Page 1
VoiceTracer
音视频记录仪
VTR8400
使用手册
User manual
Page 2
Page 3
目录
1 欢迎 5
1.1 产品特点 5
7 拍照 12
8 录音 13
中文
2 重要须知 6
2.1 安全 6
3 您的音视频记录仪 7
3.1 供货范围 7
3.2 主机概览 7
4 开始使用 8
4.1 开 / 关机 8
4.2 充电方法 8
4.3 连接电脑 9
5 录像 10
6 当前录像时长 11
9 一键回放模式 14
10 视频模式 15
10.1 视频播放 15
11 照片模式 16
12 语音模式 17
12.1 语音播放 17
13 设置模式 18
13.1 录音设置 18
13.2 录像设置 18
13.3 拍照设置 19
13.4 系统设置 20
ZH 3
Page 4
14 背夹的装取 24
15 常见问题 25
15.1 无法启动音视频记录仪 25
15.2 显示时间 / 日期不正确 25
15.3 拍照 / 录像图像模糊，不清楚 25
15.4 音视频记录仪无法录音或者录像 25
15.5 音视频记录仪无法播放录音或者录像 25
15.6 音视频记录仪死机后如何处理 25
16 技术参数 26
16.1 存储器 26
16.2 尺寸和重量 26
16.3 系统要求 26
16.4 录音 26
16.5 运行条件 26
4 ZH
Page 5
1 欢迎
欢迎来到飞利浦世界！您能选择和购买飞利浦的产品，我们非
常高兴。您可在我们的官方网站上获得飞利浦公司的全方位技
术支持，如：使用手册、软件下载、保修信息等。
www.philips.com
1.1 产品特点
• 一键录音：仅仅按下录音键即可实现录音，再按一下录音键
保存录音。
• 一键录像：仅仅按下录像键即可实现录像，再按一下录像键
保存录像。
• 超大广角镜头，录像无死角。
• 超大光圈镜头 , 进光量更充足 , 画面更清晰通透。
• 双滤光片切换器，白天不偏色，夜晚更清晰。
• 字符叠加功能，所有视频和照片都附加时间、产品编号、使
用者编号等信息，无法剪辑，更具法律证据效力。
• 超长文件名，所有录像文件的文件名都包含产品编号、时间、
使用者编号等信息，方便数据存档、检索。
• 录像资料自动分割保存，防止误操作造成资料丢失。
• 外置存储卡，最大支持 256G。
• 高清扬声器：采用高品质喇叭 , 无论播放录音文件或录像文
件，都给人身临其境的享受。
• 以常见的 MP3 格式录音。
• 使用高速 USB 2.0 快速存取录音文件和数据。
• 可作为大容量的 USB 存储设备，确保最大的兼容性。
• 可调节任意角度的阻尼轴背夹，佩戴灵活可靠。
中文
Page 6
2 重要须知
2.1 安全
注意
• 请注意，切勿挤压电缆，特别是插头处。
小心
特别声明：使用本产品前请仔细阅读本说明书，如因人为操作
或不可抗力因素而导致数据丢失，本公司一概不予负责。特别
提醒用户小心操作，注意将资料另外备份。
6 ZH
Page 7

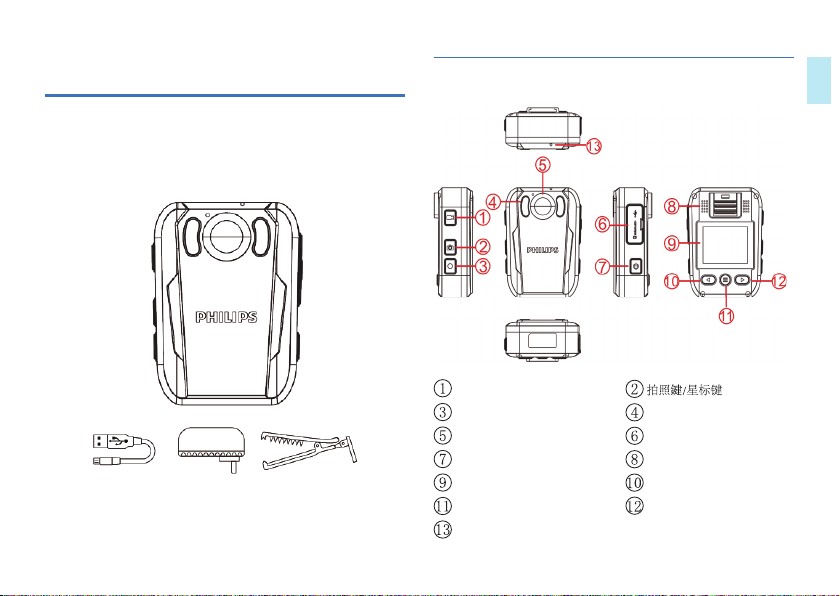

3 您的音视频记录仪
3.1 供货范围：
3.2 主机概览：
录像键/补光灯
录音键/红外灯开关
镜头
电源开/关
屏幕
菜单键/返回键
指示灯
中文
白光灯
USB接口/TF卡插口/复位孔
扬声器
上键/快退
下键/快进
Page 8
4 开始使用
4.1 开 / 关机
注意
• 第一次使用机器时，请对该机器充电三小时以确保机器有
电工作！

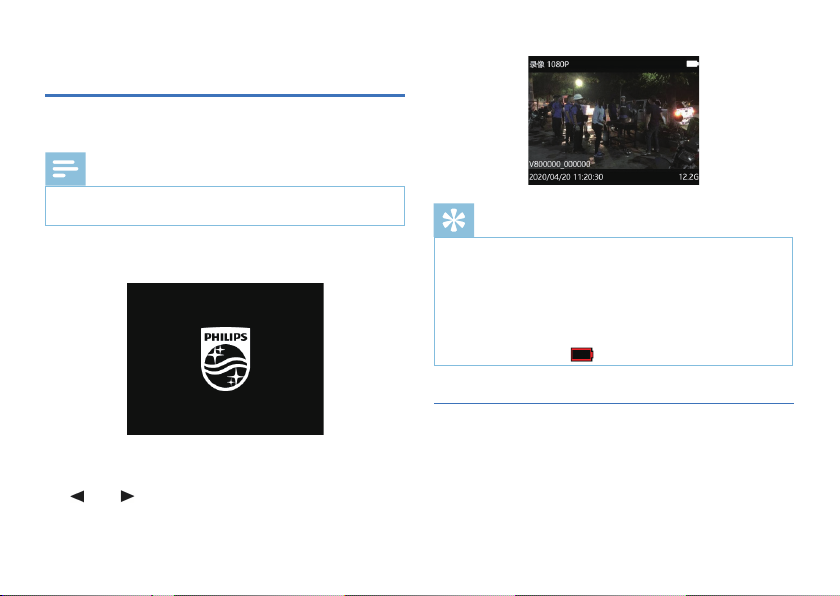

关机状态下，长按开机键 3s，本机立即自动开机，然后显示飞
利浦图标，如下图所示：
然后机器进入预览界面，如下图所示，预览状态下，工作状态
指示灯亮绿灯，在此界面短按菜单键，机器回到设置界面。长
按“
”或“ ”键放大或缩小预览界面，实现数码变焦功能。
8 ZH
提示
• 本机使用不可拆卸锂电池供电，如果长时间不使用音视频
记录仪，请长按开关机键 3s 关掉机器。
• 如果音视频记录仪无法正常工作，请确认机器是否已没电。
• 机器工作过程中，请勿直接把外置卡拔出，否则会损坏文
件或导致机器导常。
• 当电量指示标志为“
”时，请及时充电。
4.2 充电方法
(1) 使用 USB 数据线将本机与 PC 相连接，充电过程中充电指示
灯常亮绿色。
(2) 使用 USB 数据线将本机和出厂配备的充电器进行充电，充
电过程中充电指示灯常亮绿色，充满后熄灭。
Page 9
提示
• 本机充电可以使用关机充电和开机充电的方式，一般情况
下，关机充满电需要 4 小时左右，开机充满电需要 6 小时
左右（建议关机充电）。

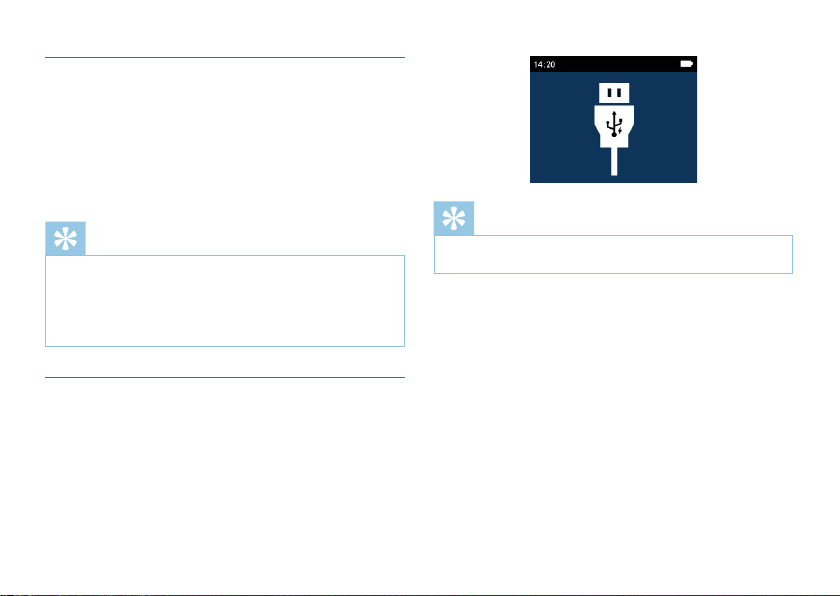

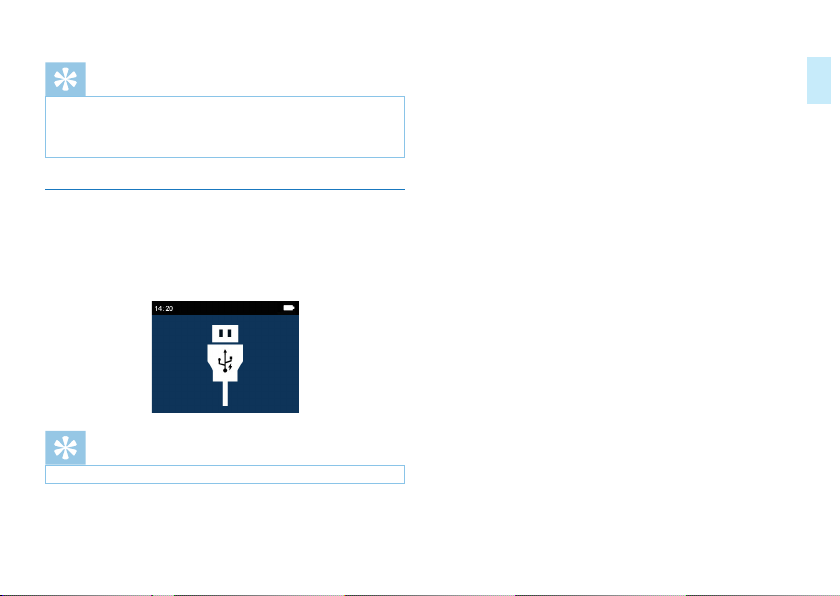

4.3 连接电脑
音视频记录仪可作为大容量的 USB 存储设备，并可方便地与电
脑相连，VTR8102 无须安装软件，音视频记录仪会自动显示为
可移动设备。连接电脑图标如下图所示。
提示
• 在文件移入或移出机器时，请不要断开机器与电脑的连接。
中文
Page 10
5 录像
当您初次使用音视频记录仪录像时，请注意本节中的内容说明！
(1) 在摄像预览状态下，短按录像键开始录像，状态指示灯将
红灯闪烁。
(2) 短按录像键结束录像，红色指示灯灭，并回到摄像预览状
态界面，状态指示灯亮绿色。
(3) 在预览界面长按“
变焦功能。
(4) 在黑夜或者光线暗的环境下录像时，如果红外切换为手动
切换，可以长按录音键，此时红外灯开启进入到夜视摄录
模式， 画面颜色为黑白模式。 在黑夜或者光线暗的环境
下录像时，长按录像键，照明 灯将打开，补充光源。
(5) 按“拍照”键可以抓拍当前摄录画面。
(6) 录像过程中长按拍照键，文件将会标记为重要文件，循环
录像打开时，标记的文件不会被删除。

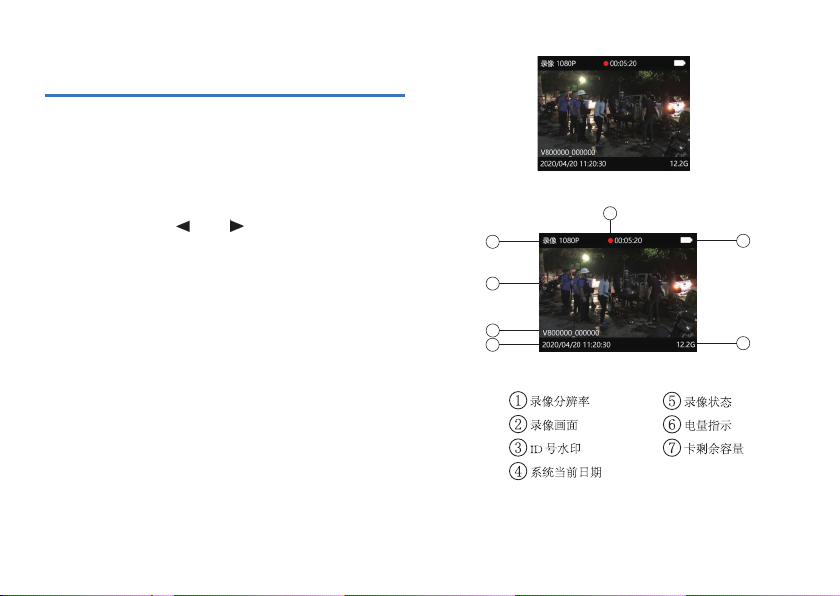

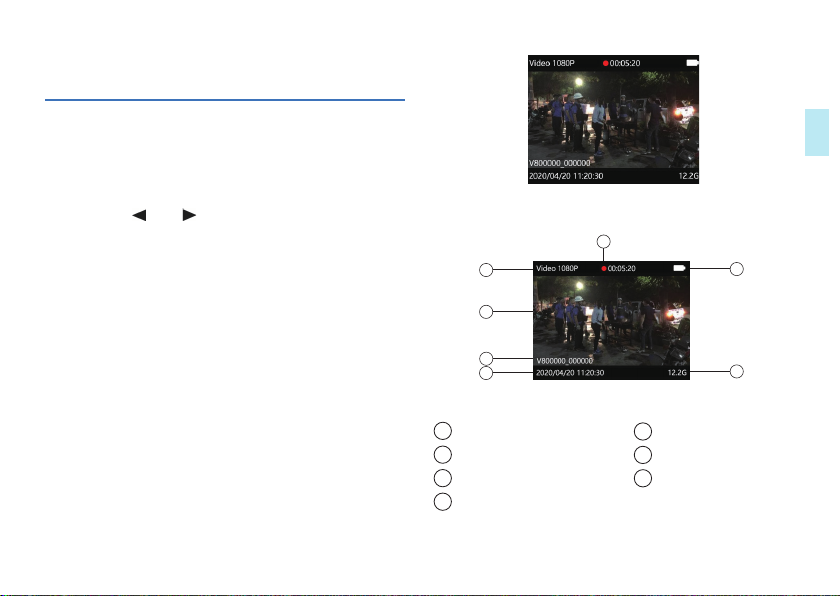

(7) 录像参考界面如下如所示：
10 ZH
”或“ ”键放大或缩小，实现数码
录像界面说明
1
2
3
4
5
6
7
Page 11

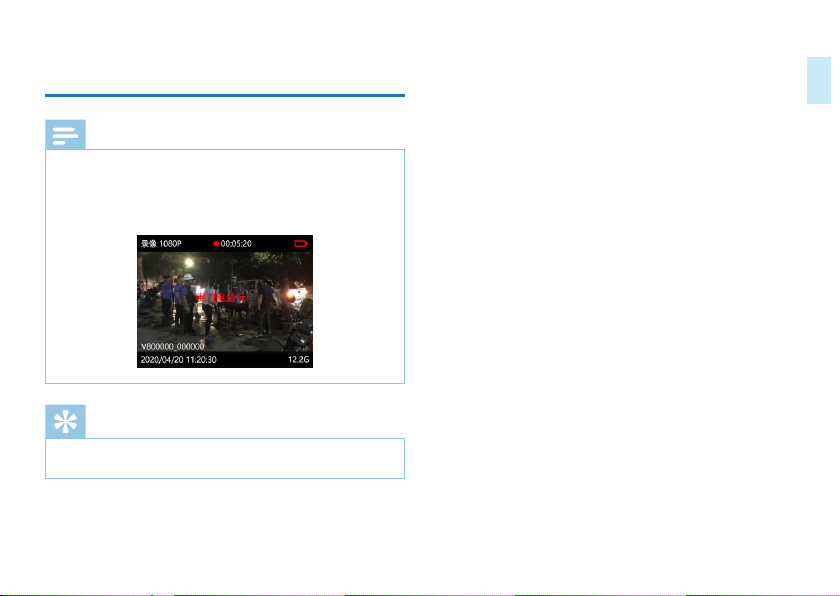

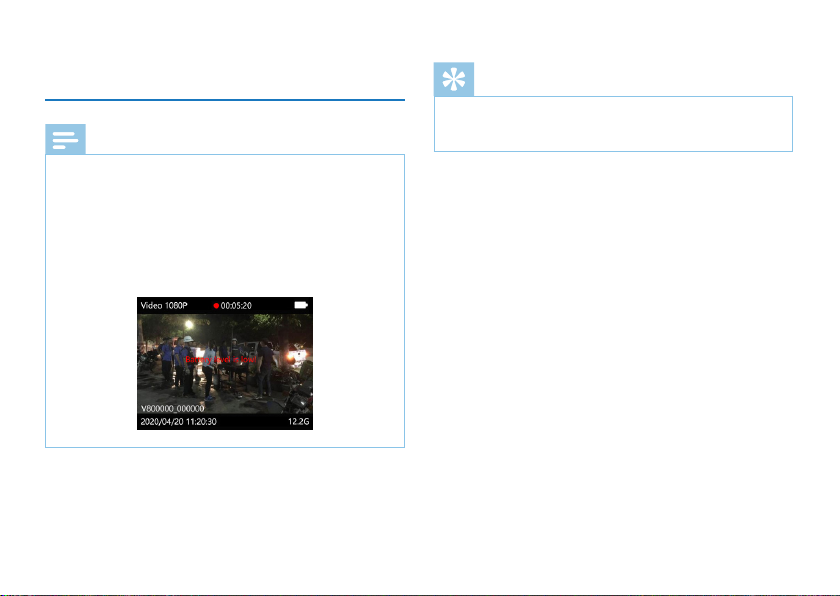

6 当前录像时长
注意
• 电池标记符显示空格时，表明低电。低电时系统会自动关机。
如果正在录像或者录音，系统自动保存录音文件后再关机。
电量不足时，请及时充电。低电关机时显示屏会有相应的
提示，显示屏的提示图标如下所示。
提示
• 录像前，请先设置所需的录像参数。
• 请先删除一些不必要的文件再录。
中文
Page 12
7 拍照
当您初次使用音视频记录仪拍照时，请注意本节中的内容说明！
在摄像预览状态下，直接按拍照按键进行拍照，拍照时红色指
示灯亮，并发出“咔嚓”一声，在黑夜或者光线暗的环境下拍
摄需要开启机器红外灯或补光灯进行拍摄。在录像状态下，按
下拍照按键可以抓拍当时摄录照片。
12 ZH
Page 13
8 录音
当您初次使用音视频记录仪录音时，请注意本节中的内容说明！
(1) 在摄像预览状态按下“录音键”开始录音；工作状态指示
灯将亮黄灯； 请将内置麦克风对准音源。
(2) 按下“录音”键结束录音，并回到预览界面。

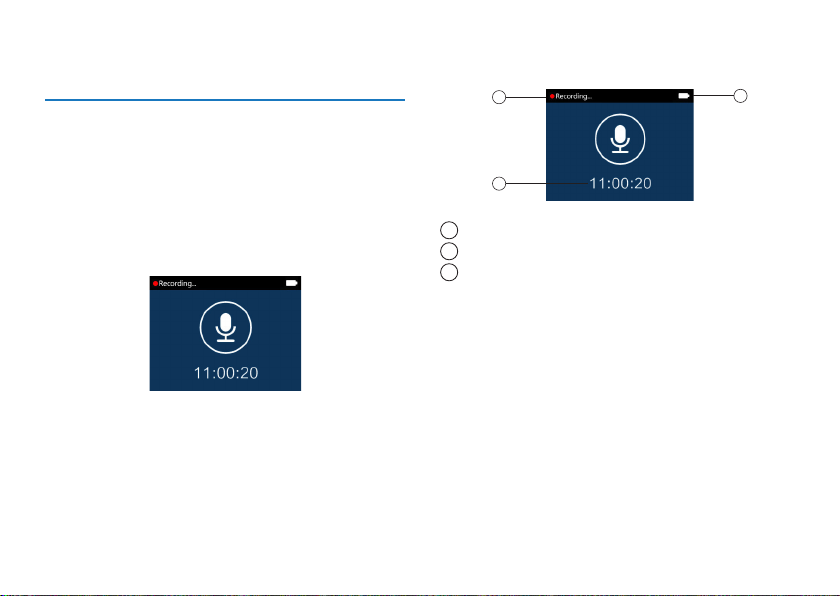

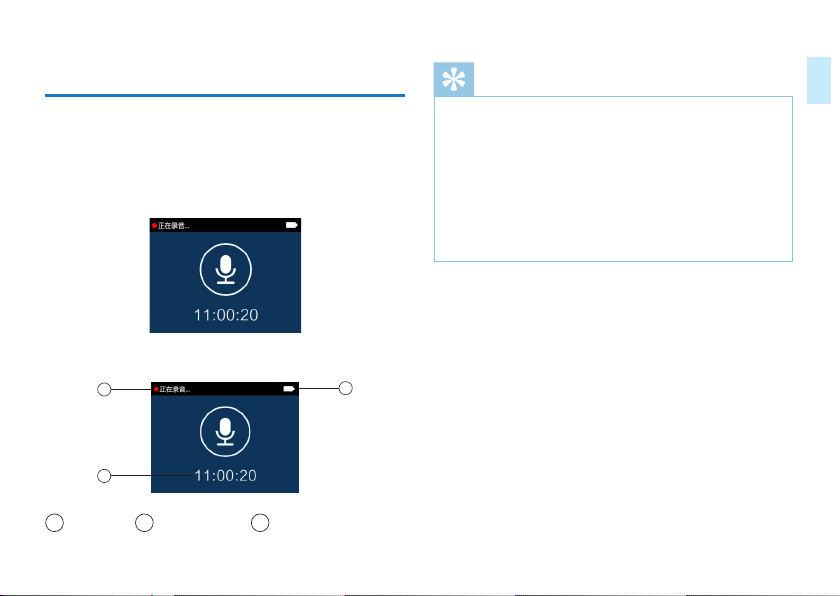

录音参考界面如下图所示：
录音界面说明
提示
• 录音前，请先设置所需的录音灵敏度。
• 请先删除一些不必要的文件再录。
• 请先测试录音，以确认音视频记录仪设置是否正确。
• 在录音或者录像过程中禁止直接将卡拔出，否则可能导致
文件损坏。
• 录音或者录像时请勿断电，否则这会导致音视频记录仪故
障，文件丢失或文件损坏等问题。
• 如果需要长时间使用，请在录音前充电。
中文
1
2
录音状态 2 当前录音时长 3电量指示
1
3
Page 14
9 一键回放模式
在摄像预览状态下，录像保存后，短按“ ”键，音视频记录
仪将直接播放你刚刚摄录的录像文件。录音保存后短按“
键， 音视频记录仪将直接播放你刚刚录的录音文件。机器刚刚
开机启动，一键回放功能默认为播放最近摄录的录像文件。
14 ZH
”
Page 15

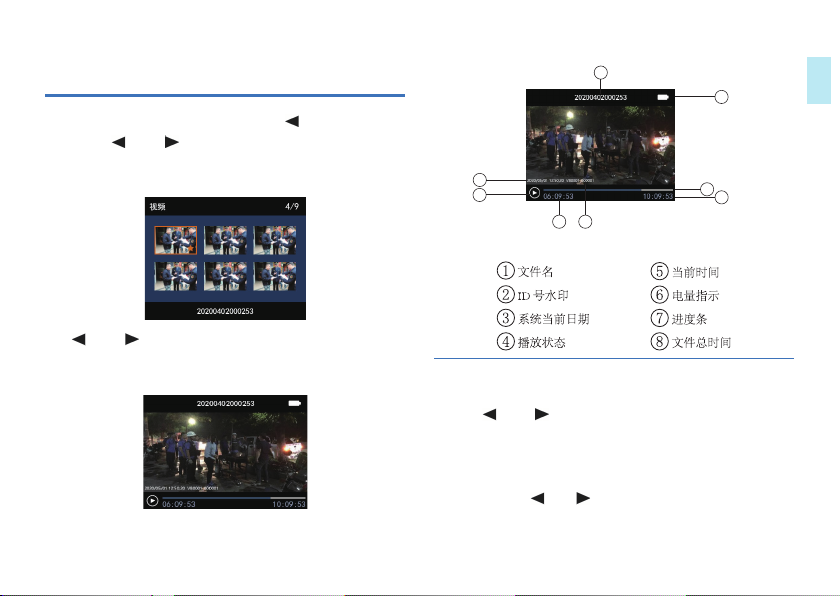

10 视频模式
在摄像预览状态界面中，我们可以使用“ ”键进入查阅回放
界面，按“
确认进入视频文件列表界面，视频文件列表参考界面如下图所
示：
”或“ ”键，选择视频选项，然后短按菜单键
录像文件播放界面说明：
3
4
5 2
1
6
7
8
中文
按“ ”或“ ”键选择需要播放的视频文件，短按菜单键进
入视频播放界面，视频播放参考界面如下图所示：
文件的删除需通过连接电脑才可以进行。
10.1 视频播放
(1) 按“ ”或“ ”键，选择要播放的文件。
(2) 按“菜单”键开始播放，工作状态指示灯将亮绿灯。
(3) 播放过程中，按“菜单”键暂停播放，再次按下“菜单”键，
将继续先前位置的播放。
(4) 播放时短按“
32 倍，64 倍快退或快进当前正在播放的文件。
”或“ ”键，可选择 2 倍，4 倍，8 倍，16 倍，
Page 16

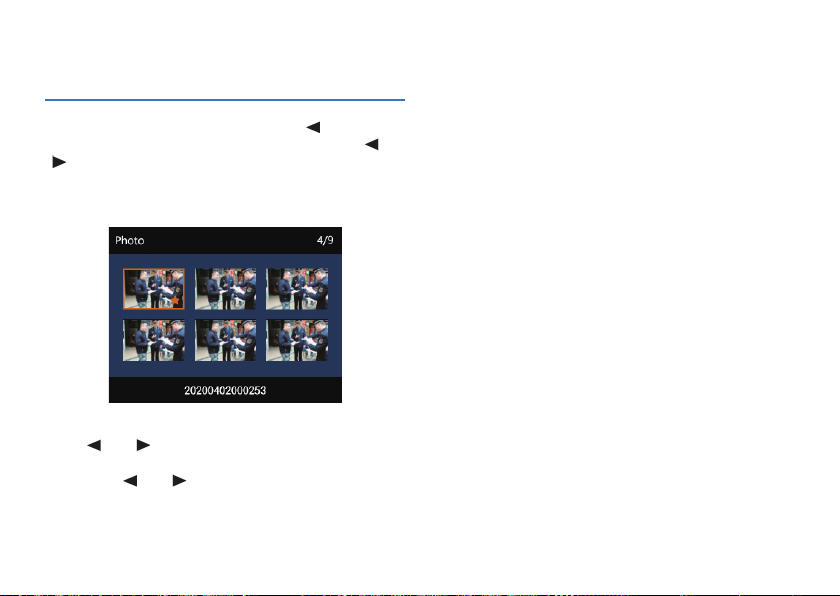

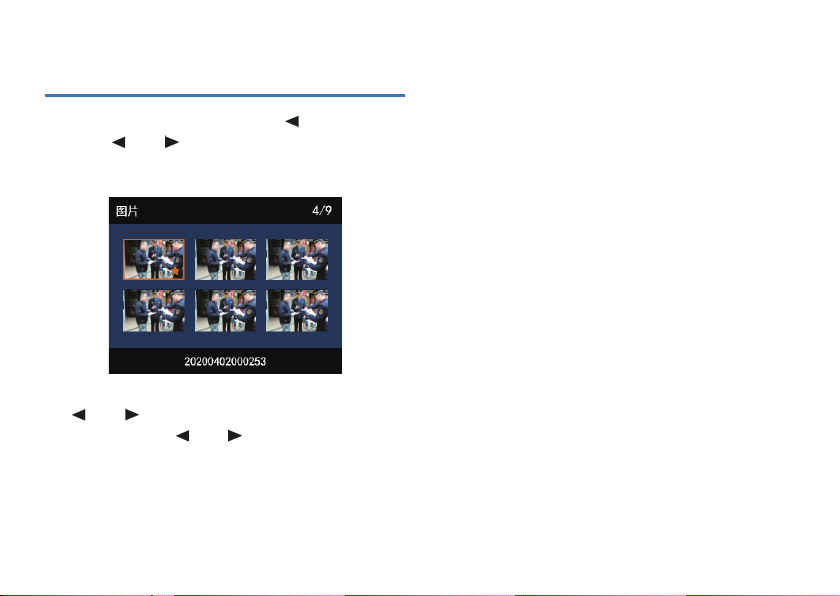

11 照片模式
在摄像预览状态界面中，我们可以使用“ ”键进入查阅回放
界面，按“
进入拍照文件列表界面，拍照文件列表参考界面如下图所示：
按“ ”或“ ”键选择需要播放的照片文件，短按菜单键进
入照片浏览状态，按“
16 ZH
”或“ ”键，选择拍照选项，然后短按菜单键
”或“ ”键切换照片。
Page 17

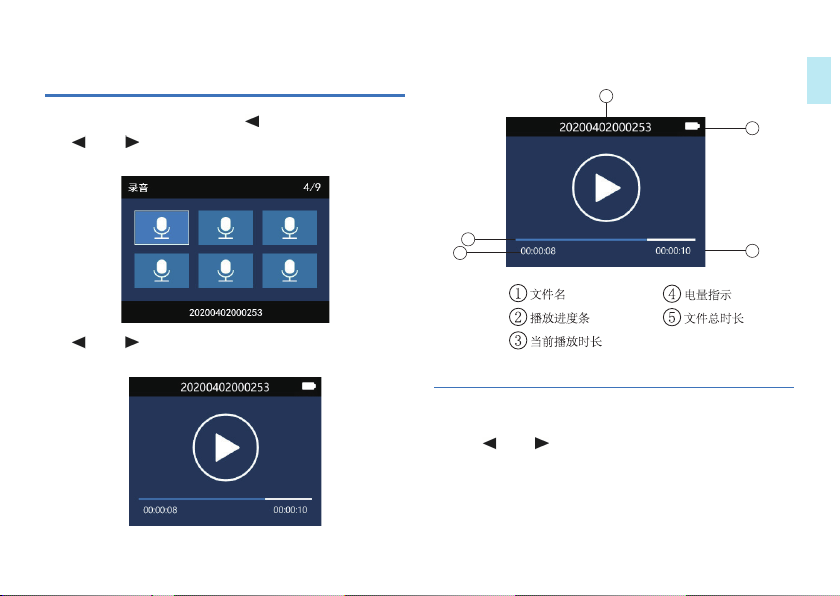

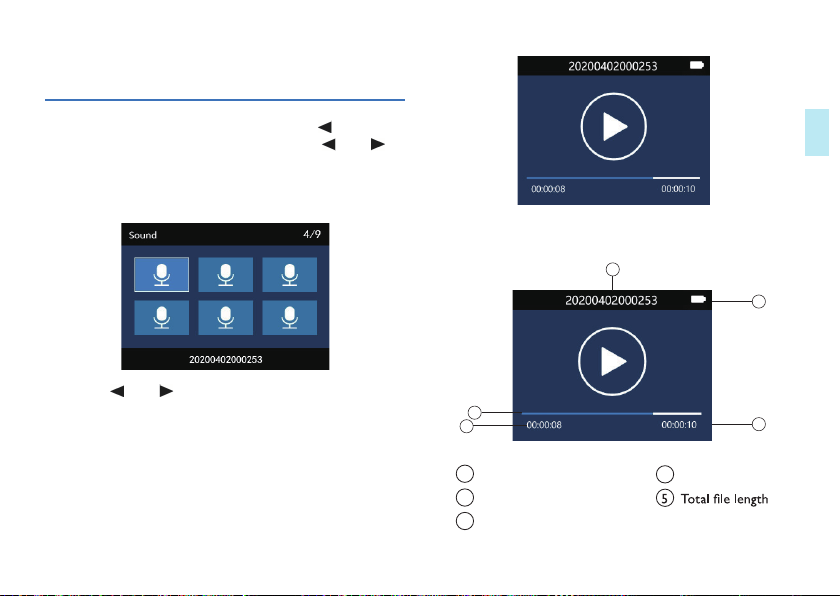

12 语音模式
在摄像预览状态下，你可以使用“ ”键进入查阅回放界面，
按“
”或“ ”键，选择录音选项，然后短按菜单键进入语
音文件列表界面，语音文件列表参考界面如下图所示：
语音文件播放界面说明：
1
4
中文
按“ ”或“ ”键选择需要播放的音频文件，短按菜单键进
入语音播放界面，语音播放参考界面如下图所示：
2
3
5
12.1 语音播放
(1) 按“ ”或“ ”键，选择要播放的文件。
(2) 按“菜单”键开始播放，工作状态指示灯将亮绿灯。
(3) 播放过程中，按菜单键暂停播放，再次按下菜单键，将继
续播放。
Page 18
13 设置模式
在摄像预览状态界面按下菜单键，系统将会进入功能设置界面。
功能设置包括：录音设置，录像设置，拍照设置和系统设置。
按“
”或“ ”键选择 , 按菜单键进入选中的选项。长按“菜
单“键返回预览界面。

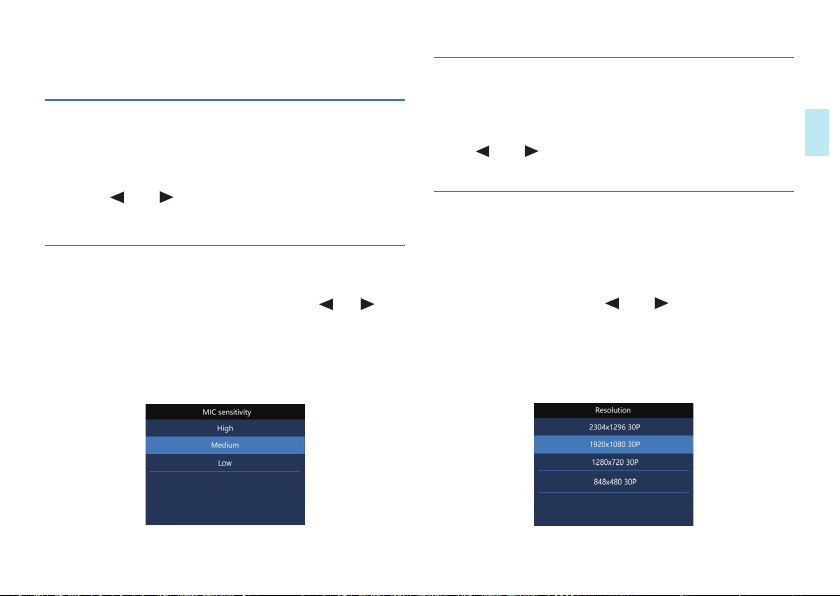

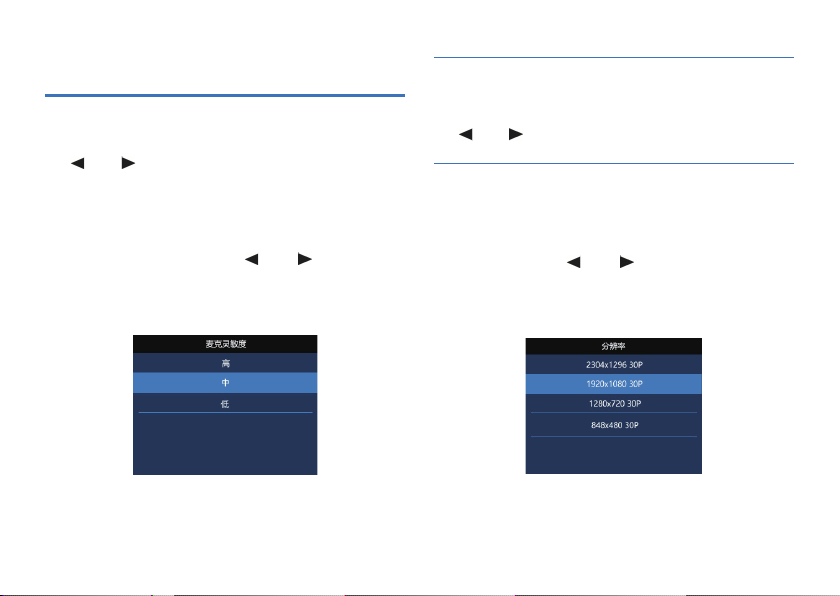

13.1 录音设置
按“菜单“键进入功能设置，按“ ”或“ ”键选择录音设
置菜单栏，按“菜单“键选择，弹出：高、中、低 选择不同的
麦克灵敏度可以达到不同的录音效果。
13.2 录像设置
录像设置菜单栏包括：分辨率，视频质量，视频预录，视频延录。
按“
”或“ ” 键 选 择 所 需 设 置 的 选 项 ， 然 后 按 菜 单 键 进 入 。
13.2.1 分辨率
录像分辨 率 有 2304×1296 30P、1920×1080 30P、1280×720
30P、848×480 30P 四个 级别， 多种录 像分辨率选 择，可满足
大部分应用场合，按“
择完成后按菜单键确定，长按菜单键可返回上一级菜单。
参考界面如下图所示：
”或“ ”键选择合适的分辨率，选
18 ZH
Page 19
13.2.2 视频质量
在视频质量菜单中有三种画质可供选择：“超精细，良好，正常”。
根据不同的需求选择不同的画质效果，画质越好，相同录像时
间所占的内存越大。
13.2.3 视频预录
使用视频预录功能，你可以提前录制事件触发前十几秒的画面，
视频预录有关闭和打开两种选择，按“
选择完成后按菜单键确定，长按菜单键可返回上一级菜单。
预 录 时 间 ： 约 17 秒 。
”或“ ”键进行选择，
13.2.4 视频延录
使用视频延录功能，你可以在按下按键保存录像后继续摄录设
定的 时 间，视频 延 录设 置 关闭、5 秒、10 秒、15 秒、30 秒 和
60 秒六个选择，按“
菜单键确定，长按菜单键可返回上一级菜单。
”或“ ”键进行选择，选择完成后按
13.3 拍照设置
拍照设置菜单栏包括：照片大小，照片质量，自拍，连拍。按
“
”或“ ” 键 选 择 所 需 设 置 的 选 项 ， 然 后 按 菜 单 键 进 入 。

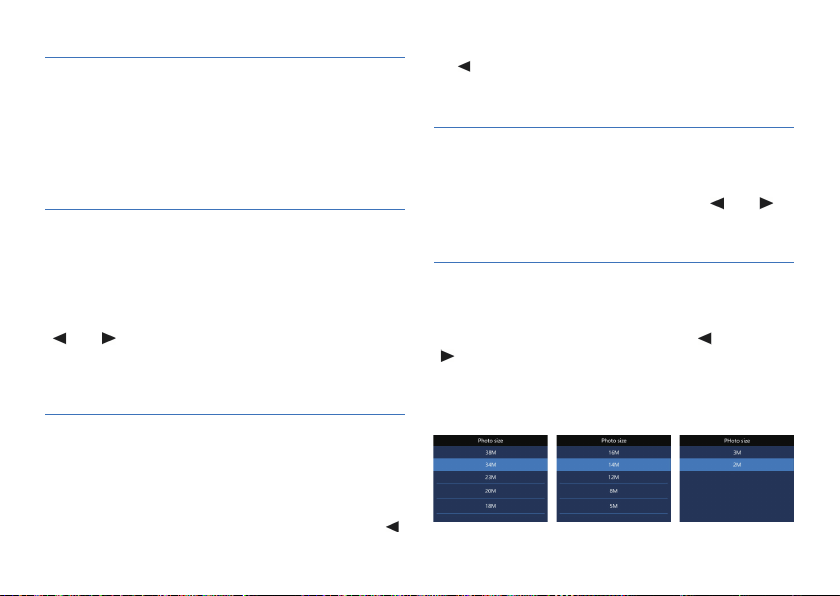

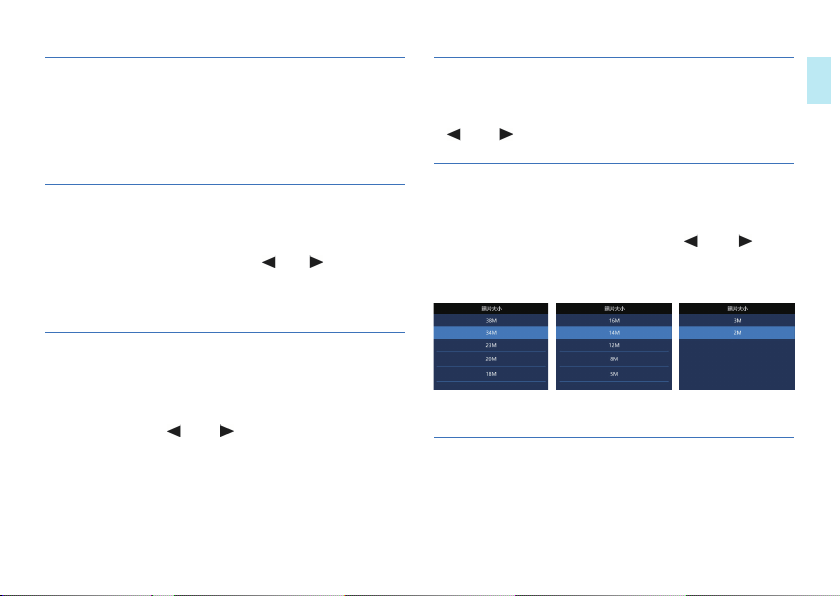

13.3.1 照片大小
拍 照 照 片 的 大 小 有 38M、34M、23M、20M、18M、16M、14M、
12M、8M、5M、3M、2M 这十 二个 级别， 按“
择合适的分辨率，选择完成后按菜单键确定，长按菜单键可返
回上一级菜单。参考界面如下图所示：
”或“ ”键选
13.3.2 照片质量
在照片质量菜单中有三种画质可供选择：“超精细，良好，正常”。
根据不同的需求选择不同的画质效果，画质越好，照片所占的
中文
Page 20
内存越大。
13.3.3 自拍
自动拍照是指在取景预览模式下，按一次拍照键机器隔一定的
时间拍摄一张照片，直到按下拍照键取消或者卡满和没电为止。
自动拍照可以设置关闭、3 秒、5 秒、10 秒、30 秒、60 秒六
个选择， 按“
确认键确定，按返回键可返回上一级菜单。
”或“ ”键选择合适的秒数，选择完成后按
13.3.4 连拍
连拍是指在取景预览模式下或在录像过程中，按一次拍照键机
器能够连续拍摄照片。
在拍照设置菜单中，选择“连拍”菜单，再按菜单键进入连拍菜单。
连拍设置可以设置关闭、3 张、5 张、10 张、20 张五个选择，
按“
”或“ ”键选择合适的连拍张数，选择完成后按菜单
键 确 定 ， 长 按 菜 单 键 可 返 回 上 一 级 菜 单 。
13.4 系统设置
系统设置菜单栏包括：语言，默认设置，屏亮度，系统时间，
自动关机，自动关屏，音量，车载模式，循环录像，车载录音，
20 ZH
分段录像，按键音，指示灯，红外切换，移动侦测，曝光补偿，
ID 号和系统信息。按“
然 后 按 菜 单 键 进 入 。
”或“ ”键选择所需设置的选项，

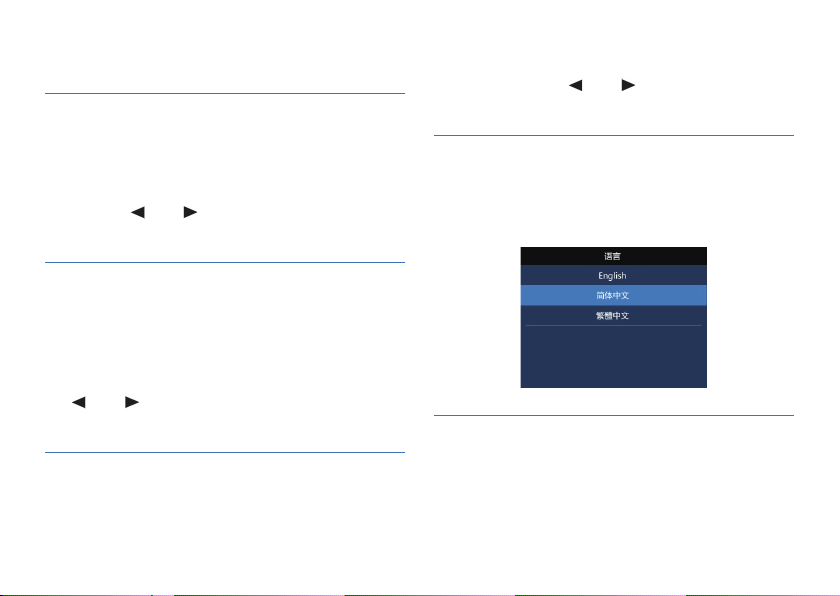

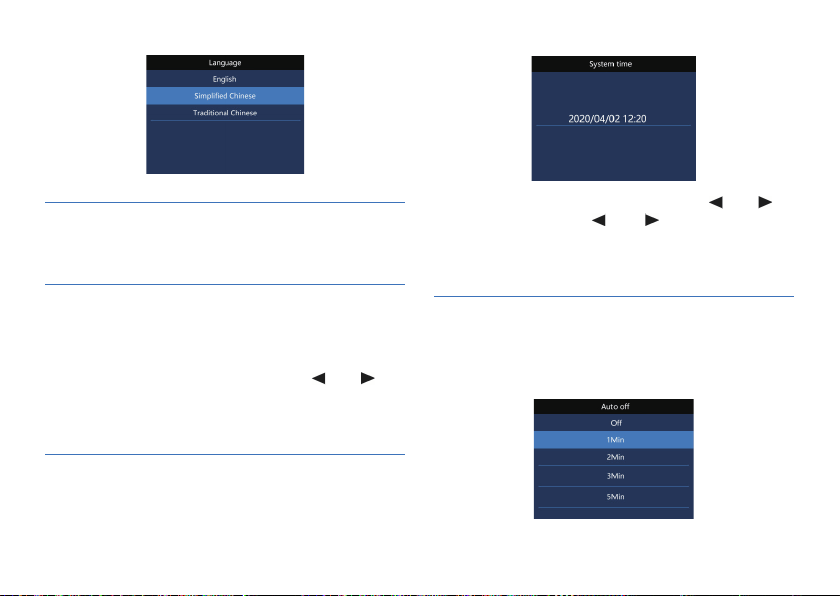

13.4.1 语言
在语言选择菜单中，你可以选择一种语言作为系统语言。语言
选择参考界面如下：
13.4.2 默认设置
使用此功能，你可以重置机器的设置选项。
Page 21
13.4.3 屏亮度
使用此功能，可以根据需要调节显示屏的亮度。屏亮度设置可
以设置高、中、低三个级别，按“
选 项 ，选 择 完 成 后 按 菜 单 键 确 定 ， 长 按 菜 单 键 可 返 回 上 一 级 菜 单 。
”或“ ”键选择合适的
自动关机设置参考界面如下：
中文

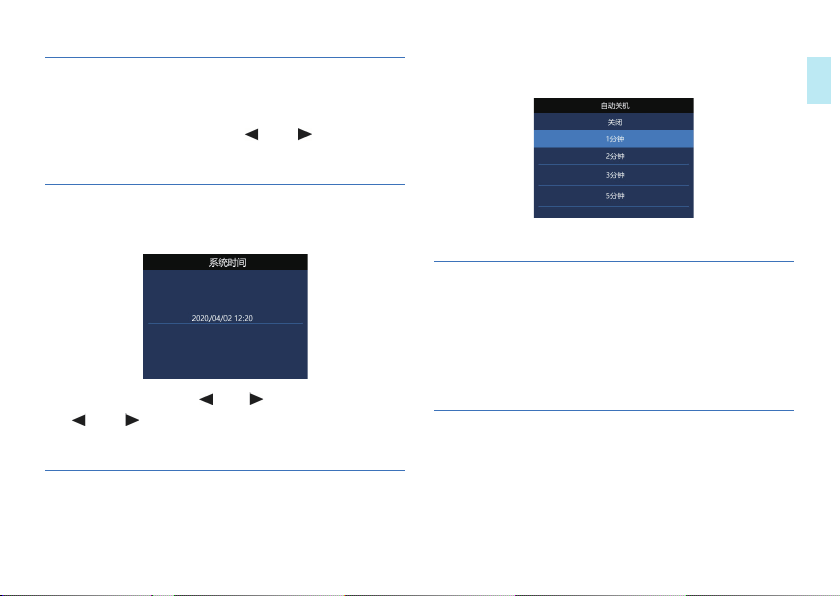

13.4.4 系统时间
系统时间设置界面，参考图片如下：
在此界面下，按菜单键与“ ”或“ ”键可以设置实时时间。
按“
”或“ ”键改变相应位置数值，短按菜单键确认，长
按 菜 单 键 返 回 上 一 级 菜 单 。
13.4.5 自动关机
如果在设定的时间内没对机器做任何操作，系统将会自动关机。
13.4.6 自动关屏
自动关屏时间有四种时长可供选择：关闭、1 分钟、3 分钟和
5 分钟。如果在设定的时间内没对机器做任何操作，显示屏将
会自动灭。如果选择“关闭”，显示屏将会常亮。
13.4.7 车载模式
本机可以当行车记录仪使用，车载模式默认为“关闭”，“循
环录像”和“车载录音”这两个选项，不能选择。车载模式选
择“打开”后，“循环录像”和“车载录音”这两个菜单选项
变 成 可 选 ， 并 且 “ 车 载 录 音 ” 默 认 为 关 。
Page 22
13.4.8 音量
使用此功能，你可以设置机器的输出音量。
音量设置可以从 0~10 之间 11 个数值选择，按“
键 选 择 合 适 的 音 量 值 ， 选 择 完 成 后 按 菜 单 键 确 定 。
”或“ ”

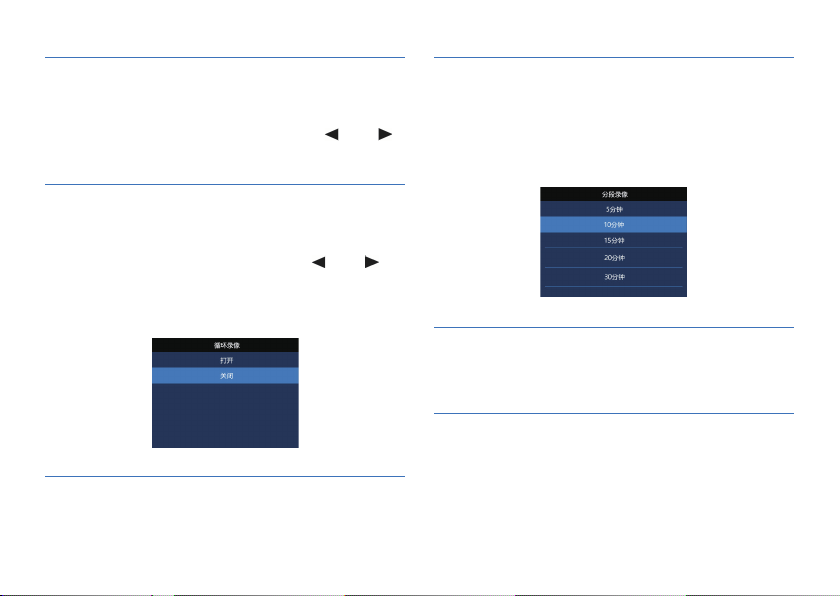

13.4.9 循环录像
在录像设置菜单中，选择“循环录像”菜单，再按菜单键进入
循环录像菜单。有关闭和打开两种选择，按“
进行选择，选择完成后按菜单键确定，长按菜单键返回上一级
菜单。
参考界面如下图所示：
”或“ ”键
13.4.11 分段录像
视频分段有 5 分钟、10 分钟、15 分钟、20 分钟、30 分钟五个级别，
在录像过程中，视频分段在所设定的时间自动将视频文件分段
保存并自动进入下一个文件录像，并且是无缝切换。视频分段
功能参考界面如下图所示：
13.4.12 按键音
使 用 此 功 能 ， 按 键 操 作 将 会 有 声 音 提 示 。
13.4.10 车载录音
使 用 此 功 能 ， 你 可 以 选 择 是 否 需 要 录 下 车 内 的 声 音 。
22 ZH
13.4.13 指示灯
使用此功能，你可以根据需要打开或者关闭状态指示灯。
Page 23
13.4.14 红外切换
在系统设置菜单中，按“ ”或“ ”键选择“红外”菜单，
再按菜 单键进入红外切换菜单。红外切换可以设置手动、自动
两种选择， 选择完成后按确认键确定，按返回键可返回上一级
菜单。
13.4.15 移动侦测
音视频记录仪在待机状态下，有物体进入音视频记录仪拍摄范
围内后自动开启录像功能，物体离开音视频记录仪拍摄范围后
结束录像功能并保存录像文件。移动侦测功能设置可选择：
关闭、低、中、高。
13.4.16 曝光补偿
曝光补偿是一种曝光控制方式，曝光补偿可以让照片更明亮或
者更昏暗的拍摄手法。可以根据自己的想法调节照片的明暗程
度，创造出独特的视觉效果等。
曝光补偿设置可以从 -2.0~+2.0 之间 13 个数值选择，按“
或“
” 键 选 择 合 适 的 曝 光 值 ， 选 择 完 成 后 按 菜 单 键 确 定 。

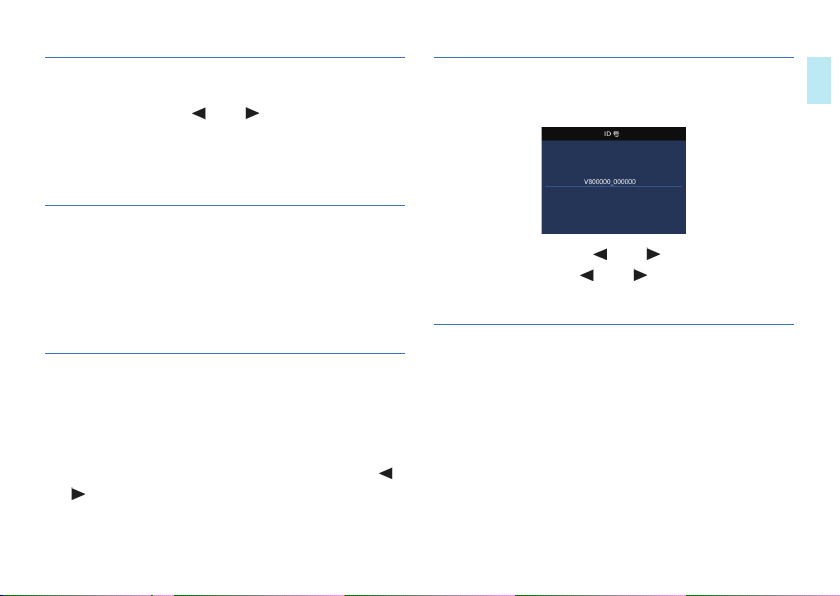

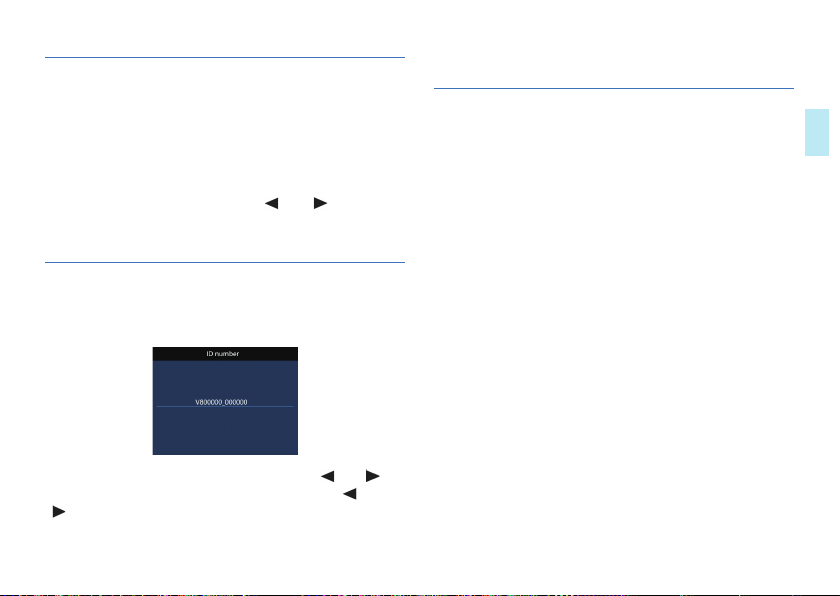

13.4.17 ID 号
ID 号设置界面，参考图片如下：
在此界面下，按菜单键与“ ”或“ ”键可以设置机器的设
备编号和用户编号。按“
短 按 菜 单 键 确 认 ， 长 按 菜 单 键 返 回 上 一 级 菜 单 。
”或“ ”键改变相应位置数值，
13.4.18 系统信息
系统信息菜单中包括：总存储容量，可用空间，可用录像时间，
可用录音时间，电池电量和版本号。
总存储容量：本机内存大小信息。
可用空间：剩余空间信息。
可用录像时间：当前录像分辨率可录像时长。
”
可用录音时间：当前录音类型可录音时长。
电池电量：当前电池电量信息。
版本号：固件版本信息。
中文
Page 24

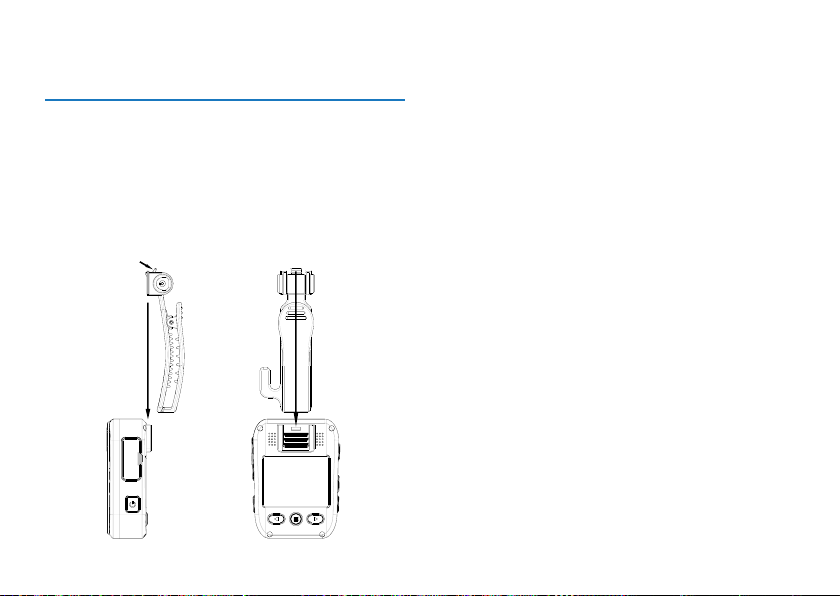

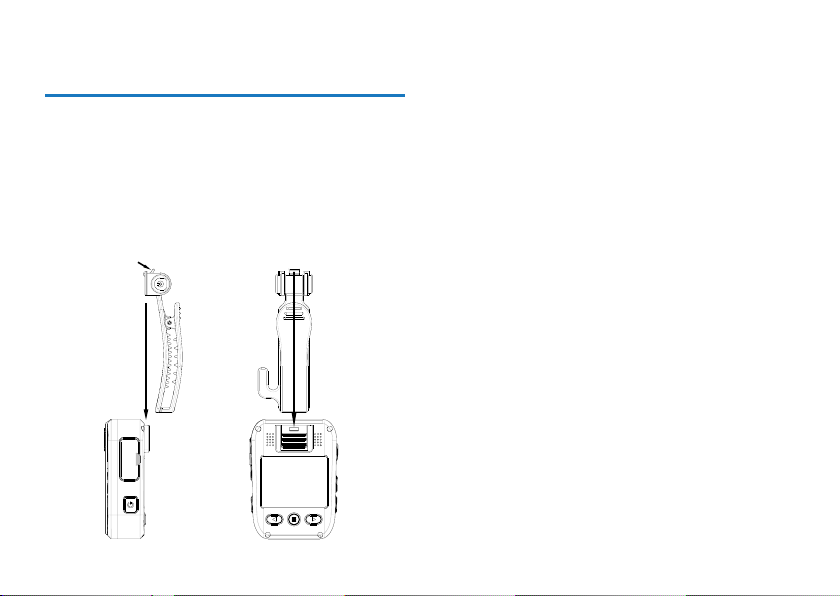

14 背夹的装取
① 如需装上背夹，手握主机，另一手持背夹，按图示方位将背
夹的连接支架对正主机槽口后，缓慢推进背夹直至连接支
架顶到主机槽口底部，且连接支架的底部凸起扣进主机凹
坑中为止。
② 如需取下背夹，手握主机，另一手持背夹，先用拇指按压图
示方位的指定部位，使得背夹的连接支架底部凸起离开主
机凹坑后，缓慢推出背夹直至连接支架离开主机为止。
24 ZH
Page 25
15 常见问题
此处列举了常见问题的解答，可帮助解决音视频记录仪出现的
简单问题。如果故障仍无法排除，请咨询经销商或访问我们的
官方网站：www.philips.com/support
15.1 无法启动音视频记录仪
电池 电 量已耗 尽 请及 时 充电。
15.2 显示时间 / 日期不正确
音视频记录仪时间不准确，请在菜单上重新设置时间。
15.3 拍照 / 录像图像模糊，不清楚
镜头不干净。请用干净的绒布清洁镜头。
15.4 音视频记录仪无法录音或者录像
音视频记录仪存储空间已满并且未开启循环录像。请删除部分
文 件 或 将 其 移 至 外 部 存 储 设 备 。
15.5 音视频记录仪无法播放录音或者录像
电 池 电 量 已 耗 尽 ， 请 充 电 。
15.6 音视频记录仪死机后如何处理
你有时在操作中会遇到开不了机，黑屏，操作不了等死机现像，
通常处理方法是，复位一下，复位键位置：打开 USB 盖，槽内
有一个小孔，用镊子或尖的东西点按一下小孔即可。
注：本操作不会造成文件数据丢失或者损坏。
中文
Page 26
16 技术参数
16.1 存储器
外置存储空间
参考录音时间（16GB）：录音时间约 290 小时
内置存储器类型：C10 TF 卡
移动存储器 (PC)：是
16.2 尺寸和重量
宽 × 高 × 深：56×78×25 (mm)
重量 （含电池）： 110g( 不含背夹）
16.3 系统要求
操作系统：Windows 7/8/10/Vista/XP/2000, Mac OS X, Linux
接口：USB 接口
16.4 录音
单声道：比特率为 128kbps，格式为 MP3
26 ZH
16.5 运行条件
温度：-30℃ ~55℃
空气湿度：10% – 90%, 不凝结
Page 27
中文
Page 28
Content
8 Voice Recording 38
1 Welcome 30
1.1 Product features 30
2 Important Notice 31
2.1 Safety 31

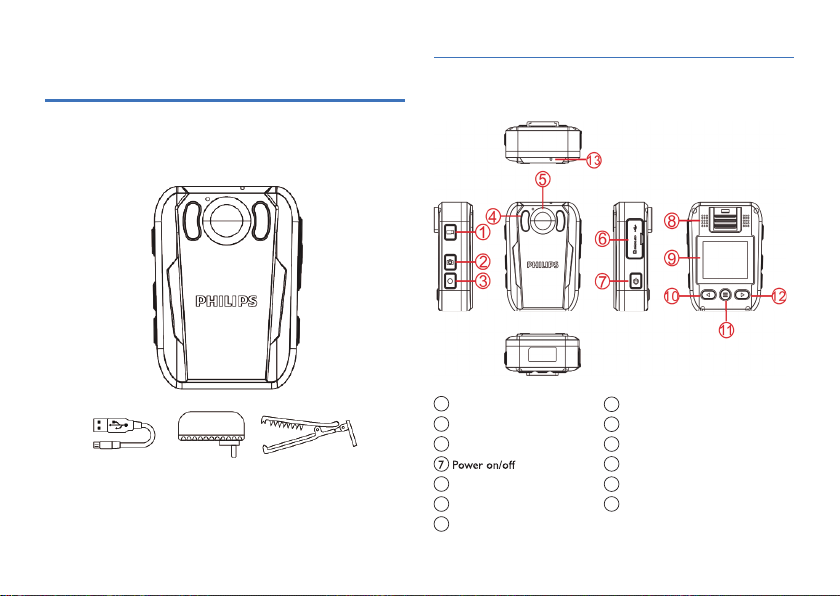

3 Your Audio/Video Recorder 32
3.1 What's in the box 32
3.2 Overview of your audio recorder 32
4 Start to Use 33
4.1 Turn ON/OFF 33
4.2 Charging methods 34
4.3 Connecting to computer 34
5 Video Recording 35
6 Current Video Duration 36
7 Photo 37
28 EN
9 One-touch Playback Mode 40

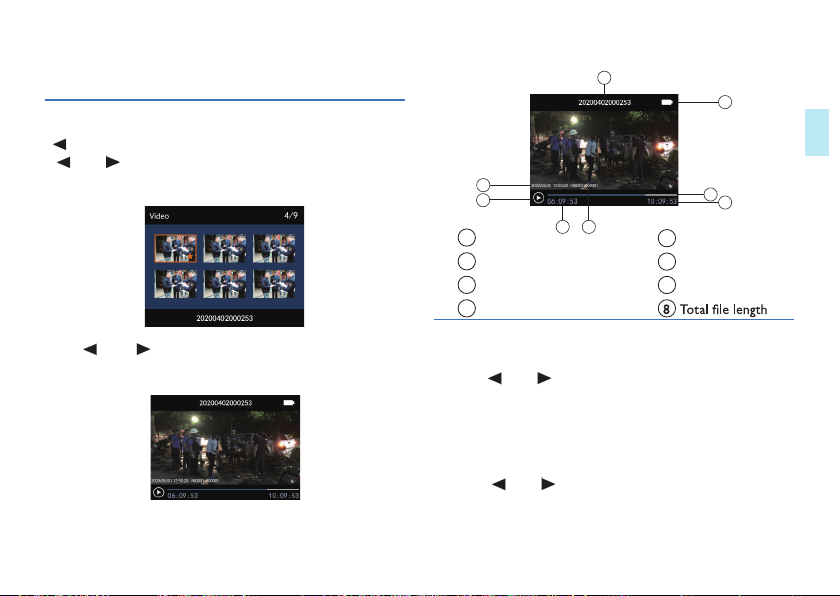

10 Video Mode 41
10.1 Video playing 41
11 Photo Mode 42
12 Audio Mode 43
12.1 Voice play 44
13 Setting Mode 45
13.1 Voice recording 45
13.2 Recording setting 45
13.3 Photo setting 46
13.4 System setting 47
14 Mounting of Shoulder Clip 52
15 FAQ 53
15.1 Unable to start audio and video recorder 53
Page 29
15.2 Incorrect time/date 53
15.3 Unclear image 53
15.4 Fail to record audio/video 53
15.5 Unable to play audio or video files 53
15.6 How to respond to recorder failure 53
16 Technical Parameters 54
16.1 Memory 54
16.2 Dimensions and weight 54
16.3 PC Interface 54
16.4 Voice recording 54
16.5 Operating conditions 54
English
Page 30
1 Welcome
Welcome to the world of Philips! We are honored by your
choice and purchase of Philips’ products. You can have Philips’
comprehensive technical supports from our website, e.g. user’s manuals, software downloading and warranty information
etc.
www.philips.com
1.1 Product features
• One-touch voice recording: Just press the voice record
button to start recording, and then press again to save the
file.
• One-touch video recording: Just press the video record
button to start recording, and then press again to save the
file.
• Super-wide angle lens to get a fuller picture.
• Super-wide angle lens with more charge to get a clearer
picture.
• Double-filter switcher for images without color deviation
during the day and clearer images at night.
• On-Screen Display function ensures that all videos and
photos contain un-editable timing, product serial number
and user serial number that ensure legal validity of such
30 EN
evidence.
• Super long file name: All recorded video files contain
information such as product serial number, recording time
and user serial number, which ensure convenient data
storage and retrieval.
• All recorded video files are automatically cut and saved to
prevent data loss due to incorrect operation.
• External memory card supports 256G.
• High-definition speaker: Use high-quality speaker to give
you a live feel during audio or video play.
• Record in a common MP3 format.
• Access to the audio file and data by using high-speed USB
2.0.
• It is able to be used as a large capacity USB storage device
to ensure the maximum compatibility.
• The damper shaft back clip can be adjusted at any angle,
which is flexible and reliable to wear.
Page 31
2 Important Notice
2.1 Safety
Notice
• Protect the cables from being pinched, particularly at
plugs.
Warning
Special Announcement: Before using the product, please
read the Manual carefully. The Company shall not be held
liable for any data loss due to incorrect manual operation
or force majeure. We specially recommend that users make
additional copies of the files in the device.
English
Page 32
3 Your Audio/Video Recorder
3.1 What's in the box
3.2 Overview of your audio recorder
32 EN
1 Video recording button
3 Recording button/IR switch
5 Lens
9 Screen
Menu key/Back key
13
Indicator lamp
2 Photo/Star button
4 Additional light
6 USB interface/TF card socket/Reset
8 Loudspeaker
10
Up/FB
1211
Down/FF
Page 33
4 Start to Use
‘
’ or ‘ ’to zoom in or out on the preview interface for
digital zoom.
4.1 Turn ON/OFF
Notice
• Please recharge the device for three hours before using it
for the first time!

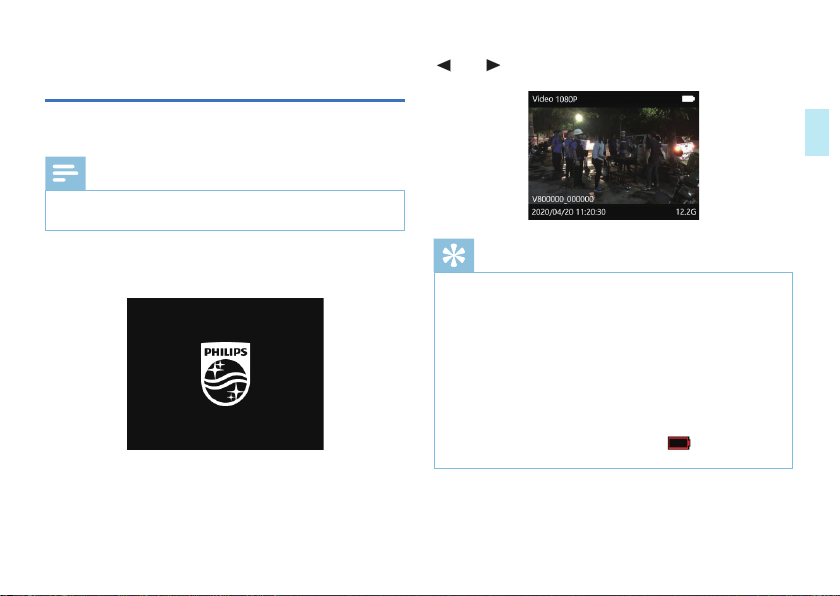

During shutdown mode, long press Turn ON button for 3
seconds, and the device will be turned on, showing the Philips
logo, as shown below:
Then the device enters the preview interface, as shown in
the fi gure below. In the preview state, the working indicator
lights up in green. On this interface, press the menu button
and the device returns to the setting interface. Long press
Notice
• This device is powered by a non-removable lithium
battery. If you do not use the audio and video recorder
for a long time, long press the power button for 3
seconds to turn off the device.
• If the record does not work properly, please check if the
device is out of power.
• During the operation please do not pull out the external
memory card. Otherwise, damage might be caused to
the files or the device.
• When the battery sign shows this ‘
your device in time.
’ , please charge
English
Page 34
4.2 Charging methods
(1)Use USB cable to connect the device with PC, the
indicator will show green light during charging.
(2)Use USB cable and the connector to charge the device.
The device indicator will show green light first, which will
be extinguished after the device is fully charged.
Reminder
• The device can be charged either during ON or OFF
mode. Normally, during OFF mode charging, it takes
around 4 hours for full charging. During ON mode, it
takes around 6 hours for full charging (we recommend
that you use OFF mode charging).
4.3 Connecting to computer
The recorder can be used as a large-volume USB storage
device, which can be connected to the computer. No software needs to be installed for VTR8102. The recorder will
be shown as a portable device. The icon of connecting to
computer is shown in the figure below.
34 EN
Reminder
• When the file are moved from the PC to the VideoTracer,
please do not disconnect the device from the PC.
Page 35
5 Video Recording
When you use the recorder for the fi rst time, please pay
attention to the requirements in this section!
(1)On the Preview interface, press the ‘Video Record’ button
to start recording. The device will vibrate twice briefly and
the state indicator flickers red.
(2)Long press‘
in or out on the preview interface for digital zoom.
(3) When recording at night, in a low light environment or
of the infrared is in manual mode, please press the ‘Voice
Record’ button to change to night recording mode. The
screen will become black/white.
(4) Press the ‘Photo’ button to capture the current recording
screen.
(5) Long press the photo button during video recording. The
file will be marked as important file, and the marked file
will not be deleted when the loop video files are turned
up.
(6) The reference video recording interface is shown below:
’ or ‘ ’ on the preview interface to zoom
Recording Interface Illustration
1
2
3
4
1 Recording resolution
2 Video recording
3 ID watermark
4 System current data and time
English
5
6
7
5 Recording mode
6 Battery
7 Remaining card capacity
Page 36
6 Current Video Duration
Notice
• When the battery icon is showing empty, it means low
on battery. When the low battery icon occurs, the
system will automatically shut down. If you are recording,
the system will automatically save the recorded files then
shut down. In case of low battery, please charge your
device timely. During low battery, the device gives you
‘Low Battery’ notice as shown below.
36 EN
Reminder
• Before recording, please adjust the recording parameters
first.
• Please delete some unnecessary files before recording.
Page 37
7 Photo
Please note the instructions in this section when you take the
first photo with your Video Tracer! On the preview interface, press the Camera button to take a photo. While taking
a photo, a red light appears with a “click” sound. If taking a
photo in a dark environment, the device needs its infrared
lamp or additional lamp to secure good quality videos. During
the video recording the user can press the camera button to
make a photo.
English
Page 38
8 Voice Recording
When you use the device for audio recording for the first
time, please read the instructions in this section
(1) Press the ‘Voice button’ in the video preview state to start
recording; the working indicator lights on in yellow; please
point the built-in microphone to the voice source.
(2) Press the ‘Voice’ button to end the recording and return
to the preview interface.
The recording interface is shown below:
38 EN
!
Audio recording interface
1
2
Recording status
1
Current recording duration
2
Battery status
3
3
Page 39
Reminder
• Before recording, please adjust the desired recording
sensitivity.
• Please delete some unnecessary files before recording.
• Please test the voice recording first to confirm that the
audio and video recorder settings are correct.
• Do not pull out the memory card during audio/video
recording mode. Otherwise, damage might be caused to
the files.
• Do not cut off power during audio/video recording mode.
Otherwise, damage might be caused to the recorder and
the files might be lost or damaged.
• If you intend to use the device for a long period of time,
please charge the device before recording.
English
Page 40
9 One-touch Playback Mode
On the Preview interface, press the Right button quickly after
the video recording file is saved, the Voice Tracer will directly
play the file. Press the Right button quickly after the voice
recording file is saved, the Video Tracer will directly play the
file. By default, the one-touch playback will play the last video
recording file as soon as the device is powered on.
40 EN
Page 41
10 Video Mode
On the camera preview status interface, we can use the
‘
’ button to enter the review playback interface, press
‘
’ or ‘ ’to select the video option, and then press the
menu button to confi rm the video fi le list interface. The
video fi le list reference interface is shown below:
Recorded File Playing Illustration:
3
4
1 File name
2 ID watermark
1
5 2
3 System current date and time
4 Recording mode
6
7
8
5 Current duration
6 Battery
7 Progress bar
English
Press‘ ’ or ‘ ’ to select the video fi le. Press the menu
button to enter the video playback interface. The video
playback reference interface is as shown below:
The deletion of the fi le can be done by connecting to a computer.
10.1 Video playing
(1)Press‘ ’ or ‘ ’to select the fi le you need to play.
(2)Press the ‘Menu’ button to start playback, and the working
indicator will light on in green.
(3)During playback, press the ‘Menu’ button to pause
playback, press the ‘Menu’ button again, and the playback
will return to the previous position.
(4)Press ‘
4 times, 8 times, 16 times, 32 times, 64 times to fast back-
’ or ‘ ’during playback to select 2 times,
ward or fast forward the currently playing fi le.
Page 42
11 Photo Mode
In the camera preview status interface, the ‘ ’button can
be used to enter the review playback interface. Press ‘
‘
’button to select the camera option, then press the menu
button to enter the camera fi le list interface. The camera fi le
list reference interface is shown below:
Press ‘ ’ or ‘ ’ button to select the photo fi le to be
played; press the menu button to enter the photo browsing
state, press ‘
42 EN
’ or ‘ ’ to switch the photo.
’ or
Page 43
12 Audio Mode
In the camera preview state, you can use the ‘ ’ button to
enter the review playback interface, press the ‘
button to select the voice recording option, and then press
the menu button to enter the voice fi le list interface. The
voice fi le list reference interface is as shown below:
Press the ‘ ’ or ‘ ’ button to select the audio fi le to be
played; press the menu button to enter the voice playback
interface. The voice playback reference interface is as shown
below:
’ or ‘ ’
Audio File Playing Interface Illustration:
1
2
3
1 File name
2 Progress bar
3 Current duration
English
4
5
4 Battery
Page 44
12.1 Voice play
(1)Press‘ ’ or ‘ ’button to select the file you want to
play.
(2)Press the ‘Menu’ button to start playback, the working
indicator will light on in green.
(3)During playback, press the menu button to pause playback
and press the menu button again to resume playback.
44 EN
Page 45
13 Setting Mode
Press the menu button in the camera preview status interface, the system will enter the setting interface. System settings include: voice recording setting, video recording setting,
camera setting and system setting.
Press the ‘
button to enter the selected option. Long press the ‘Menu’
button to return to the preview interface.
13.1 Voice recording
Press ‘Menu’ to enter the setting mode, press ‘ ’ or‘ ’
to select the voice recording setting menu, press ‘Menu’ to
select, and the options of high, medium and low will pop up.
Select di erent levels of microphone sensitivity to achieve
di erent recording e ects.
’ or ‘ ’ button to select and press the menu
13.2 Recording setting
The video settings menu includes: resolution, video quality,
video pre-recording, video delay recording.
Press ‘
’ or ‘ ’ to select the option you want to set, and
then press the menu button to enter.
13.2.1 Resolution
Video resolution is of four levels, namely 2304×1296 30P,
1920×1080 30P, 1280×720 30P, and 848×480 30P. Di erent
video resolution options can meet the requirements in most
application occasions. Press ‘
ate resolution. Press the menu button when the selection is
completed, and long press the menu button to return to the
previous menu.
The reference interface is shown below:
’ or ‘ ’ to select appropri-
English
Page 46
13.2.2 Video quality
There are three quality options to choose from on the
Video Quality menu: ‘Highres’, ‘Good’, ‘Normal’. According
to di erent needs, di erent quality e ects are selected. The
better the video quality, the larger the memory occupied by
the same video length.
13.2.3 Video pre-recording
Apply the video pre-recording function to start the recording
around the fi rst ten seconds, before the record button is
activated. The video pre-recording has two options: o and
on. Press
‘
’ or ‘ ’ to select, and press the menu button to confi rm. Long press the menu button to return to the previous
menu.
Pre-recording time: about 17 seconds.
13.2.4 Delayed recording
Apply the delayed recording function to continue the
recording for a certain time after pushing the button to save
the recording. There are fi ve options for delayed recording:
setting o , 5 sec, 10 sec, 15 sec, 30 sec and 60 sec. Press ‘
46 EN
’or ‘ ’ to select and press the menu button to confi rm after
the selection is completed. Long press the menu button to
return to the previous menu.
13.3 Photo setting
The photo settings menu includes: photo size, photo quality,
auto shooting and continuous shooting. Press ‘
select the option you want, and then press the menu button
to enter.
’ or ‘ ’to
13.3.1 Photo size
The sizes of the photos are of 38M, 34M, 23M, 20M, 18M,
16M, 14M, 12M, 8M, 5M, 3M and 2M. Press ‘
‘
’ to select the appropriate resolution. After the selection is completed, press the menu button to confi rm. Long
press the menu button to return to the previous menu. The
reference interface is shown below
：
’or
Page 47
13.3.2 Photo quality
There are three quality options to choose from on the Photo
Quality menu: ‘Highres’, ‘Good’, ‘Normal’. According to different needs, di erent quality e ects are selected. The better
the picture quality, the larger the memory occupied by the
photo.
13.3.3 Photo selftimer
Photo selftimer means that the device takes a photo at
regular intervals when the Camera button is pressed in the
Preview mode until the Camera button is pressed, the card
is full or the battery is empty. Photo selftimer o ers six
options: O , 3 Seconds, 5 Seconds, 10 Seconds, 30 Seconds
and 60 Seconds. Press the
‘
’ or ‘ ’button to select the desired number of seconds. After selection, press the OK button to confi rm, or
press the Back button to return to the previous menu.
13.3.4 Photo rate
Photo rate means press the photo button to take photos
during preview or recording mode.
On the camera setting menu, select ‘Photo rate’ and press
the menu button to enter. Press ‘ ’ or ‘ 'to select. Press
the menu button to confi rm after the selection is completed.
Long press the menu button to return to the previous menu.
13.4 System setting
System settings menu includes: language, default settings,
screen brightness, system time, auto power o , auto screen
o , volume, in-car mode, video loop, in-car record, duration,
key tone, indicator light, infrared switch, motion detect, EV,
ID number, system info. Press ‘
option you want to set, and then press the menu button to
enter.
’ or ‘ ’ to select the
13.4.1 Language
In the language selection menu, you can select a language
as the system language. The reference interface of language
selection is as follow:
English
Page 48
13.4.2 Default settings
Apply the function to reset the device’s setting options.
On this interface, press the menu button and ‘ ’ or ‘ ’
to set the real time. Press‘
Press the menu button to confi rm after the selection is completed. Long press the menu button to return to the previous
menu.
’ or ‘ ’to change the value.
13.4.3 Brightness
When you want to use this function, you can adjust the
brightness of the screen. The screen brightness can be set
to three levels: high, medium and low. Press ‘
select the appropriate option. Press the menu button to confi rm after the selection is completed. Long press the menu
button to return to the previous menu.
’ or ‘ ’ to
13.4.4 System time
The system time setting interface is as shown below:
48 EN
13.4.5 Auto off
If there is no operation on the device, the VideoTracer
automatically shuts down after a certain period of time. The
interface looks like following:
Page 49
13.4.6 Auto screen off
There are four options for the auto screen o time: O ,
1Min, 3Min, 5Min. If no operation is done to the device within
the given time, the screen will black out. If ‘O ’ is selected,
the display will be constantly lit.
13.4.7 Volume
When you use this function, you can adjust the volume of the
device.
The volume setting can be selected from 11 values between 0
and 10. Press ‘
value. After the selection is completed, press the menu
button to confi rm.
’ or ‘ ’ to select the appropriate volume
13.4.9 Video loop
On the video settings menu, select ‘Loop video’ and press the
menu button to enter. Press ‘
the two options: on and o . After the selection is completed,
press the menu button to confi rm. Press the menu button to
return to the previous menu.
The reference interface is shown below:
’ or ‘ ’ to choose from
English
13.4.8 In-car mode
The device can be used as car driving recorder which defaults
to “O ”, and “Video loop” and “Video loop” are unavailable
at this time. When the “In-car mode” is on, “Video loop” and
“Video loop” are unavailable and “In-car mode” defaults to
“O ”.
13.4.10 In-car record
When the function is used, you can choose whether you
want to record the sound inside the car.
Page 50
13.4.11 Duration
The segmented video has six levels: 5 minutes, 10 minutes, 15
minutes, 20 minutes, and 30 minutes. During the recording
process, the segmented video automatically saves the video
file in segments and automatically switches to the next video
recording.
The video segmentation function reference interface is shown
below :
13.4.12 Key tone
When the function is used, there will be an audible prompt
for button operation.
50 EN
13.4.13 Indicator light
When the function is used, you can turn on or o the status
indicator as needed.
13.4.14 Infrared switch
On the System Settings menu, press the or button to select
the “Infrared” menu, and then press the Menu button to
enter the Infrared Switch menu. The menu oers two options: Manual and Auto. After selecting the mode, press the
OK button to confirm, or press the Back button to return to
the previous menu.
13.4.15 Motion detect
In the standby state, the audio and video recorder automatically turns on the recording function after an object enters
the shooting range of the audio and video recorder. After the
object leaves the shooting range, the recording function ends
and the recording file is saved. The motion detection function
setting can be selected: o, low, middle, high.
Page 51
13.4.16 EV
Exposure compensation is an exposure control method that
compensates for brighter or darker shots. You can adjust
the brightness of your photos to create unique visual e ects
according to your own needs.
The exposure compensation setting can be selected from 13
values between -2.0 and +2.0. Press ‘
the appropriate value. When the selection is completed,
press the menu button to confi rm.
‘ or ‘ ’ to select
13.4.17 ID number
ID number setting interface is as shown below:
On this interface, press the menu button and ‘ ’or ‘ ’
to set the device number and user number. Press ‘
‘
’ to change the corresponding position value, and press
the menu key to confi rm. Long press the menu to return to
’ or
the previous menu.
13.4.18 System info
The system information menu includes: total storage capacity,
available space, available video time, available audio time,
battery power and version number
Total storage capacity: local memory size information.
Available space: remaining space information.
Available video time: the time length for the current video
recording resolution.
Available audio time: the time length for the current audio
recording type.
Battery level: current battery level information.
Version number: Firmware version information.
.
English
Page 52
14 Mounting of Shoulder Clip
When mounting the shoulder clip, align the connecting
①
bracket of the clip into the main slot according to the
shown position, and then slowly push it until the top of
the clip reaches the bottom of the slot.
When removing the shoulder clip, hold it with one hand,
②
hold the device body with the other hand and hold the
clip. Gently push it out until the connecting bracket leaves
the device. It is as shown below:
52 EN
Page 53
15 FAQ
This section has listed all the frequently asked questions to
help you address the simple issues during use of the voice/
video recorder. If such issues persist, please consult our
dealers or visit our ocial website: www.philips.com/support
no recycling shooting mode has been turned on. Please delete
some of the files or transfer such files to external storage
device.
15.5 Unable to play audio or video les
The batter is used up, please charge your device .
English
15.1 Unable to start audio and video recorder
The batter has run out and you need to charge your device.
15.2 Incorrect time/date
The audio and video recorder time is not accurate, and
please reset the time on the menu.
15.3 Unclear image
Unclean lens has caused it. Please use clean cloth to clean it.
15.4 Fail to record audio/video
The internal storage of audio/video recorder has run out and
15.6 How to respond to recorder failure
Sometimes you will encounter in the operation the problems
such as failure to power on or black screen, etc. The usual
processing method is to reset it. The position of the reset
button: open the USB cover, and you’ll find a small hole in the
slot; use tweezers or pointed item to click on the hole.
Note: This operation will not cause data loss or destruction.
Page 54
16 Technical Parameters
16.1 Memory
External Memory
Recording time reference(16GB): about 290 hours
Type of Internal Storage: C10 TF card
Mobile storage device (PC): Yes
16.2 Dimensions and weight
Width × Height × Depth: 56×78×25 (mm)
Weight (with battery): 110g (without back clip)
16.3 PC Interface
Operating System: Windows 7,8,10/Vista/XP/2000, Mac OS X,
Linux
Port: USB
16.4 Voice recording
Mono: The bit rate is 128kbps, and the format is MP3
54 EN
16.5 Operating conditions
Temperature: -30℃ ~ 55
Air humidity: 10% – 90%, non-condensing
℃
Page 55
English
Page 56
VTR8102
Page 57
Page 58
© 2020 Speech Processing Solutions GmbH.
版权所有文档版本
1.0, 2020/06/28
Register your product and get support at
www.philips.com/welcome
Loading...
