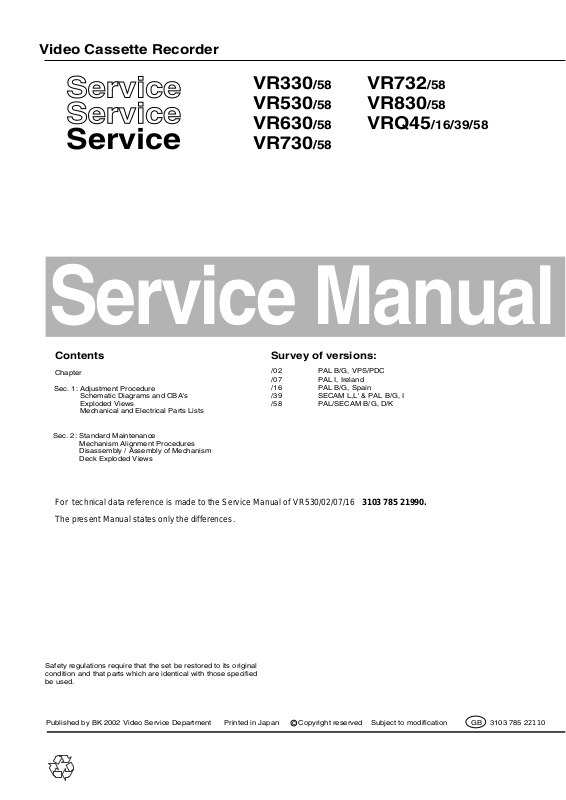

Philips VR330/58, VR630/58, VR730/58, VR830/58, VRQ45/16 Service Manual

Video Cassette Recorder

For technical data reference is made to the Service Manual of VR530/02/07/16

3103 785 21990.

The present Manual states only the differences.

VR330

/58

VR732

/58

Service
Service

Service

VR530
VR630
VR730

/58

/58

/58

VR830
VRQ45

/58

/16/39/58

Service Manual

Contents

Chapter

Adjustment Procedure

Sec. 1:

Schematic Diagrams and CBA's
Exploded Views
Mechanical and Electrical Parts Lists

Survey of versions:

/02 PAL B/G, VPS/PDC
/07 PAL I, Ireland
/16 PAL B/G, Spain
/39 SECAM L,L' & PAL B/G, I
/58 PAL/SECAM B/G, D/K

Sec. 2:

Standard Maintenance
Mechanism Alignment Procedures
Disassembly / Assembly of Mechanism
Deck Exploded Views

Safety regulations require that the set be restored to its original
condition and that parts which are identical with those specified
be used.

Published by BK 2002 Video Service Department Printed in Japan c

Copyright reserved Subject to modification GB 3103 785 22110

[ VR630/58 ]

EJECT

MENU STATUS/EXIT CLEAR

1 2 3

4 5 6

7 8

VCR

RECORD/OTR

P+

P-

INDEX

STANDBY/ON

0

MUTE

TURBO TIMER

TV

STILL

SV/V

Buttons for VCR feature only

VCR

To operate the VCR with the remote control.

EJECT

CLEAR

RECORD/OTR

start a One-Touch Recording.

STILL

adjust the tracking.

INDEX

9

+

cassette.

SLOW

AUDIO

SYSTEM

TURBO TIMER

SV/V

MENU

playback, press to fast forward the tape while the picture stay on the screen. To store or confirm
entry in the menu.

press to rewind the tape while the picture stay on the screen.To return the cursor in the menu.

To eject the cassette.

To delete last entry/Clear programmed recording (TIMER).

To record the TV channel selected at this moment or press repeatedly to

To stop the tape and slow a still picture.

P-P+

To select the programme number. During normal or slow motion playback, press to

In combination with :to search for previous or next recording on the

To view the picture in slow motion.

To change stereo sound and 2nd language.

Doesn’t

work in these models. [ VR630/02, VR630/07, VR630/16 ]

To change the video (colour) system. [ VR630/39 ]

+

To play a tape, select an item in the menu of VCR.

To stop the tape, select an item in the menu of VCR

To programme a recording with the function TURBO TIMER.

To make a TIMER programming with SHOWVIEW.

To call up main menu of VCR.

When tape playback is stopped, press to fast forward the tape at high speed. During

When tape playback is stoped, press to rewind the tape at high speed. During playback,

SLOW

SYSTEM

AUDI O

Press button VCR on the remote control
before doing VCR related functions
on the remote. By pressing button TV it
is possible to navigate some
functions on PHILIPS TV sets.

Buttons with TV feature

TV

To call up additional TV functions.

STANDBY/ON

STATUS/EXIT

menus. Or, to access or remove a status display or menu of Philips TV.

0..9

Press to select channels at VCR or Philips TV.

MUTE

To mute the TV’s sound. Press again to restore the volume.

To switch VCR or Philips

To access or remove the VCR’s on-screen status display. To exit on-screen

To adjust the TV’s volume.

TV on or off, interrupt menu function.

1-5-3 HC493IB

Front of the device

STANDBY/ON

STILL

PROGRAMME

STANDBY/ON

RECORD

RECORD

COUNTER RESET

To switch off or on, interrupt a function.

PROGRAMME-PROGRAMME+

To select the programme number. During normal or slow motion playback, press to adjust the tracking.

To record the TV channel selected at this moments.

PWR.

REC

When tape playback is stopped, press to fast forward the tape at high speed. During playback, press to fast forward the tape while the picture stay on the screen.

When tape playback is stoped, press to rewind the tape at hight speed. During playback, press to rewind the tape while the picture stay on the screen.

To play a tape.

To stop the tape and eject the cassette.

STILL

To stop the tape and show a still picture.

COUNTER RESET

To reset the counter.

Back of the set

AV2 (DECODER) AV1 (TV)

AUDIO OUTPUT L R

AV2(DECODER)

AV1(TV)

AERIAL

RF OUT

To connect a satellite receiver, decoder, video recorder,etc.

To connect the TV set.

To connect the aerial cable.

To connect the TV set.

AERIAL

RF OUT

To connect a HIFI-set.

1-5-4 HC493IB

[ VR330/58 ]

EJECT

MENU STATUS/EXIT CLEAR

1 2 3

4 5 6

7 8

VCR

RECORD/OTR

P+

STANDBY/ON

0

TV

STILL

Buttons for VCR feature only

VCR

To operate the VCR with the remote control.

EJECT

CLEAR

RECORD/OTR

start a One-Touch Recording.

STILL

adjust the tracking.

INDEX

9

cassette.

SYSTEM

SV/V

MENU

playback, press to fast forward the tape while the picture stay on the screen. To store or confirm
entry in the menu.

press to rewind the tape while the picture stay on the screen.To return the cursor in the menu.

To eject the cassette.

To delete last entry/Clear programmed recording (TIMER).

To record the TV channel selected at this moment or press repeatedly to

To stop the tape and slow a still picture.

P-P+

To select the programme number. During normal or slow motion playback, press to

In combination with :to search for previous or next recording on the

To change the video (colour) system. [ VR330/39 ]

+

To make a TIMER programming with SHOWVIEW.

To call up main menu of VCR.

To play a tape, select an item in the menu of VCR.

To stop the tape, select an item in the menu of VCR

When tape playback is stopped, press to fast forward the tape at high speed. During

When tape playback is stoped, press to rewind the tape at high speed. During playback,

MUTE

P-

+

INDEX

SYSTEM

SV/V

Press button VCR on the remote control
before doing VCR related functions
on the remote. By pressing button TV it
is possible to navigate some
functions on PHILIPS TV sets.

Buttons with TV feature

TV

To call up additional TV functions.

STANDBY/ON

STATUS/EXIT

menus. Or, to access or remove a status display or menu of Philips TV.

0..9

Press to select channels at VCR or Philips TV.

MUTE

To mute the TV’s sound. Press again to restore the volume.

To switch VCR or Philips TV on or off, interrupt menu function.

To access or remove the VCR’s on-screen status display. To exit on-screen

To adjust the TV’s volume.

1-5-5 HC493IB

Front of the device

STANDBY/ON

STILL

PROGRAMME

STANDBY/ON

RECORD

COUNTER RESET

RECORD

To switch off or on, interrupt a function.

PROGRAMME-PROGRAMME+

To select the programme number. During normal or slow motion playback, press to adjust the tracking.

To record the TV channel selected at this moments.

PWR.

REC

When tape playback is stopped, press to fast forward the tape at high speed. During playback, press to fast forward the tape while the picture stay on the screen.

When tape playback is stoped, press to rewind the tape at hight speed. During playback, press to rewind the tape while the picture stay on the screen.

To play a tape.

To stop the tape and eject the cassette.

STILL

To stop the tape and show a still picture.

COUNTER RESET

To reset the counter.

Back of the set

TV

To connect the TV set(programme number ).

TV

AERIAL

RF OUT

To connect the aerial cable.

To connect the TV set.

AERIAL

RF OUT

1-5-6 HC493IB

[ VR730/58,VR732/58 ]

EJECT

MENU STATUS/EXIT CLEAR

1 2 3

4 5 6

7 8

VCR

RECORD/OTR

P+

TAPE LIST SMART PICTURE TURBO TIMER

INDEX

SLOW

P-

STANDBY/ON

0

MUTE

SYSTEM

STILL

SV/V

AUDI O

9

TV

+

Buttons for VCR feature only

VCR

To operate the VCR with the remote control.

EJECT

CLEAR

(TIMER).

RECORD/OTR

moment or press repeatedly to start a One-Touch Recording.

STILL

slow motion playback, press to adjust the tracking.

INDEX

previous or next recording on the cassette.

SLOW

AUDIO

SYSTEM

picture mode.

TURBO TIMER

TURBO TIMER.

SV/V

MENU

high speed. During playback, press to fast forward the tape while the
picture stay on the screen. To store or confirm entry in the menu.

speed. During playback, press to rewind the tape while the picture stay
on the screen.To return the cursor in the menu.

To eject the cassette.

To delete last entry/Clear programmed recording

To record the TV channel selected at this

To stop the tape and slow a still picture.

P-P+

To select the programme number. During normal or

3

In combination with :to search for

To view the picture in slow motion.

To change stereo sound and 2nd language.

Doesn’t work in these models.

TAPE LIST

+

To make a TIMER programming with Video Plus

To call up main menu of VCR.

To play a tape, select an item in the menu of VCR.

To stop the tape, select an item in the menu of VCR

When tape playback is stopped, press to fast forward the tape at

When tape playback is stopped, press to rewind the tape at high

To call up the Tape List.

SMART PICTURE

To programme a recording with the function

To select a smart

+ system

.

Press button VCR on the remote control
before doing VCR related functions
on the remote. By pressing button TV it
is possible to navigate some
functions on PHILIPS TV sets.

Buttons with TV feature

TV

To call up additional TV functions.

STANDBY/ON

function.

STATUS/EXIT

display. To exit on-screen menus. Or, to access or remove a status
display or menu of Philips TV.

0..9

Press to select channels at VCR or Philips TV.

MUTE

To mute the TV’s sound. Press again to restore the volume.

To switch VCR or Philips TV on or off, interrupt menu

To access or remove the VCR’s on-screen status

To adjust the TV’s volume.

1-5-7 HC493IB

Front of the device

STANDBY/ON

STILL

OPEN A/V FRONT CONNECTORS

STANDBY/ON

RECORD

RECORD

COUNTER RESET

To switch off or on, interrupt a function.

PROGRAMME-PROGRAMME+

To select the programme number. During normal or slow motion playback, press to adjust the tracking.

To record the TV channel selected at this moments.

PWR.

REC

PROGRAMME

When tape playback is stopped, press to fast forward the tape at high speed. During playback, press to fast forward the tape while the picture stay on the screen.

When tape playback is stoped, press to rewind the tape at hight speed. During playback, press to rewind the tape while the picture stay on the screen.

To play a tape.

To stop the tape and eject the cassette.

STILL

To stop the tape and show a still picture.

COUNTER RESET

To reset the counter.

AV FRONT CONNECTORS

White and red socket Audio input socket left/right:To connect a camera recorder or video recorder
Yellow socket Video input socket:To connect a camera recorder or video recorder.

Back of the set

AV2 (DECODER) AV1 (TV)

AUDIO OUTPUT L R

AV2(DECODER)

AV1(TV)

AERIAL

RF OUT

To connect a satellite receiver, decoder, video recorder,etc.

To connect the TV set.

To connect the aerial cable.

To connect the TV set.

AERIAL

RF OUT

To connect a HIFI-set.

1-5-8 HC493IB

[ VR830/58 ]

Buttons for VCR feature only

EJECT

MENU STATUS/EXIT CLEAR

STANDBY/ON

1 2 3

4 5 6

7 8

VCR

0

RECORD/OTR

STILL

P+

MUTE

P-

TAPE LIST SMART PICTURE TURBO TIMER

INDEX

SV/V

VCR

To operate the VCR with the remote control.

A

EJECT

CLEAR

RECORD/OTR I

start a One-Touch Recording.

STILL

adjust the tracking.

9

TV

+

INDEX

cassette.

SLOW

AUDIO

SYSTEM

TAPE LIST

SMART PICTURE

TURBO TIMER

SV/V

MENU

KB

LC

playback, press to fast forward the tape while the picture stay on the screen. To store or confirm
entry in the menu.

press to rewind the tape while the picture stay on the screen.To return the cursor in the menu.

To eject the cassette.

To delete last entry/Clear programmed recording (TIMER).

To record the TV channel selected at this moment or press repeatedly to

To stop the tape and slow a still picture.

P-P+

To select the programme number. During normal or slow motion playback, press to

3

In combination with :to search for previous or next recording on the

To view the picture in slow motion.

To change stereo sound and 2nd language.

Doesn’t work in these models.

To call up the Tape List.

To select a smart picture mode.

+

To play a tape, select an item in the menu of VCR.

To stop the tape, select an item in the menu of VCR

To programme a recording with the function TURBO TIMER.

To make a TIMER programming with SHOWVIEW.

To call up main menu of VCR.

When tape playback is stopped, press to fast forward the tape at high speed. During

When tape playback is stoped, press to rewind the tape at high speed. During playback,

SLOW

SYSTEM

AUDI O

Press button VCR on the remote control
before doing VCR related functions
on the remote. By pressing button TV it
is possible to navigate some
functions on PHILIPS TV sets.

Buttons with TV feature

TV

To call up additional TV functions.

y

STANDBY/ON

STATUS/EXIT

menus. Or, to access or remove a status display or menu of Philips TV.

0..9

Press to select channels at VCR or Philips TV.

MUTE

To mute the TV’s sound. Press again to restore the volume.

To switch VCR or Philips

To access or remove the VCR’s on-screen status display. To exit on-screen

To adjust the TV’s volume.

TV on or off, interrupt menu function.

1-5-9 HC493IB

Front of the device

STANDBY/ON

OPEN A/V FRONT CONNECTORS

STANDBY/ON

To switch off or on, interrupt a function.

PROGRAMME-PROGRAMME+

RECORD

To record the TV channel selected at this moments.

COUNTER RESET

RECORD

PWR.

REC

PROGRAMME

To select the programme number. During normal or slow motion playback, press to adjust the tracking.

STILL

When tape playback is stopped, press to fast forward the tape at high speed. During playback, press to fast forward the tape while the picture stay on the screen.

When tape playback is stoped, press to rewind the tape at hight speed. During playback, press to rewind the tape while the picture stay on the screen.

To play a tape.

To stop the tape and eject the cassette.

STILL

To stop the tape and show a still picture.

COUNTER RESET

AV FRONT CONNECTORS

White and red socket Audio input socket left/right:To connect a camera recorder or video recorder
Yellow socket Video input socket:To connect a camera recorder or video recorder.

To reset the counter.

Back of the set

AUDIO OUTPUT L R

AV2(DECODER)

AV1(TV)

AERIAL

RF OUT

IR-SAT

To connect a satellite receiver, decoder, video recorder,etc.

To connect the TV set.

To connect the aerial cable.

To connect the TV set.

To connect the SAT MOUSE.

To connect a HIFI-set.

AV2 (DECODER) AV1 (TV)

AUDIO

OUTPUT

AERIAL

L

RF OUT

R

IR-SAT

1-5-10 HC493IB

[ VRQ45/16,VRQ45/39,VRQ45/58 ]

Buttons for VCR feature only

EJECT

MENU STATUS/EXIT CLEAR

STANDBY/ON

1 2 3

4 5 6

7 8

VCR

0

RECORD/OTR

STILL

P+

MUTE

P-

TAPE LIST SMART PICTURE TURBO TIMER

INDEX

SV/V

VCR

To operate the VCR with the remote control.

A

EJECT

CLEAR

RECORD/OTR I

start a One-Touch Recording.

STILL

adjust the tracking.

9

TV

+

INDEX

cassette.

SLOW

AUDIO

SYSTEM

TAPE LIST

SMART PICTURE

TURBO TIMER

SV/V

MENU

KB

LC

playback, press to fast forward the tape while the picture stay on the screen. To store or confirm
entry in the menu.

press to rewind the tape while the picture stay on the screen.To return the cursor in the menu.

To eject the cassette.

To delete last entry/Clear programmed recording (TIMER).

To record the TV channel selected at this moment or press repeatedly to

To stop the tape and slow a still picture.

P-P+

To select the programme number. During normal or slow motion playback, press to

3

In combination with :to search for previous or next recording on the

To view the picture in slow motion.

To change stereo sound and 2nd language.

Doesn’t work in these models.

To call up the Tape List.

To select a smart picture mode.

+

To play a tape, select an item in the menu of VCR.

To stop the tape, select an item in the menu of VCR

To programme a recording with the function TURBO TIMER.

To make a TIMER programming with SHOWVIEW.

To call up main menu of VCR.

When tape playback is stopped, press to fast forward the tape at high speed. During

When tape playback is stoped, press to rewind the tape at high speed. During playback,

SLOW

SYSTEM

AUDI O

Press button VCR on the remote control
before doing VCR related functions
on the remote. By pressing button TV it
is possible to navigate some
functions on PHILIPS TV sets.

Buttons with TV feature

TV

To call up additional TV functions.

y

STANDBY/ON

STATUS/EXIT

menus. Or, to access or remove a status display or menu of Philips TV.

0..9

Press to select channels at VCR or Philips TV.

MUTE

To mute the TV’s sound. Press again to restore the volume.

To switch VCR or Philips

To access or remove the VCR’s on-screen status display. To exit on-screen

To adjust the TV’s volume.

TV on or off, interrupt menu function.

1-5-11 HC493IB

Front of the device

STANDBY/ON

STANDBY/ON

RECORD

RECORD

COUNTER RESET

To switch off or on, interrupt a function.

PROGRAMME-PROGRAMME+

To select the programme number. During normal or slow motion playback, press to adjust the tracking.

To record the TV channel selected at this moments.

PWR.

REC

PROGRAMME PLAY FWDREW

STOP/EJECT

When tape playback is stopped, press to fast forward the tape at high speed. During playback, press to fast forward the tape while the picture stay on the screen.

When tape playback is stoped, press to rewind the tape at hight speed. During playback, press to rewind the tape while the picture stay on the screen.

To play a tape.

To stop the tape and eject the cassette.

STILL

To stop the tape and show a still picture.

COUNTER RESET

AV FRONT CONNECTORS

White and red socket Audio input socket left/right:To connect a camera recorder or video recorder
Yellow socket Video input socket:To connect a camera recorder or video recorder.

To reset the counter.

Back of the set

AV2 (DECODER) AV1 (TV)

AUDIO OUTPUT L R

AV2(DECODER)

AV1(TV)

AERIAL

RF OUT

IR-SAT

To connect a satellite receiver, decoder, video recorder,etc.

To connect the TV set.

To connect the aerial cable.

To connect the TV set.

To connect the SAT MOUSE.

To connect a HIFI-set.

AUDIO

OUTPUT

AERIAL

L

RF OUT

R

1-5-12 HC493IB

[ VR530/58,VR630/58,VR330/58,VR730/58,VR732/58,VR830/58,VRQ45/16,
VRQ45/39,VRQ45/58 ]

Signal Name Function

Signal Name Function

8POUT-1

8POUT-2

A-MODE Hi-Fi Tape Detection Signal

A-MUTE-H

A-PB/REC

AFC

AGC IF AGC Control Signal

AL+15V/+12V

AL+5V

AL+9V

AMPC CTL AMP Connected Terminal

AMPVcc AMPVcc

AMPVREF

AMPVss AMPVss (GND)

AVcc

CC Terminal

C-CONT Capstan Motor Control Signal

C-F/R

C-FG

C-POWER­SW

C-ROTA

C-SYNC Composite Synchronized Pulse

CLKSEL Clock Select (GND)

COLOR-IN

CTL (+)

CTL (-)

SCART 1 8Pin Output Control
Signal

SCART 2 8Pin Output Control
Signal

Audio Mute Control Signal
(Mute = “H”)

Normal Audio Play Back/Record
Signal

Automatic Frequency Control
Signal

Always +15V/+12V with AC Plug
Connected

Always +5V with AC Plug
Connected

Always +9V with AC Plug
Connected

IN

V-Ref for CTL AMP

A/D Converter Power Input/
Standard Voltage Input

Capstan Motor FWD/REV Control
Signal (FWD=”L”/REV=”H”)

Capstan Motor Rotation Detection
Pulse

Capstan Power Switching Pulse

Color Phase Rotary Changeover
SIgnal

SECAM or MESECAM Chroma
Video Input Signal at Super
Impose

Playback/Record Control Signal
(+)

Playback/Record Control Signal
(-)

CTLAMPout To Monitor for CTL AMP Output

D-CONT Drum Motor Control Signal

D-FG

D-PG Drum Motor Pulse Generator

D-REC-H Delayed Record Signal

D-V- SYNC Dummy V-sync Output

DAVN-L VPS/PDC Data Receive = “L”

DRV-CLK LED Clock Driver IC Control Clock

DRV-DATA LED Clock Driver IC Control Data

DRV-STB

END-S

FE-H GND Ground for Full Erase Head

FF/REW-L

FSC-IN
[4.43MHz]

FTV-IN

H-A-COMP Head Amp Comparator Signal

H-A-SW Video Head Amp Switching Pulse

Hi-Fi-A (L) Hi-Fi Audio Head (L)

Hi-Fi-A (R) Hi-Fi Audio Head (R)

Hi-Fi-COM Hi-Fi Audio Head Common

HiFi-H-SW HiFi Audio Head Switching Pulse

HLF LPF Connected Terminal (Slicer)

2

C BUS- SCL I2C BUS Control Clock

I

2

I

C BUS- SDA I2C BUS Control Data

JK1-8P-OUT-1

JK1-8P-OUT-2

KEY-1 Key Scan Input Signal 1

KEY-2 Key Scan Input Signal 2

LD-SW

LINK-IN Easy Link Data Input

Drum Motor Rotation Detection
Pulse

LED Clock Driver IC Chip Select
Signal

Tape End Position
Detect Signal

CTL Amp Gain Switching Signal
(FF/REW=”L”)

4.43MHz Clock Input

Comparator Input of Video Signal
for Follow TV

SCART 1 8Pin Output Control
Signal

SCART 2 8Pin Output Control
Signal

Deck Mode Position Detector
Signal

1-6-3 HC464-493SNA

Signal Name Function

LINK-OUT Easy Link Data Output

LM-FWD/REV Loading Motor Control Signal

MOD-A Modulator Audio Output Signal

N-A-PB Normal Audio Playback

N-A-REC Normal Audio Recording

OSC

OSC

IN

OUT

Clock Input for letter size

Clock Output for letter size

OSDVcc OSDVcc

OSDVss OSDVss

P-DOWN-L

Power Voltage Down Detector
Signal

P-ON+44V +44V at Power-On Signal

P-ON+5V +5V at Power-On Signal

P-ON+9V +9V at Power-On Signal

P-ON-H Power On Signal at High

Signal Name Function

V-ENV

Video Envelope Comparator
Signal

Vcc Vcc

VIDEO-IN Video Signal Input

VIDEO-OUT Video Signal Output

Vss Vss(GND)

X-IN Main Clock Input

X-OUT Main Clock Input

XC-IN Sub Clock

XC-OUT Sub Clock

PG-DELAY

POW-SAF

Video Head Switching Pulse
Signal Adjusted Voltage

P-ON Power Detection Input
Signal

Recording Safety SW Detect (With

REC-SAF

Record tab="L"/With out Record
tab="H")

REMOCON-IN Remote Control Sensor

RESET

System Reset
Signal (Reset=”L”)

RF-SW Video Head Switching Pulse

RGB­THROUGH

S-REEL

SAT-MOUSE

SCART 2 RGB Through Control
Signal

Supply Reel
Rotation Signal

SAT-MOUSE Data Control Signal
Output

SC2-IN Input Signal from Pin 8 of SCART2

SECAM-H SECAM Mode at High

ST-S

Tape Start Position Detector
Signal

T-REEL Take Up Reel Rotation Signal

TIMER+5V +5V at Timer

TRICK-H

Special Playback = “H” in SECAM
Mode

TU-AUDIO Tuner Audio Input Signal

TU-VIDEO Tuner Video Input Signal

1-6-4 HC464-493SNA

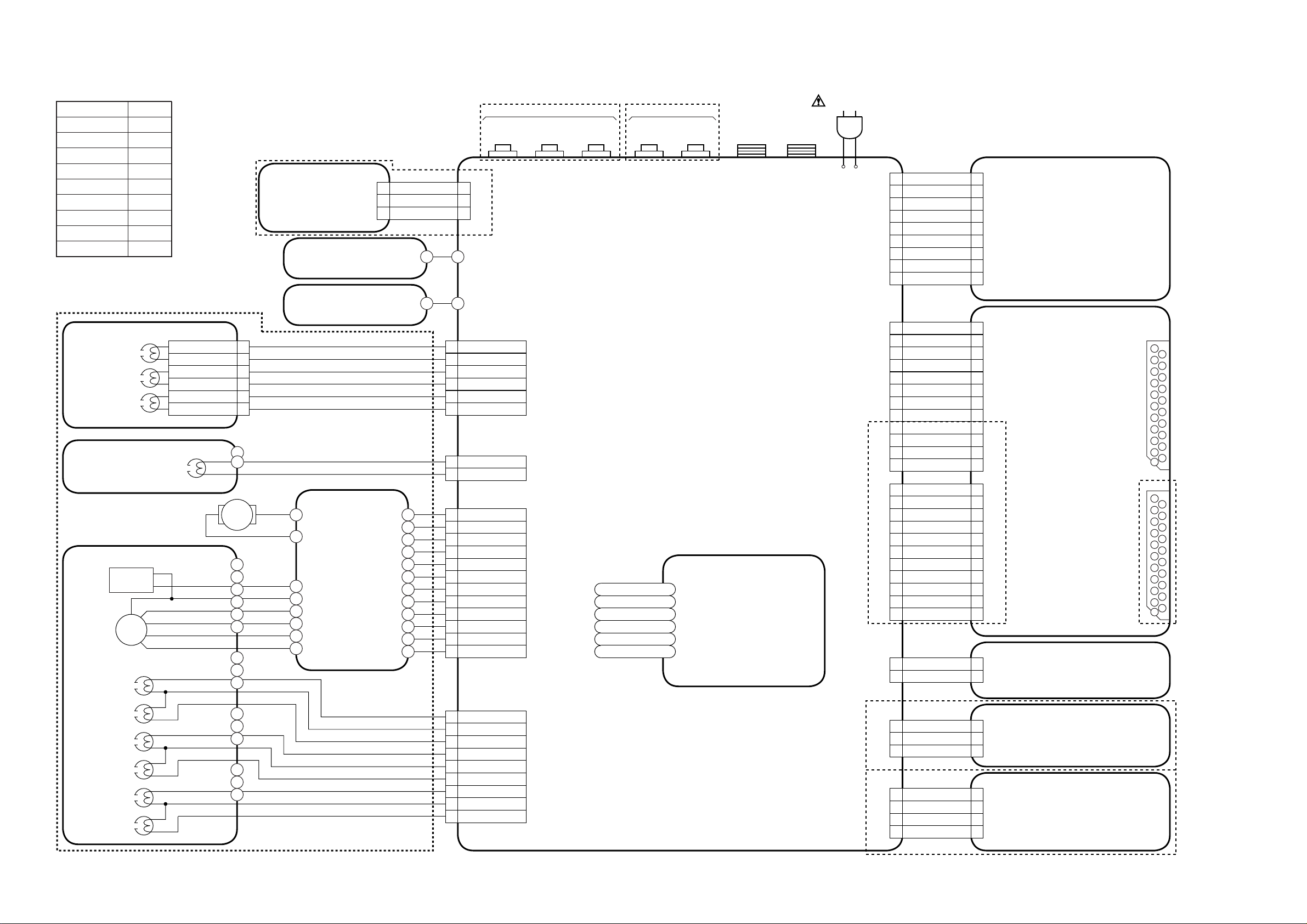

Servo/System Control Block Diagram BLOCK DIAGRAMS

Comparison Chart of Models & Marks

Model Mark

VR530/58
VR630/58
VR330/58
VR730/58
VR732/58

AB

JK631
SAT
MOUSE

W
X
Y
Z

AA

SMV CBA

SW510 POWER

POWER SW CBA

(DECK ASSEMBLY)

CONTROL
HEAD

AC HEAD ASSEMBLY

Q504

ST-S

SENSOR CBA

Q505

END-S

SENSOR CBA

CYLINDER ASSEMBLY CAPSTAN MOTOR

PG
SENSOR

DRUM
MOTOR

M

LOADING
MOTOR

Model Mark

VR830/58
VRQ45/16
VRQ45/39
VRQ45/58

CL631

Q631

AL+5V

REG

CL509

CL287

M

AB
AC
AD
AE

3 3SAT-MOUSE

1 1KEY-1

5 5CTL(+)
6 6CTL(-)

" " = SMD

MAIN CBA

CL632

CL508

CL504

TO
VIDEO
BLOCK

CAPSTAN
MOTOR

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.
(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER
HOLES OF THE PCB.
(WIRE IS SOLDERED DIRECTLY.)

AL+5V

D502
S-LED

TP506

END-S

Q503

T-REEL

P-ON+5V

TU-VIDEO

V-IN1

M

SW507
LD-SW

PS503

S-REEL

IC771

(COMPARATOR)

9
8

11
10

CL502

12 C-F/R
11

AL+15V/+12V

10 AL+12V

P-ON+5V

9

GND

8

C-FG

7

C-CONT

6

GND

5

D-FG

4

LM-FWD/REV

3

D-CONT

2

D-PG

1

AL+5V

TIMER+5V

14

13

VR501
SW-POINT

TO
POWER
SUPPLY
BLOCK

Q771,
Q772

AND

AL+5V

Q501

RESET

P-ON+5V

AL+5V

AL+15V/+12V
AL+12V
P-ON+5V

C-POW-SW
P-ON-H
P-DOWN-L

Q502

4
5

SW506

REC-SAFETY

TP501

CTL

2 64

TEST POINT INFORMATION

IC501

(SERVO/SYSTEM CONTROL)

SAT-MOUSE

73

LD-SW9

95

CTL(+)
CTL(-)

94
10

ST-S

4

END-S
T-REEL

80

S-REEL79

RESET

34

CTL97

FF/REW-L84

FTV-IN

PG-DELAY

2

REC-SAF-SW

31

C-F/R

78

87

C-FG

C-CONT

76

D-FG

89

LM-FWD/REV

81

D-CONT77
D-PG

90

C-POW-SW

66

P-ON-H

67

P-DOWN-L

86

:INDICATES A TEST POINT WITH A JUMPER WIRE ACROSS A HOLE IN THE PCB.
:USED TO INDICATE A TEST POINT WITH A COMPONENT LEAD ON FOIL SIDE.
:USED TO INDICATE A TEST POINT WITH NO TEST PIN.
:USED TO INDICATE A TEST POINT WITH A TEST PIN.

LINK-OUT

LINK-IN

KEY- 1

KEY- 2

DRV-DATA

DRV-STB
DRV-CLK

REMOCON-IN

A-MUTE-H

Hi-Fi-H-SW

A-MODE

I2C-BUS SDA

I2C-BUS SCL

DAVN-L

D-REC-H

RF-SW

C-ROTA

D-V SYNC

V-ENV

C-SYNC

H-A-SW

H-A-COMP

SECAM-H

TRICK-H

AD

AB

CL151 CL101

Q621 10

63

85

7

8

68
69
70

14

83

19
61

72
71
20
65
18
15
13

6
58
16

17

32
33

DRIVE

TP507

S-INH

KEY
SWITCH

SW505

CH-UP

IC561

(FIP DRIVER)

DRV-DATA

28

DRV-STB

2

DRV-CLK

1

IC503 (MEMORY)

RS501

REMOTE
SENSOR

W,X,Z,AA,AB,AC,AD,AE

<W,X,Z,AA,AB,AC,AD,AE>

AL+5V

W,X,Y

G1
G2
G3
G4

S1
S2

S7
S8
S9

S10

SDA
SCL

5 5EASY-LINK

CL505 CN651

4 4KEY-1
2 2KEY-2

CN506 CN651

1 1KEY-2
3 3KEY-1

Z,AA,AB,
AC,AD,
AE

FP562

LED CLOCK

23
22
21
20

7
8

13
14
16
17

5
6

TU701(TUNER UNIT)

SDA

3

SDA

12

SCL

5

SCL

11

I2C-BUS SDA

I2C-BUS SCL

A-MUTE-H

I2C-BUS SDA

I2C-BUS SCL

Hi-Fi-H-SW

A-MODE

I2C-BUS SDA

I2C-BUS SCL

DAVN-L

D-REC-H

RF-SW

C-ROTA

D-V SYNC

V-ENV

C-SYNC

H-A-SW

H-A-COMP

SECAM-H

TRICK-H

JK101

EASY­LINK

JACK CBA

FUNCTION
CBA

KEY SWITCH

KEY SWITCH

TO
AUDIO BLOCK

TO
Hi-Fi AUDIO
BLOCK

TO
VIDEO BLOCK

1-9-11 1-9-12 HC464BLS

Video Block Diagram ( W,X,Z,AA,AB,AC,AD,AE )

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.
(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER

" " = SMD

MAIN CBA

HOLES OF THE PCB.
(WIRE IS SOLDERED DIRECTLY.)

IC501 (OSD)

OSD
CHARACTER

52

MIX

IC301

Q351

BUFFER

(Y/C SIGNAL PROCESS)

COLOR

-IN

TEST POINT INFORMATION

:INDICATES A TEST POINT WITH A JUMPER WIRE ACROSS A HOLE IN THE PCB.
:USED TO INDICATE A TEST POINT WITH A COMPONENT LEAD ON FOIL SIDE.
:USED TO INDICATE A TEST POINT WITH NO TEST PIN.
:USED TO INDICATE A TEST POINT WITH A TEST PIN.

TO SERVO/SYSTEM
CONTROL BLOCK

50

55

W,X,Z,AA,
AB,AD,AE

65

DAVN-L
I2C BUS SDA
I2C BUS SCL

Comparison Chart of
Models & Marks

Model Mark

VR530/58

REC-VIDEO SIGNAL

PB-VIDEO SIGNAL MODE: SP/REC

VR630/58
VR330/58

DAVN-L
I2C BUS-SDA
I2C BUS-SCL
OSD-V-IN

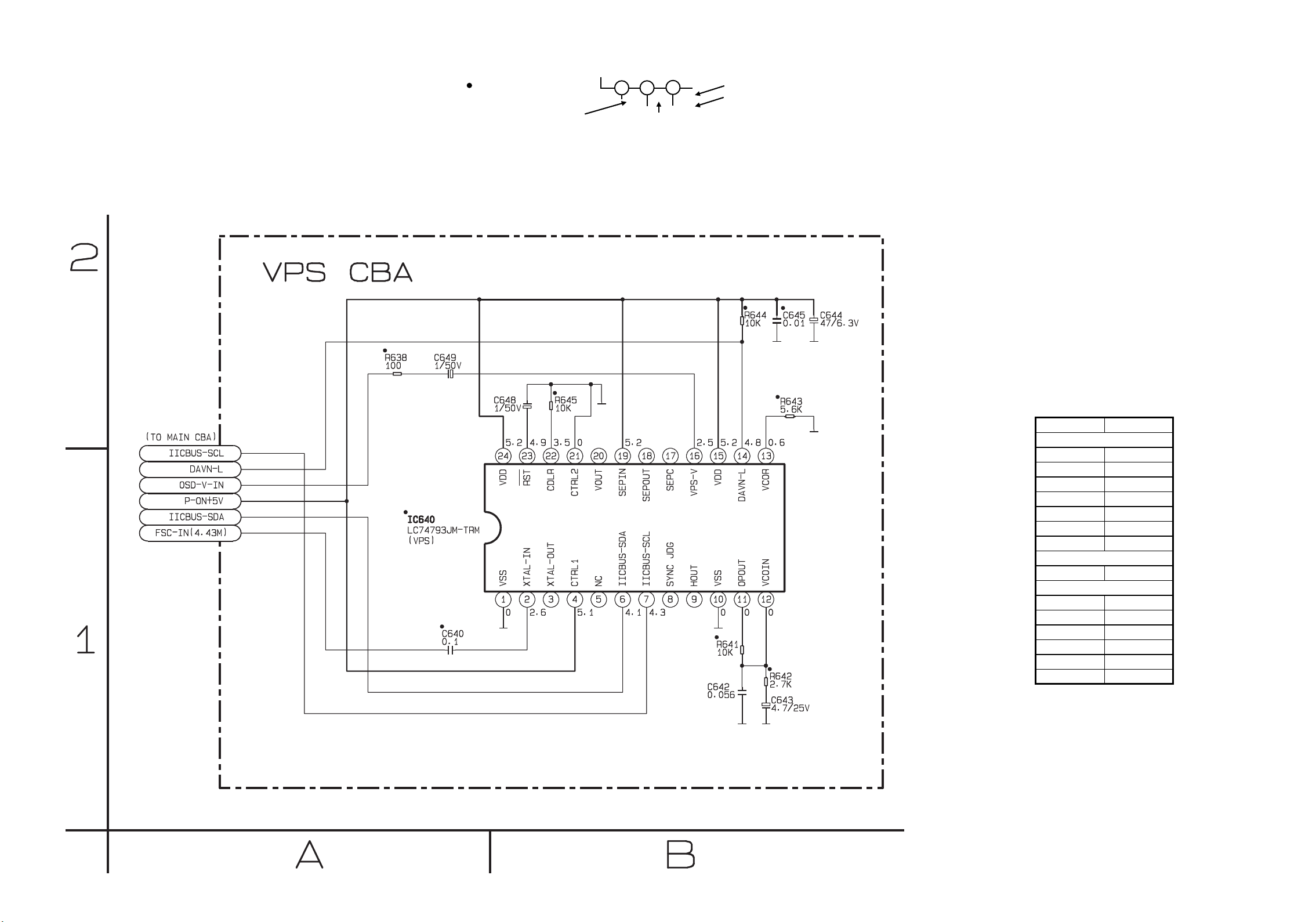

IC640 (VPS)

DAVN-L

14

6

I2C BUS SDA

7

I2C BUS SCL

VPS-V

16

VPS CBA

VR730/58
VR732/58
VR830/58
VRQ45/16
VRQ45/39
VRQ45/58

69684643

7978

W
X
Y

Z
AA
AB
AC
AD
AE

V-OUT1

V-IN1

V-OUT2

V-IN2

W,X,Z,AA,
AB,AC,AD,
AE

SERVO/SYSTEM
CONTROL BLOCK

JACK CBA

JK101

19
20

JK102

19
20

TU701

Q101

BUFFER

Q102

BUFFER

TU-VIDEO

Z,AA,AB

JK756
V-IN-F

CL101

1

V-OUT1
V-IN1

3 3

CL102

1

V-OUT2
V-IN2 3

3

V-IN1TO
TU-VIDEO

VIDEO

24

6

CL151

1

CL152

1

WF1

TP751

V-OUT

48
50
52
54
56

61
63

TUNER

PB/EE

TUNER

IN1

PB/EE

MUTE

IN1

IN2

FRT

IN2

FRT

MUTE

BYPASS

CHARA.
INS.

AGC VXO

58 59

FBC

AGC

PR

Y. DELAY

1/2

LUMINANCE
SIGNAL
PROCESS

Y/C
MIX

SERIAL

DECORDER

CCD 1H DELAY

CHROMINANCE
SIGNAL
PROCESS

X301

4.43MHz

R

P

Y

REC FM

+

C

R P R P

252928 44

TP301

C-PB

WF5

AGC

PB-H OUT

21

SP

SP

HEAD
AMP

EP

EP
HEAD
AMP

D-REC-H

RF-SW/C-ROTA

D-V-SYNC

H-A-SW

H-A-COMP

V-ENV

C-SYNC

96
95
93
94

90
89
88
87

80

70
62
71
83
84
67

(DECK ASSEMBLY)

CL253

V(R)-1

V-COM

V(L)-1

V(L)-2

V-COM

V(R)-2

WF2

TP502

RF-SW

D-V-SYNC

H-A-COMP

IC370 (PAL/SECAM DECTECOTR)

28

1
29
17
14
18

2
16

1
2
3
4
5
6

D-REC-H

RF-SW

C-ROTA

H-A-SW

V-ENV

C-SYNC

TRICK-H

SECAM-H

PAL/SECAM
DETECTOR

TO SERVO/SYSTEM
CONTROL BLOCK

CYLINDER ASSEMBLY

VIDEO (R)-1
HEAD

VIDEO (L)-1
HEAD

VIDEO (L)-2
HEAD

VIDEO (R)-2
HEAD

AD

1-9-13 1-9-14 HC464BLV

Video Block Diagram ( Y )

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.
(CAN DISCONNECT AND RECONNECT.)

" " = SMD

MAIN CBA

SERVO/SYSTEM
CONTROL BLOCK

TU701

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER
HOLES OF THE PCB.
(WIRE IS SOLDERED DIRECTLY.)

V-IN1TO
TU-VIDEO

VIDEO

TU-VIDEO

24

Comparison Chart of

Q351

BUFFER

IC501 (OSD)

OSD
CHARACTER

52

MIX

IC301

(Y/C SIGNAL PROCESS)

TEST POINT INFORMATION

COLOR

-IN

:INDICATES A TEST POINT WITH A JUMPER WIRE ACROSS A HOLE IN THE PCB.
:USED TO INDICATE A TEST POINT WITH A COMPONENT LEAD ON FOIL SIDE.
:USED TO INDICATE A TEST POINT WITH NO TEST PIN.
:USED TO INDICATE A TEST POINT WITH A TEST PIN.

REC-VIDEO SIGNAL PB-VIDEO SIGNAL MODE: SP/REC

TO SERVO/SYSTEM
CONTROL BLOCK

50

55

65

DAVN-L
I2C BUS SDA
I2C BUS SCL

69684643

DAVN-L
I2C BUS-SDA
I2C BUS-SCL
OSD-V-IN

7978

IC640 (VPS)

DAVN-L

14

6

I2C BUS SDA

7

I2C BUS SCL

VPS-V

16

VPS CBA

(DECK ASSEMBLY)

Y. DELAY

LUMINANCE
SIGNAL
PROCESS

6

48
50

TUNER

IN1

BYPASS

AGC

SERIAL

DECORDER

CL253

R

P

HEAD
AMP

96
95
93
94

V(L)

V-COM

V(R)

1
2
3

Models & Marks

Model Mark

VR530/58
VR630/58
VR330/58
VR730/58
VR732/58
VR830/58
VRQ45/16
VRQ45/39
VRQ45/58

CYLINDER ASSEMBLY

W
X
Y

Z
AA
AB
AC
AD
AE

VIDEO (L)
HEAD

VIDEO (R)
HEAD

V-OUT1

V-IN1

JACK CBA

JK101

19
20

Q101

BUFFER

CL101

1

V-OUT1
V-IN1

3 3

CL151

1

WF1

TP751

V-OUT

56

61

PB/EE

MUTE

CHARA.
INS.

1/2

FBC

PR

AGC VXO

58 59

Y/C
MIX

CCD 1H DELAY

CHROMINANCE
SIGNAL
PROCESS

2928

X301

4.43MHz

Y

+

C

R P R P

21

TP301

C-PB

WF5

REC FM
AGC

D-REC-H

RF-SW/C-ROTA

D-V-SYNC

V-ENV

C-SYNC

80

70
62
84
67

WF2

TP502

RF-SW

D-REC-H

RF-SW

C-ROTA

D-V-SYNC

V-ENV

C-SYNC

TO SERVO/SYSTEM
CONTROL BLOCK

1-10-15 1-10-16 HC268BLV

Audio Block Diagram ( W,X,Z,AA,AB,AC,AD,AE )

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.
(CAN DISCONNECT AND RECONNECT.)

" " = SMD

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER
HOLES OF THE PCB.
(WIRE IS SOLDERED DIRECTLY.)

TEST POINT INFORMATION

:INDICATES A TEST POINT WITH A JUMPER WIRE ACROSS A HOLE IN THE PCB.
:USED TO INDICATE A TEST POINT WITH A COMPONENT LEAD ON FOIL SIDE.
:USED TO INDICATE A TEST POINT WITH NO TEST PIN.
:USED TO INDICATE A TEST POINT WITH A TEST PIN.

MAIN CBA

Comparison Chart of Models & Marks

Model Mark

VR530/58
VR630/58
VR330/58
VR730/58
VR732/58

PB-AUDIO SIGNAL REC-AUDIO SIGNAL Mode : SP/REC

W
X
Y
Z

AA

Model Mark

VR830/58
VRQ45/16
VRQ45/39
VRQ45/58

AB
AC
AD
AE

TO Hi-Fi
AUDIO BLOCK

(DECK ASSEMBLY)

ACE HEAD ASSEMBLY

AUDIO
HEAD

AUDIO
ERASE
HEAD

N-A-PB
N-A-REC

CL287
A-PB/REC 4
A-COM 3
AE-H 1
AE-H/FE-H 2

CL504
4 A-PB/REC
3 A-COM
1 AE-H
2 AE-H/FE-H

Q401

Q402

BIAS
OSC

+5V

Q406

IC301

(AUDIO SIGNAL PROCESS) 1513 17

TUNER IN2

INV

R

98

ATT

P

REC
AMP

5
6

1
2

PB-ON

EQ
AMP

SP/LP-ON

AUTO
BIAS

7

3

100

IN1

ALC

DET

ALC

LINE
AMP

REC-ON

MUTE

12

11

FULL
ERASE
HEAD

FE HEAD

SERIAL

DECODER

68 69

71

I2C BUS-SDA

I2C BUS-SCL

A-MUTE-H

TO SERVO/SYSTEM
CONTROL BLOCK

CL501
2 FE-H
1 FE-H-GND

Q404 (PB=ON)

Q403

Q405
(PB=ON)

SWITCHING
D-REC-OFF

+5V

AUDIO HD-SW
CONTROL

16

1-9-17 1-9-18 HC464BLA

Audio Block Diagram ( Y )

" " = SMD

Comparison Chart of Models & Marks

Model Mark

VR530/58
VR630/58
VR330/58
VR730/58
VR732/58

A-IN1(R)
A-IN1(L)
A-OUT1(R)
A-OUT1(L)

2
6
1
3

W
X
Y
Z

AA

JACK CBA

JK101

Model Mark

VR830/58
VRQ45/16
VRQ45/39
VRQ45/58

CL101

8
6

AB
AC
AD
AE

A-IN1
A-OUT1

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.

(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER

HOLES OF THE PCB.

(WIRE IS SOLDERED DIRECTLY.)

TU701

TU-AUDIO

CL151

8
6

21

TEST POINT INFORMATION

:INDICATES A TEST POINT WITH A JUMPER WIRE ACROSS A HOLE IN THE PCB.
:USED TO INDICATE A TEST POINT WITH A COMPONENT LEAD ON FOIL SIDE.
:USED TO INDICATE A TEST POINT WITH NO TEST PIN.
:USED TO INDICATE A TEST POINT WITH A TEST PIN.

PB-AUDIO SIGNAL REC-AUDIO SIGNAL Mode : SP/REC

MAIN CBA

J911

(DECK ASSEMBLY)

ACE HEAD ASSEMBLY

AUDIO
HEAD

AUDIO
ERASE
HEAD

FE HEAD

FULL
ERASE
HEAD

CL287
A-PB/REC 4
A-COM 3
AE-H 1
AE-H/FE-H 2

CL504
4 A-PB/REC
3 A-COM
1 AE-H
2 AE-H/FE-H

CL501
2 FE-H
1 FE-H-GND

Q401

Q402

BIAS
OSC

Q404
(PB=ON)

Q405
(PB=ON)

+5V

Q406

Q403

13
15

5
6

1
2

SWITCHING
D-REC-OFF

+5V

IC301 (AUDIO SIGNAL PROCESS)

TUNER

IN1

PB-ON

EQ
AMP

SP/LP-ON

7

AUTO
BIAS

3

98

100

INV

R

ATT

P

REC
AMP

AUDIO HD-SW
CONTROL

16

ALC

DET

ALC

LINE
AMP

REC-ON

SERIAL

DECODER

68 69

MUTE

71

A-MUTE-H
I2C BUS-SDA
I2C BUS-SCL

12

11

TO SERVO/SYSTEM
CONTROL BLOCK

1-9-19 1-9-20 HC268BLA

Hi-Fi Audio Block Diagram ( W,X,Z,AA,AB,AC,AD,AE )

" " = SMD

A-IN1(R)
A-IN1(L)
A-OUT1(R)
A-OUT1(L)

A-IN2(R)
A-IN2(L)
A-OUT2(R)
A-OUT2(L)

JK101

2
6
1
3

JK102

2
6
1
3

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.
(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER
HOLES OF THE PCB.
(WIRE IS SOLDERED DIRECTLY.)

CL101

CL102

10

A-IN1(R)
A-IN1(L) 8

8
6

A-OUT1(R)
A-OUT1(L) 12

12

9

A-IN2(R)
A-IN2(L) 8

8
6

A-OUT2(R)
A-OUT2(L) 11

11

CL151

10

6

CL152

9

6

TEST POINT INFORMATION

:INDICATES A TEST POINT WITH A JUMPER WIRE ACROSS A HOLE IN THE PCB.
:USED TO INDICATE A TEST POINT WITH A COMPONENT LEAD ON FOIL SIDE.
:USED TO INDICATE A TEST POINT WITH NO TEST PIN.
:USED TO INDICATE A TEST POINT WITH A TEST PIN.

FRONT

A-OUT(R)

A-OUT(L)

JK751

MAIN CBA

REC-AUDIO SIGNALPB-AUDIO SIGNAL Mode : SP/REC

Comparison Chart of
Models & Marks

Model Mark

VR530/58
VR630/58
VR330/58
VR730/58
VR732/58
VR830/58
VRQ45/16
VRQ45/39
VRQ45/58

W
X
Y

Z
AA
AB
AC
AD
AE

JACK CBA

TU701

21

TU-AUDIO

22

SIF

Z,AA,AB

JK758
A-IN(R)

FRONT

JK757
A-IN(L)

CN701 CN1

2

SIF
TU-AUDIO 1

1

2

AUDIO

2

AFV CBA

IF SINAL
PROCESS

TO AUDIO BLOCK

4

TU-AUDIO(R)
TU-AUDIO(L)

5

N-A-REC
N-A-PB

Z,AA,AB,AC,AD,AE

IC451 (MTS/ SAP/ Hi-Fi AUDIO PROCESS/ Hi-Fi HEAD AMP)

76
75

SW

SW

P

R

LIM DEV

LIM DEV

R

P

SW
NOISE

SW
NOISE

COMP

VCO

OUTPUT
SELECT

HOLD
PULSE

NOISE
DET

VCO

COMP

R-CH BPF

LPF

MIX

LPF

L-CH BPF

ALC

ALC

D.C.

D.C.

69
73
71
51
65

67

7

11

9

53

CN701CN1

4
5

6
4

R-CH
INSEL

NOR
SW

L-CH
INSEL

48

13

R-CH
PNR

47

14

L-CH
PNR

LIM

DO
DET

COMP

SERIAL
DATA
DECODER

ENV
DET

ALC

31 30

MUTE

38
39

Q451

23

80

2

78

40

26

R

L

24

27

Hi-Fi-A(R) 7
Hi-Fi-COM 8
Hi-Fi-A(L) 9

I2C-BUS SDA

I2C-BUS SCL

W,X,Z,AA,
AB,AC,AE

Hi-Fi-H-SW

CL253

A-MODE

TO
SERVO/ SYSTEM
CONTROL BLOCK

CYLINDER
ASSEMBLY

Hi-Fi
AUDIO
(R) HEAD

Hi-Fi
AUDIO
(L) HEAD

1-9-21 1-9-22

HC464BLH

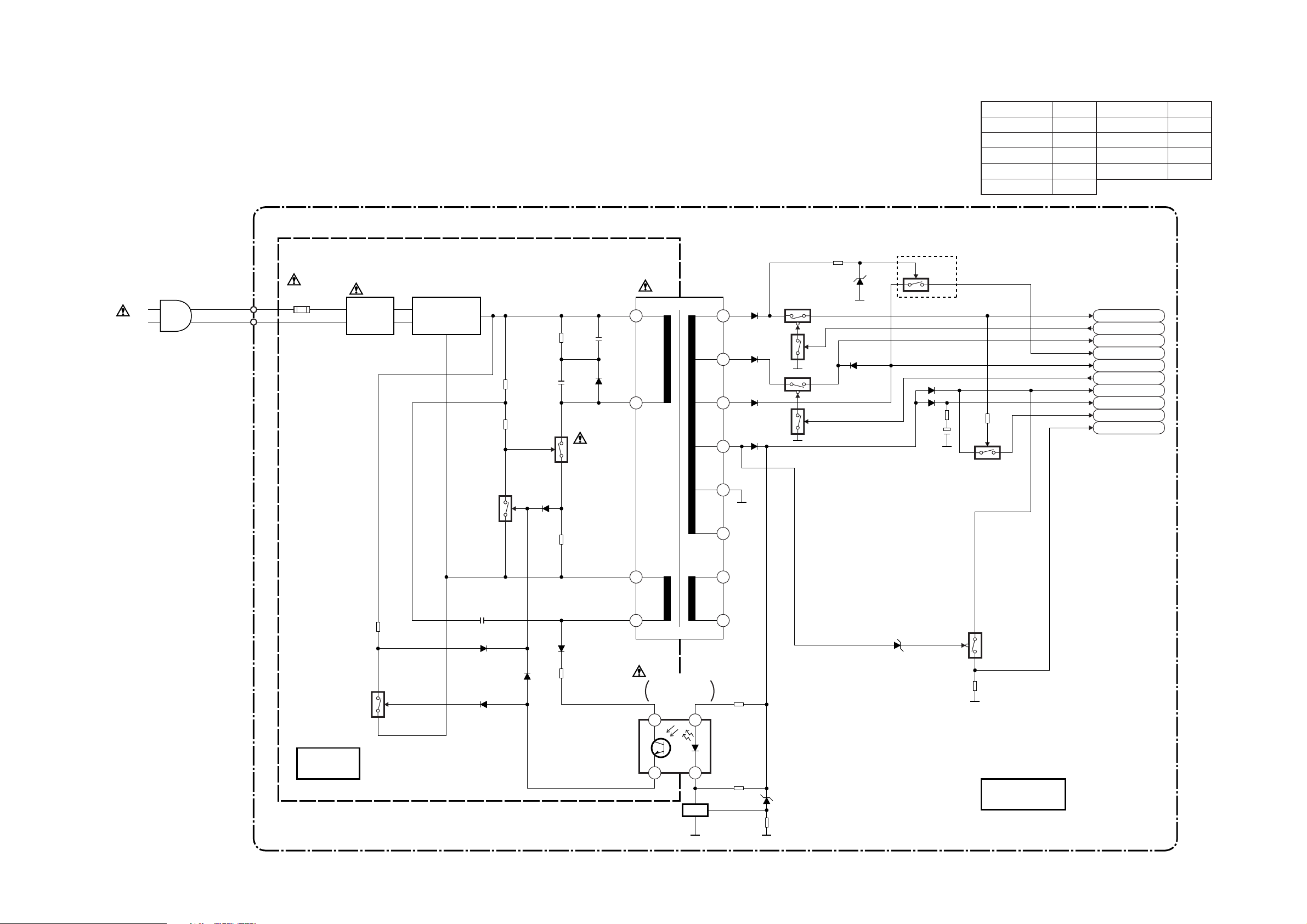

Power Supply Block Diagram

NOTE :
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE T1.6AL/250V FUSE.

CAUTION !

Fixed voltage (or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

Comparison Chart of Models & Marks

Model Mark

VR530/58
VR630/58
VR330/58
VR730/58
VR732/58

W
X
Y
Z

AA

Model Mark

VR830/58
VRQ45/16
VRQ45/39
VRQ45/58

AB
AC
AD
AE

AC001

HOT CIRCUIT. BE CAREFUL.

F001
T1.6A L 250V

L003

LINE
FILTER

D001 - D004

BRIDGE
RECTIFIER

Q002

Q001

MAIN CBA

W,X,Z,AA,AB,AC,AD,AE

T001

Q051

2

4

12

Q052

13

Q057

14

Q058

15

16

11

Q053

P-ON+44V
P-ON-H
AL+15V/+12V
AL+9V
AL+12V
C-POW-SW
AL+5V
TIMER+5V
P-ON+5V
P-DOWN-L

Q054

Q003

HOT

1-9-23 1-9-24

7

6

IC001

ERROR
VOLTAGE DET

4

Q004

(SHUNT REGULATOR)

17

18

Q056

1

23

COLD

REG

HC464BLP

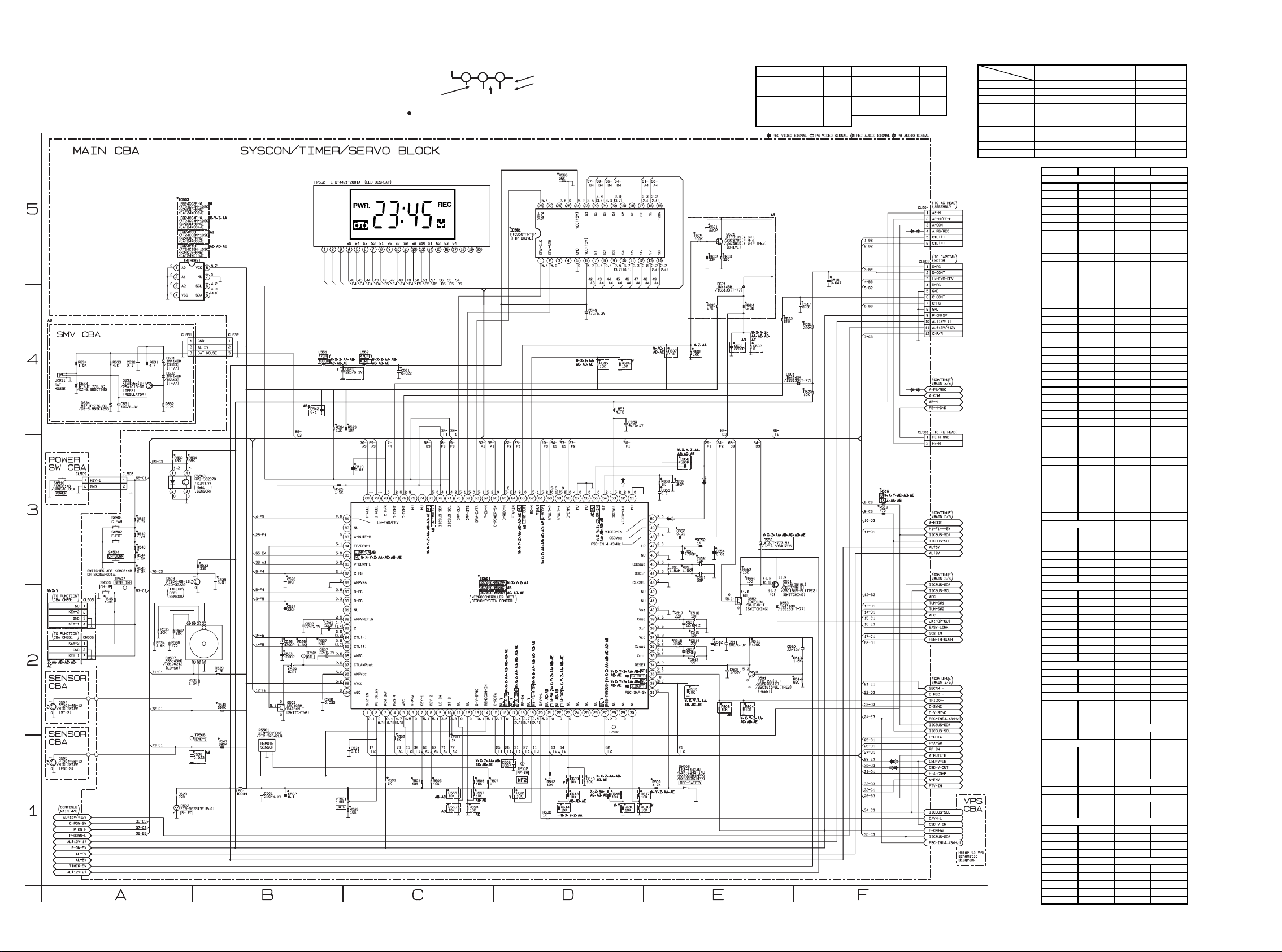

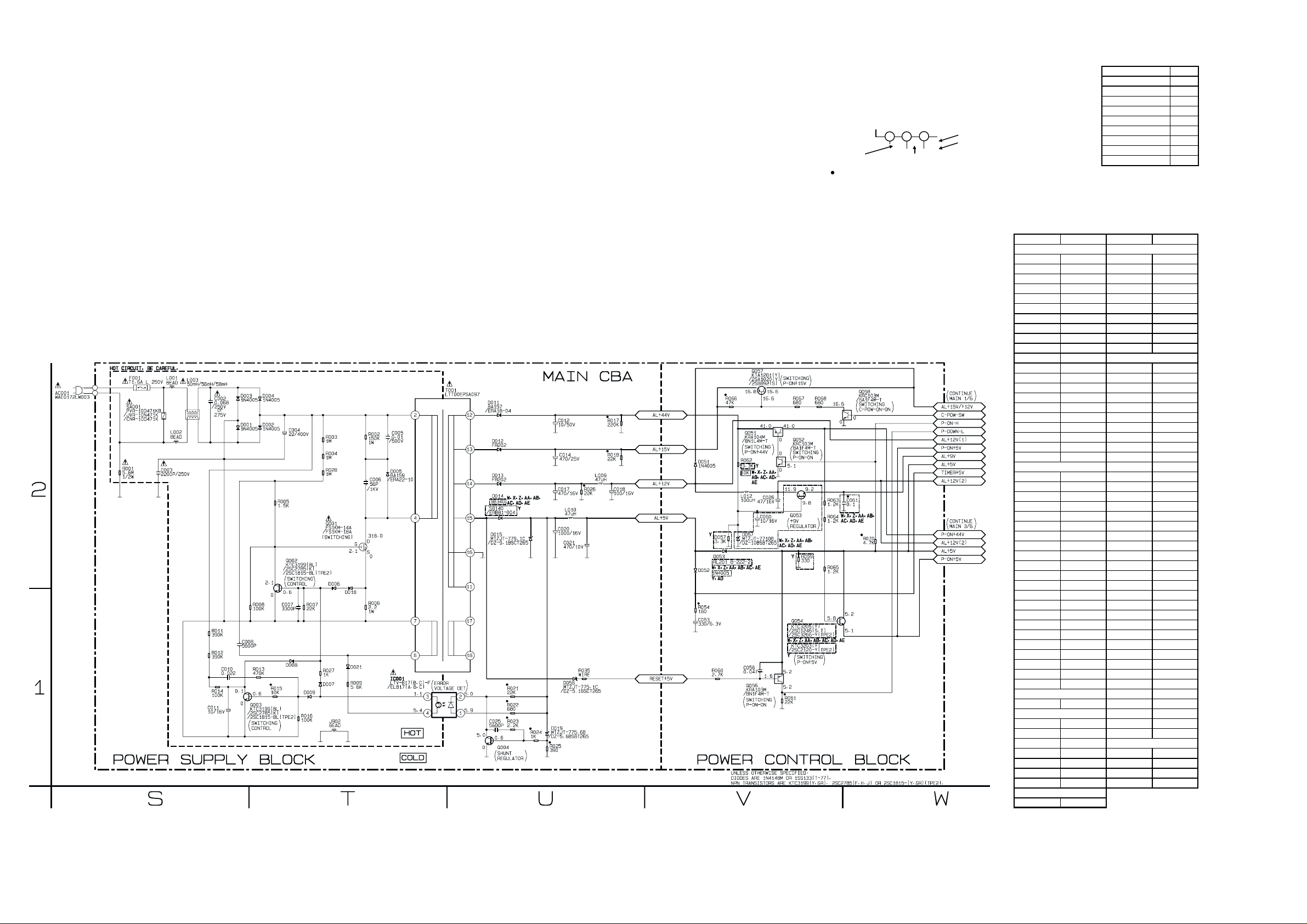

Main 1/6 Schematic Diagram

1-10-51

MODE: SP/REC

THE SAME VOLTAGE FOR
BOTH PLAY & REC MODES.
“ “ = SMD

2

1

3

5.0

~

INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.

5.0
(2.5)

PLAY MODE
REC MODE

Comparison Chart of Models and Marks

MODEL M ARK MODEL MARK

VR530/58 W VR830/58 AB
VR630/58 X VRQ45/16 AC
VR330/58 Y VRQ45/39 AD
VR730/58 Z VRQ45/58 AE
VR732/58 AA

IC501 KEY VOLTAGE CHART

0.00 ~ 0.51V POWER ----------------------- -----------------------

0.51 ~ 0.92V ----------------------- RE W REW

0.92 ~ 1.27V CLEAR PLAY PLAY

1.27 ~ 1.61V EJE CT FF FF

1.61 ~ 1.98V CH DOWN PA USE -----------------------

1.98 ~ 2.39V S-INH ----------------------- -----------------------

2.39 ~ 2.90V ----------------------- S TOP/EJECT ST OP/E JECT

2.90 ~ 3.60V ----------------------- ----------------------- -----------------------

3.60 ~ 4.30V ----------------------- ----------------------- -----------------------

4.30 ~ 5.00V KEY OFF KEY OFF KEY OFF

KEY 1 (7PIN) KEY 2 (8 PIN) KEY 2 (8 PIN)

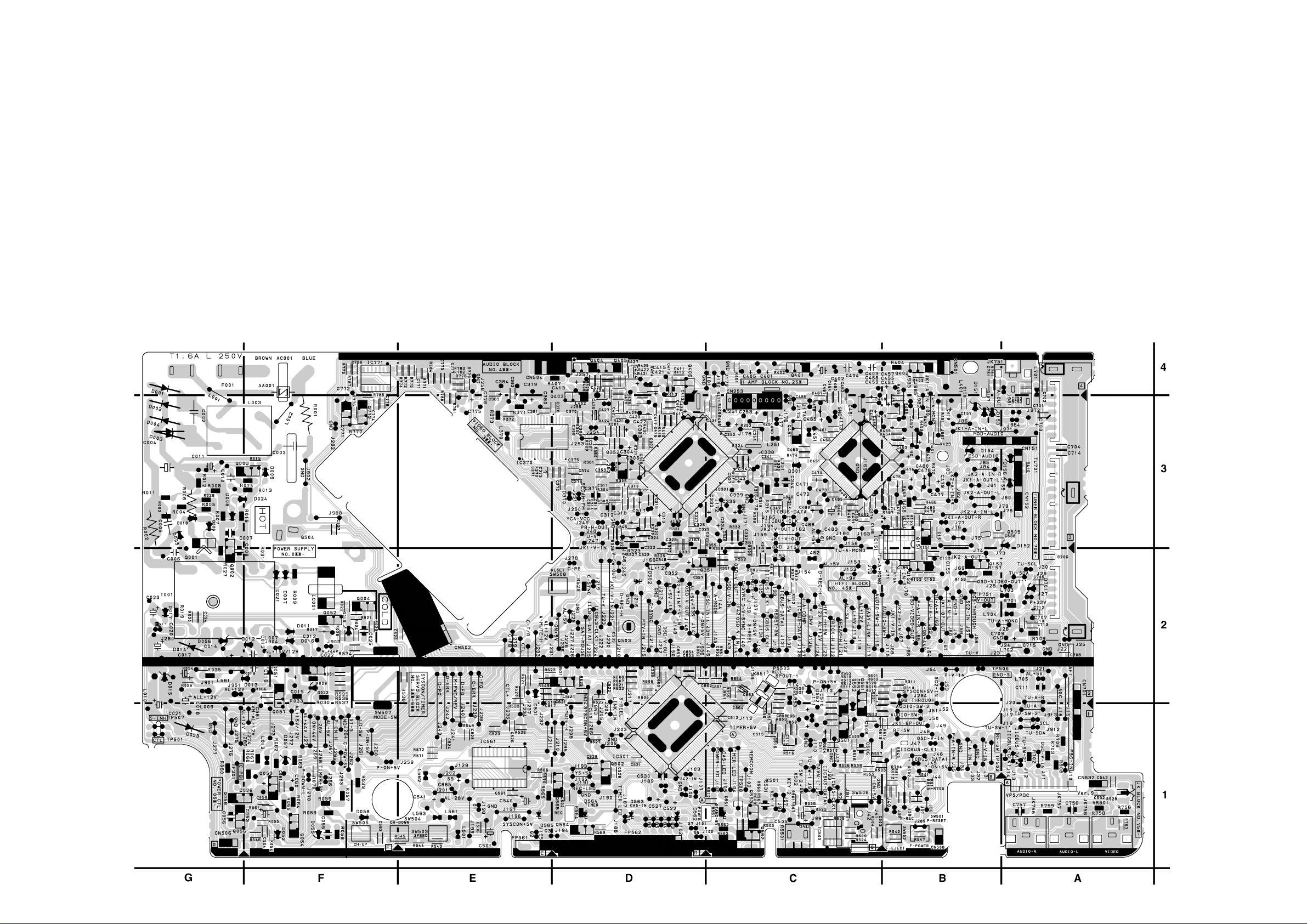

MAIN 1/6 Schematic Diagram Parts Location Guide

Ref No. Position Ref No. Position

CL501 F-4 R605 D-4
CL502 F-5 R606 D-4
CL504 F-5 R607 E-4
CL505 A-2 R608 E-4
CL508 A-3 R609 D-1
CL509 A-3 R610 D-1

CN506 A-2 R612 D-1

(W,X,Y,Z,AA,AB) (AC,AD,AE)

C501 B-1 R511 E-2
C502 B-1 R513 F-2
C506 D-1 R514 F-2
C508 E-2 R516 E-2
C510 E-2 R517 E-2
C511 E-2 R518 F-3
C512 E-2 R519 F-3
C513 E-2 R520 F-4
C514 E-2 R521 F-4
C515 E-2 R522 E-4
C516 E-2 R523 C-4
C517 F-4 R524 B-4
C518 F-5 R525 B-3
C519 C-3 R526 B-2
C520 B-3 R527 B-2
C521 B-2 R528 C-1
C522 B-2 R529 A-1
C523 B-2 R530 A-3
C524 B-2 R531 A-3
C526 B-2 R533 B-3
C527 B-2 R534 A-2
C529 B-2 R535 A-2
C530 B-2 R536 A-2
C531 C-1 R537 A-2
C535 B-3 R538 B-2
C538 B-1 R539 B-2
C540 D-4 R540 B-2
C541 C-4 R541 B-1
C542 B-4 R542 A-3
C561 C-4 R543 A-3
C621 E-5 R544 A-3
C622 E-4 R545 A-2
C631 A-4 R546 A-2
C632 A-4 R547 A-3
C851 E-3 R551 E-3
C852 E-3 R552 E-3
C853 E-3 R555 C-1
C854 E-3 R556 C-1
C855 E-3 R557 C-1
C856 E-3 R558 C-1
C858 E-3 R566 D-5
C859 D-4 R601 D-1
C862 E-3 R603 E-2

CONNECTORS

DIODE S
D501 E-4 R614 D-1
D502 A-1 R615 D-1
D552 E-3 R616 D-1
D553 E-2 R617 D-1
D621 E-5 R618 D-1
D631 A-4 R621 E-5
D632 A-4 R622 E-5
D633 A-4 R623 E-5
D634 A-4 R624 E-4

ICS
IC501 C-3 R631 A-4
IC503 A-5 R632 A-4
IC561 D-5 R633 A-4

COILS
L501 B-1 R851 E-3
L561 B-4 R852 E-3
L562 C-4 R853 E-3
L851 E-3
L853 D-4 SW501 A-3

TRANSISTORS
Q501 E-2 SW504 A-3
Q502 B-2 SW505 A-2
Q503 A-3 SW506 E-1
Q504 A-2 SW507 A-2
Q505 A-1
Q551 E-3 VR501 B-1
Q552 E-2
Q621 E-5 X501 E-2
Q631 A-4 X502 E-2

RESISTORS
R501 C-1 FP562 B-5
R502 C-1 JK631 A-4
R503 C-1 PS503 B-3
R504 C-1 RS501 B-2
R505 C-1
R506 C-1 TP501 B-2
R507 C-1 TP502 D-1
R508 D-1 TP506 B-2
R509 E-1 TP507 A-2
R510 E-2 TP508 D-1

RESISTORSCAPACITORS

R604 E-2

R613 D-1

R625 E-4

R634 A-4

SWITCHES

SW502 A-3

VARIABLE RESISTORS

CRYSTAL OSCILLATORS

MISCELLANEOUS

TEST POINTS

1-10-52 1-10-53 HC464SCM1

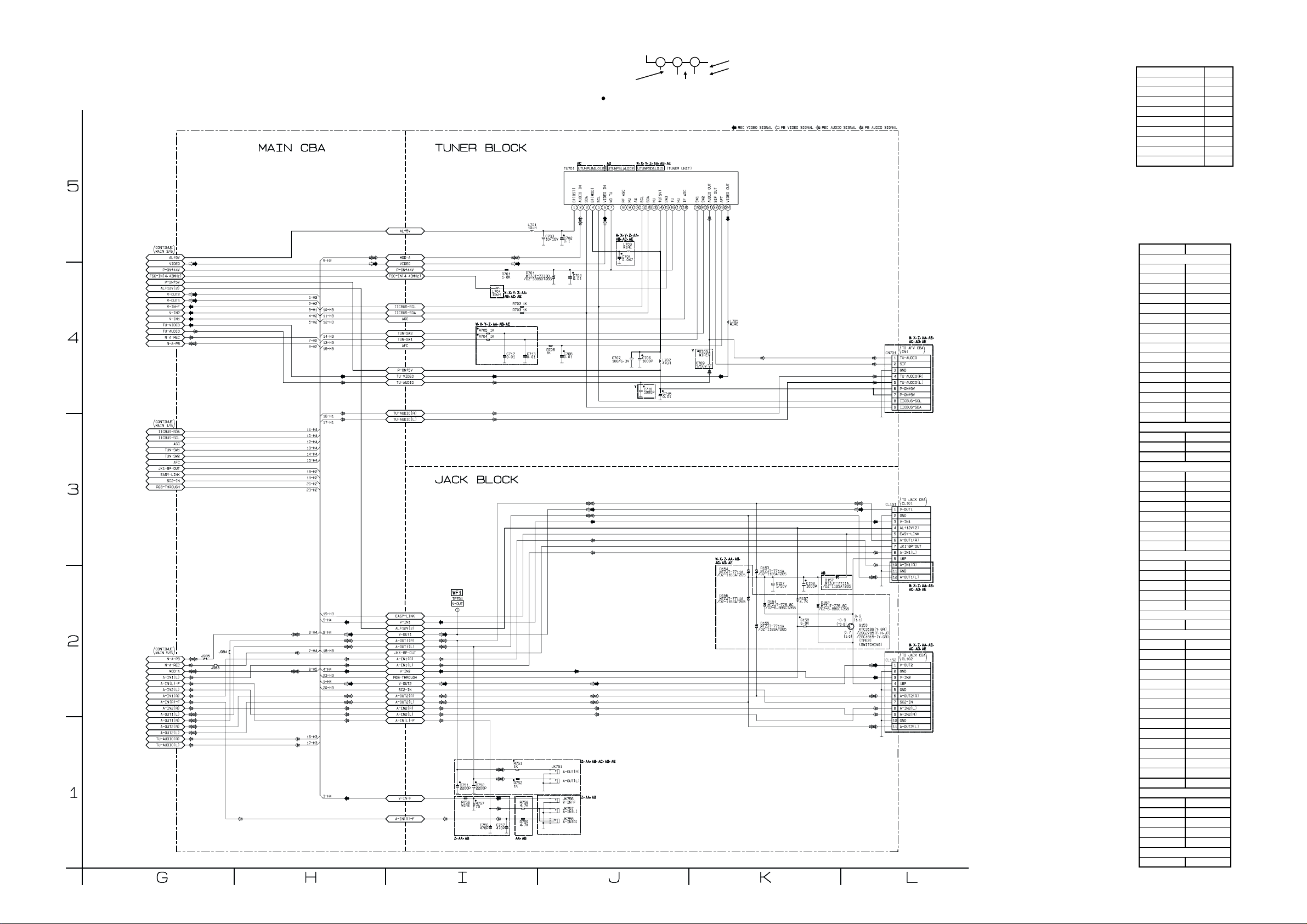

Main 2/6 Schematic Diagram

MODE: SP/REC

THE SAME VOLTAGE FOR

BOTH PLAY & REC MODES.

“ “ = SMD

2

1

3

5.0

~

INDICATES THAT THE VOLTAGE

IS NOT CONSISTENT HERE.

5.0

(2.5)

PLAY MODE

REC MODE

Comparison Chart of
Models and Marks

MODEL M ARK

VR530/58 W
VR630/58 X
VR330/58 Y
VR730/58 Z
VR732/58 AA

VR830/58 AB
VRQ45/16 AC
VRQ45/39 AD
VRQ45/58 AE

MAIN 2/6 Schematic Diagram
Parts Location Guide

Ref No. P ositi on

CAPACITORS
C157 K-2
C158 K-2
C701 J- 5

C702 J- 5
C703 J- 5

C704 J- 4
C706 J- 4
C707 J- 4
C708 J- 4
C709 K-4
C710 J- 4
C712 I-4
C713 I-4
C715 J- 4
C751 I-1
C752 I-1

CONNECTORS
CL151 L- 3
CL152 L- 2

CN701 L-4

DIODES
D151 K-2
D152 K-2
D153 K-2
D154 K-2

D155 K-2
D156 K-2

D157 K-2
D701 I-4

COILS
L701 I -5
L702 J -4
L703 J -5
L704 I -4
L705 K- 4

TRANSISTOR

Q153 L-2

RESISTORS
R157 K-2
R158 K-2
R701 I-4
R702 I-4
R703 I-4
R704 I-4
R705 I-4
R706 J- 4
R709 K-4
R751 I-1
R752 I-1
R756 I-1
R757 I-1
R758 I-1
R759 I-1

MISCELLANEOUS
JK751 J-1
JK756 J-1
JK757 J-1
JK758 J-1
TU701 J-5

TEST POINT

TP751 I-2

1-10-54

1-10-55

1-10-56 HC464SCM2

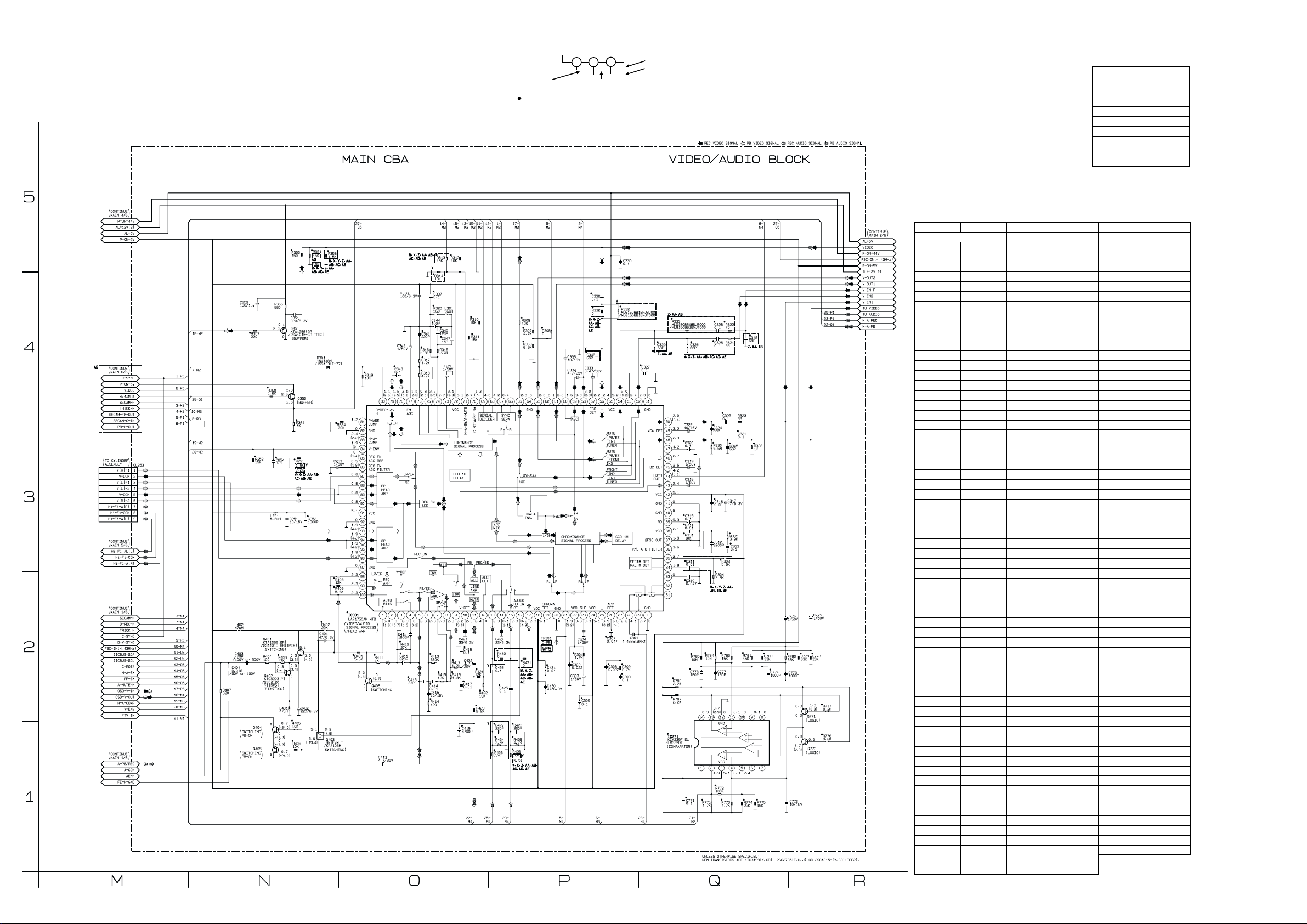

Main 3/6 Schematic Diagram

MODE: SP/REC

THE SAME VOLTAGE FOR

BOTH PLAY & REC MODES.

“ “ = SMD

2

1

3

5.0

5.0

~

(2.5)

INDICATES THAT THE VOLTAGE

IS NOT CONSISTENT HERE.

PLAY MODE

REC MODE

Comparison Cha rt of
Models and Marks

MODEL MARK

VR530/58 W
VR630/58 X
VR330/58 Y
VR730/58 Z
VR732/58 AA

VR830/58 AB
VRQ45/16 AC
VRQ45/39 AD
VRQ45/58 AE

MAIN 3/6 Schematic Diagram Parts Location Gui de

Ref No. Posi tion Ref No. Positi on

CAPACITORS CAPACITORS
C251 N-3 C422 O- 2
C252 N-3 C423 P-2
C253 O- 3 C424 P-2
C254 N-3 C425 P-2
C302P-2C427P-

C303P-2C428P-

1R328Q-3

1R330Q-3

C304P-2C430P-2

C305P-2C431P-2
C307 P-2 C756 I-1 R333 Q -4
C308 P-2 C757 I-1 R351 N- 5

C309 P-2 C771 Q-1
C310 Q- 2 C772 R-1
C311 Q- 3 C773 R-2
C312 Q- 3 C774 Q-2
C313 Q- 3 C775 R-2
C314 Q- 3 C776 Q-2
C315 Q- 3 C777 Q-2

C316 Q- 3 C778 Q-2
C317 Q- 3

CONNECTOR
C318 Q-3 CL253 M-3
C319 Q- 3

DIODE

C320 Q- 3 D301 N-4

C321 Q- 3

ICS

C322 Q- 3 IC301 O-2

C323 Q- 4 IC771 Q­C324 Q- 3

COILS

1 R409 O-2

C325 Q- 4 L251 N- 3
C326 Q- 4 L301 O -4
C327 Q- 4 L401 N- 2
C328 Q- 4 L402 N- 2
C329 Q- 4

TRANSISTORS
C330 P- 5 Q351 N-4
C332 P- 4 Q352 N-4
C333 P- 4 Q401 N-

2 R422 O- 2
C334 P- 4 Q402 N-2

C335 P- 4 Q403 N-1
C337 O-4 Q404 N-1
C338 O-4 Q405 N-1
C339 O-4 Q406 O-2
C340 O-4 Q771 R-2

C341 O-4 Q772 R-1
C342 O- 4

RESISTORS
C343 O- 4 R251 N-3
C344 O- 4 R252 N-3
C345 Q- 4 R301 P-2
C346P-4R302P-2
C347 O- 4 R303 Q-3
C348 Q- 4 R304 Q-2
C351 N-4 R305 Q- 3
C352 N-4 R306 P-4
C401 N-2 R307 P-4
C402 N-2 R308 P-4
C403 N-2 R309 P-4
C404 N-2 R310 O- 4

C411 O- 2 R311 O-4
C412 O- 2 R312 O-5

C413 O- 1 R313 O-

5 R786 Q-2
C414 O- 2 R314 O-4
C415 O- 2 R315 O-4
C416 O-2 R316 O-4
C417 O- 2 R317 O-4
C418 O-2 R318 O-4

C419 O- 1 R319 O-4
C421 O- 2 R320 O-4

Ref No. Positi on

TRANSISTORS
R321 Q- 4
R322 Q- 4
R323 Q- 4
R324 O- 3

R331Q-3

R332P-4

R352 N-5
R355 N-4
R357 N-4
R358 N-5
R360 N-4
R361 N-3
R401 O- 2

R402 N-2
R403 N-2

R404 N-2
R405 N-1
R406 N-1

R407 N-2
R408 O- 2

R411 O- 2
R412 O- 2
R413 O- 2
R414 O- 2
R415 O- 2
R416 O- 2

R417 O-2
R421 O-2

R423 P- 1

R424 P- 1
R425 P- 1
R426 P- 1
R429 O-2
R430 P- 2

R431 P- 2
R771 Q- 1

R772 Q- 1
R773 Q- 1
R774 Q- 1
R775Q-1
R776 R-2
R777 R-2
R778 R-2
R779 R-2
R780 Q- 2
R781 Q- 2
R782 Q- 2
R783 Q- 2

R784 Q- 2
R785 Q- 2

R787 Q- 2

CRYSTAL OSCILLATOR

X301 P -2

TEST POINT

TP301 P-2

1-10-57

1-10-58

1-10-59

HC464SCM3

Main 4/6 Schematic Diagram

CAUTION !

Fixed voltage power supply circuit is used in this
If Main Fuse (F001) is blown, check to see that all
circuit are not defective before you connect the A
Otherwise it may cause some components in the power

unit.
components in the power supply

C plug to the AC power supply.

supply circuit to fail.

NOTE :
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

CAUTION

FOR CONTINUED PROTECTION AGAINST
REPLACE ONLY WITH THE SAME TYPE FUSE.

FIRE HAZARD,

MODE: SP/REC

THE SAME VOLTAGE FOR

BOTH PLAY & REC MODES.

“ “ = SMD

2

1

3

5.0

5.0

~

(2.5)

INDICATES THAT THE VOLTAGE

IS NOT CONSISTENT HERE.

PLAY MODE

REC MODE

Comparison Cha rt of
Models and Marks

MODEL MARK

VR530/58 W
VR630/58 X
VR330/58 Y
VR730/58 Z
VR732/58 AA

VR830/58 AB
VRQ45/16 AC
VRQ45/39 AD
VRQ45/58 AE

MAIN 4/6 Schematic Diagram Parts Location Guide

Ref No. Positi on Ref No. Positi o

C002 S-2 Q002 T-2
C003 S-2 Q003 T-1
C004 T -2 Q004 U-1
C005 T -2 Q051 V-2
C006 T -2 Q052 V-2

C007 T -1 Q053 V-2
C008 S-1 Q054 V-1

C010 S-1 Q056 V-1
C011 S-1 Q057 V-2
C012 U-2 Q058 W-2

C014 U-2
C017U-2R001S-2
C018 U-2 R002 T-2
C020 U-2 R003 T-2
C021 U-2 R004 T-2
C025 U-1 R005 T­C026 V- 2 R006 T-1

C053 V- 1 R007 T-1
C056 V- 1 R008 T-1

C060 V- 2 R009 T-1
C061 W-2 R011 S-1

DIODES
D001 S- 2 R013 T­D002T-2R014S-1

D003 S- 2 R015 T-1
D004 T-2 R016 T -1
D005T-2R017U-2
D006T-2R018U-2
D007T-1R021U-1
D008T-1R022U-1
D009T-1R023U-1

D011U-2R024U-1
D012U-2R025U-1
D013U-2R026U-2
D014 U-2 R027 T-1

D015 U-2 R028 T-2
D018T-1R035U-1
D019U-1R054V-1
D021T-1R059V-2
D051V-2R060V-1

D052V-2R061V­D053V-2R062V-2

D056U-1R063V-2
D057V-2R064V-2

IC

IC001 T-1 R066 V -2

COILS
J902 T-1 R068 V -2
L001 S- 2 R070 W-2
L002 S- 2
L003 S-2 AC001 S-2
L009 U-2 F 001 S-2
L010 U-2 SA001 S-2
L012 V- 2 T001 T -2

TRANSISTORS

Q001 T-2

TRANSISTORSCAPACITORS

RESISTORS

2

R012 S- 1

1

1

R065 V- 2

R067 V- 2

MISCELLANEOUS

n

1-10-60

1-10-61

1-10-62

HC464SCM4

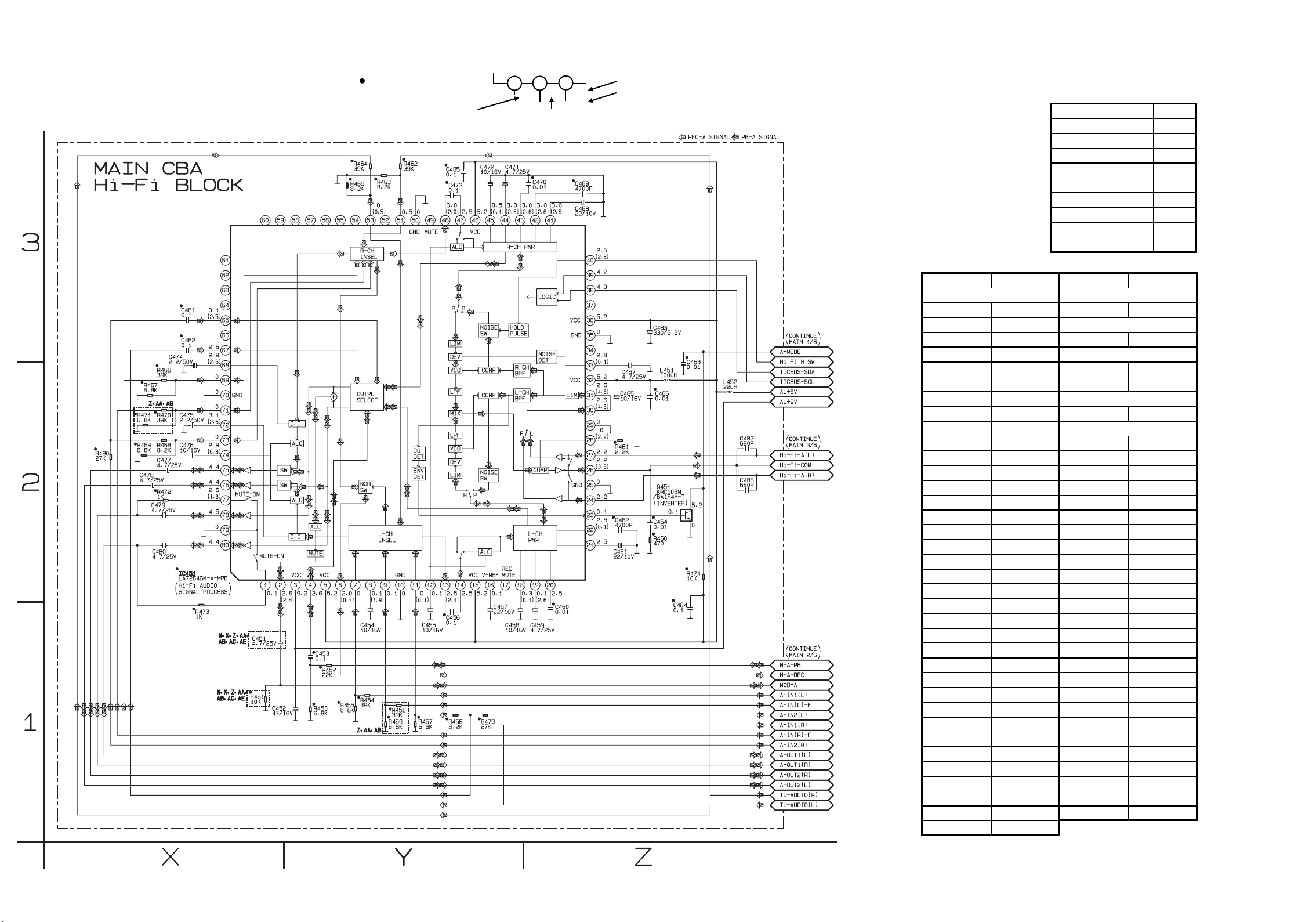

Main 5/6 Schematic Diagram ( W,X,Z,AA,AB,AC,AD,AE )

Comparison Chart of
Models and Marks

MODEL MARK

VR530/58 W
VR630/58 X
VR330/58 Y
VR730/58 Z
VR732/58 AA

VR830/58 AB
VRQ45/16 AC
VRQ45/39 AD
VRQ45/58 AE

MAIN 5/6 Schematic Diagram Parts Location Guide

Ref No. Position Ref No. Position

C451 X-1 C487 Z-2
C452 X-1
C453 Y-1 IC451 X-2
C454 Y-1
C455 Y-1 L451 Z-2

C456 Y-1 L452 Z-2
C457 Y-1

C458 Y-1 Q451 Z-2
C459 Z-1
C460 Z-1 R451 X-1

C461 Z-2 R452 Y-1
C462 Z-2 R453 Y-1
C463 Z-2 R454 Y-1
C464 Z-2 R455 Y-1
C465 Z-2 R456 Y-1
C466 Z-2 R457 Y-1
C467 Z-2 R458 Y-1

C468 Z-3 R459 Y-1
C469 Z-3 R460 Z-2

C470 Z-3 R461 Z-2
C471 Y-3 R462 Y-3
C472 Y-3 R463 Y-3

C473 Y-3 R464 Y-3
C474 X-3 R465 Y-3

C475 X-2 R466 X-2
C476 X-2 R467 X-2
C477 X-2 R468 X-2
C478 X-2 R469 X-2
C479 X-2 R470 X-2
C480 X-2 R471 X-2
C481 X-3 R472 X-2

C482 X-3 R473 X-1
C483 Z-3 R474 Z-2
C484 Z-1 R479 Y-1
C485 Y-3 R480 X-2
C486 Z-2

RESISTORS

IC

CAPACITORS

COILS

CAPACITORS

MODE: SP/REC

THE SAME VOLTAGE FOR

BOTH PLAY & REC MODES.

“ “ = SMD

1-10-63

2

1

5.0

3

5.0

~

(2.5)

INDICATES THAT THE VOLTAGE

IS NOT CONSISTENT HERE.

PLAY MODE

REC MODE

1-10-64

TRANSISTOR

HC464SCM5

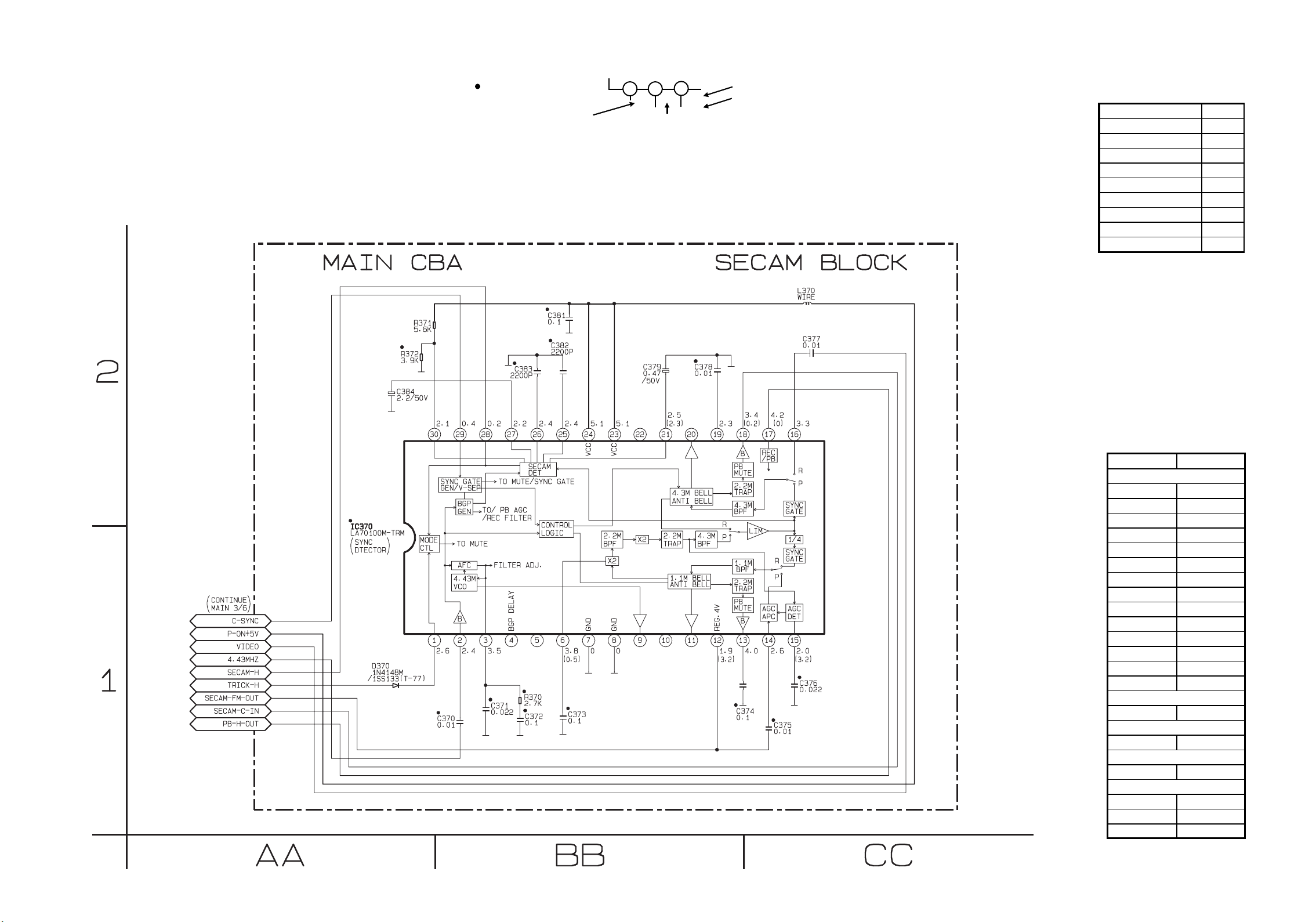

Main 6/6 Schematic Diagram ( AD )

MAIN 6/6 Schematic Diagram
Parts Location Guide ( AD )

Ref No. Position

C370 BB-1
C371 BB-1
C372 BB-1
C373 BB-1
C374 BB-1

C375 CC-1
C376 CC-1

C377 CC-2
C378 BB-2
C379 BB-2

C381 BB-2
C382 BB-2
C383 BB-2
C384 AA-2

D370 AA-1

IC370 AA-1

L370 CC-2

R370 BB-1

R371 AA-2
R372 AA-2

CAPACITORS

DIODE

RESISTORS

Comparison Chart of
Models and Marks

MODEL MARK

VR530/58 W

VR630/58 X

VR330/58 Y

VR730/58 Z

VR732/58 AA

VR830/58 AB
VRQ45/16 AC
VRQ45/39 AD
VRQ45/58 AE

“ “ = SMD

MODE: SP/REC

THE SAME VOLTAGE FOR

BOTH PLAY & REC MODES.

2

1

5.0

3

5.0

~

(2.5)

INDICATES THAT THE VOLTAGE

IS NOT CONSISTENT HERE.

PLAY MODE

REC MODE

1-10-65

1-10-66

IC

COILS

HC492SCM6

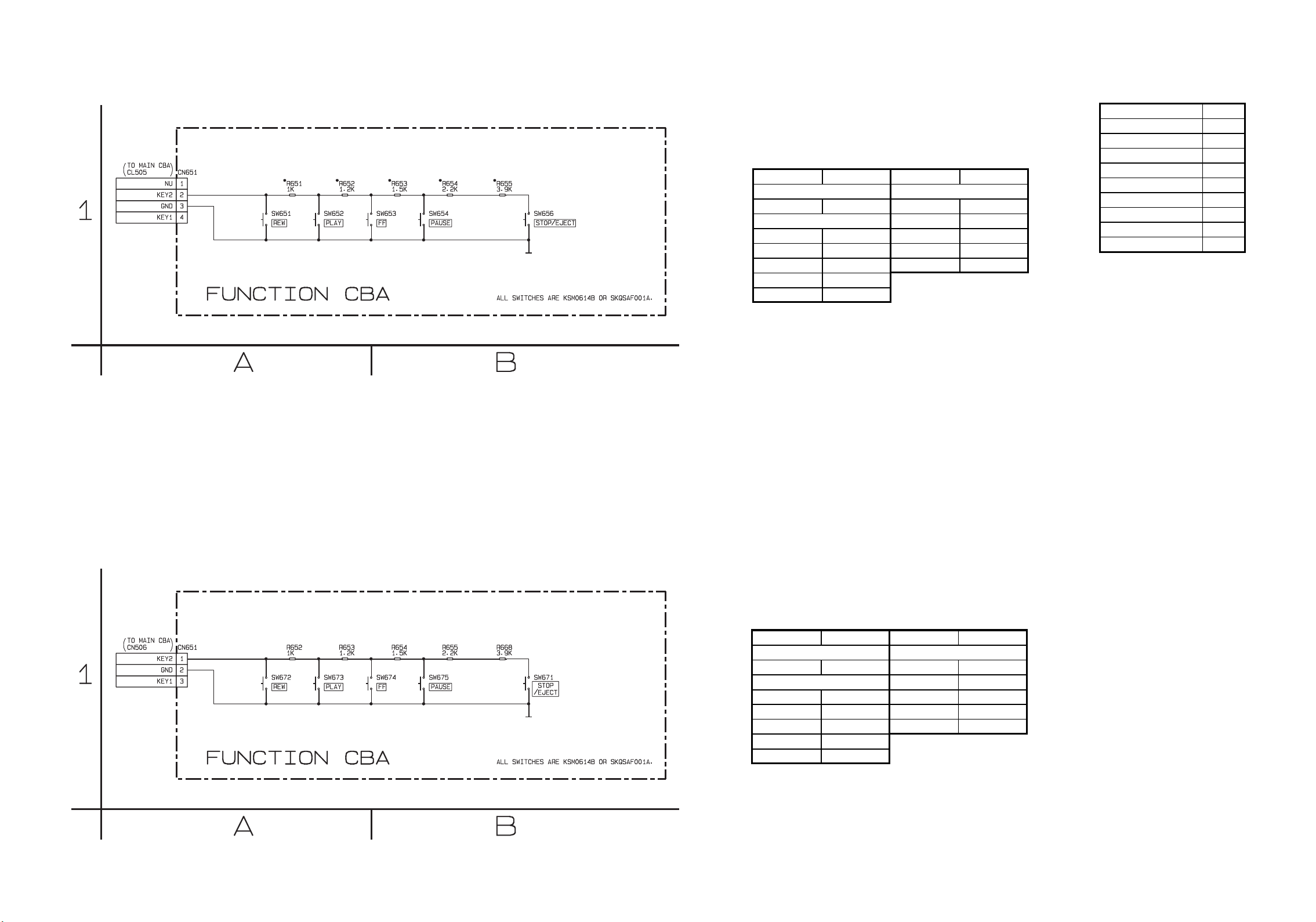

Function Schematic Diagram ( W,X,Y )

Function Sc hemati c Diagram Location Guide ( W,X,Y )

Ref No. Position Ref No. Posi ti on

CN651 A-1 SW651 A- 1

SW652 A-1
R651 A-1 SW653 B-1
R652 A-1 SW654 B-1
R653 B-1 SW656 B-1

R654 B-1
R655 B-1

SWITCHESCONNECTORS

RESISTORS

Function Sc hemati c Diagram Location Guide ( Z,AA )

Ref No. Position Ref No. Position

CN651 A-1 SW671 B- 1

SW672 A-1
R652 A-1 SW673 A-1
R653 A-1 SW674 B-1
R654 B-1 SW675 B-1

R655 B-1
R668 B-1

RESISTORS

CONNECTORS SWITCHES

Comparison Chart of
Models and Marks

MODEL MARK

VR530/58 W
VR630/58 X
VR330/58 Y
VR730/58 Z
VR732/58 AA

VR830/58 AB
VRQ45/16 AC
VRQ45/39 AD
VRQ45/58 AE

HC460SCF

Function Schematic Diagram ( Z,AA )

HC470SCF

1-10-67 1-10-68

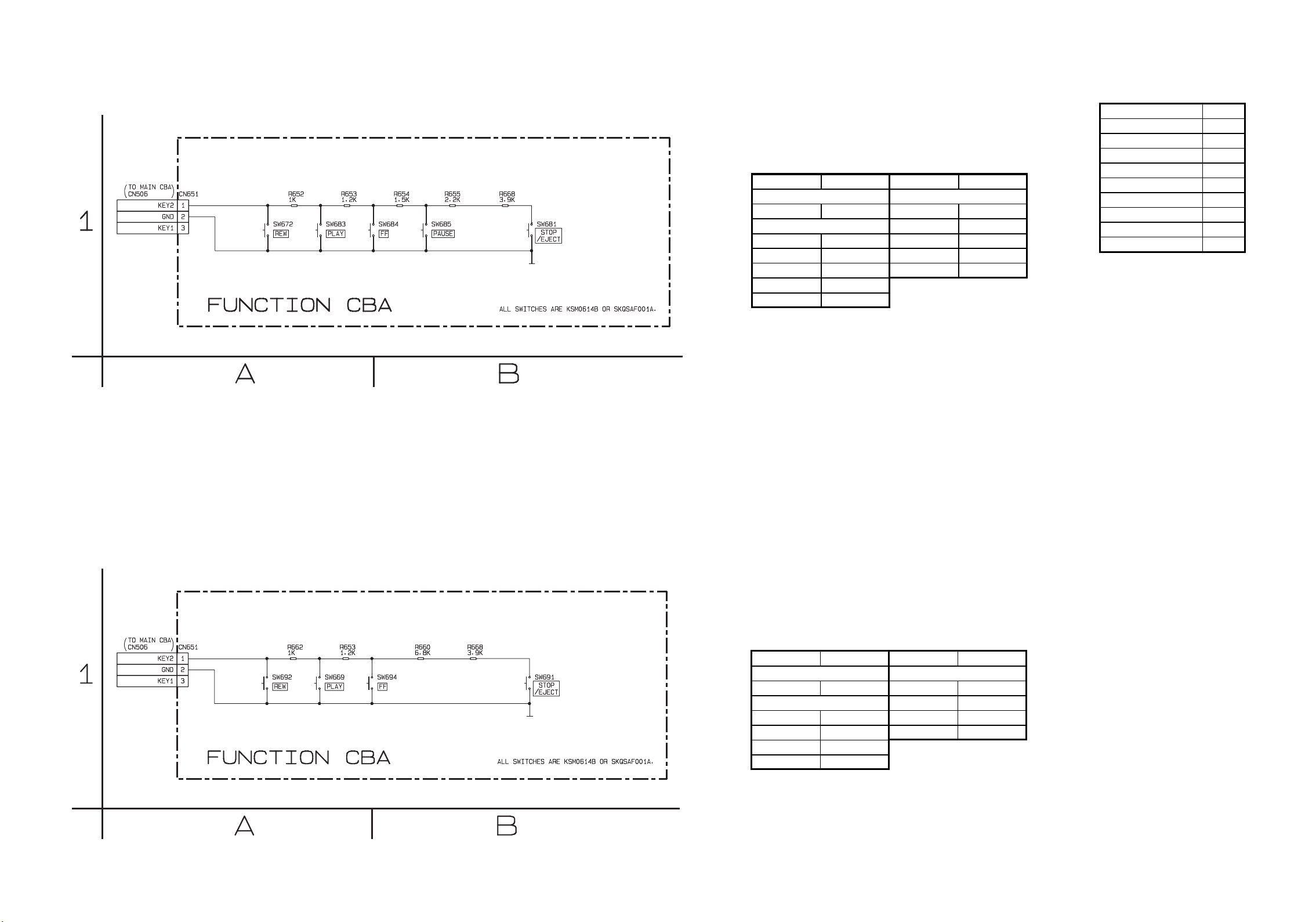

Function Schematic Diagram ( AB )

Func ti on Schemati c Diagram Location Guide ( A B )

Ref No. Posi ti on Ref No. Position

CN651 A-1 SW672 A -1

SW681 B-1
R652 A -1 SW683 A-1
R653 A -1 SW684 B-1
R654 B -1 SW685 B-1
R655 B-1
R668 B-1

RESISTORS

Function Schematic Diagram Location Guide ( AC,AD,AE )

Ref No. Position Ref No. Position

CN651 A-1 SW669 A-1

SW691 B-1
R660 B-1 SW692 A-1
R662 A-1 SW694 B-1

R663 A-1
R668 B-1

RESISTORS

Comparison Chart of
Models and Marks

MODEL MARK

VR530/58 W
VR630/58 X
VR330/58 Y
VR730/58 Z
VR732/58 AA

VR830/58 AB
VRQ45/16 AC
VRQ45/39 AD
VRQ45/58 AE

CONNECTORS SWITCHES

Function Schematic Diagram ( AC,AD,AE )

1-10-69

HC480SCF

CONNECTORS SWITCHES

HC490SCF

1-10-70

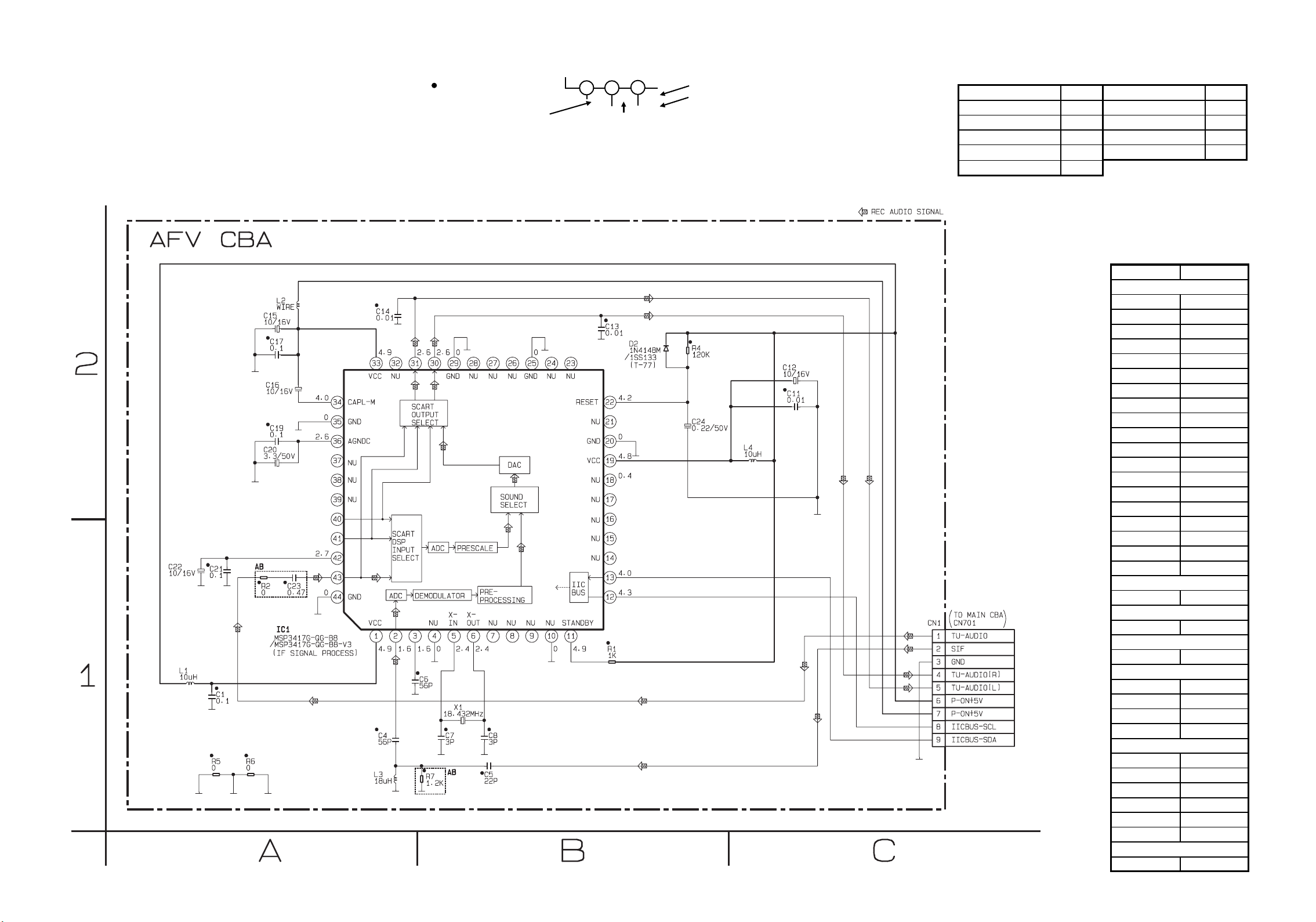

AFV Schematic Diagram ( W,X,Z,AA,AB,AC,AD,AE )

AFV Schematic Diagram
Parts Location Guide

Ref No. Posi ti on

C1 A-1
C4 A-1
C5 B-1
C6 B-1
C7 B-1

C8 B-1

C11 C-2

C12 C-2
C13 B-2
C14 A-2

C15 A-2
C16 A-2
C17 A-2
C19 A-2
C20 A-2
C21 A-1
C22 A-1

C23 A-1
C24 B-2

CN1 C-1

D2 B-2

IC1 A-1

L1 A-1
L2 A-2
L3 A-1
L4 C-2

R1 B-1
R2 A-1
R4 B-2
R5 A-1

R6 A-1
R7 B-1

X1 B-1

CAPACITORS

CONNECTOR

C

CRYSTAL OSCILLATORS

COILS

Comparison Chart of Models and Marks

MODEL MARK MODEL MARK

VR530/58 W VR830/58 AB
VR630/58 X VRQ45/16 AC
VR330/58 Y VRQ45/39 AD
VR730/58 Z VRQ45/58 AE
VR732/58 AA

“ “ = SMD

MODE: SP/REC

THE SAME VOLTAGE FOR

BOTH PLAY & REC MODES.

2

1

5.0

3

5.0

~

(2.5)

INDICATES THAT THE VOLTAGE

IS NOT CONSISTENT HERE.

PLAY MODE

REC MODE

DIODE

I

RESISTORS

1-10-71 1-10-72

HC464SCAFV

VPS Schematic Diagram

VPS Schematic Diagram
Parts Location Guide

Ref No. Posi ti on

C640 A-1
C642 B-1
C643 B-1
C644 B-2
C645 B-2

C648 B-2
C649 A-2

IC640 A-2

R638 A-2
R641 B-1
R642 B-1
R643 B-2
R644 B-2
R645 B-2

CAPACITORS

IC

“ “ = SMD

MODE: SP/REC

THE SAME VOLTAGE FOR

BOTH PLAY & REC MODES.

2

1

5.0

3

5.0

~

(2.5)

INDICATES THAT THE VOLTAGE

IS NOT CONSISTENT HERE.

PLAY MODE

REC MODE

1-10-73

1-10-74

RESISTORS

HC464SCV

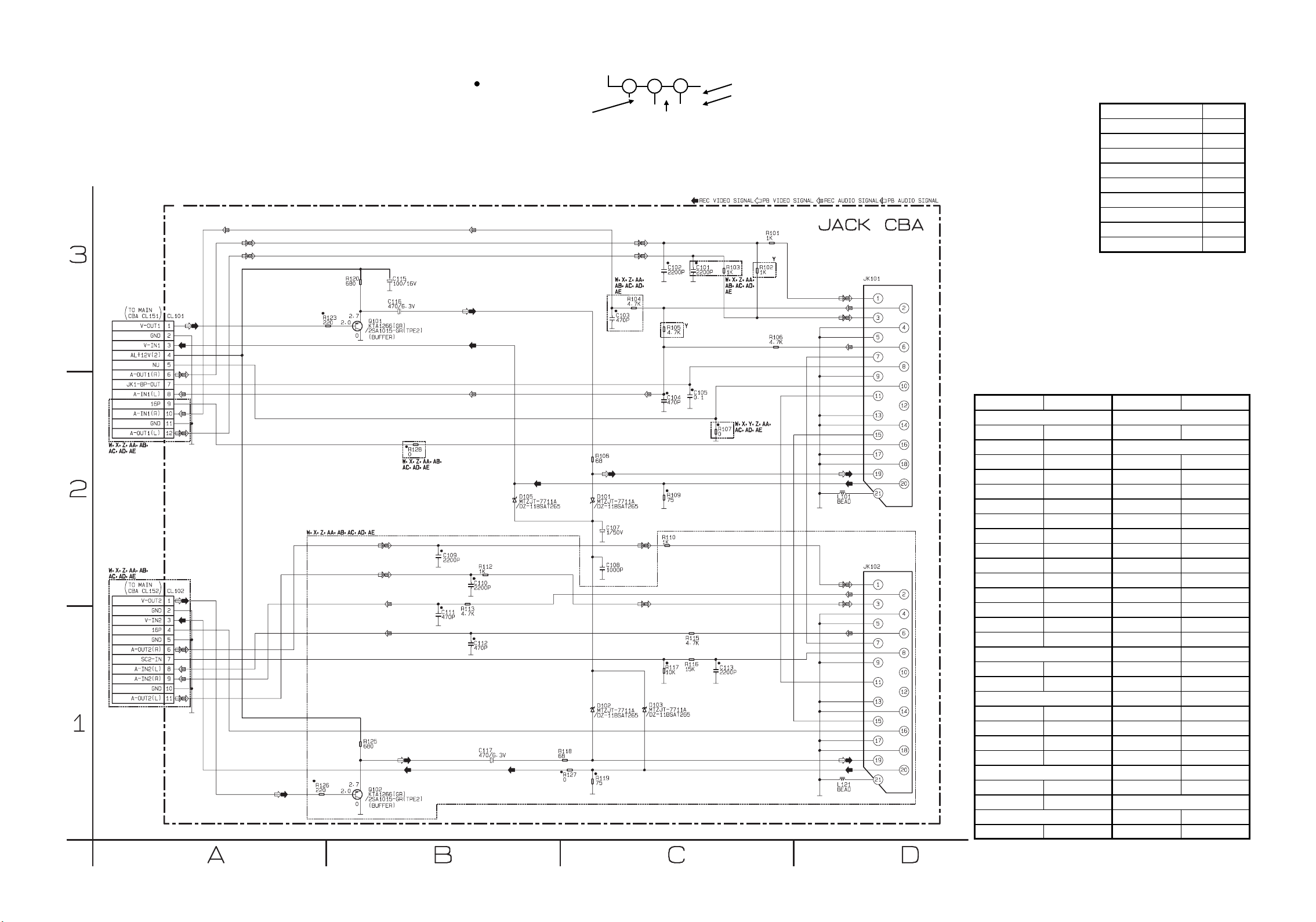

Jack Schematic Diagram

Jack Schematic Diagram Parts Location Guide

Ref No. Position Ref No. Position

C101 C-3 Q102 B-1
C102 C-3
C103 C-3 R101 B-1
C104 C-2 R102 C-3
C105 C-2 R103 C-3

C107 C-2 R104 C-3
C108 C-2 R105 C-3

C109 B-2 R106 C-3
C110 B-2 R107 C-2
C111 B-1 R108 C-2

C112 B-1 R109 C-2
C113 C-1 R110 C-2
C115 B-3 R112 B-2
C116 B-3 R113 B-1
C117 B-1 R115 C-1

R116 C-1
CL101 A-3 R117 C-1

CL102 A-2 R118 C-1

R119 C-1

D101 C-2 R120 B-3
D102 C-1 R123 B-3
D103 C-1 R125 B-1

D105 B-2 R126 A-1

R127 C-1

L101 D-2 R128 B-2
L121 D-1

JK101 D-3

Q101 B-3 JK102 D-2

TRANSISTORSCAPACITORS

RESISTORS

TRANSISTORS

MISCELLANEOUS

Comparison Chart of
Models and Marks

MODEL MARK

VR530/58 W
VR630/58 X
VR330/58 Y
VR730/58 Z
VR732/58 AA

VR830/58 AB
VRQ45/16 AC
VRQ45/39 AD
VRQ45/58 AE

“ “ = SMD

MODE: SP/REC

THE SAME VOLTAGE FOR

BOTH PLAY & REC MODES.

2

1

5.0

3

5.0

~

(2.5)

INDICATES THAT THE VOLTAGE

IS NOT CONSISTENT HERE.

PLAY MODE

REC MODE

CONNECTORS

1-10-75 1-10-76

DIODES

COILS

HC464SCJ

Main CBA Parts Location Guide

Ref No. Position Ref No. Position Ref No. Position Ref No. Position

R008 G-3 R357 D-2 R510 C-1 R705 B-1
R009 F-2 R358 C-3 R511 C-2 R706 A-1
R011 G-3 R360 D-3 R513 C-2 R709 A-1
R012 G-3 R361 D-3 R514 C-2 R751 B-4
R013 F-3 R370 E-3 R516 C-1 R752 A-3

R014 F-3 R371 E-3 R517 C-1 R756 A-1
R015 F-3 R372 E-3 R518 C-2 R757 A-1

R016 F-3 R401 C-4 R519 C-2 R758 A-1
R017 F-2 R402 C-4 R520 E-2 R759 A-1
R018 F-2 R403 B-4 R521 E-2 R771 E-4

R021 F-2 R404 B-4 R522 D-2 R772 E-4
R022 F-2 R405 D-4 R523 C-1 R773 F-4
R023 F-2 R406 D-4 R524 C-1 R774 E-4
R024 F-2 R407 D-4 R525 C-1 R775 E-4
R025 F-2 R408 C-3 R526 E-1 R776 F-4
R026 G-2 R409 C-3 R527 D-1 R777 F-3
R027 G-2 R411 C-4 R528 A-1 R778 E-4

R028 G-3 R412 D-4 R529 D-2 R779 E-4
R035 G-2 R413 D-4 R530 C-2 R780 E-4
R054 F-1 R414 D-4 R531 C-2 R781 E-4

R059 F-1 R415 D-3 R533 E-2 R782 E-4
R060 G-1 R416 D-3 R534 F-2 R783 E-4

R061 F-1 R417 D-3 R535 F-2 R784 E-4
R062 F-1 R421 D-4 R536 F-2 R785 F-4
R063 F-1 R422 D-4 R537 F-1 R786 F-4

R064 F-1 R423 D-3 R538 E-2 R787 F-4
R065 F-1 R424 D-3 R539 F-1 R851 C-2
R066 F-2 R425 D-4 R540 B-1 R852 D-2
R067 F-1 R426 D-4 R541 B-1 R853 C-1

R068 F-1 R429 D-3 R542 B-1
R070 F-1 R430 D-3 R543 E-1 SW501 B-1

R157 B-2 R431 D-3 R544 E-1 SW502 B-1
R158 B-2 R451 B-3 R545 F-1 SW504 E-1
R251 C-3 R452 B-3 R546 G-1 SW505 F-1

R252 C-3 R453 B-3 R547 B-1 SW506 C-1
R301 D-3 R454 B-3 R551 C-2 SW507 F-1
R302 D-3 R455 B-3 R552 C-2
R303 D-3 R456 B-4 R555 C-1 VR501 A-1
R304 D-3 R457 B-3 R556 C-1
R305 D-3 R458 B-3 R557 C-1 X301 D-3

R306 C-2 R459 C-3 R558 C-1 X501 C-1
R307 C-3 R460 C-4 R566 E-1 X502 C-1

R308 C-3 R461 C-3 R601 C-2
R309 C-3 R462 C-3 R603 C-1 AC001 F-4
R310 B-2 R463 C-3 R604 C-1 F001 G-4
R311 B-2 R464 C-3 R605 D-2 FP562 D-1
R312 C-2 R465 C-3 R606 D-2 JK751 B-4
R313 C-2 R466 B-3 R607 D-2 JK756 A-1
R314 C-3 R467 B-3 R608 D-2 JK757 A-1
R315 C-3 R468 B-3 R609 C-1 JK758 A-1
R316 C-3 R469 B-3 R610 C-1 PS503 C-2
R317 C-3 R470 B-3 R612 B-1 RS501 C-1
R318 C-3 R471 B-3 R613 B-1 SA001 F-4
R319 C-3 R472 B-3 R614 B-1 T001 G-2
R320 C-3 R473 B-3 R615 B-1 TU701 A-3
R321 D-3 R474 C-3 R616 C-1
R322 D-3 R479 B-3 R617 C-2 TP301 G-1
R323 D-2 R480 B-3 R618 C-1 TP501 G-1
R324 C-3 R501 C-1 R621 D-2 TP502 B-1
R328 D-3 R502 B-1 R622 D-2 TP506 A-2
R330 D-3 R503 C-1 R623 E-2 TP507 G-1
R331 D-3 R504 C-1 R624 D-2 TP508 C-1
R332 D-3 R505 C-1 R625 D-5 TP751 B-2

R333 D-2 R506 C-1 R701 A-2
R351 C-2 R507 C-1 R702 A-1
R352 C-2 R508 A-1 R703 A-1

RESISTORSRESISTORSRESISTORS RESISTORS

SWITCHES

VARIABLE RESISTOR

CRYSTAL OSCILLATORS

MISCELLANEOUS

TEST POIN TS

Comparison Chart of
Models and Marks

MODEL MARK

VR530/58 W

VR630/58 X

VR330/58 Y

VR730/58 Z

VR732/58 AA

VR830/58 AB
VRQ45/16 AC
VRQ45/39 AD
VRQ45/58 AE

Ref No. Position Ref No. Position Ref No. Position Ref No. Position Ref No. Position

CAPACITORS CAPACITORS CAPACITORS ICSCAPACITORS
C002 G-3 C345 D-3 C476 B-3 C778 F-3 IC561 E-1
C003 F-3 C346 C-3 C477 B-3 C851 C-2 IC771 F-4
C004 G-3 C347 C-3 C478 B-3 C852 C-2
C005 G-3 C348 D-2 C479 B-3 C853 D-2 J902 F-3
C006 G-2 C351 C-3 C480 B-3 C854 D-2 L001 G-4

C007 F-3 C352 D-2 C481 C-3 C855 C-1 L002 F-3
C008 F-2 C370 D-3 C482 C-3 C856 C-1 L003 F-3

C010 G-3 C371 E-3 C483 C-3 C858 D-2 L009 G-1
C011 G-3 C372 D-3 C484 C-3 C859 C-1 L010 G-2
C012 F-2 C373 E-3 C485 C-3 C862 D-2 L012 F-1

C014 G-2 C374 D-3 C486 C-3 L251 C-3
C017 G-2 C375 D-3 C487 C-4 CL151 A-3 L301 C-3
C018 G-1 C376 D-3 C501 E-1 CL152 A-3 L370 E-3
C020 G-2 C377 D-3 C502 D-1 CL253 C-4 L401 B-4
C021 G-1 C378 D-3 C506 C-1 CL501 B-4 L402 D-3
C025 F-2 C379 E-4 C508 C-1 CL502 E-2 L451 C-3
C026 F-1 C381 E-3 C510 C-2 CL504 E-4 L452 C-2

C053 F-1 C382 E-4 C511 C-1 CL505 F-1 L501 E-1
C056 G-1 C383 E-3 C512 C-1 CL508 B-1 L561 E-1
C060 F-1 C384 E-4 C513 C-1 CL509 B-1 L562 E-1

C061 F-1 C401 C-4 C514 C-1 CN506 G-1 L701 A-4
C157 B-4 C402 C-4 C515 C-1 CN701 A-2 L702 A-2

C158 B-3 C403 C-4 C516 C-1 L703 A-2
C251 C-3 C404 C-4 C517 E-2 D001 G-4 L704 B-2
C252 C-3 C411 D-4 C518 E-2 D002 G-3 L705 A-2

C253 C-3 C412 D-4 C519 D-1 D003 G-3 L851 C-2
C254 C-3 C413 D-4 C520 D-1 D004 G-3 L853 C-1
C302 D-3 C414 D-4 C521 D-1 D005 G-3
C303 D-3 C415 D-4 C522 D-1 D006 G-3 Q001 G-2

C304 D-3 C416 D-3 C523 E-1 D007 F-2 Q002 G-2
C305 D-3 C417 D-3 C524 E-1 D008 G-3 Q003 F-3

C307 D-3 C418 D-4 C526 E-1 D009 F-3 Q004 F-2
C308 D-3 C419 D-3 C527 D-1 D011 F-2 Q051 F-2
C309 D-3 C421 D-4 C529 D-1 D012 F-2 Q052 F-2

C310 D-3 C422 D-3 C530 D-1 D013 F-2 Q053 F-1
C311 D-3 C423 D-3 C531 C-1 D014 G-2 Q054 F-1
C312 D-3 C424 D-4 C535 D-2 D015 G-2 Q056 F-1
C313 D-3 C425 D-3 C538 A-3 D018 G-3 Q057 F-1
C314 D-3 C427 D-3 C540 E-1 D019 F-2 Q058 G-1
C315 D-3 C428 D-4 C541 E-1 D021 F-2 Q153 B-2

C316 D-3 C430 D-3 C542 A-1 D051 F-2 Q351 C-2
C317 D-3 C431 C-3 C561 E-1 D052 F-1 Q352 D-3

C318 D-3 C451 B-3 C621 D-2 D053 G-1 Q401 C-4
C319 D-3 C452 B-3 C622 D-2 D056 G-2 Q402 B-4
C320 D-3 C453 B-3 C701 A-3 D057 F-1 Q403 D-4
C321 D-3 C454 B-4 C702 A-4 D151 B-4 Q404 D-4
C322 D-3 C455 B-4 C703 A-3 D152 A-3 Q405 D-4
C323 D-2 C456 C-3 C704 A-3 D153 B-3 Q406 D-4
C324 D-3 C457 B-4 C706 A-2 D154 B-3 Q451 C-3
C325 D-3 C458 C-4 C707 A-2 D155 A-3 Q501 C-1
C326 D-3 C459 C-4 C708 A-2 D156 A-3 Q502 D-1
C327 D-3 C460 C-3 C709 B-2 D157 B-4 Q503 D-2
C328 D-3 C461 C-3 C710 A-2 D301 C-3 Q504 F-3
C329 C-3 C462 C-4 C712 A-2 D370 D-3 Q505 A-3
C330 D-3 C463 C-3 C713 A-2 D501 E-1 Q551 C-2
C332 C-3 C464 C-4 C715 A-1 D502 D-2 Q552 C-2
C333 C-3 C465 C-3 C751 B-4 D552 C-2 Q621 D-2
C334 C-3 C466 C-3 C752 A-3 D553 C-2 Q771 F-3
C335 C-3 C467 C-3 C756 A-1 D621 D-2 Q772 F-3
C337 C-3 C468 C-3 C757 A-1 D701 A-2
C338 C-3 C469 C-3 C771 E-4 R001 F-3
C339 C-3 C470 C-3 C772 F-4 IC001 F-2 R002 G-3
C340 C-3 C471 C-3 C773 E-4 IC301 C-3 R003 G-3

C341 C-3 C472 C-3 C774 F-3 IC370 E-3 R004 G-3
C342 C-3 C473 C-3 C775 E-3 IC451 C-3 R005 G-3
C343 C-3 C474 C-3 C776 E-3 IC501 D-1 R006 G-3

1-10-77 1-10-78

COILS

CONNECTORS

DIODES

TRANSISTORS

RESISTORS

ICS

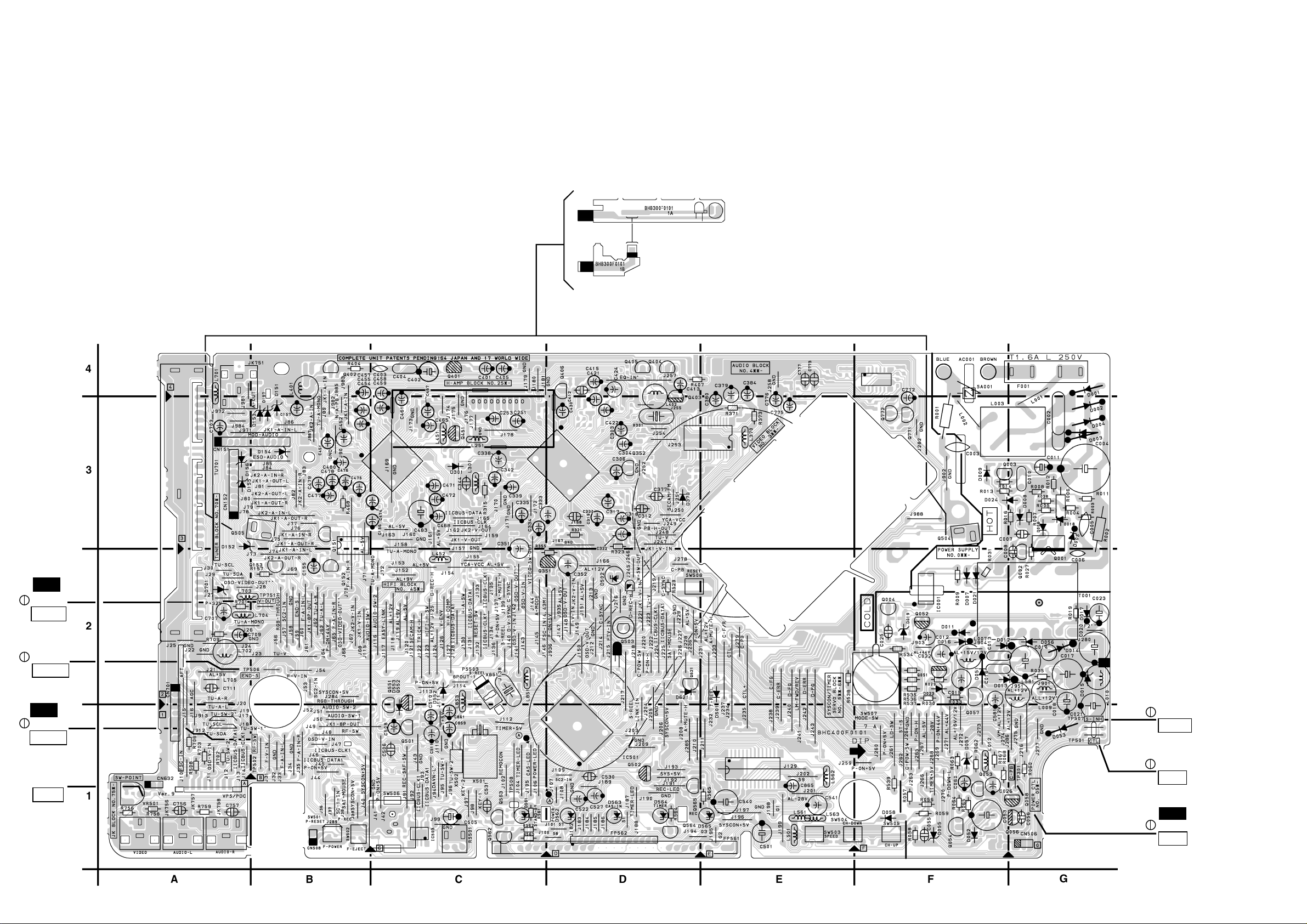

Main CBA Top View

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN
SUPPLY CIRCUIT , AN ISOLATION TRANSFORMER MUST BE USED
ALSO , IN ORDER TO HAVE THE ABILITY TO INCREASE
SLOWLY , WHEN TROUBLESHOOTING THIS TYPE
CIRCUIT , A VARIABLE ISOLATION TRANSFORMER IS REQ

THE POWER

THE INPUT

POWER SUPPLY

UIRED.

CAUTION !

.

CAUTION

FOR CONTINUED PROTECTION AGAINST
REPLACE ONLY WITH THE SAME TYPE FUSE.

FIRE HAZARD,

Fixed voltage (or Auto voltage selectable ) power
If Main Fuse (F001) is blown, check to see that all components
circuit are not defective before you connect the AC
Otherwise it may cause some components in the power

supply circuit is used in this unit.

plug to the AC power supply.

supply circuit to fail.

in the power supply

NOTE :
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

Sensor CBA Top View

BHB300F01011-A

BHB300F01011-B

WF1

TP751
V-OUT

TP506

END-S

WF2

TP502
RF-SW

VR501

SW-P

TP507

S-INH

TP501

CTL

WF5

TP301

C-PB

1-10-79

1-10-80

1-10-81

BHC400F01017-A

Main CBA Bottom View

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER
SUPPLY CIRCUIT , AN ISOLATION TRANSFORMER MUST BE USED.
ALSO , IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT
SLOWLY , WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY
CIRCUIT , A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,
REPLACE ONLY WITH THE SAME TYPE FUSE.

CAUTION !

Fixed voltage (or Auto voltage selectable ) power supply circuit is used in this unit.
If Main Fuse (F001) is blown, check to see that all components in the power supply
circuit are not defective before you connect the AC plug to the AC power supply.
Otherwise it may cause some components in the power supply circuit to fail.

NOTE :
The voltage for parts in hot circuit is measured using
hot GND as a common terminal.

1-10-82

1-10-83

1-10-84

BHC400F01017-A

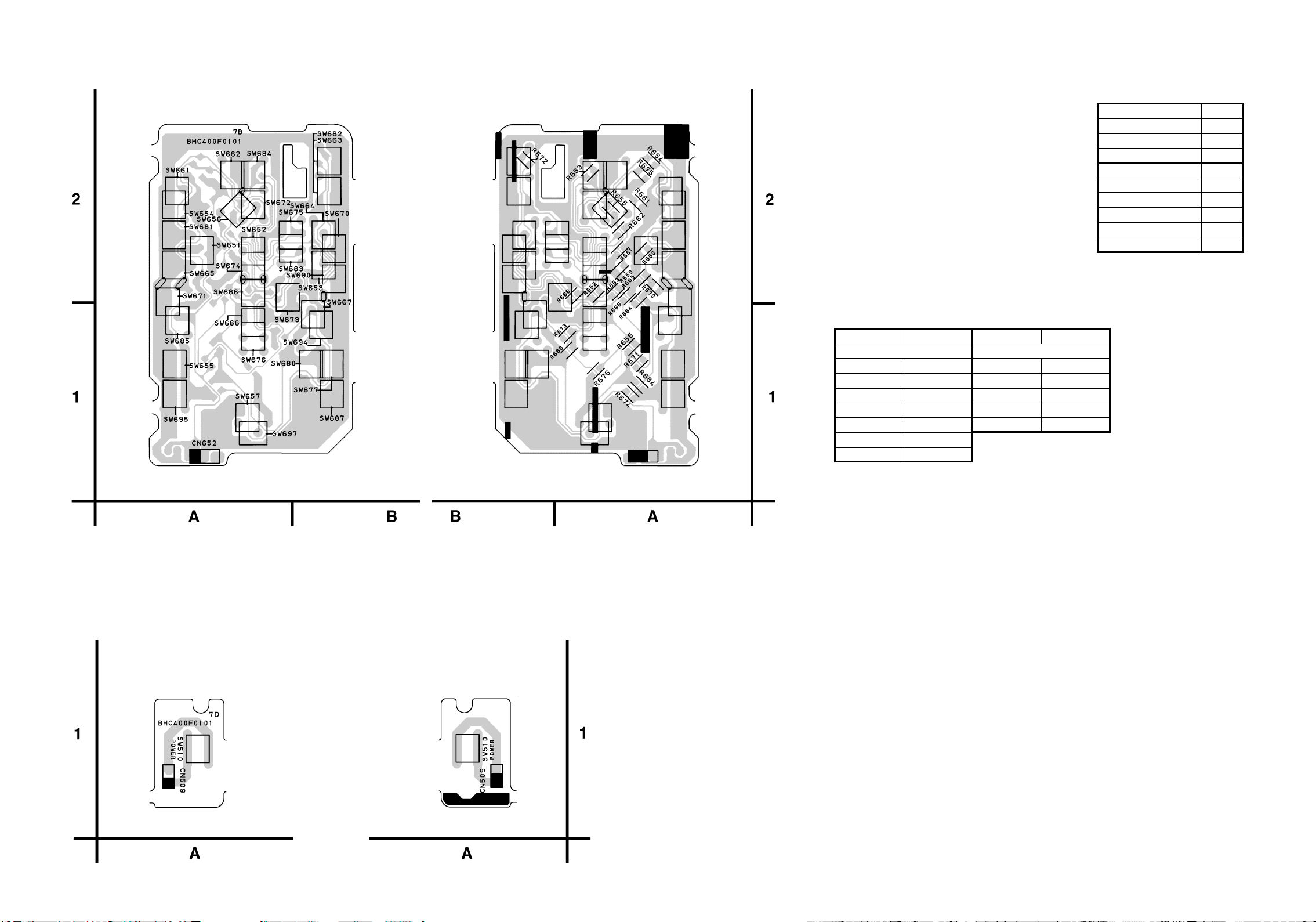

Function CBA Top View ( W,X,Y )

Function CBA Parts Location Guide ( W,X,Y )

Ref No. Position Ref No. Position

CN651 A-1 SW651 A-2

SW652 A-2
R651 A-2 SW653 B-2
R652 A-1 SW654 A-2
R653 A-2 SW656 A-2

R654 A-2
R655 A-2

RESISTORS

CONNECTORS SWITCHES

Comparison Chart of
Models and Marks

MODEL MARK

VR530/58 W
VR630/58 X
VR330/58 Y
VR730/58 Z
VR732/58 AA

VR830/58 AB
VRQ45/16 AC
VRQ45/39 AD
VRQ45/58 AE

Function CBA Bottom View ( W,X,Y )

Power SW CBA Top View Power SW CBA Bottom View

BHC400F01017-B

BHC400F01017-D

1-10-85 1-10-86

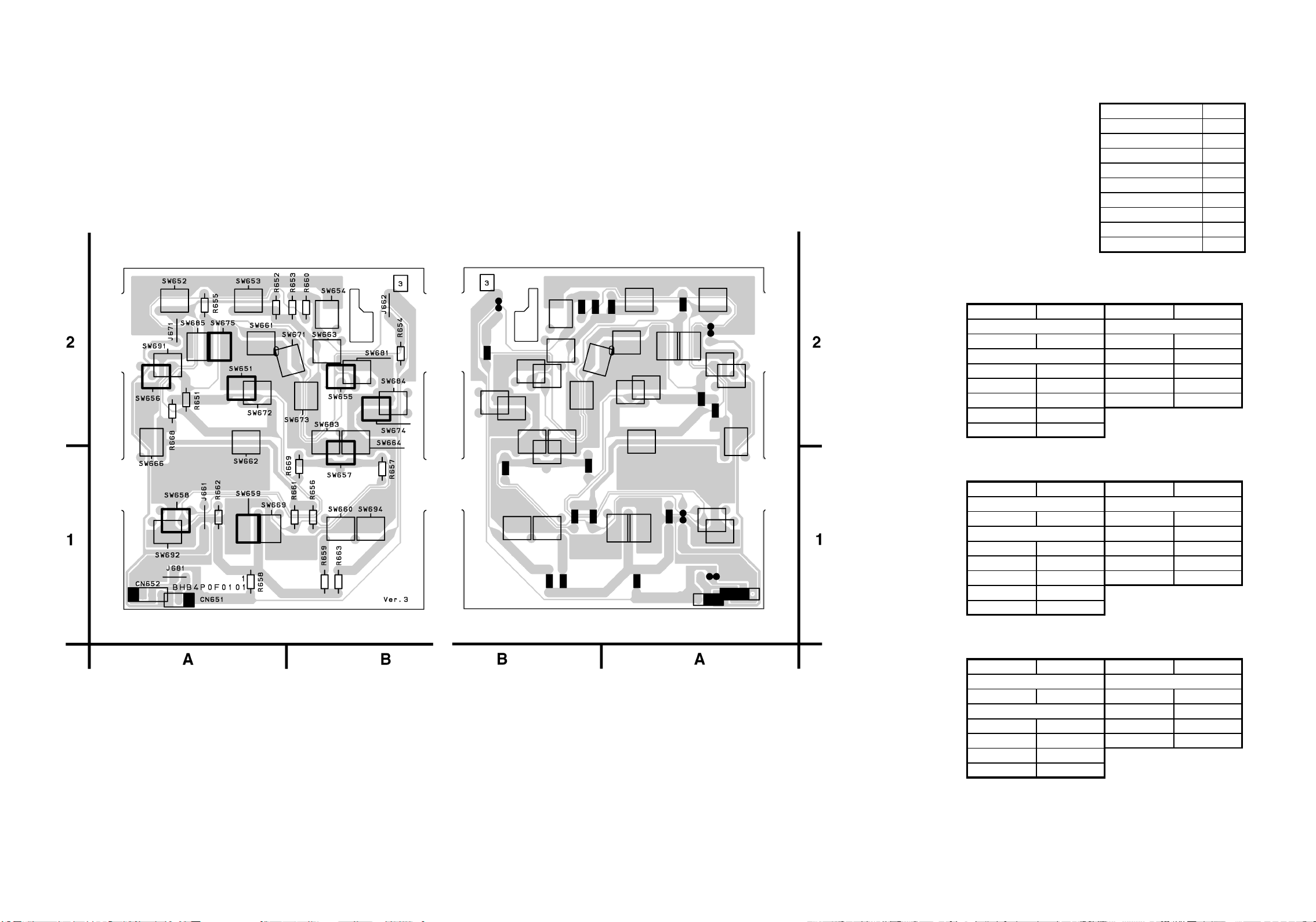

Function CBA Top View

Function CBA Parts Location Guide ( Z,AA )

Ref No. Position Ref No. Position

CN651 A-1 SW671 A-1

SW672 A-1
R652 A-2 SW673 B-1
R653 A-2 SW674 B-1
R654 A-2 SW675 B-1

R655 A-2
R668 B-2

Function CBA Parts Location Guide ( AB )

Ref No. Position Ref No. Position

CN651 A-1 SW672 A-2

SW681 B-2
R652 A-2 SW683 B-2
R653 A-2 SW684 B-2
R654 A-2 SW685 A-2

R655 A-2
R668 B-2

Function CBA Parts Location Guide ( AC,AD,AE )

Ref No. Position Ref No. Position

CN651 A-1 SW669 A-1

SW691 A-1
R660 B-2 SW692 B-1
R662 A-1 SW694 B-1

R663 B-1
R668 A-1

RESISTORS

CONNECTORS SWITCHES

RESISTORS

CONNECTORS SWITCHES

RESISTORS

CONNECTORS SWITCHES

Comparison Chart of
Models and Marks

MODEL MARK

VR530/58 W
VR630/58 X
VR330/58 Y
VR730/58 Z
VR732/58 AA

VR830/58 AB
VRQ45/16 AC
VRQ45/39 AD
VRQ45/58 AE

( Z,AA,AB,AC,AD,AE )

Function CBA Bottom View
( Z,AA,AB,AC,AD,AE )

1-10-87

BHB4P0F01011

1-10-88

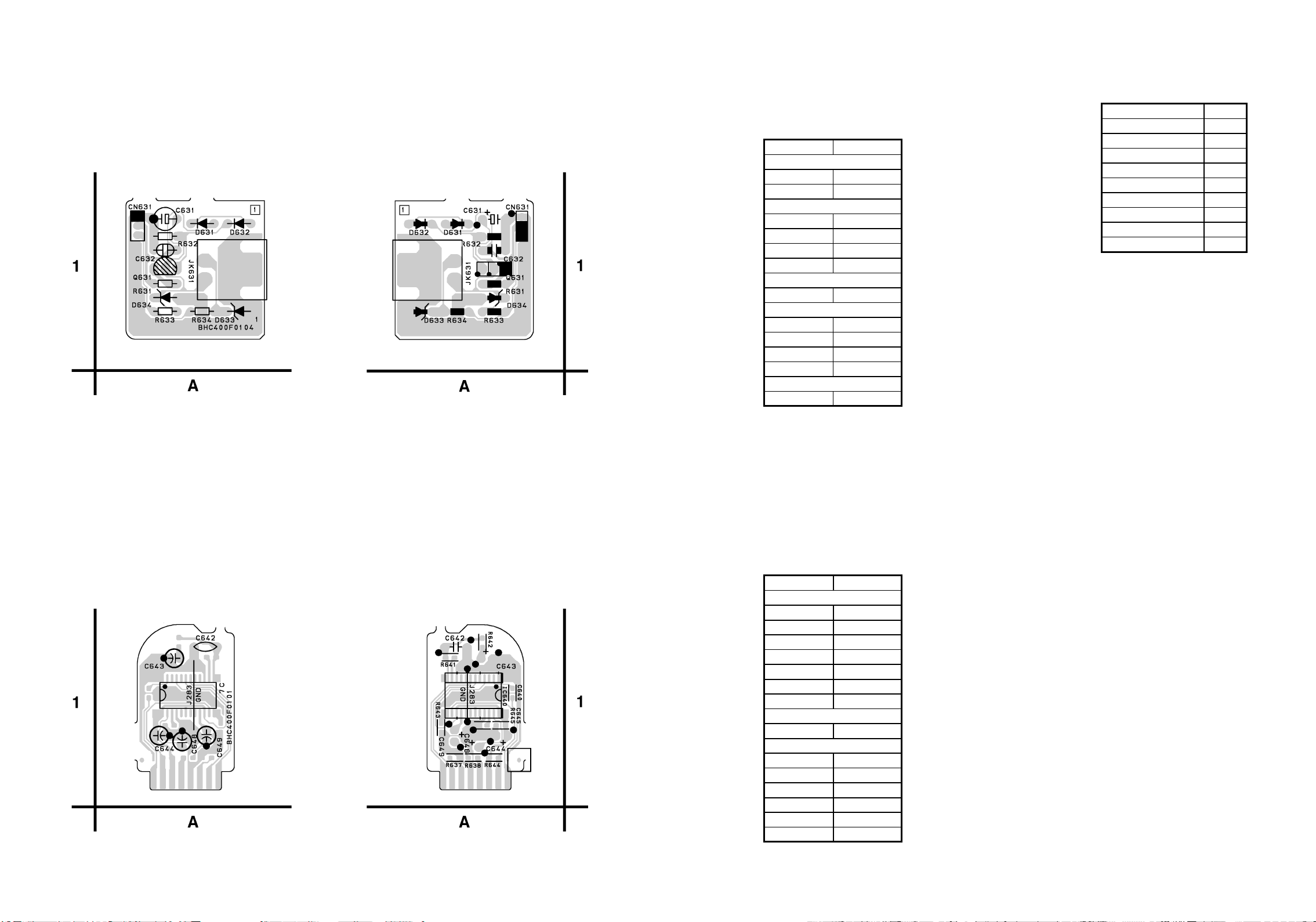

SMV CBA Top View ( AB )

SMV CBA
Parts Location Guide ( AB )

Ref No. Position

C631 A-1
C632 A-1

D631 A-1

D632 A-1
D633 A-1

D634 A-1

Q631 A-1

R631 A-1
R632 A-1
R633 A-1
R634 A-1

JK631 A-1

CAPACITORS

DIODES

TRANSISTORS

RESISTORS

MISCELLANEOUS

Comparison Chart of
Models and Marks

MODEL MARK

VR530/58 W

VR630/58 X

VR330/58 Y

VR730/58 Z

VR732/58 AA

VR830/58 AB
VRQ45/16 AC
VRQ45/39 AD
VRQ45/58 AE

VPS CBA
Parts Location Guide

Ref No. Position

C640 A-1
C642 A-1
C643 A-1
C644 A-1

C645 A-1
C648 A-1

C649 A-1

IC640 A-1

R638 A-1
R641 A-1
R642 A-1
R643 A-1
R644 A-1
R645 A-1

CAPACITORS

ICS

RESISTORS

SMV CBA Bottom View ( AB )

BHC400F01041

VPS CBA Top View

VPS CBA Bottom View

BHC400F01017-C

1-10-89 1-10-90

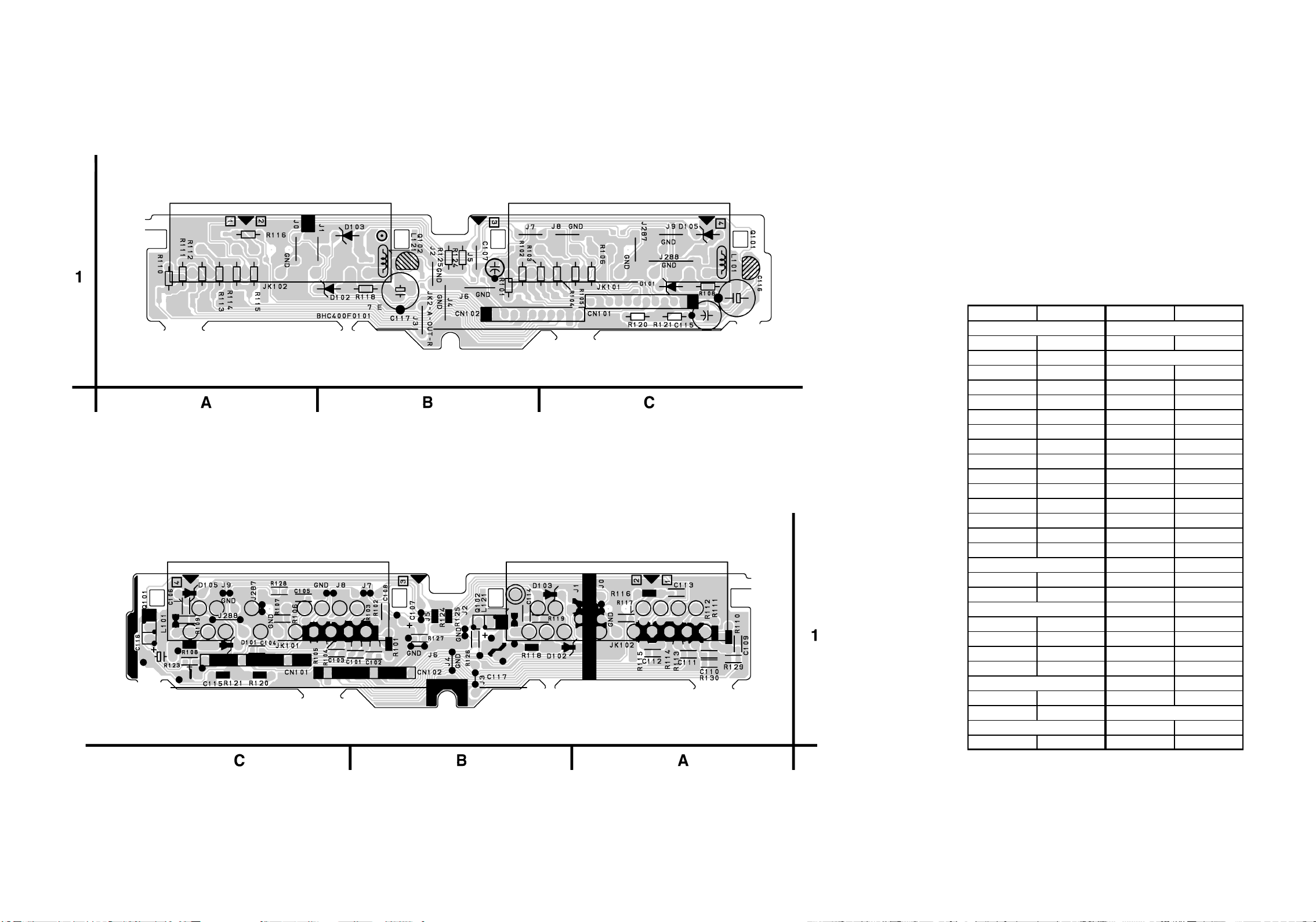

Jack CBA Top View

JACK CBA Parts Location Guide

Ref No. Position Ref No. Position

C101 C-1 Q102 B-1
C102 B-1
C103 C-1 R101 B-1
C104 C-1 R102 B-1

C105 C-1 R103 B-1
C107 B-1 R104 C-1

C108 B-1 R105 C-1
C109 A-1 R106 C-1
C110 A-1 R107 C-1

C111 A-1 R108 C-1
C112 A-1 R109 C-1
C113 A-1 R110 A-1
C115 C-1 R112 A-1
C116 C-1 R113 A-1
C117 B-1 R115 A-1

R116 A-1

CL101 C-1 R117 A-1
CL102 B-1 R118 B-1

R119 B-1

D101 C-1 R120 C-1
D102 B-1 R123 C-1

D103 B-1 R125 B-1
D105 C-1 R126 B-1

R127 B-1

L101 C-1 R128 C-1
L121 B-1

JK101 C-1

Q101 C-1 JK102 A-1

MISCELLANEOUS

TRANSISTORS

RESISTORS

TRANSISTORSCAPACITORS

Jack CBA Bottom View

1-10-91

CONNECTORS

DIODES

COILS

BHC400F01017-E

1-10-92

Comparison Chart of
Models & Marks

Model Mark

VR530/58
VR630/58
VR330/58
VR730/58
VR732/58
VR830/58
VRQ45/16
VRQ45/39
VRQ45/58

W
X
Y

Z
AA
AB
AC
AD
AE

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.
(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER
HOLES OF THE PCB.
(WIRE IS SOLDERED DIRECTLY.)

1 1

SMV CBA

(BHC400F01041)

GND

2

AL+5V

3

SAT-MOUSE

SENSOR CBA

(BHB300F01011)

VIDEOINAUDIO

AB

CL632CL631

2
3

WIRING DIAGRAM

FRONT REAR

IN (R)

AUDIO
IN (L)

Z,AA,AB

AUDIO
OUT (R)

AUDIO
OUT (L)

Z,AA,AB,AC,AD,AE

ANT-IN ANT-OUT

AC CORD

CN701 CN1

1 TU-AUDIO

SIF

2
3 GND
4

TU-AUDIO(R)
TU-AUDIO(L)5
P-ON+5V

6

P-ON+5V

7

I2C BUS-SCL8
I2C BUS-SDA9

1
2
3
4
5
6
7
8
9

AFV CBA

(BHC400F01091)

(DECK ASSEMBLY)

AC HEAD ASSEMBLY

AUDIO

ERASE HEAD

AUDIO HEAD

CONTROL HEAD

FE HEAD

CYLINDER ASSEMBLY

DRUM
MOTOR

VIDEO
(R)1 HEAD

VIDEO
(L)1 HEAD

VIDEO
(L)2 HEAD

VIDEO
(R)2 HEAD

Hi-Fi AUDIO
(R) HEAD

Hi-Fi AUDIO
(L) HEAD

FULL
ERASE HEAD

PG
SENSOR

M

MOTOR

CL287

AE-H

AE-H/FE-H

A-COM

A-PB/REC

CTL(+)

CTL(-)

SENSOR CBA

(BHB300F01011)

CL504

AE-H

1
2
3
4
5
6

1

6

AE-H/FE-H2
A-COM3
A-PB/REC4
CTL(+)5
CTL(-)

MAIN CBA

CL501
FE-H2
FE-H GND1

CAPSTAN MOTOR

MLOADING

CL502

12 C-F/R

AL+15V/+12V

11
10 AL+12V(1)

9

P-ON+5V
GND8
C-FG

7

C-CONT

6

GND5
D-FG4
LM-FWD/REV

3

D-CONT

2

D-PG1

I2C BUS-SCL
DAVN-L
OSD-V-IN
P-ON+5V
I2C BUS-SDA
FSC-IN

CL253
V(R)-11
V-COM2

3 V(L)-1

V(L)-2

4

V-COM5
V(R)-26
Hi-Fi-A(R)7
Hi-Fi-COM8
Hi-Fi-A(L)9

(BHC400F01017A)

VPS CBA

(BHC400F01017C)

Z,AA,AB,AC,AD,AE

W,X,Y

CL151

1 V-OUT1

GND

2
3 V-IN1
4

AL+12V(2)
EASY-LINK5
A-OUT1(R)

6

JK1-8P-OUT

7

A-IN1(L)8
16P9
A-IN1(R)

10

GND

11

A-OUT1(L)12

CL101
1
2
3
4
5
6
7
8
9

10
11
12

CL152 CL102

1 V-OUT2

GND

2
3 V-IN2
4

16P
GND5
A-OUT2(R)

6

SC2-IN

7

A-IN2(L)8
A-IN2(R)9
GND

10

A-OUT2(L)

11

1
2
3
4
5
6
7
8
9

10
11

CL509CL508

1 1

KEY-1

2

GND

2

CN651CN506

1 1

KEY-2
2
3

GND

KEY-1

2
3

CN651CL505

1 1

NU
2
3
4

KEY-2

GND

KEY-1

2
3
4

JACK CBA

(BHC400F01017E)

W,X,Z,AA,AB,

AC,AD,AE

POWER SW CBA

(BHC400F01017D)

FUNCTION CBA

(BHB4P0F01011)

FUNCTION CBA

(BHC400F01017B)

W,X,Z,AA,AB,

AC,AD,AE

JK101

1

3

5

7

9

11

13

15

17

19

21

JK102

1

3

5

7

9

11

13

15

17

19

21

2

4

6

8

10

12

14

16

18

20

2

4

6

8

10

12

14

16

18

20

1-12-3 1-12-4

HC464WI

[ VR530/58,VR630/58,VR330/58,
VR730/58,VR732/58,VR830/58,
VRQ45/16,VRQ45/39,VRQ45/58 ]

Comparison Chart of Models and Marks

Model Mark

VR530/58 W

VR630/58 X

VR330/58 Y

VR730/58 Z

VR732/58 AA

VR830/58 AB

VRQ45/16 AC

VRQ45/39 AD

VRQ45/58 AE

IC501( SERVO / SYSTEM CONTROL IC )

“H” ≥ 4.5V, “L” ≤ 1.0V

Pin

Mark

No.

1IN

2IN

3IN

4IN

5IN

6IN

7IN

8IN

9IN

10 OUT

11 -

IN/

Signal

OUT

Name

SC2-IN

PG­DELAY

POW­SAF

END-S

AFC

V-ENV

KEY-1

KEY-2

LD-SW

ST-S

N.U. Not Used

Function

Input Signal from
Pin 8 of SCART2

Video Head
Switching Pulse
Signal Adjusted
Voltage

P-ON Power
Detection Input
Signal

Tape End
Position
Detect Signal

Automatic
Frequency
Control Signal

Video Envelope
Comparator
Signal

Key Scan Input
Signal 1

Key Scan Input
Signal 2

Deck Mode
Position Detector
Signal

Tape Start
Position Detector
Signal

Active

Level

L/Hi-z

A/D

A/D

A/D

A/D

A/D

A/D

A/D

A/D

A/D

Pin

Mark

No.

12 -

13 OUT

14 IN

15 OUT

Y-

W,X,
Z,
AA,

16

AB,
AC,
AD,
AE

Y-

W,X,
Z,
AA,

17

AB,
AC,
AD,
AE

18 OUT

Y-

W,X,
Z,
AA,

19

AB,
AC,
AD,
AE

20 IN

AC,
AD

W,X,

21

Y,Z,
AA,
AB,
AE

AC,
AD

W,X,

22

Y,Z,
AA,
AB,
AE

23 -

24 -

­25 -

IN/

Signal

OUT

OUT

OUT

OUT

OUT

Name

N.U. Not Used

D-V­SYNC

REMOC
ON-IN

C-ROTA

N.U. Not Used

H-A-SW

N.U. Not Used

H-A-

IN

COMP

RF-SW

N.U. Not Used

HiFi-H-SWHiFi Audio Head

DAVN-L

-

N.U. Not Used

TUN­SW1

-

N.U. Not Used

TUN­SW2

N.U. Not Used

N.U. Not Used

N.U. Not Used

Dummy V-sync
Output

Remote
Control Sensor

Color Phase
Rotary
Changeover
SIgnal

Video Head Amp
Switching Pulse

Head Amp
Comparator
Signal

Video Head
Switching Pulse

Switching Pulse

VPS/PDC Data
Receive = “L”

Tuner System
Control Signal
Output

Tuner System
Control Signal
Output

Function

Active

Level

-

H/Hi-z

L

H/L

-

H/L

-

H/L

H/L

-

H/L

L

-

H/L

-

H/L

-

-

-

1-14-3 HC493PIN

Pin
No.

Mark

IN/

OUT

26 -

Y-

W,X,
Z,
AA,

27

AB,

OUT
AC,
AD,
AE

28 -

29 -

30 -

31 IN

W,X,
Y,Z,

32

AA,
AB,
AC,

-

AE

AD IN

W,X,
Y,Z,

33

AA,
AB,
AC,

-

AE

AD OUT TRICK-H

34 IN

35 IN

36 OUT

37 -

38 IN

39 OUT

40 -

41 -

42 -

43 IN

44 IN

45 OUT

Signal

Name

Function

N.U. Not Used

N.U. Not Used

RGB­THROUGH

SCART 2 RGB
Through Control
Signal

N.U. Not Used

N.U. Not Used

N.U. Not Used

Recording Safety

REC­SAF-SW

SW Detect (With
Record tab="L"/
With out Record
tab="H")

N.U. Not Used

SECAM-HSECAM Mode at

High

N.U. Not Used

Special
Playback = “H”
in SECAM Mode

System Reset

RESET

Signal
(Reset=”L”)

XC-IN Sub Clock

XC-OUT Sub Clock

Vcc Vcc

X-IN Main Clock Input

X-OUT Main Clock Input

Vss Vss(GND)

N.U. Not Used

N.U. Not Used

CLKSEL

OSC

OSC

Clock Select
(GND)

Clock Input

IN

for letter size

Clock Output for

OUT

letter size

Active

Level

-

-

L/Hi-z

-

-

-

H

-

H/L

-

H

L

-

-

-

-

-

-

-

-

L

-

-

Pin

Mark

No.

46 -

47 -

48 IN

49 -

50 IN

51 -

52 OUT

53 -

54 -

AC -

W,X,
Y,Z,

55

AA,
AB,
AD,
AE

56 -

57 -

IN/

Signal

OUT

Name

N.U. Not Used

LP LP

FSC-IN
[4.43MHz]

OSDVss OSDVss

VIDEO-INVideo Signal

N.U. Not Used

VIDEO­OUT

OSDVcc OSDVcc

HLF

N.U. Not Used

COLOR-

IN

IN

N.U. Not Used

N.U. Not Used

Function

4.43MHz Clock
Input

Input

Video Signal
Output

LPF Connected
Terminal (Slicer)

SECAM or
MESECAM
Chroma Video
Input Signal at
Super Impose

Active

Level

Composite

58 IN

C-SYNC

Synchronized

PULSE

Pulse

SCART 1 8Pin

59 OUT

8POUT-1

Output Control
Signal

SCART 2 8Pin

60 OUT

8POUT-2

Output Control
Signal

Y-

N.U. Not Used

W,X,
Z,
AA,

61

AB,
AC,

IN

A-MODE

Hi-Fi Tape
Detection Signal

AD,
AE

62 OUT SD-H SD-H -

W,X,
Y,Z,

63

AA,
AC,
AD,

-

N.U. Not Used

AE

AB OUT

LINK­OUT

Easy Link Data
Output

Comparator

64 IN

FTV-IN

Input of Video
Signal for Follow

L/Hi-z

TV

-

-

-

-

-

-

-

-

-

-

Z/L

-

-

H/L

H/L

-

L

-

Z/L

1-14-4 HC493PIN

Pin
No.

Mark

IN/

OUT

65 OUT

66 OUT

67 IN

68 OUT

69 OUT

70 OUT

71 OUT

72

IN/

OUT

W,X,
Y,Z,

73

AA,
AC,
AD,

-

AE

AB OUT

74 -

75 -

76 OUT

77 OUT

78 OUT

79 IN

80 IN

81 OUT

82 -

83 OUT

84 OUT

Signal

Name

D-REC-H

C­POWER­SW

P-ON-H

DRV­DATA

DRV­STB

DRV­CLK

2

C BUS-

I
SCL

2

C BUS-

I
SDA

Function

Delayed Record
Signal

Capstan Power
Switching Pulse

Power On Signal
at High

LED Clock Driver
IC Control Data

LED Clock Driver
IC Chip Select
Signal

LED Clock Driver
IC Control Clock

I2C BUS Control
Clock

I2C BUS Control
Data

N.U. Not Used

SAT­MOUSE

SAT-MOUSE
Data Control
Signal Output

N.U. Not Used

N.U. Not Used

C-CONT

D-CONT

Capstan Motor
Control Signal

Drum Motor
Control Signal

Capstan Motor
FWD/REV

C-F/R

Control Signal
(FWD=”L”/
REV=”H”)

S-REEL

T-REEL

LM-FWD/
REV

Supply Reel
Rotation Signal

Take Up Reel
Rotation Signal

Loading Motor
Control Signal

N.U. Not Used

Audio Mute
A-MUTE­H

Control

Signal (Mute =

“H”)

FF/REW­L

CTL Amp Gain

Switching Signal

(FF/REW=”L”)

Active

Level

L

L/Hi-z

H

H/L

H/L

H/L

H/L

H/L

-

L

-

-

PWM

PWM

H/L

PULSE

PULSE

H/L/
Hi-z

-

H

L

Pin
No.

Mark

IN/

OUT

Signal

Name

W,X,
Y,Z,

85

AA,
AC,
AD,

-

N.U. Not Used

AE

AB IN LINK-IN

86 IN

P­DOWN-L

Easy Link Data
Input

Power Voltage
Down Detector
Signal

Capstan Motor

87 IN

C-FG

Rotation
Detection
Pulse

88 -

AMPVss AMPVss (GND)

Drum Motor

89 IN

D-FG

Rotation
Detection Pulse

90 IN

91 -

92 -

93 -

94 OUT

D-PG

N.U. Not Used

AMPVRE

IN

F

CC Terminal

CTL (-)

Drum Motor
Pulse Generator

V-Ref for CTL
AMP

Playback/Record
Control Signal (-)

Playback/Record

95 OUT

CTL (+)

Control Signal
(+)

CTL AMP

96 -

AMPC

Connected
Terminal

97 -

98 -

CTLAMP
out

AMPVcc AMPVcc

To Monitor for
CTL AMP Output

A/D Converter

99 -

AVcc

Power Input/
Standard
Voltage Input

100 IN

AGC

IF AGC Control
Signal

Notes:

Abbreviation for Active Level:

PWM -----Pulse Wide Modulation
A/D--------Analog - Digital Converter

Function

Active

Level

-

Z/L

L

PULSE

-

PULSE

PULSE

-

-

-

H/L

H/L

-

PULSE

-

-

H/L/

Hi-z

1-14-5 HC493PIN

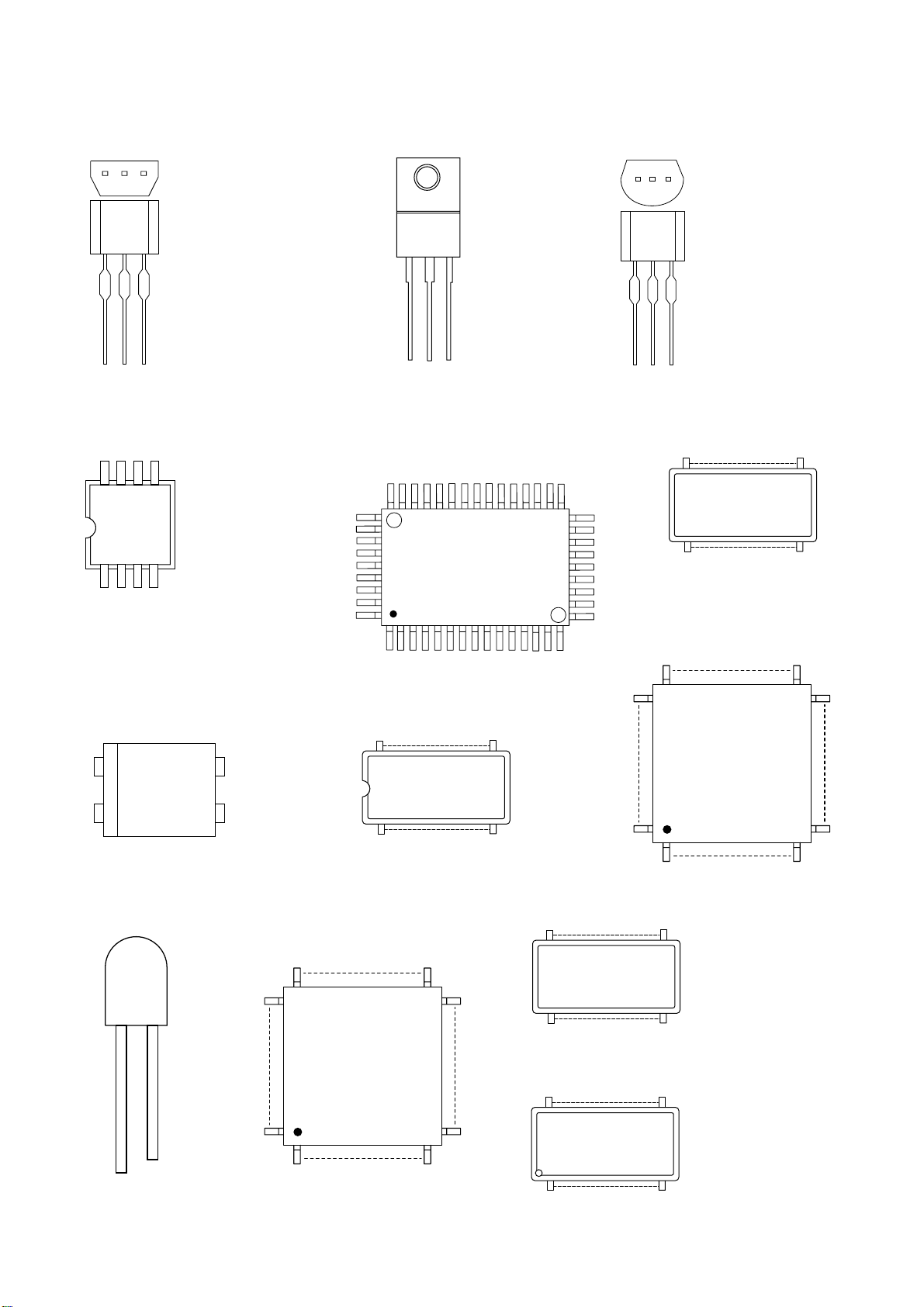

[ VR530/58,VR630/58,VR330/58,VR730/58,VR732/58,VR830/58,VRQ45/16,
VRQ45/39,VRQ45/58 ]

BN1F4M-T
BA1F4M-T
KTA1266(GR)
KRA104M
KTC3199(Y,GR,BL)
2SC2785(J.H.F.K)
KTC3205(Y)
KRA103M
KRC103M
BN1L4M-T

FS1KM-18A
FS1KM-14A

2SC1815-Y(TPE2)
2SC1815-GR(TPE2)
KTA1281(Y)
2SC2120-Y(TPE2)
KTC3203(Y)
2SC1815-BL(TPE2)
2SA1020(Y)
2SB892(S)
2SD1246(S,T)
2SA1015-GR(TPE2)
2SC3266-Y(TPE2)

E C B

8

1

LTV-817(B.C)-F
EL817(A,B,C)

A

K

BR24C02F-W
AT24C02N-10SC
CAT24WC02JI
BR24C04F-W
AT24C04N-10SC
M24C04-MN6T

5

CAT24WC04JI
BR24C08F-W
AT24C08N-10SC
M24C08-MN6T

4

CAT24WC08JI
BR24C16F
AT24C16N-10SC
M24C16-MN6T

G D S

LA71750M-AM-MTB
QSZAB0RMB102
QSZAB0RMB099
QSZAD0RMB101

80

81

100

1

PT-6958-FN-TP

28

C

E

1

15

14

51

50

31

30

61

80

E C B

60

14

1

LA72646M

LM339DT
KIA339F EL

8

7

41

40

21

PT204-6B-12
MID-32A22

C

E

44

34

MSP3407G-QG-B8
MSP3417G-QG-B8

33

1

23

11

22

12

LC74793JM-TRM

24

1

LA70100M-TRM

30

1

1

13

12

16

15

20

Note:

A: Anode
K: Cathode
E: Emitter
C: Collector
B: Base
R: Reference
S: Source
G: Gate
D: Drain

1-15-2 HC493LE

PRODUCT SAFETY NOTE: Products marked with a h

1-16-13

have special characteristics important to safety.
Before replacing any of these components, read carefully
the product safety notice in this service manual.
Don't degrade the safety of the product through improper servicing.

NOTES:

Parts that not assigned part numbers (-----------) are not
available.
Tolerance of Capacitors and Resistors are noted with
the following symbols.

C…..±0.25% D…..±0.5% F…..±1%
G…..±2% J…..±5% K…..±10%
M…..±20% N…..±30% Z…..+80/-20%

ELECTRICAL PARTS LIST

Pos.

2B7 9965 000 12286 SHIELD ASSEMBLY HC460ED 111111111
2B8 9965 000 08566 BUSH, LED(F) H3700UD 111111111
2B46 9965 000 12173 ROHM HOLDER H7770JD 111111111
A4 9965 000 13038 JACK BOARD(CONV) HC461BD 1 1 1 1 1
A4 9965 000 12406 JACK BOARD(CONV) HC480ED 1
AC001

C002
C003
C004 9965 000 06566 ELECTROLYTIC CAP. 22UF/400V M(L?Z) 111111111
C005 4822 126 14142 CERAMIC CAP. B K 0.01UF/500V 111111111
C006 4822 126 14141 CERAMIC CAP. SL K 56PF/1KV 111111111
C007 CERAMIC CAP.(AX) X K 3300PF/16V 111111111
C008 CERAMIC CAP.(AX) X K 5600PF/16V 111111111
C010 FILM CAP.(P) 0.022UF/50V J 111111111
C011 ELECTROLYTIC CAP. 10UF/16V M 111111111
C012 ELECTROLYTIC CAP. 10UF/50V M H7 111111111
C014 ELECTROLYTIC CAP. 470UF/25V M 111111111
C017 ELECTROLYTIC CAP. 470UF/16V M 111111111
C018 ELECTROLYTIC CAP. 100UF/16V M 111111111
C020 ELECTROLYTIC CAP. 1000UF/16V M 111111111
C021 ELECTROLYTIC CAP. 470UF/10V M 111111111
C025 CERAMIC CAP.(AX) X K 5600PF/16V 111111111
C026 ELECTROLYTIC CAP. 47UF/16V M H7 111111111
C053 ELECTROLYTIC CAP. 330UF/6.3V M 111111111
C056 CERAMIC CAP.(AX) F Z 0.047UF/16V 111111111
C060 ELECTROLYTIC CAP. 10UF/16V M H7 11111111
C061 CHIP CERAMIC CAP. F Z 0.1UF/50V 11111111
C157 ELECTROLYTIC CAP. 1UF/50V M H7 111111111
C158 CHIP CERAMIC CAP. B K 1000PF/50V 111111111
C251 ELECTROLYTIC CAP. 10UF/16V M H7 111111111
C252 CHIP CERAMIC CAP. B K 1000PF/50V 111111111
C253 ELECTROLYTIC CAP. 1UF/50V M H7 111111111
C254 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C302 CHIP CERAMIC CAP. B K 0.022UF/50V 111111111
C303 ELECTROLYTIC CAP. 1UF/50V M H7 111111111
C304 ELECTROLYTIC CAP. 1UF/50V M H7 111111111
C305 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C307 CHIP CERAMIC CAP. B K 0.047UF/50V 111111111
C308 CHIP CERAMIC CAP. B K 0.022UF/50V 111111111

h

12 NC Description

MCV CBA
MAIN CBA (MCV-A)

h

9965 000 08666 AC CORD PE8B2CB1H0A-057 111111111

CAPACITORS

h

9965 000 06521 METALLIZED FILM CAP. 0.068UF/250V K 111111111

h

9965 000 06522 SAFETY CAP. 2200PF/250V 111111111

VR330/58

VR530/58

VR630/58

VR730/58

VR732/58

VR830/58

VRQ45/16

VRQ45/39

VRQ45/58

ELECTRICAL PARTS LIST

h

1-16-14

Pos.

C309 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C310 CHIP CERAMIC CAP. B K 0.047UF/50V 111111111
C311 CHIP CERAMIC CAP. B K 0.01UF/50V 111111 11
C312 CERAMIC CAP.(AX) Y M 8200PF/16V 111111111
C313 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C314 CHIP CERAMIC CAP. B K 0.01UF/50V 111111111
C315 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C316 CHIP CERAMIC CAP. B K 0.01UF/50V 111111111
C317 ELECTROLYTIC CAP. 47UF/6.3V M H7 111111111
C318 ELECTROLYTIC CAP. 1UF/50V M H7 111111111
C319 ELECTROLYTIC CAP. 1UF/50V M H7 111111111
C320 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C321 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C322 ELECTROLYTIC CAP. 10UF/16V M H7 111111111
C323 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C324 CHIP CERAMIC CAP. CH J 68PF/50V 111111111
C325 CHIP CERAMIC CAP. F Z 0.1UF/50V 11111111
C326 CHIP CERAMIC CAP. CH J 68PF/50V 11111111
C327 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C328 CHIP CERAMIC CAP. F Z 0.1UF/50V 1 1 1
C329 CHIP CERAMIC CAP. CH J 68PF/50V 1 1 1
C330 CERAMIC CAP.(AX) F Z 0.1UF/50V 111111111
C332 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C333 ELECTROLYTIC CAP. 0.47UF/50V M H7 111111111
C334 ELECTROLYTIC CAP. 4.7UF/25V M NP H7 111111111
C335 ELECTROLYTIC CAP. 10UF/16V M H7 111111111
C337 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C338 ELECTROLYTIC CAP. 100UF/6.3V H7 111111111
C339 ELECTROLYTIC CAP. 1UF/50V M H7 111111111
C340 CHIP CERAMIC CAP. CH J 120PF/50V 111111111
C341 CHIP CERAMIC CAP. CH J 220PF/50V 111111111
C342 ELECTROLYTIC CAP. 1UF/50V M H7 111111111
C343 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C344 CERAMIC CAP.(AX) B K 100PF/50V 111111111
C345 CHIP CERAMIC CAP. CH J 68PF/50V 111111111
C346 CHIP CERAMIC CAP. CH J 68PF/50V 1
C347 CHIP CERAMIC CAP. CH J 15PF/50V 111111111
C348 CHIP CERAMIC CAP. CH J 68PF/50V 1 1 1
C351 ELECTROLYTIC CAP. 220UF/6.3V M H7 111111111
C352 ELECTROLYTIC CAP. 100UF/16V M H7 111111111
C370 CHIP CERAMIC CAP. B K 0.01UF/50V 1
C371 CHIP CERAMIC CAP. B K 0.022UF/50V 1
C372 CHIP CERAMIC CAP. F Z 0.1UF/50V 1
C373 CHIP CERAMIC CAP. F Z 0.1UF/50V 1
C374 CHIP CERAMIC CAP. F Z 0.1UF/50V 1
C375 CHIP CERAMIC CAP. B K 0.01UF/50V 1
C376 CHIP CERAMIC CAP. B K 0.022UF/50V 1
C377 CERAMIC CAP.(AX) Y M 0.01UF/16V 1
C378 CHIP CERAMIC CAP. B K 0.01UF/50V 1
C379 ELECTROLYTIC CAP. 0.47UF/50V M H7 1
C381 CHIP CERAMIC CAP. F Z 0.1UF/50V 1
C382 CHIP CERAMIC CAP. B K 2200PF/50V 1
C383 CHIP CERAMIC CAP. B K 2200PF/50V 1
C384 ELECTROLYTIC CAP. 2.2UF/50V M H7 1
C401 ELECTROLYTIC CAP. 47UF/6.3V M H7 111111111
C402 ELECTROLYTIC CAP. 220UF/6.3V M H7 111111111
C403 CERAMIC CAP. B K 470PF/100V 111111111
C404 FILM CAP.(P) 0.018UF/100V J 111111111
C411 CHIP CERAMIC CAP. CH J 820PF/50V 111111111
C412 CERAMIC CAP.(AX) X K 1800PF/16V 111111111
C413 ELECTROLYTIC CAP. 4.7UF/25V M H7 111111111

12 NC Description

VR330/58

VR530/58

VR630/58

VR730/58

VR732/58

VR830/58

VRQ45/16

VRQ45/39

VRQ45/58

ELECTRICAL PARTS LIST

h

1-16-15

Pos.

C414 CHIP CERAMIC CAP. B K 0.01UF/50V 111111111
C415 ELECTROLYTIC CAP. 10UF/16V M H7 111111111
C416 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C417 CHIP CERAMIC CAP. B K 0.01UF/50V 111111111
C418 CHIP CERAMIC CAP. CH J 33PF/50V 111111111
C419 CHIP CERAMIC CAP. B K 4700PF/50V 111111111
C421 ELECTROLYTIC CAP. 33UF/6.3V M H7 111111111
C422 ELECTROLYTIC CAP. 4.7UF/25V M H7 111111111
C423 CHIP CERAMIC CAP. F Z 0.1UF/50V 1
C424 ELECTROLYTIC CAP. 22UF/6.3V M H7 111111111
C425 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C427 CHIP CERAMIC CAP. CH J 220PF/50V 1
C428 CHIP CERAMIC CAP. CH J 220PF/50V 111111111
C430 ELECTROLYTIC CAP. 47UF/6.3V M H7 111111111
C431 CHIP CERAMIC CAP. B K 0.01UF/50V 111111111
C451 ELECTROLYTIC CAP. 4.7UF/25V M H7 111111 1
C452 ELECTROLYTIC CAP. 47UF/16V M H7 11111111
C453 CHIP CERAMIC CAP. F Z 0.1UF/50V 11111111
C454 ELECTROLYTIC CAP. 10UF/16V M H7 11111111
C455 ELECTROLYTIC CAP. 10UF/16V M H7 11111111
C456 CHIP CERAMIC CAP. F Z 0.1UF/50V 11111111
C457 ELECTROLYTIC CAP. 22UF/10V M H7 11111111
C458 ELECTROLYTIC CAP. 10UF/16V M H7 11111111
C459 ELECTROLYTIC CAP. 4.7UF/25V M H7 11111111
C460 CHIP CERAMIC CAP. B K 0.01UF/50V 11111111
C461 ELECTROLYTIC CAP. 22UF/10V M H7 11111111
C462 CHIP CERAMIC CAP. B K 4700PF/50V 11111111
C463 CHIP CERAMIC CAP. B K 0.01UF/50V 11111111
C464 CHIP CERAMIC CAP. B K 0.01UF/50V 11111111
C465 ELECTROLYTIC CAP. 10UF/16V M H7 11111111
C466 CHIP CERAMIC CAP. B K 0.01UF/50V 11111111
C467 ELECTROLYTIC CAP. 4.7UF/25V M H7 11111111
C468 ELECTROLYTIC CAP. 22UF/10V M H7 11111111
C469 CHIP CERAMIC CAP. B K 4700PF/50V 11111111
C470 CHIP CERAMIC CAP. B K 0.01UF/50V 11111111
C471 ELECTROLYTIC CAP. 4.7UF/25V M H7 11111111
C472 ELECTROLYTIC CAP. 10UF/16V M H7 11111111
C473 CHIP CERAMIC CAP. F Z 0.1UF/50V 11111111
C474 ELECTROLYTIC CAP. 2.2UF/50V M H7 11111111
C475 ELECTROLYTIC CAP. 2.2UF/50V M H7 11111111
C476 ELECTROLYTIC CAP. 10UF/16V M H7 11111111
C477 ELECTROLYTIC CAP. 4.7UF/25V M H7 11111111
C478 ELECTROLYTIC CAP. 4.7UF/25V M H7 11111111
C479 ELECTROLYTIC CAP. 4.7UF/25V M H7 11111111
C480 ELECTROLYTIC CAP. 4.7UF/25V M H7 11111111
C481 CHIP CERAMIC CAP. F Z 0.1UF/50V 11111111
C482 CHIP CERAMIC CAP. F Z 0.1UF/50V 11111111
C483 ELECTROLYTIC CAP. 330UF/6.3V M H7 11111111
C484 CHIP CERAMIC CAP. F Z 0.1UF/50V 11111111
C485 CHIP CERAMIC CAP. F Z 0.1UF/50V 11111111
C501 ELECTROLYTIC CAP. 220UF/6.3V M 111111111
C502 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C506 CERAMIC CAP.(AX) B K 100PF/50V 11111111
C508 ELECTROLYTIC CAP. 1UF/50V M H7 111111111
C510 ELECTROLYTIC CAP. 22UF/10V M H7 111111111
C511 ELECTROLYTIC CAP. 100UF/6.3V H7 111111111
C512 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C513 CHIP CERAMIC CAP. CH J 22PF/50V 111111111
C514 CHIP CERAMIC CAP. CH J 22PF/50V 111111111
C515 CHIP CERAMIC CAP. CH D 10PF/50V 111111111
C516 CHIP CERAMIC CAP. CH D 10PF/50V 111111111

12 NC Description

VR330/58

VR530/58

VR630/58

VR730/58

VR732/58

VR830/58

VRQ45/16

VRQ45/39

VRQ45/58

ELECTRICAL PARTS LIST

h

1-16-16

Pos.

C517 CHIP CERAMIC CAP. B K 0.01UF/50V 111111111
C518 CHIP CERAMIC CAP. B K 0.047UF/50V 111111111
C519 CHIP CERAMIC CAP. B K 0.01UF/50V 111111111
C520 CHIP CERAMIC CAP. CH J 100PF/50V 111111111
C521 CHIP CERAMIC CAP. CH J 560PF/50V 111111111
C522 ELECTROLYTIC CAP. 22UF/6.3V M H7 111111111
C523 CHIP CERAMIC CAP. B K 1000PF/50V 111111111
C524 CHIP CERAMIC CAP. CH J 330PF/50V 111111111
C526 CHIP CERAMIC CAP. B K 4700PF/50V 111111111
C527 ELECTROLYTIC CAP. 22UF/6.3V M H7 111111111
C529 CHIP CERAMIC CAP. B K 0.01UF/50V 111111111
C530 CERAMIC CAP.(AX) F Z 0.022UF/25V 111111111
C531 CERAMIC CAP.(AX) Y M 0.01UF/16V 111111111
C535 CHIP CERAMIC CAP. B K 0.01UF/50V 111111111
C540 ELECTROLYTIC CAP. 470UF/6.3V M 111111111
C541 ELECTROLYTIC CAP. 220UF/6.3V M H7 1
C561 CHIP CERAMIC CAP. B K 0.022UF/50V 111111111
C621 CHIP CERAMIC CAP. CH J 220PF/50V 1
C622 CHIP RES.(1608) 1/10W 0 OHM 11111 111
C622 CHIP CERAMIC CAP. B K 2200PF/50V 1
C701 CHIP CERAMIC CAP. B K 0.047UF/50V 1111111 1
C702 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C703 ELECTROLYTIC CAP. 10UF/16V M H7 111111111
C704 CHIP CERAMIC CAP. B K 0.01UF/50V 111111111
C706 CHIP CERAMIC CAP. B K 1000PF/50V 111111111
C707 ELECTROLYTIC CAP. 100UF/6.3V H7 111111111
C708 CHIP CERAMIC CAP. B K 0.01UF/50V 111111111
C709 ELECTROLYTIC CAP. 1UF/50V M H7 1
C710 CHIP CERAMIC CAP. B K 1000PF/50V 1
C712 CHIP CERAMIC CAP. B K 0.01UF/50V 111111 1
C713 CHIP CERAMIC CAP. B K 0.01UF/50V 111111 1
C715 CHIP CERAMIC CAP. B K 0.01UF/50V 111111111
C751 CHIP CERAMIC CAP. B K 2200PF/50V 111111
C752 CHIP CERAMIC CAP. B K 2200PF/50V 111111
C756 CERAMIC CAP.(AX) B K 470PF/50V 1 1 1
C757 CERAMIC CAP.(AX) B K 470PF/50V 1 1 1
C771 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C772 ELECTROLYTIC CAP. 10UF/16V M H7 111111111
C773 CERAMIC CAP.(AX) B K 1000PF/50V 111111111
C774 CHIP CERAMIC CAP. B K 1000PF/50V 111111111
C775 ELECTROLYTIC CAP. 1UF/50V M H7 111111111
C776 ELECTROLYTIC CAP. 1UF/50V M H7 111111111
C777 CERAMIC CAP.(AX) B K 180PF/50V 111111111
C778 CHIP CERAMIC CAP. CH J 180PF/50V 111111111
C851 CHIP CERAMIC CAP. CH J 22PF/50V 111111111
C852 CHIP CERAMIC CAP. CH J 18PF/50V 111111111
C853 CHIP CERAMIC CAP. B K 4700PF/50V 111111111
C854 CHIP CERAMIC CAP. B K 0.01UF/50V 111111111
C855 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C856 CHIP CERAMIC CAP. CH J 180PF/50V 111111111
C858 CHIP CERAMIC CAP. CH J 560PF/50V 111111 11
C859 ELECTROLYTIC CAP. 47UF/6.3V M H7 111111111
C862 CHIP CERAMIC CAP. B K 0.01UF/50V 111111111
CN506 9965 000 12262 FNT PCB ASSEMBLY CP2500/C470/FUNCTION 1 1
CN506 9965 000 12407 FNT PCB ASSEMBLY CP2500/C480/FUNCTION 1
CN506 9965 000 13045 FNT PCB ASSEMBLY CP2500/C490/FUNCTION 1 1 1

CN701 9965 000 12175 AFV PCB ASSEMBLY CP2500/C461 111111 1
CN701 9965 000 12254 AFV PCB ASSEMBLY CP2500/C463 1

D001 4822 130 31933 RECTIFIER DIODE 1N4005 111111111

12 NC Description

AFV PCB

DIODES

VR330/58

VR530/58

VR630/58

VR730/58

VR732/58

VR830/58

VRQ45/16

VRQ45/39

VRQ45/58

ELECTRICAL PARTS LIST

h

1-16-17

Pos.

D002 4822 130 31933 RECTIFIER DIODE 1N4005 111111111
D003 4822 130 31933 RECTIFIER DIODE 1N4005 111111111
D004 4822 130 31933 RECTIFIER DIODE 1N4005 111111111
D005 5322 130 34979 RECTIFIER DIODE BA159 111111111
D006 4822 130 30621 SWITCHING DIODE 1N4148M 111111111
D007 4822 130 30621 SWITCHING DIODE 1N4148M 111111111
D008 4822 130 30621 SWITCHING DIODE 1N4148M 111111111
D009 4822 130 30621 SWITCHING DIODE 1N4148M 111111111
D011 4822 130 41487 RECTIFIER DIODE BA157 111111111
D012 4822 130 83883 RECTIFIER DIODE FR202 111111111
D013 4822 130 83883 RECTIFIER DIODE FR202 111111111
D014 5322 130 81917 SCHOTTKY BARRIER DIODE SB140 1
D014 4822 130 32715 SCHOTTKY BARRIER DIODE SB340 11111111
D015 4822 130 80319 ZENER DIODE MTZJT-779.1C 111111111
D018 4822 130 32778 SWITCHING DIODE 1SS133(T-77) 111111111
D019 9965 000 05249 ZENER DIODE MTZJT-775.6B 111111111
D021 4822 130 32778 SWITCHING DIODE 1SS133(T-77) 111111111
D051 4822 130 31933 RECTIFIER DIODE 1N4005 111111111
D052 4822 130 32778 SWITCHING DIODE 1SS133(T-77) 111111111
D053 9965 000 12176 RECTIFIER DIODE RL201 B-222-2 111111 1
D053 4822 130 31933 RECTIFIER DIODE 1N4005 1
D053 9965 000 09322 RECTIFIER DIODE FR302 1
D056 9965 000 05694 ZENER DIODE MTZJT-775.1C 111111111
D057 4822 130 80998 ZENER DIODE MTZJT-7710B 11111111
D057 9965 000 12891 CARBON RES. 1/4W J 3.3K OHM 1
D151 9965 000 12177 ZENER DIODE DZ-6.8BSCT265 11111111
D152 9965 000 12177 ZENER DIODE DZ-6.8BSCT265 11111111
D153 9965 000 12178 ZENER DIODE DZ-11BSAT265 111111111
D154 9965 000 12178 ZENER DIODE DZ-11BSAT265 11111111
D155 9965 000 12178 ZENER DIODE DZ-11BSAT265 11111111
D156 9965 000 12178 ZENER DIODE DZ-11BSAT265 11111111
D157 9965 000 12178 ZENER DIODE DZ-11BSAT265 1
D301 4822 130 30621 SWITCHING DIODE 1N4148M 111111111
D370 4822 130 30621 SWITCHING DIODE 1N4148M 1
D501 4822 130 30621 SWITCHING DIODE 1N4148M 111111111
D502 9965 000 05250 LED SIR-563ST3F P 111111111
D552 4822 130 10094 ZENER DIODE MTZJT-777.5A 11111111
D553 4822 130 32778 SWITCHING DIODE 1SS133(T-77) 111111111
D621 4822 130 32778 SWITCHING DIODE 1SS133(T-77) 1
D701 4822 130 81729 ZENER DIODE MTZJT-7733D 111111111
F001
FH001 4822 256 10461 FUSE HOLDER MSF-015 111111111
FH002 4822 256 10461 FUSE HOLDER MSF-015 111111111
FP562 9965 000 09307 LED DISPLAY LFU-4421-2001A 111111111

IC001
IC301 9965 000 12180 IC:Y/C/A LA71750AM-MTB 111111111
IC370 9965 000 12255 IC:SECAM LA70100M-TRM 1
IC451 9965 000 12181 IC:HIFI LA72646M-A-MPB 11111111
IC501 9965 000 13029 MICROCONTROLLER 16BIT M37762MFA-1B8GP 11111 1
IC501 9965 000 12408 MICROCONTROLLER 16BIT M37762MFA-1B7GP 1
IC501 9965 000 12556 MICROCONTROLLER 16BIT M37762MFA-1B9GP 1 1
IC503 9965 000 06554 IC:MEMORY BR24C02F-W 1
IC503 9965 000 13030 IC:EEPROM CAT24WC04JI 1 1 1 1
IC503 9965 000 12409 IC:EEPROM M24C08-MN6T 1
IC503 9965 000 13046 IC:EEPROM M24C16-MN6T 1 1 1
IC561 9965 000 12183 IC:LED DRIVER PT6958-FN-TP 111111111
IC771 9965 000 12410 IC:COMPARATOR LM339DT 111111111
J902 4822 526 10685 BEAD CORE HF70BB3.5X10X1.3 111111111
JW001 9965 000 12411 FLAT CABLE, 11P AWG26#2651/P1.25/150 11111111
JW001 9965 000 12892 FLAT CABLE, 8P AWG26#2651/P1.25/150 1

12 NC Description

h

9965 000 12179 FUSE 21301.6M 111111111

IC’s

h

4822 130 11655 PHOTOCOUPLER LTV-817B-F 111111111

VR330/58

VR530/58

VR630/58

VR730/58

VR732/58

VR830/58

VRQ45/16

VRQ45/39

VRQ45/58

ELECTRICAL PARTS LIST

h

1-16-18

Pos.

JW002 9965 000 12412 FLAT CABLE, 12P AWG26#2651/P1.25/150 11111111
JW003 9965 000 12413 FLAT CABLE, 2P AWG26#2651/P1.25/120 111111111

L001 4822 526 10685 BEAD CORE HF70BB3.5X10X1.3 111111111
L002 4822 526 10685 BEAD CORE HF70BB3.5X10X1.3 111111111
L003
L009 9965 000 05627 CHOKE COIL 47UH-K 111111111
L010 9965 000 05627 CHOKE COIL 47UH-K 111111111
L012 4822 157 10649 INDUCTOR 100UH-K-26T 111111111
L251 9965 000 08652 INDUCTOR 5.6UH-K-26T 111111111
L301 4822 157 63316 INDUCTOR 56UH-K-26T 111111111
L370 PCB JUMPER D0.6-P5.0 1
L401 9965 000 05627 CHOKE COIL 47UH-K 111111111
L402 9965 000 05627 CHOKE COIL 47UH-K 111111111
L451 4822 157 10649 INDUCTOR 100UH-K-26T 11111111
L452 4822 157 10347 INDUCTOR 22UH-K-26T 11111111
L501 4822 157 10649 INDUCTOR 100UH-K-26T 111111111
L561 4822 157 10649 INDUCTOR 100UH-K-26T 11111111
L561 4822 157 11509 INDUCTOR 47UH-K-26T 1
L562 PCB JUMPER D0.6-P5.0 11111111
L562 4822 157 11509 INDUCTOR 47UH-K-26T 1
L701 4822 157 10889 INDUCTOR 10UH-K-26T 111111111
L702 9965 000 05627 CHOKE COIL 47UH-K 111111111
L703 PCB JUMPER D0.6-P5.0 1111111 1
L704 4822 157 11511 INDUCTOR 15UH-K-26T 1111111 1
L705 PCB JUMPER D0.6-P5.0 111111111
L851 9965 000 08629 INDUCTOR 1.8UH-K-26T 111111111
L853 PCB JUMPER D0.6-P5.0 111111111
PS503 9965 000 12189 PHOTO INTERRUPTER RPI-302C70 111111111

Q001 9965 000 06568 FET FS1KM-18A 111111111
Q002 4822 130 41319 TRANSISTOR 2SC1815-BL(TPE2) 111111111
Q003 4822 130 41319 TRANSISTOR 2SC1815-BL(TPE2) 111111111
Q004 4822 130 10103 TRANSISTOR KTC3199(Y) 111111111
Q051 9965 000 09287 RES. BUILT-IN TRANSISTOR BN1L4M-T 111111111
Q052 4822 130 10098 RES. BUILT-IN TRANSISTOR KRC103M 111111111
Q053 4822 130 10103 TRANSISTOR KTC3199(Y) 11111111
Q054 9965 000 09389 TRANSISTOR 2SD1246(S) 11111111
Q054 4822 130 42292 TRANSISTOR 2SC2120-Y(TPE2) 1
Q056 4822 130 10145 RES. BUILT-IN TRANSISTOR KRA103M 111111111
Q057 9965 000 12190 TRANSISTOR KTA1281(Y) 111111111
Q058 4822 130 10098 RES. BUILT-IN TRANSISTOR KRC103M 111111111
Q153 4822 130 10103 TRANSISTOR KTC3199(Y) 11111111
Q351 4822 130 42959 TRANSISTOR KTA1266(GR) 111111111
Q352 4822 130 10103 TRANSISTOR KTC3199(Y) 111111111
Q401 4822 130 42959 TRANSISTOR KTA1266(GR) 111111111
Q402 4822 130 42292 TRANSISTOR KTC3203(Y) 111111111
Q403 4822 130 10145 RES. BUILT-IN TRANSISTOR KRA103M 111111111
Q404 4822 130 10103 TRANSISTOR KTC3199(Y) 111111111
Q405 4822 130 10103 TRANSISTOR KTC3199(Y) 111111111
Q406 4822 130 10103 TRANSISTOR KTC3199(Y) 111111111
Q451 4822 130 10098 RES. BUILT-IN TRANSISTOR KRC103M 11111111
Q501 4822 130 10923 TRANSISTOR KTC3199(BL) 111111111
Q502 4822 130 10098 RES. BUILT-IN TRANSISTOR KRC103M 111111111
Q503 9965 000 08630 PHOTO TRANSISTOR PT204-6B-12 111111111
Q551 4822 130 10923 TRANSISTOR KTC3199(BL) 111111111
Q552 4822 130 10098 RES. BUILT-IN TRANSISTOR KRC103M 111111111
Q621 4822 130 10103 TRANSISTOR KTC3199(Y) 1
Q771 4822 130 10103 TRANSISTOR KTC3199(Y) 111111111
Q772 4822 130 10103 TRANSISTOR KTC3199(Y) 111111111

12 NC Description

COILS

h

9965 000 09877 LINE FILTER 56MH TLF14CB5630R2 111111111

TRANSISTORS

RESISTORS

VR330/58

VR530/58

VR630/58

VR730/58

VR732/58

VR830/58

VRQ45/16

VRQ45/39

VRQ45/58

ELECTRICAL PARTS LIST

h

1-16-19

Pos.

R001 9965 000 08653 CARBON RES. 1/2W K 5.6M OHM 111111111
R002 9965 000 08635 METAL OXIDE FILM RES. 1W J 150K OHM 111111111
R003 CARBON RES. 1/4W J 1M OHM 111111111
R004 CARBON RES. 1/4W J 1M OHM 111111111
R005 4822 116 52243 CARBON RES. 1/4W G 1.5K OHM 111111111
R006 9965 000 13032 METAL OXIDE FILM RES. 1W J 2.2 OHM 111111111
R007 CARBON RES. 1/6W J 22K OHM 111111111
R008 CARBON RES. 1/6W J 100K OHM 111111111
R009 CARBON RES. 1/6W G 5.6K OHM 111111111
R011 CARBON RES. 1/4W J 390K OHM 111111111
R012 CARBON RES. 1/4W J 390K OHM 111111111
R013 CARBON RES. 1/6W J 470K OHM 111111111
R014 CARBON RES. 1/6W J 100K OHM 111111111
R015 CHIP RES.(1608) 1/10W J 10K OHM 111111111
R016 CARBON RES. 1/6W J 100K OHM 111111111
R017 CHIP RES.(1608) 1/10W J 220K OHM 111111111
R018 CHIP RES.(1608) 1/10W J 22K OHM 111111111
R021 CHIP RES.(1608) 1/10W J 22K OHM 111111111
R022 CHIP RES.(1608) 1/10W J 680 OHM 111111111
R023 CHIP RES.(1608) 1/10W J 2.2K OHM 111111111
R024 CHIP RES.(1608) 1/10W J 1K OHM 111111111
R025 CHIP RES.(1608) 1/10W J 390 OHM 111111111
R026 CHIP RES.(1608) 1/10W J 22K OHM 111111111
R027 CARBON RES. 1/6W J 1K OHM 111111111
R028 CARBON RES. 1/4W J 1M OHM 111111111
R035 PCB JUMPER D0.6-P5.0 111111111
R054 CHIP RES.(1608) 1/10W J 180 OHM 111111111
R059 CARBON RES. 1/6W J 330 OHM 1
R060 CARBON RES. 1/6W J 2.7K OHM 111111111
R061 CHIP RES.(1608) 1/10W J 22K OHM 111111111
R062 CARBON RES. 1/4W J 10K OHM 11111111
R062 9965 000 12891 CARBON RES. 1/4W J 3.3K OHM 1
R063 CARBON RES. 1/4W J 1.2K OHM 111111111
R064 CARBON RES. 1/4W J 1.2K OHM 111111111
R065 CARBON RES. 1/4W J 1.2K OHM 111111111
R066 CHIP RES.(1608) 1/10W J 47K OHM 111111111
R067 CARBON RES. 1/4W J 680 OHM 111111111
R068 CARBON RES. 1/4W J 680 OHM 111111111
R070 CHIP RES.(1608) 1/10W J 4.7K OHM 111111111
R157 CARBON RES. 1/6W J 4.7K OHM 11111111
R158 CHIP RES.(1608) 1/10W J 6.8K OHM 11111111
R251 CHIP RES.(1608) 1/10W J 2.2K OHM 11111111
R251 CHIP RES.(1608) 1/10W J 1.8K OHM 1
R252 CHIP RES.(1608) 1/10W J 39K OHM 111111111
R301 CHIP RES.(1608) 1/10W J 1.2K OHM 111111111
R302 CHIP RES.(1608) 1/10W J 8.2K OHM 111111111
R303 CHIP RES.(1608) 1/10W J 5.6K OHM 111111 11
R304 CHIP RES.(1608) 1/10W J 3.9K OHM 111111 11
R305 CHIP RES.(1608) 1/10W J 3.9K OHM 111111111
R306 CHIP RES.(1608) 1/10W 0 OHM 111111111
R307 CHIP RES.(1608) 1/10W J 4.7K OHM 111111111
R308 CHIP RES.(1608) 1/10W J 6.8K OHM 111111111
R309 CHIP RES.(1608) 1/10W J 100 OHM 111111111
R310 CHIP RES.(1608) 1/10W J 10K OHM 111111111
R311 CHIP RES.(1608) 1/10W J 18K OHM 111111111
R312 CHIP RES.(1608) 1/10W J 10K OHM 111111111
R313 CHIP RES.(1608) 1/10W J 18K OHM 11111111
R314 CHIP RES.(1608) 1/10W J 18K OHM 1
R315 CARBON RES. 1/6W J 2.4K OHM 111111111
R316 CHIP RES.(1608) 1/10W J 6.8K OHM 111111111
R317 CHIP RES.(1608) 1/10W J 1.2K OHM 111111111

12 NC Description

VR330/58

VR530/58

VR630/58

VR730/58

VR732/58

VR830/58

VRQ45/16

VRQ45/39

VRQ45/58

ELECTRICAL PARTS LIST

h

1-16-20

Pos.

R318 CHIP RES.(1608) 1/10W J 4.7K OHM 111111111
R319 CHIP RES.(1608) 1/10W J 10K OHM 111111111
R320 CHIP RES.(1608) 1/10W J 560 OHM 111111111
R321 CARBON RES. 1/6W J 33 OHM 11111111
R322 CHIP RES.(1608) 1/10W J 75 OHM 1 1 1
R323 CARBON RES. 1/6W J 33 OHM 111111111
R324 CHIP RES.(1608) 1/10W J 39K OHM 111111111
R328 CHIP RES.(1608) 1/10W J 1K OHM 111111111
R330 CHIP RES.(1608) 1/10W J 5.6M OHM 111111111
R331 CHIP RES.(1608) 1/10W J 10K OHM 111111111
R332 CHIP RES.(1608) 1/10W 0 OHM 11111111
R332 CHIP INDUCTOR MLG1608B18NJB000 1
R333 CHIP INDUCTOR MLG1608B18NJB000 1 1 1
R351 CHIP RES.(1608) 1/10W J 180 OHM 1111111 1
R351 CHIP RES.(1608) 1/10W J 150 OHM 1
R352 CHIP RES.(1608) 1/10W J 150 OHM 111111111
R355 CARBON RES. 1/4W J 680 OHM 111111111
R357 CHIP RES.(1608) 1/10W J 220 OHM 111111111
R358 CHIP RES.(1608) 1/10W J 1.5K OHM 1111111 1
R360 CHIP RES.(1608) 1/10W J 1.8K OHM 111111111
R361 CHIP RES.(1608) 1/10W J 1K OHM 111111111
R370 CHIP RES.(1608) 1/10W J 2.7K OHM 1
R371 CARBON RES. 1/6W J 5.6K OHM 1
R372 CHIP RES.(1608) 1/10W J 3.9K OHM 1
R401 CHIP RES.(1608) 1/10W J 5.6K OHM 111111111
R402 CHIP RES.(1608) 1/10W J 22K OHM 111111111
R403 CHIP RES.(1608) 1/10W J 47K OHM 111111111
R404 CARBON RES. 1/6W J 100 OHM 111111111
R405 CHIP RES.(1608) 1/10W J 10K OHM 111111111
R406 CHIP RES.(1608) 1/10W J 10K OHM 111111111
R407 CARBON RES. 1/6W J 820 OHM 111111111
R408 CHIP RES.(1608) 1/10W J 12K OHM 111111111
R409 CHIP RES.(1608) 1/10W J 5.6K OHM 111111111
R411 CHIP RES.(1608) 1/10W J 1K OHM 111111111
R412 CHIP RES.(1608) 1/10W J 27K OHM 111111111
R413 CHIP RES.(1608) 1/10W J 330K OHM 111111111
R414 CHIP RES.(1608) 1/10W J 120 OHM 111111111
R415 CHIP RES.(1608) 1/10W J 12K OHM 111111111
R416 CHIP RES.(1608) 1/10W J 1.8K OHM 111111111
R417 CHIP RES.(1608) 1/10W J 1.2K OHM 111111111
R421 CHIP RES.(1608) 1/10W J 12K OHM 111111111
R422 CHIP RES.(1608) 1/10W J 10K OHM 111111111
R423 CHIP RES.(1608) 1/10W J 22K OHM 1
R424 CHIP RES.(1608) 1/10W J 3.9K OHM 1
R425 CHIP RES.(1608) 1/10W J 5.6K OHM 11111111
R425 CHIP RES.(1608) 1/10W J 22K OHM 1
R426 CHIP RES.(1608) 1/10W J 4.7K OHM 111111111
R429 CHIP RES.(1608) 1/10W J 2.2K OHM 111111111
R430 CHIP RES.(1608) 1/10W 0 OHM 11111111
R431 CHIP RES.(1608) 1/10W 0 OHM 11111111
R451 CHIP RES.(1608) 1/10W J 10K OHM 111111 1
R452 CHIP RES.(1608) 1/10W J 22K OHM 11111111
R453 CHIP RES.(1608) 1/10W J 6.8K OHM 11111111
R454 CHIP RES.(1608) 1/10W J 39K OHM 11111111
R455 CHIP RES.(1608) 1/10W J 6.8K OHM 11111111
R456 CHIP RES.(1608) 1/10W J 8.2K OHM 11111111
R457 CHIP RES.(1608) 1/10W J 6.8K OHM 11111111
R458 CHIP RES.(1608) 1/10W J 39K OHM 1 1 1
R459 CHIP RES.(1608) 1/10W J 6.8K OHM 1 1 1
R460 CHIP RES.(1608) 1/10W J 470 OHM 11111111
R461 CHIP RES.(1608) 1/10W J 2.2K OHM 11111111

12 NC Description

VR330/58

VR530/58

VR630/58

VR730/58

VR732/58

VR830/58

VRQ45/16

VRQ45/39

VRQ45/58

ELECTRICAL PARTS LIST

h

1-16-21

Pos.

R462 CHIP RES.(1608) 1/10W J 39K OHM 11111111
R463 CHIP RES.(1608) 1/10W J 8.2K OHM 11111111
R464 CHIP RES.(1608) 1/10W J 39K OHM 11111111
R465 CHIP RES.(1608) 1/10W J 8.2K OHM 11111111
R466 CHIP RES.(1608) 1/10W J 39K OHM 11111111
R467 CHIP RES.(1608) 1/10W J 6.8K OHM 11111111
R468 CARBON RES. 1/6W J 8.2K OHM 11111111
R469 CHIP RES.(1608) 1/10W J 6.8K OHM 11111111
R470 CHIP RES.(1608) 1/10W J 39K OHM 1 1 1
R471 CHIP RES.(1608) 1/10W J 6.8K OHM 1 1 1
R472 CHIP RES.(1608) 1/10W J 1K OHM 11111111
R473 CHIP RES.(1608) 1/10W J 1K OHM 11111111
R474 CHIP RES.(1608) 1/10W J 10K OHM 11111111
R479 CHIP RES.(1608) 1/10W J 27K OHM 11111111
R480 CHIP RES.(1608) 1/10W J 27K OHM 11111111
R501 CHIP RES.(1608) 1/10W J 1K OHM 111111111
R502 CHIP RES.(1608) 1/10W J 1K OHM 111111111
R503 CHIP RES.(1608) 1/10W J 1K OHM 111111111
R504 CHIP RES.(1608) 1/10W J 10K OHM 111111111
R505 CHIP RES.(1608) 1/10W J 10K OHM 111111111
R506 CHIP RES.(1608) 1/10W J 10K OHM 111111111
R507 CHIP RES.(1608) 1/10W 0 OHM 111111111
R508 CARBON RES. 1/6W J 1K OHM 111111111
R509 CHIP RES.(1608) 1/10W J 4.7K OHM 111111111
R510 CHIP RES.(1608) 1/10W J 10K OHM 1111111 1
R511 CHIP RES.(1608) 1/10W J 100K OHM 111111111
R513 CHIP RES.(1608) 1/10W J 2.2K OHM 111111111
R514 CHIP RES.(1608) 1/10W J 820 OHM 111111111
R516 CHIP RES.(1608) 1/10W J 330K OHM 111111111
R517 CHIP RES.(1608) 1/10W J 220 OHM 111111111
R518 CHIP RES.(1608) 1/10W J 470 OHM 111111111
R519 CHIP RES.(1608) 1/10W 0 OHM 1 1 1 1 1 1
R519 CHIP RES.(1608) 1/10W J 1K OHM 1 1 1
R520 CHIP RES.(1608) 1/10W J 10K OHM 111111111
R521 CHIP RES.(1608) 1/10W J 220K OHM 111111111
R522 CHIP RES.(1608) 1/10W J 68K OHM 111111111
R523 CHIP RES.(1608) 1/10W J 10K OHM 111111111
R524 CHIP RES.(1608) 1/10W J 10K OHM 111111111
R525 CHIP RES.(1608) 1/10W J 1.5K OHM 111111111
R526 CHIP RES.(1608) 1/10W J 1.8K OHM 111111111
R527 CHIP RES.(1608) 1/10W J 680 OHM 111111111
R528 CHIP RES.(1608) 1/10W J 10K OHM 111111111
R529 CARBON RES. 1/4W J 270 OHM 111111111
R530 CHIP RES.(1608) 1/10W J 180 OHM 111111111
R531 CHIP RES.(1608) 1/10W J 68K OHM 111111111
R533 CHIP RES.(1608) 1/10W J 33K OHM 111111111
R534 CARBON RES. 1/6W G 3.6K OHM 111111111
R535 CARBON RES. 1/6W G 10K OHM 111111111
R536 CARBON RES. 1/6W G 470 OHM 111111111
R537 CARBON RES. 1/6W G 22K OHM 111111111
R538 CARBON RES. 1/6W G 1.5K OHM 111111111
R539 CARBON RES. 1/6W G 4.7K OHM 111111111
R540 CHIP RES.(1608) 1/10W J 390K OHM 111111111
R541 CHIP RES.(1608) 1/10W J 390K OHM 111111111
R542 CHIP RES.(1608) 1/10W J 1.2K OHM 111111111
R543 CHIP RES.(1608) 1/10W 0 OHM 111111111
R544 CHIP RES.(1608) 1/10W J 1.5K OHM 111111111
R545 CHIP RES.(1608) 1/10W J 2.2K OHM 111111111
R546 CHIP RES.(1608) 1/10W J 1.8K OHM 111111111
R547 CHIP RES.(1608) 1/10W J 2.7K OHM 111111111
R551 CHIP RES.(1608) 1/10W J 100 OHM 111111111

12 NC Description

VR330/58

VR530/58

VR630/58

VR730/58

VR732/58

VR830/58

VRQ45/16

VRQ45/39

VRQ45/58

ELECTRICAL PARTS LIST

h

1-16-22

Pos.

R552 CHIP RES.(1608) 1/10W J 10K OHM 111111111
R555 CHIP RES.(1608) 1/10W J 10K OHM 1 1
R556 CHIP RES.(1608) 1/10W J 10K OHM 1
R557 CHIP RES.(1608) 1/10W J 10K OHM 1 1
R558 CHIP RES.(1608) 1/10W J 10K OHM 1
R566 CHIP RES.(1608) 1/10W J 56K OHM 111111111
R601 CHIP RES.(1608) 1/10W J 10K OHM 1
R603 CHIP RES.(1608) 1/10W J 10K OHM 1
R604 CHIP RES.(1608) 1/10W J 10K OHM 11111 111
R605 CHIP RES.(1608) 1/10W J 10K OHM 1111 111
R606 CHIP RES.(1608) 1/10W J 10K OHM 1
R607 CHIP RES.(1608) 1/10W J 10K OHM 1 1 1 1
R608 CHIP RES.(1608) 1/10W J 10K OHM 1 1 1
R609 CHIP RES.(1608) 1/10W J 10K OHM 1
R610 CHIP RES.(1608) 1/10W J 10K OHM 1111 111
R612 CHIP RES.(1608) 1/10W J 10K OHM 111111111
R613 CHIP RES.(1608) 1/10W J 10K OHM 1 1 1
R614 CHIP RES.(1608) 1/10W J 10K OHM 11111
R615 CHIP RES.(1608) 1/10W J 10K OHM 1 1 1 1 1 1
R616 CHIP RES.(1608) 1/10W J 10K OHM 1 1
R617 CHIP RES.(1608) 1/10W J 10K OHM 1 1 1 1 1
R618 CHIP RES.(1608) 1/10W J 10K OHM 1
R621 CHIP RES.(1608) 1/10W J 100K OHM 1
R622 CHIP RES.(1608) 1/10W J 33K OHM 1
R623 CHIP RES.(1608) 1/10W J 220 OHM 1
R624 CHIP RES.(1608) 1/10W J 6.8K OHM 1
R625 CHIP RES.(1608) 1/10W J 27K OHM 1
R701 CARBON RES. 1/6W J 1.8K OHM 111111111
R702 CARBON RES. 1/6W J 1K OHM 111111111
R703 CARBON RES. 1/6W J 1K OHM 111111111
R704 CHIP RES.(1608) 1/10W J 1K OHM 111111 1
R705 CHIP RES.(1608) 1/10W J 1K OHM 111111 1
R706 CARBON RES. 1/6W J 1K OHM 111111111
R709 PCB JUMPER D0.6-P5.0 1
R751 CHIP RES.(1608) 1/10W J 1K OHM 111111
R752 CHIP RES.(1608) 1/10W J 1K OHM 111111
R756 PCB JUMPER D0.6-P5.0 1 1 1
R757 CHIP RES.(1608) 1/10W J 75 OHM 1 1 1
R758 CARBON RES. 1/6W J 4.7K OHM 1 1 1
R759 CARBON RES. 1/6W J 4.7K OHM 1 1 1
R771 CHIP RES.(1608) 1/10W J 4.7K OHM 111111111
R772 CHIP RES.(1608) 1/10W J 100K OHM 111111111
R773 CHIP RES.(1608) 1/10W J 4.7K OHM 111111111
R774 CHIP RES.(1608) 1/10W J 22K OHM 111111111
R775 CHIP RES.(1608) 1/10W J 15K OHM 111111111
R776 CHIP RES.(1608) 1/10W J 8.2K OHM 111111111
R777 CHIP RES.(1608) 1/10W J 8.2K OHM 111111111
R778 CHIP RES.(1608) 1/10W J 33K OHM 111111111
R779 CHIP RES.(1608) 1/10W J 33K OHM 111111111
R780 CHIP RES.(1608) 1/10W J 33K OHM 111111111
R781 CHIP RES.(1608) 1/10W J 15K OHM 111111111
R782 CHIP RES.(1608) 1/10W J 33K OHM 111111111
R783 CHIP RES.(1608) 1/10W J 15K OHM 111111111
R784 CHIP RES.(1608) 1/10W J 10M OHM 111111111
R785 CHIP RES.(1608) 1/10W J 10M OHM 111111111
R786 CHIP RES.(1608) 1/10W J 2.2K OHM 111111111
R787 CHIP RES.(1608) 1/10W J 2.2K OHM 111111111
R851 CHIP RES.(1608) 1/10W J 1.5K OHM 111111111
R852 CHIP RES.(1608) 1/10W J 1K OHM 111111111
R853 CHIP RES.(1608) 1/10W J 1K OHM 111111111
RS501 9965 000 12191 REMOTE RECEIVER PIC-37042LQ 111111111

12 NC Description

VR330/58

VR530/58

VR630/58

VR730/58

VR732/58

VR830/58

VRQ45/16

VRQ45/39

VRQ45/58

ELECTRICAL PARTS LIST

h

1-16-23

Pos.

SA001

SW501 4822 276 13954 TACT SWITCH KSM0614B 111111111
SW502 4822 276 13954 TACT SWITCH KSM0614B 111111111
SW504 4822 276 13954 TACT SWITCH KSM0614B 111111111
SW505 4822 276 13954 TACT SWITCH KSM0614B 111111111
SW506 9965 000 12285 LEAF SWITCH LSA-1142AU 111111111
SW507 9965 000 09194 ROTARY MODE SWITCH R8100212 111111111
T001
TP301 PCB JUMPER D0.6-P9.5 111111111
TP501 PCB JUMPER D0.6-P6.0 111111111
TP502 PCB JUMPER D0.6-P10.0 111111111
TP506 PCB JUMPER D0.6-P5.0 111111111
TP507 PCB JUMPER D0.6-P6.0 111111111
TP508 PCB JUMPER D0.6-P23.0 111111111
TP751 PCB JUMPER D0.6-P5.0 111111111
TU701 9965 000 13033 TUNER UNIT TMDG2-731A 111111 1
TU701 9965 000 12265 TUNER UNIT TMDG2-631A 1
TU701 9965 000 12256 TUNER UNIT TMDZ2-731A 1
VR501 9965 000 05260 CARBON P.O.T. 100K OHM B 111111111
X301 9965 000 05629 X’TAL 4.433619MHZ 111111111
X501 9965 000 12194 X’TAL 12.000MHZ 111111111
X502 9965 000 12288 X’TAL 32.768KHZ(20PPM) 111111111

CN651 9965 000 09213 ANGLE PIN HEADER, 3P 6029B-1-03Z002-T 1 1 1

R651 CHIP RES.(1608) 1/10W J 1K OHM 1 1 1
R652 CHIP RES.(1608) 1/10W J 1.2K OHM 1 1 1
R653 CHIP RES.(1608) 1/10W J 1.5K OHM 1 1 1
R654 CHIP RES.(1608) 1/10W J 2.2K OHM 1 1 1
R655 CHIP RES.(1608) 1/10W J 3.9K OHM 1 1 1

SW651 4822 276 13954 TACT SWITCH KSM0614B 1 1 1
SW652 4822 276 13954 TACT SWITCH KSM0614B 1 1 1
SW653 4822 276 13954 TACT SWITCH KSM0614B 1 1 1
SW654 4822 276 13954 TACT SWITCH KSM0614B 1 1 1
SW656 4822 276 13954 TACT SWITCH KSM0614B 1 1 1

C640 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C642 SEMICONDUCTOR CAP. SR K 0.056UF/25V 111111111
C643 ELECTROLYTIC CAP. 4.7UF/25V M H7 111111111
C644 ELECTROLYTIC CAP. 47UF/6.3V M H7 111111111
C645 CHIP CERAMIC CAP. B K 0.01UF/50V 111111111
C648 ELECTROLYTIC CAP. 1UF/50V M H7 111111111
C649 ELECTROLYTIC CAP. 1UF/50V M H7 111111111

IC640 9965 000 12198 IC:VPS/PDC SLICER LC74793JM-TRM 111111111
J283 PCB JUMPER D0.6-P15.0 111111111

R638 CHIP RES.(1608) 1/10W J 100 OHM 111111111
R641 CHIP RES.(1608) 1/10W J 10K OHM 111111111
R642 CHIP RES.(1608) 1/10W J 2.7K OHM 111111111
R643 CHIP RES.(1608) 1/10W J 5.6K OHM 111111111
R644 CHIP RES.(1608) 1/10W J 10K OHM 111111111
R645 CHIP RES.(1608) 1/10W J 10K OHM 111111111

SW510 4822 276 13954 TACT SWITCH KSM0614B 111111111

2L022 4822 502 30752 SCREW, P-TIGHT M3X10 WASHER HEAD+ 111111111
A5 9965 000 12196 JACK BOARD(2-21P) HC460ED 1 1

12 NC Description

h

4822 252 11373 SURGE ABSORBER JVR-10N471K 111111111

SWITCHES

h

9965 000 09203 PULSE TRANS SA-00901B 111111111

FUNCTION CBA (MCV-B)

RESISTORS

SWITCHES

VPS CBA (MCV-C)
CAPACITORS

IC’s

RESISTORS

POWER SW CBA (MCV-D) 111111111

JACK CBA (MCV-E) 111111111

VR330/58

VR530/58

VR630/58

VR730/58

VR732/58

VR830/58

VRQ45/16

VRQ45/39

VRQ45/58

ELECTRICAL PARTS LIST

h

1-16-24

Pos.

A5 9965 000 12894 JACK BOARD(1-21P) HC461BD 1
A5 9965 000 12263 JACK BOARD(2-21P) HC470ED 1 1111
A5 9965 000 12273 JACK BOARD(2-21P) HC475ED 1

C101 CHIP CERAMIC CAP. B K 2200PF/50V 11111111
C102 CHIP CERAMIC CAP. B K 2200PF/50V 111111111
C103 CHIP CERAMIC CAP. CH J 470PF/50V 11111111
C104 CHIP CERAMIC CAP. CH J 470PF/50V 111111111
C105 CHIP CERAMIC CAP. F Z 0.1UF/50V 111111111
C107 ELECTROLYTIC CAP. 1UF/50V M H7 111111111
C108 CHIP CERAMIC CAP. B K 1000PF/50V 111111111
C109 CHIP CERAMIC CAP. B K 2200PF/50V 11111111
C110 CHIP CERAMIC CAP. B K 2200PF/50V 11111111
C111 CHIP CERAMIC CAP. CH J 470PF/50V 11111111
C112 CHIP CERAMIC CAP. CH J 470PF/50V 11111111
C113 CHIP CERAMIC CAP. B K 2200PF/50V 11111111
C115 ELECTROLYTIC CAP. 100UF/16V M H7 111111111
C116 ELECTROLYTIC CAP. 470UF/6.3V M 111111111
C117 ELECTROLYTIC CAP. 470UF/6.3V M 11111111

D101 9965 000 12178 ZENER DIODE DZ-11BSAT265 111111111
D102 9965 000 12178 ZENER DIODE DZ-11BSAT265 11111111
D103 9965 000 12178 ZENER DIODE DZ-11BSAT265 11111111
D105 9965 000 12178 ZENER DIODE DZ-11BSAT265 111111111
JK101 9965 000 12197 RGB CONNECTOR MRC-021V-01 111111111
JK102 9965 000 12197 RGB CONNECTOR MRC-021V-01 11111111
JK751 9965 000 13039 RCA JACK MSP-282V-12 PBSN 111111
JK756 4822 265 11659 RCA JACK(YELLOW) MSP-281V4-B 1 1 1
JK757 4822 265 11661 RCA JACK(WHITE) MSP-281V1-B 1 1 1
JK758 9965 000 00423 RCA JACK(RED) MSP-281V3-A 1 1 1

L101 4822 526 10685 BEAD CORE HF70BB3.5X10X1.3 111111111
L121 4822 526 10685 BEAD CORE HF70BB3.5X10X1.3 11111111

Q101 4822 130 11101 TRANSISTOR 2SA1015-GR(TPE2) 111111111
Q102 4822 130 11101 TRANSISTOR 2SA1015-GR(TPE2) 11111111

R101 CARBON RES. 1/4W J 1K OHM 111111111
R102 CARBON RES. 1/4W J 1K OHM 1
R103 CARBON RES. 1/4W J 1K OHM 11111111
R104 CARBON RES. 1/6W J 4.7K OHM 11111111
R105 CARBON RES. 1/6W J 4.7K OHM 1
R106 CARBON RES. 1/6W J 4.7K OHM 111111111
R107 CHIP RES.(1608) 1/10W 0 OHM 11111 111
R108 CARBON RES. 1/4W J 68 OHM 111111111
R109 CHIP RES.(1608) 1/10W J 75 OHM 111111111
R110 CARBON RES. 1/4W J 1K OHM 11111111
R112 CARBON RES. 1/4W J 1K OHM 11111111
R113 CARBON RES. 1/6W J 4.7K OHM 11111111
R115 CARBON RES. 1/6W J 4.7K OHM 11111111
R116 CARBON RES. 1/6W J 15K OHM 11111111
R117 CHIP RES.(1608) 1/10W J 10K OHM 11111111
R118 CARBON RES. 1/4W J 68 OHM 11111111
R119 CHIP RES.(1608) 1/10W J 75 OHM 11111111
R120 CARBON RES. 1/6W J 680 OHM 111111111
R123 CHIP RES.(1608) 1/10W J 220 OHM 111111111
R125 CARBON RES. 1/6W J 680 OHM 11111111
R126 CHIP RES.(1608) 1/10W J 220 OHM 11111111
R127 CHIP RES.(1608) 1/10W 0 OHM 11111111
R128 CHIP RES.(1608) 1/10W 0 OHM 11111111

12 NC Description

CAPACITORS

DIODES

COILS

TRANSISTORS

RESISTORS

SENSOR CBA

VR330/58

VR530/58

VR630/58

VR730/58

VR732/58

VR830/58

VRQ45/16

VRQ45/39

VRQ45/58

ELECTRICAL PARTS LIST

h

1-16-25

Pos.

Q504 9965 000 08630 PHOTO TRANSISTOR PT204-6B-12 111111111
Q505 9965 000 08630 PHOTO TRANSISTOR PT204-6B-12 111111111

C631 ELECTROLYTIC CAP. 100UF/6.3V M 1
C632 CERAMIC CAP.(AX) F Z 0.1UF/50V 1

D631 4822 130 30621 SWITCHING DIODE 1N4148M 1
D632 4822 130 30621 SWITCHING DIODE 1N4148M 1
D633 9965 000 12177 ZENER DIODE DZ-6.8BSCT265 1
D634 9965 000 12177 ZENER DIODE DZ-6.8BSCT265 1
JK631 9965 000 12415 MINIATURE JACK WTJ035-10DBT 1
JW004 9965 000 12414 FLAT CABLE, 3P AWG26#2651/P1.25/150 1

Q631 4822 130 42959 TRANSISTOR KTA1266(GR) 1

R631 CARBON RES. 1/6W J 4.7K OHM 1
R632 CARBON RES. 1/6W J 2.2K OHM 1
R633 CARBON RES. 1/6W J 47K OHM 1
R634 CARBON RES. 1/6W J 1.5K OHM 1

CN651 9965 000 09213 ANGLE PIN HEADER, 3P 6029B-1-03Z002-T 111111

R652 CARBON RES. 1/6W J 1K OHM 1 1 1
R653 CARBON RES. 1/6W J 1.2K OHM 1 1 1
R654 CARBON RES. 1/6W J 1.5K OHM 1 1 1
R655 CARBON RES. 1/6W J 2.2K OHM 1 1 1
R660 CARBON RES. 1/6W J 6.8K OHM 1 1 1
R662 CARBON RES. 1/6W J 1K OHM 1 1 1
R663 CARBON RES. 1/6W J 1.2K OHM 1 1 1
R668 CARBON RES. 1/6W J 3.9K OHM 1 1 1
R668 PCB JUMPER D0.6-P5.0 1 1 1

SW669 4822 276 13954 TACT SWITCH KSM0614B 1 1 1
SW671 4822 276 13954 TACT SWITCH KSM0614B 1 1
SW672 4822 276 13954 TACT SWITCH KSM0614B 1 1 1
SW673 4822 276 13954 TACT SWITCH KSM0614B 1 1
SW674 4822 276 13954 TACT SWITCH KSM0614B 1 1
SW675 4822 276 13954 TACT SWITCH KSM0614B 1 1
SW681 4822 276 13954 TACT SWITCH KSM0614B 1
SW683 4822 276 13954 TACT SWITCH KSM0614B 1
SW684 4822 276 13954 TACT SWITCH KSM0614B 1
SW685 4822 276 13954 TACT SWITCH KSM0614B 1
SW691 4822 276 13954 TACT SWITCH KSM0614B 1 1 1
SW692 4822 276 13954 TACT SWITCH KSM0614B 1 1 1
SW694 4822 276 13954 TACT SWITCH KSM0614B 1 1 1

C1 CHIP CERAMIC CAP. F Z 0.1UF/50V 11111111
C4 CHIP CERAMIC CAP. CH J 56PF/50V 11111111
C5 CHIP CERAMIC CAP. CH J 22PF/50V 11111111
C6 CHIP CERAMIC CAP. CH J 56PF/50V 11111111
C7 CHIP CERAMIC CAP. CH D 3PF/50V 11111111
C8 CHIP CERAMIC CAP. CH D 3PF/50V 11111111
C11 CHIP CERAMIC CAP. B K 0.01UF/50V 11111111
C12 ELECTROLYTIC CAP. 10UF/16V M H7 11111111

12 NC Description

SMV CBA
CAPACITORS

DIODES

TRANSISTORS

RESISTORS

FUNCTION CBA

FUNCTION CBA 1 1
FUNCTION CBA 1
FUNCTION CBA 1 1 1

RESISTORS

SWITCHES

AFV CBA

AFV CBA 111111 1
AFV CBA 1

CAPACITORS

VR330/58

VR530/58

VR630/58

VR730/58

VR732/58

VR830/58

VRQ45/16

VRQ45/39

VRQ45/58

ELECTRICAL PARTS LIST

h

1-16-26

Pos.

C13 CHIP CERAMIC CAP. B K 0.01UF/50V 11111111
C14 CHIP CERAMIC CAP. B K 0.01UF/50V 11111111
C15 ELECTROLYTIC CAP. 10UF/16V M H7 11111111
C16 ELECTROLYTIC CAP. 10UF/16V M H7 11111111
C17 CHIP CERAMIC CAP. F Z 0.1UF/50V 11111111
C19 CHIP CERAMIC CAP. F Z 0.1UF/50V 11111111
C20 ELECTROLYTIC CAP. 3.3UF/50V M H7 11111111
C21 CHIP CERAMIC CAP. F Z 0.1UF/50V 11111111
C22 ELECTROLYTIC CAP. 10UF/16V M H7 11111111
C23 CHIP CERAMIC CAP. F Z 0.47UF/10V 1
C24 ELECTROLYTIC CAP. 0.22UF/50V M H7 11111111
CN1 4822 265 11267 ANGLE PIN HEADER, 9P 6029B-1-09Z003-T 11111111

D2 4822 130 30621 SWITCHING DIODE 1N4148M 11111111

IC1 9965 000 12199 IC:AUDIO PROCESSOR MSP3417G-QG-B8 11111111

L1 4822 157 10889 INDUCTOR 10UH-K-26T 11111111
L2 PCB JUMPER D0.6-P5.0 11111111
L3 4822 157 11318 INDUCTOR 18UH-K-26T 11111111
L4 4822 157 10889 INDUCTOR 10UH-K-26T 11111111

R1 9965 000 13036 CHIP RES.(1608) 1/10W J 1K OHM 11111111
R2 9965 000 09942 CHIP RES.(1608) 1/10W 0 OHM 1
R4 9965 000 13037 CHIP RES.(1608) 1/10W J 120K OHM 11111111
R5 9965 000 09942 CHIP RES.(1608) 1/10W 0 OHM 11111111
R6 9965 000 09942 CHIP RES.(1608) 1/10W 0 OHM 11111111
R7 9965 000 09966 CHIP RES.(1608) 1/10W J 1.2K OHM 1
X1 9965 000 12200 X’TAL 18.432MHZ 11111111

12 NC Description

DIODES

IC’s

COILS

RESISTORS

VR330/58

VR530/58

VR630/58

VR730/58

VR732/58

VR830/58

VRQ45/16

VRQ45/39

VRQ45/58

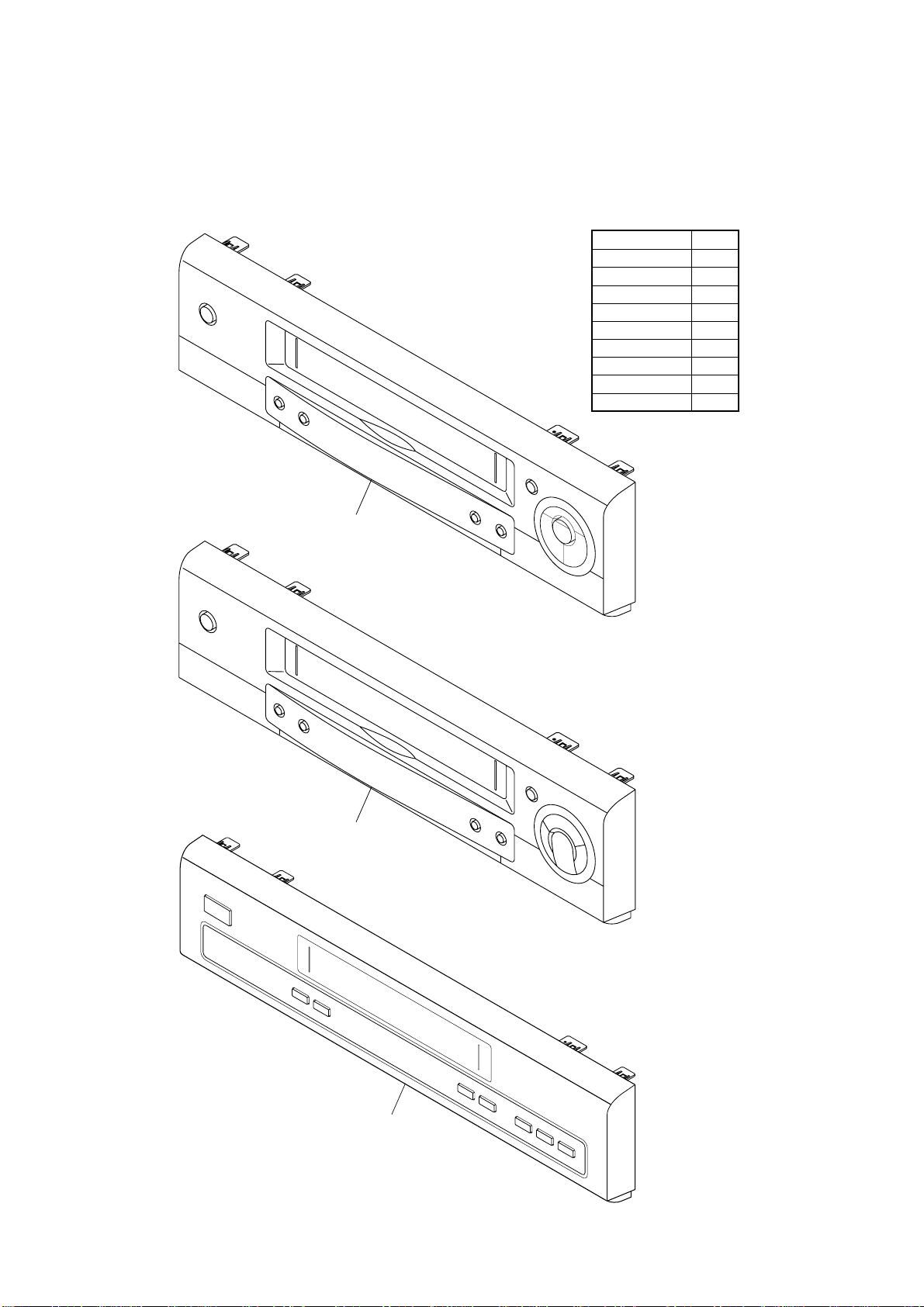

[ VR530/58,VR630/58,VR330/58,VR730/58,VR732/58,VR830/58,VRQ45/16,
VRQ45/39,VRQ45/58 ]

Front Panel

[ Y ]

[ W,X,Z,AA,AB ]

A1X

Comparison Chart of
Models and Marks

Model Mark

VR530/58
VR630/58
VR330/58
VR730/58
VR732/58
VR830/58
VRQ45/16
VRQ45/39
VRQ45/58

W
X
Y
Z
AA
AB
AC
AD
AE

[ AC,AD,AE ]

A1X

A1X

1-17-4 HC493FEX

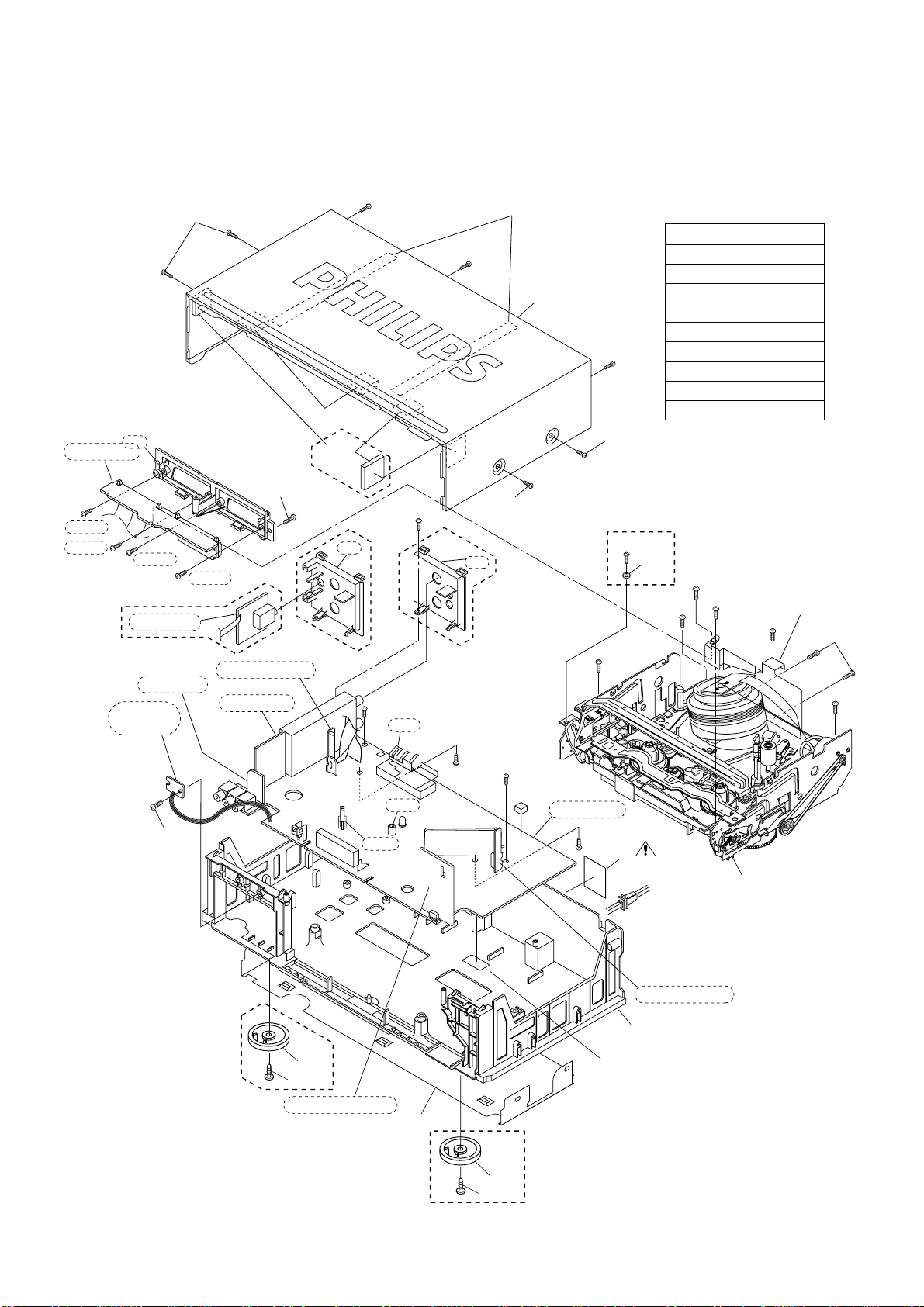

[ VR530/58,VR630/58,VR330/58,VR730/58,VR732/58,VR830/58,VRQ45/16,
VRQ45/39,VRQ45/58 ]

Cabinet

Comparison Chart of
Models and Marks

Model Mark

VR530/58
VR630/58
VR330/58
VR730/58
VR732/58
VR830/58
VRQ45/16
VRQ45/39
VRQ45/58

2B45

2L042

2L021

2L021

2L021

JACK CBA

2L022

2L022

[ AB ]

POWER

SW CBA

A5

2L022

SMV CBA

VPS CBA

2L011

2L022

[ Z,AA,AB,AC,
AD,AE ]

2L012

SENSOR CBA

AFV CBA

2B9

2B10

A4

2L011

[ AB ]

2L041

2L041

2B7

2B18

2L011

A2

2L011

2L011

2L011

[ Z,AA,AB,AC,AD,AE ]

2L021

A4

[ Z,AA,AC,AD,AE ]

2L021

W
X
Y
Z
AA
AB
AC
AD
AE

2B5

2L051

2L021

2L043

[ AB ]

2B46

A34

2L044

FUNCTION CBA

2B8

A7

2L031

2L041

A34

2L044

2B14

MAIN CBA

2L099

A10

1B1

SENSOR CBA

A3

2B49

[ AB ]

1-17-5 HC493CEX

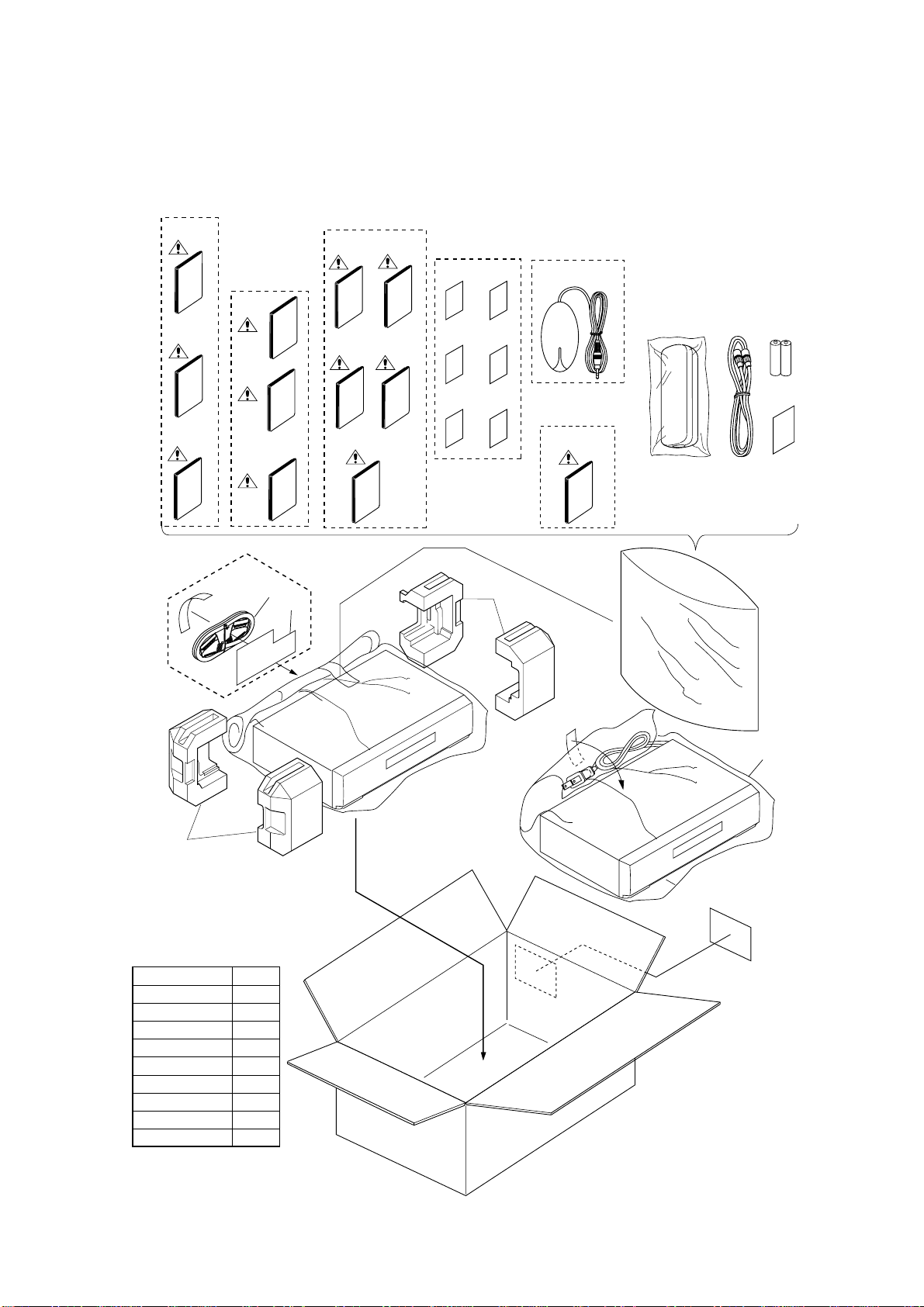

[ VR530/58,VR630/58,VR330/58,VR730/58,VR732/58,VR830/58,
VRQ45/16,VRQ45/39,VRQ45/58 ]

Packing

[ W,AC,AD ]

X20A

X20B

X20C

[ W,AC ]

X20D

X20E

X20F

X6

[ AD ]

S7

[ AC ]

X20G

X20K

X20H

X20JX20I

[ W ]

Some Ref. Numbers are not in sequence.

[ AB ]

X36BX36A

X41

X1

X3

X2

X36DX36C

X36FX36E

[ X,Y,Z,AA,

X26

AB,AE ]

X20

S2

S2

Comparison Chart of
Models and Marks

Model Mark

VR530/58
VR630/58
VR330/58
VR730/58
VR732/58
VR830/58
VRQ45/16
VRQ45/39
VRQ45/58

W

X
Y

Z
AA
AB
AC
AD
AE

X4

S3

Unit

A14

S1

1-17-6 HC493PEX

h

h

h

h

h

h

h

h

h

h

PRODUCT SAFETY NOTE: Products marked with a h

1-18-2

have special characteristics important to safety.
Before replacing any of these components, read carefully
the product safety notice in this service manual.
Don’t degrade the safety of the product through improper
servicing.

MECHANICAL PARTS LIST

Pos.

A1X 9965 000 12292 FRONT ASSEMBLY HC462ED 1
A1X 9965 000 12912 FRONT ASSEMBLY HC467ED 1
A1X 9965 000 12888 FRONT ASSEMBLY HC265ED 1
A1X 9965 000 12264 FRONT ASSEMBLY HC472ED 1
A1X 9965 000 12277 FRONT ASSEMBLY HC477ED 1
A1X 9965 000 13040 FRONT ASSEMBLY HC484ED 1
A1X 9965 000 13047 FRONT ASSEMBLY HC491ED 1 1
A1X 9965 000 13049 FRONT ASSEMBLY HC492FD 1
A2 9965 000 12164 CASE, TOP HC460ED 1 1 1
A2 9965 000 12258 CASE, TOP HC470ED 1 1111
A2 9965 000 12268 CASE, TOP(BLACK) HC475ED 1
A3 9965 000 12165 CHASSIS HC461BD 1 1 1
A3 9965 000 12259 CHASSIS(U25PAL FTZ) HC470ED 1 1 1 1
A3 9965 000 12269 CHASSIS(435/BLACK) HC475ED 1
A3 9965 000 12398 CHASSIS HC480ED 1
A7 9965 000 12166 PANEL, BOTTOM HC461BD 1 1 1
A7 9965 000 12260 PANEL, BOTTOM HC470ED 111111
A8 9965 000 13034 DOOR, CASSETTE HC462ED 1
A8 9965 000 12167 DOOR, CASSETTE HC466BD 1 1 1
A8 9965 000 13026 DOOR, CASSETTE HC265ED 1
A8 9965 000 12276 DOOR, CASSETTE HC476BD 1
A8 9965 000 13041 DOOR, CASSETTE HC481BD 1
A8 9965 000 13048 DOOR, CASSETTE HC492FD 1 1
A9 9965 000 09192 SPRING, DOOR H7220UD U15 111111111
A10
A10
A10
A10
A10
A10
A10
A10
A10
A14 LABEL, BAR CODE HC464ED 1
A14 LABEL, BAR CODE HC469ED 1
A14 LABEL, BAR CODE HC268ED 1
A14 LABEL, BAR CODE HC474ED 1
A14 LABEL, BAR CODE HC479ED 1
A14 LABEL, BAR CODE HC484ED 1
A14 LABEL, BAR CODE HC491ED 1
A14 LABEL, BAR CODE HC492FD 1
A14 LABEL, BAR CODE HC493ED 1
1B1 9965 000 12399 DECK ASSEMBLY CZD011/VM15E0 11111111
1B1 9965 000 12889 DECK ASSEMBLY CZD011/VM15A0 1
2B5 9965 000 12168 SHEILD, CYLINDER HC460ED 111111111
2B9 9965 000 12378 CUSHION HC460ED 111111111
2B10 SIDE CUSHION HC470ED 111111

12 NC Description

LABEL, RATING HC464ED 1

LABEL, RATING HC469ED 1

LABEL, RATING HC268ED 1

LABEL, RATING HC474ED 1

LABEL, RATING HC479ED 1

LABEL, RATING HC484ED 1

LABEL, RATING HC491ED 1

LABEL, RATING HC492FD 1

LABEL, RATING HC493ED 1

VR330/58

VR530/58

VR630/58

VR730/58

VR732/58

VR830/58

VRQ45/16

VRQ45/39

VRQ45/58

MECHANICAL PARTS LIST

h

1-18-3

Pos.

2B49 9965 000 12402 CHASSIS FIBER HC460ED 111111111
2L011 9965 000 12403 SCREW, P-TIGHT 3X12 BIND HEAD+ 111111111
2L012 9965 000 12403 SCREW, P-TIGHT 3X12 BIND HEAD+ 111111111
2L021 4822 502 30752 SCREW, P-TIGHT M3X10 WASHER HEAD+ 111111111
2L031 9965 000 12171 SCREW, B-TIGHT M3X8 BIND HEAD+ 111111111
2L041 4822 502 14012 P-TIGHT SCREW 3X8 BIND + 111111111
2L042 4822 502 14012 P-TIGHT SCREW 3X8 BIND + 111111111
2L043 4822 502 14012 P-TIGHT SCREW 3X8 BIND + 111111111
2L044 4822 502 14012 P-TIGHT SCREW 3X8 BIND + 1
2L051 4822 502 14018 SCREW, S-TIGHT M3X5 BIND HEAD+ 111111111
2L099 9965 000 13027 SCREW, P-TIGHT M3X8 BIND HEAD+ 111111111

S1 GIFT BOX CARTON HC460ED 1
S1 GIFT BOX CARTON HC465ED 1
S1 GIFT BOX CARTON HC265ED 1
S1 GIFT BOX CARTON HC470ED 1
S1 GIFT BOX CARTON HC475ED 1
S1 GIFT BOX CARTON HC480ED 1111
S2 STYROFOAM HC460ED 11111 111
S2 STYROFOAM HC480ED 1
S3 UNIT, BAG V4010PA 1 1 1
S3 UNIT, BAG E5500UD 111111
X1 9965 000 13035 REMOTE CONTROL UNIT 364/CRC006 1
X1 9965 000 12172 REMOTE CONTROL UNIT 364/CRC006 1 1
X1 9965 000 13028 REMOTE CONTROL UNIT 364/CRC006 1
X1 9965 000 12271 REMOTE CONTROL UNIT 364/CRC006 1
X1 9965 000 12404 REMOTE CONTROL UNIT 364/CRC006 1
X1 9965 000 13044 REMOTE CONTROL UNIT 364/CRC006 1 1 1
X3 4822 320 50377 RF CORD PAL 1.2M 111111111
X4 ACCESSORY BAG K8092BA 111111111
X6 9965 000 12420 21P SCART CABLE 1
X41 9965 000 12405 SATMOUSE 8622-666-10101 1

12 NC Description

PACKING

VR330/58

VR530/58

VR630/58

VR730/58

VR732/58

VR830/58

VRQ45/16

VRQ45/39

VRQ45/58

DECK PARTS LIST DECK PARTS LIST

h

h

SCREW, S-TIGHT

SCREW, B-TIGHTM1.7X12

2-6-2

Pos.

B2 9965 000 12201

B2 9965 000 12895
B3 9965 000 12202

B8 9965 000 12203
B9 9965 000 08560
B10 9965 000 08431
B11 9965 000 12204
B12 9965 000 12205
B27 9965 000 12206
B31 9965 000 12207
B35 9965 000 12208
B37 9965 000 12209
B52 9965 000 08593
B73 9965 000 12210
B74 9965 000 08555
B121 9965 000 12211
B126 9965 000 12212
B133 9965 000 12213
B148 4822 462 11189
B300 9965 000 12214
B303 9965 000 12215
B347 9965 000 08445
B354 9965 000 12216
B355 9965 000 12217
B359 9965 000 12416
B360 9965 000 06561
B410 9965 000 12218
B411 9965 000 08453
B414 9965 000 12219
B416 9965 000 12220
B417 9965 000 12221
B425 9965 000 08457
B426 9965 000 08458
B482 9965 000 12222
B483 9965 000 08461

B487 9965 000 08462

B488 9965 000 12223

B491 9965 000 12224

B492 9965 000 12225

B494 9965 000 12226

B499 9965 000 08467
B501 9965 000 12227
B502 9965 000 08469

B505 9965 000 12372

B507 9965 000 05342

B508 9965 000 08470

B513 9965 000 08471

12 NC Description Pos.

CYLINDER ASS. MK11
PAL 4HD HIFI

CYLINDER ASS. MK11
PAL 2HD 2SP / for VR330/58
LOADING MOTOR ASS. MK11
PULLEY ASS. MK11
MOVING GUIDE MK10
MOVING GUIDE MK10
LOADING ARM ASS. MK11
LOADING ARM ASS. MK11
TENSION LEVER MK11
AC HEAD ASS. MK11
TAPE GUIDE ASS. MK11
CAPSTAN MOTOR
CAP BELT MK10
FE HEAD ASS. MK11
PRISM MK10
WORM MK11
PULLEY MK11
IDLER ASS.(2) MK10
TG CAP MK6
C DRIVE LEVER R MK11
F DOOR OPENER MK11
GUIDE HOLDER A MK10
SLIDER R MK11
SLIDER L MK11
CLEANER LEVER MK11
CLEANER ROLLER MK9
PINCH ARM(A) ASS. MK11
PINCH SPRING MK10
M BRAKE S(HI) ASS. MK11
M BRAKE T(HI) ASS. MK11
TENSION SPG(190265) MK11
LOCK LEVER SPRING MK10
KICK PULLEY MK10
C PLATE MK11
LOCK LEVER MK10

BAND BRAKE MK10

MODE LEVER(HI) MK11

CAM GEAR(A) MK11

MODE GEAR MK11

DOOR OPENER B MK11

T LEVER HOLDER MK10
WORM HOLDER MK11

CAM GEAR(B) MK10

PSCW(625504) MK11

REEL WASHER MK9 5*2.1*0.5

S BRAKE SPRING MK10

PSCW(752605) MK10

12 NC Description

B514 9965 000 12228

B516 9965 000 05342
B518 4822 532 13159

B520 9965 000 12229
B521 9965 000 08482
B522 9965 000 08483
B525 9965 000 12230
B529 9965 000 12231
B551 9965 000 12232
B553 9965 000 12233
B555 9965 000 12234
B557 9965 000 08519
B558 9965 000 12235
B559 9965 000 12236
B560 9965 000 08522
B562 9965 000 08524
B563 9965 000 08525
B564 9965 000 12237
B565 9965 000 12238
B567 9965 000 08544
B568 9965 000 08545
B569 9965 000 12239
B570 9965 000 12240
B571 4822 532 13158
B572 4822 532 13159
B573 9965 000 12241
B574 9965 000 12376
B578 9965 000 12243
B579 9965 000 12244
B580 9965 000 12245
B581 9965 000 12246
B582 9965 000 12247
B583 9965 000 05342
B584 9965 000 12248
B585 9965 000 12249

L1051 9965 000 05359

L1053 9965 000 05375

L1151 9965 000 08642

L1191 9965 000 05375

L1321 4822 502 14009

L1341 4822 502 14669
L1406 9965 000 08643
L1407 9965 000 12250

L1450 4822 502 14671

L1461 4822 502 30471

L1466 9965 000 05364

L1467 9965 000 12251
L1468 9965 000 12252

SCREW RACK MK11

REEL WASHER MK9 5*2.1*0.5
P.S.W CUT 1.6X4.0X0.5T
T BRAKE SPRING HI(F) MK11
SOFT SPRING MK10
TG POST ASS. MK10
LDG BELT MK11
CLEANER ASS. MK11
FF ARM(HI) MK10
REV SPRING MK11
RACK ASS. MK11
MOTOR PULLEY U5
LOADING MOTOR
CLUTCH ASS.(HI)(2) MK11
KICK SPRING MK10
C DRIVE LEVER L MK10
SLIDER SHAFT MK10
M GEAR(HYT) N12G5F*
SENSOR GEAR MK11
PINCH ARM(B) MK10
BT ARM MK10
CAM HOLDER F MK11
CAM RACK SPRING(HI) MK11
P.S.W F 6*2.55*0.5
P.S.W CUT 1.6X4.0X0.5T
REEL S MK11
REEL T MK10
TR GEAR A MK10
TR GEAR B MK10
TR GEAR C MK11
CENTER GEAR(HYT) N12G5F*
TR GEAR SPRING MK10
REEL WASHER MK9 5*2.1*0.5
TR GEAR SHAFT MK10
PSW(2957505) MK11
SCREW, B-TIGHT
M2.6X6 PAN HEAD+
SCREW, S-TIGHT
M2.6X8 WASHER HEAD+
SCREW, SEMS
M2.6X4 PAN HEAD+
SCREW, S-TIGHT
M2.6X8 WASHER HEAD+
SCREW, S-TIGHT
M3X6 BIND HEAD+
SCREW, P-TIGHT
M2.6X6 BIND HEAD+
AC HEAD SCREW MK9
SCREW, S-TIGHT
M2.6X10 DISH HEAD+
SCREW, SEMS
M2.6X5 PAN HEAD+
SCREW, P-TIGHT
M2.6X6 WASHER HEAD+
SCREW, S-TIGHT
M2.6X6 BIND HEAD+

M2.6X5 WASHER HEAD+
