Philips VR705 User Manual

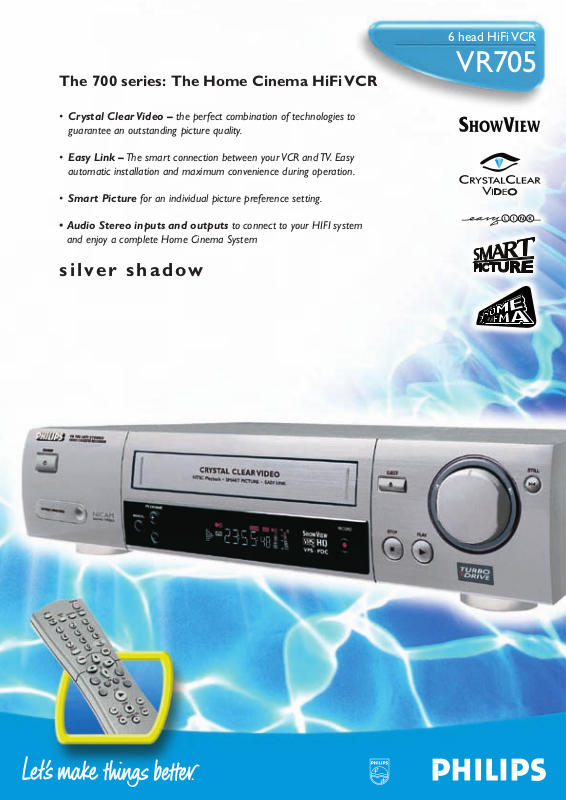

The 700 series: The Home Cinema HiFi VCR
• Crystal Clear Video – the perfect combination of technologies to
guarantee an outstanding picture quality.
• Easy Link – The smart connection between your VCR and TV. Easy
automatic installation and maximum convenience during operation.
• Smart Picture for an individual picture preference setting.
• Audio Stereo inputs and outputs to connect to your HIFI system
and enjoy a complete Home Cinema System
silver shadow
6 head HiFi VCR
VR705
6 head HiFi VCR
VR705
Subject to modification without notice
ShowView and VideoPlus are Trademarks of Gemstar Development Group
Product Highlights
• Crystal Clear Video
With Crystal Clear Video, Philips has created the perfect combination of
technologies to guarantee the best possible picture restitution:
• Digital Studio Picture Control: Optimises the picture rendition regardless
of the quality of tape used.
• Laser cut Video Heads: They have a better profile for a superior
head/tape contact. Lesser wear guarantees longer life and higher
performance quality.
• Studio Tracking System: It improves the tracking accuracy and reduces
the crosstalk noise.
• Natural Colour: It cleans the colour from any kind of noise and corrects
the spill.
• Easy Link
Easy Link offers maximum convenience when it comes to installing a VCR.
There’s no need to wait endlessly for the tuning of all channels or to spend
time re-sorting the presets in the right order.You just connect both VCR and
TV with a Scart cable and plug the mains.That’s all! On top of that
features like Automatic On/Off switching of the TV when the VCR is used,
Direct Record and automatic 16x9 switching make the daily life of the VCR
user much easier.
• SMART Picture
With this unique feature, you are now able to optimise the sharpness and
colour, in playback, to your own preference.
Product Information
Reception - Installation
• Tuner: Full Tuner (UHF + VHF + Hyperband)
• Tuning: PLL, CH & FREQ entry, 99 presets
• Time/Date Download: PDC , TXT
User Interface
• Tuning/Install Features:
Auto Tuning, Manual Store ,
Plug & Play, ShowView Mapping, Welcome Screen
•
OSD Menu Languages:
Czech, Danish, Dutch, English, Finnish,
French, German, Hungarian, Italian, Norwegian, Polish, Portuguese,
Russian Cyrillic, Spanish, Swedish
• Special Features: Auto Standby On / Off, Child Lock, Demo mode, Display
On / Off
• Picture Improvement System:Crystal Clear Video, SMART Picture
• Audio Recording System: Audio only, FM Audio, Linear
• Audio Recording Level: Automatic, Manual
• Dubbing: Audio
• Tape Advance: Commercial Skip
• TV Related Functions: 16:9 (pin 8), Cinema Link (pin 10),
Analog Follow TV, Direct Record.
Remote Control Unit
• Remote Control - code: TV-Multicode, TV-RC5,VCR1-RC5, VCR2-RC5
Connectors Rear
• EXT1: Black, Euro CVBS in / out
• EXT2: Black, Euro Decoder,RGB loop through
• Audio Conn. Rear : Cinch stereo in,Cinch stereo out
• Terrestrial Antenna In / Out: 75 Ohms (IECtype)
• Mains Connector: Standard (IECtype)
Connectors Front
• Audio/Video Connectors Front: Cinch CVBS in, Cinch stereo in
Tape Deck
• Number of Video / FM Audio / Flying Erase Heads: 4 / 2 / 0
• Play: +1, -1, Repeat
• Playback Features:Perfect Still, Multiple Search Speed, Multiple Slow
Motion Speed
• Index Search: Next/Previous index search
• Head Cleaning Mode: Automatic , Manual
• Tape Length Recognition: Automatic
• Tape Counter: Linear Relative (h.m.s), Linear Time Used/Left (h.m)
• Wind / Rewind Time (E180): 90 sec.
• Automatic Functions at Tape End: Rewind after Play - Eject after Record
Programming
• Number of Events: 6 / month
• Programming Mode: OTR, Remote
• Record Control & Transmitter Identification: PDC,VPS
• Automatic SAT. Recording: SCART 1, SC ART 2
• Record Speed: Long Play, Standard Play
• Record Speed Selection: Auto LP, per Timer
On Tape Standard
•
Additional Playback Standard:BLACK & WHITE, NTSC Playback on PAL TV
General
• Voltage / Frequency: 198-264 V / 50Hz
• Backup Presets & Timer events: 1yr
• Backup Clock, Calendar : 7 hrs
• Power Cons. in Play / Std-By / Low Power Std By:18 / 6 / < 4W
• Weight incl. / excl. package in kg:
6.5 / 4.3
• Set Size - W x D x H (mm):
435 x 290 x 93
• Packaging - W x D x H (mm):
553 x 384 x 180
• Equipment Supplied:
Aerial Cable, Mains cord,
Batteries, SCART cable
/02 /16 /39 /58
TV Systems Off Air PAL B/G PAL B/G PAL B/G, PAL I, PAL B/G, PAL D/K,
SECAM B/G, SECAM L/L1 SECAM B/G, SECAM D/K
Sound Systems German Stereo, Mono German Stereo, Mono, German Stereo, Mono, German Stereo, Mono,
NICAM NICAM NICAM
Modulator Pal G Pal G Splitter Pal GK (switchable)
Modulator Features Auto Seek, Auto Seek, – Auto Seek,
Electr. On/Off switch Electr. On/Off switch Electr. On/Off switch
Frequency Adj. Range Ch 21 - Ch 55 Ch 21 - Ch 55 – Ch 21 - Ch 55
Preadj. modulation frequency 591.25 MHz (Ch 36) 591.25 MHz (Ch 36) – 591.25 MHz (Ch 36)
Remote Control - type RT195/101 RT195/101 RT195/104 RT195/101
Programming System Daily/Weekly, Daily/Weekly, Daily/Weekly, Daily/Weekly,
ShowView Mapping, ShowView Mapping, ShowView Mapping, ShowView Mapping,
Showview Showview Showview Showview
Record / Playback Standard PAL PAL MESECAM, PAL, SECAM MESECAM, PAL
