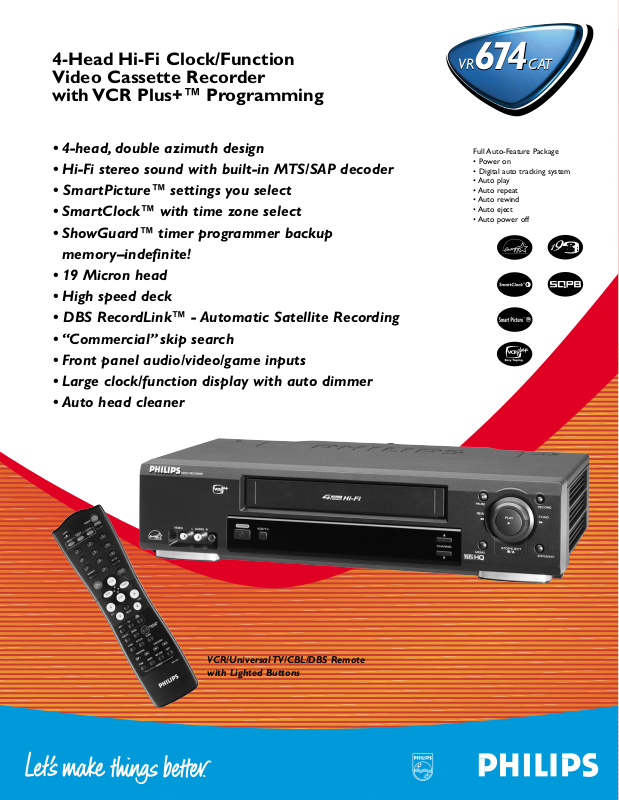

Philips VR674CAT User Manual

VR674CAT

4-Head Hi-Fi Clock/Function
Video Cassette Recorder
with VCR Plus+™ Programming

VCR/Universal TV/CBL/DBS Remote
with Lighted Buttons

• 4-head, double azimuth design

• Hi-Fi stereo sound with built-in MTS/SAP decoder

• SmartPicture™ settings you select

• SmartClock™ with time zone select

• ShowGuard™ timer programmer backup
memory–indefinite!

• 19 Micron head

• High speed deck

• DBS RecordLink™ - Automatic Satellite Recording

• “Commercial” skip search

• Front panel audio/video/game inputs

• Large clock/function display with auto dimmer

• Auto head cleaner

VR

674CAT

Full Auto-Feature Package

• Power on

• Digital auto tracking system

• Auto play

• Auto repeat

• Auto rewind

• Auto eject

• Auto power off

Front Panel Menu Access
Child Lock
Bilingual (English/Spanish) Onscreen Function Display
Alternate Channel (for TV)
Onscreen Real-Time Counter with Time Search
Record End Search
Repeat Play-Indefinite!
400mm Front Panel Width
On-Board Shuttle Dial

Special Effects

High Speed Deck

Philips High Speed Deck cuts fast forward and rewind time in half
(about a minute for T-120 tapes) using a microprocessor to measure
tape wheel revolutions.This reduces waiting time between playback
for the utmost in speed and convenience.

“Commercial” Skip Search
Variable Slow Motion
Still Frame
Index Search System

Remote (Remote # N9411UD)

VCR/Universal TV/CBL/DBS Remote with Lighted Buttons

Multifunction infrared remote controls all operating features and
functions of this VCR, plus select functions of most Philips, Magnavox
and some competitive brand television sets, as well as some cable
converter/decoders, and standard features of Philips, Magnavox, RCA,
and Sony, digital broadcast satellite receivers.Change channels fast
with the numeric direct access keypad and heads-up onscreen display
for confirmation.

Full Feature Auto Package

• Power On • Digital Auto Tracking System

• Auto Play • Auto Repeat

• Auto Rewind • Auto Eject

• Auto Power Off

UPC: 0 37849 90949 2
Product Dimensions: 15.7"W x 3.6"H x 8.8"D
Product Weight: 5.8 lbs.
Carton Dimensions: 18.1"W x 6.6"H x 11.8"D
Carton Weight: 6.7 lbs.
Master Pack: 1
Contains: 4-Head Hi-Fi Clock/Function Video Cassette Recorder,VCR/Universal
TV/CBL/DBS Remote Control with Lighted Buttons (Batteries included), RF Coaxial Cable,
Operating Instructions,Warranty Information

Printed in U.S.A.
©2001 Philips Consumer Electronics
A Division of Philips Electronics North America Corp.
KID Design 200325 Philips Consumer Electronics

As an ENERGY STAR®Partner,Philips has determined that this product meets the ENERGY STAR®guidelines for
energy efficiency.ENERGY STAR is a U.S. registered trademark.

RecordLink, SmartClock,SmartPicture, and ShowGuard are trademarks of Philips Consumer Electronics.

VCR Plus+ is a trademark of Gemstar Development Corporation.

By using environmentally-friendly materials,Philips Consumer Electronics continues to demonstrate our commitment to
a cleaner environment.This paper is made from at least 10% post-recycled stock,and the ink is vegetable based.

INTERNET ADDRESS: http://www.philipsusa.com

Specification subject to change without notice.

Programming and Playback Features

Hi-Fi Stereo Sound with Built-In MTS/SAP Decoder

Record stereo videotapes from stereo sound sources and playback
pre-recorded hi-fi stereo tapes in hi-fi stereo sound using two audio heads and
four video heads. Delivers an excellent 90dB+ dynamic range–through a stereo­equipped TV or regular TV and stereo hi-fi home audio system.The built-in
MTS/SAP decoder allows reception and recording of off-air television stereo
broadcasts and second audio program transmissions,where available. Back-up
memory logic retains the cable channel guide map indefinitely even during a
power failure or when the VCR is disconnected from its power source.

VCR Plus+™ Easy Taping

Simplifies VCR programming by allowing you to simply enter PlusCode®
programming numbers found in many published television listings.When
recording begins, your VCR automatically selects the proper TV channel and
program length. Back-up memory logic retains the cable channel guide map
indefinitely even during a power failure or when the VCR is disconnected
from its power source.

Auto DBS RecordLink™

If you own a satellite dish, this is the feature you’ve been waiting for.
Set your DBS receiver to turn on and tune in to a specific program and it
will automatically turn on the VCR in the record mode and then turn off
when the DBS receiver turns off.The secret is in the A/V input jack panel.It
senses the presence of a video signal…and the rest is history.

One-Touch Record
8-Event/1-Year Smart Programming
Remote Control Onscreen Menu Programming


4-Head, Double Azimuth Design

Combines direct drive cylinder and capstan motors with precision digital
servo control to produce smooth “Still” and “Slow” effects in both SP and SLP
speeds. Using the appropriate remote, you can enjoy other excellent special
effects such as “Frame Advance,” “Variable Slow Motion,” and “x2 Play.”

SmartPicture™

Customize picture to your viewing preferences for maximum enjoyment
with SmartPicture.A touch of the SmartPicture button on the remote control
provides the option of selecting one of four factory preset positions including
natural, distinct, soft, or sharp.

Auto Head Cleaner
19 Micron Head
SQPB (S-VHS Quasi-Playback)
Digital Auto Tracking

Convenience

SmartClock™ with Time Zone Select

This menu-driven feature automatically maintains the correct time, regularly
checking and updating the time if necessary. It also resets the clock after a
power failure.The menu-driven time zone feature allows selection of
appropriate time for those who live in a time zone other than that of their
cable service provider or broadcaster.

ShowGuard™ Timer Programmer Backup Memory–Indefinite!
Large Clock/Function Display with auto dimmer
Front Panel Audio/Video/Game Inputs
Time Search

4-Head Hi-Fi Clock/Function
Video Cassette Recorder
with VCR Plus+™ Programming

VR674CAT
