Philips VR670B-58, VR670W-58 User Manual

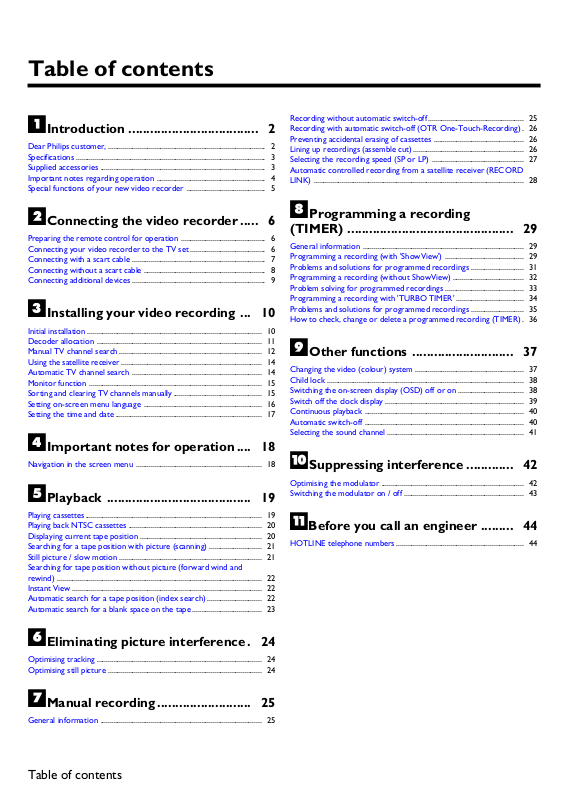

Table of contents
AIntroduction 2....................................
Dear Philips customer, 2....................................................................................
Specifications 3.....................................................................................................
Supplied accessories 3........................................................................................
Important notes regarding operation 4..........................................................
Special functions of your new video recorder 5..........................................
Recording without automatic switch-off 25...................................................
Recording with automatic switch-off (OTR One-Touch-Recording) 26.
Preventing accidental erasing of cassettes 26................................................
Lining up recordings (assemble cut) 26...........................................................
Selecting the recording speed (SP or LP) 27.................................................
Automatic controlled recording from a satellite receiver (RECORD
LINK) 28................................................................................................................
BConnecting the video recorder 6.....
Preparing the remote control for operation 6.............................................
Connecting your video recorder to the TV set 6........................................
Connecting with a scart cable 7.......................................................................
Connecting without a scart cable 8.................................................................
Connecting additional devices 9.......................................................................
CInstalling your video recording 10...
Initial installation 10.............................................................................................
Decoder allocation 11........................................................................................
Manual TV channel search 12............................................................................
Using the satellite receiver 14...........................................................................
Automatic TV channel search 14.....................................................................
Monitor function 15............................................................................................
Sorting and clearing TV channels manually 15...............................................
Setting on-screen menu language 16...............................................................
Setting the time and date 17..............................................................................
DImportant notes for operation 18....
Navigation in the screen menu 18...................................................................
EPlayback 19........................................
Playing cassettes 19..............................................................................................
Playing back NTSC cassettes 20.......................................................................
Displaying current tape position 20.................................................................
Searching for a tape position with picture (scanning) 21............................
Still picture / slow motion 21............................................................................
Searching for tape position without picture (forward wind and
rewind) 22.............................................................................................................
Instant View 22.....................................................................................................
Automatic search for a tape position (index search) 22.............................
Automatic search for a blank space on the tape 23.....................................
HProgramming a recording
(TIMER) 29..............................................
General information 29......................................................................................
Programming a recording (with 'ShowView') 29..........................................
Problems and solutions for programmed recordings 31............................
Programming a recording (without ShowView) 32......................................
Problem solving for programmed recordings 33..........................................
Programming a recording with 'TURBO TIMER' 34....................................
Problems and solutions for programmed recordings 35............................
How to check, change or delete a programmed recording (TIMER) 36.
IOther functions 37............................
Changing the video (colour) system 37..........................................................
Child lock 38.........................................................................................................
Switching the on-screen display (OSD) off or on 38...................................
Switch off the clock display 39..........................................................................
Continuous playback 40.....................................................................................
Automatic switch-off 40.....................................................................................
Selecting the sound channel 41.........................................................................
JSuppressing interference 42.............
Optimising the modulator 42............................................................................
Switching the modulator on / off 43................................................................
KBefore you call an engineer 44.........
HOTLINE telephone numbers 44....................................................................
FEliminating picture interference 24.
Optimising tracking 24........................................................................................
Optimising still picture 24..................................................................................
GManual recording 25..........................
General information 25......................................................................................
Table of contents
The remote control
MONITOR TV monitor: To switch between TV reception and VCR playback
CHILD LOCK Child lock: To switch child lock on/off
SELECT Select: Selecting functions
STANDBY/ON m Switch on or off: To switch set on or off, interrupt menu function,
interrupt a programmed recording (TIMER)
0-9 Number buttons:0-9
TV To call up additional TV functions: Additional TV functions for TV
sets with the same remote control code (RC5)
TURBO TIMER TurboTimer: To programme a recording with the function Turbo
Timer
TIMER k TIMER: To make a TIMER programming with SHOWVIEW or to alter
or clear a programmed TIMER
RECORD n Record: To record the TV channel selected at this moment
MENU Menu: To call up or end main menu
CLEAR (CL) Delete: To delete last entry/Clear programmed recording (TIMER)
P ;q Select: To select the next line or programme number
ENGLISH
P =r Select: To select the previous line or programme number
QSr Select: Cursor left
SqP Select: Cursor right
OK Store/Confirm: To store or confirm entry
INDEX E Index search: In combination with H / I : to search for previous
or next recording on the cassette
STILL R Still picture: To stop the tape and show a still picture
H Rewind: During STOP and STANDBY: rewind, during PLAYBACK:
reverse scanning
STOP h Pause/Stop: To stop the tape, except during TIMER-recording
PLAY G Playback: To play a cassette
I Forward wind: During STOP and STANDBY: forward wind, during
PLAYBACK: forward scanning
Additional TV functions
Hold down TV and select the corresponding function using the following buttons.
STANDBY/ON m Standby : To switch off the TV
MUTE y TV sound off: To switch the sound on or off
AV To switch the TV to Audio/Video in-socket
P ;q Select: To select a programme number
P =r Select: To select a programme number
QSr TV volume: TV volume down
SqP TV volume: TV volume up
Front of the device
STANDBY/ON m/I Switch on or off: To switch off or on, interrupt a function, interrupt a
programmed recording (TIMER)
RECORD n Record: To record the TV channel selected at this moment
PROGRAMME r Select: One line or programme number down
PROGRAMME q Select: One line or programme number up
STOP/EJECT ? Pause/Stop, eject cassette: To stop the tape and eject the cassette
H Rewind: During STOP and STANDBY: rewind, during PLAYBACK:
reverse scanning
G Playback: To play a cassette
I Forward wind: During STOP and STANDBY: forward wind, during
PLAYBACK: forward scanning
The symbols on your video recorder
display
These symbols can light up on your video recorder display:
This is where the current operating mode is shown as a symbol.
LP When you have switched on the LP (Long Play) function or when you
play a tape that has been recorded in LP (Long Play).
When you have switched on the child lock.
When a satellite recording has been programmed.
DEC When a decoder has been allocated to the TV channel (currently
selected programme number on the video recorder) you have currently
selected on the video recorder.
When you play a cassette that has been recorded with hifi sound, or
when a hifi sound is transmitted.
When you are making a recording.
k When you have programmed a recording or when a programmed
recording is being made.
D When you are programming daily recordings.
ENGLISH
W When you are programming weekly recordings.
When you have put a cassette in the video recorder.
DATE When the date of the programmed recording is shown.
START When the start time of the programmed recording is shown.
PROG. When the programme number of the programmed recording is shown.
END When the end time of the programmed recording is shown.
VPS/PDC Video Programming System / Programme Delivery Control: when a VPS
or PDC code is being transmitted.
Display of programme number of the TV channel / tape position /
channel name / function.
Tape position in seconds.
AIntroduction
Dear Philips customer,
Instruction manuals are usually very dry since they are technically-oriented and often poorly
translated. I have been employed by Philips for this reason.
Allow me to introduce myself.
My name is Phil. I will be guiding you through the instruction manual and try to be of help in
operating your new device. At appropriate points along the way, I will be providing you with the
following information:
Excuse me?
Here I will be
explaining seemingly
unimportant things.
I hope you have lots of fun with your new device.
Tip
Here I will be giving
you instructions on
functions that help
make it easier to
use your device.
Problem
Here I will help you
to find the cause of
problems and their
solutions.
For experts
Here I will be giving
you instructions on
functions that are
necessary for special
applications.
Phil
P.S. If you have questions or if problems come up during operation, please see the helpful
information in the chapter 'Before you call an engineer'. If this doesn't help you to resolve the
problem, please call the customer support service for your country. The corresponding
telephone numbers and e-mail addresses can be found on the last page of this instruction
manual.
2
Introduction
Welcome to the large family of owners of PHILIPS VHS video recorders.
Thank you for buying a VR670B-VR670W/58 .
Please take the time to read this operating manual before using your video recorder. It contains
important information and notes regarding operation.
The video recorder should not be turned on immediately after transportation from a
cold to a hot area or vice versa, or in conditions of extreme humidity.
Wait at least three hours after transporting the device. The video recorder needs this time in
order to become acclimatised to its new environment (temperature, air humidity, etc.).
Your Philips team hopes that you
will enjoy using your new video
recorder.
This video recorder is used for the recording and playback of VHS video cassettes.
Cassettes with the VHS-C label (VHS cassettes for camcorders) may only be used with a suitable
adapter.
This product complies with the requirements of Directive 73/23/EEC +89/336/EEC +93/68 EEC.
Specifications
ENGLISH
Voltage: 220-240V/50Hz
Energy consumption : 16W
Energy consumption (Standby): less than 4W (clock display switched off)
Rewind time: approx. 100 seconds (cassette E-180)
Dimensions in cm (B/H/T): 38.0/9.3/26.0
Number of video heads :4
Number of video heads (HIFI):2
Recording/playback time: 4 hours (SP) (cassette E-240)
8 hours (LP) (cassette E-240)
Supplied accessories
Operating instructions
Remote control and batteries
Antenna cable
Power cable
Introduction
3
Important notes regarding operation
Danger: High voltage!
Do not remove the top cover as there is a risk of an electrical shock!
The video recorder does not contain any components that can be repaired by the customer. Please
leave all maintenance work for qualified personnel.
As soon as the video recorder is connected to the power supply, there are some components
that are in constant operation. To switch off the video recorder completely you must disconnect
it from the power supply.
These operating instructions have been printed on non-polluting paper.
Deposit old batteries at the appropriate collection points.
Please make use of the facilities available in your country for disposing of the packaging of the video
recorder in a way that helps to protect the environment.
This electronic device contains many materials that can be recycled. Please enquire about the
possibilities for recycling your old device.
Make sure that air can circulate freely through the ventilation slots on the video recorder. Do not
place the device on an unsteady base.
Make sure that no objects or liquids enter the video recorder. Do not place vases or the like on
the video recorder. If liquid is spilt into it, immediately disconnect the video recorder from the
power supply and call After-sales Service for advice.
Do not place any combustible objects on the device (candles, etc.).
Make sure that children do not place any foreign objects within the openings or ventilation slots.
4
Introduction
Special functions of your new video
recorder
Your PHILIPS video recorder is not just for recording and playing back VHS cassettes. It also has
a whole range of special functions which will make the day-to-day use of your new video
recorder much easier.
Philips has developed a system which produces the best possible playback quality. For old and
often-used video cassettes, this system reduces interference. For new or high quality cassettes, it
emphasises the details.
When you connect your video recorder to your television and plug it into the wall socket, you will
be welcomed with a screen menu. All you have to do is follow the instructions in the 'intelligent
help line' for the next step. Enjoy the automatic TV channel search/save function and the automatic
time setting.
Recordings made on your video recorder can be controlled by an external satellite receiver.
The precision tape drive from Philips provides short rewind times and automatic tape length
recognition.
ENGLISH
Simple programming system for video recorders. Makes programming as easy as making a
telephone call. Simply enter the number code associated with your television programme. This
number is located in your favourite television listings magazine.
ShowView is a registered trademark of Gemstar Development Corporation. The ShowView
system is manufactured under licence from Gemstar Development Corporation.
So that you can identify your machine for service questions or in the event of theft, enter the
serial number here. The serial number (PROD.NO.) is printed on the type plate fixed at the
back of the device.
MODEL NO. VR670B-VR670W/58
PROD. NO. ..................
Introduction
5
BConnecting the video recorder
Preparing the remote control for
operation
The remote control and its batteries are packed separately in the original video recorder
packaging. You must install the batteries in the remote control before use - described in the
following section.
1 Take the remote control and the enclosed batteries (2 batteries).
2 Open the remote control's battery compartment and place the
batteries in it as shown in the picture and close the battery
compartment.
The remote control is now ready to use. Its range is approximately 5 meters.
Connecting your video recorder to the TV
set
The necessary cable connections must be made before you can record or playback TV
programmes using your video recorder.
We recommend that you use a scart cable to connect your TV set and video recorder.
What is a scart cable?
The scart or Euro AV cable serves as the universal connector for picture,
sound and control signals. With this type of connection, there is practically no
loss of quality during the picture or sound transfer.
When you install your video recorder for the first time, select one of the following options:
'Connecting with a scart cable'
If your TV set has a scart socket and you are using a scart cable.
'Connecting without a scart cable'
If you do not wish to use a scart cable.
6
Connecting the video recorder
Connecting with a scart cable
Have the following cables ready:
an aerial cable (1, supplied), a mains cable (2, supplied), a scart cable (3).
1 Remove the aerial cable plug from your TV set. Insert it into the
socket 2 at the back of the video recorder.
2 Insert one end of the supplied aerial cable into the socket TV at the
back of the video recorder and the other end into the aerial input
socket at the back of the TV set.
ENGLISH
3 Plug one end of a scart cable into the scart socket EXT.1 AV. 1 at
the back of the video recorder and the other end into the suitable
scart socket on your TV set reserved for the video recorder
operation (see your TV's operating instructions).
My TV set has several scart sockets. Which one should I use?
Select that scart socket which is suited for the video output as well as for the
video input.
My TV offers me a selection menu for the scart socket.
Select 'TV' as a connection source of this scart socket.
4 Switch on the TV set.
5 Insert one end of the supplied mains cable into the mains socket
4 at the back of the video recorder and the other end into the wall
socket.
6 If the connection was properly made and your TV was automatically
switched to the programme number for the scart socket, e.g. 'EXT',
'0', 'AV', you will see the following picture:
Connecting the video recorder
7
CONGRATULATIONS
YOU NOW OWN A NEW
PHILIPS
VIDEO RECORDER
a My screen is empty
b Many TV sets are switched to the programme number for the scart socket
by way of a control signal sent through the scart cable.
b If the TV set does not automatically switch to the scart socket programme
number, manually change to the corresponding programme number on your
TV set (see your TV's operating instructions).
CONTINUEpOK
Then, read the paragraph 'Initial installation' in the chapter 'Installing your video recorder'.
Connecting without a scart cable
Have the following cables ready:
an aerial cable (1, supplied), a mains cable (2, supplied).
1 Switch off your TV set.
2 Remove the aerial cable plug from the aerial input socket of the TV
set. Insert it into the socket 2 at the back of the video recorder.
3 Insert one end of the supplied aerial cable into the socket TV at the
back of the video recorder and the other end into the aerial input
socket at the back of the TV set.
4 Insert one end of the supplied mains cable into the mains socket
4 at the back of the video recorder and the other end into the wall
socket.
5 Switch on your TV set and select the programme number used for
video playback on your TV set (see your TV's operating instructions).
Which programme number is used for video recorder operation?
To ensure the stability of the television picture during cassette playback
(prevention of waves or streaks), special programme numbers have been set
aside on the TV for the use of video recorders. This is usually the highest
possible programme number, e.g. '12', '16', '99' or even programme number
'0'. For more information, please see your TV's operating instructions.
8
Connecting the video recorder
6 Select this programme number and manually start the TV's channel
search as if you wanted to save a new TV channel until the 'test
image' appears.
ENGLISH
CONGRATULATIONS
YOU NOW OWN A NEW
PHILIPS
VIDEO RECORDER
CONTINUEpOK
a I do not see a 'test screen'
b Check the cable connections.
b The video recorder 'transmits' on the 591MHz frequency (channel 36)
Repeat the channel search on your TV set.
7 Save this programme number setting on your TV set for video
recorder operation.
Programme number for video recorder operation
You have now saved a programme number for use by your video recorder as
you would a regular TV channel. This programme number must now be used
in future for video recorder playback ('video recorder' TV channel).
You can find more details in chapter 'Initial Installation'.
Connecting additional devices
You can connect additional devices such as decoders, satellite receivers, camcorders, etc. to the
socket EXT.2 AV. 2 .
Two audio sockets AUDIO OUT L R are located on the back of the video recorder (audio
signal output left/right). These can be used to connect stereo systems.
Connecting the video recorder
9
CInstalling your video recording
Initial installation
This chapter shows you how to start the initial installation. The video recorder automatically
seeks out and stores all available TV channels.
'Aim' correctly
In the following sections, you require the remote control for the first time.
When using, always aim the front of the remote control at the video recorder
and not at the TV set.
Connecting additional devices
After you have connected additional devices (satellite receiver, etc.) through
the aerial cable, switch them on. The automatic channel search will recognise
them and save them.
1 Confirm the image on the TV screen by pressing the OK button on
the remote control.
2 Select the desired language for the on-screen menu by pressing
P =r or P ;q .
AUTO TUNING
SEARCHING
00 TV CHANNELS FOUND
ƒƒƒƒƒƒƒ__________________
PLEASE WAIT...
What is an onscreen menu?
The multi-language on-screen menu takes the mystery out of using your new
video recorder. All settings and/or functions are displayed on your TV screen
in the corresponding language.
3 Confirm with OK .
4 Select the country of your residence with P =r or P ;q .
If your country does not appear, select 'OTHERS'.
Confirm with OK .
The automatic TV channel search starts. This picture will appear on
the screen:
a The video recorder does not find any TV channels during the
search
b Select channel 1 on the TV set. Can you see the saved TV channel on the
TV set?
If not, check the cable connection of the aerial (aerial socket), video
recorder, TV set.
b Please have patience.
The video recorder searches the entire frequency range in order to find
and save the largest possible number of TV channels. It is possible that the
TV channels in your country are broadcast in a higher frequency range. As
soon as this range is reached during the search, the video recorder will find
the TV channels.
10
5 When the automatic TV channel search is complete, 'STORED' will
briefly appear on the TV screen.
'YEAR', 'MONTH', 'DATE', 'TIME' will appear on the TV screen.
Installing your video recording
CLOCK
YEAR è 2001 p
MONTH 01
DATE 01
TIME 20:00
SMART CLOCK ON
________________________________
EXITpMENU STOREpOK
6 Check the year in line 'YEAR'. If required, please change the year with
the number buttons 0-9 on the remote control.
7 Select the next line with P ;q or P =r .
8 Check if the displayed settings for 'MONTH', 'DATE' and 'TIME' are
correct.
9 When all information is correct, save by pressing OK .'STORED' will
briefly flash in the video recorder display.
The initial installation is now complete.
Satellite receiver
If you are connecting a satellite receiver, please read the section 'Using the
satellite receiver'.
Decoder
If you are connecting a decoder, you must install it as described in the next
section.
ENGLISH
a Sound disruptions can occur on several TV channels
b If sound disruptions should occur for several saved TV channels or there is
no sound at all, it is possible that the incorrect TV system was saved for
this TV channel. In the chapter 'Manual TV channel search' you will find the
information on how to change the TV system.
Decoder allocation
Some TV channels transmit encoded TV signals which can only be viewed with a commercially
purchased or hired decoder without disturbances. You can connect such a decoder
(descrambler) to this video recorder. The following function will automatically activate the
connected decoder for the desired TV channel.
1 Switch the TV on. If applicable, select the programme number for the
video recorder operation.
2 Use the buttons P ;q , P =r on the video recorder or the
number buttons 0-9 on the remote control to select the TV channel
which you would like to allocate the decoder to.
3 Press the button MENU on the remote control. The main menu will
appear.
Installing your video recording
4 Use the buttons P ;q or P =r to select the line 'MANUAL
SEARCH' and confirm with OK .
11
Loading...
