Page 1
VR654/50
PHILIPS
Page 2
2 Table of Contents
Safety Precautions
WARNING: DANGEROUS VOLTAGE INSIDE
WARNING: TO PREVENT FIRE OR SHOCK
HAZARD, DO NOT EXPOSE THIS
UNIT TO RAIN OR MOISTURE.
•The POWER button does not completely shut off
mains power from the unit, but switches operating
current on and off.
•The rating piate and the safety caution are on the
rear of the unit.
Getting Started
Description of Controls.................................3-5
Before Using Your VCR
..................................
Hook Up Your VCR......................................7-8
Turn On Your VCR
Set the Clock
.....................................................
.........................................

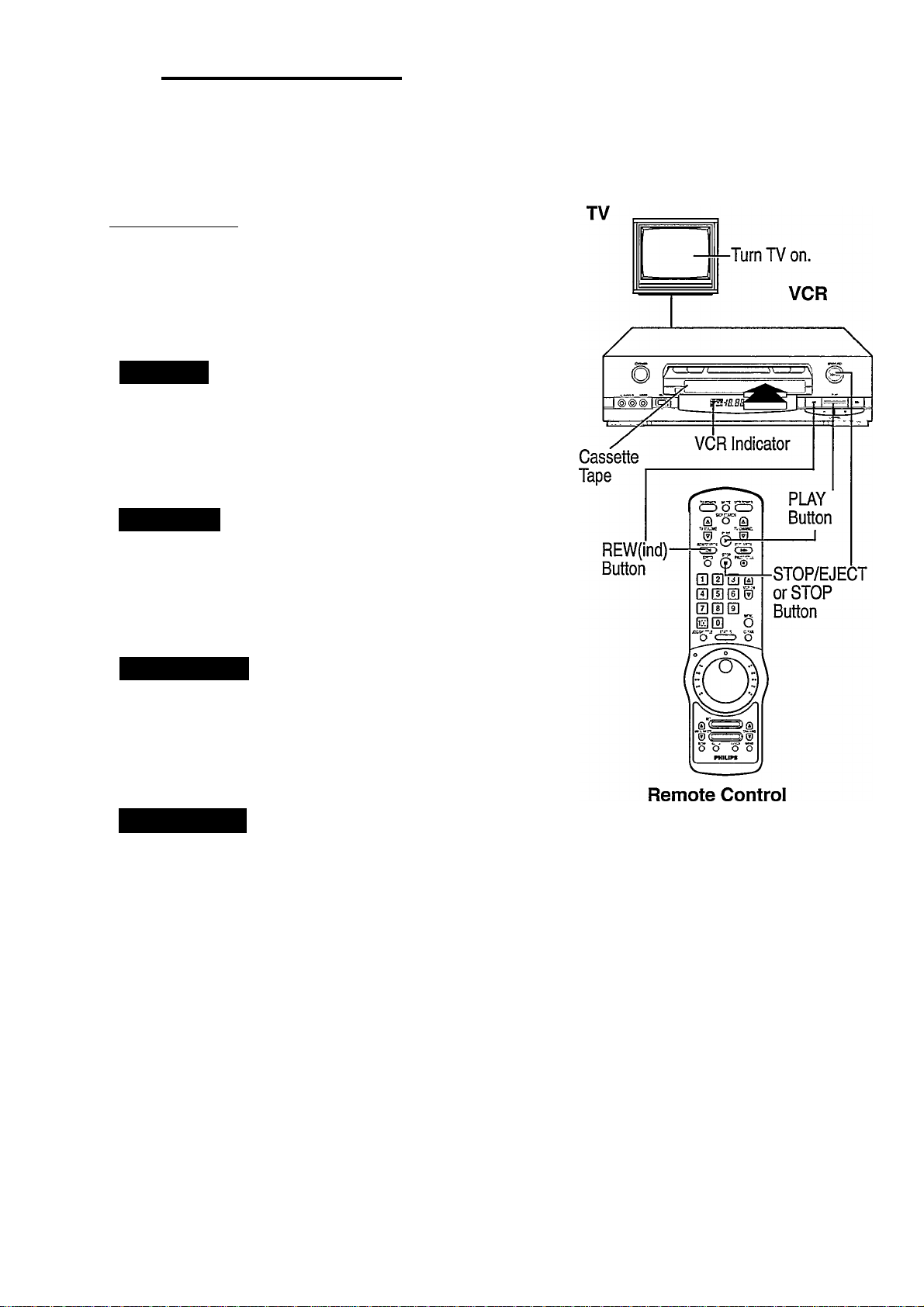

Play a Tape......................................................10
Record on a Tape
Record One Channel/See Another
...........................................
................
11
12
On Screen Displays.........................................13
Doing More
One Touch Recording (OTR)
Timer Recording
.......................................
Special Playback Features........................17-18
Re-Recording (Tape Duplication)
Tape Operation...............................................20
TV Code Setting
.............................................
Re-Setting Your VCR’s Tuner
MTS (Multi-Channel Television Sound)
Broadcast Stereo System
VHS Hi-Fi Stereo Sound System
........................
15-16
.................
......................
...............................
...................
14
19
21
22
23
24
6
8
9
Introduction
Congratuiations on purchasing your new VCR (Video
Cassette Recorder). It is one of the most sophisticated
yet simpie-to-use home video recorders you can buy.
It will give you many hours of enjoyment, whether you
use it for playing back prerecorded cassettes of your
favourite films, or for recording TV programs which
you would otherwise have missed. Aiternatively, you
may find it an invaluabie business aid.
You can't wait to get it working, but before you do,
spare a few moments to read this brief introduction to
the world of video recording, it may repay you
handsomeiy in terms of improved results, or avoiding
of costly mistakes.
Your VCR is prepared for reception of NTSC
programs.
IMPORTANT
Audio-Visuai material may consist of copyrighted
works which must not be recorded without the
authority of the owner of the copyright.
Please refer to relevant laws in your country.
Information You May Need
Notes on Operations
Before Requesting Service
Specifications
..................................................
What is a video recorder?
Simply, it is a machine which stores pictures and
sound on magnetic tape. This VCR uses VHS
cassettes, and since VHS is the most popular video
system in the world, there are plenty to choose from.
Suffice it to say that a cassette from another kind of
VCR cannot be used on this VCR. Ensure that you
only buy VHS cassettes of the best quality to get the
best results from this VCR.
The VCR is a television receiver in its own right. When
you record a TV program, it is being received by the
video recorder, not by your TV set. This means that
you can record one TV program on the VCR while you
watch another which is being received by the TV set.
Your VCR has two big enemies: other electrical
machines, and condensation. Read the instructions for
instaliation carefuily, with special regard to the
proximity of other eiectricai devices, and make sure
that you never, either during installation or ever in the
future — put a cassette, still cold from your shopping
basket or car, into the VCR without first ietting it stand
in the room for at ieast two hours to acciimatize.
Positioning
Do not piace the VCR directiy on top of, or
underneath, your TV set. Ensure that there is at least
20 cm between the VCR and the TV set, and that air
can circulate freely through the ventilation openings of
the VCR.
.......................................
........................
25
26-27
27
Page 3
Description of Controls 3
Front Panel
1 POWER Button
Press to turn the VCR (Video Cassette Recorder) on and
off. To set the VCR for unattended recordings after timer
settings have been completed.
2 Cassette Compartment
Where the video cassette is inserted.
3 Wireless Remote Sensor
Receives the signal from the (wireless) remote control.
4 STOP/EJECT Button
Press to stop the tape. Press again after the tape has
stopped to eject the cassette.
5 PLAY Button
• Press to play back a tape.
• Press to release the Slow or Search mode and return to
playback.
6 FF (Fast Forward)/SEARCH Button
Press to move the tape forward rapidly. Also, during
playback, press this button for rapid forward visual
search.
7 CHANNEL UP/DOWN Buttons
Press to scan up or down through the VCR’s channels.
8 REW(ind)/SEARCH Button
Press to rewind tapes. Also, during playback, press this
button for reverse visual search.
9 TVA/CR Button
Press to select the signal source that your TV receives.
TV position
(VCR indicator on the display panel: OFF)
To watch TV or to watch one program while recording
another.
VCR position
(VCR indicator on the display panel: ON)
To watch a tape, monitor a recording, or watch a TV
broadcast selected with the VCR’s channel selector.
10 REC(ord) Button
Press to start recording.
11 Front AUDIO/VIDEO IN(put) jack
For audio and video input connection from another VCR
or a portable video camera.
VCR Display Panel
12 VCR Indicator
Lights up when the VCR mode is selected.
13 OTR Indicator
Lights up when the One Touch Recording (OTR) feature
is in use.
14 Timer Indicator‘TIMER”
Lights up when the VCR is set for unattended recording.
15 Digital Clock/Counter Indicator
After setting the clock, the present time is displayed.
When a tape is inserted, the tape counter is displayed.
16 Channel/Input Signal Indicator
Shows the channel number. (“L” means External Line
Input Signal is selected.)
Select Line mode by pressing NUMBER buttons 0-0.
To exit Line mode, press any other number, for example, 0-2.
17 Sound Program Indicator
Lights up when a Stereo or 2nd audio program is received.
ST - receiving Stereo program
SAP - receiving 2nd audio program
18 Mode Indicator
Displays which feature the VCR is currently performing.
REC - Recording
PLAY - Playback
PAUSE - Still, Slow, Record-Pause
19 Memory Indicator
Lights up when the Memory function is selected.
20 Speed Indicator “SP,” “SLP”
Shows the tape speed during recording and playback
(“SP”or“SLP”).
SP - Standard Play
SLP - Super Long Play
21 Cassette-Inside Indicator
Lights up when there is a cassette in the unit.
Page 4
4 Description of Controls (conf d)
Rear Panel Remote Control Transmitter
22 AC (Alternating Current) Power Cord
Connect to a household outlet.
23 AUDIO IN(put) Jacks
For audio input connection from the output jack of a
portable video camera, another VCR, or another audio
source.
24 AUDIO OUT(put) Jacks
For connection to the audio input connector on a TV,
another VCR, or an audio tape recorder.
25 VIDEO OUT(put) Jack
For video output connection to a TV or another VCR.
26 VIDEO IN(put) Jack
For video input connection from the output jack of a
portable video camera, another VCR, or another video
source.
27 CH3/CH4 Switch
Set to channel 3 or 4 (whichever is not used for regular
TV broadcasting in your area) to use your TV as a screen
for your VCR. See “Hook Up Your VCR.”
28 RF OUT(put) Jack (out to TV set)
Use the supplied cable to connect this terminal to the
UHFA^HF input terminal on your TV set.
29 ANT(enna) IN(put) Jack (in from Antenna)
Connect your antenna or cable to this terminal.
30 TV POWER Button
Press to turn TV power ON or OFF.
31 MUTE Button
Press to instantly reduce the TV’s sound level. Press
again to return to previous setting.
32 VCR POWER Button
Press to turn VCR power ON or OFF. Also, used to set
the VCR for unattended timer recording.
33 VOLUME UP/DOWN Buttons
Press “ A ” or “ V” to increase or decrease the TV’s
sound volume.
34 SKIP SEARCH Button
Press during playback mode to skip forward 30 seconds
on tape coimter. Press up to 4 times consecutively to skip
up to 2 minutes on the tape counter. VCR will
automatically return to Playback mode.
35 TV CHANNEL UP/DOWN Buttons
Press “ A ” or “ V” to scan up or down through the TV
channels. Release at desired channel.
36 PLAY Button
• Press to play back a tape.
• Press to release the Slow or Search mode and return to
playback.
37 REW(ind)/SEARCH Button
Press to rewind the tape at high speed. Also, during
playback, press this button to view the picture in rapid
reverse visual search. .
38 FF (Fast Fonward)/SEARCH Button
To move the tape forward at high speed. Also, during
playback, press this button for rapid forward visual
search.
Page 5
Description of Controls (cont’d) 5
Remote Control Transmitter
45 JOG/SHUniE Button
Press to use the Jog Dial or the Shuttle Ring.
46 STATUS Button
Press this button to display the time counter, time,
function, and channel number.
47 CLEAR Button
• To erase incorrect or unwanted data in on-screen
menu operation.
• To reset the tape counter. “0:00:00” will appear on the
TV screen.
48 Jog/Shuttle Light
Lights up when the JOG/SHUTTLE button is pressed.
49 Jog Dial
Turn this dial while in the Still mode clockwise for jog
control. The tape moves forward frame-by-frame at the
speed with which the dial is turned. Frame by frame
playback is not possible in the reverse direction.
50 Shuttle Ring
Turn this ring while in the Play or Still mode in either
direction.
The farther the ring is rotated, the faster the search speed.
Releasing the ring stops the picture in the Still mode.
51 REC(ord) Button
Press to start recording.
39 Tape SPEED Button
Press to select recording speed (SP, SLP). In playback,
the tape speed is automatically selected (SP, LP, SLP).
40 STOP Button
Press to stop the tape.
41 PAUSE/STILL Button
• Press once to temporarily stop the tape during
recording (Pause).
• Press once to freeze the tape picture during playback
(Still).
• Press again when you want to resume normal
playback or recording.
42 VCR CH(annel) UP/DOWN Buttons
Press “ A ” or “ V ” to scan up or down through the
VCR’s channels. Release at desired channel.
43 NUMBER Buttons
(0,1,2,3,4,5,6,7,8 and 9)
Use for channel selection, on-screen menu selection,
clock setting, program setting, etc. For selecting channels
1 to 9, first press “0” button and then press “1” to “9.”
(100)
Press this button first when selecting channels 100 and
higher.
44 MENU Button
Press to call up the on-screen menu display.

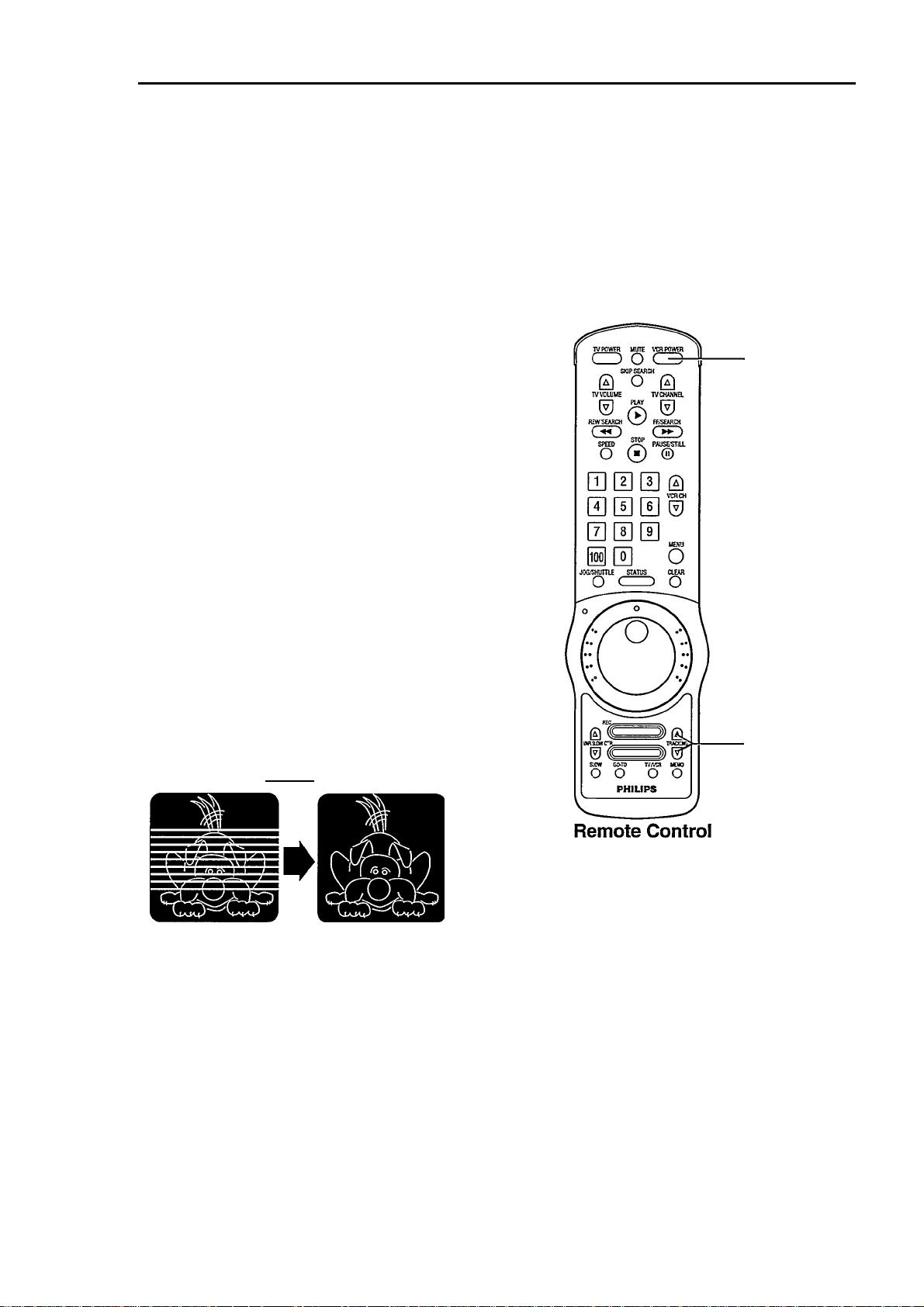

52 TRACKING Buttons
In the Play and Slow modes, when playing a tape, press
TRACKING “ A ” or “ V ” button to adjust the tracking.
53 ONE TOUCH RECORDING (OTR) Button
Select the channel and press this button to start an
immediate recording 30 minutes to 9 hours long. Each
press delays the shut-off time by 30 minutes. Power shut
off is automatic.
54 SLOW/VAR(iable) SLOW Buttons
First press the SLOW button during SP or SLP playback
to view a slow-motion picture. The speed can be varied
from about 1/6 to about 1/30 of normal speed with the
VAR(iable) SLOW button.
55 GO-TO Button
This button can make search easier by allowing you to
skip back or ahead on a tape. Press this button and select
desired counter number with NUMBER buttons,
followed by PLAY/STOP button.
56 TVA/CR Button
Press to select the signal source that your TV receives.
TV position
(VCR indicator on the display panel: OFF)
To watch TV or to watch one program while recording
another.
VCR position
(VCR indicator on the display panel: ON)
To watch a tape, monitor a recording, or watch a TV
broadcast selected with the VCR’s channel selector.
57 MEMO(ry) Button
Press to memorize the tape position at which the counter
was reset to “0:00:00.”
Page 6
Your VCR
Load The Batteries as Follows:
1
Battery Replacement Caution
• Do not mix old and new batteries. (Also never mix alkaline batteries with manganese batteries.)
NOTE:
This remote control and batteries are supplied accessories. Please check to make sure they are included.
Also, check the Specifications to see what other accessories are included.
Typ0s of Video Cassettes and Tape Speeds
You can change the recording speed for a tape using the Tape SPEED button.
2 Recording speeds: SP, SLP
3 Playback speeds: SP, LP, SLP
In this VCR, use only tapes with the IVHSI mark. The chart below shows the recording/playback time for 3 types of tapes (T160,
T120,T60).
Tape Speed Selector Position
Type of Tapes
SP (Standard Play)
LP (Long Play)(Playback only)
SLP (Super Long Play)
* During Playback, the VCR selects the tape speed, SP, LP, or SLP, automatically.
T160 T120
2 Hours 40 Minutes
5 Hours 20 Minutes 4 Hours
8 Hours
Maximum Record/Playback Time
2 Hours
6 Hours
T60
1 Hour
2 Hours
3 Hours
Erabe Protection
Cassettes have a Record Tab to ensure that recordings are not accidentally erased.
• To prevent accidental erasure: • To record again:
VCR Tape Cassette—
Break off the tab with a screwdriver.
~nC
*\
Please Read and Relax
Please read all the instmctions for each feature before attempting that
feature. For example, read all the steps for Timer Recording (pages
15-16) before doing a Timer Recording.
Cover the hole with
cellophane tape.
Now, turn the page to begin hooking
up your VCR.
Page 7
Hook Up Your VCR 7
VCR to TV Connection
1
Step 1: Disconnect the Antenna or Cable from Your TV.
Connect Your Antenna or Cable to Your VCR.
Back of VCR
Step 3 I Connect Your VCR to Your TV.
-------------
Antenna or Cable
AC Power Cord of VCR
/
Á
il
1
^
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _1_ _ _ _
----------------------------
--------------------------------------
................
(in
. . . . .
. . . . . . . .
tSi
i II
lnucxol i^^ol ^
B-1 -- ANTwf
^ RFOUT-,
OUT CUT ,,
NOTE:
^ANT IN
■ Out to TV
Both ends of the black RF cable are the
same. Plug either end into the VCR. Now,
plug the other end into the TV.
ANT, IN
(In from Antenna)
Out to TV
TV
Use the supplied conversion plug if
necessary.
RF Coaxial Cable
(supplied)
(Continued on next page.)
Page 8
8 Hook Up Your VCR (conf d)
Selept Channel 3 or 4
2
Set the CH3/CH4 switch on the back of the VCR to channel
3 or 4. To operate the VCR with your TV, set your TV to the
same channel. For example, if your switch is set to chaimel 3
(CH3), turn your TV to channel 3.
To avoid local interference, the CH3/CH4 switch position you
choose should correspond to the local TV channel that is not
used or least used.
If both are used, select the channel that gives you the best
picture when playing a tape.
3 ilillllllllllMll !
____________________________________
Back of VCR
—
----
Now, turn ON the VCR’s power to see if you have made the right connections.
Turn On Your VCR
------------
1 II
ò’ò
,(fe 5 =1^0,
/ X
___________
\
i'
I Make sure
the batteries are loaded in the remote control and the connections
have been completed before continuing to the steps below.
At the TV
I Turn the TV on. Set the TV to the same chaimel as the switch on
the back of the VCR (CH3/CH4).

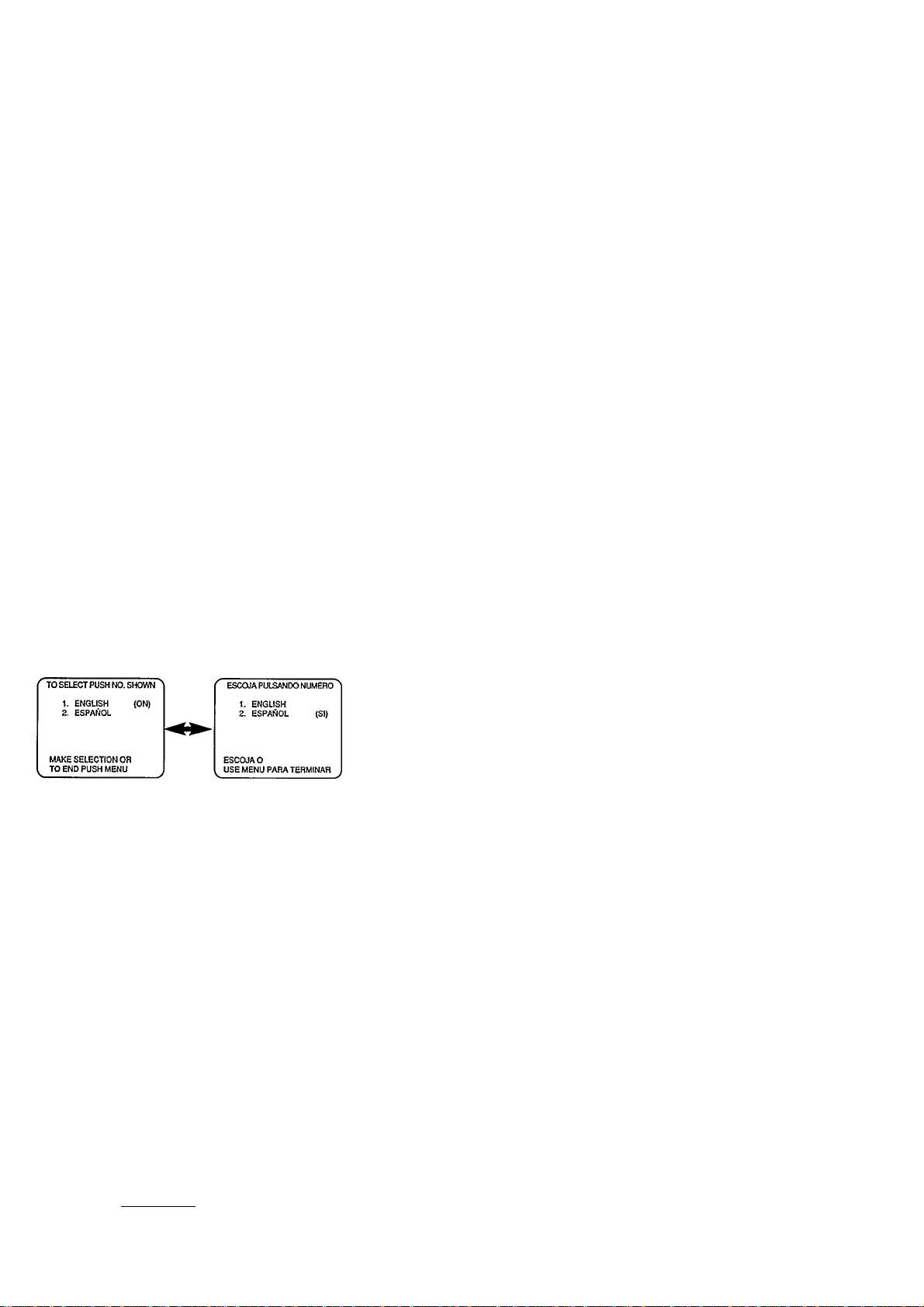

Chpose Your Language
Press the VCR POWER button.
• The VCR (Video Cassette Recorder) Power will
come on.
The language select menu appears, asking you
' whether you prefer to have messages displayed
on your TV screen in English or in Spanish.
Press the NUMBER 1 button if you want English.
Press the NUMBER 2 button if you want Spanish.
Press the MENU button to continue to the next step.
• To change your selection later on, see the instructions on page 13.
TO SELECT PUSH NO. SHOWN
1 ENGLISH
2 ESPAÑOL
MAKE SELECTION OR
PUSH MENU TO CONTINUE
Sefting the VCR’s Tuner
Press the VCR CH(annel) UP button to start
automatic tuner setting.
• “AUTO SET PROCEEDING, PLEASE WATT”
will be displayed on the TV screen. If you made
all connections properly, the local channels that
are receivable in your area will be automatically
placed in your VCR’s tuner.
(If the tuner has already been set, press the STOP button.)
• When completed, “AUTO SET COMPLETED” will be displayed
and the VCR will tune in to the lowest receivable channel.
• If proper antenna or cable connections were not made, “NO TV
SIGNALS” will be displayed. Please make connections and press
the VCR CH(annel) UP button again.
AUTO SET PROCEEDING
PLEASE WAIT
[ON]
—
>
Now, turn to the next page and set the
VCR’s clock
Page 9
Set the Clock 9
o set your VCR to the present day and time, follow steps 1-4 below. Once set, your VCR (Video Cassette Recorder)
T
will maintain the time in its internal clock, and will make timer recording possible.
I Make sure... |
---------------------------------------
• your VCR and TV are connected and turned on.
• the VCR indicator says “VCR”.
• to make each entry within 10 seconds, otherwise the VCR will exit
the Clock Set mode and you will have to start over.
Select the Clock Set Mode
Press the MENU button. Then press the 5
button to select “CLOCK SET’ from the
menu screen.
Set the Time & AM or PM
I First, press two NUMBER buttons for the hour, then two NUMBER
buttons for the minutes, and finally press “1” for AM or “2” for PM.
For example, for 10:30 PM, press the NUMBER buttons 1-0,3-0,2.
When setting the clock for the first time, entries that do not
match the VCR’s internal calendar will cause a “?” to appear.
Always enter “0” before any single-number entries.
To make corrections, press the CLEAR button repeatedly to move
back to an item then enter the correct number.
Set the Month, Day & Year
Press two numbers for the month, two
TIME 10 JO PM
MONTH
numbers for the day, and two numbers for
the year.
For example, for July 1,1994, press the
TO CORRECT PUSH CLEAR
TO END PUSH MENU
NUMBER buttons 0-7,0-1,9-4.
TIME 10 30 PM
DATE 07/01/94
FRI
TO CORRECT PUSH CLEAR
TO END PUSH MENU
Start the Clock
1
Press the MENU button.
Clock starts and the screen returns to the program you were on.
To display the time, press the STATUS button.
To Reset the Clock
Press the MENU button. The TV and VCR must be on and the VCR
in the “VCR” mode. The menu screen will appear. Press the
NUMBER 5 button and follow the clock set
guide to re-enter the new date and time.
TO SELECT PUSH NO SHOWN
1 PROGRAM
2VCRSETUP
3 TUNER SET UP
4 INPUT SELECT
5 CLOCK SET
6 DAYLIGHT SAV TIME
TO END PUSH MENU
Power failures can cause you to lose your clock setting placed in the
VCR’s memory. Should this happen, repeat steps on pages 8 and 9
before doing anything else.
Your VCR should now be properly set-up.
Go to the next page and try playing a tape.
Page 10
“10 Play a Tape
'’o play a tape, follow steps 1-4 below.
] Make sure... |
the batteries are loaded in the remote control and the connections on
pages 7 and 8 have been completed before continuing to the steps
below.
--------------------------------------
At the TV
Turn the TV on. Set the TV to the same channel as the switch on the
back of the VCR (CH3/CH4).
At the VCR
1
Insert a cassette.*
The VCR Power will come on.
Start Playback
Press the PLAY button.
• The VCR mode is automatically set. “VCR” indicator will light.
Step Playback
I Press the STOP/EIECT button to stop playback.
Press the REW(ind) button to fully rewind the tape.
Press the STOP/EJECT button again to remove the tape.
* • If a cassette’s record tab is removed, playback starts
automatically.
• If a cassette is already in the VCR, just press the POWER button.
Now, turn to the next page and leam how to record a TV program.
Page 11
Record on a Tape 11
record on a cassette tape, follow steps 1-7 below. Read all the instructions before starting. You must use your
r„
remote control.
Power ON:
Select channel
3or4.
STOP Button
REC(ord) Cassette CHANNEL
Button Tape UP/DOWN
Buttons
] Make sure — |
the steps in “Hook Up Your VCR” on pages 7-8 have been
completed.
-------------------------------
At the TV
1
Turn the TV on. Turn to channel 3 if the VCR CH3/CH4 switch is
set to “CH3.” Turn to channel 4 if the VCR is set to “CH 4.”
At the VCR
Insert a cassette with the record tab in place.
The power will come on.
If the cassette is already in the VCR, press the POWER button.
If the VCR display lights on the VCR, do nothing.
If it isn’t, press the TVA^CR button.
Choose the Tape Speed
(You may skip this step if the desired tape speed is already
selected.)
Press the Tape SPEED button on the remote control until the desired
tape speed (SP, SLP) appears on the TV screen.
STOP
Button
Tape SPEED
Button
NUMBER
Buttons
Remote Control
EBBI
BJE o
•-,-14 S'A'-S O-f«
O <=) o
PAUSE/STILL
Button
VCR
CH(annel)
UP/DOWN
Buttons
REC(ord)
Button
Choose the Channel
I
Press the VCR CH(annel) UP/DOWN or NUMBER buttons to
select the channel to be recorded.
Start Recording
Press the REC(ord) button.
Pause Recording
I To pause, press the PAUSE/STILL button. To continue recording,
press this button again.
Stop Recording
1
To stop, press the STOP button.
Other recording options are available on
pages 14-16,19.
Now, go to the next page and learn how to record one channel while
watching another.
Page 12
12 Record One Channel/See Another
o record one channel while viewing another, follow steps 1-4 below. Please read all the instructions. You
must use your remote control.
T
S^art a Recording
Start a recording as described on page 11.
Set the VCR/TV Button
i Press the TVA'^CR button to select the TV mode. The VCR
' indicator disappears.
Select the Channel at the TV for Viewing
1 Select the chaimel to be viewed at the TV, using the channel
' controls on the TV or TV remote control.
The channel selected with the TV channel controls appears on the
TV screen. The chaimel selected with the VCR channel control is
recorded on the tape.
To Return to the Channel Being Recorded
j First, using the channel controls on the TV or TV remote control,
' retmu the TV to either channel 3 or 4 (Please see “Hook Up Your
VCR.”)
Now, press the TV/VCR button to view again the channel being
recorded.
* If you are not receiving channels, please repeat the
steps on page 7 - 8 of this book. Also, follow
carefully the instructions hsted above.
NOTE:
If you use a converter box or sateUite
system hook-up, you may not be able to do
this feature.
Point the transmitter toward the remote sensor, within
the angle shown in the illustration above.
Congratulations! You’ve taken many steps. Now, turn to
the next page and find out a httle more about your VCR
and remote control.
Page 13
On-Screen Displays (OSD) 13
TO saecT push no. shown
1 PROGRAM
2 VCR SET UP
3 TUNER SET UP
4 INPUT SELECT
5 CLOCK SET
6 DAYLIGHT SAV. TIME
TO END PUSH MENU
Main Menu
TO SELECT PUSH NO. SHOWN
1. NORMAL PLAY (ON)
2. REPEAT PLAY
3. ON SCREEN MODE
4. LANGUAGE
5. AUDIO OUT
TO END PUSH MENU
VCR Set Up
Button
Pressed
Time
-U
12:00AjT|
CH12--Channel
I SLP M 153.45 HIFI
-Audio Output
Tape L-Counter and
Speed Counter Memory
OSD Main Menu Screen
Press the MENU button on the remote to display the main menu screen.
Then press the NUMBER button on the remote control for the desired
feature displayed on the menu. When you select a feature, turn to the
section in this manual and read the accompanying instructions.
VCR Status Display
1. Press the MENU button.
2. Next, press the 2 button to select “VCR SET UP.”
3. Then, press the 3 button to select “ON SCREEN MODE.”
4. Now, press the 1,2, or 3 button to select “ON SCREEN ON.”
“COUNTER ONLY” or “ON SCREEN OFF.”
“[ON]” appears beside the selection made.
POSITION
ON SCREEN ON: Whenever a function button (Stop, FF, etc.) is pressed,
a 5 second VCR Status Display appears.
COUNTER ONLY: Whenever a function button (Stop, FF, etc.) is pressed,
a 5 second VCR Status Display appears.
After 5 seconds, the coimter information will remain on the screen.
ON SCREEN OFF: In this position, there will be no indication when
normal functions are pressed.
VCR Status Display
Language Selection Menu
TO SELECT PUSH NO. SHOWN
1. NORMAL PLAY
2. REPEAT PLAY (ON)
3. ON SCREEN MODE
4. LANGUAGE
5. AUDIO OUT
MAKE SELECTION OR
TO END PUSH MENU
Repeat Playback Selection
OSD Language Select
1. Press the MENU button.
2. Next, press the 2 button to select “VCR SET UP.”
3. Then, press the 4 button to select “LANGUAGE.”
4. Now, press the 1 or 2 button to select “ENGLISH” or “SPANISH.”
AH OSD (On-Screen Displays) will appear in the language you select.
“[ON]” will appear beside the selection if you choose English and
“[SI]” will appear if you choose Spanish.
Repeat Playback
1. Press the MENU button.
2. Next, press the 2 button to select “V(2R SET UP.”
3. Then, press the 2 button to select “REPEAT PLAY.”
“[ON]” wiU appear beside the selection.
• The PLAY light on the display panel will blink.
• The tape will be played all the way to the end, 20 times automatically
and then stop.
• When the STATUS button is pressed during Repeat Playback. “PLAY”
blinks on the TV screen.
• To stop the tape during Repeat Playback, press STOP.
DAYLIGHT SAVINGS. TIME
SELECT D.S.T. (ON)
1. ON
2. OFF
TO END PUSH MENU
_________
Daylight Saving Time
Daylight Saving Time
1. Press the MENU button.
2. Next, press the 6 button to select “DAYLIGHT SAV. TIME.”
3. Then, press the 1 button to select “ON.”
• With this feature ON, the clock will automatically set forward one hour
at 2:00AM on the first Sunday in April, and will automatically set back
one hour at 2:00AM on the last Sunday in October.
Page 14
14 One Touch Recording (OTR)
o set the VCR (Video Cassette Recorder) to automatically shut off after recording is completed, follow steps 1-3
below. OTR lets you quickly specify how long you want recording to continue. You don’t have to program the
T
timer with this function. You must use your remote control.
-] Make sure... |
• the steps in “Hook Up Your VCR” are done, channels are
programmed into the VCR’s memory, and the TV and VCR are
both turned on.
• the clock is set to the correct time.
• the desired tape speed (SP, SLP) is selected. Use the tape SPEED
button.
• the record tab is in place on the cassette.
• the tape is long enough to record the programs.
---------------------------------------
Cpoose a TV Program
I Press the VCR CH(annel) UP/DOWN or NUMBER buttons on the
remote control.
Start an OTR
I Press the OTR button on the remote control.
The screen below appears.
Recording begins immediately.
OTR will flash on the VCR display.
This indicates that the VCR
will automatically shut off after"
30 minutes of recording.
OTR (030)
Select a Recording Length
Continue pressing the OTR button imtil the desired recording length
is displayed.
Each press of the button will add 30 minutes, up to 9 hours.
If pressed beyond 9 hours, “REC” appears on the TV screen.
• To check time remaining after an OTR has been set, press the
STATUS button.
CHANNEL
UP/DOWN
Buttons
STOP Button PAUSE/STILL Button
VCR CH(annel) UP/DOWN Buttons
NUMBER Buttons
i— To Change the Recording Length
Press the OTR button until the desired length is displayed.
To Cancel an OTR
To stop recording before the preset recording length is reached,
simply press the STOP button. If you want to cancel the OTR
mode but continue recording, press the OTR button several times
until the OTR indicator disappears. “REC” remains on the VCR
Display Panel.
• During recording, the displayed time counts down. When 0:00
is reached, recording stops and the power is switched off
automatically.
• If OTR is engaged in the Record-Pause mode, the timer will
count down normally, but recording will not begin until the
PAUSE/STILL button is pressed.
OTR Button
Page 15
Timer Recording 15
o record while you’re away, follow steps 1-12 below. For each program you set, the VCR wiU turn itself on, do the
recording, and turn off automatically. You can store up to eight programs. Instmctions for each step appear on the TV screen
T
after you begin. You must use your remote control.
-| Make sure... |------------------------------------------------------------------------------------
the steps in “Hook Up Your VCR” have been
completed, an antenna or cable system is connected to
the VCR, and the VCR and TV are turned on.
CABLE or NORMAL has been selected and channels
have been programmed into the VCR’s memory. See
“Turn On Your VCR” and “Adding/Deleting a
Channel”.
the TVA^CR selector is set to “VCR.”
• the clock is set to the correct time.
• a cassette tape is inserted in the VCR and the record
tab is in place on the cassette.
• the tape is long enough to record the programs.
FOR EACH STEP BELOW, YOU HAVE 60 SECONDS
TO COMPLETE rr. IF YOU DON’T, PROGRAMMING
WILL HAVE TO BE RESTARTED FROM STEP 1.
VCR
uun vCTPQwra
c__) o C3-
WiPstwtCH _
0 o ©
r/VuUOie TVOMMEl
FSwixAfíai V
___
/ n'sejJiCH
CEO
e«ui PAusttrai
o © ®
LÜ LiJ llJ-®-
saci ®
Hind
km r^
... — —
©-
■ POWER Button
■NUMBER
Buttons
■MENU Button
■CLEAR Button
TO SELECT PUSH NO SHOWN
Select the Menu Screen
Press the MENU button on the remote control.
The main menu screen at right will appear.
1 PROGRAM
2 VCR SET UP
3 TUNERSET UP
4 INPUT SELECT
5 CLOCK SET
e DAYLIGHT SAV TIME
TO END PUSH MENU
Select the Program Mode
Press the NUMBER 1 button on the remote control to select the
Program mode.
Remember, use the NUMBER buttons on your remote control.
Select Normal, Daily or Weekly Recording
I Normal Recording
Press the 1 button to record a TV show on any
day you choose up to 12 months away.
TO SELECT PUSH NO SHOWN
1 NORMAL
2 DAILY
3 WEEKLY
4 PROGRAM REVIEW
Or
Daily Recording
Press the 2 button to record a TV show every
day (Monday through Friday) at the same time
and length.
TO END PUSH MENU
DAILY PROGRAM. (MON-FRI)
\W W i l ¡ ■^
PROGRAM-1 2 34 6 6 7 8-
^ I I tl\W\
Or
Weekly Recording
Press the 3 button to record a TV show once a
week at the same day, time, and length.
SELECT PROGRAM NUMBER
TO END PUSH MENU
WEEKLY PROGRAM
\ \ \ 1 I I r / /
PROGRAM-12345678-
/• / / M \ \ V s
Remote Control
t- To Make Corrections...
Press the CLEAR button while the screen
you wish to change is displayed. This
moves the flashing indicator to the number
you want to change. Now, enter the correct
number. You may have to press the
CLEAR button more than once to reach
the numbers you want to change.
Select the Position
SELECT PROGRAM NUMBER
TO END PUSH MENU
Press the NUMBER buttons 1-8 to select one of the 8 positions to
store a timer record program. The flashing numbers indicate an open
position where a program can be stored.
If you select a position number that has
already been set, “PREVIOUSLY SET
PROGRAM” appears for a few seconds,
PREVIOUSLY SET PROGRAM
then the position contents will be displayed.
If this happens, press the MENU button
twice and start over.
Select the Channel
Enter two numbers for the TV channel. For
chatmels above 100, press the 100 button, then
two numbers for the channel.
For example, for channel 10, press NUMBER
button 1, then 0. Or, for channel 115, press 100,
then press 1 and 5. To record from line input,
press 0 and 0. “AlW IN” will appear on the screen.
(Continued on next page.)
NORMAL PROGRAM
PROGRAM 1
CHANNEL
TO CORRECT PUSH CLEAR
TO END PUSH MENU _______
Page 16
16 Timer Recording (cont’d)
Select the “TIME ON”
I Fkst, press two NUMBER buttons for the hour.
Next, press two NUMBER buttons for the
NORMAL PROGRAM
PROGRAM 1
CHANNEL ^^0
TIME ON
minute.
Now, press NUMBER button “1” for AM or
“2” for PM.
TO CORRECT PUSH CLEAR
TO END PUSH MENU
For example, for 9:30 PM, press NUMBER buttons 0-9,3-0,2.
Sélect the “TIME OFF”
I First, press two NUMBER buttons for the hour.
' Next, press two NUMBER buttons for the
NORMAL PROGRAM
PROGRAM 1
CHANNEL 10
TIME ON 0950 PM
TIME OFF
minute.
For example, for 10:00 PM, press 1-0,0-0,2.
Select the Recording Speed
Press the 1 or 2 button to choose SP (Standard
Play) or SLP (Super Long Play).
You cannot use the SPEED button on the
remote control to choose the recording speed.
TO CORRECT PUSH CLEAR
TO END PUSH MENU
' NORMALPROGRAM
PROGRAM 1
CHANNEL 10
TIME ON 0930 PM
TIME OFF ^Q-QO PM
REC SPEED -GL^
SPol SLPogl^
TO CORRECT PUSH CLEAR
TO END PUSH MENU
Select the “START DATE”
I First, press two NUMBER buttons for the month.
Next, press two NUMBER buttons for the day.
For example, to make a recording on Feb. 12,
press 0-2,1-2.
The year and day of the week will be displayed
automatically.
NORMALPROGRAM
PRCDGRAM 1
CHANNEL
TIME ON
TIME OFF 10.-00 PM
REC SPEED SP
START DATE 02/1 a*94
TO CORRECT PUSH CLEAR
i, TOENDPUSHMENU
Confirm Your Prograrn
1
Press the MENU button.
“PROGRAM WAS COMPLETED” should appear on the screen.
If “PROGRAM NOT COMPLETED” appears, please try again
from step 1 on page 15.
After 3 seconds, the display will disappear from the screen, and the
normal TV picture will reappear.
The TIMER Indicator will light up on the VCR.
“T<"
10
0930 PM
SAT.
Check or Clear Timer Recordings
1. Turn the VCR on. VCR must be in VCR
mode.
2. First, press the MENU button.
Next, press the 1 button to select
“PROGRAM.”
Now, press the 4 button to select
“PROGRAM REVIEW.”
The Timer Record information for the
lowest numbered position (1-8)
appears.
NORLIALPROGHAM
PROGRAM 1
CHANNEL
TIME ON
TIME OFF
REC SPEED SP
START DATE 02/12-94
TO CANCEL PUSH CLEAR
^ NEXTol
10
0930 PM
1030 PM
SAT.
END=MENU )
3. Press the 1 button repeatedly to view all
the filled positions.
If you do not press the 1 button, after 10
seconds the display changes to the next
filled position. This continues until all
filled positions appear. Finally, the
screen returns to the previous on-screen
menu.
4. Press the CLEAR button to clear a filled
position.
5. At any time, press the MENU button
once to exit the Program Review mode.
6. Repeat steps 1 - 4 to make sure you
have cleared the correct filled positions.
To fill a position, follow “Timer
Recording” steps 1 —12.
NOTE: This function does not work with
OTR (One Touch Recording).
Select the Next Program
If needed, press the MENU button and repeat steps 2 tolO.
Sei the Timer
When finished, press the POWER button to OFF on the remote
control.
After a Timer Recording Has Taken Place
Press the POWER button on the remote control to return your VCR
(Wdeo Cassette Recorder) to normal operation.
r- if the Power Should Fall...
repeat the steps on pages 8 and 9 before setting up a Timer
Recording.
Stop a Started Timer Recording
1. Press the POWER button.
• Timer recording is cancelled and VCR
power turns off.
Today’s recording stops. If it is a Daily or
Weekly recording, future recordings will be
carried out as programmed.
Page 17
Special Playback Features 17
s your VCR (Video Cassette Recorder) connected to your TV (see “Hook Up Your VCR”)? Are you familiar with tape
playback (see “Play a Tape”)? If so, you are ready to enjoy the special playback features described on this page. These
I
features work best in the SP (Standard Play) or SLP (Super Long Play) mode. You must use your remote control.
To Rapidly Locate a Particular Segment
First, press the PLAY button.
' Next, press the REW(ind)/SEARCH or FF (Fast
Forward)/SEARCH button.
A rapid forward or reverse picture search begins.
Search speed in SP mode is about 7 times the normal speed.
Search speed in SLP mode is about 21 times the normal speed.
D O CZ)
[.:) O Q
TVV UJWt IVOikSUt
r 71 fUY t—1
G±D
ma Sf
--------
o ©
d] HI dl 0
0 0 0®
0 0 0
S 0 o
viCKUTTli STATUS Ct£W
O CZID o
■ REW(ind)/
SEARCH Button
• PLAY Button
■ FF (Fast Forward)/
SEARCH Button
■PAUSE/STILL
Button
VAR(iable) SLOW Buttons
SLOW Button
Now, press the PLAY button to return to playback.
If the FF or REW button is held down for more than 2 seconds,
simply releasing it will cancel the Search mode. In this case, the
search speed in SLP mode is about 15 times normal speed.
Press the PLAY button to return to playback.
• During search playback, some noise bars will appear on the TV
screen.
To View a Still Picture (During Playback)
First, press the PLAY button.
Next, press the PAUSE/STILL button.
A freeze frame (still) playback image appears.
I Now, press the PAUSE/STILL or PLAY button again to release the
stilled image and continue playback.
To View a Slow Motion Picture
First, press the PLAY button.
Next, press the SLOW button.
• During slow motion the slow speed can be controlled using the
VAR(iable) SLOW buttons.
Now, press the PLAY or SLOW button to release the Slow mode
and continue playback.
Remote Control
To View Picture in Slow to Fast Motion
First, press the JOG/SHUTTLE button while in the Play or Still
mode.
Next, turn the outer ring in either direction.
I The farther the ring is rotated, the faster the search speed.
Release the ring stops the picture in the Still mode.
Next, turn the inner dial clockwise for jog control. Turn this dial
I while in the Still mode clockwise for jog control.The tape moves
forward frame-by-frame at the speed with which the dial is turned.
Frame by frame playback is not possible in the reverse direction.
1 Now, press the PLAY button to release the Still mode.
NOTES:
• The sound will be muted during special-effects playback.
• Slow Motion and Still automatically switch to the Stop
mode after 5 minutes to protect the tape and video heads.
• The Jog/Shuttle Light turns off after 60 seconds unless
pressing any button.
Page 18
18 Special Playback Features (cont’d)
Auto Operation Functions
Auto Playback
When a tape is inserted, the power comes on.
If the record tab* is removed, playback begins.
Auto Rewind
When a tape reaches its end during playback, fast forward, or manual
record, the VCR rewinds the tape and goes into Stop mode.
Memory Rewind Power Off
When the POWER button is pressed during rewind, the VCR will
turn off after rewind is complete.
Eject Cassette
A cassette may be ejected with power on or off.
* For record tab information, refer to page 6.
POWER
Auto Tracking Control
With Auto Tracking there is usually no need for manual adjustments
to minimize noise in playback for most tapes. Auto Tracking
continuously analyzes the signal to adjust for optimum picture
quality for each recording. However, with some recordings you may
get a better result using the TRACKING UP/DOWN buttons.
Manual Tracking Controls
Press the TRACKING UP/DOWN buttons.
Use Manual Tracking adjustment during playback, slow motion, and
double speed playback to minimize noise in the picture.
Also, use these buttons to reduce jitter in a stiU picture. Once you
make this adjustment, you probably will not have to do it again unless you select Still mode while playing a tape recorded on a
different VCR.
To cancel manual tracking, stop the tape, eject the tape, then re-insert
it. Each time a tape is inserted automatic tracking is engaged.
TRACKING
UP/DOWN Buttons
Page 19
Re-Recording (Tape Duplication) 19
|Ubbing from any VHS recorder (or camcorder) to another is simple. Just use the connections and steps below. The
d:
example below uses two VCRs like this one. Other VCRs may operate differently.
At VCR 1
I Insert a pre-recorded tape. VCR 1 is the VCR (Video Cassette
CONNECTIONS 1
Recorder) that will play your tape. If the record tab is missing
(page 6), playback starts. In that case, press the stop button.
Source
Player
(A/V outputs)
(Front View)
Editing
(Recording)
VCR
(AN
inputs)
(Back View)
©©
.©
TV Set
(Used for monitoring)
At VCR 2
I Insert a blank tape in the editing VCR. The VCR will mm on
automatically. The VCR indicator light on the VCR should come on.
If not, press the TVA^CR button on the remote control.
To Monitor the Re-Recording Process On Your TV
Turn the TV on.
Turn the TV channel to either 3 or 4, whichever channel VCR 2 is
set to (see page 8).
Seiect input Source
I
To record from a rear terminal (Connections
2), press the MENU to display the main menu.
Press “4” to select the Input Select mode, and then press “2” to
select the Rear A/V Input mode.
To record from a camcorder terminal (Connections 1), follow the
above procedures, but press the “3” button to select the Front AfV
Input Mode.
“L” appears on the display panel and “AA'^ IN” on the TV screen.
Seiect Tape Speed
j
Point yom remote control at VCR 2. Press Tape SPEED button to
/ select SP (Standard Play) or SLP (Super Long Play).
5
Piay Back the Tape
I
Press the PLAY button on VCR 1.
TO SELECT PUSH NO SHOWN
1 TUNER
2A'VINREAR
3A'V IN FRONT (ON)
CONNECTIONS 2
VCR1
Source (Piaying) VCR
(Back View)
AUDIO and
VIDEO OUT
----------
Record (Copy) the Tape
I Press the REC(ord) button on VCR 2.
Remember: press the buttons in steps 6 and 7 simultaneously to
avoid missing any of the recording.
CAUTION
Unauthorized recording of copyrighted television programs, films,
video tapes, and other materials may infringe on the rights of
copyright owners and be contrary to copyright laws.
VCR2
Editing (Recording) VCR
(Back View)
Q©
X)J
From AUDIO OUT to AUDIO
-CB» «UD—1
-cm •BD-
From VIDEO OUT to VIDEO IN
____________
Î tl
■oo-
-tìZBa»!
TV Set
(Used for
monitoring)
AUDIO and
VIDEO IN
Channel 3 or 4
Page 20

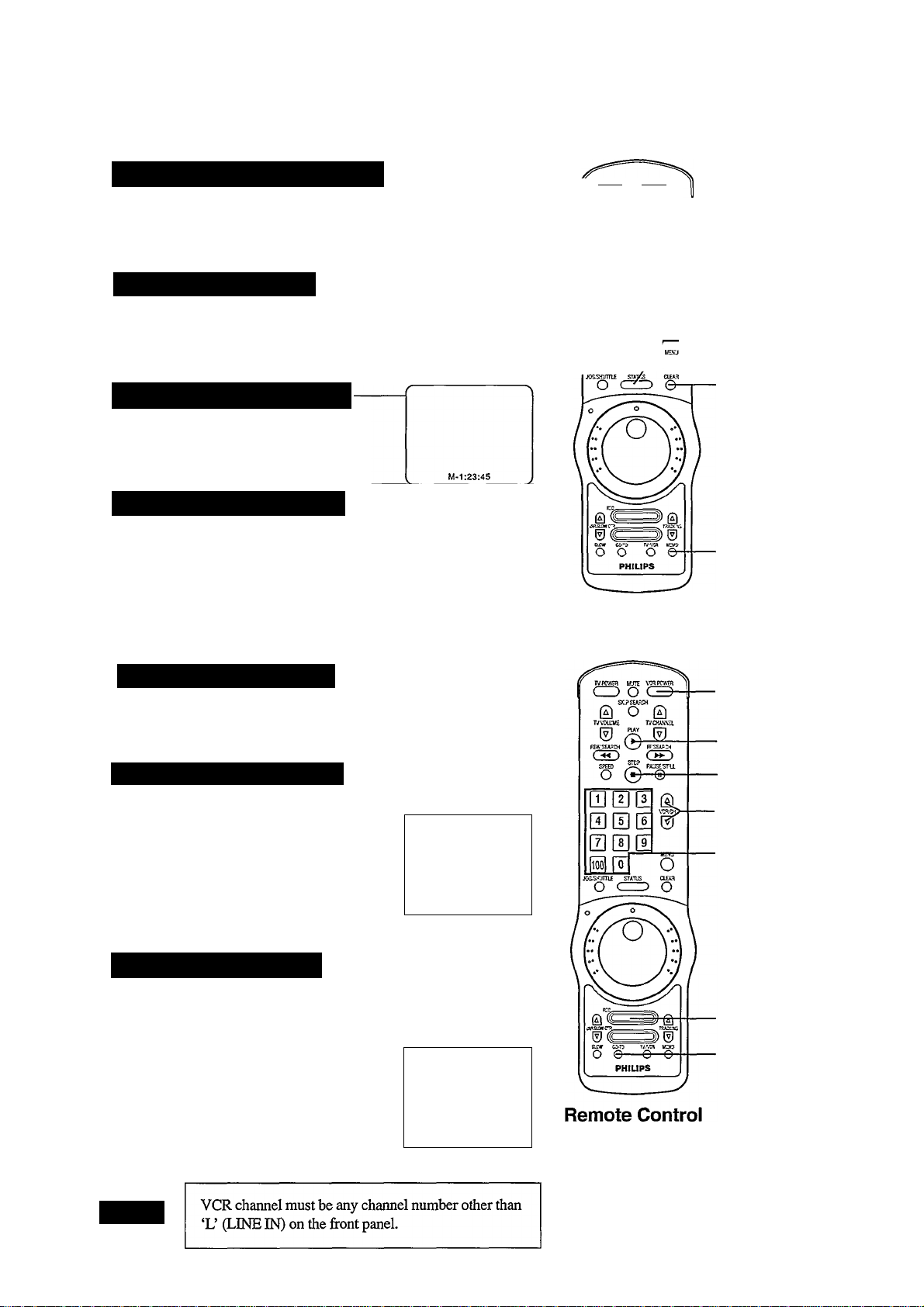

20 Tape Operation
Tape Counter Control
f you always rewind your tapes fully and reset the tape counter, then you’ll be able to use a list of program locations as an
index. You must use your remote control.
I
Se^ct the Tape Counter Display
1 To select the tape counter display, press the
STATUS button. The tape coimter display
appears on the TV screen.
Reset the Tape Counter
, To reset the tape counter, press the CLEAR
button. You can reset the counter to zero at
whatever point on the tape you choose.
Seject the Memory Function
1
To select the memory function, press the
MEMO(iy) button. “M” will appear on the
screen in front of the counter reading.
St^rt the Memory Function
I To start the memory function, from anywhere on the tape, press the
STOP button, then press the REW(ind) or FF (Fast Forward) button.
The tape will stop automatically wherever “0:00:00” was set.
TVPCAth IWT£ \CTPCA-Pt
CZ) O CD
0 o 0
Tvv-oiue r/coaa.
i \Z/ I
___
CH)
spw pAüSEsra
o © ®
IDIDiD 0
E d] E 'i
BEE/
EE /o
■REW(ind)/SEARCH
Button
■ STATUS Button
CLEAR Button
(Counter) MEMO(ry) Button
Go-To Function
'ou can have yoi
ou can have your VCR automatically “go to” and locate the point on
You must use your remote control.
NOW 1:00:00
Select the Go-To Function
I While in the Stop mode, press the GO-TO
/ button.
The screen at right appears.
I
GOTO
Select the Counter Number
Select the desired coimter number by pressing the NUMBER
buttons. For example, by pressing 1,2-0,0-0,
the VCR will automatically go to the point
with counter reading “1:20:00.”
If the counter location you want has a minus
(—) before it, you can enter the minus by
pressing the VCR CH(aimel) DOWN button.
To remove the minus, press the VCR CH(annel) UP button.
' NOW
GOTO
V j
Stajl the Go-To Function
I Press the PLAY or REC or STOP or VCR POWER button.
The Go-To function will Fast Forward or Rewind to the counter
number, and depending on which button you pressed, will enter that
mode.
PLAY button = Vdll begin playback at that
point.
REC button = Will begin recording at that
point.
STOP button = Will stop at that point.
VCR POWER button = Will turn the VCR’s power off at that point
' NOW
GOTO
\
__________
1:00:00
1:20:00
1:20:00
1:20:00
Remote Control
the tape with the counter reading that you specify.
■VCR POWER Button
PLAY Button
.VCR CH(annel)
UP/DOWN Buttons
■ NUMBER Buttons
REC(ord) Button GO-TO Button
j
NOTE:
Page 21

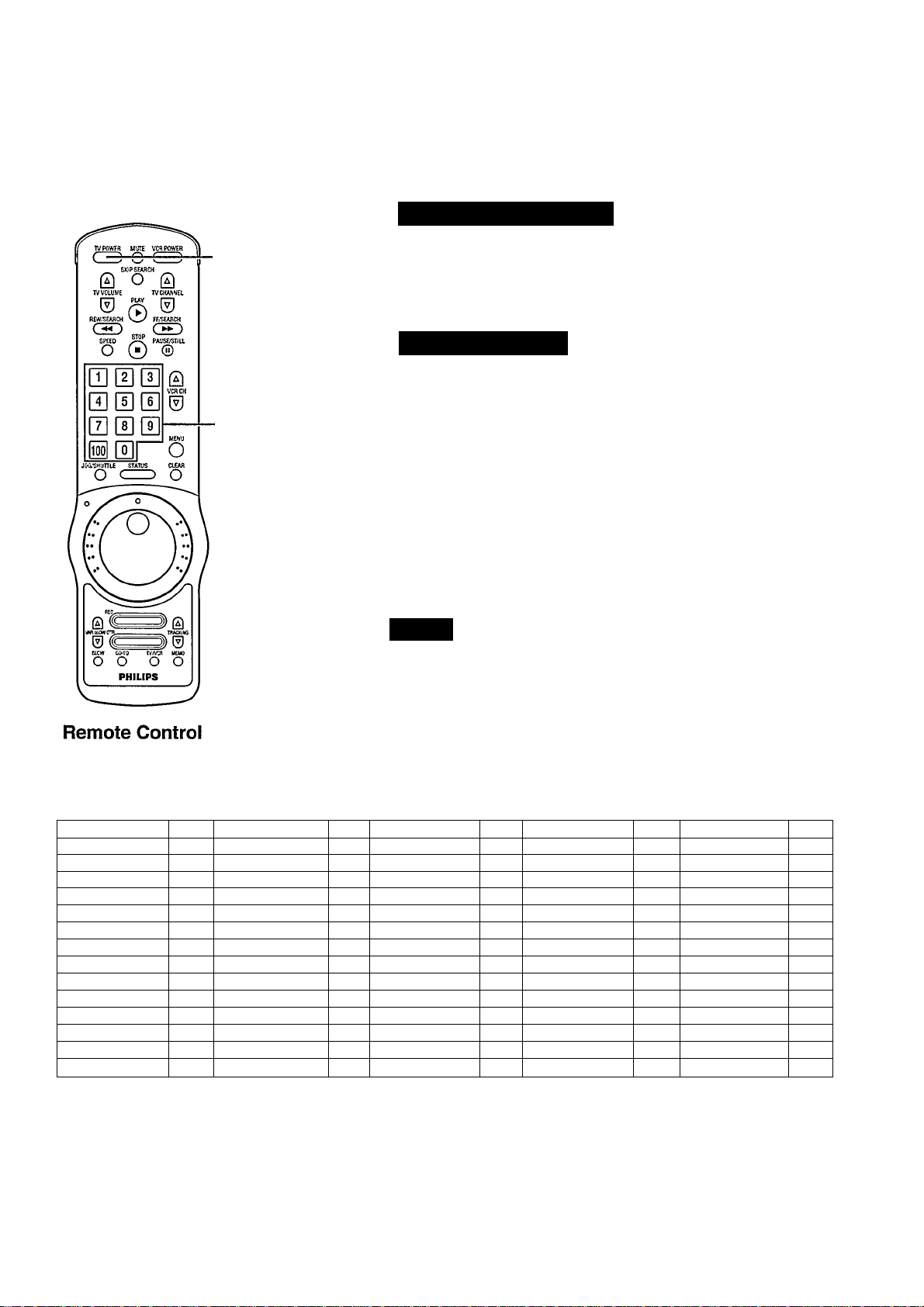

TV Code Setting 21
our remote control may be able to operate the basic functions of your television. In addition to PHILIPS televisions,
other manufacturer’s televisions listed below can also be controlled by setting the remote control to the corresponding
Y
TV code. Initially, the code number is set to 01.
Try Your Remote Control
Point this remote control at your remote controllable TV and try the
I
■TV POWER Button
■NUMBER Buttons
TV POWER button. If it turns your TV on and off, try the other
buttons.
If these buttons do not work your TV, go to step 2.
To Set the TV Code
While pressing the TV POWER button, also press the NUMBER
I buttons for the code number of your TV’s brand listed below.
For example, press 0, then 2 for code 02.
Now, repeat step 1.
If the remote still does not work your TV, use another code and repeat
step 2.
Whenever You Replace Batteries
...in the remote control, it is necessary to re-set the TV code if your
television is not a PHILIPS TV.
NOTE:
Important
Although the provided remote control unit is
compatible with most PHILIPS televisions, as well
as many TV models manufactured by others, it is
possible that the provided remote control will not
work with your TV, or in some instances, will have
limited capability.
TV BRAND NAME CODE TV BRAND NAME CODE TV BRAND NAME CODE TV BRAND NAME CODE
PHILIPS 01
AKAI
AOC 05
CENTURION 03 HITACHI 12 MGA/MITSUBISHI 05
CORONADO 02
CURTIS-MATHES 03
DAYTRON 03 JVC 04
EMERSON
EMERSON
EMERSON 14 KTV
FISHER
GENERAL ELECTRIC 07 MAGNAVOX 02 QUASAR 07 SONY 09
GENERAL ELECTRIC
GOLDSTAR 02 MARANTZ 05 RADIO SHACK 14 SYLVANIA 03
05 GOLDSTAR 05
HITACHI
J.C. PENNEY 03 MGA/MITSUBISHI 13 SANYO 11 TOSHIBA 08
J.C. PENNEY 05 NEC 03 SCOTT 03 WARDS
02 KMC 02 PANASONIC 07 SEARS 11 WARDS 05
KTV
05
11 MAGNAVOX 01 PORTLAND 02 SHARP 16
10 MAGNAVOX 03 RADIO SHACK 06 SYLVANIA 01
MARANTZ
02
MGA/MITSUBISHI
NEC 05 SEARS
02 PHILCO 02 SHARP 02 YORX 03
PHILCO 05 SHARP 06 ZENITH 15
05
13 RCA 05
03 RCA 10 TEKNIKA 02
SAMPO
03 TEKNIKA 14
08
TV BRAND NAME CODE
TEKNIKA 01
02
WARDS
03
Page 22
22 Re-Setting Your VCR’s Tuner
o place receivable channels in your VCR (Video Cassette Recorder), follow steps 1-4 below. This function lets you re
program your VCR’s tuner at any time.With the Add/Delete feature you can add or delete any channel. You must use
T
your remote control.
I Make sure... |
---------------------------------------
• the steps on pages 7-8 have been completed, and your TV and
VCR are on.
• to make each entry within 60 seconds, otherwise the VCR will exit
the Tuner Set Up mode and you will have to start over.
Display the Tuner Set Up Mode
I First, press the MENU button to display the
main menu screen.
Now, press the NUMBER 3 button to select
“TUNER SET UP.”
The screen at right appears.
TO SELECT PUSH NO. SHOWN
1TV [ON]
2CABLE TV
3 AUTO PROGRAMMING
4ADD;T)ELETE CH
5CH MEMORY REVIEW
6 TV STEREO [ON]
7 2ND AUDIO
TO END PUSH MENU
Start Auto Program
Press the NUMBER 3 button to start Auto
Programming. “AUTO SET PROCEEDING,
PLEASE WAIT” appears on the TV screen.
AUTO SET PROCEEDING
PLEASE WAIT
Finish Auto Program
I When auto program is complete, “AUTO SET COMPLETED”
appears on the TV screen, and then the lowest channel stored in the
VCR’s memory will appear on the TV screen. To view other stored
channels, press the VCR CH(annel) UP/DOWN buttons. Line mode
is always stored in the VCR’s memory. “L” appears on the VCR’s
front panel when selected using the VCR CH(aimel) UP/DOWN
buttons.
NUMBER Buttons
VCR CH(annel) UP/DOWN Buttons
MENU Button
r- Adding and Deleting a Channel
1. Press the MENU button to display the menu screen. Next, press
the 3 button to select “TUNER SET UP.”
2. Press the 2 button to change from “TV” to “CABLE TV.”
Press the 1 button to change from “CABLE TV” to “TV.”
“[ON]” appears beside your selection.
3. Press the 4 button to select the Add/Delete
SELECT CHANNEL NUMBER
chaimel feature. The display shown here
will appear.
4. Press two numbers to add or delete channels
up to 99. For 100 and higher, first press the
100 button, then two numbers.
• Always enter a “0” before any single-digit
entries. For example, 0, then 6 for “6.”
• Refer to “Using the 100 Button” to enter a
three-digit number.
5. Press the 1,2, or 3 button to “ADD,”
“DELETE,” or “SELECT ANOTHER CH”
TO END PUSH MENU
TO SELECT PUSH NUMBER
1 ADD
2 DELETE
3 SELECT ANOTHER CH
TO END PUSH MENU
that is in the VCR’s memoiy.
If “3” is selected, the display in step 3 will re-appear.
To exit the Add/Delete mode, press the MENU button once.
Channel Memory Review
First, press the MENU button. Next, press
the 3 button to select “TUNER SET UP.”
Now, press the 5 button to select “CH
MEMORY REVIEW.” The memorized
channel list will appear on the TV screen.
Now, press the 1 button to see the next
channel hst. Press the
2 button to see the
previous channel list
To exit, press the
MENU button.
^MEf.lORIZED CHANNEL: CABLE'
151720 21 27 31
32 38 42 43 45
50 51 52 68
68 70 73 75 78 60
84 88
81 83
90 9295104 107
NEXr=1 PREVIOUS = 2
TO END PUSH MENU
64 67
83 89
47
112
Using the 100 Button
To select channel numbers 100 to 125 with
the NUMBER buttons, first press the 100
button and then enter the remaining two
numbers. For example for channel 105,
press NUMBER buttons 100,0,5.
)
Page 23

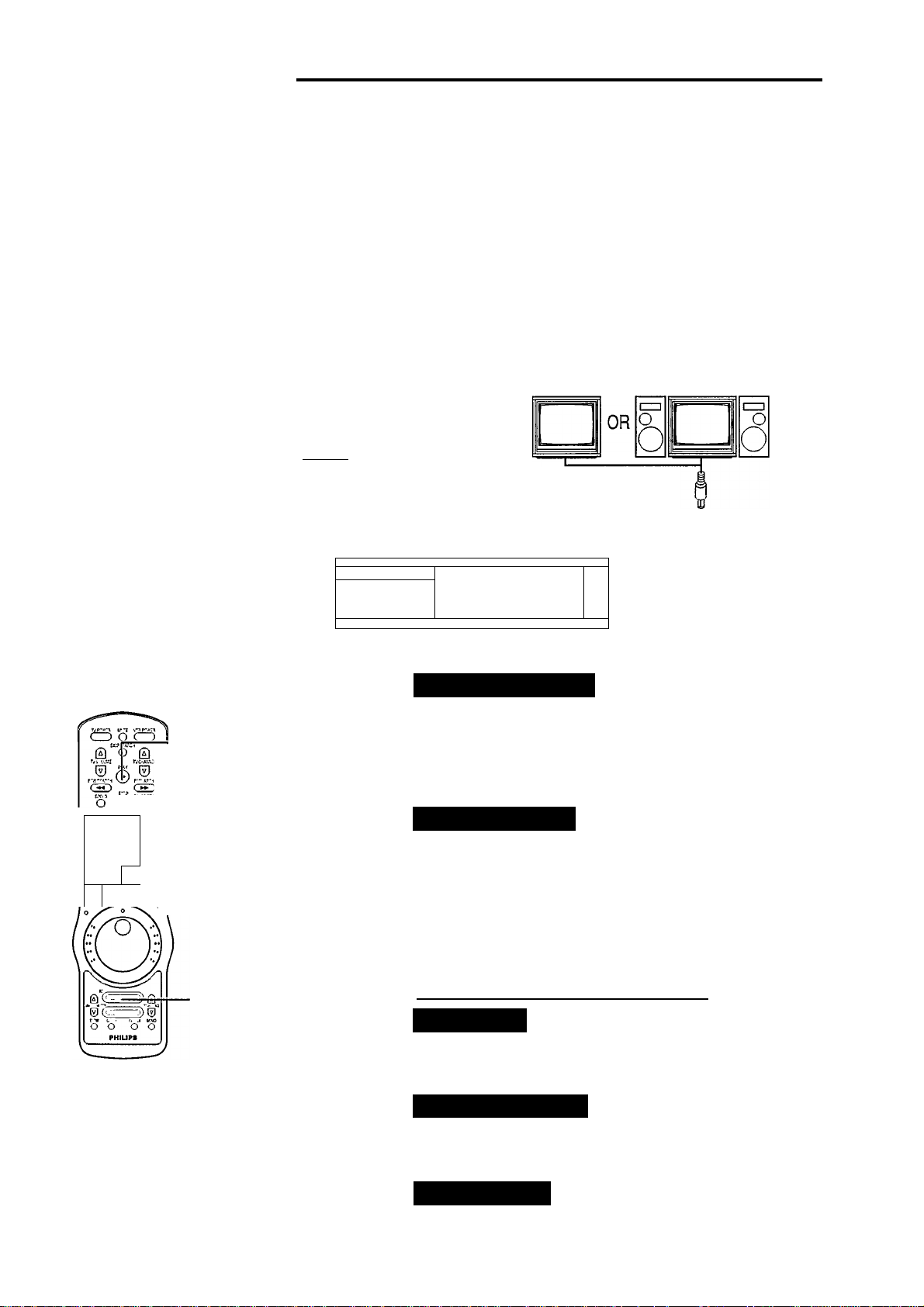

MTS Broadcast Stereo System 23
(Multi-Channel Television Sound)
our VCR (Video Cassette Recorder) can record and play back a second audio program (SAP) or TV stereo when
received as an MTS broadcast.
Y
MTS Recording and Playback
By hooking-up to a stereo amplifier and speakers, you can enjoy MTS broadcasts. You can select the type of broadcast and
sound track you wish to record or play back using steps 1-4 below.
Make sure...
• an antenna or cable system is connected to the VCR (page 7).
• a cassette is inserted (page 10).
• the desired tape speed (SP, SLP) is selected (page 11).
CONNECTIONS
Note:
• Input hook ups to the
VCR not shown.
See page 7.
• For connections to the
TV using AudioA^ideo
Outputs, the TV may
have to be in the AUX
mode. See TV instraction
book.
Remote Control
■PLAY Button
© ®
nrum]
0UKIÌ
U101II
0 0
'CZ±>
■'o
o-
o
VCR CH(annel) UP/D0WI\1 Buttons
•MENU Button
■NUMBER Buttons
REC(ord) Button
Stereo AMP
or RECEIVER
Back of VCR
Monitor TV
a pQnO
"i?
1
n
--------
srs:---------------------------------------
,__1,
Cjlj'
\ ' \ - -II-- -
1
(3 Dmiiiiimo vr
AUDIO OUTPUT (R/L)
Choose Input Source
(You may skip this step if “TUNER” is already selected.)
I
First, press the MENU button.
Next, press the 4 button to select “INPUT SELECT.”
Then, press the 1 button to select “TUNER.”
Now, press the MENU button to leave this mode.
Choose a Program
(Select the type of broadcast.)
I
First, press the MENU button.
Next, press the 3 button.
The “TUNER SET UP” menu appears.
Then, press the 6 button for “TV STEREO,” or the 7 button for “2ND
AUDIO.”
Make the desired selection according to the type of broadcast.
This selects which type of audio programs are recorded on the tape.
Now, press the MENU button to leave this mode.
To Play Back
To play back, press the PLAY button.
I To record, go to step 3.
Mono
Speaker TV
Monaural Sound
\ 1V E
______1__________________
IlDE O
OUTPUT
Stereo Speaker
TV
RFOUT (Out to TV)
1
_________________
MTS: means a Multi-Channel
Television Sound broadcast.
Hi-Fi Stereo: records and plays back on
the Left and Right Hi-Fi
tracks.
SAP: means a Separate Audio
Program in a second
language.
Choose the Channel
Select the chaimel to be recorded using the VCR CH(annel)
IUP/DOWN or NUMBER buttons.
Start Recording
I Press the REC(ord) button.
Page 24
24 VHS Hi-Fi stereo Sound System
hen an MTS program is broadcast in Hi-Fi stereo, it will automatically be recorded in Hi-Fi stereo. To play back, just
be sure the settings shown in the TUNER SET UP and AUDIO OUT menus are displayed like those below. With
W
these settings, you can play back stereo programs in Hi-Fi audio.
MTS (Multi-Channel Television Sound) Hi-Fi Playback
When you want to play back an MTS broadcast, be sure the VCR is connected to a stereo AMP or receiver, or a stereo TV
(as shown on page 23, see “Connections”), and the settings described in steps 1-3 below have been made.
Choose Input Source
(You may skip this step if “TUNER” is already selected.)
I
First, press the MENU button.
Next, press the 4 button to select “INPUT SELECT.”
Then, press the 1 button to select “TUNER.”
Now, press the MENU button to leave this mode.
Selecting Hi-Fi Output Mode
(Select “HM” from the AUDIO OUT menu.)
First, press the MENU button.
Next, press the 2 button.
The “VCR SET UP” menu appears.
I Then, press the 5 button.
The “AUDIO OUT” menu appears.
Now, press the 1 button.
This setting gives you:
• stereo Hi-Fi playback.
• monaural playback of non Hi-Fi tapes.
NOTE:
Normally “HM” should be selected from the AUDIO OUT menu
for playback with Hi-Fi sound. But you can change the selection to
“MONO” to listen to the monaural audio playback, for example,
listening to an audio dubbed tape.
' TO SELECT PUSH NO. SHOWN '
1 PROGRAM
2 VCR SET UP
SHINER SET UP 3AA/IN FRONT
4 INPUT SELECT
5 CLOCK SET
6 DAYLIGHT SAV. TIME
TO END PUSH MENU
OSD Main Menu INPUT SELECT Menu
^ TO SELECT PUSH NO. SHOWN ^
1 TUNER (ON)
2ATVIN REAR
, TO END PUSH MENU
TO SELECT PUSH NO. SHOWN
1 Hin (ON)
2 MONO
TO END PUSH MENU
AUDIO OUT Menu
Select TV STEREO or 2ND AUDIO Mode
First, press the MENU button.
Next, press the 3 button.
The “TUNER SET UP” menu appears.
me":
press the 6 button to select “TV STEREO.”
a) Now,
This setting plays back:
Thiss
stereo Hi-Fi recording (in the main language).
@
• ster
Or
b) Now, press the 7 button to select “2ND AUDIO.”
This setting plays back:
• recordings in the Second Audio language.
jo Clear the On Screen Display
Press the MENU button.
Recording in VHS Hi-Fi
Both the Hi-Fi audio and the separate linear (monaural) audio are automatically
recorded on their respective tracks.
Note: To record, a video signal is required for proper speed accuracy.
TO SS.ECT PUSH NO. SHOWN
1TV
2 CABLE TV (ONI
3 AUTO PROGRAMMINO
4ADD/DELETE CH
5CH MEMORY REVIEW
6 TV STEREO [ON]
7 2ND AUDIO
TO END PUSH MENU
TUNER SET UP Menu
Page 25
Notes on Operations 25
Hook Up Your VCR
• If the reception on all channels is unsatisfactory, you may
need to re-tune your TV set.
Clock Adjustment
• In the Clock Adjustment mode, be sure to enter the first
digit and all subsequent entries within 10 seconds of one
another. Otherwise, the VCR will automatically leave this
mode and the program you were watching will return to
the screen. If tiiis happens, press the MENU button and
start again.
• Be sure to enter “0” before single-digit numbers.
• The letters indicating the day of the week will appear
when you have entered both digits for the year.
• If the digits entered for the day do not match the calendar,
the entry will be rejected and “?” will appear.
• If you press the MENU button while in the Clock Set
mode, the TV screen will return to the program you were
watching.
Special Playback Features
• During search playback, horizontal noise bars will appear
on the TV screen.
• After the VCR has been in the Still mode for 5 minutes, it
will automatically go to the Stop mode to protect the tape
and video heads.
• Special-effects playback can be used during playback of
tapes recorded in the SP or SLP mode. Tapes recorded in
the LP mode cannot be viewed in special-effects
playback.
To Record
• Although it is possible to change the tape speed while
you are recording, some distortion will appear on the tape
at the point where you make the change.
• After the VCR has been in the Pause mode for 5 minutes,
it will automatically go to the Stop mode to protect the
tape and video heads.
One Touch Recording (OTR)
• If the preset time for a timer recording comes up during
OTR recording, OTR has priority.
VHS Hi-Fi Stereo Sound System
• A difference in audio level may be detected between HiFi and normal audio playback.
• While adjusting tracing control, Hi-Fi audio sound may
revert to normal audio sound. This is normal.
• To record audio, a video signal is required for proper
speed accuracy.
• When you hook the audio output jacks on your VCR to
the audio input jacks on your stereo TV, the stereo light
on the TV might not glow. This is normal. As long as
your VCR indicates a stereo signal and the correct
connections made (see page 23), you are receiving a
stereo signal.
• When connecting this VCR to a stereo TV, you will only
get stereo sound on your TV if you use audio cables and
connect the VCR’s audio output jacks to the stereo TV’s
audio input jacks and the TV is switched to the Line (or
Auxiliary) Input.
• If the Hi-Fi sound keeps reverting to normal (monaural)
sound during playback, you may want to change
“AUDIO OUT’’ to “MONO,” see NOTE on pap 24.
• Only Hi-Fi stereo tapes will play back in the Hi-Fi stereo
mode. Tapes with standard stereo sound will play back in
monaural sound.
Timer Recording
• To do a timer recording in the LINE mode, follow steps
1- 4 in “Timer Recording” section. At step 5, press the
NUMBER button 0 twice (0,0) to engage the LINE
(external source) mode. Complete the rest of the steps
under “Timer Recording” section.
• Timer recording may not be performed or continued if a
power interruption of more than one minute occurs
before or during timer recording, even if power resumes
thereafter. Preset clock and timer data will be lost. This is
indicated by the clock display on the VCR which resets
to If this happens, reset the clock and program
the timer.
• If the time spans of two preset programs overlap, the
lower-numbered program will have priority and the
second program will start only after the first program has
been executed.
• If the POWER button is pressed to OFF with no cassette
loaded, the TIMER and “Cassette Inside” indicators will
continue blinking.
• If the record tab is missing, the cassette will be ejected
when the POWER button is pressed to OFF, and the
TIMER and “Cassette Inside” indicators will continue
blinking.
Power Failure
• Timer Recordings will be erased if the power fails.
Repeat “Set the Clock” on page 9 before setting up a
“Timer Recording” on pages 15-16.
Satellite Hook-Up
• Watching one TV channel while recording another may
not be possible with a satellite hook-up.
• You may have to set yoin VCR to channel 3 or 4 and
make your channel selections at the satellite converter
box.
Line Input
• If you accidentally get into the Line mode (“L” appears
on the VCR), simply press the VCR CH(annel)
UP/DOWN button or select a channel using the
NUMBER buttons to exit.
MTS (Multi-Channel Television Sound) Broadcast Stereo System
• When stereo or second audio program is recorded on this
VCR and played back on a conventional VHS VCR, the
playback sound will be from the normal sound track.
• Once SAP is selected, if no SAP is available, the VCR
reverts to non-SAP (normal) audio.
Page 26
26 Before Requesting Service
IMPORTANT NOTE: Periodic maintenance is required in order to maintain the unit’s continued excellent performance. After a
period of time the \ddeo heads will require replacement If cleaning or replacement of the Video heads is required, this service
should be performed by an authorized \ddeo System Service Center.
Check the following points once again if you are having some difficulty with your VCR (Video Cassette Recorder).
I—Power-
No power...
Power Failure...
—Recording & Playback
TV program can’t be recorded...
Timer recording can’t be performed...
There is no playback picture, or the playback picture is
noisy or contains streaks...
-Correction-
■ Check that the power cord is correctly connected to an AC
(Alternating Current) outlet.
' Check that the Power button is set to on.
' Please complete “Setting the Clock” on page 9 before
attempting to set up a “Timer Recording” on page 15-16.
-Correction-
' Check the coimections between the VCR, the external
anteima, and your TV.
• Make sure that the record tab on the back of the cassette is
still intact (P.6).
- Set the recording start/stop time correctly (P.15 -16).
• Make sure that the POWER button is set to “OFF’ (P. 16).
• Timer recording may not be performed or continued if a
power interruption of more than 1 minute occurs before or
during Timer Recording, even if the power resumes
thereafter.
' Select the same channel on your TV as that of the VCR
Charmel 3/4 switch (P.8).
' Set the TV/VCR selector to “VCR”.
' Check that charmel 3 or 4 of the TV is properly adjusted.
• Adjust the Tracking control slowly in either direction
(P.18).
During special effects playback, the picture may contain
some vertical jitter when using a TV which has an
Automatic Vertical Hold Control...
If the top of your playback picture waves back and forth
excessively...
■ Set the TV’s Vertical Hold Control, if available, to
“MANUAL” and adjust.
• Because the VCR playback signal is not as stable as an
off-the-air TV signal, the top of your TV screen may be
bent or unstable during playback. To solve this problem,
slowly turn the HORIZONTAL HOLD control on your
TV to correct the wavy picture. If your TV does not have
the horizontal hold control or adjusting the control does
not help, please contact your local TV service center.
Page 27
Before Requesting Service (cont'd) 27
■Remote Control-
VCR can’t be remote controlled...
—Miscellaneous
You can’t view programs normally on the TV...
Video cassette can’t be inserted...
Video cassette can’t be removed...
Video cassette ejects when the OTR or RECORD button is
pressed, or when the POWER button is pressed off to set the
Timer...
--------------------------
-Correction-
' Aim the Remote Control directly at the remote sensor on
the VCR.
' Avoid all obstacles which may interfere with the signal
path.
■ Inspect or replace the batteries (P.6).
' Make sure batteries are inserted correctly (P.6).
—Correction----------------------------------------
' Set the TVA^CR selector to “TV”.
' Insert the cassette with the window side up and the record
tab facing you.
' Make sure a cassette tape is not already inserted. Press
STOP/EJECT button on VCR.
' Check that the power cord is correctly connected to an AC
(Alternating Current) outlet.
■ Check the cassette to be sure that the record tab on the
back of the cassette is still intact (P.6).
Specifications
Video Recording System
Video Signal
Antenna
VHP Output Signal
Power Requirement
Power Consumption
Operating Temperature
Relative Humidity
Design and specifications are subject to change without notice.
Rotary four-head helical scan
system
EIA standards: NTSC color
VHF/UHF - 75 ohm external
antenna terminal
Channel 3 or 4 (switchable) 75
ohms unbalanced
ACllOV-127V - 220V'v
50/60 Hz
19W
41°F(5°C)tol04°F(40°C)
10% to 80%
Weight
Dimensions
TYiner
Broadcast Channels
CATV Channels
Accessories
9.3 lbs. (4.2 kg)
14-3/16"(W) X 3-3/4"(H) X
12-1/8"(D)
(360 mm X 94 mm x 307 mm)
VHF2-13,UHF14-69
Midband A -1
Superband J - W
Hyperband AA - EEE
Lowband A5-A1
Special channel 5A
Ultraband 65-125
• Wireless Remote Control
• “AAA” Batteries
• RF Coaxial Cable
• Conversion plug
Page 28
0ШЭ1Л1
Page 29
Memo
Page 30
THE BEST CHOICE FOR YOUR
VIDEO CASSETTE RECORDER
Philips offers a fuil range of High Grade &
Extra High Grade Video Cassettes.
PHILIPS
PU36278-92
Loading...
