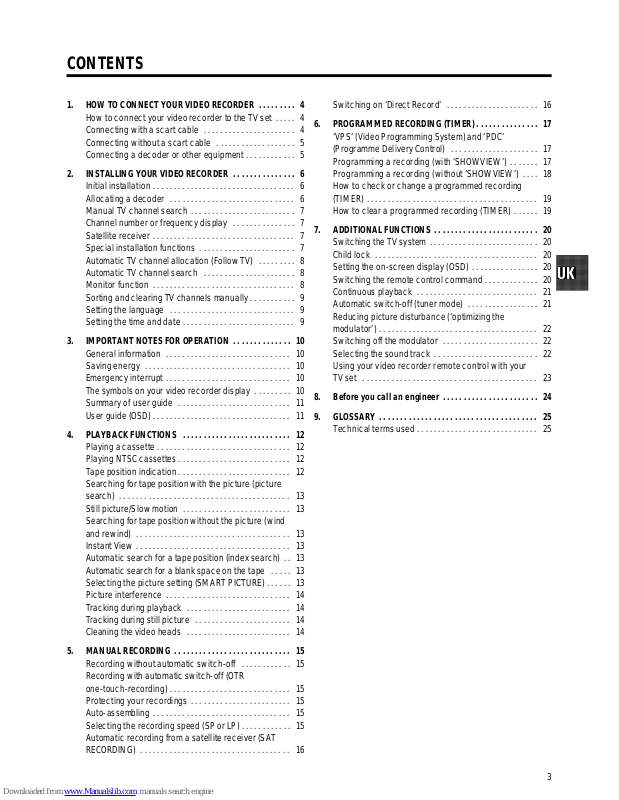

Philips VR605/58 User Manual

1. HOW TO CONNECT YOUR VIDEO RECORDER 4.........

How to connect your video recorder to the TV set 4.....

Connecting with a scart cable 4......................

Connecting withouta scart cable 5...................

Connecting a decoder or other equipment 5............

2. INSTALLING YOUR VIDEO RECORDER 6...............

Initialinstallation 6..................................

Allocatinga decoder 6..............................

Manual TV channel search 7.........................

Channel number or frequency display 7...............

Satellitereceiver 7..................................

Special installationfunctions 7.......................

AutomaticTV channel allocation (FollowTV) 8.........

AutomaticTV channel search 8......................

Monitorfunction 8..................................

Sortingand clearing TV channels manually 9...........

Settingthe language 9..............................

Settingthe time and date 9...........................

3. IMPORTANT NOTES FOR OPERATION 10..............

General information 10..............................

Saving energy 10...................................

Emergencyinterrupt 10..............................

The symbolson your video recorder display 10.........

Summaryofuserguide 11...........................

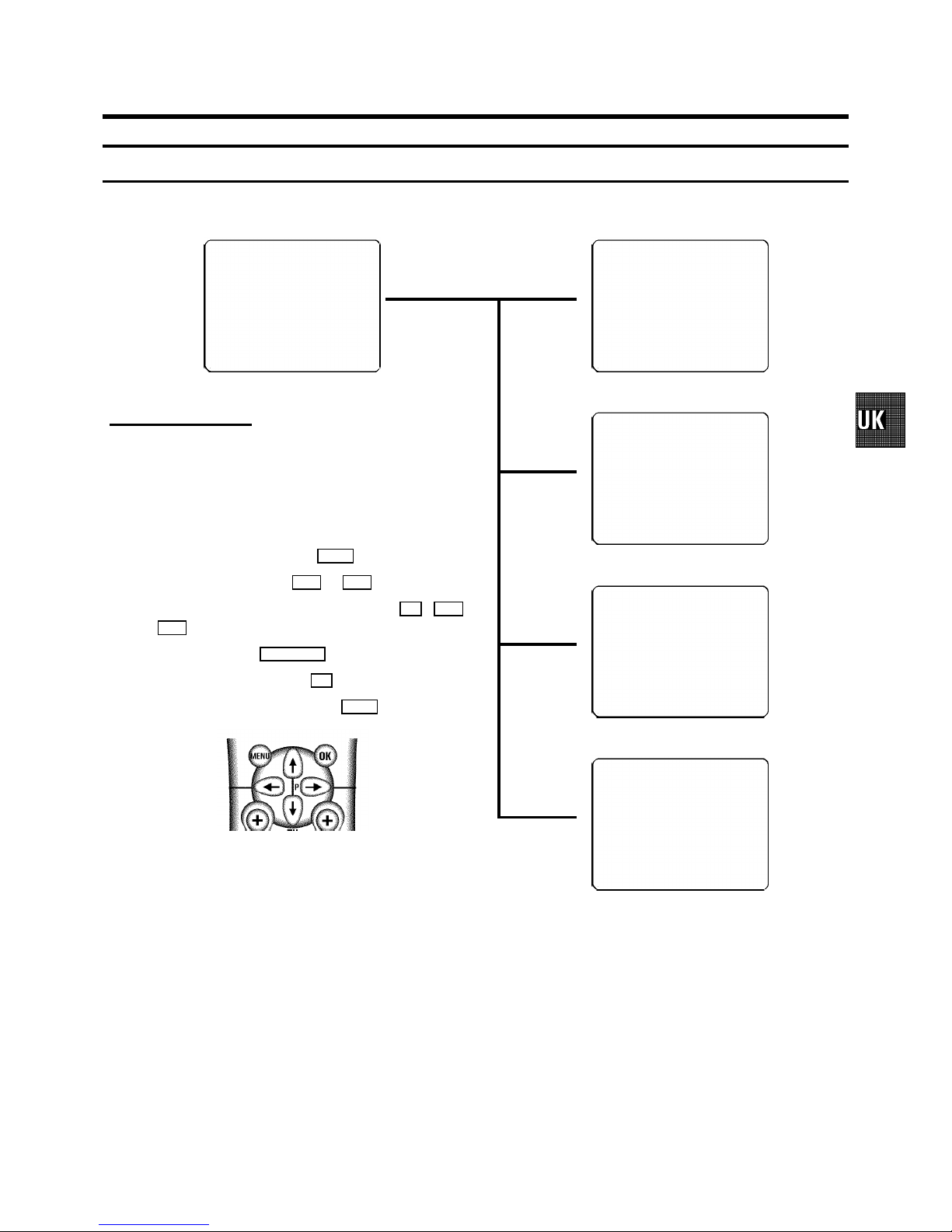

User guide (OSD) 11.................................

4. PLAYBACK FUNCTIONS 12..........................

Playinga cassette 12................................

PlayingNTSC cassettes 12...........................

Tape position indication 12...........................

Searching for tape position withthe picture (picture

search) 13.........................................

Stillpicture/Slowmotion 13..........................

Searching for tape position withoutthepicture(wind

and rewind) 13.....................................

InstantView 13.....................................

Automaticsearchfora tape position (indexsearch) 13..

Automaticsearchfora blank space on the tape 13.....

Selecting the picture setting(SMARTPICTURE) 13......

Pictureinterference 14..............................

Trackingduring playback 14.........................

Trackingduring stillpicture 14.......................

Cleaning the video heads 14.........................

5. MANUAL RECORDING 15............................

Recording withoutautomaticswitch-off 15............

Recording with automaticswitch-off(OTR

one-touch-recording) 15.............................

Protectingyourrecordings 15........................

Auto-assembling 15.................................

Selecting the recording speed (SP or LP) 15............

Automaticrecordingfromasatellitereceiver(SAT

RECORDING) 16....................................

Switchingon ’DirectRecord’ 16......................

6. PROGRAMMED RECORDING (TIMER) 17...............

’VPS’ (Video ProgrammingSystem)and’PDC’

(ProgrammeDeliveryControl) 17.....................

Programminga recording(with’SHOWVIEW’) 17.......

Programminga recording(without’SHOWVIEW’) 18....

How to check or change a programmed recording

(TIMER) 19.........................................

How to clear a programmed recording (TIMER) 19......

7. ADDITIONAL FUNCTIONS 20.........................

Switchingthe TV system 20..........................

Child lock 20.......................................

Settingthe on-screendisplay(OSD) 20................

Switchingthe remotecontrolcommand 20.............

Continuousplayback 21.............................

Automaticswitch-off(tunermode) 21.................

Reducing picture disturbance(’optimizingthe

modulator’) 22......................................

Switchingoffthe modulator 22.......................

Selecting the sound track 22.........................

Using your video recorderremotecontrolwithyour

TV set 23..........................................

8. Before you call an engineer 24.......................

9. GLOSSARY 25......................................

Technical termsused 25.............................

CONTENTS

3

The remote control

SMART SMART: To adjust the picture setting during

playback

STANDBYm

Switch off : To switch off set, interrupt menu
function, interrupt a programmed recording (TIMER)

CLEAR (CL)

Delete : To delete last entry/Clear programmed
recording (TIMER)

SYSTEM

Switching the TV system: To select the TV system
while you record or play a cassette

SP/LP

SP/LP: To select the recording speed (Standard Play/
Long Play)

MONITOR

TV monitor : To switch between TV reception and
VCR playback

0-9

Number buttons:0-9

SELECT

Select: To select a function

TIMERk

TIMER: To make a manual TIMER programming or to
alter or clear a programmed TIMER

MENU

Menu : To call up or end main menu

OK

Store/Confirm: To store or confirm entry

D

Select: Cursor left

C

Select: Cursor right

P q

Select: One line up

P r

Select: One line down

PLAYG

Playback : To play a recorded cassette

H

Rewind : During STOP and STANDBY: rewind, during PLAYBACK: reverse scanning

STOPh

Pause/Stop: To stop the tape, except while a TIMER-recording is being made

I

Forward wind: During STOP and STANDBY: forward wind, during PLAYBACK: forward
scanning

INDEXE

Index search: In combination with H / I :to search for previous or next
recording on the cassette.

nRECORD/OTR

Record: To record the programme selected

STILLR

Still picture : To stop the tape and show a still picture

Additional TV functions

qS

TV volume: To regulate the TV volume up

Sr

TV volume: To regulate the TV volume down

y

TV sound off : To switch off/on the sound completely

TV m

TV Switch off : To switch off the TV

qTV

TV Programme number: TV programme number up

TV r

TV Programme number: TV programme number down

OPERATING INSTRUCTIONS IN BRIEF

&

Front of the set

STANDBYm Standby : To switch off, interrupt a function, interrupt a programmed recording (TIMER)

RECORDn

Record: To record the programme selected

PROGRAMMEr

Select: One line or programme number down.

PROGRAMMEq

Select: One line or programme number up.

STOP/EJECT?

Pause/Stop, eject cassette: To stop the tape and eject the cassette

PLAYG

Playback : To play a cassette

o

Rotary control: Turn left: during STOP and STANDBY: rewind, during PLAYBACK: reverse
scanning
Turn right: during STOP and STANDBY: wind, during PLAYBACK: forward scanning

STILLR

Still picture: To stop the tape and show a still picture
Sockets at the lefthand corner on the front:
White and red socket: Audio input socket left/right : To connect a camera recorder or

video recorder (programme number ’

E3’)

Yellowsocket:Videoinput socket : To connectacamerarecorder or video recorder
(programmenumber’

E3’)

Back of the set

4 Mainssocket:To connect the mains cable

L AUDIOOUTR

Audio outputsocket,left/right : To connect aHiFi-set

EXT.2 AV2

Scart socket2:Toconnect a satellite receiver,decoder,videorecorder,etc. (programme
number ’

E2’)

EXT.1 AV1

Scart socket1:Toconnect the TV set (programmenumber’E1’)

2

Aerial inputsocket:To connect the aerial cable

3

Aerial outputsocket:To connect the TV set

&

Acura 02 GoldStar 15, 20, 27 Proline 31
Adyson 20 Goodmans 07, 10, 20, 29, 36 Protech 02, 12, 20, 23, 25, 38
Akai 18, 33 Gorenje 35 Quelle 03, 04, 33
Akura 21, 25 Graetz 33 Questa 07
Alba 02, 07, 21 Granada 10, 18, 20 Rank Arena 07
Allorgan 28 Grandin 26 Rediffusion 33
Amplivision 20 Grundig 17 Rex 25
Amstrad 02 HCM 02, 26 Roadstar 02, 21, 25, 38
Anitech 02 Hanseatic 30, 33 SEG 07, 20, 25
Arcam 19, 20 Hinari 02, 07, 21 SEI 12, 28
Asuka 21 Hisawa 26, 40 Saba 15
Audiosonic 15 Hitachi 05, 07, 08, 13, 15, 20, 22 Saisho 02, 04, 25
BPL 26 Huanyu 19, 36 Salora 33
BSR 28 Hypson 25, 26 Sambers 12
BTC 21 ICE 20, 25 Samsung 01, 02, 20, 25, 27, 35
Basic Line 02, 21 ICeS 21 Sandra 19
Baur 03, 33 ITT 33 Sanyo 04, 07, 10, 18
Beko 35 Imperial 23, 35, 38 Schaub Lorenz 33
Binatone 20 Inno Hit 10 Schneider 21, 23, 37
Blaupunkt 17 Interfunk 23, 33 Sei-Sinudyne 03
Blue Sky 21 Intervision 12, 20, 25 Sentra 06
Blue Star 26 Isukai 21 Sharp 07, 11
Bondstec 23 JVC 07, 09 Shorai 28
Boots 20 Kaisui 02, 19, 20, 21, 26 Siarem 12
Brandt 15 Kathrein 01 Siemens 17
Britannia 19 Kingsley 19 Silver 07
Bush 02, 07, 21, 26, 28, 36, 42 Koyoda 02 Sinudyne 12, 28
CGE 23 Leyco 10, 25, 28 Solavox 05
CS Electronics 19 Lloytron 05 Sonitron 18
CTC 23 Luxor 33 Sonoko 02
Carrefour 07 M Electronic 02, 13, 15, 20, 32, 36, 41 Sonolor 18
Cascade 02 Magnadyne 12, 23 Sony 03, 04, 07
Cimline 02 Magnafon 12 Soundwave 38
Clatronic 23, 35 Manesth 20, 25, 30 Standard 02, 20, 21
Condor 30, 35 Marantz 01 Sunkai 28, 31
Contec 02, 07, 19 Matsui 02, 04, 06, 07, 10, 18, 20, 28, 39 Susumu 21
Crown 02, 35, 38 Memorex 02 Tandy 10, 20, 21
Cybertron 21 Metz 34 Tashiko 07, 20
Daewoo 02, 36 Mitsubishi 07, 14, 16 Tatung 10, 20
Dainichi 21 Mivar 19, 27 Tec 20, 23
Dayton 02 Multitech 02, 12, 19 Technema 30
De Graaf 18 Neckermann 01 Technics 24
Decca 10 Nikkai 05, 06, 10, 19, 21, 25 Telefunken 15
Dixi 02 Nobliko 12 Telemeister 30
Dual 42 Nokia 33, 41 Teletech 02
Dual Tec 20 Nordmende 15 Teleton 20
Elite 21, 30 Oceanic 33 Tensai 21, 28, 29, 30
Elta 02 Orion 28, 30, 31 Texet 19, 21
Emerson 33 Osaki 05, 10, 20, 21, 25 Thomson 15
Ferguson 15 Oso 21 Thorn 06, 10, 33
Fidelity 19, 33 Osume 05, 10 Tomashi 26
Finlandia 18, 32 Otake 29 Toshiba 06, 07
Finlux 10, 13, 32 Otto Versand 01, 03, 07, 20, 30 Uher 30
Firstline 02, 19, 20, 23, 28, 31 Palladium 35, 38 Ultravox 12
Fisher 18, 20, 35 Panama 20, 25 Universum 13, 25, 32, 35
Flint 40 Panasonic 24, 34 Videosat 23
Formenti 30 Pathe Cinema 19, 30 Videotechnic 20
Frontech 23, 25 Pausa 02 Visa 02
Fujitsu 10 Perdio 30 Vision 30
Funai 25, 28 Phase 05 Waltham 20
GEC 10, 20 Philco 23 Watson 30
GPM 21 Philips 01, 36 Watt Radio 12
Geloso 02 Pioneer 15 Wega 07
Genexxa 21 Profex 02, 33 White Westinghouse 19, 30

Yoko 20, 25

Remote codes

3103 166 21961

8392/001 VR800/02

(WwnnNNNwwnwNNnwnWwnNwNnNwNwwnN)

Congratulations!You now own one of the most sophisticated
and simple-to-usevideo recorders (VCR) on the market. With
thisVCR you can record and play VHS-standard cassettes.

Please take the time to read this operating manual before
using your video recorder.

Safety instructions and other notes

ADanger:High voltage!

Do not remove the top cover as there is a risk of an electrical
shock!

AThevideo recorder does not contain anycomponents that can

be repaired by the customer. When the appliance is connected
to the power supply there are some components that are
constantlyoperational. To switch off the videorecorder
completelyyou must disconnect it from the power supply.

BMakesure that aircan circulate freelythrough the ventilation

slotson the video recorder.

BMakesure that no objects or liquidsenter the videorecorder. If

liquidis spilt into it, disconnect the video recorder immediately
fromthe power supplyand call the After-sales Service for
advice.

BThe video recorder shouldnot be used immediately after

transportation from a coldto a hot areaor vice versa,or in

conditionsof extreme humidity.
Afterunpacking the videorecorder, it should be allowed to
acclimatize for at least three hours before installation.

C These operating instructions have been printed onnonpolluting

paper.

C Depositold batteries at the relevant collectionpoints.
C Pleasemake use of the facilities availablein your country for

disposingof the packagingof the video recorder in a way that
helpsto protect the environment.

C Thiselectronic equipment contains many materialsthat can be

recycled.Please inquire about the possibilitiesfor recycling
yourold set.

DSHOWVIEWis a registeredtrademark of Gemstar

DevelopmentCorporation. SHOWVIEWis manufactured
underlicence from GemstarDevelopment Corporation.

So that you can identify your machine in the event of theft,
enter the serial number (PROD.NO)here. The serialnumberis
printed on the type plate fixed at the rear of the set.

MODEL NO. VR605/58

PROD.NO:......

Thisproduct complies with the requirementsof the Directive
73/23/EEC+ 89/336/EEC + 93/68/EEC.

Technical information

Measurements in cm (W / H / D): 38.0 / 9.3 / 26.0
Power consumption (Standby) : less than 6W (Saving energy

mode)

Voltage : 220-240V/50Hz
Number of heads : 4 Video / 2 Audio
Winding time:approx. 100 seconds (Cassette E-180)
Recording/Playback time :SP (Standard Play) 4 hours

(CassetteE-240) / LP (Long Play) 8 hours (Cassette E-240)

OPERATING INSTRUCTIONS PHILIPS VR605/58

1

Special functions on your video recorder

Philipshasdevelopeda systemwhich producesthe best possibleplayback
quality.Itreducesdisturbance on old, worn video cassettes,and emphasises
the detail on very good quality cassettes.

This function allowsyouto savethe playbacksettingsthat suit you best. Select
your own personal settingsfor the typeof filmyouare currentlywatching.

When you connect your video recorder to your televisionand plug it into the
mains,you willbe welcomed with an OSD picture. All you have to do is follow
the instructionsin the "intelligenthelp line" for the next step. Enjoy the Automatic
TV channel search/savefunctionand the automatic time adjustment.

You can operate the main functions on your television using your video recorder
remote control,evenifyourtelevisionis not a Philipsone.

We guarantee that your video recorder willswitchto the new millennium with
no problems whatsoever.

Recordingsmade on your video recorder can be controlled by an external
satellitereceiver.

This function automaticallytransfers all the television channel settings onto
your video recorder.

Your video recorder can ascertain which channel is currentlyplayingon your
televisionand record fromitat the touch of a button.

Simple programmingsystemfor video recorders. Makes programming as easy
as making a telephone call. Simply enter the programme code which you will
find in your listingsmagazine.

The precision tape drive from Philipswithshortrewind times and automatic
tape length recognition.

2

How to connect your video recorder to the
TV set

We recommend the use of a scart cable. This will give you the
best pictureand sound quality.

When you installyourvideorecorderforthefirsttime, please
read:

E If your TV set has a scartsocketand you are using a

scartcable, please read the section ’Connecting with a
scartcable’.

E The section ’Connecting without a scart cable’, if you are

not using a scart cable.

Connecting with a scart cable

a Switch off the TV set.

b Remove the aerial cable plug from your TV set and insert

it into the 2 socket at the back of the video recorder.

c Plug one end of the aerial cable provided into the 3

socketon the video recorder and the other end into the
aerial input socketon your TV set.

d Plug one end of the scart cable into the EXT.1 AV 1 scart

socketat the back of the video recorder and the other
end into the scart socket on your TV set (see instruction
manual TV set).

e Switchon the TV set.

f Insertone end of the mains cable into the mains socket

4 at the back of the video recorder and the other end

into the wall socket.

g If your TV set automatically switches to programme

number e.g.: ’EXT’, ’0’,or ’AV’,thistextwill appear on the
TV screen:

CONGRATULATIONS ON THE
PURCHASE OF YOUR NEW
PHILIPS VIDEO RECORDER

TO CONTINUE PRESS OK

DIfyourTV set does not switch to programme number

e.g.: ’EXT’, ’0’,or ’AV’ automatically,select the
programmenumberforthe video recordermanually
(see instructionmanual TV set).

h Then read ’Initial installation’in chapter ’INSTALLING

YOUR VIDEO RECORDER’.

1. HOW TO CONNECT YOUR VIDEO RECORDER

4

Connecting without a scart cable

a Switch off the TV set.

b Remove the aerial cable plug from your TV set and insert

it into the 2 socket at the back of the video recorder.

c Plug one end of the aerial cable provided into the 3

socketon the video recorder and the other end into the
aerial input socketon your TV set.

d Insertone end of the mains cable into the mains socket

4 at the back of the video recorder and plug the other

end into the wall socket.

e Switchon your TV set and select the programme number

that you have chosen for video playback (see instruction
manual TV set).

f Tune in the TV set until this picture appears.

DThe video recorder willnow be sending a

welcoming texton channel 36 or 591MHz.

CONGRATULATIONS ON THE
PURCHASE OF YOUR NEW
PHILIPS VIDEO RECORDER

TO CONTINUE PRESS OK

g When the TV has been tuned read the paragraph ’Initial

installation’in the chapter’INSTALLINGYOUR VIDEO
RECORDER’.

Connecting a decoder or other equipment

You can connect additional equipment to the EXT.2 AV 2
socket.Forexample: a decoder, a satellitereceiveror a
camera recorder.
You can connect a hifi-stereo set to the socket

L AUDIO OUT R (audio output left/right).

5

Initial installation

a Open up the battery compartment of your remote control

and place the batteries in it as shown in the picture.

b Close the batterycompartment.

c Confirmthe pictureon the TV screen with the OK button

on the remote control.

d Select the language for the on-screen display (OSD) with

the P r or P q button.
The display on the video recorder will only show English
text.

e Confirmwith the OK button.

’AutomaticTV channel search’ starts.This picture will
appear on the screen:

SEARCH 00

Waituntilall TV channels have been found. This can take
severalminutes.

f When all TV channels have been found, ’READY’ will

appear on the TV screen.

E ’TIME’, ’YEAR’, ’MONTH’, ’DATE’ will appear on the TV

screen.

TIME 20:00
YEAR 1999
MONTH 01
DATE 01

------------------------

-/+ 0-9 OK

g Check if the TIME in line ’TIME’ is correct. If required,

change the time with the number buttons 0-9 onyour
remote control.

h Confirmwiththe OK button.

i Check’YEAR’, ’MONTH’ and ’DATE’. Confirm each line

with the OK button.

j Afteryou have confirmedthe line ’DATE, the video

recorderwillswitchto standby.
The initial installationis now complete.

DIfyou have connected a decoder, you must install it

as described in the next section.

DIfyou have connected a satellite receiver,please

read the section ’satellitereceiver’.

Allocating a decoder

Some TV stations willsend coded TV channels, that you can
only watch when you use a decoder. You can connect such a
decoder (descrambler)to your video recorder. With the
followingfunction,the connected decoder will automatically
be activated for the TV programme you want to watch.

a Switch on the TV set. If required, select the programme

number for the video recorder.

b Choose the televisionchannel on which you wish to use

the decoder with the qP or P r buttons on the video
recorderor the number buttons 0-9 on the remote
control.

c Pressthe MENU button on the remote control. The main

menu will appear.

d Select the line ’MANUAL SEARCH’ with the qP or

P r button.

e Confirmwith the OK button.

f Pressthe INDEX E button.’DEC’ will appear in the

display.

CH21

g Confirmwiththe OK button.

2. INSTALLING YOUR VIDEO RECORDER

6

h To end, press the OK button again. Then, press the

STANDBYm button.

This channel is now assigned to the decoder.

Manual TV channel search

In certain cases the ’AutomaticTV channel search’ may not be
able to find all of the TV channels (e.g. coded TV channels). In
that case, use this manual method to set the channels.

DWhen you search for TV channels manually, you can

choose between the indication for ’channel’ or
’frequency’.Please read the nextparagraph
’Channel number or frequency display’.

a Switch on the TV set. If required, select the programme

number for the video recorder.

b Pressthe MENU button on the remote control. The main

menu will appear.

c Select the line ’MANUAL SEARCH’ with the qP or

P r button and confirm with the OK button.

CH 26 P01

-----------------------­SEARCH g+ 0-9 OK

d Hold the qP buttonuntil you have found the right TV

channel. A changing channel number or frequency will
appear on the screen.

DIfyou know the frequencyor channel number of the

desiredTV channel, you can enter the information in
line with the number buttons 0-9 on the remote
control.

DTo enter a special/hyperbandchannel, you must

enter a ’9’ before the first channel digit. The
indicationchanges from’CH’to ’CA’. Forexample,
for special channel ’S 30’, enter ’9 30’.

DThisvideorecordercan receiveHIFIsound

transmissionsin ’NICAM’. You can switch ’NICAM’
off or on with the SELECT button.

e Confirmwith the OK button.

f With the qP or P r button or with the number buttons

0-9 , select the programme number you want to give to

thisTV channel, for instance, ’P01’.

g Confirmwiththe OK button.

If you want to allocate more TV channels, repeat steps

d through g .

h To end, press the STANDBY m button.

Channel number or frequency display

You can switch between the display for ’channel number’ or
’frequency’for manual channel search.

a Switch on the TV set. If required, select the programme

number for the video recorder.

b Pressthe MENU button on the remote control. The main

menu will appear.

c Select the line ’CHANNEL/FREQUENCY’ with the

P r or qP button and confirm with the OK button.

d With the qP button,select ’CHANNEL’or

’FREQUENCY’ and confirm with the OK button.

e Toend, press the STANDBY m button.

Satellite receiver

You can receive channels from the satellite receiverviathe
scartsocket EXT.2 AV 2 .
To do this, select the channel number ’E2’ by pressing the
buttons qP or P r . You will have to select the channels to
be received by the satellite receiveron the receiver itself.

Special installation functions

You can select one of the following installation functions in
order to adapt the video recorder to your own specific
requirements.

7

Automatic TV channel allocation (Follow
TV)

Withthisfunction,the videorecorderstoresthe channels in
the same order as on the TV set. This only works if the video
recorder(socket EXT.1 AV 1 ) and the TV set are connected
with a scart cable. You must switch off any equipment
connected to socket EXT.2 AV2 .

a Switch on the TV set. If required, select the programme

number for the video recorder.

b Pressthe MENU button on the remote control. The main

menu will appear.

CLOCK
OSD
CHANNEL ALLOCATION
CHANNEL/FREQUENCY
MANUAL SEARCH
AUTOSEARCH
LANGUAGE
FOLLOW TV
DIRECT RECORD
COUNTER

------------------------

-/+ OK

c Select the line ’FOLLOW TV’ with the P r or P q

button.

d Pressthe OK button. ’TV01’willappear on the video

recorderdisplay.

TV01

e Selectprogramme number ’1’ on the TV set.

f Confirmwiththe OK button on the video

recorder-remotecontrol. The video recorder compares
the TV channels on the TV set and the video recorder.
If the video recorder found the same TV channel as the
TV set, then it stores it at ’P01’.

DWhen ’NOTV’(no signalfromTV set)appearsin the

display,the TV channels can not be allocated
automatically.In this case, read ’Manual TV channel
allocation’.

g Wait until,forexample,’TV02’ appears.

h Select the next programme number, for example,’2’on

the TV set.

i Confirmwith the OK button on the video

recorder-remotecontrol.

DIfyou allocatedthe wrong TV channeL, you can go

back one step with the CLEAR (CL) button.

j Repeat steps g to i until all TV channels have been

allocated.

k To end, press the STANDBY m button.

Automatic TV channel search

The video recorder will search for all TV channels.
If you want to start the automatic TV channel search again,
then follow the instructionsbelow.

a Switch on the TV set. If required, select the programme

number for the video recorder.

b Pressthe MENU button on the remote control. The main

menu will appear.

c Select the line ’AUTOSEARCH’ with the P r or P q

button.

d Pressthe OK button. The ’Automatic TV channel search’

starts.

SEARCH 00

e Whenthe TV channel search is complete, ’READY’ will

appear on the screen.

How to search for a TV channel manually, you can read in the
section’ManualTV channel search’.

Monitor function

You can switch backwards and forwardsbetween TV picture
and video recorder picture with the MONITOR button.But this
only workswhenyou use a scart cable to connect the video
recorderto your TV set and if your TV set responds to this
switch-over.

8

Sorting and clearing TV channels manually

You can assign any programme number to a TV channel that
you have stored and you can also delete unwanted TV
channels.

a Switch on the TV set. If required, select the programme

number for the video recorder.

b Pressthe MENU button on the remote control. The main

menu will appear.

c Select the line ’CHANNEL ALLOCATION’ with P r or

P q button and confirm with the OK button.

P01 CH26

------------------------

-/+ CL OK

d With the P r or P q button, select the TV channel to

which you want to give a programme number (starting
with ’P01’).

e Confirmwith the OK button.

DIfyou want to delete a TV channel, press the

CLEAR(CL) button.

f Repeat steps dto euntilyou have given a programme

number to all TV channels.

g To end, press the STANDBY m button.

Setting the language

You can select the language for the on-screen display (OSD).
The small displayon the video recorder will only show english
text.

a Switch on the TV set. If required, select the programme

number for the video recorder.

b Pressthe MENU button on the remote control. The main

menu will appear.

c Select the line ’LANGUAGE’ and confirm with the OK

button.

d Select your language with the P r or P q buttonand

confirmwiththe OK button.

e Toend, press the STANDBY m button.

Setting the time and date

DIfa TV channel which transmits TXT/PDCisstored

under programme number ’P01’,time and date will
automaticallybe takenfromtheTXT/PDC
information.

If the time in the video recorder display is not
corrector if ’--:--’ appears in the display, please
set the clock manually.

a Switch on the TV set. If required, select the programme

number for the video recorder.

b Pressthe MENU button on the remote control. The main

menu will appear.

c Select the line ’CLOCK’ with the P r or P q button

and confirm with the OK button.

TIME 20:00
YEAR 1999
MONTH 01
DATE 01

------------------------

-/+ 0-9 OK

d Check the time in line ’TIME’. If required, please change

the time with the 0-9 buttons on the remotecontrol.

e Confirmwith the OK button.

f Check ’YEAR’, ’MONTH’ and ’DATE’ in the same way.

Confirmeach entrywiththe OK button.

g To end, press the STANDBY m button.

9

General information

DYou can switch on with the STOPh button,the

0-9 buttons or by putting in a cassette.

DIfyou do not use the video recorder for a few

minutes,itwillswitch to standby automatically.
Please read the section ’Automaticswitch-off(tuner
mode)’ in chapter ADDITIONALFUNCTIONS.

DIfyou have switchedthe video recorderoffwiththe

STANDBYm button, the time will show in the display,

for instance, ’18:00’.
If the clock has not been set, ’--:--’ will appear.

DKeep your video recorderconnected to the mains at

all timesto ensure that programmedrecordingscan
be made and that the television works normally.

DIfthe video recorderisnot plugged into the mains, it

will usuallystore TV channelsfora year, and date
and timer informationforsevenhours.

Saving energy

There are two ways to switch to standby.
Switching to standby with clock display: Switch to standby
using the STANDBY m button.The time will be displayed.
To save energy: Pressthe STANDBY m buttontwice. The time
will disappearfromthedisplay.

Emergency interrupt

You can use the STANDBY m button on the video recorder or
the remote control to interruptanyfunction.
So if you are having operating problems, you can just interrupt
the function and start again.
And you can practise operating your set without any worries.
No matter which buttonsyou press,you cannot damage it.

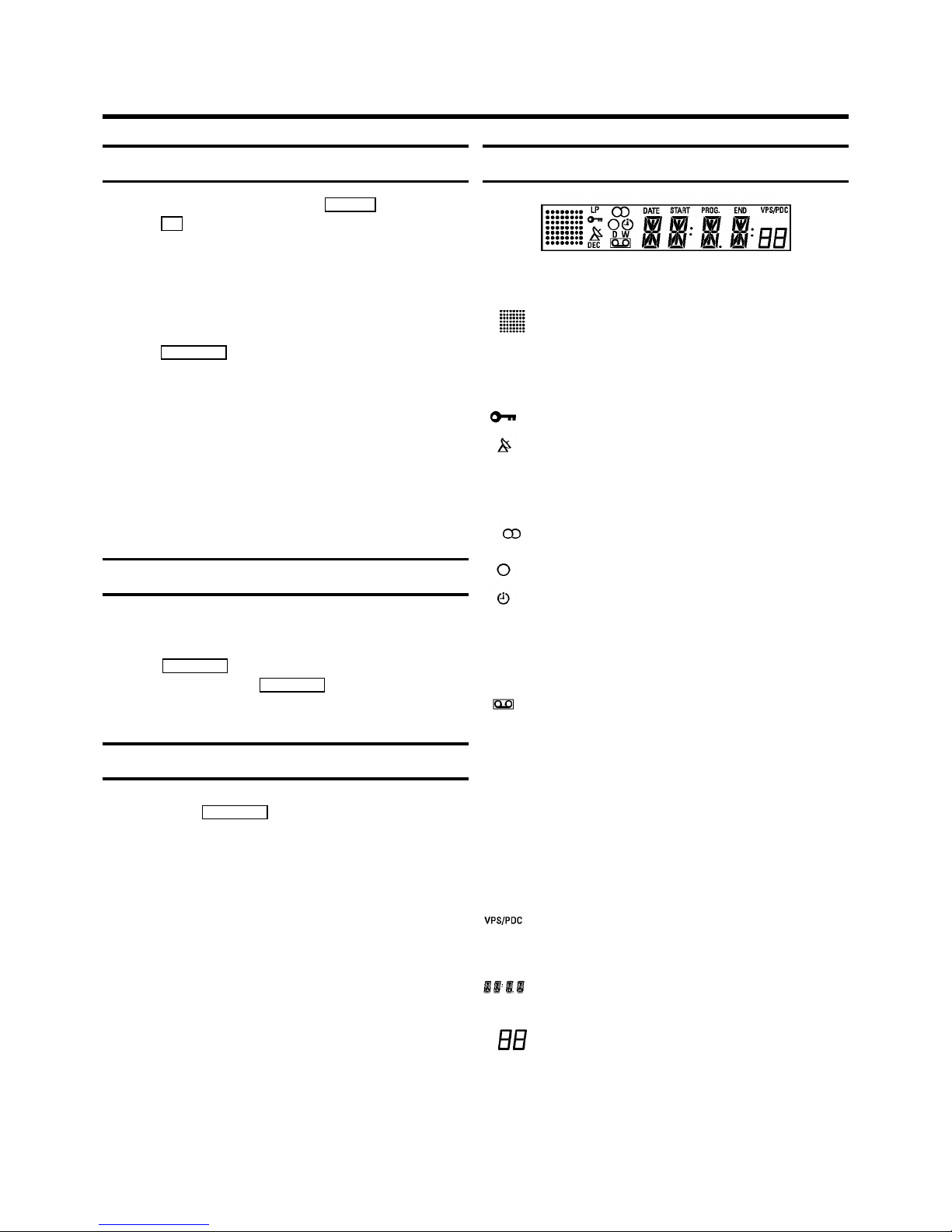

The symbols on your video recorder display

These symbolscan light up on your video recorder display:

This is where the current operating mode is shown
as a symbol.

LP Whenyou play a tape that has been recorded in LP

(Long Play).
When you have switched on the child lock.
When a satellite recordinghas been programmed.

DEC Whena decoder has been allocated to the TV

channel you have currently selected.
When you play a cassette that has been recorded

with hifi sound, or when a hifi sound is transmitted.
When you are recording a progamme.
When you have programmed a recording or when a

programmedrecordingisbeing made.

D When you are programming daily recordings.
W When you are programming weekly recordings.

When you have put a cassette in the video recorder.

DATE When the date of the programmed recording is

shown.

START When the starttimeofthe programmedrecordingis

shown.

PROG. When the programme number of the programmed

recording is shown.

END When the end time of the programmed recording is

shown.
Video programmingsystem/ programme delivery

control:when a VPS or PDC code is being
transmitted.

Displayofprogrammenumber / tape position/
channel name / function.

Tape position in seconds, but only if the display
mode ’LINEAR COUNTER’ has been selected.

3. IMPORTANT NOTES FOR OPERATION

10

Summary of user guide

The OSD menu offers the following functions.Moredetailson each can be found in the appropriate chapter.

CLOCK
OSD
CHANNEL ALLOCATION
CHANNEL/FREQUENCY
MANUAL SEARCH
AUTOSEARCH
LANGUAGE
FOLLOW TV
DIRECT RECORD
COUNTER

------------------------

-/+ OK

MAINMENU

User guide (OSD)

The OSD (On-screen display)shows the various functions in
the form of a menu on the television screen. You can then
choose the settingsyourequire.Thereisa summaryofthe
menus on this page. The main button functions are displayed
in a help line along the bottom of the screen.

E To call up the menu: With the MENU button.
E To select a line: Withthe P r or qP button.
E To enter or change your selection: Withthe 0-9 , Pr

or qP button.

E To cancel: Withthe STANDBY m button.
E To save or confirm: With the OK button.
E To close the main menu: Withthe MENU button.

TIME 20:00
YEAR 1999
MONTH 01
DATE 01

------------------------

-/+ 0-9 OK

Chapter:INSTALLINGYOURVIDEO RECORDER -

’Settingthe date and the time’

OSD

ON
OFF

------------------------

-/+ OK

Chapter:ADDITIONALFUNCTIONS- ’Switching OSD

Informationon or off’

P01 CH26

------------------------

-/+ CL OK

Chapter:INSTALLINGYOURVIDEO RECORDER -

’Sortingand clearing TV channels manually’

CHANNEL
FREQUENCY

------------------------

-/+ OK

Chapter:’INSTALLINGYOURVIDEO RECORDER -

’Channel number or frequency display’

11

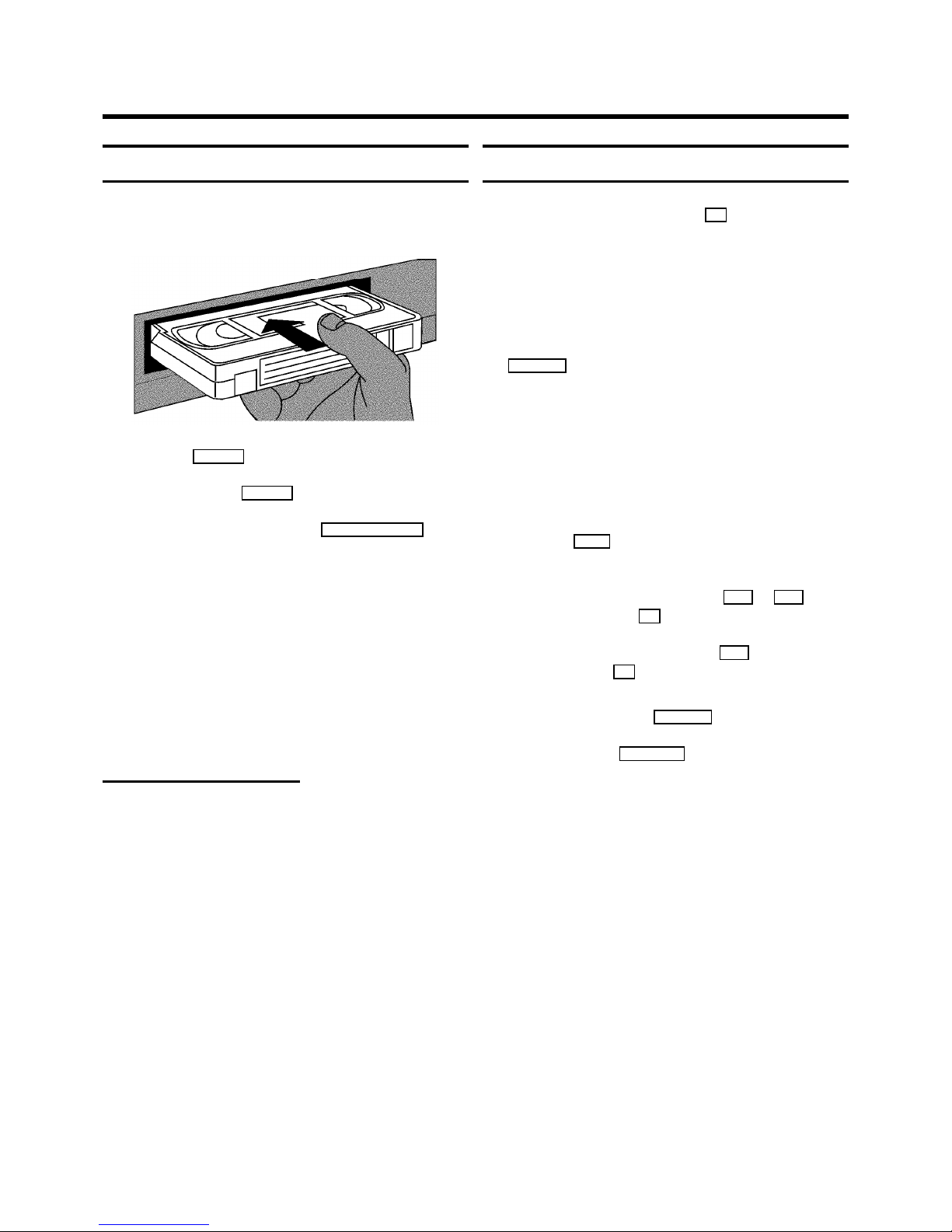

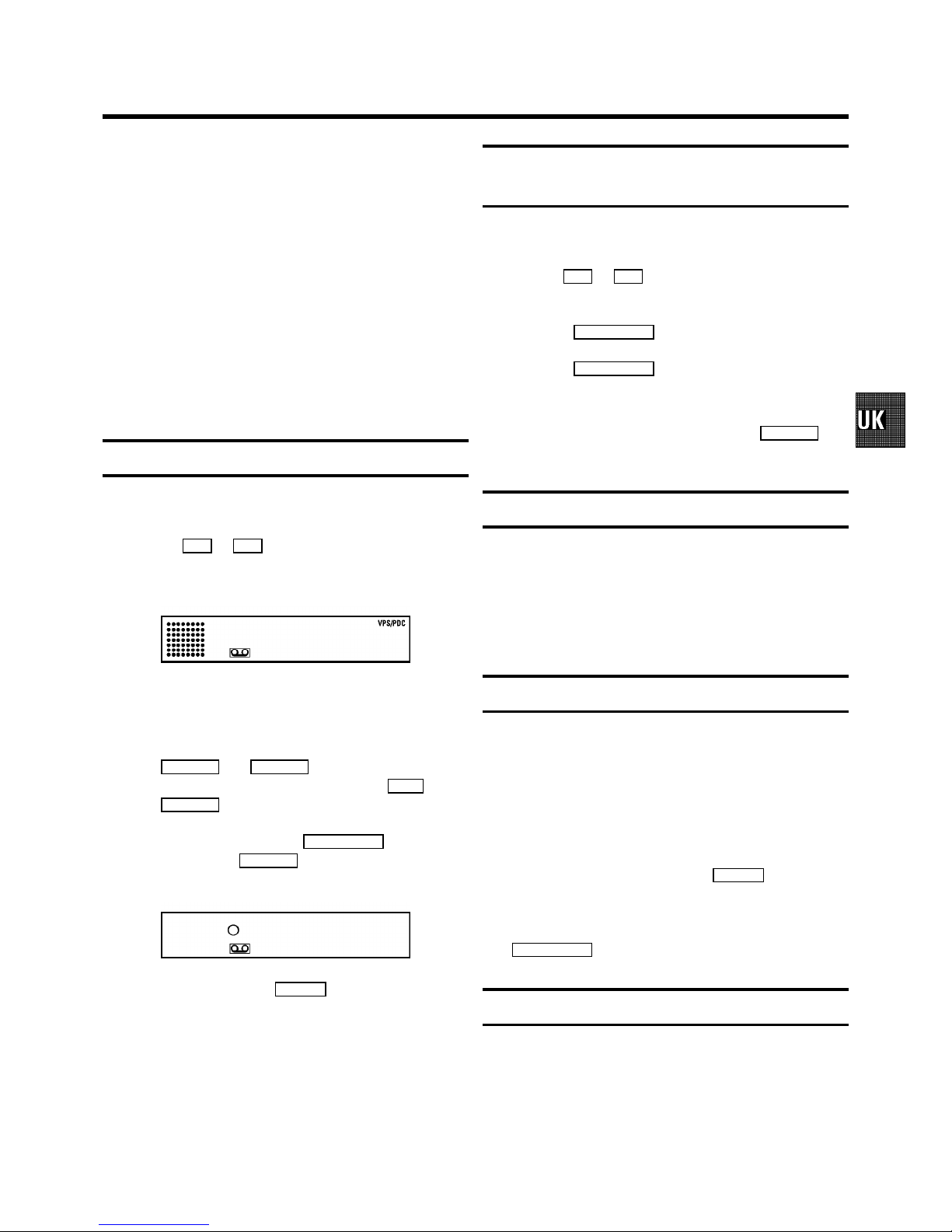

Playing a cassette

a Put a cassette into the cassetteslot.’v’ willappear on

the display.

b Pressthe PLAY G button.

c To stop, press the STOP h button.

d To eject the cassette, pressthe STOP/EJECT? button

on the video recorder.
DSome hired cassettesmay have a poor picture or

poor sound quality. This is not a fault in your
machine. Please read the section ’Selecting the
picture setting(SMART PICTURE)’, or ’Eliminating
picture interference’.

DSome functionsswitchoff automatically after a

while (forexample,pause,stillpicture, picture
search).Thishelpstoprotectthecassetteand
avoidswastingpower.

Playing NTSC cassettes

Withthissetyoucan playbackcassettesthat have been
recorded on another video recorder in the NTSC standard (for
example,Americancassettes).But this only works for
PAL-televisionsets which are suitable for a picture frequency
of 60 Hz.

DSome specialfeatures(for example, still picture) are

not possiblewhileyou are playing an NTSC
cassette.

Tape position indication

When playing a tape, by pressing the OK button, you can
show the present tape positionon the TV screen.

You have a choise of selecting ’LINEAR COUNTER’or
’TIME LEFT’. The LINEAR COUNTER showsthe tape position
in hours, minutesand seconds. This LINEARCOUNTERisreset
to 0:00:00everytime a cassette is inserted even if the tape is
not at the beginning. You can also reset to 0:00:00 by pushing
the CLEAR (CL) button. ’TIME LEFT’ shows the actual amount of
playing/recordingtime left on the cassettein hoursand
minutes.

DWhen you play an NTSC cassette, the video

recorderwillonlyshow’LINEAR COUNTER’.

a Switch on the TV set. If required, select the programme

number for the video recorder.

b Pressthe MENU button on the remote control. The main

menu will appear.

c Select the line ’COUNTER’ with the qP or P r button

and confirm with the OK button.

d Select the type of counter with the qP buttonand

confirmwiththe OK button.
DTo reset the tape position ’LINEAR COUNTER’to

’0:00:00’,press the CLEAR (CL) button.

e Toend, press the STANDBY m button.

DThisvideorecorderwillautomatically recognise the

length of the tape.

DWhen you put a cassette in the video recorder and

you want to see ’TIME LEFT’, the video recorder
mustfirstcalculate the time played. Therefore, ’-:--’
appears firstand only afterthe tape has been
running for a few seconds the playing time will be
shown.

DIfthe video recorderdoes not find a recording at a

certain tape positionwith’LINEAR COUNTER’
switchedon, the counter will stop.

4. PLAYBACK FUNCTIONS

12

Searching for tape position with the picture
(picture search)

a While a cassetteisplaying,pressthe H (reverse) or

I (forward) button once or several times.

b To stop a certain place on the tape, press the PLAY G

button.
DDuringpicturesearch,the picturequalitymay not be

so good and there will be no sound.

Still picture/Slow motion

a Pressthe STILLR button. A still picture will appear on

the screen.

b Each time you press STILLR again, the picturewill

move on one step.

c When you hold the STILL R button,the tape will be

played in slow motion.

d When you press the I buttonseveral times, you have

a choice of several playback speeds.
During slow motiontherewillbe no sound.

Searching for tape position without the
picture (wind and rewind)

a Stop the tape with the STOPh button.

b Pressthe H (reverse) or I (forward) button.

c To stop a certain place on the tape, press the STOPh

button.

Instant View

Withthisfunctionyou can switch to picture search during
wind and rewind.

a If you hold the H (rewind)or I (wind)button

during wind or rewind, you will switch to picture search.

b When you release the button, the video recorder will

automaticallyswitch back to rewind or wind.

Automatic search for a tape position
(index search)

At the start of each recording, the video recorder will writean
index code on the tape.

a Pressthe INDEX E buttonand then the I button to

selectthe next code mark or the H buttonfor the
previouscode mark.

b When the video recorder finds the code mark, it will

automaticallyswitch to play.

Automatic search for a blank space on the
tape

You can search for a space on the tape (at least 1 minute of
blank tape) for a new recording, for example, after an existing
recording on the tape.

a Pressthe INDEX E button.Then press the STOP h

button.

b When the video recorder find a blank space, it will

automaticallyswitch to ’pause’.
DIfno empty space has been found when the end of

the tape is reached, the cassette will be ejected.

Selecting the picture setting (SMART
PICTURE)

You can change the picture setting while a tape is playing.

a Pressthe SMART button. This will show the current

picture setting.

b Pressthe SMART button again to selectthe picture

settingofyourchoise.

’NATURAL’: for all typesof movies(naturalpicture)
’DISTINCT’: for fastmovement,sport (detailed picture)
’SOFT’: for hired tapes (interferenceis suppressed)
’SHARP’: for cartoons(sharppicture)

DThispicturesettingwill not change untilyou eject

the cassette.

13

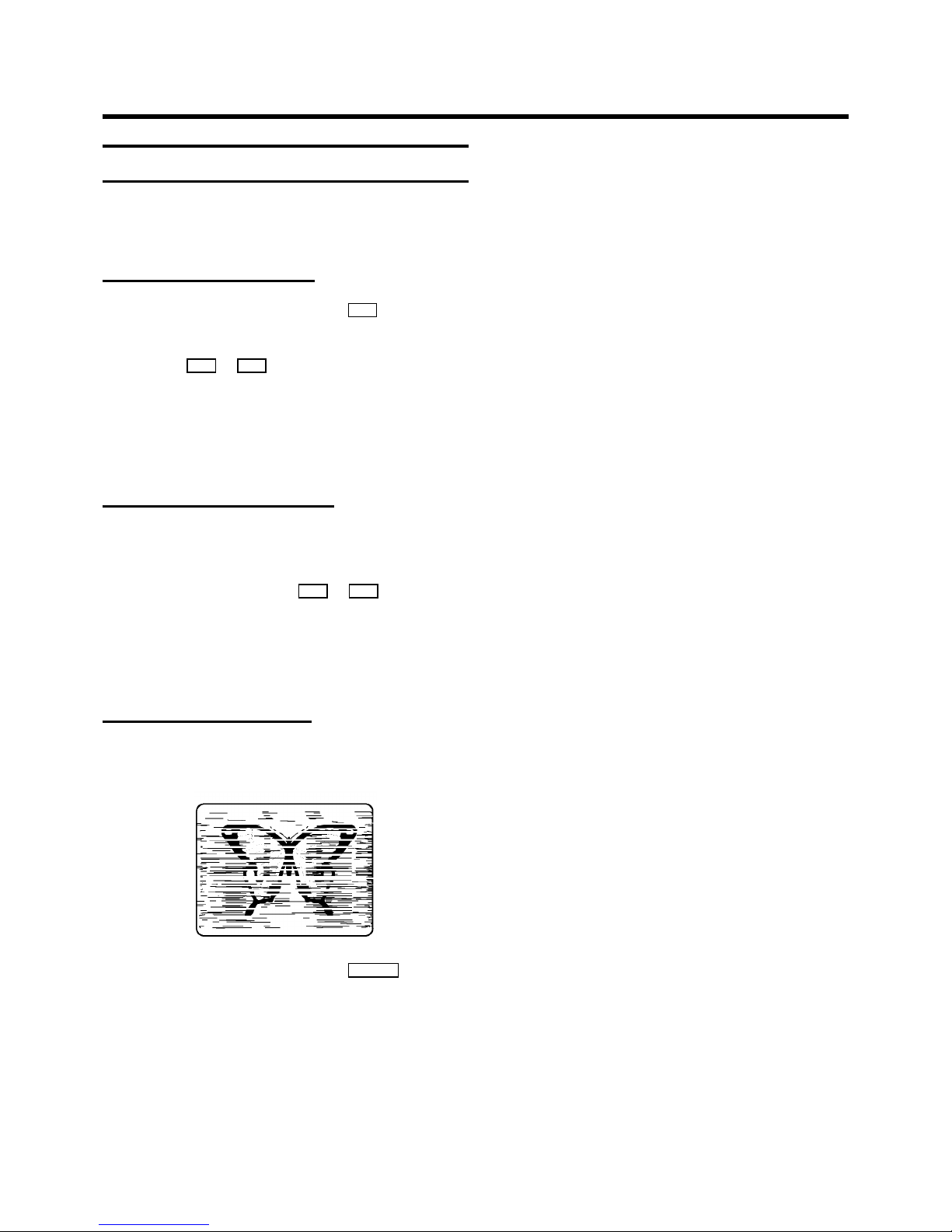

Picture interference

If the picture qualityispoor when you play a cassette, please
followtheseinstructions.

Tracking during playback

a While a cassetteisplaying,holdthe qP buttonuntil

’TRAC’ (tracking)appears on the display.

b Hold the P r or qP buttonuntil the picture quality is

at its best.

c Wait a few seconds, until ’TRAC’ disappearsfrom the

display.This picture setting will not change until you
eject the cassette.

Tracking during still picture

If the stillpicturevibratesvertically, you can improve the still
picture as follows:

a During stillpicture,hold the qP or P r button until the

picture qualityisatitsbest.
The video recorder will storethissettingautomatically.

DPleasenote,however,that interference may still

occur with poor quality cassettes.

Cleaning the video heads

If horizontallines appear on the screen when you play a
cassette,you should clean the video heads.

a While a cassetteisplaying,holdthe PLAY G button until

’HEAD’ appears on the display. The video heads will now
be cleaned. The video recorder will automaticallyswitch
to play again.

14

Use ’Manual Recording’ to make a spontaneous recording (for
example,a programme currentlybeing shown).

E If you want to start and stop a recordingmanually,read

the section: ’Recordingwithoutautomatic switch-off’.

E If you want to start a recording manually but have it

stopped automatically,read the section: ’Recording with
automaticswitch-off’.

E If you want to record a programmecurrentlybeing

shown, read the section ’Directrecord’.

E If you want a recordingto be controlled automaticallyby

a satellitereceiver,read the sectionentitled’Automatic
recording froma satellitereceiver’.

Recording without automatic switch-off

a Inserta cassette.

b Use the qP or P r button to select the programme

number you want to record, for example, ’P01’.On the
displayappears:

BBC1

DWhen a TV channel transmits a channel name, it will

show on the video recorder display.

DProgrammenumbers ’E1’ and ’E2’ are for recording

from other sources(throughscart sockets

EXT.1AV 1 and EXT.2 AV 2 ). Programmenumber ’E3’

is for recording fromthe frontsockets VIDEO and

L AUDIO R .

c To start recording,pressthe nRECORD/OTR buttonon the

remote controlor RECORD n on the video recorder. On
the displayyou willsee:

0:00

d Stop recording with the STOPh button.

Recording with automatic switch-off
(OTR one-touch-recording)

a Put a cassette in the machine.

b Use the qP or P r button to select the programme

number you want to record.

c Pressthe nRECORD/OTR button on the remote control.

d Pressthe nRECORD/OTR button again and again until the

displayon the video recorder showsthe desiredend time
or length of the recording.

DTo cancel this information,press the CLEAR (CL)

button.

Protecting your recordings

So that you don’t accidentally delete an important recording,
removethe special tab on the narrow side of the cassette with
a screwdriveror slidethe specialtab to the left. Later,ifyou
no longer want to protect your recording, you can seal the gap
again with stickytape or slide the special tab to the right.

Auto-assembling

You can use the auto-assembling function to join individual
recordingswithoutany major picture disturbance between
them.

a While the cassetteisplaying,search for the correct

positionon the tape.

b Stop the cassette by pressingthe STOP h button.’9’

will appear in the display.

c Now startrecordingasusualby pressingthe

nRECORD/OTR button on the remote control.

Selecting the recording speed (SP or LP)

You can reduce the recording speed by half. This makes it
possibletorecord,forexample,eight-hours instead of
four-hourson an ’E240’(four-hour)cassette.

a Switch on the TV set and, if required, select the

programmenumberforthe video recorder.

5. MANUAL RECORDING

15

b With the video recorder switchedon,and before you

start recording,select the recording speed with the

SP/LP button.On the video recorder display you will see:

’LP’: Long Play = half recording speed (double recording
time).
’SP’: Standard Play = normal recording speed.

DThe picture qualitymaysufferwhen you recordat

half speed (LP).

DWhen you play back your recording,the machine

will automaticallyselect the correct speed.

Automatic recording from a satellite
receiver (SAT RECORDING)

You can only use this function, when you have a satellite
receiverwhichcan control other equipment by a
’programming’function.

a Use a scart cable to connect the scart socket

EXT.2AV 2 to the scart socket on the satellite receiver.

b Put a cassette in the machine. Switch off with the

STANDBYm button on the remote control.

c Hold the MONITOR butonon the remote control, until

’SAT.P’appearson the video recorder display.
The video recorder is now ready to record. The

EXT.2AV 2 plug controls the start and the end of the

recording.
DWhen thisfunctionisswitchedon and the video

recorderisswitchedoff, ’x’ appears on the video
recorderdisplay.

DIfyou want to cancel this function before the

recording has started,you mustholdthe

MONITOR button until ’SAT.P’ disappears.

DIfyou want to cancel this function while a

programmeisbeing recorded, pressthe

STANDBYm button on the remote control.

Switching on ’Direct Record’

When this functionisswitchedon, the video recorder will
automaticallyrecord the programme selected on the television
by means of a scart cable.

DThe video recorder must be switched off .

a Switch on the TV set and select the programme number

for the video recorder.

b Pressthe MENU button on the remote control. The main

menu will appear.

c Select the line ’DIRECT RECORD’ with the P r or

qP button.

d Confirmwiththe OK button.

e Selectthe function ’ON’ with the qP button. If you

select’OFF’,the functionwillbe switchedoff.

f Confirmwiththe OK button.

g On the TV set, select the programme number you want to

record from.

h Pressthe nRECORD/OTR button with the video recorder

switched off.
DDon’tselectanotherprogrammenumber on your TV

set,untilthe ’searchsymbol’on the video recorder
displayhasdisappeared.This can take up to one
minute.

DIf’NOTV’appearson the video recorder display,this

means the video recorder cannot find this
programmenumber.In thiscase,read the section
’Recording withoutautomaticswitch-off’.

16

Use programmedrecordingto automaticallystart and stop a
recording at a later date.

To make a programmed recording, your video recorder needs
to know:

* the date you want to make the recording;
* the programme number for the TV channel you want to
record;
* the start and stop time of the recording;
* whether you want to use VPS or PDC

The video recorder storesallthe informationin a TIMER block.
You can programme up to 6 TIMER blocks a month in advance.

’VPS’ (Video Programming System) and
’PDC’ (Programme Delivery Control)

With’VPS and PDC’, the TV station controls the starttimeand
the length of the recording. This means that the video recorder
switchesitself on and off at the right time even if a TV
programmeyou want to record begins earlier or finisheslater
than expected.
Usuallythestarttime is the same as the VPS or PDC time. But
if your TV guide gives a VPS or PDC time which is different to
the programme’sstarttime (for example, 20.15 and VPS 20.14),
you must enter ’20.14’as the start time.
If you want to programme a time that is different fromthe VPS
or PDC time, you must switchoffVPS or PDC.

Programming a recording
(with ’SHOWVIEW’)

All the importantinformationneeded fora programmingis
contained in the SHOWVIEW-programmingnumber.

a Switch on the TV set and select the programme number

for the video recorder.

b Pressthe TIMER k button on the remote control.

c Enter the entire SHOWVIEW-number(up to 9 digits)

printed in your TV guide next to the start time of a TV
programme.
For example,5-312-4or 5 312 4
Enter 53124for the SHOWVIEW-number.
If you make a mistake,you can clear your instructions
with the CLEAR (CL) button.

SHOWVIEW

53124----

ONCE

-----------------------­D/WgSELECT CLEAR gCL
0-9 OK

d Use the SELECT buttonto selectdailyor weekly

programming.

’D’: recordingseveryday from Monday to Friday.
’W’: recordingseveryweek on the same day of the week.

e Confirmwith the OK button. Your programmingdetails

will then appear on the TV screen.

DATE PROG START V/P END

01 01 20:00 21:30

-----------------------­CHANGE gTIMER CLEAR gCL
V/P g SELECT OK

DIfSHOWVIEWdoes not recognise the TV channel,

’SELECT PROG’ will appear on the TV screen.
Insteadof ’E2’, you can select the programme
number you want with the number buttons 0-9 and
confirmwiththe OK button.

DIf’CODE ERROR’ appearson the TV screen, this

means you entered an incorrect SHOWVIEW-code
number or the incorrect date. Correct your
instructionsor end withthe STANDBY m button.

DIf’DAILY ERROR’ appearson the TV screen, the

date was incorrectlyentered. Daily programming
can only be used for recordings to be made from
Monday to Friday.

DUsethe SELECT buttontoswitch’VPS/PDC’ on or

off.

DIfyou want to set a later end time for a recording,

pressthe qP button.Each time you press the

qP button,you will add 15 minutes to the end time.

6. PROGRAMMED RECORDING (TIMER)

17

f Confirmwiththe OK button when the information is

correct.
DThe programminginformationhas been storedin a

TIMER block.

g Select the recording speed SP or LP with the SP/LP

button..

h Make sure that the cassetteyouhave put in can be

recorded on.

i Switchoff with the STANDBY m button.

The programmed recording will only functionwhen the
video recorderisswitched off with the STANDBY m
button.

DIfany of the TIMER blocks are in use, ’k’ will light up

on the video recorder display.

DWhilea programmedrecordingisbeing made, you

cannot operate your video recorder manually.Ifyou
want to cancel the programmed recording, press the

STANDBYm button.

DIfthe video recorderisswitchedon a few minutes

before a programmed recording is supposed to
begin, ’TIMER RECORD’ will flash on the TV
screen.

DIfyou reach the end of the cassette during a

recording,the video recorderwillautomatically
eject the cassette.

DIfyou forgetto load a cassette, ’NO CASSETTE’

will appear on the TV screen and ’k’ will flash on the
video recorderdisplay.

DIfyou have put in a cassette which cannot be used

for recording,the video recorderwillautomatically
eject it.

DIf’TIMER FULL’ appearson the TV screen when

you pressthe TIMER k button, you have used up all
the available TIMER blocks.If you want to clear or
check a TIMER block, select it with the qP or

P r button.

DProgrammenumbers ’E1’ and ’E2’ are for

recordingsfromother sources (through scart socket

EXT.1AV 1 or EXT.2 AV 2 ).

Programming a recording
(without ’SHOWVIEW’)

a Switch on the TV set and select the programme number

for the video recorder.

b Pressthe TIMER k button on the remote control twice .

c Select a free TIMER block with the qP or P r button.

Pressthe TIMER k button.

DATE PROG START V/P END

01 01 20:00 21:30

-----------------------­NEXT gTIMER CLEAR gCL

-/+ 0-9 D/WgSELECT OK

d With the TIMER k , C or D button you can select

’DATE’ (date),’PROG’ (programmenumber), ’START’
(starttime) and ’END’ (end time).
Enter or change your information with the qP or

P r button, or with the number buttons 0-9 .

DUnder ’DATE’, use the SELECT buttonto selectdaily

or weeklyprogramming.

’D’: Recording from Mondayto Friday.
’W’: Recordingseveryweek on the same day.

DUnder ’START’, use the SELECT buttonto switch

’VPS or PDC’ on or off.

e Confirmwith the OK button when the informationis

correct.
DThe programminginformationhas been storedin a

TIMER block.

f Make sure that the cassetteyouhave put in can be

recorded on.
DUsethe SP/LP button to select the recording speed

’SP’ or ’LP’.

18

g Switch off with the STANDBY m button.

The programmed recording will only functionwhen the
video recorderisswitched off with the STANDBY m
button.

DIfany of the TIMER blocks are in use, ’k’ will light up

on the video recorder display.

DWhilea programmedrecordingisbeing made, you

cannot operate your video recorder manually.Ifyou
want to cancel the programmed recording, press the

STANDBYm button.

DIfthe video recorderisswitchedon a few minutes

before a programmed recording is supposed to
begin, ’TIMER RECORD’ will flash on the TV
screen.

DIfyou reach the end of the cassette during a

recording,the video recorderwillautomatically
eject the cassette.

DIfyou forgetto load a cassette, ’NO CASSETTE’

will appear on the TV screen and ’k’ will flash on the
video recorderdisplay.

DIfyou have put in a cassette which cannot be used

for recording,the video recorderwillautomatically
eject it.

DIf’TIMER FULL’ appearson the TV screen when

you pressthe TIMER k button, you have used up all
the available TIMER blocks.If you want to clear or
check a programmed recording (TIMER block),
selectit withthe qP or P r button.

DProgrammenumbers ’E1’ and ’E2’ are for

recordingsfromother sources (through scart socket

EXT.1AV 1 or EXT.2 AV 2 ).

How to check or change a programmed
recording (TIMER)

a Switch on the TV set and select the programme number

for the video recorder.

b Pressthe TIMER k button on the remote control twice.

c Select the programmed recording (TIMER)you wantto

check or change with the qP or P r button.

d Pressthe TIMER k button.

e Selectthe entry field with the D or C button.

f Change any information with the P r or qP buttonor

with the 0-9 buttons.

g Confirmwiththe OK button.

h Make sure that the cassetteyouhave put in can be

recorded on. Switch off with the STANDBY m button.
DThe programmed recordingwillonlyfunctionwhen

the video recorder is switched off withthe

STANDBYm button.

DThe video recorder willalwaysrecord the

programmedrecordingatthe speed you have
selectedbefore the recording starts.

How to clear a programmed recording
(TIMER)

a Switch on the TV set and select the programme number

for the video recorder.

b Pressthe TIMER k button on the remote control twice.

c Select the programmed recording (TIMER)you wantto

clear with the P r or qP button.

d Pressthe CLEAR (CL) button.

e Confirmwith the OK button.

19

Switching the TV system

If you play recordingsmade on another video recorder or if
you record from another source,thismaylead to problems
with the automatic TV systemswitch-over. You can switch off
the automatic TV systemswitch-overas follows.

a Select the TV system withthe SYSTEM buttonbefore you

startrecording,or while you play a cassette.

b If you select a different programmenumberor eject the

cassette,the videorecorderwillautomatically switch to
’automatic’again.

Child lock

This function willpreventunauthorised use of your video
recorder.Allbutton-functionswill be locked.

DYou can make programmed recordings while the

child lock is on.

a With the video recorder switchedon,pressthe

STANDBYm button on the remote control.

’{’ will appear on the video recorder display.
Keep the remote control in a safe place.

b If you want to switch off the child lock, press the

STANDBYm button again.

’{’ will disappearfromthevideorecorderdisplay.
DIfyou pressa button when the child lock is on, ’{’

will flashon the display for a few seconds.

Setting the on-screen display (OSD)

You can switch the on-screen display of the current operating
informationon or off.

a Switch on the TV set and select the programme number

for the video recorder.

b Pressthe MENU button on the remote control. The main

menu will appear.

CLOCK
OSD
CHANNEL ALLOCATION
CHANNEL/FREQUENCY
MANUAL SEARCH
AUTOSEARCH
LANGUAGE
FOLLOW TV
DIRECT RECORD
COUNTER

------------------------

-/+ OK

c Select the line ’OSD’ with the P r or qP buttonsand

confirmwiththe OK button.

d Select one of the options shown with the qP button.

’ON’: Shows the OSD for a few seconds only.
’OFF’: SwitchesofftheOSD.

e Confirmwith the OK button.

Switching the remote control command

If you have two video recorders withthe same remote control
command, you can change the remote control command of the
remote controlforone of the video recorders.

a Switch on the TV set and select the programme number

for the video recorder.

b Pressthe MENU button on the remote control. The main

menu will appear.

CLOCK
OSD
CHANNEL ALLOCATION
CHANNEL/FREQUENCY
MANUAL SEARCH
AUTOSEARCH
LANGUAGE
FOLLOW TV
DIRECT RECORD
COUNTER

------------------------

-/+ OK

c On the remote control, press the SELECT buttonand

button 2 atthe same time, to switch the remote control
to ’VCR 2’.

7. ADDITIONAL FUNCTIONS

20

DIfyou want to switchback to ’VCR 1, press the

SELECT buttonand button 1 at the same time.

d Confirmwiththe OK button.

On the TV screen, for example, ’VCR 2 OK’ will appear.
Then the video recorder automaticallyswitchesoff.

DIfyou change the batteries of the remote control, it

will switchbackto ’VCR 1’.

DIfthe message,forexample,’VCR 2’ appears on

the video recorder display,you mustswitchthe
remote controlto ’VCR 2’.

Continuous playback

You can automatically play a cassette again and again. When
the video recorder reaches the end of the tape or the end of
the recording, it will rewindand startagain.

a Put a cassette in the machine.

b Pressthe PLAY G button.

c Pressthe MONITOR buttonon the remote control and the

PLAYG buttonon the video recorder at the same time .

On the video recorder display you will see:

REP

d If you want to cancel continuous playback, repeat step

c .

DDuringcontinuousplayback,no otherbuttonwill

work.Aftera power failure,playbackwill
automaticallystart again.

Automatic switch-off (tuner mode)

If you do not use the video recorder for a few minutes in
certain modes (e.g.:STOP),itwillswitch to standby
automatically.You can cancel this function to use the video
recorderas a televisionreceiver(tuner).

a Hold the STOPh buttonuntil +appears on the video

recorderdisplay.

b Select the programme number you want with the P r or

qP buttonor with the number buttons 0-9 .

c Switch off the video recorder with the STANDBY m button,

if you no longer want to watch TV.

21

Reducing picture disturbance (’optimizing
the modulator’)

You may experience picture disturbanceifyou have not used
a scart cable to connect your video recorder and TV. This is
because another TV station in your reception area may
alreadybe using UHF-channel CH36or591MHz.

a Make sure that there is no cassettein the video recorder.

Withthe video recorderswitched off hold the SYSTEM
button for a few seconds until the modulator frequency,
for example,’G591’(591 Mhz or channel 36) appears on
the video recorder display.The video recorder willthen
transmita testpicturechannelor frequency.

MODULATOR 591 G

------------------------

-/+ G/KgSELECT
ON/OFF gCL OK

b Change the modulator frequency with the P r or

qP button.

c Confirmthe new modulator frequencywiththe OK

button.

d Tune in the TV set to this channel or frequency.

e Toend, press the STANDBY m button.

DIfthe pictureor sound qualityispoor, you may have

selectedthe wrong TV system.Atstepa , select
the TV system’G591’for PAL-B,G or ’K591’ for
SECAM-D,K,using the SELECT button.

Switching off the modulator

If you cannot clear picture or sound interference, you can
switchoffthe built-inmodulator.
You should only do this if you have connected the video
recorderto the TV set with a scart cable. ’Connecting VCR
withoutscartcable’ isnot possiblewhen the modulatoris
switchedoff.

a Switch on the TV set and select the programme number

for the video recorder.

b Make sure that no cassetteisin the video recorder.

Pressthe SYSTEM buttonfor several seconds, until, for
example,’G591’appears on the videorecorderdisplay.

c Hold the CLEAR (CL) button, until ’MOFF’ (modulator off)

appears on the video recorder display.Ifyou want to
switchthe modulatoron again, hold the CLEAR (CL)
button, until’G591’(Modulator switched on) appears on
the display.

d To end, press the STANDBY m button.

Selecting the sound track

You can select the sound track you want to record. This is
especiallyuseful if the programmeismultilingual.

a Pressthe SELECT button.The currentsettingwill appear

on the TV screen.

b By pressingthe SELECT buttonseveral times you can

selectfromthe four possibilitiesdisplayed (’STEREO’,
’RIGHT’, ’LEFT’, ’MONO’).

DWhilea tape is playing, you can select a fifth

possibility:the ’MIXED’ mode. In this mode you can
play the mono sound of the normal (linear) audio
tracktogetherwiththe sound of the stereo audio
track.You can play casettes that have been dubbed
on another video recorder.

DIfthereisno stereo sound recorded on the cassette,

the video recorder will automaticallyswitch to mono
sound.

22

Using your video recorder remote control
with your TV set

Your video recorder remote controlcan transmitseveral
commands to TV sets of differentmakes.
By using the TV buttons on the panel in the middle of the
control,you can:

qS increase the TV volume
Sr reduce the TV volume

y switchoff sound
TV m switch off the TV set
qTV next programme number
TV r previousprogramme number

a Hold the TVm buttonand enter the correct remote

control command with the digit buttons 0-9 .
You will find a list of all available remote control
commands on the last page of this manual.

DIfthe selectedcode does not work with your TV set,

or if the make of your TV is not in the list, you can try
out the codes one after the other.

23

If, contraryto expectation,you have any problemsusingthis
video recorder,itmaybe caused by one of the reasons
mentioned below. You can also call the customer service
centre in your country.
You will find the phone number in the enclosed guarantee
leaflet.

Your video recorder does not respond to any button being
pressed:

• There is no power supply: check the power supply

• A programmed recording is currentlybeing made: cancel the

programmedrecording with the

STANDBYm button.

• Continuous playback is on: switchthe continuous playbackoff.

• There is a technical problem: switch off the mains power supply

for30 seconds, then switch it onagain. If thisdoes not have any
effect,you can:

1.Switch off the mains power supplyagain.

2.Then switch iton whilst holding down the

STANDBYm button

on the video recorder.

3.Release the button when MENU appears on the video recorder
display.All the information stored (TVchannels, time and date,
TIMER)will be cleared.

Cassette is jammed in the video recorder:

• Don’t use force. Pull out the mains plug for a moment.

Remote control does not work:

• Remote control not pointed toward thevideo recorder: point it at
the video recorder.

• Batteries have run out: change the batteries.

• You have giventhe wrong remotecontrol command: read

’Switchingremote control command’ in chapter ’Additional
functions’.

No picture when you play a cassette:

• There is no recording on thecassette: change the cassette.

• You have chosenthe wrong programmenumber on the TV for

playingcassette: on theTV, select the correct programme
numberfor the video recorder.

• The cable connectingthe TV set and the video recorderhas
comeloose: check the cable.

Poor picture quality when you play a cassette:

• Your TV setis not properlyadjusted.

• The cassette badlyworn or of poor quality: use new cassette.

• Tracking is not properly adjustedor the video heads are dirty:

turnto chapter ’PLAYBACK’and read the section ’Cleaning the
videoheads’.

• Read the section ’Selecting the picture setting (SMART
PICTURE)’,or ’Eliminatingpicture interference’.

The video recorder will not record:

• The TV channel you want to record is not stored or you selected
the wrong programme number: check TV channelsstored.

• You have loadeda cassette whichcannot be recorded on: undo
the erase protection on the cassette.

Programmed recording does not work:

• You have not set the TIMER properly: check the TIMER blocks.

• You have programmedthe wrong time or date: check time and

date.

• You have put in a cassette that cannot be recorded on: undo the
eraseprotection on the cassette.

• ’PDC’ or ’VPS’ switched on but ’PDC/VPS time’wrong: enter PDC
orVPS time exactlyto the minute. Have your aerialchecked.

• After a ’programmedrecording with’SHOWVIEW’, the
programmenumber of the TIMER block willnot agree withthe
requiredprogramme number:when you have confirmed the
SHOWVIEWprogramming number,confirm the TIMERblock by
pressingthe

TIMERk button.Then change the programme

numberdisplayed in the ’

PROG’entry field and confirm by

pressingthe

TIMERk button.

There is picture or sound interference on TV reception:

• Turn to chapter’ADDITIONAL FUNCTIONS’and read ’PoorTV
reception- optimising the modulator’ and ’Switching off the
modulator’.

• Have your aerial checked.

8. Before you call an engineer

24

Technical terms used

Current tape position : The part of the tape currently being

played.
External source : A device connected via a socket (for
example,scartsocket) which is transmitting audio/video
signalstothe video recorder.
Index marking : A marking which is automaticallymade on the
tape at the beginning of every recording. This marking
(recordingID)can be searched for with the Index search
function.
Scart cable : Also known as a Euro-AV cable. This standard
cable is an easy method of connecting various audio and
video devices,computerscreens and televisions.Other
signalsin additionto audio and video signals can be
transmittedon it.
TV system : There are varioussystemsfor transmitting
televisionsignals, for example, PAL, SECAM, PAL BG, SECAM
DK, SECAM L/L,NTSCetc. The systemusedbyyourtelevision
depends on which country you are in.

TXT : Also known as Teletext, Fasttext,Videotext, FLOF etc.
OTR : One touch recording. This function enables you to select

the switch-offtime in intervals of 30 minutes.
Modulator : An electronic component in a video recorder
which allows audio and video signals to be transmittedviathe
aerial cable. Your televisionreceivesthe signal in the same
way as a signal from a television station.
Modulator frequency : Thisfrequencyorchannel indicatesthe
frequencyor channel on which the audio or video signal is
transmitted.
UHF frequency range : Channels 21 to 69. The video recorder
’broadcasts’on channel 36/frequency591 MHz. This frequency
or channel can be changed. See the section ’Reducing picture
disturbance(’optimizingthe modulator’).
OSD (On-screen display): The largestpossible display area
for the video recorder - the screen on your television set.

9. GLOSSARY

25
