Philips VR530-07 User Manual

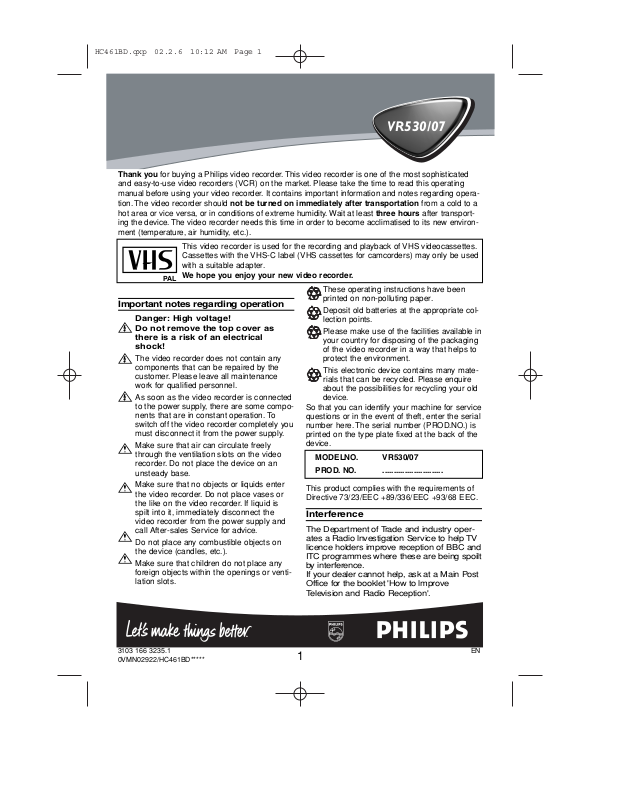

Page 1

This video recorder is used for the recording and playback of VHS videocassettes. Cassettes with the VHS-C label (VHS cassettes for camcorders) may only be used with a suitable adapter.

We hope you enjoy your new video recorder.

Thank you for buying a Philips video recorder. This video recorder is one of the most sophisticated and easy-to-use video recorders (VCR) on the market. Please take the time to read this operating manual before using your video recorder. It contains important information and notes regarding operation. The video recorder should not be turned on immediately after transportation from a cold to a hot area or vice versa, or in conditions of extreme humidity. Wait at least three hours after transporting the device. The video recorder needs this time in order to become acclimatised to its new environment (temperature, air humidity, etc.).

VR530/07

3103 166 3235.1 0VMN02922/HC461BD*****

PA L

Important notes regarding operation

Danger: High voltage! Do not remove the top cover as there is a risk of an electrical shock!

The video recorder does not contain any components that can be repaired by the customer. Please leave all maintenance work for qualified personnel.

As soon as the video recorder is connected to the power supply, there are some components that are in constant operation. To switch off the video recorder completely you must disconnect it from the power supply.

Make sure that air can circulate freely through the ventilation slots on the video recorder. Do not place the device on an unsteady base.

Make sure that no objects or liquids enter the video recorder. Do not place vases or the like on the video recorder. If liquid is spilt into it, immediately disconnect the video recorder from the power supply and call After-sales Service for advice.

Do not place any combustible objects on the device (candles, etc.).

Make sure that children do not place any foreign objects within the openings or ventilation slots.

These operating instructions have been printed on non-polluting paper.

Deposit old batteries at the appropriate collection points.

Please make use of the facilities available in your country for disposing of the packaging of the video recorder in a way that helps to protect the environment.

This electronic device contains many materials that can be recycled. Please enquire about the possibilities for recycling your old

device. So that you can identify your machine for service questions or in the event of theft, enter the serial number here. The serial number (PROD.NO.) is printed on the type plate fixed at the back of the device.

This product complies with the requirements of Directive 73/23/EEC +89/336/EEC +93/68 EEC.

Interference

The Department of Trade and industry operates a Radio lnvestigation Service to help TV licence holders improve reception of BBC and ITC programmes where these are being spoilt by interference. If your dealer cannot help, ask at a Main Post Office for the booklet 'How to lmprove Television and Radio Reception'.

MODELNO. VR530/07

PROD. NO. ...........................

Page 2

Important for the United Kingdom

This apparatus is fitted with an approved moulded 10 Amp plug. To change a fuse in this type of plug proceed as follows:

1.Remove fuse cover and fuse.

2.Fix new fuse which should be a

BS1362 3A,ASTA or BSI approved type.

3.Refit the fuse cover.

If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place.

If the mains plug contains a fuse, this should have a value of 3A. If a plug without a fuse is used, the fuse at t

he distribution board should not be greater than 3A.

How to connect a plug:

The wires in the mains lead are coloured in accordance with the following code:

BLUE- 'NEUTRAL' ('N') BROWN- 'LIVE' ('L')

4.The BLUE wire must be connected to the terminal

which is marked with the letter 'N' or coloured BLACK.

5.The BROWN wire must be connected to the termi-

nal which is marked with the letter 'L' or coloured RED.

6.Do not connect either wires to the earth terminai in

the plug which is marked with the letter 'E' or by the safety earth symbol

or coloured green or

green-and-yellow. Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead-not imply over the two wires.

Preparing the remote control for operation

The remote control and its batteries are packed separately in the original video recorder packaging. You must install the batteries in the remote control before use.

1.Ta ke the remote control and the enclosed batteries

(2 batteries).

2.Open the remote control's battery compartment

and place the batteries in it as shown in the picture

and close the battery compartment. The remote control is now ready to use. Its range is approximately 5 metres.

Connecting your video recorder to the TV set

The necessary cable connections must be made before you can record or playback TV programmes using your video recorder. We recommend that you use a scart cable to connect your TV and video recorder.

Connecting with a scart cable

Have the following cables ready: an aerial cable (1, supplied), a scart cable (2, not supplied).

1.Remove the aerial cable plug from

your TV set. Insert it into the AERIAL at the back of the video recorder.

2.Insert one end of the supplied

aerial cable into the RF OUT at the back of the video recorder and the other end into the aerial input socket at the back of the TV set.

3.Plug one end of a scart cable

into the scart socket AV1(TV) at the back of the video recorder and the other end into the suitable scart socket on your TV reserved for the video recorder operation (see your TV's operating instructions).

4.Switch on the TV.

5.Insert AC cable into the wall socket.

Specifications

Voltage: 220-240V/50Hz Power consumption : 20W Power consumption (Standby): less than 4W

(PWR. in the display switched off) Rewind time: approx. 100 seconds (cassette E-

180) Dimensions in cm/ft (WxDxH): 36.0x22.6x9.2 /

1.2x0.3x0.9

Number of video heads : 4 Number of video heads (HIFI): 2 Recording/playback time: 3 hours (SP) (cassette

E-180)

6 hours (LP) (cassette E-180)

Supplied accessories

• Operating instructions

• Remote control and batteries

• Aerial Cable

1. Connecting the video recorder

What is a scart cable?

The scart or Euro AV cable serves as the universal connector for picture, sound and control signals.With this type of connection, there is practically no loss of quality during the picture or sound transfer.

The severed plug must be destroyed to avoid a possible shock hazard should it be inserted into a 13A socket alsewhere.

)

AERIAL

(TV 1 V A

IA R E

U O F

) V T

(

1 V A

RF OUT

IA R E

U O F

)

1 (TV

AERIAL

T U

RF O

)

AV1(TV

Page 3

6.If the connection was properly made

and your TV was automatically switched to the programme number for the scart socket, you will see the following picture:

Then, read the paragraph 'Preparation for use' in the chapter 'Installing your video recorder'.

Connecting without a scart cable

Have the following cables ready: an aerial cable.

1.Switch off your TV.

2.Remove the aerial

cable plug from the aerial input socket of the TV. Insert it into the AERIAL at the back of the video recorder.

3.Insert one end of the

supplied aerial cable into the RF OUT at the back of the video recorder and the other end into the aerial input socket at the back of the TV.

4.Insert AC cable into the wall socket.

5.Switch on your TV and select the programme

number used for video playback on your TV set (see your TV's operating instructions).

6.Select this programme number and manually

start the TV's channel search as if you wanted to save a new TV channel until the next

screen appears.

7.Save this programme number setting on your

TV for video recorder operation. You can find more details in chapter 'Preparation for use.

Connecting additional devices

You can connect additional devices such as decoders, satellite receivers, camcorders, etc. to the socket AV2(DECODER).

My screen is empty

Many TVs are switched to the programme number for the scart socket by way of a control signal sent through the scart cable. If the TV does not automatically switch to the scart socket programme number, manually change to the corresponding programme number on your TV (see your TV's operating instructions).

I do not see the picture

* Check the cable connections. * Repeat the channel search on your TV.

Programme number for video recorder operation

You have now saved a programme number for use by your video recorder as you would a regular TV channel. This programme number must now be used in future for video recorder playback ('video recorder' TV channel).

PLEASE CONNECT AERIAL OR CABLE TO THE VCR

THEN...

PUSH P

+ KEY

OR...

FOR PLAY ONLY - PUSH PLAY

PLEASE CONNECT AERIAL OR CABLE TO THE VCR

THEN...

PUSH P

+ KEY

OR...

FOR PLAY ONLY - PUSH PLAY

My TV has several scart sockets. Which one should I use?

Select that scart socket which is suited for the video output as well as for the video input.

My TV offers me a selection menu for the scart socket.

Select 'TV' as a connection source of this scart socket.

)

AERIAL

AV1 (TV

ERIAL

RF O

AV1 (TV)

RF OUT

IAL

AER

RF OUT

AV2 (DECODER) AV1 (TV)

AERIAL

RF OUT

AV2(DECODER

)

Page 4

Preparation for use

This chapter shows you how to start the video recorder for use. The video recorder automatically seeks out and stores all available TV channels.

1.Press

The automatic channel search starts.

2.'TIME' and 'DATE' will appear on the TV

screen.

3.Check 'TIME'. If required, please change the

time with the number buttons .

4.Check if the displayed settings for 'DAY',

'MONTH' and 'YEAR' are correct.

5.When all information is correct, save by

pressing .

The preparation for use is now complete.

Decoder allocation

Some TV channels transmit encoded TV signals which can only be viewed with a purchased or rented decoder.You can connect such a decoder to this video recorder. The following function will automatically activate the connected decoder for the desired TV channel.

1.Switch the TV on. If applicable, select the

programme number for the video recorder operation.

2.Use or to select the TV

channel which you would like to allocate the decoder to.

3.Press . The main menu will appear.

4.Use to select 'TUNER SET UP'.

Then press .

5.Use to select 'MANUAL TUNING'.

Then press .

6.Use to select 'DECODER'.

7.Use to select 'ON'

(Decoder switched on).

8.To end, press .

The decoder has now been allocated to this TV channel.

STATUS/EXIT

LCKB

0..9

LCKB

STATUS/EXIT

0..9

'Aim' correctly

In the following sections, you require the remote control for the first time. When using, always aim the front of the remote control at the video recorder and not at the TV.

Connecting additional devices

After you have connected additional devices (satellite receiver, etc.) through the aerial cable, switch them on. The automatic channel search will recognise them and save them.

TIME --:--

DATE --/--/--

SMART CLOCK [ON]

END=EXIT

2. Installing your video recorder

MANUAL TUNING

PROG. P55 CHANNEL 055

→DECODER [OFF]

SKIP [OFF]

SELECT KL CHOOSE B END=EXIT

How can I switch off the decoder?

Use to select 'OFF' (Decoder switched off).

PLEASE WAIT

START FINISH

❚❚❚❚❚❚❚❚❚❚❚

❚❚❚❚❚❚❚❚❚❚❚❚

The video recorder does not find any TV channels during the search

* Select channel 1 on the TV. Can you see the saved TV channel on the TV? If not, check the cable connection of the aerial (aerial socket), video recorder, TV. * The video recorder searches the entire frequency range in order to find and save the largest possible number of TV channels. It is possible that the TV channels in your country are broadcast in a higher frequency range. As soon as this range is reached during the search, the video recorder will find the TV channels.

Satellite receiver

If you are connecting a satellite receiver, please read the section 'Using the satellite receiver'.

Decoder

If you are connecting a decoder, you must install it as described in the next section.

Page 5

Manual TV channel search

In some cases it can occur that all of the TV channels are not found and saved during the first installation. In this case, the missing or coded TV channels must be searched for and stored manually.

1.Switch on the TV set. If required, select the

programme number for the video recorder.

2.Press .

The main menu will appear.

3.Use to select 'TUNER SET UP'.

Then press .

4.Use to select 'MANUAL TUNING'.

Then press .

5.Select 'PROG.' with

. Then press

6.With

, select the desired programme number that you want to use for the TV channel, e.g. 'P01'. Then press .

7.Select 'CHANNEL' with , and con-

firm with . Then enter the desired channel with

. If you set 'SKIP'on for a channel, this channel will be ignored when going through the channels

with or .

8.Save the TV channel with .

9.To search for other TV channels, begin again

at step 5.

10.

10.To end, press

Using the satellite receiver

Satellite channels from a satellite receiver (connected to the scart socket AV2(DECODER) ) are received on the video recorder on programme number 'AV2' with

0.0.2

. You should select the satelite channels to be received by the satellite receiver directly on the receiver itself.

Sorting TV channels automatically (Follow TV)

When the automatic channel search function is activated, the TV channels are saved in a specific order. This may vary from the order of TV channels on the TV. This function changes the order of TV channels saved in the video recorder to match that of the TV. Make sure that the video recorder and the TV are connected by a scart cable.

1.Switch on the TV. If required, select the pro-

gramme number for the video recorder.

2.Press . The main menu will appear.

3.Select 'TUNER SET UP' with and

confirm with .

4.Select 'FOLLOW TV' with and

confirm with .

5.'P:01' will appear in the video recorder dis-

play.

6.Select programme number '1' on the TV.

7.Confirm with on the video recorder

remote control. The video recorder compares the TV channels on the TV and the video recorder. If the video recorder finds the same TV channel as on the TV, then it stores it at 'P01'.

LCKB

STATUS/EXIT

P–P+

0..9

LCKB

0..9

LCKB

MANUAL TUNING

→PROG. P55

CHANNEL 055 DECODER [OFF] SKIP [OFF]

SELECT KL CHOOSE B END=EXIT

What is a special channel?

TV channels are transmitted in certain predefined frequency ranges. These ranges are divided into channels. A specific frequency/channel is assigned to each TV station. Certain frequency ranges are specified as special channels (hyperband channels).

I don't know the channels for my TV stations

In this case, press in 'CHANNEL' to start the automatic channel search. A changing channel number will appear on the TV screen. Continue the automatic search until you have found the desired TV channel.

LCKB

SELECT KL CHOOSE B

AUTO TUNING MANUAL TUNING

→FOLLOW TV

MOVE

END=EXIT

I cannot switch my TV set to programme number '1'

* If you have connected additional devices to socket AV2(DECODER), please disconnect these devices. Because of other connected devices, the TV set could switch to the programme number of the scart socket.

Page 6

8.Wait until the next number, e.g. 'P:02' appears

in the display.

9.Select the next programme number on the

TV, e.g. '2'.

10.

10.Confirm with

11.

11.Repeat steps 8 to 10 until you have assigned

a programme number to all TV channels.

12.

12.To end, press .

Automatic Tuning

During installation, all available TV channels are searched for and saved. If the channel assignments of your cable or satellite TV provider change or if you are re-installing the video recorder, e.g. after moving house, you can start this procedure again. This will replace the TV channels already saved with the new ones.

1.Switch on the TV. If required, select the pro-

gramme number for the video recorder.

2.Press . The main menu will appear.

3.Select 'TUNER SET UP' with and

confirm with .

4.Select 'AUTO TUNING' with

and

confirm with

5.The automatic TV channel search starts. This

allows the video recorder to save all available TV channels. This procedure may take several minutes.

6.When the TV channel search is complete,

'COMPLETED' will briefly appear on the TV screen.

Sorting and clearing TV channels manually

After you have performed the automatic channel search you may not agree with the sequence in which the individual TV channels have been allocated to the programme positions (programme numbers) of the video recorder.You can use this function to individually sort the TV channels already saved or to delete unwanted TV channels or those with poor reception.

1.Switch on the TV set. If required, select the

programme number for the video recorder.

2.Press . The main menu will appear.

3.Select 'TUNER SET UP' with and

confirm with .

4.Select 'MOVE' with , and confirm

with .

5.With , select the saved TV channel

that you want to change.

6.Confirm with .

7.Move the selected channel with to

the programme number you want to assign.

8.Confirm with .

9.To assign other TV channels to a programme

number, repeat steps 5 to 8.

10.

10.Confirm the assignment of the TV channel

with

MOVE menu

11.

11.To exit the

MOVE menu

, press .

STATUS/EXIT

LCKB

STATUS/EXIT

'NO TV SIGNAL' will appear in the TV screen. The video recorder is not receiving a video signal from the TV.

Check the plug on the scart cable. Check your TV's operating instructions to see which scart socket is used for video signals. If this does not help, it's not possible to use this function. Please read the section 'Sorting TV channels manually'.

PLEASE WAIT...

START FINISH

❚❚❚❚❚❚❚❚❚❚❚

❚❚❚❚❚❚❚❚❚❚❚❚

The clock resets automatically

If you save a TV channel that transmits TXT/PDC on programme number ‘P01’, date and time will constantly be updated. As a result, time changes, i.e. daylight savings time, will be set automatically.

MOVE

P01: 02 P06: 90 P02: 03 P07: 99 P03: 05 P08: 121 P04: 10 P09: 124

P05: 74 P10: 130 SELECT KL CHOOSE B END=EXIT

Page 7

Setting the clock

If the display shows an incorrect time or ' --:-- ', the time and date must be reset manually. If a TV channel that transmits TXT/PDC (teletext/PDC) is stored under programme number 'P01', time/date will automatically be taken from the TXT/PDC information. (SMART CLOCK)

1.Switch on the TV. If required, select the pro-

gramme number for the video recorder.

2.Press . The main menu will appear.

3.Select 'INITIAL SET UP' with and

confirm with .

4.Select 'CLOCK' with and confirm

with .

5.Check the time in 'TIME'. If required, please

change the time with .

6.Check 'DAY', 'MONTH' and 'YEAR' in the

same way.

7.Choose ‘SMART CLOCK’ ON or OFF with

8.To end, press .

Setting the RF out channel

In some reception locations it is possible that a TV channel will be sent on the same or similar frequency as the video recorder. Result: As soon as the video recorder is switched on, the reception quality for this or several other TV channels will decrease. The following steps will show you how to change the pre-set 'transmission' (RF out channel) frequency on the video recorder.

1.Switch on the TV. If required, select the pro-

gramme number for the video recorder.

2.Press . The main menu will appear.

3.Select 'INITIAL SET UP' with and

confirm with .

4.Select 'RF OUT' with and confirm

with .

5.Press .

6.Press

or to select the channel

which is not broadcasted between channel 22 and channled 69 in your area.

7.Press

. When you want to receive TV signals directly from the VHF/UHF TV aerial, select the channel 22 first

. Then, press

and confirm with .

8.To end, press .

STATUS/EXIT

0..9

LCKB

STATUS/EXIT

0..9

LCKB

TIME --:--

DATE --/--/--

SMART CLOCK [ON]

END=EXIT

Time/date is displayed incorrectly despite manual setting

* With Smart Clock, time/date is transferred from the TV channel saved on 'P01' and automatically corrected. Switch off Smart Clock. In 'SMART CLOCK',

select 'OFF' with . You can switch on 'SMART CLOCK' again when you select 'ON'.

What is RF out channel?

This electronic component in the video recorder allows the device to transmit audio and video signals via the aerial cable. These signals can be received on a TV set just like TV channels.

What is RF out channel frequency?

This frequency or channel indicates the channel on which the audio or video signal is transmitted.

SELECT KL CHOOSE B

→RF OUT CH 35

END=EXIT

Page 8

Playing cassettes

You can use this video recorder to play back recorded VHS videocassettes.You can operate the video recorder using the remote control or the buttons on the front of the video recorder. Your video recorder can only record and play standard VHS cassettes.

1.Put a cassette into the cassette slot. The cas-

sette is inserted automatically. ' ' will appear on the display.

2.Press to view the tape.

3.To stop the playback, press or on

the video recorder.

4.To eject the cassette, press when the

video recorder stops the playback.

Playing back NTSC cassettes

Cassettes that have been recorded in the NTSC standard (for example, American cassettes) can be played back using this video recorder. However, this only works on PAL-television sets that are suitable for a picture frequency of 60Hz.

Displaying current tape position

The following information is displayed on the screen: e.g.: 0:02:45 shows the counter in hours, minutes and seconds. SP/LP: will show the recorded speed of your cassette 'REM 0:06': will show the actual amount of playing/recording time left on the tape in hours and minutes. When you play an NTSC cassette, the video recorder will show 'REM -:--'.

Searching for a tape position with picture (scanning)

1.While a cassette is playing, press

(reverse) or (forward) one or more times.

2.Press to resume playback.

Still picture / slow motion

1.During playback, press to stop the

tape and display a still picture.

2.During playback, press to play the

tape in slow motion.

3.Press to resume playback.

Scanning and still/slow motion interferes with the picture quality. The sound is switched off. This is not a fault in your video recorder.

SLOW

STILL

3. Playback

DIGITAL STUDIO PICTURE CONTROL

Philips has developed a system which produces the best possible playback quality. For old and often-used video cassettes, this system reduces interference. For new or high quality cassettes, it emphasises the details.

Picture/ sound quality is poor

When playing rental videos or older, poorer quality cassettes, it may not be possible to completely filter out picture and sound interference.This is not a fault in your machine. Read the section 'Manual tracking'.

Automatic switch-off of special functions

Many functions (e.g. pause, still picture) switch themselves off automatically after a short time in order to protect the cassette and to save energy.

Do I need to change the playback speed when playing back LP recordings?

During playback, the correct speed will automatically be selected. For more information, please read the section 'Selecting the recording speed (SP or LP)' in the chapter 'Manual recording'.

How can I set the counter to '0:00:00'?

You can set the counter to '0:00:00' with

. When you put a cassette in the video recorder, the counter will automatically reset to '0:00:00'.

CLEAR

The counter does not move

This occurs when there are no recordings on a portion of a tape. This is not a fault in your video recorder.

The screen shows '-0:01:20'

If you rewind a cassette from the tape position '0:00:00', the counter will show for instance, '-0:01:20' (the cassette will be rewound to 1 minute and 20 seconds before '0:00:00').

'-:--' is displayed in the 'REM' counter

This counter will automatically recognise the length of the tape. In addition, when you put in a cassette the video recorder must first calculate the time played. Therefore, '-:--' appears first and only after the tape has been running for a few seconds, the correct playing time will be shown.

Page 9

General information

Use 'Manual Recording' to make a spontaneous recording (for example, a programme currently being shown).

If you want to start and stop a recording manually, read the section 'Recording without automatic switch-off'.

If you want to start a recording manually but have it stopped automatically, read the section

'Recording with automatic switch-off'.(e.g. not to record to the end of the tape)

Read the section 'Direct record' if you want to record a programme currently being shown.

Read the section 'Automatic recording from a satellite receiver', if you want a recording to be controlled automatically by a satellite receiver.

Recording without automatic switch-off

Insert a cassette.

2.Use to select the programme num-

ber you want to record, for example, 'P01'.

3.To start recording, press .

4.Stop recording with .

Recording with automatic switch-off (OTR One-Touch-Recording)

1.Insert a cassette.

2.Use to select the programme num-

ber you want to record.

3.Press .

4.Each time you press you will

add 30 minutes to the recording time.

Preventing accidental erasing of cassettes

All cassettes (except for rental and store cassettes) have a security tab on the back of the cassette. To prevent recording over important recordings (erasing), you can remove this security tab. If you later decide to record on a protected cassette, simply cover the hole with adhesive tape or slide the tab to the right.

Lining up recordings (assemble cut)

When you add a further recording to a cassette, which already has a recording on it, a short blank (flicker) can appear between the old and the new recording or the picture itself can flicker. To help reduce these from occurring, proceed as follows:

1.Find the tape position of the old recording

where you want to insert the new recording.

2.Look at the last minute of the old recording

(playback).

3.Press at the tape position where the

new recording is to go and press .

4.Now start recording as usual by pressing

on the remote control.

5.Stop recording with .

RECORD/OTR I

STILL

RECORD/OTR I

P-P+

RECORD/OTR I

P-P+

Searching for tape position without picture (forward wind and rewind)

1.Stop the tape with .

2.Press (reverse) or (forward).

3.To stop the tape, press .

Automatic search for a tape position (index search)

Every time a tape is recorded an index marking is written on the tape. These marked positions can be found again quickly and easily later.

1.To search for the previous marking, press

and then .

For the next marking, press and then .

3.As soon as the video recorder finds this

marking, it automatically switches to playback.

Manual Tracking

To manually adjust the tracking during playback and slow motion playback, press

or .

Tr acking will return to Automatic Tracking Adjustment when you press , insert a tape, or press .

To remove vertical jitter in a Still picture, press

or .

P-

P+

PROGRAMME

P-P+

PROGRAMME

INDEX

4. Manual recording

Page 10

Selecting the recording speed (SP or LP)

LP allows to double the recording duration on tape (for example six hours instead of three hours on a E180 cassette)

1.Switch on the TV set. If required, select the

programme number for the video recorder.

2.Press . The main menu will appear.

3.Select 'RECORD SETUP' using

and confirm with

Select 'RECORD SPEED' using

5.Select the required recording speed with

6.To end, press .

Automatic controlled recording from a satellite receiver (RECORD LINK)

This function automatically starts recording on the switched-off video recorder when a video signal is recognised through the connected scart cable. If your satellite receiver has a programming function, the recording will start automatically (as long as the satellite receiver is switched on).

1.Use a scart cable to connect scart socket

AV2(DECODER) on the video recorder to the corresponding scart socket on the satellite receiver.

2.Switch on the TV. If required, select the pro-

gramme number for the video recorder.

Press . The main menu will appear.

4.Select 'RECORD SET UP' with

and confirm with .

5.Select 'RECORD LINK' with

6.Select function 'ON' with .

7.To end, press .

8.Insert a cassette.

9.Programme the satellite receiver with the

required information (programme number of the TV channel, start time, end time). If necessary, please see the operating instructions for your satellite receiver.

10.

10.Switch off the video recorder with

. The video recorder is now ready to record. The beginning and end of the recording is controlled via scart socket AV2(DECODER).

'Direct Record'

With Direct Record, you can record the right TV channel in seconds even if your video recorder is switched off. If the recording is started manually, the video recorder uses the current TV channel set on the TV. You will find more information on how to switch 'Direct Record' on or off in the next section. Make sure that your video recorder socket (AV1/TV) and the TV are connected by a scart cable.

1.On the TV, select the programme number you

want make the recording from.

2.Press with the video recorder

switched off.

3.Stop recording with .

Switching 'Direct Record' on or off

1.Switch on the TV. If required, select the pro-

gramme number for the video recorder.

2.Press . The main menu will appear.

3.Select 'RECORD SET UP' with

and confirm with .

4.In 'DIRECT RECORD', select 'OFF' (Direct

Record off) or 'ON' (Direct Record on) with

5.To end, press .

6.Switch off with .

STANDBY/ON

STATUS/EXIT

LCKB

RECORD/OTR I

STANDBY/ON

STATUS/EXIT

LCKB

STATUS/EXIT

LCKB

SELECT KL CHOOSE B

→RECORD SPEED [SP]

DIRECT RECORD [OFF] RECORD LINK [OFF]

END=EXIT

'SP'/'LP' /'AUTO'

'SP': StandardPlay (normal recording speed) offers the usual first-class picture quality. 'LP': LongPlay (half recording speed, double recording time). 6 hours can be recorded on a 3-hour cassette (E180) with a somewhat reduced picture quality. 'AUTO': AUTOmatic Long Play. If there is not enough space on the tape to record a programmed recording in standard speed, the recording is automatically done in 'LP'. (Longplay). Otherwise, the recording speed will be 'SP' (Standardplay).

SELECT KL CHOOSE B

RECORD SPEED [SP] DIRECT RECORD [OFF]

→RECORD LINK [OFF]

END=EXIT

Switching off 'Record Link'

To s witch off the function, select 'OFF'

with

SELECT KL CHOOSE B

RECORD SPEED [SP]

→DIRECT RECORD [OFF]

RECORD LINK [OFF]

END=EXIT

How does Direct Record work?

The video recorder compares the TV channel selected on the TV set with its stored TV channels via the scart cable. If the same TV channel is found, it switches the video recorder to the corresponding programme number and starts recording. Please do not change the TV channel on the TV set during the search so as not to affect the process.

Page 11

General information

Use a TIMER programming to automatically start and stop a recording at a later time or date. The video recorder will switch to the right programme number and begin recording at the correct time. With this video recorder, you can pre-programme up to eight recordings within a period of one year. To make a programmed recording, your video recorder needs to know: * the date you want to make the recording * the programme number of the TV channel * the start and stop time of the recording * VPS or PDC on or off This information is saved in a 'TIMER block

Programming a recording

1.Switch on the TV. If required, select the pro-

gramme number for the video recorder.

2.Press . The main menu will appear.

3.Select 'TIMER' with . Then press

4.Select 'ONCE', 'DAILY', or 'WEEKLY' record-

ing with . Then press .

If any of the TIMER blocks are in use, 'FULL' will appear on the TV screen.

5.Select TIMER block with .

6.With buttons you can enter 'START'

(start time) , 'STOP' (end time) , 'PROG.' (programme number) ‘VPS/PDC’ and 'DATE'.

7.When all informations are correctly, press

. The programming information

is stored in a TIMER block.

8.Insert a cassette with an intact security tab

(unprotected).

9.Switch off with .

The programmed recording will only function when the video recorder is switched off with

STANDBY/ON

STATUS/EXIT

0..9

LCKB

5. Programming a recording (TIMER)

What is 'VPS/PDC'?

'VPS' (Video Programming System)/ 'PDC' (Programme Delivery Control) are used to control the start and duration of TV channel recordings. If a TV programme starts earlier or ends later than scheduled, the video recorder will turn on and off at the correct time.

What do I need to know about 'VPS/PDC'?

Usually the VPS or PDC time is the same than the start time. But if your TV guide shows a VPS or PDC time which is different from the programme’s scheduled start time, e.g. 20.10 (VPS/PDC 20.14), you must enter the VPS/PDC time exact to the minute. If you want a start time different from the VPS/PDC time, you must switch VPS/PDC off.

SELECT KL CHOOSE B

→ONCE

DAILY WEEKLY

TIMER LIST

END=EXIT

Selecting once/daily/weekly recordings

Use to select from the following options: 'ONCE': Recording once 'DAILY': Repeated daily recordings from

Monday to Friday

'WEEKLY.': Repeated weekly recordings (every

week on the same day)

LCKB

Programme numbers of the ' AV1 ' and ' AV2 ' scart socket

You can also programme recordings from external sources via scart socket AV1(TV)or AV2 (DECODER).

Page 12

How to check, or delete a programmed recording (TIMER)

Switch on the TV. If required, select the programme number for the video recorder.

2.Press . The main menu will appear.

3.Select 'TIMER' with . Then press

4.Select 'TIMER LIST' with , and

confirm with

5.Select timer block with .

6.To cancel the recording, press .

7.To end, press

8.Switch off with

with

How to change a programmed recording (TIMER)

1.Switch on the TV. If required, select the pro-

gramme number for the video recorder.

2.Press . The main menu will appear.

3.Select 'TIMER' with . Then press

4.Select ONCE, DAILY, or WEEKLY recording

with . Then press .

5.Select TIMER block with . (The flashing

number is nothing recorded.)

6.Press

to delete information and input

correct information with

7.To end, press

8.Switch off with

Problems and solutions for programmed recordings

STANDBY/ON

STATUS/EXIT

0..9

LCKB

CLEAR

0..9

LCKB

STANDBY/ON

STATUS/EXIT

CLEAR

ONCE

TIMER - 1 2 3 4 5 6 7 8 -

SELECT TIMER NUMBER END=EXIT

Error message: ' ' will flash in the video recorder display

•

No cassette was inserted. Insert a cassette and

switch off the video recorder using

• A cassette was inserted with the security tab

removed. Undo the erase protection (chapter 'Manual Recording', section 'Preventing accidental erasing of cassettes') or insert a different cassette.

Cassette is ejected during recording

• The end of the tape was reached during recording.

The video recorder does not react

• While a programmed recording is being made, you

cannot operate your video recorder manually. If you want to cancel the programmed recording, press

• The end of the tape was reached during recording.

STANDBY/ON

SELECT KL CHOOSE B

ONCE DAILY WEEKLY

→TIMER LIST

END=EXIT

Page 13

6. Other Functions

Switching the status display off or on

Along with the on screen menu, the status display also displays information on the current operating status (counter, playback, recording, TV channel, etc.) on the TV screen.You can switch off the information about the operating status so that the status display is not recorded when copying videocassettes.

1.Switch on the TV set. If required, select the

programme number for the video recorder.

2.Press . The main menu will appear.

3.Select 'VCR SET UP' with and

confirm with .

4.Select 'STATUS DISPLAY' with

5.Select 'ON' or 'OFF' with

6.To end, press .

Continuous playback

This function can be used to play a cassette over and over again. When the end of the cassette is reached, the video recorder will rewind and start from the beginning again. This function is activated or deactivated as follows.

1.Press . The main menu will appear.

2.Select line 'VCR SET UP' using

and confirm with .

3.Select 'REPEAT PLAY' using .

4.Select function 'ON' with .

If you select 'OFF', continuous playback will be switched off.

5.To end, press .

6.Insert a cassette.

7.Start the continuous playback with

Blue Background on or off

1.Switch on the TV. If required, select the pro-

gramme number for the video recorder.

2.Press . The main menu will appear.

3.Select 'VCR SET UP' using and

confrim with .

4.Select 'BLUE BACKGROUND' using

and confirm with .

5.Select 'OFF' (no blue background) or 'ON'

(blue background on) with . If you select 'OFF', the menu display will disappear.

6.To end, press .

STATUS/EXIT

LCKB

STATUS/EXIT

LCKB

STATUS/EXIT

LCKB

SELECT KL CHOOSE B

REPEAT PLAY [ON]

→STATUS DISPLAY [ON]

BLUE BACKGROUND[ON] AUTO STANDBY [OFF]

END=EXIT

Which settings can I choose?

'ON': Shows the status display for a few seconds only. 'OFF': Switches off the status display.

SELECT KL CHOOSE B

→REPEAT PLAY [ON]

STATUS DISPLAY [ON] BLUE BACKGROUND[ON] AUTO STANDBY [OFF]

END=EXIT

SELECT KL CHOOSE B

REPEAT PLAY [ON] STATUS DISPLAY [ON]

→BLUE BACKGROUND [ON]

AUTO STANDBY [OFF]

END=EXIT

Page 14

Automatic switch-off

If you haven't used the video recorder for a few minutes in certain modes (e.g.: STOP), it will switch to standby automatically. You can cancel this function to use the video recorder as a television receiver.

1.Switch on the TV. If required, select the pro-

gramme number for the video recorder.

2.Press . The main menu will appear.

3.Select 'VCR SET UP' using and

confrim with .

4.Select 'AUTO STANDBY' using .

5.Select 'OFF' (no automatic switch-off) or 'ON'

(automatic switch-off) with .

6.To end, press .

Selecting the sound channel

You can select the desired sound channel during playback or while receiving TV channels via the video recorder. This allows you to select a desired language for multi-language transmissions.

1.Press . This will show the current

sound setting.

2.Press until the desired setting

appears in the display.

AUDIO

STATUS/EXIT

LCKB

SELECT KL CHOOSE B

REPEAT PLAY [ON] STATUS DISPLAY [ON] BLUE BACKGROUND[ON]

→AUTO STANDBY [ON]

END=EXIT

•

Reception of stereo broadcasts:

Mode

Stereo

Monaural

• During playback of the recorded tape in Hi-Fi mode:

Stereo

Monaural MONO

•

During reception of bilingual broadcasts:

AUDIO OUTPUT

L Audio

R Audio

L Audio

Mode

MIX

Mode

MAIN

SUB

MAIN

SUB

L Audio

R Audio

+R Audio

L R

L+R Audio

AUDIO OUTPUT

Hi Fi L Audio

Hi Fi R Audio

Hi Fi L Audio

Hi Fi R Audio

Normal Audio

Hi Fi L Audio

Normal Audio

Hi Fi R Audio

Normal Audio

AUDIO OUTPUT

Main Audio

Sub Audio

Main Audio

Sub Audio

Display on

the TV screen

STEREO

LEFT

RIGHT

Display on

the TV screen

STEREO

LEFT

RIGHT

MIXED

Display on

the TV screen

MAIN

SUB

MAIN

SUB

Page 15

No recording possible:

* The TV channel you want to record is not stored or you selected the wrong programme number: check TV channels stored. * A cassette was inserted that does not have the security tab (cannot be used to record): Insert a cassette with an intact security tab or change cassette. For more information, please see the section 'Preventing accidental erasing of cassettes' in chapter 'Manual Recording'. * 'VPS/PDC' switched on but 'VPS/PDC time' wrong: enter 'VPS/PDC time' exactly to the minute. Have your aerial checked.

There is picture or sound interference on TV reception:

* Turn to chapter 'Installing your video recorder' and read 'Setting the RF out channel'. * Have your aerial checked.

7. Before you call an engineer

If, contrary to expectation, you have any problems using this video recorder, it may be caused by the following reasons.

Your video recorder does not respond to any button being pressed:

* There is no power supply: check the power supply. * A programmed recording is currently being made: if desired, cancel the programmed recording. Please see the section 'How to check or delete a programmed recording' in chapter 'Programming a recording' * There is a technical problem: disconnect from the mains power supply for 60 seconds, then connect again. If this doesn't help, you could reset your video recorder to the default factory settings.

Resetting devices to default factory settings * Attention:

All the information stored (TV channels, time and date, TIMER) will be cleared.

1.Switch off this video recorder with

2.Press and hold and for 2 seconds or more at the same time.

Cassette is jammed in the video recorder:

* Don't use force. Pull out the mains plug for a moment.

Remote control does not work:

* Remote control not pointed toward the video recorder: point it at the video recorder. * There is a technical problem: Take out the batteries, wait for 10 seconds and place them back. * Batteries have run out: change the batteries.

No picture when you play a cassette:

* There is no recording on the cassette: change the cassette. * You have selected the wrong programme number on the TV for playing cassette: on the TV, select the correct programme number for the video recorder. * The cable connecting the TV set and the video recorder has come loose: check the cable.

Poor picture quality when you play a cassette:

* Your TV set is not properly adjusted. * The cassette is badly worn or of poor quality: use new cassette. * Tracking is not properly adjusted: turn to section 'Manual Tracking'.

PROGRAMME+

RECORD

STANDBY/ON

Page 16

PHILIPS NORGE AS

Sandstuveien 70, PO Box 1, Manglerud N-0612 Oslo

NORWAY

Phone: 2274 8250

OY PHILIPS AB

Sinikalliontie 3, 02630 Espoo

FINLAND

puh. 09 615 80 250

PHILIPS KUNDTJÄNST

Kottbygatan 7, Akalla, 16485 Stockholm

SWEDEN

Phone: 08-598 52 250

PHILIPS POLSKA

AL. Jerozolimskie 195B 02-222 Warszawa

POLSKA

TEL.: (022)-571-0-571

PHILIPS SERVICE

V Mezihori 2 180 00 Prage

CZECH REPUBLIC

Phone: (02)-3309 9240

PHILIPS Iberia, S.A.

C/Martinez Villergas, 49 28027 MADRID

SPAIN

Phone: 902-11 33 84

PHILIPS AUSTRIA GMBH

Triesterstrasse 64 1101 Wien

AUSTRIA

Tel: 0810 001 203

PHILIPS INFO CENTER

Alexanderstrasse 1 20099 Hamburg

GERMANY

Tel: 0180-53 56 767

SERVICE CONSOMMATEURS PHILIPS

BP 0101 75622 Paris Cédex 13

FRANCE

Phone: 0825-889 789

PHILIPS ELECTRONICS IRELAND LIMITED

Consumer Information Centre Newstead, Clonskeagh

DUBLIN 14

Phone: 01-7640292

PHILIPS CONSUMER ELECTRONICS

Servizio Consumatori Via Casati 23 20052 Monza - Milano

ITALY

Phone: 800 820026

PHILIPS MAGYARORSZÁG KFT.

Fehérvári út 84. Budapest 1119

HUNGARY

Phone: (01)-382-1700

PHILIPS PORTUGUESA, S.A.

Consumer Information Centre Rua Dr. António Loureiro Borge, nr. 5 Arquiparque, Miraflores P-2795 L-A-VEHLA

PORTUGAL

Phone: 021-4163063

PHILIPS CE, The Philips Centre,

420 - 430 London Road, Croydon, Surrey CR9 3 QR

UNITED KINGDOM

Phone: 0208-665-6350

PHILIPS KUNDECENTER

Frederikskaj 6, DK-1780 Copenhagen V

DENMARK

Tlf: 8088 2814

PHILIPS REPRESENTATION OFFICE

Ul. Usacheva 35a 119048 MOSCOW

RUSSIA

Phone: 095-937 9300

PHILIPS INFO CENTER

Fegistrasse 5 8957 Spreitenbach

SUISSE

Tel.: 0844-800 544

PHILIPS CUSTOMER CARE CENTER

Twee Stationsstraat 80/ 80 Rue des Deux Gares 1070 BRUSSEL/BRUXELLES

BELGIUM (for BENELUX)

Tel: 070-222303

PHILIPS CONSUMENTENLIJN

t.a.v. betreffende afdeling Postbus 102 5600 AC Eindhoven

NETHERLANDS

Phone: 0900-8406
