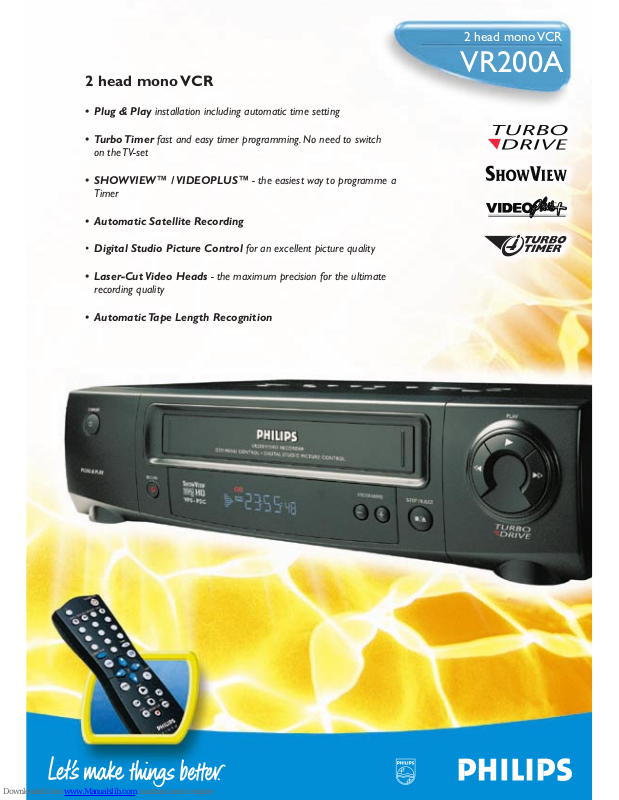

Philips VR200A, VR200A/02, VR200A/07, VR200A/39, VR200A/58 User Manual
2 head mono VCR
• Plug & Play installation including automatic time setting
• Turbo Timer fast and easy timer programming. No need to switch
on the TV-set
• SHOWVIEW™ / VIDEOPLUS™ - the easiest way to programme a
Timer
• Automatic Satellite Recording
• Digital Studio Picture Control for an excellent picture quality
• Laser-Cut Video Heads - the maximum precision for the ultimate
recording quality
• Automatic Tape Length Recognition
2 head mono VCR
VR200A
2 head mono VCR
VR200A
Product Highlights
• Plug & Play
Let the VCR guide you through the installation steps and within
short your videorecorder will be installed without the need of the
user manual. Installing a VCR has never been easier!
• Automatic Time download
The Teletext contains an extremely precise time information.Your
videorecorder knows that and during the installation, it
automatically reads out this precious information.You can then
use your VCR as the clock reference in your home, as the time is
readjusted every day.You even don't have to worry about
changing from summer to winter time!
• Automatic Satellite Recording
All you need to do is connect your Satellite Tuner to SC ART 2
and programme what you want to record on your VCR.When
time has come, the Satellite Tuner wakes the VCR up and starts
the recording.
• Direct Record
Record instantly what you see on your TV just by pressing the
Record button.You don't need to select the right channel: the
VCR will do it by itself.
• Digital Studio Picture Control
Thanks to a digitally controlled Noise-Reduction Circuit, you are
sure to obtain the best picture quality with any kind of tape.
• TURBO DRIVE
Enjoy the ease of use and the comfort of one of the fastest VCR
decks in the world.
• Automatic Head Cleaning
Clean heads ensure an optimum picture quality. Each time you
put a tape in your VCR, the heads will be cleaned automatically.
Product Information
Reception - Installation
• Tuner: Full Tuner (UHF + VHF + Hyperband)
• Tuning: PLL, CH entry, 99 presets
• Time Date/Download: PDC (Time/Date),Text ( Time)
• Sound Systems:Mono
User Interface
• OSD Menu Languages:Czech, Danish, Dutch, English, Finnish, French,
German, Hungarian, Italian, Norwegian, Polish, Portugese, Russian, Cyrillic,
Slovak, Spanish, Swedish
• Special Features: Auto Standby On/Off, Child Lock, Display On/Off
• Picture Improvement System: Digital Studio Picture Control
• Audio Recording System: Linear
• Audio Recording Level: Automatic
Remote Control Unit
• Remote Control - code: TV-RC5,VCR1-RC5
Connectors Rear
• EXT1: Black, Euro CVBS in/out
• EXT2: Black, Euro Decoder, RGB loop through
• Terrestrial Antenna In & Out: 75 Ohms (IECtype)
• Mains Connector: Standard (IECtype)
Tape Deck
• Number of Video / FM Audio / Flying Erase Heads: 2 / 0 / 0
• Play: +1, -1, Repeat
• Playback Features:Standard Still, Multiple Search Speed
• Index Search Related Functions: Blank Tape Search, Next/Previous
index search
• Head Cleaning Mode: Automatic
• Tape Length Recognition: Automatic
• Tape Counter: Linear Relative (h.m.s),Time left (h.m)
• Wind / Rewind Time (E180): 100 sec.
• Automatic Functions at Tape End: Rewind after Play -
Eject after Record
Programming
• Number of Events: 6/month
• Programming Mode: OTR, Remote
• Record Control & Transmitter Identification: PDC,VPS
• Special Timer Programming: Turbo Timer
• Automatic SAT. Recording: SCART 2
• Record Speed: Standard Play
General
• Voltage / Frequency: 198-264 V / 50Hz
• Backup Presets: 1yr
• Backup Clock, Calendar, Timer: 3 hrs
• Power Cons. in Play / Std-By / Low
Power Std By: 12.5 / 4.4W/ <4W
• Weight incl. / excl. package in kg: 5,5/ 3,6
• Set Size - W x D x H (mm): 380 x 260 x 93
• Packaging - W x D x H (mm): 450 x 382 x 180
• Equipment Supplied: Aerial Cable, Mains cord, Batteries
Tuning/Install Features
TV Systems Off Air
Modulator
Modulator Features
Frequency Adj. Range
Preadj. modulation frequency
OSD Menu Languages
TV Related Functions
Remote Control - type number
Programming System
Record /Playback Standard
Additional Playback Standard
Record Speed
Record Speed Selection
/02
Auto Tuning, Manual Store,
Plug & Play,Welcome Screen
PAL B/G
Pal G
Electr. On/Off switch, Manual
Frequency Adjustment
Ch 21 - Ch 55
591,25 MHz ( Ch 36)
Czech, Danish,Dutch, English,
Finnish, French, German,
Hungarian, Italian,Norwegian,
Polish, Portuguese, Russian
Cyrillic, Slovak,Spanish, Swedish
---
RT112/102
Daily/Weekly, Showview
PAL
BLACK & WHITE
Standard Play
---
/07
Auto Install, Manual Store,
Plug & Play,Welcome Screen
PAL 1
Pal 1
Auto Seek, Electr. On/Off
switch, Manual Frequency
Adjustment
Ch 21 - Ch 55
583,25 MHz ( Ch 35)
English
---
RT112/101
Daily/Weekly,VideoPlus+
PAL
BLACK & WHITE
Long Play
Standard Play
per Set
/39
Auto Tuning, Manual Store,
Plug & Play,Welcome Screen
PAL B/G, PAL 1, SECAM B/G,
SECAM L/L1
Splitter
---
---
---
Czech, Danish,Dutch, English,
Finnish, French, German,
Hungarian, Italian,Norwegian,
Polish, Portuguese, Russian
Cyrillic, Slovak,Spanish, Swedish
Direct Record, Follow TV
RT112/104
Daily/Weekly, Showview
MESECAM, PAL, SECAM
BLACK & WHITE, NTSC
Playback on PAL TV
Standard Play
---
/58
Auto Tuning, Manual Store,
Plug & Play,Welcome Screen
PAL B/G, PAL D/K, SECAM
B/G, SECAM D/K
Pal GK (swithable)
Electr. On/Off switch, Manual
Frequency Adjustment
Ch 21 - Ch 55
591,25 MHz ( Ch 36)
Czech, Danish,Dutch, English,
Finnish, French, German,
Hungarian, Italian,Norwegian,
Polish, Portuguese, Russian
Cyrillic, Slovak,Spanish, Swedish
Direct Record, Follow TV
RT112/101
Daily/Weekly, Showview
MESECAM, PAL
BLACK & WHITE, NTSC
Playback on PAL TV
Standard Play
---
Subject to modification without notice
ShowView and VideoPlus are Trademarks of Gemstar Development Group
