User manual

Charge the handset(s) for 24 hours

before use !

Welcome mode

Before using your CD 135, you need to configure it according to the country of use. Install the batteries. After a few minutes of charge, the Welcome screen appears.

1. Press .

2. Browse through the different countries.

3. Press to confirm the country that suits you.

Your phone is ready to be used.

If you need to re-configurate your CD 135, see page 33.

Note: If BACK is pressed, the handset will show the country selection screen again.

Welcome mode ...................................................2

Contents ..............................................................3

Important information .......................................4

What’s in the box ................................................5

Handset and base station ...................................6

Icons on the handset display ..............................9

Installing the base station .................................10

Using GAP standard compliance ....................11

Installing the batteries ......................................11

Menu structure ..................................................13

Handset power OFF and ON ...........................14

Keypad lock / unlock .........................................14

Text or number entry ......................................14

Call ......................................................................15

Redial list ............................................................17

Phonebook .........................................................19

Call log ...............................................................22

Using the Intercom ...........................................24

Other functions .................................................25

Paging ...........................................................................25

Chain Dialing ..............................................................25

Clock and Alarm Settings .......................................25

Personal settings ...............................................26

To set the handset ringer volume

or silence mode (Ringer OFF) ...............................26

To select the handset ring melody .......................27

To activate / deactivate the key tone ..................27

To rename the handset ...........................................27

To activate / deactivate the auto answer mode 28

To change the display language .............................28

Advanced settings .............................................28

To change the recall time .......................................28

To change the dial mode ........................................29

Local area code setting ............................................29

To set or change Call Barring ................................29

To activate / deactivate Call Barring ....................30

To set or deactivate the prefix number ..............30

To set or change an SOS number ........................31

To register a handset ...............................................31

To unregister a handset ..........................................32

To change the PIN code .........................................32

To reset to default settings (base station

and handset) ...............................................................32

Country selection .....................................................33

Default settings (after Reset Unit) ........................33

Answer machine ................................................34

Troubleshooting ................................................41

Information ........................................................43

Important information

For your safety

Before installing your CD 135, carefully read the following informations:

Power requirements

> This product requires an electrical supply of 220-240 volts, alternating monophased

power, excluding IT installations defined in standard EN 60950. In case of power failure, the communication can be lost.

Warning ! The electrical network is classified as hazardous according to criteria in the standard EN 60950. The only way to power down this product is to unplug the power supply unit from the electrical outlet. Ensure the electrical outlet is located close to the apparatus and is always easily accessible.

Telephone connection

Always use the line cable provided with the product otherwise you may not have a dialling tone.

If you have a broadband DSL Internet connection, please make sure you have one DSL filter plugged directly on each line socket used in the house and check the modem and the phone are plugged in the correct filter slot (one specific for each).

Need help ?

More troubleshooting and FAQ’s :

Online help: www.p4c.philips.com

Troubleshooting : page 41 and page 42

One CD 135 base

station

What’s in the box

One CD 135 handset

2 NiMh AAA

550 mAh rechar-

geable batteries

A power supply unit

A line cord*

One belt clip

(Country dependent)

User manual

*Note : You may find in the box the line adaptor delivered separately from the line cable. In this case, please connect the line adaptor to the line cable

before connecting it to the line socket.

Note : In CD 135 multi handset packs, you will also find one or more additional

handsets, chargers with power supply units and additional rechargeable batteries.

Guarantee Quick Start Guide

Handset and base station

CD 135 Handset

1 Earpiece 2Display

Icons see page 9

3 Menu key & Softkey OK

- In idle mode, short press to access the main menu.

- Short press to select next menu level.

- In Edit & Phonebook mode, short press

to confirm OK.

- In Call log or Redial list to save the selected record in the phonebook.

4 Redial list, mute key & Softkey Back

- In idle mode, short press to access the Redial list.

- In talk mode, to mute/ unmute the handset microphone.

- In edit mode, to cancel last digit.

- In phonebook mode, to view number and name.

- In Call log to switch from name/number to time/date.

5 Navigation keys

- Scroll up/down to move to the next or previous record in the Call log, Redial list or Phonebook.

- Scroll up to access the Call log from idle mode.

- Scroll down to access the Phonebook from idle mode.

6 Hang-up key

- A short press to hang-up the line or to exit (return to idle mode).

- A long press to power off the handset.

- To exit Edit & Phonebook mode, Redial list & Call log.

7 Ringer ON/OFF & Insert #

- Short press to insert #.

- Long press to insert a pause (P) when dialling.

- Long press to turn the ringer ON/OFF.

8 Intercom

- Short press to initiate an internal call.

Handset and base station

9 Recall key / Play new message(s) received on answer machine

- In idle mode, long press to switch from handset name display to Date/Time display.

- To insert R for operator services when on line.

- In idle mode, short press to play new message(s) received on answer machine.

10 Microphone

11 Keypad lock & insert

- Short press to insert

- Long press to lock/unlock the keypad in idle mode.

12 Pick-up key

- In idle mode, press to take the line and answer a call.

- In Phonebook mode, Redial list and Call log press to dial the selected number.

- Handset loudspeaker* ON/OFF (press 2 times to activate the handsfree mode).

*Warning ! Handsfree activation could suddenly increase the volume in the loudspeaker to a very high level. Make sure the handset is not too close to your ear.

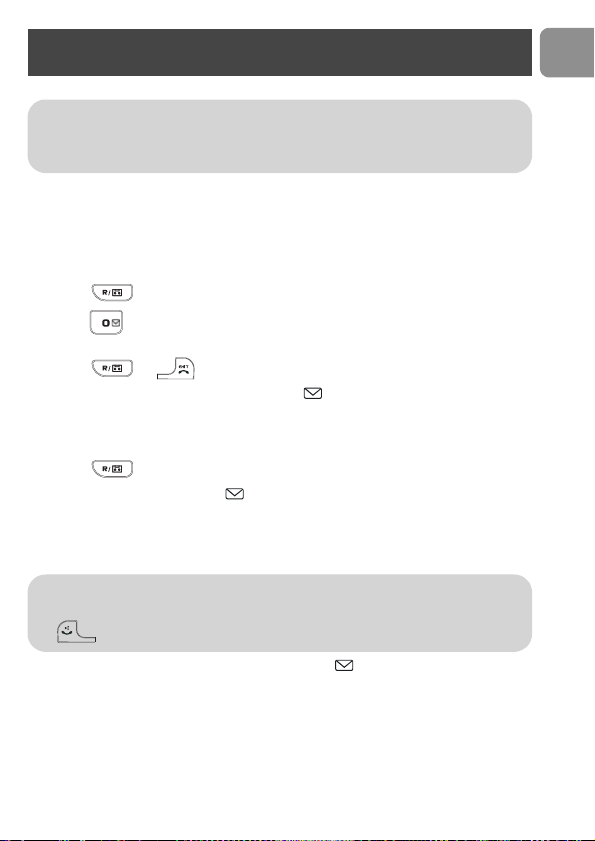

Answer machine functions

KEYS FUNCTIONS

Play new message(s) / Activate or deactivate answer machine mode. Always press this key before using one of the

following answer machine functions :

Go back to the previous message.

Play all recorded messages (new and old) or play the current message again.

Skip forward to the next message.

Long press to record a new outgoing message after the beep.

Play the current outgoing message.

Delete the current message.

Turn ON the answer machine.

Stop message playback or stop outgoing message recording.

Turn OFF the answer machine.

Record a memo via the handset after the beep. Count as a new message after recording.

Handset and base station

CD 135 base station

1 Answer machine indicator

- LED ON : Answer machine activated.

- LED OFF : Answer machine deactivated.

- LED blinking : New message(s) or memo on answer machine.

- LED blinking fast : The answer machine memory is full.

2 Paging key

The paging key enables you to locate a missing handset if the handset is in range and has charged batteries. Press the key until the handset starts to ring. Once retrieved, press paging key again to end paging.

Icons on the handset display

The display gives information about the operation of your telephone. Following icons can be shown in the headline of the display:

When being used for the first time, it is sometimes necessary to wait until the battery is sufficiently charged before the icons appear on the display.

When ON the battery is fully charged. When blinking, this symbol indicates that the battery needs to be charged.

An external call is in progress. When blinking, this symbol indicates that there is an internal call in progress or that the line is already busy.

New message(s) on your voice mailbox. When blinking, this symbol indicates that there is one or more new message(s) on the answer machine.

New Call log records or Call log records are being reviewed.

Phonebook is accessed.

The alarm clock is activated.

The handset loudspeaker is activated.

The ringtone is deactivated.

The handset is registered and in range of the base. When blinking, this symbol indicates that the handset is not registered to the base or out of range.

Turn ON when entering Menu mode. In Phonebook mode to enter next menu level.

Turn ON when entering Menu mode. In Phonebook mode to return to higher menu level. In editing mode to delete the last digit/character entered.

Indicates further options are available.

Installing the base station

Place your product close enough to the telephone and mains power sockets so that the cables will reach. To properly install the base station, plug the line cord and the power cable into the base station. Plug the cord and the cable into the wall. If you have a broadband DSL Internet connection, please make sure you have one DSL filter plugged directly on each line socket used in the house and check the modem and the phone are plugged in the correct filter slot (one specific for each).

Warning ! The electrical network is classified as hazardous according to criteria in the standard EN 60-950. The only way to power down this product is to unplug the power supply from the electrical outlet. Ensure the electrical outlet is located close to the apparatus and is always easily accessible.

Please take care that the power supply and telephone line are connected to the correct sockets as incorrect placement could damage your equipment.

Warning ! Always use the line cable provided with the product otherwise you may not have a dialling tone.

1 Connect the telephone line cord delivered with the

product.

2 Connect the power supply.

Installing the batteries

Installing and replacing the batteries in the handset

To insert the batteries, open the battery cover, place the batteries as indicated and then replace the battery cover. When the battery icon is blinking, charge is needed. Allow 24 hours for the batteries to fully charge. On first use it may be necessary to wait for a few minutes before seeing symbols on the display.

Warning : the base station must always be plugged into the mains when charging or when in use. Always use rechargeable batteries.

The warranty does not apply to the batteries and any other components which have a limited lifetime or are exposed to wear.

Warning ! Always use the line cable provided with the product otherwise you may not have a dialling tone.

Batteries should not be disposed of with general household waste.

Battery life and range

Optimal battery life is reached after 3 cycles of complete charging & discharging. When reaching the range limit and the conversation becomes crackly, move closer to the base. To reach optimal range, place the base station away from electrical appliances.

Battery life in talk

time

up to 12 hours up to 150 hours up to 50 metres up to 300 metres

Battery life in

standby mode

Indoor range Outdoor range

Using GAP standard compliance

The GAP standard guarantees that all DECT with a minimum operating standard irrespective of their make. Your CD 135 handset and base station are GAP compliant, which means the minimum guaranteed functions are : register a handset, take the line, receive a call and dial. The advanced features may not be available if you use another handset than a CD 135 with your base station. To register and use your CD 135 handset with a GAP standard base station of a different make, first follow the procedure described in the manufacturer’s instructions, then follow the procedure described on page 31.

GAP handsets and base stations comply

To register a handset of another make to the CD135 base station, place the base station into registration mode (page 31), then follow the procedure in the manufacturer’s instructions.

DECT DECT technology.

Using GAP standard compliance

is a Trade Mark of ETSI registered for the benefit of the implementers of the

Using the menus

From idle mode, press to enter the menu. Use the

Navigation keys to go up or down in the menu list.

Press Softkey OK to confirm the selection.

OK BACK

Press Softkey BACK to exit the menu or to go back to the previous menu level.

Menu structure

PHONEBOOK

CLOCK/ALARM

PERSONAL SET

ADVANCE SET

ANS MACHINE

ADD NUMBER

EDIT NUMBER

DEL.NUMBER

DELETE LIST

DATE & TIME

SET ALARM

ALARM TONE

HANDSET TONE

HANDSET NAME

AUTO ANSWER

LANGUAGE

RECALL TIME

DIAL MODE

AREA CODE

CALL BARRING

PREFIX

SOS NUMBER

REGISTRATION

UNREGISTER

RESET UNIT

COUNTRY SEL.

ANSWER ONLY

NB RING

REMOTE

SCREENING

OFF/ON ONCE/ON DAILY

MELODY 1/2/3

RING VOLUME

RING MELODY

KEY TONE

ON/OFF

Language list

SHORT/LONG

TONE/PULSE

BARR MODE

BARR NUMBER

NUMBER 1/2/3

DEACTIVATED / ACTIVATED

5 / 7 / 3

DEACTIVATED / ACTIVATED

ON / OFF

HIGH/MEDIUM/LOW/ RINGER OFF

MELODY 1 - 10

ON/OFF

ON/OFF NUMBER 1/2/3/4

You can enter the names of your phonebook entries character by character, pressing the corresponding key as many times as necessary to reach the desired character.

Press under the label to delete a character.

Example to write “Peter”

Press once : P

Press twice : PE

Press once : PET

Press twice : PETE

Press three times : PETER

Text or number entry

Keypad Keys

1 [space] 1 _ < > * 2 A B C 2 3 D E F 3 4 G H I 4 5 J K L 5 6 M N O 6 7 P Q R S 7 8 T U V 8 ? 9 W X Y Z 9 0 0 - / \ # +

Multi-tap Sequence

Handset power OFF and ON

To power the handset OFF or ON long press the key.

Keypad lock / unlock

Long press the key to lock/unlock the keypad in idle mode.

KEYS LOCKED is displayed on the screen.

+ 32 hidden pages
