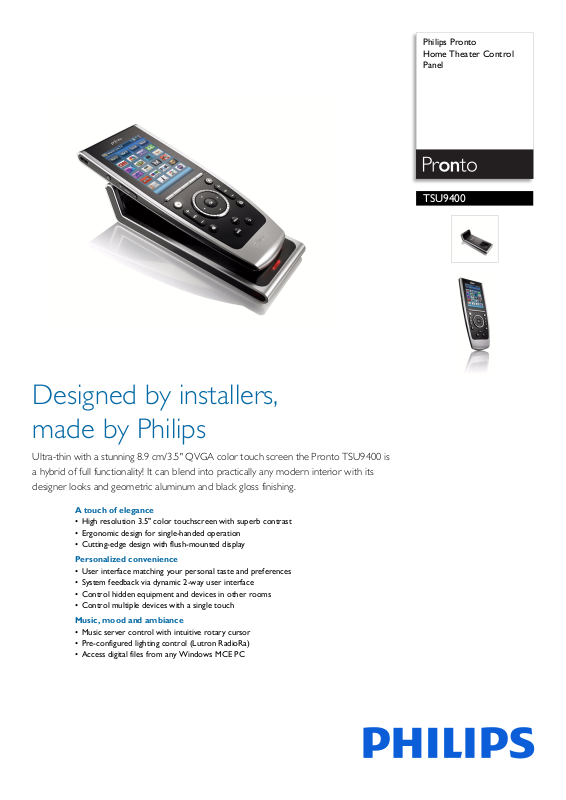

Page 1
Philips Pronto
Home Theater Control
Panel
TSU9400
Designed by installers,
made by Philips
Ultra-thin with a stunning 8.9 cm/3.5" QVGA color touch screen the Pronto TSU9400 is
a hybrid of full functionality! It can blend into practically any modern interior with its
designer looks and geometric aluminum and black gloss finishing.
A touch of elegance
• High resolution 3.5" color touchscreen with superb contrast
• Ergonomic design for single-handed operation
• Cutting-edge design with flush-mounted display
Personalized convenience
• User interface matching your personal taste and preferences
• System feedback via dynamic 2-way user interface
• Control hidden equipment and devices in other rooms
• Control multiple devices with a single touch
Music, mood and ambiance
• Music server control with intuitive rotary cursor
• Pre-configured lighting control (Lutron RadioRa)
• Access digital files from any Windows MCE PC
Page 2
Home Theater Control Panel
TSU9400/05
Specifications
Picture/Display
• Diagonal screen size (inch): 3.5 inch
• Display colors: 65,536
• Resolution: 320 x 240 pixels
• Display backlight: White
• Display screen type: LCD TFT
• Touch panel
Connectivity
• Connector: Mini USB
• Built-in wireless technology: 802.11g
• Power: 100-240V, 50/60Hz
• Encryption / security: WEP 128 bit, WEP 64 bit
• Network mode: DHCP, Fixed IP
• USB: USB 2.0
Convenience
• Automatic power off
• Multi language: English, Spanish, F
Dutch
• Clock with calendar
• Cradle/ docking station
•Cursor key
•Pick up sensor
• Rotary wheel
• Soft touch back for extra grip
Accessories
•AC/DC Adaptor
•CD-ROM
•Docking Station
• Printed User Guide
• Warranty Card: No
•USB cable
System Requirements
• Hard disk space: 250 MB free
•CD-ROM drive
• PC OS: Windows 2000, XP, Vista
• RAM memory: 256 MB free
• USB: Free USB port
Dimensions
• Box dimensions (W x H x D): 352 x 85 x 207 mm
• Master carton quantity: 1
• Master carton weight: 1.360 kg
• Product dimensions (WxDxH): 157x100x34 mm
• Product weight: 0.285 kg
Power
• Battery capacity: 1700 mAh
• Charging time: Up to 3 hr
rench, German,
•Battery Type: LI-Polymer
• On/Off switch
Customization
• On screen customization
• Full screen configurability
• Alpha-blending
• Macros: Up to 250 steps
• Database: Configurable personal database, Model
mber based database
nu
System Specifications
• CPU: Freescale 32 bit RISC
• CPU speed: 266 MHz
• Ram size: 64 MB
Infrared Capabilities
• Operating distance: 36 ft (12 m)
• Learning IR codes
• Learning frequency range: 25 kHz - 1 MHz
• Transmitting LEDs: 5
• Universal IR code database
• Number of brands in database: Over 3000
RF Capabilities
• Frequency (GHz): 2.4
• WiFi based
Outer Carton
• Gross weight: 1.169 kg
•Outer carton (L x W x H): 35.5 x 21.6 x 10 cm
• Nett weight: 0.379
• Tare weight: 0.79 kg
• EAN: 87 12581 32849 8
• Number of consumer packagings: 1
kg
Packaging dimensions
• Packaging dimensions (W x H x D):
34.5 x 20.7 x 8.5 cm
• Gross weight: 1.169 kg
• Nett weight: 0.379 kg
• Tare weight: 0.79 kg
• EAN: 87 12581 32849 8
• Number of products included: 1
• Packaging type: Carton
• Type of shelf placement: Laying
Product dimensions
• Product dimensions (W x H x D):
8.4 x 20 x 2.5 cm
• Weight: 0.379 kg
•
Highlights
Customizable UI
User interface can be created to fully incorporate
the end user's personal taste and preferences. So,
only the devices and buttons that are used most, will
be visible on the touchscreen. Also, the graphical
design (backgrounds, icons, buttons, colors used)
can be chosen by the user.
ProntoScript
ProntoScript, a JavaScript based software tool,
enables installers to create a dynamic 2-way user
interface for system control over RS232 or IP with
full graphical flexibility. The tool is incorporated in
the ProntoEdit Professional software. Ready-made
ProntoScript modules with Pronto partners are
available via the website. For typical installations, you
may opt to use standard installation reference files
and simply re-assign the various components. More
advanced JavaScript programmers will be able to
create their own ProntoScript modules for complete
system operation and feedback.
Flush-mounted display
Flush-mounted display means that the screen is not
recessed anymore, but instead flows smoothly with
the casing.
Extended control
A range of extenders is available, both wired and
wireless versions, that extend the range of
transmission of the remote control. This enables the
user to control equipment hidden in cabinets or in
other rooms with one and the same control unit.
One-touch convenience
One-touch control allows you to perform multiple
commands with one press of a button via a macro. A
macro combines a string of pre-programmed
commands under one single button. Therefore, it
simply takes one button press to execute a series of
functions.
Music server control
Out-of-the-box, a user can control his music server
e.g. Escient Fireball. The user interface of the music
server is built into the remote control. It facilitates
listening to music without being in view of a TV,
which is normalIy required to display a music
server's user interface. This, in combination with an
ergonomic thumb wheel on the remote, simplifies
selecting tracks and playlists, & also frees up the TV
screen for other activities.
Issue date 2014-02-10
Version: 3.4.13
12 NC: 8670 000 28833
EAN: 87 12581 32849 8
Lighting control
Pre-configured lighting control includes a full onscreen user interface for controlling lighting scenes,
moods and individual dimmers. With on-screen
feedback from lighting throughout the house, the
end user knows if the light is actually on or off.
MCE PC functionality
Through 3rd party software, the Pronto control
panel can incorporated Windows MCE PC
functionality. This means you are able to access any
digital files from your MCE PC via the control panel.
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
