Philips TS2779C1 User Manual

TABLE OF CONTENTS

Getting Started

Warning/Precautions........................................1

Basic Television Hookups...............................1

Basic Television and Remote Operation.......................2

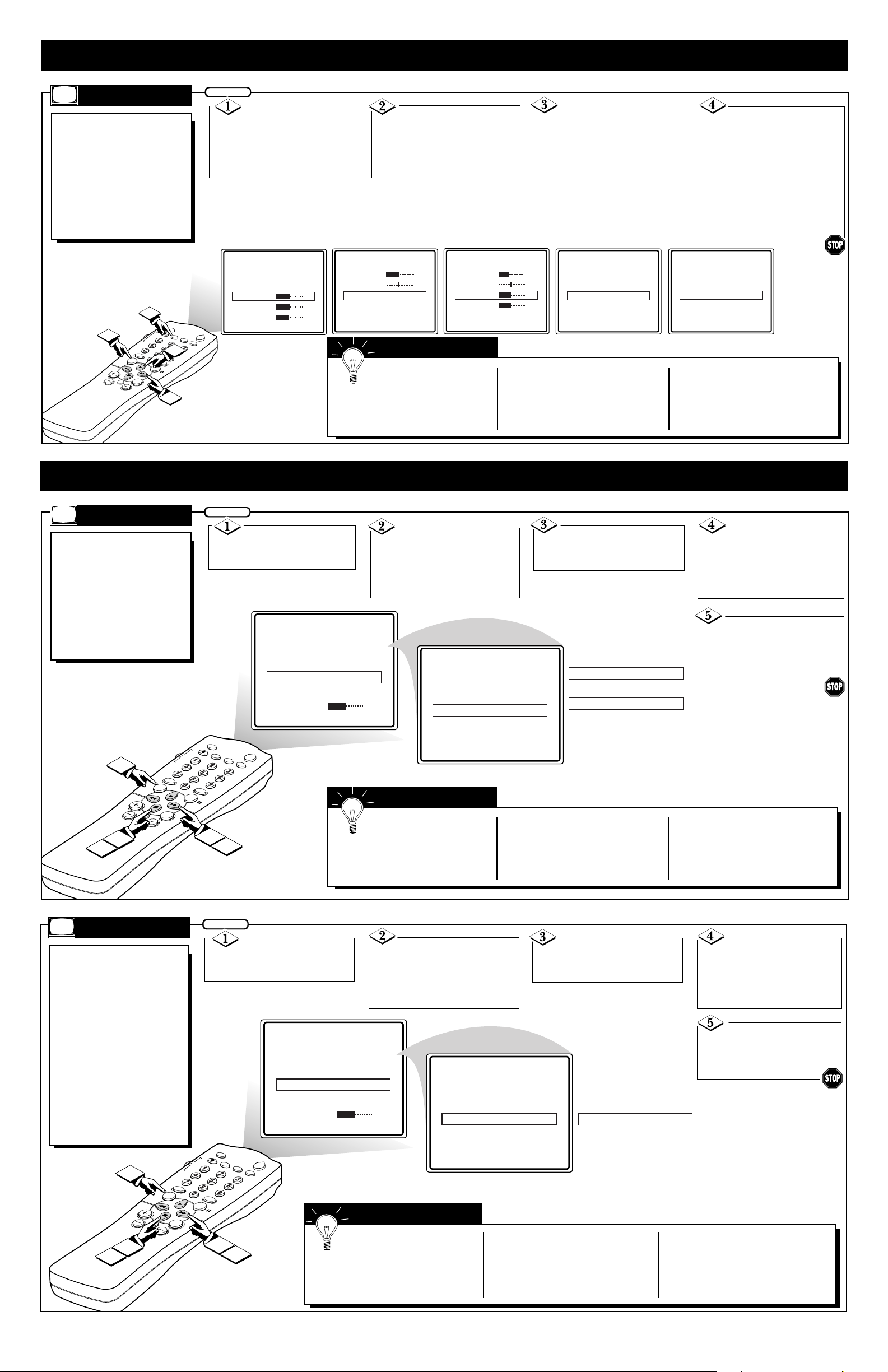

How to Use the Onscreen Menu Controls....................3

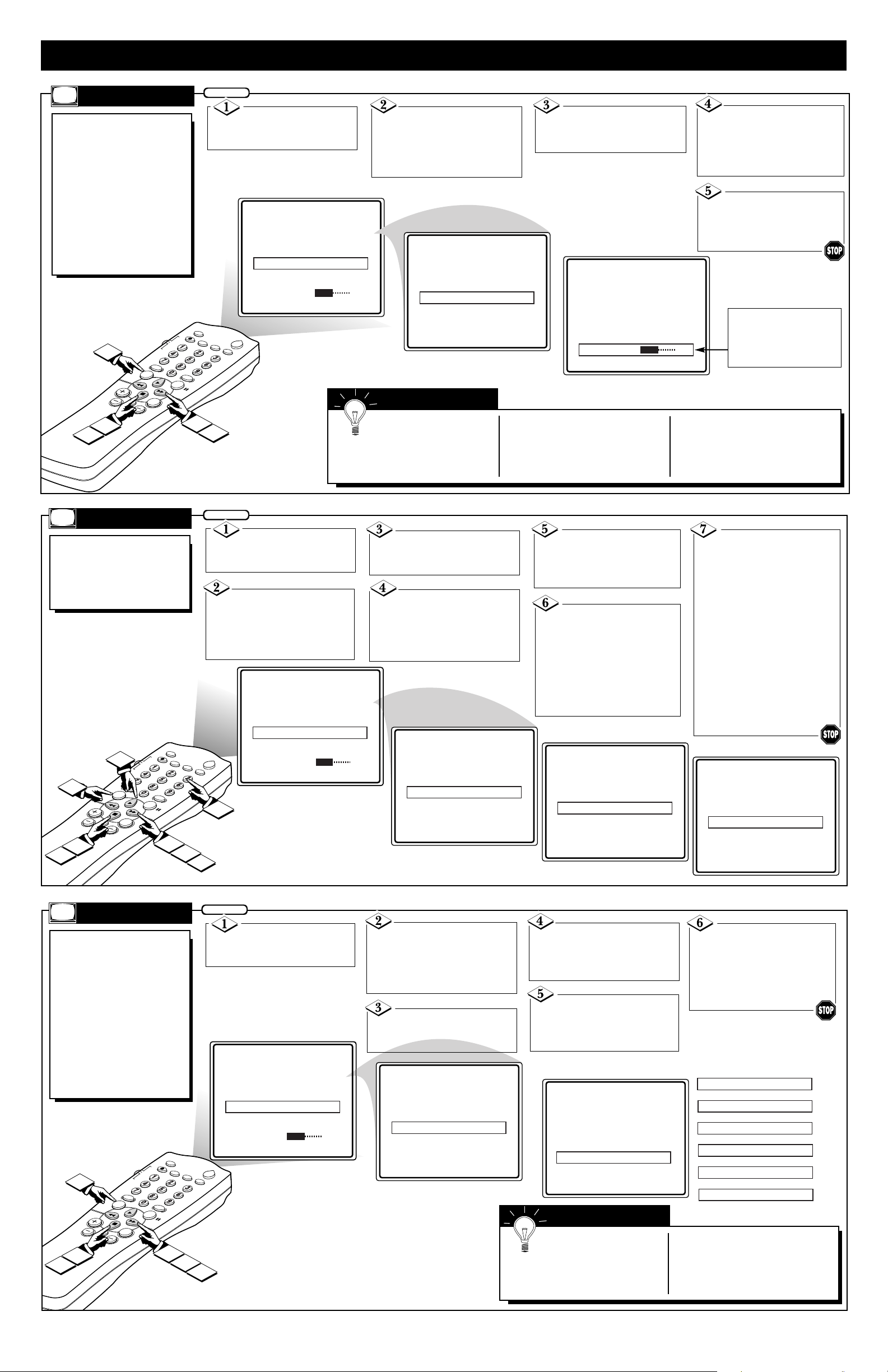

Setting Up Your Television for the First Time ..........3-4

• For details on product registration, warranty, and ser-

vice refer to the other literature (Owner’s Manual)
included with your TV information packet.

Please retain all these materials and keep them handy
for future reference.

WARNING: TO PREVENT FIRE OR SHOCK HAZ­ARD DO NOT EXPOSE THIS UNIT TO RAIN OR
EXCESSIVE MOISTURE.

NOTE: This owner's manual is used with several
different television models. Not all features (and
drawings) discussed in this manual will necessar­ily match those found with your television set.
This is normal and does not require you contact­ing your dealer or requesting service.

3121 233 40031

Quick Use and Setup Guide

Color Television

TS2779C1

HOOKING UP YOUR TV (BASIC ANTENNA/CABLE TV CONNECTIONS)

Y

our Cable TV input into

your home may be a
single (75 ohm) cable, or a
Converter Box installation.
In either case the connec­tion to the TV is very easy.
Just put the threaded end
of the cable signal to the
TV's antenna plug and
screw it down tight.

CABLE TV

CABLE INPUT/CONVERTER

T

he basic Antenna, or

Cable TV, to VCR to
TV connection is shown to
the right. For more infor­mation on other hookups
(possible when Cable
Converter/Descrambler
boxes are included) refer to
your accessory VCR and
Cable Converter Owner's
Manual for details.

TV TO VCR

BASIC CONNECTION

If your Cable TV signal

is a single round cable (75

ohm) then you're ready to con­nect to the TV.

If you have a Cable
Converter Box:

Connect the Cable TV signal to
the Cable Signal IN(put) plug
on the Converter.

Connect the Cable TV cable to the

ANTENNA/CABLE plug on the TV.

If you have a Cable Converter Box:

Connect the OUT(put) plug from the
Converter to the 75Ω plug on the TV.

Connect your
Antenna or Cable TV signal
to the IN FROM ANT(enna)

plug on the VCR.

Connect the OUT TO

TV plug on the VCR to the
75Ω plug on the TV (connect-

ing cable supplied with the
VCR.)

Back of TV

Round Cable

75Ω Ohm

Cable TV Converter

Box Connection

Cable TV Company

Remember:
Set the TV for the
type signal you've
just connected (see
the “Tuner” section
on page 3 of this
Set-Up Guide.)

To select only the
channel numbers on
your Cable system
see “Auto Program"
(page 4). If you use a
Cable Converter box,
set the TV to the
same channel as the
converter's CH 3/4
switch (on the rear of
the converter.)

SMART

HELP

Cable TV Signal Input

Round Cable

75Ω Supplied with VCR

Outdoor

VHF/UHF

Antenna

300 to 75Ω

Ohm Adapter

Cable TV signal

Back of TV

Refer to the Owner's

Manual included with your

VCR for other possible con­nections and TV/VCR operat­ing details.

OR

NOTE: The connecting cable
for the Converter is supplied
from the Cable TV Company.

VCR

A

combination antenna

receives normal broad­cast channels (VHF 2-13
and UHF 14-69). Your
connection is easy since
there is only one 75Ω
(ohm) antenna plug on the
back of your TV - and
that’s where the antenna
goes.

ANTENNA

COMBINATION UHF/VHF

Remember,
be sure to set the TV
for the type signal
you've connected
(see the “Tuner”
section on page 3 of
this Set-Up Guide.)

To set the TV to
select only the chan­nel numbers in your
area see how to
“Program" or "Add"
channels in memory
on page 4 (Auto
Program section).

To order any option­al accessory contact
your dealer or call
the toll-free accesso­ry ordering number

(1-800-851-8885).

SMART

HELP

If your antenna has a

round cable (75 ohm) on the end,

then you're ready to connect it to
the TV.

If your antenna has flat twin-lead
wire (300 ohm), you first need to

attach the antenna wires to the
screws on a 300 to 75 ohm adapter.

Push the round end of the

adapter (or antenna) onto the
75Ω plug on the rear of the TV.
If the round end of the antenna
wire is threaded, screw it down
tight.

300 to 75Ω

Adapter

Combination VHF/UHF

Antenna

(Outdoor or Indoor)

Twin Lead

Wire

Round Cable

75Ω

Back of TV

OR

Note: For homes with separate UHF and VHF
antennas you will need an optional combiner
to connect to the TV.

75Ω

L
AUDIO
R

outin-2in-1

VIDEO

S-VIDEO

U/V

Combiner

75-300 Ohm Adapter

Back of TV

12

1

11

2

10

3

9

4

8

5

7

6

BEGIN

IN

75Ω

OUT

1

2

VIDEO

75Ω

L

AUDIO

R

S-VIDEO

outin-2in-1

BEGIN

1

75Ω

2

VIDEO

75Ω

L

AUDIO

R

S-VIDEO

outin-2in-1

BEGIN

OR

IN FROM ANT.

1

OUT TO TV

75Ω

2

VIDEO

75Ω

L

AUDIO

R

S-VIDEO

outin-2in-1

TV AND REMOTE CONTROL OPERATION

TELEVISION

T

o load the supplied bat-

teries into the remote:

1. Remove the battery
compartment lid on the

back of the remote.

2. Place the batteries (2­AA) in the remote. Be

sure the (+) and (-) ends
of the batteries line up
correctly (inside of case is
marked.)

3. Reattach the battery lid.

BATTERY INSTALLATION

Point the remote control toward the

remote sensor window on the TV when
operating the TV with the remote.

Press the POWER

button to turn the TV ON.

Press the VOLUME +
button to increase the sound
level or the VOLUME – but­ton to lower the sound level.

Pressing both buttons at the
same time will display the

onscreen menu. Once in the
menu, use these button to make
adjustments or selections.

Press the CHANNEL UP

▲ or DOWN ▼ button to
select TV channels.

REMOTE

Slide the TV/VCR/ACC

mode switch on the remote

control to the TV position and
point the remote at the front
of the TV when sending com­mands.

The remote's TV/VCR/ACC
Switch controls how buttons

on the remote are used.
For example:

With the switch in the "TV"
position:

the Menu, CURSOR ©,

©©

, §§ and ■ buttons

are used to select and
adjust onscreen TV
features.

With the switch in the
"ACC" position:

the Power, Channel
Number, and Channel
Up (+) /Down (–) buttons
on the remote work with
Cable TV Converters.

With the switch in the
"VCR" position:

the Menu, CURSOR

©,

©©

, §§ and ■ buttons

on the remote work Stop,
Play, and other VCR
features.

Note: For more details on
how the TV remote works
with VCRs and Cable
Converters, see the other
owner's manual supplied with
your TV.

TV/VCR/ACC MODE

SWITCH

POWER

SLEEP

A/CH STATUS/EXIT CC CLOCK

RECORD

TV

VCR

ACC

SMART

SMARTSMART

SOUND


MENU SURF

VOL

CH

MUTE

1

2 3

4

5

6

7

8 9
0

TV/VCR

Power Button

Press to turn the TV (or select VCR/
Cable Converter) ON and OFF.

CC Button

Press to select Closed Caption options
within the menu. (Refer to the Owner’s
Manual for details.)

Clock-TV/VCR Button

When used in the TV mode, the
CLOCK-TV/VCR button will access the
Clock menu options.
Press while in the VCR mode (VCR
indicator on the front of the unit will
light) to view the playback of a tape.
Press again to place in the TV position
(VCR indicator light will go off) to view
one program while recording another
program.

Number Buttons

Press the number buttons to select TV
channels. When selecting single digit
channels, press the number of the desired
channel. The TV will pause for a few
seconds then tune to the selected chan­nel. (Note: you can press "0", then the
number also.) For channels "100" and
above, first press "1" then the next two
numbers of the desired channel.

SmartPicture™ Button

Press to select from a list of
SmartPicture controls. (Factory preset
picture control levels set for different
types of viewing sources and pro­grams.)

Surf Button

Press to select previously viewed chan­nels. You can place up to 8 channels in
memory. Then by pressing the SURF but­ton you can quickly view the select chan­nels. See the “Surf" section (in your other
owner's manual) to see how to select a
series of channels using the Surf button.
When in the VCR mode, pressing this but­ton will pause the playback of a video
tape.

Channel (+), (–) Buttons

Press to change the tuned channel.

Sleep Button

Press to set the TV to automatically turn
itself OFF. Also can be used as an Enter but­ton when sending channel commands to
remote controlled cable converters or VCRs.

Status/Exit Button

Press to see the current channel number on the
TV screen. Also press to clear the TV screen
after control adjustments.

A/CH-Record Button

Press to toggle between the currently viewed
channel and the previously viewed channel.
When in the VCR mode, press to start the
recording of a video tape.

TV/VCR/ACC Mode Switch

Slide to TV position to control TV functions;
VCR to control VCR functions; and ACC for
Cable Converter, DBS, DVD, etc. functions.

SmartSound™ Button

Press to select from a list of SmartSound
controls. (Factory preset sound control levels
set for different types of listening, based on
the type of programming being used.)

Menu Button

Press for the onscreen menu to appear.
Pressing the menu button after menu selec­tions are made will eliminate the menu from
the display.

Cursor Buttons

Use these buttons to select and adjust the
TV's onscreen menu. Also used with a VCR
for PLAY, FAST FORWARD, REWIND, and
STOP.

Volume (+), (–) Buttons

Press to adjust the TV sound level.

Mute Button

Press to turn the sound OFF on the TV. Press
again to return the sound to its previous level.

SMART HELP

Remember, You can

press any button on the
front of the TV to turn the TV
ON.

The tuned channel number will
always briefly appear when the
TV is first turned ON (and with
channel changes.)

You can also press the STA­TUS/EXIT button (on the
remote) to see what channel the
TV is ON.

2

6

POWER

BEGIN

STEREO

9:30 AM

INSTALL /
MENU

– VOLUME + CHANNEL

Remote Sensor Window

POWER

1

– VOLUME + CHANNEL

POWER

CLOCK

CC

SLEEP

STATUS/EXIT

A/CH

RECIRD

TV

VCR

TV/VCR

ACC

SMART

SOUND

MENU

MENU

SMART


SURF

VOL CH

2

3

3

MUTE

4
