Philips TS2744C User Manual

▲

POWER

▼

MENU

▲

▼

CH

▲

▼

VOL

ON

–

+

TABLE OF CONTENTS

12

1

2

3

4

5

6

7

8

9

10

11

Once your PHILIPS MAGNAVOX purchase is registered, you’re eligible to receive all the privileges of owning a PHILIPS MAGNAVOX product.

So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to ensure you

receive all the benefits you’re entitled to.

Congratulations

on your

purchase,

and welcome to the

“family!”

Dear PHILIPS MAGNAVOX product owner:

Thank you for your confidence in PHILIPS MAGNAVOX. You’ve selected one of the best-built, best-backed products
available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS MAGNAVOX “family,” you’re entitled to protection by one of the most comprehensive warranties and out­standing service networks in the industry.

What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to
accessories from our convenient home shopping network.

And most importantly you can count on our uncompromising commitment to your total satisfaction.
All of this is our way of saying welcome–and thanks for investing in a PHILIPS MAGNAVOX product.

Sincerely,

Robert Minkhorst

President and Chief Executive Officer

Know these

safety

symbols

t This “bolt of lightning” indicates uninsulated material within your unit may cause an electrical shock. For the safety

of everyone in your household, please do not remove product covering.

s The “exclamation point” calls attention to features for which you should read the enclosed literature closely to pre-

vent operating and maintenance problems.
WARNING: TO PREVENTFIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert.
ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante

de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warranty

Verification

Registering your product within 10 days
confirms your right to maximum protection
under the terms and conditions of your
PHILIPS MAGNAVOX warranty.

Owner

Confirmation

Your completed Warranty
Registration Card serves as
verification of ownership in the
event of product theft or loss.

Model

Registration

Returning your Warranty Registration Card
right away guarantees you’ll receive all
the information and special offers which
you qualify for as the owner of your model.

P.S. Remember, to get the most from your PHILIPS MAGNAVOX product, you must return

your Warranty Registration Card within 10 days. So please mail it to us right now!

R

E

G

I

S

T

R

A

T

I

O

N

N

E

E

D

E

D

W

I

T

H

I

N

1

0

D

A

Y

S

Hurry!

COLOR TELEVISION

AND

REMOTE CONTROL

Visit our World Wide Web Site at http://www.philipsmagnavox.com

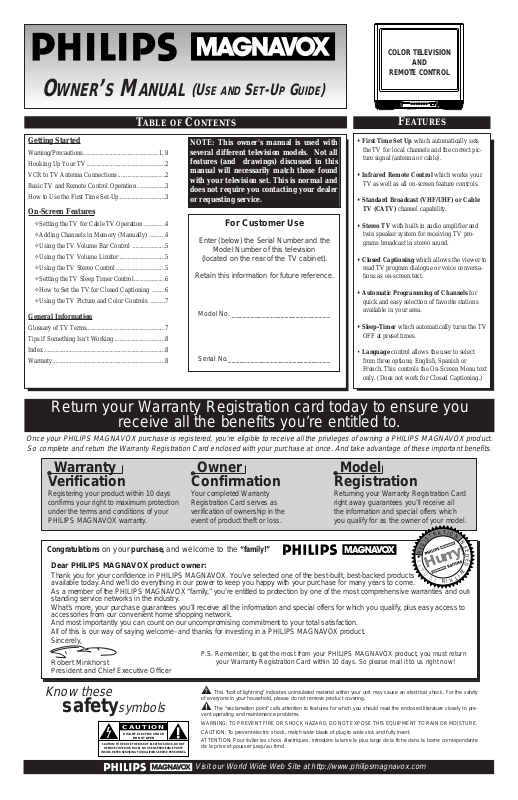

OWNER’S MANUAL

(U

SE ANDSET

-UPG

UIDE

)

FEATURES

• First Time Set Up which automatically sets

the TV for local channels and the correct pic­ture signal (antenna or cable).

• Infrared Remote Control which works your

TV as well as all on-screen feature controls.

• Standard Broadcast (VHF/UHF) or Cable
TV (CATV) channel capability.

• Stereo TV with built-in audio amplifier and

twin speaker system for receiving TV pro­grams broadcast in stereo sound.

• Closed Captioning which allows the viewer to
read TV program dialogue or voice conversa­tions as on-screen text.

• Automatic Programming of Channels for
quick and easy selection of favorite stations
available in your area.

• Sleep-Timer which automatically turns the TV
OFF at preset times.

• Language control allows the user to select
from three options; English, Spanish or
French. This controls the On-Screen Menu text
only. (Does not work for Closed Captioning.)

Getting Started

Warning/Precautions..............................................1, 8

Hooking Up Your TV................................................2

VCR to TV Antenna Connections.............................2

Basic TV and Remote Control Operation .................3

How to Use the First Time Set-Up............................3

On-Screen Features

✧ Setting the TV for Cable TV Operation .............4

✧ Adding Channels in Memory (Manually) ..........4

✧ Using the TV Volume Bar Control ....................5

✧ Using the TV Volume Limiter ............................5

✧ Using the TV Stereo Control..............................5

✧ Setting the TV Sleep Timer Control ...................6

✧ How to Set the TV for Closed Captioning ........6

✧ Using the TV Picture and Color Controls .........7

General Information

Glossary of TV Terms................................................7

Tips if Something Isn’t Working...............................8

Index ..........................................................................8

Warranty.....................................................................8

For Customer Use

Enter (below) the Serial Number and the

Model Number of this television

(located on the rear of the TV cabinet).

Retain this information for future reference.

Model No. __________________________

Serial No.___________________________

NOTE: This owner's manual is used with
several different television models. Not all
features (and drawings) discussed in this
manual will necessarily match those found
with your television set. This is normal and
does not require you contacting your dealer
or requesting service.

1

75V
ANT /

CABLE

2

VHFV

VHF

UHF

300Ω

75-300 Ω ADAPTER

OR

75V
ANT /

CABLE

HOOKING UP YOUR TV (ANTENNA/CABLE TV CONNECTIONS)

A

combination antenna

receives normal
broadcast channels (VHF
2-13 and UHF 14-69).
Your connection is easy
since there is only one
75Ω (ohm) antenna plug
on the back of your TV ­and that’s where the anten­na goes.

ANTENNA

COMBINATION UHF/VHF

Remember,
be sure to set the
TV for the type sig­nal you've connect­ed (see page 3 of
this Set-Up Guide.)

To set the TV to
select only the
channel numbers in
your area see how
to “Program" or
"Add" channels in
memory on page 3.

To order any
optional accessory
contact your dealer
or call the toll-free
accessory ordering
number (1-800-292-

6066):

• UHF/VHF
Combiner:
(SBV1133AO1)

• 75-300 Ohm
Adapter:
(SBV1113AO1)

• 300-75 Ohm
Adapter:
(483521827003)

SMART

HELP

If your antenna has a

round cable (75 ohm) on the

end, then you're ready to con­nect it to the TV.

If your antenna has flat twin­lead wire (300 ohm), you first

need to attach the antenna wires
to the screws on a 300 to 75
ohm adapter.

Push the round end of the

adapter (or antenna) onto the
ANTENNA/CABLE plug on
the rear of the TV. If the round
end of the antenna wire is
threaded, screw it down tight.

S

ome of you may have

two separate antennas.
One antenna is for VHF
channels (2-13) and the
other antenna is for UHF
channels (14-69).

For homes with separate
UHF/VHF antennas, you
will need an optional
"combiner" before you can
connect to the TV. See the
"Smart Help" section (to
the right on this page) for
ordering details.

SEPARATE UHF/VHF

300 to 75Ω

Adapter

(483521827003)

Combination VHF/UHF Antenna

(Outdoor or Indoor)

Twin Lead

Wire

Round Cable

75Ω

Back of TV

Back of TV

U/V Combiner

75-300 Ohm Adapter

Outdoor UHF Antenna

(Twin-lead 300 Ohm)

Outdoor VHF Antenna

(Twin-lead 300 Ohm)

IN

OUT

1

75V
ANT /

CABLE

2

Y

our Cable TV input

into your home may be
a single (75 ohm) cable, or
a Converter Box installa­tion. In either case the
connection to the TV is
very easy. Just put the
threaded end of the cable
signal to the TV's antenna
plug and screw it down
tight.

CABLE TV

CABLE INPUT/CONVERTER

OUT TO TV

IN FROM ANT.

75V
ANT /
CABLE

T

he basic Antenna, or

Cable TV, to VCR to
TV connection is shown to
the right. For more infor­mation on other hookups
(possible when Cable
Converter/Descrambler
boxes are included) refer
to your accessory VCR
and Cable Converter
Owner's Manual for
details.

VCR TO TV

BASIC CONNECTION

Twin Lead

Wire

Round Cable 75Ω

If your Cable TV sig-

nal is a single round cable (75

ohm) then you're ready to con­nect to the TV.

If you have a Cable TV
Converter Box:

Connect the Cable TV signal to
the Cable Signal IN(put) plug
on the Converter.

Connect the Cable TV

cable to the ANTENNA/CABLE
plug on the TV.

If you have a Cable TV
Converter Box:

Connect the OUT(put) plug
from the Converter to the
ANTENNA/CABLE plug on the
TV.

Push the round end of the combiner

onto the ANTENNA/CABLE plug on
the rear of the TV.

Attach the separate

UHF and VHF antennas to

the correct screws on the com­biner.

BEGIN

BEGIN

BEGIN

Round

End

Connect your
Antenna or Cable TV signal
to the IN FROM ANT(enna)

plug on the VCR.

Connect the OUT TO TV
plug on the VCR to the
ANTENNA plug on the TV

(connecting cable supplied
with the VCR.)

Outdoor VHF Antenna
(Round 75 Ohm cable)

Back of TV

Round Cable

75Ω Ohm

Cable TV Converter

Box Connection

Cable TV Company

Remember,
set the TV for the
type signal you've
just connected (see
page 3 of this Set­Up Guide.)

To select only the
channel numbers on
your Cable system
see “Auto Program"
(page 3). If you use
a Cable Converter
box, set the TV to
the same channel as
the converter's CH
3/4 switch (on the
rear of the convert­er.)

SMART

HELP

Cable TV Signal Input

Round Cable

75Ω Supplied with VCR

Outdoor VHF/UHF

Antenna

300 to 75Ω Ohm

Adapter

Cable TV signal

Back of TV

Refer to the Owner's

Manual included with your

VCR for other possible con­nections and TV/VCR operat­ing details.

OR

NOTE: The connecting cable for
the Converter is supplied from
the Cable TV Company.

VCR

2 - IB7759 E001

BEGIN

PRESS +

SETUP

BRIGHTNESS
COLOR
TINT
SHARPNESS

3

12

▲

POWER

▼

MENU

▲

▼

CH

▲

▼

VOL

ON

–

+

▲

POWER

▼

MENU

▲

▼

CH

▲

▼

VOL

–

+

4

HOW TO USE AND SETUP OUR TV FOR THE FIRST TIME

LANGUAGE

AUTO CABLE SELECT
AUTO PROGRAMMING
EXIT

SETUP

ENGLISH

PRESS + TO SELECT LANGUAGE

ESPANOL FRANCAIS

LANGUAGE
AUTO CABLE SELECT

AUTO PROGRAMMING

EXIT

SETUP

PRESS + TO

AUTO PROGRAM CHANNELS

AUTOPROGRAM

SEARCHING FOR

CHANNEL 12 FOUND

AUTOPROGRAM

SEARCH COMPLETED

LANGUAGE
AUTO CABLE SELECT
AUTO PROGRAMMING
SET CLOCK

EXIT

SETUP

PRESS + TO

EXIT

LANGUAGE

AUTO CABLE SELECT

AUTO PROGRAMMING
EXIT

SETUP

PRESS + TO DETERMINE

IF CABLE CHANGES ARE PRESENT

AUTO CABLE SEARCH

PLEASE WAIT

AUTO CABLE SEARCH

CABLE CHANNELS ARE PRESENT

AUTO CABLE SEARCH

OR

NO CABLE CHANNELS ARE PRESENT

Press the POWER

button to turn the TV ON.

Press the VOLUME UP

(▲) or DOWN (▼) button to

adjust the sound level.

Press the CHANNEL UP

(▲) or DOWN (▼) button to

select TV channels.

TELEVISION

Remember,
you can press
any button on the
front of the TV to
turn the TV ON.The
tuned channel num­ber will always
briefly appear when
the TV is first turned
ON (and with chan­nel changes.) You
can also press the
STATUS button (on
the remote) to see
what channel the TV
is ON.

SMART
HELP

SETUP MENU

Press MENU (M)

button on the remote (or

MENU ▲ or ▼ buttons on the
TV). An on-screen list of fea­tures appears on the TV screen.

Press the CH (+) or (–)
buttons on the remote (or the

MENU ▲ or ▼ buttons on the
TV) to select the SETUP feature
with the on-screen arrow.

Press the VOL(+) button to
access the SETUP on-screen
menu. Then, press the CH (+)
or (–) buttons to scroll the
SETUP options. Next press the
VOL(+) or (–) buttons as direct-

ed to use the selected menu items.

Press the STATUS/EXIT

button on the remote to clear

the screen after an adjustment,
or scroll to the “EXIT” option
in the SETUP screen and press
the VOL (+) button to bring
you back to the main on-screen
menu.
You can also just wait and after
a minute the MENU will drop
automatically from the screen.

MUTE

CC

A/CH

SLEEP

VOL

VOL

CH

CH

MENU

123

456

789

0

STATUS/EXIT

POWER

REMOTE

T

o load the supplied batter-

ies into the remote:

1.Remove the battery com­partment lid on the back of

the remote.

2.Place the batteries (2­AAA) in the remote. Be

sure the (+) and (-) ends of
the batteries line up correct­ly (inside of case is
marked.)

3.Reattach the battery lid.

Point the remote

control toward the remote
sensor window on the TV
when operating the TV with
the remote.

Menu Buttons

Press the M button to show on­screen controls. Press Channel (+)
or (–) buttons to move through the
list of controls. Press the Volume
(+) or (–) buttons to adjust the
MENU controls.

V

olume (–) and (+)

Buttons

Press to adjust the TV
sound level. When used
with the MENU button,
press to adjust the selected
on-screen (MENU) feature
controls.

Number

Buttons

Press two number buttons
to select TV channels. For
example: to select channel

6... press "0" first; then "6".

Mute Button

Press to turn the sound OFF on the
TV. Press again to return the sound
to its previous level.

Channel Scan Button

Press to scan up or down through
channel numbers. (Also can be
used with the MENU button to
select on-screen controls. With the
Menu displayed, press Channel ▲
or ▼ buttons to move up or down
the list of controls.)

A/CH Button

Press to toggle between cur­rent and previously viewed
channel.

Status/Exit Button

Press to see the current channel
number on the TV screen. Also
press this button to clear the TV
screen after control adjustments.

CC Button

Press to select the Closed Captioning
mode. (CC w MUTE, CAPTION 1,
CAPTION 2, or OFF)

Sleep Button

Press to set the TV to auto­matically turn itself OFF.

Power

Button

Press to turn TV ON and
OFF.

F

irst Time Setup takes care

of some basic TV control
settings for you. Follow the steps
in this section to quickly add
area channel numbers into the
TV’s memory, set the Language,
and the TV for Antenna or Cable
signal.

LANGUAGE

With the Language feature
selected, press the VOL (+)
button to choose English,
Espanol (Spanish), or Francais
(French) for the TV’s on-screen
menu controls.

AUTO CABLE SELECT

With Auto Cable Select cho­sen, press the VOL (+) button
to automatically determine if
cable channels are present.

AUTO
PROGRAMMING

With the Auto Programming
feature selected, press the VOL
(+) button to automatically
store all available channels into
the TV’s memory.

EXIT

Pressing the VOL (+) button
with the Exit feature selected
will return you to the main on­screen menu.

TV set to receive Cable TV
supplied channels.

TV set to receive Antenna
supplied channels

AUTOMATIC SETTINGS

Battery Compartment

Battery Lid

Press the MENU UP (▲) or

DOWN (▼) button to display

the TV’s on-screen menu. Then
press the MENU UP (▲) or
DOWN (▼) button to scroll
through the list of on-screen fea­tures.

Press the
remote’s STATUS
button (or use
“EXIT”) to back out
of the SETUP menu.

Remember, SETUP
is a first-use, one­time operation and
will not have to be
repeated (even if the
TV is unplugged.)

SMART
HELP

The SETUP on-screen control is auto­matically selected when you first plug
in your TV and press the MENU but­ton (on the TV or remote.)

3 - IB7759 E001

ENGLISH

SPANISH

FRENCH

BEGIN

BEGIN

BEGIN

31

28

20

8

EXIT
