Philips TPS16.3A la Datasheet

Colour Television Chassis

TPS16.3A

LA

Contents Page Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 5

4. Mechanical Instructions 9
Cable dressing (75PUH7101/96) 9

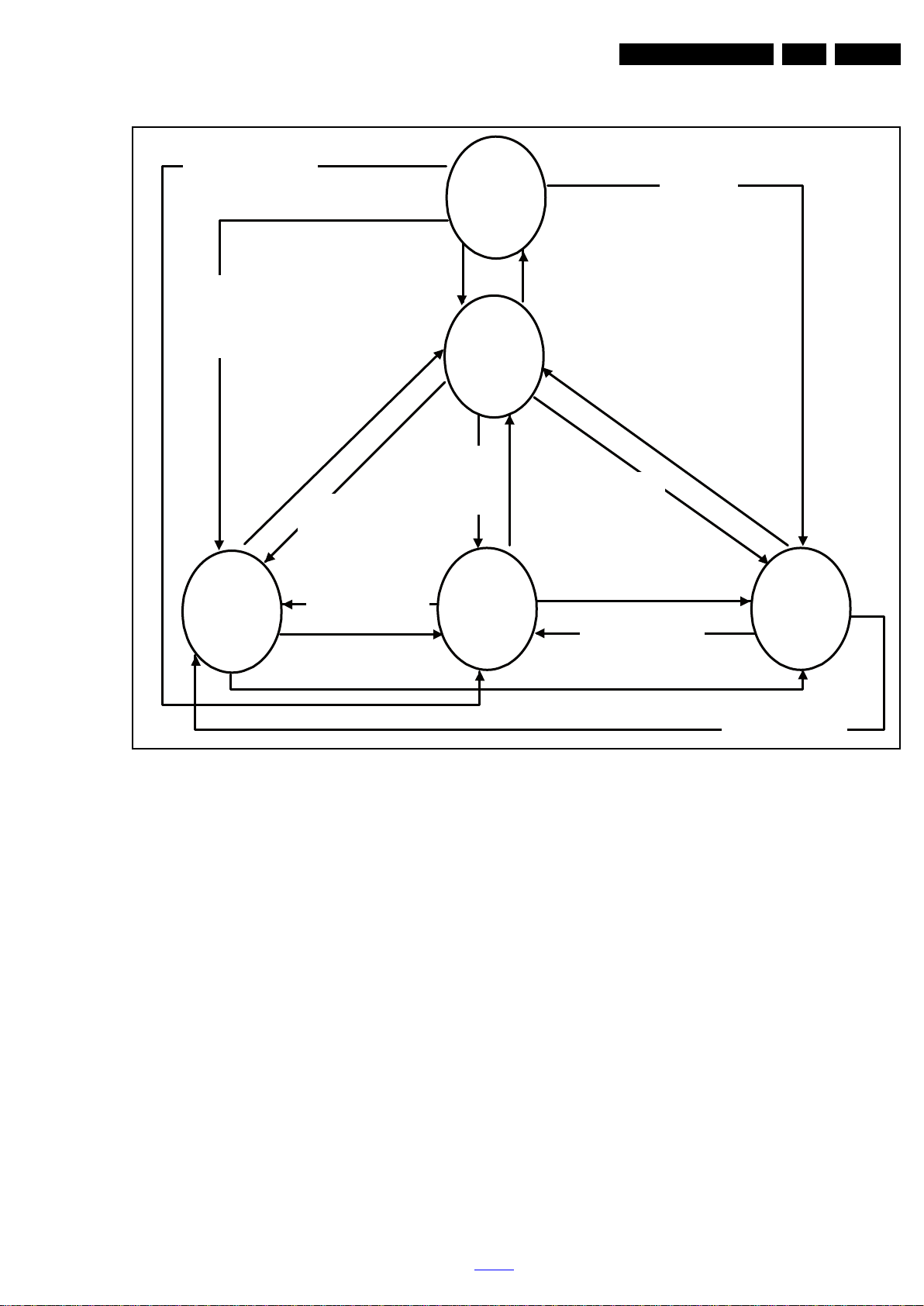

5. Service Modes, Error Codes, and Fault Finding 14

6. Alignments 17

7. Circuit Descriptions 18

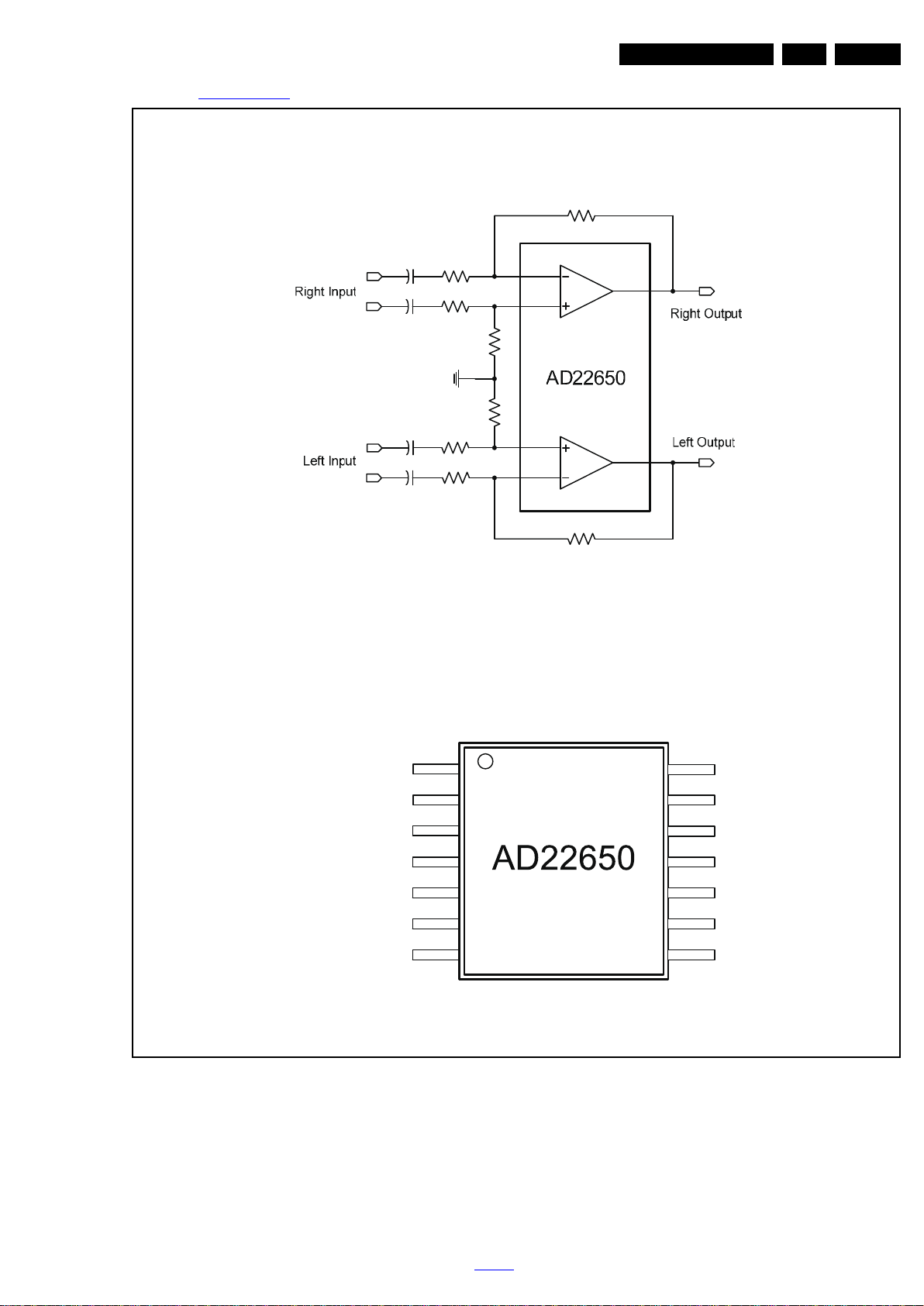

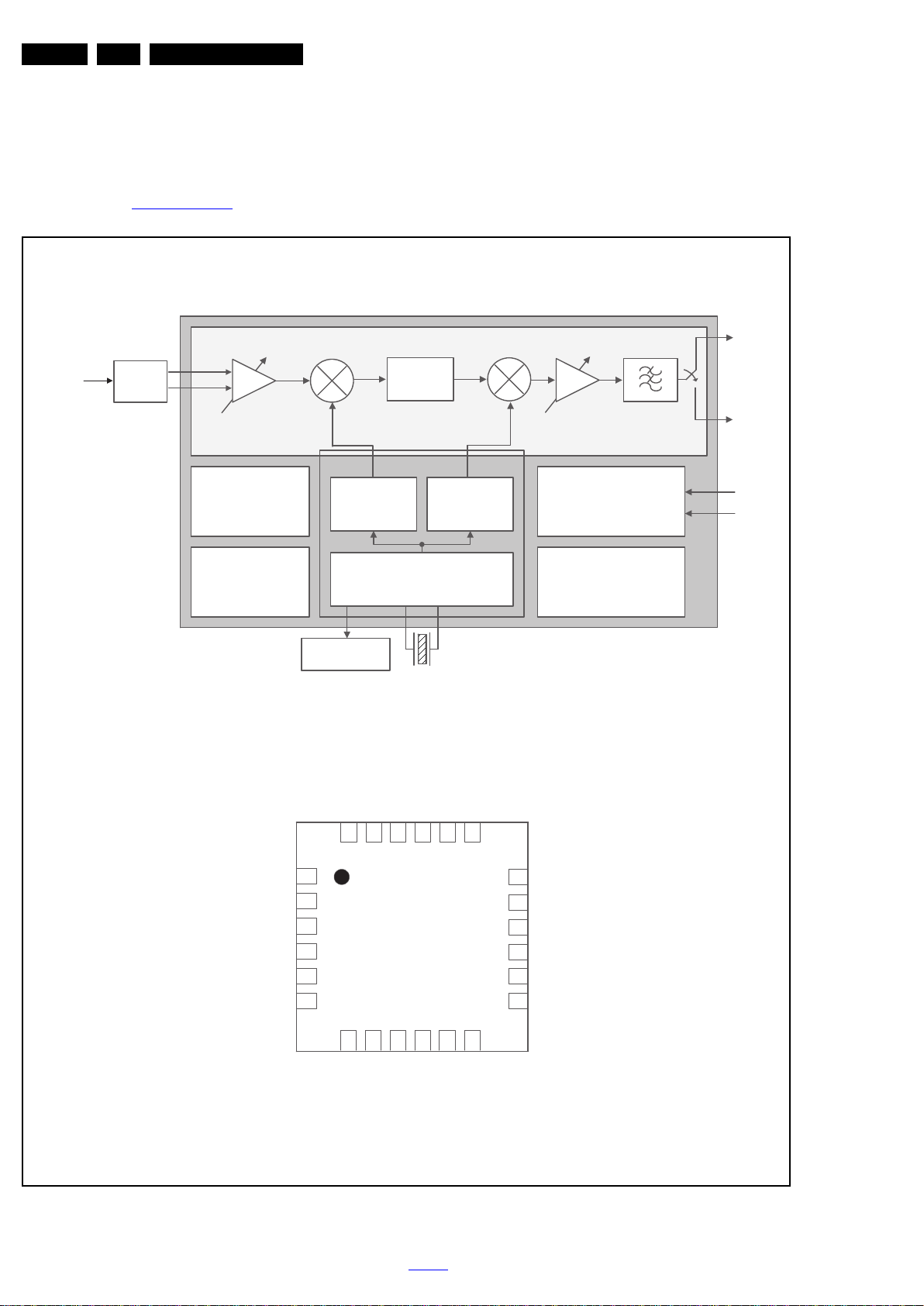

8. IC Data Sheets 22

9. Block Diagrams
Block Diagrams 25

10. Circuit Diagrams and PWB Layouts Drawing PWB

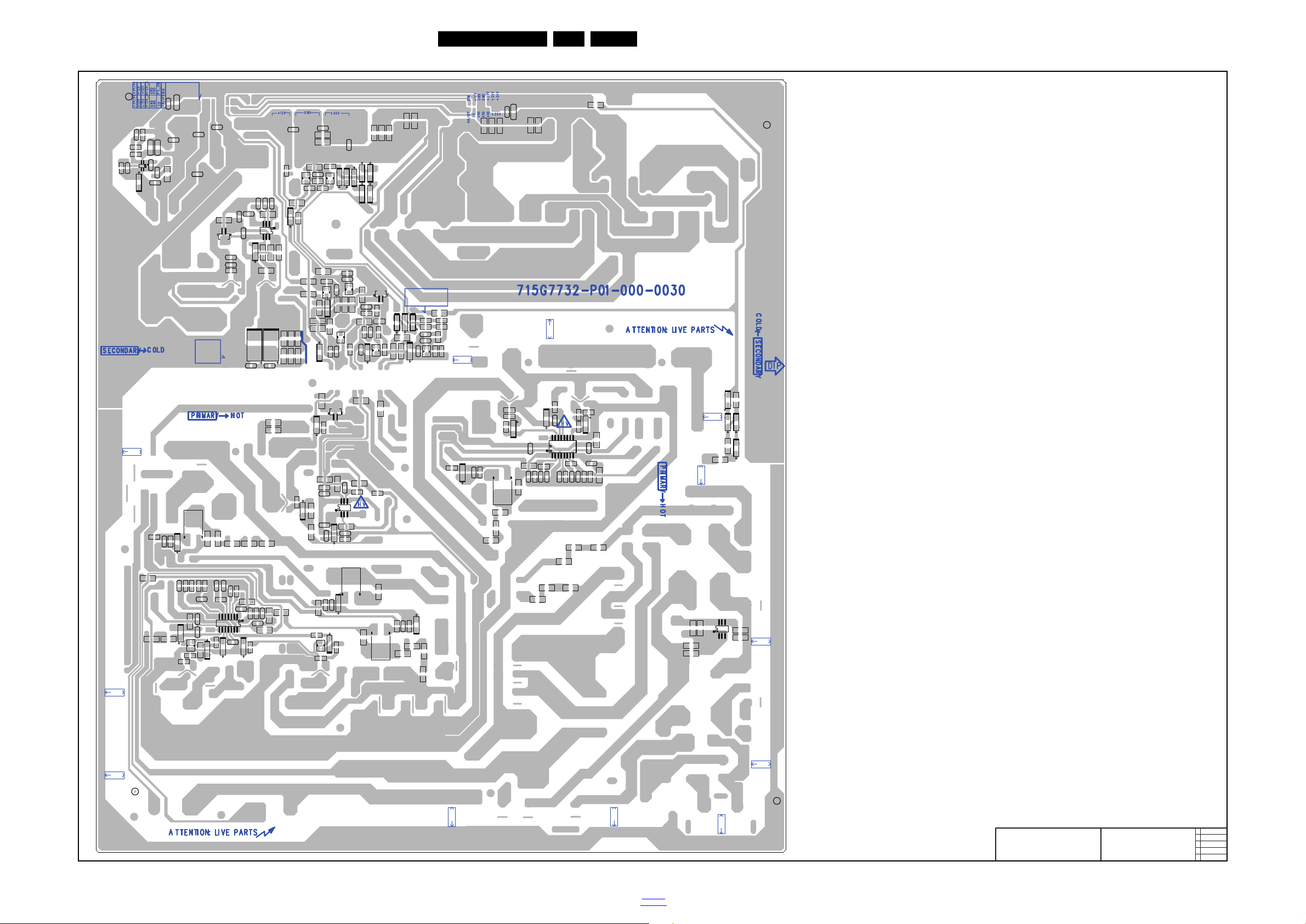

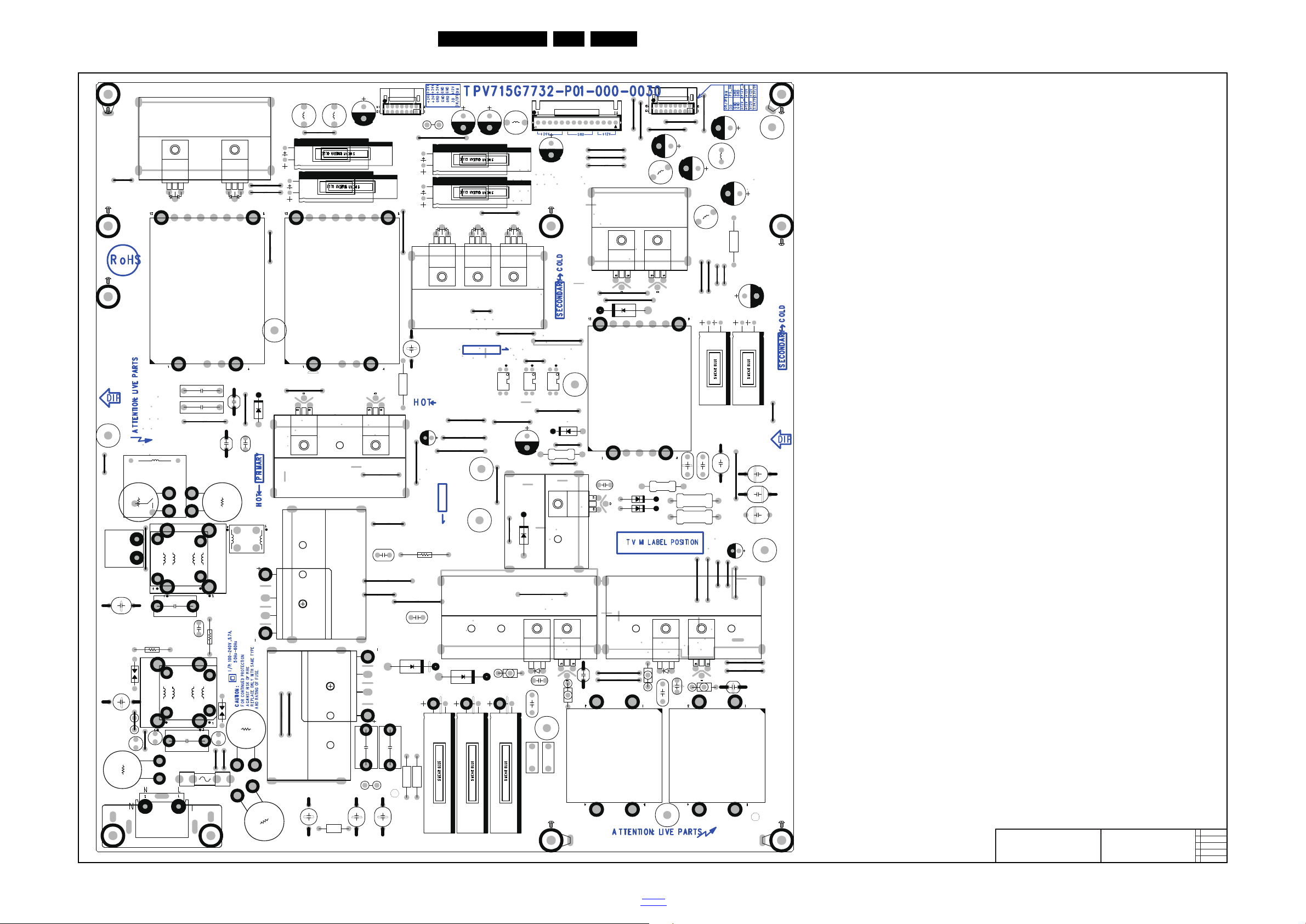

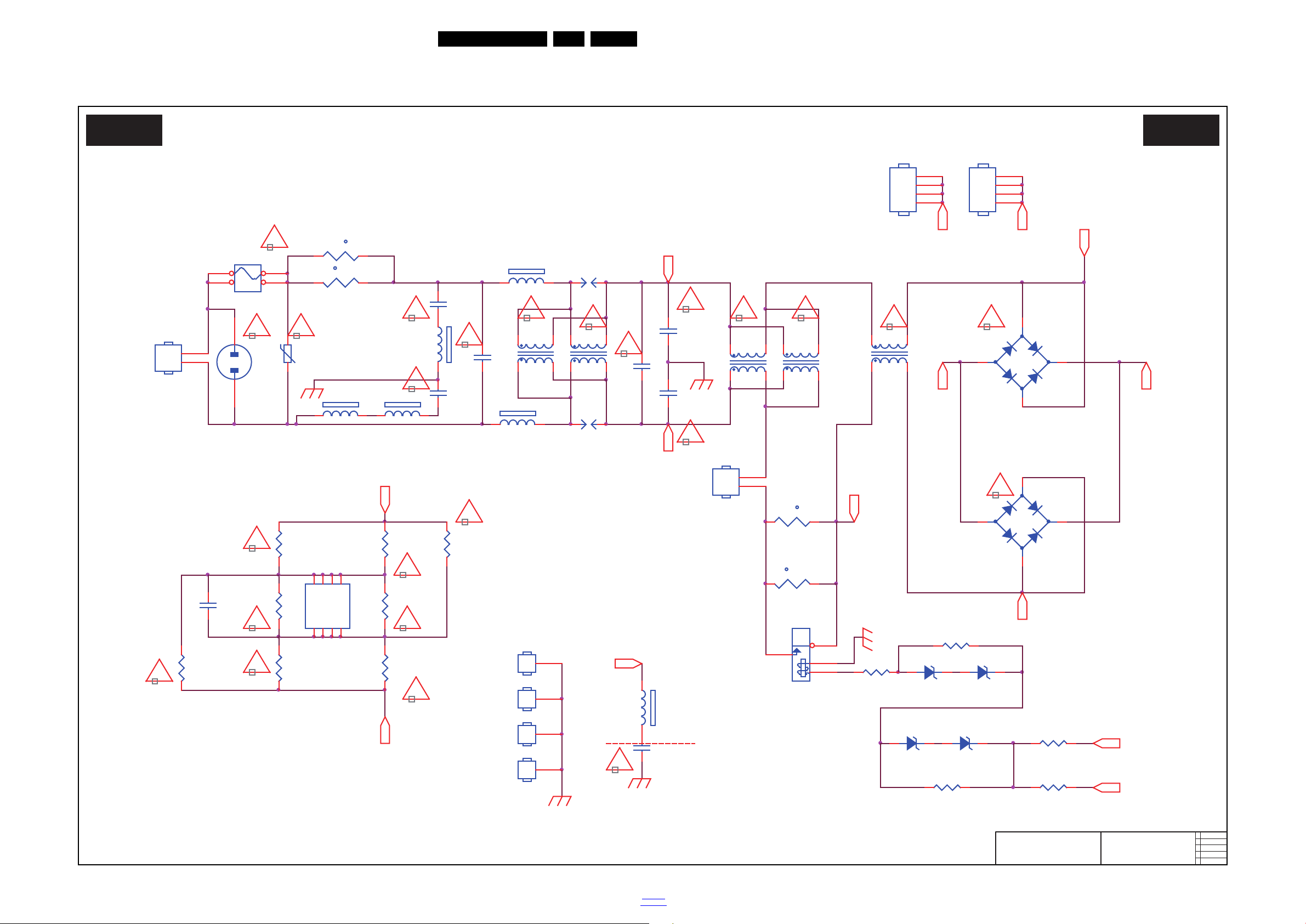

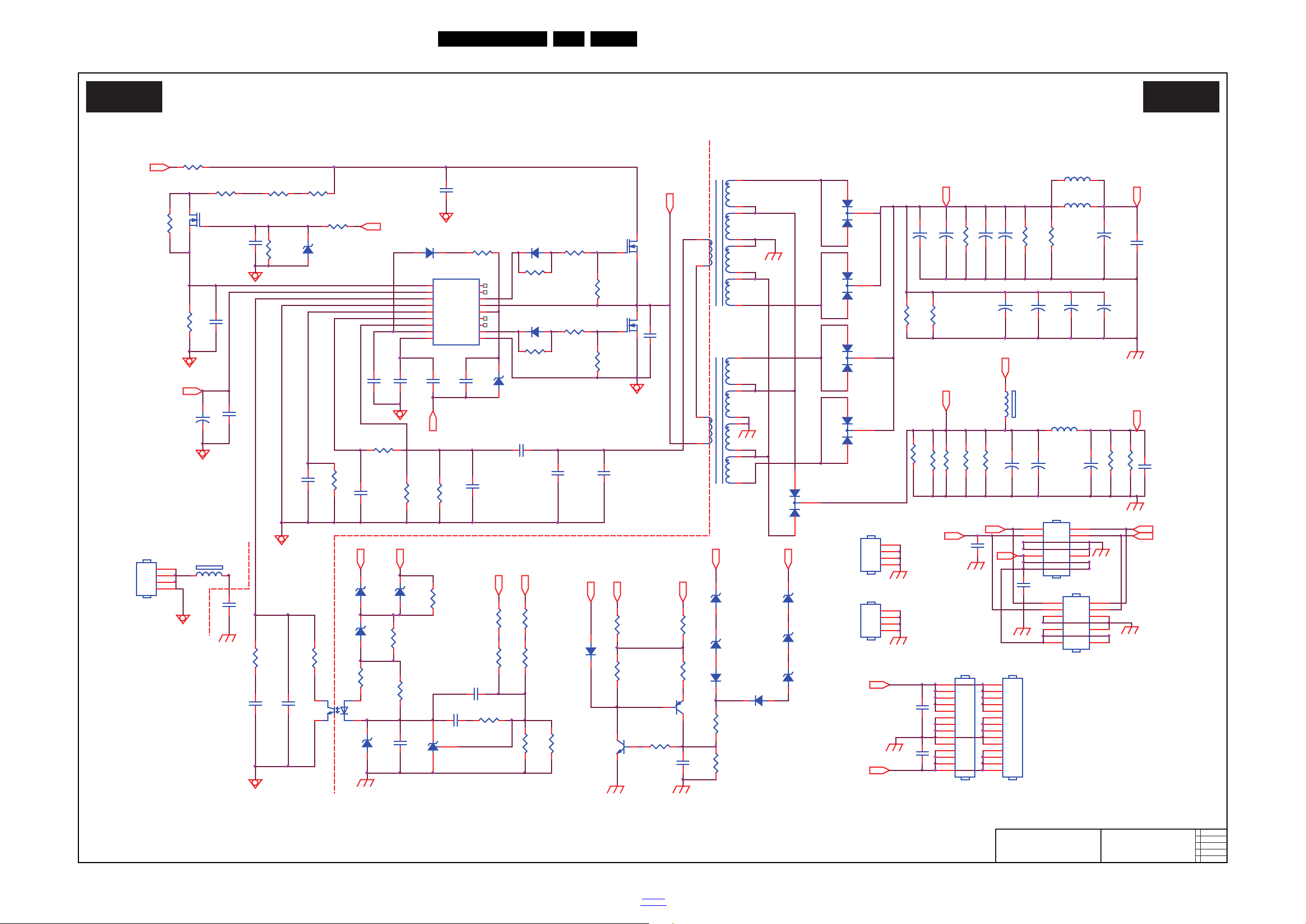

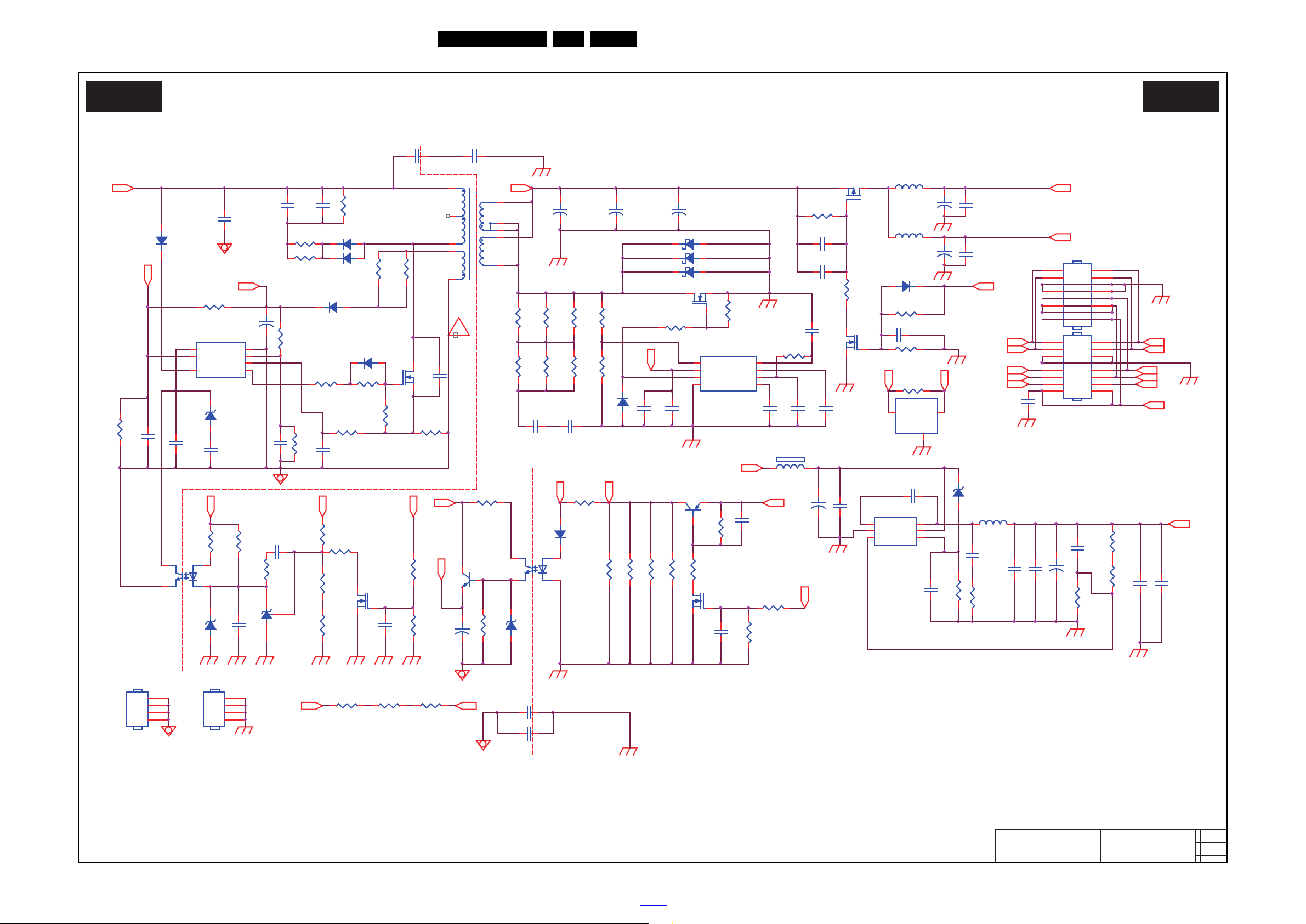

A 715G7732 PSU

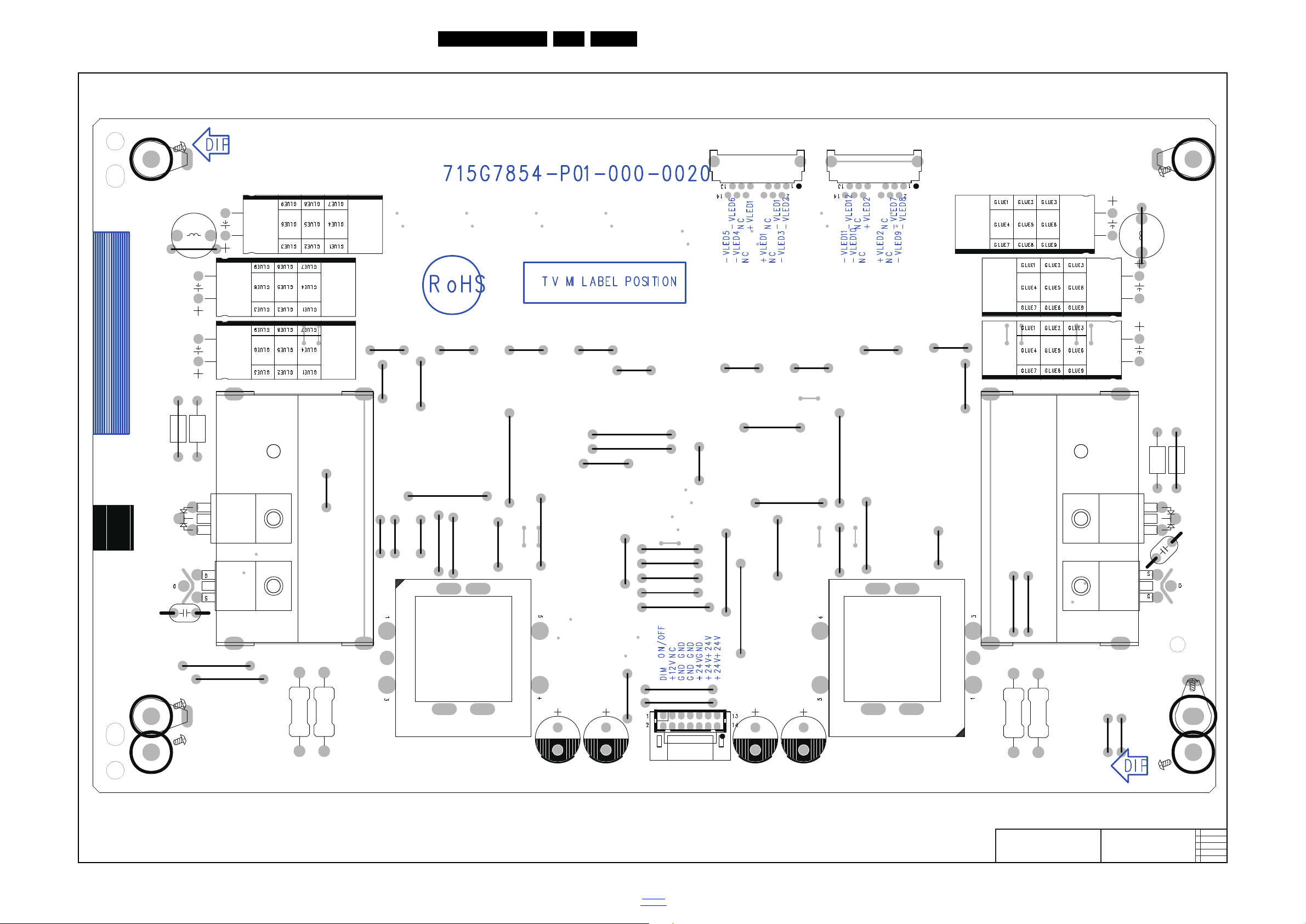

A 715G7854 PSU 32 34-35

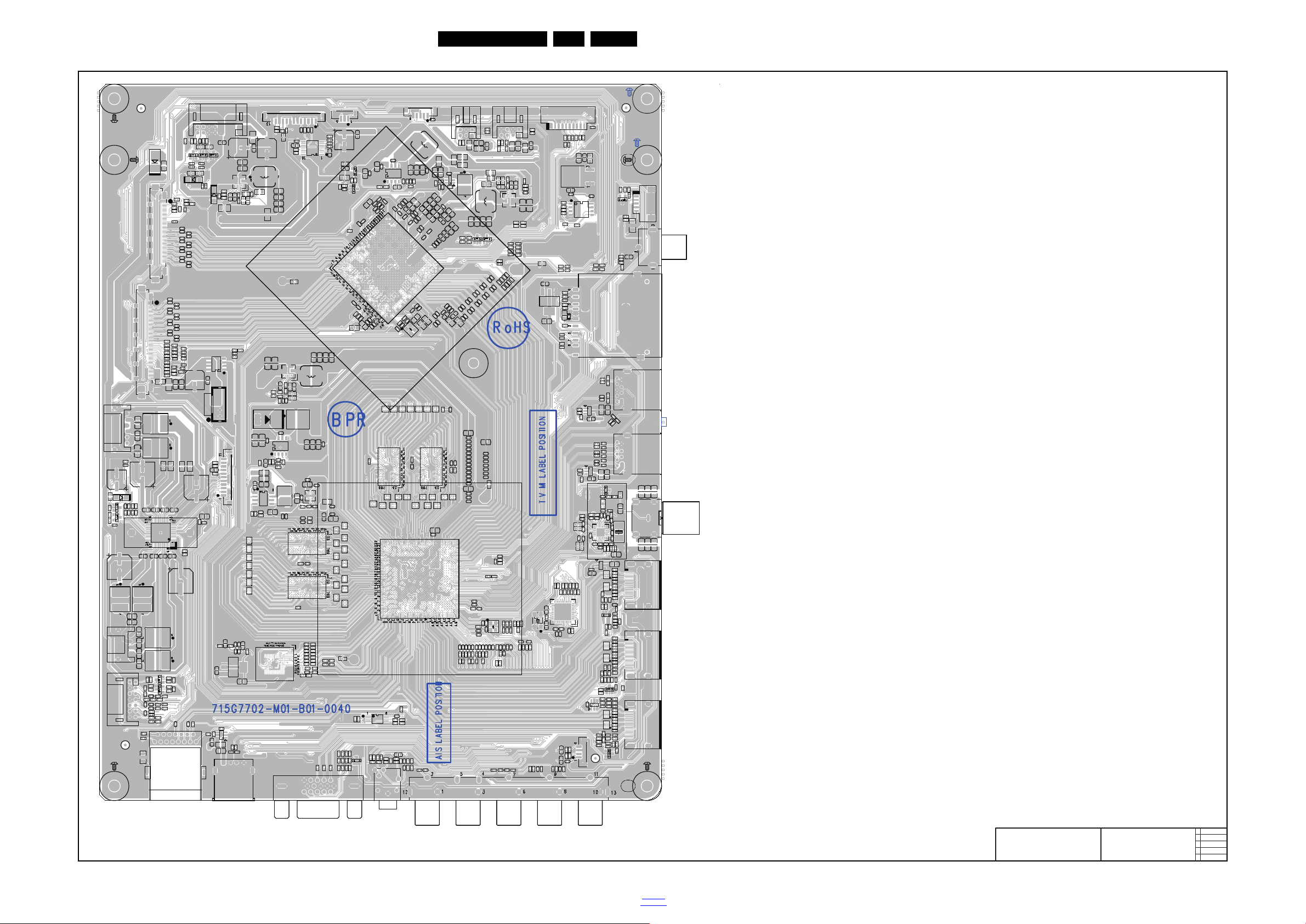

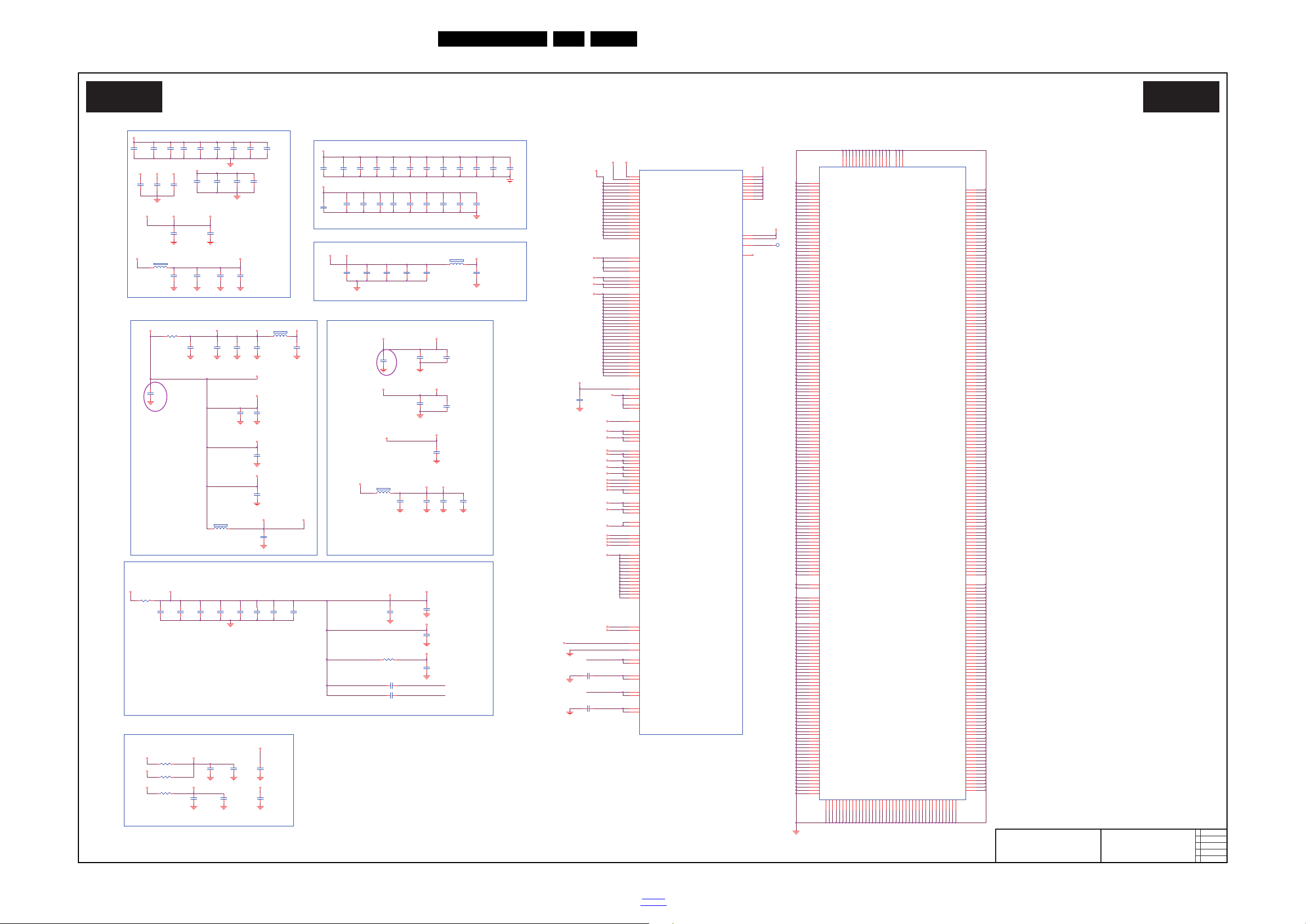

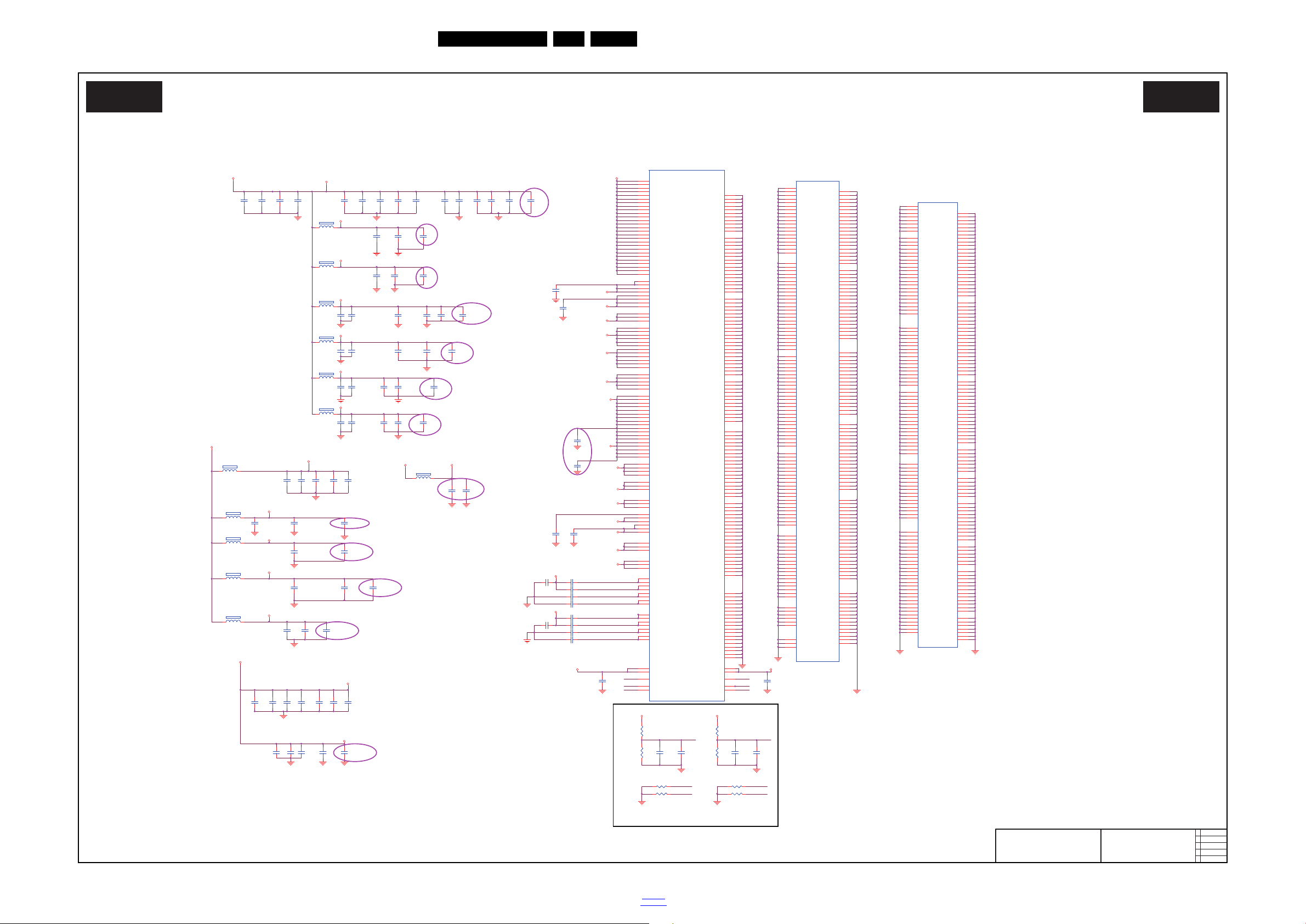

B 715G7702 SSB 36 61-62

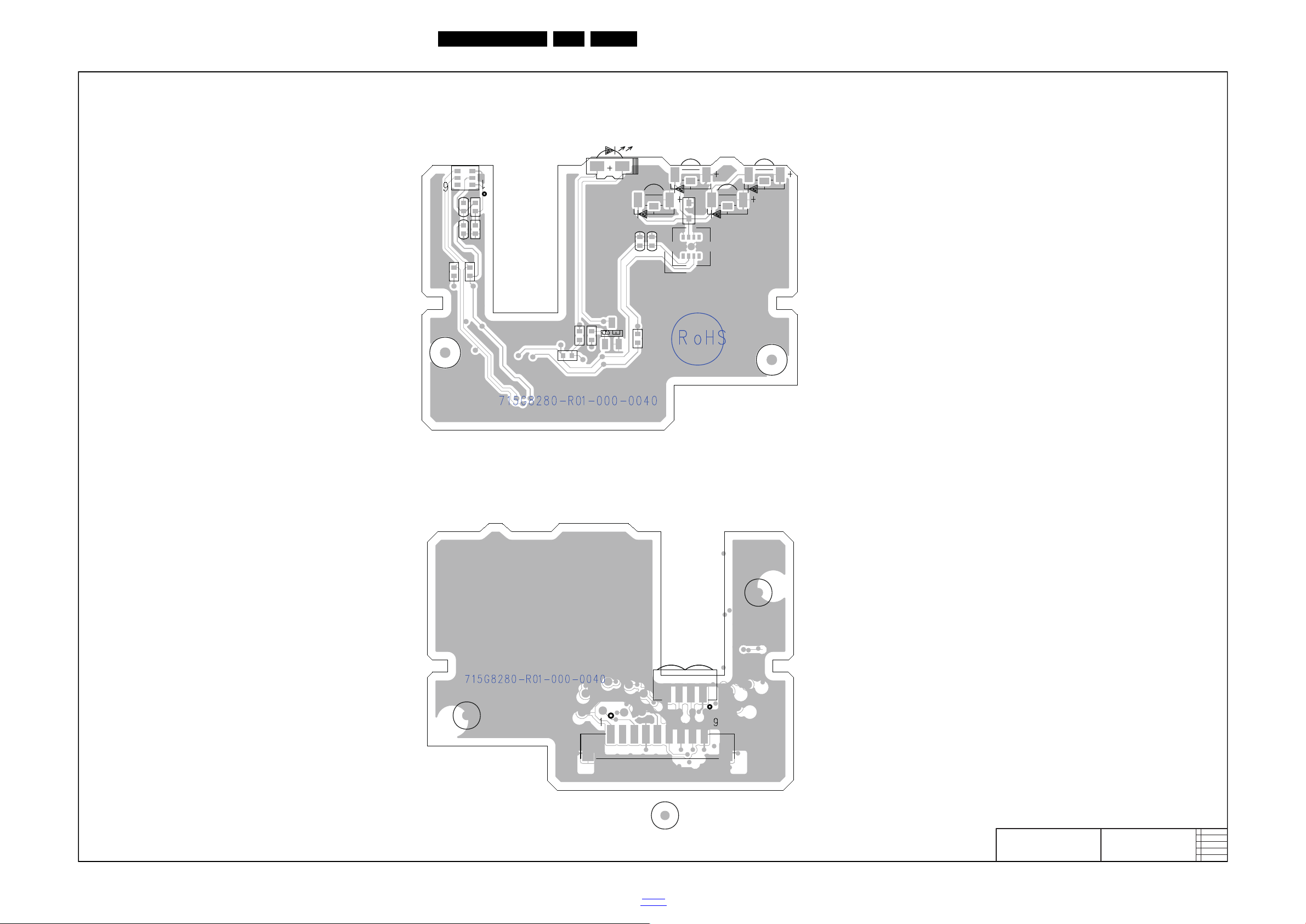

J 715G8280 IR/LED Panel 63 64
E 715G7065 Keyboard control panel 65 66

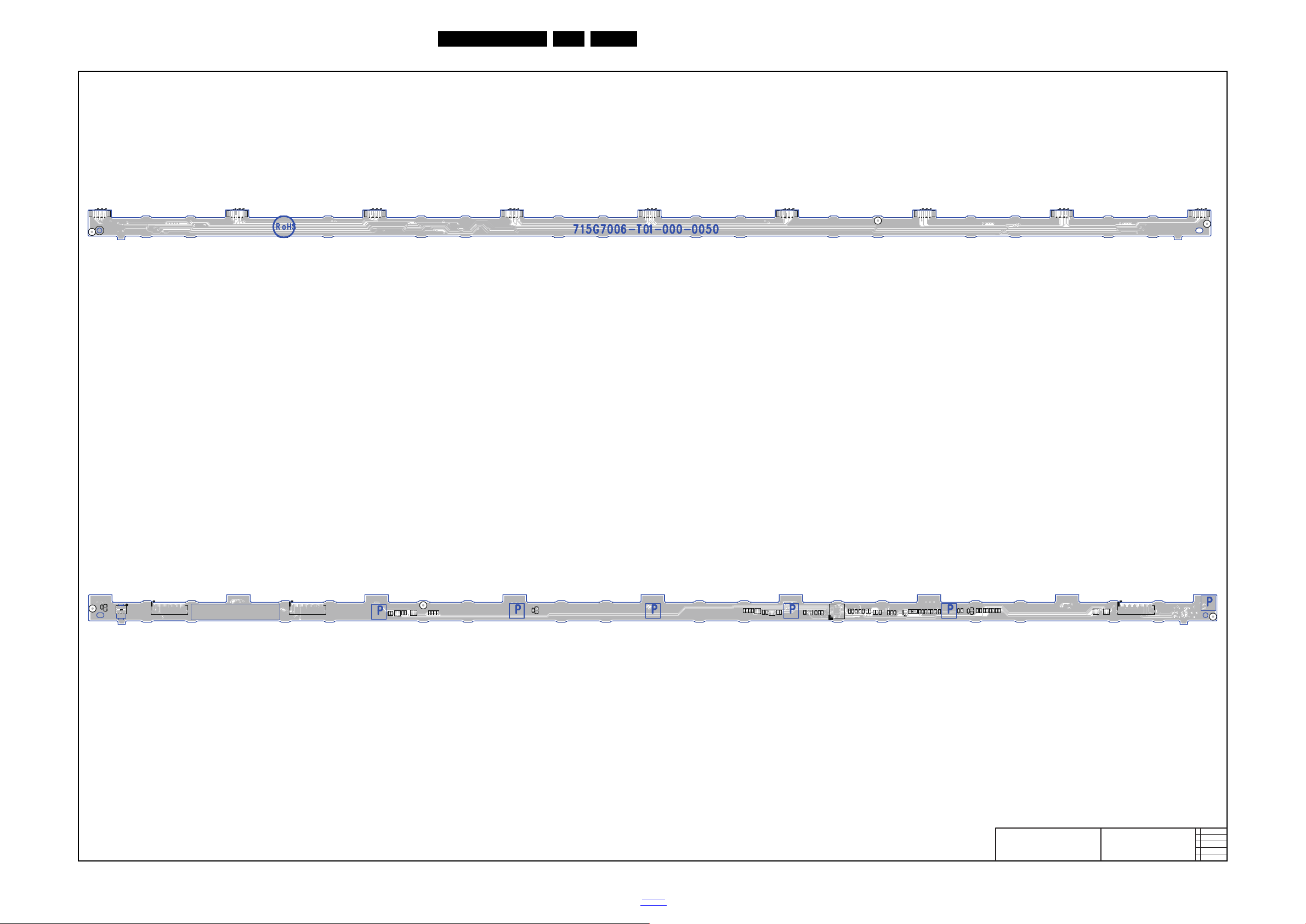

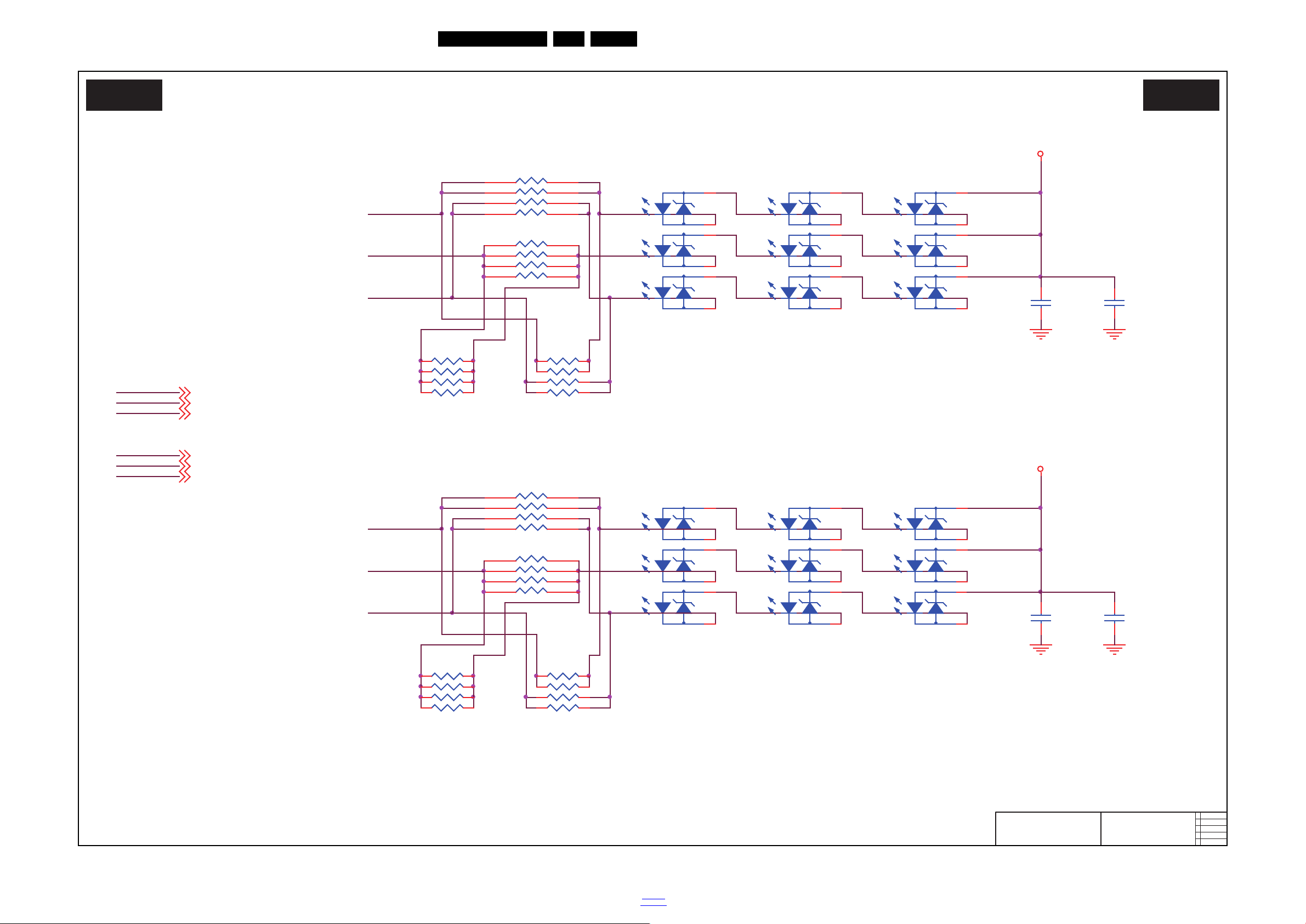

AL 715G7006 Ambilight Board 67 69
AL 715G7007 Ambilight Board 70 72

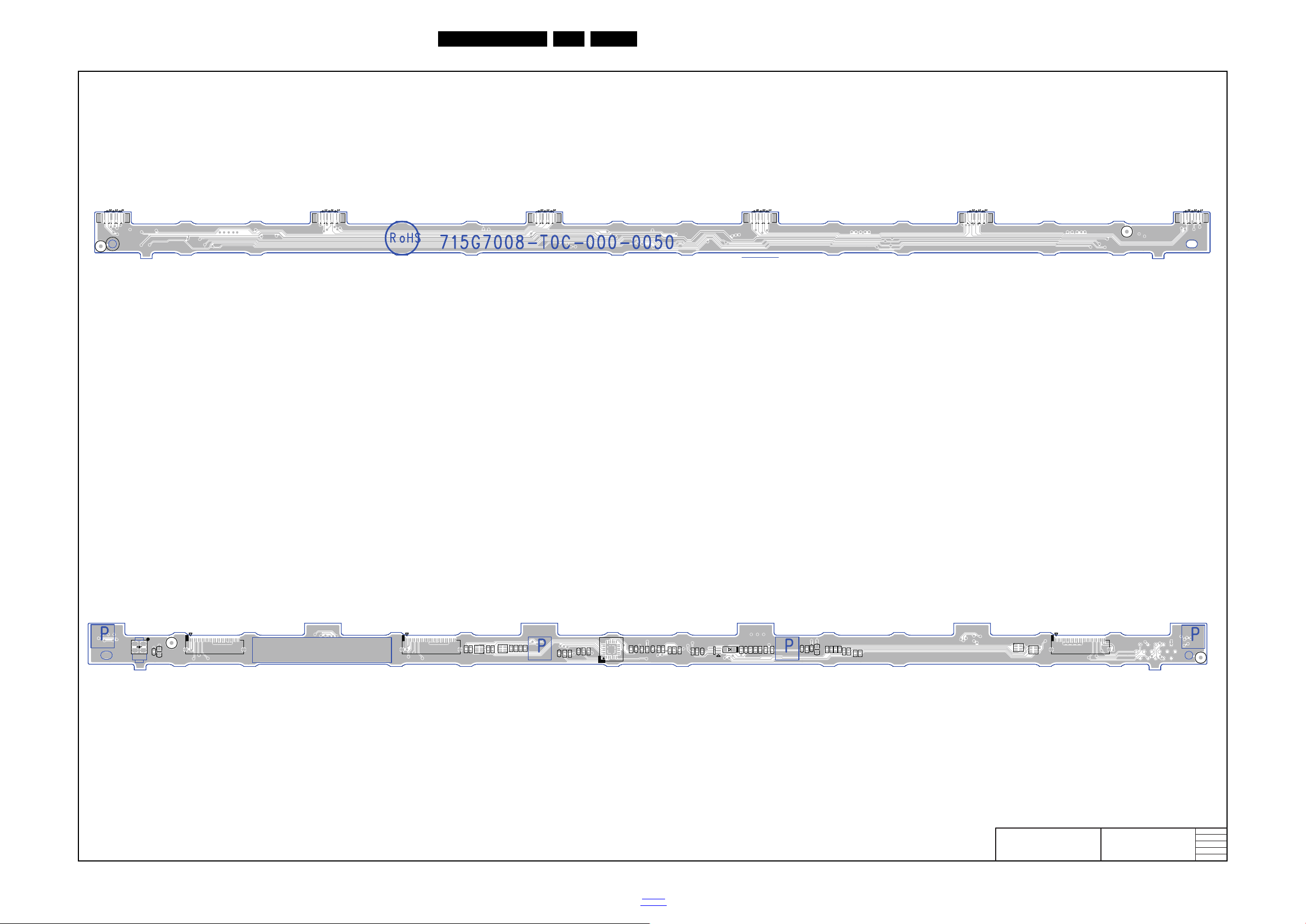

AL 715G7008 Ambilight Board 73 77

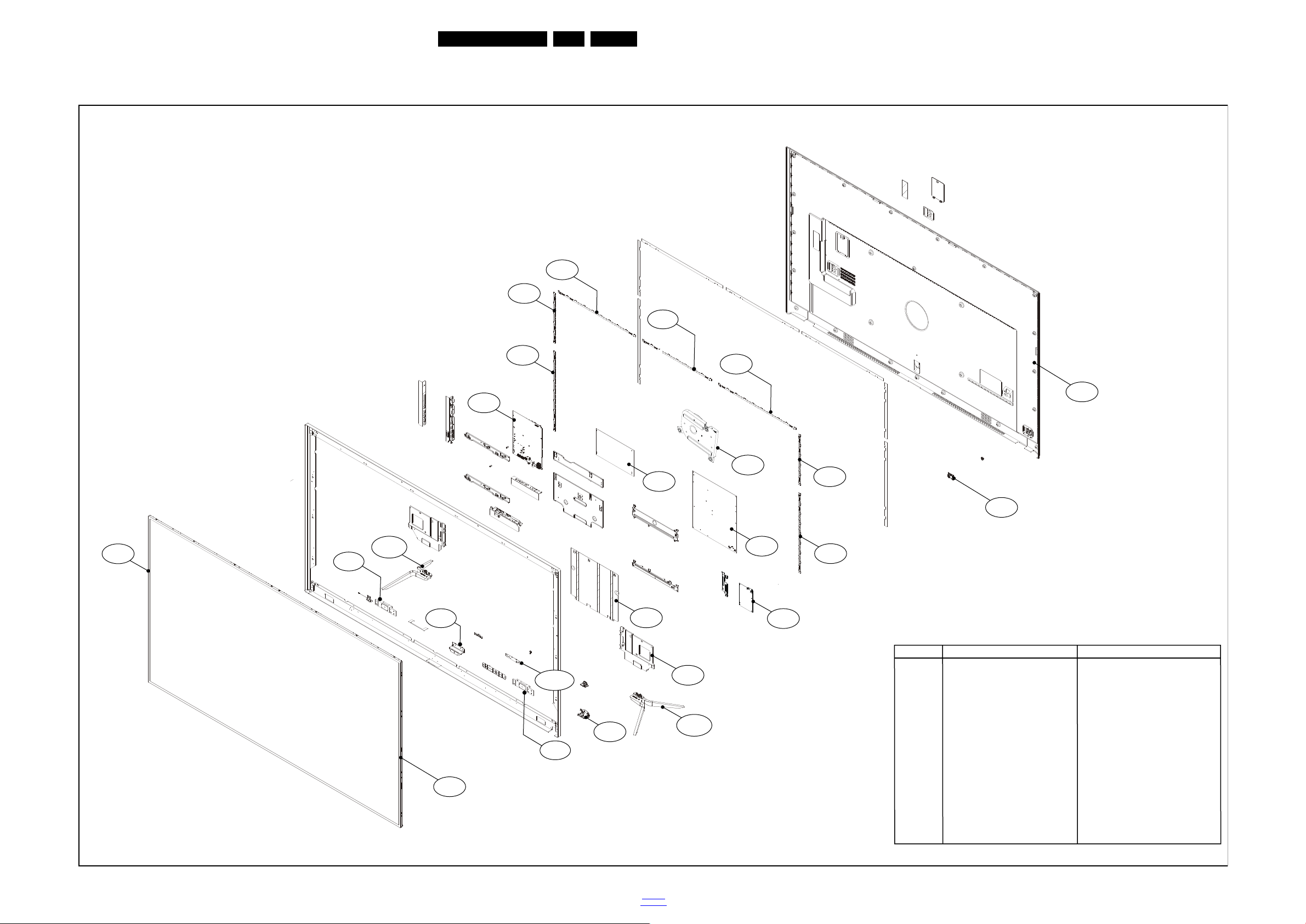

11. Styling Sheets
7101 series 75” 78

26 30-31

Published by CQZ/SC 1709 Quality Printed in the Netherlands Subject to modification EN 3122 785 20300

2017-Mar-03

2016 ©

TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks are the
property of Koninklijke Philips Electronics N.V. or their respective owners.
TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust
earlier supplies accordingly.
PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phili ps Electronics N.V.

EN 2 TPS16.4A LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

2. Technical Specs, Diversity, and Connections

Index of this chapter:

• Specifications are indicative (subject to change).

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

2.1 Technical Specifications

For on-line product support please use the links in Table 2-1.
Here is product information available, as well as getting started,
user manuals, frequently asked questions and software &

Notes:

drivers.

• Figures can deviate due to the different set executions.

Table 2-1 Described Model Numbers and Diversity

24 910 11

Mechanics

CTN

75PUH7101/96 2-1 4-1 4-3 4-3 & 4-4 4-6 4-7 9.1 10.1 & 10.2 10.3 10.4 10.5 10.6 & 10.7& 10.8 11.1

Connection Overview

Wire Dressing

Stand Removal

Rear Cover Removal

SSB Removal

IR/LED Board Removal

Schematics

Block Diagram

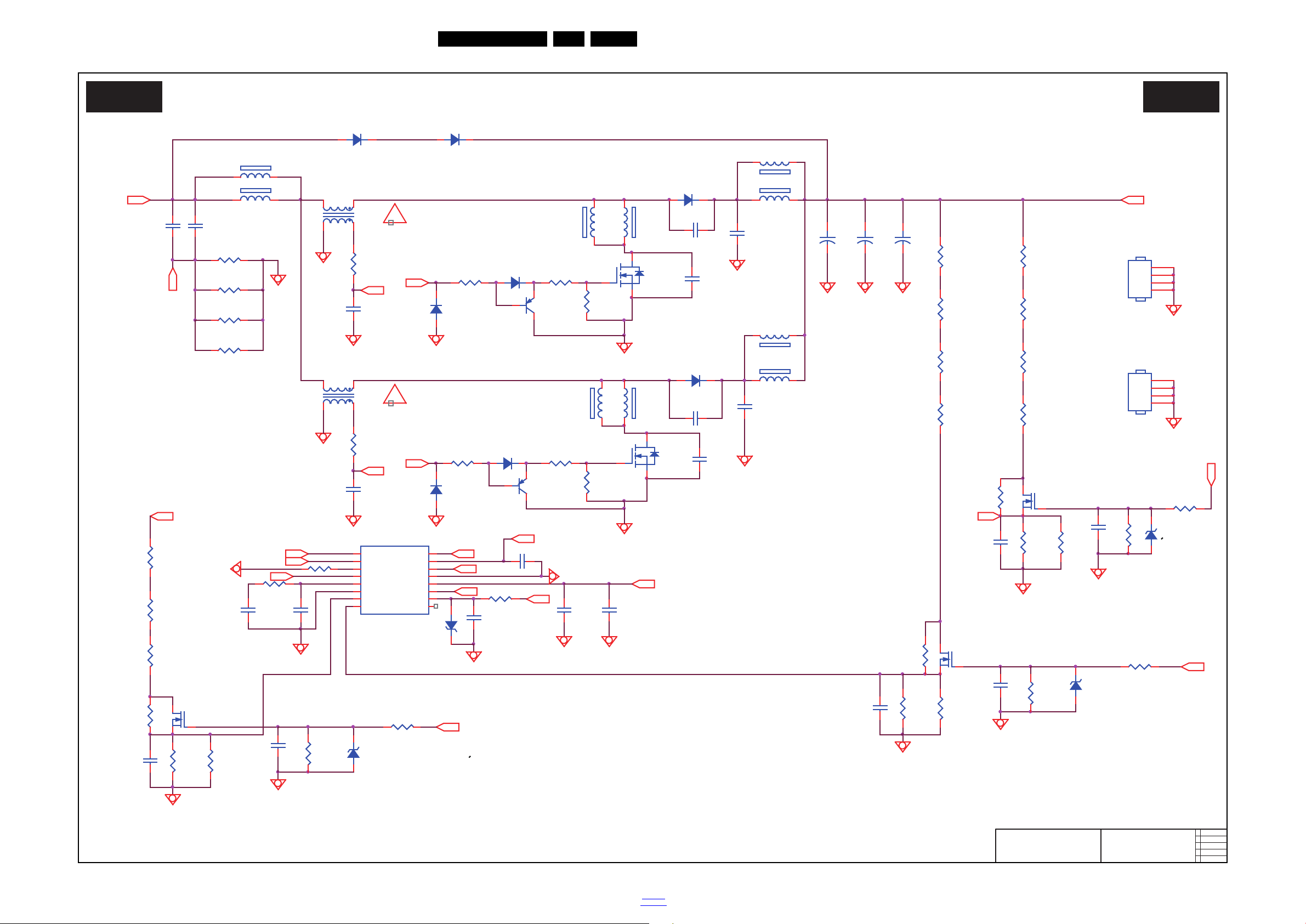

Power Supply

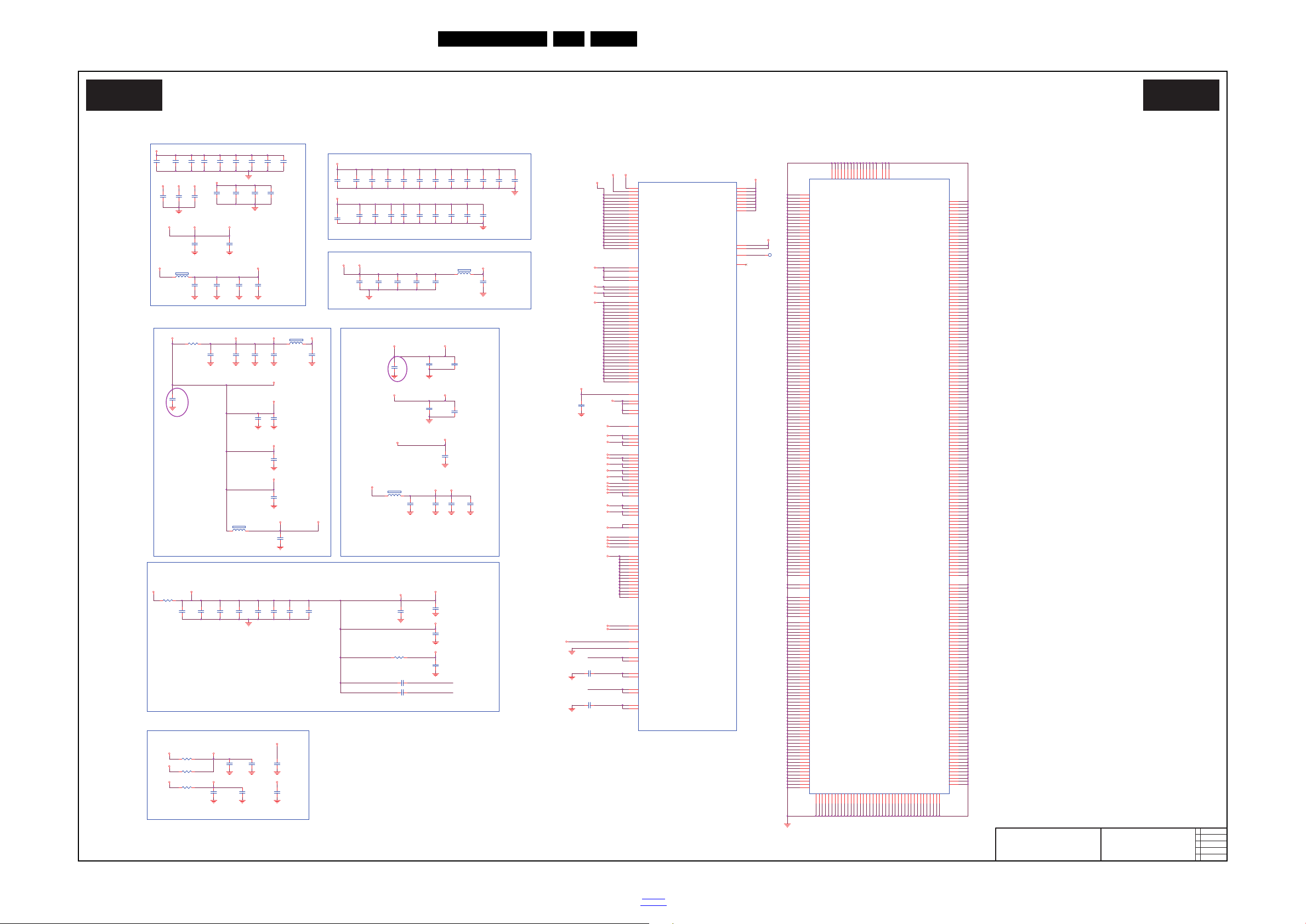

SSB

J (IR/LED)

E (Keyboard/Leading Edge)

2.2 Directions for Use

Directions for use can be downloaded from the following
websites:

http://www.philips.com/support
http://www.p4c.philips.com

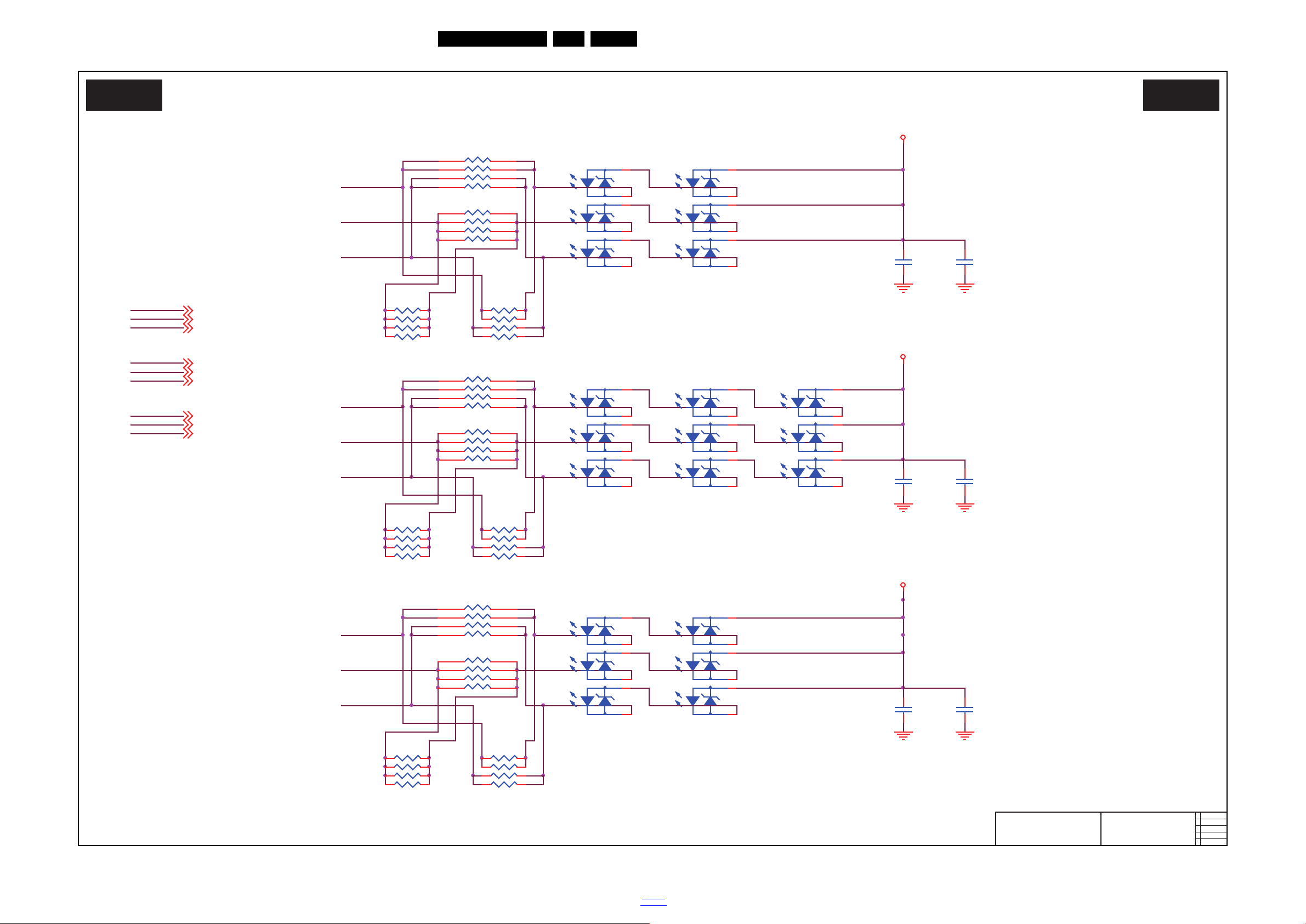

AL(Ambilight Board)

Styling

2017-Mar-03

Table 2-1

2.3 Connections

HDMI 2

USB

SPDIF

1

USB

2

SD

NETWORK

TV ANTENNA

HDMI 1

HDMI 3

USB3

VGA

L

R

CVBS/Y

Pr

Pb

20310_001.eps

1

3

4

2

5

7

6

8

9

10

Side Connectors

Rear Connectors

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

EN 3TPS16.4A LA 2.

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

2.3.1 Side Connections

1 - Cinch: Digital Audio - Out

BK - Coaxial 0.4 - 0.6V

2 - Cinch: SPDIF - Out

Ye -Coaxial 0.4 - 0.6V

3 - USB

1-+5V k
2 -Data (-) jk
3 -Data (+) jk
4 -Ground Gnd H

4 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

5- HDMI : Digital Video - In, Digital Audio with ARC - In/Out

/ 75 W kq

PP

/ 75  kq

PP

Figure 2-2 USB (type A)

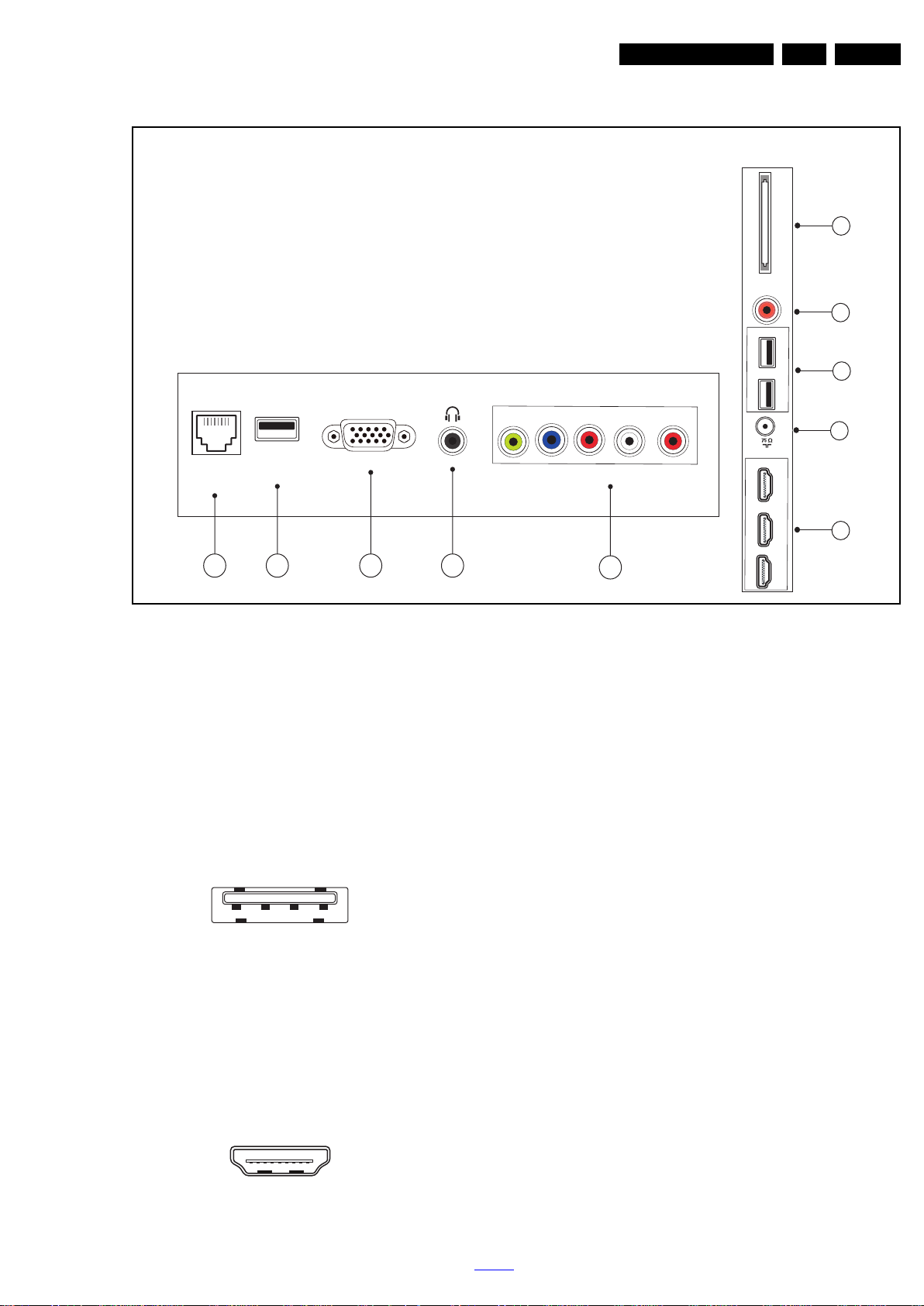

Figure 2-1 Connection overview

1 -D2+ Data channel j
2 -Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5 -Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8 -Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

2.3.2 Rear Connections

6 - Cinch: Video YPbPr - In, Audio - In

Gn -Video - Y 1 V
Bu -Video - Pb 0.7 V
Rd - Video - Pr 0.7 V
Wh -Audio - L 0.5 V
Rd - Audio - R 0.5 V

7- Head phone (Output)

/ 75 W jq

PP

/ 75 W jq

PP

/ 75 W jq

PP

/ 10 kW jq

RMS

/ 10 kW jq

RMS

Bk -Head phone 80 - 600  / 10 mW

Figure 2-3 HDMI (type A) connector

ot

Table 2-1

2017-Mar-03

EN 4 TPS16.4A LA2.

1

6

10

11

5

15

10000_002_090121.eps

090127

1 2 3 4

10000_022_090121.eps

090121

Technical Specs, Diversity, and Connections

8 - PC IN:VGA

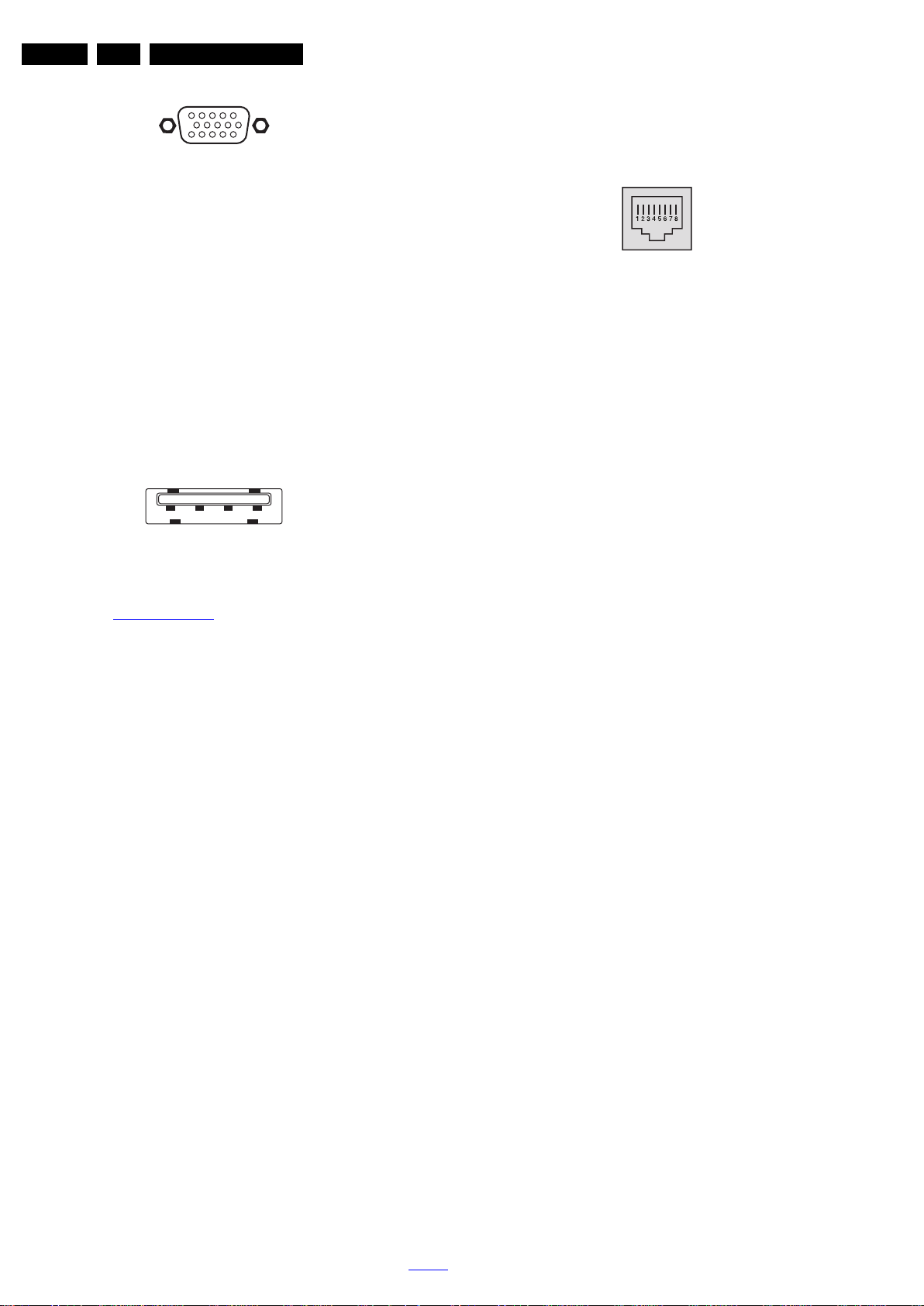

Figure 2-4 VGA connector

1 -Video Red 0.7 V
2 -Video Green 0.7 V
3 -Video Blue 0.7 V
4-n.c.

/ 75 W j

PP

/ 75 W j

PP

/ 75 W j

PP

5 -Ground Gnd H
6 -Ground Red Gnd H
7 -Ground Green Gnd H
8 -Ground Blue Gnd H
9-+5V
10 - Ground Sync Gnd H

+5 V j

DC

11 - Ground Red Gnd H
12 - DDC_SDA DDC data j
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL DDC clock j

9 - USB3 2.0

1-+5V k
2 -Data (-) jk
3 -Data (+) jk
4 -Ground Gnd H

10 - RJ45: Ethernet

10000_025_090121.eps

120320

Figure 2-6 Ethernet connector

1 -TD+ Transmit signal k
2 -TD- Transmit signal k
3 -RD+ Receive signal j
4 -CT Centre Tap: DC level fixation
5 -CT Centre Tap: DC level fixation
6 -RD- Receive signal j
7 -GND Gnd H
8 -GND Gnd H

Figure 2-5 USB (type A)

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

2017-Mar-03

Table 2-1

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation
transformer (> 800 VA).

• Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:

• Route the wire trees correctly and fix them with the
mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for
external damage.

• Check the strain relief of the Mains/AC Power cord for
proper function.

• Check the electrical DC resistance between the Mains/AC
Power plug and the secondary side (only for sets that have
a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any
inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential.

• Be careful during measurements in the high voltage
section.

• Never replace modules or other components while the unit
is switched “on”.

• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the
Service Default Mode with a colour bar signal and stereo
sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and
picture carrier at 475.25 MHz for PAL, or 61.25 MHz for
NTSC (channel 3).

• Where necessary, measure the waveforms and voltages
with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 k).

• Resistor values with no multiplier may be indicated with
either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10
nano-farads (n 10

• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer
to the diversity tables for the correct values.

• The correct component values are listed on the Philips
Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare
Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this
URL: http://www.atyourservice-magazine.com
“Magazine”, then go to “Repair downloads”. Here you will find
Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile.
Where applicable and available, this profile is added to the IC
Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected
by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is
required, please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.

• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
– To reach a solder-tip temperature of at least 400°C.
– To stabilize the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilized at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will increase drastically and flux-fluid will be destroyed.
To avoid wear-out of tips, switch “off” unused equipment or
reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If this cannot be avoided, carefully
clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website,
“Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example:
AG2B0335000001) indicates the number of the alternative
B.O.M. (Bill Of Materials) that has been used for producing the
specific TV set. In general, it is possible that the same TV
model on the market is produced with e.g. two different types
of displays, coming from two different suppliers. This will then

Table 2-1

-9

), or pico-farads (p 10

. Select

EN 5TPS16.4A LA 3.

-6

),

-12

).

2017-Mar-03

EN 6 TPS16.4A LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

result in sets which have the same CTN (Commercial Type
Number; e.g. 28PW9515/12) but which have a different B.O.M.
number.
By looking at the third digit of the serial number, one can
identify which B.O.M. is used for the TV set he is working with.
If the third digit of the serial number contains the number “1”
(example: AG1B033500001), then the TV set has been
manufactured according to B.O.M. number 1. If the third digit is
a “2” (example: AG2B0335000001), then the set has been
produced according to B.O.M. no. 2. This is important for
ordering the correct spare parts!
For the third digit, the numbers 1...9 and the characters A...Z
can be used, so in total: 9 plus 26= 35 different B.O.M.s can be
indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 1 and 2 refer to the production centre (e.g.
SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M.
code, digit 4 refers to the Service version change code, digits 5
and 6 refer to the production year, and digits 7 and 8 refer to
production week (in example below it is 2010 week 10 / 2010
week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide
if the board has to be exchanged or if it should be repaired on
component level.
If your repair procedure says the board should be exchanged
completely, do not solder on the defective board. Otherwise, it
cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3
format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to
remove horizontal black bars; keeps
the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels
directly from a cable network by

means of a predefined TXT page
ADC Analogue to Digital Converter
AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency
AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box
AM Amplitude Modulation
AP Asia Pacific
AR Aspect Ratio: 4 by 3 or 16 by 9
ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information
ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA
ATV See Auto TV
Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way
AV External Audio Video
AVC Audio Video Controller
AVIP Audio Video Input Processor
B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz
BDS Business Display Solutions (iTV)
BLR Board-Level Repair
BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries
B-TXT Blue TeleteXT
C Centre channel (audio)
CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections
CL Constant Level: audio output to

connect with an external amplifier
CLR Component Level Repair
ComPair Computer aided rePair
CP Connected Planet / Copy Protection
CSM Customer Service Mode
CTI Color Transient Improvement:

manipulates steepness of chroma

transients
CVBS Composite Video Blanking and

Synchronization
DAC Digital to Analogue Converter
DBE Dynamic Bass Enhancement: extra

low frequency amplification
DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV).
DDC See “E-DDC”
D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz
DFI Dynamic Frame Insertion
DFU Directions For Use: owner's manual
DMR Digital Media Reader: card reader
DMSD Digital Multi Standard Decoding
DNM Digital Natural Motion

2017-Mar-03

Table 2-1

Precautions, Notes, and Abbreviation List

EN 7TPS16.4A LA 3.

DNR Digital Noise Reduction: noise

reduction feature of the set
DRAM Dynamic RAM
DRM Digital Rights Management
DSP Digital Signal Processing
DST Dealer Service Tool: special remote

control designed for service

technicians
DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394
DVB-C Digital Video Broadcast - Cable
DVB-T Digital Video Broadcast - Terrestrial
DVD Digital Versatile Disc
DVI(-d) Digital Visual Interface (d= digital only)
E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display.
EDID Extended Display Identification Data

(VESA standard)
EEPROM Electrically Erasable and

Programmable Read Only Memory
EMI Electro Magnetic Interference
EPG Electronic Program Guide
EPLD Erasable Programmable Logic Device
EU Europe
EXT EXTernal (source), entering the set by

SCART or by cinches (jacks)
FDS Full Dual Screen (same as FDW)
FDW Full Dual Window (same as FDS)
FLASH FLASH memory
FM Field Memory or Frequency

Modulation
FPGA Field-Programmable Gate Array
FTV Flat TeleVision
Gb/s Giga bits per second
G-TXT Green TeleteXT
H H_sync to the module
HD High Definition
HDD Hard Disk Drive
HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding.
HDMI High Definition Multimedia Interface
HP HeadPhone
I Monochrome TV system. Sound

2

C Inter IC bus

I

2

I

D Inter IC Data bus

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate F requency
IR Infra Red
IRQ Interrupt Request
ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

Table 2-1

The SDI signal is self-synchronizing,
uses 8 bit or 10 bit data words, and has
a maximum data rate of 270 Mbit/s,
with a minimum bandwidth of 135
MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored
in RAM or in the NVM. They are called
at start-up of the set to configure it
according to the customer's

preferences
LATAM Latin America
LCD Liquid Crystal Display
LED Light Emitting Diode
L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I
LPL LG.Philips LCD (supplier)
LS Loudspeaker
LVDS Low Voltage Differential Signalling
Mbps Mega bits per second
M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz
MHEG Part of a set of international standards

related to the presentation of

multimedia information, standardised

by the Multimedia and Hypermedia

Experts Group. It is commonly used as

a language to describe interactive

television services
MIPS Microprocessor without Interlocked

Pipeline-Stages; A RISC-based

microprocessor
MOP Matrix Output Processor
MOSFET Metal Oxide Silicon Field Effect

Transistor, switching device
MPEG Motion Pictures Experts Group
MPIF Multi Platform InterFace
MUTE MUTE Line
MTV Mainstream TV: TV-mode with

Consumer TV features enabled (iTV)
NC Not Connected
NICAM Near Instantaneous Compounded

Audio Multiplexing. This is a digital

sound system, mainly used in Europe.
NTC Negative Temperature Coefficient,

non-linear resistor
NTSC National Television Standard

Committee. Color system mainly used

in North America and Japan. Color

carrier NTSC M/N= 3.579545 MHz,

NTSC 4.43= 4.433619 MHz (this is a

VCR norm, it is not transmitted off-air)
NVM Non-Volatile Memory: IC containing

TV related data such as alignments
O/C Open Circuit
OSD On Screen Display
OAD Over the Air Download. Method of

software upgrade via RF transmission.

Upgrade software is broadcasted in

TS with TV channels.
OTC On screen display Teletext and

Control; also called Artistic (SAA5800)
P50 Project 50: communication protocol

between TV and peripherals
PAL Phase Alternating Line. Color system

mainly used in West Europe (colour

carrier = 4.433619 MHz) and South

America (colour carrier

PAL M = 3.575612 MHz and

PAL N = 3.582056 MHz)
PCB Printed Circuit Board (same as “PWB”)
PCM Pulse Code Modulation

2017-Mar-03

EN 8 TPS16.4A LA3.

Precautions, Notes, and Abbreviation List

PDP Plasma Display Panel
PFC Power Factor Corrector (or

Pre-conditioner)
PIP Picture In Picture
PLL Phase Locked Loop. Used for e.g.

FST tuning systems. The customer

can give directly the desired frequency
POD Point Of Deployment: a removable

CAM module, implementing the CA

system for a host (e.g. a TV-set)
POR Power On Reset, signal to reset the uP
PSDL Power Supply for Direct view LED

backlight with 2D-dimming
PSL Power Supply with integrated LED

drivers
PSLS Power Supply with integrated LED

drivers with added Scanning

functionality
PTC Positive Temperature Coefficient,

non-linear resistor
PWB Printed Wiring Board (same as “PCB”)
PWM Pulse Width Modulation
QRC Quasi Resonant Converter
QTNR Quality Temporal Noise Reduction
QVCP Quality Video Composition Processor
RAM Random Access Memory
RGB Red, Green, and Blue. The primary

color signals for TV. By mixing levels

of R, G, and B, all colors (Y/C) are

reproduced.
RC Remote Control
RC5 / RC6 Signal protocol from the remote

control receiver
RESET RESET signal
ROM Read Only Memory
RSDS Reduced Swing Differential Signalling

data interface
R-TXT Red TeleteXT
SAM Service Alignment Mode
S/C Short Circuit
SCART Syndicat des Constructeurs

d'Appareils Radiorécepteurs et

SCL Serial Clock I

Téléviseurs

SCL-F CLock Signal on Fast I
SD Standard Definition
SDA Serial Data I
SDA-F DAta Signal on Fast I

2

C

2

C bus

2

C

2

C bus
SDI Serial Digital Interface, see “ITU-656”
SDRAM Synchronous DRAM
SECAM SEequence Couleur Avec Mémoire.

Colour system mainly used in France
and East Europe. Colour
carriers = 4.406250 MHz and

4.250000 MHz
SIF Sound Intermediate Frequency
SMPS Switched Mode Power Supply
SoC System on Chip
SOG Sync On Green
SOPS Self Oscillating Power Supply
SPI Serial Peripheral Interface bus; a

4-wire synchronous serial data link

standard
S/PDIF Sony Philips Digital InterFace
SRAM Static RAM
SRP Service Reference Protocol
SSB Small Signal Board
SSC Spread Spectrum Clocking, used to

reduce the effects of EMI
STB Set Top Box
STBY STand-BY
SVGA 800 × 600 (4:3)
SVHS Super Video Home System
SW Software

SWAN Spatial temporal Weighted Averaging

Noise reduction
SXGA 1280 × 1024
TFT Thin Film Transistor
THD Total Harmonic Distortion
TMDS Transmission Minimized Differential

Signalling
TS Transport Stream
TXT TeleteXT
TXT-DW Dual Window with TeleteXT
UI User Interface
uP Microprocessor
UXGA 1600 × 1200 (4:3)
V V-sync to the module
VESA Video Electronics Standards

Association
VGA 640 × 480 (4:3)
VL Variable Level out: processed audio

output toward external amplifier
VSB Vestigial Side Band; modulation

method
WYSIWYR What You See Is What You Record:

record selection that follows main

picture and sound
WXGA 1280 × 768 (15:9)
XTAL Quartz crystal
XGA 1024 × 768 (4:3)
Y Luminance signal
Y/C Luminance (Y) and Chrominance (C)

signal
YPbPr Component video. Luminance and

scaled color difference signals (B-Y

and R-Y)
YUV Component video

2017-Mar-03

Table 2-1

4. Mechanical Instructions

20300_100.eps

KEYBOARD
CONTROL

(1057)

E

CN03

CN02

CN01

EXA04

CN9205 CN9101

CN9201

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN413

ECN701

IR/LED BOARD
(1056)

J

ECN701

ECN414

AMBI-LIGHT BOARD
(1068)

ALC

CN201

LOUDSPEAKER

(1186)

OPTION BOARD ASSY

(AUDIO)

(1160)

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

WIFI MODULE

W

WiFi01

AmbiLight

AL

(1061)

AmbiLight

AL

(1062)

AmbiLight

AL

(1063)

AmbiLight

AL

(1062)

AmbiLight

AL

(1063)

AmbiLight

AL

(1061)

AmbiLight

AL

(1062)

EXA02

EXA04

EXA04

EXA04

EXA02

LED DRIVER

(1055)

AD

ECN02

CN701

CN102

CN103

CN414

CN413

CN404

CN703

CN604

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal

4.4 Set Re-assembly

4.1 Cable Dressing

Mechanical Instructions

Notes:

• Figures below can deviate slightly from the actual situation,
due to the different set executions.

EN 9TPS16.4A LA 4.

Figure 4-1 Cable dressing (75PUH7101/96)

Table 2-1

2017-Mar-03

EN 10 TPS16.4A LA4.

20150_102.eps

1

1

1

1

1

1

Mechanical Instructions

4.2 Se rvice Positions

For easy servicing of a TV set, the set should be put face down
on a soft flat surface, foam buffers or other specific workshop
tools. Ensure that a stable situation is created to perform
measurements and alignments. When using foam bars take
care that these always support the cabinet and never only the
display. Caution: Failure to follow these guidelines can
seriously damage the display!
Ensure that ESD safe measures are taken.

4.3 Assembly/Panel Removal

Instructions below apply to the 75PUH7101/96.

4.3.1 Stand

Refer to Figure 4-2

1. Remove the fixation screws [1] that secure the stand
bracket. Refer to Figure 4-2

2. Take the stand bracket out from the set.

for details.

for details.

Figure 4-2 Stand removal

2017-Mar-03

Table 2-1

Mechanical Instructions

20030_112.eps

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

2

1

2

2

20150_103.eps

3

EN 11TPS16.4A LA 4.

4.3.2 Rear Cover

Refer to Figure 4-3
Warning: Disconnect the mains power cord before removing
the rear cover.

1. Remove the fixation screws [1] and [2] that secure the rear
cover. Refer to Figure 4-3

& Figure 4-4 for details.

for details.

2. Unplug the connector [3] from SSB. Refer to Figure 4-4
details.

3. Gently lift the rear cover from the TV. Make sure that wires
and cables are not damaged while lifting the rear cover
from the set.

for

Figure 4-3 Rear cover removal[1]

Figure 4-4 Rear cover removal[2]

Table 2-1

2017-Mar-03

EN 12 TPS16.4A LA4.

20150_104.eps

3

2

3

4

4

55

1

1

5

5

5

5

20150_105.eps

1

3

3

3

3

3

3

2

2

Mechanical Instructions

4.3.3 AmbiLight Panel

Refer to Figure 4-5

1. Gently release the clamps and unplug the connectors [5]
that secure the ambilight panels. Release the clips from the

for details.

FFC connector that connect with the Keyboard control
panel [4].

2. Lift the AmbiLight panel from the rear cover. Make sure that
wires and flat foils are not damaged while lifting the
Ambilight panel from the rear cover.

Figure 4-5 Ambilight and Keyboard removal

4.3.4 Keyboard Control Unit

Refer to Figure 4-5

1. Release the connector [2] from the SSB Board, then
release the connectors [3] from the Ambilight panel.
Caution: be careful, as these are very fragile connectors!

2. Remove all the fixation screws from the keyboard control
panel [1] and take it out from the Back cover.

When defective, replace the whole unit.

4.3.5 Small Signal Board (SSB)

Refer to Figure 4-6
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the SSB.

1. Release the clips from the LVDS connector that connect
with the SSB [1].
Caution: be careful, as these are very fragile connectors!
Unplug the cable/flat foils connector.

2. Unplug all other connectors [2].

3. Remove all the fixation screws from the SSB [3].

4. Take out the SSB with I/O bracket.

5. The SSB can now be shifted away from side connector
cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-6

for details.

for details.

for details.

Figure 4-6 SSB removal

2017-Mar-03

Table 2-1

Mechanical Instructions

20030_116.eps

2

Step 1

Step 2

1

20030_117.eps

2

Step 1

Step 2

1

1

EN 13TPS16.4A LA 4.

4.3.6 IR/LED Board

Refer to Figure 4-7

1. Remove the fixation screw [1] from the bracket, pull out the
assy from the set.

2. Carefully Releas the cover secured by clips, then unplug
the connector [2] from the IR/LED board. The IR/LED
Board can now be lifted and taken out from the cover.

for details.

4.3.10 LED Logo Board

Refer to Figure 4-8

1. Remove the fixation screws [1] from the bracket, pull out
the assy from the set.

2. Carefully Releas the cover secured by clips, then unplug
the connector [2] from the LED Logo board. The LED Logo
board can now be lifted and taken out from the cover.

for details.

Figure 4-7 IR/LED Board removal

4.3.7 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result
in damaging the PSU.

1. Unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.3.8 Speakers

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

3. Take the speakers out.
When defective, replace the both units.

4.3.9 WIFI module

1. Unplug the connector from the SSB.

2. Remove fixation screw that secure the WIFI module,
getntly remove the module from the set.

When defective, replace the whole unit.

Figure 4-8 LED Logo Board removal

4.3.11 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the WIFI module as earlier.

7. Remove the fixations screws that fix the metal clamps to
the front bezel. Take out those clamps.

8. Remove all other metal parts not belonging to the panel.

9. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

4.4 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse
order.

Notes:

• While re-assembling, make sure that all cables are placed
and connected in their original position. See Figure 4-1

• Pay special attention not to damage the EMC foams on the
SSB shields. Ensure that EMC foams are mounted
correctly.

.

Table 2-1

2017-Mar-03

EN 14 TPS16.4A LA5.

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Service Modes

5.2 Stepwise Start-up

5.3 Service Tools

5.4 Software Upgrading

5.1 Service Modes

The Service Mode feature is split into five parts:

• Factory Mode.

Factory mode offer features, which can be used by the Service
engineer to repair/align a TV set. Some features are:

• Make alignments (e.g. White Tone), reset the error buffer
(Factory Mode).

Note: For the new model range, a new remote control (RC) is
used with some renamed buttons. This has an impact on the
activation of the Service modes. For instance the old “MENU”
button is now called “HOME” (or is indicated by a “house” icon).

5.1.1 Contents of the Factory mode:

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

• Displaying and or changing Tuner ID information.

• Error buffer clearing.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control
transmitter: from the “menu/home” press “1999”, directly
followed by the “Back/Return” button. Do not allow the
display to time out between entries while keying the
sequence.

After entering the Factory mode, the following items are
displayed,

Table 5-1 Factory mode overview

Item Item value Description75"

0 Brand PHILIPS Brand name
1 Model 75PUH7101 Model name
2 HW Ver 715g7702 Main-MCU version
3 SW Ver V1.01 Bootloader version
4 URSA Ver V0.13 Sub-MCU version

5 Date Fri Dec 23 20:36:06 CST 2016 Software release date
6 Scaler MSD95E1D-W4 Scaler name
7 Tuner MXL661 Tuner type

8 Panel
9 SN Unknow Serial number of TV
10 System alive

time(hr.)

11 ADC Adjust ADC Adjust
12 W/B Adjust W/B Adjust
13 SSC Adjust SSC Adjust
14 EQ Ajust EQ Ajust
15 Burn In Off Burn In
16 Others Others
17 Start adbd Start adbd
18 Android reset Language
19 Reset System Reset
20 Exit Exit factory mode

UD_LG_LC750EQF

65 System alive time(hr.)

Display Panel model

How to Exit the Factory mode

Use one of the following methods:

• Select EXIT_FACTORY from the menu and press the “OK”
button.

Note: When the TV is switched “off” by a power interrupt, or
normal switch to “stand-by” while in the factory mode, the TV
will show up in “normal operation mode” as soon as the power
is supplied again. The error buffer will not be cleared.

2017-Mar-03

Table 2-1

5.2 Stepwise Start-up

19080_206_110323.eps

120224

Power Off

Standby
Soft Mode

Power On

Semi-
Standby

Standby

Switch

Off(Mains
Power Plug)

Standby Soft Mode
Command Received,
previously in Standby

Soft Mode (Power tact
switch)

TV Wakeup
commands
Received
(TV Wakeup
keys)

Digital
background
tasks started

Digital
background
tasks completed

Swith On,
previously in

Standby/Semi-
Standby (Mains
Power Plug)

Standby
Soft Mode

Command
Received
(Power tact

switch)

Switch Off (Mains
Power Plug)

Switch Off

(Mains Power
Plug)

Swith On,
previously in
Standby Soft Mode
(Mains Power Plug)

Standby
commands

Received (RC

Standby key)

Standby Soft Mode

Command Received,
previously in Standby
Soft Mode (Power
tact switch)

TV Wakeup
commands
Received
(TV Wakeup
keys)

Switch On, previously
in Power On Mode
(Power tact switch)

Standby Soft Mode
Command Received,
(Power tact switch)

Switch Off (Mains
Power Plug)

Switch On,previously in
TV Operation Mode
(Mains Power Plug)

Service Modes, Error Codes, and Fault Finding

EN 15TPS16.4A LA 5.

Figure 5-1 Stepwise Start-up

Table 2-1

2017-Mar-03

EN 16 TPS16.4A LA5.

19943_200_151102.eps

Soware upgrade in progress

…

5.3 Service Tools

5.3.1 ComPair

The ComPair Tool is no longer supported here. Still, the interface box can be used as level shifter between the TV chassis and PC.

5.4 Software Upgrading

5.4.1 Description

It is possible for the user to upgrade the main software via the
USB port. This allows replacement of a software image in a
stand alone set. A description on how to upgrade the main
software can be found in the DFU or on the Philips website.

Service Modes, Error Codes, and Fault Finding

Figure 5-2 Update the TV software 1

5.4.2 Introduction

Philips continuously tries to improve its products, and it’s
recommend that the TV software is updated when updates are
available. Software update files can be obtained from the
dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip
for Windows or Stufflt for Mac OS).

3. A FAT formatted USB memory stick (preferably empty).

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

5.4.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to
check that what the current TV software:

1. Press the “Home screen” + “1999” + “Back” button on the
remote control to enter the Factory mode.

2. Use the up/down cursor keys to select “SW Ver”.

If the current software version of the TV is the same as the
latest update file found on , it is not necessary to update the TV
software.

5.4.4 Update the TV software

The following update is for .pkg file.

1. Rename the file to “upgrade_loader.pkg”

2. Switch off the TV and Insert the USB memory stick that
contains the software update files in one of the TV’s USB

2.0 ports.
Note: The TV contains USB3.0 port, if connect on it, the
software may can’t be detected.

3. Switch on the TV. The TV will detect the USB memory s tick
automatically. Then a window jumps out as Figure 5-2
Note: Make sure the TV is start up after power plug, If the
USB flash drive is not detected after power up, disconnect
it and re-insert it.

4. When the TV software is updated, the TV will turn on
automatically. Remove your USB flash drive.

web site.

Note:

• Do not remove the USB flash drive during the software
update.

• Do not turn off the power during the software update.

• If a power failure occurs during the update, do not remove
the USB flash drive from the TV. The TV will continue the
software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or
contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV
software from the USB portable memory.

5.5 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly
with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options
are set.

5.5.1 Unstable Picture via HDMI input

Check if HDMI EDID data is properly programmed.

5.5.2 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

5.5.3 Audio Amplifier

The Class D-IC U606 has a powerpad for cooling. When the IC
is replaced it must be ensured that the powerpad is very well
pushed to the PWB while the solder is still liquid. This is needed
to insure that the cooling is guaranteed, otherwise the Class
D-IC could break down in short time.

5.5.4 Loudspeakers

Make sure that the volume is set to minimum during
disconnecting the speakers in the ON-state of the TV. The

.

audio amplifier can be damaged by disconnecting the speakers
during ON-state of the set!

2017-Mar-03

Table 2-1

6. Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following
conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer
with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct
ground (e.g. measure audio signals in relation to
AUDIO_GND).
Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

• Use an isolated trimmer/screwdriver to perform
alignments.

> 10 MW, Ci < 20 pF.

i

6.2 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service
repair shop (SSB repair on component level) implies the reset
of the NVM on the SSB.

After a repaired SSB has been mounted in the set (set repair
on board level), the type number (CTN) and production code of
the TV has to be set according to the type plate of the set.

, 50/ 60 ± 3 Hz.

AC

Alignments

EN 17TPS16.4A LA 6.

6.2.1 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB.
715Axxxx-Nnn-MMM-OOOO

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code

Make sure when replacing an SSB the SSB identification codes
match the replacement panel.

6.3 Cable pos ition numbers

In this chassis, the cable position numbers can be defined via
the rule that the number is always starting with an “E” followed
by the connector number of the current sourcing board. The
order is always seen from where the power initiates from. So
from PSU to SSB, from SSB to IR/LED panel, from IR/LED
panel to keyboard control panel. For example, a cable from the
PSU connector CN902 to the SSB connector CN701, will have
the position number ECN902.

Table 2-1

2017-Mar-03

EN 18 TPS16.4A LA7.

7. Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 DC/DC Converters

7.4 Front-End Analogue and DVB-T, DVB-C; ISDB-T reception

7.5 HDMI

7.6 Video and Audio Processing - MSD95E1D-W4

Notes:

•Only new circuits (circuits that are not published recently)
are described.

• Figures can deviate slightly from the actual situation, due
to different set executions.

• For a good understanding of the following circuit
descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

you will find a separate drawing for clarification.

) and circuit diagrams (see chapter

).Where necessary,

Circuit Descriptions

7.1 Introduction

The TPS16.3A LA is a new chassis launched in Taiwan in

2016. The whole range is covered by MSD95E1D platfor m .
The major deltas versus its predecessor support

P AL/NTSC/SECAM with also USB3.0,WIFI/multi-media, Video
out functionality.

The TPS16.3A LA chassis comes with the following stylings:

• series xxPUH7101/96

7.1.1 Implementation

Key components of this chassis are:

• SCALER MSD95E1D-W4 BGA954

• SCALER MST7410FET BGA-1024

• NAND FLASH KLMAG2GEND-B031 16GB FBGA-153

• FLASH MX25L3206EM2I-12G 32Mb SOP-8

• AUDIO Amplifier AD22650-QH14NAR - TSSOP-14

• TUNER MxL661-AG-R

7.1.2 TPS16.3A LA Architecture Overview

For details about the chassis block diagrams refer
to 9. Block Diagrams

Figure 9.1

.

. An overview architecture can be found in

2017-Mar-03

Table 2-1

7.2 Power Supply

20300_201.eps

Display power

Platform

MSD95E1D

PFC

Platform power

1 power- PCB

LVDS AMP

Low stby
power

Ac-input + Mains filter

BL-ON/OFF

AC IN

CN9901

DIM

12V_A

12V

PS_On

12V

CN701

AMP

12V

CN8103(FOR 715G7854)

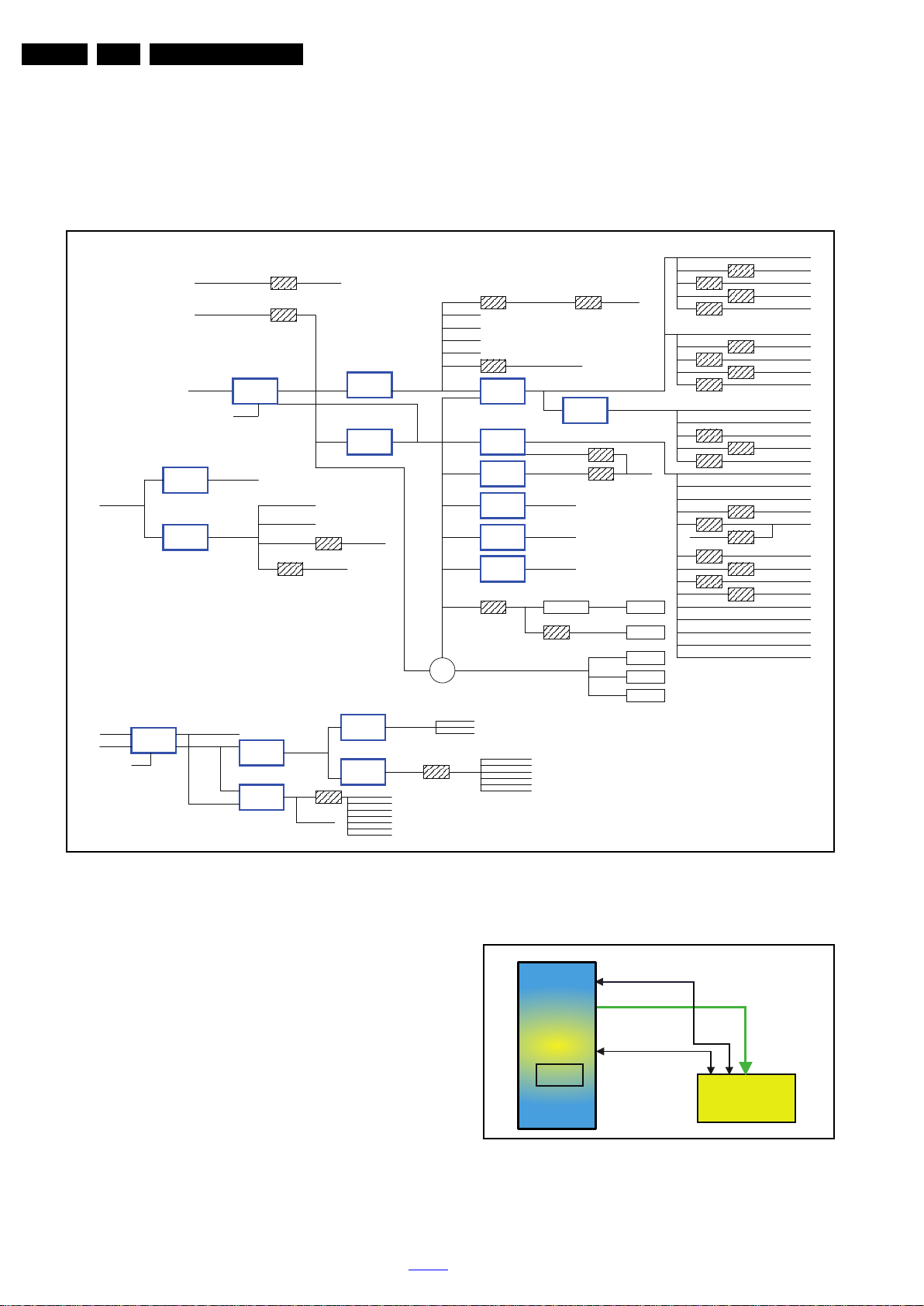

Refer to figure Figure 7-1 for the power architecture of this
platform.

Circuit Descriptions

EN 19TPS16.4A LA 7.

7.2.1 Power Supply Unit

All power supplies are a black box for Service. When defective,
a new board must be ordered and the defective one must be
returned, unless the main fuse of the board is broken. Always
replace a defective fuse with one with the correct
specifications! This part is available in the regular market.
Consult the Philips Service web portal for the order codes of the
boards.

Important delta’s with the TPS16.3A LA classis platform are:

• New power architecture for LED backlight

• “Boost”-signal is now a PWM-signal + continuous variable.

The control signals are:

• PS-ON

• Lamp “on/off”

• DIM (PWM) (not for PSDL)

In this manual, no detailed information is available because of
design protection issues.

The output voltages to the chassis are:

• +3.7V output for 715G7732P(standby mode)

• +12 output (on-mode)

• +12V_audio (audio AMP power)

• Output to the display; in case of

- IPB: High voltage to the LCD panel

- PSL and PSLS (LED-driver outputs)

- PSDL (high frequent) AC-current.

Figure 7-1 Power Architecture

7.2.2 Connector overview

Table 7-1 Connector overview

7.3 DC /DC Converters

The on-board DC/DC converters deliver the following voltages
(depending on set execution):

• +3V5-SB, permanent voltage for the Stand-by Power
system and WIFI

• +3V3-STANDBY,voltage for IR/Key board

• +12V, input from the power supply for the panel
common(active mode)

• +12V, input from the power supply for LNB supply

Table 2-1

Connector

Number
Description to SSB to panel to panel
Pin161114

1 DIM VLED- VLED­2 BL_O/F VLED- VLED­3 PS_ON VLED- VLED­4 Scan BL EN

5 GND NG NG
6 GND +VLED- +VLED­7 GND NG NG
8 GND NG NG
9 12V(Audio) +VLED- +VLED­10 12V(Audio) NG NG
11 12V NG NG
12 12V - VLED­13 12VA - VLED­14 12VA - VLED­15 +3.5V/+5V - ­16 +3.5V/+5V - -

75"
CN9101 CN8103 CN8104

(A3D)

NG NG

2017-Mar-03

EN 20 TPS16.4A LA7.

U706
G5695T11U

U701
AT1529F11U

U708
G5695T11U

U703
AZ1117-3.3V

Q703
AO4449

U711
G5383QU1U

U707
G5695T11U

U710
APL3529A

U702
AZ11117CH

U101
G5250K1T1U

U704
AZ1117

ybdnatS_V3.3+ybdnatS_V5+

+5V_Normal

+1.5V_DDR

L33

AVDD_USB AVDD_USB3

L41

AVDD_DMPLL
AVDD3_LAN
AVDD_NODIE
AVDD_DADC
AVDD_ADC

L69

AVDD_AU33 AVDD_EAR33

AVDD_DDR0_S

MR2

MR8

MR11

MR12

C-MVREFDQ-T1
C-MVREFDQ-T2
C-MVREFCA-T1
C-MVREFCA-T2

MR22

D-MVREFCA-T2

MR21

AVDD_DDR1_S

D-MVREFDQ-T2
D-MVREFCA-T1

D-MVREFDQ-T1

MR33

MR34

+1.5V_AVDD_DDR

AVDD-DDR-LDO-A
AVDD-DDR-LDO-B
AVDD15-MOD

L35

C677

AVDD-DDR-VBP-B

C675

AVDD-DDR-VBP-A

+3.3V_Normal

VDDP33
AVDD3P3_MHL
AVDD3P3_MOD
AVDD_LPLL AVDD_PLL
VDDP_NAND_A

VCC3.3V_EMMC_SD

L73

L53

L113

FB103

VCC3V3

FB601

AMP_3V3
EEPROM U403
ARC OPA U501
AMBI CHIP U405
LINE OUT AMP U6011

+1.8V_Normal

R411

EMMC_VIO

L12

+1.8V_Normal

VDDP_NAND_C

R4109

R4214

VCC3.3V_EMMC_SD

+1.2V_Demod

+3.3V_TU

+3.3V_SD

R719

USB_5V USB30_5V External

USB3.0

External
USB2.0

TH105

Internal
USB2.0

Inernal
USB3.0

Internal
USB2.0

+5V_Standby

+5V_Normal

P12V

P24V

AMP_24V

FB603

+5V_Standby

L41

AVDDL_USB3

L32

L153

DVDD_DDR

AVDDL_MOD

U705
G5383QU1U

AVDDL_MHL3

+1.05V_VDDC_CPU

VDDC_1

U709
MSH6100A

+1.2V_VDDC

P12V

P12

+5V_ Normal

U709
AO3401A

VCC5V_FRC
12_FRC

VCC5V_FRC

PS_ON

U716
SY80009BABC

U715
AZ1084D

U714
TPS54328DDAR

VCC1.5V_FRC

VCC3.3V_FRC

U717
TPS54528DDAR

VDDP_FRC

AVDD_DVI_FRC

AVDD_HDMITX_FRC

AVDD_MOD_FRC

AVDD_ALLRX_FRC

AVDD_PLL_FRC

AVDD_DDR_FRC

AVDD_15_MOD_FRC

VCC1V_FRC

AVDDL_MOD_FRC

AVDDL_PREDRV_FRC

DVDD_DDR_FRC

AVDDL_RX_FRC

AVDDL_HDMITX_FRC
AVDDL_DVI_FRC

VDDC_FRC

+5V_Normal

PS_ON

20300_202.eps

IF

IF_AGC

RF_AGC

MSD95E1D

IF_AGC

MxL661-AG-R

I2C

I

2

C

20310_206.eps

Circuit Descriptions

• +12V, input from the power supply for the Ambilight

• +3V3-EMMC, +1V8-EMMC-IO, voltage for EMMC when
TV on

• +1V5-DDR, +1V0-VCCK, voltage for DDR

• TUNER_3V3, supply voltage for tuner

• +5V-SW, input intermediate supply voltage for USB Power

• +12V-AUDIO1 for the AUDIO AMP

• +1V2 for Core.

• +3V3-WIFI,voltage for WIFI

• +1V1-NT,+2V5-NT, voltage for NT72324

Figures gives a graphical representation of the DC/DC
converters with its current consumptions :

Figure 7-2 DC/DC converters(For Mainboard)

7.4 Front-End Analogue and DVB-T, DVB-C; ISDB-T reception

7.4.1 Front-End Analogue part

The Front-End for analogue tuner consist of the following key
components:

•TUNER MxL661-AG-R

• SCALER MSD95E1D-W4 BGA954 Processor

2017-Mar-03

Below find a block diagram of the front-end application for
analogue part.

Table 2-1

Figure 7-3 Front-End Analogue block diagram

Circuit Descriptions

20310_208.eps

MSD95E1D

ARX

BRX

CN503

HDMI 1

CN501
HDMI 2

EN 21TPS16.4A LA 7.

7.5 HDMI

Refer to figure 7-4 HDMI input configuration for the application.

Figure 7-4 HDMI input configuration

The following HDMI connector can be used:

• HDMI 1: HDMI input ( TV digital interface support
HDMI1.4/HDCP1.3) with digital audio/PC DVI input/ARC

• HDMI 2: HDMI input ( TV digital interface support HDCP)
with digital audio/PC DVI input/ARC

• +5V detection mechanism

• Stable clock detection mechanism

• Audio return channel(ARC)

• TMDS output control

•HPD control

•CEC control

The MSD95E1D enables feature rich products that bring
differentiation to the iDTV market. By the use of powerful
CPU/GPU and AV decoders capable of decoding a plethora of
high definition content from Ethernet, USB 3.0 connectivity and
MHL. The MSD95E1D based systems can provide a high
quality media-center experience.
The MSD95E1D provides legacy multi-standard analog TV
support with adaptive 3D video decoding and VBI data
extraction. Similarly the audio decoder is capable of decoding
FM, AM, NICAM, A2, BTSC and sound standards.
The MSD95E1D supplies all the necessary A/V inputs and
outputs to complete a receiver design including a multi-port
HDMI receiver and component video ADC. All input selections
multiplexed for video and audio are integrated, including full
SCART supported with CVBS output.

7.6 Video and Audio Processing -

The MSD95E1D is a highly integrated smart TV solution which
supports dual channel 8/10bit LVDS output, DTV channel
decoding, MPEG decoding, VP decoding, 3D formatter, and
security OS. MSD95E1D serves full functions of multi-media
centers with a high performance CPU, GPU, and AV
CODEC/security engines. It has the following features:

• ATSC /DVB-T /DVB-C/DTMB/ISDB-T Front-End
demodulators

• Advanced Multi-Core CPU and 3D GPU

• 3D Formatter Engine

• Multi-Standard A/V Format Decoder

• The MACE-PRO3UC Video Processor

• Home Theater Sound Processor

• Internet and Variety of Connectivity Support

• Peripheral and Power Management

• Robust and Efficient Security Engine

• Full Multi-Media Decoders Including HEVC Decoder
Supporting up to UHD/60fps Resolution

The MSD95E1D is MStar’s most up-to-date system-on-chip
solution for flat panel integrated digital television products.
Building on the success of MStar’s advanced technologies, the
MSD95E1D hosts the most advanced picture processing
engine, MStarACE-PRO3UC, for all the experts in various of
TV video quality tuning fields to develop the state-of-the-art
DTV system. The powerful CPUs and GPUs deliver high
performance for modern Linux and Android TVs. The popular
ARM and Mali architecture ensures the best software
compatibility. Applications with HTML5, Java, Flash, etc., can
be realized on MSD95E1D with minimized developer efforts.
The MSD95E1D also integrates all-purpose AV decoders for
DTV/multi-media applications, ATSC/QAM, DVB-T, DVB-C,
ISDB-T and DTMB Demadulators and Sound/Video
processors into a single device. This allows the overall BOM to
be reduced significantly and making the MSD95E1D a very
cost effective multi-standard DTV solution.

MSD95E1D-W4

Table 2-1

2017-Mar-03

EN 22 TPS16.4A LA8.

19760_301.eps

Block diagram

Pinning information

24

23

22

21

20

19

18

17
16

15

14

13

7

8

9

10

11

12

1

2

3

4
5

6

LNA_INP

LNA_INN

AS

GND_XTAL

CLK_OUT

XTAL_P

XTAL_N

VDD_1p8

VDD_IO

AGC_1

AGC_2/GPO_3

MxL661

VDD_3p3

RESET_N

VDD_1p8

VDD_1p8

GND_DIG

VDD_1p2

IF_OUTN_1

IF_OUTP_1

IF_OUTP_2/GPO_1

IF_OUTN_2/GPO_2

SDA

SCL

VDD_3p3

Crystal

Reference

I2C

Voltage

Regulator

AGC1

RF

Synth

Gain

Control

IF

Synth

Synth

Calibration

LNA

AGC2

Channel
Filtering

CLK_OUT

IF1 Out

IF2 Out

RF Input

Balun

IC Data Sheets

8. IC Data Sheets

This chapter shows the internal block diagrams and pin
configurations of ICs that are drawn as “black boxes” in the
electrical diagrams (with the exception of “memory” and “logic”
ICs).

8.1 Diagram 10-3-13 Tuner, B13, MxL661-AG-R (IC U104)

2017-Mar-03

Figure 8-1 Internal block diagram

Table 2-1

8.2 Diagram 10-3-17 AMP, B17, AD22650-QH14NAR (IC U602)

20210_301.eps

Block diagram

Pinning information

LINP
LINN

EN

SGND

CN

PVSS

OUTL

RINP

RINN

PGND

UVP

CP

PVDD

OUTR

TSSOP-14
(Top View)

1

2

3

4

5

6

7

14

13

12

11

10

9

8

AD22650

IC Data Sheets

EN 23TPS16.4A LA 8.

Figure 8-2 Internal block diagram and pin configuration

Table 2-1

2017-Mar-03

EN 24 TPS16.4A LA8.

Personal Notes:

10000_012_090121.eps

IC Data Sheets

2017-Mar-03

Table 2-1

9. Block Diagrams

20300_400.eps

LCD PANEL

CVBS (Share with YPbPr Y)

RGB

TMDS

TMDS

SD Card

R/L

USB 2.0 Port2

VIDEO

Speaker Output

USB 3.0

Audio AMP
AD22650

VB1

USB 2.0 Port2

USB 2.0

R/L

SPDIF Output

HDMI 3

NOR FLASH ROM
MX25L1606EM2I-12G

TMDS

VIF

iNAND FLASH / eMMC
KLMAG2GEND-B031

DDR III x 4
(4G 1866MHz)
H5TQ4G63AFR-RDC

YPbPr

RJ-45

EEPROM
M24C32-WDW6

HDMI 1 / MHL

USB 3.0

USB 2.0

YPbPr/AV/VGA Audio In

I2S

Hsync, Vsync

IEC958

MSD95E1D

YPbPr

VGA

R/L

USB 3.0

HDMI 2

AV output

Audio Lineout

RESET IC
G690H293T73

Audio Amplifier
AD82588

MxL661

RF

MSB1241

VIF

TS

USB 2.0

USB 2.0 Port1

External

External

Internal

Internal

Internal

USB 2.0 Port3

9.1 Block diagram

Block Diagrams

EN 25TPS16.3A LA 9.

2017-Feb-24

back to

div.table

Circuit Diagrams and PWB Layouts

20150_501.eps

AC input

A01 A01

2016-03-07

715G7732

AC input

FB9906

900R

1 2

FB9905

127R

12

GND2
GND

1

t

NR99033R 3.6W

1 2

R9903
NC / 510K 1/ 4W

FB9904

127R

1 2

R9298

NC/0R05

CN9903
NC/CONN

1
2

C9915
100PF 250V

R9908
NC / 510K 1/ 4W

R9901
390K 1/2W

HS9902

HEAT SINK

1
2

3

4

L9903

10uH

1

2

4

3

-

+

BD9901
GBJ1008-FUC

2

1

3

4

FB9902

900R

1 2

GND4
GND

1

L9902

NC/8MH

1

4

2

3

C9901

470NF 275V

R9904
NC / 510K 1/ 4W

SG9901

NC/DSPL-501N-A21F

t

NR9904
3R 3.6W

12

t

NR9902

5R

12

ZD9213

NC/BZT52-B3V0G

1 2

L9904
8mH

1

2

4

3

L9905
8mH

1

2

4

3

CN9902

NC/CONN

L

1

N

2

FB9903
BEAD

12

FB9901
900R

1 2

HS9901

HEAT SINK

1
2

3

4

ZD9210

NC/BZT52-B3V0G

1 2

R9905

NC / 510K 1/ 4W

CN9901

AC 2P

12

U9901
CAP004DG-TL

NC

1

D12D1

3

NC

4

NC5D26D27NC

8

t

NR9901

5R

1 2

F9901
8A 250V

1 2
3 4

R9100

NC/0R05

ZD9211

NC/BZT52-B3V0G

1 2

R9906
NC / 510K 1/ 4W

C9912

100PF 250V

C9902

470NF 275V

R9299

NC / 2 OH M 1%

RV9901

680V

C9904
47PF

SW9901

NC/HF162F_en_12V

3

4

1
2

C9911
22PF 250V

R9297

NC/0R05

R9200

NC/0R05

SG9902

NC/DSPL-501N-A21F

GND1
GND

1

-

+

BD9902
GBJ1008-FUC

2

1

3

4

C9913
100PF 250V

R9902
390K 1/2W

R9907
NC / 510K 1/ 4W

L9901

NC/8MH

1

4

2

3

C9914

100PF 250V

GND3
GND

1

ZD9212

NC/BZT52-B3V0G

1 2

BO

R-

R-

Vsin

N

R-

BI

R-

CZ2

+24V

CZ2

CZ1

DV5

CZ1

! !

!

!

!

!

!

!

!

!

!

!!

!!

!

!

!

!

!

!

!

!

!

!

10. Circuit Diagrams and PWB Layouts

10.1 A 715G7732 PSU

10-1-1 AC input

EN 26TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-1-2 PFC with TI

20150_502.eps

PFC with TI

A02 A02

2016-03-07

715G7732

PFC with TI

R9839

NC/18.7K 1%

R9825 120KOHM +-1% 1/8W

Vsin

Vbus

+VCC2

R-

GDB

GDB

GDA

ZCDA GDA

ZCDB ZCDA

ZCDB

Vref

Vref

VSENSE

VSENSE

Vsin

R-

FB9807
BEAD

1 2

D9801
IN5408G-04

L9802
200uH

6

41

3

FB9808BEAD

12

D9800
IN5408G-04

FB9809BEAD

12

C9125

10NF 1KV

D9806

SS1060FL

ZD9803

NC/BZT52-B18

1 2

FB9800
BEAD

1 2

ZD9802

NC/BZT52-B18

1 2

D9807

SS1060FL

ZD9803

NC/BZT52-B18

1 2

C9824
100N 50V

R9805
NC/0.03R

R9840

0.024R

R9801
NC/0.03R

R9841

0.024R

FB9806
BEAD

1 2

+

C9823

68uF 450V

Q9806

MMBT2907A

R9806

10R 1/ 8W 5%

R9808

33R 1%

!

!

D9803
SS1060FL

HS9802
HEAT SINK

1
2

3

4

C9808
47PF

D9805

SS1060FL

FB9804 NC/127R

1 2

Q9807

MMBT2907A

FB9805 NC/127R

1 2

C9126

10NF 1KV

R9818

33R 1/8W 5%

R9816

10R 1/ 8W 5%

R9827

200 OHM 1/4W

C9806
100PF

Q9802

IPA60R230P6

2

1

3

R9821
10KOHM

R9824
2Mohm 1/4W +/-1%

C9821

100N 50V

C9816
10NF 50V

C9803
1UF 450V

R9815

16.2K 1%

Q9801

IPA60R230P6

2

1

3

R9823

NC/18.7K 1%

+

C9805

68uF 450V

ZD9801

BZT52-B3V6

12

C9813 220nF50V

Q9805
STD1NK60T4

+

C9804

68uF 450V

R9834

33K 1/8W 1%

R98311K

L9801
200uH

6

41

3

Q9803

STD1NK60T4

R9836 1K 1/4W

R9814
0R05

C9812

1NF 50V

C9810

22pF 50V

R9809
1MOHM +-1% 1/4W

C9809
100PF

HS9801
HEAT SINK

1
2

3

4

R9803
1MOHM +-1% 1/4W

R9828

2Mohm 1/4W +/-1%

C9807

22pF 50V

C9802
47PF

R9813
0R05

C9811

100N 50V

C9819

100N 50V

+VCC2

+VCC2

C9815

1uF

+VCC2

FB9803
NC/127R

12

R9811
1MOHM +-1% 1/4W

R9830

NC / 0R 05 1/ 4W

R9826
7K5 1/8W +/-1%

R9807
10K OHM +-5% 1/8W

Q9804

STD1NK60T4

R9819
NC/0R05 1/4W

R9804

16.2K 1%

C9817
100N 50V

R9833

220K OHM 1%

C9801
1UF 450V

D9802 FMNS-1106S

R9835

NC

FB9802
NC/127R

12

R9838

120KOHM +-1% 1/8W

R9837
10KOHM

C9822

1NF 50V

R9820 1K

R9832
10KOHM

C9818

3.3nF 50V

R9812
1MOHM +-1% 1/4W

FB9801
BEAD

1 2

C9820

1NF 50V

U9801

UCC28063DR

ZCDB

1

VSENSE

2

TSET

3

PHB

4

COMP

5

AGND

6

VINAC

7

HVSEN8PWMCNTL

9

CS

10

GDB

11

VCC

12

PGND

13

GDA

14

VREF

15

ZCDA

16

R9829
2Mohm 1/4W +/-1%

R9802
1MOHM +-1% 1/4W

R9822

47K 1/8W 1%

R9817
10K OHM +-5% 1/8W

D9804 FMNS-1106S

R9810
1MOHM +-1% 1/4W

Circuit Diagrams and PWB Layouts

EN 27TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-1-3 Flyback with Sanken QR

20150_503.eps

Flyback with Sanken QR

A03 A03

2016-3-7

715G7732

Flyback with Sanken QR

ZD9301

BZT52-B5V1

1 2

C930610UF 16V

C9303

100NF 50V

L9302

4.7uH

C930510UF 16V

R9119

1K5 +-1% 1/8W

+12V

12VS

BI

+12V

R9118

4.7K 1/8W

C9114

1uF

!

+VCC1

U9104

AS431AN-E1

R9153

3K

C9311

10UF 16V

HOT COLD

Q9102

BTC4672M3

+

C9146

10UF 50V

R9121

1K 1/8W 1%

C9121

220NF 50V

R9306

43K

C9108

47PF

C9308

1uF

C9310

100PF 50V

+VCC2

R9307

10K 1/8W 1%

+12V

R9115

2K2 1/8W 1%

R9116

1.3K 1% 1/8W

R9154

20K 1/8W 1%

+12V_A

R9120

9K1 1/8W 1%

DV5

12VS

R9128

6.8K 1%

Q9105

2N7002K

Q9111 TK32A12N1 32A

ZD9109

BZT52-B16

1 2

Vbus

U9101

SSC3S121A

FB/OLP

1

BR

2

ST4DRV

5

OCP

6

VCC

7

GND

8

C9116
1NF

C9142

0.1uF 50V

U9111

SP6018ES8RGB

Timing

1

Pred

2

VR

3

Adj

4

GND

5

MOSG-C

6

Vdd

7

SYNC

8

T9101

POWER X'FMR

1

2

3

4

5

7

6

10

11

12

R9129

10K OHM

R9130

330K 1% 1/8W

C9916 220PF 250V

D9104 SK810C

12

DV5

+12V_A +12V_A

+12V+12V

+

C9107
NC/120uF 35V

C9917 330PF 250V

C9123

2.2NF

R9141
82K 2W

Q9110

2N7002K

D9108
IN4148W RHG

R9155

2Kohm 1/4W +/ -5%

R9140 39R

R9156

2Kohm 1/4W +/ -5%

C9150
NC/ 4. 7U F 25V

ZD9110

NC/BZT52-B4V7

1 2

D9101 SARS01-V1

R9157

10K OHM

R9158

1K5 +-1% 1/8W

+5V (Normal Output 3.7V)

Q9101

TK13A65U

D9102
SS1060FL

R9142

100KOHM +-5% 1/8W

R9107
82 OHM 1/4W

Q9108

2N7002K

+

C9105
2200uF 25V

C9307

1uF

+

C9106
2200uF 25V

C9147

0.1uF 50V

R9108

10ohm 1/4W +/ -1%

C9119 NC

C9120 1uF

R9159

100 OHM 1/4W

R9160

510K 1% 1/8W

R9109

10K 1/8W

PS_ON

12VS

R9101

0.22R 1%

DV5

LLC_OVP

R9104

330R 1/8W 5%

U9112

NC/L78L12ABUTR

IN

3

OUT

1

GND

2

R9143

100K

R9110

27 OHM

R9111

27 OHM

R9112

27 OHM

R9131

27 OHM

C9104
680P 50V

R9132

27 OHM

R9133

27 OHM

C9122 0.1uF 50V

R9145
510K 1% 1/8W

C9141

1uF

D9106 SK810C

12

R9144 100 OHM 1/4W

D9107
SS1060FL

R9308

1.96KOHM +-1% 1/8W

R9113

5.1 OHM 1/4W

12VS

CN9102
NC/CONN

2

4

6

8

10

12

14

16

1

3

5

7

9

11

13

15

C9139
1nF 50V

C9140
1nF 50V

R91642Kohm 1/4W +/ -5%

R9114

5.1 OHM 1/ 4W

R9122

10K 1/4W

R9123

5.1K 1/4W

D9103

PR1007G

R9134

5.1 OHM 1/ 4W

PS_ON

+5V(Normal Output 3.7V)

C9143
1uF

+

C9103

100UF 50V

12VS

C9144
1uF

7812

R91652Kohm 1/4W +/ -5%

CN9101
CONN

2
4
6

8

10
12
14
16

1

3

5
7
9
11
13
15

ON/OFF DIM

3D

R9126

10 OHM 1/4W

C9918

NC/1NF 250V

Q9104
MTB5D 0P03FP-0-UB-S

R9117

5.1K 1/4W

D9109
PR1007G

C9919 NC/1NF 250V

Q9109

BTB1424AM3

R9105

10M

R9125

4R7 1/4W 5%

7812

12VS

FB9301

BEAD

1 2

R91662Kohm 1/4W +/ -5%

L9101
3UH

L9102
3UH

C9124

4.7uF K 25V

C9137

NC/1uF

+

C9113
470UF 25V

+

C9115
470UF 25V

R9102

56K 1/8W +/ -1%

R9106
82K

C9149

4.7uF K 25V

D9105

SS1060FL

R9309

10ohm 1/4W +/ -1%

C9312

220P 50V

C9112

2N2 50V

C9111

NC/0.1uF 50V

C9136

100PF 50V

C9135

0.1uF 50V

R9170 39R

+

C9301

470UF 25V

C9134

100PF 50V

C9133

0.1uF 50V

D9111 SR810-05

12

HS9101
HEAT SINK

1
2

3

4

HS9102
HEAT SINK

1
2

3

4

R9124
22K 1%

+VCC1

C9117

NC/2.2NF

C9304

1NF 50V

U9102
EL817M(X)

1

23

4

U9103

EL817M(X)

1

23

4

D9110 SARS01-V1

BR

C93021uF

BR

ZD9106

BZT52-B15

1 2

R9161

620K +-1% 1/4W

R9162

620K +-1% 1/4W

R9163

620K +-1% 1/4W

+

C9309470UF 25V

U9305

SY8113BADC

BS

1

GND

2

FB3EN

4

IN

5

LX

6

R9302

10K 1/8W 1%

Circuit Diagrams and PWB Layouts

EN 28TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-1-4 LLC with Sanker

20150_504.eps

LLC with Sanken

A04 A04

2016-3-7

715G7732

LLC with Sanken

ZD9205
BZT52-B15

1 2

ZD9206
BZT52-B15

1 2

R9249
56K 1/4W

C9239

0.1uF 50V

T9202

POWER X'FMR

1

7

4

8

9

6

11

5

10

12

COLD

HOT

C9242

220NF 50V

R9247

NC/ 1. 5K OH M

R9248

NC/ 1. 5K OH M

R9251

0R05

R9241

NC/ 0R 05 1/ 4W

+

C9233

NC/1500uF 35V

+VCC2

R9242
1K

C9244

100N 50V

R9243
10KOHM

Q9206

STD1NK60T4

R9252

0R05

JP

+

C9204

270UF 100V

JP

+

C9234

NC/1500uF 35V

+

C9245

NC/1500uF 35V

+

C9246

NC/1500uF 35V

HS9201
HEAT SINK

1
2

3

4

R9244

1K 1/8W 1%

HS9202
HEAT SINK

1
2

3

4

HS9203
HEAT SINK

1
2

3

4

+

C9237
330UF 35V

+

C9236
330UF 35V

T9201

POWER X'FMR

1

7

4

8

9

6

11

5

10

12

R9207 1M5 1/4W 1% R9202

1M5 1/4W 1%

R9203

1M5 1/4W 1%

24VB

+VCC2

FB9202

BEAD

1 2

24VB

ZD9214

NC/BZT52-B6V2

1 2

C9209

5PF

R9221

100R 1/8W 5%

R9235

1Kohm +-1% 1/4W

D9205

SS1060FL

C9225

4.7uF 10V

D9204

FMXA-2203SE

1

2

3

R9227

220K OHM 1%

R9219

220K OHM 1%

D9201
UF4007

24VS

R9210

18K 1/8W 1%

+

C9211

22UF 50V

R9217
NC

CN9203
NC/CONN

2
4
6

8

10
12
14

1

3

5
7
9
11
13

C9220

100N 50V

U9201

SSC9522S

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

R9222

91KOHM +-1% 1/ 8W

+

C9205

47uF 100V

R9201

0.1R 1W

Q9204

LMBT3906LT1G

C9201
1NF

C9232

0.1uF 50V

ZD9202

BZT52-B22

1 2

C9223
NC

R9206
10R 1/8W 5%

R9236

2K 1/8W 1%

R9225

1K 1/8W 1%

R9216

200R 1/8W 1%

C9228

0.1uF 50V

C9226

0.1uF 50V

R9212
82 OHM

Q9205

LMBT3904LT1G

R9234

2.4KOHM +-1% 1/8W

C9218
1NF 50V

C9208

47P 50V

R9229

20K 1/4W

R9204
56K

C9207

1uF

D9202

FMXA-2203SE

1

2

3

R9214

470OHM +-5% 1/8W

U9204
AS431AN-E1

D9203
SS1060FL

C9219

560PF 50V

C9212

0.1uF 50V

CN9205
CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

C9215
100PF

D9210

FCHS30A08

1

2

3

R9211
10R 1/8W 5%

C9231

0.47UF 50V

D9211

IN4148W RHG

ZD9201

BZT52-B15

1 2

R9224
2K 1/8W 1%

L9201
3UH

R9215

NC

D9212

IN4148W RHG

R9228

3.9KOH M +-1% 1/ 4W

D9208

SS1060FL

R9231
560 OHM +-1% 1/8W

L9202
3UH

D9206

FMXA-2203SE

1

2

3

R9205
10R 1/8W 5%

Q9202

TK13A50D

C9216
22nF

Q9201

TK13A50D

R9223

470 OHM 1/ 4W

D9207

FMXA-2203SE

1

2

3

R9218

0 OHM +-5% 1/ 8W

ZD9208
BZT52-B30

1 2

24VS

C9202

CAP 0805 0.1uF 10% 100V X7R

ZD9207
BZT52-B30

1 2

C9210
1uF

R9209
10K 1/8W 1%

R9213
10K 1/8W 1%

R9230
8K2 1/8W 1%

C9206

0.1uF 50V

R9208
82 OHM

ZD9209
BZT52-B30

1 2

CN9201

CONN

2

4

6

8

10

12

14

1

3

5

7

9

11

13

C9217

1UF

VS

Vbus

24VS

VS

DV5LLC_OVP

+24V (Normal Output 60V)

24VB

+12V

24VS

+12V

CN9202

NC/CONN

1
2

3

4
5
6
7

8

9
10
11
12
13
14

+

C9213
270UF 100V

+

C9214

270UF 100V

R9253

47K 1/8W 1%

C9221
1NF 500V

U9202

EL817M(X)

1

23

4

C9920

680PF 250V

+12V

+24VA(Normal Output 12V)

C9240

100N 50V

ZD9204

NC/BZT52-B6V2

1 2

24VB

C9243

22nF

ZD9203

NC/BZT52-B6V2

1 2

R92391.5K OH M

R9232
56K

R9233
56K

R92461.5K OHM

R9237 1. 5K OH M

R9238 1.5K OHM

+24VA (Normal Output 12V)

+

C9238

330UF 35V

L9203
3UH

ZD9215

NC/BZT52-B18

1 2

C9224

100PF

R9240
NC/180R 1%

+

C9203

270UF 100V

DIM

3D

R92451.5K OHM

ON/OFF

+24V(Normal Output 60V)

24VS

FB9201

NC/127R

1 2

R9250
56K 1/4W

Circuit Diagrams and PWB Layouts

EN 29TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-1-5 Power layout top

20150_505.eps

2015-12-22

715G7732

LAYOUT TOP

C9211

C9802

C9808

C9146

D9103

D9201

U9102

U9103

U9202

R9101

R9141

T9101

D9800

D9801

J946

J947

J916

J917

J915

J914

J903

J909

J910

J924

J928

J930

J940

J937

J945

J949

J948

J939

J943

J938

J942

J936

J941

J934

J931

J933

J925

J935

J927

J923

J921

J904

J922

J901

J905

J919

J911

J913

T9202T9201

J952

J932

J953

J912

J944

J954

SU5

SU1

SU2

SU3

SU4

J929

J902

J920

SU6

SU7

SU8

C9108

J956

J957

C9904

J951

J964

J965

J926

D9111

J918

J955

J908

J907

J906

J966

J967

J968

J969

J970

SU9

J971

SLT903

SLT904

SLT905

SLT908

SLT907

SLT909

SLT1

SLT2

SLT3

SLT4

SLT6

SLT5

SLT7

SLT901

SLT902

SLT8

ICT1

ICT2

SLT9

C9103

C9113

C9115

C9116

C9123

C9201

C9205

C9209

C9216

C9237

C9236

C9801

C9803

C9804

C9823

C9805

CN9903

D9802 D9804

FB9802

FB9803

FB9903

FB9904

HS9102

HS9101

L9101

L9102

L9202L9201

HS9802

HS9203

BD9901

BD9902

D9202D9204

D9206 D9207

HS9801

GND3

GND1

GND2

GND4

L9802

CN9201

CN9101

C9238

L9203

HS9901

HS9902

D9210

HS9202

HS9201

D9109

FB9801

FB9800

D9101

R9201

C9243

CN9202

FB9201

FB9301

L9801

Q9101

Q9104Q9111

Q9201Q9202

Q9801 Q9802

C9917

C9125

C9126

FB9804

FB9805

R9170

CN9203

CN9102

CN9205

FB9202

C9901

C9902

F9901

FB9901

FB9902

R9901

R9902

RV9901

SG9901

SG9902

SW9901

L9903

L9901

L9902

CN9902

C9301

CN9901

C9916

C9215

C9806

C9809

C9117

C9309

L9302

R9841

R9840

R9140

C9224

D9110

C9912

C9911

C9920

C9213

C9204

C9203

C9214

C9233

C9246

C9105 C9106

C9234

C9245

FB9807

FB9809

FB9808

FB9806

NR9901

NR9902

C9919

C9915

C9914

C9913

C9918

L9904

L9905

NR9903

NR9904

C9107

FB9905

FB9906

MH3

MH2

MH1

MH8

MH7

MH5 MH6

MH4

Circuit Diagrams and PWB Layouts

EN 30TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-1-6 Power layout bottom

20150_506.eps

2015-12-22

715G7732

LAYOUT BOTTOM

C9104

C9112

C9114

C9119
C9120

C9121

C9122

C9137

C9133

C9134

C9135

C9136

C9124

C9139C9140

C9141

C9142

C9143

C9144

C9147

C9149

C9202

C9206

C9207

C9208

C9210

C9212

C9217

C9218

C9219

C9220

C9240

C9223

C9225

C9226

C9228

C9231

C9232

C9307

C9308

C9807

C9810

C9811

C9812

C9813

C9815

C9816

C9817C9818

C9819

C9820

C9821

C9822

U9111

U9801

R9102

R9104

R9107R9108

R9109

R9111

R9110

R9112

R9113

R9114

R9115

R9116

R9117

R9118

R9119

R9120

R9121

R9122

R9123

R9124

R9125

R9126

R9128

R9129

R9130

R9133

R9131

R9132

R9142

R9144

R9145

R9153

R9154

R9155

R9156

R9157

R9158

R9159

R9160

R9161

R9162 R9163

R9202

R9203

R9204

R9205

R9206

R9207

R9208

R9209

R9210

R9211R9212

R9213

R9214

R9215

R9216

R9217

R9218

R9219

R9297

R9222

R9223

R9224 R9225

R9228

R9229

R9298

R9234

R9235

R9802

R9803

R9808

R9807

R9806

R9809

R9810

R9811

R9812

R9813

R9814

R9817

R9819

R9820

R9821

R9822

R9823

R9824

R9825

R9826

R9827

R9828

R9829

R9830

R9831

R9832

R9833

R9834

R9835

R9837

R9838

R9839

C9239

C9242

JR903

JR908

JR904

JR902

JR909

JR901

JR906

R9836

R9164

JR910

JR907

JR911

R9143

JR912

R9815

JR913

R9804

C9221

C9244

R9242

R9243

R9244

R9241

C9824

JR905

R9165

R9166

U9101

R9240

R9299

JR914

JR915

R9105

JR916

U9104

U9204

Q9105

Q9108

Q9110

C9306

U9901

R9904

R9903

R9905

R9906

R9908
R9907

C9302

R9302

R9306

R9307
R9308

C9303

C9310

C9305

C9304

R9816

R9818

JR917

R9227

R9236

C9311

R9134

R9221

C9111

R9230 R9231

R9100

R9200

R9232

R9233

R9237

R9238

R9239

C9150

R9245

R9246

R9247

R9248

R9249

R9250

R9251

R9252

C9312

R9309

R9106

R9253

U9201

Q9102

Q9803

Q9804

Q9805

SEN1

SEN3

SEN2

Q9109

Q9206

Q9204

Q9205

D9106

D9104

U9112

U9305

Q9806

Q9807

SEN4

ZD9208

D9102

D9105

D9107

D9108

D9203

D9205

D9208

D9803

D9805

ZD9106

ZD9109

ZD9201

ZD9202

ZD9203

ZD9204

ZD9801

D9806

D9807

ZD9207

ZD9210 ZD9211

ZD9212

ZD9213

ZD9301

D9211

D9212

ZD9205

ZD9206

ZD9209

ZD9214

ZD9110

ZD9215

ZD9802

ZD9803

ZD9804

Circuit Diagrams and PWB Layouts

EN 31TPS16.3A LA 10.

2017-Feb-24

back to

div.table

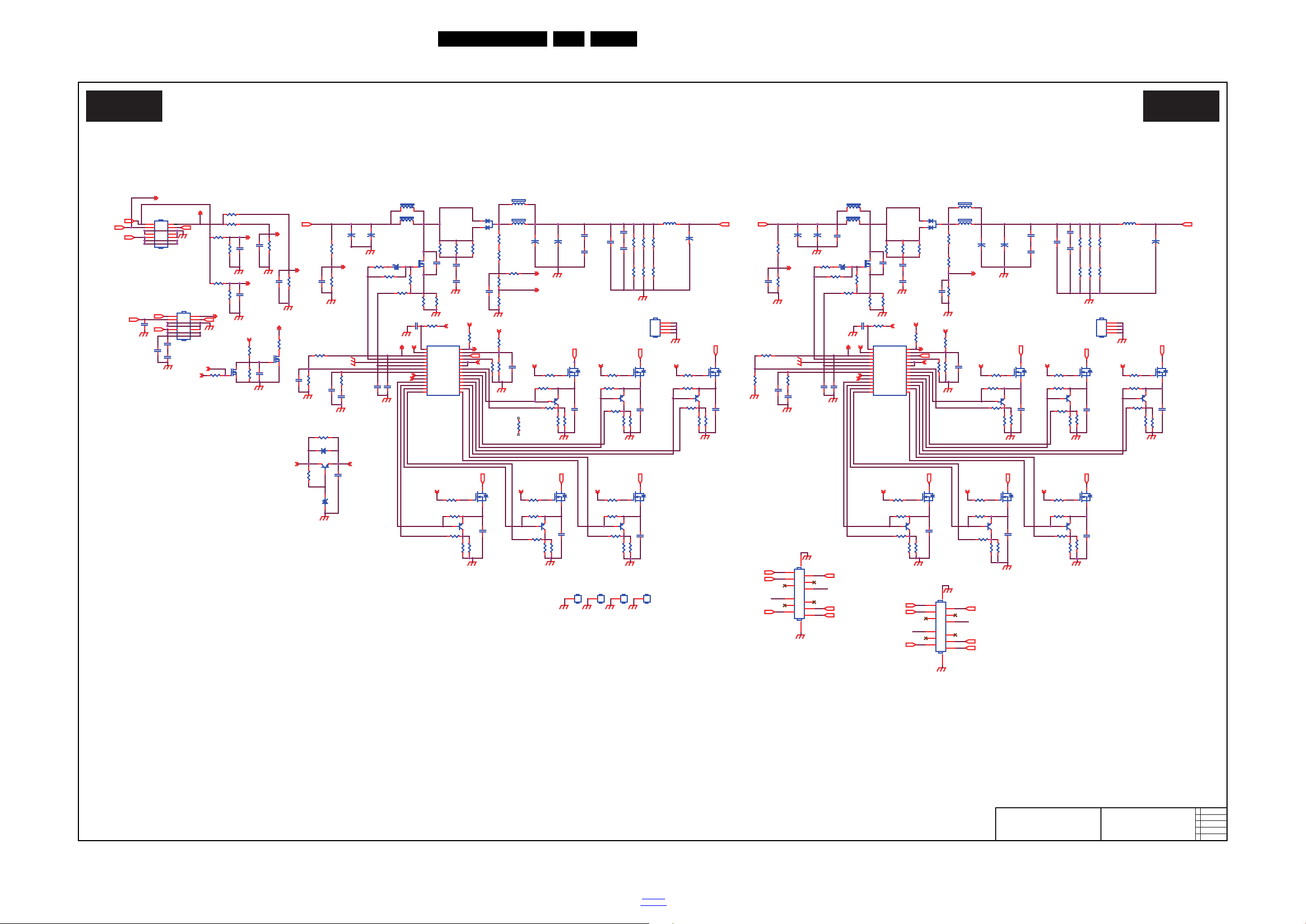

10.2 A 715G7854 PSU

20150_507.eps

LED OZ9908A

A01 A01

2015-9-24

715G7854

LED OZ9908A

R8148
1K 1/8W

R8146
1K 1/8W

UVLS2

R8175
10 OHM

C8147

NC

R8186

5.1 OHM 1/4W

R8106 200K 1/4W

Q8119
PB210BM

R8107 200K 1/4W

C8157
220PF

VREF2

R8161
1K 1/8W

C8160

2.2uF 25V

LED_VCC

R8163
1K 1/8W

R8162
1K 1/8W

LED_VCCLED_VCC

LED_VCC

R8215
1K 1/8W

FB8102
BEAD

1 2

R8177

180K +-1% 1/8W

R8217

1K 1/8W

LED_VCC

-VLED8

R8216
1K 1/8W

R8174

150K 1/8W +/-1%

R8187

NC

R8171 200K 1/4W

R8201

1K 1/8W

C8164

0.1uF 50V

R8172 200K 1/4W

R8202
1K 1/8W

Q8126
PB210BM

C8134

2.2UF 25V

L8104
47uH

3

1

R8200
1K 1/8W

R8219

7.5R 1%

R8184

0.18R 1%

C8141

NC/0.1uF 50V

Q8117

TK20A20D

R18150

8.2 OHM

UVLS1

R8221

7.5R 1%

+VLED2

VREF2

OVP2

R8193
0 OHM +-5% 1/8W

+VIN

R8181

10K 1/8W 1%

R8180

10K 1/8W

L8105

NC/47uH

2

1

LED_VCC

OVP2

-VLED9

R8190

NC

R8203

7.5R 1%

R8131

150K 1/4W +/-1%

C8154

100P 50V

LED_VCC

+VIN

R8207

7.5R 1%

R8126

5.1 OHM 1/4W

-VLED10

-VLED7

+VIN

+VLED2

R8192

0 OHM +-5% 1/8W

-VLED9

-VLED8

+VIN

Q8124
PB210BM

CN8104

CONN

1

3

5

9
11
13

15

2
4
6

10
12
14

16

-VLED11

-VLED12

+VLED2

Q8125
PB210BM

C8153

1N 50V

C8150
NC

LED_VCC

R8211
0 OHM +-5% 1/8W

C8163

0.1uF 50V

L8102

NC/47uH

2

1

-VLED12

R8188
100K

R8210
0 OHM +-5% 1/8W

R8209
0 OHM +-5% 1/8W

C8129

2.2uF 25V

Q8103
PB210BM

R8157
0 OHM +-5% 1/8W

R8156
0 OHM +-5% 1/8W

ON OFF

+

C8106

100uF 160V

+

C8101

47uF 100V

R8155
0 OHM +-5% 1/8W

R8137
0 OHM +-5% 1/8W

R8138
0 OHM +-5% 1/8W

ENA1

R8102
10K 1/4W

R8139
0 OHM +-5% 1/8W

C8109

100N 50V

Q8104
PB210BM

R8108

300K

Q8105
PB210BM

D8101

MBRF10150CT

1

2

3

R8149

7.5R 1%

ZD8101
BZT52-B15G

1 2

R8225

200K 1/4W

D8104

MBRF10150CT

1

2

3

R8145

2K 1/4W

C8137

0.1uF 50V

R8167

7.5R 1%

R8125

6.2KOHM +-1% 1/8W

R8168

8.2OHM 1%

LED_VCC

+

C8102

47uF 100V

Q8112
PB210BM

Q8111
PB210BM

C8138

0.1uF 50V

R8164

8.2OHM 1%

R8169

7.5R 1%

LED_VCC

Q8113
PB210BM

VREF

-VLED6

R8182

6.2KOHM +-1% 1/8W

R8140

30K 1/8W 1%

-VLED5

R8127

NC

-VLED4

-VLED3

R8226

200K 1/4W

-VLED2-VLED1

R8227

200K 1/4W

VREF

R8119

1K 1/8W 1%

GND810
GND

1

GND811
GND

1

GND812
GND

1

R8208

8.2OHM 1%

GND813
GND

1

R8143

5.1KR 1%

R8144

5.1KR 1%

R8142

5.1KR 1%

+

C8139

47uF 100V

C8127

NC

R8194
0 OHM +-5% 1/8W

R8158

5.1KR 1%

R8159

5.1KR 1%

CN8101

NC_CONN

2
4
6

8

10
12
14

1

3

5
7
9
11
13

OVP2

+

C8105

100uF 160V

OVP1

C8118

100N 50V

R8228

200K 1/4W

R8160

5.1KR 1%

R8198

5.1KR 1%

C8128
220PF

R8199

5.1KR 1%

U8101

OZ9908AGN-A2

STATUS

1

ADIM

2

COM

3

RT

4

PWM1

5

PWM2

6

ISEN1

7

COMP1

8

ISEN2

9

COMP2

10

ISEN3

11

COMP3

12

ISEN4

13

COMP4

14

ISEN5

15

COMP5

16

ISEN6

17

COMP6

18

OVP

19

UVLS

20

SSTCMP

21

RANGELED

22

ISW

23

GND

24

DRV

25

VREF

26

ENA

27

VIN

28

+

C8140

47uF 100V

R8197

5.1KR 1%

R8206

8.2OHM 1%

R8212

5.1KR 1%

R8213

5.1KR 1%

R8128
100K

R8214

5.1KR 1%

R8229

200K 1/4W

R8230

200K 1/4W

C8122
1uF

R8130
NC

R8132

NC

R8204

8.2OHM 1%

+12V

PWM1

VREF1

VREF1

R8179

10 OHM 1%

R8115

10 OHM 1%

R8231
10 OHM

R8232
10 OHM

COM COM

R8111
10 OHM

R8112
10 OHM

D8103
1N4148W

+

C8107

100uF 160V

R8150

8.2OHM 1%

LED_VCC

C8114

1N 50V

C8117

1N 50V

R8224
NC_1K 1/8W 1%

ENA1

R8218

8.2OHM 1%

CN8102

NC

2

4

6

8

10

12

14

1

3

5

7

9

11

13

C8123
NC

R8152

8.2OHM 1%

+12V

C8121
NC

R8154

8.2OHM 1%

Q8101 D8101

FB8103
BEAD

1 2

FB8104
BEAD

1 2

R8222

8.2OHM 1%

FB8101
BEAD

1 2

R8166

8.2OHM 1%

Q8102
NC

C8126
NC

Q8106
NC

C8124

2.2UF 25V

Q8114
BTB1184J3

R8136
NC

Q8115
BTB1184J3

Q8116
BTB1184J3

L8101
47uH

3

1

R8133

174K 1%

Q8107
BTB1184J3

Q8110
BTB1184J3

R8134

NC

R8135

NC

Q8123
BTB1184J3

Q8121
BTB1184J3

Q8122
BTB1184J3

C8116

10NF 50V

C8110

10N 50V

Q8127
BTB1184J3

Q8128
BTB1184J3

Q8129
BTB1184J3

R8151

7.5R 1%

L8103
3UH

C8111

NC/0.1uF 50V

C8103

NC/0.1uF 50V

C8108

NC

C8130

1NF 50V

R8153

7.5R 1%

VREF1

C8132

0.1uF 50V

R8109

300K

C8131

2.2uF 25V

HS8101

HEAT SINK

1
2

3

4

UVLS1

R8165

7.5R 1%

+12V

C8159

1NF 50V

C8135

0.1uF 50V

+

C8145

100uF 160V

R8120

10K 1/8W

R8121

300K

PWM2

C8120

10N 50V

R8113

180K +-1% 1/8W

OVP=93V

C8104
NC

+VLED1

R8114

10 OHM 1%

C8112
NC

R8110
150K 1/8W +/-1%

C8113
NC

C8133

0.1uF 50V

R8123

0.18R 1%

C8119

100P 50V

R8124

0.18R 1%

Q8101

TK20A20D

R8104

270K +-1% 1/8W

+VLED1

D8102

SS1060FL

12

R8103

10K 1/8W

Q8109
BTC4672M3

3D

OVP1

+

C8146

100uF 160V

+12V

DIM

STATUS

R8117

300K

ENA2

C8115

100N 50V

R8101
10K 1/4W

R8129

NC_10K 1/4W

STATUS

R8176
10 OHM

C8158

2.2uF 25V

R8196
100 OHM +-1% 1/8W

R8220

8.2OHM 1%

L8106
3UH

R8141
100 OHM +-1% 1/8W

UVLS2

LED_VCC

ENA2

+

C8144

100uF 160V

C8156
NC

C8148

NC/0.1uF 50V

Q8108
BTB1184J3

C8155

2.2UF 25V

C8161

0.1uF 50V

C8152

10NF 50V

R8118

10K 1/8W 1%

R8116

10K 1/8W

R8183

1K OHM +-5% 1/8W

R8170

270K +-1% 1/8W

VREF2

C8125
NC

R8178

10 OHM 1%

-VLED11

3D

DIM

+VLED2

R8122
1K OHM +-5% 1/8W

PWM2

R8195

30K 1/8W 1%

R8189
150K 1/4W +/-1%

HS8102

HEAT SINK

1
2

3

4

R8223

7.5R 1%

LED_VCC

CN8103

CONN

1

3

5

9
11
13

15

2
4
6

10
12
14

16

C8162

0.1uF 50V

C8142
100N 50V

D8105

SS1060FL

12

LED_VCC

+VLED1

R8173 200K 1/4W

R8105 200K 1/4W

+VLED1

Q8120
PB210BM

-VLED1

C8151

1N 50V

C8143
NC

LED_VCC

-VLED2

R8205

7.5R 1%

C8136

0.1uF 50V

C8166

0.1uF 50V

-VLED10

-VLED3

-VLED4

ON OFF

U8102

OZ9908AGN-A2

STATUS

1

ADIM

2

COM

3

RT

4

PWM1

5

PWM2

6

ISEN1

7

COMP1

8

ISEN2

9

COMP2

10

ISEN3

11

COMP3

12

ISEN4

13

COMP4

14

ISEN5

15

COMP5

16

ISEN6

17

COMP6

18

OVP

19

UVLS

20

SSTCMP

21

RANGELED

22

ISW

23

GND

24

DRV

25

VREF

26

ENA

27

VIN

28

Q8118
PB210BM

R8185

0.18R 1%

R8191 174K 1%

ON OFF

C8165

0.1uF 50V

-VLED7

-VLED6

-VLED5

C8149
NC

STATUS

PWM1

R8147
1K 1/8W

10-2-1 LED OZ9908A

Circuit Diagrams and PWB Layouts

EN 32TPS16.3A LA 10.

2017-Feb-24

back to

div.table

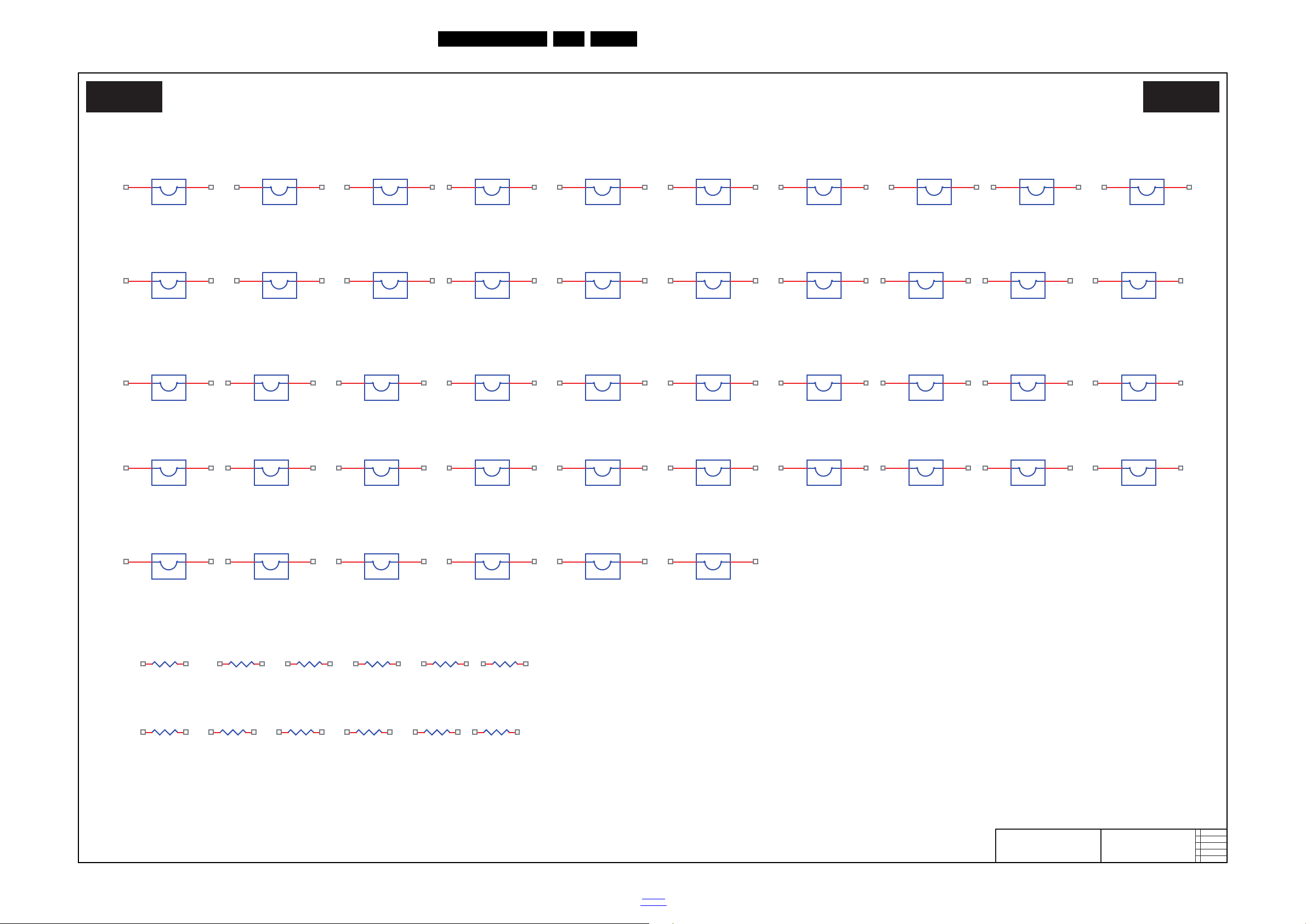

10-2-2 JUMPER

20150_508.eps

JUMPER

A02 A02

2015-09-24

715G7854

JUMPER

J8111

JUMPER

1 2

J8101

JUMPER

1 2

J8105

JUMPER

1 2

J8103

JUMPER

1 2

RJ8101

0R05 1/ 4W

J8106

JUMPER

1 2

J8102

JUMPER

1 2

J8107

JUMPER

1 2

J8108

JUMPER

1 2

J8109

JUMPER

1 2

J8110

JUMPER

1 2

J8112

JUMPER

1 2

J8104

JUMPER

1 2

J8114

JUMPER1

1 2

J8113

JUMPER1

1 2

J8115

JUMPER1

1 2

J8117

JUMPER1

1 2

J8116

JUMPER1

1 2

J8118

JUMPER1

1 2

J8120

JUMPER1

1 2

J8119

JUMPER1

1 2

J8121

JUMPER1

1 2

J8122

JUMPER1

1 2

J8123

JUMPER1

1 2

J8124

JUMPER1

1 2

J8125

JUMPER1

1 2

J8127

JUMPER1

1 2

J8126

JUMPER1

1 2

J8128

JUMPER1

1 2

J8130

JUMPER1

1 2

J8129

JUMPER1

1 2

J8131

JUMPER1

1 2

J8132

JUMPER1

1 2

J8133

JUMPER1

1 2

J8134

JUMPER1

1 2

J8135

JUMPER1

1 2

J8136

JUMPER1

1 2

J8137

JUMPER1

1 2

J8138

JUMPER1

1 2

J8139

JUMPER1

1 2

J8140

JUMPER1

1 2

J8141

JUMPER1

1 2

J8142

JUMPER1

1 2

J8143

JUMPER1

1 2

J8144

JUMPER1

1 2

J8145

JUMPER1

1 2

J8146

JUMPER1

1 2

RJ8102

0R05 1/ 4W

RJ8103

0R05 1/ 4W

RJ8104

0R05 1/ 4W

RJ8105

0R05 1/ 4W

RJ8106

0R05 1/ 4W

RJ8107

0R05 1/ 4W

RJ8108

0R05 1/ 4W

RJ8109

0R05 1/ 4W

RJ8110

0R05 1/ 4W

RJ8111

0R05 1/ 4W

RJ8112

0R05 1/ 4W

Circuit Diagrams and PWB Layouts

EN 33TPS16.3A LA 10.

2017-Feb-24

back to

div.table

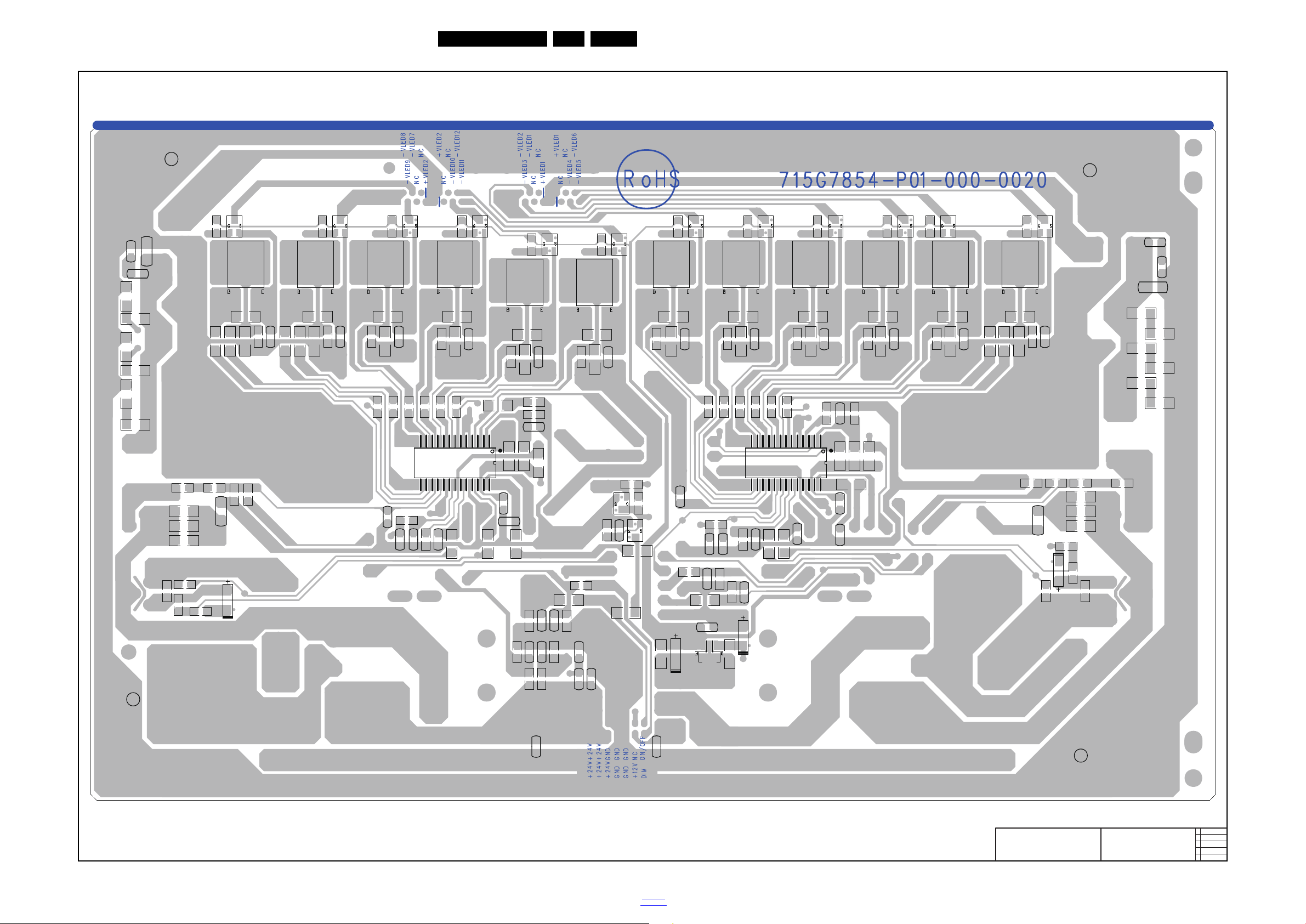

Circuit Diagrams and PWB Layouts

20150_509.eps

2016-01-20

715G7854

LAYOUT TOP

C8113

C8150

R8123

R8124

R8184

R8185

J8140

J8130

J8111

J8110

J8141

J8142

J8101 J8102 J8103 J8104

J8106 J8107

J8108

J8109

J8136

J8115

J8129

J8105

J8135

J8131

J8114

J8138

J8112

J8113

J8137

J8139

J8134

J8133

J8132

J8118

J8121

J8123

J8122

J8124

J8120

J8125

J8126

J8127

J8128

J8117

J8116

J8119

J8143

J8145

J8144

J8146

J8150

J8149

J8147

J8148

J8151

J8152

J8153

J8154

H1

H2

H3 H4

R1

C8101

C8102

C8139

C8140

CN8101

CN8102

FB8101

FB8102

GND810

L8102

L8103

L8105

L8106

Q8101 Q8117

MH2

MH3

MH4

MH5

HS8101

HS8102

GND811 GND812

GND813

MH6

MH1

CN8103 CN8104

D8101 D8104

FB8103

FB8104

C8107

C8105

C8106

C8144

C8145

C8146

L8101

L8104

EN 34TPS16.3A LA 10.

10-2-3 Power layout top

2017-Feb-24

back to

div.table

10-2-4 Power layout bottom

20150_510.eps

2016-1-02

715G7854

LAYOUT BOTTOM

C8103

C8108

C8109

C8110

C8111

C8115C8116

C8118

C8119

C8120

C8121

C8122

C8123

C8124 C8125

C8126

C8127

C8128

C8129

C8130

C8131

C8132

C8133

C8134

C8135

C8136

C8137

C8138

C8141

C8142

C8147

C8148

C8152

C8154

C8155

C8156

C8157

C8158

C8159

C8160

C8161

C8162

C8163

C8164

C8165

C8166

Q8102

Q8106

R8101 R8102

R8103

R8104

R8105

R8106

R8107

R8108

R8109

R8110

R8111

R8112

R8113

R8115

R8116

R8117

R8118

R8119

R8120

R8121

R8122

R8125

R8126

R8127

R8128

R8130

R8131

R8132

R8133

R8134

R8135

R8136

R8137

R8138

R8139

R8140

R8141

R8145

R8149

R8151

R8153

R8155

R8156

R8157

R8165

R8167

R8169

R8170

R8171

R8172

R8173

R8174

R8175
R8176

R8177

R8179

R8180

R8181

R8182

R8183

R8186

R8187

R8188

R8189

R8190

R8192

R8193

R8194

R8195

R8196

R8203

R8205

R8207

R8211

R8219

R8221

R8223

R8146

R8147

R8148

R8161

R8162

R8163

R8200

R8201

R8202

R8209

R8210

R8215

R8216

R8217

R8159 R8144 R8143R8160 R8142R8158

RJ8101

RJ8102

R8198R8199

R8197R8214R8213R8212

RJ8105

RJ8106

RJ8103

RJ8104

RJ8110

R8224

RJ8107

RJ8108

RJ8109

RJ8111

R8129

FID1

FID2

FID3

FID4

R8225

R8226

R8227

R8228 R8229 R8230

R8114

R8178

R8191

R8231

R8232

RJ8112

R8150

R8152

R8154

R8164

R8166

R8168

R8204

R8206

R8208

R8218

R8220

R8222

C8112

C8104

Q8103

Q8104

Q8105

Q8109

Q8111

Q8112

Q8113

Q8118

Q8119

Q8120

Q8124

Q8125

Q8126

U8101

D8103

D8105

ZD8101

D8102

U8102

Q8107

Q8108

Q8110

Q8114

Q8115

Q8116

Q8121

Q8122

Q8123

Q8127

Q8128

Q8129

Circuit Diagrams and PWB Layouts

EN 35TPS16.3A LA 10.

2017-Feb-24

back to

div.table

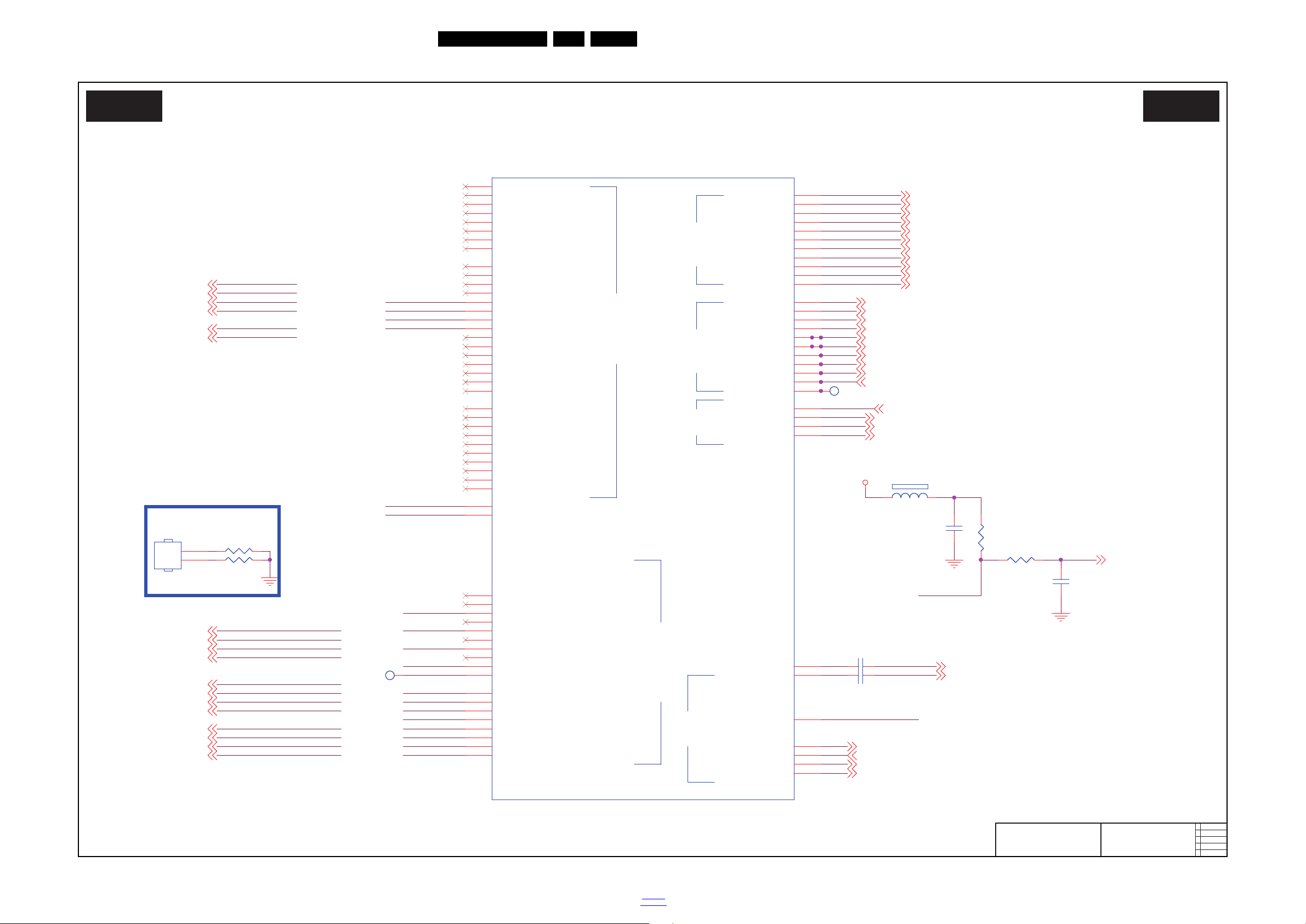

10.3 B 715G7702 SSB

20310_506.eps

95E1D eMMC SD & TS

B01 B01

C

715G7702

95E1D eMMC SD & TS

VIFP
VIFM

TS_D3

TS_SYNC

TS_D7

TS_D0

PCM2_RESET

NAND-AD7

NAND-AD2

NAND-RBZ

PCM_A6

TS_CLK_S

SDIO_CLK

NAND-AD6

TS_D2

PCM_A4

IFAGC

TS_D6

PCM2_WAIT_N

NAND-AD4

NAND-AD3

PCM_A7

PCM_A5

TS_D1

NAND-AD0

TS_D5

NAND-AD5

NAND-DQS

NAND-AD1

TS_VLD

TS_D4

NAND-REZ

NAND-CEZ

PCM_A7

PCM_A6

PCM_A5

PCM_A4

PCM2_WAIT_N

PCM2_RESET

EMMC_CMD NAND-CEZ
EMMC_RSTZ NAND-RBZ
EMMC_DQS NAND-DQS

EMMC_CLK NAND-REZ

EMMC_D5 NAND-AD7

EMMC_D0 NAND-AD4

NAND-AD6EMMC_D4

EMMC_D3 NAND-AD5

EMMC_D2 NAND-AD2

NAND-AD0EMMC_D6

EMMC_D1 NAND-AD3

EMMC_D7 NAND-AD1

IF-AGC

IFAGC

+3.3V_TU

VIFP 15

T_SCL 15

VIFM 15

Demod_RST16

T_SDA 15

AUD_RSTN 19

USB2_GPIO 9

USB1_GPIO0 9

TS_D2 16

TS_D0 16

TS_SYNC 16

TS_D5 16

TS_CLK_S 16

TS_D3 16

TS_D7 16

TS_D6 16

TS_VLD 16

TS_D1 16

TS_D4 16

FRC_RESET 24
OFF-RS 27

EVDD-ON 27
ERROR-DET 27
EVDD-DET 27

HP_DET 20

AM_SDA 18
AM_SCL 18

AUMUTE 19

PCM_A614
PCM_A714

PCM_A514

PCM_A414

PCM2_WAIT_N14

PCM2_RESET14

EMMC_D614
EMMC_D714
EMMC_D214
EMMC_D114

EMMC_D014
EMMC_D314
EMMC_D414
EMMC_D514

EMMC_DQS14

EMMC_RSTZ14

EMMC_CLK14
EMMC_CMD14

IF_AGC 15

ACK 24

TCON-WP 27

ON-RF 27

Heat sink

R4322
NC/0R05 OHM

R4322
NC/0R05 OHM

R4152
10K+-5%1/16W

R4152
10K+-5%1/16W

R401
0R05 OHM

R401
0R05 OHM

C4148
22NF25V

C4148
22NF25V

TP01 TPTP01 TP

C4101 100N 16VC4101 100N 16V

TP47TP47

C4305

100N 16V

C4305

100N 16V

HS401

HEAT SINK

HS401

HEAT SINK

1
2

FB405

120R

FB405

120R

1 2

C4102 100N 16VC4102 100N 16V

U401B MSD95E1D-W4U401BMSD95E1D-W4

NAND_ALE/EMMC_IO15/SDIO_D[1]

G2

NAND_WPZ/EMMC_IO17/SDIO_D[2]

J4

NAND_CEZ/EMMC_IO9

F1

NAND_CLE/EMMC_IO14/SDIO_D[0]

G1

NAND_REZ/EMMC_IO10

F3

NAND_WEZ/EMMCIO16/SDIO_D[3]

G3

NAND_RBZ/EMMC_IO11

E3

TS1CLK

AM16

TS1SYNC

AK19

TS1VALID

AL16

TS1DATA [0]

AM18

TS1DATA_[1]

AL18

TS1DATA_[2]

AK18

TS1DATA_[3]

AL17

TS1DATA_[4]

AK17

TS1DATA_[5]

AK16

TS1DATA_[6]

AM15

TS1DATA_[7]

AJ16

TS0CLK

AL21

TS0SYNC

AL20

TS0VALID

AK21

TS0DATA_[0]

AK20

TS0DATA_[1]

AL19

TS0DATA_[2]

AM19

TS0DATA_[3]

AK23

TS0DATA_[4]

AL22

TS0DATA_[5]

AM22

TS0DATA_[6]

AK22

TS0DATA_[7]

AM21

TGPIO0

AK8

TGPIO1

AL1

TGPIO2/SCK1

AM4

TGPIO3/SDA1

AL4

IF_AGC

AM6

VIFM

AL7

VIFP

AM7

NAND_CEZ1/EMMC_IO12/SDIO_CMD

J5

TS2_CLK

AF15

PCMDATA[6]/CI_DATA[6]

AG19

PCMIORD/CI_RD

AH20

PCMDATA[7]/CI_DATA[7]

AG20

PCMIOWR/CI_WR

AG21

PCMDATA[2]/CI_DATA[2]

AH29

PCMADR[1]/CI_A[1]

AH27

PCMADR[2]/CI_A[2]

AJ27

PCMADR[10]/CI_A[10]

AJ19

PCMADR[12]/CI_A[12]

AG24

PCMADR[6]/CI_A[6]

AG26

PCMADR[13]/CI_A[13]

AH22

PCMDATA[3]/CI_DATA[3]

AJ17

PCMIRQA/CI_INT

AJ23

PCMCD/CI_CD

AH17

PCMOEN

AJ20

PCMWAIT/CIWACK

AH24

PCMADR[8]/CI_A[8]

AG23

PCMADR[11]/CI_A[11]

AH21

PCMREG/CI_CLK

AG27

PCMDATA[0]/CI_DATA[0]

AH28

PCMADR[0]/CI_A[0]

AJ28

PCMDATA[1]/CI_DATA[1]

AJ29

PCMADR[5]/CI_A[5]

AH25

PCMADR[3]/CI_A[3]

AJ26

PCMRST/CI_RST

AH26

PCMWEN

AH23

PCMDATA[4]/CI_DATA[4]

AH18

PCMADR[9]/CI_A[9]

AG22

PCMADR[7]/CI_A[7]

AG25

PCMCEN/CI_CS

AH19

PCMADR[4]/CI_A[4]

AJ25

PCMADR[14]/CI_A[14]

AJ22

PCMDATA[5]/CI_DATA[5]

AG18

NAND_DQS/EMMC_IO8

B4

TS2_D0

AG16

TS2_SYNC

AH15

TS2_VLD

AG15

NAND_AD0/EMMC_IO6

D1

NAND_AD1/EMMC_IO7

D3

NAND_AD2/EMMC_IO2

C2

NAND_AD3/EMMC_IO1

B1

NAND_AD4/EMMC_IO0

B2

NAND_AD5/EMMC_IO3

A2

NAND_AD6/EMMC_IO4

A3

NAND_AD7/EMMC_IO5

B3

EMMC_IO13/SDIO_CLK

M5

PCM2_RESET

AG17

PCM2_WAIT_N

AH16

R4307
NC/0R05 OHM

R4307
NC/0R05 OHM

CI

PCMCIA

NAND

EMMC

Front End

TS1

(In/Out)

TS0

(In)

TS1

10-3-1 95E1D eMMC SD&TS

Circuit Diagrams and PWB Layouts

EN 36TPS16.3A LA 10.

2017-Feb-24

back to

div.table

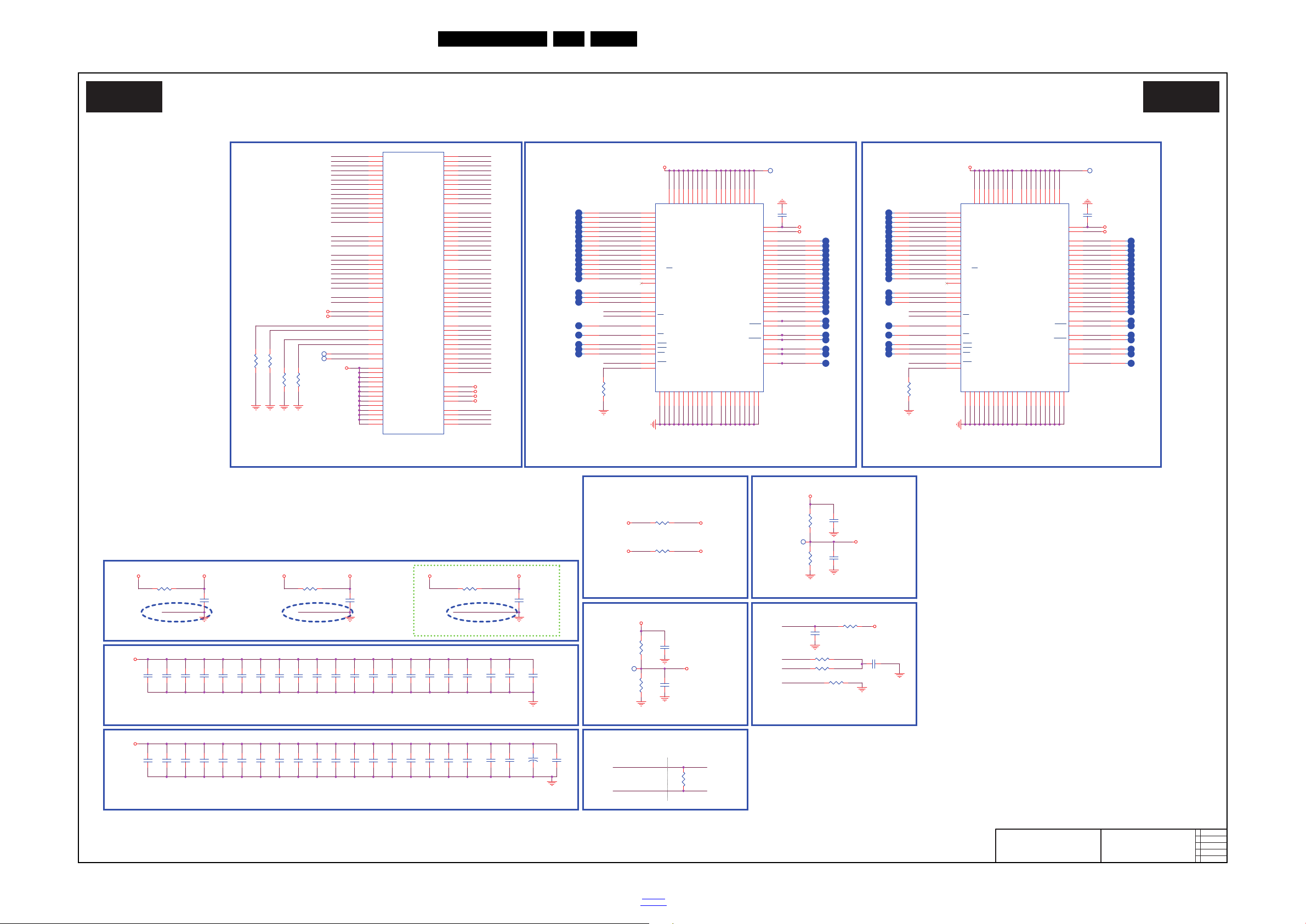

10-3-2 95E1D GPIO & Vby1

20310_507.eps

95E1D GPIO & Vby1

B02 B02

C

715G7702

95E1D GPIO & Vby1

DRAM Decoupling: Place close to DRAM#1

DRAM Decoupling: Place close to DRAM#2

PU/PD resistors

Keep a trace from the GND of Cap to Main Chip

MT5593 DDR 32b #1

Reserved on bottom side.

NEAR Main Chip

Differential Clock

Close to DRAM

DDR3#2 Ref Volt.

DDR3#1 Ref Volt.

Near DRAM

Near DRAM

2#3RDD1#3RDD

M0-CKE

M0-CSn
M0-CSDn

M0-MA0
M0-MA1
M0-MA2
M0-MA3
M0-MA4
M0-MA5
M0-MA6
M0-MA7
M0-MA8
M0-MA9
M0-MA10
M0-MA11
M0-MA12
M0-MA13
M0-MA14

M0-MA0

M0-BA2

M0-BA0
M0-BA1

M0-MA1
M0-MA2

M0-RTn

M0-MA3
M0-MA4
M0-MA5

GND-1V0-DDR

GND-3V3-DDR
GND-1V0-DDR

GND-1V0-DDR

M0-DQS2p

M0-DQS3p

M0-DQM3

M0-DQM2

M0-DQS3n

M0-DQS2n

M0-MCLK0p

M0-MD26

M0-MD25

M0-MD28

M0-MCLK0n

M0-MD24

M0-MD29
M0-MD30
M0-MD31

M0-MD27

M0-MD23

M0-MD20

M0-MD16

M0-MD21

M0-MD17

M0-MD22

M0-MD18
M0-MD19

M0-MD9

M0-MD8

M0-MD11

M0-MD10

M0-MD13

M0-MD12

M0-MD15

M0-MD14

M0-MA6
M0-MA7
M0-MA8
M0-MA9
M0-MA10
M0-MA11
M0-MA12
M0-MA13
M0-MA14

M0-RESETn

GND-1V0-DDR

M0-CKE
M0-CSn

TP-HPCPLL

M0-MCLK0n

M0-MCLK0p

M0-CKE

TN-HPCPLL

M0-RASn
M0-CASn

M0-MEMTn

M0-MEMTp

M0-ODT

M0-RASn
M0-CASn
M0-WEn

M0-CSDn

M0-CSn

M0-BA2

M0-BA0
M0-BA1

M0-WEn

M0-RTp

M0-RESETn

M0-MCLK0p
M0-MCLK0n

M0-MCLK0p

M0-MCLK0n

GND-3V3-DDR

M0-DQS1p
M0-DQS1n

M0-DQS0n

M0-DQS0p

M0-DQS0n

M0-DQM0
M0-DQS0p

M0-MD7

M0-MD6

M0-MA0

M0-MA8

M0-MD4
M0-MD5

M0-MA10
M0-MA12

M0-MA13

M0-MD3

M0-MD0
M0-MD1

M0-MA14

M0-MD2

M0-MCLK0p
M0-MCLK0n

M0-CASn

M0-RESETn

M0-DQS3p
M0-DQS3n

M0-DQS2n

M0-DQS2p

GND-1V0-DDR

M0-DQM1
M0-DQS1p
M0-DQS1n

M0-MD0
M0-MD1
M0-MD2
M0-MD3
M0-MD4
M0-MD5
M0-MD6

M0-MD11

M0-MD8

M0-MD10

M0-MD7
M0-MD9

M0-MD12
M0-MD13

M0-MD15

M0-MD14

M0-DQM0
M0-DQM1

M0-ODT

M0-MD22

M0-MD20
M0-MD21

M0-MD25

M0-MD17
M0-MD18

M0-MD28

M0-MD23

M0-MD16

M0-MD31

M0-MD27

M0-MD26

M0-MD19

M0-MD30

M0-MD24

M0-MD29

M0-DQM3

M0-DQM2

M0-ODT

M0-RESETn

M0-MA1
M0-MA2
M0-MA3
M0-MA4
M0-MA5
M0-MA6
M0-MA7

M0-MA9
M0-MA11

M0-BA2

M0-BA1

M0-BA0

M0-CKE
M0-CSn
M0-RASn
M0-WEn

+1V5-DDR

+VREF-A1-CA

+1V5-DDR

+VREF-A2-CA

+1V5-DDR

+VREF-A1-DQ

+1V5-DDR

+1V0-VCCK+3V3

+1V5-DDR

+3V3-DDR

+1V5-DDR

+1V0-DDR

+1V0-VCCK

+1V0-DDR

+1V5-DDR

+VREF-A2-DQ

+1V5-DDR

+VREF-A1-DQ

+3V3-DDR
+1V0-DDR
+1V0-DDR
+1V0-DDR

+VREF-A2-DQ

+VREF-A2-CA+VREF-A1-CA

+VREF-A2-CA

+VREF-A1-CA

+VREF-A1-DQ

+VREF-A2-DQ

TP9157

1

C9166
1UF16V

TP9149

1

TP9121

1

C9142

100N16V

C9184

100N16V

TP9176

1

TP9165

1

TP9142

1

TP9130

1

TP9106

1

TP9111

1

C9150

100N16V

TP9127

1

C9139

100N16V

TP9191

1

TP9135

1

R9119
NC/0R05 OHM

TP9183

1

C9159
100N16V

R9117

1KOHM +-1% 1/16W

R9109

1KOHM +-1% 1/16W

TP9182

1

R9103

NC/49.9 OHM 1% 1/16W

MT5593UGIJ

U9400-1

DDRV

AB8

DDRV

AC10

DDRV

AC9

DDRV

AD10

DDRV

AH10

DDRV

AH9

DDRV

AJ10

DDRV

AJ11

DDRV

AJ8

DDRV

AJ9

MEMTP

AE10

MEMTN

AF10

DDRVREF_A1

V1

ARCKE

AA7

ARCLK0

Y4

ARCLK0#

Y5

ARODT

AB6

ARRAS#

AA5

ARCAS#

AA6

ARCS#

AB5

ARWE#

AB7

ARRESET#

AK4

ARBA0

AD5

ARBA1

AE3

ARBA2

AD6

ARCSD#

AB4

ARA14

AM4

ARA13

AK5

ARA12

AF6

ARA11

AK6

ARA10

AD7

ARA9

AH4

ARA8

AL4

ARA7

AJ5

ARA6

AJ6

ARA5

AG7

ARA4

AG5

ARA3

AF4

ARA2

AF7

ARA1

AG6

ARA0

AE4

ARDQM0

AD1

ARDQS0

AC1

ARDQS0#

AC2

ARDQ0

Y2

ARDQ1

AG2

ARDQ2

Y1

ARDQ3

AG3

ARDQ4

W1

ARDQ5

AH3

ARDQ6

W2

ARDQ7

AH2

ARDQM1

AC3

ARDQS1

AD2

ARDQS1#

AE2

ARDQ8

AF1

ARDQ9

AB3

ARDQ10

AG1

ARDQ11

Y3

ARDQ12

AF2

ARDQ13

AB2

ARDQ14

AF3

ARDQ15

AB1

ARDQM2

AN2

ARDQS2

AM3

ARDQS2#

AN1

ARDQ16

AK2

ARDQ17

AT2

ARDQ18

AK1

ARDQ19

AU1

ARDQ20

AJ1

ARDQ21

AU2

ARDQ22

AJ3

ARDQ23

AR4

ARDQM3

AM1

ARDQS3

AP1

ARDQS3#

AP2

ARDQ24

AR2

ARDQ25

AL2

ARDQ26

AT1

ARDQ27

AK3

ARDQ28

AP3

ARDQ29

AL3

ARDQ30

AR3

ARDQ31

AM2

AVDD33_DDR

G1

AVDD10_DDR

AV20

ARTN

W10

ARTP

Y10

DDRVREF_A2

AJ2

TN_HPCPLL

AK18

TP_HPCPLL

AK19

DDRV

AK10

DDRV_CKA

Y6

AVSS_DDR

G2

AVSS_DDR

AU20

DDRV

AK11

AVDD10_DDR

AF13

AVSS_DDR

AF12

AVDD10_DDR

AE19

AVSS_DDR

AE17

C9170

100N16V

TP9158

1

R9114
NC/4.7K 1/16W

C9191

100N16V

TP9117

1

R9100

47 OHM 1/16W

TP9177

1

TP9179

1

C9143

100N16V

TP9143

1

TP9196

1

TP9107

1

TP9128

1

TP9197

1

TP9192

1

TP9136

1

C9147

100N16V

C9140

100N16V

C9185

100N16V

C9179

100N16V

TP9184

1

TP9159

1

C9135

100N16V

TP9118

1

TP9155

1

C9168

100N16V

C9129
100N16V

TP9131

1

TP9116

TP9167

1

C9151
100N16V

TP9180

1

TP9174

1

TP9144

1

R9112
NC/0R05 OHM

TP9153

1

C9192
100N16V

TP9172

1

C9144

100N16V

C9154

100N16V

TP9193

1

TP9137

1

R9105

240 OHM +-1% 1/16W

+

C9173

100UF 16V

TP9122

1

R9101

47 OHM 1/16W

R9116
47 OHM 1/16W

C9148

100N16V

TP9185

1

C9153

100N16V

C9186

100N16V

TP9178

1

C9180

100N16V

TP9113

TP9160

1

TP9156

1

TP9132

1

TP9168

1

TP9145

1

TP9150

1

TP9161

1

TP9195

1

TP9138

1

U9101
K4B4G1646E-BCMA

NC = J1,J9,L1,L9

NC_A15

M7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

G9

A13

T3

A12/BC

N7

A11

R7

A10/AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

BA0

M2

BA1

N8

BA2

M3

CK

J7

CK

K7

CKE

K9

CS

L2

RAS

J3

CAS

K3

WE

L3

ODT

K1

RST

T2

ZQ

L8

LDM

E7

UDM

D3

A14

T7

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

DQL7

H7

DQL6

G2

DQL5

H8

DQL4

H3

DQL3

F8

DQL2

F2

DQL1

F7

DQL0

E3

LDQS

F3

LDQS

G3

UDQS

C7

UDQS

B7

VREF_DQ

H1

VREF_CA

M8

C9155

100N16V

TP9166

1

TP9123

1

TP9186

1

TP9114

R9111
0R05 OHM

C9172

1uF 10V

C9145

100N16V

C9181

100N16V

TP9102

1

TP9104

1

C9187

100N16V

C9137

100N16V

TP9171

1

TP9146

1

R9113

1KOHM +-1% 1/16W

TP9151

1

TP9101

C9165

100N16V

TP9133

1

TP9162

1

TP9139

1

TP9169

1

TP9115

TP9108

1

TP9124

1

TP9187

1

TP9103

1

R9102

NC/49.9 OHM 1% 1/16W

TP9198

1

C9189

100N16V

C9174

10UF 6.3V X5R +-20%

C9146

100N16V

TP9100

C9182

100N16V

C9136
NC/1UF16V

TP9105

1

C9175

1uF 10V

TP9147

1

C9188

100N16V

C9161
100N16V

TP9163

1

TP9152

1

TP9140

1

TP9170

1

TP9109

1

TP9188

1

TP9125

1

TP9194

1

C9167

100N16V

C9176

10UF 6.3V X5R +-20%

TP9119

1

U9102
K4B4G1646E-BCMA

NC = J1,J9,L1,L9

NC_A15

M7

VSSA9VSSB3VSSE1VSSG8VSSJ2VSSJ8VSSM1VSSM9VSSP1VSSP9VSST1VSST9VSSQB1VSSQB9VSSQD1VSSQD8VSSQE2VSSQE8VSSQF9VSSQG1VSSQ

G9

A13

T3

A12/BC

N7

A11

R7

A10/AP

L7

A9

R3

A8

T8

A7

R2

A6

R8

A5

P2

A4

P8

A3

N2

A2

P3

A1

P7

A0

N3

BA0

M2

BA1

N8

BA2

M3

CK

J7

CK

K7

CKE

K9

CS

L2

RAS

J3

CAS

K3

WE

L3

ODT

K1

RST

T2

ZQ

L8

LDM

E7

UDM

D3

A14

T7

VDDB2VDDD9VDDG7VDDK2VDDK8VDDN1VDDN9VDDR1VDD

R9

VDDQA1VDDQA8VDDQC1VDDQC9VDDQD2VDDQE9VDDQF1VDDQH2VDDQ

H9

DQU7

A3

DQU6

B8

DQU5

A2

DQU4

A7

DQU3

C2

DQU2

C8

DQU1

C3

DQU0

D7

DQL7

H7

DQL6

G2

DQL5

H8

DQL4

H3

DQL3

F8

DQL2

F2

DQL1

F7

DQL0

E3

LDQS

F3

LDQS

G3

UDQS

C7

UDQS

B7

VREF_DQ

H1

VREF_CA

M8

TP9189

1

R9108
NC/0R05 OHM

R9115
47 OHM 1/16W

C9141

100N16V

C9183

100N16V

TP9148

1

TP9120

1

C9162

1uF 10V

C9190
22NF 25V

TP9175

1

R9110
0R05 OHM

TP9164

1

TP9141

1

C9149

100N16V

TP9129

1

C9138

100N16V

R9104

240 OHM +-1% 1/16W

C9178

100N16V

TP9110

1

C9171

1uF 10V

C9164

100N16V

TP9173

1

TP9126

1

C9163
100N16V

R9118
NC/4.7K 1/16W

TP9134

1

R9107

1KOHM +-1% 1/16W

R9120
100R 1/16W 1%

C9169

100N16V

TP9181

1

C9177
1UF16V

TP9154

1

TP9190

1

Circuit Diagrams and PWB Layouts

EN 37TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-3-3 95ELD HDMI & Audio

20310_508.eps

95E1D HDMI & Audio

B03 B03

C

715G7702

95E1D HDMI & Audio

HDMID-RX0N

MHL_CABLE_DETHDMID-HPDIN

HDMI0-RX2P

AUWS_OUT

HDMIB-CLKN
HDMIB-CLKP

HDMIB-RX2P

HDMI0-RX0P

HDMIA-CEC

HDMI0-SCL

AUBCK_OUT

HDMIB-SDA

HDMIB-RX0P

HDMI0-RX0N

AUVAG

HDMI0-SDA

HDMID-CLKN

HDMI0-HPDIN

SPDIF_OUT

HDMID-RX2N

HP_Audio-R

I2S_IN_WS

HDMIB-HPDIN

AUSD_OUT

HDMI0-RX2N

HDMIB-SCL

HDMI0-CLKP

HDMIB-RX2N

HDMID-RX2P

HDMID-SCL

HDMI0-RX1P

I2S_IN_SD

HDMIB-RX1N

HP_Audio-L

HDMID-RX0P

3D_FLAG

HDMI0-CLKN

HDMIB-RX0N

AUVRM

HDMID-RX1P

HDMID-RX1N

MHL_VBUS_EN

HDMI0-RX1N

HDMID-CLKP

HOTPLUGA_HDMI20_5V

HDMID-SDA

AUMCK_OUT

ARC_OUT

I2S_IN_BCK

HDMIB-RX1P

KALA_LIN

Side_AUR

COMP_AUR2

COMP_AUL2

LINE_IN_2L

LINE_IN_1L

LINE_IN_0R

LINE_IN_2R

LINE_IN_0L

KALA_RIN
Side_AUL

LINE_IN_1R

AUVAG AUVAG

AUVRM

I2S_MCLK
I2S_SD

I2S_WS

I2S_BCLK

LINE_OUT_R

LINE_OUT_L

MHL_VBUS_EN 10

HDMIA-CEC10

HDMI0-RX0N10
HDMI0-RX0P10

HDMI0-CLKP10

HDMIB-RX1P10

HDMID-CLKP10

HDMID-RX1N10

HDMIB-RX2N10
HDMIB-CLKN10

HDMID-HPDIN10

HDMIB-SCL10

HDMID-RX0P10

HDMIB-RX0N10

HDMI0-RX1P10

HDMID-RX2N10

HDMI0-CLKN10

HDMI0-RX2N10

HDMIB-SDA10

HDMID-RX0N10

HDMI0-HPDIN10

HDMI0-SDA10

HDMID-RX1P10

HDMI0-SCL10

HDMIB-RX2P10

ARC_OUT 10

HOTPLUGD_HDMI20_5V10

HDMI0-RX1N10

HDMIB-CLKP10

HDMID-CLKN10
HDMID-SCL10

HDMIB-RX0P10

HDMIB-HPDIN10

MHL_CABLE_DET 10

SPDIF_OUT12

HDMID-RX2P10

HOTPLUGB_HDMI20_5V10

HDMI0-RX2P10

HDMIB-RX1N10

HOTPLUGA_HDMI20_5V10

HDMID-SDA10

COMP_AUL2 12

KALA_RIN 17

COMP_AUR2 12

Side_AUR 20

Side_AUL 20

KALA_LIN 17

LINE_OUT_L 20
LINE_OUT_R 20

3D_LR4

I2S_BCLK 19
I2S_WS 19

I2S_MCLK 19
I2S_SD19

3D_FLAG_U24

Close to MST IC
with width
trace

R4175 33 OHM 1/16WR4175 33 OHM 1/16W

FB403

120R

FB403

120R

12

R4176 33 OHM 1/16WR4176 33 OHM 1/16W

U401CMSD95E1D-W4U401CMSD95E1D-W4

LINE_OUT_0L

AJ4

LINE_OUT_0R

AJ5

LINE_OUT_2L

AL5

LINE_OUT_2R

AK6

LINE_IN_0L

AJ2

LINE_IN_0R

AJ1

LINE_IN_1L

AJ3

LINE_IN_1R

AK2

AUVAG

AK5

AUVRM

AK4

SPDIF_IN

K4

SPDIF_OUT

K5

I2S_OUT_BCK

L6

I2S_OUT_MCK

M7

I2S_OUT_WS

N6

I2S_OUT_SD

M6

RXA0N

Y2

RXA0P

Y3

RXA1N

AA1

RXA1P

AB2

RXA2N

AC2

RXA2P

AC1

RXACKN

W1

RXACKP

W2

DDCDA_CK

AA4

DDCDA_DA

AA5

HOTPLUGA

Y5

RXD0N

N2

RXD0P

N3

RXD1N

P2

RXD1P

P3

RXD2N

R2

RXD2P

R1

RXDCKN

M3

RXDCKP

N1

DDCDD_CK

U5

DDCDD_DA

U4

HOTPLUGD

V6

RXB0N

T2

RXB0P

T3

RXB1N

U2

RXB1P

U3

RXB2N

V2

RXB2P

V1

RXBCKN

R3

RXBCKP

T1

DDCDB_CK

W5

DDCDB_DA

V5

HOTPLUGB

W6

NC

J15

NC

J12

NC

K7

ARC0

AB4

GPIO_PM14

AB3

GPIO_PM15

AB6

CEC

AB5

LINE_IN_2L

AK1

LINE_IN_2R

AK3

EARPHONE_OUT_L

AH6

EARPHONE_OUT_R

AJ6

HOTPLUGA_HDMI20_5V

AA3

HOTPLUGD_HDMI20_5V

V4

HOTPLUGB_HDMI20_5V

Y6

C4142 CAP 0402 2.2uF 10% 16V X5RC4142 CAP 0402 2.2uF 10% 16V X5R

R4216
NC/0R05 OHM

R4216
NC/0R05 OHM

TP03TP TP03TP

R4177 33 OHM 1/16WR4177 33 OHM 1/16W

R4218

0R05 OHM

R4218

0R05 OHM

TP05TP TP05TP

C4128
10uF 16V

C4128
10uF 16V

C4187

1N 50V

C4187

1N 50V

R4297 NC/0R05 OHMR4297 NC/0R05 OHM

C4151
22PF 50V

C4151
22PF 50V

C4144 CAP 0402 2.2uF 10% 16V X5RC4144 CAP 0402 2.2uF 10% 16V X5R

C4188
1N 50V

C4188
1N 50V

R4100 0R05 OHMR4100 0R05 OHM

C4152
22PF 50V

C4152
22PF 50V

C4140 CAP 0402 2.2uF 10% 16V X5RC4140 CAP 0402 2.2uF 10% 16V X5R

C4141 CAP 0402 2.2uF 10% 16V X5RC4141 CAP 0402 2.2uF 10% 16V X5R

C4153
22PF 50V

C4153
22PF 50V

R4101 0R05 OHMR4101 0R05 OHM

C4139 CAP 0402 2.2uF 10% 16V X5RC4139 CAP 0402 2. 2uF 10% 16V X5R

C4179
NC/33P50V

C4179
NC/33P50V

C4103

100N 16V

C4103

100N 16V

TP04TP TP04TP

R417833 OHM 1/16WR417833 OHM 1/16W

R4298 NC/0R05 OHMR4298 NC/0R05 OHM

C4143 CA P 0402 2.2uF 10% 16V X5RC4143 CA P 0402 2.2uF 10% 16V X5R

HDMI

I2S

Spdif

Analog
Audio

Circuit Diagrams and PWB Layouts

EN 38TPS16.3A LA 10.

2017-Feb-24

back to

div.table

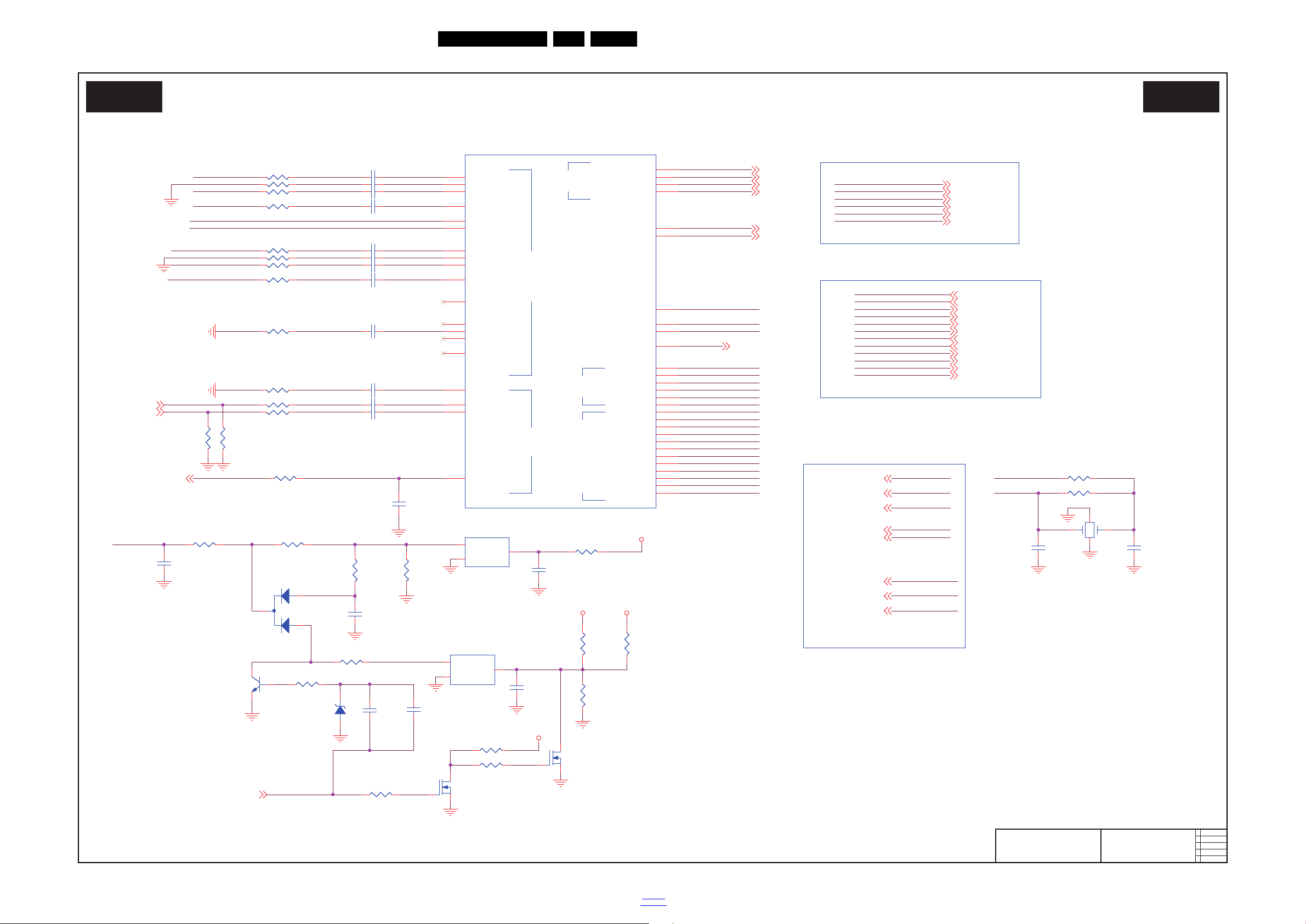

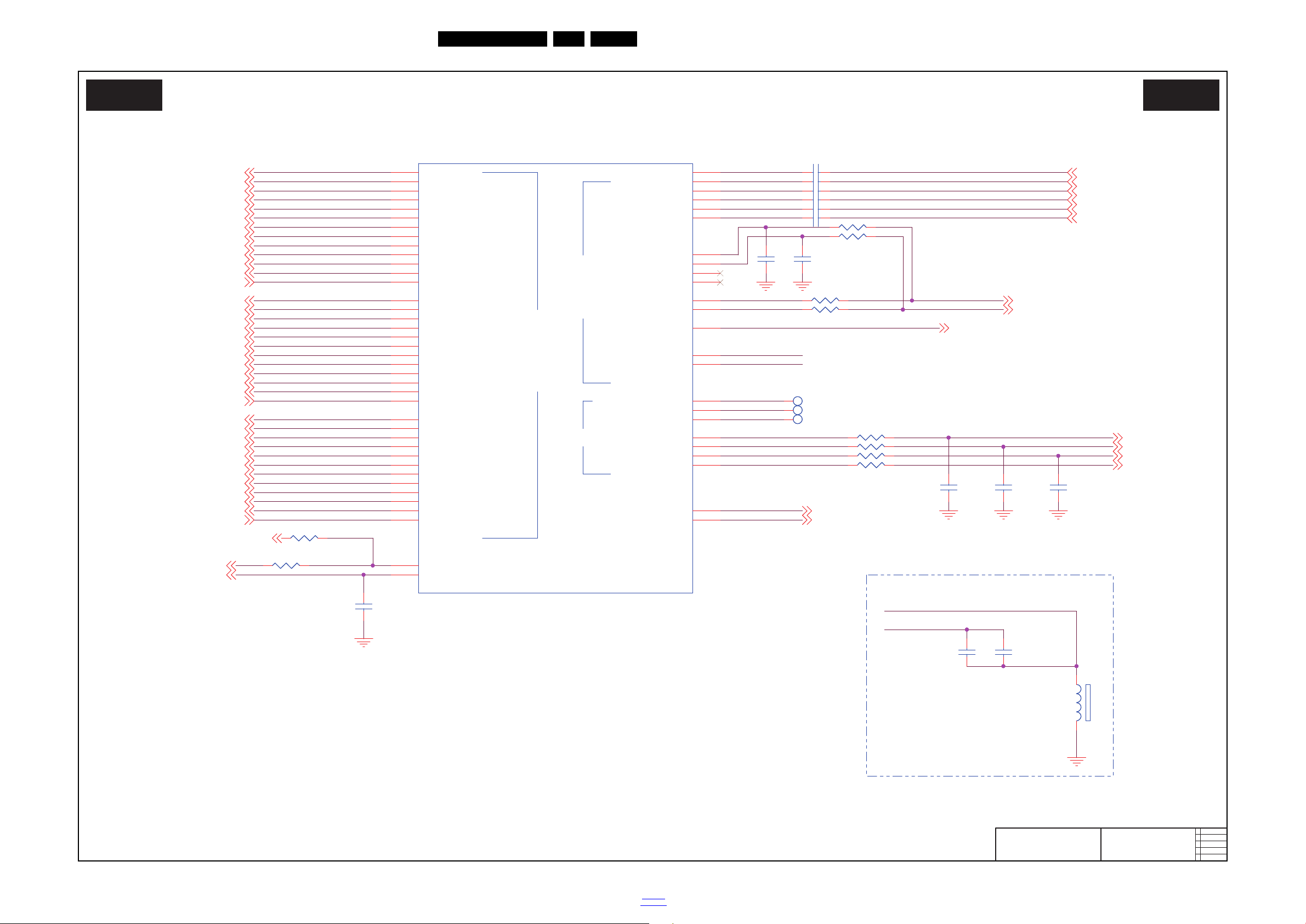

10-3-4 95e1d Video & USB

20310_509eps

95E1D Video & USB

B04 B04

C

715G7702

95E1D Video & USB

USB_SSRXP

VCOM

USB_D+

CVBS0
CVBS1

USB0_D+

USB_1D-

LED1

USB_SSRXN

USB_SSRXP1

USB1_D+

MDI_TN

USB1_D-

SYS_RST

XTALO

USB0_D-

LED0

USB_SSRXN1

MDI_TP

USB_SSTXP

XTALI

IRIN

USB_1D+

MDI_RN

USB_SSTXN

USB2_D-

GIN2N

USB1_D-

USB_SSTXP1

USB1_D+

USB_D-

MDI_RP

USB2_D+

USB0_D-

USB2_D-

USB_SSTXN1

RIN1

VGA_GIN-

VGA_RIN+

RGB2-YPbPr_RIN+

BIN0

BIN1

VGA_HSYNC

GIN0

VGA_GIN+

RGB2-YPbPr_BIN+

RGB2-YPbPr_GIN+

RIN0

GIN1

VGA_VSYNC

RGB2-YPbPr_GIN-

GIN0N

GIN1N

VGA_BIN+

RGB2-YPbPr_BIN+

VGA_VSYNC

VGA_GIN+
VGA_BIN+

VGA_HSYNC

RGB2-YPbPr_GIN+

RGB2-YPbPr_RIN+

VGA_RIN+

CVBS_OUT1

CVBS_OUT

AV_CVBS

Side_CVBS

XTALI

XTALO

USB2_D+

USB0_D+

USB_SSTXP
USB_SSTXN
USB_D­USB_D+
USB_SSRXP
USB_SSRXN
USB_SSTXP1
USB_SSTXN1
USB_1D­USB_1D+
USB_SSRXP1
USB_SSRXN1

RST_P

PWR_ON

SYS_RST

+3.3V_Standby

+3.3V_Standby

P12V

+3.3V_Normal

MDI_RP 13

MDI_TP 13

LED0 13

MDI_RN 13

MDI_TN 13

LED1 13

RGB2-YPbPr_BIN+12

RGB2-YPbPr_GIN+12

VGA_HSYNC11

VGA_GIN+11

VGA_RIN+11

VGA_BIN+11

RGB2-YPbPr_RIN+12

VGA_VSYNC11

CVBS_OUT20

AV_CVBS

Side_CVBS

IRIN 4,17

USB_DM_P1 9
USB_DM_P0 9

USB_DP_P1 9

USB_DM_P2 9
USB_DP_P2 9

USB_DP_P0 9

USB_DP_PSS 9

USB_SSTXN 9

USB_SSRXN_1 9

USB_DM_PSS19

USB_DM_PSS 9

USB_DP_PSS19

USB_SSRXN 9

USB_SSRXP 9
USB_SSTXP_1 9

USB_SSRXP_1 9

USB_SSTXP 9

USB_SSTXN_1 9

PWR_ON4,22

USB3.0 Block

USB Block

Video Block

Crystal

System XTAL

0805

0603

0805

R4291
NC/4.7K1/16W

R4291
NC/4.7K1/16W

C4146

NC/120pF 50V

C4146

NC/120pF 50V

R7141

2K 1/10W

R7141

2K 1/10W

X401
24MHZ

X401
24MHZ

1

24

3

D401
NC/BAT54

D401
NC/BAT54

1 3

C4154 47NF 16VC4154 47NF 16V

R4217 NC/0R05 OHMR4217 NC/0R05 OHM

R4288
NC/2.2K1/16W

R4288
NC/2.2K1/16W

R4284 100OHMR4284 100OHM

C4186
NC/22uF 6.3V

C4186
NC/22uF 6.3V

C4155 47NF 16VC4155 47NF 16V

R4289
NC/330 OHM 1/16W

R4289
NC/330 OHM 1/16W

C4156 47NF 16VC4156 47NF 16V

Q407

NC/2N7002K

Q407

NC/2N7002K

R4179 33 OHM 1/16WR4179 33 OHM 1/16W

C4184
NC/2.2U10V

C4184
NC/2.2U10V

R4203 68OHM 1/16WR4203 68OHM 1/16W

R4293
NC/6.2K 1/16W

R4293
NC/6.2K 1/16W

C4185
NC/22uF 6.3V

C4185
NC/22uF 6.3V

PHY

U401E MSD95E1D-W4

PHY

U401E MSD95E1D-W4

GIN0P

AD2

GIN0M

AD3

HSYNC0

AD4

VSYNC0

AE4

GIN1P

AF1

VSYNC1/SOGIN1

AF2

GIN2M

AH2

CVBS0

AF7

CVBS1

AE5

VCOM

AF6

CVBSOUT1

AF5

HWRESET

N4

XIN

AM3

XOUT

AM2

IRIN

M4

USB0_DM

H2

USB0_DP

H3

USB1_DM

J2

USB1_DP

J1

RIN0P

AE2

BIN0P

AD1

RIN1P

AG1

GIN1M

AF3

BIN1P

AE3

RIN2P

AH3

GIN2P

AG3

BIN2P

AG2

USB2_DM

J3

USB2_DP

K1

USB_SSTXP

AL14

USB_SSTXN

AK15

USB_DM_PSS

AM13

USB_DP_PSS

AL13

USB_SSRXP

AL12

USB_SSRXN

AM12

TN

M2

TP

M1

RN

L2

RP

L3

GPIO19/LAN_LED[0]

K3

USB_SSTXP_1

AK9

USB_SSTXN_1

AL9

USB_DM_PSS1

AK10

USB_DP_PSS1

AM10

USB_SSRXP_1

AK11

USB_SSRXN_1

AL11

GPIO20/LAN_LED[1]

K2

C4183
NC/100N16V

C4183
NC/100N16V

R4180 33 OHM 1/16WR4180 33 OHM 1/16W

R4204 68OHM 1/16WR4204 68OHM 1/16W

U407

NC/G690H293T73

U407

NC/G690H293T73

GND

1

RESET

2

Vcc

3

R4205 68OHM 1/16WR4205 68OHM 1/16W

D402

NC/BAT54CH

D402

NC/BAT54CH

3

1

2

R4290 NC/4.7K1/16WR4290 NC/4.7K1/16W

R42820R05 OHMR42 820R05 OHM

R4210
75R 1/16W 1%

R4210
75R 1/16W 1%

R4181NC/33 OHM 1/16WR4181NC/33 OHM 1/16W

U406

G690H293T73

U406

G690H293T73

GND

1

RESET

2

Vcc

3

R4211
NC/75R 1/16W 1%

R4211
NC/75R 1/16W 1%

R4206 68OHM 1/16WR4206 68OHM 1/16W

R4287

NC/18Kohm 1/16W +/-1%

R4287

NC/18Kohm 1/16W +/-1%

C4157 47NF 16VC4157 47NF 16V

C4129
18PF 50V

C4129
18PF 50V

R4283
100K1/16W

R4283
100K1/16W

C4158 47NF 16VC4158 47NF 16V

C4160 47NF 16VC4160 47NF 16V

R4182 33 OHM 1/16WR4182 33 OHM 1/16W

C4159 47NF 16VC4159 47NF 16V

C4161 47NF 16VC4161 47NF 16V

C4130
18PF 50V

C4130
18PF 50V

R4280 33 OHM 1/16WR4280 33 OHM 1/16W

R4163 1M 1/16WR4163 1M 1/16W

R4286

NC/18Kohm 1/16W +/-1%

R4286

NC/18Kohm 1/16W +/-1%

Q406

NC/2N7002K

Q406

NC/2N7002K

R4183 33 OHM 1/16WR4183 33 OHM 1/16W

C4162 47NF 16VC4162 47NF 16V

C4181

2.2UF 10V

C4181

2.2UF 10V

R4292 NC/4.7K1/16WR4292 NC/4.7K1/16W

Q408
NC/BC847N3

Q408
NC/BC847N3

R4281 33 OHM 1/16WR4281 33 OHM 1/16W

R4184 33 OHM 1/16WR4184 33 OHM 1/16W

R4102 0R05 OHMR4102 0R05 OHM

C4163 47NF 16VC4163 47NF 16V

C4182
10N 50V

C4182
10N 50V

R4285

NC/11K 1%

R4285

NC/11K 1%

C4165 47NF 16VC4165 47NF 16V

C4164 47NF 16VC4164 47NF 16V

RGB

USB

CVBS

USB3.0

Circuit Diagrams and PWB Layouts

EN 39TPS16.3A LA 10.

2017-Feb-24

back to

div.table

Circuit Diagrams and PWB Layouts

19430_519_130114.eps

130114

Audio/Video IO/SPDIF

B05 B05

2012-12-15

C

715G5713

Audio/Video IO/SPDIF

Y1P

SOY0

ADCINP_DEMOD

ADCINN_DEMOD

IF BPF

VGA_R_IN

SCART1_R_IN
SCART1_L_IN

GND

VGA_L_IN

AVDD33_ADAC

AOSDATA0_D

AOMCLK_D

AOBCLK_D

AR0O

AL0O

AOLRCK_D

AVDD33_HPAAVDD33_AADC

Analog Power

YPBPR0_L_IN

R1047

56R 1/16W 1%

MT5580MPOI

U401J

ADCINP_DEMOD

AD19

ADCINN_DEMOD

AE19

IF_AGC

M19

RF_AGC

M20

AVDD12_RGB

AC17

AVSS12_RGB

V13

AVDD33_DEMOD

AE18

AVSS33_DEMOD

V16

AVDD12_DEMOD

AD18

AVSS12_DEMOD

AC18

AVDD33_VIDEO

AD17

AVSS33_VDAC

V14

AVSS33_VDAC_BG

W15

AVSS33_CVBS_1

W17

AVSS33_CVBS_2

Y17

AVSS33_CPUPLL

G15

HSYNC

AC11

VSYNC

AC10

RP

AB13

GP

AE12

BP

AB12

COM

AD12

SOG

AC12

VGA_SCL

AE9

VGA_SDA

AD9

COM1

AD14

PB1P

AE14

PR1P

AC14

Y1P

AB14

SOY1

AC13

COM0

AC16

PB0P

AD16

PR0P

AE16

Y0P

AC15

SOY0

AB15

VDACX_OUT

AA14

VDACY_OUT

Y14

CVBS0P

W16

CVBS1P

AB16

CVBS2P

AA16

CVBS3P

Y16

OSCL2

M21

OSDA2

M22

CVBS_COM

AA15

C605

33pF 50V

R1043 100R 1/16W 5%

MT5580MPOI

U401C

AIN1_L_AADC

AB19

AIN1_R_AADC

AB21

AIN2_L_AADC

AB18

AIN2_R_AADC

AB22

AIN3_L_AADC

AB20

AIN3_R_AADC

AC22

AIN4_L_AADC

AC20

AIN4_R_AADC

AB23

MPXP

W14

AVDD33_AADC

AD22

AVSS33_AADC

Y18

AVDD33_ADAC

AE23

AVSS33_ADAC

W19

AVSS33_CLN

AA18

VMID_AADC

AD23

AL0_ADAC

AE24

AR0_ADAC

AD25

AL1_ADAC

AC24

AR1_ADAC

AE25

AL2_ADAC

AD24

AR2_ADAC

AC25

ALIN

AE6

ASPDIFO0

AB4

AOBCK

AC8

AOLRCK

AD7

AOMCLK

AD8

AOSDATA0

AD6

AOSDATA1

AC7

AVDD33_HPA

AE22

AVSS33_HPA

V17

R1048 100R 1/16W 5%

R1040

18R 1/16W 5%

C619 10NF 50V

C603
100NF 16V

C1034 10NF 50V

R600

240R 1/10W 5%

C1040

10UF 10V

C618

10PF 50V

R1045

56R 1/16W 1%

C620 10NF 50V

R1039 0R05 1/16W

C615
10UF 10V

C600
100NF 16V

C612
100NF 16V

R1073 75 OHM +-5% 1/16W

C601
100NF 16V

C1037

NC/10N 50V

C614
10UF 10V

C613
100NF 16V

C1036 47NF 16V

C1035

10PF 50V

C1033 1.5NF 50V

C617 10NF 50V

R1071 75 OHM +-5% 1/16W

R1050 100R 1/16W 5%

C607
1uF 10V

R1041 100R 1/16W 5%

R1042

18R 1/16W 5%

R604

51OHM 1/16W +/-5%

C606
1uF 10V

C602
100NF 16V

R1113 10R 1/16W 5%

R1088

30Kohm 1/16W +/-5%

R605 10K 1/16W 5%

R1049 100R 1/16W 5%

R601

100R 1/10W 5%

C609

10PF 50V

C622

47PF 50V

C604

100NF 16V

R603

51OHM 1/16W +/-5%

ABC

D

EF

CN112

RCA JACK

3

2

6

5

9

8

1

4

7

10

11
12

C623

47PF 50V

C611
100NF 16V

C610
100NF 16V

C1039

10UF 10V

C608
1uF 10V

C1038

NC/10N 50V

C616
10NF 50V

R1087

30Kohm 1/16W +/-5%

C621

47NF 16V

R1044

18R 1/16W 5%

YPBPR0_R_IN

R1046

56R 1/16W 1%

AVDD3V3

AVDD3V3

AVDD3V3

AVDD1V2 AVDD3V3

AVDD1V2 AVDD3V3

VGA_R_IN8
VGA_L_IN8

SCART1_L_IN8

GND2,3,4,5,7,8,9,10,11,12,13,14,15

AL0O7

SCART1_R_IN8

AR0O7

AOLRCK_D7

AOBCLK_D7
AOMCLK_D7

Y0P8

AOSDATA0_D7

PB0P8

COM08
PR0P8
VSYNC8

HSYNC8
RP8

SPDIFOUT

BP8

GP8
VGACOM8

SOG8
VGASCL8

VGASDA8
TU_FAT_IN2+14

PR1P

TU_FAT_IN2-14
OSCL212,14

CVBS3P8

OSDA212,14

IF_AGC12,14

AVDD1V2 2,9,12,13,14

SOY08

AVDD3V32,4,5,9,10,11,12,13
ARC13

Analog Power

AVDD12_DEMOD

AVDD12_RGB AVDD33_DEMOD

AVDD33_VIDEO

AVDD1V2

SPDIF_OUT

YPbPrL_INY_IN_1

YPbPrR_IN

SPDIFOUT

PB_IN_1

YPbPr & Audio IN

PR_IN_1

IF_AGC

YPbPrL_IN

---><---|>

---><---|>

YPBPR0_L_IN

YPBPR0_R_INYPbPrR_IN

IF_AGC

PB1P

TU_FAT_IN2+

AVDD3V3

PR_IN_1

PB_IN_1

-------><-------

YPBPR IN

PR1

PB1P

COM1

PR1P

SOY1

Y1PY1

-------><--------------><-------

PB1

Y_IN_1

CVBS1P

Video

TU_FAT_IN2-

---><---|>

SPDIF OUT

AOLRCK_D
AOSDATA0_D

AOMCLK_D

AOBCLK_D

AL0O

AVSS33_HPA

AVDD33_HPA

AR0O

SPDIF_OUT

ARC

VGA_R_IN

SCART1_R_IN

SCART1_L_IN

AVDD33_AADC
AVSS33_AADC

AVSS33_ADAC

AVDD33_ADAC

VGA_L_IN

VMID_AADC

AVSS33_CLN

ARC

OSDA2

OSCL2

SOG

Y0P
COM0

VGASDA

CVBS_COM

PB0P

VGASCL

HSYNC

AVSS33_DEMOD

AVDD12_RGB
AVSS12_RGB

VSYNC

AVSS33_VDAC_BG

AVSS33_VDAC

AVDD33_VIDEO

AVSS12_DEMOD

AVDD12_DEMOD

AVDD33_DEMOD

TU_FAT_IN2+

RP

PR0P

AVSS33_CVBS_1
AVSS33_CPUPLL

ADCINP_DEMOD
ADCINN_DEMOD

TU_FAT_IN2-

GP

BP

GP

VSYNC

HSYNC

AVSS33_CVBS_2

BP

CVBS3P

VGASDA

VGASCL

VGACOM
SOG

RP

VGACOM

COM0

SOY1

Y0P

PR0P

PB0P

SOY0

OSDA2

CVBS1P
CVBS3P

OSCL2

Audio

COM1

20310_510eps

95E1D Power & GND

B05 B05

C

715G7702

95E1D Power & GND

AVDD_DDR_VBN_B

VCTRL

AVDD_DDR_VBN_A

AVDD_DDR_VBP_A

AVDD_DDR_VBP_B

AVDD_DDR_VBP_B

AVDD_DDR_VBP_A

AVDD5V_MHL

+1.8V_Normal

AVDD_USB

AVDD_USB

VDDC_2

+1.20V_VDDC

VDDP33

+3.3V_Standby

+1.20V_VDDC

AVDD3P3_MHL3

VDDP33

+3.3V_Normal

AVDD_LPLL

VDDC_4

VDDC_4

+3.3V_Normal

AVDD_MO D

AVDD15_MOD

VDDP_NAND_C

AVDD_NODIE

+1.05_VDDC_CPU

AVDD_DAD C

AVDD5V_MHL

AVDD_DMPLL

+1.20V_VDDC

AVDD_DDR_LDO_A

VDDC_SRAM

AVDD_EAR 33

VDDP_NAND_C

+3.3V_Normal

AVDDL_MOD

+1.20V_VDDC

VDDP_NAND_A

AVDD_USB3

+1.5V_AVDD_DDR

VDDP_NAND_C_1

DVDD_DDR

AVDDL_MHL3

DVDD_NODIE

AVDDL_M OD

AVDD_USB3

AVDD33_LAN

+3.3V_Normal

AVDD_DDR_LDO_B

+1.5V_DDR

AVDD33_ADC

AVDD_DDR_LDO_A

AVDD_DMPLL

AVDD_DD R

AVDDL_M HL3

+1.05_VDDC_CPU

+3.3V_Normal

AVDD33_ADC

AVDD3P3_MHL3

AVDD_PLL

DVDD_DDR

AVDD_DAD C

AVDD15_MOD

AVDD_EAR33

VDDC_2

VDDP_NAND_A

AVDD_LPLL

+1.20V_VDDC

AVDD_NODIE

AVDD_PLL

AVDD_DDR

+3.3V_Normal

AVDD33_LAN

AVDD_MO D

+1.20V_VDDC

VDDP_NAND_A_1

AVDDL_USB3

+1.20V_VDDC

AVDDL_USB3

VDDC_1

AVDD_AU33

+1.05_VDDC_CPU

AVDD_AU33

AVDD_DDR_LDO_B

+1.20V_VDDC

VDDP_NAND_C_1

VDDP_NAND_A_1

20mA,15mil

20mA,15mil20mA,15mil

20mA,15mil

Close to MSTAR IC

20mA,15mil

20mA,15mil20mA,15mil

20mA,15mil

60mA,15mil

60mA,15mil60mA,15mil

60mA,15mil

4200mA,100mil

4200mA,100mil4200mA,100mil

4200mA,100mil

40mA,15mil

40mA,15mil40mA,15mil

40mA,15mil

20mA,15mil

20mA,15mil20mA,15mil

20mA,15mil

AVDDL_MOD

40mA,15mil

40mA,15mil40mA,15mil

40mA,15mil

80mA,25mil

80mA,25mil80mA,25mil

80mA,25mil

180mA,25mil

180mA,25mil180mA,25mil

180mA,25mil

eMMC

40mA,25mil

40mA,25mil40mA,25mil

40mA,25mil

DDR3-1.5V

Normal Power 3.3V

160mA,20mil

160mA,20mil160mA,20mil

160mA,20mil

Standby Power 3.3V

50mA,15mil

50mA,15mil50mA,15mil

50mA,15mil

10mA,15mil

10mA,15mil10mA,15mil

10mA,15mil

60mA,15mil

60mA,15mil60mA,15mil

60mA,15mil

CPU

2300mA,100mil

2300mA,100mil2300mA,100mil

2300mA,100mil

20mA,15mil

20mA,15mil20mA,15mil

20mA,15mil

40mA,15mil

40mA,15mil40mA,15mil

40mA,15mil

300mA,20mil

300mA,20mil300mA,20mil

300mA,20mil

30mA,15mil

30mA,15mil30mA,15mil

30mA,15mil

10mA,15mil

10mA,15mil10mA,15mil

10mA,15mil

20mA,15mil

20mA,15mil20mA,15mil

20mA,15mil

60mA,15mil

60mA,15mil60mA,15mil

60mA,15mil

50mA,15mil

50mA,15mil50mA,15mil

50mA,15mil

CORE

50mA,15mil

50mA,15mil50mA,15mil

50mA,15mil

20mA,25mil

20mA,25mil20mA,25mil

20mA,25mil

C4272
22uF 6.3V

C4272
22uF 6.3V

C4265
1uF 6.3V

C4265
1uF 6.3V

C405

100N 16V

C405

100N 16V

L410

NC/0R05 1/16W

L410

NC/0R05 1/16W

L401

0R05 1/16W

L401

0R05 1/16W

C406

100N 16V

C406

100N 16V

C408

100N 16V

C408

100N 16V

C407

100N 16V

C407

100N 16V

C409

100N 16V

C409

100N 16V

C4273
22uF 6.3V

C4273
22uF 6.3V

U401G

MSD95E1D-W4

U401G

MSD95E1D-W4

GND

A14

GND

A29

GND

B6

GND

B11

GND

B13

GND

B20

GND

B22

GND

B24

GND

B28

GND

B30

GND

C1

GND

C26

GND

C31

GND

D2

GND

D6

GND

D8

GND

D10

GND

D14

GND

D16

GND

D18

GND

D20

GND

D22

GND

D23

GND

D24

GND

D25

GND

G19

GND

G20

GND

G21

GND

G22

GND

G23

GND

G24

GND

G25

GND

G26

GND

G28

GND

G29

GND

G30

GND

H8

GND

H9

GND

H10

GND

H11

GND

H12

GND

H14

GND

H15

GND

H16

GND

H22

GND

H23

GND

H25

GND

H26

GND

H31

GND

J7

GND

J8

GND

J9

GND

J10

GND

J16

GND

J25

GND

J26

GND

J28

GND

T15

GND

T16

GND

T17

GND

T18

GND

T19

GND

T20

GND

T21

GND

T22

GND

T23

GND

T24

GND

T28

GND

T30

GND

U6

GND

U7

GND

U8

GND

U9

GND

U10

GND

U13

GND

U16

GND

U17

GND

U18

GND

U19

GND

U20

GND

U21

GND

U22

GND

U23

GND

U24

GND

U26

GND

U29

GND

U31

GND

V3

GND

V7

GND

V8

GND

V9

GND

V10

GND

V11

GND

V12

GND

V13

GND

V14

GND

V15

GND

V16

GND

V17

GND

V18

GND

V19

GND

V22

GND

V25

GND

J29

GND

J32

GND

K8

GND

K9

GND

K10

GND

K11

GND

K12

GND

K13

GND

K15

GND

K24

GND

K25

GND

L12

GND

L13

GND

L14

GND

L15

GND

L16

GND

L24

GND

L25

GND

L26

GND

L29

GND

L32

GND

M8

GND

M11

GND

M12

GND

M13

GND

M17

GND

AL24

GND

AM30

GND

M18

GND

M19

GND

M20

GND

M25

GND

AK26

GND

AK27

GND

AL2

GND

AL3

GND

AL6

GND

AL8

GND

AL10

GND

AL15

GND

K26

GND

K31

GND

L7

GND

L8

GND

L9

GND

K6

GND

M26

GND

M28

GND

AK30

GND

H7

GND

H20

GND

H21

GND

J13

GND

J14

GND

K16

GND

L10

GND

L11

GND

T25

GND

T26

GND

AK14

GND

C19

GND

D12

GND

H4

GND

AK13

GND

M14

GND

M15

GND

AL29

GND

AM9

GND

U25

GND

D27

GND

E2

GND

E4

GND

E6

GND

E8

GND

E10

GND

E13

GND

E15

GND

E17

GND

E19

GND

E29

GND

E30

GND

F12

GND

F13

GND

F22

GND

F23

GND

F24

GND

F25

GND

F26

GND

F30

GND

G4

GND

M31

GND

N10

GND

V26

GND

V28

GND

V32

GND

W3

GND

W7

GND

W8

GND

W9

GND

W10

GND

W11

GND

W12

GND

W13

GND

W14

GND

W15

GND

W16

GND

W17

GND

W18

GND

W19

GND

W20

GND

W21

GND

W22

GND

W25

GND

W26

GND

W27

GND

W28

GND

W29

GND

W31

GND

Y7

GND

Y8

GND

Y9

GND

Y10

GND

Y11

GND

Y12

GND

Y13

GND

Y14

GND

Y15

GND

Y16

GND

Y17

GND

Y18

GND

Y19

GND

Y20

GND

Y21

GND

Y22

GND

Y26

GND

Y27

GND

Y28

GND

Y29

GND

Y32

GND

AA2

GND

AA7

GND

AA8

GND

AA9

GND

AA10

GND

AA11

GND

AA12

GND

AA13

GND

AA14

GND

AA15

GND

AA17

GND

AA20

GND

AA30

GND

AB1

GND

AB7

GND

AB8

GND

AB11

GND

AB12

GND

AB13

GND

AB16

GND

AB17

GND

AB20

GND

AB31

GND

A21

GND

A23

GND

B15

GND

B27

GND

C3

GND

B32

GND

C4

GND

C5

GND

C8

GND

C9

GND

C10

GND

C17

GND

C18

GND

D26

GND

E21

GND

E22

GND

E23

GND

E24

GND

E25

GND

E26

GND

F2

GND

F4

GND

G5

GND

G6

GND

N12

GND

H17

GND

H18

GND

A12

GND

H19

GND

A5

GND

G7

GND

G8

GND

G9

GND

G10

GND

G12

GND

G13

GND

G14

GND

G15

GND

G11

GND

G16

GND

G17

GND

G18

GND

AB32

GND

AC3

GND

AC7

GND

AC8

GND

AC9

GND

AC10

GND

AC13

GND

AC14

GND

AC15

GND

AC16

GND

AC17

GND

AC18

GND

AC19

GND

AC20

GND

AD6

GND

AD10

GND

AD11

GND

AD12

GND

AD13

GND

AD14

GND

AD15

GND

AD16

GND

AD17

GND

AD18

GND

AD19

GND

AD20

GND

AE6

GND

AE10

GND

AE11

GND

AE14

GND

AE15

GND

AE16

GND

AE17

GND

AE18

GND

AE19

GND

AE20

GND

AE29

GND

AF10

GND

AF11

GND

AF14

GND

AF17

GND

AF18

GND

AF19

GND

AF20

GND

AF21

GND

AF22

GND

AF23

GND

AF24

GND

AF25

GND

AG9

GND

AG10

GND

AG11

GND

AG28

GND

AG30

GND

AH9

GND

AH10

GND

AJ9

GND

AJ10

GND

AJ11

GND

AJ14

GND

AJ24

GND

AJ31

GND

AK7

GND

AK12

GND

N29

GND

P12

GND

P13

GND

P14

GND

P16

GND

P17

GND

P18

GND

P19

GND

P20

GND

P25

GND

P26

GND

P28

GND

P30

GNDR4GNDR5GND

R12

GND

R13

GND

R14

GND

R15

GND

R16

GND

R17

GND

R18

GND

R19

GND

R20

GND

R21

GND

R22

GND

R25

GND

R26

GND

R29

GND

R30

GNDT4GNDT5GNDT6GNDT7GNDT8GNDT9GND

T10

GND

T12

GND

T13

GND

T14

GND

N13

GND

N14

GND

N15

GND

N16

GND

N17

GND

N18

GND

N19

GND

N20

GND

N25

GND

N26

GND

P11

GND

R11

GND

U11

C412

100N 16V

C412

100N 16V

C410

100N 16V

C410

100N 16V

L405
120R

L405
120R

1 2

C411

100N 16V

C411

100N 16V

C413

100N 16V

C413

100N 16V

C414

100N 16V

C414

100N 16V

C415

100N 16V

C415

100N 16V

C4277
NC/22uF 6.3V

C4277
NC/22uF 6.3V

C4266

2.2uF 6.3V

C4266

2.2uF 6.3V

C417

100N 16V

C417

100N 16V

C416

100N 16V

C416

100N 16V

C4267

2.2uF 6.3V

C4267

2.2uF 6.3V

C418

100N 16V

C418

100N 16V

C420

100N 16V

C420

100N 16V

C419

100N 16V

C419

100N 16V

L406
120R

L406
120R

1

2

C421

100N 16V

C421

100N 16V

C423

100N 16V

C423

100N 16V

C424

100N 16V

C424

100N 16V

C422

100N 16V

C422

100N 16V

C4274
22uF 6.3V

C4274
22uF 6.3V

C425

100N 16V

C425

100N 16V

C426

100N 16V

C426

100N 16V

C427

100N 16V

C427

100N 16V

C4249
10uF 16V

C4249
10uF 16V

C4250
10uF 16V

C4250
10uF 16V

C428

100N 16V

C428

100N 16V

U401F MSD95E1D-W4U401F MSD95E1D-W4

AVDDL_MHL3

U14

AVDDL_MHL3

U15

VDDC

AB22

AVDDL_USB3_B

AB14

AVDDL_MOD

AA19

VDDC

M16

AVDD3P3_ETH

AD9

AVDD_AU33

AB10

AVDD_MOD

P9

AVDD_NODIE

AE7

VDDC

AB21

VDDP

N7

AVDD3P3_DMPLL

AF16

DVDD_NODIE

P15

AVDD3P3_DADC

AE8

AVDD_PLL_A

M9

GND_EFUSE

N11

VDDP_3318_A

H5

VDDC_C PU

V23

AVDD3P3_USB

AE12

VDDC

AC21

VDDC

AC22

VDDC

AC23

DVDD_DDR

L21

DVDD_DDR_RX_A

N21

DVDD_DDR_RX_B

M21

VDDC

AC24

VDDC

AD21

VDDC

AD22

AVDD3P3_ADC

AD7

AVDDL_USB3_A

AB15

AVDD_DDR_VBP_A

J17

VDDC_C PU

Y23

VDDC_C PU

AA26

VDDC_C PU

AA27

VDDC_C PU

AA28

VDDC_C PU

AA29

VDDC_C PU

AB28

VDDC_C PU

AC29

AVDD_EAR 33

AB9

VDDP_3318_C

J6

AVDD_LPLL

P10

AVDD_DDR_A_CMD

K18

AVDD_DDR_B_CMD

K22

AVDD_DDR_A_DAT

J21

AVDD_DDR_B_DAT

N22

AVDD_DDR_A_DAT

K19

VDDC

AA22

VDDC

AA21

VDDC

U12

VDDC

AB23

VDDC

AA16

VDDC_C PU

AB26

VDDC_C PU

AB27

VDDC_C PU

W23

VDDC_C PU

W24

AVDD15_MOD

V20

AVDD_MOD

R9

AVDD_PLL_B

M10

AVDD_DDR_LDO_A

L17

AVDD_DDR_LDO_B

K21

AVDD_HDMI_5V_PA

AC6

AVDD15_MOD

V21

AVDD_DDR_VBP_A

J18

AVDD_DDR_VBP_B

M24

AVDD_DDR_VBP_B

N24

AVDD_DDR_VBN_B

P24

AVDD_DDR_VBN_B

R24

AVDD_DDR_A_DAT

L19

AVDD_DDR_A_DAT

L20

AVDD_DDR_A_MCK

L18

AVDD_DDR_B_DAT

N23

AVDD_DDR_B_DAT

P23

AVDD_DDR_B_DAT

R23

AVDD_DDR_B_MCK

J22

AVDD_LPLL

R10

VDDP

P7

AVDD3P3_USB

AF12

AVDD3P3_USB3

AE13

AVDD3P3_USB3

AF13

AVDD3P3_DADC

AE9

AVDD3P3_ADC

AD8

AVDD3P3_MHL3

P8

AVDD3P3_MHL3

R8

DVDD_DDR

P21

AVDD_DDR_A_CMD

K17

AVDD_DDR_B_CMD

L22

AVDDL_PREDRV

AB18

AVDDL_MOD

AB19

VDDC_C PU

Y25

VDDC_C PU

AA25

VDDC_C PU

AB30

VDDC_C PU

AC28

VDDC_C PU

V24

VDDC_C PU

Y24

VDDC_C PU

AB29

AVDDL_PREDRV

AA18

VDD_SRAM

AK24

VDD_SRAM

AL23

CTRL_SRAMLDO

AM24

PADA_EMMC_CTRL

H6

AVDD_DDR_VBN_A

J19

AVDD_DDR_VBN_A

J20

VDDP_3318_A_1

K14

VDDP_3318_C_1

H13

VDDC

AD23

VDDC

AD24

VDDC

AD25

VDDC

AD26

VDDC

AD27

VDDC

AD28

VDDC

AE21

VDDC

AE22

VDDC

AE23

VDDC

AE24

VDDC

AE25

VDDC

AE26

VDDC

AE27

VDDC

AE28

VDDC_C PU

AC30

VDDC_C PU

AC31

VDDC_C PU

AC32

VDDC_C PU

AD29

VDDC_C PU

AD30

VDDC_C PU

AD31

VDDC_C PU

AD32

C429

100N 16V

C429

100N 16V

C430

100N 16V

C430

100N 16V

C431

100N 16V

C431

100N 16V

C432

100N 16V

C432

100N 16V

C433

100N 16V

C433

100N 16V

C435

100N 16V

C435

100N 16V

C436

100N 16V

C436

100N 16V

C434

100N 16V

C434

100N 16V

C437

100N 16V

C437

100N 16V

C438

100N 16V

C438

100N 16V

L402

0R05 1/16W

L402

0R05 1/16W

C440

100N 16V

C440

100N 16V

C439

100N 16V

C439

100N 16V

L407
120R

L407
120R

1 2

C441

100N 16V

C441

100N 16V

C442

100N 16V

C442

100N 16V

C444

100N 16V

C444

100N 16V

C443

100N 16V

C443

100N 16V

C445

100N 16V

C445

100N 16V

L404
0R051/8W

L404
0R051/8W

C401 0.47UF 10VC401 0.47UF 10V

C446

100N 16V

C446

100N 16V

C448

100N 16V

C448

100N 16V

C447

100N 16V

C447

100N 16V

C449

100N 16V

C449

100N 16V

C4251
10uF 16V

C4251
10uF 16V

C450

100N 16V

C450

100N 16V

C451

100N 16V

C451

100N 16V

C452

100N 16V

C452

100N 16V

C453

100N 16V

C453

100N 16V

C4252
10uF 16V

C4252
10uF 16V

C403 0.47UF 10VC403 0.47UF 10V

C402 0.47UF 10VC402 0.47UF 10V

C4268

2.2uF 6.3V

C4268

2.2uF 6.3V

C455

100N 16V

C455

100N 16V

C454

100N 16V

C454

100N 16V

C456

100N 16V

C456

100N 16V

C457

100N 16V

C457

100N 16V

C458

100N 16V

C458

100N 16V

C404 0.47UF 10VC404 0.47UF 10V

L408 120RL408 120R

1

2

C460

100N 16V

C460

100N 16V

C461

100N 16V

C461

100N 16V

C459

100N 16V

C459

100N 16V

C4247
10uF 16V

C4247
10uF 16V

C4269

2.2uF 6.3V

C4269

2.2uF 6.3V

TP06TPTP06

TP

C462

100N 16V

C462

100N 16V

L411

NC/0R05 1/16W

L411

NC/0R05 1/16W

C463

100N 16V

C463

100N 16V

C465

100N 16V

C465

100N 16V

C464

100N 16V

C464

100N 16V

C4253
10uF 16V

C4253
10uF 16V

C4270

2.2uF 6.3V

C4270

2.2uF 6.3V

C466

100N 16V

C466

100N 16V

C467

100N 16V

C467

100N 16V

C4276

4.7UF 10% 10V

C4276

4.7UF 10% 10V

C4254
10uF 16V

C4254
10uF 16V

C469

100N 16V

C469

100N 16V

C471

100N 16V

C471

100N 16V

C468

100N 16V

C468

100N 16V

C470

100N 16V

C470

100N 16V

C4275
22uF 6.3V

C4275
22uF 6.3V

C472

100N 16V

C472

100N 16V

L403

0R05 1/16W

L403

0R05 1/16W

C4235
10uF 16V

C4235
10uF 16V

C4271

2.2uF 6.3V

C4271

2.2uF 6.3V

C473

100N 16V

C473

100N 16V

L409
120R

L409
120R

1

2

EN 40TPS16.3A LA 10.

10-3-5 95ELD Power & GND

2017-Feb-24

back to

div.table

10-3-6 DDR3(16X2+16X2) Page

20310_511.eps

DDR3(16X2+16X2) Page

B06 B06

C

715G7702

DDR3(16X2+16X2) Page

AVDD_DDR_VBN_B

VCTRL

AVDD_DDR_VBN_A

AVDD_DDR_VBP_A

AVDD_DDR_VBP_B

AVDD_DDR_VBP_B

AVDD_DDR_VBP_A

AVDD5V_MHL

+1.8V_Normal

AVDD_USB

AVDD_USB

VDDC_2

+1.20V_VDDC

VDDP33

+3.3V_Standby

+1.20V_VDDC

AVDD3P3_MHL3

VDDP33

+3.3V_Normal

AVDD_LPLL

VDDC_4

VDDC_4

+3.3V_Normal

AVDD_MOD

AVDD15_MOD

VDDP_NAND_C

AVDD_NODIE

+1.05_VDDC_CPU

AVDD_DADC

AVDD5V_MHL

AVDD_DMPLL

+1.20V_VDDC

AVDD_DDR_LDO_A

VDDC_SRAM

AVDD_EAR33

VDDP_NAND_C

+3.3V_Normal

AVDDL_MOD

+1.20V_VDDC

VDDP_NAND_A

AVDD_USB3

+1.5V_AVDD_DDR

VDDP_NAND_C_1

DVDD_DDR

AVDDL_MHL3

DVDD_NODIE

AVDDL_MOD

AVDD_USB3

AVDD33_LAN

+3.3V_Normal

AVDD_DDR_LDO_B

+1.5V_DDR

AVDD33_ADC

AVDD_DDR_LDO_A

AVDD_DMPLL

AVDD_DDR

AVDDL_MHL3

+1.05_VDDC_CPU

+3.3V_Normal

AVDD33_ADC

AVDD3P3_MHL3

AVDD_PLL

DVDD_DDR

AVDD_DADC

AVDD15_MOD

AVDD_EAR33

VDDC_2

VDDP_NAND_A

AVDD_LPLL

+1.20V_VDDC

AVDD_NODIE

AVDD_PLL

AVDD_DDR

+3.3V_Normal

AVDD33_LAN

AVDD_MOD

+1.20V_VDDC

VDDP_NAND_A_1

AVDDL_USB3

+1.20V_VDDC

AVDDL_USB3

VDDC_1

AVDD_AU33

+1.05_VDDC_CPU

AVDD_AU33

AVDD_DDR_LDO_B

+1.20V_VDDC

VDDP_NAND_C_1

VDDP_NAND_A_1

20mA,15mil

20mA,15mil20mA,15mil

20mA,15mil

Close to MSTAR IC

20mA,15mil

20mA,15mil20mA,15mil

20mA,15mil

60mA,15mil

60mA,15mil60mA,15mil

60mA,15mil

4200mA,100mil

4200mA,100mil4200mA,100mil

4200mA,100mil

40mA,15mil

40mA,15mil40mA,15mil

40mA,15mil

20mA,15mil

20mA,15mil20mA,15mil

20mA,15mil

AVDDL_MOD

40mA,15mil

40mA,15mil40mA,15mil

40mA,15mil

80mA,25mil

80mA,25mil80mA,25mil

80mA,25mil

Close to MSTAR IC

180mA,25mil

180mA,25mil180mA,25mil

180mA,25mil

eMMC

40mA,25mil

40mA,25mil40mA,25mil

40mA,25mil

DDR3-1.5V

Normal Power 3.3V

160mA,20mil

160mA,20mil160mA,20mil

160mA,20mil

Standby Power 3.3V

50mA,15mil

50mA,15mil50mA,15mil

50mA,15mil10mA,15mil

10mA,15mil10mA,15mil

10mA,15mil

60mA,15mil

60mA,15mil60mA,15mil

60mA,15mil

CPU

2300mA,100mil

2300mA,100mil2300mA,100mil

2300mA,100mil

20mA,15mil

20mA,15mil20mA,15mil

20mA,15mil

40mA,15mil

40mA,15mil40mA,15mil

40mA,15mil

300mA,20mil

300mA,20mil300mA,20mil

300mA,20mil

30mA,15mil

30mA,15mil30mA,15mil

30mA,15mil

10mA,15mil

10mA,15mil10mA,15mil

10mA,15mil

20mA,15mil

20mA,15mil20mA,15mil

20mA,15mil

60mA,15mil

60mA,15mil60mA,15mil

60mA,15mil

50mA,15mil

50mA,15mil50mA,15mil

50mA,15mil

CORE

50mA,15mil

50mA,15mil50mA,15mil

50mA,15mil

20mA,25mil

20mA,25mil20mA,25mil

20mA,25mil

C4272
22uF 6.3V

C4272
22uF 6.3V

C4265
1uF 6.3V

C4265
1uF 6.3V

C405

100N 16V

C405

100N 16V

L410

NC/0R05 1/16W

L410

NC/0R05 1/16W

L401

0R05 1/16W

L401

0R05 1/16W

C406

100N 16V

C406

100N 16V

C408

100N 16V

C408

100N 16V

C407

100N 16V

C407

100N 16V

C409

100N 16V

C409

100N 16V

C4273
22uF 6.3V

C4273
22uF 6.3V

U401G

MSD95E1D-W4

U401G

MSD95E1D-W4

GND

A14

GND

A29

GND

B6

GND

B11

GND

B13

GND

B20

GND

B22

GND

B24

GND

B28

GND

B30

GND

C1

GND

C26

GND

C31

GND

D2

GND

D6

GND

D8

GND

D10

GND

D14

GND

D16

GND

D18

GND

D20

GND

D22

GND

D23

GND

D24

GND

D25

GND

G19

GND

G20

GND

G21

GND

G22

GND

G23

GND

G24

GND

G25

GND

G26

GND

G28

GND

G29

GND

G30

GND

H8

GND

H9

GND

H10

GND

H11

GND

H12

GND

H14

GND

H15

GND

H16

GND

H22

GND

H23

GND

H25

GND

H26

GND

H31

GND

J7

GND

J8

GND

J9

GND

J10

GND

J16

GND

J25

GND

J26

GND

J28

GND

T15

GND

T16

GND

T17

GND

T18

GND

T19

GND

T20

GND

T21

GND

T22

GND

T23

GND

T24

GND

T28

GND

T30

GND

U6

GND

U7

GND

U8

GND

U9

GND

U10

GND

U13

GND

U16

GND

U17

GND

U18

GND

U19

GND

U20

GND

U21

GND

U22

GND

U23

GND

U24

GND

U26

GND

U29

GND

U31

GND

V3

GND

V7

GND

V8

GND

V9

GND

V10

GND

V11

GND

V12

GND

V13

GND

V14

GND

V15

GND

V16

GND

V17

GND

V18

GND

V19

GND

V22

GND

V25

GND

J29

GND

J32

GND

K8

GND

K9

GND

K10

GND

K11

GND

K12

GND

K13

GND

K15

GND

K24

GND

K25

GND

L12

GND

L13

GND

L14

GND

L15

GND

L16

GND

L24

GND

L25

GND

L26

GND

L29

GND

L32

GND

M8

GND

M11

GND

M12

GND

M13

GND

M17

GND

AL24

GND

AM30

GND

M18

GND

M19

GND

M20

GND

M25

GND

AK26

GND

AK27

GND

AL2

GND

AL3

GND

AL6

GND

AL8

GND

AL10

GND

AL15

GND

K26

GND

K31

GND

L7

GND

L8

GND

L9

GND

K6

GND

M26

GND

M28

GND

AK30

GND

H7

GND

H20

GND

H21

GND

J13

GND

J14

GND

K16

GND

L10

GND

L11

GND

T25

GND

T26

GND

AK14

GND

C19

GND

D12

GND

H4

GND

AK13

GND

M14

GND

M15

GND

AL29

GND

AM9

GND

U25

GND

D27

GND

E2

GND

E4

GND

E6

GND

E8

GND

E10

GND

E13

GND

E15

GND

E17

GND

E19

GND

E29

GND

E30

GND

F12

GND

F13

GND

F22

GND

F23

GND

F24

GND

F25

GND

F26

GND

F30

GND

G4

GND

M31

GND

N10

GND

V26

GND

V28

GND

V32

GND

W3

GND

W7

GND

W8

GND

W9

GND

W10

GND

W11

GND

W12

GND

W13

GND

W14

GND

W15

GND

W16

GND

W17

GND

W18

GND

W19

GND

W20

GND

W21

GND

W22

GND

W25

GND

W26

GND

W27

GND

W28

GND

W29

GND

W31

GND

Y7

GND

Y8

GND

Y9

GND

Y10

GND

Y11

GND

Y12

GND

Y13

GND

Y14

GND

Y15

GND

Y16

GND

Y17

GND

Y18

GND

Y19

GND

Y20

GND

Y21

GND

Y22

GND

Y26

GND

Y27

GND

Y28

GND

Y29

GND

Y32

GND

AA2

GND

AA7

GND

AA8

GND

AA9

GND

AA10

GND

AA11

GND

AA12

GND

AA13

GND

AA14

GND

AA15

GND

AA17

GND

AA20

GND

AA30

GND

AB1

GND

AB7

GND

AB8

GND

AB11

GND

AB12

GND

AB13

GND

AB16

GND

AB17

GND

AB20

GND

AB31

GND

A21

GND

A23

GND

B15

GND

B27

GND

C3

GND

B32

GND

C4

GND

C5

GND

C8

GND

C9

GND

C10

GND

C17

GND

C18

GND

D26

GND

E21

GND

E22

GND

E23

GND

E24

GND

E25

GND

E26

GND

F2

GND

F4

GND

G5

GND

G6

GND

N12

GND

H17

GND

H18

GND

A12

GND

H19

GND

A5

GND

G7

GND

G8

GND

G9

GND

G10

GND

G12

GND

G13

GND

G14

GND

G15

GND

G11

GND

G16

GND

G17

GND

G18

GND

AB32

GND

AC3

GND

AC7

GND

AC8

GND

AC9

GND

AC10

GND

AC13

GND

AC14

GND

AC15

GND

AC16

GND

AC17

GND

AC18

GND

AC19

GND

AC20

GND

AD6

GND

AD10

GND

AD11

GND

AD12

GND

AD13

GND

AD14

GND

AD15

GND

AD16

GND

AD17

GND

AD18

GND

AD19

GND

AD20

GND

AE6

GND

AE10

GND

AE11

GND

AE14

GND

AE15

GND

AE16

GND

AE17

GND

AE18

GND

AE19

GND

AE20

GND

AE29

GND

AF10

GND

AF11

GND

AF14

GND

AF17

GND

AF18

GND

AF19

GND

AF20

GND

AF21

GND

AF22

GND

AF23

GND

AF24

GND

AF25

GND

AG9

GND

AG10

GND

AG11

GND

AG28

GND

AG30

GND

AH9

GND

AH10

GND

AJ9

GND

AJ10

GND

AJ11

GND

AJ14

GND

AJ24

GND

AJ31

GND

AK7

GND

AK12

GND

N29

GND

P12

GND

P13

GND

P14

GND

P16

GND

P17

GND

P18

GND

P19

GND

P20

GND

P25

GND

P26

GND

P28

GND

P30

GNDR4GNDR5GND

R12

GND

R13

GND

R14

GND

R15

GND

R16

GND

R17

GND

R18

GND

R19

GND

R20

GND

R21

GND

R22

GND

R25

GND

R26

GND

R29

GND

R30

GNDT4GNDT5GNDT6GNDT7GNDT8GNDT9GND

T10

GND

T12

GND

T13

GND

T14

GND

N13

GND

N14

GND

N15

GND

N16

GND

N17

GND

N18

GND

N19

GND

N20

GND

N25

GND

N26

GND

P11

GND

R11

GND

U11

C412

100N 16V

C412

100N 16V

C410

100N 16V

C410

100N 16V

L405
120R

L405
120R

1 2

C411

100N 16V

C411

100N 16V

C413

100N 16V

C413

100N 16V

C414

100N 16V

C414

100N 16V

C415

100N 16V

C415

100N 16V

C4277
NC/22uF 6.3V

C4277
NC/22uF 6.3V

C4266

2.2uF 6.3V

C4266

2.2uF 6.3V

C417

100N 16V

C417

100N 16V

C416

100N 16V

C416

100N 16V

C4267

2.2uF 6.3V

C4267

2.2uF 6.3V

C418

100N 16V

C418

100N 16V

C420

100N 16V

C420

100N 16V

C419

100N 16V

C419

100N 16V

L406
120R

L406
120R

1

2

C421

100N 16V

C421

100N 16V

C423

100N 16V

C423

100N 16V

C424

100N 16V

C424

100N 16V

C422

100N 16V

C422

100N 16V

C4274
22uF 6.3V

C4274
22uF 6.3V

C425

100N 16V

C425

100N 16V

C426

100N 16V

C426

100N 16V

C427

100N 16V

C427

100N 16V

C4249
10uF 16V

C4249
10uF 16V

C4250
10uF 16V

C4250
10uF 16V

C428

100N 16V

C428

100N 16V

U401F MSD95E1D-W4U401F MSD95E1D-W4

AVDDL_MHL3

U14

AVDDL_MHL3

U15

VDDC

AB22

AVDDL_USB3_B

AB14

AVDDL_MOD

AA19

VDDC

M16

AVDD3P3_ETH

AD9

AVDD_AU33

AB10

AVDD_MOD

P9

AVDD_NODIE

AE7

VDDC

AB21

VDDP

N7

AVDD3P3_DMPLL

AF16

DVDD_NODIE

P15

AVDD3P3_DADC

AE8

AVDD_PLL_A

M9

GND_EFUSE

N11

VDDP_3318_A

H5

VDDC_CPU

V23

AVDD3P3_USB

AE12

VDDC

AC21

VDDC

AC22

VDDC

AC23

DVDD_DDR

L21

DVDD_DDR_RX_A

N21

DVDD_DDR_RX_B

M21

VDDC

AC24

VDDC

AD21

VDDC

AD22

AVDD3P3_ADC

AD7

AVDDL_USB3_A

AB15

AVDD_DDR_VBP_A

J17

VDDC_CPU

Y23

VDDC_CPU

AA26

VDDC_CPU

AA27

VDDC_CPU

AA28

VDDC_CPU

AA29

VDDC_CPU

AB28

VDDC_CPU

AC29

AVDD_EAR33

AB9

VDDP_3318_C

J6

AVDD_LPLL

P10

AVDD_DDR_A_CMD

K18

AVDD_DDR_B_CMD

K22

AVDD_DDR_A_DAT

J21

AVDD_DDR_B_DAT

N22

AVDD_DDR_A_DAT

K19

VDDC

AA22

VDDC

AA21

VDDC

U12

VDDC

AB23

VDDC

AA16

VDDC_CPU

AB26

VDDC_CPU

AB27

VDDC_CPU

W23

VDDC_CPU

W24

AVDD15_MOD

V20

AVDD_MOD

R9

AVDD_PLL_B

M10

AVDD_DDR_LDO_A

L17

AVDD_DDR_LDO_B

K21

AVDD_HDMI_5V_PA

AC6

AVDD15_MOD

V21

AVDD_DDR_VBP_A

J18

AVDD_DDR_VBP_B

M24

AVDD_DDR_VBP_B

N24

AVDD_DDR_VBN_B

P24

AVDD_DDR_VBN_B

R24

AVDD_DDR_A_DAT

L19

AVDD_DDR_A_DAT

L20

AVDD_DDR_A_MCK

L18

AVDD_DDR_B_DAT

N23

AVDD_DDR_B_DAT

P23

AVDD_DDR_B_DAT

R23

AVDD_DDR_B_MCK

J22

AVDD_LPLL

R10

VDDP

P7

AVDD3P3_USB

AF12

AVDD3P3_USB3

AE13

AVDD3P3_USB3

AF13

AVDD3P3_DADC

AE9

AVDD3P3_ADC

AD8

AVDD3P3_MHL3

P8

AVDD3P3_MHL3

R8

DVDD_DDR

P21

AVDD_DDR_A_CMD

K17

AVDD_DDR_B_CMD

L22

AVDDL_PREDRV

AB18

AVDDL_MOD

AB19

VDDC_CPU

Y25

VDDC_CPU

AA25

VDDC_CPU

AB30

VDDC_CPU

AC28

VDDC_CPU

V24

VDDC_CPU

Y24

VDDC_CPU

AB29

AVDDL_PREDRV

AA18

VDD_SRAM

AK24

VDD_SRAM

AL23

CTRL_SRAMLDO

AM24

PADA_EMMC_CTRL

H6

AVDD_DDR_VBN_A

J19

AVDD_DDR_VBN_A

J20

VDDP_3318_A_1

K14

VDDP_3318_C_1

H13

VDDC

AD23

VDDC

AD24

VDDC

AD25

VDDC

AD26

VDDC

AD27

VDDC

AD28

VDDC

AE21

VDDC

AE22

VDDC

AE23

VDDC

AE24

VDDC

AE25

VDDC

AE26

VDDC

AE27

VDDC

AE28

VDDC_CPU

AC30

VDDC_CPU

AC31

VDDC_CPU

AC32

VDDC_CPU

AD29

VDDC_CPU

AD30

VDDC_CPU

AD31

VDDC_CPU

AD32

C429

100N 16V

C429

100N 16V

C430

100N 16V

C430

100N 16V

C431

100N 16V

C431

100N 16V

C432

100N 16V

C432

100N 16V

C433

100N 16V

C433

100N 16V

C435

100N 16V

C435

100N 16V

C436

100N 16V

C436

100N 16V

C434

100N 16V

C434

100N 16V

C437

100N 16V

C437

100N 16V

C438

100N 16V

C438

100N 16V

L402

0R05 1/16W

L402

0R05 1/16W

C440

100N 16V

C440

100N 16V

C439

100N 16V

C439

100N 16V

L407
120R

L407
120R

1

2

C441

100N 16V

C441

100N 16V

C442

100N 16V

C442

100N 16V

C444

100N 16V

C444

100N 16V

C443

100N 16V

C443

100N 16V

C445

100N 16V

C445

100N 16V

L404
0R051/8W

L404
0R051/8W

C401 0.47UF 10VC401 0.47UF 10V

C446

100N 16V

C446

100N 16V

C448

100N 16V

C448

100N 16V

C447

100N 16V

C447

100N 16V

C449

100N 16V

C449

100N 16V

C4251
10uF 16V

C4251
10uF 16V

C450

100N 16V

C450

100N 16V

C451

100N 16V

C451

100N 16V

C452

100N 16V

C452

100N 16V

C453

100N 16V

C453

100N 16V

C4252
10uF 16V

C4252
10uF 16V

C403 0.47UF 10VC403 0.47UF 10V

C402 0.47UF 10VC402 0.47UF 10V

C4268

2.2uF 6.3V

C4268

2.2uF 6.3V

C455

100N 16V

C455

100N 16V

C454

100N 16V

C454

100N 16V

C456

100N 16V

C456

100N 16V

C457

100N 16V

C457

100N 16V

C458

100N 16V

C458

100N 16V

C404 0.47UF 10VC404 0.47UF 10V

L408 120RL408 120R

1 2

C460

100N 16V

C460

100N 16V

C461

100N 16V

C461

100N 16V

C459

100N 16V

C459

100N 16V

C4247
10uF 16V

C4247
10uF 16V

C4269

2.2uF 6.3V

C4269

2.2uF 6.3V

TP06TPTP06

TP

C462

100N 16V

C462

100N 16V

L411

NC/0R05 1/16W

L411

NC/0R05 1/16W

C463

100N 16V

C463

100N 16V

C465

100N 16V

C465

100N 16V

C464

100N 16V

C464

100N 16V

C4253
10uF 16V

C4253
10uF 16V

C4270

2.2uF 6.3V

C4270

2.2uF 6.3V

C466

100N 16V

C466

100N 16V

C467

100N 16V

C467

100N 16V

C4276

4.7UF 10% 10V

C4276

4.7UF 10% 10V

C4254
10uF 16V

C4254
10uF 16V

C469

100N 16V

C469

100N 16V

C471

100N 16V

C471

100N 16V

C468

100N 16V

C468

100N 16V

C470

100N 16V

C470

100N 16V

C4275
22uF 6.3V

C4275
22uF 6.3V

C472

100N 16V

C472

100N 16V

L403

0R05 1/16W

L403

0R05 1/16W

C4235
10uF 16V

C4235
10uF 16V

C4271

2.2uF 6.3V

C4271

2.2uF 6.3V

C473

100N 16V

C473

100N 16V

L409
120R

L409
120R

1 2

Circuit Diagrams and PWB Layouts

EN 41TPS16.3A LA 10.

2017-Feb-24

back to

div.table

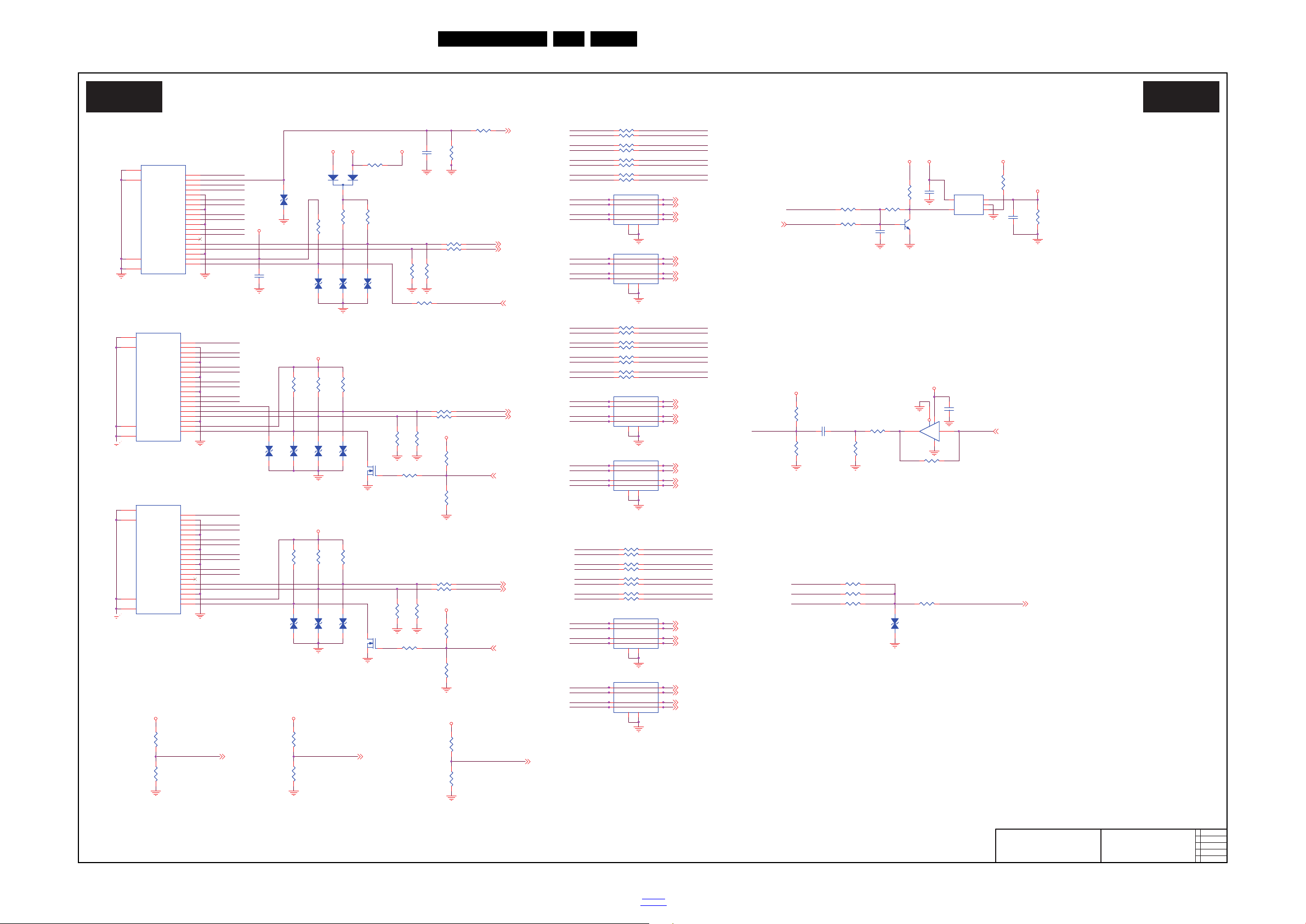

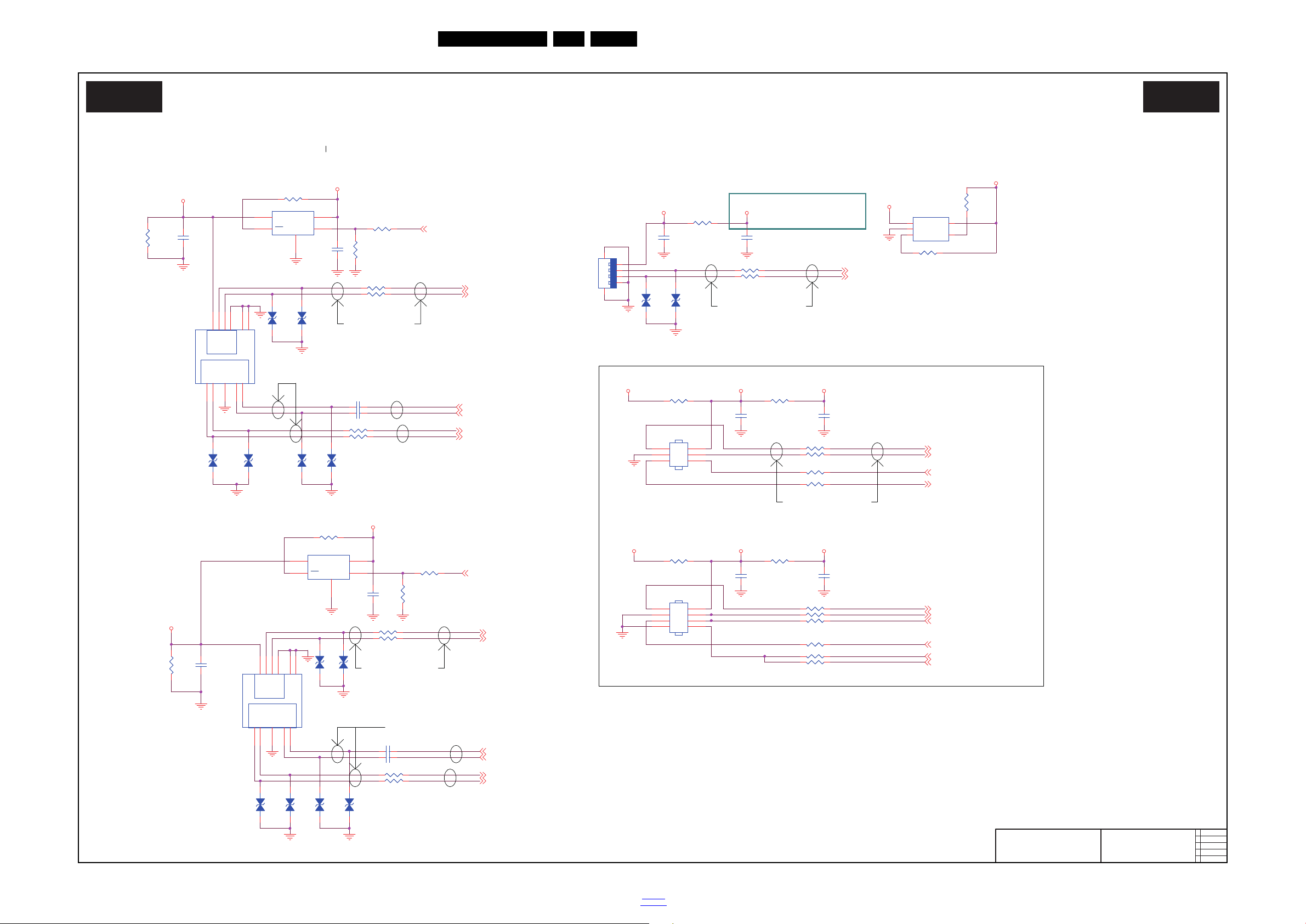

10-3-7 USB Port

20310_512.eps

USB Port

B07 B07

C

715G7702

USB Port

5

USB30_DM
USB30_DP

USB30_RXP

USB30_TXN

USB30_TXP

USB_SSRXN

USB_SSTXN

USB_SSTXP

USB30_RXN

USB_DM_PSS
USB_DP_PSS

USB_SSRXP

USB30_1_DM
USB30_1_DP

USB30_1_TXP
USB30_1_TXN

USB30_1_RXP

USB_SSTXN_1

USB_SSRXN_1USB30_1_RXN

USB_SSTXP_1

USB_DP_PSS1

USB_DM_PSS1

USB_SSRXP_1

USB1_GPIO1

USB1_GPIO0

USB2_DM

USB2_GPIO

USB1_DP

USB1_DM

USB2_DP

USB30_1_GPIO2

USB0_DM
USB0_DPUSB0_DP

USB30_5V

+5V_Normal

USB30_1_5V

+5V_Normal

+5V_Standby

5V_USB2 +5V_Normal

+5V_Standby

5V_USB1

+5V_Normal

5V_USB0 +5V_Normal

5V_USB0

+5V_Normal

USB30_SW_CTL 4

USB_SSTXP 6

USB_SSRXN 6

USB_DM_PSS 6

USB_SSTXN 6

USB_SSRXP 6

USB_DP_PSS 6

USB_SSTXP_1 6

USB_DM_PSS16

USB_SSRXN_1 6

USB_SSRXP_1 6

USB_SSTXN_1 6

USB_DP_PSS16

USB30_SW_CTL 4

USB1_GPIO1 4

USB_DM_P2 6
USB_DP_P2 6

USB2_GPIO 3

USB1_GPIO0 3

USB_DP_P1 6

USB_DM_P1 6

3D_LR_O 17,27
Glass_Sync 17,27

USB30_1_GPIO2 4

USB_DP_P0 6

USB_DM_P0 6

CN108 & CN109 are USB 3.0 Port (Side)

0603

0805

Run As 90 Ohm +/-15%
Differential Pairs

0805

088G352E912AXH

Run As 90 Ohm +/-15%
Differential Pairs

0805

Run As 90 Ohm +/-15%
Differential Pairs

Run As 90 Ohm +/-15%
Differential Pairs

088G352E912AXH

0805

0603

KMC3S075RY002

0603

KMC3S075RY002

0805

Run As 90 Ohm +/-15%
Differential Pairs

0805

0603

USB To WIFI
(Internal)

KMC3S075RY002

6P R/A 2.0mm
311GW200C06ABL

KMC3S075RY002

From Scaler.

From Tcon.

USB To WIFI/BT
(Internal)

5V_USB net change to
+5V_normal (layout request)

Run As 90 Ohm +/-15%
Differential Pairs

0805

USB 2.0 Port (Side)

0603

KMC3S075RY002

088G352F6B3ACL

Current limit TYP. 1A

ZD108

NC/MLVG0402

ZD108

NC/MLVG0402

12

C1155
1UF16V

C1155
1UF16V

R1153
0R051/8W

R1153
0R051/8W

ZD105

NC/MLVG0402

ZD105

NC/MLVG0402

12

R1152
NC/0R051/8W

R1152
NC/0R051/8W

C1149
1UF16V

C1149
1UF16V

ZD121

NC/MLVG0402

ZD121

NC/MLVG0402

12

C1129
10uF 10V

C1129
10uF 10V

R1115 100OHMR1115 100OHM

C1151
1UF16V

C1151
1UF16V

ZD103

NC/MLVG0402

ZD103

NC/MLVG0402

12

R1134 10KR1134 10K

C1130
10uF 10V

C1130
10uF 10V

U105

G5250M1T1U

U105

G5250M1T1U

OUT

1

GND

2

OC3EN

4

IN

5

R1174 5.1R 1/16WR1174 5.1R 1/16W

R1176 5.1R 1/16WR1176 5.1R 1/16W

ZD125

NC/MLVG0402

ZD125

NC/MLVG0402

12

R1167 5.1R 1/16WR1167 5.1R 1/16W

R1166 5.1R 1/16WR1166 5.1R 1/16W

R1129 100OHMR1129 100OHM

ZD101

NC/MLVG0402

ZD101

NC/MLVG0402

12

R1183 5.1R 1/16WR1183 5.1R 1/16W

1234

CN107

USB CONN

1234

CN107

USB CONN

1
2

3

4

6 5

R1168 5.1R 1/16WR1168 5.1R 1/16W

CN102

CONN

CN102

CONN

2
4
6

1

3

5

R1154
NC/0R051/8W

R1154
NC/0R051/8W

R1146
10K

R1146
10K

C1133 100N16VC1133 100N16V

ZD106

NC/MLVG0402

ZD106

NC/MLVG0402

12

R1173 5.1R 1/16WR1173 5.1R 1/16W

USB2.0

USB3.0

CN109

USB CONN 9P

USB2.0

USB3.0

CN109

USB CONN 9P

HAND110HAND2

11

VCC

1

D+

3

GND

4

D-

2

RXN5RXP6GND7TXN8TXP

9

R1162 5.1R 1/16WR1162 5.1R 1/16W

C1152
1UF16V

C1152
1UF16V

C1116 100N16VC1116 100N16V

C1131
10uF 10V

C1131
10uF 10V

C1132

10uF 10V

C1132

10uF 10V

R1210 NC/100OHMR1210 NC/100OHM

U103 G5250K1T1UU103 G5250K1T1U

OUT

5

GND

2

IN

4

EN

1

OC

3

R1116 100OHMR1116 100OHM

R1151
0R051/8W

R1151
0R051/8W

R1163 5.1R 1/16WR1163 5.1R 1/16W

C1115 100N16VC1115 100N16V

ZD123

NC/MLVG0402

ZD123

NC/MLVG0402

12

R1171 5.1R 1/16WR1171 5.1R 1/16W

R1211 NC/100OHMR1211 NC/100OHMR1130

100K 1/8W

R1130

100K 1/8W

USB2.0

USB3.0

CN108

USB CONN 9P

USB2.0

USB3.0

CN108

USB CONN 9P

HAND110HAND2

11

VCC

1

D+

3

GND

4

D-

2

RXN5RXP6GND7TXN8TXP

9

R1164 5.1R 1/16WR1164 5.1R 1/16W

ZD122

NC/MLVG0402

ZD122

NC/MLVG0402

12

ZD124

NC/MLVG0402

ZD124

NC/MLVG0402

12

U101 G5250K1T1UU101 G 5250K1T1U

OUT

5

GND

2

IN

4

EN

1

OC

3

C1128
10uF 10V

C1128
10uF 10V

R1135
10K

R1135
10K

ZD107

NC/MLVG0402

ZD107

NC/MLVG0402

12

ZD126

NC/MLVG0402

ZD126

NC/MLVG0402

12

R1114 100OHMR1114 100OHM

R1112 100OHMR1112 100OHM

R1220 10KR1220 10K

ZD104

NC/MLVG0402

ZD104

NC/MLVG0402

12

CN103

CONN

CN103

CONN

2
4
6

8

1

3

5
7

R1110
100K 1/8W

R1110
100K 1/8W

C1134 100N16VC1134 100N16V

R1219
10K

R1219
10K

C1150
1UF16V

C1150
1UF16V

R1142 10KR1142 10K

R1209 5.1R 1/16WR1209 5.1R 1/16W

ZD102

NC/MLVG0402

ZD102

NC/MLVG0402

12

R1208 5.1R 1/16WR1208 5.1R 1/16W

R1150
NC/0R051/8W

R1150
NC/0R051/8W

R1170 5.1R 1/16WR1170 5.1R 1/16W

R1118 100OHMR1118 100OHM

Circuit Diagrams and PWB Layouts

EN 42TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-3-8 HDMI Interface

20310_513.eps

HDMI Interface

B08 B08

C

715G7702

HDMI Interface

HDMI2-D0P

HDMI1SCL

HDMI1-D2N

HDMID-RX1P

HDMI0_D0N

HDMI0_CEC

HDMID-RX2N

HDMIB-RX1N

HDMI0_D2P

HDMI1-D1P

HDMIB-RX2P

HDMI1_HPD

HDMI2-CLKP

HDMIB-RX0N

HDMIB-RX2P

HDMIB-RX0N

HDMI0-RX0N

HDMID-CLKP

HDMI0_CLKN

HDMI1-D2P

HDMI2_HPD

HDMI0-RX1P

HDMI0-CLKP

HDMI2-D0P

HDMI2-D1P

HDMIB-RX0P

HDMIB-RX0P

HDMI0_CEC

HDMI2-D2P

HDMI1_CEC

HDMID-RX2P

HDMI0-RX0N

ARC_OUT

HDMI2-D1N

HDMI0_D1N

HDMIB-RX2N

HDMI1-D0N

HDMI0_CLKN

HDMIB-RX1N

HDMI2_5V

HDMI2SDA

HDMI0_D0N

HDMIB-RX1P

HDMI0-RX0P

HDMI2-D2P

HDMID-RX0P

HDMI1-D1P

HDMI0_D1N

HDMI0-RX1N

HDMIB-RX2N

HDMI0_D1P

HDMIB-RX1P

HDMI1SDA

HDMIB-CLKN

HDMIB-HPDIN

HDMID-CLKN

HDMID-RX1N

HDMI0-CLKN

HDMI2-D0N

HDMID-RX0P

HDMI1-D1N

HDMIB-CLKN

CD_SENSE

HDMI2-D0N

HDMI2_CEC

HDMI0_HPD

HDMI2_CEC

HDMI0-RX1P

HDMID-RX1N

HDMI0-RX1N

HDMI1-CLKP

HDMI0SCL

HDMI1-D2N

HDMID-RX1P

HDMI0-RX2P
HDMI0-RX2N

HDMI2-CLKN

HDMI1-CLKP

HDMI0_D0P

HDMI2-CLKN

HDMI0_D1P

HDMI1_CEC

HDMIB-CLKP

HDMID-RX0N

HDMI0_D2N

HDMI0SDA

HDMI0-RX2N
HDMI0-RX2P

HDMI2-D1P

HDMI2SCL

HDMI1-D0P

HDMI2-D1N

HDMI0_D2P

HDMI2-CLKP

HDMI0-RX0P

HDMID-RX2P

HDMI0_D2N

HDMID-RX0N

HDMI1-D0N

HDMIA-CEC

HDMID-RX2N

HDMI1-CLKN

HDMI0_CLKP

HDMID-HPDIN

HDMI0-CLKN

HDMI1-D1N

HDMI1_ARC

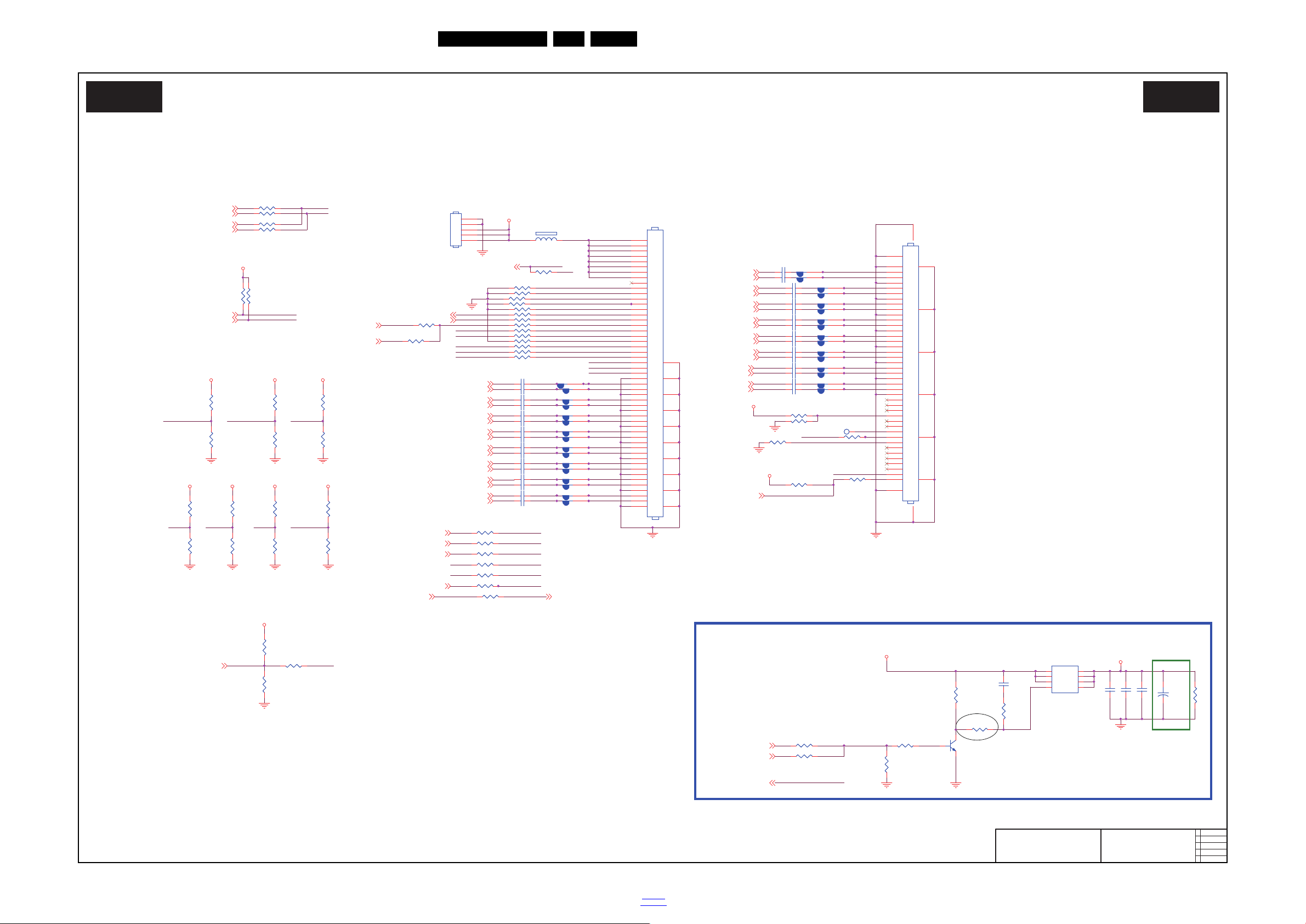

HDMI1-CLKN

HDMI1-D2P

HDMI0-CLKP

HDMI1_5V

HDMIB-CLKP

HDMI1-D0P

HDMID-CLKP

HDMI2-D2N

HDMI1_ARC

HDMI0_D0P

HDMI0_CLKP

HDMI2-D2N

HDMID-CLKN

HOTPLUGD_HDMI20_5V

HOTPLUGB_HDMI20_5V

HOTPLUGA_HDMI20_5V

HDMI0_5V

MHL_CABLE_DET

MHL_VBUS_EN

HDMI0-HPDIN

+5V_Normal

+3.3V_Normal

5VBUS

HDMI1_5V

5VBUS

HDMI2_5V

HDMI1_5V

+5V_Normal

HDMI2_5V

5VBUS HDMI1_5V

HDMI2_5V

AVDD5V_MHL

+5V_Normal

5VBUS

+5V_Normal+5V_Normal

HDMI0-RX2N 5

HDMID-RX2N 5

HDMID-SCL 5

HDMIB-RX1P 5

HDMID-SDA 5

HDMIB-RX2P 5

HDMI0-CLKN 5

HDMIB-CLKP 5

HDMI0-SDA 5

HDMID-CLKN 5

HDMIB-RX0P 5

HDMID-RX0P 5

HDMID-RX1N 5

MHL_CABLE_DET 5

HDMIA-CEC 5

HDMID-RX1P 5

ARC_OUT 5

HDMID-RX2P 5

HDMI0-RX1N 5

HDMIB-RX2N 5

HDMID-HPDIN 5

HDMIB-CLKN 5

HDMIB-SCL 5

HDMI0-RX0N 5

HDMID-RX0N 5

HDMID-CLKP 5

HDMIB-RX1N 5

HDMIB-RX0N 5

HDMI0-RX2P 5

HDMI0-SCL 5

HDMI0-RX0P 5

HDMIB-HPDIN 5

HDMI0-CLKP 5

HDMI0-RX1P 5

HDMIB-SDA 5

HOTPLUGA_HDMI20_5V 5

HOTPLUGB_HDMI20_5V 5

HOTPLUGD_HDMI20_5V 5

MHL_VBUS_EN5

HDMI0-HPDIN 5

HDMI3
(Back)

088G 34019K AV

HDMI2
(Side)

088G 34019K AV

HDMI ARC Function

088G 34019K AV

HDMI1 / MHL
(Side)

HDMI ARC
DC voltage level = 4V
Signal voltage p-p = 500 mV +-100mV (Test need add 55 ohm terminal resistor to GND)
Tr,Tf <= 60 ns

0603

0805

MHL Voltage Charge

0805

R537
10K

R537
10K

C5103
10uF 10V

C5103
10uF 10V

ZD501

NC/MLVG0402

ZD501

NC/MLVG0402

12

R7144

200K

R7144

200K

R538
10K

R538
10K

R4296
10R 1/16W 5%

R4296
10R 1/16W 5%

R568
NC/100OHM

R568
NC/100OHM

R539
10K

R539
10K

R557 100OHMR557 100OHM

R501 0R05 1/16WR501 0R 05 1/ 16W

R540
10K

R540
10K

R565 0R05 OHMR 565 0R05 OHM

R550
200K

R550
200K

R525 0R05 OHMR 525 0R05 OHM

R502 0R05 1/16WR502 0R 05 1/ 16W

ZD502

NC/MLVG0402

ZD502

NC/MLVG0402

12

R530
10K

R530
10K

R5491KR549
1K

U501

NC/74LVC1G125GV

U501

NC/74LVC1G125GV

2

4

5

1

3

C5105
1UF16V

C5105
1UF16V

U502 NC/AZ1045-04F.R7GU502 NC/AZ1045-04F.R7G

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

NC

6

NC

7

GND

8

NC

9

NC

10

R503 0R05 1/16WR503 0R05 1/16W

R7147

200K

R7147

200K

R504 0R05 1/16WR504 0R 05 1/ 16W

C5104 1UF 10VC 5104 1UF 10V

R506 0R05 1/16WR506 0R 05 1/ 16W

ZD503

NC/MLVG0402

ZD503

NC/MLVG0402

12

R505 0R05 1/16WR505 0R 05 1/ 16W

U503 NC/AZ1045-04F.R7GU503 NC/AZ1045-04F.R7G

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

NC

6

NC

7

GND

8

NC

9

NC

10

C7246

NC/0.1UF 16V

C7246

NC/0.1UF 16V

R507 0R05 1/16WR507 0R 05 1/ 16W

R508 0R05 1/16WR508 0R05 1/16W

R509 0R05 1/16WR509 0R 05 1/ 16W

R510 0R05 1/16WR510 0R 05 1/ 16W
R512 0R05 1/16WR512 0R 05 1/ 16W

R7143

200K

R7143

200K

R511 0R05 1/16WR511 0R 05 1/ 16W

R534

100OHM

R534

100OHM

R513 0R05 1/16WR513 0R05 1/16W

R558

100OHM

R558

100OHM

R514 0R05 1/16WR514 0R 05 1/ 16W

R566NCR566
NC

R5471KR547
1K

ZD505

NC/MLVG0402

ZD505

NC/MLVG0402

12

C5101
100N16V

C5101
100N16V

R535

100OHM

R535

100OHM

R515 0R05 1/16WR515 0R 05 1/ 16W

R5481KR548
1K

R546
10K

R546
10K

R541
10K

R541
10K

R531
10K

R531
10K

R516 0R05 1/16WR516 0R 05 1/ 16W

ZD506

NC/MLVG0402

ZD506

NC/MLVG0402

12

R529
100OHM

R529
100OHM

R526

0R05 OHM

R526

0R05 OHM

R517 0R05 1/16WR517 0R 05 1/ 16W

R527 0R05 OHMR 527 0R05 OHM

R542
10K

R542
10K

R518 0R05 1/16WR518 0R05 1/16W

U504 NC/AZ1045-04F.R7GU504 NC/AZ1045-04F.R7G

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

NC

6

NC

7

GND

8

NC

9

NC

10

R7146

200K

R7146

200K

R543
10K

R543
10K

Q501
2N7002K

Q501
2N7002K

U508

STMPS2171STR

U508

STMPS2171STR

OUT

1

GND

2

FAULT

3

EN

4

IN

5

R519 0R05 1/16WR519 0R 05 1/ 16W

U505 NC/AZ1045-04F.R7GU505 NC/AZ1045-04F.R7G

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

NC

6

NC

7

GND

8

NC

9

NC

10

R553
22K 1/16W 5%

R553
22K 1/16W 5%

R7145

200K

R7145

200K

R532
10K

R532
10K

U506 NC/AZ1045-04F.R7GU506 NC/AZ1045-04F.R7G

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

NC

6

NC

7

GND

8

NC

9

NC

10

CN501 HDMI 19PCN501 HDMI 19P

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

R563
33 OHM 1/16W

R563
33 OHM 1/16W

R544
10K

R544
10K

R569
NC/1K

R569
NC/1K

C5106
47NF 16V

C5106
47NF 16V

ZD507

NC/MLVG0402

ZD507

NC/MLVG0402

12

R559

100OHM

R559

100OHM

ZD508

NC/MLVG0402

ZD508

NC/MLVG0402

12

Q717

NC/MMBT3904

Q717

NC/MMBT3904

R520 0R05 1/16WR520 0R 05 1/ 16W

D501

BAT54CH

D501

BAT54CH

3

1

2

R521 0R05 1/16WR521 0R 05 1/ 16W

R554
22K 1/16W 5%

R554
22K 1/16W 5%

R551
200K

R551
200K

ZD510

NC/MLVG0402

ZD510

NC/MLVG0402

12

R7142

200K

R7142

200K

ZD511

NC/MLVG0402

ZD511

NC/MLVG0402

12

R560

100OHM

R560

100OHM

R545
10K

R545
10K

R567
NC/100K 1/8W

R567
NC/100K 1/8W

R556
300K

R556
300K

R570

0R05 OHM

R570

0R05 OHM

ZD504

NC/MLVG0402

ZD504

NC/MLVG0402

12

R522 0R05 1/16WR522 0R 05 1/ 16W

R552 200RR552 200R

U507 NC/AZ1045-04F.R7GU507 NC/AZ1045-04F.R7G

IN1

1

IN2

2

GND

3

IN3

4

IN4

5

NC

6

NC

7

GND

8

NC

9

NC

10

R555
22K 1/16W 5%

R555
22K 1/16W 5%

R528 0R05 OHMR528 0R05 OHM

C5102
100N16V

C5102
100N16V

R561 100OHMR561 100OHM

R564
39K 1/16W 5%

R564
39K 1/16W 5%

ZD512

NC/MLVG0402

ZD512

NC/MLVG0402

12

R562 100OHMR562 100OHM

R573

NC/10K

R573

NC/10K

R523 0R05 1/16WR523 0R05 1/16W

Q503
2N7002K

Q503
2N7002K

CN503 HDMI 19PCN503 HDMI 19P

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

CN502 HDMI 19PCN502 HDMI 19P

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

R524 0R05 1/16WR524 0R 05 1/ 16W

ZD513

NC/MLVG0402

ZD513

NC/MLVG0402

12

Circuit Diagrams and PWB Layouts

EN 43TPS16.3A LA 10.

2017-Feb-24

back to

div.table

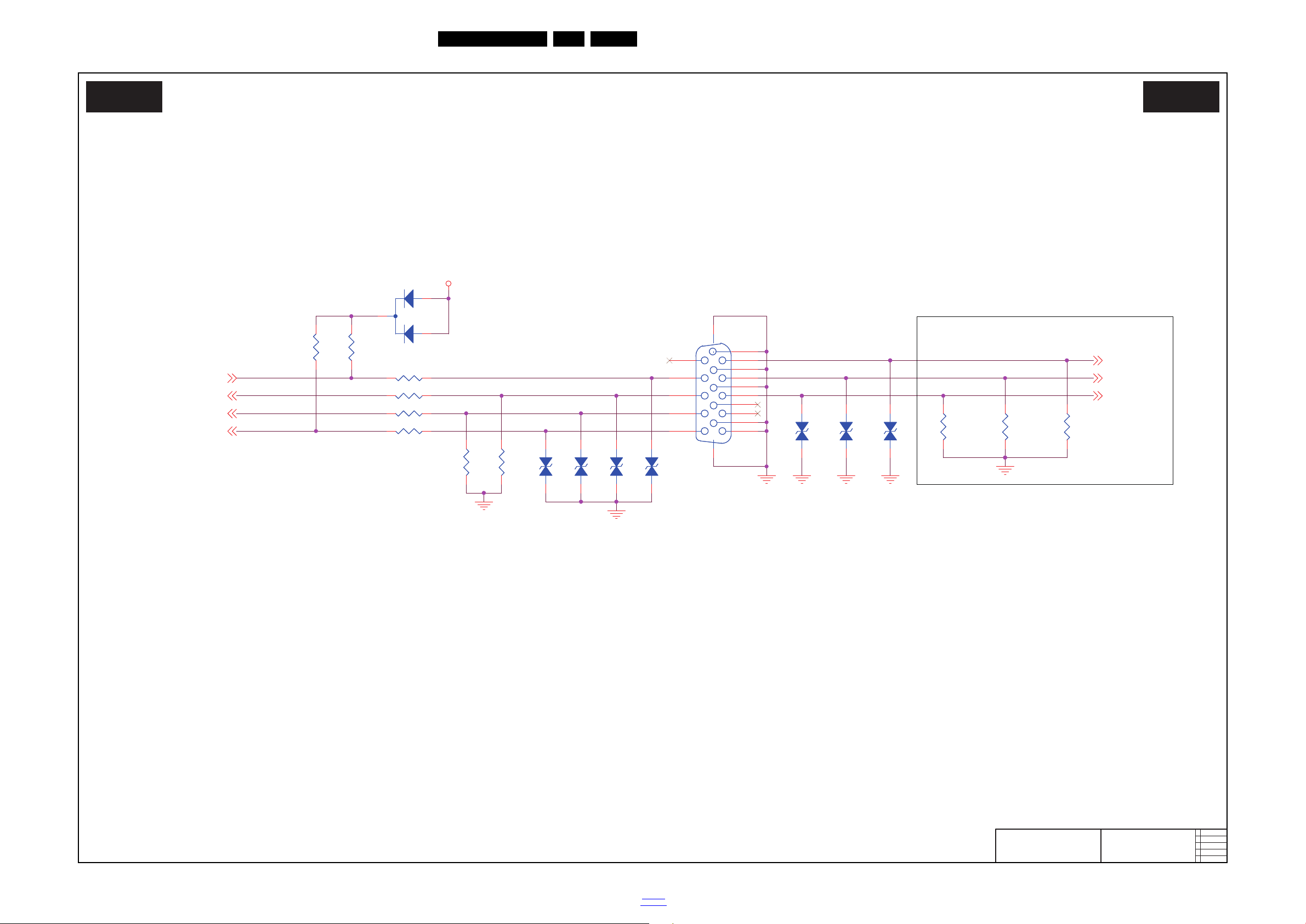

10-3-9 VGA-In

20310_514.eps

VGA-In

B09 B09

C

715G7702

VGA-In

VGA_SCL

VGA_SDA

VGA_VSYNC

VGA_HSYNC

DDCA_DA

DDCA_CK

+5V_Standby

VGA_HSYNC6
VGA_VSYNC6
DDCA_CK4,17

DDCA_DA4,17

VGA_BIN+ 6

VGA_RIN+ 6
VGA_GIN+ 6

088G353GFF1AXH or
088G353GFF1ACL

Place close to U401

R1121 100OHMR1121 100OHM

CN101

CONN

CN101

CONN

1
7
2

8
3

9
4
10
5

11
12
13
14
15

1716

6

D101

BAT54CH

D101

BAT54CH

3

1

2

R1144

2.2K1/16W

R1144

2.2K1/16W

R1137
10K

R1137
10K

ZD115

NC/MLVG0402

ZD115

NC/MLVG0402

12

R1119 100OHMR1119 100OHM

ZD113

NC/MLVG0402

ZD113

NC/MLVG0402

12

R1136

10K

R1136

10K

ZD109

NC/MLVG0402

ZD109

NC/MLVG0402

12

R1178

75R 1/16W 1%

R1178

75R 1/16W 1%

R1177

75R 1/16W 1%

R1177

75R 1/16W 1%

ZD110

NC/MLVG0402

ZD110

NC/MLVG0402

12

ZD114

NC/MLVG0402

ZD114

NC/MLVG0402

12

ZD111

NC/MLVG0402

ZD111

NC/MLVG0402

12

R1179

75R 1/16W 1%

R1179

75R 1/16W 1%

ZD112

NC/MLVG0402

ZD112

NC/MLVG0402

12

R1145

2.2K1/16W

R1145

2.2K1/16W

R1120 100OHMR1120 100OHM

R1122 100OHMR1122 100OHM

Circuit Diagrams and PWB Layouts

EN 44TPS16.3A LA 10.

2017-Feb-24

back to

div.table

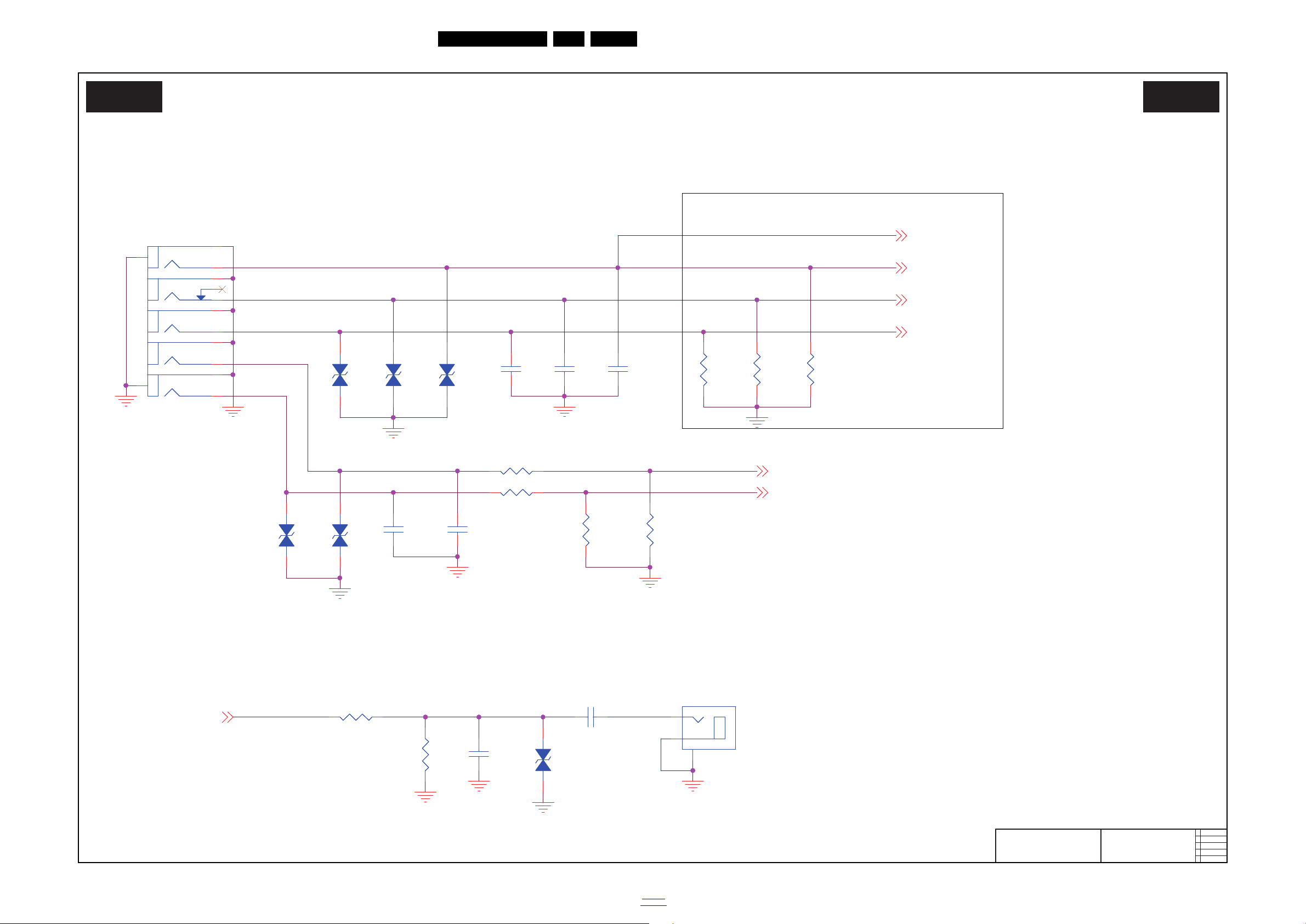

10-3-10 Video In & SPDIF Out

20310_515.eps

Video In & SPDIF Out

B10 B10

C

715G7702

Video In & SPDIF Out

COMP_AUL2

YPbPr_Pb

YPbPr_Pr

COMP_AUR2

SPDIF_OUT

Y

Coaxial

YPbPr_R

AV_CVBS

YPbPr_L

Pb

YPbPr_Y

Pr

SPDIF_OUT5

COMP_AUL2 5

AV_CVBS 6

RGB2-YPbPr_BIN+ 6

RGB2-YPbPr_RIN+ 6

COMP_AUR2 5

RGB2-YPbPr_GIN+ 6

388G078G111ACL

Coaxial

SPDIF
Output
(Side)

0603

Place close to U401

YPbPr (AV share with Y) Input (Down)

088G 78G155ACL

ZD116

NC/MLVG0402

ZD116

NC/MLVG0402

12

R1138 10KR1138 10K

R1140
12K 1/16W

R1140
12K 1/16W

R1180
75R 1/16W 1%

R1180
75R 1/16W 1%

R1141
12K 1/16W

R1141
12K 1/16W

C1157
330PF 50V

C1157
330PF 50V

C1158
330PF 50V

C1158
330PF 50V

ZD117

NC/MLVG0402

ZD117

NC/MLVG0402

12

A

CN606

RCA JACK

A

CN606

RCA JACK

2
1

3

ZD604

MLVG0402

ZD604

MLVG0402

12

C1174

NC/10PF 50V

C1174

NC/10PF 50V

R1181
75R 1/16W 1%

R1181
75R 1/16W 1%

ZD118

NC/MLVG0402

ZD118

NC/MLVG0402

12

C1175
NC/10PF 50V

C1175
NC/10PF 50V

C6128 1UF16VC6128 1UF16V

ZD119

NC/MLVG0402

ZD119

NC/MLVG0402

12

R644
NC

R644
NC

C1176
NC/10PF 50V

C1176
NC/10PF 50V

R1182

75R 1/16W 1%

R1182

75R 1/16W 1%

E

A

B

C

D

CN105 RCA JACK

E

A

B

C

D

CN105 RCA JACK

1
2

3

4
6
7

8

9
10

11

12

13

5

ZD120

NC/MLVG0402

ZD120

NC/MLVG0402

12

C6129
330PF 50V

C6129
330PF 50V

R1139 10KR1139 10K

R620 100OHMR620 100OHM

Circuit Diagrams and PWB Layouts

EN 45TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-3-11 Ethernet

20310_516.eps

Ethernet

B11 B11

C

715G7702

Ethernet

LAN_LED1
LAN_LED0

MDI_TN
MDI_RP

MDI_TP

MDI_RN

N_GND

N_GND

MDI_TP 6

LED0 6

MDI_TN 6
MDI_RN 6

MDI_RP 6

LED1 6

088G342GFB1AGN

MDI

Ethernet
Input
(Down)

Run As Differential Pairs

Differential 100 +- 10 ohms
Common Mode 50 +- 5 ohms
MDI-T and MDI-R separate > 30mil

space/trace/space/trace/space(mil)
12 / 5 / 7 / 5 / 12

1206

R1101 0R05R1101 0R05

CN106

RJ45 CONN+LED R/A 15P

CN106

RJ45 CONN+LED R/A 15P

TCT P1

1

TD+ P2

2

TD- P3

3

RD+ P4

4

RD- P5

5

RCT P6

6

NC P7

7

NC P8

8

NC P9

9

NC P10

10

NC P11

11

Y- P12

12

G- P14

14

Y+ P13

13

G+ P15

15

TH1

16

TH2

17

R1123 100OHMR1123 100OHM

C1125
10N 50V

C1125
10N 50V

R1160 470OHM1/16WR1160 470OHM1/16W
R1161 470OHM1/16WR1161 470OHM1/16W

C1117 100N16VC1117 100N16V

R1124 100OHMR1124 100OHM

Circuit Diagrams and PWB Layouts

EN 46TPS16.3A LA 10.

2017-Feb-24

back to

div.table

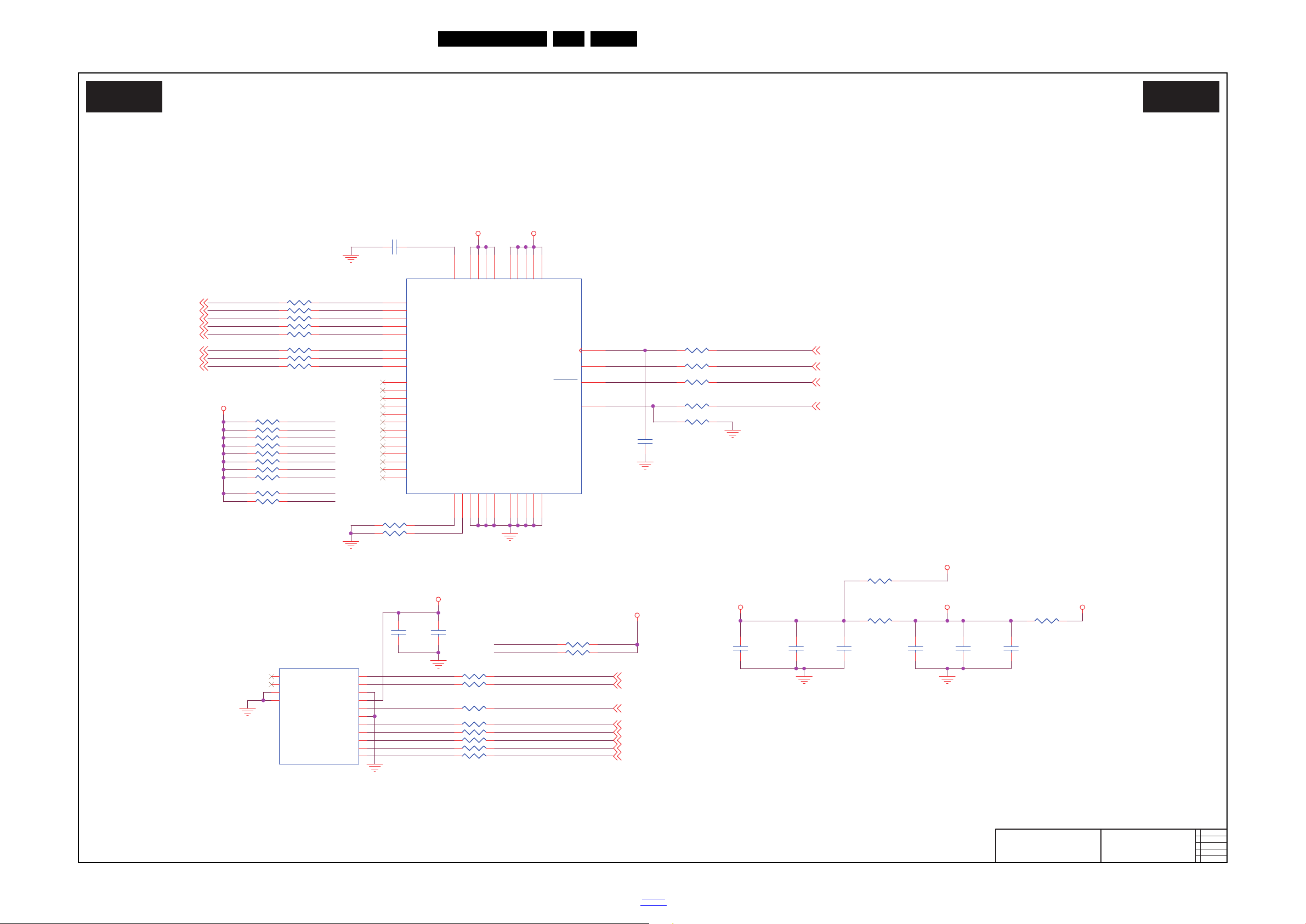

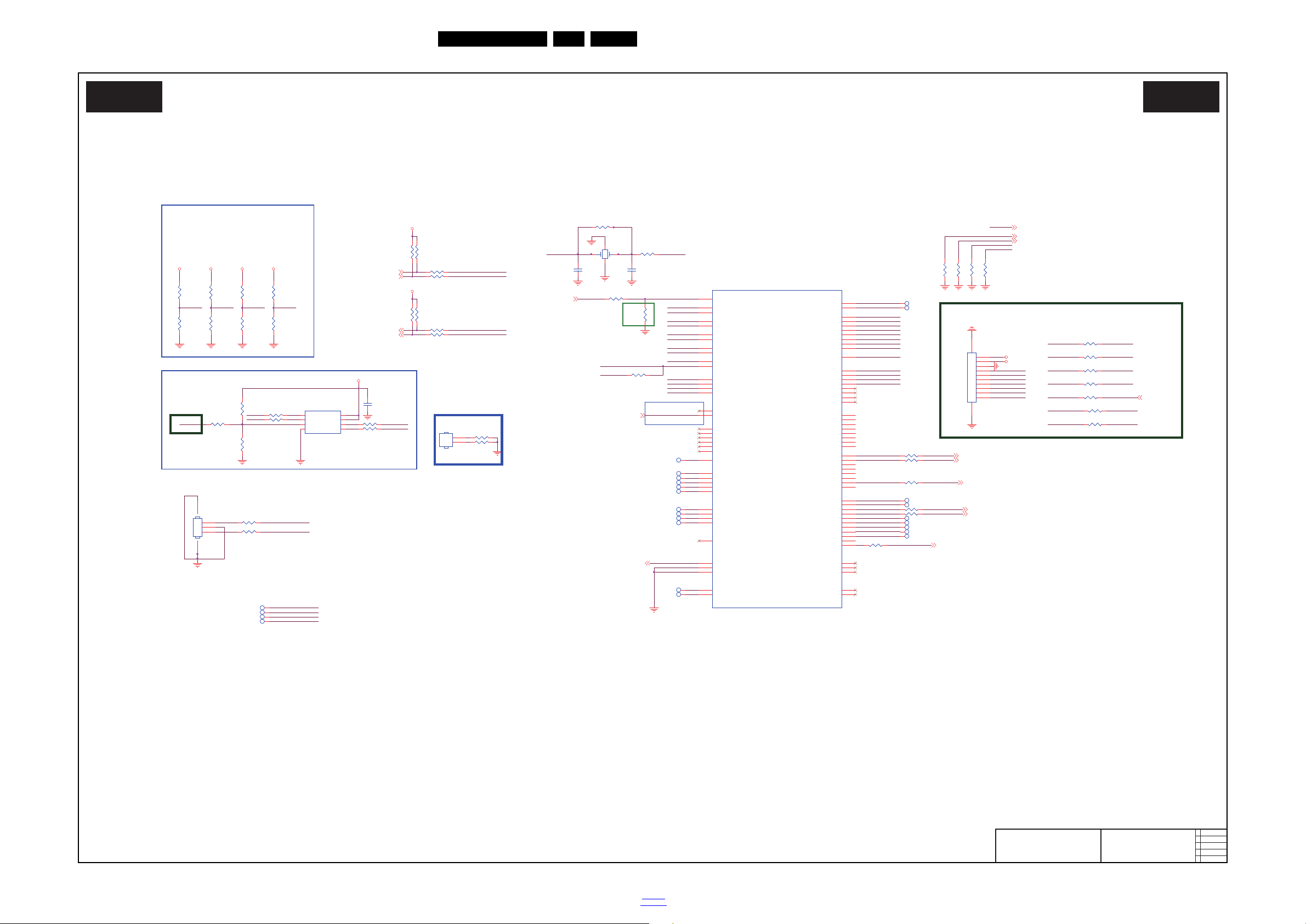

10-3-12 eMMC & SD Card

20310_517.eps

eMMC & SD Card

B12 B12

C

715G7702

eMMC & SD Card

NF_D4

NF_D1

NF_D2

EMMC_D7

NF_D6

EMMC_D3

NF_RSTZ

NF_D7

NF_D7

EMMC_RSTZ

NF_D1

NF_D0

EMMC_DQS

EMMC_D4

NF_RSTZ

EMMC_D6

EMMC_D1

EMMC_CMD

NF_D3
EMMC_D2
EMMC_D0

NF_DQS

NF_CMD

NF_D6

NF_D4

NF_D2

EMMC_CLK

NF_CMD

NF_D5

NF_D5

NF_CLK

NF_D3

EMMC_D5

NF_D0

SD_D0

SD_CDZ

SD-CDZ

SD_WP

PCM_A4

SD-CDZ

SD_D3

SD_WP#

PCM2_WAIT_N

SD_D2

SD_D1

PCM_A5

SD_CLK

SD_WP#

PCM2_RESET

SD_CMD

PCM_A6

PCM_A7

VCC3.3V_EMMC_SD EMMC_VIO

EMMC_VIO

+3.3V_Normal

+1.8V_Normal

EMMC_VIO

VCC3.3V_EMMC_SD

+3.3V_SD

+3.3V_SD

EMMC_D43

EMMC_D53

EMMC_D03

EMMC_D23

EMMC_D63

EMMC_CLK 3

EMMC_RSTZ 3

EMMC_D33

EMMC_CMD 3

EMMC_DQS3

EMMC_D73

EMMC_D13

PCM_A7 3
PCM2_WAIT_N 3

PCM2_RESET 3
PCM_A4 3

PCM_A5 3
PCM_A6 3

SD_WP 4
SD_CDZ 4

16GB e-MMC

0603

iNAND Flash/eMMC

Layout trace
NF_D3 B1, B2
NF_D4 A2, B3
NF_D5 B4, C3, D1, D2
NF_D7 A8, B6, B7
NF_DQS H1, H2, H3, H5
NF_CLK M6, M7, M8, N9, P9
NF_CMD M5, N6, N7, P8
NF_RSTZ K5, M9, N10, P11
C4211 C1, C2

HS400: 1.8V

3.3V Only

SD/MMC Card Reader

(Side)

0805

C4121
100N16V

C4121
100N16V

R4133 10KR4133 10K

R4134 10KR4134 10K
R4135 10KR4135 10K

R4103 0R05 OHMR4103 0R05 OHM

R4136 10KR4136 10K

R4104 0R05 OHMR4104 0R05 OHM

R4137 10KR4137 10K

R4105 0R05 OHMR4105 0R05 OHM

R4138 10KR4138 10K

R4106 0R05 OHMR4106 0R05 OHM

R4107 0R05 OHMR4107 0R05 OHM

R4164 22 OHM 1/16WR4164 22 OHM 1/16W

R4108 0R05 OHMR4108 0R05 OHM

R4165 22 OHM 1/16WR4165 22 OHM 1/16W

CN409

SCV CONN

CN409

SCV CONN

DAT3

1

CMD

2

VSS

3

VCC

4

CLK

5

VSS

6

DAT0

7

DAT1

8

DAT2

9

Write Protect

10

Card Detect Indication

11

TH1

12

TH2

13

TH3

14

TH4

15

R4166 22 OHM 1/16WR4166 22 OHM 1/16W

R4109
0R05 OHM

R4109
0R05 OHM

R413910KR413910K

R4110 0R05 OHMR4110 0R05 OHM

C4136

2.2U10V

C4136

2.2U10V

C4122
100N16V

C4122
100N16V

C4123
100N16V

C4123
100N16V

R4167 22 OHM 1/16WR4167 22 OHM 1/16W

R4111
0R05 OHM

R4111
0R05 OHM

R4112 0R05 OHMR4112 0R05 OHM

R4168 22 OHM 1/16WR4168 22 OHM 1/16W

C4124
100N16V

C4124
100N16V

R4140 10KR4140 10K

C4127
10uF 10V

C4127
10uF 10V

U402

KLMAG2GEND-B031

U402

KLMAG2GEND-B031

DAT7

B6

VDD

N4

VDDF

J10

VDDF

K9

VDDP5VDD

P3

VSSN5VSS

N2

VDD

M4

VSS

H10

VSS

K8

RESET

K5

VSS

G5

VDD

C6

VSSE7VSSP6VSS

P4

DAT6

B5

VDDF

E6

VDDF

F5

CMD

M5

VSS

C4

CLK

M6

DAT0

A3

DAT1

A4

DAT2

A5

DAT3

B2

DAT4

B3

DAT5

B4

VDDI

C2

VSS

A6

RFU

A7

RFU

E5

RFU

E8

RFU

E9

RFU

E10

RFU

F10

RFU

G3

RFU

G10

Data Strobe

H5

VSS

J5

RFU

K6

RFU

K7

RFU

K10

RFU

P7

RFU

P10

C4137 2.2U10VC4137 2.2U10V

R4189 4.7K1/16WR4189 4.7K1/16W

R4113 0R05 OHMR4113 0R05 OHM

R4169 22 OHM 1/16WR4169 22 OHM 1/16W

R4114 0R05 OHMR4114 0R05 OHM

C4138

2.2U10V

C4138

2.2U10V

R4141 10KR4141 10K

R4170 22 OHM 1/16WR4170 22 OHM 1/16W

R4171 22 OHM 1/16WR4171 22 OHM 1/16W

R4142 10KR4142 10K

R4172 22 OHM 1/16WR4172 22 OHM 1/16W

R4143 10KR4143 10K

R4115 0R05 OHMR4115 0R05 OHM

R4116 0R05 OHMR4116 0R05 OHM

R4190 4.7K1/16WR4190 4.7K1/16W

R4214
NC/0R05 OHM

R4214
NC/0R05 OHM

R4117 0R05 OHMR4117 0R05 OHM

C4180
NC/33PF 50V

C4180
NC/33PF 50V

C4125
100N16V

C4125
100N16V

Circuit Diagrams and PWB Layouts

EN 47TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-3-13 Tuner

20310_518.eps

Tuner

B13 B13

C

715G7702

Tuner

NF_D4

NF_D1

NF_D2

EMMC_D7

NF_D6

EMMC_D3

NF_RSTZ

NF_D7

NF_D7

EMMC_RSTZ

NF_D1

NF_D0

EMMC_DQS

EMMC_D4

NF_RSTZ

EMMC_D6

EMMC_D1

EMMC_CMD

NF_D3
EMMC_D2
EMMC_D0

NF_DQS

NF_CMD

NF_D6

NF_D4

NF_D2

EMMC_CLK

NF_CMD

NF_D5

NF_D5

NF_CLK

NF_D3

EMMC_D5

NF_D0

SD_D0

SD_CDZ

SD-CDZ

SD_WP

PCM_A4

SD-CDZ

SD_D3

SD_WP#

PCM2_WAIT_N

SD_D2

SD_D1

PCM_A5

SD_CLK

SD_WP#

PCM2_RESET

SD_CMD

PCM_A6

PCM_A7

VCC3.3V_EMMC_SD EMMC_VIO

EMMC_VIO

+3.3V_Normal

+1.8V_Normal

EMMC_VIO

VCC3.3V_EMMC_SD

+3.3V_SD

+3.3V_SD

EMMC_D43

EMMC_D53

EMMC_D03

EMMC_D23

EMMC_D63

EMMC_CLK 3

EMMC_RSTZ 3

EMMC_D33

EMMC_CMD 3

EMMC_DQS3

EMMC_D73

EMMC_D13

PCM_A7 3
PCM2_WAIT_N 3

PCM2_RESET 3
PCM_A4 3

PCM_A5 3
PCM_A6 3

SD_WP 4
SD_CDZ 4

16GB e-MMC

0603

iNAND Flash/eMMC

Layout trace
NF_D3 B1, B2
NF_D4 A2, B3
NF_D5 B4, C3, D1, D2
NF_D7 A8, B6, B7
NF_DQS H1, H2, H3, H5
NF_CLK M6, M7, M8, N9, P9
NF_CMD M5, N6, N7, P8
NF_RSTZ K5, M9, N10, P11
C4211 C1, C2

HS400: 1.8V

3.3V Only

SD/MMC Card Reader

(Side)

0805

C4121
100N16V

C4121
100N16V

R4133 10KR4133 10K

R4134 10KR4134 10K
R4135 10KR4135 10K

R4103 0R05 OHMR4103 0R05 OHM

R4136 10KR4136 10K

R4104 0R05 OHMR4104 0R05 OHM

R4137 10KR4137 10K

R4105 0R05 OHMR4105 0R05 OHM

R4138 10KR4138 10K

R4106 0R05 OHMR4106 0R05 OHM

R4107 0R05 OHMR4107 0R05 OHM

R4164 22 OHM 1/16WR4164 22 OHM 1/16W

R4108 0R05 OHMR4108 0R05 OHM

R4165 22 OHM 1/16WR4165 22 OHM 1/16W

CN409

SCV CONN

CN409

SCV CONN

DAT3

1

CMD

2

VSS

3

VCC

4

CLK

5

VSS

6

DAT0

7

DAT1

8

DAT2

9

Write Protect

10

Card Detect Indication

11

TH1

12

TH2

13

TH3

14

TH4

15

R4166 22 OHM 1/16WR4166 22 OHM 1/16W

R4109
0R05 OHM

R4109
0R05 OHM

R413910KR413910K

R4110 0R05 OHMR4110 0R05 OHM

C4136

2.2U10V

C4136

2.2U10V

C4122
100N16V

C4122
100N16V

C4123
100N16V

C4123
100N16V

R4167 22 OHM 1/16WR4167 22 OHM 1/16W

R4111
0R05 OHM

R4111
0R05 OHM

R4112 0R05 OHMR4112 0R05 OHM

R4168 22 OHM 1/16WR4168 22 OHM 1/16W

C4124
100N16V

C4124
100N16V

R4140 10KR4140 10K

C4127
10uF 10V

C4127
10uF 10V

U402

KLMAG2GEND-B031

U402

KLMAG2GEND-B031

DAT7

B6

VDD

N4

VDDF

J10

VDDF

K9

VDDP5VDD

P3

VSSN5VSS

N2

VDD

M4

VSS

H10

VSS

K8

RESET

K5

VSS

G5

VDD

C6

VSSE7VSSP6VSS

P4

DAT6

B5

VDDFE6VDDF

F5

CMD

M5

VSS

C4

CLK

M6

DAT0

A3

DAT1

A4

DAT2

A5

DAT3

B2

DAT4

B3

DAT5

B4

VDDI

C2

VSS

A6

RFU

A7

RFU

E5

RFU

E8

RFU

E9

RFU

E10

RFU

F10

RFU

G3

RFU

G10

Data Strobe

H5

VSS

J5

RFU

K6

RFU

K7

RFU

K10

RFU

P7

RFU

P10

C4137 2.2U10VC4137 2.2U10V

R4189 4.7K1/16WR4189 4.7K1/16W

R4113 0R05 OHMR4113 0R05 OHM

R4169 22 OHM 1/16WR4169 22 OHM 1/16W

R4114 0R05 OHMR4114 0R05 OHM

C4138

2.2U10V

C4138

2.2U10V

R4141 10KR4141 10K

R4170 22 OHM 1/16WR4170 22 OHM 1/16W

R4171 22 OHM 1/16WR4171 22 OHM 1/16W

R4142 10KR4142 10K

R4172 22 OHM 1/16WR4172 22 OHM 1/16W

R4143 10KR4143 10K

R4115 0R05 OHMR4115 0R05 OHM

R4116 0R05 OHMR4116 0R05 OHM

R4190 4.7K1/16WR4190 4.7K1/16W

R4214
NC/0R05 OHM

R4214
NC/0R05 OHM

R4117 0R05 OHMR4117 0R05 OHM

C4180
NC/33PF 50V

C4180
NC/33PF 50V

C4125
100N16V

C4125
100N16V

Circuit Diagrams and PWB Layouts

EN 48TPS16.3A LA 10.

2017-Feb-24

back to

div.table

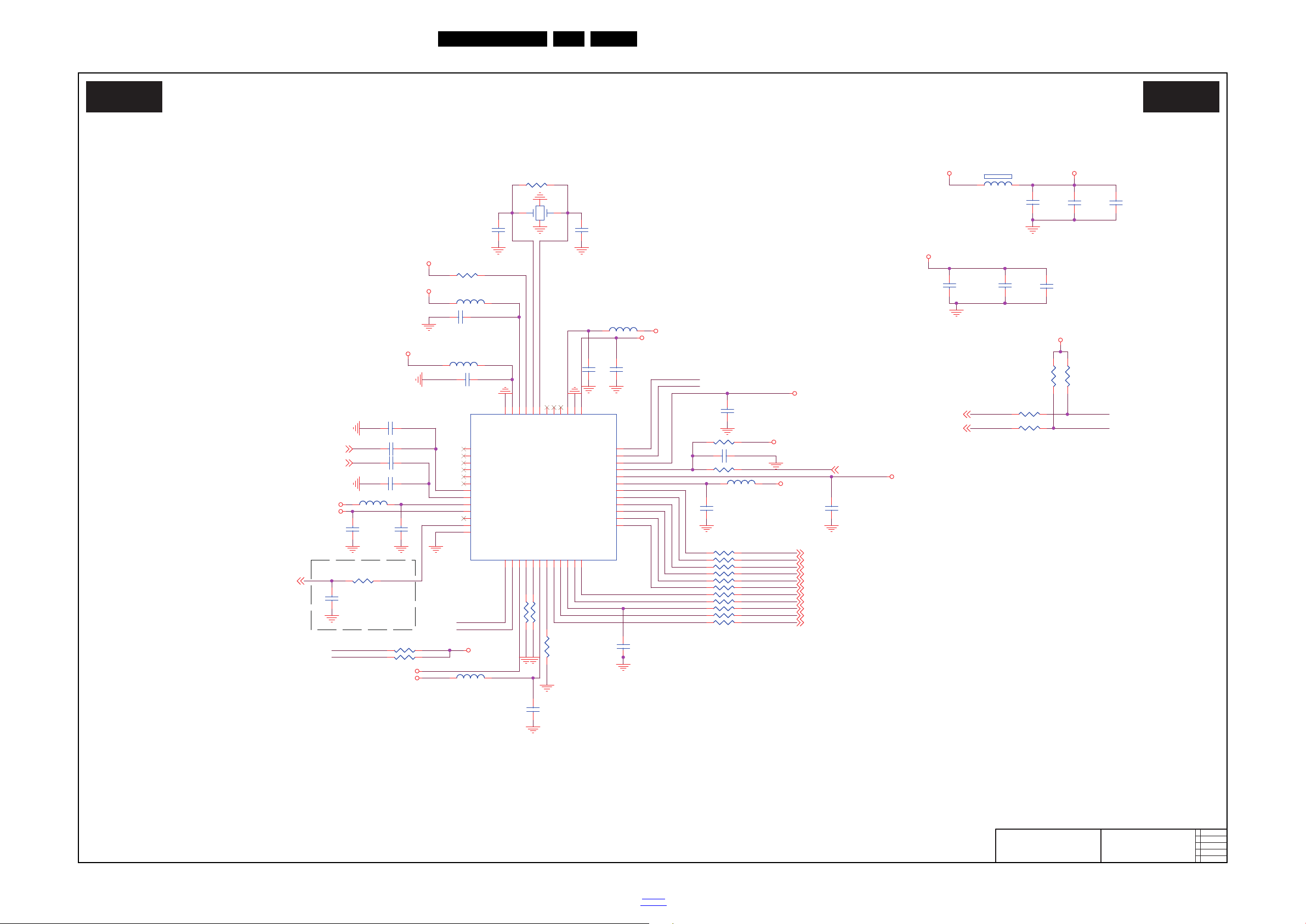

10-3-14 T2 Demod

20310_519.eps

T2 Demod

B14 B14

C

715G7702

T2 Demod

DEM_SCL

SCL_TEST

SCL_TEST

SDA_TEST

DEM_SDA

SDA_TEST

DEM_SCL

DEM_SDA

+1.1V_ATBM

+1.1V_ATBM

+1.1V_ATBM

+3.3V_ATBM

+1.1V_ATBM

+3.3V_ATBM

+1.1V_ATBM

+3.3V_ATBM

+3.3V_ATBM

+3.3V_ATBM

+3.3V_ATBM

+3.3V_ATBM

+1.1V_ATBM

+3.3V_Normal

+3.3V_ATBM

+1.1V_ATBM

+3.3V_ATBM

+3.3V_ATBM

TS_D0 3

TS_SYNC 3

TS_D4 3
TS_D33

TS_CLK_S3

TS_D6 3

Demod_RST 3

TS_D2 3

TS_VLD 3

TS_D5 3

TS_D7 3

TS_D1 3

AGC215

QM15

QP15

M_SDA4,18,19,21,24,27
M_SCL4,18,19,21,24,27

Close TO ATBM

Backup DTMB Demodulator

L155

2.2uH

L155

2.2uH

R12144.7K 1/16W R12144.7K 1/16W

C1188
100N 16V

C1188
100N 16V

R1202 2.2K1/16WR1202 2.2K1/16W

C1199

10UF 6.3V

C1199

10UF 6.3V

L163 NC/3.3uHL163 NC/3.3uH

R1197 0R05 OHMR1197 0R05 OHM

R1207NC/12.7K 1/16W R1207NC/12.7K 1/16W

C1192
100N 16V

C1192
100N 16V

R1196 0R05 OHMR1196 0R05 OHM

C1195
100N 16V

C1195
100N 16V

L158 2.2uHL158 2.2uH

C1189
100N 16V

C1189
100N 16V

R1194 0R05 OHMR1194 0R05 OHM

R1189 0R05 OHMR1189 0R05 OHM

R1193 0R05 OHMR1193 0R05 OHM

C1210

NC/100NF 25V

C1210

NC/100NF 25V

C1185 100N 16VC1185 100N 16V

R1192 0R05 OHMR1192 0R05 OHM

L156 2.2uHL156 2.2uH

R1191 0R05 OHMR1191 0R05 OHM

C1206 NC/22P 50VC1206 NC/22P 50V

C1212 NC/2.2UFC1212 NC/2.2UF

C1184
100N 16V

C1184
100N 16V

C1203

18pF 50V

C1203

18pF 50V

C1198

10PF 50V

C1198

10PF 50V

L154 2.2uHL154 2.2uH

C1186 100N 16VC1186 100N 16V

C1201

10UF 6.3V

C1201

10UF 6.3V

R1190 0R05 OHMR1190 0R05 OHM

C1204 2.2UFC1204 2.2UF

C1205 NC/22P 50VC1205 NC/22P 50V

C1196
100N 16V

C1196
100N 16V

R1199 10KR1199 10K

C1194
100N 16V

C1194
100N 16V

R1205 22 OHM 1/16WR1205 22 OHM 1/16W

C1182 100N 16VC1182 100N 16V

R1213

2.7K 1%

R1213

2.7K 1%

R1195 0R05 OHMR1195 0R05 OHM

R1198 10KR1198 10K

X101

30.4MHz

X101

30.4MHz

1

24

3

C1181
100N 16V

C1181
100N 16V

R1212

2.7K 1%

R1212

2.7K 1%

R7140 4.7K 1/16WR7140 4.7K 1/16W

C1191
100N 16V

C1191
100N 16V

R1201 2.2K1/16WR1201 2.2K1/16W

R1188 0R05 OHMR1188 0R05 OHM

C1202

18pF 50V

C1202

18pF 50V

C1200

10UF 6.3V

C1200

10UF 6.3V

FB102
300R

FB102
300R

1 2

R1204 22 OHM 1/16WR1204 22 OHM 1/16W

L157 2.2uHL157 2.2uH

C1180

100N 16V

C1180

100N 16V

R1203 22 OHM 1/16WR1203 22 OHM 1/16W

R1187 0R05 OHMR1187 0R05 OHM

U102
ATBM8880

U102
ATBM8880

SDAM1SCLM2CVDD3TEST04I2CINT/GPIO45VDD336STATUS7TSSYNC8TSVLID9TSCLK10TS011TS1

12

TS2

13

TS3

14

TS4

15

TS5

16

TS6

17

TS7

18

VDD33

19

CVDD

20

RESETN

21

CVDD

22

SCLS

23

SDAS

24

CVDD

25

TEST1

26

VDD33

27

TEST/GPIO1

28

NC29NC

30

XTALI

31

XTAL0

32

ADDR

33

NC

34

AVDD33

35

GND

36

NC

37

NC

38

IFBP

39

IFBN

40

NC

41

CLK_IO

42

IFAP

43

IFAN

44

VDD33

45

CVDD

46

PWM1/GPIO2

47

PWM0/GPIO3

48

E-PAD

49

C1190
100N 16V

C1190
100N 16V

R1206
NC/1 MOHM 1% 1/ 16W

R1206
NC/1 MOHM 1% 1/ 16W

R1200
1K 1/16W 1%

R1200
1K 1/16W 1%

Circuit Diagrams and PWB Layouts

EN 49TPS16.3A LA 10.

2017-Feb-24

back to

div.table

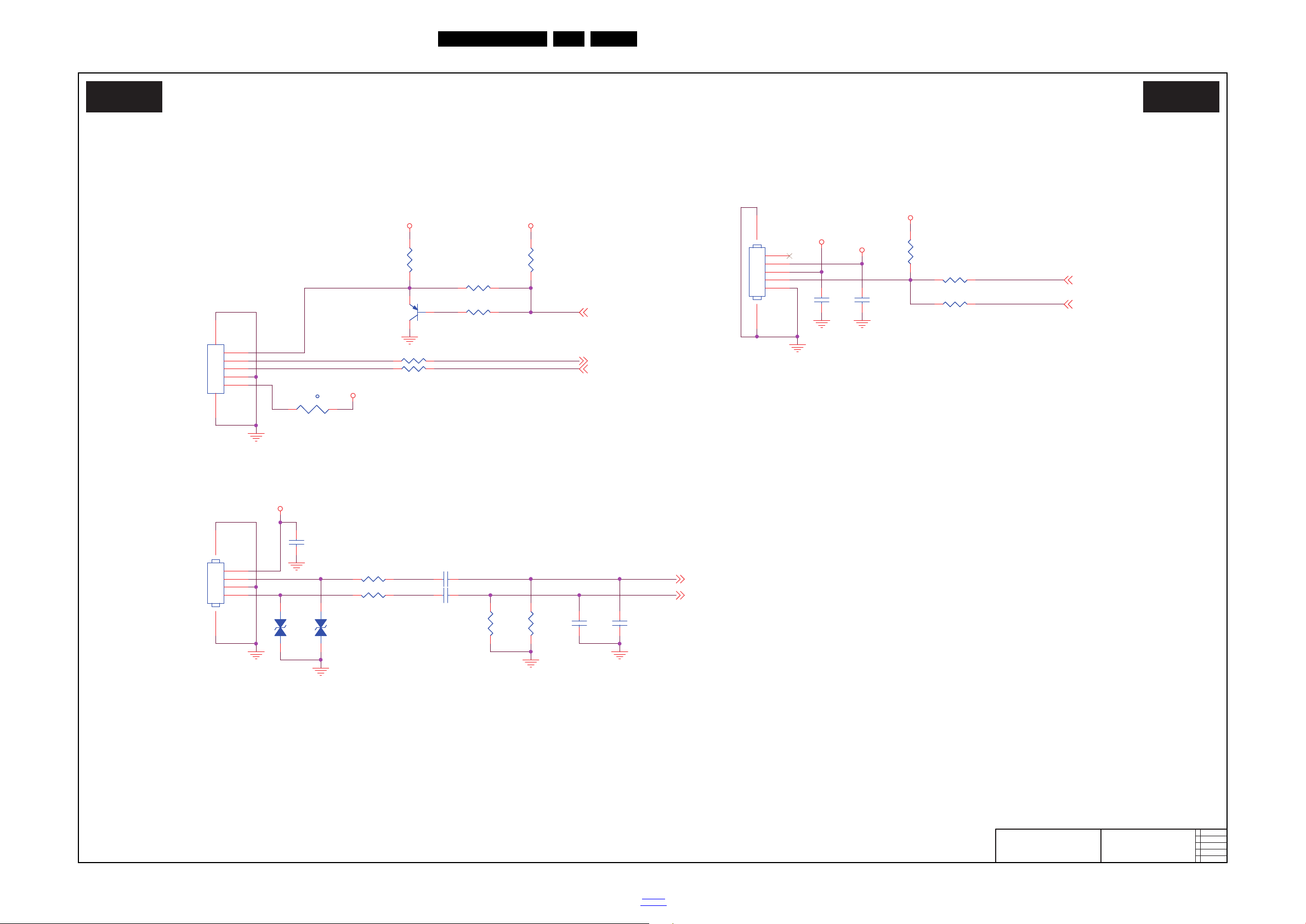

10-3-15 3D & ITV

20310_520.eps

3D & ITV

B15 B15

C

715G7702

3D & ITV

HOTEL_TX

HOTEL_RX

IR_OUT

IRIN

3D_LR_O

KALA_LIN

KALA_RIN

+5V_Standby+5V_Standby

+5V_Standby

+5V_Normal

+3.3V_Normal

+3.3V_Normal

+5V_Normal

DDCA_CK 4,11
DDCA_DA 4,11

IRIN 4,6

3D_LR_O 9,27

Glass_Sync 9,27

KALA_RIN 5
KALA_LIN 5

5P R/A 1.25mm
033G8032 5F HR

Port For ITV Level 1 / Hotel Mode

061G 56A050 WT

5P S/T 1.25mm

311GW125D05ACX

3D Glasses Launch

0603

KALA-OK Audio Input

4P V/T 1.25mm
311GW125D04ACL

0603

R648

NC/10K

R648

NC/10K

CN405

NC/CONN

CN405

NC/CONN

1
2

3

4
5

67

R647

NC/10K

R647

NC/10K

R4231
NC/10K

R4231
NC/10K

R4295

NC/100R 1/16W 5%

R4295

NC/100R 1/16W 5%

ZD605

NC/MLVG0402

ZD605

NC/MLVG0402

12

C6148
NC/560PF 50V

C6148
NC/560PF 50V

ZD606
NC/MLVG0402

ZD606
NC/MLVG0402

12

CN407

CONN

CN407

CONN

1
2

3

4
5

67

C6149

NC/560PF 50V

C6149

NC/560PF 50V

t

TH401

PTCR

t

TH401

PTCR

1

2

R4223 100R 1/16W 5%R4223 100R 1/16W 5%

C4171

NC/100N16V

C4171

NC/100N16V

R4225 NC/100OHMR4225 NC/100OHM

R4224 100R 1/16W 5%R4224 100R 1/16W 5%

R4253 NC/1KR4253 NC/1K

C4172
NC/100N16V

C4172
NC/100N16V

R652
NC/12K 1/16W

R652
NC/12K 1/16W

R4232

10K

R4232

10K

CN602

NC/CONN

CN602

NC/CONN

1
2

3

4

56

C6141
NC/100N16V

C6141
NC/100N16V

R653

NC/12K 1/16W

R653

NC/12K 1/16W

Q405

LMBT3906LT1G

Q405

LMBT3906LT1G

1

23

C6145 NC/1UF16VC6145 NC/1UF16V

R4252

100R 1/16W 5%

R4252

100R 1/16W 5%

C6144 NC/1UF16VC6144 NC/1UF16V

R4278
NC/47K

R4278
NC/47K

Circuit Diagrams and PWB Layouts

EN 50TPS16.3A LA 10.

2017-Feb-24

back to

div.table

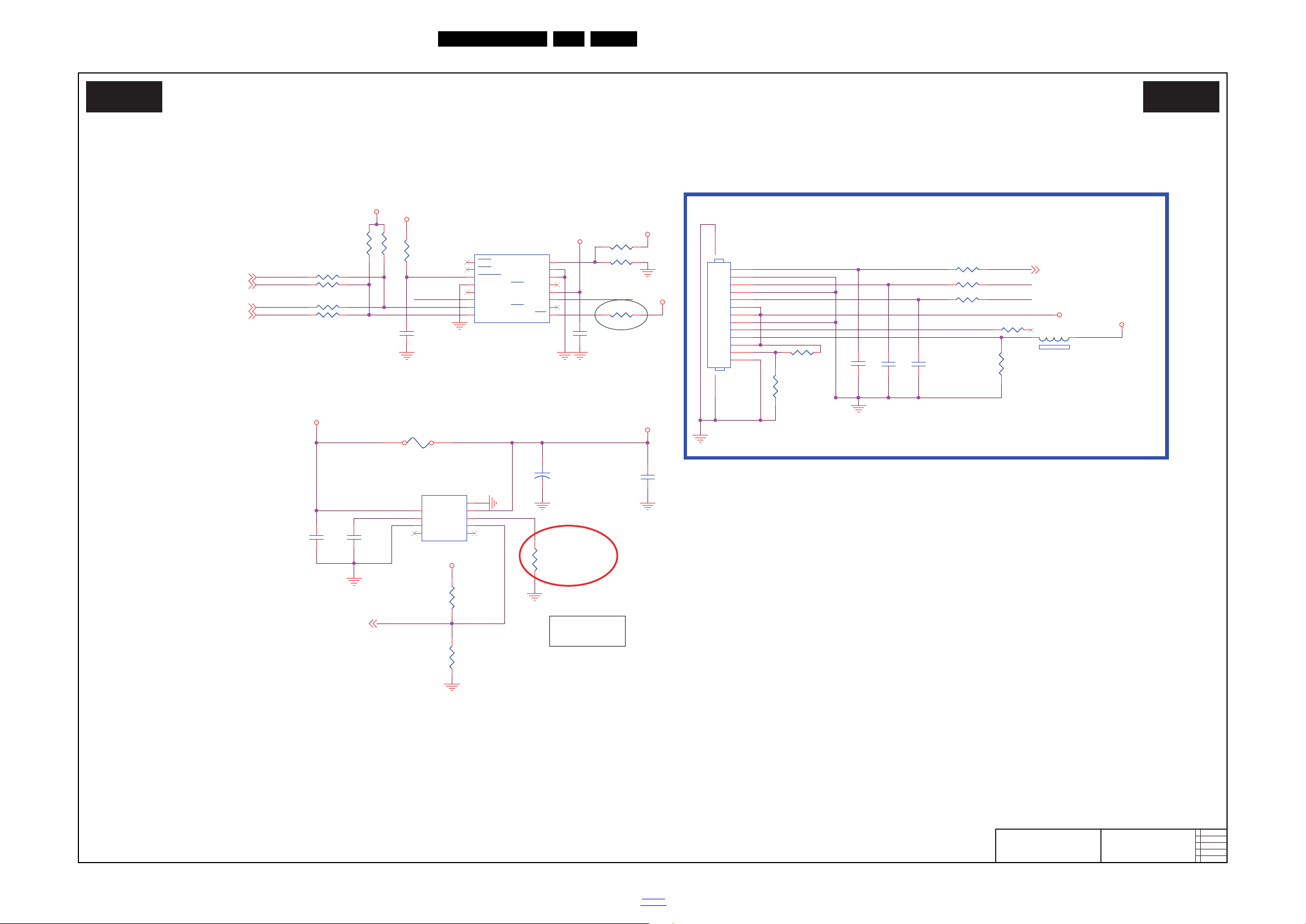

10-3-16 AMBI Light

20310_521.eps

AMBI Light

B16 B16

C

715G7702

AMBI Light

SPI_CLK

SPI_DATASPI_CLK

SPI_DATA

M_SDA
M_SCL

AMBI_ON_OFF

+3.3V_Normal

LED_VCC

+3.3V_Normal

+3.3V_Normal

+3.3V_Normal

+3.3V_Normal

LED_VCC

P12V

+3.3V_Normal

+3.3V_Normal

KEY0 4
AM_SDA3
AM_SCL3

M_SDA4,16,19,21,24,27
M_SCL4,16,19,21,24,27

AMBI_ON_OFF4

2K15 AL3

0603

I2C Address: 0x28

AmbiLight

0603

AL PROTECTION

180K ---> 2.5A

R4234
NC/0R05 1/16W

R4234
NC/0R05 1/16W

R4230
10K

R4230
10K

R4233

NC/10K 1/16W 5%

R4233

NC/10K 1/16W 5%

R4158
10K

R4158
10K

R4186

33 OHM 1/16W
R4186

33 OHM 1/16W

C4132

1UF 10% 16V

C4132

1UF 10% 16V

R4279 NC/6K8 1%R4279 NC/6K8 1%

R4151
10K 1/16W 5%

R4151
10K 1/16W 5%

CN403

CONN

CN403

CONN

1
2

3

4
5
6
7

8

9
10
11
12
13

1415

R4187

33 OHM 1/16W
R4187

33 OHM 1/16W

C4134
1UF16V

C4134
1UF16V

C4147

22N 50V

C4147

22N 50V

C4133

1UF 16V

C4133

1UF 16V

C4131

1N 50V

C4131

1N 50V

F401

NC/2A 63V

F401

NC/2A 63V

R4220

0R05 1/16W

R4220

0R05 1/16W

C4135
1UF16V

C4135
1UF16V

R4237
10K

R4237
10K

R4174

180K +-1% 1/10W

R4174

180K +-1% 1/10W

R4150
10K

R4150
10K

U413

APL3546A KAI-TRG

U413

APL3546A KAI-TRG

VIN

1

SS

2

GND

3

NC4NC

5

EN

6

ISET

7

VOUT

8

GND

9

R4159
10K

R4159
10K

R4188
NC/33 OHM 1/16W

R4188
NC/33 OHM 1/16W

+

C4126

100UF 16V

+

C4126

100UF 16V

R4185

NC/33 OHM 1/16W
R4185

NC/33 OHM 1/16W

C4149

22P 50V

C4149

22P 50V

R4202

33 OHM 1/16W
R4202

33 OHM 1/16W

R4221
0R05 1/16W

R4221
0R05 1/16W

R4213
NC

R4213
NC

R4254

100R 1/16W 1%
R4254

100R 1/16W 1%

R4201
33 OHM 1/16W

R4201
33 OHM 1/16W

C4150

22P 50V

C4150

22P 50V

U405

SC18IS602BIPW

U405

SC18IS602BIPW

SS0/GPIO0

1

SS1/GPIO1

2

RESET

3

Vss

4

MISO

5

MOSI

6

SDA

7

SCL

8

INT

9

SS2/GPIO2

10

SPICLK

11

VDD

12

SS3/GPIO3

13

A0

14

A1

15

A2

16

FB401

NC/120R 3A

FB401

NC/120R 3A

1 2

Circuit Diagrams and PWB Layouts

EN 51TPS16.3A LA 10.

2017-Feb-24

back to

div.table

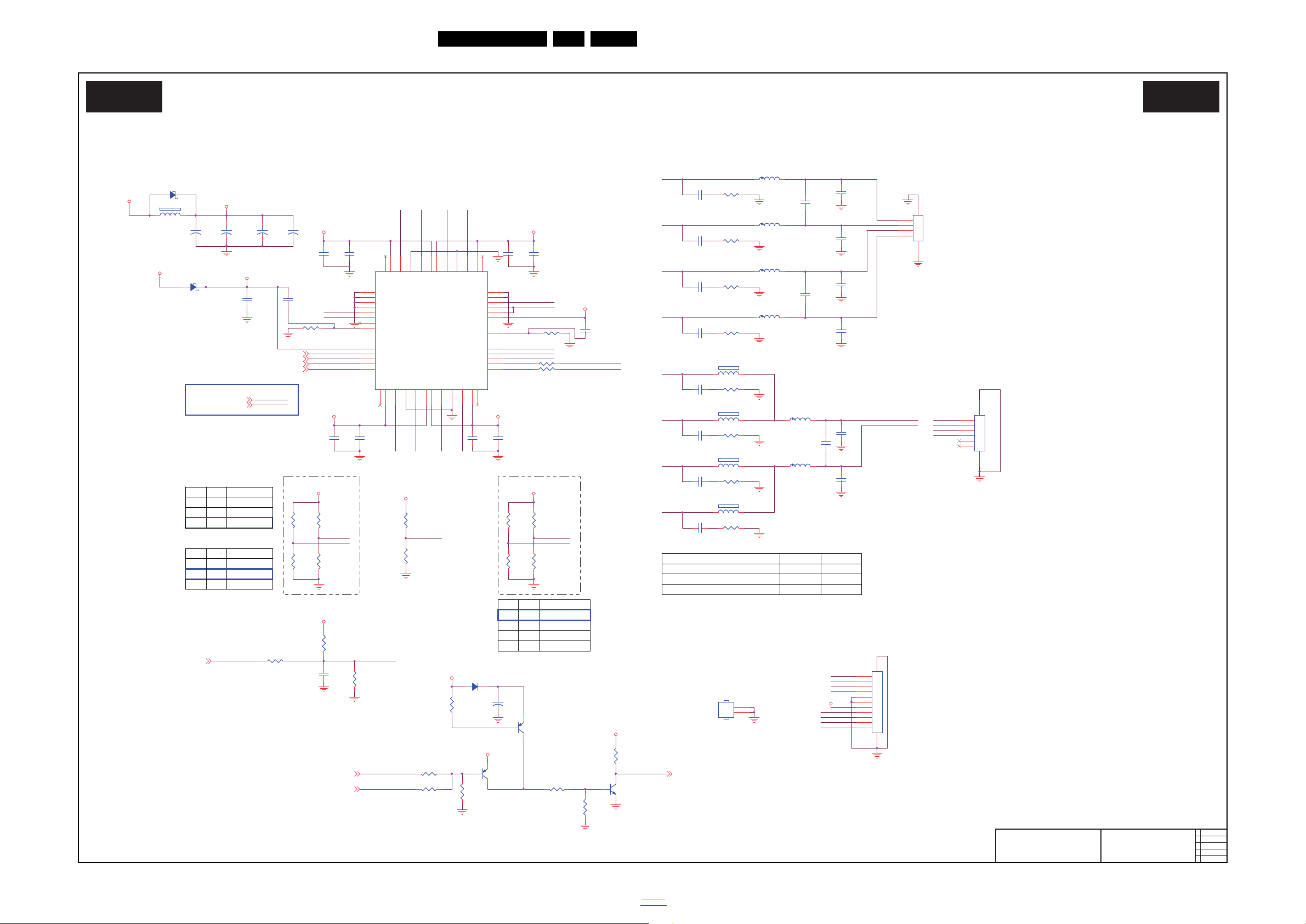

10-3-17 AMP

20310_522.eps

AMP

B17 B17

C

715G7702

AMP

I2S_MCLK

LB

LA

SA1

SB2

AMP_DEF

L-

AUD_RSTN

M_SCL

AMP_RSTN

CFG0

L+

SB1

M_SCL

AMP_SA0

R-

A_SCL

I2S_SD

LB

RB

SA1

AUMUTE_OUT

CFG0

A_SDA

I2S_WS

RA

AMP_RSTN

RA

I2S_BCLK

SW-

AMP_PDN

AMP_SA1

LA

M_SDA

CFG1

SB1

AMP_SA1

SA2

AMP_SA0

AMP_PDN

R+

CFG1

SA2

SB2

AMP_DEF

M_SDA

RB

AMP_RSTN

AMP_PDN

I2S_SD

I2S_WS

I2S_BCLK

I2S_MCLK

M_SDA

M_SCL

AUMUTE

SW+ SW-

SW-
SW+

SW+

AMP_24V

AMP_3V3

+3.3V_Standby

AMP_24V

P24V

+3.3V_Normal

AMP_3V3

AMP_24V

AMP_3V3

AMP_3V3

AMP_24V

AMP_24V

+3.3V_Normal

+5V_Normal

+3.3V_Normal

AMP_3V3

+3.3V_Normal

AMP_PDN 20

I2S_SD5

AUD_RSTN3

I2S_WS5

M_SCL4,16,18,21,24,27

I2S_BCLK5

AUMUTE_OUT4

M_SDA4,16,18,21,24,27

I2S_MCLK5

AUMUTE3

1

L601/L602/L603/L604/L605/L606 47uH

Mono

Speaker

0603

680nF/50V

1206

8 ohm

0x60

1206

1

Mode

0603

0x62

1206

0603

Hi

X

0603

22uH

0603

0x6A

Active LOW

0805

Stereo

0805

AMP VCC

1206

L-

I2C Address

0603

0

06030603

For external AMP

1206

0603

0603

Lo

CFG1

0805

R

CFG1

0603

Q90G6119 6

24V

1206

0x68

SA1

Speaker

Output

Heat Sink

Initial default volume setting
1 : Un-Mute
0 : Mute

Lo

1

330nF/50V

L+

0603

Hi

SMT

R+

Mono

16 ohm

2.0 CH -> use 356G061613300A AD82588

2.1 CH -> use 056G 616X02 AD83586

Mode

1

0805

0

R-

L

Stereo

SMT

1

SA0

1

0805

For POP Noise

0603

24V

Lo

0603

0805

SubWoofer
Output

1206

2.1 Channel

SMT

1206

0603

0805

2.1 Channel

AD82588

0603

0

0603

AD83586

1206

0603

CFG0

10uH -> 073G253S 81 Y
22uH -> 373G253S193D00
47uH -> 373G253S173Y00

0

Hi

1206

CFG0

C604/C607/C613/C619/C622/C629

4Pin R/A 2.0mm
311GW200A04ABX

Hi

Lo

0

FB602 NC/120R 6AFB602 NC/120R 6A

1 2

C6100

NC/0.1uF 50V

C6100

NC/0.1uF 50V

R636
NC/1K

R636
NC/1K

C6115
NC/1nF 250V

C6115
NC/1nF 250V

U602

NC/AD83586

U602

NC/AD83586

SDATA1

1

MS

2

PLL

3

CFG0

4

CFG1

5

CLK_OUT

6

DGND

7

DVDD

8

SDATA0

9

LRCIN

10

BCLK

11

MCLK

12

NC13VDDSA14SA15GNDS16SA17VDDSA18VDDSB19SB20GNDS21SB22VDDSB23NC

24

SDA

25

SCL

26

SA0

27

SA1

28

DEF

29

DGND

30

DVDD

31

PD#

32

ERROR#

33

RESET#

34

LREX

35

LINEIN

36

NC

37

VDDRA

38

RA

39

GNDR

40

RB

41

VDDRB

42

VDDLB

43

LB

44

GNDL

45

LA

46

VDDLA

47

NC

48

THERMALPAD

49

D603

NC/SS0520_R1

D603

NC/SS0520_R1

1

2

+

C6111
100UF 16V

+

C6111
100UF 16V

C6101
NC/0.1uF 50V

C6101
NC/0.1uF 50V

FB603

NC/120R 3A

FB603

NC/120R 3A

1

2

R641 33 OHM 1/16WR641 33 OHM 1/16W

L603
NC/22uH

L603
NC/22uH

R618
100K1/16W

R618
100K1/16W

R656
NC/1M 1/16W

R656
NC/1M 1/16W

CN604

CONN

CN604

CONN

1
2

3

4
5
6
7

8

9
10
11

1213

L604
NC/22uH

L604
NC/22uH

C6133

NC/470P 50V

C6133

NC/470P 50V

C6102

NC/0.1uF 50V

C6102

NC/0.1uF 50V

+

C6112

NC/100uF 35V

+

C6112

NC/100uF 35V

R637
NC/1K

R637
NC/1K

C6134

NC/470P 50V

C6134

NC/470P 50V

R619
100K1/16W

R619
100K1/16W

C6135

NC/470P 50V

C6135

NC/470P 50V

Q602
MMBT3906

Q602
MMBT3906

C6116
NC/1nF 250V

C6116
NC/1nF 250V

R606

NC/10 OHM 1/4W

R606

NC/10 OHM 1/4W

C6136

NC/470P 50V

C6136

NC/470P 50V

D601

LL4148

D601

LL4148

L605
NC/22uH

L605
NC/22uH

D602

NC/SX36

D602

NC/SX36

1 2

+

C6113

NC/100uF 35V

+

C6113

NC/100uF 35V

R624
10K

R624
10K

L606
NC/22uH

L606
NC/22uH

CN601

NC/CONN

CN601

NC/CONN

1

2

3

4

5 6

R607

NC/10 OHM 1/4W

R607

NC/10 OHM 1/4W

R608

NC/10 OHM 1/4W

R608

NC/10 OHM 1/4W

C6103

NC/0.1uF 50V

C6103

NC/0.1uF 50V

FB604

NC/120R 6A

FB604

NC/120R 6A

1 2

R609

NC/10 OHM 1/4W

R609

NC/10 OHM 1/4W

C6137

NC/470P 50V

C6137

NC/470P 50V

C6130
NC/47NF 50V

C6130
NC/47NF 50V

R654
NC/1K

R654
NC/1K

C6104

NC/0.1uF 50V

C6104

NC/0.1uF 50V

R642 NC/33 OHM 1/16WR642 NC/33 OHM 1/16W

C6117
NC/1nF 250V

C6117
NC/1nF 250V

R610

NC/10 OHM 1/4W

R610

NC/10 OHM 1/4W

L601
NC/10uH

L601
NC/10uH

R649
NC/10K

R649
NC/10K

R630
10K 1/10W

R630
10K 1/10W

C6132

NC/47NF 50V

C6132

NC/47NF 50V

C6105
NC/0.1uF 50V

C6105
NC/0.1uF 50V

R621
10K

R621
10K

R611

NC/10 OHM 1/4W

R611

NC/10 OHM 1/4W

C6106

NC/0.1uF 50V

C6106

NC/0.1uF 50V

HS601

NC/HEAT SINK

HS601

NC/HEAT SINK

1
2

R601
NC/0R05 1/16W

R601
NC/0R05 1/16W

R650
NC/10K

R650
NC/10K

Q601
MMBT3904

Q601
MMBT3904

C6138

NC/470P 50V

C6138

NC/470P 50V

+

C6142

NC/100uF 35V

+

C6142

NC/100uF 35V

R625
NC/10K

R625
NC/10K

R643 NC/33 OHM 1/16WR643 NC/33 OHM 1/16W

CN607

NC/CONN

CN607

NC/CONN

1
2

3

4
5
6

78

L602
NC/10uH

L602
NC/10uH

R626
NC/10K

R626
NC/10K

C6109
NC/100N16V

C6109
NC/100N16V

R660

NC/10K

R660

NC/10K

FB605 NC/120R 6AFB605 NC/120R 6A

1

2

R655
NC/1K

R655
NC/1K

C6139

NC/470P 50V

C6139

NC/470P 50V

C6108
100N 50V

C6108
100N 50V

R627 10KR627 10K

R602
NC/0R05 1/16W

R602
NC/0R05 1/16W

+

C6143

NC/100uF 35V

+

C6143

NC/100uF 35V

R612

NC/10 OHM 1/4W

R612

NC/10 OHM 1/4W

C6110
NC/100N16V

C6110
NC/100N16V

C6119
NC/1NF 500V

C6119
NC/1NF 500V

C6107

NC/0.1uF 50V

C6107

NC/0.1uF 50V

FB606 NC/120R 6AFB606 NC/120R 6A

1 2

R651
NC/10K

R651
NC/10K

C6114

NC/10uF 10V

C6114

NC/10uF 10V

R628
NC/10K

R628
NC/10K

C6131
NC/47NF 50V

C6131
NC/47NF 50V

C6118
NC/1nF 250V

C6118
NC/1nF 250V

Q603
MMBT3906

Q603
MMBT3906

C6140

NC/470P 50V

C6140

NC/470P 50V

R629

10K

R629

10K

C6120
NC/1NF 500V

C6120
NC/1NF 500V

R613

NC/10 OHM 1/4W

R613

NC/10 OHM 1/4W

Circuit Diagrams and PWB Layouts

EN 52TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-3-18 Head Phone

20310_523.eps

Head Phone

B18 B18

C

715G7702

Head Phone

A_OUT_L

A_OUT_R

A_OUT_L

A_OUT_R

+3.3V_Normal

+3.3V_Normal

P12V

LINE_OUT_L5 LINE_OUT_R 5

AMP_PDN19

CVBS_OUT6

Side_AUR
Side_AUL

Side_CVBS6

HP_DET3

388G302F5B1ACL

FB607 300RFB607 300R

1 2

C6123

1UF16V

C6123

1UF16V

C6124

1UF16V

C6124

1UF16V

U601
AD22650-QH14NAT

U601
AD22650-QH14NAT

LINP

1

LINN

2

OUTL

3

SGND

4

EN

5

PVSS

6

CN

7

CP

8

PVDD

9

PGND

10

UVP

11

OUTR

12

RINN

13

RINP

14

C6146
NC/330PF 50V

C6146
NC/330PF 50V

R631 10K 1/16WR631 10K 1/16W

R614
100K 1/16W 5%

R614
100K 1/16W 5%

R657
NC/75R 1/16W 1%

R657
NC/75R 1/16W 1%

ZD601

MLVG0402

ZD601

MLVG0402

12

R670

4.7K1/16W

R670

4.7K1/16W

R616

100K1/16W

R616

100K1/16W

C6125

1UF16V

C6125

1UF16V

R615
100K 1/16W 5%

R615
100K 1/16W 5%

R635

1K

R635

1K

R645 NC/0R05 OHMR645 NC/0R05 OHM

R640 30Kohm 1/16W +/-5%R640 30Kohm 1/16W +/-5%

C6126

1UF16V

C6126

1UF16V

R603

1.5KOHM +-5% 1/16W

R603

1.5KOHM +-5% 1/16W

R633
12K 1/16W

R633
12K 1/16W

C6121
1uF 25V

C6121
1uF 25V

ZD602
MLVG0402

ZD602
MLVG0402

12

R617

100K1/16W

R617

100K1/16W

CN605

PHONE JACK 5P

CN605

PHONE JACK 5P

1

2

3

5

4

R638
20K 1/10W

R638
20K 1/10W

C6122
1uF 25V

C6122
1uF 25V

R634
12K 1/16W

R634
12K 1/16W

C6147
NC/330PF 50V

C6147
NC/330PF 50V

R604 10 OHMR604 10 OHM

ZD603
MLVG0402

ZD603
MLVG0402

12

R646 NC/0R05 OHMR646 NC/0R05 OHM

R622 NC/10KR622 NC/10K

C6127

1UF16V

C6127

1UF16V

R623 NC/10KR623 NC/10K

R639
20K 1/10W

R639
20K 1/10W

R659 0R05 OHMR659 0R05 OHM

R658
NC/1.5KOHM +-5% 1/16W

R658
NC/1.5KOHM +-5% 1/16W

R632 10K 1/16WR632 10K 1/16W

R605 10 OHMR605 10 OHM

Circuit Diagrams and PWB Layouts

EN 53TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-3-19 Core & CPU Power

20310_524.eps

Core & CPU Power

B19 B19

C

715G7702

Core & CPU Power

+1.05_VDDC_CPU

+1.20V_VDDC

+1.05_VDDC_CPU

+5V_Normal

P12V

+3.3V_Normal

P12V

+1.20V_VDDC

M_SDA
M_SCL

GPIO_VID_14

GPIO_VID_04

Vout=VFB*(1+RA/RB)
VFB=0.83V

080508050805

1206 1206

RB

CPU Power

RA

Core Power

VID_0 => High , DCDC Output 1.15V
VID_0 => Low , DCDC OutPut 0.98V

SY8368QNC: Max:8A
Vin 4V~25V

Big plane

R1

R2

Big plane

Big plane

Vout = 0.6V × (1+( R1/R2 ))

R7111

10ohm +/-1% 1/10W

R7111

10ohm +/-1% 1/10W

L707

0.68uH

L707

0.68uH

R7104
0R05 OHM

R7104
0R05 OHM

R734
NC/12K 1%

R734
NC/12K 1%

R7113

150K 1%

R7113

150K 1%

R7135
NC/9.1K 1%

R7135
NC/9.1K 1%

C761
22UF

C761
22UF

L701

2.2uH

L701

2.2uH

R7117 1R 1%R7117 1R 1%

C780
100N 50V

C780
100N 50V

C760
22UF

C760
22UF

Q713
NC/2N7002K

Q713
NC/2N7002K

C759
22UF

C759
22UF

C794

220pF 50V

C794

220pF 50V

C797
22UF 6.3V

C797
22UF 6.3V

R795

11K 1%

R795

11K 1%

R7127
NC/0R05 OHM

R7127
NC/0R05 OHM

R775
5K6 1/16W 5%

R775
5K6 1/16W 5%

C798
22UF 6.3V

C798
22UF 6.3V

R7110

10K

R7110

10K

R7123
300K 1%

R7123
300K 1%

R704 0R05 OHMR704 0R05 OHM

R705 0R05 OHMR705 0R05 OHM

C795
22UF 6.3V

C795
22UF 6.3V

C7107

NC/100N16V

C7107

NC/100N16V

R754

NC/20K 1/16W

R754

NC/20K 1/16W

C747
1UF16V

C747
1UF16V

U713
SY8368QNC

U713
SY8368QNC

FB

4

GND

9

BS

6

IN

8

LX

10

EN

1

IN

7

PG

2

ILMT

3

LDO

5

R7129
NC/100OHM

R7129
NC/100OHM

C712

100N16V

C712

100N16V

R711

NC/0R05 OHM

R711

NC/0R05 OHM

R7126
75K 1/16W 1%

R7126
75K 1/16W 1%

C796
22UF 6.3V

C796
22UF 6.3V

C709
100N16V

C709
100N16V

R7119

2.2R 1%

R7119

2.2R 1%

C790
10UF 25V

C790
10UF 25V

C755

2.2UF 10V

C755

2.2UF 10V

U709
MSH6110A

U709
MSH6110A

EN

1

FB

2

VREG5

3

SDA

4

SCL

5

SW

6

BSR

7

PVDD

8

EPAD

9

C711
100N16V

C711
100N16V

R7107

100K 1/10W 1%

R7107

100K 1/10W 1%

R7114 1KR7114 1K

C788
10UF 25V

C788
10UF 25V

R765

NC/33K 1/16W 1%

R765

NC/33K 1/16W 1%

D701
NC/MB810

D701
NC/MB810

1 2

C740

10uF 25V

C740

10uF 25V

Q714
2N7002K

Q714
2N7002K

R7109
100OHM

R7109
100OHM

C710
100N16V

C710
100N16V

C7103

4.7UF 6.3V

C7103

4.7UF 6.3V

C737

10uF 25V

C737

10uF 25V

Circuit Diagrams and PWB Layouts

EN 54TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-3-20 System Power

20310_525.eps

System Power

B20 B20

C

715G7702

System Power

P24V

P5V

BL_ON_OFF

BL_BR_CTRL

DIM

P12V

BL_ON

PW_ON

PS_ON

PS_ON

PS_ON

P12V

+5V_Normal

P24V

+3.3V_Standby

+5V_Standby

P12V

+3.3V_Standby

+3.3V_Standby

+3.3V_Standby

+5V_Standby

P12V

+5V_Standby

+5V_Normal

+1.5V_DDR

+5V_Standby

+3.3V_Standby

+5V_Normal

+5V_Normal+5V_Standby

+3.3V_Standby+5V_Standby

+5V_Normal

+3.3V_Normal +5V_Normal

+1.8V_Normal

+5V_Normal

+3.3V_TU

+5V_Normal +3.3V_SD

+1.5V_AVDD_DDR

+5V_Standby

+1.5V_DDR

+1.1V_ATBM

+5V_Normal

BL_BR_CTRL 4

BL_ON_OFF 4

PWR_ON4,6

3D_EN_PW

PANEL_ON 27

BL_ON24

PS_ON 23

STR_GPIO4

PWR_ON4,6

From Power Board

SMT

Low : Backlight On
High: Backlight Off

12V

0805

0603

24V

High: Light
Low : Dark

0603

5V

0603

0603

1206

0603

8PX2 R/A 2.0mm
311GW200C16BBX

High : Power On
Low: Power Off

0603

Reserve by TV4

Big plane

SY8368QNC: Max:8A
Vin 4V~25V

2.2uH

Big plane

Big plane

R2

Vout = 0.6V × (1+( R1/R2 ))

R1

6.3V
C0805

6.3V
C0805

6.3V
C0805C0805

6.3V

C0805C0805

Standby power

0805

R1

0805

0805

0805

Vout = 0.8x(R1+R2)/R2

373G253S356Y00

0603

0603

R2

SMT

0603

0603

0603

0603E

0603

Standby Power

0805 0805

+5V_Normal => +3.3V_Normal

08050603

6.3V

+5V_Normal => +1.8V_Normal

0603 0805

6.3V

0805

0603

0805

For Tuner

0603 0805

For SD Card

STR Load Switch.

Vout = 0.6*(1+R1/R2)=1.2V

R2

R1

500 mA

+5V_Normal =>+1.2V_Demod

C792
10uF 16V

C792
10uF 16V

C746
1UF16V

C746
1UF16V

C777

NC/22uF 10V

C777

NC/22uF 10V

R759 2K OHMR759 2K OHM

D702

SX36

D702

SX36

1

2

C720

10uF

C720

10uF

C715

NC/22uF 25V

C715

NC/22uF 25V

C770

NC/10N 50V

C770

NC/10N 50V

ZD702
BZT52-B7V5

ZD702
BZT52-B7V5

1 2

C729
10uF 10V

C729
10uF 10V

R757 2K OHMR757 2K OHM

C713
100N16V

C713
100N16V

R731

10K 1%

R731

10K 1%

Q704
MMBT3904

Q704
MMBT3904

R761
NC/2K OHM

R761
NC/2K OHM

R7148

4K7 1/16W 5%

R7148

4K7 1/16W 5%

C782
100N 50V

C782
100N 50V

R7830R05 R7830R05

U702
AZ1117CH-3.3TRG1

U702
AZ1117CH-3.3TRG1

ADJ(GND)

1

VOUT

2

VIN

3

4

4

C762
22UF

C762
22UF

C772

NC/1N 50V

C772

NC/1N 50V

C779

NC/22uF 25V

C779

NC/22uF 25V

U711
SY8368QNC

U711
SY8368QNC

FB

4

GND

9

BS

6

IN

8

LX

10

EN

1

IN

7

PG

2

ILMT

3

LDO

5

CN701

CONN

CN701

CONN

2
4
6

8

10
12
14
16

1

3

5
7
9
11
13
15

+

C769

100UF 16V

+

C769

100UF 16V

C736
10uF 10V

C736
10uF 10V

C749
1UF16V

C749
1UF16V

C751

2.2UF

C751

2.2UF

C756
NC/220NF 25V

C756
NC/220NF 25V

C789

NC/22uF 25V

C789

NC/22uF 25V

R742
1K 1/10W

R742
1K 1/10W

C799
22UF

C799
22UF

Q705
MMBT3904

Q705
MMBT3904

U708
AP1117E18G-13

U708
AP1117E18G-13

VI

3

VO

2

GND14

4

R769

4.7K1/16W

R769

4.7K1/16W

R7121

3.3K 1%

R7121

3.3K 1%

R785
NC/100OHM

R785
NC/100OHM

R762

3.3K

R762

3.3K

R706

0R05 OHM

R706

0R05 OHM

R760 2K OHMR760 2K OHM

C7100
22UF

C7100
22UF

R780 NC/0R051/8WR780 NC/0R051/8W

R774
NC/47K

R774
NC/47K

Q706
MMBT3904

Q706
MMBT3904

R7120

2.2R 1%

R7120

2.2R 1%

R7112
13K 1%

R7112
13K 1%

R781 1K 1/16W 5%R781 1K 1/16W 5%

C722

10uF

C722

10uF

R758 2K OHMR758 2K OHM

R7105
0R05 OHM

R7105
0R05 OHM

C7101
22UF

C7101
22UF

R718 0R051/8WR718 0R051/8W

C728
10uF 10V

C728
10uF 10V

R7037

NC/33 OHM 1/16W

R7037

NC/33 OHM 1/16W

U707

G5695T11U

U707

G5695T11U

VIN

1

GND

2

EN3VFB

4

LX

5

C706

NC/100N16V

C706

NC/100N16V

R744
1K 1/10W

R744
1K 1/10W

R733 10OHM1/10WR733 10OHM1/10W

C707

100N16V

C707

100N16V

C7109
NC/100N16V

C7109
NC/100N16V

C735
10uF 10V

C735
10uF 10V

C7106
470P 50V

C7106
470P 50V

C731

10uF 10V

C731

10uF 10V

C776

NC/1UF16V

C776

NC/1UF16V

L702

2.2UH

L702

2.2UH

+

C732

100UF 16V

+

C732

100UF 16V

R753
200R 1/16W 1%

R753
200R 1/16W 1%

R751

2.2K1/16W

R751

2.2K1/16W

R737 NC/150KR737 NC/150K

C708
100N16V

C708
100N16V

C7105

4.7UF 6.3V

C7105

4.7UF 6.3V
R7116

1K1/10W

R7116
1K1/10W

R782NC/0R05 R782NC/0R05

R767

4.7K 1/16W

R767

4.7K 1/16W

R772 4.7K1/16WR772 4.7K1/16W

U703
AZ1117CH-3.3TRG1

U703
AZ1117CH-3.3TRG1

ADJ(GND)

1

VOUT

2

VIN

3

4

4

R738

15K 1%

R738

15K 1%

R7108
100K 1/10W 1%

R7108
100K 1/10W 1%

L708 2.2UHL708 2.2UH

ZD701

BZT52-B7V5

ZD701

BZT52-B7V5

1 2

C766
NC/0.1uF 50V

C766
NC/0.1uF 50V

U706
AZ1117CH-3.3TRG1

U706
AZ1117CH-3.3TRG1

ADJ(GND)

1

VOUT

2

VIN

3

4

4

L705

2.2uH

L705

2.2uH

Q703

NC/AO4449 -7A/-30V

Q703

NC/AO4449 -7A/-30V

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

R728
10K

R728
10K

U710

APL3529A

U710

APL3529A

IN

1

IN

2

EN

3

VDD4GND

5

SS

6

OUT

7

OUT

8

PAD

9

R736
13K 1%

R736
13K 1%

R724 100OHMR724 100OHM

C734
10uF 10V

C734
10uF 10V

C703
100N16V

C703
100N16V

Q708
MMBT3904

Q708
MMBT3904

C718

10uF

C718

10uF

R7132 NC/1KR7132 NC/1K

C705
100N16V

C705
100N16V

C716
10N 50V

C716
10N 50V

R743
1K 1/10W

R743
1K 1/10W

C750
1UF16V

C750
1UF16V

C721

10uF

C721

10uF

R717
NC/0R05 OHM

R717
NC/0R05 OHM

R7790R05 R7790R05

R730

10K 1%

R730

10K 1%

C752
1UF16V

C752
1UF16V

R725 100OHMR725 100OHM

C791
10uF 16V

C791
10uF 16V

C704
100N16V

C704
100N16V

U720

G9091-330T11U

U720

G9091-330T11U

VIN

1

GND

2

EN

3

NC

4

VOUT

5

Q707
NC/MMBT3904

Q707
NC/MMBT3904

C767
NC/0.1uF 50V

C767
NC/0.1uF 50V

R7122 3.3K 1%R7122 3.3K 1%

C7102
22UF

C7102
22UF

U701
AT1529F11U

U701
AT1529F11U

VCC

1

REF

2

GND

3

FB

4

EN

5

PGND

6

LX

7

VIN

8

E-PAD

9

R750

2.2K 1/16W

R750

2.2K 1/16W

C748
1UF16V

C748
1UF16V

R770

4.7K1/16W

R770

4.7K1/16W

R707

0R05 OHM

R707

0R05 OHM

C753
1UF16V

C753
1UF16V

C719

10uF

C719

10uF

R771

4.7K1/16W

R771

4.7K1/16W

C768
NC/0.1uF 50V

C768
NC/0.1uF 50V

R7125
62K 1/16W 1%

R7125
62K 1/16W 1%

Circuit Diagrams and PWB Layouts

EN 55TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-3-21 FRC-Power

20310_526.eps

FRC Power

B21 B21

C

715G7702

FRC Power

DDR_PWR_FB_U EN_U716

DDR_PWR_FB_U

EN_U716

EN_U713

PS_ON

EN_U717

VCC1V_FRC

VCC5V_FRC

VCC3.3V_FRC

VCC5V_FRC

VCC1.5V_FRC

FRC_POWER

+5V_Normal

P12V

VCC5V_FRC

VCC5V_FRC

FRC_POWER

VCC1V_FRC

PS_ON22

CHIP_VDET 24

VID124

VID024

TO252

FRC 5V => +1.5V

Vout = 0.6*(1+R1/R2)==>1.50V

FRC 5V => 3.3V

1.15A

300mA

Vout=0.765x (1+124K/22.1K) = 5.06V

FFB728 and FB724 stuff==> 5V bypass

(650KHz)

3.8A @ 70 C

Core Power

VID_0 => High , DCDC Output 1.15V
VID_0 => Low , DCDC OutPut 0.98V

SY8368QNC: Max:8A
Vin 4V~25V

Big plane

R1

R2

Big plane

Big plane

Vout = 0.6V × (1+( R1/R2 ))

C7112 100N F 25VC7112 100NF 25V

R7133

2.2R 1%

R7133

2.2R 1%

R7017

4.7K1/16W

R7017

4.7K1/16W
C7121

10N 50V

C7121

10N 50V

C802

22UF 20% 6.3V

C802

22UF 20% 6.3V

C7136 100NF 25VC7136 100NF 25V

FB725

42OHM

FB725

42OHM

1 2

C793

10UF 25V

C793

10UF 25V

C7104

4.7UF 6.3V

C7104

4.7UF 6.3V

R7010
22K 1%

R7010
22K 1%

Q710

MMBT3904

Q710

MMBT3904

C7135

CAP 0805 10UF 10% 25V X5R

C7135

CAP 0805 10UF 10% 25V X5R

R7009

0R05 OHM

R7009

0R05 OHM

C7116 NC/22uF 25VC7116 NC/22uF 25V

Q716
2N7002K

Q716
2N7002K

L711

3.3UH

L711

3.3UH

C7114
1UF16V

C7114
1UF16V

U714

TPS54328DDAR

U714

TPS54328DDAR

EN

1

VFB

2

VREG5

3

SS

4

GND

5

SW

6

VBST

7

VIN

8

E-PAD

9

Q709
AO3401A

Q709
AO3401A

C7117 22uF 25VC7117 22uF 25V

C804

10UF 25V

C804

10UF 25V

R7139
100K 1%

R7139
100K 1%

R7101

10K 1%

R7101

10K 1%

R7008
33K 1%

R7008
33K 1%

R7018

4.7K1/16W

R7018

4.7K1/16W

C7111

100NF 25V

C7111

100NF 25V

L706

0.68uH

L706

0.68uH

C7118 NC/22uF 25VC7118 NC/22uF 25V

R7115
100OHM

R7115
100OHM

FB723
42OHM

FB723
42OHM

1

2

R7134

16.9K 1%

R7134

16.9K 1%

R7012
0R05 OHM

R7012
0R05 OHM

R7118 0R05 1/10WR7118 0R 05 1/10W

C7133
10uF 16V

C7133
10uF 16V

C7130
22P 50V

C7130
22P 50V

FB724

NC/120R 6A

FB724

NC/120R 6A

1

2

C7108

CAP 0805 10UF 10% 25V X5R

C7108

CAP 0805 10UF 10% 25V X5R

R7106
140 OHM +-1% 1/16W

R7106
140 OHM +-1% 1/16W

C7115 100NF 25VC7115 100NF 25V

FB727

42OHM

FB727

42OHM

1

2

C781
100N 50V

C781
100N 50V

C7127
10uF 16V

C7127
10uF 16V

R7055 NC/0 OHM +-5% 1/8WR7055 NC/0 OHM +-5% 1/8W

FB728

NC/42OHM

FB728

NC/42OHM

1

2

C7131
10uF 16V

C7131
10uF 16V

R7136
NC/9.1K 1%

R7136
NC/9.1K 1%

C7134
220N 25V

C7134
220N 25V

C7122 22P 50VC7122 22P 50V

C803

220pF 50V

C803

220pF 50V

R7103

100 OHM 1% 1/10W

R7103

100 OHM 1% 1/10W

C7119 100NF 25VC7119 100NF 25V

R7053

0 OHM +-5% 1/8W

R7053

0 OHM +-5% 1/8W

R7004 124K 1%R7004 124K 1%

C7110

1UF16V

C7110

1UF16V

C7132
100NF 25V

C7132
100NF 25V

R7124
200K 1%

R7124
200K 1%

C7128

100NF 25V

C7128

100NF 25V

C7123

470NF 10V

C7123

470NF 10V

R7001

100K 1%

R7001

100K 1%

C783

22UF 20% 6.3V

C783

22UF 20% 6.3V

R7003

0R05 OHM

R7003

0R05 OHM

R7128
NC/0R05 OHM

R7128
NC/0R05 OHM

R7002

22.1K 1%

R7002

22.1K 1%

C7113
10uF 16V

C7113
10uF 16V

R7000

100K 1%

R7000

100K 1%

R7138

100K 1%

R7138

100K 1%

C7141

10N 50V

C7141

10N 50V

R7054

NC/10R 1/16W 5%

R7054

NC/10R 1/16W 5%

R7007

0R05 OHM

R7007

0R05 OHM

Q715
NC/2N7002K

Q715
NC/2N7002K

C800

22UF 20% 6.3V

C800

22UF 20% 6.3V

U716
SY8009BABC

U716
SY8009BABC

EN

1

GND

2

LX

3

IN

4

NC

5

FB

6

C7120

1UF16V

C7120

1UF16V

R7014

4.7K1/16W

R7014

4.7K1/16W

C801

22UF 20% 6.3V

C801

22UF 20% 6.3V

U715
AZ1084D-3.3TRE1

U715
AZ1084D-3.3TRE1

VIN

3

VOUT

2

GND/ADJ

1

U719
SY8368QNC

U719
SY8368QNC

FB

4

GND

9

BS

6

IN

8

LX

10

EN

1

IN

7

PG

2

ILMT

3

LDO

5

R7131
NC/100OHM

R7131
NC/100OHM

R7011

4.7K1/16W

R7011

4.7K1/16W

C7129
10uF 16V

C7129
10uF 16V

FB714 NC/120R 6AFB714 NC/120R 6A

L712 2.2UHL712 2.2UH

R7130
0R05 OHM

R7130
0R05 OHM

Circuit Diagrams and PWB Layouts

EN 56TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-3-22 MST7410FE

20310_527.eps

MST7410FE

B22 B22

C

715G7702

MST7410FE

A

DIM2DIM0 DIM3DIM1

I2CS_SCL_U

I2CM_SDA_U
I2CM_SCL_U

I2CS_SDA_U

SPI_CZ
SPI_DO

UART2_TX

SPI_CK
SPI_DI

UART2_RX
UART2_TX

UART1_RX
UART1_TX

I2CS_SDA_U

I2CS_SCL_U

UART2_TX
UART2_RX

UART1_TX

I2CM_SCL_U

I2CM_SDA_U

I2CS_SCL_U

I2CS_SDA_U

XTALO_FRC
XTALI_FRC

HW_RESET

SPI_DI

SPI_CZ

TCON8

GPIO7

GPIO4
GPIO6

GPIO14

GPIO9

GPIO5

TCON9

GPIO8

SPI3_DA
SPI4_DA

DIM0

VSYNC_Like

SPI4_CK

SPI1_CK

DIM1

SPI1_DA

DIM2

SPI2_CK

DIM3

VSYNC_Like2

SPI2_DA

VSYNC_Like3

SPI3_CK

3D_FLAG_U

SPI_CK
SPI_DO

IRE

UART1_RX

LD_SPI_CLK
LD_SPI_DO
LD_SPI_DI
LD_SPI_CS
LD_GPIO
LD_HSYNC
LD_VSYNC

SPI4_DA

VSYNC_Lik e

SPI2_DA

SPI2_CK

LD_VSYNC

SPI1_DA

LD_SPI_DO

LD_SPI_CLK

LD_GPIO

LD_SPI_DI

LD_SPI_CS

SPI1_CK

LD_HSYNC

SPI4_CK
SPI2_CK

SPI2_DA

SPI3_CK

SPI3_DA

XTALO_FRCXTALI_FRC

VCC3.3V_FRC

VCC3.3V_FRC VCC3.3V_FRCVCC3.3V_FRC

VCC3.3V_FRC

VCC3.3V_FRC

VCC3.3V_FRC

FRC_POWER

+5V_Normal

I2CM_SCL27

I2CM_SDA27

M_SDA4,16,18,19,21,27
M_SCL4,16,18,19,21,27

VID0 23
VID1 23

FRC_RESET3

VX1T_HTPDN 27
VX1T_LOCKN 27

CHIP_VDET23

PANEL_ON/OFF_U 27

3D_FLAG_U5

BL_ON 22

SPI4_CK 27
SPI3_CK 27

SPI3_DA 27

ACK 3

LN:[Chip Config]

Debug/ISP ADDR
DIM3 I2C ADD select
"0" (Debug Port:0xB4, ISP:0x98) ,
"1" (Debug Port:0xB8, ISP:0x94) ,
CHIP_CONF: {DIM2, DIM1, DIM0}
CHIP_CONF= 3'd7: 111 : boot from SPI Flash

GPIO0

[SPI Flash] 4MB

Del CN406 by Alex

UART1 Port

[I2C / UART]

I2C_S Port

Local Dimming

Heat sink

1. X402 change footprint

2. C4283 and C4284 change value to 12PF
By Alex

TP36 TPTP36 TP

TP26 TPTP26 TP

R4337
NC/10K

R4337
NC/10K

R4353 0R05 OHMR4353 0R05 OHM

R65 33 OHM 1/16WR65 33 OHM 1/16W

C4283
18PF 50V

C4283
18PF 50V

TP32 TPTP32 TP

TP25 TPTP25 TP

R46 33 OHM 1/16WR46 33 OHM 1/16W

R111

4.7K1/16W

R111

4.7K1/16W

R4240 NC/0R05 OHMR4240 NC/0R05 OHM

HS402

HEAT SINK

HS402

HEAT SINK

1
2

R4319 NCR4319 NC

TP33 TPTP 33 TP

U412

MX25L3206EM2I-12G

U412

MX25L3206EM2I-12G

CS#

1

SO/SIO1

2

WP#

3

GND4SI/SIO0

5

SCLK

6

HOLD#

7

VCC

8

R4331

0R05 OHM

R4331

0R05 OHM

R4227
10K

R4227
10K

R4329

10R 1/16W 5%

R4329

10R 1/16W 5%

TP50 TPTP50 TP

TP42TP TP42TP

R4260 NC/0R05 OHMR4260 NC/0R05 OHM

TP40 TPTP40 TP

TP31TP TP31TP

R61 33 OHM 1/16WR61 33 OHM 1/16W

R110

4.7K1/16W

R110

4.7K1/16W

R4335

1 MOHM 1% 1/16W

R4335

1 MOHM 1% 1/16W

R4299
NC/10K

R4299
NC/10K

R7052

10K

R7052

10K

TP24 TPTP24 TP

TP34 TPTP34 TP

R4318
NC/0R05 OHM

R4318
NC/0R05 OHM

R4352
NC/10K

R4352
NC/10K

R4833 OHM 1/16WR4833 OHM 1/16W

TP48 TPTP48 TP

R4344

10K

R4344

10K

TP35TP TP35TP

R109

4.7K1/16W

R109

4.7K1/16W

R4351 10 OHMR4351 10 OHM

TP38TP TP 38TP

TP8 TPTP8 TP

R4305
10K

R4305
10K

R49
33 OHM 1/16W

R49
33 OHM 1/16W

R4348 10 OHMR4348 10 OHM

R4304
NC/10K

R4304
NC/10K

R4320
10K

R4320
10K

TP41TP TP41TP

X402

24MHZ

X402

24MHZ

1

24

3

R4324 0R05 OHMR4324 0R05 OHM

R4239
NC/0R05 OHM

R4239
NC/0R05 OHM

TP43TP TP43TP

R4345 10 OHMR4345 10 OHM

R4354 0R05 OHMR4354 0R05 OHM

R4326 0R05 OHMR4326 0R05 OHM

R4321
10K

R4321
10K

TP44TP TP44TP

C4285
100NF 25V

C4285
100NF 25V

R4301
NC/10K

R4301
NC/10K

R4336
NC/10K

R4336
NC/10K

TP49 TPTP49 TP

TP30TP TP30TP

R56 0R05 OHMR56 0R05 OHM

CN408

NC/CONN

CN408

NC/CONN

1
2

3

4
5
6
7

8

9
10

1112

R4357
NC/0R05 OHM

R4357
NC/0R05 OHM

R4302
10K

R4302
10K

R4349 NC/1KR4349 NC/1K

R4526 NC/33 OH M 1/16WR4526 NC/33 OHM 1/16W

R4300
10K

R4300
10K

TP39 TPTP39 TP

R112

4.7K1/16W

R112

4.7K1/16W

R4242
NC/0R05 OHM

R4242
NC/0R05 OHM

R4303
NC/10K

R4303
NC/10K

CN412

CONN

CN412

CONN

1
2

3

45

R60 33 OHM 1/16WR60 33 OHM 1/16W

TP46 TPTP46 TP

U718B MST7410FEU718B MST7410FE

I2CS_SDA

AH20

I2CS_SCL

AG20

GPIO1 / UART2_RX

F10

XTALO

AM4

XTALI

AM3

I2CM_SDA / GPIO28

AH21

I2CM_SCL / GPIO29 / VSYNC_Like1

AG21

RESET

AE19

GND

AF26

GPIO0 / UART2_TX

E11

GPIO2 / UART1_TX

E10

SPI_CZ

AE30

SPI_CK

AD30

SPI_DI

AE31

SPI_DO

AF31

SPI1_CK / PWM2 / GPIO58

AG32

SPI2_DI / PWM1 / GPIO57

AG31

SPI2_CK / PWM0 / GPIO56

AH31

VSYNC_Like / PWM5 / GPIO40

AF30

SPI3_DI / DIM11 / GPIO55

AG30

SPI3_CK / DIM10 / GPIO54

AH30

SPI4_DI / DIM9 / GPIO53

AJ32

SPI4_CK / DIM8 / GPIO52

AJ31

SPI1_DI / PWM3 / GPIO59

AF32

GPIO43 / TCON0

E4

GPIO44 / TCON1

D5

GPIO45 / TCON2

E6

GPIO46 / TCON3

E5

GPIO47 / TCON4

F5

GPIO48 / TCON5

F4

GPIO49 / TCON6

D6

GPIO50 / TCON7

D4

VX1_TX_HTPD / TCON8

Y6

VX1_TX_LOCK / TCON9

AA6

GPIO20 / TCON10

AB5

GPIO21 / TCON11

AB4

GPIO22 / TCON12

AA4

GPIO23 / TCON13

AA5

GPIO24 / TCON14

AG4

GPIO25 / TCON15

AG5

CHIP_VDET

F6

INT_R21 / HDMI0_DET _5V

AD31

INT_R20 / 3D_FLAG_IN

AD32

I2C_HSC_SCL / VSYNC_Like3 / GPIO31

AG22

I2C_HSC_SDA / VSYNC_Like2 / GPIO30

AH22

DIM0 / GPIO32

AH24

DIM1 / GPIO33

AH25

DIM2 / GPIO34

AH26

DIM3 / GPIO35

AH27

GPIO51 / IRE / UART1_RX

D10

GND

AB7

NC

AJ13

NC

AH13

NC

AG13

GPIO62

AH5

GPIO64

V6

GPIO65

Y5

GPIO66

W6

GPIO67

W5

GPIO63

U6

GPIO10 / PWM_DIM_IN[0]

AH23

GPIO11 / PWM_DIM_IN[1]

AG23

GPIO14

AF20

GPIO17

AE20

NC

AG14

NC

AH14

NC

AJ14

DEMURA_SCL / GPIO70

B2

DEMURA_SDO / GPIO72

C3

DEMURA_CS / GPIO73

C1

DEMURA_SDI / GPIO71

B3

NC

N2

NC

P1

NC

P2

GPIO4

AJ21

GPIO5

AJ23

GPIO6

AJ24

GPIO7

AJ26

GPIO8

AJ27

GPIO9

AJ28

DIM4 / GPIO36

AG24

DIM5 / GPIO37

AG25

DIM6 / GPIO38

AG26

DIM7 / GPIO39

AG27

NC

AK4

GPIO68

AB6

TEST_19

N14

TEST_80

P21

NC

B32

NC

A31

TP27 TPTP27 TP

R4523 NC/33 OHM 1/16WR4523 NC/33 OHM 1/16W

R4350 10 OHMR4350 10 OHM

R4358
NC/0R05 OHM

R4358
NC/0R05 OHM

TP37TP TP37TP

R4317
NC/0R05 OHM

R4317
NC/0R05 OHM

TP23 TPTP23 TP

C4284
20PF

C4284
20PF

Circuit Diagrams and PWB Layouts

EN 57TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-3-23 FRC Power & GND

20310_528.eps

FRC Power & GND

B23 B23

C

715G7702

FRC Power & GND

VREF_A

VREF_B

AVDD_DDR_VBP_B_FRC
AVDD_DDR_VBN_B_CAP
AVDD_DDR_VBN_B_FRC

AVDD_DDR_VBN_A_CAP

AVDD_DDR_V BP_A_CAP

AVDD_DDR_VBN_A_FRC

AVDD_DDR_VBP_A_FRC

AVDD_DVI_CAP_FRC

AVDD_DDR_V BP_B_CAP

AVDDL_DVI_CAP_FRC

ZQ_C

ZQ_B

AVDD_HDMITX_CAP

DRAM_VDD_B

ZQ_D

VREF_B

ZQ_A

ZQ_D

ZQ_A

VREF_A

ZQ_B

ZQ_C

DRAM_VDD_A

AVDD_DDR_FRC

AVDD_DDR_FRC

AVDDL_RX_FRC

AVDDL_HDMITX_FRC

AVDD_DDR_FRC

AVDDL_MOD_FRC

AVDDL_DVI_FRC

VDDC_FRC

VCC1V_FRC

DVDD_DDR_FRC

VDDP_FRC

AVDD_ALLRX_FR C

AVDD_DDR_FRC

AVDD_PLL_FRC

AVDD_DVI_FR C

AVDDL_PREDRV_FRC

AVDDL_MOD_FRC

AVDDL_PREDRV_FRC

AVDDL_RX_FRC

VDDP_FRC

AVDD_15_MOD_FRC

AVDD_MOD_FRC

AVDDL_DVI_FRC

AVDD_HDMITX_FRC

DVDD_DDR_FRC

AVDD_15_MOD_FRC

AVDD_DDR_FRC

VCC1.5V_FRC

AVDD_PLL_FRCVCC3.3V_FRC

AVDD_DDR_FRC

VCC3.3V_FRC

AVDD_DDR_FR C

AVDDL_HDMITX_FRC

AVDD_MOD_FRC

AVDD_DDR_FRC

VDDC_FRC

AVDD_HDMITX_FRC

AVDD_DVI_FRC

AVDD_ALLRX_FR C

AVDD_DDR_FRC

close to chip

Reserve at Bottom side.

close to chip

0.95V @4600mA

30mA

60mA

110mA

290mA

20mA

90mA

20mA

140mA

100mA

160mA

48mA

80mA

0.95V @5200mA

Reserve at Bottom side.

close to chip

Reserve at Bottom side.

120mA

800mA

Reserve at Bottom side.

DDR3 POWER

Reserve at Bottom side.

Reserve at Bottom side.

Reserve at Bottom side.

Reserve at Bottom side.

Reserve at Bottom side.

Reserve at Bottom side.

Reserve at Bottom side.

Reserve at Bottom side.

FB743

120R 6A

FB743

120R 6A

1

2

R7031

1KOHM +-1% 1/16W

R7031

1KOHM +-1% 1/16W

R7035

240 OHM +-1% 1/16W

R7035

240 OHM +-1% 1/16W

FB737

120R 6A

FB737

120R 6A

1 2

C7237

10uF

C7237

10uF

C7204

100N16V

C7204

100N16V

C7180

100N16V

C7180

100N16V

FB731

120R 6A

FB731

120R 6A

1 2

FB736

120R 6A

FB736

120R 6A

1 2

C7179

100N16V

C7179

100N16V

C7176

10uF

C7176

10uF

FB735

120R 6A

FB735

120R 6A

1 2

C7243

100N16V

C7243

100N16V

C7155

10uF 16V

C7155

10uF 16V

C7203

100N16V

C7203

100N16V

C7178

100N16V

C7178

100N16V

C7175

10uF

C7175

10uF

FB734

120R 6A

FB734

120R 6A

1

2

C7222

100N16V

C7222

100N16V

FB733

120R 6A

FB733

120R 6A

1 2

C7174

10uF

C7174

10uF

C7240

100N16V

C7240

100N16V

R7034

240 OHM +-1% 1/16W

R7034

240 OHM +-1% 1/16W

R7030

1KOHM +-1% 1/16W

R7030

1KOHM +-1% 1/16W

C7166

22uF 6.3V

C7166

22uF 6.3V

C7208

1UF16V

C7208

1UF16V

C7202

100N16V

C7202

100N16V

C7173

10uF

C7173

10uF

C7165

22uF 6.3V

C7165

22uF 6.3V

C7193

1UF16V

C7193

1UF16V

C7221

100N16V

C7221

100N16V

C169
100N16V

C169
100N16V

C7164

22uF 6.3V

C7164

22uF 6.3V

C7209

22UF 6.3V

C7209

22UF 6.3V

C7232 470NF 10VC7232 470N F 10V

C7224

100N16V

C7224

100N16V

C7201

100N16V

C7201

100N16V

C7169

100N16V

C7169

100N16V

C7223

100N16V

C7223

100N16V

R7033

240 OHM +-1% 1/16W

R7033

240 OHM +-1% 1/16W

R7029

1KOHM +-1% 1/16W

R7029

1KOHM +-1% 1/16W

C7154

22UF 6.3V

C7154

22UF 6.3V

C7200

100N16V

C7200

100N16V

C7236 NC/ 220NF 16VC7236 N C/220NF 16V

C7168

100N16V

C7168

100N16V

C7227

100N16V

C7227

100N16V

C7242

1nF 50V

C7242

1nF 50V

C7167

100N16V

C7167

100N16V

C7199

100N16V

C7199

100N16V

C7220

100N16V

C7220

100N16V

FB742

120R 6A

FB742

120R 6A

1

2

C7231 470NF 10VC7231 470N F 10V

C7213

10uF

C7213

10uF

U718F

MST7410FE

U718F

MST7410FE

VSS

V23

VSS

V24

VSS

V25

VSS

V26

VSS

V27

VSS

V28

VSS

V29

VSS

V30

VSS

W8

VSS

W9

VSS

W10

VSS

W11

VSS

W12

VSS

W13

VSS

W14

VSS

W18

VSS

Y7

VSS

W26

VSS

W27

VSS

W23

VSS

W15

VSS

W17

VSS

W24

VSS

W25

VSS

W16

VSS

Y8

VSS

W22

VSS

W29

VSS

W28

VSS

Y3

VSS

Y9

VSS

Y10

VSS

Y11

VSS

Y12

VSS

Y13

VSS

Y14

VSS

Y15

VSS

Y16

VSS

Y17

VSS

Y18

VSS

Y22

VSS

Y23

VSS

AA3

VSS

AA7

VSS

AA8

VSS

AA9

VSS

AA10

VSS

AA11

VSS

AA12

VSS

AA13

VSS

AA14

VSS

AA15

VSS

AA16

VSS

AA17

VSS

AA18

VSS

AA19

VSS

AA20

VSS

AA21

VSS

AA22

VSS

AA23

VSS

AB3

VSS

AB8

VSS

AB9

VSS

AB11

VSS

AB12

VSS

AB13

VSS

AB14

VSS

AB15

VSS

AB16

VSS

AB17

VSS

AB18

VSS

AB19

VSS

AB20

VSS

AB21

VSS

AB22

VSS

AB23

VSS

AC12

VSS

AC13

VSS

AC14

VSS

AC15

VSS

AC16

VSS

AC17

VSS

AC18

VSS

AC19

VSS

AC20

VSS

AC21

VSS

AC22

VSS

AC23

VSS

AC24

VSS

AC25

VSS

AC26

VSS

AD2

VSS

AD3

VSS

AD8

VSS

AD9

VSS

AD10

VSS

AD11

VSS

AD12

VSS

AD13

VSS

AD14

VSS

AD15

VSS

AD16

VSS

AD17

VSS

AD18

VSS

AD19

VSS

AD20

VSS

AD21

VSS

AD22

VSS

AD23

VSS

AD24

VSS

AD25

VSS

AD26

VSS

AE4

VSS

AE8

VSS

AE12

VSS

AE13

VSS

AE14

VSS

AE15

VSS

AE16

VSS

AE17

VSS

AE18

VSS

AE21

VSS

AE22

VSS

AE23

VSS

AE24

VSS

AE25

VSS

AE26

VSS

AF2

VSS

AF5

VSS

AF6

VSS

AF8

VSS

AF12

VSS

AF13

VSS

AF19

VSS

AF23

VSS

AF24

VSS

AF25

VSS

AG2

VSS

AG6

VSS

AG7

VSS

AG12

VSS

AG15

VSS

AG19

VSS

AH6

VSS

AH12

VSS

AH15

VSS

AH19

VSS

AJ3

VSS

AJ5

VSS

AJ6

VSS

AJ12

VSS

AJ19

VSS

AJ20

VSS

AK3

VSS

AK15

VSS

AK22

VSS

AK23

VSS

AK24

VSS

AL1

VSS

AL2

VSS

AL3

VSS

AL4

VSS

AL17

VSS

AL19

VSS

AL21

VSS

AL26

VSS

AL28

VSS

AL30

VSS

AM2

VSS

AC2

VSS

AC9

VSS

AC10

VSS

AC11

VSS

AM5

VSS

AM18

VSS

AM20

VSS

AM27

VSS

AM29

VSS

AC4

VSS

AC5

VSS

AC6

VSS

AC7

VSS

AD27

VSS

AD28

VSS

AE9

VSS

AE10

VSS

AE11

VSS

AF4

VSS

AG8

VSS

AF14

VSS

AF15

VSS

AJ15

VSS

AJ7

VSS

AJ8

VSS

AM31

VSS

AF21

VSS

AF22

VSS

AH7

VSS

AH8

VSS

AJ17

VSS

W31

VSS

W32

VSS

AC27

VSS

AC28

VSS

AC29

VSS

AC30

VSS

AC31

VSS

AC32

VSS

AD29

VSS

AE27

VSS

AE28

VSS

AE29

VSS

AJ30

VSS

AL32

VSS

AF27

VSS

AF28

VSS

AF29

VSS

W21

VSS

AK5

VSS

AL5

VSS

Y20

VSS

Y21

C7153

22UF 6.3V

C7153

22UF 6.3V

C7172

100N16V

C7172

100N16V

C7219

100N16V

C7219

100N16V

C7190

100N16V

C7190

100N16V

C7226

100N16V

C7226

100N16V

C7212

10uF

C7212

10uF

C7192

10uF

C7192

10uF

FB741

120R 6A

FB741

120R 6A

1

2

C7198

100N16V

C7198

100N16V

C7171

100N16V

C7171

100N16V

C7189

100N16V

C7189

100N16V

C7235 NC/ 220NF 16VC7235 N C/220NF 16V

C7152

22UF 6.3V

C7152

22UF 6.3V

C7170

100N16V

C7170

100N16V

U718E MS T7410FEU718E MST7410FE

VSS

M30

VSS

M29

VSS

M28

VSS

M27

VSS

M23

VSS

M22

VSS

H24

VSS

H27

VSS

H28

VSS

J1

VSS

J9

VSS

J11

VSS

J14

VSS

J15

VSS

J16

VSS

J17

VSS

J18

VSS

J19

VSS

J20

VSS

J22

VSS

J30

VSS

J31

VSS

K7

VSS

K11

VSS

K15

VSS

K21

VSS

K22

VSS

K29

VSS

K31

VSS

K32

VSS

L1

VSS

L8

VSS

L14

VSS

M4

VSS

N25

VSS

N26

VSS

N27

VSS

N28

VSS

N29

VSS

N30

VSS

N31

VSS

N32

VSS

P3

VSS

P4

VSS

P5

VSS

P6

VSS

P7

VSS

P9

VSS

P12

VSS

P22

VSS

P24

VSS

P27

VSS

P28

VSS

P29

VSS

P30

VSS

P31

VSS

P32

VSS

R4

VSS

R9

VSS

R12

VSS

R22

VSS

R23

VSS

R24

VSS

R27

VSS

R28

VSS

R30

VSS

T9

VSS

T10

VSS

T12

VSS

T13

VSS

T22

VSS

T23

VSS

T24

VSS

T27

VSS

T28

VSS

U2

VSS

U7

VSS

U8

VSS

U10

VSS

M15

VSS

U13

VSS

L11

VSS

M24

VSS

J7

VSS

L13

VSS

T29

VSS

J21

VSS

M17

VSS

M18

VSS

N3

VSS

N4

VSS

J28

VSS

J27

VSS

J26

VSS

J32

VSS

K2

VSS

K16

VSS

K17

VSS

L12

VSS

L27

VSS

L28

VSS

L30

VSS

L31

VSS

M2

VSS

P13

VSS

R13

VSS

R1

VSS

R2

VSS

T3

VSS

U9

VSS

H23

VSS

H29

VSS

H30

VSS

H31

VSS

K27

VSS

K30

VSS

M21

VSS

U14

VSS

U15

VSS

U22

VSS

U23

VSS

U24

VSS

U25

VSS

U26

VSS

U27

VSS

U28

VSS

U29

VSS

U30

VSS

V2

VSS

V7

VSS

V9

VSS

V12

VSS

V13

VSS

V14

VSS

V15

VSS

V16

VSS

H32

VSS

J8

VSS

J10

VSS

J23

VSS

J24

VSS

J25

VSS

J29

VSS

K12

VSS

K13

VSS

K14

VSS

K18

VSS

K19

VSS

K28

VSS

L15

VSS

L16

VSS

L17

VSS

L19

VSS

L22

VSS

M11

VSS

M12

VSS

M13

VSS

M14

VSS

M16

VSS

M31

VSS

M32

VSS

P11

VSS

P25

VSS

P26

VSS

R10

VSS

R11

VSS

N9

VSS

U12

VSS

U11

VSS

V11

VSS

V10

VSS

M19

VSS

M20

VSS

L24

VSS

V8

VSS

H2

VSS

H7

VSS

H8

VSS

H9

VSS

H10

VSS

H11

VSS

H14

VSS

H15

VSS

H16

VSS

H19

VSS

H20

VSS

V22

VSS

K20

VSS

L18

VSS

K6

VSS

K24

VSS

K26

VSS

K25

VSS

L21

VSS

L20

VSS

M5

VSS

M8

VSS

R31

VSS

T30

VSS

N11

VSS

N13

VSS

N16

VSS

N17

VSS

N18

VSS

N19

VSS

N20

VSS

N21

VSS

N22

VSS

N23

VSS

N24

VSS

P23

VSS

T4

VSS

K8

VSS

L7

VSS

R5

VSS

R3

VSS

U4

VSS

T5

VSS

T6

VSS

T7

VSS

T8

VSS

U31

VSS

U32

VSS

R21

VSS

T14

VSS

T21

VSS

U21

VSS

V17

VSS

V18

VSS

V21

VSS

N15

VSS

K23

VSS

L23

VSS

N12

C7218

100N16V

C7218

100N16V

C7225

100N16V

C7225

100N16V

FB740

120R 6A

FB740

120R 6A

1 2

C7188

100N16V

C7188

100N16V

C7163

10uF

C7163

10uF

C7191

10uF

C7191

10uF

C7197

100N16V

C7197

100N16V

C7228

100N16V

C7228

100N16V

C7230 470NF 10VC7230 470N F 10V

C7211

22UF 6.3V

C7211

22UF 6.3V

C7239

100N16V

C7239

100N16V

C7241

1nF 50V

C7241

1nF 50V

C7162

1UF16V

C7162

1UF16V

C7187

100N16V

C7187

100N16V

C7217

100N16V

C7217

100N16V

FB739

120R 6A

FB739

120R 6A

1

2

C7207

100N16V

C7207

100N16V

C7161

100N16V

C7161

100N16V

C7186

100N16V

C7186

100N16V

C7196

100N16V

C7196

100N16V

C7210

22UF 6.3V

C7210

22UF 6.3V

C7160

100N16V

C7160

100N16V

C7216

100N16V

C7216

100N16V

C7185

100N16V

C7185

100N16V

FB738

120R 6A

FB738

120R 6A

1 2

C7234 NC/220NF 16VC7234 NC/220NF 16V

U718C MST7410FEU718C MST7410FE

VDDC 1V

Y27

VDDC 1V

Y28

VDDC 1V

AA31

VDDC 1V

Y30

VDDC 1V

Y31

AVDD_HDMITX 3.3

AF10

VDDP 3.3

AG18

AVDD_PLL 3.3

AG16

VDDP 3.3

AH18

AVDD_DDR0

T15

AVDD_DDR0

P17

AVDD_DDR0

P18

AVDD_DDR0

R16

VDDC 1V

Y26

AVDD_HDMITX 3.3

AG10

AVDD_DDR0

R17

AVDD_DDR0

R18

AVDDL_HDMIRX

R8

AVDDL_HDMITX

AD5

AVDDL_HDMITX

AD6

AVDDL_RX

AE6

AVDDL_RX

AE7

AVDDL_RX

AF7

VDDP 3.3

AF18

AVDDL_MOD 1V

K10

AVDD_MOD

AF11

AVDD_MOD

AG11

AVDD_MOD

AH11

AVDD_XTAL 3.3

AF16

AVDD_HDMIRX 3.3

AF9

AVDD_HDMIRX 3.3

AG9

AVDD_DDR1

P19

AVDD_DDR1

R19

AVDD_DDR1

R20

AVDD_DDR1

T19

AVDD_DDR1

T20

AVDD_DDR1

U19

VSS

A28

VSS

A30

VSS

B7

VSS

B9

VSS

B11

VSS

B16

VSS

C20

VSS

D28

VSS

D30

VSS

E3

VSS

E7

VSS

E8

VSS

E9

VSS

E25

VSS

B26

AVDDL_PREDRV 1V

M6

VDDC 1V

Y32

VDDC 1V

AA24

VDDC 1V

Y29

VDDC 1V

AA25

VDDC 1V

AA26

VDDC 1V

AA27

VDDC 1V

AA28

VDDC 1V

AA29

VDDC 1V

AA30

VDDC 1V

AA32

VDDC 1V

AB24

AVDDL_HDMITX

AD7

AVDD_RX 3.3

AF17

VSS

E26

VSS

E27

VSS

E28

VSS

E29

VSS

F7

VSS

F8

VSS

F9

AVDDL_MOD 1V

L9

AVDDL_MOD 1V

L10

AVDDL_PREDRV 1V

M7

AVDDL_PREDRV 1V

N5

AVDDL_HDMIRX

R6

AVDDL_HDMIRX

R7

VDDC 1V

Y24

AVDDL_PREDRV 1V

N6

VSS

A26

VSS

C28

VSS

E24

VSS

E20

VSS

E22

VSS

E23

VDDC 1V

Y25

VSS

C26

VSS

B27

VSS

B28

VSS

B29

VSS

B31

VSS

C19

VSS

C25

VSS

C27

VSS

B17

VSS

B30

VSS

C5

VSS

C12

AVDDL_MOD 1V

M9

AVDD_PLL 3.3

AH16

AVDD_15_MOD

H12

AVDD_15_MOD

H13

AVDD_15_MOD

J12

AVDD_15_MOD

J13

DVDD_DDR

T17

DVDD_DDR

T18

DVDD_DDR

U17

DVDD_DDR

U18

AVDD_RX 3.3

AG17

DRAM_VDD_A

B22

AVDD_DDR_VBP_A(CAP)

A20

AVDD_DDR_VBP_A(CAP)

B20

AVDD_DDR_VBN_A(CAP)

A18

AVDD_DDR_VBN_A(CAP)

B18

AVDD_DDR_VBP_B(CAP)

T31

AVDD_DDR_VBP_B(CAP)

T32

AVDD_DDR_VBN_B(CAP)

V31

AVDD_DDR_VBN_B(CAP)

V32

VSS

A3

VSS

A8

VSS

A27

VSS

B19

VSS

C4

VSS

A19

VSS

A17

DRAM_VDD_A

A22

VSS

D23

VSS

D21

VSS

E30

VSS

F3

VSS

F19

VSS

F17

VSS

F20

VSS

F18

VSS

F16

VSS

F21

VSS

F22

VSS

F23

VSS

F24

VSS

F25

VSS

F26

VSS

F27

VSS

F28

VSS

F29

VSS

F30

AVDD_DDR0

P16

AVDD_DDR1

P20

VSS

B25

VSS

C14

VSS

C17

VSS

C18

VSS

C21

VSS

C30

VSS

C31

VSS

D20

VSS

E21

VSS

C2

VSS

C22

VSS

C23

VSS

C24

VSS

C29

VSS

C32

VSS

D7

VSS

D8

VSS

D9

VSS

D24

VSS

E16

VSS

E17

VSS

E18

VSS

E19

VSS

D26

VSS

D27

VSS

A2

VSS

A10

VSS

C13

A_DDR3_VREF_A

A23

A_DDR3_ZQ_A

D17

DRAM_VDD_B

D31

DRAM_VDD_B

D32

A_DDR3_VREF_B

E32

A_DDR3_ZQ_B

B23

AVDD_DDR_VBP_A

R14

AVDD_DDR_VBP_A

R15

AVDD_DDR_VBP_B

V19

AVDD_DDR_VBP_B

V20

AVDD_DDR_VBN_B

W19

AVDD_DDR_VBN_B

W20

AVDD_DDR_VBN_A

P14

AVDD_DDR_VBN_A

P15

VDDC 1V

AB25

VDDC 1V

AB26

VDDC 1V

AB27

AVDDL_HDMITX(CAP)

AF3

AVDD_HDMITX 3.3(CAP)

AG3

AVDD_HDMIRX 3.3(CAP)

W4

AVDDL_MOD 1V

M10

AVDDL_PREDRV 1V

N7

AVDDL_MOD 1V

K9

AVDDL_PREDRV 1V

N8

AVDD_RX 3.3

AH17

AVDD_DDR0

T16

AVDD_DDR1

U20

VSS

F31

VSS

F32

VSS

G3

VSS

G7

VSS

G8

VSS

G9

VSS

G10

VSS

G11

VSS

G12

VSS

G13

VSS

G14

VSS

G15

VSS

G16

VSS

G19

VSS

G20

VSS

G23

VSS

G24

VSS

G27

VSS

G28

VSS

G30

VSS

G31

DVDD_DDR

U16

VSS

A24

VSS

B1

VSS

B21

VSS

B24

VDDC 1V

AB28

VDDC 1V

AB29

VDDC 1V

AB30

VDDC 1V

AB31

VDDC 1V

AB32

AVDDL_HDMIRX(CAP)

V3

AVDD_DDR0

A21

AVDD_DDR1

R32

A_DDR3_ZQ_C

E31

A_DDR3_ZQ_D

W30

VSS

D18

C7238

10uF

C7238

10uF

C7206

100N16V

C7206

100N16V

R7032

1KOHM +-1% 1/16W

R7032

1KOHM +-1% 1/16W

R7036

240 OHM +-1% 1/16W

R7036

240 OHM +-1% 1/16W

C7184

100N16V

C7184

100N16V

C7159

100N16V

C7159

100N16V

C7177

1UF16V

C7177

1UF16V

C7195

100N16V

C7195

100N16V

C7215

100N16V

C7215

100N16V

C7183

100N16V

C7183

100N16V

C7229

470NF 10V

C7229

470NF 10V

C7158

100N16V

C7158

100N16V

C7157

100N16V

C7157

100N16V

C7205

100N16V

C7205

100N16V

C7182

100N16V

C7182

100N16V

C61
100N16V

C61
100N16V

C7214

100N16V

C7214

100N16V

C7156

100N16V

C7156

100N16V

C7194

100N16V

C7194

100N16V

C7181

100N16V

C7181

100N16V

C7233 N C / 220NF 16VC7233 NC/220NF 16V

Circuit Diagrams and PWB Layouts

EN 58TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-3-24 7410FE Rx & Tx Interface

20310_529.eps

7410FE Rx & Tx Interface

B24 B24

C

715G7702

7410FE Rx & Tx Interface

A3P
A3M VX1_RX_LOCK_V

VB1_TX1N VBY1_R1N

VB1_TX0P VBY1_R0P

VB1_TX0N VBY1_R0N

VB1_TX1P VBY1_R1P

VB1_TX7P VBY1_R7P

VB1_TX4N VBY1_R4N

VB1_TX2P VBY1_R2P
VB1_TX3N VBY1_R3N

VB1_TX5P VBY1_R5P
VB1_TX6P VBY1_R6P

VB1_TX5N VBY1_R5N

VB1_TX4P VBY1_R4P

VB1_TX6N VBY1_R6N

VB1_TX3PVBY1_R3P

VB1_TX2N VBY1_R2N

VB1_TX7N VBY1_R7N

B4P

B0P

B2M

B3P

B2P
BCKM

B4M

B0M

BCKP

B1M

B3M

B1P

LVSYNC
LDE

LCK

LHSYNC

A1P

A0M

ACKP

A1M

ACKM

A2M
A2P

A0P

OSD_VBY0N
OSD_VBY0P
OSD_VBY1N
OSD_VBY1P
OSD_VBY2N
OSD_VBY2P
OSD_VBY3N
OSD_VBY3P

A4P
A4M

OSD_VBYLOCKn

VX1_RX_HTPD_V

OSD_VBYHTPDn

A3M

A4P

A3P
A4M

VCC3.3V_FRC

A3P4
A3M4

VX1_15P 27

VX1_0M 27
VX1_0P 27
VX1_1M 27
VX1_1P 27

VX1_3M27
VX1_3P27

VX1_2M 27
VX1_2P 27

VX1_4M 27
VX1_4P 27

VX1_5P 27

VX1_5M 27

VX1_6P 27

VX1_6M 27

VX1_7P 27

VX1_7M 27

VX1_8P27

VX1_8M27

VX1_9P 27

VX1_9M 27

VX1_10P 27

VX1_10M 27

VX1_11P 27

VX1_11M 27

VX1_12P 27

VX1_12M 27

VX1_14P 27

VX1_13P27

VX1_13M27

VX1_15M 27

VX1_14M 27

B2P4

B2M4

B0M4
B0P4

B4P4

B1M4

B3P4

B3M4

BCKP4

B1P4

B4M4

BCKM4

LCK4

LVSYNC4
LHSYNC4
LDE4

A2P4

A0M4

ACKM4

A2M4

A0P4

ACKP4

A1M4
A1P4

A4M4

A4P4

4 lane OSD

8 lane Video

Capacitance closed to U718

C4111 100N16VC4111 100N16V

C4110 100N16VC4110 100N16V

mini LVDS / VB1 /EPI

LVDS in

VB1RX

U718A MST 7410FE

mini LVDS / VB1 /EPI

LVDS in

VB1RX

U718A MST 7410FE

PAD_A0P/MLVB4_5N/VBY_0-/EPI_0-

M1

PAD_A0M/MLVB4_5P/VBY_0+/EPI_0+

M3

RA0N

AM6

RA0P

AL6

RA1N

AK6

RA1P

AL7

RA2N

AK7

RA2P

AL8

RACKN

AM8

RACKP

AK8

RA3N

AM9

RA3P

AL9

RA4N

AK9

RA4P

AL10

RB0N

AK10

RB0P

AL11

RB1N

AM11

RB1P

AK11

RB2N

AM12

RB2P

AL12

RBCKN

AK12

RBCKP

AL13

RB3N

AK13

RB3P

AL14

RB4N

AM14

RB4P

AK14

VBY1_RXM[1]

AL16

VBY1_RXP[1]

AK16

VBY1_RXM[0]

AM15

VBY1_RXP[0]

AL15

VBY1_RXM[2]

AM17

VBY1_RXP[2]

AK17

VBY1_RXM[3]

AL18

VBY1_RXP[3]

AK18

VBY1_RXM[4]

AK19

VBY1_RXP[4]

AL20

VBY1_RXM[5]

AK20

VBY1_RXP[5]

AM21

VBY1_RXM[6]

AK21

VBY1_RXP[6]

AL22

VBY1_RXM[7]

AL23

VBY1_RXP[7]

AM23

PAD_A1P/MLVB4_4N/VBY_1-/EPI_1-

L2

PAD_A1M/MLVB4_4P/VBY_1+/EPI_1+

L3

PAD_A2P/MLVB4_3N/VBY_2-/EPI_2-

K3

PAD_A2M/MLVB4_3P/VBY_2+/EPI_2+

J2

PAD_ACKP/MLVB4_CKN/VBY_3-/EPI_3-

J3

PAD_ACKM/MLVB4_CKP/VBY_3+/EPI_3+

H1

PAD_A3P/MLVB4_2N/VBY_4-/EPI_4-

H3

PAD_A3M/MLVB4_2P/VBY_4+/EPI_4+

G2

PAD_A4P/MLVB4_1N/VBY_5-/EPI_5-

F2

PAD_A4M/MLVB4_1P/VBY_5+/EPI_5+

F1

PAD_B0P/MLVB4_0N/VBY_6-/EPI_6-

E1

PAD_B1P/MLVB3_5N/VBY_7-/EPI_7-

D2

PAD_B0M/MLVB4_0P/VBY_6+/EPI6+

E2

PAD_B1M/MLVB3_5P/VBY_7+/EPI_7+

D3

PAD_C1P/MLVB2_5N/VBY_8-/EPI_14-

B4

PAD_C1M/MLVB2_5P/VBY_8+/EPI_14+

A4

PAD_C2P/MLVB2_4N/VBY_9-/EPI_15-

A5

PAD_C2M/MLVB2_4P/VBY_9+/EPI_15+

B5

PAD_CCKP/MLVB2_3N/VBY_10-/EPI_16-

B6

PAD_CCKM/MLVB2_3P/VBY_10+/EPI_16+

C6

PAD_C3P/MLVB2_CKN/VBY_11-/EPI_17-

A7

PAD_C3M/MLVB2_CKP/VBY_11+/EPI_17+

C7

PAD_C4P/MLVB2_2N/VBY_12-/EPI_18-

B8

PAD_C4M/MLVB2_2P/VBY_12+/EPI_18+

C8

PAD_D0P/MLVB2_1N/VBY_13-/EPI_19-

C9

PAD_D0M/MLVB2_1P/VBY_13+/EPI_19+

B10

PAD_D1P/MLVB2_0N/VBY_14-/EPI_20-

C10

PAD_D1M/MLVB2_0P/VBY_14+/EPI_20+

A11

PAD_MOD_GPIO2/MLVB1_5N/VBY_15-/EPI_21-

C11

PAD_MOD_GPIO3/MLVB1_5P/VBY_15+/EPI_21+

B12

PAD_D2P/MLVB1_4N/VBY_16-/EPI_22-

B13

PAD_D2M/MLVB1_4P/VBY_16+/EPI_22+

A13

PAD_DCKP/MLVB1_3N/VBY_17-/EPI_23-

A14

PAD_DCKM/MLVB1_3P/VBY_17+/EPI_23+

B14

PAD_D3P/MLVB1_CKN/VBY_18-/EPI_24-

B15

PAD_D3M/MLVB1_CKP/VBY_18+/EPI_24+

C15

PAD_D4P/MLVB1_2N/VBY_19-/EPI_25-

A16

PAD_D4M/MLVB1_2P/VBY_19+/EPI_25+

C16

PAD_MOD_GPIO0/MLVB3_4N/EPI_8-

K5

PAD_MOD_GPIO1/MLVB3_4P/EPI_8+

K4

PAD_B2P/MLVB3_3N/EPI_9-

L5

PAD_B2M/MLVB3_3P/EPI_9+

L6

PAD_BCKP/MLVB3_CKN/EPI_10-

J6

PAD_BCKM/MLVB3_CKP/EPI_10+

H6

PAD_B3P/MLVB3_2N/EPI_11-

J5

PAD_B3M/MLVB3_2P/EPI_11+

J4

PAD_B4P/MLVB3_1N/EPI_12-

G5

PAD_B4M/MLVB3_1P/EPI_12+

G4

PAD_C0P/MLVB3_0N/EPI_13-

H5

PAD_C0M/MLVB3_0P/EPI_13+

G6

PAD_MOD_GPIO4/MLVB1_1N/EPI_26-

D12

PAD_MOD_GPIO5/MLVB1_1P/EPI_26+

E12

PAD_MOD_GPIO6/MLVB1_0N/EPI_27-

F11

PAD_MOD_GPIO7/MLVB1_0P/EPI_27+

F12

PAD_E0P/EPI_28-

F13

PAD_E0M/EPI_28+

E14

PAD_E1P/EPI_29-

D13

PAD_E1M/EPI_29+

E13

PAD_E2P/EPI_30-

D15

PAD_E2M/EPI_30+

E15

PAD_ECKP/EPI_31-

F15

PAD_ECKM/EPI_31+

F14

GPIO[12] / VBY1_RX_HTPD_O

AH28

GPIO[13] / VBY1_RX_HTPD_V

AH29

GPIO[15] / VBY1_RX_LOCK_O

AG28

GPIO[16] / VBY1_RX_LOCK_V

AG29

VBY1_RXM[8]

AM24

VBY1_RXP[8]

AL24

VBY1_RXM[9]

AL25

VBY1_RXP[9]

AK25

VBY1_RXM[10]

AM26

VBY1_RXP[10]

AK26

VBY1_RXM[11]

AL27

VBY1_RXP[11]

AK27

VBY1_RXM[12]

AK28

VBY1_RXP[12]

AL29

VBY1_RXM[13]

AK29

VBY1_RXP[13]

AM30

VBY1_RXM[14]

AL31

VBY1_RXP[14]

AK30

VBY1_RXM[15]

AK31

VBY1_RXP[15]

AK32

C4107 100N16VC4107 100N16V

C4197 100N16VC4197 100N16V

C4112 100N16VC4112 100N16V

C4105 100N16VC4105 100N16V

HDMI TX

HDMI RX_0

HDMI RX_1

U718D MST7410FE

HDMI TX

HDMI RX_0

HDMI RX_1

U718D MST7410FE

HDMI_TXCP

AG1

HDMI_TXCN

AF1

HDMI_TX0P

AH2

HDMI_TX0N

AH3

HDMI_TX1P

AJ1

HDMI_TX1N

AJ2

HDMI_TX2P

AK2

HDMI_TX2N

AK1

HDMITX_SDA

AH4

HDMITX_SCL

AJ4

HDMI_RXCP_0

U3

HDMI_RXCN_0

T2

HDMI_RX0P_0

V1

HDMI_RX0N_0

U1

HDMI_RX1P_0

W2

HDMI_RX1N_0

W3

HDMI_RX2P_0

Y1

HDMI_RX2N_0

Y2

HDMI_RXCN_1

AA1

HDMI_RX1N_1

AC1

HDMI_RX0P_1

AC3

HDMI_RX2N_1

AE3

HDMI_RX2P_1

AE2

HDMI_RX0N_1

AB2

HDMI_RXCP_1

AA2

HDMI_RX1P_1

AD1

HDMIRX0_SCL

U5

HDMIRX0_SDA

V5

HDMIRX0_CEC

W7

HDMIRX0_HPD

V4

C4195 100N16VC4195 100N16V

C4193 100N16VC4193 100N16V

C4108 100N16VC4108 100N16V

R4149 0R05 OHMR4149 0R05 OHM

C4104 100N16VC4104 100N16V

R4122 0R05 OHMR4122 0R05 OHM

C4119 100N16VC4119 100N16V

R4306
10K

R4306
10K

C4117 100N16VC4117 100N16V

R4121 0R05 OHMR4121 0R05 OHM

R4153 0R05 OHMR4153 0R05 OHM

C4115 100N16VC4115 100N16V

R4161
10K

R4161
10K

C4198 100N16VC4198 100N16V

C4145 100N16VC4145 100N16V

R4160
10K

R4160
10K

C4196 100N16VC4196 100N16V

C4106 100N16VC4106 100N16V

C4116 100N16VC4116 100N16V

C4194 100N16VC4194 100N16V

C4192 100N16VC4192 100N16V

C4114 100N16VC4114 100N16V
C4113 100N16VC4113 100N16V

C4118 100N16VC4118 100N16V

C4109 100N16VC4109 100N16V

R4162
10K

R4162
10K

Circuit Diagrams and PWB Layouts

EN 59TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-3-25 7410FE to Panel

20310_530.eps

7410FE to Panel

B25 B25

C

715G7702

7410FE to Panel

VBY13P_1

VBY8P_1 VBY8P_1

VBY15P_1

VBY15N_1

VBY14P_1

VBY13N_1

VBY14N_1

VBY8N_1 VBY8N_1

Boost_EN

VBY4N_2

VBY1N_2

VBY4P_2
VBY5N_2

VBY6P_2

VBY6N_2

VBY0N_2

VBY5P_2

VBY7N_2

VBY2P_2

VBY0P_2

VBY1P_2
VBY2N_2

VBY7P_2

VBY3P_2

VBY3N_2

VX1T_LOCKN

VX1T_HTPDN

8B_10B_SEL

3D_EN_P
SCL

SDA

DATA_FORMAT0
DATA_FORMAT1
PCID_EN

3D_LR_O
3D_LR_IN

3D_EN_P

LD-EN

PIN31

3D_LR_IN

AGP

3D_LR_O

3D_EN_P

Boost_EN

SDA
SCL

PCID_ENDATA_FORMAT0 DATA_FORMAT1

AGPLD-EN 8B_10B_SELPIN31

Pin8_CMI

3D_EN

I2C-SCL1

I2C-SDA1

ERROR_DET

OFF_RS
EVDD_ON

EVDD_DET

OFF_RS
EVDD_ON
ERROR_DET

I2C-SDA1

I2C-SCL1
EVDD_DET

SDA
SCL

Glass_SyncSPI3_DA

PANEL_ON

PANEL_ON

VX1T_HTPDN
VX1T_LOCKN

VBY0P_2

VBY8N_1
VBY8P_1

VBY9N_1
VBY9P_1

VBY10N_1
VBY10P_1

VBY11N_1
VBY11P_1

VBY12N_1
VBY12P_1

ON_RF

ON_RF

VCC3.3V_FRC

VCC3.3V_FRCVCC3.3V_FRC VCC3.3V_FRC

VCC3.3V_FRC

VCC3.3V_FRC

VCC3.3V_FRC

VCC3.3V_FRC

12V-Panel

P12V

VCC3.3V_FRC

12V-Panel

VCC3.3V_FRC

VCC3.3V_FRC

VX1_8M26

VX1_15P26

VX1_9P26

VX1_10P26

VX1_10M26

VX1_15M26

VX1_11P26
VX1_12M26

VX1_8P26

VX1_11M26

VX1_14M26

VX1_9M26

VX1_14P26

VX1_13P26

VX1_13M26

VX1_12P26

SPI4_CK24

3D_LR_O9,17

3D_EN4

3D_EN_PW22

SPI3_CK24

I2CM_SDA24
I2CM_SCL24

M_SDA4,16,18,19,21,24
M_SCL4,16,18,19,21,24

VX1_1M26

VX1_4M26

VX1_7P26

VX1_5M26

VX1_4P26

VX1_0P26

VX1_5P26

VX1_0M26

VX1_3P26

VX1_2M26
VX1_2P26

VX1_6M26

VX1_3M

26

VX1_1P26

VX1_6P26
VX1_7M26

OFF-RS3

EVDD-ON3

ERROR-DET3

EVDD-DET3

SPI3_DA24

Glass_Sync 9,17

PANEL_ON/OFF4

PANEL_ON/OFF_U

24

PANEL_ON22

VX1T_LOCKN24

VX1T_HTPDN24

TCON-WP3

ON-RF3

55" Pin 1 NC
65" Pin 1 GND

PWM_OUT: 55" and 65" R7034 with, 85" R7034 without

BUS_SW(55"):H=EN; Low/Open=Disable
(65"):NC

BUS_SW

Boost_EN: 65 "and 55" R7035 with, 85" R7034 without

0.1uF for VB1 Out

AUO VBY1 Conn

FRC 3D_EN

0.1uF for VB1 Out

(CMI

不改不

)

PWM_OUT

Panel Power

4.6A @ 70 C




R4382=68K T1=0.6s

C4504 100NF 25VC4504 100NF 25V

R4380

0R05 OHM

R4380

0R05 OHM

R4395 0R05 OHMR4395 0R05 OHM

R4365 10KR4365 10K

C4490 100NF 25VC4490 100NF 25V

TP70

TP-0.1X0.6

TP70

TP-0.1X0.6

1

R4389

NC/0R05 OHM

R4389

NC/0R05 OHM

TP72

TP-0.1X0.6

TP72

TP-0.1X0.6

1

TP68

TP-0.1X0.6

TP68

TP-0.1X0.6

1

C4517 100NF 25VC4517 100NF 25V

TP71

TP-0.1X0.6

TP71

TP-0.1X0.6

1

R4377 NC/0R05 OHMR4377 NC/0R05 OHM

R4385

4.7K1/16W

R4385

4.7K1/16W

R4397 0R05 OHMR4397 0R05 OHM

TP67

TP-0.1X0.6

TP67

TP-0.1X0.6

1

TP73

TP-0.1X0.6

TP73

TP-0.1X0.6

1

TP69

TP-0.1X0.6

TP69

TP-0.1X0.6

1

TP74

TP-0.1X0.6

TP74

TP-0.1X0.6

1

R7049

NC/1K 1/16W 5%

R7049

NC/1K 1/16W 5%

R4376 NC/4.7K1/16WR4376 NC/4.7K1/16W

C4505 100NF 25VC4505 100NF 25V

R4314 NC/33 OHM 1/16WR4314 NC/33 OHM 1/16W

R7050

0R05 OHM

R7050

0R05 OHM

TP66

TP-0.1X0.6

TP66

TP-0.1X0.6

1

TP51

TP-0.1X0.6

TP51

TP-0.1X0.6

1

R7057

NC/0R05 OHM

R7057

NC/0R05 OHM

C4499 100NF 25VC4499 100NF 25V

R4388 NC/22R 1/ 16W 5%R4388 NC/22R 1/16W 5%

C4190 NC/10uF 16VC4190 NC/10uF 16V

R7041

1K 1/16W 5%

R7041

1K 1/16W 5%

TP75

TP-0.1X0.6

TP75

TP-0.1X0.6

1

TP76

TP-0.1X0.6

TP76

TP-0.1X0.6

1

R4313 NC/33 OHM 1/16WR4313 NC/33 OHM 1/16W

R4381 NC/0R05 OHMR4381 NC/0R05 OHM

TP65

TP-0.1X0.6

TP65

TP-0.1X0.6

1

R7056

NC/1K 1/16W 5%

R7056

NC/1K 1/16W 5%

TP55

TP-0.1X0.6

TP55

TP-0.1X0.6

1

FB744

NC/120R 6A

FB744

NC/120R 6A

1

2

C4506 100NF 25VC4506 100NF 25V

R4308 NC/33 OHM 1/ 16WR4308 NC/33 OHM 1/ 16W

C4489 100NF 25VC4489 100NF 25V

C4387
220N 25V

C4387
220N 25V

R7040

NC/1K 1/16W 5%

R7040

NC/1K 1/16W 5%

C4488 100NF 25VC4488 100NF 25V

TP77

TP-0.1X0.6

TP77

TP-0.1X0.6

1

R4366 10KR4366 10K

R4315 NC/33 OHM 1/16WR4315 NC/33 OHM 1/16W

TP54

TP-0.1X0.6

TP54

TP-0.1X0.6

1

TP64

TP-0.1X0.6

TP64

TP-0.1X0.6

1

R4396 NC/0R05 OHMR4396 NC/0R05 OHM

R7058

NC/0R05 OHM

R7058

NC/0R05 OHM

TP78

TP-0.1X0.6

TP78

TP-0.1X0.6

1

C4509 100NF 25VC4509 100NF 25V

C4493 100NF 25VC4493 100NF 25V

CN703

CONN 5P

CN703

CONN 5P

1
2

3

4
5

Q412
MMBT3904

Q412
MMBT3904

R7059

NC/1K 1/16W 5%

R7059

NC/1K 1/16W 5%

R4309 NC/33 OHM 1/16WR4309 NC/33 OHM 1/16W

R7051

NC/1K 1/16W 5%

R7051

NC/1K 1/16W 5%

TP53

TP-0.1X0.6

TP53

TP-0.1X0.6

1

TP63

TP-0.1X0.6

TP63

TP-0.1X0.6

1

C4512 100NF 25VC4512 100NF 25V

C4501 100NF 25VC4501 100NF 25V

C4191 NC/10uF 16VC4191 NC/10uF 16V

TP62

TP-0.1X0.6

TP62

TP-0.1X0.6

1

R4370 NC/0R05 OHMR4370 NC/0R05 OHM

TP45 TPTP45 TP

TP79

TP-0.1X0.6

TP79

TP-0.1X0.6

1

TP52

TP-0.1X0.6

TP52

TP-0.1X0.6

1

R7044

0R05 OHM

R7044

0R05 OHM

C4515 100NF 25VC4515 100NF 25V

Q411

AO4449 -7A/-30V

Q411

AO4449 -7A/-30V

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

C4491 100NF 25VC4491 100NF 25V

TP80

TP-0.1X0.6

TP80

TP-0.1X0.6

1

C4513 100NF 25VC4513 100NF 25V

TP61

TP-0.1X0.6

TP61

TP-0.1X0.6

1

R4399 NC/0R05 OHMR4399 NC/0R05 OHM

C4502 100NF 25VC4502 100NF 25V

R4383
0R05 OHM

R4383
0R05 OHM

R7043

NC/1K 1/16W 5%

R7043

NC/1K 1/16W 5%

C4487 100NF 25VC4487 100NF 25V

R4369 NC/0R05 OHMR4369 NC/0R05 OHM

TP60

TP-0.1X0.6

TP60

TP-0.1X0.6

1

R4379 0R05 OHMR4379 0R05 OHM

C4516 100NF 25VC4516 100NF 25V

TP81

TP-0.1X0.6

TP81

TP-0.1X0.6

1

C4507 100NF 25VC4507 100NF 25V

R4372 NC/0R05 OHMR4372 NC/0R05 OHM

R7042

NC/1K 1/16W 5%

R7042

NC/1K 1/16W 5%

C4496 100NF 25VC4496 100NF 25V

R4534 0R05 OHMR4534 0R05 OHM

R7048

NC/0R05 OHM

R7048

NC/0R05 OHM

TP59

TP-0.1X0.6

TP59

TP-0.1X0.6

1

CN414

CONN 41P

CN414

CONN 41P

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48 49

50

51

C4498 100NF 25VC4498 100NF 25V

R7047

NC/1K 1/16W 5%

R7047

NC/1K 1/16W 5%

C4510

100NF 25V

C4510

100NF 25V

C4189 100N 50VC4189 100N 50V

TP82

TP-0.1X0.6

TP82

TP-0.1X0.6

1

TP58

TP-0.1X0.6

TP58

TP-0.1X0.6

1

C4494 100NF 25VC4494 100NF 25V

R4390

NC/0R05 OHM

R4390

NC/0R05 OHM

R4364 NC/0R05 OHMR4364 NC/0R05 OHM

R4310 NC/33 OHM 1/16WR4310 NC/33 OHM 1/16W

R4382
68K 1/10W

R4382
68K 1/10W

R7046

NC/1K 1/16W 5%

R7046

NC/1K 1/16W 5%

C4486 100NF 25VC4486 100NF 25V

C4503 100NF 25VC4503 100NF 25V

CN413
CONN

CN413
CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

53

54

55

56

57

58

59

60

61

R7045

NC/1K 1/16W 5%

R7045

NC/1K 1/16W 5%

R4373
47K

R4373
47K

C4495 100NF 25VC4495 100NF 25V

R4392 NC/0R05 OHMR4392 NC/0R05 OHM

R7038

1K 1/16W 5%

R7038

1K 1/16W 5%

R4535 0R05 OHMR4535 0R05 OHM

+

C733

NC/100UF 16V

+

C733

NC/100UF 16V

TP57

TP-0.1X0.6

TP57

TP-0.1X0.6

1

R4384 2.2KR4384 2.2K

C4492 100NF 25VC4492 100NF 25V

R4391 NC/0R05 OHMR4391 NC/0R05 OHM

C4508 100NF 25VC4508 100NF 25V

TP56

TP-0.1X0.6

TP56

TP-0.1X0.6

1

R4398 0R05 OHMR4398 0R05 OHM

C4497 100NF 25VC4497 100NF 25V

R4312 NC/33 OHM 1/16WR4312 NC/33 OHM 1/16W

R4378

0R05 OHM

R4378

0R05 OHM

R4316 0R05 OHMR4316 0R05 OHM

R4386 NC/0R05 OHMR4386 NC/0R05 OHM

C4511

100NF 25V

C4511

100NF 25V

R4374 NC/3.3K 1/16WR4374 NC/3.3K 1/16W

R226 NC/0RR226 NC/0R

R7039

NC/1K 1/16W 5%

R7039

NC/1K 1/16W 5%

R4371

NC/0R05 OHM

R4371

NC/0R05 OHM

C4500 100NF 25VC4500 100NF 25V

R4311 NC/33 OHM 1/16WR4311 NC/33 OHM 1/16W

R4375

4.7K1/16W

R4375

4.7K1/16W

C4514 100NF 25VC4514 100NF 25V

Circuit Diagrams and PWB Layouts

EN 60TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-3-26 SSB layout top

20310_531.eps

C

LAYOUT TOP

715G7702

HS401

C7110

R744

C6114

R630

FB401

C4134

C4135

L711

C7152

C7154

C7153

C7127

C7129

FB724

FB725

FB728

C4126

C4133

U718

R7012

C7134

C7120

C7131

C1151

C102

C7133

C7238

R762

C7114

C7113

FB723

C1152

C1131

R7053

C4247

C4251

C4277

C4256

L404

C4274

CN414

CN413

C1149

C1150

C1155

C1202

C1203

C4136

C4138

C4189

C6100

C6101C6102

C6103

C6104

C6105

C6106

C6107

C6108

C6124

C6128

C6144

C6145

C7162

C7164

C7165

C7177

C7193

C7208

C746

C748

C749

C753

C755

C1129

C1130

C1132

C4127

C4190

C6115

C6116C6117

C6118

C6132

C7163

C7173

C7175

C7192

C720

C7209

C721

C7210

C7212

C7213

C722

C7237

C791

C792

C728

C729

C731

C736

C759

C760

C761

C762

C6119

C6120

C737

C103

C104

C740

C1215

U710

C6111

FB734

FB736

FB738

FB739

FB741

FB742

L101

L102

L103

L104

R4357

R4358

FB603

R1110

R1130

R718

R780

R1101

R4384

X401

X101

R4307

R4322

U401

C4248

X402

C1128

C767

C769

R743

R742

R779

C106

C105

C768

C794

C6130

C6131

R7118

R7111

R7107

R7101

CN703

C7103

C7104

C7105

C7106

C781

C782

C803

C1216

C7100

C7101

C7102

C799

C788

C790

C793

C804

FB714

L706

L707

L708

R7103

R7108

R7116

R7117

R1150

R1151

R1152

R1153

R1154

R7055

R7120

R7133

CN101

C783

C800

C801

C802

R782

R783

C4191

FB744

C732

TH401

CN501

CN502

CN503

FB602

FB604

FB605

FB606

C733

C7108

C7116

C7117

C7118

C795

C796

C797

C798

C7135

J101

TP81

TP82

TP79

TP80

TP77

TP78

TP75

TP76

TP73

TP74

TP71

TP72

TP70

TP69

TP67

TP68

TP65

TP66

TP63

TP64

TP62

TP61

TP60

TP59

TP58

TP57

TP55

TP56

TP54

TP53

TP51

TP52

H11

H7

H10

H12H13

H14

H15

C7111

U715

R7132

R4372R4385

R4378

R4375

R654

R636

R601

C6109

R760

R751

ZD701

R4186

C4149

C4150

R4187

R4279

R4230

R4201

R4185

R4202

R4188

C7119

C7128

U405

R4213

R4349

R1211

R1210

R1118

Q709

R7011

R7014

R7018

R7017

C7141

Q710

R7000 R7001

R7002

C7122

R7004

R7003

C7121

C7136

C7112

C7115

U714

R7007

R7010

R7009

U716

R7008

C7130

L712

C7132

C4171

CN405

R61

R60 R7115

Q715

R103

R7054

C476

R226

Q405

R4295

R4252

R4232

R4231

R4224

R4223

R1167

R1170

R1114

R112

R111

R4318

R4317

R4242

R4239

R4352

R4351

R4350

C4285

R4344

C4492

RP455

RP452

RP467

RP470

RP478

RP463

RP473

RP445

RP434

RP421

RP429

RP441

RP424

RP426

RP451

RP444

RP425

RP446

RP438

RP480

RP472 RP466 RP461 RP477 RP469 RP453 RP457

RP423 RP415

RP448

RP427

RP442 RP436

RP413RP420 RP447

RP433 RP411

RP422 RP412

C4203

C405

C408

C409

C418

C419

C421

C426

C428

C433

C449

C450

C455

C459

C461

C463

C465

C439

C429

C432

C444

C466

C468

C469

C481

C4257

C4230

C4263

C4262

C4100

C4258

C4205

C487

C414

R420

R415

R417

R413

R428

R429

R427

R426

R435

C4237

R4100

R4101

U408

U410

U409 U411

C4140

C4141

C4142

C4143

C4144

D601

U701

CN409

C1115

C1116

C1117

C1118

C1119

C1120

C1121

C1122

C1123

C1124

C1125

C1126

C1133

C1134

C1147

C1148

C1154

C1157

C1158

C1159C1160

C1167

C1169

C1170

C1171

C1172

C1174C1175 C1176

C1182

C1186

C1192

C1205

C1206

C169

C4101

C4102

C4104

C4105

C4106

C4107

C4108

C4109

C4110

C4111

C4112

C4113

C4114

C4115

C4116

C4117

C4118

C4119

C4120

C4121

C4122

C4123

C4124

C4125

C4129

C4130

C4139

C4145

C4148

C4154

C4156

C4157

C4158

C4159

C4161

C4162

C4164

C4165

C4167

C4169

C4170

C4174

C4175

C4176

C4180

C4187C4188

C4192

C4193

C4194

C4195

C4196

C4197

C4198

C4283

C4284

C4486

C4487

C4488

C4489

C4490

C4491

C4493

C4494

C4495

C4496

C4497

C4498

C4499

C4500

C4501

C4502

C4503

C4504

C4505

C4506

C4507

C4508

C4509

C4510

C4511

C4512

C4513

C4514

C4515

C4516

C4517

C5101

C5102

C5104

C5106

C6110

C6129

C6141

C6146C6147

C6148

C6149

C704

C705C707

C708

C709

C710

C711

C712

C7156

C7157

C7158

C716

C7178

C7179

C7184

C7185

C7186

C7187

C7194

C7195

C7196

C7199

C7203

C7204

C7206

C7214

C7216

C7217

C7220

C7221

C7226

C7227

C7229

C7230

C7231

C7232

C7239

C7240

C7241

C7242

ZD101

ZD102

ZD103

ZD104

ZD105

ZD106

ZD107

ZD108

ZD109

ZD110

ZD111

ZD112

ZD113

ZD114

ZD115

ZD116

ZD117

ZD118

ZD119

ZD120

ZD121

ZD122

ZD123

ZD124

ZD125

ZD126

ZD401

ZD402

ZD403

ZD404

ZD405

ZD501

ZD502

ZD503

ZD504

ZD505

ZD506

ZD507

ZD508

ZD510

ZD511

ZD512

ZD513

ZD601ZD602ZD603

ZD604

ZD605ZD606

C6112

C6113

C6142

C6143

U402

FB101

L702

L701

L601

L602

L603

L604

L605 L606

CN602

U602

U104

R1112

R1119

R1120

R1121

R1122

R1123

R1124

R1125

R1126

R1127

R1128

R1129

R1134

R1135

R1136

R1137

R1138

R1139

R1140

R1141

R1142

R1143

R1144

R1145

R1146

R1147

R1148

R1160

R1161

R1162

R1163

R1168

R1171

R1173

R1174

R1176

R1177

R1178

R1179

R1180

R1181

R1182

R1183

R1187

R1188

R1190

R1191

R1192

R1193

R1196

R1197

R1199

R1203

R1204

R1205

R1206

R1208

R1209

R4102

R4103

R4105

R4106

R4107

R4108

R4109

R4110

R4111

R4112

R4113

R4114

R4115

R4117

R4118

R4119

R4121

R4122

R4123

R4124

R4125R4126

R4127

R4128

R4130

R4131

R4132

R4133

R4134

R4135

R4136

R4137

R4138

R4139

R4140

R4141

R4142

R4143

R4144

R4145

R4149

R4153

R4154

R4155

R4156

R4157

R4160

R4161

R4162

R4163

R4164

R4165

R4166

R4167

R4168

R4169

R4170

R4171

R4172

R4173

R4180

R4182

R4183

R4184

R4189

R4190

R4195

R4196

R4197

R4198

R4199

R4200

R4203

R4204

R4206

R4207

R4208

R4212

R4214

R4219

R4222

R4226

R4227

R4228

R4229

R4235

R4256

R4257

R4271

R4273

R4274

R4275

R4276

R4280

R4281

R4285

R4286

R4296

R4297

R4298

R4299

R4300R4301

R4302

R4303

R4304R4305

R4306

R4308

R4309

R4310

R4311

R4312

R4313

R4314

R4315

R4329

R4331

R4335

R4365

R4366

R4371

R4374

R4376

R4377

R4381

R4386

R4388

R4392

R46

R48

R401

R501

R502

R503

R504

R505

R506

R507

R508

R509

R510

R511

R512

R513

R514

R515

R516

R517

R518

R519

R520

R521

R522

R523

R524

R525

R526

R527

R528

R529

R530

R531

R532

R534

R535

R537

R538

R539

R540

R541

R542

R543

R544

R545

R547

R548

R550

R551

R552

R553

R554

R555

R556

R557

R558

R559

R560

R561

R562

R563

R564

R565

R566

R569

R602

R604

R605

R616R617

R618

R620

R621

R622R623

R624

R625

R626

R628

R629

R633

R634

R641

R642

R643

R644

R645

R646

R647

R648

R649

R65

R650

R651

R652

R653

R656

R657

R7029

R7123

R7030

R7031

R7032

R7033

R7034

R7035

R7036

R7038

R7039

R7040

R7041

R7042

R7043

R7044

R7045

R7046

R7047

R7048

R7049

R7050

R7051

R707

R711

R734

R736

R738

R7113

R7126

R753

R754

R765

R775

R7114

R7127

R7135

U502

U503

U504

U505

U506

U507

D701

Q411

U709

U702

U101

U103

U501

U105

D101

D501

D102

Q402 Q404

Q602 Q603

Q501

Q503

U403

X102

L105

R659

R670

H5

H6

R4146R4236

C7244C7245

R7052

R795

CN604

R1194

R1195

R104

Q716

R1164

R1166

R4260

CN408

R1116

R1115

R4348

R4345

U412

R4526

R4523 R4337

R4336

R4326

R4324R4321

R4320

CN412

R4240

R4319

Q705

R771

R758

R728

R785

R725

R769

R757

Q708

Q704

R724

R7122

ZD702

R7037

CN407

C770

HS2

HS3

HS4

HS5

U102

H2

H3H4

H1

H8

H9

U711

U719

U708

L108

C107

C7107

C7109

C7123

L164

U713

R102

R1219

R1220

R660

R7104

R7105

R7106

R7110

R7112

R7121

R7124

R7125

R7128

R7130

R7131

R7134

R7136

R7138

R7139

R7142

R7143

R7144

R7145

R7146

R7147

CN701

CN102

CN103

CN606

CN105

CN605

CN106

CN404

CN601

HS601

R7148

U720

R49

CN403

R4220R4221

R4234

D602

SH101

R7149

R7150

HS402

R4237

CN607

R7059

R4238

R7056 R7057

R7058

H16

CN107

CN108

CN109

Circuit Diagrams and PWB Layouts

EN 61TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-3-27 SSB layout bottom

20310_532.eps

C

LAYOUT BTM

715G7702

F401

C4147

C4132

R4174

FB727

C7155

C4280

C779

R774

R737

C756

R717

C4252

C4275

C4253

C4273

C4272

C4276

C4235

C4249

C4250

C1204

C4137

C4184

C4387

C5105

C6121

C6122

C6123

C6125

C6126

C6127

C6133

C6134

C6135

C6136

C6137

C6138

C6139

C6140

C7166

C747

C750

C751

C752

C776

C4128

C4185

C4186

C5103

C4254

C7174

C7176

C718

C719

C7191

C7211

C734

C735

C766

C777

FB102

FB607

FB731

FB733

FB735

FB737

FB740

FB743

R4373

R4382R4383

R638

R639

R733

L154

L155

L156

L157

L158

R567

R606

R607

R608

R609

R610

R611

R612

R613

C1212

L163

C715

C789

C4181

C4279

C780

C1218

R7141

R7119

TP50

TP48

TP46

TP49

TP06

TP01

TP23

TP24

TP25

TP26

TP27

TP30

TP31

TP32

TP33

TP34

TP35

TP37

TP38

TP39

TP40

TP41

TP42

TP43

TP44

TP45

TP47

TP8

TP02

TP03

TP04

TP05

TP36

Q412

R637

R655

Q706

R770

R759

R110

R4254

C4131

R4158

R4159

R4150

R4233

R4151

U413

R4278

C4172

R4253

R4225

Q703

Q707

C706

R761

RP454

RP458

RP476

RP462

RP471

RP479

RP464

RP449

RP419

RP410

RP431

RP450

RP435

RP439

RP437

RP416

RP465RP460RP475RP474RP468RP459RP456

RP430

RP428

RP443RP409RP417

RP440

RP432

RP418RP414

C435

C446

C447

C451

C4266

C430

C441

C456

C442

C454

C412

C413

C4268

C445

C436

C422

C438

C416

C417

C427

C467

C423

C434

C443

C472

C462

C420

C415

C4271

C437

C448

C471

C4269

C410

C457

C458

C452

C453

C440

C470

C4265

C473

C424

C425

C402

C401

C403

C404

C4267

C4216

C4236

C4259

C4234

C4260

C4261

C4221

C4264

C491

C4218

C4239

C4255

C4228

C478

C479

C486

C488

C489

C490

C492

C493

C496

C497

C485

C4204

C4207

C4208

C477

C4209

C495

C4211

C4245

C4240

C4213

C4200

C4217

C4219

C4220

C4222

C4223

C4224

C4225

C4226

C4229

C4231

C4232

C4233

C494

C4215

C499

C474

C484

C482

C4210

C4227

C4202

C4206

C4212

C498

C4201

C4214

C475

C4238

C480

C483

C411

C4246

C4243

C4242

C4241

C431

C4244

C4270

C407

R443

R439

R440

R442

R425

R424

R412

R421

R411

R414

R444

R446

R436

R438

R437

R441

R423

R422

R419

R416

R406

R404

R402

R405

R407

R408

R403

R409

R410

R418

R447

R445

R448

R449

R430

R431

R434

R432

R433

L406

L409

L408

L405

L407

C4151

C4152

C4153

C4179

L402

L410

L401

L403

L411

R4175

R4176

R4177

R4178

R4216

C7243

C1180

C1181

C1184

C1185

C1188

C1189

C1190

C1191

C1194

C1195

C1196

C1198

C1199

C1200

C1201

C4305

C4103

C4155

C4160

C4163

C4168

C1210

C4182

C4183

C406

C460

C464

C61

C703

C713

C4146

C7159

C7160

C7161

C7167

C7168

C7169

C7170

C7171

C7172

C7180

C7181

C7182

C7183

C7188

C7189

C7190

C7197

C7198

C7200

C7201

C7202

C7205

C7207

C7215

C7218

C7219

C7222

C7223

C7224

C7225

C7228

C7233

C7234

C7235

C7236

C772

FB403

L705

R109

R1189

R1198

R1200

R1201

R1202

R4104

R4116

R4129

R4152

R4179

R4181

R4191

R4192

R4193

R4194

R4205

R1214

R4210

R4211

R4215

R4217

R4218

R4272

R4277

R4282

R4283

R4284

R4287

R4288

R4289

R4290

R4291

R4292

R4293

R4316

R4364

R4369

R4370

R4379

R4380

R4389

R4390

R4391

R4395

R4396

R4397

R4398

R4399

R4534

R4535

R546

R549

R56

R568

R603

R614

R615

R619

R627

R631

R632

R635

R640

R658

R704

R705

R706

R7129R7109

R4209

R730

R731

R750

R767

R772

R781

U404

U703

U508

U707

D402

D401

Q408

U406

U407

Q601

Q406Q407

Q714 Q713

U601

R1212

R1213

R4353

R4354

HS6

HS7

HS8

HS9

HS1

R573

C7246

FB405

R1207

R570

R7140

U706

Q717

D603

R752

R763

R764

R773

Q711

Q712

Circuit Diagrams and PWB Layouts

EN 62TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10.4 J 715G8280 IR/LED Panel

20300_500.eps

LED&IR&3D&Light sensor

J J

715G8280

LED&IR&3D&Light sensor

2014-11-011

LED_R
RC-IR

LS_SCL
LS_SDA

LED_R

LS_SDA

LS_SCL

LS_SCL

LS_SDA

RC-IR

IR power

IR power

RC-IR

3V3SB
DVD3V3

3V3SB

3V3SB

DVD3V3

DVD3V3

Red

Light Sensor

Digital Light Sensor

JSA-1130

JSA-1130

R224 R223 I2C addr

0R

0RNC

NC 0x44

0x45

Standby LED

IR Receiver

8/21 modify

LED212
GPTS12048PB1

LED212
GPTS12048PB1

1 2

3

U221
JSA-1130

U221
JSA-1130

ADDR

1

VDD

2

GND

3

SCL

4

SDA

5

INT

6

LED213
GPTS12048PB1

LED213
GPTS12048PB1

1 2

3

CN201

CONN

CN201

CONN

1
2

3

4
5
6
7

8

9

10 11

R221

10K 1/16W 5%

R221

10K 1/16W 5%

R212

10R 1/16W 5%

R212

10R 1/16W 5%

C211

1UF 6.3V

C211

1UF 6.3V

U211

VSOP58436

U211

VSOP58436

NC

1

VS

2

OUT

3

NC

4

NC

5

GND

6

IN

7

GND

8

E-PAD

9

R202

1K 1/16W 5%

R202

1K 1/16W 5%

Q201
BC847BW

Q201
BC847BW

R223

NC/0R05 1/16W

R223

NC/0R05 1/16W

R211

100R 1/16W 5%

R211

100R 1/16W 5%

R201

100R 1/16W 5%

R201

100R 1/16W 5%

LED214

GPTS12048PB1

LED214

GPTS12048PB1

1 2

3

C221 100N 16VC221 100N 16V

C210

NC/1UF 6.3V

C210

NC/1UF 6.3V

C222 1uF 10VC222 1uF 10V

LED201

GPSS008RC4

LED201

GPSS008RC4

12

LED211
GPTS12048PB1

LED211
GPTS12048PB1

1 2

3

R224

0R05 1/16W

R224

0R05 1/16W

R222

10K 1/16W 5%

R222

10K 1/16W 5%

U212

TSOP75436TR

U212

TSOP75436TR

GND

1

VCC

2

Vout

3

GND

4

ZD1

AZ5125-01H.R7G

ZD1

AZ5125-01H.R7G

12

10-4-1 LED&IR&3D&Light sensor

Circuit Diagrams and PWB Layouts

EN 63TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-4-2 IR/LED board layout

19792_509.eps

1

715G7045

LED Board

layout top/bottom

2014-11-04

U211

R221

R222

C221C222

R223

R224

Q201

R202

R211

C211

R212

R201

LED201

U221

H7

H9

LED211

LED212

LED213

ZD1

LED214

C210

H8

H10

H12

U212

CN201

Layout

LED Board

(top side)

Layout

LED Board

(bottom side)

Circuit Diagrams and PWB Layouts

EN 64TPS16.3A LA 10.

2017-Feb-24

back to

div.table

Circuit Diagrams and PWB Layouts

19812_516.eps

KEY+AL

E E

2014-12-11

1

715G7065

KEY+AL

KEY1
AMBI_SPI_CLK
AMBI_SPI_MOSI

+12V_AMBI

AMBI_TEMP

+12V_AMBI
+12V_AMBI

AMBI_TEMP

+12V_AMBI

+3V3_AMBI

AMBI_SPI_MOSI

AMBI_SPI_CLK

AMBI_SPI_CLK

AMBI_TEMP

+12V_AMBI

AMBI_SPI_MOSI

+3V3_AMBI

+12V_AMBI

+3V3_AMBI

GND_AL

GND_AL

GND_AL

GND_AL

GND_AL

GND_AL

GND_AL

GND_AL

GND_AL

GND_AL

Left

Right

Key functionResistance

Center

CH+
CH­VOL­VOL+

0R

2K2

1K2

15K

6K8

----><----|

----><----|

----><----|

----><----|

----><----|

----><----|

Down

Up

Center

Menu
Right
Left
Down
Up

6-5 short

2-5 short

3-5 short

1-5 short
4-5 short

Direction switch

0V

0.5V

0.81V

1.65V

2.27V

No function 3.3V

Voltage

F1
F2
F3
F4
F5

Joystick circuit di agram

pin1 pin2

pin3

pin4 pin5 pin6

TO AMBI LIGHT

JOYSTICK

Co-layot

CONN TO SSB

------------------------------

CN02

CONN 26P

CN02

CONN 26P

1
2

3

4
5
6
7

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

2728

C10

NC/100PF 50V

C10

NC/100PF 50V

CN01

CONN 13P 1.25MM

CN01

CONN 13P 1.25MM

1
2

3

4
5
6
7

8

9
10
11
12
13

1415

R03

6K8 1/10W 1%

R03

6K8 1/10W 1%

CN04

NC/CONN 10P 1.25MM

CN04

NC/CONN 10P 1.25MM

1
2

3

4
5
6
7

8

9
10

1112

C08

1UF 10V

C08

1UF 10V

R05

15K 1/10W 1%

R05

15K 1/10W 1%

R9 0R05 1/16WR9 0R05 1/16W

R01

1K2 1/10W 1%

R01

1K2 1/10W 1%

C06

100PF 50V

C06

100PF 50V

R10 0R05 1/16WR10 0R05 1/ 16W

F5

F3

F1

F4

F2

SW01

TACT SW 6P

F5

F3

F1

F4

F2

SW01

TACT SW 6P

3 4

2

1 6

5

7

8

CN03

CONN 26P

CN03

CONN 26P

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27 28

R11
0R05 1/10W

R11
0R05 1/10W

R04

2K2 1/10W 1%

R04

2K2 1/10W 1%

C07

1UF 10% 16V

C07

1UF 10% 16V

R13
NC/0R05 1/10W

R13
NC/0R05 1/10W

C11 NC/ 100PF 50VC11 NC/100PF 50V

C09

NC/100PF 50V

C09

NC/100PF 50V

R02

10R 1/10W 5%

R02

10R 1/10W 5%

R12
0R05 1/10W

R12
0R05 1/10W

R14

NC/0R05 1/10W

R14

NC/0R05 1/10W

R8 NC/ 0R05 1/ 16WR8 NC/0R05 1/16W

C12

1UF 10% 16V

C12

1UF 10% 16V

10.5 E 715G7065 Keyboard control panel

10-5-1 Key+AL

EN 65TPS16.3A LA 10.

2017-Feb-24

back to

div.table

Circuit Diagrams and PWB Layouts

19812_518.eps

2014-11-06

1

715G7065

Keyboard control panel

layout top/bottom

C12

R04

R03

R05

R02

R01

C07

R11

R12

R13

R14

H1

C09

C06

CN01

R10

R9

R8

C11

C10

CN02

C08

CN04

H2

CN03

H15

H16

H3

H6

H4

H5

SW01

Layout Keyboard control panel (top side)

Layout Keyboard control panel (bottom side)

10-5-2 Key board layout

EN 66TPS16.3A LA 10.

2017-Feb-24

back to

div.table

Circuit Diagrams and PWB Layouts

19810_561.eps

TLC5971

AL01 AL01

2014-10-25

715G7006

TLC5971

PWM2-R3 3
PWM2-G3 3
PWM2-B3 3

S006

0R05 1/16W

R001 1.2K OHM 1/16W 1%

PWM2-R2

Item

R012

27K 1/16W 5%

R007

3K3 1%

R006

100OHM1/16W

PWM2-G2

U002

TLC5971RGER

SDTI

1

SCKI

2

NC(1)

3

NC

4

SCKO

5

SDTO

6

OUTR27OUTG28OUTB29OUTR310OUTG311OUTB3

12

VCC

13

NC

14

VREG

15

IREF

16

NC

17

GND

18

OUTR019OUTG0

20

OUTB0

21

OUTR122OUTG1

23

OUTB1

24

E-Pad

25

Function

XA0 5

NC/CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27 28

SDI-BUF

AMBI-TEMP

SCKI-BUF

+12V

AMBI-TEMP

+12V

SCKI-BUF

C007

10PF 50V

SCKI
SD1

+3V3

XA0 2

CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27 28

t

R009

NC/10K

12

SCKI

SD1

SD1

SD2

+3V3

S014

0R05 1/16W

S015

NC/ 0R 05 1/ 16W

S008

NC/ 0R 05 1/ 16W

PWM2-B2

+3V3

YES

+12V

T+

YES

S012

NC/0R05 1/16W

+3V3

S013

0R05 1/16W

SD1

SD2

C001

100N16V

R002

220R +-5% 1/16W

YES

+12V

AMBI-TEMP
SCKI
SD2

+3V3

XA0 4

CONN

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

2728

S002 NC / 0R 05 1/ 16W

NO NO

C005

100pF 50V

+3V3

+3V3AL

T+

F010

NO

SCKI-BUF

R005

100OHM1/16W

X000

1

2 4

3

SD1

F005

R010

18Kohm 1/16W +/ -1%

F009

+3V3AL

+12V

F001

SCKI

C002

100N16V

SD2

F011

SDI-BUF

F008

S007

NC/ 0R 05 1/ 16W

F012 F013

F003

F014

S012

PWM2-R3

S013

F015

R004

10K 1/16W 5%

PWM2-G3

S014

F116

t

R008

10K 1%

12

S015

PWM2-R1 3

PWM2-B3

AMBI-TEMP

F004

CounterClockwise
(XA02:IN, X A04:OUT)

U001

LMV321IDCKR

1IN+

1

GND

2

1IN-3OUT

4

VCC+

5

+3V3AL

F007

PWM2-G1 3
PWM2-B1 3

+3V3

Clockw ise
(XA02:OUT, XA04:IN)

F006

C004

1uF 10V

PWM2-R2 3

GND

F002

D100

LBAT54HT1G

1 2

PWM2-G2 3
PWM2-B2 3

+3V3

R003

10K 1/16W 5%

Test Pad

S001

0R05 1/16W

SCKI

PWM2-R1

R011

10K 1%

C006

10PF 50V

NO

PWM2-G1

AMBI-TEMP

YES

PWM2-B1

C003 100N16V

10.6 AL 715G7006 Ambilight Board

10-6-1 Connector

EN 67TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-6-2 Ambilight 9-LED

19810_562.eps

Ambilight 9-LED

AL02 AL02

2014-10-25

B

715G7006

Ambilight 9-LED

+12V

Red BlueGreen

D003

P5018/RSSGBB7-2K14

1

2

3

4

5

6

Red BlueGreen

D002

P5018/RSSGBB7-2K14

1

2

3

4

5

6

Red BlueGreen

D001

P5018/RSSGBB7-2K14

1

2

3

4

5

6

C013

NC / 100N F 50V

PWM2-B1 2

PWM2-G1 2

PWM2-R1 2

+12V

C011

NC / 100N F 50V

Red BlueGreen

D006

P5018/RSSGBB7-2K14

1

2

3

4

5

6

Red BlueGreen

D005

P5018/RSSGBB7-2K14

1

2

3

4

5

6

Red BlueGreen

D004

P5018/RSSGBB7-2K14

1

2

3

4

5

6

C009

NC / 100N F 50V

+12V

C012

100N16V

C010

100N16V

C008

100N16V

R017

22R

1
2
3
4

8
7
6
5

R018 560R

1
2
3
4

8
7
6
5

PWM2-R1

PWM2-B1

PWM2-G1

R024 NC/560R
R021 NC/560R
R022 NC/560R

Red BlueGreen

D009

P5018/RSSGBB7-2K14

1

2

3

4

5

6

R023 NC/560R

R040 N C / 22R 1/ 16W 5%
R041 N C / 22R 1/ 16W 5%
R042 N C / 22R 1/ 16W 5%
R043 N C / 22R 1/ 16W 5%

R014

22R

1
2
3
4

8
7
6
5

R016 560R

1
2
3
4

8
7
6
5

PWM2-R2

PWM2-B2

PWM2-G2

R028 NC/560R

PWM2-B2 2

R025 NC/560R

PWM2-G2 2

R026 NC/560R

PWM2-R2 2

R027 NC/560R

R044 N C / 22R 1/ 16W 5%
R045 N C / 22R 1/ 16W 5%
R046 N C / 22R 1/ 16W 5%
R047 N C / 22R 1/ 16W 5%

PWM2-B3 2

PWM2-G3 2

PWM2-R3 2

Red BlueGreen

D008

P5018/RSSGBB7-2K14

1

2

3

4

5

6

Red BlueGreen

D007

P5018/RSSGBB7-2K14

1

2

3

4

5

6

R032 NC/560R
R029 NC/560R
R030 NC/560R
R031 NC/560R

R048 N C / 22R 1/ 16W 5%
R049 N C / 22R 1/ 16W 5%
R050 N C / 22R 1/ 16W 5%
R051 N C / 22R 1/ 16W 5%

R013

22R

1
2
3
4

8
7
6
5

R015 560R

1
2
3
4

8
7
6
5

PWM2-R3

PWM2-B3

PWM2-G3

Circuit Diagrams and PWB Layouts

EN 68TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-6-3 Ambilight board layout top/bottom

19810_563.eps

2014-10-27

715G7007

Ambilight board

layout top/bottom

Layout Ambilight board (top side)

Layout

Ambilight board

(bottom side)

XA2

D001 D002 D003 D004 D005 D007 D008 D009

XA1

XA5

XA6

D006

D1

D100

X000

C009

C011

C013

F001

F002

F003

F004

F005

F006F007

F008

F009

F010

F011 F012 F013 F014 F015

F116

R013

R014

R015

R016

R017

R018

U001

U002

XA02 XA04XA05

XA3

XA4

D2

C001

C002

C003

C004

C005

C006

C007

C008

C010

C012

R001

R002

R003

R004

R005

R006

R007

R008

R009

R011

R012

S001

S002

S006

S007

S008

S012

S013

S014

S015

R010

R021

R022

R023

R024

R025

R026

R027

R028

R029

R030

R031

R032

R040

R041

R042

R043

R044

R045

R046

R047

R048

R049

R050

R051

Circuit Diagrams and PWB Layouts

EN 69TPS16.3A LA 10.

2017-Feb-24

back to

div.table

Circuit Diagrams and PWB Layouts

19810_564.eps

TLC5971

AL01 AL01

2014-04-02

715G7007

TLC5971

PWM2-R3 3
PWM2-G3 3
PWM2-B3 3

S006

0R05 1/16W

R001 1.2K OHM 1/16W 1%

PWM2-R2

Item

R012

27K 1/16W 5%

R007

3K3 1%

R006

100OHM1/16W

PWM2-G2

R010

18Kohm 1/16W +/ -1%

U002

TLC5971RGER

SDTI

1

SCKI

2

NC(1)

3

NC

4

SCKO

5

SDTO

6

OUTR27OUTG28OUTB29OUTR310OUTG311OUTB3

12

VCC

13

NC

14

VREG

15

IREF

16

NC

17

GND

18

OUTR019OUTG0

20

OUTB0

21

OUTR122OUTG1

23

OUTB1

24

E-Pad

25

Function

S012

0R05 1/16W

SDI-BUF
SCKI-BUF

S013

NC/ 0R 05 1/ 16W

SCKI-BUF

C007

10PF 50V

t

R009

NC/10K

12

SD1

S008

0R05 1/16W

PWM2-B2

+3V3

YES

+12V

T+

D100

1PS76SB10

1 2

SD2

PWM2-R4

YES

+3V3

C001

100N16V

R002

220R +-5% 1/16W

PWM2-G4

YES

S002 NC / 0R 05 1/ 16W

NO NO

C005

100pF 50V

+3V3

+12V

+3V3AL

PWM2-B4

SD1

AMBI-TEMP
SCKI
SD2

T+

+3V3

F010

XA0 4

CONN

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

2728

NO

SCKI-BUF

R005

100OHM1/16W

SD2

X000

1

2 4

3

SD1

F005

F009

U001

LMV321IDCKR SC -70

A

1

B

2

GND3Y

4

VCC

5

+3V3AL

+12V

F001

SCKI

C002

100N16V

SD2

F011

XA0 5

NC/CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27 28

AMBI-TEMP

SDI-BUF

+12V

AMBI-TEMP

356G0192005600LMV321I DCKR
Shottky BAT54WS 393R060S03000002TP
NCP 15XH103F03RC

361G0054103AFM

+12V

SCKI
SD1

+3V3

F008

XA0 2

CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27 28

SCKI
SD1

+3V3

TPVision used pa rt only, not TPV AVL

S007

NC/ 0R 05 1/ 16W

Ref erence

F012 F013

R014

F003

F014

S012

PWM2-R3

RST NET 180R 5%

Description

S013

F015

R004

10K 1/16W 5%

PWM2-G3

S014

F116

t

R008

10K 1%

12

S015

Part ID

PWM2-R1 3

PWM2-B3

361R01261818J 000TP

U001

AMBI-TEMP

F004

CounterClockwise
(XA02 :IN, XA04:OUT)

D100

+3V3AL

F007

R008, R009

PWM2-G1 3

PWM2-R4 3

PWM2-B1 3

PWM2-G4 3
PWM2-B4 3

+3V3

Clockw ise
(XA02:OUT, XA04:IN)

F006

C004

1uF 10V

PWM2-R2 3

GND

F002

S014

NC/ 0R 05 1/ 16W

S015

0R05 1/16W

PWM2-G2 3
PWM2-B2 3

+3V3

R003

10K 1/16W 5%

Test Pad

S001

NC/ 0R 05 1/ 16W

SCKI

PWM2-R1

R011

10K 1%

C006

10PF 50V

NO

PWM2-G1

AMBI-TEMP

YES

PWM2-B1

C003 100N16V

EN 70TPS16.3A LA 10.

10.7 AL 715G7007 Ambilight Board

10-7-1 TCL5971

2017-Feb-24

back to

div.table

10-7-2 Ambilight 10-LED

19810_565.eps

Ambilight 10-LED

AL02 AL02

2014-04-01

715G7007

Ambilight 10-LED

C012

100N16V

R018 560R

1
2
3
4

8
7
6
5

PWM2-R2

+12V

PWM2-B2

PWM2-G2

Red BlueGreen

D007

P5018/RSSGBB7-2K14

1

2

3

4

5

6

Red BlueGreen

D006

P5018/RSSGBB7-2K14

1

2

3

4

5

6

R017

180R

1
2
3
4

8
7
6
5

R013

22R

1
2
3
4

8
7
6
5

R015 560R

1
2
3
4

8
7
6
5

PWM2-R4

+12V

PWM2-B4

PWM2-G4

Red BlueGreen

D003

P5018/RSSGBB7-2K14

1

2

3

4

5

6

Red BlueGreen

D002

P5018/RSSGBB7-2K14

1

2

3

4

5

6

Red BlueGreen

D001

P5018/RSSGBB7-2K14

1

2

3

4

5

6

PWM2-B1 2

PWM2-G1 2

PWM2-R1 2

R019

22R

1
2
3
4

8
7
6
5

R016 560R

1
2
3
4

8
7
6
5

PWM2-R3

+12V

PWM2-B3

PWM2-G3

Red BlueGreen

D005

P5018/RSSGBB7-2K14

1

2

3

4

5

6

Red BlueGreen

D004

P5018/RSSGBB7-2K14

1

2

3

4

5

6

R014

180R

1
2
3
4

8
7
6
5

R020 560R

1
2
3
4

8
7
6
5

PWM2-R1

+12V

PWM2-B4 2

PWM2-G4 2

PWM2-R4 2

C013

NC/ 100N F 50V

PWM2-B1

C015

NC/ 100N F 50V

C011

NC/ 100N F 50V

PWM2-G1

C009

NC/ 100N F 50V

Red BlueGreen

D010

P5018/RSSGBB7-2K14

1

2

3

4

5

6

PWM2-B2 2

PWM2-G2 2

PWM2-R2 2

PWM2-B3 2

PWM2-G3 2

PWM2-R3 2

Red BlueGreen

D009

P5018/RSSGBB7-2K14

1

2

3

4

5

6

Red BlueGreen

D008

P5018/RSSGBB7-2K14

1

2

3

4

5

6

C008

100N16V

C010

100N16V

C014

100N16V

Circuit Diagrams and PWB Layouts

EN 71TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-7-3 Ambilight board layout top/bottom

19810_566.eps

2014-10-27

715G7007

Ambilight board

layout top/bottom

Layout Ambilight board (top side)

Layout Ambilight board

(bottom side)

XA2

D001 D002 D003 D006 D007 D008

XA1

XA5

XA6

D004 D005 D009 D010

R13

F001

F002

F003

F004

F005

F006

F007

F008

F009

F010

F011 F012 F013 F014 F015

F116

D100

R013R017 R015

R018

R019

R020

U001

U002

X000

XA02 XA04XA05

XA3

XA4

R014

R016

R14

C001

C002

C003

C004

C005

C006

C007

C008

C010

C012

C014

C009

C011

C013

C015

R001

R002

R003

R004

R005

R006

R007

R008

R009

R011

R012

S001

S002

S006

S007

S008

S012

S013

S014

S015

R010

R021

R022

R023

R024

R025

R026

R027

R028

R029

R030

R031

R032

R033

R034

R035

R036

R040

R041

R042

R043

R044

R045

R046

R047

R060

R061

R062

R063

R064

R065

R066

R067

Circuit Diagrams and PWB Layouts

EN 72TPS16.3A LA 10.

2017-Feb-24

back to

div.table

Circuit Diagrams and PWB Layouts

19810_567.eps

TLC5971

AL01 AL01

2015-01-22

715G7008

TLC5971

S006

0R05 1/16W

R001 1.2K OH M 1/16W 1%

PWM2-R2

Item

R012

27K 1/16W 5%

R007

3K3 1%

R006

100OHM1/16W

PWM2-G2

U002

TLC5971RGER

SDTI

1

SCKI

2

NC(1)

3

NC

4

SCKO

5

SDTO

6

OUTR27OUTG28OUTB29OUTR310OUTG311OUTB3

12

VCC

13

NC

14

VREG

15

IREF

16

NC

17

GND

18

OUTR019OUTG0

20

OUTB0

21

OUTR122OUTG1

23

OUTB1

24

E-Pad

25

Function

XA05

NC/CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27 28

SDI-BUF

AMBI-TEMP

SCKI-BUF

+12V

AMBI-TEMP

+12V

SCKI-BUF

C007

10PF 50V

SCKI
SD1

+3V3

XA0 2

CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27 28

t

R009

NC/10K

12

SCKI
SD1

+3V3

S008

NC/ 0R 05 1/ 16W

PWM2-B2

+3V3

YES

+12V

T+

YES

+3V3

C001

100N16V

R002

220R +-5% 1/16W

U001

LMV321IDCKR

1IN+

1

GND

2

1IN-3OUT

4

VCC+

5

+12V

YES

AMBI-TEMP
SCKI
SD2

+3V3

XA04

CONN

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

2728

S002 N C / 0R 05 1/ 16W

NO NO

C005

100pF 50V

+3V3

+3V3AL

T+

F010

D100

LBAT54HT1G

1 2

NO

SCKI-BUF

R005

100OHM1/16W

X000

1

2 4

3

SD1

F005

F009

+3V3AL

+12V

F001

R010

18Kohm 1/16W +/ -1%

SCKI

C002

100N16V

SD2

F011

SDI-BUF

F008

S007

NC/ 0R 05 1/ 16W

F012 F013

F003

F014

S012 S013

F015

R004

10K 1/16W 5%

S014

F116

t

R008

10K 1%

12

S015

S012

NC/ 0R 05 1/ 16W

S013

0R05 1/16W

SD1

SD2

PWM2-R1 3

AMBI-TEMP

F004

CounterClockwise
(XA02:IN, XA04:OUT)

+3V3AL

F007

SD1

SD2

S014

0R05 1/16W

S015

NC/ 0R 05 1/ 16W

PWM2-G1 3
PWM2-B1 3

+3V3

Clockw ise
(XA02:OUT, XA04:IN)

F006

C004

1uF 10V

PWM2-R2 3

GND

F002

PWM2-G2 3
PWM2-B2 3

+3V3

R003

10K 1/16W 5%

Test Pad

S001

0R05 1/16W

SCKI

PWM2-R1

R011

10K 1%

C006

10PF 50V

NO

PWM2-G1

AMBI-TEMP

YES

PWM2-B1

C003 100N16V

10.8 AL 715G7008 Ambilight Board

10-8-1 TCL5971

EN 73TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-8-2 TCL5971_2

19810_568.eps

TLC5971_2

AL02 AL02

2015-01-22

715G7008

TLC5971_2

356G0192005600LMV321IDCK R
Shottky BAT54WS 393R060S03000002TP
NCP 15XH103F03RC 361G0054103AFM

TPVision used pa rt only, not TPV AVL

Ref erence

R014 RST NET 180R 5%

Description Part ID

361R01261818J 0 00TP

U001
D100
R008, R009

SDI-BUF
SCKI-BUF

SCKI-BUF

SDI-BUF

SCKI

PWM2-R3

PWM2-G3

PWM2-B3

PWM2-R1

PWM2-G1

PWM2-B1

PWM2-R2

PWM2-G2

PWM2-B2

SD1

SD2

SD1

SD2

AMBI-TEMP

SCKI T+ SD1 +12V

SD2

AMBI-TEMP +3V3AL +3V3 GND

SCKI-BUF

T+

AMBI-TEMP
SCKI
SD2

AMBI-TEMP AMBI-TEMP

SCKI
SD1

SCKI
SD1

C004

1uF 10V

F012

C002

100N16V

XA0 4

CONN

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26

2728

S007

NC/ 0R 05 1/ 16W

R011

10K 1%

F001

S001

0R05 1/16W

C001

100N16V

F005

R007

3K3 1%

R012

27K 1/16W 5%

R003

10K 1/16W 5%

t

R009

NC/10K

12

C007

10PF 50V

X00 0

1

2 4

3

C006

10PF 50V

F008

S002 N C / 0R 05 1/ 16W

XA0 2

CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27 28

S013

NC/ 0R 05 1/ 16W

R010

18Kohm 1/16W +/ -1%

C003 100N16V

S008

NC/ 0R 05 1/ 16W

D100

1PS76SB10

1 2

F004

F116

F015

F007

S006

0R05 1/16W

F009

C005

100pF 50V

F014

S015

0R05 1/16W

F006

F010

S014

NC/ 0R 05 1/ 16W

F011

XA0 5

NC/CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27 28

U002

TLC5971RGER

SDTI

1

SCKI

2

NC(1)

3

NC

4

SCKO

5

SDTO

6

OUTR27OUTG28OUTB29OUTR310OUTG311OUTB3

12

VCC

13

NC

14

VREG

15

IREF

16

NC

17

GND

18

OUTR019OUTG0

20

OUTB0

21

OUTR122OUTG1

23

OUTB1

24

E-Pad

25

R006

100OHM1/16W

F013

F002

R005

100OHM1/16W

R002

220R +-5% 1/16W

R001 1.2K OH M 1/16W 1%

S012

0R05 1/16W

U001

LMV321IDCKR SC -70

A

1

B

2

GND3Y

4

VCC

5

F003

R004

10K 1/16W 5%

t

R008

10K 1%

12

+12V

+3V3

+3V3AL

+3V3 +3V3AL

+3V3

+3V3

+12V

+3V3

+12V +12V

+3V3+3V3

PWM2-R1 3
PWM2-G1 3
PWM2-B1 3

PWM2-R2 3
PWM2-G2 3
PWM2-B2 3

PWM2-R3 3
PWM2-G3 3
PWM2-B3 3

S012 S013 S014 S015

CounterClockwise
(XA02:IN, XA04:OUT)

Clockw ise
(XA02:OUT, XA04:IN)

NO

YES

Item

Function

Test Pad

YES

YES YES

NO NO

NO

Circuit Diagrams and PWB Layouts

EN 74TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-8-3 Ambilight 6-LED

19810_569.eps

Ambilight 6-LED

AL03 AL03

2014-12-25

715G7008

Ambilight 6-LED

+12V

Red BlueGreen

D003

P5018/RSSGBB7-2K14

1

2

3

4

5

6

Red BlueGreen

D002

P5018/RSSGBB7-2K14

1

2

3

4

5

6

Red BlueGreen

D001

P5018/RSSGBB7-2K14

1

2

3

4

5

6

C011

NC / 100N F 50V

PWM2-G1 2
PWM2-B1 2

PWM2-R1 2

C009

NC / 100N F 50V

+12V

C010

100N16V

C008

100N16V

Red BlueGreen

D006

P5018/RSSGBB7-2K14

1

2

3

4

5

6

R014

22R

1
2
3
4

8
7
6
5

R016 560R

1
2
3
4

8
7
6
5

PWM2-R1

PWM2-B1

PWM2-G1

R024 NC/560R
R021 NC/560R
R022 NC/560R
R023 NC/560R

R040 N C / 22R 1/ 16W 5%
R041 N C / 22R 1/ 16W 5%
R042 N C / 22R 1/ 16W 5%

PWM2-B2 2

R043 N C / 22R 1/ 16W 5%

PWM2-G2 2

PWM2-R2 2

R013

22R

1
2
3
4

8
7
6
5

R015 560R

1
2
3
4

8
7
6
5

PWM2-R2

PWM2-B2

PWM2-G2

R028 NC/560R
R025 NC/560R
R026 NC/560R
R027 NC/560R

R044 N C / 22R 1/ 16W 5%
R045 N C / 22R 1/ 16W 5%
R046 N C / 22R 1/ 16W 5%
R047 N C / 22R 1/ 16W 5%

Red BlueGreen

D005

P5018/RSSGBB7-2K14

1

2

3

4

5

6

Red BlueGreen

D004

P5018/RSSGBB7-2K14

1

2

3

4

5

6

Circuit Diagrams and PWB Layouts

EN 75TPS16.3A LA 10.

2017-Feb-24

back to

div.table

10-8-4 Ambilight 7-LED

19810_570.eps

Ambilight 7-LED

AL04 AL04

2015-01-22

715G7008

Ambilight 7-LED

PWM2-R3

PWM2-B3

PWM2-G3

Red BlueGreen

D006

P5018/RSSGBB7-2K14

1

2

3

4

5

6

R022 NC/560R

R032 NC/560R

C009

NC / 100N F 50V

R040 N C / 22R 1/ 16W 5%

R067 NC/180R

R014

22R

1
2
3
4

8
7
6
5

Red BlueGreen

D004

P5018/RSSGBB7-2K14

1

2

3

4

5

6

R041 N C / 22R 1/ 16W 5%

R029 NC/560R

R023 NC/560R

C011

NC / 100N F 50V

C008

100N16V

R018 560R

1
2
3
4

8
7
6
5

C010

100N16V

R060 NC/180R

C012

100N16V

R042 N C / 22R 1/ 16W 5%

C013

NC / 100N F 50V

R024 NC/560R

R025 NC/560R

R030 NC/560R

R061 NC/180R

R064 NC/180R

R043 N C / 22R 1/ 16W 5%

R015 560R

1
2
3
4

8
7
6
5

Red BlueGreen

D002

P5018/RSSGBB7-2K14

1

2

3

4

5

6

R026 NC/560R

R031 NC/560R

R017

180R

1
2
3
4

8
7
6
5

R062 NC/180R

R065 NC/180R

R013

180R

1
2
3
4

8
7
6
5

R027 NC/560R

Red BlueGreen

D007

P5018/RSSGBB7-2K14

1

2

3

4

5

6

Red BlueGreen

D001

P5018/RSSGBB7-2K14

1

2

3

4

5

6

R066 NC/180R

Red BlueGreen

D005

P5018/RSSGBB7-2K14

1

2

3

4

5

6

R063 NC/180R

R021 NC/560R

Red BlueGreen

D003

P5018/RSSGBB7-2K14

1

2

3

4

5

6

R028 NC/560R

+12V

R016 560R

1
2
3
4

8
7
6
5

+12V

+12V

PWM2-B1 2

PWM2-G1 2

PWM2-R1 2

PWM2-B2 2

PWM2-G2 2

PWM2-R2 2

PWM2-B3 2

PWM2-G3 2

PWM2-R3 2

PWM2-R1

PWM2-B1

PWM2-G1

PWM2-R2

PWM2-B2

PWM2-G2

Circuit Diagrams and PWB Layouts

EN 76TPS16.3A LA 10.

2017-Feb-24

back to

div.table

Circuit Diagrams and PWB Layouts

19810_571.eps

2014-10-28

715G7008

Ambilight board

layout top/bottom

Layout Ambilight board (top side)

Layout

Ambilight board

(bottom side)

XA2

D001 D002 D003 D004 D005 D006

XA1

XA5

XA6

F001

F002

F003

F004

F005

F006F007

F008

F009

F010

F011 F012 F013 F014 F015

F116

D100

R013

R015

R014

R016

U001

U002

X000

XA02 XA04XA05

XA3

XA4

C001

C002

C003

C004

C005

C006

C007

C008

C010

C009

C011

R001

R002

R003

R004

R005

R006

R007

R008

R009

R011

R012

S001

S002

S006

S007

S008

S012

S013

S014

S015

R010

R021

R022

R023

R024

R025

R026

R027

R028

R040

R041

R042

R043

R044

R045

R046

R047

EN 77TPS16.3A LA 10.

10-8-5 Ambilight board layout top/bottom

2017-Feb-24

back to

div.table

11. Styling S heets

20300_800.eps

7101 series 75"

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0030 Bezel
0040 Rear cover
0050R Stand Assy - R
0050L Stand Assy - L
0095 V0 SHEET
1050 Display panel
1053 Panel SSB
1054 Power Supply Unit
1055 Driver Board
1056 IR/LED panel
1057 Keyboard control panel
1060 Option Board ASSY(Audio)
1061 LED Modules
1062 LED Modules
1063 LED Modules
1068 LED Logo
1176 Remote control Not displayed
1184 Speakers
1186 Speaker
WiFi01 WiFi_USB

Pos No. Description Remarks

0040

1057

1184

0030

1061

1062

1053

1050

1056

1061

1062

1060

1186

1054

0095

0050L

0050R

1063

1063

1184

1184

1068

1062

WIFI01

1055

11.1 7101 series 75”

Styling Sheets

EN 78TPS16.3A LA 11.

2017-Feb-24

back to

div.table
