Colour Television Chassis

TPH16.1A

LA

Contents Page Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 5

4. Mechanical Instructions 9
Cable dressing (43" 6701 series) 9
Cable dressing (49" 6701 series) 10

5. Service Modes, Error Codes, and Fault Finding 14

6. Alignments 18

7. Circuit Descriptions 19

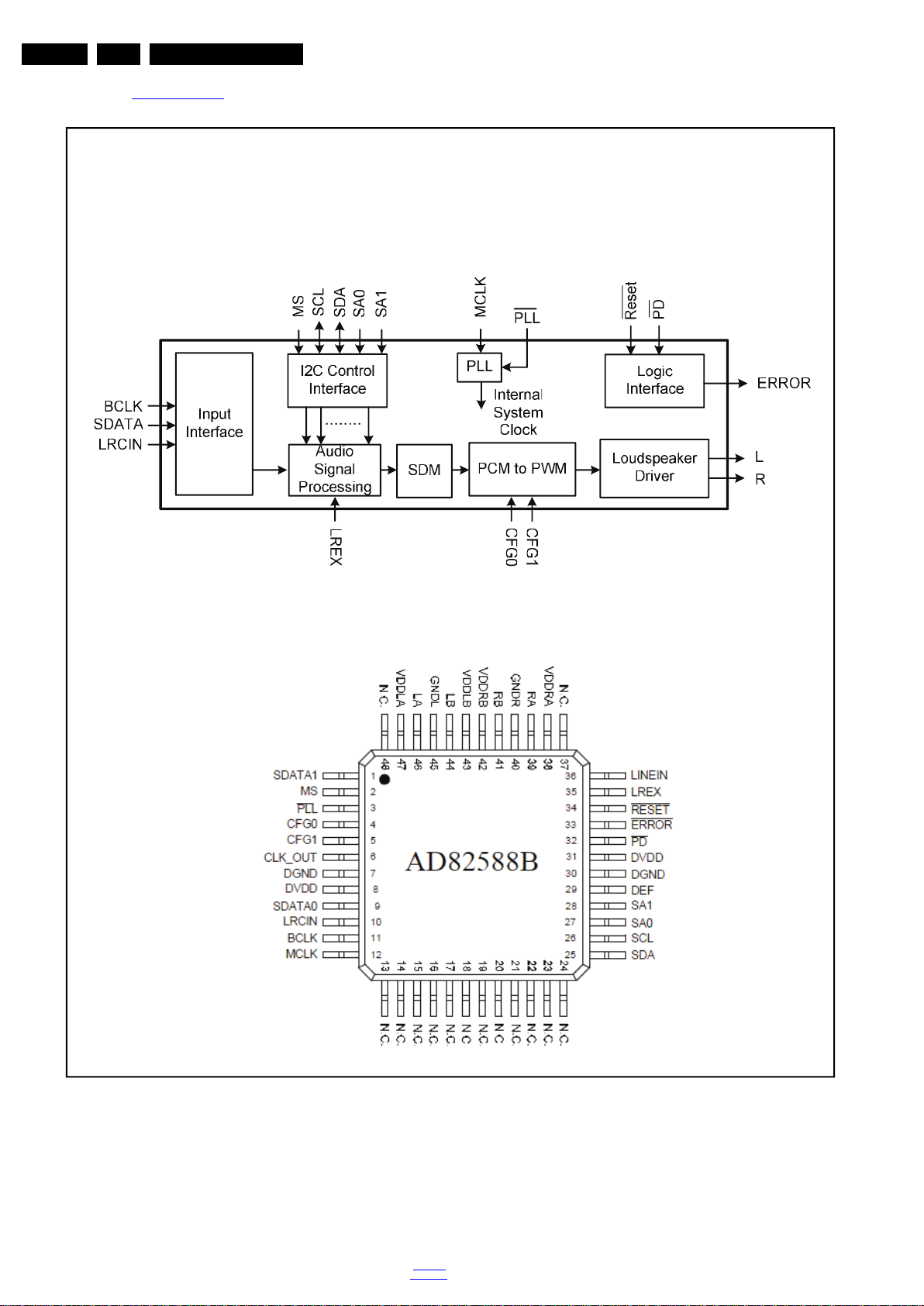

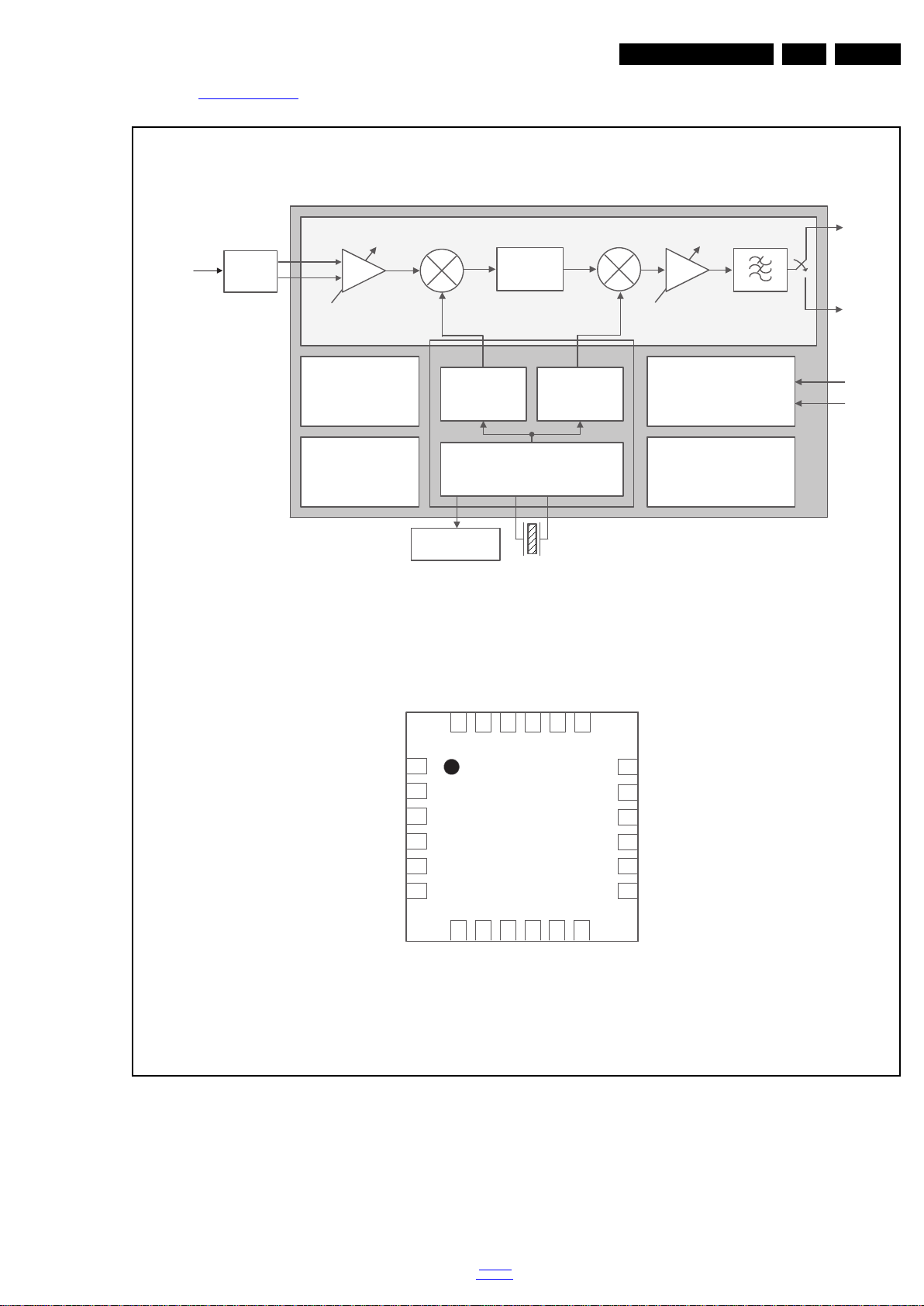

8. IC Data Sheets 26

9. Block Diagrams
Block Diagrams 29

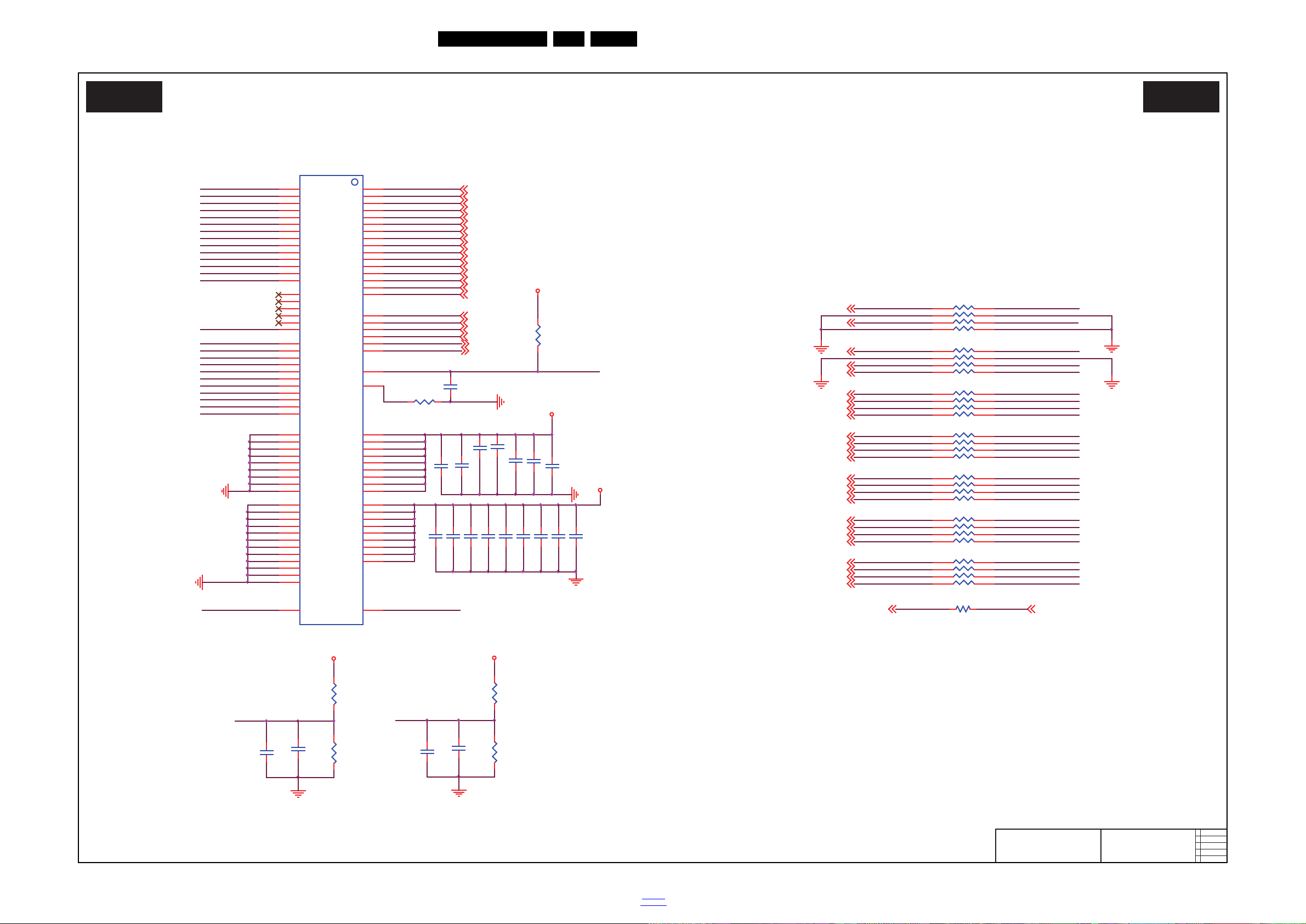

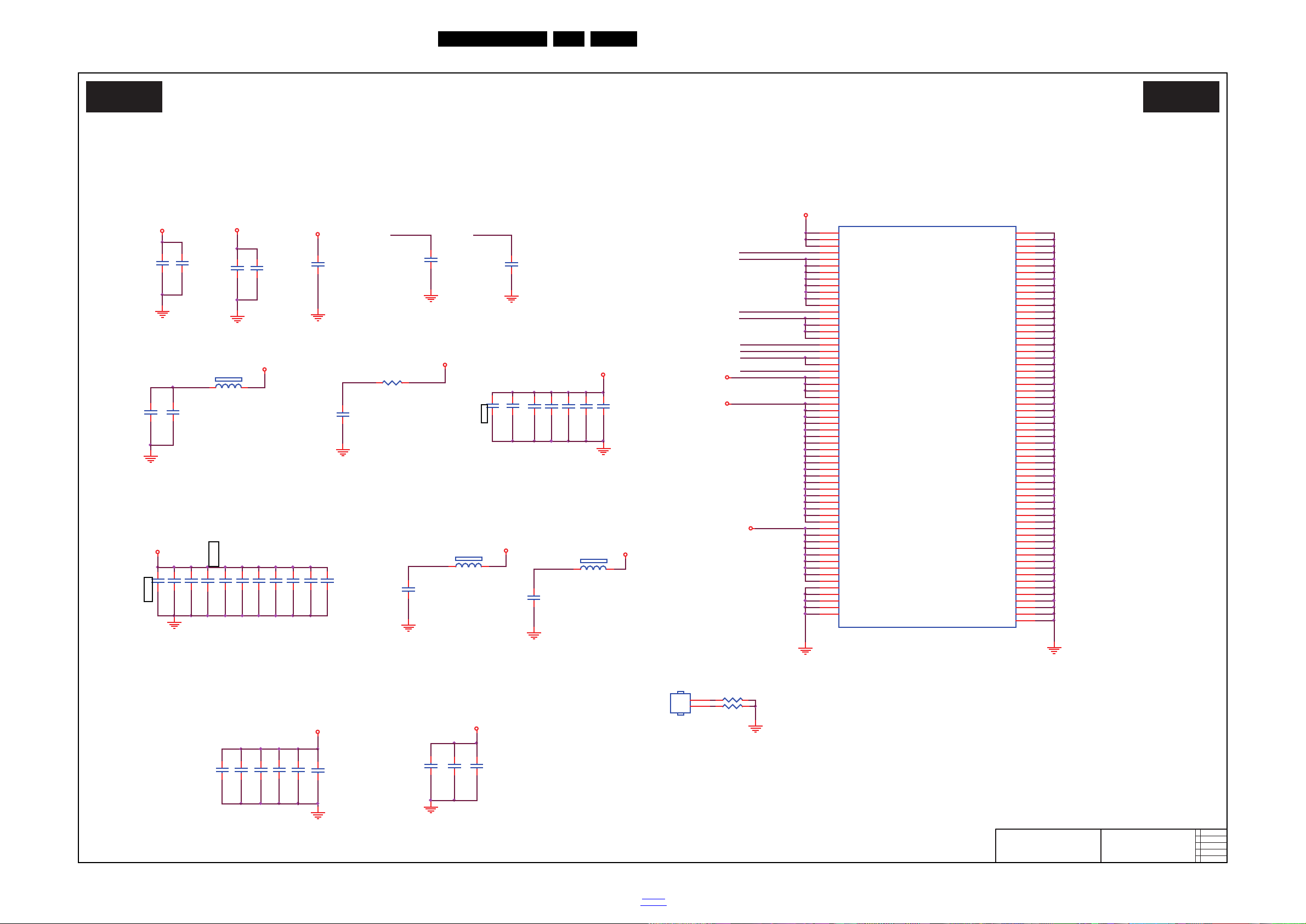

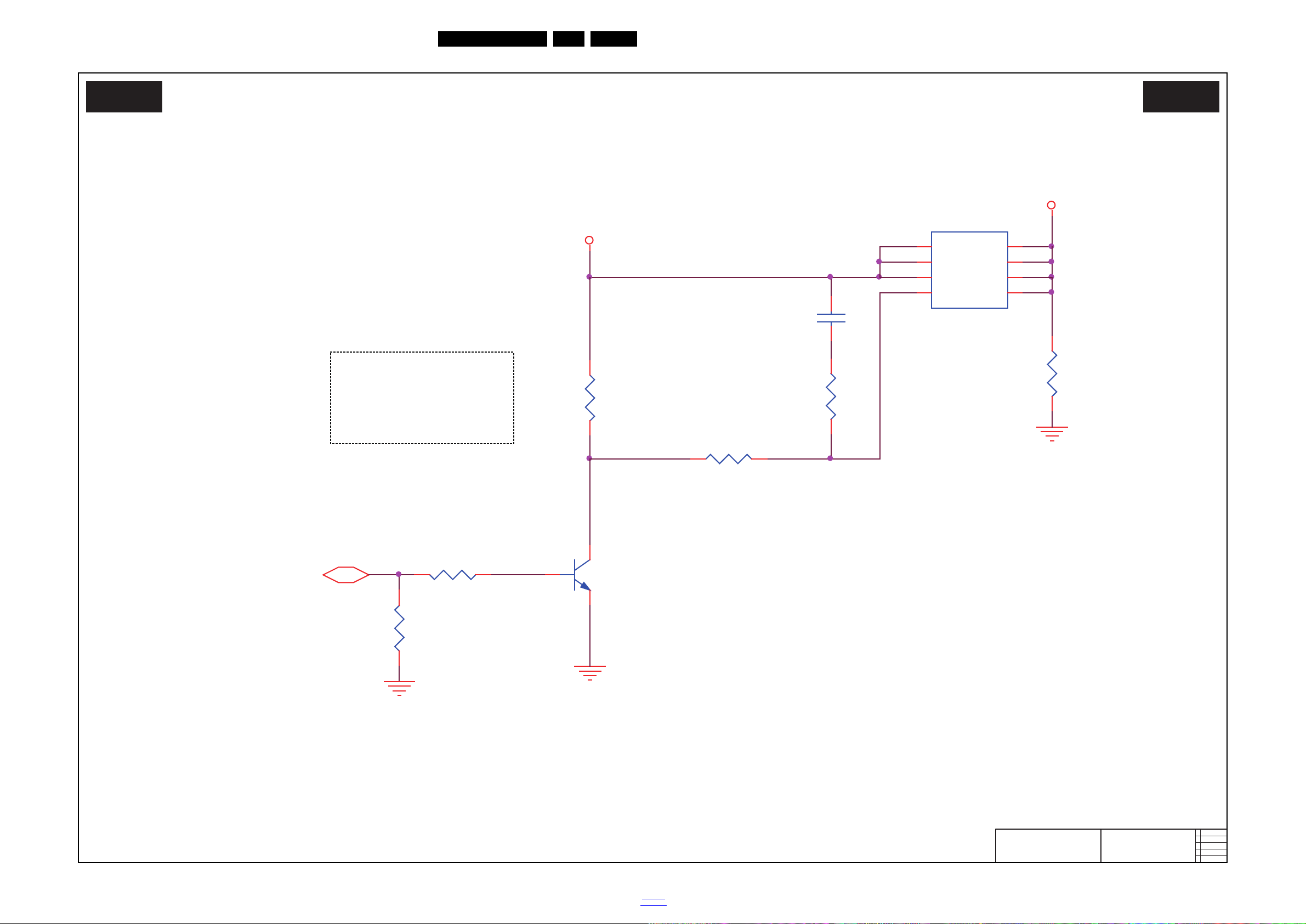

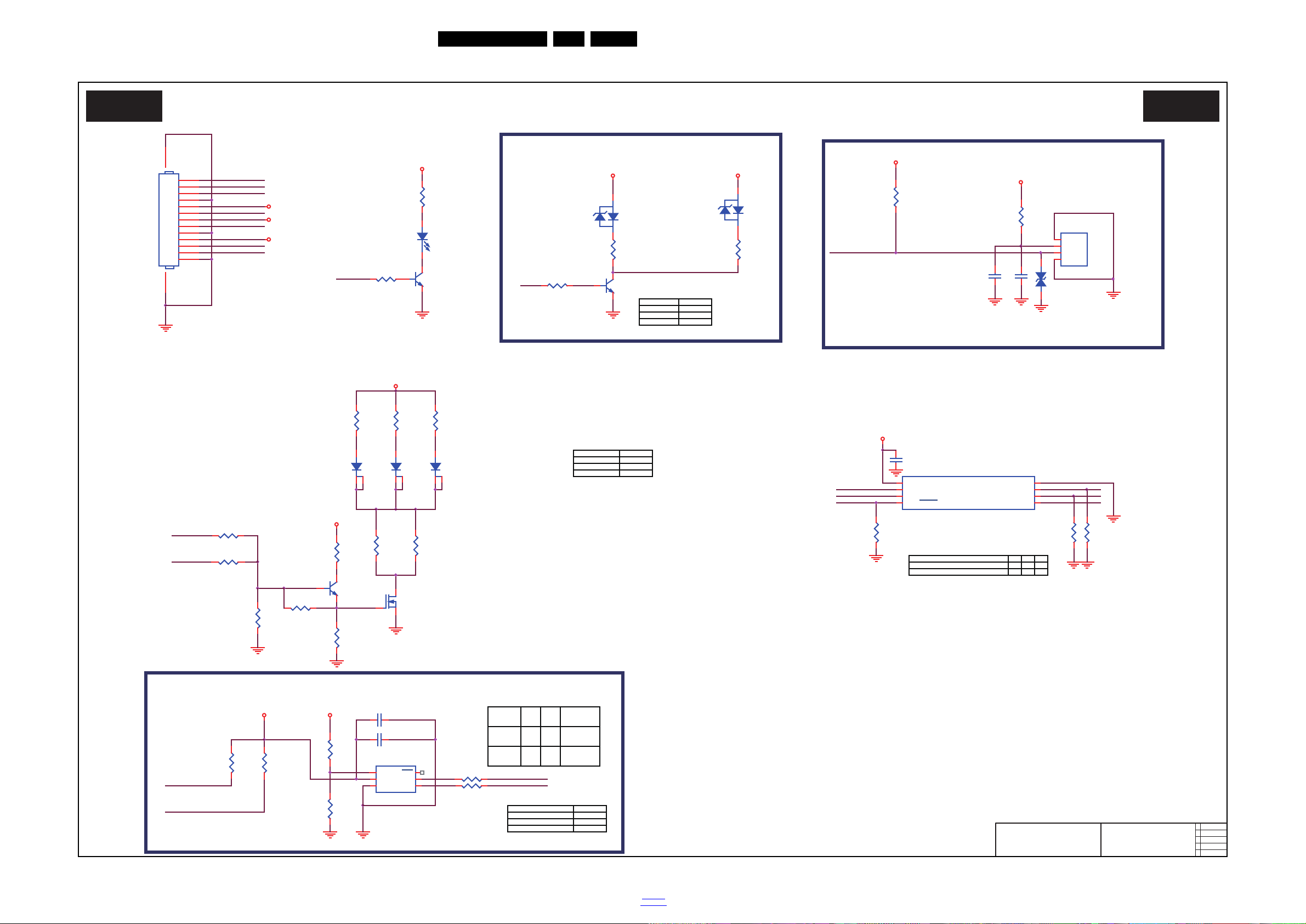

10. Circuit Diagrams and PWB Layouts Drawing PWB

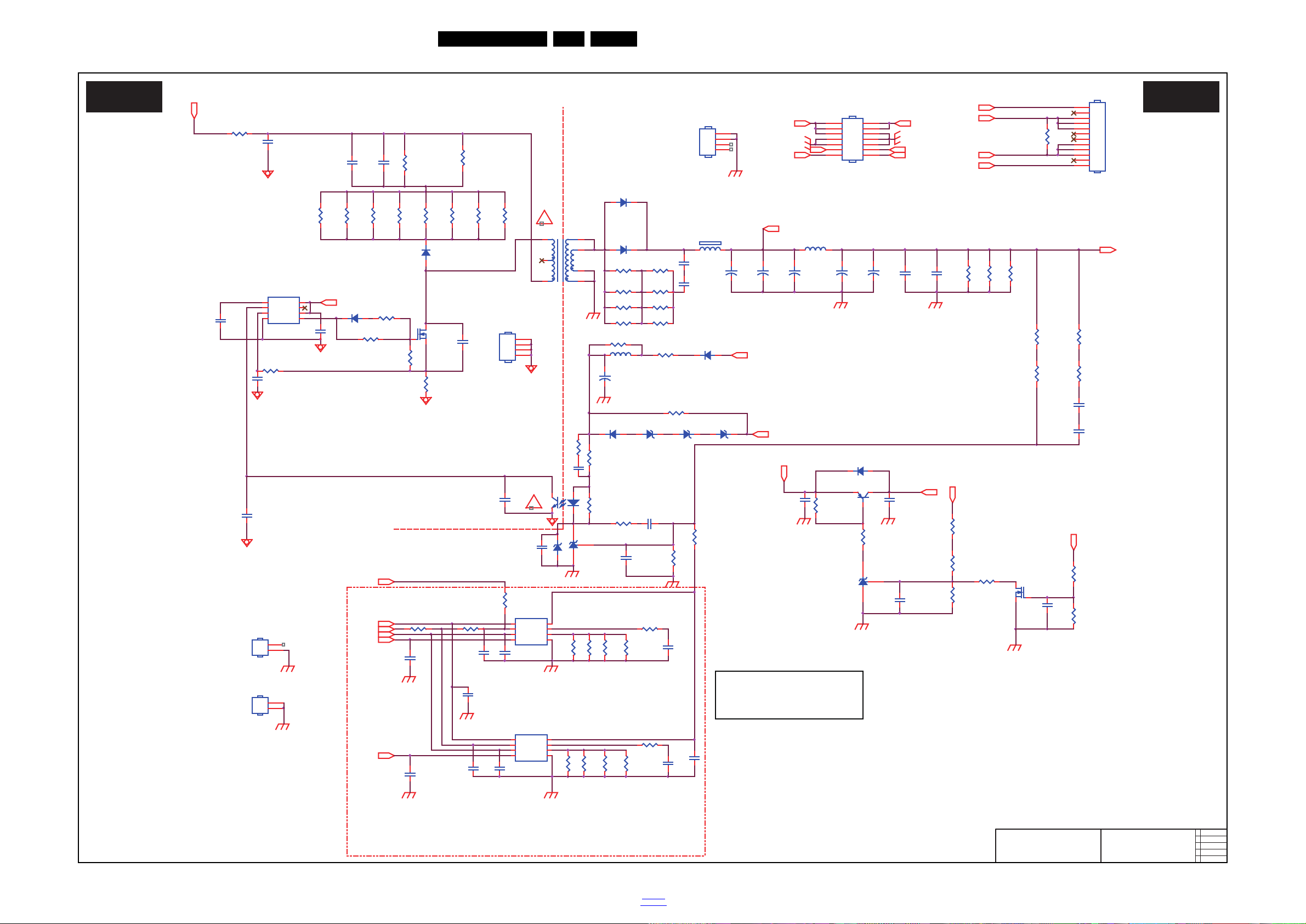

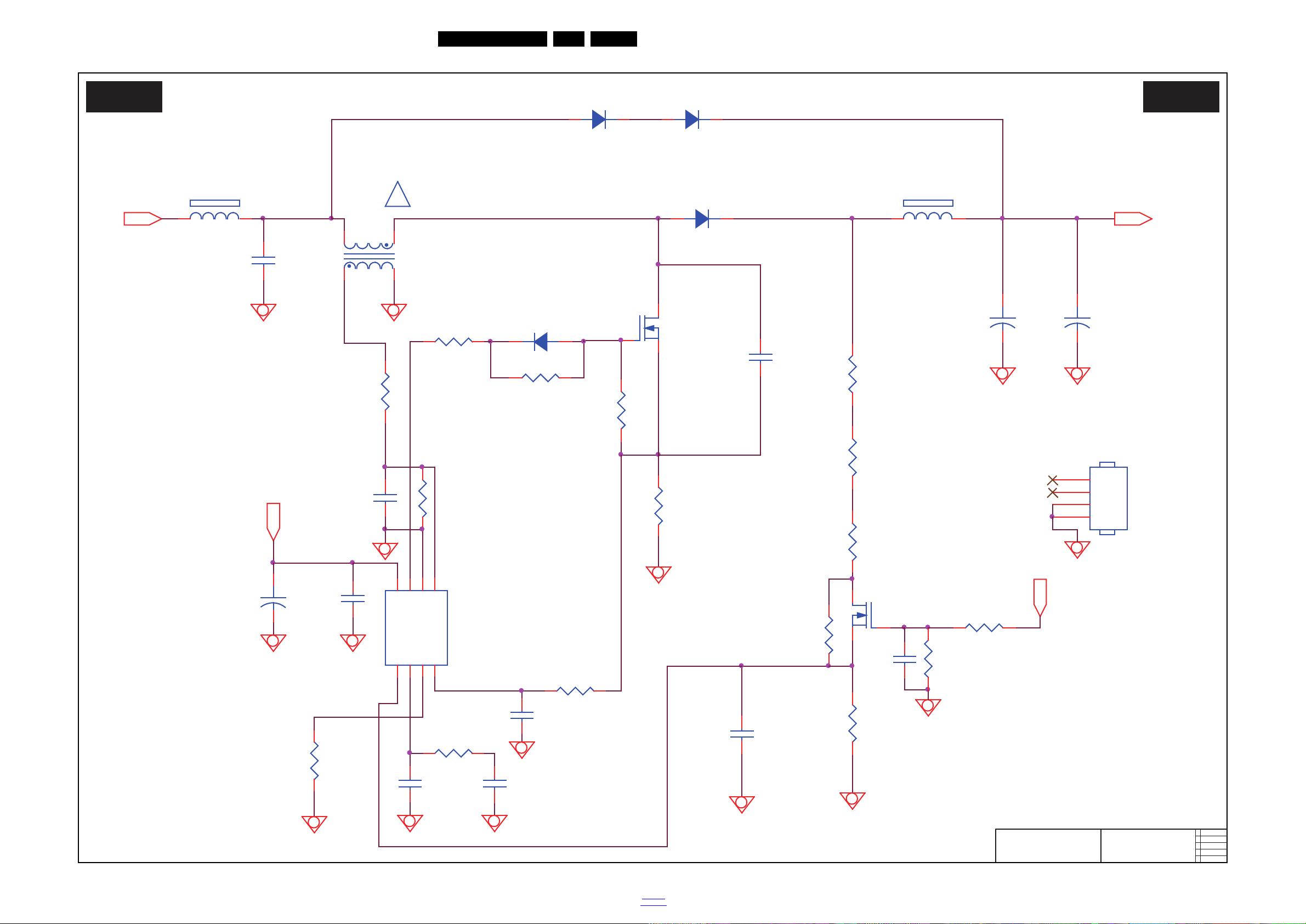

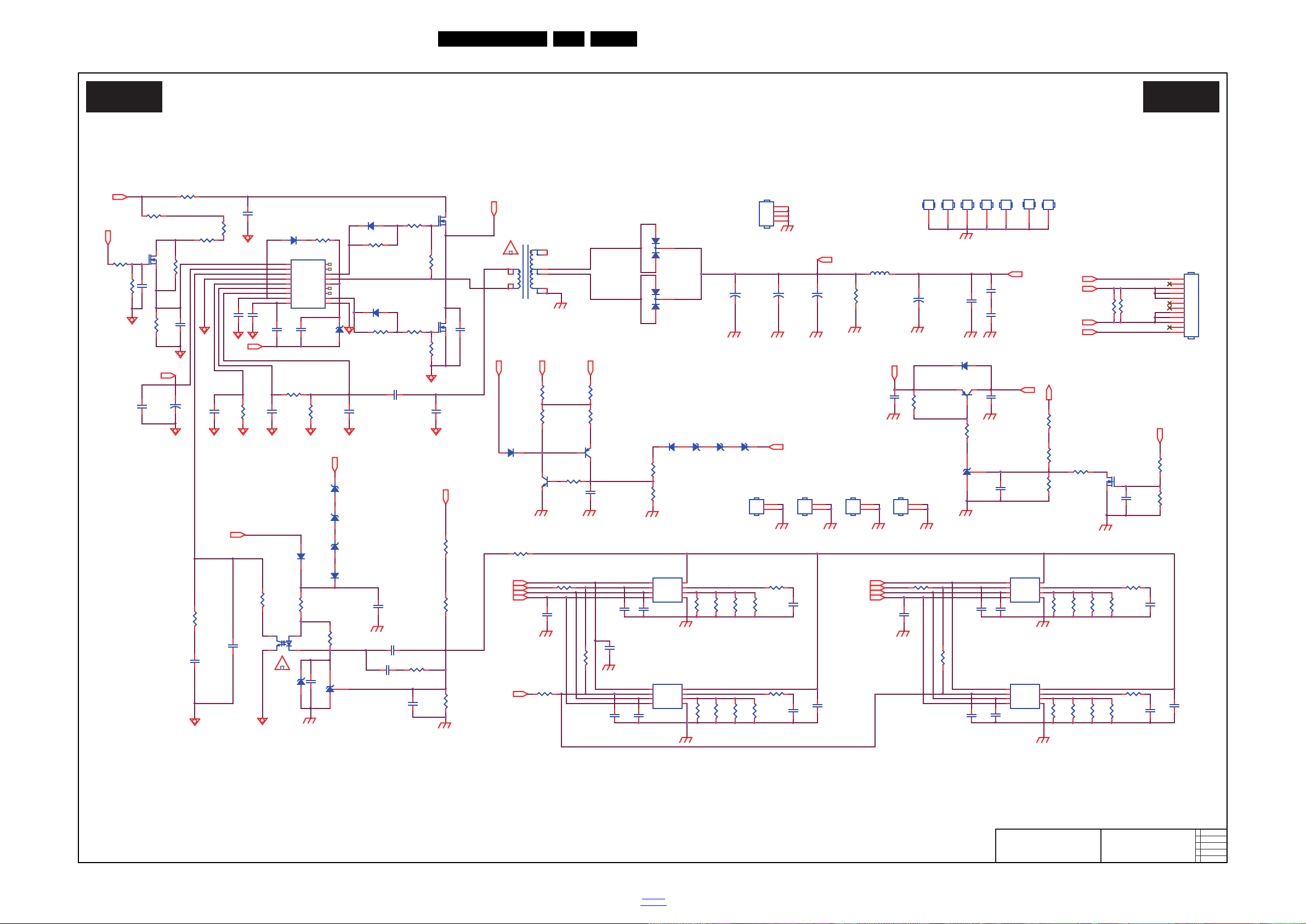

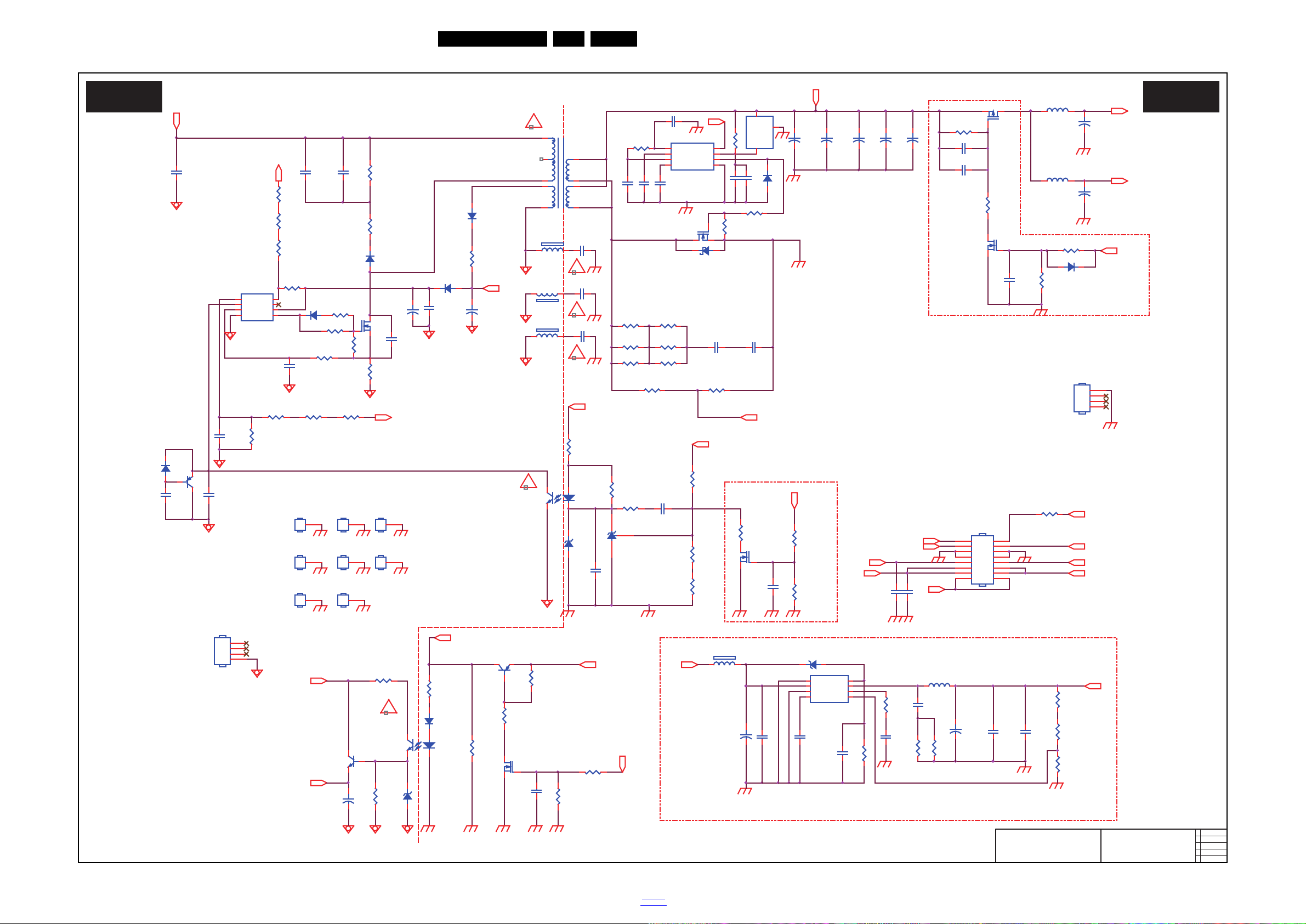

A 715G6679 PSU

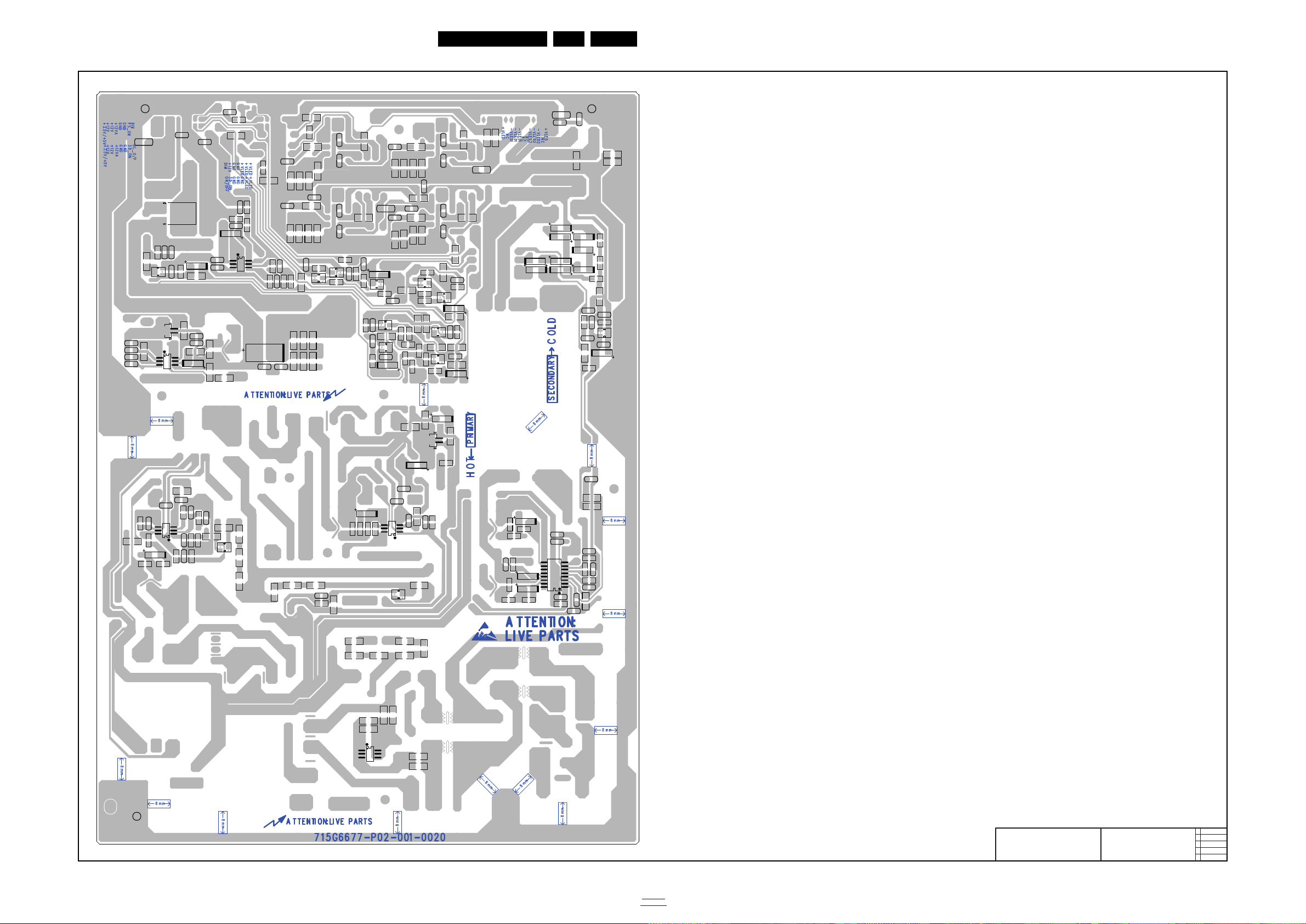

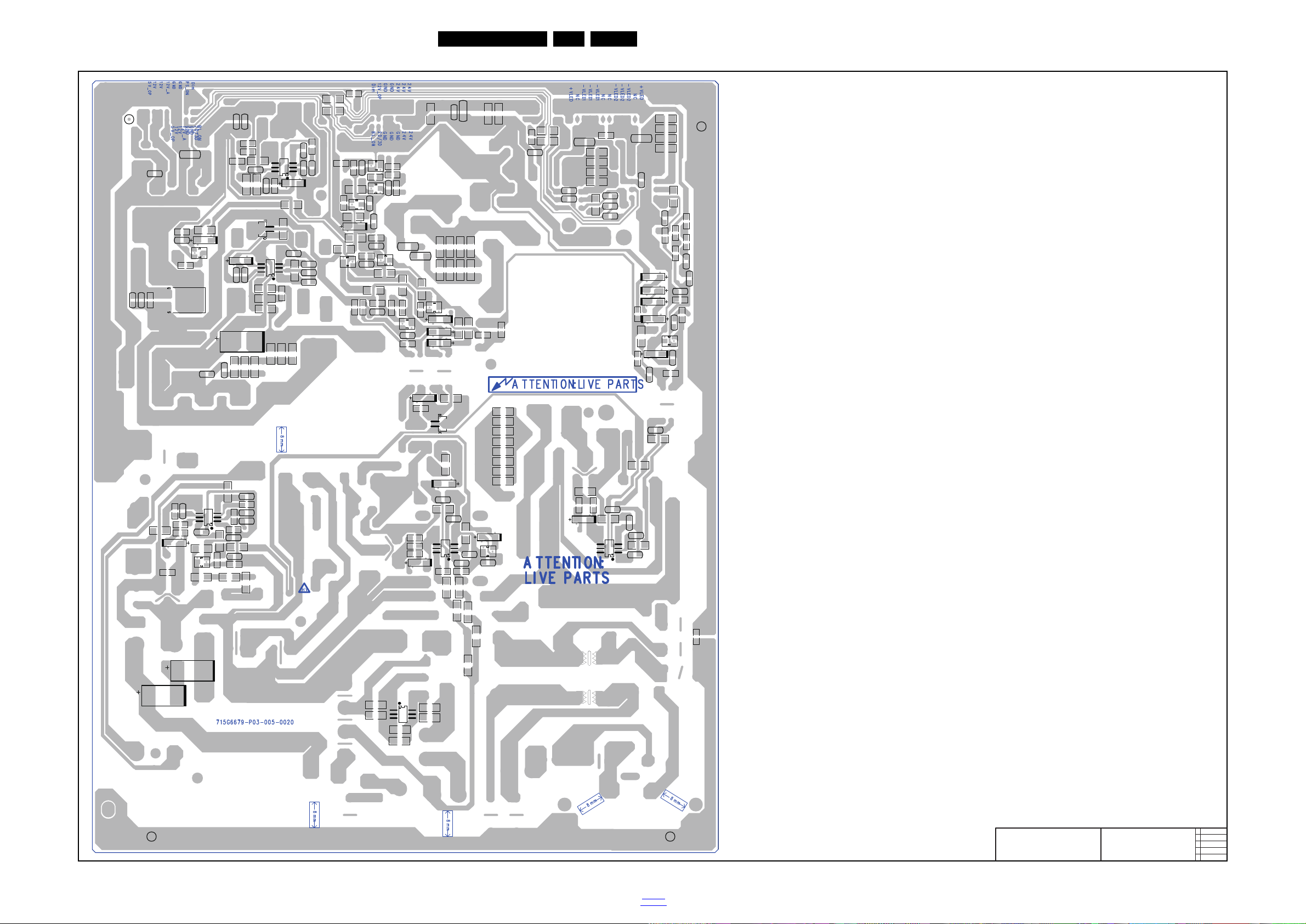

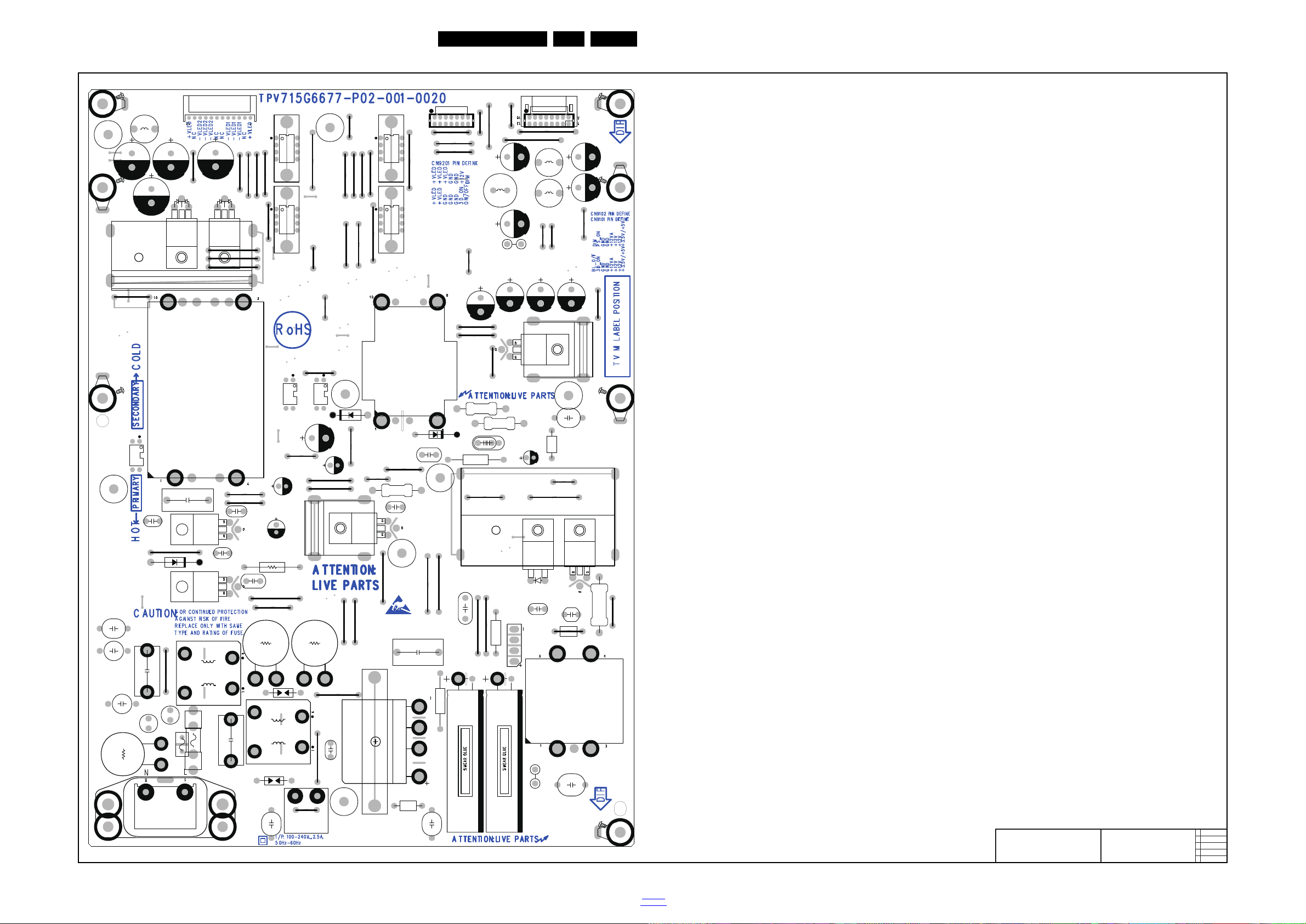

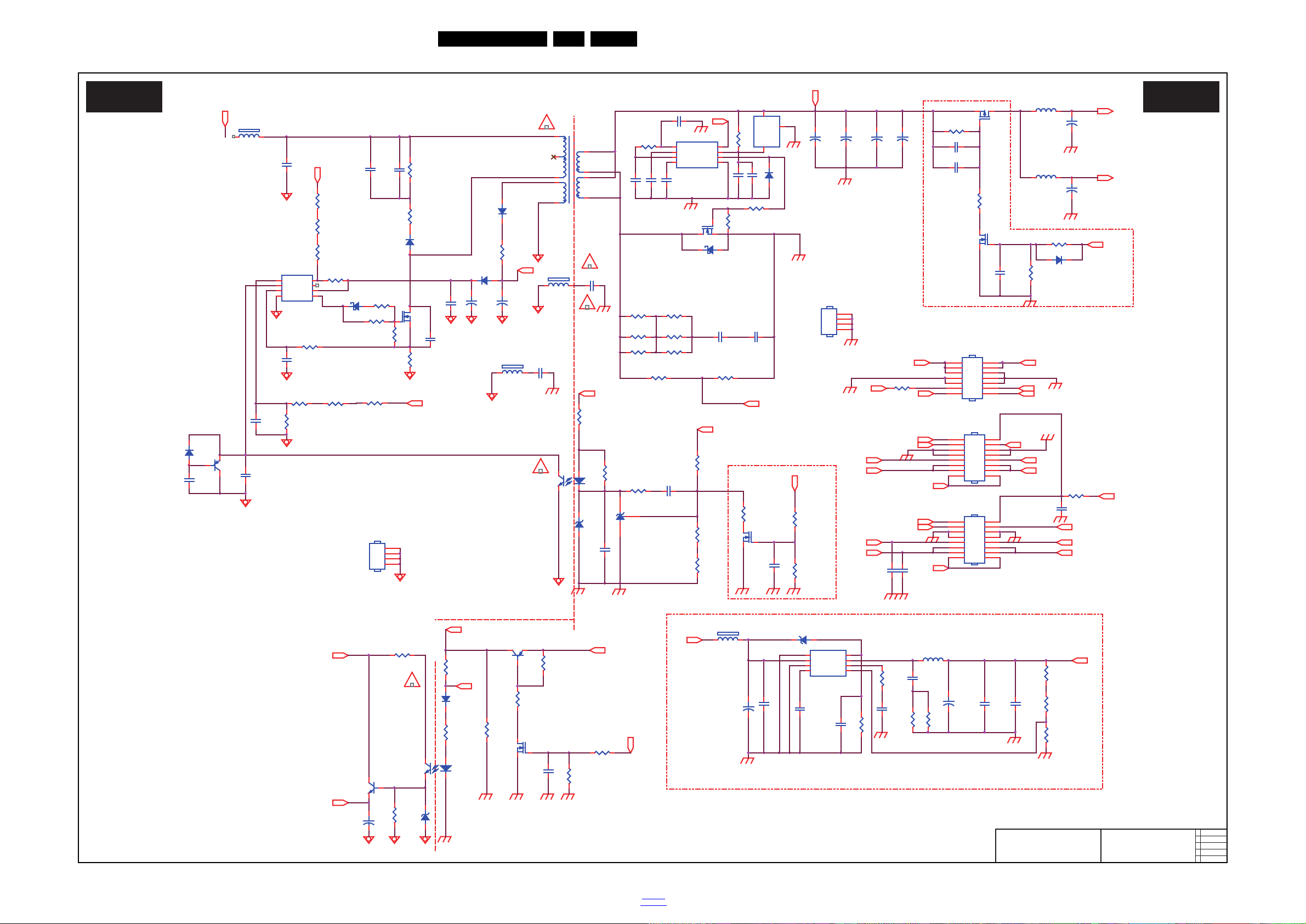

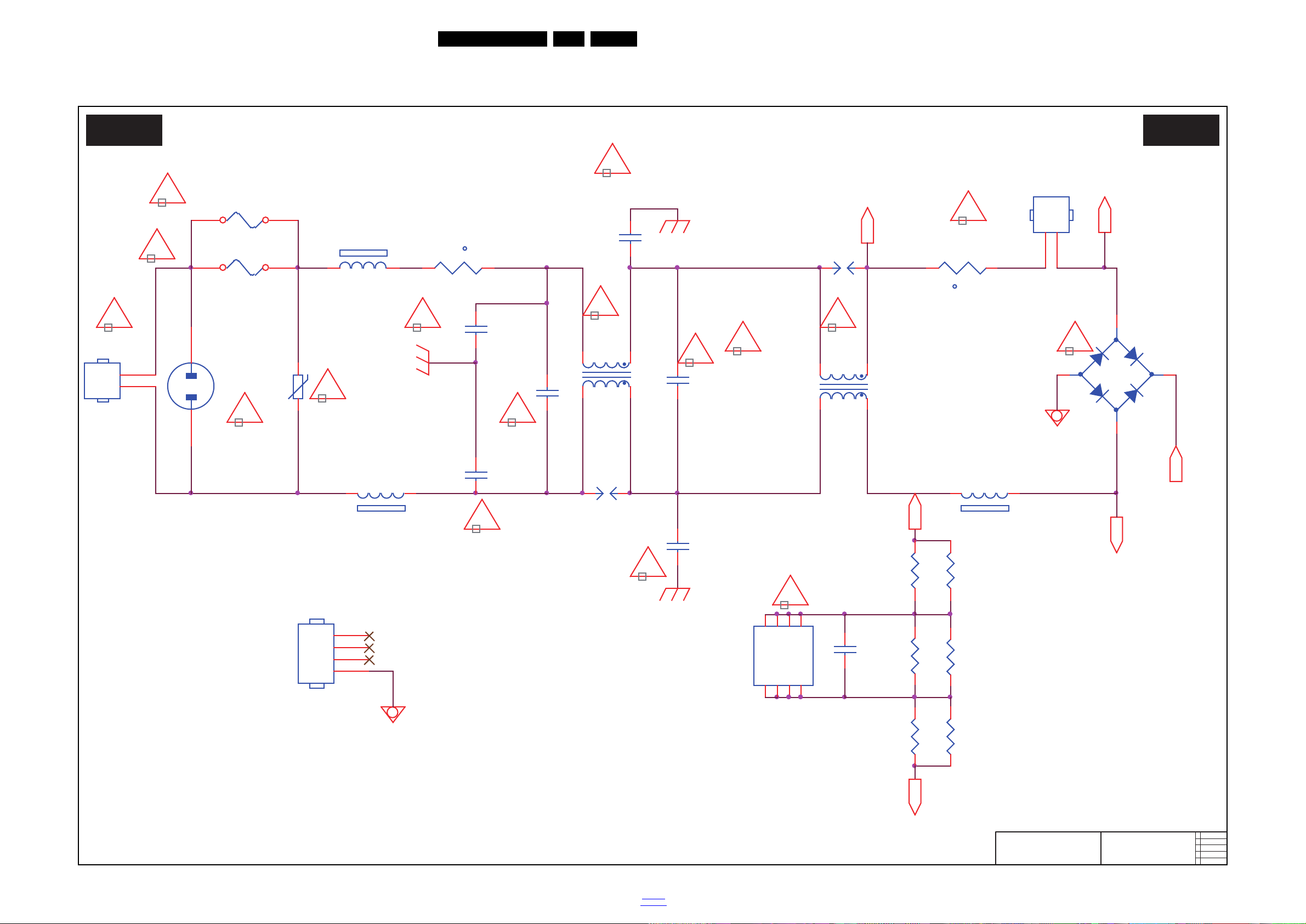

A 715G6677 PSU 36 40-41

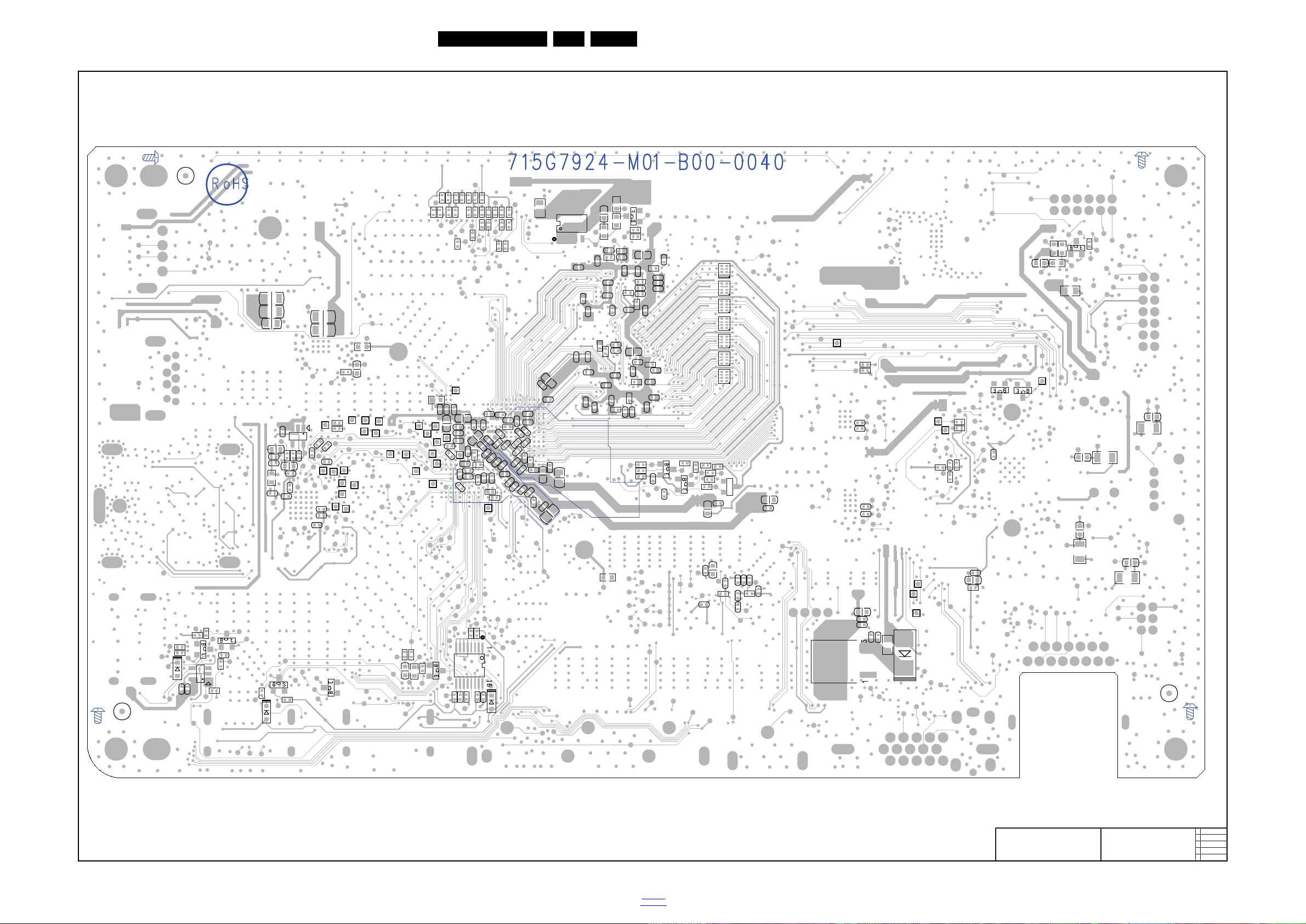

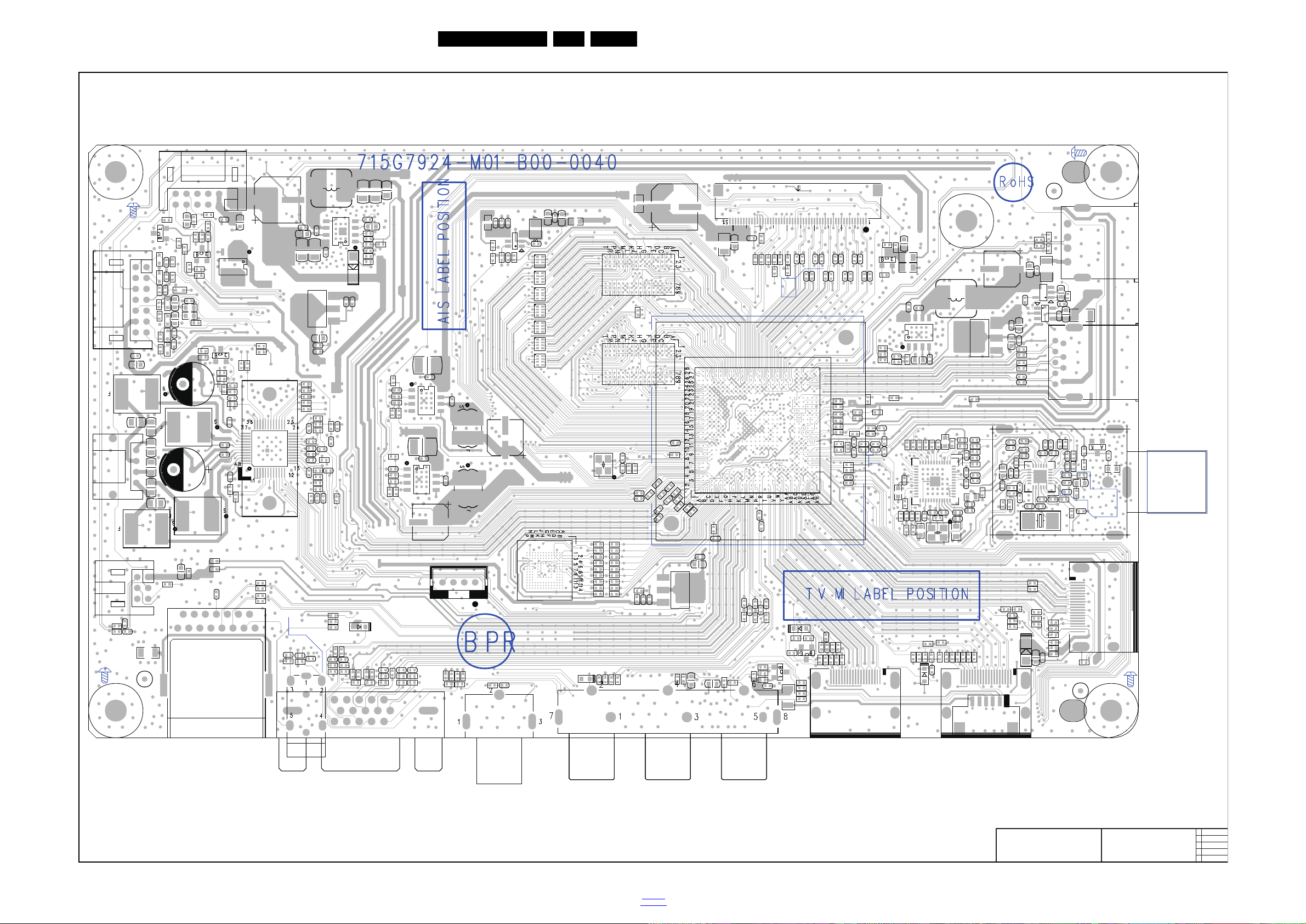

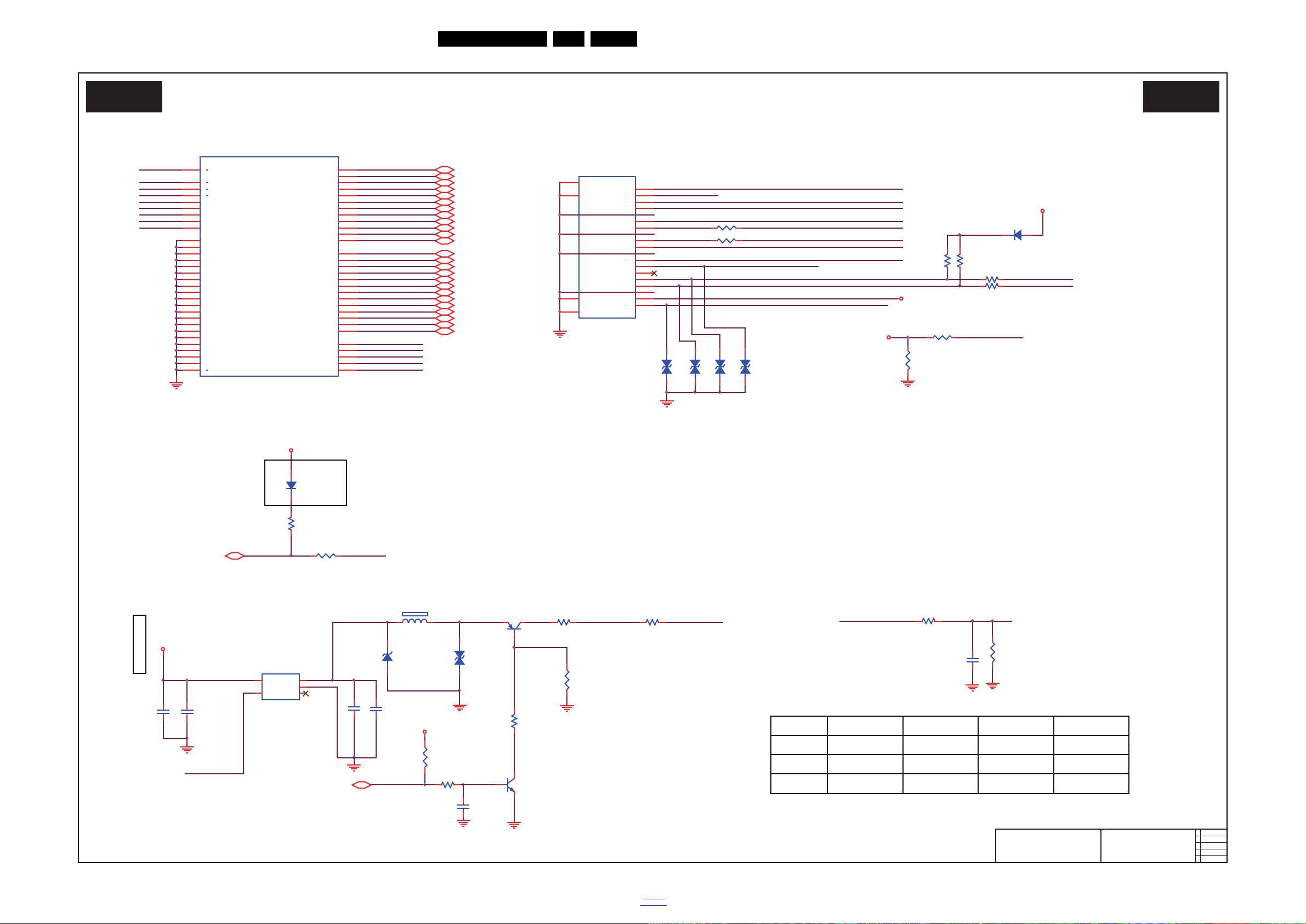

B 715G7324 SSB 42 60-61

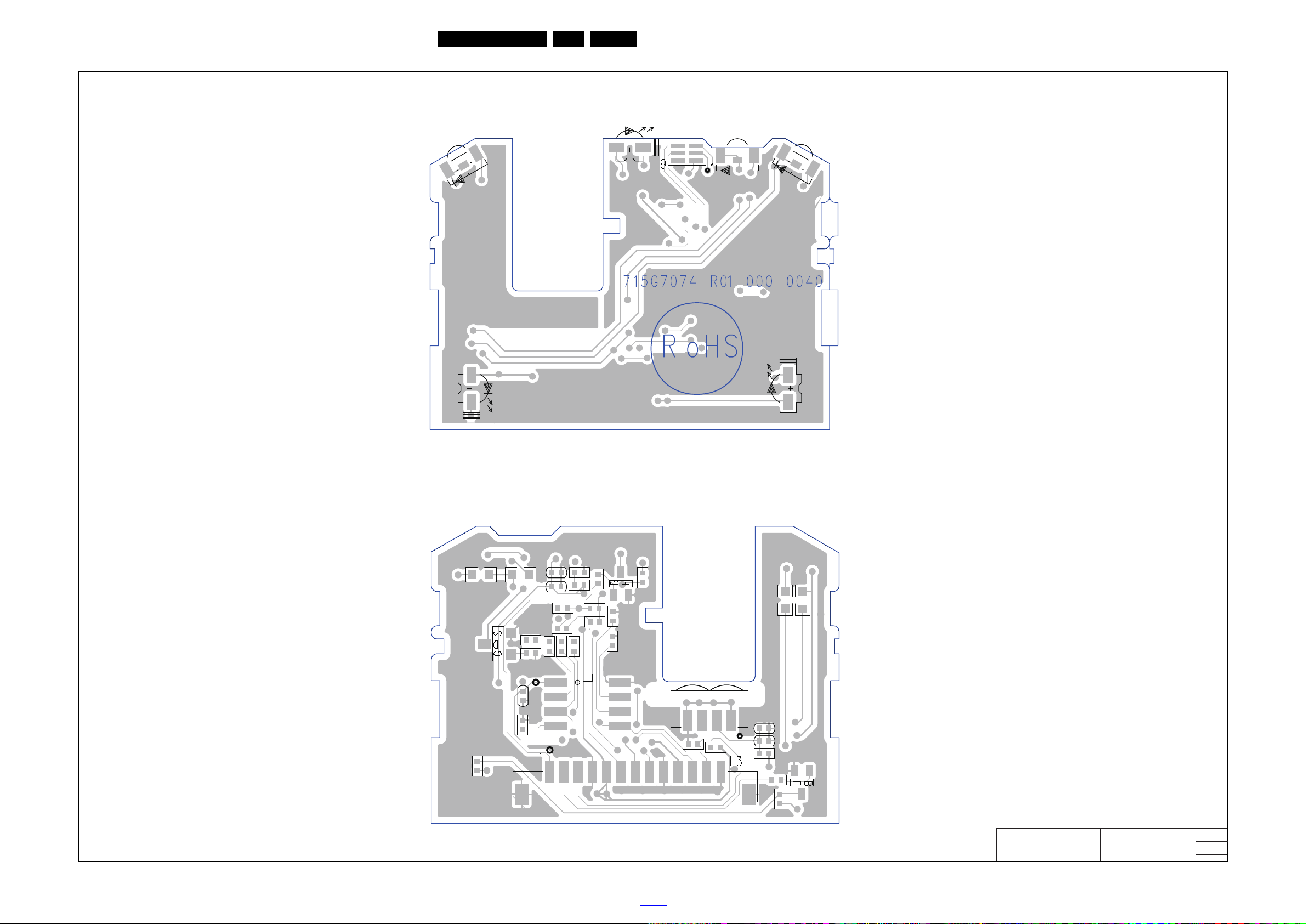

J 715G7074 IR/LED Panel 62 63
E 715G7088 Keyboard control panel 64 65

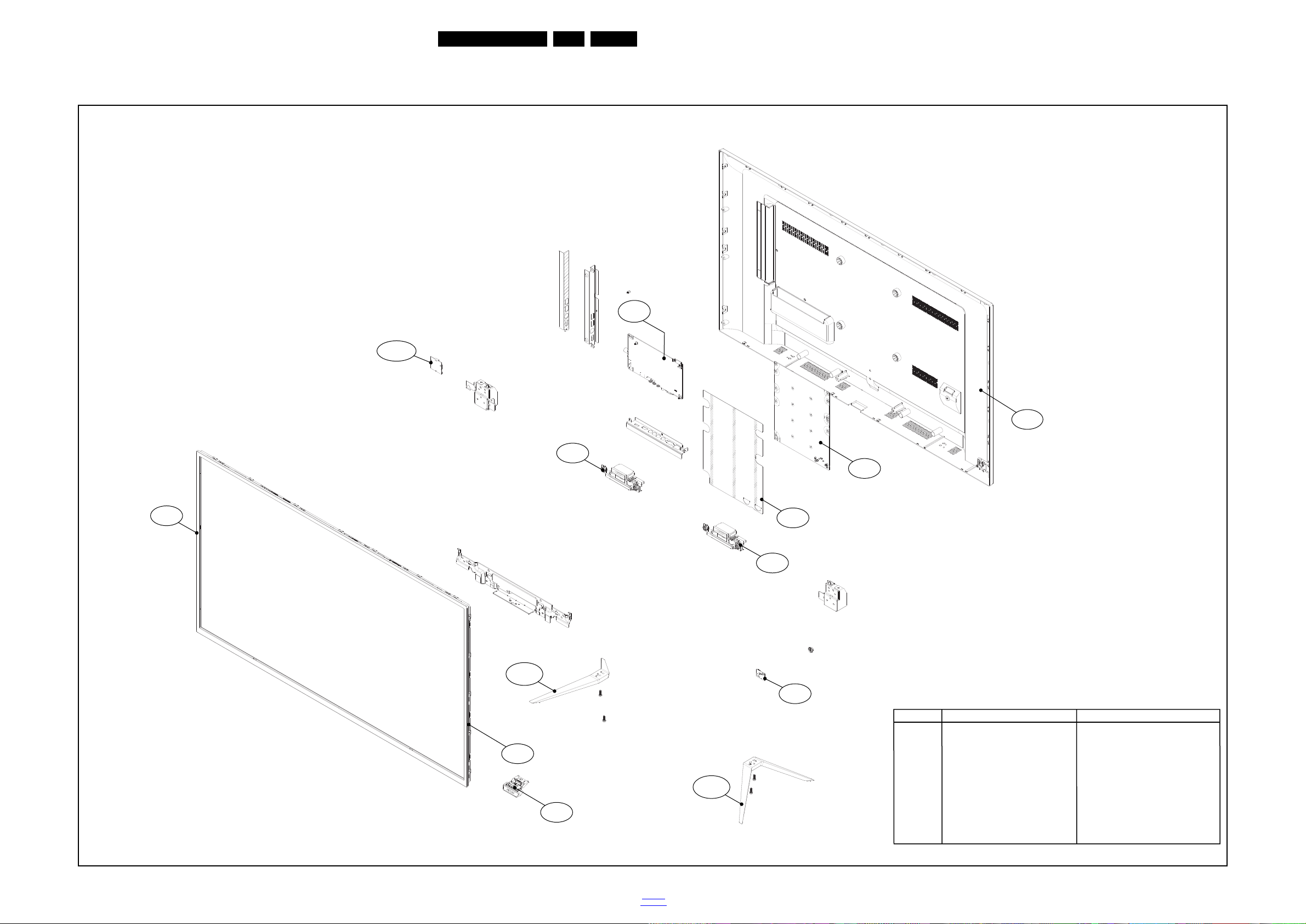

11. Styling Sheets
6701 series 43" 66
6701 series 49" 67

30 34-35

Published by CQZ/SC 1646 Quality Printed in the Netherlands Subject to modification EN 3122 785 20270

2016-Nov-18

2016 ©

TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks are the
property of Koninklijke Philips Electronics N.V. or their respective owners.
TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust
earlier supplies accordingly.
PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phili ps Electronics N.V.

EN 2 TPH16.1A LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

2. Technical Specs, Diversity, and Connections

Index of this chapter:

• Specifications are indicative (subject to change).

2.1 Technical Specifications

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

2.1 Technical Specifications

For on-line product support please use the links in Table 2-1.
Here is product information available, as well as getting started,
user manuals, frequently asked questions and software &

Notes:

drivers.

• Figures can deviate due to the different set executions.

Table 2-1 Described Model Numbers and Diversity

24 910 11

Mechanics

CTN

43PUD6701/30 2-1 4-1 4-3 4-4 4-5 4-6 9.1 10.1 10.3 10.4 10.5 11.1
49PUD6701/30 2-1 4-2 4-3 4-4 4-5 4-6 9.1 10.2 10.3 10.4 10.5 11.2

Connection Overview

Wire Dressing

Stand Removal

Rear Cover Removal

Keyboard Removal

Block
Diagrams Schematics

SSB Removal

Block Diagram

Power Supply

SSB

2.2 Directions for Use

Directions for use can be downloaded from the following
websites:

http://www.philips.com/support
http://www.p4c.philips.com

J (IR/LED )

E (Keyboard/Leading Edge)

Styling

2016-Nov-18

back to

div. table

2.3 Connections

Audio outAudio out

1

2

NETNETWORKORK

PC / DVI PC / DVI

20200_001.eps

1
2

3

9

4
5

6
7

8

1011

1213

1 2 3 4

10000_022_090121.eps

090121

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

EN 3TPH16.1A LA 2.

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

2.3.1 Side Connections

1 - Cinch: SPDIF - Out

Ye -Coaxial 0.4 - 0.6V

2 - Audio out

Connect to loudspeaker box or equivalent to output audio.

3 - USB1 2.0

Figure 2-2 USB (type A)

1-+5V k
2 -Data (-) jk
3 -Data (+) jk
4 -Ground Gnd H

/ 75  kq

PP

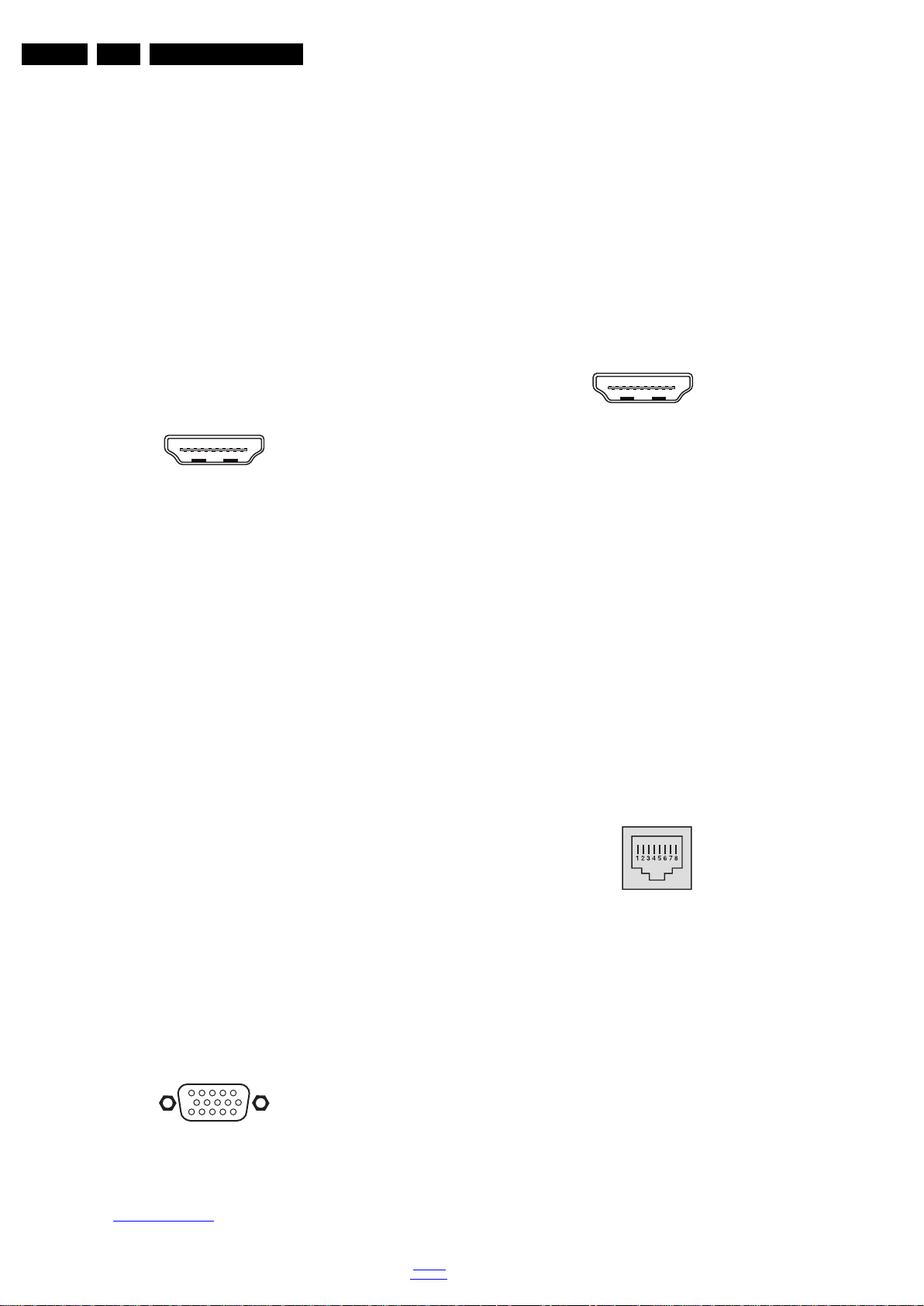

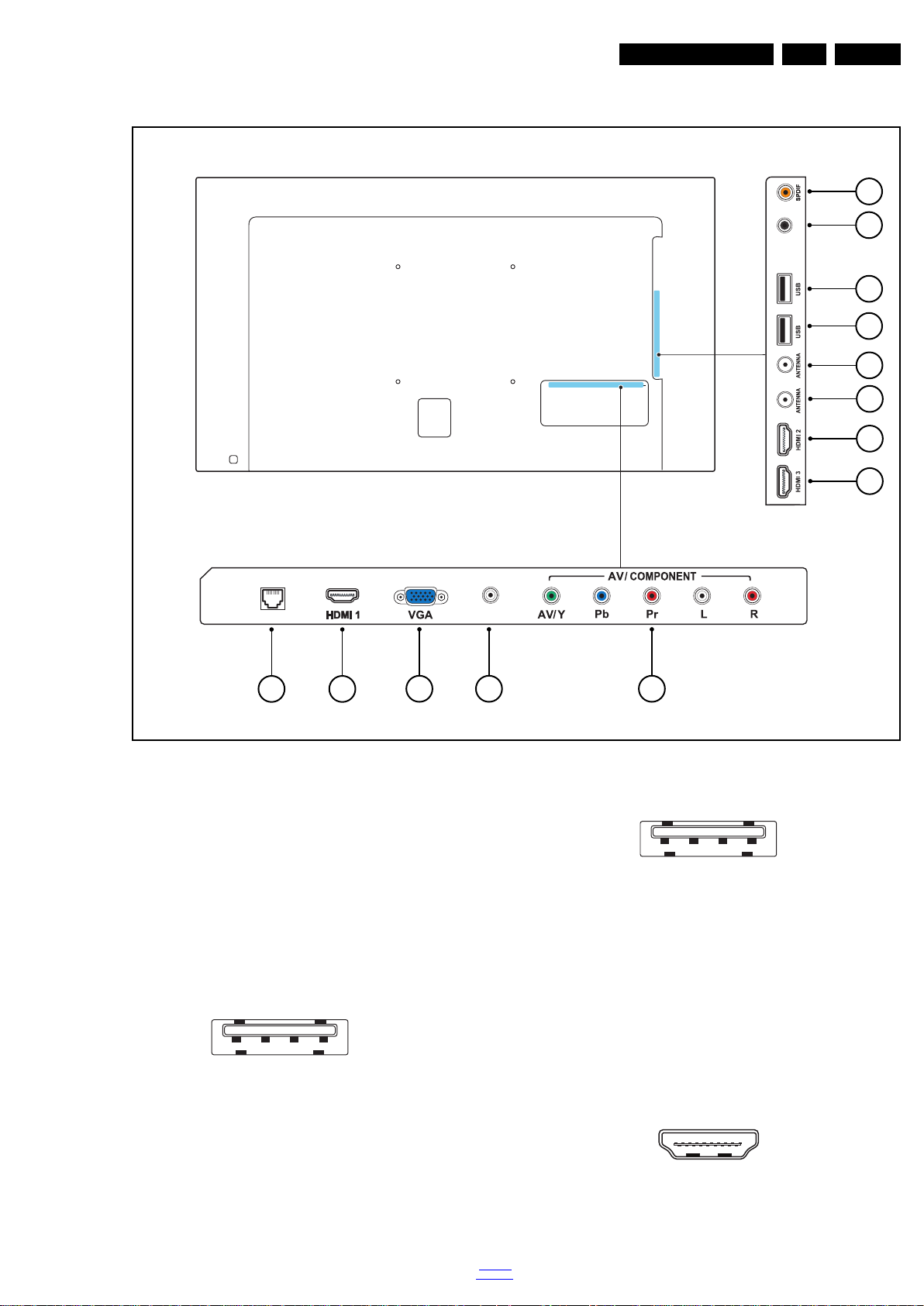

Figure 2-1 Connection overview

4 - USB2 2.0

1-+5V k
2 -Data (-) jk
3 -Data (+) jk
4 -Ground Gnd H

5 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

6 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

7 - HDMI 2: Digital Video - In, Digital Audio - In/Out

Figure 2-3 USB (type A)

Figure 2-4 HDMI (type A) connector

1 -D2+ Data channel j

back to

div. table

2016-Nov-18

EN 4 TPH16.1A LA2.

10000_017_090121.eps

090428

19

1

18 2

1

6

10

11

5

15

10000_002_090121.eps

090127

10000_017_090121.eps

090428

19

1

18 2

10000_025_090121.eps

120320

Technical Specs, Diversity, and Connections

2-Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5-Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8-Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

8 - HDMI 3: Digital Video - In, Digital Audio with MHL ­In/Out

Figure 2-5 HDMI (type A) connector

1 -D2+ Data channel j
2-Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5-Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8-Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

1 -Video Red 0.7 V
2 -Video Green 0.7 V
3 -Video Blue 0.7 V
4-n.c.

/ 75 W j

PP

/ 75 W j

PP

/ 75 W j

PP

5 -Ground Gnd H
6 -Ground Red Gnd H
7 -Ground Green Gnd H
8 -Ground Blue Gnd H
9-+5V
10 - Ground Sync Gnd H

+5 V j

DC

11 - Ground Red Gnd H
12 - DDC_SDA DDC data j
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL DDC clock j

12 - HDMI 1: Digital Video - In, Digital Audio with MHL ­In/Out

Figure 2-7 HDMI (type A) connector

1 -D2+ Data channel j
2 -Shield Gnd H
3 -D2- Data channel j
4 -D1+ Data channel j
5 -Shield Gnd H
6 -D1- Data channel j
7 -D0+ Data channel j
8 -Shield Gnd H
9 -D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - ARC Audio Return Channel k
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H

13 - RJ45: Ethernet

2.3.2 Rear Connections

9 - Cinch: Video YPbPr - In, Audio - In

Gn - Video - Y 1 V
Bu -Video - Pb 0.7 V
Rd -Video - Pr 0.7 V
Wh -Audio - L 0.5 V
Rd -Audio - R 0.5 V

10 - Audio In: PC/DVI - Left / Right,

Gn - Audio L/R in 0.5 V

11 - PC IN:VGA

Figure 2-6 VGA connector

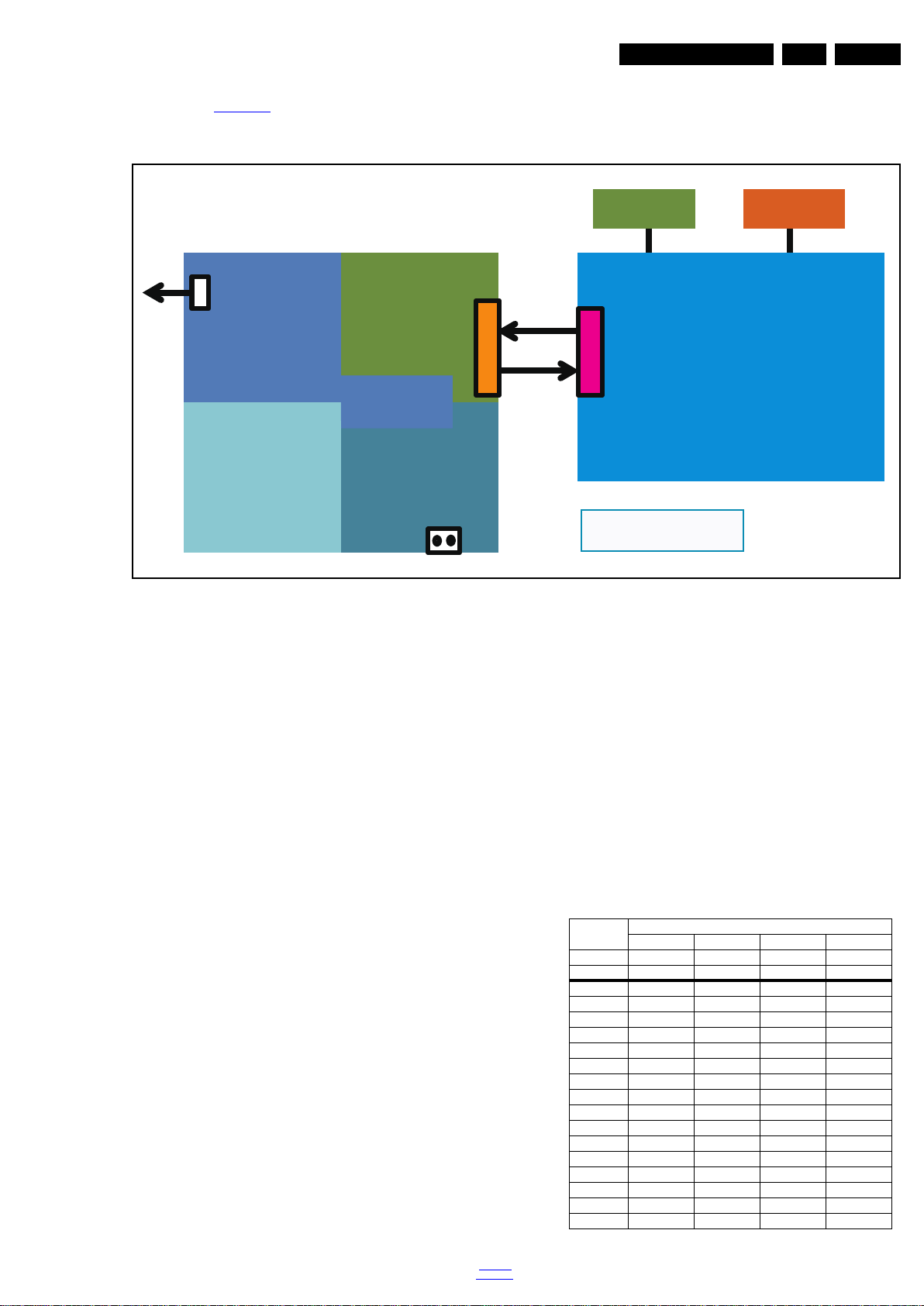

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

2016-Nov-18

/ 75 W jq

PP

/ 75 W jq

PP

/ 75 W jq

PP

/ 10 kW jq

RMS

/ 10 kW jq

RMS

/ 10 k jq

RMS

back to

div. table

Figure 2-8 Ethernet connector

1 -TD+ Transmit signal k
2 -TD- Transmit signal k
3 -RD+ Receive signal j
4 -CT Centre Tap: DC level fixation
5 -CT Centre Tap: DC level fixation
6 -RD- Receive signal j
7 -GND Gnd H
8 -GND Gnd H

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation
transformer (> 800 VA).

• Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:

• Route the wire trees correctly and fix them with the
mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for
external damage.

• Check the strain relief of the Mains/AC Power cord for
proper function.

• Check the electrical DC resistance between the Mains/AC
Power plug and the secondary side (only for sets that have
a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any
inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential.

• Be careful during measurements in the high voltage
section.

• Never replace modules or other components while the unit
is switched “on”.

• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the
Service Default Mode with a colour bar signal and stereo
sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and
picture carrier at 475.25 MHz for PAL, or 61.25 MHz for
NTSC (channel 3).

• Where necessary, measure the waveforms and voltages
with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 k).

• Resistor values with no multiplier may be indicated with
either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10
nano-farads (n 10

• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer
to the diversity tables for the correct values.

• The correct component values are listed on the Philips
Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare
Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this
URL: http://www.atyourservice-magazine.com
“Magazine”, then go to “Repair downloads”. Here you will find
Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile.
Where applicable and available, this profile is added to the IC
Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected
by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is
required, please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.

• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
– To reach a solder-tip temperature of at least 400°C.
– To stabilize the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilized at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will increase drastically and flux-fluid will be destroyed.
To avoid wear-out of tips, switch “off” unused equipment or
reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If this cannot be avoided, carefully
clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website,
“Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example:
AG2B0335000001) indicates the number of the alternative
B.O.M. (Bill Of Materials) that has been used for producing the
specific TV set. In general, it is possible that the same TV
model on the market is produced with e.g. two different types
of displays, coming from two different suppliers. This will then

back to

div. table

-9

), or pico-farads (p 10

. Select

EN 5TPH16.1A LA 3.

-6

),

-12

).

2016-Nov-18

EN 6 TPH16.1A LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

result in sets which have the same CTN (Commercial Type
Number; e.g. 28PW9515/12) but which have a different B.O.M.
number.
By looking at the third digit of the serial number, one can
identify which B.O.M. is used for the TV set he is working with.
If the third digit of the serial number contains the number “1”
(example: AG1B033500001), then the TV set has been
manufactured according to B.O.M. number 1. If the third digit is
a “2” (example: AG2B0335000001), then the set has been
produced according to B.O.M. no. 2. This is important for
ordering the correct spare parts!
For the third digit, the numbers 1...9 and the characters A...Z
can be used, so in total: 9 plus 26= 35 different B.O.M.s can be
indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 1 and 2 refer to the production centre (e.g.
SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M.
code, digit 4 refers to the Service version change code, digits 5
and 6 refer to the production year, and digits 7 and 8 refer to
production week (in example below it is 2010 week 10 / 2010
week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide
if the board has to be exchanged or if it should be repaired on
component level.
If your repair procedure says the board should be exchanged
completely, do not solder on the defective board. Otherwise, it
cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3
format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to
remove horizontal black bars; keeps
the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels
directly from a cable network by

means of a predefined TXT page
ADC Analogue to Digital Converter
AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency
AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box
AM Amplitude Modulation
AP Asia Pacific
AR Aspect Ratio: 4 by 3 or 16 by 9
ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information
ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA
ATV See Auto TV
Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way
AV External Audio Video
AVC Audio Video Controller
AVIP Audio Video Input Processor
B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz
BDS Business Display Solutions (iTV)
BLR Board-Level Repair
BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries
B-TXT Blue TeleteXT
C Centre channel (audio)
CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections
CL Constant Level: audio output to

connect with an external amplifier
CLR Component Level Repair
ComPair Computer aided rePair
CP Connected Planet / Copy Protection
CSM Customer Service Mode
CTI Color Transient Improvement:

manipulates steepness of chroma

transients
CVBS Composite Video Blanking and

Synchronization
DAC Digital to Analogue Converter
DBE Dynamic Bass Enhancement: extra

low frequency amplification
DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV).
DDC See “E-DDC”
D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz
DFI Dynamic Frame Insertion
DFU Directions For Use: owner's manual
DMR Digital Media Reader: card reader
DMSD Digital Multi Standard Decoding
DNM Digital Natural Motion

2016-Nov-18

back to

div. table

Precautions, Notes, and Abbreviation List

EN 7TPH16.1A LA 3.

DNR Digital Noise Reduction: noise

reduction feature of the set
DRAM Dynamic RAM
DRM Digital Rights Management
DSP Digital Signal Processing
DST Dealer Service Tool: special remote

control designed for service

technicians
DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394
DVB-C Digital Video Broadcast - Cable
DVB-T Digital Video Broadcast - Terrestrial
DVD Digital Versatile Disc
DVI(-d) Digital Visual Interface (d= digital only)
E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display.
EDID Extended Display Identification Data

(VESA standard)
EEPROM Electrically Erasable and

Programmable Read Only Memory
EMI Electro Magnetic Interference
EPG Electronic Program Guide
EPLD Erasable Programmable Logic Device
EU Europe
EXT EXTernal (source), entering the set by

SCART or by cinches (jacks)
FDS Full Dual Screen (same as FDW)
FDW Full Dual Window (same as FDS)
FLASH FLASH memory
FM Field Memory or Frequency

Modulation
FPGA Field-Programmable Gate Array
FTV Flat TeleVision
Gb/s Giga bits per second
G-TXT Green TeleteXT
H H_sync to the module
HD High Definition
HDD Hard Disk Drive
HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding.
HDMI High Definition Multimedia Interface
HP HeadPhone
I Monochrome TV system. Sound

2

C Inter IC bus

I

2

I

D Inter IC Data bus

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate F requency
IR Infra Red
IRQ Interrupt Request
ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

back to

div. table

The SDI signal is self-synchronizing,
uses 8 bit or 10 bit data words, and has
a maximum data rate of 270 Mbit/s,
with a minimum bandwidth of 135
MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored
in RAM or in the NVM. They are called
at start-up of the set to configure it
according to the customer's

preferences
LATAM Latin America
LCD Liquid Crystal Display
LED Light Emitting Diode
L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I
LPL LG.Philips LCD (supplier)
LS Loudspeaker
LVDS Low Voltage Differential Signalling
Mbps Mega bits per second
M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz
MHEG Part of a set of international standards

related to the presentation of

multimedia information, standardised

by the Multimedia and Hypermedia

Experts Group. It is commonly used as

a language to describe interactive

television services
MIPS Microprocessor without Interlocked

Pipeline-Stages; A RISC-based

microprocessor
MOP Matrix Output Processor
MOSFET Metal Oxide Silicon Field Effect

Transistor, switching device
MPEG Motion Pictures Experts Group
MPIF Multi Platform InterFace
MUTE MUTE Line
MTV Mainstream TV: TV-mode with

Consumer TV features enabled (iTV)
NC Not Connected
NICAM Near Instantaneous Compounded

Audio Multiplexing. This is a digital

sound system, mainly used in Europe.
NTC Negative Temperature Coefficient,

non-linear resistor
NTSC National Television Standard

Committee. Color system mainly used

in North America and Japan. Color

carrier NTSC M/N= 3.579545 MHz,

NTSC 4.43= 4.433619 MHz (this is a

VCR norm, it is not transmitted off-air)
NVM Non-Volatile Memory: IC containing

TV related data such as alignments
O/C Open Circuit
OSD On Screen Display
OAD Over the Air Download. Method of

software upgrade via RF transmission.

Upgrade software is broadcasted in

TS with TV channels.
OTC On screen display Teletext and

Control; also called Artistic (SAA5800)
P50 Project 50: communication protocol

between TV and peripherals
PAL Phase Alternating Line. Color system

mainly used in West Europe (colour

carrier = 4.433619 MHz) and South

America (colour carrier

PAL M = 3.575612 MHz and

PAL N = 3.582056 MHz)
PCB Printed Circuit Board (same as “PWB”)
PCM Pulse Code Modulation

2016-Nov-18

EN 8 TPH16.1A LA3.

Precautions, Notes, and Abbreviation List

PDP Plasma Display Panel
PFC Power Factor Corrector (or

Pre-conditioner)
PIP Picture In Picture
PLL Phase Locked Loop. Used for e.g.

FST tuning systems. The customer

can give directly the desired frequency
POD Point Of Deployment: a removable

CAM module, implementing the CA

system for a host (e.g. a TV-set)
POR Power On Reset, signal to reset the uP
PSDL Power Supply for Direct view LED

backlight with 2D-dimming
PSL Power Supply with integrated LED

drivers
PSLS Power Supply with integrated LED

drivers with added Scanning

functionality
PTC Positive Temperature Coefficient,

non-linear resistor
PWB Printed Wiring Board (same as “PCB”)
PWM Pulse Width Modulation
QRC Quasi Resonant Converter
QTNR Quality Temporal Noise Reduction
QVCP Quality Video Composition Processor
RAM Random Access Memory
RGB Red, Green, and Blue. The primary

color signals for TV. By mixing levels

of R, G, and B, all colors (Y/C) are

reproduced.
RC Remote Control
RC5 / RC6 Signal protocol from the remote

control receiver
RESET RESET signal
ROM Read Only Memory
RSDS Reduced Swing Differential Signalling

data interface
R-TXT Red TeleteXT
SAM Service Alignment Mode
S/C Short Circuit
SCART Syndicat des Constructeurs

d'Appareils Radiorécepteurs et

SCL Serial Clock I

Téléviseurs

SCL-F CLock Signal on Fast I
SD Standard Definition
SDA Serial Data I
SDA-F DAta Signal on Fast I

2

C

2

C bus

2

C

2

C bus
SDI Serial Digital Interface, see “ITU-656”
SDRAM Synchronous DRAM
SECAM SEequence Couleur Avec Mémoire.

Colour system mainly used in France
and East Europe. Colour
carriers = 4.406250 MHz and

4.250000 MHz
SIF Sound Intermediate Frequency
SMPS Switched Mode Power Supply
SoC System on Chip
SOG Sync On Green
SOPS Self Oscillating Power Supply
SPI Serial Peripheral Interface bus; a

4-wire synchronous serial data link

standard
S/PDIF Sony Philips Digital InterFace
SRAM Static RAM
SRP Service Reference Protocol
SSB Small Signal Board
SSC Spread Spectrum Clocking, used to

reduce the effects of EMI
STB Set Top Box
STBY STand-BY
SVGA 800 × 600 (4:3)
SVHS Super Video Home System
SW Software

SWAN Spatial temporal Weighted Averaging

Noise reduction
SXGA 1280 × 1024
TFT Thin Film Transistor
THD Total Harmonic Distortion
TMDS Transmission Minimized Differential

Signalling
TS Transport Stream
TXT TeleteXT
TXT-DW Dual Window with TeleteXT
UI User Interface
uP Microprocessor
UXGA 1600 × 1200 (4:3)
V V-sync to the module
VESA Video Electronics Standards

Association
VGA 640 × 480 (4:3)
VL Variable Level out: processed audio

output toward external amplifier
VSB Vestigial Side Band; modulation

method
WYSIWYR What You See Is What You Record:

record selection that follows main

picture and sound
WXGA 1280 × 768 (15:9)
XTAL Quartz crystal
XGA 1024 × 768 (4:3)
Y Luminance signal
Y/C Luminance (Y) and Chrominance (C)

signal
YPbPr Component video. Luminance and

scaled color difference signals (B-Y

and R-Y)
YUV Component video

2016-Nov-18

back to

div. table

4. Mechanical Instructions

20270_100.eps

CN408

CN8601

CN9101

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN602

ECN401

ECN601

ECN401

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

ECN102

ECN700

IR/LED BOARD

(1056)

J

KEYBOARD CONTROL

(1057)

E

CN01

ECN408

CN700

CN401

CN602

CN102

WIFI MODULE

W

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal

4.4 Set Re-assembly

4.1 Cable Dressing

Mechanical Instructions

Notes:

• Figures below can deviate slightly from the actual situation,
due to the different set executions.

EN 9TPH16.1A LA 4.

Figure 4-1 Cable dressing (43" 6701 series)

back to

div. table

2016-Nov-18

EN 10 TPH16.1A LA4.

20270_101.eps

CN408

CN8601 CN9303

MAIN POWER SUPPLY

(1054)

A

SSB

(1053)

B

ECN602

ECN401

ECN601

ECN401

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

ECN102

ECN700

IR/LED BOARD

(1056)

J

KEYBOARD CONTROL

(1057)

E

CN01

ECN408

CN700

CN401CN602

CN102

WIFI MODULE

W

Mechanical Instructions

Figure 4-2 Cable dressing (49" 6701 series)

4.2 Se rvice Positions

For easy servicing of a TV set, the set should be put face down
on a soft flat surface, foam buffers or other specific workshop
tools. Ensure that a stable situation is created to perform
measurements and alignments. When using foam bars take
care that these always support the cabinet and never only the
display. Caution: Failure to follow these guidelines can
seriously damage the display!
Ensure that ESD safe measures are taken.

2016-Nov-18

back to

div. table

Mechanical Instructions

20200_106.eps

1

1

1

1

20270_102.eps

2 2

2

2

2

2

2

2

2

2

2

2

2

2 2

3

3

M3× 6

2

M3 × 6

3

EN 11TPH16.1A LA 4.

4.3 Assembly/Panel Removal

Instructions below apply to the 43PUD6701/30, but will be
similar for other 43"/49"PUD6701 series models.

4.3.1 Stand

Refer to Figure 4-3

1. Remove the fixation screws [1] that secure the stand
bracket. Refer to Figure 4-3

2. Take the stand bracket out from the set.

for details.

for details.

Figure 4-3 Stand removal

4.3.2 Rear Cover

Refer to Figure 4-4
Warning: Disconnect the mains power cord before removing
the rear cover.

for details.

1. Remove the fixation screws [2] and [3] that secure the rear
cover. Refer to Figure 4-4

2. Gently lift the rear cover from the TV. Make sure that wires
and cables are not damaged while lifting the rear cover
from the set.

for details.

Figure 4-4 Rear cover removal

back to

div. table

2016-Nov-18

EN 12 TPH16.1A LA4.

20200_108.eps

3

1

2

2

20270_104.eps

2

1

3

3

3

Mechanical Instructions

4.3.3 Keyboard Control Unit

Refer to Figure 4-5

1. Release the connectors [1] and [3] from the keyboard
control panel.
Caution: be careful, as these are very fragile connectors!

for details.

2. Remove all the fixation screws from the keyboard control
panel [2].

When defective, replace the whole unit.

4.3.4 Small Signal Board (SSB)

Refer to Figure 4-6
Caution: it is mandatory to remount all different screws at their
original position during re-assembly. Failure to do so may result
in damaging the SSB.

1. Release the clips from the LVDS [1] connector that connect
with the SSB.
Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2].

3. Remove all the fixation screws [3] from the SSB.

4. The SSB can now be shifted from side connector cover,
then lifted and taken out of the I/O bracket.Refer to

Figure 4-6

for details.

for details.

Figure 4-5 Keyboard Control unit removal

Figure 4-6 SSB removal

2016-Nov-18

back to

div. table

4.3.5 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result
in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.3.6 Speakers

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

3. Take the speakers out.
When defective, replace the both units.

4.3.7 Stand bracket

1. Remove all fixation screws of the bracket.

2. Lift the bracket from the set.

4.3.8 IR/LED panel

1. Remove the stand bracket, as described earlier.

2. Unplug the connector from the IR/LED panel.

3. Gently release the clip that holds the panel and take it out
from the bezel.

When defective, replace the whole unit.

Mechanical Instructions

EN 13TPH16.1A LA 4.

4.3.9 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the stand bracket as described earlier.

4. Remove the IR/LED as described earlier.

5. Remove the fixations screws that fix the metal clamps to
the front bezel. Take out those clamps.

6. Remove all other metal parts not belonging to the panel.

7. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

4.4 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse
order.

Notes:

• While re-assembling, make sure that all cables are placed
and connected in their original position. See Figure 4-1

Figure 4-2

• Pay special attention not to damage the EMC foams on the
SSB shields. Ensure that EMC foams are mounted
correctly.

.

to

back to

div. table

2016-Nov-18

EN 14 TPH16.1A LA5.

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Service Modes

5.2 Stepwise Start-up

5.3 Service Tools

5.4 Software Upgrading

5.5 Fault Finding and Repair Tips

5.1 Service Modes

The Service Mode feature is split into follow parts:

• Factory Mode.

SAM and the Factory mode offer features, which can be used
by the Service engineer to repair/align a TV set. Some features
are:

• Make alignments (e.g. White Tone), reset the error buffer
(Factory Mode).

Note: For the new model range, a new remote control (RC) is
used with some renamed buttons. This has an impact on the
activation of the Service modes. For instance the old “MENU”
button is now called “HOME” (or is indicated by a “house” icon).

Table 5-1 Factory mode overview

5.1.1 Contents of the Factory mode:

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control
transmitter: from the “Menu/Home screen” press “1999”,
directly followed by the “Back” button. Do not allow the
display to time out between entries while keying the
sequence.

After entering the Factory mode, the following items are
displayed, the Default value just for reference.

Default value

Item Item value

0 Brand Philips Philips Brand name
1 Model 43PUD6701_30 49PUD6701_30 Model name
2 HW Ver 715G7924 715G7924 Hardware version
3 SW Ver V1.00 V1.00 Software version
4 Date Thu Sep 8 10;00;04 cst 2016 Thu Sep 8 10;00;04 cst 2016 Software release date
5 Scaler Hi3751v510 Hi3751v510 Scaler name
6 Tuner MXL661 MXL661 Tuner name
7 Panel LG_TPT430U3_EQYSHM_4K_60Hz_2D TPT490U2-EQYSHM.G SC1B Panel type
8 ADC Adjust Press OK to adjust Press OK to adjust ADC Adjust
9 W/B Adjust Press OK to adjust Press OK to adjust W/B Adjust
10 SSC Adjust Press OK to adjust Press OK to adjust SSC Adjust
11 EQ Adjust Press OK to adjust Press OK to adjust EQ Adjust
12 Burn In Off Off Burn In
13 Others Press OK Press OK Others
14 Reset Press OK Press OK System Reset
15 APK Version V0.015.A V0.015.A APK Version
16 Exit Press OK Press OK Exit factory mode

Description43" 49"

How to Exit the Factory mode

Use one of the following methods:

• Select EXIT_FACTORY from the menu and press the “OK”
button.

Note: When the TV is switched “off” by a power interrupt, or
normal switch to “stand-by” while in the factory mode, the TV
will show up in “normal operation mode” as soon as the power
is supplied again. The error buffer will not be cleared.

2016-Nov-18

back to

div. table

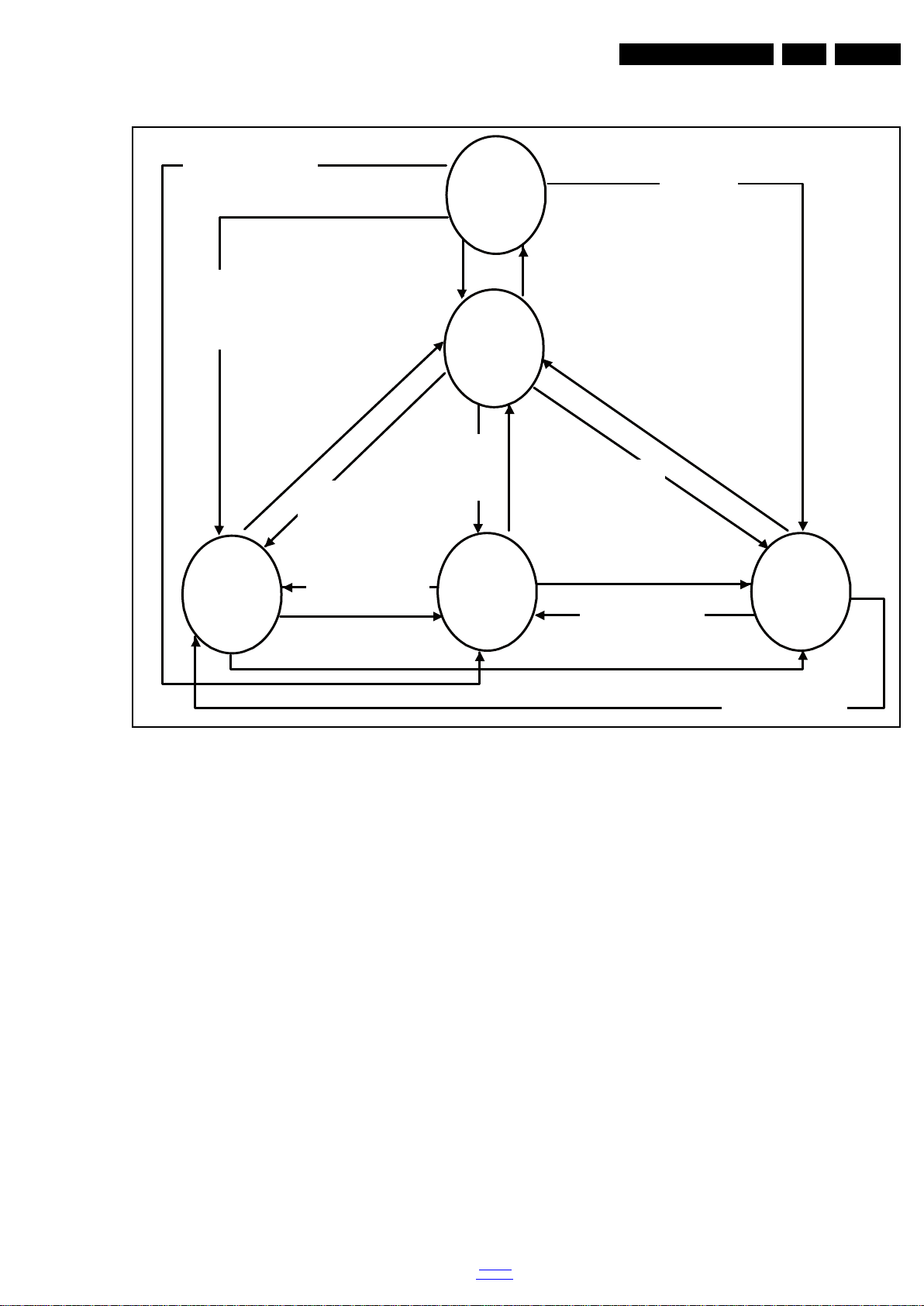

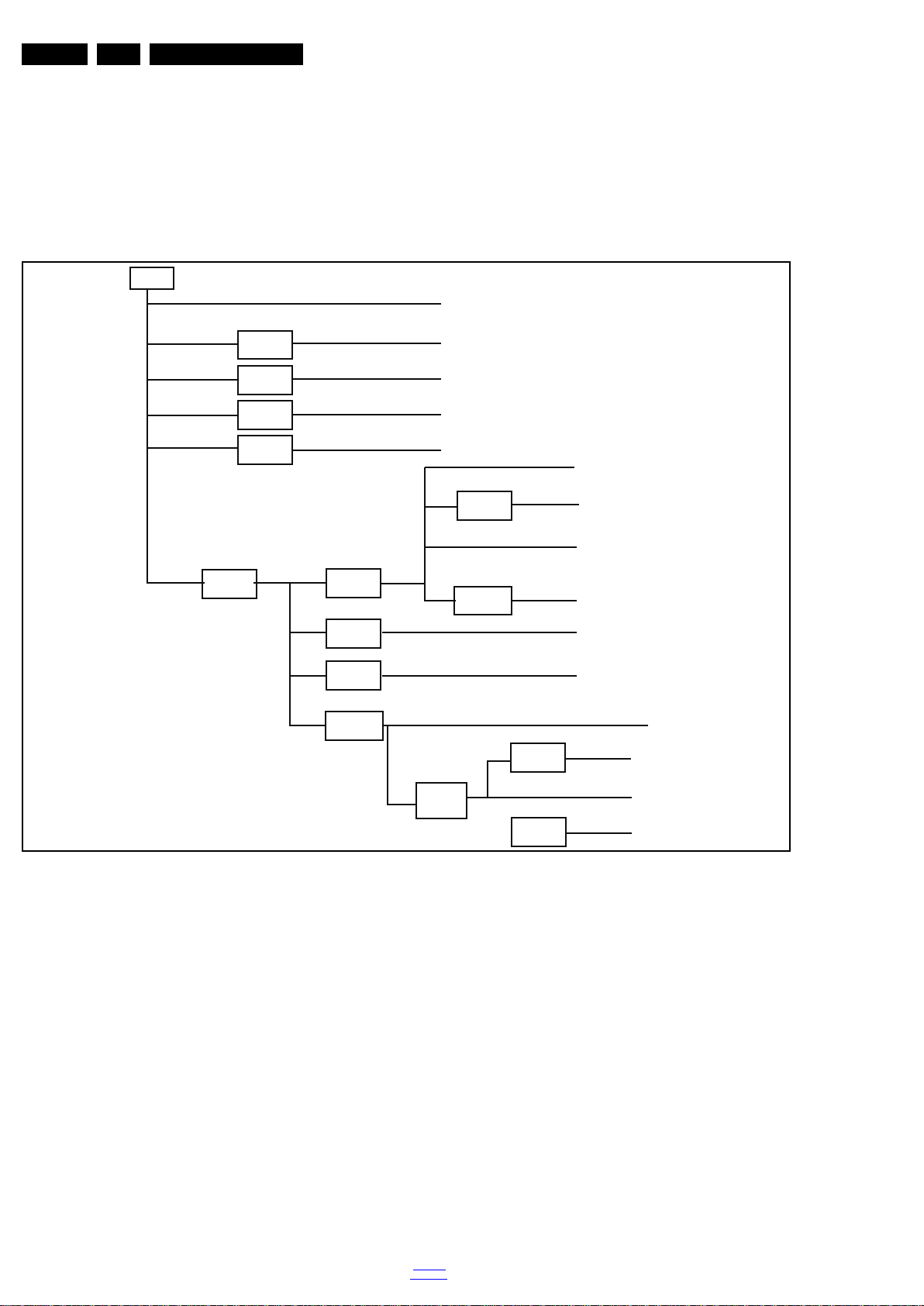

5.2 Stepwise Start-up

19080_206_110323.eps

120224

Power Off

Standby
Soft Mode

Power On

Semi-
Standby

Standby

Switch

Off(Mains
Power Plug)

Standby Soft Mode
Command Received,
previously in Standby

Soft Mode (Power tact
switch)

TV Wakeup
commands
Received
(TV Wakeup
keys)

Digital
background
tasks started

Digital
background
tasks completed

Swith On,
previously in

Standby/Semi-
Standby (Mains
Power Plug)

Standby
Soft Mode

Command
Received
(Power tact

switch)

Switch Off (Mains
Power Plug)

Switch Off

(Mains Power
Plug)

Swith On,
previously in
Standby Soft Mode
(Mains Power Plug)

Standby
commands

Received (RC

Standby key)

Standby Soft Mode

Command Received,
previously in Standby
Soft Mode (Power
tact switch)

TV Wakeup
commands
Received
(TV Wakeup
keys)

Switch On, previously
in Power On Mode
(Power tact switch)

Standby Soft Mode
Command Received,
(Power tact switch)

Switch Off (Mains
Power Plug)

Switch On,previously in
TV Operation Mode
(Mains Power Plug)

Service Modes, Error Codes, and Fault Finding

EN 15TPH16.1A LA 5.

Figure 5-1 Stepwise Start-up

back to

div. table

2016-Nov-18

EN 16 TPH16.1A LA5.

19080_207_110324.eps

110324

19080_208_110324.eps

110324

19080_209_110324.eps

110324

Service Modes, Error Codes, and Fault Finding

5.3 Service Tools

5.3.1 ComPair

The ComPair Tool is no longer supported here. Still, the interface box can be used as level shifter between the TV chassis and PC.

5.4 Software Upgrading

5.4.1 Description

It is possible for the user to upgrade the main software via the
USB port. This allows replacement of a software image in a
stand alone set. A description on how to upgrade the main
software can be found in the DFU or on the Philips website.

5.4.2 Introduction

Philips continuously tries to improve its products, and it’s
recommend that the TV software is updated when updates are
available. Software update files can be obtained from the
dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip
for Windows or Stufflt for Mac OS).

3. A FAT formatted USB memory stick (preferably empty).

6. Upgrading will now begins and the status of the updating
progress will be displayed.

7. When the TV software is updated. Remove your USB flash
drive, then select [Restart] and press OK to restart the
TV.See Figure 5-4

.

Figure 5-2 Update the TV software [1/3]

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

web site.

5.4.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to
check that what the current TV software:

1. Press the “1 2 3 6 5 4” button on the remote control to enter
the CSM mode.

2. Use the up/down cursor keys to select “Current Main
Software”.

If the current software version of the TV is the same as the
latest update file found on http://www.philips.com/support
not necessary to update the TV software.

5.4.4 Download the latest software

1. Open the internet page http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the
PC.

4. Insert the USB memory stick into one of the USB ports of
the PC.

5. Decompress the downloaded ZIP file and copy it to the root
directory of the USB flash drive.

5.4.5 Update the TV software

1. Turn the TV on and wait for it to boot completely.

2. Insert the USB memory stick that contains the software
update files in one of the TV’s USB ports.

3. The TV will detect the USB memory stick automatically.
Then a window jumps out as Figure 5-2

.
Note: If the USB flash drive is not detected after power up,
disconnect it and re-insert it.

4. Select [Update] and press OK. See Figure 5-2

5. To proceed, In next menu select [Start] and press OK to
.

2016-Nov-18

start software updates. See Figure 5-3

Figure 5-3 Update the TV software [2/3]

, it is

.

Figure 5-4 Update the TV software [3/3]

Note:

• Do not remove the USB flash drive during the software
update.

• If a power failure occurs during the update, do not remove
the USB flash drive from the TV. The TV will continue the
software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or
contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV
software from the USB portable memory.

.

back to

div. table

Service Modes, Error Codes, and Fault Finding

5.4.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and
instructions on how and when to use it. Only files that are
relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the
different EDID NVMs.

• FUS_clustername_version.zip: Contains the file
downloaded which is needed to upgrade the TV main
software and the software download application.

• NVM_clustername_version.zip: Default NVM content.

5.4.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder
“repair” is used. When inserting an empty USB memory stick,
and downloading data to the stick, the TV will create this folder.
When sending data from a USB memory stick to a TV, the
intended data must be available in the “repair” folder.
Note that when copying EDID data to the TV, all necessary
EDID files must be in this folder.
Service mode overview for your reference.

5.5 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly
with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options
are set.

EN 17TPH16.1A LA 5.

5.5.1 Unstable Picture via HDMI input

Check if HDMI EDID data is properly programmed.

5.5.2 No Picture via HDMI input

Check if HDCP key is valid. This can be done in CSM.

5.5.3 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

5.5.4 Audio Amplifier

The Class D-IC U606 has a powerpad for cooling. When the IC
is replaced it must be ensured that the powerpad is very well
pushed to the PWB while the solder is still liquid. This is needed
to insure that the cooling is guaranteed, otherwise the Class
D-IC could break down in short time.

5.5.5 Loudspeakers

Make sure that the volume is set to minimum during
disconnecting the speakers in the ON-state of the TV. The
audio amplifier can be damaged by disconnecting the speakers
during ON-state of the set!

back to

div. table

2016-Nov-18

EN 18 TPH16.1A LA6.

6. Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following
conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer
with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct
ground (e.g. measure audio signals in relation to
AUDIO_GND).
Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

• Use an isolated trimmer/screwdriver to perform
alignments.

> 10 MW, Ci < 20 pF.

i

6.2 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service
repair shop (SSB repair on component level) implies the reset
of the NVM on the SSB.

After a repaired SSB has been mounted in the set (set repair
on board level), the type number (CTN) and production code of
the TV has to be set according to the type plate of the set.

, 50/ 60 ± 3 Hz.

AC

Alignments

6.2.1 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB.
715Axxxx-Nnn-MMM-OOOO

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code

Make sure when replacing an SSB the SSB identification codes
match the replacement board.

2016-Nov-18

back to

div. table

7. Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 DC/DC Converters

7.4 Front-End Analogue and DVB-T, DVB-C reception

7.5 HDMI

7.6 Video and Audio Processing - Hi3751ARBCV5100D00

Notes:

•Only new circuits (circuits that are not published recently)
are described.

• Figures can deviate slightly from the actual situation, due
to different set executions.

• For a good understanding of the following circuit
descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

you will find a separate drawing for clarification.

) and circuit diagrams (see chapter

).Where necessary,

Circuit Descriptions

7.1 Introduction

The TPH16.1A LA is a new chassis launched in Hong Kong in

2016. The whole range is covered by Hi3751 V51 0 .
The major deltas versus its predecessor support
NTSC/PAL, MHL, Ethernet,DVB-C; DVB-T, with also
USB3.0, WIFI/multi-media, video out function.

The TPH16.1A LA chassis comes with the following stylings:

• series xxPUD6701/30

7.1.1 Implementation

Key components of this chassis are:

• SCALER Hi3751ARBCV5100D00 PBGA-577

• TUNER MxL661-AG-R

• EMMC THGBMDG5D1LBAIT 4GB FBGA153

• AUDIO AD82588B-LG48NAY 2x15W stereo E-LQ

• DRAM K4B4G1646E-BCK0 4G FBGA-96

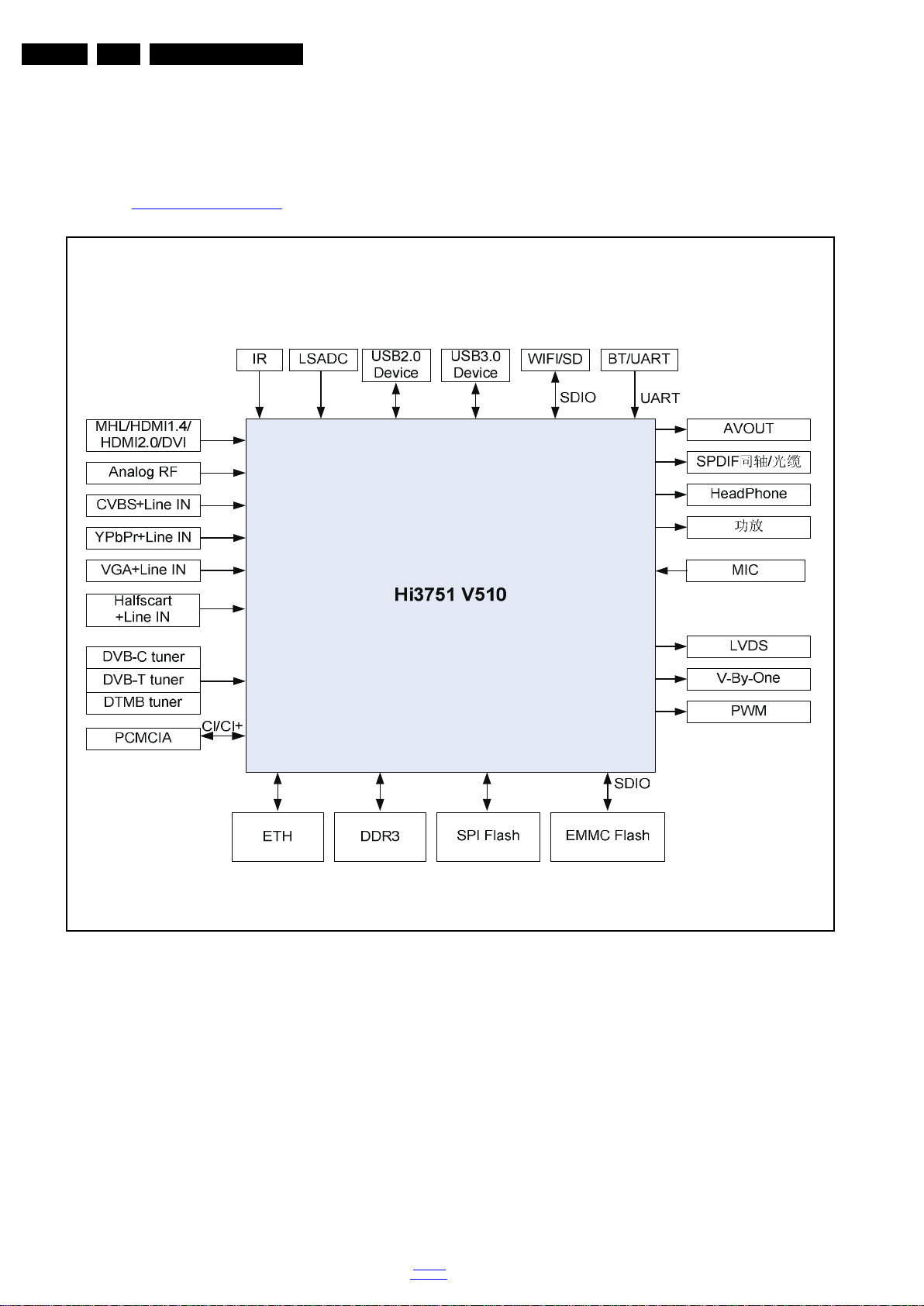

7.1.2 TPH16.1A LA Architecture Overview

For details about the chassis block diagrams refer
to 9. Block Diagrams

Figure 9.1

.

. An overview architecture can be found in

EN 19TPH16.1A LA 7.

back to

div. table

2016-Nov-18

EN 20 TPH16.1A LA7.

20270_200.eps

Antenna

DC/DC

ANALOG I/O

VGA

HDMI2

HDMI1

SERV.U

Hi3751 V510

USB2

USB1

COAXIAL

NETWORK

DDR

7.1.3 SSB Cell Layout

Circuit Descriptions

Figure 7-1 SSB layout cells (top view)

2016-Nov-18

back to

div. table

7.2 Power Supply

Platform

Hi3751ARBCV5100D00

AUDIO

AMP

LVDS

24V 12V

CN700

AC IN

DIM

BL-ON/OFF

12V

AC input +

Main filter

Display Power

Platfor m p ow er

PFC

Lower Stby
Power

CN8601

CN8101

1 power-PCB

PS_ON

20270_201.eps

Refer to figure Figure 7-2 for the power architecture of this
platform.

Circuit Descriptions

EN 21TPH16.1A LA 7.

7.2.1 Power Supply Unit

All power supplies are a black box for Service. When defective,
a new board must be ordered and the defective one must be
returned, unless the main fuse of the board is broken. Always
replace a defective fuse with one with the correct
specifications! This part is available in the regular market.
Consult the Philips Service web portal for the order codes of the
boards.

Important delta’s with the TPH16.1A LA classis platform are:

• New power architecture for LED backlight

• “Boost”-signal is now a PWM-signal + continuous variable.

The control signals are:

• Stand-by

• Lamp “on/off”

• DIM (PWM) (not for PSDL)

In this manual, no detailed information is available because of
design protection issues.

The output voltages to the chassis are:

• +8.5V output (stand-by mode)

• +12V (on-mode)

• +12V_audio (audio power)

• Output to the display; in case of

- IPB: High voltage to the LCD panel

- PSL and PSLS (LED-driver outputs)

- PSDL (high frequent) AC-current.

7.2.2 Diversity

The diversity in power supply units is mainly determined by the
diversity in displays.

The following displays can be distinguished:

Figure 7-2 Power Architecture

• CCFL/EEFL backlight: power panel is conventional IPB

• LED backlight:

PSL stands for Power Supply with integrated LED-drivers.
PSLS stands for a Power Supply with integrated LED-drivers
with added Scanning functionality (added microcontroller).
PSDL stands for a Power Supply for Direct-view LED backlight

with 2D-dimming.

7.2.3 Connector overview

Table 7-1 Connector overview

back to

div. table

- side-view LED without scanning: PSL power panel

- side-view LED with scanning: PSLS power panel

- direct-view LED without 2D-dimming: PSL power panel

- direct-view LED with 2D-dimming: PSDL power panel.

Number
Description to SSB to panel to SSB to panel
Pin16121612

1 DIM +VLED DIM +VLED
2 BL_O/F n.c. BL_O/F n.c.
3 PS_ON +VLED1 PS_ON -VLED-1
4 3D_DB +VLED1 3D_ON -VLED-1
5 GND +VLED1 GND -VLED-1
6 GND n.c. GND n.c.
7 GND n.c. GND n.c.
8 GND +VLED2 GND -VLED-2
9 12VA+VLED212VA-VLED-2
10 12VA +VLED2 12VA -VLED-2
11 +12V n.c. +12V n.c.
12 +12V VLED +12V +VLED
13 +12V - +12V ­14 +12V - +12V ­15 +5V - +3.5V/+5V ­16 +5V - +3.5V/+5V -

Connector
CN9101 CN8601 CN9303 CN8101

2016-Nov-18

EN 22 TPH16.1A LA7.

VCC_SD

4K2K:4A PMOS

5V_SB

MOS 1A

ETA6010

2.7A max

0.5A

5V0

TPS554328

ETA6010

MOS 2.4A

DC DC 3A

IRLML6401TRPBF

WIFI_PWR

TJ4210GDP-ADJ

MOS 1A

VCC_PANEL

DC/DC 5A

MOS 1A

AZ1117

1V5_DDR3

5A max

TUNER

MOS 1A

NDS336P

5V0

TPS54528

VCC_PCMCIA

(Core GPU)

MOS 1A

AZ1084/AS1117

TPS56220

USB3.0

CPU

0.8A max

3V3

12V0

1A max

1A max

WIFI

DC DC 2A

TPS54328

VBUS

0.3A

LDO_1V2

(QAM AVDDREF FE A FE HDMI)

NDS336P

12V0

DDR & DDR PHY

MHL

3V3_SB

VDD_1V1

LDO

LDO 1A

TCON

2.5A max

NDS336P

(USB2.0 * 2 & BT)

AMP

CI

2.5A max

CPU_1V1

3V3_T UN

DC DC 3A

SD CARD

1A max

4A

DVDD33

LDO 1A

20270_202.eps

Circuit Descriptions

7.3 DC/DC Converters

The on-board DC/DC converters deliver the following voltages
(depending on set execution):

• +3V3SB, permanent voltage for the Stand-by controller

• STB, power supply for LED/IR receiver and Keyboard

• +12V, input from the power supply for the panel common
(active mode)

• VCC_3V3 voltage for EMMC when TV on

• 1V5_DDR3,DDR voltage for DDR & DDR PHY

• 3V3_TUN, supply voltage for tuner

• 5V_USB, input intermediate supply voltage for USB Power

• AMP_12V from the power P24V for the AUDIO AMP

• WIFI_Power,voltage for WIFI

• 3V3_SB,voltage for For MHL Power

• 1V1,voltage for CPU

Figures gives a graphical representation of the DC/DC
converters with its current consumptions:

2016-Nov-18

Figure 7-3 DC/DC converters

back to

div. table

7.3.1 Power layout SSB

20270_205.eps

L711, 5V_USB

C7034, 12V0

L710, 5V-SB

C646, AMP_12V

L703, CPU_1V1

L704, VDD_1V1

U707, 3V3_SB

C4025, VCC_Panel

C725, TU3V3

Circuit Descriptions

EN 23TPH16.1A LA 7.

Figure 7-4 Power SSB Top View

back to

div. table

2016-Nov-18

EN 24 TPH16.1A LA7.

20270_206.eps

U405,+1.1V_ATBM

IF

IF_AGC

RF_AGC

Hi3751ARBCV5100D00

IF_AGC

MxL661-AG-R

I2C

I

2

C

20270_203.eps

Circuit Descriptions

Figure 7-5 Power SSB Bottom View

7.4 Front-End Analogue and DVB-T, DVB-C reception

7.4.1 DVB-T/C DTV part

The Front-End for DVB-T/C DTV part consist of the following
key components:

• SCALER Hi3751ARBCV5100D00 PBGA-577

• Silicon Tuner MxL661-AG-R

Below find a block diagram of the front-end application for
DVB-T/C DTV part.

2016-Nov-18

back to

div. table

Figure 7-6 Front-End DVB-T2 DTV block diagram

7.5 HDMI

20270_204.eps

Hi3751ARBCV5100D00

HDMI0

HDMI 2

CN501

CN504

R2X

R0X

I2C

I

2

C

Refer to figure 7-7 HDMI input configuration for the application.

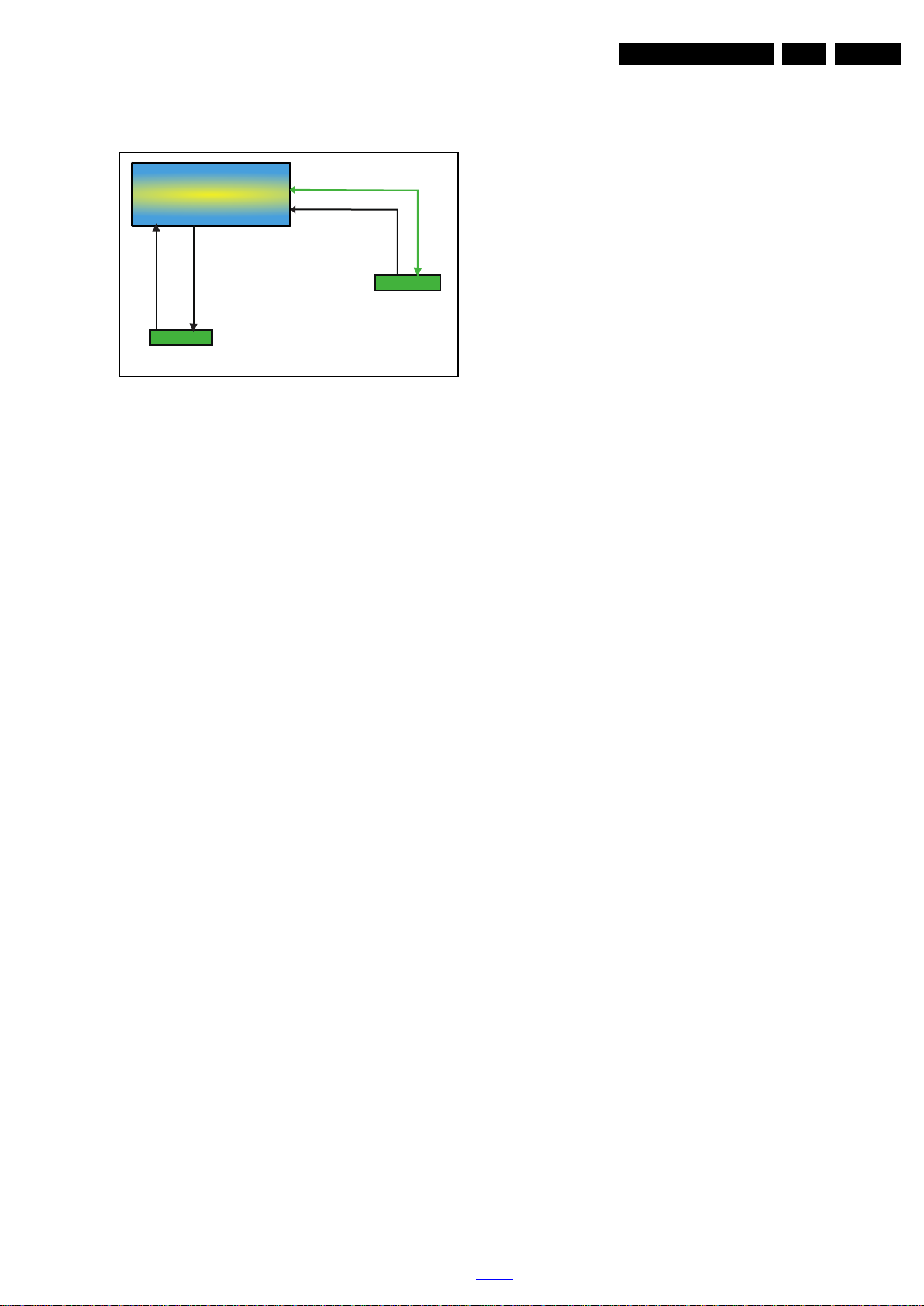

Figure 7-7 HDMI input configuration

The following HDMI connector can be used:

• HDMI 1: HDMI input ( TV digital interface support HDCP)
with digital audio/PC DVI input/ARC

• HDMI 2: HDMI input ( TV digital interface support HDCP)
with digital audio/PC DVI input

• HDMI 3: HDMI input ( TV digital interface support HDCP)
with digital audio/PC DVI input

• +5V detection mechanism

• Stable clock detection mechanism

•HPD control

• Sync detection

• TMDS output control

•CEC control

•ARC control

•MHL control

Circuit Descriptions

EN 25TPH16.1A LA 7.

7.6 Video and Audio Processing ­Hi3751ARBCV5100D00

Hi3751 V510 is a high-performance, highly integrated 4K2K
60Hz smart TV solution chip. The chip Integrated
high-performance ARM CortexA53 dual-core processor,
clocked at up to 1.2GHz, can support smooth intelligent
applications. Integrated high-performance mali-450 quad-core
GPU. Integrated Hass professional graphics engine Imprex
Engine, can bring customers better image quality experience.
Has a strong ability to codec, with H265 4K2K 30Hz decoding,
MPEG4 / MPEG2 / VC1 high-definition decoding capabilities,
support H264 encoding. Provide a wealth of audio and video
input interface, Support HDMI1.4 / HDMI2.0 / analog RF /
CVBS / YPbPr / VGA / halfscart interface, compatible with
DVB-C / DVBT /DTMB protocol, support the size of card
solutions.

back to

div. table

2016-Nov-18

EN 26 TPH16.1A LA8.

20270_300.eps

Block diagram

Hi3751

IC Data Sheets

8. IC Data Sheets

This chapter shows the internal block diagrams and pin
configurations of ICs that are drawn as “black boxes” in the
electrical diagrams (with the exception of “memory” and “logic”
ICs).

8.1 Diagram 10-3-4 SOC_POWER B04, Hi3751 (IC U401)

Figure 8-1 Internal block diagram and pin configuration

2016-Nov-18

back to

div. table

8.2 Diagram 10-3-12 Tuner B12, MxL661 (IC U407)

19760_301.eps

Block diagram

Pinning information

24

23

22

21

20

19

18

17
16

15

14

13

7

8

9

10

11

12

1

2

3

4
5

6

LNA_INP

LNA_INN

AS

GND_XTAL

CLK_OUT

XTAL_P

XTAL_N

VDD_1p8

VDD_IO

AGC_1

AGC_2/GPO_3

MxL661

VDD_3p3

RESET_N

VDD_1p8

VDD_1p8

GND_DIG

VDD_1p2

IF_OUTN_1

IF_OUTP_1

IF_OUTP_2/GPO_1

IF_OUTN_2/GPO_2

SDA

SCL

VDD_3p3

Crystal

Reference

I2C

Voltage

Regulator

AGC1

RF

Synth

Gain

Control

IF

Synth

Synth

Calibration

LNA

AGC2

Channel
Filtering

CLK_OUT

IF1 Out

IF2 Out

RF Input

Balun

IC Data Sheets

EN 27TPH16.1A LA 8.

Figure 8-2 Internal block diagram and pin configuration

back to

div. table

2016-Nov-18

EN 28 TPH16.1A LA8.

19740_301.eps

Block diagram

Pinning information

AD82588B

IC Data Sheets

8.3 Diagram 10-3-15 AMP B15, AD82588B (IC U601)

Figure 8-3 Internal block diagram and pin configuration

2016-Nov-18

back to

div. table

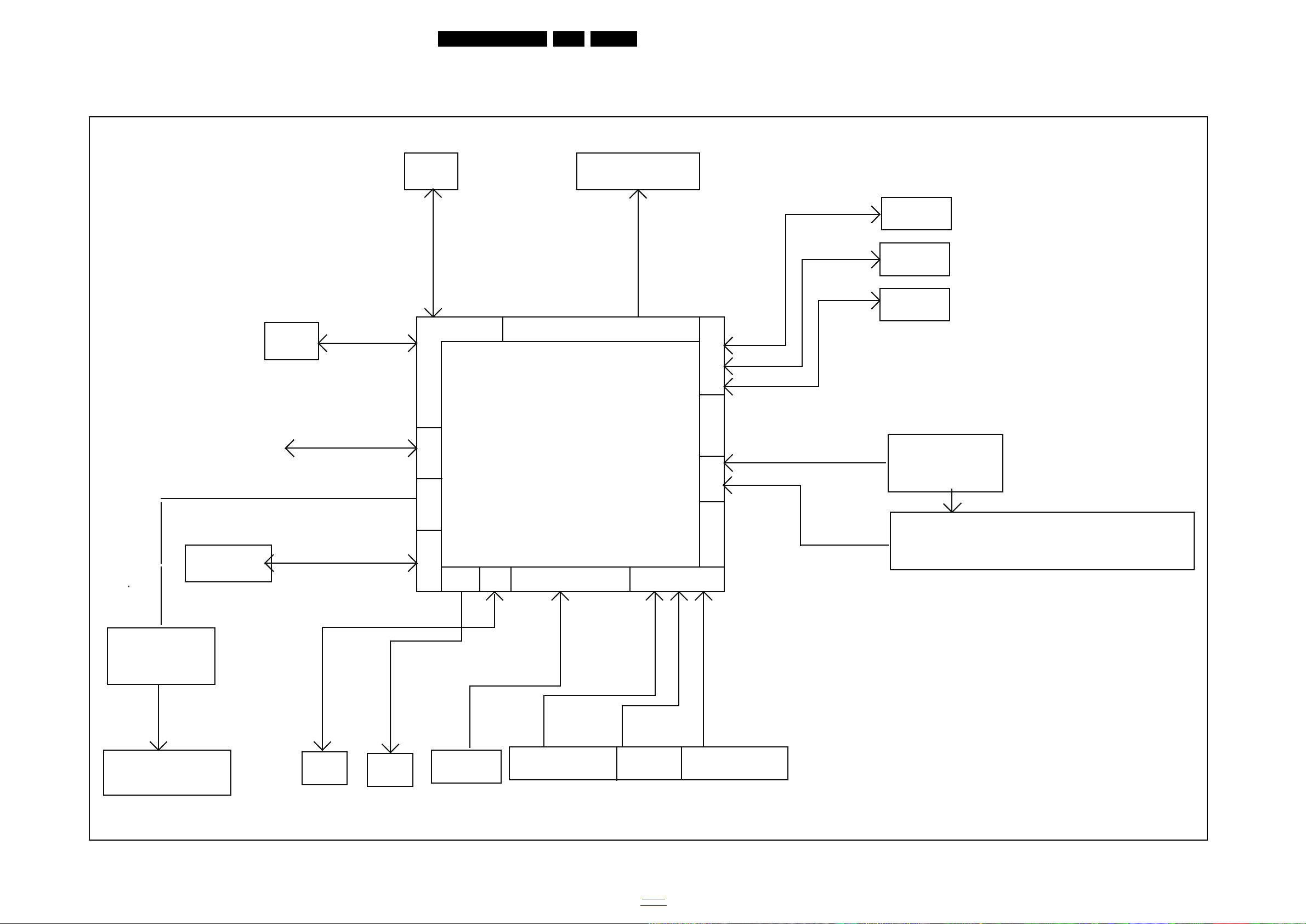

9. Block Diagrams

20270_400.eps

for WIFI

Headphone
OUT

Tuner
MXL661

ATBM8880

Demodulator(Reser ve)

USB2.0

I2S

KEY & I R

SPDIF

VBO & LVDS

HI3751 AV500

AMP

AD87588

AFE

HDMI2(ARC)

HDMI1

CVBS in

DDR1

DDR0

STB

RJ45

SPDIF

FE

CI & SIM

& SD

IF & TS

AudioCodec

HDMI0(MHL)

USB

HDMI

VBO Connector

EMMC

EMMC

USB2.0

DDR

USB3.0

9.1 Block diagram

Block Diagrams

EN 29TPS16.2A LA 9.

2016-Nov-18

back to

div.table

Circuit Diagrams and PWB Layouts

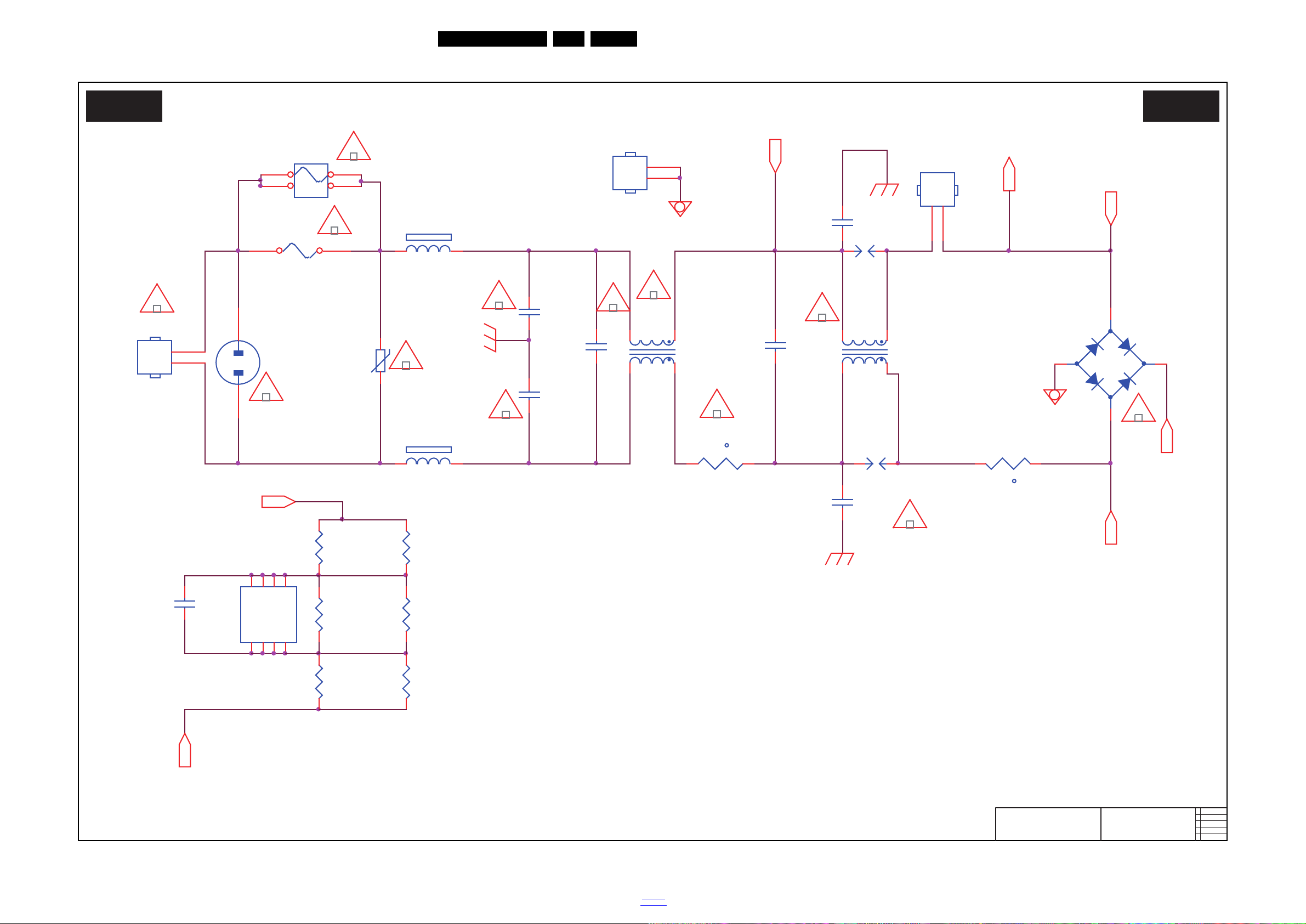

19903_500.eps

AC Input

A01 A01

2015-08-18

715G6679

AC Input

T5AH/250V

R9904

510K 1/4W

R9905

510K 1/4W

R9902

510K 1/4W

F9901 NC/5A 250V

!

N

SG9902

NC/DSPL-501N-A21F

t

NR9902

1.5R

12

FB9903

BEAD

1 2

IC9901
NC

NC

1

D12D1

3

NC

4

NC

5D26D27NC8

C9908

NC

-

+

BD9901
KBJ1008G-FUC

2

1

3

4

T5AL/250V

FB9902

JUMPER

1 2

L9901

14mH

1

2

4

3

HS9901
HEAT SINK

1
2

3

4

!

L9902

18mH

1

2

4

3

SG9901

NC/DSPL-501N-A21F

!

F9902
5A 250V

CN9902
SOCKET

12

C9914

220PF 250V

C9913

220PF 250V

FB9901

BEAD

1 2

C9911 47PF 250V

C9901

470nF 275V

RV9901

680V

C9902

470nF 275V

CN9901

NC/CONN

1
2

C9912

47PF 250V

Vsin

!

!

!

!

!

!

!

!

!

!

!

!

!

!

L

CN9903

NC/CONN

L1N

2

BR

R9907

510K 1/4W

R9906

510K 1/4W

N

R9903

510K 1/4W

L

t

NR9901

1.5R

1 2

10. Circuit Diagrams and PWB Layouts

10.1 A 715G6679 PSU

10-1-1 AC Input

EN 30TPS16.2A LA 10.

2016-Nov-18

back to

div.table

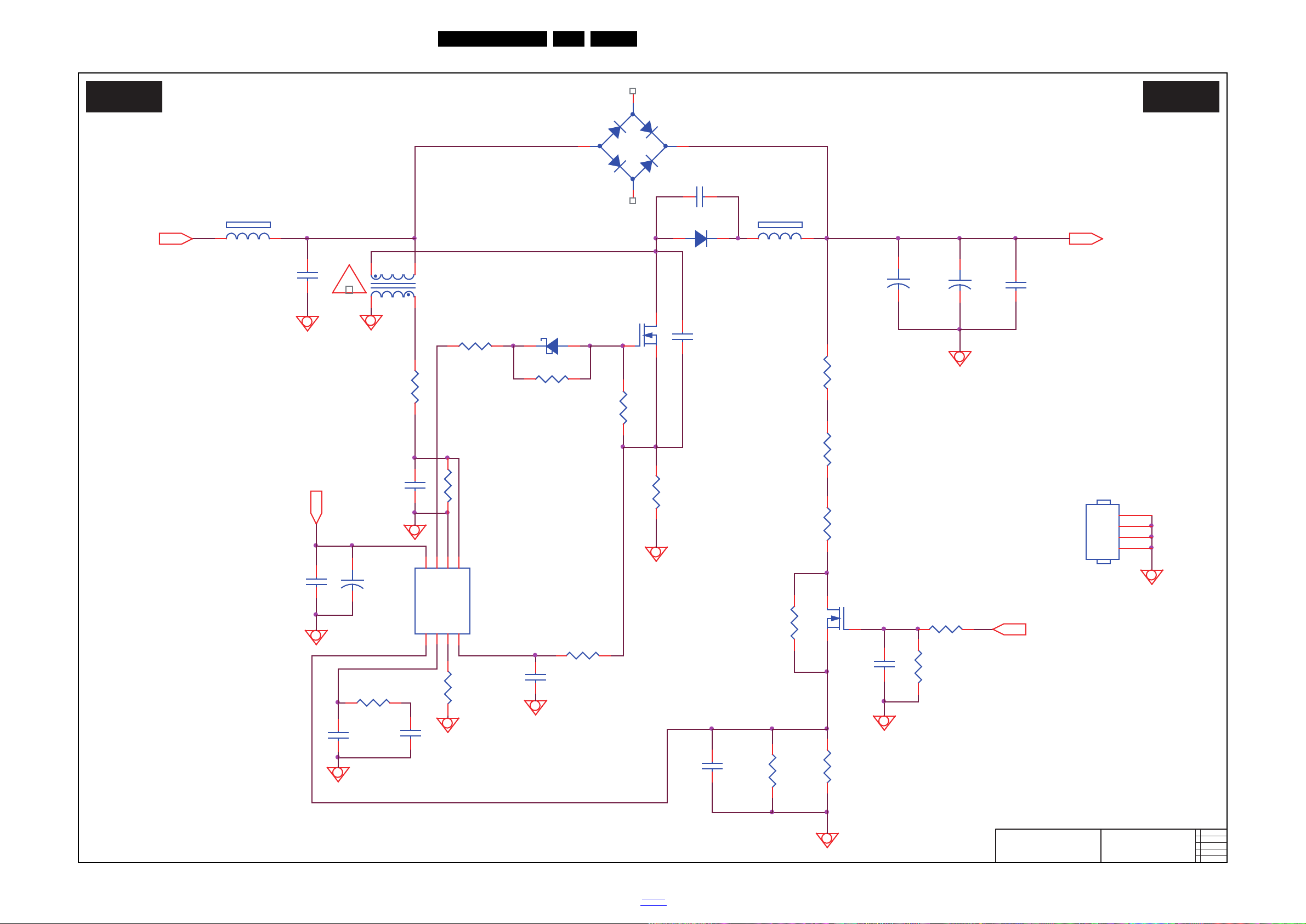

10-1-2 PFC

19903_501.eps

PFC

A02 A02

2015-08-18

715G6679

PFC

R9812

24K 1/8W 1%

+

C9802

68UF 450V

HS9801

HEAT SINK

1
2

3

4

+

C9801

68UF 450V

HV

Q9801
TK16A60W

C9810
NC

D9802

S8KC

R9807

47OHM +-5% 1/8W

R9806
2K4 +/-1% 1/ 8W

R9810

1K 1/4W

!

Vsin

R9809

10K 1/8W

C9805
47nF 50V

C9803

100N 50V

FB9801
BEAD

1 2

U9801

LD7591T

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT7VCC

8

VCC_ON

C9808
47PF

D9801

FMNS-1106S

R9808

33R 1/8W 5%

R9813

10K 1/8W

+

C9804

10UF 50V

R9805
20K 1/4W

R9801

0.1R

C9820
1UF 450V

C9807
220pF 50V

FB9802
JUMP ER

1 2

C9806

0.47U F 50V

C9811

47P 50V

R9802

1M 1% 1/4W

R9803
1M 1% 1/4W

R9817

1M 1% 1/4W

C9809

330P 50V

VCC_ON

L9801
240uH

1

3 4

5

R9815

NC

D9804

S8KC

R9804
19K1 +-1% 1/8W

R9814

0R05 1/ 4W

R9816
NC

Q9802

NC

D9803

SS1060FL

Circuit Diagrams and PWB Layouts

EN 31TPS16.2A LA 10.

2016-Nov-18

back to

div.table

10-1-3 Main power

19903_502.eps

Main power

A03 A03

2015-08-18

715G6679

Main power

D9109
NC

R9124

33K +-1% 1/4W

R9122
10K 1/4W

+12V_A+12V_A

U9101

LD5532

BNO

1

FB

2

CS

3

GND4OUT

5

VCC

6

NC

7

VCC

8

R9117
5K1 +-5% 1/8W

Q9102

NC

1

23

C9104
NC

D9105
NC

+

C9138

4.7UF 50V

R9141

100K 1/8W 1%

COLDHOT

+VCC1

R9113

3.3M 1/ 4W

R9105

330K 1/4W

C9121

4.7UF

R9111

330K 1/4W

BR

R9116

220R 1%

C9134

4.7UF

IC9104

NC/L78L12ABUTR

IN

3

OUT

1

GND

2

R9407

100 OHM 1/4W

R9119

2K7 1/8W 1%

+

C9126

NC

C9120

2.2NF

Q9101

TK11A65D

R9125

4R7 1/4W 5%

+

C9110
470UF 25V

.

C9139
100N 50V

Q9401

BTC4672M3

C9402

100N 50V

R9108

27 OHM 1/4W

R9134

27 OHM 1/4W

Q9402

LMBT3906LT1G

1

23

C9115
47PF

C9140

NC

+

C9101

NC

+

C9107

470UF 25V

R9115

2K2 1/8W 1%

C9922

220PF 250V

R9107

10K 1/8W

U9111

NC

PGND

1

VIN

2

AGND

3

VCC4FB

5

COMP

6

LX

7

EN

8

FB9101

127R

1 2

R9408
510K 1% 1/8W

U9103

TL431G-AE2-R

+

C9106

NA/470UF 25V

D9104

PG1010R

R9152

NC

R9112

4R7 1/4W 5%

C9141
1uF

U9104

SP6018ES8RGB

Timing

1

Pred

2

VR

3

Adj4GND

5

MOSG-C

6

Vdd

7

SYNC

8

C9116

NC

R9128
0 OHM +-5% 1/8W

T9101

POWER X'FMR

1

2

3

4

5

6

7

9

10

R9138
0 OHM +-5% 1/8W

ZD9107
NC

12

L9105
3UH

+

C9105

470UF 25V

C9117

NC

R9129
NC

C9118

0.47UF 50V

Q9403

2N7002K

C9135

NC

C9131 100P 50V

+

C9109
470UF 25V

Q9105

TK22A10N1

R9403
1K 1/4W

C9119

NC

C9123

NC

R9137

NC

R9118
1K OHM +-5% 1/8W

R9104
10R 1/8W 5%

C9129

NC

R9142
22R

R9133

27 OHM 1/4W

R9131
NC

FB9102

NC

1 2

R9406
1K5 +-1% 1/8W

HS9101

HEAT SINK

1
2

3

4

+

C9108
470UF 25V

R9151

NC

R9154

NC

ZD9401

BZT52-B16

1 2

ZD9106

BZT52-B15

1 2

C9113
1NF

C9920
680PF 250V

C9143

1uF

C9125

NC

R9123 5. 1K 1/ 4W

C9130

100N 50V

C9127

NC

R9401
3K

R9404
10K 1/4W

R9161

NC

Q9104

NC

L9106
3UH

HS9102

HEAT SINK

1
2

3

4

C9111
NC/1NF

L9102 NC

C9132 100N 50V

R9147
82K 2W

C9921

220PF 250V

C9122

NC

R9135

NC

C9142
1uF 50V

R9153

NC

+

C9401

10UF 50V

C9136

1N 50V

R9121
1K 1/8W 1%

R9130
NC

R9126 10 OHM 1/4W

D9108
SK510C

12

CN9101

CONN

2
4
6

8

10
12
14
16

1

3

5
7
9
11
13
15

FB9904

127R

1 2

U9102

EL817M(X)

12

43

R9132

27 OHM 1/4W

C9133

NC

R9110

27 OHM 1/4W

R9136

NC

+

C9112
470UF 25V

R9402

20K 1/8W 1%

C9137

1N 50V

R9158

NC

D9102
SARS01-V1

R9140

NC

C9128

NC

R9139

NC

D9401
1N4148W

R9405
10K OHM

R9120
9K1 1/8W 1%

R9109

27 OHM 1/4W

Q9106

NC

SYNC

+12V_A

+12V

+12V

+5V

BL_ON/OFF

+5V

+VCC1

+12V

DIM

PS_ON

12VS

12VS

12VS

12VS

SYNC

DV5

DV5

PS_ON

PS_ON

3D_DB

12VS

BR

HV

VCC_ON

!

!

!

!

!

!

R9114

3.3M 1/ 4W

R9127

3.3M 1/ 4W

D9101

1N4148W

R9102

330K 1/4W

+

C9145
100UF 50V

C9144

1NF

Q9111

NC

R9103

1K 1/4W

C9102

330P 50V

GND1
NC

1

R9106

100R 1/8W 5%

FB9103

BEAD

12

GND2
NC

1

R9101

0.27R 2W

GND3
NC

1

GND4
GND

1

C9103

4.7nF 50V

GND5
GND

1

3.5V/40mA
R9140:10.5K
R9136:0ohm
R9139:3K
R9116:1.3K
NR9901,NR9902:1.5R

GND6
NC

1

GND7
NC

1

D9103

SS1060FL

GND8
NC

1

D9106

SS1060FL

U9401

EL817M(X)

12

43

Circuit Diagrams and PWB Layouts

EN 32TPS16.2A LA 10.

2016-Nov-18

back to

div.table

10-1-4 LED

19903_503.eps

LED

A04 A04

2015-08-18

715G6679

LED

HS8602

HEAT SINK

1
2

C8118

1N 50V

HS8601

HEAT SINK

1
2

D8606

SS1060FL

VCC_ON

For D8106

R8152
100K

+

C8605

120UF 100V

C8119

1N 50V

R8172

NC

R8153
100K

+

C8606

120UF 100V

FB8601

BEAD

12

VLED

R8119

0R05 1/4W

!

C8101
1N 50V

R8136

0R05 1/4W

!

+

C8608
47uF 100V

R8601

0.15R

U8603
TL431G-AE2-R

R8128

NC/ 750K 1%

R8129
NC/ 510K 1% 1/ 8W

R8110
3K9 1/8W 5%

U8602

EL817M(X)

12

43

R8106
82KOHM +-5% 2WS

R8109

1.5K OHM

C8132
NC/2.2NF

COLD

12VS

R8154
NC

VLED

C8135

NC/ 100N 50V

C8136

NC/ 100N 50V

HOT

HV

C9114
1NF

3D_DB

+

C8609
47uF 100V

HS9202

HEAT SINK

1
2

3

4

-VLED-2

+

C8607
NC

R8120

300 OHM 1/4W

D8102

1N4148W

U8605

TPV101D

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

Q8101

LMBT3906LT1G

1

2 3

C8113

1uF

U8606

TPV101D

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

C8127

1uF

Q8601
AOTF8N65

R8107
510OHM +-5% 1/8W

R8121

300 OHM 1/4W

12VS

R8111

470K +-5% 1/8W

C8128

1uF

HS9201

HEAT SINK

1
2

3

4

C8106

4.7nF 50V

R8164

0R05 1/4W

R8114
75KOHM +-1% 1/8W

R8122

300 OHM 1/4W

R8113

68KOHM +-1% 1/8W

U8101

TL431G-AE2-R

R8116
330K 1/8W 1%

R8137

300 OHM 1/4W

R8144

200 OHM 1/ 4W

R8138

300 OHM 1/4W

R8146

200 OHM 1/ 4W

R8112
270K +-1% 1/8W

R8123

300 OHM 1/4W

R8145

200 OHM 1/ 4W

R8124

1.3R 1%

R8142

200 OHM 1/ 4W

R8141

200 OHM 1/ 4W

R8143

200 OHM 1/ 4W

R8155

300 OHM 1/4W

R8157

300 OHM 1/4W

C8131

NC/1NF 500V

C8122

NC/ 100P 50V

R8131

1.3R 1%

+12V

+

C8611

4.7UF 50V

C8129

1uF

L8602
3UH

R8171

0 OHM +-5% 1/8W

LED current setting
40 inch (1.5R/1.5R/1.5R/1.2R)

39.56 inch (1.5R/1.5/R/1.2R/1.2R)

R8130
47KOHM +-1% 1/8W

R8135

43KOHM +-1% 1/8W

R8140

39KOHM +-1% 1/8W

For IC8103

C8134

NC/1NF 500V

R8117
NC

VLED

R8139
13K 1/8W 1%

T8601

POWER X'FMR

3

4

5

7

10
11

6

C8123

100P 50V

C8124

100P 50V

For IC8105

R8161

NC/ 10K 1/ 4W

C8125

NC/ 100P 50V

Q8102

2N7002K

C8130

0.47UF 50V

D8107

1N4148W

R8149
1M 1/8W 5%

D8108

1N4148W

R8104

10K 1/4W

C8111
100PF 500V

C8120
NC/1NF

C8114

1uF

This block is for LPB function use,
for PSU function all cancel.

C8121

NC/10N 50V

R8115

NC

R8125

1.3R 1%

C8116

1uF

C8103
47PF

R8150
510K +-5% 1/8W

R8126

1.3R 1%

R8105

0.1R

CN8601

CONN

1
2

3

4
5
6
7

8

9
10
11
12

+VLED

R8156

0 OHM +-5% 1/8W

-VLED-2

-VLED-1

+VLED

ZD8103
BZT52-B30

1 2

R8127

1.5R

C8133

NC

IC_VCC

IC_VCC

C8126

NC

+VLED

R8132

1.3R 1%

R8108

3.3K 1/4W

DIM

-VLED-1

R8133

1.3R 1%

R8147

200 OHM 1/ 4W

R8148

200 OHM 1/ 4W

R8134

1.5R

ZD8104

BZT52-B22

1 2

ZD8105

BZT52-B22

1 2

ZD8106

BZT52-B22

1 2

C8137
470P 50V

R8103
470 OHM 1/4W

D8101
SARS01-V1

C8112
100PF 500V

R8101
22R

R8102

47OHM +-5% 1/8W

+VLED+VLED

U8601

PF6002AS

CT

1

FB

2

CS

3

GND4OUT

5

VCC

6

NC

7

VCC

8

C8102

100N 50V

C8104

2.2NF

CN9201
NC

2
4
6

8

10
12
14

1

3

5
7

9
11
13

C8105

0.47UF 50V

BL_ON/OFF

3D_DB

DIM

BL_ON/OFF

IC_VCC

D8602

NC

C8115

1uF

D8601

FMNS-1106S

L8601
3UH

R8118

100KOHM +-5% 1/8W

R8151
100K

Circuit Diagrams and PWB Layouts

EN 33TPS16.2A LA 10.

2016-Nov-18

back to

div.table

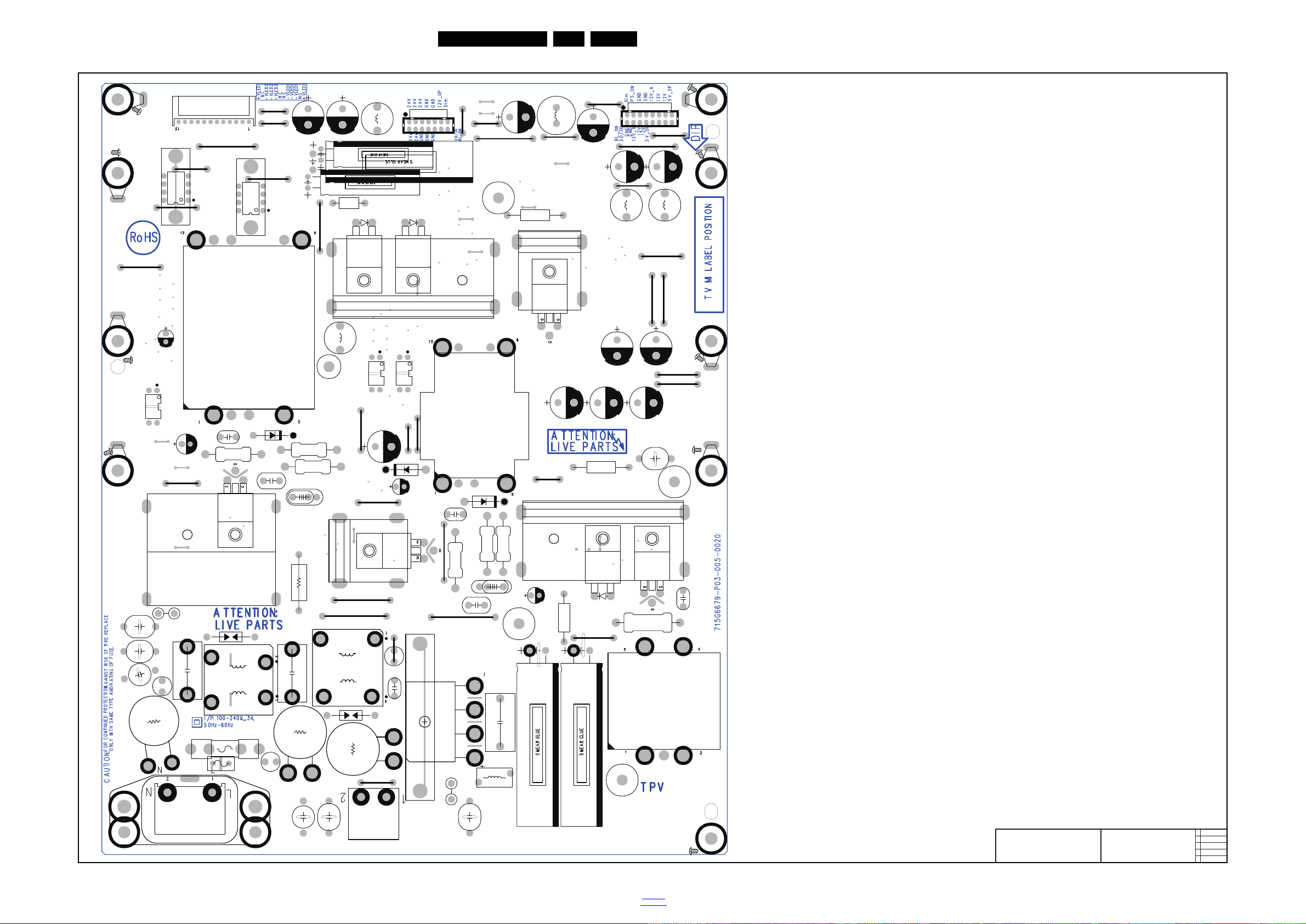

10-1-5 Power layout top

19903_504.eps

2015-01-08

715G6679

LAYOUT TOP

C8103

C9115

C9401

D9102

D9104

F9901

U8602

U9102

U9401

R8601

R8106

R8117

R9101

R9142

R9147

T8601

T9101

J929

J913

J918

J911

J910

J908

J902

J903

J904

J912

J901

J916

J923

J922

J909

J906

J905

J935

C9808

J937

J938

J934

J941

J945

J907

J919

J920

J936

J921

J914

J928

J946

J942

C9138

SU10

SU11

D8101

J943

SU12

SU6

SU3

J947

H5

H4

H9

HS1

P1

P2P3

P4

P5P6 P7

P8

P9

P10

HS2

MH1

MH2

MH4

MH5

MH7

MH6

MH8

MH9

MH10

C8104

C8605

C8606

C8608

C8120

C9109

C9105

C9106

C9107

C9108

C9110

C9111

C9112

C9113

C9114

C9126

C9101

C9804

C9801

C9802

C9911

C9912

C9908

C9913

C9914

C9920

C9922

C9921

CN8601

CN9901

CN9903

D9801

FB9101

FB9102

FB9801

FB9802

FB9901

FB9902

FB9904

HS9201

HS9101

HS9102

HS8601

HS8602

HS9801

U8605

U8606

L8601

L9105

L9106

L9102

NR9901

NR9902

Q9105

R9801

SG9901

SG9902

CN9201

CN9101

FB9103

HS9202

FB8601

Q9801

Q8601

Q9101

L9901

F9902

R8105

C8607

GND1

GND2

GND3

GND4

GND5

GND6

GND7

GND8

CN9902

L9801

BD9901

C9901

C9902

C9120

C8609

HS9901

C8611

L8602

C9145

D8601 D8602

C9820

L9902

FB9903

RV9901

Circuit Diagrams and PWB Layouts

EN 34TPS16.2A LA 10.

2016-Nov-18

back to

div.table

10-1-6 Power layout bottom

19903_505.eps

2015-01-08

715G6679

LAYOUT BOTTOM

C8137

C8101

C8102

C8105

C8106

C8111

C8112

C8113

C8114

C8115

C8116

C8118

C8119

C8121

C8122

C8123

C8124

C8125

C8126

C8131

C8132

C8133

C8134

C8135

C8136

C9102

C9103

C9143

C9116

C9117

C9118

C9119

C9121 C9122

C9123

C9125

C9127 C9128

C9129

C9130

C9131

C9132

C9133

C9134

C9135

C9136

C9137

C9139

C9140

C9141

C9142

C9144

C9402

C9811

C9803

C9805
C9806

C9807

U9104

U9111

U9801

IC9901

R8101

R8102

R8110

R8111

R8112

R8113

R8114

R8115

R8116

R8128R8129

R8156

R9104

R9107

R9116

R9118

R9119

R9120

R9131

R9135

R9136

R9137

R9139

R9140

R9151

R9152

R9154

R9402

R9406

R9408

R9806
R9807
R9808

R9809

R9812

R9813

JR911

JR907

JR906

JR901

JR903

JR902

R9128

U8601

C8127

C8128

C8129

C8130

C9810

R8107

R8130
R8135

R8139

R8140

R8149

R8150

R9816

R9141

R9117

R9121

R9115

R9106

R8118

R8103

R8104

R8109

R8119

R8120

R8121

R8122

R8123

R8124
R8125
R8126
R8127

R8131
R8132
R8133
R8134

R8136

R8137

R8138

R8141
R8142
R8143
R8144
R8145
R8146
R8147
R8148

R8161

R9103

R9108

R9109

R9110

R9112

R9113

R9114

R9122

R9123

R9124

R9125

R9126

R9127

R9129

R9130

R9132

R9133

R9134

R9153

R9158

R9161

R9401

R9403

R9404

R9405

R9817

R9802R9803

R9805

R9810

R9814

R9902

R9903

R9904

R9905

R9906
R9907

R8108

R9407

R9815

JR905

JR904

JR920

JR910

C9809

R9804

JR908

JR922

JR921

R9138

U9101

C9104

R9102

R9105

R9111

R8151

R8152

R8153

Q8102

Q9104

Q9106

Q9403

Q9802

R8154

U8603

U9103

R8155R8157

R8164

R8171

R8172

JR923

U8101

SG4

SG3

FD1

FD3

FD4

Q9111

Q9401

FD5

IC9104

Q8101

Q9102

Q9402

D9802

D9804

D9108

D8102

D8107

D8108

D8606

D9101

D9103

D9105

D9106

D9109

D9401

D9803

ZD8103

ZD8104

ZD8105

ZD8106

ZD9106

ZD9107

ZD9401

Circuit Diagrams and PWB Layouts

EN 35TPS16.2A LA 10.

2016-Nov-18

back to

div.table

10.2 A 715G6677 PSU

19850_500.eps

AC input

A01 A01

2014-11-11

715G6677

AC input

L9901

12mH

1

2

4

3

L9902

12mH

1

2

4

3

U9901

NC/CAP004DG-TL

NC

1

D12D1

3

NC

4

NC

5D26D27NC8

HS9901
HEAT SINK

1
2

SG9901

NC/DSPL-501N-A21F

t

NR9902

2.5R

1 2

VXB

CN9901

AC SOKET

12

R9907
510K 1/4W

R9905
510K 1/4W

R9908
510K 1/4W

R9906
510K 1/4W

R9903
510K 1/4W

R9904
510K 1/4W

BR

VXC

VXA

VXA

VXB

C9907

NC/47PF

F9901

FUSE

1 2
3 4

C9904

220PF 250V

C9903

220PF 250V

-

+

BD9901

TS10K80-02

2

1

3

4

CN9903

NC/CONN

L1N

2

C9901

NC / 100PF 250V

C9905

470NF 275V

RV9901

680V

SG9902

NC/DSPL-501N-A21F

FB9901

BEAD

1 2

C9906

470NF 275V

CN9902

NC/CONN

1
2

C9902

NC / 100PF 250V

Vsin

FB9902
BEAD

12

!

T5.0AH/250V

F9902

NC/250V

t

NR9901

2.5R

1 2

!

!

!

!

!

!

!

!

!

!

!

!

10-2-1 AC input

Circuit Diagrams and PWB Layouts

EN 36TPS16.2A LA 10.

2016-Nov-18

back to

div.table

10-2-2 PFC

19850_501.eps

PFC

A02 A02

2014-11-11

715G6677

PFC

+

C9802

68UF 450V

+

C9803

68UF 450V

R9809
20K 1/4W

FB9802
BEAD

1 2

R9815

470 OHM 1/4W

C9813

100N 50V

C9814

100N 50V

C9812

470NF 50V

R9812
47OHM

D9803
SS1060FL

12

R9803
1M 1% 1/4W

+

C9809

10UF 50V

R9804

NC/0R05

R9813

10K 1/8W

R9816

10K 1/8W 1%

C9811

1nF 50V

Q9801

TK18A60V

C9808

10PF 50V

R9811

10 OHM

R9807

10K 1/8W

C9806

NC/100PF

C9810

100N 50V

D9802

FMNS-1106S

R9817

100K 1/8W 1%

R9806

680K 1%

R9810
2K 1/8W 1%

R9802

1M 1% 1/4W

FB9891
BEAD

1 2

R9814

0.1R

C9801

1UF 450V

R9801

1M 1% 1/4W

C9815
470P 50V

Q9802

AO3160

HS9801
HEAT SINK

1
2

3

4

C9805

NC/47PF

U9801
LD7591T

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT7VCC

8

R9895
20K 1/8W 1%

C9804

NC

HV

Vsin

VCC_ON

VCC_ON

R9808
27K 1/8W 1%

-

+

BD9801

KBP206G X0G

2

1

3

4

L9801

240uH

5

43

1

!

Circuit Diagrams and PWB Layouts

EN 37TPS16.2A LA 10.

2016-Nov-18

back to

div.table

10-2-3 Standby

19850_502.eps

Standby

A03 A03

2014-11-11

715G6677

Standby

CN9302

NC/CONN

2

4

6

8

10

12

14

16

1

3

5

7

9

11

13

15

+

C9304
100UF 50V

R9328 5.1K 1/4W

R9334

27 OHM 1/4W

D9313

NC/SS1060FL

C9818
1NF 250V

R9307

2.2 OHM 1/ 4W

Q9309

NC/2N7002K

C9331

1N 50V

R9360

100 OHM 1/4W

T9301

POWER X'FMR

1

2

3

5

6

7

9

10

4

C9330

1N 50V

C9352

NC/ 100N 50V

R9313

3.3M 1/4W

C9355

NC/2N2 50V

R9315

3.3M 1/ 4W

R9321

4R7 1/4W 5%

ZD9302

BZT52-B15

1 2

C9341
1uF 50V

L9304 NC/47uH
R9362
10K 1/8W 1%

R9318

100K 1/8W 1%

C9306

100N 50V

FB9302

BEAD

12

R9322

NC/ 100KOH M 1/8W

Q9307

2N7002K

R9333

27 OHM 1/4W

D9302

FR107G-A0

C9340

1uF

R9363
100K

R9356

NC/ 620ohm 1/ 8W +/-1%

R9309
10R 1/8W 5%

R9366
0R05

C9315

220PF 250V

L9302
3UH

U9102

EL817M(X)

12

43

R9314

3.3M 1/4W

C9343
1N 50V

R9317
3K

Q9304 NC/P1604ED

C9358

NC/1uF

C9333 100N 50V

R9336

NC/0R05 1/4W

R9353

NC/30R 1%

C9353

NC/1N 50V

R9326

NC/510K 1/8W

C9328

NC/ 100N 50V

R9324

5.1K 1/4W

R9331

27 OHM 1/4W

R9364

10K OHM +-5% 1/8W

R9354

NC/30R 1%

HS9302

HEAT SINK

1
2

3

4

C9303

NC/1NF

C9308
330P 50V

C9342

1uF

R9340

NC/ 6. 2K OH M 1/8W

CN9303

CONN

2
4
6

8

10
12
14
16

1

3

5
7
9
11
13
15

R9325

NC/ 100 OH M 1/4W

Q9306

BTC4672M3

R9330

27 OHM 1/4W

D9312

SS1060FL

R9327

NC/100K

D9314
1N4148W

L9303
3UH

C9302

2.2NF

R9365
2K 1%

HS9301
HEAT SINK

1
2

3

4

R9357

NC/3K3 1/8W 1%

C9351

NC/1uF

C9338

NC/ 1N 50V

R9332

27 OHM 1/4W

C9357

NC/1uF

ZD9303

NC/BZT52-B5V1_R1_00001

12

Q9305

NC/2N7002K

R9335

27 OHM 1/4W

C9301
1NF

R9339

NC/ 100K 1/ 8W

C9332

100N 50V

R9338

NC/ 100K 1%

ZD9301

BZT52-B16

1 2

R9361
510K 1% 1/8W

FB9301

BEAD

1 2

R9337
0 OHM +-5% 1/8W

C9335

NC/100P 50V

R9355

NC/ 10. 5K OH M 1%

+

C9313

10UF 50V

C9324

NC/1uF

+

C9305
10UF 50V

U9305

NC/AOZ3015AI

PGND

1

VIN

2

AGND

3

VCC4FB

5

COMP

6

LX

7

EN

8

C9325

NC/1uF

R9345
1K 1/8W 1%

C9307

NC/47PF

CN9301

NC/CONN

2
4
6

8

10
12
14

1

3

5
7

9
11
13

C9329

100N 50V

R9329 8.2K 1/4W

R9310

10K OHM 1/8W

FB9305

NC/127R

1 2

R9320

33K +-1% 1/4W

R9352

NC/ 20K 1/ 8W 1%

C9334 100P 50V

C9354

NC/2N2 50V

+12V

+12V_A

SYNC

+3.5V/+5V

BL_ON/OFF

+3.5V/+5V

+12V

+12V_A

PS_ON

DIM

+12V

+12V_A

+VCC1

DV5

SYNC

12VS

12VS

12VS

12VS

12VS

3D_ON

PS_ON

PS_ON

DV5

VCC_ON

HV

+VLED

BL_ON/OFF

DIM

3D_ON

+VLED

+12V

3D_ON

BL_ON/OFF

PS_ON

+12V

+12V_A +12V_A

+12V

+3.5V/+5V

HOT COLD

For Q9301

From AC N

D9304

SS1060FL

12

D9311
SK510C

12

Q9303

TK22A10N1

C9310

1NF

R9306

22R 5%

R9308

82 OHM

U9304

TL431G-AE2-R

BR

U9306

EL817M(X)

12

43

R9312
0R27 5%

R9311

750 OHM 1/4W

R9346
2K7 1/8W 1%

U9303

NC/AS78L12RTR-G1

IN

3

OUT

1

GND

2

R9323 10ohm 1/4W +/-1%

C9312

NC/4.7nF 50V

Q9302

NC/PMBT3906

1

23

D9395

NC/1N4148W

R9302

750K +-5% 1/4W

R9303
750K +-5% 1/4W

R9304
0 OHM +-5% 1/8W

R9305

82K 2W

R9301

750K +-5% 1/4W

R9316

100K 1/8W 1%

C9339

470NF 50V

R9351

NC/3K 1/8W 5%

R9347

1K OHM +-5% 1/8W

R9343

0 OHM 1/8W

R9342

2K43 1/8W 1%

R9341

9.53K 1/8W

+

C9320
470uF 25V

U9302
SP6018ES8RGB

Timing

1

Pred

2

VR

3

Adj4GND

5

MOSG-C

6

Vdd

7

SYNC

8

+

C9323

470uF 25V

+

C9321

470uF 25V

+

C9322

470uF 25V

FB9803

127R

1 2

Q9308

MMBT3906

Q9301

TK11A65D

BR

+VCC1

D9301

SARS01-V1

U9301
LD5532

BNO

1

COMP

2

CS

3

GND4OUT

5

VCC

6

NC

7

NC

8

+

C9326

470uF 25V

+

C9327
470uF 25V

D9393
1N4148W

C9336

4.7UF

C9337

4.7UF

LED_OV

+

C9350

NC/470uF 25V

+

C9356

NC/470uF 25V

C9311

4.7nF 50V

!

!

!

!

!

Circuit Diagrams and PWB Layouts

EN 38TPS16.2A LA 10.

back to

div.table

2016-Nov-18

10-2-4 LED

19850_503.eps

LED

A04 A04

2014-11-11

715G6677

LED

U8102

EL817M(X)

1

23

4

ZD8107

0R05

1 2

R8107

10K OHM

R8157

1.5R 1%

Q8103

AO3160

R8156

1.5R 1%

R8106

NC/0R 05 1/ 4W

C8102

100N 50V

R8108

100K 1/8W 1%

VCC_ON

Q8102

TK10A50D

Q8101
TK10A50D

C8146

100N 50V

R8172

10K 1/4W

R8160

0R05 1/4W

C8156

100N 50V

R8170

0R05 1/4W

R8135

0R05 1/4W

R8152

1.5R 1%

U8106

TPV10 1D

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8151

1.5R 1%

C8135

1uF 50V

U8108

TPV10 1D

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

C8149

NC/100P 50V

C8160

NC/10N 50V

C8148

1uF

C8158

1uF

DIM

-VLED-1

IC_VCC

BL_ON/OFF

C8142

1uF 50V

D8106
FMXA-2202S

1

2

3

Q8107

MMBT3906

D8107
FMXA-2202S

1

2

3

R8101 0.1R 1W

R8159

1.2R 1%

U8104

TL431G-AE2-R

R8154

1.2R 1%

R8129

3K3 1/8W 5%

U8103

TL431G-AE2-R

R8113

10R 1/8W 5%

3D_ON

R8158

1.2R 1%

R8111

10R 1/8W 5%

R8153

1.2R 1%

R8150

75 K +-1% 1/8W

Q8106

MMBT3904

GND6

NC

1

GND7

GND

1

R8116

10R 1/8W 5%

C8133

470NF 50V

For Power Saving

LED_OV

VLED

ZD8106

0R05

1 2

D8112

1N4148W

+

C8105

22UF 50V

C8141

100N 50V

C8151

100N 50V

R8128
13K 1/8W 1%

R8171

10K 1/4W

R8155

0R05 1/4W

R8166
3R6 1%

R8165

0R05 1/4W

HS8105

HEAT SINK/NC

1
2

U8105

TPV101D

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

C8147

1uF 50V

U8107

TPV101D

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

C8143

1uF

C8154

NC/10N 50V

C8153

1uF

DIM

-VLED-2

IC_VCC

BL_ON/OFF

C8152

1uF 50V

R8167
3R6 1%

C8140

NC/1N F 500V

C8111
5PF

D8108

1N4148W

C8136

1uF

+12V

C8157

1uF

+VLED

R8126

43K +-1% 1/4W

R8127

43K 1/8W 1%

R8168
3R6 1%

Q8105

2N7002K

R8169
3R6 1%

R8123
1M 1/8W 5%

R8124
510K +-5% 1/8W

IC_VCC

IC_VCC

R8175

10K 1/8W

U8101

SSC9522S

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

ZD8101

BZT52-B15

1 2

C8137

NC

HS8102
HEAT SINK

1
2

3

4

C8116

100PF1KV

C8126

100N 50V

C8108

0.47UF 50V

C8113
560P 50V

D8101

SS1060FL

+

C8120

82uF 100V

D8103

UF4007

+

C8121

82uF 100V

+

C8122

82uF 100V

R8149
100K

ZD8109

NC/BZ T52-B30

1 2

C8115

NC/100PF

D8102 SS1060FL

C8106

10NF 50V

C8125

100N 50V

R8161
3R6 1%

R8162
3R6 1%

R8163
3R6 1%

C8103

100N 50V

R8164
3R6 1%

C8128

4N7 50V

T8101
EE39

1

4

5
6

7

8

9

10

2

3

C8112
1uF

R8102 1M5 1/4W 1%

C8124

NC/1NF 500V

C8107

4.7uF 10V

L8101
3UH

HS8106

HEAT SINK/NC

1
2

C8127
100P 50V

C8109

1UF

R8105

18K 1/8W 1%

D8111

NC/SS1060FL

R8112
47 +-5% 1/8W

R8114

10K 1/8W 1%

R8117

10K 1/8W 1%

C8104

100N 50V

C8131

100N 50V

C8110

47P 50V

R8115

47 +-5% 1/8W

R8120

NC

R8110
47K +-1% 1/4W

R8145

330K 1% 1/8W

C8101
1NF

VBoot

VBoot

+VLED

HV

VCC_ON

VLED

VLED

+12V

R8109

470 OHM 1/4W

R8103

1M5 1/4W 1%

R8140

300K 1% 1/8W

+VLED

CN8101

CONN

1
2

3

4
5
6
7

8

9
10
11
12

-VLED-1

+VLED

-VLED-2

+

C8123

82uF 100V

HS8107

HEAT SINK/NC

1
2

C8145

NC/1N F 500V

GND1

NC

1

R8104

1M5 1/4W 1%

ZD8104
BZT52-B16

2

ZD8105
BZT52-B16

1 2

R8132

1K 1/8W 1%

D8109

SS1060FL

R8133

NC/0R 05 1/ 4W

R8131

5.1KR 1%

R8136
2K 1/8W 1%

C8132
100N 50V

R8134
1K 1/8W 1%

+12V

VLED

DV5

HS8108

HEAT SINK/NC

1
2

R8137

1K 1/8W 1%

R8174 NC/0R 05 1/ 4W

R8139

1K 1/8W 1%

R8121

0R05 1/4W

R8122
0R05 1/4W

R8173 NC/ 0R 05 1/ 4W

R8130

510OHM +-5% 1/8W

R8142
82K +-1% 1/8W

D8110

1N4148W

C8129

NC

R8141

390K 1/8W 1%

R8138

1.5K OHM

R8119

470OHM +-5% 1/8W

ZD8108
BZT52-B16

1 2

R8118
390 OHM

C8114
220P 50V

R8125

36K 1/8W 1%

C8134

1uF

ZD8102
BZT52-B16

2

GND3

NC

1

GND2
GND

1

GND5
GND

1

GND4

NC

1

Q8104

MMBT3906

C8117
47NF

!

!

Circuit Diagrams and PWB Layouts

EN 39TPS16.2A LA 10.

2016-Nov-18

back to

div.table

10-2-5 Power layout top

19850_504.eps

2014-11-06

715G6677

LAYOUT TOP

C8105

C9307

C9313

C9805

C9907

D9302

U8102

U9102

U9306

R9312

R9306

R9305

T9301

J968

J966

J912

J902

J952

J955

J931

J906

J935

SU1

SU2

SU4

J950

J924

J942

J923

J928

J925

J908

J904

SU6

J945

SU3

J913

J964

J958

J938

J932

J937

J936

J943

J918

J920

J919

J917

J927

J915

J914

J916

J930

J909

J907

J901

J934

J903

J929

J911

C8120

J905

C9305

J939

J944

J947

C9803

C9806

C9809

J926

J933

C8101

J956

J960

J946

J957

J963

J959

J951

SU7

J962

J961

J910

F9902

J922

J921

SU5

J949

C8111

J967

J948

D9301

J941

J969

SU8

J970

T8101

H1

S6

J940

J965

MH8

C8116

C8115

C9303

C9301

C9901

C9902

C9903

C9904

C9315

CN9902

CN9903

D8106D8107

D9802

FB9803

FB9302

HS9301

HS9302

L8101

L9302

L9303

L9304

NR9901 NR9902

R9814

CN9301

CN9303

C9302

MH3

SG9901

SG9902

D8103

MH2

MH1

C9905

C9906

RV9901

F9901

FB9305

HS8107

U8106

U8108

U8105

U8107

MH4

HS8105

HS8106HS8108

MH5

C9818

CN9302

Q9301

Q9801

HS8102

C8121

C8122

R8101

C9801

C9802

C9350

C9304

C9321 C9322

C9323

C9326

C9327

C9356

C9320

MH6

MH7

C9804

FB9802

FB9891

FB9301

HS9901

HS9801

BD9901

FB9901

FB9902

Q8102

Q8101

C8123

CN8101

GND1

GND2

GND3

GND4

GND5

GND6

GND7

Q9303

C9920

FB9903

L9801

BD9801

FB9801

CN9901

L9901

L9902

C8117

Circuit Diagrams and PWB Layouts

EN 40TPS16.2A LA 10.

2016-Nov-18

back to

div.table

10-2-6 Power layout bottom

19850_505.eps

2014-11-06

715G6677

LAYOUT BOTTOM

C8103

C8109

C8112

C8104

C8108

C8113

C8114

C8106

C8107

C8125

C8126

C8124

C8110

C8132

C9308

C9311

C9340

C9343

C9325

C9324

C9339

C9329

C9337

C9358

C9357

C9354

C9351
C9352

C9353

C9332
C9334
C9333
C9335

C9336

C9355

C9330C9331

C9306

C9338

C9342

C9310

C9810

C9808

C9812

C9811

C9814

U9901

R8102

R8103

R8113

R8111

R8112

R8104

R8114

R8105

R8115

R8116

R8117

R8119

R8120

R8118

R8109

R8136
R8134

R9813

R9311

R9309

R9308

R9310

R9307

R9313

R9314

R9342

R9343

R9324

R9345

R9328

R9321

R9315

R9337

R9338

R9339

R9334

R9333

R9335

R9352

R9356

R9351

R9357

R9355

R9322

R9325

R9326

R9317

R9318

R9362

R9361

R9801

R9806

R9802

R8121

R9809

R9810

R9895

R9816

R9817

R9904

R9903

R9905

R9906

R9907

R9908

RJ910

R8110

R9316

R9803

R9364

R9340

R9365

R9360

RJ912

FID7

FID6

C9341

R8132

R9327

R9320

R9366

C8127

C8128

C8148

C8146C8135

C8137

C8149

C8158

C8151C8142

C8147

C8131

C8145

C8141C8152 C8156

C8153

C8143

R8149

R8154

R8138

R8141

R8172

R8145

R8152

R8151

R8153

R8142

R8164

R8161

R8162

R8163

R8171

R8159

R8158

R8156

R8157

R8166

R8168

R8167

R8169

R8130

R8129

RJ908

FID5

R8160

R8170

R8155

R8165

R8128

C8102

C8136

C8157

C8134

C8133

C8160

C8154

C9813

R8108

R8125

R8123

R8124

R9808

R9807

R8106

RJ904

RJ903

R8139

RJ909

R9812

R8137

R8107

C8140

R9329

R9347

R9346

R9341

R9363

R9323

R8173R8174

RJ905

R9336

RJ906

R8135

R8133

R8175

R9353

R9354

R8127

R8126

R9304

R9301R9302

R9303

C9815

R8122

R9804

R9815

R9811

Q8104

Q8106

Q8107

Q9308

Q8103

Q8105

Q9305

Q9309

Q9307

Q9802

RJ907

U9801

U9301

U9302

U9305

RJ911

R8131

R9330

R9331

R9332

C9328

RJ901
RJ902

U8103

U8104

U9304

R8150

R8140

C8129

S2

S1

S4

S3

U8101

Q9304

D9311

Q9306

U9303

D8101

D8102

D8108

D8109

D8110
D8111

D8112

D9304

D9312

D9313

D9314

D9393

D9803

ZD8101

ZD8102
ZD8104

ZD8105

ZD8106

ZD8107

ZD8108

ZD8109

ZD9301

ZD9302

ZD9303

Circuit Diagrams and PWB Layouts

EN 41TPS16.2A LA 10.

2016-Nov-18

back to

div.table

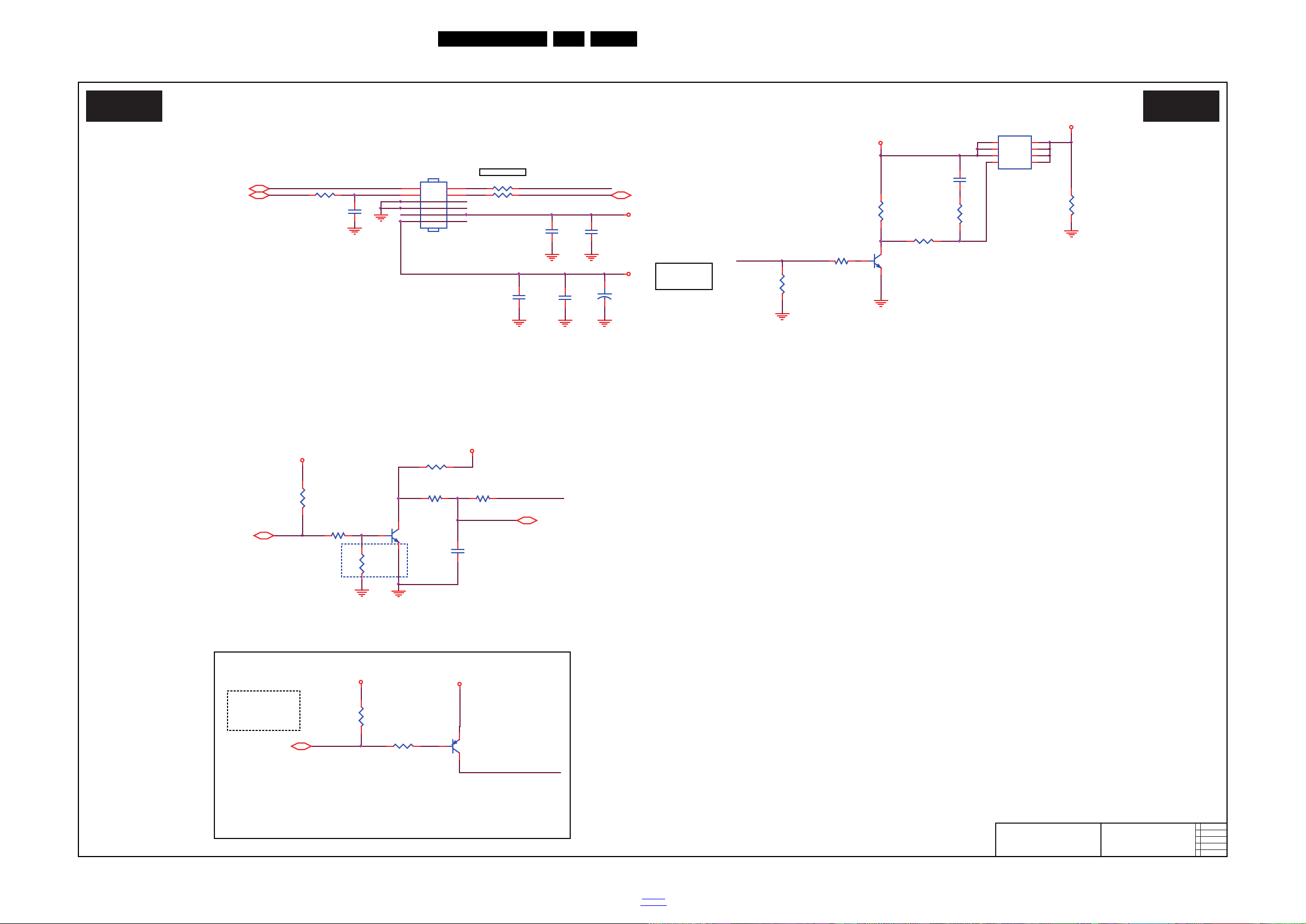

10.3 B 715G7324 SSB

20270_500.eps

POWER0

B01 B01

C

715G7924

POWER0

2015-9-25

R7030 33 OH M 1/16W

Power on off switch

C7063

NC/100N 50V

CN700
CONN

2

4

6

8

10

12

1

3

5

7

9

11

STB

R7021

4.7K1/16W

ろ㌔R7021

R711

4.7K1/16W

PWM_OUT

R757

4.7K1/16W

Q701

AO4449 -7A/-30V

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

R702

NC/10KOHM

Panel bright control

PWM_OUT12
STB5,11 BIT_SEL/3D_EN 12

R7020 1K

R709 150K

C7031
1N 50V

C701
220NF 25V

BL_ON_OFF

PWM0

BL_ON

R705
47K

PWM_OUT

BL_ON/OFF:
Inverter on: Low
Inverter off:
High

STB

C7032
100N 50V

+

C7034
100UF 25V

C703

NC/1UF 6.3V

R717

0R05 OHM

R716

0R05 OHM

R728 4.7K1/16W

Q703
MMBT3904

R713

10K

Q705
MMBT3904

R714
NC/4.7K1/16W

R718

4.7K1/16W

BL_ON11

VBO_DIMM_CTL 12

R704
0R05 OHM

PWM011

R708 NC/33 OHM 1/16W

3V3

3V3

3V3

3V3

5V0

5V_SB

BL_ON_OFF

12V0

AMP_12V

C7030
100N 50V

C7033
1N 50V

Q708
MMBT3906

R725

10K

10-3-1 Power0

Circuit Diagrams and PWB Layouts

EN 42TPS16.2A LA 10.

2016-Nov-18

back to

div.table

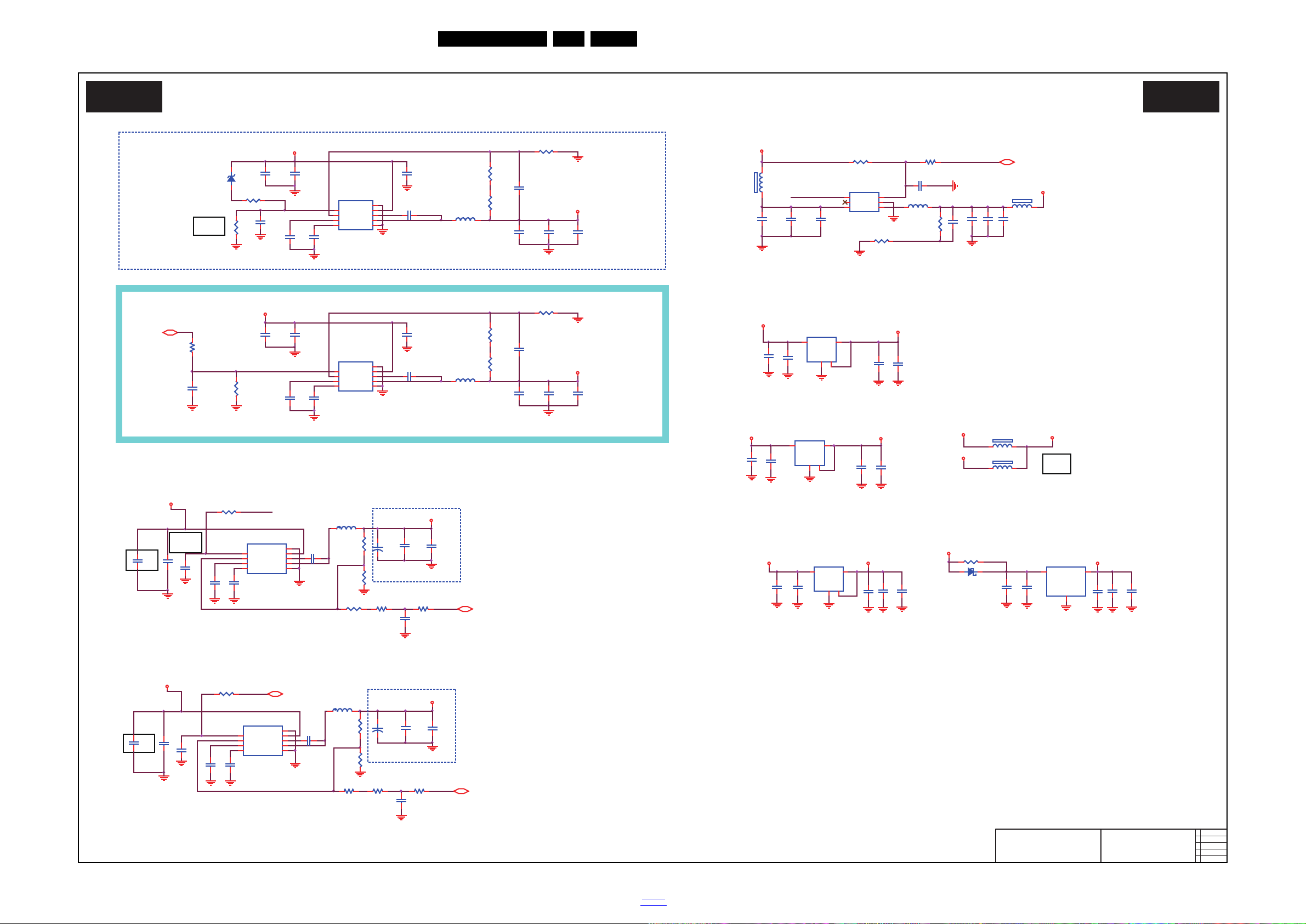

10-3-2 Power1

20270_501.eps

POWER1

B02 B02

C

715G7924

POWER1

2015/9/25

R729

4.7K1/16W

FB702

NC/120R

1 2

C7061
10uF 10V

C7062
22UF 10V

R7029

22K 1/16W 1%

R1

C7060
10uF 25V

1206

U712
RT6206BHGSP

EN

1

FB

2

VREG5

3

SS4GND

5

SW

6

BOOT

7

VIN

8

GND

9

L711

3.3UH

1206

C7059 100N16V

FB705

120R

1 2

12V0

1206

1206

5V_USB

C7056
NC

R7028
100K 1/16W

R2

C7054
10uF 25V

1.2K

Ր 6.8K (ㆷ{USB ȃMHL power drop)

R7025
121K 1%

0603

0805

C7053

3.3NF 50V

C7058
100N16V

C7057
1UF16V

R7026
6K8 1%

073G253S 67 M

C7055
22UF 10V

R7027

22 OHM 1/16W

C7052
1uF 50V

5V_SB

STB4,11

PMC0

STB

3V3_SB

R7005

30K 1%

3A DC-DC For CPU

TUNER_3V3

3A DC-DC For VDD

R7002 12K 1%

ZD710
BZT52-B7V5

1 2

D701 SM260A

1 2

C7016
1UF16V

C721
10UF

C719

100N 16V

R735
22K 1%

C717

100N 16V

L702 4.7uH

R738

16.9K 1%

C718

1UF 6.3V

C723
22P 50V

STB_GPIO0_0

R733
33K 1%

1V5_DDR3

DDR_PWR_FB

C722

10UF

FB704

120R 3A

1 2

C7045

100N 16V

U702
SY8009BABC

EN

1

GND

2

LX

3

IN

4

NC

5

FB

6

C7048

100N 16V

STB_GP IO0_0 11

C7047

10UF

C720

2.2uF 6.3V

3V3

5V0

DDR_PWR_FB

C7049

1UF 6.3V

C7046

1UF 6.3V

WIFI_PWR

C7012
100N16V

C706 1U F 6. 3V

C735

1UF 6.3V

C754

1UF 6.3V

1V5_DDR3_1A

R751

24.9K 1%

R739

24.9K 1%

U711
AZ1084CD-3.3TRG1

VIN3VOUT

2

GND/AD J

1

C733

100N 16V

+

C7051

100UF 16V

+

C7050

100UF 16V

C748

100N 16V

R7361K

R748 1K

C729

100N 16V

C744

100N 16V

C7011
10uF 25V

R7001
121K 1%

12V0

C725

10UF

C7019
22UF 10V

C7014 100N16V

U710
RT6206BHGSP

EN

1

FB

2

VREG5

3

SS4GND

5

SW

6

BOOT

7

VIN

8

GND

9

C7013
NC

C7015
1nF 50V

R758 NC/0 OHM +-5% 1/8W

C7010
10uF 25V

C7017

3.3NF 50V

C7018
22UF 10V

R7000

22K 1/16W 1%

L710

3.3UH
C7020

10uF 10V

3V3

C731
10uF 25V

C746
10uF 25V

5V0

STB

PMC1

C741

10UF

3V3

C742

100N 16V

LDO_1V2

C739

100N 16V

R750

12.1K 1%

C755

10NF 50V

C749

220nF 16V

C750

100N 16V

U706

TPS54328DDAR

EN

1

VFB

2

VREG5

3

SS4GND

5

SW

6

VBST

7

VIN

8

E-PAD

9

U707

G1117-33T63Uf

VI3VO

2

GND14

4

FB703

120R 3A

1 2

C753

10UF

U705

AZ1117H-1.2TRE1

VI3VO

2

GND14

4

C743
10UF

C738

2.2uF 6.3V

073G253S 67 M

R1

R7003
6K8 1%

C745

100N 16V

R741

10K

C726

10UF

1206

R754

1K

C740

1UF 6.3V

U704

TPS54328DDAR

EN

1

VFB

2

VREG5

3

SS4GND

5

SW

6

VBST

7

VIN

8

E-PAD

9

1206

R753

100K 1/16W

R2

C727

100N 16V

C724

100N 16V

0603

R730

NC/100OHM

1206

C728
10UF

1206 0805

C734

220nF 16V

C736

10NF 50V

C752

100N 16V

C7001

1UF 6.3V

C751

1UF 6.3V

L703

4.7UH

C756

2.2uF 6.3V

C730

100N 16V

R743

1K

R752

27K 1/16W 1%

R742

100K 1/16W

U703

G1117-33T63Uf

VI3VO

2

GND14

4

PMC0 11

STB 4,11

PMC1 11

CPU_1V1

12V0

VDD_1V1

12V0

5V_SB

3V3_SB5V_SB

5V0

TU3V3

L704

4.7UH

Circuit Diagrams and PWB Layouts

EN 43TPS16.2A LA 10.

2016-Nov-18

back to

div.table

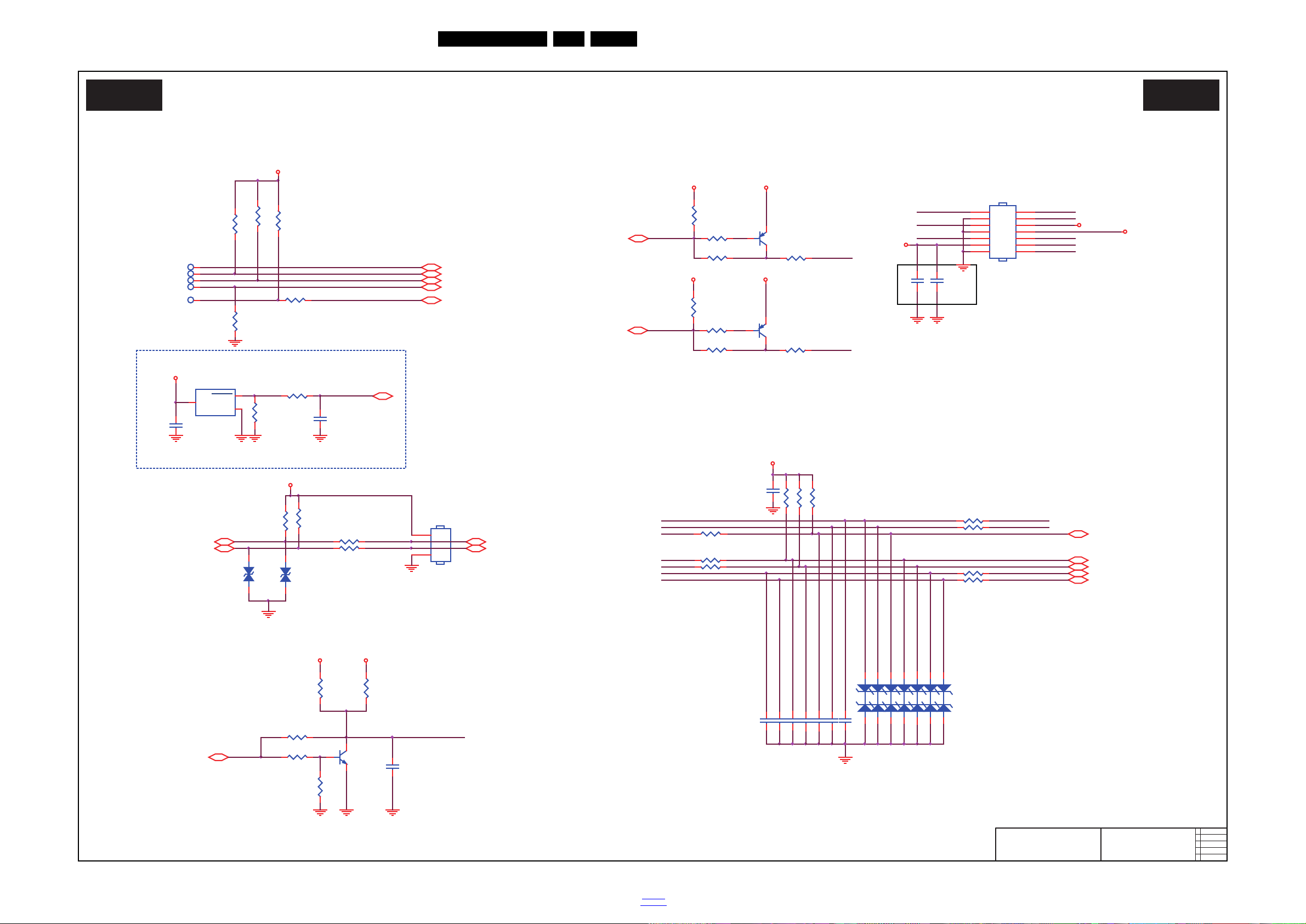

10-3-3 KEY_IR

20270_502.eps

KEY_IR

B03 B03

C

715G7924

KEY_IR

2015/9/25

R4122
NC/100R 1/16W 1%

R4100
NC/100R 1/16W 1%

C4038
NC/10uF 16V

LOGO-PWM

C4040 NC/100NF 25V

R428

22 OHM 1/16W

5V0

R4114 N C / 1K 1/ 16W 5%

R439

22 OHM 1/16W

C4039
10uFэ

1uF(0805䄹0603)

ZD413 AZ5123-01H

12

ZD412 NC/AZ5123-01H

12

ZD411 NC/AZ5123-01H

12

ZD410 NC/AZ5123-01H

12

R441

22 OHM 1/16W

R429
1K

ZD402

NC/MLVG0402

1 2

R421

4.7K1/16W

ZD401

NC/MLVG0402

1 2

R438

NC/4.7K1/16W

R420

NC/ 4. 7K 1/ 16W

IRIN

R437

NC/4.7K1/16W

R418

4.7K1/16W

UART1_RXD_IN16,20

UART1_TXD 11

IRIN 11,16

TSI0_D2/JTAG_TCK 21
TSI0_D4/JTAG_TDO 21

LS_ADC0_KEY 11
LS_ADC1_KEY 11

TSI0_D1/JTAG_TRSTN 21
TSI0_D3/JTAG_TDI 21
TSI0_D0/JTAG_TMS 21

3V3

3V3_SB

R4119
100K 1/16W

C4030

100NF 25V

3V3_SB

R4105

NC/100K1/16W

U402

G690L263T73U

GND

1

RESET

2

Vcc

3

CN401
CONN

2
4
6

8

10
12
14

1

3

5
7
9
11
13

I2C1-SCL

LED-B

KEY1 KEY0

IR

I2C1-SDA

5V0

3V3_SB

LED-R

R4115 2.2K1/16W

C4031 NC/2.2uF 6.3V

LED_PWM11

UART1

3V3_SB

Connector

TO IR/KEY BOARD

C40391UF16V

ZD415 NC/AZ5123-01H12ZD416 NC/AZ5123-01H

12

I2C1_SCL 11,12

I2C1_SDA 11,12

R4128 10 OHM
R4129 10 OH M

I2C1_SCL

I2C1_SDA

IR

C4041 NC

C4042 NC

I2C1-SDA
I2C1-SCL

RESETIN 11

C4036NC

R4103 NC / 10 OH M

R4117 6K8 1/ 10W 1%

C4033 100N 50V

LED-B

C4032
100NF 25V

R4108 100R 1/ 16W 1%

R4104 10 OH M

LOGO-PWM

TP401

1

TP402

1

TP403

1

TP404

1

TP405

1

3V3_SB

LED_R

C4035 100pF 50V

C4034 N C / 100N 50V

C4037NC

R4107 100R 1/ 16W 1%

R4111 10K 1%

LED_B

R4106 100R 1/ 16W 1%

TSI0_D3/JTAG_ TDI

JTAG

LED-R

R4118 NC/6K8 1/10W 1%

TSI0_D1/JTAG_TRSTN

TSI0_D2/JTAG_TCK

TSI0_D0/JTAG_TMS

TSI0_D4/JTAG_TDO

Q423
NC /MMBT3904

R4121

NC/0R05 1/16W

R4120

NC/0R05 1/16W

RESETIN

UART1_RXD 11

UART1_TXD_IN16,20

RESET

LEDR_OUT11

LED_PWM11

CN412

CONN

1
2

3

4

3V3

Lighting LOGO

3V3

R4113
1K 1/16W 1%

R4109

10K

R4101

1.2K 1/16W 1%

Q420
MMBT3906

LEDR

LED_R

R4130 0R05 OHM

3V3_SB 3V3_SB

KEY1

KEY0

LS_ADC1_KEY

LS_ADC0_KEY

ZD414 NC/AZ5123-01H

12

R4102
NC/1.2K 1/16W 1%

3V3_SB

Q421
NC/MMBT3906

R4110

NC/10K

LED_B

R4112
NC/ 1K 1/ 16W 1%

LEDB

Circuit Diagrams and PWB Layouts

EN 44TPS16.2A LA 10.

2016-Nov-18

back to

div.table

10-3-4 SOC_POWER

20270_503.eps

SOC_POWER

B04 B04

C

715G7924

SOC_POWER

2015/9/25

C783

100N 16V

C761

2.2uF 6.3V

C769

1UF 6. 3V

C795

100N 16V

C773

1UF 6.3V

C771

1UF 6. 3V

C776

1UF 6. 3V

C790

1UF 6.3V

C794

100N 16V

C765

100N 16V

C789

100N 16V

C777

1UF 6. 3V

C770

1UF 6. 3V

C785

100N 16V

C766

1UF 6. 3V

C760

100N 16V

C787

1UF 6.3V

C762

100N 16V

C768

1UF 6. 3V

C792

100N 16V

C767

1UF 6. 3V

C763

100N 16V

C778

1UF 6. 3V

C775

1UF 6. 3V

C757

1UF 6. 3V

MISC Interf ace of

U401J

HI3751AV500_AFE

HI3751AV500

AVDDREF

Y13

AVDD33_FE

R9

VSS63

W18

VSS62

W17

VSS61

W16

VSS60

W15

VSS59

W14

VSS58

W11

VSS57

V18

VSS56

V17

VSS55

V16

VSS54

V15

VSS53

V14

VSS52

V13

VSS51

V12

VSS50

V11

VSS49

U18

VSS48

U17

VSS47

U16

VSS46

U15

VSS45

U14

VSS44

U13

VSS43

U12

VSS42

U11

VSS41

T18

VSS40

T17

VSS39

T16

VSS38

T13

VSS37

T12

VSS36

T11

VSS35

R19

VSS34

R13

VSS33

R12

VSS32

R11

VSS31

P19

VSS30

P18

VSS29

P13

VSS28

P12

VSS27

P11

VSS26

N19

VSS25

N18

VSS24

N13

VSS23

N12

VSS22

N11

VSS21

M19

VSS20

M18

VSS19

L19

VSS18

L18

VSS17

K19

VSS16

K18

VSS15

K17

VSS14

K16

VSS13

M12

VSS12

L12

VSS11

H7

VSS10

G7

VSS9

P16

VSS8

N17

VSS7

AB16

VSS6

AB11

VSS5

N10

VSS4

R17

VSS3

K15

VSS2

R16

VSS1

AB10

AGNDREF

W13

AVSS_PLL

J14

VDD_CPU9

M11

VDD_CPU8

L11

VDD_CPU7

K11

VDD_CPU6

M10

VDD_CPU5

L10

VDD_CPU4

K10

VDD_CPU3

H8

VDD_CPU2

G8

VDD_CPU1

F8

VDD19

M13

VDD18

L13

VDD17

L17

VDD16

L16

VDD15

R15

VDD14

R14

VDD13

P15

VDD12

P14

VDD11

N16

VDD10

N15

VDD9

N14

VDD8

M17

VDD7

M16

VDD6

M15

VDD5

M14

VDD4

L15

VDD3

T15

VDD2

T14

VDD1

L14

AVDD11_HDMIRX2

W10

AVDD11_HDMIRX1

V10

AVDD11_AFE

U10

AVDD11_PLL_AFE

T10

AVDD11_FE

R10

AVDD11_QAM

Y12

AVDD11_PLL

K14

DVDD11_LDO1_OUT

F10

AVDD33_HDMIRX2

W9

AVDD33_HDMIRX1

V9

AVDD33_AFE

T9

AVREF

AB9

DVDD33_8

F4

DVDD33_7

E4

DVDD33_6

AB18

DVDD33_5

AB17

DVDD33_4

AB15

DVDD33_3

AB14

DVDD33_2

AB13

DVDD33_1

AB12

AVDD33_PLL

J13

AVDD33_HDMI_VBUS

E11

DVDD33_STAND BY2

D12

DVDD33_STAND BY1

C12

C774

1UF 6. 3V

FB709

120R

1 2

C788

100N 16V

C758

100N 16V

FE_3V3

C772

100N 16V

C779

1UF 6. 3V

C791

100N 16V

C793

100N 16V

C759

100N 16V

C786

1UF 6. 3V

C780

1UF 6. 3V

C781

1UF 6. 3V

3V3_SB

3V3

DVDD_3V3

LDO_1V2

CPU_1V1

LDO_1V2

LDO_1V2

VDD_1V1

3V3

LDO_1V2

3V3_SB

3V3

VDD_1V1

VDD_1V1

3V3

CPU_1V1

Chip Power

3V3

REF_1V2

3V3

FE_1V2

PLL_1V1

PLL_1V1

AVREF

AVREF

AVREF

REF_1V2

PLL_3V3

PLL_3V3

LDO_1V1_OUT

LDO_1V1_OUT

LDO_1V1_OUT

C784

10uF 6.3V

C764

22uF 6.3V

C782

22uF 6.3V

Heat sink

HS401
HEAT SINK

1
2

R4126
NC/0R05 OHM

R755
0R05 OHM

FE_1V2

FB710

220R

1 2

FB711

220R

1 2

R4127
NC/0R05 OHM

Circuit Diagrams and PWB Layouts

EN 45TPS16.2A LA 10.

2016-Nov-18

back to

div.table

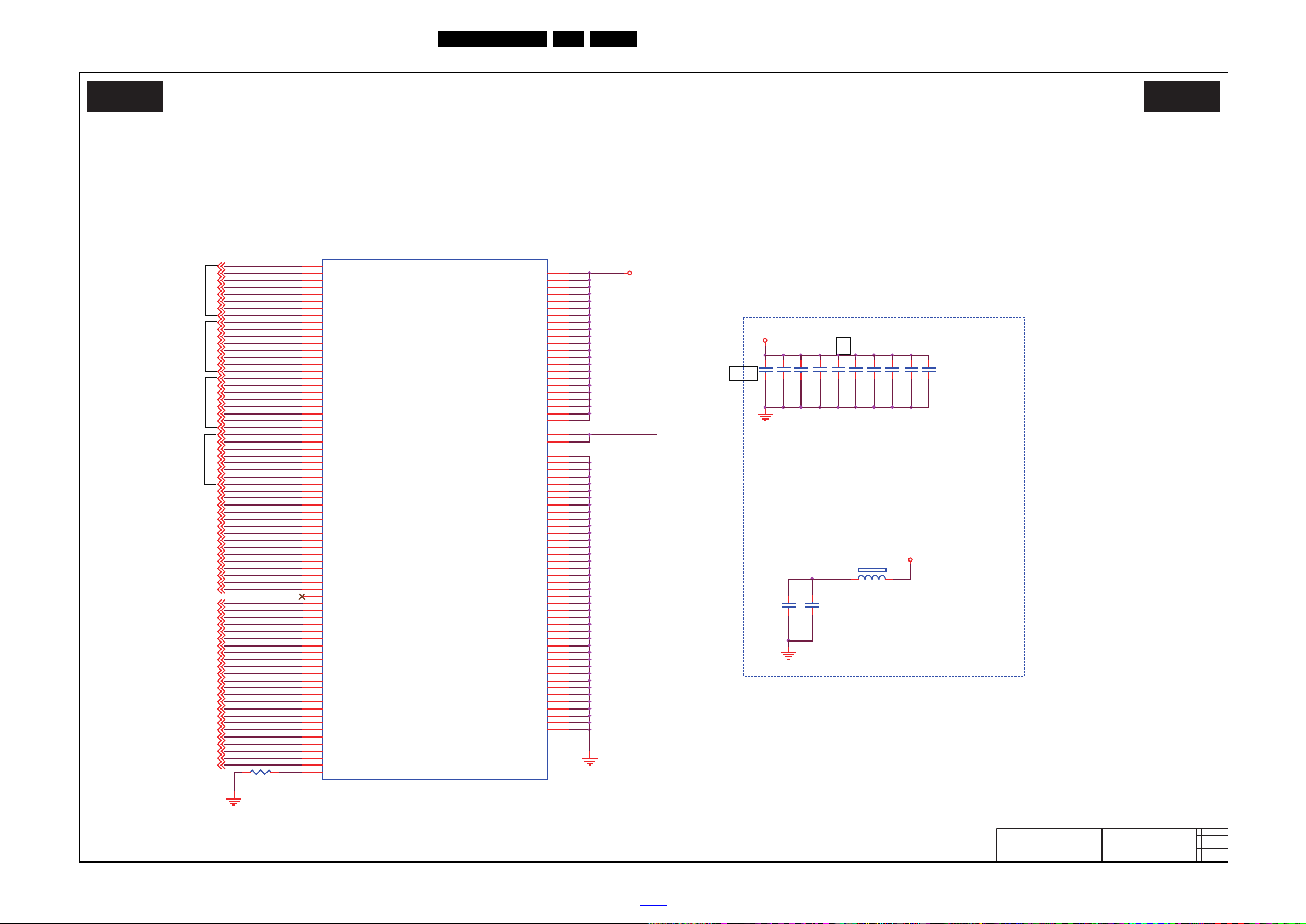

10-3-5 SOC_DDR_PWR

20270_504.eps

SOC_DDR_PWR

B05 B05

C

715G7924

SOC_DDR_PWR

2015/9/25

AVDD_DDR_PLL

DDR0_DQS3_N

DDR0_DQS2_P

DDR0_CLK0_P
DDR0_CLK0_N

DDR0_DQS3_P

DDR0_DQS2_N

DDR0_DQ28

DDR0_DQ29

DDR0_DQ30

DDR0_DQ31

DDR0_DQ24

DDR0_DQ25

DDR0_DQ26

DDR0_DQ27

DDR0_DQ20

DDR0_DQ21

DDR0_DQ22

DDR0_DQ23

DDR0_DQ16

DDR0_DQ17

DDR0_DQ18

DDR0_DQ19

DDR0_ADDR1

DDR0_ADDR4

DDR0_ADDR11

DDR0_ADDR14

DDR0_ADDR10

DDR0_CKE

DDR0_ADDR8

DDR0_ADDR6

DDR0_CASN

DDR0_WEN

DDR0_BA1

DDR0_ADDR12

DDR0_ADDR2

DDR0_ADDR13

DDR0_ADDR0

DDR0_BA2

DDR0_ADDR7

DDR0_ADDR5

DDR0_ADDR9

DDR0_RESETN

DDR0_ODT

DDR0_CSN

DDR0_ADDR3

DDR0_BA0

DDR0_DQS0_P

DDR0_RASN

DDR0_DQ12
DDR0_DQ13

DDR0_DQ14

DDR0_DQ15

DDR0_DQ8

DDR0_DQ9

DDR0_DQ10

DDR0_DQ11

DDR0_DQ4

DDR0_DQ5
DDR0_DQ6

DDR0_DQ7

DDR0_DQS1_N

DDR0_DQS0_N

DDR0_DQS1_P

DDR0_DQ3

DDR0_DQ2

DDR0_DQ1
DDR0_DQ0

16-23 BIT 8-15 BIT

24-31 BIT

DDRIII_Chip Power

0-7 BIT

FB712

120R

1 2

C7039

1UF 6.3V

C7042

1UF 6. 3V

C7035

470NF 16V

MISC Interface of

U401I

HI3751AV500_AFE

HI3751AV500

DDR_ZQ

G13

VDDIO_CK_DDR

H18

AVDD_DDR_PLL2

H16

AVDD_DDR_PLL1

J21

VSS20

D25

VSS40

L27

VSS39

L25

VSS38

K25

VSS37

J26

VSS36

J24

VSS35

H26

VSS34

H25

VSS33

G25

VSS32

G23

VSS31

F27

VSS30

F18

VSS29

F16

VSS28

E28

VSS27

E18

VSS26

E17

VSS25

E16

VSS24

E15

VSS23

E14

VSS22

E13

VSS21

D27

VSS19

D22

VSS18

D20

VSS17

C28

VSS16

C25

VSS15

C21

VSS14

C20

VSS13

C19

VSS12

C13

VSS11

B26

VSS10

B23

VSS9

B21

VSS8

B17

VSS7

B15

VSS6

A28

VSS5

A26

VSS4

A22

VSS3

A16

VSS2

A14

VSS1

A13

VDDIO_DDR21

G18

VDDIO_DDR20

G22

VDDIO_DDR19

G21

VDDIO_DDR18

G20

VDDIO_DDR17

G19

VDDIO_DDR16

G17

VDDIO_DDR15

G16

VDDIO_DDR14

G15

VDDIO_DDR13

G14

VDDIO_DDR12

M22

VDDIO_DDR11

L22

VDDIO_DDR10

K22

VDDIO_DDR9

J22

VDDIO_DDR8

H22

VDDIO_DDR7

F23

VDDIO_DDR6

F22

VDDIO_DDR5

F21

VDDIO_DDR4

F20

VDDIO_DDR3

E24

VDDIO_DDR2

E23

VDDIO_DDR1

D24

DDR_CSN

C14

DDR_ODT

B13

DDR_RESETN

C16

DDR_RASN

D13

DDR_CASN

D16

DDR_WEN

D15

DDR_CKE

F19

DDR_DQS3_N

B25

DDR_DQS3_P

A25

DDR_DQS2_P

B27

DDR_DQS2_N

A27

DDR_DQS1_P

H28

DDR_DQS1_N

H27

DDR_DQS0_P

J27

DDR_DQS0_N

J28

DDR_CLK0_N

A20

DDR_CLK0_P

B20

DDR_BA2

A17

DDR_BA1

B19

DDR_BA0

B14

DDR_DM3

D23

DDR_DM2

E22

DDR_DM1

J23

DDR_DM0

J25

DDR_ADDR15

D17

DDR_ADDR14

D18

DDR_ADDR13

F14

DDR_ADDR12

A19

DDR_ADDR11

F17

DDR_ADDR10

E20

DDR_ADDR9

B16

DDR_ADDR8

C18

DDR_ADDR7

D14

DDR_ADDR6

B18

DDR_ADDR5

F13

DDR_ADDR4

E19

DDR_ADDR3

C15

DDR_ADDR2

F15

DDR_ADDR1

D19

DDR_ADDR0

C17

DDR_DQ31

C24

DDR_DQ30

B28

DDR_DQ29

B24

DDR_DQ28

C27

DDR_DQ27

D21

DDR_DQ26

C26

DDR_DQ25

E21

DDR_DQ24

D26

DDR_DQ23

E25

DDR_DQ22

B22

DDR_DQ21

E26

DDR_DQ20

C22

DDR_DQ19

F24

DDR_DQ18

A23

DDR_DQ17

E27

DDR_DQ16

C23

DDR_DQ15

H24

DDR_DQ14

K24

DDR_DQ13

H23

DDR_DQ12

K23

DDR_DQ11

G24

DDR_DQ10

K26

DDR_DQ9

F25

DDR_DQ8

K27

DDR_DQ7

L26

DDR_DQ6

F26

DDR_DQ5

L28

DDR_DQ4

F28

DDR_DQ3

L23

DDR_DQ2

G27

DDR_DQ1

L24

DDR_DQ0

G26

C797

100N 16V

C799

1UF 6.3V

C7037

1UF 6.3V

C7041

100N 16V

R756

240 OHM

C7036

100N 16V

C7038

1UF 6.3V

C7040

1UF 6.3V

1V5_DDR3

3V3

1V5_DDR3

C796

470NF 16V

C798

10uF 6.3V

AVDD_DDR_PLL

DDR0_DM0
DDR0_DM2

DDR0_DM1
DDR0_DM3

Circuit Diagrams and PWB Layouts

EN 46TPS16.2A LA 10.

2016-Nov-18

back to

div.table

10-3-6 DDR1

20270_505.eps

DDR1

B06 B06

C

715G7924

DDR1

2015/9/25

RESETN_1

R445

200R

C429 100N 16V

C413
1N 50V

RP406

33R

1
2

3

4

8

7
6
5

C425 100N 16V

C423 100N 16V

C420

10UF

C433
100N 16V

RP405

33R

1
2

3

4

8

7
6
5

R443

4.7K1/16W

R444

240 OHM

R447

1K 1/16W 1%

C419

100N 16V

RP404

33R

1
2

3

4

8

7
6
5

C426 100N 16V

C427 100N 16V

RP402

33R

1
2

3

4

8

7
6
5

U403

K4B4G1646E-BCK0

VDD_0

B2

NC_0

J1

VSS_0

A9

VSSQ_0

B1

UDQS#

B7

VDDQ_0

A1

DQU6

B8

VSSQ_1

B9

UDM

D3

UDQS

C7

VSSQ_2

D1

DQU7

A3

VDDQ_1

A8

DQU1

C3

VDDQ_2

C1

VDDQ_3

C9

DQU0

D7

VDDQ_4

D2

DQU4

A7

VSSQ_3

D8

DQU3

C2

DQU2

C8

VSSQ_4

E2

DQU5

A2

VDD_1

D9

NC_1

J9

VSS_1

B3

VSSQ_5

E8

LDQS#

G3

VDDQ_5

E9

DQL6

G2

VSSQ_6

F9

LDM

E7

LDQS

F3

VSSQ_7

G1

DQL7

H7

VDDQ_6

F1

DQL1

F7

VDDQ_7

H2

DQL0

E3

VDDQ_8

H9

DQL4

H3

VSSQ_8

G9

DQL3

F8

DQL2

F2

BA2

M3

DQL5

H8

VDD_5

N1

VREFDQ

H1

VSS_2

E1

VSS_5

J8

CK

J7

VDD_2

G7

CKE

K9

WE#

L3

RAS#

J3

CK#

K7

ODT

K1

RESET#

T2

BA0

M2

BA1

N8

CAS#

K3

CS#

L2

A10/AP

L7

A1

P7

A2

P3

A0

N3

VDD_3

K2

VSS_3

G8

A3

N2

A5

P2

A6

R8

A4

P8

A7

R2

A9

R3

A11

R7

A8

T8

VSS_4J2VDD_4

K8

A12/BC#

N7

NC_3

L9

ZQ

L8

NC_2

L1

VREFCA

M8

NC_4

M7

A13

T3

A14

T7

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VDD_6

N9

VDD_7

R1

VDD_8

R9

RP403

33R

1
2

3

4

8

7
6
5

C417

1UF 6. 3V

C421 100N 16V

R448

1K 1/16W 1%

C428 100N 16V

C431

1UF 6. 3V

RP401

33R

1
2

3

4

8

7
6
5

R449
1K 1/16W 1%

C418

100N 16V

R446

1K 1/16W 1%

C430

1UF 6. 3V

C432
100N 16V

C422 100N 16V

C424 100N 16V

C416

1UF 6.3V

C414

470NF 10% 10V

RP407

33R

1
2

3

4

8

7
6
5

C415

470NF 10% 10V

1V5_DDR3

1V5_DDR3

1V5_DDR3

1V5_DDR3

1V5_DDR3

VREF_DQ_0

VREF_CA_0

VREF_DQ_0

DDR0_CLK0_P

DDR0_DQ11

ADDR5_1

ADDR1_1

ODT_1

DDR0_DQ10

ADDR3_1
ADDR4_1

DDR0_DQS1_P

CSN_1

DDR0_DQ9

ADDR2_1

ADDR6_1

DDR0_DQS0_N

DDR0_DQS0_P

DDR0_DQ8

ADDR0_1

ADDR8_1

DDR0_DQS1_N

BA2_1

DDR0_DQ7

RASN_1

ADDR14_1

DDR0_DQ15

DDR0_DQ0

BA0_1

DDR0_DQ6

WEN_1

ADDR11_1

DDR0_DQ1

DDR0_DQ14

ADDR13_1

CKE_1

DDR0_DQ5

CASN_1

BA1_1

DDR0_DQ2

DDR0_DQ13

ADDR9_1

ADDR12_1

DDR0_DQ4

DDR0_CLK0_N

DDR0_DQ12

ADDR7_1

ADDR10_1

DDR0_DQ3

ADDR5_1

DDR0_ADDR3

DDR0_ADDR6

CASN_1

ADDR12_1

DDR0_ADDR0

DDR0_CLK0_N

DDR0_CSN

ADDR7_1

DDR0_ADDR8

ADDR2_1

DDR0_ADDR13

ADDR14_1

DDR0_ODT

ADDR13_1

DDR0_CKE

ADDR3_1

CKE_1

DDR0_ADDR2

DDR0_RASN

ADDR0_1

DDR0_ADDR10

WEN_1

CSN_1

DDR0_CLK0_P

ADDR11_1

DDR0_RESETN

ADDR6_1

DDR0_ADDR12

DDR0_ADDR9

DDR0_ADDR14

RESETN_1

DDR0_BA1

DDR0_ADDR11

DDR0_ADDR5

BA0_1

ADDR8_1

DDR0_ADDR7

ADDR9_1

RASN_1

DDR0_WEN

DDR0_ADDR4

DDR0_CASN

BA1_1

ADDR1_1

ODT_1

DDR0_ADDR1

DDR0_BA0

ADDR10_1

BA2_1

ADDR4_1

DDR0_BA2

DDR0_DM1
DDR0_DM0

VREF_CA_0

DDRIII_1

Circuit Diagrams and PWB Layouts

EN 47TPS16.2A LA 10.

2016-Nov-18

back to

div.table

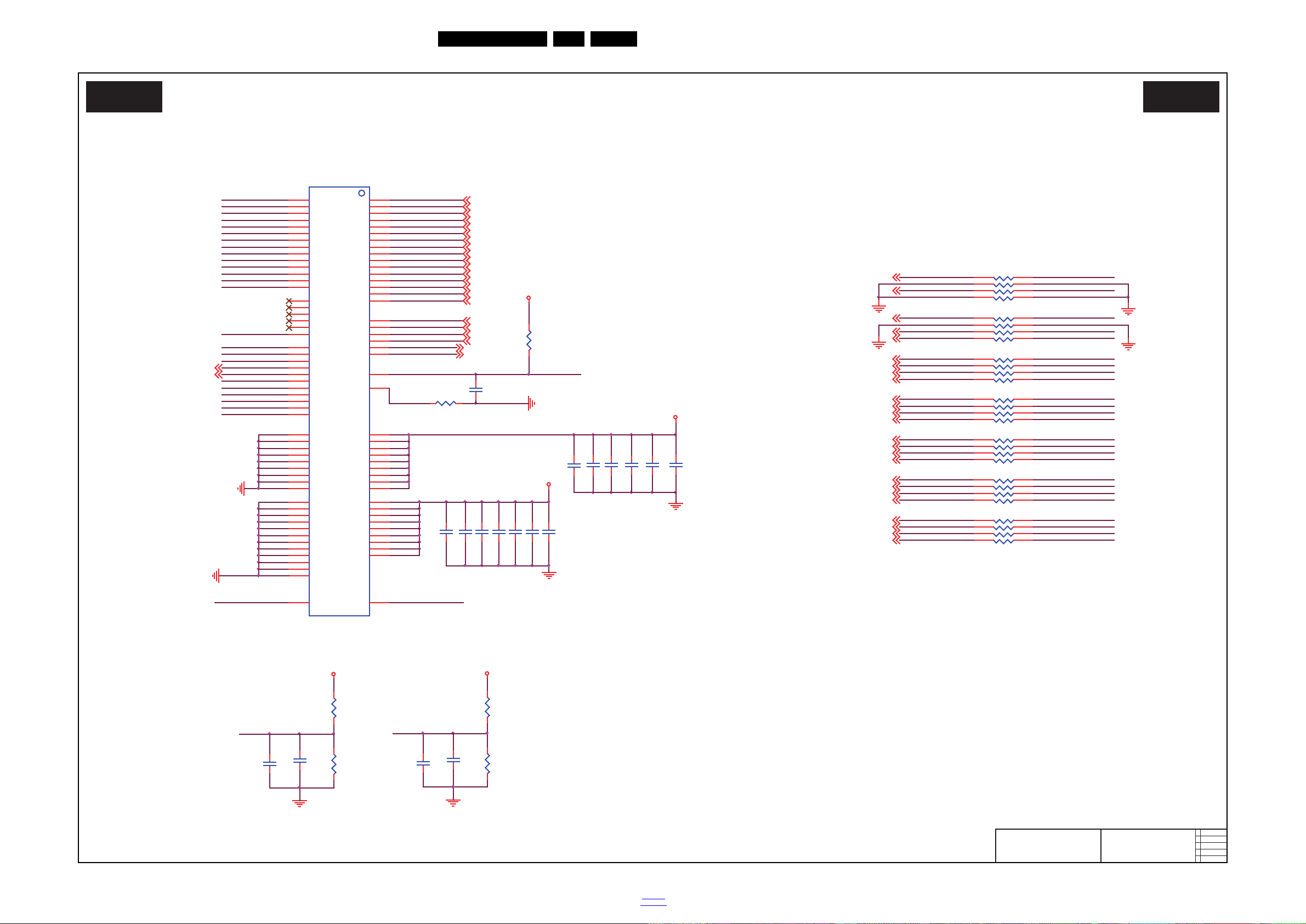

10-3-7 DDR2

20270_506.eps

DDR2

B07 B07

C

715G7924

DDR2

2015/9/25

DDR0_DQ18

DDR0_DQS2_P

ADDR10_2

DDR0_DQ22

ADDR1_2

CKE_2

ADDR9_2

DDR0_DQ19

DDR0_DQ23

ADDR0_2

BA2_2

DDR0_DQ20

DDR0_DQS2_N

ADDR8_2 DDR0_DQ24

BA1_2

ADDR7_2

DDR0_DQ21

DDR0_DQS3_N

DDR0_DQ25

BA0_2

ADDR6_2

DDR0_DQ31

CASN_2

ADDR14_2

DDR0_DQ26

ADDR5_2

DDR0_DQS3_P

WEN_2

DDR0_DQ27

ADDR13_2

DDR0_DQ28

ADDR4_2

RASN_2

DDR0_DQ16

ADDR12_2

DDR0_CLK0_N

ADDR3_2

ODT_2

DDR0_DQ29

ADDR11_2

DDR0_DQ17

DDR0_CLK0_P

ADDR2_2

DDR0_DQ30

CSN_2

VREF_CA_1 VREF_DQ_1

RP414

33R

1

2

3

4

8

7

6

5

RP409

33R

1

2

3

4

8

7

6

5

RP413

33R

1

2

3

4

8

7

6

5

C451
100N 16V

C443 100N 16V

C441 100N 16V

C439

10UF

C440

100N 16V

R453

1K 1/16W 1%

RP410

33R

1

2

3

4

8

7

6

5

RP411

33R

1

2

3

4

8

7

6

5

R450

4.7K1/16W

C445 100N 16V

RP412

33R

1

2

3

4

8

7

6

5

R452

1K 1/16W 1%

C438

470NF 10% 10V

C449

1UF 6. 3V

C442 100N 16V

C447 100N 16V

RP408

33R

1

2

3

4

8

7

6

5

C436

470NF 10% 10V

C437

470NF 10% 10V

C434
1N 50V

R454
1K 1/16W 1%

R455

1K 1/16W 1%

C450

100N 16V

C435

100N 16V

R451

240 OHM

C446 100N 16V

C444 100N 16V

C448

1UF 6. 3V

1V5_DDR3

1V5_DDR3

1V5_DDR3

1V5_DDR3

1V5_DDR3

U404

K4B4G1646E-BCK0

VDD_0

B2

NC_0

J1

VSS_0

A9

VSSQ_0

B1

UDQS#

B7

VDDQ_0

A1

DQU6

B8

VSSQ_1

B9

UDM

D3

UDQS

C7

VSSQ_2

D1

DQU7

A3

VDDQ_1

A8

DQU1

C3

VDDQ_2

C1

VDDQ_3

C9

DQU0

D7

VDDQ_4

D2

DQU4

A7

VSSQ_3

D8

DQU3

C2

DQU2

C8

VSSQ_4

E2

DQU5

A2

VDD_1

D9

NC_1

J9

VSS_1

B3

VSSQ_5

E8

LDQS#

G3

VDDQ_5

E9

DQL6

G2

VSSQ_6

F9

LDM

E7

LDQS

F3

VSSQ_7

G1

DQL7

H7

VDDQ_6

F1

DQL1

F7

VDDQ_7

H2

DQL0

E3

VDDQ_8

H9

DQL4

H3

VSSQ_8

G9

DQL3

F8

DQL2

F2

BA2

M3

DQL5

H8

VDD_5

N1

VREFDQ

H1

VSS_2

E1

VSS_5

J8

CK

J7

VDD_2

G7

CKE

K9

WE#

L3

RAS#

J3

CK#

K7

ODT

K1

RESET#

T2

BA0

M2

BA1

N8

CAS#

K3

CS#

L2

A10/AP

L7

A1

P7

A2

P3

A0

N3

VDD_3

K2

VSS_3

G8

A3

N2

A5

P2

A6

R8

A4

P8

A7

R2

A9

R3

A11

R7

A8

T8

VSS_4J2VDD_4

K8

A12/BC#

N7

NC_3

L9

ZQ

L8

NC_2

L1

VREFCA

M8

NC_4

M7

A13

T3

A14

T7

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VDD_6

N9

VDD_7

R1

VDD_8

R9

RESETN_2

DDR0_DM2

DDR0_DM3

DDRIII_2

RASN_2

ADDR8_2

DDR0_BA1

ADDR6_2

DDR0_ADDR5

ODT_2

RESETN_2

CSN_2

DDR0_ADDR11

DDR0_WEN

DDR0_ADDR4

DDR0_ADDR7

ADDR13_2

DDR0_CASN

DDR0_BA0

ADDR11_2

DDR0_ADDR1

DDR0_BA2

ADDR3_2DDR0_ADDR3

BA1_2

DDR0_ADDR6

CASN_2

BA0_2

DDR0_ADDR0

ADDR1_2

DDR0_CSN

ADDR0_2

DDR0_ADDR8

ADDR2_2

DDR0_ODT

ADDR4_2

DDR0_ADDR13

DDR0_CKE

ADDR7_2

DDR0_ADDR2

ADDR5_2

DDR0_ADDR10

CKE_2

DDR0_RASN

ADDR10_2

DDR0_RESETN

ADDR14_2

ADDR9_2

DDR0_ADDR12

WEN_2

ADDR12_2

DDR0_ADDR9

BA2_2

DDR0_ADDR14

VREF_CA_1

VREF_DQ_1

Circuit Diagrams and PWB Layouts

EN 48TPS16.2A LA 10.

2016-Nov-18

back to

div.table

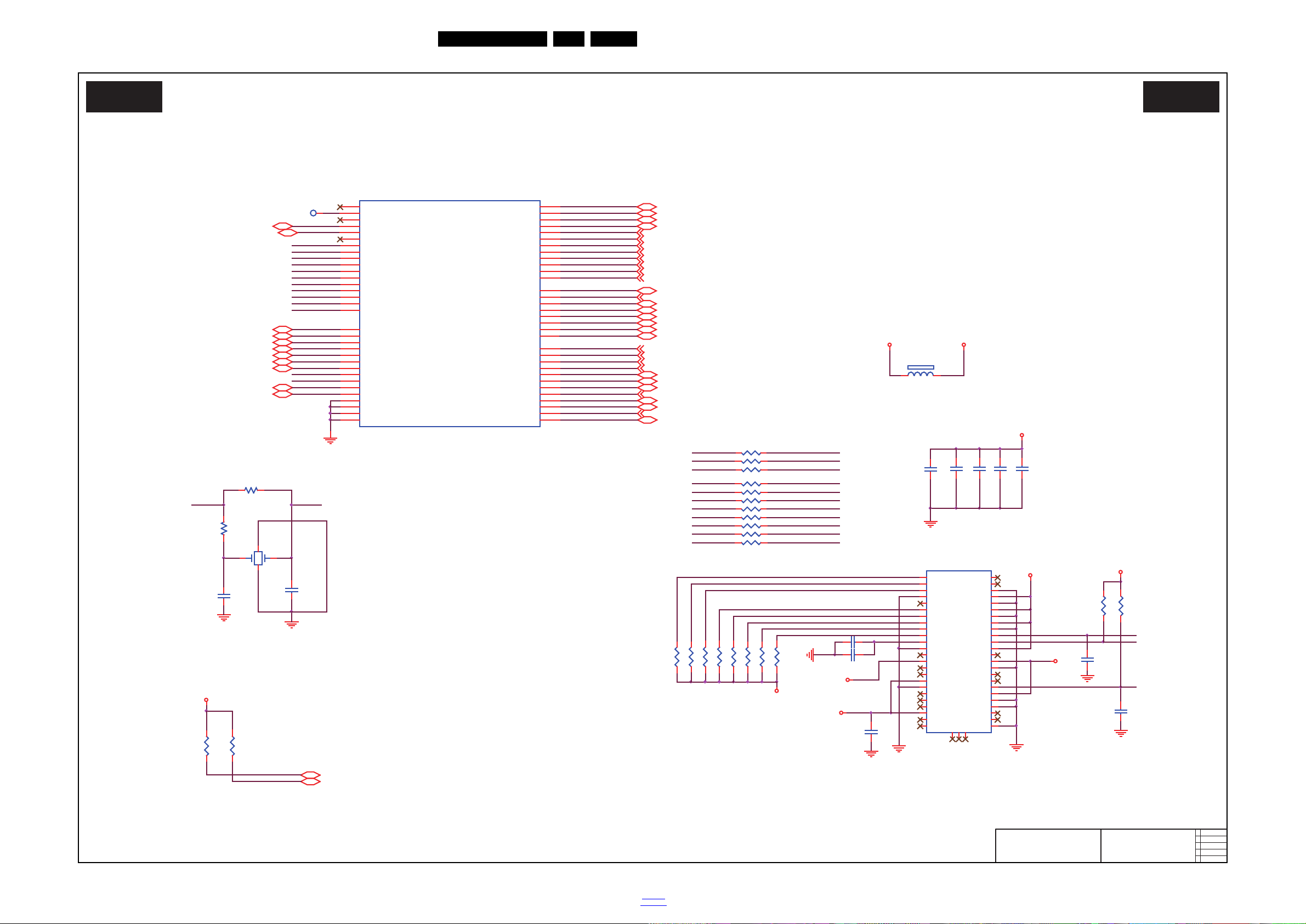

10-3-8 eMMC

20270_507.eps

eMMC

B08 B08

C

715G7924

eMMC

2015/9/25

RESET IN

RESETIN6

LEDR_OUT 6

R469

10K

LS_ADC3/STB_GPIO1_1 18

TP406

1

USB-EN

EAR_DET17

USB-EN14

EAR_DET

HP_EN 18

GPIO4_7

HP_EN

PMC0

XIN

BL_ON

IRIN

STB_GPIO0_0

LS_ADC0_KEY

PWM0

UART1_TXD

LS_ADC1_KEY

UART1_RXD

STB_GPIO0_1
STB

PMC1

I2S_DOUT

PWR_EN

I2S_WS

I2S_BCLK

I2C0_SDA

I2S_MCLK

I2C0_SCL

LD_EN

3D_EN

DF0/SYNC_3D_IN

VBO_HPN

I2C1_SCL

DF1/SYNC_3D_OUT

I2C1_SDA

LEDR_OUT

PWR_EN 13

LOCKN

EMMC_D4

EMMC_CMD

EMMCDAT3

EMMC_D5

EMMCDAT0

EMMC_D7

EMMCRSTN

EMMCDAT7

EMMC_D6

EMMCDAT2

EMMCDAT5

EMMCCMD

EMMCCMD

C459100N 16V

R464 33 OHM 1/16W

R477

NC

R482
NC/4.7K1/16W

R46333 OH M 1/16W

X40 1

24MHZ

1

2 4

3

EMMCCK

R476

NC

R481

NC/4.7K1/16W

R472

NC

EMMCDAT4

C458
30PF

EMMCDAT6

R462 33 OHM 1/16W

EMMC_D3

EMMC_D1

EMMCDAT3

MISC Interface of

U401H HI3751AV500_AFE

LS_ADC1/SGP0_7

B11

LS_ADC2/SGP1_0

C11

LS_ADC3/SGP1_1

D11

LS_ADC0/SGP0_6

A11

MHL_VBUS_CTRL/SGP0_1

A6

SGP0_0

D8

IRIN/SGP0_2

C7

UART2_RXD/GP7_0/I2C4_SCL

B1

UART2_TXD/GP7_1/I2C4_SDA

B4

PMC1/GP6_5

D4

PMC0/GP6_4

C4

I2S_MCLK/GP6_0

C2

I2S_BCLK/GP6_1

C3

I2S_WS/GP6_2

A2

I2S_DOUT/GP6_3

A3

I2C0_SCL/GP6_6

A4

VSS4

E10

SYNC_3DO/GP5_0

M23

SYNC_3DI/GP5_1

M24

VSYNC_GLSS/GP4_7

P24

BRI_PWM0/GP4_5

M26

LD_EN/GP4_0/SCN_EN/SFC_ADDR_MOD

M25

POR_SEL

B7

STANDBY/SGP0_3

A7

RESTIN

D10

FUNC_SEL

C10

AMP_MUTE/SGP0_5

D9

LED_PWM/SGP0_4

C8

I2C0_SDA/GP6_7

B3

UART1_TXD/UART0_TXD

C6

UART1_RXD/UART0_RXD

B6

I2C1_SCL/GP5_3

N24

I2C1_SDA/GP5_2

N23

BLK_ON/GP4_6

N28

VBO_LOCKN/GP4_4/LVDS_SEL

N26

VBO_HPN/GP4_3

N25

PWR_EN/GP4_2

N27

EN_3D/GP4_1

P23

VSS3

C9

VSS2

B2

VSS1

A1

XIN

B9

XOU T

A9

VGA_DDC_SDA/GP8_7

H4

VGA_DDC_SCL/GP8_6

G3

SPDIF_OUT/GP8_5

G1

JTAG_SEL

H3

EMMC_D7/GP8_4

G2

EMMC_D6/GP8_3

F1

EMMC_D5/GP8_2

F3

EMMC_D4/GP8_1

E3

EMMC_D3/GP8_0

D2

EMMC_D2/GP7_7

G4

EMMC_D1/GP7_6

F2

EMMC_D0/GP7_5

E2

EMMC_CLK/GP7_4

C1

EMMC_CCMD/GP7_3

D3

EMMC_RSTN/GP7_2

D1

SFC_CS1N/GP3_5/SPI0_CSN

AD25

SFC_HOLDN/GP3_4

AD26

SFC_DOI/GP3_3/SPI0_DI

AC28

SFC_CLK/GP3_2/SPI0_CLK

AC27

SFC_WPN/GP3_1

AD27

SFC_DIO/GP3_0/SPI0_DO

AD28

EMMCDAT7

EMMCDAT0

R457 33 OHM 1/16W

C462

NC/100NF

EMMCDAT6

EMMCDAT2

EMMC_D0

C456

2.2uF 6.3V

C4604.7U F 6. 3V

EMMCRSTN

R456 33 OHM 1/16W

R471

NC

EMMCCKEMMC_CLK

R45833 OH M 1/16W

R466

100OHM

EMMCDAT1

C453

100N 16V

R474

NC

R46833 OH M 1/16W

EMMCDAT4

C455

100N 16V

EMMCDAT1

EMMC_RST

R478

NC

R460

1MOHM 1/16W +/-5%

EMMC_D2

R473

NC

R459 33 OHM 1/16W

C452

100N 16V

C454

100N 16V

EMMCDAT5

C457
30PF

R470

47K

R467 33 OHM 1/16W

C461

10PF 50V

R465 33 OHM 1/16W

R461 33 OHM 1/16W

C463

100N 16V

R475

NC

FB402

120R

1 2

I2C1_SDA 6,12

I2C1_SCL 6,12

LED_PWM6

FUNC_SEL3

POR_SEL3

SPDIF_OUT17

JTAG_SEL3

IRIN 6,16

STB_GPIO0_0 5

PMC0 5

PMC1 5

AMP_MUTE17 DF1/SYNC_3D_OUT 12

BL_ON 4

PWM0 4

LS_ADC1_KEY 6

LS_ADC0_KEY 6

STB 4,5

VBO_HPN 12

3V3

VDD_EM

3V3

VDD_EM

3V3

3V3

VDD_EM

VDD_EM3V3

VDD_EM

XIN

XOUT

EMMC_D7

EMMC_D6

EMMC_D5

EMMC_D4

EMMC_D2
EMMC_D3

EMMC_D1

EMMC_D0

EMMC_RST

EMMC_CMD
EMMC_CLK

POR_SEL

LED_PWM

JTAG_SEL

FUNC_SEL

AMP_MUTE

SPDIF_OUT

eMMC & eeprom & xtal

LS_ADC3/STB_GPIO1_1

XOU T

UART2_TXD_IN 16
UART2_RXD_IN 16

U413
THGBMBG5D1KBAIT

DAT0

A3

DAT1

A4

DAT2

A5

VSS

A6

NC

A7

DAT3

B2

DAT4

B3

DAT5

B4

DAT6

B5

DAT7

B6

VDDI

C2

Vssq

C4

Vccq

C6

NC

C5

Vcc

E6

Vss

E7

NC

E8

NC

E9

Vcc

F5

NC

F10

Vss

G5

NC

G10

NC

G3

DS

H5

Vss

H10

VSS

J5

Vcc

J10

RSTN

K5

NC

K6

NC

K7

Vss

K8

Vcc

K9

NC

K10

Vccq

M4

CMD

M5

CLK

M6

Vssq

N2

Vccq

N4

Vssq

N5

Vccq

P3

Vssq

P4

Vccq

P5

Vssq

P6

NC

P7

NC

P10

A1 index

D4

NC

E5

NC

E10

NCB1NCC1NC

N1

VGA_DDC_SCL16

VGA_DDC_SDA

VGA_DDC_SDA16

VGA_DDC_SCL

Circuit Diagrams and PWB Layouts

EN 49TPS16.2A LA 10.

2016-Nov-18

back to

div.table

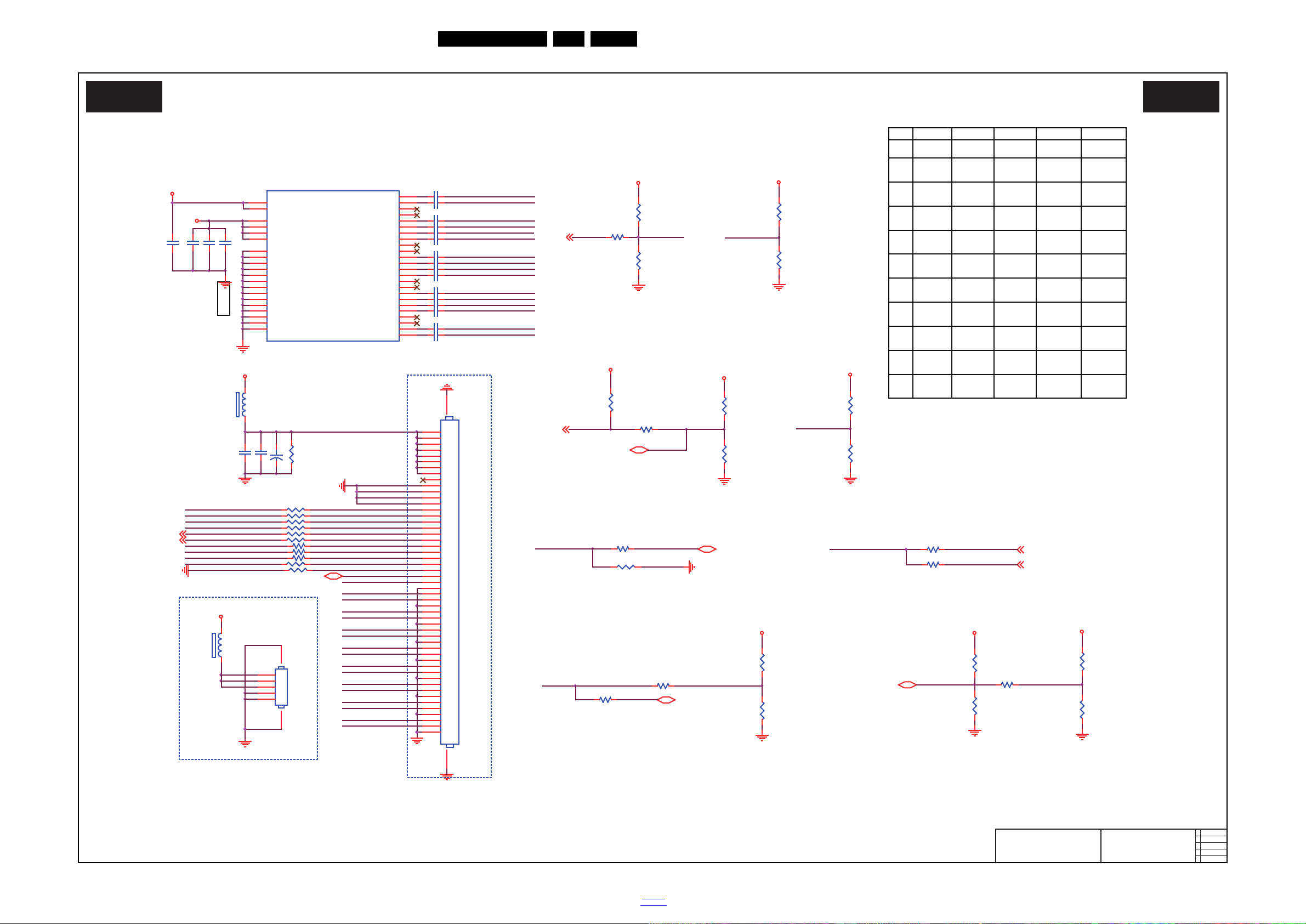

10-3-9 VX1

20270_508.eps

VX1

B09 B09

C

715G7924

VX1

2015/9/25

R4003

0R05 OHM

R4031

0R05 O HM

C4026 NC

LOCKN_OUT

R4013 NC/0R 05 OH M

3V3

R4016 NC / 0R 05 OH M
R4018 NC/0R 05 OH M

R4014 NC / 0R 05 OH M
R4015 NC / 0R 05 OH M

R4017 NC / 0R 05 OH M

R4029

10K

R4024 0R05 OH M
R4025 0R05 OHM

VX1_LANE5P

3V3

VBO_HPN

LOCKN_OUT

R4035

0R05 OHM

C4010

10uF 6.3V

C4005100N 16V

CN409

NC/CONN

1

2

3

4

5

6 7

R4033

NC

C4011100N 16V

R4028

NC

R4022

NC

R4005

NC

C4004100N 16V

C4016100N 16V

C4009

100N 16V

R4019

NC

R4034

NC

C4014100N 16V

C4003100N 16V

C4013100N 16V

R4020

NC

R4009

0R05 OHM

R4012

NC

C4018100N 16V

R4036

NC

R4007

NC

R4008

NC

R4021

0R05 O HM

R4011

NC

R4023

0R05 O HM

R4032

0R05 OHM

C4008

1UF 6. 3V

R4001

10K

C4006100N 16V

C4001

100N 16V

MISC Interface of

U401G

HI3751AV500_AFE

AVSS33_PLL_LVDS

R23

LVDS0_TAN/VX1_LANEN0N

R27

LVDS0_TAP/VX1_LANEN0P

R28

LVDS0_TBN

R25

LVDS0_TBP

R24

LVDS1_TEP/VX1_LANE7P

AB25

LVDS1_TEN/VX1_LANE7N

AB26

LVDS1_TDP

AA24

LVDS1_TDN

AA25

LVDS1_TCLKP/VX1_LANE6P

AA28

LVDS1_TCLKN/VX1_LANE6N

AA27

LVDS1_TCP/VX1_LANE5P

Y25

LVDS1_TCN/VX1_LANE5N

Y26

LVDS1_TBP

W24

LVDS1_TBN

W25

LVDS1_TAP/VX1_LANE4P

W28

LVDS1_TAN/VX1_LANE4N

W27

LVDS0_TEP/VX1_LANE3P

V25

LVDS0_TEN/VX1_LANE3N

V26

LVDS0_TDP

U24

LVDS0_TDN

U25

LVDS0_TCLKP/VX1_LANE2P

U28

LVDS0_TCLKN/VX1_LANE2N

U27

LVDS0_TCP/VX1_LANE1P

T25

LVDS0_TCN/VX1_LANE1N

T26

AVSS_LVDS13

AC26

AVSS_LVDS12

AC25

AVSS_LVDS11

AC24

AVSS_LVDS10

AB24

AVSS_LVDS9

AA26

AVSS_LVDS8

Y24

AVSS_LVDS7

W26

AVSS_LVDS6

V24

AVSS_LVDS5

U26

AVSS_LVDS4

T24

AVSS_LVDS3

R26

AVSS_LVDS2

P26

AVSS_LVDS1

P25

AVDD33_LVDS3

W23

AVDD33_LVDS2

V23

AVDD33_LVDS1

U23

AVDD33_PLL_LVDS

T23

AVDD11_LVDS2

U19

AVDD11_LVDS1

T19

R4030

10K

R4026

NC

C4019100N 16V

R4002

10K

C4015100N 16V

C4020100N 16V

C4002100N 16V

R4006

10K

C4007100N 16V

C4012100N 16V

R4010
NC/1K 1/4W

C4017100N 16V

R4004

NC

DF1/SYNC_3D_OUT11

PWM_OUT 4

VBO_HPN11

BIT_SEL/3D_EN4

3V3

VDD_1V1

3V3

3V3

3V3

3V3

3V3

VCC_PANEL

3V3

3V33V3

FB404
NC/120R 6A

12

VBO_DIMM_CTL 4

VCC_PANEL

VDD_1V1

DF1/SYNC_3D_OUT

WP/NC

3V3

FB403
120R 6A

12

DF0/SYNC_3D_IN

LD_EN

VBO_DIMM_CTL

DF0/SYNC_3D_IN

GND/PWM_T IN

NC/LD_EN/L/R_O

AGP/NSB/L/R_I

VBO_HPN

LOCKN

PWM_OUT

DF0/SYNC_3D_IN/PWM_TOUT

VX1_LANE7P

VX1_LANE6P

VX1_LANE7N

3V3

VX1_LANE4P

VX1_LANE5N

VX1_LANE4N
VX1_LANE3P

VX1_LANE2P

VX1_LANE3N

VX1_LANE1P

VX1_LANE2N

VX1_LANE0P

VX1_LANE1N

VX1_LANE0N

V-BY-ONE socket

R4027

0R05 OHM

3V3

3V3

3V3

BIT_SEL/3D_EN

I2C1_SDA
I2C1_SCL

3D_EN

BIT_SEL/3D_EN

DF0/SYNC_3D_IN/PWM_TOUT

WP/NC

GND/PWM_T IN
DF1/SYNC_3D_OUT

NC/LD_EN/L/R_O
AGP/NSB/L/R_I

R134/R135

(R83,R111)

LD_EN

NC

32

(R96)

(R101,R109)

(R80,R114)

3D_Sync_In

SCL

30

R136/R152

28

NC

(R95)

(R106)

(R80,R114)

R150/R151

(R106)

(R102)

PWM TOUT

NC

NC

(R96,R107)

(R95)

AGP or NSB

WP

LG

3D_Sync_In

GND

NC

CMI

Gplus Mode

(R83,R111)

(R101,R109)

3D_EN

Pin No.

(R100)

NC

NC

(R22)

LG-S

NC

GND

Bit SEL

NC

R156/R183

3D_Sync_out

NC

SDA

36

Gplus EN

37

(R105)

3D_Sync_out

SDA

33

NC

(R105)

3V3

Data format

SCL

31

(R95)

(R100)

NC

(R95)

(R101,R110)

R137/R139

(R102,R113)

(R80,R115)

AGP or NSB

SCL

29

3D_Sync_out

R136/R152

NC

NC

Samsu ng

Data format 1

(R80,R114)

(R106)

NC

AUO

3D_Sync_In

(R83,R111)

(R102)

R150/R151

(R83,R111)

R134/R135

R134/R135

(R96)

GND

(R105)

NC

NC

GND

3D_EN

GND

NC

Bit SEL

PWM TIN

NC

GND

3D_EN

38

(R22)

35

NC

34

(R22)

(R103)

(R100,R107)

NC

Data format 0

SDA

+

C4025 220uF 25V

VX1_LANE2P

VX1_LANE6P

VX1_LANE4P

VX1_LANE4N

VX1_LANE2N

VX1_LANE0N

VX1_LANE3P

VX1_LANE1P

VX1_LANE6N

VX1_LANE5P

VX1_LANE7P

VX1_LANE1N

VX1_LANE5N

VX1_LANE3N

VX1_LANE7N

VX1_LANE0P

VX1_LANE6N

DF1/SYNC_3D_OUT_OUT

DF0/SYNC_3D_IN/PWM_TOUT2

AGP/NSB/L/R_I_OUT

BIT_SEL/3D_EN_OUT

I2C1_SCL_OUT

I2C1_SDA_OUT

3D_EN_OUT

3V3

CN408
CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52 53

V by One

C4022

100N 16V

3D_EN

Circuit Diagrams and PWB Layouts

EN 50TPS16.2A LA 10.

2016-Nov-18

back to

div.table

10-3-10 VX1_CSOT

20270_509.eps

VX1_CSOT

B10 B10

C

715G7924

VX1_CSOT

2015/9/25

Q409
MMBT3904

Q408

AO4449 -7A/ -30V

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

R4045

NC/10KOHM

12V0

VCC_PANEL

OPWRSB_PWR
Normal:High
Stand_By:Low

C4023
220N F 25V

R4047
47K

R4046

0R05 OHM

PWR_EN11

R4053
150K

R4057

4. 7K 1/ 16W

R4125

4. 7K 1/ 16W

Circuit Diagrams and PWB Layouts

EN 51TPS16.2A LA 10.

2016-Nov-18

back to

div.table

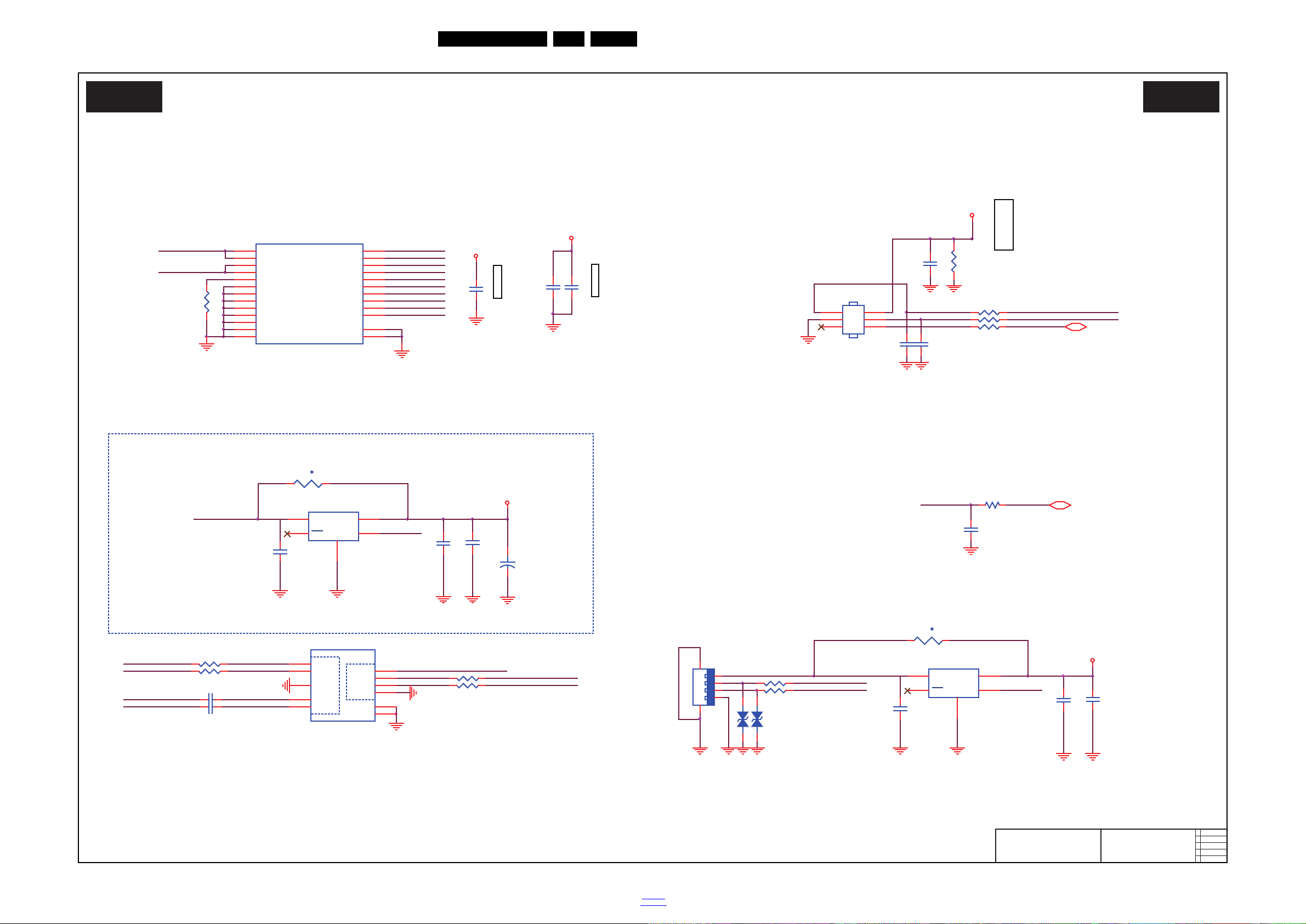

10-3-11 USB&WIFI

20270_510.eps

USB&WIFI

B11 B11

C

715G7924

USB&WIFI

2015/9/25

WIFI

Wi -Fi Pow e r C o n trol

USB2_DP

C1023
NC/1uF 50V

R191

NC/100OHM

C112

10UF

USB3_DP

USB3_DM

USB2.0

USB3_RXM

USB_EN

USB-EN 11

USB_EN

USB3.0

C101

10uF 6.3V

C103

10uF 6.3V

USB3_DM

3V3

USB3_RXM

USB3_DP
USB3_RXP

USB3_T XP

USB3_T XM

USB2_DP0

USB2_DM0

USB2_DP1

USB2_DM1

VDD_1V1

USB2.0 & USB3.0 & WIFI

USB3_VBUS

U100

NC/G5250K1T1U

OUT

5

GND

2

IN

4

EN

1

OC

3

USB_EN

C1021

NC/100N 16V

C1020
NC/ 100N F 25V

5V_USB

C1022

NC/10UF

USB3_T XP

USB2_DM0
USB2_DP0

t

TH101
PTCR

1 2

t

TH102

PTCR

1 2

USB3_RXP

USB3_T XM

USB3_VBUS

USB2_DM

R104 0R05 OH M

C1027

4.7pF 50V

CN102

CONN

2
4
6

1

3

5

R101
133R 1/10W 1%

USB2_DM1
USB2_DP1

1234

CN103
USB CONN

1
2

3

4

6 5

C102

100N 16V

USB2.0

USB3.0

CN101

USB CONN 9P

HAND1

10

HAND2

11

VCC

1

D+

3

GND

4

D-

2

RXN

5

RXP

6

GND

7

TXN

8

TXP

9

R109 5.1R 1/ 16W

R114 5.1R 1/ 16W

R111 5. 1R 1/ 16W

ZD102

1 2

C111

100N 16V

R103 0R 05 OH M

+

C110
100UF 16V

ZD101

1 2

C108 100N 16V

R106

NC/10K

R102 0R05 OH M

MISC Interface of

U401F

HI3751AV500_AFE

HI3751AV500

USB2_DP2

AE25

VSS8

AB19

USB3_TXN

AG24

USB3_TXP

AH24

USB2_DN2

AF25

USB3_RXN

AG26

USB3_RXP

AH26

USB2_DM1

AG28

USB2_DP1

AG27

USB2_DM0

AE27

USB2_DP0

AE28

AVSS_USB3_2

AF24

AVSS_USB3_1

AE24

VSS7

AB22

VSS6

AH28

VSS5

AH27

VSS4

AF28

VSS3

AF27

VSS2

AF26

VSS1

AE26

USB2_RBIAS

AD24

DVDD11_USB3

W19

AVCC11_USB2

V19

AVDD33_USB2

AB21

AVDD33_USB3

AB20

C107
10UF

R110 5. 1R 1/ 16W

C109

100N 16V

R113 5. 1R 1/ 16W

R108 5. 1R 1/ 16W

GPIO10_1/JTAG_MUX1 3,15

C1026

4.7pF 50V

U101

NC/G5250K1T1U

OUT

5

GND

2

IN

4

EN

1

OC

3

5V_USB

WIFI_PWR

C1024
NC/ 100N F 25V

VDD_1V1

3V3

Circuit Diagrams and PWB Layouts

EN 52TPS16.2A LA 10.

2016-Nov-18

back to

div.table

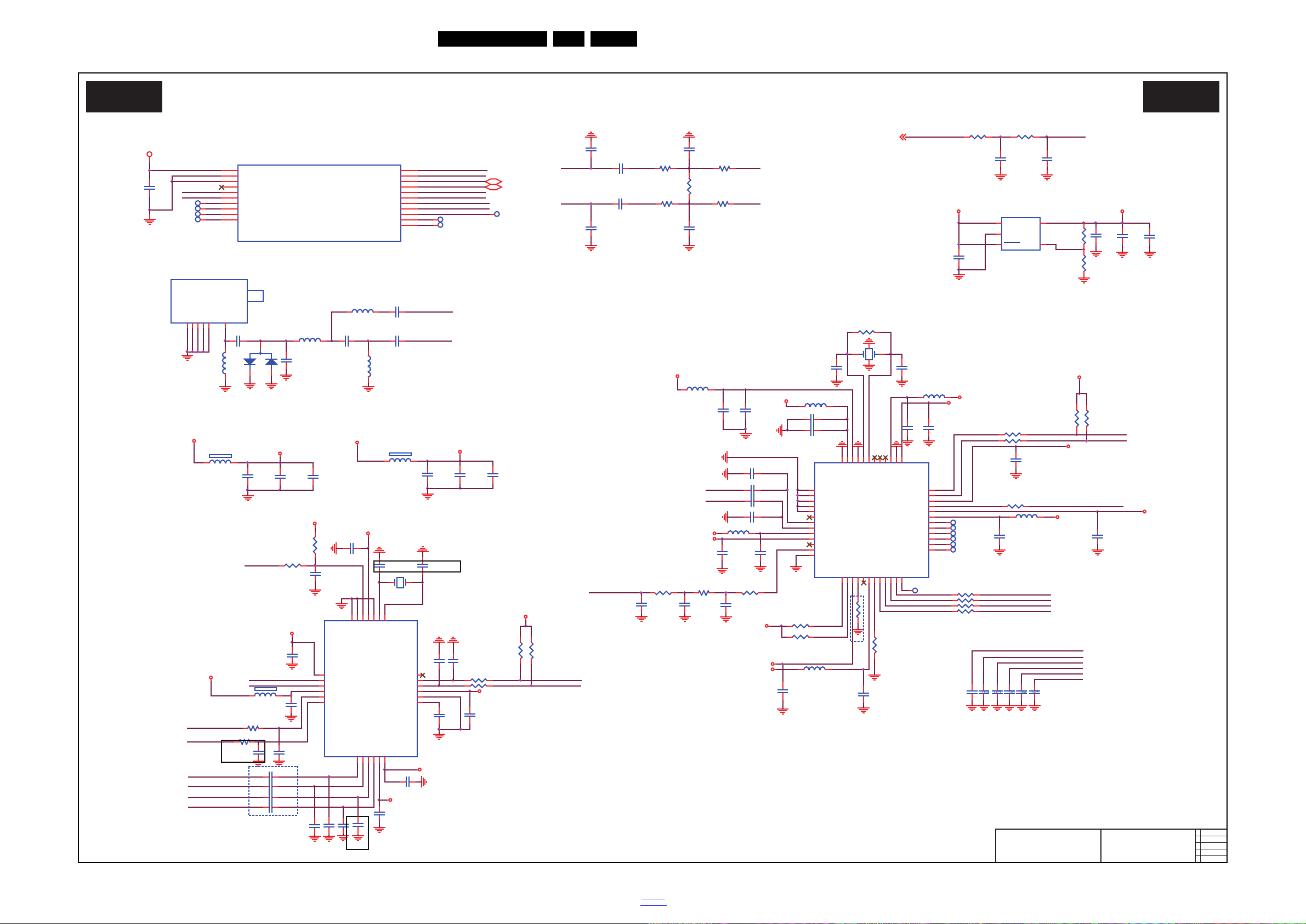

10-3-12 Tuner

20270_511.eps

TUNER

B12 B12

C

715G7924

TUNER

2015/9/25

R131

100K 1/16W

C119

1UF 6. 3V

C181
NC/47pF 50V

L101

27nH

IF-

C177

1UF 6.3V

R118

0R05 OHM

R133

NC/200R

C175

NC/100N 16V

C155
NC/ 100N 16V

IF_AGC_TUXG

C160

1UF 6.3V

TU101

RF CONN

ANT1GND2GND3GND4GND5GND

6

R130

NC/ 0R 05 OH M

R144

100OHM

C151 NC/100N 16V

C154
NC/100N 16V

C128

5.6PF 50V

C169

100N 16V

R136 N C / 22 OH M 1/16W

C141
NC/100N 16V

C178

100N 16V

R126
NC/4.7K1/16W

R145

NC/100OHM

C176

100N 16V

R138 N C / 22 OH M 1/16W

C129

1N 50V

GPIO10_1/JTAG_MUX1 3,14

DVDD18_OUT

RF_AGC/JTAG_MUX0 3

3V3_TUN

VDD_1V8_SOB

VDD_1V8_SOB

3V3_TUN

3V3_TUN

VDD_1V8_SOB

3V3_TUN

DEMOD_RST

TU3V3

3V3_TUN

+3.3V_ATBM

+3.3V_ATBM

+3.3V_ATBM

+1.1V_ATBM

+3.3V_ATBM

+3.3V_ATBM

+1.1V_ATBM

+1.1V_ATBM

+1.1V_ATBM

R119
NC/330R 1%

+3.3V_ATBM

+1.1V_ATBM

TU3V3

+3.3V_ATBM

+3.3V_ATBM

+1.1V_ATBM

C1000 100N 16V
C1001 100N 16V
C1002 NC/100N 16V
C1003 N C / 100N 16V

R1000 NC / 0R 05 OH M

DEM_SCL

DEM_SDA

C158

2.7pF

TP100

1

TP101

1

TP102

1

TP104

1

TP103

1

TP105

1

TP106

1

TSI1 _ SYNC

C131
NC/8.2pF 50V

TP408

1

R117

100OHM

DEM_SDA
DEM_SCL

C104

NC/10PF

C105

NC/10PF

R120

100OHM

TP409

1

TP410

1

C106

NC/10PF

C144

NC/10PF

C121
33PF 50V

TP411

1

TP412

1

C145

NC/10PF

C146

NC/10PF

TP413

1

TSI1 _ SYNC

TSI1 _ VL D

TSI1_CLK

TSI1_D0

C114
33PF 50V

TP414

1

TSI1 _ SYNC

DEMOD_RST

C159

2.7pF

C165
30PF

TSI1 _ VL D

C166
30PF

C133

NC/10NF 50V

C143

NC/100N 16V

Tuner

IFN_DM
IFP_DM

TUNER_SDA
TUNER_SCL

+1.1V_ATBM

TSI1_D0
TSI1_CLK

IF_AGC_TUXG

X10 1
NC/24MHZ

1

2 4

3

3V3_TUN

R189

4.7K1/16W

R190

4.7K1/16W

DTMB Demo

CAVDD

TUNER_SCL

R1001 NC/4.7K1/16W
R1002 NC/4.7K1/16W

+3.3V_ATBM

RF_AGC/JTAG_MUX0

RF_AGC/JTAG_MUX0

IF-

IF+

GPIO10_1/JTAG_MUX1

IFP_DM
IFN_DM

TSI1 _ D0

IFP_SOC
IFN_SOC

FB103

1000

1 2

TUN ER _SDA

FB105

NC/1000

1 2

IF_AGC_DM

L114
NC/2.2UH

SOB_LNA_INN

TUNER_SDA
TUNER_SCL

SOB_LNA_INP

R1003 NC/1KIF_AGC_DM

C122

NC/1UF 6.3V

C1025
NC/ 100N 16V

C162
NC/ 100N 16V

C163
NC/ 100N 16V

C124

NC/ 100N 16V

C180

47pF 50V

FB104 1000

12

C136
NC/ 100N 16V

C168
NC/100N 16V

C118

1UF 6. 3V

R125

NC/4.7K1/16W

L103

NC/0.33uH

R132

NC/0R05 OHM

TSI1_VLD

C120
NC/ 47pF 50V

C139

10PF 50V

TSI1_CLK
TSI1_D0+

U406

NC/ATBM8880

SDAM1SCLM2CVDD3TEST04I2CINT/GPIO45VDD336STATUS7TSSYNC8TSVLID9TSCLK10TS011TS1

12

TS2

13

TS3

14

TS4

15

TS5

16

TS6

17

TS7

18

VDD33

19

CVDD

20

RESETN

21

CVDD

22

SCLS

23

SDAS

24

CVDD

25

TEST1

26

VDD33

27

TEST/GPIO1

28

NC29NC

30

XTALI

31

XTAL0

32

ADDR

33

NC

34

AVDD33

35

GND

36

NC

37

NC

38

IFBP

39

IFBN

40

NC

41

CLK_IO

42

IFAP

43

IFAN

44

VDD33

45

CVDD

46

PWM1/GPIO2

47

PWM0/GPIO3

48

E-PAD

49

R127

NC/0R05 OHM

C123

NC/10UF

C125
NC/1UF 6.3V

R134NC/10K

L104

27nH

C170
100N 16V

C174

NC/ 100N 16V

R128 NC/0R05 OHM

C115
47NF 16V

C171

2.2nF 50V

C140

100N 16V

C153
NC/ 100N 16V

C172

NC/10UF

L108

NC/2.2UH

C117

1UF 6. 3V

R142

0R05 OHM

R141
NC/1K

C156
NC/ 100N 16V

C182
47pF 50V

L105 NC/2.2UH

L106
NC/2.2UH

U407
MxL661-AG-R

VDD_3p3

1

LNA_INP

2

LNA_INN

3

VDD_1p8

4

AGC_2/GPO_3

5

AGC_1

6

IF_OUTP_2/GPO_17IF_OUTN_2/GPO_28IF_OUTP_19IF_OUTN_110VDD_3p311VDD_1p8

12

VDD_1p2

13

GND_DIG

14

VDD_IO

15

SCL

16

SDA

17

CLK_OUT

18

XTAL_N

19

XTAL_P

20

GND_XTAL

21

VDD_1p8

22

RESET_N

23

AS

24

E-PAD

25

C134 NC/100N 16V

C127

1N 50V

C164

100N 16V

C142 NC/22P 50V

C116
47NF 16V

R135 N C / 22 OH M 1/16W

C167
NC/ 100N 16V

R115

10K

C130

NC/8.2pF 50V

C138

10UF

C157

10NF 50V

MISC Interface of

U401D

HI3751AV500_AFE

I2C2_SDA/PWM2/GP10_3

AE9

I2C2_SCL/PWM1/GP10_2

AD9

AGC_SEL/JTAG_MUX1/GP10_1

AC8

RF_AGC/JTAG_MUXO/GP10_0

AC9

QAMAD_VINNI

AH10

QAMAD_VINPI

AG10

TSI1_VLD/GP13_2

AE10

TSI1_CLK/GP13_1

AC10

TSI1_D7/GP13_0

AF9

SD_D0/TSI1_D2/GP12_3

AF11

SD_D1/TSI1_D1/GP12_2

AD11

SD_D2/TSI1_D6/GP12_7

AE12

SD_D3/TSI1_D5/GP12_6

AC12

SD_CCMD/TSI1_D4/GP12_5

AD12

SD_CLK/TSI1_D3/GP12_4

AE11

SD_CWPR/TSI1_D0/GP12_1

AC11

SD_PWREN/TSI1_SYNC/GP12_0

AD10

SD_CDZ/GP11_7

AF12

AVSS_QAM2

W12

AVSS_QAM1

AF10

DVDD1833_LDO_OUT

AB8

L109 NC/2.2UH

D102
BAV99

3

1

2

C126

1N 50V

C113
NC/ 47pF 50V

U405

NC/G9141T11U

IN

1

GND

2

SHDN3SET

4

OUT

5

C135 NC/10NF 50V

R122

NC/4.3K 1%

R137 N C / 22 OH M 1/16W

C149 NC/100N 16V

L102

8.2NH

C173

NC/ 10PF 50V

C132

1pF 50V

IF+

R143 0R05 OH M

C137
NC/ 100N 16V

R116

0R05 OHM

IFP_SOC

C179
NC/47pF 50V

R121

0R05 OHM

IFN_SOC

X10 2

16MHz

1 2

R123

NC/ 11K 1%

SOB_LNA_INP

R124
NC/1 MOHM 1% 1/16W

SOB_LNA_INN

C152 NC/22P 50V L107 NC/2.2UH

Circuit Diagrams and PWB Layouts

EN 53TPS16.2A LA 10.

2016-Nov-18

back to

div.table

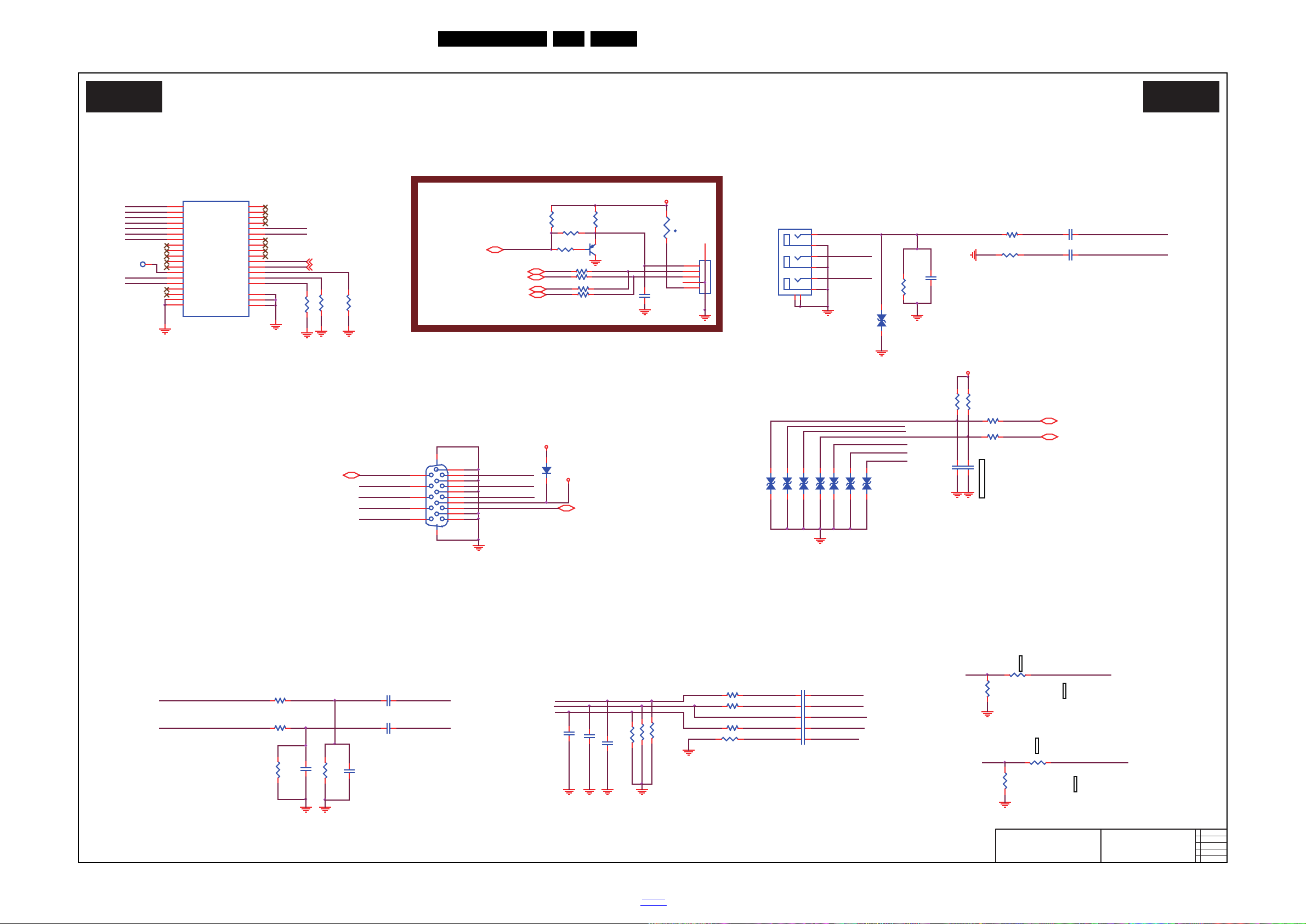

10-3-13 AV_IN_OUT

20270_512.eps

AV_IN_OUT

B13 B13

C

715G7924

AV_IN_OUT

2015/9/25

Q410

MMBT3906

R1005

10K 1%

R1006

10K 1%

C1009

NC/ 10PF 50V

R163

0R05 OHM

C199 47NF 16V

ZD112

MLVG0402

12

R161 10K

MISC Interface of

U401C

HI3751AV500_AFE

VSS1

M5

VSS2

T6

LINEOUT_L1

AE6

LINEOUT_R1

AE5

Y0P

P3

PROY

P2

Y0N

N1

LINEIN_R3

AG6

LINEIN_L3

AF6

LINEIN_R2

AG5

LINEIN_L2

AH6

LINEIN_R1

AG7

LINEIN_L1

AF7

LINEOUT_R3

AD8

LINEOUT_L3

AD7

LINEOUT_R2

AE8

LINEOUT_L2

AF8

MIC _P

AH8

MIC _N

AG8

BG_RES_10K

R6

CVBS2

R5

CVBS1

R4

CVBS0

R2

CVBS_COM

T4

VDAC1_OUT

T5

PB0Y

P1

SOY0

R3

VGA_VS0

L1

VGA_HS0

M4

VGA_RP

N2

VGA_GP

M2

VGA_BP

L2

VGA_GN

M3

SOG

N3

AVSS_AFE2

P4

AVSS_AFE3

P5

AVSS_AFE1

N4

ZD109MLVG0402

12

R158

4.7K1/16W

R171

75R 1/16W 1%

R154

10K 1%

R164

2.2K 1/16W

CN106

CONN

1
7
2

8
3

9
4
10
5

11
12
13
14
15

1716

6

R146

75R 1/16W 1%

ZD115

MLVG0402

12

R169

0R05 OHM

ZD111

MLVG0402

12

C198

47NF 16V

ZD103

NC/VPORT0603100KV05

1 2

ZD114

MLVG0402

12

R160 10K

ZD113

MLVG0402

12

C197
1UF 6. 3V

C1007 47N F 16V

C184

NC/47pF

R166

12K 1/16W

C1008

NC/ 470P 50V

C190
47NF 16V

R17075R 1/16W 1%

C1006

NC/ 470P 50V

C1010

NC/ 10PF 50V

R16875R 1/ 16W 1%

R165

0R05 OHM

C1005 2.2nF 50V

C183
47NF 16V

C196
1UF 6. 3V

R167

12K 1/16W

C1011

47NF 16V

R157

4.7K1/16W

ZD110

MLVG0402

12

R147

33R 1/16W 5%

C1012

NC/ 10PF 50V

UART1_RXD_IN6,20

UART1_TXD_IN 6,20

VGA_5V

5V0

VGA_5V

VGA_AUIN_L

R162 33 OHM 1/16W

R17333 OHM 1/16W

VGA_AUIN_R

VGA_AUIN_R

VGA_AUIN_L

VGA_B_P

I TV Port

VGA_G_P

VGA_R_P

Debug
NC R4155 , R4156
ADD R496 , R497 ,
R501 , R502

IRIN6,11

IRIN

D101

BAS316WS

TP415 1

LINEIN_L1

LINEIN_R1

LINEOUT_L1
LINEOUT_R1

YPBPR0_Y_P_IN

R490

NC/100OHM

R491

NC/100OHM

VGA_B_P

VGA_G_P

VGA_R_P

VGA_HS

VGA_VS

VGA_HSYNC

VGA_VSYNC

VGA_BP

VGA_RP

VGA_GP

VGA_GN

VGA_SINCIN

CVBS_VCOM

CVBS0_IN

VGA_VS

R172

0R05 OHM

LINEIN_L1

э33R

VGA_G_P

VGA_R_P

VGA_B_P

VGA_HS

R15333R 1/ 16W 5%

UART1_TXD_IN

A

B

C

CN104
RCA JACK

2
1
4

3

5

6

7

8

э33R

UART1_TXD_IN6,20

UART1_RXD_IN6,20

R4123

100OHM

R4124

100OHM

VGA_SCL

VGA_SDA

VGA_HS

VGA_VS

5V_SB

CN109

CONN

1
2

3

4
5

67

t

TH104
PTCR

12

C467

NC/ 100P 50V

R489
100OHM

R487

10K

R486
NC/10K

R488

NC/ 100R 1/ 16W 5%

RC_IR_OUT

UART2_TXD_IN11

UART2_RXD_IN11

UART1_RXD_IN

VGA

CVBS_VCOM

C468 NC/100pF 50V

CVBS0_IN

MIC & YPBPR & AV IN & CVBS OUT

C469 150pF 50V

VGA_GN
VGA_GP

VGA_RP

VGA_SINCIN
VGA_BP

VGA_VSYNC

VGA_HSYNC

R434

100OHM

R433

100OHM

R174

2.2K 1/16W

VGA_SCL

VGA_DDC_SDA 11

VGA_DDC_SCL 11

LINEIN_R1

VGA/YPBPR0 Audio IN

VGA_SDA

Circuit Diagrams and PWB Layouts

EN 54TPS16.2A LA 10.

2016-Nov-18

back to

div.table

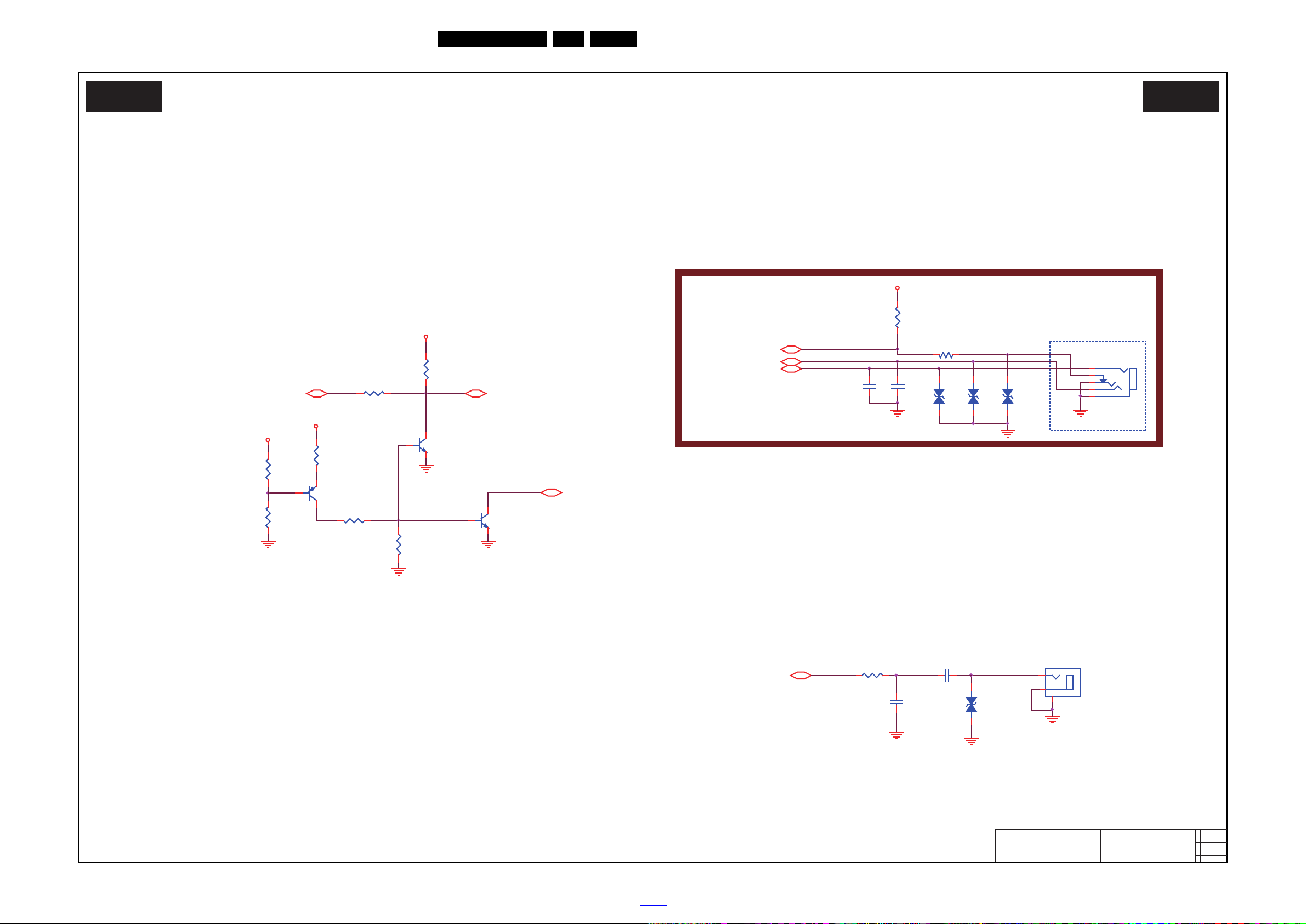

10-3-14 AUDIO_OUT

20270_513.eps

AUDIO_OUT

B14 B14

C

715G7924

AUDIO_OUT

2015/9/25

CN603

NC/ PH ON E J AC K

1

2

4

5

3

AMPVCC=12V,R1=301K

EAR_DET11

R1

Q1

AUDIO_OUT_R118

AUDIO_OUT_L118

AUDIO_OUT_R1

R622

NC/100OHM

C613

NC/ 100N 16V

C615

NC/ 100N 16V

R615 1K

Audio Output

R616
33 OHM 1/16W

HP_PDN

Q603
MMBT3904

C612

100N 16V

AMP_MUTE11

ZD601
NC/MLVG0402

12

A

CN601

RCA JACK

2
1

3

C614

NC/100pF 50V

SPDIF_OUT11

3V3_SB

R612
33 OHM 1/16W

AMP_MUTE_OUT2 18

R613

100K 1/16W

SPDIF_OUT

HP_PDN 18

R617
1K

3V3

R618

301K 1%

388G078G111ACL

Coaxial

AMP_12V

Q601
MMBT3904

R614
10K

R619
10K

ZD603

NC/MLVG0402

12

ZD602

NC/MLVG0402

12

ZD604

NC/MLVG0402

12

AUDIO_OUT_L1

R621
10K

EAR_DET

3V3

Q602

MMBT3906

Q1 ON :Mute

Q1 OF F :Normal

MUTE Circuit

Circuit Diagrams and PWB Layouts

EN 55TPS16.2A LA 10.

2016-Nov-18

back to

div.table

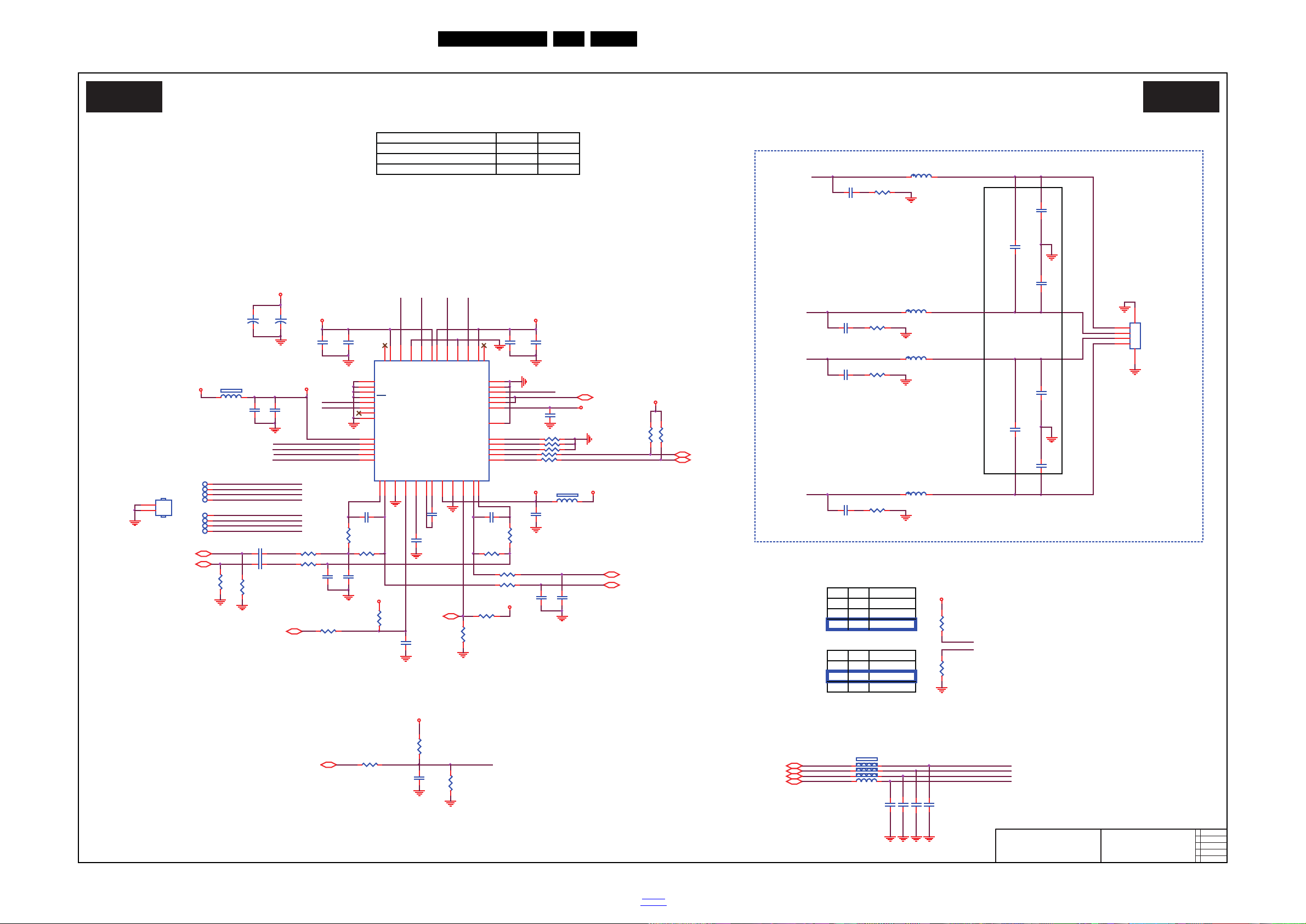

10-3-15 AMP

20270_514.eps

AMP

B15 B15

C

715G7924

AMP

2015/9/25

16 ohm

CFG0

I2S1_BCLK_P

LA

HP_3V3

I2S1_BCLK_P

LA

RB

Speaker

I2S_DOUT

AMP_RSTN_IN

C608
NC/100N16V

0603

HP_3V3

C623
330nF

0603

C625
330nF

C634
330nF

0603 0603

C628

330nF

C621

330nF

+

C646

100UF 35V

+

C627

100UF 35V

LS_ADC3/STB_GPIO1_1

FB605

120R

1 2

0603 1206

FB601

120R

1 2

3V3TP601

1

TP602

1

TP603

1

TP604

1

TP605

1

AUDIO_OUT_R1 17

AUDIO_OUT_L1 17

TP606

1

TP607

1

TP608

1

LINEOUT_R116
LINEOUT_L116

HS601
HEAT SINK

1
2

C606

100N 16V

C607

100N 16V

C610

100N 16V

R609 560R 1/16W 5%

C611
1N 50V

C636
10UF

C639
100N 16V

R644
10K

C651

NC/22P 50V

C633

470P 50V

C635

100N 16V

R637
NC/1M 1/16W

C616

1N 50V

CN602

CONN

1

2

3

4

5 6

R631 33 OHM 1/16W

C630

0.1uF 25V

C622

470P 50V

C624

470P 50V

C632

0.1uF 25V

R624

10 OHM 1/4W

R629 10K

C653NC/22P 50V

C629

0.1uF 25V

R633
470KOHM 5% 1/16W

R634
470KOHM 5% 1/16W

R623

10 OHM 1/4W

R63010K

L601
22uH

R646
1K

C652

NC/22P 50V

C654

NC/22P 50V

R625

10 OHM 1/4W

C631

0.1uF 25V

R640
1K

C601 2.2uF 6.3V

C650

0.1uF 25V

C619

470P 50V

R632 33 OHM 1/16W

C602 2.2uF 6.3V

R64333 OHM 1/16W

R628

10K

HP_PDN17

FB603

120R

1 2

R626

10 OHM 1/4W

I2S_BCLK11
I2S_DOUT11

I2S_MCLK11
I2S_WS11

I2C0_SDA 11

AMP_MUTE_OU T2 17

I2C0_SCL 11

R601 20K 1/16W 5%

AMP_3V3

3V3

3V3

AMP_12V AMP_12V

AMP_12V

AMP_3V3

AMP_3V3

R602 20K 1/16W 5%

R603
5K1

R606
5K1

C603
47pF 50V

C609
47pF 50V

R620
10K

R607

75K

C605
680PF

10uH -> 073G253S 81 Y
22uH -> 373G253S193D00
47uH -> 373G253S173Y00

U601

AD87588-LG48NAY

SDATA1

1

MS

2

PLL

3

CFG0

4

CFG1

5

CLK_OUT

6

DGND

7

DVDD

8

SDATA0

9

LRCIN

10

BCLK

11

MCLK

12

RINN13OUTR14VSS15EN16PVSS17CN18CP19PVDD20PGND21UVP22OUTL23LINN

24

SDA

25

SCL

26

SA0

27

SA1

28

DEF

29

DGND

30

DVDD

31

PD#

32

ERROR#

33

RESET#

34

LREX

35

LINEIN

36

NC

37

VDDRA

38

RA

39

GNDR

40

RB

41

VDDRB

42

VDDLB

43

LB

44

GNDL

45

LA

46

VDDLA

47

NC

48

THERMALPAD

49

э

330n?

AMP_3V3

R647

4.7K1/16W

R648

4.7K1/16W

C604

680PF

HP_EN11

2.1 Channel

X

0

2.1 Channel

1 Stereo

Stereo

CFG1

CFG0

1

0

Mono

1

Mono

1

Mode

AD83586

AD82588

1

0

0

CFG0

Mode

1

0

CFG1

R604

75K

R608 560R 1/16W 5%

AUDIO_OUT_R1

AUDIO_OUT_L1

0603

0603

1206

R605 33 OHM 1/16W

0603

0603

1206

1206

0805

C620
330nF

L602
22uH

L603
22uH

L604
22uH

24V

LS_ADC3/STB_GPIO1_111

0805

RA

0805

LB

2.0 CH -> use 356G061613300A AD82588

2.1 CH -> use 056G 616X02 AD83586

24V

I2S1_WS_P

AMP_MUTE_OU T2

I2S_MCLK

AMP_RSTN_IN

L

R-

R+

L-

Speaker
Output

I2S1_DOUT_P

R

L+

I2S1_WS_P

I2S1_BCLK_P

FB606

120R

1 2

I2S1_MCLK/BOOT_SEL0_P

FB607 120R

1 2

I2C0_SDA

FB608 120R

1 2

0805

I2C0_SCL

330nF/50V

I2S1_MCLK/BOOT_SEL0_P

RB

CFG1

AMP_DEF

CFG0

RA

CFG1

C604/C607/C613/C619/C622/C629

I2S1_DOUT_P

L+
L­R+

8 ohm

I2S_WS

I2S1_MCLK/BOOT_SEL0_P

R-

AMP VCC

A_SCL

0805

0805

22uH

AMP_SA0

AMP

LB

I2S1_DOUT_P
I2S1_WS_P

R611
1K

R610

1K

HP_3V3

I2S_BCLK

A_SDA

AMP_SA1

47uH

AMP_MUTE_OUT2

L601/L602/L603/L604/L605/L606

680nF/50V

Circuit Diagrams and PWB Layouts

EN 56TPS16.2A LA 10.

2016-Nov-18

back to

div.table

10-3-16 HDMI0&MHL

20270_515.eps

HDMI0&MHL

B16 B16

C

715G7924

HDMI0&MHL

2015/9/25

Q501
MMBT3906

HDMI2_DET 20
HDMI2_HOTPLUG 20

ARC_PAD 20

HDMI_CEC

HDMI0 & MHL

Connect ditectly defaultly

HDMI_R1X0N

HDMI_R1XCP

HDMI_R1X2N

HDMI1_DET
HDMI1_HOTPLUG

HDMI_R1X0P
HDMI_R1X1P

HDMI1_SCL

HDMI1_SDA

HDMI_R1XCN

HDMI_R1X2P

HDMI_R1X1N

R7023
NC/4.7K1/16W

HDMI1_DET 20
HDMI1_HOTPLUG 20

HDMI_R1XCN 20

HDMI1_SDA 20

HDMI_R1X1N 20

HDMI1_SCL 20

HDMI_R1X0N 20

HDMI_R1XCP 20
HDMI_R1X0P 20
HDMI_R1X1P 20

HDMI_R1X2N 20

HDMI_R1X2P 20

D502

BAS316

C504

1UF 6. 3V

HDMI0_HTP_CBUSVBUS_HDMI0_5V

STB_GPIO0_1

CBUS_PAD

MHL_CD_SENSE_1

DDC0B_SDA

CEC

MHL_CD_SENSE_1 MHL_CD_SENSE

CN501

HDMI 19P

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

HDMI0 (Side)/(MHL 2.0)

HDMI_R0X0N

HDMI_R0X0P

R520
301K 1%

ZD502

NC/MLVG0402

1 2

R517

1K

C506
1UF 6. 3V

R510

10K

R516

0R05 OHM

R523

4.7K1/16W

R515

27K 1/16W 1%

ZD501

NC/MLVG0402

1 2

C503
100N 16V

MISC Interf ace of

U401B

HI3751AV500_AFE

CBUS_PAD

AC5

HDMI_R0X0N

AF3

HDMI_R0X1N

AG1

HDMI_R0X1P

AG2

HDMI_R0X2N

AH3

HDMI_R0X2P

AH4

HDMI_R0XCP

AE2

HDMI_R0XCN

AE1

HDMI_CEC/SGP2_6

U5

AGND_HDMI_VBUS

F12

HDMI_R0X0P

AF4

HDMI0_SCL/SGP2_1

AD6

HDMI0_SDA/SGP2_0

AC6

HDMI0_DET/SGP1_3

AB6

MHL_CD_SENSE/SGP1_2

AA5

HDMI_R2XCP

U2

HDMI_R2XCN

U1

HDMI_R2X0P

V4

HDMI_R2X0N

V3

HDMI_R2X1P

W2

HDMI_R2X1N

W1

HDMI_R2X2P

Y4

HDMI_R2X2N

Y3

HDMI2_SDA/SGP2_4

Y7

HDMI2_SCL/SGP2_5

U6

HDMI2_DET/SGP1_5

V7

HDMI2_HTP/SGP1_7

W6

HDMI_R1XCP

AA2

HDMI_R1XCN

AA1

HDMI_R1X0P

AB4

HDMI_R1X0N

AB3

HDMI_R1X1P

AC2

HDMI_R1X1N

AC1

HDMI_R1X2P

AD4

HDMI_R1X2N

AD3

HDMI1_SDA/SGP2_2

W5

HDMI1_SCL/SGP2_3

AA6

HDMI1_DET/SGP1_4

Y6

HDMI1_HTP/SGP1_6

V6

ARC_PAD

AC7

AVSS_HDMIRX20

AH5

AVSS_HDMIRX19

AH2

AVSS_HDMIRX18

AH1

AVSS_HDMIRX17

AG4

AVSS_HDMIRX16

AG3

AVSS_HDMIRX15

AF5

AVSS_HDMIRX14

AE4

AVSS_HDMIRX13

AE3

AVSS_HDMIRX12

AD5

AVSS_HDMIRX11

AC4

AVSS_HDMIRX10

AC3

AVSS_HDMIRX9

AB5

AVSS_HDMIRX8

AA4

AVSS_HDMIRX7

AA3

AVSS_HDMIRX6

Y5

AVSS_HDMIRX5

W4

AVSS_HDMIRX4

W3

AVSS_HDMIRX3

V5

AVSS_HDMIRX2

U4

AVSS_HDMIRX1

U3

FB501

120R

1 2

ZD507
RLZ5.6B

1 2

Q502
MMBT3904

R513

1K

R521

4.7K1/16W

ZD504

NC/MLVG0402

1 2

R524

1K

C502

10uF 16V

ZD503

NC/MLVG0402

1 2

C501

100N 16V

R509

10K

R512

100OHM

R519

180K

R514
10K

R518

0R05 OHM

ZD506
NC/MLVG0402

1 2

C505

100N 16V

R511

100OHM

STB_GPIO0_111

CEC20

5V0

3V3_SB

3V3_SB

VBUS_HDMI0_5V

VBUS_HDMI0_5V

5V_SB

HDMI0_DET

VBUS_HDMI0_5V

HDMI_R0XCP

HDMI_R0X1N

HDMI_R0X1P

HDMI_R0X2N

HDMI_R0X2P

MHL_CD_SENSE_1

HDMI_R0XCN

HDMI0_HTP_CBUS

HDMI0_DDC_5V

HDMI0_SDA

HDMI0_SCLDDC0B_SCL

D501

BAS316WS

CBUS_PAD

HDMI_R2X0P 20

HDMI_R2X1N 20
HDMI_R2X2P 20

HDMI_R2XCP 20

HDMI_R2X0N 20

HDMI_R2X2N 20

HDMI_R2X1P 20

HDMI_R2XCN 20

HDMI2_SDA 20
HDMI2_SCL 20

HDMI_R0X2P

HDMI0_SDA

MHL_CD_SENSE

HDMI0_SCL

HDMI0_DET

HDMI_CEC

HDMI_R0XCN

HDMI_R0XCP

HDMI_R0X0N

HDMI_R0X0P

HDMI_R0X1N

HDMI_R0X1P

HDMI_R0X2N

HDMI2_HOTPLUG

HDMI2_SCL

HDMI2_SDA
HDMI2_DET

HDMI_R2XCN

HDMI_R2XCP

HDMI_R2X0N

HDMI_R2X0P

HDMI_R2X1N

HDMI_R2X1P
HDMI_R2X2P

HDMI_R2X2N

ARC_PAD

MHL 2.0 Switch Circuit

OFF
ON
ONL

HH

R598 0R05 OHM

HDMI0_DET

MHL MO DE

L

input detect

QH4 QH5

output controlinput detect

HDMI MODE
No Sourece

CD SENSE

output control

R599 0R05 OHM

OFF

H
LON

ON

U503
STMPS2171STR

OUT

1

GND

2

FAULT

3

EN

4

IN

5

Circuit Diagrams and PWB Layouts

EN 57TPS16.2A LA 10.

2016-Nov-18

back to

div.table

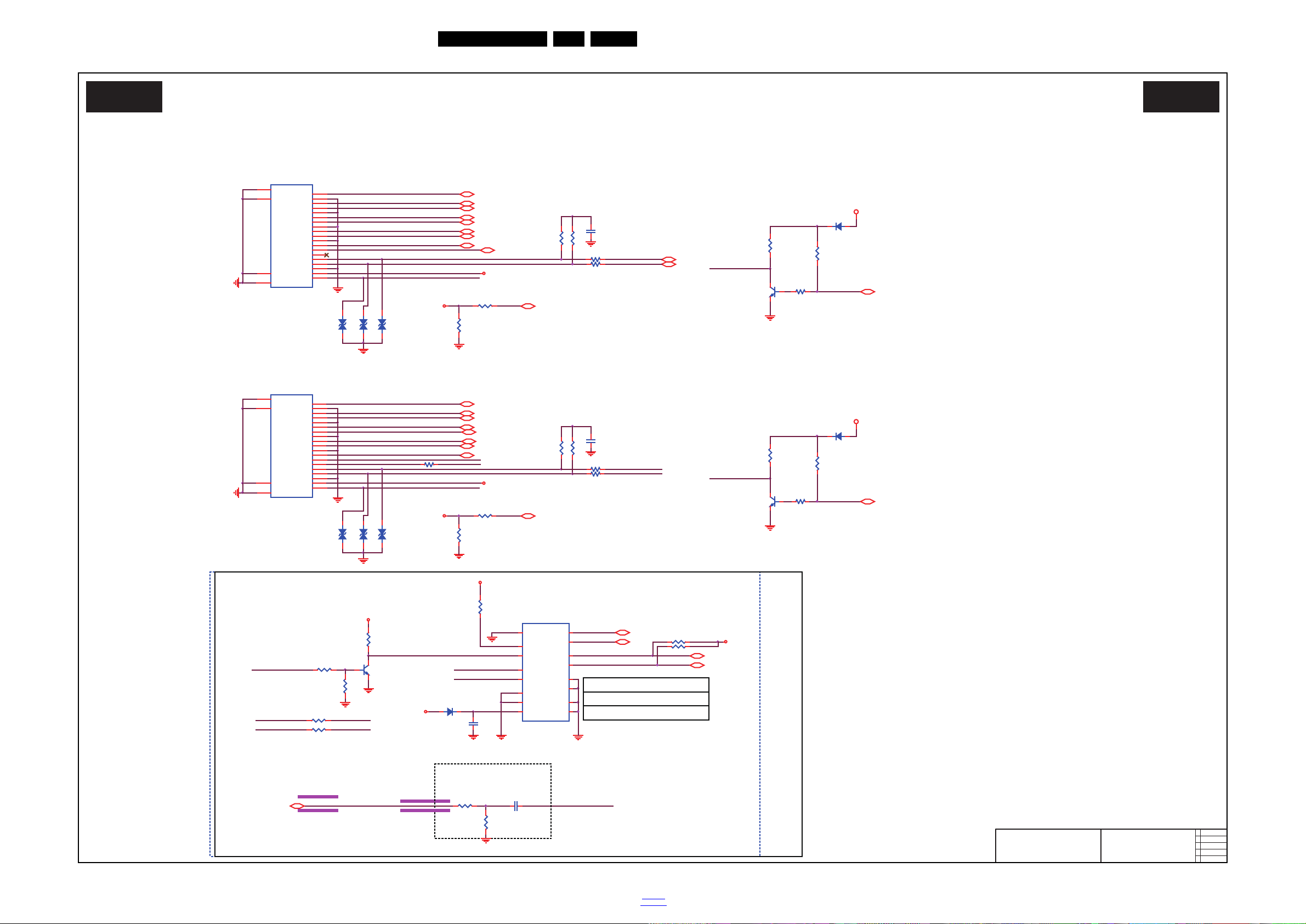

10-3-17 HDMI 1&2

20270_516.eps

HDMI1&2

B17 B17

C

715G7924

HDMI1&2

2015/9/25

U510

NC/74HC4052PW

1Y0

12

2Y0

1

1Y1

14

2Y1

5

1Y2

15

2Y2

2

1Y3

11

2Y3

4

S0

10

S1

9

VEE

7

GND

8

/E

6

1Z

13

2Z

3

VCC

16

C510

NC/100N F 16V

HDMI_R2XCP 19

R597

10K

Q511

MMBT3904

HDMI2 (HDMI 2.0 / ARC and HDMI debug-programing)

HDMI2-SCL/RX

R590

10K

CEC

R595

4.7K1/16W

DDC2B_SDA

HDMI_R2X2P 19

HDMI2_5V0

DDC2B_SCL

R593

100OHM

HDMI_R2X0 N

HDMI2_HOT PLUG

R589

10K

HDMI2_5V

R591

1K

HDMI_R2X0N 19

HDMI_R2X1P 19

HDMI2-HOTPLUG

5V_SB

HDMI_R2X1N 19

HDMI_R2X0 P

HDMI2-HOTPLUG

ZD518

NC/MLVG0402

1 2

5V_SB

HDMI_R2X0P 19

HDMI_R2X1 P

R594

100OHM

D511

BAS316WS

HD MI2_HOTPLU G 19

HDMI2_5V

HDMI2_5V0

HDMI_R2X1 N

R596

1K

5V_SB

HDMI_R2XCN 19

ZD517

NC/MLVG0402

1 2

HDMI2_DET

HDMI2_DET 19

HDMI_R2XCN

R592
10K

CN504

HDMI 19P

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

HDMI_R2XCP

ZD516

NC/MLVG0402

1 2

HDMI_R2X2N 19

HDMI2-SDA/TX

HDMI_R2X2 N

C511
100N 16V

HDMI_R2X2P

D510

NC/BAS316

R580

NC/40.2K 1/16W 1%

HDMI1 (HDMI 1.4a) ; Co-layout with ITV connector

R585

NC/60.4K 1%

5V_SB

R588
NC/10K +-1% 1/16W

HDMI1_SDA 19

HDMI1_SCL 19

C508
1UF 10% 16V

HDMI2-SCL/RX

HDMI1_5V0

UART_SEL

HDMI2-SDA/TX

HDMI2-SCL/RX

HDMI2_SCL

D504

NC/BAS316WS

HDMI2_SDA

R583

0R05 OHM

UART_SEL

UART1_RXD_IN
UART1_TXD_IN

R586 10K +-1% 1/16W
R584 10K +-1% 1/16W

5V_SB

R582

NC/10K +-1% 1/16W

UART_SEL

H

Factory UART & I2C Switch IC

S1

S1

H

HDMI function

NC/ARC

Grounding

Debug mode

For ARC

S0

Grounding

HL

S0

CHANNEL

HDMI
pin14

to HDMI Pin-14 for ARC

HDMI ARC Function

+12V

HDMI2_SCL 19
HDMI2_SDA 19

UART1_TXD_IN 6,16

UART1_RXD_IN 6,16

HDMI1_DET

HDMI1_5V0

HDMI_R1XCN

HDMI_R1XCP

HDMI_R1X0 N

HDMI_R1X1 N

HDMI_R1X0P

HDMI_R1X1 P

HDMI_R1X2 N

HDMI_R1X2P

CEC

HDMI1_HOT PLUG

DDC1B_SCL

HDMI1_SDA

HDMI1_SCL

HDMI1-HOTPLUG

Q510

NC/LMBT3904LT1G

R538
0R05 OHM

R577
NC

R557

NC/100OHM

R553

NC/10K

R543

NC/1K

ZD515

NC/MLVG0402

1 2

R559

NC/10K

CN503

NC/HDMI 19P

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

C509
NC/100N 16V

Q504

NC/MMBT3904

R552

NC/10K

R558

NC/1K

ZD513

NC/MLVG0402

1 2

R556

NC/100OHM

HDMI1 & HDMI2 (HDMI 2.0 / A RC)

ZD514

NC/MLVG0402

1 2

R545
NC/10K

R554

NC/4.7K1/16W

HDMI_R1X2P 19

HDMI_R1XCP 19
HDMI_R1XCN 19

DDC1B_SDA

HDMI1-HOTPLUG

HDMI_R1X0N 19

HDMI_R1X2N 19

HDMI1_DET 19

HDMI_R1X1N 19

HDMI_R1X1P 19

HDMI_R1X0P 19

CEC 19

HD MI1_HOTPLU G 19

HDMI1_5V

HDMI1_5V

5V_SB

ARC_PAD19

HDMI2_SDA

HDMI2_SCL

R581

0R05 1/16W

R587

0R05 1/16W

HDMI2-SDA/TX

Circuit Diagrams and PWB Layouts

EN 58TPS16.2A LA 10.

2016-Nov-18

back to

div.table

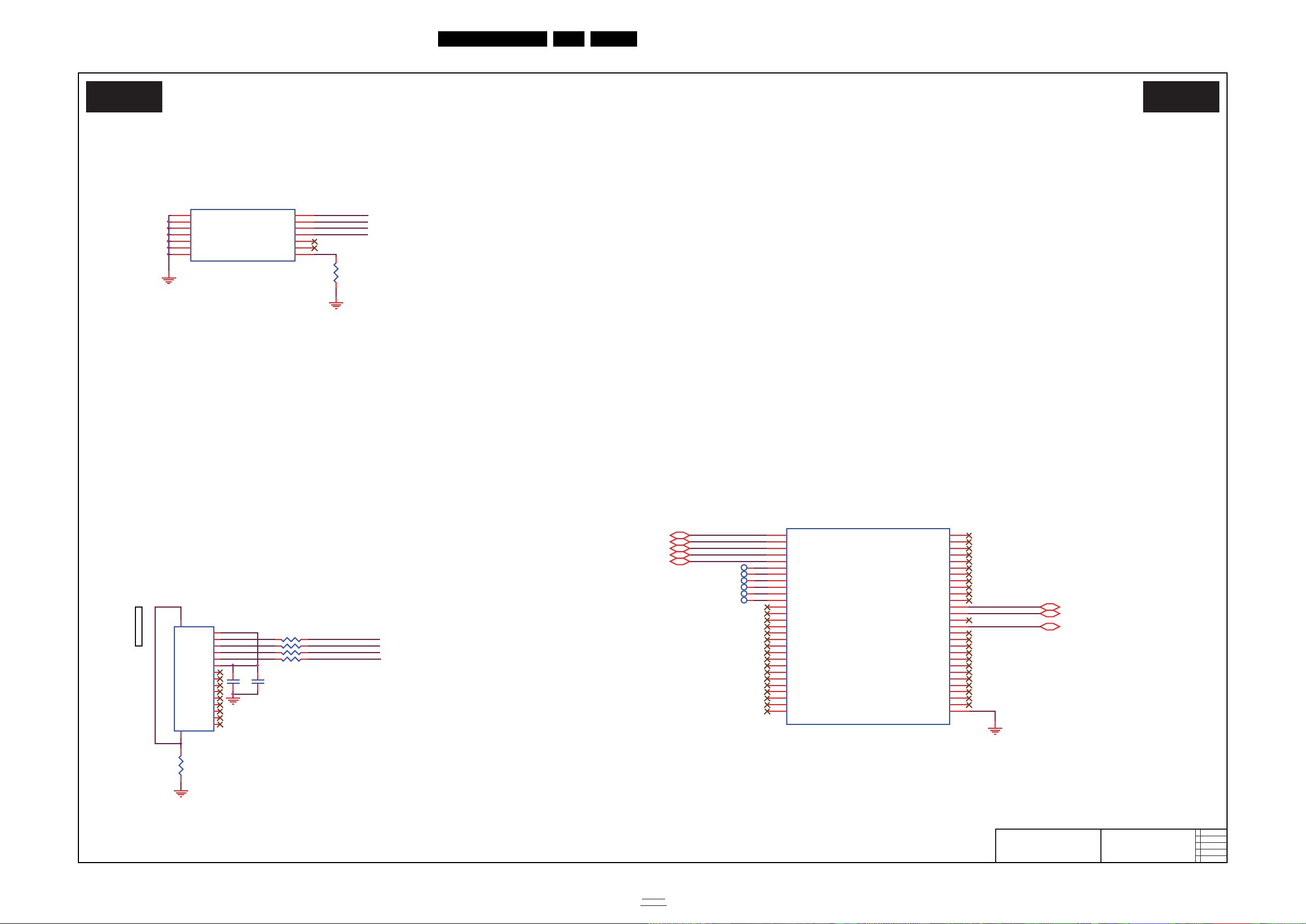

10-3-18 RJ45_SD_CI

20270_517.eps

RJ45_SD_CI

B18 B18

C

715G7924

RJ45_SD_CI

2015/9/25

TSI0_D3/JTAG_TDI

R183

10K 1%

FE_TX-

FE_TX+
FE_RX+

FE_RX-

TSI0_D0/JTAG_TMS
TSI0_D1/JTAG_TRSTN
TSI0_D2/JTAG_TCK

TSI0_D4/JTAG_TDO

R185 22 OH M 1/16W

MISC Inte r face of

U401A

HI3751AV500_AFE

HI3751AV500

AVSS_FE6

L5

AVSS_FE4

L3

FE_REXT

N6

FE_TXP

J1

AVSS_FE3

K5

FE_LED1/GP9_1

J5

FE_LED0/GP9_0

H5

FE_TXN

J2

FE_RXP

K3

FE_RXN

K4

AVSS_FE2

J4

AVSS_FE1

J3

AVSS11_FE

P9

AVSS_FE5

L4

R187 22 OH M 1/16W

MISC Inte r face of

U401E

HI3751AV500_AFE

VSS

AH12

CI_RDY/SIM0_RST

AE17

CI_REGN/GP17_5

AG20

CI_IOWRN/GP17_4

AC16

CI_IORDN/GP17_3

AG15

CI_RST/GP17_2

AD20

CI_WAITN/SIM0_DATA

AF20

CI_WEN/GP17_1

AC17

CI_OEN/GP17_0

AD15

CI_CEN/GP16_7

AC15

CI_CDN/GP16_6

AC22

CI_ADR14/GP16_5

AF17

CI_ADR13/PCB_L

AH16

CI_ADR12/BOOT_SEL0

AG18

CI_ADR11/ROMBOOT_SEL

AF15

CI_ADR10/BOOT_SEL1

AF14

CI_ADR9/GP16_4

AE15

CI_ADR8/GP16_3

AH15

CI_ADR7/GP16_2

AH18

CI_ADR6/GP16_1

AC20

CI_ADR5/SIM0_PWREN

AH19

CI_ADR4/SIM0_CLK

AG19

CI_ADR3/SIM0_DET

AE20

CI_ADR2/GP16_0

AF21

CI_ADR1/GP15_7

AG21

CI_ADR0/GP15_6

AF22

CI_DQ7/GP15_5

AG13

CI_DQ6/GP15_4

AD13

CI_DQ5/GP15_3

AE14

CI_DQ4/GP15_2

AG12

CI_DQ3/GP15_1

AC13

CI_DQ2/GP15_0

AE22

CI_DQ1/GP14_7

AD21

CI_DQ0/GP14_6

AH22

TSO0_SYNC/GP14_5

AF16

TSO0_VLD/GP14_4

AD18

TSO0_CLK/GP14_3

AE18

TSO0_D7/GP14_2

AD19

TSO0_D6/GP14_1

AF18

TSO0_D5/GP14_0

AC19

TSO0_D4/GP13_7

AC18

TSO0_D3/GP13_6

AG17

TSO0_D2/GP13_5

AD17

TSO0_D1/GP13_4

AD16

TSO0_D0/GP13_3

AG16

TSI0_SYNC/GP11_6

AC21

TSI0_VLD/BOOTROM_STR/GP11_5

AH21

TSI0_CLK/CLK_TEST_OUT/GP11_4

AF19

TSI0_D7/GOIN_NORMAL/GP11_3

AG14

TSI0_D6/RSA_END/GP11_2

AC14

TSI0_D5/RSA_RESULT/GP11_1

AD14

TSI0_D4/JTAG_TDO/GP11_0

AF13

TSI0_D3/JTAG_TDI/GO10_7

AH13

TSI0_D2/JTAG_TCK/GP10_6

AD22

TSI0_D1/JTAG_TRSTN/GP10_5

AE21

TSI0_D0/JTAG_TMS/GP10_4

AG22

C1015

100N 16V

R188 22 OH M 1/16W

C1014
100N 16V

R186 22 OH M 1/16W

TSI0_D1/JTAG_TRSTN6

CI_ADR10/BOOT_SEL1 3

TSI0_D0/JTAG_TMS6

TSI0_D3/JTAG_TDI6

TSI0_D2/JTAG_TCK6

TSI0_D4/JTAG_TDO6

TP416

1

TP419

1

TP417

1

TP418

1

TP421

1

TP420

1

CI_ADR10/BOOT_SEL1

FE_RX­FE_TX+

FE_RX+

FE_TX-

Ethernet & SD & CI

100M ETHERNET

Run As Differential Pairs

R192
0R05

CN108

RJ45 15P

TCT P 1

1

TD+ P 2

2

TD- P3

3

RD+ P4

4

RD- P5

5

RCT P6

6

NC P7

7

NC P8

8

NC P9

9

NC P10

10

NC P11

11

Y- P12

12

G- P14

14

Y+ P13

13

G+ P15

15

TH1

16

TH2

17

CI_ADR12/BOOT_SEL0

CI_ADR12/BOOT_SEL0 3

CI_ADR13/PCB_L 3

CI_ADR13/PCB_L

Circuit Diagrams and PWB Layouts

EN 59TPS16.2A LA 10.

2016-Nov-18

back to

div.table

10-3-19 SSB layout top

20270_518.eps

715G7924

LAYOUT TOP

U401

C627

CN408

R4118

C1008

C7050

C7051

CN503

CN504

CN106

D101

R4117

X401

C107

C112

C128

C138

C1006

C4026

C502

C7016

C7030

C721

C722

C725

C726

C741

C753

C110

FB703

FB704

L103

L114

R4010

D504

X101

L105

L106

L107

L109

TH101

TH102

TH104

L710

C4033 C4034

C7032

C7020

C7010

C7011

C7018

C7019

FB403

D511

CN501

C621 C628

C4038

C1022

C1023

C620

C623

C625

C634

C646

C7057

L711

C4025

C7063

C731

C4039

C746

R192

R4122

R4100

TU101

VTP1

VTP2

VTP3

VTP4

VTP5

VTP6

VTP7

VTP8

VTP9

VTP10

VTP11

VTP12

VTP13

VTP14

VTP15

VTP16

R111

ZD502

R514

R463

R591

U705

R599

R598

FB705

U707

L603

CN401

Q701

R4105

C7056
R7026

U712

C7053

C7058

C7059

R406

U404

R742

R738

R741

R602

C604

C611

R607
R608

C602

R633

R753

R751
R752

C749

C734
R739

R191

CN700

R132

FB501

ZD506

ZD501

ZD503

R4128

C4035

R160

CN104

R637

R618

R613

C4032

R143
R142

R190

R1001

U406

R1003

C1025

C151

R1002

L704

CN108

U601

C1010

Q511

R596

R428

R597

CN109

R631

C180

CN601

RP402

R403

C730

HS401

C179

ZD514

R583

R605

C603

ZD603

ZD604

R643

R481

R482

C1002

FB103

R128

R127

R125

ZD518

C153

SCREW1

R615

CN603

R491

C182

R106

CN102

R104

C1015

ZD507

R730 R729

Q423

R622

ZD516

R103

R102

U403

RP401RP403RP404RP405RP406RP407

SET1

SCREW2

SCREW3

SET2

SEN5

SEN6

SCREW4

SEN8

C108
C109

C111

C113

C114

C115

C116

C117

C119

C120

C121

C126

C127

C129

C132

C133

C134

C135

C136

C139

C140

C142

C143

C149

C152

C157

C158C159

C160

C162

C163

C164

C165

C166

C168

C169

C170

C171

C175

C176

C177

C178

C181

C183

C184

C190

C196
C197

C198

C199

C1005

C1007

C1009

C1011

C1012

C1014

C4002

C4003

C4004

C4005

C4006

C4007

C4011

C4012

C4013

C4014

C4015

C4016

C4017

C4018

C4019

C4020

C4022

C457C458

C467

C501

C503

C509

C606

C609

C607

C612

C608

C614

C629

C630

C631

C632

C605

C650

C651

C652

C653C654

C7001

C703

C511

C7014

C7012

C7015

C7013

C7017

C717

C718

C719

C720

C723

C724

C727

C733

C738

C739

C740

C742

C745

C748

C750

C751

C752

C756

C762

CN412

ZD101 ZD102

ZD602

ZD109

ZD110 ZD111

ZD112

ZD113ZD114ZD115

ZD401ZD402

ZD504

ZD513

ZD515

ZD601

ZD103

FB104

FB105

L101

L102

L104

L703

L601

L602

L604

R619

R108
R109

R110

R113

R114

R115

R116

R117R118

R119

R120R121

R124

R126

R130

R131

R133

R134

R135

R136

R137

R138

R141

R144

R145

R146

R147

R153

R157

R158

R161

R162

R163

R164

R165

R166

R167

R168

R169

R170R171

R172

R173

R174

R185

R186

R187

R188

R4003

R4004

R4005

R401

R4013

R4017

R4018

R402

R4021

R4023

R4026

R404

R409

R410

R412

R413

R4108

R418

R420

R421

R429

R437

R438

R439

R621

R441

R4103

R445

R456

R457

R458

R459

R460

R461
R462

R464

R465

R466

R467
R468

R470

R471

R472
R473

R474

R475

R476

R477
R478

R486

R487

R488

R489

R490

R511
R512
R513

R517R518

R519

R520

R757

R543

R545

R552

R553

R554

R556

R557

R558

R559

R606

R601

R604

R611

R614

R616

R628
R629
R630

R632

R640

R644

R646

R708

R713

R714

R716

R717

R718

R725

R728

R733

R7005

R735

R736

R743

R748

R750

R754

U710

U704

U706

U703

U702

D102

Q410

Q705

Q708

L702

X102

C130C131

C616

R603

R609

R612

R617

Q602

FB702

R433

R434

C613

C615

R4107

R4106

C601

R634

C104

C105

ZD410 ZD411

ZD412

ZD413 ZD414

C1000

C1001

C1003

C4036

C4037

C7031

C7033

ZD517

C7034

R1000

R4104

R4111

R4114

R4123

R4124

R589

R590

R592

R593

R594

R595

R7000

R7001

R7002

R7003

R7020

R7021

ZD710

CN101

CN103

HS601

CN602

C706

R189

C1020

C1021

C1024

U100

U101

U413

R1

ZD415 ZD416

C4040

C4041

C4042

R4129

R1005

R1006

R7025

R7027

R7028

U407

C1026

C1027

C468

C469

R4130

R7030

FB605

FB606

FB607

FB608

Circuit Diagrams and PWB Layouts

EN 60TPS16.2A LA 10.

2016-Nov-18

back to

div.table

10-3-20 SSB layout bottom

20270_519.eps

715G7924

LAYOUT BOTTOM

C7060
C7054

C7062

C728

C743

D502

R101

C508

C101

C103

C123

C172

C4010

C4023

C420

C439

C460

C619

C622

C624

C633

C636

C784

C798

R4046

R704

R4045

R623

R624

R625

R626

D501

L108

R4053

R585

D510

R4126

R4127

C7045

C7047

C7052

C7061

C7055

C701

R4047

R702

R705

R709

R758

C764

C782

C7035

C796

R500

Q512

TP602

R4110

R4119

R711

TP415

C744

C729

TP603

C463

U510

Q510

U402

Q502

C793

R523

TP606

TP405

TP404

TP403

Q408

C146

R580

SEN4

TP100

TP101

TP413

TP409

TP408

TP412

TP105

TP106

TP421

TP419

TP417

TP416

TP410

TP418

R4012

Q504

R577

R538

R647

R586

R648

TP607

TP414

TP104

TP103

TP102

TP605

TP420

Q409

TP604

R4112

C4030

R4109

Q421

R4115

R4102

R4120

R4035

RP408RP409RP410RP411RP412RP413RP414

SEN3

SEN7

C102

C118

C122

C124

C125

C137

C141

C154

C155

C156

C167

C173
C174

C4001

C4008

C4009

C4031

C413

C414

C415

C416

C417

C418

C419

C421

C422

C423

C424

C425
C426

C427

C428

C429

C430

C431

C432

C433

C434

C435

C436

C437

C438

C440

C441

C442

C443

C444

C445

C446

C447

C448

C449

C450

C451

C452

C453

C454

C455

C456

C459

C461

C462

C504

C505

C506

C610

C635

C639

C7048

C7046

C735
C736

C7049

C754
C755

C757

C758

C759

C760

C761

C763

C765

C766

C767

C768

C769

C770

C771

C772

C773

C774

C775

C776

C777

C778

C779

C780

C781

C783

C785

C786

C787

C788

C789

C790

C791

C792
C794

C795

C797

C799

C7037

C7038

C7039

C7040

C7036

C7042

C7041

FB402

FB601

FB603

FB709

FB710

FB711

FB712

R122

R123

R154

R183

R4001

R4002

R4006

R4007

R4008

R4009 R4011

R4014

R4015

R4016

R4019

R4020

R4022

R4024

R4025

R4027

R4028

R4029

R4030

R4031

R4032R4033

R4034

R4036

R405

R4057

R407

R408
R411

R443

R444

R446

R447

R448

R449

R450

R451

R452

R453

R454

R455

R469

R509
R510

R515

R521

R524

R755

R756

U405

U503

Q501

Q601

Q603

Q703

TP400

R610

R620

TP401

TP402

C106

C144

C145

C510

R4101

R4113
R4121

R4125

R581

R582

R584

R587

R588

Q420

TP406

TP411

TP608

R7023

U711

R7029

D701

Circuit Diagrams and PWB Layouts

EN 61TPS16.2A LA 10.

back to

div.table

2016-Nov-18

10.4 J 715G7074 IR/LED Panel

19850_526.eps

IR & 3D & Light sensor & LOGO

J J

2014-09-30

C

715G7074

IR &3D&Light sensor&LOGO

R229
0R05 1/16W

R210
10K 1/16W 5%

R211

10K 1/16W 5%

R212
10K 1/16W 5%

C203
1uF 10V

+5V_SW

R219

4.7 OHM +-1% 1/ 10W

R218

10ohm +/-1% 1/ 10W

R217

10ohm +/-1% 1/ 10W

R220

NC/4.7 OHM +-1% 1/10W

C204

1uF 10V

+5V_SW

Standby

LED203

IR LED GPTS12048IRC3-R

12

3

LED204

IR LED GPTS12048IRC3-R

12

3

IR Receiver

3V3SB

R202

100R 1/16W 5%

R201

NC/ 2K7 1/ 16W 5%

3V3SB

RC6

U202

455C

VDD

1

GP5/OSC1/CLKIN

2

GP4/OSC2

3

GP3/MCLR/VPP4GP2/AN2/T0CKI/C1OUT

5

GP1/AN1/C1IN-/ICSPCLK

6

GP0/AN0/C1IN+/ICSPDAT

7

VSS

8

RC6

3D_L/R

3V3SB

LS_SDA

LS_SCL

DVD3V3

Gaming

LED201

GPSS008RC4

12

Red

R204

NC 100R 1/ 16W 5%

R216

10ohm +/-1% 1/ 10W

Active 3D

LOGO

VPP

+5V_SW

3D_L/R

DVD3V3

Wireless_L/R

R207

47K 1/16W 5%

ICSPCLK

ICSDAT
Gaming

3D_L/R

Wireless_L/R

Q202
AO3414

Lighting LOGO

R230

1K 1/16W 5%

R232

2R2 1/16W 5%

DVD3V3

3V3SB

LED205

CHIP LED WHITE 99-113UNC/2223010/TR8

2 1

LED206

CHIP LED WHITE 99-113UNC/2223010/TR8

2 1

R231

2R2 1/16W 5%

3V3SB

LOGO

R205

NC 0R 05 1/ 16W

U203
NC JSA-1130

ADDR

1

VDD

2

GND3SCL

4

SDA

5

INT

6

R213

NC 0R 05 1/ 16W

Light Sensor

R209

NC 10K 1/ 16W 5%

Digital Light Sensor

C202 NC 1uF 10V

R208

NC 10K 1/ 16W 5%

LS_SCL

LS_SDA

R214

NC/ 0R 05 1/ 16W

JSA-1130

R42R41

JSA-1130

NC

NC 0R

0R

I2C addr

R206 N C 0R 05 1/ 16W

0x45

0x44

C201 NC 100N 16V

LS_SDA

LS_SCL

DVD3V3

C205

1uF 10V

Q207
BC847BW

MTK 5593 Panel 100/120Hz] NC

A3D Control

R203 U202R204

Yes

Yes YesNC

5500
6200
6500

LOGO Function

NC
Yes
Yes

Q204
NC/BC847BW

NC

R233

1K 1/16W 5%

LED_R

Q201
BC847BW

R215
NC/ 47K 1/ 16W 5%

LED_R

R234
2K2 1/16W 5%

ZD201

MLVG0402

12

5500
6200
6500

Light sensor Function

NC

Yes

NC

5500
6200
6500

A3D function

Yes

NC
NC

U201

TSOP75436TR

GND

1

VCC

2

Vout

3

GND

4

LED202

IR LED GPTS12048IRC3-R

12

3

PIC12F510-I/SN [Panel 50/60Hz]

R203

100R 1/16W 5%

CN201

1
2

3

4
5
6
7

8

9
10
11
12
13

1415

3V3SB

R221

NC/ 10K 1/ 16W 5%

10-4-1 IR & 3D & Light sensor & LOGO

Circuit Diagrams and PWB Layouts

EN 62TPS16.2A LA 10.

2016-Nov-18

back to

div.table

10-4-2 IR/LED board layout

19850_527.eps

715G7074

IR/LED panel

layout top/bottom

LED206

LED201

LED205

U203

LED202

LED203

LED204

R217

R216

R218

R219

R229

Q202

R231

R206

R205

R203

R204

R233

R202

C205

C204

R215

Q207

Q201

R234

R211

R212

U202

C203

R210

R209

R208

CN201

R232

C202

C201

R201

R213
R214

U201

ZD201

R230

R207

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 63TPS16.2A LA 10.

2016-Nov-18

back to

div.table

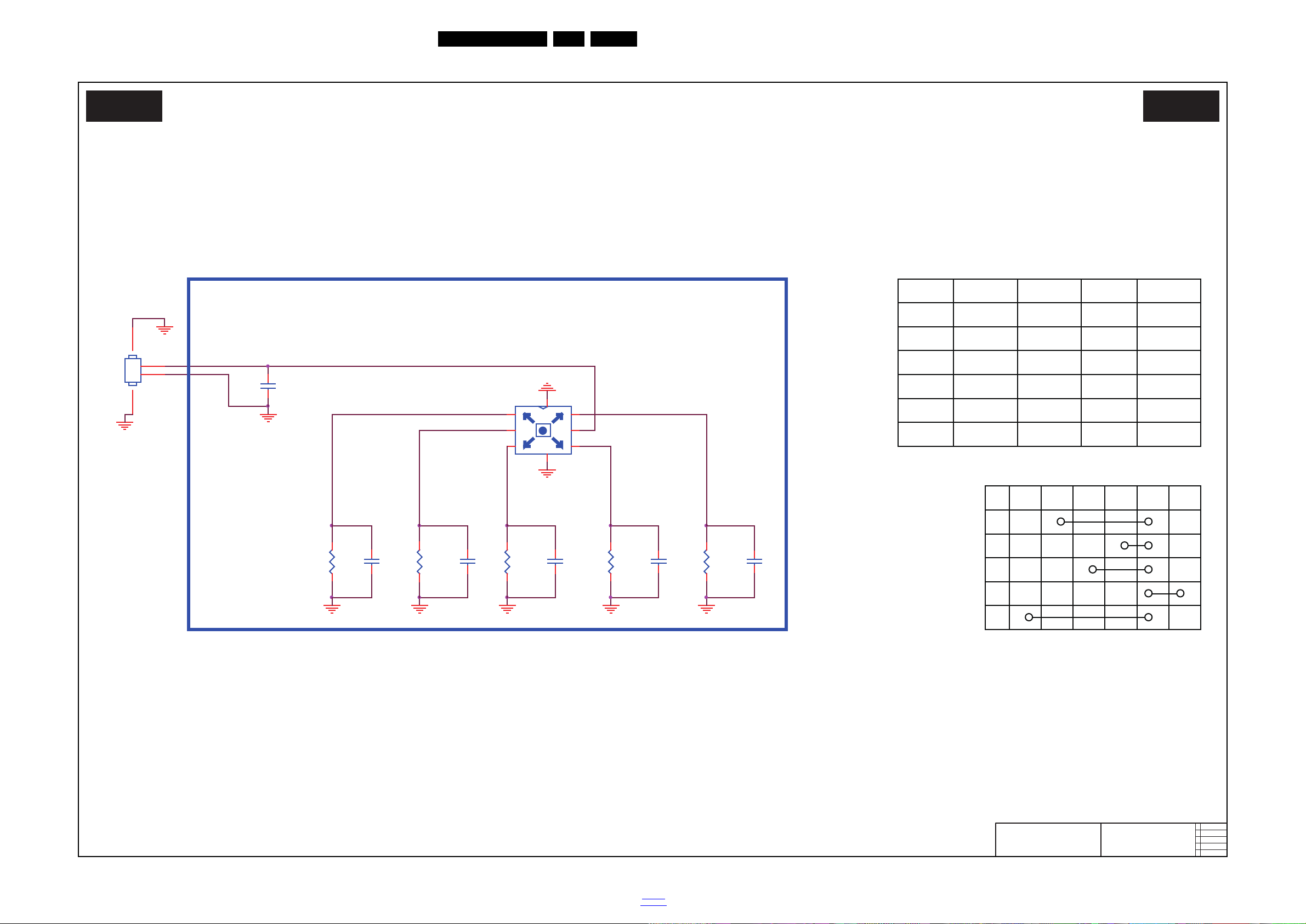

Circuit Diagrams and PWB Layouts

19850_524.eps

Key

E E

2014-05-28

715G7088

Key

KEY1

Menu
Right
Left
Down
Up

6-5 short

R04

2K2 1/10W 1%

2-5 short

F1

3-5 short

R01

1K2 1/10W 1%

1-5 short
4-5 short

F2
F3

F5

F3

F1

F4

F2

SW01

TACT SW 6P

3 4

2

1 6

5

7

8

F4
F5

R05

15K 1/10W 1%

Direction

R03

6K8 1/10W 1%

switch

----><----|

Joystick circuit diagram

C06

0.1uF 50V

pin1

0V

0.5V

0.81V

1.65V

2.27V

pin2

No function

pin3

3.3V

C04

NC / 100N 50V

pin4 pin5

C05

NC / 100N 50V

pin6

----><----|

C01

NC / 100N 50V

C02

NC / 100N 50V

C03

NC / 100N 50V

----><----|

----><----|

----><----|

Down

Up

Center

CN01

CONN

1
2

34

R02

0R05 1/ 10W

0R

2K2

Key functionResistance

Center

CH+

CH-

1K2

VOL-

VOL+

Left

15K

6K8

Right

Voltage

JOYSTICK

10.5 E 715G7088 Keyboard control panel

10-5-1 Key

EN 64TPS16.2A LA 10.

2016-Nov-18

back to

div.table

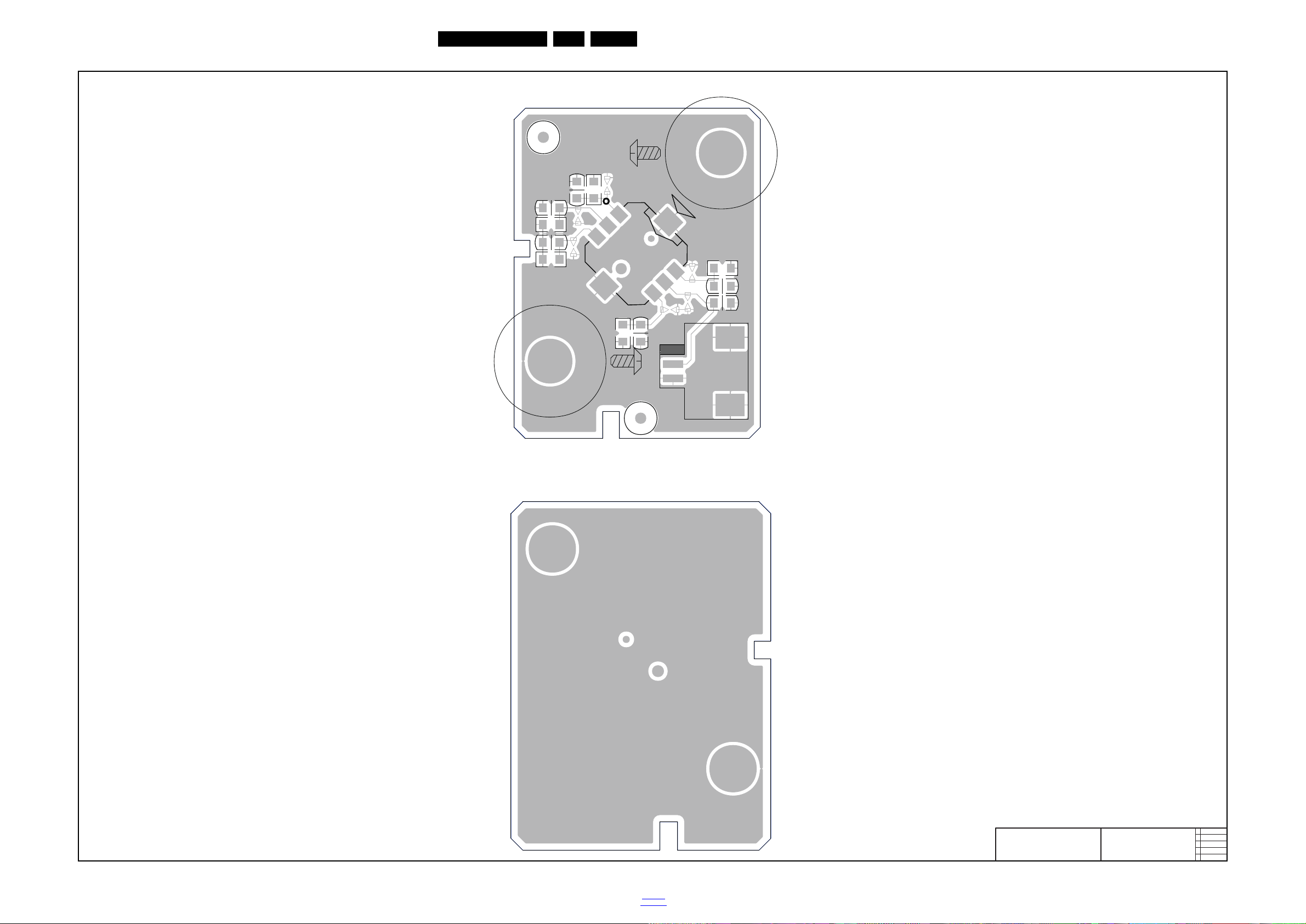

Circuit Diagrams and PWB Layouts

19850_525.eps

2014-06-06

715G7088

Keyboard control panel

layout top/bottom

C01

C02

C03

C04

C05

C06

R01

R02

R03

R04

R05

H1

H2

H3

H4

H5

H6

CN01

SW01

SW1

SW2

SW3

SW4

Layout Keyboard control panel (top side)

Layout Keyboard control panel (bottom side)

10-5-2 Key board layout

EN 65TPS16.2A LA 10.

2016-Nov-18

back to

div.table

11. Styling Sheets

20270_800.eps

6701 series 43"

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0030 Bezel
0040 Rear cover
0050R Stand_R
0050L Stand_L
0095 V0 SHEET
1050 Display panel
1053 Panel SSB
1054 Power Supply Unit
1056 IR/LED panel
1057 Keyboard control panel
1176 Remote control Not displayed
1184 Speakers
WiFi01 WiFi_USB

Pos No. Description Remarks

0040

0030

1184

1054

1050

1184

1057

1053

1056

0050R

0050L

0095

WIFI01

11.1 6701 series 43"

Styling Sheets

EN 66TPS16.2A LA 11.

2016-Nov-18

back to

div.table

11.2 6701 series 49"

20270_801.eps

6701 series 49"

FOR ELECTRICAL PARTS/ASSEMBLIES SEE WIRING DIAGRAM CHAPTER 9

0030 Bezel
0040 Rear cover
0050R Stand_R
0050L Stand_L
0095 V0 SHEET
1050 Display panel
1053 Panel SSB
1054 Power Supply Unit
1056 IR/LED panel
1057 Keyboard control panel
1176 Remote control Not displayed
1184 Speakers
WiFi01 WiFi_USB

Pos No. Description Remarks

0040

0030

1184

1054

1050

1184

1057

1053

1056

0050R

0050L

0095

WIFI01

Styling Sheets

EN 67TPS16.2A LA 11.

2016-Nov-18

back to

div.table
