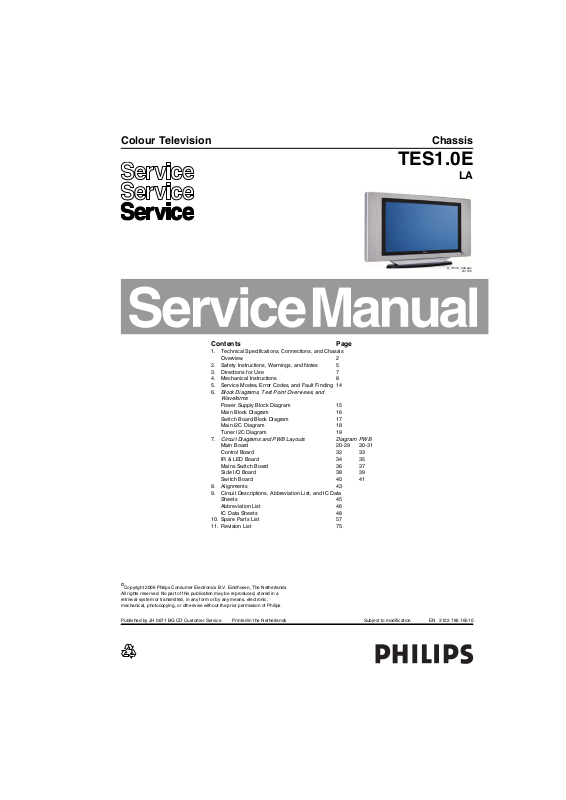

Philips tes1_0e_la_123 Datasheet

Colour Television Chassis

TES1.0E

LA

G_16510_000.eps

231106

Contents Page

1. Technical Specifications, Connections, and Chassis
Overview 2

2. Safety Instructions, Warnings, and Notes 5

3. Directions for Use 7

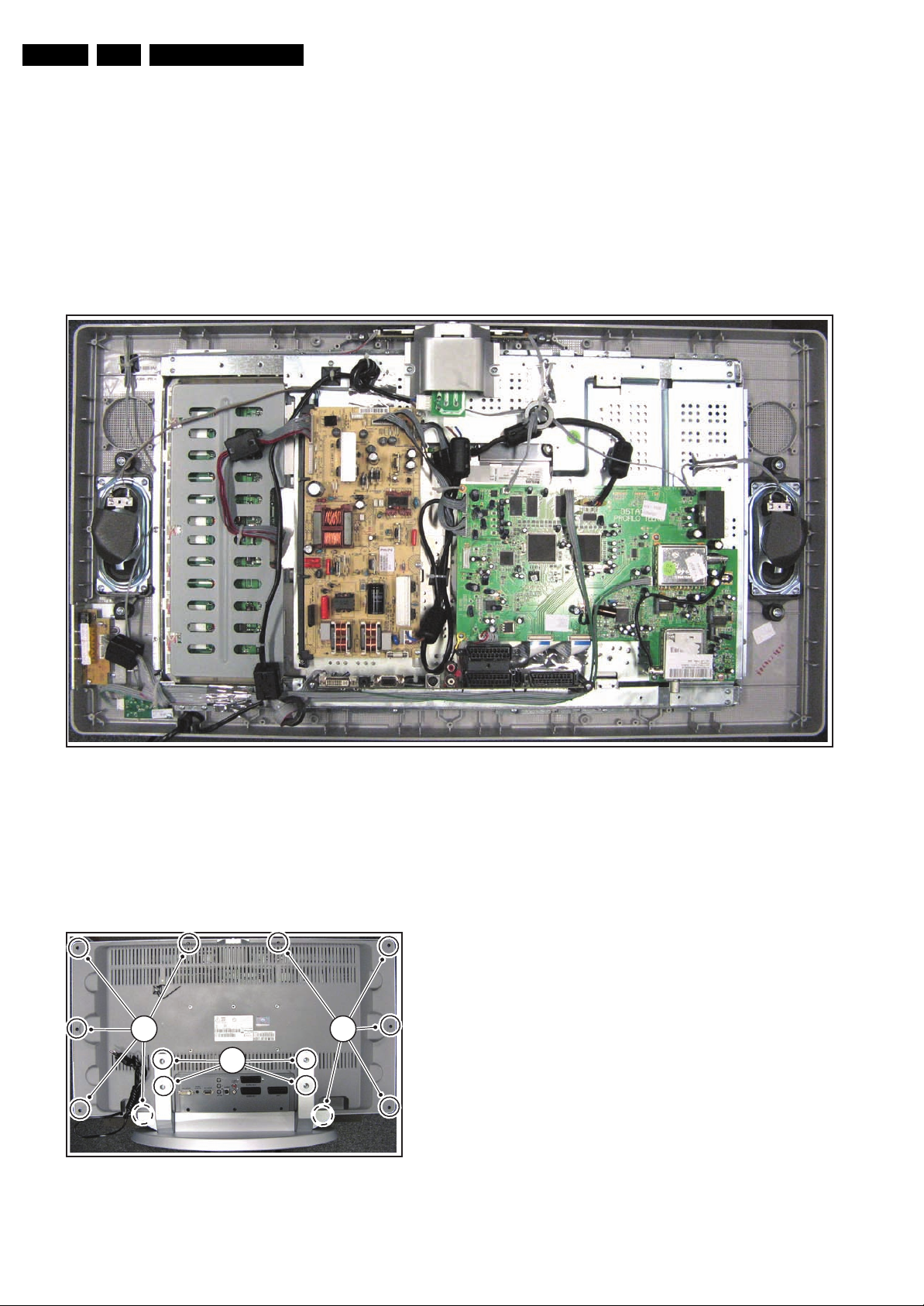

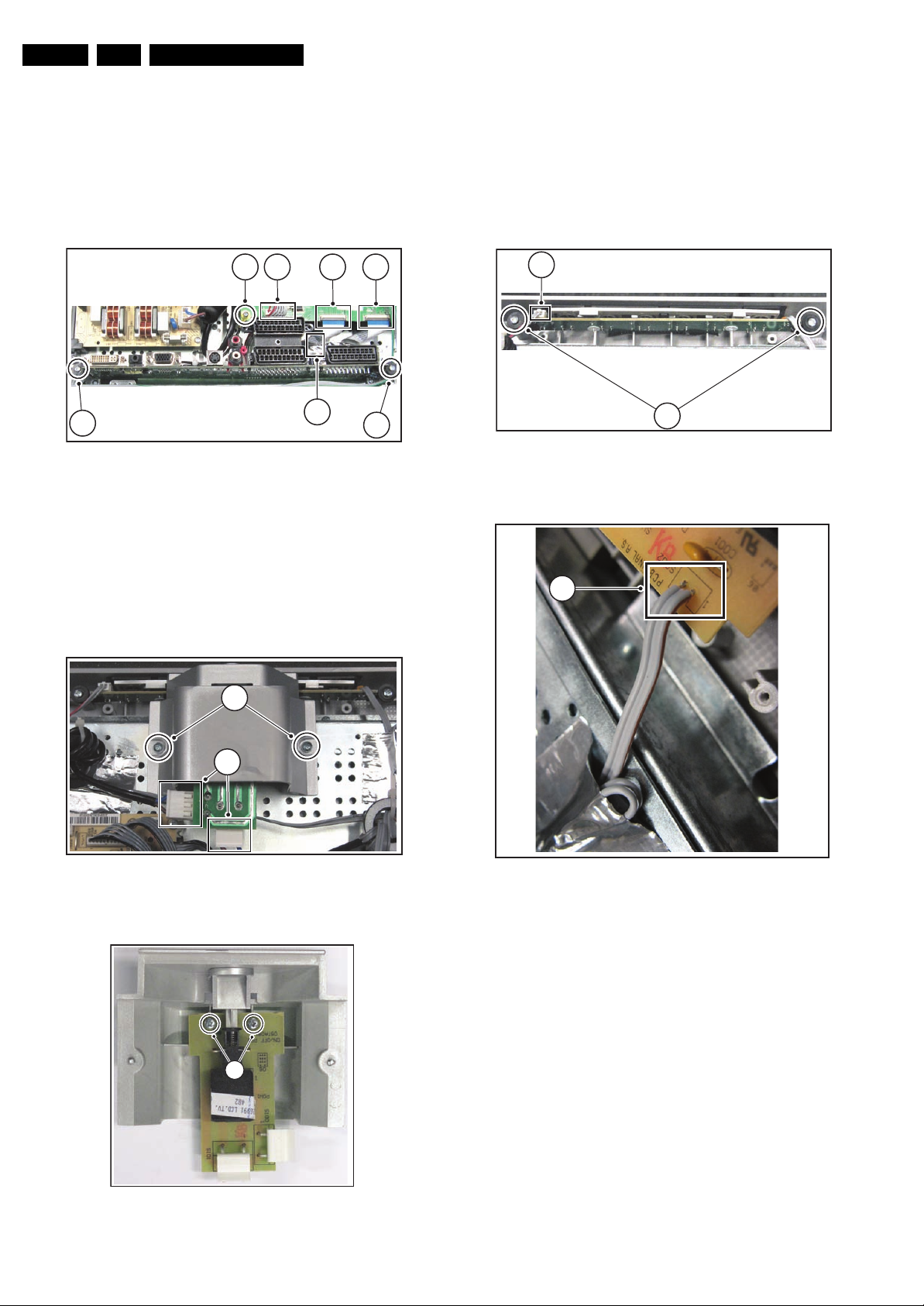

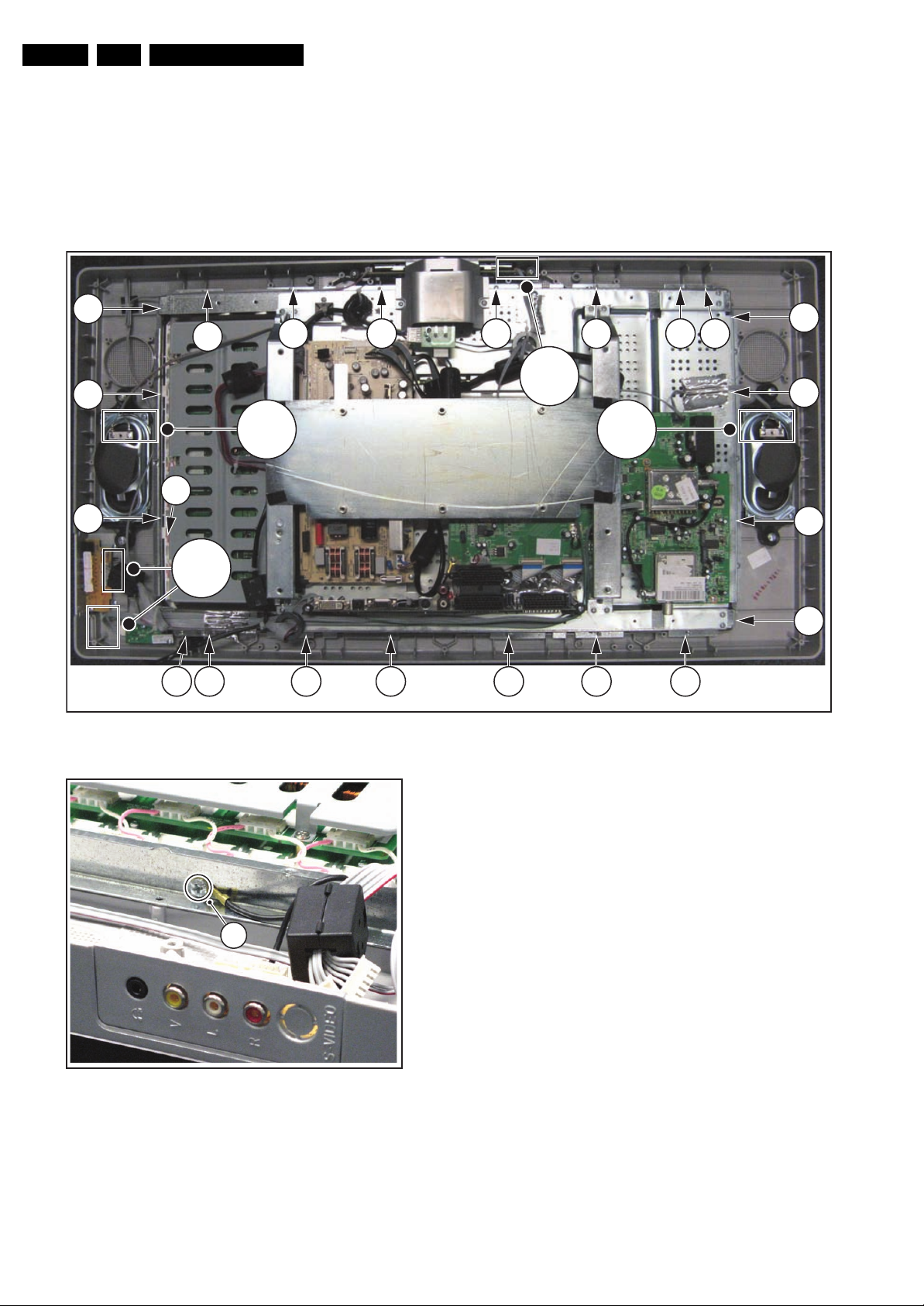

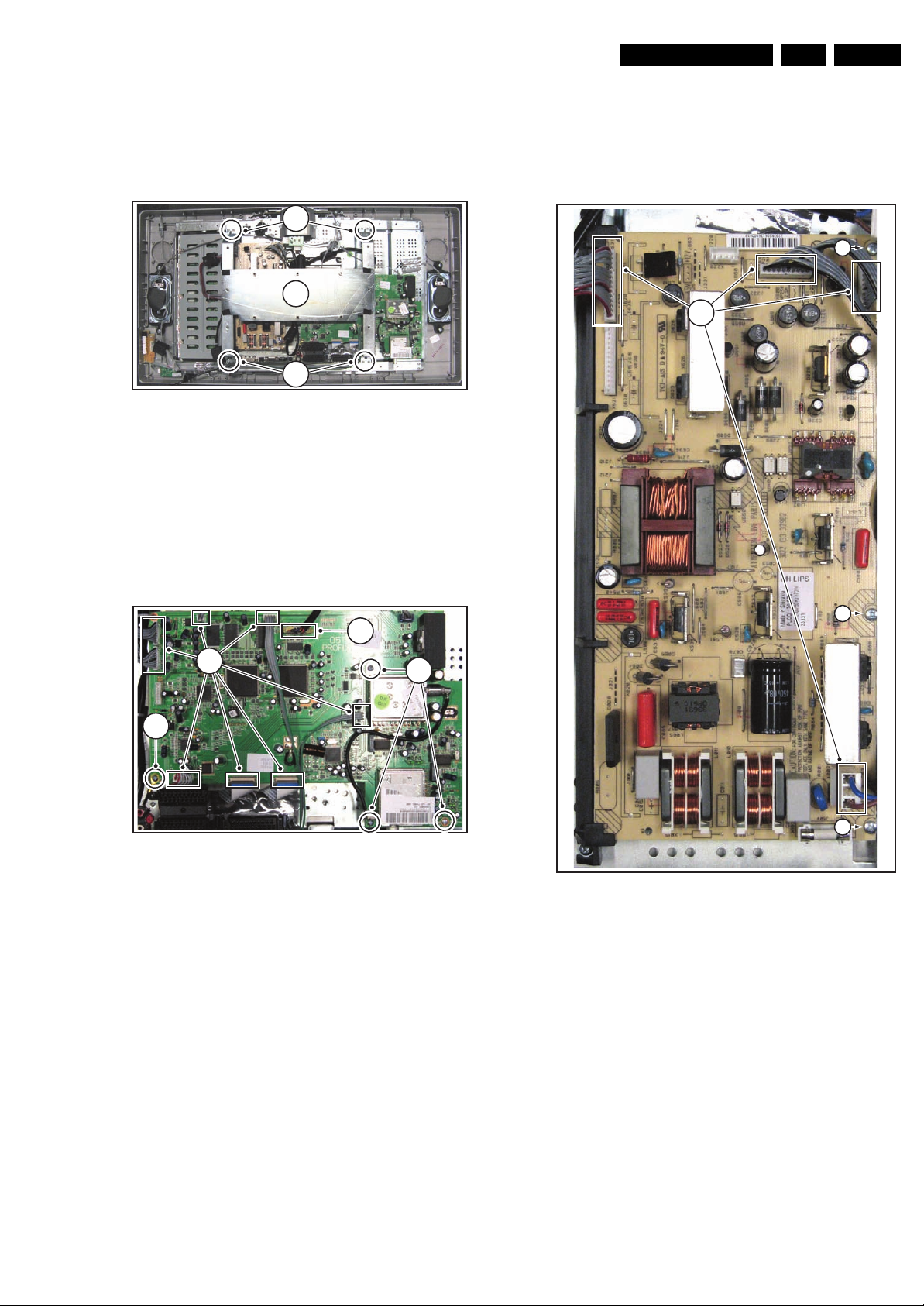

4. Mechanical Instructions 8

5. Service Modes, Error Codes, and Fault Finding 14

6. Block Diagrams, Test Point Overviews, and

Waveforms

Power Supply Block Diagram 15

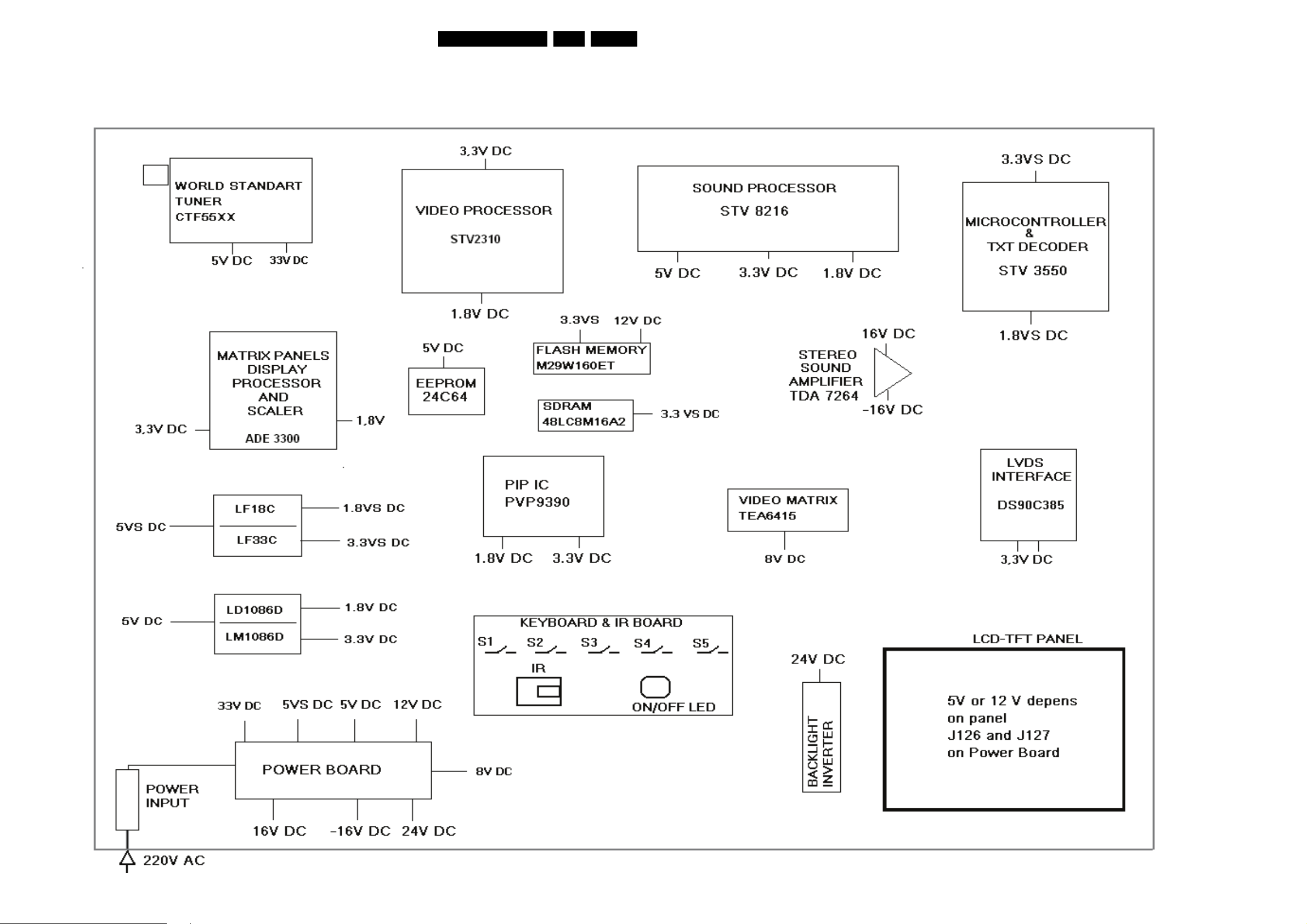

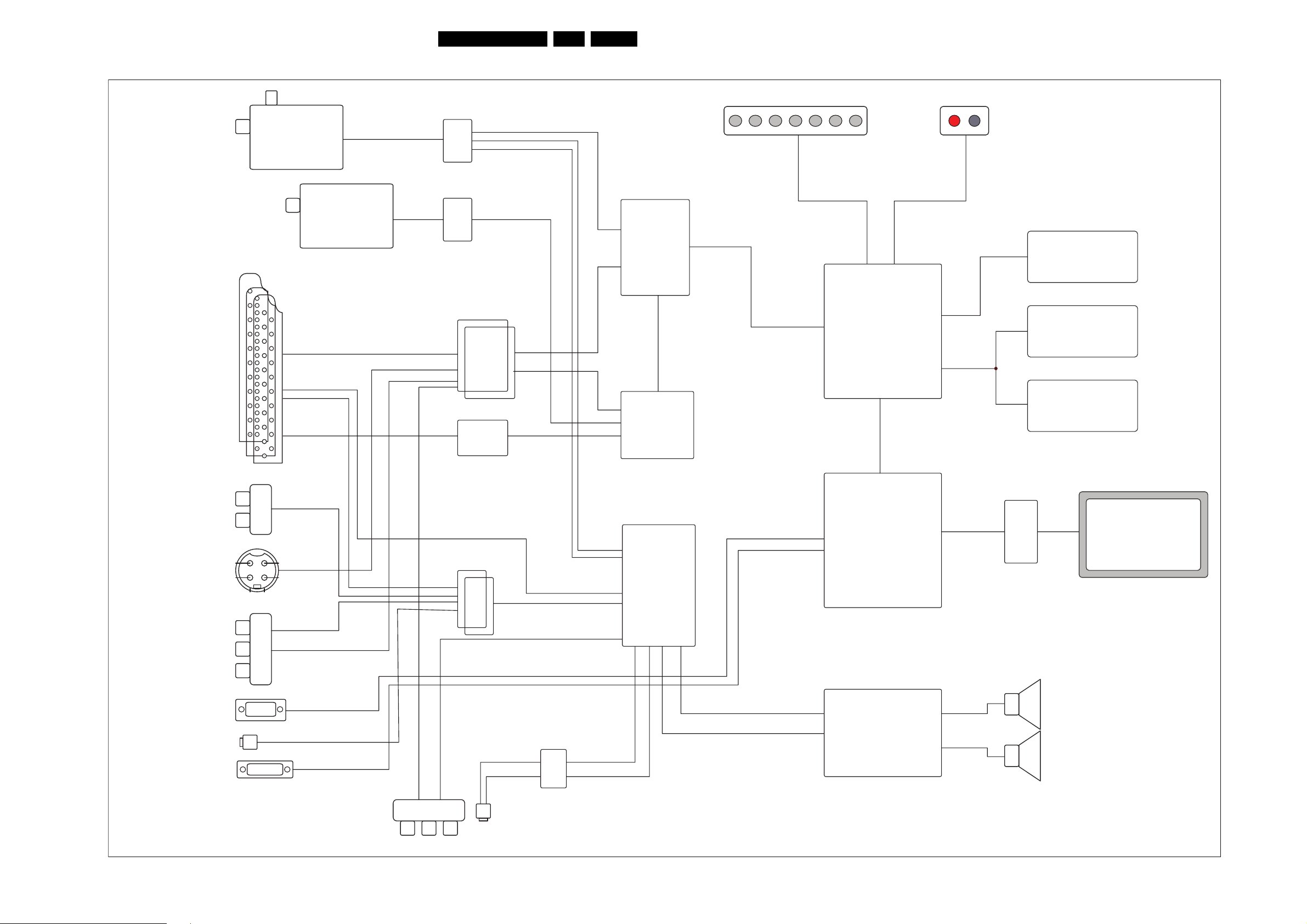

Main Block Diagram 16
Switch Board Block Diagram 17

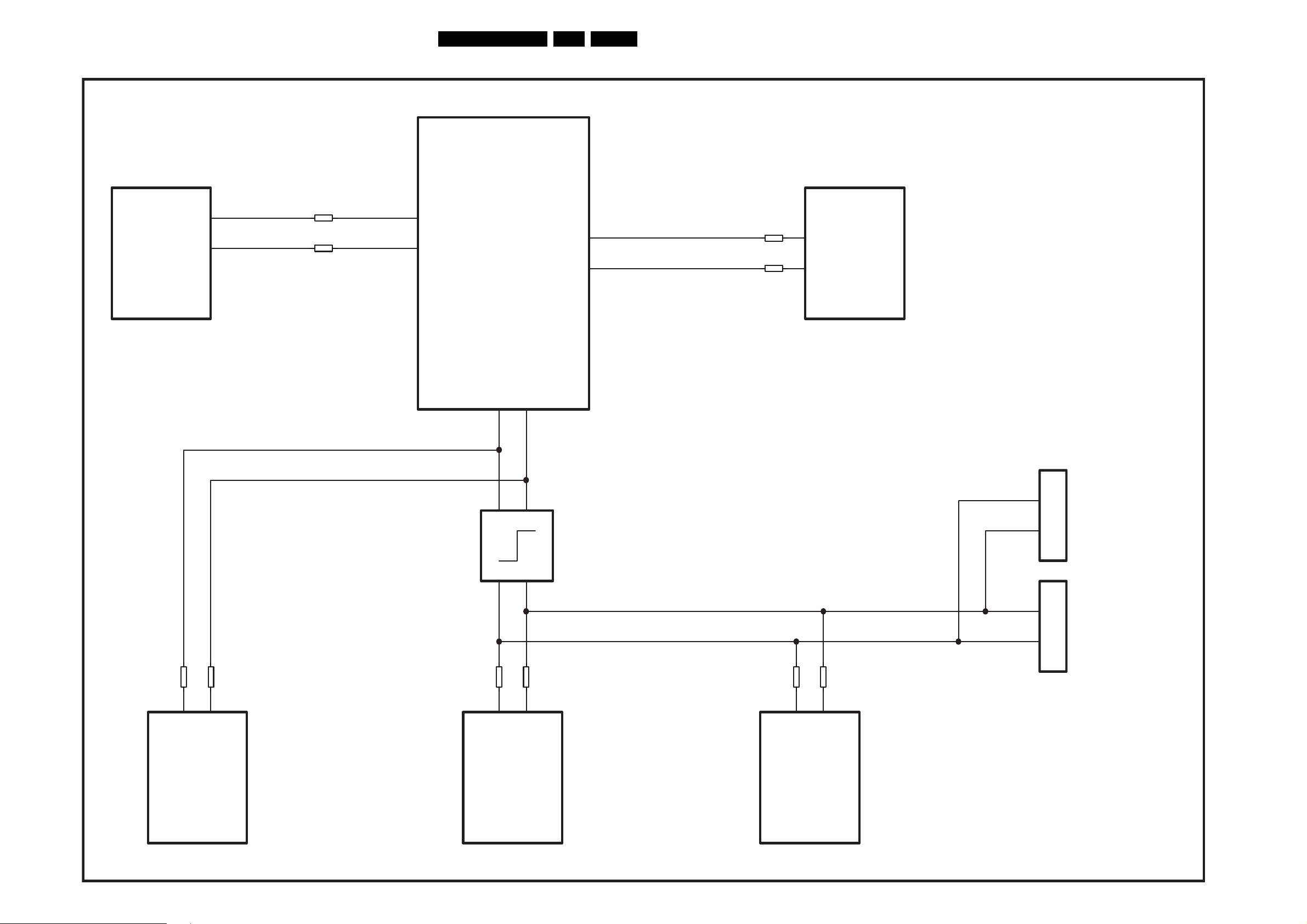

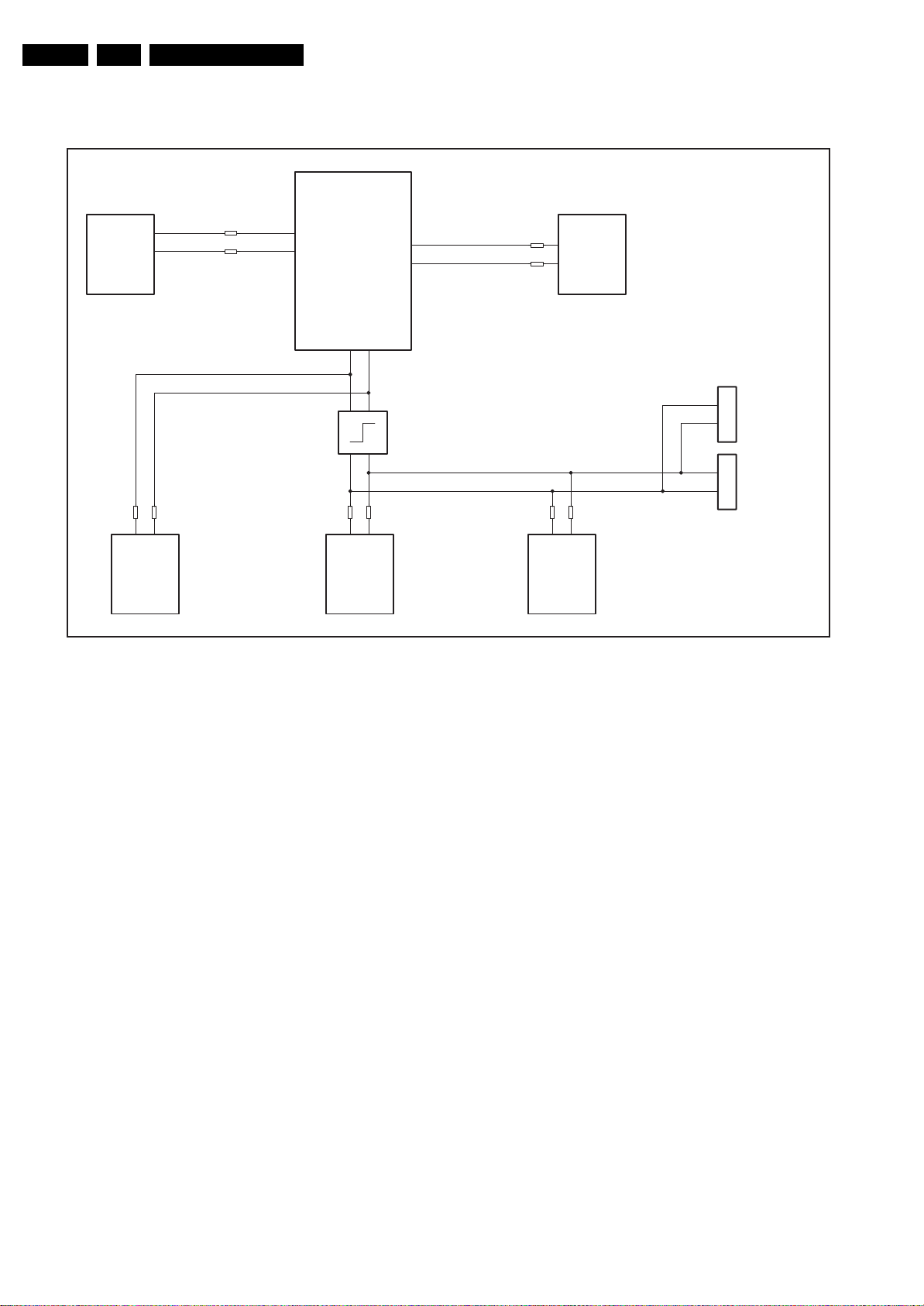

Main I2C Diagram 18

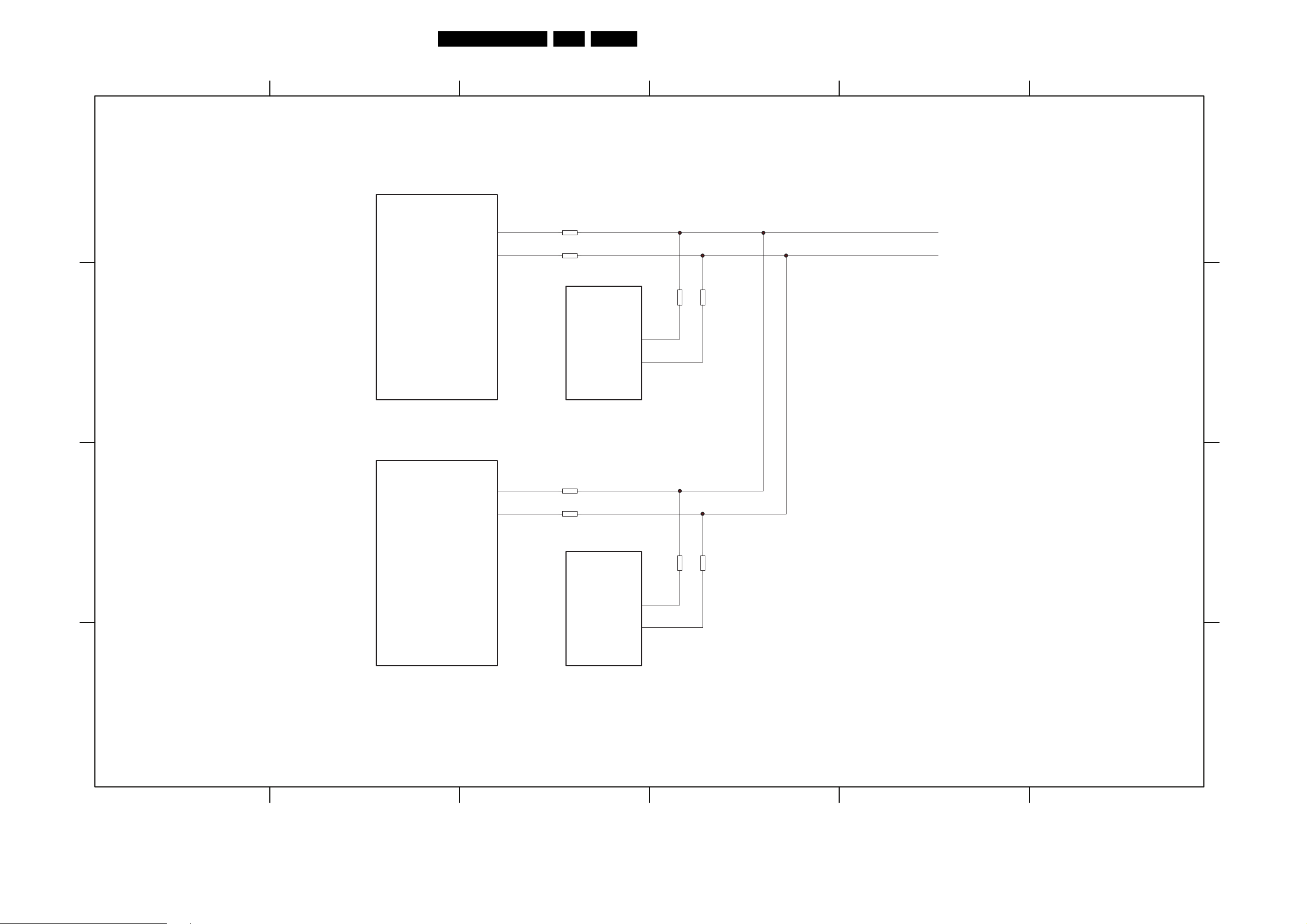

Tuner I2C Diagram 19

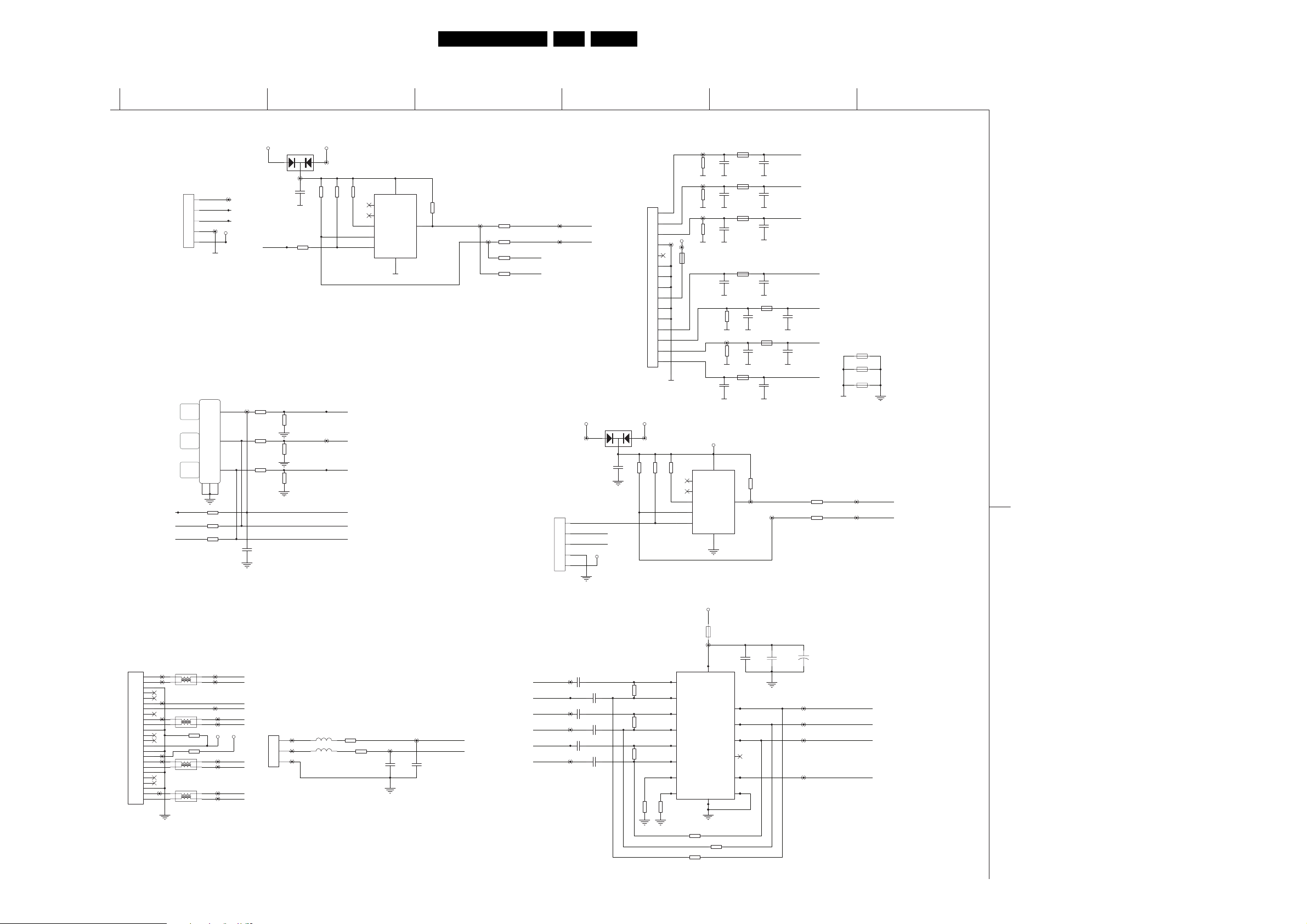

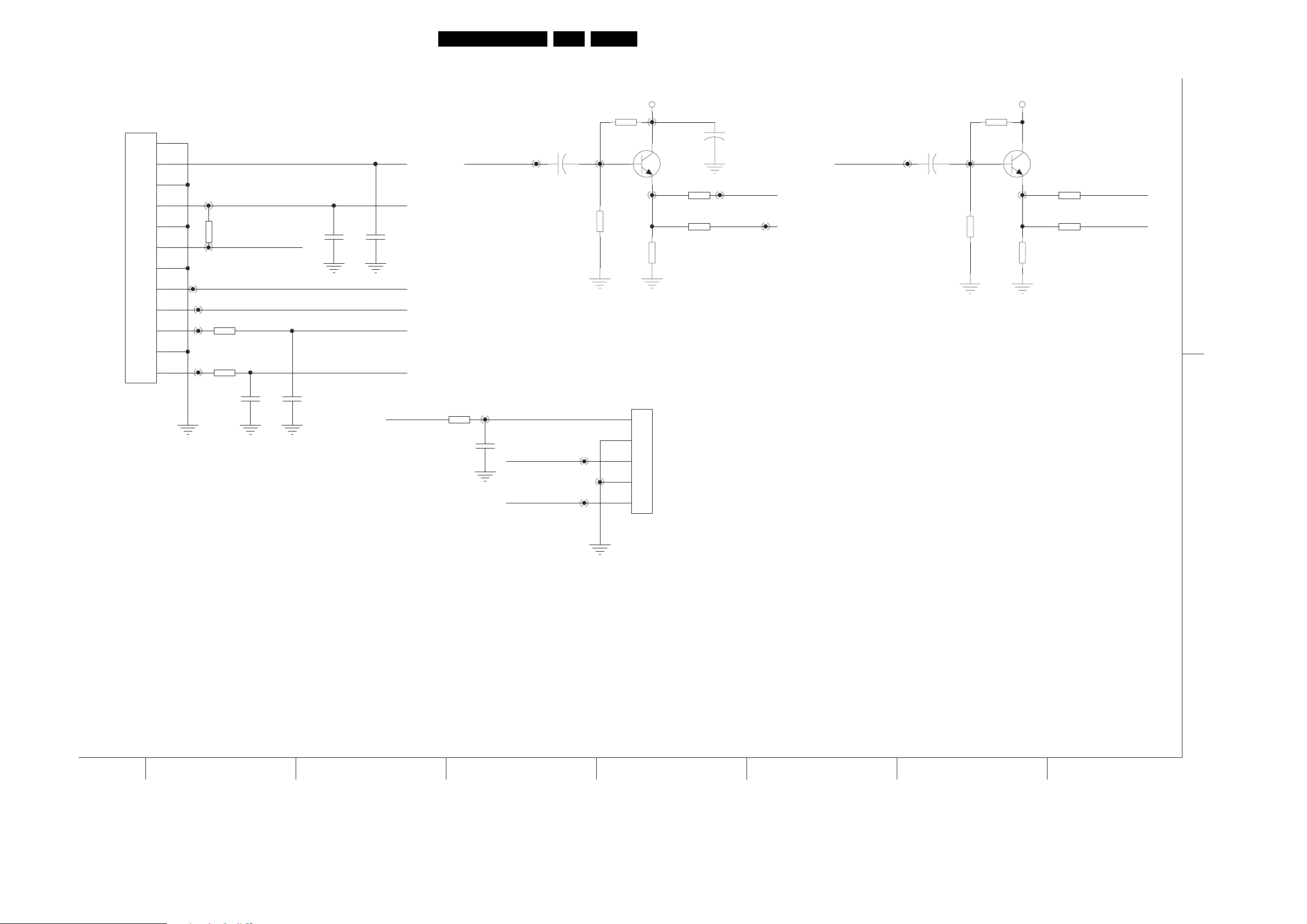

7. Circuit Diagrams and PWB Layouts Diagram PWB

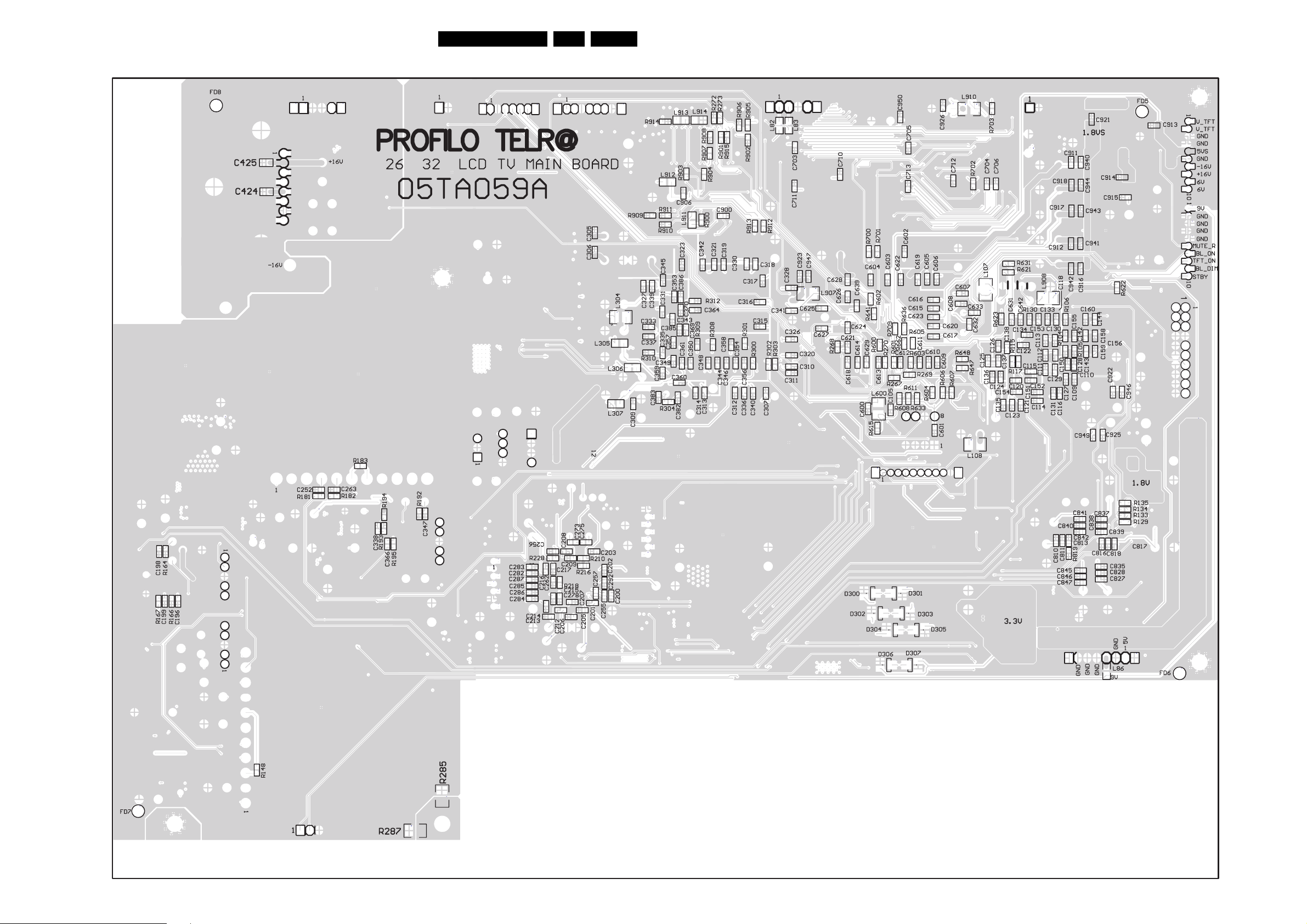

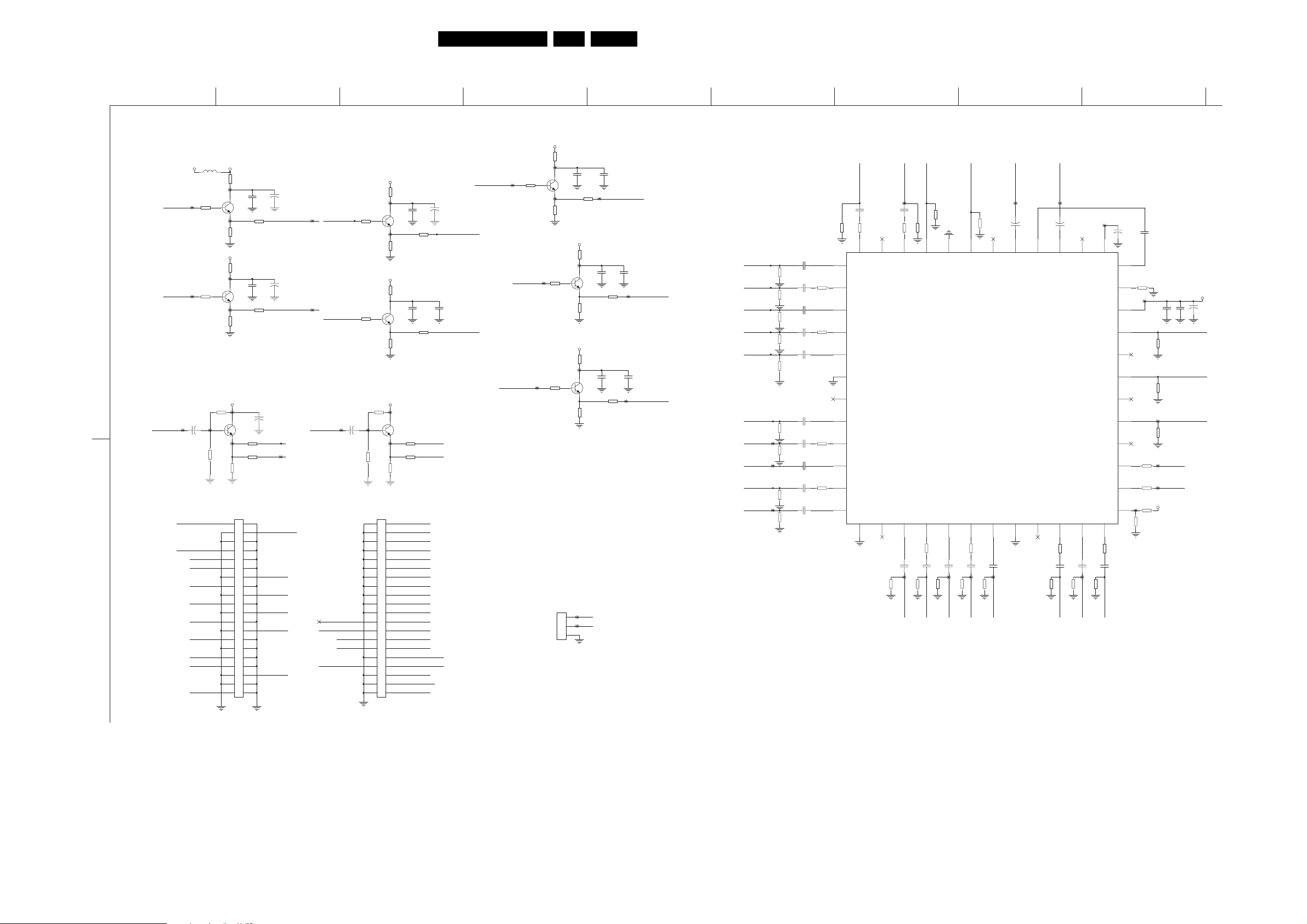

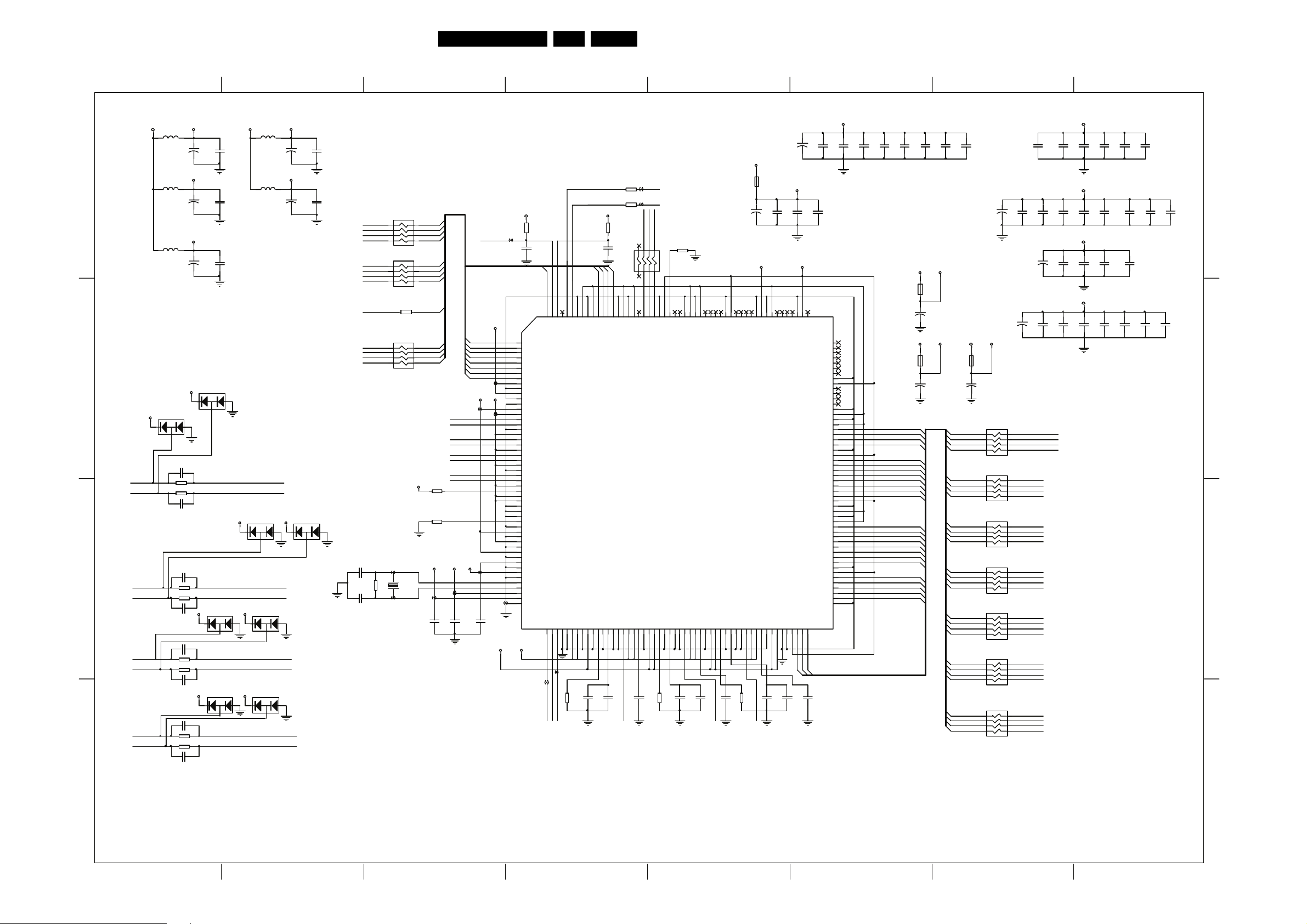

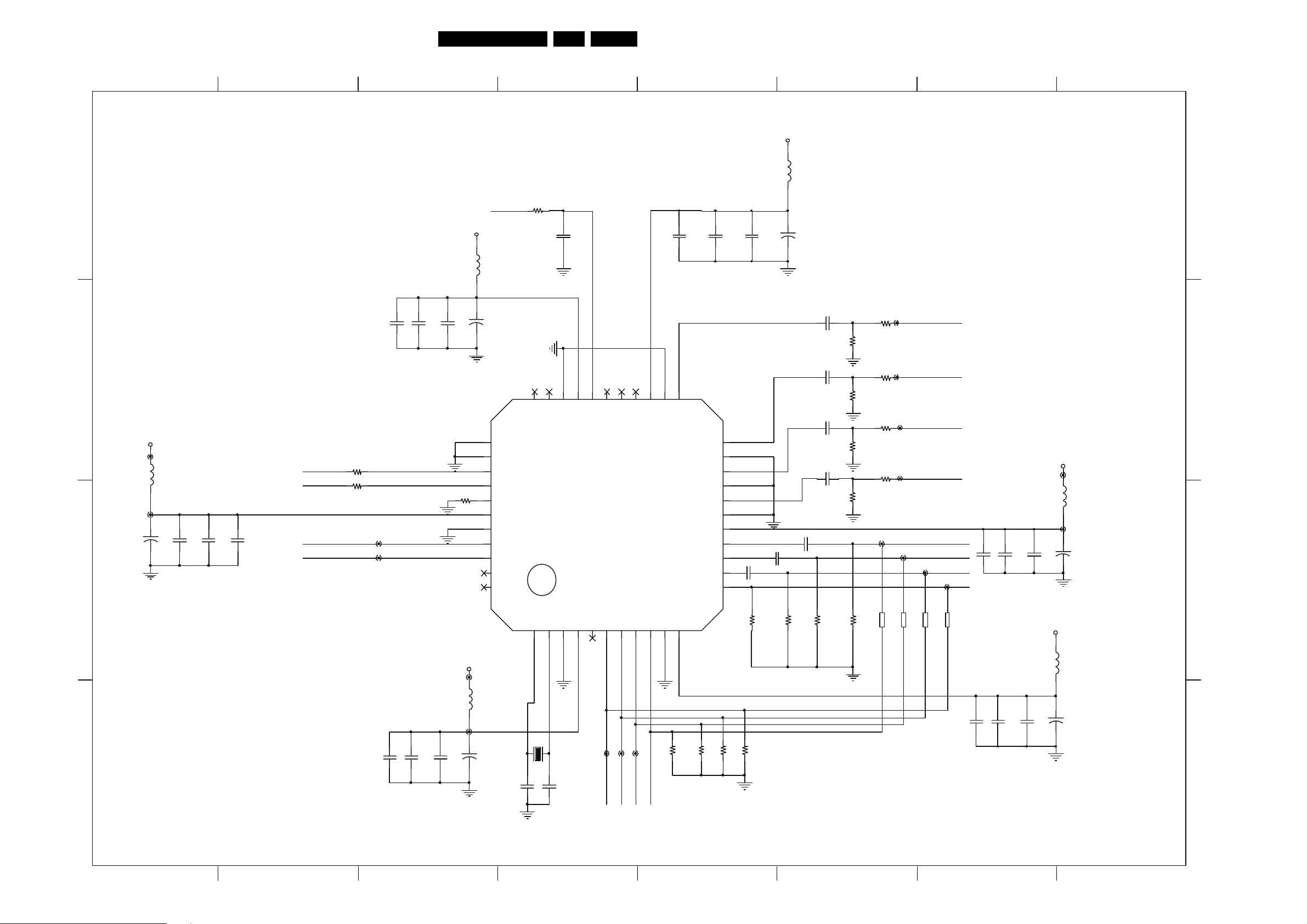

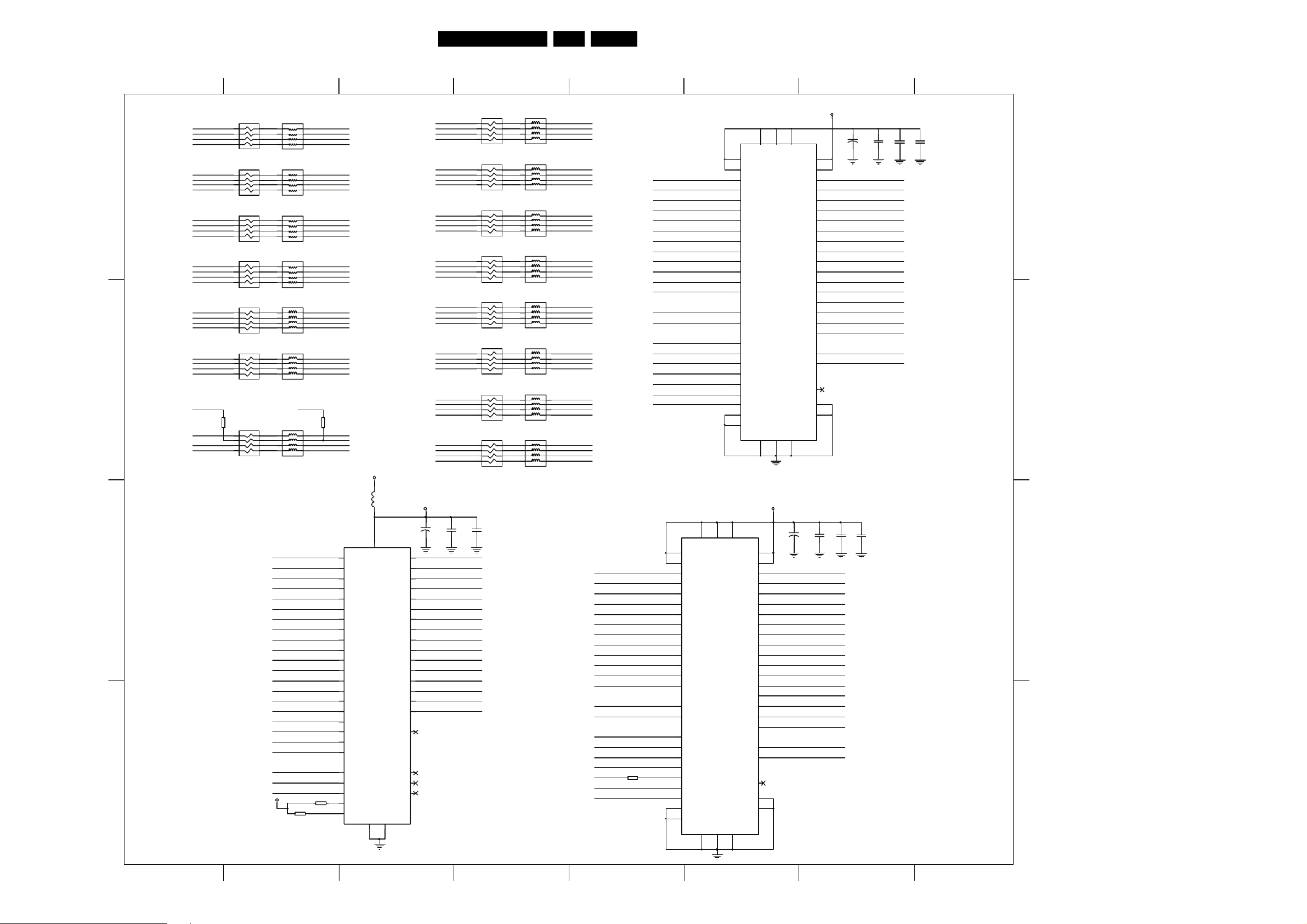

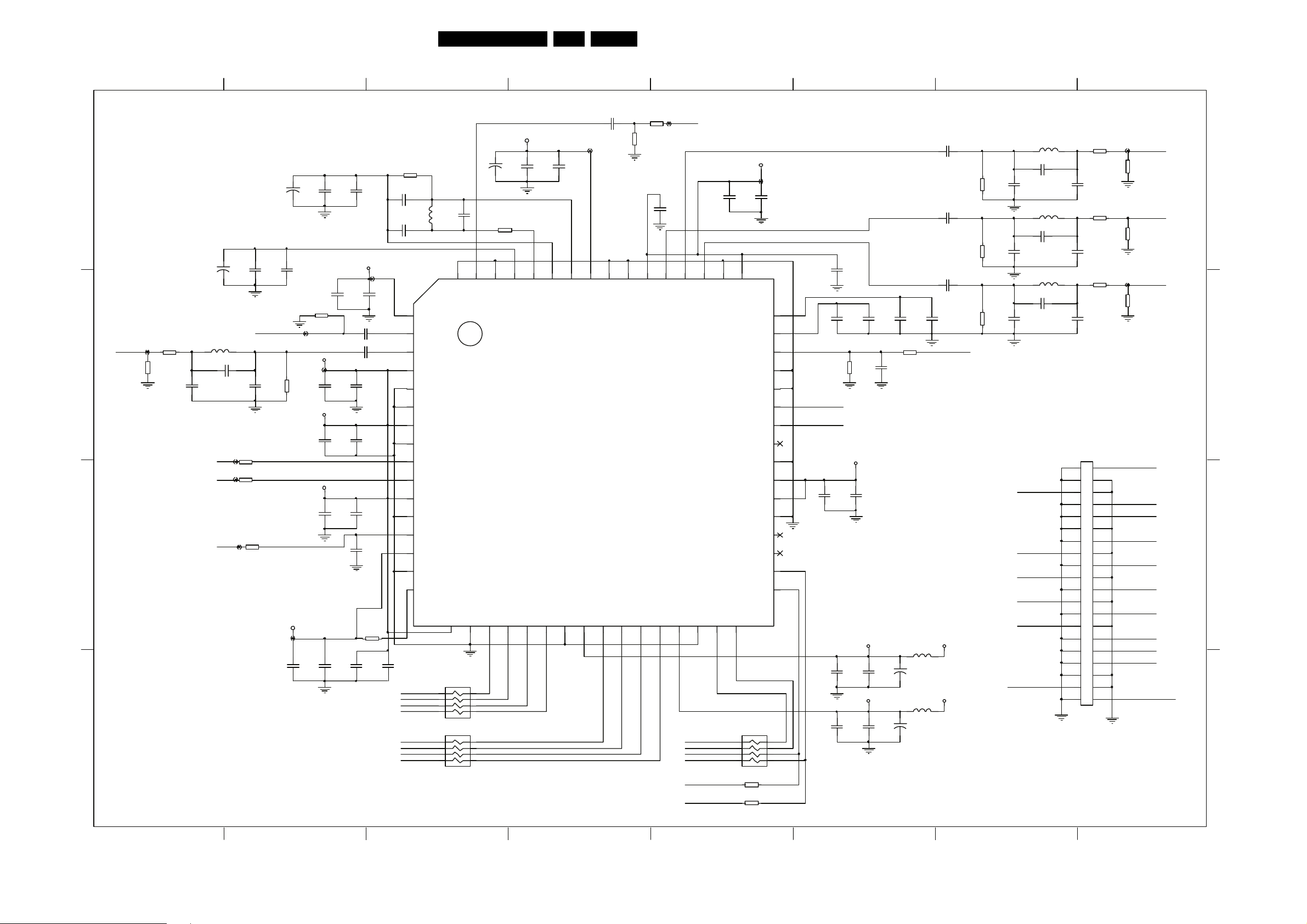

Main Board 20-29 30-31

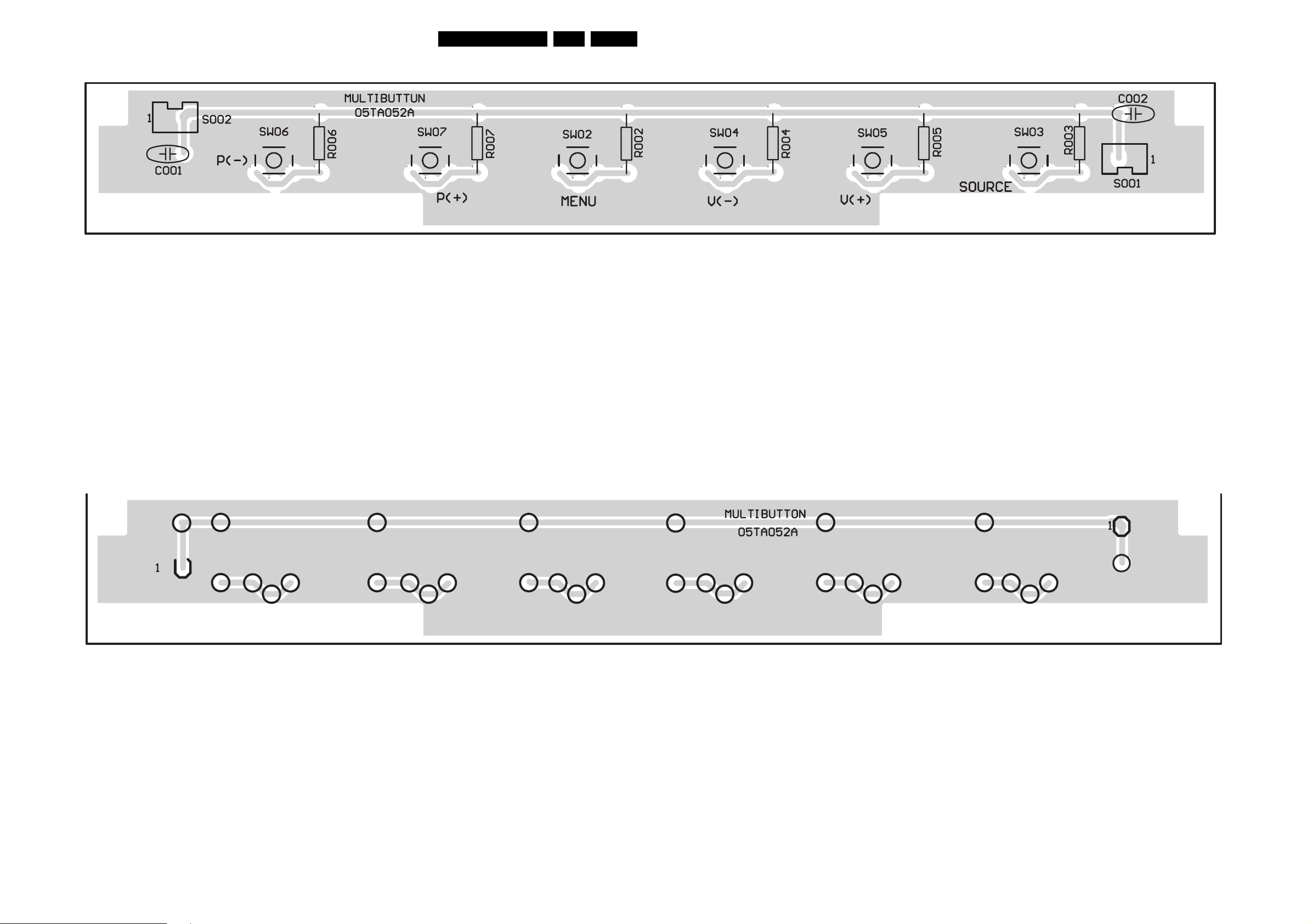

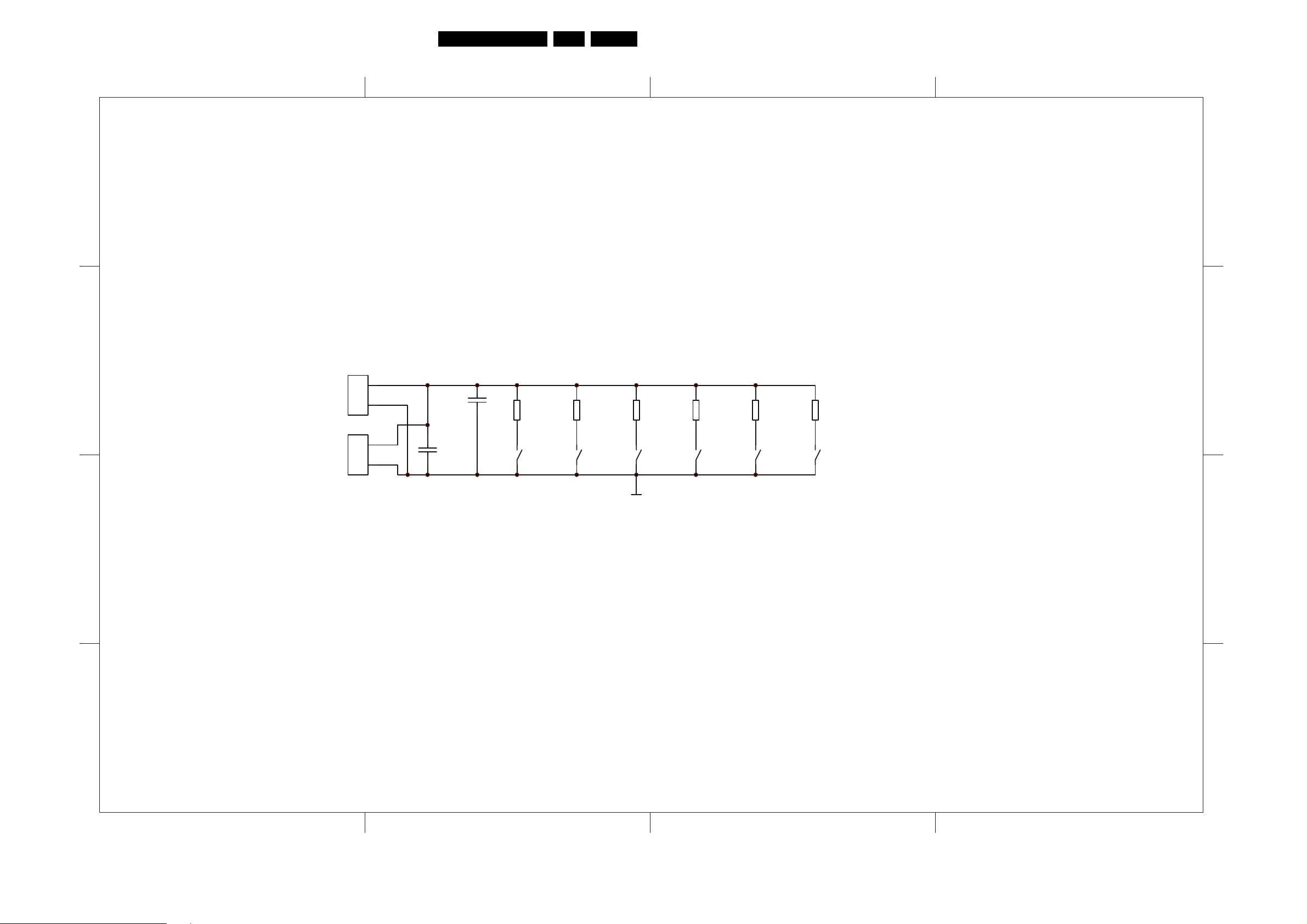

Control Board 32 33

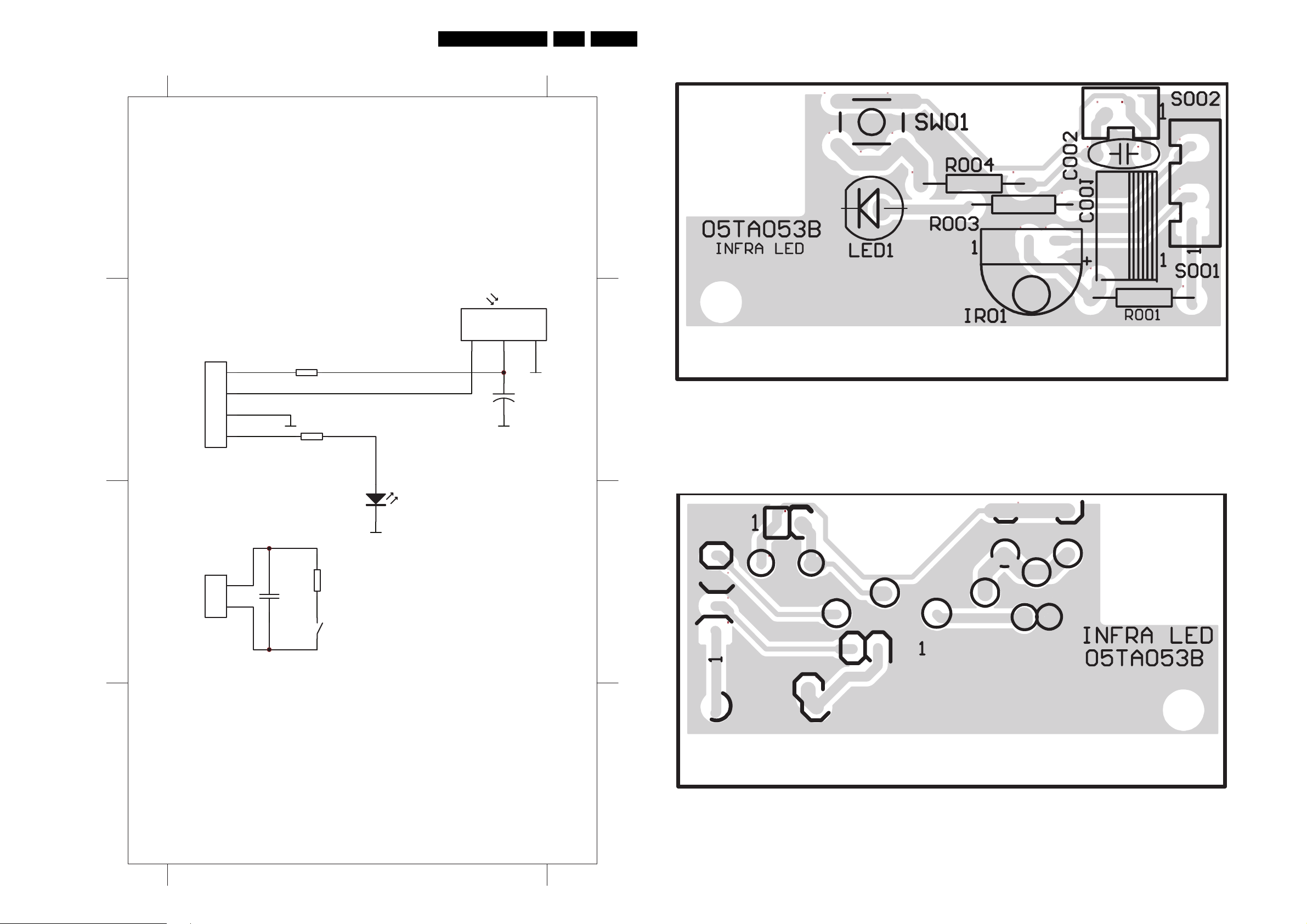

IR & LED Board 34 35

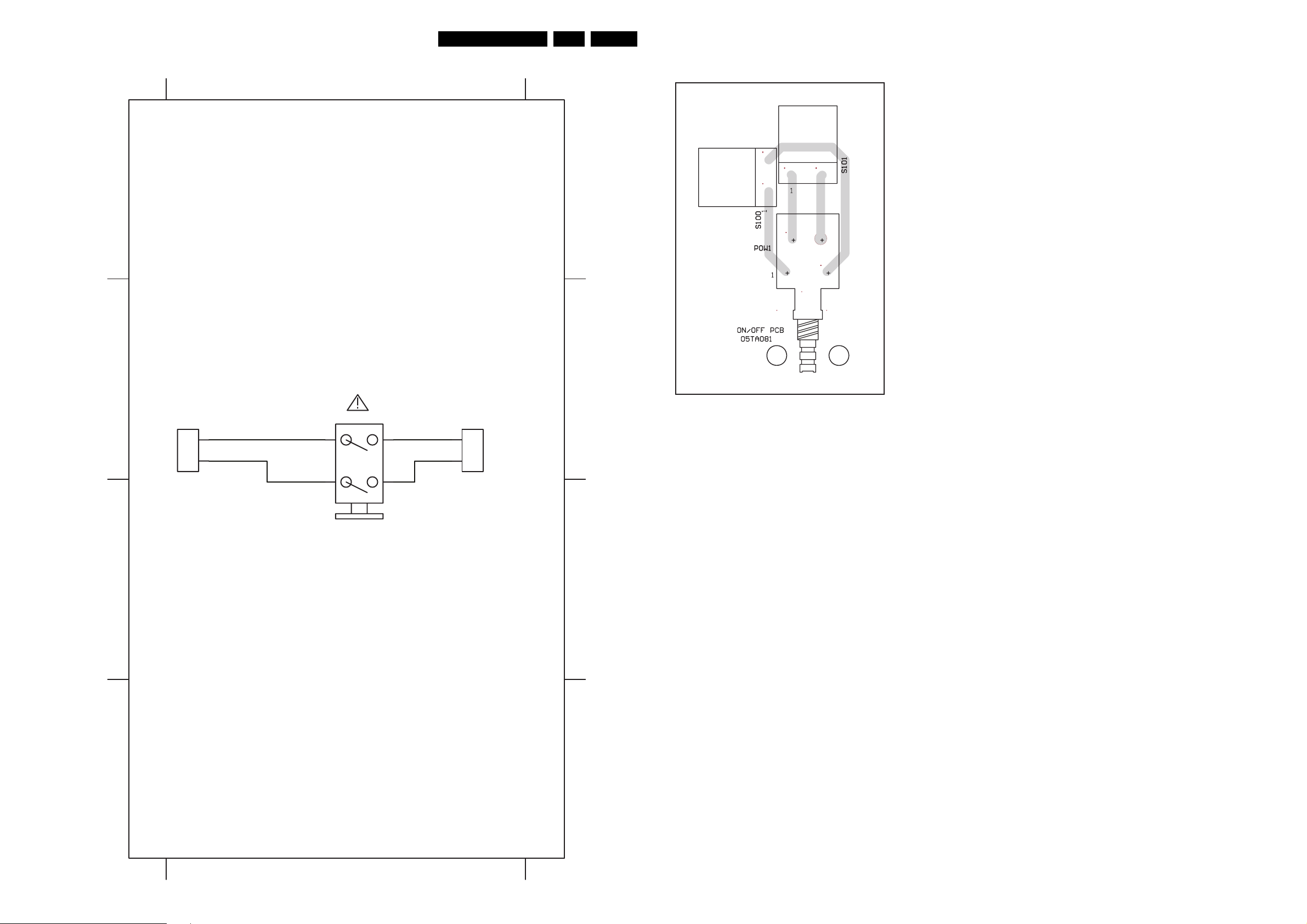

Mains Switch Board 36 37

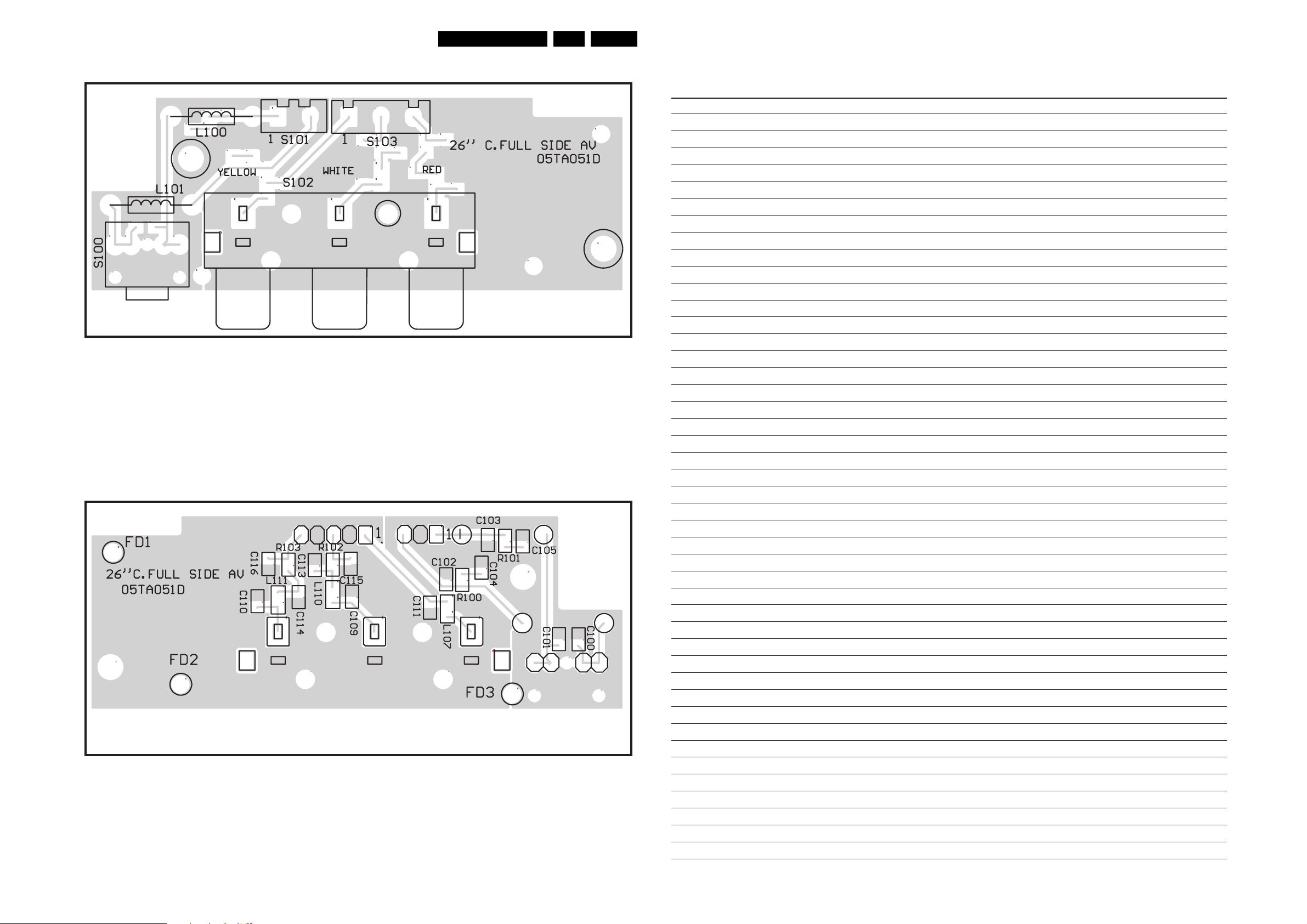

Side I/O Board 38 39

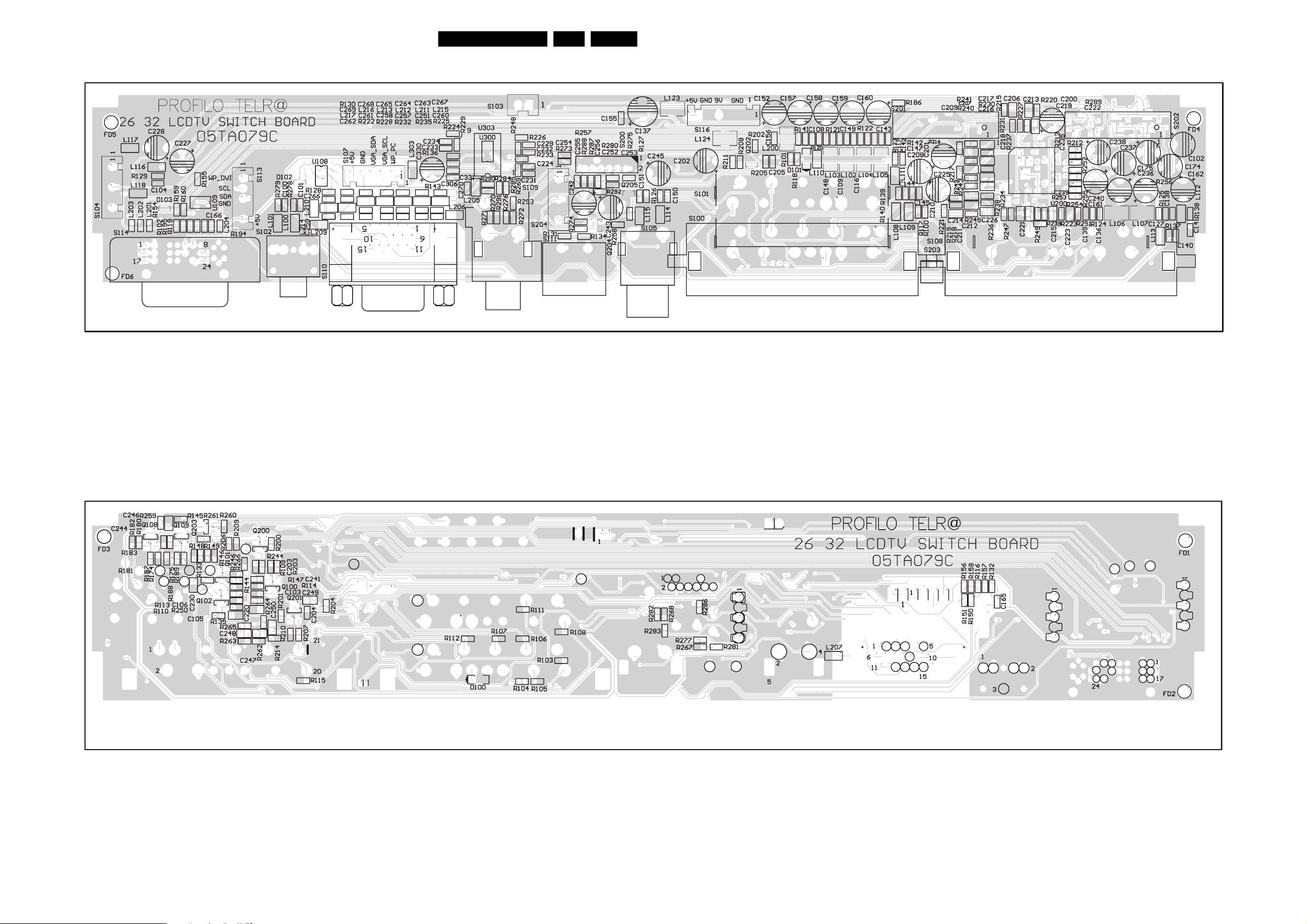

Switch Board 40 41

8. Alignments 43

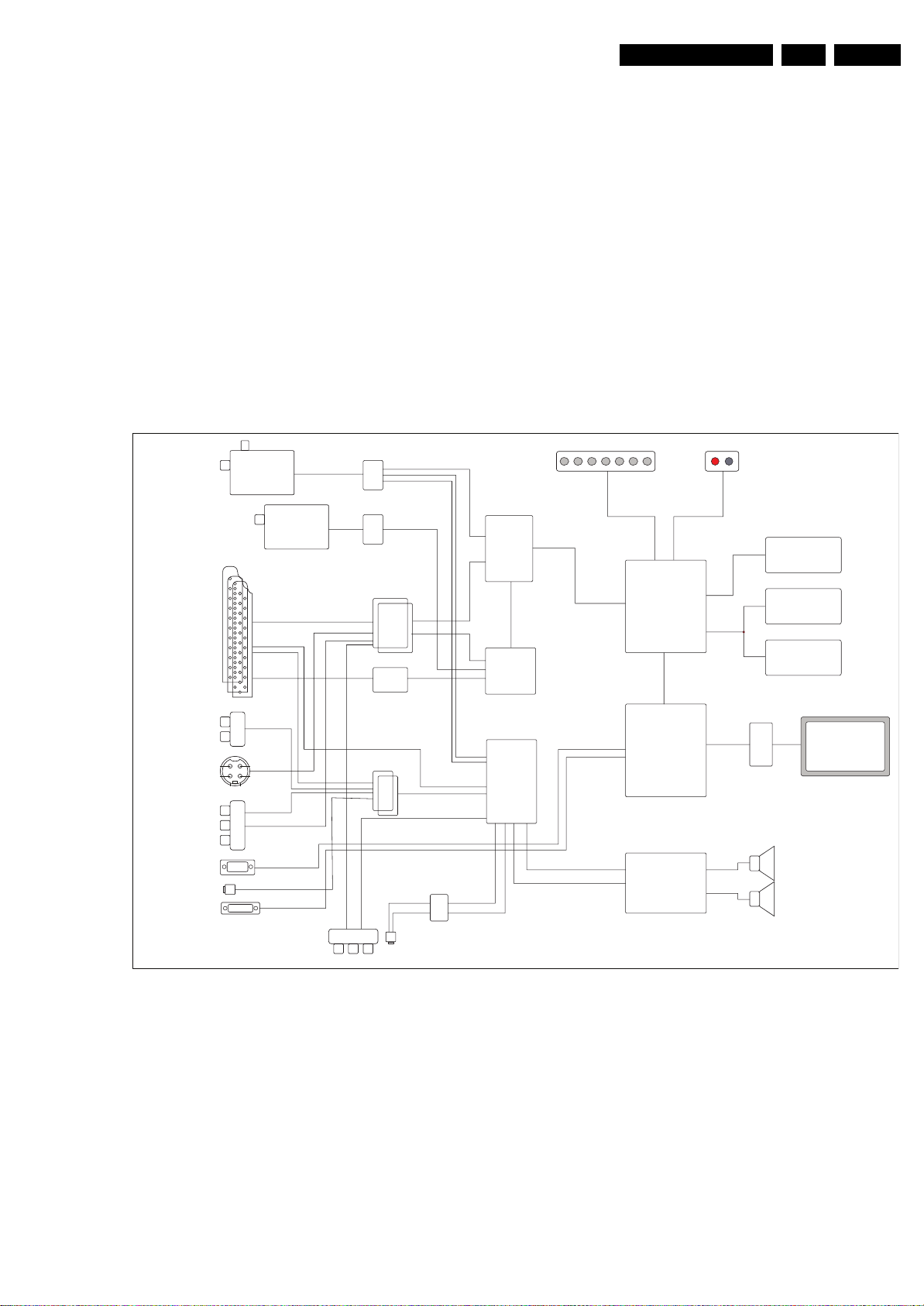

9. Circuit Descriptions, Abbreviation List, and IC Data
Sheets 45
Abbreviation List 46

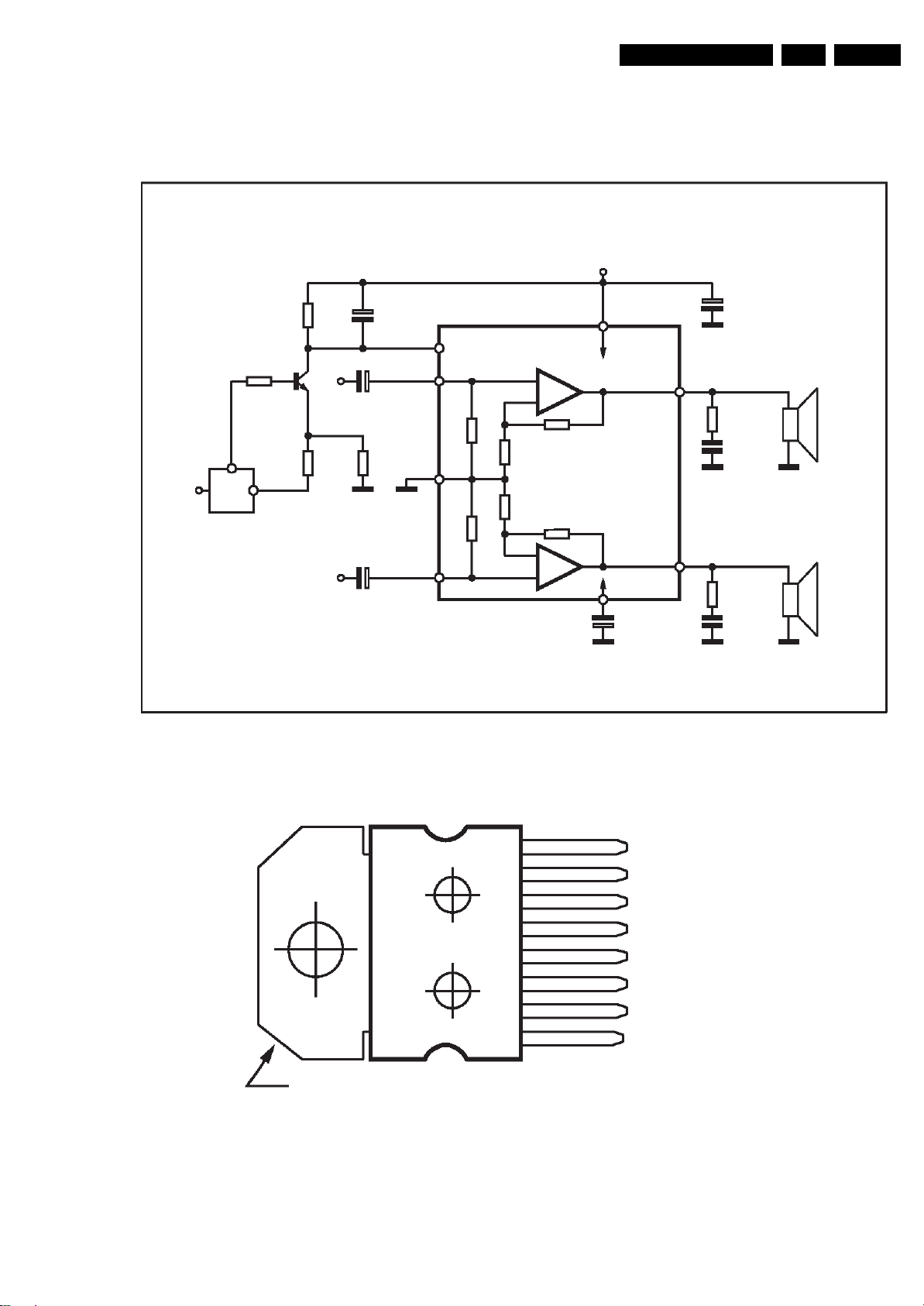

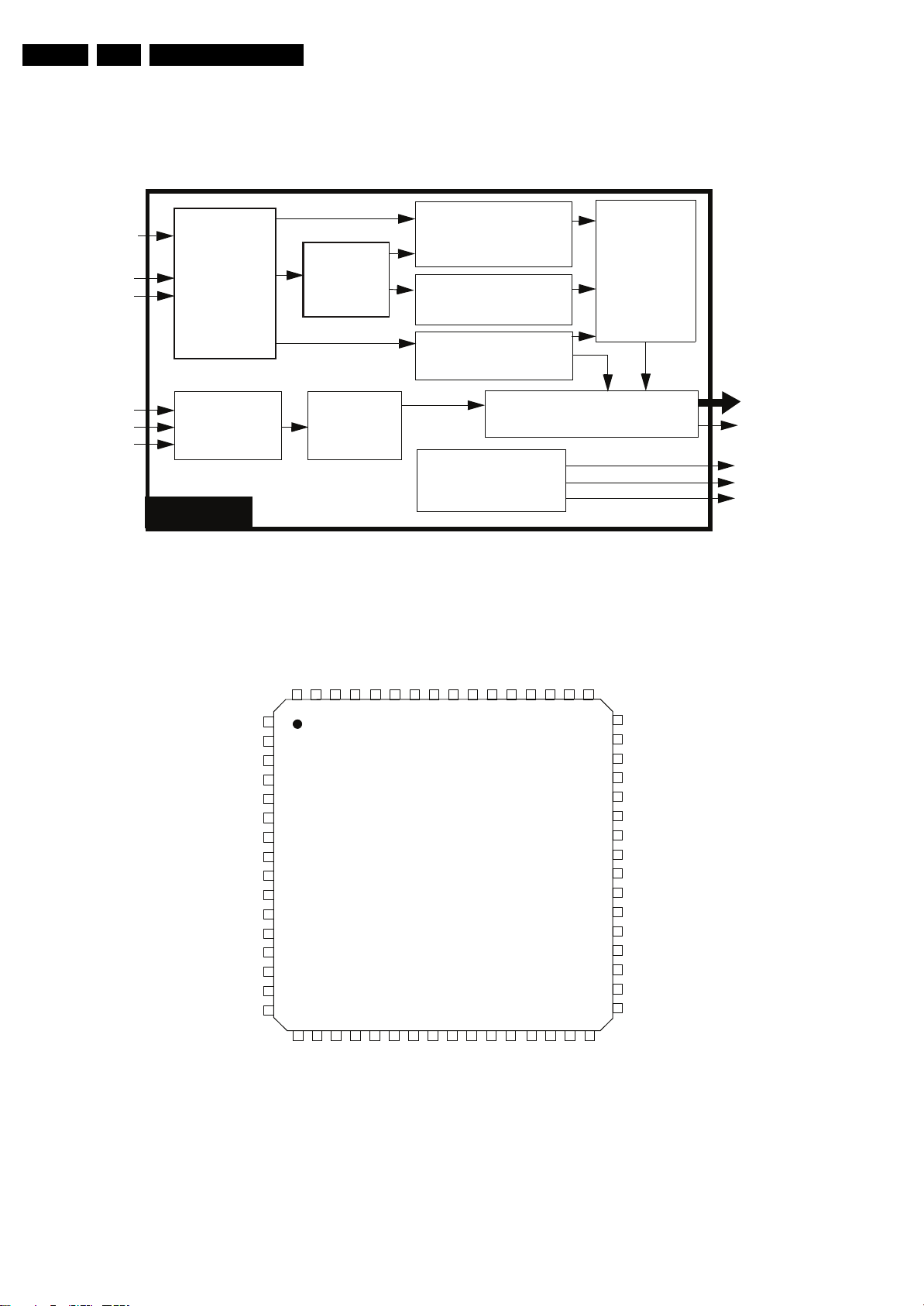

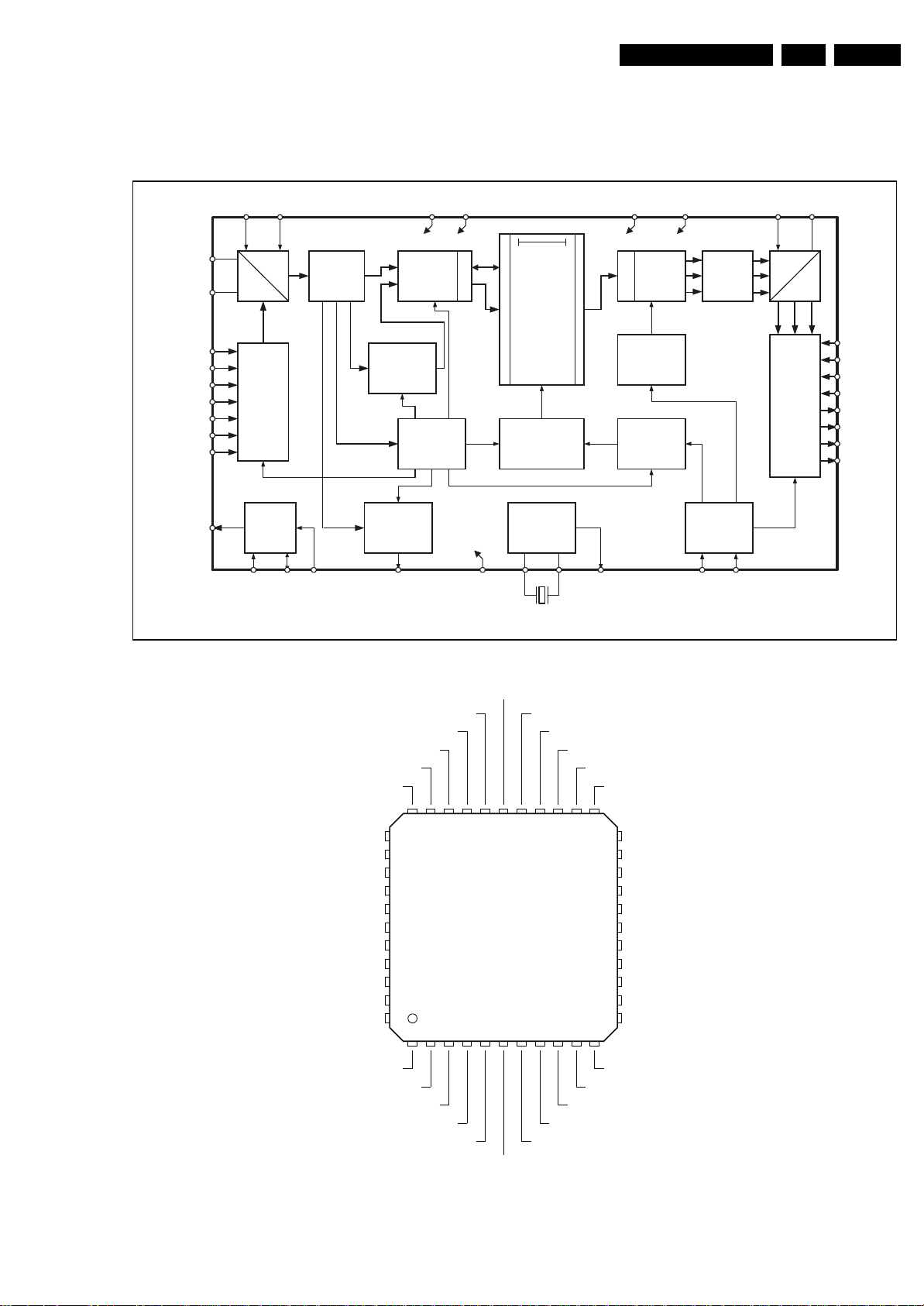

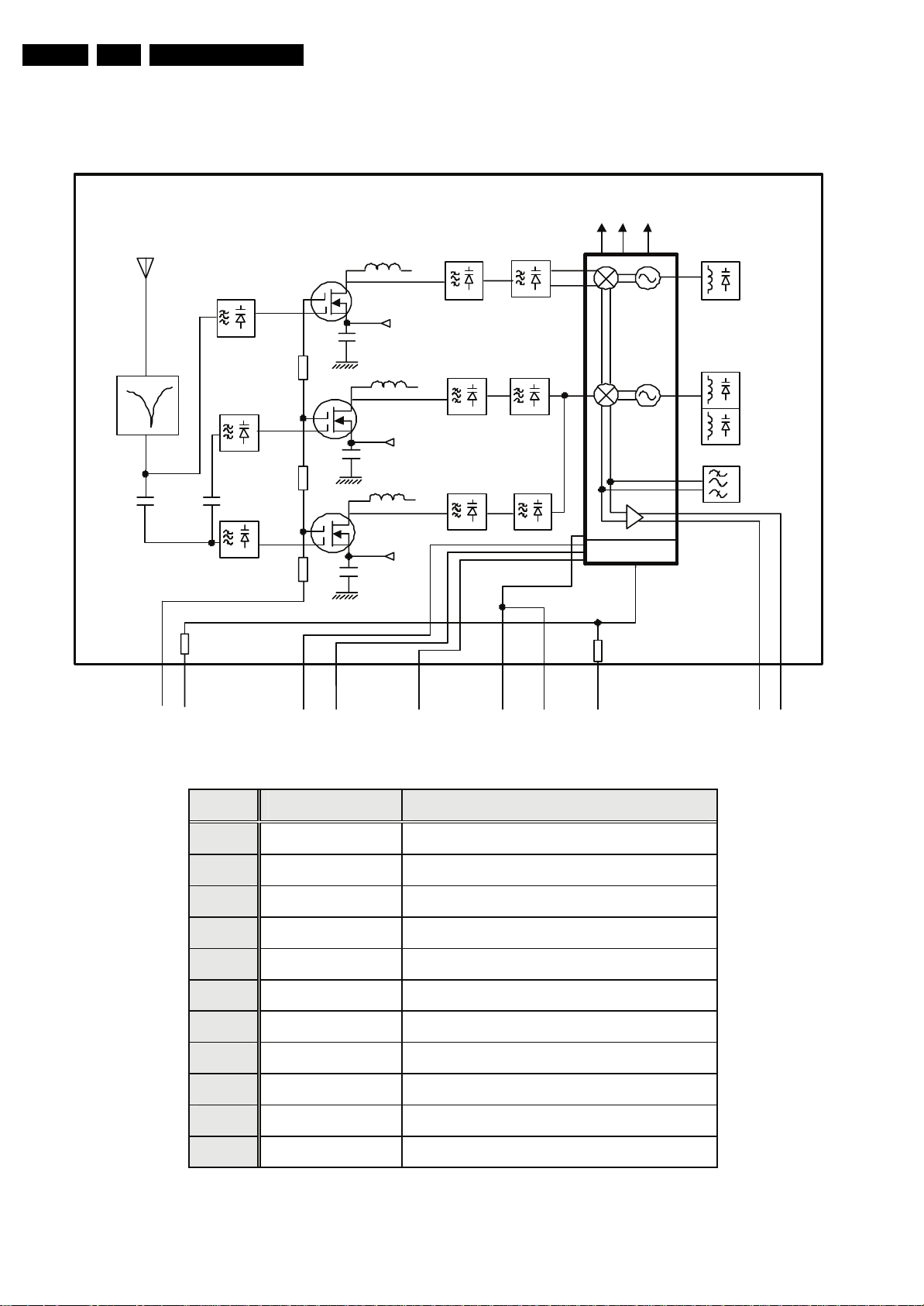

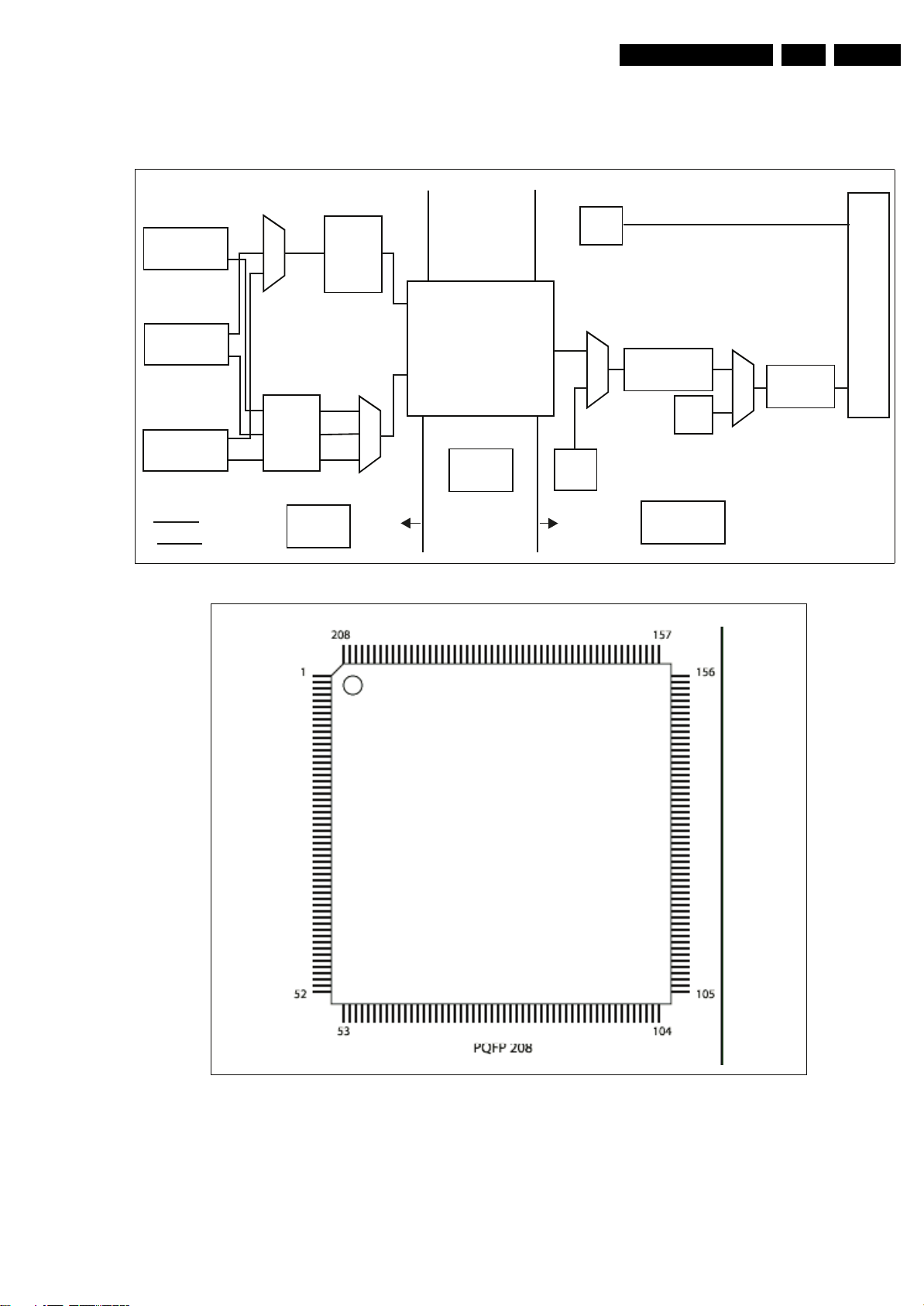

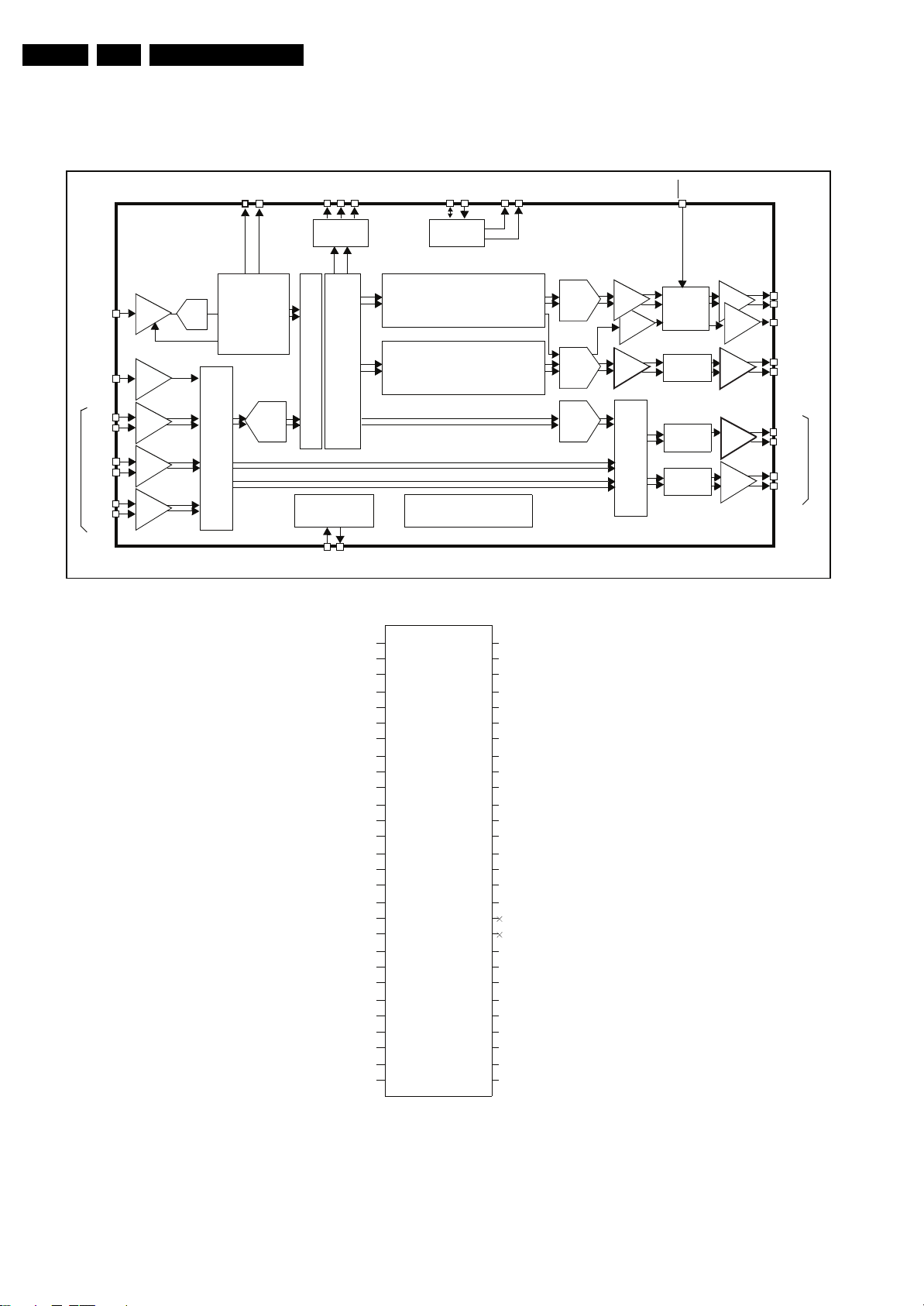

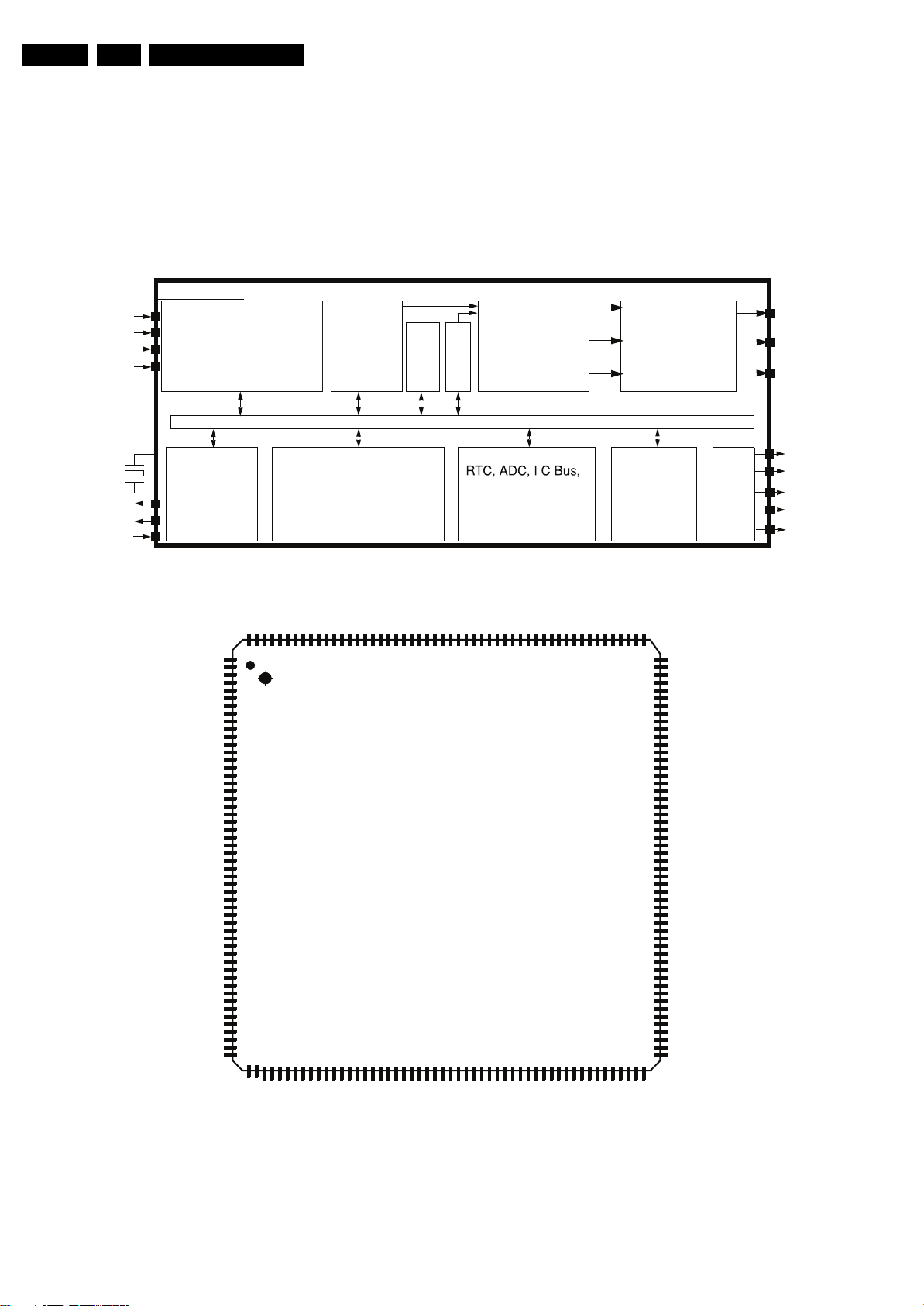

IC Data Sheets 48

10. Spare Parts List 57

11. Revision List 75

©

Copyright 2006 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.

Published by JH 0671 BG CD Customer Service Printed in the Netherlands Subject to modification EN 3122 785 16510

EN 2 TES1.0E LA1.

Technical Specifications, Connections, and Chassis Overview

1. Technical Specifications, Connections, and Chassis Overview

Index of this chapter:

1.1 Technical Specifications

1.2 Connection Overview

1.3 Chassis Overview

Notes:

• Figures can deviate due to the different set executions.

• Specifications are indicative (subject to change).

1.1 Technical Specifications

G_16510_007.eps

161106

1.1.1 Vision

Display type : LCD
Screen size : 26” (66 cm), 16 : 9

: 32” (81 cm), 16 : 9
Resolution : 1366 x 768p
Viewing angle : 176 / 176
Brightness : 500 cd/m
Contrast ratio : 800 : 1
Response time : 8 ms
Tuning system : PLL
TV Colour systems : PAL B/G, D/K, I

: SECAM B/G, D/K, L/L’
Video playback : NTSC M/N 3.58, 4.43
Presets/channels : 200 presets
Tuner bands : VHF

: UHF

: Hyper-band (S1-S41)

1.1.2 Sound

Sound systems : A2/Nicam/A2+Nicam
Equalizer : 5-band graphic

equalizer
Sound effects : Spatial stereo
Maximum power (W

):2 x 8

RMS

1.1.3 Miscellaneous

Power supply:

- Mains voltage (V

- Mains frequency (Hz) : 50 - 60

) : 90 - 264

AC

Ambient conditions:

- Temperature range (°C) : 5 to +40

- Maximum humidity : 99% R.H.

Power consumption (values are indicative):

- Normal operation (W) : 100 (26”), 130 (32”)

- Stand-by (W) : < 3

Dimensions incl. stand (W x H x D, in mm):

- 26PF1000/62 : 825 x 486 x 207

- 32PF1000/62 : 985 x 546 x 213

1.2 Connection Overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, and Ye= Yellow.

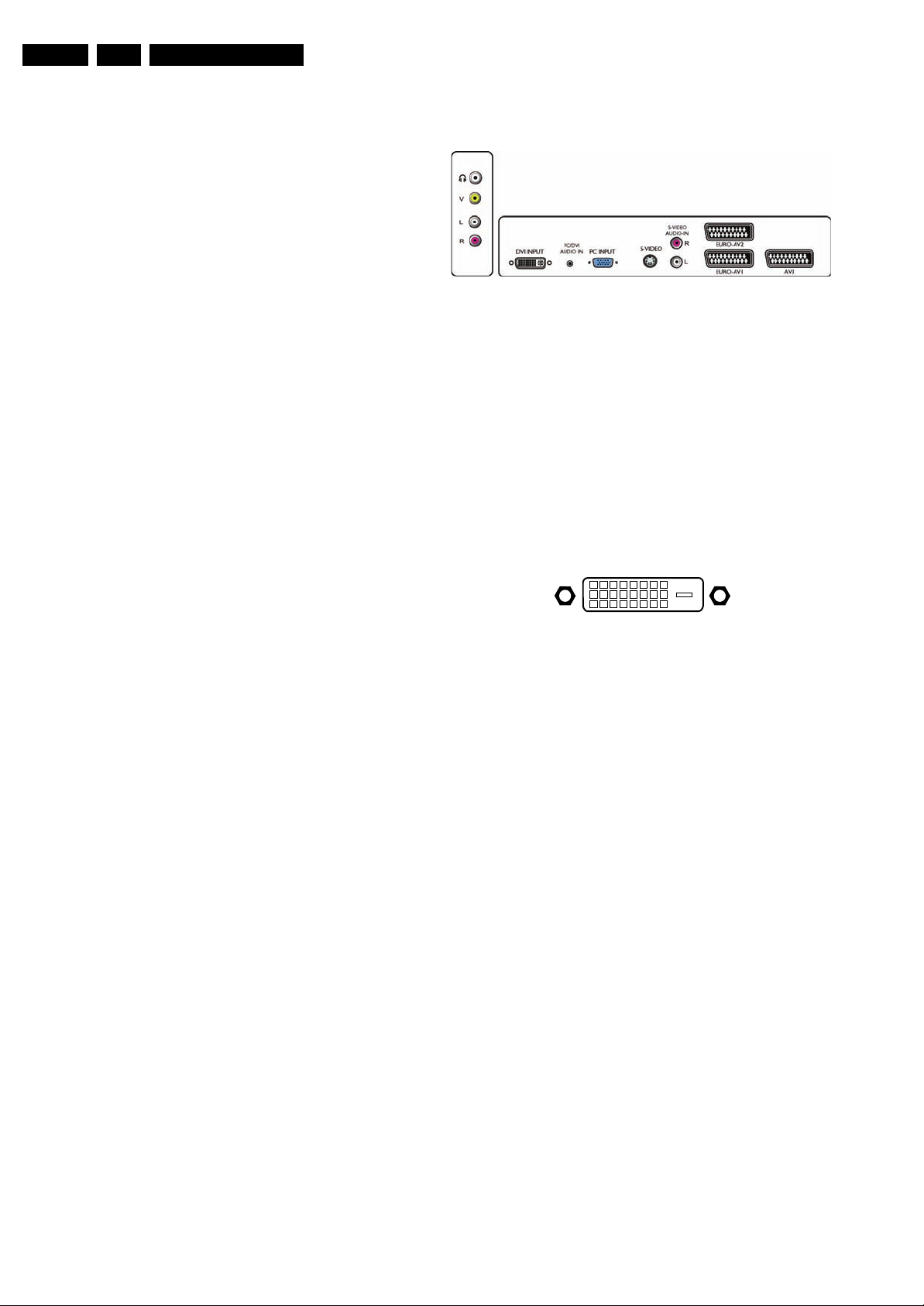

Figure 1-1 Connection overview

1.2.1 Side Connections

Mini Jack: Audio Head phone - Out

Bk - Head phone 32 - 600 ohm / 10 mW ot

2

Cinch: Video CVBS - In, Audio - In

Ye -Video CVBS 1 V
Wh - Audio L 0.5 V
Rd - Audio R 0.5 V

/ 75 ohm jq

PP

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

1.2.2 Rear Connections

DVI-D: Digital Video - In

18
916

17

C5

24

E_06532_003.eps

050404

Figure 1-2 DVI-D connector

1-RX2- j
2-RX2+ j
3 -GND Gnd H
4 -GND Gnd H
5 -GND Gnd H
6 -DDC_SCL DDC clock k
7 -DDC_SDA DDC data jk
8 -GND Gnd H
9-RX1- j
10 - RX1+ j
11 - GND Gnd H
12 - GND Gnd H
13 - GND Gnd j
14 - +5V j
15 - DVI-D self test
16 - +5V Hot Plug Detect j
17 - RX0- j
18 - RX0+ j
19 - GND Gnd H
20 - GND- Gnd H
21 - GND Gnd H
22 - GND Gnd H
23 - RXC+ j
24 - RXC j

Mini Jack: PC/DVI Audio - In

Wh - Audio L 0.5 V
Rd - Audio R 0.5 V

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

Technical Specifications, Connections, and Chassis Overview

EN 3TES1.0E LA 1.

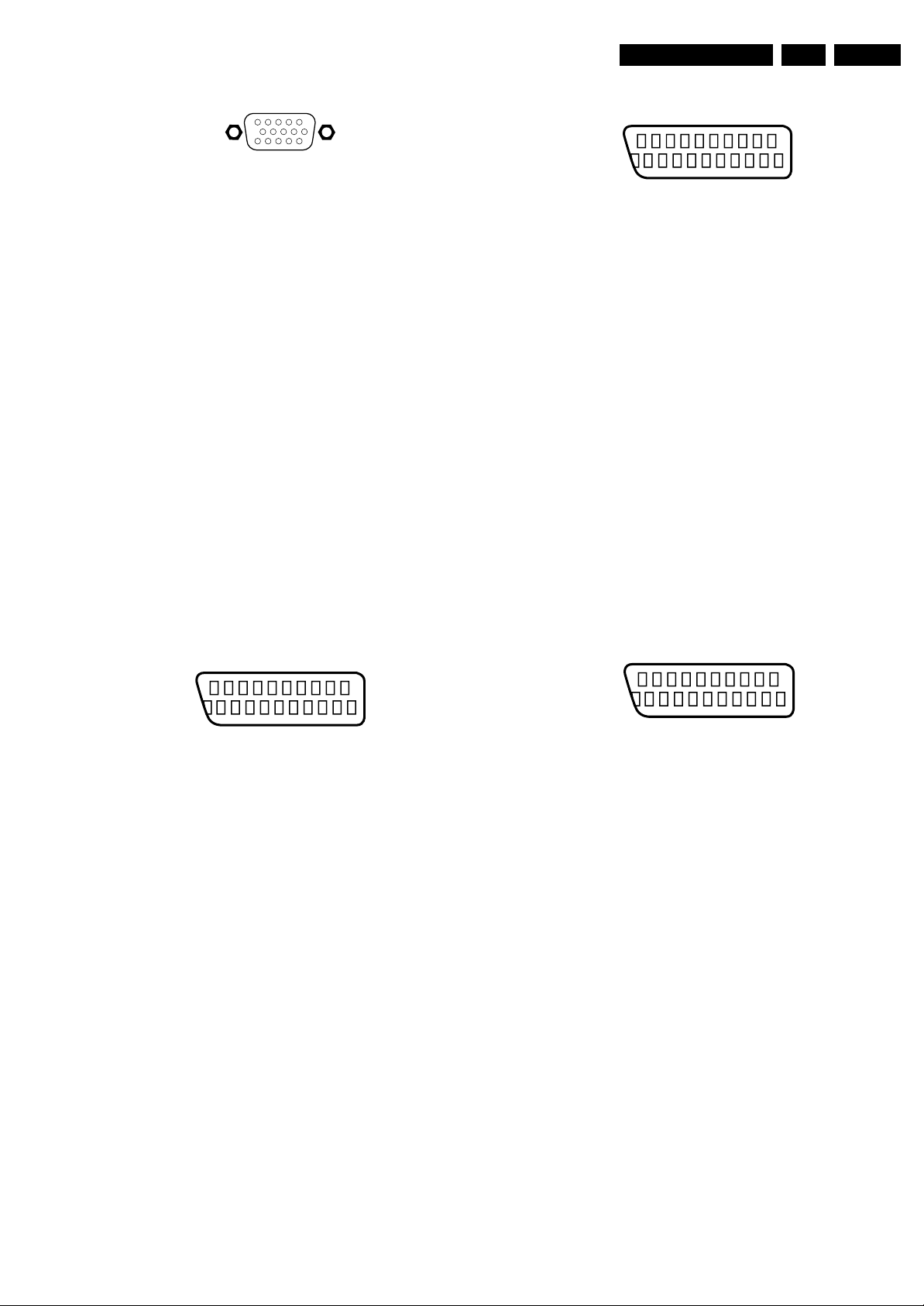

VGA: Video RGB - In

1

5

6

11

10

15

E_06532_002.eps

050404

Figure 1-3 VGA Connector

1 -Video Red 0.7 V
2 -Video Green 0.7 V
3 -Video Blue 0.7 V
4 -Self test.

/ 75 ohm j

PP

/ 75 ohm j

PP

/ 75 ohm j

PP

5 -DDC return
6 -Ground Red Gnd H
7 -Ground Green Gnd H
8 -Ground Blue Gnd H
9-+5V
10 - Ground Sync Gnd H

Supply of DDC circuit j

DC

11 - GND GND H
12 - DDC_SDA DDC data j
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL DDC clock j

S-Video (Hosiden): Video Y/C - In

1 -Ground Y Gnd H
2 -Ground C Gnd H
3 - Video Y 1 V
4 - Video C 0.3 V

/ 75 ohm j

PP

P / 75 ohm j

PP

Cinch: S-Video Audio - In

Wh - Audio L 0.5 V
Rd - Audio R 0.5 V

/ 10 kohm jq

RMS

/ 10 kohm jq

RMS

EXT1: AV + RGB

20

2

EXT2: AV + opt. RGB

21

20

E_06532_001.eps

2

1

050404

Figure 1-5 SCART connector EXT2

1 - Audio R 0.5 V
2 - Audio R 0.5 V
3 - Audio L 0.5 V
4 - Ground Gnd (audio) H

/ 1 kohm k

RMS

/ 10 kohm j

RMS

/ 1 kohm k

RMS

5 - Ground Gnd H
6 - Audio L 0.5 V
7 - Video Blue 0.7 V
8 - Function Select 0 - 2 V: INT

/ 10 kohm j

RMS

/ 75 ohm j

PP

4.5 - 12 V: EXT 4:3 j

9 - Ground Gnd H
10 - Res. Clock signals
11 - Video Green 0.7 V
12 - Res. Remote control

/ 75 ohm j

PP

13 - Ground Gnd H
14 - Ground Gnd (switch RGB) H
15 - Video Red 0.7 V
16 - Switch RGB j

/ 75 ohm j

PP

17 - Ground Gnd (video) H
18 - Ground Gnd (video out) H
19 - Video out 1 V
20 - Video in 1 V
21 - Shield Gnd H

/ 75 ohm k

PP

/ 75 ohm j

PP

EXT3: AV + opt. RGB + opt. S-Video

20

2

21

E_06532_001.eps

1

050404

Figure 1-4 SCART connector EXT1

1 - Audio R 0.5 V
2 - Audio R 0.5 V
3 - Audio L 0.5 V

/ 1 kohm k

RMS

/ 10 kohm j

RMS

/ 1 kohm k

RMS

4 - Ground Gnd (audio) H
5 - Ground Gnd H
6 - Audio L 0.5 V
7 - Video Blue 0.7 V
8 - Function Select 0 - 2 V: INT

/ 10 kohm j

RMS

/ 75 ohm j

PP

4.5 - 12 V: EXT 4:3 j

9 - Ground Gnd H
10 - Res. Clock signals
11 - Video Green 0.7 V

/ 75 ohm j

PP

12 - Res. Remote control
13 - Ground Gnd H
14 - Ground Gnd (switch RGB) H
15 - Video Red 0.7 V
16 - Switch RGB j

/ 75 ohm j

PP

17 - Ground Gnd (video) H
18 - Ground Gnd (video out) H
19 - Video out 1 V
20 - Video in 1 V

/ 75 ohm k

PP

/ 75 ohm j

PP

21 - Shield Gnd H

21

E_06532_001.eps

1

050404

Figure 1-6 SCART connector EXT3

1 - Audio R 0.5 V
2 - Audio R 0.5 V
3 - Audio L 0.5 V
4 - Ground Gnd (audio) H

/ 1 kohm k

RMS

/ 10 kohm j

RMS

/ 1 kohm k

RMS

5 - Ground Gnd H
6 - Audio L 0.5 V
7 - Video Blue 0.7 V

/ 10 kohm j

RMS

/ 75 ohm j

PP

8 - Function Select 0 - 2 V: INT

4.5 - 12 V: EXT 4:3 j

9 - Ground Gnd H
10 - Res. Clock signals
11 - Video Green 0.7 V
12 - Res. Remote control

/ 75 ohm j

PP

13 - Ground Gnd H
14 - Ground Gnd (switch RGB) H
15 - Video Red 0.7 V

/ 75 ohm j

PP

16 - Switch RGB j
17 - Ground Gnd (video) H
18 - Ground Gnd (video out) H
19 - Video out 1 V
20 - Video in 1 V
21 - Shield Gnd H

/ 75 ohm k

PP

/ 75 ohm j

PP

Aerial - In

- - IEC-type Coax, 75 ohm D

EN 4 TES1.0E LA1.

1.3 Chassis Overview

KEYBOARD CONTROL

MAINS SWITCH

POWER SUPPLY

SIDE I/O BOARD

Technical Specifications, Connections, and Chassis Overview

MAIN BOARD

IR & LED BOARD

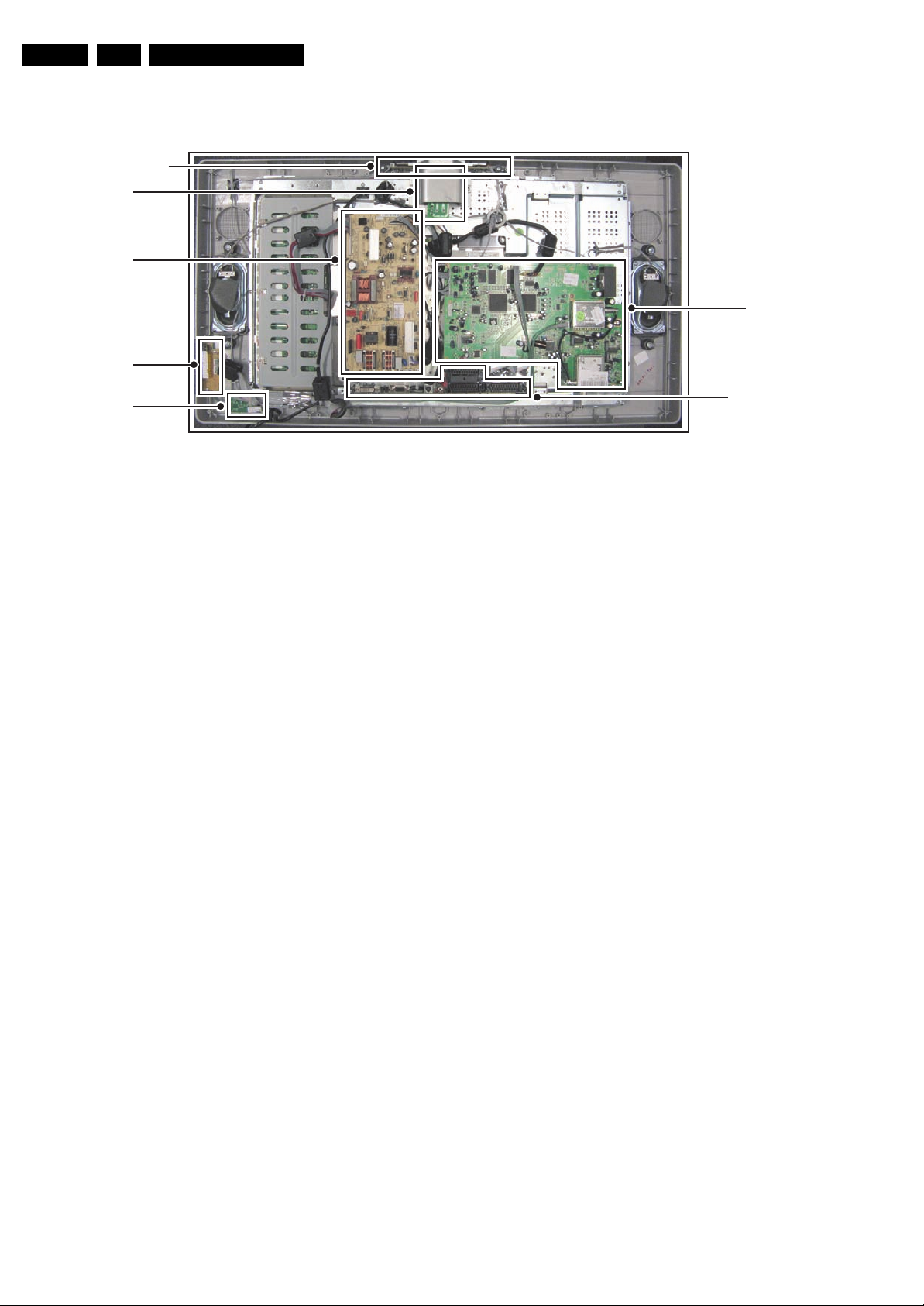

Figure 1-7 PWB locations

SWITCH BOARD

G_16510_012.eps

221106

Safety Instructions, Warnings, and Notes

2. Safety Instructions, Warnings, and Notes

EN 5TES1.0E LA 2.

Index of this chapter:

2.1 Safety Instructions

2.2 Warnings

2.3 Notes

2.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation
transformer (> 800 VA).

• Replace safety components, indicated by the symbol h,
only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:

• Route the wire trees correctly and fix them with the
mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for
external damage.

• Check the strain relief of the Mains/AC Power cord for
proper function.

• Check the electrical DC resistance between the Mains/AC
Power plug and the secondary side (only for sets that have
a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the "ON" position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 Mohm and 12 Mohm.

4. Switch "OFF" the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any
inner parts by the customer.

Service Default Mode (see chapter 5) with a colour bar
signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated
otherwise) and picture carrier at 475.25 MHz for PAL, or

61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages

with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.

• The semiconductors indicated in the circuit diagram and in
the parts lists, are interchangeable per position with the
semiconductors in the unit, irrespective of the type
indication on these semiconductors.

• Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the “double-D symbol”, are
trademarks of Dolby Laboratories.

2.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 kohm).

• Resistor values with no multiplier may be indicated with
either an "E" or an "R" (e.g. 220E or 220R indicates 220
ohm).

• All capacitor values are given in micro-farads (μ= x10
nano-farads (n= x10

• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An "asterisk" (*) indicates component usage varies. Refer
to the diversity tables for the correct values.

• The correct component values are listed in the Spare Parts
List. Therefore, always check this list when there is any
doubt.

2.3.3 Lead-free Solder

Philips CE is producing lead-free sets (PBF) from 1.1.2005
onwards.

-9

), or pico-farads (p= x10

-12

-6

),

).

2.2 Warnings

• All ICs and many other semiconductors are susceptible to

electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential. Available
ESD protection equipment:
– Complete kit ESD3 (small tablemat, wristband,

connection box, extension cable and earth cable) 4822
310 10671.

– Wristband tester 4822 344 13999.

• Be careful during measurements in the high voltage
section.

• Never replace modules or other components while the unit
is switched "ON".

• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.

2.3 Notes

2.3.1 General

• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the

Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 5 and 6 refer to the production year, digits
7 and 8 refer to production week (in example below it is 2006
week 17).

MODEL :

PROD.NO:

Regardless of the special lead-free logo (which is not always
indicated), one must treat all sets from this date onwards
according to the rules as described below.

32PF9968/10

AG 1A0617 000001

Figure 2-1 Serial number example

MADE IN BELGIUM

220-240V 50/60Hz

VHF+S+H+UHF

S

~

128W

BJ3.0E LA

E_06532_024.eps

130606

P

b

Figure 2-2 Lead-free logo

Due to lead-free technology some rules have to be respected
by the workshop during a repair:

EN 6 TES1.0E LA2.

Safety Instructions, Warnings, and Notes

• Use only lead-free soldering tin Philips SAC305 with order
code 0622 149 00106. If lead-free solder paste is required,
please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.

• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able:
– To reach a solder-tip temperature of at least 400°C.
– To stabilise the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around
360°C - 380°C is reached and stabilised at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will increase drastically and flux-fluid will be destroyed.
To avoid wear-out of tips, switch “off” unused equipment or
reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If this cannot be avoided, carefully
clear the solder-joint from old tin and re-solder with new tin.

• Use only original spare-parts listed in the Service-Manuals.
Not listed standard material (commodities) has to be
purchased at external companies.

• For sets produced before 1.1.2005, containing leaded
soldering tin and components, all needed spare parts will
be available till the end of the service period. For the repair
of such sets nothing changes.

2.3.6 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.

In case of doubt whether the board is lead-free or not (or with
mixed technologies), you can use the following method:

• Always use the highest temperature to solder, when using
SAC305 (see also instructions below).

• De-solder thoroughly (clean solder joints to avoid mix of
two alloys).

2.3.4 Alternative BOM identification

In September 2003, Philips CE introduced a change in the way
the serial number (or production number, see Figure 2-1) is
composed. From this date on, the third digit in the serial
number (example: AG2B0335000001) indicates the number of
the alternative BOM (Bill of Materials used for producing the
specific model of TV set). It is possible that the same TV model
on the market is produced with e.g. two different types of
displays, coming from two different O.E.M.s.
By looking at the third digit of the serial number, the service
technician can see if there is more than one type of B.O.M.
used in the production of the TV set he is working with. He can
then consult the At Your Service Web site, where he can type
in the Commercial Type Version Number of the TV set (e.g.
28PW9515/12), after which a screen will appear that gives
information about the number of alternative B.O.M.s used.
If the third digit of the serial number contains the number 1
(example: AG1B033500001), then there is only one B.O.M.
version of the TV set on the market. If the third digit is a 2
(example: AG2B0335000001), then there are two different
B.O.M.s. Information about this is important for ordering the
correct spare parts!
For the third digit, the numbers 1...9 and the characters A...Z
can be used, so in total: 9 plus 26 = 35 different B.O.M.s can
be indicated by the third digit of the serial number.

2.3.5 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide
if the board has to be exchanged or if it should be repaired on
component level.
If your repair procedure says the board should be exchanged
completely, do not solder on the defective board. Otherwise, it
cannot be returned to the O.E.M. supplier for back charging!

3. Directions for Use

You can download this information from the following websites:
http://www.philips.com/support
http://www.p4c.philips.com

Directions for Use

EN 7TES1.0E LA 3.

EN 8 TES1.0E LA4.

Mechanical Instructions

4. Mechanical Instructions

Index of this chapter:

4.1 Cable Dressing

4.2 Rear Cover Removal

4.3 Subframe Removal

4.8 Top Control Board (Keyboard) Removal

4.13 Set Re-assembly

4.1 Cable Dressing

Notes:

• Figures below can deviate slightly from the actual situation,
due to the different set executions.

• Follow the disassemble instructions in the described order.

4.2 Rear Cover Removal

1. Put the set face down on a table.

2. Remove fixation screws [1] and the stand.

3. Remove fixation screws [2] and remove the rear cover.

2

1

Figure 4-1 Cable Dressing

2

G_16510_008.eps

161106

G_16510_010.eps

161106

1. Place the strain relief of the mains cord correctly in its slot.

2. Place all cables in their original position (see figure “Cable
dressing”).

Figure 4-2 Rear cover removal

Before you assemble the rear cover:

Mechanical Instructions

EN 9TES1.0E LA 4.

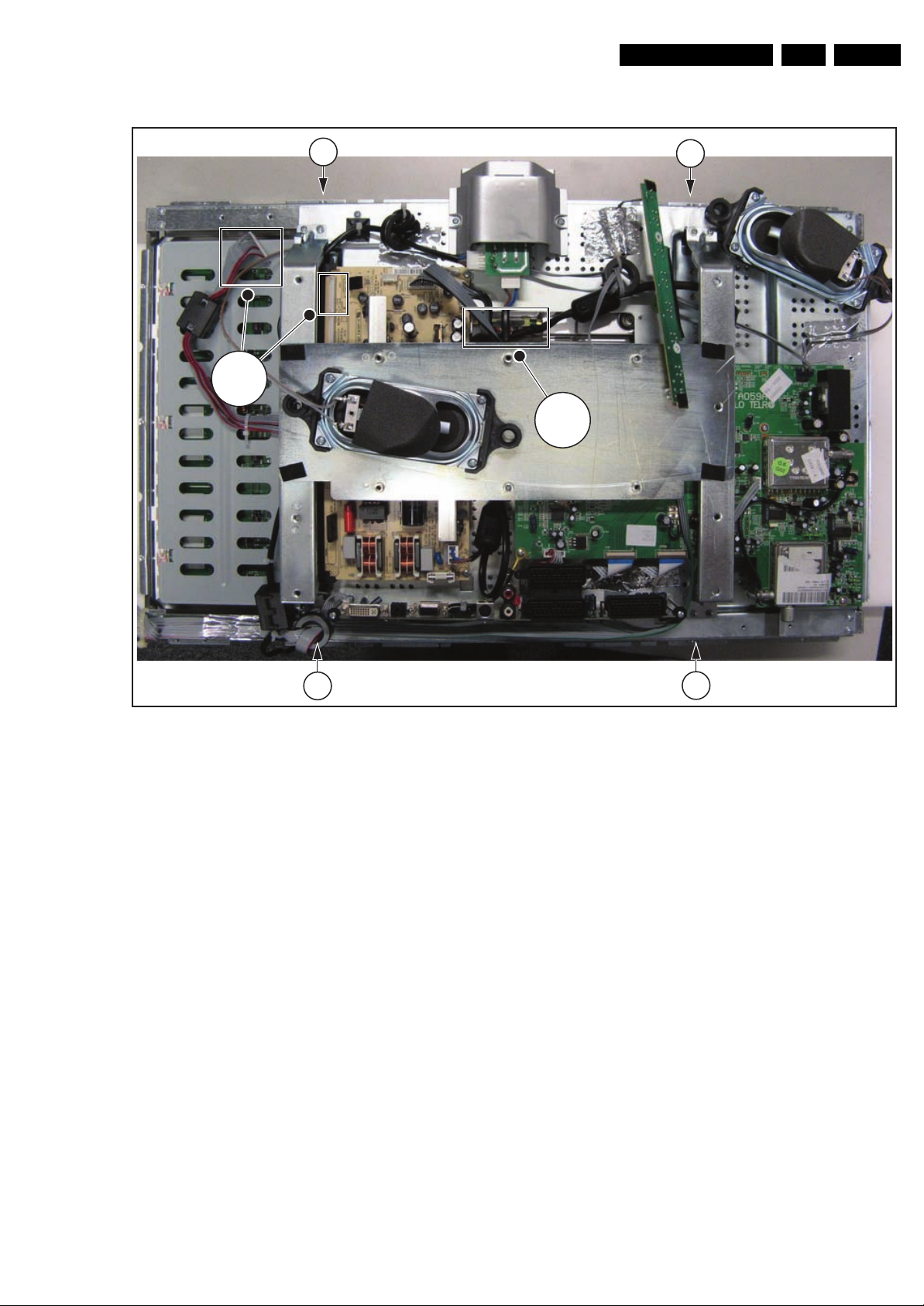

4.3 Subframe Removal

1. Remove the rear cover, as described above.

2. Remove fixation screws [1].

3. Remove the subframe [2].

1

2

1

Figure 4-3 Subframe removal

4.4 Main Board Removal

1. Remove the subframe, as described above.

2. Unplug connectors [1].

3. Carefully unplug the fragile LVDS connector [2].

4. Remove fixation screws [3].

5. Remove the main board.

G_16510_009.eps

171106

4.5 Power Supply Removal

1. Remove the subframe, as described above.

2. Unplug connectors [1] from the power supply.

3. Remove fixation screws [2].

4. Remove the power supply.

2

1

1

3

Figure 4-4 Main board removal

2

3

G_16510_011.eps

161106

Figure 4-5 Power supply removal

2

2

G_16510_013.eps

161106

EN 10 TES1.0E LA4.

Mechanical Instructions

4.6 Switch board Removal

1. Remove the rear cover, as described above.

2. Unplug connector [1].

3. Unplug flat foil connectors [2].

4. Carefully remove the tape [3], that fixates the flat foils to the
frame.

5. Remove fixation screws [4].

6. Remove the switch board.

4

1

4

Figure 4-6 Switch board removal

4.7 Mains Switch Removal

2 2

3

G_16510_021.eps

4

171106

4.8 Top Control Board (Keyboard) Removal

1. Remove the mains switch partially, to get access to the
keyboard.

2. Unplug connector [1].

3. Remove screws [2].

4. Pull the keyboard out of the set.

5. De-solder wires [3].

6. Remove the keyboard.

1

2

G_16510_018.eps

Figure 4-9 Keyboard removal 1/2

171106

1. Remove the rear cover, as described above.

2. Unplug connectors [1].

3. Remove screws [2].

4. Remove screws [3].

5. Remove the mains switch.

2

1

Figure 4-7 Mains switch removal 1/2

G_16510_016.eps

171106

3

Figure 4-10 Keyboard removal 2/2

G_16510_019.eps

171106

3

G_16510_017.eps

Figure 4-8 Mains switch removal 2/2

171106

Mechanical Instructions

EN 11TES1.0E LA 4.

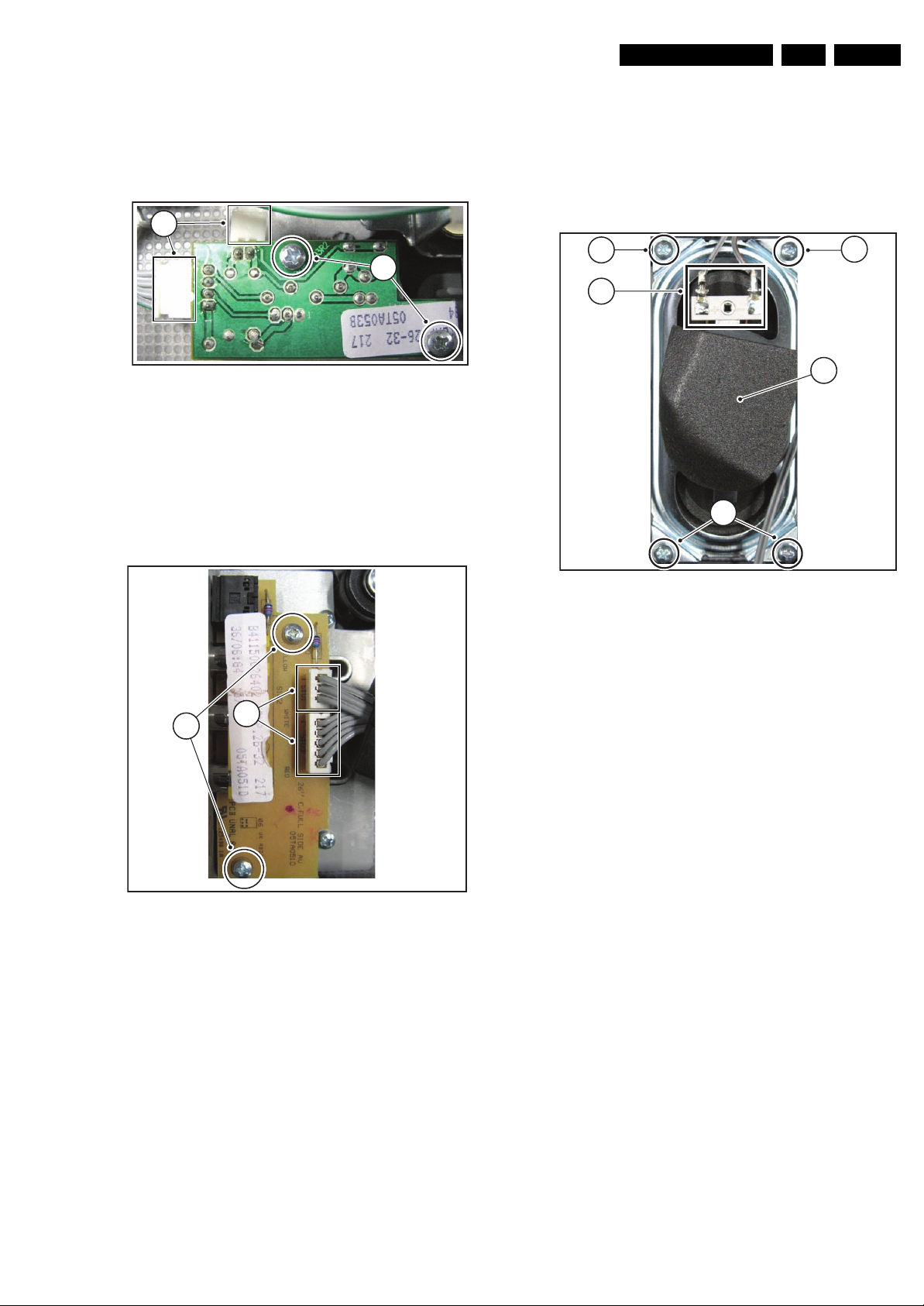

4.9 IR & LED Board Removal

1. Remove the rear cover, as described above.

2. Unplug connectors [1].

3. Remove screws [2].

4. Remove the IR & LED board.

1

Figure 4-11 IR & LED board removal

4.10 Side I/O Board Removal

1. Remove the rear cover, as described above.

2. Unplug connectors [1].

3. Remove screws [2].

4. Remove the side I/O board.

2

G_16510_014.eps

171106

4.11 Speaker Removal

1. Remove the rear cover, as described above.

2. De-solder the wires [1] from the speaker contacts.

3. Remove screws [2].

4. Remove the speaker.

5. At installation of a new speaker, also glue a piece of foam
to the speaker.

2

1

2

2

3

2

1

Figure 4-12 Side I/O board removal

G_16510_015.eps

171106

Figure 4-13 Speaker removal

G_16510_020.eps

171106

EN 12 TES1.0E LA4.

Mechanical Instructions

4.12 LCD Display Panel Removal

1. Remove the rear cover, as described above.

2. Unplug connectors [1].

3. De-solder wire [2] from the keyboard and the wires [3] to
the speakers.
Note: Instead of de-soldering, you can also partially
remove the keyboard and the speakers and put them on
the frame of the set.

4. Remove screws [4].

4

4

4 4 4 4 4 4

4

3

5

4

5. Remove the screw, that fixates the ground wire [5].

6. Lift the frame with the display panel from the front cover,
and put it on an appropriate surface.

7. Carefully unplug the fragile LVDS connector [6].

8. Unplug connector [7].

9. Remove screws [8].

10. Lift the frame from the display panel.

4

2

4

3

4

1

44

Figure 4-14 Display panel removal 1/3

5

4

44444

G_16510_022.eps

221106

Figure 4-15 Display panel removal 2/3

G_16510_023.eps

161106

Mechanical Instructions

EN 13TES1.0E LA 4.

7

8

8

6

8

4.13 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse
order.

Note:

• While re-assembling, make sure that all cables are placed
and connected in their original position. See figure "Cable
dressing".

Figure 4-16 Display panel removal 3/3

8

G_16510_024.eps

221106

EN 14 TES1.0E LA5.

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Service Mode

5.2 Error Codes

5.3 Fault Finding and Repair Tips

5.1 Service Mode

The Service Mode is activated by pressing ‘1923’ on the
Remote Control, while the set is in the Main User Menu.
The software provides menu flexibility and full control to the
software. Service persons can adjust the TV in all manners. In
the Service Menu, you find a list of parameters.

All functions of the Service Mode, and the default parameter
settings, are listed in Chapter “Alignments”.

FAULT TRACING DIAGRAM FOR POWER SUPPLY

Check 220 V AC Mains

YES

Check C 324 Voltage

NO

NO

5.2 Error Codes

These sets do not generate Error Codes

5.3 Fault Finding and Repair Tips

Notes:

• It is assumed that the components are mounted correctly
with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options
are set.

• The Service Menu contains some useful tests, e.g. “ADE
pattern” in de “Scaler Setup” Menu, that generates
patterns.

Check AC Power Cable is Plugged

Check F300 Fuse

YES

Check 5VSTBY

YES

Check 3.3 VS and 1.8 VS

YES

Check 5V MAIN

YES

Check 24V,33V,12V
8V,+16V,-16V

YES

Check 3.3V and 1.8V

NO

NO

NO

NO

NO

Check IC21 and Peripheral

Components

Check U902 and U903

Check StandBy Pin

HIGH LOW

StandBy

Mode

Normal Mode

Check Components

For 5V

Check Related Components for

Defective Outputs

YES

POWER IS OK

Check U900 and U901

Figure 5-1 Fault finding power supply

G_16510_052.eps

211106

Block Diagrams, Test Point Overviews, and Waveforms

6. Block Diagrams, Test Point Overviews, and Waveforms

Power Supply Block Diagram

15TES1.0E LA 6.

G_16510_056.eps

211106

Block Diagrams, Test Point Overviews, and Waveforms

Main Block Diagram

MAIN TUNER

PLL TUNER

TDA9886

IF1

IF DEMODULATOR

TDA9886

MAIN TUNER CVBS
MONO
SIF

16TES1.0E LA 6.

MULTIBUTTON LED/INFRA

PIP TUNER

SCARTS

S-VIDEO AUDIO

PLL TUNER

SCART CVBS

SCART1 AUDIO IN
SCART AUDIO IN/OUT

SCART RGB/FB

S-VIDEO AUDIO

IF2

IF DEMODULATOR

TEA6415

VIDEO SWITCH

PI5V330

RGB SWITCH

PIP TUNER CVBS

STV2310

VIDEO

DECODER

PIP PIC/MAIN RGB

PVP9390A

PIP

PROCESSOR

ITU656 BUS

STV3550

VIDEO

PROCESSOR

DIGITAL YUV BUS

ADE3300

M29W160ET

FLASH ROM

K4S281632

RAM

K4S281633

RAM

24-bit DIGITAL RGB LVDS BUS

S-VIDEO

AV IN or OUT

PC INPUT

PC/DVI AUDIO

DVI INPUT

S-VIDEO Y/C

BACK AV VIDEO IN or OUT

BACK AV AUDIO IN or OUT

PC VGA INPUT

PC and DVI AUDIO INPUT

DVI-D(Single Link) INPUT

74HC4052

AUDIO SWITCH

HEADPHONE R

FRONT-AV AUDIO INPUT

FRONT-AV VIDEO INPUT

HEADPHONE L

HP AMPLIFIER

FRONT AV HEADPHONE

TDA7050

STV8216

SOUND

PROCESSOR

MAIN AUDIO R

MAIN AUDIO L

SCALER

TDA7264

AUDIO POWER

AMPLIFIER

LCD

LVDS TRANSMITTER

Block Diagrams, Test Point Overviews, and Waveforms

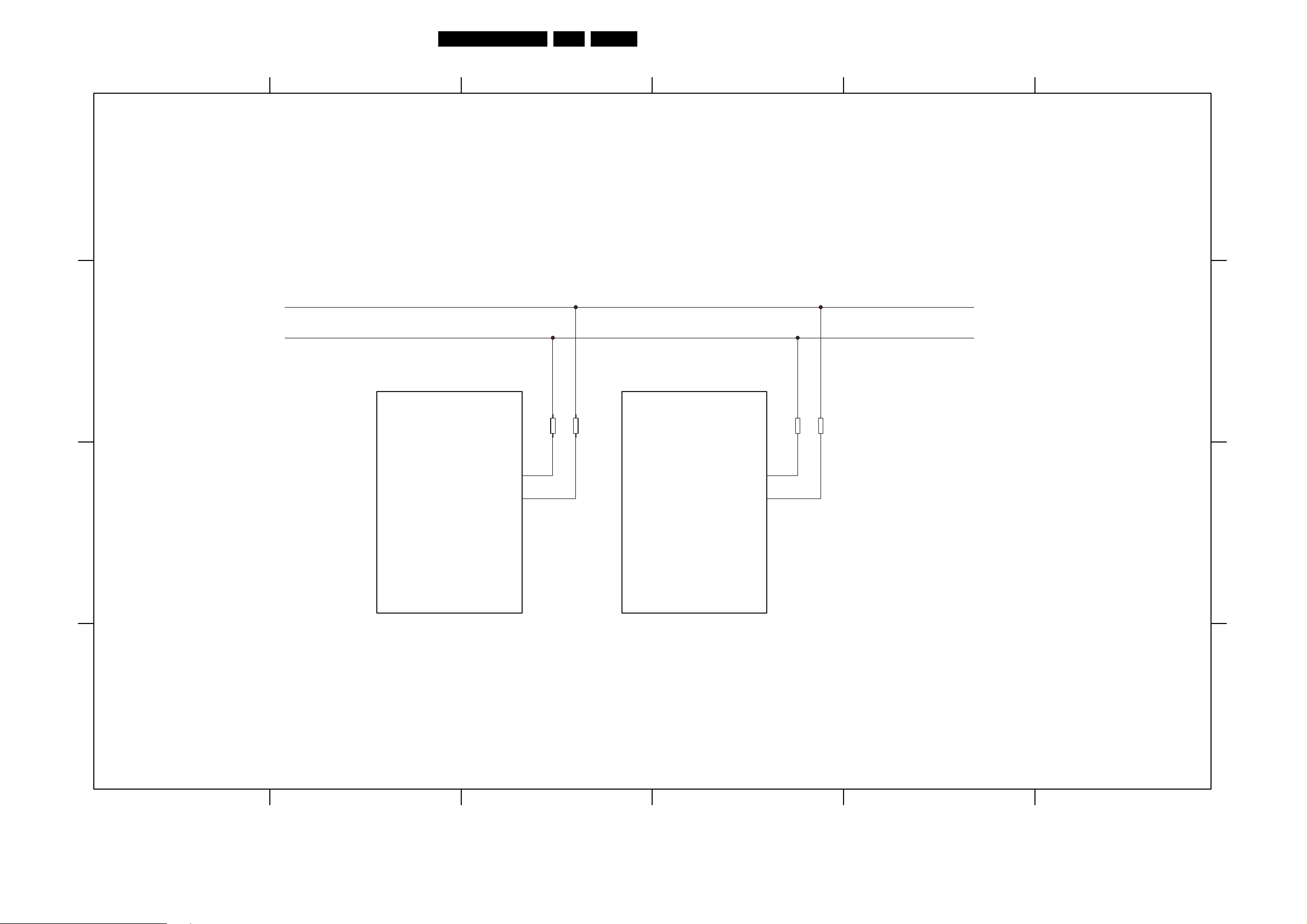

Switch Board I2C Block Diagram

17TES1.0E LA 6.

654321

D

D

SDA1
SCL1

C

C

TEA6415C TEA6415C

R210R211

R252R253

44

22

B

A

G_16510_054.eps

123 456

B

A

211106

Block Diagrams, Test Point Overviews, and Waveforms

Main I2C Diagram

18TES1.0E LA 6.

EEPROM

SDA2_3.3V

SCL2_3.3V

SCL1_3.3V

SDA1_3.3V

R665

R666

MCU

5V

SDA3_3.3V

SCL3_3.3V

R302
R

R303
R

ADE3300

TO TUNER BOARD

R846

R847

R

R

PVP9390

3.3V

R110

R111

R

R

STV2310

SDA1_5V

SCL1_5V

R122

R123

R

R

STV8216

TO SWITCH BOARD

G_16510_053.eps

211106

Block Diagrams, Test Point Overviews, and Waveforms

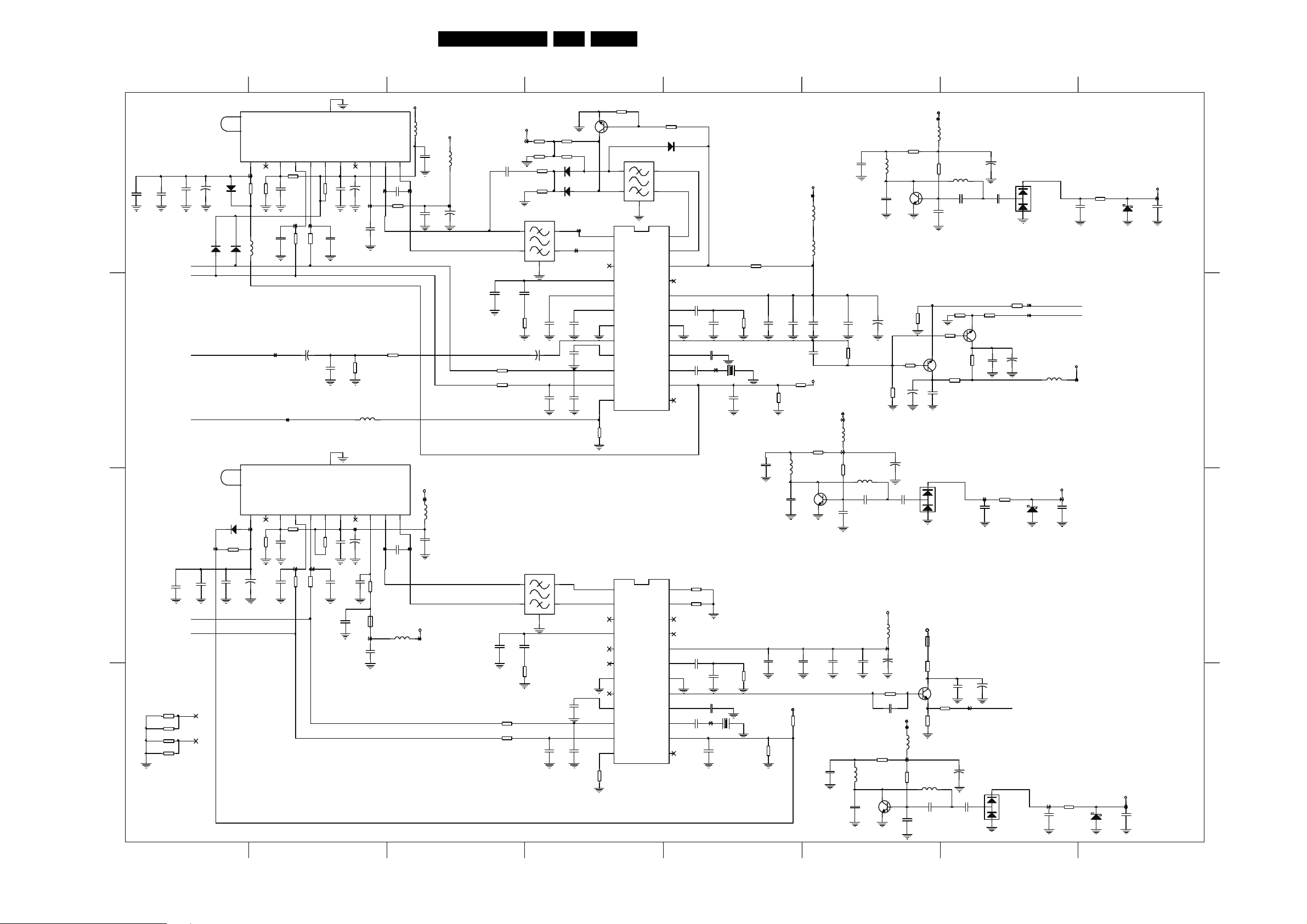

Tuner I2C Diagram

19TES1.0E LA 6.

654321

D

TEDE9-736A

5

4

R415
R

R414
R

R438RR439

R

TDA9886

SDA-1
SCL-1

D

10

C

5

4

B

R418
R

R417
R

11

C

B

R444RR445

CTF5513A

TDA9886

R

10

11

A

G_16510_055.eps

123 456

A

211106

Circuit Diagrams and PWB Layouts

7. Circuit Diagrams and PWB Layouts

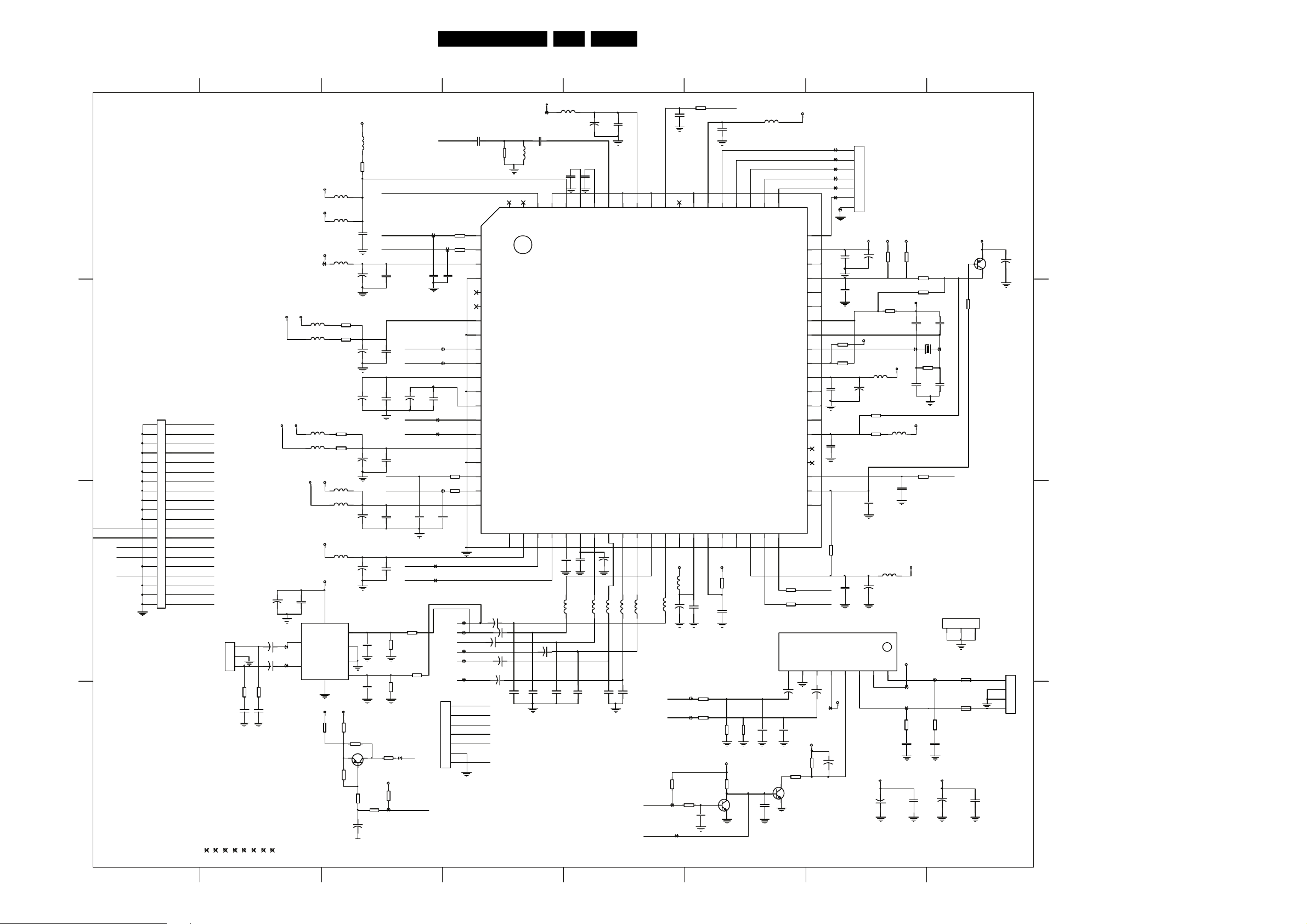

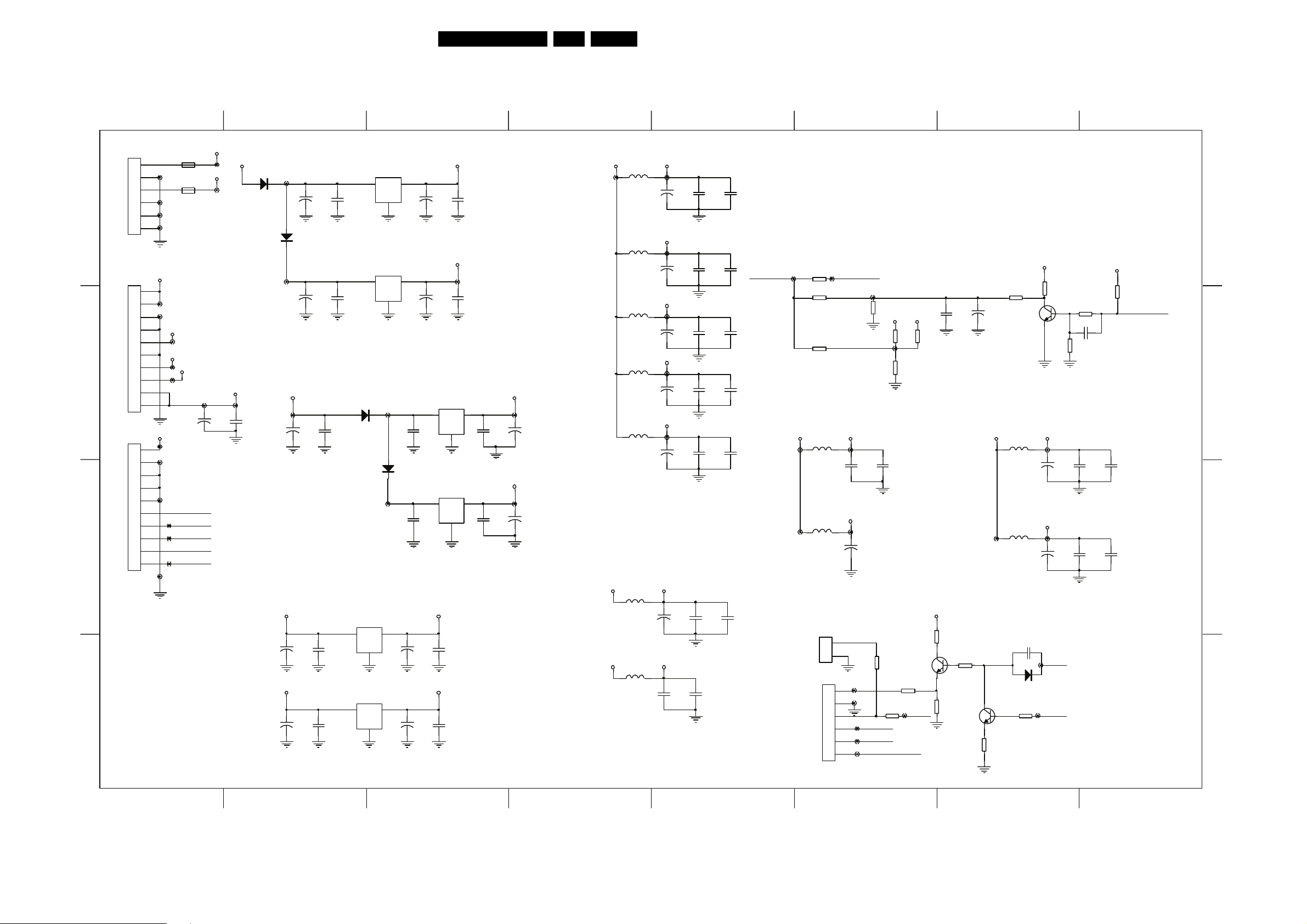

Main Board

20TES1.0E LA 7.

87654321

D

C

B

A

05TA059A

S103

POWER

S900

CON10

S204

CON10

1

2

3

4

5

6

V_TFT

1

2

3

4

5

6

7

8

9

10

1

2

3

4

5

6

7

8

9

10

TP145

TP146

TP147

TP148

TP149

TP150

TP152

9V

TP155

TP156

TP157

TP163

5VS

TP151

-16V

+16V

TP153

MUTE_REF

BL_ON/OFF

TP159

TFT_ON/OFF

TP160

BL_DIMM

STBY

TP162

L85

BEAD

L86

BEAD

TP154

5V

6V 3.3V

TP143

9V

TP144

D109

1N4001

TP140

C901
470uF

C907
100nF

3

U900
LM1086D

IN

OUT

GND

1

D110
1N4001

U901
LD1086D

3

IN

OUT

D900

1N4001

U203
LM2940

IN

GND

2

U204
LM2940

IN

GND

2

OUT

OUT

GND

1

TP134TP135TP136

D901
1N4001

3

3

C948
470uF

6V

TP137

C939
100nF

C908

C902

100nF

470uF

5VS

C913

C905

100nF

470uF

6V 5V

1

C297

C417

100nF

470uF

6V 5VTUNER

1

C322

C418

100nF

470uF

2

2

C914
100nF

C920
100nF

C397
100uF

C39 8
100uF

1

1

C903
100uF

C904
100uF

U902
LF33C

U903
LF18C

IN

IN

1.8V

OUT

GND

2

OUT

GND

2

C395
100nF

C396
100nF

1.8VCORE1.8VS

L900
FERRITE

C909
100nF

TP126 TP127

C927
10uF

C911
100nF

C940
10nF

1.8VIO

L901
FERRITE

TP138TP139

C910
100nF

L902
FERRITE

L903
FERRITE

3.3VS

TP128

1.8PLL

TP129

1.8PLL1

TP130

C928
10uF

C930
10uF

C931
10uF

C912
100nF

C916
100nF

C917
100nF

C941
10nF

C942
10nF

C943
10nF

BL_DIMM

R241
0R

R242
0R

R243
0R

PWM_DIMM

TP123TP125

A_DIMM

VOLTAGE_DIV

TP122

R271
R

5V

R250
R

TP121

R251
R

3.3V

R284
R

C266
100nF C290

100uF

R249
1K

5VS

R247

4.7K

Q201

BC848

R252

2.2K

R246
470R

C376

56pF

3

1.8PLL3

C915
100nF

C929
100uF

L904
FERRITE

TP131

C932
10uF

C918
100nF

C944
10nF

3.3V

L905

FERRITE

3.3VA

TP117TP118

C919
100nF

C945
10nF

1.8V

L906
FERRITE

1.8VA

TP115

C934
10uF

C922
100nF

1.8VS

3

C921
100nF

TP132TP133

C935
100uF

TP119 TP120

L908

FERRITE

3.3VD

C937
10uF

TP114

L909
FERRITE

1.8VD

TP116

C938
10uF

C925
100nF

3.3VIO3.3VS

L907

3.3VFLASH

FERRITE

L910
FERRITE

3.3VRAM

C936
10uF

C926
100nF

C923
100nF

C950
10nF

C947
10nF

S102

1

2

DVD EJECT

S804

DVD IDTV WIRELESS INTERFACE

1

2

3

4

5

6

TP111

TP110

TP108

TP107

TP106

R288
0R

R289
0R

PORT_B

PORT_C

PORT_D/MUTE_IN

R837

220R

PORT_A

TP109

5VS

R801
100R

Q800

BC848 B

R804
330R

R800

560R

Q202

BC848B

R264
1K

C419

56pF

LL4148

R263
560R

D200

TP113

IR

TP112

IR_MUTE

1 2 3 4 5 6 7 8

3.3VS

R248

4.7K

C946
10nF

C949
10nF

PWM_DIMM

G_16510_026.eps

201106

D

C

B

A

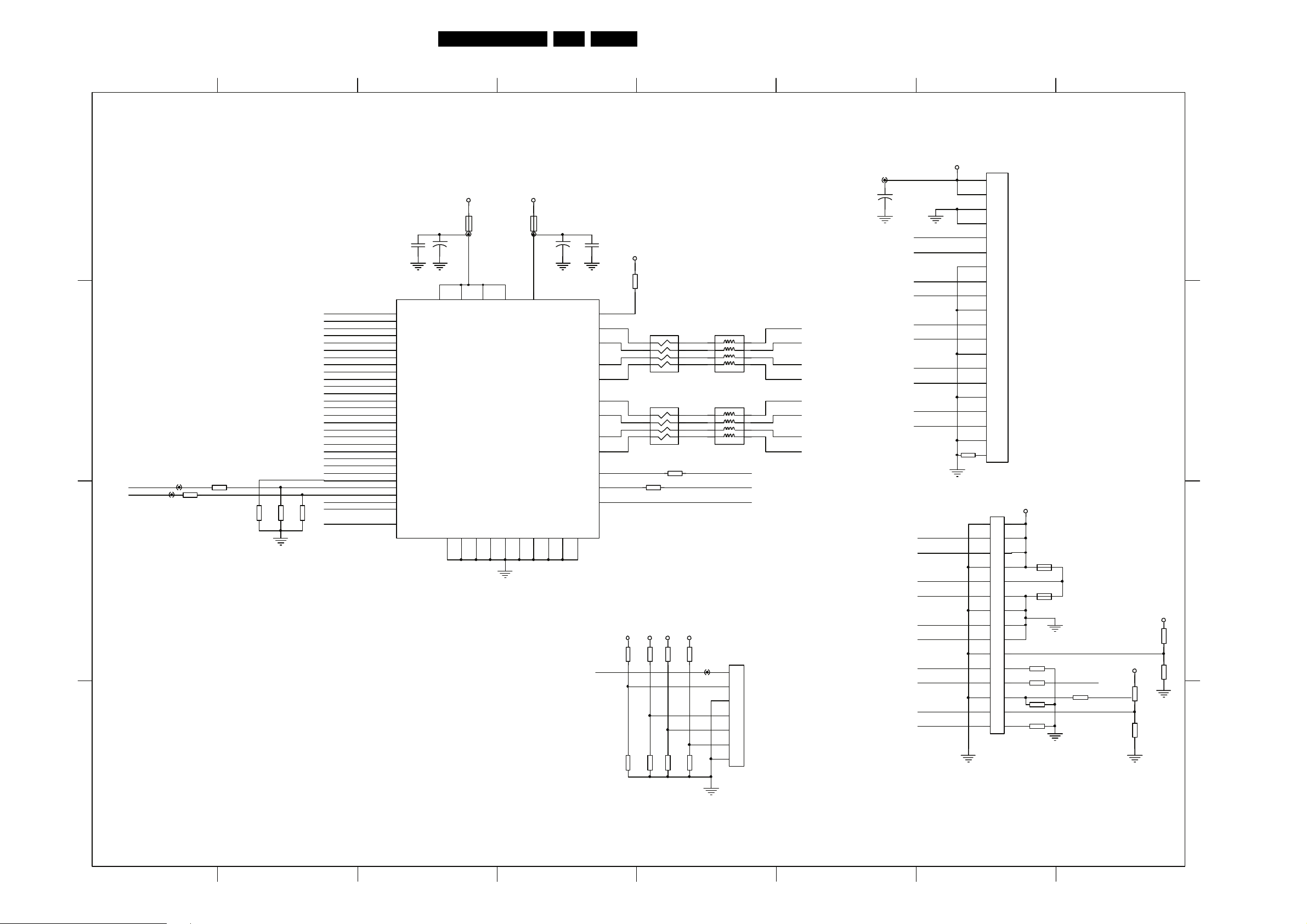

Main Board

Circuit Diagrams and PWB Layouts

21TES1.0E LA 7.

87654321

V_TFT

D

3.3V 3.3V

LVVCC

L912
BEAD

34

PLVCC

C933

10uF

R_FB

TXOUT0-

TXOUT0+

TXOUT1-

TXOUT1+

TXOUT2-

TXOUT2+

TXOUT3+

TXOUT3-

TCLKOUT-

TCLKOUT+

-PWRDWN

43

100nF

U904

17

48

47

46

45

42

41

37

38

40

39

32

ODSEL1

3.3V

3.3V

R143
0R

R144
0R

6
7

8

6
7

8

R900
0R

3.3V

RN90

120R

RN91

120R

R903
120R

R145
0R

R198
0R

3.3V

R904
120R

R199
0R

R279
0R

3.3V

45

3

2
1

45

3

2
1

R280
0R

R281
0R

4

3

2

4

3

2

TP183

L133

RN - FERRIT

L134

RN - FERRIT

RCLK-

RCLK+

PWRD

S101

1

2

3

4

5

6

7

RIN0-

5

RIN0+
6
7
81

RIN1-

RIN1+

RIN2-

5

RIN2+
6
7
81

RIN3+

RIN3-

SHARP CONTROL

L911
BEAD

C900
100nF C906

R0
R1
R2
R3
R4
R7
R5
G0
G1
G2

C

0R

ADE_HSYNC
ADE_VSYNC

TP185

B

A

TP184

R912

R913

0R

R909
0R

R910
0R

R911
0R

G6
G7
G3
G4
G5
B0
B6
B7
B1
B2
B3
B4
B5

ADE_DE
R6

ADE_CLK

51

TIXN0

52

TIXN1

54

TIXN2

55

TIXN3

56

TIXN4

2

TIXN5

3

TIXN6

4

TIXN7

6

TIXN8

7

TIXN9

8

TIXN10

10

TIXN11

11

TIXN12

12

TIXN13

14

TIXN14

15

TIXN15

16

TIXN16

18

TIXN17

19

TIXN18

20

TIXN19

22

TIXN20

23

TIXN21

24

TIXN22

25

TIXN23

27

TIXN24

28

TIXN25

30

TIXN26

50

TIXN27

31

TXCLKIN

TP186 TP187

C924
10uF

26

44

VCC1VCC9VCC

DS90C385

PLLGND35PLLGND33GND5GND13GND21GND29GND53LVGND36LVGND49LVGND

TP188

C951
2200uF

RIN0-

RIN0+

RIN1-

RIN1+

RIN2-

RIN2+

RCLK-

RCLK+

RIN3-

RIN3+

RIN3+

RIN3-

RCLK+

RCLK-

RIN2+

RIN2-

RIN1+

RIN1-

RIN0+

RIN0-

S905

20

19

18

17

16

15

14

13

12

11

10

9

8

7

6

5

4

3

2

R914

1

0R

CON20

V_TFT

S903

12

3 4

56

7 8

910

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

BEAD (LG hariç)

CON2X15

L913

L914

BEAD (LG)

R272

R273

R915

R902
0R

LVDS OPTION

NS

NS

0R

ODSEL1

R901
0R

BL_ON/OFF

V_TFT

R905
R

R906
R

3.3VS

R907
R

R908
R

D

C

B

A

05TA059A

1 2 3 4 5 6 7 8

G_16510_027.eps

201106

Main Board

Circuit Diagrams and PWB Layouts

22TES1.0E LA 7.

87654321

VDDQ

VDDQ

DQ0

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

DQ8

DQ9

DQ10

DQ11

DQ12

DQ13

DQ14

DQ15

L_DQM

U_DQM

RFU/NC

VSSQ

VSSQ

3.3VRAM

43

49

2

4

5

7

8

10

11

13

42

44

45

47

48

50

51

5

3

15

39

40

46

52

C700
10uF

C703
100nF

SDRAM_D0

SDRAM_D1

SDRAM_D2

SDRAM_D3

SDRAM_D4

SDRAM_D5

SDRAM_D6

SDRAM_D7

SDRAM_D8

SDRAM_D9

SDRAM_D10

SDRAM_D11

SDRAM_D12

SDRAM_D13

SDRAM_D14

SDRAM_D15

NOT_BE0

NOT_BE1

C710
100nF

C711
100nF

D

C

RN70

45

SD7

3

SD6
SD5

2

SD4

1

33R

RN71

45

SD3

3

D

C

SD2

2

SD1

1

SD0

SD15

45

SD14

3

SD13

2

SD12

1

SD11

45

SD10

3

SD9

2

SD8

1

FLASHD4
FLASHD12

6

FLASHD5

7

FLASHD13

8

FLASHD6
FLASHD14

6

FLASHD7

7

FLASHD15

8

CKSD

R700
0R

ADR3

1
2

ADR4

3

ADR5

45

33R

RN72

33R

RN73

33R

RN78

33R

RN79

33R

RN80

33R

6
7

8

6
7

8

6
7

8

6
7

8

45

3

2
1

45

3

2
1

8

7
6

2

3

4

2

3

4

2

3

4

2

3

4

4

3

2

4

3

2

4

3

2

L700

RN - FERRIT

L702

RN - FERRIT

L703

RN - FERRIT

L704

RN - FERRIT

L705

RN - FERRIT

L706

RN - FERRIT

L714

RN - FERRIT

81
7
6
5

81
7
6
5

81
7
6
5

81
7
6
5

5
6
7
81

5
6
7
81

CKOUT-

5
6
7

81

SDRAM_D7
SDRAM_D6
SDRAM_D5
SDRAM_D4

SDRAM_D3
SDRAM_D2
SDRAM_D1
SDRAM_D0

SDRAM_D15
SDRAM_D14
SDRAM_D13
SDRAM_D12

SDRAM_D11
SDRAM_D10
SDRAM_D9
SDRAM_D8

FLASH_D4
FLASH_D12
FLASH_D5
FLASH_D13

FLASH_D6
FLASH_D14
FLASH_D7
FLASH_D15

R701
0R

ADDR3
CKOUT
ADDR4
ADDR5

3.3VS

ADR14
ADR19
ADR18
ADR17

NCSFLS
NOTBE0
RDNOTWR
NOTCAS

NOTRAS
NOTCSSRD
ADR15
ADR16

ADR10
ADR0
ADR1
ADR2

ADR6
ADR7
ADR8
ADR9

ADR11
ADR12
NOTBE1
ADR13

FLASHD0
FLASHD8
FLASHD1
FLASHD9

FLASHD2
FLASHD10
FLASHD3
FLASHD11

RN74

1
2

3

45

33R

RN75

1
2

3

45

33R

RN76

1
2

3

45

33R

RN77

1
2

3

45

33R

RN81

1
2

3

45

33R

RN82

1
2

3

45

33R

RN83

1
2

3

45

33R

RN84

1
2

3

45

33R

8

7
6

8

7
6

8

7
6

8

7
6

8

7
6

8

7
6

8

7
6

8

7
6

4

3

2

4

3

2

4

3

2

4

3

2

4

3

2

4

3

2

4

3

2

4

3

2

L707

RN - FERRIT

L708

RN - FERRIT

L709

RN - FERRIT

L710

RN - FERRIT

L711

RN - FERRIT

L712

RN - FERRIT

L713

RN - FERRIT

L715

RN - FERRIT

5

ADDR14

6

ADDR19

7

ADDR18

81

ADDR17

5

NOT_CS_FLASH

6

NOT_BE0

7

RD_NOTWR

81

NOT_CAS

5

NOT_RAS

6

NOT_CS_SDRAM

7

ADDR15

81

ADDR16

5

ADDR10

6

ADDR0

7

ADDR1

81

ADDR2

5

ADDR6

6

ADDR7

7

ADDR8

81

ADDR9

5

ADDR11

6

ADDR12

7

NOT_BE1

81

ADDR13

5

FLASH_D0

6

FLASH_D8

7

FLASH_D1

81

FLASH_D9

5

FLASH_D2

6

FLASH_D10

7

FLASH_D3

81

FLASH_D11

ADDR0

ADDR1

ADDR2

ADDR3

ADDR4

ADDR5

ADDR6

ADDR7

ADDR8

ADDR9

ADDR10

ADDR11

ADDR15

ADDR16

RD_NOTWR

NOT_CAS

NOT_RAS

CKOUT

CKE_O

NOT_CS_SDRAM

ADDR12

27

3

VDD1VDD14VDD

VDDQ

9

VDDQ

23

24

25

26

29

30

31

32

33

34

22

35

20

21

16

17

18

38

37

19

36

6

12

A0

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10/AP

A11

BA0

BA1

WE

CAS

RAS

CLK

CKE

CS

NC

VSSQ

VSSQ

U700

48LC8M16A2

VSS

VSS41VSS

28

54

B

A

05TA059A

L701

3.3VFLASH

ADDR0

ADDR1

ADDR2

ADDR3

ADDR4

ADDR5

ADDR6

ADDR7

ADDR8

ADDR9

ADDR10

ADDR11

ADDR12

ADDR13

ADDR14

ADDR15

ADDR16

ADDR17

ADDR18

ADDR19

NOT_CS_FLASH

NOT_CAS

RD_NOTWR

R702

0R

R703

0R

FERRITE

37

25

A0

A1

A2

A3

A4

A5

A6

A7

A8

A9

A10

A11

A12

A13

A14

A15

A16

A17

A18

A19

CE

OE

WE

RESET

BYTE

VCC

U702

VSS27VSS

24

23

22

21

20

19

18

8

7

6

5

4

3

2

1

48

17

16

9

26

28

11

12

47

3.3VFLASH

C706

C701
10uF

29

DQ0

31

DQ1

33

DQ2

35

DQ3

38

DQ4

40

DQ5

42

DQ6

44

DQ7

30

DQ8

32

DQ9

34

DQ10

36

DQ11

39

DQ12

41

DQ13

43

DQ14

45

DQ15/A-1

15

RY/BY

10

NC

13

NC

M29W160ET

46

14

NC

390pF

FLASH_D0

FLASH_D1

FLASH_D2

FLASH_D3

FLASH_D4

FLASH_D5

FLASH_D6

FLASH_D7

FLASH_D8

FLASH_D9

FLASH_D10

FLASH_D11

FLASH_D12

FLASH_D13

FLASH_D14

FLASH_D15

C704
100nF

ADDR0

ADDR1

ADDR2

ADDR3

ADDR4

ADDR5

ADDR6

ADDR7

ADDR8

ADDR9

ADDR10

ADDR11

ADDR15

ADDR16

RD_NOTWR

NOT_CAS

NOT_RAS

CKOUT

R709

CKE

33R

NOT_CS_SDRAM

ADDR12

CKE_O

3

VDDQ

9

VDDQ

23

A0

24

A1

25

A2

26

A3

29

A4

30

A5

31

A6

32

A7

33

A8

34

A9

22

A10/AP

35

A11

20

BA0

21

BA1

16

WE

17

CAS

18

RAS

38

CLK

37

CKE

19

CS

36

NC

6

VSSQ

12

VSSQ

27

VDD1VDD14VDD

U701

48LC8M16A2

VSS

VSS41VSS

28

54

VDDQ

VDDQ

DQ0

DQ1

DQ2

DQ3

DQ4

DQ5

DQ6

DQ7

DQ8

DQ9

DQ10

DQ11

DQ12

DQ13

DQ14

DQ15

L_DQM

U_DQM

RFU/NC

VSSQ

VSSQ

3.3VRAM

43

49

2

4

5

7

8

10

11

13

42

44

45

47

48

50

51

5

3

15

39

40

46

52

C702
10uF

FLASH_D0

FLASH_D1

FLASH_D2

FLASH_D3

H_D4

FLAS

FLASH_D5

FLASH_D6

FLASH_D7

FLASH_D8

FLASH_D9

FLASH_D10

FLASH_D11

FLASH_D12

FLASH_D13

FLASH_D14

FLASH_D15

ADDR18

ADDR19

C705
100nF

C712
100nF

C713
100nF

G_16510_028.eps

1 2 3 4 5 6 7 8

B

A

201106

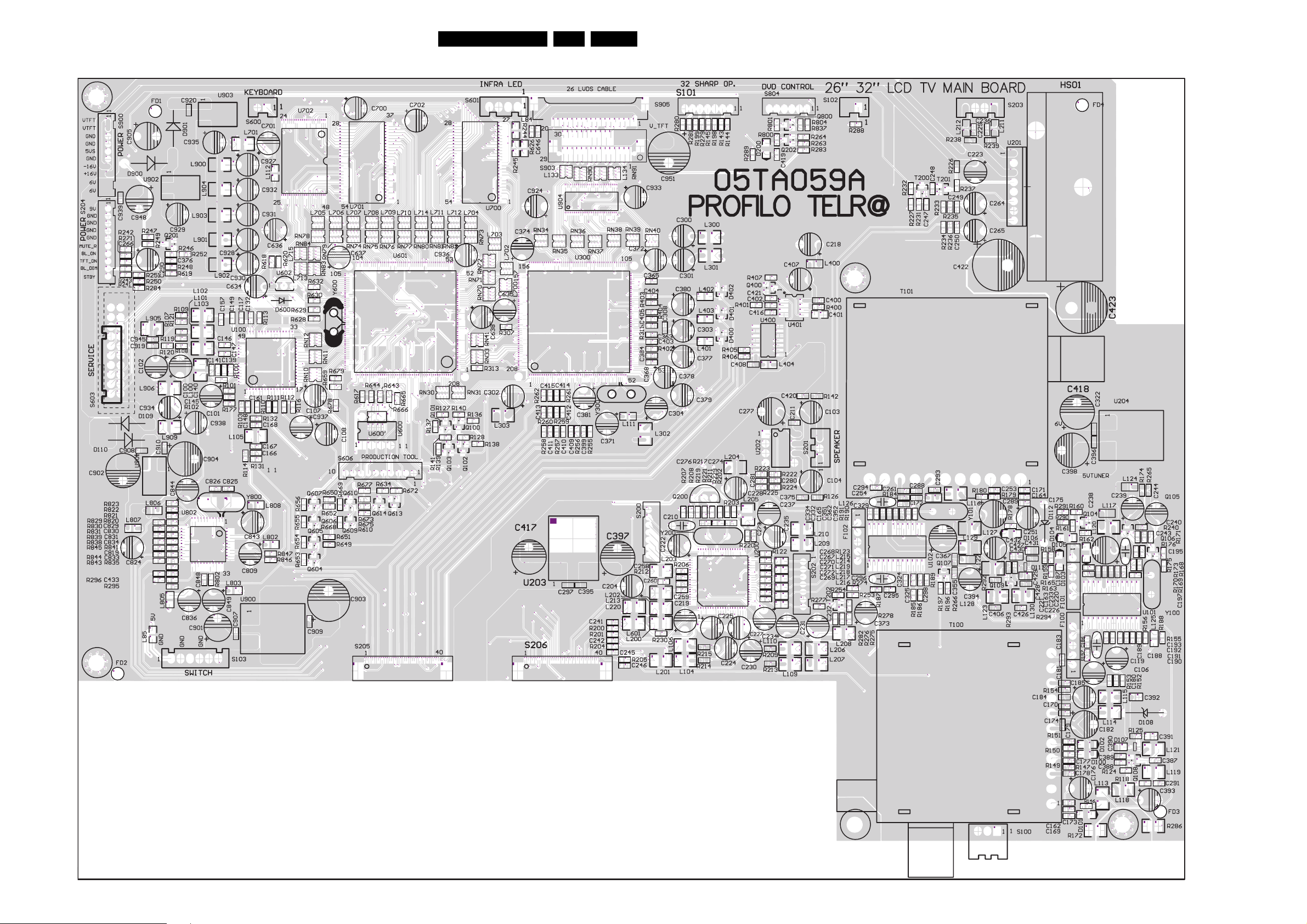

Main Board

D

C169

C162

390pF

1nF

C

B

R286

0R
R172

0R
R285

0R
R287

A

05TA059A

0R

1nF

C164

HOLE1

HOLE2

100nF

C173

SDA1_5

SCL1_5

MONO_AUDIO

SIF

C171

390pF

SDA1_5

SCL1_5

C176
47uF

D100

LL4148

TP215

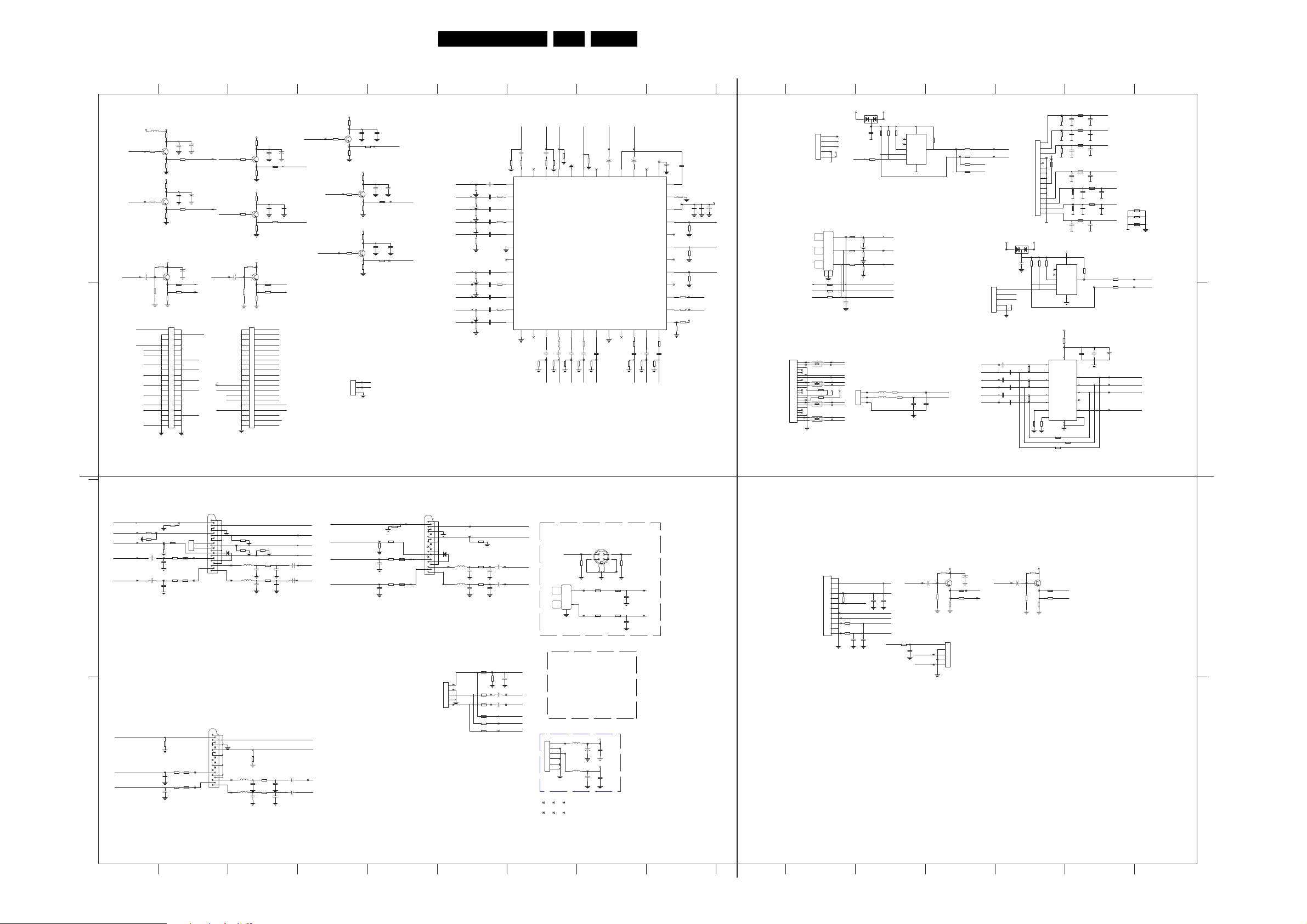

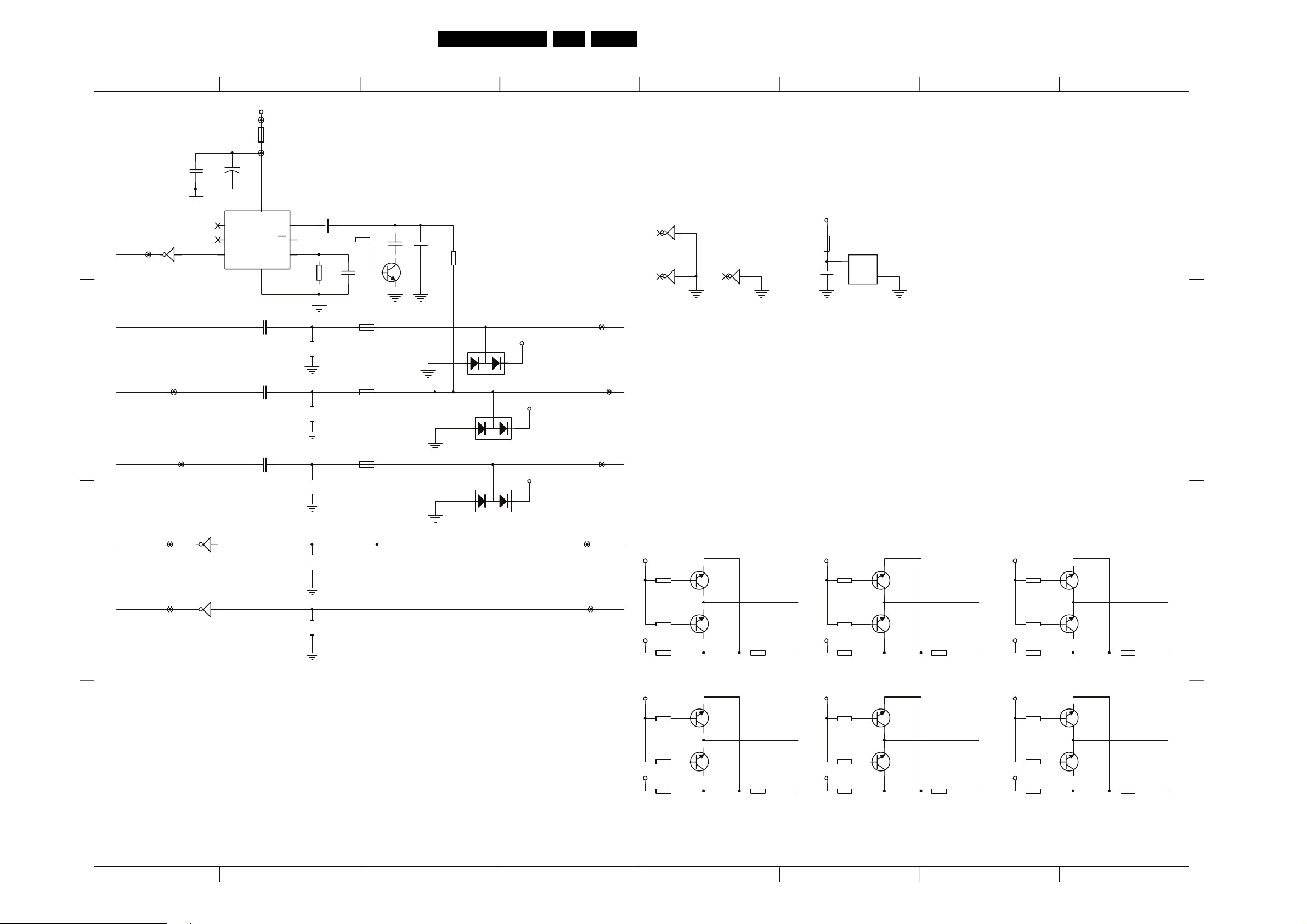

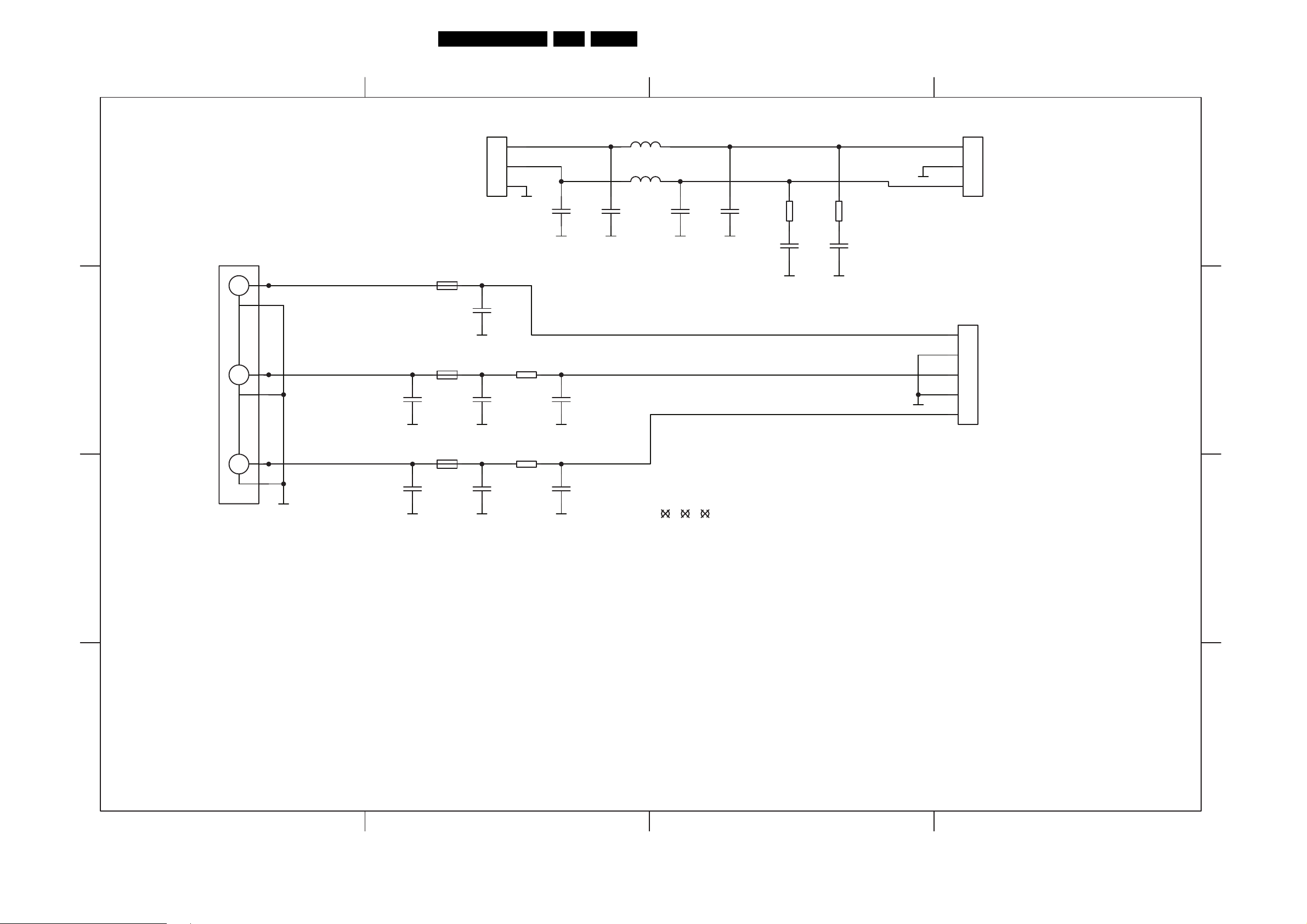

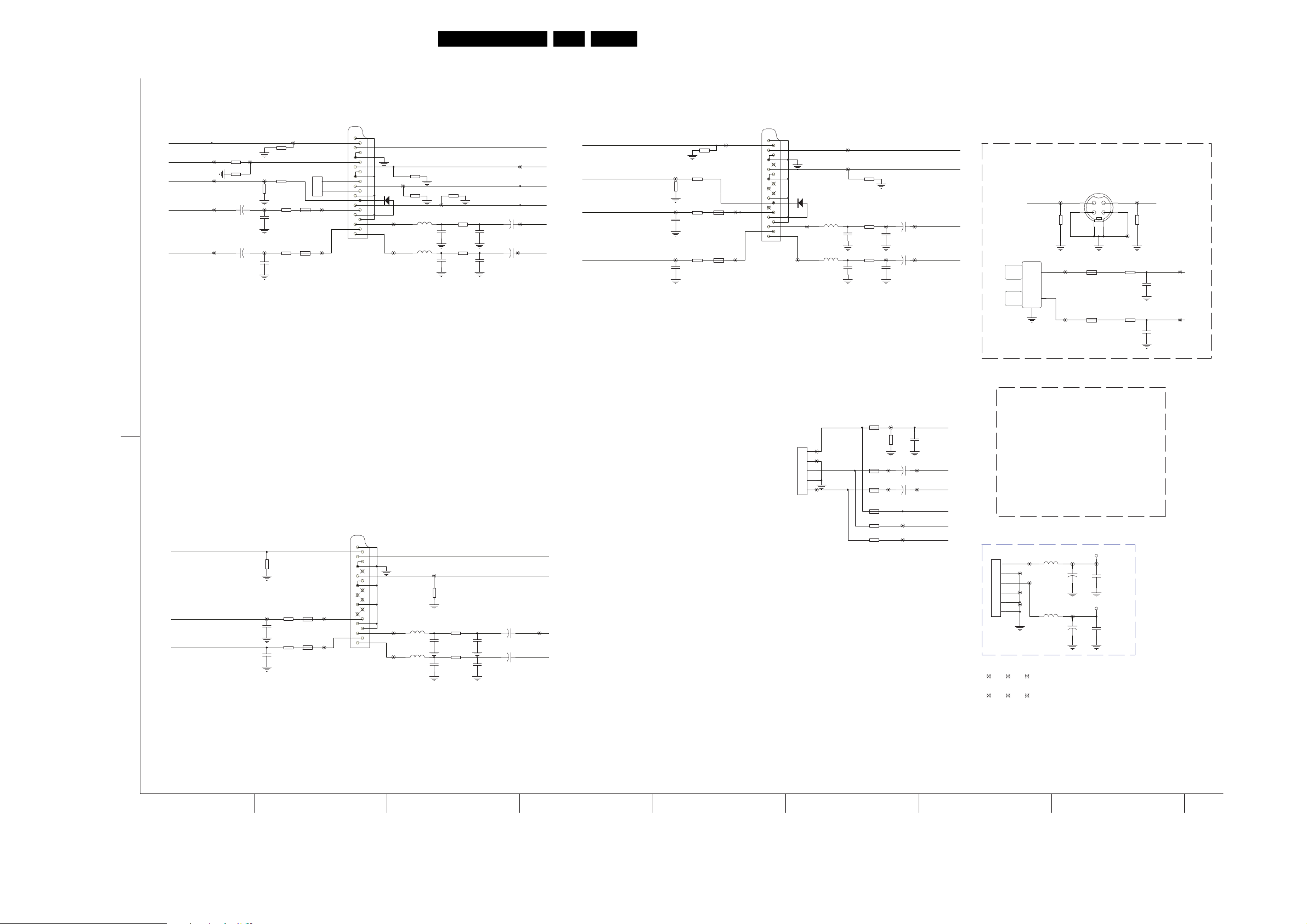

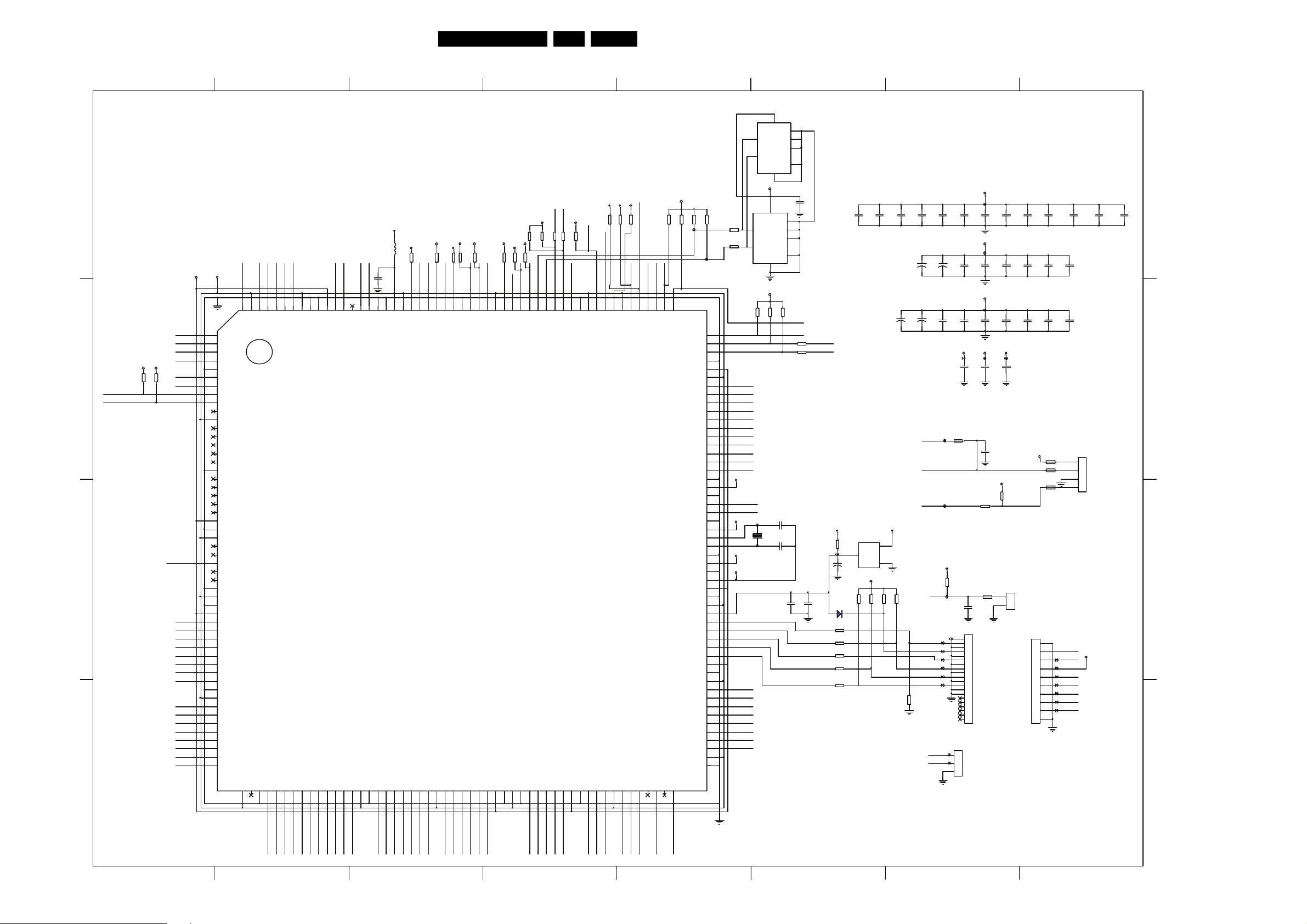

Circuit Diagrams and PWB Layouts

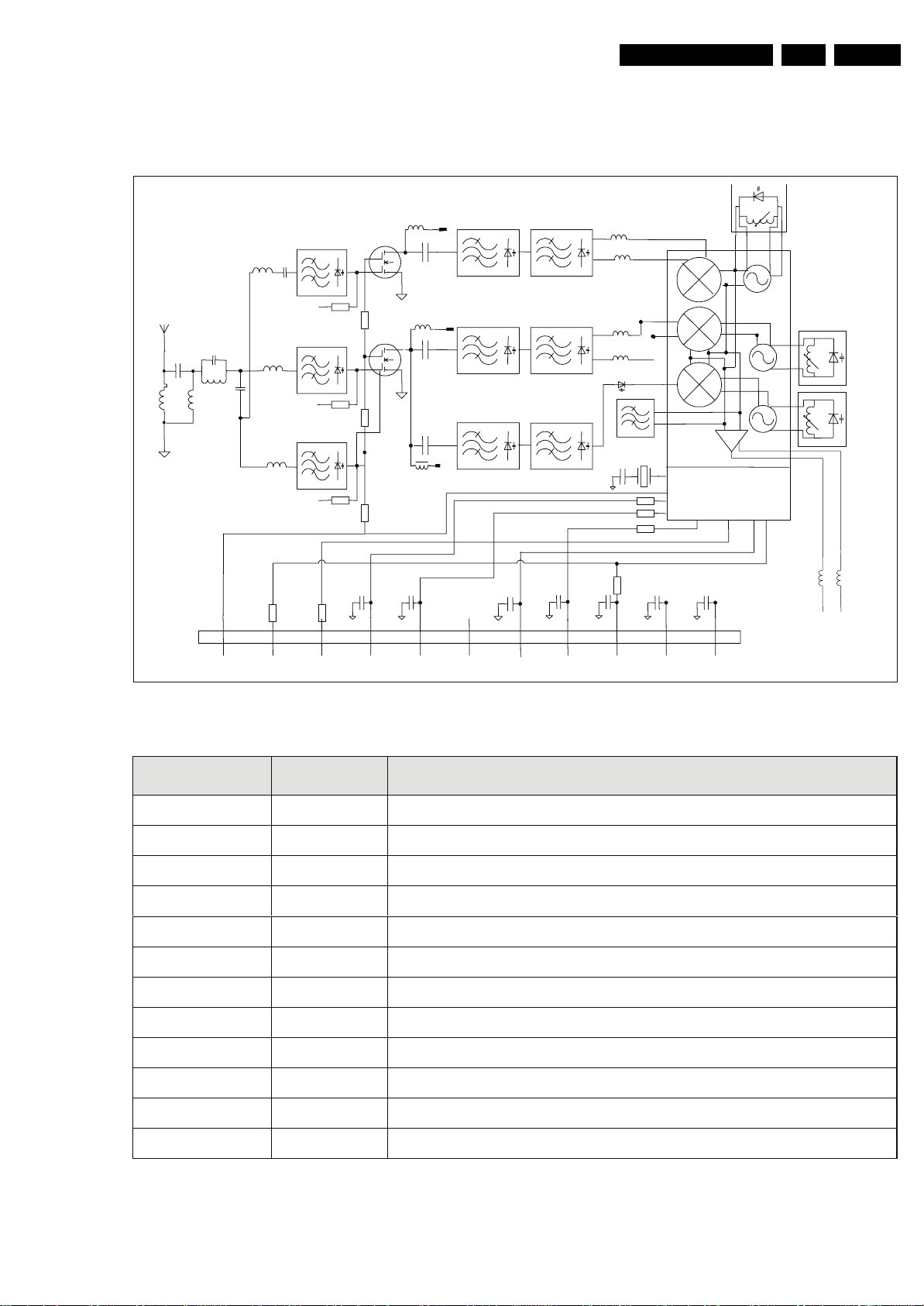

T100

CTT5520E

AGC1TUN2AS3SCL

4

R147
10K

C177

NS

C178

47nF

R148

10K

TP204 TP205

D101
LL4148

D102

LL4148

TP189

R146
12K

L113
10uH

TP190

TP191

T101

AGC1TUN2AS3SCL4SDA5NC6+5V7ADC8+33V9IF210IF1

D106

LL4148

R178
12K

100nF

TP216

C175

C251

47uF

R179
10K

C252

NS

C253

47nF

R180

10K

TP217 TP218

AGC_A

12

GND

SDA5NC6+5V7ADC8+33V

R151
NS

C106

1uF

R150
220R

C179

NS

C180
NS

R149
220R

12

GND

CTT5520E

R183
NS

R182
220R

C263

NS

C254
100nF

R181
220R

ADRES: C2H

C174

C182

100nF

220uF

C181
100nF

R152
10K

L125
BEAD

ADRES: C0H

TP219

C288

C289

100uF

100nF

C261
100nF

5VTUNER

L114
10uH

33V

L115

IF210IF1

9

11

390pF

C170

100uH

C183

TP202TP203

10pF

R154
22K

TP199 TP200

R153

10K

C184
100nF

5VTUNER

TP220

L127
10uH

11

TP221TP222

33V_PIP

390pF

C172

C294

10pF

R184
22K

L126
BEAD

L116
10uH

TP223 TP224

C293
10nF

C185
10uF

R155

100R
R156

100R

C186
390pF

R185

100R
R186

100R

C295
390pF

C187
1nF

5VTUNER

TP196

1

2

1

2

GND

F100
K3953M

C188
10nF

R157

5.6K

F102
K3953M

C296
10nF

R187

5.6K

R290
0R

R291
NS

C119

1uF

C189

R158

1K

R159

22K

NS

3

3

R160

6.8K

R161

6.8K

BA582
D103

BA582

5

4

C190
10nF

5

4

C298NSC325

D104

TP197

TP198

C191
470nF

C192
1nF

C193
NS

C324
1nF

NS

23TES1.0E LA 7.

R162

680K

Q104

BC848B

1

2

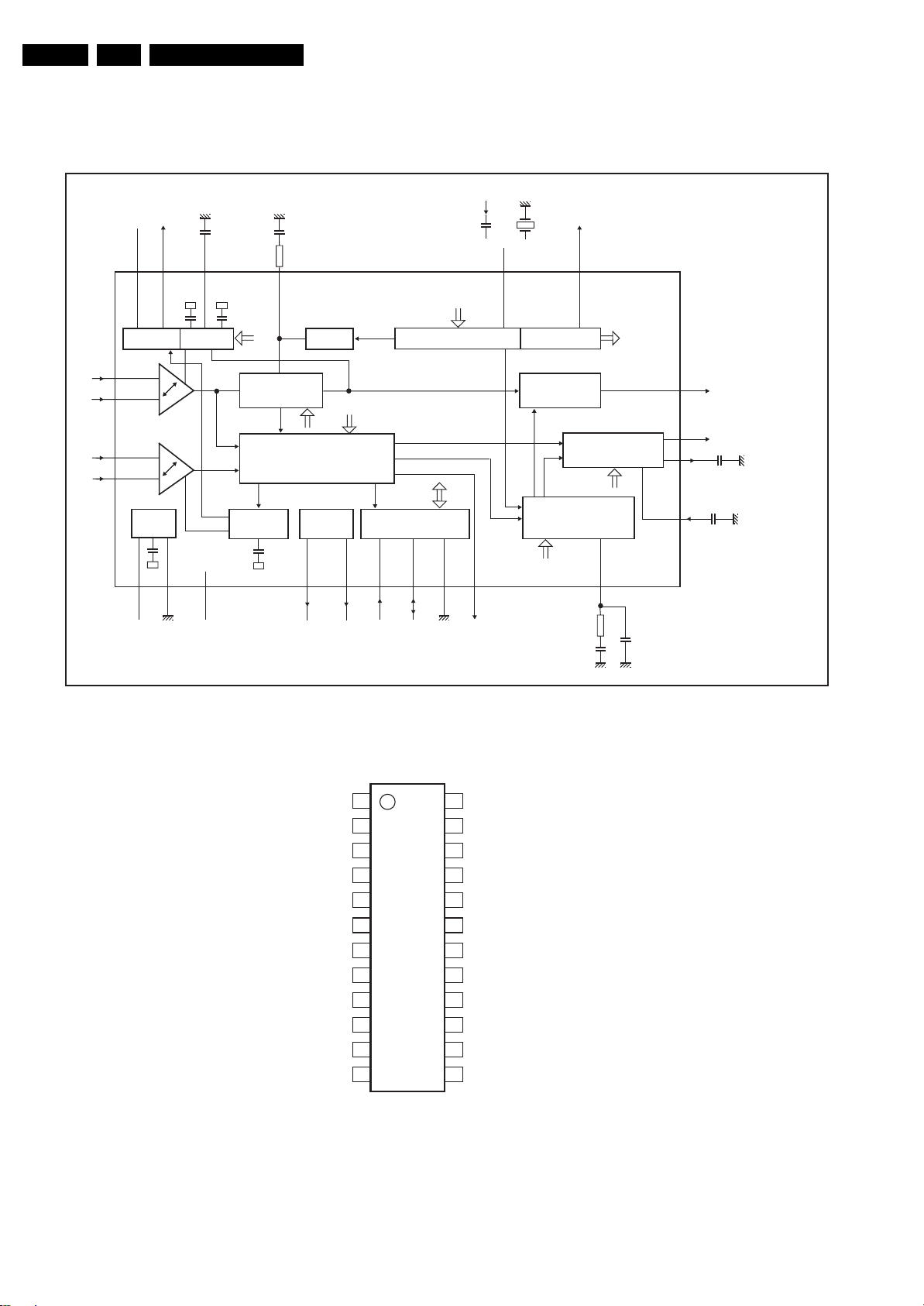

U101

1

IF1

2

IF2

3

OP1

4

FMPLL

5

DEEM

6

AFD

7

DGND

8

AUD

9

TOP

10

SDA

11

SCL

12

SIOMAD

ADRES: 84H

R188

2.2K

U102

1

IF1

2

IF2

3

OP1

4

FMPLL

5

DEEM

6

AFD

7

DGND

8

AUD

9

TOP

10

SDA

11

SCL

12

SIOMAD

ADRES: 94H

R189

2.2K

F101
K9453M

5VTUNER

R163

220K

D105

BA582

5

C220
100nF

C351
100nF

AGC_A

R166
47K

5VTUNER

L119
47uH

C163

1nF

R167
12K

C387

4.7nF

R194
12K

5VTUNER

TP195

5VTUNER

R118

22R

C352
10nF

L117
BEAD

L120
10uH

C221
10nF

C226
10pF

Q108

BC847

5VTUNER

TP208

L118
10uH

TP207

R124
33K

C362
390pF

C291

4.7nF

R168
330R

C388

4.7nF

C233
390pF

4

3

24

SIF2

23

DELEAT

TDA9886

DELEAT

TDA9886

VPLL

AGND

CVBS

VAGC

TAGC

VPLL

AGND

CVBS

VAGC

TAGC

SIF1

AFC

REF

SIF2

SIF1

AFC

REF

22

21

20

VP

C195

19

220nF

18

17

C196

16

470nF

C197

15

10pF

R190

150k
R191

150k

TP206

14

13

NC

24

23

22

21

20

VP

C329

19

220nF

18

17

C332

16

470nF

C334

15

10pF

TP214

14

13

NC

C338
100nF

C198

1.5nF

C347

1.5nF

4MHz

Y101

Y100
4MHz

C199
100nF

R164
330R

R192
330R

R165

22K

C291

4.7nF

R193
47K

L121
47uH

C389

220pF/50V

L119
47uH

C387

4.7nF

1nF

C406

4.7nF

C165

C238
220uF

5VTUNER

TP212

R195

100R

R118

22R

L123
47uH

C426

4.7nF

L129
10uH

Q108

BC847

R169
1K

C367
220uF

C366
10pF

5VTUNER

C393
10uF/10V

C390

33nF/50V

R292

22R

R170

100R

TP208

TP207

R124
33K

L118
10uH

C388

4.7nF

Q109

BC847

R171
1K

C239
100uF

5VTUNER

L121

47uH

C389

220pF/50V

L128
BEAD

R266
10R

Q107
BC848B

R196
1K

TP104

L122
10uH

R293
33K

Q105
BC848B

C240
100nF

D107
BAV99W

R197
75R

C427

4.7nF

R173
100R

R174

10R

L130

47uH

C428

220pF/50V

R175
1K

C355
10nF

R265
10R

TP211

C393
10uF/10V

C390

33nF/50V

C432
10uF/10V

C429

33nF/50V

R176

47R

Q106
BC848B

C243
100nF

R125

47R

C391
33nF/50V

C394
47uF

CVBS_TUNER2

D107
BAV99W

R240
0R

C244
10uF

D111
BAV99W

TP194

TP193

CVBS

CVBS_TUNER1

L124
BEAD

D108
BZX284-C33

C391

33nF/50V

33V

TP209TP210

5VTUNER

C392
33nF/50V

R125

47R

TP192

C430
33nF/50V

R294

47R

D108
BZX284-C33

33V

TP209TP210

D112
BZX284-C33

C392
33nF/50V

1 2 3 4 5 6 7 8

87654321

33V_PIP

TP142

C431
33nF/50V

G_16510_029.eps

D

C

B

A

201106

Main Board

D

Circuit Diagrams and PWB Layouts

1.8V

L803
BEAD

NRESET

R802
100R

C848
100nF

24TES1.0E LA 7.

87654321

3.3V

L805

C827
100nF

C828
10nF

C835
390pF

BEAD

C836
10uF

D

C846

C845

10nF

390pF

C

3.3V

TP182

L802
BEAD

TP181

C809

10uF

B

C810

100nF

C811

10nF

C813

390pF

SDA1_3

SCL1_3

VSYNC_PIP

HSYNC_PIP

R846

R847
100R

100R

TP166

TP167

C840
390pF

C841
10nF

C842
100nF

C847
100nF

R819

75R

1.8V

34

35

36

37

38

39

40

41

42

43

44

TP180

TP179

L808

BEAD

C843
10uF

C849
10uF

I2C1

I2C2

SDA

SCL

INTR

VDD33PAD

VSS33PAD

VSP

HSP

GPO1

CLKOUT

31

32

33

GPO2

POR

29

30

VSS18

VDD18

27

28

UIN

VIN

RESET

24

25

26

YIN

VDD33ADC

23

CVBS4

VSS33ADC

CVBS3

U802

CVBS2

PVP9390A

XOUT1XIN2VSS18

Y800

VDD184GPO05SEL6OUT37OUT28OUT19VSS33DAC10VDD33DAC

3

20.25MHZ

TP169TP170TP171

VDD18ADC

11

R820
10K

CVBS1

VSS18ADC

TM

TEST

IN1

IN2

IN3

FSW

R821
10K

R822
10K

22

21

20

19

18

17

16

15

14

13

12

C829

47nF

R823
NS

R829
NS

C830

47nF

C433

47nF

C833

47nF

R841

47nF

C834

47nF

C831

47nF

R830NSR831NSR839

R296

0R

R295
75R

R835
75R

C819
75R

R838
75R

NS

TP158

R843

0R

TP178

R844

TP176

0R

R845

0R

TP177

TP175

R129NSR133NSR134NSR135

PIP_VIDEO

PIP_CHROMA

PIP_LUMA

CVBS_TUNER2

TP174

TP173

SC1_R

SC1_G

SC1_B

SC1_FB

TP172

NS

C837

100nF

C816

390pF

C838

10nF

C817
10nF

C818
100nF

C839

390pF

3.3V

1.8V

TP165

TP164

L806
BEAD

C844

10uF

L807
BEAD

C824
10uF

C

B

A

05TA059A

C825
27pF

1 2 3 4 5 6 7 8

C826
27pF

STV_FB

STV_B

STV_G

STV_R

G_16510_030.eps

201106

A

Main Board

D

C

VGA/YPBPR SELECT

IR_MUTE

B

A

3.3VS

R268
R

3.3VS

R283

4.7K

P6

P7

P8

P9

P10

P11

ADE_RESET

SD7

SD6

SD5

SD4

SD3

SD2

SD1

SD0

SD15

SD14

SD13

SD12

SD11

SD10

SD9

SD8

1.8VCORE

3.3VIO

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

51

52

P5

208

P_VIDEO6

P_VIDEO7

P_VIDEO8

P_VIDEO9

VSS_IO

P_VIDEO10

P_VIDEO11

P_VIDEO12_I/O

P_VIDEO13_I/O

P_VIDEO14_I/O

VDD33_IO

P_VIDEO15

P_VIDEO16

P_VIDEO17

P_VIDEO18

P_VIDEO19

VSS_IO

P_VIDEO20

P_VIDEO21

P_VIDEO22

P_VIDEO23

P_VIDEO24

VDD18_CORE

VSS

VDD33_IO

P_VIDEO25

P_VIDEO26

P_VIDEO27_I/O

P_VIDEO28_I/O

P_VIDEO29_I/O

_IO

VSS

VDD33_IO

VSS

VDD18_CORE

SDRAM_D7

SDRAM_D6

SDRAM_D5

SDRAM_D4

SDRAM_D3

SDRAM_D2

SDRAM_D1

SDRAM_D0

VSS_IO

VDD33_IO

SDRAM_D15

SDRAM_D14

SDRAM_D13

SDRAM_D12

SDRAM_D11

SDRAM_D10

SDRAM_D9

SDRAM_D8

53NC54

Circuit Diagrams and PWB Layouts

3.3VS

P1

P0

207

P_VIDEO5

VDD33_IO

205

206

P_VIDEO4

P_VIDEO3

P2P3P4

203

204

P_VIDEO2

202

P_VIDEO0

P_VIDEO1

DE

DCLK

198

196

199

201

197

200

DE

DCLK

VSS_IO

VSS_IO

VDD33_IO

VDD18_CORE

195

CLK_DFL

H100

194

H100

V100

192

193

V100

SHIELD_ADCDAC

C600
100nF

191

GND_ADC

U601

STV3550

ADDR13

VDD33_IO

ADDR12

VSS_IO

NOT_BE1

57

55

56

58

ADDR1159ADDR960ADDR8

ADDR7

61

62

ADDR663ADDR564ADDR465CKOT_SDRAM66VDD33_IO

CKIN_SDRAM

VSS_IO

ADDR3

67

68

69

70

L600
10uH

190

189

VDD33_IO

VCC33_ADC

ADDR271ADDR1

72

R270
R

PORT_A

188

PORT_B0

ADDR0

73

5VS

SC1_8

KEY

186

187

PORT_B2

PORT_B1

ADDR1074ADDR1675VDD33_IO

3.3VS 3.3 VS 5VS

5VS

3.3VS3.3 VS3.3VS

R600

R662

4.7K

BL_ON/OFF

185

PORT_B3

76

R601

R267

R

4.7K

4.7K

CKE

PORT_B

SC2_8

184

77

TFT_ON/OFF

182

180

183

181

VSS_IO

PORT_B5

PORT_B4

PORT_A3

ADDR15

NOT_CS_SDRAM78NOT_RAS79NOT_CAS80RD_NOTWR81NOT_BE082VDD18_CORE83VSS

PORT_A2

SUB_CONTROL

178

179

PORT_D6

VDD33_IO

PWRD

177

84

R602

4.7K

PORT_D3

R269
R

LED

176

PORT_D2

33_IO

VDD

85

PORT_C

175

PORT_D1

VSS_IO

86

3.3VS

R617

4.7K

R603

4.7K

SOUND_INT

173

174

PORT_C4

PORT_D0

NOT_CS_FLASH87ADDR1788ADDR18

R633

4.7K

172

PORT_C5

89

SDA3_ 3

171

90

5VS

SCL3_3

R636

R644

R643

100R

4.7K

100R

MUTE

169

170

168

PORT_C7

PORT_C6

PORT_D5

ADDR19

ADDR1491VDD18_CORE92VSS93FLASH_D15

25TES1.0E LA 7.

87654321

8

U600'

5

SDA

6

SCL

3.3VS

PLL_LOCK

IR_IN

159

160

PORT_A1

102

NRESET

158

PORT_D4

PORT_A0

FLASH_D12

NC

103

3.3VS

R606

4.7K

157

PORT_C0

VDD18_CORE

VDD18_CORE

VDD18_CORE

FLASH_D4

104

R607

R608

4.7K

4.7K

TP95

PORT_C1

PORT_C2

PORT_C3

VSS_IO

VDD33_IO

YCRBC7

YCRBC6

YCRBC5

YCRBC4

YCRBC3

YCRBC2

YCRBC1

YCRBC0

CLK_DATA

HSYNC

VSYNC

SHIELD_PLL

VDD18_PLL

VSS_PLL

CLKXTP

CLKXTM

GND_PLL1

VCC18_PLL1

XTALIN

XTALOUT

GND_PLL3

VCC18_PLL3

GND_IO

VCC18_IO

VSS_IO

VDD33_IO

NRESET

TRST

VSS_IO

VDD33_IO

FLASH_D0

FLASH_D8

FLASH_D1

FLASH_D9

FLASH_D2

FLASH_D10

FLASH_D3

FLASH_D11

VDD33_IO

VSS_IO

R665

100R

R666
100R

Y_CR_CB7

Y_CR_CB6

Y_CR_CB5

Y_CR_CB4

Y_CR_CB3

Y_CR_CB2

Y_CR_CB1

Y_CR_CB0

CLOCKDATA

HSYNC

VSYNC

1.8PLL

CLKXTP

CLKXTM

1.8PLL1

1.8PLL3

1.8VIO

FLASHD0

FLASHD8

FLASHD1

FLASHD9

FLASHD2

FLASHD10

FLASHD3

FLASHD11

U600

5

SDA

6

SCL

3.3VS

R659

4.7K

TP93

Y600
27MHz

TP94

R611

4.7K

SDA2_3

SCL2_3

TP96

156

155

154

153

152

151

150

149

148

147

146

145

144

143

142

141

140

139

138

137

136

135

134

133

132

131

130

129

128

127

126

125

124

123

122

121

TDI

120

TDO

119

TCK

118

TMS

117

116

115

114

113

112

111

110

109

108

107

106

105

GND

5VS

3.3VS

5VS

R641

R604

R605

4.7K

4.7K

4.7K

STBY

PWM_DIMM

165

166

167

VSS_IO

PORT_A7

VDD33_IO

FLASH_D7

94

96

95

164

PORT_A5

PORT_A6

FLASH_D14

VDD33_IO

97

TXD

RXD

163

162

VDD33_IO

FLASH_D6

98

PORT_D/MUTE_IN

161

PORT_A4

PORT_D7

FLASH_D1399FLASH_D5

100NC101

VCC

24C64

VSS

4

8

E0

VCC

E1

E2

24C64

WC

VSS

4

R678

4.7K

C632

18pF

C633

18pF

E0

E1

E2

WC

R679

4.7K

1

2

3

7

ODSEL1

PORT_E

1

2

3

7

3.3VIO

C601
100nF

R647

SDA1_3

100R
R648

SCL1_3

100R

C642

C631

390pF

100nF

3.3VS

TP92

R628

120R
R629

120R
R630

120R
R631

120R

R632

120R

D600

BAT85

C602

C603

C604

C605

100nF

100nF

100nF

C636
10uF

3.3VS

U602

R618
10K

1

C634
10uF

RST

MC34164-3

3.3VS

R619
10K

GND

2

IN

3

R620

R621

R622

10K

10K

10K

R623
10K

100nF

C635
10uF

C638
10uF

IR_IN

IR

LED

C606
100nF

C637
10uF

C615
100nF

TP103

TP105

3.3VS

R615
1K

KEY

TP91

TP90

TP84

TP85

TP86

TP87

TP88

TP89

1

RXD

TP74

2

TXD

TP75

3

TP97

C607
100nF

3.3VIO

TP98

C639
100nF

1.8VCORE

TP99

C616
100nF

1.8PLL1

TP100 TP101 TP102

C617
100nF

R626

220R

R245

470R

L112

BEAD

C105
470nF

S603

20

20

19

19

18

18

17

17

16

16

15

15

14

14

13

13

12

12

11

11

10

10

9

9

8

8

7

7

6

6

5

5

4

4

3

3

2

2

1

1

JTAG

S100

SERVICE

C608
100nF

C618
100nF

C619
100nF

C620
100nF

C646
22pF

C609

C610

C611

C612

100nF

100nF

100nF

C621

C624
100nF

C625
100nF

S606

I2C

C626
100nF

C627
100nF

5VS

L82

1

BEAD
L83

2

BEAD

3

L84

4

BEAD

1

2

SCL1_5

SDA1_5

3

TP82

4

TP81

SCL2_5

5

TP80

SDA2_5

6

TP79

7

SCL3_5

TP78

8

SDA3_5

TP77

9

KEY

TP76

10

100nF

C622
100nF

1.8PLL31.8PLL

C623
100nF

5VS

R244
220R

S600

1

2

KEY

C613

100nF

100nF

C628
100nF

C629
100nF

S601

REMOUT

5VS

D

C614
100nF

C

B

A

05TA059A

ADR9

ADR6

ADR5

ADR7

ADR8

ADR4

CKOUT-

CKSD

ADR0

ADR1

ADR2

ADR3

ADR10

ADR16

NOTBE1

ADR11

ADR13

ADR12

1 2 3 4 5 6 7 8

ADR15

NOTCAS

NOTCSSRD

NOTRAS

RDNOTWR

NOTBE0

ADR19

ADR17

ADR18

NCSFLS

ADR14

FLASHD15

FLASHD14

FLASHD7

FLASHD5

FLASHD13

FLASHD6

FLASHD12

FLASHD4

G_16510_031.eps

201106

Main Board

Circuit Diagrams and PWB Layouts

26TES1.0E LA 7.

87654321

C326
100nF

C380
22uF

C344
100nF

C331
100nF

C328
100nF

C343
100nF

C346
100nF

1.8AV

1.8DV

3.3AV

3.3RV

C333
100nF

C330
100nF

C349
100nF

C348
100nF

C335
100nF

C336
100nF

C353
100nF

C350
100nF

C337
100nF

C358
100nF

C340
100nF

C357
100nF

C339
100nF

C354
100nF

C341
100nF

C356
100nF

C342
100nF

D

C

B

C372
22uF

157

OGB4

OBA5

104

B5.

OGB5
OGB6
OGB7
OBB0
OBB1
OBB2
OBB3

DGND

DVDD33

OBB4
OBB5
OBB6
OBB7

DGND

DVDD18

DGND

DVDD18

OCLK

DGND

DVDD33

ORA0
ORA1
ORA2
ORA3
ORA4
ORA5
ORA6
ORA7

DVDD33

DGND

DVDD18

DGND

DVDD18

OGA0
OGA1
OGA2
OGA3
OGA4
OGA5
OGA6
OGA7

DGND

DVDD33

OBA0
OBA1
OBA2
OBA3
OBA4

DGND

C365
100nF

OVS

OHS

ODE

C314
100nF

C315
100nF

3.3DV

8

7
6

8

7
6

8

7
6

8

7
6

8

7
6

8

7
6

8

7
6

C327
100nF

C320
100nF

C381
22uF

ADE_VSYNC
ADE_CLK
ADE_HSYNC
ADE_DE

R0
R1
R2
R3

R4
R5
R6
R7

G0
G1
G2
G3

G4
G5
G6
G7

B0
B1
B2
B3

B4
B5
B6
B7

C316

C317

100nF

100nF

156
155
154
153
152
151
150
149
148
147
146
145
144
143
142
141
140

39

1
138
137
136
135
134
133
132
131
130
129
128
127
126
125
124
123
122
121
120
119
118
117
116
115
114
113
112
111
110
109
108
107
106
105

C318
100nF

C319
100nF

1.8V1.8LV

1.8V1.8XV

OVS.
OCLK
OHS.
ODE

R0.
R1.
R2.
R3.
R4.
R5.
R6.
R7.

G0.
G1.
G2.
G3.
G4.
G5.
G6.
G7.

B0.
B1.
B2.
B3.
B4.

L305
BEAD

L306
BEAD

C377
22uF

C378
22uF

C321
100nF

C323

C345

100nF

100nF

1.8V1.8PV

L307
BEAD

C379
22uF

RN34

1

OVS.

2

OCLK

3

OHS.

45

ODE

33R

RN35

1

R0.

2

R1.

3

R2.

45

R3.

33R

RN36

1

R4.

2

R5.

3

R6.

45

R7.

33R

RN37

1

G0.

2

G1.

3

G2.

45

G3.

33R

RN38

1

G4.

2

G5.

3

G6.

45

G7.

33R

RN39

1

B0.

2

B1.

3

B2.

45

B3.

33R

RN40

1

B4.

2

B5.

3

B6.

45

B7.

33R

C374
22uF

3.3DV3.3V

L300
FERRITE

D

C

B

RXC-.

RXC+.

RX0+.

RX0-.

RX1+.

RX1-.

RX2+.

RX2-.

3.3V

L301
FERRITE

L302
FERRITE

D300
BAS70-04

C399 39pF

R255

R256

C40939pF

C410 39pF

R257

R258

C411 39pF

C412 39pF

R259

R260

C41339pF

C414 39pF

R261

R262 39R

C300

C305

10uF

100nF

3.3AV

C306

C301

100nF

10uF

3.3RV

C304

C309

10uF

100nF

D301

3.3V

BAS70-04

39R

39R

D302
BAS70-04

39R

39R

D306
BAS70-04

39R

39R

D304
BAS70-04

39R

D307

3.3V3.3V

BAS70-04

D305

3.3V3.3V

BAS70-04

L303
FERRITE

L304
FERRITE

RXC-

RXC+

RX0+

RX0-

RX1+

RX1-

3.3V3.3V

RX2+

RX2-

1.8DV1.8V

1.8AV

C302
10uF

C303
10uF

D303
BAS70-04

C307
100nF

C308
100nF

C382

10pF

C383

15pF

DCLK

P0
P1
P2

P3
P4
P5
P6

P7

P8
P9
P10
P11

RN30

8

7
6

33R

RN31

8

7
6

33R

R313

33R

RN33

8

7
6

33R

TP62

Y300

R304
270K

27MHz

TP63 TP64

3.3AV

1.8AV

L111

167

168

169

170

171

172

ORB7

ORB6

ORB5

ORB4

DGND

DVDD18

REFPR89AGND90AGND91INR92AVDD3393AVDD3394REFCR95AGND96AVDD18

C364

R312
15K

100nF

RED/PR

BEAD

1.8DV 3.3DV

DGND

1.8RV

C312

C371

100nF

22uF

159

160

161

162

163

164

165

166

OGB3

OGB2

OGB1

OGB0

DGND

DGND

DVDD18

DVDD18

AVDD18

TST_SCAN99DGND

DVDD33

OBA7

97

98

100

101

102

B7.

C386

C370

100pF

470nF

C313
100nF

158

DVDD33

OBA6

103

B6.

R302

SDA3_3

100R

TP56

R303

SCL3_3

100R

TP57

V100

H100

DE

R301
220K

678

C311
100nF

Y11

194

195

TCON3

TCON2

193

DGND

DVDD18

192

DGND

123

190

191

8

DVDD1

189

TCON4

R307

RN41

22R

33R

45

188

187

185

TCON6

TCON5

186

DGND

TCON7

184

DVDD33

TCON-IN

183

CLKIN

182

181

CLKOUT

180

DGND

DVDD18

179

DGND

177

178

DVDD18

176

ORB0

175

ORB1

174

ORB2

U300

AVDD33

REFCB71AGND72AVDD18

AVDD18

C368
100pF

69

70

BLUE/PB

REFG75REFMG76REFPG77AGND78AGND79ING80AVDD3381AVDD3382REFCG83AGND84AVDD18

73

74

R311

C363

15K

100nF

C385
470nF

C369
100pF

AVDD18

85

86

GREEN/Y

173

ORB3

REFR87REFMR

88

TP61

TP60

TP67

TP58

10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29

30
31
32
33
34
35
36
37
38
39

40
41
42
43
44
45
46
47
48
49
50
51
52

1
2

3

4
5
6
7

8

9

3.3AV1.8AV

5V

R300
100K

C310
100nF

YUV6
YUV5
YUV4
YUV3
YUV2
YUV1
YUV0
YUVCLK
DVDD18
DGND
DVDD18
DGND
AGND
AVDD18
AVDD33
RX2M
RX2P
AGND
AVDD33
RX1M
RX1P
AVDD33
RXOM
RXOP
AVDD33
AGND
RXCP
RXCM
AVDD33
REXT
AVDD33
AVDD33
AGND
AGND
AGND
RBIAS
AGND
AVDD18
AGND
AVDD33
AGND
AVDD18
AGND
AVDD18
AGND
AVDD18
XGND
XTAL_IN
XTAL_OUT
XVDD18
LVDD18
LGND

Y7

207

208

204

205

206

SDA

YUV7

XCLK

RESETN

XCLK_EN

ADE3000SXT

CSYNC53VSYNC

HSYNC55AGND56AGND57AVDD33

54

TP70

TP68

R310
15K

CSYNC

V_SYNC

H_SYNC

1

YC

2

Y0

3

Y1

45

Y2

1

Y3

2

Y4

3

Y5

45

Y6

Y7

1

Y8

2

Y9

3

Y10

45

Y11

R308

470R

R309
2K

C359
100nF

TP65

RX2­RX2+

RX1­RX1+

RX0­RX0+

RXC+
RXC-

C360
100nF

1.8PV1.8XV1.8LV

ADE_RESET

Y6
Y5
Y4
Y3
Y2
Y1
Y0
YC

1.8RV

TP59

TP66

C361
100nF

1.8DV

3.3RV

202

203

SCL

DGND

AVDD33

58

59

Y8Y9Y10

198

199

200

201

DGND

TCON0

DVDD18

DVDD18

AGND60AVDD18

AGND62REFB63REFMB64REFPB65AGND66AGND67INB68AVDD33

61

C384
470nF

3.3DV

196

197

TCON1

A

05TA059A

C415 39pF

1 2 3 4 5 6 7 8

G_16510_032.eps

201106

A

Main Board

D

C

PORT_E

VGA/YPBPR SELECT

PIP_LUMA

B

A

05TA059A

S206

SCR2_ARO

3940

SCR2_ALO

3738

SCR1_ARO

3536

SCR1_ALO

3334

SCR1_ARI

3132

SCR1_ALI

2930

2728

MUX_LI

2526

MUX_RI

2324

FRONT_L

2122

FRONT_R

PORT_D/MUTE_IN

1920

1718

SCL1_5

1516

SDA1_5

1314

RXDTXD

1112

SC1_8SC2_8

910

PIP_VIDEO

78

PIP_CHROMA

56

CVBS_MAIN

34

CHROMA

12

CVBS_TUNER1

Circuit Diagrams and PWB Layouts

3.3V

L200

10uH

1.8V

L213

3.3uH

5V

L201

10uH

TP20

3.3V

5V

L104

R214

10uH

22R

L106

R215

10uH

0R

3.3V5V

L109

R213

10uH

75R

L110

R209

10uH

0R

5V

3.3V

L206

10uH
L207

10uH

3.3V

L208
10uH

3.3V

C211

C277

100nF

S201

3

2

1

HEADPHONE

R126
NS

C375
NS

HEAD_R

HEAD_L

R142
NS

C420
NS

C103

47uF

C104

47uF

100uF

TP29

TP30

8

U202

7

OUTB

TDA7050

6

OUTA

VDD

GND

INA+

1

2

INA-

3

INB-

4

INB+

5

3.3V 9V

R274

R253

10K

NS

R254

NS

R278
47K

5V

R275
10K

L601
10uH

R230
22R

C373

4.7uF

C200
100nF

C219
10uF

C224
10uF

C225
10uF

C230
1uF

C231
10uF

C232
10uF

C280
1nF

C281
1nF

T202
BC857B

R276
10K

MONO_AUDIO

SCR1_ALO

SCR1_ARO

C201
100nF

C205
100nF

C206
100nF

C212
100nF

SCR2_ALO

SCR2_ARO

C213
100nF

C214
100nF

R222

2.2K

R223

2.2K

R277

10K

TP38

3.3V

R282

4.7K

SUB_CONTROL

TP37

"0" -SUBW ON
"1" -SUBW OFF

R224

10K

C

C241

330pF

SCR1_ALI

SCR1_ARI

C227
10uF

FRONT_L

FRONT_R

MUX_LI

MUX_RI

R225

10K

C245
330pF

TP18

TP27

TP28

TP23

TP24

TP21

TP22

C207
100nF

TP26

S202

TP19

SIF

C242
330pF

R204

220R
R205

220R

C246
330pF

R200

220R
R201

220R

1.8V

L220
10uH

TP16

R212
560R

80

SC4_IN_R

L202
10uH

79

SC4_IN_L

C259

22nF

C255

100nF/0R

77

78

VCC18IF76GND18IF

MONO_IN

STV82X6

10

11

12

13

14

15

16

17

18

19

20

1

2

3

4

5

6

7

8

9

C260

100pF

SC1_OUT_L

SC1_OUT_R

VCC_H

GND_H

SC3_OUT_L

SC3_OUT_R

VCC33SC

GND33SC

SC1_IN_L

SC1_IN_R

VREFA

GND_SA

VBG

SC2_IN_L

SC2_IN_R

VCC33LS

GND33LS

SC2_OUT_L

SC2_OUT_R

VCC_NISO

VSS33CONV21VSS33CONV22SC3_IN_L23SC3_IN_R24LS/SL25LS/SR26LS.C27LS.L

C215

100nF

L214
100uH

C268

SRR

SRR

SRL

SW

OUTR

OUTL

SRL

C

SW

OUTL

OUTR

C271

1uF

C269
1uF

C272

1uF

1uF

C267
1uF

C270
1uF

C284

C282

C283

33nF

33nF

33nF

TP32

TP31

TP34

TP35

TP36

1

2

3

4

5

6

7

C

27TES1.0E LA 7.

C204
10uF

C257
220nF

73

74

75

SIF_P

SIF_N

GND_PWIF

U200

28

C234

C278

0R

10uF

L216

L217

100uH

100uH

C286

C287

33nF

33nF

C258

C292
100nF

72

71

70

100nF

67

68

69

IRQ

BUS_EXP

GNDPSUB

VSS18ADC

VDD18ADC

LS.R29LS.SUB30HP.L31HP.R32VSS18CONV33VDD18CONV

34

1.8V

L209
10uH

L215

L219

L218
100uH

C285
33nF

100uH

MUTE

MUTE_REF

100uH

TP39

OUTR

OUTL

R227

4.7K

TP40

C235

10uF

R231

4.7K

TP41

TP42

R206

100R

VSS18

C216

100nF

R233
560R

R234
560R

SOUND_INT

66

VDD18

HP.DET35ADR_SEL

T200

BC848B

C247

100nF

65

36

3.3V

C202
100nF

I2S_DATA2

R218

3.3K

C262
100pF

R235

1.5K

5VS

R232

4.7K

64

I2S_DATA1

VSS18

37

R236

1.5K

L203

10uH

63

62

I2S_LRCK

I2S_DATA0

XTALOUT/CLKXTM

XTALIN/CLKXTP

VDD1838SCL39SDA

C249

1nF

C248

100nF

1.8V

S200

1

TP49

2

TP50

3

TP51

4

TP52

5

61

TP53

TP54

I2S INPUT

6

7

TP55

I2S_SCK

I2S_POM_CK

GND18CLK2

GND18CLK1

CK_TST_CTRL

40

U201

TDA7264

VDD33IO

VSS33IO

VCC18CLK2

VCC18CLK1

CLK_SEL

VDD18

VSS18

VSS33IO

VDD33IO

SPDIF_OUT

SPDIF_IN

RST_N

VDD18

VSS18

R122
100R

R123
100R

60

59

58

57

56

55

54

53

52

51

50

49

48

47

46

45

44

43

42

41

SDA1_5

SCL1_5

R228
0R

R216

0R

R210

0R

C209
100nF

C208
100nF

C203
100nF

C210
100nF

C217
100nF

3.3V

3.3V

C228
10uF

IN_R8GND7IN_L6-VS5MUTE/STB4OUT_L3+VS2OUT_R

C264

C265

1uF

1uF

-16V

TP43

C250

1nF

+16V

R226

C223

15K

R237
1K

T201

BC848B

1uF

1.8V

3.3V

C222
10uF

L204

10uH

R202

0R

R203

0R

C256
100nF/0R

C237
10uF

L210

10uH

R211

0R

R207
0R

1.8V

L205

10uH

R208
0R

R219

0R
R221

0R

1.8V

C273
18pF

Y200

TP47 TP48

27MHz

R217

270K

C274
18pF

3.3V

R220

100R

C279
470nF

1.8V

+16V

1

TP44

TP46

R238

4.7R

C229
100nF

-16V +16V

C424

C422
1000uF/25V

100nF/50V

C275
18pF

C276
18pF

NRESET

HS01
AUDIO HEATSINK

1

TP45

R239

4.7R

C236
100nF

C423

1000uF/25V

5V

R229
0R

2

3

L211

BEAD

L212

BEAD

C425

100nF/50V

FD1 FD2 FD3 FD4 FD5 FD6 FD7 FD8

1 2 3 4 5 6 7 8

87654321

Q200

C218

BC327

47uF

S203

1

OUT AUDIO

2

3

4

G_16510_033.eps

201106

D

C

B

A

Main Board

Circuit Diagrams and PWB Layouts

28TES1.0E LA 7.

87654321

D

C

B

A

05TA059A

C145

3.3VA

C129

C111

R100

C131
390pF

470R

C139
220pF

C140
120pF

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

C136
390pF

Y_CR_CB7
Y_CR_CB6
Y_CR_CB5
Y_CR_CB4

Y_CR_CB3
Y_CR_CB2
Y_CR_CB1
Y_CR_CB0

L100

5.6uH

VCC18_CVBS

CVBS2_Y

C

VDD18_CORE

VSS

TST_MODE

VDD18_CORE

VSS

SDA

SCL

VDD18_CORE

VSS

NRESET

VDD33_IO

VSS_IO

I2CADO

2
4
6

2
4
6

C141

10pF

64

GND_CVBS

STV2310

VDD18_CORE

17

18

RN10

68R

RN11

68R

C101
10uF

C127

C109

C100
10uF

CVBS_MAIN

C166
180pF

L105

3. 3uH

SDA1_5

SCL1_5

NRESET

C167

10pF

TP12

TP11

TP13

R110

100R
R111

100R

R112

100R

CHROMA

R131

270R

TP9

R114
220R

1 2 3 4 5 6 7 8

100nF

C168
270pF

R132
220R

3.3VD

TP14

390pF

C123
100nF

R103

75R

TP7

1.8VD

TP10

1.8VD

1.8VD

100nF

C114
100nF

C115
100nF

C120
100nF

C135
390pF

C116
100nF

390pF

1.8VA

C151
330pF

C152
330pF

C154
330pF

C121
100nF

R116

0R

C124
100nF

TP8

C148
22nF

C161
1nF

C128

C110

C102
10uF

R101

150R

63

CVBS1_Y

VSS

1

3

5
78

1

3

5
78

61

62

REFP_CVBS

REFM_CVBS

YCRCB719YCRCB620YCRCB521YCRCB422VSS_10

390pF

100nF

58

59

60

ADCIN

VIDEO_OUT

VIDEOCOMM

U100

23

22nF

TP6

56

57

GND_IO

VCC33_IO

VDD33_IO24YRCB325YRCB226YRCB127YRCB0

R102
NS

55

GND_DIG

54

R177

47R

VCC18_DIG

28

TP5

C112
100nF

53

B_CR

CVBS

51

52

G

VDD18_OUT29VSS_OUT

30

CLOCKDATA
PLL_LOCK
HSYNC
VSYNC

HSYNC_PIP

VSYNC_PIP

R_CR

31

C130
390pF

50

GND_RGB

XTALIN/CLKXTP

VCC18_CLK

CLK_DATA

PLLOCK

32

2
4
6

1.8VA

TP4

49

VCC18_RGB

REF_RGB

REFB_RGB

SHIELD

CKSEL

CLKXTM

XTALOUT

GND_CLK

VCC12SUB

GNDSUB

VCC33SUB

FIELD

VSYNC

HSYNC

RN12

68R

R115
68R

R117
68R

FB

C113
100nF

C146
22nF

R104
220R

C147
22nF

R105
220R

C150
330pF

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

1

3

5
78

CLKXTM

CLKXTP

C134
390pF

C132
390pF

1.8VA

C137
390pF

C138
390pF

R130
75R

3.3VOUT

1.8VOUT

C122
100nF

C117
100nF

C125
100nF

C126
100nF

C153
330pF

C133
390pF

R113

0R

C107
10uF

C108
10uF

L107
FERRITE

L108
FERRITE

C118
100nF

STV_FB

3.3V

1.8V

C149
22nF

R106
220R

L101

3. 3uH

C155
270pF

L102

3. 3uH

C156
270pF

L103

3. 3uH

C157
270pF

SC1_G

RX2+.

RX1+.

RX0+.

RXC-.

ANALOG_GREEN

C142
10pF

C158
180pF

C143
10pF

C159
180pF

C144
10pF

C160
180pF

S205

12

3 4

56

7 8

910

11 12

13 14

15 16

17 18

19 20

21 22

23 24

25 26

27 28

29 30

31 32

33 34

35 36

37 38

3940

R107

270R

R108

270R

R109

270R

TP1

R119
220R

R120
220R

TP3

R121
220R

SC1_R

SC1_B

SC1_FB

RX2-.

RX1-.

RX0-.

RXC+.

VGA_HS

VGA_VS

ANALOG_BLUE

ANALOG_RED

STV_G

STV_B

STV_R

G_16510_034.eps

D

C

B

A

201106

Main Board

Circuit Diagrams and PWB Layouts

5V

TP237

L400
BEAD

29TES1.0E LA 7.

87654321

C400

D

TP225

U400A

74F14H5

CSYNC

100nF

12

RED/PR

C

GREEN/Y

TP227

BLUE/PB

TP228

C407
10uF

8

C404
100nF

C405
100nF

C403
100nF

ISL59885

CVIN

VCC

HD

CSET

GND

4

C402

2

100nF

5

6

R400

2.5M

R403
75R

R404
75R

R402
75R

R407
10K

C401
56nF / X7R

L402

BEAD

L403

BEAD

L401

BEAD

C421
470pF

Q400
BC848

C416
100pF

R401
100R

D402
BAS70

D401
BAS70

3.3V

3.3V

3.3V

ANALOG_RED

TP235

ANALOG_GREEN

TP234

ANALOG_BLUE

TP233

U400D

74F14H5

U400C

74F14H5

98

U400E

56

1110

74F14H5

5V

L404
BEAD

U400G

14

VCC

C408
100nF

74F14H5

GND

7

U401

7

HO

3

VO

1

CSYNC

D

C

TP236

D400

U400F

74F14H5

1312

R405
10K

H_SYNC

TP229

B

V_SYNC

TP230

U400B

74F14H5

34

R406
10K

A

BAS70

VGA_HS

VGA_VS

TP231

TP232

3.3VS

5VS

3.3VS

5VS

R136

47K

R137

47K

R140

10K

R668

47K

R669

47K

R675

10K

Q100

BC848B

Q101

BC848B

Q609

BC848B

Q610

BC848B

3.3VS

R138

47K

SDA3_3

R139

47K

5VS

R127

SDA3_5 SCL3_5

100R

R141

10K

Q102

BC848B

Q103

BC848B

3.3VS

R672

47K

SDA2_3

R673

47K

5VS

R610

SDA2_5 SCL2_5

100R

R677

10K

Q613

BC848B

Q614

BC848B

R128

100R

R634

100R

SCL3_3

SCL2_3

3.3VS

5VS

3.3VS

5VS

R653

47K

R654

47K

R651

10K

R655

47K

R656

47K

R652

10K

Q604

BC848B

Q605

BC848B

Q606

BC848B

Q607

BC848B

R649

100R

R650

100R

SDA1_3

SDA1_5

SCL1_3

SCL1_5

B

A

05TA059A

1 2 3 4 5 6 7 8

G_16510_035.eps

201106

Circuit Diagrams and PWB Layouts

Layout Main Board (Top Side)

30TES1.0E LA 7.

05TA059A

G_16510_026.eps

201106

Circuit Diagrams and PWB Layouts

Layout Main Board (Bottom Side)

31TES1.0E LA 7.

05TA059A

G_16510_027.eps

201106

Keyboard Control Board

Circuit Diagrams and PWB Layouts

32TES1.0E LA 7.

1

D

432

D

MULTI BUTTON SEMA

C

S002

2

1

To infra pcb
S001

2

1

To main pcb

C001
100nF

C002
100nF

R002

5.6K 1/6W

SW02
MENU

R003

2.7K 1/6W

SW03
SOURCE

R004

1.5K 1/6W

SW04
V(-)

R005

820R 1/6W

SW05

V(+)

R006
470R 1/6W

SW06
P(-)

GND

R007
220R 1/6W

SW07
P(+)

C

B

A

05TA052A

B

A

G_16510_038.eps

201106

1

2 43

Circuit Diagrams and PWB Layouts

Layout Keyboard Control Board (Top Side)

05TA052A

33TES1.0E LA 7.

G_16510_039.eps

201106

Layout Keyboard BoardControl Board (Bottom Side)

05TA052A

G_16510_040.eps

201106

Circuit Diagrams and PWB Layouts

34TES1.0E LA 7.

IR & LED Board

D

C

INFRA RED

S001

Layout IR & LED Board (Top Side)

1

D

IR01
IR

IR

VCC2GND

G_16510_042.eps

1

2

GND

3

4

R001
33R 1/4W

R003
470R

3

1

C001
100uF

05TA053B

C

201106

Layout IR & LED Board (Bottom Side)

LED1
LED

S002

B

To mbutton pcb

2

1

C002
100nF

R004
15K 1/6W

SW01
STBY

B

G_16510_043.eps

05TA053B

A

A

201106

05TA053B

G_16510_041.eps

221106

1

Circuit Diagrams and PWB Layouts

35TES1.0E LA 7.

Mains Switch Board

D

C

Layout Mains Switch Board (Top Side)

1

D

C

05TA081

G_16510_045.eps

211106

S100

1

2

POWER

POW1

1

2 3

POWER

S101

4

2

1

POWER

POWER

B

B

A

05TA081

A

G_16510_044.eps

221106

1

Side I/O Board

Circuit Diagrams and PWB Layouts

36TES1.0E LA 7.

1

S100

1

D

S102

3

6

C

2

5

L107

BEAD

L110

BEAD

C109
1nF

2

3

HEADF

C111
10pF

AGND

C113
1nF

L

R

GND

C100
220nF

GND

R102
15K

C115
1nF

GND

L100
22uH

L101
22uH

C101
220nF

AV_CVBS

AV_L

GND

C102
100nF

AV_R

C103
100nF

GND

32

GND

R100

4.7R

C104
10nF

GND

R101

4.7R

C105
10nF

GND

AGND

S101

1

2

3

CON3

S103

1

2

3

4

5

4

D

C

AGND AGND AGND

1

4

CHINC3

B

A

AGND

AGND AGND AGND

L111

BEAD

C110
1nF

C114
1nF

R103
15K

C116
1nF

FD1

FD2 FD3

CON5

B

A

05TA051D

G_16510_046.eps

211106

1

2 43

Circuit Diagrams and PWB Layouts

Layout Side I/O Board (Top Side)

05TA051D

37TES1.0E LA 7.

Personal Notes:

G_16510_047.eps

211106

Layout Side I/O Board (Top Side)

05TA051D

G_16510_048.eps

211106

E_06532_012.eps

131004

Switch Board (Overview)

21

9V

9V'

L200
10uH

R203
10R

TP5

C200

C203

10uF

100nF

R200

CVBS_MAIN

D

CVBS_MAIN

SC2_ARO

C

Q200
BC848B

100R

TP2

TP3

C174

TP1

1uF

VGA_RED / PR

VGA_BLUE / PB

VGA_VS

VGA_HS

RXC+

RX0-

RX1-

RX2-

SC1_FB PIP_VIDEO_MAIN

SC1_B

SC1_R

R201
100R

R180

100K

TP4

R182
150K

R206
75R

TP6

R209
1K

9V'

R204
10R

TP7

C204

100nF
Q201
BC848B

R207
75R

TP8

R210
1K

9V

TP9

Q108
BC848

R186

470R

TP69

R187

470R
R174
1K

S201

12

3 4

6

5

8

7

910

11 12

13 14

15 16

18

17

19 20

21 22

23 24

25 26

27

28

29 30

31 32

33 34

35 36

37 38

3940

C102
47uF

SC2_RO

SC3_RO

VGA_GREEN / Y

RXC-

RX0+

RX1+

RX2+

SC1_G

MAIN_VIDEO

C201
10uF

SC3_CVBSOUT

TP70

TP10

TP11

CVBS_MAIN

PIP_CHROMA

SC2_ALO

PORT_E

VGA/YPBPR SELECT

PIP_LUMA_MAIN

Circuit Diagrams and PWB Layouts

3

9V

R133
10R

PIP_LUMA

TP17

CHROMA_OUT

TP20

R110

Q101
BC848B

100R

R145
1K

9V

TP22

R109
100R

TP19

9V

TP23

R256
100R

TP18

9V'

R205
10R

TP14

C205
100nF

R202

Q202
BC848B

100R

R208
75R

TP15

R211
1K

9V

R135
10R

C106
100nF

R113

Q102
BC848B

100R

R149

75R
R146
1K

9V

R181

100K

TP16

C175

Q109
BC848

TP12

TP13

1uF

R188

470R

TP71

R189

R183
150K

470R
R175
1K

SC2_LO

SC3_LO

C202
10uF

SC2_CVBSOUT

C220
1uF

PIP_CHROMA_MAIN

PIP_VIDEO

Part 1

S202

SC2_ARO

TXD

12

3 4

56

7

8

910

11 12

13 14

15 16

18

17

20

19

21 22

23 24

25 26

27 28

29 30

31 32

33 34

35 36

38

37

40

39

SC2_ALO

SC1_ARO

SC1_ALO

SC1_ARI

SC1_ALI

MUX_LI

MUX_RI

FRONT_L

FRONT_R

MUTE_IN

SCL

SDA

RXD

SC1_8SC2_8

PIP_CHROMA_MAIN

MAIN_VIDEO

CHROMA_MAIN

SC1_CVBSOUT

G_16510_049a.eps

S203

1

TP72

2

TP73

3

CON3

38TES1.0E LA 7.

DVI_DDSDA

DVI_DDSCL

16

D

C

VGA

L211

BEAD

C251
100pF

VGAGND

L212

BEAD

C257
100pF

VGAGND

L213

BEAD

C258
100pF

VGAGND

L214

BEAD

C259
100pF

VGAGND VGAGND

R225
10K

VGAGND VGAGND

VGAGND

TP67

R222
10K

VGAGND

VGAGND

L217

BEAD

C262
100pF

VGAGND VGAGND

8

VCC

5

SDA

TP61

24LC21

VSS

4

L303
BEAD

4

4

DA

DA

7

7

DB

DB

9

9

DC

DC

12

12

DD

DD

1

1

IN

IN

15

15

EN

EN

R226

NS

1514

VGA_R

C263
100pF

VGAGND

VGA_G

C264
100pF

VGAGND

VGA_B

C265
100pF

VGAGND

VGA_SDA

C266
100pF

L215

VGA_HS

BEAD

C260

C267

100pF

100pF

L216

VGA_VS

BEAD

C268

C261
100pF

VGAGND

C269
100pF

R160
47K

TP95

C331

C306

390pF

100nF

L207

100pF

BEAD
L206

BEAD

VGA_SCL

L209

BEAD

VGAGND

R194
100R

TP64
R195
100R

TP100

C330
10uF

VGA_RED / PR

TP96

VGA_GREEN / Y

TP97

VGA_BLUE / PB

TP98

VGA/YPBPR SELECT

TP99

987654

C105

C230

100nF

1uF

R148

PIP_VIDEO_MAIN

75R

TP24TP21

R215
NS

R114
10R

C241

C103
100nF

1uF
Q100
BC848B

R147

CHROMA_MAIN

75R

TP26
R144
1K

R259
10R

C244

C246

100nF

1uF
Q203
BC848B

R261

PIP_LUMA_MAIN

75R

TP25
R260
1K

RXD

TXD

SC1_CVBS

S_VIDEO_L

LUMA

S_VIDEO_R

CHROMA

SC2_CVBS

SC2_ALI

SC2_CVBS

SC2_ARI

SC2_CHROMA

C216

1

R240

470nF

75R

C207

R230

2

1.2K

R216

1uF

NS

C217

3

R241

470nF

75R

C209

R231

4

1.2K

R217

1uF

NS

C225

5

100nF

R242
75R

6

7

C218

8

R243

470nF

75R

C211

R234

9

1.2K

TP74

R218

1uF

NS

C249

TP75

TP76

10

100nF

C212

R236

11

1.2K

R219

1uF

NS

C226

12

R245

100nF

75R

DVD_L_SW

DVD_R_SW

TP27

C213

C206

1uF

1uF

R237

R227

R220

1.2K

1.2K

NS

46

47

48

LTV

RTV

TV IN

V1 IN

LV1

Y1 IN

RV1

C1 IN

S2-1

S-1

V2 IN

LV2

Y2 IN

RV2

C2 IN

V3 IN

S2-2

S-2

15

13

14

C221
470nF

TP77

R247

R221

75R

NS

SC3_CVBS

CVBS_MAIN

CHROMA_OUT

R244
10K

R213
10K

43

45

COUT1

42

44

GND

TRAP1

YOUT1

U200

CXA2089Q

Y3 IN

LV3

16

R238

1.2K

C214
1uF

R289

NS

SC3_ALI

C3 IN

RV3

17

19

18

R239

1.2K

C222

C215

C250

470nF

1uF

100nF

TP79 TP80

TP78

R249

R223

NS

75R

SC3_ARI

EXT_LUMA

EXT_CHROMA

MUX_LI

MUX_RI

TP28

TP29

C237

C236

10uF

10uF

40

41

ROUT1

VOUT1

S2-3

S-3

21

20

R262

NS

TP30

C238

C219

10uF

39

38

CIN1

LOUT1

V4 IN

LV4

23

22

R264

1.2K

C247

C223

1uF

470nF

TP81

R251

R263

75R

NS

FRONT_V

PC/DVI_L

470nF

37

BIAS

36

YIN1

R212

35

MUTE

1K

100nF

9V

C235

C239

TP31

34

VCC

33

VOUT2

32

ROUT2

31

YOUT2

30

LOUT2

29

COUT2

28

DC OUT

27

SDA

26

SCL

25

ADR

TP82

R255

RV4

0R

24

R265

1.2K

C248
1uF

PC/DVI_R

C240
100uF

NS

PIP_VIDEO

R246
10K

PIP_LUMA

R266
10K

PIP_CHROMA

TP32

R250
10K

R252

SDA

220R

TP83

R253

SCL

220R

TP84

5V

R254
0R

S114

1
2

3

4
5
6
7

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

CON24

S107

1

WP_PC

VGA_SCL

2

VGA_SDA

3

4

5

PC SERVICE

VGAGND

S109

YPbPr

5

1

R286

DVB_CVBS

NS
R292

DVD_L

NS
R293

DVD_R

NS

DVI

L201

32

14

TP46
TP47

CMCC

TP48

L202

32

14

TP49

CMCC

DVI5V

R119

10K
R102

10K

L203

3

2

TP50

14

TP51

CMCC

L204

32
4

1

TP45

CMCC

TP33

TP52
TP53

TP54

TP55
TP56

TP57
TP58

TP59
TP60

5V

6

RX2­RX2+

DVI_DDSCL
DVI_DDSDA

RX1­RX1+

DVIVCC

RX0­RX0+

RXC+
RXC-

TP34

VGA_VS

TP35

R270

3

0R

R271

4

0R

R272

2

0R

C270
NS

S102

HEADF

121110

5VVGA5V

D102
BAT54C

TP36

C165
100nF

VGAGND

R156
100R

Y

R290
75R

Pr

R291
75R

Pb

R276
75R

CHINCH_1

CHINCH_3

CHINCH_2

PC VESA PROM

TP37

R157
47K

TP38

8

R132

R116

U108

0R

47K

1

NC

VCC

2

NC

3

SDA

NC

6

SCL

24LC21

WP_PC

7

VCLK

VSS

4

VGAGND

Part 2

G_16510_049b.eps

PC AUDIO

BEAD

L100

1

2

3

R278
15K

L101

TP85

BEAD

TP86

TP87

TP89

R279
15K

TP88

C100
1nF

13

TP68

R235
75R

VGAGND

TP66

R232
75R

D103
BAT54C

TP43 TP44

C166
100nF

WP_DVI

DVI_DDSCL

DVI_DDSDA

5V

C231
100nF

C224

100nF
C232
100nF

C229

100nF
C233
100nF

C234

100nF

S110

1

VGAGND

TP65

2

R228
75R

3

VGA5V

TP62

4

VGAGND

TP63

5

L210
BEAD

6

7

8

9

VGA CONNECTOR

10

11

12

13

14

15

VGAGND

5VDVI5V

DVI VESA PROM

DVIVCC

R1540RR159

R155

U109

47K

0R

1

NC

2

NC

3

NC

6

SCL

7

VCLK

5V

TP94

16

16

U303

2

2

S1A

S1A

VCC

R269
NS

R248
NS

R229
NS

VCC

3

3

S2A

S2A

5

5

S1B

S1B

6

6

S2B

S2B

PI5V330

PI5V330

11

11

S1C

S1C

10

10

S2C

S2C

14

14

S1D

S1D

13

13

S2D

S2D

GND

GND

R136

R143

8

8

0R

0R

R224
NS

R233

NS

R158
47K

R128

5

TP39

TP40

PC/DVI_L

PC/DVI_R

C101
1nF

VGA_SDA

100R

TP41

R130

VGA_SCL

100R

TP42

R150

TXD

100R
R151

RXD

100R

S113

1

2

3

4

5

DVI SERVICE

VGA_R

TP90

Pr

VGA_G

TP91

Y

TP92

VGA_B

Pb

TP93

TP119

TP120

TP121

R101

3.3K

C146
1nF

C147
1nF

75R

R108

R118

10K

R141

15K

L110
FB

L111

R142

FB

15K

SCART2

S101

21

20

TP122

19

18

17

16

15

14

13

12

11

10

9

8

TP123

7

6

5

4

3

2

1

SCART1

TP124

D101
LL4148

L104
10uH

TP126

L105
10uH

TP125

FRONT-AV

FRONT_VI

S104

TP168

1

TP169

2

FRONT_LI

3

4

FRONT_RI

5

TP167

CON5

SC2_CVBSOUT

TP127

TP128

SC2_CHROMA

R111

150R

R122

SC2_LO

TP132

220R

TP129

C116

C159

C142

1nF

1nF

10uF

C160

R123

SC2_RO

TP133

220R

TP130

C117

C143

10uF

1nF

L116

BEAD

L117

BEAD

L118

BEAD

L205

NS
R284
NS
R285
NS

1nF

TP131

R129
NS

C228

TP170 TP174

10uF
C227

TP171

10uF

TP172

TP173

FRONT_V

C104
10pF

FRONT_L

FRONT_R

TP175

CHINCH_1

CHINCH_3

CHINCH_2

R

L

S105
CHINC2-1

S116

1

2

3

4

5

6

CON6

FD1 FD2 FD3

FD4

FD5 FD6

TP176

TP177

TP178

SVHS

S111
S_VHS

1

4

TP134

2 3

R131
75R

3

TP135

1

2

TP136

L123
10uH

TP181

C137
470uF

TP180

L124
10uH

TP182

C152
10uF

LUMACHROMA

TP138

R134
75R

5

6

TP137

L114

R126

S_VIDEO_R

TP139

15K

BEAD

L115

BEAD

C150
1nF

R127

S_VIDEO_L

TP140

15K

C151
1nF

5V

TP183TP179

C155
100nF

9V

C156
100nF

S200

EXT DEVICE INTERFACE

1

2

3

4

5

6

7

8

9

10

11

12

EXT_CHROMA

TP146

EXT_LUMA

R280
NS

C252NSC253

DVB_CVBS

TP142

COAX

TP141

MUTE_IN

TP143

R287

DVD_L

15K

TP144

R288

DVD_R

15K

TP145

C255

C256

1nF

1nF

DVD_R

NS

R273

COAX

0R

TP147

C254
NS

G_16510_049d.eps

TP148

DVD_R_LINE

DVD_L_LINE

C242

1uF

TP149

TP150

9V

R257

100K

TP153

Q204
BC848

TP151

TP154 TP155

R274
150K

R267
1K

S204

1

2

3

4

TP152

5

DVD OUT

Part 4

9V

R258

C245
47uF

R277

DVD_R_SW

470R
R281

DVD_R_LINE

TP156

470R

100K

C243

DVD_L

Q205
BC848

TP157

TP158

1uF

R282

DVD_L_SW

470R

TP159

R283

R275

DVD_L_LINE

150K

470R
R268
1K

B

A

SCART1

S100

SC1_CVBS

SC1_FB

SC1_8

SC1_ALI

B

SC1_ARI

R103

R104

TP111

75R

TP101

R105

TP105

75R

R117

TP102

TP103

TP104

10K

R100

3.3K

C208

R139

TP107

15K

C144

10uF

1nF

C210

R140

TP106

15K

10uF

C145
1nF

21

TP108

75R

L108
FB

L109

20

19

18

17

16

15

14

S103

13

2

11

1

CON2

TP109

SCART1

TP110

FB

R106

75R

12

D100

TP114

10

R107

LL4148

9

75R

8

7

6

5

4

3

2

1

TP115

TP112

L103

C108

10uH

1nF

L102
10uH

TP113

C109
1nF

SC1_CVBSOUT

SC1_R

TP117

R112

75R

R120

120R

R121

120R

SC1_G

SC1_B

C157

SC1_ALO

TP118

C148

10uF

1nF

C158

SC1_ARO

TP116

C149

10uF

1nF

SC2_CVBS

SC2_8

SC2_ALI

SC2_ARI

Part 3

G_16510_049c.eps

SCART3

S108

SC3_CVBS

SC3_ALI

A

SC3_ARI

R115
75R

R137

15K
C140
1nF

R138

15K
C141
1nF

21

20

19

18

17

16

15

14

13

12

11

10

9

8

TP161TP160

L113

7

6

FB

5

4

3

2

TP162

1

L112

SCART3

FB

TP165

R214
150R

L106
10uH

TP163

C136
1nF

L107
10uH

TP164

C127
1nF

SC3_CVBSOUT

SC3_CHROMA

C161

R124

220R

R125

220R

SC3_LO

TP166

C139

10uF

1nF

C162

SC3_RO

C138

10uF

1nF

05TA079C

123 456

G_16510_049.eps

7

8

9

10

11

12 13 14

5

1

1

6

221106

Switch Board (Part 1)

Circuit Diagrams and PWB Layouts

39TES1.0E LA 7.

21

9V

CVBS_MAIN

TP2

D

CVBS_MAIN

TP3

C174

SC2_ARO

TP1

1uF

VGA_RED / PR

VGA_BLUE / PB

VGA_VS

VGA_HS

RXC+

RX0-

C

RX1-

RX2-

SC1_FB PIP_VIDEO_MAIN

SC1_B

SC1_R

R200
100R

R201
100R

L200
10uH

R180

100K

TP4

R182
150K

9V'

R203
10R

TP5

C203

100nF
Q200
BC848B

R206
75R

TP6

R209
1K

9V'

R204
10R

TP7

C204

100nF
Q201
BC848B

R207
75R

TP8

R210
1K

9V

TP9

TP69

1

3 4

5

7

910

11

13

15 16

17 18

19 20

21

23 24

25 26

27

29

31 32

33 34

35

37 38

3940

C102

47uF
Q108
BC848

R186

SC2_RO

470R
R187

SC3_RO

470R
R174
1K

S201

2

VGA_GREEN / Y

6

8

12

14

22

28

30

36

RXC-

RX0+

RX1+

RX2+

SC1_G

C200
10uF

MAIN_VIDEO

C201
10uF

SC3_CVBSOUT

TP70

CVBS_MAIN

TP10

TP11

PIP_CHROMA

SC2_ALO

PORT_E

VGA/YPBPR SELECT

PIP_LUMA_MAIN

R202
100R

R113
100R

C175

TP12

TP13

1uF

11 12

13 14

15 16

17

19

21 22

23 24

25 26

TXD

27 28

29 30

31 32

33 34

35

37

39

3

9V'

R205
10R

TP14

Q202
BC848B

TP15

R211
1K

9V

R135
10R

Q102
BC848B

R146
1K

9V

R181

100K

TP16

Q109
BC848

R188

470R

TP71

S202

R189

470R
R175
1K

SC2_ARO

SC2_ALO

SC1_ARO

6

SC1_ALO

8

SC1_ARI

10

SC1_ALI

MUX_LI

MUX_RI

FRONT_L

18

FRONT_R

20

MUTE_IN

SCL

SDA

RXD

SC1_8SC2_8

PIP_CHROMA_MAIN

MAIN_VIDEO

36

CHROMA_MAIN

38

SC1_CVBSOUT

40

R183
150K

12

3 4

5

7

9

C205
100nF

R208
75R

C106
100nF

R149
75R

SC2_LO

SC3_LO

C202
10uF

SC2_CVBSOUT

C220
1uF

PIP_CHROMA_MAIN

PIP_VIDEO

TP17

PIP_LUMA

R110
100R

CHROMA_OUT

TP18

9V

R133
10R

TP20

Q101
BC848B

R145
1K

R109
100R

TP19

R256
100R

Part 1

S203

CON3

C105

C230

100nF

1uF

R247

DVD_L_SW

CHROMA_OUT

TP27

R237

1.2K

47

TV IN

R244

C213

10K

1uF

R220

NS

45

46

LTV

COUT1

CVBS_MAIN

R213
10K

43

44

GND

YOUT1

MUX_RI

TP28

C236
10uF

42

41

TRAP1

ROUT1

U200

CXA2089Q

V3 IN

S-2

15

14

C221
470nF

TP77

R221

75R

NS

SC3_CVBS

Y3 IN

LV3

17

16

R238

1.2K

C214

C222
470nF

1uF

TP78

R289

R223

NS

NS

SC3_ALI

EXT_LUMA

TP79

C3 IN

RV3

18

R239

1.2K

C215
1uF

R249

75R

SC3_ARI

TP80

S2-3

19

20

C250
100nF

EXT_CHROMA

MUX_LI

TP29

C237
10uF

40

39

LOUT1

VOUT1

S-3

LV4

21

22

R264

1.2K

C247
1uF

R262

R251

NS

75R

PC/DVI_L

38

23

TP81

FRONT_V

CIN1

V4 IN

R263

NS

C223
470nF

TP30

37

BIAS

YIN1

MUTE

VCC

VOUT2

ROUT2

YOUT2

LOUT2

COUT2

DC OUT

ADR

RV4

24

R265

1.2K

PC/DVI_R

SDA

SCL

C248
1uF

R148

PIP_VIDEO_MAIN

75R

TP24TP21

9V

R114
10R

TP22

Q100
BC848B

R144
1K

9V

R259
10R

TP23

Q203
BC848B

R260
1K

RXD

1

TP72

2

TXD

TP73

3

C103
100nF

R147
75R

C244
100nF

R261
75R

C241
1uF

CHROMA_MAIN

TP26

C246
1uF

PIP_LUMA_MAIN

TP25

SC1_CVBS

S_VIDEO_L

LUMA

S_VIDEO_R

CHROMA

SC2_CVBS

SC2_ALI

SC2_CVBS

SC2_ARI

SC2_CHROMA

TP74

TP75

TP76

R240
75R

R216
NS

R241
75R

R217
NS

R242
75R

R243
75R

R218
NS

R219
NS

R245
75R

C216

470nF

C207

1uF

470nF

100nF

470nF

100nF

100nF

R230

1.2K

C217

C209

R231

1.2K

1uF

C225

C218

C211

R234

1.2K

1uF

C249

C212

R236

1.2K

1uF

C226

DVD_R_SW

C206
1uF

R227

R215

1.2K

NS

48

RTV

1

V1 IN

2

LV1

3

Y1 IN

4

RV1

5

C1 IN

6

S2-1

7

S-1

8

V2 IN

9

LV2

10

Y2 IN

11

RV2

12

C2 IN

S2-2

13

987654

C238
10uF

36

R212

35

1K

TP31

34

33

32

31

30

29

28

R252

27

220R

R253

26

220R

R254

25

0R

TP82

R255
0R

G_16510_049a.eps

C219
470nF

TP32

TP83

TP84

5V

R246
10K

R266
10K

R250
10K

C239

NS

100nF
C235

PIP_VIDEO

PIP_LUMA

PIP_CHROMA

SDA

SCL

221106

9V

C240
100uF

Switch Board (Part 2)

Circuit Diagrams and PWB Layouts

40TES1.0E LA 7.

S109

YPbPr

S107

PC SERVICE

DVB_CVBS

DVD_L

DVD_R

1

2

3

4

5

VGAGND

1

R286
NS

R292
NS

R293
NS

WP_PC

VGA_SCL

VGA_SDA

TP33

5

6

1211

13

1514

16

VGA

TP36

R156
100R

C165
100nF

Y

Pr

Pb

CHINCH_1

CHINCH_3

CHINCH_2

R157
47K

5VVGA5V

TP37

TP38

R116
47K

WP_PC

PC VESA PROM

R132
0R

8

U108

1

NC

NC

NC

SCL

VCLK

VCC

24LC21

VSS

4

VGAGND

2

3

6

7

SDA

R158
47K

5

TP39

TP40

Part 2

R128
100R
R130
100R
R150
100R
R151
100R

TXD

RXD

VGA_SDA

TP41

VGA_SCL

TP42

DVI5V

TP43 TP44

S113

1

DVI_DDSCL

2

DVI_DDSDA

3

4

5

DVI SERVICE

WP_DVI

TP68

VGAGND

TP66

S110

1

VGAGND

TP65

2

3

VGA5V

TP62

4

VGAGND

TP63

5

L210
BEAD

6

7

8

9

VGA CONNECTOR

10

11

12

13

14

15

VGAGND

C166
100nF

5V

DVI VESA PROM

R154

R155

R159
47K

0R

U109

0R

1

NC

2

NC

3

NC

6

SCL

7

VCLK

D103
BAT54C

5V

R235
75R

R232
75R

R228
75R

DVIVCC

8

4

VGAGND

VGAGND

VGAGND

VGAGND

VGAGND

TP67

VGAGND

VGAGND

VCC

SDA

24LC21

VSS

C251
100pF

C257
100pF

C258
100pF

C259
100pF

R225
10K

R222
10K

C262
100pF

L211

BEAD

L212

BEAD

L213

BEAD

L214

BEAD

VGAGND

VGAGND
L217

BEAD

5

TP61

VGAGND

VGAGND

VGAGND

VGAGND

C260
100pF

C261
100pF

VGAGND

R160
47K

L215

BEAD

L216

BEAD

C263
100pF

C264
100pF

C265
100pF

C266
100pF

C269
100pF

TP95

VGA_R

VGA_G

VGA_B

VGAGND

VGAGND

VGA_SDA

VGA_HS

C267
100pF

VGA_VS

C268
100pF

VGA_SCL

R194
100R
R195
100R

VGAGND

L207

BEAD
L206

BEAD
L209

BEAD

TP64

TP100

D

DVI_DDSDA

DVI_DDSCL

D102
BAT54C

TP34

5V

TP35

R270

3

0R

R271

4

0R

R272

2

0R

C270
NS

VGA_VS

VGAGND

R290
75R

R291
75R

R276
75R

S114

CON24

5V

L303
BEAD

DVI

L201

32

1

1

TP46

2

TP47

TP45

TP48

TP49

TP50
TP51

CMCC

L202

1

CMCC

R119

R102

10K

L203

2
1

CMCC

L204

1

CMCC

3

4
5
6
7

8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24

RX2­RX2+

4

TP52
TP53

DVI_DDSCL
DVI_DDSDA

TP54

RX1-

32
4

RX1+

TP55
TP56

DVI5V

DVIVCC

10K

3

RX0­RX0+

4

TP57
TP58

RXC+

32

RXC-

4

TP59
TP60

S102

HEADF

1

TP85

2

TP86

3

TP87

PC AUDIO

BEAD

L100

L101

BEAD

R278
15K

R279
15K

TP88

C100
1nF

TP89

C101
1nF

PC/DVI_L

PC/DVI_R

VGA_R

Pr

VGA_G

Y

VGA_B

Pb

TP90

TP91

TP92

TP93

C231
100nF

C232
100nF

C233
100nF

C224

100nF

C229

100nF

C234

100nF

R269
NS

R248
NS

R229
NS

R143
0R

R136
0R

TP94

16

16

U303

2

2

S1A

S1A

VCC

VCC

3

3

S2A

S2A

5

5

S1B

S1B

6

6

S2B

S2B

PI5V330

S1C

S1C

S2C

S2C

S1D

S1D

S2D

S2D

R224
NS

R233

NS

PI5V330

GND

GND

8

8

R226

NS

11

11

10

10

14

14

13

13

C331
390pF

4

4

DA

DA

7

7

DB

DB

9

9

DC

DC

12

12

DD

DD

1

1

IN

IN

15

15

EN

EN

C306
100nF

TP96

TP97

TP98

TP99

C330
10uF

VGA_RED / PR

VGA_GREEN / Y

VGA_BLUE / PB

VGA/YPBPR SELECT

G_16510_049b.eps

221106

C

Switch Board (Part 3)

Circuit Diagrams and PWB Layouts

41TES1.0E LA 7.

SCART1

S100

TP110

21

20

19

18

17

16

15

2

1

11

9

7

5

3

1

SCART1

12

10

8

6

4

2

14

13

D100
LL4148

TP112

TP113

TP114

R106

75R

R107

75R

10uH

L102
10uH

R112

75R

TP115

C108
1nF

C109
1nF

R120

120R

R121

120R

L103

C148
1nF

C149
1nF

SC1_CVBSOUT

SC1_R

TP117

SC1_G

SC1_B

C157

SC1_ALO

TP118

10uF

C158

SC1_ARO

TP116

10uF

SC2_CVBS

SC2_8

SC2_ALI

SC2_ARI

TP119

TP120

TP121

R101

3.3K

C146
1nF

C147
1nF

R118

10K

R141

15K

R142

15K

R108

SC1_CVBS

TP101

TP102

TP103

TP104

R104

75R
R105

75R

C208

10uF

C210

10uF

TP111

C144
1nF

C145
1nF

TP105

SC1_FB

SC1_8

SC1_ALI

B

SC1_ARI

TP107

TP106

R100

3.3K

R103

R117

10K

R139

15K

R140

15K

TP108

75R

S103

CON2

TP109

L108
FB

L109

FB

SCART2

TP123

TP124

21

19

17

15

13

11

9

7

5

3

1

SCART1

TP122

75R

L110
FB

L111

FB

S101

20

18

16

14

12

D101

10

LL4148

8

6

4

TP126

2

TP125

L104
10uH

L105
10uH

TP127

TP128

C116
1nF

C117
1nF

R111

150R

R122

220R

R123

220R

TP129

TP130

C142
1nF

C143
1nF

SC2_CVBSOUT

SC2_CHROMA

TP132

C159
10uF

C160

TP133

10uF

SC2_LO

SC2_RO

SVHS

S111
S_VHS

1

TP134

2 3

R131
75R

TP135

TP136

L114

BEAD

L115

BEAD

R

L

S105
CHINC2-1

3

1

2

4

LUMACHROMA

TP138

R134

TP137

R126

15K

R127

15K

75R

S_VIDEO_R

TP139

C150
1nF

S_VIDEO_L

TP140

C151
1nF

5

6

Part 3

FRONT-AV

TP131

FRONT_VI

S104

TP168

1

TP169

2

FRONT_LI

3

4

FRONT_RI

5

TP167

CON5

SCART3

S108

TP161TP160

TP162

21

19

17

15

13

11

9

7

5

3

1

SCART3

20

18

16

14

12

10

8

6

4

TP163

2

TP164

L106
10uH

L107
10uH

TP165

R214
150R

C136
1nF

C127
1nF

R124

220R

R125

220R

C139
1nF

C138
1nF

SC3_CVBSOUT

SC3_CHROMA

C161

SC3_LO

10uF

C162

SC3_RO

10uF

TP166

SC3_CVBS

R115
75R

L113

A

SC3_ALI

SC3_ARI

C140
1nF

C141
1nF

R137

15K

R138

15K

FB

L112

FB

L116

BEAD

L117

BEAD

L118

BEAD

L205

NS
R284
NS
R285
NS

R129
NS

TP170 TP174

TP171

C228

10uF
C227

10uF

TP172

TP173

TP175

C104
10pF

FRONT_V

FRONT_L

FRONT_R

CHINCH_1

CHINCH_3

CHINCH_2

S116

1

2

TP176

3

4

TP177

5

TP178

6

CON6

FD1 FD2 FD3

TP180

L123
10uH

L124
10uH

TP181

TP182

C137
470uF

C152
10uF

5V

TP183TP179

C155
100nF

9V

C156
100nF

05TA079C

123 456

FD4

FD5 FD6

G_16510_049c.eps

221106

7

8

Switch Board (Part 3)

Circuit Diagrams and PWB Layouts

42TES1.0E LA 7.

EXT DEVICE INTERFACE

S200

1

2

3

4

5

6

7

8

TP141

9

10

11

12

TP146

R280
NS

TP142

TP143

TP144

TP145

R287

15K

R288

15K

DVB_CVBS

C255
1nF

EXT_CHROMA

EXT_LUMA

COAX

MUTE_IN

DVD_L

DVD_R

C256
1nF

C252NSC253

NS

COAX

R273

0R

DVD_R

TP147

C254
NS

C242

TP148

1uF

DVD_R_LINE

DVD_L_LINE

TP151

TP149

TP152

TP150

R274
150K

1

2

3

4

5

9V

R257

100K

TP153

Q204
BC848

TP154 TP155

R267
1K

S204

DVD OUT

R277

470R
R281

470R

C245
47uF

DVD_R_SW

DVD_R_LINE

TP156

Part 4

DVD_L

TP157

C243

1uF

R258

100K

TP158

R275
150K

9V

Q205
BC848

TP159

R268
1K

R282

470R
R283

470R

B

DVD_L_SW

DVD_L_LINE

A

G_16510_049d.eps

10

11

12 13 14

5

1

1

6

221106

Circuit Diagrams and PWB Layouts

Layout Switch Board (Top Side)

43TES1.0E LA 7.

05TA079C

Layout Switch Board (Top Side)

G_16510_050.eps

211106

05TA079C

G_16510_051.eps

211106

Personal Notes:

Circuit Diagrams and PWB Layouts

44TES1.0E LA 7.

E_06532_013.eps

131004

8. Alignments

Index of this chapter:

8.1 Options

8.2 General Alignment Conditions

8.3 Hardware Alignments

8.4 Software Alignments

8.1 Options

8.1.1 Introduction

Options are used to control the presence/absence of certain
features and hardware.

How to Change an Option

Different from other Philips TV sets, the options are not
represented as bits and bytes, but with clear text.

The option settings are a part of the Service Menu. The method
of entering the Service Menu and the structure of the Service
Menu are described in “Software Alignments” below.

8.2 General Alignment Conditions

Alignments

EN 45TES1.0E LA 8.

Perform all electrical adjustments under the following
conditions:

• AC voltage and frequency: 230 V_ac / 50 Hz.

• Connect the set to the mains voltage via an isolation
transformer with a low internal resistance.

• Allow the set to warm up for approximately 20 minutes.

• Measure the voltages and waveforms in relation to chassis
ground (with the exception of the voltages on the primary
side of the power supply). Never use the cooling fins /
plates as ground.

• Test probe: Ri > 10 Mohm; Ci < 2.5 pF.

• Use an isolated trimmer / screwdriver to perform the
alignments.

8.3 Hardware Alignments

There are no hardware alignments present in the sets.

8.4 Software Alignments

8.4.1 Service Menu

The Service Menu enables a large number of settings. You can
activate and deactivate options, or change parameters that
influence the quality of the displayed image. Activate the
Service Menu as follows:

• Press the “Menu” button on the remote control: the screen
will display the Customer Menu.

• Press “1923” on the remote control: the screen will now
display the top level of the Service Menu:
– General Setup
– Video Setup
– Audio Setup
–Scaler Setup
– Options Setup
– Display Setup
–More

Every item in the service menu top level gives you access to a
sublevel, that contains several items. Navigate with the cursor
buttons on the remote control, increase a value with “>”,
decrease with “<“:

EN 46 TES1.0E LA8.

Alignments

Table 8-1 Service Menu

Service Menu Submenu Sublevel Parameters / Remarks

General Setup I2C Bus Quiet ON / OFF, default ON

Translucency 128 steps
Teletext Languages West / East
Tuner ALPS / THOMSON / SAMSUNG / PHILIPS / T.5540 / TAD5-E2I23RW / ENV57D#46H6F
PIP Tuner ALPS / THOMSON / SAMSUNG / PHILIPS / T.5540 / TAD5-E2I23RW / ENV57D#46H6F
Main Tuner AGC -16 to +15, default value 2
PIP Tuner AGC -16 to +15, default value 2

Video Setup Fast Blanking Delay 16 Steps, -8 to 7

Audio Setup L/L' AGC 31 Steps, 0 to 30

Scaler Setup SRGB Block ON / OFF

Option Setup TR ON / OFF

Display Setup H Display Start 350 Steps

More IN/OUT Setup S-VHS Option S-Video / DVD / DVB / DMP / Wireles In

Luma/Chroma Delay 16 Steps, -8 to 7
RGB Gain Prescale 64 Steps, -32 to 31
Restore Default Cancels all settings, return to default settings
Color Temperature White Balance Red, 64 steps, default value 32

Green, 64 steps, default value 32
Blue, 64 steps, default value 32

Black Balance Red, 64 steps, default value 32

Green, 64 steps, default value 32
Blue, 64 steps, default value 32

Advanced Picture CTI ON / OFF, default ON

Green Boost ON / OFF, default OFF
Chroma Coring OFF / LOW / MEDIUM / HIGH, default OFF
Comb Filter ON / OFF, default ON
Auto Flesh ON / OFF, default OFF
IFP Level Auto / Movie / Video, default Auto

PreScl Scart 13 Steps, -6 to 6
PreScl FM 31 Steps, -6 to 24
PreScl NICAM 31 Steps, -6 to 24
Nic. Switch Thrs. 4 Steps, 0 to 3
PreScl Mono 13 Steps, -6 to 6
Smart Volume ON / OFF
Smart Volume Level 2 / 4 / 8 / 16
Sound System System BG ON / OFF

System DK ON / OFF
System I ON / OFF
System M ON / OFF
Default System BG / DK / I / M

ADE Pattern ON / OFF (test pattern, created by the ADE3300 Scaler chip)
ADE Pattern Auto ON / OFF (loop of test patterns, created by the ADE3300 Scaler chip)
Brightness 256 Steps, 0 to 256
Contrast 256 Steps, 0 to 256

INDIA ON / OFF
Logo OFF / PROFILO / OCEANIC / MEDION / KENSTAR
Panel Type 26 AUO 16/9 / 32 AUO
Model T260XW02 / T315XW01
Switch Board 05TA079A / OTHER
Power On Last Status / Stand-By
Zoom 14:9 Full Screen / 14:9 Mode

V Display Start 40 Steps
Zoom In Offset 1024 Steps
Zoom In Factor 1024 Steps
PCE 5 Steps 4 to 8
PCE Control ON / OFF
Median ON / OFF

DVD RC Dual System / Mono System / New Mono Sys. / 3601 / 4901 / 4901 Wireless / 4901 DVB
AV Input ON / OFF
S-Scart 2 ON / OFF
Head Phone ON / OFF

PIP Setup PTP Red 256 Steps

PTP Green 256 Steps
PTP Blue 256 Steps
Contrast 16 Steps
Brightness 16 Steps
Bln.L. Red 16 Steps
Bln.L. Green 16 Steps

Bln.L. Blue 16 Steps
Service Information
Eprom Reset

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9. Circuit Descriptions, Abbreviation List, and IC Data Sheets

EN 47TES1.0E LA 9.

Index of this chapter:

9.1 Introduction

9.2 Basic Hardware Descriptions

9.3 Block Diagrams

9.3.1 Main Block Diagram

9.3.2 I2C Block Diagram

9.4 Abbreviation List

9.5 IC Data Sheets

9.5.1 Video Processor with CPU Core, STV3550 (U601)

9.5.2 LCD Monitor Controller, ADE3300 (U300)

9.5.3 Multistandard TV / VCR Digital Video Decoder and
Output Scaler, STV2310 (U100)

9.5.4 Main Tuner, UV1316 Mk4 (T100)

9.5.5 PIP Tuner, CTF5513A (T101)

9.5.6 PIP IC, PVP 9390 (U802)

9.5.7 Audio Processor, STV8216 (U200)

9.5.8 Audio Amplifier, TDA7264 (U201)

9.5.9 PLL, TDA9886 (U101, U102)

TDA9886

TDA9886

TEA6415

VIDEO SWITCH

PI5V330

RGB SWITCH

MAIN TUNER CVBS
MONO
SIF

PIP TUNER CVBS

MAIN TUNER

PIP TUNER

SCARTS

PLL TUNER

SCART CVBS

SCART1 AUDIO IN
SCART AUDIO IN/OUT

SCART RGB/FB

PLL TUNER

IF1

IF DEMODULATOR

IF2

IF DEMODULATOR

9.1 Introduction

The "TES1.0E CA" chassis is an LCD TV chassis, only
marketed in Turkey and is used for TV sets with a 26 inch and
a 32 inch diameter.

9.2 Basic Hardware Descriptions

No information available

9.3 Block Diagrams

9.3.1 Main Block Diagram

MULTIBUTTON LED/INFRA

STV2310

VIDEO

DECODER

STV3550

VIDEO

PROCESSOR

DIGITAL YUV BUS

PIP PIC/MAIN RGB

PVP9390A

PIP

PROCESSOR

ITU656 BUS

M29W160ET
FLASH ROM

K4S281632

RAM

K4S281633

RAM

S-VIDEO AUDIO

S-VIDEO

AV IN or OUT

PC INPUT

PC/DVI AUDIO

DVI INPUT

S-VIDEO AUDIO

S-VIDEO Y/C

BACK AV VIDEO IN or OUT

BACK AV AUDIO IN or OUT

PC VGA INPUT

PC and DVI AUDIO INPUT

DVI-D(Single Link) INPUT

74HC4052

AUDIO SWITCH

HEADPHONE R

HEADPHONE L

FRONT-AV AUDIO INPUT

FRONT-AV VIDEO INPUT

FRONT AV HEADPHONE

Figure 9-1 Main block diagram

TDA7050

HP AMPLIFIER

STV8216

SOUND

PROCESSOR

MAIN AUDIO R

MAIN AUDIO L

ADE3300

SCALER

TDA7264

AUDIO POWER

AMPLIFIER

24-bit DIGITAL RGB LVDS BUS

LCD

LVDS TRANSMITTER

EN 48 TES1.0E LA9.

9.3.2 I2C Block Diagram

Circuit Descriptions, Abbreviation List, and IC Data Sheets

EEPROM

PVP9390

R847
R

SDA2_3.3V

SCL2_3.3V

R846
R

R665

R666

SCL1_3.3V

SDA1_3.3V

MCU

3.3V

R111
R

5V

R110
R

SDA3_3.3V

SCL3_3.3V

STV2310

Figure 9-2 I2C block diagram

SDA1_5V

SCL1_5V

R302
R

ADE3300

R303
R

R123
R

STV8216

R122
R

TO TUNER BOARD

TO SWITCH BOARD

G_16510_053.eps

211106

9.4 Abbreviation List

2CS 2 Carrier Sound. Analog stereo sound

system used, e.g., in Germany.

4.43 NTSC 4.43; Sound carrier is on 5.5
MHz.

A/V Audio / Video. Video is CVBS.
ADE Scaler chip manufacturer
AFC Automatic Frequency Control.
AGC Automatic Gain Control: algorithm that

controls the video input of the feature
box

AM Amplitude Modulation.
B/G Monochrome TV system. Sound

carrier = 5.5 MHz. Also system H
(Belgium) is included.

BCL Beam Current Limitation
Black Stretch The lowest value of the video signal is

measured during the scanning time.
The black stretch shifts this level to the
nominal black level within limits.

BLR Board Level Repair
BTSC Broadcast Television Systems

Committee. Multiplex FM stereo sound
system. Originating from USA and
used, e.g., in LATAM and AP-NTSC
countries.

CC Closed Caption.
CLR Component Level Repair
ComPair Computer aided rePair
CRT Cathode Ray Tube or picture tube
CVBS Composite Video Blanking and

Synchronization

CVI Component Video Input

D/K Monochrome TV system. Sound

carrier = 6.5 MHz.

EEPROM Electrically Erasable and

Programmable Read Only Memory

EW East West, related to horizontal

deflection of the set

EXT External (source), entering the set via

SCART or Cinch. Can either be Ext.1

or Ext.3
FM Frequency Modulation.
I Monochrome TV system. Sound

carrier = 6.0 MHz.
I2C Integrated IC bus
I.F. Intermediate Frequency
LED Light Emitting Diode.
L/L' Monochrome TV system, Sound

carrier=6.5MHz (France), L' is Band I,

L is all bands except for Band I
LS Loudspeaker
M/N Monochrome TV system. Sound

carrier = 4.5 MHz.
MCU Main Control Unit
NC Not Connected
NICAM Near Instantaneous Compounded

Audio Multiplexing. This is a digital

sound system, mainly used in Europe.
NTSC National Television Standard

Committee. Colour system mainly

used in North America and Japan.

Colour carrier NTSC M/N = 3.579545

MHz, NTSC 4.43 = 4.433619 MHz

(this is a VCR norm, it is not

transmitted off-air)
NVM Non Volatile Memory: IC containing

TV related data e.g. alignments
OC Open Circuit

Circuit Descriptions, Abbreviation List, and IC Data Sheets

OSD On Screen Display
PAL Phase Alternate Line. Colour system

used mainly in Western Europe (PAL
= 4.43361875 MHz) and South
America. (PAL M = 3.57561175 MHz;
PAL N = 3.58205625 MHz).

PB Play Back. Some colour systems

cannot be received on air. The sound
carrier is on a different frequency.
However via External (PB) the sound
is offered in base-band, so via Ext. the

picture and sound are O.K.
PCB Printed Circuit board
PFC Power Factor Correction
PLL Phase Locked Loop. Used for e.g.

FST tuning systems. The customer

can give directly the desired

frequency.
QSS Quasi Split Sound. Sound IF

application used for stereo sound.
RAM Random Access Memory
RC Remote Control handset
RC5 Remote Control code standard.
RGB Red, Green, and Blue video signals
ROM Read Only Memory
S/C Short Circuit
Scart Peri television interconnection 42-pin

or 21-pin euro connector
SCL Serial Clock
SECAM Colour system used e.g. in France.

Colour carriers: F0R = 4.40625 MHz;

F0B = 4.25000 MHz
SIF Sound Intermediate Frequency
SRGB A Standard RGB (Red Green Blue)

colour space, created by Hewlett-

Packard and MicroSoft.
TBF To Be Fixed.
Tint By the user selectable white tones for

different colour temperatures.
TXT Teletext.
uP Microprocessor
XTAL Quartz crystal
YC Luminance (Y) and Chrominance (C)

signal

EN 49TES1.0E LA 9.

EN 50 TES1.0E LA9.

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9.5 IC Data Sheets

This section shows the internal block diagrams and pin layouts
of ICs that are drawn as "black boxes" in the electrical diagrams
(with the exception of "memory" and "logic" ICs).

9.5.1 Video Processor with CPU Core, STV3550 (U601)

Block Diagram

STV3550

YCRCB[7:0]

CLK_DATA

HSYNC

VSYNC

Standard Denition

Input (SDIN)

H/V Filter

Temporal Noise Reduction

Film Mode Detection

Display

Pipeline

Video

PSI/CTI

k

Bl oc

2D

Move

OS D


Compositor

Cursor Plane

Background Plane

Digital

Video

Output

Gamma Correction

Perfect Color

Engine

4- to

10-bit

RGB

Video

Outputs

27 MHz

CLKXTP

Clock

Generator

CLKXTM

Reset

Pin Configuration

POR TC0
PORTA0
PORTD4
PORTA1
POR TD7
PORTA4

VDD33_IO

PORTA5
POR TA6
PORTA7

VDD33_IO

VSS_IO
POR TD5
PORTC7
PORTC6
PORTC5
POR TC4
PORTD0
PORTD1
POR TD2
PORTD3

VDD33_IO

PORTD6
POR TA2
PORTA3

VSS_IO
PORTB5
PORTB4
PORTB3
PORTB2
PORTB1
PORTB0

VDD33_IO

VCC33_ADC

GND_ADC

SHIELD_ADCDAC

CLK_DFL

VDD18_CORE

VSS_IO

VSS_IO

VDD33_IO
P_VIDEO0
P_VIDEO1
P_VIDEO2
P_VIDEO3
P_VIDEO4
VDD33_IO
P_VIDEO5

DCLK

V100
H100

ST20 32-bit CPU Core

TV Peripherals

100 MHz, 8 kB SRAM

4 kB I-Cache 4 kB D-Cache

Diagnostic Controller

Interrupt Controller

YCRCB 3

YCRCB 4

YCRCB 5

YCRCB 6

VDD 33_I O

VS S_ IO

POR TC2

POR TC1

YCRCB 7

VDD 18_C OR E

PO R TC3

157

A

HSY NC

YCRCB 0

YCRCB1YCRCB 2

CL K_ DAT

1
L

GND_ PL

CL KX TM

CL KXT P

VSS _P LL

VDD1 8_ IO

S HIE LD_P LL

VSY NC

PQFP 280 Package

I/O Ports, 4 Timers,

UART, WDT, PWM

and Infrared Digital

C18_P LL3
C

XTAL OUT

VC C18_I O

GND_IOV

GND_ PL L3

VC C18_P LL1

XTAL IN

Preprocessor

T

TRS

VS S_ IO

VDD 18_C OR E

TCKTD O

TDI

NRES E T

VDD 33_I O

RE
O

D0
H_

_IO

VDD 33_I O

FL AS

TMS

VDD 18_C

VSS

STV3550

DE

208

1

O

O
_I

O10

DE O6

DE O7

VSS

VI

VI

P_ VI DE O9

P_

P_ VI DE O8

P_

O15

DE O17

DE O18

DE O12

DE O13

VI DE

VI

VI DE O14

VI

P_

P_

P_ VI DE O11

P_

P_

DE O19

D33_I
D
V

VSS _I O

VI DE O20

VI DE O16

VI

VI

VI DE
P_

P_

VI DE O21

VI

P_

P_

P_

P_

P_

O25

O23

O24

VS S

33_I O

DD

VI DE

VI DE

VI DE

V

P_

P_

P_ VI DE O22

P_

VDD18_COR E

VI DE O26P_VI
P_

O

O

I

D7

RE

VS S

DE O27

O

VSS _I

RAM_

DD33_

VI DE O29

18_C

V

D

SD

P_

P_ VI DE O28

SD RAM_ D6

VD

D5

RAM_
SD

D4

RAM_
SD

D3

RAM_
SD

D0

VSS _I O

SD RAM_

SD RAM_ D2

SD RAM_ D1

External
Memory

e

Interface

Flash

SDRAM

0

1

D9

D1

D1

33_I O

AS H_

AS H_

DD

FL AS H_ D1

FL AS H_ D2

VS S_ IO

FL AS H_ D3

FL AS H_ D8

VDD33_IO

V

FL AS H_

FL

FL

105156

FLASH_D4

104

NC
FL ASH_D12
NC
FLASH_D5
FL ASH_D13
FL ASH_D6
VDD33_IO
FLASH_D14
FL ASH_D7
FL ASH_D15
VSS
VDD18_CORE
ADDR_14
ADDR_ 19
ADDR_18
ADDR_17
NOT_CS_F LASH
VSS_IO
VDD33_IO
VSS
VDD18_CORE
NOT_BE0
RD8NOTWR
NOT_CAS
NOT_RAS
NOT_CS_S DRAM
ADDR_15
VDD33_IO
ADDR_16
ADDR_10
ADDR_0
ADDR_1
ADDR_2
ADDR_3
CKIN_SDRAM
VSS_IO
VDD33_IO
CKOUT_SDRAM
ADDR_4
ADDR_5
ADDR_6
ADDR_7
ADDR_8
ADDR_9
ADDR_11
ADDR_12
NOT_BE1
ADDR_13
VSS_IO
NC

53

VDD33_IO

52

0

3

5

S DRAM_ D1

D8

RAM_

DRAM_ D12

SD RAM_ D9

SD

S

S DRAM_ D14

S DRAM_ D11

S DRAM_ D1

S DRAM_ D1

Time bas

DCLK

DE

H100

V100
Output

Ge nerator

Clock

G_16510_058.eps

221106

Figure 9-3 Internal block diagram and pin configuration of the Video Processor

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9.5.2 LCD Monitor Controller, ADE3300 (U300)

Block Diagram

YUV PORT

DMEAS

EN 51TES1.0E LA 9.

TCON

OUTPUT

FORMAT

Analog PORT

SMEAS

DVI PORT

DATA

CTRL

Pin Configuration

LLKPLL

SCALER

SCLK

F.SYNTH

P. G E N

INCLK SCLK DOTCLK

COLOR

MANAGEMENT

OSD

FM

F.SYNTH

GAMMA

LUT

Figure 9-4 Internal block diagram and pin configuration of the LCD Monitor Controller

G_16510_062.eps

221106

EN 52 TES1.0E LA9.

9.5.3 Multistandard TV / VCR Digital Video Decoder and Output Scaler, STV2310 (U100)

Circuit Descriptions, Abbreviation List, and IC Data Sheets

Block Diagram

C

Analog to

CVBS1/Y
CVBS2/Y

Conversion

and SRC

R/Cr

Analog to

G

B/Cb

Conversion

STV2310

Pin Configuration

Digital

Digital

Luma

Chroma

Separator

Cr Cb

Tint

Control

Fully Automatic

PAL/NTSC/SECAM

Decoder

Adaptive

Luminance Delay

Data Slicer

(TxT, CC, ...)

and Output Interface

Synchronization

and IC Monitoring

Format

Converter

Output

Data Selection

Line

and

Scaler

YCrCb[7:0]

Clock

HSYNC
VSYNC
Field

VCC18_CVBS

CVBS2_Y

VDD18_CORE

VSS

TST_MODE

VDD18_CORE

VSS
SDA

SCL

VDD18_CORE

VSS

NRESET

VDD33_IO

VSS_IO

I2CADD

DEO_ OUT

GND_ CVBS

CVBS1_YREFM _CVBS

64 63 62 61 60 59 58 57 56 55 54 53 52 51 50 49

1

2

C

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17 18 19 20 21 22 23 24 29 30 31 3225 26 27 28

VSS

CORE
_
8

YCRC B 7

VDD1

REFP_ CVBS

YCRC B 6

VI DEOCOM M

VI

YCRC B 5

YCRC B 4

ADCIN

VCC3 3_IO

VSS_IO

VDD3 3_IO

GND_ IO

GND_ DIG

YCRC B 3

YCRC B 2

VCC1 8_DIG

YCRC B 1

B_CB

B0

YCRC

G

VDD1 8_OUT

R_ CR

GND_ RGB

VCC1 8_RGB

48

47

46

45

44

43

42

41

40

39

38

37

36

35

34

33

OCK
L

PLL

VSS_OUT

CL K_ DATA

REFM_RGB
REFP_RGB
FB
SHIELD
CLKSEL
CLKXTM
XTALIN_CLKXTP
XTALOUT
GND_CLK
VCC18_CLK
VCC18SUB
GNDSUB
VCC33SUB
FIELD

VSYNC
HSYNC

G_16510_063.eps

221106

Figure 9-5 Internal block diagram and pin configuration of the Video Decoder

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9.5.4 Main Tuner, UV1316 Mk4 (T100)

Block Diagram

HIGH

MID

LOW

EN 53TES1.0E LA 9.

5V

5V

5V

PLL

1

AGC TU AS SCL SDA n.c 5V ADC 33V IF2/nc IF1

Pin Configuration

SYMBOL PIN DESCRIPTION

AGC 1 Automatic Gain Control Voltage
TU 2 Tuning voltage monitor (output)
AS 3 I
SCL 4 I
SDA 5 I
n.c. 6 Not Connected
V

s

7 Supply Voltage +5V
ADC 8
V

ST

9 Fixed tuning Supply Voltage +33V

2

C-Bus Address Select

2

C-Bus Serial Clock

2

C-Bus Serial Data

ADC Input

(5)

IF2

nc

IF1

I.F out 2 / d.n.c 10 Symmetrical I.F output 2 / Do not connect for asymmetrical
I.F out 1 11 Asymmetrical I.F Output / Symmetrical I.F output 1
GND M1,M2,M3,M4 Mounting Tags (Ground)

Figure 9-6 Internal block diagram and Pin configuration of the main tuner

G_16510_060.eps

221106

EN 54 TES1.0E LA9.

9.5.5 PIP Tuner, CTF5513A (T101)

Block Diagram

Circuit Descriptions, Abbreviation List, and IC Data Sheets

UHF VLVH

5V

UHF

5V

VH

5V

12

AGC Tu

Pin Configuration

Pin Symbol Description
1 AGC Automatic gain control

2 TU For production process usage
3 AS Tuner Address Select
4 SCL I2C serial clock
5 SDA I2C serial data
6 UB 5V supply voltage

VL

35679

4

AS SCL SDA

5V

PLL

Vt

10 11

IF2 IF1

7 5V Internal connection to pin 6
8 N.C. ­9 Vt Tuning voltage (+32V)
10 IF2 IF output (balanced)
11 IF1 IF output (balanced)

For CTF 5510A, 5511, 5512, 5513, 5515, 5516 and 5517:

Figure 9-7 Internal block diagram and pin configuration of the PIP tuner

G_16510_061.eps

221106

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9.5.6 PIP IC, PVP 9390 (U802)

Block Diagram

EN 55TES1.0E LA 9.

VSS33ADC

VSS18ADC

CVBS1
CVBS2
CVBS3
CVBS4

Y
U
V

GP0..2

VDD33ADC

3x ADC

Select

Clamp

Controller

VDD18ADC

8bit

Input

Gain

2

I

C

Y/C &

Sync

Separation

I2C1SCL SDA
I2C2

VDD33PA D

Skewcomp.

H/V Scaler
Decimation

Color

Decoder

PAL/SECAM/

NTSC

Processing

Data Slicer
Acquisition

INTR

Inset
Sync

MUX

RESET

RAM

768kbit

Memory

Controller

Clock

Synthesizer

XIN XQ

XTAL

20.25 MHz

VSS33PA D

DEMUX

Peaking

Over-

sampling

Insertion

OSD &

Frame

Generation

Display

Controller

PVP 9390A

CLKOUT

RGB

Matrix

Parent

Sync

Processing

HSPVSP

VDD33DAC VSS33DACVDD18 VSS18

Triple

DAC

3x7bit

IN1
IN2
IN3

Fast

RGB/YUV

Switch

FSW
OUT1
OUT2
OUT3
SEL

Pin Configuration

I2C1

I2C2

SDA

SCL

INTR

VDD33PAD

VSS33PAD

VSP

HSP

GPO1

CLKOUT

VIN

RESET

VDD18

VSS18

POR

GPO2

33 32 31 302928 27 26 25 24 23

34

35

36

37

38

39

40

41

42

43

44

XOUT

XIN

VSS18

PVP 9390A

123 45678 91011

VDD18

GPO0

SEL

UIN

OUT3

YIN

VDD33ADC

OUT1

OUT2

VSS33ADC

CVBS4

22

CVBS3

21

TM

20

CVBS2

19

TEST

18

CVBS1

17

VSS18ADC

16

VDD18ADC

15

IN1

14

IN2

13

IN3

12

FSW

VDD33DAC

VSS33DAC

G_16510_057.eps

221106

Figure 9-8 Internal block diagram and pin configuration of the PIP IC

EN 56 TES1.0E LA9.

9.5.7 Audio Processor, STV8216 (U200)

Block Diagram

IRQ

S TV82x6

Re ques t

So und IF

Mono In

MONOIN

AI1L

AI1R

AI2L
AI2R

Inp ut SCART s

AI3L
AI3R

SI F

Demodulation

AGC

0.5V

rms

2V

rms

2V

rms

2V

rms

A/D

Multi-Standard

Digital Stereo

Demodulator

FM, AM, A2
and NICAM

Input

Analog

Audio

Matrix

Interrupt

ST

Fla g

S tereo

Audio
Stereo

A/D

Fla g

Ste reo

Circuit Descriptions, Abbreviation List, and IC Data Sheets

SD O

WS

I2S Interface

Digital
Au dio
Matrix

S ource P re processing

Single Crystal

Clock Generation

K
SC

SDA

SC L

I2C Interface

Audio Processing

Loudspeaker Audio Processing

Smart V olume Control, ST WideSurround,

5-band Equalizer and Loudness,

Beeper and Subwoofer Output

Headphone A udio Processing

Sm art Volume Control,

Bass/Treble and Beeper

Au dio Matrixing

Po wer Supply Managem ent

DC Regulators, Standby mode

BUS 1

BU S0

I2C Bus Expander

Audio

S tereo

D/A

Audio

Stereo

D/A

Audio

S tereo

D/A

Vol./
Ba l.

Gain

Vo l./
Bal.

Output

Analog

Audio
Matrix

Low Noise

Audio Mute

Low Noise

Audio Mute

Low Noise

Audio Mute

Low Noise

Audio Mute

HPD

Headphone

Detection

Lo udspeaker

1V

1V

2V

2V

LS L

rms

LSR

SW

Subwoofer

Headphone

HPL

rms

HP R

AO1L

rms

AO1R

tScarts
u
p

t

AO2L
AO2R

Ou

rms

Pin Configuration

I
XT

XT O

1

SIF

2

VTOP

3

VREFIF

4

VDDIF

5

GNDIF

6

MONOIN

7

AO1L

8

AO1R

9

VDCC

10

GNDC

11

AI1L

12

AI1R

13

VMC1

14

VMC2

15

AI2L

16

AI2R

17

VDDA

18

GNDAH

19

AO2L

20

AO2R

21

VDDH

22

VREFA

23

AI3L

24

AI3R

25

BGAP

26

LSL

27

LSR

28

SW

STV82x6D

BUS0

BUS1

CKTST

VDD2

GND2

GNDP

VDDP

GNDSP

GND1

VDD1

MCK

SYSCK

RESET

GNDSA

SCK

SDO

XTO

REG

SDA

SCL

ADR

HPD

HPR

HPL

56

IRQ

55

54

53

52

WS

51

ST

50

49

48

47

46

45

44

43

XTI

42

41

40

NC

39

NC

38

37

36

35

34

33

32

31

30

29

G_16510_064.eps

221106

Figure 9-9 Internal block diagram and pin configuration of the audio processor

Circuit Descriptions, Abbreviation List, and IC Data Sheets

9.5.8 Audio Amplifier, TDA7264 (U201)

Block Diagram

+V

EN 57TES1.0E LA 9.

S

+5V

μP

15K 1μF

1μF

1μF

MUTE/

ST-BY

IN (L)

18K15K

GND

IN (R)

D94AU069A

OUT (L)

4.7Ω

OUT (R)

4.7Ω

1000μF

RL (L)

100nF

RL (R)

100nF

+V

S

4
6

-

7

8

-

+

1000μF

2

3+

1

5

-V

S

Pin Configuration

Figure 9-10 Internal block diagram and pin configuration of the audio amplifier

Tab connected to pin 5

8 IN (1)
7
6
5
4
3
2
1

GND
IN (2)

-V

S

MUTE/ST-BY
OUTPUT (2)
+V

S

OUTPUT (1)

G_16510_065.eps

221106

EN 58 TES1.0E LA9.

9.5.9 PLL, TDA9886 (U101, U102)

Block Diagram

C

TAGC

TOP
9

14 16

C

AGC neg

VAGC VPLL

C

VAGC pos

(1)

BL

VIF-PLL

filter

19

Circuit Descriptions, Abbreviation List, and IC Data Sheets

external

reference

crystal

4 MHz

or

REF

15

AFC

21

TUNER AGC

VIF2

2
1

VIF1

24

SIF2

23

SIF1

SUPPLY

(1) Not connected for TDA9885.

VIF-AGC

1820
AGNDV

P

Pin Configuration

VIF-PLL

SINGLE REFERENCE QSS MIXER/

INTERCARRIER MIXER AND

AM-DEMODULATOR

SIF-AGC

C

AGC

13

n.c.

RC VCO

OUTPUT

PORTS

3

DIGITAL VCO CONTROL

TDA9885
TDA9886

MAD

2

C-BUS TRANSCEIVER

I

22

AFC DETECTOR

VIDEO TRAPS

4.5 to 6.5 MHz

AUDIO PROCESSING

AND SWITCHES

NARROW-BAND FM-PLL

DETECTOR

10

7 11

12

sound intercarrier output
and MAD select

4

LLPMFDAMOISDNGDADSLCS2PO1PO

FM-PLL filter

CVBS

17

[1.1 V (p-p) without trap]

AUD

8

DEEM

5

de-emphasis
network

6

AFD

C

video output 2 V (p-p)

AF

VIF1
VIF2

OP1

FMPLL

DEEM

AFD

DGND

AUD

TOP
SDA

SCL

SIOMAD

1
2
3
4
5
6

TDA9885TS
TDA9886TS

7
8

9
10
11
12

SIF2

24

SIF1

23

OP2

22

AFC

21

V

20

P

VPLL

19

AGND

18

CVBS

17

(1)

VAGC

16

REF

15

TAGC

14

n.c.

13

Figure 9-11 Internal block diagram and pin configuration of the PLL

G_16510_059.eps

221106

10. Spare Parts List

Spare Parts List

EN 59TES1.0E LA 10.

Table 10-1 Parts List 26PF1000/62

TELRA NO TELRA DESCRIPTION POS

002013202500 CABLE POWER 2PX2SKT 55CM SFTY S101
002013202680 CABLE POW.FLTR.94T 2TRM240CMSF
002013502131 CABLE 6P*2SKT.10CM MINI S103
002022000591 CABLE 2P*2SKT.65CM MINI S002
002025010781 CABLE 10PX2SKT 16CM 2MM 32'AUO S204
002025010781 CABLE 10PX2SKT 16CM 2MM 32'AUO S900
002025010871 CABLE 14PX2SKT 25CM 2MM 32'AUO S305
002029530051 CABLE 30P*2SK20CM LVDS SA-AU32 S903
002041010600 CABLE 4PX1SK20+70CMD.ISLBLUEMN S203
002041010620 CABLE 2PX2SKTAWG24DB.IS.25CMMN S600
002042000210 CABLE AERIAL SECOND 20CM
002092000820 CABLE 1P 1TRM 9CM AWG24 SK09
002092000820 CABLE 1P 1TRM 9CM AWG24 SK10
002163018670 CABLE 40P 0.5MM FFC 10CM S205
002163018670 CABLE 40P 0.5MM FFC 10CM S206
002421000060 CABLE 3PX2SKTAWG24DB.IS.80CMMN S201
002421000070 CABLE 4PX2SKTAWG24DB.IS.80CMMN S601
002421000080 CABLE 5PX2SKTAWG22DB.IS.45CMMN S104
002521517030 CABLE 7*0.20 BLACK
002720517130 CABLE 16*0.18 GND.EMC 18CM SK08
005002101930 REFLECTOR 26'32' COLORFULL
005002101940 STAND BY REFLECTOR 26'32'CFULL
005051084631 BEAD INSH. TO-220 BBH U201
005051084640 SILICONE INSULATE 24.5X20MM U201
005110008210 PAINTED FRAME 26' C.FULL PHL GLO CERC
005202102540 PAINTED BUTTON ST BY 2632CFUL PH SC STND
005207001350 PAINTED MULTI BUTTON 26-32 CFULL PH SC MULT
005415025680 BACK COVER LABEL POLYE.82X263PH FTV
013466066240 LOGO PHILIPS PIMLI 52X10.5MM
030010600001 RESISTOR ARRAY 0R 5% 0603 L133
030010600001 RESISTOR ARRAY 0R 5% 0603 L134
030010600001 RESISTOR ARRAY 0R 5% 0603 RN80
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R104
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R233
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R255
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 L100
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 L101
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R155
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 C231
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 C232
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 C233
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R132
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R229
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R248
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R269
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R224
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R226
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 C256
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R113
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R116
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R203
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R207
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R210
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R216
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R700
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R701
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R702
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R703
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R912
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R913
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 L214
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 L215
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 L217
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 L218
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R107
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R108
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R109
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R129
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R133

TELRA NO TELRA DESCRIPTION POS

030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R134
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R135
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R136
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R138
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R653
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R655
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R200
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R201
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R204
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R205
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R240
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R290
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R907
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R243
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 L913
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R284
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R107
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R108
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R109
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R129
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R133
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R134
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R135
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R296
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R843
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R844
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R845
030010600071 RESISTOR C.F 0R 1/8W 1206 JUMP R172
030010600071 RESISTOR C.F 0R 1/8W 1206 JUMP R285
030010600071 RESISTOR C.F 0R 1/8W 1206 JUMP R286
030010600071 RESISTOR C.F 0R 1/8W 1206 JUMP R287
030010600081 RESISTOR C.F 0R 1/8W 5% 0805 L401
030010600081 RESISTOR C.F 0R 1/8W 5% 0805 L402
030010600081 RESISTOR C.F 0R 1/8W 5% 0805 L403
030010610061 RESISTOR C.F 10R 1/10W 5% 0603 R174
030010610061 RESISTOR C.F 10R 1/10W 5% 0603 R265
030010610061 RESISTOR C.F 10R 1/10W 5% 0603 R266
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R194
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R195
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R200
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R201
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R202
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R128
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R130
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R156
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R109
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R110
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R113
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R256
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R110
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R111
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R112
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R122
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R123
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R128
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R206
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R220
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R302
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R303
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R643
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R644
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R647
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R648
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R649
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R650
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R665
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R666
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R155
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R156
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R170
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R173

EN 60 TES1.0E LA10.

Spare Parts List

TELRA NO TELRA DESCRIPTION POS

030010610161 RESISTOR C.F 100R 1/10W5% 0603 R195
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R185
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R186
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R802
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R846
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R847
030010610181 RESISTOR C.F 100R 1/8W 5% 0805 R245
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R174
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R175
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R211
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R209
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R210
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R212
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R144
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R146
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R149
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R145
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R260
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R615
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R237
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R249
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R158
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R171
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R175
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R154
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R196
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R184
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R117
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R118
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R213
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R102
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R119
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R154
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R244
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R246
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R250
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R140
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R141
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R224
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R225
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R405
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R406
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R407
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R618
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R619
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R620
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R621
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R622
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R623
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R651
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R652
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R153
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R179
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R224
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R225
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R820
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R821
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R822
030010610461 RESISTOR C.F 100K 1/10W5% 0603 R180
030010610461 RESISTOR C.F 100K 1/10W5% 0603 R181
030010610461 RESISTOR C.F 100K 1/10W5% 0603 R300
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN90
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN91
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN10
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN11
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN12
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN31
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN33
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN34
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN35
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN36
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN37
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN38
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN39

TELRA NO TELRA DESCRIPTION POS

030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN40
030010612161 RESISTOR C.F 120R 1/10W5% 0603 R628
030010612161 RESISTOR C.F 120R 1/10W5% 0603 R629
030010612161 RESISTOR C.F 120R 1/10W5% 0603 R630
030010612161 RESISTOR C.F 120R 1/10W5% 0603 R631
030010612161 RESISTOR C.F 120R 1/10W5% 0603 R632
030010612161 RESISTOR C.F 120R 1/10W5% 0603 R903
030010612161 RESISTOR C.F 120R 1/10W5% 0603 R904
030010612161 RESISTOR C.F 120R 1/10W5% 0603 R313
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R234
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R238
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R230
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R231
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R239
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R227
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R236
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R237
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R264
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R265
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R235
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R236
030010612361 RESISTOR C.F 12K 1/10W 5% 0603 R146
030010612361 RESISTOR C.F 12K 1/10W 5% 0603 R167
030010612361 RESISTOR C.F 12K 1/10W 5% 0603 R178
030010612361 RESISTOR C.F 12K 1/10W 5% 0603 R194
030010615161 RESISTOR C.F 150R 1/10W5% 0603 R101
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R139
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R140
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R141
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R142
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R137
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R138
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R126
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R127
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R278
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R279
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R310
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R311
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R312
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R226
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R102
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R103
030010615461 RESISTOR C.F 150K 1/10W5% 0603 R182
030010615461 RESISTOR C.F 150K 1/10W5% 0603 R183
030010615461 RESISTOR C.F 150K 1/10W5% 0603 R191
030010615461 RESISTOR C.F 150K 1/10W5% 0603 R190
030010622261 RESISTOR C.F 22R 1/10W5% 0603 R214
030010622261 RESISTOR C.F 22R 1/10W5% 0603 R307
030010622261 RESISTOR C.F 22R 1/10W5% 0603 R118
030010622261 RESISTOR C.F 22R 1/10W5% 0603 R292
030010622461 RESISTOR C.F 220K 1/10W5% 0603 R301
030010622461 RESISTOR C.F 220K 1/10W5% 0603 R163
030010627181 RESISTOR C.F 270R 1/8W 5% 0805 R244
030010633161 RESISTOR C.F 330R 1/10W5% 0603 R164
030010633161 RESISTOR C.F 330R 1/10W5% 0603 R168
030010633161 RESISTOR C.F 330R 1/10W5% 0603 R192
030010633261 RESISTOR C.F 3.3K 1/10W5% 0603 R100
030010633261 RESISTOR C.F 3.3K 1/10W5% 0603 R101
030010633261 RESISTOR C.F 3.3K 1/10W5% 0603 R218
030010633361 RESISTOR C.F 33K 1/10W5%0603SF R124
030010633361 RESISTOR C.F 33K 1/10W5%0603SF R293
030010647061 RESISTOR C.F 47R 1/10W5% 0603 R131
030010647061 RESISTOR C.F 47R 1/10W5% 0603 R125
030010647061 RESISTOR C.F 47R 1/10W5% 0603 R294
030010647061 RESISTOR C.F 47R 1/10W5% 0603 R107
030010647061 RESISTOR C.F 47R 1/10W5% 0603 R108
030010647061 RESISTOR C.F 47R 1/10W5% 0603 R109
030010647061 RESISTOR C.F 47R 1/10W5% 0603 R100
030010647061 RESISTOR C.F 47R 1/10W5% 0603 R101
030010647161 RESISTOR C.F 470R 1/10W5% 0603 R186
030010647161 RESISTOR C.F 470R 1/10W5% 0603 R188
030010647161 RESISTOR C.F 470R 1/10W5% 0603 R187
030010647161 RESISTOR C.F 470R 1/10W5% 0603 R189
030010647161 RESISTOR C.F 470R 1/10W5% 0603 R100

Spare Parts List

EN 61TES1.0E LA 10.

TELRA NO TELRA DESCRIPTION POS

030010647161 RESISTOR C.F 470R 1/10W5% 0603 R308
030010647161 RESISTOR C.F 470R 1/10W5% 0603 R246
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R600
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R602
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R603
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R605
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R606
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R607
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R608
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R611
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R617
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R633
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R641
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R659
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R662
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R678
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R679
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R227
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R232
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R247
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R248
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R231
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R268
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R152
030010647961 RESISTOR C.F 4.7R 1/10W5% 0603 R238
030010647961 RESISTOR C.F 4.7R 1/10W5% 0603 R239
030010651961 RESISTOR C.F 5.1R 1/10W5% 0603 R104
030010656161 RESISTOR C.F 560R 1/10W5% 0603 R212
030010656161 RESISTOR C.F 560R 1/10W5% 0603 R234
030010656161 RESISTOR C.F 560R 1/10W5% 0603 R233
030010656161 RESISTOR C.F 560R 1/10W5% 0603 R233
030010656161 RESISTOR C.F 560R 1/10W5% 0603 R234
030010656261 RESISTOR C.F 5.6K 1/10W5% 0603 R157
030010656261 RESISTOR C.F 5.6K 1/10W5% 0603 R187
030010668361 RESISTOR C.F 68R 1/10W5% 0603 R115
030010668361 RESISTOR C.F 68R 1/10W5% 0603 R117
030010668361 RESISTOR C.F 68R 1/10W5% 0603 R132
030010668361 RESISTOR C.F 68R 1/10W5% 0603 R176
030010668461 RESISTOR C.F 680K 1/10W5% 0603 R162
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R207
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R208
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R243
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R245
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R247
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R249
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R251
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R240
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R241
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R242
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R177
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R104
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R105
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R106
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R197
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R104
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R105
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R106
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R295
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R830
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R831
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R835
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R839
030010675161 RESISTOR C.F 750R 1/10W5% 0603 R401
030010682161 RESISTOR C.F 820R 1/10W5% 0603 R233
030010682161 RESISTOR C.F 820R 1/10W5% 0603 R234
030010683061 RESISTOR C.F 2K 1/10W5% 0603 R309
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R206
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R147
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R148
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R261
030011610261 RESISTOR C.F 75R 1/10W1% 0603 C819
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R102
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R103
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R130

TELRA NO TELRA DESCRIPTION POS

030011610261 RESISTOR C.F 75R 1/10W1% 0603 R213
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R402
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R403
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R404
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R819
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R829
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R838
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R120
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R121
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R122
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R123
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R252
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R253
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R124
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R125
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R114
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R626
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R149
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R150
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R182
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R181
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R105
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R106
030011622261 RESISTOR C.F 2.2K 1/10W5% 0603 R222
030011622261 RESISTOR C.F 2.2K 1/10W5% 0603 R223
030011622261 RESISTOR C.F 2.2K 1/10W5% 0603 R252
030011622261 RESISTOR C.F 2.2K 1/10W5% 0603 R188
030011622261 RESISTOR C.F 2.2K 1/10W5% 0603 R189
030011622361 RESISTOR C.F 22K 1/10W5% 0603 R159
030011622361 RESISTOR C.F 22K 1/10W5% 0603 R165
030011647361 RESISTOR C.F 47K 1/10W 5% 0603 R159
030011647361 RESISTOR C.F 47K 1/10W 5% 0603 R160
030011647361 RESISTOR C.F 47K 1/10W 5% 0603 R116
030011647361 RESISTOR C.F 47K 1/10W 5% 0603 R157
030011647361 RESISTOR C.F 47K 1/10W 5% 0603 R158
030011647361 RESISTOR C.F 47K 1/10W 5% 0603 R166
030011647361 RESISTOR C.F 47K 1/10W 5% 0603 R193
030011656261 RESISTOR C.F 5.1K 1/10W5% 0603 R224
030011656261 RESISTOR C.F 5.1K 1/10W5% 0603 R225
030020270361 RESISTOR C.F 270K 1/10W5% 0603 R217
030020270361 RESISTOR C.F 270K 1/10W5% 0603 R304
030020615161 RESISTOR C.F 15R 1/10W 5% 0603 R203
030020615161 RESISTOR C.F 15R 1/10W 5% 0603 R204
030020615161 RESISTOR C.F 15R 1/10W 5% 0603 R205
030020615161 RESISTOR C.F 15R 1/10W 5% 0603 R114
030020615161 RESISTOR C.F 15R 1/10W 5% 0603 R135
030020615161 RESISTOR C.F 15R 1/10W 5% 0603 R133
030020615161 RESISTOR C.F 15R 1/10W 5% 0603 R259
030020633031 RESISTOR C.F 33R 1/4W 5% R001
030020633031 RESISTOR C.F 33R 1/4W 5% R004
030020647131 RESISTOR C.F 470R 1/4W 5% R003
030020668261 RESISTOR C.F 6.8K 1/10W2% 0603 R160
030020668261 RESISTOR C.F 6.8K 1/10W2% 0603 R161
030140615221 RESISTOR C.F 1.5K 1/6W 1% R006
030140615321 RESISTOR C.F 15K 1/6W 1% R003
030140627221 RESISTOR C.F 2.7K 1/6W 1% R005
030140633061 RESISTOR C.F 33R 1/10W5% 0603 R709
030140633061 RESISTOR C.F 33R 1/10W5% 0603 R255
030140633061 RESISTOR C.F 33R 1/10W5% 0603 R256
030140633061 RESISTOR C.F 33R 1/10W5% 0603 R257
030140633061 RESISTOR C.F 33R 1/10W5% 0603 R258
030140633061 RESISTOR C.F 33R 1/10W5% 0603 R259
030140633061 RESISTOR C.F 33R 1/10W5% 0603 R260
030140633061 RESISTOR C.F 33R 1/10W5% 0603 R261
030140633061 RESISTOR C.F 33R 1/10W5% 0603 R262
030140647121 RESISTOR C.F 470R 1/6W 1% R004
030140656221 RESISTOR C.F 5.6K 1/6W 1% R002
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN70
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN71
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN72
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN73
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN78
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN79
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN74

EN 62 TES1.0E LA10.

Spare Parts List

TELRA NO TELRA DESCRIPTION POS

030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN75
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN76
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN77
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN81
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN82
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN83
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN84
030140682131 RESISTOR C.F 820R 1/6W 1% R007
036000204051 FERRIT BLM21A102S 0805 L107
036000204051 FERRIT BLM21A102S 0805 L108
036000204051 FERRIT BLM21A102S 0805 L111
036000204051 FERRIT BLM21A102S 0805 L112
036000204051 FERRIT BLM21A102S 0805 L300
036000204051 FERRIT BLM21A102S 0805 L301
036000204051 FERRIT BLM21A102S 0805 L302
036000204051 FERRIT BLM21A102S 0805 L303
036000204051 FERRIT BLM21A102S 0805 L304
036000204051 FERRIT BLM21A102S 0805 L305
036000204051 FERRIT BLM21A102S 0805 L306
036000204051 FERRIT BLM21A102S 0805 L307
036000204051 FERRIT BLM21A102S 0805 L400
036000204051 FERRIT BLM21A102S 0805 L404
036000204051 FERRIT BLM21A102S 0805 L701
036000204051 FERRIT BLM21A102S 0805 L900
036000204051 FERRIT BLM21A102S 0805 L901
036000204051 FERRIT BLM21A102S 0805 L902
036000204051 FERRIT BLM21A102S 0805 L903
036000204051 FERRIT BLM21A102S 0805 L904
036000204051 FERRIT BLM21A102S 0805 L905
036000204051 FERRIT BLM21A102S 0805 L906
036000204051 FERRIT BLM21A102S 0805 L907
036000204051 FERRIT BLM21A102S 0805 L908
036000204051 FERRIT BLM21A102S 0805 L909
036000204051 FERRIT BLM21A102S 0805 L910
036000204051 FERRIT BLM21A102S 0805 L911
036000204051 FERRIT BLM21A102S 0805 L912
036000204051 FERRIT BLM21A102S 0805 L082
036000204051 FERRIT BLM21A102S 0805 L083
036000204051 FERRIT BLM21A102S 0805 L084
036000204051 FERRIT BLM21A102S 0805 L085
036000204051 FERRIT BLM21A102S 0805 L086
036000204051 FERRIT BLM21A102S 0805 L211
036000204051 FERRIT BLM21A102S 0805 L212
036000204051 FERRIT BLM21A102S 0805 L802
036000204051 FERRIT BLM21A102S 0805 L803
036000204051 FERRIT BLM21A102S 0805 L805
036000204051 FERRIT BLM21A102S 0805 L806
036000204051 FERRIT BLM21A102S 0805 L807
036000204051 FERRIT BLM21A102S 0805 L808
036016010071 FERRIT RING U5 T 31X7X19
036016010071 FERRIT RING U5 T 31X7X19
036016010071 FERRIT RING U5 T 31X7X19 S202
036016010071 FERRIT RING U5 T 31X7X19 S303
036016010071 FERRIT RING U5 T 31X7X19
036016010071 FERRIT RING U5 T 31X7X19
036016010071 FERRIT RING U5 T 31X7X19 S201
036016010131 FERRITE RING CTNF-100B
036016010131 FERRITE RING CTNF-100B
036016010131 FERRITE RING CTNF-100B
036016010141 FERRIT RING WURTH 742701 3
036070204111 FERRIT BEAD LI0805H151R-00 SMD L108
036070204111 FERRIT BEAD LI0805H151R-00 SMD L109
036070204111 FERRIT BEAD LI0805H151R-00 SMD L110
036070204111 FERRIT BEAD LI0805H151R-00 SMD L111
036070204111 FERRIT BEAD LI0805H151R-00 SMD L116
036070204111 FERRIT BEAD LI0805H151R-00 SMD L112
036070204111 FERRIT BEAD LI0805H151R-00 SMD L113
036070204111 FERRIT BEAD LI0805H151R-00 SMD L114
036070204111 FERRIT BEAD LI0805H151R-00 SMD L115
036070204111 FERRIT BEAD LI0805H151R-00 SMD L117
036070204111 FERRIT BEAD LI0805H151R-00 SMD L124
036070204111 FERRIT BEAD LI0805H151R-00 SMD L125
036070204111 FERRIT BEAD LI0805H151R-00 SMD L128
036070204111 FERRIT BEAD LI0805H151R-00 SMD L126

TELRA NO TELRA DESCRIPTION POS

036070204111 FERRIT BEAD LI0805H151R-00 SMD L107
036070204111 FERRIT BEAD LI0805H151R-00 SMD L110
036070204111 FERRIT BEAD LI0805H151R-00 SMD L111
036070204201 FERRIT ARRAY MZA3216 L700
036070204201 FERRIT ARRAY MZA3216 L702
036070204201 FERRIT ARRAY MZA3216 L703
036070204201 FERRIT ARRAY MZA3216 L704
036070204201 FERRIT ARRAY MZA3216 L705
036070204201 FERRIT ARRAY MZA3216 L706
036070204201 FERRIT ARRAY MZA3216 L707
036070204201 FERRIT ARRAY MZA3216 L708
036070204201 FERRIT ARRAY MZA3216 L709
036070204201 FERRIT ARRAY MZA3216 L710
036070204201 FERRIT ARRAY MZA3216 L711
036070204201 FERRIT ARRAY MZA3216 L712
036070204201 FERRIT ARRAY MZA3216 L713
036070204201 FERRIT ARRAY MZA3216 L714
036070204201 FERRIT ARRAY MZA3216 L715
036070204201 FERRIT ARRAY MZA3216 RN30
036070204201 FERRIT ARRAY MZA3216 RN41
036070204211 FERRIT HDMI ACM2012D-900-2P-T L201
036070204211 FERRIT HDMI ACM2012D-900-2P-T L202
036070204211 FERRIT HDMI ACM2012D-900-2P-T L203
036070204211 FERRIT HDMI ACM2012D-900-2P-T L204
037730007771 FILTER SAW K9453M B/GD/KL/L'AU F101
037730007801 FILTER SAW K3953M B/G L/L' VID F100
037730007801 FILTER SAW K3953M B/G L/L' VID F102
040013081041 CAP CER 100NF 63V 10% C001
040030042261 CAP CER 27PF 50V 5% COG 0603 C825
040030042261 CAP CER 27PF 50V 5% COG 0603 C826
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C206
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C207
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C209
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C211
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C212
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C213
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C214
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C215
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C247
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C248
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C246
040031042261 CAP CER 22PF 50V 5% COG 0603 C646
040032041011 CAP CER 100PF 50V 5% CH C257
040032041011 CAP CER 100PF 50V 5% CH C258
040034042761 CAP CER 270PF 50V 5% COG 0603 C155
040034042761 CAP CER 270PF 50V 5% COG 0603 C156
040034042761 CAP CER 270PF 50V 5% COG 0603 C157
040034042761 CAP CER 270PF 50V 5% COG 0603 C168
040040041661 CAP CER 1.5NF 50V 10% X7R 0603 C198
040040041661 CAP CER 1.5NF 50V 10% X7R 0603 C347
040040042241 CAP CER 220NF 50V 10% B C329
040040263361 CAP CER 330PF 50V 10% COG 0603 C150
040040263361 CAP CER 330PF 50V 10% COG 0603 C151
040040263361 CAP CER 330PF 50V 10% COG 0603 C152
040040263361 CAP CER 330PF 50V 10% COG 0603 C153
040040263361 CAP CER 330PF 50V 10% COG 0603 C154
040042044761 CAP CER 47NF 25V 10% X7R 0603 C178
040042044761 CAP CER 47NF 25V 10% X7R 0603 C433
040042044761 CAP CER 47NF 25V 10% X7R 0603 C829
040042044761 CAP CER 47NF 25V 10% X7R 0603 C830
040042044761 CAP CER 47NF 25V 10% X7R 0603 C831
040042044761 CAP CER 47NF 25V 10% X7R 0603 C833
040042044761 CAP CER 47NF 25V 10% X7R 0603 C834
040042044761 CAP CER 47NF 25V 10% X7R 0603 R841
040042044861 CAP CER 47NF 50V 10% X7R 0603 C253
040042056861 CAP CER 56NF 25V 20% X7R 0603 C401
040043041861 CAP CER 18PF 50V 5% COG 0603 C274
040043041861 CAP CER 18PF 50V 5% COG 0603 C276
040043041861 CAP CER 18PF 50V 5% COG 0603 C632
040043041861 CAP CER 18PF 50V 5% COG 0603 C633
040043045661 CAP CER 56PF 50V 5% COG 0603 C376
040043447261 CAP CER 4.7NF 50V 10% X7R 0603 C291
040043447261 CAP CER 4.7NF 50V 10% X7R 0603 C387
040043447261 CAP CER 4.7NF 50V 10% X7R 0603 C388

Spare Parts List

EN 63TES1.0E LA 10.

TELRA NO TELRA DESCRIPTION POS

040043447261 CAP CER 4.7NF 50V 10% X7R 0603 C406
040043447261 CAP CER 4.7NF 50V 10% X7R 0603 C427
040043447261 CAP CER 4.7NF 50V 10% X7R 0603 C426
040044081861 CAP CER 470NF 16V 10% X7R 0603 C218
040044081861 CAP CER 470NF 16V 10% X7R 0603 C219
040044081861 CAP CER 470NF 16V 10% X7R 0603 C217
040044081861 CAP CER 470NF 16V 10% X7R 0603 C223
040044081861 CAP CER 470NF 16V 10% X7R 0603 C216
040044081861 CAP CER 470NF 16V 10% X7R 0603 C221
040044081861 CAP CER 470NF 16V 10% X7R 0603 C222
040044081861 CAP CER 470NF 16V 10% X7R 0603 C105
040044081861 CAP CER 470NF 16V 10% X7R 0603 C279
040044081861 CAP CER 470NF 16V 10% X7R 0603 C384
040044081861 CAP CER 470NF 16V 10% X7R 0603 C385
040044081861 CAP CER 470NF 16V 10% X7R 0603 C386
040044081861 CAP CER 470NF 16V 10% X7R 0603 C191
040044081861 CAP CER 470NF 16V 10% X7R 0603 C196
040044081861 CAP CER 470NF 16V 10% X7R 0603 C332
040050041861 CAP CER 180PF 50V 5% COG 0603 C158
040050041861 CAP CER 180PF 50V 5% COG 0603 C159
040050041861 CAP CER 180PF 50V 5% COG 0603 C160
040050041861 CAP CER 180PF 50V 5% COG 0603 C166
040052043961 CAP CER 390PF 50V 5% COG 0603 C127
040052043961 CAP CER 390PF 50V 5% COG 0603 C128
040052043961 CAP CER 390PF 50V 5% COG 0603 C129
040052043961 CAP CER 390PF 50V 5% COG 0603 C130
040052043961 CAP CER 390PF 50V 5% COG 0603 C131
040052043961 CAP CER 390PF 50V 5% COG 0603 C132
040052043961 CAP CER 390PF 50V 5% COG 0603 C133
040052043961 CAP CER 390PF 50V 5% COG 0603 C134
040052043961 CAP CER 390PF 50V 5% COG 0603 C135
040052043961 CAP CER 390PF 50V 5% COG 0603 C136
040052043961 CAP CER 390PF 50V 5% COG 0603 C137
040052043961 CAP CER 390PF 50V 5% COG 0603 C138
040052043961 CAP CER 390PF 50V 5% COG 0603 C642
040052043961 CAP CER 390PF 50V 5% COG 0603 C706
040052043961 CAP CER 390PF 50V 5% COG 0603 C839
040052043961 CAP CER 390PF 50V 5% COG 0603 C169
040052043961 CAP CER 390PF 50V 5% COG 0603 C170
040052043961 CAP CER 390PF 50V 5% COG 0603 C186
040052043961 CAP CER 390PF 50V 5% COG 0603 C233
040052043961 CAP CER 390PF 50V 5% COG 0603 C171
040052043961 CAP CER 390PF 50V 5% COG 0603 C295
040052043961 CAP CER 390PF 50V 5% COG 0603 C362
040052043961 CAP CER 390PF 50V 5% COG 0603 C172
040052043961 CAP CER 390PF 50V 5% COG 0603 C813
040052043961 CAP CER 390PF 50V 5% COG 0603 C816
040052043961 CAP CER 390PF 50V 5% COG 0603 C835
040052043961 CAP CER 390PF 50V 5% COG 0603 C840
040052043961 CAP CER 390PF 50V 5% COG 0603 C845
040052044661 CAP CER 47PF 25V 5% COG 0603 C399
040052044661 CAP CER 47PF 25V 5% COG 0603 C409
040052044661 CAP CER 47PF 25V 5% COG 0603 C410
040052044661 CAP CER 47PF 25V 5% COG 0603 C411
040052044661 CAP CER 47PF 25V 5% COG 0603 C412
040052044661 CAP CER 47PF 25V 5% COG 0603 C413
040052044661 CAP CER 47PF 25V 5% COG 0603 C414
040052044661 CAP CER 47PF 25V 5% COG 0603 C415
040052044861 CAP CER 470PF 50V 5% COG 0603 C421
040052100261 CAP CER 220PF 50V 5% COG 0603 C139
040052100261 CAP CER 220PF 50V 5% COG 0603 C389
040052100261 CAP CER 220PF 50V 5% COG 0603 C428
040067041661 CAP CER 15PF 16V 5% 0603 C383
040067141061 CAP CER 100NF 50V 10% X7R 0603 C203
040067141061 CAP CER 100NF 50V 10% X7R 0603 C204
040067141061 CAP CER 100NF 50V 10% X7R 0603 C205
040067141061 CAP CER 100NF 50V 10% X7R 0603 C225
040067141061 CAP CER 100NF 50V 10% X7R 0603 C226
040067141061 CAP CER 100NF 50V 10% X7R 0603 C235
040067141061 CAP CER 100NF 50V 10% X7R 0603 C249
040067141061 CAP CER 100NF 50V 10% X7R 0603 C155
040067141061 CAP CER 100NF 50V 10% X7R 0603 C156
040067141061 CAP CER 100NF 50V 10% X7R 0603 C166
040067141061 CAP CER 100NF 50V 10% X7R 0603 C165

TELRA NO TELRA DESCRIPTION POS

040067141061 CAP CER 100NF 50V 10% X7R 0603 C103
040067141061 CAP CER 100NF 50V 10% X7R 0603 C105
040067141061 CAP CER 100NF 50V 10% X7R 0603 C106
040067141061 CAP CER 100NF 50V 10% X7R 0603 C244
040067141061 CAP CER 100NF 50V 10% X7R 0603 C109
040067141061 CAP CER 100NF 50V 10% X7R 0603 C110
040067141061 CAP CER 100NF 50V 10% X7R 0603 C111
040067141061 CAP CER 100NF 50V 10% X7R 0603 C112
040067141061 CAP CER 100NF 50V 10% X7R 0603 C113
040067141061 CAP CER 100NF 50V 10% X7R 0603 C114
040067141061 CAP CER 100NF 50V 10% X7R 0603 C115
040067141061 CAP CER 100NF 50V 10% X7R 0603 C116
040067141061 CAP CER 100NF 50V 10% X7R 0603 C117
040067141061 CAP CER 100NF 50V 10% X7R 0603 C118
040067141061 CAP CER 100NF 50V 10% X7R 0603 C120
040067141061 CAP CER 100NF 50V 10% X7R 0603 C121
040067141061 CAP CER 100NF 50V 10% X7R 0603 C122
040067141061 CAP CER 100NF 50V 10% X7R 0603 C123
040067141061 CAP CER 100NF 50V 10% X7R 0603 C124
040067141061 CAP CER 100NF 50V 10% X7R 0603 C125
040067141061 CAP CER 100NF 50V 10% X7R 0603 C126
040067141061 CAP CER 100NF 50V 10% X7R 0603 C200
040067141061 CAP CER 100NF 50V 10% X7R 0603 C203
040067141061 CAP CER 100NF 50V 10% X7R 0603 C205
040067141061 CAP CER 100NF 50V 10% X7R 0603 C206
040067141061 CAP CER 100NF 50V 10% X7R 0603 C207
040067141061 CAP CER 100NF 50V 10% X7R 0603 C208
040067141061 CAP CER 100NF 50V 10% X7R 0603 C211
040067141061 CAP CER 100NF 50V 10% X7R 0603 C212
040067141061 CAP CER 100NF 50V 10% X7R 0603 C213
040067141061 CAP CER 100NF 50V 10% X7R 0603 C214
040067141061 CAP CER 100NF 50V 10% X7R 0603 C215
040067141061 CAP CER 100NF 50V 10% X7R 0603 C255
040067141061 CAP CER 100NF 50V 10% X7R 0603 C258
040067141061 CAP CER 100NF 50V 10% X7R 0603 C278
040067141061 CAP CER 100NF 50V 10% X7R 0603 C305
040067141061 CAP CER 100NF 50V 10% X7R 0603 C306
040067141061 CAP CER 100NF 50V 10% X7R 0603 C307
040067141061 CAP CER 100NF 50V 10% X7R 0603 C308
040067141061 CAP CER 100NF 50V 10% X7R 0603 C309
040067141061 CAP CER 100NF 50V 10% X7R 0603 C310
040067141061 CAP CER 100NF 50V 10% X7R 0603 C311
040067141061 CAP CER 100NF 50V 10% X7R 0603 C312
040067141061 CAP CER 100NF 50V 10% X7R 0603 C313
040067141061 CAP CER 100NF 50V 10% X7R 0603 C314
040067141061 CAP CER 100NF 50V 10% X7R 0603 C315
040067141061 CAP CER 100NF 50V 10% X7R 0603 C316
040067141061 CAP CER 100NF 50V 10% X7R 0603 C317
040067141061 CAP CER 100NF 50V 10% X7R 0603 C318
040067141061 CAP CER 100NF 50V 10% X7R 0603 C319
040067141061 CAP CER 100NF 50V 10% X7R 0603 C320
040067141061 CAP CER 100NF 50V 10% X7R 0603 C321
040067141061 CAP CER 100NF 50V 10% X7R 0603 C322
040067141061 CAP CER 100NF 50V 10% X7R 0603 C323
040067141061 CAP CER 100NF 50V 10% X7R 0603 C326
040067141061 CAP CER 100NF 50V 10% X7R 0603 C327
040067141061 CAP CER 100NF 50V 10% X7R 0603 C328
040067141061 CAP CER 100NF 50V 10% X7R 0603 C330
040067141061 CAP CER 100NF 50V 10% X7R 0603 C331
040067141061 CAP CER 100NF 50V 10% X7R 0603 C333
040067141061 CAP CER 100NF 50V 10% X7R 0603 C335
040067141061 CAP CER 100NF 50V 10% X7R 0603 C336
040067141061 CAP CER 100NF 50V 10% X7R 0603 C337
040067141061 CAP CER 100NF 50V 10% X7R 0603 C339
040067141061 CAP CER 100NF 50V 10% X7R 0603 C340
040067141061 CAP CER 100NF 50V 10% X7R 0603 C341
040067141061 CAP CER 100NF 50V 10% X7R 0603 C342
040067141061 CAP CER 100NF 50V 10% X7R 0603 C343
040067141061 CAP CER 100NF 50V 10% X7R 0603 C344
040067141061 CAP CER 100NF 50V 10% X7R 0603 C345
040067141061 CAP CER 100NF 50V 10% X7R 0603 C346
040067141061 CAP CER 100NF 50V 10% X7R 0603 C348
040067141061 CAP CER 100NF 50V 10% X7R 0603 C349
040067141061 CAP CER 100NF 50V 10% X7R 0603 C350

EN 64 TES1.0E LA10.

Spare Parts List

TELRA NO TELRA DESCRIPTION POS

040067141061 CAP CER 100NF 50V 10% X7R 0603 C353
040067141061 CAP CER 100NF 50V 10% X7R 0603 C354
040067141061 CAP CER 100NF 50V 10% X7R 0603 C356
040067141061 CAP CER 100NF 50V 10% X7R 0603 C357
040067141061 CAP CER 100NF 50V 10% X7R 0603 C358
040067141061 CAP CER 100NF 50V 10% X7R 0603 C359
040067141061 CAP CER 100NF 50V 10% X7R 0603 C360
040067141061 CAP CER 100NF 50V 10% X7R 0603 C361
040067141061 CAP CER 100NF 50V 10% X7R 0603 C363
040067141061 CAP CER 100NF 50V 10% X7R 0603 C364
040067141061 CAP CER 100NF 50V 10% X7R 0603 C365
040067141061 CAP CER 100NF 50V 10% X7R 0603 C400
040067141061 CAP CER 100NF 50V 10% X7R 0603 C402
040067141061 CAP CER 100NF 50V 10% X7R 0603 C403
040067141061 CAP CER 100NF 50V 10% X7R 0603 C404
040067141061 CAP CER 100NF 50V 10% X7R 0603 C405
040067141061 CAP CER 100NF 50V 10% X7R 0603 C408
040067141061 CAP CER 100NF 50V 10% X7R 0603 C600
040067141061 CAP CER 100NF 50V 10% X7R 0603 C601
040067141061 CAP CER 100NF 50V 10% X7R 0603 C602
040067141061 CAP CER 100NF 50V 10% X7R 0603 C603
040067141061 CAP CER 100NF 50V 10% X7R 0603 C604
040067141061 CAP CER 100NF 50V 10% X7R 0603 C605
040067141061 CAP CER 100NF 50V 10% X7R 0603 C606
040067141061 CAP CER 100NF 50V 10% X7R 0603 C607
040067141061 CAP CER 100NF 50V 10% X7R 0603 C608
040067141061 CAP CER 100NF 50V 10% X7R 0603 C609
040067141061 CAP CER 100NF 50V 10% X7R 0603 C610
040067141061 CAP CER 100NF 50V 10% X7R 0603 C611
040067141061 CAP CER 100NF 50V 10% X7R 0603 C612
040067141061 CAP CER 100NF 50V 10% X7R 0603 C613
040067141061 CAP CER 100NF 50V 10% X7R 0603 C614
040067141061 CAP CER 100NF 50V 10% X7R 0603 C615
040067141061 CAP CER 100NF 50V 10% X7R 0603 C616
040067141061 CAP CER 100NF 50V 10% X7R 0603 C617
040067141061 CAP CER 100NF 50V 10% X7R 0603 C618
040067141061 CAP CER 100NF 50V 10% X7R 0603 C619
040067141061 CAP CER 100NF 50V 10% X7R 0603 C620
040067141061 CAP CER 100NF 50V 10% X7R 0603 C621
040067141061 CAP CER 100NF 50V 10% X7R 0603 C622
040067141061 CAP CER 100NF 50V 10% X7R 0603 C623
040067141061 CAP CER 100NF 50V 10% X7R 0603 C624
040067141061 CAP CER 100NF 50V 10% X7R 0603 C625
040067141061 CAP CER 100NF 50V 10% X7R 0603 C626
040067141061 CAP CER 100NF 50V 10% X7R 0603 C627
040067141061 CAP CER 100NF 50V 10% X7R 0603 C628
040067141061 CAP CER 100NF 50V 10% X7R 0603 C629
040067141061 CAP CER 100NF 50V 10% X7R 0603 C631
040067141061 CAP CER 100NF 50V 10% X7R 0603 C639
040067141061 CAP CER 100NF 50V 10% X7R 0603 C703
040067141061 CAP CER 100NF 50V 10% X7R 0603 C704
040067141061 CAP CER 100NF 50V 10% X7R 0603 C705
040067141061 CAP CER 100NF 50V 10% X7R 0603 C710
040067141061 CAP CER 100NF 50V 10% X7R 0603 C711
040067141061 CAP CER 100NF 50V 10% X7R 0603 C712
040067141061 CAP CER 100NF 50V 10% X7R 0603 C713
040067141061 CAP CER 100NF 50V 10% X7R 0603 C837
040067141061 CAP CER 100NF 50V 10% X7R 0603 C900
040067141061 CAP CER 100NF 50V 10% X7R 0603 C906
040067141061 CAP CER 100NF 50V 10% X7R 0603 C907
040067141061 CAP CER 100NF 50V 10% X7R 0603 C908
040067141061 CAP CER 100NF 50V 10% X7R 0603 C909
040067141061 CAP CER 100NF 50V 10% X7R 0603 C910
040067141061 CAP CER 100NF 50V 10% X7R 0603 C911
040067141061 CAP CER 100NF 50V 10% X7R 0603 C912
040067141061 CAP CER 100NF 50V 10% X7R 0603 C913
040067141061 CAP CER 100NF 50V 10% X7R 0603 C914
040067141061 CAP CER 100NF 50V 10% X7R 0603 C915
040067141061 CAP CER 100NF 50V 10% X7R 0603 C916
040067141061 CAP CER 100NF 50V 10% X7R 0603 C917
040067141061 CAP CER 100NF 50V 10% X7R 0603 C918
040067141061 CAP CER 100NF 50V 10% X7R 0603 C919
040067141061 CAP CER 100NF 50V 10% X7R 0603 C920
040067141061 CAP CER 100NF 50V 10% X7R 0603 C921

TELRA NO TELRA DESCRIPTION POS

040067141061 CAP CER 100NF 50V 10% X7R 0603 C922
040067141061 CAP CER 100NF 50V 10% X7R 0603 C923
040067141061 CAP CER 100NF 50V 10% X7R 0603 C925
040067141061 CAP CER 100NF 50V 10% X7R 0603 C926
040067141061 CAP CER 100NF 50V 10% X7R 0603 C297
040067141061 CAP CER 100NF 50V 10% X7R 0603 C395
040067141061 CAP CER 100NF 50V 10% X7R 0603 C396
040067141061 CAP CER 100NF 50V 10% X7R 0603 C424
040067141061 CAP CER 100NF 50V 10% X7R 0603 C425
040067141061 CAP CER 100NF 50V 10% X7R 0603 C229
040067141061 CAP CER 100NF 50V 10% X7R 0603 C236
040067141061 CAP CER 100NF 50V 10% X7R 0603 C266
040067141061 CAP CER 100NF 50V 10% X7R 0603 C173
040067141061 CAP CER 100NF 50V 10% X7R 0603 C174
040067141061 CAP CER 100NF 50V 10% X7R 0603 C181
040067141061 CAP CER 100NF 50V 10% X7R 0603 C184
040067141061 CAP CER 100NF 50V 10% X7R 0603 C199
040067141061 CAP CER 100NF 50V 10% X7R 0603 C220
040067141061 CAP CER 100NF 50V 10% X7R 0603 C240
040067141061 CAP CER 100NF 50V 10% X7R 0603 C243
040067141061 CAP CER 100NF 50V 10% X7R 0603 C288
040067141061 CAP CER 100NF 50V 10% X7R 0603 C254
040067141061 CAP CER 100NF 50V 10% X7R 0603 C351
040067141061 CAP CER 100NF 50V 10% X7R 0603 C175
040067141061 CAP CER 100NF 50V 10% X7R 0603 C261
040067141061 CAP CER 100NF 50V 10% X7R 0603 C338
040067141061 CAP CER 100NF 50V 10% X7R 0603 C810
040067141061 CAP CER 100NF 50V 10% X7R 0603 C818
040067141061 CAP CER 100NF 50V 10% X7R 0603 C827
040067141061 CAP CER 100NF 50V 10% X7R 0603 C842
040067141061 CAP CER 100NF 50V 10% X7R 0603 C847
040067141061 CAP CER 100NF 50V 10% X7R 0603 C848
040067141061 CAP CER 100NF 50V 10% X7R 0603 C100
040067141061 CAP CER 100NF 50V 10% X7R 0603 C101
040067141061 CAP CER 100NF 50V 10% X7R 0603 C102
040067141061 CAP CER 100NF 50V 10% X7R 0603 C103
040067141061 CAP CER 100NF 50V 10% X7R 0603 C104
040067141061 CAP CER 100NF 50V 10% X7R 0603 C105
040730014061 CAP CER 10NF 50V 10% X7R 0603 C838
040730014061 CAP CER 10NF 50V 10% X7R 0603 C940
040730014061 CAP CER 10NF 50V 10% X7R 0603 C941
040730014061 CAP CER 10NF 50V 10% X7R 0603 C942
040730014061 CAP CER 10NF 50V 10% X7R 0603 C943
040730014061 CAP CER 10NF 50V 10% X7R 0603 C944
040730014061 CAP CER 10NF 50V 10% X7R 0603 C945
040730014061 CAP CER 10NF 50V 10% X7R 0603 C946
040730014061 CAP CER 10NF 50V 10% X7R 0603 C947
040730014061 CAP CER 10NF 50V 10% X7R 0603 C949
040730014061 CAP CER 10NF 50V 10% X7R 0603 C950
040730014061 CAP CER 10NF 50V 10% X7R 0603 C190
040730014061 CAP CER 10NF 50V 10% X7R 0603 C221
040730014061 CAP CER 10NF 50V 10% X7R 0603 C293
040730014061 CAP CER 10NF 50V 10% X7R 0603 C355
040730014061 CAP CER 10NF 50V 10% X7R 0603 C352
040730014061 CAP CER 10NF 50V 10% X7R 0603 C811
040730014061 CAP CER 10NF 50V 10% X7R 0603 C817
040730014061 CAP CER 10NF 50V 10% X7R 0603 C828
040730014061 CAP CER 10NF 50V 10% X7R 0603 C841
040730014061 CAP CER 10NF 50V 10% X7R 0603 C846
040730033261 CAP CER 33NF 25V 10% 0603 C390
040730033261 CAP CER 33NF 25V 10% 0603 C391
040730033261 CAP CER 33NF 25V 10% 0603 C392
040730033261 CAP CER 33NF 25V 10% 0603 C429
040730033261 CAP CER 33NF 25V 10% 0603 C431
040730033261 CAP CER 33NF 25V 10% 0603 C430
040730033311 CAP CER 1MF 16V Y5V 10% 0805 C267
040730033311 CAP CER 1MF 16V Y5V 10% 0805 C268
040730033311 CAP CER 1MF 16V Y5V 10% 0805 C271
040730033311 CAP CER 1MF 16V Y5V 10% 0805 C272
040732041061 CAP CER 100PF 50V 5% COG 0603 C260
040732041061 CAP CER 100PF 50V 5% COG 0603 C262
040732041061 CAP CER 100PF 50V 5% COG 0603 C368
040732041061 CAP CER 100PF 50V 5% COG 0603 C369
040732041061 CAP CER 100PF 50V 5% COG 0603 C370

Spare Parts List

EN 65TES1.0E LA 10.

TELRA NO TELRA DESCRIPTION POS

040732041061 CAP CER 100PF 50V 5% COG 0603 C416
040732042061 CAP CER 120PF 50V 5% COG 0603 C140
040742022261 CAP CER 22NF 50V 5% X7R 0603 C145
040742022261 CAP CER 22NF 50V 5% X7R 0603 C146
040742022261 CAP CER 22NF 50V 5% X7R 0603 C147
040742022261 CAP CER 22NF 50V 5% X7R 0603 C148
040742022261 CAP CER 22NF 50V 5% X7R 0603 C149
040742022261 CAP CER 22NF 50V 5% X7R 0603 C259
040742041061 CAP CER 10PF 50V 5% COG 0603 C104
040742041061 CAP CER 10PF 50V 5% COG 0603 C141
040742041061 CAP CER 10PF 50V 5% COG 0603 C142
040742041061 CAP CER 10PF 50V 5% COG 0603 C143
040742041061 CAP CER 10PF 50V 5% COG 0603 C144
040742041061 CAP CER 10PF 50V 5% COG 0603 C167
040742041061 CAP CER 10PF 50V 5% COG 0603 C382
040742041061 CAP CER 10PF 50V 5% COG 0603 C197
040742041061 CAP CER 10PF 50V 5% COG 0603 C226
040742041061 CAP CER 10PF 50V 5% COG 0603 C294
040742041061 CAP CER 10PF 50V 5% COG 0603 C366
040742041061 CAP CER 10PF 50V 5% COG 0603 C334
040742041061 CAP CER 10PF 50V 5% COG 0603 C111
040743022161 CAP CER 220NF 16V +80-20% 0603 C257
040752041061 CAP CER 1NF 50V 10% X7R 0603 C108
040752041061 CAP CER 1NF 50V 10% X7R 0603 C109
040752041061 CAP CER 1NF 50V 10% X7R 0603 C116
040752041061 CAP CER 1NF 50V 10% X7R 0603 C117
040752041061 CAP CER 1NF 50V 10% X7R 0603 C142
040752041061 CAP CER 1NF 50V 10% X7R 0603 C143
040752041061 CAP CER 1NF 50V 10% X7R 0603 C144
040752041061 CAP CER 1NF 50V 10% X7R 0603 C145
040752041061 CAP CER 1NF 50V 10% X7R 0603 C146
040752041061 CAP CER 1NF 50V 10% X7R 0603 C147
040752041061 CAP CER 1NF 50V 10% X7R 0603 C148
040752041061 CAP CER 1NF 50V 10% X7R 0603 C149
040752041061 CAP CER 1NF 50V 10% X7R 0603 C127
040752041061 CAP CER 1NF 50V 10% X7R 0603 C136
040752041061 CAP CER 1NF 50V 10% X7R 0603 C138
040752041061 CAP CER 1NF 50V 10% X7R 0603 C139
040752041061 CAP CER 1NF 50V 10% X7R 0603 C140
040752041061 CAP CER 1NF 50V 10% X7R 0603 C141
040752041061 CAP CER 1NF 50V 10% X7R 0603 C150
040752041061 CAP CER 1NF 50V 10% X7R 0603 C151
040752041061 CAP CER 1NF 50V 10% X7R 0603 C100
040752041061 CAP CER 1NF 50V 10% X7R 0603 C101
040752041061 CAP CER 1NF 50V 10% X7R 0603 C161
040752041061 CAP CER 1NF 50V 10% X7R 0603 C280
040752041061 CAP CER 1NF 50V 10% X7R 0603 C281
040752041061 CAP CER 1NF 50V 10% X7R 0603 C180
040752041061 CAP CER 1NF 50V 10% X7R 0603 C249
040752041061 CAP CER 1NF 50V 10% X7R 0603 C250
040752041061 CAP CER 1NF 50V 10% X7R 0603 C162
040752041061 CAP CER 1NF 50V 10% X7R 0603 C163
040752041061 CAP CER 1NF 50V 10% X7R 0603 C187
040752041061 CAP CER 1NF 50V 10% X7R 0603 C192
040752041061 CAP CER 1NF 50V 10% X7R 0603 C165
040752041061 CAP CER 1NF 50V 10% X7R 0603 C324
040752041061 CAP CER 1NF 50V 10% X7R 0603 C164
040752041061 CAP CER 1NF 50V 10% X7R 0603 C116
040752041061 CAP CER 1NF 50V 10% X7R 0603 C115
042140161071 CAP ELECT 100MF 16V 20% C240
042140161071 CAP ELECT 100MF 16V 20% C929
042140161071 CAP ELECT 100MF 16V 20% C935
042140161071 CAP ELECT 100MF 16V 20% C290
042140161071 CAP ELECT 100MF 16V 20% C239
042140164771 CAP ELECT 470MF 16V 20% C901
042140164771 CAP ELECT 470MF 16V 20% C902
042140164771 CAP ELECT 470MF 16V 20% C905
042140164771 CAP ELECT 470MF 16V 20% C417
042140164771 CAP ELECT 470MF 16V 20% C418
042414251071 CAP ELECT 100MF 25V 20% C277
042414251071 CAP ELECT 100MF 25V 20% C903
042414251071 CAP ELECT 100MF 25V 20% C904
042414254761 CAP ELECT 47MF 25V 20% C176
042416501051 CAP ELECT 1MF 50V 20% C174

TELRA NO TELRA DESCRIPTION POS

042416501051 CAP ELECT 1MF 50V 20% C175
042416501051 CAP ELECT 1MF 50V 20% C230
042416501051 CAP ELECT 1MF 50V 20% C264
042416501051 CAP ELECT 1MF 50V 20% C265
042416501051 CAP ELECT 1MF 50V 20% C223
042416501051 CAP ELECT 1MF 50V 20% C106
042416501051 CAP ELECT 1MF 50V 20% C119
042416501051 CAP ELECT 1MF 50V 20% C185
042416502261 CAP ELECT 22MF 50V 20% C001
042416502261 CAP ELECT 22MF 50V 20% C371
042416502261 CAP ELECT 22MF 50V 20% C372
042416502261 CAP ELECT 22MF 50V 20% C374
042416502261 CAP ELECT 22MF 50V 20% C377
042416502261 CAP ELECT 22MF 50V 20% C378
042416502261 CAP ELECT 22MF 50V 20% C379
042416502261 CAP ELECT 22MF 50V 20% C380
042416502261 CAP ELECT 22MF 50V 20% C381
042417162271 CAP ELECT 220MF 16V 20% C182
042440251101 CAP ELECT 1000MF 25V 20% 105¯ C397
042440251101 CAP ELECT 1000MF 25V 20% 105¯ C398
042440251101 CAP ELECT 1000MF 25V 20% 105¯ C422
042440251101 CAP ELECT 1000MF 25V 20% 105¯ C423
042440861081 CAP ELECT 100MF 50V 20% C289
042446161061 CAP ELECT 10MF 16V 20% C393
042446501061 CAP ELECT 10MF 50V 20% C102
042446501061 CAP ELECT 10MF 50V 20% C152
042446501061 CAP ELECT 10MF 50V 20% C157
042446501061 CAP ELECT 10MF 50V 20% C158
042446501061 CAP ELECT 10MF 50V 20% C159
042446501061 CAP ELECT 10MF 50V 20% C160
042446501061 CAP ELECT 10MF 50V 20% C161
042446501061 CAP ELECT 10MF 50V 20% C162
042446501061 CAP ELECT 10MF 50V 20% C200
042446501061 CAP ELECT 10MF 50V 20% C201
042446501061 CAP ELECT 10MF 50V 20% C202
042446501061 CAP ELECT 10MF 50V 20% C208
042446501061 CAP ELECT 10MF 50V 20% C210
042446501061 CAP ELECT 10MF 50V 20% C227
042446501061 CAP ELECT 10MF 50V 20% C228
042446501061 CAP ELECT 10MF 50V 20% C236
042446501061 CAP ELECT 10MF 50V 20% C237
042446501061 CAP ELECT 10MF 50V 20% C238
042446501061 CAP ELECT 10MF 50V 20% C100
042446501061 CAP ELECT 10MF 50V 20% C101
042446501061 CAP ELECT 10MF 50V 20% C102
042446501061 CAP ELECT 10MF 50V 20% C107
042446501061 CAP ELECT 10MF 50V 20% C108
042446501061 CAP ELECT 10MF 50V 20% C222
042446501061 CAP ELECT 10MF 50V 20% C224
042446501061 CAP ELECT 10MF 50V 20% C225
042446501061 CAP ELECT 10MF 50V 20% C227
042446501061 CAP ELECT 10MF 50V 20% C231
042446501061 CAP ELECT 10MF 50V 20% C232
042446501061 CAP ELECT 10MF 50V 20% C234
042446501061 CAP ELECT 10MF 50V 20% C300
042446501061 CAP ELECT 10MF 50V 20% C301
042446501061 CAP ELECT 10MF 50V 20% C302
042446501061 CAP ELECT 10MF 50V 20% C303
042446501061 CAP ELECT 10MF 50V 20% C304
042446501061 CAP ELECT 10MF 50V 20% C407
042446501061 CAP ELECT 10MF 50V 20% C634
042446501061 CAP ELECT 10MF 50V 20% C635
042446501061 CAP ELECT 10MF 50V 20% C636
042446501061 CAP ELECT 10MF 50V 20% C637
042446501061 CAP ELECT 10MF 50V 20% C638
042446501061 CAP ELECT 10MF 50V 20% C700
042446501061 CAP ELECT 10MF 50V 20% C701
042446501061 CAP ELECT 10MF 50V 20% C702
042446501061 CAP ELECT 10MF 50V 20% C924
042446501061 CAP ELECT 10MF 50V 20% C927
042446501061 CAP ELECT 10MF 50V 20% C928
042446501061 CAP ELECT 10MF 50V 20% C930
042446501061 CAP ELECT 10MF 50V 20% C931
042446501061 CAP ELECT 10MF 50V 20% C932

EN 66 TES1.0E LA10.

Spare Parts List

TELRA NO TELRA DESCRIPTION POS

042446501061 CAP ELECT 10MF 50V 20% C933
042446501061 CAP ELECT 10MF 50V 20% C934
042446501061 CAP ELECT 10MF 50V 20% C936
042446501061 CAP ELECT 10MF 50V 20% C937
042446501061 CAP ELECT 10MF 50V 20% C938
042446501061 CAP ELECT 10MF 50V 20% C238
042446501061 CAP ELECT 10MF 50V 20% C244
042446501061 CAP ELECT 10MF 50V 20% C432
042446501061 CAP ELECT 10MF 50V 20% C367
042446501061 CAP ELECT 10MF 50V 20% C809
042446501061 CAP ELECT 10MF 50V 20% C824
042446501061 CAP ELECT 10MF 50V 20% C836
042446501061 CAP ELECT 10MF 50V 20% C843
042446501061 CAP ELECT 10MF 50V 20% C844
042446501061 CAP ELECT 10MF 50V 20% C849
042448504761 CAP ELECT 47MF 50V 20% C103
042448504761 CAP ELECT 47MF 50V 20% C104
042448504761 CAP ELECT 47MF 50V 20% C251
042448504761 CAP ELECT 47MF 50V 20% C394
042449254771 CAP ELECT 470MF 25V 20% SK14
045000000291 IC DS90C385AMT LVDS U904
045000000561 IC REG FAN1086M33X 1.5A U900
045000000921 IC STV2310 VIDEO DECODER U100
045000001821 IC TDA9886 PAL SEC (SOT137-1) U101
045000001821 IC TDA9886 PAL SEC (SOT137-1) U102
045000002081 IC STV8216 TQFP80 U200
045000003081 IC CXA2089Q U200
045000003221 IC STV3550 CPU+SCALER PQFP208 U601
045000003981 IC TDA7264 SOUND AMP. U201
045000004981 IC LD1086DT18 REG.1V8 1.5A LOW U901
045000011251 IC M24C64 PSDIP8 U600
045000011281 IC SDRAM K4S281632F-TC75 U700
045000011281 IC SDRAM K4S281632F-TC75 U701
045000011731 IC TDA7050T SO8 (SMD) U001
045088343881 IC ST24LC21B 1K EEPROM SO8 U109
045088343881 IC ST24LC21B 1K EEPROM SO8 U108
045100001121 IC PVP 9390A PIP U802
045238103161 IC LF33C 3,3 VOLT . REG. DPAK U902
045238103171 IC LF18C 1.8 VOLT . REG. DPAK U903
045238103311 IC LM2940 5V 1A REGULATOR U203
045238103311 IC LM2940 5V 1A REGULATOR U204
045238103311 IC LM2940 5V 1A REGULATOR U204
045238103311 IC LM2940 5V 1A REGULATOR U203
045300000221 IC 74F14 SOIC-14 U400
045300000381 IC M29W160BT-70N1 FLASH TSOP48 U702
045300000511 IC RESET MC33164P-003 TO-92 U602
045500000581 IC LM1881 VIDEO SNYC SEPERATOR U401
045500000671 IC ADE3300 LCD DISP.CONTROLLER U300
046000000371 TRS MOSFET N-CHANNEL SOT-23 Q100
046000000371 TRS MOSFET N-CHANNEL SOT-23 Q102
046000000371 TRS MOSFET N-CHANNEL SOT-23 Q604
046000000371 TRS MOSFET N-CHANNEL SOT-23 Q606
046000002391 TRS BC847C SOT23 Q108
046848000001 TRS.BC848B SOT-23 Q100
046848000001 TRS.BC848B SOT-23 Q108
046848000001 TRS.BC848B SOT-23 Q109
046848000001 TRS.BC848B SOT-23 Q200
046848000001 TRS.BC848B SOT-23 Q201
046848000001 TRS.BC848B SOT-23 Q202
046848000001 TRS.BC848B SOT-23 Q102
046848000001 TRS.BC848B SOT-23 Q101
046848000001 TRS.BC848B SOT-23 Q203
046848000001 TRS.BC848B SOT-23 Q201
046848000001 TRS.BC848B SOT-23 Q400
046848000001 TRS.BC848B SOT-23 T200
046848000001 TRS.BC848B SOT-23 T201
046848000001 TRS.BC848B SOT-23 Q104
046848000001 TRS.BC848B SOT-23 Q105
046848000001 TRS.BC848B SOT-23 Q106
046848000001 TRS.BC848B SOT-23 Q107
046848480121 TRS. BC847B SOT-23 Q109
048000000421 DIODESHOTTKY DBL.BAT54CWSOT323 D103
048000000421 DIODESHOTTKY DBL.BAT54CWSOT323 D102
048000000491 DIODE BAS70-04 SWITCHING SOT23 D400

TELRA NO TELRA DESCRIPTION POS

048000000491 DIODE BAS70-04 SWITCHING SOT23 D401
048000000491 DIODE BAS70-04 SWITCHING SOT23 D402
048000000491 DIODE BAS70-04 SWITCHING SOT23 D300
048000000491 DIODE BAS70-04 SWITCHING SOT23 D301
048000000491 DIODE BAS70-04 SWITCHING SOT23 D302
048000000491 DIODE BAS70-04 SWITCHING SOT23 D303
048000000491 DIODE BAS70-04 SWITCHING SOT23 D304
048000000491 DIODE BAS70-04 SWITCHING SOT23 D305
048000000491 DIODE BAS70-04 SWITCHING SOT23 D306
048000000491 DIODE BAS70-04 SWITCHING SOT23 D307
048110411111 DIODE LS4148 SOD80 QMELF D100
048110411111 DIODE LS4148 SOD80 QMELF D101
048110411111 DIODE LS4148 SOD80 QMELF D100
048110411111 DIODE LS4148 SOD80 QMELF D101
048110411111 DIODE LS4148 SOD80 QMELF D102
048110411111 DIODE LS4148 SOD80 QMELF D103
048110411111 DIODE LS4148 SOD80 QMELF D104
048110411111 DIODE LS4148 SOD80 QMELF D105
048110411111 DIODE LS4148 SOD80 QMELF D106
048113229121 DIODE BAV99 D107
048113229121 DIODE BAV99 D111
048210200001 DIODE SCHTKY BAT85 DO-34 D600
048321423201 DIODE RECT.1N4007 DO-41 D109
048321423201 DIODE RECT.1N4007 DO-41 D110
048321423201 DIODE RECT.1N4007 DO-41 D900
048321423201 DIODE RECT.1N4007 DO-41 D901
048540733021 DIODE ZNR.33V ZTK33B DO-35 D108
048540733021 DIODE ZNR.33V ZTK33B DO-35 D112
048774606051 DIODE LED WHITE/RED 3MM LED1
049030000461 CRYSTAL 4.000 MHZ HC49U Y100
049030000461 CRYSTAL 4.000 MHZ HC49U Y101
049030000601 CRYSTAL 20.25MHZ SM49US Y800
049030010991 CRYSTAL 27MHZ SS4 ( HC49/U4H ) Y200
049030010991 CRYSTAL 27MHZ SS4 ( HC49/U4H ) Y300
049030010991 CRYSTAL 27MHZ SS4 ( HC49/U4H ) Y600
065001056920 DFU PHILIPS 26PF1000
065001056950 QSG PHILIPS 26PF1000
066010037671 CARTON BOX PHILIPS 26 PF1000
066022750760 BAG NYLON 202128'4/3BSKLI NEW
070652110071 LCD 26' AUO T260XW02 V5 SFT
075012880261 SOCKET CHINCH DOUBLE AUDIO W/R S105
075013220021 SOCKET IC 8P DIP-8 U600
075015420111 CONN 15P VGA/PT100-MONITOR S110
075016420011 SOCKET HEADPHONE STR S102
075016420011 SOCKET HEADPHONE STR S100
075016420171 SOCKET S-VHS W/SHIELD W/O SCRW S111
075016420391 SOCKET CHIN HRZ.TRIP Y/W/R 35B S102
075030211011 CONN.2P IN-LINE VRT MINI S600
075030261020 CONN 2P HRZ POWER 10MM S100
075030261020 CONN 2P HRZ POWER 10MM S101
075030311021 CONN 3P IN-LINE VRT MINI S201
075030311021 CONN 3P IN-LINE VRT MINI S101
075030411001 CONN.4P IN-LINE VRT MINI S601
075030411031 CONN.4P IN-LINE VRT BLUE MINI S203
075030511001 CONN 5P IN-LINE VRT MINI S104
075030511001 CONN 5P IN-LINE VRT MINI S103
075030611061 CONN 6P IN-LINE VRT MINI S116
075030611061 CONN 6P IN-LINE VRT MINI S103
075030810951 SOCKET DVI-I S114
075040210051 SOCKET SCART 27'/28'/32'COMMON S108
075040210071 SOCKET SCART DOUBLE PT90A S100
075100201181 CONN 4P HRZ 2.5MM MINI S001
075100212000 CONN.FEMALE WHITE 10MM
075100711081 CONN 4P SINGLEROW PIN HDR FORM U002
075100711971 CONN.7P IN-LINE VRT MINI S603
075101211161 CONN 2P IN LINE HRZ 2.5MM MINI S002
075101211161 CONN 2P IN LINE HRZ 2.5MM MINI S001
075101211161 CONN 2P IN LINE HRZ 2.5MM MINI S002
075110090091 CONN.10P IN-LINE VRT MINI 2MM S204
075110090091 CONN.10P IN-LINE VRT MINI 2MM S900
075110900141 CONN.40P FFC 0.5MM HRZ SMD S201
075110900141 CONN.40P FFC 0.5MM HRZ SMD S202
075110900141 CONN.40P FFC 0.5MM HRZ SMD S205
075110900141 CONN.40P FFC 0.5MM HRZ SMD S206

Spare Parts List

EN 67TES1.0E LA 10.

TELRA NO TELRA DESCRIPTION POS

075220480021 CONN 30P SMD MX53505 S903
081000000141 SWITCH POWERALPS SDKVA30100SFT POW1
081101111601 SWITCH TACT HRZ MTLCONT 6*6 SW01
081101111601 SWITCH TACT HRZ MTLCONT 6*6 SW02
081101111601 SWITCH TACT HRZ MTLCONT 6*6 SW03
081101111601 SWITCH TACT HRZ MTLCONT 6*6 SW04
081101111601 SWITCH TACT HRZ MTLCONT 6*6 SW05
081101111601 SWITCH TACT HRZ MTLCONT 6*6 SW06
081101111601 SWITCH TACT HRZ MTLCONT 6*6 SW07
399000006203 PWRBRD 26 CTV100LCD 5V 170PT2 KPOW
399593000090 BATTERY 1.5V AAA GREENLINE PHL
608000000121 COIL 56UH 10% 0.068A AXIAL FIX L119
608000000121 COIL 56UH 10% 0.068A AXIAL FIX L121
608000000121 COIL 56UH 10% 0.068A AXIAL FIX L123
608000000121 COIL 56UH 10% 0.068A AXIAL FIX L130
608080000051 COIL 22UH 5% 0.1A AXIAL FIXED L100
608080000051 COIL 22UH 5% 0.1A AXIAL FIXED L101
608080000251 COIL 5.6UH %5 0.2A SMD 1206 L100
608080000271 COIL 10UH %5 0.15A SMD 1206 L102
608080000271 COIL 10UH %5 0.15A SMD 1206 L103
608080000271 COIL 10UH %5 0.15A SMD 1206 L104
608080000271 COIL 10UH %5 0.15A SMD 1206 L105
608080000271 COIL 10UH %5 0.15A SMD 1206 L123
608080000271 COIL 10UH %5 0.15A SMD 1206 L124
608080000271 COIL 10UH %5 0.15A SMD 1206 L200
608080000271 COIL 10UH %5 0.15A SMD 1206 L106
608080000271 COIL 10UH %5 0.15A SMD 1206 L107
608080000271 COIL 10UH %5 0.15A SMD 1206 L104
608080000271 COIL 10UH %5 0.15A SMD 1206 L200
608080000271 COIL 10UH %5 0.15A SMD 1206 L202
608080000271 COIL 10UH %5 0.15A SMD 1206 L205
608080000271 COIL 10UH %5 0.15A SMD 1206 L207
608080000271 COIL 10UH %5 0.15A SMD 1206 L600
608080000271 COIL 10UH %5 0.15A SMD 1206 L113
608080000271 COIL 10UH %5 0.15A SMD 1206 L114
608080000271 COIL 10UH %5 0.15A SMD 1206 L115
608080000271 COIL 10UH %5 0.15A SMD 1206 L118
608080000271 COIL 10UH %5 0.15A SMD 1206 L120
608080000271 COIL 10UH %5 0.15A SMD 1206 L127
608080000271 COIL 10UH %5 0.15A SMD 1206 L116
608080000271 COIL 10UH %5 0.15A SMD 1206 L129
608080000271 COIL 10UH %5 0.15A SMD 1206 L122
608080000281 COIL 3.9UH 0.25A 5% SMD 1206 L101
608080000281 COIL 3.9UH 0.25A 5% SMD 1206 L102
608080000281 COIL 3.9UH 0.25A 5% SMD 1206 L103
608080000281 COIL 3.9UH 0.25A 5% SMD 1206 L105
608980000191 COIL 1UH 5% 0.4A SMD 1206 L109
609330001251 PREAMP-PHOTOMODULE TSOP2236 IR01
610308150211 SPEAKER 8R 15/20W126X58MMXPACE
616000001371 TUNER PHILIPS UV1316T/SIGH-3 T100
616800020091 TUNER PLL THOMSON CTF5513 T101
618014011161 CAP MKT 100NF 50V 5% C210
620004001051 CAP MKT 10NF 50V 5% C188
620004001051 CAP MKT 10NF 50V 5% C296
620004072241 CAP MKT 220NF 63V 10% 5MM C195
631020001781 REMOTE CONTROL TM4901 (ID)
841010026991 COMPLETE LCDTV ON-OFF 26-32 C.FULL
841100026402 MAIN CHASSIS CTV100LCD26 PIP CFUL 9SKT
841108026020 COMPLETE POWER CABLE 2-FER.FLT240CM SF KPWR
841120026402 COMPLETE 26-32 C.FULL M.BUTON PHLP KMUL
841130026402 COMPLETE 26-32 C.FULL INFRA C100PH KINF
841130032838 COMPLETE DIP8 TDA7050 ADAPTOR U202
841150026402 COMPLETE 26-32 C.FULL SIDE AV PHLP SIDE
841160032955 COMPLETE SWITCH 26/32 PIP'LI 079C KSWI
841300310570 COMPLETE 26' C.FULL SPEA. PHILIPS
871000920026 COMPLETE LEG 26 C.FULL PHL S.FR AYAK
905110260390 BACK COVER 26'C.FULL 26PF1000 BLACK
905202260130 PAINTED FRONT CABIN 26'COLORFULL PF1000 SF BKBN
905208203620 PAINTED BUTTON ON-OF26-32CFUL PH SC ONOF
966026000020 STRAPHOR 26' COLORFUL

Table 10-2 Parts List 32PF1000/62

TELRA NO TELRA DESCRIPTION POS

002013202590 CABLE 2P FLAT 10CM
002013202680 CABLE POW.FLTR.94T 2TRM240CMSF
002013202920 CABLE POW.2PX2SKT(10MM)70CM SF S101
002013502131 CABLE 6P*2SKT.10CM MINI S103
002022000981 CABLE 2P*2SKT.80CM MINI S002
002025010781 CABLE 10PX2SKT 16CM 2MM 32'AUO S302
002025010781 CABLE 10PX2SKT 16CM 2MM 32'AUO S204
002025010781 CABLE 10PX2SKT 16CM 2MM 32'AUO S900
002025010871 CABLE 14PX2SKT 25CM 2MM 32'AUO S305
002029530051 CABLE 30P*2SK20CM LVDS SA-AU32 S903
002041010610 CABLE 4PX1SK30+80CMD.ISLBLUEMN S203
002041010620 CABLE 2PX2SKTAWG24DB.IS.25CMMN S600
002042000210 CABLE AERIAL SECOND 20CM
002092000820 CABLE 1P 1TRM 9CM AWG24 SK09
002092000820 CABLE 1P 1TRM 9CM AWG24 SK10
002163018670 CABLE 40P 0.5MM FFC 10CM S205
002163018670 CABLE 40P 0.5MM FFC 10CM S206
002421000060 CABLE 3PX2SKTAWG24DB.IS.80CMMN S201
002421000070 CABLE 4PX2SKTAWG24DB.IS.80CMMN S601
002421000080 CABLE 5PX2SKTAWG22DB.IS.45CMMN S104
002521517030 CABLE 7*0.20 BLACK
002720517130 CABLE 16*0.18 GND.EMC 18CM SK08
005002101930 REFLECTOR 26'32' COLORFULL
005002101940 STAND BY REFLECTOR 26'32'CFULL
005051084631 BEAD INSH. TO-220 BBH U201
005051084640 SILICONE INSULATE 24.5X20MM U201
005110008220 PAINTED FRAME 32' C.FULL PHL GLO CERC
005202102540 PAINTED BUTTON ST BY 2632CFUL PH SC STND
005207001350 PAINTED MULTI BUTTON 26-32 CFULL PH SC MULT
005415025680 BACK COVER LABEL POLYE.82X263PH FTV
013466066240 LOGO PHILIPS PIMLI 52X10.5MM
030010600001 RESISTOR ARRAY 0R 5% 0603 L133
030010600001 RESISTOR ARRAY 0R 5% 0603 L134
030010600001 RESISTOR ARRAY 0R 5% 0603 RN80
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R104
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R233
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R255
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 L100
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 L101
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R155
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 C231
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 C232
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 C233
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R132
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R229
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R248
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R269
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R224
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R226
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 C256
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R113
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R116
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R203
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R207
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R210
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R216
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R700
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R701
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R702
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R703
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R912
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R913
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 L214
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 L215
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 L217
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 L218
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R107
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R108
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R109
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R129
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R133
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R134

EN 68 TES1.0E LA10.

Spare Parts List

TELRA NO TELRA DESCRIPTION POS

030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R135
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R136
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R138
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R653
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R655
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R200
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R201
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R204
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R205
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 L913
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R907
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R243
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R240
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R290
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R700
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R107
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R108
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R109
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R129
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R133
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R134
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R135
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R296
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R843
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R844
030010600061 RESISTOR C.F 0R 1/10W 5% 0603 R845
030010600071 RESISTOR C.F 0R 1/8W 1206 JUMP R172
030010600071 RESISTOR C.F 0R 1/8W 1206 JUMP R285
030010600071 RESISTOR C.F 0R 1/8W 1206 JUMP R286
030010600071 RESISTOR C.F 0R 1/8W 1206 JUMP R287
030010600081 RESISTOR C.F 0R 1/8W 5% 0805 L401
030010600081 RESISTOR C.F 0R 1/8W 5% 0805 L402
030010600081 RESISTOR C.F 0R 1/8W 5% 0805 L403
030010610061 RESISTOR C.F 10R 1/10W 5% 0603 R174
030010610061 RESISTOR C.F 10R 1/10W 5% 0603 R265
030010610061 RESISTOR C.F 10R 1/10W 5% 0603 R266
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R194
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R195
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R200
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R201
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R202
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R128
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R130
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R156
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R109
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R110
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R113
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R256
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R110
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R111
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R112
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R122
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R123
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R128
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R206
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R220
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R302
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R303
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R643
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R644
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R647
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R648
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R649
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R650
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R665
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R666
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R155
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R156
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R170
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R173
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R195
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R185
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R186
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R802

TELRA NO TELRA DESCRIPTION POS

030010610161 RESISTOR C.F 100R 1/10W5% 0603 R846
030010610161 RESISTOR C.F 100R 1/10W5% 0603 R847
030010610181 RESISTOR C.F 100R 1/8W 5% 0805 R245
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R174
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R175
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R211
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R209
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R210
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R212
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R144
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R146
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R149
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R145
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R260
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R615
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R237
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R249
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R251
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R158
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R171
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R175
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R154
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R196
030010610261 RESISTOR C.F 1K 1/10W5% 0603 R184
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R117
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R118
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R213
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R102
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R119
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R154
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R244
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R246
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R250
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R140
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R141
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R224
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R225
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R405
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R406
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R407
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R618
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R619
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R620
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R621
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R622
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R623
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R651
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R652
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R153
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R179
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R224
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R225
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R820
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R821
030010610361 RESISTOR C.F 10K 1/10W5% 0603 R822
030010610461 RESISTOR C.F 100K 1/10W5% 0603 R180
030010610461 RESISTOR C.F 100K 1/10W5% 0603 R181
030010610461 RESISTOR C.F 100K 1/10W5% 0603 R300
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN90
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN91
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN10
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN11
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN12
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN31
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN33
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN34
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN35
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN36
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN37
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN38
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN39
030010612001 RES.ARRAY C.F 120R 1/10W5%0603 RN40
030010612161 RESISTOR C.F 120R 1/10W5% 0603 R628
030010612161 RESISTOR C.F 120R 1/10W5% 0603 R629

Spare Parts List

EN 69TES1.0E LA 10.

TELRA NO TELRA DESCRIPTION POS

030010612161 RESISTOR C.F 120R 1/10W5% 0603 R630
030010612161 RESISTOR C.F 120R 1/10W5% 0603 R631
030010612161 RESISTOR C.F 120R 1/10W5% 0603 R632
030010612161 RESISTOR C.F 120R 1/10W5% 0603 R903
030010612161 RESISTOR C.F 120R 1/10W5% 0603 R904
030010612161 RESISTOR C.F 120R 1/10W5% 0603 R313
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R234
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R238
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R230
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R231
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R239
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R227
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R236
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R237
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R264
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R265
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R235
030010612261 RESISTOR C.F 1.2K 1/10W5% 0603 R236
030010612361 RESISTOR C.F 12K 1/10W 5% 0603 R146
030010612361 RESISTOR C.F 12K 1/10W 5% 0603 R167
030010612361 RESISTOR C.F 12K 1/10W 5% 0603 R178
030010612361 RESISTOR C.F 12K 1/10W 5% 0603 R194
030010615161 RESISTOR C.F 150R 1/10W5% 0603 R101
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R139
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R140
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R141
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R142
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R137
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R138
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R126
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R127
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R278
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R279
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R310
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R311
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R312
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R226
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R102
030010615361 RESISTOR C.F 15K 1/10W 5% 0603 R103
030010615461 RESISTOR C.F 150K 1/10W5% 0603 R182
030010615461 RESISTOR C.F 150K 1/10W5% 0603 R183
030010615461 RESISTOR C.F 150K 1/10W5% 0603 R191
030010615461 RESISTOR C.F 150K 1/10W5% 0603 R190
030010622261 RESISTOR C.F 22R 1/10W5% 0603 R214
030010622261 RESISTOR C.F 22R 1/10W5% 0603 R307
030010622261 RESISTOR C.F 22R 1/10W5% 0603 R118
030010622261 RESISTOR C.F 22R 1/10W5% 0603 R292
030010622461 RESISTOR C.F 220K 1/10W5% 0603 R301
030010622461 RESISTOR C.F 220K 1/10W5% 0603 R163
030010627181 RESISTOR C.F 270R 1/8W 5% 0805 R244
030010633161 RESISTOR C.F 330R 1/10W5% 0603 R164
030010633161 RESISTOR C.F 330R 1/10W5% 0603 R168
030010633161 RESISTOR C.F 330R 1/10W5% 0603 R192
030010633261 RESISTOR C.F 3.3K 1/10W5% 0603 R100
030010633261 RESISTOR C.F 3.3K 1/10W5% 0603 R101
030010633261 RESISTOR C.F 3.3K 1/10W5% 0603 R218
030010633361 RESISTOR C.F 33K 1/10W5%0603SF R124
030010633361 RESISTOR C.F 33K 1/10W5%0603SF R293
030010647061 RESISTOR C.F 47R 1/10W5% 0603 R131
030010647061 RESISTOR C.F 47R 1/10W5% 0603 R125
030010647061 RESISTOR C.F 47R 1/10W5% 0603 R294
030010647061 RESISTOR C.F 47R 1/10W5% 0603 R107
030010647061 RESISTOR C.F 47R 1/10W5% 0603 R108
030010647061 RESISTOR C.F 47R 1/10W5% 0603 R109
030010647061 RESISTOR C.F 47R 1/10W5% 0603 R100
030010647061 RESISTOR C.F 47R 1/10W5% 0603 R101
030010647161 RESISTOR C.F 470R 1/10W5% 0603 R186
030010647161 RESISTOR C.F 470R 1/10W5% 0603 R188
030010647161 RESISTOR C.F 470R 1/10W5% 0603 R187
030010647161 RESISTOR C.F 470R 1/10W5% 0603 R189
030010647161 RESISTOR C.F 470R 1/10W5% 0603 R100
030010647161 RESISTOR C.F 470R 1/10W5% 0603 R308
030010647161 RESISTOR C.F 470R 1/10W5% 0603 R246
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R600

TELRA NO TELRA DESCRIPTION POS

030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R602
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R603
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R605
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R606
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R607
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R608
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R611
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R617
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R633
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R641
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R659
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R662
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R678
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R679
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R227
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R232
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R247
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R248
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R231
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R268
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R250
030010647261 RESISTOR C.F 4.7K 1/10W5% 0603 R152
030010647961 RESISTOR C.F 4.7R 1/10W5% 0603 R238
030010647961 RESISTOR C.F 4.7R 1/10W5% 0603 R239
030010651961 RESISTOR C.F 5.1R 1/10W5% 0603 R104
030010656161 RESISTOR C.F 560R 1/10W5% 0603 R212
030010656161 RESISTOR C.F 560R 1/10W5% 0603 R234
030010656161 RESISTOR C.F 560R 1/10W5% 0603 R233
030010656161 RESISTOR C.F 560R 1/10W5% 0603 R233
030010656161 RESISTOR C.F 560R 1/10W5% 0603 R234
030010656261 RESISTOR C.F 5.6K 1/10W5% 0603 R157
030010656261 RESISTOR C.F 5.6K 1/10W5% 0603 R187
030010668361 RESISTOR C.F 68R 1/10W5% 0603 R115
030010668361 RESISTOR C.F 68R 1/10W5% 0603 R117
030010668361 RESISTOR C.F 68R 1/10W5% 0603 R132
030010668361 RESISTOR C.F 68R 1/10W5% 0603 R176
030010668461 RESISTOR C.F 680K 1/10W5% 0603 R162
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R207
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R208
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R243
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R245
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R247
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R249
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R251
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R240
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R241
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R242
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R177
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R104
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R105
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R106
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R197
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R104
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R105
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R106
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R295
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R830
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R831
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R835
030010675061 RESISTOR C.F 75R 1/10W5% 0603 R839
030010675161 RESISTOR C.F 750R 1/10W5% 0603 R401
030010682161 RESISTOR C.F 820R 1/10W5% 0603 R233
030010682161 RESISTOR C.F 820R 1/10W5% 0603 R234
030010683061 RESISTOR C.F 2K 1/10W5% 0603 R309
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R206
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R147
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R148
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R261
030011610261 RESISTOR C.F 75R 1/10W1% 0603 C819
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R102
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R103
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R130
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R213
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R402

EN 70 TES1.0E LA10.

Spare Parts List

TELRA NO TELRA DESCRIPTION POS

030011610261 RESISTOR C.F 75R 1/10W1% 0603 R403
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R404
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R819
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R829
030011610261 RESISTOR C.F 75R 1/10W1% 0603 R838
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R120
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R121
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R122
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R123
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R252
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R253
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R124
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R125
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R114
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R626
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R149
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R150
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R182
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R181
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R105
030011622161 RESISTOR C.F 220R 1/10W5% 0603 R106
030011622261 RESISTOR C.F 2.2K 1/10W5% 0603 R222
030011622261 RESISTOR C.F 2.2K 1/10W5% 0603 R223
030011622261 RESISTOR C.F 2.2K 1/10W5% 0603 R252
030011622261 RESISTOR C.F 2.2K 1/10W5% 0603 R188
030011622261 RESISTOR C.F 2.2K 1/10W5% 0603 R189
030011622361 RESISTOR C.F 22K 1/10W5% 0603 R159
030011622361 RESISTOR C.F 22K 1/10W5% 0603 R165
030011647361 RESISTOR C.F 47K 1/10W 5% 0603 R159
030011647361 RESISTOR C.F 47K 1/10W 5% 0603 R160
030011647361 RESISTOR C.F 47K 1/10W 5% 0603 R116
030011647361 RESISTOR C.F 47K 1/10W 5% 0603 R157
030011647361 RESISTOR C.F 47K 1/10W 5% 0603 R158
030011647361 RESISTOR C.F 47K 1/10W 5% 0603 R166
030011647361 RESISTOR C.F 47K 1/10W 5% 0603 R193
030011656261 RESISTOR C.F 5.1K 1/10W5% 0603 R224
030011656261 RESISTOR C.F 5.1K 1/10W5% 0603 R225
030020270361 RESISTOR C.F 270K 1/10W5% 0603 R217
030020270361 RESISTOR C.F 270K 1/10W5% 0603 R304
030020615161 RESISTOR C.F 15R 1/10W 5% 0603 R203
030020615161 RESISTOR C.F 15R 1/10W 5% 0603 R204
030020615161 RESISTOR C.F 15R 1/10W 5% 0603 R205
030020615161 RESISTOR C.F 15R 1/10W 5% 0603 R114
030020615161 RESISTOR C.F 15R 1/10W 5% 0603 R135
030020615161 RESISTOR C.F 15R 1/10W 5% 0603 R133
030020615161 RESISTOR C.F 15R 1/10W 5% 0603 R259
030020633031 RESISTOR C.F 33R 1/4W 5% R001
030020633031 RESISTOR C.F 33R 1/4W 5% R004
030020647131 RESISTOR C.F 470R 1/4W 5% R003
030020668261 RESISTOR C.F 6.8K 1/10W2% 0603 R160
030020668261 RESISTOR C.F 6.8K 1/10W2% 0603 R161
030140615221 RESISTOR C.F 1.5K 1/6W 1% R006
030140615321 RESISTOR C.F 15K 1/6W 1% R003
030140627221 RESISTOR C.F 2.7K 1/6W 1% R005
030140633061 RESISTOR C.F 33R 1/10W5% 0603 R709
030140633061 RESISTOR C.F 33R 1/10W5% 0603 R255
030140633061 RESISTOR C.F 33R 1/10W5% 0603 R256
030140633061 RESISTOR C.F 33R 1/10W5% 0603 R257
030140633061 RESISTOR C.F 33R 1/10W5% 0603 R258
030140633061 RESISTOR C.F 33R 1/10W5% 0603 R259
030140633061 RESISTOR C.F 33R 1/10W5% 0603 R260
030140633061 RESISTOR C.F 33R 1/10W5% 0603 R261
030140633061 RESISTOR C.F 33R 1/10W5% 0603 R262
030140647121 RESISTOR C.F 470R 1/6W 1% R004
030140656221 RESISTOR C.F 5.6K 1/6W 1% R002
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN70
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN71
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN72
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN73
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN78
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN79
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN74
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN75
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN76

TELRA NO TELRA DESCRIPTION POS

030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN77
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN81
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN82
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN83
030140668321 RES.ARRAY C.F 68R 1/10W5% 0603 RN84
030140682131 RESISTOR C.F 820R 1/6W 1% R007
036000204051 FERRIT BLM21A102S 0805 L107
036000204051 FERRIT BLM21A102S 0805 L108
036000204051 FERRIT BLM21A102S 0805 L111
036000204051 FERRIT BLM21A102S 0805 L112
036000204051 FERRIT BLM21A102S 0805 L300
036000204051 FERRIT BLM21A102S 0805 L301
036000204051 FERRIT BLM21A102S 0805 L302
036000204051 FERRIT BLM21A102S 0805 L303
036000204051 FERRIT BLM21A102S 0805 L304
036000204051 FERRIT BLM21A102S 0805 L305
036000204051 FERRIT BLM21A102S 0805 L306
036000204051 FERRIT BLM21A102S 0805 L307
036000204051 FERRIT BLM21A102S 0805 L400
036000204051 FERRIT BLM21A102S 0805 L404
036000204051 FERRIT BLM21A102S 0805 L701
036000204051 FERRIT BLM21A102S 0805 L900
036000204051 FERRIT BLM21A102S 0805 L901
036000204051 FERRIT BLM21A102S 0805 L902
036000204051 FERRIT BLM21A102S 0805 L903
036000204051 FERRIT BLM21A102S 0805 L904
036000204051 FERRIT BLM21A102S 0805 L905
036000204051 FERRIT BLM21A102S 0805 L906
036000204051 FERRIT BLM21A102S 0805 L907
036000204051 FERRIT BLM21A102S 0805 L908
036000204051 FERRIT BLM21A102S 0805 L909
036000204051 FERRIT BLM21A102S 0805 L910
036000204051 FERRIT BLM21A102S 0805 L911
036000204051 FERRIT BLM21A102S 0805 L912
036000204051 FERRIT BLM21A102S 0805 L082
036000204051 FERRIT BLM21A102S 0805 L083
036000204051 FERRIT BLM21A102S 0805 L084
036000204051 FERRIT BLM21A102S 0805 L085
036000204051 FERRIT BLM21A102S 0805 L086
036000204051 FERRIT BLM21A102S 0805 L211
036000204051 FERRIT BLM21A102S 0805 L212
036000204051 FERRIT BLM21A102S 0805 L802
036000204051 FERRIT BLM21A102S 0805 L803
036000204051 FERRIT BLM21A102S 0805 L805
036000204051 FERRIT BLM21A102S 0805 L806
036000204051 FERRIT BLM21A102S 0805 L807
036000204051 FERRIT BLM21A102S 0805 L808
036016010071 FERRIT RING U5 T 31X7X19
036016010071 FERRIT RING U5 T 31X7X19
036016010071 FERRIT RING U5 T 31X7X19 S101
036016010071 FERRIT RING U5 T 31X7X19 S303
036016010071 FERRIT RING U5 T 31X7X19
036016010071 FERRIT RING U5 T 31X7X19 S101
036016010071 FERRIT RING U5 T 31X7X19 S201
036016010131 FERRITE RING CTNF-100B
036016010131 FERRITE RING CTNF-100B
036070204111 FERRIT BEAD LI0805H151R-00 SMD L108
036070204111 FERRIT BEAD LI0805H151R-00 SMD L109
036070204111 FERRIT BEAD LI0805H151R-00 SMD L110
036070204111 FERRIT BEAD LI0805H151R-00 SMD L111
036070204111 FERRIT BEAD LI0805H151R-00 SMD L116
036070204111 FERRIT BEAD LI0805H151R-00 SMD L112
036070204111 FERRIT BEAD LI0805H151R-00 SMD L113
036070204111 FERRIT BEAD LI0805H151R-00 SMD L114
036070204111 FERRIT BEAD LI0805H151R-00 SMD L115
036070204111 FERRIT BEAD LI0805H151R-00 SMD L117
036070204111 FERRIT BEAD LI0805H151R-00 SMD L124
036070204111 FERRIT BEAD LI0805H151R-00 SMD L125
036070204111 FERRIT BEAD LI0805H151R-00 SMD R700
036070204111 FERRIT BEAD LI0805H151R-00 SMD L128
036070204111 FERRIT BEAD LI0805H151R-00 SMD L126
036070204111 FERRIT BEAD LI0805H151R-00 SMD L107
036070204111 FERRIT BEAD LI0805H151R-00 SMD L110
036070204111 FERRIT BEAD LI0805H151R-00 SMD L111

Spare Parts List

EN 71TES1.0E LA 10.

TELRA NO TELRA DESCRIPTION POS

036070204201 FERRIT ARRAY MZA3216 L700
036070204201 FERRIT ARRAY MZA3216 L702
036070204201 FERRIT ARRAY MZA3216 L703
036070204201 FERRIT ARRAY MZA3216 L704
036070204201 FERRIT ARRAY MZA3216 L705
036070204201 FERRIT ARRAY MZA3216 L706
036070204201 FERRIT ARRAY MZA3216 L707
036070204201 FERRIT ARRAY MZA3216 L708
036070204201 FERRIT ARRAY MZA3216 L709
036070204201 FERRIT ARRAY MZA3216 L710
036070204201 FERRIT ARRAY MZA3216 L711
036070204201 FERRIT ARRAY MZA3216 L712
036070204201 FERRIT ARRAY MZA3216 L713
036070204201 FERRIT ARRAY MZA3216 L714
036070204201 FERRIT ARRAY MZA3216 L715
036070204201 FERRIT ARRAY MZA3216 RN30
036070204201 FERRIT ARRAY MZA3216 RN41
036070204211 FERRIT HDMI ACM2012D-900-2P-T L201
036070204211 FERRIT HDMI ACM2012D-900-2P-T L202
036070204211 FERRIT HDMI ACM2012D-900-2P-T L203
036070204211 FERRIT HDMI ACM2012D-900-2P-T L204
037730007771 FILTER SAW K9453M B/GD/KL/L'AU F101
037730007801 FILTER SAW K3953M B/G L/L' VID F100
037730007801 FILTER SAW K3953M B/G L/L' VID F102
040013081041 CAP CER 100NF 63V 10% C001
040030042261 CAP CER 27PF 50V 5% COG 0603 C825
040030042261 CAP CER 27PF 50V 5% COG 0603 C826
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C206
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C207
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C209
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C211
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C212
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C213
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C214
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C215
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C247
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C248
040030044711 CAP CER 1MF 16V 5% Y5V 0805 C246
040031042261 CAP CER 22PF 50V 5% COG 0603 C646
040032041011 CAP CER 100PF 50V 5% CH C257
040032041011 CAP CER 100PF 50V 5% CH C258
040034042761 CAP CER 270PF 50V 5% COG 0603 C155
040034042761 CAP CER 270PF 50V 5% COG 0603 C156
040034042761 CAP CER 270PF 50V 5% COG 0603 C157
040034042761 CAP CER 270PF 50V 5% COG 0603 C168
040040041661 CAP CER 1.5NF 50V 10% X7R 0603 C198
040040041661 CAP CER 1.5NF 50V 10% X7R 0603 C347
040040042241 CAP CER 220NF 50V 10% B C329
040040263361 CAP CER 330PF 50V 10% COG 0603 C150
040040263361 CAP CER 330PF 50V 10% COG 0603 C151
040040263361 CAP CER 330PF 50V 10% COG 0603 C152
040040263361 CAP CER 330PF 50V 10% COG 0603 C153
040040263361 CAP CER 330PF 50V 10% COG 0603 C154
040042044761 CAP CER 47NF 25V 10% X7R 0603 C178
040042044761 CAP CER 47NF 25V 10% X7R 0603 C433
040042044761 CAP CER 47NF 25V 10% X7R 0603 C829
040042044761 CAP CER 47NF 25V 10% X7R 0603 C830
040042044761 CAP CER 47NF 25V 10% X7R 0603 C831
040042044761 CAP CER 47NF 25V 10% X7R 0603 C833
040042044761 CAP CER 47NF 25V 10% X7R 0603 C834
040042044761 CAP CER 47NF 25V 10% X7R 0603 R841
040042044861 CAP CER 47NF 50V 10% X7R 0603 C253
040042056861 CAP CER 56NF 25V 20% X7R 0603 C401
040043041861 CAP CER 18PF 50V 5% COG 0603 C274
040043041861 CAP CER 18PF 50V 5% COG 0603 C276
040043041861 CAP CER 18PF 50V 5% COG 0603 C632
040043041861 CAP CER 18PF 50V 5% COG 0603 C633
040043045661 CAP CER 56PF 50V 5% COG 0603 C376
040043447261 CAP CER 4.7NF 50V 10% X7R 0603 C291
040043447261 CAP CER 4.7NF 50V 10% X7R 0603 C387
040043447261 CAP CER 4.7NF 50V 10% X7R 0603 C388
040043447261 CAP CER 4.7NF 50V 10% X7R 0603 C406
040043447261 CAP CER 4.7NF 50V 10% X7R 0603 C427
040043447261 CAP CER 4.7NF 50V 10% X7R 0603 C426

TELRA NO TELRA DESCRIPTION POS

040044081861 CAP CER 470NF 16V 10% X7R 0603 C218
040044081861 CAP CER 470NF 16V 10% X7R 0603 C219
040044081861 CAP CER 470NF 16V 10% X7R 0603 C217
040044081861 CAP CER 470NF 16V 10% X7R 0603 C223
040044081861 CAP CER 470NF 16V 10% X7R 0603 C216
040044081861 CAP CER 470NF 16V 10% X7R 0603 C221
040044081861 CAP CER 470NF 16V 10% X7R 0603 C222
040044081861 CAP CER 470NF 16V 10% X7R 0603 C105
040044081861 CAP CER 470NF 16V 10% X7R 0603 C279
040044081861 CAP CER 470NF 16V 10% X7R 0603 C384
040044081861 CAP CER 470NF 16V 10% X7R 0603 C385
040044081861 CAP CER 470NF 16V 10% X7R 0603 C386
040044081861 CAP CER 470NF 16V 10% X7R 0603 C191
040044081861 CAP CER 470NF 16V 10% X7R 0603 C196
040044081861 CAP CER 470NF 16V 10% X7R 0603 C332
040050041861 CAP CER 180PF 50V 5% COG 0603 C158
040050041861 CAP CER 180PF 50V 5% COG 0603 C159
040050041861 CAP CER 180PF 50V 5% COG 0603 C160
040050041861 CAP CER 180PF 50V 5% COG 0603 C166
040052043961 CAP CER 390PF 50V 5% COG 0603 C127
040052043961 CAP CER 390PF 50V 5% COG 0603 C128
040052043961 CAP CER 390PF 50V 5% COG 0603 C129
040052043961 CAP CER 390PF 50V 5% COG 0603 C130
040052043961 CAP CER 390PF 50V 5% COG 0603 C131
040052043961 CAP CER 390PF 50V 5% COG 0603 C132
040052043961 CAP CER 390PF 50V 5% COG 0603 C133
040052043961 CAP CER 390PF 50V 5% COG 0603 C134
040052043961 CAP CER 390PF 50V 5% COG 0603 C135
040052043961 CAP CER 390PF 50V 5% COG 0603 C136
040052043961 CAP CER 390PF 50V 5% COG 0603 C137
040052043961 CAP CER 390PF 50V 5% COG 0603 C138
040052043961 CAP CER 390PF 50V 5% COG 0603 C642
040052043961 CAP CER 390PF 50V 5% COG 0603 C706
040052043961 CAP CER 390PF 50V 5% COG 0603 C839
040052043961 CAP CER 390PF 50V 5% COG 0603 C169
040052043961 CAP CER 390PF 50V 5% COG 0603 C170
040052043961 CAP CER 390PF 50V 5% COG 0603 C186
040052043961 CAP CER 390PF 50V 5% COG 0603 C233
040052043961 CAP CER 390PF 50V 5% COG 0603 C171
040052043961 CAP CER 390PF 50V 5% COG 0603 C295
040052043961 CAP CER 390PF 50V 5% COG 0603 C362
040052043961 CAP CER 390PF 50V 5% COG 0603 C172
040052043961 CAP CER 390PF 50V 5% COG 0603 C813
040052043961 CAP CER 390PF 50V 5% COG 0603 C816
040052043961 CAP CER 390PF 50V 5% COG 0603 C835
040052043961 CAP CER 390PF 50V 5% COG 0603 C840
040052043961 CAP CER 390PF 50V 5% COG 0603 C845
040052044661 CAP CER 47PF 25V 5% COG 0603 C399
040052044661 CAP CER 47PF 25V 5% COG 0603 C409
040052044661 CAP CER 47PF 25V 5% COG 0603 C410
040052044661 CAP CER 47PF 25V 5% COG 0603 C411
040052044661 CAP CER 47PF 25V 5% COG 0603 C412
040052044661 CAP CER 47PF 25V 5% COG 0603 C413
040052044661 CAP CER 47PF 25V 5% COG 0603 C414
040052044661 CAP CER 47PF 25V 5% COG 0603 C415
040052044861 CAP CER 470PF 50V 5% COG 0603 C421
040052100261 CAP CER 220PF 50V 5% COG 0603 C139
040052100261 CAP CER 220PF 50V 5% COG 0603 C389
040052100261 CAP CER 220PF 50V 5% COG 0603 C428
040067041661 CAP CER 15PF 16V 5% 0603 C383
040067141061 CAP CER 100NF 50V 10% X7R 0603 C203
040067141061 CAP CER 100NF 50V 10% X7R 0603 C204
040067141061 CAP CER 100NF 50V 10% X7R 0603 C205
040067141061 CAP CER 100NF 50V 10% X7R 0603 C225
040067141061 CAP CER 100NF 50V 10% X7R 0603 C226
040067141061 CAP CER 100NF 50V 10% X7R 0603 C235
040067141061 CAP CER 100NF 50V 10% X7R 0603 C249
040067141061 CAP CER 100NF 50V 10% X7R 0603 C155
040067141061 CAP CER 100NF 50V 10% X7R 0603 C156
040067141061 CAP CER 100NF 50V 10% X7R 0603 C166
040067141061 CAP CER 100NF 50V 10% X7R 0603 C165
040067141061 CAP CER 100NF 50V 10% X7R 0603 C103
040067141061 CAP CER 100NF 50V 10% X7R 0603 C105
040067141061 CAP CER 100NF 50V 10% X7R 0603 C106

EN 72 TES1.0E LA10.

Spare Parts List

TELRA NO TELRA DESCRIPTION POS

040067141061 CAP CER 100NF 50V 10% X7R 0603 C244
040067141061 CAP CER 100NF 50V 10% X7R 0603 C109
040067141061 CAP CER 100NF 50V 10% X7R 0603 C110
040067141061 CAP CER 100NF 50V 10% X7R 0603 C111
040067141061 CAP CER 100NF 50V 10% X7R 0603 C112
040067141061 CAP CER 100NF 50V 10% X7R 0603 C113
040067141061 CAP CER 100NF 50V 10% X7R 0603 C114
040067141061 CAP CER 100NF 50V 10% X7R 0603 C115
040067141061 CAP CER 100NF 50V 10% X7R 0603 C116
040067141061 CAP CER 100NF 50V 10% X7R 0603 C117
040067141061 CAP CER 100NF 50V 10% X7R 0603 C118
040067141061 CAP CER 100NF 50V 10% X7R 0603 C120
040067141061 CAP CER 100NF 50V 10% X7R 0603 C121
040067141061 CAP CER 100NF 50V 10% X7R 0603 C122
040067141061 CAP CER 100NF 50V 10% X7R 0603 C123
040067141061 CAP CER 100NF 50V 10% X7R 0603 C124
040067141061 CAP CER 100NF 50V 10% X7R 0603 C125
040067141061 CAP CER 100NF 50V 10% X7R 0603 C126
040067141061 CAP CER 100NF 50V 10% X7R 0603 C200
040067141061 CAP CER 100NF 50V 10% X7R 0603 C203
040067141061 CAP CER 100NF 50V 10% X7R 0603 C205
040067141061 CAP CER 100NF 50V 10% X7R 0603 C206
040067141061 CAP CER 100NF 50V 10% X7R 0603 C207
040067141061 CAP CER 100NF 50V 10% X7R 0603 C208
040067141061 CAP CER 100NF 50V 10% X7R 0603 C211
040067141061 CAP CER 100NF 50V 10% X7R 0603 C212
040067141061 CAP CER 100NF 50V 10% X7R 0603 C213
040067141061 CAP CER 100NF 50V 10% X7R 0603 C214
040067141061 CAP CER 100NF 50V 10% X7R 0603 C215
040067141061 CAP CER 100NF 50V 10% X7R 0603 C255
040067141061 CAP CER 100NF 50V 10% X7R 0603 C258
040067141061 CAP CER 100NF 50V 10% X7R 0603 C278
040067141061 CAP CER 100NF 50V 10% X7R 0603 C305
040067141061 CAP CER 100NF 50V 10% X7R 0603 C306
040067141061 CAP CER 100NF 50V 10% X7R 0603 C307
040067141061 CAP CER 100NF 50V 10% X7R 0603 C308
040067141061 CAP CER 100NF 50V 10% X7R 0603 C309
040067141061 CAP CER 100NF 50V 10% X7R 0603 C310
040067141061 CAP CER 100NF 50V 10% X7R 0603 C311
040067141061 CAP CER 100NF 50V 10% X7R 0603 C312
040067141061 CAP CER 100NF 50V 10% X7R 0603 C313
040067141061 CAP CER 100NF 50V 10% X7R 0603 C314
040067141061 CAP CER 100NF 50V 10% X7R 0603 C315
040067141061 CAP CER 100NF 50V 10% X7R 0603 C316
040067141061 CAP CER 100NF 50V 10% X7R 0603 C317
040067141061 CAP CER 100NF 50V 10% X7R 0603 C318
040067141061 CAP CER 100NF 50V 10% X7R 0603 C319
040067141061 CAP CER 100NF 50V 10% X7R 0603 C320
040067141061 CAP CER 100NF 50V 10% X7R 0603 C321
040067141061 CAP CER 100NF 50V 10% X7R 0603 C322
040067141061 CAP CER 100NF 50V 10% X7R 0603 C323
040067141061 CAP CER 100NF 50V 10% X7R 0603 C326
040067141061 CAP CER 100NF 50V 10% X7R 0603 C327
040067141061 CAP CER 100NF 50V 10% X7R 0603 C328
040067141061 CAP CER 100NF 50V 10% X7R 0603 C330
040067141061 CAP CER 100NF 50V 10% X7R 0603 C331
040067141061 CAP CER 100NF 50V 10% X7R 0603 C333
040067141061 CAP CER 100NF 50V 10% X7R 0603 C335
040067141061 CAP CER 100NF 50V 10% X7R 0603 C336
040067141061 CAP CER 100NF 50V 10% X7R 0603 C337
040067141061 CAP CER 100NF 50V 10% X7R 0603 C339
040067141061 CAP CER 100NF 50V 10% X7R 0603 C340
040067141061 CAP CER 100NF 50V 10% X7R 0603 C341
040067141061 CAP CER 100NF 50V 10% X7R 0603 C342
040067141061 CAP CER 100NF 50V 10% X7R 0603 C343
040067141061 CAP CER 100NF 50V 10% X7R 0603 C344
040067141061 CAP CER 100NF 50V 10% X7R 0603 C345
040067141061 CAP CER 100NF 50V 10% X7R 0603 C346
040067141061 CAP CER 100NF 50V 10% X7R 0603 C348
040067141061 CAP CER 100NF 50V 10% X7R 0603 C349
040067141061 CAP CER 100NF 50V 10% X7R 0603 C350
040067141061 CAP CER 100NF 50V 10% X7R 0603 C353
040067141061 CAP CER 100NF 50V 10% X7R 0603 C354
040067141061 CAP CER 100NF 50V 10% X7R 0603 C356

TELRA NO TELRA DESCRIPTION POS

040067141061 CAP CER 100NF 50V 10% X7R 0603 C357
040067141061 CAP CER 100NF 50V 10% X7R 0603 C358
040067141061 CAP CER 100NF 50V 10% X7R 0603 C359
040067141061 CAP CER 100NF 50V 10% X7R 0603 C360
040067141061 CAP CER 100NF 50V 10% X7R 0603 C361
040067141061 CAP CER 100NF 50V 10% X7R 0603 C363
040067141061 CAP CER 100NF 50V 10% X7R 0603 C364
040067141061 CAP CER 100NF 50V 10% X7R 0603 C365
040067141061 CAP CER 100NF 50V 10% X7R 0603 C400
040067141061 CAP CER 100NF 50V 10% X7R 0603 C402
040067141061 CAP CER 100NF 50V 10% X7R 0603 C403
040067141061 CAP CER 100NF 50V 10% X7R 0603 C404
040067141061 CAP CER 100NF 50V 10% X7R 0603 C405
040067141061 CAP CER 100NF 50V 10% X7R 0603 C408
040067141061 CAP CER 100NF 50V 10% X7R 0603 C600
040067141061 CAP CER 100NF 50V 10% X7R 0603 C601
040067141061 CAP CER 100NF 50V 10% X7R 0603 C602
040067141061 CAP CER 100NF 50V 10% X7R 0603 C603
040067141061 CAP CER 100NF 50V 10% X7R 0603 C604
040067141061 CAP CER 100NF 50V 10% X7R 0603 C605
040067141061 CAP CER 100NF 50V 10% X7R 0603 C606
040067141061 CAP CER 100NF 50V 10% X7R 0603 C607
040067141061 CAP CER 100NF 50V 10% X7R 0603 C608
040067141061 CAP CER 100NF 50V 10% X7R 0603 C609
040067141061 CAP CER 100NF 50V 10% X7R 0603 C610
040067141061 CAP CER 100NF 50V 10% X7R 0603 C611
040067141061 CAP CER 100NF 50V 10% X7R 0603 C612
040067141061 CAP CER 100NF 50V 10% X7R 0603 C613
040067141061 CAP CER 100NF 50V 10% X7R 0603 C614
040067141061 CAP CER 100NF 50V 10% X7R 0603 C615
040067141061 CAP CER 100NF 50V 10% X7R 0603 C616
040067141061 CAP CER 100NF 50V 10% X7R 0603 C617
040067141061 CAP CER 100NF 50V 10% X7R 0603 C618
040067141061 CAP CER 100NF 50V 10% X7R 0603 C619
040067141061 CAP CER 100NF 50V 10% X7R 0603 C620
040067141061 CAP CER 100NF 50V 10% X7R 0603 C621
040067141061 CAP CER 100NF 50V 10% X7R 0603 C622
040067141061 CAP CER 100NF 50V 10% X7R 0603 C623
040067141061 CAP CER 100NF 50V 10% X7R 0603 C624
040067141061 CAP CER 100NF 50V 10% X7R 0603 C625
040067141061 CAP CER 100NF 50V 10% X7R 0603 C626
040067141061 CAP CER 100NF 50V 10% X7R 0603 C627
040067141061 CAP CER 100NF 50V 10% X7R 0603 C628
040067141061 CAP CER 100NF 50V 10% X7R 0603 C629
040067141061 CAP CER 100NF 50V 10% X7R 0603 C631
040067141061 CAP CER 100NF 50V 10% X7R 0603 C639
040067141061 CAP CER 100NF 50V 10% X7R 0603 C703
040067141061 CAP CER 100NF 50V 10% X7R 0603 C704
040067141061 CAP CER 100NF 50V 10% X7R 0603 C705
040067141061 CAP CER 100NF 50V 10% X7R 0603 C710
040067141061 CAP CER 100NF 50V 10% X7R 0603 C711
040067141061 CAP CER 100NF 50V 10% X7R 0603 C712
040067141061 CAP CER 100NF 50V 10% X7R 0603 C713
040067141061 CAP CER 100NF 50V 10% X7R 0603 C837
040067141061 CAP CER 100NF 50V 10% X7R 0603 C900
040067141061 CAP CER 100NF 50V 10% X7R 0603 C906
040067141061 CAP CER 100NF 50V 10% X7R 0603 C907
040067141061 CAP CER 100NF 50V 10% X7R 0603 C908
040067141061 CAP CER 100NF 50V 10% X7R 0603 C909
040067141061 CAP CER 100NF 50V 10% X7R 0603 C910
040067141061 CAP CER 100NF 50V 10% X7R 0603 C911
040067141061 CAP CER 100NF 50V 10% X7R 0603 C912
040067141061 CAP CER 100NF 50V 10% X7R 0603 C913
040067141061 CAP CER 100NF 50V 10% X7R 0603 C914
040067141061 CAP CER 100NF 50V 10% X7R 0603 C915
040067141061 CAP CER 100NF 50V 10% X7R 0603 C916
040067141061 CAP CER 100NF 50V 10% X7R 0603 C917
040067141061 CAP CER 100NF 50V 10% X7R 0603 C918
040067141061 CAP CER 100NF 50V 10% X7R 0603 C919
040067141061 CAP CER 100NF 50V 10% X7R 0603 C920
040067141061 CAP CER 100NF 50V 10% X7R 0603 C921
040067141061 CAP CER 100NF 50V 10% X7R 0603 C922
040067141061 CAP CER 100NF 50V 10% X7R 0603 C923
040067141061 CAP CER 100NF 50V 10% X7R 0603 C925

Spare Parts List

EN 73TES1.0E LA 10.

TELRA NO TELRA DESCRIPTION POS

040067141061 CAP CER 100NF 50V 10% X7R 0603 C926
040067141061 CAP CER 100NF 50V 10% X7R 0603 C297
040067141061 CAP CER 100NF 50V 10% X7R 0603 C395
040067141061 CAP CER 100NF 50V 10% X7R 0603 C396
040067141061 CAP CER 100NF 50V 10% X7R 0603 C424
040067141061 CAP CER 100NF 50V 10% X7R 0603 C425
040067141061 CAP CER 100NF 50V 10% X7R 0603 C229
040067141061 CAP CER 100NF 50V 10% X7R 0603 C236
040067141061 CAP CER 100NF 50V 10% X7R 0603 C266
040067141061 CAP CER 100NF 50V 10% X7R 0603 C173
040067141061 CAP CER 100NF 50V 10% X7R 0603 C174
040067141061 CAP CER 100NF 50V 10% X7R 0603 C181
040067141061 CAP CER 100NF 50V 10% X7R 0603 C184
040067141061 CAP CER 100NF 50V 10% X7R 0603 C199
040067141061 CAP CER 100NF 50V 10% X7R 0603 C220
040067141061 CAP CER 100NF 50V 10% X7R 0603 C240
040067141061 CAP CER 100NF 50V 10% X7R 0603 C243
040067141061 CAP CER 100NF 50V 10% X7R 0603 C288
040067141061 CAP CER 100NF 50V 10% X7R 0603 C254
040067141061 CAP CER 100NF 50V 10% X7R 0603 C351
040067141061 CAP CER 100NF 50V 10% X7R 0603 C175
040067141061 CAP CER 100NF 50V 10% X7R 0603 C261
040067141061 CAP CER 100NF 50V 10% X7R 0603 C338
040067141061 CAP CER 100NF 50V 10% X7R 0603 C810
040067141061 CAP CER 100NF 50V 10% X7R 0603 C818
040067141061 CAP CER 100NF 50V 10% X7R 0603 C827
040067141061 CAP CER 100NF 50V 10% X7R 0603 C842
040067141061 CAP CER 100NF 50V 10% X7R 0603 C847
040067141061 CAP CER 100NF 50V 10% X7R 0603 C848
040067141061 CAP CER 100NF 50V 10% X7R 0603 C100
040067141061 CAP CER 100NF 50V 10% X7R 0603 C101
040067141061 CAP CER 100NF 50V 10% X7R 0603 C102
040067141061 CAP CER 100NF 50V 10% X7R 0603 C103
040067141061 CAP CER 100NF 50V 10% X7R 0603 C104
040067141061 CAP CER 100NF 50V 10% X7R 0603 C105
040730014061 CAP CER 10NF 50V 10% X7R 0603 C838
040730014061 CAP CER 10NF 50V 10% X7R 0603 C940
040730014061 CAP CER 10NF 50V 10% X7R 0603 C941
040730014061 CAP CER 10NF 50V 10% X7R 0603 C942
040730014061 CAP CER 10NF 50V 10% X7R 0603 C943
040730014061 CAP CER 10NF 50V 10% X7R 0603 C944
040730014061 CAP CER 10NF 50V 10% X7R 0603 C945
040730014061 CAP CER 10NF 50V 10% X7R 0603 C946
040730014061 CAP CER 10NF 50V 10% X7R 0603 C947
040730014061 CAP CER 10NF 50V 10% X7R 0603 C949
040730014061 CAP CER 10NF 50V 10% X7R 0603 C950
040730014061 CAP CER 10NF 50V 10% X7R 0603 C190
040730014061 CAP CER 10NF 50V 10% X7R 0603 C221
040730014061 CAP CER 10NF 50V 10% X7R 0603 C293
040730014061 CAP CER 10NF 50V 10% X7R 0603 C355
040730014061 CAP CER 10NF 50V 10% X7R 0603 C352
040730014061 CAP CER 10NF 50V 10% X7R 0603 C811
040730014061 CAP CER 10NF 50V 10% X7R 0603 C817
040730014061 CAP CER 10NF 50V 10% X7R 0603 C828
040730014061 CAP CER 10NF 50V 10% X7R 0603 C841
040730014061 CAP CER 10NF 50V 10% X7R 0603 C846
040730033261 CAP CER 33NF 25V 10% 0603 C390
040730033261 CAP CER 33NF 25V 10% 0603 C391
040730033261 CAP CER 33NF 25V 10% 0603 C392
040730033261 CAP CER 33NF 25V 10% 0603 C429
040730033261 CAP CER 33NF 25V 10% 0603 C431
040730033261 CAP CER 33NF 25V 10% 0603 C430
040730033311 CAP CER 1MF 16V Y5V 10% 0805 C267
040730033311 CAP CER 1MF 16V Y5V 10% 0805 C268
040730033311 CAP CER 1MF 16V Y5V 10% 0805 C271
040730033311 CAP CER 1MF 16V Y5V 10% 0805 C272
040732041061 CAP CER 100PF 50V 5% COG 0603 C260
040732041061 CAP CER 100PF 50V 5% COG 0603 C262
040732041061 CAP CER 100PF 50V 5% COG 0603 C368
040732041061 CAP CER 100PF 50V 5% COG 0603 C369
040732041061 CAP CER 100PF 50V 5% COG 0603 C370
040732041061 CAP CER 100PF 50V 5% COG 0603 C416
040732042061 CAP CER 120PF 50V 5% COG 0603 C140
040742022261 CAP CER 22NF 50V 5% X7R 0603 C145

TELRA NO TELRA DESCRIPTION POS

040742022261 CAP CER 22NF 50V 5% X7R 0603 C146
040742022261 CAP CER 22NF 50V 5% X7R 0603 C147
040742022261 CAP CER 22NF 50V 5% X7R 0603 C148
040742022261 CAP CER 22NF 50V 5% X7R 0603 C149
040742022261 CAP CER 22NF 50V 5% X7R 0603 C259
040742041061 CAP CER 10PF 50V 5% COG 0603 C104
040742041061 CAP CER 10PF 50V 5% COG 0603 C141
040742041061 CAP CER 10PF 50V 5% COG 0603 C142
040742041061 CAP CER 10PF 50V 5% COG 0603 C143
040742041061 CAP CER 10PF 50V 5% COG 0603 C144
040742041061 CAP CER 10PF 50V 5% COG 0603 C167
040742041061 CAP CER 10PF 50V 5% COG 0603 C382
040742041061 CAP CER 10PF 50V 5% COG 0603 C197
040742041061 CAP CER 10PF 50V 5% COG 0603 C226
040742041061 CAP CER 10PF 50V 5% COG 0603 C294
040742041061 CAP CER 10PF 50V 5% COG 0603 C366
040742041061 CAP CER 10PF 50V 5% COG 0603 C334
040742041061 CAP CER 10PF 50V 5% COG 0603 C111
040743022161 CAP CER 220NF 16V +80-20% 0603 C257
040752041061 CAP CER 1NF 50V 10% X7R 0603 C108
040752041061 CAP CER 1NF 50V 10% X7R 0603 C109
040752041061 CAP CER 1NF 50V 10% X7R 0603 C116
040752041061 CAP CER 1NF 50V 10% X7R 0603 C117
040752041061 CAP CER 1NF 50V 10% X7R 0603 C142
040752041061 CAP CER 1NF 50V 10% X7R 0603 C143
040752041061 CAP CER 1NF 50V 10% X7R 0603 C144
040752041061 CAP CER 1NF 50V 10% X7R 0603 C145
040752041061 CAP CER 1NF 50V 10% X7R 0603 C146
040752041061 CAP CER 1NF 50V 10% X7R 0603 C147
040752041061 CAP CER 1NF 50V 10% X7R 0603 C148
040752041061 CAP CER 1NF 50V 10% X7R 0603 C149
040752041061 CAP CER 1NF 50V 10% X7R 0603 C127
040752041061 CAP CER 1NF 50V 10% X7R 0603 C136
040752041061 CAP CER 1NF 50V 10% X7R 0603 C138
040752041061 CAP CER 1NF 50V 10% X7R 0603 C139
040752041061 CAP CER 1NF 50V 10% X7R 0603 C140
040752041061 CAP CER 1NF 50V 10% X7R 0603 C141
040752041061 CAP CER 1NF 50V 10% X7R 0603 C150
040752041061 CAP CER 1NF 50V 10% X7R 0603 C151
040752041061 CAP CER 1NF 50V 10% X7R 0603 C100
040752041061 CAP CER 1NF 50V 10% X7R 0603 C101
040752041061 CAP CER 1NF 50V 10% X7R 0603 C161
040752041061 CAP CER 1NF 50V 10% X7R 0603 C280
040752041061 CAP CER 1NF 50V 10% X7R 0603 C281
040752041061 CAP CER 1NF 50V 10% X7R 0603 C180
040752041061 CAP CER 1NF 50V 10% X7R 0603 C249
040752041061 CAP CER 1NF 50V 10% X7R 0603 C250
040752041061 CAP CER 1NF 50V 10% X7R 0603 C162
040752041061 CAP CER 1NF 50V 10% X7R 0603 C163
040752041061 CAP CER 1NF 50V 10% X7R 0603 C187
040752041061 CAP CER 1NF 50V 10% X7R 0603 C192
040752041061 CAP CER 1NF 50V 10% X7R 0603 C165
040752041061 CAP CER 1NF 50V 10% X7R 0603 C324
040752041061 CAP CER 1NF 50V 10% X7R 0603 C164
040752041061 CAP CER 1NF 50V 10% X7R 0603 C116
040752041061 CAP CER 1NF 50V 10% X7R 0603 C115
042140161071 CAP ELECT 100MF 16V 20% C240
042140161071 CAP ELECT 100MF 16V 20% C929
042140161071 CAP ELECT 100MF 16V 20% C935
042140161071 CAP ELECT 100MF 16V 20% C290
042140161071 CAP ELECT 100MF 16V 20% C239
042140164771 CAP ELECT 470MF 16V 20% C901
042140164771 CAP ELECT 470MF 16V 20% C902
042140164771 CAP ELECT 470MF 16V 20% C905
042140164771 CAP ELECT 470MF 16V 20% C417
042140164771 CAP ELECT 470MF 16V 20% C418
042414251071 CAP ELECT 100MF 25V 20% C277
042414251071 CAP ELECT 100MF 25V 20% C903
042414251071 CAP ELECT 100MF 25V 20% C904
042414254761 CAP ELECT 47MF 25V 20% C176
042416501051 CAP ELECT 1MF 50V 20% C174
042416501051 CAP ELECT 1MF 50V 20% C175
042416501051 CAP ELECT 1MF 50V 20% C230
042416501051 CAP ELECT 1MF 50V 20% C264

EN 74 TES1.0E LA10.

Spare Parts List

TELRA NO TELRA DESCRIPTION POS

042416501051 CAP ELECT 1MF 50V 20% C265
042416501051 CAP ELECT 1MF 50V 20% C223
042416501051 CAP ELECT 1MF 50V 20% C106
042416501051 CAP ELECT 1MF 50V 20% C119
042416501051 CAP ELECT 1MF 50V 20% C185
042416502261 CAP ELECT 22MF 50V 20% C001
042416502261 CAP ELECT 22MF 50V 20% C371
042416502261 CAP ELECT 22MF 50V 20% C372
042416502261 CAP ELECT 22MF 50V 20% C374
042416502261 CAP ELECT 22MF 50V 20% C377
042416502261 CAP ELECT 22MF 50V 20% C378
042416502261 CAP ELECT 22MF 50V 20% C379
042416502261 CAP ELECT 22MF 50V 20% C380
042416502261 CAP ELECT 22MF 50V 20% C381
042417162271 CAP ELECT 220MF 16V 20% C182
042440251101 CAP ELECT 1000MF 25V 20% 105?A 397
042440251101 CAP ELECT 1000MF 25V 20% 105?A 398
042440251101 CAP ELECT 1000MF 25V 20% 105?A 422
042440251101 CAP ELECT 1000MF 25V 20% 105?A 423
042440861081 CAP ELECT 100MF 50V 20% C289
042446161061 CAP ELECT 10MF 16V 20% C393
042446501061 CAP ELECT 10MF 50V 20% C102
042446501061 CAP ELECT 10MF 50V 20% C152
042446501061 CAP ELECT 10MF 50V 20% C157
042446501061 CAP ELECT 10MF 50V 20% C158
042446501061 CAP ELECT 10MF 50V 20% C159
042446501061 CAP ELECT 10MF 50V 20% C160
042446501061 CAP ELECT 10MF 50V 20% C161
042446501061 CAP ELECT 10MF 50V 20% C162
042446501061 CAP ELECT 10MF 50V 20% C200
042446501061 CAP ELECT 10MF 50V 20% C201
042446501061 CAP ELECT 10MF 50V 20% C202
042446501061 CAP ELECT 10MF 50V 20% C208
042446501061 CAP ELECT 10MF 50V 20% C210
042446501061 CAP ELECT 10MF 50V 20% C227
042446501061 CAP ELECT 10MF 50V 20% C228
042446501061 CAP ELECT 10MF 50V 20% C236
042446501061 CAP ELECT 10MF 50V 20% C237
042446501061 CAP ELECT 10MF 50V 20% C238
042446501061 CAP ELECT 10MF 50V 20% C100
042446501061 CAP ELECT 10MF 50V 20% C101
042446501061 CAP ELECT 10MF 50V 20% C102
042446501061 CAP ELECT 10MF 50V 20% C107
042446501061 CAP ELECT 10MF 50V 20% C108
042446501061 CAP ELECT 10MF 50V 20% C222
042446501061 CAP ELECT 10MF 50V 20% C224
042446501061 CAP ELECT 10MF 50V 20% C225
042446501061 CAP ELECT 10MF 50V 20% C227
042446501061 CAP ELECT 10MF 50V 20% C231
042446501061 CAP ELECT 10MF 50V 20% C232
042446501061 CAP ELECT 10MF 50V 20% C234
042446501061 CAP ELECT 10MF 50V 20% C300
042446501061 CAP ELECT 10MF 50V 20% C301
042446501061 CAP ELECT 10MF 50V 20% C302
042446501061 CAP ELECT 10MF 50V 20% C303
042446501061 CAP ELECT 10MF 50V 20% C304
042446501061 CAP ELECT 10MF 50V 20% C407
042446501061 CAP ELECT 10MF 50V 20% C634
042446501061 CAP ELECT 10MF 50V 20% C635
042446501061 CAP ELECT 10MF 50V 20% C636
042446501061 CAP ELECT 10MF 50V 20% C637
042446501061 CAP ELECT 10MF 50V 20% C638
042446501061 CAP ELECT 10MF 50V 20% C700
042446501061 CAP ELECT 10MF 50V 20% C701
042446501061 CAP ELECT 10MF 50V 20% C702
042446501061 CAP ELECT 10MF 50V 20% C924
042446501061 CAP ELECT 10MF 50V 20% C927
042446501061 CAP ELECT 10MF 50V 20% C928
042446501061 CAP ELECT 10MF 50V 20% C930
042446501061 CAP ELECT 10MF 50V 20% C931
042446501061 CAP ELECT 10MF 50V 20% C932
042446501061 CAP ELECT 10MF 50V 20% C933
042446501061 CAP ELECT 10MF 50V 20% C934
042446501061 CAP ELECT 10MF 50V 20% C936

TELRA NO TELRA DESCRIPTION POS

042446501061 CAP ELECT 10MF 50V 20% C937
042446501061 CAP ELECT 10MF 50V 20% C938
042446501061 CAP ELECT 10MF 50V 20% C238
042446501061 CAP ELECT 10MF 50V 20% C244
042446501061 CAP ELECT 10MF 50V 20% C302
042446501061 CAP ELECT 10MF 50V 20% C432
042446501061 CAP ELECT 10MF 50V 20% C367
042446501061 CAP ELECT 10MF 50V 20% C809
042446501061 CAP ELECT 10MF 50V 20% C824
042446501061 CAP ELECT 10MF 50V 20% C836
042446501061 CAP ELECT 10MF 50V 20% C843
042446501061 CAP ELECT 10MF 50V 20% C844
042446501061 CAP ELECT 10MF 50V 20% C849
042448504761 CAP ELECT 47MF 50V 20% C103
042448504761 CAP ELECT 47MF 50V 20% C104
042448504761 CAP ELECT 47MF 50V 20% C251
042448504761 CAP ELECT 47MF 50V 20% C394
045000000291 IC DS90C385AMT LVDS U904
045000000561 IC REG FAN1086M33X 1.5A U900
045000000921 IC STV2310 VIDEO DECODER U100
045000001821 IC TDA9886 PAL SEC (SOT137-1) U101
045000001821 IC TDA9886 PAL SEC (SOT137-1) U102
045000002081 IC STV8216 TQFP80 U200
045000003081 IC CXA2089Q U200
045000003221 IC STV3550 CPU+SCALER PQFP208 U601
045000003981 IC TDA7264 SOUND AMP. U201
045000004981 IC LD1086DT18 REG.1V8 1.5A LOW U901
045000011251 IC M24C64 PSDIP8 U600
045000011281 IC SDRAM K4S281632F-TC75 U700
045000011281 IC SDRAM K4S281632F-TC75 U701
045000011731 IC TDA7050T SO8 (SMD) U001
045088343881 IC ST24LC21B 1K EEPROM SO8 U109
045088343881 IC ST24LC21B 1K EEPROM SO8 U108
045100001121 IC PVP 9390A PIP U802
045238103161 IC LF33C 3,3 VOLT . REG. DPAK U902
045238103171 IC LF18C 1.8 VOLT . REG. DPAK U903
045238103311 IC LM2940 5V 1A REGULATOR U203
045238103311 IC LM2940 5V 1A REGULATOR U204
045238103311 IC LM2940 5V 1A REGULATOR U204
045238103311 IC LM2940 5V 1A REGULATOR U203
045300000221 IC 74F14 SOIC-14 U400
045300000381 IC M29W160BT-70N1 FLASH TSOP48 U702
045300000511 IC RESET MC33164P-003 TO-92 U602
045500000581 IC LM1881 VIDEO SNYC SEPERATOR U401
045500000671 IC ADE3300 LCD DISP.CONTROLLER U300
046000000371 TRS MOSFET N-CHANNEL SOT-23 Q100
046000000371 TRS MOSFET N-CHANNEL SOT-23 Q102
046000000371 TRS MOSFET N-CHANNEL SOT-23 Q604
046000000371 TRS MOSFET N-CHANNEL SOT-23 Q606
046000002391 TRS BC847C SOT23 Q108
046848000001 TRS.BC848B SOT-23 Q100
046848000001 TRS.BC848B SOT-23 Q108
046848000001 TRS.BC848B SOT-23 Q109
046848000001 TRS.BC848B SOT-23 Q200
046848000001 TRS.BC848B SOT-23 Q201
046848000001 TRS.BC848B SOT-23 Q202
046848000001 TRS.BC848B SOT-23 Q102
046848000001 TRS.BC848B SOT-23 Q101
046848000001 TRS.BC848B SOT-23 Q203
046848000001 TRS.BC848B SOT-23 Q201
046848000001 TRS.BC848B SOT-23 Q400
046848000001 TRS.BC848B SOT-23 T200
046848000001 TRS.BC848B SOT-23 T201
046848000001 TRS.BC848B SOT-23 Q104
046848000001 TRS.BC848B SOT-23 Q105
046848000001 TRS.BC848B SOT-23 Q106
046848000001 TRS.BC848B SOT-23 Q107
046848480121 TRS. BC847B SOT-23 Q109
048000000421 DIODESHOTTKY DBL.BAT54CWSOT323 D103
048000000421 DIODESHOTTKY DBL.BAT54CWSOT323 D102
048000000491 DIODE BAS70-04 SWITCHING SOT23 D400
048000000491 DIODE BAS70-04 SWITCHING SOT23 D401
048000000491 DIODE BAS70-04 SWITCHING SOT23 D402
048000000491 DIODE BAS70-04 SWITCHING SOT23 D300

Spare Parts List

EN 75TES1.0E LA 10.

TELRA NO TELRA DESCRIPTION POS

048000000491 DIODE BAS70-04 SWITCHING SOT23 D301
048000000491 DIODE BAS70-04 SWITCHING SOT23 D302
048000000491 DIODE BAS70-04 SWITCHING SOT23 D303
048000000491 DIODE BAS70-04 SWITCHING SOT23 D304
048000000491 DIODE BAS70-04 SWITCHING SOT23 D305
048000000491 DIODE BAS70-04 SWITCHING SOT23 D306
048000000491 DIODE BAS70-04 SWITCHING SOT23 D307
048110411111 DIODE LS4148 SOD80 QMELF D100
048110411111 DIODE LS4148 SOD80 QMELF D101
048110411111 DIODE LS4148 SOD80 QMELF D100
048110411111 DIODE LS4148 SOD80 QMELF D101
048110411111 DIODE LS4148 SOD80 QMELF D102
048110411111 DIODE LS4148 SOD80 QMELF D103
048110411111 DIODE LS4148 SOD80 QMELF D104
048110411111 DIODE LS4148 SOD80 QMELF D105
048110411111 DIODE LS4148 SOD80 QMELF D106
048113229121 DIODE BAV99 D107
048113229121 DIODE BAV99 D111
048210200001 DIODE SCHTKY BAT85 DO-34 D600
048321423201 DIODE RECT.1N4007 DO-41 D109
048321423201 DIODE RECT.1N4007 DO-41 D110
048321423201 DIODE RECT.1N4007 DO-41 D900
048321423201 DIODE RECT.1N4007 DO-41 D901
048540733021 DIODE ZNR.33V ZTK33B DO-35 D108
048540733021 DIODE ZNR.33V ZTK33B DO-35 D112
048774606051 DIODE LED WHITE/RED 3MM LED1
049030000461 CRYSTAL 4.000 MHZ HC49U Y100
049030000461 CRYSTAL 4.000 MHZ HC49U Y101
049030000601 CRYSTAL 20.25MHZ SM49US Y800
049030010991 CRYSTAL 27MHZ SS4 ( HC49/U4H ) Y200
049030010991 CRYSTAL 27MHZ SS4 ( HC49/U4H ) Y300
049030010991 CRYSTAL 27MHZ SS4 ( HC49/U4H ) Y600
065001056920 DFU PHILIPS 32PF1000
065001056950 QSG PHILIPS 32PF1000
066010037681 CARTON BOX PHILIPS 32 PT1000
066022750760 BAG NYLON 202128'4/3BSKLI NEW
070722110011 LCD 32'AUO T315XW01 SFT 1TUP
075012880261 SOCKET CHINCH DOUBLE AUDIO W/R S105
075013220021 SOCKET IC 8P DIP-8 U600
075015420111 CONN 15P VGA/PT100-MONITOR S110
075016420011 SOCKET HEADPHONE STR S102
075016420011 SOCKET HEADPHONE STR S100
075016420171 SOCKET S-VHS W/SHIELD W/O SCRW S111
075016420391 SOCKET CHIN HRZ.TRIP Y/W/R 35B S102
075030211011 CONN.2P IN-LINE VRT MINI S600
075030261020 CONN 2P HRZ POWER 10MM S100
075030261020 CONN 2P HRZ POWER 10MM S101
075030311021 CONN 3P IN-LINE VRT MINI S201
075030311021 CONN 3P IN-LINE VRT MINI S101
075030411001 CONN.4P IN-LINE VRT MINI S601
075030411031 CONN.4P IN-LINE VRT BLUE MINI S203
075030511001 CONN 5P IN-LINE VRT MINI S104
075030511001 CONN 5P IN-LINE VRT MINI S103
075030611061 CONN 6P IN-LINE VRT MINI S116
075030611061 CONN 6P IN-LINE VRT MINI S103
075030810951 SOCKET DVI-I S114
075040210051 SOCKET SCART 27'/28'/32'COMMON S108
075040210071 SOCKET SCART DOUBLE PT90A S100
075100201181 CONN 4P HRZ 2.5MM MINI S001
075100212000 CONN.FEMALE WHITE 10MM
075100711081 CONN 4P SINGLEROW PIN HDR FORM U002
075100711971 CONN.7P IN-LINE VRT MINI S603
075101211161 CONN 2P IN LINE HRZ 2.5MM MINI S002
075101211161 CONN 2P IN LINE HRZ 2.5MM MINI S001
075101211161 CONN 2P IN LINE HRZ 2.5MM MINI S002
075110090091 CONN.10P IN-LINE VRT MINI 2MM S204
075110090091 CONN.10P IN-LINE VRT MINI 2MM S900
075110900141 CONN.40P FFC 0.5MM HRZ SMD S201
075110900141 CONN.40P FFC 0.5MM HRZ SMD S202
075110900141 CONN.40P FFC 0.5MM HRZ SMD S205
075110900141 CONN.40P FFC 0.5MM HRZ SMD S206
075220480021 CONN 30P SMD MX53505 S903
081000000141 SWITCH POWERALPS SDKVA30100SFT POW1
081101111601 SWITCH TACT HRZ MTLCONT 6*6 SW01

TELRA NO TELRA DESCRIPTION POS

081101111601 SWITCH TACT HRZ MTLCONT 6*6 SW02
081101111601 SWITCH TACT HRZ MTLCONT 6*6 SW03
081101111601 SWITCH TACT HRZ MTLCONT 6*6 SW04
081101111601 SWITCH TACT HRZ MTLCONT 6*6 SW05
081101111601 SWITCH TACT HRZ MTLCONT 6*6 SW06
081101111601 SWITCH TACT HRZ MTLCONT 6*6 SW07
399000006183 PWRBRD 32 CTV100LCD 5V 190PT2 KPOW
399593000090 BATTERY 1.5V AAA GREENLINE PHL
608000000121 COIL 56UH 10% 0.068A AXIAL FIX L119
608000000121 COIL 56UH 10% 0.068A AXIAL FIX L121
608000000121 COIL 56UH 10% 0.068A AXIAL FIX L123
608000000121 COIL 56UH 10% 0.068A AXIAL FIX L130
608080000051 COIL 22UH 5% 0.1A AXIAL FIXED L100
608080000051 COIL 22UH 5% 0.1A AXIAL FIXED L101
608080000251 COIL 5.6UH %5 0.2A SMD 1206 L100
608080000271 COIL 10UH %5 0.15A SMD 1206 L102
608080000271 COIL 10UH %5 0.15A SMD 1206 L103
608080000271 COIL 10UH %5 0.15A SMD 1206 L104
608080000271 COIL 10UH %5 0.15A SMD 1206 L105
608080000271 COIL 10UH %5 0.15A SMD 1206 L123
608080000271 COIL 10UH %5 0.15A SMD 1206 L124
608080000271 COIL 10UH %5 0.15A SMD 1206 L200
608080000271 COIL 10UH %5 0.15A SMD 1206 L106
608080000271 COIL 10UH %5 0.15A SMD 1206 L107
608080000271 COIL 10UH %5 0.15A SMD 1206 L104
608080000271 COIL 10UH %5 0.15A SMD 1206 L200
608080000271 COIL 10UH %5 0.15A SMD 1206 L202
608080000271 COIL 10UH %5 0.15A SMD 1206 L205
608080000271 COIL 10UH %5 0.15A SMD 1206 L207
608080000271 COIL 10UH %5 0.15A SMD 1206 L600
608080000271 COIL 10UH %5 0.15A SMD 1206 L113
608080000271 COIL 10UH %5 0.15A SMD 1206 L114
608080000271 COIL 10UH %5 0.15A SMD 1206 L115
608080000271 COIL 10UH %5 0.15A SMD 1206 L118
608080000271 COIL 10UH %5 0.15A SMD 1206 L120
608080000271 COIL 10UH %5 0.15A SMD 1206 L127
608080000271 COIL 10UH %5 0.15A SMD 1206 L116
608080000271 COIL 10UH %5 0.15A SMD 1206 L129
608080000271 COIL 10UH %5 0.15A SMD 1206 L122
608080000281 COIL 3.9UH 0.25A 5% SMD 1206 L101
608080000281 COIL 3.9UH 0.25A 5% SMD 1206 L102
608080000281 COIL 3.9UH 0.25A 5% SMD 1206 L103
608080000281 COIL 3.9UH 0.25A 5% SMD 1206 L105
608980000191 COIL 1UH 5% 0.4A SMD 1206 L109
609330001251 PREAMP-PHOTOMODULE TSOP2236 IR01
610308015041 TWEETER 8R 15W/20W 70/70MM
610308150211 SPEAKER 8R 15/20W126X58MMXPACE
616000001371 TUNER PHILIPS UV1316T/SIGH-3 T100
616800020091 TUNER PLL THOMSON CTF5513 T101
618014011161 CAP MKT 100NF 50V 5% C210
620004001051 CAP MKT 10NF 50V 5% C188
620004001051 CAP MKT 10NF 50V 5% C296
620004072241 CAP MKT 220NF 63V 10% 5MM C195
631020001781 REMOTE CONTROL TM4901 (ID)
841010026991 COMPLETE LCDTV ON-OFF 26-32 C.FULL
841100032402 MAIN CHASSIS CTV100 32 PIP AUO 9SKT
841108026020 COMPLETE POWER CABLE 2-FER.FLT240CM SF KPWR
841120026402 COMPLETE 26-32 C.FULL M.BUTON PHLP KMUL
841130026402 COMPLETE 26-32 C.FULL INFRA C100PH KINF
841130032838 COMPLETE DIP8 TDA7050 ADAPTOR U202
841150026402 COMPLETE 26-32 C.FULL SIDE AV PHLP SIDE
841160032955 COMPLETE SWITCH 26/32 PIP'LI 079C KSWI
841300310580 COMPLETE 32' C.FULL SPEA&TWEE.PHIL
871000920027 COMPLETE LEG 32 C.FULL PHL S.FRS AYAK
905110320520 BACK COVER 32'COLORFULL PF1000 BLACK
905208203620 PAINTED BUTTON ON-OF26-32CFUL PH SC ONOF
905302320690 PAINTED FRONT CABIN 32' C.FULL PF1000 S.FR BKBN
966032000020 STRAPHOR 32' COLORFUL STRH

EN 76 TES1.0E LA11.

11. Revision List

11.1 Manual xxxx xxx xxxxx.0

• First release.

Revision List
