TEA1104; TEA1104T

Cost effective battery monitor and
fast charge IC for NiCd and NiMH
chargers

Objective specification
File under Integrated Circuits, IC03

1996 Feb 26

Philips Semiconductors Objective specification

Cost effective battery monitor and fast
charge IC for NiCd and NiMH chargers

FEATURES

• Accurate detection of fully charged batteries by
currentless peak voltage sensing

• Switch-over from fast to safe trickle charge current at
battery full detection

• Fast charge termination back-up by maximum time and
maximum temperature detection

• Several trickle charge drive possibilities for mains
isolated and non-mains isolated systems

• Battery checking to protect against short-circuited and
open batteries

• Battery monitor allows recharging of different battery
packs in the same charger

• Dual LED indicator provision

• External regulator not required because of large input

voltage range

• Few low cost external components required.

TEA1104; TEA1104T

APPLICATIONS

• Portable telephone

• Portable computer

• Portable audio

• Portable video.

GENERAL DESCRIPTION

The TEA1104 is manufactured in a BiCMOS process
intended to be used as a battery monitor circuit in charge
systems for NiCd and NiMH batteries. It is especially
designed for cost effective compact consumer
applications.

The circuit is able to detect fully charged batteries by
currentless battery voltage sensing. Several output drive
functions are available to control the (reduced) trickle
charge current to keep the batteries full with maximum life
expectations.

The battery full detection is backed up by two independent
mechanisms to make the system fail safe; maximum time
and maximum temperature.

QUICK REFERENCE DATA

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

V

P

I

P

V

bat

∆V

bat/Vbat

supply voltage 5.45 − 11.5 V
supply current outputs off −−3mA
voltage range of battery full detection 0.81 − 3.6 V
voltage peak detection level with

− 0.25 − %

respect to top value

I

bat

V

bat(l)

V

bat(h)

f

osc

battery monitor input current −−1nA
battery voltage protection low − 0.81 0.91 V
battery voltage protection high 3.5 3.6 − V
oscillator frequency 10 − 100 kHz

ORDERING INFORMATION

TYPE

NUMBER

NAME DESCRIPTION VERSION

PACKAGE

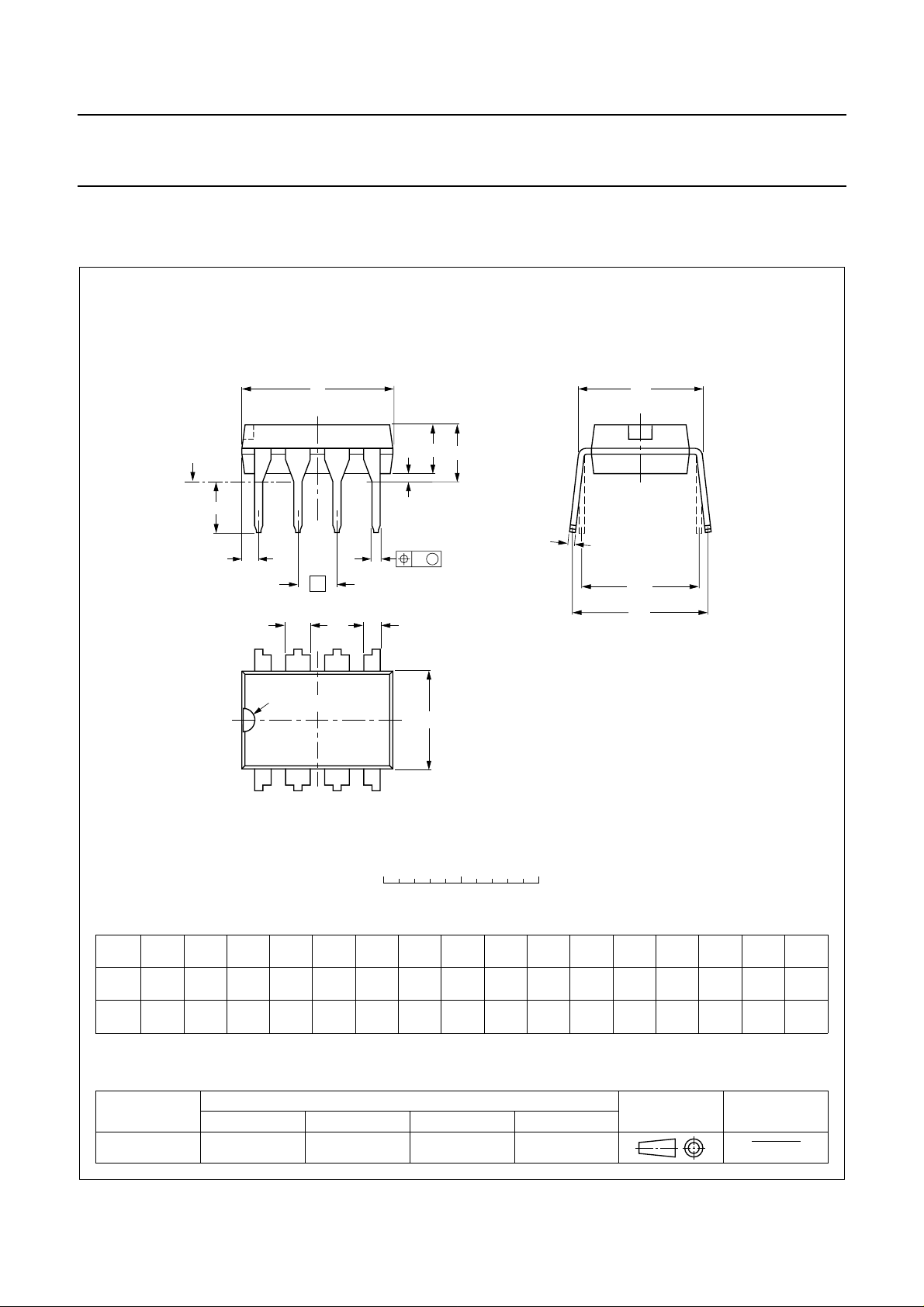

TEA1104 DIP8 plastic dual in-line package; 8 leads (300 mil) SOT97-1

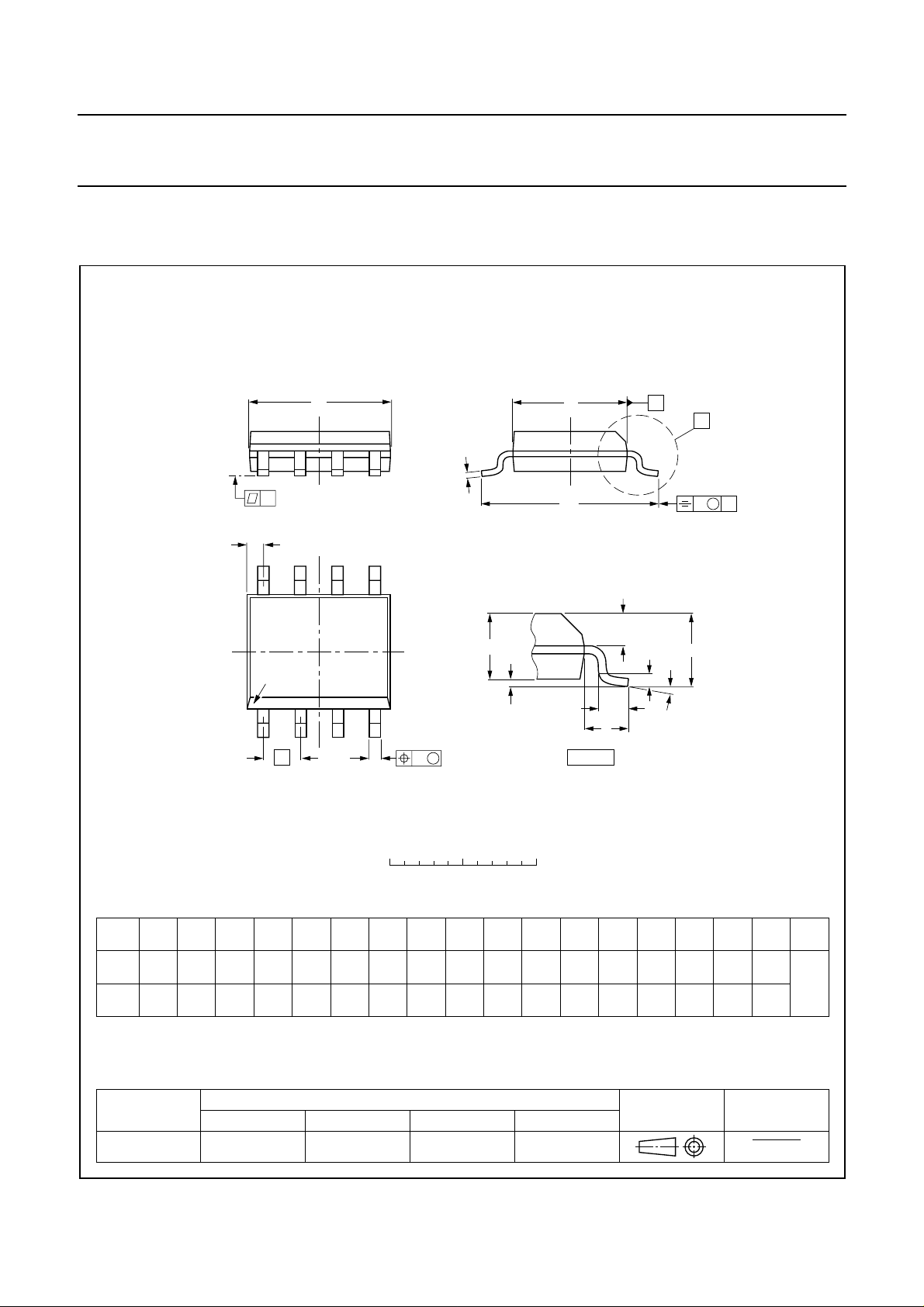

TEA1104T SO8 plastic small outline package; 8 leads; body width 3.9 mm SOT96-1

1996 Feb 26 2

Philips Semiconductors Objective specification

Cost effective battery monitor and fast
charge IC for NiCd and NiMH chargers

BLOCK DIAGRAM

handbook, full pagewidth

6

V

P

4

V

bat

battery high

protection

battery low

protection

R

ref

SUPPLY

FILTER

SAMPLE-

AND-HOLD

5

POR

V

S

3

BATTERY

DETECTOR

OR

FULL

MODE

LATCH

TO

TEA1104; TEA1104T

fast

trickle

CONTROL

8

LED

1

GND

trickle

TIMER

T

T

max

min

OR

TEA1104

TEA1104T

T

cut-off

2

NTC OSC

OSCILLATOR

7

MGE354

Fig.1 Block diagram.

1996 Feb 26 3

Philips Semiconductors Objective specification

Cost effective battery monitor and fast
charge IC for NiCd and NiMH chargers

PINNING

SYMBOL PIN DESCRIPTION

GND 1 ground
NTC 2 negative temperature coefficient

resistor input

V

S

V

bat

R

ref

V

P

OSC 7 oscillator input
LED 8 LED output

INTRODUCTION

The operation of the TEA1104; TEA1104T is explained

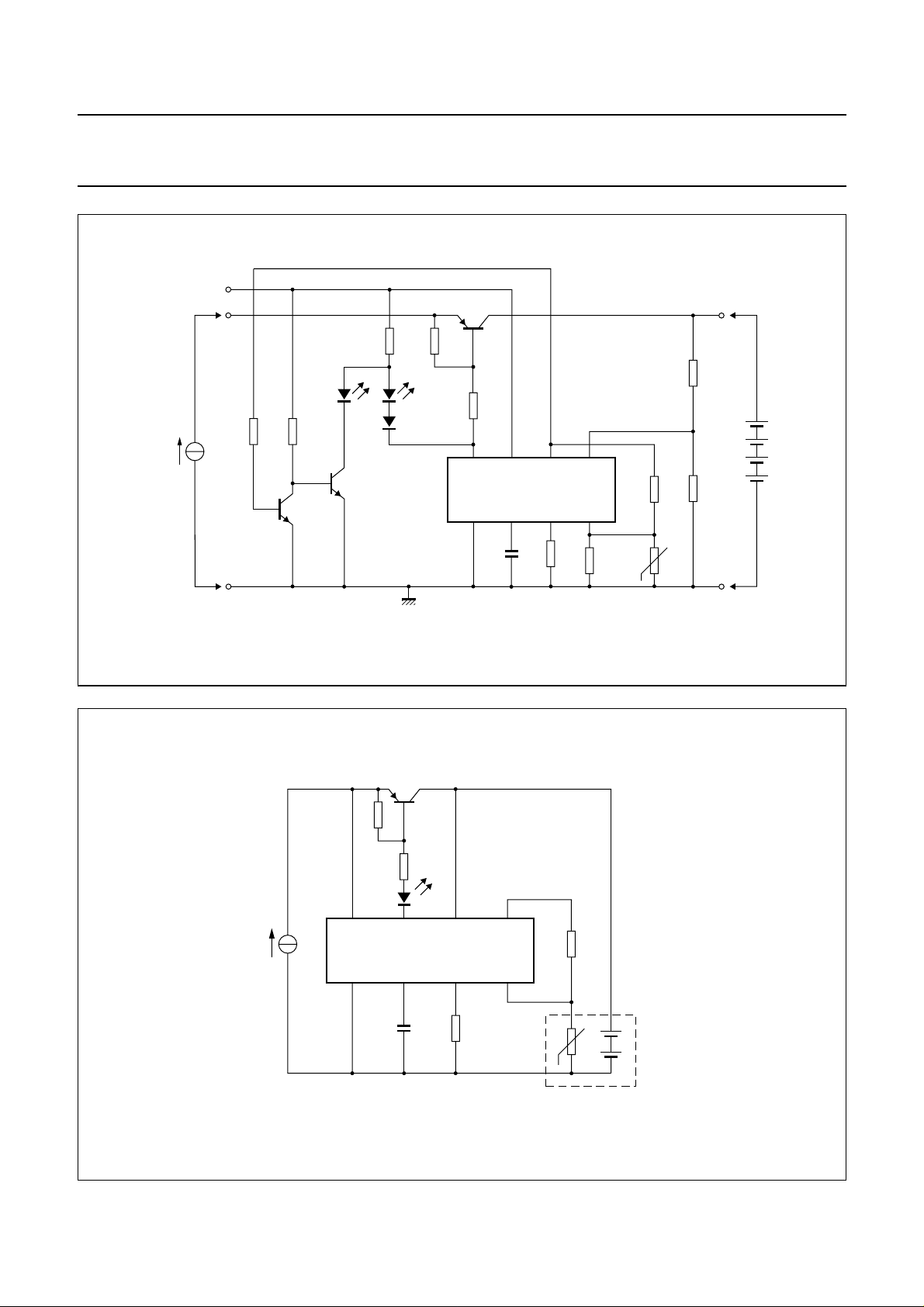

with the aid of the application diagram illustrated in Fig.7.

An application note (AN95085) is available describing the
versatility of the TEA1104; TEA1104T.

3 stabilized supply voltage
4 battery voltage sensing
5 reference resistor
6 positive supply voltage

TEA1104; TEA1104T

handbook, halfpage

• Trickle charge is active if:
– battery full is detected
– maximum time is exceeded
– maximum cut-off temperature is exceeded after the

initial phase.

GND

1
2

TEA1104

3

V

s

4

V

bat

MGE353

Fig.2 Pin configuration.

LED

8

OSCNTC

7

V

6

P

R

5

ref

An external power current source charges the batteries via
an electronic switch which is controlled by the TEA1104.
The TEA1104 monitors the battery voltage. Fully charged
batteries are detected when the battery voltage peaks. In
fact, a voltage drop of 0.25% with respect to the top value
is detected. Fast charging is initiated at ‘power on’ or at
‘replaced batteries’. The switch is continuously on,
providing that all protection levels are met. At battery full
detection, the charge current is duty cycled to reduce the
average charge current to a lower level, keeping the
batteries fully charged but at he same time assuring long

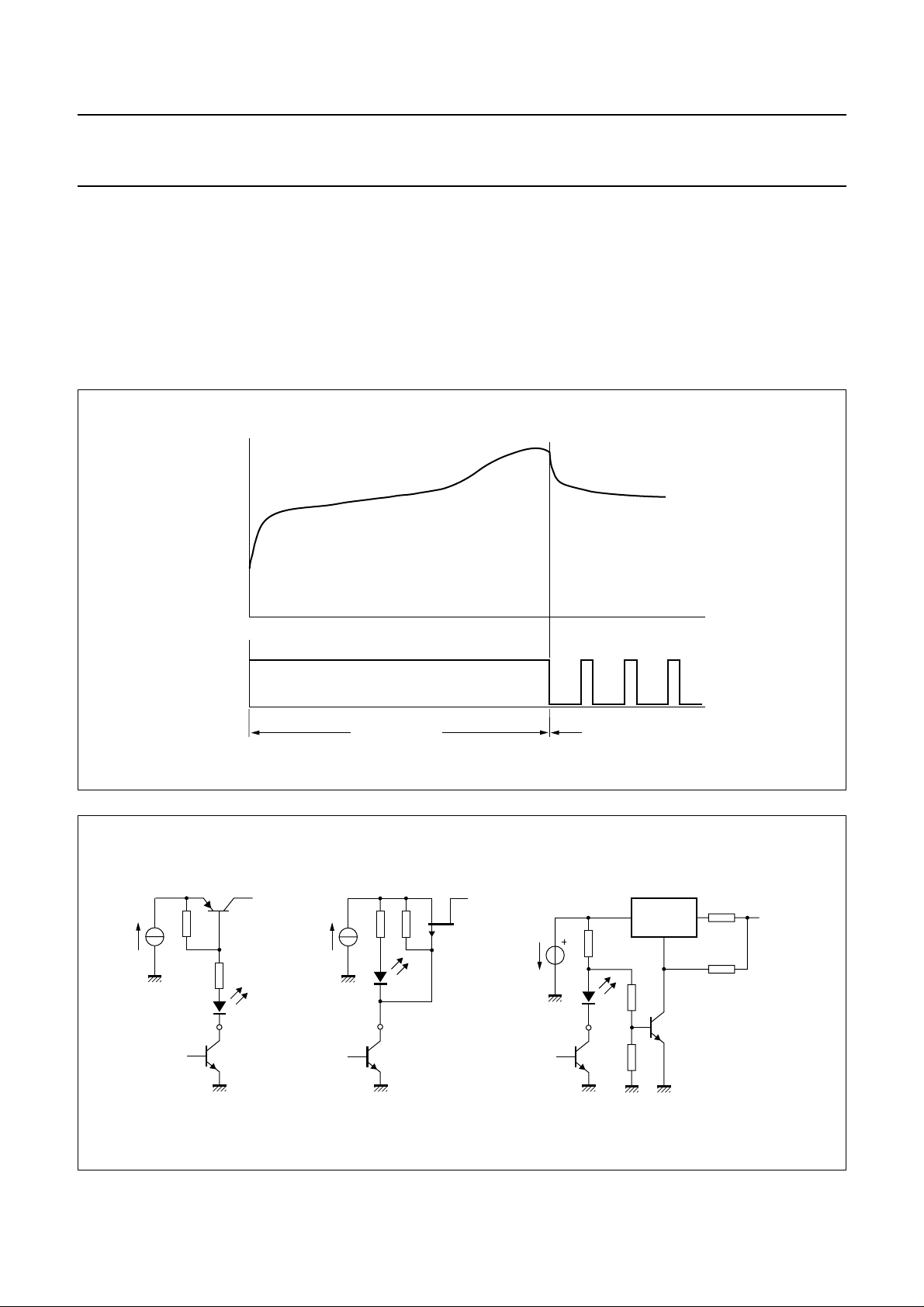

battery life. In Fig.3 the battery voltage during fast charge
is plotted.

FUNCTIONAL DESCRIPTION

A block diagram of the TEA1104; TEA1104T is illustrated
in Fig.1

Mode latch

The Mode latch determines if the system is in the fast or in
the slow charge mode.

• Fast charge is active at:
– power switch-on and battery connected
– temperature between minimum and maximum value
– battery insert

Supply block

For correct start-up, the IC supply current is limited to
35 µA (typ.) until the start-up voltage of 6.4 V is reached
(standby mode). Thereafter, the operating supply voltage
V

has to be within the window of 5.45 to 11.5 V, meaning

P

that there is no need for an external voltage regulator to
supply the IC.

The supply block delivers the following outputs:

• With the help of an external resistor (pin R

ref

), a
reference current is obtained which defines the
accuracy of all IC timing characteristics

• Externally available 4.25 V stabilized voltage source
(V

). This source is used internally to supply a large

source

part of the circuit and can be used to set the NTC biasing
and to supply other external circuitry with a maximum
current of 1 mA. Protection information is provided via
VS, to design a dual LED indicator

• Power-on reset pulse resets all digital circuitry after a
start or restart, due to an interrupted VS.

1996 Feb 26 4

Philips Semiconductors Objective specification

Cost effective battery monitor and fast
charge IC for NiCd and NiMH chargers

Open battery protection

When the rechargeable battery is removed, the output
voltage V
protection’ block will detect this voltage and the charge
current will be switched off. A digital filter prevents false
open battery protection. The open battery signal
(V

bat

4 clock pulses.

Battery monitor

One or two cell packs can be connected directly to V
(battery connection) without an external resistor divider. At
larger cell packs the battery voltage must be scaled down
to a voltage range of 0.81 to 3.6 V. It is also possible to
take a tap on the chain of batteries. Battery full is
recognized by voltage peak detection (V
decrease of 0.25% (typ.) with respect to the top value.
Keeping in mind a battery voltage range of 0.81 to 3.6 V
and an accuracy of 10% at V
detection, means that the internal ADC has to be 13 bits.
Several filters are included to prevent false full detection.
The series resistance of the battery and battery connection
can cause battery voltage fluctuations and therefore it is
necessary to stop the charging before sensing; this is
called the ‘inhibit time’. This will be performed
automatically via the regulation output pin LED. The
charging is stopped for ten oscillator periods at the end of
which sampling is performed. The battery voltage will now
be sensed in a currentless way.

Timer/oscillator

The oscillator has a sawtooth shape.
The period time is defined by: t
The oscillator frequency is used in the timer block. In this

block several important signals are created.

• Time-out for protecting the fast charge process in time.
Time-out is normally chosen to be 25% longer than the
associated fast charge time. So for a one hour charge
time, time-out = 1.25 hours. The relationship with the
oscillator period time is:

– Time-out = 2 exp28 × t

• The duty factor in the trickle charge mode: The duty
factor is fixed to1⁄40, meaning that the average:

–I
–ton=3⁄4× 2 exp9 × t
–t

will rise to a high level. The ‘open battery

bat

> 3.6 V) must be present for a duration of at least

), meaning a

peak

= 2.4 V for battery full

bat

=1⁄40× I

trickle

= 2 exp14 × t

off

fast

osc

=K×R

osc

osc

osc

.

ref

× C

osc

bat

TEA1104; TEA1104T

• The battery voltage is sensed each ‘cycle time’. The
cycle time is defined as:

–T

• The ‘inhibit time’ is the time that the charger current is
disabled, after which the battery voltage is sensed in a
currentless way.

–t
Battery sampling takes one oscillator period for each

cycle interval.
–t

• The ‘disable time’ is present to correct start-up with flat
or polarized batteries. During the disable time, the
battery full detection is not active.

–t

The timer is reset by battery full detection, but is on hold
during the temperature and battery-low protection modes.

Temperature protection block

Temperature sensing is achieved by using a cheap
thermistor. Two temperature windows are built in:

• If the temperature at power-on reset is above the
maximum temperature protection level, the trickle
charge current is active. The same applies for
temperatures below the minimum temperature. Fast
charging starts when the temperature is in between the
minimum and the maximum temperature levels.

• If the temperature is between the maximum and
minimum temperature at power-on reset, the fast charge
current level is active. If the temperature sinks below the
minimum temperature level, again the trickle charge
level is active. At rising temperature, the fast charge
current is latched off at the ‘cut off’ temperature level.

To avoid switching on and off with temperature, a
hysteresis is built in for low temperature level. If the
temperature protection is not necessary, pin ‘Negative
Temperature Coefficient resistor’ (NTC) must be
connected to pin R

Battery low protections

When the battery voltage is less than 0.81 V, the circuit
assumes that there are short circuited batteries and the
charge current is reduced to the trickle charge level. If the
batteries are flat, the trickle charge current is able to raise
the battery voltage within an acceptable period of time,
after which fast charging starts.

= 2 exp16 × t

cycle

=10×t

inhibit

sample=tosc

disable

osc

= 2 exp −5 × time-out

ref

osc

.

1996 Feb 26 5

Philips Semiconductors Objective specification

Cost effective battery monitor and fast
charge IC for NiCd and NiMH chargers

Output drivers

Several output drive possibilities are supported by the
TEA1104, to limit the fast charge current and to indicate
the mode that the charge is in.

In mains isolated systems, output drive current is available
for a bipolar or MOS switching device. Moreover, current
regulators can be driven (see Fig.4).

handbook, full pagewidth

V

bat

TEA1104; TEA1104T

In non mains isolated systems, the current source can be
switched via the auxiliary winding (see Fig.6) using the
TEA140X power plugs.

In the application section, an example is shown driving two
LEDs that are indicating fast charging, protection during
fast charging, full status and removed batteries. It is also
possible to output the same information via one LED only.

MGE355

full

detection

handbook, full pagewidth

TEA1104

I

charge

fast charge (I

) trickle charge (I

fast

Fig.3 NiCd battery characteristics during a 1.25C charge cycle.

output output

LED

TEA1104

LED

LED

TEA1104

fast

LM317

t

/40)

output

Fig.4 Output drivers.

1996 Feb 26 6

MGE356

Philips Semiconductors Objective specification

Cost effective battery monitor and fast
charge IC for NiCd and NiMH chargers

handbook, full pagewidth

Vs > 11.5 V

yes

clamp at 11.5 V

I

= 25 mA

DDmax

circuit active

no no

START

6.2 V < Vs < 11.5 V

yes

total reset logic

set TIME OUT (e.g. 111 min)

set T

T

min

V

or T

or T

trickle charge

OFF

(e.g. 48

max

(e.g. 20

circuit active

< 0.81 V

bat

< T

bat

> T

bat

(note 1)

yes

I

/ 40

fast

yes

dual LED
indication

(note 2)

yes

FASTFULL

blinks

min
max

o

C)

o

C)

TEA1104; TEA1104T

Vs < 5.25 V

yes

circuit non-active

IDD ≤ 45 µA

no

FAST

no

blinks

(1) V

< 0.81V due to empty or flat battery.

bat

(2) For single LED application see Fig.7, for dual LED

application see Fig.6.

> 3.6 V due to system occurrence or an external

(3) V

bat

inhibit via pin V

.

bat

(4) Release via reset.
(5) T

min=VNTC

T

cut-off=VNTC

≥ 2 V; Tmax = V

≤ 0.81 V.

NTC

≤ 1V;

0.81 V < V

T

min

FAST charge

set T

cut-off

OFF

-∆V
t

dis

bat

and

< T

bat

(note 5)

(e.g. 55

dual LED
indication

≥ 0.25%

bat

and

> 3% TO

< 3.6 V

< T

yes

yes

yes

FASTFULL

ON

max

no

(note 3)

stop charge

o

C)

FAST

no

ON

no

total reset

open battery

dual LED
indication

yes

FASTFULL

OFF

OFF

TIME OUT > 111 min

(TO)

battery is FULL

trickle charge

I

/ 40

fast
(note 4)

yes

dual LED
indication

yes

FASTFULL

OFF

ON

FAST

no

OFF

no

FAST

no

blinks

o

T

≥ 55

bat

(TCO)

no

C

MGE359

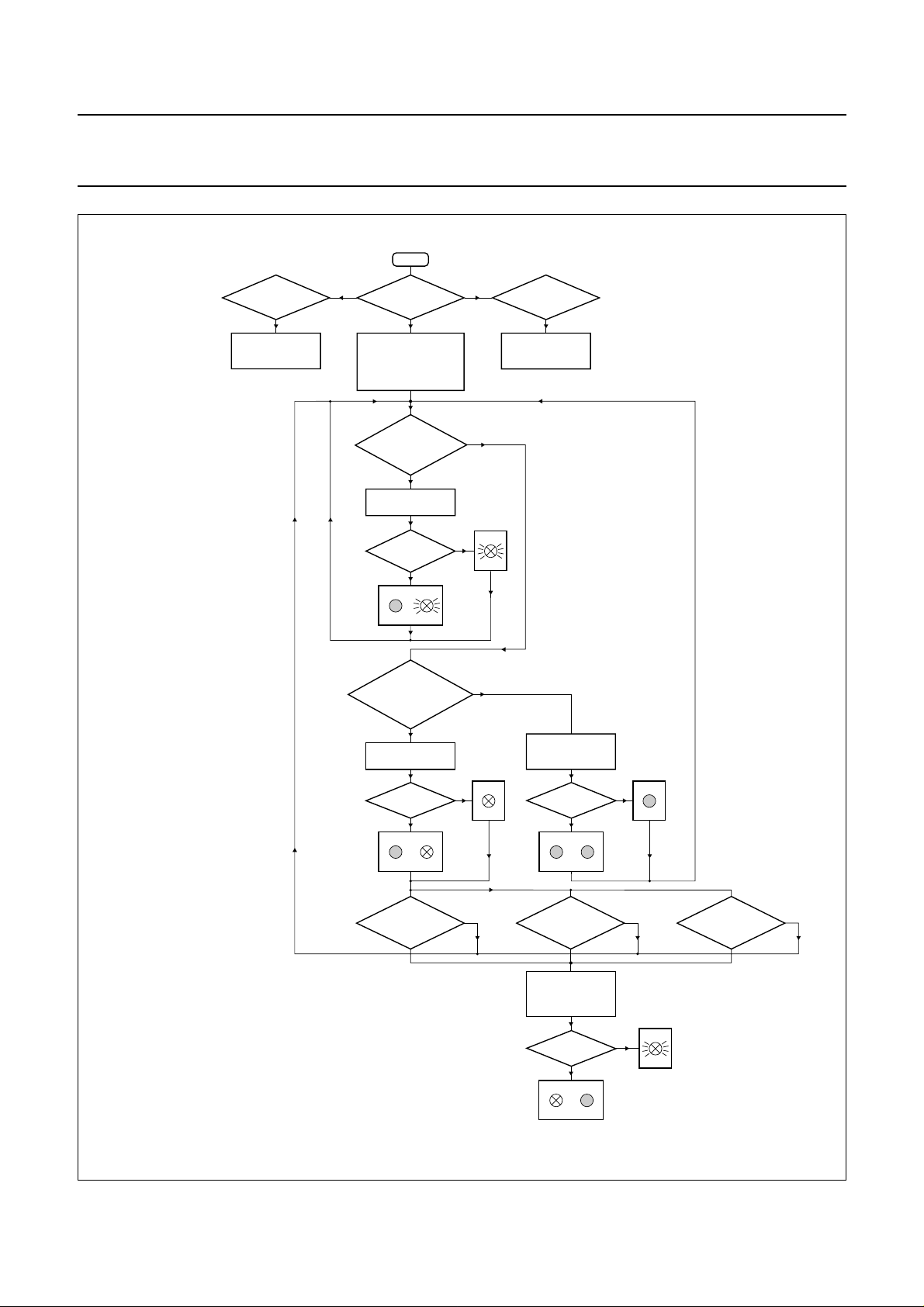

Fig.5 Flow chart of the TEA1104.

1996 Feb 26 7

Philips Semiconductors Objective specification

Cost effective battery monitor and fast

TEA1104; TEA1104T

charge IC for NiCd and NiMH chargers

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 134); note 1.

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

V

P

V

oLED

V

iNTC

V

i(OSC)

V

i(bat)

V

Rref

I

source

I

oLED

I

Rref

I

bat

V

P

P

tot

T

amb

T

j(max)

T

stg

supply voltage −0.5 +13.2 V
LED output voltage (pin 8) −0.5 V
negative temperature coefficient resistor

−0.5 +5 V

P

V

input voltage (pin 2)
oscillator input voltage (pin 7) −0.5 +5 V
battery input voltage (pin 4) −0.5 +5 V
reference resistor voltage (pin 5) −0.5 +5 V
output source current −3 +0.01 mA
LED output current − 25 mA
reference resistor current −1 +0.01 mA
battery current −1+1mA
supply current − 25 mA
total power dissipation T

amb

=70°C
TEA1104 − 0.5 W
TEA1104T − 0.35 W

operating ambient temperature −20 +70 °C
maximum operating junction temperature − +150 °C
storage temperature −55 +150 °C

Note

1. All voltages are measured with respect to ground; positive currents flow into the IC. The voltage ratings are valid
provided that other ratings are not violated; current ratings are valid provided that the power rating is not violated.

QUALITY SPECIFICATION

In accordance with

Reference Handbook”

“SNW-FQ-611 part E”

. The numbers of the quality specification can be found in the

. The handbook can be ordered using the code 9397 750 00192.

“Quality

1996 Feb 26 8

Philips Semiconductors Objective specification

Cost effective battery monitor and fast

TEA1104; TEA1104T

charge IC for NiCd and NiMH chargers

CHARACTERISTICS

= 10 V; T

V

P

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

Supply

V

P

/∆t supply voltage start rate −− 0.5 V/µs

∆V

P

V

clamp

V

start

V

pd

I

P

I

start

V

S

V

Rref

TC

Vref

I

Rref

=25°C; R

amb

=33kΩ;C

ref

= 1 nF; unless otherwise specified.

OSC

supply voltage 5.45 − 11.5 V

clamping voltage I

=25mA 11.5 − 12.8 V

clamp

start-up voltage 6.1 6.4 6.7 V
power-down voltage level 4.65 5.05 5.45 V
supply current outputs off −− 3mA
start-up current VP=4V − 45 50 µA
stabilized voltage IS= 1 mA 4.03 4.25 4.46 V
voltage range at reference resistor I
temperature coefficient of the

=20µA 1.18 1.25 1.31 V

Rref

T

= 0 to 45 °C −±60 ±120 ppm/K

amb

reference voltage
current range of the reference

10 − 100 µA

resistor

Temperature related input; NTC

V

i(co)

input voltage level for detecting

0.75 0.81 0.87 V

temperature cut-off

V

i(co; max)

maximum input voltage level for

0.92 1.0 1.08 V

detecting temperature cut-off

V

i(co; min)

minimum input voltage level for

1.85 2.0 2.15 V

detecting temperature cut-off

I

NTC

input current V

= 1.5 V −5 − +5 µA

NTC

Output drivers

δ

LED

V

LED(sat)

I

LI(LED)

LED pulse duty factor 2.4 2.5 2.6 %
LED saturation voltage I
LED input leakage current V

=15mA −− 600 mV

LED(sat)

=15V −− 5 µA

LED

Battery monitor

I

i(bat)

V
∆V

bat

bat/Vbat

input battery current V

= 2.4 V − 1 − nA

bat

voltage range for peak detection 0.81 − 3.6 V
peak detection level with respect to

V

=2V − 0.25 − %

bat

top level

T

j

temperature range of peak

0 − 50 °C

detection

Protections; BAT

V
V

bat(l)
bat(h)

low level battery protection voltage − 0.81 0.91 V
high level battery protection voltage 3.5 3.6 4.5 V

Oscillator

k correction factor 0.84 0.93 1.02
f

osc

frequency range 10 − 100 kHz

1996 Feb 26 9

Philips Semiconductors Objective specification

Cost effective battery monitor and fast
charge IC for NiCd and NiMH chargers

APPLICATION INFORMATION

A guideline for the settings of TEA1104 and its external
components selection is given based on an example of a
1 hour charger for a 4 cell NiCd or NiMH battery pack. The
basic application diagram as illustrated in Fig.6 which is
based on the application diagram illustrated in Fig.7 with
some additional components; a 2 LED charge status
indication has been provided.

For charging a battery within one hour the charge current
rating should be as follows:

Required minimum charge current = battery
capacity × 1.2/charge time.

Therefore, for a 1 Ah battery the external charge current
supply has to deliver at least 1.2 A.

TEA1104 settings

The fast charge back-up timer period, time-out, has to be
set in relation to the expected maximum charge time.
Normally, a safety back-up time is chosen approximately
25% longer than the maximum expected fast charge time.
For a one hour charger the time-out period can be set to

1.25 h.

Time-out relationship with the oscillator repetition time is
as follows;

t

= time-out (h) × 3600/2 exp28

osc

t

=17µs for time-out = 1.25 h

osc

t

is set with the combination of C

osc

where t

R

can be chosen between 13 and 120 kΩ, but a 27 kΩ

ref

= 0.93 × R

osc

ref

× C

osc

.

resistor is recommended. The oscillator capacitor can be
calculated which is 668 pF; the nearest higher practical
value is 680 pF.

osc

and R

ref

;

TEA1104; TEA1104T

In the trickle charge mode the LED output will pulsate with
a repetition time; t

The duty factor of the pulse is 2.5% of t
factor also applies to the charge current as the charge
current switch is driven by the LED output. Therefore, the
average trickle charge current is I
can be adapted to the battery voltage via the resistor
dividers R1 and R2. When an NTC thermistor has been
incorporated into the battery, the minimum, maximum and
cut-off temperature levels can be set with the resistors R3
and R4. For an NTC with a common sensitivity of 3965
and adjustment resistor values R3 = 13 kΩ, R4 = 20 kΩ
the minimum, maximum and cut-off temperatures will be 5,
42 and 50 °C respectively.

The flow chart of the TEA1104; TEA1104A is given in
Fig.5. The load state of the batteries can be displayed by
one or two LEDs. The flow chart is not to be regarded as
sequential. Each mode of operation is a purely separate
continuous process.

Table 1 Dual LED indication

CHARGER

MODE

Fast charging low high on off
Fast charging

protection
Full

(trickle charging)
Battery open high high off off

= 2 exp14 × t

trickle

V

LED

osc

/40. The V

fast

V

S

= 0.28 s.

. This duty

trickle

bat

LED 1 LED 2

low/high high on/off off

low/high low off on

input

1996 Feb 26 10

Philips Semiconductors Objective specification

Cost effective battery monitor and fast
charge IC for NiCd and NiMH chargers

handbook, full pagewidth

VP = 6.5 to 12 V

current
supply

+
+

1.2
kΩ

100

kΩ

LED 2

FULL

47
kΩ

BC548

BC548

LED1
FAST

BAW62

−

BD434

5.1
kΩ

270

Ω

LED V

GND OSCVref NTC

P

TEA1104

C

osc

VsV

TEA1104; TEA1104T

+

R1

4

bat

R3

R2

R

ref

R4

−θ

−

MGE357

cells

handbook, full pagewidth

Fig.6 Basic application diagram.

684 3

TEA1104

1752

−θ

MGE358

Fig.7 Application diagram.

1996 Feb 26 11

Philips Semiconductors Objective specification

Cost effective battery monitor and fast
charge IC for NiCd and NiMH chargers

PACKAGE OUTLINES

SO8: plastic small outline package; 8 leads; body width 3.9 mm

D

c

y

Z

8

5

TEA1104; TEA1104T

SOT96-1

E

H

E

A

X

v M

A

A

pin 1 index

1

e

DIMENSIONS (inch dimensions are derived from the original mm dimensions)

mm

A

max.

1.75

0.069

A

1

0.25

0.10

0.010

0.004

A2A

1.45

1.25

0.057

0.049

0.25

0.01

b

3

p

0.49

0.25

0.36

0.19

0.019

0.0100

0.014

0.0075

UNIT

inches

Notes

1. Plastic or metal protrusions of 0.15 mm maximum per side are not included.

2. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

4

w M

b

p

0 2.5 5 mm

scale

(1)E(2)

cD

5.0

4.8

0.20

0.19

eHELLpQZywv θ

4.0

1.27

3.8

0.16

0.050

0.15

2

A

6.2

5.8

0.244

0.228

Q

3

A

θ

0.25 0.10.25

0.010.010.041 0.004

(1)

0.7

0.3

0.028

0.012

o

8

o

0

L

p

L

0.7

0.6

0.028

0.024

(A )

1

detail X

1.0

1.05

0.4

0.039

0.016

OUTLINE
VERSION

SOT96-1

IEC JEDEC EIAJ

076E03S MS-012AA

REFERENCES

1996 Feb 26 12

EUROPEAN

PROJECTION

ISSUE DATE

95-02-04
97-05-22

Philips Semiconductors Objective specification

Cost effective battery monitor and fast
charge IC for NiCd and NiMH chargers

DIP8: plastic dual in-line package; 8 leads (300 mil)

D

seating plane

L

Z

b

e

b

8

1

5

A

A

1

w M

b

2

TEA1104; TEA1104T

SOT97-1

M

E

2

A

c

(e )

1

M

H

pin 1 index

E

1

DIMENSIONS (inch dimensions are derived from the original mm dimensions)

A

A

A

UNIT

max.

mm

inches

Note

1. Plastic or metal protrusions of 0.25 mm maximum per side are not included.

OUTLINE

VERSION

SOT97-1

12

min.

max.

050G01 MO-001AN

b

1.73

1.14

0.068

0.045

IEC JEDEC EIAJ

0.021

0.015

b

1

0.53

0.38

4

0 5 10 mm

scale

b

2

0.36

1.07

0.23

0.89

0.014

0.042

0.009

0.035

REFERENCES

(1) (1)

cD E e M

9.8

9.2

0.39

0.36

6.48

6.20

0.26

0.24

L

e

1

3.60

3.05

0.14

0.12

M

E

8.25

7.80

0.32

0.31

EUROPEAN

PROJECTION

10.0

0.39

0.33

H

8.3

w

max.

0.2542.54 7.62

1.154.2 0.51 3.2

0.010.10 0.30

0.0450.17 0.020 0.13

ISSUE DATE

92-11-17
95-02-04

(1)

Z

1996 Feb 26 13

Philips Semiconductors Objective specification

Cost effective battery monitor and fast
charge IC for NiCd and NiMH chargers

SOLDERING
Introduction

There is no soldering method that is ideal for all IC
packages. Wave soldering is often preferred when
through-hole and surface mounted components are mixed
on one printed-circuit board. However, wave soldering is
not always suitable for surface mounted ICs, or for
printed-circuits with high population densities. In these
situations reflow soldering is often used.

This text gives a very brief insight to a complex technology.
A more in-depth account of soldering ICs can be found in

“IC Package Databook”

our

DIP

SOLDERING BY DIPPING OR BY WA VE
The maximum permissible temperature of the solder is

260 °C; solder at this temperature must not be in contact
with the joint for more than 5 seconds. The total contact
time of successive solder waves must not exceed
5 seconds.

The device may be mounted up to the seating plane, but
the temperature of the plastic body must not exceed the
specified maximum storage temperature (T
printed-circuit board has been pre-heated, forced cooling
may be necessary immediately after soldering to keep the
temperature within the permissible limit.

R

EPAIRING SOLDERED JOINTS

Apply a low voltage soldering iron (less than 24 V) to the
lead(s) of the package, below the seating plane or not
more than 2 mm above it. If the temperature of the
soldering iron bit is less than 300 °C it may remain in
contact for up to 10 seconds. If the bit temperature is
between 300 and 400 °C, contact may be up to 5 seconds.

SO

REFLOW SOLDERING
Reflow soldering techniques are suitable for all SO

packages.

(order code 9398 652 90011).

). If the

stg max

TEA1104; TEA1104T

Several techniques exist for reflowing; for example,
thermal conduction by heated belt. Dwell times vary
between 50 and 300 seconds depending on heating
method. Typical reflow temperatures range from
215 to 250 °C.

Preheating is necessary to dry the paste and evaporate
the binding agent. Preheating duration: 45 minutes at
45 °C.

AVE SOLDERING

W
Wave soldering techniques can be used for all SO

packages if the following conditions are observed:

• A double-wave (a turbulent wave with high upward
pressure followed by a smooth laminar wave) soldering
technique should be used.

• The longitudinal axis of the package footprint must be
parallel to the solder flow.

• The package footprint must incorporate solder thieves at
the downstream end.

During placement and before soldering, the package must
be fixed with a droplet of adhesive. The adhesive can be
applied by screen printing, pin transfer or syringe
dispensing. The package can be soldered after the
adhesive is cured.

Maximum permissible solder temperature is 260 °C, and
maximum duration of package immersion in solder is
10 seconds, if cooled to less than 150 °C within
6 seconds. Typical dwell time is 4 seconds at 250 °C.

A mildly-activated flux will eliminate the need for removal
of corrosive residues in most applications.

EPAIRING SOLDERED JOINTS

R
Fix the component by first soldering two diagonally-

opposite end leads. Use only a low voltage soldering iron
(less than 24 V) applied to the flat part of the lead. Contact
time must be limited to 10 seconds at up to 300 °C. When
using a dedicated tool, all other leads can be soldered in
one operation within 2 to 5 seconds between
270 and 320 °C.

Reflow soldering requires solder paste (a suspension of
fine solder particles, flux and binding agent) to be applied
to the printed-circuit board by screen printing, stencilling or
pressure-syringe dispensing before package placement.

1996 Feb 26 14

Philips Semiconductors Objective specification

Cost effective battery monitor and fast

TEA1104; TEA1104T

charge IC for NiCd and NiMH chargers

DEFINITIONS

Data sheet status

Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.

Limiting values

Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 134). Stress above one or
more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation
of the device at these or at any other conditions above those given in the Characteristics sections of the specification
is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information

Where application information is given, it is advisory and does not form part of the specification.

LIFE SUPPORT APPLICATIONS

These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.

1996 Feb 26 15

Philips Semiconductors – a worldwide company

Argentina: IEROD, Av. Juramento 1992 - 14.b, (1428)

BUENOS AIRES, Tel. [phone], Fax. [phone]

Australia: 34 Waterloo Road, NORTH RYDE, NSW 2113,

Tel. [phone], Fax. [phone]

Austria: Triester Str. 64, A-1101 WIEN, P.O. Box 213,

Tel. [phone], Fax. [phone]

Belgium: Postbus 90050, 5600 PB EINDHOVEN, The Netherlands,

Tel. [phone], Fax. [phone]

Brazil: Rua do Rocio 220 - 5

CEP: 04552-903-SÃO PAULO-SP, Brazil,
P.O. Box 7383 (01064-970),
Tel. [phone], Fax. [phone]

Canada: PHILIPS SEMICONDUCTORS/COMPONENTS:

Tel. [phone], Fax. [phone]

Chile: Av. Santa Maria 0760, SANTIAGO,

Tel. [phone], Fax. [phone]

China/Hong Kong: 501 Hong Kong Industrial Technology Centre,

72 Tat Chee Avenue, Kowloon Tong, HONG KONG,
Tel. [phone], Fax. [phone]

Colombia: IPRELENSO LTDA, Carrera 21 No. 56-17,

77621 BOGOTA, Tel. [phone],
Fax. [phone]

Denmark: Prags Boulevard 80, PB 1919, DK-2300

COPENHAGEN S, Tel. [phone], Fax. [phone]

Finland: Sinikalliontie 3, FIN-02630 ESPOO,

Tel. [phone], Fax. [phone]

France: 4 Rue du Port-aux-Vins, BP317,

92156 SURESNES Cedex,
Tel. [phone], Fax. [phone]

Germany: P.O. Box 10 51 40, 20035 HAMBURG,

Tel. [phone], Fax. [phone]

Greece: No. 15, 25th March Street, GR 17778 TAVROS,

Tel. [phone] 911, Fax. [phone]

India: Philips INDIA Ltd, Shivsagar Estate, A Block,

Dr. Annie Besant Rd. Worli, Bombay 400 018
Tel. [phone], Fax. [phone]

Indonesia: Philips House, Jalan H.R. Rasuna Said Kav. 3-4,

P.O. Box 4252, JAKARTA 12950,
Tel. [phone], Fax. [phone]

Ireland: Newstead, Clonskeagh, DUBLIN 14,

Tel. [phone], Fax. [phone]

Italy: PHILIPS SEMICONDUCTORS S.r.l.,

Piazza IV Novembre 3, 20124 MILANO,
Tel. [phone], Fax. [phone]

Japan: Philips Bldg 13-37, Kohnan 2-chome, Minato-ku, TOKYO 108,

Tel. [phone], Fax. [phone]

Korea: Philips House, 260-199 Itaewon-dong,

Yongsan-ku, SEOUL, Tel. [phone], Fax. [phone]

Malaysia: No. 76 Jalan Universiti, 46200 PETALING JAYA,

SELANGOR, Tel. [phone], Fax. [phone]

Mexico: 5900 Gateway East, Suite 200, EL PASO, TX 79905,

Tel. [phone], Fax. [phone]

th

floor, Suite 51,

Netherlands: Postbus 90050, 5600 PB EINDHOVEN, Bldg. VB,

Tel. [phone], Fax. [phone]

New Zealand: 2 Wagener Place, C.P.O. Box 1041, AUCKLAND,

Tel. [phone], Fax. [phone]

Norway: Box 1, Manglerud 0612, OSLO,

Tel. [phone], Fax. [phone]

Pakistan: Philips Electrical Industries of Pakistan Ltd.,

Exchange Bldg. ST-2/A, Block 9, KDA Scheme 5, Clifton,
KARACHI 75600, Tel. [phone],
Fax. [phone]

Philippines: PHILIPS SEMICONDUCTORS PHILIPPINES Inc.,

106 Valero St. Salcedo Village, P.O. Box 2108 MCC, MAKATI,
Metro MANILA, Tel. [phone], Fax. [phone]

Portugal: PHILIPS PORTUGUESA, S.A.,

Rua dr. António Loureiro Borges 5, Arquiparque - Miraflores,
Apartado 300, 2795 LINDA-A-VELHA,
Tel. [phone], Fax. [phone]

Singapore: Lorong 1, Toa Payoh, SINGAPORE 1231,

Tel. [phone], Fax. [phone]

South Africa: S.A. PHILIPS Pty Ltd.,

195-215 Main Road Martindale, 2092 JOHANNESBURG,
P.O. Box 7430, Johannesburg 2000,
Tel. [phone], Fax. [phone]

Spain: Balmes 22, 08007 BARCELONA,

Tel. [phone], Fax. [phone]

Sweden: Kottbygatan 7, Akalla. S-164 85 STOCKHOLM,

Tel. [phone], Fax. [phone]

Switzerland: Allmendstrasse 140, CH-8027 ZÜRICH,

Tel. [phone], Fax. [phone]

Taiwan: PHILIPS TAIWAN Ltd., 23-30F, 66, Chung Hsiao West

Road, Sec. 1. Taipeh, Taiwan ROC, P.O. Box 22978,
TAIPEI 100, Tel. [phone], Fax. [phone]

Thailand: PHILIPS ELECTRONICS (THAILAND) Ltd.,

209/2 Sanpavuth-Bangna Road Prakanong,
Bangkok 10260, THAILAND,
Tel. [phone], Fax. [phone]

Turkey:Talatpasa Cad. No. 5, 80640 GÜLTEPE/ISTANBUL,

Tel. [phone], Fax. [phone]

Ukraine: Philips UKRAINE, 2A Akademika Koroleva str., Office 165,

252148 KIEV, Tel.[phone], Fax. [phone]

United Kingdom: Philips Semiconductors LTD.,

276 Bath Road, Hayes, MIDDLESEX UB3 5BX,
Tel. [phone], Fax. [phone]

United States:811 East Arques Avenue, SUNNYVALE,

CA 94088-3409, Tel. [phone], Fax. [phone]

Uruguay: Coronel Mora 433, MONTEVIDEO,

Tel. [phone], Fax. [phone]

Internet: http://www.semiconductors.philips.com/ps/
For all other countries apply to: Philips Semiconductors,

International Marketing and Sales, Building BE-p,
P.O. Box 218, 5600 MD EINDHOVEN, The Netherlands,
Telex 35000 phtcnl, Fax. [phone]

SCDS47 © Philips Electronics N.V. 1996

All rights are reserved. Reproduction in whole or in part is prohibited without the
prior written consent of the copyright owner.

The information presented in this document does not form part of any quotation
or contract, is believed to be accurate and reliable and may be changed without
notice. No liability will be accepted by the publisher for any consequence of its
use. Publication thereof does not convey nor imply any license under patent- or
other industrial or intellectual property rights.

Printed in The Netherlands

417021/1100/02/pp16 Date of release: 1996 Feb 26
Document order number: 9397 750 00692
