Philips TPS764, TPS770, TPS772, TCS760, TCS770 Brochure & Specs
...
Suspended and
surface-mounted luminaires
Philips indoor luminaires Suspended and surface-mounted luminaires 3.2
Luminaire family Product range Page Mounting Light distribution
Suspended Surface-mounted Free standing Dir
ect Direct/indirect
Strato
TPH710 3.10
• •
Savio
TPS760/762/764 3.18
• • •
TPS770/772 3.20
• • •
TCS760 3.22
• •
TCS770 3.24
• •
Rotaris
TPS740/745 3.28
• •
TCS740 3.30
• •
Celino

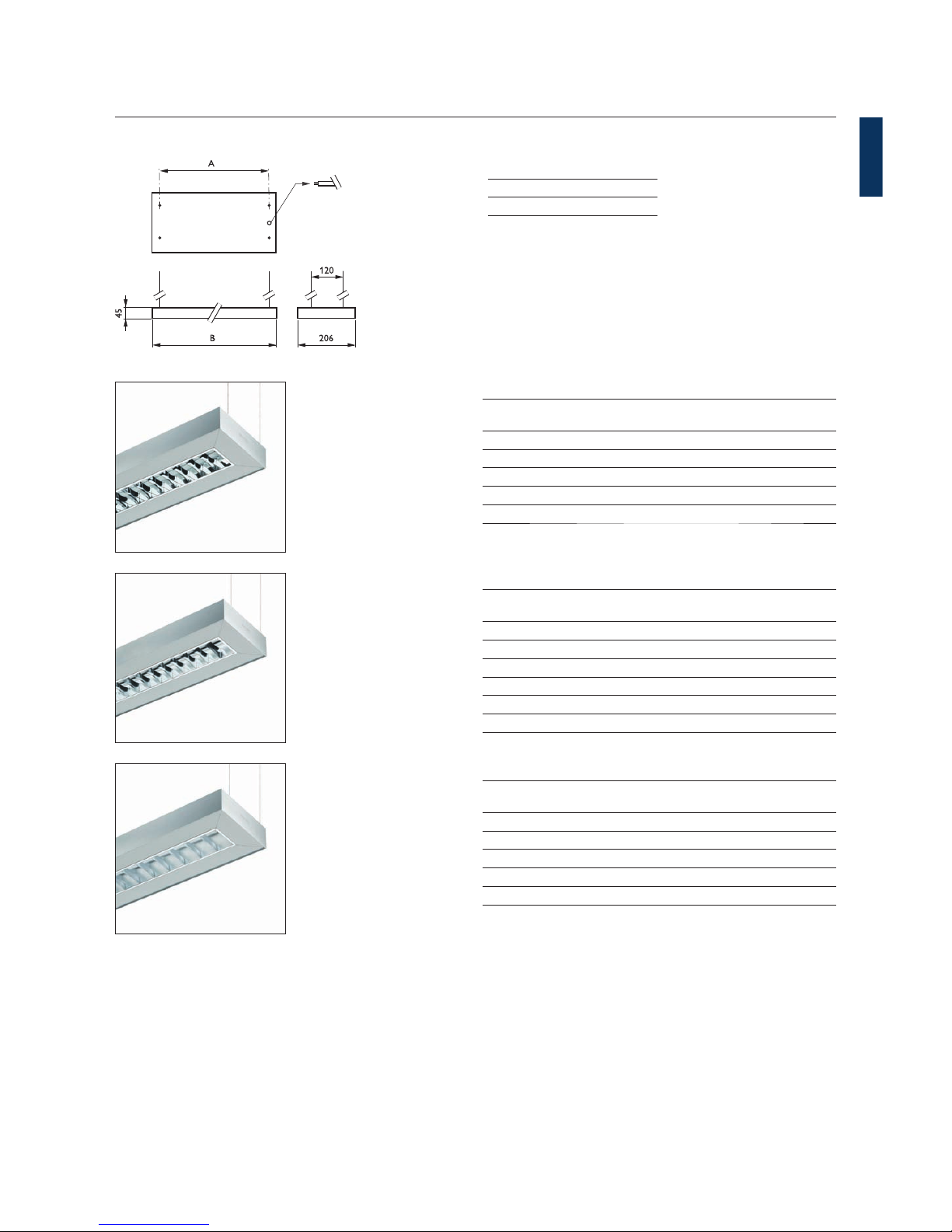

TPS680/682 3.34
• •

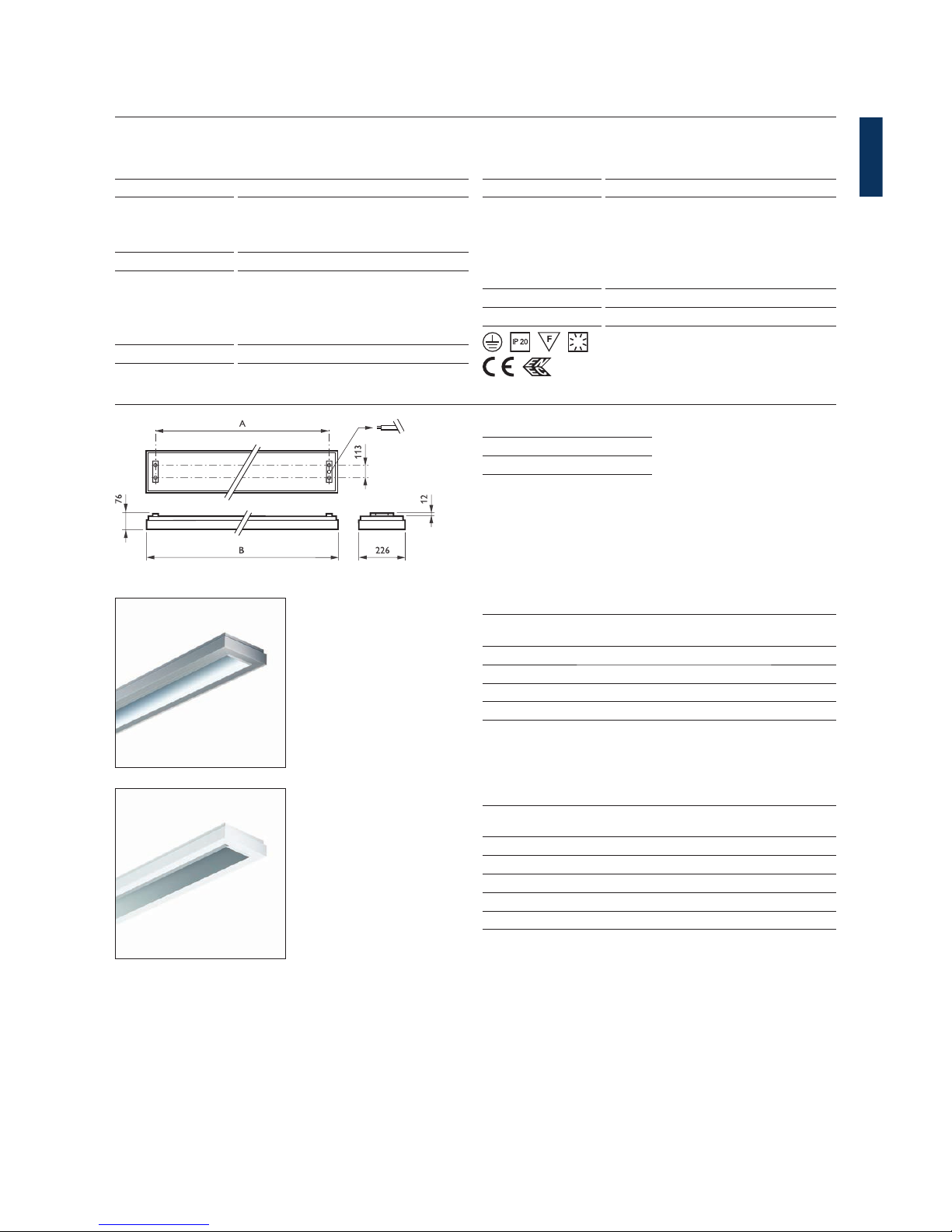

TCS680 3.38
••
Arano
TPS640/642/644 3.42
• • •
TPS646, Nordic 3.54
• •

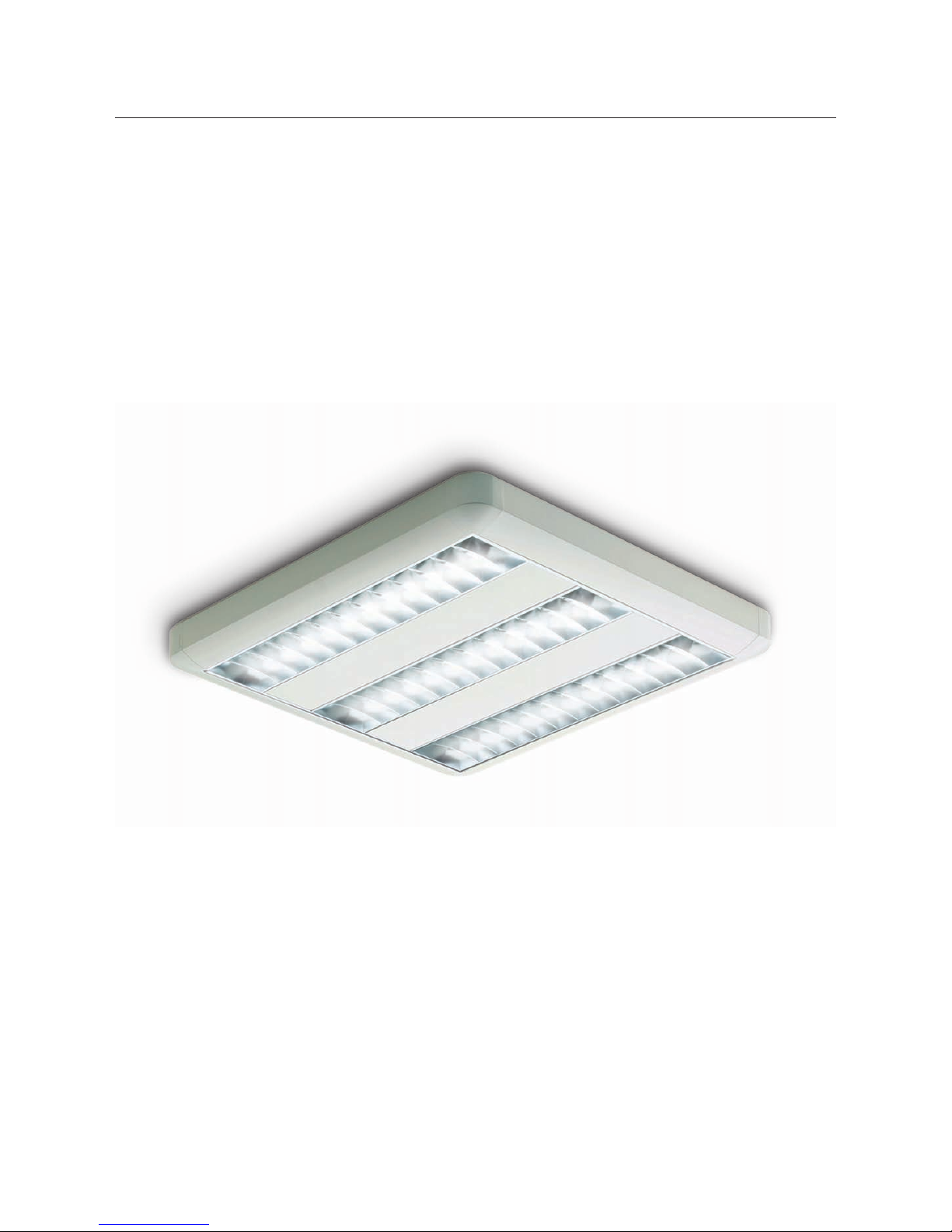

TCS640 3.48
• •
TCS649, asymmetric 3.52
•
ThinMark
TPS580 3.58
• •
X-tendolight
TPS498 3.62
• • •

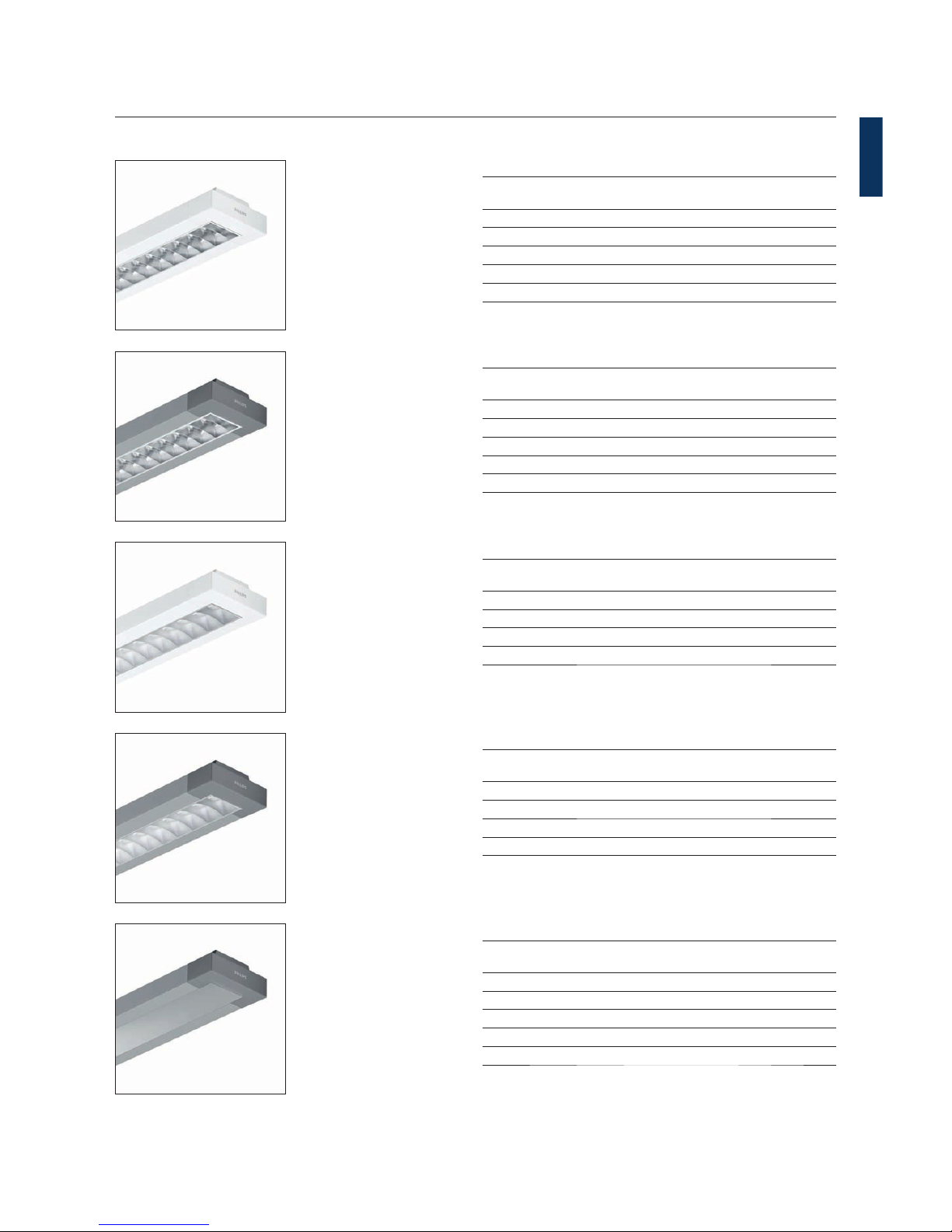

TCS398 195 mm wide 3.68
• • •
TCS398 311 mm wide 3.74
• •
TCS398 CLL 3.73
• • • •

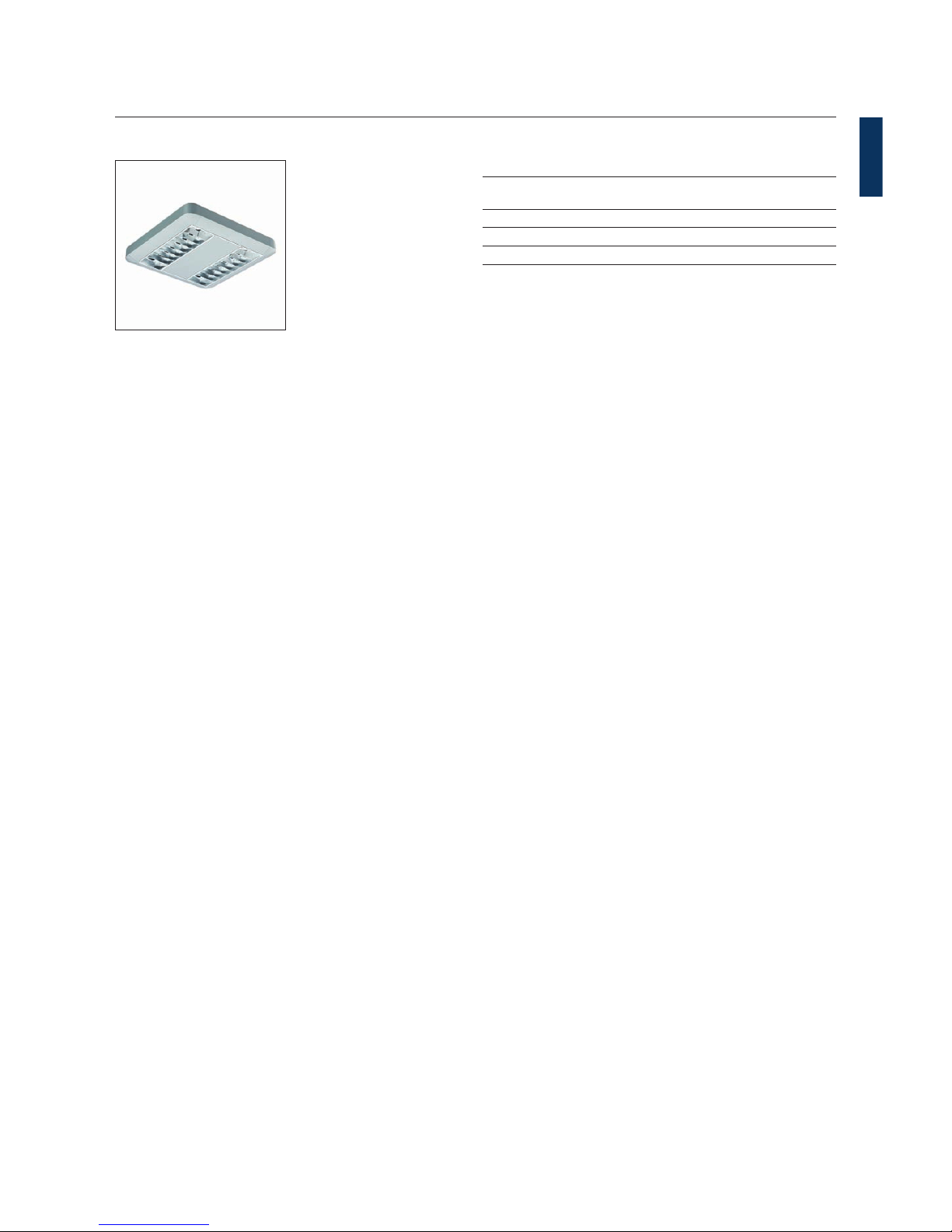

TCS398 Square 3.76
• •
FCS398 Square 3.92
•
EFix
TPS262 3.82
• •

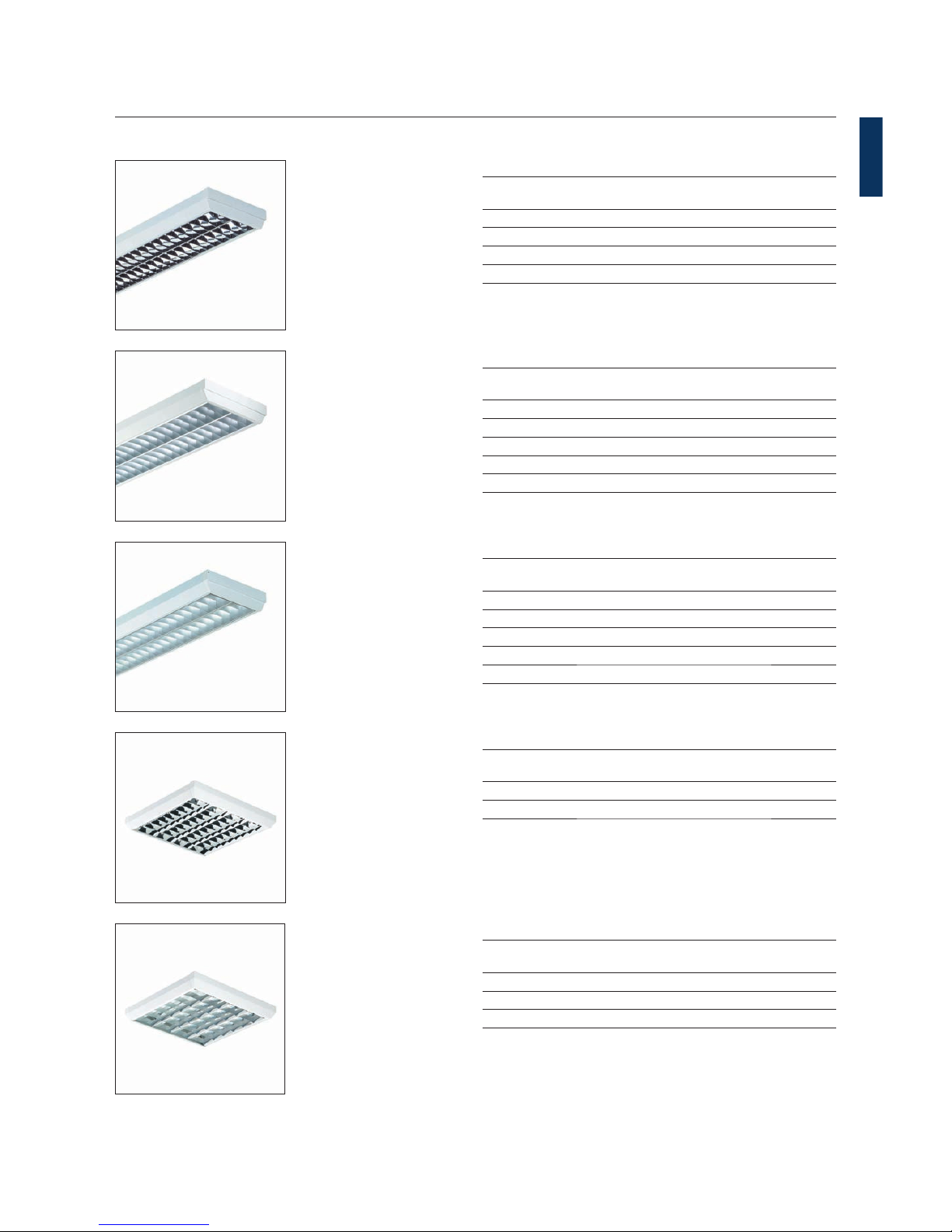

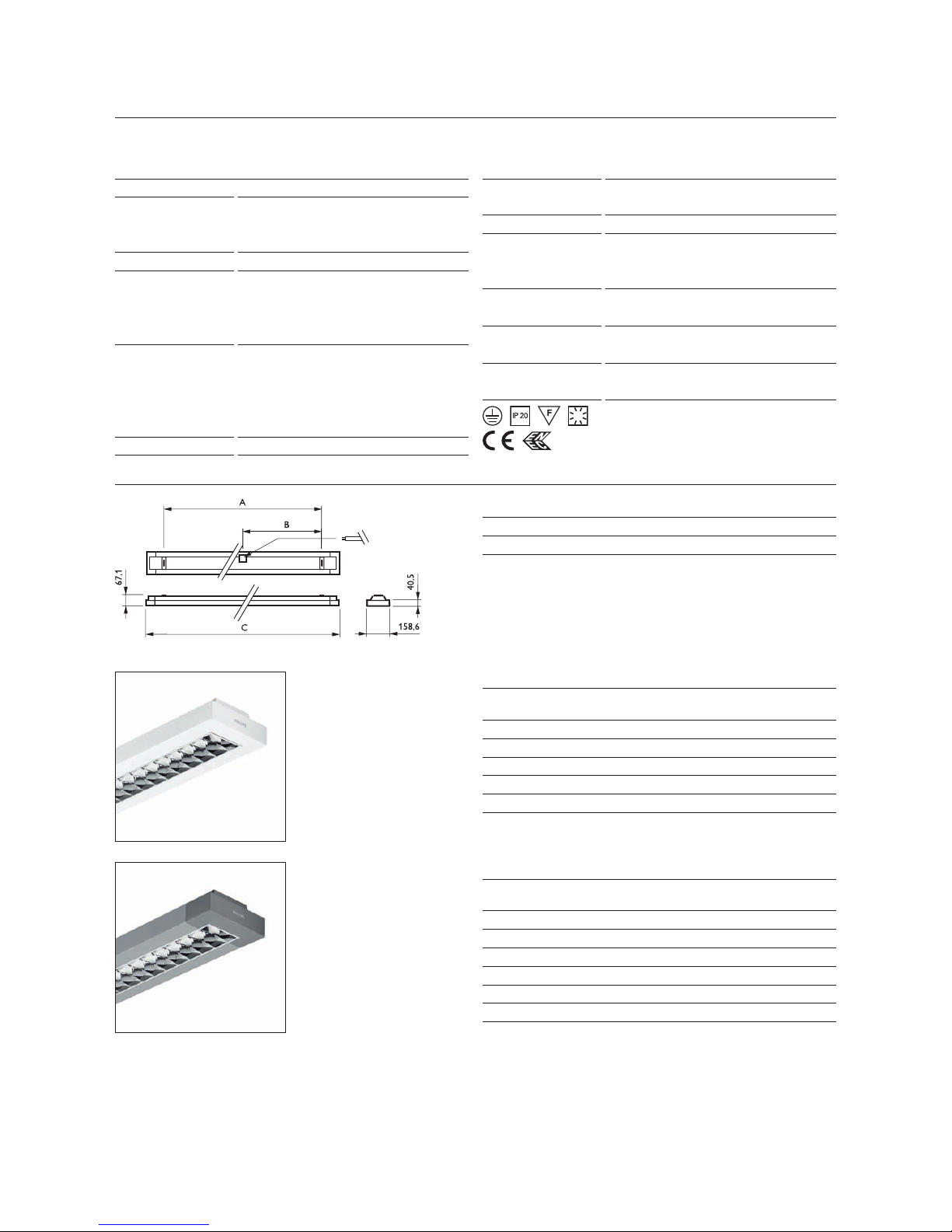

TCS260 3.86
• • • •
TCS257
TCS257 3.90
• •
Finess
TCS198 3.96
• •
Selection guide – Suspended and surface-mounted luminaires
3.3
Suspended and surface-mounted luminaires
Suspended and surface-mounted luminairesPhilips indoor luminaires
Selection guide – Suspended and surface-mounted luminaires
Product range Light distribution Number of lamps Lamps
Indirect Asymmetric Double asymmetric Fluorescent Compact fluorescent
TL5 TL5-C TL-D PL-L
Strato
TPH710 4x2, 4x3
•
Savio
TPS760/762/764 2,4
•
TPS770/772 3,6
•
TCS760 2,4
•
TCS770 3,6
•
Rotaris
TPS740/745 1
•
TCS740 1
•
Celino
TPS680/682 1,2
•
TCS680 1,2
•
Arano
TPS640/642/644 1,2
TPS646, Nordic 3
•
TCS640 1,2,3,4
•
TCS649, asymmetric
•
1,2
•
ThinMark
TPS580 1,2
•
X-tendolight
TPS498 1,2
• •
TCS398 195 mm wide
• •
1
• •
TCS398 311 mm wide
•
2
• •
TCS398 CLL
•
1,2
• •
TCS398 Square 3,4
• •
FCS398 Square 2,3
•
EFix
TPS262 1,2
•
TCS260 1,2
•
TCS257
TCS257 2,3,4
•
Finess
TCS198 1,2
•
Philips indoor luminairesSuspended and surface-mounted luminaires3.4
Luminaire family Product range Page Mounting Light distribution
Suspended Surface-mounted Free standing Direct Direct/indirect
Centura2
TCS160 3.102
• •
Modella
TCS125 3.106
• •
TCS147
TCS147 3.108
• •
TCS047
TCS047 3.110
• •
SuperOmni
TCH481 3.112
• • •
Wall-mounted luminaires
Savio
TWS760 3.116
•
Arano
TWS640 3.120
•
Celino
TWS680 3.122
•
Free floor-standing luminaires
Savio
FFS764 4, 4
• •
TFS764 4.4
•
•
Arano
FFS644 4.8
• •
TFS644 4.8
• •
Celino
FFS684 4.12
• •
Selection guide – Suspended and surface-mounted luminaires
3.5
Suspended and surface-mounted luminaires
Suspended and surface-mounted luminairesPhilips indoor luminaires
Product range Light distribution Number of lamps Lamps
Indirect Asymmetric Double asymmetric Fluorescent Compact fluorescent
TL5 TL5-C TL-D PL-L
Centura2
TCS160 1,2,4
•
Modella
TCS125 1,2
• •
TCS147
TCS147 2,4
•
TCS047
TCS047 2,4
•
SuperOmni
TCH481
•
2,4
• • •
Wall-mounted luminaires
Savio
TWS760 2
•
Arano
TWS640 1
•
Celino
TWS680 1
•
Free floor-standing luminaires
Savio
FFS764 3
•
TFS764 3,4
•
Arano
FFS644 2,3
•
TFS644 4
•
Celino
FFS684 2
•
Selection guide – Suspended and surface-mounted luminaires
Philips indoor luminaires3.6
MASTER TL5 lamps
Suspended and surface-mounted luminaires
Philips MASTER TL5 – the perfect
t every time
Philips invented the T5 uorescent concept in the 1990s, making Philips MASTER
TL5 lamps the original 16 mm lamps. Philips has MASTER TL5 lamps to suit
every application, as well as an extensive portfolio of MASTER TL5 luminaires,
gear and controls.
MASTER TL5 lamps are operated on HF gear and offer the following benets:
• up to 28% less energy consumption than T8 lamps on electromagnetic gear
• maximum energy efciency: up to 104 lm/W
• very good color rendering
• long life of 19,000 hours (10% failure rate).
For a complete overview of all our MASTER TL5 lamps, we refer to page 12.14.
Philips indoor luminaires 3.7
MASTER TL5 lamps
Suspended and surface-mounted luminaires
Suspended and surface-mounted luminaires
Best environmental choice
Environmentally, Philips MASTER TL5 lamps and gear offer the highest energy
efciency for uorescent lighting, resulting in the lowest CO2 emissions. All
products are RoHS-compliant. MASTER TL5 lamps use less glass, metal and
packaging, and their lower weight offers transport and recycling benets.
www.philips.com/mastertl5
Innovative luminaires
Philips has a history of innovative advances in optic design, including the renowned
OLC (Omni-directional Luminance Control) optics introduced at the time of the
launch of the MASTER TL5 lamp. Continuing this tradition, our latest luminaires
feature OLC micro optics. These allow luminaires to be miniaturist in design, with
optimum performance in terms of light distribution, visual comfort and efciency.
Lighting controls for MASTER TL5 lamps
Philips offers control systems that switch the lights off when an area is vacated
and/or react to the level of daylight by adjusting the articial light.
MASTER TL5 lamps with Philips electronic (HF) gear
By using Philips TL5 electronic (HF) gear you can be sure that the lamp and gear
work perfectly together, because they have been designed, developed, tested and
optimized for each other. (HF) gear maximizes energy savings, improves user
comfort by eliminating start-up icker and strobe effects, improves safety with
over-voltage detection and extends lamp life.
Philips indoor luminaires3.8
ActiViva
Suspended and surface-mounted luminaires
Philips ActiViva – get activated
Good lighting doesn’t only enable us to see, it also affects how we feel. On dull, dark days, the
absence of bright light can dampen our mood and make us feel as miserable as the weather.
But a ray of sunshine is sometimes all it takes to lift our spirits and make us feel invigorated.
For several years now we’ve been working with leading universities to understand the highly
complex relationship between light and well-being.
This has led to the development of Philips ActiViva lamps. These revolutionary new lamps
contain an optimized amount of blue light and in this way make people feel more energized.
So instead of feeling tired, people are able to stay alert and focused to concentrate on the
task at hand..
Philips indoor luminaires 3.9
ActiViva
Suspended and surface-mounted luminaires
Suspended and surface-mounted luminaires
MASTER TL5 ActiViva
Active and Natural
• 24 W, 49 W and 54 W
• Colour Rendering Index >80
• Lumen output:
24 W: 1650
49 W: 4100
54 W: 4250
MASTER TL-D ActiViva
Natural
• 18 W, 36 W and 58 W
• Colour Rendering Index >80
• Lumen output:
18 W: 1300
36 W: 3250
58 W: 5000
ActiViva Natural lamps
provide natural, cool light that contains 25% more blue light than existing cool-
daylight lamps, and combine well with other light sources in existing installations.
They are available in TL5 and TL-D versions.
ActiViva Active lamps
are available in TL5 and provide extremely cool light with 85% more blue light than
current cool-daylight lamps. Due to the high blue light content, these lamps can
create a real sky effect.
All types are retro-ttable into existing ttings, making them quick and easy to
install.
www.philips.com/activiva
With Philips ActiViva lamps With traditional lamps
Philips indoor luminaires3.10
Suspended and surface-mounted luminaires
Strato
Philips indoor luminaires 3.11
Suspended and surface-mounted luminaires
Suspended and surface-mounted luminaires
Strato – my sky
Strato is a modular light ceiling that brings the natural, appealing dynamic of
daylight – with its changing color temperatures – into shops, ofces and other
public areas. It also offers dynamic constellations of color for imaginative,
dedicated lighting ambiences. With its discreet design and high-quality materials,
this light ceiling integrates harmoniously with the interior architecture.
The 1200 x 1200 mm Strato module has a translucent PMMA cover with an integrated
patented diffuser to create a virtually homogeneous luminous surface. The cover can be
suspended via a damped spring locking system to facilitate easy maintenance. Multiple Strato
modules can be connected.
Strato’s modularity enables it to be tailored to the specic layout of the space and to adapt to
any subsequent changes to that layout. And its minimal depth (165 mm) means that it can be
used in rooms with relatively low ceilings. Strato can be suspended or wall-mounted.
Strato comes in two versions:
Strato Sky features 4 x 2 x TL5 28 W lamps and light colors 827 and 865 for color mixing.
Strato Rainbow features 4 x 3 x TL5 28 W lamps and light colors red, green and blue for color
mixing.
www.philips.com/lighting
Philips indoor luminaires3.12
Strato
Suspended and surface-mounted luminaires
Strato
Type TPH710
Light source Fluorescent:
Sky version:
4 x 2 x MASTER TL5 / G5 / 28 W
Rainbow version:
4 x 3 x TL5 / G5 / 28 W
Lamp included Yes (lamp color RGB or 827/865)
Gear Electronic, 220 - 240 V / 50 - 60 Hz:
High Frequency Regulator (HFR) or DALI
(HFD)
Option Lighting controls: customized solutions possible
Material Housing: sides from extruded aluminum proles,
steel top cover
Cover: two layer PMMA (with integrated diffuser)
Optics: high-purity aluminum mirrors
Installation Surface (wall or ceiling): screw mounting
Suspended: with various suspension sets
Luminaire modules can be connected to one
another with mounting accessories
Accessory Suspension sets, mounting brackets
Remarks Cover can be suspended via a damped spring
locking system (easy maintenance)
Main applications Shopping malls, areas with missing daylight, ofce,
hospitality
Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.
TPH710
Strato TPH710, modular lighting panel
with a translucent acrylate cover with
an integrated diffuser
Preferred selection
Product ID Weight
(kg)
European Order
Code (EOC)
TPH710 12xTL5-28W/RGB HFD 33.40 213511 00
TPH710 12xTL5-28W/RGB HFR 33.40 213528 00
TPH710 8xTL5-28W/827/865 HFD 31.60 213535 00
TPH710 8xTL5-28W/827/865 HFR 31.60 213542 00
Please contact your local Philips representative for additional congurations
Philips indoor luminaires 3.13
Strato
Suspended and surface-mounted luminaires
Suspended and surface-mounted luminaires
Accessories
Product ID EOC
ZPH710 MB-SW (4PCS) 214044 00
ZPH710 CP-SW (2PCS) 214051 00
ZPH710 CPL-SW 214075 00
ZPH710 SMB (4PCS) 214082 00
ZPH710 CPX-SW 214068 00
The cover can be suspended via a
damped spring locking system to
facilitate maintenance.
Philips indoor luminaires3.14
Suspended and surface-mounted luminaires

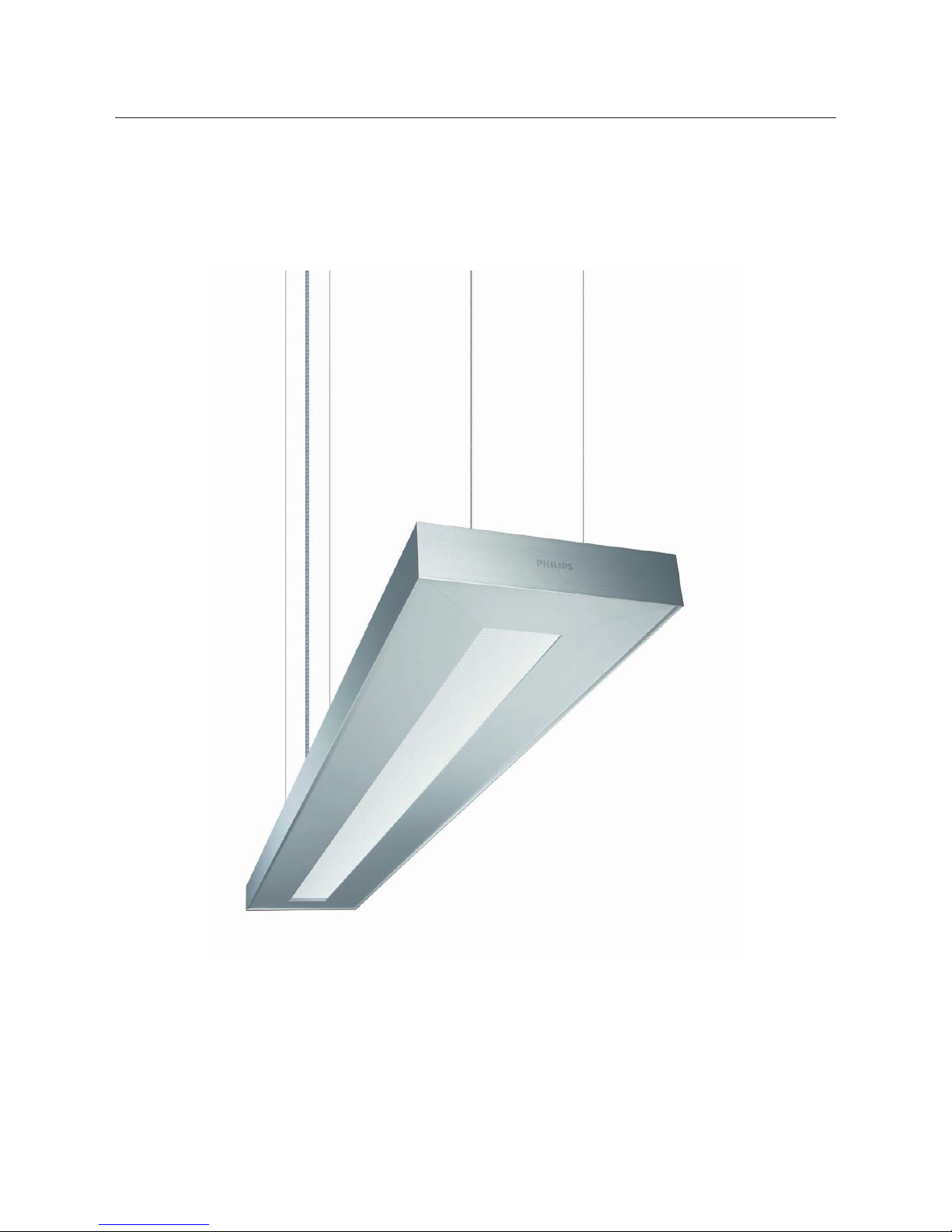

Savio TPS760/762/764/770/772, TCS760/770
Philips indoor luminaires 3.15
Suspended and surface-mounted luminaires
Suspended and surface-mounted luminaires

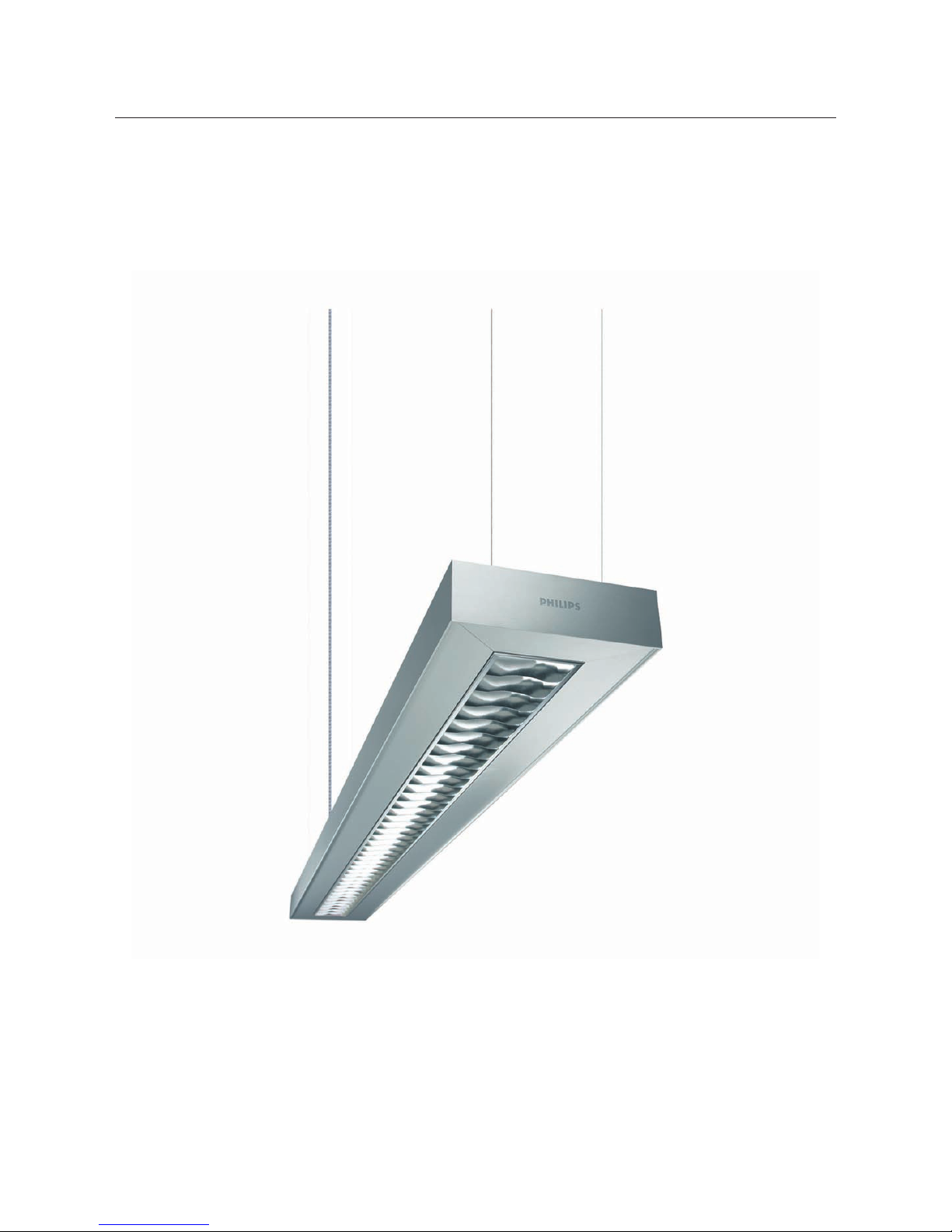

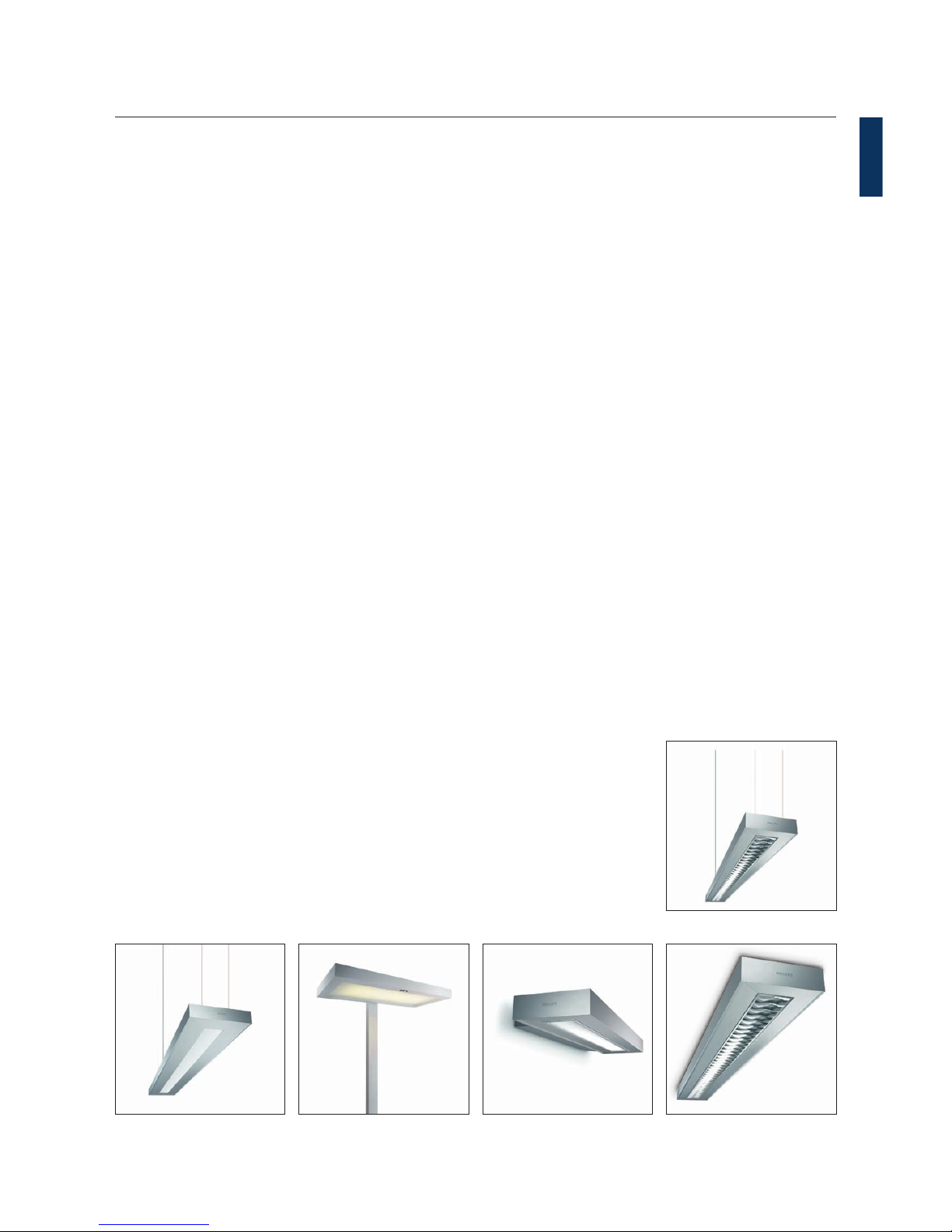

Savio – pure light
Featuring Philips’ patented micro-lens optic technology, Savio is a complete
luminaire range that offers the ideal combination of stylish design and optimum
performance for both task and general lighting.
Savio has an edge-to-edge lighting appearance with a uniform and comfortable brightness
impression – a real ‘surface of light’. The micro-lens optic consists of a single plate and is
embedded in a housing made of high-quality natural anodized aluminum. Savio ensures optimum
light distribution and full glare control in compliance with the latest ofce-lighting norm (EN
12464-1).
Savio luminaires with Dynamic Lighting keep us feeling active by creating dynamic articial light
that varies over the course of the day or is set according to personal preference.
Savio is available as a full range: suspended, surface-mounted, recessed, free-standing and wall-
mounted.
www.philips.com/lighting

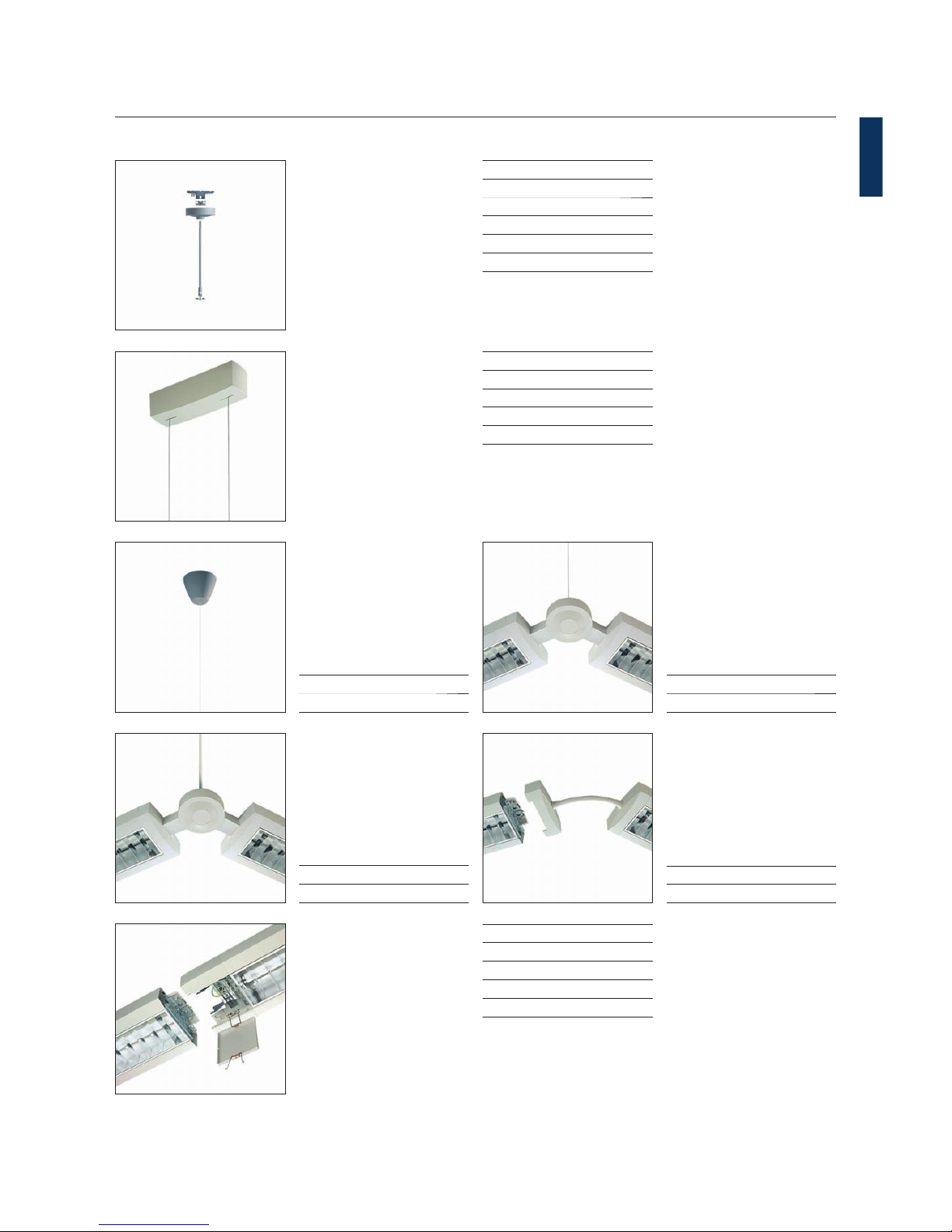

Double steel-wire suspension set with
ceiling xation and ceiling caps (SMS).
Fast ne adjustment can be performed
with a clutch device. A metal-like
power cord is included. The set is
delivered along with the rectangular
luminaire versions.
Set of four single steel-wire suspensions
with ceiling xation (SM4). A separate
ceiling cap is included for the metal-like
power cord. The set is delivered along
with the square luminaire versions.
Savio recessedSavio suspended
Savio wall-mountedSavio free oor-standingSavio surface-mounted
Philips indoor luminairesSuspended and surface-mounted luminaires3.16
Savio - Suspended and surface-mounted luminaires
Savio – surface of light
Besides outstanding lighting performance, aesthetic appeal and architectural
integration were key drivers in the development of Savio. The patented micro-
lens optic provides a uniform light distribution, ensuring an even and
comfortable brightness impression. Completing the effect of an edge-to-edge
‘surface of light’, the micro-lens optic is secured by a translucent rim around the
luminaire.
Savio’s design also allows multiple luminaires to be connected in a line or block arrangement,
ensuring maximum freedom in application and conguration.
Philips indoor luminaires Suspended and surface-mounted luminaires 3.17
Savio - Suspended and surface-mounted luminaires
Suspended and surface-mounted luminaires
Micro-lens optic
With the new patented micro-lens optic (MLO), the lamps are not directly visible and full glare control
from all viewing angles is a reality (Omnidirectional Luminance Control, OLC). The micro-lens optic is highly
efcient and meets the latest ofce standards: Lm<1000 cd/m2 in all viewing directions at γ ≥ 65º and
UGRR<19 (EN 12464-1).
This means no disturbing glare on PC or laptop screens, regardless of where they are positioned in the room.
The micro-lens optic provides a uniform light distribution, ensuring an even and comfortable brightness
impression – a real ‘surface of light’. The micro-lens optic is secured by a translucent rim around the luminaire.
The patented micro-lens optic design uses conical lenses with inverted tops that are positioned in a square
array for the best possible glare control. The optic fully justies the designation ‘micro’ since there are over 35
high-precision lenses per square centimeter.
Edge-to-edge lighting The principle The cone
The trend towards multi-skilled knowledge workers and attening hierarchies will transform tomorrow’s ofce.
Ofce spaces will take on a more social role of bringing knowledge workers together in physical proximity.
They will be places where people come together to think, communicate and create. This vision has driven the design
and development of Savio, with freedom in application and conguration being a key objective. Its design allows multiple
luminaires to be connected in a line or block arrangement.
Line arrangement Block arrangement
Philips indoor luminaires3.18
Savio TPS760/762/764/770/772, TCS760/770
Suspended and surface-mounted luminaires
Savio
Type TPS760 (direct lighting, standard version)
TPS762 (direct 70% / indirect 30% lighting,
standard version)
TPS764 (direct 30% / indirect 70% lighting,
standard version)
Light source Fluorescent:
2 x or 4 x MASTER TL5 / G5 / 14, 24, 28, 35, 49,
54, 80 W
Lamp included Yes, lamp color 451 (ActiViva Natural),
452 (ActiViva Active), 827, 830 or 840)
No
Gear Electronic, 220 - 240 V / 50 - 60 Hz:
High Frequency Performer, Intelligent (HFP-I)
High Frequency Performer (HFP)
High Frequency Regulator, DALI (HFD)
High Frequency Regulator (HFR)
High Frequency Regulator, touch-switch
(HFD-T)
Optical cover Acrylate micro lens optic (AC-MLO)
Polycarbonate micro lens optic (PC-MLO)
Connection Push-in connector
Option Diffuser tted
Open housing (HO)
Emergency lighting: 3 hours (EL3)
Lighting controls: ActiLume multi controller (ACL)
Euro fuse (FU) included
Housing conguration
(for line arrangements)
Line end (LE), for ending a line
Line feature (LF), for insertion in a line
Material Housing: anodized aluminum
Optical cover: PMMA (optional is polycarbonate)
Rim: polycarbonate (translucent)
Installation Rectangular versions:
Individual or line; suspended mounting with
a set of two double steel-wire suspensions
(SMS) or with a set of two triangular steel-wire
suspensions (SMT), both with metal-like power
cord, 150 cm, and ceiling caps
Square versions:
Individual; suspended mounting with a set of
four single steel-wire suspensions including a
metal-like power cord, 150 cm and ceiling cap
(SM4)
Square versions in block arrangement:
Suspended mounting with a set of single steel-
wire suspensions including a metal-like power
cord, 150 cm, and ceiling cap (SBM)
Fast ne adjustment with clutch device (Reutlinger)
Accessory Coupling set for square block arrangement
Remarks MLO optic ensures optimum light distribution and
full glare control in all viewing directions compliant
with the current norm for indoor working places
(EN12464-1, UGR
r
, 19, Lm < 1000 cd/m2 at γ >
65º)
Luminaires standard delivered without diffuser
(ND)
Dedicated line arrangement luminaires (LE and LF
types) include all connection and suspension parts
and through-wiring
Dedicated ready to install versions available (KIT)
Main applications Ofce, department stores
Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

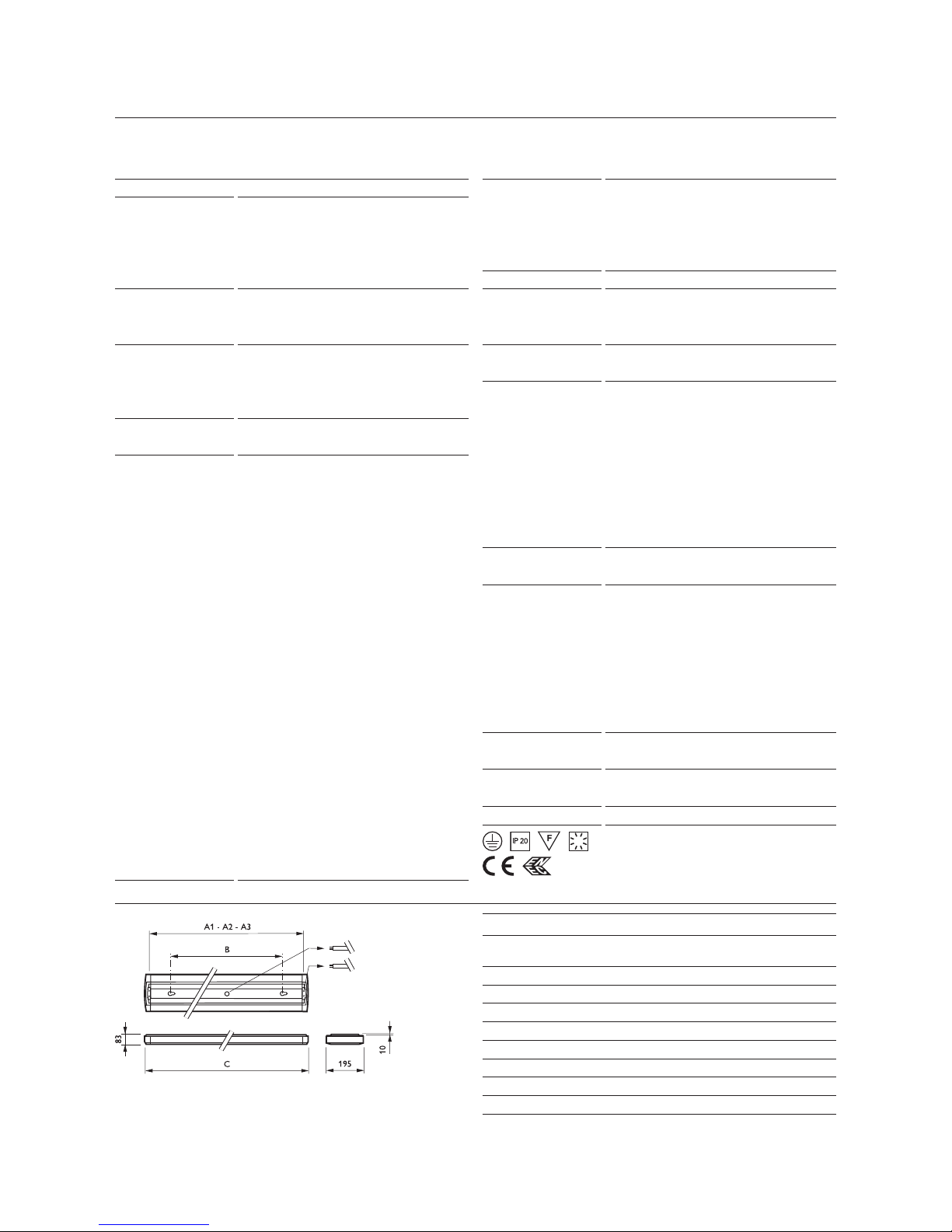

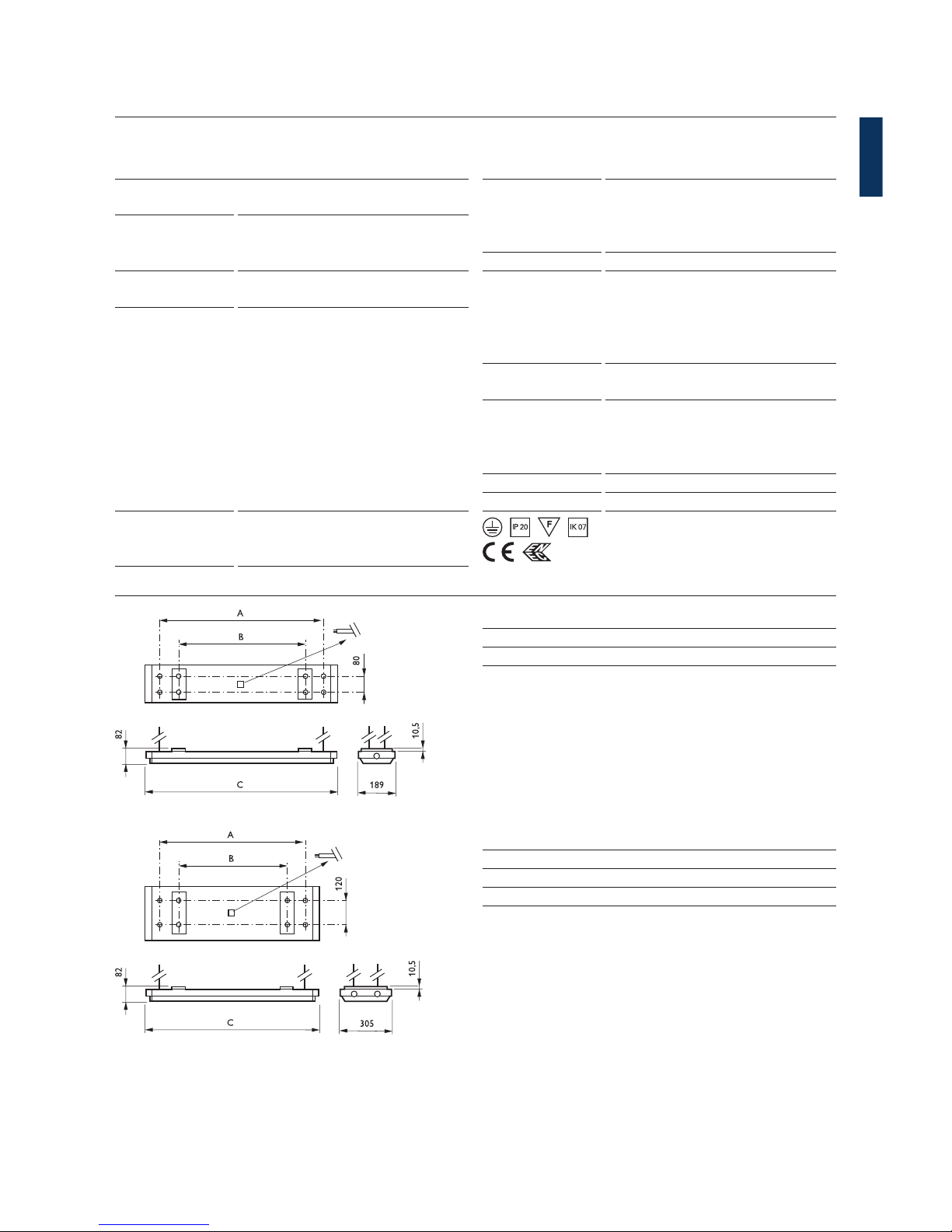

TPS760/762/764 2 x TL5, TPS770/772 3 x TL5
TPS760/762/764 3 x TL5
A B
28W, 54W 1100 1259
35W, 49W, 80W 1400 1559
Philips indoor luminaires 3.19
Savio TPS760/762/764/770/772, TCS760/770
Suspended and surface-mounted luminaires
Suspended and surface-mounted luminaires
Savio TPS760/762/764 suspended
luminaire with PMMA micro-lens optic
(AC-MLO) for direct or direct/indirect
lighting
Preferred selection
Product ID Weight
(kg)
European Order
Code (EOC)
TPS760 2x54W/840 HFP ND AC-MLO SMS 7.80 756257 00
TPS762 2x28W/840 HFP ND AC-MLO SMS 7.80 756448 00
TPS764 2x54W/840 HFP ND AC-MLO SMS 7.80 756868 00
TPS772 3x28W/827/865 HFD AC-MLO SMS 7.70 759135 00
Please contact your local Philips representative for additional congurations
Savio TPS760/762/764 suspended
luminaire with PMMA micro-lens optic
(AC-MLO) for direct or direct/indirect
lighting
Preferred selection
Product ID Weight
(kg)
European Order
Code (EOC)
TPS760 4x14W/840 HFP AC-MLO SM4 8.20 749877 00
TPS762 4x14W/840 HFP AC-MLO SM4 8.20 749921 00
TPS770 6x14W/827/865 HFD AC-MLO SM4 9.90 750934 00
TPS772 6x14W/827/865 HFD AC-MLO SM4 9.90 751382 00
Please contact your local Philips representative for additional congurations
The micro-lens optic provides
a uniform and comfortable light
distribution
Natural anodized aluminum housing
with translucent rim
Philips indoor luminaires3.20
Savio TPS760/762/764/770/772, TCS760/770
Suspended and surface-mounted luminaires
TPS770/772 6 x TL5
Savio
Type TPS770 (direct lighting, Dynamic Lighting version)
TPS772 (direct 70% / indirect 30% lighting,
Dynamic Lighting version)
Light source Fluorescent:
3 x or 6 x MASTER TL5 / G5 / 14, 24, 28, 35, 49,
54 W
Lamp included Yes, lamp color 827/865, 827/451 (ActiViva
Natural) or 827/452 (ActiViva Active)
Gear Electronic, 220 - 240 V / 50 - 60 Hz:
High Frequency Regulator, DALI (HFD)
Optical cover Acrylate micro lens optic (AC-MLO)
Polycarbonate micro lens optic (PC-MLO)
Connection Push-in connector
Option Open housing (HO) (only in TPS772 version)
Emergency lighting: 3 hours (EL3)
Lighting controls: Color Variation Controller (CVC)
Euro fuse (FU) included
Housing conguration
(for line arrangements)
Line end (LE), for ending a line
Line feature (LF), for insertion in a line
Material Housing: anodized aluminum
Micro-lens optic: PMMA (optional is
polycarbonate)
Rim: polycarbonate (translucent)
Installation Rectangular versions:
Individual or in line; suspended mounting with
a set of two double steel-wire suspensions
(SMS) or with a set of two triangular steel-wire
suspensions (SMT), both with metal-like power
cord, 150 cm, and ceiling caps
Square versions:
Individual; suspended mounting with a set of
four single steel-wire suspensions including a
metal-like power cord, 150 cm and ceiling cap
(SM4)
Square versions in block arrangement:
Suspended mounting with a set of single steel-
wire suspensions including a metal-like power
cord, 150 cm, and ceiling cap (SBM)
Fast ne adjustment with clutch device (Reutlinger)
Accessory Coupling set for square block arrangement
Remarks MLO optic ensures optimum light
distribution and full glare control in all viewing
directions compliant with the current norm for
indoor working places (EN12464-1, UGR
r
, 19, Lm<
1000 cd/m
2
at γ > 65º)
Dedicated line arrangement luminaires (LE and LF
types) include all connection and suspension parts
and through-wiring
Dedicated ready to install versions available (KIT)
Main applications Ofce, department stores
Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.
TPS760/762/764 2 x TL5, TPS770/772 3 x TL5
A B
28W, 54W 1100 1259
35W, 49W, 80W 1400 1559
Philips indoor luminaires 3.21
Savio TPS760/762/764/770/772, TCS760/770
Suspended and surface-mounted luminaires
Suspended and surface-mounted luminaires
Savio TPS770/772 suspended luminaire
with PMMA micro-lens optic (AC-
MLO) for direct or direct/indirect
lighting, with Dynamic Lighting facility
and CVC
Preferred selection
Product ID Weight
(kg)
European Order
Code (EOC)
TPS770 3x54W/827/865 HFD AC-MLO CVC SMS 7.70 747576 00
TPS772 3x28W/827/865 HFD AC-MLO CVC SMS 7.70 759142 00
TPS772 3x35W/827/865 HFD AC-MLO CVC SMS 9.40 759180 00
Please contact your local Philips representative for additional congurations
Savio TPS770/772 suspended luminaire
with PMMA micro-lens optic (AC-
MLO) for direct or direct/indirect
lighting, with Dynamic Lighting facility
and CVC
Preferred selection
Product ID Weight
(kg)
European Order
Code (EOC)
TPS770 6x14W/827/865 HFD AC-MLO CVC SM4 9.90 750941 00
Please contact your local Philips representative for additional congurations

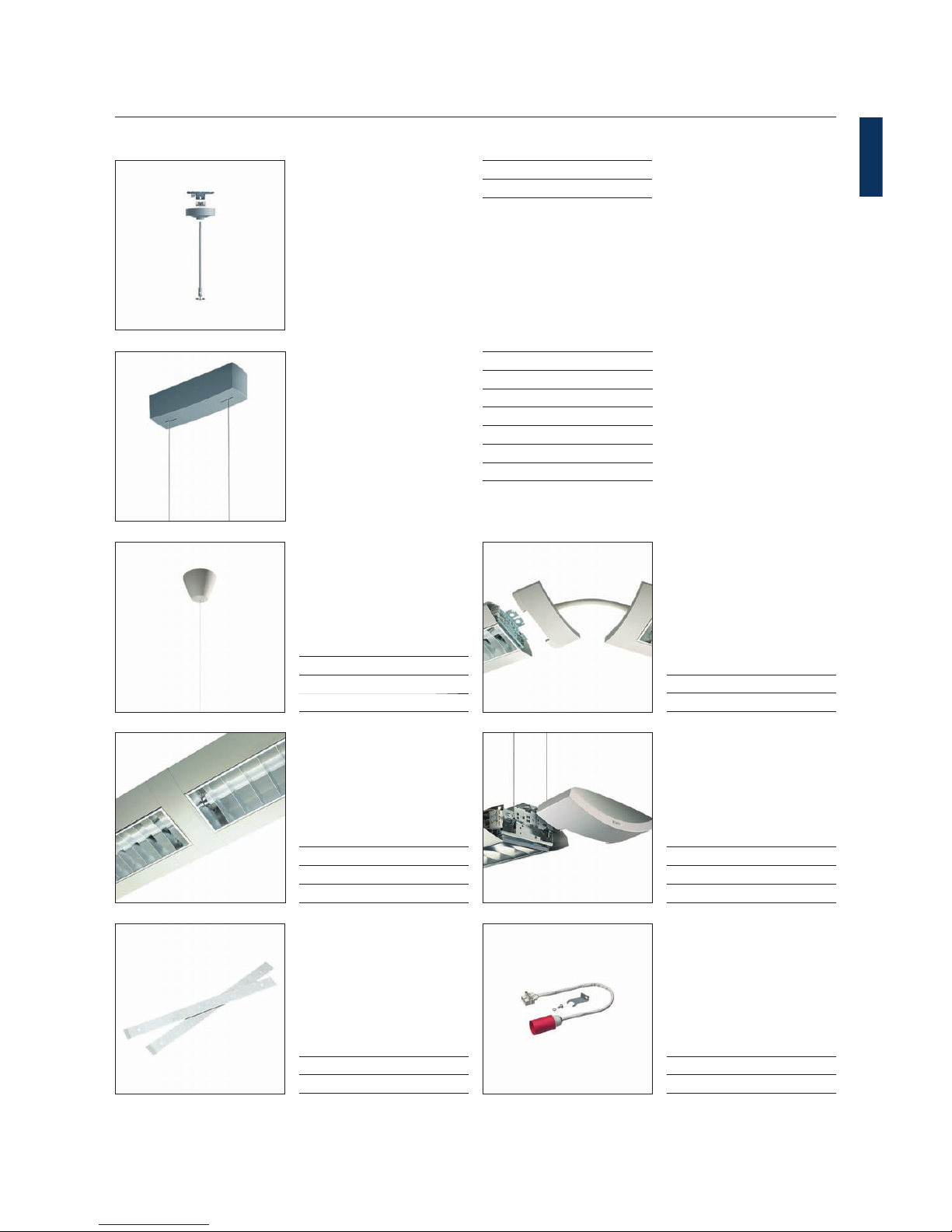

Accessories
Accessories for coupling piece X-shape
(4 x 90 degrees) and cable, length
1.5 m
Product ID EOC
ZPH760 CPX C1500 750316 00
Power cord in metal design, 5-wire,
length 10 m
Product ID EOC
ZPH760 C10000-5x0.75 790190 00
Savio suspended square luminaires can
be coupled in a block arrangement.
Four square luminaires are needed, as
well as a coupling set, which includes
all coupling and suspension elements
required to build a block arrangement.
The Savio Dynamic Lighting luminaire
for personal light is delivered
with an integrated controller
(ActiLume) to adjust the lighting level
and color temperature.
Set of four single steel-wire suspensions
with ceiling xation (SM4). A
separate ceiling cap is included for the
metal-like power cord. The set
is delivered along with the square
luminaire versions
Double steel-wire suspension set with
ceiling xation and ceiling caps
(SMS). Fast ne adjustment can be
performed with a clutch device. A
metal-like power cord is included. The
set is delivered along with the
rectangular luminaire versions.
Philips indoor luminaires3.22
Savio TPS760/762/764/770/772, TCS760/770
Suspended and surface-mounted luminaires
Savio
Type TCS760 (standard version)
Light source Fluorescent:
2 x or 4 x MASTER TL5 / G5 / 14, 24, 28, 35, 49,
54, 80 W
Lamp included Yes, lamp color 451 (ActiViva Natural),
452 (ActiViva Active), 827, 830 or 840
No
Gear Electronic, 220 - 240 V / 50 - 60 Hz:
High Frequency Performer (HFP)
High Frequency Regulator, DALI (HFD)
High Frequency Regulator (HFR)
High Frequency Regulator, touch-switch
(HFD-T)
Optical cover Acrylate micro lens optic (AC-MLO)
Polycarbonate micro lens optic (PC-MLO)
Connection Push-in connector
Option Diffuser tted
Emergency lighting: 3 hours (EL3)
Lighting controls: Actilume multi controller (ACL)
Euro fuse (FU) included
Housing conguration
(for line arrangements)
Line end (LE), for ending a line
Line feature (LF), for insertion in a line
Material Housing: anodized aluminum
Micro-lens optic: PMMA (optional is
polycarbonate)
Rim: polycarbonate (translucent)
Installation Individual or in line (rectangular types), mounting
by screw xing
Remarks MLO optic ensures optimum light distribution and
full glare control in all viewing directions compliant
with the current norm for indoor working places
(EN12464-1, UGR
r
, 19, Lm< 1000 cd/m2 at γ > 65º)
Luminaires standard delivered without diffuser
(ND)
Dedicated line arrangement luminaires (LE and LF
types) include through-wiring facility
Dedicated ready to install versions available (KIT)
Main applications Ofce, department stores
Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

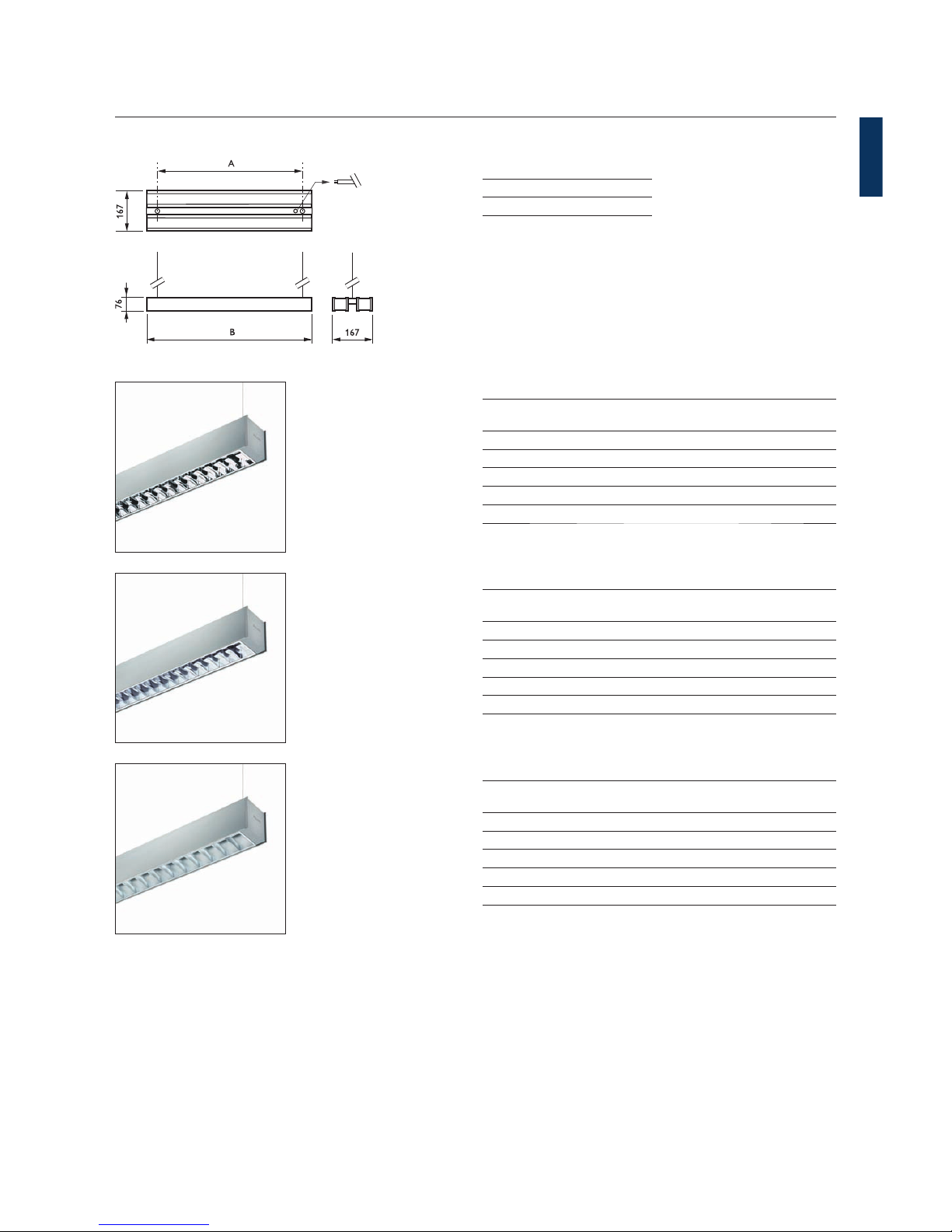

TCS760 2 x TL5, TCS770 3 x TL5
A B
28W, 54W 1100 1259
35W, 49W, 80W 1400 1559
TCS760 4 x TL5
Philips indoor luminaires 3.23
Savio TPS760/762/764/770/772, TCS760/770
Suspended and surface-mounted luminaires
Suspended and surface-mounted luminaires
Savio TCS760 surface-mounted
luminaire with PMMA or polycarbonate
micro-lens optic (AC-MLO/PC-MLO)
Preferred selection
Product ID Weight (kg) European Order Code (EOC)
TCS760 2x35W/840 HFP PC-MLO 10.50 746531 00
TCS760 2x54W/830 HFP AC-MLO 8.80 747446 00
Please contact your local Philips representative for additional congurations
Savio TCS760 surface-mounted
luminaire with PMMA or polycarbonate
micro-lens optic (AC-MLO/PC-MLO)
Preferred selection
Product ID Weight (kg) European Order Code (EOC)
TCS760 4x24W/840 HFP ND AC-MLO 7.20 493831 00
TCS760 4x14W/830 HFP AC-MLO 8.20 747460 00
TCS760 4x14W/840 HFD ND AC-MLO 7.20 560275 00
TCS760 4x14W/840 HFD ND AC-MLO ACL 7.20 560282 00
Please contact your local Philips representative for additional congurations
Philips indoor luminaires3.24
Savio TPS760/762/764/770/772, TCS760/770
Suspended and surface-mounted luminaires
Savio
Type TCS770 (Dynamic Lighting version)
Light source Fluorescent:
3 x or 6 x MASTER TL5 / G5 / 14, 28, 35, 49,
54, W
Lamp included Yes, lamp color 827/865, 827/451 (ActiViva
Natural) or 827/452 (ActiViva Active)
Gear Electronic, 220 - 240 V / 50 - 60 Hz:
High Frequency Regulator, DALI (HFD)
Optical cover Acrylate micro lens optic (AC-MLO)
Polycarbonate micro lens optic (PC-MLO)
Connection Push-in connector (PI)
Option Emergency lighting: 3 hours (EL3)
Lighting controls: Color Variation Controller (CVC)
Euro fuse (FU) included
Housing conguration
(for line arrangements)
Line end (LE), for ending a line
Line feature (LF), for insertion in a line
Material Housing: anodized aluminum
Micro-lens optic: PMMA (optional is
polycarbonate)
Rim: polycarbonate (translucent)
Installation Individual or in line (rectangular types), mounting
by screw xing
Remarks MLO optic ensures optimum light distribution and
full glare control in all viewing directions compliant
with the current norm for indoor working places
(EN12464-1, UGR
r
, 19, Lm< 1000 cd/m2 at γ > 65º)
Dedicated line arrangement luminaires (LE and LF
types) include through-wiring facility
Dedicated ready to install versions available (KIT)
Main applications Ofce, department stores
Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.
TCS760 2 x TL5, TCS770 3 x TL5
A B
28W, 54W 1100 1259
35W, 49W, 80W 1400 1559
TCS770 6 x TL5
Philips indoor luminaires 3.25
Savio TPS760/762/764/770/772, TCS760/770
Suspended and surface-mounted luminaires
Suspended and surface-mounted luminaires
Savio TCS770 surface-mounted
luminaire with PMMA or polycarbonate
micro-lens optic (AC-MLO/PC-MLO)
with Dynamic Lighting facility and CVC
Preferred selection
Product ID Weight
(kg)
European Order
Code (EOC)
TCS770 3x28W/827/865 HFD AC-MLO CVC 7.70 758909 00
TCS770 3x35W/827/865 HFD AC-MLO CVC 9.40 758947 00
Please contact your local Philips representative for additional congurations
Savio TCS770 surface-mounted
luminaire with PMMA or polycarbonate
micro-lens optic (AC-MLO/PC-MLO)
with Dynamic Lighting facility and CVC
Preferred selection
Product ID Weight (kg) European Order Code (EOC)
TCS770 6x14W/827/865 HFD AC-MLO CVC 9.90 750699 00
Please contact your local Philips representative for additional congurations
The Savio Dynamic Lighting luminaire
for personal light is delivered with an
integrated controller (Actilume) to
adjust the lighting level and color
temperature.
Philips indoor luminaires3.26
Suspended and surface-mounted luminaires
Rotaris TPS740/745, TCS740
Philips indoor luminaires 3.27
Suspended and surface-mounted luminaires
Suspended and surface-mounted luminaires

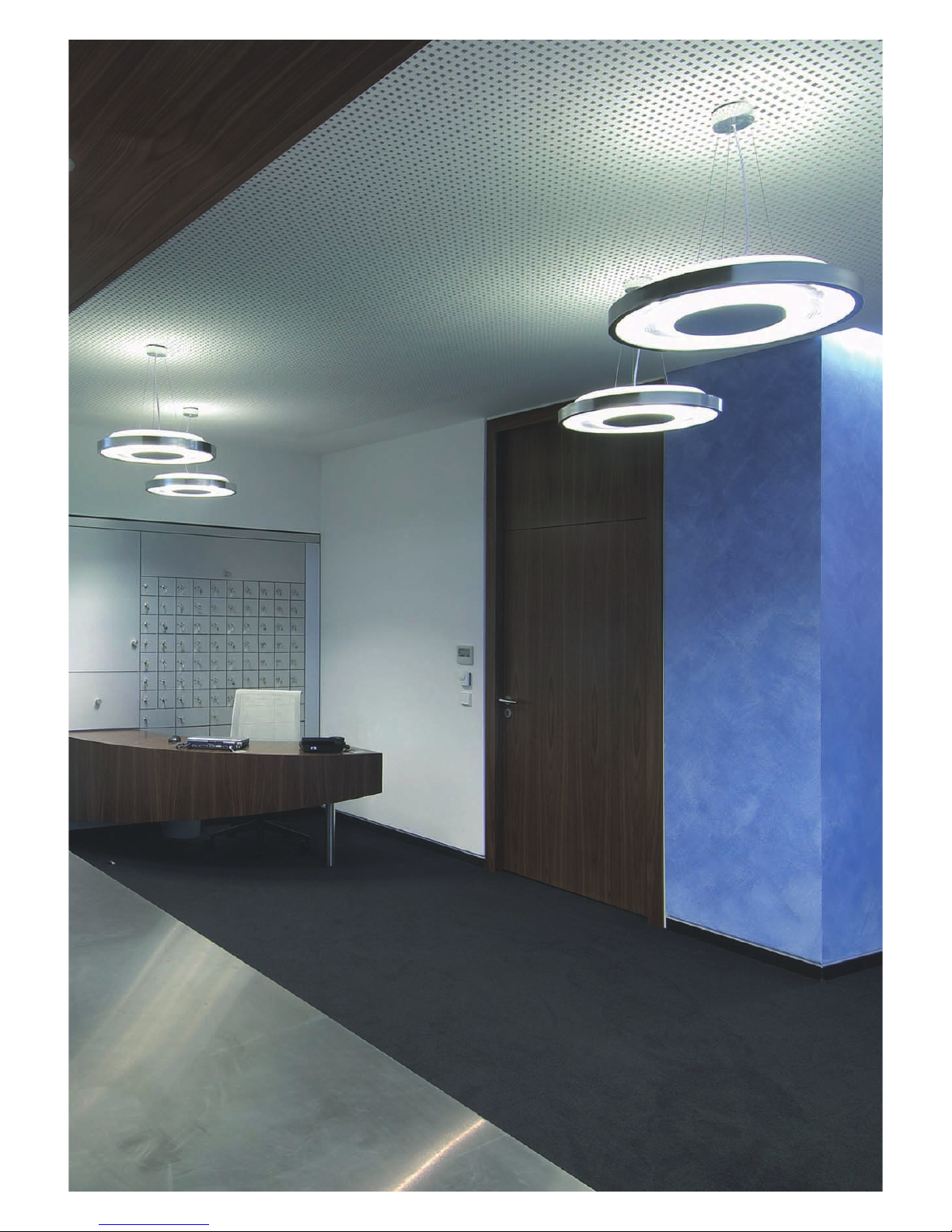

Rotaris recessedRotaris surface-mountedRotaris suspended

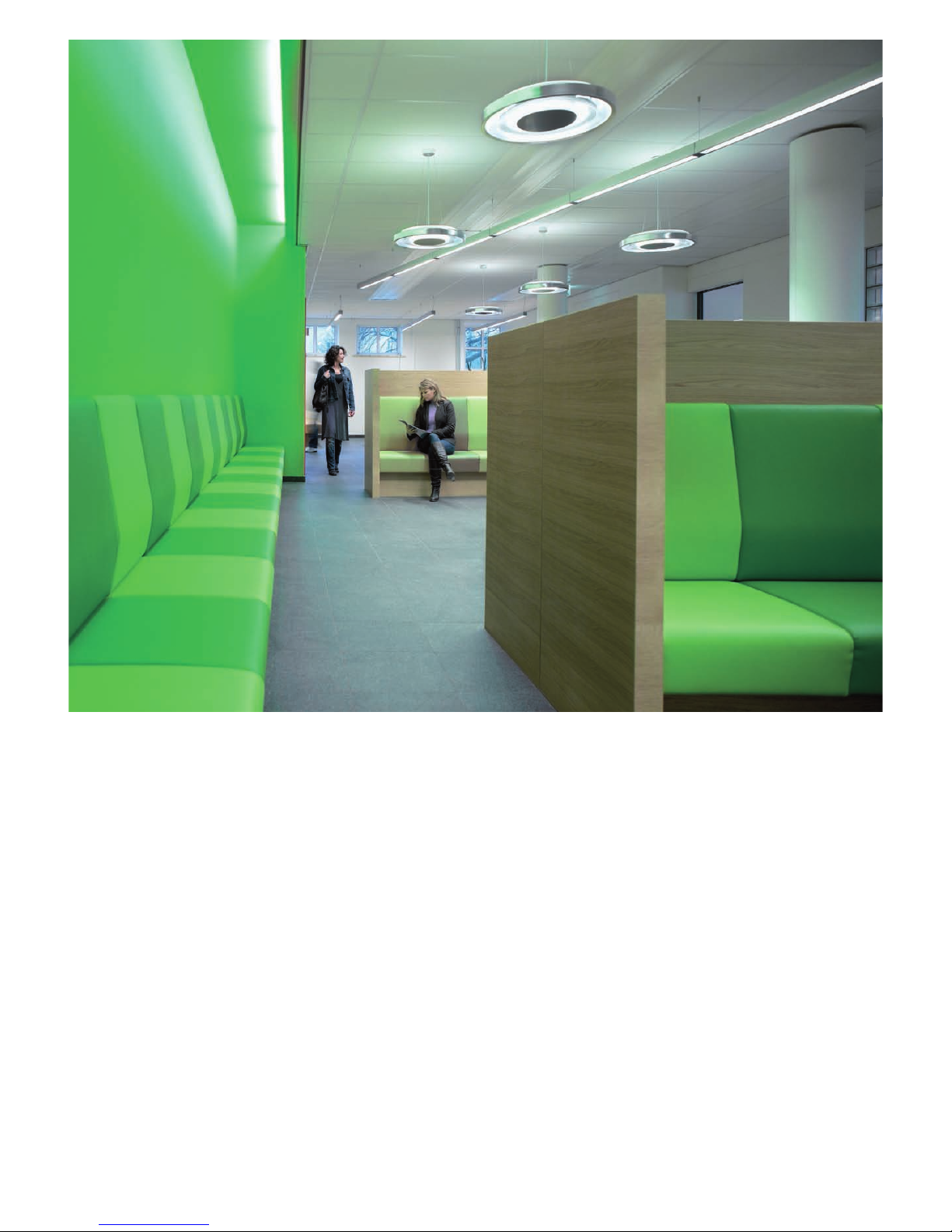

Rotaris – the perfect form
The dening visual characteristic of the Rotaris product range, which is based
on the innovative TL5 Circular lamp, is its concentric circles. The semi-high-gloss
aluminum centerpiece is surrounded by an opal or clear lamp cover, the inside of
which has a prismatic structure, again in concentric circles. Continuing outwards,
the high-reectance optic is made of the same semi-high-gloss aluminum. Finally,
the optic continues in the outer rim and the housing since it is all made out of
one single piece of material.
With the surface-mounted version, some light is directed towards the ceiling to create a
smooth transition between the ceiling and the luminaire. The suspended versions offer a choice
of direct or direct/indirect light distribution. Glare is controlled in all viewing directions by
Omnidirectional Luminance Control technology.
Within the Rotaris family, a complete range of surface-mounted, recessed and suspended
luminaires is available.
www.philips.com/lighting
Philips indoor luminaires3.28
Rotaris TPS740/745, TCS740
Suspended and surface-mounted luminaires
Rotaris
Type TPS740 (direct lighting)
TPS745 (direct / indirect lighting)
Light source Compact uorescent:
1 x MASTER TL5 Circular / 2GX13 / 60 W
Lamp included Yes (lamp color 830 or 840)
Gear Electronic, 220 - 240 V / 50 - 60 Hz:
High Frequency Performer (HFP)
High Frequency Regulator, DALI (HFD)
High Frequency Regulator (HFR)
Optical cover Opal cover (O)
Prismatic cover (P)
Inll plate / centre piece Standard (IP)
Enlarged (IPL)
Perforated (IPP)
Connection Push-in connector (PI)
Color White (WH)
Aluminum (ALU)
Option Emergency lighting: 1 hour (EL1), 3 hours (EL3)
Lighting controls:
Luxsense daylight controller (LX),
ActiLume multi controller (ACL)
Euro fuse (FU) included
Dedicated centre pieces: prepared for Fugato
Micro, Fugato Mini, Fugato Compact or smoke
detector
Material Frame: steel
Components: polycarbonate
Reector: anodized aluminum, semi-high-gloss
Installation Individual; suspended mounting with a triple steel-
wire suspension set including a metal-like power
cord (SM3)
Fast ne adjustment with clutch device (Reutlinger)
Accessory Blue inlay sheet
Remarks Glare control in all viewing directions is based on
the Omnidirectional Luminance Control (OLC)
technology, complying with the current ofce
lighting norms (EN12464-1, L
m
< 1000 cd/m2 at γ
> 65º)
Main applications Ofce, retail
Where relevant, for detailed descriptions of Lighting Controls we refer you to chapter 11, and descriptions for e.g. optics/optical covers, lamps data, photometrical diagrams, etc. to the respective sections in chapter 12.

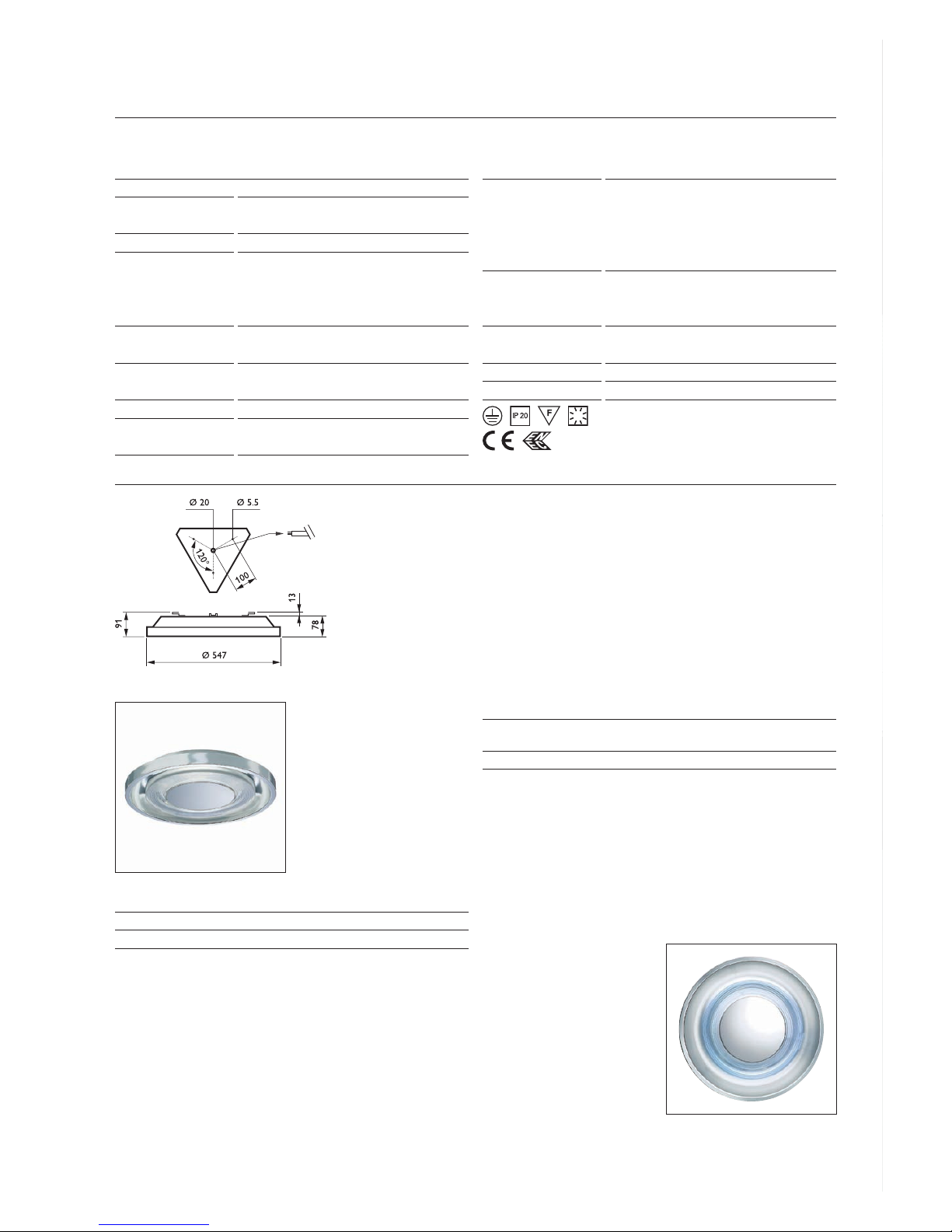

TPS740/745
Rotaris TPS740/745 suspended
luminaire for direct and direct/indirect
lighting respectively
Preferred selection
Product ID Weight
(kg)
European Order
Code (EOC)
TPS740 TL5C60W/840 HFP P SM3 IP ALU 3.00 635606 00
TPS745 TL5C60W/840 HFP P SM3 IP ALU 3.00 635613 00
Please contact your local Philips representative for additional congurations
Philips indoor luminaires 3.29
Rotaris TPS740/745, TCS740
Suspended and surface-mounted luminaires
Suspended and surface-mounted luminaires
Loading...
