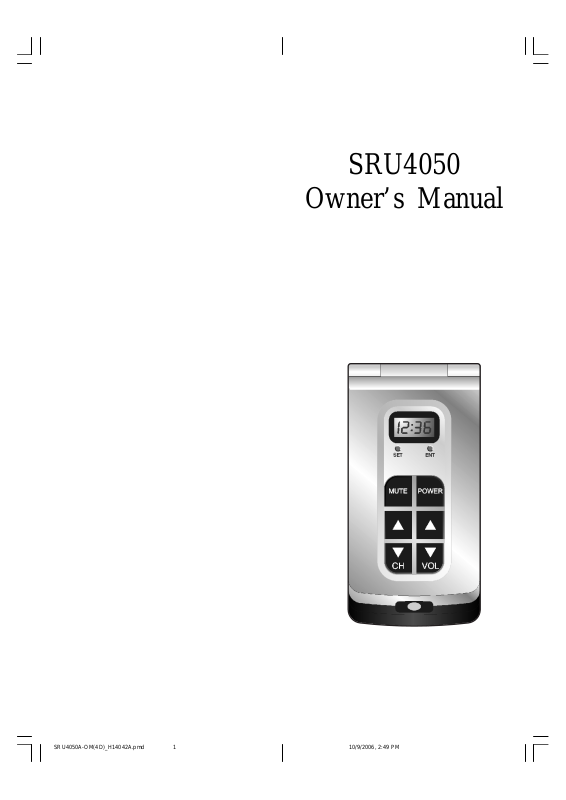

SRU4050

Owner’s Manual

SRU4050A-OM(4D)_H14042A.pmd 10/9/2006, 2:49 PM1

IntroductionTable of Contents

Introduction.................................................... 3

Button Functions.............................................4

SAT/DVD Functions .................................. 6

INPUT...................................................... 6

Shift Operation........................................... 7

Setup.............................................................8

Battery Installation...................................... 8

Battery Saver.............................................8

Power-On default ...................................... 8

Code Setup ............................................... 8

Code Entry .................................................... 9

Direct Code Entry......................................9

Code Search ............................................. 9

Brand Search........................................... 10

Code Identification Feature ........................... 11

Sleep Timer .................................................. 11

Programming Combo Device Codes .............. 12

Controlling Combo Devices........................... 12

Controlling Devices with Power On and Off.... 12

VCR/DVD/DVR Punch-Through Feature....... 13

Volume/Mute Control Feature........................ 13

Setting Volume/Mute Control, Punch-Through. 14 Setting any Mode to use its own Volume/Mute 14

Clock Setup and Functions............................ 15

Troubleshooting ............................................ 16

Instrucciones en Español ............................... 18

Manuel d’instruction...................................... 34

Congratulations on your purchase of a Philips Universal Remote Control. Philips Universal Remotes let you replace a broken or lost remote or combine more than one remote into one.

This remote control operates the common features of most but not all models and brands of IR Infrared Controlled Video Equipment. This remote may provide functions that are not available on your equipment. Some functions of your particular equipment (e.g. menu functions) may not be controlled by this remote. In such cases, use the original remote control for your equipment. Please use this manual to become familiar with your Philips Universal Remote. After you are familiar with your remote the first thing you need to do is to install batteries and setup your remote for your particular product and brand.

Thank you for buying a Philips remote and we hope it will give you many years of service.

SRU4050A-OM(4D)_H14042A.pmd 10/9/2006, 2:49 PM2-3

Button Functions

Button Functions, cont.

VCR

DVD

POWER

CBL

SAT

SETUP

SLEEP

VOL VOL

MUTE

INFO

LAST

INPUTENTER

Note: The REC button must be pressed TWICE to record from your VCR. For some brands of VCRs, you might need to press the REC button once, then press it again for three seconds.

Some buttons on the remote might have functions that are referred to by different names on the device you are controlling. E.G. LAST may be called RECALL, or ENTER may be called DISPLAY. These differences depend on the brand and model of your product. Also, this remote can only operate features that exist on your product. E.G., your product must have LAST ability for the LAST button to operate this feature.

16.

15.

14.

13.

12.

11.

10.

12.

13.

1. Red Indicator Lights when any button is pressed.

2. TV, VCR, DVD, CBL, SAT Selects product to be

operated.

3. POWER Turns product On or Off.

4. SLEEP Turns off the TV after a period of 1 to 99

minutes.

5. VOLUME UP/DOWN Changes the volume level of the

product, normally the TV.

6. INFO Displays/selects on-screen channel information, etc. MENU Access the Menu functions of the device you are controlling.

7. RECORD, PLAY, STOP, REW, FF, PAUSE

VCR control buttons operate your VCR even when the remote is set to operate the TV. Also operates DVD Scan

-/+.

8. ENTER Used after direct channel number entry to immediately change to the selected channel.

9. INPUT For some TVs, press repeatedly to select from available viewing sources (antenna, cable box, VCR, etc.).

10. NUMBERS Enter numbers for direct channel selection. Some products require Enter to be pressed after channel selection.

11. LAST Returns to the previously selected channel, or DVD repeat toggle. EXIT Used to exit menu functions.

12. MUTE Turns off the TV sound while the picture remains. OK Selects menu items for the device you are controlling.

13. CHANNEL UP/DOWN Changes the channels.

14. CC (SUBTITLE) TV Closed Caption (if your TV has

this feature) or DVD Subtitle toggle. The Satellite GUIDE is accessed under the CC button when in SHIFT mode.

15. SETUP Used for setup.

16. SHIFT Press to access “shifted” functions (labeled in

Green). See page 7.

SRU4050A-OM(4D)_H14042A.pmd 10/9/2006, 2:49 PM4-5

Button Functions, cont. Button Functions, cont.

SAT Functions

CHANNEL+ and CHANNEL- buttons perform the

“Page+” and “Page-” function for on-screen Guide Menus used by some Satellite systems. INFO button brings up Satellite Display screen for current Channel and system information. The Satellite GUIDE is accessed under the CC button when in SHIFT mode.

DVD Functions

FORWARD and REVERSE buttons control the speed of

Fast Forward and Reverse Playback respectively. CHANNEL+ and CHANNEL- buttons respectively locate the succeeding or preceding Chapters or Tracks on a disc.

SUBTITLE (CC) button turns the subtitles on or off. REPEAT (LAST) button performs DVD players “A-B

Repeat” (or RPT A.B) function for repeat play of current Chapter or Track. INFO button brings up DVD Display or Control Menu for Chapter/Track/Title number, Time remaining/elapsed indication, system information, etc. PLAY button is used to start Disc playback and for Menu selection on some DVD players.

STOP button stops Disc playback. PAUSE button pauses Disc playback - press PLAY to

resume.

INPUT button activates the DVD Player’s SETUP Menu.

SHIFT Button

The SHIFT button is a “toggle” button. I.E. press and release it to get into shifted operation, press and release again to get back out. The Red Indicator is on when you are in “shifted” mode.

The shifted functions are those labeled in Green i.e. MENU, EXIT, OK, GUIDE, and the navigation keys. When not in Shift these buttons operate respectively as

INFO, LAST, MUTE (M), CC, CHAPTER/CHAN UP/ DOWN and VOLUME UP/DOWN. The non-shifted

functions are those labeled in Black or Blue.

To access the shifted “green” functions, press and release SHIFT. The Red Indicator will stay on while in Shift mode and blinks off briefly for any subsequent button press. Press and release desired button labeled in green for that function. To exit Shifted operation, press and release the SHIFT button. Note the remote will automatically time-out from Shifted mode if no button is pressed for approximately 15 seconds.

To access the following functions in SAT or DVD Modes, press SHIFT first.

MENU button brings up the Menu screen - use with the UP, DOWN , LEFT and RIGHT navigation buttons. OK button is used for on-screen Menu selection. EXIT button is used to Exit or Clear on-screen Menu

displays.

INPUT

When in TV mode the INPUT button performs the INPUT source switch function. When in a mode that has been programmed for VCR the INPUT button performs the TV/VCR antenna switch function. When in a mode that has been programmed for Cable the INPUT button performs the A.B switch function. When in a mode that has been programmed for SAT the INPUT button performs the TV/SAT switch function. When in a mode that has been programmed for DVD the

INPUT button performs the DVD Setup function.

OK means same as SELECT - some manufacturers use

OK label and others use SELECT label on their remotes. CC will activate the Closed Caption feature if your device has that feature.

SRU4050A-OM(4D)_H14042A.pmd 10/9/2006, 2:49 PM6-7

Example:

To access Menu and use the navigation functions.

1. Press and release SHIFT (red indicator turns on).

2. Press and release the MENU (INFO) button.

3. Press and release the UP, DOWN, LEFT and RIGHT

buttons as desired.

4. Press and release the EXIT (LAST) button to clear

the on-screen Menu display.

5. Press and release SHIFT for normal remote operation

(red indicator turns off).

Setup

Direct Code Entry

Battery Installation

1. On the back of the remote, push down on the tab and lift the cover off.

2. Insert 2 CR2032 lithium batteries (+ facing up).

3. Press the battery cover back into place.

Note: you will lose any programmed codes after changing the batteries. The remote defaults to the factory setting and you will need to reprogram the

remote.

Battery Saver

Your remote automatically turns off if the buttons are depressed more than 30 seconds. This will save your batteries should your remote get stuck in a place where the buttons remain depressed (e.g., between the sofa cushions).

1. Press and hold the SETUP button until the red indicator stays on, then release the SETUP button.

2. Press and release the desired mode button (TV, VCR, etc.). The red indicator blinks, then stays lit.

3. Enter the 4 digit code from the code tables (on separate sheet). Note: after a valid code entry, the red indicator turns off. For an invalid code, the red indicator flashes.

4. With your device on, press CHANNEL UP. If the device responds, no further programming is required. Note: If some buttons do not operate your equipment, try one of the other codes for your brand.

Write your codes down here for easy reference later.

Type Type stored Code

TV TV

VCR

DVD

Cable

SAT

Power-On Default

The remote powers on in TV mode.

Code Setup

The SETUP button is used to setup the remote. You can either setup the remote using the code for your brand of product, from the code tables (on separate sheet), or you can search through the library of codes until you find a code that works for your product.

Please refer to “Programming with Code Search” on page 9 for more information on using the code search feature to learn how to search through the library of codes for your products.

NOTE: You can store any kind of code under any mode (except TV). I.E. you can store a VCR code under the CBL button, or a DVD code under the VCR button, etc. However, you can only store TV codes under the TV button.

Code Search

If your product does not respond after you have tried all the codes for your brand, or if your brand is not listed, try searching for your code by following these steps.

1. Manually turn on the device (TV, VCR, etc.) to be controlled.

2. Press and hold the SETUP button until the red indicator stays on, then release the SETUP button.

3. Press and quickly release the desired mode button (TV, VCR, etc.). The red indicator blinks off once.

4. Press the CHANNEL UP button repeatedly (up to 300 times) until the device to be controlled changes channel. The red indicator blinks off with each button press. If you accidentally overshoot the code required, press the CHANNEL DOWN button to backtrack through the library until the device changes channel. Pressing CHANNEL UP changes direction to forward again.

5. Press and release MUTE to install the code.

Most users will store VCR codes under the VCR button,

SRU4050A-OM(4D)_H14042A.pmd 10/9/2006, 2:49 PM8-9

Code Search, cont.

Code Identification Feature

Cable codes under CABLE, etc. If (for example) you want to store a VCR code under CABLE, first follow the procedure for Direct Code Entry (previous page) and press CABLE in step 2 of Direct Code Entry, then enter ANY VCR code in step 3 of Direct Code Entry. Then follow the steps above for Code Search (or Brand Search, below). Note: If the device does not have a

CHANNEL UP button, use PLAY (VCR only) or POWER instead. Code Search starts from the currently

stored 4 digit number under that mode.

Code Search by Brand

Lets you search for a code for a specific Brand within the Code Library for a particular manufacturer.

1. Turn on the device (TV, VCR, etc.) to be controlled.

2. Press and hold the SETUP button until the red indicator remains on, then release SETUP button.

3. Press and quickly release the desired mode button (TV, VCR, etc.). The red indicator blinks off once.

4. Press and release the numeric button (0-9) corresponding to desired Manufacturer (see table on code list sheet). The red indicator blinks off once. Note, pressing “0” performs a full library search same as normal Code Search Method on previous page.

5. Press the CHANNEL UP button ((or POWER or PLAY (VCR only)) repeatedly until the device to be controlled changes channel. The red indicator blinks off with each button press. If you accidentally overshoot the code required, press the CHANNEL DOWN button to backtrack through the library until the device changes channel. Pressing CHANNEL UP changes direction to forward again.

6. Press and release MUTE to install the code.

Brand Search Method entry is now complete. Note: When all codes under a Brand have been searched the red indicator flashes rapidly for 3 seconds.

The Code Identification Feature allows you to identify the 4 digit library code stored under your device key. For example, if you want to find out what 4 digit code is stored under your TV device key, follow the six steps below:

1. Press and hold the SETUP button until the red indicator stays on. Release the SETUP button.

2. Press and release the desired mode button (TV, VCR, etc.). The red indicator blinks, then stays lit.

3. Press and release the SETUP button. The red indicator blinks off.

4. To find the first digit for the code stored under the mode key pressed in step 2, press each numeric key from 0-9 in turn. When the red indicator blinks off the number you pressed is the first digit for the code you are searching for.

5. To find the second digit, repeat step 4, this time when the red indicator blinks off this is the second digit.

6. Repeat step 4 to find the third and fourth digits.

Sleep Timer

The SLEEP button operates the Sleep function of your device providing it supports the Sleep function. Alternatively, you can enable the remote to turn off your TV after a period of 1 to 99 minutes as shown below. This feature is only available for the TV Mode and the remote must be in TV Mode to set a Sleep Timer. This feature works even if your TV does not have its own Sleep function.

1. Press and release the TV Mode button.

2. Press and hold the SETUP button until the red indicator stays on. Release the SETUP button.

3. Press and release the SLEEP button (Note any previously set Sleep timer is cancelled at this point and the remote returns to normal operation).

4. Press and release the numeric buttons (01-99) for the time required. The red indicator blinks off to indicate button press acceptance and remains off after the second button press.

5. TV Sleep Timer now set.

6. Leave the Remote pointing towards the TV with an unobstructed path.

SRU4050A-OM(4D)_H14042A.pmd 10/9/2006, 2:49 PM10-11

To cancel the Sleep Timer, press and release the POWER button in TV Mode or repeat Steps 1, 2 and 3 above.

1110

Setup, cont.

Programming Combo Device Codes

Some Combo devices (e.g. TV/VCR, TV/DVD, DVD/ VCR, etc.) will require you to set up two different Mode buttons to control both parts of the Combo device. For example, if you have a TV/DVD Combo, you might need to set up one code under the TV button to control the TV part AND a separate code (under any other Mode button) to control the DVD part.

Controlling Combo Devices

Some Combo devices (e.g. TV/VCR, TV/DVD, DVD/ VCR, etc.) have separate buttons on the original remote to select the part of the Combo device to be controlled. For example, if your Combo device is a DVD/VCR then its original remote might have separate DVD and VCR buttons for selection of the Combo part you would control. The equivalent button functions can be found on your Philips remote by using the device Mode and SETUP buttons.

Referring to “Programming with Code Search” on page 9, setup a device Mode (e.g. DVD) with the correct code for your Combo device. Assuming the DVD/VCR Combo device is the example and its code is programmed under DVD Mode, press and hold the DVD Mode button for more than one second to send the DVD button command. To send the VCR button command, quickly press and release the SETUP button followed by pressing and releasing the DVD Mode button. This method can be applied similarly to all Combo devices (e.g. TV/VCR, TV/DVD, DVD/VCR, etc.) and is available for all Modes. Note this feature is not supported by all codes.

Controlling Devices Requiring Separate Power On and Off Buttons

Some devices (e.g. certain RCA TVs) require separate Power On and Power Off buttons to turn the device on and off. The equivalent button functions can be found on your Philips remote by using the device Mode and POWER buttons. Referring to “Programming with Code Search” on page 9, setup a device Mode (e.g. TV) with the correct code for your device.

Controlling Devices Requiring Separate Power On and Off Buttons, cont.

To turn the TV off, press and release the POWER button to transmit the Power Off button command. This method can be applied similarly to any device and is available for all Modes. Note this feature is not supported by all codes.

VCR/DVD/DVR Punch-Through Feature

This remote allows the 6 VCR transport buttons (i.e. PLAY, PAUSE, STOP, FF, REWIND , and REC) to Punch-Through control from any Mode programmed with TV, SAT or Cable codes to the last VCR, DVD or DVR programmed Mode you used. Normally other types of remotes only punch-through (from another Mode) on the 6 VCR buttons to the device programmed under the VCR Mode button. This is not much use if you are using a DVD programmed under a Mode other than VCR. For example, if you have 3 DVD, VCR or DVR devices programmed into this remote, the last one you accessed on the remote will be the one that has control of the 6 VCR transport buttons when in any other Mode. This feature will not operate if the programmed TV, SAT or Cable code has its own VCR transport button control e.g. a TV Combo, SAT/PVR, etc.

Volume/Mute Control and Punch-Through Feature

This remote lets you select which device Mode controls your Volume/Mute buttons. The remote is initially set (factory default) for all device Modes programmed with “Visual” codes (e.g. TV, VCR, DVD, DVR, SAT & CABLE) and “Audio” codes (e.g. CD & AUDIO) to use their own Volume/Mute control if present. If the programmed “Visual” code has no Volume/Mute operation of its own then those buttons will punchthrough control to the TV Mode device without needing to change to TV Mode. Please refer to the next page for more information.

Assuming a TV device is the example and its code is programmed under TV Mode, to turn your TV on, press and hold the TV Mode button for more than one second to transmit the Power On button command.

SRU4050A-OM(4D)_H14042A.pmd 10/9/2006, 2:49 PM12-13

1312

Setup, cont.

Any Mode chosen for Volume/Mute control MUST have its own Volume/Mute function or the Volume/Mute buttons will do nothing.

Setting ALL Volume/Mute Control to any one Mode

This routine can set all Modes to “punch-through” to any one chosen Mode for Volume/Mute button control without the needing to change to that Mode.

1. Press and hold the SETUP button until the red

indicator turns on, then release the button.

2. Press and hold the MUTE button until the red

indicator blinks off, then release the button.

3. Press and release the desired Mode button (TV, VCR, etc.) for Volume/Mute control, the red indicator blinks then stays on.

4. Press and release the MUTE button and the red indicator turns off. The red indicator will blink rapidly for three seconds if the Mode you have selected has no Volume/Mute control.

5. All other Modes will now punch-through to your chosen Mode for Volume/Mute control.

6. All “Visual” and “Audio” programmed Modes will now punch-through to the respective Modes you have chosen for Volume/Mute control.

Setting any Mode to use its own Volume/Mute Control

This routine can set any Mode to use only its own Volume/Mute control. Note - If your chosen Mode has no Volume/Mute functions of its own then the Volume/ Mute buttons will do nothing.

Clock Setup and Functions

Setting the date and time

Set date and time using a pencil or paper clip to press the SET and ENT buttons below the clock display.

1. Press SET twice. A number between 1 to 12 for the month appears in the left of the display, press and hold ENT until the current month is displayed, then release the ENT button.

2. Press SET once to save the month and call up the settings for the date.

3. Press and hold ENT until the current date is displayed, then release the ENT button.

4. Press SET once to save the date and call up the settings for the hour.

5. Press and hold ENT until the current hour is displayed, then release the ENT button.

6. Press SET once to save the hour and call up the settings for the minute.

7. Press and hold ENT until the current minute is displayed, then release the ENT button.

8. Press SET once and the set time is displayed.

9. Press ENT once to start the clock (the colon flashes in intervals of 1 second).

To display date and time

1. Press and hold the SETUP button until the red

indicator turns on, then release the button.

2. Press and hold the MUTE button until the red

indicator blinks off, then release the button.

3. Press and release the desired Mode button (TV, VCR, etc.), the red indicator blinks then stays on.

4. Press and release the VOLUME- (Down) button, the red indicator blinks then stays on.

5. Press and release the MUTE button and the red indicator turns off.

6. All “Visual” and “Audio” programmed Modes will now punch-through to the respective Modes you have chosen for Volume/Mute control.

SRU4050A-OM(4D)_H14042A.pmd 10/9/2006, 2:49 PM14-15

After completing the settings, the time is displayed. Press ENT once to display the date. If you want to have alternating time and date displayed, press and release ENT and then SET. To switch off this function, press and hold ENT until the time is displayed.

To display the seconds

When the time is displayed, press ENT twice to display the seconds. When the date is displayed, press ENT once to display the seconds. When seconds is displayed, press and release SET to set the seconds display to “00.” When seconds is displayed, press and release ENT to switch back to time display.

1514

+ 18 hidden pages
