Philips SRU4000 User Manual
WW
IRELESSIRELESS
W
IRELESS
IRELESSIRELESS
WW
with IR Extender Feature
Transmisor inalámbrico de Audio
y Video con extendedor IR
A A
A
A A
UDIOUDIO
UDIO
UDIOUDIO
/V/V
/V
/V/V
RECEIVER
Receptor
SENDER
Transmisor
IDEOIDEO
IDEO
IDEOIDEO
S S
ENDERENDER
S
ENDER
ENDERENDER
S S
OWNER’S MANUAL
Manual del Usuario
PRT215-OM_H13957B.pmd 9/5/2006, 12:05 PM1
PRT215_h13957b-050906
MODEL NO. PRT215
(includes T215 Sender and R215 Receiver)
incluye el transmisor T215 y el receptor R215)
(
INTRODUCTION
CONTENTS
Your Wireless Audio/Video Sender system consists of a Sender unit which
you connect to your satellite receiver, DVD player, etc., and a Receiver
unit that you connect to a TV anywhere in your home. The Audio/Video
Sender converts the A/V signal from your A/V product into a 2.4 GHz
wireless Radio Frequency (RF) signal and transmits it (even through walls)
to the Audio/Video Receiver unit. The Audio/Video Receiver converts the
signal back to an A/V signal and passes it through a cable to your TV’s
COAX input, or A/V input jacks.
The Audio/Video Sender system also includes an IR Extender feature. This
lets you remotely control the A/V product that the Sender is connected to,
from the location where the Receiver is located. For example, you can
control a DVD Player in your living room, while watching it on a TV in
your bedroom.
There are just a few simple steps to follow to hook up your Audio/Video
Sender system to a satellite receiver, VCR, DVD Player, or Cable Box.
FCC CAUTION
This equipment generates and uses radio frequency energy, and if not
installed and used properly, that is, in strict accordance with the
manufacturer’s instructions, it may cause interference to radio and
television reception. It has been type tested and found to comply with the
limits for remote control devices in accordance with the specifications in
Sub-Parts B and C of Part 15 of FCC Rules, which are designed to provide
reasonable protection against such interference in a residential installation.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause interference to radio or
television reception, which can be determined by unplugging the equipment,
try to correct the interference by one or more of the following measures.
• Reorient the antenna of the radio/TV experiencing the interference.
• Relocate the equipment with respect to the radio/TV.
• Move the equipment away from the radio/TV.
• Plug the equipment into an outlet on a different electrical circuit from the
radio/TV experiencing the interference.
• If necessary, consult your local dealer for additional suggestions.
INTRODUCTION ........................................................................ 3
C
ONTROLS AND CONNECTIONS ..................................................4
S
ENDER ............................................................................ 4
R
ECEIVER .......................................................................... 5
C
ONNECTING UP ..................................................................... 6
H
OOKING UP THE SENDER .................................................... 6
H
OOKING UP THE RECEIVER ................................................. 8
F
INE TUNING YOUR SYSTEM .................................................... 10
IR E
XTENDER FEATURE ......................................................... 11

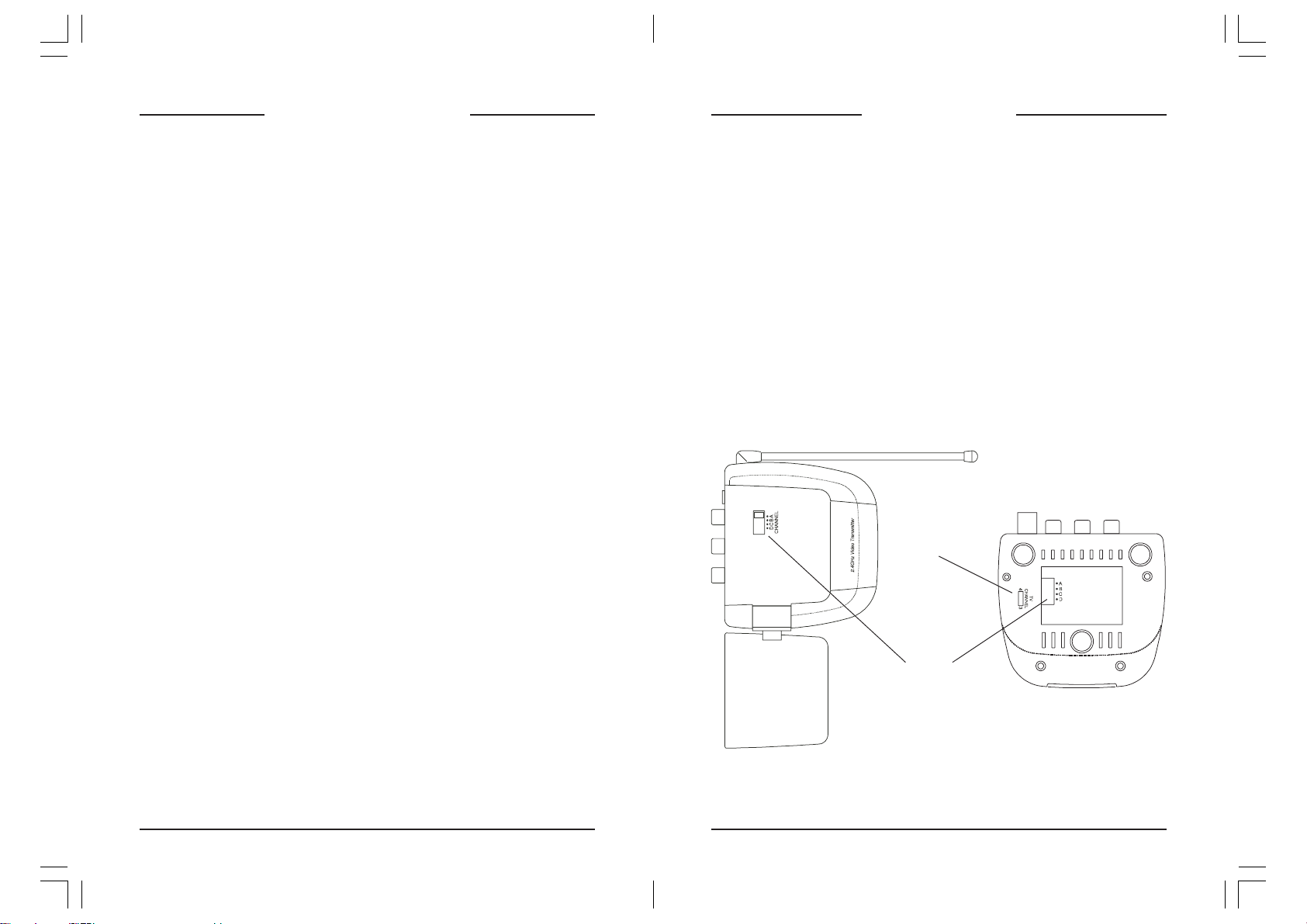

TV Channel
Switch
2.4 GHz Channel
Switch
ECEIVER
R
SENDER (TOP VIEW)
(BOTTOM VIEW)
PRT215-OM_H13957B.pmd 9/5/2006, 12:05 PM2-3
32

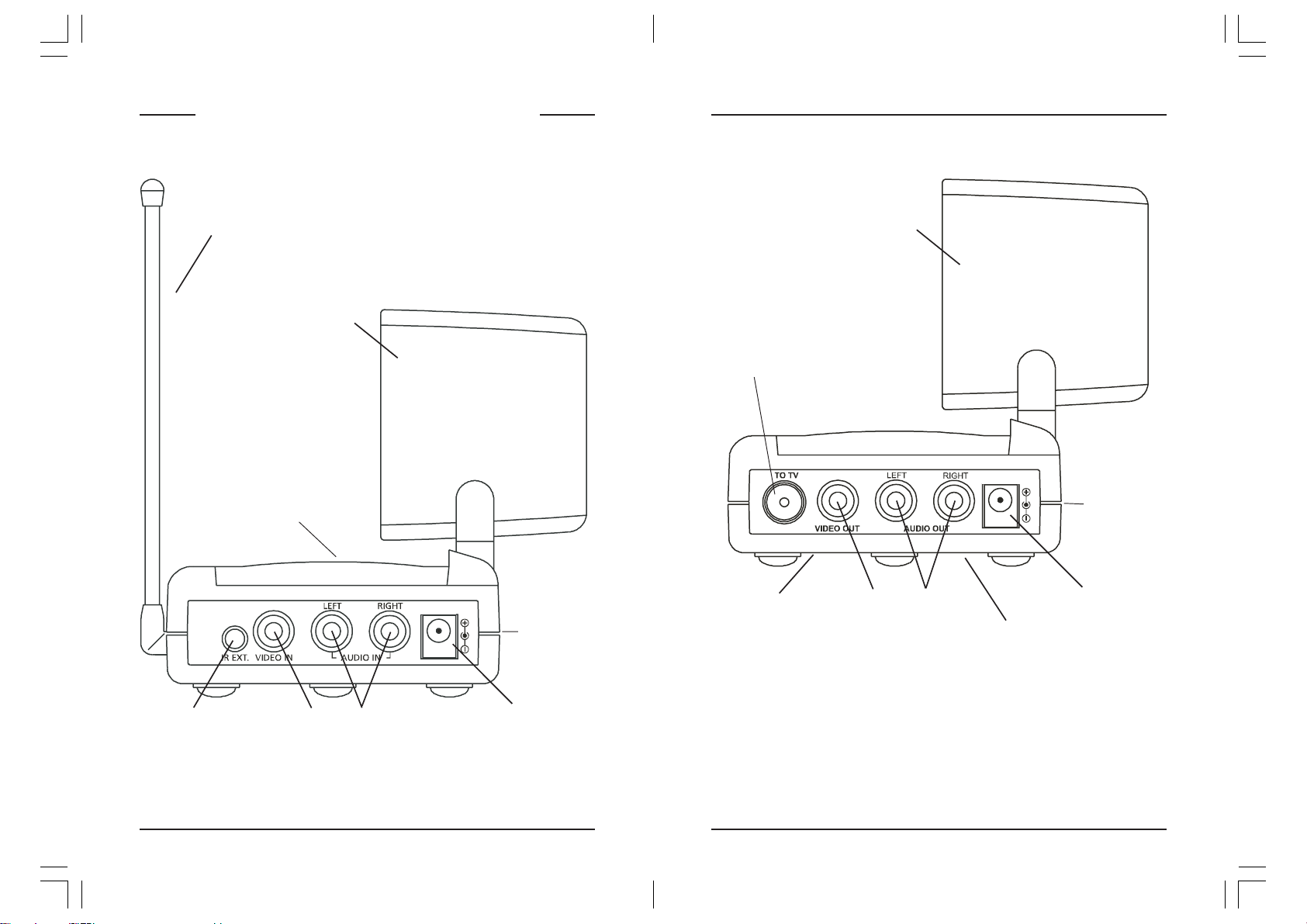

CONTROLS AND CONNECTIONS
Audio/Video ReceiverAudio/Video Sender
Antenna for
IR Extender
Feature
2.4 GHz Video
2.4 GHz Channel
Switch
Antenna
DC6V
ON-OFF
Switch
(on side)
TV Output
Connector
TV Channel
Switch
(on bottom)
2.4 GHz Video
Antenna
A/V Input
Jacks
DC6V
2.4 GHz Channel
Switch
(on bottom)
ON-OFF
Switch
(on side)
Power Supply
Jack
IR Extender
Jack
PRT215-OM_H13957B.pmd 9/5/2006, 12:05 PM4-5
A/V Input
Jacks
Power Supply
Jack
54
CONNECTING UP
Hooking up the Audio/Video Sender
1. Connect one set of Audio/Video cables to the VIDEO and AUDIO
jacks of your Audio/Video Sender. Take care to match the colors of the
plugs on the cable with the jacks on the Audio/Video Sender.
2. Connect the other end of the cable to the Audio/Video OUT jacks on
your TV. Take care to match the colors of the plugs on the cable with
the jacks on the TV. If the jacks on the TV are colored differently,
connect the yellow plug to the jack labelled VIDEO, the red plug to the
jack labelled AUDIO RIGHT and the white plug to the jack labeled
AUDIO LEFT. See diagram A below.
Note: If your TV does not include Audio/Video OUT jacks, you will
need to remake the connections as shown in diagram B) using the
TV antenna (coaxial) connections to link up a Satellite Receiver
(DBS), or Cable Box, or VCR, or DVD Player to your TV.
A/V Cables
SAT Receiver
SAT Receiver
Coaxial
Cable
3. Plug the Audio/Video Sender’s Power Supply into a convenient 120 volt
wall outlet and plug its jack into the Audio/Video Sender.
4. Position the Audio/Video Sender in a convenient location such as on top
of your TV and orient the antenna so that the flat side points in the
direction of the room where you will be installing the Receiver.

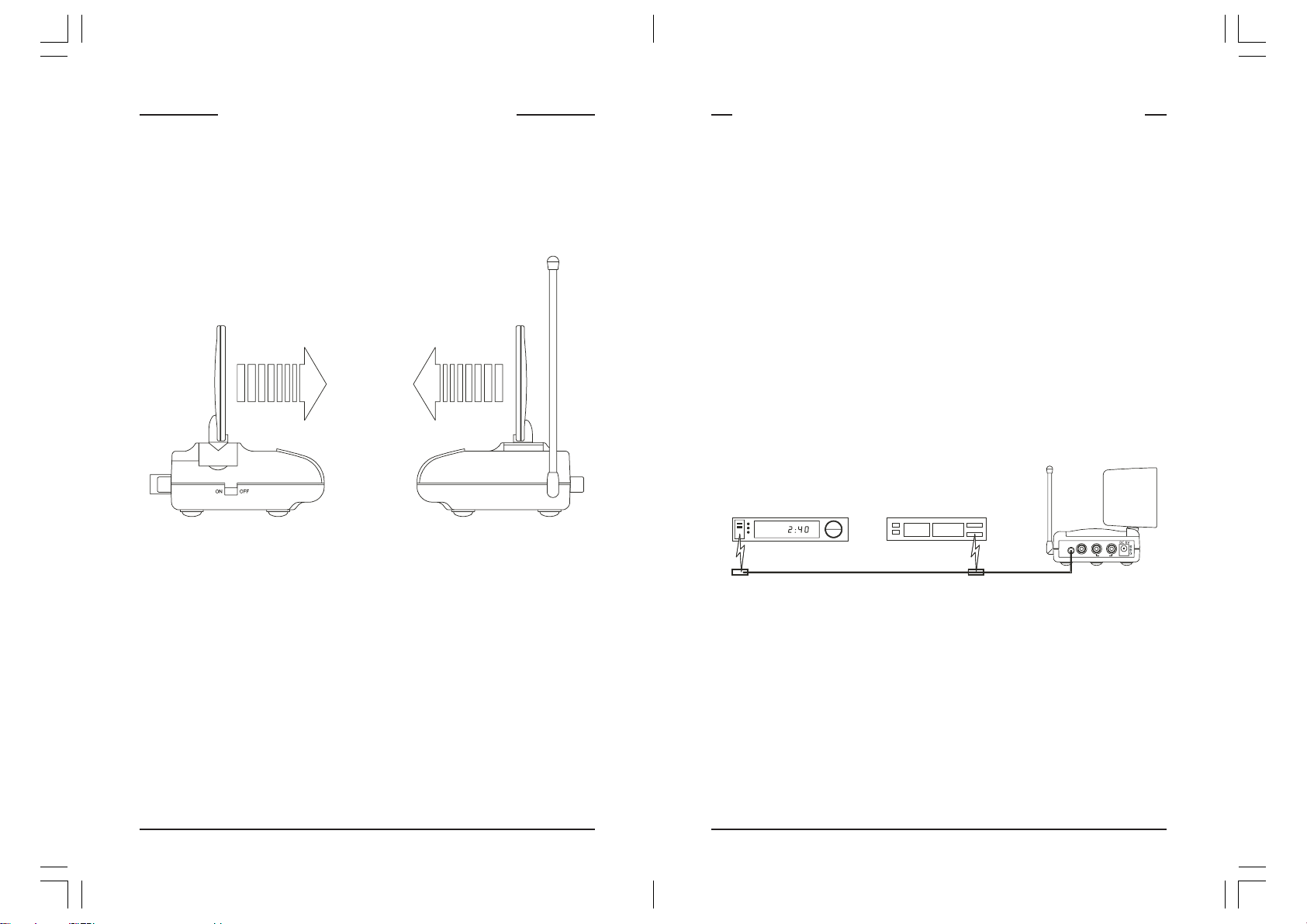

If you have several A/V
components:
If you have two or more A/V
components (e.g. Satellite Receiver
(DBS), VCR, Cable Box, DVD Player,
etc.) that you want to watch in another
room, they will probably already be
hooked up to the local TV in series (see
the diagram to the right). To connect the
Audio/Video Sender you just need to
identify the last component in the chain
and connect its LINE OUT jacks to the
Audio/Video Sender’s A/V IN jacks.
If the last component in the chain does
not have spare LINE OUT jacks,
reconnect the local TV to the last
component in the chain using a coaxial
cable to connect to the VHF/UHF jack,
then use the A/V connections for the
Audio/Video Sender.
SAT Receiver
Cable Box
DVD Player
A) Connections for a TV
with A/V OUT jacks.
PRT215-OM_H13957B.pmd 9/5/2006, 12:05 PM6-7
B) Connections for a TV
without A/V OUT jacks.
76
