Always there to help you
Register your product and get support at
www.philips.com/support
Question?
Contact
Philips
SRP2018
User manual
Contents
1 Your universal remote 2
Introduction 2
Overview of the universal remote 2
Supported devices 3
2 Get started 4
Insert batteries (not included) 4
Set up the universal remote 5
3 Notice 9
Disposal of your old product and battery 9
4 Service and support 10
Frequently asked questions 10
Need help? 10
English
EN 1
1 Your universal remote
a
b
c
d
e
f
g
Congratulations on your purchase, and welcome to Philips! To fully
benet from the support that Philips offers, register your product at
www.philips.com/welcome
Introduction
With the universal remote, you can operate up to 8 different devices.
Overview of the universal remote
a INPUT: select available source inputs (antenna, cable, etc.).
: LED indicator
: power on or off.
b Device selection buttons
2 EN
c GUIDE: displays the program guide.
INFO: displays on-screen channel information.
MENU: menu on or off.
BACK: exit from the menu.
OK: conrm your selection.
/ / / : up/down/left/right.
d VOL+/-: adjust the volume.
CH+/CH-: go to the next/previous channel.
: mute
LAST: return to the previous tuned channel.
e
: previous page
: stop
: next page
: play
: pause
: rewind
: record
: fast forward
f A/B/C/D: context sensitivity buttons (A - yellow, B - blue, C- red,
D - Green)
g Digit buttons
ENTER: conrm the digit button selection.
(-): select between one and two-gure channel numbers.
English
Supported devices
Device name Description
TV/TV-2 TV, DTV
CBL/SAT Cable box, satellite receiver, IPTV, DVR, HDTV
decoder and TiVo
BD DVD player/recorder, Blu-ray player
STR Streaming devices, Apple TV, Roku, Sony, WD TV,
Netgear
VCR Video cassette player/ recorder
AUX Auxiliary equipment, media center PC, others
EN 3
2 Get started
Insert batteries (not included)
Warning
Check the battery polarity when inser ting in the batter y compartment. Incorrect
•
polarity may damage the product.
Caution
Risk of explosion! Keep batteries away from heat, sunshine or re. Never discard
•
batteries in re.
• Risk of decreased battery life! Never mix different brands or types of batteries.
Note
When you replace the batteries, all user settings will be retained in the memory of
•
the universal remote for 5 minutes.
4 EN
Set up the universal remote
You must rst set up the universal remote before operating your
devices.

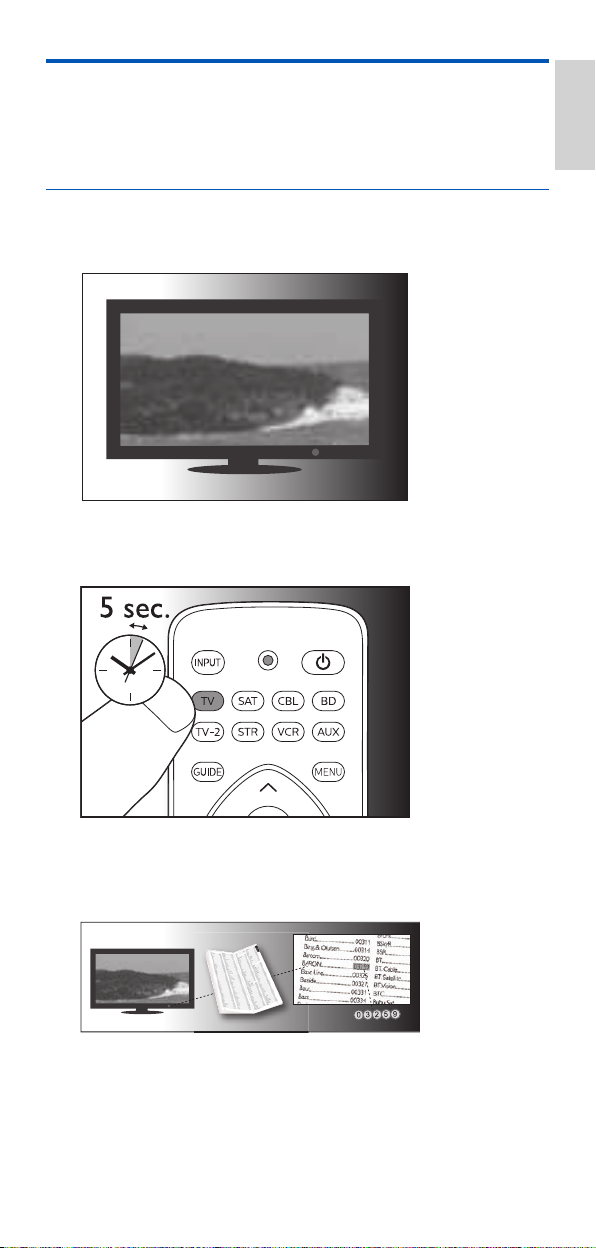

Manual registration
Switch on your device.
1
Press and hold the device selection button (e.g. TV) for 5 seconds
2
until the red LED is on.
English
Look up the 5-digit code for your brand in the code list. Codes
3
are listed by the device type and brand name. The most popular
code is listed rst.
EN 5
Enter the rst 5-digit code using the digit buttons.
4
If the light is off, a valid code is saved. Otherwise, the light will ash
5
once, and then remains on for code re-entry.
Operate the device with the universal remote. If your device
6
responds correctly, it means you have entered the right code.
Otherwise, repeat from step 2, and enter the second code on the
list.
Note
It is possible sometimes that your device only responds to some of the buttons. In
•
such case, set up with the next code in the code list, and try operating your device
again.
• Each device button can be used to set up any device. E.g. you may setup a TV using
the BD device button.
6 EN
Auto registration
Switch on your device.
1
Press and hold the device selection button (e.g. TV) for 5 seconds
2
until the red LED is on.
English
Point at your device with the universal remote. Then press and
3
release
infrared signal is sent every 2 seconds as the universal remote
searches, indicated by a red ash.
to start searching the code for your brand. A different
EN 7
When the device is off, immediately press and release OK to save
4
the code. The red LED indicator will turn off.
max. 20
minutes
Operate the device with the universal remote. If your device
5
responds correctly, it means you have saved the right code.
Note
Auto registration can be reversed, by pressing and releasing once more during the
•
auto registration process. This is helpful if you missed out the chance to press OK
within 2 seconds. Make sure that the device is rst powered on again.
• Repeat the same procedures to set up other devices.
• It is possible sometimes that your device only responds to some of the buttons. In
such case, set up with the next code in the code list, and try operating your device
again.
8 EN
3 Notice
Notice of compliance
Notice for US
This set complies with the FCC rules, Part 15 and with 21 CFR
1040.10. Operation is subject to the following two conditions:
a This device may not cause harmful interference, and
b This device must accept any interference received, including
interference that may cause undesired operation.
FCC rules
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to tr y to correct the
interference by one or more of the following measures:
• Relocate the receiving antenna.
• Increase the separation between equipment and receiver.
• Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for
help.
English
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed
and operated with a minimum distance of 20cm between the radiator
and your body. This transmitter must not be co-located or operated in
conjunction with any other antenna or transmitter.
Warning: Changes or modications made to this equipment not
expressly approved by Gibson Innovations may void the FCC
authorization to operate this equipment.
Model number: SRP2018
Trade Name: Philips
Responsible party: Gibson Innovations USA Inc.3070 Windward Plaza
Suite F, Box 735 Alpharetta, GA 30005
EN 9
Notice for Canada:
This device complies with Industry Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
IC Radiation Exposure Statement:
This equipment complies with Canada radiation exposure limits set
forth for uncontrolled environments.
This transmitter must not be co-located or operating in conjunction
with any other antenna or transmitter.
Disposal of your old product and batteries
Your product is designed and manufactured with high quality materials
and components, which can be recycled and reused.
Never dispose of your product with other household waste. Please
inform yourself about the local rules on the separate collection of
electrical and electronic products and batteries. The correct disposal of
these products helps prevent potentially negative consequences on the
environment and human health.
Your product contains batteries, which cannot be disposed of with
normal household waste.
Please inform yourself about the local rules on separate collection of
batteries. The correct disposal of batteries helps prevent potentially
negative consequences on the environment and human health.
Please visit www.recycle.philips.com for additional information on a
recycling center in your area.
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam
sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
10 EN
4 Service and support
Frequently asked questions
My universal remote does not work at all.
• Check if you have correctly setup the device with the right code.
• Check if you have pressed the corresponding device key for your
device.
• Check if the batteries are inserted properly. If the battery level is
low, replace the batteries.
• Check if your device is powered on.
If several device codes are listed under the brand of my device, how
can I select the correct device code?
To seek the correct device code, test the codes one by one. The codes
are sorted by popularity, and the most popular code is listed rst.
My device responds only to some of the commands.
You have set a code for which only some commands work properly
but some do not. Try other codes until most keys work properly.
Need help?
We advise you to rst read this user manual carefully. It helps you set
up and use the universal remote.
If, however, you require extra information or have additional questions
about setup, usage, warranty, etc of the SRP2018, you can always
contact us.
When calling our helpline, make sure to have the SRP2018 at hand
when you call, so that our operators can help you determine whether
SRP2018 is working properly.
You will nd our contact details at the end of this user manual.
For online support, visit www.philips.com/support
English
EN 11
2016 © Gibson Innovations Limited. All rights reserved.
This product has been manufactured by, and is sold under the
responsibility of Gibson Innovations Ltd., and Gibson Innovations
Ltd. is the warrantor in relation to this product.
Philips and the Philips Shield Emblem are registered trademarks
of Koninklijke Philips N.V. and are used under license from
Koninklijke Philips N.V.
UM_SRP2018_27_EN_V1.0
