Wireless Multimedia Keyboard |
SPK5000BC |
EN |
User manual |
3 |
ES |
Guía de usuario |
14 |
CS |
|
25 |
SPK5000BC 23-01-2006 14:09 Pagina 2
Need help?
If you have any questions about the Philips SPK5000BC Wireless Multimedia Keyboard, please contact our helpline for assistance! You can find the number in the list below.
Country |
Telephone number |
|
België/Belgique/Belgien (Belgium) . . . . |
. . .3 |
070 222303 |
China ( ) . . . . . . . . . . . . . . . . . . . . . . |
. .3 |
4008 800 008 |
Danmark (Denmark) . . . . . . . . . . . . . . |
. .3 |
35-25-8759 |
Deutschland (Germany) . . . . . . . . . . . . |
. .3 |
0180 536767 |
Espana (Spain) . . . . . . . . . . . . . . . . . . . |
. .3 |
902 888 784 |
E da (Greece) . . . . . . . . . . . . . . . . . |
. .3 |
0 0800 3122 1280 |
France . . . . . . . . . . . . . . . . . . . . . . . . . . |
. .3 |
08 09165 0005 |
Italia (Italy) . . . . . . . . . . . . . . . . . . . . . . . |
. .3 |
899 23 45 06 |
Luxembourg (Luxemburg) . . . . . . . . . . |
. .3 |
40 6661 5644 |
Nederland (Netherlands) . . . . . . . . . . . |
. .3 |
0900 8407 |
Norge (Norway) . . . . . . . . . . . . . . . . . . |
. .3 |
2270-8111 |
Österreich (Austria) . . . . . . . . . . . . . . . |
. .3 |
0810 001 203 |
Portugal . . . . . . . . . . . . . . . . . . . . . . . . . |
. .3 |
2 1359 1442 |
Schweiz/Suisse/Svizzera (Switzerland) |
. . .3 |
0844 800 544 |
Suomi (Finland) . . . . . . . . . . . . . . . . . . . |
. .3 |
09 6158 0250 |
Sverige (Sweden) . . . . . . . . . . . . . . . . . . |
. .3 |
08 5792 9100 |
United Kingdom . . . . . . . . . . . . . . . . . . |
. .3 |
0906 1010 016 |
U.S.A. (United States of America) . . . . . |
. .3 |
(919) 573 7854 |
If your country is not mentioned in the list above, please check our website:
www.philips.com/support for additional information.
ñ
SPK5000BC 23-01-2006 14:09 Pagina 3 |
|
|

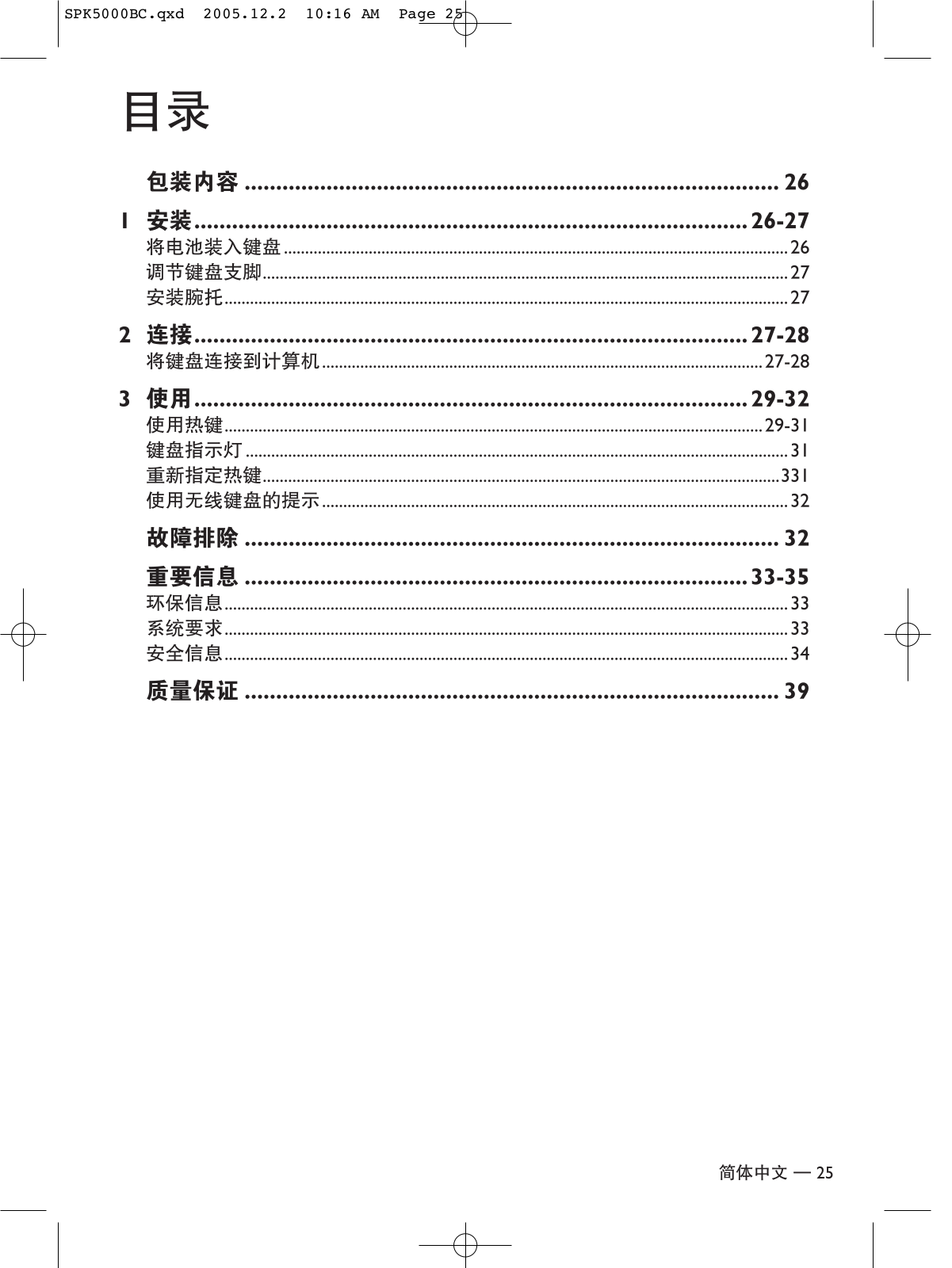

Contents |
|
|
|
What’s in the box ........................................................................ |
4 |
1 |
Install ......................................................................................... |
4-5 |
|
Inserting the batteries in the keyboard .................................................................................. |
4 |
|
Adjusting the keyboard legs....................................................................................................... |
5 |
|
Installing the palm rest................................................................................................................ |
5 |
2 |
Connect ..................................................................................... |
5-6 |
|
Connecting the keyboard to the computer....................................................................... |
5-6 |
3 |
Enjoy ........................................................................................ |
7-10 |
|
Using the hot keys ................................................................................................................... |
7-9 |
|
Keyboard lights ............................................................................................................................. |
9 |
|
Reassigning hot keys.................................................................................................................... |
9 |
|
Tips for using your wireless keyboard.................................................................................. |
10 |
|
Troubleshooting......................................................................... |
10 |
|
Important information ........................................................ |
11-13 |
|
Environmental information ...................................................................................................... |
11 |
|
System requirements ................................................................................................................ |
11 |
|
Safety information...................................................................................................................... |
12 |
|
FCC Compliance........................................................................................................................ |
13 |
|
Guarantee .................................................................................. |
39 |
English - 3
SPK5000BC 23-01-2006 14:09 Pagina 4

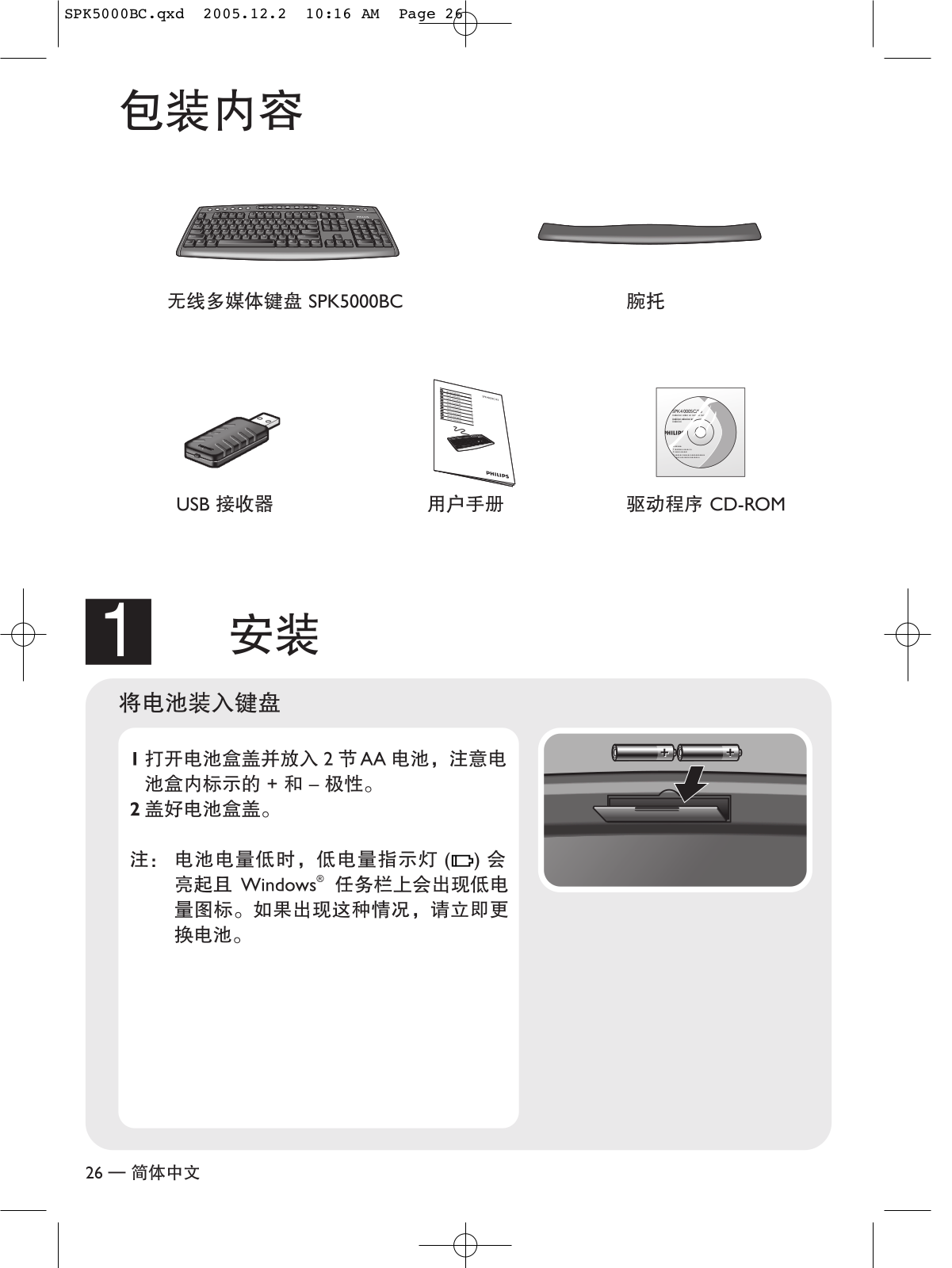

What’s in the box
Wireless multimedia keyboard SPK5000BC
USB receiver |
User manual |
1Install
Inserting the batteries in the keyboard
1 Remove the battery compartment and insert
2 AA batteries, noting the + and – configuration in the battery compartment.
2 Replace the cover.
Note:When the batteries are low, the battery-low indicator () lights up and a battery-low icon appears on the Windows® taskbar. If this is the case, change the batteries immediately.
Palm rest
Driver CD-ROM
+ |
+ |
4 - English
SPK5000BC 23-01-2006 14:09 Pagina 5

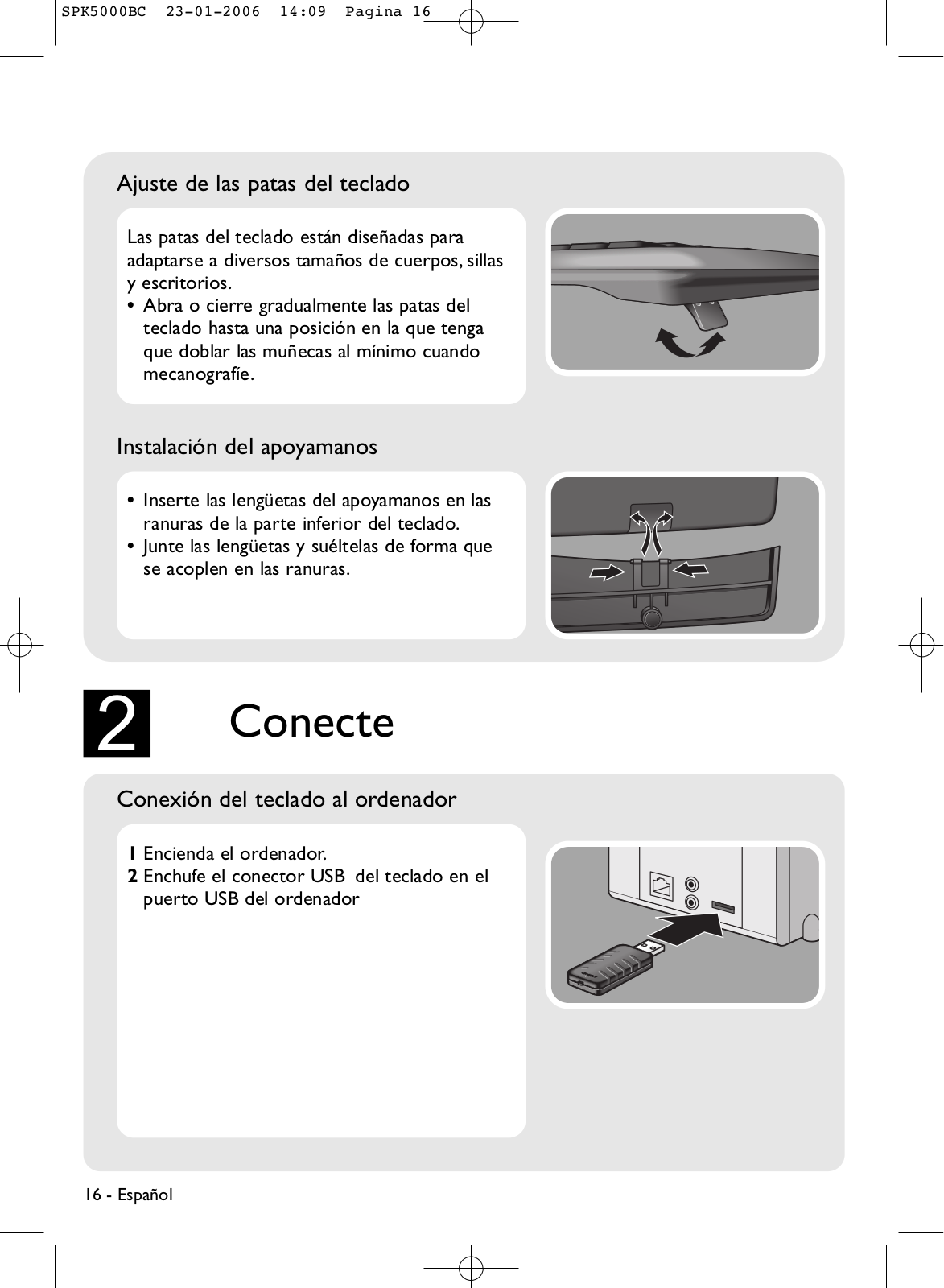

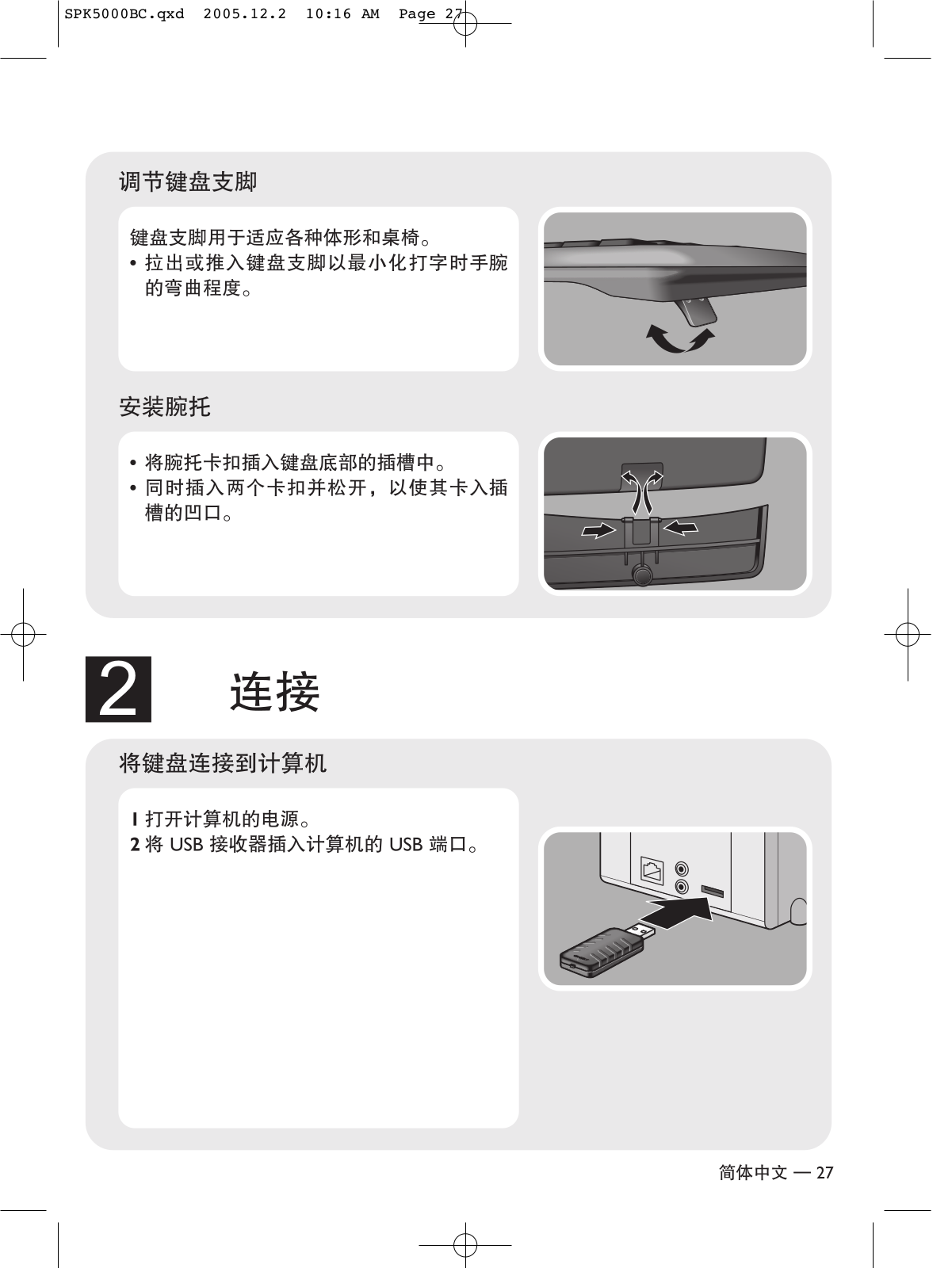

Adjusting the keyboard legs
The keyboard legs are designed to accomodate various body sizes, chairs and desks.
•Pull out or push in the keyboard legs to a position that minimizes bending of your wrists while typing.
Installing the palm rest
•Insert the palm rest tabs into the slots at the bottom of the keyboard.
•Snap the tabs together and loosen them so they click into the recesses in the slots.
2Connect
Connecting the keyboard to the computer
1 Switch on the computer.
2 Plug the USB receiver into the computer USB port.
English - 5
SPK5000BC 23-01-2006 14:09 Pagina 6
3 Press the receiver CONNECT button.
4 Press the keyboard Connect button within 15 seconds.
The button is located at the top left side of the keyboard bottom, under the keyboard leg. Use a pen or paperclip to press the button.
>After 15 seconds the LED on the receiver lights up, indicating that connection is established. Your keyboard is now ready for use.
Notes:
–Distance between keyboard and receiver may not exceed 6 meters (18 feet).
–If no connection is established after 15 seconds, repeat above steps.
–Once connection is established you do not have to reconnect keyboard and receiver after e.g. changing batteries or restarting the computer.
–If your computer runs on Windows® 98, a popup window may appear when you plug the USB receiver into the computer USB port.
You will be asked to insert the Windows® 98 CDROM. Please do so and follow the on-screen instructions for installing the required driver or set the driver path as ‘Windows\system’ or the other path that the driver located.
6 - English
SPK5000BC 23-01-2006 14:09 Pagina 7
3Enjoy
Using the hot keys
Hot keys are special shortcut keys, situated along the top of the keyboard. They provide quick, one-press access to programs, files or commands.
Web and Internet hot keys
Web backward
Goes back to the previously viewed item in programs that support the ‘Back’ command, such as a Web browser.
Web forward
Goes to the next item (if it was previously viewed in the same session) in programs that support the ‘Forward’ command, such as a Web browser.
Web stop
Stops loading or refreshing a Web page or the contents of a particular window.
Web refresh
Updates the information on an active Web page or the contents of a particular window.
Web search
Opens the Internet Explorer Search window.
My favorites
Opens the Internet Explorer Favorites window.This is where you can store shortcuts to frequently used files, websites or other items for easy access.
Home
Starts the default Web browser or goes to the Home Web page.
If the Web browser is already activated it opens the Home Web page.
Starts the default e-mail program. If you are not sure what the default e-mail program is, press this key to find out.
English - 7
SPK5000BC 23-01-2006 14:09 Pagina 8

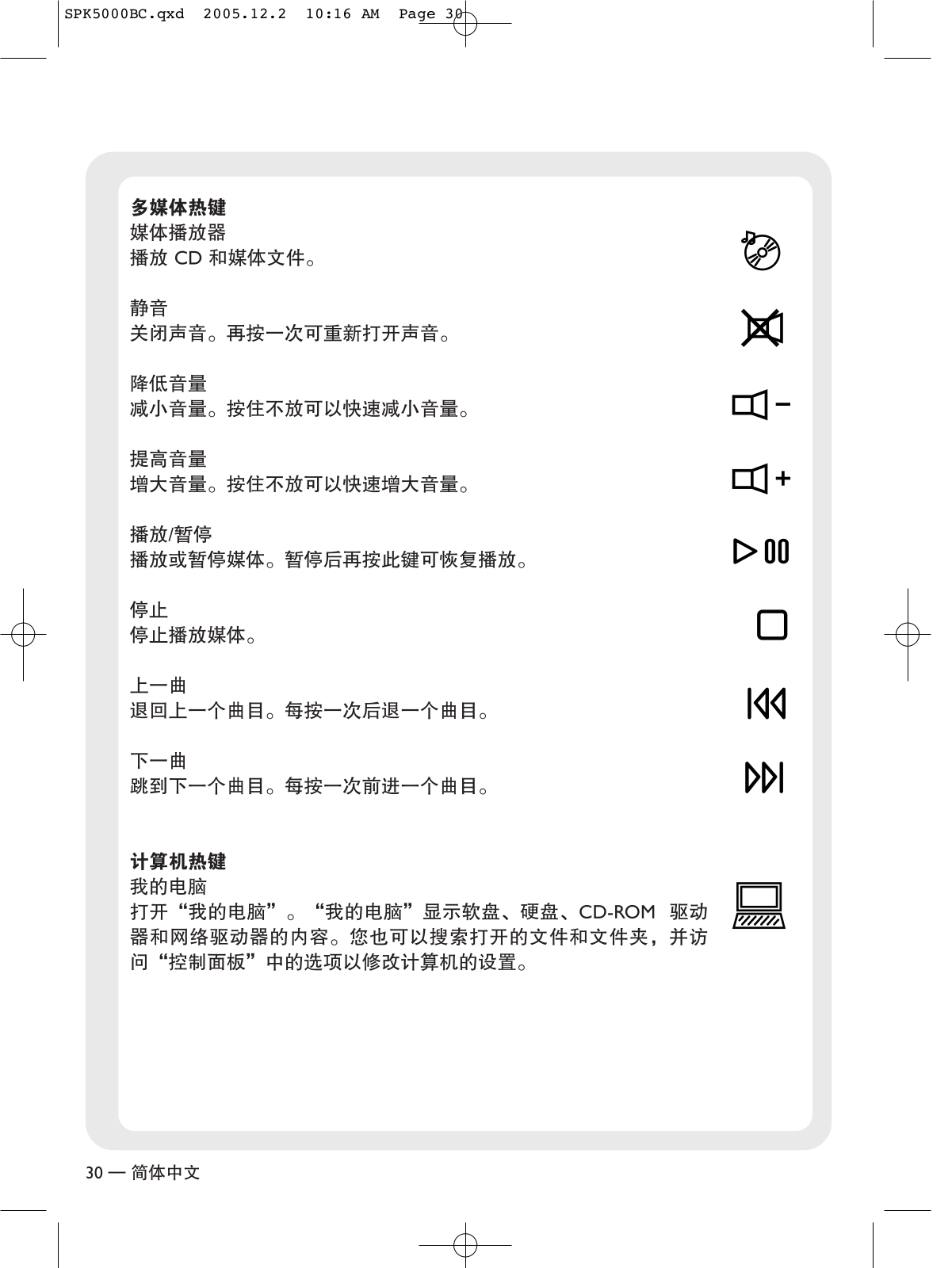

Multimedia hot keys
Media Player
Plays CD and media content.
Mute
Turns off the sound. Press again to turn the sound back on.
Volume down
Decreases the volume. Hold down to decrease the volume more quickly.
Volume up
Increases the volume. Hold down to increase the volume more quickly.
Play / Pause
Plays or pauses media. Once paused, press this key again to resume playback.
Stop
Stops playing media.
Previous track
Goes back to the previous media track. Press once for each preceding track.
Next Track
Skips to the next media track. Press once for each subsequent track.
PC hot keys
My computer
Opens ‘My Computer’. My computer shows the contents of your floppy disk, hard disk, CD-ROM drive and network drives.You can also search for open files and folders, and gain access to options in ‘Control Panel’ to modify the computer’s settings.
8 - English
SPK5000BC 23-01-2006 14:09 Pagina 9

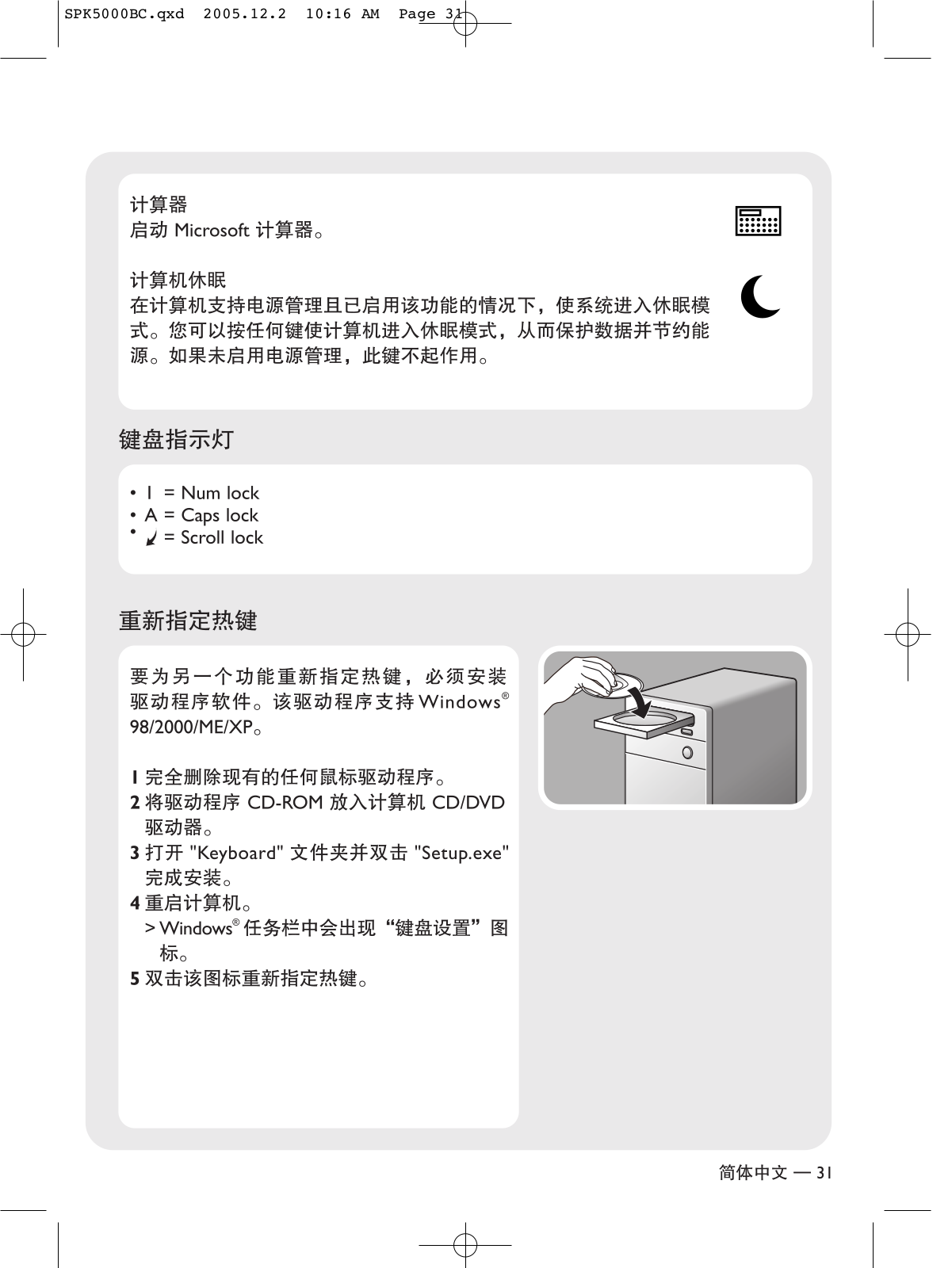

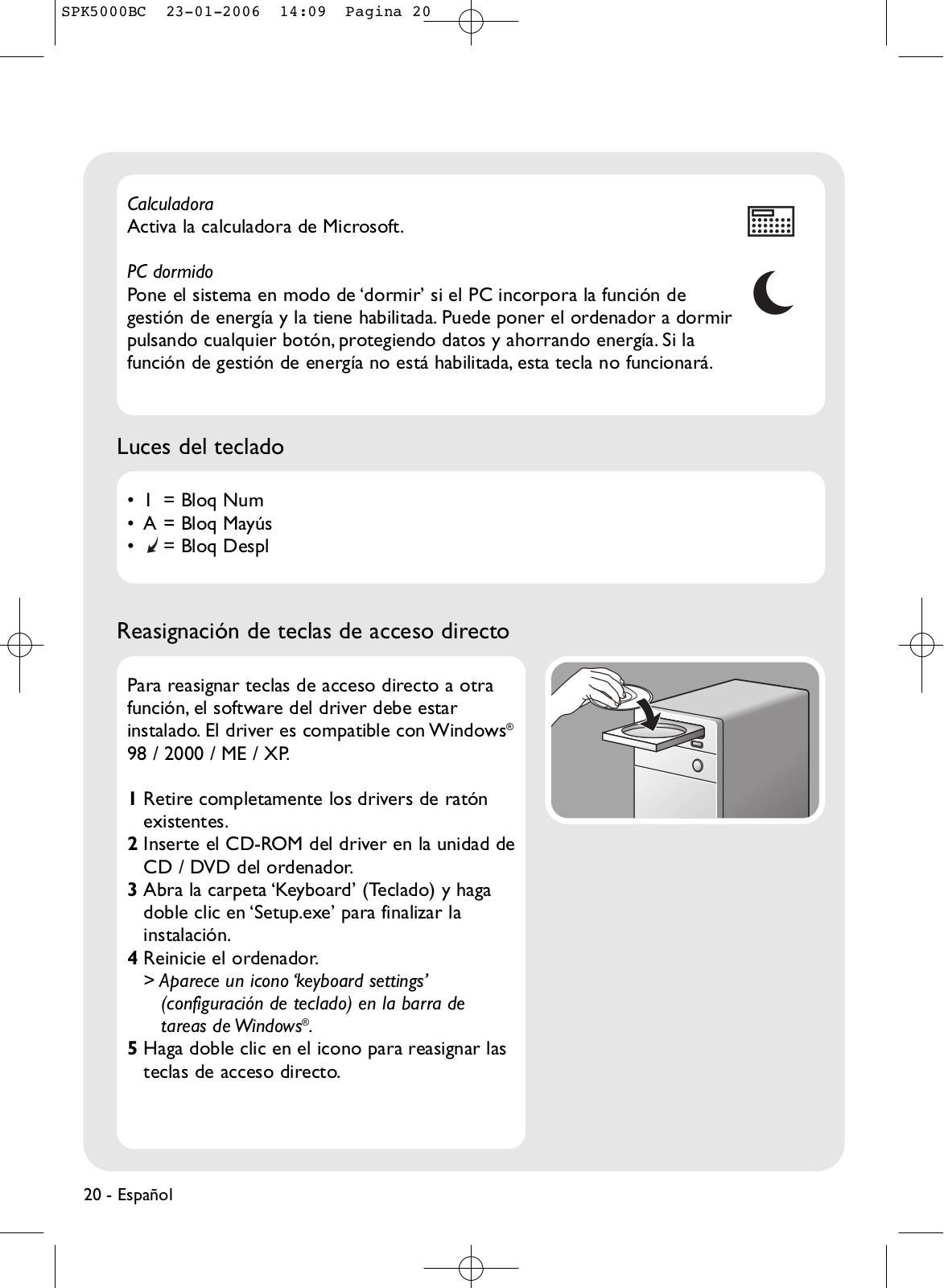

Calculator
Activates Microsoft Calculator.
PC sleep
Puts the system into sleep mode if the PC supports power management and has it enabled.You can put the computer to sleep by pressing any button, protecting data and saving energy. If power management is not enabled, this key will not work.
Keyboard lights
•1 = Num lock
•A = Caps lock
• = Scroll lock
Reassigning hot keys
In order to reassign hot keys to another function, the driver software has to be installed. The driver supports Windows® 98 / 2000 /
ME / XP.
1 Remove any existing mouse drivers completely.
2 Insert the driver CD-ROM into the computer CD / DVD drive.
3 Open the ‘Keyboard’ folder and double click ‘Setup.exe’ to complete installation.
4 Restart the computer.
>A ‘keyboard settings’ icon appears in the Windows® task bar.
5 Double click the icon to reassign the hot keys.
English - 9
SPK5000BC 23-01-2006 14:09 Pagina 10

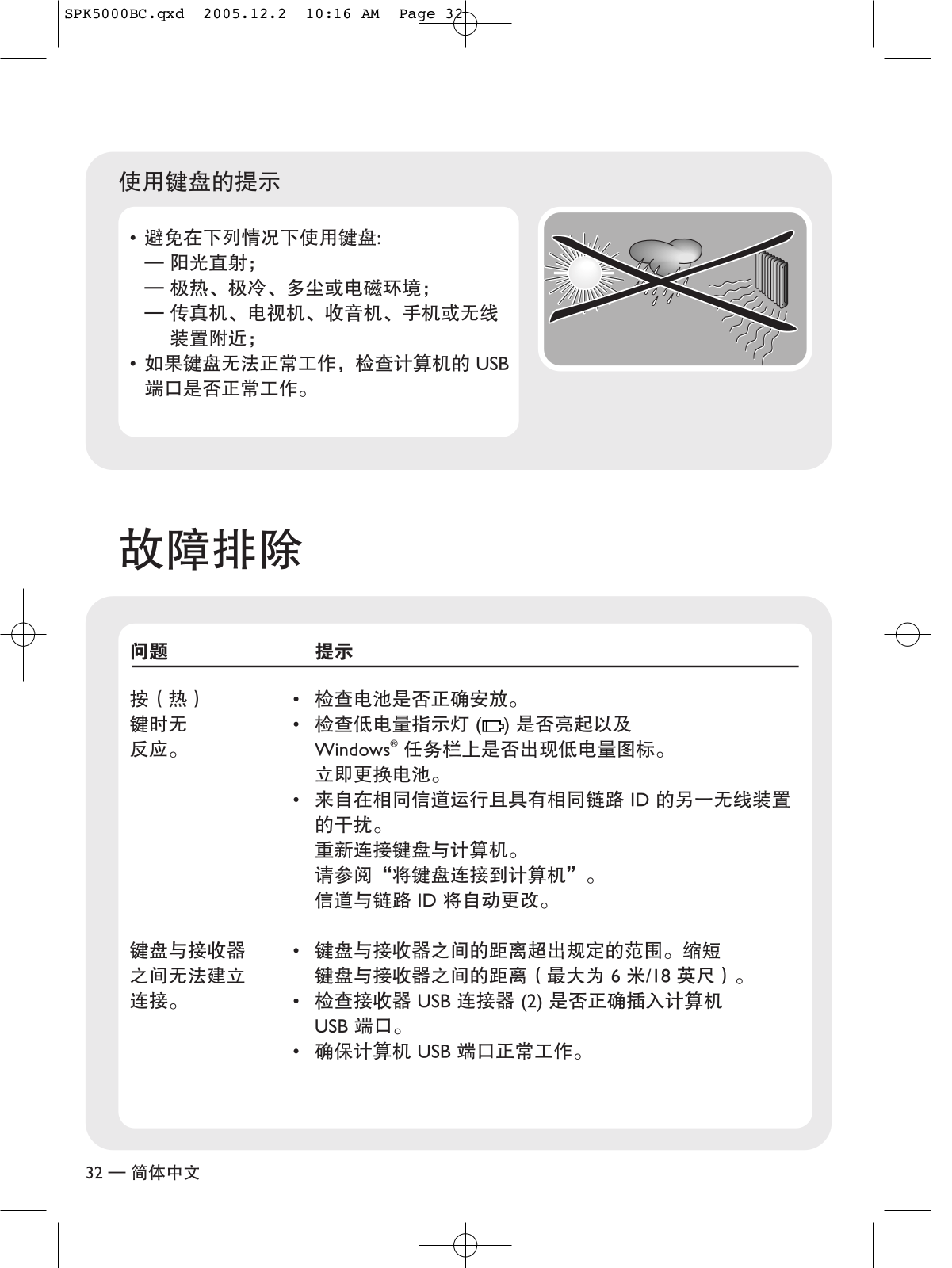

Tips for using your keyboard
• Avoid using the keyboard under following conditions:
– in direct sunlight;
– in extreme hot, cold, dusty or magnetic environments;
–near fax machines,TV sets, radios, mobile phones or wireless devices;
•If the keyboard does not work properly, make sure the computer USB port is valid.
Troubleshooting
Problem |
Tip |
||
No reaction |
• Check if batteries are properly placed. |
||
when pressing |
• Check if battery-low indicator ( |
|
) is lit and if a |
|
|||
(hot) keys. |
battery-low icon is shown on the Windows® taskbar. |
||
|
Change batteries immediately. |
||
|
• Interference from another wireless device that operates on |
||
|
the same channel and with the same Link ID. |
||
|
Reconnect the keyboard to the computer. |
||
|
See ‘Connecting the keyboard to the computer’. |
||
|
Channel and Link ID will be changed automatically. |
||
No connection can |
• Keyboard and receiver out of range. Reduce distance |
||
be established |
between keyboard and receiver (max. 6 meters / 18 feet). |
||
between keyboard |
• Check if receiver USB connector (2) is properly plugged |
||
and receiver. |
into the computer USB port. |
||
|
• Make sure computer USB port is a valid one. |
10 - English
SPK5000BC 23-01-2006 14:09 Pagina 11

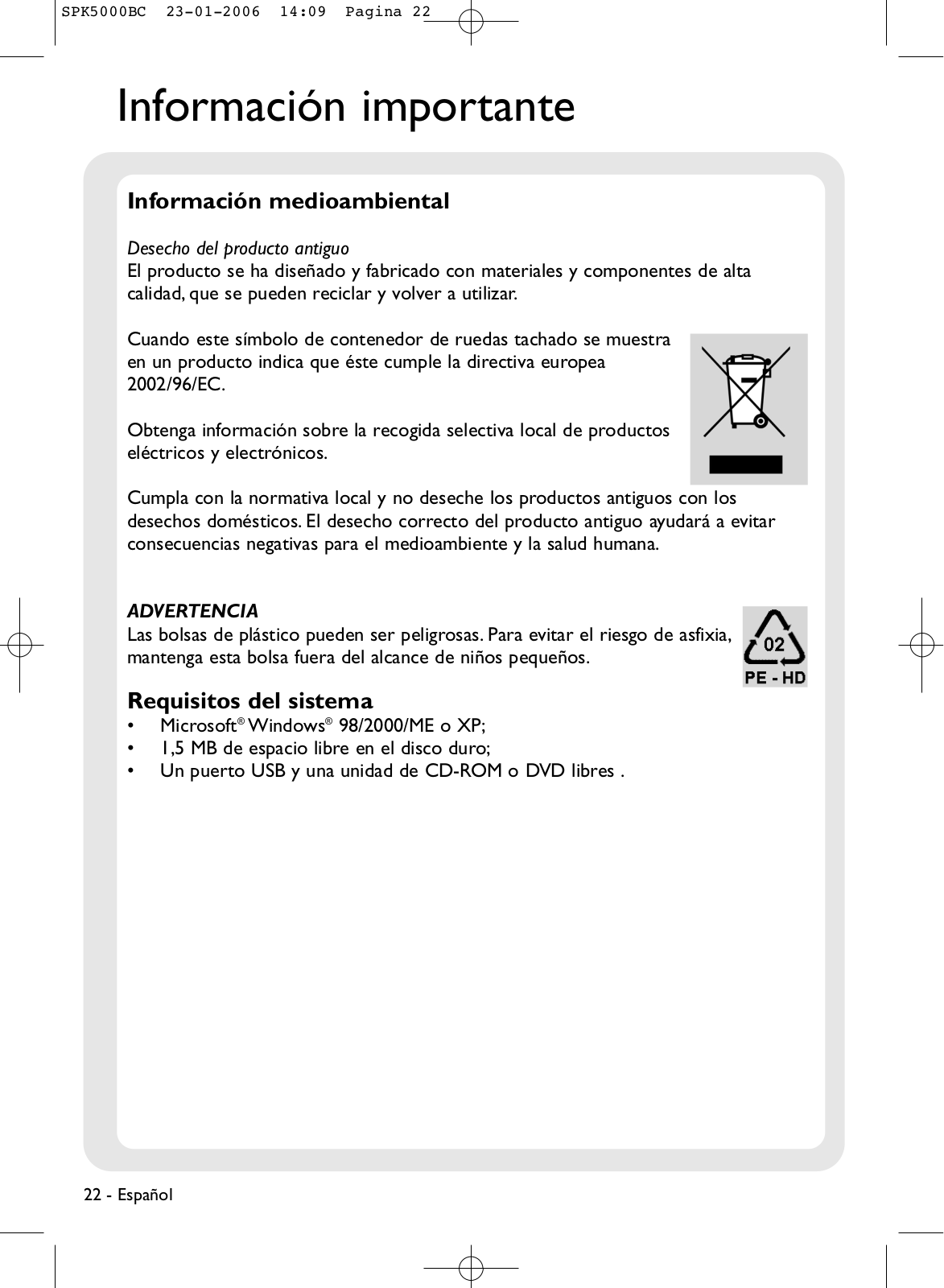

Important information
Environmental information
Disposal of your old product
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC.
Please inform yourself about the local separate collection system for electrical and electronic products.
Please act according to your local rules and do not dispose of your old products with your normal household waste.The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.
WARNING
Plastic bags can be dangerous.To avoid danger of suffocation, keep this bag away from babies and small children.
System requirements
•Microsoft® Windows® 98/2000/ME or XP;
•1.5 MB free hard disk space;
•One free USB port and CD-ROM or DVD drive.
English - 11
SPK5000BC 23-01-2006 14:09 Pagina 12

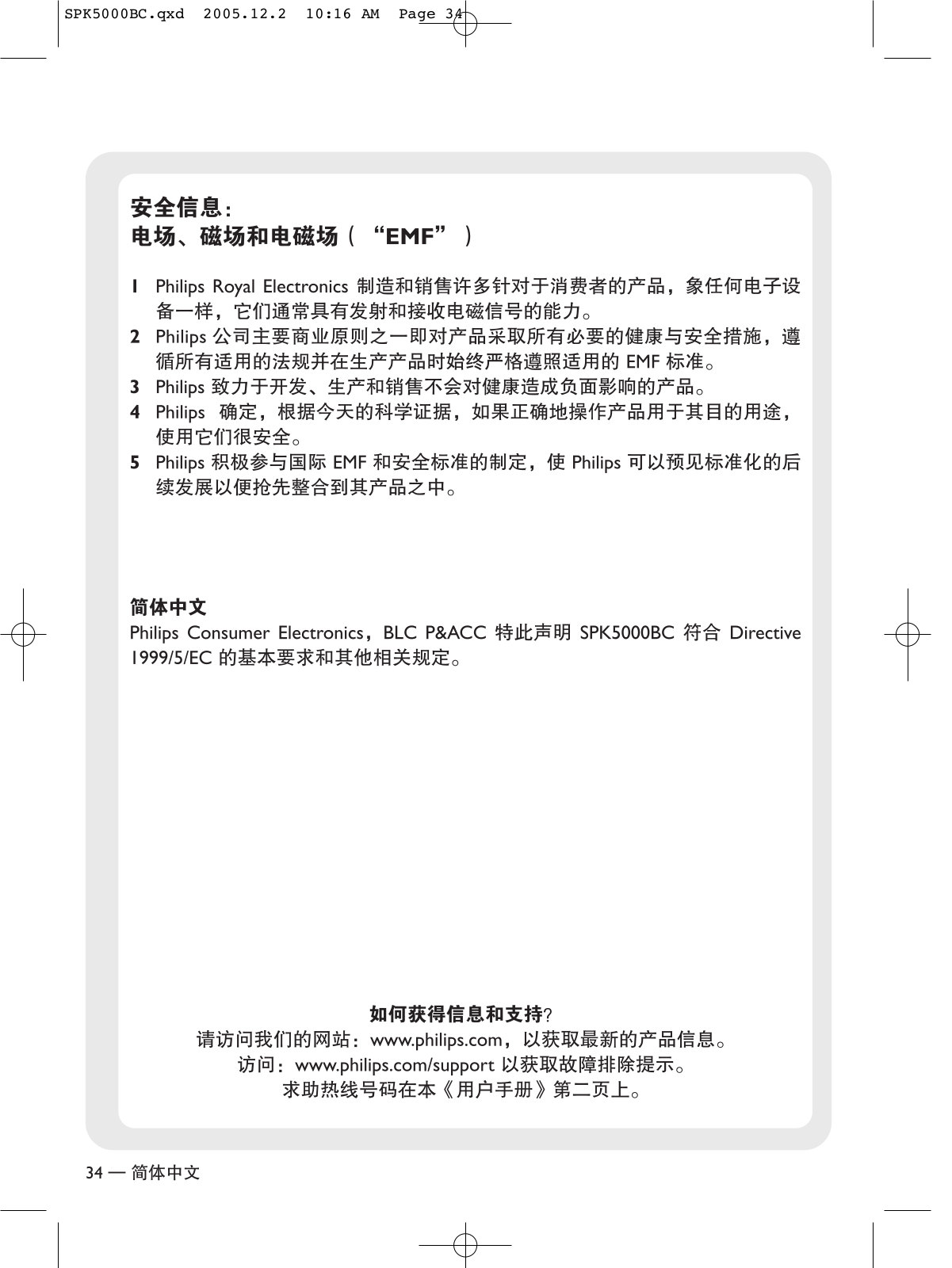

Safety Information:
Electric, Magnetic and Electromagnetic Fields (‘EMF’)
1Philips Royal Electronics manufactures and sells many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electro magnetic signals.
2One of Philips’ leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products.
3Philips is committed to develop, produce and market products that cause no adverse health effects.
4Philips confirms that, if its products are handled properly for their intended use, they are safe to use according to scientific evidence available today.
5Philips plays an active role in the development of international EMF and safety standards, enabling Philips to anticipate further developments in standardization for early integration in its products.
Where to go for information and support?
Please visit our website: www.philips.com for the latest product information. Go to: www.philips.com/support for for troubleshooting tips.
The helpline phone numbers can be found on page 2 of this User Manual.
