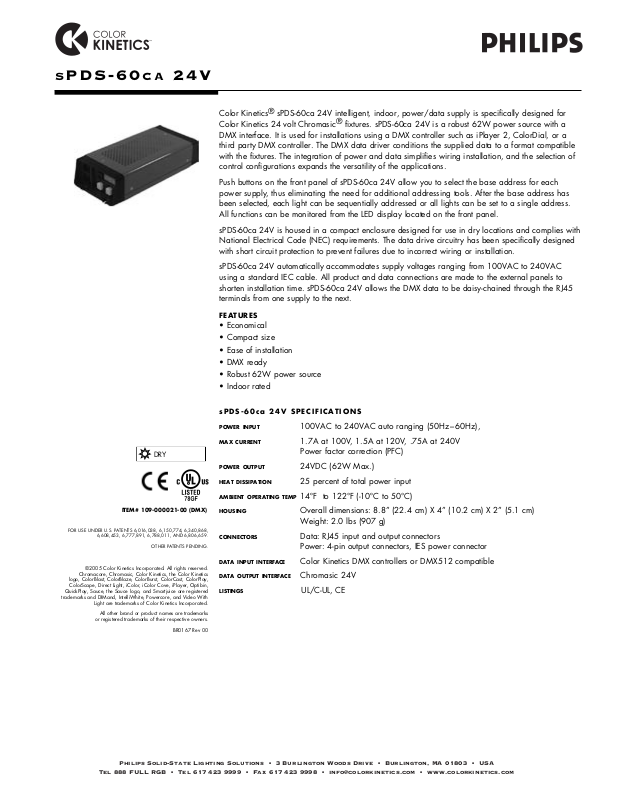

Philips SPDS-60CA 24V User Manual

S P D S - 6 0 C A 2 4 V

DRY

Philips Solid-State Lighting Solutions • 3 Burlington Woods Drive • Burlington, MA 01803 • USA

Tel 888 FULL RGB • Tel [phone] • Fax [phone] • [e-mail] • www.colorkinetics.com

Color Kinetics® sPDS-60ca 24V intelligent, indoor, power/data supply is specifically designed for
Color Kinetics 24 volt Chromasic® fixtures. sPDS-60ca 24V is a robust 62W power source with a
DMX interface. It is used for installations using a DMX controller such as iPlayer 2, ColorDial, or a
third party DMX controller. The DMX data driver conditions the supplied data to a format compatible
with the fixtures. The integration of power and data simplifies wiring installation, and the selection of
control configurations expands the versatility of the applications.

Push buttons on the front panel of sPDS-60ca 24V allow you to select the base address for each
power supply, thus eliminating the need for additional addressing tools. After the base address has
been selected, each light can be sequentially addressed or all lights can be set to a single address.
All functions can be monitored from the LED display located on the front panel.

sPDS-60ca 24V is housed in a compact enclosure designed for use in dry locations and complies with
National Electrical Code (NEC) requirements. The data drive circuitry has been specifically designed
with short circuit protection to prevent failures due to incorrect wiring or installation.

sPDS-60ca 24V automatically accommodates supply voltages ranging from 100VAC to 240VAC
using a standard IEC cable. All product and data connections are made to the external panels to
shorten installation time. sPDS-60ca 24V allows the DMX data to be daisy-chained through the RJ45
terminals from one supply to the next.

FEATU RE S

• Economical

• Compact size

• Ease of installation

• DMX ready

• Robust 62W power source

• Indoor rated

ITEM# 109-000021-00 (DMX)

FOR USE UNDER U.S. PATENTS 6,016,038, 6,150,774, 6,340,868,

6,608,453, 6,777,891, 6,788,011, AND 6,806,659.

OTHER PATENTS PENDING.

©2005 Color Kinetics Incorporated. All rights reserved.

Chromacore, Chromasic, Color Kinetics, the Color Kinetics

logo, ColorBlast, ColorBlaze, ColorBurst, ColorCast, ColorPlay,

ColorScape, Direct Light, iColor, iColor Cove, iPlayer, Optibin,

QuickPlay, Sauce, the Sauce logo, and Smartjuice are registered

trademarks and DIMand, IntelliWhite, Powercore, and Video With

Light are trademarks of Color Kinetics Incorporated.

All other brand or product names are trademarks

or registered trademarks of their respective owners.

BR0167 Rev 00

sP D S - 6 0c a 24V S PE CI F IC AT IO N S

POWER INPUT 100VAC to 240VAC auto ranging (50Hz – 60Hz),

MAX CURRENT 1.7A at 100V, 1.5A at 120V, .75A at 240V

Power factor correction (PFC)

POWER OUTPUT 24VDC (62W Max.)

HEAT DISSIPATION 25 percent of total power input
AMBIENT OPERATING TEMP 14ºF to 122°F (-10ºC to 50°C)
HOUSING Overall dimensions: 8.8” (22.4 cm) X 4” (10.2 cm) X 2” (5.1 cm)

Weight: 2.0 lbs (907 g)

CONNECTORS Data: RJ45 input and output connectors

Power: 4-pin output connectors, IES power connector

DATA INPUT INTERFACE Color Kinetics DMX controllers or DMX512 compatible
DATA OUTPUT INTERFACE Chromasic 24V

LISTINGS UL/C-UL, CE

sPDS-60ca 24V

8.79”

(22.3 cm)

4.01”

(10.2 cm)

2.25”

(5.7 cm)

8.31”

(21.1 cm)

8.03”

(20.4 cm)

4.01”

(10.2 cm)

2.06”

(5.2 cm)

SIDE BACK

TOP

Philips Solid-State Lighting Solutions • 3 Burlington Woods Drive • Burlington, MA 01803 • USA

Tel 888 FULL RGB • Tel [phone] • Fax [phone] • [e-mail] • www.colorkinetics.com

ph ysi cal dim ens i on s

DATA CONNECTOR

OUTPUT

SUPPLY

WEIGHT

s P D S - 6 0 c a 2 4 V

I T E M # 1 0 9 - 0 0 0 0 2 1 - 0 0 / 0 1

Input and output: RJ45

CONNECTOR

CONNECTOR

4-pin
IEC Inlet
2 lbs. (907 kg)
