Table of contents
1 Important 2
1.1 Safety information 2
1.2 Network range & speed information 2
1.3 Conformity 2
1.4 Recycling and disposal 2
1.5 FCC Radiation Exposure Statement 2
1.6 Software licenses 2
1.7 Disclaimer 2
2 Your Wireless Router 3
2.1 What’s in the box 3
2.2 What else will you need 3
2.3 Overview of the front side of the wireless router 4
2.4 Overview of the rear side of the wireless router 4
3 Getting started 5
3.1 Install 5
3.2 Connect 5
3.3 Connection overview 6
3.4 Install a WiFi device 7
3.4.1 Install a Wireless USB adapter SNB5600 7
3.4.2 Install another WiFi device 7
4 Configuring the Wireless Router 8
4.1 Log on the webpages 8
4.2 Webpages’ menu structure 8
4.3 SYSTEM 8
4.3.1 Time zone 8
4.3.2 Password Settings 9
4.3.3 Remote management 9
4.4 WAN 9
4.6 WIRELESS 10
4.6.1 Channel and SSID 10
4.6.2 Access control 11
4.6.3 Security 11
4.7 NAT 11
4.7.1 Address Mapping 12
4.7.2 Virtual server 12
4.7.3 Special Applications 12
4.7.4 NAT Mapping Table 12
4.8 FIREWALL 12
4.8.1 Access Control 13
4.8.2 MAC Filter 13
4.8.3 URL blocking 13
4.8.4 Schedule rule 13
4.8.5 Intrusion detection 13
4.8.6 DMZ 14
4.9 UPnP 14
4.10 DDNS 14
4.11 TOOLS 15
4.11.1 Configuration Tools 15
4.11.2 Firmware Upgrade 15
4.11.3 Reset 15
4.12 STATUS 15
4.13 SET UP WIZARD 16
4.13.1 Getting started 16
4.13.2 Time zone 16
4.13.3 Wireless settings 16
4.13.4 Connection type settings 16
5 Technical data 17
4.4.1 Dynamic IP Address 9
4.4.2 PPPoE 9
4.4.3 Static IP Address 10
4.4.4 Clone MAC Address 10
4.4.5 DNS 10
4.5 LAN 10
Table of contents
6 Frequently asked questions 18
1
1 Important
Take time to read this user manual before you use your Wireless
Router. It contains important information and notes regarding your
Wireless Router.
1.1 Safety information
1.4 Recycling and disposal
Disposal instructions for old products :
The WEEE directive (Waste Electrical and Electronic Equipment
Directive ; 2002/96/EC) has been put in place to ensure that products
are recycled using best available treatment, recovery and recycling
techniques to ensure human health and high environmental protection.
Your product is designed and manufactured with high quality materials
and components, which can be recycled and reused.
!
Warning
• This equipment must only be powered with the Power Adapter
provided in the box.
• For use only with power supply "Leader : 48090100-C5" and / or
"DVE : DV-01AUP".
• Always use the cables provided with the product.
• Radio equipment for wireless applications is not protected against
disturbance from other radio services.
• Do not expose the system to excessive moisture, rain, sand or heat
sources.
• The product should not be exposed to dripping or splashing.
• No object filled with liquids, such as vases, should be placed on the
product.
• Keep the product away from domestic heating equipment and direct
sunlight.
• Allow a sufficient amount of free space all around the product for
adequate ventilation.
• Do not open this product. Contact your ISP / cable provider
helpdesk.
1.2 Network range & speed information
• The environment : Radio signals can travel further outside of
buildings, and if the wireless components are in direct line of sight to
one another. Putting wireless components in high places helps avoid
physical obstacles and provides better coverage.
• Building construction such as metal framing and concrete or masonry
walls and floors will reduce radio signal strength. Avoid putting
wireless components next to large solid objects ; or next to large
metal object such as computers, monitors, and appliances.
• Wireless signal range, speed, and strength can be affected by
interference from neighbouring wireless networks and devices.
Electro-magnetic devices such as televisions, radios, microwave
ovens, and cordless phones, especially those with frequencies in the
2.4GHz range, may also interfere with wireless transmission.
• Standing or sitting too close to wireless equipment can also affect
radio signal quality.
• Adjusting the antenna : Do not place antennas next to large pieces of
metal, because this might cause interference.
1.3 Conformity
Do not dispose of your old product in your general household waste
bin.
Inform yourself about the local separate collection system for electrical
and electronic products marked by this symbol :
Use one of the following disposal options :
• Dispose of the complete product (including its cables, plugs and
accessories) in the designated WEEE collection facilities.
• If you purchase a replacement product, hand your complete old
product back to the retailer. He should accept it as required by the
WEEE directive.
Packaging information :
Philips has marked the packaging with standard symbols designed to
promote the recycling and appropriate disposal of any waste.
A financial contribution has been paid to the associated national
recovery & recycling system.
The labeled packaging material is recyclable.
1.5 FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment. This equipment should be installed
and operated with minimum distance 20 cm between the radiator and
your body.
1.6 Software licenses
This product contains open source software packages. An overview of
these packages, the licences and / or notices that apply to them, and the
source code for a number of these packages are available in the on-line
product documentation, which is visible on www.p4c.philips.com.
We, Philips declare that the product is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
You can find the Declaration of Conformity on www.p4c.philips.com.
Following this Directive, this product can be brought into service in the
following states :
B ✓ DK ✓ E3GR✓ F ✓
IRL ✓ I ✓ L3NL✓ A ✓
P ✓ SU ✓ S3UK✓ N ✓
D ✓ CH ✓ TR 3
2
1.7 Disclaimer
This product is provided by "Philips" "as is" and without any express or
implied warranty of any kind of warranties, including, but not limited to,
the implied warranties of merchantability and fitness for a particular
purpose are disclaimed.
In no event shall Philips be liable for any direct, indirect, incidental,
special, exemplary, or consequential damages (including, but not limited
to, procurement of substitute goods or services ; loss of information,
data, or profits ; or business interruption) howsoever caused and on any
theory of liability, whether in contract, strict liability, or tort (including
negligence or otherwise) arising in any way out of the use of inability to
use this product, even if advised of the possibility of such damages.
Philips further does not warrant the accuracy or completeness of the
information, text, graphics, links or other items transmitted by this
product.
Important
2Your Wireless Router
Quick start guide
1
2
3
Connect
Install
Enjoy
SNB5600
W
E
B
B
R
O
W
S
E
R
Congratulations on your purchase and welcome to Philips !
To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.
2.1 What’s in the box
Wireless Router Quick start guide Power adapter
Installation CD ROM Ethernet cable
(RJ-45)
2.2 What else will you need
A desktop or a laptop with free A modem A web browser An Internet connection
USB port and an Ethernet
connector
Your Wireless Router
3
2.3 Overview of the front side of the wireless router
2.4 Overview of the rear side of the wireless router
ABCD E
A
ON : Power on, normal operation
OFF : Power off or failure
B
ON : Wireless link is up
Blinking : Send / Receive data
OFF : Wireless disable or failure
C
ON : Internet connection is up
Blinking : Data transfering
OFF : Internet connection is down or failure
D
ON : WAN connection is OK
Blinking : Send / Receive data
OFF : Connection is not established
E
ON : Ethernet connection is established
Blinking : Send / Receive data
OFF : Connection is not established
WAN
1
LAN
"
LAN2LAN3LAN
4
9V DC
-
+
BCA
PHILIPS
Model: SNB5600/00
0682
S/N:
Made in China
AWAN port
Connect your modem to this port
BLAN ports
10/100 Ethernet ports (RJ-45). Connect devices to your local area
network on these ports (i.e., a PC, hub, or switch).
C Power Inlet
Connect the included power adapter to this inlet
D Reset button
Use this button to reset the power and restore the default factory
settings. To reset without losing configuration settings, see 4.11.3.
!
Warning
Using the wrong type of power adapter may damage the Wireless
Router.
For use only with power supply "Leader : 48090100-C5" and / or
"DVE : DV-01AUP".
-
+
Input:
9V 1A
Reset
D
4
Your Wireless Router
3 Getting started
1
2
3
4
1
2
3
4
5
3.1 Install
Insert the installation CD into the PC’s CD ROM (or DVD ROM)
drive
• The installation program will start automatically
Follow instructions on the screen
Note
If for some reason the installation does not start automatically :
1 Click on Windows START and then RUN
2Type explorer and navigate to the CD ROM (or DVD ROM)
drive
3 Double-click on Setup.exe
Tip
By default, the language of your operating system will be choosen, but
you have 10 seconds if you want to select another one.
3.2 Connect
Connect the supplied power adapter to the 9V DC port
Connect the power adapter to the electricity supply socket
• Power light will turn on
If your computer is already connected via Ethernet, then disconnect
this cable from your computer
Click on the required language
• The next screen will be displayed automatically
Click on the picture of the SNB5600 Wireless Router
• The next screen will be displayed automatically
Connect this Ethernet cable to the WAN port on the SNB5600
• WAN light will turn on
Take the Ethernet cable provided in the box
Getting started
5
Connect this Ethernet cable to the LAN1 port
6
7
8
9
12
Connect the other side of this Ethernet cable to your computer
• light will turn on
Note
Depending on your modem settings, you might have the following
screen displayed.
Click on Menu if you want to go back to the menu screen
Tip
Your WiFi network is running but not secured.
Click on Menu if you want to go back to the menu screen
Click on Set Encryption
• Your WiFi network will be secured by generating automatically an
encryption key and a network name (SSID)
Note
At any time you can retrieve your wireless security settings using your
installation CD ROM on the computer where you installed your
gateway and by clicking on the security icon of the menu page.
Fill in the fields using the information provided by your Internet
Service Provider (ISP)
Then click on Continue
• A progress bar screen will be displayed, your settings will be saved and
you will be connected to Internet
• Once the installation completed, the following screen will be displayed
Note
This screen is the Philips support site. It is a live Internet page, subject
to change. The screen displayed may differ from the one shown.
3.3 Connection overview
Your connection before the installation of the router :
Ethernet
Internet
Internet
@
@
Modem
Your connection after the installation of the router :
Wi-Fi
Internet
Internet
@
@
Modem
OR
Ethernet
PC
PCRouter
6
Getting started
3.4 Install a WiFi device
1
If you want to install a WiFi device you have to retrieve your wireless
security settings using your installation CD ROM on the computer
where you installed your gateway and by clicking on the security icon
of the menu page.
3.4.1 Install a Wireless USB adapter SNU5600
If you have bought the starter kit SNK5600, the Wireless USB adapter
SNU5600 is part of the box content. In that case you just have to insert
the installation CD ROM, provided with your SNK5600, and follow the
instructions on the screen.
You can either install your Wireless USB adapter on the same PC than
the Wireless Router or on another PC.
3.4.2 Install another WiFi device
Refer to the manual of the other WiFi device
Note
If you have previously secured your network (see 3.2 step 12) through
the easy installation, the name of your network (SSID) will be
"PHILIPS_xxxxxx".
If not secured previously through the easy installation, the SSID will be
"philips_install".
In case you have given another name to your network, bear in mind that
this name will be displayed instead of the "PHILIPS_xxxxxx" or
"philips_install".
Note
At any time you can retrieve your wireless security settings using your
installation CD ROM on the computer where you installed your
gateway and by clicking on the security icon of the menu page.
Getting started
7
4 Configuring the Wireless Router
1
2
3
4
Advanced users may want to change the configuration of their Wireless
Router. This chapter explains how to access the configuration
webpages, show you the struture of these webpages and it describes
them.
LAN
WIRELESS Channel and SSID
Access control
Security
WEP
WPA
802.1X
4.1 Log on the webpages
Open your Internet Browser
Enter http://192.168.1.2 in the address field
Click on GO
• The following webpage will be displayed
Note
The only default language is English.
NAT Address Mapping
Virtual Server
Special Applications
NAT Mapping Table
FIREWALL Access Control
MAC Filter
URL blocking
Schedule rule
Intrusion Detection
DMZ
UPnP
DDNS
TOOLS
Configuration Tools
Firmware Upgrade
Reset
STATUS
To access the required webpage, click on the corresponding tab on
the left side of the page
4.2 Webpages’ menu structure
The table below describes the menu tree of the webpages :
SET UP WIZARD Getting started
Time zone
Wireless settings
Connection Type Settings
Dynamic IP
Note
It is highly recommended to use the Easy Install program
available on the provided CD ROM instead of the SET UP
WIZARD pages.
SYSTEM Time zone
Password Settings
Remote Management
WAN Dynamic IP Address
PPPoE
Static IP Address
Clone MAC Address
DNS
4.3 SYSTEM
4.3.1 Time zone
Select your local time zone from the drop down list. This information is
used for log entries and client filtering.
If you want to automatically synchronize the Wireless Router with
a public time server, check the box to Enable Automatic Time Server
Maintenance. Select the desired servers from the drop down menu.
8
Configuring the Wireless Router
4.3.2 Password Settings
4.4 WAN
Use this page to change the password for accessing the management
interface of the Wireless Router.
Passwords can contain from 3-12 alphanumeric characters and are case
sensitive.
Note
If you lost the password, or you cannot gain access to the user interface,
press the reset button on the rear panel, holding it down for at least
five seconds to restore the factory defaults. By default, there is no
password to login to the user interface.
!
Warning
When you reset the Wireless Router using the reset button, all
configuration settings will be lost, also your ISP setting (Internet Service
Provider).
Enter a maximum Idle Time Out (in minutes) to define a maximum
period of time for which the login session is maintained during inactivity.
If the connection is inactive for longer than the maximum idle time, it
will perform system logout, and you have to log in again to access the
management interface. (Default : 10 minutes)
4.3.3 Remote management
The router can be connected to your Internet Service Provider (ISP) in
any of the following ways :
- Dynamic IP Address
-PPPoE
- Static IP address
4.4.1 Dynamic IP Address
This page allows you to obtain an IP address automatically from your
Service Provider.
By default, management access is only available to users on your local
network. However, you can also manage the Wireless Router from a
remote host by entering the IP address of a remote computer on this
screen. Check the Enabled check box, and enter the IP address of the
Host Address and click "SAVE SETTINGS".
Note
If you check Enable and specify an IP address of 0.0.0.0, any remote host
can manage the Wireless Router.
For remote management via WAN IP address you need to connect
using port 8080. Simply enter WAN IP address followed by :8080, for
example, 212.120.68.20:8080.
4.4.2 PPPoE
PPPoE is a common connection method used for xDSL.
Configuring the Wireless Router
9
4.4.3 Static IP Address
4.5 LAN
Your ISP provides a static IP address to access Internet services.
4.4.4 Clone MAC Address
Some ISP’s require you to register your MAC address with them. If you
have done this, the MAC address of the router must be changed to the
MAC address that you supplied to your ISP.
4.4.5 DNS
You can enable DHCP to dynamically allocate IP addresses to your
client PCs, or configure filtering functions based on specific clients or
protocols. The router must have an IP address for the local network.
4.6 WIRELESS
The router can be quickly configured as a wireless access point for
roaming clients by setting the service set identifier (SSID) and channel
number. It also supports data encryption and client filtering. Check the
box to enable the wireless module function.
Domain Name Servers (DNS) are used to map a domain name (e.g.,
www.philips.com) with the IP address (e.g., 64.147.25.20). The DNS
address is usually configured automatically. If this is not the case, one or
more DNS address will be provided to you by your ISP.
However, if there is a DNS server that you would rather use, you need
to specify the IP address here.
10
4.6.1 Channel and SSID
You must specify a common radio channel and SSID (Service Set ID) to
be used by the Wireless Router and all of its wireless clients. Make sure
you configure all of its clients to the same values.
Configuring the Wireless Router
4.6.2 Access control
Access Control allows users to define the outgoing traffic permitted or
not-permitted through the WAN interface. The default is to permit all
outgoing traffic.
4.6.3 Security
To manually configure the encryption key, enter five hexadecimal pairs
of digits for each 64-bit key, or enter 13 pairs for the single 128-bit key.
(A hexadecimal digit is a number or letter in the range 0-9 or A-F).
Note that WEP protects data transmitted between wireless nodes, but
does not protect any transmissions over your wired network or over
the Internet.
WPA
Wi-Fi Protected Access (WPA) combines temporal key integrity
protocol (TKIP) and 802.1x mechanisms. It provides dynamic key
encryption and 802.1x authentication service.
The router can transmit your data securely over the wireless network.
Matching security mechanisms must be setup on your router and
wireless client devices. You can choose the allowed security
mechanisms in this page and configure them in the sub-pages.
WEP
802.1X
If 802.1x is used in your network, then you should enable this function
for the Wireless Router. These parameters are used for the Wireless
Router to connect to the authentication server.
4.7 NAT
If you use WEP to protect your wireless network, you need to set the
same parameters for the Wireless Router and all your wireless clients.
You may automatically generate encryption keys or manually enter the
keys. To generate the key automatically with passphrase, check the
Passphrase box, enter a string of characters. Select the default key from
the drop down menu. Click "SAVE SETTINGS".
Note
The passphrase can consist of up to 32 alphanumeric characters.
Configuring the Wireless Router
Network Address Translation allows multiple users to access the
Internet sharing one public IP.
Check the box to enable the NAT module function.
11
4.7.1 Address Mapping
4.7.3 Special Applications
Allows one or more public IP addresses to be shared by multiple
internal users. This also hides the internal network for increased privacy
and security. Enter the Public IP address you wish to share into the
Global IP field. Enter a range of internal IPs that will share the global IP
into the "from" field.
4.7.2 Virtual server
If you configure the Wireless Router as a virtual server, remote users
accessing services such as web or FTP at your local site via public IP
addresses can be automatically redirected to local servers configured
with private IP addresses. In other words, depending on the requested
service (TCP/UDP port number), the Wireless Router redirects the
external service request to the appropriate server (located at another
internal IP address).
For example, if you set Type/Public Port to TCP/80 (HTTP or web) and
the Private IP/Port to 192.168.2.2/80, then all HTTP requests from
outside users will be transferred to 192.168.2.2 on port 80. Therefore,
by just entering the IP address provided by the ISP, Internet users can
access the service they need at the local address to which you redirect
them.
Some applications require multiple connections, such as Internet
gaming, video-conferencing, and Internet telephony.
These applications may not work when Network Address Translation
(NAT) is enabled. If you need to run applications that require multiple
connections, use these pages to specify the additional public ports to be
opened for each application.
4.7.4 NAT Mapping Table
This page displays the current NAPT (Network Address Port
Translation) address mappings.
4.8 FIREWALL
A list of ports is maintained at the following link :
http://www.iana.org/assignments/ports-numbers
12
The Wireless Router’s firewall inspects packets at the application layer,
maintains TCP and UDP session information including time-outs and the
number of active sessions, and provides the ability to detect and prevent
certain types of network attacks.
Configuring the Wireless Router
Network attacks that deny access to a network device are called
Denial-of-Service (DoS) attacks. DoS attacks are aimed at devices and
networks with a connection to the Internet. Their goal is not to steal
information, but to disable a device or network so users no longer have
access to network resources.
The Wireless Router firewall function protects against the following
DoS attacks : IP Spoofing, Land Attack, Ping of Death, IP with zero
length, Smurf Attack, UDP port loopback, Snork Attack, TCP null scan,
and TCP SYN flooding.
The firewall does not significantly affect system performance, so we
advise leaving it enabled to protect your network. Select "Enable" and
click the "SAVE SETTINGS" button to open the Firewall submenus.
4.8.1 Access Control
4.8.3 URL blocking

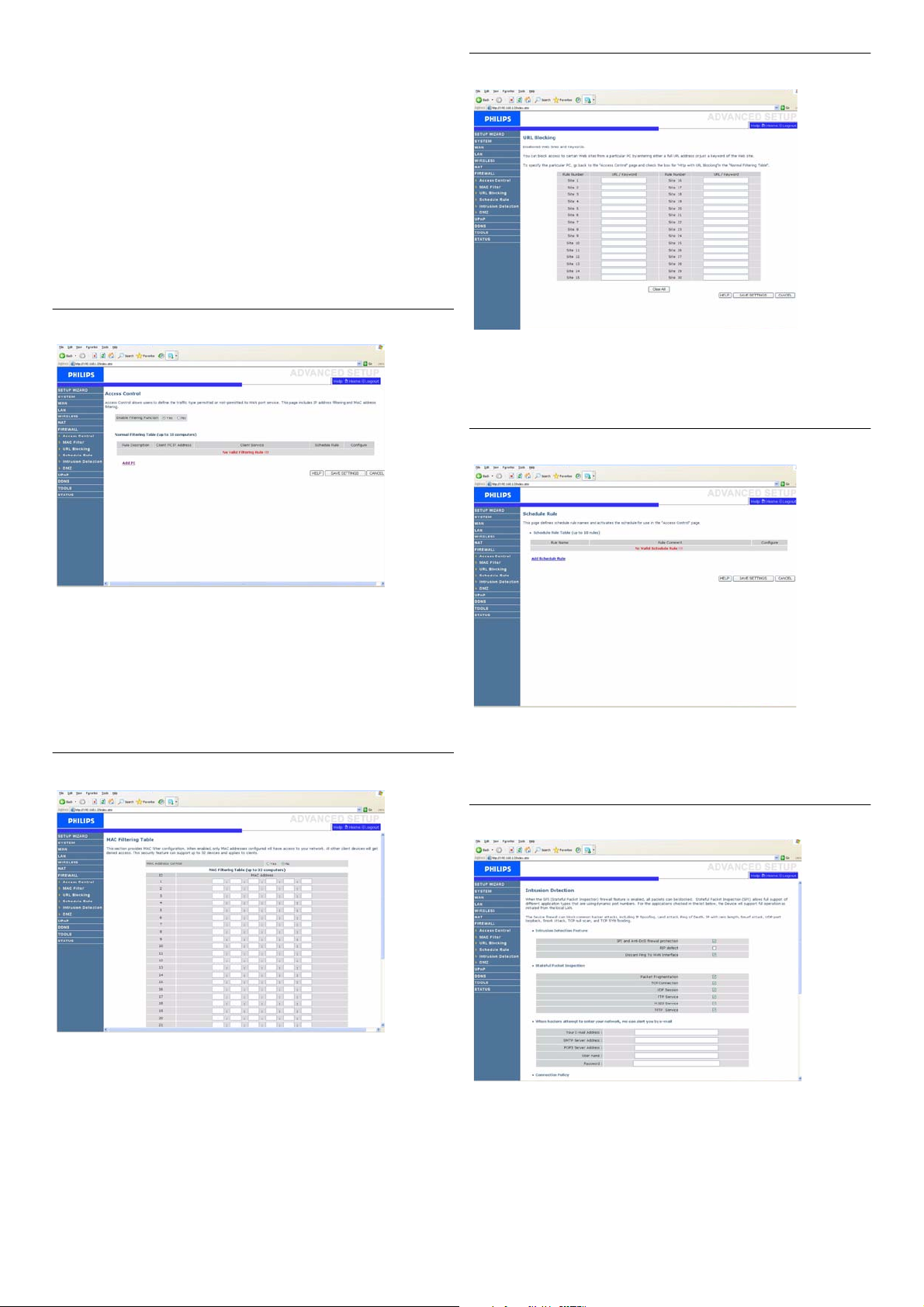

The Wireless Router allows the user to block access to web sites by
entering either a full URL address or just a keyword. This feature can be
used to protect children from accessing violent or pornographic web
sites.
4.8.4 Schedule rule
Access Control allows users to define the outgoing traffic permitted or
not-permitted through the WAN interface. The default is to permit all
outgoing traffic.
To add the PC to the filtering table :
1- Click "Add PC" on the Access Control screen
2- Define the appropriate settings for client PC services
3- Click "OK" and then click "SAVE SETTINGS" to save your settings
4.8.2 MAC Filter
The Wireless Router can also limit the network access based on the
MAC address. The MAC Filtering Table allows the Wireless Router to
enter up to 32 MAC addresses that are allowed to access to the WAN
port.
1- Click "Yes" to enable, or "No" to disable this function
2- Enter the MAC address in the space provided and click "Save
Settings" to confirm
You may filter Internet access for local clients based on rules. Each
access control rule may be activated at a scheduled time. Define the
time schedule on this page, and apply the rule on the Access Control
page.
4.8.5 Intrusion detection
Intrusion Detection Feature
Stateful Packet Inspection (SPI) and Anti-DoS firewall protection
(Default : Enabled) - The Intrusion Detection Feature of the Wireless
Router limits access for incoming traffic at the WAN port. When the
SPI feature is turned on, all incoming packets will be blocked except for
those types marked in the Stateful Packet Inspection section.
Configuring the Wireless Router
13
RIP Defect (Default : Disabled) - If an RIP request packet is not
acknowledged to by the router, it will stay in the input queue and not
be released. Accumulated packets could cause the input queue to fill,
causing severe problems for all protocols. enabling this feature prevents
the packets from accumulating.
Discard Ping to WAN (Default : Disabled) - Prevent a ping on the
Wireless Router’s WAN port from being routed to the network.
Scroll down to view more information.
Stateful Packet Inspection
This is called a "Stateful" packet inspection because it examines the
contents of the packet to determine the state of the communications ;
i.e., it ensures that the stated destination computer has previously
requested the current communication. This is a way of ensuring that all
communications are initiated by the recipient computer and are taking
place only with sources that are known and trusted from previous
interactions. In addition to being more rigorous in their inspection of
packets, stateful inspection firewalls also close off ports until connection
to the specific port is requested.
When particular types of traffic are checked, only the particular type of
traffic initiated from the internal LAN will be allowed. For example, if
the user only checks "FPT Service" in the Stateful Packet Inspection
section, all incoming traffic will be blocked except for FTP connections
initiated from the local LAN.
Stateful Packet Inspection allows you to select different application
types that are using dynamic port numbers. If you wish to use the
Stateful Packet Inspection (SPI) to block packets, click on the Yes radio
button in the "Enable SPI and Anti-DoS firewall protection" field and
then check the inspection type that you need, such as Packet
Fragmentation, TCP Connection, UDP Session, FTP Service, H.323
Service, or TFTP Service.
two-way Internet access. Enter the IP address of a DMZ (Demilitarized
Zone) host on this screen. Adding a client to the DMZ may expose your
local network to a variety of security risks, so only use this option as a
last resort.
4.9 UPnP
UPNP (Universal Plug and Play) settings
With Universal Plug and Play, a device can automatically join a network,
obtain an IP address, communicate its capabilities, and learn about the
presence and capabilities of other devices. Devices can then directly
communicate with each other. This further enables peer-to-peer
networking.
4.10 DDNS
When hackers attempt to enter your network, the router can alert you by e-mail
If the mail server needs to authenticate your indentification before
sending out any e-mail, please fill related information in POP3 server,
username and password fields. Otherwise leave the three fields blank.
Connection Policy
Enter the appropriate values for TCP/UDP sessions as described in the
following table.
Note
The firewall does not significantly affect system performance, so we
advise enabling the prevention features to protect your network.
4.8.6 DMZ

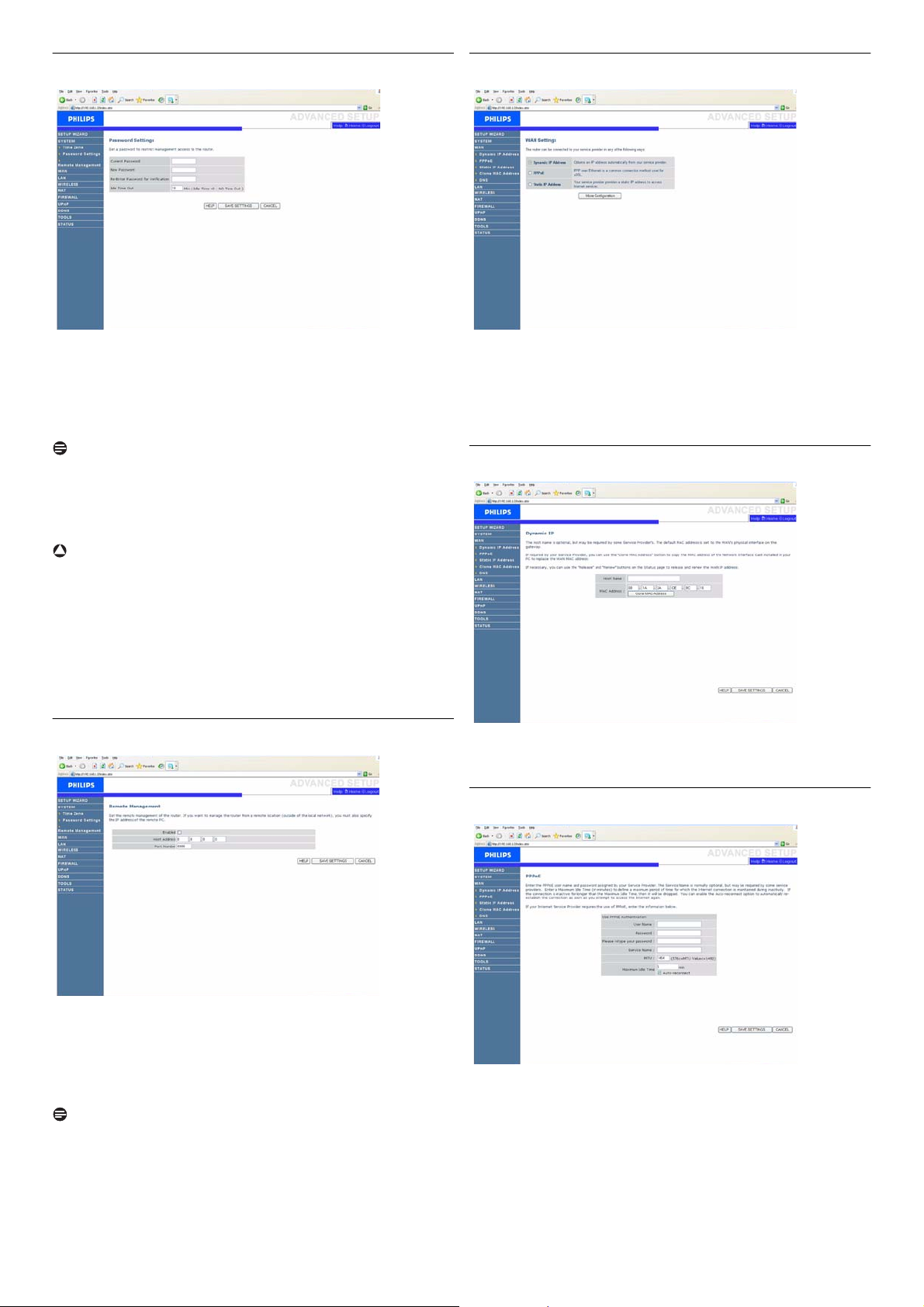

DDNS (Dynamic DNS) settings
DDNS text "Domain Name" is a series of alphanumeric strings
separated by periods that maps to the address of a network connection
and identifies the owner of the address.
Dynamic DNS provides users on the Internet with a method to tie their
domain name to a computer or server. DDNS allows your domain
name to follow your IP address automatically by having your DNS
records changed when your IP address changes.
The Server Configuration section automatically opens the TCP port
options checked in the Virtual Server section. Simply enter in the IP
Address of your server, such as a web server, and then click on the port
option HTTP Port 80 so users can access your web server from the
Internet connection.
This DNS feature is powered by a DDNS service provider. With
a DDNS connection you can host your own web site, email server, FTP
site, and more at your own location even if you have a dynamic IP
address. (Default : Disable)
If you have a client PC that cannot run an Internet application properly
from behind the firewall, you can open the client up to unrestricted
14
Configuring the Wireless Router
4.11 TOOLS
4.11.3 Reset
Use the Maintenance menu to backup the current configuration, restore
a previously saved configuration, restore factory settings, update
firmware, and reset the Wireless Router.
4.11.1 Configuration Tools
Choose a function and click "Next>>".
"Backup" allows you to save the Wireless Router’s configuration to a
file.
"Restore" can be used to restore the saved backup configuration file.
"Restore to Factory Defaults" resets the Wireless Router to the original
settings. You will be asked to confirm your decision.
4.11.2 Firmware Upgrade
Click "REBOOT ROUTER" to reset the Wireless Router.
If you perform a reset from this page, the configuration will not be
changed back to the factory default settings.
Note
If you use the Reset button on the rear panel, the Wireless Router
performs a power reset. Press the button for over five seconds, and the
factory default settings will be restored.
4.12 STATUS
The Status page displays WAN/LAN connection status, firmware, and
hardware version numbers, illegal attempts to access your network, as
well as information on DHCP clients connected to your network. The
security log may be saved to a file by clicking "Save" and choosing
a location.
Use the Firmware Upgrade screen to update the firmware or user
interface to the latest versions. Download the upgrade file from
www.philips.com/support (Model SNB5600), and save it to your hard
drive. Then click "Browse..." to look for the downloaded file. Click
"BEGIN UPGRADE". Check the Status page Information section to
confirm that the upgrade process was successful.
Configuring the Wireless Router
15
4.13 SET UP WIZARD
4.13.1 Getting started
4.13.4 Connection type settings
This page allows you to select a connection type to connect Internet
(see 4.4).
Make sure the router is connected correctly. For a detailed description,
refer to the user manual. This can be found on the Installation CD
provided.
4.13.2 Time zone
This page allows you to configure the local time zone and automatic
time maintenance. Automatic time maintenance synchronizes the
router with a public time server on the Internet.
4.13.3 Wireless settings
Dynamic IP
This page allows you to obtain an IP address automatically from your
Service Provider.
In step 2 you can change the Wireless settings of the Wireless Router.
For easy installation it is advised to keep the default settings. If you later
would like to change any of the wireless settings you can do so via the
menu in the Wireless Router.
16
Configuring the Wireless Router
5 Technical data
Ports
• Four 10/100Mbps Rj-45 Ports
Management Features
• Firmware upgrade via web based management
• Web based management (configuration)
• Power indicators
• Event and history logging
• Network ping
Security Features
• Password protected configuration access
• User authentication (PAP/CHAP) with PPP
• Firewall NAT NAPT
• VPN pass through (IPSec-ESP Tunnel mode, L2TP, PPTP)
Wireless Security
• WEP 64/128 bit
• WPA/WPA2
• WPA/WPA2-Personal (PSK)
• WPA-PSK with TKIP
• WPA2-PSK with AES
• WPA-PSK + WPA2-PSK with TKIP+AES.AES, or TKIP
LAN Features
• IEEE 802.1d (self-learning transparent Bridging)
• DHCP Server
• DNS Proxy
• Static Routing, RIPv1 and RIP
Modulation Rate - Output Power (dBm)
• 802.11g - 6Mbps (15dBm)
• 802.11g - 9Mbps (15dBm)
• 802.11g - 12Mbps (15dBm)
• 802.11g - 18Mbps (15dBm)
• 802.11g - 24Mbps (15dBm)
• 802.11g - 36Mbps (15dBm)
• 802.11g - 48Mbps (15dBm)
• 802.11g - 54Mbps (15dBm)
Sensitivity Modulation Rate - Receiver 2.412~2.484 GHz Sensitivity (dBm)
• 802.11b - 1Mbps (90dBm)
• 802.11b - 2Mbps (88dBm)
• 802.11b - 5.5Mbps (85dBm)
• 802.11b - 11Mbps (84dBm)
Modulation Rate - Receiver Sensitivity Typical (dBm)
• 802.11g - 6Mbps (88dBm)
• 802.11g - 9Mbps (87dBm)
• 802.11g - 12Mbps (84dBm)
• 802.11g - 18Mbps (82dBm)
• 802.11g - 24Mbps (79dBm)
• 802.11g - 36Mbps (75dBm)
• 802.11g - 48Mbps (68dBm)
• 802.11g - 54Mbps (68dBm)
Environmental
Complies with the following standards :
Radio Features
• Wireless RF module Frequency Band
• 802.11g Radio : 2.4GHz
• 802.11b Radio : 2.4GHz
Europe - ETSI
• 2412~2472MHz (Ch1-Ch13)
Modulation Type
• 802.11g : OFDM (BPSK, QPSK, 16- and 64-QAM)
• 802.11b : CCK (11 Mbps, 5.5 Mbps), DQPSK (2 Mbps)
Operating Channels IEEE 802.11g
• 13 channels (ETSI)
Operating Channels IEEE 802.11b
• 13 channels (Europe)
Transmit Power and Sensitivity
Tx Output Power : (Typical)
• 11b : 18.5 +/- 1 dBm
• 11g : 14.5 +/- 1 dBm@54Mbps
RF Output Power Modulation Rate - Output Power (dBm)
• 802.11b - 1Mbps (16dBm)
• 802.11b - 2Mbps (16dBm)
• 802.11b - 5.5Mbps (16dBm)
• 802.11b - 11Mbps (16dBm)
Temperature : IEC 68-2-14
• 0 to 50 degrees C (Standard Operating)
• -40 to 70 degrees C (non-operation)
Humidity
• 10% to 90% (non-condensing)
Vibration
• IEC 68-2-36, IEC 68-2-6
Shock
• IEC 68-2-29
Drop
• IEC 68-2-32
Input Power
•9VDC
IEEE standards
• IEEE 802.3, 802.3u, 802.11g, 802.1d
• IUT G.dmt
• IUT G.Handshake
• IUT T.413 issue 2 - ADSL full rate
Standards, Conformance Electromagnetic, Compatibility
• CE, ETSI, R&TTE, ETS 300 328, ETS 300 826
Technical data
Safety
• EN60950
17
6 Frequently asked questions
In this chapter you will find the most frequently asked questions and
answers about your Wireless Router.
Set-up
I cannot connect using the Web browser
• Check that you have a valid network connection to your Wireless
Router
• Check all parameter settings with your Internet provider
• Check Internet Explorer* configuration :
- Go to Start and select the Control Panel
- In the Control Panel select Internet Options
- Ensure that Always dial my default connection is not ticked
*depends on your Web browser
I forgot (or lost) the password. How do I reset my Wireless Router (Factory Defaults) ?
• Make sure the Wireless Router is ON
• Use a pen to push the recessed reset button on the rear panel,
holding it down for at least five seconds
• Release the reset button and the Wireless Router restarts
!
Warning
When you reset the Wireless Router using the reset button, all
configuration settings will be lost, also your ISP setting (Internet Service
Provider).
• Make sure the Ethernet cable (RJ45) is firmly connected to your
Wireless Router
• Make sure you are using the correct cable type for your Ethernet
equipment
• Verify that the IP address is properly configured. For most
applications, you should use the Wireless Router DHCP function to
dynamically assign IP address to hosts on the attached LAN.
However, if you manually configure IP address on the LAN, verify that
the same network address and subnet mask are used for both the
Wireless Router and any attached LAN devices.
The Wireless network is often interrupted.
• Move your Wireless PC closer to the Wireless Router to find a
better signal. If the signal is still weak, you can change the angle of the
antenna. There may be interference, possibly caused by microwave
ovens, a Wireless TV link or wireless phones. Adapt the location of
the interference sources or of the Wireless Router.
• You can change the wireless channels on the Wireless Router. See
webpage “Channel and SSID”.
A Wireless PC cannot associate with my Wireless Router
• Make sure that the WiFi function of your Wireless Router is enabled
• Make sure the Wireless PC has the same SSID setting as your
Wireless Router. See webpage “Channel and SSID”.
• You need to have the same security settings on the Wireless PC and
your Wireless Router. See webpage “Security”.
Product behaviour
The signal does not switch on
• Make sure that the electrical power supply is plugged into a wall
outlet
• Make sure that the coaxial jack of the electrical power supply adapter
is plugged into your Wireless Router
• Make sure you are using the correct power supply for your Wireless
Router
• However, if your Wireless Router power if OFF after running for
a while, check for power loss or overcharge. (If your wall outlet has
a switch is it in position ON ?)
• If you still cannot isolate the problem, then the external power supply
may be defective. In this case, contact Technical Support for
assistance.
The signal is OFF
• Make sure that your Modem Ethernet cable (RJ45) is plugged into the
WLAN port of your Wireless Router and to your modem
The signal is always OFF
• Confirm with your Internet Service Provider that your Internet
service is active
• Confirm your Internet setting with your Internet Service Provider
The signals do not switch ON. Cannot ping the Wireless Router from the attached LAN.
• If you are using the Ethernet connection, verify that your TCP/IP is
properly installed and configured on your PC
18
Frequently asked questions
Copyright © 2007 Koninklijke Philips Electronics N.V.
All rights reserved.
Trademarks are the property of Koninklijke Philips Electronics N.V. or
their respective owners.
Specifications are subject to change without notice.
Document order number : 3111 285 43951
Loading...
