Philips SNA6640 User Manual

SNA6640

User Manual 1

☎

Helpline

België/Belgique/Belgien

070 253 010 (. 0.17)

Luxemburg/Luxembourg

26 84 30 00

Danmark

3525 8761

Deutschland

0180 5 007 532 (. 0.12)

España

902 888 785 (. 0.15)

France

08 9165 0006 (. 0.23)

Eda

0 0800 3122 1223

Ireland

01 601 1161

Italia

199 404 042 (. 0.25)

Cyprus

800 92256

Nederland

0900 0400 063 (. 0.20)

Norge

2270 8250

Österreich

01 546 575 603 (low rate)

Portugal

2 1359 1440

Schweiz/Suisse/Svizzera

02 2310 2116

Suomi

09 2290 1908

Sverige

08 632 0016

Türkiye

0800 2613302

UK (United Kingdom)

0906 1010 017 (£ 0.15)

China

4008 800 008

European Regulations

This product has been designed, tested and manufactured according to the European R&TTE Directive 1999/5/EC.

Following this Directive, this product can be brought into service in the following states:

B ✔ DK ✔ E ✔ GR ✔ F ✔

IRL ✔ I ✔ L ✔ NL ✔ A ✔

P ✔ SU ✔ S ✔ UK ✔ N ✔

D ✔ CH ✔

SNA6640/00/05

L1 L2 L3 L4

ADSL

12V—1A

POWER ADSL ONLINE WIRELESS

RESET

LAN4 LAN3 LAN2 LAN1

1 ADSL Port

ADSL port (RJ-11). Connect your ADSL line to this port.

2 Power Inlet

Connect the included power adapter to this inlet. Warning: Using the wrong type of power adapter may damage the

ADSL Wireless Modem Router.

3 Reset Button

Use this button to reset the power and restore the default factory settings. To reset without losing configuration settings, see ‘Reset’ on page 28-29.

4 LAN Ports

10/100 Ethernet ports (RJ-45). Connect devices on your local area network to these ports (i.e., a PC, hub, or switch).

5 Introduction

5 About the ADSL Wireless Modem Router 5 Features and Benefits

7 Installation

7 System Requirements 7 Hardware Description 7 LED Indicators 7 ISP Settings 8 Connect the System 8 Connect the ADSL Line 8 Phone Line Configuration 8 Connect the Power Adapter

9 Configuring Client PC

9 TCP/IP Configuration

9 Windows 98/Me 10 Obtain IP Settings from Your ADSL Wireless Modem Router 11 Windows NT 4.0 12 Disable HTTP Proxy 12 Obtain IP Settings from Your ADSL Wireless Modem Router 13 Windows 2000 13 Disable HTTP Proxy 13 Obtain IP Settings from Your ADSL Wireless Modem Router 14 Windows XP 14 Disable HTTP Proxy 14 Obtain IP Settings from Your ADSL Wireless Modem Router 15 Configuring Your Macintosh Computer 16 Disable HTTP Proxy 16 Configuring your wireless adapter 16 Disable HTTP Proxy

18 Setting up the ADSL Wireless Modem Router

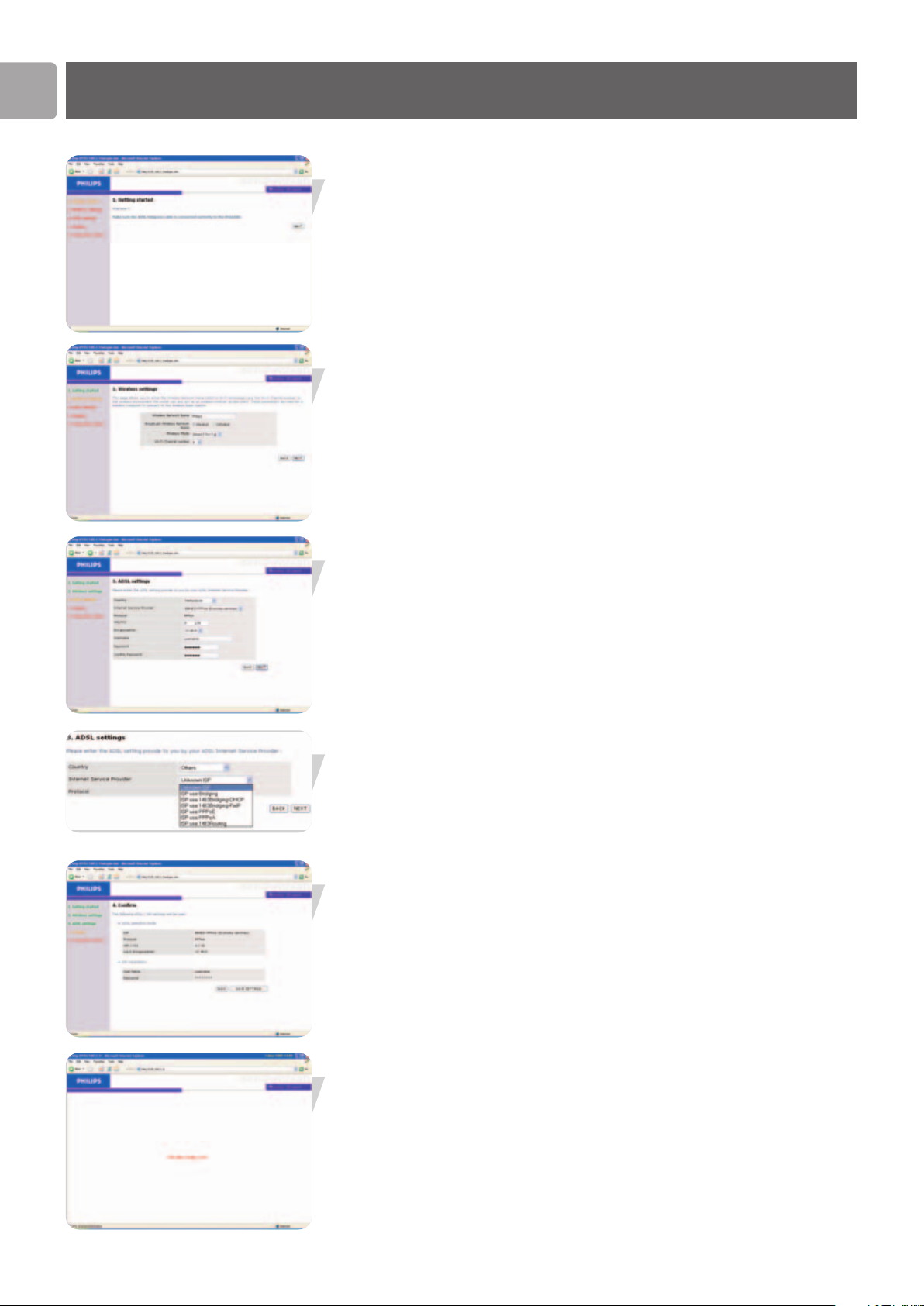

18 Setup Wizard

20 Configuring the ADSL Wireless Modem Router

20 ADSL / Internet settings 21 Security 22 Home network settings 27 Advanced settings

32 Finding the MAC address of a Network Card

32 Windows 98/ME 32 Windows NT4/2000/XP 32 Macintosh 32 Linux 32 MAC address

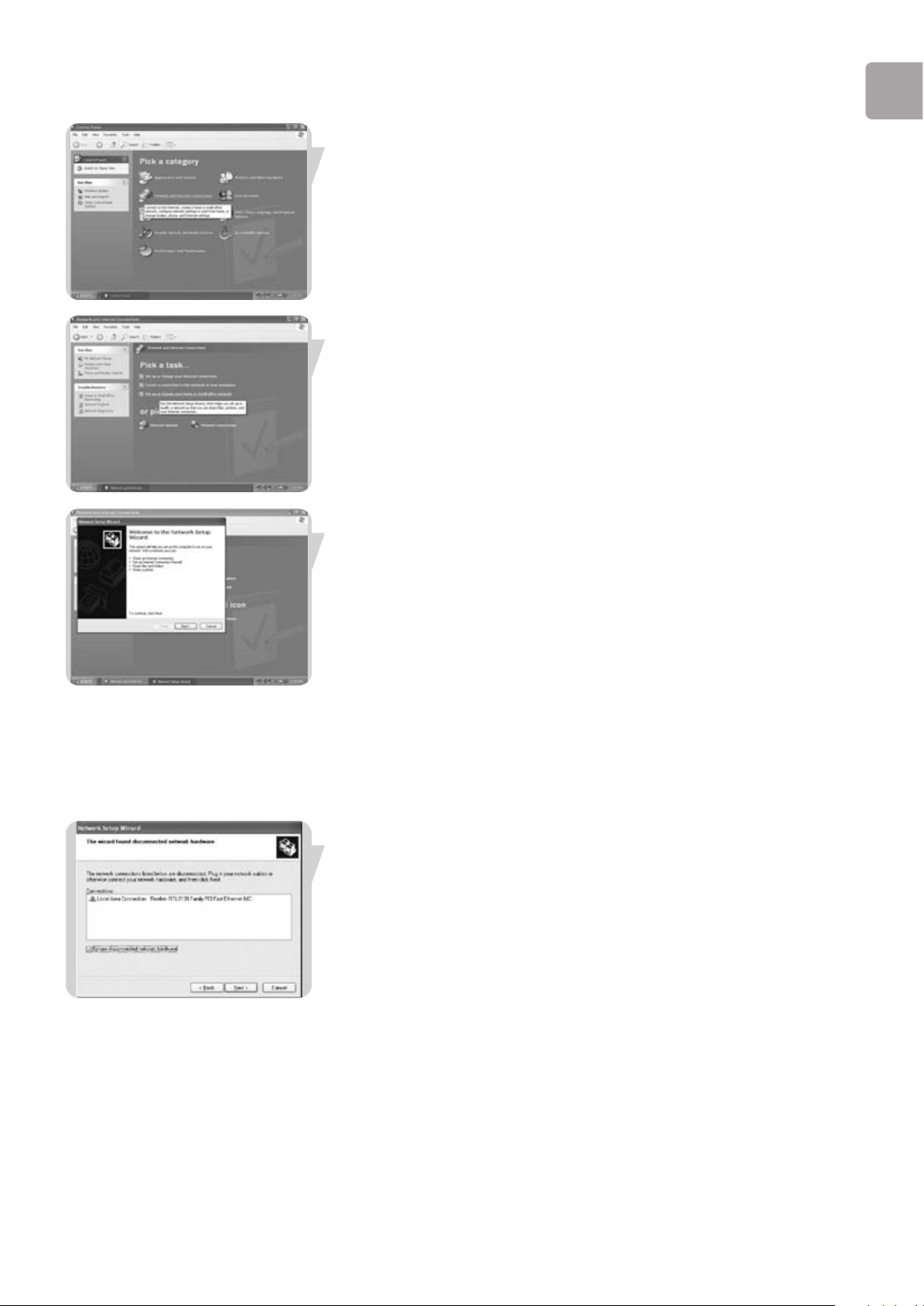

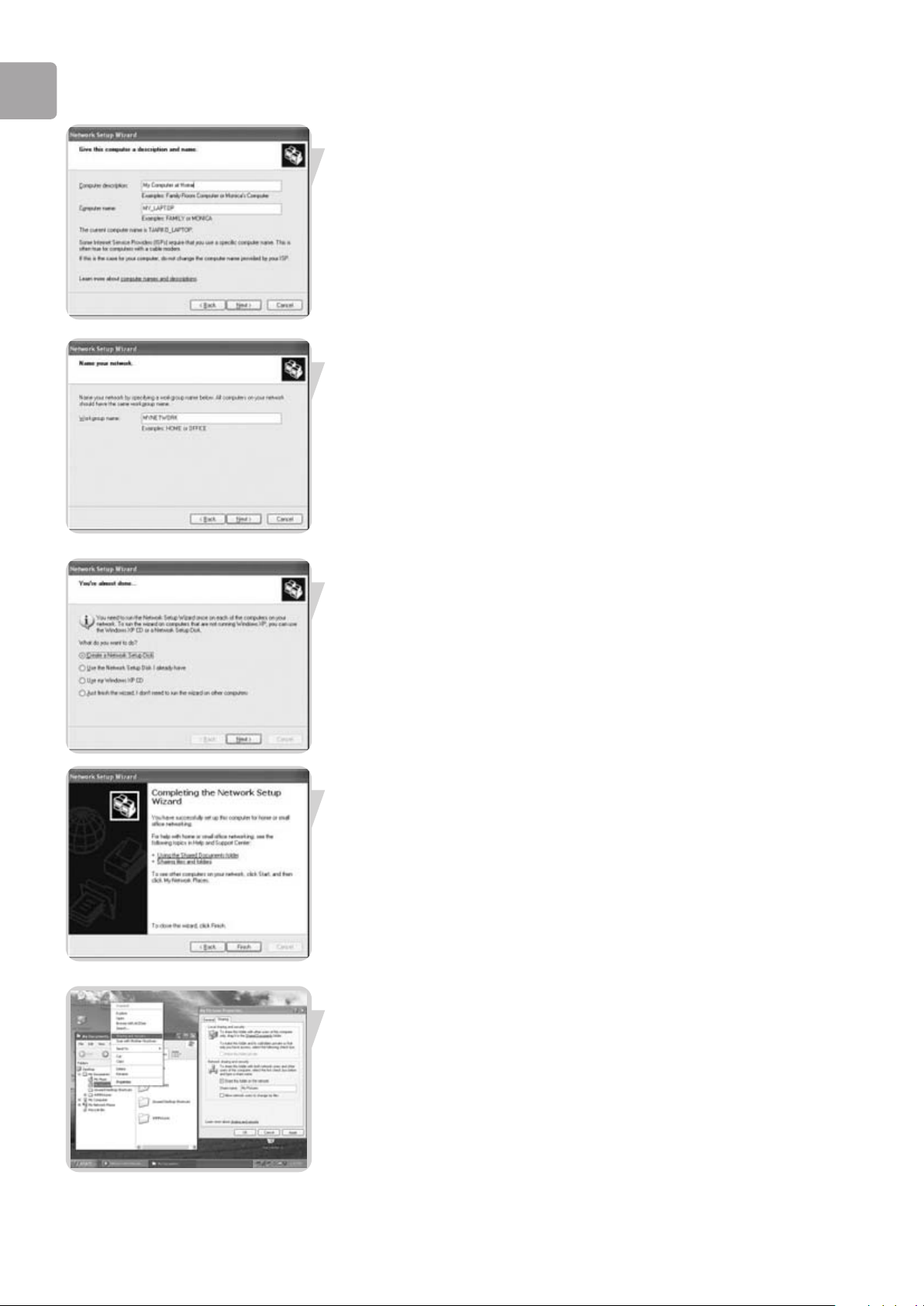

32 How to set-up a computer network?

32 What is your windows version?

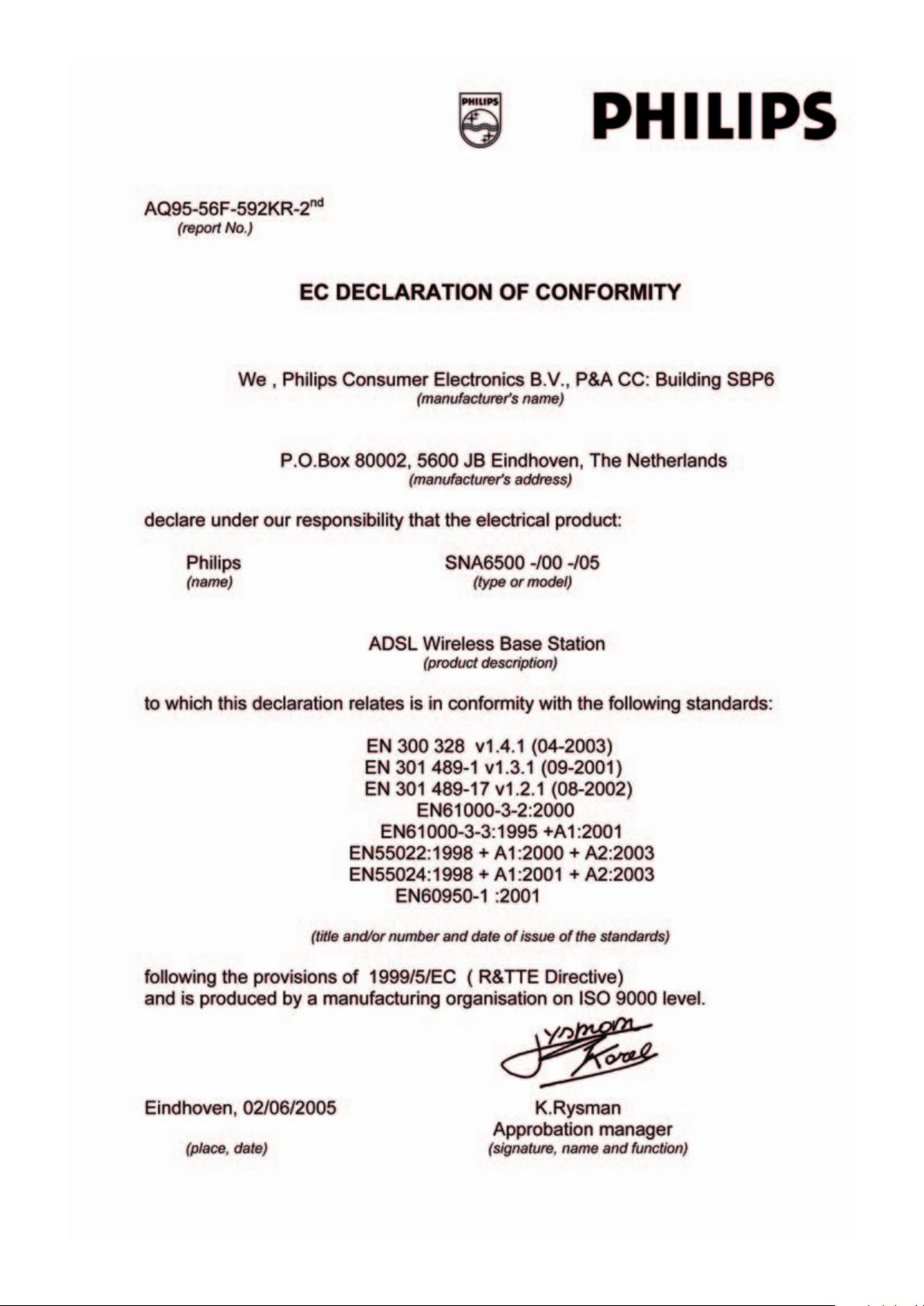

38 Troubleshooting 39 Specifications 42 Declaration of conformity 43 Guarantee certificate

Table of Contents

SNA6640

Congratulations on your purchase of the Philips ADSL Wireless Modem Router, hereafter referred to as the ‘ADSL Wireless Modem Router’. We are proud to provide you with a powerful yet simple communication device for connecting your local area network (LAN) to the Internet. For those who want to surf the Internet in the most secure way, this router provides a convenient and powerful solution.

About the ADSL Wireless Modem Router

The ADSL Wireless Modem Router provides Internet access to multiple users by sharing a single-user account. Support is provided for both wired and wireless devices. New technology provides wireless security via Wired Equivalent Privacy (WEP) encryption, WiFi Protected Access (WPA/WPA2) encryption and MAC address filtering. It is simple to configure and can be up and running in minutes.

Features and Benefits

• Internet connection to an ADSL line via an RJ-11 ADSL port

• Local network connection via four 10/100 Mbps Ethernet ports

• On-board IEEE 802.11g wireless network adapter

• DHCP for dynamic IP configuration, and DNS for domain name mapping

• Firewall with Stateful Packet Inspection, client privileges, intrusion detection, and NAT

• NAT also enables multi-user Internet access via a single user account, and virtual server functionality (providing protected access to Internet services such as web, FTP, email, and Telnet)

• VPN pass-through (IPSec-ESP Tunnel mode, L2TP, PPTP)

• User-definable application sensing tunnel supports applications requiring multiple connections

• Easy setup through a web browser on any operating system that supports TCP/IP

• Compatible with all popular Internet applications

Applications

Many advanced networking features are provided by the ADSL Wireless Modem Router:

Wireless and Wired LAN

The ADSL Wireless Modem Router provides connectivity to 10/100 Mbps devices, and wireless IEEE 802.11g compatible devices, making it easy to create a network in small offices or homes.

Internet Access

This device supports Internet access through an ADSL connection. Since many DSL providers use PPPoE or PPPoA to establish communications with end users, the ADSL Wireless Modem Router includes built-in clients for these protocols, eliminating the need to install these services on your computer.

Shared IP Address

The ADSL Wireless Modem Router provides Internet access for up to 253 users via a single shared IP address. Using only one ISP account, multiple users on your network can browse the web at the same time.

Virtual Server

If you have a fixed IP address, you can set the ADSL Wireless Modem Router to act as a virtual host for network address translation. Remote users access various services at your site using a constant IP address. Then, depending on the requested service (or port number), the ADSL Wireless Modem Router can route the request to the appropriate server (at another internal IP address). This secures your network from direct attack by hackers, and provides more flexible management by allowing you to change internal IP addresses without affecting outside access to your network.

DMZ Host Support

Allows a networked computer to be fully exposed to the Internet. This function is used when NAT and firewall security prevent an Internet application from functioning correctly.

Introduction

Security

The ADSL Wireless Modem Router supports security features that deny Internet access to specified users, or filter all requests for specific services that the administrator does not want to serve. The ADSL Wireless Modem Router's firewall also blocks common hacker attacks, including IP Spoofing, Land Attack, Ping of Death, IP with zero length, Smurf Attack, UDP port loopback, Snork Attack, TCP null scan, and TCP SYN flooding. WEP (Wired Equivalent Privacy), WPA/WPA2 (WiFi Protected Access), SSID, and MAC filtering provide security over the wireless network.

Important information

• Please install and connect the product in the order as described in the chapter ‘Quick Start Guide’ only. This assures best installation results with the least technical hassles.

• Please read this guide carefully before using the ADSL Wireless Modem Router; and keep it for future reference.

• During set-up and installation, it may be helpful to have the instructions for your PC and other network components at hand.

Safety Precautions

• Do not expose the product to excessive moisture, rain, sand or heat sources.

• The product should not be exposed to dripping or splashing. No object filled with liquids, such as vases, should be placed on the product.

• Keep the product away from domestic heating equipment and direct sunlight.

• Allow a sufficient amount of free space all around the product for adequate ventilation.

• Do not open this product. Contact your retailer if you experience technical difficulties.

Environmental information

All redundant packing material has been omitted. We have done our utmost to make the packaging easily separable into three mono materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet). Your set consists of materials that can be recycled if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packing materials, exhausted batteries and old equipment.

Packaging contents

Please check whether all of the following items are present in the box of the Wireless Modem Router. These are provided to help you set up and use your Wireless Modem Router. Contact your retailer if any items are missing.

• Philips ADSL Wireless Modem Router

• Power adapter

• One Category 5 Ethernet cable (RJ-45)

• Telephone patch cable (RJ-11)

• Quick Start Guide

• CD with manual

Disclaimer

This product is provided by ‘Philips’ ‘as is'' and without any express or implied warranty of any kind of warranties, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose are disclaimed.

In no event shall Philips be liable for any direct, indirect, incidental, special, exemplary, or consequential damages (including, but not limited to, procurement of substitute goods or services; loss of information, data, or profits; or business interruption) howsoever caused and on any theory of liability, whether in contract, strict liability, or tort (including negligence or otherwise) arising in any way out of the use of inability to use this product, even if advised of the possibility of such damages.

Philips further does not warrant the accuracy or completeness of the information, text, graphics, illustrative examples links or other items can be deviated of the product.

FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

ADSL

12V—1A

RESET

LAN4 LAN3 LAN2 LAN1

System Requirements

• ADSL line installed by your Internet Service Provider.

• A computer using a fixed IP address or dynamic IP address assigned via DHCP, as well as a gateway server address and DNS server address from your service provider.

• A computer equipped with a 10/100 Mbps network adapter, a USB-to-Ethernet converter or an IEEE 802.11g wireless network adapter.

• TCP/IP network protocols installed on each PC that will access the Internet.

• A Java-enabled web browser, such as Microsoft Internet Explorer 5.5 or above or Netscape 4.7 or above, installed on one PC at your site for configuring the ADSL Wireless Modem Router.

Hardware Description

The ADSL Wireless Modem Router contains an integrated ADSL modem and connects to the Internet or to a remote site using its RJ-11 WAN port. It can be connected directly to your PC or to a local area network using any of the four 10/100 Ethernet LAN ports.

Data passing between devices connected to your local area network can run at up to 100 Mbps over the 10/100 Ethernet ports and 108 Mbps over the built-in wireless network adapter.

The ADSL Wireless Modem Router includes an LED display on the front panel for system power and port indications that simplifies installation and network troubleshooting. It also provides the following ports on the rear panel:

1 ADSL Port

ADSL port (RJ-11). Connect your ADSL line to this port.

2 Power Inlet

Connect the included power adapter to this inlet.

Warning: Using the wrong type of power adapter may damage the

ADSL Wireless Modem Router.

3 Reset Button

Use this button to reset the power and restore the default factory settings. To reset without losing configuration settings, see ‘Reset’ on page 28-29.

4 LAN Ports

10/100 Ethernet ports (RJ-45). Connect devices on your local area network to these ports (i.e., a PC, hub, or switch).

LED Indicators

The power and port LED indicators on the front panel are illustrated by the following figure and table.

LED Status Description

Power On Power on, normal operation.

Off Power off or failure.

ADSL (DSL sync) On ADSL loop is brought UP.

Blinking Start up. Off ADSL loop is down.

Online On Link is up.

Blinking Send/Receive data. Off No data transfering.

Wireless On Link is up.

Blinking Send/Receive data. Off No data transfering.

LAN 1-4 On Ethernet Connection is established.

Blinking Send/Receive data. Off Without Link.

ISP Settings

Please collect the following information from your ISP before setting up the ADSL Wireless Modem Router:

• ISP account user name and password

• Protocol, encapsulation and VPI/VCI circuit numbers

• DNS server address

• IP address, subnet mask and default gateway (for fixed IP users only)

Installation

L1 L2 L3 L4

POWER ADSL ONLINE WIRELESS

Connect the System

The ADSL Wireless Modem Router can be positioned at any convenient location in your office or home. No special wiring or cooling requirements are needed. You should, however, comply with the following guidelines:

• Keep the ADSL Wireless Modem Router away from any heating devices.

• Do not place the ADSL Wireless Modem Router in a dusty or wet environment.

You should also remember to turn off the power, remove the power cord from the outlet, and keep your hands dry when you install the ADSL Wireless Modem Router.

Connect the ADSL Line

Connect the supplied RJ-11 cable from the ADSL Microfilter/Splitter to the ADSL port on your ADSL Wireless Modem Router. When inserting an ADSL RJ-11 plug, be sure the tab on the plug clicks into position to ensure that it is properly seated.

Phone Line Configuration

Installing a Full-Rate Connection

If you are using a full-rate (G.dmt) connection, your service provider will attach the outside ADSL line to a data/voice splitter. In this case you can connect your phones and computer directly to the splitter as shown below:

Figure 2-3. Installing with a Splitter

Installing a Splitterless Connection

If you are using a splitterless (G.lite) connection, then your service provider will attach the outside ADSL line directly to your phone system. In this case you can connect your phones and computer directly to the incoming ADSL line, but you will have to add low-pass filters to your phones as shown below:

Figure 2-4. Installing without a Splitter

Attach to Your Network Using Ethernet Cabling

The four LAN ports on the ADSL Wireless Modem Router auto-negotiate the connection speed to 10 Mbps Ethernet or 100 Mbps Fast Ethernet, as well as the transmission mode to half duplex or full duplex.

Use RJ-45 cables to connect any of the four LAN ports on the ADSL Wireless Modem Router to an Ethernet adapter on your PC. Otherwise, cascade any of the LAN ports on the ADSL Wireless Modem Router to an Ethernet hub or switch, and then connect your PC or other network equipment to the hub or switch. When inserting an RJ-45 connector, be sure the tab on the connector clicks into position to ensure that it is properly seated.

Warning: Do not plug a phone jack connector into an RJ-45 port. This may damage the

ADSL Wireless Modem Router.

Notes:

– Use 100-ohm shielded or unshielded twisted-pair cable with RJ-45 connectors for all

10/100 ethernet ports. Use Category 3, 4, or 5 for connections that operate at 10 Mbps, and Category 5 for connections that operate at 100 Mbps.

– Make sure each twisted-pair cable length does not exceed 100 meters (328 feet).

Connect the Power Adapter

Plug the power adapter into the power socket on the rear of the ADSL Wireless Modem Router, and the other end into a power outlet.

Check the power indicator on the front panel is lit. If the power indicator is not lit, refer to ‘Troubleshooting’ on page 42.

In case of a power input failure, the ADSL Wireless Modem Router will automatically restart and begin to operate once the input power is restored.

After completing hardware setup by connecting all your network devices, you need to configure your computer to connect to the ADSL Wireless Modem Router. See: ‘Windows 98/Me’ on page 9

‘Windows NT 4.0’ on page 12 ‘Windows 2000’ on page 14 ‘Windows XP’ on page 14 ‘Wireless adapters’ on page 17

TCP/IP Configuration

To access the Internet through the ADSL Wireless Modem Router, you must configure the network settings of the computers on your LAN to use the same IP subnet as the ADSL Wireless Modem Router. The default IP settings for the ADSL Wireless Modem Router are:

IP Address 192.168.1.1 Subnet Mask 255.255.255.0 DHCP function Enable DHCP IP Pool Range 192.168.1.2 to 192.168.1.254

Note: These settings can be changed to fit your network requirements, but you must first

configure at least one computer to access the ADSL Wireless Modem Router's web configuration interface in order to make the required changes. (See ‘Configuring the ADSL Wireless Modem Router’ on page 20 for instruction on configuring the ADSL Wireless Modem Router.)

Windows 98/Me

You may find that the instructions in this section do not exactly match your version of Windows. This is because these steps and screen shots were created from Windows 98. Windows Millennium Edition is similar, but not identical, to Windows

98.

1 On the Windows desktop, click Start/Settings/Control Panel.

2 In Control Panel, double-click the Network icon.

Configuring Client PC

3 In the Network window, under the Configuration tab, double-click the TCP/IP

item listed for your network card.

4 In the TCP/IP window, select the IP Address tab. If ‘Obtain an IP address

automatically’ is already selected, your computer is already configured for DHCP. If not, select this option.

5 Windows may need your Windows 98/ME CD to copy some files.

After it finishes copying, it will prompt you to restart your system. Click Yes and your computer will restart.

Obtain IP Settings from Your ADSL Wireless Modem Router

Now that you have configured your computer to connect to your ADSL Wireless Modem Router, it needs to obtain new network settings. By releasing old DHCP IP settings and renewing them with settings from your ADSL Wireless Modem Router, you can also verify that you have configured your computer correctly.

1 On the Windows desktop, click Start/Run...

2 Type ‘WINIPCFG’ and click OK.

It may take a second or two for the IP Configuration window to appear.

3 In the IP Configuration window, select your network card from the drop-down

menu. Click Release and then click Renew. Verify that your IP address is now

192.168.1.xxx, your Subnet Mask is 255.255.255.0 and your Default Gateway is

192.168.1.1. These values confirm that your ADSL Wireless Modem Router is functioning. Click OK to close the IP Configuration window.

Windows NT 4.0

1 On the Windows desktop, click Start/Settings/Control Panel.

2 Double-click the Network icon.

3 In the Network window, select the Protocols tab.

Double-click TCP/IP Protocol.

4 When the Microsoft TCP/IP Properties window opens,

select the IP Address tab.

5 In the Adapter drop-down list, make sure your Ethernet adapter is selected.

6 If ‘Obtain an IP address automatically’ is already selected, your computer is

already configured for DHCP. If not, select this option and click ‘Apply.’

7 Click the DNS tab to see the primary and secondary DNS servers.

Record these values, and then click ‘Remove.’ Click ‘Apply’, and then ‘OK.’

8 Windows may copy some files, and will then prompt you to restart your system.

Click Yes and your computer will shut down and restart.

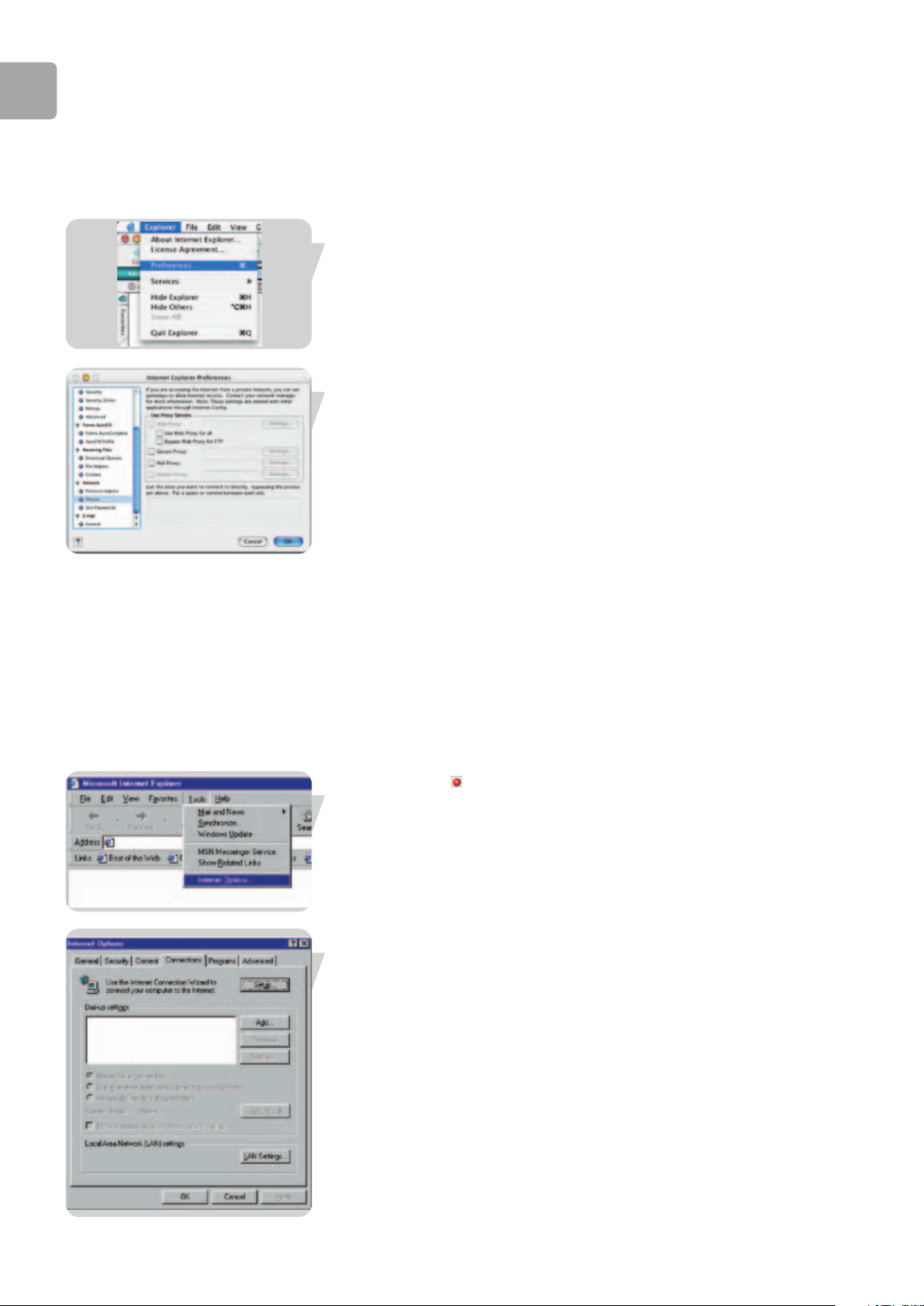

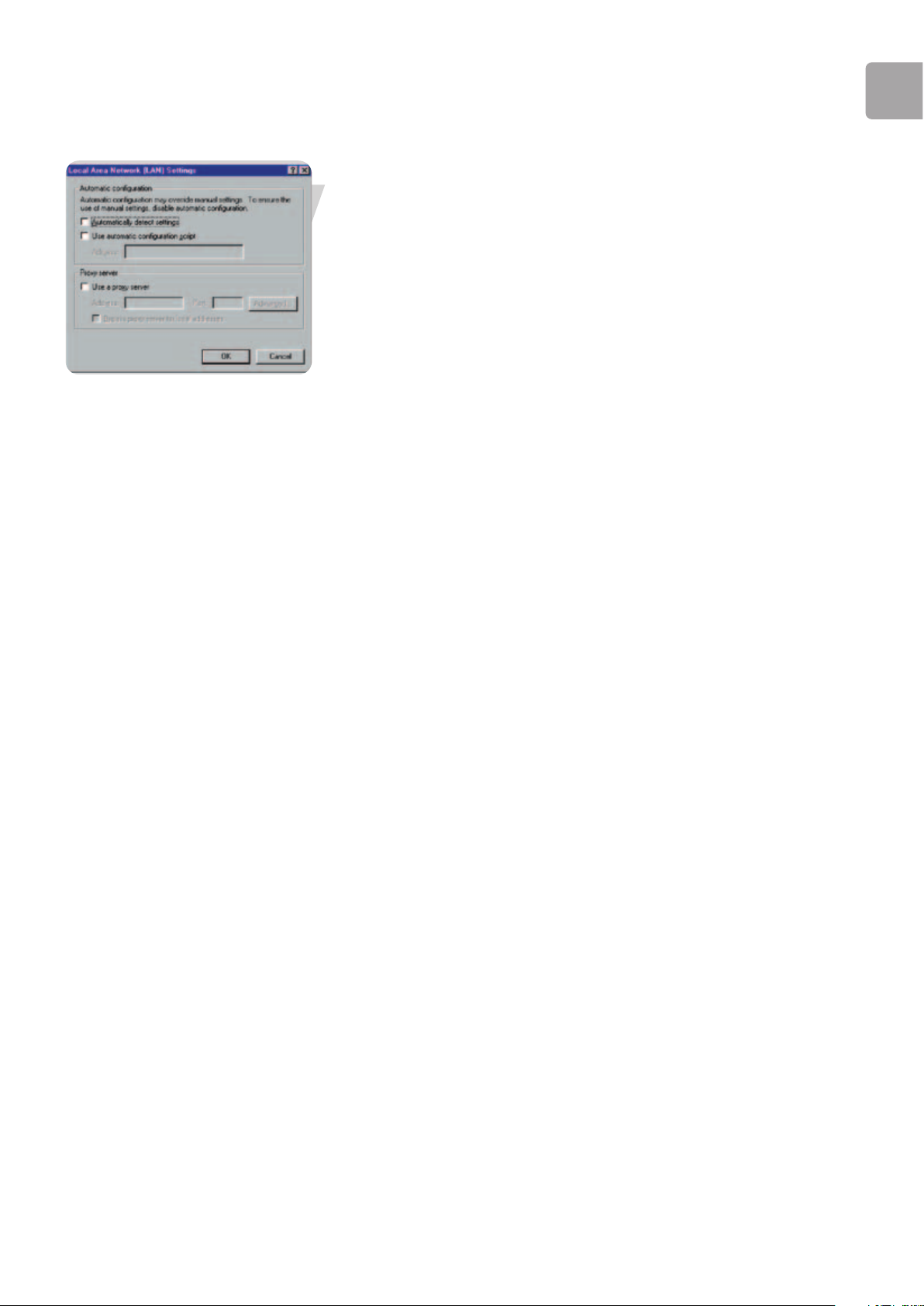

Disable HTTP Proxy

You need to verify that the ‘HTTP Proxy’ feature of your web browser is disabled. This is so that your browser can view the ADSL Wireless Modem Router's HTML configuration pages (refer to ‘Internet Explorer’ on page 16).

Obtain IP Settings from Your ADSL Wireless Modem Router

Now that you have configured your computer to connect to your ADSL Wireless Modem Router, it needs to obtain new network settings. By releasing old DHCP IP settings and renewing them with settings from your ADSL Wireless Modem Router, you will verify that you have configured your computer correctly.

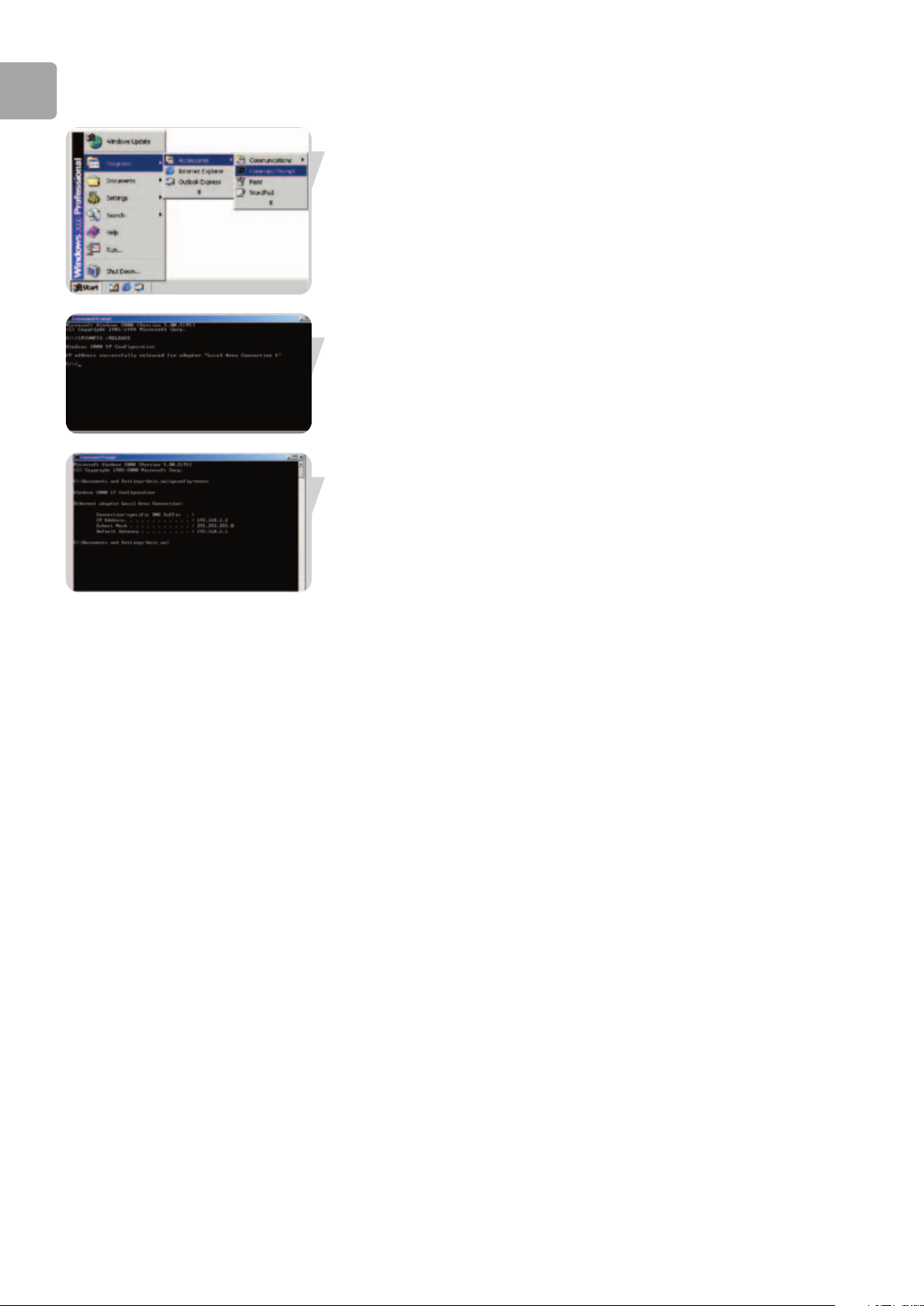

1 On the Windows desktop, click Start/Programs/Command Prompt.

2 In the Command Prompt window, type ‘IPCONFIG /RELEASE’ and press the

ENTER key.

3 Type ‘IPCONFIG /RENEW’ and press the ENTER key. Verify that your IP Address

is now 192.168.1.xxx, your Subnet Mask is 255.255.255.0 and your Default Gateway is 192.168.1.1. These values confirm that your ADSL Wireless Modem Router is functioning.

4 Type ‘EXIT’ and press the ENTER key to close the Command Prompt window.

Your computer is now configured to connect to the ADSL Wireless Modem Router.

Windows 2000

1 On the Windows desktop, click Start/Settings/Network and Dial-Up Connections.

2 Click the icon that corresponds to the connection to your ADSL Wireless

Modem Router.

3 The connection status screen will open. Click Properties.

4 Double-click Internet Protocol (TCP/IP).

5 If ‘Obtain an IP address automatically’ and ‘Obtain DNS server address

automatically’ are already selected, your computer is already configured for DHCP. If not, select this option.

Disable HTTP Proxy

Obtain IP Settings from Your ADSL Wireless Modem Router

Now that you have configured your computer to connect to your ADSL Wireless Modem Router, it needs to obtain new network settings. By releasing old DHCP IP settings and renewing them with settings from your ADSL Wireless Modem Router, you can verify that you have configured your computer correctly.

+ 29 hidden pages
