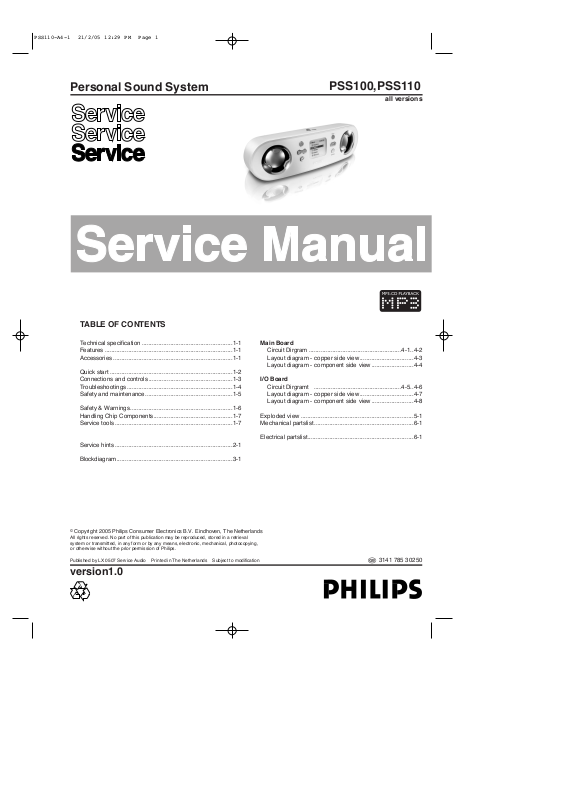

Philips _sm_30250 Datasheet

Personal Sound System

PSS100,PSS110

all versions

TABLE OF CONTENTS

Technical specification ......................................................1-1

Features ............................................................................1-1

Accessories .......................................................................1-1

Quick start .........................................................................1-2

Connections and controls ..................................................1-3

Troubleshootings ...............................................................1-4

Safety and maintenance....................................................1-5

Safety & Warnings.............................................................1-6

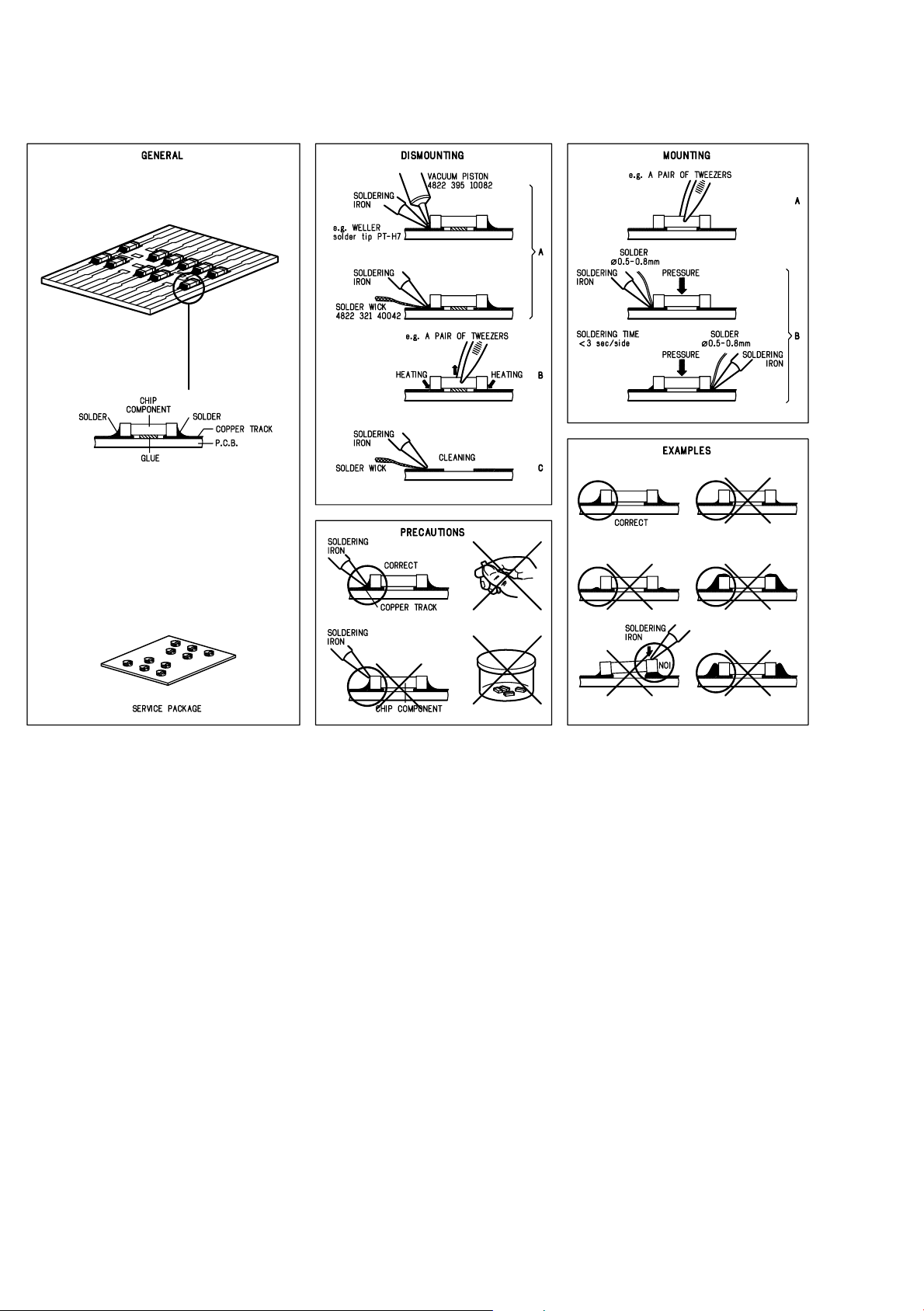

Handling Chip Components...............................................1-7

Service tools ......................................................................1-7

Service hints ......................................................................2-1

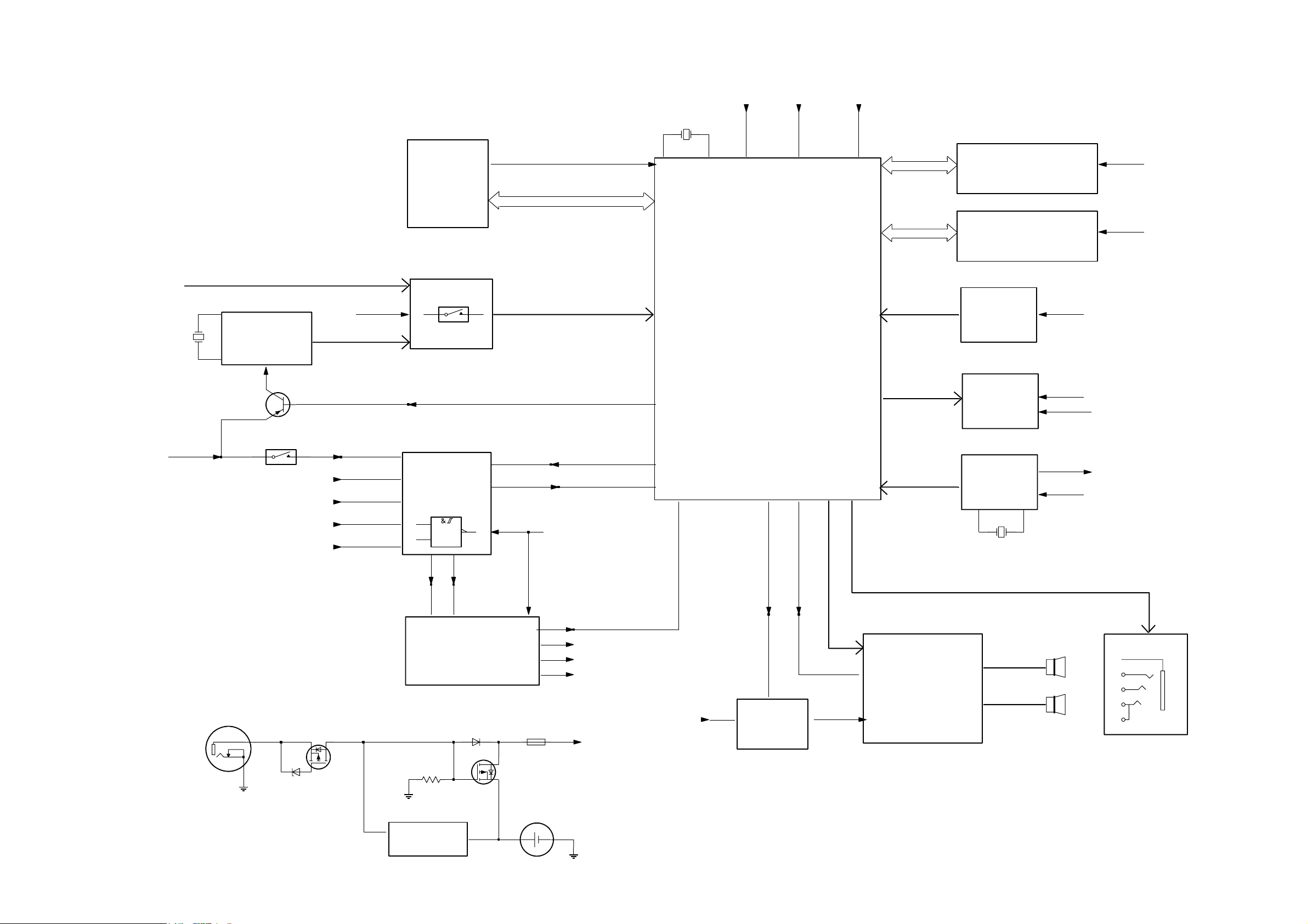

Blockdiagram.....................................................................3-1

Main Board

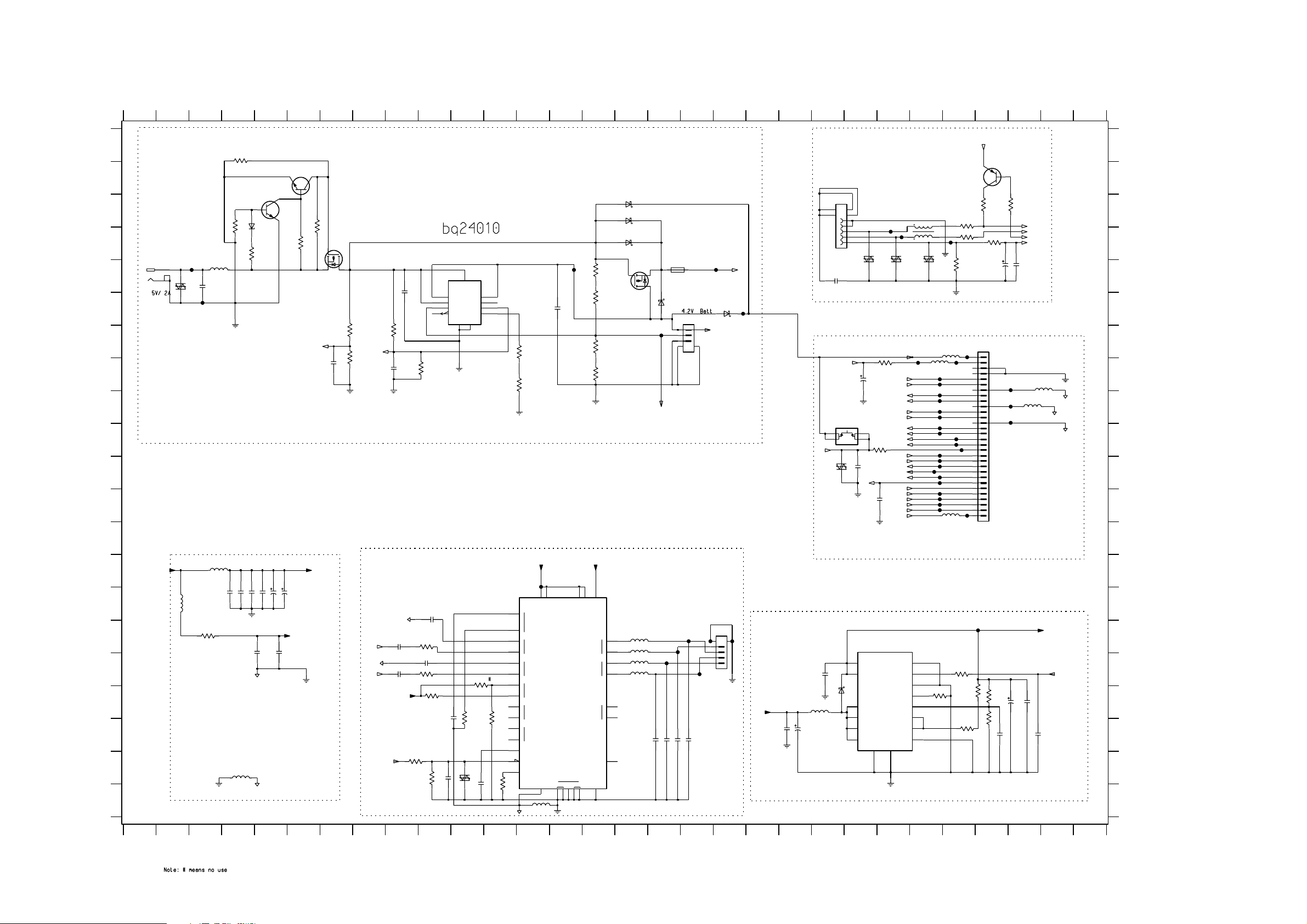

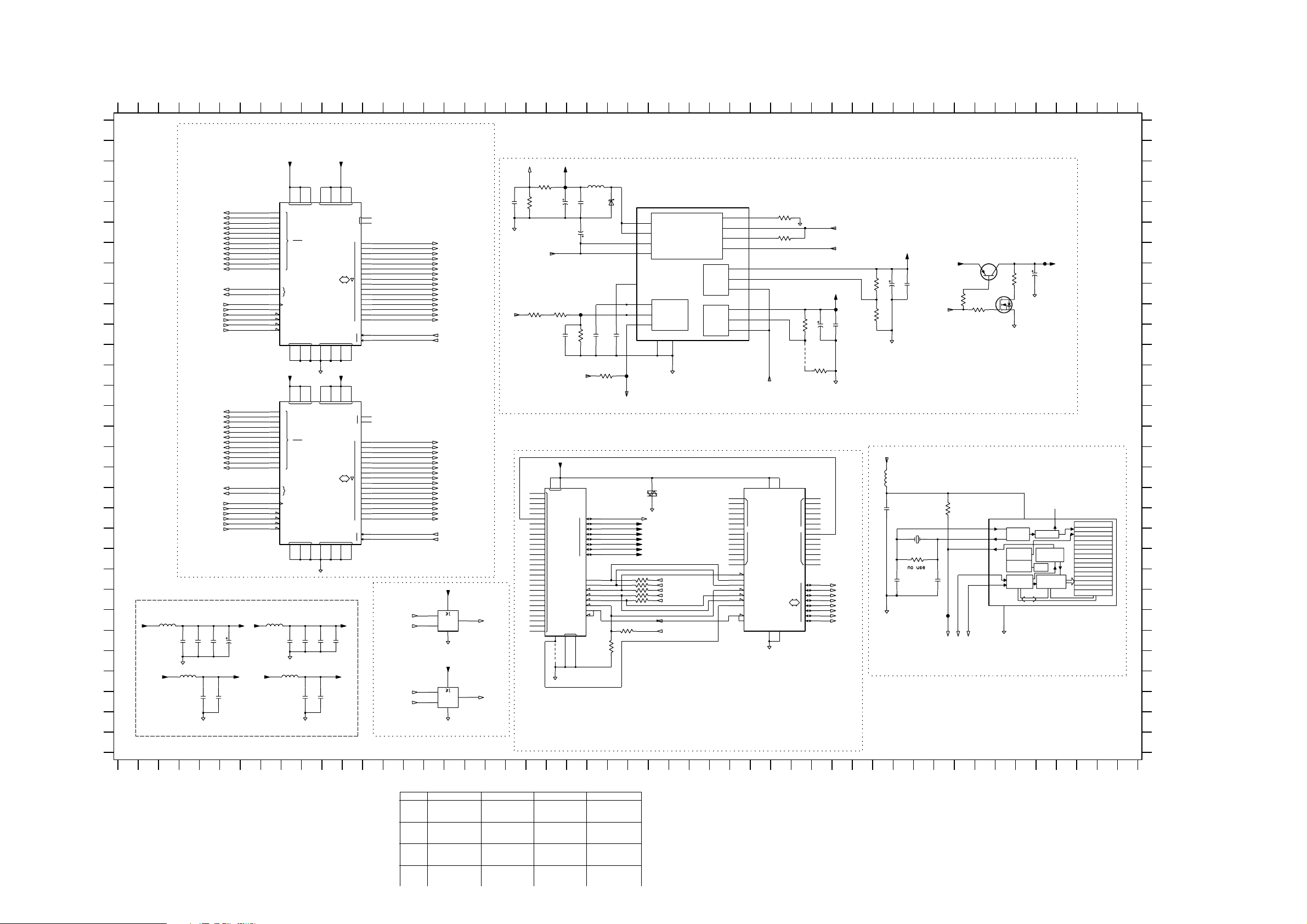

Circuit Dirgram .......................................................4-1..4-2

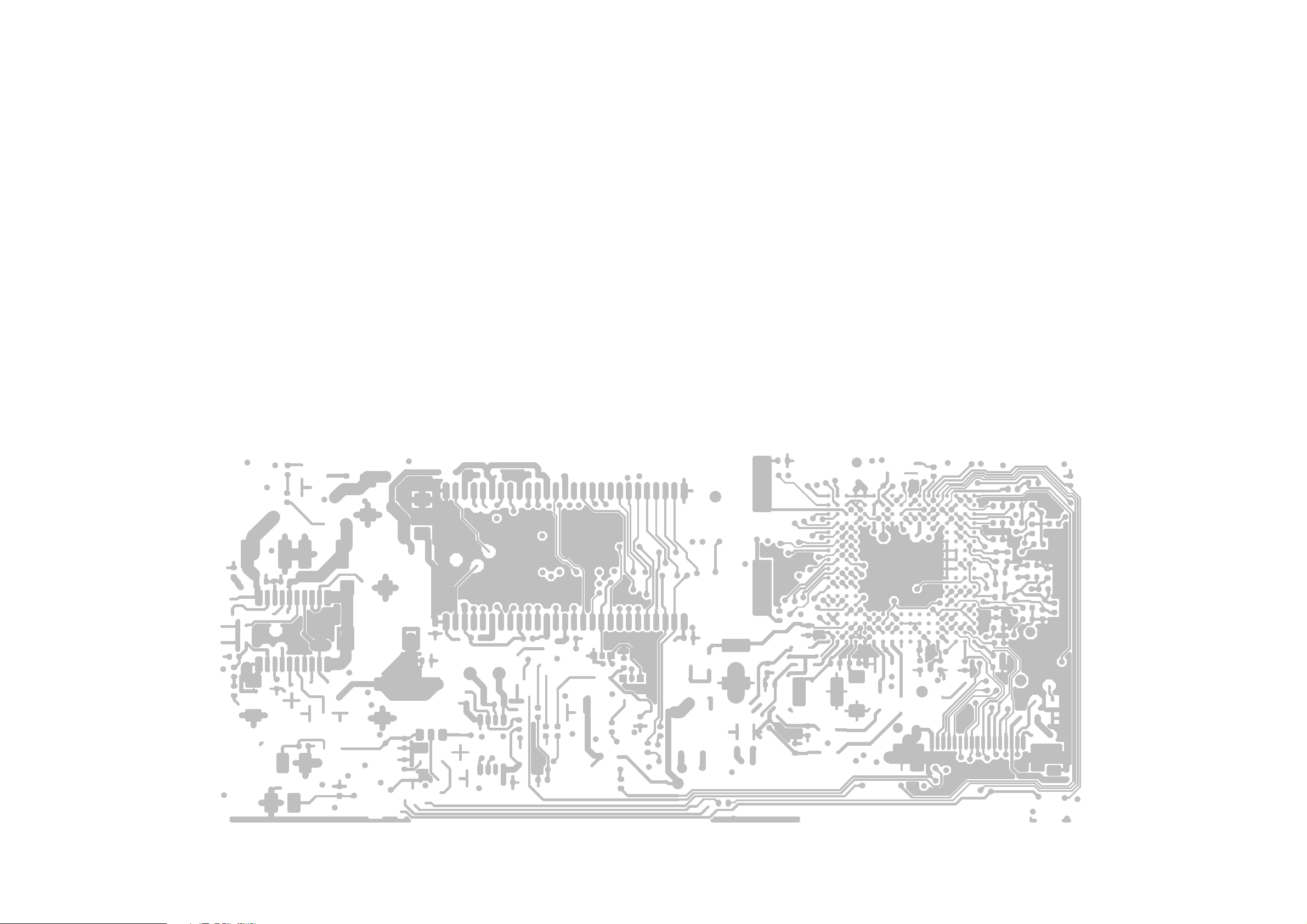

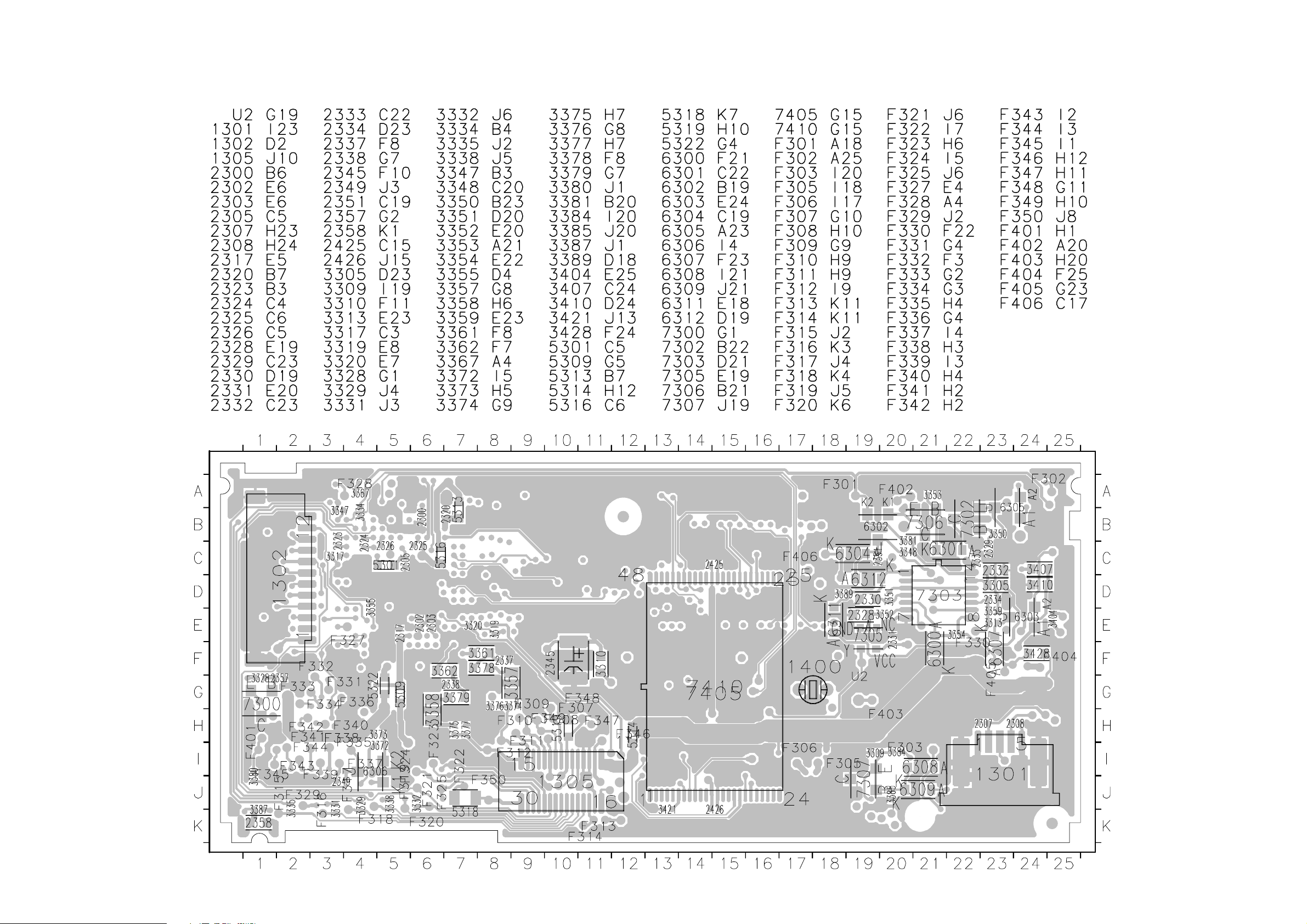

Layout diagram - copper side view................................4-3

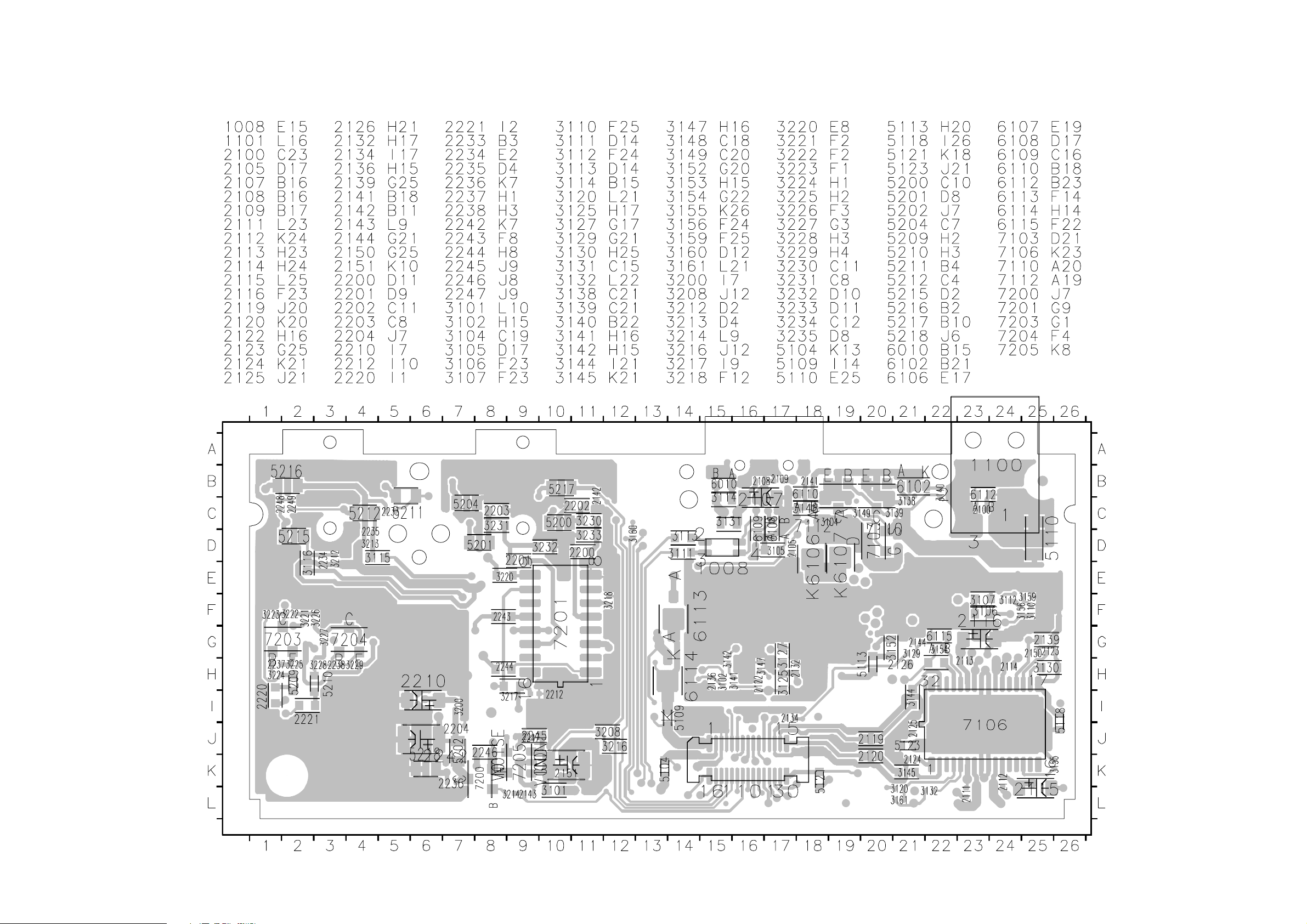

Layout diagram - component side view .........................4-4

I/O Board

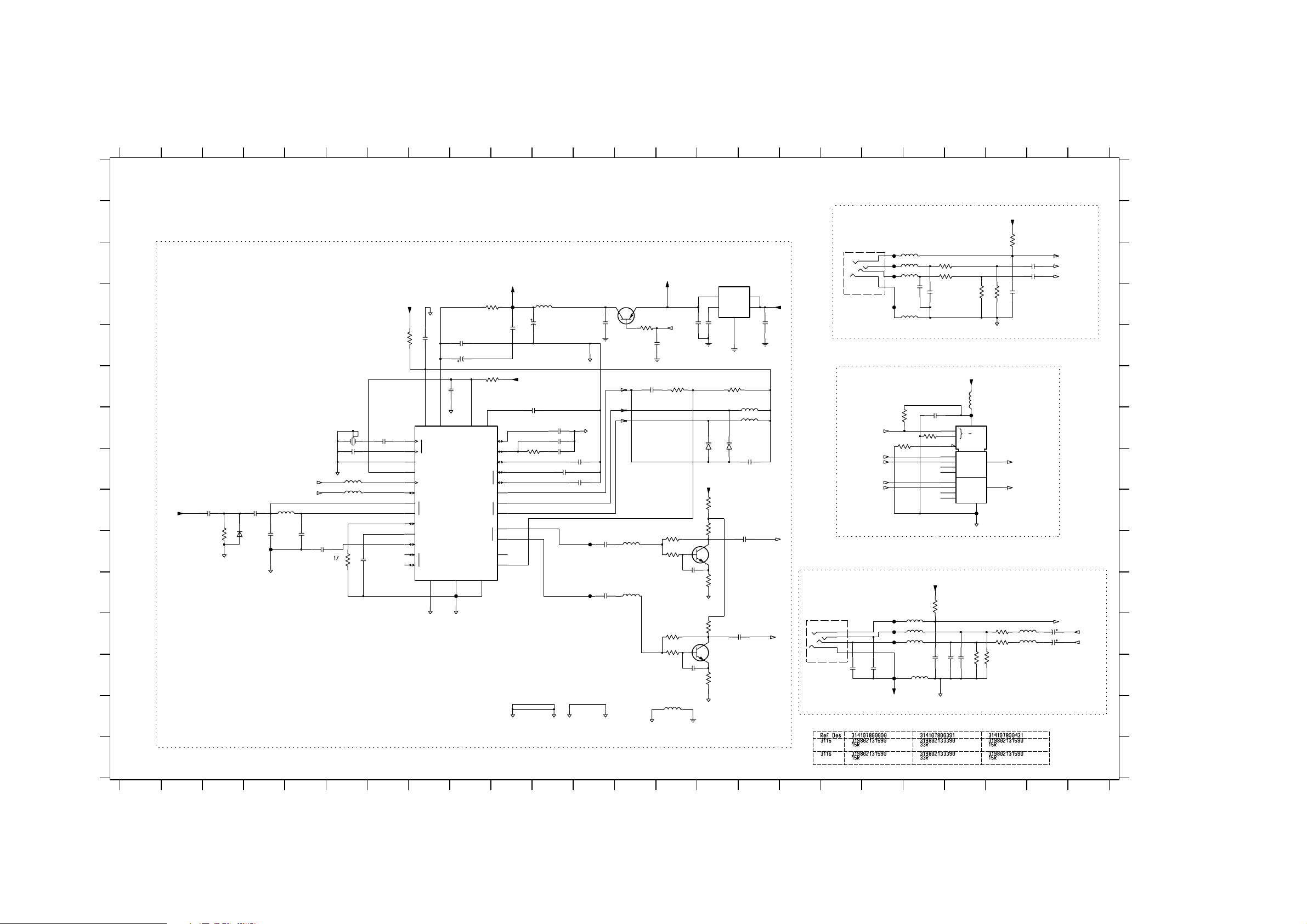

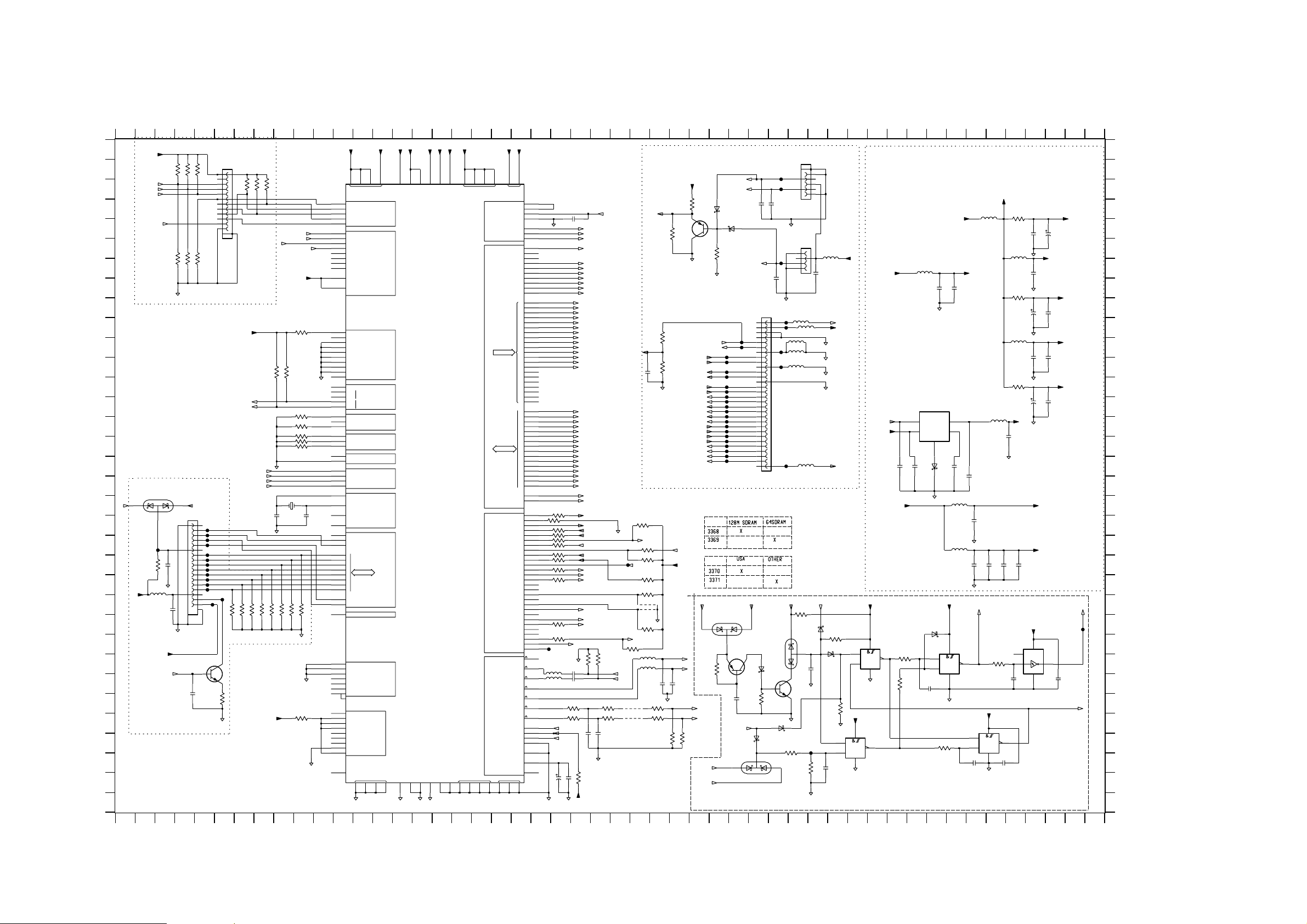

Circuit Dirgramt ....................................................4-5..4-6

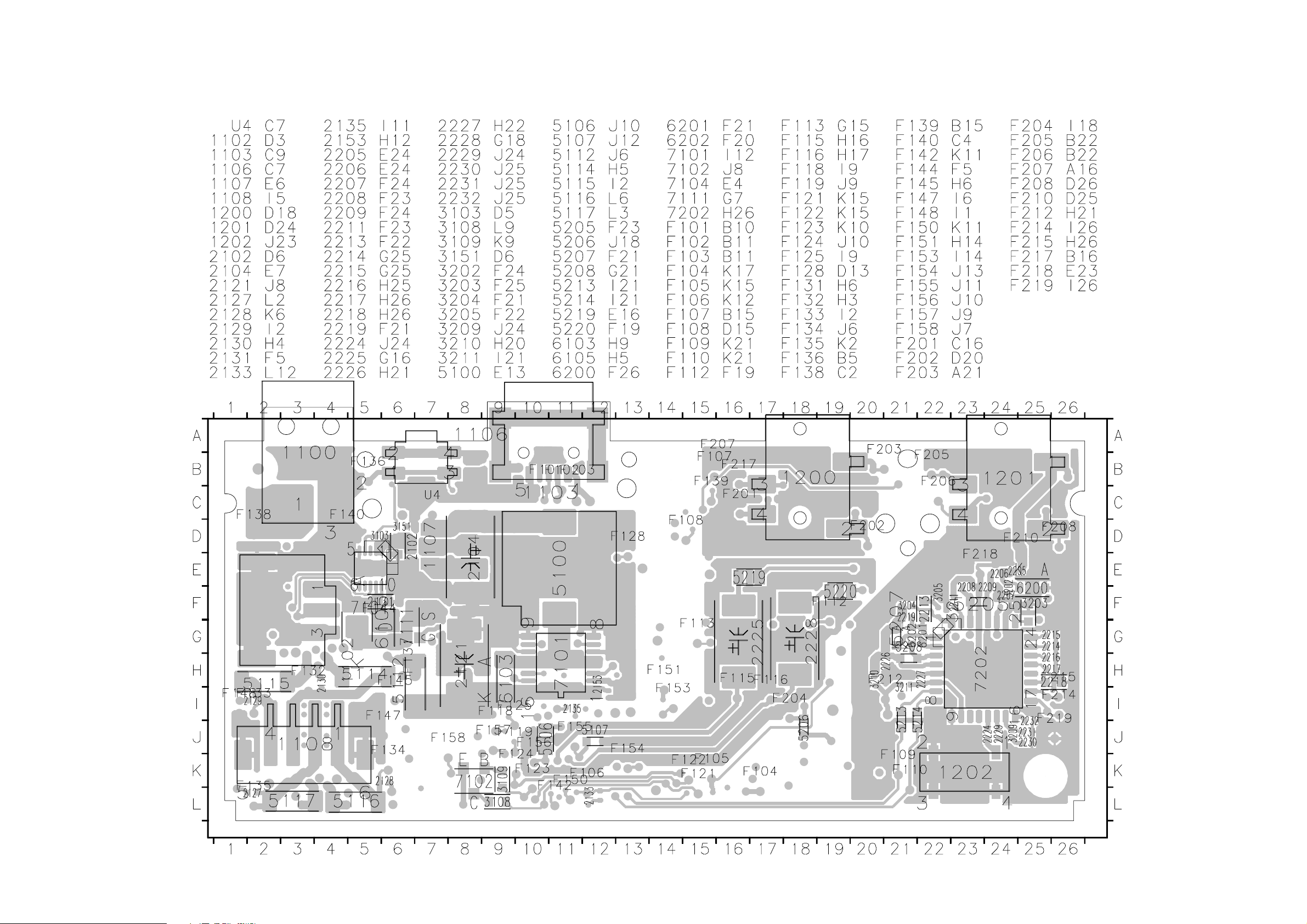

Layout diagram - copper side view................................4-7

Layout diagram - component side view .........................4-8

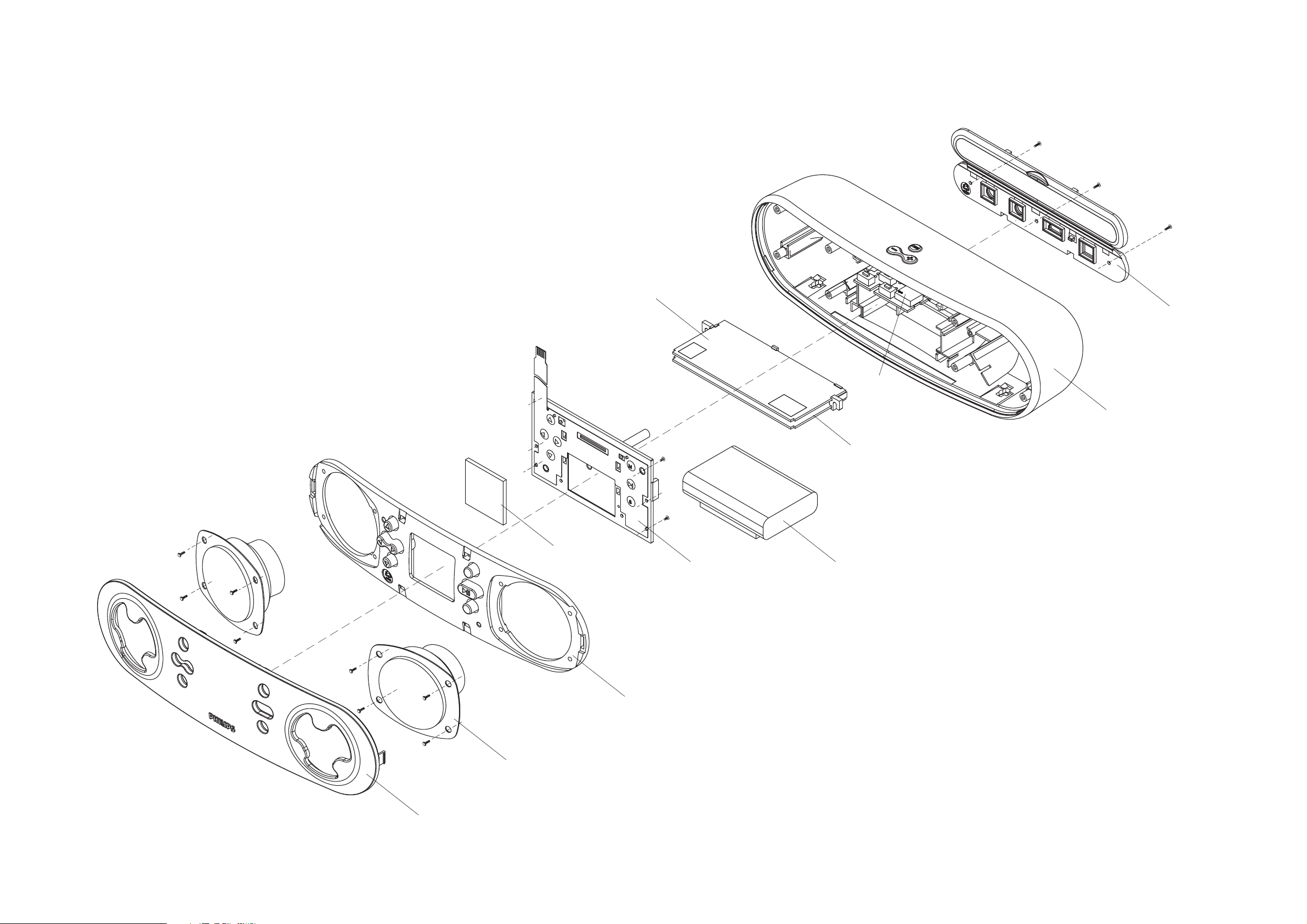

Exploded view ...................................................................5-1

Mechanical partslist ...........................................................6-1

Electrical partslist...............................................................6-1

©

Copyright 2005 Philips Consumer Electronics B.V. Eindhoven, The Netherlands

All rights reserved. No part of this publication may be reproduced, stored in a retrieval
system or transmitted, in any form or by any means, electronic, mechanical, photocopying,
or otherwise without the prior permission of Philips.

Published by LX 0507 Service Audio Printed in The Netherlands Subject to modification

version1.0

© 3141 785 30250

1-1

TUNER(Norm.)MP3 (Norm.)(mA)

SPK O/P 50mW

H/P O/P 1mW

play pause

download

play

140 130 120 140mA

120 80mA80 80

Battery level 3 ,ON

Battery level 2 ,ON

Battery level 1 ,ON

Battery level 0 ,ON

Li-ion rechargeable battery

4.20 ~4.01V

4.00 ~3.91V

3.90 ~3.81V

3.80 ~3.51V

EPYTYRETTAB

Li-ion rechargeable

MP3 MP3 TUNER TUNER

LP103450SR

Norm.

Limit

Norm.

Limit

9H

10H

9H

10H

For personal sound system

SEIROSSECCA

PSS100/110

00/17/

01/

10/05/

00/3192YA rotpadACD/CA

X

3192/17YA rotpadACD/CA

X

X

192/103YA rotpadACD/CA

X

X

Mains Plug Adapter

X

X

Antenna

Pouch Hard

Cable USB

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

X

3140 118 33803

3140 118 33822

3140 178 30062

192/053YA rotpadACD/CA

3140 178 33812

3139 128 73011

3141 078 70011

3141 073 10091

3140 110 21991

Line-in Cable

3141 078 70111

PSS100/110

TECHNICAL SPECIFICATION

General

Dimensions (W x L x H) : 182 x 58 x 56 mm
Weight without batteries : 350g

Music play time : < 10 hrs at 128 kbps
LCD display : Dot Matrix (128x96 dots)

white LED back light

File download transmission : USB 1.1
System set up time : less than 2s

LCD backlight : white
Auto power down : 60 sec

Power supply modes

DC-in socket : 3.7 V
Li-ion batteries : LP103450SR
Battery charging current : 980 mA

Battery lifetime

ACCESSORIES

Battery level detection

LEVELNOITCETED

Current consumption

Current Comsuption

FM Part (measured with DC3.7V,40Ohm.74dBf)

Tuner Range : 87.5~108 MHz
Tuner Step : 50KHz(EU)

Frequency response : > 8KHz (10KHz typ,)
S/N ratio (A-wght) : ≥ 45dBA (50dBA typ.)
26dB mono noise limited
sensitivity : ≤ 28DBf (17 typ.)
Image Rejection Ratio : ≤ 20dB (24dB typ.)
Channel unbalance : +/-3 dB

-3dB limiting sensitivity : < 26.5dBf

.SUPPLYTTAB

: 100KHz(US)

)V( 3.7

Feature Overview

SERUTAEF

PERSONAL SSA PLAYER

WM/MFRENUT

YTILIBITAPMOCELBATIRWER-DC

MP3 & WMA PLAYBACK

GRAPHICS DISPLAY

NOITCNUFEMUSER/DLOH

SEGATSBBD

KCABDEEFCITSUOCA

FLASH MEMORY CAPACTY

N LI BATTERYOITCNUFEGRAHCER

USB PORT (USB BUS POWERED)

LCD BACK LIGHT ON/OFF (WHITE)

LINE IN / MUSIC

128 x 96 dots

128 / 256 MB

/

●

-

● / ●

/

1

●

●

●

● / ●

/

)snoisrevlla(

-

--

●●

4 Organize and Transfer Music

Launch your music software from Windows desktop or
Start menu . Organize your music. Transfer files from
your PC to your pss.

5 Unplug /Eject

Exit your music software .
Disconnect pss safely from your PC by clicking on the
task bar to avoid file er ror .
(WINDOWS 98SE users: there is no icon.
Simply disconnect pss after file tr ansfer completes. )

6 Immerse in your music everywhere you go

Press and hold 2; to switch on pss.
Use scroll controls to bro wse and press 2; to enj oy music!

TIP

Detailed info rmation is given in selected music software’ s Help.

Quick start

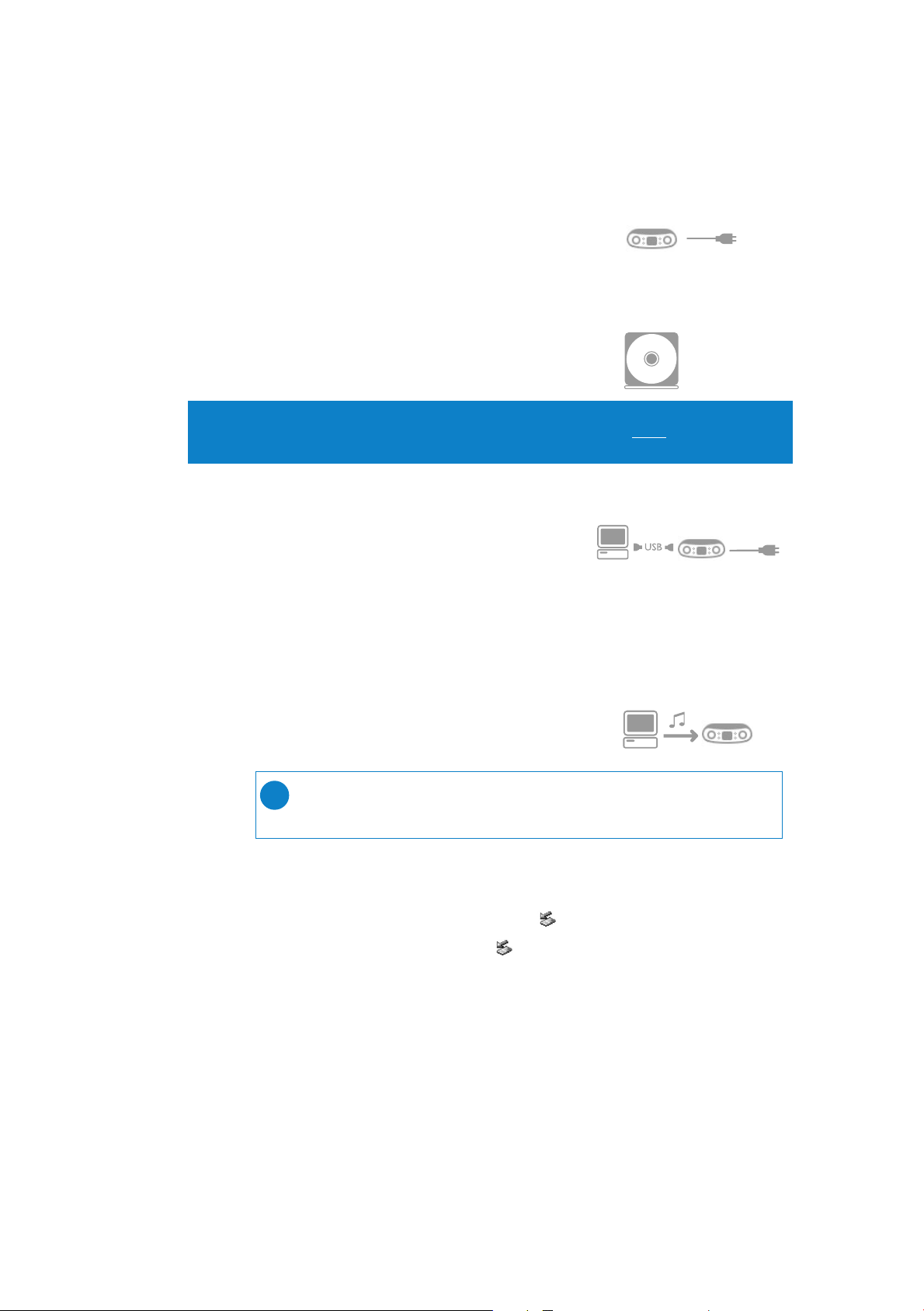

1 Charge

Open the connections co ver at the back of your pss.
Connect the included multi-vo ltage adaptor / charger into the
pss jack marked 5V DC , and then plug the multi-vo ltage
adaptor / char ger into a standard AC outlet.
Char ge 1 hour for fast charge or 4 hour s for 100% batter y powe r.

(Battery life may vary according to use.)

2 Install music software

Inser t the included CD into your PC's CD-R OM dr iv e.
Follo w screen instr uctions to complete installation.

3 Connect

Connect your pss to your PC using the included USB
cable, w ith pss pow ered by included adapter. The USB
connection screen will automatically appear.

ATTENTION! WINDOWS 98SE USERS:

To avoid installation prob lems, DO NO T CONNECT pss to the PC until AFTER
installation completes.

CONNECTIONS AND CONTROLS

1-2

MENU

SOURCE

USB

RESET

LINE IN

5V DC

USB

RESET

LINE IN

5V DC

1

2

3

10 11

7

8

9

6

5

4

12

CONNECTIONS AND CONTROLS

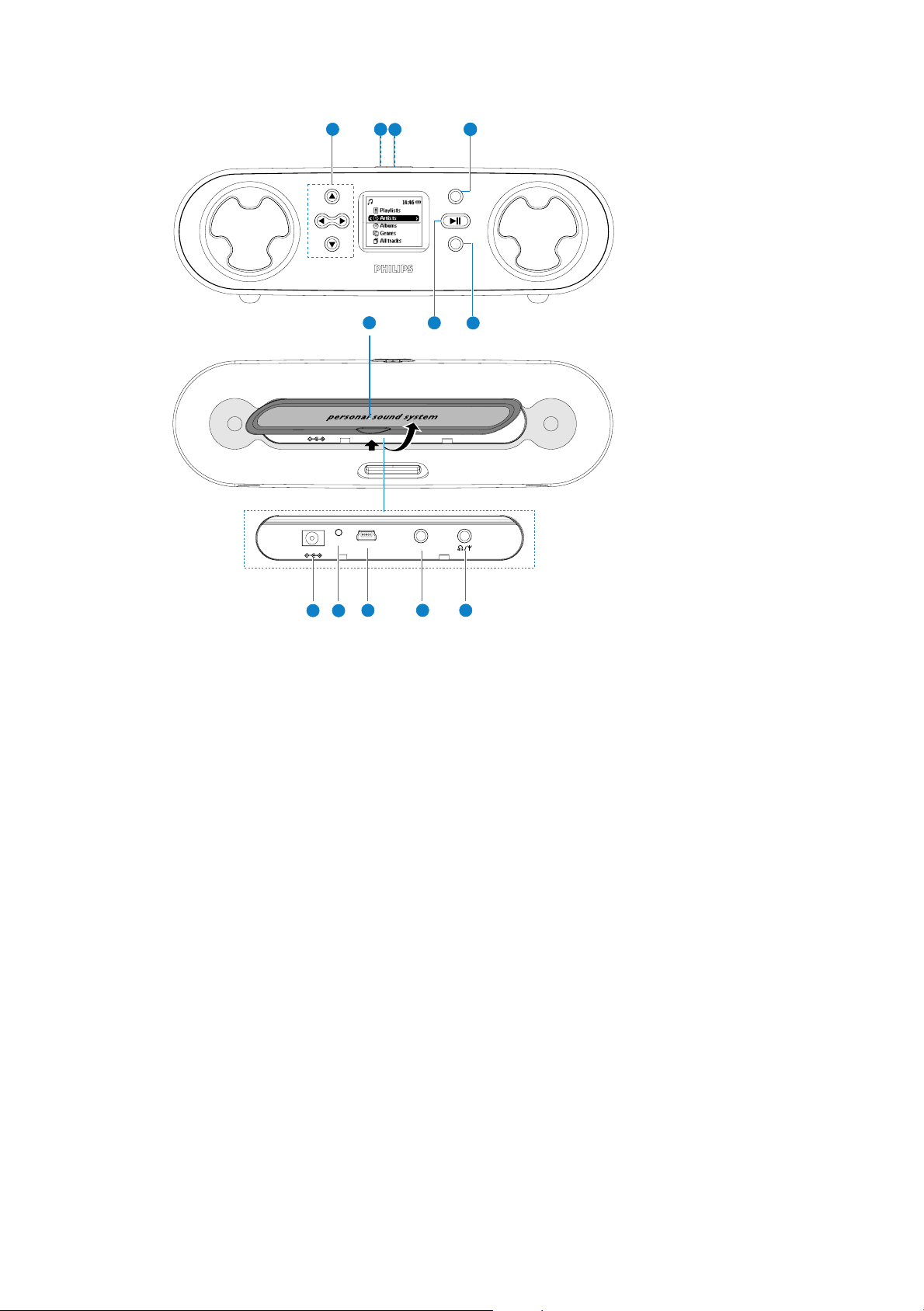

Ov er view of controls and connections

1 Navigation

3

Up / previous / fast search backwards

4

Do wn / next / fast search forwards

1

Left / retur n to previous menu or lib rary leve ls

2

Right / conf ir m a menu setting

2 + / – Increases / decreases vo lume

3 DBB Enables or disables Dynamic Bass Boost to enhance bass tones

4 MENU For menu options

5 2; On / off ; plays / pauses music; plays / stores a radio station

6 SOURCE Retur ns to root menu / displays playscreen or librar y options

7 Connections cover

8 5V DC Char ger /adapter connection

for pow er supply

9 Reset opening Press here to reset if the device “hangs” or “freezes”

0 USB USB cable connector

! LINE IN 3.5mm socket for audio cable: connects to LINE OUT

of auxiliary equipment

@ p

/

b 3.5mm jack for headphones (not included) or for

FM antenna (included)- if listening via speakers

1-3

Q. My pss does not respond.

Should your pss100 "hang" or continues to display the busy icon indefinitel y, use a pencil or
similar object to press the reset pinhole at the back of the set . File contents e.g. your songs
or do wnloaded files on your pss are not affected when resetting in this way.

Q. I can't play my music tracks.

pss can only play MP3 / WMA files transferred using the included software . pss will not be
able to play audio files that are not of these form ats. e.g. AA C encr ypted or WMA songs
bought from the inter net.

Q. pss switches off by itself.

This is a built-in safety measure to protect the unit from overheating, possi bly caused by
ov er use at too high vo lume , incor rect pow er vo ltage. Check vo ltage and use only the
included adapter/char ger. P lay at a sensible vo lume . A llo w pss to cool do wn before using
again. Alter natively, check the shutown menu setting. Change if necessar y.

Q. My pss has short playback time.

Make sure pss batter y is fully char ged when you begin playback. Ov er time, the inter nal
rechar geable batter y will become w eaker. It is replaceable. Please contact your nearest
Philips Ser vice Center for a batter y replacement.

WARNING:

Do not open the set as there is a risk of electr ic shock! Under no circumstances should yo u
tr y to repair the set your self, as this will invalidate the warr anty.

Troubleshooting

If a fault occurs, first check the points listed in the following pages. For fur ther help and
other troubleshooting tips, please also check out pss FAQ at www .philips.com/support.
If you are unable to find a solution by following these hints, consult your dealer or
ser vice center .

TROUBLESHOOTINGS

Q. Poor fm reception.

Weak signal. Adjust the headphone cable or antenna. Batter y weak. Switch ov er to
AC power.

Q. My pss shows this [file error] icon.

You have a file error : system files may be missing or there is a fo rm at er ror on pss.
To remedy , please connect pss to your PC with the included USB cable and to the
main pow er supply with the included adapter. Star t the included Philips application.
The system files will be recreated automatically.

Q. How do I know which firmware version I have?

On your pss, you can check your firmware version from the menu options.
Scroll for MENU Settings Information to displ ay FW vers:.

Q. How do I know how much free space I have?

On your pss, you can check your pss free space from the menu options.
Scroll for MENU Settings Information to displ ay Free:.

Q.The alarm does not function

Clock date and time incorrect.
Check you have cor rectly set both the clock and alarm settings.
Alar m source/ occur rence not selected.
Check you have activated all the necessar y alarm settings.
Batter y power low. Use the AC adapter/char ger to operate pss.

1-4

Safety and maintenance

To get the most from your product, please also ref er to the Safety &
Warranty booklet included with this device for impor tant safety instr uctions.

About oper ating and stor age temper atures

0 Operate pss in a place where the temper ature is always betw een 0 and 35º C

(32 to 95º F).

0 Store pss in a place where the temper ature is always betw een -20 and 45º C

(-4 to 113º F).

0 Batter y life of pss may shor ten in lo w temper ature conditions.
0 Do not expose to excessive heat caused by heating equipment or direct sunlight.
0 When you are using pss, connecting it to your PC or char ging the batter y, it is

normal for pss to become warm.

Av oiding damage or malfunction

0 Backup your files.Please ensure that you retain the or iginal files that you have do wn

loaded to pss. Philips is not responsi ble for any loss of content if the product becomes
damaged or not readable / legible.

0 Manage (tr ansfer, delete , etc.) your files only through included music software

to avoid prob lems!

0 Do not drop pss or allow objects to fall on pss.
0 Do not allow pss to be submer sed in water.Do not expose connection jacks

to water as water enter ing the set may cause major damage.

0 Clean pss with a slightly damp cloth. Don't use any cleaning agents containing

alcohol , ammonia, benzene or abrasives as these may harm the finishing on pss.

0 Acti ve mobile phones in the vicinity may cause interf erence to the device .

SAFETY AND MAINTENANCE

Using the power adapter / char ger

0 Use only the AY3192 pow er adapter that came with pss. Adapter s for other electronic

devices may look similar, but they may damage pss.

0 The only way to shut off pow er completely to your pow er adapter/char ger is to

disconnect it from the pow er source .

0 Alwa ys leave space around your pow er adapter. Do not use this equipment in a location

where airflow around the pow er adapter is confined, such as a bookcase .

0 When connecting or disconnecting your pow er adapter, always hold the pow er adapter

by its sides. Keep finger s away from the metal part of the plug.

0 The pow er adapter for pss is a high-v oltage component and should not be opened for

any reason, even when pss is off.

Using your headphones

0 Hearing safety

Listen at a moder ate vo lume . Using headphones at high vo lume can impair your hear ing.

0 Traffic safety

Do not use while dr iving or cycling as you may cause an accident.

0 Optimizing playback performance

We recommend to only use PHILIPS headphones for pss. Music vo lume and / or qualit y
is not guaranteed for other non-PHILIPS headphones.

1-5

© WARNING

All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD). Careless handling during
repair can reduce life drastically.
When repairing, make sure that you are connected with the
same potential as the mass of the set via a wristband with
resistance. Keep components and tools at this potential.

f ATTENTION

Tous les IC et beaucoup d´autres semi-conducteurs sont
sensibles aux décharges statiques (ESD). Leur longévite
pourrait être considérablement écourtée par le fait qu´aucune
précaution nést prise à leur manipulation.
Lors de réparations, s´assurer de bien être relié au même
potentiel que la masse de l´appareil et enfileer le bracelet
serti d´une résistance de sécurité.
Veiller à ce que les composants ainsi que les outils que l´on
utilise soient également à ce potentiel.

d WARNUNG

Alle ICs und viele andere Halbleiter sind empfindlich
gegenüber elektrostatischen Entladungen (ESD).
Unsorgfältige Behandlung im Reparaturfall kann die
Lebensdauer drastisch reduzieren.
Sorgen Sie dafür, daß Sie im Reparaturfall über ein Puls­armband mit Widerstand mit dem Massepotential des
Gerätes verbunden sind.
Halten Sie Bauteile und Hilfsmittel ebenfalls auf diesem
Potential.

ñ WAARSCHUWING

Alle IC´s en vele andere halfgeleiders zijn gevoelig voor
electrostatische ontladingen (ESD).
Onzorgvuldig behandelen tijdens reparatie kan de levensduur
drastisch doen vermindern. Zorg ervoor dat u tijdens reparatie
via een polsband met weerstand verbonden bent met hetzelfde
potentiaal als de massa van het apparaat.
Houd componenten en hulpmiddelen ook op ditzelfde potentiaal.

i AVVERTIMENTO

Tutti IC e parecchi semi-conduttori sono sensibili alle scariche
statiche (ESD).
La loro longevità potrebbe essere fortemente ridatta in caso di
non osservazione della più grande cauzione alla loro
manipolazione. Durante le riparationi occorre quindi essere
collegato allo stesso potenziale che quello della massa
delápparecchio tramite un braccialetto a resistenza.
Assicurarsi che i componenti e anche gli utensili con quali si
lavora siano anche a questo potenziale.

©

Safety regulations require that the set be restored to its
original condition and that parts which are identical with
those specified be used.
Safety components are marked by the symbol

i

Le norme di sicurezza estigono che l´apparecchio venga
rimesso nelle condizioni originali e che siano utilizzati i
pezzi di ricambiago identici a quelli specificati.
Componenty di sicurezza sono marcati con

ñ

Veiligheidsbepalingen vereisen, dat het apparaat in zijn
oorspronkeliijke toestand wordt teruggebracht en dat
onderdelen, identiek aan de gespecificeerde, worden toegepast.
De Veiligheidsonderdelen zijn aangeduid met het symbool

s Varning !

Osynlig laserstr lning när apparaten är öppnad och
spärren är urkopplad. Betrakta ej str len.

∂ Advarsel !

Usynlig laserstr ling ved bning n r sikkerhedsafbrydere
er ude af funktion. Undg udsaettelse for str ling.

ß Varoitus !

Avatussa laitteessa ja suojalukituksen ohitettaessa olet alttiina
näkymättömälle laserisäteilylle. Älä katso säteeseen !

f

"Pour votre sécurite, ces documents doivent être utilisés par
des spécialistes agréés, seuls habilités à réparer votre
appareil en panne".

ESD

SAFETY

d

Bei jeder Reparatur sind die geltenden Sicherheitsvor­schriften zu beachten. Der Originalzustand des Gerätes
darf nicht verändert werden. Für Reparaturen sind Original­ersatzteile zu verwenden.
Sicherheitsbauteile sind durch das Symbol markiert.

f

Les normes de sécurité exigent que l`appareil soit remis
à l`état d`origine et que soient utilisées les pièces de
rechange identiques à celles spécifiées.
Les composants de sécurité sont marqués

CLASS 1

LASER PRODUCT

©

DANGER: Invisible laser radiation when open.

©

After servicing and before returning the set to customer
perform a leakage current measurement test from all
exposed metal parts to earth ground, to assure no
shock hazard exists.
The leakage current must not exceed 0.5mA.

AVOID DIRECT EXPOSURE TO BEAM.

©

AVAILABLE ESD PROTECTION EQUIPMENT :

anti-static table mat large 1200x650x1.25mm 4822 466 10953

small 600x650x1.25mm 4822 466 10958
anti-static wristband 4822 395 10223
connection box (3 press stud connections, 1MΩ) 4822 320 11307
extendible cable (2m, 2MΩ, to connect wristband to connection box) 4822 320 11305
connecting cable (3m, 2MΩ, to connect table mat to connection box) 4822 320 11306
earth cable (1MΩ, to connect any product to mat or to connection box) 4822 320 11308
KIT ESD3 (combining all 6 prior products - small table mat) 4822 310 10671
wristband tester 4822 344 13999

SAFETY & WARNINGS

1-6

HANDLING CHIP COMPONENTS

1 - 7

SERVICE TOOLS

service tool: ESD Equipment:

Universal Torx driver holder....................... 4822 395 91019 Anti-static table mat-large

Torx bit T10 150mm................................... 4822 395 50456 1200x650x1.25mm.....................................4822 466 10953

Torx driver set T6-T20................................ 4822 395 50145 Anti-static table mat-small

Torx driver T10 extended........................... 4822 395 50423 600x650x1.25mm.......................................4822 466 10958

Anti-static wrist band.................................. 4822 395 10223

Compact Disc: Connector box (1MW)................................ 4822 320 11307

ECC.200_8cm............................................ 7104 099 32821 Extension cable

SUB8A_8cm............................................... 7104 099 32841 (to connect wrist band to conn.box)....... 4822 320 11305

MP3_8cm................................................... 7104 099 32851 Connecting cable

Skew Disc _8cm......................................... 7104 099 28262 (to connect table mat to conn.box)......... 4822 320 11306

Music Disc_8cm..........................................7104 099 28252 Earth cable

(to connect product to conn.box)................4822 320 11308

Audio Test Disc TCD783(ABEX) Complete kit ESD3

(Combining all above products)..............4822 320 10671

Wrist band tester.................................... 4822 344 13999

SERVICE HINTS

2 -1

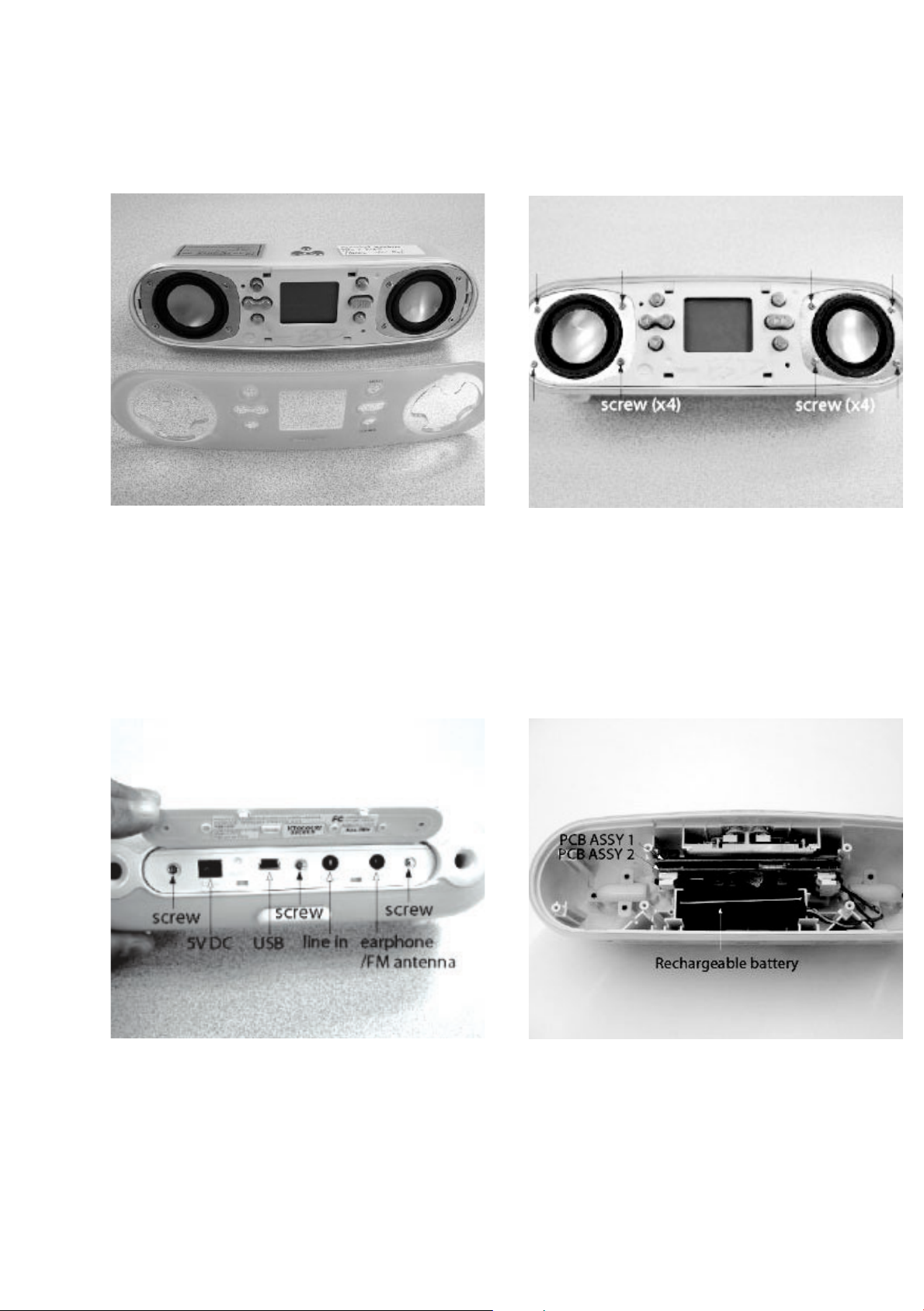

A. REMOVE LENS FRONT,

- NO NEED TO REMOVE ANY SCREWS

B. REMOVE SCREWS ON LOUDSPEAKERS 8x,

C. REMOVE SCREWS ON COVER REAR 3x

D. REMOVE PCB ASSY

- REMOVE PANEL FRONT ASSY FIRST

3 -13 - 1

Backlight

LCM

TH58100FT

BQ24010

(3.0V~4.2v)

5.0VDC_IN

2W x 2CH

74LV132

32K

FM Power_Down

TEA5768HL

FM

LINE_IN

SAA7750EL/N102

TPA2000D4

6M

RTC

USB

3.6V -- 3.0V/2.5V/1.8V

DC-DC

TEA1210

Power ON/OFF

PC

KEY

128M*2 EEPROM

CLASS_D

Power AMP

PCF8563

3.6V -- 5.0V

TEA1202

8M SDRAM

MT48LC4M16A2TG

HP JACK

DSP & MCU

DC-DC

1A Charger

4R

32K

HEF4052B

LOCAL

+5.0_OFF

+A

1.8V

3.0V 1.8V 2.5V

2.5V

3.0V

3.0V

3.0V

5.0V

USB_5V

+A

3.0V

3.0V

ALARM

AMP_OFF

5.0V

Low_Batt

+A

3.0V

STOP

2.5V_OFF

3.0V_OFF

3.0V

USB_IN

ALARM

DC_IN

RESET

PLAY_PAUSE_POWER

SAA7750_Reset

+A

BLOCK DIAGRAM

4 - 1 4 - 1

ON/

VIN

NOISE

OFF

VO

GND

TEST PINS

20

19

EBI_NCS_1

NC

SSA

UART

MEMORY CARD INTERFACE

REMOTE CONTROL

GPIO_21

JTAG

PLL

VSSA

EBI_WEN

EBI_SDCLKOUT

EBI_CKE_0

EBI_DQM_1

EBI_DQM_0

EBI_NRAS

EBI_NCAS

EBI_NOE

GPIO_22
GPIO_23
GPIO_24

VREF_HP

VOUTL

VOUTR

VOUTL_HP

VOUTR_HP

VINL

VINR

VINM

GPIO_25

IIC

LCD INTERFACE

UART_NCTS

IIS

UART_CLK

USB

PERIP

10 BIT ADC

SPDIFO

CD BLOCK DECODER

UART_NDCD

CDB_EFAB
CDB_V4_SUB
CDB_CFLAG_SBSY
CDB_SFSY
CDB_RCK

7

0
1
2
3
4
5
6

UART_IO_NRI

UART_DIR_TX

UART_REQ_RX

UART_RST_NRTS

TEST_DAT_3

XTAL2O

XTAL2I

XTAL1O

XTAL1I

USB_VUSB

USB_CONNECT_N

USB_DM

USB_DP

MCI_CMD

MCI_CLK

MCI_DAT_0

TEST_DAT_1
TEST_DAT_2

GPA_1

LCD_RS

LCD_CSB

LCD_E_RD

LCD_RW_WR

LCD_WE

CLKO1

MASTER

CDB_WSAB

GPA_0

VREFP_1

VREFP_0

DO_0
DI_0

BCKI1
WSI1
DATAI1
BCKO1
WSO1
DATAO1
DATAO2

NTRST
TCK
TMS
TDI
TDO

SCL
SDA

A0_SLAVE

SDA

SCL

CDB_CRQ_NERDY
CDB_NCRST_NHRDY
CDB_CLAB
CDB_DAAB

UART_NDSR

UART_NDTR

GPA_3

GPA_2

GPA_5

GPA_4

GPA_7

GPA_6

VDDA_HP

VADCP

VDDA_AD

VDDA_DA

VDDD_FLASH

VDDD_CODEC

GPIO_15

GPIO_14

GPIO_13

GPIO_12

GPIO_11

GPIO_10

GPIO_9

GPIO_8

GPIO_7

GPIO_6

GPIO_5

GPIO_4

GPIO_3

GPIO_2

GPIO_1

GPIO_0

EBI_NCS_2

18

0
1
2
3

EBI ADDR

EBI DATA

LCD DB

SLAVE

4
5
6
7
8

9
10
11
12
13
14
15
16
17

15

0

1

2

3

4

5

6

7

8

9
10
11
12
13
14

VREF

L3CLOCK_SCL

L3DATA_SDA

L3MODE_A0

SELECT_L3_IIC

TEST1

MODE_2

MODE_1

MODE_0

WAKE_UP

NRESET_IN

RESET_OUT

RESET

EBI_NCS_0

EBI_SDNCS_0

SYSTEM

EBI

GPIO_20

GPIO_19

GPIO_18

GPIO_17

GPIO_16

GPIO_27

GPIO_26

1

VSSA_HP

VSSA_DA

VADCN

VSSA_AD

VSSD_CODEC

VSSD_FLASH

VSSI

OSCILLATORS

VDDIVDDA PERIP

F335 U2
F336 U5

F338 V5

F337 V5

36

3303 B4

3307 C7

2335 AF23
2336 AG23
2337 AE24
2338 AE25
2345 E47
2346 AB28

N

O

P

Q

R

S

T

U

V

W

3301 B3
3302 B4

3377 AE29

31

F345 X5
F346 J34
F347 J34
F348 K34

3634 37 38

3352 AA45

3351 AA40

2300 P45
2302 E23
2303 E47
2304 Q41
2305 G47
2306 H36
2307 D34
2308 D33
2309 H34
2310 I47

891011 12 13 14 15 16 17

F340 V5
F341 W5
F342 W5
F343 W5
F344 X6

F308 L31

3387 K28
3388 L28
3389 AC37
5301 F46
5303 F37
5305 J35

F349 L34
F350 Q34

F309 L31
F310 L31
F311 M31
F312 M31
F313 K32
F314 N31
F315 N31
F316 N31
F317 O31
F318 O31

AE

AF

AG

AH

U2 Y49
1301 D35
1302 B6
1304 G35
1305 I33
1306 S9
1307 T4

35 39

3353 AC33
3354 AB40
3355 AD10
3356 AF24
3357 AC26
3358 AC26
3359 AF35

3325 P9
3326 P9
3327 U22
3328 S22
3329 T22
3331 U22
3332 W22
3333 U22
3334 V22

2347 AB29
2349 V3
2350 AA24
2351 AA35
2352 AB23
2354 Q40
2355 Q43
2356 R43
2357 AC4
2358 L27

3346 X10
3347 T22
3348 Z37
3350 AA31

F306 N31
F307 K31

E

F

2328 AB46
2329 AC32

3306 C7

3305 AE42

3304 AC6

5306 AA27
5307 L35
5309 G41
5310 K36

F319 O31
F320 O31
F321 P31
F322 P31
F323 P31
F324 P31

18 19 20 21 22 23 24 25 26 27 28 29 40

3379 AD25

3378 AC25

3514 15 16 17 18 19

3361 AC24

3308 C8
3309 E28
3310 D46
3311 G3
3312 G4
3313 AE35
3314 G4
3315 D45
3316 H46
3317 J10

3374 AC28
3375 AD28
3376 AE28

7303-4 AD44
7305 Z46
7306 AB35
7307 E30
7308 N42
F301 C34
F302 B34
F303 G34
F305 M31

C

D

3338 Y22
3339 X6
3340 X7
3341 X7
3342 X8
3343 X8
3344 X9

30

32 3433

32

Power_ON_OFF

SSA1

2330 AB42
2331 AB48
2332 AF44
2333 AF45
2334 AF36

2312 L47
2313 L47
2314 N47
2315 N47

AE

AF

AG

AH

A

BB

G

5320 AA23
5321 AB23
5322 K46
5323 O45
6300 Z42
6301 AA33

3362 AD24

F339 V5

F325 Q31
F327 Z22
F328 V26
F329 K32

6302 Z36
6303 AF32
6304 Y37
6305 Y32
6306 R3
6307 AE33
6308 E32
6309 D31
6310 Q41
6311 AD34

F330 AE35
F331 T5
F332 T5
F333 U5
F334 U5

31

30

33

3335 T22
3336 V22

48 49 50

1234

3345 X9

5311 AA27

K

M

I

J

H

L

Y

Z

AA

AB

AC

AD

43 44 45 46 47 48 49 50

A

7302 AA32

5319 K36

27 28

3322 N9

3321 M46

3323 O9

2324 V44
2325 V45

3364 V27
3365 U27
3367 W27
3368 W27

3369 X27
3370 X27
3371 Y27
3372 Z22
3373 Z27

6312 AA37
7300 AA6

5316 U43

5314 J35

5317 W3
5318 Q35

5313 S43

3380 V2
3381 X35
3382 AA24
3383 AA25
3384 D30
3385 F31
3386 T27

42

4746

2311 I47

10 11

123

56

C

Z

O

N

Q

X

Y

AA

L

P

M

AB

AD

AC

J

K

7303-2 Z43

7303-1 Z40

7303-3 AE37

7301 C12

25 26

2326 V46

3319 L8

3324 O9

3320 L9

2323 V44

2327 X3

2316 H42
2317 H43
2318 T8
2319 T10
2320 T44

D

H

G

I

E

F

37 38 39 40 41

44 454567

78

X

R

JTAG

W

S

U

V

29

T

20 21 22 23 2413

Parallel LCM

129

41 42 43

2

3

4

5

67

1301

SFW5R-5STE1

1

3327

4K7

F336

100n

2312

100K3325

3

6306

BAT54A

5306

BAT54 COL

6310

3

2

4

15

MM1572JN

7308

3314

100K

7300
BC817-40

3304

22R

F308

100K 3309

F309

10K3377

F344

F335

3369

3332

4K7

3351

120K

F317

F348

F346

F347

100n

2329

120K

3352

4K7

100n

3334

2302

F325

100n2357

F303

F328

100K 3380

F321

5318

F302

2303

100n

3385 100K

6307

BAT54 COL

C3

L3

L1

H15

F16

P4

R3

N4

P3

M1

N17

P16

U16

U14

F17

L14

K4

H1

G3

E3

T17

R16

U17

P17

L2

M3

T16

R1P1N1

E17

K14

J4

L4G4E4

C4

M17

H17

K17

P15

C15

J17 G17

R2P2N2

M2

L17

R17

R15

N14

E14

B14

A15

B13

A14

C10

C11

D16

D17

C17

P13

P12

R13

R12

T15

T14

B4
A3
B3

D11

D10

A2
B2

A4

M16
M15

L16

D15

L15

N15
N16

C14
C16
D13
A17
C13
B16

B15

D12

A16

K3

K15
U12

T13
U13

K16

P14

R14

U15

C12

D14
B17

B12
A12
A13

C2
D1
D2
E1
D4
E2
D3

F4
A7
B8
A8
B9

C1

A9
B10
A10
B11
A11

A5
B6
A6
B7

A1

B1

F1

F2

G1
F3
G2

G16

H2

R10

J1

H3

J2

N3
M4
J3
B5

T2
R5
U1
P6
U2
P7
T3

R11

U10

T10

U11

T11

R4
T1

U3
T4
U4
T5
U5
T6

P5

H16

P8

J16

T7
P9
U7

P10

R7

P11

U8

H4

R6

T8
R8
U9
T9
R9

J14
H14
G14

F14

C6

D7

D8

C8

F15

G15

E16
E15

K2

K1

U6

T12

J15

M14

D6

C9

C5

C7

D9

D5

Φ

AUDIO PLAYER

7301

SAA7750

3342100K

100n

2316

F313

100K

3387

680R 3379

4K7

3336

5322

2308 100n

2334

100n

4K7

3329

2309 100n

F345

F301

F306

BC847B

7306

100n

2333

2326

100n

5301

F340
F341

9

10

714

8

7303-3

74LV132PW

3350

1M0

5321

2305

100n

100n

2325

F307

2349

100n

5303

7302

BC857B

5309

3383

47K

100K

3319

3384 10K

100K

3320

1u0

2356

3358

F322

100n

2320

F316

2319

56p

4K7

3331

F312

10K

3348

220n

2328

100n

2327

U2

680R

3361

F350

100n2336

56p

2318

F305

2K23374

4

5

714

6

7303-2

74LV132PW

2313

100n

3354

100K

3312

100K

F331

3301 100K

2332

100n

F343

F311

3344

100K

5307

1u0

2352

6301

BAT54 COL

3378

680R

4K7

3333

GND

NC

1 VCC

5

Y4

7305

74LVC1G14GW

A2

3

2n22347

7307

BC807-40

3346100K

2331

100n

2350

1u0

2324

100n

3313

10K

F315

100n

2323

2

F337

BAT54A

6302

3

1

2338 2n2

F327

1M0

3353

3316

56R

100K3308

F330

100n

2355

100K

3347

100K

3343

3386 100K

220n

2330

F332

3356

100K

3335

4K7

2n2

2337

3306 100K

100K 3373

10K

3302

3317

100K

2304

100n

1

2

714

3

7303-1

74LV132PW

F310

10K3311

6M0

1306

12

6312

BAT54 COL

5310

100K 3340

3357

3326 100K

F318

F329

100n2306

100K3368

F342

3322

100K

100K3307

100n

2300

4V100u

2314

5323

100R

3365

3341100K

3315

2351

100n

F323

3305

150K

9

18

19

14
15
16
17

2
3
4
5
6
7
8

SFV17R-1STE1

1307

1

10
11
12
13

56R

3310

100K

3345

3376 10K

3367 100K

F319

3328

47K

5320

BAT54 COL

6304

3370

100K

6
7
8
9

3371

24
25
26
27
28
29

3

30

4
5

15
16
17
18
19

2

20
21
22
23

1

10
11
12
13
14

52991-0308

1305

100n

2307

F333

4V100u

2345

F334

BAT54C

6303

1

2

3

100K 3339

3324

100K

5317

10V10u 2335

5314

5305

3382

47K

22R

3321

BAT54 COL

6308

6309

BAT54 COL

1

2

3

4

F314

14

11

HFW4S-2STE1

1304

7303-4

74LV132PW

12

13

7

3355

100K

2317

100n

F338

3338 1K0

F320

1K0

3372

100K3323

F339

F349

100n

2311

1M0

3381

2315

100n

1u0

2354

100K3364

7
8
9

13 14

12FMN-SMT-A-TF

1

10
11
12

2
3
4
5
6

1302

3303 100K

BAT54 COL

6311

3389

2M2

F324

2346

2n2

5316

2310

100u 4V

5313

3362680R

150K

3388

2358

1u0

6300

5319

BAT54 COL

5311

3375

2K2

2M2

3359

1

2

3

+5.0V

+5.0V_OFF

SAA7750_3V

BATT_LEVEL

LBO

6305

BAT54C

ADC_IN_LIN_L

LCD_RESET

ADC_IN_LIN_R

Line_in_IN

HP_IN

KEY1

KEY2

GPIO-10

+3.0V

LED-

+A2

+3.0V

SAA7750_3V

+3.0V

Codec_L

Codec_R

Back_light

7750_NRESET

SAA7750_3V

Codec_HP_R

Codec_HP_L

+3.0V

+3.0V

+A2

7750_NRESET

+3.0V

BATT+

SCL

HP_IN

AMP_OFF

+5.0V_OFF

USB_DP

Flash1_CE

GPIO-10

Codec_HP_R

ADC_IN_LIN_R

Codec_L

ADC_IN_LIN_L

SAA7750_3V

L3DATA

PLAY_PAUSE_POWER

ALARM

EBI_NCS_0

SDRAM_CS

PLAY_PAUSE_POWER

Key_reset

STOP

DC_IN

USB_V

7750_NRESET

RY_BY

LCD_RESET

3V_CODEC_D

MODE_0

MODE_1

MODE_2

PLAY_PAUSE_POWER

FM_ON_OFF

SAA7750_3V

3V_Codec_ADC

1V8_VDDI

3V_I_O

+A2

+2.5V_ON_OFF

+A2

1V8_VDDA

+3.0V

+5.0V

+A2

Codec_HP_L

SDA

USB_V

USB_CON

USB_DM

BATT_TEMP

Charge_Full

Line_in_IN

DC_IN

Codec_R

FM_ON_OFF

Key_reset

+1.8V

+2.5V 2V5_I_O

7750_NRESET

STOP

L3DATA

Charge_Full

L3MODE

USB_DM

USB_DP

USB_V

SAA7750_3V

SDA

Back_light

DC_IN

3V_Codec_HP

EBI_D10
EBI_D11
EBI_D12
EBI_D13
EBI_D14
EBI_D15

EBI_D8
EBI_D9

+3.0V_ON_OFF

+A2

AMP_OFF

KEY1
KEY2

BATT_LEVEL

BATT_TEMP

Flash1_WP

L3CLOCK

L3CLOCK

L3MODE

MODE_0
MODE_1
MODE_2

SCL

USB_CON

3V_Codec_ADC

1V8_VDDA

3V_ADC

3V_Codec_DAC

3V_Codec_HP

3V_CODEC_D

2V5_I_O

2V5_I_O

3V_I_O

1V8_VDDI

3V_ADC

3V_ADC

3V_Codec_DAC
EBI_A0
EBI_A1

EBI_A10
EBI_A11
EBI_A12
EBI_A13

EBI_A2
EBI_A3
EBI_A4
EBI_A5
EBI_A6
EBI_A7
EBI_A8
EBI_A9

SDRAM_CKE

SDRAM_DQML

SDRAM_DQMH

EBI_D0
EBI_D1
EBI_D2
EBI_D3
EBI_D4
EBI_D5
EBI_D6
EBI_D7

SDRAM_CAS

EBI_NOE

SDRAM_RAS

SDRAM_CLK

SDRAM_WE

MAIN BOARD - CIRCUIT DIAGRAM (part 1)

4 -24 -2

7

1

6
BY
RY

D

GND

ALE

NC

NC

WP
WE
RE

5

CLE

3

4

8

2

CE

B

R

GND

WP

VCC

VSS

IO

NC

0
1
2
3
4
5
6
7

CLE
ALE

CE
RE

WE

SHDWN0

SHDWN2

SYNC|PWM

FB1

IN2

FB2

OUT2

GND0GND

UPOUT|DNIN

LX2

LBO

U_|D

LBI2

LBI1

LX1

ILIM

FB0

OUT1

VREF

11

1

0

13

12

9

8

9
10

VSS

VDDQ

1M-1

DQM

VDD

VSSQ

0

A

BA

1

6

H

0

WE

L

NC

CAS

RAS

7

5

4

3

2

15

14

11

10

CS

CKE

CLK

D

0
1
2
3
4
5
6
7
8

NC

D

0
1
2
3
4
5
6

8
9
10

VSS

VCCQ

2M-1

DQM

VCC

VSSQ

0

A

BA

1

6

U

0

WE

L

1

CAS

RAS

7

5

4

3

2

15

14

11

10

CS

2

CKE

CLK

11

1

0

13

12

9

8

7

SECONS/VL

CONTROL/STATUS1

ADDRESS
REGISTER

CONTROL/STATUS2

LOGIC

INTERFACE

POR

DIVIDER

CONTROL

MINUTES
HOURS
DAYS
WEEKDAYS
MONTHS/CENTURY
YEARS
MINUTE ALARM
HOURS ALARM

TIMER

WEEKDAY ALARM
CLKOUT CONTROL
TIMER CONTROL

DAY ALARM

OSC

VOLTAGE

DETECTOR

OSC

I2C

MONITOR

BUS

32.768kHz

17

Y

Z

AA

AB

AC

AD

36

18

41

28

7

8
10
11
13
42
44

40

45 46 47 48 49 50

A

P

Q

R

S

T

7401 E26

2429 K22
3400 D21
3401 E21
3402 E33
3403 F33
3404 K34
3405 J22
3406 L34
3407 I38
3408 M35

U

13 14 15 16

C

D

E

B

40 41

F

9101112 2 627282930313233

P

Q

R

AE

A

B

C

D

E

42 43 44

2402 E23

F406 Y41

5404 AB4
5405 AB9
5406 R38
6400 E25
6401 S26

31445 768

4256

F402 G46
F403 D22
F404 J23
F405 M26

G

X

U

V

W

24 25

3421 AA22

3416 X27
3417 X27
3418 X27
3419 Y26
3420 Z25

S

T

2408 H45

2405 F23

2407 K36

2406 K35

V

W

2401 E22

2419 Z4

O

M

2420 Z10

H

I

J

K

L

32 33 34

2 36 371 38 39

7891011 12 13 48 49 50

3423 J43
3424 I42

25

X

Y

Z

AA

AB

AC

AD

AE

1400 U40
2400 E20

2421 Z11

N

2416 W41
2417 Z9

DC_DC_SYS

2418 Z10

20 2218

128M FLASH

26 27 28 29 30 31

RTC

2422 Z4
2423 Z5
2424 Z6
2425 AC5
2426 AC5
2427 AC10
2428 AC10

F

G

H

34 35

43 44 45 46 47

3412 T41

39 414021 22 23 24 36 37 38

232119

35

7411 N8
F401 J36

3414 W27

256M Flash

3413 V40

3415 W27

15

8M SDRAM

16 174

I

J

K

L

M

N

O

3409 K23
3410 J38

2415 W39

2411 K25

5401 D24

5403 Y3

2410 I39

3427 J21

2412 K24

2409 I38

2414 T38

5402 Y8

7402 G43
7403 D7
7405 R23
7406 X16
7407 T43
7408 AB16
7409 J44
7410 R31

2018 19123

3426 H44

3428 M24

2429

1u0

DT-26

1400

32K768

5402

7402

BC807-40

3412

100K

5405

22R

100K

3423

3415

F401

3417

22R

22u

5401

3

1

2

3401

150K

7409
BSH103

330R

3402

2412

10n

3406

100n

2419

100n

2427

5403

100n

SL03

6400

2420

F404

F403

2414

100n

7

12

37

13

36

18

19

3414

22R

47
48

3
4
5
10
11
14
15

8

28
33

2

34
35
38
39
40
45
46

43
44

1

20
21
22
23
24

25
26
27

17

9
16

6

29
30
31
32
41
42

7410

TC58DVG02A1FT00

EEPROM

Φ

8-BIT SERIAL

2400

33p

3428

100K

1

20

6

10

2

3

18

4

19

15

TEA1202TS

16

7

9

8

17

5

11

13

12

14

DETECTOR

BATTERY

LOW

DC/DC CONVERTER

CONTROL LOGIC

LDO2

LDO1

7401

2418

100n

3410

130K

2416

7

12

37

13

36

18
19

22p

46
47
48

3
4
5
38
10
11
14

8

26
27
28

2

33
34
35
39
40
45

42
43
44

1

15
20
21
22
23
24
25

Φ

TC58DVG14B1FT00

7405

17

9

16

6

29
30
31
32
41

256Mx8

[FLASH]

5406

10V10u

2424

3421

100n

2426

22R

3418

4u7 20V

2408

100n

2421

10K

3403

91K

100n

2410

3408

5404

2417

10V 10u

100n

F406

2405

100n

2407

3400

75K

7408

1

2

35

4

74AHC1G32GW

100u 4V

2409

2411

10n 50V

150K

3404

3419

22R

F405

2428

100n

100K

8

VDD

VSS

4

3420

CLKO

7

INT_3

OSCI1

OSCO2

SCL6

SDA5

PCF8563TS

7407

2422

100n

74AHC1G32GW

1

2

35

4

546124652

16

7406

38

19

2

4

45
47
48
50
51
53

5

29
30
31
32
33
34

20
21

17

37

23
24

22
35

25
26

2M X 16 X 4

DRAM

Φ

MT48LC8M16A2P-7E

7411

6.3V22u

220K

3409

100n

2401

16

2425

94349

2841546124652

44

39
15

36
40

18

11427

3

47
48
50
51
53

5
7

8
10
11
13
42

34

20
21

17

37

38

19

2

4

45

24

22
35

25
26
29
30
31
32
33

7403

MT48LC4M16A2P-7E

Φ

DRAM

1M X 16 X 4

23

22p

2415

4V100u

2406

1M0

3413

470K

3405

3426

10R

22R

3416

100n

2402

150K

3407

F402

3427

150K

150V

PGB

6401

100n

2423

1K0

3424

EBI_D4

EBI_D3

EBI_D2

EBI_D15

EBI_D14

EBI_D13

EBI_D12

EBI_D11

EBI_D10

EBI_D1

EBI_D0

SDRAM_CS

SDRAM_CLK

SDRAM_CKE

SDRAM_CAS

EBI_A12

EBI_A13

EBI_A9

EBI_A8

EBI_A7

EBI_A6

EBI_A5

EBI_A4

EBI_A3

EBI_A2

EBI_A11

EBI_A10

EBI_A1

EBI_A0

Flash1_3V

EBI_D9

SDRAM_DQMH
SDRAM_DQML

SDRAM_3V

SDRAM_3V_DQ

+3.0V

SDRAM_3V

SDRAM_3V_DQ

LBO

+2.5V

2V5

+2.5V_ON_OFF

2V5

BATT+

+A2

SDRAM_WE

SDRAM_3V_DQ

SDRAM_3V

SDRAM_RAS

SDRAM_DQML

SDRAM_DQMH

EBI_D9

EBI_D8

EBI_D7

EBI_D6

EBI_D5

EBI_A9
EBI_A10
EBI_A11

SDRAM_CAS

SDRAM_CKE

SDRAM_CLK

SDRAM_CS
SDRAM_RAS

SDRAM_WE

EBI_A13
EBI_A12

+A2

EBI_D0
EBI_D1

EBI_D10
EBI_D11
EBI_D12
EBI_D13
EBI_D14
EBI_D15

EBI_D2
EBI_D3
EBI_D4
EBI_D5
EBI_D6
EBI_D7
EBI_D8

+1.8V

ALARM

+A2

+3.0V

Gate_3V

Flash_RE
Flash_WE

EBI_A3

EBI_A2

Flash1_CE

EBI_D7

EBI_D6

EBI_D5

EBI_D4

EBI_D3

EBI_D2

EBI_D1

EBI_D0

RY_BY

EBI_A0

EBI_A1

EBI_A2

EBI_A3

EBI_A4

EBI_A5

EBI_A6

EBI_A7

EBI_A8

EBI_D0
EBI_D1
EBI_D2
EBI_D3
EBI_D4
EBI_D5
EBI_D6
EBI_D7

Flash1_WP

+3.0V

Flash1_3V

+3.0V

Flash_WE

Flash_RE

EBI_NCS_0

SDRAM_RAS

EBI_NOE

EBI_NCS_0

Gate_3V

Gate_3V

FB_1V8

+3.0V_ON_OFF

+A2

+3.0V

FB_1V8

SCL

SDA

Ref Des

3141 078 00411 3141 078 00421 3141 078 00481 3141 078 00501

7403

7405

7410

7411

932221633668

MT48LC4M16A2P-7EF

DRAM 1Mx16x4

932221633668

MT48LC4M16A2P-7EF

DRAM 1Mx16x4

932221633668

MT48LC4M16A2P-7EF

DRAM 1Mx16x4

Not used

Not used Not used Not used

Not usedNot usedNot used

Not used

932228493671

TC58DVG14B1FT00

256Mx8 Flash

932219951671
TC58DVG02A1FT00
8-bit serial EEPROM

932228493671

TC58DVG14B1FT00

256Mx8 Flash

932215713668

MT48LC4M16A2TG-7F

DRAM 2Mx16x4

932228493671

TC58DVG14B1FT00

256Mx8 Flash

MAIN BOARD - CIRCUIT DIAGRAM (part 2)

4 - 3 4 - 3

4 - 44 - 4

MAIN BOARD - LAYOUT DIAGRAM
COMPONENT SIDE VIEW

4 -5 4 -5

VCC VCCDVCCA VREF

L

R

MPXO

PHASEFIL

1

IGAIN

TMUTE

DATA

XTAL

VCOTANK

VAF

SWPORT

RFI

LIMDEC

CPOUT

AGND DGND

1 PILFIL

1

2

1

2

2

TAGC

LOOPSW

1

2

RFGND

TIFC

CLOCK

BUSENABLE

BUSMODE

2

G4

0

3

2

VDD

VEE VSS

1

0

3

2

1

4X

030

1

ON/

VIN

NOISE

OFF

VO

GND

5206 F21
5207 F16

F204 G21
F205 L19

2201 C23
2202 D20

F206 L19
F207 I21

F215 J12
F217 C19
F218 J4
F219 K9

ADC_INPUT

2247 D15

2249 M19

5208 G16
5209 J13

F208 L19
F210 M19
F212 D10
F214 K12

5214 H6
5215 L20
5216 M20
5217 C20

3217 G19
3218 G20

2203 D20
2204 E10

2231 G11
2232 G11
2233 M20
2234 M21

2209 J5
2210 E9
2211 J5
2212 G20

2215 H12

2214 H11

2213 F13

2216 H12
2217 F11

2248 M18

2230 H11

3222 I15
3223 J14
3224 J14
3225 K15

2235 M21
2236 D12
2237 J14
2238 M14

2245 D16
2246 E14

FM

2242 D10
2243 J16
2244 L16

3220 G20
3221 I15

6201 G15

6202 G15
7200 D13
7201 G21

3226 L15
3227 L14
3228 L14
3229 M15

5205 I5

5204 D20

3230 C21
3231 C21
3232 D21
3233 D22
5200 C20
5201 C20
5202 D11

2218 J6
2219 H16

3203 J6
3204 F15
3205 F14
3208 K20

2226 E8
2227 F9
2228 L23
2229 G6

H/P O/P

5218 N14
5219 L22
5220 L23
6200 J3

7202 G8
7203 J15
7204 L15
7205 C15
F201 C19
F202 C19
F203 D19

3115 L22
3116 L22
3200 D10
3202 J3

5210 K13
5211 L20
5212 L20
5213 H6

3209 H11
3210 E7
3211 F10
3212 M21
3213 M21
3214 E13
3216 B22

G

H

I

J

2220 J12
2221 K12
2224 G7
2225 L23

O

A

B

C

2143 E13
2200 C22

16 17 18 19

2205 I3
2206 I4
2207 E9
2208 J4

24

A

B

C

Line_IN

18 19 20

D

E

F

1234

K

L

M

N

9101112113 14 15

6789

20 21 22 23

14 15 16 17

21 22 23 24

H

I

J

K

5678

1200 C19
1201 L18
1202 G6
2142 D22

F

G

L

M

2345

N

O

10 11 12 13

3208

100K

D

E

2238

1n0

47n

33n

2215

5218

5208

5207

5201

F207

33n

TC38-360-01

3
4
2
1

F202

1201

220u 6.3V

2228

1u0

2246

IN_A

FM_A

2208

33p

3225

1K0

2220 1u0

2242

4

27

6

2

3

21

13

14

100u 4V

29

28

30

11

12

31

22

19

17

18

8

17

5

25

23

24

32

20

15

16

TEA5768HL

7202

Φ

FM STEREO

RADIO

26

10

9

22n

2n2

2231

1n0

2202

2224

2211

100n

2143

100K

4n7

3220

2225 6.3V220u

5219

IN_A

FM_RF

47R

3210

2243

47n

5220

FM_A

F215

FM_A

2221 1u0

5209

2210

6.3V 22u

5217

1K0

3214

39n

2213

3116 33R

3115

33R

10R

3200

2245

47K

1u0

3232

32K768 1202

100n

FM_A

2212

5210

4

13

3

2233

100n

16

7

8

12

1

14

5

15

2

11

MDX

HEF4052B

10
9

6

3
4
2
1

7201

1200

TC38-360-01

F214

10n

2219

HP_A

BC807-40

7200

2207

22n

5211

IN_A

FM_A

10K

3233

3212

100R

47K

100K

3224

3204

5214

22R

3211

F206

3221

15R

BC847B

7203

2218

33n

3229

1K0

2n2

3209

33K

2203

3216

100K

100R

3218

100n

2142

2227

22n

3222

2K2

1n5

2249

F218

22n 2230

5200

3231 3K9

5205

100n

BB202

6202

2248

1n5

2206

220p

1u0

2204

100n

2200

F210

3230

3K9

5204

10K

3213

5

5216

MM1572JN

7205

3

2

4

1

F208

5213

5206

47n

10K

3205

2244

3203

18K

3226

2K2

1n0

3228

100R

F205

2232

F212

22n

2226

FM_A

5212

47n

2216

5215

2n2

5202

100n

2236

2235

33n

47n

2217

F201

2214

7204
BC847B

1M0

3223

2234

2n2

3217

100K

2205

220p

IN_A

IN_A

3227

1M0

FM_A

2237

1n0FM_RF

F204

FM_A

6201

BB202

F203

F217

2209

47p

3202

FM_A

BAS316

100K

F219

6200

22p

2229

2247

100n

FM_RF

FM_A

ANT

2201 1u0

FM_ON_OFF

FM_ON_OFF

FM_AL

FM_AR

VCC_FM

VCC_FM

VAFR

VAFL

HP_IN

LINE_IN_IN

+3.0V

+3.0V

+3.0V_INA

+3.0V

TIFC

Tmute

VCOTANK2

Vref

XTAL1

XTAL2

RFI2

VCC_FM

CPOUT

VCC_FM

LIMDEC2

ANT

LINE_IN_REC_L

LINE_IN_REC_R

FM_AR

FM_AL

LINE_IN_REC_R

LINE_IN_REC_L

ADC_IN_LIN_L

+3.0V_INA

ADC_IN_LIN_R

Codec_HP_R

Codec_HP_L

LIMDEC1

PILFIL

VCOTANK1

SCL

SDA

IFgain

PHASEFIL

I/O BOARD - CIRCUIT DIAGRAM (part 1)

4 - 6 4 - 6

ILIMH

ILIML

FB

PWM

U_|D

SHDWN

SYNC

LX4

LX3

LX2

LX1

UPOUT2

UPOUT1

ILIMSEL

GND

HPOUT

0

N

R

R

P

L

SHUTDOWN

C

MODE

BYPASS

1

P

LR

N

R

GND_HS

AGND

VDDPVDDL

N

N

P

NC

L

R

P

L

HPIN

HPGAIN

PVDDR

RIN

LIN

ROUT

OSC

LOUT

PGND

GAIN

STAT2

HS

ISET

IN
TS
PG

VCC

BAT

VSS

OUT

STAT1

F

G

H

I

J

K

L

M

N

O

U

U4 E19
1008 D25

3567891011 12 13 14 15 21 22 23 24 25 26 27

P

Q

R

S

T

345 789

12

12

4

14 15 16 17 18 19 20 21 22 23 24

16 17 18 19 20

30

A

B

Charging

C

F

H

I

J

K

L

M

N

O

P

Q

R

28 29 30

12

C

D

E

6101113

1100 E2
1101 G27
1102 F18
1103 D22
1106 J22
1107 E17
1108 Q19
2100 E3
2102 E9
2104 S21

25 26 27 28 29

2112 O4
2113 O4
2114 O5

D

E

G

2115 O5
2116 O5
2119 P9
2120 Q9

S

T

U

A

B

2126 U12
2127 S17
2128 S17
2129 S17
2130 S18
2131 F14
2132 S27
2133 H9
2134 L23
2135 H7
2136 S28

2105 S21
2107 E27
2108 E28
2109 E22
2111 O4

2153 Q22
3101 H23
3102 Q26
3103 G9
3104 G7
3105 G7
3106 G12
3107 H12
3108 C27
3109 C27
3110 G15
3111 C26
3112 E15

2121 R27
2122 R28
2123 R10
2124 Q10
2125 P10

3129 T9
3130 R11
3131 D27

DC_IN&Batt

3132 R10
3138 C4
3139 D6
3140 D4
3141 R26
3142 S26

2139 P4
2141 K23
2144 T10
2150 P5
2151 H23

3151 H9
3152 P3
3154 T10
3155 T12
3156 F15
3159 H15
3160 J24
3161 Q11

3113 D26
3114 E26
3120 R12
3125 R27
3127 R27

5110 E3
5112 N3
5113 O2
5114 P16
5115 P16
5116 Q16

3144 P10
3145 Q10
3147 R25
3148 A4
3149 C6

6102 C4
6103 R23
6105 F17
6106 D16
6107 C16

5100 R22
5104 H26
5106 I28
5107 H29
5109 G26

6114 F19
6115 T11
7101 P25

5117 Q16
5118 U13
5121 L26
5123 T4
6010 D25

7106 O13
7110 C5
7111 E17
7112 B6
F101 D24
F102 D24
F103 D26

6108 D23
6109 D24
6110 K22

6112 E2
6113 C16

F109 J26
F110 J26
F112 I25

DC_DC_AMP

USB Socket

7102 B27
7103 E7
7104 E10

F121 L25
F122 L25
F123 L25

F104 H25
F105 K25
F106 K25
F107 K25
F108 J26

F125 K25
F128 H25
F131 N13
F132 P17
F133 P17
F134 Q17

F113 I25
F115 I25
F116 I25
F118 J25
F119 J25

F142 G17
F144 E14
F145 P26
F147 P18

F124 L25

F155 H28
F156 I28
F157 I28
F158 L26

F135 Q18
F136 F19
F138 E2
F139 J25
F140 F3

Power_AMP

F148 P19
F150 K25
F151 H25
F153 G26
F154 H26

F121

7112

BC847B

F102

F153

2135

F124

100n

3K3

3104

220p2127

PDZ5.1-B

6102

2M2

3148

3152

22R

3147

100R

F140

22R

3142

7102

F128

67

89

BC857B

TCX0101-110100

1

2

3

4

5

47K

1103

F131

3144

F110

2n2

2144

100n 2125

330R

3159

F147

F135

47n

2113

F142

10V

10u

2107

4K7

3129

6.3V330u

1
3

2
4

2121

EVQPUA

1106

2M2

3120

100n

v

2136

3139

5114

F113

3K3

F108

2112 47n

F125

11

4

5

12

13

14

3

21

16

6

TEA1210TS

7101

15

8

9

7

10

3132

2M2

6105

MBRM120LT1

220p

2129

270R

3156

3113 18R

5104

1107

3A F

100n

2153

5117

4K7

3105

1u0

F118

2131

1u0 10V

2139

F115

3

1

2

2104

6.3V220u

TC18-099-03

1100

2123

220p

2132

33p

22

27

32

31

18

23

26

28

20

10

7

14

21

8

9

24

25

6

11

4

5

33

12

31 3

15

30 16

1

2

Φ

CLASS-D

TPA2000D4DAP

7106

17

29

19

AUDIO AMP

150V

PGB

6115

5118

5123

5113

F103

3108

1K5

220n

2120

100K

F132

HP_A

3103

2M2

3154

4K7

3102

3112

5K6

5106

18R3111

10u

2115

3106

820R

2116 10u

29

3

30

4
5
6
7
8
9

2

20
21
22
23
24
25
26
27
28

1

10
11
12
13
14
15
16
17
18
19

1101

53748-0308

3

1

2

220n

2119

5112

7103

SI2305DS

F109

2150

47n

v

6109

PGB

150V

100n

2108

1K0

3138

150V

PGB

6010

6107

6114

MBRM120LT1

F116

MBRM120LT1

F105

10n

2109

5121

v

3

45

S3B-PH-SM4-TB

1
2

3161

2M2

1102

F148

470n

2126

F101

6106

MBRM120LT1

3101 2R2

33R

3107

3127

39K

150V

PGB 6110

4K7

3160

PGB

150V

4K7

AMP_A

6112

12

43

3131

F122

DLW31S

1008

100n

5107

F136

2141

F134

SI2305DS
7111

3

1

2

100K

3149

AMP_A

100K

3114

5116

2105

100n

5109

5110

3141 220R

F119

PRLL5819

6103

3145

47K

F150

v

3109

10K

2151

100u 4V

2100

100n

A_GND

3155

2M2

120K

F104

3130

1

2

3

4

56

B4B-PH-SM4-TBT(LF)

1108

6113

MBRM120LT1

2134100n

F106

100n

2133

2102

1u0

100n

2122

F123

120R

3140

220p2128

150V

PGB

6108

AMP_A

F138

v

47n

F156

2111

A_GND

F151

F144

2114

47n

1

6

10

7

3
48

2

5

BQ24010

9

11

IN_A

v

7104

Φ

F133

F107

7110
BC847B

10K

3110

5100

22u

F145

F155

5115

F154

U4

AMP_A

F112

150K

3151

v

v

2130220p

F157

F158

100n

F139

v

2124

3125

120K

+5.0V_P

+3.0V

+5.0V_A

+5.0V

+A2

Key_reset

+A

+5.0V_A

5.0V_OFF

+A

AMP_OFF

AMP_OFF

batt_temp

batt_temp

BATT+

Charge_full

Codec_R

Codec_L

DC_IN

+5.0V_P

DC-IN

BATT+

BATT+

+5.0V

+3.0V

USB_DM

USB_DP

USB_CON

+5.0V_P

FM_ON_OFF

HP_IN

Codec_HP_R

USB_DP

SDA

USB_V

Codec_HP_L

ADC_IN_LIN_R

DC_IN

5.0V_OFF

+5.0V

batt_temp

SCL

USB_V

USB_CON

USB_DM

Charge_full

LINE_IN_IN

ADC_IN_LIN_L

Codec_R

Codec_L

I/O BOARD - CIRCUIT DIAGRAM (part2)

4 - 7 4 - 7

I/O BOARD - LAYOUT DIAGRAM
COPPER SIDE VIEW

4 - 84 - 8

I/O BOARD - LAYOUT DIAGRAM
COMPONENT SIDE VIEW

5 - 1 5 - 1

screw 1.7x8 (8x)

screw 1.4x3.5 (10x)

screw 1.7x8 (3x)

200

1006

201

1003

326

202

203

1004

1001

1011

1010

EXPLODED VIEW DIAGRAM - CABINET

6 - 16 - 1

200 3141 077 50141 LENS FRONT PNT
201 3141 077 50121 PANEL FRONT PRE-ASSY
202 3141 077 50151 CABINET REAR PRE-ASSY
203 3141 077 50411 COVER REAR PNT

325 3140 118 33821 AC/DC ADAPTOR HDD100/17

325 3140 118 33801 AC/DC ADAPTOR HDD100/00
325 3140 118 33811 AC/DC ADAPTOR HDD100/05

326 3141 078 70011 ANTENNA
327 3141 073 10091 POUCH HARD

328 3140 110 21991 USB CABLE, FCI, SG-D90063
331 3141 078 70111 LINE-IN CABLE

462 3141 078 70061 CD ROM-IFU PSS100

1001 3141 078 00431 PBAS 9 - IO BOARD PSS110/37

1001 3141 078 00391 PBAS 9 - IO BOARD PSS100/00/05

1003 3141 078 70051 LCD MODULE
1004 3141 078 50011 RECHARGEABLE BATT PACK
1005 3141 073 30041 MEMBRANE

1006 2441 257 30017 LSP 4R 2W R45

1010 3141 078 00421 PBAS MAIN PSS110/37

1010 3141 078 00501 PBAS MAIN PSS110/00/05

1011 3141 078 00401 PBAS KEY ASSY

Note:

Accessories:

Only these parts mentioned in the list are
normal service parts.

1001 3141 078 00431 PBAS 9 - IO BOARD PSS110/37
1001 3141 078 00391 PBAS 9 - IO BOARD PSS100/00/05
1003 3141 078 70051 LCD MODULE
1004 3141 078 50011 RECHARGEABLE BATT PACK
1005 3141 073 30041 MEMBRANE

1006 2441 257 30017 LSP 4R 2W R45
1010 3141 078 00421 PBAS MAIN PSS110/37
1010 3141 078 00501 PBAS MAIN PSS110/00/05
1011 3141 078 00401 PBAS KEY ASSY
1100 2422 026 05086 CON BM SUPPLY H 1P

1103 2422 025 17684 SOCKET USB H 5P
1107 2422 086 00655 FUSE SM 3A 125V
1200 2422 026 05331 SOCKET PHONE H 1P
1201 2422 026 05331 SOCKET PHONE H 1P
8001 3141 070 20451 FFC FOIL 4P/90/4P AD 1MM

ELECTRICAL PARTSLIST

- MISCELLANEOUS -

Note: Only these parts mentioned in the list are

normal service parts.

!

!

MECHANICAL PARTSLIST - CABINET
