Philips _sm_15060 Datasheet

Colour Television Chassis

L05.1U

AA

F_15060_000.eps

210305

Contents Page Contents Page

1. Technical Specifications, Connections, and Chassis
Overview 2

2. Safety Instructions, Warnings, and Notes 4

3. Directions for Use 6

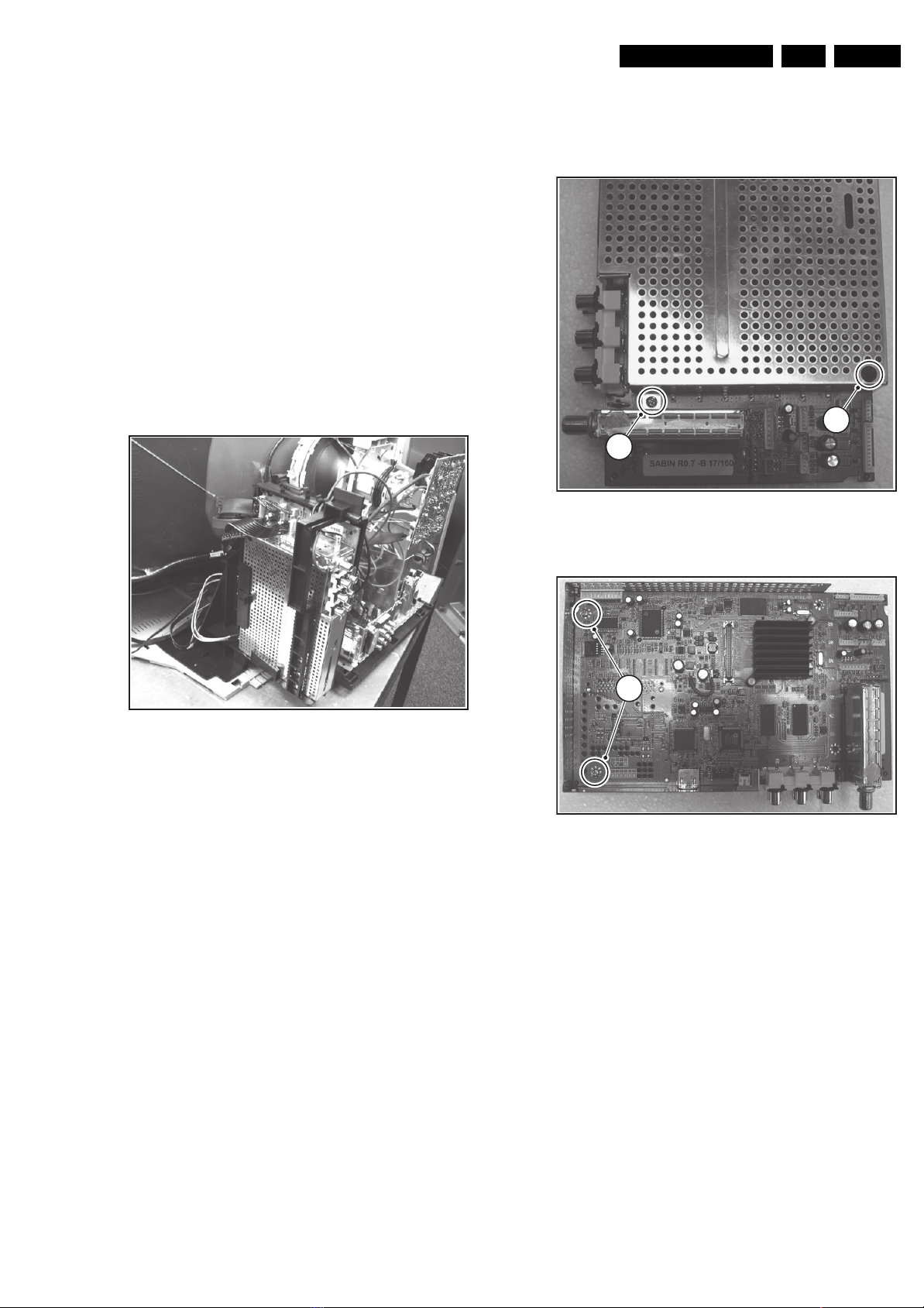

4. Mechanical Instructions 7

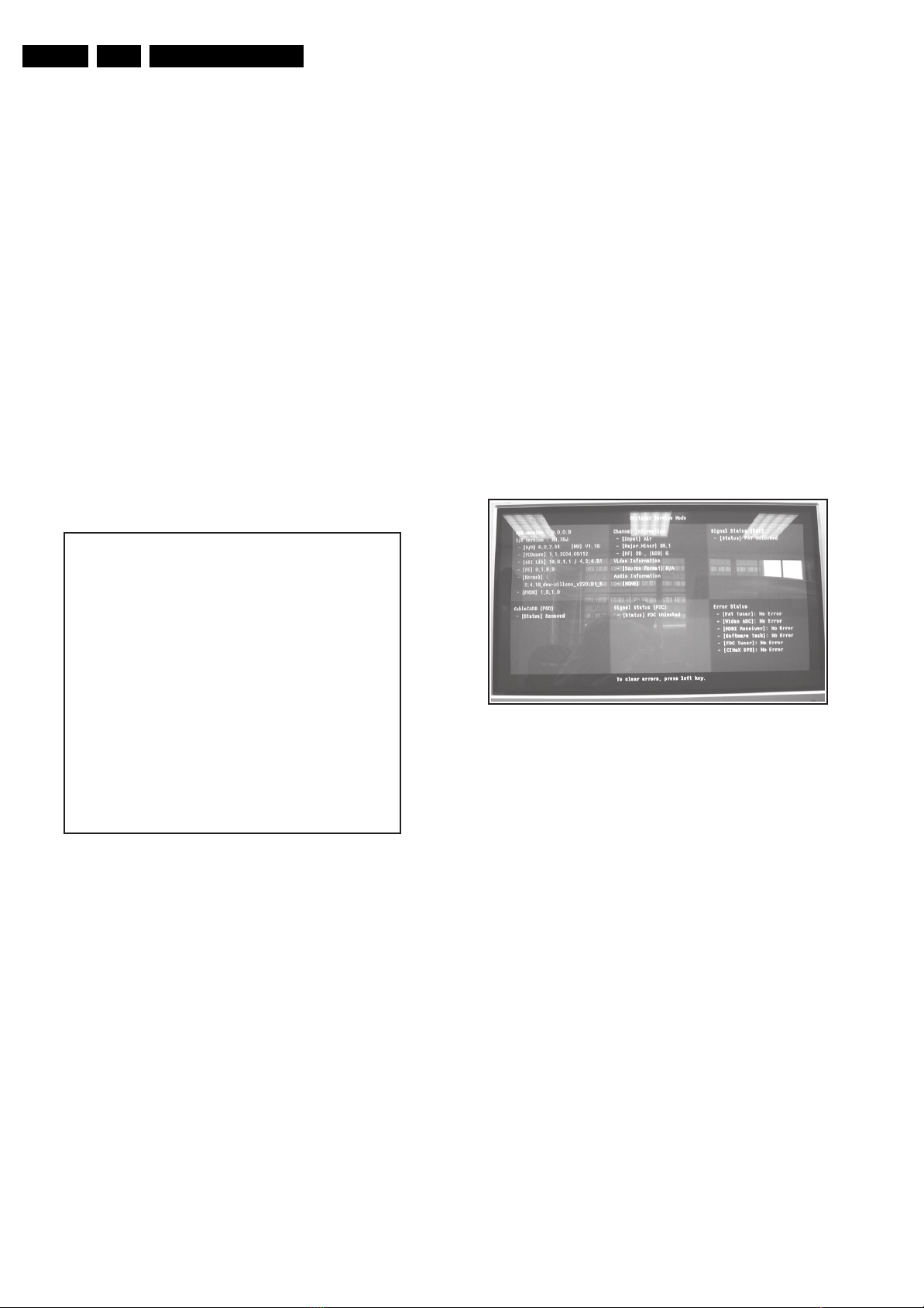

5. Service Modes, Error Codes, and Fault Finding 8

6. Block Diagrams, Testpoint Overviews, and

Waveforms

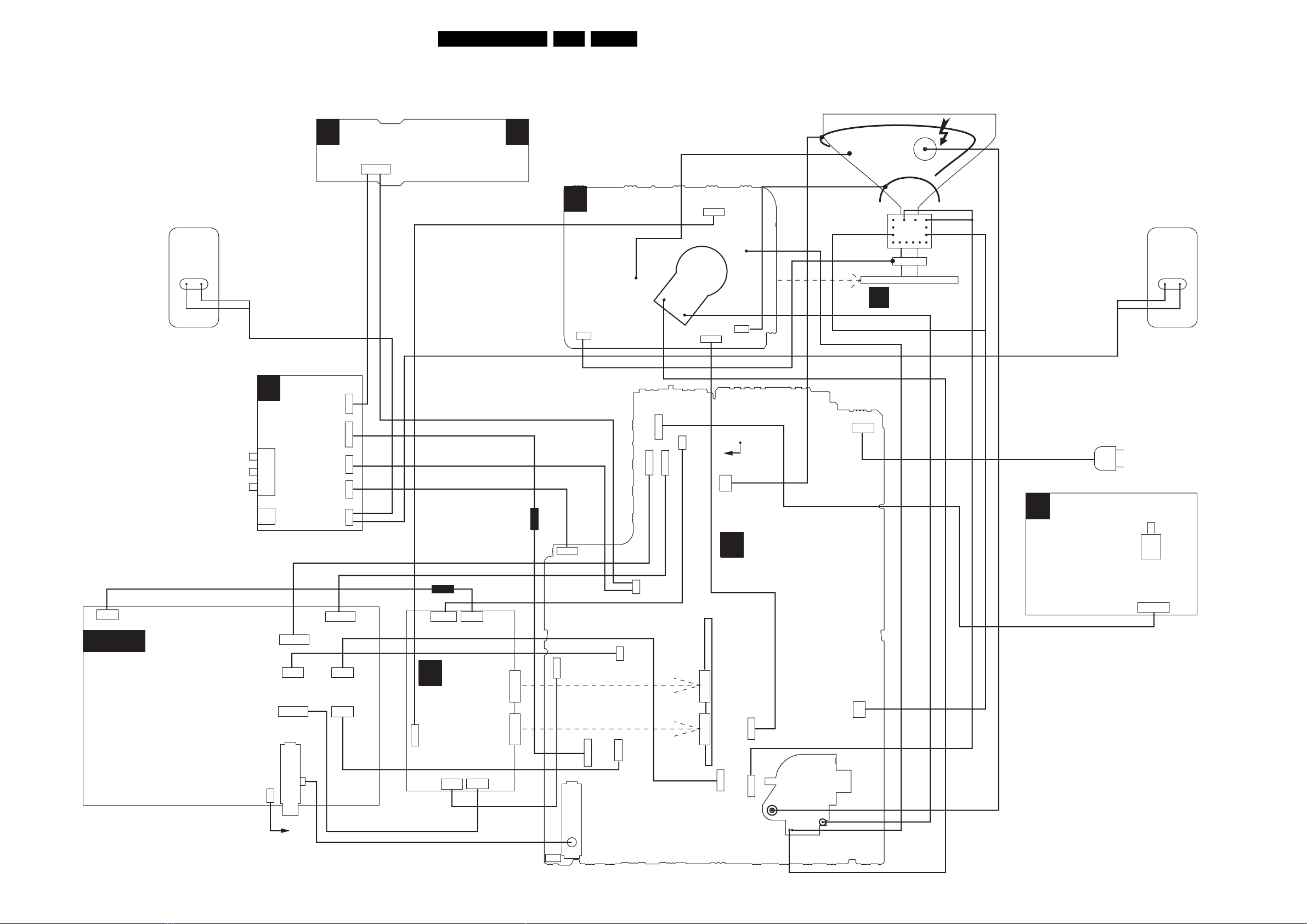

Wiring Diagram 21

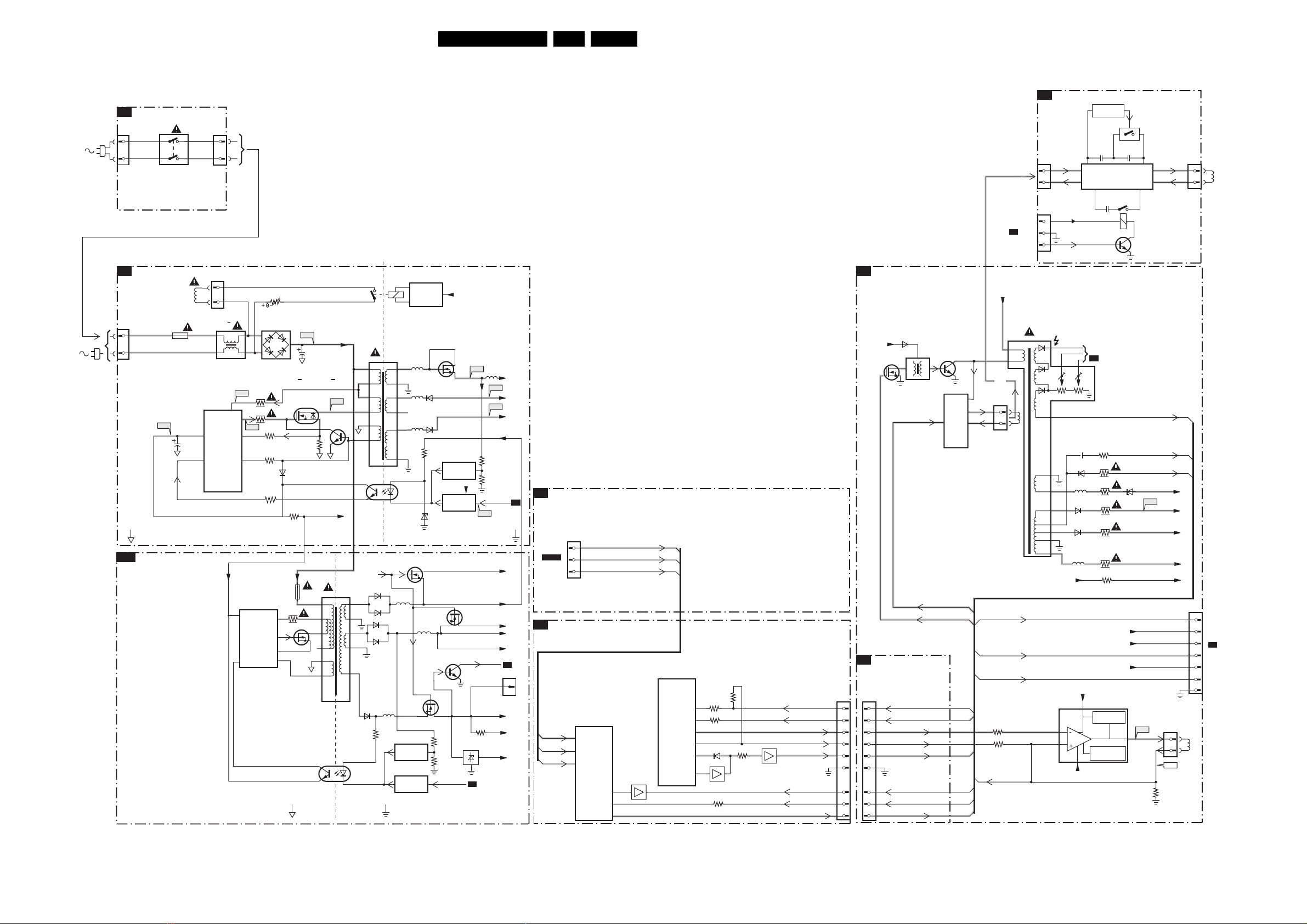

Block Diagram Supply and Deflection 22
Testpoint Overview Mono Carrier 23
Block Diagram Video 24
Testpoint Overview CRT Panel (Multi Board) 25

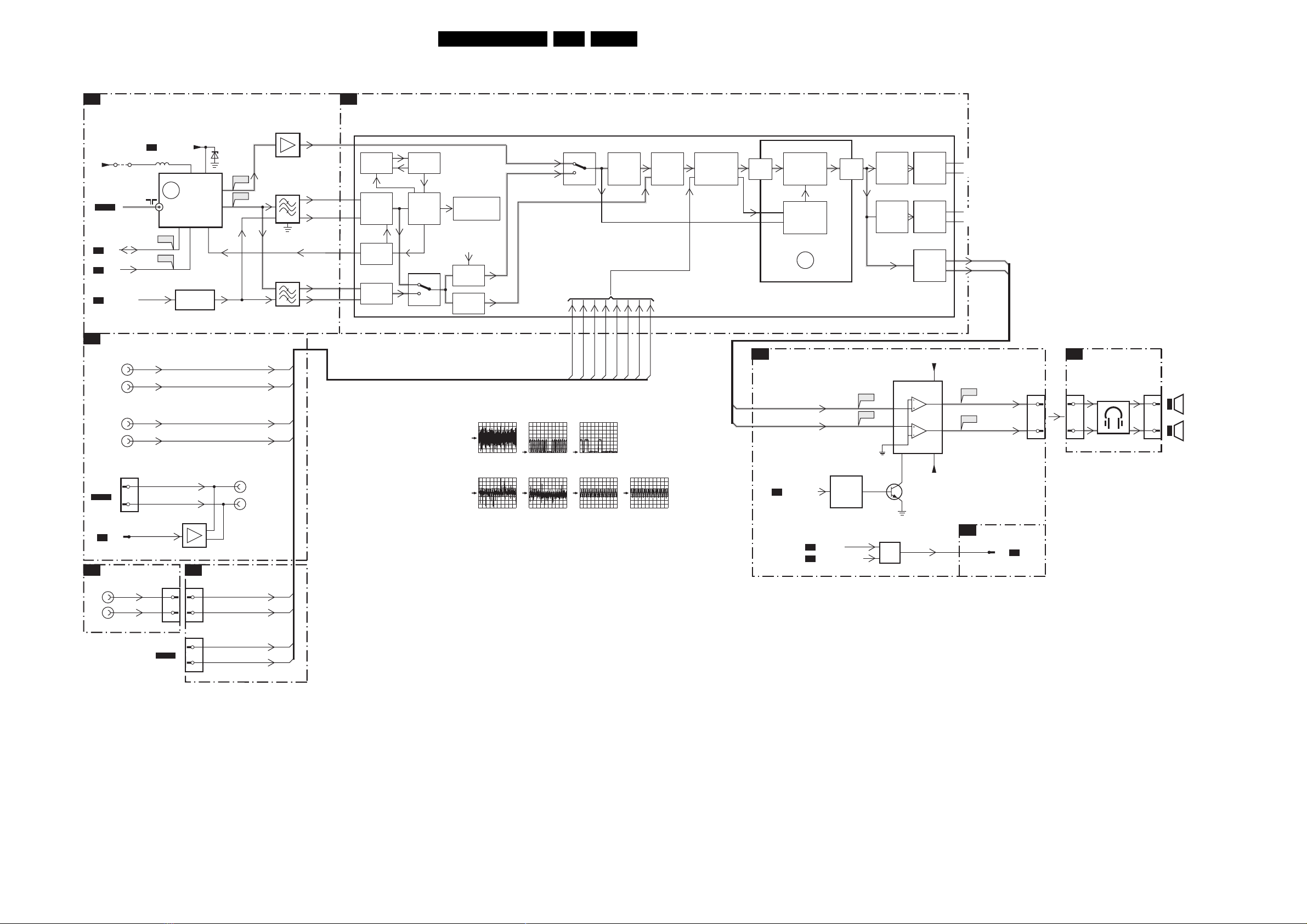

Block Diagram Audio 26

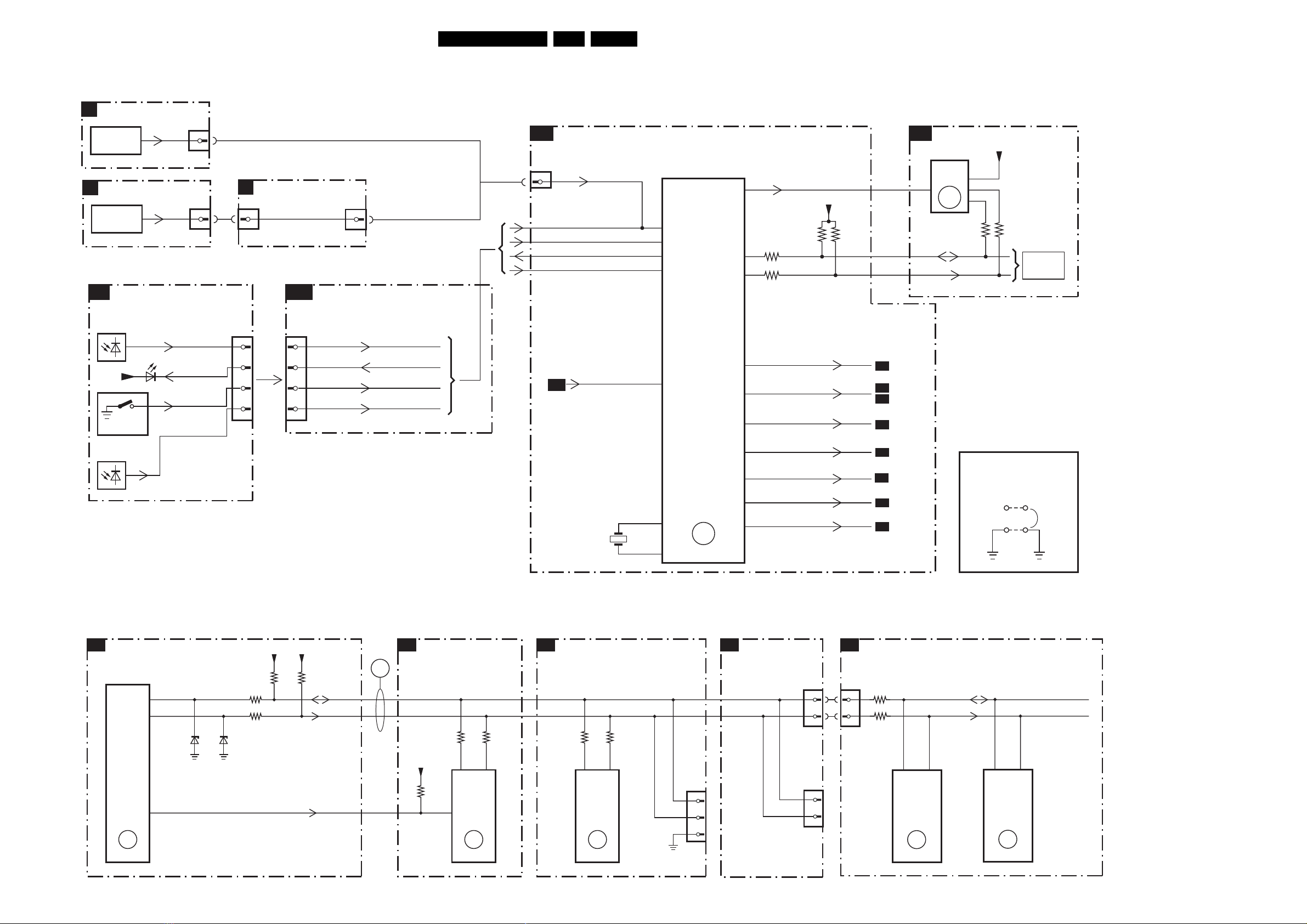

Block Diagram Control & I2C Overview 27
Supply Lines Overview 28

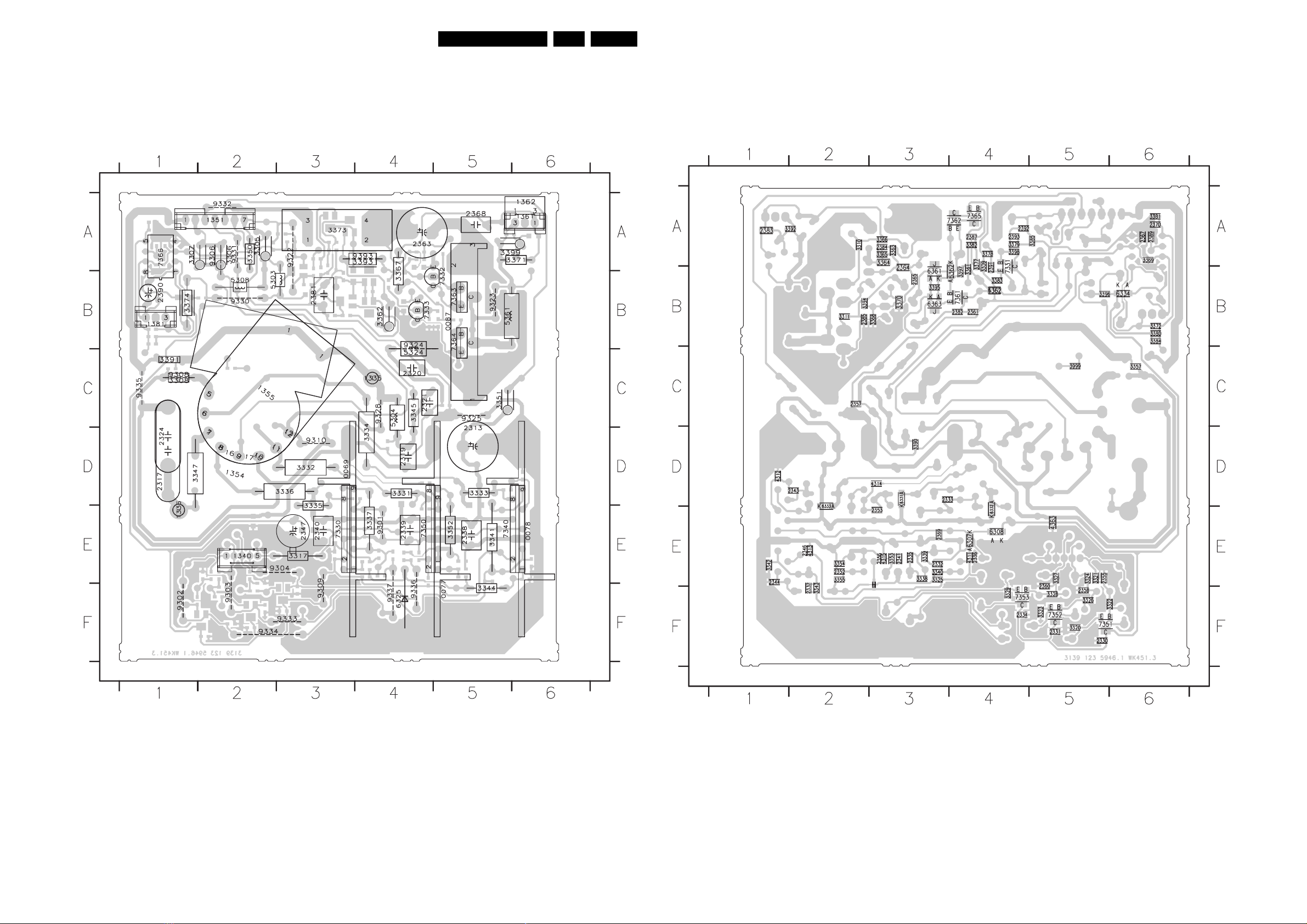

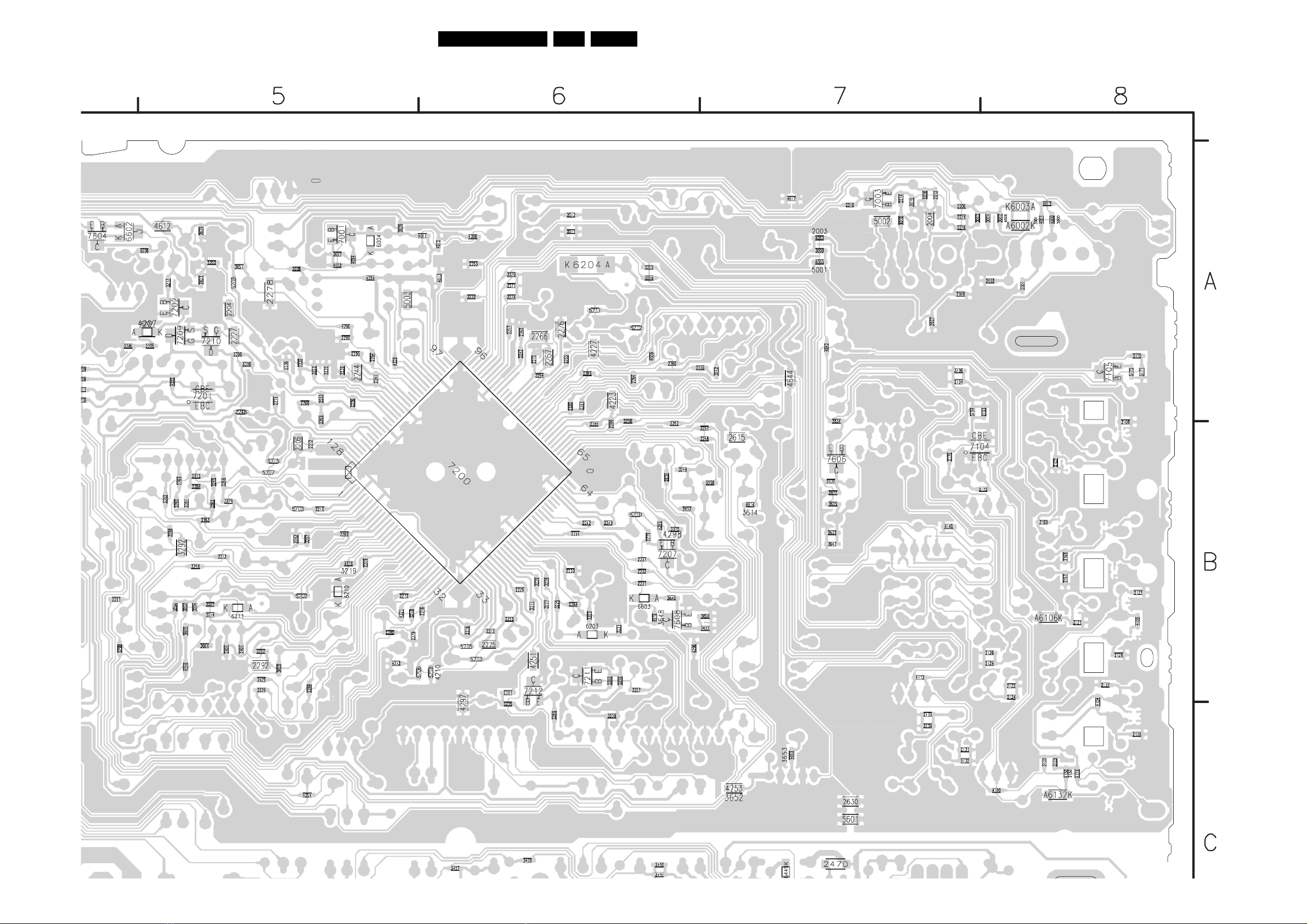

7. Circuit Diagrams and PWB Layouts Diagram PWB

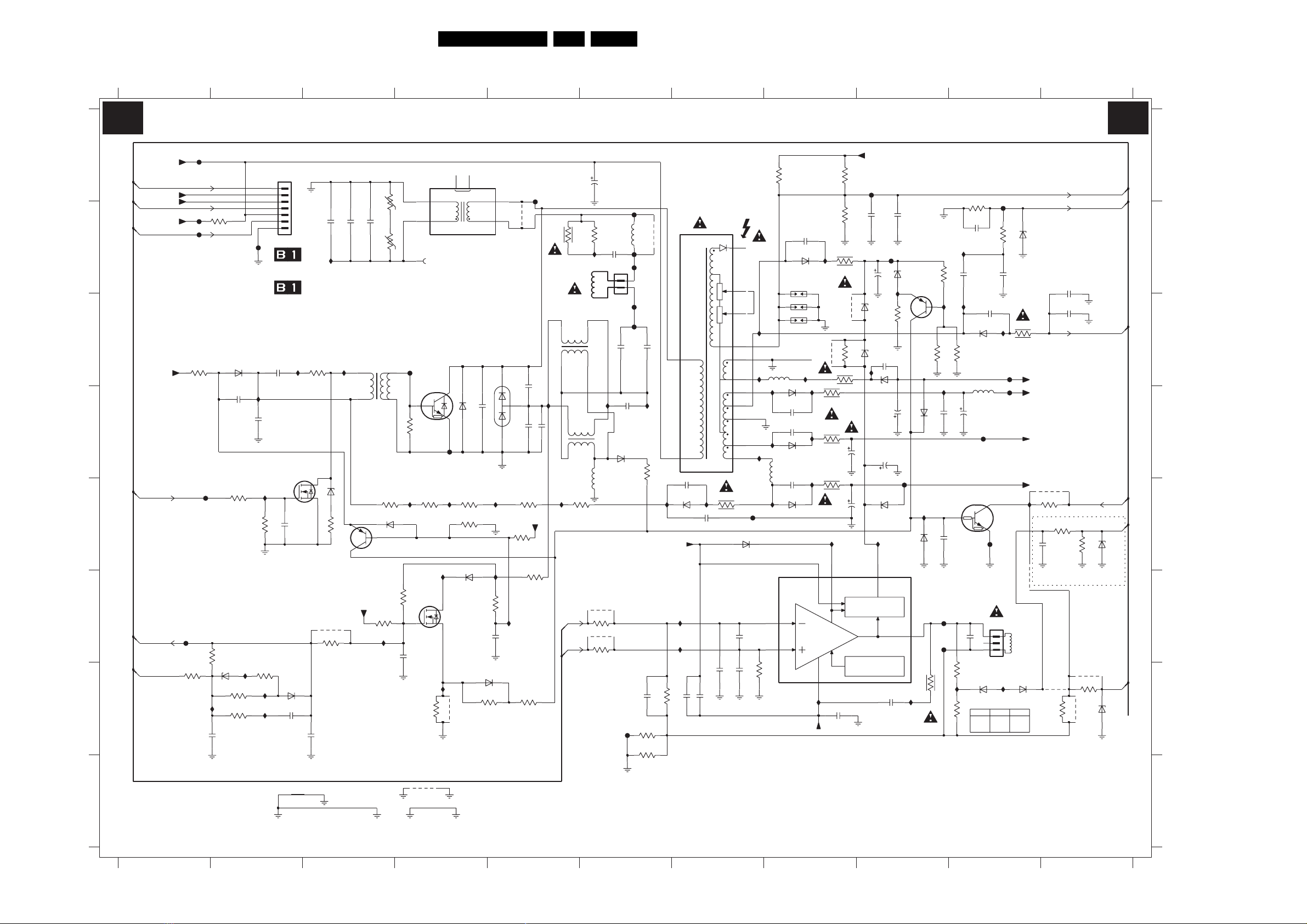

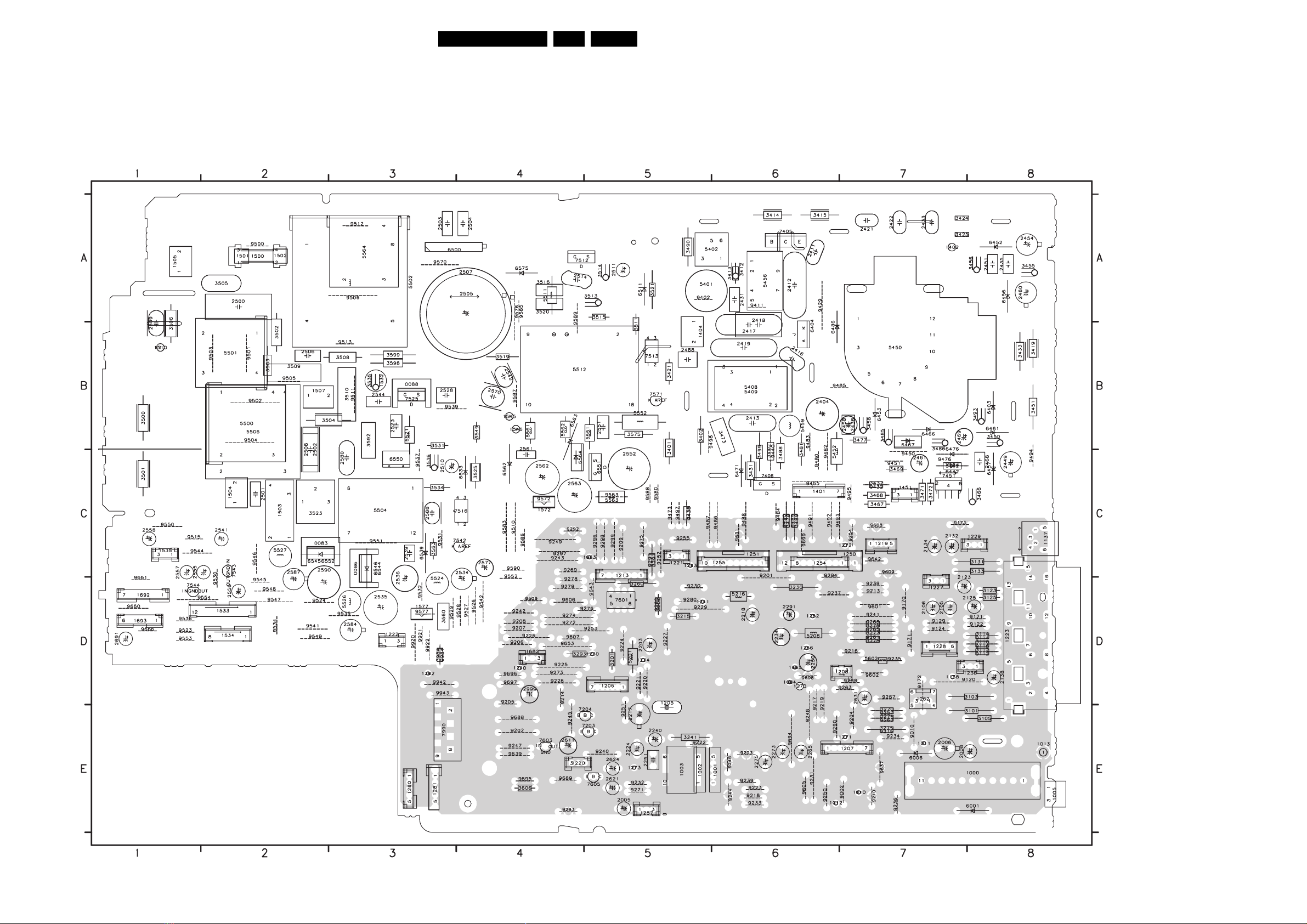

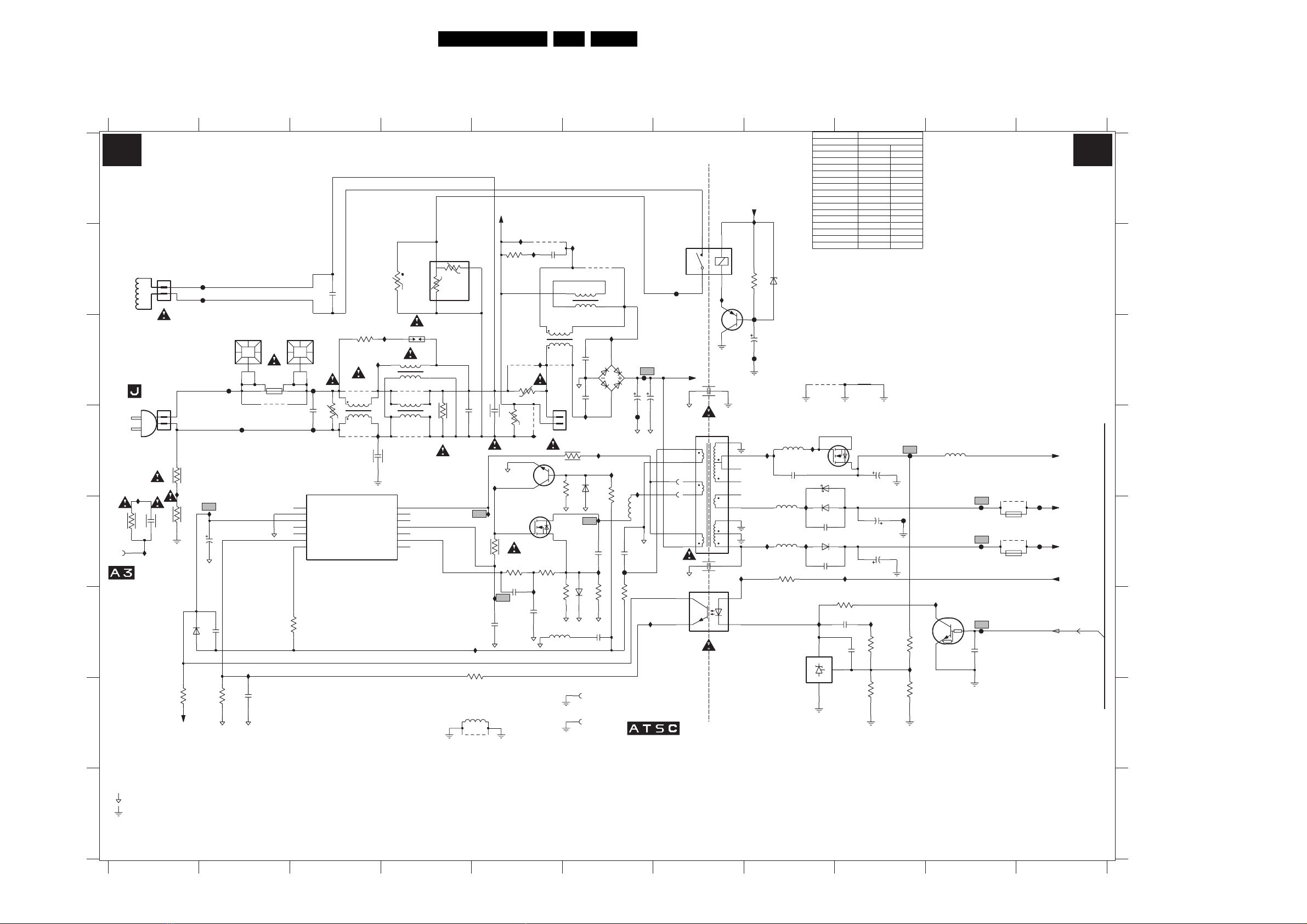

Mono Carrier: Power Supply (A1) 29 38-43

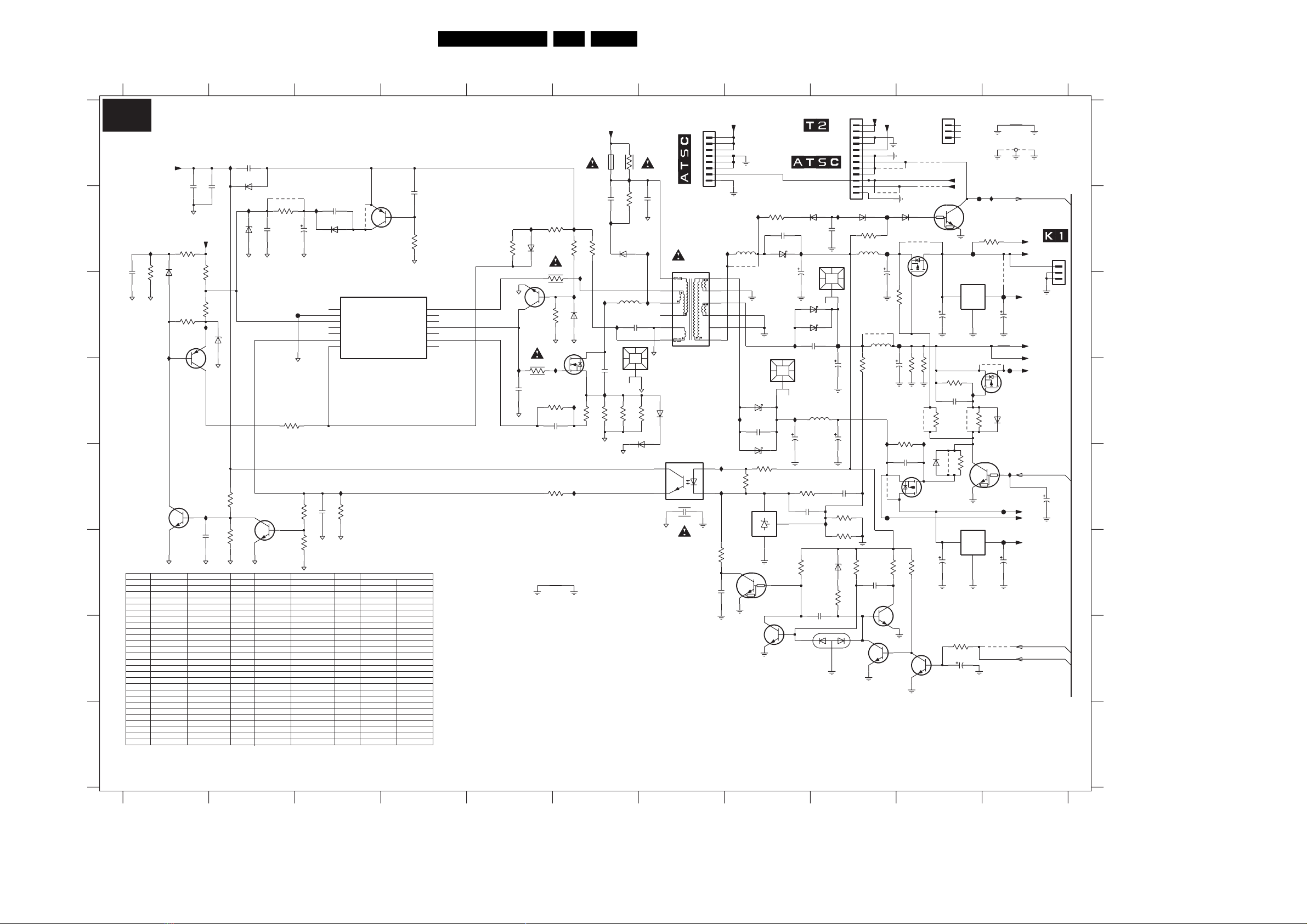

Mono Carrier: Deflection (A2) 30 38-43
Mono Carrier: Tuner IF (A3) 31 38-43
Mono Carrier: Hercules (A4) 32 38-43
Mono Carrier: Features & Connectivities (A5)33 38-43
Mono Carrier: Audio Amplifier (A7) 34 38-43
Mono Carrier: Rear I/O Cinch (A8) 35 38-43
Mono Carrier: Front Control (A9) 36 38-43
Mono Carrier: Diversity Tables A2 & A4 36 38-43

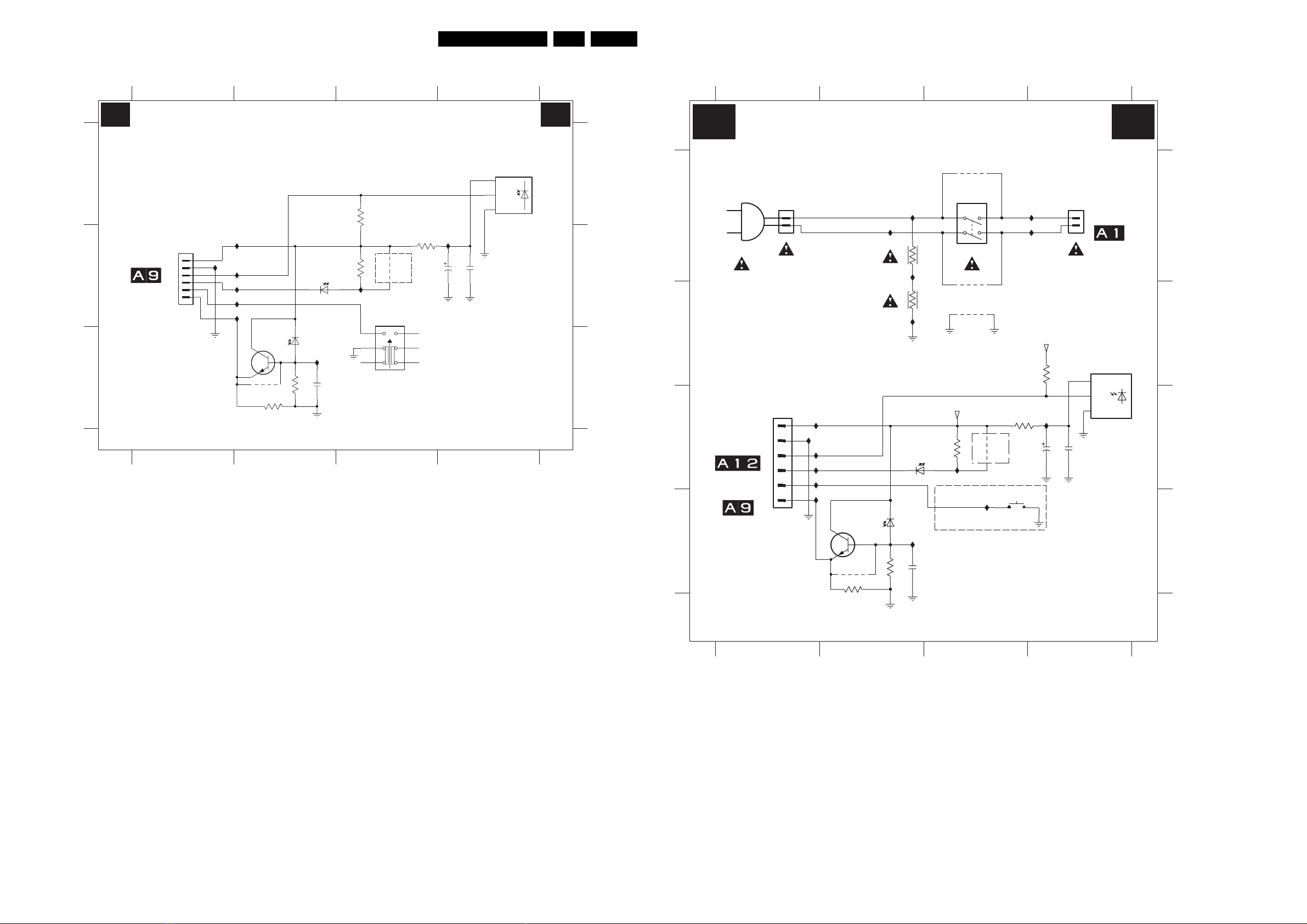

Mono Carrier: AUX Power Supply (A10)37 38-43
CRT Panel (Multi Board) (B1)44 47

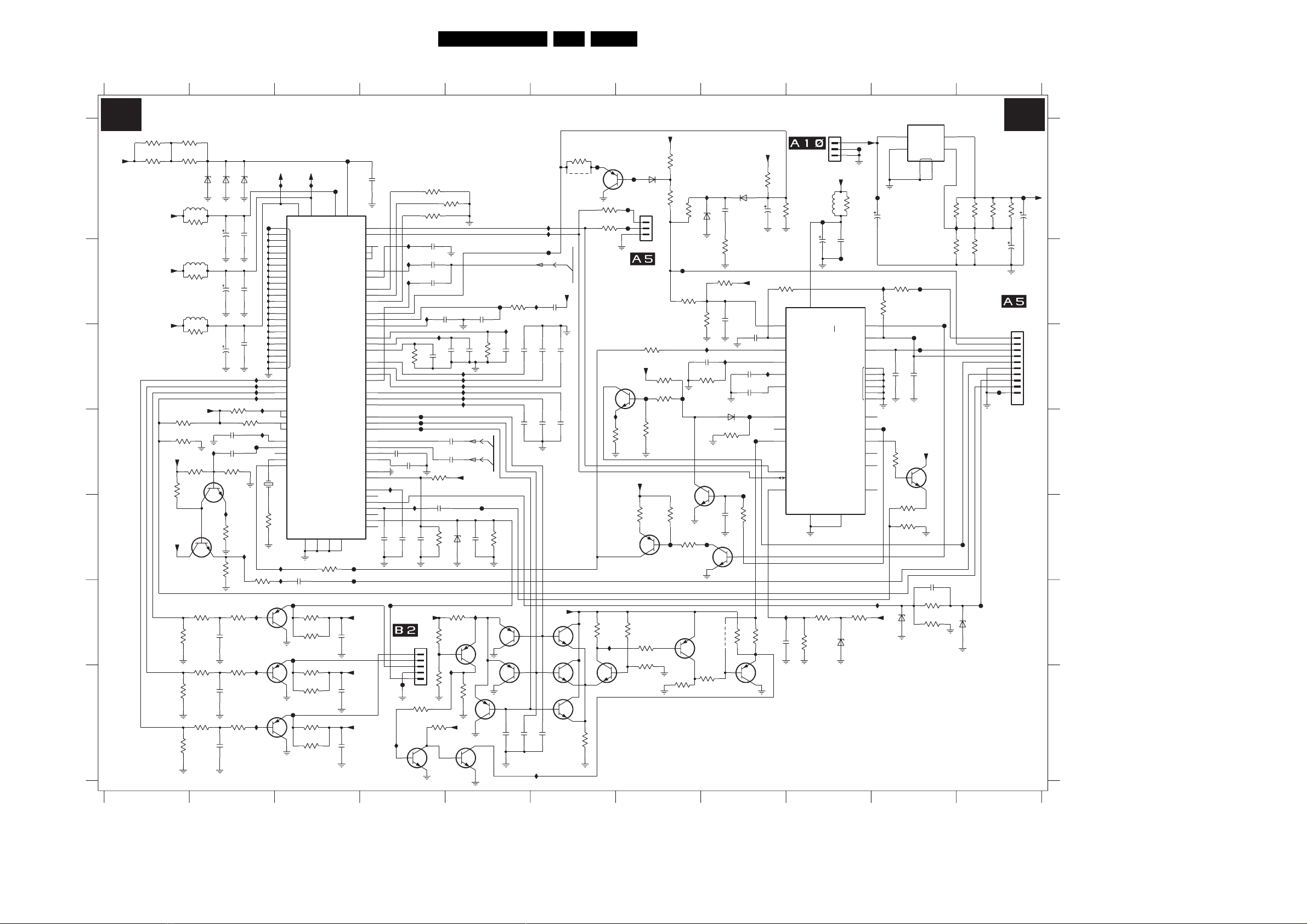

CRT Panel: RGB Amplifier (Multi Board) (B2)45 47
CRT Panel: Rot. & SCAVEM (Multi Board) (B3) 46 47

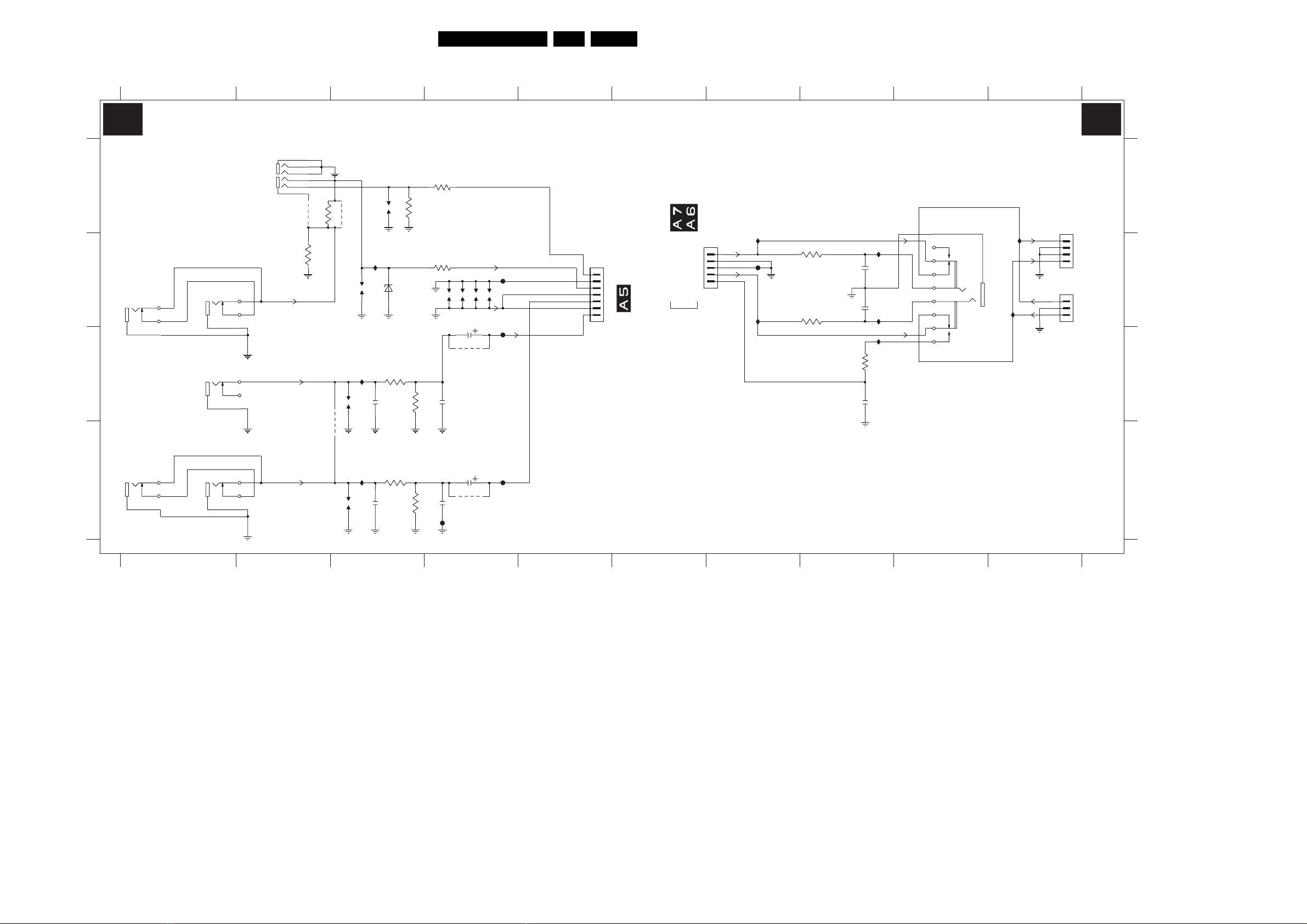

Side AV + HP Panel (PV2) (D) 48 49
Side AV + HP Panel (FL13) (D) 50 51

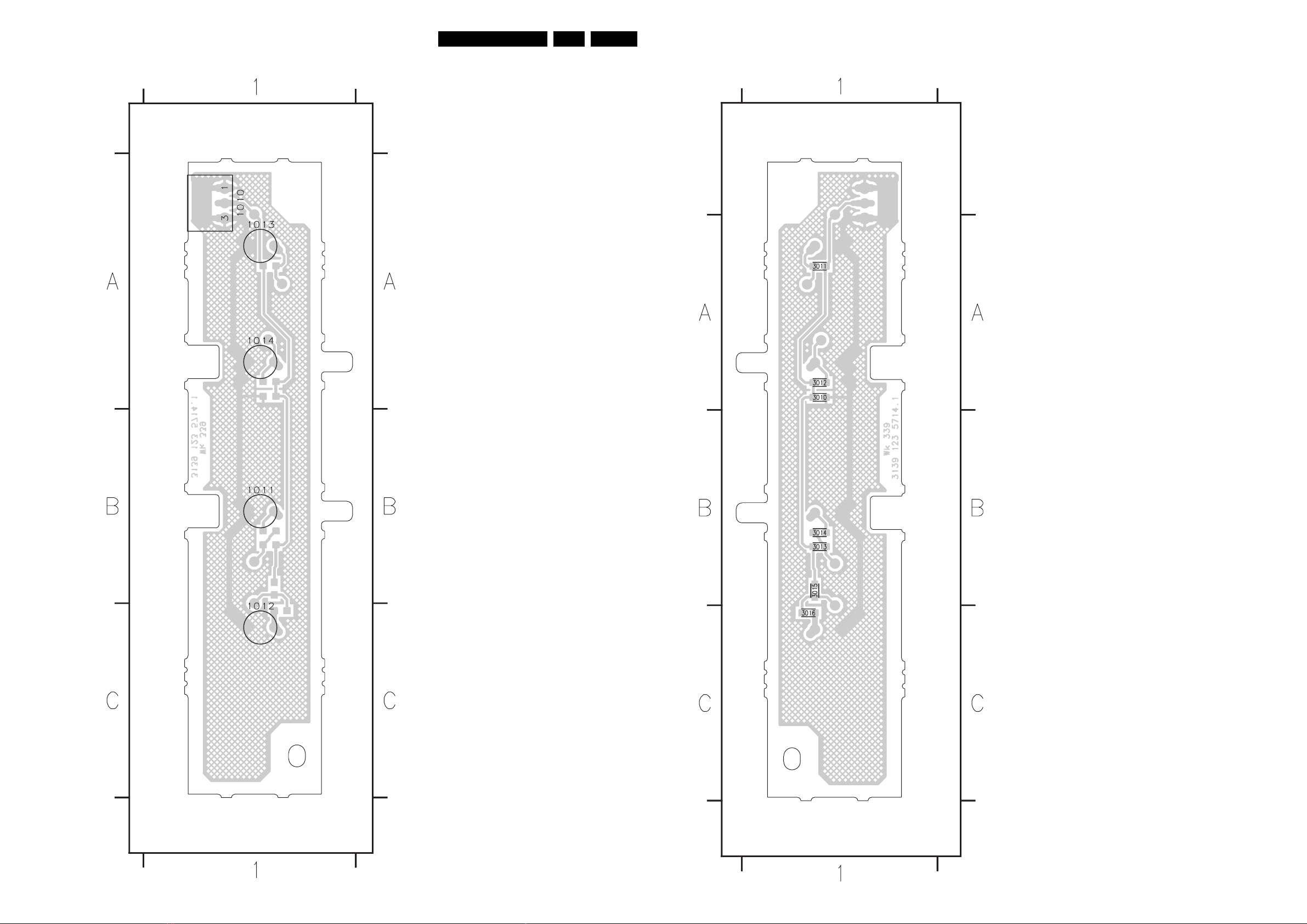

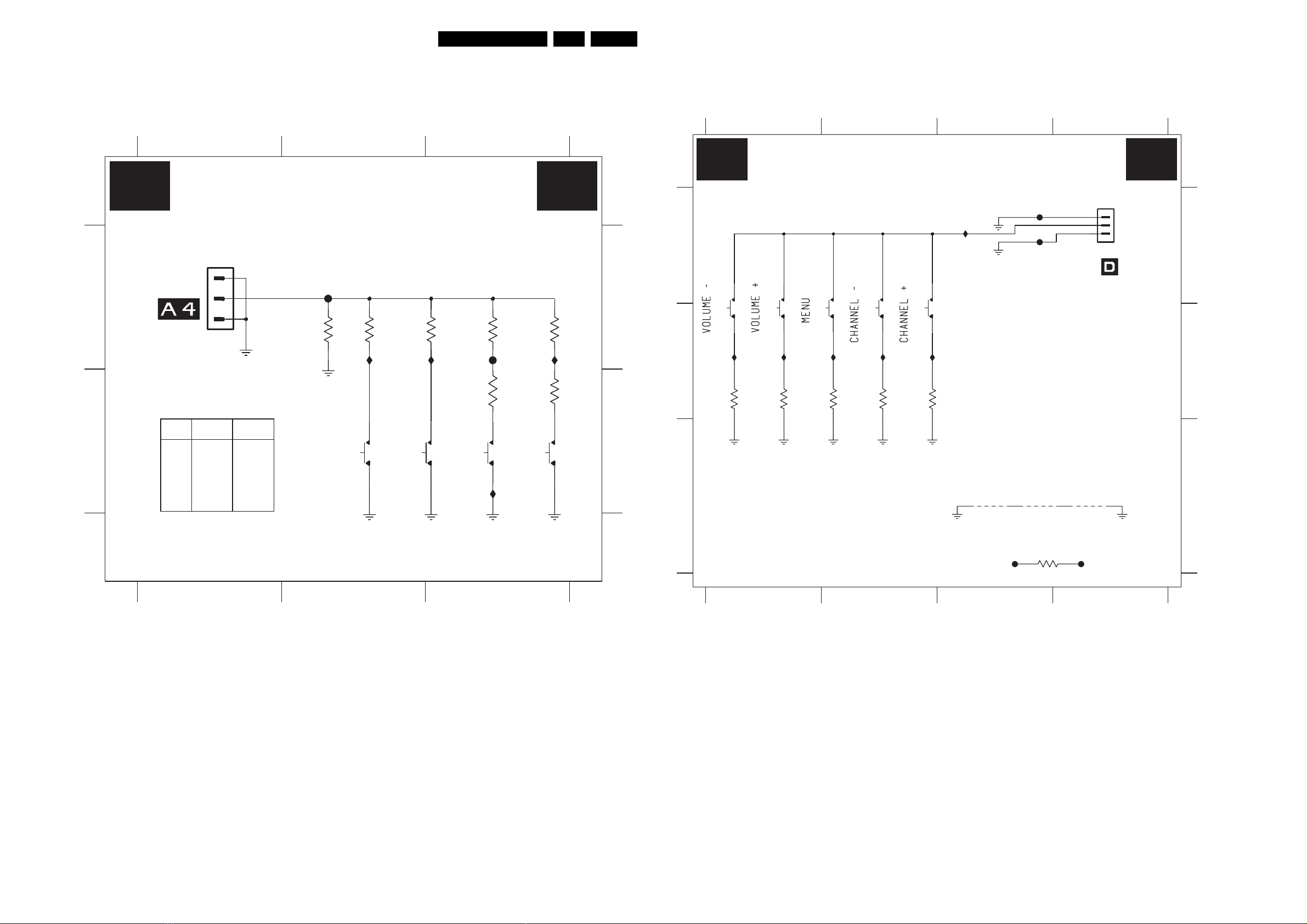

Top Control Panel (PV2) (E)52 53
Top Control Panel (FL13) (P) 52 54

©

Copyright 2005 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.

Front Interface Panel (FL13) (J) 55 56

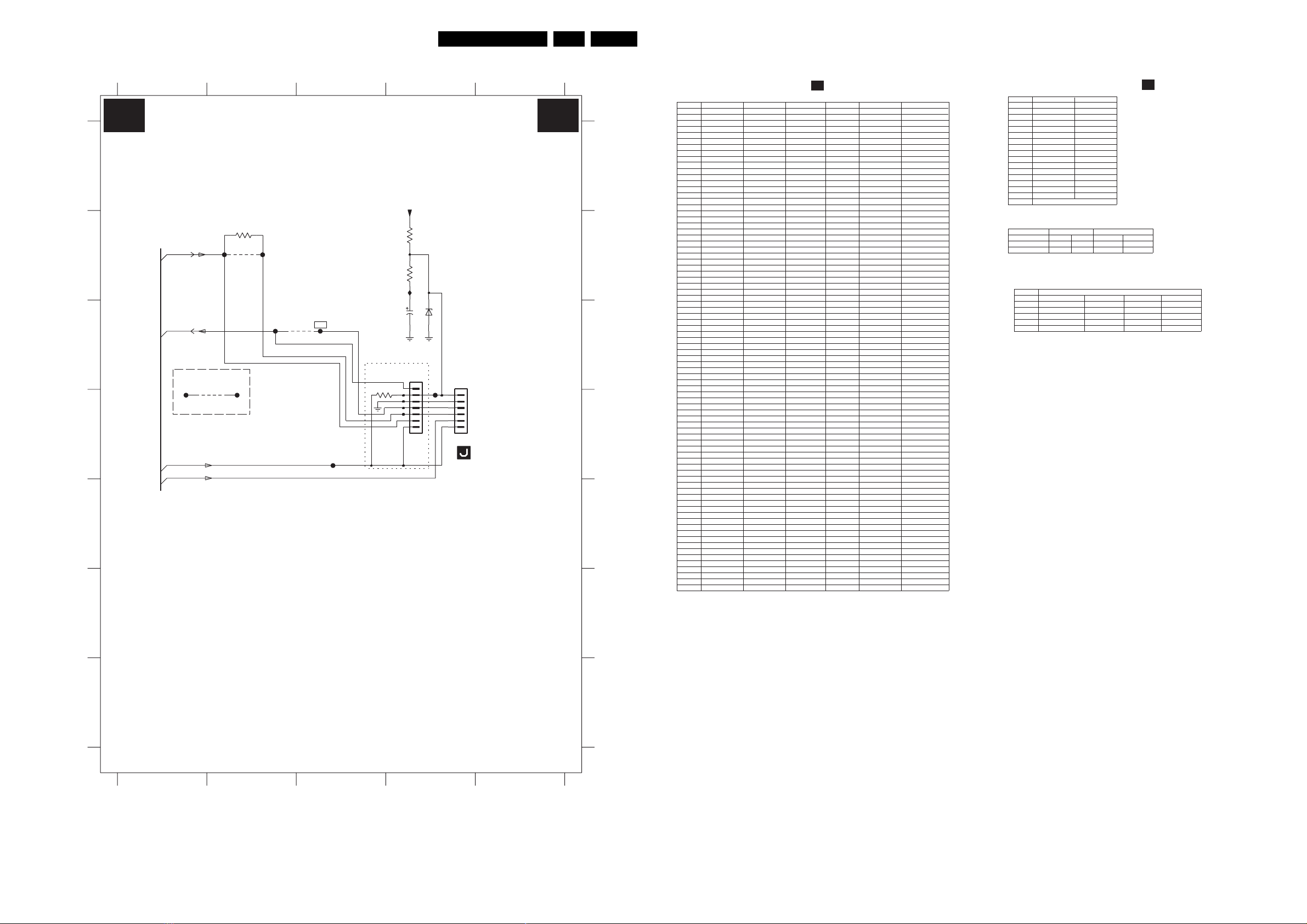

Front Interface Panel (PV2) (J) 55 57
Deflection Controller - ATSC (K1) 58 60
RGB Buffer- ATSC (K2) 59 60

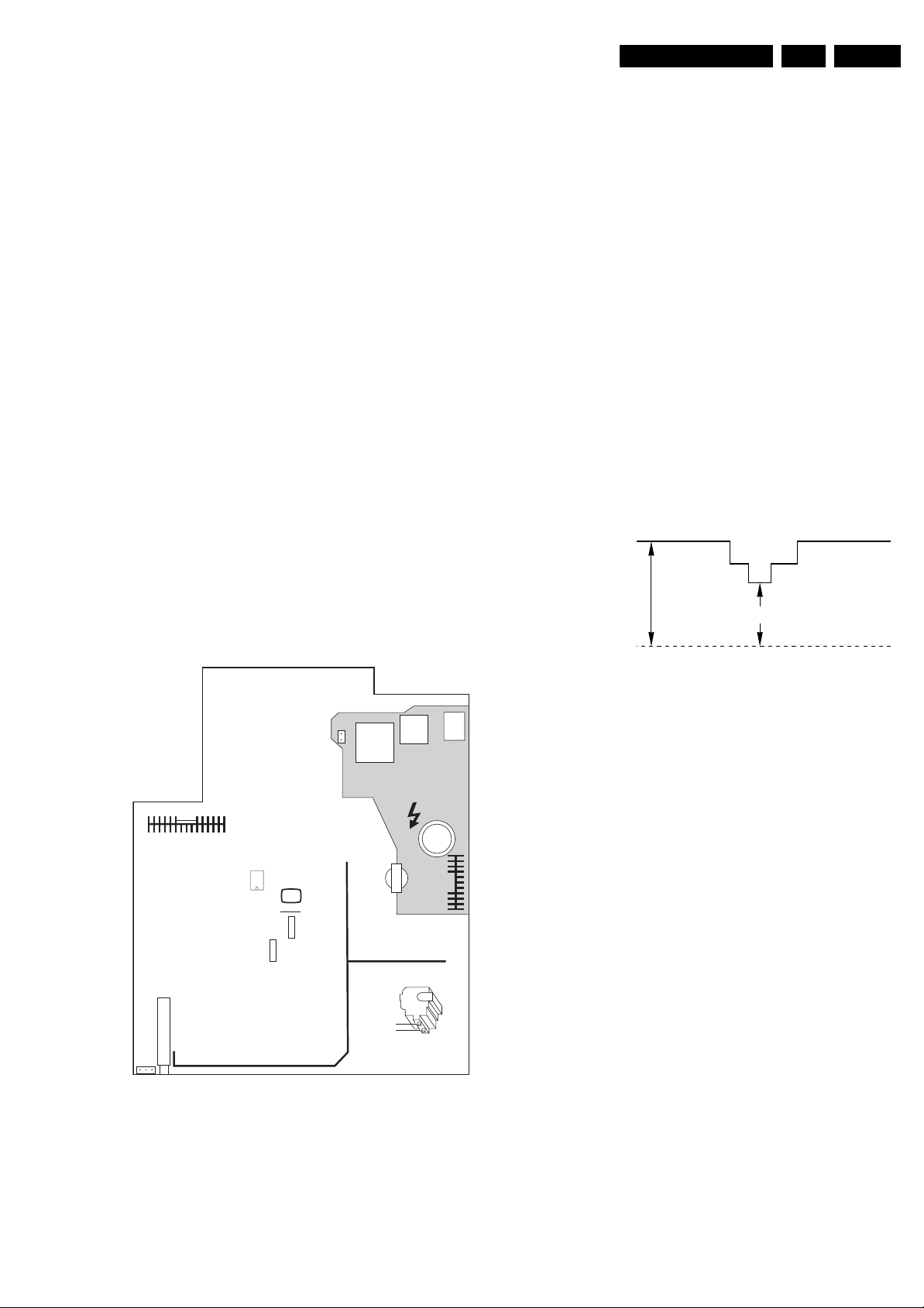

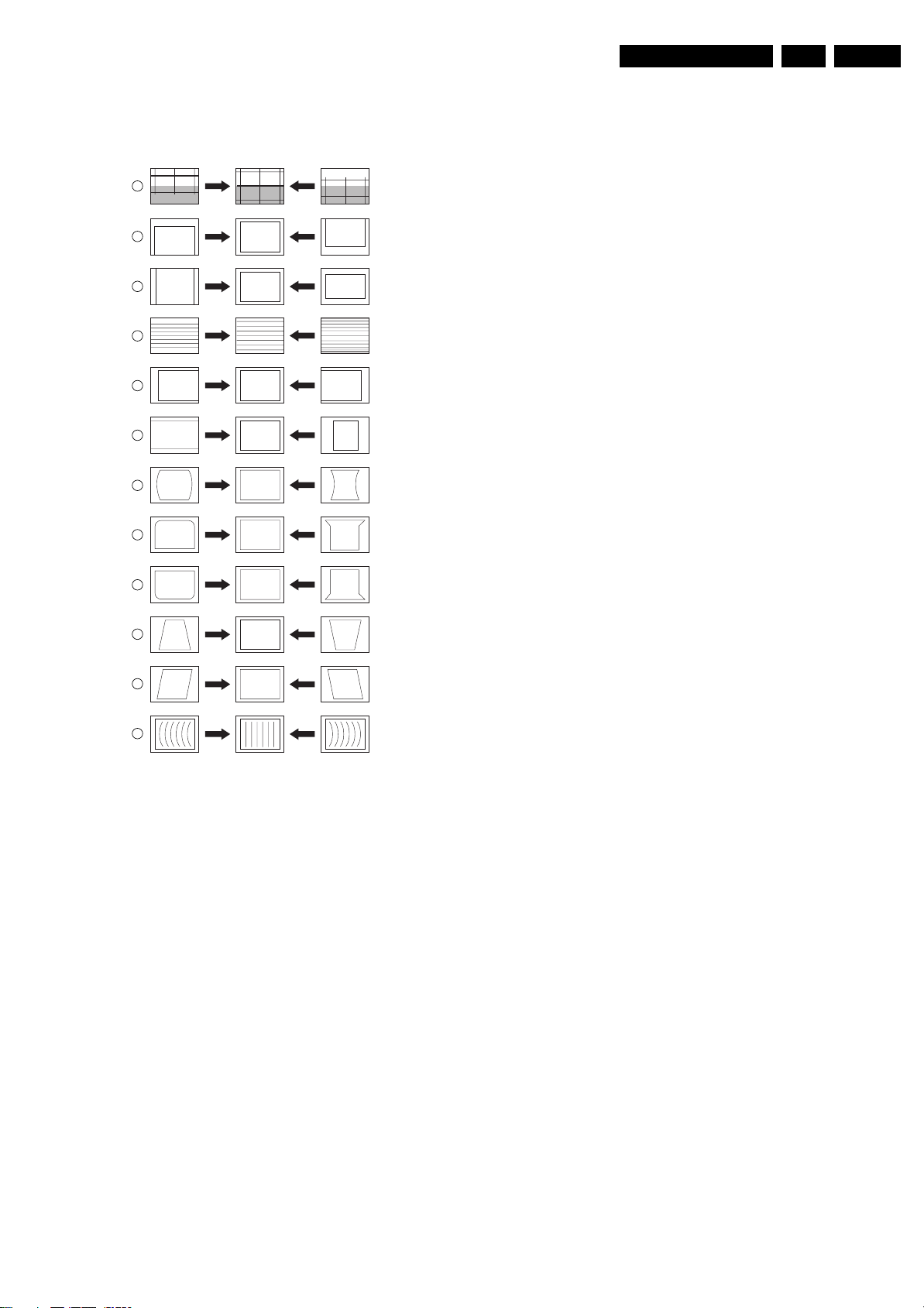

8. Alignments 61

9. Circuit Descriptions, List of Abbreviations, and IC
Data Sheets 66
Abbreviation List 68
IC Data Sheets 70

10. Spare Parts List 71

11. Revision List 72

Published by BB 0563 TV Service Printed in the Netherlands Subject to modification EN 3122 785 15060

EN 2 L05.1U AA1.

Technical Specifications, Connections, and Chassis Overview

1. Technical Specifications, Connections, and Chassis Overview

Index of this chapter:

1.1 Technical Specifications

1.2 Connections

1.3 Chassis Overview

Notes:

• Described specifications are valid for the whole product
range.

• Figures below can deviate slightly from the actual situation,
due to different set executions.

1.1 Technical Specifications

1.1.1 Reception

Display type : CRT-DV-SF
Screen size : 26”, 16:9

: 27”, 4:3
: 30”, 16:9

: 32”, 4:3
Tuning system : PLL
Color systems : NTSC
Sound systems : BTSC
Channel selections : 181, full cable
IF picture carrier : 45.75 MHz
Aerial input : 75 ohm, F-type
A/V Connections : NTSC M (3.58 - 4.5)

1.2 Connections

Note: The following connector color abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, Ye= Yellow.

1.2.1 Top Control and Front / Side Connections

FRONT I/O

RED

IRLIGHT SENSOR

(OPTIONAL)

- VOL +

LED

TOP CONTROL

MENU CH

SIDE I/O

1.1.2 Miscellaneous

Audio output: : 2 x 10 W

Power supply:

- Mains voltage range : 90 - 140 V_ac

- Mains frequency : 60 Hz

Ambient conditions:

- Temperature range : +5 to +45 °C

- Maximum humidity : 90% R.H.

Power consumption:

- Normal operation : from 119 W

- Standby : < 1 W

: to 133 W

S-VIDEO

R AUDIO L

VIDEO

F_15050_005.eps

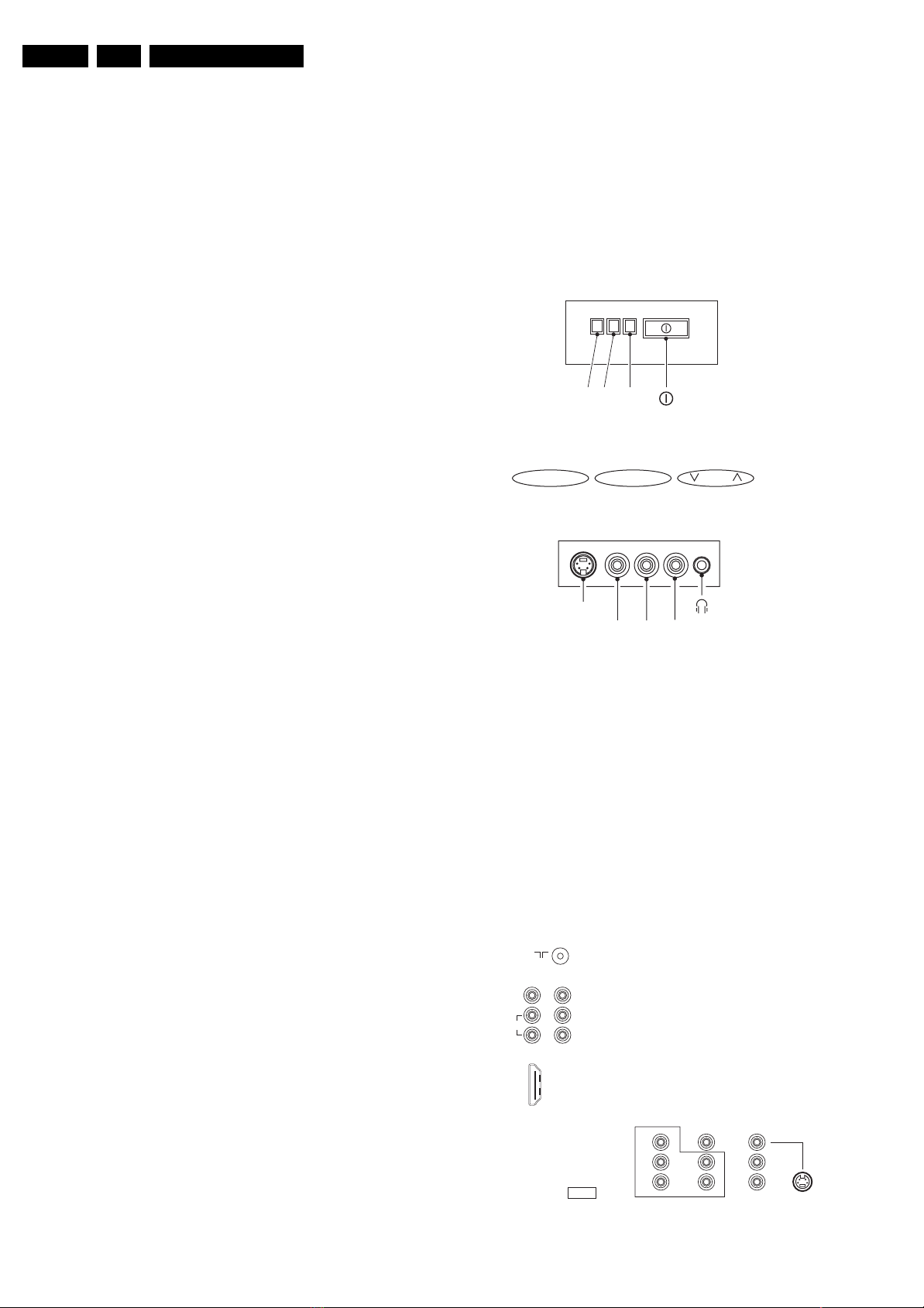

Figure 1-1 Top control and Front / Side connections

Hosiden: SVHS - In

1 -GND Ground H
2 -GND Ground H
3 -Y 1 Vpp / 75 ohm j
4 -C 0.3 Vpp / 75 ohm j

Audio / Video In

Ye - Video (CVBS) 1 V_pp / 75 ohm jq
Wh - Audio - L 0.2 V_rms / 10 kohm jq
Rd - Audio - R 0.2 V_rms / 10 kohm jq
Bk - Headphone 8 - 600 Ohm / 4 mW ot

1.2.2 Rear Connections

75 Ohm

SPDIF

L

AUDIO

R

Y

Pb

Pr

110205

1

18 2

19

HDMI

Y

Pb

ComPair

Pr

COMPONENT VIDEO INPUT

Figure 1-2 Rear connections

AV1

V

L

R

AV2

IN

S-VIDEO

F_15060_050.eps

210305

IN

V

L

R

Technical Specifications, Connections, and Chassis Overview

EN 3L05.1U AA 1.

Aerial In

- F-type Coax, 75 ohm D

Monitor Out

Ye - Video (CVBS) 1 V_pp / 75 ohm kq
Wh - Audio - L 0.5 V_rms / 1 kohm kq
Rd - Audio - R 0.5 V_rms / 1 kohm kq

YUV In

Bu - U 0.7 V_pp / 75 ohm jq
Rd - V 0.7 V_pp / 75 ohm jq
Gn - Y 0.7 V_pp / 75 ohm jq

AV1 In

Ye - Video (CVBS) 1 V_pp / 75 ohm jq
Wh - Audio - L 0.5 V_rms / 10 kohm jq
Rd - Audio - R 0.5 V_rms / 10 kohm jq

AV2 In

Ye - Video (CVBS) 1 V_pp / 75 ohm jq
Wh - Audio - L 0.5 V_rms / 10 kohm jq

1.3 Chassis Overview

B1

CRT SOCKET

RGB AMP

B2

ROT &

B3

SCAVEM

SIDE AV PANEL +

D

HEADPHONE

CRT PANEL

Rd - Audio - R 0.5 V_rms / 10 kohm jq

AV2 In (SVHS)

1 -Ground GND H
2 -Ground GND H
3 -Y 1 V_pp / 75 ohm jq
4 -C 0.3 V_pp / 75 ohm jq

TOP CONTROL PANEL

FRONT INTERFACE PANEL

MULTI BOARD

E/P

J

K1

K2

ATSC

DEFLECTION
CONTROLLER

RGB
BUFFER

ATSC PANEL

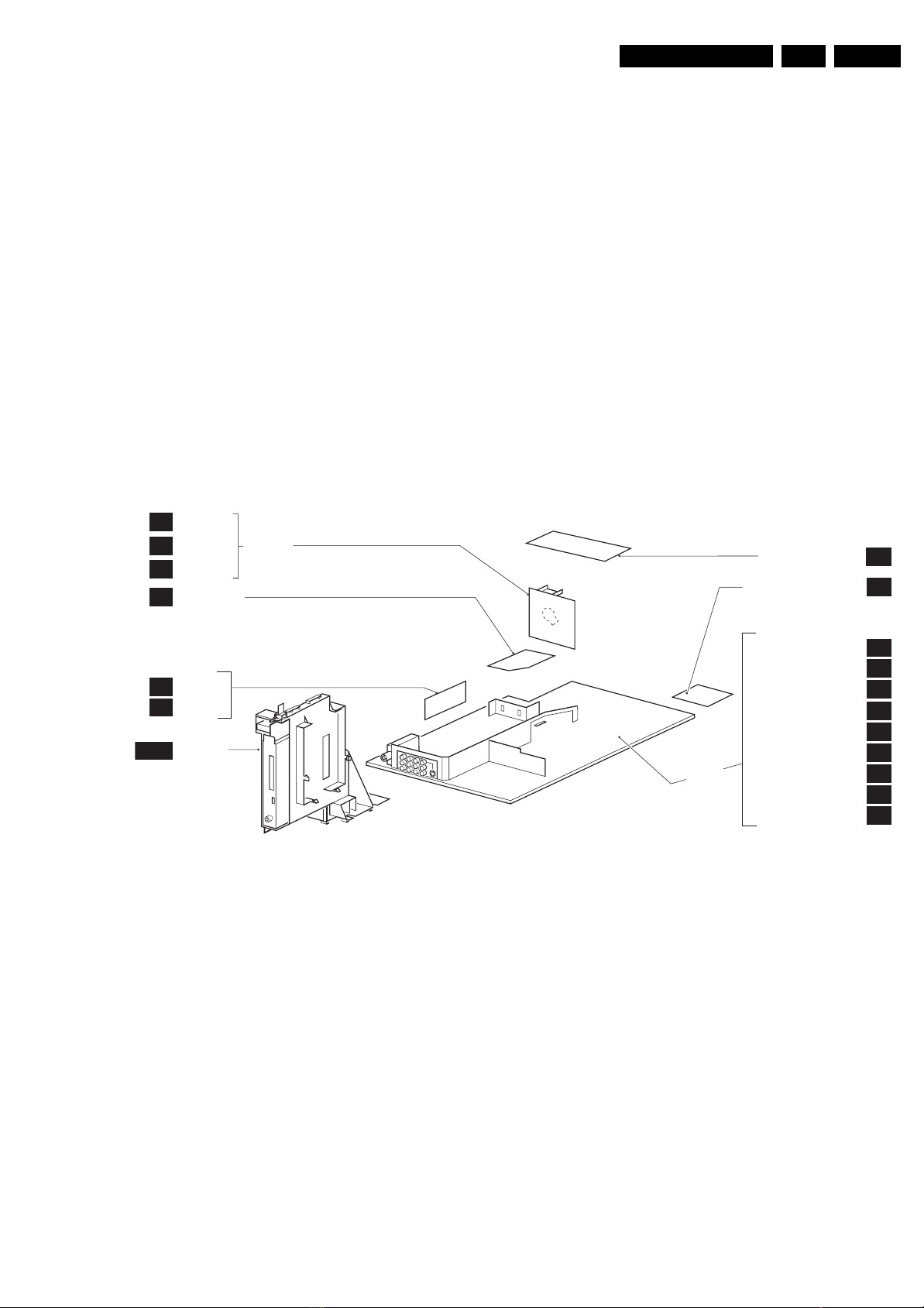

Figure 1-3 PWB location

MONO

CARRIER

POWER SUPPLY

DEFLECTION

TUNER IF

HERCULES

FEATURES & CONNECTIVITIES

AUDIO AMPLIFIER

REAR I/O CINCH

FRONT CONTROL

AUXILIARY POWER SUPPLY

F_15060_006.eps

A1

A2

A3

A4

A5

A7

A8

A9

A10

210305

EN 4 L05.1U AA2.

Safety Instructions, Warnings, and Notes

2. Safety Instructions, Warnings, and Notes

Index of this chapter:

2.1 Safety Instructions

2.2 Maintenance Instructions

2.3 Warnings

2.4 Notes

2.1 Safety Instructions

Safety regulations require that during a repair:

• Connect the set to the Mains (AC Power) via an isolation

transformer (> 800 VA).

• Replace safety components, indicated by the symbol h,

only by components identical to the original ones. Any
other component substitution (other than original type) may
increase risk of fire or electrical shock hazard.

• Wear safety goggles when you replace the CRT.

Safety regulations require that after a repair, the set must be
returned in its original condition. Pay in particular attention to
the following points:

• General repair instruction: as a strict precaution, we advise

you to re-solder the solder connections through which the
horizontal deflection current is flowing. In particular this is
valid for the:

1. Pins of the line output transformer (LOT).

2. Fly-back capacitor(s).

3. S-correction capacitor(s).

4. Line output transistor.

5. Pins of the connector with wires to the deflection coil.

6. Other components through which the deflection current
flows.

Note: This re-soldering is advised to prevent bad connections
due to metal fatigue in solder connections, and is therefore only
necessary for television sets more than two years old.

• Route the wire trees and EHT cable correctly and secure
them with the mounted cable clamps.

• Check the insulation of the Mains (AC Power) lead for
external damage.

• Check the strain relief of the mains (AC Power) cord for
proper function, to prevent the cord from touching the CRT,
hot components, or heat sinks.

• Check the electrical DC resistance between the Mains (AC
Power) plug and the secondary side (only for sets which
have a Mains (AC Power) isolated power supply):

1. Unplug the Mains (AC Power) cord and connect a wire

between the two pins of the Mains (AC Power) plug.

2. Set the Mains (AC Power) switch to the "on" position

(keep the Mains (AC Power) cord unplugged!).

3. Measure the resistance value between the pins of the

Mains (AC Power) plug and the metal shielding of the
tuner or the aerial connection on the set. The reading
should be between 4.5 Mohm and 12 Mohm.

4. Switch "off" the set, and remove the wire between the

two pins of the Mains (AC Power) plug.

• Check the cabinet for defects, to avoid touching of any
inner parts by the customer.

2.2 Maintenance Instructions

We recommend a maintenance inspection carried out by
qualified service personnel. The interval depends on the usage
conditions:

• When a customer uses the set under normal
circumstances, for example in a living room, the
recommended interval is three to five years.

• When a customer uses the set in an environment with
higher dust, grease, or moisture levels, for example in a
kitchen, the recommended interval is one year.

• The maintenance inspection includes the following actions:

1. Perform the “general repair instruction” noted above.

2. Clean the power supply and deflection circuitry on the
chassis.

3. Clean the picture tube panel and the neck of the picture
tube.

2.3 Warnings

• In order to prevent damage to ICs and transistors, avoid all
high voltage flashovers. In order to prevent damage to the
picture tube, use the method shown in figure “Discharge
picture tube”, to discharge the picture tube. Use a high
voltage probe and a multi-meter (position V
until the meter reading is 0 V (after approx. 30 s).

V

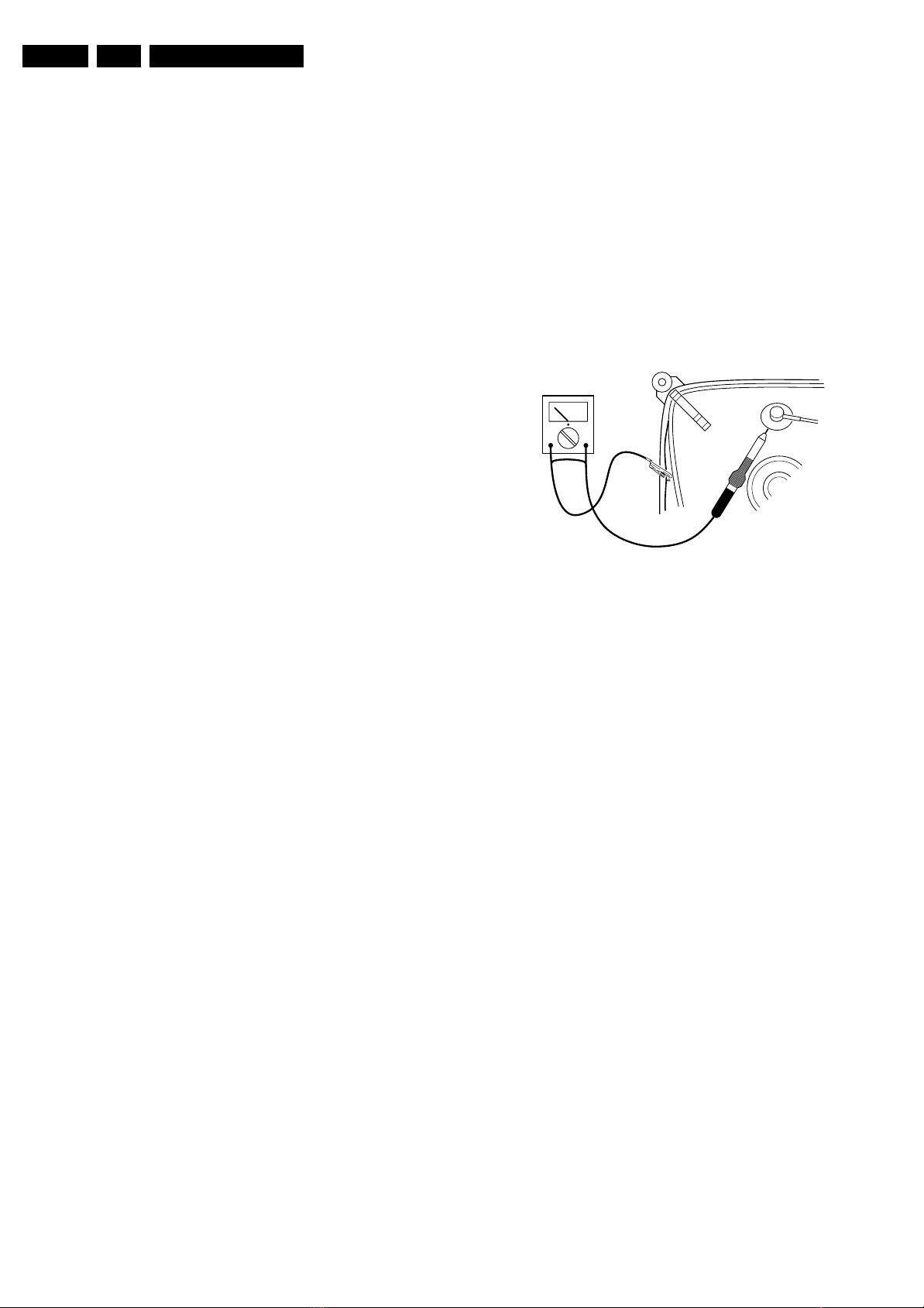

Figure 2-1 Discharge picture tube

• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential. Available
ESD protection equipment:
– Complete kit ESD3 (small tablemat, wristband,

connection box, extension cable and earth cable) 4822
310 10671.

– Wristband tester 4822 344 13999.

• Be careful during measurements in the high voltage
section.

• Never replace modules or other components while the unit
is switched "on".

• When you align the set, use plastic rather than metal tools.
This will prevent any short circuits and the danger of a
circuit becoming unstable.

2.4 Notes

2.4.1 General

• Measure the voltages and waveforms with regard to the
chassis (= tuner) ground (H), or hot ground (I), depending
on the tested area of circuitry. The voltages and waveforms
shown in the diagrams are indicative. Measure them in the
Service Default Mode (see chapter 5) with a colour bar
signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated
otherwise) and picture carrier at 475.25 MHz for PAL, or

61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages
with (D) and without (E) aerial signal. Measure the
voltages in the power supply section both in normal
operation (G) and in stand-by (F). These values are
indicated by means of the appropriate symbols.

• The semiconductors indicated in the circuit diagram and in
the parts lists, are interchangeable per position with the
semiconductors in the unit, irrespective of the type
indication on these semiconductors.

). Discharge

DC

E_06532_007.eps

250304

Safety Instructions, Warnings, and Notes

EN 5L05.1U AA 2.

• Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the “double-D symbol”, are
trademarks of Dolby Laboratories.

2.4.2 Schematic Notes

• All resistor values are in ohms and the value multiplier is
often used to indicate the decimal point location (e.g. 2K2
indicates 2.2 kohm).

• Resistor values with no multiplier may be indicated with
either an "E" or an "R" (e.g. 220E or 220R indicates 220
ohm).

• All capacitor values are given in micro-farads (µ= x10
nano-farads (n= x10

• Capacitor values may also use the value multiplier as the
decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An "asterisk" (*) indicates component usage varies. Refer
to the diversity tables for the correct values.

• The correct component values are listed in the Spare Parts
List. Therefore, always check this list when there is any
doubt.

2.4.3 Rework on BGA (Ball Grid Array) ICs

General

Although (LF)BGA assembly yields are very high, there may
still be a requirement for component rework. By rework, we
mean the process of removing the component from the PWB
and replacing it with a new component. If an (LF)BGA is
removed from a PWB, the solder balls of the component are
deformed drastically so the removed (LF)BGA has to be
discarded.

-9

), or pico-farads (p= x10

-12

2.4.4 Lead Free Solder

Philips CE is producing lead-free sets (PBF) from 1.1.2005
onwards.

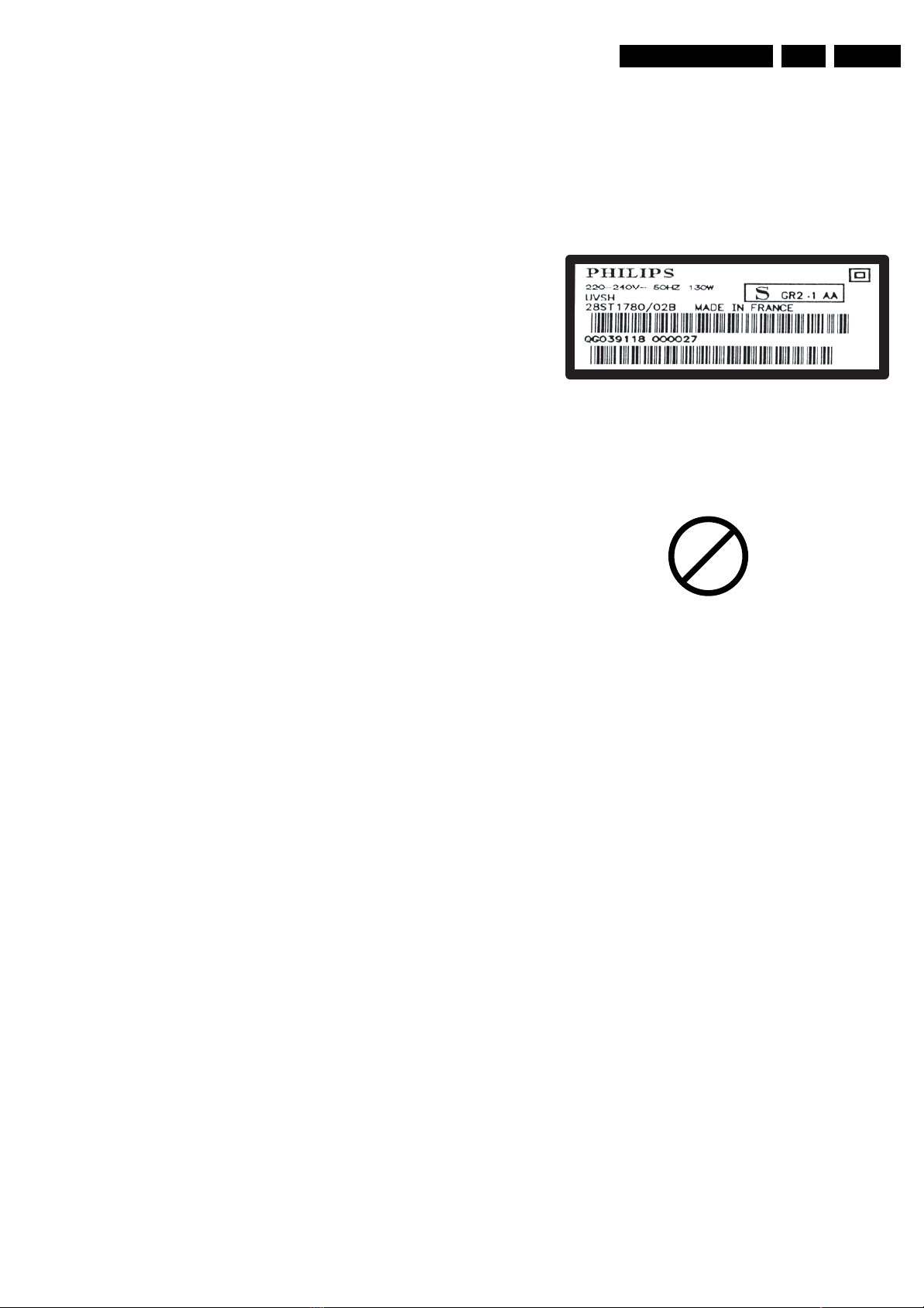

Identification: The bottom line of a type plate gives a 14-digit
serial number. Digits 5 and 6 refer to the production year, digits
7 and 8 refer to production week (in example below it is 1991
week 18).

-6

),

).

E_06532_024.eps

230205

Figure 2-2 Serial number example

Regardless of the special lead-free logo (which is not always
indicated), one must treat all sets from this date onwards
according to the rules as described below.

P

b

Device Removal

As is the case with any component that, it is essential when
removing an (LF)BGA, the board, tracks, solder lands, or
surrounding components are not damaged. To remove an
(LF)BGA, the board must be uniformly heated to a temperature
close to the reflow soldering temperature. A uniform
temperature reduces the chance of warping the PWB.
To do this, we recommend that the board is heated until it is
certain that all the joints are molten. Then carefully pull the
component off the board with a vacuum nozzle. For the
appropriate temperature profiles, see the IC data sheet.

Area Preparation

When the component has been removed, the vacant IC area
must be cleaned before replacing the (LF)BGA.
Removing an IC often leaves varying amounts of solder on the
mounting lands. This excessive solder can be removed with
either a solder sucker or solder wick. The remaining flux can be
removed with a brush and cleaning agent.
After the board is properly cleaned and inspected, apply flux on
the solder lands and on the connection balls of the (LF)BGA.
Note: Do not apply solder paste, as this has shown to result in
problems during re-soldering.

Device Replacement

The last step in the repair process is to solder the new
component on the board. Ideally, the (LF)BGA should be
aligned under a microscope or magnifying glass. If this is not
possible, try to align the (LF)BGA with any board markers.
So as not to damage neighbouring components, it may be
necessary to reduce some temperatures and times.

More Information

For more information on how to handle BGA devices, visit this
URL: www.atyourservice.ce.philips.com (needs subscription,
not available for all regions). After login, select “Magazine”,
then go to “Workshop Information”. Here you will find
Information on how to deal with BGA-ICs.

Figure 2-3 Lead-free logo

Due to lead-free technology some rules have to be respected
by the workshop during a repair:

• Use only lead-free soldering tin Philips SAC305 with order
code 0622 149 00106. If lead-free solder paste is required,
please contact the manufacturer of your soldering
equipment. In general, use of solder paste within
workshops should be avoided because paste is not easy to
store and to handle.

• Use only adequate solder tools applicable for lead-free
soldering tin. The solder tool must be able
– To reach at least a solder-tip temperature of 400°C.
– To stabilise the adjusted temperature at the solder-tip.
– To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature around 360°C

- 380°C is reached and stabilised at the solder joint.
Heating time of the solder-joint should not exceed ~ 4 sec.
Avoid temperatures above 400°C, otherwise wear-out of
tips will rise drastically and flux-fluid will be destroyed. To
avoid wear-out of tips, switch “off” unused equipment or
reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering
tin/parts is possible but PHILIPS recommends strongly to
avoid mixed regimes. If not to avoid, clean carefully the
solder-joint from old tin and re-solder with new tin.

• Use only original spare-parts listed in the Service-Manuals.
Not listed standard material (commodities) has to be
purchased at external companies.

• Special information for lead-free BGA ICs: these ICs will be
delivered in so-called "dry-packaging" to protect the IC
against moisture. This packaging may only be opened
short before it is used (soldered). Otherwise the body of the
IC gets "wet" inside and during the heating time the
structure of the IC will be destroyed due to high (steam­)pressure inside the body. If the packaging was opened
before usage, the IC has to be heated up for some hours
(around 90°C) for drying (think of ESD-protection!).
Do not re-use BGAs at all!

• For sets produced before 1.1.2005, containing leaded
soldering tin and components, all needed spare parts will

EN 6 L05.1U AA3.

Directions for Use

be available till the end of the service period. For the repair
of such sets nothing changes.

In case of doubt whether the board is lead-free or not (or with
mixed technologies), you can use the following method:

• Always use the highest temperature to solder, when using
SAC305 (see also instructions below).

• De-solder thoroughly (clean solder joints to avoid mix of
two alloys).

Caution: For BGA-ICs, you must use the correct temperature­profile, which is coupled to the 12NC. For an overview of these
profiles, visit the website www.atyourservice.ce.philips.com
(needs subscription, but is not available for all regions)
You will find this and more technical information within the
"Magazine", chapter "Workshop information".

3. Directions for Use

You can download this information from the following websites:

http://www.philips.com/support
http://www.p4c.philips.com

For additional questions please contact your local repair help
desk.

2.4.5 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.
While some sources are expected to have a possible
dangerous impact, others of quite high potential are of
limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be
dangerous in themselves, they can cause unexpected
reactions that are best avoided. Before reaching into a
powered TV set, it is best to test the high voltage insulation.
It is easy to do, and is a good service precaution.

4. Mechanical Instructions

Mechanical Instructions

EN 7L05.1U AA 4.

Index of this chapter:

4.1 Assy/Panel Removal

4.2 Set Re-assembly

Notes:

• Only the ATSC module and deflection controller panel
disassembly are described. For other disassembly
instructions, see the Service manual for
L05U AA.

• Figures below can deviate slightly from the actual situation,
due to different set executions.

4.1 Assy/Panel Removal

4.1.1 ATSC Assy

1. Release the fixation clamp and pull the bracket backwards.

4.1.3 ATSC Panel Removal

1

1

F_15060_042.eps

Figure 4-2 ATSC Module Top Shield Removal

Figure 4-1 ATSC bracket

4.1.2 ATSC Module Removal

1. Disconnect all cables that lead to the module.

2. Unlock the clip at the left side of the bracket and pull out the
ATSC module.

F_15060_041.eps

180305

2

Figure 4-3 ATSC Panel Removal

1. Unscrew the shield mounting screws [1] and lift the top
shield.

2. Unscrew the ATSC panel mounting screws [2] and take out
the ATSC panel.

4.1.4 Deflection Control Panel

1. Remove all cables.

2. Pull the panel upwards out of the connectors.

4.2 Set Re-assembly

To re-assemble the whole set, do all processes in reverse
order.

Note: before you mount the rear cover, perform the following
checks:

• Check whether the AC power cord is mounted correctly in
its guiding brackets.

• Check whether all cables are replaced in their original
position

F_15060_043.eps

180305

EN 8 L05.1U AA5.

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Problems and Solving Tips Related to CSM

5.4 ComPair

5.5 Error Codes

5.6 The Blinking LED Procedure

5.7 Protections

5.8 Fault Finding and Repair Tips

5.1 Test Points

This chassis is equipped with test points in the service printing.
In the schematics test points are identified with a rectangle box
around Fxxx or Ixxx. These test points are specifically
mentioned in the “Test Point Overview” as “half moons” with a
dot in the center.

Table 5-1 Test point overview

Test point Circuit Diagr.

F508, F535, F536, F537, F552, F561, F563, F573, F664,
I513, I518, I519, I524, I531, I533, I546

F401, F412, F413, F414, F418, F452, F453, F455, F456,
F458, F459, F460, F461, I408, I416, I417, I420, I462,
I468

F003, F004, I001, I002 Tuner IF A3

F201, F203, F205, F206 Hercules A4

F240, F241, F242 Features &

F952, F955, I951, I952 Audio Amplifier A7

F692 Front Control A9

F331, F332, F333, F338, F339, F341, F351, F353, F354 CRT Panel B1

F361, F362, F381, F382 ECO Scavem B2

Perform measurements under the following conditions:

• Television set in Service Default Alignment Mode.

• Video input: Color bar signal.

• Audio input: 3 kHz left channel, 1 kHz right channel.

Power supply A1

Line & Frame
Deflection

Connectivities

• All service-unfriendly modes (if present) are disabled. The
service unfriendly modes are:
– Timer / Sleep timer.
– Child / parental lock.
– Blue mute.
– Hotel / hospital mode.
– Auto shut off (when no “IDENT” video signal is

received for 15 minutes).
– Skipping of non-favorite presets / channels.
– Auto-storage of personal presets.
– Auto user menu time-out.
– Auto Volume Leveling (AVL).

How to enter

To enter SDM, use one of the following methods:

• Press the following key sequence on the remote control
transmitter: “062596” directly followed by the MENU button
(do not allow the display to time out between entries while
keying the sequence).

• Short the jumper wire 9252 with a cold ground on the family
board (for example the tuner casing) and apply AC power.
Then press the power button (remove the short after start­up).
Caution: Entering SDM by shorting wire 9252 with ground
will override the +8V-protection. Do this only for a short

A2

period. When doing this, the service-technician must know
exactly what he is doing, as it could damage the television
set.

• Or via ComPair.

A5

After entering SDM, the following screen is visible, with SDM in
the upper right corner of the screen to indicate that the
television is in Service Default Mode.

00028 L05U 0.12 SDM
ERR 0 0 0 0 0
OP 000 057 140 032 120 128 000

5.2 Service Modes

Service Default mode (SDM) and Service Alignment Mode
(SAM) offers several features for the service technician, while
the Customer Service Mode (CSM) is used for communication
between the call center and the customer.

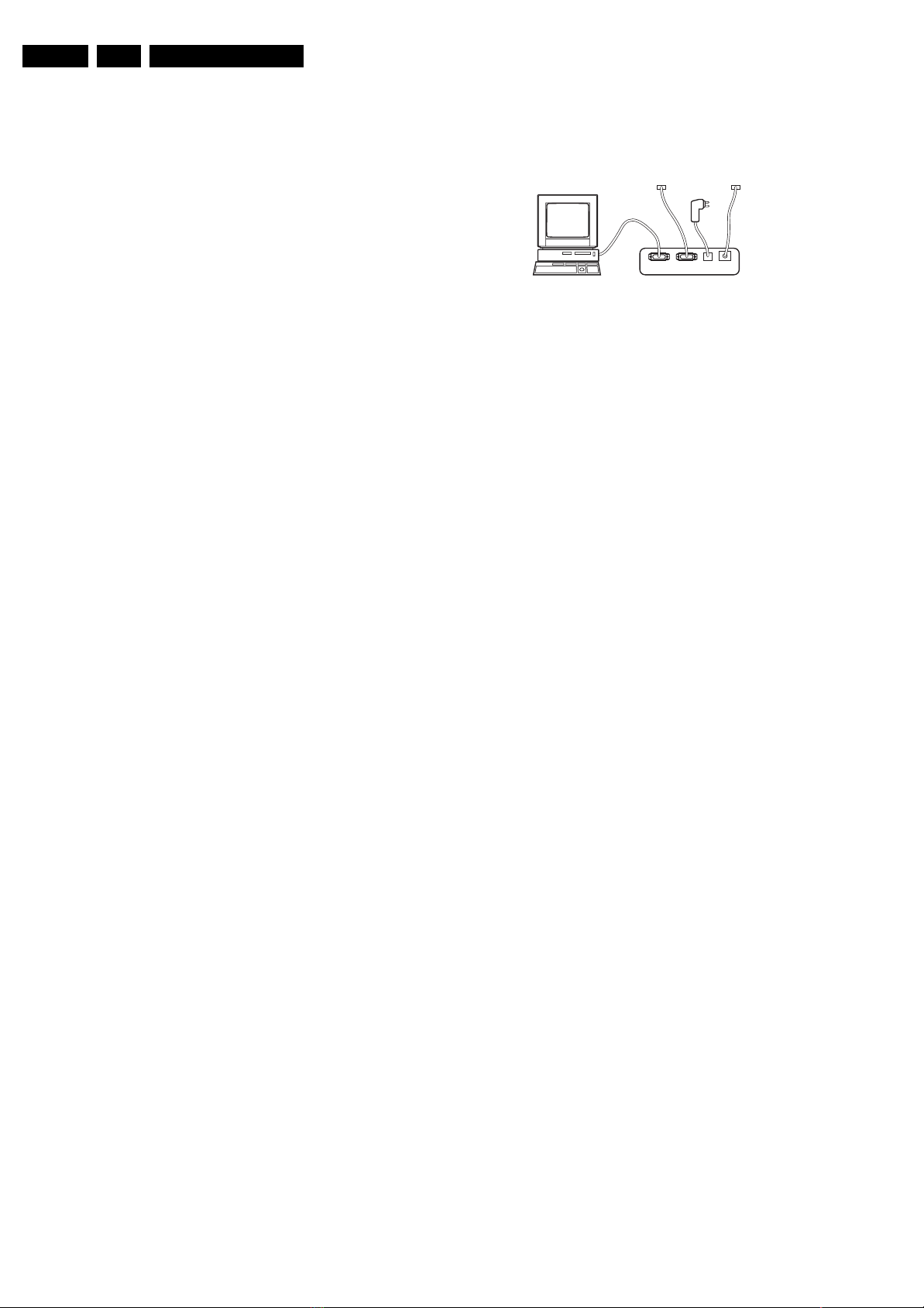

This chassis also offers the option of using ComPair, a
hardware interface between a computer and the TV chassis. It
offers the abilities of structured troubleshooting, error code
reading, and software version readout for all chassis.
Minimum requirements for ComPair: a Pentium processor, a
Windows OS, and a CD-ROM drive (see also paragraph
"ComPair").

5.2.1 Service Default Mode (SDM)

Purpose

• To create a predefined setting for measurements to be
made.

• To override software protections.

• To start the blinking LED procedure.

Specifications

• Tuning frequency: 61.25 MHz (channel 3).

• Color system: NTSC M.

• All picture settings at 50% (brightness, color contrast, hue).

• Bass, treble and balance at 50 %; volume at 25 %.

Figure 5-1 SDM menu

F_15060_044.eps

210305

Service Modes, Error Codes, and Fault Finding

EN 9L05.1U AA 5.

How to navigate

Use one of the following methods:

• When you press the MENU button on the remote control,
the set will switch on the normal user menu in the SDM
mode.

• On the TV, press and hold the VOLUME DOWN and press
the CHANNEL DOWN for a few seconds, to switch from
SDM to SAM and reverse.

How to exit

Switch the set to STANDBY by pressing the POWER button on
the remote control transmitter or the television set.
If you turn the television set off by removing the AC power (i.e.,
unplugging the television) without using the POWER button,
the television set will remain in SDM when AC power is re­applied, and the error buffer is not cleared.

5.2.2 Service Alignment Mode (SAM)

Purpose

• To change option settings.

• To display / clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, Error codes, and Option settings display.

• Error buffer clearing.

• Option settings.

• AKB switching.

• Software alignments (Tuner, White Tone, Geometry &
Audio).

• NVM Editor.

• ComPair Mode switching.

How to enter

To enter SAM, use one of the following methods:

• Press the following key sequence on the remote control
transmitter: “062596" directly followed by the OSD/
STATUS button (do not allow the display to time out
between entries while keying the sequence).

• Or via ComPair.

After entering SAM, the following screen is visible, with SAM in
the upper right corner of the screen to indicate that the
television is in Service Alignment Mode.

00028 L05U 0.12 SAM
ERR 0 0 0 0 0

Menu explanation

1. LLLLL. This represents the run timer. The run timer counts
normal operation hours, but does not count standby hours.

2. AAABCD-x.y. This is the software identification of the
main microprocessor:
– A= the project name (= L05).
– B= the region: E= Europe, A= Asia Pacific, U= NAFTA,

L= LATAM.

– C= the software diversity:

• Europe: T= 1 page TXT, F= Full TXT, V= Voice
control.

• LATAM and NAFTA: A= ATSC, N= Stereo non­dBx, S= Stereo dBx.

• Asian Pacific: T= TXT, N= non-TXT, C= NTSC.

• ALL regions: M= mono, D= DVD, Q= Mk2.

– D= the language cluster number.
– x= the main software version number (updated with a

major change that is incompatible with previous
versions).

– y= the sub software version number (updated with a

minor change that is compatible with previous
versions).

3. SAM. Indication of the Service Alignment Mode.

4. Error Buffer. Shows all errors detected since the last time
the buffer was erased. Five errors possible.

5. Option Bytes. Used to set the option bytes. See “Options”
in the Alignments section for a detailed description. Seven
codes are possible.

6. Clear. Erases the contents of the error buffer. Select the
CLEAR menu item and press the MENU RIGHT key. The
content of the error buffer is cleared.

7. Options. Used to set the option bits. See “Options” in the
Alignments section for a detailed description.

8. AKB. Used to disable (Off) or enable (On) the “black
current loop” (AKB= Auto Kine Bias).

9. Tuner. Used to align the tuner. See “Tuner” in the
Alignments section for a detailed description.

10. White Tone. Used to align the white tone. See “White
Tone” in the Alignments section for a detailed description.

11. Geometry. Used to align the geometry settings of the
television. See “Geometry” in the Alignments section for a
detailed description.

12. Audio. No audio alignment is necessary for this television
set.

13. NVM Editor. Can be used to change the NVM data in the
television set. See table “NVM data” further on.

14. ComPair. Can be used to switch on the television to In
System Programming (ISP) mode, for software uploading
via ComPair. Caution: When this mode is selected without
ComPair connected, the TV will be blocked. Remove the
AC power to reset the TV.

OP 000 057 140 032 120 128 000

. Clear Clear ?
. Options
. AKB On
. Tuner
. White Tone
. Geometry
. Audio
. NVM Editor
. ComPair on

F_15060_045.eps

Figure 5-2 SAM menu

180305

How to navigate

• In SAM, select menu items with the MENU UP/DOWN keys
on the remote control transmitter. The selected item will be
highlighted. When not all menu items fit on the screen, use
the MENU UP/DOWN keys to display the next / previous
menu items.

• With the MENU LEFT/RIGHT keys, it is possible to:
– Activate the selected menu item.
– Change the value of the selected menu item.
– Activate the selected submenu.

• In SAM, when you press the MENU button twice, the set
will switch to the normal user menus (with the SAM mode
still active in the background). To return to the SAM menu
press the MENU or STATUS/EXIT button.

• When you press the MENU key in while in a submenu, you
will return to the previous menu.

How to store SAM settings

To store the settings changed in SAM mode, leave the top level
SAM menu by using the POWER button on the remote control
transmitter or the television set.

EN 10 L05.1U AA5.

Service Modes, Error Codes, and Fault Finding

How to exit

Switch the set to STANDBY by pressing the POWER button on
the remote control transmitter or the television set.
If you turn the television set “off” by removing the AC power
(i.e., unplugging the television) without using the POWER
button, the television set will remain in SAM when AC power is
re-applied, and the error buffer is not cleared.

5.2.3 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and
information on the TV’s operation settings. The call center can
instruct the customer (by telephone) to enter CSM in order to
identify the status of the set. This helps the call center to
diagnose problems and failures in the TV set before making a
service call.
The CSM is a read-only mode; therefore, modifications are not
possible in this mode.

How to enter

To enter CSM, press the following key sequence on the remote
control transmitter: “123654” (do not allow the display to time
out between entries while keying the sequence).

Upon entering the Customer Service Mode, the following
screen will appear:

• Press the MENU, STATUS/EXIT, or POWER button on the
remote control transmitter.

• Press the POWER button on the television set.

5.2.4 Digital Customer Service Mode (DCSM)

Purpose

The Digital Customer Service Mode shows error codes and
information on the TV’s digital operation settings. The call
center can instruct the customer (by telephone) to enter DCSM
in order to identify the digital status of the set. This helps the
call center to diagnose problems and failures with the ATSC
part before making a service call.
The DCSM is a read-only mode; therefore, modifications are
not possible in this mode, with exception of the digital error
buffer. This error buffer can be cleared in DCSM.

How to enter

To enter DCSM, the set has to be in digital mode. When the set
is in digital mode, press the following key sequence on the
remote control transmitter: “123654” (do not allow the display
to time out between entries while keying the sequence).

Upon entering the Digital Customer Service Mode, the
following screen will appear:

1 00028 L05U 0.12 CSM
2 CODES 0 0 0 0 0

3 OP 000 057 140 032 120 128 000
4 nnXXnnnn/nnX
5 P3C-1
6 NOT TUNED
7 NTSC
8 STEREO
9 CO 50 CL 50 BR 50 HU 0
0 AVL Off BS 50

F_15060_046.eps

180305

Figure 5-3 CSM menu

Menu explanation

1. Indication of the decimal value of the operation hours
counter, Software identification of the main microprocessor
(see "Service Default or Alignment Mode" for an
explanation), and the service mode (CSM= Customer
Service Mode).

2. Displays the last five errors detected in the error code
buffer.

3. Displays the option bytes.

4. Displays the type number version of the set.

5. Reserved item for P3C call centers.

6. Indicates the television is receiving an "IDENT" signal on
the selected source. If no "IDENT" signal is detected, the
display will read "NOT TUNED"

7. Displays the detected Color system (e.g. PAL/NTSC).

8. Displays the detected Audio (e.g. stereo/mono).

9. Displays the picture setting information.

10. Displays the sound setting information.

How to exit

To exit CSM, use one of the following methods:

F_15060_047.eps

180305

Figure 5-4 DCSM menu

Menu explanation

1. H/W version: Indication of the hardware version of the
ATSC module.

2. S/W version:
– D/D: The DST driver software version.
– HW: The DST middleware version.
– PODware: The CableCARD software version.
– ATI lib: The ATI software version.
– FE: Front End software version.
– Kernel: Linux kernel software version.

3. CableCARD (POD): CableCard present or not.

4. Channel Information:
– Input: Displays the input type.
– Major.Minor: Displays the major and minor channel

numbers.
– RF: Displays the physical channel number.
– UID: Displays the unique ID.

5. Video Information:
– Source Format: Displays the format of the received

signal.

6. Audio Information:
– Dolby: Displays information on the received audio

signal.

7. Signal Status (FDC): Not used in this version.

8. Signal Status (FAT): Displays the Forward Application
status.
– Status: Displays if the signal is locked.
– Type: Displays the type of the received signal.
– SQI: Signal Quality Index (0..100).
– Equai_SNR: Equaliser Signal to Noise Ratio.

Service Modes, Error Codes, and Fault Finding

EN 11L05.1U AA 5.

– Tre_SNR: Trellis Signal to Noise Ratio.
– RS Error Rate: Reed-Solomon error rate.

9. Error Status: Displays the error status for each device.

How to clear the error buffer

To clear the error buffer, press the LEFT key on the remote
control.

How to exit

To exit DCSM, press the RIGHT key on the remote control.

5.3 Problems and Solving Tips Related to CSM

5.3.1 Picture Problems

Note: The problems described below are all related to the TV

settings. The procedures used to change the value (or status)
of the different settings are described.

Picture too dark or too bright

If:

• The picture improves when you have press the AUTO
PICTURE button on the remote control transmitter, or

• The picture improves when you enter the Customer
Service Mode,

Then:

1. Press the AUTO PICTURE button on the remote control
transmitter repeatedly (if necessary) to choose
PERSONAL picture mode.

2. Press the MENU button on the remote control transmitter.
This brings up the normal user menu.

3. In the normal user menu, use the MENU UP/DOWN keys
to highlight the PICTURE sub menu.

4. Press the MENU LEFT/RIGHT keys to enter the PICTURE
sub menu.

5. Use the MENU UP/DOWN keys (if necessary) to select
BRIGHTNESS.

6. Press the MENU LEFT/RIGHT keys to increase or
decrease the BRIGHTNESS value.

7. Use the MENU UP/DOWN keys to select PICTURE.

8. Press the MENU LEFT/RIGHT keys to increase or
decrease the PICTURE value.

9. Press the MENU button on the remote control transmitter
twice to exit the user menu.

10. The new PERSONAL preference values are automatically
stored.

White line around picture elements and text

If:

The picture improves after you have pressed the AUTO
PICTURE button on the remote control transmitter,

Then:

1. Press the AUTO PICTURE button on the remote control
transmitter repeatedly (if necessary) to choose
PERSONAL picture mode.

2. Press the MENU button on the remote control transmitter.
This brings up the normal user menu.

3. In the normal user menu, use the MENU UP/DOWN keys
to highlight the PICTURE sub menu.

4. Press the MENU LEFT/RIGHT keys to enter the PICTURE
sub menu.

5. Use the MENU UP/DOWN keys to select SHARPNESS.

6. Press the MENU LEFT key to decrease the SHARPNESS
value.

7. Press the MENU button on the remote control transmitter
twice to exit the user menu.

8. The new PERSONAL preference value is automatically
stored.

Snowy picture

Check CSM line 6. If this line reads “Not Tuned”, check the
following:

• Antenna not connected. Connect the antenna.

• No antenna signal or bad antenna signal. Connect a proper
antenna signal.

• The tuner is faulty (in this case line 2, the Error Buffer line,
will contain error number 10). Check the tuner and replace/
repair the tuner if necessary.

Black and white picture

If:

• The picture improves after you have pressed the AUTO
PICTURE button on the remote control transmitter,

Then:

1. Press the AUTO PICTURE button on the remote control
transmitter repeatedly (if necessary) to choose
PERSONAL picture mode.

2. Press the MENU button on the remote control transmitter.
This brings up the normal user menu.

3. In the normal user menu, use the MENU UP/DOWN keys
to highlight the PICTURE sub menu.

4. Press the MENU LEFT/RIGHT keys to enter the PICTURE
sub menu.

5. Use the MENU UP/DOWN keys to select COLOR.

6. Press the MENU RIGHT key to increase the COLOR value.

7. Press the MENU button on the remote control transmitter
twice to exit the user menu.

8. The new PERSONAL preference value is automatically
stored.

Menu text not sharp enough

If:

• The picture improves after you have pressed the AUTO
PICTURE button on the remote control transmitter,

Then:

1. Press the AUTO PICTURE button on the remote control
transmitter repeatedly (if necessary) to choose
PERSONAL picture mode.

2. Press the MENU button on the remote control transmitter.
This brings up the normal user menu.

3. In the normal user menu, use the MENU UP/DOWN keys
to highlight the PICTURE sub menu.

4. Press the MENU LEFT/RIGHT keys to enter the PICTURE
sub menu.

5. Use the MENU UP/DOWN keys to select PICTURE.

6. Press the MENU LEFT key to decrease the PICTURE
value.

7. Press the MENU button on the remote control transmitter
twice to exit the user menu.

8. The new PERSONAL preference value is automatically
stored.

5.4 ComPair

5.4.1 Introduction

ComPair (Computer Aided Repair) is a service tool for Philips
Consumer Electronics products. ComPair is a further
development on the European DST (service remote control),
which allows faster and more accurate diagnostics. ComPair
has three big advantages:

• ComPair helps you to quickly get an understanding on how
to repair the chassis in a short time by guiding you
systematically through the repair procedures.

• ComPair allows very detailed diagnostics (on I2C level)
and is therefore capable of accurately indicating problem
areas. You do not have to know anything about I2C
commands yourself because ComPair takes care of this.

EN 12 L05.1U AA5.

Service Modes, Error Codes, and Fault Finding

• ComPair speeds up the repair time since it can
automatically communicate with the chassis (when the
microprocessor is working) and all repair information is
directly available. When ComPair is installed together with
the Force/SearchMan electronic manual of the defective
chassis, schematics and PWBs are only a mouse click
away.

5.4.2 Specifications

ComPair consists of a Windows based fault finding program
and an interface box between PC and the (defective) product.
The ComPair interface box is connected to the PC via a serial
(or RS232) cable.
For this chassis, the ComPair interface box and the TV
communicate via a bi-directional service cable via the service
connector(s).

The ComPair fault finding program is able to determine the
problem of the defective television. ComPair can gather
diagnostic information in two ways:

• Automatic (by communication with the television): ComPair
can automatically read out the contents of the entire error
buffer. Diagnosis is done on I2C/UART level. ComPair can
access the I2C/UART bus of the television. ComPair can
send and receive I2C/UART commands to the micro
controller of the television. In this way, it is possible for
ComPair to communicate (read and write) to devices on
the I2C/UART buses of the TV-set.

• Manually (by asking questions to you): Automatic
diagnosis is only possible if the micro controller of the
television is working correctly and only to a certain extend.
When this is not the case, ComPair will guide you through
the fault finding tree by asking you questions (e.g. Does the

screen give a picture? Click on the correct answer: YES /
NO) and showing you examples (e.g. Measure test-point I7
and click on the correct oscillogram you see on the
oscilloscope). You can answer by clicking on a link (e.g.

text or a waveform picture) that will bring you to the next
step in the fault finding process.

By a combination of automatic diagnostics and an interactive
question / answer procedure, ComPair will enable you to find
most problems in a fast and effective way.

Beside fault finding, ComPair provides some additional
features like:

• Up- or downloading of pre-sets.

• Managing of pre-set lists.

• Emulation of the (European) Dealer Service Tool (DST).

• If both ComPair and Force/SearchMan (Electronic Service
Manual) are installed, all the schematics and the PWBs of
the set are available by clicking on the appropriate
hyperlink.

Example: Measure the DC-voltage on capacitor C2568
(Schematic/Panel) at the Mono-carrier.

– Click on the “Panel” hyperlink to automatically show

the PWB with a highlighted capacitor C2568.

– Click on the “Schematic” hyperlink to automatically

show the position of the highlighted capacitor.

5.4.3 How To Connect

This is described in the chassis fault finding database in
ComPair.

TO

UART SERVICE

CONNECTOR

PC VCR I2CPower

I2C SERVICE
CONNECTOR

9V DC

E_06532_021.eps

180804

TO

Figure 5-5 ComPair interface connection

5.4.4 How To Order

ComPair order codes (US):

• ComPair Software: ST4191.

• ComPair Interface Box: 4822 727 21631.

• AC Adapter: T405-ND.

• ComPair Quick Start Guide: ST4190.

• ComPair interface extension cable: 3139 131 03791.

• ComPair UART interface cable: 3122 785 90630

Note: If you encounter any problems, contact your local
support desk.

5.5 Error Codes

The error code buffer contains all errors detected since the last
time the buffer was erased. The buffer is written from left to
right. When an error occurs that is not yet in the error code
buffer, it is displayed at the left side and all other errors shift one
position to the right.

5.5.1 How To Read The Error Buffer

You can read the error buffer in 3 ways:

• On screen via the SAM (if you have a picture). Examples:
– ERROR: 0 0 0 0 0 : No errors detected
– ERROR: 6 0 0 0 0 : Error code 6 is the last and only

detected error

– ERROR: 9 6 0 0 0 : Error code 6 was detected first and

error code 9 is the last detected (newest) error

• Via the blinking LED procedure (when you have no
picture). See “The Blinking LED Procedure”.

•Via ComPair.

Service Modes, Error Codes, and Fault Finding

EN 13L05.1U AA 5.

5.5.2 How To Clear The Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu:
– To enter SAM, press the following key sequence on the

remote control transmitter: “062596” directly followed
by the OSD/STATUS button (do not allow the display
to time out between entries while keying the
sequence).

– Make sure the menu item CLEAR is highlighted. Use

the MENU UP/DOWN buttons, if necessary.

– Press the MENU RIGHT button to clear the error

buffer. The text on the right side of the “CLEAR” line will
change from “CLEAR?” to “CLEARED”

Table 5-2 Error code overview

Error Device Error description Check item Diagram

0 Not applicable No Error

1 Not applicable X-Ray/Over-voltage protection (US only) 2411, 2412, 2413, 6404, 6411, 6412 A2

2 Not applicable High beam (BCI) protection 3412, 7405 A2

3 Not applicable Vertical guard protection 3466, 7451 A2

4 Not applicable - --

5 Not applicable +5v protection 7604, 7605 A5

6 I2C bus General I2C error 7200, 3207, 3214 A4

7 Not applicable - --

8 Not applicable - --

9 24C16 I2C error while communicating with the EEPROM 7601, 3604, 3605 A5

10 Tuner I2C error while communicating with the PLL tuner 1000, 5001 A3

11 TDA6107/A Black current loop instability protection 7330, 3351, CRT B1

19 TDA1200x I2C error while communicating with sound decoder in Hercules IC 7200 A4

20 TDA1200x I2C error while communicating with video cosmic in Hercules IC 7200 A4

33 TA1360AFG I2C error while communicating with the ATSC PQ - ATSC module

34 TA1317AFG I2C error while communicating with the ATSC deflection controller - ATSC module

35 SAA5565 I2C error while communicating with the ATSC uProcessor - ATSC module

• If the contents of the error buffer have not changed for 50
hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the AC power from the
television set, the error buffer is not reset.

5.5.3 Error Codes

In case of non-intermittent faults, write down the errors present
in the error buffer and clear the error buffer before you begin
the repair. This ensures that old error codes are no longer
present.
If possible, check the entire contents of the error buffer. In
some situations, an error code is only the result of another error

5.6 The Blinking LED Procedure

Using this procedure, you can make the contents of the error
buffer visible via the front LED. This is especially useful when
there is no picture.

When the SDM is entered, the front LED will blink the contents
of the error-buffer:

• When all the error-codes are displayed, the sequence
finishes with a LED blink of 1.5 seconds,

• The sequence starts again.

Example of error buffer: 12 9 6 0 0
After entering SDM, the following occurs:

• 1 long blink of 5 seconds to start the sequence,

• 12 short blinks followed by a pause of 1.5 seconds,

• 9 short blinks followed by a pause of 1.5 seconds,

• 6 short blinks followed by a pause of 1.5 seconds,

• 1 long blink of 1.5 seconds to finish the sequence,

• The sequence starts again at 12 short blinks.

5.7 Protections

If a fault situation is detected, an error code will be generated;
and, if necessary, the television set will go into protection
mode. Blinking of the red LED at a frequency of 3 Hz indicates
the protection mode. In some error cases, the microprocessor
does not put the set in protection mode. The error codes of the
error buffer and the blinking LED procedure can be read via the
Service Default Menu (SDM), or via ComPair.

To get a quick diagnosis the chassis has three service modes
implemented:

• The Customer Service Mode (CSM).

• The Service Default Mode (SDM).

• The Service Alignment Mode (SAM).

• The Digital Customer Service Mode (DCSM).

For a detailed mode description, see the relevant sections.

5.8 Fault Finding and Repair Tips

Notes:

• It is assumed that the components are mounted correctly
with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options
are set.

5.8.1 NVM Editor

In some cases, it can be handy if one directly can change the
NVM contents. This can be done with the “NVM Editor” in SAM
mode. In the next table, the default NVM values are given.

EN 14 L05.1U AA5.

Service Modes, Error Codes, and Fault Finding

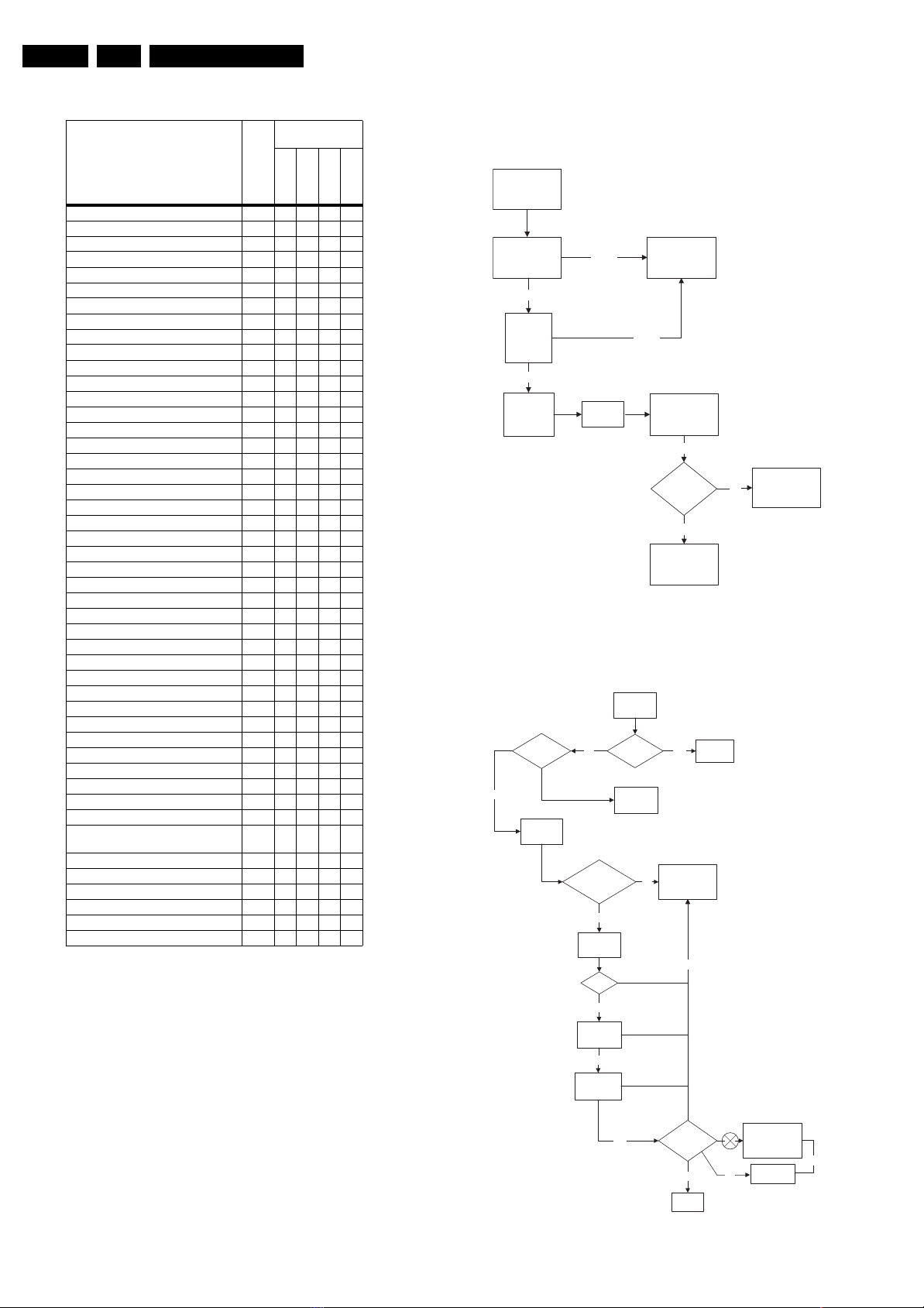

Table 5-3 NVM default values for NAFTA-region 5.8.2 Power Supply

Default values
(hex)

Item

Address (dec)

26PW21718

30PW21709

27PT21714

NVM Table Version 19 15 15 15 15

Option Table Version 20 70 70 70 70

EW (EW Width) 56 3C 66 3D 3C

PW (EW Parabola Width) 57 0E 14 17 28

HS (Horizontal Shift) 58 58 56 5A 5E

HP (Horizontal Parallelogram) 59 08 08 08 07

HB (Horizontal Bow) 60 08 0A 09 05

UCP (EW Upper Corner Parabola) 61 10 16 10 10

LCP (EW Lower Corner Parabola) 62 0F 07 11 11

TC (EW Trapezium) 63 40 54 44 43

VS (Vertical Slope) 64 00 00 00 00

VA (Vertical Amplitude) 65 40 2F 33 3D

VSC (S-Correction) 66 2C 23 32 35

VSH (Vertical Shift) 67 40 41 3F 42

VX (Vertical Zoom) 68 00 00 00 0F

VSL (Vertical Scroll) 69 79 74 78 72

VL (Vertical Linearity) 70 10 12 11 12

EWS (EW S Correction) 71 10 00 10 10

EWC (EW Corner) 72 10 0C 12 16

AGC (AGC Takeover) 163 1D 1D 1D 1D

OIF (IF-PLL Offset) 164 26 26 26 26

IFAGC, SBO 166 20 20 20 20

Hercules Default SOC & Brightness 211 1F 1F 1F 1F

Hercules Default Color 212 10 10 10 10

Hercules Default Contrast 213 1F 1F 1F 1F

Hercules Default Sharpness 214 0D 0D 0D 0D

Hercules Default Hue 215 20 20 20 20

Hercules Default Base-Band Tint 216 20 20 20 20

Hercules Default White Point Red 217 20 20 20 20

Hercules Default White Point Green 218 20 20 20 20

Hercules Default White Point Blue 219 20 20 20 20

Hercules Default CL & PWL 220 DF DF DF DF

Hercules Default RF & AV Y Delay 221 77 77 77 77

Hercules Default BLOR 222 20 20 20 20

Hercules Default BLOG 223 20 20 20 20

Last Brightness (VID PP others) 264 1E 1E 1E 1E

Last Color (VID PP others) 265 44 44 44 44

Last Contrast (VID PP others) 266 64 64 64 64

Last Sharpness (VID PP others) 267 44 44 44 44

Last Hue (VID PP others) 268 32 32 32 32

Last Color Temperature
(VID PP others)

269 01010101

White-D Cool Red 356 FA FA FA FA

White-D Cool Blue 357 12 12 12 12

White-D Normal Red 358 52 52 52 52

White-D Normal Blue 359 4C 4C 4C 4C

White-D Warm Red 360 0A 0A 0A 0A

White-D Warm Blue 361 E8 E8 E8 E8

Set Not Working

Check Power
Supply Mains

32PT21705

Switch

Bridge Rectifier

circuit 6500

Ok

Check DC
voltage at
2505/2507

Ok

Check

fusible

resistor 3535

Not Ok

Check

3536

Not Ok

Check fusible
resistor 1500 &
circuit before it

Check IC7510 &

IC7531

Ok

Set able to

start-up

Ye s

End

No

Check other

fusible resistor

and capacitor in

the circuit

F_15050_004.eps

030205

Figure 5-6 Fault finding tree “Set not working”

Set Does Not Start Up

Set Unable

to Start

Software

loaded?

Yes

Check

voltage

across 2552

No

Is Vbatt

approximately

140V

Yes

Check

voltage

7545

3V3

Yes

Check 8V

across 7543

Yes

Check 5V

across 7544

Fuse Blown?

Load

Software

No

Yes

Check Power
Supply circuit

No

Change

Fuse

Yes

Set able to

Start

Yes

End

No

No

Check Line

Transistor 7405

Trident

F_15050_003.eps

Figure 5-7 Fault finding tree “Set does not start up”

Yes

030205

Service Modes, Error Codes, and Fault Finding

EN 15L05.1U AA 5.

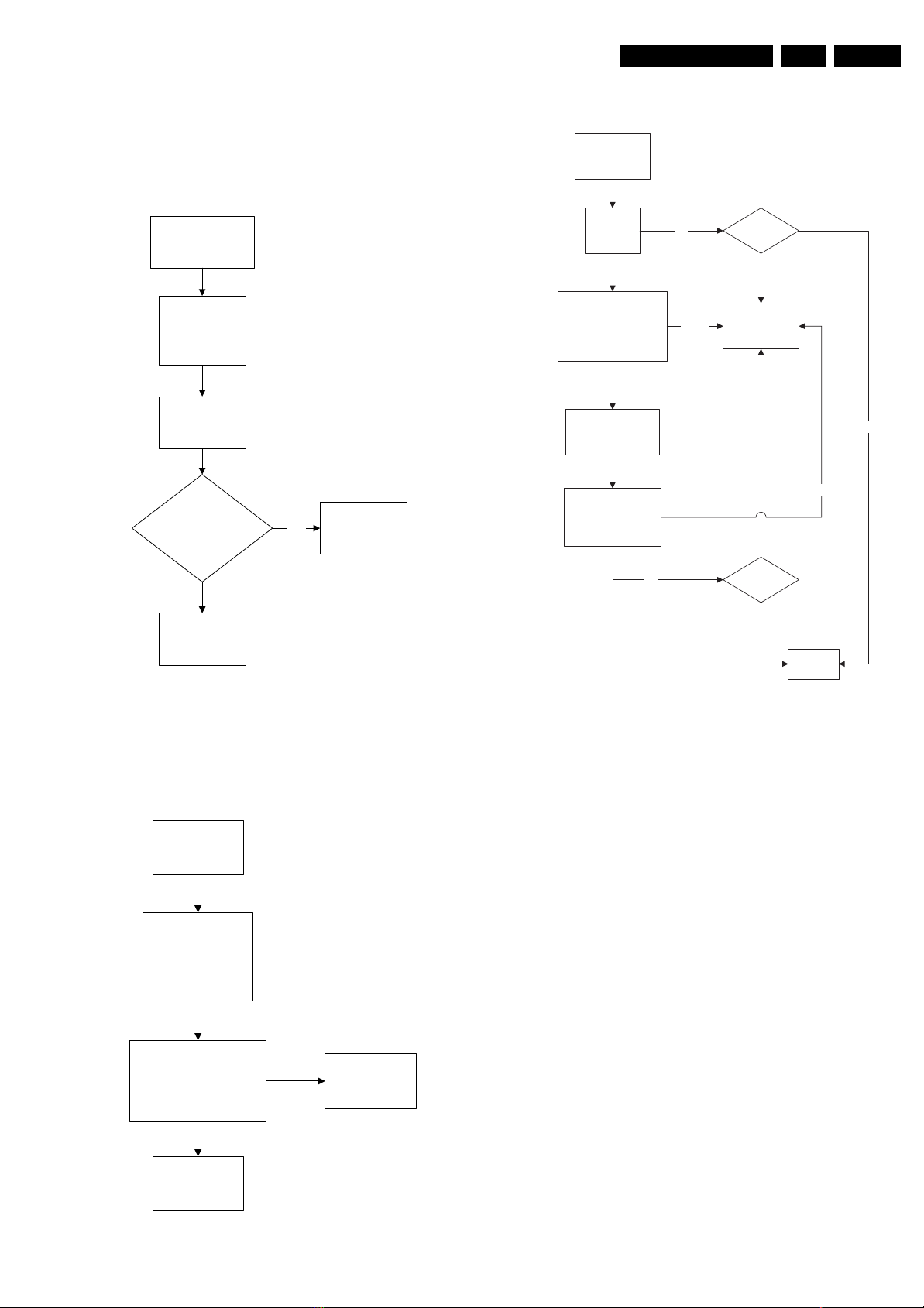

5.8.3 Deflection

One Thin Vertical Line

Quick check:

• Set in protection mode.

• LED blinking with error “3”.

One Thin Vertical Line

LED Blinking

Check all

connection and

peripheral at

Deflection Circuit in

place

Check

Line Transistor

7405

Is VBE between

200mV to 30mV & V

approximately 500mV

Blank Screen

Blank Screen

Check Vg2

(fine tune)

Not Ok

Check Beam Current Limit

(voltage is 1.8V-2V when

brightness and contrast is

set to the maximum

Ok

Check heater voltage

(measure pin 9&10

at the CRT socket)

Check video supply

(2436) is approximately

180V

Yes

Check Horizontal

Deflection

Circuitry

CB

Ok

Not Ok


appears?

Picture not appearing

Check deflection

circuit

Picture not appearing

Ok

Not Ok

Replace transistor

E_14480_059.eps

170204

Figure 5-8 Fault finding tree “One thin vertical line”

One Thin Horizontal Line

Quick check:

• Set in protection mode.

• LED blinking with error “2”.

One Horizontal

Thin Line

LED Blinking

Check all connection

and peripheral at

Deflection Circuit

in place

Check transistor

(7451, 7523, 7543) at

Vertical Deflection Circuitry

Replace transistor

Ok


appears?

Ok

Figure 5-10 Fault finding tree “Blank screen”

5.8.4 Source Selection

Set is not able to go into AV or any missing AV is
encountered

E.g. AV1 is available but not able to enter to AV1: Check if the
option setting is correct.

Set is able to go to AV, but no audio is heard.

1. Check that continuity of signal is there from the SCART/
Cinch input to the input of the Hercules.

2. If continuity is there and still no audio, check that option
settings are correct.

3. If logic setting is correct and still no audio, proceed to Audio
Decoder/Processor troubleshooting section.

Set is able to go into AV but no video is available:

1. Check continuity from AV input to HERCULES depending
on the input.

2. If continuity is available and yet no video, proceed to Video
Processor troubleshooting section.

End

F_15050_001.eps

030205

Check Vertical

Deflection Circuit

E_14480_060.eps

170204

Figure 5-9 Fault finding tree “One thin horizontal line”

EN 16 L05.1U AA5.

Service Modes, Error Codes, and Fault Finding

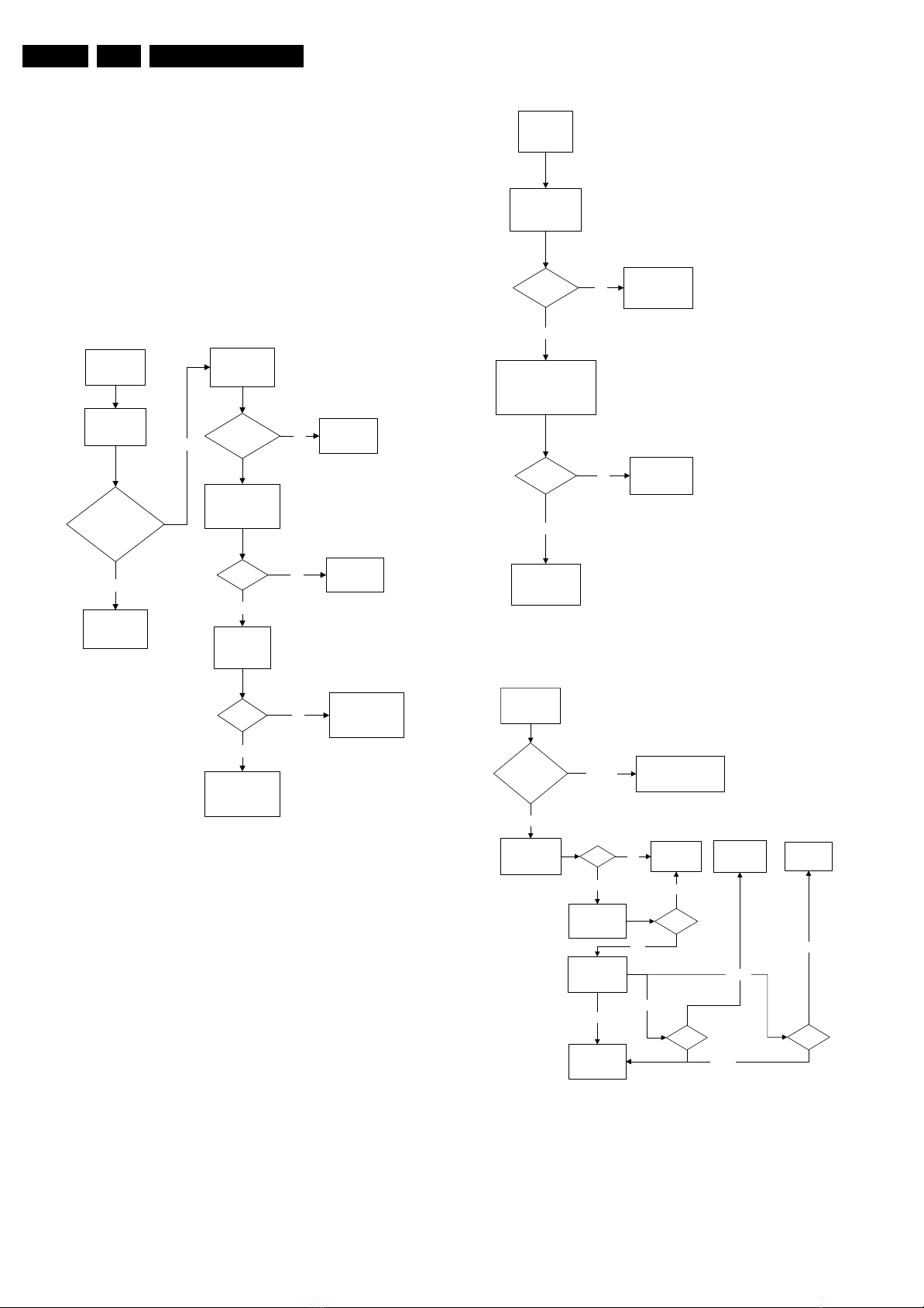

5.8.5 Tuner and IF

No Picture

1. Check that the Option settings are correct.

2. If correct, check that supply voltages are there.

3. If supply voltages are present, check whether picture is
present in AV.

4. If picture is present in AV, check with the scope the Tuner
IF output signal by manual storage to a known channel.

5. If IF output is present, Tuner is working fine. If no IF output,
I2C data lines may be open, check continuity of I2C lines.
If I2C lines are ok, Tuner may be defect, replaced Tuner.

6. If Tuner IF is present and yet still no picture in RF mode, go
to Video Processing troubleshooting section.

No Picture, No Sound

Yes

Check tuning

supply voltage,

pin 9 of tuner

>30V & <35V

Check supply

voltage, pin 7 of

tuner

No

No Picture,

No Sound,
Raster Ok

Check AGC

Voltage, pin 1

of tuner

AGC voltage
changes with

different signal

strength

Check

Supply

V

T

Section

Picture Ok, No Sound

Picture Ok,

No Sound

Check IF output of

tuner, pin 11

CVBS

present?

Ye s

Check SAW filter output

(pin 4&5)

EU/AP/CH (QSS)- 1001

NA/LA/AP INT - 1002

Output Ok?

Ye s

No

No

Refer to fig.

"Power Supply:

Set not working"

Replace SAW

filter

No

Check AGC

circuit section

5V

Yes

Check Tuner

pin 4 & 5

I2C Bus

Ok

Yes

Replace Tuner

Check Power

No

No

Supply

Check other

functional area

E_14480_062.eps

Figure 5-11 Fault finding tree “No picture, no sound”

170204

Check other

functional area

E_14480_063.eps

170204

Figure 5-12 Fault finding tree “Picture ok, no sound”

Unable To Perform Tuning

Unable to

perform tuning

Enter SDM

check optionbyte 1

Correct

Check if tuner

Supply Voltage

pin 7

Incorrect

5V

Yes

Check Tuner

Supply Voltage

Check I2C at pin

4 & 5 and tuner

Ok

Check other

functional area

Enter SDM and change

to the appropriate byte

Check Power

No

Supply

No

33V

Yes

Not Ok

Check I2C

circuit

Not Ok

I2C

Not Ok

E_14480_064.eps

Replace

Tuner

Not Ok

Tuner

170204

Figure 5-13 Fault finding tree “Unable to perform tuning”

Service Modes, Error Codes, and Fault Finding

EN 17L05.1U AA 5.

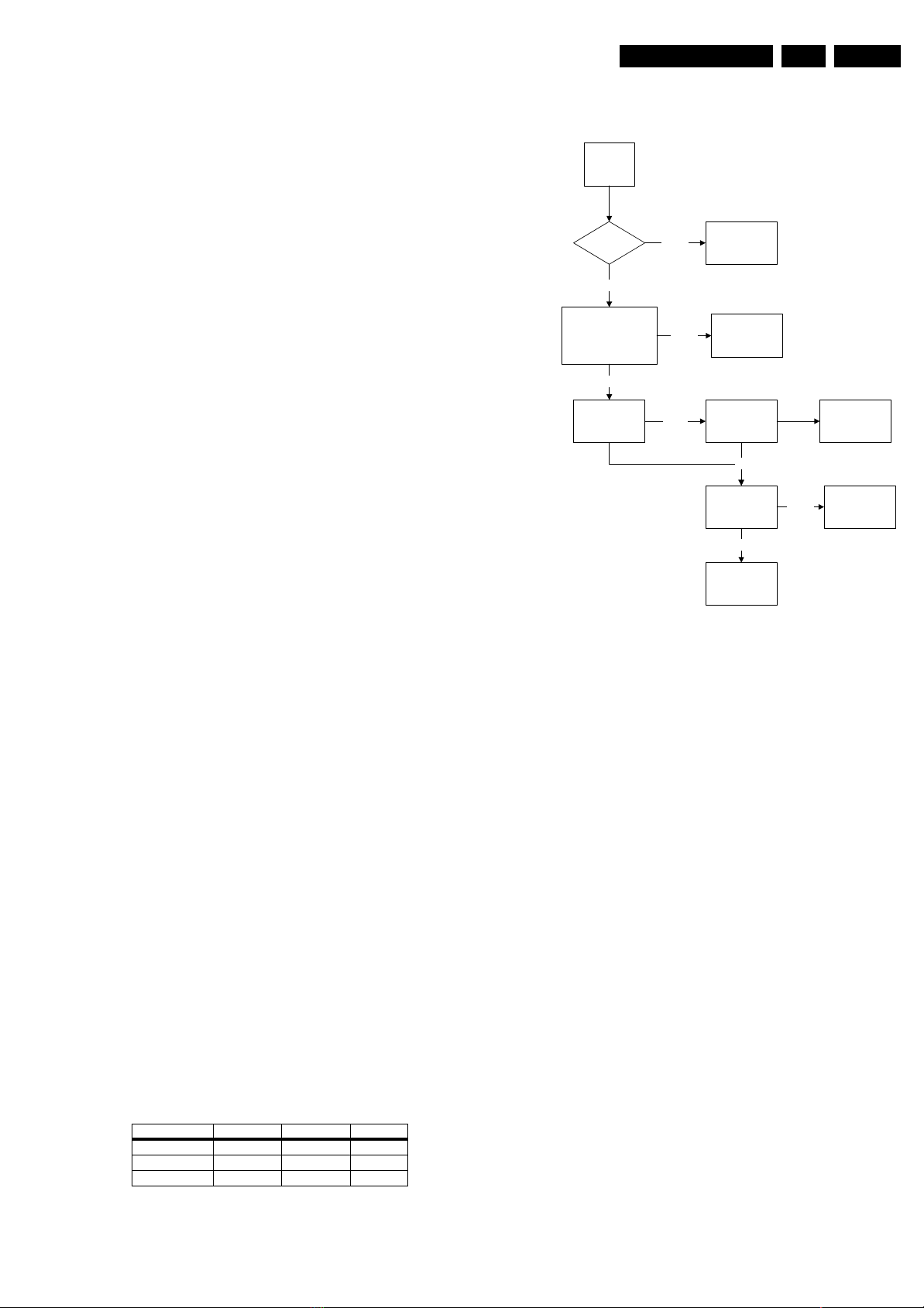

5.8.6 Controller

Below are some guidelines for troubleshooting of the Micro
Controller function. Normally Micro Controller should be
checked when there is a problem of startup.

1. Check that both +3.3 V_dc and +1.8 V_dc are present.

2. Check that crystal oscillator is working.

3. Check that Power Good signal is at “high” logic, normal
operation.

4. Check that HERCULES is not in standby mode. Pin 15 of
HERCULES should be 0 V_dc.

5. Make sure H-drive pulse is there. This can be checked at
resistor R3239. If H-drive does not exist, remove resistor
R3239 to check if there is loading.

Note: When the set shuts down after a few second after power
“on”, the main cause is that Vg2 not aligned properly, try
adjusting Vg2 during the few seconds of power “on”.

5.8.7 Video Processing

No Picture

When “no picture in RF”, first check if the microprocessor is
functioning ok in section “Controller”. If that is ok, follow the
next steps.
When “no picture in AV”, first check if the video source
selection is functioning ok in section “Source Selection”. If that
is ok, follow the next steps.

1. Check that normal operating conditions are met.

2. Check that there is video signal at pin 81. If no video,
demodulator part of the HERCULES is faulty, replace with
new HERCULES.

3. If video signal is available at pin 81, check pin 56, 57, and
58 for the RGB signal.

4. If signal is not available, try checking the BRIGHTNESS
and/or CONTRAST control, and make sure it is not at zero.

5. If still with the correct settings and no video is available,
proceed to the CRT/RGB amplifier diagram.

For sets with TDA9178, follow steps below:

1. Put Option Byte 2 bit 4 to “0”; if video signal is not available,
then check fault finding section “Controller”, Section
“Source Selection”, and steps above.

2. If video is available but not correct, put Option Byte 2 bit 4
to “1”, then check if LTI panel is present. If not, put LTI
panel in the main chassis (connector 1221).

3. If LTI panel is in main chassis, check cable between LTI
panel and main chassis (position is 1206). If it is
connected, then the LTI panel is faulty, replace it.

For sets with Scavem, and Scavem does not work, follow steps
below:

1. Check Scavem coil connector (position is 1361) if
connected; if not, connect it.

2. If connected, check NVM “bit storage” byte 1 bit 7; if it is not
“1”, set it to “1”.

3. If it is “1”, then check the data of the NVM addresses as in
the next table. If the data is not correct, then set these
addresses to diagram values.

4. If it still not works, track Scavem output from pin64 of
HERCULES to CRT panel.

Table 5-4 NVM default values for Scavem

Description

SPR, WS

VMA, SVM

NVM_SOC_SMD

Address (dec) Address (hex) Value (hex)

140 8C 00

141 8D 32

142 8E 03

5.8.8 Audio Processing

No Sound

Picture Ok,

No Sound

Tuner IF Ok Check Tuner/IFNot Ok

Ok

Check AUDOUTLSL &

AUDOUTLSR pin at

Hercules

Ok

Check Audio

Amplifier

Not Ok

Not Ok

Check Hercules IC

Check Audio

Power Supply

Ok

Check Audio

Amplifier Circuit

and loud speaker

Ok

Check NVM

Not Ok

Figure 5-14 Fault finding tree “No sound”

No RF audio for QSS/Inter-Carrier stereo sets.

1. Check pin 99 and 100 for SIF signal (for QSS) or pin 104
and 105 for video with SIF (for Inter-Carrier)

2. If signal is not present, check for the QSS/FMI bit settings.
Check also the NVM data.

3. If signals are present and still no audio, check the audio
supply voltage +8V are present.

4. If still no audio signal at Hercules output, Hercules is faulty.

No AV audio.

1. Check troubleshooting methods in section “Source
Selection”.

2. Check the output of the Hercules to see if there is signal
available. If no, check the normal operating condition and
also the NVM data.

3. If still no audio signal at Hercules output, Hercules is faulty.

Note: If there is audio signal at Hercules output and no audio

at loudspeaker, proceed to Audio Amplifier troubleshooting
methods.

5.8.9 Audio Amplifier

No RF as well as AV audio at the loudspeaker:

1. Check that the normal operation condition of the amplifier
is met.

2. If normal operation conditions are met, check the continuity
from Hercules output to input of the amplifier.

3. If continuity is there and still no audio, check speaker wire
connections. If still no audio, amplifier IC might be faulty.

Check Power

Supply

Replace Audio

Amplifier

E_14480_065.eps

170204

EN 18 L05.1U AA5.

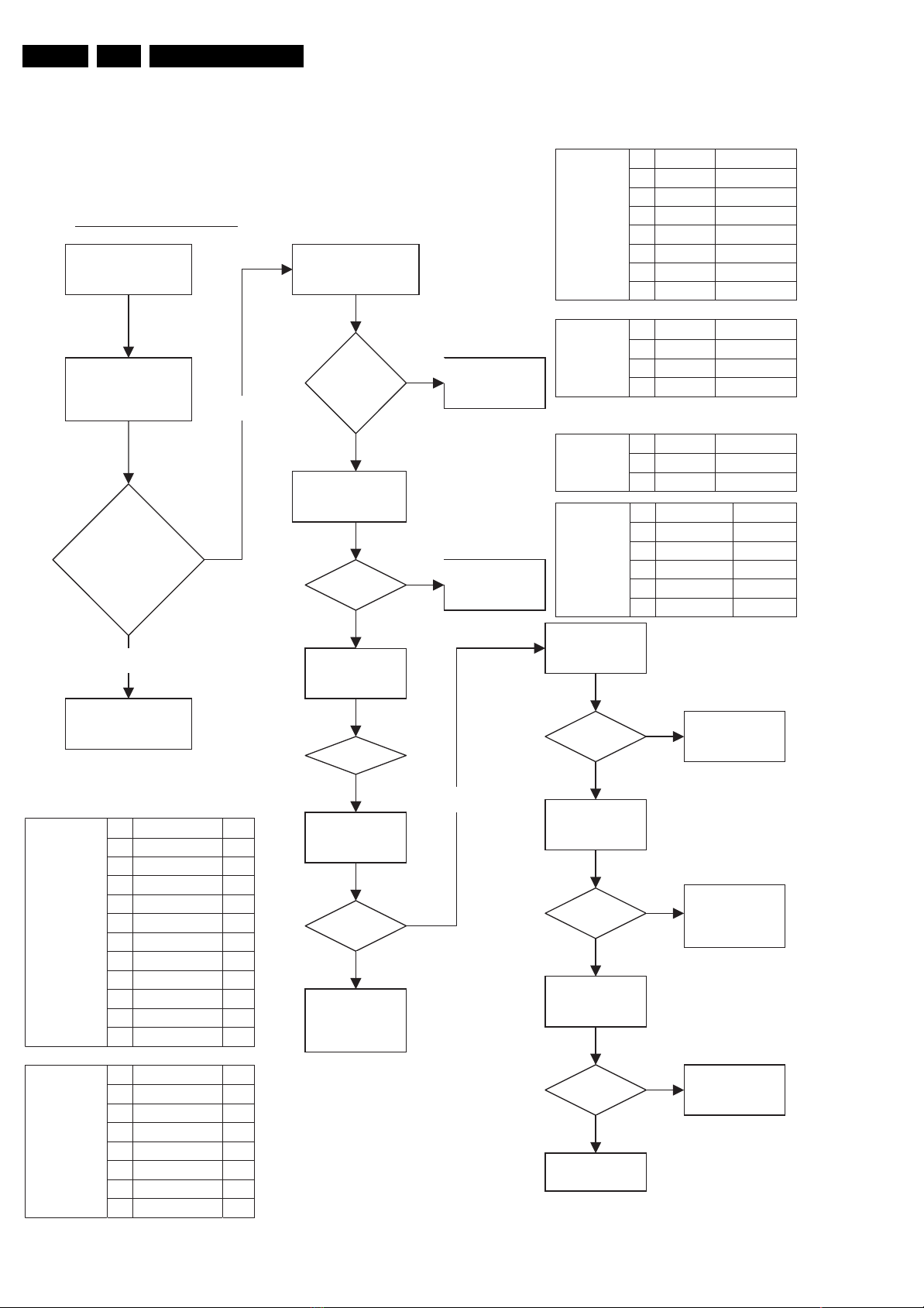

5.8.10 ATSC

No digitalpicture & Sound

No picture,

No sound,

Raster OK.

Check

AGC Voltage,

Pin 1 of Tuner

AGC voltage

change with

difference

signal

strength

No

Check

AGC circuit section

1 3_3V 3.3V

2 3_3V 3.3V

3 GND 0V

4 GND 0V

5 9V 9VA

Power Supply

ATSC (P1533)

Power Supply

ATSC (P1534)

6 GND 0V

7 POWER_DOWN GND

8 STBY_EN GND

9 GND 0V

10 6V 6VA

11 6V 6VA

12 GND 0V

1 3_3V 3.3V

2 3_3V 3.3V

3 3_3V 3.3V

4 GND 0V

5 GND 0V

6 GND 0V

7 6V 6VA

8 GND 0V

YES

Service Modes, Error Codes, and Fault Finding

Analog video

(P1254)

Check

tuning voltage,

Pin 9 of Tuner

Digital Audio

>30V

&

< 35V

Check

Supply voltage,

Pin 7 of Tuner

5V

YES

Check Tuner,

Pin 4 & 5

2

C Bus

I

OK

Check YpbPr

O/P

(ATSC module)

OK

YES

Check (K)
Deflection

controller

Panel

No

No

Check

V

T

Supply section

Check

Power Supply

No

(P1219)

Analog Audio

(P1208)

1206 control

(P1206)

Check ATSC

module

connector

OK

YES

Check supply

voltage

6V & 3V3

OK

YES

Check

ATSC (P1206)

UART Signal

OK

YES

Replace ATSC

module

1 GND 0V

2 RED_IN 1.4Vpp(100IRE)

3 GND 0V

4 GREEN_IN 1.4Vpp(100IRE)

5 GND 0V

6 BLUE_IN 1.4Vpp(100IRE)

7 HS_IN 5.0Vpp

8 VS_IN 5.0Vpp

1 R_OUT 1.15Vrms

2 GND 0V

3 L_OUT 1.15Vrms

4 GND 0V

1 R_IN 2Vrms

2 L_IN 2Vrms

3 GND 0V

1 Tx 3.3V

2 GND 0V

3 Rx 3.3V

4 POD_DET# 3.3V

5 EXT_PWRON 3.3V

6 RESET# 3.3V

No

No

No

Check

Wiring of

ATSC module

Check

ATSC (P1533)

& (P1534)

Power supply

Check

Hercules UART

O/P

F_15060_048.eps

180305

Figure 5-15 Fault finding tree “ATSC part”

Service Modes, Error Codes, and Fault Finding

5.8.11 Deflection Controller

Check Deflection Controller Panel (ATSC set only)

Check 10V supply

from Main Chassis

EN 19L05.1U AA 5.

ok

Check RGB output

ok

Check CRT feedback

on 1404 pin 5

ok

Check

Power Supply

Check CRT/RGB

amplifier

CRT amp

(P1404)

1 RED_OUT 2.6Vpp(100IRE)

2 GREEN_OUT 2.6Vpp(100IRE)

3 BLUE_OUT 2.6Vpp(100IRE)

4 GND 0V

5 BC_INFO 0V5

Check signal at
connector 1251

ok

Replace Deflection

Panel

Check Deflection

Circuit

F_15060_049.eps

180305

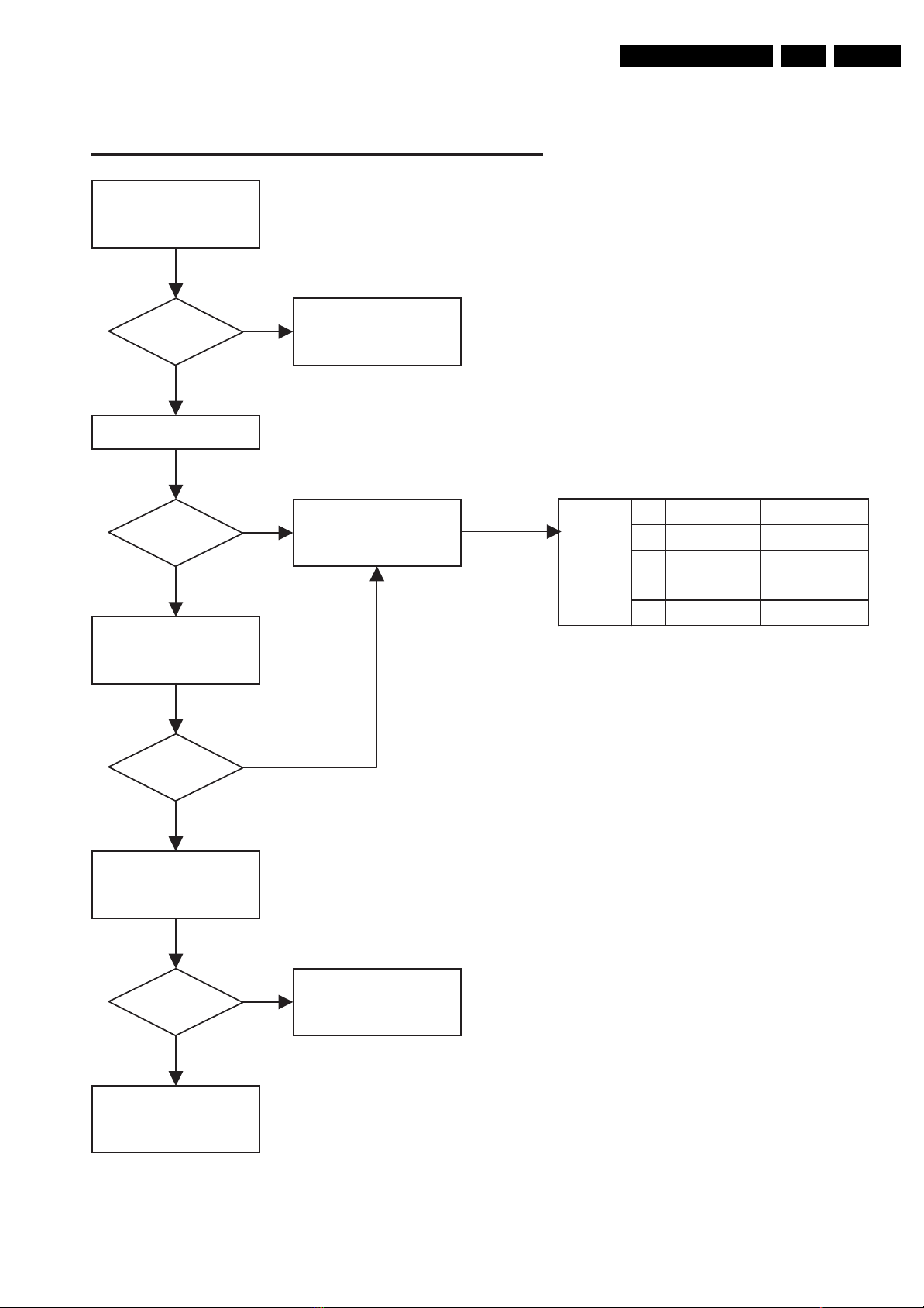

Figure 5-16 Fault finding tree “Deflection Controller”

EN 20 L05.1U AA5.

Personal Notes:

Service Modes, Error Codes, and Fault Finding

E_06532_012.eps

131004

Block Diagrams, Testpoint Overviews, and Waveforms

6. Block Diagrams, Testpoint Overviews, and Waveforms

Wiring Diagram

RIGHT

SPEAKER

RED

BLACK

E

(PV2)

TOP CONTROL PANEL

1010 (PV2)
0345 (FL13)

3P

(PV2)

(FL13)

P

(FL13)

CRT PANEL

B

1361

3P

21L05.1U AA 6.

DEGAUSSING COIL

BLUE

CRT
16:9

ROTATION

CRT PANEL

B

FRAME

COIL

GREY

ORANGE

BROWN

SCAVEM

COIL

EHT
CRT

BLACK
RED

LEFT

SPEAKER

1335

1352

CRT

SOCKET

1351

1340

5P

5P

1336

1381

AQUADAG

3P

6P

P1255

ATSC

CVBS (YELLOW)

LEFT (WHITE)

RIGHT (RED)

ATSC PANEL

HEADPHONE

(FL13)(PV2)

D

SIDE
A/V PANEL +
HEADPHONE

8P

P1534

6P

P1206

8P

P1254

P14

TUNER

1P

12P

P1533

4P

P1219

P1208

3P

1281

1252

1280

1254

1278

3P

7P

3P

5P

4P

Ferrite core

1405

K

5P

1404

(FL13)

6P

3P

1403

DEFLECTION
CONTROLLER

1401

1400

8P

3P

1251

1250

12P 10P

Ferrite core

1280

1257

3P

5P

1206

1207

1208

7P

1693

6P

1535

1533

1534

8P

12P

3P

1682

6P

3P

3P

1251

1250

10P

12P

To P14

AT SC

1504

2P

1219

4P

A

MONO
CARRIER

1401

7P

2P

1451

LOT

1505

1404

2P

2P

FRONT INTERFACE

J

Warning: Some models have tact switch.

MAINS

CORD

1693

6P

MAINS

SWITCH

To1546

A1

1005

3P

ComPair

CONNECTOR

TUNER

F_15060_035.eps

210305

Block Diagrams, Testpoint Overviews, and Waveforms

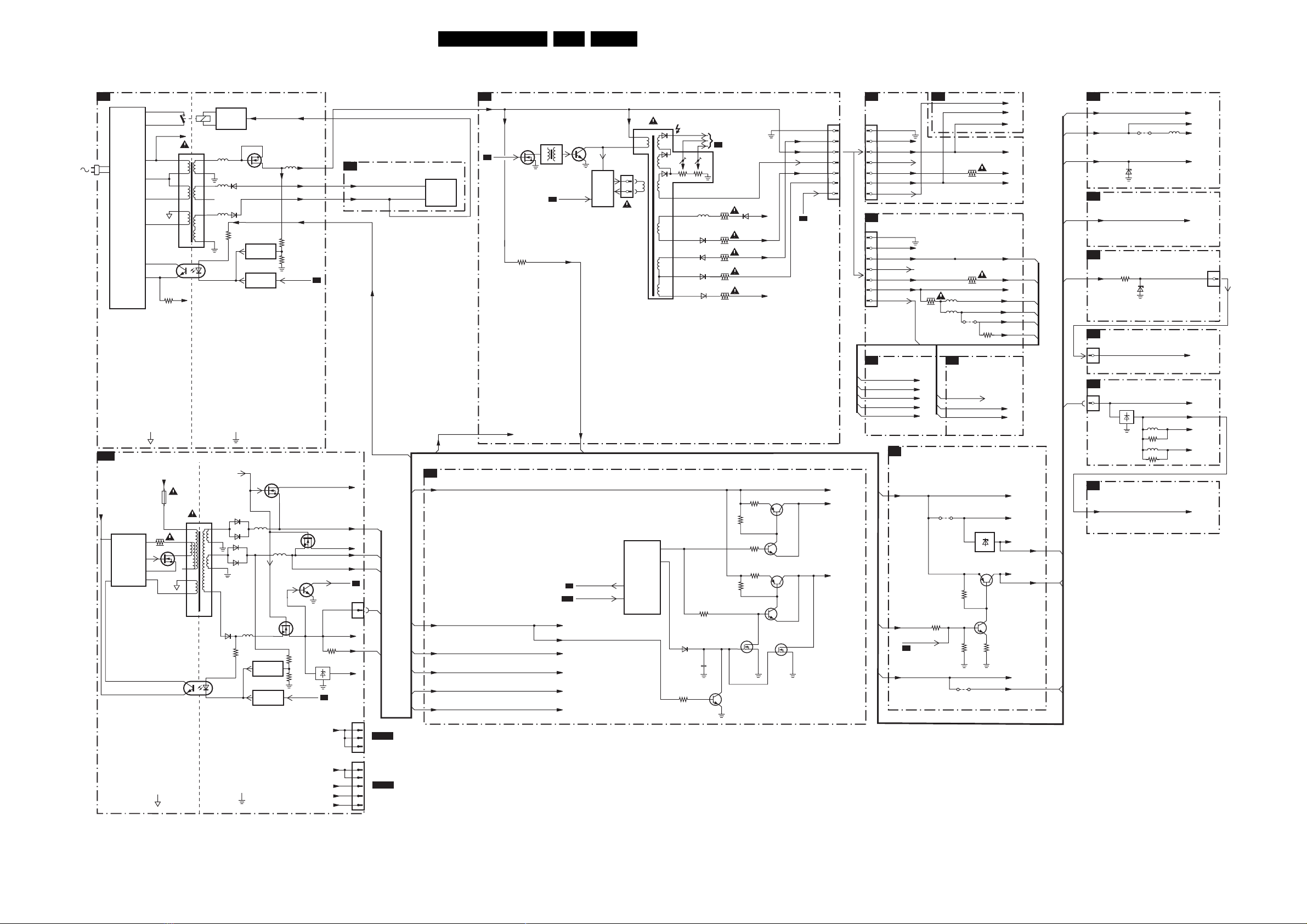

Block Diagram Supply and Deflection

SUPPLY AND DEFLECTION

SUPPLY

FRONT INTERFACE

J

1211

1

2

1231

MAINS

SWITCH

(not USA)

1212
1

2

22L05.1U AA 6.

LINEARITY & PANORAMA

TO 1221

A5

CONNECTIONS

G

ONLY FOR:
28"WSRF LA/NA
32" WSRF LA/NA
28" WS-SF LA

1404

4

1

1462

1

2

3

+9V

I2SD/1

7460

ACTIVATING

CIRCUIT

2466

LINEARITY AND

PANORAMA

CORRECTION

2474
2475

7462

7463

2464
2467

1463

1461
4

1

HOR.
DEFL.
COIL

POWER SUPPLY

A1

Degaussing

1505

or

A10

1500

T4E

I511

HOT GROUND COLD GROUND

AUXILIARY POWER SUPPLY

2511

1504

1

I513

3513

3514

11

I519

9

7

7510

SUPPLY

CONTROL

6

6500

AC

3522

3517

3518

3523

F508

2505

DC

SUPPLY

7512

G

3516

6511

3519

VDC

1532

3536

14

7525

11

9

7

HOT GROUND COLD GROUND

MAIN

6

3

VDC

5512

9

8

VCC

7

8

9

10

12

1

7516
TCET1103

2

4

5

3

2

4

3

B

6545

6552

6544

6546

6539

I516

D

S

7514

5504

5

4

2

1

3

4

Coil

7511
TEA1506T

2

Vcc

CONTROL

6

CTRL

2

5500 :
5502

DRAIN

IC

14

DRIVER

SENSE

DEMAG

VCC

2

5524

3542

1503

24

1

17

18

13

14

10

11,12

1

7513
TCET1103

2

7509

5527

7542

REFERENCE

CIRCUIT

7575

STANDBY

CIRCUIT

7541

ENERGIZING

CIRCUIT
(optional)

5551

6563

5562

6562

5561

3571

6573

5526

7535

7404

7571

REFERENCE

CIRCUIT

7573

STANDBY

CIRCUIT

7561

3545

3544

Stdby_con

V_DG

+3V3

7545

POWER_DOWN

7543

A4

F552

3560

5552

F563

F561

3575

3576

Stdby_Con

I573

+6VA

+6V

+3V3A

+3V

+3V3

A4

1535

1

+12VA

+8VA

+8V

Vbatt

-Vaudio

+Vaudio

+6V

A4

RGB BUFFER - ATSC

K2

1403

TO P1255

K1

1

3

ATS C

PANEL

5

DEFLECTION CONTROLLERS

7402
TA1360AFG

F_Y

68

SIGNAL AND

F_Pb

F_Pr

SYNC PROC.

67

66

VSM_OUT

FBP_IN

H_OUT

77

39

37

F_Pb

7406/7416

F_Y

F_Pr

7404
TA1317AFG

DEFLECTION
PROCESSOR

EWFILTER

V_NF

EHT

VDRIVE

VDC

EW_FD

3429

3410

7

3470

3

5

6

6408

13

7405

14

3434

3470

7403

Vguard

EHTinfo

VDRA

VDRB

EW_DRIVE

VM_MOD

HFB

H_DRV

1251

LINE + FRAME DEFLECTION

A2

+6V

7404

FEATURES &

A5

CONNECTIVITIES

1251

1

1

2

2

3

3

4

4

5

5

6

6

7

7

8

8

9

9

LINE

6481

5402

EW_DRIVE

Vguard

EHTinfo

VDRA

VDRB

EW_DRIVE

SVM_ROT

HFB

HD

7405

BU4508DX

OUTPUT
CIRCUIT

EW_DRIVE

HD

LINE

+

E/W

CORR.

Vbatt

3

1

OR

1404
1

2

SVM_ROT

EHTinfo

Filament

3489

3478

Vguard

HOR.
DEFL.
COIL

5450

EHT

FOCUS G2

10

7

12

5

6

8

11

9

Vbatt

7451
TDA8177F

1

FRAME

7

5457

6453

6461

5458

-14V

2477

6467

+14V

TO

CRT

B1

3477

3485

3456

3458

3450

3455

3401

+12V_LOT

VideoSupply

FLYBACK

GENERATOR

THERMAL

PROTECTION

6452

Vbatt

F453

F458

5

F_15060_036.eps

EHTinfo

HFB

Filament

-14V

VideoSupply

+12V_LOT

+14V

VT_SUPPLY

1451
1

3

F459

3471

1401

VER.
DEFL.
COIL

210305

7

6

TO 1351

5

B1

4

CRT

3

2

1

Block Diagrams, Testpoint Overviews, and Waveforms

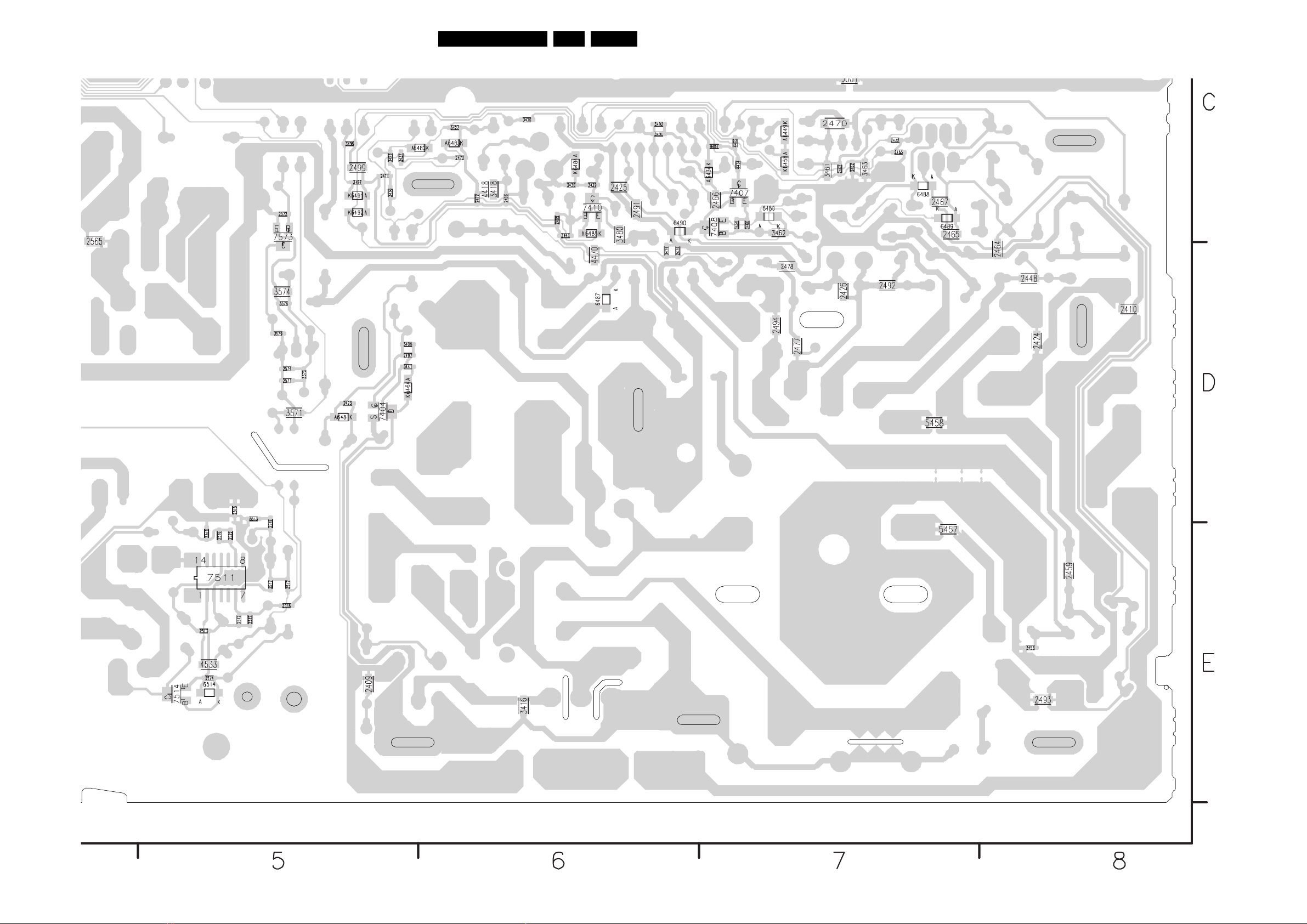

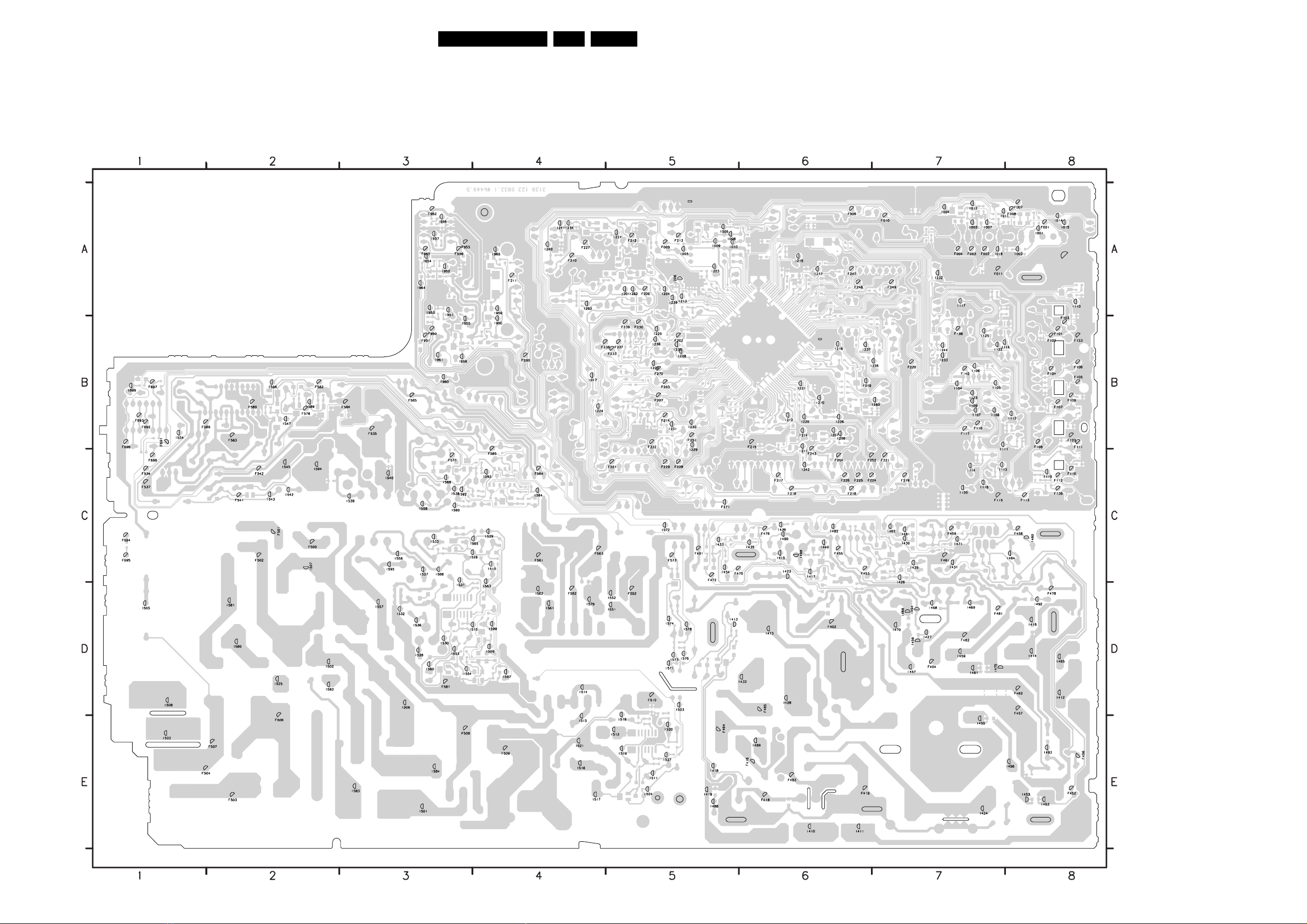

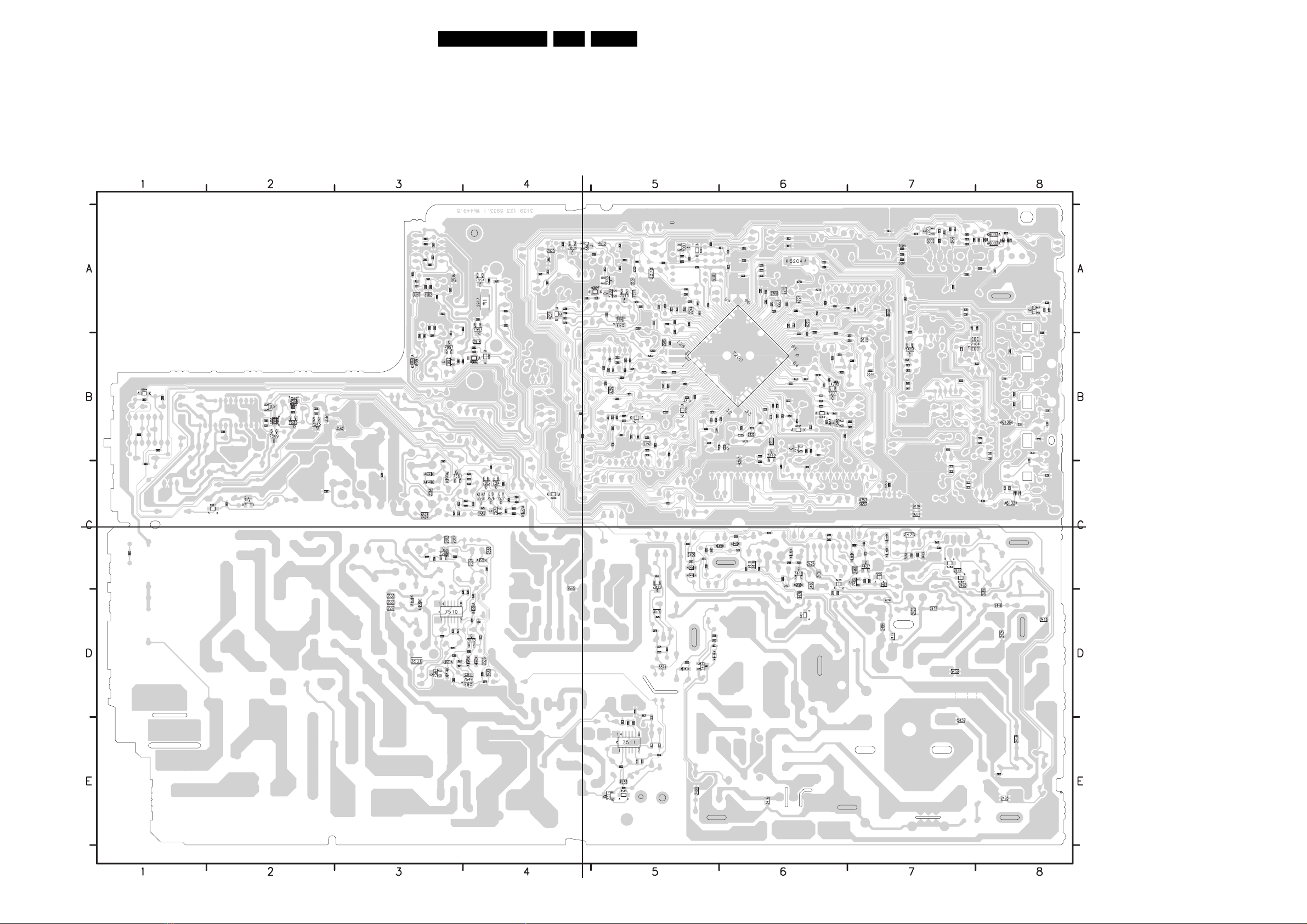

Testpoint Overview Mono Carrier

F001 A8
F002 A7
F003 A7
F004 A7
F005 A8
F006 A6
F007 A8
F008 A8
F009 A5

F010 A7
F011 A7
F101 B8
F102 B8
F103 B8
F104 B8
F105 B8
F106 B8
F107 B8

F108 B8
F109 B8
F110 C8
F111 B8
F112 C8
F113 C8
F115 C7
F116 B7
F117 B7

F122 B8
F123 B8
F138 B7
F139 C8
F140 B7
F200 B4
F201 C5
F202 B5
F203 B5

F207 B5
F209 A5
F210 A4
F211 A4
F212 A5
F213 A5
F214 B5
F215 B6
F216 C6

F217 C6
F218 C6
F219 C7
F220 B7
F221 C7
F224 C6
F225 C6
F226 C6
F227 A4

F228 C5
F229 C5
F230 B5
F232 B5
F233 B5
F237 B5
F238 B4
F239 B5
F243 C6

F247 A6
F248 A6
F249 A7
F251 B5
F252 C6
F254 C6
F270 B5
F271 C5
F401 C5

F402 D6
F404 D7
F416 E6
F418 E6
F419 E6
F452 E8
F453 C6
F455 C6
F456 E8

F457 D8
F458 C8
F459 C7
F461 C7
F462 D8
F464 E5
F465 D6
F472 C5
F475 C5

F476 C6
F478 D8
F481 D7
F482 D7
F483 E6
F500 C2
F501 C2
F502 C2
F503 E2

F504 E1
F506 E2
F507 E2
F508 E3
F509 E4
F510 D5
F534 C1
F535 B3
F537 C1

F541 C2
F542 C2
F552 D5
F561 C4
F562 D4
F563 C4
F564 C4
F565 B3
F573 C5

F577 C3
F578 B2
F580 B2
F581 D3
F582 B2
F583 B2
F584 B3
F585 C4
F586 B1

23L05.1U AA 6.

F691 B1
F692 B1
F693 B1
F694 C1
F695 C1
F696 C1
F697 B1
F698 B1
F950 B3

F951 B3
F952 A3
F953 A3
F955 A3
F956 A3
I001 A8
I002 A8
I003 A7
I004 A7

I005 A5
I006 A5
I007 A7
I008 A5
I009 A5
I010 A5
I011 A7
I012 A7
I014 A8

I015 A8
I016 A7
I017 B4
I104 B7
I105 B7
I106 B7
I107 B7
I108 B7
I109 B7

I110 A8
I111 C7
I112 B8
I113 C7
I114 C7
I116 C7
I117 A7
I119 C8
I120 C7

I122 B7
I123 B7
I124 B8
I125 B7
I201 A5
I203 A5
I204 A5
I206 A5
I207 B6

I208 B6
I210 B6
I211 C6
I212 B6
I213 A5
I214 B6
I215 A6
I217 A6
I218 B6

I219 B6
I220 B6
I221 B6
I222 B5
I224 B4
I225 B5
I226 B6
I227 A5
I228 B5

I229 C5
I230 B5
I231 B5
I232 A7
I233 B7
I234 A4
I235 B5
I236 B5
I237 B6

I238 B7
I239 A5
I240 A4
I241 A4
I242 C6
I244 B7
I280 B7
I282 A5
I283 A4

I410 E6
I411 E6
I412 D8
I413 D5
I414 D8
I415 C6
I416 D8
I417 C6
I418 E5

I419 E5
I423 C6
I424 E7
I425 C7
I426 D7
I427 D7
I428 D6
I430 C7
I431 C7

I432 D6
I433 C5
I434 C5
I435 C6
I436 C6
I440 C6
I453 E8
I455 E7
I456 E8

I457 D7
I458 D7
I459 D7
I460 C8
I461 D7
I462 C7
I463 E8
I464 C8
I465 D8

I466 D7
I468 D7
I469 D7
I470 D7
I471 C7
I473 D6
I475 D7
I481 C7
I482 C6

I488 E5
I489 E6
I490 C6
I492 D8
I493 E8
I494 D7
I499 C6
I501 E3
I502 D2
I505 D1
I506 D3
I507 C2
I508 D1
I509 D4
I510 C4
I511 E5
I512 D4
I513 E5
I514 D4
I515 E4
I516 E4
I517 E4
I518 E5
I519 E5
I520 E5
I521 E4
I522 E1
I523 D5
I524 E5
I525 D2
I526 D3
I527 E5
I528 C4
I529 C4
I530 D3
I531 D3
I532 D3
I533 C3
I534 B1
I536 D3
I537 C3
I538 C3
I539 C3
I540 C3
I542 C2
I543 C2
I545 C2
I547 B2
I551 D5
I552 D5
I553 D3
I554 D3
I556 C3
I557 D3
I558 C3
I560 D3
I561 D4
I562 D4
I563 D4
I564 C4
I565 C4
I568 C3
I571 D5
I572 C5
I573 D5
I574 D5
I576 D5
I578 D5
I579 D4
I580 D2
I581 D2
I582 D2
I583 E3
I584 E3
I588 C3
I589 B2
I590 C3
I592 C3
I593 C4
I594 C2
I595 C3
I596 B2
I597 D4
I599 D4
I699 B1
I950 B4
I951 A3
I952 A3
I953 A3
I954 A3
I955 B3
I956 A3
I957 A3
I958 B3
I959 A4
I960 B3
I961 B3
I964 A3
I965 A4

3139 123 5933.1

F_15060_013.eps

210305

Block Diagrams, Testpoint Overviews, and Waveforms

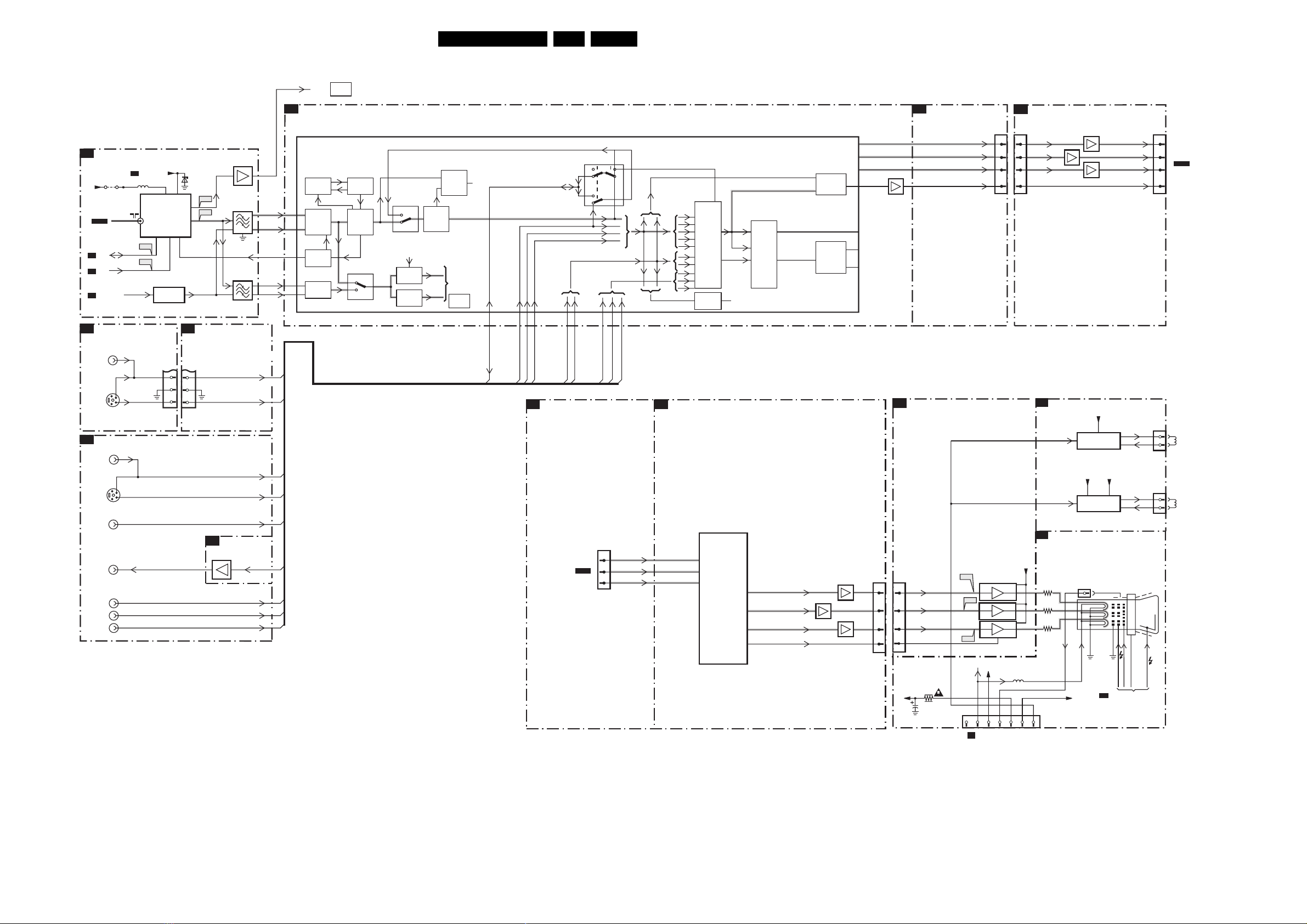

Block Diagram Video

VIDEO

TUNER IF

A3

VT_Supply

A2

9002

+5V

TO TUNER

ATS C

PAN E L

A4

A4

A4

SIDE AV

D

SDA

SCL

SEL-LLPIM

5001

1000 6, 7 9

TV

I002

I001

TUNER

4

5

7001

FILTER

SELECTION

VT

AGC

6001
BZX79-C33

FM

IF

1

A5

F002

10

F004

11

CONNECTION

7003

1002
1003

1001

SSIF

VIF1

VIF2

RF_AGC

SIF1

SIF2

SSIF

A4

105

104

100

7200 (IF)

31

99

TO
AUDIO
PAR T

HERCULES

PHASE

DISC

VIDEO

IF

TUNER IF

AGC

AUDIO IF

QSS/AM

See block
diagram
AUDIO

VCO

VIDEO

DEMOD

24L05.1U AA 6.

FEATURES & CONNECTIVITIES

A5

(CVBS I/O + FILTERS + COLOUR DECODING)

SWITCH

PLL

747178

CVBS1

CVBS/Y

INPUT

SWITCH

VIDEO
IDENT

49

50

70

77

51

COMB

FILTER

CHROMA/CVBS

&TRAP

C

SWITCH

PLL

SOUND

MIXER

AM

SOUND

DET.

SOUND

TRAP

FM/QSS

TO
AUDIO
PAR T

AM

See block
diagram
AUDIO

81

OUTPUT
SWITCH

PAL, NTSC

SECAM

DECODER

44

43

42

7211

65

YintYint

Uint

Vint

CVBS_OUT_SVP

1250

Rout

Gout

Bout

10

4

6

8

RGB BUFFER - ATSC

K2

1250

4

Rout

6

Gout

8

Bout

10

7491

7490

7492

Rout_ADC

Gout_ADC

Bout_ADC

1401

2

4

6

8

TO 1254

ATS C

PAN E L

VIDEO

IN

SVHS

REAR I/O CINCH

A8

AV2

SVHS

AV1

MONITOR

OUT

YUV

INPUT

1277

SC1_CVBS_IN

Y

5

1

3

5

4

2

1251

1224

1

3

5

4

2

1223

V

6

C

7

5

6

7

SIDE_CHROMA_IN

SIDE_Y/CVBS_IN

SC2_Y/CVBS_IN

SC2_CHROMA_IN

SC1_CVBS_IN

1207

1252

SW_SC2_CVBS

SC2_Y/CVBS_IN

SIDE_Y/CVBS_IN

RGB BUFFER - ATSC

K2

SC2_CHROMA_IN

SIDE_CHROMA_IN

A5

7606

V

Y

U

V

SC2_CVBS_OUT

SW_SC2_CVBS

SC1_GREEN_IN

SC1_BLUE_IN

SC1_RED_IN

TO P1255

ATS C

PAN E L

SC1_RED_IN

SC1_BLUE_IN

SC1_GREEN_IN

1340

1

F_Pb

2

F_Pr

3

DEFLECTION CONTROLLER - ATSC

K1

7402
TA1360AFG

SIGNAL AND

F_Y

SYNC PROCESSOR

68

Y1_IN

67

CB1_PB1_IN

66

CR1_PB1_IN

B_OUT

G_OUT

R_OUT

IK_IN

B_OUT

14

G_OUT

13

R_OUT

12

BEAM_INFO

8

7409

7410

7411

1404

RGB AMPLIFIER

B2

1340

3

2

1

5

+200A

B

G

R

CUT_OFF

3351

2313

3

2

1

5

V13

3

V11

3

3

V12

1351

1351

123 45

A2

DEFLECTION

7330/7340/7350

MULTI BOARD

5

+141V

5352

EHT-INFO

to 1401

+200VA

8

8

8

67

ROTATION & SCAVEM

B3

SVM_ROT

SVM_ROT

CRT SOCKET

B1

3332

3334

3336

FILAMENT

FILAMENT

ROTATION

OUTPUT

FILAMENT

SCAVEM
OUTPUT

1335

11

B

6

G

8

R

10 9 5 7 1

+8V_12V

VSVM

AQUADAG

VG2

A2

FROM DEFLECTION

DEFLECTION

FOCUS

CRT

EHT

25kV

1381
1

2

1361
1

2

ROTATION
COIL

SCAVEM
COIL

F_15060_037.eps

210305

Block Diagrams, Testpoint Overviews, and Waveforms

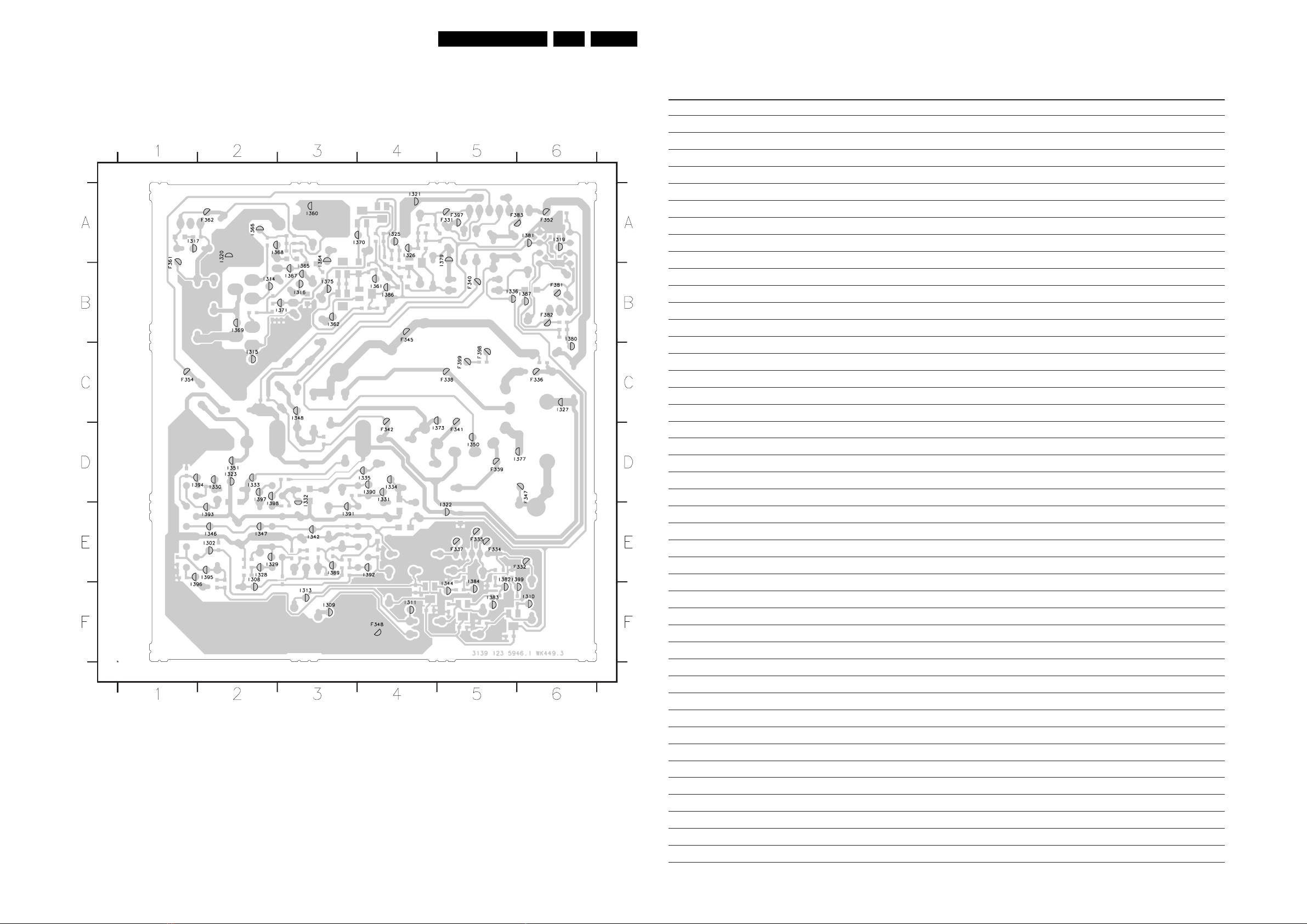

Testpoint Overview CRT Panel (Multi Board)

F331 A5
F332 E6
F334 E5
F335 E5
F336 C6
F337 E5
F338 C5

F339 D5
F340 B5
F341 D5
F342 D4
F345 B4
F347 D6
F348 F4

F352 A6
F354 C1
F361 A1
F362 A2
F381 B6
F382 B6
F383 A5

F397 A5
F398 C5
F399 C5
I302 E2
I308 E2
I309 F3
I310 F6

I311 F4
I313 F3
I314 B2
I315 C2
I316 B3
I317 A1
I319 A6

I320 A2
I321 A4
I322 E5
I323 D2
I325 A4
I326 A4
I327 C6

I328 E2
I329 E2
I330 D2
I331 D4
I332 D3
I333 D2
I334 D4

I335 D4
I336 B5
I342 E3
I344 F5
I346 E2
I347 E2
I348 C3

I350 D5
I351 D2
I360 A3
I361 B4
I362 B3
I364 A3
I365 B3

I366 A2
I367 B3
I368 A2
I369 B2
I370 A4
I371 B3
I373 D5

I375 B3
I377 D6
I379 A5
I380 B6
I381 A6
I382 E5
I383 F5

I384 E5
I386 B4
I387 B6
I389 E3
I390 D4
I391 E3
I392 E4

I393 E2
I394 D1
I395 E2
I396 F1
I397 D2
I398 E2
I399 E6

25L05.1U AA 6.

Personal Notes:

3139 123 5946.1

F_15060_051.eps

180305

E_06532_012.eps

131004

Block Diagrams, Testpoint Overviews, and Waveforms

Block Diagram Audio

AUDIO

TUNER IF

A3

A4

26L05.1U AA 6.

HERCULES

+5V

FROM TUNER

ATSC

PAN E L

SDA

A4

SCL

A4

SEL-LLPIM

A4

REAR I/O CINCH

A8

TO P1208

ATSC

PAN E L

TO 1240

A5

SIDE AV

D

L

R

9002

L

R

L

R

AV1

AV2

1207

1138

3

1

VT_SUPPLY

A2

5001

1000 6,7 9

ERR

10

TV

I002

I001

7001

SC2_R_OUT

SC2_L_OUT

MUTING

1252

3

1

TUNER

AGC

5

4

FILTER

SELECTION

7104

A5

1207

3

1

6001
BZX79-C33

VT

F003

10

FM

F004

11

IF

1

SC1_L_IN

SC1_R_IN

SC2_L_IN

SC2_R_IN

MONITOR

OUT

CONNECTIVITIES

SIDE_L_IN

SIDE_R_IN

7003

SSIF

1002
1003

1001

L

R

VIF1

VIF2

RF_AGC

SIF1

SIF2

A4

A4

A4

A4

A4

A4

96

105

104

100

31

99

7200

PHASE

VIDEO

TUNER IF

AUDI O IF

QSS/AM

DISC

IF

AGC

IF

VCO

PLL

VIDEO

DEMOD

F003 0V (N.A.)

F201 2V / div DC
F203 2V / div DC

To VIDEO PART
see block diagram
VIDEO

PLL

SOUND

MIXER

AM

SOUND

DET.

F004

200mV / div AC

10ms / div

50mV / div AC

2ms / div

SSIF

FM/QSS

AM

SC1_R_IN 94

I001 I002

1V / div DC

20µs / div

I952I951 F952 F955

50mV / div AC

2ms / div

SC1_L_IN 95

SC2_R_IN 72

A4A4A4

1V / div DC

20µs / div

500mV / div AC

2ms / div

SC2_L_IN 73

A4

FM

DEM.

AM

SIDE_L_IN 80

SIDE_R_IN 79

A5A5A5

500mV / div AC

INTF_R_IN 75

2ms / div

AMPLI

+

MUTE

INTF_L_IN 76

A5

AUDI O

SOURCE

SELECTION

A4

A4

AUDI O

DIGITAL PART

ADC DAC

A7

DIGITAL

SOUND

PROCESSING

DIGITAL

STEREO

SOUND

DECODER

ERR

AUDIO AMPLIFIER

MAIN_OUTL

MAIN_OUTR

VOL_MUTE

A4

19

Stby_Con

A4

POWER_DOWN

A4

7991
7992

VOLUME

MUTE

+

I951

I952

AUDI O

SELECT

AUDI O

SELECT

7990
TDA2616Q

1

9

8

7993, 7994

MUTE

2

7991

MUTING

SCART

CINCH

OUTPUT

HP

OUTPUT

LS

OUTPUT

+Vaudio

-Vaudio

92

93

66

67

MAIN_OUTR

68

MAIN_OUTL

69

7

F952

4

F955

6

5

A7

A7

SIDE AV

D

1280

5

2

5

2

12781254

1

2

L 8 Ohm/15W

R 8 Ohm/15W

A5

TO1138

1240

A8

TO P1219

ATSC

PAN E L

1219

INTF_L_IN

3

INTF_R_IN

1

A4

A4

F_15060_038.eps

210305

Block Diagrams, Testpoint Overviews, and Waveforms

Block Diagram Control & I2C Overview

CONTROL

TOP CONTROL

E

1010

LOCAL

KEYBOARD

TOP CONTROL

P

LOCAL

KEYBOARD

FRONT INTERFACE

J

(PARTLY)

6692
TSOP1836

+3.3V

ON/OFF

USA only

6693

or

6691

2

0345

2

IR

LED

KEYBOARD

LIGHT_SENSOR

SIDE AV PANEL

D

1281

2

1693

3

4

5

6

FRONT CONTROL

A9

1693

3

4

5

6

1280

2

(PV2 Styling)

(FL13 Styling)

IR_OUT

LED_OUT

KEY_PROTN

LIGHT_SENSOR

or

or

HERCULES (CONTROL)

A4

1682

2

KEY_PROTN

IR_OUT

LED_OUT

LIGHT-SENSOR

A10

POWER_DOWN

1205

24MHz

27L05.1U AA 6.

FEATURES

A5

+3.3V

8
6
5

36043605

see

IIC

DIAGRAM

7200-G (Control)
TDA12001H1

I/O PORTS

9

32

30

TRANSCEIVER

14

+

IIC BUS

7601

EEPROM

22

3207

20

3214

21

WRITE_PROTECT

+3.3V

32043202

SDA

SCL

(NVM)

7

ERR

9

+

PWM

OUTPUTS

+

31

CPU

+

TELETEXT

18

15

17

VOL_MUTE

Stdby_Con

SVM_ROT

A7

A1
A7

A5

(close caption)

119

118

+

ROM

RAM

ERR

20

16

23

24

25

SEL_LLPIM

I2SD/1

Reset__5V

X_RAY

A3

A5

A5

A5

SERVICE JUMPER

9252

SDM

I2C BUS INTERCONNECTION DIAGRAM

HERCULES

A4

7200

SET

PROCESSOR

PART OF

VIDEO­PROCESSER
(HERCULES)

ERR

19,20

20

21

22

3207

3214

62116210

WRITE_PROTECT

+3.3V

3202

+3.3V

ERR

3204

SDA

SCL

FEATURES & CONNECTIONS

A5

6

36043605

+3.3V

3601

56

7601
PCF8511
EEPROM

7

(NVM)

ERR

9

A3

TUNER IF

30003001

54

1000

TUNER

ERR

10

For

COMPAIR

only

1005

1

2

3

A5

SDA

SCL

1275 1400

1

2

1206

1

3

TO P1206

ATSC PANEL

DEFLECTION CONTROLLER

K1

3486

1

3487

2

TA1317AFG
DEFLECTION
PROCESSOR

16 17

7404

ERR

XX

UOC_SDA

UOC_SCL

28 30

7202

TA1360AFG
SIGNAL AND
SYNC PROC.

ERR

XX

F_15060_039.eps

210305

Block Diagrams, Testpoint Overviews, and Waveforms

Supply Lines Overview

SUPPLY LINES DIAGRAM

POWER SUPPLY

A1

SUPPLY

PRIMARY

SIDE

AUXILIARY POWER SUPPLY

A10

VCC

7510

2

CONTROL

6

SUPPLY

14

11

VDC

5512

9

8

4

5

3

2

3

4

VCC

3519

HOT GROUND COLD GROUND

VDC

1532

6

3536

5

7525

4

9

2

7

1

HOT GROUND COLD GROUND

7541

1503

43

ENERGIZING

1

2

5551

17

18

5562

13

14

5561

10

12

1

7513
TCET1103

2

5504

7

8

9

10

12

3

1

7516
TCET1103

2

4

CIRCUIT
(optional)

6563

6562

6544

6546

6539

3571

B

6545

6552

7571

REFERENCE

7573

5524

3542

+Vaudio

6551

CIRCUIT

STANDBY

CIRCUIT

5527

7542

REFERENCE

CIRCUIT

7575

STANDBY

CIRCUIT

7509

7535

5552

3575

3576

STDBY_CON

5526

3545

3544

Stdby_con

Vbatt

-Vaudio -Vaudio

+Vaudio

+6V

A7

+Vaudio

A4

+6VA

+6V

7545

+3V3A

+3V

+3V3

POWER_DOWN

7561

7543

3560

+12VA

+8VA

+8V

A4

1535

1

A4

1534

+3V3A

+3V3A

+6VA

1

2

3

1533

1

2

5

+8V

10

+5V

11

AUDIO_AMPLIFIER

+6V

A10

A1,A2
A4,A5

A4

A4

K1

A4

A10

A10

TO P1534

ATSC

ATS C

PAN E L

TO P1533

ATSC

ATS C

PAN E L

28L05.1U AA 6.

+3V

+1.8V_A

+1.8V_B

Family Board

or

or

Multi Board

B1

B1

B1

B1

B1

CRT

B1

1351

1

Filament

2

Vbatt

3

EHTinfo

4

+200V

5

+12V_LOT

6

SVM_ROT

7

CRT SOCKET

B1

1351

1

DC_Filament

2

+141V

3

EHT-INFO

4

+200V

5

+8V_+12V

6

SVM_ROT

7

RGB AMPLIFIER

B2

A5

A10

A2

A10

SCAVEM

B2

3351

3351

3305

5303

5308

9309

ROTATION &

B3

+3V

+12V

+12A1

+12A

+200A

SCAVEM

SVM_ROT

B1

B1

B1

FEATURES & CONNECTIVITIES

+6V

4604

13

3608

3606

VT_SUPPLY

RESET +5V

A4

+8VA

3607

9605

SVM_ROT

+12V_LOT

+12V_LOT

+8V_+12V

+12V_SVM

3325

+12V_SVM

+141V

7603
L78L33ACZ

7604

3609

+200VA

+200A

+12A

7605

Vbatt

Vbatt

+141V

+12A1

+3V

+6V

+6VS

+3.3V

+5V

+8VA

Vbuffer

+3.3V

+5V

TUNER IF

A3

A8,A3
A4

Vbuffer

+5V

VT_Supply

REAR I/O CINCH

A8

Vbuffer

FRONT CONTROL

A9

+6V

FRONT INTERFACE

J

1693

1

DEFLECTION CONTROLLER - ATSC

K1

1405

1

DEFLECTION CONTROLLER - ATSC

K2

+9V

9002

6001

3690

6694

7423

5402

3202

5403

3203

A5

A5

A2

A5

B3

A10

B3

B3

B3

B3

B3

A10

A4

A3
A4

Vbuffer

+5V

5001

To TUNER
Pin 6.7

To TUNER
Pin 9

Vbuffer

+6V

+10V

+9V

DAC_9V

RGB_VCC

+9V

F_15060_040.eps

1693

1

180305

LINE + FRAME DEFLECTION

A2

+Vbatt

5450

LINE

3

1

1404
1

2

+

E/W

7200

HOR.
DEFL.
COIL

A10

7990
TDA2616Q

5

OUTPUT

7

A4

AUDIO

+6V

A10

HERCULES

+3V

5402

7404

HD

A5

3401

VT_Supply

+6V

A5

EW_DRIVE

7405

VT_Supply

A3,A5

OUTPUT
CIRCUIT

CORR.

HERCULES

PWM1

Stdby_Con

A1

POWER_DOWN

A10

+5V

A5

+3.3V

A5

Vbuffer

A5

+6V

+8VA

+5V

+3.3V

Vbuffer

+6V

+8VA

15

31

115

16

EHT

FOCUS VG2

10

12

5

6

8

9

DECDIG

6207

3217

5457

6453

6467

6461

6456

3295

2204

CRT

TO

B1

3456

6452

-14V

3458

VideoSupply

3485

3450

3455

7202

Filament

+14V

3210

3211

3206

3209

3208

7210

G

7204

7201-2

7203

7201-1

7209

D

S

D

G

S

Filament

Vbatt

EHTinfo

VideoSupply

+12V_LOT

SVM_ROT

A5

1401

1

2

3

4

5

6

7

Circuit Diagrams and PWB Layouts

29L05.1U AA 7.

7. Circuit Diagrams and PWB Layouts

Mono Carrier: Power Supply

1234567891011

I572

3579

2K2

2571

15n

3

3

2

2574

ATSC

680mm

680/200V

2.2K

82K

4mH 2.8A

Jumper
Jumper

AUDIO_GND1

160V

AUDIO_GND2

I576

3573

1n0

3574

Item

A1 A1

POWER SUPPLY

A

2

1

16V4

7541
BC857B

18

17

16

15

14

13

12

11

10

I571

9V3

14

8V2

2

7513
TCET1103(G)

+Vaudio

I543

3541

16V4

F541

2541

F542

Vaux_GND1

AUDIO_GND1

AUDIO_GND2

47K

47u 25V

I551

I561

6541

BZX384-C12

Audio_Gnd

5551

2551

1n0

5562

I579

5561

3571

B

C

Front Interface Panel

D

E

*

1510

TO 1013 OF

TUNER IF

(For

Lightning

Protection)

F

G

"$"

..V.. Normal Operation
(..V..) Standy Mode

DEGAUSSING COIL

1504

AC Main Plug

Or

From 1505 Of

1505

I522

1n5

3M3

3506

2509

*

*

I508

FOR MAINS 120V AC 170V (177V)

F502

2
1

F501

2
1

3M3

3500

I505

I511

3M3

3501

2511

6511

RGP10D

15K

3519

VCC

220V AC 309V (317V)

2517

50V22u

3512

F503

1n0

1K2

1501

PFC5000

F504

I527

2512

1500

T4E.250V

*

9500

For ITV only

100n

15V5

0V

1502

PFC5000

1
3
2
4
5
6
7

0V

3517

F506

2500

470n

F507

TEA1506T/N1

7511

SIG_IN_POS
GAIN_ADJ1
GAIN_ADJ2
SIG_IN_NEG
BIAS
OUT_POS
NC1

330K

RES

2501

3502

9501

*

RES

5501

*

1

7511

3505

23

V

DMF2405H60

9503

*

RES

CAR_IN_NEG

CAR_IN_POS

AC_IN

I506

9506

2506

I582

RES

2508

I517

3514

I519

2513

470p

MainSupplyGndA

220R

100n

3508

9505
RES

-T

3510

BC847B

3522

47K

2516

100n

33n

*

DMF2405H60
1

23

I502

*

3509

2R0

1

2R0

RES

9511

2

-T
I507

7514

2V3

7512

D

2V3

S

3515

1K0

I518

100p

2519

5564

9513

1507

*

0V

3524

295V

0VG

0R1

3516

5513

1u0

2

3

+t

ZPB

3564

*

I525

3503

DSP-301N

I580

5506

14

23 6500

DMF35

9502

5500

4

14

23

9504

I581

2573

297V

14

VEE

13

NC4

NC3

NC2

12

2V2

11
10

0V

9
8

OUT_NEG

Rs

4R5

1

3523

*

1M5

3504

MainSupplyGnd

Rh

4R5

+T

2502

I520

For EMC

3518

3K3

5563

22u

9563

I513

I583

*

5502

4

2504

I584

For ITV Only

3513

2K2

47K

6514

I516

I521

6575

1N5062

1545
Provision For
Lightning Protection

1546
Provision For

Lightning Protection

9512

45

81

I501

2n2

2503

1

2n2

I514

BAS316

2514

3520

2518

10n

4

*

23

2505

*

I524

3K3

3521

5511

1n5

2515

F510

4R73511

I515

470p

F508

2507

F509

I523

To P14 Of

Panel

"$"

RES

15V6

F500

5V

1503

LKS1AF

3

2

3

4

5

8

9

VDC

4

3

2542

5512

HOT

I542

Vaux_GND1

2570

470P

COLD

1500
1510
2505

2509
3506
3513
3523
3564
3574
5501
5564
6563 SB360
6564
9501
9503
9512
9513

9510

AUDIO_GND2

I552

6551

1

6564

*

STPS10L60D

6563

*

2565

470p

I562

6562

2561

1n0

I573

KA

7571

REF

TL431CZ-AP

21

HOT GROUND

H

COLD GROUND

Cell 11NC : 8239_125_1084 ver6.0 (2004-12-03 - WK449.5)
Function 11NC : 8239_125_1090 ver6.0 (2004-12-03 - WK449.5)

FAMILY BOARD 11 NC : 3139_123_5932
MAIN CHASSIS 11 NC : 3139_123_5933

3139 123 5933.2

123456

7891011

6.3A

x
x

1R5

x

x

x

x
x

2552

100u

2563

AUDIO_GND1

2562

15K

*

HD
4A

480mm

1000/200

1N5

3.3M
1K

x

3R

100K

4mH 2.8A

x
x

PBYR10100

x
x

Jumper

Jumper

F552

F562

3575

I578

3576

4K7

82K

I574

5552

27u

7573
PDTC114ET

8V2

2572

F563

F561

F573

9572

F564

1572

2.5AF

9577

F565

1577

2.5AF

10n

Vbatt

140V

-Vaudio

-16V

+Vaudio

+16V

+6V

Stdby_Con

A4

F_15060_001.eps

180305

A

B

C

D

E

F

G

H

1500 C2
1501 C2
1502 C3
1503 B7
1504 B1
1505 D1
1507 D5
1510 E1
1545 G6
1546 G6
1572 E10
1577 E10
2500 D3
2501 B3
2502 D4
2503 C6
2504 C6
2505 C6
2506 B5
2507 C6
2508 D5
2509 E1
2511 E2
2512 G2
2513 F5
2514 E6
2515 E6
2516 F5
2517 F2
2518 F6
2519 F5
2541 C8
2542 C7
2551 D8
2552 D9
2561 E8
2562 E9
2563 E9
2565 E8
2570 E7
2571 F9
2572 F10
2573 D4
2574 F9
3500 D1
3501 E1
3502 C3
3503 C4
3504 D4
3505 D3
3506 E1
3508 B5
3509 C5
3510 D5
3511 F6
3512 G2
3513 D6
3514 E5
3515 E5
3516 F5
3517 F2
3518 F5
3519 G1
3520 F6
3521 D6
3522 E5
3523 B4
3524 D5
3541 B8
3564 B4
3571 E8
3573 F9
3574 G9
3575 F9
3576 G9
3579 F9
5500 C4
5501 C3
5502 B6
5506 C4
5511 E6
5512 D7
5513 F5
5551 D8
5552 D10
5561 E8
5562 E8
5563 G5
5564 B5
6500 C6
6511 F1
6514 D6
6541 B8
6551 D9
6562 E8
6563 E8
6564 D8
6575 F6
7511 D3
7512 E5
7513 F7
7514 D5
7541 C7
7571 F8
7573 F10
9500 C2
9501 C3
9502 C4
9503 D3
9504 D4
9505 C5
9506 B5
9510 C8
9511 D5
9512 B6
9513 C5
9563 G5
9572 E10
9577 E10
F500 B7

F501 B2
F502 B2
F503 C2
F504 D2
F506 C3
F507 D3
F508 C6
F509 D6
F510 E6
F541 C8
F542 C8
F552 D9
F561 E10
F562 E9
F563 E10
F564 E11
F565 E11
F573 F10
I501 C6
I502 C5
I505 D1
I506 B5
I507 D5
I508 E1
I511 E2
I513 E5
I514 D6
I515 D6
I516 E6
I517 D5
I518 F5
I519 F5
I520 F4
I521 E6
I522 D1
I523 F6
I524 D6
I525 C4
I527 F2
I542 B7
I543 A8
I551 D8
I552 D8
I561 E8
I562 E8
I571 E7
I572 E9
I573 F8
I574 F10
I576 F9
I578 F9
I579 E8
I580 C3
I581 D3
I582 B5
I583 B6
I584 D6

Mono Carrier: Deflection

12

A2

A

LINE + FRAME DEFLECTION

F402

Vbatt

SVM_ROT

A5,B1

+12V_LOT

VideoSupply

EHTinfo

A2

VT_Supply

Filament

A2

F401

F455

B

C

+6V

22R

3421

*

D

HD

A5

E

F

F476

*

3426

100K

G

EW_DRIVE

A5

EHTinfo

A2,A5

I

H

3139 123 5933.2

3401 47K

F475

*

3427

I436

*

2471

GND_EW

6481

BAS316

2423

330p

3402

330R

680K

6482

*

BZX384-C6V8

3436

*

680K
3437

*

22K

100n

Circuit Diagrams and PWB Layouts

3456789

1401

F404

CRT_GND

2488

GND_HOR

GND_HOR

I433

I419

1u

7404
BSH103

I413

3408

22K3428

*

I434

I435

GND_HOR

7
6
5
4
3
2
1

TO 1351 OF

CRT Panel

Or

TO 1351 OF

CRT Socket

I488

2409

33n

G
3V6

2497

220p

100K

6483

BAS316

2473

15n

GND_HOR

3490

150R

D

S

50V

*

*

2472

GND_EW

*

2421

I424

7V

6464

3441

4418

*

3418

*

100R

10n

MainSupplyGnd

2422

I418

BZX384-C27

5V7 E

100R

*

3424

*

*

2433

*

3425

5402

1

3

PSD10-204B

3414

**

4R7

6485

BAS316

B
6V

7410

BC857B

C0V

Vbatt

3499

*

1M0

GND_EW

VV

F418

5

6

I410

3431

I415

2496

GND_EW

CRT_GND

7405
BU2527DX

0V

3416

47R

82K

7406

G

4V6

10n

9484

5456
CD25405-00

*

9

7

From 5450 Of LOT

1402

(30PWXXXX Only)

126V

0V

F419

I411

3415

4R7

I490

14V9

D

S

0V

I499

2R2

3440

***

MainSupplyGnd

MainSupplyGnd

GND_DEFCRT_GND

5

NC

6486

9440

1

BYD33D

3419

*

4R7

3443

RES

6471

RGP10D

3412

150R

2404

GND_HOR

3413

F483

2

4

9411

*

*

4

5409

1

*

VDRA

A5

VDRB

A5

4
5408

1

3451

4R7

I489

3

2

I432

3

*

2

5459

GND_HOR

9489

3489

*

100R
9490

*

3478

*

10R

HORIZONTAL

DEFLECTION

COIL

K

6404

*

2412

DMV1500M

I473

J

*

2411

2413

*

3480

6M8

*

3433

4R7

Vbatt

*

3473

*

2416

I465

A

GND_HOR

I412

GND_EW

I423

*

3488

220K
I417

*

100n

2495

GND_EW

6484

BAS316

3438

10K

3439

10K

Cell 11NC : 8239_125_1084 ver6.0 (2004-12-03 - WK449.5)
Function 11NC : 8239_125_1091 ver6.0 (2004-12-03 - WK449.5)

30L05.1U AA 7.

47u

150R

2431

560n

F416

2n2

1404

2417

2419

*

6487

BAS316

F461

CRT_GND

1401 A2

6481 C2

1402 B4

10 11

A2

**

+12V_LOT

33K

3491

L.LIN

F464

**

*

F466

1

2

F467

F465

2418

*

I428

1

*

3

1K0

*

3481

2407

3471

2R7

3472

2R7

I414

3n3

*

*

3461

2424

470p
6403

RGP10D

+14V

I471

I462

*

220n

2467

2410

100n

2465

I416

2463

220n

CRT_GND

EHT

TO PICTURE TUBE

FOCUS

G2

10

7

12

5

6

11

GND_DEF

8

9

3493

2R2

6457

BYV27-200-TAP

2432

2n2

2462

I458

I455

I461

I475

F457

0V6

1n0

0V6

2n2

3463

CRT_GND

5450

*

9402

5401

1403

1405

1406

CRT_GND

5457

I457

6453

RGP10G

2494

2448

6461

I459

RGP10D

5458

2459

470p
6456

BYV27-200-TAP

7451
TDA8177F

1IN-

7IN+

*

2492

470p
6466

RGP10D

GND_DEF

I456

I466

470p

470p

I492

I493

2

VSUP

POWER

AMPLIFIER

GND

4

I463

-14V

GND_DEF

I469

9442

**

3458

4R7

3450

1R0

CRT_GND

3455

1R0

GND_DEF

6

12V7

VSUPO

-14V7

2464

100n

I460

33K

3492

F462

56K

3453

2451

GND_DEF

3486

1R0

9476

*

*

22K

3442

6442

3456

I453

BZV85-C6V8

1R0

470u

2449

470u

2460

BZX384-C33

13V9

FLYBACK

GENERATOR

THERMAL

PROTECTION

CRT_GND

*

GND_DEF

F481

1u0

2469

CRT_GND

6476

*

BZV85-C6V8

2493
470p

BZV85-C6V8

6452

GND_DEF

2461

47u

CRT_GND

F456

6488

I431

3

50V7

FLYB

2468

100n

2435

6480

I425

3469

2454

*

7408

BZX384-C15

BC857B

E

42V4

22K

0V

CRT_GND

CRT_GND

470u

0V5

I464

C

6489

I440

6490

CRT_GND

5OUT

3466

CRT_GND

3462

B

45V7

*

3459

680K

I470

*

2458

BAS316

CRT_GND

2466

BAS316

F458

F459

1R5

I481

3474

F472

3K9

2474

*

I426

18K

3460

100n

2u2

B

0V

150p

I494

8n2

2477

I427

BYV29X-500

68K

CRT_GND

2436

1u0 250V

7407
PDTC144ET

*

2470

6467

5452

10u

F478

F482

CRT_GND

220n

CRT_GND

2426

470p

C
3V3

E

0V

1451
1
2
3

1K5

3477

GND_EW

15n

2478

I468

F452

F453

+12V_LOT

6492

BZX384-C8V2

3485

*

1R5

-14V

VideoSupply

+14V

I482

4434

VERTICAL
DEFLECTION
COIL

9435

*

3435

*

10R

2499

*

GND_EW

3496

10K

1u0

For ATSC only

*

3467

100R

I430

ATSC

10K
10K

6458

BAS316

Tri+
1K
1K5

4495

Frame_FB

3432

*

6449

**

BZX384-C15

*

*

3468

100R

3432
3432

2425

2u2

2491

2u2

*

3497

**

GND_EW

4401

*

3434

*

1K0

1K0

9432

*

EHTinfo

CRT_GND

CRT_GND

Filament

V_PROTN

10K

6491

6434

CRT_GND

A2,A5

HFB

A5

A2

X_RAY

A4

A4

BZX384-C3V3

A2,A5

Vguard

BZX384-C6V8

FAMILY BOARD 11NC : 3139_123_5932
MAIN CHASSIS 11NC : 3139_123_5933

F_15060_002.eps

A

B

C

D

E

F

G

H

180305

1403 B8
1404 B6
1405 C8
1406 C8
1451 F10
2404 A6
2407 G6
2409 C2
2410 E7
2411 D4
2412 D5
2413 D5
2416 D5
2417 C6
2418 C6
2419 D6
2421 B3
2422 B3
2423 D2
2424 E7
2425 B11
2426 C10
2431 B6
2432 F7
2433 B3
2435 B9
2436 D10
2448 D8
2449 D8
2451 B9
2454 D9
2458 D9
2459 E8
2460 E8
2461 D9
2462 G7
2463 G7
2464 G8
2465 G7
2466 E9
2467 G7
2468 G9
2469 B9
2470 F10
2471 G1
2472 G3
2473 G2
2474 B10
2477 B10
2478 B10
2488 D2
2491 C11
2492 B8
2493 C9
2494 D8
2495 F5
2496 F4
2497 E2
2499 E10
3401 B2
3402 E2
3408 E2
3412 B5
3413 B6
3414 E3
3415 E4
3416 D4
3418 F3
3419 E4
3421 C1
3424 A3
3425 B3
3426 G1
3427 G1
3428 G2
3431 F3
3432 G11
3433 E5
3434 G11
3435 E11
3436 G2
3437 G2
3438 G5
3439 G5
3440 G4
3441 E3
3442 C8
3443 E4
3450 D8
3451 E6
3453 B8
3455 E8
3456 C8
3458 D8
3459 C9
3460 C10
3461 G6
3462 B9
3463 G7
3466 G9
3467 G10
3468 G10
3469 C9
3471 G6
3472 G6
3473 F5
3474 B10
3477 B10
3478 F6
3480 E5
3481 D6
3485 C10
3486 B8
3488 F4
3489 F6
3490 C3
3491 A8
3492 A8
3493 E7
3496 E11
3497 E11
3499 F3
4401 G11
4418 F3
4434 F10
4495 G11
5401 B6
5402 C3
5408 D6
5409 C5
5450 B7
5452 D10
5456 A4
5457 C8
5458 D8
5459 E6
6403 E7
6404 C5
6434 G11
6442 C9
6449 G10
6452 C9
6453 D8
6456 E8
6457 E7
6458 G10
6461 D8
6464 E3
6466 B8
6467 C10
6471 F4
6476 C9
6480 B9

6482 G2
6483 G2
6484 G5
6485 E3
6486 D4
6487 D6
6488 E9
6489 D9
6490 E9
6491 E11
6492 B10
7404 E2
7405 C4
7406 F4
7407 E10
7408 B9
7410 E3
7451 F8
9402 B6
9411 B5
9432 G11
9435 E11
9440 G4
9442 C8
9476 C9
9484 H4
9489 F6
9490 F6
F401 B1
F402 A1
F404 B2
F416 B6
F418 C4
F419 D4
F452 C10
F453 D10
F455 B1
F456 E9
F457 E7
F458 F9
F459 F9
F461 G6
F462 A9
F464 B6
F465 C6
F466 B6
F467 C6
F472 B10
F475 E1
F476 F1
F478 D10
F481 B9
F482 E10
F483 A5
I410 E4
I411 E4
I412 E5
I413 E2
I414 E6
I415 F4
I416 E7
I417 F5
I418 C3
I419 D2
I423 F5
I424 B3
I425 C9
I426 C10
I427 C10
I428 D6
I430 G10
I431 E9
I432 D6
I433 G2
I434 G2
I435 G2
I436 G1
I440 E9
I453 C9
I455 C7
I456 C8
I457 D8
I458 C8
I459 D8
I460 E8
I461 D7
I462 F7
I463 G8
I464 G9
I465 E5
I466 D8
I468 C10
I469 B8
I470 C9
I471 F7
I473 D5
I475 E8
I481 G10
I482 E10
I488 C2
I489 B6
I490 F4
I492 D8
I493 E8
I494 B10
I499 G4

1234567891011

Mono Carrier: Tuner IF

12

A3

TUNER IF

A

B

C

D

ITEM NO

SIZE

27VRF

1000

V+U PLL F MN

2001

50V 22P

E

2002
2003
2008
3000
3001
3002
3010
4000
4001
4003
4004
4005
4006
4010
4011
4012

F

5001
5002

---

---

25V 100U

---

---

---

390R

JMP
JMP
JMP

---

---

JMP

---

---

---

100MHZ 120R

G

H

3139 123 5933.2

HD

30WSRF

V+U PLL F MN

50V 22P

25V 100U

390R

JMP
JMP
JMP

JMP

100MHZ 120R

Circuit Diagrams and PWB Layouts

27VRF 30WSRF

UV1336BE/A T SN-4 UV1336BE/A T SN-4

50V 22P 50V 22P

---

---

---

---

---

---

---

---

---

---

---

---

25V 100U 25V 100U

---

---

---

JMP
JMP
JMP

---

---

JMP JMP

---

---

---

100MHZ 120R

TO 0282

OF

POWER SUPPLY

A4

A4

A4

L05 ATSC

100MHZ 120R

U56 coilU56 coilU39 coilU39 coil

31L05.1U AA 7.

3456789

F001

+5V

Vbuffer

1000

FOR ITV ONLY

1010

FOR EMC ONLY

1011

For Compair only

SEL_LLP|M

---

---

---

---

--­390R390R
JMP
JMP
JMP

---

---

---

---

---

1005

SCL

SDA

*

RF

IN

F005

F007

F008

*
*

*
*

F009

I014

I015

1
2
3

F011

CGND

I017

15

CGND

4000

3000

RES

4001

3001

RES

3006

I001

I002

AGC

2

1

*

CGND

I005

TUNER

SCL5SDA7VS9VST

VT

AS|CE
4

3

4.3V

RES

2001

CGND

7001
PDTC124ET

0V

4.3V

2002

9002

5001

*

4005

*

RES

2014

I

GND

38M9

1003

1

IN
ISWI

2

IGND

3
8

GND

1001

*

I

GND

2009

CGND

I007

O1
O2IGND

O1
O2IGND

6006

CGND

3016

3019

CGND

5
4

2017

GND_28

O1
O2

NC

5
4

BZX79-B8V2

1V1

4
5

6
7

CGND1002

5004

F002

2003

F004

6004

I016

100n

3003

3004

CGND

I011

1K5

RES

3008

3007

IFGND

I008

3005

100R

*
*

*

GND_28

*

4010

RES

3010

4004

4011

I009

IFGND

4002

*

I010

4012

*

IFGND

I003

1
2

3

GND_28

*

10

GND_28

1
2

3

GND_28

2007

470u

2006

VT_Supply

2005

47n

2004

4003

*

*

CGND

5002

CGND

*

10u 50V

6001

CGND

BZX79-C33

*

2008

6002

BAS316

6003

3002

4006

*

CGND

*

*

CGND

I006

CGND

2011

100n
2012

100n

9010

CGND

CGND

CGND

1314
12

IF

NC1

NC2

ADC

11

8

6

10

4.9V

34V5

F003

*

+5V

3009

5V

0V

IFGND

FAMILY BOARD 11 NC : 3139_123_5932
MAIN CHASSIS 11 NC : 3139_123_5933

Cell 11NC : 8239_125_1092 ver6.0 (2004-12-03 - WK449.5)
Function 11NC : 8239_125_1085 ver6.0 (2004-12-03 - WK449.5)

5V

F006

3014

3018

5003

I004

0V3

CGND

for EMC

10 11

RES

1012

2016

7003

4013

1u8

F010

I012

2013

CGND

TO 1510 OF

1013

POWER SUPPLY

(For Lightning Protection)

GND_28

RF_AGC

SSIF

VIF2

VIF1

SIF1

SIF2

1000 A4
1001 E9

A

B

C

D

E

F

G

H

1002 D9
1003 E9
1005 C3
1010 B3
1011 B3
1012 C10
1013 E10
2001 C4
2002 C5
2003 C6
2004 B6
2005 B6
2006 B7
2007 B7
2008 C7
2009 C9
2011 F7
2012 F7
2013 D10
2014 C9
2016 C10
2017 D9
3000 B4
3001 C4
3002 B7
3003 B7
3004 C7
3005 B8
3006 D4
3007 D8
3008 D8
3009 C5
3010 C8
3014 C9
3016 C9
3018 D9
3019 D9
4000 B4
4001 C4
4002 E8
4003 C6
4004 E8
4005 B9
4006 C7
4010 C8
4011 F8
4012 F8
4013 E10
5001 A9
5002 C6
5003 F9
5004 D9
6001 B6
6002 B7
6003 B7
6004 D6
6006 A9
7001 D5
7003 C10
9002 A9
9010 F7
F001 A6
F002 B6
F003 B6
F004 B6
F005 A4
F006 B10
F007 B4
F008 C4
F009 D4
F010 C10
F011 C3
I001 B4
I002 C4
I003 C9
I004 C10
I005 D5
I006 D6
I007 C9
I008 D8
I009 D8
I010 F8
I011 B8
I012 C10
I014 B3
I015 C3
I016 A6
I017 D3

A3

A4

A4

A4

A4

A4

A4

F_15060_003.eps

180305

12345

67891011

Circuit Diagrams and PWB Layouts

32L05.1U AA 7.

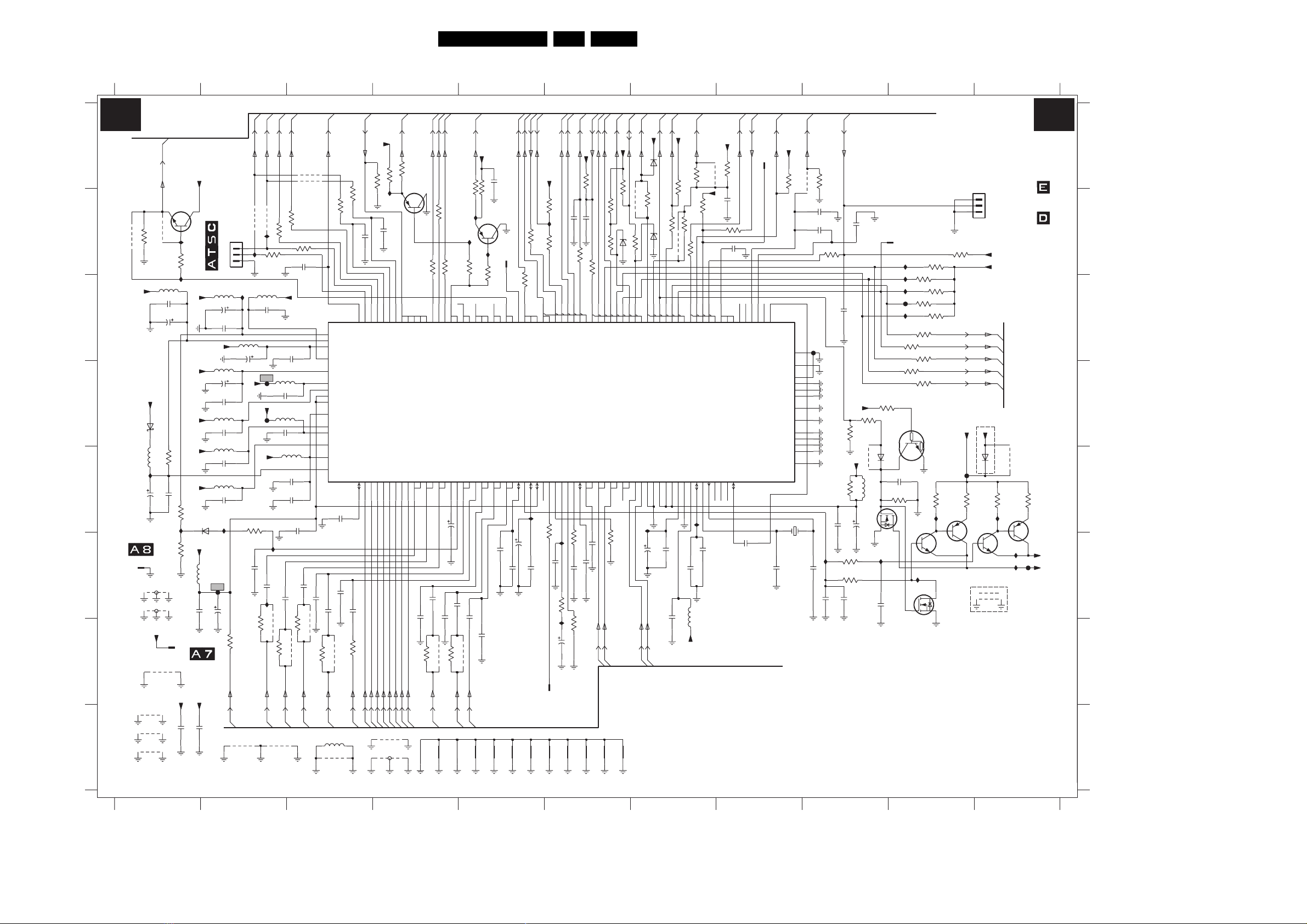

Mono Carrier: Hercules

1234567891011

HERCULES

A4 A4

G

A

B

C

D

E

F

H

To 1729 Of

Rear I/O Scart

1684

Cell 11NC : 8239_125_1085 ver6.0 (2004-12-03 - WK449.5)
Function 11NC : 8239_125_1093 ver6.0 (2004-12-03 - WK449.5)

A5

SANDCASTLE

0V6 C

4298

1K0

4295

3273

GND68

CGND

(+8V)

Vbuffer

6204

SS14

5211

I217

10V100u

2273

CGND

9292

9293

POWER_DOWN

requested by Leong

4209

IFGND

requested by Gozali

4212

4297

4296

E

5212

2276

100n
2265

3254

2272

I218

10V100u

GND3

7207
BC847B

B

0V7

3272

120R

100n

3220

I226

3221

1683

2207

Vaux_GND

+5V

I219

To P1208 Of

820R

+5V

GND3

+5V

GND68

GND68

+1.8V_B

GND125

+3.3V

+3.3V

GND89

180R

6203

BAS316

+1.8V_B

390R

5201

2206

GND121

TO 1282 OF

Audio Amplifier

(Power Down)

+6V+3V

2208

220n

100u

+5V

GND1

100u 25V

F203

2203

220n

220n

5208

2234

2233

5210

2250

2249

100n
5203

2210

220n
5215

2212

220n

5216

2211

220n

I220

1208

1

Panel

2
3

I210

25V

100n

5209

2224

10V100u

3229

16V

100u

100R

3288

C

A5

requested by Rama Rao

9205

Vaux_GND GND_1

A8

SC2_L_OUT

9216

3258
I238

CGND

+1.8V_A

F207

GND92

1K0

2264

GND3

I280

3276

A8

A7

SC2_R_OUT

MAIN_OUTL

9288

3257

I237

5202

2209

GND121

220n

GND1

F201

220n

+3.3V

+1.8V_A

GND95

GND92

I221

560p

100n

2231

9266

100R

3277

SC1_BLUE_IN

SC1_GREEN_IN

A8

9202

A7

MAIN_OUTR

3248

100R

3249

100R

+3.3V+5V

2238

220n

5207

2205

5205

2215

220n

5206

2216

220n
2225

220n

2232

9265

100R

A8

*
*

100R

2253

10n

3V3

3V3

3V3

2V0

7V0

2213

220n

2237

100n

3278

100R

SC1_RED_IN

A8

9601
9602

3V3
5V1
5V1
5V1

5V0

2V0

2V0
2V0

9261

A3

RF_AGC

3255

*

100R

47

VP3

82

VP2

114

VP1

19

VDDP_3.3

60

VDDCOMB

126

VDDC4

5

VDDC3

29

2V0

VDDC2

12

VDDC1

2V0

33

VDDADC_1.8

125

VDDA3_3.3

35

VDDA2_3.3

41

VDDA1

36

VDDA_1.8

84

VCC8V

2267

2u2

CGND

100n

2284

RES

2286

10n

2262

CGND

CGND

9257

3270

100R

SC2_CHROMA_IN

A8

requested by Hock Aun

5218

4210

GND95

A3

+8VA

SSIF

3222

*

3256

100R

100R

2271

100n2270

CGND

3V3

3V8

4V5

3V6

98

676669

AGCOUT

AUDOUTLSL

AUDOUTHPL

AUDOUTHPR

Φ

VIDEO

AGC2SIF

AUDIOIN2L

AUDIOIN2R

AUDIOIN3L

83

76757372807995

1V9

2V2

2V2

2V2

RES

10n

2255

3242

100R

INTF_L_IN

INTF_R_IN

SC2_L_IN

SIDE_CHROMA_IN

A5

A5

A8

A5

for EMC

75R3290

7211
BC857B

B

1V4

SSIF

SWO

C

REFO

A5

Bout

3226

42

REFIN

A5

Gout

100R 3227

43

BO

GO

A5

Rout

100R

3228

44

100R

65

RO

0V0

PIP

CVBSO

A5

+8VA

270R3289

470R3235

CVBS_TXT_CC

I211

E

2V

I208

100R

3267

4V4

3V8

85

86

DVBO

DVBO

FMRO

2201

7212
BC857B

1V4

B

I214

3230

IFVO

FMRO

108

C

100R

EWD

AVL

100n

1685

0V8

63

FBISO

A5

CVBS_OUT_SVP

470R

3236

680R

2V

I207

100n

CGND

3V6

3V3

3V6

0V0

689392

96

AUDOUTSL

AUDOUTSR

AUDOUTLSR

E

AVL

SIGNAL

PROCESSOR

C2C4CVBS2

CVBS3

74

1V4

100n

2285

CGND

GND12

CVBS4

Y2Y3Y4

71

78

1V5

1V4

2u2

2244

2241

GND1

RES

c210

c203

GND_28

2V3

AUDIOIN3R

AUDIOIN4L

2V2

2V2

2V2

SIDE_L_IN

SIDE_R_IN

SC2_R_IN

A5

A5

A8

9241

9203

G

AUDIOIN4R

AUDIOIN5L

AUDIOIN5RBBCLIN

PBIN3

50

49

94

2V2

1V3

2V2

1V3

2283

CGND

3275

SC1_R_IN

SC1_L_IN

A8

A8

CGND

CGND GND89

YIN3

PRIN3

51

46

1V3

3V4

2291

GND3

2261

100n

RES

2287

CGND

3274

9215

100R

SC1_CVBS_IN

A8

c201

GND1

CGND

BLKIN

C3

45

70

77

1V6

3V2

1V6

10u 16V

2256

100n

RES

2260

9262

100R

SC2_Y|CVBS_IN

SIDE_Y|CVBS_IN

A8

A4

c202

c205

GND3

A5

A5

A5

A5

I2SD|1

Reset_+5V

SW_SC2_CVBS

X_RAY

100R

3260

3253

100R

1V4

62

81

CSY

SVO

IFVO

HOUT

*

DECBG

DECDIG

DECSDEM

11

91

115

109

2V0

2V3

2V8

I215

2275

10u 50V

22n

2274

CGND

c204

GND68

+3.3V

3261

3269

0V0

23

CVBSI

I2SDI1

7200
TDA12001H1

DECV1V8

EHTO

97

1V7

100n

for ITV

A5

I2SCLK

4K7

F271

100R

0V0

0V0

2425262732

O

I2SDO1

INSSW3

IREF

52

102

112

2V0

2V3

0V0

100R

3231

6n8

2235

GND1

12K3232

I206

2240

1266

c206

GND92

A5

I2SWS

0V0

I2SCLK

I2SDO2

PH1LF

PH2LF

113

4V0

I213

3223

1u5

GND1

c211

A9

IR

4K7

3215

100p

2279

2280

3216

0V0

5V5

INT0

I2SWS

PLLIFRSECPLL

88

11087100

1V5

2V3

2V0

390R

3247

100n

2239 220n

2263

CGND

RES

GND1

c207

GND95

A5

A10

A9

+3.3V

LED

POWER_DOWN

1u0

10R

100R

3218

3V3

3V9

0V0

3222121

30

31

T0

INT2

INT1

P0<0:5>

DVBAGC

DVBIN1

SIFAGC

SIFIN1

0V3

0V3

2u2

2266

CGND

GND1

SIF1

SIF2

A3

A3

c208

GND121

A3,A5

+3.3V

SCL

3K3

3K3

WRITE_PROTECT

3202

3204

10R

6211

3214

3V3

3V3

3V3

T1

TX

RX

DVBIN2

SIFIN2

VGUARD

116

99

0V5

39K

3241

GND1

c209

GND125

3139 123 5933.2

12345678

A3

A7

A3,A5

6209BAS316

POWER_DOWN

SDA

VOL_MUTE

100R3219

4219

BZX384-C5V6

10R

6210

GND121

BZX384-C5V6

GND121

3207

2V2

3V2

3V4

2V1

0V0

2018171615

SCL

SDA

PWM1

PWM0

TPWM

P1<0:7>

VIFIN1

VIFIN2

VREF_NEG_HPL+HPR

VREF_NEG_LSL+HPL

VREF_POS_HPR

SWIO

120

105

104

121

123

3V3

0V0

0V0

0V0

2V0

I212

2218

2223

47u 25V

GND92

VIF2

VIF1

GND89

A3

A3

FAMILY BOARD 11 NC : 3139_123_5932
MAIN CHASSIS 11 NC : 3139_123_5933

A5

+3.3V

A1,A3,A7,A10

SVM_ROT

3291

Stdby_Con

SEL_LLP|M

4K73284

*

10K

3298 100R

100R

3252

9260

*

3212

0V5

0V0

0V0

0V0

13

7

6

14

ADC0

PWM4

PWM3

PWM2

P2<0:5>

VREF_POS_LSL

VREF_POS_LSR+HPR

VREFAD

VREFAD_NEG

VREFAD_POS

384039

124

122

103

3V3

4V0

3V3

0V0

3V3

1V6

I203

GND89

100n

2251

*

2229

220n

5213

+3.3V

+3.3V

3292

0V0

10

ADC1

VSC

119

1V6

2278

150n

10K

4K7

3V3

9

ADC3

ADC2

XTALIN

XTALOUT

118

1V6

1u0

GND1

9291

3293

P3<0:3>

UIN

1V5

3237

2292

2257

2V5

90

QSSO

VIN

59

1V5

+3.3V

CGND

AMOUT

YIN

575556

2V0

1V5

A5,A9

4K7

10u

3n3

AUDEEM

YSYNC

A8

for ITV only

LIGHT_SENSOR

AUX_ON|ITV_MSG

10R

0V3

5V0

53

645854

106

107

SVM

VDRB

VDRA

UOUT

2242

100n

1230

VOUT

A2

V_PROTN

1V7

YOUT

VSSP2

VSSCOMB

VSSC4
VSSC3
VSSC2

VSSC1|P

VSSADC

VSSA1

GNDA

GND3
GND2
GND1

GNDIF

39p

2268

GND12

+3.3V

3299

128

1205

HC-49/U
24M576

1K0

0V0
61

0V0
127
4
28
8

34

117

37
48
89
111

101

A5

CVBS_OUT_SVP

10K

3238

4299

*

*

2293

*

1n0

2294

*

5n6

3287

100R

F202

GND68

0V0

0V0

GND125

0V0
0V0

GND121

0V0

GND95

0V0

GND12

0V0

GND92

0V0

GND3

0V0

CGND

0V0

GND1

0V0

GND_28

39p

I239

2269

2226

GND12

A9

KEY_protn

KEY_protn

GND1

1n0

2295

*

1n0

2282

GND121

+5V

3205

15K

1K0

3285

GND_1

+3.3V

3246

100R

**

2217

2214

100n

470u 16V

3206

5K6

3296

5K6

4u7

220n

2290

GND12

GND1

4207

5214

0V

G

S

GND_1

6207

7209
BSH103

I204

2227

3217

BAS316

3203 150K

10V4u7

1234

I228

2204

22n

D
2V

I236

I222

F270

I235

*

5V

-1V

for ITV only

3280

*

4K7

3283

4K7

3262

*

100R

3263

100R

3264

100R

3265

100R

3266

100R

GND_1

GND_1

7201-1
IMX1

B

2V6

I282

G

I201

3201

1K0

3281

4K7

3282

*

4K7

3279

*

4K7

*

7202

27K

3208

7203
BC327-25

B

C

2V

2V

E

2V6

D

7210
BSH103

S

GND_1GND_1

To 1010 or 1682 of

1682

1

TOP CONTROL PANEL

2
3

To 1280 of

SIDE AV PANEL+HP PANEL(FL13)

+3.3V

+3.3V

A5

A

A5,A10

B

A5

C

A5

D

A5

E

+3V

+3.3V

6201

BAS316

F200

1R0

3211

3209

2V9

E

I283
7201-2
IMX1

C

B

C
2V

2V6

E

SERVICE JUMPER

SDM
9252

OR

For ITV only

4201

*

27K

7204
BC327-25

B

2V

I224

2V

I225

91011

1R0

3210

2V8

E

2V

C

+1.8V_A

F209

+1.8V_B

F_15060_004.eps

180305

A

B

C

D

E

F

G

H

1205 E8
1208 B2
1230 A8
1234 B10
1266 G6
1682 B11
1683 G1
1684 F1
1685 B5
2201 A5
2203 F2
2204 E10
2205 D2
2206 F1
2207 H1
2208 H1
2209 C2
2210 D2
2211 E2
2212 E2
2213 E3
2214 E9
2215 D3
2216 E3
2217 E9
2218 F7
2223 F7
2224 C2
2225 E3
2226 F9
2227 F9
2229 F7
2231 F2
2232 F2
2233 C2
2234 C2
2235 F6
2237 F3
2238 C3
2239 F6
2240 G6
2241 F5
2242 F8
2244 F5
2249 D2
2250 D2
2251 F7
2253 B3
2255 F3
2256 F4
2257 B8
2260 F5
2261 F4
2262 F3
2263 F6
2264 F2
2265 C1
2266 F6
2267 E3
2268 F8
2269 F9
2270 B3
2271 B4
2272 E1
2273 E1
2274 F5
2275 F5
2276 C1
2278 F7
2279 B6
2280 B6
2282 C9
2283 F4
2284 F3
2285 G5
2286 F3
2287 F4
2290 F9
2291 E4
2292 B8
2293 B9
2294 B9
2295 B9
3201 B10
3202 B6
3203 E10
3204 B6
3205 D9
3206 F9
3207 B7
3208 E10
3209 E10
3210 E11
3211 E11
3212 B7
3214 B6
3215 B6

3216 B6
3217 D9
3218 B6
3219 B7
3220 E1
3221 F1
3222 A4
3223 G6
3226 B4
3227 B4
3228 C4
3229 E2
3230 B5
3231 F6
3232 F6
3235 B5
3236 A4
3237 A8
3238 A9
3241 F6
3242 G3
3246 E9
3247 F6
3248 B3
3249 B3
3252 B7
3253 C5
3254 E1
3255 B3
3256 B3
3257 B2
3258 B2
3260 B5
3261 B6
3262 C10
3263 C10
3264 C10
3265 D10
3266 D10
3267 C5
3269 B6
3270 G3
3272 B1
3273 B1
3274 G4
3275 G4
3276 G2
3277 G2
3278 G3
3279 C10
3280 C10
3281 B10
3282 C10
3283 C10
3284 B7
3285 D9
3287 B9
3288 G2
3289 B5
3290 A4
3291 A7
3292 B7
3293 B8
3296 F9
3298 B7
3299 A8
4201 E11
4207 E9
4209 G1
4210 H3
4212 H1
4219 B7
4295 B1
4296 H1
4297 H1
4298 B1
4299 A9
5201 F1
5202 C2
5203 D2
5205 D2
5206 E3
5207 D2
5208 C2
5209 C2
5210 D2
5211 E1
5212 C1
5213 F7
5214 E9
5215 E2
5216 E2
5218 H3
6201 E11
6203 E2
6204 D1
6207 E9

6209 A7
6210 B7
6211 B6
7200 D6
7201-1 E10
7201-2 E10
7202 D10
7203 E10
7204 E11
7207 B1
7209 F9
7210 F10
7211 A4
7212 B5
9202 H2
9203 H4
9205 H2
9215 G4
9216 B2
9241 H4
9257 G3
9260 B7
9261 G3
9262 G5
9265 G3
9266 G2
9288 B2
9291 A7
9292 F1
9293 F1
9601 A3
9602 A3
F200 E10
F201 D2
F202 C9
F203 F2
F207 D2
F209 F11
F270 C10
F271 B6
I201 E10
I203 E7
I204 F9
I206 G6
I207 B4
I208 B5
I210 C2
I211 B5
I212 E7
I213 F6
I214 B5
I215 E5
I217 E1
I218 C1
I219 B1
I220 E2
I221 F2
I222 C10
I224 F11
I225 F11
I226 E1
I228 B10
I235 C10
I236 B10
I237 B2
I238 B2
I239 F9
I280 F2
I282 F10
I283 E11
c201 H4
c202 H4
c203 H5
c204 H5
c205 H5
c206 H6
c207 H6
c208 H6
c209 H6
c210 H5
c211 H6

Circuit Diagrams and PWB Layouts

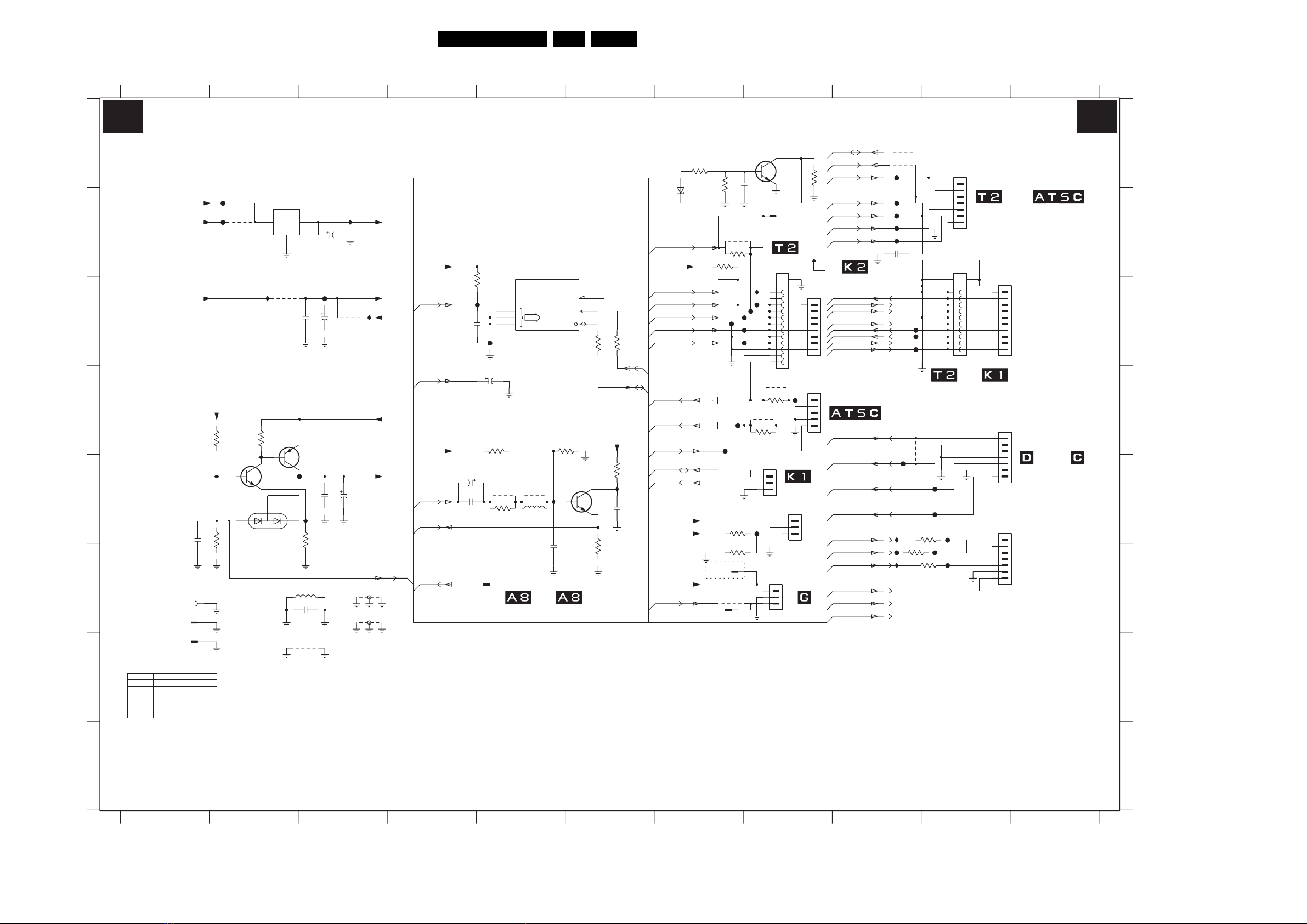

Mono Carrier: Features & Connectivities

123456789

FEATURES & CONNECTIVITIES

A5

A

B

C

D

E

F

G

REGION

SIZE
3614
3648
4609
4614
4616

H

3139 123 5933.2

F210

+6VS

F211

VT_Supply

3606

I241

2u2

3607

GND_1

CGND

150K

27K

4604

5V

B

27VRF-HD

470R

2K2

---

---

---

1270

RES

1271

RES

1272

RES

NAFTA

30WSRF-HD

+6V

+8VA

2625

GND_1

470R

2K2

---

---

---

1234567891011

6602
BAV99

A

I227

E

3608

C

1
IN

I240

27K

BC327-25

B

5V4

7604
BC847B

0V5

AK

7603

L78L33ACZ

OUTIN

COM

GND

2

GND_1

4612

7605

K

GND_1

C

GND_1

OUT

2620

E
6V

5V

F213

3609

5601

2630

1n0

4617

33L05.1U AA 7.

10 11

1206 A10
1207 D10
1213 E10

A

B

C

D

E

F

G

H

1219 D8
1220 E8
1221 F8
1240 F5
1241 F7
1243 F7
1250 B8
1251 B10
1252 B8
1254 C8
1255 C10
1257 E8
1270 F1
1271 F1
1272 G1
1273 C7
2601 C4
2611 B3
2613 B9
2615 E4
2617 E6
2620 C3
2621 C3
2622 F5
2623 E3
2624 E3
2625 E1
2630 F3
2631 E4
2632 A7
2633 D7
2634 D7
2999 D5
3601 C4
3604 C6
3605 C6
3606 D2
3607 E2
3608 D2
3609 E3
3614 E5
3622 E7
3623 F7
3625 F9
3626 E10
3628 F10
3634 F6
3635 D5
3637 E6
3647 D6
3648 B7
3649 A7
3650 A7
3651 B7
3652 D8
3653 D8
3654 A8
4253 D8
4604 B2
4609 D9
4612 C2
4614 E5
4616 B7
4617 G3
4653 D8
5601 F3
5602 E5
6602 E2
6603 B7
7601 B5
7603 B2
7604 E2
7605 D2
7606 E5
7608 A7
9235 E5
9280 F7
9605 C3
9606 A9
9607 A9
9608 F3
9609 F3
F210 B2
F211 B2
F212 C3
F213 E3
F214 C5
F215 C5
F216 C9
F217 C9
F218 C9
F219 D8
F220 D7

A5

7608

C

PMBT2369

1273

For ITV
Only

3650

3651

2K2

F252

2633

2u2

2634

2u2

F220

1243

1241

for ITV only

*
*

9280

4616

F226

100K
3623

100K

*

1K0

3648

3K3

F221

3622

F254

2632

B

6n8

I242

F243

F225

F224

F227

E

To 1250 of

Source Select +
Microcontroller

15 16
13
12
11
10

9
8

7
6
5
4
3
2
1

4253

3652

RES

4653

3653

RES

1257
1
2
3

GND_1

1221
1
2
3

3654

For ITV Only

1252

OR

1250

14

1254
8
7
6
5
4
3
2
1

RES

1219

F219

1
2
3
4
5

To 1400 Of

Deflection Controller

- ATSC

1220

1
2
3

RES

To 1462 of

Linearity &

Panorama Panel

33K

SIDE_CHROMA_IN

3649

470R

6603

BZX384-C2V7

100n

I234

470R

47u 16V

F212

2621

GND_1

2623

GND_1

CGND

CGND

2611

10V100u

100n

GND_1

GND_1

2624

I230

9605

10V

100u

I232

9608

9609

+3.3V

+8VB

Vbuffer

+6V

+5V

Reset_+5V

CGND

A4

+3.3V

WRITE_PROTECT

A4

MUTE_A

A7

Vbuffer

SW_SC2_CVBS

A4

SC2_CVBS_OUT

A5,A8

MUTING

A7

4K7

3601

F214

1
2
3

1n0

2601

F215

Belongs to Audio Amp

2999

16V 100u

3635

47K

2631

50V22u

4614

2615

*

3614

*

4u7

100R

1240

(FOR CINCH)

7601

8

PCF85116

Φ

(2Kx8)

EEPROM

0

ADR

1
2 SDA

4

9235
RES

5602

4u7

CGND

TO 1138

OF

/

3V3

WC

SCL

3647

33K

I233

B

3V6

7606
BC847B

33p

2622

TO 1763 & 1764

OF

(FOR SCART)

CGND

3V3

3V

3V

SANDCASTLE

A4

+5V

For ITV Only

CVBS_TXT_CC

SCL

100R

47R

100n

A4

A4

A4

CVBS_OUT_SVP

A4

A4

A4

A4

INTF_R_IN

A4

INTF_L_IN

A4

A5

SC2_CVBS_OUT

A4

A4

I2SD|1

A4

Bout

Gout

Rout

SDA

SCL

+6VS

+8VA

GND_1

+8VA

7

6

5

3605

3604

100R

SDA

Vbuffer

3637

C

7V

I244

3V3

2617

E

CGND

1K0

3634

CGND

3

SDA

A4

SCL

A4

A4

A4

A4

A4

A4

To 1250 Of

Deflection Controller

- ATSC

HD

A2

HFB

A2

SVM_ROT

A2

EW_DRIVE

VDRB

A2

VDRA

A2
A2

EHTinfo

Vguard

A2
A2

To P1219 Of

Panel

SIDE_R_IN

A4

SIDE_L_IN

A4

SIDE_Y|CVBS_IN

A4

A4

I2SWS

A4

I2SCLK

A4

I2SD|1

A4

LIGHT_SENSOR

A4

A4

Stdby_Con

A4

FAMILY BOARD 11 NC : 3139_123_5932
MAIN CHASSIS 11 NC : 3139_123_5933

9607

9606

F230

E

F239

D

F233

C

F238

B

F237

A

2613

100n

F216
F217

F218

4609

F247

*

I229

3625

F251

10R

I231

C

To 1251 of

Source Select +

Microcontroller

CGND

F248

F249

F228

3626

10R

F229

F232

3628

10R

1206
1
2
3
4
5
6
7

1251
13 14
11
10

9
8
7
6
5
4
3
2
1

CGND

To 1206 of

Source Select +

Microcontroller

12

10
9
8
7
6
5
4
3
2
1

To 1251 of

/

Deflection Controller

- ATSC

1207
1
2
3
4
5
6
7

1213
1
2
3
4
5
6
7

1255

RES

/

To 1252 of

AV Panel

I2S

RES

To P1206 Of

Panel

/

Side AV PaneL +

To 1252 of

HP Panel

F_15060_005.eps

180305

F221 D7
F224 C8
F225 C8
F226 C7
F227 E8
F228 E10
F229 F10
F230 A9
F232 F10
F233 B9
F237 B9
F238 B9
F239 B9
F243 C8
F247 E9
F248 E10
F249 E10
F251 F9
F252 C7
F254 C7
I227 E2
I229 E9
I230 B3
I231 F9
I232 C3
I233 E5
I234 E3
I240 C2
I241 E1
I242 C8
I244 E6

Circuit Diagrams and PWB Layouts

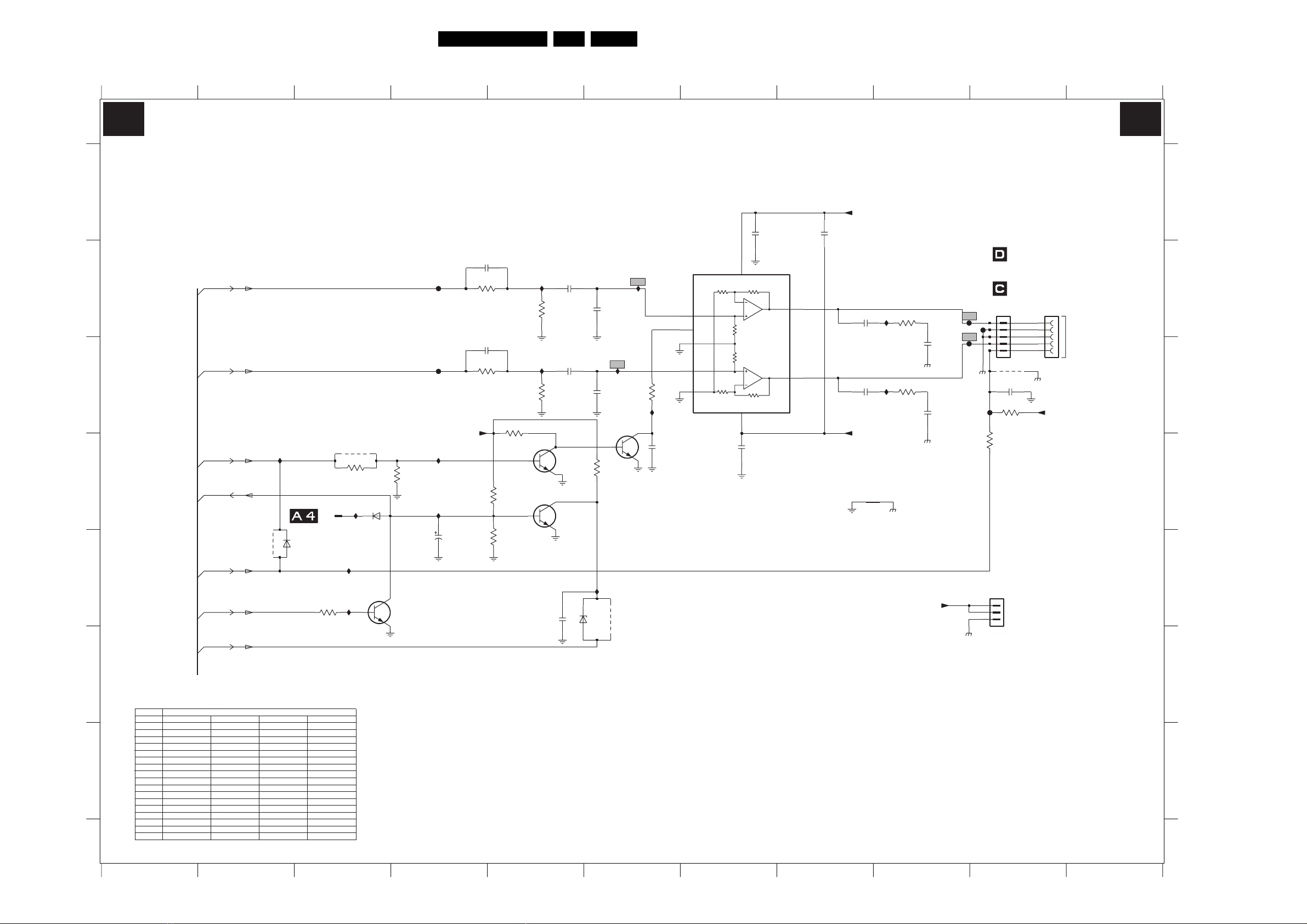

Mono Carrier: Audio Amplifier

34L05.1U AA 7.

A

B

C

D

E

F

A7

1234567891011

1222 E10
1280 B10

A

B

C

D

E

1281 B10
1282 D3
2916 D6
2917 E4
2918 E5
2985 B4
2986 A8
2987 A7
2988 D7
2989 B5
2990 B6
2991 C4
2992 C5
2993 C6
2994 B8
2995 C8
2996 C9
2997 C9
2998 C10
3982 C10
3983 D10
3984 D3
3985 B4
3986 D4
3988 B5
3989 B9
3991 C4
3992 C5
3993 C9
3994 C5
3995 C6
3996 D6
3997 D5
3998 E3
3999 E5
4991 E2
4992 E6
4993 C10
6990 D3
6991 E2
6992 E5
7990 B7
7991 C6
7992 D5
7993 D5
7994 E4
9984 D3
F950 B4
F951 C4
F952 B9
F953 B10
F955 C9
F956 C10
I950 E6
I951 B6
I952 C6
I953 B5
I954 C5
I955 C6
I956 B9
I957 C9
I958 D4
I959 D4
I960 D2
I961 D3
I964 E3
I965 E3

AUDIO AMPLIFIER

MAIN_OUTL

A4

MAIN_OUTR

A4

VOL_MUTE

A4

MUTE_A

A5

VOL_CTRL

A4

Stdby_Con

A4

MUTING

A5

I960

4991

TO 1683 OF

6991

*

Hercules

BAS316

A7

+Vaudio

2987

100n

2985

F950

RES
3985

*

10K

I953

3988

2K4

2989

*

1u0

2990

I951

1n0

*

2991

RES

+Vaudio

3991

*

10K

3997

100K

*

3999

F951

9984

*

3984

56K

I961

1282

I964

I965

3998

*

10K

0V7

*

BAS316

B

6990

0V7

C

E

3986

*

7994
BC847B

27K

I958

I959

2917

100u 6.3V

*

3994

68K

7992
BC847B

0V7

7993
BC847B

*

B

0V7

I954

2992

*

1u0

2K4

3992

*

C

B

E

2993

3996

I952

1n0

7991
BC847B

B

680K

47K

3995

I955

16V

C

4u7

2916

E

*

C

E

I950

4u7

2918

*

6992

BZX384-C5V1

4992

+16V

7990
TDA2616Q

1

2

3

9

8

INV1-

MUTE

V|GND

INV2-

INV12

+16V

-16V

2988

7

VP+

VP-

5

100n

OUT1

OUT2

4

6

2986

100n

2994

22n

2995

22n

-Vaudio

I956

I957

Audio_Gnd

3989

10R

Audio_Gnd

3993

10R

Audio_Gnd

2996

2997

+Vaudio

AmpOutL

47n

AmpOutR

47n

F952

F953

F955

Audio_Gnd

F956

Audio_Gnd

To 1254 Of

Side AV Panel

Or

To 1254 Of

Side AV Panel +

HP Panel

1280

5
4
3
2
1

4993

*

2998

2u2

3982

47K

3K9

3983

1222
1
2
3

Audio_Gnd

for ITV only

5
4
3
2
1

1281

Not In Use

+Vaudio

F

G

3139 123 5933.2

5K6
5K6
2U2
2U2

NAFTA

---

---

---

---

---

---

---

---

---

--­22K22K

---

---

---

---

---

---

---

---

---

22K 22K22K22K
5K6
5K6

2U2
2U2

22K22K

5K6
5K6
2U2
2U2

---

---

---

---

---

---

---

---

---

------

FAMILY BOARD 11NC : 3139_123_5932
MAIN CHASSIS 11NC : 3139_123_5933

REGION

SIZE
6991
6992
9984
3998
7994
6990

2917
3997
7993
3996
3985

3991
3988
3992
2989
2992

4993

26WSRF-ATSC

---

---

---

---

---

---

---

---

---

---

5K6
5K6
2U2
2U2
JMP JMP JMP JMP

30WSRF-ATSC 27VSRF-ATSC 32VSRF-ATSC

12345678910

F_15060_007.eps

180305

11

G

Circuit Diagrams and PWB Layouts

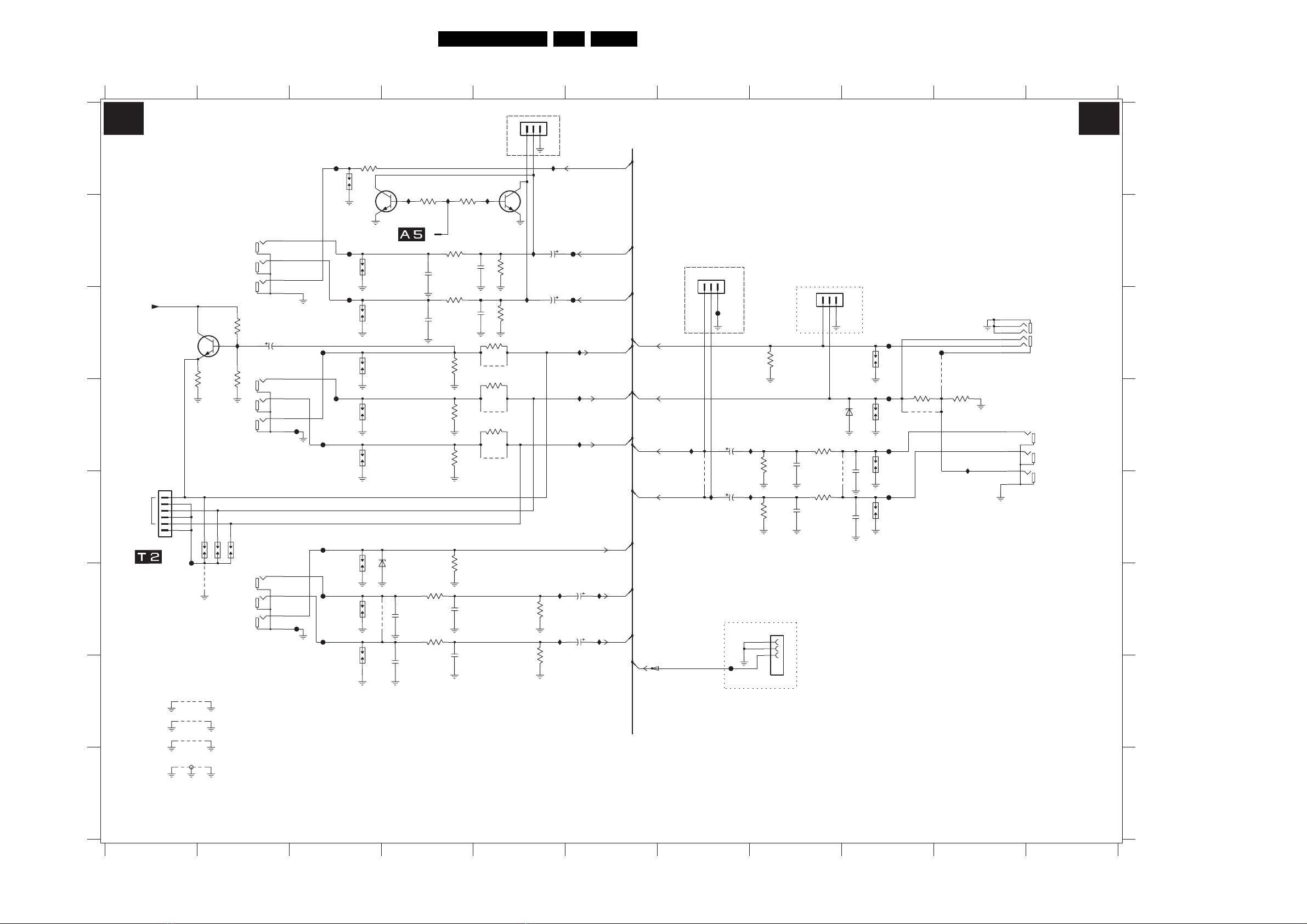

Mono Carrier: Rear I/O Cinch

35L05.1U AA 7.

A8

A

B

Vbuffer

C

D

E

To 1228 Of

Source Select +

Microcontroller

F

G

H

3139 123 5933.2

1234567891011

REAR I/O CINCH

MONITOR OUTPUT

L

R

V

For ITV

1228

1
2
3
4
5
6

MainSupplyGnd

F140

9170

9171

9172

9173

8V2

C

2V

E

47K

3172

1153

4145

CGNDCGND

B

8V2

7105
BC847B

3171

1154

3170

1155

47K

I110

YUV INPUT

1K0

U

V

Y

L

R

V

1223-1

2138

1223-2

AV1

1223-3

F101

3

2

1

4

10V100u

F104

7

6

5

F122

8

11

10

9

F123

12

F105

F106

F107

F108

F109

3101

68R

7104-2

0V

1101

From 1240 OF

Features & Connectivities

F102

1102

F103

1103

1104

1105

1106

1107

6106

1108

1109

IMX1

I124 I125

3173

B

0V2

BZX284-C6V8

2126

390p

390p

2127

4K7

1138

2107

2108

3123

150R

3125

150R

E

RES

4105

390p

390p

I122

3103

150R

3105

150R

3169

3167

3168

3121

2122

2124

3174

4K7

2103

2104

75R

75R

75R

75R

330p

330p

0V2

330p

330p

3112

RES

9112

3114

RES

9114

3116

RES

9116

7104-1
IMX1

B

3104

3106

ITV RES

1236

0V

C

E

220K

220K

123

I108

I107

3124

3126

I117

2105

10u

2106

10u

47K

47K

F116

I111

I112

SC2_CVBS_OUT

F117

SC2_L_OUT

SC2_R_OUT

SC1_GREEN_IN

I104

I105

SC1_BLUE_IN

I106

SC1_RED_IN

SC1_CVBS_IN

2123

I123

50V2u2

2125

I109

2u2 50V

SC1_L_IN

SC1_R_IN

A5

A4

A4

A4

A4

A4

A4

A4

A4

SC2_CHROMA_IN

A4

SC2_Y|CVBS_IN

A4

SC2_L_IN

A4

SC2_R_IN

A4

AUX_ON|ITV_MSG

A4

I116

1227

*

for ITV

123

4113

I120

F115

2132

50V 2u2

2134

2u250V

for ITV only

F138

I113

I114

3135

3132

3134

1
2
3
456

1262

47K

47K

75R

A8

for ITV

1229

1

2

3

F112

3130

75R

4130

F139

4116

*

3129

75R

I119

1113

F113

RES

1110

6132

3131

150R

3133

150R

RES

4104

330p

2131

2133

330p

7

2136

2137

390p

390p

F110

1111

F111

1112

1137

6
1
2
3
4
5

AV2

1224

15

L

14

R

13

16

V

F_15060_008.eps

180305

A

B

C

D

E

F

G

H

1101 A3
1102 B3
1103 C3
1104 C3
1105 D3
1106 D3
1107 F3
1108 F3
1109 G3
1110 D9
1111 D9
1112 E9
1113 C9
1137 C10
1138 B4
1153 E2
1154 E2
1155 E2
1223-1 B2
1223-2 C2
1223-3 F2
1227 B7
1228 E1
1229 C8
1236 A5
1262 F8
2103 B5
2104 C5
2105 B5
2106 C5
2107 B4
2108 C4
2122 F4
2123 F6
2124 G4
2125 F6
2126 F4
2127 G4
2131 D8
2132 D7
2133 E8
2134 E7
2136 E9
2137 E9
2138 C2
3101 A3
3103 B4
3104 B5
3105 C4
3106 C5
3112 C5
3114 D5
3116 D5
3121 F4
3123 F4
3124 F5
3125 F4
3126 G5
3129 D10
3130 D9
3131 D8
3132 D8
3133 E8
3134 E8
3135 C8
3167 D4
3168 D4
3169 C4
3170 C2
3171 D2
3172 D1
3173 B4
3174 B4
4104 E8
4105 F3
4113 E7
4116 C10
4130 D9
4145 F2
6106 F3
6132 D8
7104-1 A5
7104-2 A4
7105 C2
9112 C5
9114 D5
9116 D5
9170 G1
9171 G1
9172 G1
9173 H1
F101 A3
F102 B3
F103 C3
F104 C3
F105 D3

1234567891011

F106 D3
F107 E3
F108 F3
F109 F3
F110 D9
F111 E9
F112 C9
F113 D9
F115 C7
F116 C6
F117 B6
F122 D3
F123 F3
F138 G7
F139 C9
F140 F1
I104 C6
I105 D6
I106 D6
I107 C5
I108 B5
I109 F6
I110 C2
I111 F5
I112 F5
I113 D8
I114 E8
I116 D7
I117 A5
I119 D10
I120 E7
I122 B4
I123 F6
I124 B4
I125 B5

Circuit Diagrams and PWB Layouts

36L05.1U AA 7.

Mono Carrier: Front Control

12345

FRONT CONTROL

A9

A

LED

B

C

D

E

F

A4

A4

F696

IR

For Engg Purpose Only

F694

4694

LIGHT_SENSOR

A4

KEY_PROTN

A4

F695

3695

RES

4692

F693

F691

IR

LED_OUT

4691

F692

IR_OUT

F698

for ITV only

3698 4K7

I699

2691

+6V

3690

3693

1
2
3
4
5
6
7

1692

220R

220R

100u

6694

F697

BZX384-C5V1

1693
1
2
3
4
5
6

To 1693 Of

Front Interface Panel

A9

A

B

C

D

E

Mono Carrier: Diversity Tables A2 & A4

1692 C4
1693 C4
2691 C4
3690 B4
3693 B4
3695 B2
3698 D3
4691 C3
4692 B2
4694 D2
6694 C4
F691 C2
F692 C3
F693 B2
F694 D1
F695 D2
F696 B2
F697 D4
F698 D3
I699 B4

Item No

2407
2411
2412
2413
2416
2417
2418
2419
2421
2422
2433
2435
2451
2458
2470
2471
2473
2474
2495
2499
3412
3413
3414
3415
3418
3419
3421
3424
3425
3426
3427
3428
3432
3433
3434
3435
3436
3437
3440
3442
3451
3459
3461
3463
3467
3468
3471
3472
3478
3480
3485
3488
3489
3491
3492
3496
3497
3499
4401
4418
4495
5401

W7132-004

5408
5450

JF0101-85039
5456
6442
6449

BZX384-C15

6476

BZV85-C6V8

6482

BZX384-C6V8
6483
6491
9402
9411
9432
9435
9440
9442
9476
9489
9490 ---

A2

LINE + FRAME DEFLECTIONDIVERSITY TABLE FOR

27RF HD

2KV 820P

1K6 12N

630V 27N

250V 390N
250V 560N

100V 220N
250V 100N

100V 100N

16V 100N

50V 15N
50V 150P
50V 100N

4R7

4R7 4R7

100R

4R7
22R

100K
680K

22K

4R7
5K6

680K

2R2

4R7
820K

1K5

1K5
220R
220R

1R2
100R

4M7
0R47
220K
100R

12K
18K

JMP

3U9

BAS316

--- ---

--- --- --- --- ---

JMP

JMP JMP

--- ---

JMP JMP

30WSRF-HD 30WS ATSC

---

---

---

---

---

---

---

---

---

1K

---

---

---

22K

---

1R

---

---

1M

---

---

---

---

--- ---

---

---

---

2KV 220P

1K6 12N 1K6 12N 1K6 12N 1K6 12N 1K6 12N

630V 27N

250V 330N

250V 1U2
2KV 220P
2KV 220P

100V 100N
250V 100N --- ---

250V 47N 100V 100N 100V 100N

16V 100N

50V 15N

50V 150P

50V 100N

100R ---

1mA612V
1mA612V

100K
680K

680K

4R7
470K
1K5

1K5
220R
220R

2R2 2R2

1R5
100R

4M7
0R47
220K
100R

12K

18K

JMP
3U9

W7131-001

JF0101-85038 JF0101-85038 JF0101-85039 JF0101-85039JF0101-85040

SD20417-07 SD20417-07

BZX384-C15
BZV85-C6V8

BZX384-C6V8

BAS316

50V 330P

2KV 220P

630V 33N

---

--­250V 330N 250V 390N 250V 330N 250V 330N

250V 1U2 250V 560N 250V 560N 250V 560N
2KV 220P
2KV 220P

---

---

250V 68N

---

16V 2U2 16V 2U2 16V 2U2 16V 2U2

---

1K

4R7

4R7 4R7
22R

1mA612V
1mA612V

22K

---

4R7 4R7 4R7
3K9 ---

------

22K
2R2

---

---

--­1M

---

---

W7131-001

---

BZV85-C10 BZV85-C10
BZX384-C12 BZX384-C12
BZV85-C6V8 BZV85-C6V8 BZV85-C6V8 BZV85-C6V8

BZX384-C3V3 BZX384-C3V3

---

---

---

---

27RF ATSC 32RF ATSC 26WS ATSC

50V 330P 50V 330P 50V 330P
2KV 820P

630V 27N 630V 27N

---

---

---

---

---

---

---

---

---

1K 1K

4R7 4R7 6R8 4R7
4R7

4R7

---

---

---

---

---

---

---

---

2R2 2R2 2R2 2R2

--- --- --- --­4R7

470K

27K

3K3
100R
100R

1R5
33K 33K

---

0R47

--­10K 10K 10K 10K
8K2 10K

12K

100K

56K

470K

JMP
JMP

--­3U9 3U9 5U5 5U5

---

---

---

JMP

JMP

---

---

---

---

---

---

---

---

---

---

---

250V 68N

---

---

---

---

---

4R7

--- --- --­4R7 6R8
4R7

---

---

---

---

---

---

---

---

---

4R7 4R7
820K 820K680K
27K

3K3
100R
100R

1R

1R2 1R2 1R2

---

0R47

---

22K 47K

100K

56K

470K

JMP

JMP

---

W7132-004 W7132-004

--- --- ---

---

---

JMP JMP JMP
JMP

JMP JMP JMP

---

---

---

---

---

2KV 330P

---

---

---

---

---

---

250V 68N

--- ---

100V 100N 100V 100N

---

---

---

---

---

1K 1K

4R7 4R7

---

---

---

---

---

---

10R

--- ---

---

---

---

10R

27K

3K3
100R
100R

2R2 2R2

33K

--­1R

---

8K2 10K

100K

56K

470K

JMP
JMP

---

BZV85-C10

BZX384-C12 BZX384-C12

BZX384-C3V3

JMP JMP

2KV 1N

630V 27N

---

---

---

---

---

---

250V 68N

---

---

---

---

---

4R76R8

4R7

---

---

---

---

---

---

4R7

---

---

---

27K
3K3

100R
100R

33K

---

0R47

---

22K
100K

56K

470K

JMP
JMP

---

W7132-004

BZV85-C10

---

---

---

---

---

---

---

---

---

BZX384-C3V3

---

---

---

DIVERSITY TABLE FOR HERCULES

HD set
2251
2293
2294
2295
3238
3246
3252
3262
3265
3266
3279
3280
3282
3291
4201
4299
5214

Region: NAFTA
Size
2251
2293

Region
Size
3246
3255
3256
9601
9602

---

---

---

150n

1n
5n6

1n

4K7

100MHz, 120R

50V 150N
25V 1N

26WSRF-ATSC 30WSRF-ATSC

ATSC set

10n
470p

10K

100R

10K
100R
100R
100R

4K7

4K7

4K7

0R
0R

27V RF 30WSRF 27V RF 27V RF

50V 150N
25V 1N

100R 100R 100R 100R

---

---

---

---

L05 ATSCHD

50V 10N 50V 10N
50V 470N

---

---

---

---

A4

50V 470N

NAFTA

27VRF-ATSC 32VRF-ATSC

---

---

---

---

F_15060_031.eps

---

---

---

---

180305

F

Cell 11NC : 8239_125_1087 ver4.1 (2004-10-11 - WK442)
Function 11NC : 8239_125_1095 ver4.1 (2004-10-11 - WK442)

G

FAMILY BOARD 11NC : 3139_123_5932
MAIN CHASSIS 11NC : 3139_123_5933

3139 123 5933.2

G

F_15060_009.eps

180305

12345

Mono Carrier: AUX Power Supply

123456789

AUXILIARY POWER SUPPLY

A10

A

I565

330K

47K

6549

10u

100n

BZX384-C15

3595

3596

*

2586

330p
6532

BAV21WS

I560

6512

*

100K

C

0V6

10K

Item
3562

3565
3581
3583
3585
3586
3587
3590
3591
3592
3596
3598
4551
4567
5504
6512
6545
6547
6548
6550
6552
6553
6554
7509
7525
7542
7543

CELL 11NC : 8239_125_1089 ver6.0 (2004-12-03 - WK449.5)

FUNCTION 11NC : 8239_125_1097 ver6.0 (2004-12-03 - WK449.5)

B

2528

C

D

E

F

G

H

Item

0083

1535
2510
2526
2536
2555
2556
2557
2558
2575
2576
2577
2579
2580

3533
3534
3537
3538
3546
3547
3551
3553
3561

3139 123 5933.2

VCC

1u0

2582

2585

I554

8P1534
3P
47U

x
x

x
x

1R

x

x

x

7532
BC857B

15V8

C

15V8

E

3599

1M5

BAS316

3550

220K

B

AC_IN

3598

*

3527

I509

E

15V8

C
0V

I597

B

0V6

2583

HD

x

x
x

22U

x

1000U

47U
47U
47U
47U

x
x

x
x
x

1R2

68R
68K

x

100K

x

220R

I553

3528

470n

7549-2

IMX1

x

Layout Jumper

4M7

6531

ATSC

H/S

100N
2200U

10N

100N
100U

100N

15N

33R

1R
68K

4R7
39K 27K

1234567891011

Circuit Diagrams and PWB Layouts

*

4551

*

I510

3551

4R7

B

2510

F581

3597

47K

STP5NK80ZFP

22u

15V9

1V3

10K

3593

22K

3594

HD

100K

x
x
x
x
x
x
x

x
10K
330K

Jumper

SS28412

x

SB360

x

x

x

x

BAS316
BAS316
Si2307DSx

L78L08ACZ

2526

100n

BZX384-C18

**

7549-1

IMX1

E

ATSC

x 220R
27K
22K
5K6
56K
5K6
2K2
82K
18K
68K
3K3

100K

x

Jumper x
SS28411
BZX384-C18

x

BZX384-C6V8

BAW56

SARS03

STPS10L25D

x
x

STP6NK60ZFP

TL431ACZ TL431ACZ

x

RGP10D

2521

1
3
2
4
5
6
7

2524

1n0

6533

47n

SIG_IN_POS
GAIN_ADJ1
GAIN_ADJ2
SIG_IN_NEG
BIAS
OUT_POS
NC1

I512

1K2

3529

Item

7544

7545
7575
7576
7577
7583
7584
9515
9523
9524
9536

0V

*

4585

7510

TEA1507

E

C

3V7

ATSC

PDTC143ZT

BC847BW
BC847BW
BC847BW
BC847BW
Jumper
Jumper
Jumper
Jumper

2592

7585
BC857B

B

4V5

3589

VEE
NC4

OUT_NEG

NC3

CAR_IN_NEG

NC2

CAR_IN_POS

x LE50CZ
x Si23333DS

HD

x
x
x
x
x
x

x
x
x

37L05.1U AA 7.

VDC

1532

68p

3525

I563

10K

158V

14
13
12
11

3V4

10

9

0V

8

3588

I530

2525

6534

470K

E

C
3V4

BC847B

470p

Vaux_GND

BAS316

7567

3526

300K

3536

2K2

B

0V1

47K

3568

*

I526

G

3V4

3530

56K

2520

100n

3549

270R

MainSupplyGndA

3567

6536

7525

I531

I529

I528

I568

I599

3K3

3534

BAS316

158V

D

0V

S

3531

2580

*

I595

*

*

SARS03

I536

I533

1n0

2523

I532

1K0

3538

*

FAMILY BOARD 11NC : 3139_123_5932
MAIN CHASSIS 11NC : 3139_123_5933

1000mAT

I557

10n

6550

3532

3535

*

3592

5521

2522

470p

*

BAV21WS

4R7

33K

I556

I537

12

3533

6538

2n2

2544

0088
HEATSINK

6537

20V

6

5

4

2

1

BAV21WS

7516
TCET1103(G)

4

3

1V5

Panel

To P1534 Of

*

5504

SS28411-00

2588

Vaux_GND

*

1534

7

8

9

10

11

12

1

9V

2

8V

Vaux_GND

+3V3A

1
2
3
4
5
6
7
8

Vaux_GND1

I558

I539

I590

I592

2K2

3587

*

10n

2575

*

Vaux_GND

Vaux_GND

C
9V

E

I538

5523

4523

Vaux_GND1

Vaux_GND

*

6545

SB340L-7010

2591

1n0

*

6552

STPS10L60D

1K0

3539

7542

TL431CZ-AP

Vaux_GND

0V

PDTC143ZT

*

7576

BC847BW

Vaux_GND

3563

220R

SB340L-7010

HEATSINK

3542

680R

1

8V1

KA

2

B
0V

*

7575

0V
C

E

2539

470p
6539

Vaux_GND1

I540

*

0083

12

I594

2590

Vaux_GND1

3

REF

2V5

B

0V7

To 1533 Of

Source Select +
Microcontroller

Or

To P1533 Of

Panel

6540

BAS316

Vaux_GND1

I564

*

1m0

2536

6544

SB340L-7010

6546

STPS10L60D

2538

1n0

Vaux_GND

5527

470U

10V

3m3

Vaux_GND1

3543

10K

2578

1n0

I593

5K6

3583

*

*

2579

10n

Vaux_GND

I588

2564

0086
HEATSINK

F535

2535

2587

*

6547

3591

*

*

6548

BAW56W

BZX384-C12

100n

12

6V3

4m7

470u

2543

100n

3553

27K

3544

2K2

BZX384-C6V8

10K

1533

6542

3545

*

3590

7577
BC847BW

Vaux_GND

+3V3A
1
2
3
4
5
6
7
8
9

10
11

12

*

3565

15K

5524

10u

Vaux_GND

9507

5526

2K2

Vaux_GND

Vaux_GND

82K

*

2576

*

100n

B

0V7

Vaux_GND

C

BC847BW

E

470U

*

+8V

9523

F577

F578

2534

F585

I545

9515

7583

*

0V

*

4567

5V7

3586

C

Vaux_GND

Vaux_GND1

Vaux_GND1

6543

BAS316

16V

470u

*

3546

F584

470u

2584

Vaux_GND

*

3537

68K

2589

2u2

6V

SI2307DS

5K6

E

*

B

10V7

10 11

9999

1
2
3

S3B-EH

9554

*

+5V

9536

+6VA

3V2

C

B

0V

9534

7535

SI2307DS

68K

220R3561

*

*

3562 220R

4540

I547

0V

*

7509

68K

3585

**

Vaux_GND1

*

7584

C

BC847BW

E

Vaux_GND

Vaux_GND1

3540

*

6554

0V

7561
PDTC143ZT

E

Vaux_GND

F582

*

7543

L78L33ACZ

13

COM

*

2555

47u 16V

Vaux_GND1

*

3547

68K

I589

2546

2u2

68K

4548

68K

4566

3566

BAS316

Vaux_GND

*

7544

L78L33ACZ

13

COM

16V47u

2558

Vaux_GND1

*

3581

22K

*

2577

B

100u

Vaux_GND

Vaux_GND

Vaux_GND

I534

F534

3560

33R

OUTIN

2

Vaux_GND1

*

9524

2

0V

68K

3548

7547
PDTC143ZT

C

E

OUTIN

2

Vaux_GND1

9509

MAINSUPPLYGND

POWER_DOWN

+8VA

+12VA

9530

+8V

F583

16V

*

2556

47u

+3V

+3V3

F580

+3V3A

3

*

1

7545

SI2305DS

*

6553

BAS316

I596

B
2V

+6VA

F537

+6V

F586

+5V

2557

**

47u 16V

Vaux_GND1

9529

AUX_ON|ITV_MSG

Deflection
Controller

Vaux_GND1

2537

Vaux_GND

Stdby_con

To 1405

Of

*

1535
1
2
3

B

25V100u

A4

A4

A4

A4

F_15060_010.eps

180305

A

B

C

D

E

F

G

H

0083 C8
0086 B9
0088 D7
1532 A6
1533 A9
1534 A7
1535 B11
2510 B3
2520 D6
2521 E3
2522 C6
2523 D6
2524 B3
2525 D5
2526 B2
2528 C1
2534 C9
2535 D9
2536 C8
2537 E11
2538 C9
2539 B8
2543 E9
2544 B7
2546 D10
2555 C10
2556 C11
2557 F11
2558 F10
2564 B9
2575 F7
2576 F9
2577 G10
2578 E8
2579 F9
2580 B6
2582 B1
2583 F1
2584 D10
2585 B1
2586 A2
2587 D9
2588 E7
2589 E10
2590 D8
2591 D8
2592 B4
3525 B6
3526 D5
3527 C1
3528 C1
3529 E3
3530 D6
3531 D6
3532 D6
3533 D6
3534 B6
3535 A6
3536 C6
3537 D10
3538 D6
3539 E8
3540 D10
3542 E8
3543 E8
3544 F9
3545 D9
3546 C9
3547 D10
3548 D10
3549 E6
3550 C1
3551 B2
3553 E9
3560 B11
3561 D10
3562 D10
3563 B8
3565 B9
3566 E10
3567 B6
3568 C5
3581 G10
3583 F8
3585 F10
3586 F9
3587 F7
3588 B5
3589 B4
3590 F9
3591 F9
3592 B6
3593 E3
3594 F3
3595 E2
3596 F2
3597 D2

3598 C1
3599 B1
4523 B8
4540 D10
4548 D10
4551 B2
4566 E10
4567 A9
4585 B3
5504 B7
5521 C6
5523 B8
5524 B9
5526 C9
5527 D9
6512 B2
6531 C1
6532 A2
6533 B3
6534 B5
6536 C6
6537 D7
6538 D7
6539 B8
6540 B9
6542 B9
6543 B10
6544 C9
6545 D8
6546 C9
6547 F9
6548 G9
6549 C2
6550 B6
6552 E8
6553 D11
6554 E10
7509 E10
7510 C3
7516 E7
7525 C6
7532 C1
7535 B10
7542 E8
7543 C10
7544 E10
7545 D11
7547 E10
7549-1 E2
7549-2 E1
7561 B10
7567 C5
7575 F8
7576 G8
7577 F9
7583 G10
7584 G10
7585 B3
9507 C9
9509 A11
9515 E9
9523 B9
9524 D11
9529 G11
9530 C11
9534 B10
9536 A10
9554 A10
9999 A10
F534 B10
F535 C9
F537 E11
F577 B9
F578 B9
F580 D11
F581 C3
F582 B10
F583 C11
F584 C10
F585 E9
F586 F11
I509 C1
I510 B3
I512 E3
I526 D5
I528 B6
I529 E6
I530 D5
I531 D6
I532 D6
I533 C6
I534 B11
I536 C6
I537 C7
I538 B8
I539 D8
I540 C8

I545 E9
I547 E10
I553 B1
I554 D1
I556 B7
I557 A6
I558 B8
I560 B2
I563 B5
I564 B8
I565 A2
I568 B6
I588 B9
I589 D10
I590 E7
I592 E8
I593 E9
I594 D8
I595 B6
I596 E11
I597 E1
I599 C6

Circuit Diagrams and PWB Layouts

38L05.1U AA 7.

Layout Mono Carrier: (Top Side)

0083 C2
0086 C3
0088 B3
1000 E8
1001 E6
1002 E5
1003 E5
1005 E8
1010 E7
1011 E7
1012 E6

3139 123 5933.1

1013 E8
1137 C8
1138 D7
1205 D5
1206 D5
1207 E7
1208 D7
1213 C5
1219 C7
1220 E4
1221 C5

1222 D3
1223 D8
1227 D7
1228 D7
1229 C8
1230 D5
1234 D5
1236 D8
1240 D4
1241 D5
1243 C5

1250 C7
1251 C6
1252 D6
1254 C6
1255 C6
1257 E5
1262 D7
1266 D6
1270 D6
1271 E7
1272 C7

1273 E5
1280 E3
1281 E3
1282 D3
1401 C6
1402 A7
1404 B5
1451 C7
1500 A2
1501 A2
1502 A2

1503 C2
1504 C2
1505 A1
1507 B2
1510 B1
1532 B3
1533 D2
1534 D2
1535 C1
1545 B4
1546 B4

1572 C4
1577 D3
1682 D4
1683 C5
1684 D6
1685 D6
1692 D1
1693 D1
2005 E5
2006 E7
2008 E7

2105 D7
2106 D7
2123 D7
2125 D8
2132 C7
2134 C7
2138 D8
2203 D5
2217 E5
2218 D6
2224 E5

2234 D6
2240 E5
2250 D6
2251 E5
2265 E6
2273 E6
2275 E6
2291 D6
2404 B6
2411 A6
2412 A6

2413 B6
2416 B6
2417 B6
2418 A6
2419 B6
2421 A7
2422 A7
2431 A6
2433 A7
2435 A8
2436 B7

2449 C8
2451 A8
2454 A8
2458 B7
2460 A8
2461 C7
2468 C8
2469 B7
2488 B5
2500 A2
2501 C2

2502 C2
2503 A3
2504 A4
2505 A4
2506 B2
2507 A4
2508 C2
2509 B1
2510 C3
2511 A5
2514 A4

2523 B3
2528 B3
2534 C4
2535 D3
2536 D3
2539 C3
2541 C2
2542 B4
2544 B3
2551 B5
2552 C5

2555 C1
2556 D2
2557 C1
2558 C1
2561 B4
2562 C4
2563 C4
2570 B4
2577 C4
2580 C3
2584 D3

2587 C2
2588 C3
2590 C2
2611 E4
2621 E5
2624 E5
2631 D7
2691 D1
2999 D4
3101 E8
3103 D8

3105 E8
3112 D8
3114 D8
3116 D8
3123 D8
3125 D8
3131 C8
3133 C8
3201 D5
3215 D5
3230 D6

3241 E5
3252 D5
3260 D5
3270 E7
3274 E7
3275 E7
3276 D7
3277 D7
3278 D7
3291 C5
3293 D4

3401 B5
3402 B5
3412 A6
3413 A6
3414 A6
3415 A6
3419 B8
3421 B5
3424 A7
3425 A7
3431 C6

3432 C7
3433 B8
3435 C5
3440 C6
3442 C7
3450 B8
3451 B8
3455 A8
3456 A8
3458 B7
3466 C8

3467 C7
3468 C7
3469 C7
3471 C7
3472 C7
3473 B6
3477 B7
3478 C6
3481 C6
3485 B7
3486 B7

3488 C6
3489 C6
3490 A5
3493 B8
3499 C6
3500 B1
3501 C1
3502 B2
3503 B2
3504 B2
3505 A2

3506 B1
3508 B3
3509 B2
3510 B3
3511 B5
3513 A5
3514 A5
3515 A5
3516 A4
3519 B4
3520 A4

3521 A5
3523 C2
3525 C4
3531 B3
3534 C3
3535 B3
3536 C3
3549 B4
3560 D3
3563 C3
3575 B5

3592 B3
3598 B3
3599 B3
3606 E4
3984 D3
5201 D5
5208 D6
5216 D6
5401 A5
5402 A5
5408 B6

5409 B6
5450 B7
5452 C6
5456 A6
5459 B6
5500 B2
5501 B2
5502 A3
5504 C3
5506 B2
5511 A4

5512 B4
5512C B4
5512D B4
5521 B3
5524 D3
5526 D3
5527 C2
5551 B5
5552 B5
5561 B4
5562 B4

F_15060_011.eps

5563 C5
5564 A3
5602 D7
6001 E8
6006 E7
6403 B8
6404 B6
6442 C7
6452 A8
6453 B7
6456 A8

140305

6457 C8
6461 B8
6466 B7
6467 B7
6471 C6
6476 B7
6486 B6
6500 A3
6511 A5
6533 C4
6539 C3
6544 C3
6545 C2
6546 C3
6550 C3
6551 C5
6552 C2
6562 C4
6563 B4
6564 C4
6575 A4
7203 E5
7204 E5
7405 A6
7406 C6
7451 C7
7512 A4
7513 B5
7516 C4
7525 B3
7542 C4
7543 C2
7544 D1
7571 B5
7601 D5
7603 E4
7605 E5
7990 E3
9002 E7
9010 E7
9112 D8
9114 D8
9116 D8
9120 D8
9121 D8
9122 D8
9124 D7
9129 D7
9170 D7
9171 D7
9172 D7
9173 C7
9201 C6
9202 E4
9203 E6
9204 E7
9205 D4
9206 D4
9207 D4
9208 D4
9209 C5
9210 E7
9213 D7
9214 D4
9215 E7
9216 D7
9217 D6
9218 E6
9219 D6
9220 D5
9221 D5
9222 E5
9223 E6
9224 D5
9225 D4
9226 D4
9227 D5
9228 D4
9229 D5
9230 D5
9231 E6
9232 E5
9233 E6
9234 E7
9235 D7
9236 E7
9237 D6
9238 D7
9239 E6
9240 E5
9241 D7
9242 D4
9243 C4
9244 E6
9245 E4
9246 E6
9247 E4

9248 E6
9249 C4
9250 E6
9251 E5
9252 C5
9253 D5
9254 C7
9255 C5
9257 E7
9260 D5
9261 D7
9262 E7
9263 D7
9265 D7
9266 D7
9267 D7
9269 C4
9271 E5
9272 D4
9273 D4
9274 D4
9275 C5
9276 D5
9278 D4
9279 D4
9280 D5
9288 D7
9290 E6
9291 C5
9292 C4
9293 E4
9294 C6
9296 C5
9297 C4
9298 C5
9299 C5
9402 A5
9411 A6
9429 A6
9432 C7
9435 C5
9440 C6
9442 C7
9450 C7
9451 C7
9465 C6
9473 C5
9476 C7
9480 C6
9482 C6
9483 B6
9484 C6
9485 B6
9486 C6
9487 C5
9488 C6
9489 C6
9490 C6
9491 C6
9492 C6
9493 C6
9494 C8
9495 C7
9497 C5
9498 B5
9500 A2
9501 B2
9502 B2
9503 B2
9504 B2
9505 B2
9506 A3
9509 D4
9510 C4
9511 B3
9512 A3
9513 B3
9515 C1
9523 D1
9524 D2
9526 D4
9527 D4
9528 D4
9529 D3
9530 D2
9531 C3
9532 D3
9534 D2
9535 D3
9536 D1
9537 C3
9539 B3
9541 D2
9542 D4
9544 C1
9545 D2
9546 C2

9547 D2
9548 D2
9549 D2
9550 C1
9551 C3
9552 C4
9553 D1
9554 D2
9563 C5
9570 A3
9572 C4
9576 A4
9577 D3
9580 C5
9583 C4
9585 A4
9586 C4
9587 B4
9588 C5
9589 A4
9590 C4
9601 D7
9602 D7
9605 E6
9606 D4
9607 D4
9608 C7
9609 C7
9631 C6
9637 E7
9639 E4
9642 C7
9643 D5
9653 D4
9660 D1
9661 D1
9666 D1
9688 E4
9689 E4
9694 E6
9695 E4
9696 D4
9697 D4
9698 D6
9699 C6
9920 D3
9921 D3
9922 D3
9942 D3
9943 D3
9984 D3

Circuit Diagrams and PWB Layouts

Layout Mono Carrier (Overview Bottom Side)

2001 A8
2002 A8
2003 A7
2004 A7
2007 A7
2009 A7
2011 A6
2012 A6
2013 A7
2014 A7
2016 A7
2103 A8

2104 A7
2107 B8
2108 B8
2122 B8
2124 B8
2126 B8
2127 B8
2131 C7
2133 C7
2136 C8
2137 B8
2201 B6

2204 A5
2205 B5
2206 B5
2207 A4
2208 A4
2209 B5
2210 B5
2211 B6
2212 B5
2213 B5
2214 A5
2215 B6

3139 123 5933.1

2216 B6
2223 B6
2225 B6
2226 A5
2227 A5
2229 B6
2231 B6
2232 B6
2233 B6
2235 A5
2237 B6
2238 A5

2239 A5
2241 A5
2242 B6
2244 A5
2246 A5
2249 B6
2253 A6
2255 A7
2256 A6
2257 A6
2260 A6
2261 A6

2262 B6
2263 A6
2264 B6
2266 A6
2267 A6
2268 A5
2269 A5
2270 A6
2271 A6
2272 A6
2274 A6
2276 A6

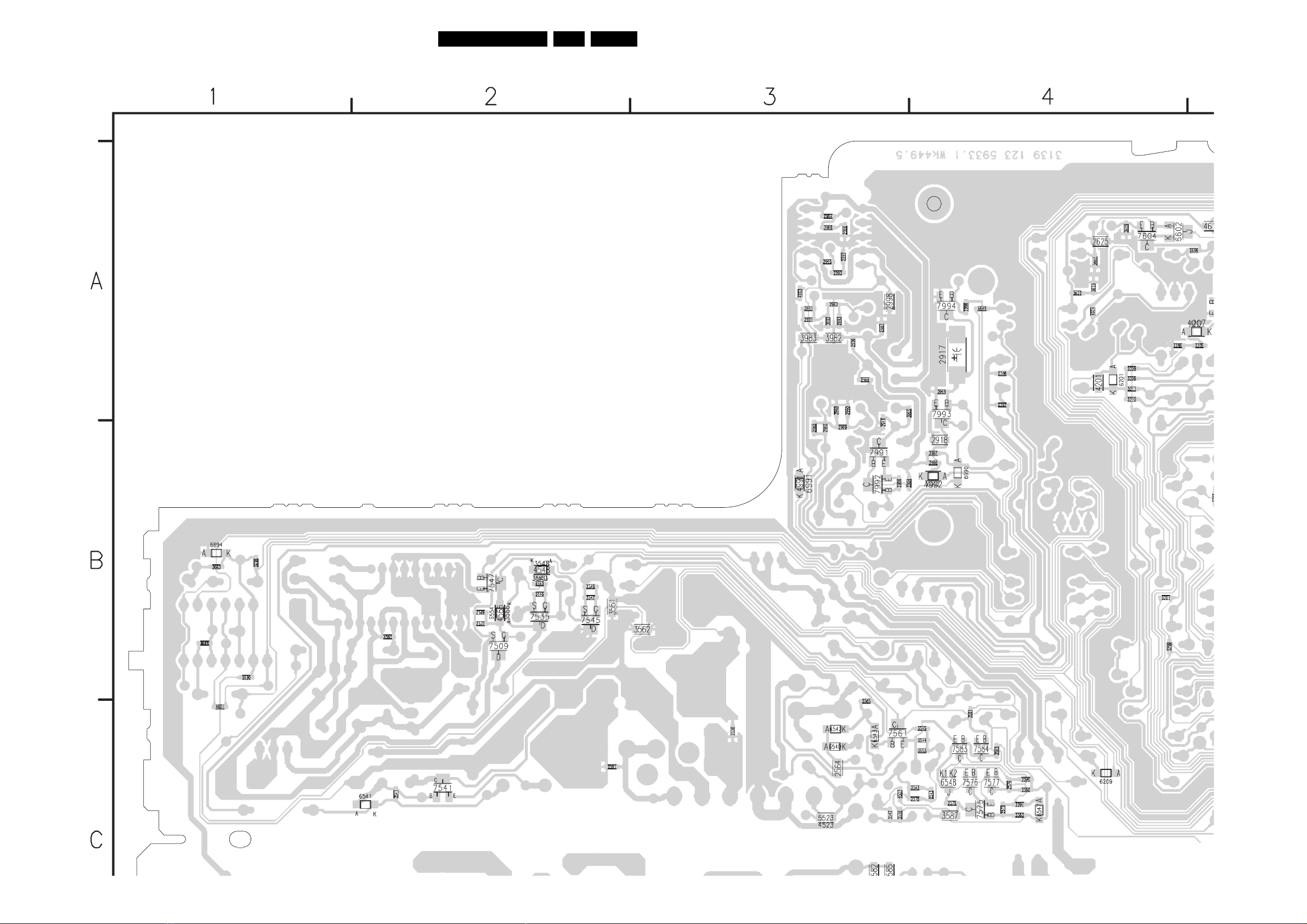

Part 1

F_15060_012a.eps

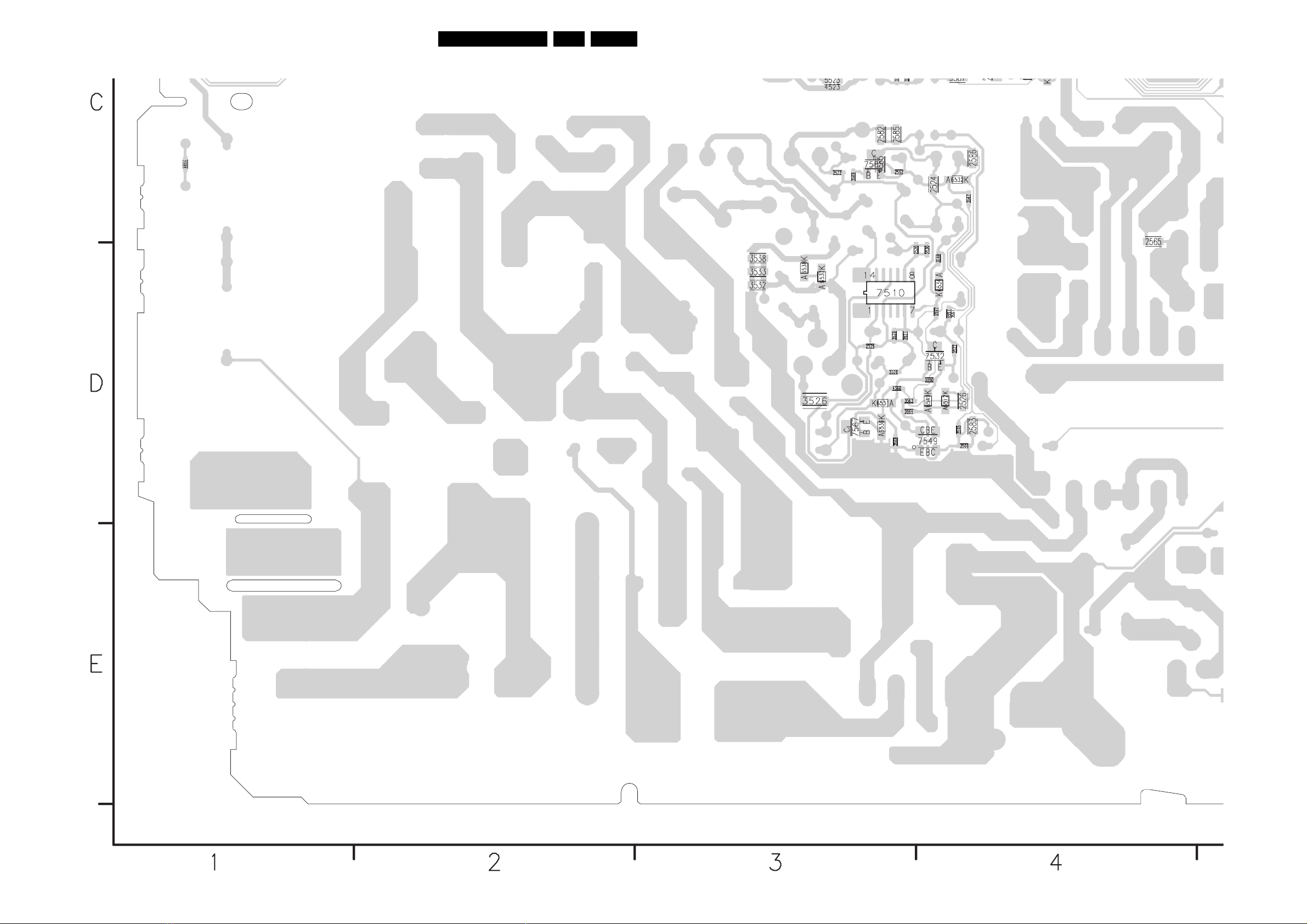

Part 3

F_15060_012c.eps

2278 A5
2279 B5
2280 B5
2282 B5
2283 A6
2284 A6
2285 A6
2286 B6
2287 B6
2290 A5
2292 B5
2293 A5

2294 A5
2295 A5
2407 C7
2409 E5
2410 D8
2423 D5
2424 D8
2425 C6
2426 D7
2432 C7
2448 D8
2459 E8

2462 C7
2463 C7
2464 D8
2465 C7
2466 C7
2467 C7
2470 C7
2471 C5
2472 C6
2473 C6
2474 D6
2477 D7

2478 D7
2491 C6
2492 D7
2493 E8
2494 D7
2495 C6
2496 C6
2497 D5
2499 C5
2512 E5
2513 E5
2515 D5

2516 E5
2517 E5
2518 E5
2519 E5
2520 D3
2521 D3
2522 C3
2524 C4
2525 D3
2526 D4
2538 C3
2543 C4

2546 B2
2564 C3
2565 C4
2571 D5
2572 C5
2574 D5
2575 C4
2576 C4
2578 C4
2579 C4
2582 C3
2583 D4

2585 C3
2586 C4
2589 B2
2591 C2
2592 C3
2601 B5
2613 B5
2615 B7
2617 B7
2620 A5
2622 B7
2623 A5

2625 A4
2630 C7
2632 B7
2633 B6
2634 B6
2916 B3
2917 A4
2918 B4
2985 B3
2986 A3
2987 A3
2988 A3

39L05.1U AA 7.

2989 B3
2990 A3
2991 A3
2992 A3
2993 A3
2994 A3
2995 A3
2996 A3
2997 A3
2998 A3
3000 A8
3001 A8

3002 A8
3003 A7
3004 A8
3005 A7
3006 A5
3007 A5
3008 A7
3009 A5
3010 A7
3014 A7
3016 A7
3018 A7

3019 A7
3104 A7
3106 A7
3121 B8
3124 B8
3126 B8
3129 C8
3130 C8
3132 C7
3134 C7
3135 C8
3167 B8

3168 B8
3169 B8
3170 A8
3171 A8
3172 A8
3173 B8
3174 B7
3202 B5
3203 A5
3204 B5
3205 A5
3206 A5

3207 B5
3208 A4
3209 A4
3210 A4
3211 A4
3212 B5
3214 B5
3216 B6
3217 A5
3218 B5
3219 B5
3220 B6

3221 B6
3222 A6
3223 A5
3226 B6
3227 B6
3228 B6
3229 B6
3231 B6
3232 A5
3235 C6
3236 B6
3237 B5

Part 2

F_15060_012b.eps

Part 4

F_15060_012d.eps

3238 C6
3242 A7
3247 A6
3248 B7
3249 B6
3253 A6
3254 A6
3255 A6
3256 A6
3257 B7
3258 B7
3261 B4

3262 B5
3263 B5
3264 B5
3265 B5
3266 B5
3267 B6
3269 B5
3272 B6
3273 B6
3279 B5
3280 B5
3281 B5

3282 B5
3283 B5
3284 B5
3285 A4
3287 B5
3288 B5
3289 C6
3290 B6
3292 B5
3296 A5
3298 B5
3299 B4

3408 D5
3416 E6
3418 C6
3426 C6
3427 C6
3428 C5
3434 C7
3436 C5
3437 C5
3438 C6
3439 C6
3441 D5

3443 C6
3453 E8
3459 C7
3460 C7
3461 C7
3462 C7
3463 C7
3474 D6
3480 C6
3491 C6
3492 C6
3496 C5

3497 C5
3512 E5
3517 E5
3518 E5
3522 E5
3524 E5
3526 D3
3527 D4
3528 D3
3529 D3
3530 D4
3532 D3

F_15060_012.eps

3533 D3
3537 B2
3538 D3
3539 C3
3540 B2
3541 C2
3542 C3
3543 C4
3544 C4
3545 C4
3546 B2
3547 B2

140305

3548 B2
3550 D4
3551 D4
3553 C4
3561 B2
3562 B3
3565 C3
3566 B2
3567 C4
3568 D3
3571 D5
3573 D5
3574 D5
3576 D5
3579 D5
3581 C4
3583 C4
3585 C4
3586 C4
3587 C4
3588 D4
3589 C3
3590 C4
3591 C4
3593 D3
3594 D3
3595 D4
3596 D4
3597 D4
3601 B5
3604 B5
3605 B5
3607 A4
3608 A5
3609 A4
3614 B7
3622 A4
3623 A4
3625 B5
3626 B5
3628 B5
3634 A7
3635 B7
3637 B7
3647 B7
3648 B6
3649 B6
3650 B7
3651 A5
3652 C7
3653 C7
3690 B1
3693 B1
3695 B1
3698 B1
3982 A3
3983 A3
3985 B3
3986 B3
3988 A3
3989 A3
3991 A3
3992 A3
3993 A3
3994 B3
3995 A3
3996 B4
3997 B4
3998 A4
3999 A4
4000 A8
4001 A8
4002 A5
4003 A7
4004 A5
4005 A7
4006 A8
4010 A7
4011 A6
4012 A6
4013 A6
4015 A8
4104 B8
4105 B8
4113 B7
4116 C8
4130 C8
4145 B7
4160 C8
4201 A4
4207 A5
4209 A6
4210 B6
4212 B5
4219 B5
4221 B5
4222 A5
4223 A6
4224 A5

4226 A5
4227 A6
4251 B6
4253 C7
4254 C5
4295 B6
4296 B6
4297 C6
4298 B6
4299 A5
4401 C7
4418 C6
4434 C7
4470 D6
4495 C7
4523 C3
4527 C3
4533 E5
4540 B2
4548 B2
4551 D4
4566 B2
4567 B2
4585 C3
4586 D3
4604 A4
4609 A6
4612 A5
4614 B7
4616 B6
4617 A7
4642 A7
4644 A7
4646 B5
4649 A4
4653 C7
4691 C1
4692 B1
4694 C1
4991 B3
4992 B4
4993 A3
5001 A7
5002 A7
5003 A5
5202 B5
5203 B5
5205 B6
5206 B5
5207 B5
5209 A5
5210 B6
5211 A6
5212 A6
5213 B6
5215 B5
5218 B6
5457 E7
5458 D7
5513 D5
5523 C3
5601 C7
6002 A8
6003 A8
6004 A5
6106 B8
6132 C8
6201 A4
6203 B6
6204 A6
6207 A5
6209 C4
6210 B5
6211 B5
6434 C7
6449 C7
6458 C7
6464 D5
6480 C7
6481 D5
6482 C6
6483 C6
6484 C6
6485 C6
6487 D6
6488 C7
6489 C7
6490 C6
6491 C5
6492 C5
6512 D4
6514 E5
6531 D3
6532 C4
6534 D4
6536 D3
6537 D3
6538 D3
6540 C3

6541 C2
6542 C3
6543 C3
6547 C4
6548 C4
6549 D4
6553 B2
6554 B2
6602 A4
6603 B6
6694 B1
6990 B4
6991 B3
6992 B4
7001 A5
7003 A7
7104 B7
7105 A8
7200 B6
7201 A5
7202 A5
7207 B6
7209 A5
7210 A5
7211 B6
7212 B6
7404 D5
7407 C7
7408 C7
7410 C6
7509 B2
7510 D3
7511 E5
7514 E5
7532 D4
7535 B2
7541 C2
7545 B2
7547 B2
7549 D4
7561 C3
7567 D3
7573 C5
7575 C4
7576 C4
7577 C4
7583 C4
7584 C4
7585 C3
7604 A4
7606 B7
7608 B6
7991 B3
7992 B3
7993 A4
7994 A4

Circuit Diagrams and PWB Layouts

Layout Mono Carrier (Part 1 Bottom Side)

40L05.1U AA 7.

Part 1

F_15060_012a.eps

210305

Circuit Diagrams and PWB Layouts

Layout Mono Carrier (Part 2 Bottom Side)

41L05.1U AA 7.

Part 2

F_15060_012b.eps

210305

Circuit Diagrams and PWB Layouts

Layout Mono Carrier (Part 3 Bottom Side)

42L05.1U AA 7.

Part 3

F_15060_012c.eps

210305

Circuit Diagrams and PWB Layouts

Layout Mono Carrier (Part 4 Bottom Side)

43L05.1U AA 7.

Part 4

F_15060_012d.eps

210305

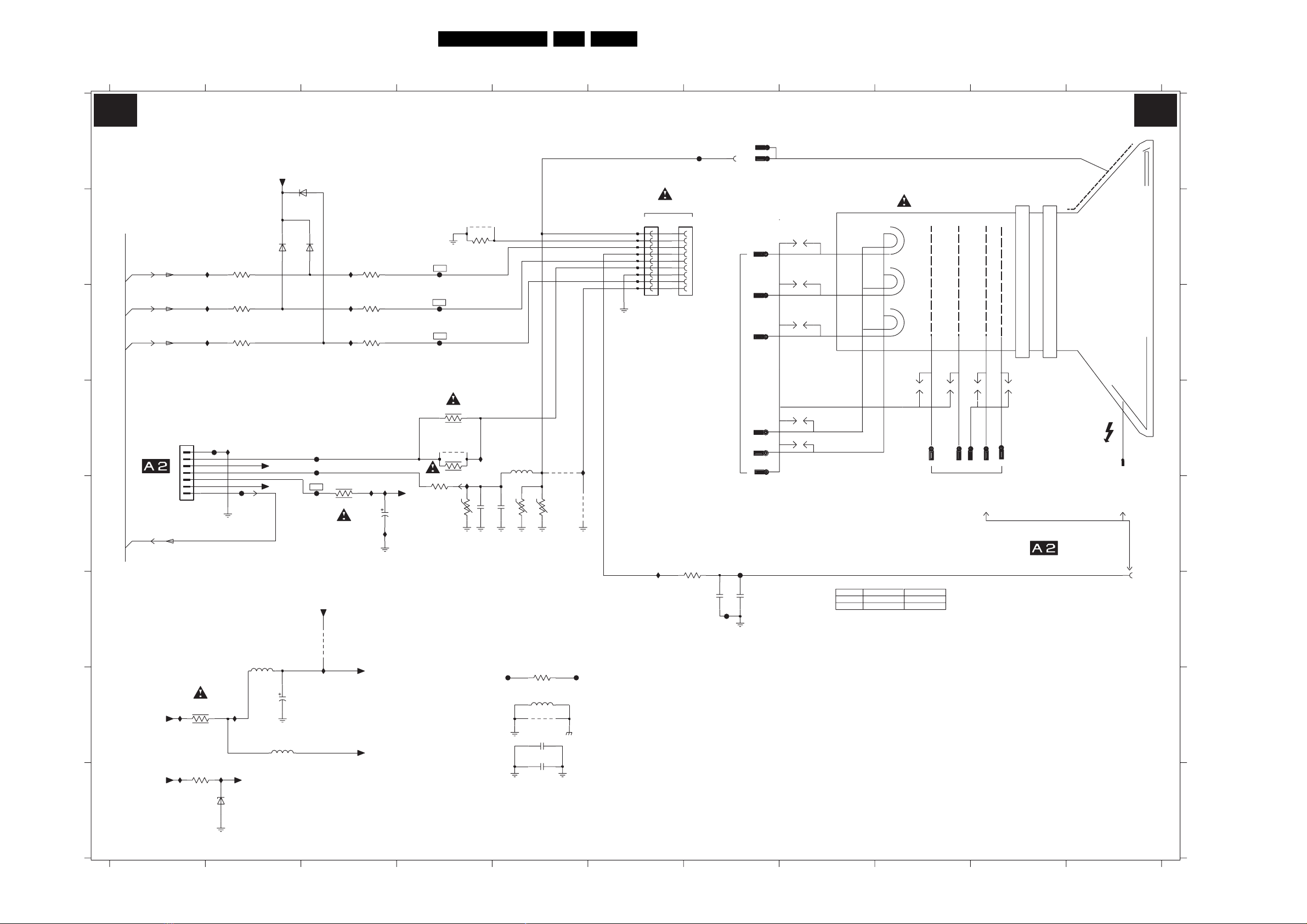

Circuit Diagrams and PWB Layouts

44L05.1U AA 7.

CRT Panel (Multi Board)

123456789

10 11

CRT SOCKET

B1 B1

A

F345

+200A

6331

BAV21WS

9308

B

6333

6332

G

B2

R

B2

C

B

B2

I330

I331

I332

3333

100R

3335

100R

3331

100R

BAV21WS

BAV21WS

I333

I334

I335

3334

1K0

3336

1K0

3332

1K0

GND_RGB

F338

F339

F341

3308

1K0

GND_LS1

CRT SOCKET

1354
1
5
6
7
8
9

10

11

12

1
5
6
7
8

9
10
11
12

1335

TO CRT SOCKET

3307

3345

33R

3R3

9306

3306

3R3

3390

*

GND_LS1

I348

V

I350

10n

2321

GND_RGB

2319

GND_LS1

10n

5304

V

V

3391

GND_RGB

9328

3357

I373

9310

GND_LS1

D

1351

From 1401 of

Line + Frame

Deflection

E

SVM_ROT

A2,B3

F352

1
2
3
4
5
6
7

GND_LS1

I327

DC_Filament

EHT-INFO
200V

F331

+141V

+8V_+12V

F383

F340

F354

3351

150R

I351

I322

I323

2313

+200A

47u

GND_RGB

2324

F342

820p

F347

2317

4n7

I377

+12A1

3347

1K5

F

GND_LS1

9309

5308

5u6

2347

3305

+12A1

F397

I302

GND_RGB

1R0

3325

1K8

*

I308

6325

I379

+3V

BZX79-C3V3

G

+8V_+12V

H

470u

GND_RGB

5303

5u6

I336

+12A

+12V_SVM

F398

GND_LS1

GND_LS1

3999

1K2

5324

9324

2320

10n
10n

2357

GND_RGB

F399

MULTIPLE BOARD 11NC : 3139_123_5945
SINGLE BOARD 11NC : 3139_123_5946

AQUADAG
WIRE

RES

Blue

Green

Red

Item No.

3390
6325

HD

---

BZX79-2V7

VG1

TO CRT SOCKET

ATSC

30PW

BZX79-3V3

VG2

STATIC FOCUS

FOCUS

CRT

DYN FOCUS

EHT

FROM LOT, MAIN CHASSIS

LINE + FRAME DEFLECTION

1336

VG2

1335 A7
1336 F11
1351 D1
1354 B6
2313 E3
2317 F7
2319 E5
2320 G5

A

2321 E4
2324 F7
2347 G2
2357 H5
3305 G1
3306 D4
3307 D4
3308 B4
3325 H1
3331 C2
3332 C3
3333 B2
3334 B3

B

3335 C2
3336 C3
3345 E4
3347 E7
3351 E3
3357 E5
3390 E4
3391 E5
3999 G5
5303 G2
5304 D5
5308 F2

C

5324 G5
6325 H2
6331 A3
6332 B2
6333 B3
9306 D4
9308 B4
9309 F3
9310 E5
9324 G5
9328 D5
F331 E2
F338 B4

D

F339 C4
F340 D3
F341 C4
F342 F7
F345 A7
F347 E7
F352 D2
F354 E3
F383 D3
F397 G1
F398 G5
F399 G5
I302 H1

E

I308 H2
I322 E3
I323 E3
I327 D2
I330 B2
I331 C2
I332 C2
I333 B3
I334 C3
I335 C3
I336 G3
I348 E4
I350 D4

F

I351 E3
I373 D6
I377 E6
I379 G2

G

H

3139 123 5946.1

1234567891011

F_15060_032.eps

180305

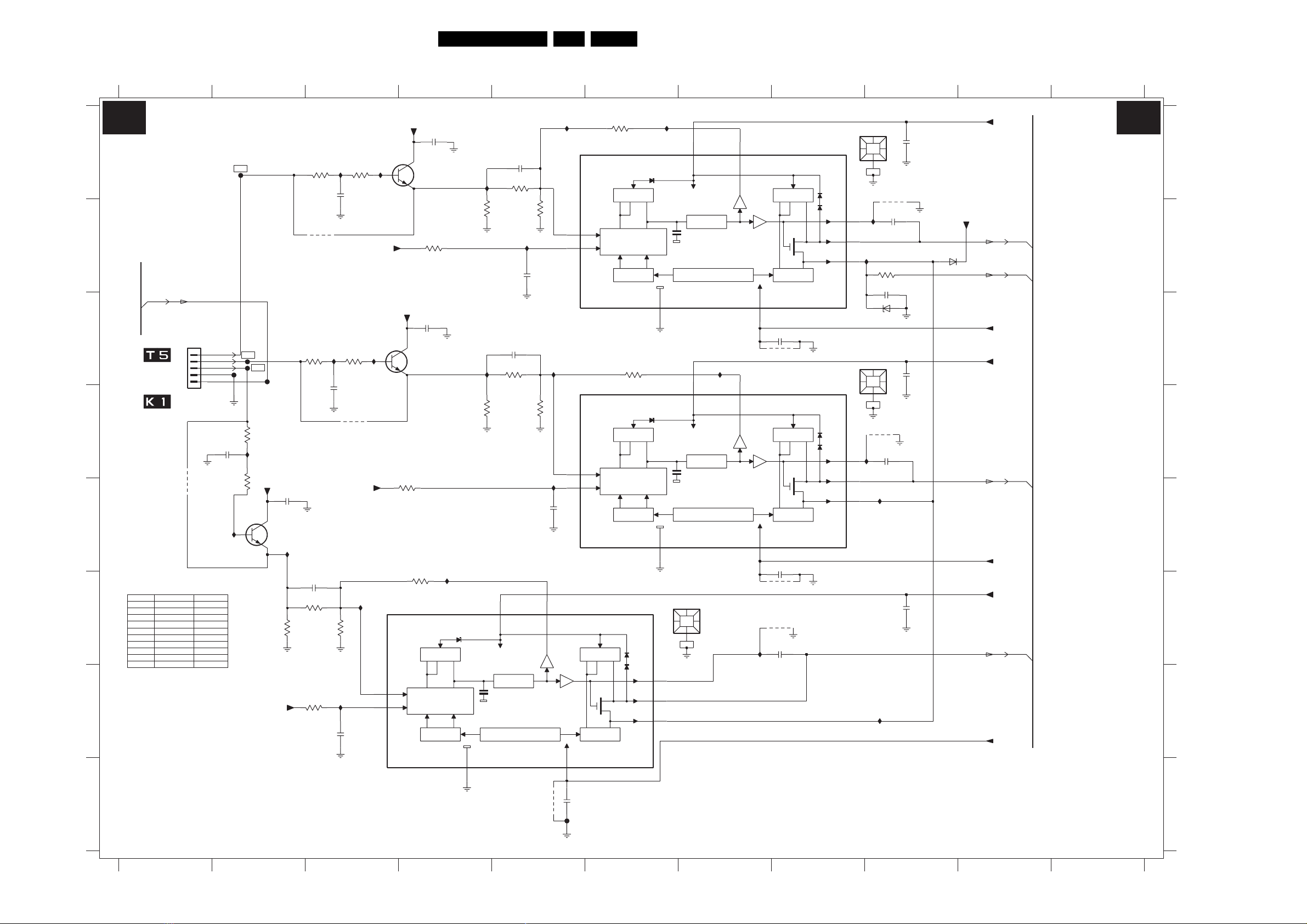

Circuit Diagrams and PWB Layouts

CRT Panel: RGB Amplifier (Multi Board)

123

RGB AMPLIFIER

B2

A

F332

B

CUT_OFF

B2

C

Deflection Controller

of Trident Panel

Deflection Controller

D

E

Item No.

2335

F

2341
2369
3338
3339
3342
3343
3353
3354 3K3

G

H

3139 123 5946.1

From 1202 of

Or

To 1404 Of

- ATSC

HD

10P
10P
10P
330P
2K2

2K7
2K7

2K2
2K2
2K7

1340

GND_RGB

9304

1

R-CRT

2

G-CRT

3

B-CRT

4
5

CUT OFF

ATSC
12P

12P2337
12P

­2K7
3K3
3K3
2K7
2K7

F336

GND_RGB

2360

22p

I344

F334

3327

7353
BC847B

B

3V4

3328

F335

220R

I384

100R

F337

+12A

C

E

2334

100n

I313

3V4

3329

GND_RGB

+3V

3324

220R

GND_RGB

GND_RGB

2341

*

8p2

3353

*

2K2

470R

3355

1K0

3321

220R

9302

I399

2355

GND_RGB

I382

22p

2358

3354

*

GND_RGB

I328

2352

GND_RGB

22p

3326

100R

9303

2K7

4n7

3322

100R

I329

3V3

3V3

I383

I310

3V4

+3V

3

B

1

B

3V6

+3V

7350
TDA6111Q

VIN

VIP

+12A

2330

100n

C

7351
BC847B

E

3V6

3340

1K0

+12A

2331

100n

7352
BC847B

3V4

3352

120K

GND_RGB

C

E

3344

1K0

MIRROR

DIFFERENTIAL

STAGE

MIRROR

45L05.1U AA 7.

456789

GND_RGB

I397

GND_RGB

*

I309

GND_RGB

GND

4

*

3320

470R

GND_RGB

GND_RGB

2337

*

8p2

3343

I311

*

2K2

3323

470R

6

VDDH

V BIAS

CURRENT SOURCE

2335

8p2

3338

2K2

I392

2332

GND_RGB

GND_RGB

3339

*

4n7

3342

*

I389

7330
TDA6111Q

2K7

3

3V3

VIN

3V3

1

VIP

I395

7340
TDA6111Q

2K7

3

3V3

I396

GND_RGB

9

139V

VFB

VIN

3V3

1

VIP

4n7

2344

B - AMPLIFIER

MIRROR

MIRROR

VDDL

2

12V7

33n

4315

2356

F348

MULTIPLE BOARD 11NC : 3139_123_5945
SINGLE BOARD 11NC : 3139_123_5946

GND_RGB

3337

120K

MIRROR

DIFFERENTIAL

STAGE

MIRROR

3341

120K

MIRROR

DIFFERENTIAL

STAGE

MIRROR

GND_RGB

GND_RGB

VCN

VOC

IOM

I390

6

200V

VDDH

V BIAS

CURRENT SOURCE

GND

4

6

VDDH

V BIAS

CURRENT SOURCE

GND

4

0077

GND_RGB

7

140V

162V

8

13V3

5

I393

9

VFB

9

VFB

R - AMPLIFIER

127V8

VDDL

2

2336 33n

4311

G - AMPLIFIER

128V4

VDDL

2

4313

4314

2353

I398

680p

MIRROR

MIRROR

MIRROR

MIRROR

33n2346

GND_RGB

GND_RGB

GND_RGB

VCN

VOC

IOM

VCN

VOC

IOM

7

8

5

7

8

5

128V7

158V5

5V

129V

158V5

5V

0069

GND_RGB

I391

I342

*

0078

GND_RGB

4312

I394

I346

I347

9301

2333

680p

3317

1K0

2369

330p

6307

GND_RGB

GND_RGB

2343

680p

2338

GND_RGB

GND_RGB

2339

GND_RGB

2340

GND_RGB

100n

+12A

6308

BAS316

100n

100n

10 11

+200A

R

B1

CUT_OFF

B2

+12A1

+200A

G

B1

+12A1

+200A

B

B1

+12A1

B2

F_15060_033.eps

180305

A

B

C

D

E

F

G

H

0069 A9
0077 F7
0078 C9
1340 C1
2330 A4
2331 C4
2332 B5
2333 B9
2334 E2
2335 A5
2336 C8
2337 C5
2338 A9
2339 C9
2340 F9
2341 F3
2343 D9
2344 E5
2346 E8
2352 G3
2353 F8
2355 A3
2356 H5
2358 D3
2360 D2
2369 B9
3317 B9
3320 B4
3321 A3
3322 A3
3323 D4
3324 C3
3326 C3
3327 D2
3328 E2
3329 F2
3337 A6
3338 A5
3339 B5
3340 B4
3341 C6
3342 D5
3343 C5
3344 E4
3352 F4
3353 F3
3354 F3
3355 G3
4311 C8
4312 D9
4313 F8
4314 F8
4315 H5
6307 C9
6308 B9
7330 A5
7340 D5
7350 F3
7351 A4
7352 C4
7353 E2
9301 B9
9302 B3
9303 D3
9304 E1
F332 A2
F334 C2
F335 C2
F336 C2
F337 D2
F348 H5
I309 A4
I310 A3
I311 C4
I313 E2
I328 G3
I329 F3
I342 B9
I344 E2
I346 E9
I347 G9
I382 C3
I383 C3
I384 D2
I389 A5
I390 A6
I391 B9
I392 B5
I393 C7
I394 D9
I395 C5
I396 E5
I397 F4
I398 F7
I399 A3

123456

7

8 9 10 11

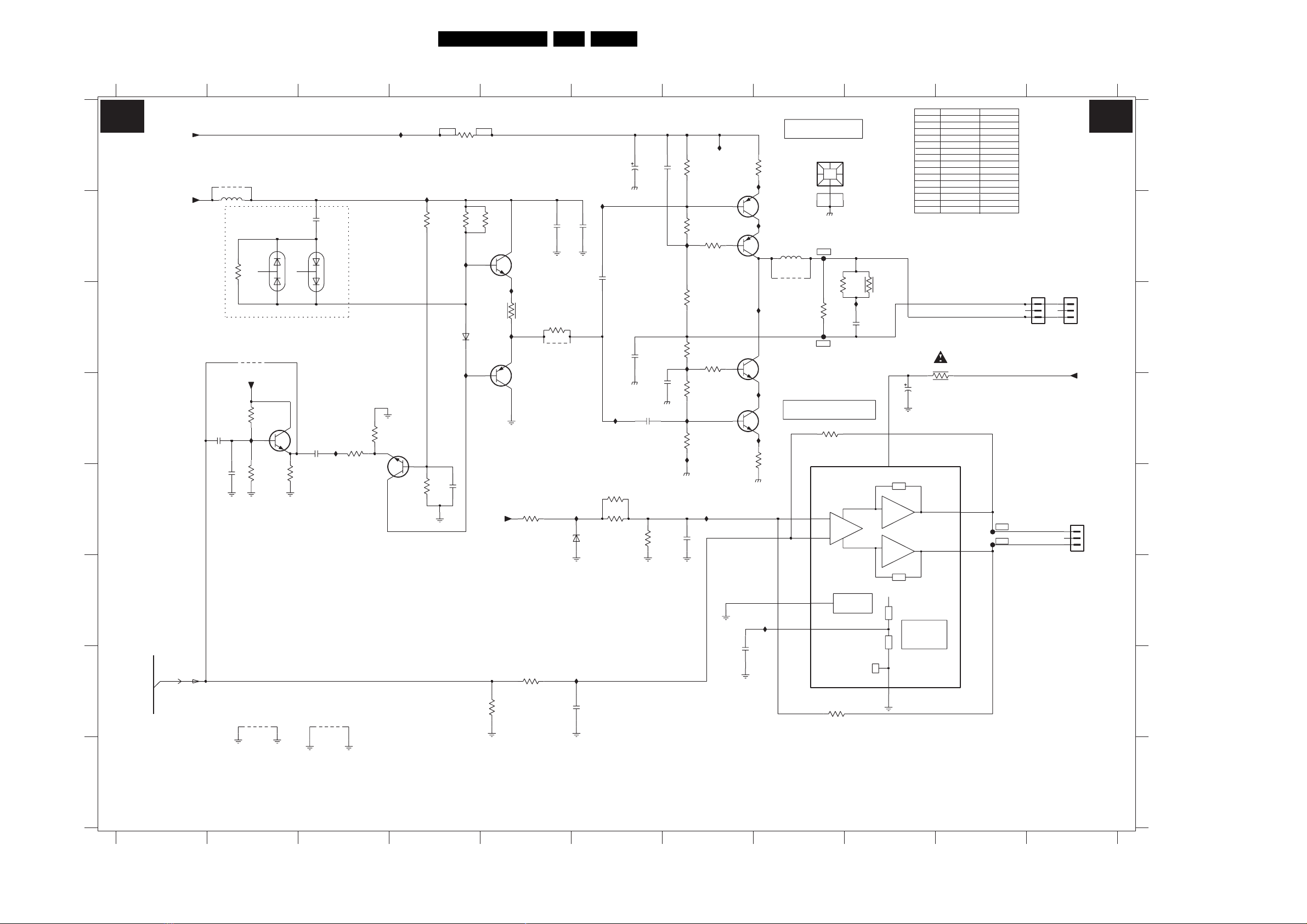

Circuit Diagrams and PWB Layouts

CRT Panel: Rot. & SCAVEM (Multi Board)

12

ROTATION & SCAVEM

B3

+141V

A

4362

+12V_SVM

B

C

D

E

F

SVM_ROT

B1

G

H

3139 123 5946.1

1234567891011

5362

1u0

2392

4n7

2393

*

GND_RGB

GND_RGB

For ATSC Only

4K7

3395

9322

+12V_SVM

3398

I326

220p

3379

GND_RGB

4363

6363BAV99

47K

7331
BC847B

B

6V4

47K

GND_RGB

C

E

7V4

3383

GND_RGB

1K0

GND_RGB

46L05.1U AA 7.

3456789

Item No.

2364

2390

GND_RGB

1

SHORT CIRCUIT

TEMPERATURE

PROTECTION

GND

8

2365
2383
2393

3367
3371
3373
3378
3380 33K
3381
3384
3385
3393
9393

3374

10R

10u

AND

8K2

1K8

2387

I361

I370

3373

*

1K5

200V47u

2363

2384

100n

I367

3361

6362

10n

3397

560R

B6V

1N4148

7362
BC857B

B

5V3

+12V_SVM

3385

C

13V

E

5V2

I362

3362

I375

E

5V1

C

GND_RGB

4K7

7361
BC847B

10R

3396

1K8

3350

6K8

2381

GND_RGB

3393

*

56R

9393

*

50V47n

2361

GND_RGB

I387

6334

GND_RGB

I381

2367

100n

2364

*

I364

3384

*

330K
3380

*

BZX384-C3V3

100n

470p

33K

2368

2365

*

470p

*

GND_RGB

100n

3381

18K

2385

I366

*

*

100n

I320

GND_RGB

3363

3365

3366

3367

3394

3368

2370

I365

I371

560R

4K7

120K

120K

5K1

560R

100n

I380

I360

3310

22R

3311

22R

GND_RGB

7332
BC327-40

B125V

B

120V3

B

3V1

B

0V3

3364

E

125V

E

121V

C

52V2

I369

C

52V2

E

2V8

C

2V8

E

0V

2389

GND_RGB

3370

100n

*

GND_RGB

GND_RGB

SCAVEM

2R7

I368

C

121V

I314

7363
KTB631K

5361

9323

7364
KTD600K

I315

ROTATION

7333
BC337-40

I316

3R3

4V

3V9

I319

5V5

5

3

4

6

0087

HEATSINK

F361

3371

*

F362

3369

150K

7366
TDA8941

IN-

IN+

MODE

SVR

3392

560R

STANDBY/

MUTE LOGIC

3372

150K

270R

2383

*

3399

I317

220p

20K

20K

GND_RGB

270R

VCC

Vcc

I321

I386

2382

100n

BAV99 6361

GND_RGB

3309

2391

100n

9325

I325

GND_RGB

3378

*

150R

220R

0V

5V3

3382

7365
BC847B

E

0V8
B

C

3377

GND_RGB

10 11

ATSC

4n7
4n7
680P

220p(30PW)

-

-

68k
68k
2K2
4K7

330R

22K
33K

-

-

-

Jmp

7

8V1

F381

4V1

F382

2

OUT-

OUT+

HD

470P
470P

220p

120k3366
120k
560R
1K5
68R

18K
330K
4K7
56R

For HD For ATSC

1
2
3

1361

1362
3
2
1

1381
1
2
3

B3

TO

SCAVEM COIL

+12V_SVM

TO

ROTATION COIL

F_15060_034.eps

180305

A

B

C

D

E

G

H

F

0087 A8
1361 C11
1362 C11
1381 E11
2361 B6
2363 A6
2364 B6
2365 D6
2367 G6
2368 C6
2370 E7
2381 B5
2382 B3
2383 C9
2384 A7
2385 D7
2387 E4
2389 G7
2390 D9
2391 D3
2392 D2
2393 E2
3309 D3
3310 B7
3311 C7
3350 G5
3361 B4
3362 C5
3363 A7
3364 A7
3365 B7
3366 C7
3367 C7
3368 D7
3369 D8
3370 D7
3371 C8
3372 G8
3373 A4
3374 C10
3377 E4
3378 D3
3379 E2
3380 E6
3381 E6
3382 B4
3383 E2
3384 E6
3385 G5
3392 C8
3393 C5
3394 D7
3395 B2
3396 E5
3397 B5
3398 D2
3399 C9
4362 A2
4363 G2
5361 B8
5362 B2
6334 E5
6361 B3
6362 C4
6363 B2
7331 D2
7332 A7
7333 D8
7361 B5
7362 C4
7363 B8
7364 C8
7365 D4
7366 D8
9322 C2
9323 B8
9325 G3
9393 C5
F361 B8
F362 C8
F381 E10
F382 E10
I314 B8
I315 D8
I316 D8
I317 C9
I319 F8
I320 D7
I321 A4
I325 D3
I326 D2
I360 A7
I361 B4
I362 C5
I364 D6
I365 C7

I366 B7
I367 B6
I368 A8
I369 C7
I370 D4
I371 D7
I375 C5
I380 E7
I381 G6
I386 B4
I387 E6

Circuit Diagrams and PWB Layouts

47L05.1U AA 7.

Layout CRT Panel (Top Side) (Multi Board)

0069 D3
0077 F5
0078 E6
0087 B5
1335 C4
1336 E1
1340 E2

1351 A2
1354 D2
1355 C2
1361 A6
1362 A6
1381 B1
2313 D5

2317 D1
2319 D4
2320 C4
2321 C4
2324 D1
2338 E5
2339 E4

2340 E3
2347 E3
2363 A4
2368 A5
2381 B3
2390 B1
3305 A2

3306 A2
3307 A1
3308 C1
3317 E3
3331 D4
3332 D3
3333 D5

3334 D4
3335 E3
3336 D3
3337 E4
3341 E5
3344 F5
3345 C4

3347 D1
3350 A2
3351 C5
3352 E5
3362 B4
3367 B4
3371 A6

3373 A3
3374 B1
3391 C1
3393 A4
3399 A5
5303 B2
5304 C4

5308 B2
5324 C4
5361 B5
6325 F4
7330 E3
7332 B5
7333 B4

7340 E5
7350 E4
7363 B5
7364 B5
7366 A1
9301 E4
9302 F1

9303 F2
9304 E3
9306 A2
9308 C1
9309 F3
9310 D3
9322 A3

9323 B5
9324 B4
9325 C5
9328 C4
9330 B2
9331 A2
9332 A2

9333 F3
9334 F2
9335 C1
9336 F4
9337 F4
9393 A4

Layout CRT Panel (Bottom Side) (Multi Board)

2330 F5
2331 F5
2332 E3
2333 D3
2334 F4
2335 E3
2336 E4
2337 F2

2341 E3
2343 D2
2344 E1
2346 E2
2352 E2
2353 E3
2355 E5
2356 E3

2357 C2
2358 F5
2360 E5
2361 B4
2364 B3
2365 B3
2367 A6
2369 E3

2370 A6
2382 B4
2383 A1
2384 A3
2385 B2
2387 A4
2389 A6
2391 B4

2392 A4
2393 A4
3309 B4
3310 A2
3311 B2
3320 F5
3321 E5
3322 F6

3323 F5
3324 E5
3325 E3
3326 F5
3327 E5
3328 F5
3329 F4
3338 E3

3339 E3
3340 E3
3342 E1
3343 F2
3353 E3
3354 E2
3355 E2
3357 C6

3361 B4
3363 A3
3364 A3
3365 A3
3366 A3
3368 B3
3369 A6
3370 B3

3372 B6
3377 A4
3378 A4
3379 A4
3380 B6
3381 A6
3382 A4
3383 B4

3384 B6
3385 A5
3390 D3
3392 A2
3394 B2
3395 B3
3396 B5
3397 B4

3398 A4
3999 C5
4311 E4
4312 D1
4313 E2
4314 D3
4315 E3
4321 E3

4362 B4

4363 E5

5362 B4

6307 E4

6308 E4

6331 D3

6332 E4

6333 D2

6334 B6
6361 B3
6362 B4
6363 B3
7331 B4
7351 F5
7352 F5
7353 F4

7361 B4
7362 A4
7365 A4

3139 123 5946.1

F_15050_032.eps

140305

3139 123 5946.1

F_15050_033.eps

210305

Circuit Diagrams and PWB Layouts

Side AV + HP Panel (PV2)

48L05.1U AA 7.

12345678910

D D

A

B

C

D

3139 123 5718.1

SIDE AV PANEL + HP PANEL

6
1
2
3
4
5

4180

3154

Video_Gnd

3155

75R

9152

*

*

1277-A

1277-B

VIDEO IN

1250-C

*

1250-A

*

1250-B

*

RIGHT

LEFT

2

3

1

Video_Gnd

8

9

7

5

6

4

1251
LAP5100-1411F

Video_Gnd

75R

9181

*

SG02

Video_Gnd

I155

SG04

RES

I152

SG03

SG01

Video_Gnd

I157

6161

Video_Gnd

3153

RES

2173

3151

150R

RES

2174

3158

Video_Gnd

BZX79-C6V8

*

3152

3150

75R

3159

100R

F154

I166

I162

3156

*

3157

*

2176 2178

3161

2181

I168

I169

39K

1254

5

3160

100R

SG09

SG08

2175

2u2

9175

*

2172

*

*

2180

2u2 50

2171

F151

*

330p

9180

47K

SG10

F153

SG11

F152

F150

1252

7
6
5
4
3
2
1

From Main Chassis 1207

for 2X5W from 1280

Features & Connectivities

4
3
2
1

for 2X10W from 1902

from Main Chassis

470pF

470pF

I163

1u

HEADPHONE

1

6

5

4

2

3

7

8

9

1232

I170

I171

1278
4
3
2
1

1279

3
2
1

E_14480_037.eps

TO
SPEAKERS

TO
ECO SUB

040305

A

B

C

D

1232 A9
1250-A C1
1250-B D1
1250-C C1
1251 A2
1252 B5
1254 B6
1277-A C1
1277-B D1
1278 A10
1279 B10
2171 D4
2172 C4
2173 C3
2174 D3
2175 C4
2176 B8
2178 B8
2180 D4
2181 C8
3150 D3
3151 D3
3152 C3
3153 C3
3154 B2
3155 A2
3156 B8
3157 B8
3158 A3
3159 A4
3160 B4
3161 C8
4180 A2
6161 B3
9152 D3
9175 C4
9180 D4
9181 A3
F150 D4
F151 D4
F152 C4
F153 B4
F154 B7
I152 D3
I155 C3
I157 B3
I162 B7
I163 C8
I166 B7
I168 B8
I169 C8
I170 B10
I171 B10
SG01 A3
SG02 B3
SG03 D3
SG04 C3
SG08 B4

SG09 B4
SG10 B4
SG11 B4

12345678910

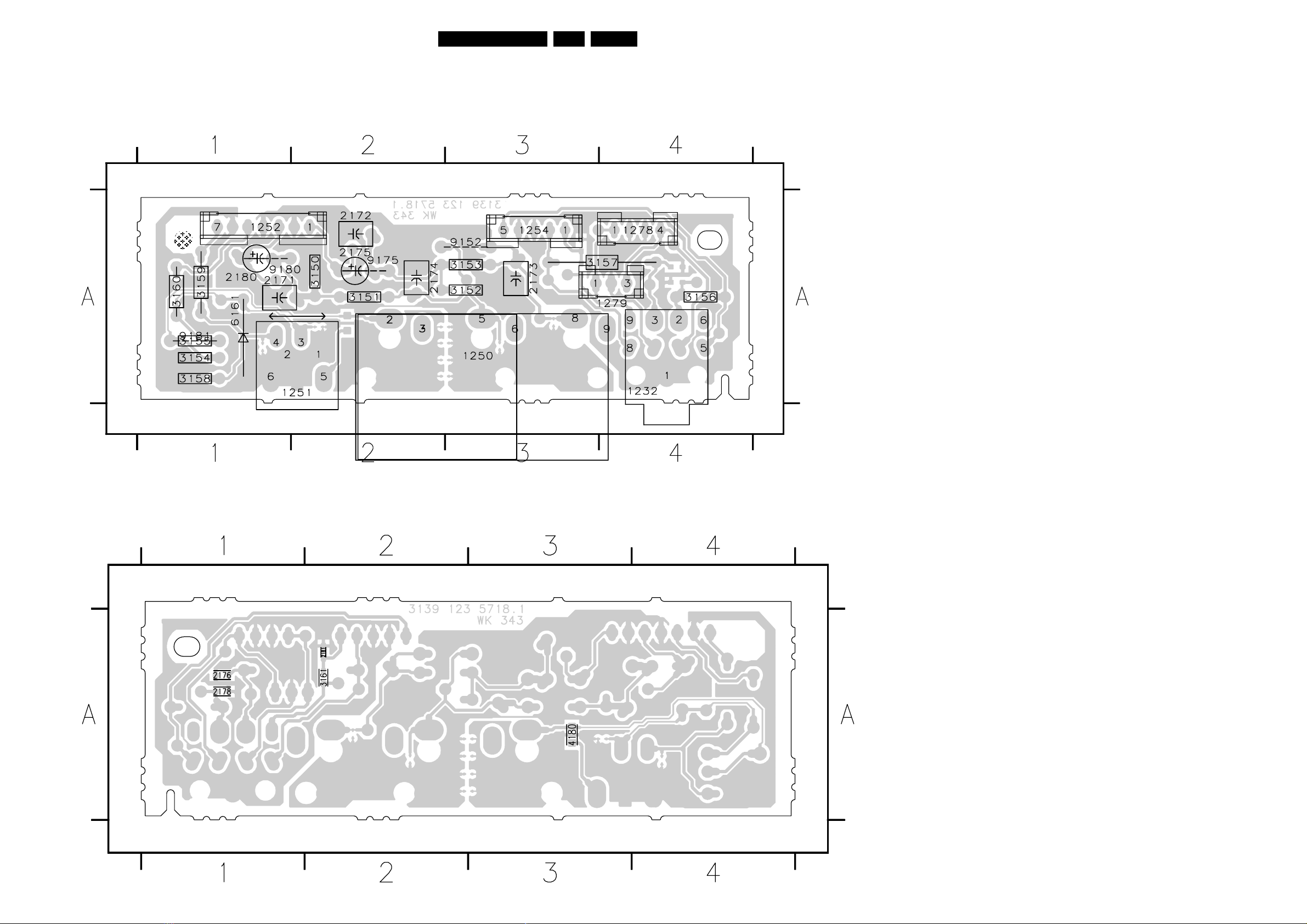

Circuit Diagrams and PWB Layouts

Layout Side AV + HP Panel (PV2) (Top Side)

49L05.1U AA 7.

1232 A4
1250 A3
1251 A2
1252 A1

1254 A3
1277 A2
1278 A4
1279 A4

2171 A1
2172 A2
2173 A3
2174 A2

2175 A2
2180 A1
3150 A2
3151 A2

3152 A3
3153 A3
3154 A1
3155 A1

3156 A4
3157 A4
3158 A1
3159 A1

3160 A1
6161 A1
9152 A3
9175 A2

9180 A1
9181 A1

3139 123 5718.1

Layout Side AV + HP Panel (PV2) (Bottom Side)

2176 A1 2178 A1 2181 A2 3161 A2 4180 A3

2181

E_14480_038.eps

100204

3139 123 5718.1

E_14480_039.eps

100204

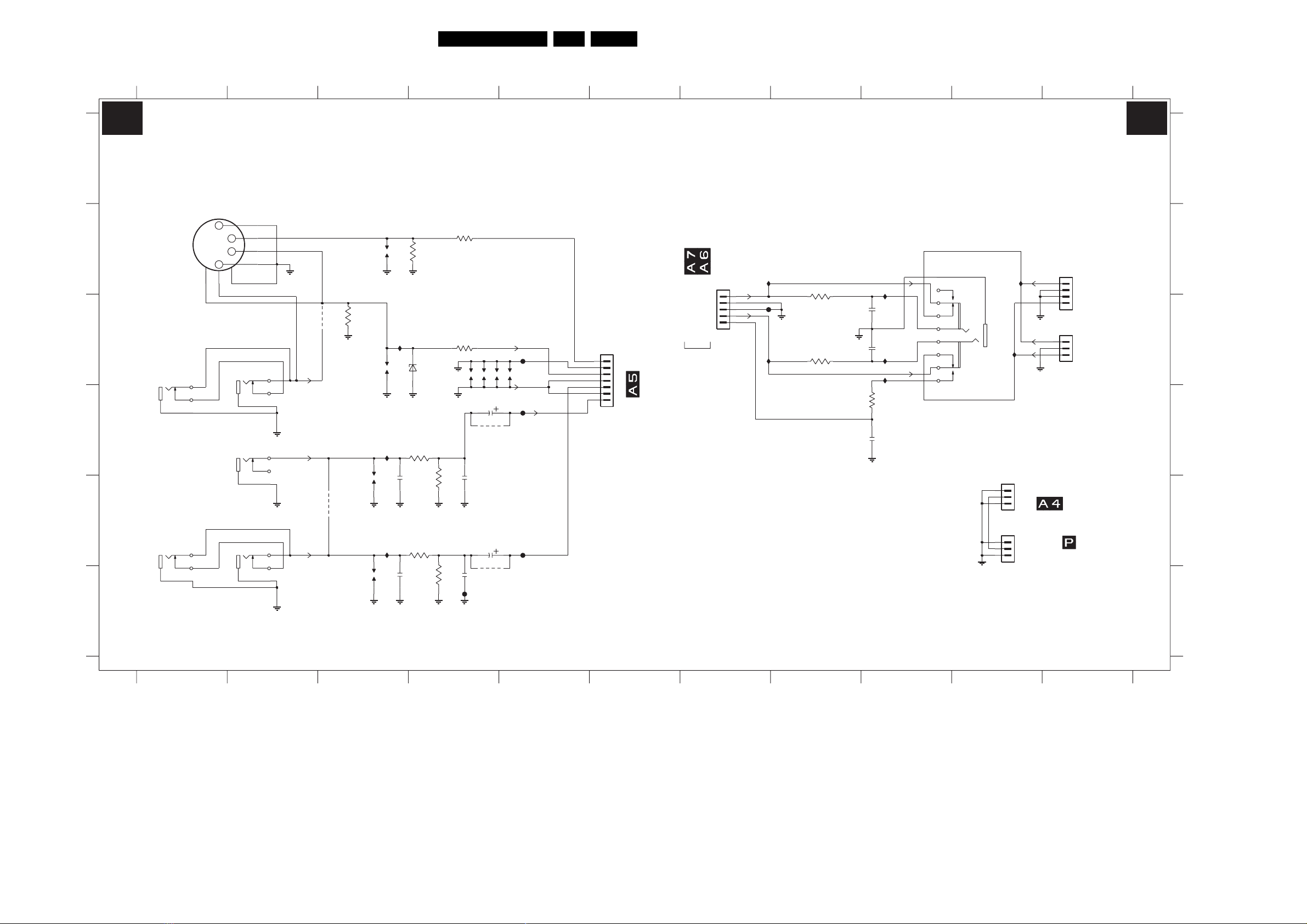

Circuit Diagrams and PWB Layouts

50L05.1U AA 7.

Side AV + HP Panel (FL13)

1234567891011

D D

SIDE AV PANEL + HP PANEL (FL13)

A

1251

C

D

YKF51-5304

B

1277-A

*

576

VIDEO IN

*

*

1

3

4

2

1250-C

1250-A

RIGHT

Video_Gnd

2

3

1

Video_Gnd

8

9

7

4180

Video_Gnd

9152

RES

3154

75R

Video_Gnd

SG04

SG01

Video_Gnd

I157

SG02

Video_Gnd

I155

2173

6161

3158

3153

22K

330p

75R

Video_Gnd

BZX79-C6V8

3152

47K

3159

100R

3160

100R

2172

SG08

*

330p

SG09

*

2175

2u2

9175

RES

SG10

SG11

F153

F152

OF

1252
7
6
5
4
3
2
1

from Main Chassis 1207

AUDIO_AMPLIFIER

for 2X5W from 1280

for 2X10W from 1902

Features & Connectivities

from Main Chassis

1254

HEADPHONE

1

I166

5
4
3

F154
2
1

I162

3156

820R

3157

820R

2178

2176

3161

2181

I168

470p

100n

I163

I169

39K

1u

1232

6

5

4

2

3

7

8

9

I170

I171

1280
1
2
3

Main Chassis 1682

1278
4
3

TO

2

SPEAKER

1

1279

3
2

TO

1

ECO SUB

To

E

1281

1

From 0345 of

2
3

Top Control (FL13)

*

1277-B

*

1250-B

LEFT

I152

3151

5

6

4

SG03

2174

330p

22K

3150

47K

2171

F151

*

330p

2180

2u2 50

*

9180
RES

F150

F

1232 B10
1250-A E2
1250-B F2
1250-C D2
1251 B1
1252 C6
1254 B7
1277-A D1
1277-B F1
1278 B11

A

1279 C11
1280 E10
1281 E10
2171 F4
2172 E4
2173 E3
2174 F3
2175 D4
2176 C9
2178 C9
2180 E4
2181 D9

B

3150 F4
3151 E4
3152 E4
3153 D4
3154 C3
3156 B8
3157 C8
3158 B4
3159 B4
3160 C4
3161 D9
4180 C3

C

6161 C3
9152 E3
9175 D4
9180 F4
F150 E5
F151 F4
F152 D5
F153 C5
F154 C7
I152 E3
I155 D3

D

I157 C3
I162 C8
I163 C9
I166 B7
I168 B9
I169 D9
I170 B10
I171 C10
SG01 B3
SG02 C3
SG03 F3
SG04 E3

E

SG08 C4
SG09 C4
SG10 C4
SG11 C5

F

3139 123 5823.1

1234567891011

F_15050_056.eps

160205

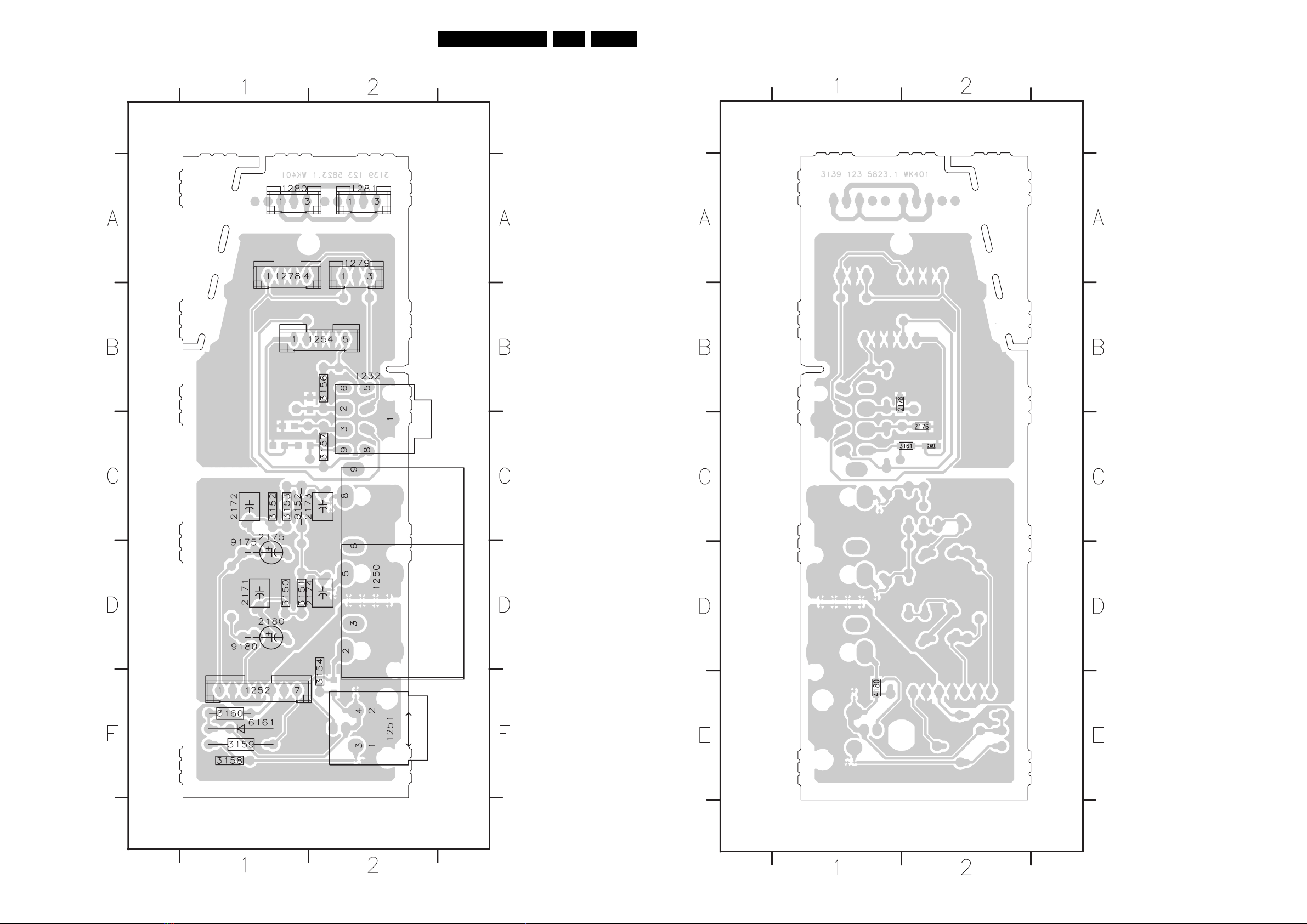

Circuit Diagrams and PWB Layouts

51L05.1U AA 7.

Layout Side AV + HP Panel (FL13) (Top Side)

1232 B2
1250 D2
1251 E2
1252 E1
1254 B2
1277 D2
1278 A1
1279 A2
1280 A1
1281 A2
2171 D1
2172 C1
2173 C1
2174 D2
2175 C1
2180 D1
3150 D1
3151 D1
3152 C1
3153 C1
3154 E2
3156 B2
3157 C2
3158 E1
3159 E1
3160 E1
6161 E1
9152 C1
9175 D1
9180 D1

Layout Side AV + HP Panel (FL13) (Bottom Side)

2176 C2
2178 B1
2181 C2
3161 C2
4180 E1

2181

3139 123 5823.1

F_15050_057.eps

160205

3139 123 5823.1

F_15050_058.eps

160205

Circuit Diagrams and PWB Layouts

52L05.1U AA 7.

Top Control Panel (PV2)

1010 A1
1011 B3
1012 B3

1013 B2
1014 B2
3010 A2

TOP CONTROL (PV2)

E

FROM 1682

A

OF

HERCULES

3011 A2
3012 A2
3013 A3

3014 B3
3015 A3
3016 B3

F011 A2
F012 A3
I011 A2

I013 A3
I017 B3
I018 A3

123

E

1010

1

KEY_PROTN

2

3

F011

3010

RES

3011

A

3012

*

I013I011

*

3013

*

F012

3015

*

I018

Top Control Panel (FL13)

0345 A4
1701 B1
1702 B1

1703 B2
1704 B2
1705 B2

3008 B2
3010 B2
3011 B1

1234

TOP CONTROL (FL13)

P P

A

1702

I109

B

1701

I105

3013 B1
3014 B1
3999 C3

1705

9000 C3
9001 C3
9002 C4

1704

I106I108 I107

F001 A3
F002 A3
F006 C3

1703

I103

F007 C4
I103 A3
I105 B1

I106 B2
I107 B2
I108 B2

F001

F002

I109 B1

0345

S3B-EH

1

KEYBOARD

2

TO LSP

3

From 1281 Of

Side AV Panel + HP Panel (FL13)

A

B

B

ITEM L03SS

3011
3012
3013
3014
3015
3016

200R
430R

2K2
200R
820R
120R

3139 123 5714.1

123

L04

150R
390R

1K8

JMP

820R

JMP

1013

SKQNAB

channel+

1014

SKQNAB

channel-

3014

1011

*

SKQNAB

I017

1012

volume+

F_15050_040.eps

3016

*

SKQNAB

volume-

160205

B

5K1

3014

C

3139 123 6066.1

3013

3K3

3011

2K

3010

1K5

3008

910R

9000

F006

3999

2K2

F007

90029001

GNDESD

F_15050_034.eps

150205

C

1234

Circuit Diagrams and PWB Layouts

53L05.1U AA 7.

Layout Top Control Panel (PV2) (Top Side)

1010 A1
1011 B1
1012 C1
1013 A1
1014 A1

Layout Top Control Panel (PV2) (Bottom Side)

3010 A1
3011 A1
3012 A1
3013 B1
3014 B1
3015 B1
3016 C1

3139 123 5714.1

F_15050_041.eps

150205

3139 123 5714.1

F_15050_042.eps

150205

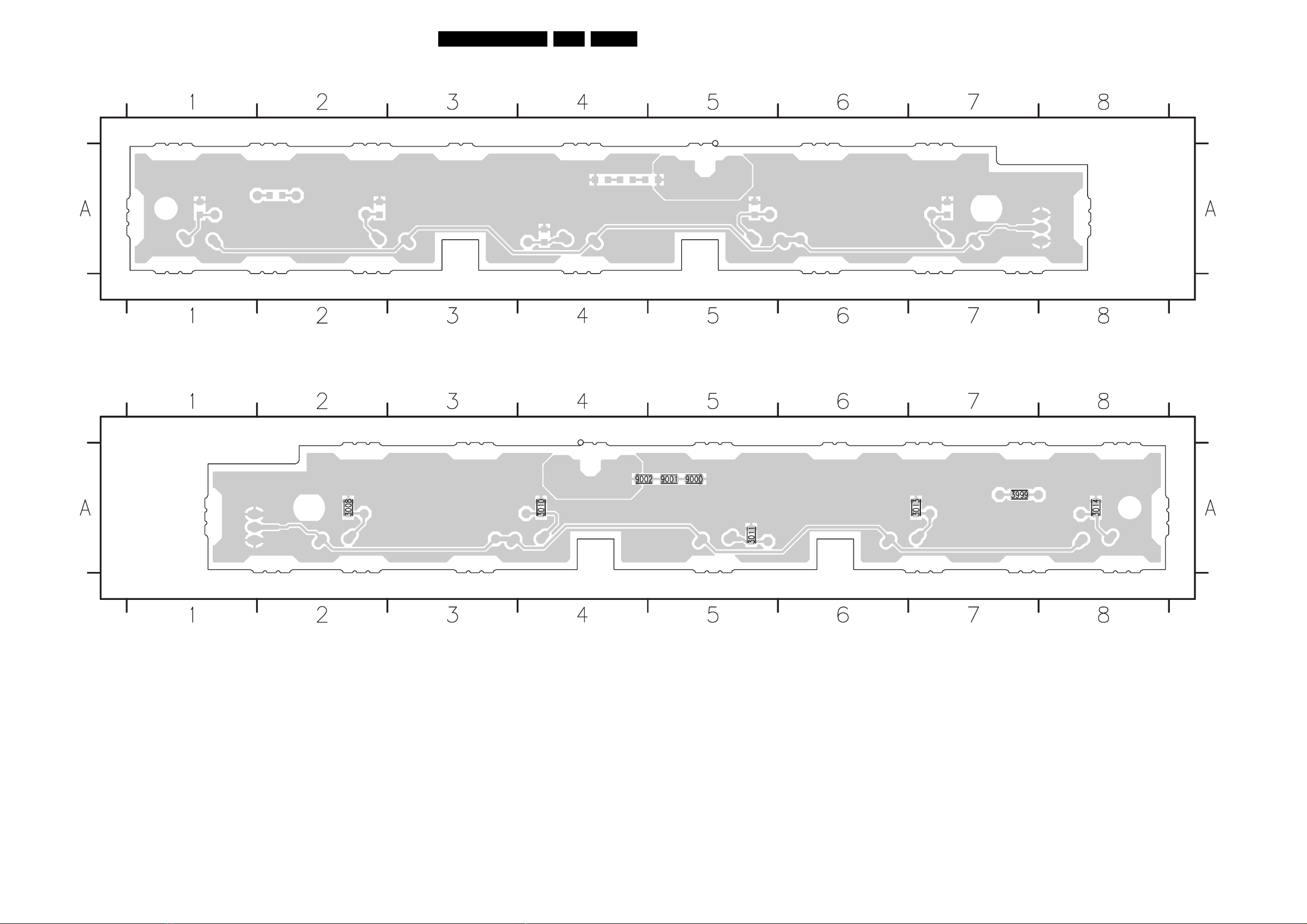

Circuit Diagrams and PWB Layouts

54L05.1U AA 7.

Layout Top Control Panel (FL13) (Top Side)

0345 A7 1701 A1 1702 A3 1703 A7 1704 A5 1705 A4

3139 123 6066.1

Layout Top Control Panel (FL13) (BottomSide)

3008 A1 3010 A3 3011 A4 3013 A6 3014 A7 3999 A6 9000 A4 9001 A4 9002 A3

3139 123 6066.1

F_15050_035.eps

150205

F_15050_036.eps

150205

Circuit Diagrams and PWB Layouts

55L05.1U AA 7.

Front Interface Panel (FL13)

1234

FRONT INTERFACE PANEL (FL13)

J J

A

4K7

3113

B

C

FROM 1693

OF

FRONT

CONTROL

1693

I107

1

I108

2
3
4
5
6

I109

I110

I121

I120

7101

BC547B

9112

3115

10K

LTL-10234WHCR

6103

3114

680K

*

LTR-301

I119

2102

6101

1u0

I111

1K2

9111

3111

*

1109

FOR
ITV
ONLY

3112

I112

*

220R

100n

2103

2101

220u 25V

*

*

36

25

14

3139 123 5982.1

1234

6102
TSOP34836

*

3

VS

1

OUT

2

GND

F_15050_043.eps

150205

A

B

C

1109 B3
1693 B1
2101 B4
2102 C2
2103 B4
3111 B3
3112 B3
3113 A3
3114 C2
3115 C2
6101 B2
6102 A4
6103 C2
7101 C2
9111 B3
9112 C2
I107 B2
I108 B1
I109 B2
I110 B2
I111 B3
I112 B4
I119 C2
I120 B2
I121 B2

Front Interface Panel (PV2)

1234

J J

LATAM 100V - 250V
NAFTA 110V
EUROPE 220V - 240V

A

FRONT INTERFACE PANEL

AC MAINS

INPUT

110V/220V

1211

1

2

B

1693

1

2

3

4

5

6

C

FROM 1693

OF

FRONT

CONTROL

OR

FROM 1693

OF

FRONT CONTROL

D

I006

I005

I004

I008

I010

I015

7691

RES

I001

3500

3501

LTL-10224WHCR

6693

LTR-301

I012

I016

I002

I003

6691

3M3

3M3

21

L01 USA ONLY

1231

T4.0AE

56

2

1

SDKVE30100

+6V

3691

I007

9001

RES

9002
RES

4001

330R

I011

4

3

9695

FOR
ITV
ONLY

3693

220R

1606

POWER

I013

I014

+6V

3694

I009

2691

RES

50V

10u

1
2

2698

1505

From 1505 OF
POWER SUPPLY

6692
TSOP1836

3

1

2

100n

VS

OUT

GND

A

B

C

D

1211 A1
1231 A3
1505 A4
1606 D3
1693 C1
2691 C4
2692 D2
2698 C4
3500 A2
3501 B2
3691 C3
3693 C3
3694 B4
3696 D2
3697 D2
4001 B3
4601 D2
6691 C3
6692 B4
6693 D2
7691 D2
9001 A3
9002 B3
9695 C3
I001 A2
I002 A3
I003 B3
I004 C1
I005 C1
I006 C1
I007 C3
I008 C1
I009 C4
I010 C1
I011 D3
I012 A2
I013 A4
I014 A4
I015 D1
I016 D2

3139 123 5722.1

1234

4601

3697

10K

3696

680K

2692

47n

F_15050_046.eps

150205

Circuit Diagrams and PWB Layouts

56L05.1U AA 7.

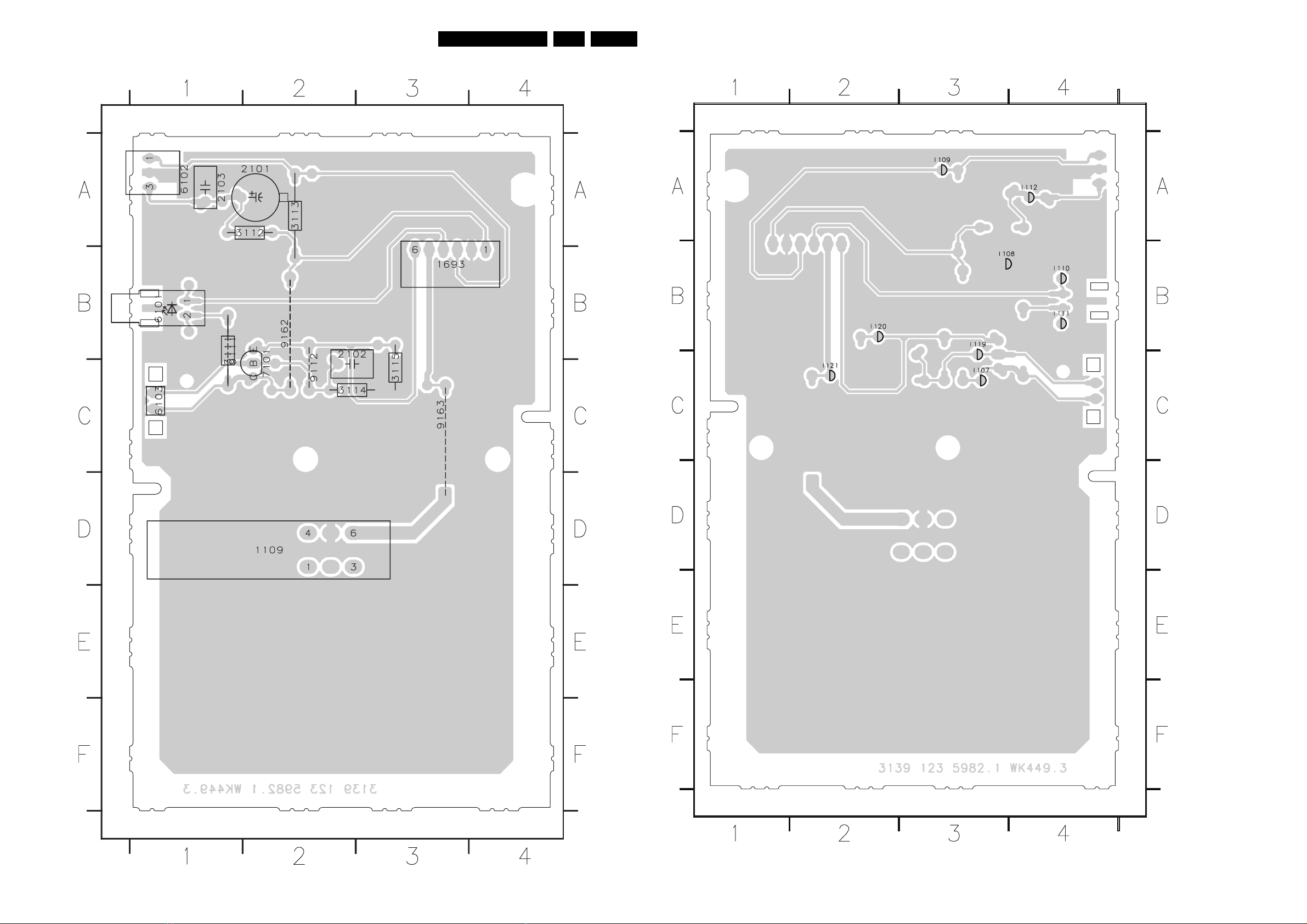

Layout Front Interface Panel (FL13) (Top Side)

1109 B1
1693 A2
2101 A1
2102 A2
2103 A1
3111 A1
3112 A1
3113 A1
3114 A2
3115 A2
6101 A1
6102 A1
6103 A1
7101 A1
9111 A1
9112 A1
9162 A1
9163 A2

Layout Front Interface Panel (FL13) (Bottom Side)

I107 A2
I108 A2
I109 A2
I110 A2
I111 A2
I112 A2
I119 A2
I120 A1
I121 A1

3139 123 5982.1

F_15050_044.eps

150205

3139 123 5982.1

F_15050_045.eps

150205

Circuit Diagrams and PWB Layouts

57L05.1U AA 7.

Layout Front Interface Panel (PV2) (Top Side)

1211 D1
1231 C3

1505 A1
1606 D4

1693 A3
2691 A4

2698 A3
3500 B2

3501 B3
3691 B3

3693 B3
3694 B3

6691 B4
6692 B4

6693 A4
9001 C1

9002 D2
9685 B3

9695 B3
9696 A3

Layout Front Interface Panel (PV2) (Bottom Side)

2692 A2 3696 A2 3697 A2 4001 A1 4601 A2 7691 A2

3139 123 5722.1

F_15050_047.eps

150205

3139 123 5722.1

F_15050_048.eps

150205

Deflection Controller - ATSC

1234567891011

K1

DAC_9V

A

B

C

D

E

F

G

3139 123 5976.1

DEFLECTION CONTROLLER - ATSC

+9V

+9V

+9V

+9V

3433

+9V

3419

2K7

3426

3K3

3448

3453

3458

3406

270R270R
3405

270R

DAC_9V

150K

1K2

5400

3200

10R

5402

3202

10R

5403

3203

10R

3441

BC847B

3445

220R

10K

3450

220R

10K

3455

220R

10K

6407

R_OUT
G_OUT

H_DRV

7416

6409

BZX79-C2V7

2406

2413

2420

I461

3436

3460

2454

2456

2459

3507

3400

270R

1234567891011

Circuit Diagrams and PWB Layouts

F400

DAC_9V

RGB_VCC

2.0V

6401

BZT52C2V7S

16V470u

2463

2464

470u 16V

16V1m0

2465

3423

10K

2438

100n
2453

10n

3442

33K

7406
BC847B

I430

180R

I431

220R

3446

100R

10p

3451

100R

10p

3456

100R

10p

I411
I412
I413
I414

3425

10K

10n

10n

10n

F415

I424

I427

I429

I458

I460

3471

75R

I401

F405

1402

3439

BC857B
7409

BC857B
7410

BC857B
7411

3
5
9
11
15
17
20
22
29
32
33
36
43
46
48
51
54
56
59
62
69
72
73
76

12
13
14
37

34

23

57
77
47
42
35

470R

I432

I433

565K7

NC

R_OUT
G_OUT
B_OUT
H_OUT

SYNC_OUT
DAC1
DAC2
ABC_PULSE

VSM_FILTER
VSM_OUT
CP_OUT
HVCO
VP_OUT

2460

10n

F425

F428

F430

F403

I402

45

16

Φ

RGB_VCC

DEP_DAC_VCC

LIGHT_AREA_DET_FIL

DARK_AREA_DET_FIL

COLOUR_LIMITER

H_CURVE_CORR

RGB_GND

DEF_DAC_GND

10

38

3430

100R

3447

1K0

3449

1K0

3452

1K0

3454

1K0

3457

1K0

3459

1K0

7402
TA1360AFG-EL

75

31

SCL
SDA

I2L_VDD

Y_C_VCC

P_MUTE

BLK

Y1_IN
Y2_IN

YS1
YS2
YS3

ABCL_IN

AFC_FILTER

APL_FILTER

BHP_FILTER

ANA_R
ANA_G
ANA_B

SYNC_IN

ANA_OSD_R
ANA_OSD_G
ANA_OSD_B

R_SH
G_SH

B_SH

CR1_PB1_IN

CB1_PB1_IN

CR2_PR2_IN

CB2_PB2_IN

H_FREQ_SW1
H_FREQ_SW2

SCP_IN
FBP_IN

HD_IN

IK_IN

VD_IN

Y_C_GND

I2L_GND

65

27

F423

F422

RGB_VCC

1u0

2455

RGB_VCC

1u0

2457

RGB_VCC

1u0

2458

YM

2403

30
28

79

68
63

80

78
44
74

70
64
71

24
25
26
53

18
19
21

66
67
60
61

55
41

58
49
39
40
50

52

1
2

4
6
7

8

100n

I425

2449

VP_OUT

VM_MOD

F426

I440

I406

I407

I408

F451
F452
F453

2441

2443

100n

100n

2450

100n

To 1340 Of

RGB Amplifier

F431

7421-1
IMX1

5

3418

I426

1u0

1
2
3
4
5

2451

1404

3481

100R

I409

100K

3

4

+9V

3403

3407

2409

100n
2410

100n
2412

100n

I410

FBP

10K

10K

2427

100n

3431

2446

3485

2K0

1u0

3443

3479

3480

68K

2415

2u2

470n

R_SH

G_SH

B_SH

3404

10K

2421

2442

100n
2444

100n

1K0

68K

I439

33K

AFC_FIL

I418
I419
I420
I421
I422

6405

3477

20K

2

2

7420-2
IMT1A

100n

2422

I415

F_Pr

F_Pb

DAC_9V

2452

BZX384-C6V8

I437

68K

3478

4

3

+9V

2416

100n

3415

470n

K2

K2

F421

CENTER_OUT

BEAM_INFO

3444

330p

1

6

6

7421-2
IMX1

1

F410

220K

R2_IN
G2_IN
B2_IN
R1_INB_OUT
G1_IN
B1_IN

4

3

1

6

IMT1A
7420-1

5

I463

2423

33K

2439

ABL

F_Y

IMT1A

7419-1

IMT1A

7419-2

UOC_SCL
UOC_SDA

3413

3K3

1u0

2424

2435

5

2

2u2

2434

I462

100n

100n

2u2

I464

F408

2425

2436

2433

I467

I468

DAC_9V

2414

1u0

100n

100n

7412-1
IMX1

5

7412-2
IMX1

2

7413-2
IMX1

2

2u2

2426

2437

+9V

58L05.1U AA 7.

1251 C11
1400 A7

C

D

G

1402 D2
1404 F4
1405 A9
2402 A8
2403 A4
2405 A8
2406 A2
2407 B9
2408 B9

A

2409 B4
2410 B4
2412 B4
2413 B2
2414 B6
2415 B4
2416 B5
2418 B8
2419 C8
2420 C2
2421 C5
2422 C5
2423 C5
2424 C5

B

2425 C6
2426 C6
2427 C4
2428 C8
2429 C8
2430 C10
2431 C10
2432 C8
2433 G6
2434 G5
2435 D5
2436 D6
2437 D6
2438 D2
2439 G5
2441 D4
2442 D5
2443 D4
2444 D5
2445 F10
2446 E4
2447 F8
2448 E8
2449 E4
2450 E4
2451 E4
2452 E5
2453 D2
2454 F2
2455 F3
2456 G2
2457 G3
2458 G3
2459 G2
2460 E3

E

2461 A10
2462 A11
2463 A2
2464 B2
2465 C2
2466 B11
3200 A2
3201 A9
3202 B2
3203 C2
3400 A1
3401 B8

F

3402 A6
3403 A4
3404 A5
3405 A1
3406 A1
3407 A4
3408 A7
3409 A8
3410 B8
3411 A7
3412 B8
3413 B5
3414 B8
3415 C5
3416 C7
3417 F9
3418 C4
3419 D1
3420 C8
3421 C7
3422 C7
3423 C2
3424 B10

LM2941SX7423

1n0

OUTVIN

6

VGUARD

2445

100n
3434

10K

3432

10K

F443

I403

54

1

3482

3483

F447

24K

2K0

6404

3500

3503

F418

BZX384-C9V1

DAC_9V

6406

BAS316

1u0

2K2

47n

F434

100n

3475

BC857B
7418

2429

1u0

2432

1u0

F448

F450

3435

EW_FLT

20K

DAC_9V

DAC_9V

2419

2n2

1K0

3476

100R

3402

2K2

4402

K2

100n

100n

3

4

6

1

6

1

3462

F439

3464

3

4

6K8

BC857B

3486

100R
3487

100R

20K

I442

7413-1

7415

3427

IMX1

F454

F407

F406

Connectivities

7403

BC847B

I454

4K7

3465

5

BAS316

1400
1
2
3

To 1257 Of

Features &

100R

DAC_9V

F436

3428

DAC_9V

3437

BC857B

20K

3467

100R

3463

68K

6402

3416

2K7

7407

3469

220K

390K

F438

EHT_info

VP_IN

1K0

3466

68K

3411

3470

220K

3440

2K0

F435

I466

82K

I452

2428

3420

20K

EW_FB

7405
BC847B

F433

7408

BC847B

7414
BC857B

3468

100R

6400

3414

22n

2402

BZX384-C8V2

3401

3412

120K

2418

150K

I453

6408

BAS316

3484

10K

2448

4400

3408

3421

1K0

3422

4K7

4K7

3438

F432

To 1535 Of

Power Supply

3409

120K

3461

2405

330K

22uF 16V

3410

100R

3

EHT

7

V_NF

VIN

28

TC

I450

29

VRAMP

30

AGC

13 10

EW_FD

15

FBP

21

LVP

17

SCL

16

SDA

1

VREF

I451

100n

2447

1405

Auxiliary

5401

F440

16V

2407

470u

8

VCC

Φ

DEFLECTION
PROCESSOR

GNDA

11

EW_DRIVE

3489

2K2

3K3

3488

1
2
3

DAC_9V

3201

2408

TA1317AFG

VDRIVE

EW_PWM

EWFILTER

CENTER

GNDD

18

6410

+10V

F404

F455

10R

100n

F441

7404

BLK

VDC

NC

V_DF

H_DF

DAC

3417

270R

BZX384-C8V2

2461

I449

3429

24

6

526

4

9
12
19
25
27

F449

14

23

22

20

2

I446

DAC_9V

47u 16V

10K

VDRB

VDRA

2

3424

10K

BLK_OUT

2430

3K9

3472

3473

3474

6403

ON_|OFF ADJ

GND

3

F442

F444

F445

10n

2431

DAC_9V

7417
BC847B

33K

6K8

BZX384-C9V1

K1

24K

24K

3502

3501

2K0

2466

To 1251 Of

Features &

Connectivities

1
2
3
4
5
6
7

HFB

8
9
10

F437

F_15060_014.eps

1251

24K

10u 16V

1112

F419

+9V

2462

140305

16V47u

3425 D2
3426 D1
3427 D6
3428 D7
3429 B10
3430 E3
3431 D4
3432 F10
3433 D1
3434 F10
3435 E8
3436 E2
3437 E7
3438 E7
3439 E2
3440 E7
3441 D2
3442 D2
3443 E4
3444 E5
3445 F2
3446 F2
3447 F3
3448 F1
3449 F3
3450 G2
3451 G2
3452 G3
3453 G1
3454 G3
3455 G2
3456 G2
3457 G3
3458 G1
3459 G3
3460 E2
3461 A8
3462 G6
3463 F7
3464 F6
3465 F7
3466 G7
3467 F7
3468 G8
3469 A7
3470 B7
3471 E2
3472 D10
3473 E10
3474 E10
3475 F8
3476 F8
3477 F5
3478 G5
3479 F4
3480 G4
3481 G4
3482 A10
3483 B10
3484 D8
3485 G4
3486 A6
3487 A6
3488 F9
3489 F9
3500 A11
3501 A11
3502 A11
3503 B11
3507 A1
4400 F8
4402 A6
5400 A2
5401 A9
5402 B2
5403 B2
6400 A8
6401 A2
6402 A7
6403 F10
6404 F11
6405 E5
6406 A8
6407 A2
6408 D8
6409 A2
6410 F9
7402 A3
7403 C7
7404 B9
7405 E7
7406 E2
7407 E7
7408 E8
7409 F2

7410 F2
7411 G2
7412-1 F6
7412-2 F6
7413-1 F7
7413-2 G6
7414 F7
7415 A7
7416 E2
7417 D10
7418 G8
7419-1 F5
7419-2 F5
7420-1 G5
7420-2 F5
7421-1 G4
7421-2 G5
7423 A10
F400 A3
F403 A3
F404 A9
F405 A2
F406 A7
F407 A7
F408 B6
F410 B5
F415 D2
F418 F11
F419 A11
F421 E5
F422 E3
F423 E3
F425 F3
F426 F4
F428 F3
F430 G3
F431 G4
F432 E7
F433 E8
F434 D8
F435 C7
F436 C7
F437 C11
F438 B7
F439 A6
F440 A9
F441 B9
F442 B10
F443 B10
F444 C10
F445 C10
F447 E11
F448 D8
F449 D10
F450 D8
F451 D4
F452 D4
F453 D4
F454 A7
F455 A9
I401 A2
I402 A3
I403 A10
I406 B4
I407 B4
I408 B4
I409 B4
I410 C4
I411 C2
I412 C2
I413 C2
I414 C2
I415 C5
I418 C5
I419 C5
I420 C5
I421 C5
I422 C5
I424 F2
I425 D4
I426 E4
I427 F2
I429 G2
I430 E2
I431 E2
I432 E3
I433 E3
I437 F5
I439 G5
I440 G4
I442 F6
I446 F10
I449 B10
I450 C8
I451 F8

I452 C8
I453 C8
I454 D7
I458 C2
I460 D2
I461 D2
I462 B6
I463 C5
I464 G6
I466 A8
I467 A6
I468 B6

RGB Buffer- ATSC

K2

A

RGB BUFFER - ATSC

To P1254 Of

B

C

D

E

F

3139 123 5976.1

Panel

Circuit Diagrams and PWB Layouts

59L05.1U AA 7.

12345678

K2

1250

Rout

Gout

Bout

1
2
3
4
5
6
7
8
9
10
11
12

14

1403
1
2
3
4
5
6

To 1250 Of

Features &

Connectivities

13

Panel

F_15060_015.eps

140305

1401

1

Rout_ADC

2
3

Gout_ADC

4
5

Bout_ADC

6
7
8

2491

2492

RES

RES

5490

5491

I484

RES

RES

3497

F482

44904491

3494

RES

1K0

3290

3291

4488

RES

RES

2494 2493

RES

RES

5492

5493

RES

RES

3498

44924493

3495

F484

RES

I485

1K0

32923293

4489

RES

RES

2496 2495

RES

RES

5494

5495

RES

RES

3499

F485

RES

3294

4494

RES

3295

4495

RES

4499

I486

F_Y

K1 To P1255 Of

1K0

3496

3504

3296

2497

F_Pb

K1

75R 75R

3505

F_Pr

K1

75R

3506

3297

3298

RES RES RES

2498

2499

+9V

47p

47p

47p

5496

470n
4496
RES

5497

470n
4497

RES

5498

470n
4498
RES

F480

F481

F483

F486

F487

2487

2488

2489

3490

47R

47p

47p

47p

2490

16V10u

I480

7490
BC847B

7491
BC847B

7492
BC847B

I481

I482

I483

F488

F489

F490

3491

100R

3492

100R

3493

100R

F409

F417

F416

F420

12345678

A

B

C

D

E

F

1250 A8
1401 A1
1403 E8
2487 E6
2488 F6
2489 F6
2490 C6
2491 B1
2492 C1
2493 B2
2494 C2
2495 B3
2496 C3
2497 E5
2498 F5
2499 F5
3290 B2
3291 C2
3292 B3
3293 C3
3294 B4
3295 C4
3296 E5
3297 F5
3298 F5
3490 C6
3491 C7
3492 D7
3493 D7
3494 D2
3495 D3
3496 E4
3497 C2
3498 C3
3499 C4
3504 E5
3505 F5
3506 F5
4488 C2
4489 C3
4490 B2
4491 C2
4492 B3
4493 C3
4494 B4
4495 C4
4496 E6
4497 F6
4498 F6
4499 C4
5490 B2
5491 C2
5492 B3
5493 C3
5494 B4
5495 C4
5496 E6
5497 E6
5498 F6
7490 C7
7491 D7
7492 D6
F409 E8
F416 E8
F417 E8
F420 E8
F480 A6
F481 A6
F482 A2
F483 A6
F484 A3
F485 A4
F486 A6
F487 A6
F488 A7
F489 A7
F490 A8
I480 C6
I481 C7
I482 D7
I483 D7
I484 D2

I485 D3
I486 E4

Circuit Diagrams and PWB Layouts

60L05.1U AA 7.

Layout Deflection Controller (Top Side)

1250 C2
1251 C3
1400 B1
1401 C1
1402 C3
1403 C5
1404 A2
1405 B5
2402 C1
2405 C1
2406 B4
2407 C2

2408 B1
2409 B4
2410 B4
2412 B3
2413 C3
2414 C3
2416 B3
2418 B1
2419 B1
2420 A3
2421 B4
2422 B4

2424 A2
2425 B2
2426 B2
2427 B4
2428 B1
2429 B1
2430 B1
2431 B1
2432 B1
2435 A2
2436 A2
2438 B3

2441 B3
2442 B4
2443 B4
2444 B4
2445 B3
2447 B1
2448 B2
2450 B3
2451 B2
2454 A3
2455 A2
2456 A3

2457 A2
2458 A2
2459 A3
2461 B4
2462 B4
2463 B4
2464 C3
2465 A2
2466 B4
2487 C4
2488 C4
2489 C4

2490 C1
2497 C4
2498 C4
2499 C4
3201 C2
3296 C4
3297 C4
3298 C4
3400 B2
3401 C1
3403 B4
3404 A3

3405 B2
3407 A3
3408 B1
3410 B1
3411 C1
3412 B1
3413 B3
3414 B1
3418 B4
3419 B2
3421 B2
3422 B2

3423 B2
3424 C2
3425 A2
3426 B2
3427 B2
3428 B2
3429 C2
3430 B2
3431 B2
3432 B2
3434 B2
3435 B2

3443 B3
3445 A3
3446 A3
3447 A2
3449 A2
3450 A3
3451 A3
3452 A2
3454 A2
3455 A3
3456 A3
3457 A2

3459 A2
3462 A3
3463 A4
3464 A4
3465 A4
3466 A4
3467 A4
3468 A4
3469 C1
3470 B1
3472 B2
3473 B2

3474 B2
3475 A4
3476 A4
3477 A4
3478 A4
3479 B4
3480 A4
3481 A4
3482 B4
3483 B4
3484 B2
3485 A4

3486 B1
3487 B1
3488 B1
3490 C1
3504 C4
3505 C4
3506 C4
4400 A4
4496 C4
4497 C4
4498 C4
5401 C2

5496 C4
5497 C4
5498 C4
6400 C1
6402 C1
6403 B2
6404 B3
6407 B2
6408 B2
6409 B2
7402 B3
7403 B2

7404 B1
7405 B2
7409 A3
7410 A2
7411 A2
7412 A3
7413 A4
7414 A4
7417 B2
7418 A4
7419 A4
7420 A4

7421 A4
7423 B5

Layout Deflection Controller (Bottom Side)

2403 B3
2415 B2
2423 B3
2433 A3
2434 B3
2437 B3
2439 B3

2446 B3
2449 B3
2452 A3
2453 B2
2460 A2
2491 C4
2492 C4

2493 C5
2494 C5
2495 C5
2496 B5
3200 B2
3202 C3
3203 A3

3290 C4
3291 C4
3292 C5
3293 C5
3294 C5
3295 C5
3402 B5

3406 B4
3409 B5
3415 B3
3416 B4
3417 B5
3420 B5
3433 B2

3436 A2
3437 C2
3438 C2
3439 C3
3440 B2
3441 B2
3442 B2

3444 A3
3448 B3
3453 B3
3458 B3
3460 A2
3461 B5
3471 A2

3489 B5
3491 C4
3492 C5
3493 C5
3494 C4
3495 C5
3496 C5

3497 C4
3498 C5
3499 C5
3500 B2
3501 B2
3502 B2
3503 B2

3507 B4
4402 B5
4488 C4
4489 C5
4490 C4
4491 C4
4492 C5

4493 C5
4494 C5
4495 C5
4499 C5
5400 B2
5402 C3
5403 A3

5490 C4
5491 C4
5492 C5
5493 C5
5494 C5
5495 C5
6401 B4

6405 A3
6406 B5
6410 B5
7406 A2
7407 C2
7408 C2
7415 B5

7416 A2
7490 C4
7491 C5
7492 C5

3139 123 5976.1

F_15060_016.eps

140305

3139 123 5976.1

F_15060_017.eps

140305

8. Alignments

Alignments

EN 61L05.1U AA 8.

Index of this chapter:

8.1 General Alignment Conditions

8.2 Hardware Alignments

8.3 Software Alignments and Settings

Note:

• The Service Default Mode (SDM) and Service Alignment
Mode (SAM) are described in chapter 5 “Service Modes,
...”.

• Menu navigation is done with the CURSOR UP, DOWN,
LEFT, or RIGHT keys of the remote control transmitter.

8.1 General Alignment Conditions

Perform all electrical adjustments under the following
conditions:

• AC voltage and frequency (region dependent):
– 120 V_ac / 60 Hz, or
– 240 V_ac / 50 Hz.

• Connect the set to the AC power (a.k.a. Mains voltage) via
an isolation transformer with a low internal resistance.

• Allow the set to warm up for approximately 20 minutes.

• Measure the voltages and waveforms in relation to chassis
ground (with the exception of the voltages on the primary
side of the power supply). Never use the cooling fins /
plates as ground.

• Test probe: Ri > 10 Mohm; Ci < 2.5 pF.

• Use an isolated trimmer / screwdriver to perform the
alignments.

8.2 Hardware Alignments

4. Go, via the MENU key, to the normal user menu and set

5. SATURATION/COLOR to “0”.

6. CONTRAST to “0”.

7. BRIGHTNESS to minimum (OSD just visible).

8. Return to the SAM via the MENU key.

9. Connect the RF output of a pattern generator to the
antenna input. Test pattern is a 'black' picture (blank
screen on CRT without any OSD info) with a signal
strength of 1 V_pp.

10. Set the channel of the oscilloscope to 50 V/div and the time
base to 0.2 ms (external triggering on the vertical pulse).
Ground the scope at the CRT panel and connect a 10:1
probe to one of the cathodes of the picture tube socket.

11. Measure the cut off pulse during first full line after the frame
blanking (see figure “V_cutoff waveform”). You will see two
pulses, one being the “cut off” pulse and the other being the
“white drive” pulse. Choose the one with the lowest value;
this is the “cut off” pulse.

12. Select the cathode with the highest V_dc value for the
alignment. Adjust the V_cutoff of this gun with the
SCREEN potentiometer (see figure “Top view family
board”) on the LOT to 160 V_dc, except for the 25/28BLD
picture tube (Black Line Display, for EU only); this tube
must be aligned to 140 V_dc.

13. Restore BRIGHTNESS and CONTRAST to normal (= 31).

max.

V

0V Ref.

CUTOFF

[VDC]

E_06532_011.eps

110204

1005

ComPair

1504

7990

7601

SDM

9252

1221

1204

1000 (TUNER)

Figure 8-1 Top view family board

Focus

Screen

Figure 8-2 V_cutoff waveform

1506

8.2.2 Focusing

1. Tune the set to a circle or crosshatch test pattern (use an
external video pattern generator).

2. Choose picture mode NATURAL with the SMART
PICTURE button on the remote control transmitter.

3. Adjust the FOCUS potentiometer (see figure “Top view
family board”) until the vertical lines at 2/3 from east and
west, at the height of the centerline, are of minimum width

5512

LOT

VG2

F_15050_066.eps

170205

without visible haze.

8.2.1 Vg2 Adjustment

1. Activate the SAM.

2. Go to the WHITE TONE sub menu.

3. Set the values of NORMAL RED, GREEN and BLUE to
“32”.

EN 62 L05.1U AA8.

Alignments

8.3 Software Alignments and Settings

00028 L05U 0.12 SDM SAM SAM
ERR 0 0 0 0 0
OP 000 057 140 032 120 128 000

00028 L05U 0.12 SAM SAM SAM
ERR 0 0 0 0 0

OP 000 057 140 032 120 128 000

. Clear Clear ? . AGC 30 . Normal Green 35
. Options . CL 10 . Normal Blue 41
. AKB On
. Tuner
. White Tone
. Geometry
. Audio
. NVM Editor
. ComPair on

1 00028 L05U 0.12 CSM
2 CODES 0 0 0 0 0
3 OP 000 057 140 032 120 128 000 . Cool . Delta Warm Red 2
4 nnXXnnnn/nnX . Normal . Delta Warm Green -3
5 P3C-1 . Warm . Delta Warm Blue -13
6 NOT TUNED
7 NTSC
8 STEREO
9 CO 50 CL 50 BR 50 HU 0
0 AVL Off BS 50

. OP1 0 . Delta Cool Red -3
. OP2 57 . Delta Cool Green -1
. OP3 140 . Delta Cool Blue 5
. OP4 32
. OP5 120
. OP6 128
. OP7 0

. IFPLL 32 . Normal Red 32

SAM SAM

SAM SAM

. Horizontal .HP 37
. Vertical .HB 31

SAM SAM

. QSS Off .SBL OFF
. FMI On .VSH 29

SAM

.ADR 0x0000 0
.VAL 0x0000 0
.Store Store ?

.HSH 34
.EWW 45
.EWP 14
.EWT 27
.UCP 42
.LCP 53

.VS 37
.VAM 30
.VSC 25

Figure 8-3 Service Mode overview

F_15060_053.eps

210305

Alignments

EN 63L05.1U AA 8.

Enter the Service Alignment Mode (see also chapter 5 “Service

Modes, ....”). The SAM menu will now appear on the screen.

Select one of the following alignments:

• Options

• Tuner

• White Tone

• Geometry

• Audio

8.3.1 Options

Options are used to control the presence/absence of certain
features and hardware.

How to change an Option Byte

An Option Byte represents a number of different options.
Changing these bytes directly, makes it possible to set all
options very fast. All options are controlled via seven option
bytes. Select the option byte (OP1.. OP7) with the MENU UP/
DOWN keys, and enter the new value.

Leaving the OPTION submenu saves the changes in the
Option Byte settings. Some changes will only take effect after
the set has been switched “off” and “on” with the AC power
switch (cold start).

How to calculate the value of an Option Byte

• Calculate an Option Byte value (OP1 .. OP7) in the
following way:

• Check the status of the single option bits (OB): are they
enabled (1) or disabled (0).

• When an option bit is enabled (1) it represents a certain
value (see column “Bit value” in table below). When an
option bit is disabled, its value is 0.

• The total value of an Option Byte (decimal) is formed by the
sum of its eight option bits. The factory values are printed
on a sticker on the CRT (depends on region).

Table 8-1 Option Byte calculation

Bit (value) OP1 OP2 OP3 OP4 OP5 OP6 OP7

0 (1) OB10 OB20 OB30 OB40 OB50 OB60 OB70

1 (2) OB11 OB21 OB31 OB41 OB51 OB61 OB71

2 (4) OB12 OB22 OB32 OB42 OB52 OB62 OB72

3 (8) OB13 OB23 OB33 OB43 OB53 OB63 OB73

4 (16) OB14 OB24 OB34 OB44 OB54 OB64 OB74

5 (32) OB15 OB25 OB35 OB45 OB55 OB65 OB75

6 (64) OB16 OB26 OB36 OB46 OB56 OB66 OB76

7 (128) OB17 OB27 OB37 OB47 OB57 OB67 OB77

Total: Sum Sum Sum Sum Sum Sum Sum

Option Bit Assignment

Following are the option bit assignments for all software
clusters.

Table 8-2 Option code overview per model (OP0 - OP5)

Option Bit

OP0

7 Philips Tuner 1 1 1 1

6 Not Used 0000

5 Not Used 0000

4 Not Used 0000

3 Not Used 0000

2 Not Used 0000

1 Not Used 0000

0 Not Used 0000

OP1 value (dec) 128 128 128 128

OP1 value (hex) 80808080

OP1

7 Not Used 0000

6 Green_UI 0 0 0 0

5 Not Used 0000

4 Not Used 0000

3 Tilt 1101

2 Fine_Tuning 0 0 0 0

1 Not Used 0000

0 Not Used 0000

OP2 value (dec) 8 8 0 8

OP2 value (hex) 08080008

OP2

7 Not Used 0000

6 ATI_PIP 1111

5 Not Used 0000

4 Not Used 0000

3 Virtual Dolby 1 1 1 1

2 Wide Screen 1 1 0 0

1 Not Used 0000

0 Not Used 0000

OP3 value (dec) 76767272

OP3 value (hex) 4C 4C 48 48

OP3 Not Used

OP4 value (dec) 0 0 0 0

OP4 value (hex) 00000000

OP4

7 AV1 1 1 1 1

6 AV2 1 1 1 1

5 AV3 1 1 1 1

4 CVI 1111

3 SVHS2 1 1 1 1

2 SVHS3 1 1 1 1

1 HDMI 1111

0 YPbPr 1 1 1 1

OP5 value (dec) 255 255 255 255

OP5 value (hex) FF FF FF FF

OP5

7 QUADRA_SURF 0 0 0 0

6 SMART_SURF 0000

5 Not Used 0000

4 Comb filter 1 1 1 1

3 Active control 1 1 1 1

2 Not Used 0000

1 Not Used 0000

0 Not Used 0000

OP6 value (dec) 24242424

OP6 value (hex) 18181818

Option Name

26PW21718

30PW21709

27PT21714

32PT21705

EN 64 L05.1U AA8.

Alignments

Table 8-3 Option code overview per model (OP6)

Option Bit

OP6

7 Not Used 0000

6 Not Used 0000

5 Not Used 0000

4 Not Used 0000

3 Digital_Module_Reset_Control 1 1 1 1

2 Not Used 0000

1 Not Used 0000

0 Not Used 0000

OP7 value (dec) 0 0 0 0

Option Name

26PW21718

30PW21709

27PT21714

Option bit definition

Option Byte 1 (OP1)

• OB17: PHILIPS TUNER
– 0 : ALPS / MASCO compatible tuner is in use.
– 1 : Philips compatible tuner is in use.

Option Byte 2 (OP2)

• OB26: GREEN UI
– 0 : Green UI is disabled (for Philips brand).
– 1 : Green UI is enabled (for Magnavox brand).
– Note: only for NAFTA region.

• OB23: TILT
– 0 : Rotate Picture is disabled or not applicable.
– 1 : Rotate Picture is enabled.

• OB22: FINE TUNING
– 0 : Fine Tuning for Channel Offset is disabled or not

applicable.

– 1 : Fine Tuning for Channel Offset is enabled.

Option Byte 3 (OP3)

• OB36: ATI_PIP
– 0 : PIP feature is disabled
– 1 : PIP feature is enabled

• OB33: VIRTUAL DOLBY
– 0 : Virtual Dolby is not applicable.
– 1 : Virtual Dolby is applicable.

• OB32: WIDE SCREEN
– 0 : Software is used for 4:3 sets or not applicable.
– 1 : Software is used for 16:9 sets.

Option Byte 4 (OP4)

This option byte is not used.

Option Byte 5 (OP5)

• OB57: AV1
– 0 : AV1 source is not present.
– 1 : AV1 source is present.

• OB56: AV2
– 0 : AV2 source is not present.
– 1 : AV2 source is present.
– Note : For EU, when AV2=“1”, both EXT2 and SVHS2

should be included in the OSD loop.

• OB55: AV3
– 0 : Side/Front AV3 source is not present.
– 1 : Side/Front AV3 source is present.

• OB54: CVI
– 0 : CVI source is not available.
– 1 : CVI source is available.

• OB53: SVHS2
– 0 : SVHS2 source is not available.
– 1 : SVHS2 source is available.
– Note : This option bit is not applicable for EU.

• OB52: SVHS3
– 0 : SVHS3 source is not available.
– 1 : SVHS3 source is available.

– Note : This option bit is not applicable for EU.

• OB51: HDMI
– 0 : HDMI source is not present.
– 1 : HDMI source is present.

• OB50: YPbPr

32PT21705

– 0: YPbPr source is not present.
– 1: YPbPr source is present.

Option Byte 6 (OP6)

• OB67: QUADRA_SURF
– 0 : Quadra Surf feature is disabled or not applicable.
– 1 : Quadra Surf feature is enabled.

• OB66: OP_SMART_SURF
– 0 : Smart Surf key is not used on remote control.
– 1 : Smart Surf key is used on remote control.

• OB64: COMBFILTER
– 0 : 3D-combfilter is not present.
– 1 : 3D-combfilter is present.

• OB63: ACTIVE CONTROL
– 0 : Active Control feature is disabled or not applicable.
– 1 : Active Control feature is enabled.

Note: Quadra Surf option is only applicable for Philips branded
sets.

Option Byte 7 (OP7)

• OB73: Digital Module Reset Control
– 0: Reset control is not used.
– 1: Reset control is used.

8.3.2 Tuner

Note: Described alignments are only necessary when the NVM

(item 7601) is replaced.

IF PLL

This adjustment is auto-aligned. Therefore, no action is
required.

AGC (AGC take over point)

1. Set the external pattern generator to a color bar video
signal and connect the RF output to aerial input. Set
amplitude to 10 mV and set frequency to 61.25 MHz
(channel 3).

2. Connect a DC multimeter to pin 1 of the tuner (item 1000
on the main panel).

3. Activate the SAM.

4. Go to the TUNER sub menu.

5. Select AGC with the UP/DOWN cursor keys.

6. Adjust the AGC-value with the LEFT/ RIGHT cursor keys
until the voltage at pin 1 of the tuner lies between 3.8 and

2.3 V (default value is “20”).

7. Switch the set to STANDBY, in order to store the
alignments.

CL (Cathode drive level)

Always set to “5”.

8.3.3 White Tone

In the WHITE TONE sub menu, the values of the black cut off
level can be adjusted. Normally, no alignment is needed, and
you can use the given default values.
The color temperature mode (NORMAL, COOL and WARM)
and the color (R, G, and B) can be selected with the UP/DOWN
RIGHT/LEFT cursor keys. The value can be changed with the
LEFT/RIGHT cursor keys. First, select the values for the
NORMAL color temperature. Then select the values for the
COOL and WARM mode. After alignment, switch the set to
STANDBY, in order to store the alignments.

Alignments

EN 65L05.1U AA 8.

8.3.4 Geometry

The geometry alignments menu contains several items to align
the set, in order to obtain correct picture geometry.

1

2

3

4

5

6

7

8

9

10

11

VERT. SLOPE

VERT. SHIFT

VERT. AMPLITUDE

V.S-CORRECTION

HOR. SHIFT

HOR. AMPLITUDE

E/W PARABOLE

UPPER E/W CORNER

LOWER E/W CORNER

E/W TRAPEZIUM

HOR. PARALLELOGRAM

• Lower Corner Parabola (LCP). Align straight vertical lines
in the lower corners of the screen.

• East West S correction (EWS). Default value is “16”.

• East West Corner (EWC). Align straight vertical lines at
the top and bottom of the sides.

Vertical

• Service blanking (SBL). Switch the blanking of the lower
half of the screen “on” or “off” (to be used in combination
with the vertical slope alignment).

• Vertical Shift (VSH). Align the vertical centering so that
the test pattern is located vertically in the middle. Repeat
the 'vertical amplitude' alignment if necessary.

• Vertical Amplitude (VAM). Align the vertical amplitude so
that the complete test pattern is visible.

• Vertical S-Correction (VSC). Align the vertical linearity,
meaning that vertical intervals of a grid pattern must be
equal over the entire screen height.

• Vertical Zoom (VX, if present). The vertical zoom is
added in for the purpose of development. It helps the
designer to set proper values for the movie expand or
movie(16x9) compress. Default value is “25”.

• Vertical Symmetry (VSL). Fine tune the vertical centering.
Only perform this alignment if it is strictly necessary.

• Vertical Linearity (VL). Align the top half and bottom half
of the picture to be of equal height.

8.3.5 Audio

No alignments are needed for the audio sub menu. Use the
given default values.

FMI (Freq. Modulation Intercarrier)

• For NICAM/2CS sound system (EU/AP, except for
APNTSC): set to “On”.

• For AV-Stereo sound system (sets without NICAM): set to
“Off”.

• For dBx/non-dBx sound systems: set to “On”.

12

HOR. BOW

E_06532_010.eps

110204

Figure 8-4 Geometry alignments

1. Connect an external video pattern generator to the aerial
input of the TV-set and input a crosshatch test pattern. Set
the generator amplitude to at least 1 mV and set frequency
to 61.25 MHz (channel 3).

2. Set 'Smart Picture' to NATURAL (or MOVIES).

3. Activate the SAM menu (see chapter 5 “Service Modes,
...”).

4. Go to the GEOMETRY sub menu.

5. Choose HORIZONTAL or VERTICAL alignment.

Now the following alignments can be performed:

Horizontal

• Horizontal Parallelogram (HP). Align straight vertical
lines in the top and the bottom; vertical rotation around the
center.

• Horizontal Bow (HB). Align straight horizontal lines in the
top and the bottom; horizontal rotation around the center.

• Horizontal Shift (HSH). Align the horizontal center of the
picture to the horizontal center of the CRT.

• East West Width (EWW). Align the picture width until the
complete test pattern is visible.

• East West Parabola (EWP). Align straight vertical lines at
the sides of the screen.

• East West Trapezium (EWT). Align straight vertical lines
in the middle of the screen.

• Upper Corner Parabola (UCP). Align straight vertical lines
in the upper corners of the screen.

EN 66 L05.1U AA9.

Circuit Descriptions, List of Abbreviations, and IC Data Sheets

9. Circuit Descriptions, List of Abbreviations, and IC Data Sheets

Index of this chapter:

9.1 Introduction

9.2 Power Supply

9.3 Video Processing

9.4 Audio Processing

9.5 Deflection Controller

9.6 Abbreviation List

9.7 IC Data Sheets

Notes:

•Only new circuits compared to the L05U chassis are
described in this chapter. For the other circuit descriptions,
see the manual of the L05U chassis.

• Because the service offering for the ATSC part is “Repair
by supplier” this part is not described in this chapter.

• Figures can deviate slightly from the actual situation, due
to different set executions.

• For a good understanding of the following circuit
descriptions, please use the diagrams in sections “Block
Diagrams, ...”, and/or “Electrical Diagrams”. Where
necessary, you will find a separate drawing for clarification.

9.1 Introduction

The L05 ATSC chassis is designed for the model year 2005.
This set has a fully integrated ATSC as well as a NTSC tuning
system. This set will come in a 26 and 30 inch screen sizes
in a 16x9 format. There will be a 32 inch version using a 4x3
ratio screen.

The set consists of a Main panel, CRT board, Side I/O panel,
ATSC module, and Deflection controller panel. The panels
consists primarily of conventional components with some
surface mounted devices.

The The functions for the 1fH video processing is performed in
one IC (TDA1200xx, IC7200), the Hercules chip. This IC is
located on the solder side of the Main panel. NTSC tuning and
switching for AV1, AV2, and CVI inputs are performed on the
Main panel. The CVI input located on the Main panel are for 1fH
(480i) signals only.

The ATSC Tuner and 1fH to 2Fh conversion is performed on
the ATSC module. Component inputs for the CVI HD and HDMI
are located on the ATSC module. This input can accept 480i,
480p, 1080i, or 720p signals. The ATSC module converts
whatever signal is applied to a 1080i format. The ATSC tuning
system can tune all channels in the VHF, UHF, and Cable
bands.

The Microprocessor communicates with the memory IC located
on the Main panel, Keyboard, Remote Receiver, NTSC Tuner,
Deflection Controller panel, and ATSC module. The Memory
IC retains the settings for favorite stations, customer-preferred
setting, and circuit settings. The circuit settings can be
accessed by the service technician via the Service Alignment
Mode.

On-screen graphics and Closed Caption decoding are
performed in IC 7200 for NTSC. IC7200 is located on the Main
signal panel. On-screen graphics and Closed Caption for the
ATSC channels are performed in the ATSC module..

9.2 Power Supply

Figure 9-1 Power supply block diagram

The supply is divided into two sections, the Auxiliary and Main
section, both located on the family board. A single filter and
rectifier circuit supplies both sections. The Auxiliary supply
operates in a low power mode when the load is reduced. In the
standby mode, the 3.3 and 6 volt supplies are operating. The

3.3 volt supply provides power to the processor section of the
Hercules. The 6 volt supply provides power to the IR receiver.
The Main supply is switched Off via the Standby line.

When the set is turned On, the "B" line from the Hercules
processor goes High switching 7547 which turns 7535, 7509,
and 7545 On. The +3V3A, +6VA, +12VA, and +8VA supplies
are then switched On. The load placed on the Aux Power
supply will cause it to switch to the full power mode. At the
same time, the STBY line switches Low turning the Main SMPS
supply On. The supply produces a +6 volt, +140 volt, -16 volt,
and +16 volt supplies.

The +Vaudio (+16 volt) supply switches on the degauss relay.

9.2.1 Auxiliary Power Supply

IC 7510 is the heart of the Auxiliary Power supply. In the
Standby mode, via the current sensing and Control circuits, a
low power condition is detected by the IC. The IC then goes into
a Burst Mode operation to reduce the power used by the circuit.
In the Burst Mode, the supply will operate at approximately 25
kHz. In full power operation the frequency will be approximately
66 kHz.

When power is first applied to the set, Start up is supplied to the
IC by the internal Start-Up current through Pin 14. Startup
voltage is also applied to the IC to Pin 2 by the AC_IN line
which is tied to the neutral side of the AC line. During normal
operation, power is supplied to the IC by the HOT windings,
Pins 1 and 2, of transformer 5504. Output drive from Pin 11 is
applied to the Gate of Transistor 7525. Voltage developed
across the current sensing resistors in the Source of 7525
provides current sense information to the IC. When 7525 is
switched Off, the voltage on Pin 1 of 5504 goes High. This
winding supplies the operating voltage the power supply circuit.
It also turns Transistor 7567 On causing the Gate of 7525 to
stay Low as long as Pin 1 of 5504 is High. This prevents 7525
from turning On until the field of 5504 has collapsed.

F_15060_052.eps

180305

Regulation is accomplished by monitoring the +3 volt supply.
This voltage is fed to Shunt regulator 7542 which controls the
current through opto-isolator 7516. Shunt Regulator 7542
begins conducting when Pin 3 of the IC reaches 2.5 volts. At

Circuit Descriptions, List of Abbreviations, and IC Data Sheets

EN 67L05.1U AA 9.

this point current flows through the opto-isolator, 7516. The
transistor inside 7516 turns On applying a control voltage to Pin
6 of 7510. If a problem should develop in the feedback circuit
causing an excessive voltage on Pin 6, Transistor 7549-2 will
turn On, switching Transistor 7532 On. This will a voltage to the
Demag circuit on Pin 7 causing the IC to latch Off. The IC will
stay latched until power is removed and reapplied to the set.

In the Standby mode, the "B" control line from the Hercules
Processor is Low. Only the +3, +3V3, and +6 volt supplies are
present. When the set is turned On, the "B" line will go High,
turning Transistors 7509, 7545, and 7535 On. This will switch
On the +8VA, +12VA, +8V, +3V3A, +6VA, and +5V supplies.

In normal operation, voltage from Pin 12 of 5504 is rectified by
6540 to produce a negative voltage which prevents Transistor
7561 from turning On. If AC is removed from the set, this
negative voltage will disappear. The voltage across the filter
capacitors on the +3V line will turn 7561 On. The Power Down
line will then go Low signaling the processor to shut the set
down.

9.2.2 Main Power Supply

The Main Power supply provides the VBAT (141 volt), and
Audio voltage supplies. This supply is switched Off during the
Standby mode. During Standby the STBY_Con line is High
which turns Transistor 7573 On. This causes the opto-isolator
7513 to turn On hard. This places a higher voltage on the
control Pin of IC 7511 causing the IC to shut down. The
operating voltage from the Auxiliary supply keeps a small
voltage on Pin 2 of 7511 to prevent it from cycling On and Off.

9.5 Deflection Controller

The Deflection panel performs the signal processing and
Deflection processing functions. YPbPr from the ATSC module
is fe to 7402 signal processor. This circuit performs the Color,
Tint, Brightness, and Contrast control functions. The Y signal is
fed to a Sync Separator to separate the Horizontal and Vertical
Sync which is output on Pins 37 and 35. RGB is output
on Pins 12, 13, and 14. These signals are sent to the CRT
panel.

Horizontal drive is output on Pin 37 where it is fed to the
deflection circuits on the Family board. Vertical Sync is output
on Pin 35 of 7402 to IC 7404. IC 7404 develops the Vertical and
EW drivefor the deflection circuits.

DC monitor signals are output on Pins 4, 6, and 7 of 7402 and
fed to an Undervoltage detection circuit. If a positive or
negative voltage develops on any of these lines, this circuit will
force Pin 21 of 7404 Low, causing the set to shut down. The
shutdown is actaviated when Pin 21 goes below 5 volts.

When the set is turned On, the STBY_Con line goes Low
switching 7573 Off. The VBAT supply is the reference voltage
for regulation. Since this voltage is missing during startup, the
Shunt Regulator 7571 is turned Off. The voltage on Pin 6 of
7511 goes Low, which turns the drive from the IC On. When the
set is On during normal operation, the supply voltage on Pin
2 of the IC is supplied by Pin 2 of Transformer 5512. When the
VBAT supply reaches the correct voltage, Pin 3 of the Shunt
Regulator 7571 reaches 2.5 volts switching it On. This switches
the opto-isolator On to provide a regulation feedback path.

Transistor 6551 provides a power on ramping of the VBAT
supply.

9.3 Video Processing

The video processing section located on the Mono Carrier
performs all of the 1fH processing. AV1, AV2, CVI, and Side
inputs are fed to this board. The CVI input on this board will only
accept 1fH signals. 1fH RGB signals from the Hercules are fed
to the ATSC module via the deflection controller board. The
ATSC module rescales the picture from the Hercules. It also
has an HDMI and CVI connection. The HDMI and CVI
connections can accept either 480i, 480p, 720p, or 1080i. The
ATSC module also has a built in Digital Tuner. The ATSC
module resizes the picture to 1080i regardless of the input.

9.4 Audio Processing

The audio decoding is done entirely via the Hercules, IC 7200.
The analogue IF output from the Tuner is fed directly to either
the Video-IF or the Sound-IF input depending on the type of
concept chosen. There are mainly two types of decoder in the
Hercules, an analog decoder that decodes only Mono,
regardless of any standards, and a digital decoder (or
DEMDEC) that can decode both Mono as well as Stereo, again
regardless of any standards.

Audio from the ATSC board is fed to the Hercules.

EN 68 L05.1U AA9.

Circuit Descriptions, List of Abbreviations, and IC Data Sheets

9.6 Abbreviation List

2CS 2 Carrier (or Channel) Stereo
ACI Automatic Channel Installation:

algorithm that installs TV sets directly
from cable network by means of a

predefined TXT page
ADC Analogue to Digital Converter
AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency
AFT Automatic Fine Tuning
AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box
AM Amplitude Modulation
AP Asia Pacific region
AR Aspect Ratio: 4 by 3 or 16 by 9
ATS Automatic Tuning System
ATSC Advanced Television Systems

Committee; HDTV standard for the

USA, using MPEG2 for video and

Dolby Digital for audio
AV External Audio Video
AVL Automatic Volume Leveler
BCL Beam Current Limitation
B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz
BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries
CC Closed Caption
CCC Continuous Cathode Calibration
ComPair Computer aided rePair
CRT Cathode Ray Tube or picture tube
CSM Customer Service Mode
CTI Color Transient Improvement:

manipulates steepness of chroma

transients
CVBS Composite Video Blanking and

Synchronization
CVI Component Video Input
DAC Digital to Analogue Converter
DBX Dynamic Bass Expander or noise

reduction system in BTSC
D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz
DFU Direction For Use: description for the

end user
DNR Dynamic Noise Reduction
DSP Digital Signal Processing
DST Dealer Service Tool: special remote

control designed for dealers to enter

e.g. service mode
DVD Digital Versatile Disc
EEPROM Electrically Erasable and

Programmable Read Only Memory
EHT Extra High Tension
EHT-INFO Extra High Tension information
EPG Electronic Programming Guide
EU Europe
EW East West, related to horizontal

deflection of the set
EXT External (source), entering the set via

SCART or Cinch
FBL Fast Blanking: DC signal

accompanying RGB signals
FILAMENT Filament of CRT
FM Field Memory or Frequency

Modulation
H Horizontal sync signal
HP Headphone

I Monochrome TV system. Sound

carrier distance is 6.0 MHz
I2C Integrated IC bus
IF Intermediate Frequency
IIC Integrated IC bus
ITV Institutional TV
LATAM Latin American countries like Brazil,

Argentina, etc.
LED Light Emitting Diode
L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I
LS Large Screen or Loudspeaker
M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz
NC Not Connected
NICAM Near Instantaneous Compounded

Audio Multiplexing. This is a digital

sound system, mainly used in Europe.
NTSC National Television Standard

Committee. Color system mainly used

in North America and Japan. Color

carrier NTSC M/N = 3.579545 MHz,

NTSC 4.43 = 4.433619 MHz (this is a

VCR norm, it is not transmitted off-air)
NVM Non Volatile Memory: IC containing

TV related data e.g. alignments
OB Option Bit
OC Open Circuit
OP Option Byte
OSD On Screen Display
PAL Phase Alternating Line. Color system

mainly used in West Europe (color

carrier = 4.433619 MHz) and South

America (color carrier PAL M =

3.575612 MHz and PAL N = 3.582056

MHz)
PCB Printed Circuit board
PLL Phase Locked Loop. Used for e.g.

FST tuning systems. The customer

can give directly the desired frequency
POR Power-On Reset
PTP Picture Tube Panel (or CRT-panel)
RAM Random Access Memory
RC Remote Control handset
RGB Red, Green, and Blue video signals
ROM Read Only Memory
SDAM Service Default / Alignment Mode
SAP Second Audio Program
SC Sandcastle: pulse derived from sync

signals
S/C Short Circuit
SCL Serial Clock
SDA Serial Data
SECAM SEequence Couleur Avec Memoire.

Color system mainly used in France

and East Europe. Color carriers =

4.406250 MHz and 4.250000 MHz
SIF Sound Intermediate Frequency
SS Small Screen
STBY Standby
SVHS Super Video Home System
SW Software
THD Total Harmonic Distortion
TXT Teletext
uP Microprocessor
UOC Ultimate One Chip
UVSH UHF, VHF, S-, and Hyper- band
V Vertical sync signal
V_BAT Main supply voltage for the deflection

stage (mostly 141 V)
V-chip Violence Chip
VCR Video Cassette Recorder

Circuit Descriptions, List of Abbreviations, and IC Data Sheets

WYSIWYR What You See Is What You Record:

record selection that follows main

picture and sound
XTAL Quartz crystal
YC Luminance (Y) and Chrominance (C)

signal

EN 69L05.1U AA 9.

EN 70 L05.1U AA9.

9.7 IC Data Sheets

This section shows the internal block diagrams and pin layouts
of ICs that are drawn as "black boxes" in the electrical diagrams
(with the exception of "memory" and "logic" ICs).

9.7.1 Diagram H, TDA9178 (IC7610)

BLOCK DIAGRAM

Circuit Descriptions, List of Abbreviations, and IC Data Sheets

Sout

Yin

Uin

Vin

DEC

DIG

Vcc

ground

Sandcastle

I2C

input­stage

supply

window

generation

calibrate

Y

U,V

Luminance vector processing

luminance
processing

saturation
correction

skin tone correction
green enhancement
blue stretch

noise
measuring

featuremode
detection

black stretch
histogram processing
gamma control

colour vector processing

2

C-control

I

"cue flash"

spectral processing

smart peaking
LTI
VDC

delay
control

colour
processing

CDS

CTI

ADC

+

output
stage

ADext1 (low frequencies)
ADext2 (low frequencies)
ADext3 (low frequencies)

Yout

Uout

Vout

CF

PIN CONFIGURATION

Sc

Nc

ADEXT1

ADEXT2

ADEXT3

Yin

1

2

3

4

5

6

24

23

22

21

20

19

Nc

Nc

CF

Sout

Vcc

Yout

TDA9178

ADR

Uin

Vin

TP

SCL

Nc Nc

7

8

9

10

11

12 13

Figure 9-2 Internal Block Diagram and Pin Configuration

18

17

16

15

14

Vee

Uout

Vout

DEC

SDA

DIG

E_14480_075.eps

270204

EN 1L05.1U AA

../../SPMSgraphs/2004/E_06532_007.eps 4
../../SPMSgraphs/2004/E_06532_010.eps 65
../../SPMSgraphs/2004/E_06532_011.eps 61
../../SPMSgraphs/2004/E_06532_012.eps 20, 25
../../SPMSgraphs/2004/E_06532_014.eps 5
../../SPMSgraphs/2004/E_06532_021.eps 12
../../SPMSgraphs/2004/E_06532_024.eps 5
../../SPMSgraphs/2004/E_14480_037.eps 48
../../SPMSgraphs/2004/E_14480_038.eps 49
../../SPMSgraphs/2004/E_14480_039.eps 49
../../SPMSgraphs/2004/E_14480_059.eps 15
../../SPMSgraphs/2004/E_14480_060.eps 15
../../SPMSgraphs/2004/E_14480_062.eps 16
../../SPMSgraphs/2004/E_14480_063.eps 16
../../SPMSgraphs/2004/E_14480_064.eps 16
../../SPMSgraphs/2004/E_14480_065.eps 17
../../SPMSgraphs/2004/E_14480_075.eps 70
../../SPMSgraphs/2005/F_15050_001.eps 15
../../SPMSgraphs/2005/F_15050_003.eps 14
../../SPMSgraphs/2005/F_15050_004.eps 14
../../SPMSgraphs/2005/F_15050_005.eps 2
../../SPMSgraphs/2005/F_15050_032.eps 47
../../SPMSgraphs/2005/F_15050_033.eps 47
../../SPMSgraphs/2005/F_15050_034.eps 52
../../SPMSgraphs/2005/F_15050_035.eps 54
../../SPMSgraphs/2005/F_15050_036.eps 54
../../SPMSgraphs/2005/F_15050_040.eps 52
../../SPMSgraphs/2005/F_15050_041.eps 53
../../SPMSgraphs/2005/F_15050_042.eps 53
../../SPMSgraphs/2005/F_15050_043.eps 55
../../SPMSgraphs/2005/F_15050_044.eps 56
../../SPMSgraphs/2005/F_15050_045.eps 56
../../SPMSgraphs/2005/F_15050_046.eps 55
../../SPMSgraphs/2005/F_15050_047.eps 57
../../SPMSgraphs/2005/F_15050_048.eps 57
../../SPMSgraphs/2005/F_15050_056.eps 50
../../SPMSgraphs/2005/F_15050_057.eps 51
../../SPMSgraphs/2005/F_15050_058.eps 51
../../SPMSgraphs/2005/F_15050_066.eps 61
../../SPMSgraphs/2005/F_15060_000.eps 1
../../SPMSgraphs/2005/F_15060_001.eps 29
../../SPMSgraphs/2005/F_15060_002.eps 30
../../SPMSgraphs/2005/F_15060_003.eps 31
../../SPMSgraphs/2005/F_15060_004.eps 32
../../SPMSgraphs/2005/F_15060_005.eps 33
../../SPMSgraphs/2005/F_15060_006.eps 3
../../SPMSgraphs/2005/F_15060_007.eps 34
../../SPMSgraphs/2005/F_15060_008.eps 35
../../SPMSgraphs/2005/F_15060_009.eps 36
../../SPMSgraphs/2005/F_15060_010.eps 37
../../SPMSgraphs/2005/F_15060_011.eps 38
../../SPMSgraphs/2005/F_15060_012.eps 39
../../SPMSgraphs/2005/F_15060_012a.eps 40
../../SPMSgraphs/2005/F_15060_012b.eps 41
../../SPMSgraphs/2005/F_15060_012c.eps 42
../../SPMSgraphs/2005/F_15060_012d.eps 43
../../SPMSgraphs/2005/F_15060_013.eps 23
../../SPMSgraphs/2005/F_15060_014.eps 58
../../SPMSgraphs/2005/F_15060_015.eps 59
../../SPMSgraphs/2005/F_15060_016.eps 60
../../SPMSgraphs/2005/F_15060_017.eps 60
../../SPMSgraphs/2005/F_15060_031.eps 36
../../SPMSgraphs/2005/F_15060_032.eps 44
../../SPMSgraphs/2005/F_15060_033.eps 45
../../SPMSgraphs/2005/F_15060_034.eps 46
../../SPMSgraphs/2005/F_15060_035.eps 21
../../SPMSgraphs/2005/F_15060_036.eps 22
../../SPMSgraphs/2005/F_15060_037.eps 24
../../SPMSgraphs/2005/F_15060_038.eps 26
../../SPMSgraphs/2005/F_15060_039.eps 27
../../SPMSgraphs/2005/F_15060_040.eps 28
../../SPMSgraphs/2005/F_15060_041.eps 7
../../SPMSgraphs/2005/F_15060_042.eps 7
../../SPMSgraphs/2005/F_15060_043.eps 7
../../SPMSgraphs/2005/F_15060_044.eps 8

../../SPMSgraphs/2005/F_15060_045.eps 9
../../SPMSgraphs/2005/F_15060_046.eps 10
../../SPMSgraphs/2005/F_15060_047.eps 10
../../SPMSgraphs/2005/F_15060_048.eps 18
../../SPMSgraphs/2005/F_15060_049.eps 19
../../SPMSgraphs/2005/F_15060_051.eps 25
../../SPMSgraphs/2005/F_15060_052.eps 66
../../SPMSgraphs/2005/F_15060_053.eps 62

SPARE PARTS LIST

MODEL "A" = 26PW9100D
MODEL "B" = 30PW9100D
MODEL "C" = 30PW9110D
MODEL "D" = 32PT9100D

PRODUCT SAFETY NOTE: Products marked with a

 have special characteristics important to safety.
Before replacing any of these components, read carefully
the product safety notice in this service manual.
Don't degrade the safety of the product through
improper servicing.

REF.  MODEL DESCRIPTION PART NO.

CABINET PARTS

8 D BC 34WDPV22 ATSC QAM/NA 313912462421
16 D AS MAINSKNOB PV2/11027/NA 313917771181
16 ABC AS MAINSKNOB FL13B/10942/NA 313917788861
41 D PV2 LENS (USA) 313912439701
50 C Nameplate 313912001301
50 BD Nameplate 314105000281
50 A Nameplate 314105000291
106 BC Yoke Wedge 312123320091
125 Instruction Book 313912533641
145 Quick Use Guide 313912533631
164 Quick Connection Guide (FR) 313912534951
166 Quick Connection Guide (SP) 313912534961
167 Quick Connection Guide (ENG) 313912534971
1081 Battery, Zinc, 1.5V (2-Pack) 929900065263
1085 Remote Transmitter 312814717131
1099 D CRT A80ERF182X45N 930194880539
1099 A CRT W66QDS770XV2N 930198420522
1099 BC CRT W76QEN691X100 932221772682
1127 A Defl - Control Assy 313918887411
1127 D Defl - Control Assy 313926712921
1128 D MOD-DIGITAL-ATSC-HDMI-4:3 313926710201
1128 ABC MOD-DIGITAL-ATSC-HDMI-16:9 313926714311
5203 A Degauss Coil 313912823931
5203 BC Degauss Coil 313912823941
5203 D Degauss Coil 313912824021
5205 Coil 242254945605
5213 D Speaker 8 ohm 15W Full-range 242226400484

5213 ABC Speaker 8 ohm 10W Full-range 242226400491
5214 D Speaker 8 ohm 15W Full-range 242226400484
5214 ABC Speaker 8 ohm 10W Full-range 242226400491
8190 AC Cord 242207000066
9950 BC Back cover Sub-Assy 312123755801
9950 A Back cover Sub-Assy 312123755821
9960 A Front cover Sub-Assy 312123755831

MAIN CHASSIS

CBA A Main Chassis Assy 313918887221
CBA BC Main Chassis Assy 313918885131
CBA D Main Chassis Assy 313918887231
1000 Tuner 313914723541
1002 SAW Filter, 45MHz75, OFWM1971M 242254944518
1005 Connector, 3 Pin 241202000725
1050 BC MC-30PW9100D.9200D/37-NA ATSC 313918885151
1050 A MC-26PW9100D.9200D/37-NA-ATSC 313918887241
1050 D MC-32PT9100D/37-NA-ATSC 313918887251
1137 4 Pin Cinch Socket 242202605659
1205 Crystal Resonator 24MHZ576 242254301421
1206 Connector, 6 Pin 242202508149
1207 Connector, 7 Pin 242202511244
1208 Connector, 3 Pin 242202510768
1219 Connector, 4 Pin 242202509406
1250 Connector, 12 Pin 242202516052
1251 Connector, 10 Pin 242202516051
1257 Connector, 3 Pin 241202000725
1280 Connector, 5 Pin 242202512481
1401 Connector, 7 Pin 242202511244
1404 Connector, 2 Pin 242202516269
1451 Connector, 3 Pin 241202000725
1500 FUSE 5X20 HT 6A3 250V IEC B 242208600194
1503 RELAY 1P 12V 5A 242213207467
1504 Connector, 2 Pin 242202516375
1505 Connector, 2 Pin 242202516269
1533 Connector, 12 Pin 242202510772
1534 8 Pin Board Connector 242202508151
1535 Connector, 3 Pin 241202000725
1546 WIRE SIN 680 POSI 18ST BK 313913105261
1682 Connector, 3 Pin 241202000725
1693 Connector, 6 Pin 242202512482
2001 Cap, 22p, 5%, 50V, Ceramic 319801632290
2004 Cap, 47n, +80/-20%, 50V, Ceramic 319802444730
2005 Cap, 4u7, 20%, 50V, Electrolytic 319802554780
2006 Cap, 470u, 20%, 16V, Electrolytic 319802524710
2007 Cap, 100n, 10%, 16V, Ceramic 319801731040

2008 Cap, 100u, 20%, 25V, Electrolytic 319802531010
2011 Cap, 100n, 10%, 16V, Ceramic 319801731040
2012 Cap, 100n, 10%, 16V, Ceramic 319801731040
2122 Cap, 330p, 10%, 50V, Ceramic 319801733310
2123 Cap, 2u2, 20%, 50V, Electrolytic 319802552280
2124 Cap, 330p, 10%, 50V, Ceramic 319801733310
2125 Cap, 2u2, 20%, 50V, Electrolytic 319802552280
2131 Cap, 330p, 10%, 50V, Ceramic 319801733310
2132 Cap, 2u2, 20%, 50V, Electrolytic 319802552280
2133 Cap, 330p, 10%, 50V, Ceramic 319801733310
2134 Cap, 2u2, 20%, 50V, Electrolytic 319802552280
2203 Cap, 100u, 20%, 10V, Electrolytic 319802511010
2204 Cap, 22n, 10%, 25V, Ceramic 319801732230
2205 Cap, 220n, +80/-20%, 16V, Ceramic 319801742240
2206 Cap, 220n, +80/-20%, 16V, Ceramic 319801742240
2207 Cap, 220n, +80/-20%, 16V, Ceramic 319801742240
2208 Cap, 220n, +80/-20%, 16V, Ceramic 319801742240
2209 Cap, 220n, +80/-20%, 16V, Ceramic 319801742240
2210 Cap, 220n, +80/-20%, 16V, Ceramic 319801742240
2211 Cap, 220n, +80/-20%, 16V, Ceramic 319801742240
2212 Cap, 220n, +80/-20%, 16V, Ceramic 319801742240
2213 Cap, 220n, +80/-20%, 16V, Ceramic 319801742240
2214 Cap, 100n, 10%, 16V, Ceramic 319801731040
2215 Cap, 220n, +80/-20%, 16V, Ceramic 319801742240
2216 Cap, 220n, +80/-20%, 16V, Ceramic 319801742240
2217 Cap, 470u, 20%, 10V, Electrolytic 319802514710
2218 Cap, 47u, 20%, 25V, Electrolytic 319802534790
2223 Cap, 100n, 10%, 16V, Ceramic 319801731040
2224 Cap, 100u, 20%, 25V, Electrolytic 319802531010
2225 Cap, 220n, +80/-20%, 16V, Ceramic 319801742240
2226 Cap, 220n, +80/-20%, 16V, Ceramic 319801742240
2229 Cap, 220n, +80/-20%, 16V, Ceramic 319801742240
2231 Cap, 100n, 10%, 16V, Ceramic 319801731040
2232 Cap, 100n, 10%, 16V, Ceramic 319801731040
2233 Cap, 100n, 10%, 16V, Ceramic 319801731040
2234 Cap, 100u, 20%, 25V, Electrolytic 319802531010
2235 Cap, 6n8, 10%, 50V, Ceramic 319801736820
2237 Cap, 100n, 10%, 16V, Ceramic 319801731040
2238 Cap, 220n, +80/-20%, 16V, Ceramic 319801742240
2239 Cap, 220n, +80/-20%, 16V, Ceramic 319801742240
2240 Cap. 1u5, 20%, 50V, Electrolytic 202002190137
2241 Cap, 22n, 10%, 25V, Ceramic 319801732230
2242 Cap, 100n, 10%, 16V, Ceramic 319801731040
2244 Cap, 2u2, +80/-20%, 10V, Ceramic 319801722250
2249 Cap, 100n, 10%, 16V, Ceramic 319801731040
2250 Cap, 100u, 20%, 25V, Electrolytic 319802531010

2251 Cap, 10n, +80/-20%, 50V, Ceramic 319801921030
2253 Cap, 10n, 10%, 50V, Ceramic 319801731030
2255 Cap, 10n, 10%, 50V, Ceramic 319801731030
2256 Cap, 100n, 10%, 16V, Ceramic 319801731040
2257 Cap, 3n3, 10%, 50V, Ceramic 319801733320
2260 Cap, 100n, 10%, 16V, Ceramic 319801731040
2261 Cap, 100n, 10%, 16V, Ceramic 319801731040
2262 Cap, 10n, 10%, 50V, Ceramic 319801731030
2263 Cap, 100n, 10%, 16V, Ceramic 319801731040
2264 Cap, 560p, 5%, 25V, Ceramic 319801635610
2265 Cap, 100u, 20%, 25V, Electrolytic 319802531010
2266 Cap, 2u2, +80/-20%, 10V, Ceramic 319801722250
2267 Cap, 2u2, +80/-20%, 10V, Ceramic 319801722250
2272 Cap, 100n, 10%, 16V, Ceramic 319801731040
2273 Cap, 100u, 20%, 25V, Electrolytic 319802531010
2274 Cap, 100n, 10%, 16V, Ceramic 319801731040
2275 Cap, 10u, 20%, 50V, Electrolytic 319802551090
2276 Cap, 100n, +80/-20%, 25V, Ceramic 319802321040
2279 Cap, 100p, 5%, 50V, Ceramic 319801631010
2280 Cap, 1u, +80/-20%, 10V, Ceramic 319801741050
2282 Cap, 1n, 10%, 50V, Ceramic 319801731020
2291 Cap, 10u, 20%, 50V, Electrolytic 319802551090
2292 Cap, 10u, 10%, 6.3V, Ceramic 202055296637
2293 Cap, 470p, 5%, 50V, Ceramic 319801634710
2404 Cap, 47u, 20%, 160v, Electrolytic 202203100103
2407 Cap, 330p, 5%, 50V, Ceramic 319801633310
2409 Cap, 33n, 10%, 50V, Ceramic 319801703330
2410 Cap, 100n, 10%, 16V, Ceramic 319801701040
2411 A Cap, 1n, 10%, 2KV, Ceramic 319801971020
2411 BC Cap, 220p, 10%, 2KV, Ceramic 319801972210
2411 D Cap, 330p, 10%, 2KV, Ceramic 319801973310
2412 ABC Cap, 12n, 1600V, 5%, Metalized Polypropylene 202233300254
2412  D Cap, 10n, 5%, 1600V, Polypropylene 222237590154
2413 BC Cap, 33n, 10%, 400V, POL PEN 202232000014
2413 AD Cap, 27n, 5%, 630v, Polypropylene 222237590223
2418 Cap, 330n, 250V, 5%, Metalized Polypropylene 202233300259
2419 AD Cap, 560n, 5%, 250V, Metalized Polypropylene 202233300088
2419 BC Cap, 1u2, 5%, 250V, Metalized Polypropylene 222247990034
2421 BC Cap, 220p, 10%, 2KV, Ceramic 319801972210
2422 BC Cap, 220p, 10%, 2KV, Ceramic 319801972210
2426 Cap, 470p, 10%, 200V, Ceramic 223893055618
2431 Cap, 680p, 10%, 500V, Ceramic 319801946810
2436 Cap, 1u, 20%, 250V, Electrolytic 202001293279
2448 Cap, 470p, 10%, 200V, Ceramic 223893055618
2449 Cap, 470u, 20%, 16V, Electrolytic 319802524710
2451  Cap, 68n, 10%, 250V, Metalized Polyester 222236545683

2454 Cap, 470u, 20%, 16V, Electrolytic 319802524710
2459 Cap, 470p, 10%, 200V, Ceramic 223893055618
2460 Cap, 470u, 20%, 16V, Electrolytic 319802524710
2461 Cap, 22u, 20%, 100V, Electrolytic 319802572290
2462 Cap, 2n2, 10%, 50V, Ceramic 319801732220
2463 Cap, 2n2, 10%, 50V, Ceramic 319801732220
2464 Cap, 100n, +80/-20%, 25V, Ceramic 319802321040
2465 Cap, 220n, +80/-20%, 50V, Ceramic 223858019814
2466 Cap, 2u2, +80/-20%, 10V, Ceramic 319801722250
2467 Cap, 220n, +80/-20%, 50V, Ceramic 223858019814
2468 Cap, 470n, 10%, 100V, Metalized Polyester 222236525474
2469 Cap, 22u, 20%, 100V, Electrolytic 319802572290
2470 Cap, 100n, 10%, 100v, Ceramic 222260155649
2477 Cap, 8n2, 10%, 50V, Ceramic 223858015635
2478 Cap, 15n, 10%, 50V, Ceramic 319801701530
2488 Cap, 1u, 10%, 50V, Polyester 319801401050
2491 Cap, 4u7, +80/-20%, 10V, Ceramic 202055296305
2492 Cap, 470p, 10%, 200V, Ceramic 223893055618
2493 Cap, 470p, 10%, 200V, Ceramic 223893055618
2494 Cap, 470p, 10%, 200V, Ceramic 223893055618
2496 Cap, 10n, 10%, 50V, Ceramic 319801731030
2497 Cap, 220p, 5%, 50V, Ceramic 319801632210
2499 Cap, 2u2, +80/-20%, 16V, Ceramic 202055295447
2500 Cap, 470n, 20%, 275V, Metalized Polypropylene 222233822474
2501 Cap, 2n2, 10%, 1KV, Ceramic 319801952220
2503 Cap, 2n2, 10%, 1KV, Ceramic 319801952220
2504 Cap, 2n2, 10%, 1KV, Ceramic 319801952220
2505 Cap. 680u, 20%, 200V, Electrolytic 202002490723
2508  Cap, 100n, 20%, 275V, Metalized Polypropylene 222233822104
2510 Cap, 47u, 20%, 50V, Electrolytic 319802554790
2511 Cap, 22u, 20%, 50V, Electrolytic 319802552290
2512 Cap, 100n, 10%, 16V, Ceramic 319801731040
2513 Cap, 470p, 5%, 50V, Ceramic 319801634710
2514 Cap, 1n5, 10%, 2KV, Ceramic 319801971520
2515 Cap, 1n, 10%, 50V, Ceramic 319801731020
2516 Cap, 100n, 10%, 16V, Ceramic 319801731040
2517 Cap, 1n, 10%, 50V, Ceramic 319801731020
2519 Cap, 470p, 5%, 50V, Ceramic 319801634710
2520 Cap, 100n, 10%, 16V, Ceramic 319801731040
2521 Cap, 47n, 10%, 16V, Ceramic 319801734730
2522 Cap, 470p, 5%, 50V, Ceramic 319801634710
2523 Cap, 330p, 10%, 1KV, Ceramic 319801963310
2524 Cap, 1n, 10%, 100V, Ceramic 223860056623
2525 Cap, 470p, 5%, 50V, Ceramic 319801634710
2526 Cap, 100n, 10%, 50V, Ceramic 222258015649
2528 Cap, 470n, 10%, 50V, Polyester 319801404740

2534 Cap, 470u, 20%, 16V, Electrolytic 319802524710
2535 Cap, 4700u, 20%, 6.3V, Electrolytic 202002100092
2536 Cap, 2u2, 20%, 16V, Electrolytic 319802622220
2538 Cap, 1n, 10%, 50V, Ceramic 319801731020
2539 Cap, 470p, 10%, 500V, Ceramic 319801944710
2541 Cap, 47u, 20%, 25V, Electrolytic 319802534790
2542  Cap, 1n5, 20%, 250v, Ceramic 202055490199
2543 Cap, 100n, 10%, 16V, Ceramic 319801731040
2544 Cap, 2n2, 10%, 500V, Ceramic 319801942220
2551 Cap, 1n, 10%, 1KV, Ceramic 319801961020
2552 Cap. 150u, 20%, 160V, Electrolytic 202002100112
2561 Cap, 1n, 10%, 50V, Ceramic 319801911020
2562 Cap, 2u2, 20%, 25V, Electrolytic 202001293402
2563 Cap, 2u2, 20%, 25V, Electrolytic 202001293402
2564 Cap, 100n, 10%, 50V, Ceramic 222258015649
2565 Cap, 1n, 10%, 100V, Ceramic 223860056623
2570  Cap, 470p, 10%, 250V, Ceramic 202055490169
2571 Cap, 15n, 10%, 50V, Ceramic 319801731530
2572 Cap, 10n, 10%, 50V, Ceramic 319801731030
2575 Cap, 10n, 10%, 50V, Ceramic 319801731030
2576 Cap, 100n, 10%, 16V, Ceramic 319801731040
2577 Cap, 100u, 20%, 16V, Electrolytic 319802821010
2578 Cap, 2n2, 10%, 50V, Ceramic 319801732220
2579 Cap, 100n, 10%, 16V, Ceramic 319801731040
2580 Cap, 15n, 10%, 400V, Polyester 222234790219
2582 Cap, 1u, +80/-20%, 25V, Ceramic 202055296723
2583 Cap, 10u, 10%, 6.3V, Ceramic 202055296637
2584 Cap, 470u, 20%, 6.3V, Electrolytic 319802504710
2585 Cap, 1u, +80/-20%, 25V, Ceramic 202055296723
2587 Cap, 470u, 20%, 10V, Electrolytic 319802514710
2590 Cap, 4700u, 20%, 10V, Electrolytic 202002100101
2591 Cap, 1n, 10%, 50V, Ceramic 319801731020
2592 Cap, 68p, 5%, 50V, Ceramic 319801636890
2601 Cap, 1n, 5%, 25V, Ceramic 319801631020
2611 Cap, 470u, 20%, 16V, Electrolytic 319802524710
2615 Cap, 4u7, +80/-20%, 10V, Ceramic 202055296305
2617 Cap, 100n, 10%, 16V, Ceramic 319801731040
2620 Cap, 100n, 10%, 16V, Ceramic 319801731040
2621 Cap, 100u, 20%, 25V, Electrolytic 319802531010
2623 Cap, 100n, 10%, 16V, Ceramic 319801731040
2624 Cap, 100u, 20%, 25V, Electrolytic 319802531010
2625 Cap, 2u2, 10%, 6v3, Ceramic 202255205615
2632 Cap, 6n8, 10%, 50V, Ceramic 319801736820
2633 Res, Zero ohm, 'Chip' Jumper 319802190030
2634 Res, Zero ohm, 'Chip' Jumper 319802190030
2986 Cap, 100n, 10%, 16V, Ceramic 319801731040

2987 Cap, 100n, 10%, 16V, Ceramic 319801731040
2988 Cap, 100n, 10%, 16V, Ceramic 319801731040
2989 Cap, 2u2, 10%, 6.3V, Ceramic 202055200183
2990 Cap, 1n, 5%, 25V, Ceramic 319801631020
2992 Cap, 2u2, 10%, 6.3V, Ceramic 202055200183
2993 Cap, 1n, 5%, 25V, Ceramic 319801631020
2994 Cap, 22n, 10%, 25V, Ceramic 319801732230
2995 Cap, 22n, 10%, 25V, Ceramic 319801732230
2996 Cap, 47n, +80/-20%, 50V, Ceramic 319802444730
2997 Cap, 47n, +80/-20%, 50V, Ceramic 319802444730
2998 Cap, 2u2, +80/-20%, 10V, Ceramic 319801722250
3003 Res, 10K, 5%, 1/16W, Metalized Glass 319802131030
3004 Res, 68K, 5%, 1/16W, Metalized Glass 319802136830
3005 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3121 Res, 75 ohm, 5%, 1/16W, Metalized Glass 319802137590
3123 Res, 22K, 5%, 1/6W, Carbon Film 319801102230
3124 Res, 47K, 5%, 1/16W, Metalized Glass 319802134730
3125 Res, 22K, 5%, 1/6W, Carbon Film 319801102230
3126 Res, 47K, 5%, 1/16W, Metalized Glass 319802134730
3129 Res, 75 ohm, 5%, 1/16W, Metalized Glass 319802137590
3130 Res, 75 ohm, 5%, 1/16W, Metalized Glass 319802137590
3131 Res, 22K, 5%, 1/6W, Carbon Film 319801102230
3132 Res, 47K, 5%, 1/16W, Metalized Glass 319802134730
3133 Res, 22K, 5%, 1/6W, Carbon Film 319801102230
3134 Res, 47K, 5%, 1/16W, Metalized Glass 319802134730
3135 Res, 75 ohm, 5%, 1/16W, Metalized Glass 319802137590
3167 Res, 75 ohm, 5%, 1/16W, Metalized Glass 319802137590
3168 Res, 75 ohm, 5%, 1/16W, Metalized Glass 319802137590
3169 Res, 75 ohm, 5%, 1/16W, Metalized Glass 319802137590
3201 Res, 1K, 5%, 1/6W, Carbon Film 319801101020
3202 Res, 3K3, 5%, 1/16W, Metalized Glass 319802133320
3203 Res, 150K, 5%, 1/16W, Metalized Glass 319802131540
3204 Res, 3K3, 5%, 1/16W, Metalized Glass 319802133320
3205 Res, 12K, 5%, 1/16W, Metalized Glass 319802131230
3206 Res, 5K6, 5%, 1/16W, Metalized Glass 319802135620
3207 Res, 10 ohm, 5%, 1/16W, Metalized Glass 319802131090
3208 Res, 27K, 5%, 1/16W, Metalized Glass 319802132730
3209 Res, 1 ohm, 5%, 1/16W, Metalized Glass 319802131080
3210 Res, 1 ohm, 5%, 1/16W, Metalized Glass 319802131080
3211 Res, 27K, 5%, 1/16W, Metalized Glass 319802132730
3212 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3214 Res, 10 ohm, 5%, 1/16W, Metalized Glass 319802131090
3215 Res, 4K7, 5%, 1/6W, Carbon Film 319801104720
3216 Res, 10 ohm, 5%, 1/16W, Metalized Glass 319802131090
3218 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3219 Res, 10K, 5%, 1/16W, Metalized Glass 319802131030

3220 Res, 150 ohm, 5%, 1/16W, Metalized Glass 319802131510
3221 Res, 270 ohm, 5%, 1/16W, Metalized Glass 319802132710
3222 Res, 330 ohm, 5%, 1/16W, Metalized Glass 319802133310
3226 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3227 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3228 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3229 Res, 1K5, 5%, 1/16W, Metalized Glass 319802131520
3231 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3232 Res, 12K, 5%, 1/16W, Metalized Glass 319802131230
3238 Res, 10K, 5%, 1/16W, Metalized Glass 319802131030
3241 Res, 39K, 5%, 1/6W, Carbon Film 319801103930
3242 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3246 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3247 Res, 390 ohm, 5%, 1/16W, Metalized Glass 319802133910
3248 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3249 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3252 Res, 10K, 5%, 1/6W, Carbon Film 319801101030
3253 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3257 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3258 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3260 Res, 100 ohm, 5%, 1/6W, Carbon Film 319801101010
3261 Res, 4K7, 5%, 1/16W, Metalized Glass 319802134720
3262 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3263 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3264 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3265 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3266 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3269 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3270 Res, 100 ohm, 5%, 1/6W, Carbon Film 319801101010
3272 Res, 820 ohm, 5%, 1/16W, Metalized Glass 319802138210
3273 Res, 1K, 5%, 1/16W, Metalized Glass 319802131020
3274 Res, 100 ohm, 5%, 1/6W, Carbon Film 319801101010
3275 Res, 100 ohm, 5%, 1/6W, Carbon Film 319801101010
3276 Res, 100 ohm, 5%, 1/6W, Carbon Film 319801101010
3277 Res, 100 ohm, 5%, 1/6W, Carbon Film 319801101010
3278 Res, 100 ohm, 5%, 1/6W, Carbon Film 319801101010
3279 Res, 4K7, 5%, 1/16W, Metalized Glass 319802134720
3280 Res, 4K7, 5%, 1/16W, Metalized Glass 319802134720
3281 Res, 4K7, 5%, 1/16W, Metalized Glass 319802134720
3283 Res, 4K7, 5%, 1/16W, Metalized Glass 319802134720
3284 Res, 4K7, 5%, 1/16W, Metalized Glass 319802134720
3285 Res, 1K, 5%, 1/16W, Metalized Glass 319802131020
3287 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3291 Res, 4K7, 5%, 1/6W, Carbon Film 319801104720
3292 Res, 4K7, 5%, 1/10W, Metalized Glass 319802154720
3293 Res, 10 ohm, 5%, 1/6W, Carbon Film 319801101090

3296 Res, 5K6, 5%, 1/16W, Metalized Glass 319802135620
3298 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3401 Res, 47k ohm, 1%, 1/16W, Metal Film 319803947030
3402 Res, 330 ohm, 5%, 1/6W, Carbon Film 319801103310
3408 Res, 100K, 5%, 1/16W, Metalized Glass 319802131040
3413 Res, 1K, 5%, 1/6W, Carbon Film 319801101020
3414 ABC Res, 4.7 ohm, 1%, 1/16W, Metal Film 319803947080
3414 D Res, 6.8 ohm, 1%, 1/16W, Metal Film 319803968080
3415 ABC Res, 4.7 ohm, 1%, 1/16W, Metal Film 319803947080
3415 D Res, 6.8 ohm, 1%, 1/16W, Metal Film 319803968080
3416 Res, 47 ohm, 5%, 1/16W, Metalized Glass 319802134790
3419 ABC Res, 4.7 ohm, 1%, 1/16W, Metal Film 319803947080
3419 D Res, 6.8 ohm, 1%, 1/16W, Metal Film 319803968080
3421 Res, 4.7 ohm, 1%, 1/16W, Metal Film 319803947080
3424  BC VDR DC 1MA/612V S MAX 1100V A 232259214217
3425  BC VDR DC 1MA/612V S MAX 1100V A 232259214217
3431 Res, 82k ohm, 1%, 1/16W, Metal Film 319803982030
3433 D Res, 10 ohm, 1%, Metal Film 319803910090
3433 ABC Res, 4.7 ohm, 1%, 1/16W, Metal Film 319803947080
3439 Res, 10K, 5%, 1/16W, Metalized Glass 319802131030
3440 Res, 2.2 ohm, 1%, 1/16W, Metal Film 319803922080
3441 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3450  Res, 1 ohm, 5%, 1/3W, Metal Film 230620403108
3451 D Res, 10 ohm, 1%, Metal Film 319803910090
3451 ABC Res, 4.7 ohm, 1%, 1/16W, Metal Film 319803947080
3453 Res, 56K, 5%, 1/16W, Metalized Glass 319802135630
3455  Res, Fuse, 0.27 ohm, 5% 230620703277
3456  Res, Fuse, 0.27 ohm, 5% 230620703277
3458 Res, 4R7, 5%, 1/2W, Metal Film 230620703478
3459 A Res, 820K, 5%, 1/16W, Metalized Glass 232270260824
3459 BC Res, 470K, 5%, 1/16W, Metalized Glass 319802134740
3459 D Res, 680K, 5%, 1/16W, Metalized Glass 319802136840
3460 Res, 56K, 1%, 1/16W, Metalized Glass 232270465603
3461 Res, 27K, 5%, 1/16W, Metalized Glass 319802132730
3462 Res, 18K, 1%, 1/16W, Metalized Glass 232270461803
3463 Res, 3K3, 5%, 1/16W, Metalized Glass 319802133320
3466 Res, 1R5, 5%, 1/3W, Metal Film 230620403158
3467 Res, 100 ohm, 1%, Metal Film 319803910010
3468 Res, 100 ohm, 1%, Metal Film 319803910010
3469 Res, 22K, 5%, 1/6W, Carbon Film 319801102230
3471 Res, 2.2 ohm, 1%, 1/16W, Metal Film 319803922080
3472 AD Res, 1.2 ohm, 1%, Metal Film 319803912080
3472 BC Res, 2.2 ohm, 1%, 1/16W, Metal Film 319803922080
3473 Res, 15 ohm, 5%, 1 1/3W, Metal Film 319801221590
3477 Res, 1K5, 5%, 1/6W, Carbon Film 319801101520
3478 Res, 33K, 5%, 1/6W, Carbon Film 319801103330

3481 Res, 1K, 5%, 1/6W, Carbon Film 319801101020
3485  D Res, 1 ohm, 5%, 1/3W, Metal Film 230620403108
3485  ABC Res, Fuse, 0.47 ohm, 5% 230620703477
3486  Res, 1 ohm, 5%, 1/3W, Metal Film 230620403108
3489 Res, 10K, 5%, 1/6W, Carbon Film 319801101030
3490 Res, 150 ohm, 1%, 1/16W, Metal Film 319803915010
3491 A Res, 10K, 5%, 1/16W, Metalized Glass 319802131030
3491 BCD Res, 8K2, 5%, 1/16W, Metalized Glass 319802138220
3492 A Res, 22K, 5%, 1/16W, Metalized Glass 319802132230
3492 BCD Res, 47K, 5%, 1/16W, Metalized Glass 319802134730
3493 Res, 2R2, 5%, 1/2W, Metal Film 230620703228
3496 Res, 100K, 5%, 1/16W, Metalized Glass 319802131040
3497 Res, 56K, 5%, 1/16W, Metalized Glass 319802135630
3499 Res, 470K, 5%, 1/6W, Carbon Film 319801104740
3500 Res, 3M3, 5%, 1/2W, Metalized Glass 232224213335
3501 Res, 3M3, 5%, 1/2W, Metalized Glass 232224213335
3502 Res, 220 ohm, 20%, 1/2W, Carbon Film 319801302210
3503  Surge Protector 242254943073
3504 Res, 1M5, 5%, 1/2W, Metalized Glass 232224213155
3505 VDR, 1mA/612V 212255000158
3510 NTC DC B57364 5W1 S 2R0 PM20 B 212261200077
3511 Res, 4R7, 5%, 1/6W, Carbon Film 319801104780
3512 Res, 1K2, 5%, 1/16W, Metalized Glass 319802131220
3513 Res, 2K2, 5%, 1/3W, Metal Film 230620403222
3514 Res, 100 ohm, 5%, 1/3W, Metal Film 230620403101
3515 Res, 1K, 5%, 1/6W, Carbon Film 319801101020
3516 Res, 0.1 ohm, 5%, 3/5W, Metal Film 319801211070
3517 Res, 300k, 1%, Metalized Glass 232270463004
3518 Res, 3K3, 5%, 1/16W, Metalized Glass 319802133320
3519 Res, 15K, 5%, 1/6W, Carbon Film 319801101530
3520 Res, 0.12ohm, 5%, 1W 212010500036
3521 Res, 3K3, 5%, 1/6W, Carbon Film 319801103320
3522 Res, 56K, 5%, 1/16W, Metalized Glass 319802135630
3523 PTC, 1R5, 20%, 145v, DBL-MONO 232266296753
3524 Res, 47K, 5%, 1/16W, Metalized Glass 319802134730
3525 Res, 330K, 1%, Metal Film 319803933040
3526 Res, 150 ohm, 5%, 1/8W, Metalized Glass 232275061501
3527 Res, 47K, 5%, 1/16W, Metalized Glass 319802134730
3528 Res, 1M, 5%, 1/16W, Metalized Glass 319802131050
3529 Res, 2M2, 5%, 1/16W, Metalized Glass 319802132250
3530 Res, 56K, 5%, 1/16W, Metalized Glass 319802135630
3531 Res, 1K, 5%, 1/6W, Carbon Film 319801101020
3532 Res, 1 ohm, 5%, 1/10W, Metalized Glass 319802151080
3533 Res, 1 ohm, 5%, 1/10W, Metalized Glass 319802151080
3534 Res, 33 ohm, 5%, 1/6W, Carbon Film 319801103390
3535 Res, 1 ohm, 5%, 1/2W, Metal Film 230620703108

3536 Res, 220 ohm, 5%, 1/3W, Metal Film 230620403221
3538 Res, 1 ohm, 5%, 1/10W, Metalized Glass 319802151080
3539 Res, 1K, 5%, 1/16W, Metalized Glass 319802131020
3541 Res, 47K, 5%, 1/16W, Metalized Glass 319802134730
3542 Res, 680 ohm, 5%, 1/16W, Metalized Glass 319802136810
3543 Res, 10K, 5%, 1/16W, Metalized Glass 319802131030
3544 Res, 2K4, 1%, 1/16W, Metalized Glass 232270462402
3545 Res, 820 ohm, 1%, 1/16W, Metalized Glass 232270468201
3546 Res, 68K, 5%, 1/16W, Metalized Glass 319802136830
3549 Res, 3K3, 5%, 1/6W, Carbon Film 319801103320
3550 Res, 220K, 5%, 1/16W, Metalized Glass 319802132240
3551 Res, 4R7, 5%, 1/16W, Metalized Glass 319802134780
3553 Res, 39K, 5%, 1/16W, Metalized Glass 319802133930
3560 Res, 33 ohm, 5%, 1W, Metal Film 319801213390
3563 Res, 220 ohm, 5%, 1/6W, Carbon Film 319801102210
3565 Res, 27K, 5%, 1/16W, Metalized Glass 319802132730
3567 Res, 3K3, 5%, 1/16W, Metalized Glass 319802133320
3568 Res, 47K, 5%, 1/16W, Metalized Glass 319802134730
3571 Res, 470 ohm, 5%, 1/10W, Metalized Glass 319802154710
3573 Res, 15K, 5%, 1/16W, Metalized Glass 319802131530
3574 Res, 82K, 5%, 1/10W, Metalized Glass 319802158230
3575 Res, 82k ohm, 1%, 1/16W, Metal Film 319803982030
3576 Res, 1K5, 1%, 1/16W, Metalized Glass 232270461502
3579 Res, 2K2, 5%, 1/16W, Metalized Glass 319802132220
3581 Res, 22K, 5%, 1/16W, Metalized Glass 319802132230
3583 Res, 5K6, 5%, 1/16W, Metalized Glass 319802135620
3585 Res, 56K, 5%, 1/16W, Metalized Glass 319802135630
3586 Res, 5K6, 5%, 1/16W, Metalized Glass 319802135620
3587 Res, 2K2, 5%, 1/16W, Metalized Glass 319802132220
3588 Res, 330K, 5%, 1/16W, Metalized Glass 319802133340
3589 Res, 10K, 5%, 1/16W, Metalized Glass 319802131030
3590 Res, 82K, 5%, 1/16W, Metalized Glass 319802138230
3591 Res, 18K, 5%, 1/16W, Metalized Glass 319802131830
3592  Res, 68K, 5%, 2W 319801226830
3593 Res, 10K, 5%, 1/16W, Metalized Glass 319802131030
3594 Res, 22K, 5%, 1/16W, Metalized Glass 319802132230
3595 Res, 100K, 5%, 1/16W, Metalized Glass 319802131040
3596 Res, 3K3, 5%, 1/16W, Metalized Glass 319802133320
3597 Res, 220K, 5%, 1/16W, Metalized Glass 319802132240
3598 Res, 100K, 5%, 1/4W, Metalized Glass 232224153104
3599 Res, 1M5, 5%, 1/4W, Metalized Glass 232224153155
3601 Res, 4K7, 5%, 1/16W, Metalized Glass 319802134720
3604 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3605 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3606 Res, 56K, 5%, 1/6W, Carbon Film 319801105630
3607 Res, 10K, 5%, 1/16W, Metalized Glass 319802131030

3608 Res, 27K, 5%, 1/16W, Metalized Glass 319802132730
3609 Res, 330 ohm, 5%, 1/16W, Metalized Glass 319802133310
3634 Res, 1K, 5%, 1/16W, Metalized Glass 319802131020
3635 Res, 39K, 5%, 1/16W, Metalized Glass 319802133930
3637 Res, 47 ohm, 5%, 1/16W, Metalized Glass 319802134790
3647 Res, 33K, 5%, 1/16W, Metalized Glass 319802133330
3648 Res, 3K3, 5%, 1/16W, Metalized Glass 319802133320
3649 Res, 470 ohm, 5%, 1/16W, Metalized Glass 319802134710
3650 Res, 1K, 5%, 1/16W, Metalized Glass 319802131020
3690 Res, 220 ohm, 5%, 1/16W, Metalized Glass 319802132210
3984 Res, 56K, 5%, 1/6W, Carbon Film 319801105630
3985 Res, 22K, 5%, 1/16W, Metalized Glass 319802132230
3986 Res, 27K, 5%, 1/16W, Metalized Glass 319802132730
3988 Res, 5K6, 5%, 1/16W, Metalized Glass 319802135620
3989 Res, 10 ohm, 5%, 1/16W, Metalized Glass 319802131090
3991 Res, 22K, 5%, 1/16W, Metalized Glass 319802132230
3992 Res, 5K6, 5%, 1/16W, Metalized Glass 319802135620
3993 Res, 10 ohm, 5%, 1/16W, Metalized Glass 319802131090
3994 Res, 68K, 5%, 1/16W, Metalized Glass 319802136830
3995 Res, 4K7, 5%, 1/16W, Metalized Glass 319802134720
4000 Res, Zero ohm, 'Chip' Jumper 319802190030
4001 Res, Zero ohm, 'Chip' Jumper 319802190030
4002 Res, Zero ohm, 'Chip' Jumper 319802190030
4003 Res, Zero ohm, 'Chip' Jumper 319802190030
4006 Res, Zero ohm, 'Chip' Jumper 319802190030
4013 Res, Zero ohm, 'Chip' Jumper 319802190030
4015 Res, Zero ohm, 'Chip' Jumper 319802190030
4116 Res, Zero ohm, 'Chip' Jumper 319802190030
4145 Res, Zero ohm, 'Chip' Jumper 319802190030
4160 Res, Zero ohm, 'Chip' Jumper 319802190030
4201 Res, Zero ohm, 'Chip' Jumper 319802190020
4209 Res, Zero ohm, 'Chip' Jumper 319802190030
4221 Res, Zero ohm, 'Chip' Jumper 319802190030
4222 Res, Zero ohm, 'Chip' Jumper 319802190030
4223 Res, Zero ohm, 'Chip' Jumper 319802190020
4226 Res, Zero ohm, 'Chip' Jumper 319802190030
4227 Res, Zero ohm, 'Chip' Jumper 319802190030
4251 Res, Zero ohm, 'Chip' Jumper 319802190030
4253 Res, Zero ohm, 'Chip' Jumper 319802190020
4254 Res, Zero ohm, 'Chip' Jumper 319802190030
4297 Res, Zero ohm, 'Chip' Jumper 319802190020
4299 Res, Zero ohm, 'Chip' Jumper 319802190030
4401 Res, Zero ohm, 'Chip' Jumper 319802190030
4418 Res, Zero ohm, 'Chip' Jumper 319802190020
4470 Res, Zero ohm, 'Chip' Jumper 319802190020
4527 Res, Zero ohm, 'Chip' Jumper 319802190030

4533 Res, Zero ohm, 'Chip' Jumper 319802190020
4540 Res, Zero ohm, 'Chip' Jumper 319802190030
4567 Res, Zero ohm, 'Chip' Jumper 319802190030
4604 Res, Zero ohm, 'Chip' Jumper 319802190030
4612 Res, Zero ohm, 'Chip' Jumper 319802190020
4614 Res, Zero ohm, 'Chip' Jumper 319802190030
4617 Res, Zero ohm, 'Chip' Jumper 319802190030
4642 Res, Zero ohm, 'Chip' Jumper 319802190030
4644 Res, Zero ohm, 'Chip' Jumper 319802190030
4646 Res, Zero ohm, 'Chip' Jumper 319802190030
4649 Res, Zero ohm, 'Chip' Jumper 319802190030
4653 Res, Zero ohm, 'Chip' Jumper 319802190030
4691 Res, Zero ohm, 'Chip' Jumper 319802190030
4692 Res, Zero ohm, 'Chip' Jumper 319802190030
4694 Res, Zero ohm, 'Chip' Jumper 319802190030
4992 Res, Zero ohm, 'Chip' Jumper 319802190020
4993 Res, Zero ohm, 'Chip' Jumper 319802190030
5001 Fixed Inductor, 100MHz, 120R 319801890030
5002 Coil, 560n 319801835670
5201 Fixed, Inductor, 100MHz, 50R 319801890010
5202 Fixed Inductor, 100MHz, 120R 319801890030
5203 Fixed Inductor, 100MHz, 120R 319801890030
5205 Fixed Inductor, 100MHz, 120R 319801890030
5206 Fixed Inductor, 100MHz, 120R 319801890030
5207 Fixed Inductor, 100MHz, 120R 319801890030
5208 Fixed, Inductor, 100MHz, 50R 319801890010
5209 Fixed Inductor, 100MHz, 120R 319801890030
5210 Fixed Inductor, 100MHz, 120R 319801890030
5211 Fixed Inductor, 100MHz, 120R 319801890030
5212 Fixed Inductor, 100MHz, 120R 319801890030
5213 Fixed Inductor, 100MHz, 120R 319801890030
5215 Fixed Inductor, 100MHz, 120R 319801890030
5216 Fixed, Inductor, 100MHz, 50R 319801890010
5401 BC Line Choke 242253601067
5401 AD Coil, 50uH. 310430820471
5402 TFM SIG DRIVER SD12404-02 Y 242253100057
5408 BC COI BRIDGE W7131-003 B 242253102334
5408 AD COI BRIDGE W7132-004 Y 242253102357
5450 BC TFM LOT, JF0101-85038 B 242253100067
5450 A TFM LOT JF0101-85039 B 242253100068
5450 D TFM LOT JF0101-85040 B 242253100069
5452 Coil, 10u 319801821090
5456 BC TFM SIG DYN FOC SD20417-07 Y 242253100078
5457 IND FXD 0805 EMI 100MHZ 60R R 242254945186
5458 IND FXD 0805 EMI 100MHZ 60R R 242254945186
5459 Coil, 560n 242253595339

5504 TFM SMT LAYER SS28411-00 B 242253100065
5506 FIL MAINS 30MH 3A DMF3530 Y 242254945783
5511 Fixed, Inductor, 100MHz, 50R 319801890010
5512 TFM SMT LAYER SS42408-00 B 242253100064
5521 Fixed, Inductor, 100MHz, 50R 319801890010
5523 Inductor, Fixed, 100Mhz, 120R 319801890070
5524 Coil, 4u7 319801874780
5526 Coil, 4u7 319801874780
5527 Coil, 4u7 319801874780
5551 Fixed, Inductor, 100MHz, 50R 319801890010
5552 Coil, 27u 242253595366
5561 Fixed, Inductor, 100MHz, 50R 319801890010
5562 Fixed, Inductor, 100MHz, 50R 319801890010
5564 FIL MAINS 4MH 2A8 DMF2404 Y 242254900408
5601 Res, Zero ohm, 'Chip' Jumper 319802190030
6001 Zener Diode, 33 volt 319801023390
6006 Zener Diode, 8.2 volt 319801058280
6106 Zener Diode, 15V 319802051590
6132 Zener Diode, 15V 319802051590
6203 Diode, Signal, BAS316 319801010630
6204 Diode, Rect, SS14 319801010710
6207 Diode, Signal, BAS316 319801010630
6209 Diode, Signal, BAT54 319801010660
6403 Diode, Rect, RGP10D 933751660673
6404 Diode, Rect, DMV1500M 932216961687
6442 Zener Diode, 10 volt 933500650133
6449 Zener Diode, 12V 319802051290
6452 Diode, Rect, RGP10D 933751660673
6453 Diode, Rect, RGP10G 933493960673
6456 Diode, Rect, BYV27-200 932212672673
6457 Diode, Rect, BYV27-200 932212672673
6458 Diode, Signal, BAS316 319801010630
6461 Diode, Rect, RGP10D 933751660673
6464 Zener Diode, 15V 319802051590
6466 Diode, Rect, RGP10D 933751660673
6467 Diode, Rect., BYV29X-500 934055559127
6471 Diode, Rect, RGP10D 933751660673
6476 Zener Diode, 6.8 volt 933500610133
6480 Zener Diode, 15 volt 934054863115
6481 Diode, Signal, BAS316 319801010630
6484 Diode, Signal, BAS316 319801010630
6487 Diode, Signal, BAS316 319801010630
6489 Diode, Signal, BAS316 319801010630
6490 Diode, Signal, BAS316 319801010630
6491 Zener Diode, 3.3V 319802053380
6500 Diode, Bridge Rect, GBU6JL-7002 932213808667

6511 Diode, Rect, RGP10D 933751660673
6512 Zener Diode, 18V 319802051890
6514 Diode, Signal, BAS316 319801010630
6531 Diode, Signal, BAS316 319801010630
6532 Diode, BAV21WS 932219745703
6533 Diode, Rect, RGP10D 933751660673
6534 Diode, Signal, BAS316 319801010630
6536 Diode, Signal, BAS316 319801010630
6537 Diode, BAV21WS 932219745703
6538 Diode, BAV21WS 932219745703
6539 Diode, Rect, SB360 319801010700
6540 Diode, Signal, BAS316 319801010630
6541 Zener Diode, 12V 319802051290
6542 Zener Diode, 6.2 volt 932212911685
6543 Diode, Signal, BAS316 319801010630
6546 DIO REC STPS10L25D 932220957687
6547 Zener Diode, 6.8V 319802056880
6548 Double Diode, High Speed, BAW56W 934026020115
6549 DIO REG SM UDZS13B 932221282685
6550 IC SARS03(LF4) 932218509682
6551 Diode, Rect, BYT28-500 933744380127
6552 DIO REC STPS10L25D 932220957687
6562 Diode, Rect, SB360 319801010700
6563 Diode, Rect, SB360 319801010700
6575 Diode, Rect, 1N5392 932200516683
6602 Diode, Signal, BAV99 319801010620
6603 Zener Diode, 2.7V 319802052780
6694 Zener Diode, 5.1V 319802055180
7200 IC SM TDA12001H1/N1B501AS 935275761557
7201 Transistor, NPN, IMX1 932205428685
7203 Transistor, PNP, BC327-25 319802043430
7204 Transistor, PNP, BC327-25 319802043430
7207 Transistor, NPN, BC847B 319801042030
7209 Transistor, FET Signal, BSH103 934054713215
7210 Transistor, FET Signal, BSH103 934054713215
7404 Transistor, FET Signal, BSH103 934054713215
7405 Transistor, NPN, BU2527DX 934049680127
7406 FET POW FQPF3N60 932216034687
7407 Transistor, NPN, PDTC144ET 319801044130
7408 Transistor, PNP, BC856B 933589730215
7451 IC E-TDA8177F 932214436687
7510 IC SM TEA1506T/N1 935272043518
7511 IC SM TEA1506T/N1 935272043518
7512 FET POW FQPF13N50C 932221806687
7513 Optic Coupler, TCET1103(G) 932214014667
7514 Transistor, NPN, BC847B 319801042030

7516 Optic Coupler, TCET1103(G) 932214014667
7525 FET POW STP6NK60ZFP 932219177687
7532 Transistor, PNP, BC857B 319801042150
7535 FET POW SM SI2307DS-E3 932219077685
7541 Transistor, PNP, BC857B 319801042150
7542 IC TL431ACZ 319801070500
7547 Transistor, NPN, PDTC143ZT 934054700215
7549 Transistor, NPN, IMX1 932205428685
7561 Transistor, NPN, PDTC143ZT 934054700215
7567 Transistor, NPN, BC847B 319801042030
7571 IC TL431ACZ 319801070500
7573 Transistor, NPN, PDTC114ET 319801044110
7575 Transistor, NPN, PDTC143ZT 934054700215
7576 Transistor, NPN, BC847BW 319801042310
7577 Transistor, NPN, BC847BW 319801042310
7583 Transistor, NPN, BC847BW 319801042310
7584 Transistor, NPN, BC847BW 319801042310
7585 Transistor, PNP, BC857B 319801042150
7601 IC, M24C16-WBN6 932214725682
7604 Transistor, NPN, BC847B 319801042030
7605 Transistor, PNP, BC327-25 319802043430
7606 Transistor, NPN, BC847B 319801042030
7608 Transistor, NPN, PMBT2369 319801043360
7990 IC, TDA2616Q/N1 935040440112
7991 Transistor, NPN, BC847B 319801042030
7992 Transistor, NPN, BC847B 319801042030
8280 Cable, 5 Pin, 680mm 313911038861

CRT PANEL

CBA A CRT Board Assy 313918885321
CBA BC CRT Board Assy 313918885661
CBA D CRT Board Assy 313926714581
1054 A PNL-CRT-N.DAF-16MHZ-26WR ATSC 313918885331
1054 BC PNL-CRT-DAF-16MHZ ATSC 313918885671
1054 D PNL-CRT-N.DAF-16MHZ-32RF ATSC 313926714591
1335 AD Ground Terminal Assembly 340mm 313912108883
1340 Connector, 5 Pin 242202510428
1351 Connector, 7 Pin 242202511244
1362 Connector, 3 Pin 242202516601
1381 Connector, 3 Pin 241202000725
2313 Cap, 47u, 20%, 250V, Electrolytic 202001293786
2317  Cap, 4n7, 5%, 1600V, Polypropylene 222237590145
2319 Cap, 10n, +80/-20%, 50V, Ceramic 319801921030
2330 Cap, 100n, 10%, 16V, Ceramic 319801731040
2331 Cap, 100n, 10%, 16V, Ceramic 319801731040
2332 Cap, 4n7, 10%, 50V, Ceramic 319801734720

2333 Cap, 680p, 5%, 25V, Ceramic 319801636810
2334 Cap, 100n, 10%, 16V, Ceramic 319801731040
2335 Cap, 12p, 5%, 50V, Ceramic 319801631290
2336 Cap, 33n, 10%, 16V, Ceramic 319801733330
2337 Cap, 12p, 5%, 50V, Ceramic 319801631290
2338 Cap, 100n, 10%, 250V, Metalized Polyester 202231800109
2339 Cap, 100n, 10%, 250V, Metalized Polyester 202231800109
2340 Cap, 100n, 10%, 250V, Metalized Polyester 202231800109
2341 Cap, 12p, 5%, 50V, Ceramic 319801631290
2343 Cap, 680p, 5%, 25V, Ceramic 319801636810
2344 Cap, 4n7, 10%, 50V, Ceramic 319801734720
2346 Cap, 33n, 10%, 16V, Ceramic 319801733330
2347 Cap, 470u, 20%, 16V, Electrolytic 319802524710
2352 Cap, 4n7, 10%, 50V, Ceramic 319801734720
2353 Cap, 680p, 5%, 25V, Ceramic 319801636810
2355 Cap, 22p, 5%, 50V, Ceramic 319801632290
2356 Cap, 33n, 10%, 16V, Ceramic 319801733330
2357 Cap, 10n, 10%, 50V, Ceramic 319801731030
2358 Cap, 22p, 5%, 50V, Ceramic 319801632290
2360 Cap, 22p, 5%, 50V, Ceramic 319801632290
2361 Cap, 1n, 10%, 50V, Ceramic 319801731020
2363 Cap, 47u, 20%, 200V, Electrolytic 202001293486
2364 Cap, 4n7, 10%, 250V, Ceramic 202055790732
2365 Cap, 4n7, 10%, 50V, Ceramic 319801734720
2367 Cap, 100n, 10%, 16V, Ceramic 319801731040
2368 Cap, 100n, 10%, 100V, Metalized Polyester 222236585104
2370 Cap, 100n, 10%, 16V, Ceramic 319801731040
2381 Cap, 47n, 10%, 50V, Polyester 319801404730
2382 Cap, 100n, 10%, 16V, Ceramic 319801731040
2383 Cap, 680p, 5%, 50V, Ceramic 319801606810
2384 Cap, 100n, 10%, 16V, Ceramic 319801731040
2385 Cap, 100n, 10%, 16V, Ceramic 319801731040
2387 Cap, 10n, 10%, 50V, Ceramic 319801731030
2389 Cap, 100n, 10%, 16V, Ceramic 319801731040
2390 Cap, 10u, 20%, 16V, Electrolytic 319802821090
2391 Cap, 100n, 10%, 16V, Ceramic 319801731040
2392 Cap, 4n7, 10%, 50V, Ceramic 319801734720
2393 BC Cap, 220p, 10%, 50V, Ceramic 319801732210
3305  Res, 1 ohm, 5%, 1/3W, Metal Film 230620403108
3309 Res, 220 ohm, 5%, 1/16W, Metalized Glass 319802132210
3310 Res, 22 ohm, 5%, 1/16W, Metalized Glass 319802132290
3311 Res, 22 ohm, 5%, 1/16W, Metalized Glass 319802132290
3317 Res, 1K, 5%, 1/6W, Carbon Film 319801101020
3320 Res, 470 ohm, 5%, 1/16W, Metalized Glass 319802134710
3321 Res, 220 ohm, 5%, 1/16W, Metalized Glass 319802132210
3322 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010

3323 Res, 470 ohm, 5%, 1/16W, Metalized Glass 319802134710
3324 Res, 220 ohm, 5%, 1/16W, Metalized Glass 319802132210
3325 Res, 1K8, 5%, 1/16W, Metalized Glass 319802131820
3326 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3327 Res, 220 ohm, 5%, 1/16W, Metalized Glass 319802132210
3328 Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3329 Res, 470 ohm, 5%, 1/16W, Metalized Glass 319802134710
3331 Res, 100 ohm, 5%, 1/6W, Carbon Film 319801101010
3332 Res, 1K, 20%, 1/2W, Carbon Film 319801301020
3333 Res, 100 ohm, 5%, 1/6W, Carbon Film 319801101010
3334 Res, 1K, 20%, 1/2W, Carbon Film 319801301020
3335 Res, 100 ohm, 5%, 1/6W, Carbon Film 319801101010
3336 Res, 1K, 20%, 1/2W, Carbon Film 319801301020
3337 Res, 120K, 5%, 1/4W, Carbon Film 212210102074
3338 Res, 2K7, 5%, 1/16W, Metalized Glass 319802132720
3339 Res, 3K3, 5%, 1/16W, Metalized Glass 319802133320
3340 Res, 1K, 5%, 1/16W, Metalized Glass 319802131020
3341 Res, 120K, 5%, 1/4W, Carbon Film 212210102074
3342 Res, 3K3, 5%, 1/16W, Metalized Glass 319802133320
3343 Res, 2K7, 5%, 1/16W, Metalized Glass 319802132720
3344 Res, 1K, 5%, 1/6W, Carbon Film 319801101020
3345 Res, 33 ohm, 1%, 1/16W, Metal Film 319803933090
3347 Res, 1K5, 20%, 1/2W, Carbon Film 319801301520
3350 Res, 6.8K, 5%, 1/6W, Carbon Film 319801106820
3351 Res, 150 ohm, 5%, 1/2W, Metal Film 230620703151
3352 Res, 120K, 5%, 1/4W, Carbon Film 212210102074
3353 Res, 2K7, 5%, 1/16W, Metalized Glass 319802132720
3354 Res, 3K3, 5%, 1/16W, Metalized Glass 319802133320
3355 Res, 1K, 5%, 1/16W, Metalized Glass 319802131020
3357 VDR 1mA/18V, 35V Max 212255200004
3361 AD Res, 680 ohm, 5%, 1/16W, Metalized Glass 319802136810
3361 BC Res, 680 ohm, 5%, 1/10W, Metalized Glass 319802156810
3362 Res, 10 ohm, 5%, 1/3W, Metal Film 230620403109
3363 Res, 560 ohm, 5%, 1/16W, Metalized Glass 319802135610
3364 Res, 1R5, 5%, 1/8W, Metalized Glass 232273061158
3365 Res, 4K7, 5%, 1/16W, Metalized Glass 319802134720
3366 Res, 68K, 5%, 1/16W, Metalized Glass 319802136830
3367 Res, 68K, 5%, 1/6W, Carbon Film 319801106830
3368 Res, 560 ohm, 5%, 1/16W, Metalized Glass 319802135610
3369 Res, 150K, 5%, 1/16W, Metalized Glass 319802131540
3370 Res, 1R5, 5%, 1/8W, Metalized Glass 232273061158
3371 Res, 2K2, 5%, 1/6W, Carbon Film 319801102220
3372 Res, 150K, 5%, 1/16W, Metalized Glass 319802131540
3373 Res, 4K7, 5%, 5W, Metal Film 232225741472
3374 Res, 10 ohm, 5%, 1/3W, Metal Film 232220533109
3377 Res, 1K8, 5%, 1/16W, Metalized Glass 319802131820

3378 Res, 330 ohm, 5%, 1/16W, Metalized Glass 319802133310
3379 Res, 47K, 5%, 1/16W, Metalized Glass 319802134730
3380 Res, 22K, 5%, 1/16W, Metalized Glass 319802132230
3381 Res, 33K, 5%, 1/16W, Metalized Glass 319802133330
3382 Res, 8K2, 5%, 1/16W, Metalized Glass 319802138220
3383 Res, 1K, 5%, 1/16W, Metalized Glass 319802131020
3390 BC VDR 1mA/18V, 35V Max 212255200004
3394 Res, 4K7, 5%, 1/16W, Metalized Glass 319802134720
3395 Res, 4K7, 5%, 1/16W, Metalized Glass 319802134720
3396 Res, 1K8, 5%, 1/16W, Metalized Glass 319802131820
3398 Res, 47K, 5%, 1/16W, Metalized Glass 319802134730
3399 Res, 270 ohm, 5%, 1/3W, Metal Film 230620403271
3999 A Res, 2K2, 5%, 1/16W, Metalized Glass 319802132220
3999 D Res, 3K3, 5%, 1/16W, Metalized Glass 319802133320
3999 BC Res, 4K7, 5%, 1/16W, Metalized Glass 319802134720
4321 Res, Zero ohm, 'Chip' Jumper 319802190030
5303 Coil, 5u6 319801815680
5304 Fixed, Inductor, 100MHz, 50R 319801890010
5308 Coil, 5u6 319801815680
5324 Fixed, Inductor, 100MHz, 50R 319801890010
5361 Fixed, Inductor, 100MHz, 80 ohm 319801890020
5362 Coil, 1u 319801831080
6307 Zener Diode, 6.8V 319802056880
6325 Zener Diode, 3.3 volt 319801023380
6331 Diode, BAV21WS 932219745703
6332 Diode, BAV21WS 932219745703
6333 Diode, BAV21WS 932219745703
6334 Zener Diode, 3.3V 319802053380
6361 Diode, Signal, BAV99 319801010620
6362 Diode, Signal, BAS316 319801010630
6363 Diode, Signal, BAV99 319801010620
7330 IC TDA6111Q/N4 935173950112
7331 Transistor, NPN, BC847B 319801042030
7332 TRA SIG TBC328-40 319801040190
7333 TRA SIG TBC338-40 319801040180
7340 IC TDA6111Q/N4 935173950112
7350 IC TDA6111Q/N4 935173950112
7351 Transistor, NPN, BC847B 319801042030
7352 Transistor, NPN, BC847B 319801042030
7353 Transistor, NPN, BC847B 319801042030
7361 Transistor, NPN, BF840 933792670215
7362 Transistor, PNP, BF824 933722350215
7363 Transistor, KTB631KY 932219505687
7364 Transistor, KTD600KY 932219514687
7365 Transistor, NPN, BF840 933792670215
7366 IC TDA8941P/N1 935262851112

ASSY-DEFL-CTRL-NA

CBA BC Defl - Control Assy 313926712641
1250 BC Connector, 12 Pin 242202516219
1251 BC Connector, 10 Pin 242202518582
1400 BC Connector, 3 Pin 242202509191
1401 BC Connector, 8 Pin 242202512492
1402 BC Ceramic Resonator 503KHZ5 242254098458
1403 BC Connector, 6 Pin 242202510738
1404 BC Connector, 5 Pin 242202509364
1405 BC Connector, 3 Pin 242202509191
2402 BC Cap, 1u, +80/-20%, 10V, Ceramic 319801741050
2403 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2405 BC Cap, 22u, 20%, 16V, Electrolytic 319802822290
2406 BC Cap, 470u, 20%, 16V, Electrolytic 202001200003
2407 BC Cap, 470u, 20%, 16V, Electrolytic 202001200003
2408 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2409 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2410 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2412 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2413 BC Cap, 470u, 20%, 16V, Electrolytic 202001200003
2414 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2415 BC Cap, 2u2, +80/-20%, 10V, Ceramic 319801722250
2416 BC Cap, 1n, 5%, 25V, Ceramic 319801631020
2418 BC Cap, 47n, 10%, 16V, Ceramic 319801734730
2419 BC Cap, 2n2, 10%, 50V, Ceramic 319801732220
2420  BC Cap, 1000uF, 20%, 16V, Electrolytic 319803821020
2421 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2422 BC Cap, 470n, +80/-20%, 10V, Ceramic 319801744740
2423 BC Cap, 4u7, 10%, 6v3, Ceramic 202255205731
2424 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2425 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2426 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2427 BC Cap, 470n, +80/-20%, 10V, Ceramic 319801744740
2428 BC Cap, 22n, 10%, 50V, Polyester 319801402230
2429 BC Cap, 1u, 10%, 50V, Polyester 319801401050
2431 BC Cap, 1n, 5%, 25V, Ceramic 319801631020
2432 BC Cap, 1u, 10%, 50V, Polyester 319801401050
2433 BC Cap, 2u2, 10%, 10V, Ceramic 202055296702
2434 BC Cap, 2u2, 10%, 10V, Ceramic 202055296702
2435 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2436 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2437 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2438 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2439 BC Cap, 2u2, 10%, 10V, Ceramic 202055296702
2441 BC Cap, 100n, 10%, 16V, Ceramic 319801731040

2442 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2443 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2444 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2446 BC Cap, 1u, +80/-20%, 16V, Ceramic 319801721050
2447 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2448 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2449 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2450 BC Cap, 1u, +80/-20%, 16V, Ceramic 319801721050
2451 BC Cap, 100n, 10%, 16V, Ceramic 319801731040
2452 BC Cap, 330p, 5%, 50V, Ceramic 319801633310
2453 BC Cap, 10n, 10%, 50V, Ceramic 319801731030
2454 BC Cap, 10p, 5%, 50V, Ceramic 319801631090
2455 BC Cap, 1u, +80/-20%, 16V, Ceramic 319801721050
2456 BC Cap, 10p, 5%, 50V, Ceramic 319801631090
2457 BC Cap, 1u, +80/-20%, 16V, Ceramic 319801721050
2458 BC Cap, 1u, +80/-20%, 16V, Ceramic 319801721050
2459 BC Cap, 10p, 5%, 50V, Ceramic 319801631090
2460 BC Cap, 10n, 10%, 50V, Ceramic 319801731030
2461 BC Cap, 100u, 20%, 16V, Electrolytic 319803041010
2462 BC Cap, 100u, 20%, 16V, Electrolytic 319803041010
2463 BC Cap, 10n, 10%, 50V, Ceramic 319801731030
2464 BC Cap, 10n, 10%, 50V, Ceramic 319801731030
2465 BC Cap, 10n, 10%, 50V, Ceramic 319801731030
2466 BC Cap, 10u, 20%, 16V, Electrolytic 319803041090
2487 BC Cap, 47p, 5%, 50V, Ceramic 319801634790
2488 BC Cap, 47p, 5%, 50V, Ceramic 319801634790
2489 BC Cap, 47p, 5%, 50V, Ceramic 319801634790
2490 BC Cap, 10u, 20%, 16V, Electrolytic 319803041090
2497 BC Cap, 47p, 5%, 50V, Ceramic 319801634790
2498 BC Cap, 47p, 5%, 50V, Ceramic 319801634790
2499 BC Cap, 47p, 5%, 50V, Ceramic 319801634790
3400 BC Res, 240 ohm, 1%, 1/8W, Metalized Glass 232273462401
3401 BC Res, 2K2, 5%, 1/16W, Metalized Glass 319802132220
3403 BC Res, 10K, 5%, 1/16W, Metalized Glass 319802131030
3404 BC Res, 10K, 5%, 1/16W, Metalized Glass 319802131030
3405 BC Res, 240 ohm, 1%, 1/8W, Metalized Glass 232273462401
3406 BC Res, 240 ohm, 1%, 1/8W, Metalized Glass 232273462401
3407 BC Res, 10K, 5%, 1/16W, Metalized Glass 319802131030
3408 BC Res, 390K, 5%, 1/16W, Metalized Glass 232270260394
3409 BC Res, 120K, 5%, 1/16W, Metalized Glass 232270260124
3410 BC Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3411 BC Res, 82K, 5%, 1/16W, Metalized Glass 319802138230
3412 BC Res, 120K, 5%, 1/16W, Metalized Glass 232270260124
3413 BC Res, 3K3, 5%, 1/16W, Metalized Glass 319802133320
3414 BC Res, 150K, 5%, 1/16W, Metalized Glass 319802131540
3415 BC Res, 220K, 5%, 1/16W, Metalized Glass 319802132240

3416 BC Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3417 BC Res, 270 ohm, 5%, 1/16W, Metalized Glass 319802132710
3418 BC Res, 100K, 5%, 1/16W, Metalized Glass 319802131040
3419 BC Res, 2K7, 5%, 1/16W, Metalized Glass 319802132720
3420 BC Res, 20K, 5%, 1/16W, Metalized Glass 232270260203
3421 BC Res, 1K, 5%, 1/16W, Metalized Glass 319802131020
3422 BC Res, 4K7, 5%, 1/16W, Metalized Glass 319802134720
3423 BC Res, 10K, 5%, 1/16W, Metalized Glass 319802131030
3424 BC Res, 10K, 5%, 1/16W, Metalized Glass 319802131030
3425 BC Res, 10K, 5%, 1/16W, Metalized Glass 319802131030
3426 BC Res, 3K3, 5%, 1/16W, Metalized Glass 319802133320
3427 BC Res, 4K7, 5%, 1/16W, Metalized Glass 319802134720
3428 BC Res, 4K7, 5%, 1/16W, Metalized Glass 319802134720
3429 BC Res, 10K, 5%, 1/16W, Metalized Glass 319802131030
3430 BC Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3431 BC Res, 2K, 1%, 1/16W, Metalized Glass 232270462002
3433 BC Res, 1K2, 5%, 1/16W, Metalized Glass 319802131220
3434 BC Res, 10K, 5%, 1/16W, Metalized Glass 319802131030
3435 BC Res, 1K, 5%, 1/16W, Metalized Glass 319802131020
3436 BC Res, 180 ohm, 5%, 1/16W, Metalized Glass 319802131810
3437 BC Res, 2K7, 5%, 1/16W, Metalized Glass 319802132720
3438 BC Res, 1K, 5%, 1/16W, Metalized Glass 319802131020
3439 BC Res, 470 ohm, 5%, 1/16W, Metalized Glass 319802134710
3440 BC Res, 2K, 1%, 1/16W, Metalized Glass 232270462002
3441 BC Res, 150K, 5%, 1/16W, Metalized Glass 319802131540
3442 BC Res, 33K, 5%, 1/16W, Metalized Glass 319802133330
3443 BC Res, 1K, 1%, 1/16W, Metalized Glass 232270461002
3444 BC Res, 56K, 5%, 1/16W, Metalized Glass 319802135630
3445 BC Res, 220 ohm, 5%, 1/16W, Metalized Glass 319802132210
3446 BC Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3447 BC Res, 1K, 5%, 1/16W, Metalized Glass 319802131020
3448 BC Res, 10K, 5%, 1/16W, Metalized Glass 319802131030
3449 BC Res, 1K, 5%, 1/16W, Metalized Glass 319802131020
3450 BC Res, 220 ohm, 5%, 1/16W, Metalized Glass 319802132210
3451 BC Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3452 BC Res, 1K, 5%, 1/16W, Metalized Glass 319802131020
3453 BC Res, 10K, 5%, 1/16W, Metalized Glass 319802131030
3454 BC Res, 1K, 5%, 1/16W, Metalized Glass 319802131020
3455 BC Res, 220 ohm, 5%, 1/16W, Metalized Glass 319802132210
3456 BC Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3457 BC Res, 1K, 5%, 1/16W, Metalized Glass 319802131020
3458 BC Res, 10K, 5%, 1/16W, Metalized Glass 319802131030
3459 BC Res, 1K, 5%, 1/16W, Metalized Glass 319802131020
3460 BC Res, 220 ohm, 5%, 1/16W, Metalized Glass 319802132210
3461 BC Res, 330K, 5%, 1/16W, Metalized Glass 319802133340
3462 BC Res, 68K, 5%, 1/16W, Metalized Glass 319802136830

3463 BC Res, 68K, 5%, 1/16W, Metalized Glass 319802136830
3464 BC Res, 100K, 5%, 1/16W, Metalized Glass 319802131040
3465 BC Res, 20K, 5%, 1/16W, Metalized Glass 232270260203
3466 BC Res, 100K, 5%, 1/16W, Metalized Glass 319802131040
3467 BC Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3468 BC Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3469 BC Res, 220K, 5%, 1/16W, Metalized Glass 319802132240
3470 BC Res, 220K, 5%, 1/16W, Metalized Glass 319802132240
3471 BC Res, 75 ohm, 5%, 1/16W, Metalized Glass 319802137590
3472 BC Res, 3K9, 5%, 1/16W, Metalized Glass 319802133920
3473 BC Res, 33K, 5%, 1/16W, Metalized Glass 319802133330
3474 BC Res, 6K8, 5%, 1/16W, Metalized Glass 319802136820
3482 BC Res, 24K, 1%, 1/16W, Metalized Glass 232270462403
3483 BC Res, 2K, 1%, 1/16W, Metalized Glass 232270462002
3484 BC Res, 47K, 5%, 1/16W, Metalized Glass 319802134730
3486 BC Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3487 BC Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3488 BC Res, 3K3, 5%, 1/16W, Metalized Glass 319802133320
3489 BC Res, 2K2, 5%, 1/16W, Metalized Glass 319802132220
3490 BC Res, 47 ohm, 5%, 1/16W, Metalized Glass 319802134790
3491 BC Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3492 BC Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3493 BC Res, 100 ohm, 5%, 1/16W, Metalized Glass 319802131010
3494 BC Res, 1K, 5%, 1/16W, Metalized Glass 319802131020
3495 BC Res, 1K, 5%, 1/16W, Metalized Glass 319802131020
3496 BC Res, 1K, 5%, 1/16W, Metalized Glass 319802131020
3500 BC Res, 24K, 1%, 1/16W, Metalized Glass 232270462403
3501 BC Res, 24K, 1%, 1/16W, Metalized Glass 232270462403
3502 BC Res, 24K, 1%, 1/16W, Metalized Glass 232270462403
3503 BC Res, 2K, 1%, 1/16W, Metalized Glass 232270462002
3504 BC Res, 75 ohm, 5%, 1/16W, Metalized Glass 319802137590
3505 BC Res, 75 ohm, 5%, 1/16W, Metalized Glass 319802137590
3506 BC Res, 75 ohm, 5%, 1/16W, Metalized Glass 319802137590
3507 BC Res, 240 ohm, 1%, 1/8W, Metalized Glass 232273462401
4400 BC Res, Zero ohm, 'Chip' Jumper 319802190030
4402 BC Res, Zero ohm, 'Chip' Jumper 319802190030
4488 BC Res, Zero ohm, 'Chip' Jumper 319802190030
4489 BC Res, Zero ohm, 'Chip' Jumper 319802190030
4490 BC Res, Zero ohm, 'Chip' Jumper 319802190030
4491 BC Res, Zero ohm, 'Chip' Jumper 319802190030
4492 BC Res, Zero ohm, 'Chip' Jumper 319802190030
4493 BC Res, Zero ohm, 'Chip' Jumper 319802190030
4494 BC Res, Zero ohm, 'Chip' Jumper 319802190030
4495 BC Res, Zero ohm, 'Chip' Jumper 319802190030
4499 BC Res, Zero ohm, 'Chip' Jumper 319802190030
5400 BC Fixed Inductor 100MHZ 220R 242254944197

5401 BC Fixed Inductor 100MHZ 220R 242254944197
5402 BC Fixed Inductor 100MHZ 220R 242254944197
5403 BC Fixed Inductor 100MHZ 220R 242254944197
5496 BC Coil, 470n 319801834770
5497 BC Coil, 470n 319801834770
5498 BC Coil, 470n 319801834770
6400 BC Zener Diode, 8.2V 319802058280
6402 BC Diode, Signal, BAS316 319801010630
6404 BC Zener Diode, 9.1V 932215008685
6405 BC Zener Diode, 6.8V 319802056880
6406 BC Diode, Signal, BAS316 319801010630
6408 BC Diode, Signal, BAS316 319801010630
6409 BC DIO REG SM UDZS2.0B 932221993685
6410 BC Zener Diode, 8.2V 319802058280
7402 BC IC SM TA1360AFG 932221351668
7403 BC Transistor, NPN, BC847B 319801042030
7404 BC IC SM TA1317AFG 932221353668
7405 BC Transistor, NPN, BC847B 319801042030
7406 BC Transistor, NPN, BC847B 319801042030
7407 BC Transistor, PNP, BC857B 319801042150
7408 BC Transistor, NPN, BC847B 319801042030
7409 BC Transistor, PNP, BC857B 319801042150
7410 BC Transistor, PNP, BC857B 319801042150
7411 BC Transistor, PNP, BC857B 319801042150
7412 BC Transistor, NPN, IMX1 932205428685
7413 BC Transistor, NPN, IMX1 932205428685
7414 BC Transistor, PNP, BC857B 319801042150
7415 BC Transistor, PNP, BC857B 319801042150
7416 BC Transistor, NPN, BC847B 319801042030
7417 BC Transistor, NPN, BC847B 319801042030
7423 BC IC SM LM2941S-NOPB 932222110668
7490 BC Transistor, NPN, BC847B 319801042030
7491 BC Transistor, NPN, BC847B 319801042030
7492 BC Transistor, NPN, BC847B 319801042030

FRONT INTERFACE PANEL

CBA D Front Interface Panel Assy 313918806011
CBA ABC Front Interface Panel Assy 313918887291
1060 D FRNT.INTERF-LS.PNL-NA 313918804761
1109 ABC SWI SIGN 2P 0.1A 30V SPUN19 B 242212802909
1606 D Switch, Tactile 242212802742
1693 Connector, 6 Pin 242202510738
2101 ABC Cap, 220u, 20%, 25V, Electrolytic 319802532210
2102 ABC Cap, 1u, 10%, 50V, Polyester 319801401050
2103 ABC Cap, 100n, 10%, 50V, Polyester 319801401040
2691 D Cap, 220u, 20%, 25V, Electrolytic 319802532210

2692 D Cap, 1u, +80/-20%, 10V, Ceramic 319801741050
2698 D Cap, 100n, 10%, 50V, Polyester 319801401040
3111 ABC Res, 1K2, 5%, 1/6W, Carbon Film 319801101220
3112 ABC Res, 220 ohm, 5%, 1/6W, Carbon Film 319801102210
3113 ABC Res, 4K7, 5%, 1/6W, Carbon Film 319801104720
3114 ABC Res, 150K, 5%, 1/6W, Carbon Film 319801101540
3691 D Res, 1K2, 5%, 1/6W, Carbon Film 319801101220
3693 D Res, 220 ohm, 5%, 1/6W, Carbon Film 319801102210
3694 D Res, 4K7, 5%, 1/6W, Carbon Film 319801104720
3696 D Res, 150K, 5%, 1/16W, Metalized Glass 319802131540
4601 D Res, Zero ohm, 'Chip' Jumper 319802190030
6101 ABC LED 932218569682
6102 ABC IR Receiver, TSOP34836UH1B 932220678667
6103 ABC OPT SEN LTR-301 932219736682
6691 D LED 932218569682
6692 D IR Receiver, TSOP34836UH1B 932220678667
6693 D OPT SEN LTR-301 932219736682

SIDE A/V PANEL

CBA ABC Side A/V Panel Assy 313926715631
CBA D Side A/V Panel Assy 313926715661
1251 D 4 Pin Cinch Socket 242202605659
1252 Connector, 7 Pin 242202511244
1254 Connector, 5 Pin 242202512481
1278 D Connector, 4 Pin 242202512479
1278 ABC Connector, 4 Pin 242202515847
1280 ABC Connector, 3 Pin 241202000725
1281 ABC Connector, 3 Pin 242202516382
2171 Cap, 330p, 10%, 50V, Ceramic 319801913310
2172 Cap, 330p, 10%, 50V, Ceramic 319801913310
2173 Cap, 330p, 10%, 50V, Ceramic 319801913310
2174 Cap, 330p, 10%, 50V, Ceramic 319801913310
2175 Cap, 2u2, 20%, 50V, Electrolytic 319802952280
2176 Cap, 100n, 10%, 16V, Ceramic 319801731040
2178 Cap, 470p, 10%, 50V, Ceramic 319801734710
2180 Cap, 2u2, 20%, 50V, Electrolytic 319802952280
2181 Res, Zero ohm, 'Chip' Jumper 319802190030
3150 Res, 47K, 5%, 1/6W, Carbon Film 319801104730
3151 Res, 22K, 5%, 1/6W, Carbon Film 319801102230
3152 Res, 47K, 5%, 1/6W, Carbon Film 319801104730
3153 Res, 22K, 5%, 1/6W, Carbon Film 319801102230
3154 Res, 75 ohm, 5%, 1/6W, Carbon Film 319801107590
3155 D Res, 75 ohm, 5%, 1/6W, Carbon Film 319801107590
3156 Res, 820 ohm, 5%, 1/6W, Carbon Film 319801108210
3157 Res, 820 ohm, 5%, 1/6W, Carbon Film 319801108210
3158 Res, 75 ohm, 5%, 1/6W, Carbon Film 319801107590

3159 Res, 100 ohm, 5%, 1/6W, Carbon Film 319801101010
3160 Res, 100 ohm, 5%, 1/6W, Carbon Film 319801101010
4180 D Res, Zero ohm, 'Chip' Jumper 319802190020

TOP CONTROL PANEL

CBA ABC Top Control Panel Assy 313918887281
CBA D Top Control Panel Assy 313926710901
1010 D Connector, 3 Pin 242202516601
1011 D Switch, Tactile 242212802742
1012 D Switch, Tactile 242212802742
1013 D Switch, Tactile 242212802742
1014 D Switch, Tactile 242212802742
1701 ABC Switch, Tactile 242212802742
1702 ABC Switch, Tactile 242212802742
1703 ABC Switch, Tactile 242212802742
1704 ABC Switch, Tactile 242212802742
1705 ABC Switch, Tactile 242212802742
3008 ABC Res, 150 ohm, 5%, 1/10W, Metalized Glass 319802151510
3010 ABC Res, 390 ohm, 5%, 1/10W, Metalized Glass 319802153910
3011 D Res, 150 ohm, 5%, 1/16W, Metalized Glass 319802131510
3011 ABC Res, 560 ohm, 5%, 1/10W, Metalized Glass 319802155610
3012 D Res, 390 ohm, 5%, 1/16W, Metalized Glass 319802133910
3013 D Res, 1K8, 1%, 1/16W, Metalized Glass 232270461802
3013 ABC Res, 1K8, 5%, 1/10W, Metalized Glass 319802151820
3014 ABC Res, 820 ohm, 5%, 1/10W, Metalized Glass 319802158210
3014 D Res, Zero ohm, 'Chip' Jumper 319802190030
3015 D Res, 820 ohm, 1%, 1/16W, Metalized Glass 232270468201
3016 D Res, Zero ohm, 'Chip' Jumper 319802190030
9000 ABC Res, Zero ohm, 'Chip' Jumper 319802190020
9001 ABC Res, Zero ohm, 'Chip' Jumper 319802190020
9002 ABC Res, Zero ohm, 'Chip' Jumper 319802190020
