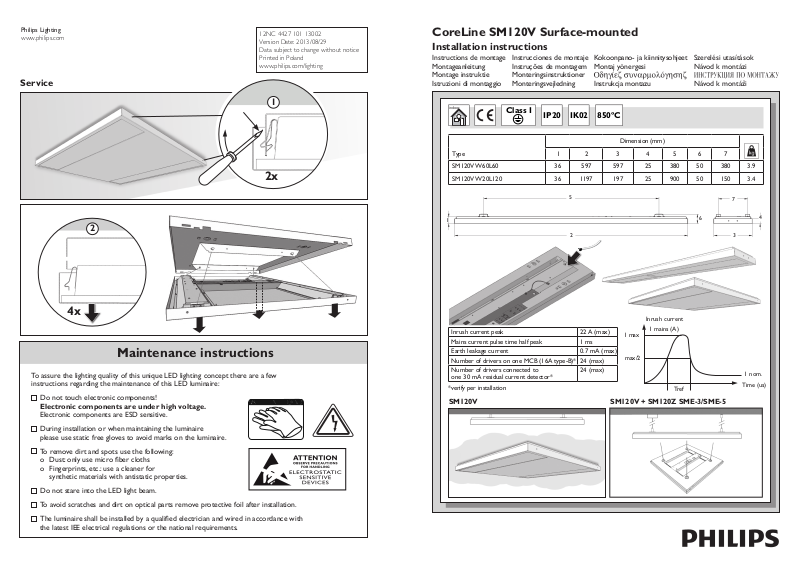

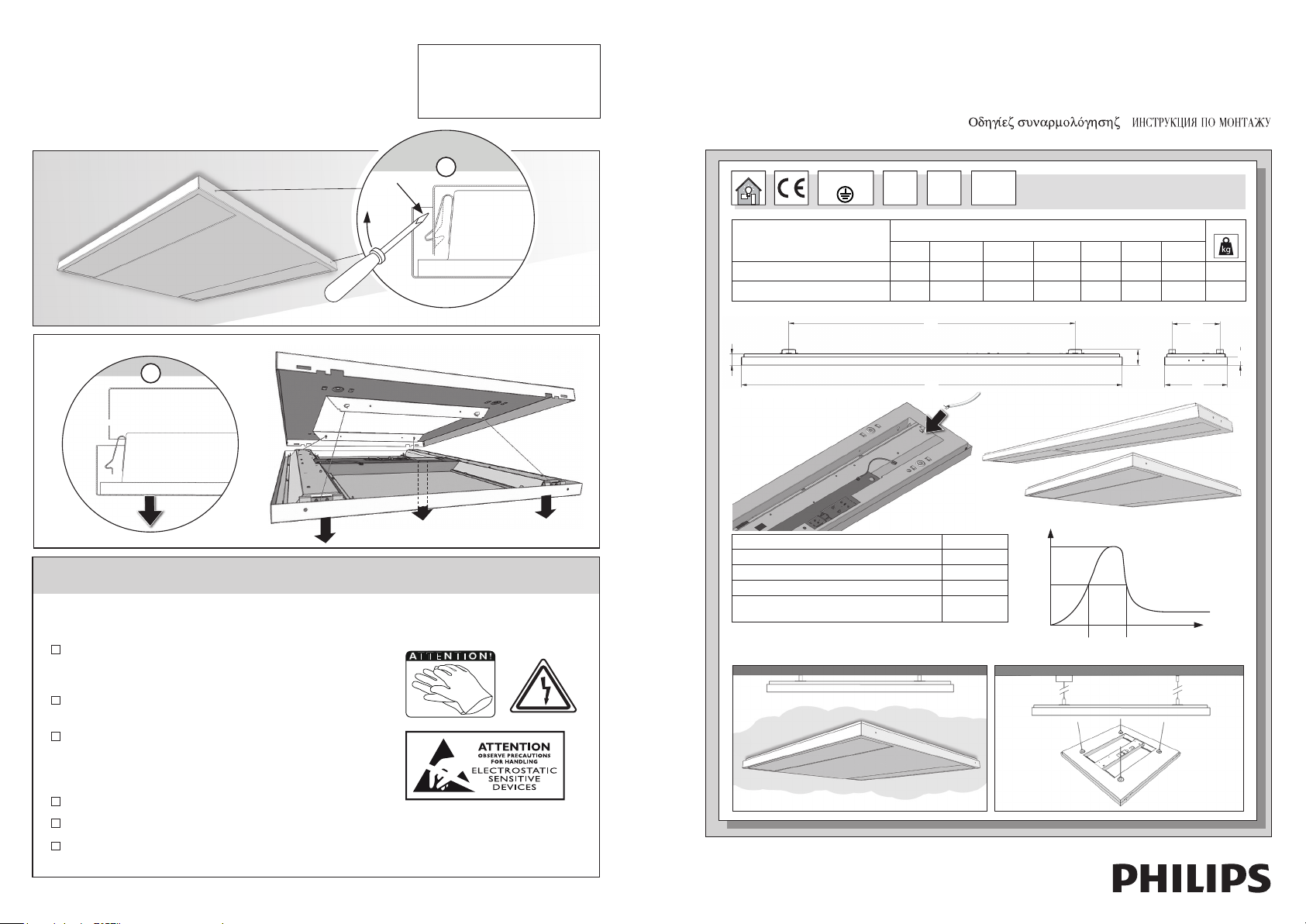

Page 1
Philips Lighting
www.philips.com
Service
12NC 4427 101 13002
Version Date: 2013/08/29
Data subject to change without notice
Printed in Poland
www.philips.com/lighting
1
2x
CoreLine SM120V Surface-mounted
Installation instructions
Instructions de montage
Montageanleitung
Montage instruktie
Istruzioni di montaggio
indoor
Type
SM120V W60L60 36 597 597 25 380 50 380 3.9
SM120V W20L120 36 1197 197 25 900 50 150 3.4
Instrucciones de montaje
Instruções de montagem
Monteringsinstruktioner
Monteringsvejledning
Class I
IP20 IK02 850ºC
1 2 3 4 5 6 7
Kokoonpano- ja kiinnitysohjeet
Montaj yönergesi
Instrukcja montazu
Dimension (mm)
Szerelési utasítások
Návod k montázi
Návod k montázi
‹
2
4x
Maintenance instructions
To assure the lighting quality of this unique LED lighting concept there are a few
instructions regarding the maintenance of this LED luminaire:
Do not touch electronic components!
Electronic components are under high voltage.
Electronic components are ESD sensitive.
During installation or when maintaining the luminaire
please use static free gloves to avoid marks on the luminaire.
To remove dirt and spots use the following:
o Dust: only use micro ber cloths
o Fingerprints, etc.: use a cleaner for
synthetic materials with antistatic properties.
Do not stare into the LED light beam.
To avoid scratches and dirt on optical parts remove protective foil after installation.
The luminaire shall be installed by a qualied electrician and wired in accordance with
the latest IEE electrical regulations or the national requirements.
5
1
2
Inrush current peak 22 A (max)
Mains current pulse time half peak 1 ms
Earth leakage current 0.7 mA (max)
Number of drivers on one MCB (16A type-B)* 24 (max)
Number of drivers connected to
one 30 mA residual current detector*
*verify per installation
24 (max)
1 max
max/2
Inrush current
1 mains (A)
6
Tre f
SM120V SM120V + SM120Z SME-3/SME-5
7
4
3
1 nom.
Time (us)
Page 2

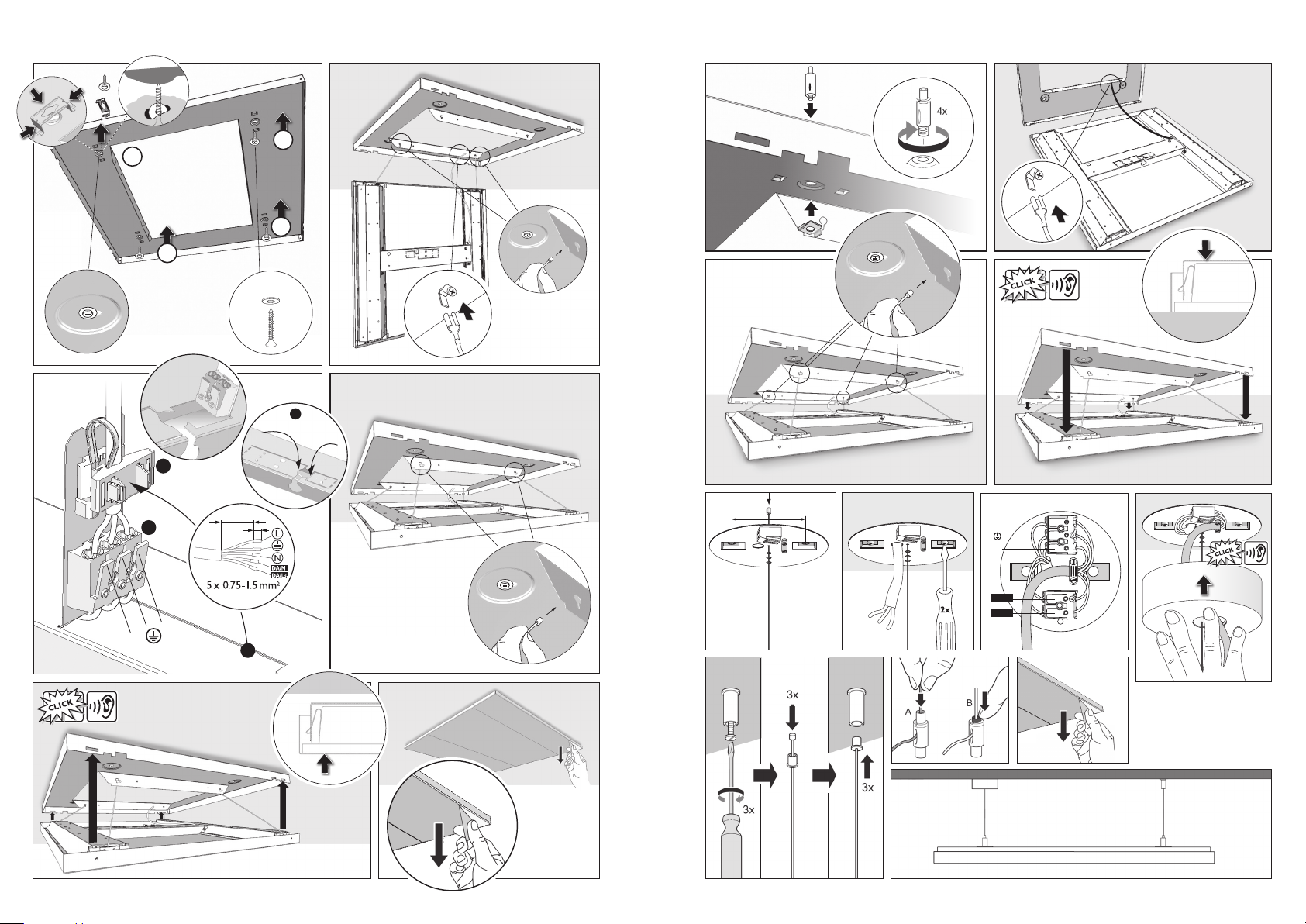

SM120V
8
20
SM120V + SM120Z SME-3/SME-5
4
1
2
Push-In (PI)
N
3
2x
4x
4x
4
3
56 mm
2
L
1
2x
N
L
DA/N
DA/Ls
4x
4x
