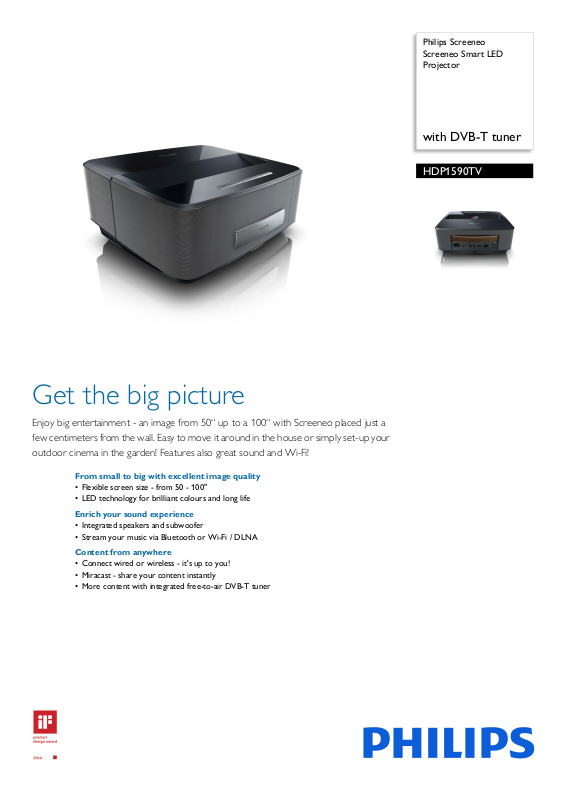

Page 1
Philips Screeneo
Screeneo Smart LED
Projector
with DVB-T tuner
HDP1590TV
Get the big picture
Enjoy big entertainment - an image from 50“ up to a 100“ with Screeneo placed just a
few centimeters from the wall. Easy to move it around in the house or simply set-up your
outdoor cinema in the garden! Features also great sound and Wi-Fi!
From small to big with excellent image quality
• Flexible screen size - from 50 - 100"
• LED technology for brilliant colours and long life
Enrich your sound experience
• Integrated speakers and subwoofer
• Stream your music via Bluetooth or Wi-Fi / DLNA
Content from anywhere
• Connect wired or wireless - it's up to you!
• Miracast - share your content instantly
• More content with integrated free-to-air DVB-T tuner
Page 2
Screeneo Smart LED Projector
with DVB-T tuner
HDP1590TV/10
Specifications
Technology/ optical
• Aspect ratio: 4:3 and 16:9
• Contrast ratio: 100.000:1
• Display technology: DLP
• Focus adjustment: manual
• Internal memory: 4 GB
• Keystone correction
• LED light source lasts over: 30.000 hours
• Light source: RGB LED
•MP4 player
• Noise level: < 25 dba
• Operating system: Android 4.2
• Resolution: 1280 x 800 pixel
• Screen distance: 10 - 44 cm
• Screen sizes: 50" - 100"
• Throw ratio: 0,321
• Wall colour correction
• 3D technology: converts 2D in 3D,
modes
• Projection modes: front, rear, front ceiling, rear
eiling
c
Connection
• Connectivity: 1x front Standard USB, 2x back
HDMI, 1 front HDMI, 2x back Standard USB,
Audio out (analogue, digital), Headphone out front,
Standard SD card, VGA, Composite
• Wi-Fi: DLNA, Dualband 2.4GHz and 5GHz,
st, WLAN IEEE 802.11 b/g/n
Miraca
• Bluetooth: Stream music from smartphone or
blet to Screeneo via Bluetooth
ta
Sound
• Internal stereo speaker: 2 + subwoofer
• RMS: Output power 26 Watt
• Sound system: Dolby Digital 2.1
• Supported audio formats: mp3, wav
supports all 3D
•NTSC
•PAL
•SECAM
DVB-T tuner
• Digital TV: DVB-T
•EPG
• Parental Control
Internal media player
• Supported audio formats: MP3, WAV
• Supported photo formats: JPEG, BMP, PNG, GIF
• Supported video formats: AVI, MOV, MP4, MKV,
LV, TS, M2TS, 3GP
F
Packaging dimensions
• Packed (W x D x H): 490 x 392 x 317 mm
• Unpacked (W x D x H): 339 x 287 x 148 mm
Power Supply
• Power adapter: 90-264V, 47-63Hz for EU and UK
Relative humidity
• Operation: 15-85% RH
• Storage packed: 5-93% RH
• Storage unpacked: 15-85% RH
Standard package includes
• 2xAAA battery
• Carrying bag
• DLP Link 3D Glasses
•HDMI cable
• HDP 1590TV
•Power cable
•Quick start guide
•Remote control
• User guide: on internal memory, internet
Highlights
Connect wired or wireless
With the built-in Wi-Fi you can easily connect to the
world online or to you r net wo rk at home via DLNA
or Bluetooth and project your content from these
devices. If you prefer physical media you can connect
the Screeneo via HDMI, insert an SD card into the
card reader, connect a USB flash, or connect the
antenna to an antenna jack.
Flexible screen size
Experience your movies, sport events or gaming like
you have never done before, from 50" up to 100".
Lean back and enjoy, in the comfort of any room in
your home. Screeneo can easily be placed close to
any smooth wall. You just need to grab the stylish
leather handle at the back of the product. For
viewing a cartoon film for kids on a 50", place it 10
cm from the wall, for your favourite football match
on 100", place Screeneo 44 cm far from the wall.
Integrated speakers
Supported video standards
• 1080i/p
•480i/p
•576i/p
•720i/p
Issue date 2014-03-10
Version: 4.0.1
12 NC: 8670 001 13346
EAN: 34 25160 32424 2
Temperature range
• Operation: 5-35 °C
• Storage packed: -25-60 °C
• Storage unpacked: 0-45 °C
•
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
There is no need to connect to any sound system,
thanks to the integrated subwoofer and
loudspeakers, with an output power of 26W RMS.
Your perfect sound experience will be completed
with Dolby Digital 2.1 sound system.
LED technology
Screeneo uses high quality LED technology to
project your photos, movies and more in brilliant
colours and a duration of 30,000 hours. Combined
with the innovative ultra short throw technology, it
guarantees a big wow anytime you switch it on.
Miracast
It sounds elaborate, but it's so simple: While
browsing photos on your smartphone or tablet,
connect wirelessly with Screeneo, which mirrors
your screen instantly. Whatever you do on your
handheld device is projected wirelessly using
Miracast.
Free-to-air DVB-T tuner
Watch even more, with content from free-to-air
channels via the built-in DVB-T tuner.
Stream your music
Use Screeneo as a Music station! Stream
conveniently music from your smartphone or tablet
to Screeneo via Bluetooth or DLNA (Digital Living
Network Alliance) functionality.
