Philips SCD841 User Manual

0 (0)

SCD841 SCD843 SCD845 SCD630

English 6 Čeština 35 Eesti 64 Hrvatski 92 Magyar 121 Български 151 Русский 182 Українська 213

Қазақша

243

English

Introduction

Congratulations on your purchase and welcome to Philips Avent! To fully benefit from the support that Philips Avent offers, register your product at www.philips.com/welcome.

The Philips Avent video babymonitor provides you with round-the-clock support and it allows you to see your baby day and night from anywhere in the house. The latest digital technology guarantees clear sound and the clearest image of your baby. This gives you an additional sense of security without entering your baby’s room and disturbing its sleep.

General description

1 Parent unit 2 Sound level lights 3 Display 4 ECO light 5 Battery status light 6 Link light 7 Speaker 8 Control button (menu navigation/volume/brightness) 9 Menu button 10 Lullaby button 11 Talk-back button 12 Microphone 13 Socket for power adapter 14 Mode button 15 On/off button 16 Antenna 17 Belt clip 18 Baby unit 19 Camera 20 Power on light 21 Lullaby on/off button 22 Nightlight 23 Microphone 24 Nightlight on/off button 25 On/off slide 26 Antenna 27 Speaker 28 Socket for small plug 29 Screws 30 Temperature sensor 31 Wall mounting holes 32 Adapter(2x)

Important safety information

Read this important information carefully before you use the appliance and save it for future reference.

English

IMPORTANT

Danger

English

This baby monitor is intended as an aid. It is not a substitute for responsible and proper adult supervision and should not be used as such.

Never leave your baby alone in your home. Always make sure there is someone present to look after the baby and take care of its needs.

Disclaimer

Please note that you use this baby monitor at your own risk. Koninklijke Philips N.V. and its subsidiary companies are not responsible for the operation of this baby monitor or your use of it and therefore do not accept any liability in connection with your use of this baby monitor.

Never immerse any part of the baby monitor in water or any other liquid. Do not place the appliance where water or any other liquid can drip or splash onto it. Never use the baby monitor in moist places or close to water.

Never put any object on top of the baby monitor and do not cover it. Do not block any ventilation openings. Install according to the manufacturer’s instructions.

Cords present a potential strangulation hazard. Keep cords out of the reach of children (more than 1 meter/3.5 feet away). Never place the baby monitor inside the baby’s bed or playpen.

Warning

Check if the voltage indicated on the adapter corresponds to the local mains voltage before you connect the appliance.

Do not modify or cut off any part of the adapter and its cord, as this causes a hazardous situation.

Only use the adapter supplied.

If the adapter is damaged, always have it replaced with one of the original type in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Protect the mains cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the appliance.

English

Make sure that you place the baby monitor in such a way that its cord does not obstruct a doorway or passage. If you place the baby monitor on a table or low cabinet, do not let the mains cord hang over the edge of the table or cabinet. Make sure the cord does not lie on the floor where it presents a tripping hazard.

Keep the packaging materials (plastic bags, cardboard buffers, etc.) out of the reach of children, as they are not a toy.

To prevent electric shock, do not open the housing of the baby unit or parent unit.

Caution

Use the appliance at a temperature between 0°C (32°F) and 40°C (104°F).

Do not install the appliance near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

Make sure that your hands are dry when you handle adapters, plugs and the mains cord.

All required markings on the baby unit, parent unitand power adapter are located on the bottom of the baby unit, parent unit and power adapter.

Compliance with standards

This product complies with the radio interference requirements of the European Community.

Philips Consumer Lifestyle hereby declares that this baby monitor is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU (FHSS: frequency band 2.4GHz, maximum radiofrequency power: 100 mW EIRP). A copy of the EC Declaration of Conformity (DoC) is available online at www.philips.com/support.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Preparing for use

20°CEco

10 hrs=3 hrs

Baby unit

Put the power adapter in the baby unit and the adapter in the wall socket.

Parent unit

The parent unit runs ona built-in rechargeable Li-ion battery. Follow the below steps to charge the parent unit:

1 Put the power adapter in the parent unit and put the adapter in the wall

socket.

The battery status light turns orange to indicate that the appliance is charging.

English

When the battery is fully charged, the battery status light turns green continuously.

When you charge the parent unit for 3 hours, it can be used cordlessly for approx. 10 hours.

If the parent unit is switched on during charging, charging takes approximately twice as long.

20°CEco

>2 .5m/8.2ft

English

When the rechargeable battery of the parent unit is almost empty, the battery status light turnsred and the parent unit beeps.

If the battery is completely empty and the parent unit it not connected to the mains, the parent unit automatically switches off and loses contact with the baby unit.

Note: The built in rechargeable battery cannot be removed from the product.

Note: The battery gradually and very slowly discharges, even when the parent unit is switched off.

Tip: To save battery, switch off the parent unit when you do not use it. Note: We advise you to keep the parent unit connected to the mains during

the whole night. If the battery of the parent unit runs low during the night, the parent unit beeps and this may wake you up.

Using the baby monitor

Linking parent unit and baby unit

1 Push the on/off slide on the baby unit upwards to the ON position.

2 When the baby unit is on, the power-on light on the baby unit lights up

green. Note: The power-on light on the baby unit always lights up green, even

when there is no connection with the parent unit.

3 Make sure that the parent unit and the baby unit are at least 2.5 meters/

8.2 feet away from each otherto avoid acoustic feedback.

20°CEco

English

4 Press the on/off button on the parent unit to switch on the parent unit.

The display goes on, the linking image appears on the display and the link light lights up red. The parent unit starts to search for the baby unit.

When the parent unit and baby unit are linked, the link light lights up green on the parent unit and one or more bars appear on the display.

Note: It takes less than 10 seconds to establish the link between the parent unit and the baby unit.

When thebaby unit is turned off, the parent unit will show the out of range image. Make sure that the baby unit is switched on.

If no connection has been established, the link light turns red, the parent unit beeps three short beeps every 20 seconds and the out-of-range image appears on the display.

Positioning the baby monitor

Warning: The cord of the baby unit presents a potential strangulation hazard. Make sure that the baby unit and its cord are at least 1 meter /

3.5 feet away from your baby. Never place the baby monitor inside the baby’s bed or playpen.

1-1.5m/3.5-5ft

>2 .5m/8.2ft

English

1 For optimal sound detection, make sure that the baby unit is no further

than 1.5 meter/ 5 feet away from the baby. Make sure that the baby unit is at least 1 meter/ 3.5 feet away from the baby because of potential strangulation hazard.

2 Place the parent unit within the operating range of the baby unit. Make

sure it is at least 2.5 meters / 8.2 feet away from the baby unit to avoid acoustic feedback.

Note: If you use a cordless phone, wireless video, Wi-Fi network, microwave oven or Bluetooth on 2.4GHz and you experience interference on either the parent unit or baby unit, move the parent unit until there is no more interference.

3 There are two ways to position the baby unit:

a Place the baby unit on a stable, level and horizontal surface.

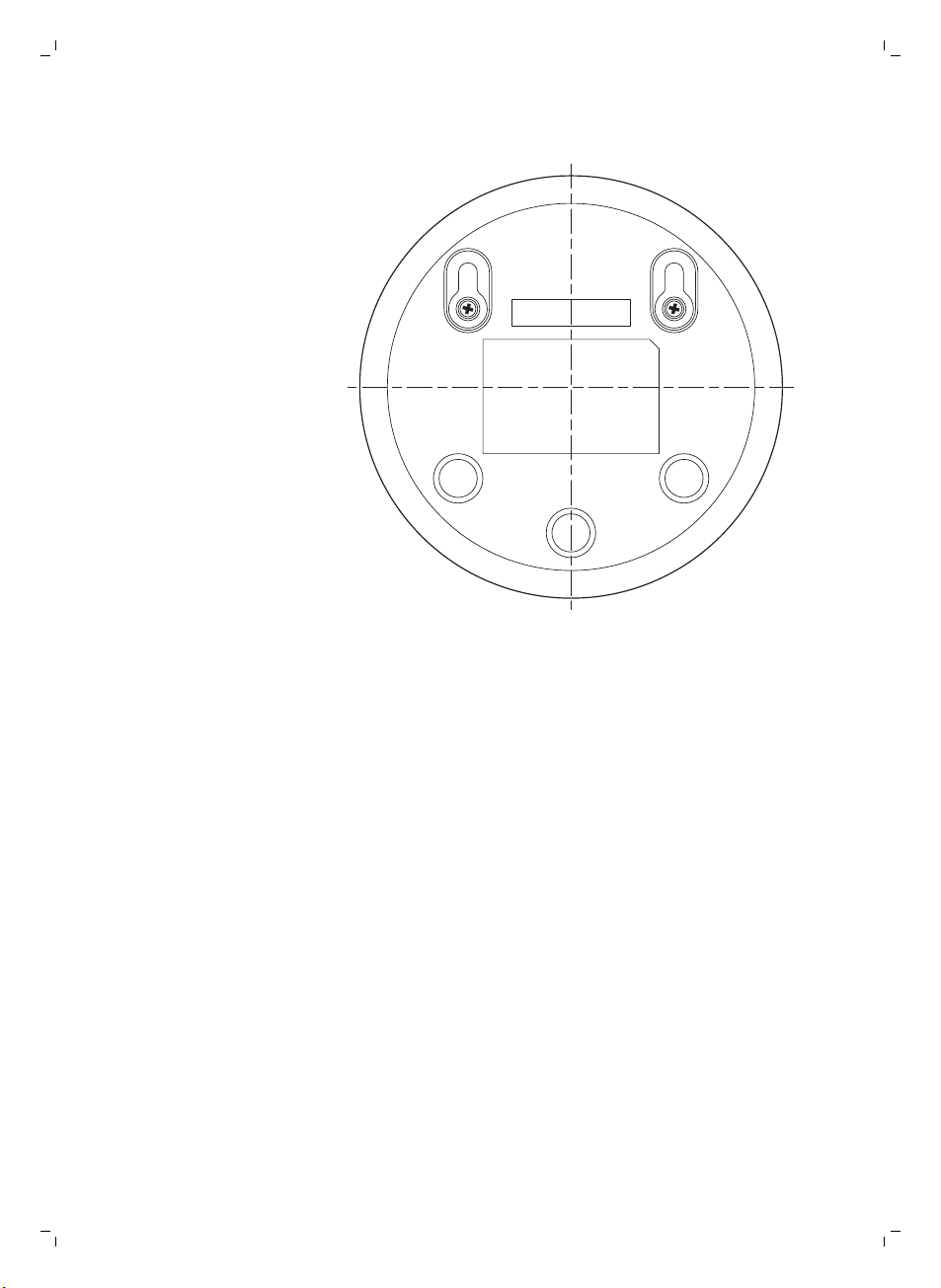

b Mount the baby unit to the wall with the screws supplied. Tip: The wall mount template (see 'Wall mount') to mount the baby unit

to the wall can be found at the end of this user manual. Tip: Use the provided template to mark the exact location of the screw

holes on the wall. Tip: Position the baby unit at a higher level to get a good overview of the

baby’s bed or playpen.

Adjust the baby unit in a way that ensures the best visibility of your baby. The baby unit can be rotated to position it in the desired way.

<50m/165ft

<300m/985ft

20°C

English

Operating range

The operating range is up to 50 meters/ 165 feet indoors and 300 meters/985 feet outdoors. The operating range of the baby monitor varies depending on the surroundings and factors that cause interference. Wet and moist materials cause so much interference that the range loss is up to 100%.

Dry materials Material

Loss of range

thickness

Wood, plaster, cardboard, glass (without metal, wires or lead)

Brick, plywood < 30cm (12in) 5-35%

Reinforced concrete < 30cm (12in) 30-100%

Metal grilles or bars < 1cm (0.4in) 90-100%

Metal or aluminium sheets < 1cm (0.4in) 100%

< 30cm (12in) 0-10%

Features and settings

Volume

You can adjust the speaker volume of the parent unit to the level you prefer. 1 Press the top or bottom part of the control button to adjust the volume.

Tip: Make sure that the volume is adapted to the current conditions. Under noisy conditions, the vibration alert can be turned on as well.

The volume bar appears on the display to show the selected volume.

Note: If the volume is set to a high level, the parent unit consumes more power.

Note: When the volume bar is at its minimum, the volume is muted. The parent unit shows a mute icon in the status bar and you will only receive alerts and video from the parent unit.

20°C

VIDEO

20°C

VIDEO

English

Brightness

You can adjust the display brightness of the parent unit to the level you prefer.

1 Press the left or right part of the control button to adjust the brightness

The brightness bar appears on the display to show the selected display brightness.

Note: If the brightness is set to a high level, the parent unit consumes more power.

Sound level lights

The parent unit continuously monitors the sound level in your baby’s room, and the sound level lights on the parent unit let you know if there is any sound picked up in the baby room.

As long as no sound is detected, the sound level lights are out.

of the display of the parent unit.

When the baby unit picks up a sound, one or more sound level lights on the parent unit light up green. The number of lights that go on depends on the loudness of the sound picked up by the baby unit. The louder your baby cries, more sound level lights light up green.

Modes

VID

VIDEO

20°C

VIDEO

20°C

VOX

English

This baby monitor has four different modes that allows you to choose how you want to look after your baby: VIDEO, AUDIO, VOX and ECO.

With the baby monitor on, you can switch between these 4 different modes by pressing the mode button on the side of the parent unit.

The display shows the selected mode. The selected mode is also indicated in the status bar. When turning on the device, the mode that was last used will be active.

VIDEO mode

Press the mode button on the side of the parent unit to select theVIDEO mode.

When the VIDEO mode is activated, the screen is always on, so you can see your baby. All sounds are directly transmitted to the parent unit.

Note: Set the sensitivity level to 'very high' to have continuous sound on the parent unit. Please see the Sensitivity level chapter for more information.

If your baby cries, the sound level lights light up green. As long as no sound is detected, the sound level lights are off.

AUDI

AUDIO

VOXAUDIO

20°C

AUDIO

VOX

20°C

VOX

English

AUDIO mode

1 Press the mode button on the side of the parent unit to switch to AUDIO

mode.

When the AUDIO mode is activated, the display of the parent unit switches off. After 3 seconds the display will completely turn off and the status bar will disappear.

Note: The status bar is not visible when the display is off.

Note: The link light shows that the parent unit is still on and connected to the baby unit.

Note: When sensitivity level is not set to 'very high', low sounds will be muted.

Note: Set the sensitivity level to 'very high' to have continuous sound on the parent unit. Please see the Sensitivity level chapter for more information.

All sounds are constantly transmitted to the parent unit. If your baby cries, the display of the parent unit is still off, but the sound level lights light up green and the sounds detected by thebaby unitare transmitted to the parent unit. As long as no sound is detected, the sound level lights are off.

VOX mode

1 Press the mode button on the side of the parent unit to switch to VOX

mode.

Note: When the display is on, the selected mode is shown in the status bar. The status baris not visible when the display is off.

When the VOX mode is activated, the display and sound of the parent unit switch off, if there is no sound detected for 20 seconds.

20°C

VOX

ECO

20°C

ECO

English

Whensound is picked up by the baby unit, the displayand sound of the parent unit switch on immediately.The sounds are transmitted to the parent unit and the sound level lights light up green. As long as no sound is detected, the sound level lights are off.

Note: The minimum sound level to activate sound and display is defined by the sensitivity setting.

ECO mode

1 Press the mode button on the side of the parent unit to switch to ECO

mode. Note: When the display is on, the selected mode will be visible in the

status bar. The status bar is not visible when the display is off.

When the ECO mode is activated the display and sound of the parent unit switch off when no sound is detected for 20 seconds. TheECO light lights up green to indicate that the ECO mode is activated. During ECO mode the display and sound transmissions are turned off.

Nightlight

Note: The minimum sound level to activate sound and display is defined by the sensitivity setting.

1 Press the nightlight on/off button on the baby unit to switch on the

nightlight feature.

English

Lullabies

The nightlight of the baby unit goes on. Note: It is not possible to control the nightlight from the parent unit. You

can only switch the nightlight on or off on the baby unit.

2 Press the nightlight on/off button again to switch off the nightlight.

You can activate the lullaby feature either from the parent unit or from the baby unit.

To activate the lullaby feature from the parent unit, follow the instructions below:

Lullaby selection

1 Press the lullaby button on the parent unit to open the menu for

lullabies. Note: Pressing the lullaby button while the lullaby menu is already open,

will close the menu.

2 Press the right part of the control button to enter the list of lullabies

20°CVIDEO

Lullaby Songs

1 Rock-a-Bye Baby

2 Twinkle, Twinkle

3 Hush, Little Baby

4 Brahm’s Lullaby

5 Golden Slumbers

20°CVIDEO

Lullaby Songs

1 Rock-a-Bye Baby

2 Twinkle, Twinkle

3 Hush, Little Baby

4 Brahm’s Lullaby

5 Golden Slumbers

15 min

20°C

Lullaby Songs

1 Rock-a-Bye Baby

2 Twinkle, Twinkle

3 Hush, Little Baby

4 Brahm’s Lullaby

5 Golden Slumbers

VIDEO

20°C

Lullaby Volume

VIDEO

English

3 Press the top or bottom part of the control button to scroll through the

list of lullabies.

4 Press the right part of the control button to play a specific lullaby.

If you want to pause the lullaby, press the right side of the control button again.

5 The status barof the parent unit shows the number of lullabies thatare

being played and repeated.

The lullaby starts to play on the baby unit and it is repeated continuously for approximately 15 minutes.

Tip: To repeat all songs that are available, select the last option in the list.

6 To select another lullaby, scroll up or down with thecontrol button to

select another song from the list.Press the right part of the control button to start the selected song.

7 To stop the lullaby, press the lullaby button on the parent unit and pause

the song that is currently playing by pressing the right part of the control button one more time.

Lullaby volume

1 Press the lullaby button and then press the bottom of the control button

to select the volume options of thelullaby menu. Press the right part of the control button to access the lullaby volume levels.

20°C

Lullaby Volume

VIDEO

15 min

English

2 Press the top or bottom part of the control button to adjust the volume.

To activate the lullaby feature from the baby unit, press the lullaby on/off button on the baby unit.

The latest lullaby selected on the parent unit starts to play on the baby unit and is repeated continuously for approximately 15 minutes.

To stop the lullaby on the baby unit, press the lullaby on/off button on the baby unit.

Talk-back

You can use the talk-back button on the parent unit to talk to your baby.

1 Press and hold the talk-back button on the parent unit. 2 Talk clearly into the microphoneat the front of the parent unit from a

distance between 15-30cm /0.5-1ft. As long as the talk-back button is pressed, there is an open sound

connection to the baby unit. The display of the parent unit shows the talk-back icon, indicating the active connection.

3 Release the talk-back button when you have finished talking.. Note: As long as the talk-back button is pressed, theparent unitcannot

process sounds coming from the baby unit.

Menu features

20°CVIDEO

Zoom

Oﬀ

English

All features described in the following sections can be operated through the menu of the parent unit.

1 Press the menu button to enter the menu.

Note: When pressing the menu button again, you will leave the menu.

2 Use the control button to navigate through the menu. The selected menu

item is highlighted purple. Note: If you are already in one of the sub menus and you want to switch

between menu features,press the left part of the control button to navigate back to the main menu.

3 Press the top or bottom part of the control button to scroll through the

different menu items.

When you are navigating through the menu features and do not want to save any change, press the menu button. You will leave the menu without changing any settings.

Note: If you are in the menu but do not press a button for 5 seconds, the menu will exit without saving changed settings.

Zoom

1 Press the right part of the control button toenter the zoom menu.

Zoom

Oﬀ

On Pan

20°CVIDEO

20°C

VIDEO

Sensitivity

Low

Medium

High

Very High

20°C

Sensitivity

Low

Medium

High

Very High

VIDEO

20°C

VIDEO

Sensitivity

Low

Medium

High

Very High

English

2 Press the bottom part of the control button to switch on the zoom

feature.

3 To adjust the video image press the right part of the control button. Now

you can use the top/bottom/right/left part of the control button to choose what image will be shown on the parent unit.

4 Press the menu button to save the new setting. The image is

automatically saved after 5 seconds.

5 Go to the zoom menu and turn off the zoom function, if you want to

zoom out the image on the parent unit.

Sensitivity

The sensitivity level of the baby unit defines what you hear through the parent unit. When the level is set high, you will hear many sounds, including soft background sounds. When the sensitivity level is set low, you will hear only the louder sounds.

1 Press the right part of the control button to access the sensitivity levels.

Note: When pressing the left part of the control button again, you will leave the menu.

2 Press the top or bottom part of the control button to select the desired

sensitivity level.

If your baby only makes soft sounds, the sensitivity of the baby unit needs to be set to a high sensitivitylevel on the parent unit.

Sensitivity

Low

Medium

High

Very High

20°C

VIDEO

20°CVIDEO

Vibrate

On if speaker is oﬀ

Always On

Oﬀ

20°CVIDEO

Vibrate

On if audio is muted

Always on

Oﬀ

VIDEO

English

The louder your baby sounds, the lower the sensitivity can be set on the parent unit.

Note: In AUDIO and VIDEO mode, you will have continuous sound when the sensitivity level is on 'very high'. Otherwise, low sounds will be muted.

Tip: The sensitivity level can be adjusted so you will always hear your baby without the disruption of other sounds. When there is a lot of background noise, turn the sensitivity lower so you will not hear these sounds through the parent unit.

3 Press the left part of the control button to save the new setting and to

return to the main menu.

Vibration

1 Press the right part of the control button to access the vibration options.

2 There are three options for vibration:

a 'On if audio is muted': When volume is set to minimum (muted) the

parent unit will vibrate when sound is detected from the baby unit and above sensitivity level.

b 'Always on': Parent unit will always vibrate when sound is detected

from the baby unit and above sensitivity level.

c 'Off': Parent unit will never vibrate. When vibration is on, the parent unit will vibrate when your baby cries or

makes sounds, according to the sensitivity level you have selected. The parent unit also vibrates whenthe temperature alert is on and a maximum or minimum temperature is reached or when the parent unit lost connection with the baby unit.

3 Press the left part of the control button to save the new setting and to

return to the main menu.

Temperature

The temperature sensor enables you to monitor the temperature in your baby’s room.

Note: The current temperature in your baby's room is shown in the status bar of the parent unit.

20°C

Temperature

Unit

Max

Min

Alert

VIDEO

20°C

Temperature

Unit

Max

Min

Alert

°C

VIDEO

20°C

Temperature

Unit

Max

Min

Alert

°C

Oﬀ

VIDEO

20°C

Temperature

Unit

Max

Min

Alert

VIDEO

20°C

ALERT

English

1 Press the right part of the control button to access the temperature

options.

Tip: You can change the temperature unit from C (Celsius) to F (Fahrenheit) by selecting the unit option.

2 In the temperature menu, an alert for temperature can be set on or off.

3 You can select the alert option to turn on the alert. To change the

maximum and minimum temperatures for the temperature alert, select the desired temperatures at ‘max’ and ‘min’ in the temperature menu.

4 Press the left part of the control button to save the new setting and to

return to the main menu.

5 The parent unit shows this alert when chosen temperatures are

measured or exceeded.

20°CVIDEO

Language

English

Deutsch

Francais

20°CVIDEO

Language

English

Deutsch

Francais

Belt clip

English

Language

1 Press the right part of the control button to access the list of languages. 2 Press the top or bottom part of the control button to select the desired

language.

3 Press the left part of the control button to save the new setting and to

return to the main menu.

You can take the parent unit with you inside and outside the house by attaching the parent unit to your belt or waistband with the belt clip. This allows you to monitor your baby while you are moving around.

Note: The display is now turned upside down, which allows you to see your baby on the screen by simply lifting up the parent unit.

Cleaning and maintenance

Warning: Do not immerse the parent unit, baby unit and power adapters in water and do not clean them under the tap.

English

Warning: Do not use cleaning sprays or liquid cleaners.

1 Switch off the baby unit, remove the power adapter from the baby unit

and remove the power adapter from the wall socket.

2 Clean the baby unit with a dry cloth.

Note: Fingerprints or dirt on the lens of the baby unit may affect the camera’s performance. Avoid touching the lens with your fingers.

3 Switch off the parent unit, remove the power adapter from the parent

unit and remove the power adapter from the wall socket.

4 Clean the parent unit with a dry cloth.

5 Clean the adapters with a dry cloth.

Storage

When you are not going to use the baby monitor fora long time, store the parent unit, the baby unit and the adapters in a cool and dry place.

Ordering accessories

To buy accessories or spare parts, visit www.philips.com/parts-andaccessories or go to your Philips dealer. You can also contact the Philips

Consumer Care Center in your country (see the international warranty leaflet for contact details).

Recycling

This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

English

This symbol means that this product contains a built-in rechargeable battery which shall not be disposed of with normal household waste (2006/66/EC). Please take your product to an official collection point or a Philips service center to have a professional remove the rechargeable battery.

Follow your country’s rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Removing the rechargeable battery

Note: We strongly advise you to have a professional remove the rechargeable battery.

Only remove the rechargeable battery when you discard the appliance. Make sure the battery is completely empty when you remove it. Only the parent unit includes a battery.

Procedure: 1 Remove the 2 rubber feet at the bottom of the parent unit.

English

2 Remove the 2 screws that are now visible at the bottom of the parent

unit.

3 Put the antenna in upward position and remove the screw in the back

housing that is now visible.

4 Remove the back housing from the front housing by forcing a screwdriver

in between them.

5 Disconnect the battery connector cable (black-white-red cable). 6 Remove the 4 screws from the battery holder. 7 Remove the battery.

Warranty and support

If you need information or support, please visit www.philips.com/support or read the international warranty leaflet.

Frequently asked questions

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

HOW TO USE / CONNECTING THE UNITS Question Answer

Why does the power-on light of the baby unit not go on when I switch on the unit?

Why doesn't the parent unit charge when I plug it in?

Why doesn’t the baby unit charge when I plug it in?

Why can’t I establish a connection? Why is the connection lost every now and then? Why are there sound interruptions?

Perhaps the baby unit is not connected to the mains. Connect the baby unit to the mains. Then set the on/off switch of the baby unit upwards to the ON position to establish connection with the parent unit.

Perhaps the adapter is not plugged in properly. Make sure the adapter is plugged into the wall socket properly.

The parent unit may already be fully charged. The battery status light will be green when the battery is fully charged and the device is connected to the mains power.

The baby unit does not have a charging function. The baby unit only works when it isconnected to themains.

The baby unit and the parent unit are probably close to the outer limits of the operating range or there is interference from other 2.4 GHz wireless devices. Try a different location, decrease the distance between the units or switch off other 2.4 GHz wireless devices (laptops, mobile phones, microwaves, etc) . It can take up to 10 seconds before the connection between the units is reestablished.

If the signal is lost, then the parent unit will make a beeping sound (3 quick beeps every 20 seconds).

HOW TO USE / CONNECTING THE UNITS

The baby and parent unit might be too close to each other, keep them at least 1.5 meters/ 5 feet away from each other to prevent interference.

English

What happens during a power failure?

Why can the charging time of the parent unit exceed 3 hours?

Why do I need to keep the baby unit and its cord at least 1 meter/

3.5 feet away from my baby?

What is the difference between the various user modes on the parent unit: Video, Audio, VOX and ECO?

As the parent unit works on a rechargeable battery, the parent unit continues to work if the battery is sufficiently charged. However, the baby unit stops working because it has no rechargeable battery and only works on a mains power. The parent unit will give a beeping sound to indicate that the link with the baby unit is lost. When mains power is restored, the connection between the parent unit and the baby unit will automatically be established.

The parent unit may be switched on during charging. Switch off the parent unit during charging to reduce the charging time. When the display of the parent unit is constantly on, charging of the parent unit will take more time.

To avoid strangulation with the cord and for optimal sound detection, always place the baby unit and its cord at least 1 meter / 3.5 feet away from the baby.

See below list for an explanation on the available modes on your baby monitor.

* Video mode: the screen and sound of the parent unit are always on.

* Audio mode: only audio will be activated. The display of the parent unit switches off when AUDIO mode is activated. The link light shows that the parent unit is still on and connected to the baby unit. SCD630 only: the sound level lights above the screen will light up green when sound from the baby unit is heard. All normal correspondence with the baby unit is possible via the talk back, lullaby, menu and sensitivity buttons.

* VOX mode: The display and sound of the parent unit switch off if there is no sound detected for 20 seconds (or not enough sound above the sensitivity setting). Both display and sound will be activated immediately when your baby cries and the sensitivity threshold is passed. When the sound drops below the sound threshold, the video will remain active for 20 seconds. When one of the control buttons is pressed (brightness or volume), the device shall display video for roughly 5 seconds. Also the lullaby menu is accessible.

* ECO mode: The display and sound of the parent unit switch off when no sound is detected for 20 seconds. Eco Mode reduces power consumption during quiet times while keeping you connected to your baby. In ECO mode the ECO LED light is green and the device will operate on a different connection modus. In ECO mode the parent unit uses the 2 seconds ping mechanism to check the connection with the baby unit instead of a continuous radio frequency connection. Therefore the Baby Unit will also consume less energy in ECO mode.

English

HOW TO USE / CONNECTING THE UNITS

Where can I turn on the nightlight?

How can I reset the parent unit?

Press the nightlight on/off button on the baby unit to switch on the nightlight feature. It is not possible to control the nightlight from the parent unit. The nightlight does not turn off automatically, press the nightlight on/off button again on the baby unit to switch it off.

You can reset the parent unit by simultaneously press the "power on/off button" and the round "navigation down button" at the front of the parent unit for about 1 second. The parent unit will switch off. In order to turn the parent unit back on, press the "power on/off button". Specific user information stored in the memory of the parent unit such as user mode, brightness settings, volume, lullaby selection, zoom selection and vibration settings will not be lost.

HOW TO USE / CONNECTING THE UNITS Question Answer

Where can I turn on the nightlight?

INDICATIONS ON THE PARENT UNIT Question Answer

The battery LED on the parent unit turns red. What should I do?

The battery power is low. If you do not connect the parent unit to the mains power when the battery LED has turned red and starts to make a beeping sound, the unit will stop working after approximately 60 minutes.

Switch to lower brightness and/or volume to save battery consumption and connect the parent unit to the mains with the power adapter. (see chapter ‘Preparing for use’).

Why does the parent unit beep?

Your baby monitor beeps in a certain way to tell you what the problem is.

1 beep: parent unit is switched off.

1 beep, every 20 seconds for the first 3 minutes, after that, every minute: parent unit is low in battery.

2 quick beeps every 20 seconds: temperature of the baby room is outside the range that is defined by the user, temperature icon is shown on parent unit's screen (for model SCD630 only).

3 quick beeps every 20 seconds: connection between parent and baby unit is lost, link icon is shown on the parent unit's screen and the link connection button is red.

+ 244 hidden pages
