English

Introduction

Congratulations on your purchase and welcome to Philips Avent! To fully benefit from the support that Philips Avent offers, register your product at www.philips.com/welcome.

The Philips Avent video baby monitor provides you with round-the-clock support and it allows you to see your baby day and night from anywhere in the house. The latest digital technology guarantees clear sound and the clearest image of your baby. This gives you an additional sense of security without entering your baby’s room and disturbing its sleep.

General description

1 Parent unit 2 Display 3 ECO light 4 Battery status light 5 Link light 6 Speaker 7 Control button (menu navigation/volume/brightness) 8 Sensitivity button 9 Lullaby button 10 Talk-back button 11 Socket for small plug 12 Mode button 13 On/off button 14 Antenna 15 Belt clip 16 Baby unit 17 Camera 18 Lullaby on/off button 19 On/off slide 20 Antenna 21 Speaker 22 Socket for small plug 23 Wall mounting holes 24 Adapter (2x) 25 Screws

Important safety information

Read this important information carefully before you use the appliance and save it for future reference.

IMPORTANT

This baby monitor is intended as an aid. It is not a substitute for responsible and proper adult supervision and should not be used as such.

Never leave your baby alone in your home. Always make sure there is someone present to look after the baby and take care of its needs.

English

Disclaimer

Please note that you use this baby monitor at your own risk. Koninklijke Philips N.V. and its subsidiary companies are not responsible for the operation of this baby monitor or your use of it and therefore do not accept any liability in connection with your use of this baby monitor.

Danger

Never immerse any part of the baby monitor in water or any other liquid. Do not place the appliance where water or any other liquid can drip or splash onto it. Never use the baby monitor in moist places or close to water.

Never put any object on top of the baby monitor and do not cover it. Do not block any ventilation openings. Install according to the manufacturer’s instructions.

English

Cords present a potential strangulation hazard. Keep cords out of the reach of children (more than 1 meter/3.5 feet away). Never place the baby monitor inside the baby’s bed or playpen.

Warning

Check if the voltage indicated on the adapter corresponds to the local mains voltage before you connect the appliance.

Do not modify or cut off any part of the adapter and its cord, as this causes a hazardous situation.

Only use the adapter supplied.

If the adapter is damaged, always have it replaced with one of the original type in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Protect the mains cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the appliance.

Make sure that you place the baby monitor in such a way that its cord does not obstruct a doorway or passage. If you place the baby monitor on a table or low cabinet, do not let the mains cord hang over the edge of the table or cabinet. Make sure the cord does not lie on the floor where it presents a tripping hazard.

Keep the packaging materials (plastic bags, cardboard buffers, etc.) out of the reach of children, as they are not a toy.

To prevent electric shock, do not open the housing of the baby unit or parent unit.

Caution

Use the appliance at a temperature between 0°C (32°F) and 40°C (104°F).

Do not install the appliance near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.

Make sure that your hands are dry when you handle adapters, plugs and the mains cord.

All required markings on the baby unit, parent unit and power adapter are located on the bottom of the baby unit, parent unit and power adapter.

Compliance with standards

20°CEco

This product complies with the radio interference requirements of the European Community.

Philips Consumer Lifestyle hereby declares that this baby monitor is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. A copy of the EC Declaration of Conformity (DoC) is available online at www.philips.com/support.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Preparing for use

Baby unit

Put the power adapter in the baby unit and the adapter in the wall socket.

English

Parent unit

The parent unit runs on a built-in rechargeable Li-ion battery. Follow the below steps to charge the parent unit:

1 Put the power adapter in the parent unit and put the adapter in the wall

socket.

The battery status light turns orange to indicate that the appliance is charging.

When the battery is fully charged, the battery status light lights up green continuously.

10 hrs=3 hrs

20°CEco

English

When you charge the parent unit for 3 hours, it can be used cordlessly for approx. 10 hours.

If the parent unit is switched on during charging, charging takes approximately twice as long.

When the rechargeable battery of the parent unit is almost empty, the battery status light turns red and the parent unit beeps.

If the battery is completely empty and the parent unit it not connected to the mains, the parent unit automatically switches off and loses contact with the baby unit.

Note: The built in rechargeable battery cannot be removed from the product.

Note: The battery gradually and very slowly discharges, even when the parent unit is switched off.

Tip: To save battery, switch off the parent unit when you do not use it. Note: We advise you to keep the parent unit connected to the mains during

the whole night. If the battery of the parent unit runs low during the night, the parent unit beeps and this may wake you up.

Using the baby monitor

Linking parent unit and baby unit

1 Push the on/off slide on the baby unit upwards to the ON position.

2 When the baby unit is on, the power-on light on the baby unit lights up

green. Note: The power-on light on the baby unit always lights up green, even

when there is no connection with the parent unit.

>2 .5 m/8.2ft

20°CEco

English

3 Make sure that the parent unit and the baby unit are at least 2.5 meters/

8.2 feet away from each other to avoid acoustic feedback.

4 Press the on/off button on the parent unit to switch on the parent unit.

The display goes on, the linking image appears on the display and the link light lights up red. The parent unit starts to search for the baby unit.

When the parent unit and baby unit are linked, the link light lights up green on the parent unit and one or more bars appear on the display.

Note: It takes less than 10 seconds to establish the link between the parent unit and the baby unit.

When the baby unit is turned off, the parent unit will show the out of range image. Make sure that the baby unit is switched on.

If no connection has been established, the link light turns red, the parent unit beeps three short beeps every 20 seconds and the out-ofrange image appears on the display.

>1-1.5m/3.5-5ft

>2 .5 m/8.2ft

English

Positioning the baby monitor

Warning: The cord of the baby unit presents a potential strangulation hazard. Make sure that the baby unit and its cord are at least 1 meter / 3.5 feet away from your baby. Never place the baby monitor inside the baby’s bed or playpen.

1 For optimal sound detection, make sure that the baby unit is no further

than 1.5 meter/ 5 feet away from the baby. Make sure that the baby unit is at least 1 meter/ 3.5 feet away from the baby because of potential strangulation hazard.

2 Place the parent unit within the operating range of the baby unit. Make

sure it is at least 2.5 meters / 8.2 feet away from the baby unit to avoid acoustic feedback.

Note: If you use a cordless phone, wireless video, Wi-Fi network, microwave oven or Bluetooth on 2.4GHz and you experience interference on either the parent unit or baby unit, move the parent unit until there is no more interference.I

3 There are two ways to position the baby unit

a Place the baby unit on a stable, level and horizontal surface.

b Mount the baby unit to the wall with the screws supplied.

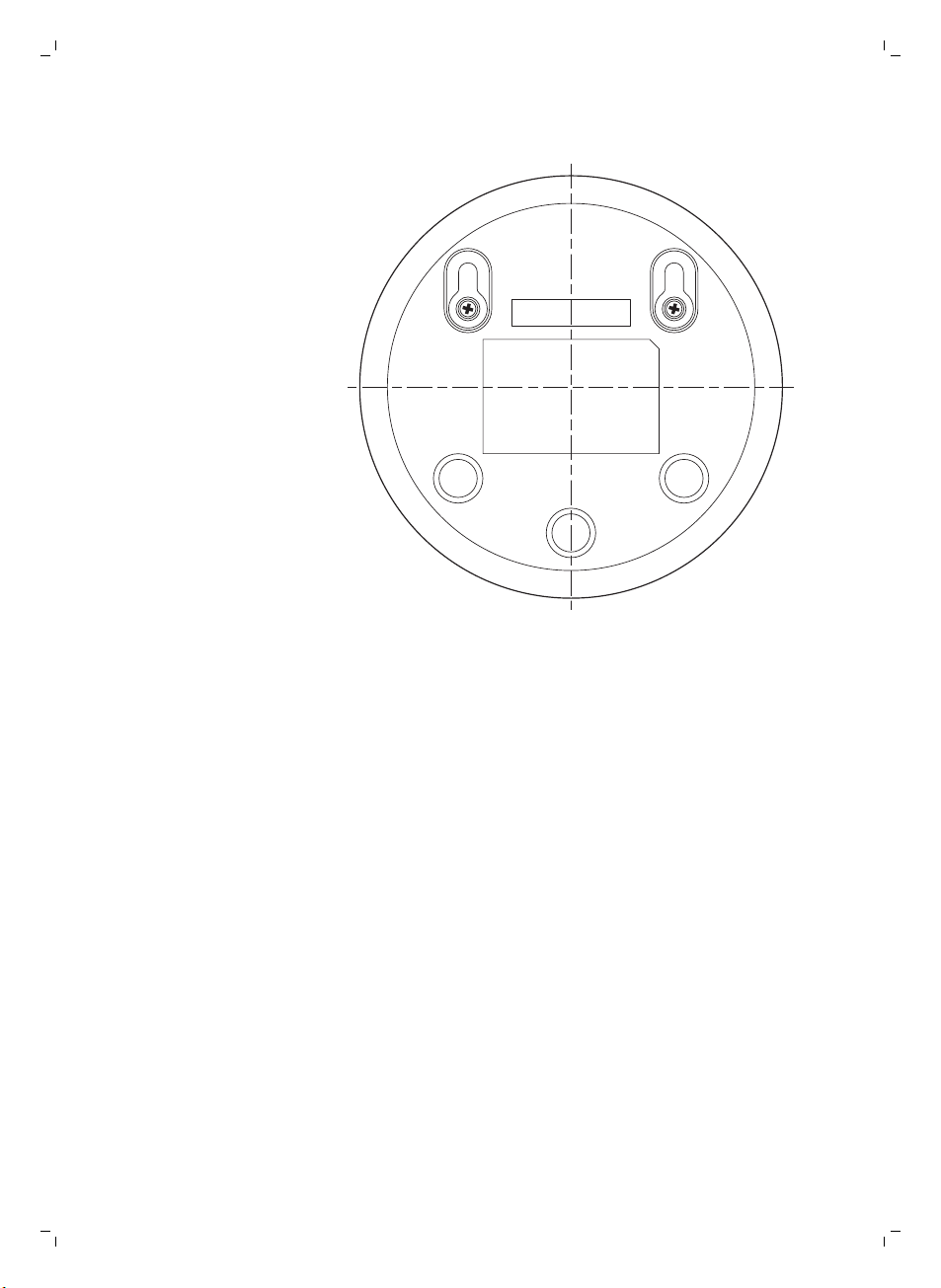

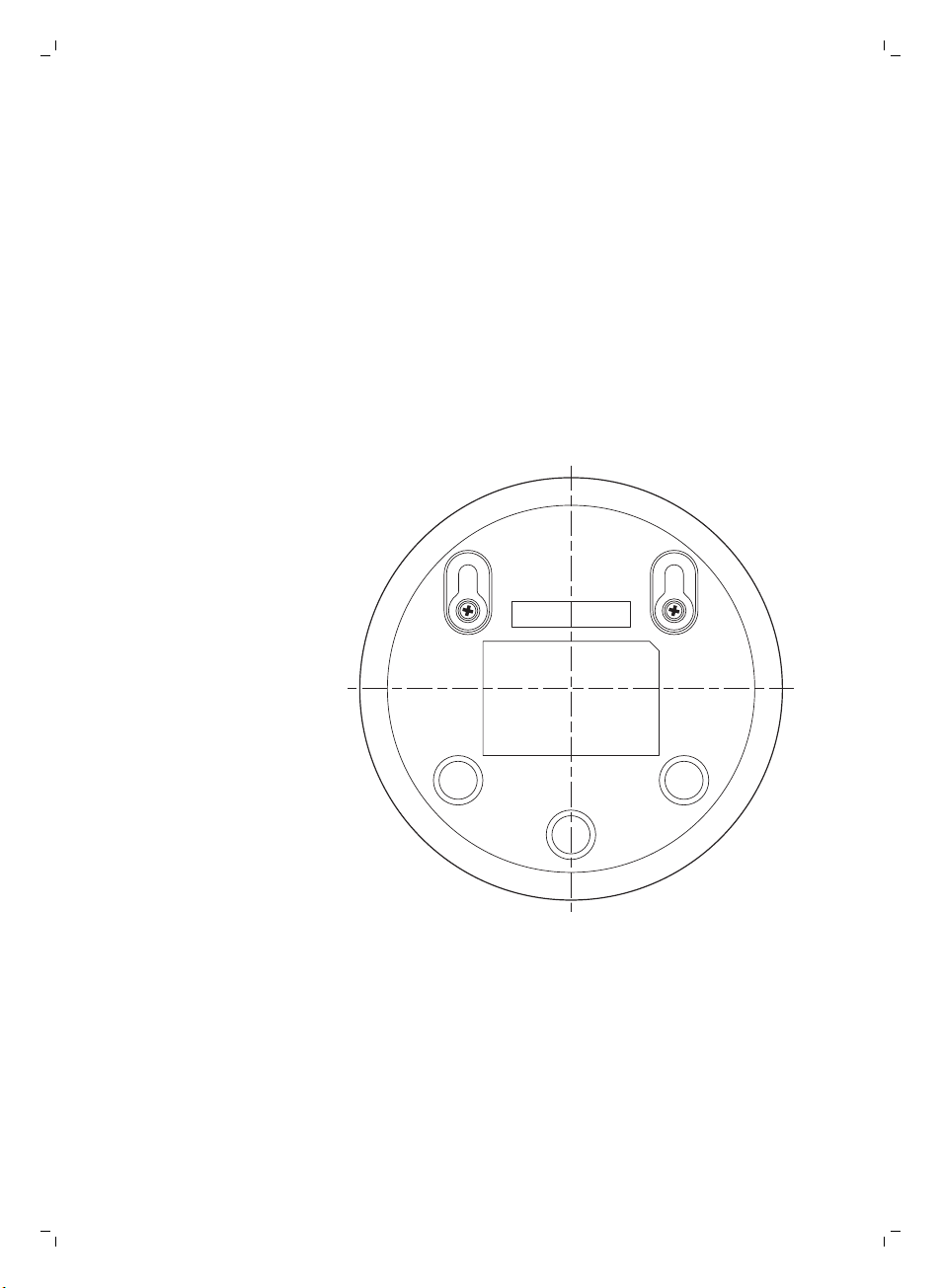

Tip: The wall mount template (see 'Wall mount') to mount the baby unit to the wall can be found at the end of this user manual.

Tip: Use the provided template to mark the exact location of the screw holes on the wall.

Tip: Position the baby unit at a higher level to get a good overview of the baby’s bed or playpen.

<300m/985ft

<50m/165ft

English

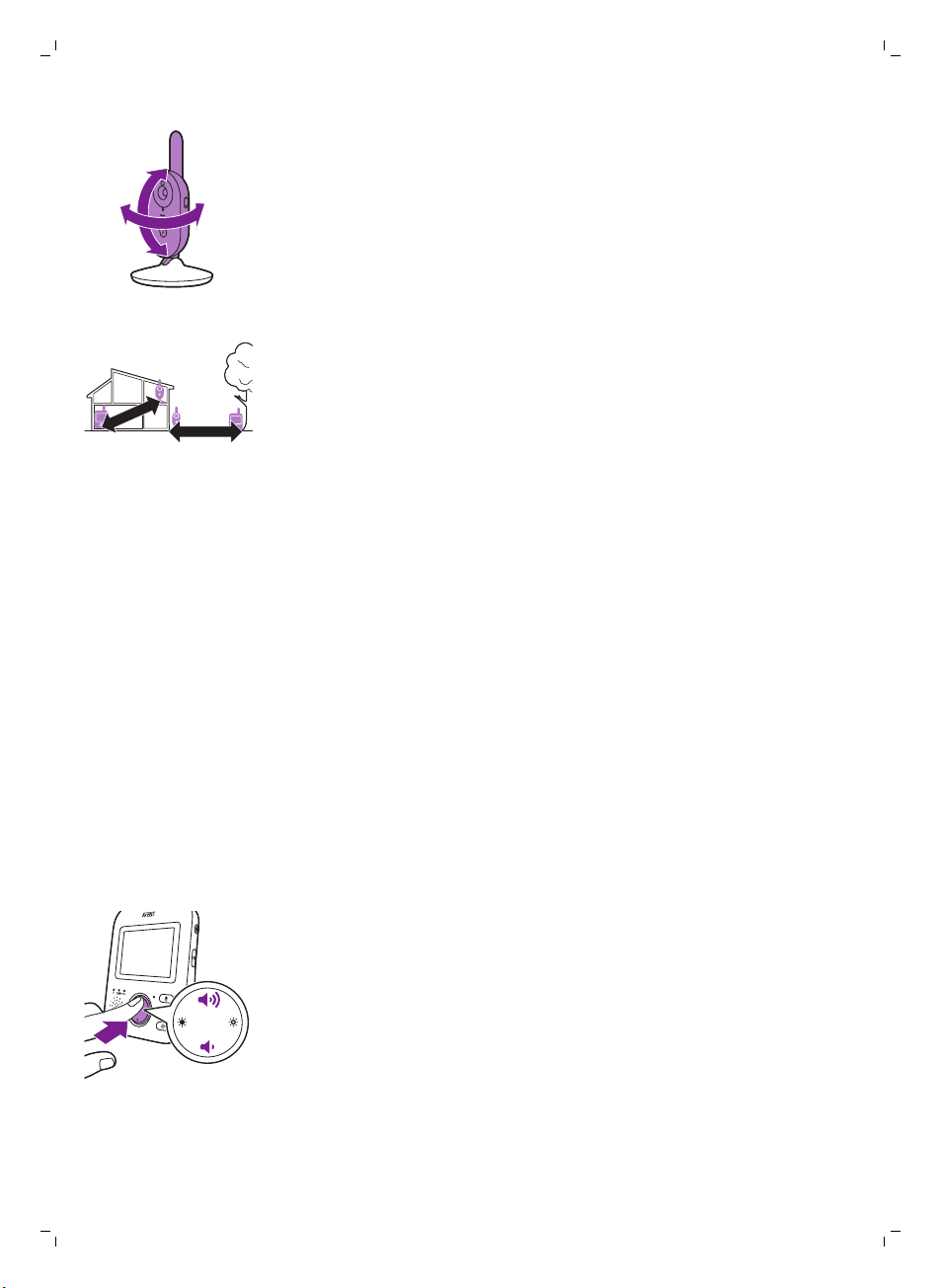

4 Adjust the baby unit in a way that ensures the best visibility of your baby.

The baby unit can be rotated to position it in the desired way.

Operating range

The operating range is up to 50 meters / 165 feet indoors and 300 meters / 985 feet outdoors. The operating range of the baby monitor varies depending on the surroundings and factors that cause interference. Wet and moist materials cause so much interference that the range loss is up to 100%.

Dry materials Material thickness Loss of range

Wood, plaster, cardboard, glass (without metal, wires or lead)

Brick, plywood < 30cm (12in) 5-35%

Reinforced concrete < 30cm (12in) 30-100%

Metal grilles or bars < 1cm (0.4in) 90-100%

Metal or aluminium sheets < 1cm (0.4in) 100%

< 30cm (12in) 0-10%

Features and settings

Volume

You can adjust the speaker volume of the parent unit to the level you prefer. 1 Press the top or bottom part of the control button to adjust the volume.

20°C

English

Brightness

Tip: Make sure that the volume is adapted to the current conditions. Under noisy conditions, the vibration alert can be turned on as well.

The volume bar appears on the display to show the selected volume.

Note: If the volume is set to a high level, the parent unit consumes more power.

Note: When the volume bar is at its minimum, the volume is muted. The parent unit shows a mute icon in the status bar and you will only receive alerts and video from the parent unit.

You can adjust the display brightness of the parent unit to the level you prefer.

1 Press the left or right part of the control button to adjust the brightness of

the display of the parent unit.

The brightness bar appears on the display to show the selected display brightness.

Note: If the brightness is set to a high level, the parent unit consumes more power.

Modes

This baby monitor has four different modes that allows you to choose how you want to look after your baby: VIDEO, AUDIO, VOX and ECO.

With the baby monitor on, you can switch between these 4 different modes by pressing the mode button on the side of the parent unit.

The display shows the selected mode. The selected mode is also indicated in the status bar. When turning on the device, the mode that was last used will be active.

VIDEO mode

VIDEO

20°C

VIDEO

20°C

VIDEO

AUDIO

20°C

AUDIO

English

Press the mode button on the side of the parent unit to select the VIDEO mode.

When the VIDEO mode is activated, the screen is always on, so you can see your baby. All sounds are directly transmitted to the parent unit.

Note: Set the sensitivity level to 'very high' to have continuous sound on the parent unit. Please see the Sensitivity level chapter for more information.

AUDIO mode

1 Press the mode button on the side of the parent unit to switch to AUDIO

mode.

When the AUDIO mode is activated, the display of the parent unit switches off. After 3 seconds the display will completely turn off and the status bar will disappear.

Note: The status bar is not visible when the display is off.

20°C

VOX

20°C

AUDIO

20°C

ECO

English

Note: The link light shows that the parent unit is still on and connected to the baby unit.

Note: Set the sensitivity level to 'very high' to have continuous sound on the parent unit. Please see the Sensitivity level chapter for more information.

All sounds are constantly transmitted to the parent unit. If your baby cries, the display of the parent unit is still off, but the sounds detected by the baby unit are transmitted to the parent unit.

VOX mode

1 Press the mode button on the side of the parent unit to switch to VOX

mode.

Note: When the display is on, the selected mode is shown in the status bar. The status bar is not visible when the display is off.

When the VOX mode is activated, the display and sound of the parent unit switch off, if there is no sound detected for 20 seconds.

When sound is picked up by the baby unit, the display and sound of the parent unit switch on immediately. The sounds are transmitted to the parent unit.

Note: The minimum sound level to activate sound and display is defined by the sensitivity setting.

ECO mode

1 Press the mode button on the side of the parent unit to switch to ECO

mode.

Note: When the display is on, the selected mode will be visible in the status bar. The status bar is not visible when the display is off.

20°C

ECO

20°C

ECO

Lullabies

English

When the ECO mode is activated the display and sound of the parent unit switch off when no sound is detected for 20 seconds. The ECO light lights up green to indicate that the ECO mode is activated. During ECO mode the display and sound transmissions are turned off.

When sound is picked up by the baby unit, the display and sound of the parent unit switch on immediately. The sounds are transmitted to the parent unit.

Note: The minimum sound level to activate sound and display is defined by the sensitivity setting.

You can activate the lullaby feature either from the parent unit or from the baby unit.

To activate the lullaby feature from the parent unit, follow the instructions below:

Lullaby selection

1 Press the lullaby button on the parent unit to open the menu for

lullabies. Note: Pressing the lullaby button while the lullaby menu is already open,

will close the menu.

2 Press the right part of the control button to enter the list of lullabies.

Lullaby Songs

1 Rock-a-Bye Baby

2 Twinkle, Twinkle

3 Hush, Little Baby

4 Brahm’s Lullaby

5 Golden Slumbers

Lullaby Songs

1 Rock-a-Bye Baby

2 Twinkle, Twinkle

3 Hush, Little Baby

4 Brahm’s Lullaby

5 Golden Slumbers

15 min

Lullaby Songs

1 Rock-a-Bye Baby

2 Twinkle, Twinkle

3 Hush, Little Baby

4 Brahm’s Lullaby

5 Golden Slumbers

English

3 Press the top or bottom part of the control button to scroll through the

list of lullabies.

4 Press the right part of the control button to play a specific lullaby.

If you want to pause the lullaby, press the right side of the control button again.

5 The status bar of the parent unit shows the number of lullabies that are

being played and repeated.

The lullaby starts to play on the baby unit and it is repeated continuously for approximately 15 minutes.

Tip: To repeat all songs that are available, select the last option in the list.

6 To select another lullaby, scroll up or down with the control button to

select another song from the list. Press the right part of the control button to start the selected song.

7 To stop the lullaby, press the lullaby button on the parent unit and pause

the song that is currently playing by pressing the right part of the control button one more time.

Lullaby volume

1 Press the lullaby button on the parent unit to open the menu for

lullabies. Press the left part of the control button and then press the bottom of the control button to select the volume options of the lullaby menu. Press the right part of the control button to access the lullaby volume levels.

20°C

15 min

English

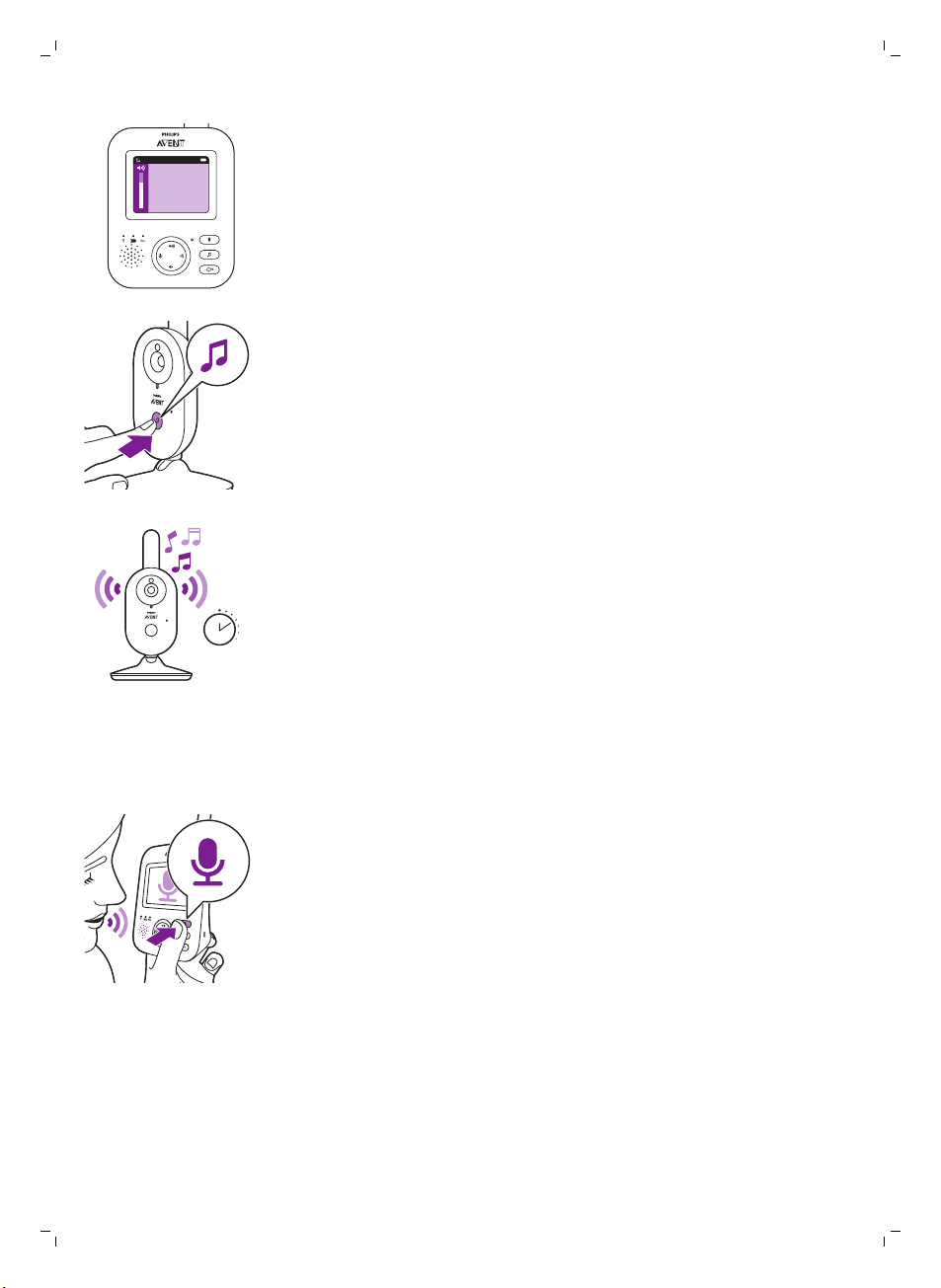

2 Press the top or bottom part of the control button to adjust the volume. 3 To stop the lullaby, press the lullaby button on the parent unit and pause

the song that is currently playing by pressing the right part of the control button one more time.

To activate the lullaby feature from the baby unit, press the lullaby on/off button on the baby unit.

The latest lullaby selected on the parent unit starts to play on the baby unit and is repeated continuously for approximately 15 minutes.

To stop the lullaby on the baby unit, press the lullaby on/off button on the baby unit.

Talk-back

You can use the talk-back button on the parent unit to talk to your baby.

1 Press and hold the talk-back button on the parent unit. 2 Talk clearly into the microphone at the front of the parent unit from a

distance between 15-30cm /0.5-1ft. As long as the talk-back button is pressed, there is an open sound

connection to the baby unit. The display of the parent unit shows the talk-back icon, indicating the active connection.

3 Release the talk-back button when you have finished talking. Note: As long as the talk-back button is pressed, the parent unit cannot

process sounds coming from the baby unit.

20°C

English

Sensitivity

The sensitivity level of the baby unit defines what you hear through the parent unit. When the level is set high, you will hear many sounds, including soft background sounds. When the sensitivity level is set low, you will hear only the louder sounds.

1 Press the sensitivity button to access the sensitivity levels.

Note: When pressing the sensitivity button again, you will leave the menu.

2 Press the top or bottom part of the control button to select the desired

sensitivity level.

If your baby only makes soft sounds, the sensitivity of the baby unit needs to be set to a high sensitivity level on the parent unit.

The louder your baby sounds, the lower the sensitivity can be set on the parent unit.

Note: In AUDIO and VIDEO mode, you will have continuous sound when the sensitivity level is on 'very high'. Otherwise, low sounds will be muted.

Tip: The sensitivity level can be adjusted so you will always hear your baby without the disruption of other sounds. When there is a lot of background noise, turn the sensitivity lower so you will not hear these sounds through the parent unit.

Belt clip

You can take the parent unit with you inside and outside the house by attaching the parent unit to your belt or waistband with the belt clip. This allows you to monitor your baby while you are moving around.

Note: The display is now turned upside down, which allows you to see your baby on the screen by simply lifting up the parent unit.

Cleaning and maintenance

Warning: Do not immerse the parent unit, baby unit and power adapters in water and do not clean them under the tap.

Warning: Do not use cleaning sprays or liquid cleaners.

English

1 Switch off the baby unit, remove the power adapter from the baby unit

and remove the power adapter from the wall socket.

English

2 Clean the baby unit with a dry cloth.

Note: Fingerprints or dirt on the lens of the baby unit may affect the camera’s performance. Avoid touching the lens with your fingers.

3 Switch off the parent unit, remove the power adapter from the parent

unit and remove the power adapter from the wall socket.

4 Clean the parent unit with a dry cloth.

5 Clean the adapters with a dry cloth.

Storage

When you are not going to use the baby monitor for a long time, store the parent unit, the baby unit and the adapters in a cool and dry place.

Ordering accessories

To buy accessories or spare parts, visit www.shop.philips.com/service or go to your Philips dealer. You can also contact the Philips Consumer Care Centre in your country (see the worldwide guarantee leaflet for contact details).

Recycling

This symbol means that this product shall not be disposed of with normal household waste (2012/19/EU).

This symbol means that this product contains a built-in rechargeable battery which shall not be disposed of with normal household waste (2006/66/EC). We strongly advise you to take your product to an official collection point or a Philips service centre to have a professional remove the rechargeable battery.

Follow your country’s rules for the separate collection of electrical and electronic products and rechargeable batteries. Correct disposal helps prevent negative consequences for the environment and human health.

Removing the rechargeable battery

Note: We strongly advise you to have a professional remove the rechargeable battery.

Only remove the rechargeable battery when you discard the appliance. Make sure the battery is completely empty when you remove it. Only the parent unit includes a battery.

Procedure: 1 Remove the 2 rubber feet at the bottom of the parent unit. 2 Remove the 2 screws that are now visible at the bottom of the parent

unit.

3 Put the antenna in upward position and remove the screw in the back

housing that is now visible.

4 Remove the back housing from the front housing by forcing a screwdriver

in between them.

5 Disconnect the battery connector cable (black-white-red cable). 6 Remove the 4 screws from the battery holder. 7 Remove the battery.

English

Guarantee and support

If you need information or support, please visit www.philips.com/support or read the separate worldwide guarantee leaflet.

Frequently asked questions

This chapter summarizes the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

English

HOW TO USE / CONNECTING THE UNITS

Question Answer

Why does the power-on light of the baby unit not go on when I switch on the unit?

Perhaps the baby unit is not connected to the mains. Connect the baby unit to the mains. Then set the on/off switch of the baby unit upwards to the ON position to establish connection with the parent unit.

Why doesn't the parent unit charge when I plug it in?

Why doesn’t the baby unit charge when I plug it in?

Why can’t I establish a connection? Why is the connection lost every now and then? Why are there sound interruptions?

What happens during a power failure?

Perhaps the adapter is not plugged in properly. Make sure the adapter is plugged into the wall socket properly.

The parent unit may already be fully charged. The battery status light will be green when the battery is fully charged and the device is connected to the mains power.

The baby unit does not have a charging function. The baby unit only works when it is connected to the mains.

The baby unit and the parent unit are probably close to the outer limits of the operating range or there is interference from other 2.4 GHz wireless devices. Try a different location, decrease the distance between the units or switch off other 2.4 GHz wireless devices (laptops, mobile phones, microwaves, etc) . It can take up to 10 seconds before the connection between the units is reestablished.

If the signal is lost, then the parent unit will make a beeping sound (3 quick beeps every 20 seconds).

The baby and parent unit might be too close to each other, keep them at least 1.5 meters/ 5 feet away from each other to prevent interference.

As the parent unit works on a rechargeable battery, the parent unit continues to work if the battery is sufficiently charged. However, the baby unit stops working because it has no rechargeable battery and only works on a mains power. The parent unit will give a beeping sound to indicate that the link with the baby unit is lost. When mains power is restored, the connection between the parent unit and the baby unit will automatically be established.

Why can the charging time of the parent unit exceed 3 hours?

Why do I need to keep the baby unit and its cord at least 1 meter/ 3.5 feet away from my baby?

What is the difference between the various user modes on the parent unit: Video, Audio, VOX and ECO?

The parent unit may be switched on during charging. Switch off the parent unit during charging to reduce the charging time. When the display of the parent unit is constantly on, charging of the parent unit will take more time.

To avoid strangulation with the cord and for optimal sound detection, always place the baby unit and its cord at least 1 meter / 3.5 feet away from the baby.

See below list for an explanation on the available modes on your baby monitor.

HOW TO USE / CONNECTING THE UNITS

* Video mode: the screen and sound of the parent unit are always on.

* Audio mode: only audio will be activated. The display of the parent unit switches off when AUDIO mode is activated. The link light shows that the parent unit is still on and connected to the baby unit. SCD630 only: the sound level lights above the screen will light up green when sound from the baby unit is heard. All normal correspondence with the baby unit is possible via the talk back, lullaby, menu and sensitivity buttons.

* VOX mode: The display and sound of the parent unit switch off if there is no sound detected for 20 seconds (or not enough sound above the sensitivity setting). Both display and sound will be activated immediately when your baby cries and the sensitivity threshold is passed. When the sound drops below the sound threshold, the video will remain active for 20 seconds. When one of the control buttons is pressed (brightness or volume), the device shall display video for roughly 5 seconds. Also the lullaby menu is accessible.

* ECO mode: The display and sound of the parent unit switch off when no sound is detected for 20 seconds. Eco Mode reduces power consumption during quiet times while keeping you connected to your baby. In ECO mode the ECO LED light is green and the device will operate on a different connection modus. In ECO mode the parent unit uses the 2 seconds ping mechanism to check the connection with the baby unit instead of a continuous radio frequency connection. Therefore the Baby Unit will also consume less energy in ECO mode.

English

Where can I turn on the nightlight?

How can I reset the parent unit?

Press the nightlight on/off button on the baby unit to switch on the nightlight feature. It is not possible to control the nightlight from the parent unit. The nightlight does not turn off automatically, press the nightlight on/off button again on the baby unit to switch it off.

You can reset the Parent Unit by simultaneously press the "power on/off button" and the round "navigation down button" at the front of the parent unit for about 1 second. The parent unit will restart and connection will be re-established. Specific user information stored in the memory of the parent unit such as user mode, brightness settings, volume, lullaby selection, zoom selection and vibration settings will not be lost.

INDICATIONS ON THE PARENT UNIT

Question Answer

The battery LED on the parent unit turns red. What should I do?

Why does the parent unit beep?

The battery power is low. If you do not connect the parent unit to the mains power when the battery LED has turned red and starts to make a beeping sound, the unit will stop working after approximately 60 minutes.

Switch to lower brightness and/or volume to save battery consumption and connect the parent unit to the mains with the power adapter. (see chapter ‘Preparing for use’).

Your baby monitor beeps in a certain way to tell you what the problem is.

1 beep: parent unit is switched off.

English

INDICATIONS ON THE PARENT UNIT

1 beep, every 20 seconds for the first 3 minutes, after that, every minute: parent unit is low in battery.

2 quick beeps every 20 seconds: temperature of the baby room is outside the range that is defined by the user, temperature icon is shown on parent unit's screen (for model SCD630 only).

3 quick beeps every 20 seconds: connection between parent and baby unit is lost, link icon is shown on the parent unit's screen and the link connection button is red.

What does the battery LED colour (green, orange, red) or no burning LED mean for the status of my battery?

When the parent unit is connected to the mains power the color of the battery light will show:

* Green: battery is full. * Orange: battery is charging.

When the parent unit is not connected to the mains power the color of the battery light will show:

* Red: battery is almost empty (<10%) * No burning LED: parent unit is not connected to the mains.

NOISE/SOUND

Question Answer

Why does the parent unit and/or baby unit produce a high-pitched noise?

How can I mute the sound?

Why don’t I hear a sound? Why can’t I hear my baby cry?

The parent unit and baby unit may be too close to each other. Make sure the parent unit and the baby unit are at least 2.5 meters / 8.2 feet away from each other.

The volume of the parent unit may be set too high. Decrease the volume of the parent unit.

For causes of a beeping sound from the parent unit, see the FAQ "Why does the parent unit beep?"

Mute the device by pressing the bottom part of the control button. When the volume bar on the screen is completely empty, the volume is muted.

The volume of the parent unit may be set too low or may be switched off. Press the top part on the control button to increase the volume level.

Perhaps the parent unit is muted, unmute the device by pressing the top part of the control button and adjust the volume.

The sensitivity is set too low, adjust the sensitivity in the parent unit's menu to a higher level.

The baby unit may be too far away from your baby. Make sure the baby unit is not further than 1.5 meters/ 5 feet away from your baby for optimal sound detection. Closer than 1 meter /3.5 feet increases strangulation hazard.

NOISE/SOUND

English

Why does the parent unit react too quickly to other sounds than my baby makes?

Why does the parent unit make a buzzing sound?

How long will the lullaby song be played by the baby unit?

How can I increase the volume of the lullaby?

The baby unit also picks up other sounds than those of your baby. Move the baby unit closer to the baby (but observe the minimum distance of 1 meter/ 3.5 feet).

The sensitivity level may be set too high. When your baby makes soft sounds, the sensitivity has to be higher. However, the louder your baby sounds, the lower the sensitivity level can be set. You can change the sensitivity of your baby monitor on the parent unit's menu.

Interference may occur when the parent unit is out of range of the baby unit. Interference may also occur if there are too many walls or ceilings between the parent unit and the baby unit or when other 2.4 GHz wireless devices are switched on (e.g. microwave, Wi-Fi router).

Put the parent unit in a different place, closer to the baby unit, or switch off other wireless devices.

If this answer does not help you, check the other FAQ on " Why does the parent unit and/or baby unit produce a high-pitched noise?"

Once you select a lullaby, it will be continuously repeated for approximately 15 minutes. In case you want to play all songs that are available, select the last option in the lullaby list.

You can adjust the volume of the lullaby on the parent unit, not on the baby unit. Press the lullaby button on the parent unit to open the lullaby menu and adjust the volume.

OPERATING TIME / RANGE

Question Answer

Why does my baby monitor manage a much smaller distance than specified in this user manual?

The specified operating range of 300 meters /985 feet is only valid outdoors in open air and in the line of sight. Depending on the surroundings and other disturbing factors, the operating range may be smaller (see also table in chapter on positioning of parent and baby unit).

The operating time of the parent unit is supposed to be up to 10 hours. Why is the operating time of my parent unit shorter?

Inside your house, the operating range is up to 50 meters/165 feet, which is also limited by the number and type of walls and/or ceilings between the parent unit and the baby unit.

The video brightness of the parent unit may be set too high, which causes the parent unit to consume a lot of energy. Decrease the brightness of the parent unit.

The parent unit consumes a lot of energy when the video display is switched on continuously. Activate the AUDIO, VOX or ECO mode in the parent unit's menu to increase the operating time (see chapter ‘Features’, sections 'AUDIO mode', ‘VOX mode' or ' ECO mode' ).

English

OPERATING TIME / RANGE

The volume of the parent unit may be set too high, which causes the parent unit to consume a lot of energy. Decrease the volume of the parent unit.

As any other rechargeable electronic device, the battery capacity decreases after a long period of usage.

VIDEO DISPLAY

Question Answer

Why do I get interference on the parent unit? Why does the video display on the parent unit flicker?

Put the parent unit in a different place, closer to the baby unit, or switch off other wireless devices.

The rechargeable battery of the parent unit may need to be charged.

Why isn’t there any image on the video display while the link light is green?

Why isn't the image on the video display clear?

Wall mount

The parent unit may be in the AUDIO, VOX or ECO mode. Press the mode button on the right side of the parent unit to switch modes (see 'Modes').

The display brightness may be set too low. Increase the display brightness on the parent unit using the control button in the centre.

Perhaps the lens of the baby unit is dirty. Clean the lens with a dry cloth.

The baby unit may be too far away from your baby. Make sure the baby unit is not further than 1.5 meters / 5 feet away from your baby for optimal video quality. Closer than 1 meter / 3.5 feet increases strangulation hazard.

Printing instructions: Print this page in scale 100% and use the template to accurately mark the position of the holes for the screws on the wall.

English

Dansk

Introduktion

Tillykke med dit køb og velkommen til Philips Avent! For at få fuldt udbytte af den støtte, Philips Avent tilbyder, skal du registrere dit produkt på www.philips.com/welcome.

Philips Avent-baby alarmen hjælper dig døgnet rundt og giver dig mulighed for at se din baby dag og nat fra alle steder i dit hjem. Den nyeste digitale teknologi garanterer klar lyd og et tydeligt billede af din baby. Det giver dig en følelse af ekstra sikkerhed, uden at du behøver at gå ind på barnets værelse og forstyrre dets søvn.

Generel beskrivelse

1 Forældreenhed 2 Display 3 ECO-indikator (Forbindelse) 4 Batteristatusindikator 5 Link-indikator 6 Højttaler 7 Kontrolknap (menunavigation/lydstyrke/lysstyrke) 8 Sensitivity-knap (Følsomhed) 9 Vuggevise-tast 10 Talk-back-knap 11 Lille strømstik 12 Indstillingsknap 13 On/off-knap 14 Antenne 15 Bælteclips 16 Babyenhed 17 Kamera 18 On/off-knap til vuggevise 19 On/off-skydekontakt 20 Antenne 21 Højttaler 22 Lille strømstik 23 Vægmonteringshuller 24 Adapter (2x) 25 Skruer

Vigtige sikkerhedsoplysninger

Læs disse vigtige oplysninger omhyggeligt igennem, inden apparatet tages i brug, og gem dem til eventuel senere brug.

VIGTIGT

Denne babyalarm er beregnet til at fungere som et hjælpemiddel. Den kan aldrig erstatte ansvarlig og korrekt forældreopsyn og -overvågning og må ikke bruges sådan.

Lad aldrig det overvågede barn være alene i hjemmet. Sørg altid for, at der er nogen, der kan holde øje med barnet og tage sig af dets behov.

Dansk

Ansvarsfraskrivelse

Bemærk, at du bruger denne babyalarm på eget ansvar. Koninklijke Philips N.V. og dets datterselskaber er ikke ansvarlig for driften af denne babyalarm eller din brug af den og påtager sig således intet ansvar i forbindelse med din brug af denne babyalarm.

Fare

Babyalarmen (eller dele af den) må aldrig kommes ned i vand eller andre væsker. Anbring ikke apparatet, hvor vand eller anden væske kan dryppe eller sprøjte på det. Babyalarmen må ikke bruges i fugtige omgivelser eller tæt ved vand.

Placer aldrig en genstand oven på babyalarmen, og dæk den ikke til. Ventilationsåbningerne må ikke blokeres. Installer i overensstemmelse med producentens instruktioner.

+ 290 hidden pages
