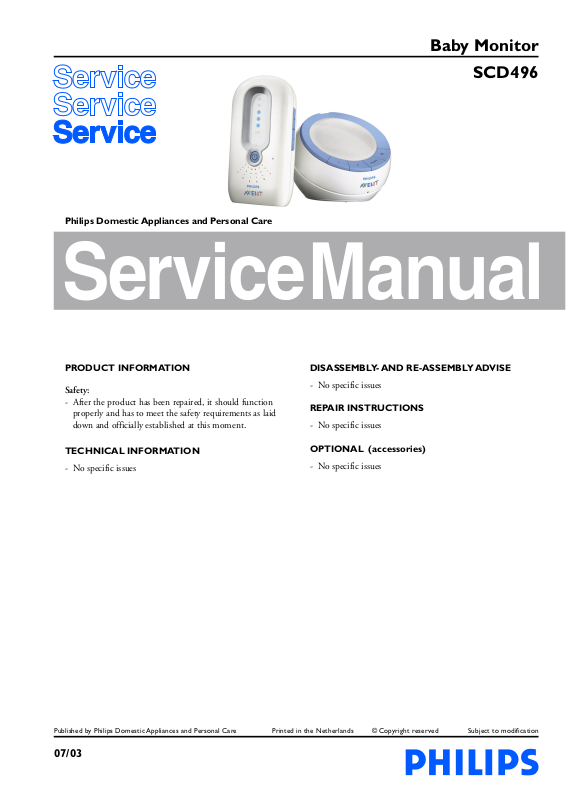

Page 1
Baby Monitor
SCD496
Philips Domestic Appliances and Personal Care
Service Manual
PRODUCT INFORMATION
Safety:
- After the product has been repaired, it should function
properly and has to meet the safety requirements as laid
down and officially established at this moment.
TECHNICAL INFORMATION
- No specific issues
DISASSEMBLY- AND RE-ASSEMBLY ADVISE
- No specific issues
REPAIR INSTRUCTIONS
- No specific issues
OPTIONAL (accessories)
- No specific issues
Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification
07/03
Page 2
PARTS LIST + EXPLODED VIEW
Symbolic illustration
SCD496
3
1,2
5
4
For the Baby Monitor SCD496 the following spare parts are available (only in Blue color):
Pos Service code Description
1
4203 035 60520
4203 035 60600
2
4203 035 60800
4203 035 60810
3
4203 035 60550
4
4203 035 60560
5
4203 035 60580
Adaptor for Baby Unit - EU
Adaptor for Baby Unit - UK
Adapter for Parent Unit - EU
Adapter for Parent Unit - UK
Battery Cover - Parent Unit
Battery Cover - Baby Unit
Belt Clip - Parent Unit
