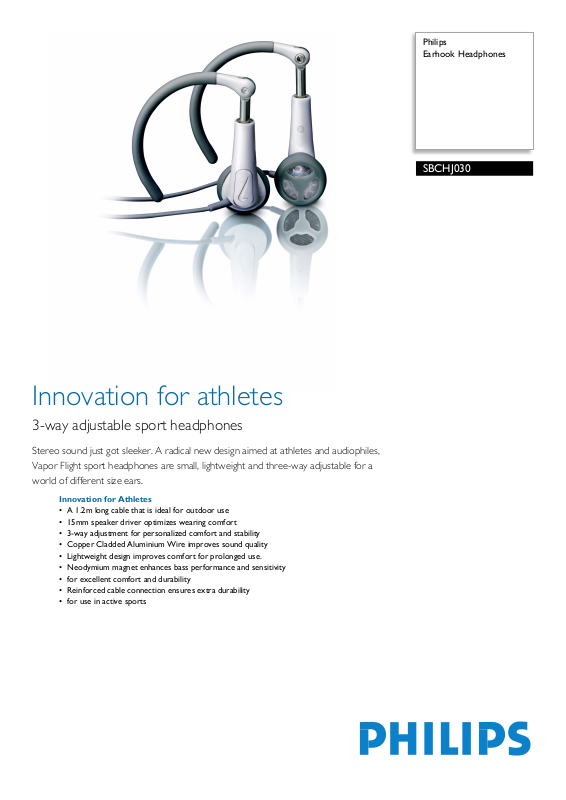

Philips SBCHJ030 User Manual
For preview purpose only
Philips
Earhook Headphones
SBCHJ030
Innovation for athletes
3-way adjustable sport headphones
Stereo sound just got sleeker. A radical new design aimed at athletes and audiophiles,
Vapor Flight sport headphones are small, lightweight and three-way adjustable for a
world of different size ears.
Innovation for Athletes
• A 1.2m long cable that is ideal for outdoor use
• 15mm speaker driver optimizes wearing comfort
• 3-way adjustment for personalized comfort and stability
• Copper Cladded Aluminium Wire improves sound quality
• Lightweight design improves comfort for prolonged use.
• Neodymium magnet enhances bass performance and sensitivity
• for excellent comfort and durability
• Reinforced cable connection ensures extra durability
• for use in active sports
For preview purpose only
Earhook Headphones
Technical specifications Product highlights
Sound
• Acoustic system: Open
• Frequency response: 10 - 22 000 Hz
• Impedance: 16 Ohm
• Magnet type: Neodymium
• Maximum power input: 50 mW
• Sensitivity: 102 dB
• Speaker diameter: 15 mm
• Type: Dynamic
• Voice coil: CCAW
• Diaphragm: Mylar dome
Connectivity
• Connector: 3.5 mm stereo
• Finishing of connector: Chrome plated
• Cable length: 1.2 m
• Type of cable: OFC
• Cable Connection: Two-parallel, symmetric
•
SBCHJ030/00
1.2 meter cable
The ideal cable length to give you the freedom to put
your audio device where you want.
15 mm speaker driver
Small enough for optimum wearing comfort and big
enough to deliver crisp, non-distorted sound, the 15 mm
speaker driver is an ideal size for listening enjoyment.
3-way adjustable
Enjoy a snug, personalized fit and optimum stability,
even when you're active or on the move. With three-way
adjustment, your comfort is guaranteed.
CCAW voice coil
By using top-quality Copper Cladded Aluminium Wire
(CCAW) in the headphone driver's voice coil, the sound
quality is considerably improved.
Lightweight design
The durable, lightweight quality materials enhance
comfort for extended wearing.
Neodymium magnet
Neodynium is the best material for producing a strong
magnetic field for greater sensitivity in a voice coil,
better bass response and higher overall sound quality.
Plastic housing
Reinforced cable connection
A soft plastic part on the earshell reduces cable strain,
protects the connection and prevents damage from
repeated bending.
Sweat-resistant ear cushions
Date of issue 2006-07-07
Version: 4.0
12 NC: 9082 100 02664
EAN: 87 10895 80741 8
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
www.philips.com
