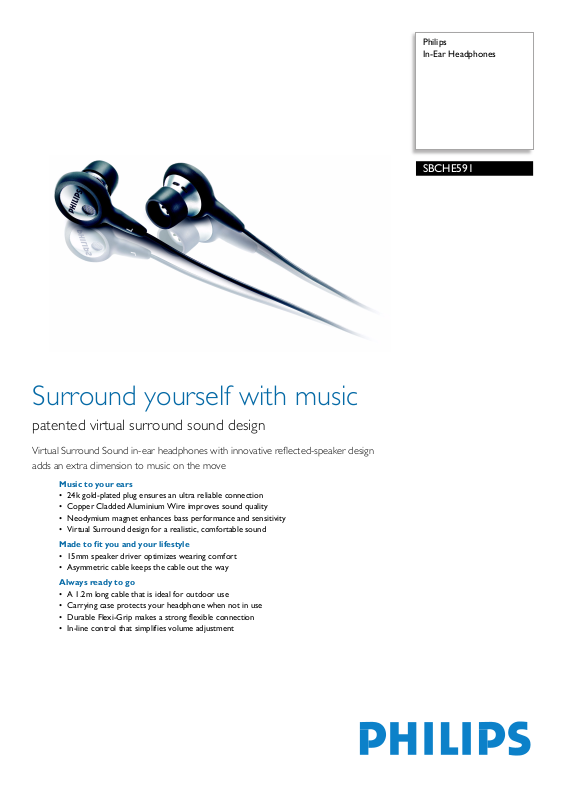

Philips SBCHE591/23 Specifications

For preview purpose only

Philips
In-Ear Headphones

SBCHE591

Surround yourself with music

patented virtual surround sound design

Virtual Surround Sound in-ear headphones with innovative reflected-speaker design
adds an extra dimension to music on the move

Music to your ears

• 24k gold-plated plug ensures an ultra reliable connection

• Copper Cladded Aluminium Wire improves sound quality

• Neodymium magnet enhances bass performance and sensitivity

• Virtual Surround design for a realistic, comfortable sound

Made to fit you and your lifestyle

• 15mm speaker driver optimizes wearing comfort

• Asymmetric cable keeps the cable out the way

Always ready to go

• A 1.2m long cable that is ideal for outdoor use

• Carrying case protects your headphone when not in use

• Durable Flexi-Grip makes a strong flexible connection

• In-line control that simplifies volume adjustment

For preview purpose only

In-Ear Headphones

Technical specifications Product highlights

Sound

• Acoustic system: Open

• Diaphragm: Mylar dome

• Frequency response: 16 - 22 000 Hz

• Impedance: 16 Ohm

• Magnet type: Neodymium

• Maximum power input: 50 mW

• Sensitivity: 106 dB

• Speaker diameter: 15 mm

• Type: Dynamic

• Voice coil: CCAW

Connectivity

• Cable Connection: Two-parallel, asymmetric

• Cable length: 1.2 m

• Connector: 3.5 mm stereo

• Finishing of connector: 24k Gold-plated

• Type of cable: OFC

Convenience

•Volume control

Accessories

• Carrying case

•

SBCHE591/23

24k Gold-plated plug

Rest assured that the precious metal gold finishing on
the plug will give you a more reliable connection for
better quality audio.

CCAW voice coil

By using top-quality Copper Cladded Aluminium Wire
(CCAW) in the headphone driver's voice coil, the sound
quality is considerably improved.

Neodymium magnet

Neodynium is the best material for producing a strong
magnetic field for greater sensitivity in a voice coil,
better bass response and higher overall sound quality.

Virtual Surround design

This Philips patented 'reflected-speaker' design creates
a virtual surround sound effect that gives you the kind
of 'out-of-head' audio experience that was previously
only possible by using complicated time delay circuits
and signal processors. It also makes using your
headphones for extended periods far less tiring.

15 mm speaker driver

Small enough for optimum wearing comfort and big
enough to deliver crisp, non-distorted sound, the 15 mm
speaker driver is an ideal size for listening enjoyment.

Asymmetric cabling system

This simple yet highly effective solution to cable tangling
works effectivly by enabling you to hang the cable
behind your neck instead of under your chin.

1.2 meter cable

The ideal cable length to give you the freedom to put
your audio device where you want.

Carrying Case

This case is the most convenient way to look after your
headphones and prevent cable tangling when not in
use.

Flexi-Grip design

A soft, flexible part protects the cable connection from
damage that otherwise would occur due to repeated
bending.

In-line volume control

Adjust the volume to your preferred level without having
to go to the audio source unit.

Date of issue 2006-10-26

Version: 1.0

12 NC: 9082 100 02943
UPC: 0 26616 73832 8

Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.

www.philips.com
