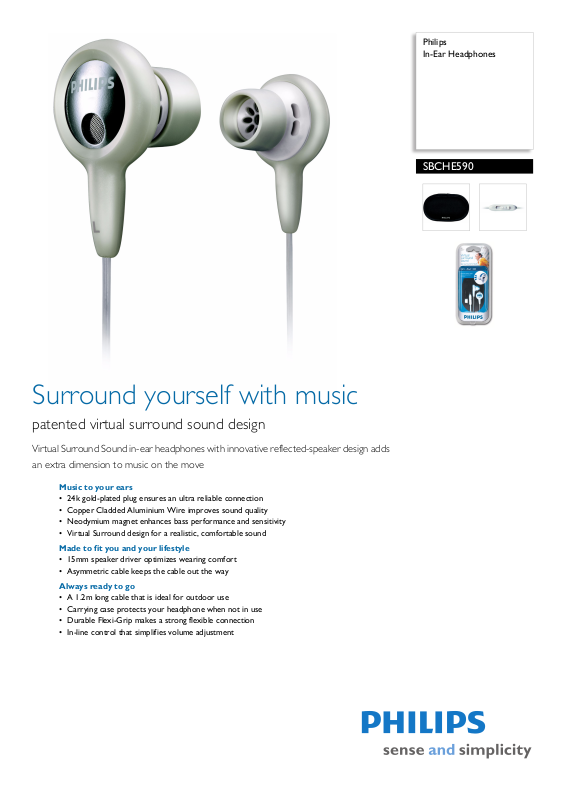

Philips SBCHE590 User Manual

Philips In-Ear Headphones

SBCHE590

Surround yourself with music

patented virtual surround sound design

Virtual Surround Sound in-ear headphones with innovative reflected-speaker design adds an extra dimension to music on the move

Music to your ears

• 24k gold-plated plug ensures an ultra reliable connection

• Copper Cladded Aluminium Wire improves sound quality

• Neodymium magnet enhances bass performance and sensitivity

• Virtual Surround design for a realistic, comfortable sound

Made to fit you and your lifestyle

• 15mm speaker driver optimizes wearing comfort

• Asymmetric cable keeps the cable out the way

Always ready to go

• A 1.2m long cable that is ideal for outdoor use

• Carrying case protects your headphone when not in use

• Durable Flexi-Grip makes a strong flexible connection

• In-line control that simplifies volume adjustment

In-Ear Headphones

SBCHE590/00

Specifications Product highlights

Sound

• Acoustic system: Open

• Diaphragm: Mylar dome

• Magnet type: Neodymium

• Voice coil: CCAW

• Frequency response: 16 - 22 000 Hz

• Impedance: 16 Ohm

• Maximum power input: 50 mW

• Sensitivity: 106 dB

• Speaker diameter: 15 mm

• Type: Dynamic

Connectivity

• Cable Connection: Two-parallel, symmetric

• Cable length: 1.2 m

• Connector: 3.5 mm stereo

• Finishing of connector: 24k Gold-plated

• Type of cable: OFC

Convenience

•Volume control

Accessories

• Carrying case

Inner Carton

• Gross weight: .618 kg

• Inner carton (L x W x H): 23.3 x 23 x 11.3 cm

• Nett weight: .435 kg

• Tare weight: .183 kg

Outer Carton

• Gross weight: 12.8 kg

• Outer carton (L x W x H): 48.8 x 48.2 x 49.2 cm

• Nett weight: 1.728 kg

• Tare weight: 11.072 kg

Packaging dimensions

• Packaging dimensions (W x H x D):

11.7

x 15.7 x 4.2 cm

• Gross weight: .072 kg

• Nett weight: .018 kg

• Tare weight: .054 kg

•

24k Gold-plated plug

Rest assured that the precious metal gold finishing on the plug will give you a more reliable connection for better quality audio.

CCAW voice coil

By using top-quality Copper Cladded Aluminium Wire (CCAW) in the headphone driver's voice coil, the sound quality is considerably improved.

Neodymium magnet

Neodynium is the best material for producing a strong magnetic field for greater sensitivity in a voice coil, better bass response and higher overall sound quality.

Virtual Surround design

This Philips patented 'reflected-speaker' design creates a virtual surround sound effect that gives you the kind of 'out-of-head' audio experience that was previously only possible by using complicated time delay circuits and signal processors. It also makes using your headphones for extended periods far less tiring.

15 mm speaker driver

Small enough for optimum wearing comfort and big enough to deliver crisp, non-distorted sound, the 15 mm speaker driver is an ideal size for listening enjoyment.

Asymmetric cabling system

This simple yet highly effective solution to cable tangling works effectivly by enabling you to hang the cable behind your neck instead of under your chin.

1.2 meter cable

Th e idea l cabl e lengt h to gi ve you the fre edom t o put y our audio device where you want.

Carrying Case

This case is the most convenient way to look after your headphones and prevent cable tangling when not in use.

Flexi-Grip design

A soft, flexible part protects the cable connection from damage that otherwise would occur due to repeated bending.

In-line volume control

Adjust the volume to your preferred level without having to go to the audio source unit.

Issue date 2009-02-12

Version: 5.1.15

12 NC: 9082 100 01656 EAN: 87 10895 75859 8

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
