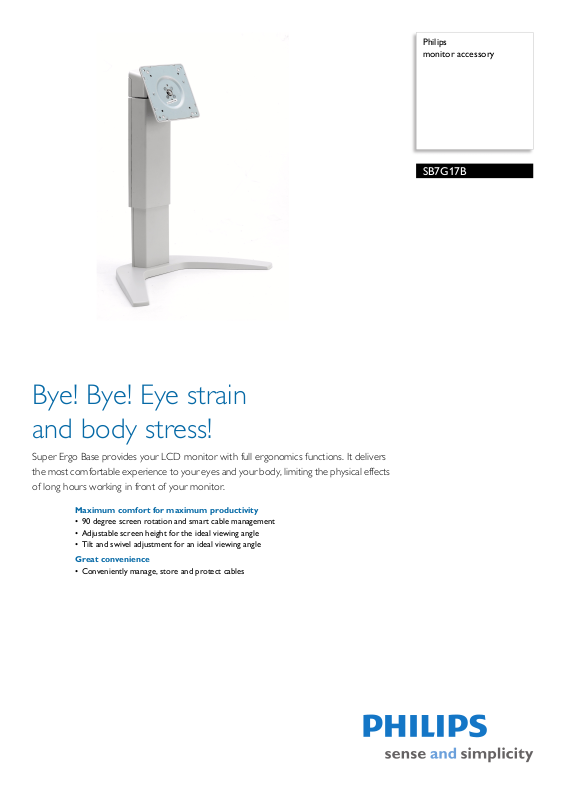

Philips SB7G17B User Manual

Philips monitor accessory

SB7G17B

Bye! Bye! Eye strain and body stress!

Super Ergo Base provides your LCD monitor with full ergonomics functions. It delivers the most comfortable experience to your eyes and your body, limiting the physical effects of long hours working in front of your monitor.

Maximum comfort for maximum productivity

• 90 degree screen rotation and smart cable management

• Adjustable screen height for the ideal viewing angle

• Tilt and swivel adjustment for an ideal viewing angle

Great convenience

• Conveniently manage, store and protect cables

Monitor accessory

SB7G17B/00

Specifications

Convenience

• Pivot: 90°

•Swivel: +/- 45°

• Tilt: -5° to 25°

• Height Adjustment: 130 mm

Dimensions

• Stand dimensions (W x H x D): 403 x 298 x 230 mm

• Max stand height: 428 mm

• Stand width (inch): 15.9 inch

• Stand height (inch): 11.7 inch

• Stand depth (inch): 9.1 inch

• Max stand height (inch): 16.9 inch

• Stand weight: 2.5 kg

• Stand weight (lb): 5.5 lb

• Weight incl. Packaging: 3.54 kg

• Weight incl. Packaging (lb): 7.8

Related Products

• Compatible with: 170B7

•

Highlights

ScreenRotate

ScreenRotate makes it possible to use a monitor in either the landscape and portrait mode; to change orientation for a better view of a selected document or image, the monitor is rotated to the desired orientation.

Adjustable height

Adjustable height is the ability of a monitor to travel up or down on its base and lock into position when the desired height is reached, delivering a comfortable, individualized viewing angle that is just right for the user's height, weight, body-type and posture, alleviating possible eyestrain or fatigue that can come from long hours working on a computer.

Screen tilt and swivel

Screen tilt and swivel is a mechanism built into the base permits the monitor to swivel and tilt backward or forward.

SEB cable management

Cable management is a system that maintains tidy workspace by organizing cables and wires required for the operation of a display device.

Issue date 2009-04-11

Version: 1.0.3

12 NC: 8670 000 26247 EAN: 87 12581 30751 6

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
