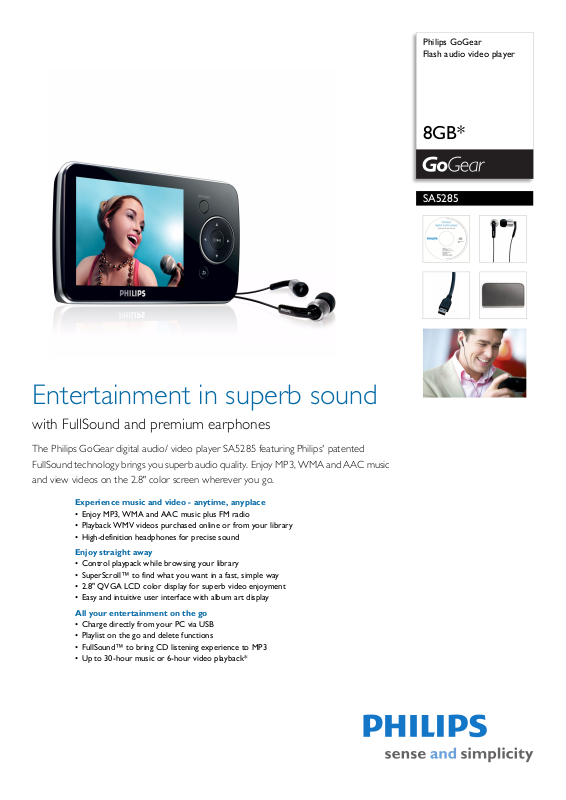

Philips SA5285-97 User Manual

Philips GoGear Flash audio video player

8GB*

SA5285

Entertainment in superb sound

with FullSound and premium earphones

The Philips GoGear digital audio/ video player SA5285 featuring Philips' patented FullSound technology brings you superb audio quality. Enjoy MP3, WMA and AAC music and view videos on the 2.8" color screen wherever you go.

Experience music and video - anytime, anyplace

• Enjoy MP3, WMA and AAC music plus FM radio

• Playback WMV videos purchased online or from your library

• High-definition headphones for precise sound

Enjoy straight away

• Control playpack while browsing your library

• SuperScroll™ to find what you want in a fast, simple way

• 2.8" QVGA LCD color display for superb video enjoyment

• Easy and intuitive user interface with album art display

All your entertainment on the go

• Charge directly from your PC via USB

• Playlist on the go and delete functions

• FullSound™ to bring CD listening experience to MP3

• Up to 30-hour music or 6-hour video playback*

Flash audio video player

8GB*

SA5285/97

Specifications

Picture/Display

• Diagonal screen size (inch): 2.8 inch

•Lines of text: 7

• Resolution: QVGA, 320 x 240 pixels, 262K colours

•Backlight

•Type: LCD

Sound

• Equalizer customizable

• Frequency response: 60 - 18k Hz

• Output Power: 2 x 3mW

• Signal to noise ratio: > 85 dB

• THD: 0.05% at 1kHz

• Channel separation: 45 dB

• Equalizer settings: Classic, Dance, Electronica, Hip Hop, Jazz, Lounge, Pop, RnB, Rock, Spoken word

• Sound Enhancement: FullSound

Audio Playback

• Compression format: MP3, WMA, AAC

• MP3 bit rates: 8-320 kbps and VBR

• WMA bit rates: 5-320 kbps

• WMA sample rates: 8, 11.025, 16, 22.050, 32, 44.1, 48 kHz

• Digital Rights Management: Windows Media DRM for Portable Devices, Supports download & subscription music services

• ID3 Tag support: Album title and artist name

• MP3 sample rates: 16, 32, 44.1, 48, 11.025, 22.050, 24, 8

kHz

Still Picture Playback

• Picture compression format: JPEG

•Slide show

Storage Media

• Built-in memory type: NAND Flash

• Built-in memory capacity: 8 GB

Connectivity

• Headphone: 3.5 mm

•USB: High speed USB 2.0

Convenience

• Battery charging indication: On User Interface

• Battery low indication

• Function: Keypad lock

•Superscroll

•Volume control

• Firmware upgradeable

Accessories

• CD-ROM: Yes , with IFU, Device Manager, Media converter & Windows Media Player

• Headphones: AY3817

• USB cable: AY3930

•Quick start guide

• Pouch: AY4255

Software

• Device manager: to restore and upgrade

• Media Converter for Philips: Converts following formats to player : AVI,MOV,RM,WMV etc. Needs Quicktime (for MOV), Realplayer (for RM) and WMP10 or above (for WMV) installations.

• Windows Media Player 11

Green Specifications

• Lead-free soldered product

System Requirements

• PC OS: Windows XP (SP2) or Windows Vista

• Internet connection: Yes (for access to updated support documents, manuals, future firmware and PC software upgrades)

•CD-ROM drive

• USB: Free USB port

Power

• Battery capacity: 880mAh

• Playtime on internal battery: Up to 30 hours audio or 6 hours video

•Battery Type: LI-Polymer

• Rechargeable: Yes, via USB

Dimensions

• Product weight: 0.095 kg

• Product dimensions (WxDxH): 106 x 9.9 x 58 mm

• Packaging type: D-box

Tuner/Reception/Transmission

• Station presets: 20

•Tuner Bands: FM

• RDS: Program Type, Radio Text, Station Information, Station Name

Video Playback

• MPEG4 SP: Upto 640kbps in avi format, 320x240 , 30fps (Other formats supported by using provided converter software)

• WMV9: Upto 512kbps, 320x240 , 30fps (Other formats supported by using provided converter software)

• Digital Rights Management: Windows XP (SP2) or Windows Vista

Audio Capturing

• Audio file format: WAV

• Built-in microphone: mono

• Voice recording: ADPCM

• FM radio recording

•

Highlights

High-definition headphones

Designed according to the curvature of the human canals, these ergonomically designed headphones with exceptional noise isolation feature precisely direct soundwaves from the speaker to your ear drums with highest definition.

SuperScroll™

Double action search keys allow easy speed control when scrolling through large libraries. You can choose to move through your playlist one song or video at a time or just press and hold down a little harder to SuperScroll™ swiftly to your desired file.

FullSound™

Philips' innovative FullSound technology faithfully restores sonic details to compressed MP3 music, dramatically enriching and enhancing it, so you can experience CD music without any distortion. Based on an audio post-processing algorithm, FullSound combines Philips' renowned expertise in music reproduction with the power of the latest generation Digital Signal Processor (DSP). The result is fuller bass with more depth and impact, boosted voice and instrument clarity, and rich detail. Rediscover your compressed MP3 music in true-to-

Issue date 2009-04-05

Version: 2.0.7

12 NC: 8670 000 38958 EAN: 87 12581 41187 9

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* 1GB = 1 billion bytes; available storage capacity will be less. * Rechargeable batteries have a limited number of charge cycles and

may eventually need to be replaced. Battery life and number of charge cycles vary by use and settings.

* Windows Media and the Windows logo are trademarks, or

registered trademarks of Microsoft Corporation in the United States and/or other countries.

* Actual transfer speed may vary based on your operating system and

software configuration.

* Supports download and subscription services compatible with WMA

DRM10

* The free Rhapsody offer is available to new customers and cannot be

used with a current Rhapsody account or with any other special offers. User must accept standard terms and conditions of use found at www.rhapsody.com/terms. Offers valid for US residents only.

* From Philips
