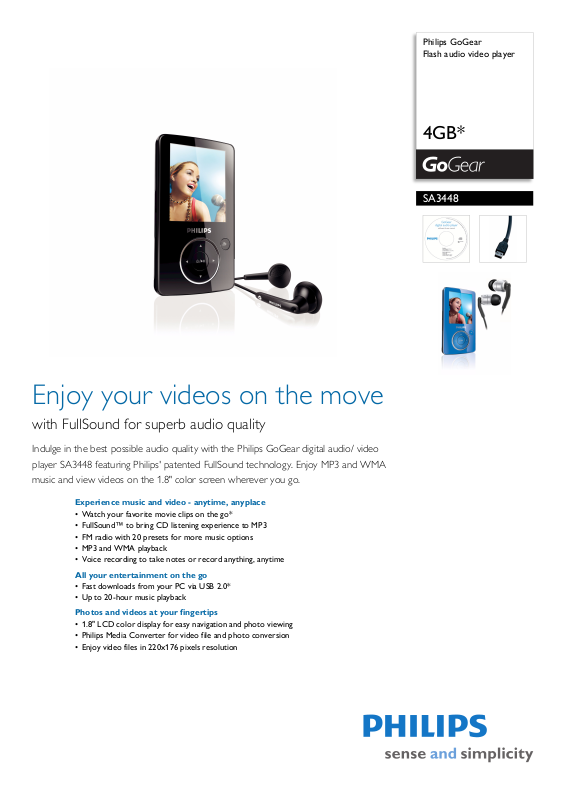

Philips SA3448-97 User Manual
Philips GoGear
Flash audio video player
4GB*
SA3448
Enjoy your videos on the move
with FullSound for superb audio quality
Indulge in the best possible audio quality with the Philips GoGear digital audio/ video
player SA3448 featuring Philips' patented FullSound technology. Enjoy MP3 and WMA
music and view videos on the 1.8" color screen wherever you go.
Experience music and video - anytime, anyplace
• Watch your favorite movie clips on the go*
• FullSound™ to bring CD listening experience to MP3
• FM radio with 20 presets for more music options
• MP3 and WMA playback
• Voice recording to take notes or record anything, anytime
All your entertainment on the go
• Fast downloads from your PC via USB 2.0*
• Up to 20-hour music playback
Photos and videos at your fingertips
• 1.8" LCD color display for easy navigation and photo viewing
• Philips Media Converter for video file and photo conversion
• Enjoy video files in 220x176 pixels resolution
Flash audio video player
4GB*
SA3448/97
Specifications
Picture/Display
•Backlight
•Type: LCD
• Diagonal screen size (inch): 1.8 inch
•Lines of text: 5
• Resolution: 220 x 176 pixels
Sound
• Equalizer customizable
• Equalizer settings: FullSound, Funk, Hip Hop, Jazz,
ck, Techno, Classical
Ro
• Frequency response: 80 - 18 000 Hz
• Output Power: 2 x 3mW
• Signal to noise ratio: > 80 dB
• Channel separation: 35 dB
Audio Playback
• Compression format: MP3, WMA
• ID3 Tag support: Song title, artist, album
• MP3 bit rates: 8-320 kbps and VBR
• WMA bit rates: 5-320 kbps
• WMA sample rates: 8, 11.025, 16, 22.050, 32, 44.1,
kHz
48
• MP3 sample rates: 16, 32, 44.1, 48, 11.025, 22.050,
, 8 kHz
24
Still Picture Playback
• Picture compression format: JPEG
•Slide show
Storage Media
• Built-in memory type: NAND Flash
• Mass storage class compliant
• Built-in memory capacity: 4 GB
• Music memory capacity, MP3: Up to 900 tracks*
Connectivity
• Headphone: 3.5 mm
• USB: USB 2.0
Convenience
• Battery low indication
• Function: Keypad lock
•Superscroll
•Volume control
• Firmware upgradeable
• Battery charging indicatio
Accessories
• CD-ROM: Yes , with IFU, Device Manager, Media
n: On User Interface
converter
• Headphones: AY3816
• USB cable: AY3930
•Quick start guide
Software
• Device manager: to restore and upgrade
• Media Converter for Philips
formats to player : AVI(Microsoft video1 format),
MPEG-1,2,4, DVD(*.vob),MOV,WMV,RM etc.
Needs Quicktime (for MOV) and WMP10 or
above (for WMV) installations.
: Converts following
Green Specifications
• Lead-free soldered product
System Requirements
•CD-ROM drive
• PC OS: Windows 2000 / XP / Vista
• Internet connection: Yes (for access to updated
upport documents, manuals, future firmware and
s
PC software upgrades)
• USB: Free USB port
Power
• Battery capacity: 310mAh
•Battery Type: LI-Polymer
• Playtime on internal battery: Up
or 4 hours video
• Rechargeable: Yes, via USB
to 20 hours audio
Dimensions
• Carton dimensions (WxDxH): 43 x 146 x 150
• Packaging type: D-box
• Product dimensions (WxDxH): 80 x 10.4 x 45
• Product weight: 0.049 kg
Tuner/Reception/Transmission
• Tuner bands: FM
• Station presets: 20
Video Playback
• SMV: 850 kbps, 220 x 176, 24 fps
Audio Capturing
• Audio file format: WAV
• Built-in microphone: mono
• Voice recording: ADPCM
• FM radio recording: ADPCM
•
Highlights
FullSound™
Philips' innovative FullSound technology faithfully
restores sonic details to compressed MP3 music,
dramatically enriching and enhancing it, so you can
experience CD music without any distortion. Based
on an audio post-processing algorithm, FullSound
combines Philips' renowned expertise in music
reproduction with the power of the latest
generation Digital Signal Processor (DSP). The result
is fuller bass with more depth and impact, boosted
voice and instrument clarity, and rich detail.
Rediscover your compressed MP3 music in true-tolife sound that will touch your soul and move your
feet.
Issue date 2009-03-10
Version: 1.0.3
12 NC: 8670 000 48324
EAN: 87 12581 45632 0
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
