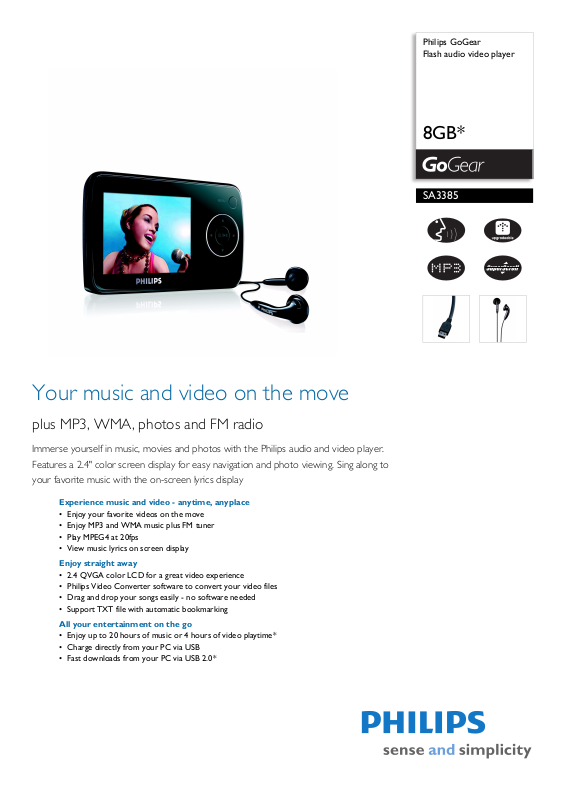

Philips SA3385-93 User Manual

Philips GoGear Flash audio video player

8GB*

SA3385

Your music and video on the move

plus MP3, WMA, photos and FM radio

Immerse yourself in music, movies and photos with the Philips audio and video player. Features a 2.4" color screen display for easy navigation and photo viewing. Sing along to your favorite music with the on-screen lyrics display

Experience music and video - anytime, anyplace

• Enjoy your favorite videos on the move

• Enjoy MP3 and WMA music plus FM tuner

• Play MPEG4 at 20fps

• View music lyrics on screen display

Enjoy straight away

• 2.4 QVGA color LCD for a great video experience

• Philips Video Converter software to convert your video files

• Drag and drop your songs easily - no software needed

• Support TXT file with automatic bookmarking

All your entertainment on the go

• Enjoy up to 20 hours of music or 4 hours of video playtime*

• Charge directly from your PC via USB

• Fast downloads from your PC via USB 2.0*

Flash audio video player

8GB*

Specifications

SA3385/93

Picture/Display

• Backlight

• Lines of text: 7

• Resolution: QVGA, 320 x 240 pixels, 65K colours

• Type: LCD

• Diagonal screen size (inch): 2.4 inch

Sound

• Channel separation: 40 dB

• Equalizer settings: Classic, Jazz, Rock, Funk, Hip Hop, Techno, Spoken word

• Frequency response: 45 - 16k Hz

• Signal to noise ratio: > 85 dB

• Output Power: 2 x 2.5mW

• THD: 1%

• Equalizer customizable

Audio Playback

• Compression format: MP3, WMA

• ID3 Tag support: Album title and artist name

• MP3 bit rates: 8-320 kbps and VBR

• MP3 sample rates: 8, 11.025, 16, 22.050, 24, 32,

44.1, 48

kHz

• WMA bit rates: 5-320 kbps

• WMA sample rates: 8, 11.025, 16, 22.050, 32,

44.1, 48 kHz

• Lyrics support: .lrc file and embedded ID3 tags

Audio Capturing

• Audio file format: WAV

• Built-in microphone: mono

• Voice recording: ADPCM

Accessories

• CD-ROM: Yes , with IFU, Device Manager, Media converter

• Headphones: AY3815

• Quick start guide

• USB cable: AY3930

Software

• Device manager: to restore and upgrade

• Media Converter for Philips: Converts following formats to player : AVI(Microsoft video1 format), MPEG-1,2,4, DVD(*.vob),MOV,WMV,RM etc. Needs Quicktime (for MOV) and WMP10 or above (for WMV) installations.

Green Specifications

• Lead-free soldered product

System Requirements

•CD-ROM drive

• Internet connection: Yes (for access to updated support documents, manuals, future firmware and PC software upgrades)

• PC OS: Windows Vista, XP, ME, 2000

• USB: Free USB port

Dimensions

• Packaging type: D-box

• Product dimensions (WxDxH): 93.8 x 12.4 x 55.9

• Product weight: 0.075 kg

• Box dimensions (W x H x D): 146

x 136 x 43 mm

Storage Media

• Built-in memory capacity: 8GB

• Built-in memory type: NAND Flash

• Music memory capacity, WMA: Up to 4000 tracks*

• Mass storage class compliant

Tuner/Reception/Transmission

• Tuner Bands: FM

• Station presets: 20

Connectivity

• Headphone: 3.5 mm

• USB: High speed USB 2.0

Convenience

• Firmware upgradeable

• Function: Keypad lock

• Battery charging indication: On User Interface

• Battery low indication

• SuperPlay

• Superscroll

•Volume control

Power

• Battery capacity: 850mAh

• Battery Type: LI-Polymer

• Playtime on internal battery: Up to 20 hours aud io or 4 hours video

• Rechargeable: Yes, via USB

Still Picture Playback

• Picture compression format: JPEG

•Slide show

Video Playback

• MPEG4 SP: ME PG 4 SP: u p t o 320 x 2 40 at 384kbp s (video), 128kbps (audio), 8~48kHz, up to 20fps stereo audio in .avi format.

• MPEG4 ASP: MEPG4 ASP: up to 320 x 240 at 384kbps (video), 128kbps (audio), 8~48kHz, up to 15fps stereo audio in .avi format.

• WMV9: WMV9 SP: up to 320 x 240 at 384kbps (video), 128kbps (audio), 44.1kHz, up to 15fps stereo audio in .wmv format.

•

Issue date 2009-01-29

Version: 1.0.5

12 NC: 8670 000 34059 EAN: 87 12581 36485 4

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* 1GB = 1 billion bytes; available storage capacity will be less. * Rechargeable batteries have a limited number of charge cycles and

may eventually need to be replaced. Battery life and number of charge cycles vary by use and settings.

* Storage capacity based on 4 minutes per song and 64 kbps WMA or

128 kbps MP3 encoding.

* Actual transfer speed may vary based on your operating system and

software configuration.
