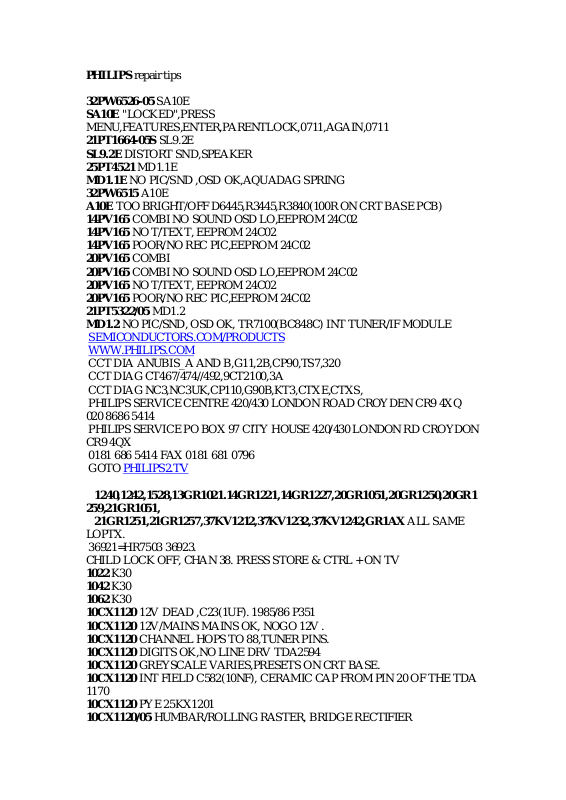

PHILIPS repair tips

32PW6526-05 SA10E
SA10E "LOCKED",PRESS

MENU,FEATURES,ENTER,PARENTLOCK,0711,AGAIN,0711

21PT1664-05S SL9.2E
SL9.2E DISTORT SND,SPEAKER
25PT4521 MD1.1E
MD1.1E NO PIC/SND ,OSD OK,AQUADAG SPRING
32PW6515 A10E
A10E TOO BRIGHT/OFF D6445,R3445,R3840(100R ON CRT BASE PCB)
14PV165 COMBI NO SOUND OSD LO,EEPROM 24C02
14PV165 NO T/TEXT, EEPROM 24C02
14PV165 POOR/NO REC PIC,EEPROM 24C02
20PV165 COMBI
20PV165 COMBI NO SOUND OSD LO,EEPROM 24C02
20PV165 NO T/TEXT, EEPROM 24C02
20PV165 POOR/NO REC PIC,EEPROM 24C02
21PT5322/05 MD1.2
MD1.2 NO PIC/SND, OSD OK, TR7100(BC848C) INT TUNER/IF MODULE

SEMICONDUCTORS.COM/PRODUCTS

WWW.PHILIPS.COM

CCT DIA ANUBIS_A AND B,G11,2B,CP90,TS7,320
CCT DIAG CT467/474//492,9CT2100,3A
CCT DIAG NC3,NC3UK,CP110,G90B,KT3,CTXE,CTXS,
PHILIPS SERVICE CENTRE 420/430 LONDON ROAD CROYDEN CR9 4XQ
020 8686 5414
PHILIPS SERVICE PO BOX 97 CITY HOUSE 420/430 LONDON RD CROYDON
CR9 4QX
0181 686 5414 FAX [phone]
GOTO

 1240,1242,1528,13GR1021.14GR1221,14GR1227,20GR1051,20GR1250,20GR1
259,21GR1051,

 21GR1251,21GR1257,37KV1212,37KV1232,37KV1242,GR1AX ALL SAME
LOPTX.
36921=HR7503 36923.
CHILD LOCK OFF, CHAN 38. PRESS STORE & CTRL + ON TV

1022 K30
1042 K30
1062 K30
10CX1120 12V DEAD ,C23(1UF). 1985/86 P351
10CX1120 12V/MAINS MAINS OK, NOGO 12V .
10CX1120 CHANNEL HOPS TO 88,TUNER PINS.
10CX1120 DIGITS OK,NO LINE DRV TDA2594
10CX1120 GREYSCALE VARIES,PRESETS ON CRT BASE.
10CX1120 INT FIELD C582(10NF), CERAMIC CAP FROM PIN 20 OF THE TDA

1170

10CX1120 PYE 25KX1201
10CX1120/05 HUMBAR/ROLLING RASTER, BRIDGE RECTIFIER

PHILIPS2.TV

10CX120
1201 K30
1205 K30
1234 K30
1250 K30
12B611 SEE T8
12B710 SEE TX
12B711 SEE TX
12B912 SEE TX
12B915 SEE TX
12TX1501 SEE TX1
12TX2301 TX2
12TX2460 TX2
12TX2501 TX2
12TX2502 TX2
12TX3201 TX3
12TX3301 TX3
12TX3303 TX3
12TX3501 TX3
12TX3502 TX3
14B614 T8
14C825 KT2
14C925 KT3
14C925/15S KT3
14CE1200 CP90
14CE1210 CP90
14CE1500 CP90
14CF1014 SEE CF1
14CF1114 SEE CF1
14CN2201 SEE NC3CR
14CN3001 SEE NC3
14CT2006 SEE CTXS
14CT2007 CTXE
14CT2201 CTXE
14CT2206 CTXE
14CT3005 KT3
14CT3205 KT3
14CT3605 KT3
14CT3606 KT3
14CT3607 KT3
14CT4206 KT4
14GR1021 SEE GR1AX
14GR1212 SEE GR1AX
14GR1220 GR1AX
14GR1221 SEE GR1AX
14GR1227 SEE GR1AX
14GR1227 DEAD LO HT,LOPTX
14GR1236 DEAD 320V OK ,NO 95V ,LOPTX(HR7527)
14GR2121
14GR2121 CHILD LOCK SND,CAUSE 1000UF16V ON 9V LINE NEXT TO

CHOPPER TX.
14GR2121 SLOW START,CAUSE 1000UF16V ON 9V LINE NEXT TO
CHOPPER TX.
14GR2121 SLOW START,LO 95V,CAUSE 1000UF16V ON 9V LINE NEXT TO
CHOPPER TX.

14GR2326 G90B
14GR2520 G90AE
14GR2540 G90AE
14P156A ANUBIS AAB NO TEXT WITH E3 DISPLAYED ON SCREEN I701

XTAL.

14PT121
14PT121A SEE GR1AX
14PT1332
14PT1332 L6.1AA DEAD POWER SUPPLY KIT+LINE O/P MODS SEE TV

APR99

14PT1342 L6.1
14PT1352 L6.1AA.
14PT135A ANUBIS A AC DEAD . LOPTX,BUT11AF
14PT135A LOPTX=AT2079/40=HR7488.
14PT135B ANUBIS_A
14PT1363 ON/OFF SWITCH PCB BURN UP SEME SWPCB1
14PT136A/05 ANUBIS.A AB REMOTE=RC8201/01.
14PT136B AA5 AA FIELD COLLAPSE,TDA3653B,C2415(100UF63V)

R3449(1R2).

14PT136B/05 DEAD LOPTX
14PT1532 L6 CHOPTR+C2515(47UF200V).
14PT155
14PT155A SEE ANUBIS_A
14PT156A ANUBIS_A
14PT156A ANUBIS_A AB LOPTX HR7488 (AT2079/40).
14PT156A DEAD LOPTX S/C PRIMARY AT2079/40 HR7488
14PT156B L6.1AA DEAD 7503 3514 3515 LOPTX 7422, OPTOCOUPLER 7420

DIODE 6426

14PT156B NO PIC GOOD SND., R3449(4R7) .
14PT156B SND OK FIELD COLLAPSE 4R7 R3449
14PT55A REMOTE=RC9133 CAN'T TUNE WITHOUT IT .
14PV163
14PV163 COMBI LINE PAIRING EFFECT TUNER UNIT U944CIEC.
14PV163 COMBI POOR 2E2 PIC/LINE PAIRING , TUNER, TYPE U944-IEC.
14PV163 COMBI STBY/JUST EJECTS ,TR7352
14PV170
14PV170 COMBI NO PIC/EJECT LED FLASHING. LOPTX
14PV170 COMBI LOPTX ARCING , BLOWS ALL SORTS,FORGET IT.
14PV182
14PV182 COMBI 1SEC PULSING MC44603.
14PV182 COMBI DEAD

CHOPFET(P4NA60F1),D6336(PH33D),MC44603P,C2317(47UF160V)

14PV182 COMBI NO OSD,L802(4822 157 71289).
14PV182 COMBI STBY MC44603 CHIP IN PSU. IC7130
14PV184

14PV184 CHECK "PROT" LINE ANODE OF DIODE D6568 NR LEFT OF

PLUG/SOCKET 1923

14PV184 COMBI DEAD LOPTX
14PV184 COMBI ELDOR LOPTX ARCING
14PV184 COMBI NO MENU,L1802 NR IC7801
14PV184 STBY LED RED/GREEN/RED PROTECTION TR7550(BC547)LOC131
14PV184 STBY LED RED/GREEN/RED PROTECTION,MICRO (IC7801 PIN53

ON THE VCR BOARD)

14PV184 TV RUNS WITH DECK REMOVED
14PV202/07 COMBI 1.25 AMP MAINS INPUT FUSE AT SWITCH-ON?

DEGAUSS?
14PV202/07 INT SWITCH-ON FUSE.DEGAUSS COIL, DEGAUSS POSISTOR
1A25T FUSE.

14PV210
14PV210 COMBI 99 DELTA
14PV210 DEAD LOPTX+ TR7543(BC547),D6541(BZX79-22 ZD)
14PV210 DEAD TRIPPED TR7543(BC547),D6541(BZX79-22 ZD)
14PV284 COMBI REMOTE NO VCR BUTTONS,REMOVE BATTERY,PRESS

BUTTON ,REFIT BATTERY

14PV2841 COMBI REMOTE NO GOOD ON VCR ,OK ON TV, NEW REMOTE
14PV320 COMBI
14PV3300 COMBI SAA,DEAD PSU D6391(BYW98/200)
14PV345 TVCR99 COMBI, DEAD RECORD LED FLASH,EEPROM IC7801 ON

TV PCB
14PV345 TVCR99 COMBI, DEAD STBY LED FLASH,EEPROM IC7818 ON
VIDEO PCB

14PV345 TVCR99 COMBI,NO TV PIC,SAA5562/TDA8841.
14PV350/07 COMBI SLOW START
14TVCR24 COMBI
14TVCR240 COMBI DEAD LOPTX
14TVCR240 COMBI DEAD PULSING D6335(1N4148),R3343(5R6)
14TVCR240 COMBI DEAD, UG06B D6334 IN PSU
14TVCR240 COMBI NO LINE DRV,Q7584(BC637-

16),R3584(47R),D6581(1N4007)

14TVCR240 COMBI NO PIC,SND OK,Q7584(BC637-16)
14TVCR240 COMBI TRIPPING ,LOPTX
14TVCR240 DEAD MAINS TX.
14TVCR240 NO EJECT/LOAD NOISE GEAR MOD KIT.
14TVCR240 NO PIC SND OK, R8511+TDA3653B.
14TVCR240 TRIP BURP NOISE LOPTX.
14TVCR240/05 COMBI TRIPPING ,HI HT R3343 5R6
14TVCR240/05 EXCESSIVE HT 170V ON 110V LINE R3343(5R6( + D6333 .
14TVCR240/05 SLOW START UP TRY 7584(2SC63716)(BC337) HEAT IT UP.
14TX1504 TX14
14TX2504 TX2
14TX3504 TX3
14TX3540 TX3
14VCR240/05
14VCR240/05
15AA3332 ANUBIS_A

15CD1210 LOPTX=HR7503
15CE1010 CP90
15CE1210
15CE1210 CP90
15CE1210 INT FIELD 7573/7571 PINS
15CE1210 NO CHANNEL DISPLAY, C2875
15CE1510 CP90
15CE1518 SEE CP90
15CF1210 DEAD WHISTLE LOPTR (BUT11AF) RESOLDER LOPTX
15CT2309 CTXE
15GR2330 G90AE
15GR2331 G90AE
15GR2331 G90AE LOPTX=HR7549=11420145=HR7503.
15GR2350 G90AE
15GR2530 G90AE
15PT1363 ON/OFF SWITCH PCB BURN UP SEME SWPCB1
16C927 KT3
16C928 KT3
16CT2016 CTXE
16CT2216 CTXE
16CT2216 CTXE TOP BLANKING R3422+D6400
16CT3015 KT3
16CT3215 KT3
16CT3715 KT3
16CT4418 KT4
16CT4616 KT4
16CT4718 KT4
17B920 E2
17B920/15X E2
17CE1230
17CE1230 CP90
17CE1530 CP90
17CE1538 CP90
17CE1630 CP90
17CT2319 CTXE
17CT2619 CTXE
17GR2340 G90AE
17GR2341 G90AE
17GR2540 SEE G90AE
17HT1340 ANUBIS_B HAVE CCT DIAG
17HT1540 ANUBIS_B
17HT1549 ANUBIS_B
17PT1563/05 L7.2E AA
17PT166A ANUBIS A-AC
17PT166A ANUBIS AAC DEAD C2450(330NF).
17PT166A DEAD C2450(330NF250V)
17PT166A DEAD LOPTX
1826 K12
2013 TX2
2056

K12Z

2060 CTX
2062 CTX
20C933 KT3
20C934 KT3
20CT2026 CTXE
20CT2035 CTXE
20CT2036 CTXE
20CT2235 CTXE
20CT2236 CTXE
20CT2635 CTXE
20CT2636 CTXE
20CT3027 KT3
20CT3036 KT3
20CT3227 KT3
20CT3723 KT3
20CT3726 KT3
20CT4428 KT4
20CT4626 KT4
20CT4636 KT4
20CT4728 KT4
20GR1252 LOPTX=2436201
20PT1552 ON/OFF SWITCH PCB BURN UP SEME SWPCB1
20PT2381/73R L7.1A.AA
21 PT EARLIER TYPE. STBY. LOPTX
2162 CTX
21AA3350 ANUBIS_A
21CD1250
21CE1051
21CE1051 CP90
21CE1059 CP90
21CE1250
21CE1250 SEE CP90
21CE1250 LOPTX=HR7503.
21CE1251 CP90
21CE1259 CP90
21CE1550 SEE CP90
21CE1551 CP90
21CE1557 CP90
21CE1558 CP90
21CE1558/05B
21CE1559 CP90
21CE2340 SEE 2A
21CE2640 HT=140VN
21CE2640 2A
21CE4550 2B
21CE4559 2B
21CE5554 2B
21CE7550 3A
21CE7550 DEAD LOPTX.
21CE7650 3A

21CT4829 KT4
21GR1251 GR1AX
21GR2150 G90AE
21GR2350 SEE G90AE
21GR2350/05B
21GR2353
21GR2353 FLYBAK LINES/TOP CEEFAX LO 163V(95V)=R3570.
21GR2353 LOPTX=HR7503/HR7549 + NO 12V R3581.
21GR2550 SEE G90AE
21GR2550 G90AE 3*33V ZENERS SM
21GR2552 G90AE
21GR2554 G90AE
21GR2752 G90B
21GR9752 G90B G110
21HT1350 ANUBIS_B
21HT1550 ANUBIS_B
21HT1559 ANUBIS_B
21PT131B ANUBIS_A
21PT1442 ON/OFF SWITCH PCB BURN UP SEME SWPCB2
21PT1532
21PT1532 L6.1
21PT1532 L6.1 INT PIC TR7505(BC33740),R3500(470R)+EEPROM.
21PT1532 L6.1AA
21PT1532/05
21PT156A ANUBIS_A HAVE CCT DIA.
21PT165 AA5AB CRT BASE PANEL BURNUP+TDA8362+R3470(8R2)+LOPTX.
21PT1653
21PT1653 L6.2
21PT165B
21PT165B AA5 AB LOPT +TDA8361 + T7275 BF422 ON THE CRT BASE

PANEL

21PT165B AA5AB GOOD SND/NO LITE BURNT 3254 TDA8361E TIMEBASE
21PT165B AA5AB SQEEL/STBY TDA8361,CAUSE LOPTX SPARKING.
21PT165B FIELD COLLAPSE R3449(400MA)+TDA+100UF, CAUSE LOPTX

ARCING.

21PT165B GREEN PIC T7275(BF422).
21PT1663
21PT1663 L7.2 GR750
21PT1663 L7.2E SURGE/STBY LOPTX
21PT1663 L7.2E SURGE/STBY, FIELD CHIP R3449(1R)R3451(2R2)ADD 51V

ZENER ACROSS PINS 5-|<-4

21PT166A
21PT166A ANUBIS_A LOPTX=HR7488/LOPTX773/40100SB.
21PT166A LOPTX 11425001=HR7488.
21PT166B AA5 AB DEAD 1571 184VN LOPTX +SCR+3482(6K8SM).
21PT166B AA5 AB INT LINE COLLAPSE, S-CORRECTION CAPACITOR

C2450 (680NF, 150V) IN LINE OUTPUT STAGE 21PT166B AA5 AB DEAD
WICKMAN FUSE 1571 LOPTX THYRISTOR NO 4822 130 20293 6K8 SMR
33482

21PT166B AA5 DEAD HT OK,FUSE(1571),IC7015,CAUSE LOPTX ARCING

21PT166B AA5 DEAD HT OK,FUSE(1571),IC7567(8V REG)
21PT166B AA5AB
21PT166B AA5AB CHOPPER P6NA60F1 FET +MC44603P.
21PT166B AA5AB CRT BASE PANEL BURNUP

7245/7275/6275/6278/3254/3276/3270.

21PT166B AA5AB DEAD 630MA,TDA8361E,CAUSE LOPTX ARCING.
21PT166B AA5AB DEAD LOPTX +F1571(630MA)
21PT166B AA5AB INT VERT LINE C2450 680NF150V.
21PT166B AA5AB POWER OK, ST24C02CP
21PT166B DEAD P6NA60F1 CHOPFET , MC44603P CONTROL CHIP
21PT166B FIELD SMALL+BRIGHT R3470 8R2 CAUSE CRT FLSHOVER

FORGET IT.

21PT166B LOPTX=HR7772 13525003=HR7839.
21PT166B POWER OK, NO LINE DRV TDA8361
21PT2665 SL9.2E DEAD 1572(MP80) NR CHOPTX CAUSE

MICROPRO(SAA5564PS/M3/0181)

21PT2665 SL9.2E VERY LONG TORX10 SCREWDRIVER NEEDED
21PT3665 LOPTX(1142 5093)
21PT4424 SL7.2E AA
21PT442B MD1.1E LOPTX 31102 OP547=HR7820
21PT4457 L012EE ,NO RED,CRT BASE PCB R3316(68R)TR7311(BF422)
21PT4457 L012EE ,STBY,CRT BASE PCB R3316(68R)TR7311(BF422)
21PT522A SEE GR2.2
21PT522A/05 GR2.2AA STBY THYRISTOR THY6670 EO102AA
21PT5322 SEE MD1.2
21PT5322 MD1.2
21PT5322/05 MD1.2E
21PT532A GR2.2
21PV288 COMBI DEAD IC7881(SAA5254)
21PV330 D2K COMBI DEAD LOPTR+LINE DRVTX+LOPTX
21PV688
21PV688 COMBI NO PIC R3532+R3537(4R7).
21PV688 COMBI STBY, TDA8356 +R3512(4R7)+R3541(1R).
21PV688/05 COMBI STBY, TDA8356 R3512 4R7 R3541 1R
21PV688/05 COMBI, NO PIC, NO HTRS R3532 AND R3537 BOTH 4R7
21ST1730
21ST1730 GR2.1
21ST2730 GR2.1
21ST2731 GR2.2
2206 CTX
2216 CTX
2226 CTX
2260 CTX
22AV3500 CP90
22CE2060
22CE2060 2A
22CE2060 2A LOPTX=HR6141.
22CE2060/05T
22CE2061 2A
22CE2065 2A

22CE2081 2A CHASSIS BOOK22 PAGE 236
22CE2261 2A
22CE2261/05T 2A 110DEG FIELD COLLAPSE, GOOD VOLTS

TDA3654Q+100UF50V .

22CE2267 2A
22CE2267 2A HOT LO BRILL,FRONT KEYPAD FAULTY.
22CE2267/05R BU508A LOPTR.
22CE2561 2A
22CE2561 2A CHASSIS LOPTR BU508A.LOPTX HR6141
22CE2561 2A LOPTX+C2609 EW,
22CE2561 2A PULSING POWER(OK ON BULB) L5642 LO 7V LINE FROM

LOPTX.

22CE2565 2A
22CE2567 2A
22CS1002 K30
22CS1019 KT30 FIELD COLLAPSE R590(1R)
22CS1201 K30
22CS1205 K30
22CS1234 K30
22CS3040 K35
22CS3245 K35
22CS3745 K35
22CS3745 KT3/KT30 DARK PIC LOW VIDEO VOLTS(155V) C583 .
22CS3761 K35
22CS3850 K35
22CS3880 K35
22CS4360 K40
22CS4860 K40
22CS4861 K40
22CS5240 K40
22CS5350 K40
22CS5735 K40
22CS5740 K40 K4
22CS5740 SYSTEM 4 INT NOPIC D6107 FIELD.
22CS5744 K40
22CS5744 LOPTX=HR6040
22CS5748 K40
22CS5748 LOPTX=HR6040
22CS5750 K40
22CS5751
22CS5751 K40
22CT2226 CTXE
22GR9972 INT ALLSORTS RESOLDER ALL NICAM/TEXT SUB PANELS.
23TC2001 TC2
24CE2370 2A
24CE2588 CP110 DEAD FUSE+CHOPPER+100R+120R+TEA1039+C2621.
24CE2670 2A
24CE2670 LOPTX 32652=HR76.49
24CE3270 CP110
24CE3271 CP110

24CE3570 CP110
24CE3578 CP110
24CE3588
24CE3588 CP110
24CE4570 2B
24CE4579 2B
24CE7570 3A
24CE7570/05S (3A ) COLD NO SND, FE644 TUNER/IF. MODULE.
24PW6005 A10E
24PW6324 A8.0E TUNING OFF/AFC TDA8843
25CE5574 2B
25CE5574 FIELD BLANKING 100UF 35V C2571.
25CE6270 CP110
25CE6570 CP110
25GR5560 G110
25GR57 G110
25GR57/63/25B
25GR5762 G110
25GR5763 G110
25GR5764 G110NIC
25GR63
25GR9762 G110
25GR9762/25B G110 CHASSIS
25GR9763 G110
25GR9768 G110
25KV1201/05 LOPTX 2765413 NOT LISTED .
25KX1201 10" GREEN STREAKY CUT OFF PRESETS .
25KX1201 GREEN STREAKS, GREEN GUN'S CUT-OFF PRESET ON THE CRT

BASE PANEL

25KX1201 PHILIPS 10CX1120
25KX1201/05R INT FIELD COLLAPSE C582 0.01UF
25KX1202 LO HEIGHT, PRESET VAMP POT (220K)
25KX2101 NO SND R401+TDA4190+C431(470UF40V).
25M8500 FL1.6
25ML8300
25ML8300
25ML8300 FL1.7
25ML8300/05B
25ML8500
25ML8500/05B FL1.6
25MN1550
25MN1550
25MN1550
25MN1550
25MN1550 GR2.1
25MN1550 GR2.2
25MN1550/25B CP110 FLUTTER WHEN COLD TRIED MOST CAPS STILL

THERE HELP .
25PT2451 CHILD LOCK, SET CAN ONLY BE TURNED ON WITH THE
REMOTE

25PT2451 CHILD LOCK, YELLOW KEY (FEATURES MENU) AND SELECT
CHILD LOCK

25PT4101
25PT4101 AA5 AB LED'S PULSING:3SECS ST24C02A LM317T LOPTX PINS(1)
25PT4101 AA5AB LOPTR +LOPTX PINS.
25PT4101 ANUB B, EW R3404 47R.
25PT4101 ANUBIS B NO EW ADJUST,47R SAFETY RESISTOR, R3404, ON

THE MODULE 110 PANEL

25PT4101/05 AA5 AB DEAD,LOPTR +SCAN COILS CONNECTIONS ON CRT
25PT4101/05 AA5 AB SCAN COILS CONNECTOR SOCKET BURNT+EW

BF819 TRANSISTOR ON EW PANEL

25PT4103
25PT4103 L6.2
25PT4103 L6.2 AA BU1508AX EL
25PT4103 L6.2 DEAD NOISE ,C2912(2N2F2KV)
25PT4103 L6.2AA
25PT4103 L6.3 BU1508AX=WVE 16508RT GOODMANS 256NS
25PT4103/05 L6.2AA
25PT4103/07 L6.2AA
25PT410A GR2.1
25PT410A GR2.2
25PT442A
25PT4457
25PT4475 L9.1E NO SND, RESET OPTION SB
25PT4475 L9.1E SNOWY PIC, TUNER UNIT
25PT4494/05 L6.3 AA DEAD 1502(630MA CP), 7505(BC337-40) 2511(22UF63V)
25PT4494/05 L6.3AA DEAD 7505 1502(MP63 FUSE) 2511(25UF

ELECTROLYTIC) 2624(100NFSM CHIP CAP).

25PT4495 INT CONTROLS/REMOTE TR7505(BC337/40) 5V REG
25PT4495 L6.3AA DEAD/TRIPPING C2912(2N2F2KV)
25PT4501 MD1.1E
25PT4501 MD1.1E INT COLOR REVERSE , REMOVE SECAM CHIP IC7113.
25PT4501 MD1.1E ODD COLORS REMODE SECAM CHIP IC7113
25PT4521
25PT4521
25PT4521
25PT4521
25PT4521
25PT4521
25PT4521 MD1.1E
25PT4521 ON/OFF SWITCH PCB BURN UP SEME SWPCB2
25PT4523
25PT4523 DEAD FUSE S/C DEGAUSS CONTROL TRIAC
25PT4523 MD1.2 DEAD TWEETING, SCAN COIL

PIN+BU1506DX(BU508AX+D(1N4007))

25PT462A GR2.2AA
25PT482A
25PT482A GR2.2AA
25PT532A
25PT532A

25PT532A
25PT532A
25PT532A SEE GR2.2AA
25PT532B
25PT532B GOODMANS 256NS/05
25PT532B SEE GR2.4
25PT632A
25PT632A GR2.4AA CHASSIS.
25PT632A/05
25PT727B GR2.4AA
25PT727B/05
25PW6333 CHILD LOCK, SET CAN ONLY BE TURNED ON WITH THE

REMOTE
25PW6333 CHILD LOCK, YELLOW KEY (FEATURES MENU) AND SELECT
CHILD LOCK

25ST1724
25ST1724 GR2.1
25ST1750 GR2.1AA
25ST1761/25B
25ST2716/05B SND DISTORT LHS TDA1543 DA CONVERTER CHIP

IC7168(4822 209 73236)

25ST2761
25ST2761
25ST2761 GR2.2AA
2601 K12Z
2605 K12Z
26C797 K12
26CE1991/75 LOPTX(4802-142-17003)
26CE2080 2A
26CE2080/05T (2A DEAD, DEGAUSSING THERMISTOR 4822 116 40033.
26CE2081 2A
26CE2281 2A
26CE2581 2A
26CE2581 BUT11A+2AT+BRIDGE.
26CE2581 LOPTX = 36832=HR6141.
26CP2601 K12
26CS1009 K30
26CS1205 K30
26CS1250 K30
26CS1250 KT4? NO PIC WHITE RASTER GOOD SND, FUSE ON POWER UNIT

UNDER.

26CS3070 K35
26CS3275 K35
26CS3775 K35
26CS3880 K35
26CS3890 K35
26CS3895 K35
26CS4880 K40
26CS4895 K40
26CS5770 K40

26CS5774 K40
26CS5793 K40
27CE2390 2A
27CE2690 2A
27CE290 LOPTX HR 614111/ 36832
27CE3290 CP110
27CE3590 CP110
27CE3598 CP110
27CE7550 3A DEAD LO HT LOPTX.
27CE7590 3A
27CE7593 3A
27CE7593/43R 3A WICKMAN FUSE 1642. 1.25AT.
27CE7690 3A
27CE7790 3A
27CS6895 K40
27KE1112 CP90
27KE1115 CP90
286NS L6.3 LOPTR(BU1508AX) C2915(390NF250V)C2913(390NF250V)
28777SIR G110 NICAM
28CE5594 2B
28CE6590 CP110
28CL6770
28CL6770 FL1.0
28CL6770 FL1.0
28CL6770/252 FL1.10 STBY,LOPTR,SCAN COIL CONNECTIONS
28CL6770/252 FL1.10 STBY,R3347(68K) PSU
28CL6770/25Z
28CL6770/25Z STBY HT=141VN.
28DC2070
28DC2070 D16 - III PIC FLASHING DIGITAL BOARD SERVICE EXCHANGE.
28DC2070 D16111
28DC2070 D16III PIC FLASHING CHANGE DIGITAL VIDEO PANEL.
28DC2070/25R ,D16 CHASSIS NO COLOUR,PO0R SYNC ELECTROLYTICS IN

IFMODULE.

28DC2070/25R D16
28GR5772 G110
28GR9 G110 INT BLANK RASTER R3917 PINS.
28GR9772
28GR9772 G110
28GR9772,
28GR9772/25B BOTTOM CRAMP /SLIGHT FOLD IN C2509(2U2F 25V)
28ML3
28ML8770
28ML8770 FL1.1
28ML8770 / 05 FL1.1AB
28ML8770 FL12
28ML8800
28ML8800 FL1.6
28ML8800/05B
28ML8805/16B FL1.6AA CHASSIS

28ML8916 FL12
28PT4494 L6.3 LOPTX (258 30141)
28PT4494 L6.3AA
28PT4521
28PT4521 MD1.1
28PT4523
28PT4523 MD1.2E
28PT4523 MD1.2E DEAD C2433(1NF2KV) BURNT
28PT4523 ON/OFF SWITCH BURNUP
28PT512
28PT512A LOPTX ARCING (1192 0507 HR7279)
28PT828 GFL2.20E INT SND RHS, SPKR PLUGS
28PW NO GREEN, BF422
28PW5324 'A8.0E CHASSIS' SERVICE MODE ? HELP
28PW6005 A10E
28PW6006 L01.1E STBY STICKS MOD R3040(10K)
28PW6305
28PW6305 A10E
28PW6305 A10E
28PW6315 A10E
28PW6315 A10E
28PW6322
28PW6322
28PW6322 MD1.2E
28PW6324 GREEN TINT ,LOPTX PINS
28PW6324 SA8.OE DIM/NO PIC CRT FAULT
28PW632A NO GREEN BF422 TRANSISTOR T7364.
28PW6332 MD1.2E
28PW6332 EXCESS RED,R3329(BURNT) CAUSE CRT,DISCONNECT R3341

TO PROVE

28PW6332 MD1.2E NO OSD ,TR7420 UNDER CRT NECK
28PW6332 NO PIC ,LOPTR HOT, SCANCOIL PCB
28PW6332/05 SEE MD1.2E AA
28PW6515 A10
28PW6515 A10E
28PW662B GR2.4 TRIPS CP1601(2A5)+TDA1521 SND.
28PW6816 A10E COMBI TV/DVD
28PW6816 A10E COMBI TV/DVD EJECT BUTTON(3139 137 91461)
28PW9512 MD2.12AA LED FLASH'S C2433(390NF250V)
28PW9512 ON/OFF SWITCH PCB BURN UP SEME SWPCB3
28PW9515 MG2.1E DEAD LOPTR(BU2508DF) MOD CUT C2411 C2413(TO

10UF100V)R3406(TO 100R)

28PW9623 DEAD FET7470(IRF620) LEAKY,HSINK IN MIDDLE.
28PW9623 MD2.25AA TO ENTER SERVICE SHORT TESTPINS ON SMALL

SIGNAL PANEL.
28PW9623/05 ENTER THE SD MODE ,SHORT OUT THE TWO TEST PINS ON
THE SMALL SIGNAL PANEL.

28PW9623/05 MD2.25AA
28PW9623/05 ONLY RUNS IN SERVICE MODE IRF620 FET 7470 H/SINK IN

MIDDLE

28SL5770 INT STBY, LOPTX PINS.
28SL5770/05B
28SL5770/05B FL1.0
28ST2781 GR2.2
29PT4103 L6.2 WARM NO COLOR ,IC7100(TDA8361)
29PT4103 L6.2 DEAD C2912
29PT5301/15 GR2.4 DEAD FUSE CHOPFET (BUT12AF) OF PSU +JOINTS
29PT532A
29PT632A GR2.4
29PT632A GR2.4 DEAD TICKS, LOPTR(BU2508)+1534 EW DRIVER FEED.
29PT632A GR2.4 MAINS SWITCH PCB BURNUP, SEME HAVE THEM
29PT6361 A10
29PT6433 MD1.2EAA
29PT6773 MD1.2EAA NO STBY R3588(3R3)+C2561(4700UF16V)
29PT727B GR2.4
29PT828 GFL2.2E INT RHS SPEAKER , LEADS TO SPEAKER.
29PT828C L2.2AA DEAD MAINS CAP(220UF400V).
29PT8413 ON/OFF SWITCH PCB BURN UP SEME SWPCB3
29PT9021
29PT9021 ON/OFF SWITCH PCB BURN UP SEME SWPCB3
29PT9113 MD2.22AA GREEN THEN RED LED,TEXT/CONTROL PANEL

EXCHANGE .

29PT9113 MD2.2AA
29PT9113 MD2.2AA DEAD RED LED IC7202, PART NO. 4822 900 11058. PUSH

FIT INTO THE SOCKET.

29PT9113 MD2.2AA GREEN 20SECS /RED IC7202.
29PT9416 MG7.1 SERVICE MODE PRESS 0 6 2 5 9 6 THEN 'MENU','MENU'
29PT9416 MG7.1 SERVICE MODE SHORT SERVICE PINS ON SIGNAL

PANEL(PINS 2 AND 3 OF CONNECTOR 0356).

2A
2A

BUT11AF+BRIDGE+TR7685+TR7686+R3654+D6663+C2664+CNX62+UPGRAD
EKIT
2A BYD33D ANODE TO COL TR7686 CATHODE TO BASE OF TR7687 THEN
RECONNECT

2A R3687 FROM BASE OF TR7686 TO BASE TR6787,+ FIT BYD33D IN

D6672.

2A 110' TOP FOLDOVER IC7570 C2571 C2575. R3573 5IK IN 110 DEG SETS.
2A 110DEG FIELD COLLAPSE, GOOD VOLTS TDA3654Q+100UF50V .
2A 110DEG HAS SERIES DEGAUSS POSISTOR.
2A 110DEG TOP FOLDOVER IC7570,C2571,C2575,R3573(51K PRESET)
2A BLACK LINES C2050 (47UF, 50V) FROM 12V RAIL, IN THE IF CAN.
2A BLANK SCREEN, SND OK, TD3561A.
2A BLANK SCRN. TDA3561A
2A BLOCKY PIC TDA3561 COLOUR DECODER
2A BOTTOM CRAMP C2575(4U7F63V)
2A BRIGHT RASTER R3473(910K)
2A

BU508V HOT, (TEST REMOVE D6644) TDA2579/N5 FAULTY

2A BUZZ SND TDA120S.
2A BUZZING SND, LO HT C2697, C2701 BOTH 47UF 160V.

2A CHASS BUT+CNX62+R3664(150R5W)+D6664(BYD33J)+C2664(1N52KV).
2A CHASS S/S CHOPPER BUT11 R3654 1R5W
2A COLD STBY R3689 39R D6689 NR CHOPPER
2A DEAD C2659 TR7687 D664 BYD33J C2664 1N5F, 1KV
2A DEAD C2698 4.7UF 6698 BT151/500R
2A DEAD ,STANDBY-THYRISTOR 6727 BT151
2A DEAD 300V OK D6663 1N5062
2A DEAD 300V OK D6663 1N5602
2A DEAD BU508V CAUSE LINE DRIVE TX PINS + R3633(6K8) C2633(1N2F).
2A DEAD BUT11 L5687
2A DEAD C2609, 9.1NF 90DEG CRT=5.6NF.
2A DEAD C2698 4.7UF
2A DEAD CHOPPER +1R5,5W CAUSE DEGAUSS POS SERIES TYPE
2A DEAD CHOPPER BUT12A +4R7+1N4007.
2A DEAD CHOPTR(BUT11A),C2664,D6664+BRIDGE+OPTO

ISOL+D6689(1N4148).

2A DEAD D6663(1N5062),D6727(BT151)
2A DEAD D6664(BYD33J)+C2664(1N5F1KV)
2A DEAD F3 R3643 AND R3644
2A DEAD FUSE ,DIODE 6664 BYD33. C2664 1.5NF
2A DEAD FUSE 6664(BYD33J)+2664 1N5(1KV).
2A DEAD FUSE R3654 BUT11AF CHOPTR, D6664 BYD33J CNX62

C2664,BRIDGE RECT C2609.

2A DEAD FUSE(6664) DIODE(2664) 1N5F 1KV
2A DEAD LO HT LOPTX
2A DEAD LO HT, LOPTX
2A DEAD LOPTR BU508V D6644 TDA2579/N5 IC7535
2A DEAD LOPTR BU508V LINE DRIVER TRANSFORMER CONNECTIONS

R3633 (6K8) C2633 (1N2F).
2A DEAD LOPTR C2609 9.1NF D6609 BY228 D6610 BYW95C, C2618 1.5NF
C2697 C2701 47UF
2A DEAD LOPTR C2609 9.1UF D6609 BY228 D6610 BYW95C, C2618 1N5F
C2697 C2701 47UF,

2A DEAD LOPTR, BU508V + LOPTX PINS+ R3633 6K8 C2633 1N2F.
2A DEAD POSISTOR
2A DEAD PSU NOISE LOPTX
2A DEAD R3654 BUT11AF CHOPTR D6664 (BYD33J) BRIDGE RECT CNX62

2N2F, 2KV C2664,C2609.

2A DEAD TICKS 6V8 ZENER DIODE D6700
2A DEAD, BUT11AF OK, D6663 IN5062
2A DEAD, BUZZING NOISE FROM PAU, RESISTOR 3711 100 DIODE 6711

IN1418 OPTO COUPLER 7668.
2A DEAD, BUZZING SOUND, R3601 OPEN CIRCUIT 5R6 IN LINE OUTPUT
CIRCUIT.

2A DEAD, DUAL THERMISTOR 4822 116 40033.
2A DEAD, TICKIN 6.8V ZENER DIODE D6700.
2A DYNATRON 27906EK/05Z DEAD. LOPTR BU508V C2609
2A EW RASTER 3601 5R6
2A EXCESS BRILL/FLYBACK R3473 910K
2A

EXCESS WIDTH, 15R R3602 C2602

2A EXCESS WIDTH,C2608.
2A EXCESS WODTH R3602(15R) C2602(10UF63V)
2A FAINT LINES DOWN PIC ,REMOVE TEXT PANEL,AND CLEAN CHIP

PINS.
2A FIELD COLLAPSE TDA3654, C2571 100UF, C2582 2200UF, C2908 4.7UF
50V

2A FIELD COLLAPSE R3643 AND R3644 NR LOPTX
2A FIELD COLLAPSE TDA3653AQ OR TDA3654Q.
2A FIELD COLLAPSE, NO 13V LINE R3643/4 2*3R FUSIBLE.
2A FIELD CRAMP C2575(4U7F25V).
2A FIELD IC(7570) C2571 100UF C2565 UNDER PCB TWEEN PIN 3 AND 5 OF

IC7570

2A FIELD LINARITY C2575 4.7UF, C2646 1000UF,
2A FIELD POOR SYNC C2500 1UF, 50V. FREM PIN6 OF THE TDA2579/N5

TIMEBASE GENERATOR CHIP IC7535.

2A FIXED HI CONTRAST D6492 (OF449)
2A FLASH FROM LOPTX THEN NO 140V ,ADD 1000UF PIN12 CHOPPER TX

TO EARTH.

2A FLYBACK LINES R3447 R3427 R3407 300R ON CRT BASE PCB
2A FLYBACK LINES R3447/3427/3407 330K.
2A FRAME COLLAPSE, C5518 9.1UF.
2A FRAME CRAMP LOWER HALF OF SCREEN, REPLACE C2575 4.7UF 16V.
2A HEIGHT CRAMP R3473(51K ON 100DEG,2K7=90DEG).
2A HI CONTRAST D6492 LEAKY.
2A INT GOES OFF LINE DRIVER TX .
2A INT NO PIC/SND THY6698.ZENER DIODES D6699 OR D6700 BOTH

RD6.8V.
2A INT NO PIC/SND THY6698.ZENER DIODES D6699 OR D6700 BOTH TYPE
RD6.8V.

2A INT RASTER,C2496(22NF) BEAM LIMITER.
2A INT SND CRACKLE,LINE TEAR C2618(1N5F)
2A INT SND CRACKLE/LINE TEAR C2618 1.5NF
2A INT STARTS FROM STBY C2681 6U8F OPTOCOUPLER
2A INT STBY C2716 1,500UF, D6726 1N4148 AND D6642 BYD33G
2A INT STBY+MUTE LED FLASH

C2716(1500UF)+D6726(IN4148)+D6642(BYD33G).

2A INT STOPS SND CHIP EARTHS
2A INT SYNC C2550(1UF).
2A INT TRIPPING OPTO.
2A INT TRIPPING OPTOISO.
2A INT TRIPPING TR7598 S.C CE +R3601(5R6).
2A INT TRIPPING, OPOCOUPLER IN PSU
2A INT TRIPS LOPTX PINS,C2609.
2A INT WARM DEAD, LOPTX
2A LINE SHIFT BENT VERTICALS, D6610 BYW95C IN EW CIRCUIT.
2A LINE SHIFT TO RHS D6610 BYW95C
2A LO HEIGHT CROSSOVER R3573 51K 90DEG= 2K7
2A LO HEIGHT R3573 110' SETS ITS 51K 90' 2K7
2A LO HT 82R R3690,
2A LO HT. 140VN. R3690 82R

2A LOPTR D6644 TDA257955 TIMEBASE GENERATOR CHIP IC7535 WAS

FAULTY.

2A LOPTX LEAKY PIN 18 HR6141.
2A LOW HEIGHT, TDA3654Q FRAME SCAN IC
2A LOW HT RISES TO 140V WHEN PLUG M17 PULLED LOPTX
2A LOW HT WITH A BULB LOAD. CHECK R3690 82R
2A NO CHANNEL CHANGE MAB 8441PT001 PTNO482220911037.
2A NO PIC/SND BATTERY
2A NO PIC/SND,LO HT C2697 C2701 47UF, 250V
2A NO REMOTE ADD 1K SERIES PIN 8 IC7925 IN U1900 MOD
2A NO SND/PIC C2697 AND C2701 47UF, 250V
2A NO TUNING,R3740(5R6).
2A PATTERNING C2565 390PF ON THE TDA3654
2A PIC RIGHT SHIFTED D6610(BYW95C) EW CCT
2A PICTURE LIKE MOSAIC TDA3561.
2A POOR FIELD SYNC C2500 (LUF, 50V)
2A POOR FIELD SYNC C2500 1UF50V FROM PIN 6 TDA2579/N5.
2A POOR START, C2609 9.1NF
2A POOR SYNC/PAIRING C2550 1UF, C2551 AND C2552 (BOTH 22UF)
2A PSU SLOW START R3670 (33OHM)
2A RAGGED VERTICALS LO HT C2697 C2701. BOTH 47UF
2A SEARCH STOP OK STORE OFF CHAN SAB3037 4MHZ
2A SEVERE PATTERNING,C2565(390PF) UNDER PCB
2A SLOW START R3670 33R
2A SLOW START R3670(33R).
2A SMEARY COLOR, C2263 2.2UF,
2A SND OK NO PIC TDA3561A IC7300
2A SOUND SQUAWKS C2151 0.1UF
2A STANDBY 1.2V CELL
2A STBY TICK C2690 1UF 100 NONE POLARISED
2A STBY TICK C2690. 1UF, 100V NON-POLARISED
2A STBY TICKS C2690 (1UF 100V)
2A STBY TICKS C2690 1UF 100V
2A STBY TICKS C2690(1UF100V NON POLAR) IN PSU.
2A SYNC/TEAR C2550 1UF,
2A TOP CRAMP R3573
2A TRIPPED R3601 5R6+R3602 15R +C2602 10UF63V.
2A TRIPPING MAB8441 MICROCONTROLLER CHIP ON THE FRONT

CONTROL PANEL.

2A TRIPPING TR7598 R3601 5R6
2B
2B AG06 STBY. X2402.
2B BLANK RASTER NO FLYBACK LINES ,C2496.
2B BLANK WHITE SCREEN FLYBACK LINES, D6410, R3639 ON CRT BASE.
2B BLANK WHITE SCREEN LIKE AV C2030 330UF 16V R3036
2B CHOPPER USE 2SC3973 CHANGE R3671 TO 22R 5W.
2B COLD TOP BLANKED C2571, (100UF, 25V)
2B

COLD TOP BLANKED D6570 AND C2571,

2B DEAD LO HT 140VN, TDA1521 AUDIO OUTPUT CHIP WAS SHORT­CIRCUIT

2B DEAD PSU OK, C2571 (100UF, 25) 68UF WITH 90' SETS).
2B DEAD R3657/7. C2658 R3686/7 C2670 68NF.
2B EHT SURGE ,LOPTX
2B FIELD COLLAPSE TDA8370 IC7550. R3535 10R C2536 100UF, 25V
2B LO BRILL D6462 AND 6480 1N4148 DIODES ON THE CRT PANEL.
2B LO HT WITH A BRIGHT PICTURE, TRANSISTOR 7685 BC547
2B LOPTR USE BU508V NOT 508A+C2618+C2609.
2B NICAM STBY DISCONNECT D6734 TO THE DISABLE STBY,

EEPROMX2402

2B NO LINE DRIVE D6555(BZX79C12).
2B NO SOUND, EEPROM X2402
2B PROTECTION CROWBAR FIRING, PCB PRINT BY PIN 1 OF THE LINE

OUTPUT TRANSFORMER

2B SMOKE, 1.5NF, 2KV (110 DEG VERSION) CAP ACROSS LOPTR
2B SMOKING 1.5NF; 2KV
2B STBY UNSOLDER GATE OF THYRISTOR 6727 TO DISAPBLE STBY,

D6729

2B TRIPPING, DISCON D6734 TO DISABLE THE STANDBY EEPROM X2402
3030 NC3
3052 KT3
3062 KT3
3152 KT3
3157 KT3
31BX2013 TX2
31BX2016 TX2
31BX2125 TX2
31BX2125 TX3
31BX3025 TX3
31BX3033 TX3
31BX3046 TX3
31BX3112 TX3
31BX3115 TX3
320 LOUD CRACK AND PIC WENT, HI HT (160N),THYRISTOR 2N444. IC2225

TBA550

320 SNOWY PIC, R2206A
3205 KT3
3215 KT3
3237 KT3
3245 K35
3267 KT3
3275 K35
32PW6005 A10E
32PW6305
32PW6305 A10E
32PW6305 A10E
32PW6315/05 A10E
32PW6322 DEAD BRIDGE RECT(2*IN5062)+2200PF1KV(ACROSS CHOPPER)
32PW6322 MD1.2EAA
32PW6322
32PW6324 A8.0E STBY MICROPRO,EEPROM

NO PIC ,TUNER UNIT

32PW6332 MD1.2
32PW6515 SA10E.
32PW6515 SA10E SPKR HUM MOD, SEE TV MAG SEPT2001.
32PW6515 SPKR HUM REMOVE LINK 9710,SHORT FREE HOLE OF LINK

9710 NEAR C2702 TO LINK 9278 WITH PVC WIRE 11CM

32PW6615 MG1.1EAA POOR START,RELAY
32PW9523 MD2.25 RED CAST CRT FAULT
32PW9523 MG2.1E STBY LED FALSHS, RELAY1010.
32PW9523/05 MD2.25
32PW9543 MD2.25 LED FLASH FAST, LINK TEST PINS NR IC7600
32PW9543 MD2.25 YOU NEED DEADLER SERVICE TOOL TO FIX THESE

SETS

32PW9543 MD2.25E POOR PIC,CRT,TR7140(BD140)
32PW9616 MG3.1E CENTER SPKR DUFF
32PW962B FL2.24
32PW9631 DEAD 510NF TO SCANCOILS,IRF620
32PW9631 GREEN LED 40SECS/RED POWER MOD KIT 4822 310 32214.
32PW9631/05 5GFL2.30EAA LOPTX, D6480 BZX79C10V LINE-SWITCH FET
32PW9631/05 5GFL2.30EAA LOPTX +D6480(BZX79C10V LEAKY.
32PW9631/25 5GFL 2.3 E AA DEAD LINE SWITCH FET C2433 (510NF)
32PW9631/25 5GFL2.30 E AA DEAD WHISTLE C2433(510NF)+LINE SWITCH

FET.

32PW9713 ON/OFF SWITCH PCB BURN UP SEME SWPCB3
32PW9763 MD2.2 POOR SND R3433
32PW9763 MD2.25E STBY LED FLASH ,D6227(3V3ZDSM)
32PW9763 MD2.25E STBY LED FLASH 5HZ=PROTECTION,LED 1.25HZ CTRL

CCTFAULT.
32PW9763/25 MD2.25 NO SOUND BU508AF 7302+ 3300 6R8, AUDIO OUTPUT
IC 7740

32PW9763/25 MD2.25
32PW9763/25 MD2.25 CHASS NO SND BU508AF+6R8+IC7740.
32W9631/05 5GFL 2.30E AA DEAD FFS SUPPLY KIT, PART NO. IS 4822 310

32214.

33CE7533 3A
33DC2080 D16111
3457 K30
3508 K35
35BX1045 TX14
35BX2045 TX2
35BX3045 TX3
3715 KT3
3745 K35
3757 K30
3775 K35
37CS5600 K40
37K3030 NC3 GREEN TUNING LINE STAYS ON, C371(100UF16V).
37K6225 KT2
37K7225 KT3
37KE1022 CP90
37KE1025 CP90

37KE1025 GOOD 95V LINE DRIVER BF422+TDA2579A.
37KF1140 CF1
37KN2010 NC3CR
37KN2010/05R DEAD SHUTS DOWN , OPTO ISO COY80NG.
37KN2010/05R NO COLOUR TDA3565
37KN2012 NC3CR
37KN3030
37KN3030 NC3
37KT2040 CTXE
37KT2042 CTXE
37KT2060 CTXS NO SND TBA120S.
37KT2062 KT3
37KT3052 KT3
37KT3062 KT3
37KT3062 KT3 HEARTBEAT,TRIPLER+BU208A(2SD200).
37KT3062/05 TOP CRAP TS532 BD234.
37KT7225 KT3
37KV 1212/05B WARM SND CRACKLE TDA7052 AUDIO OUTPUT CHIP
37KV1212
37KV1212 LOPTX 37622/HR7527 PRIMARY TO CHASSIS.
37KV1232 GR1AX
37KV1240 GR1AX
37KV1242
37KV1242 SEE GR1AX
37KV1242 LOPTX 37622 HR7527.
37KV1242 PYE LOPTX HR7527.
37KV1242 TUNING LOCK MICRO PRO.
37KV2225 G90AE
37TA1171/05 PYE AA5AA
3808 K35
3850 K35
3880 K35
3890 K35
3895 K35
38KE1102 CP90
38KE1185 CP90
38KT2093 CTXE
38KV2325 G90AE
3908 K35
3A CHASSIS DEAD SQUEALING R3638/9 CAUSE LOPTX PINS.
3A DEAD BUT12A CHOPPER TX PINS
3A DEAD 315MA FUSE F1601 BD678 EW DRIVER DARLINGTON TR. 7599,
3A DEAD BC369 TRANSISTOR TR7686
3A DEAD D6704 D6707.. ONE OF THE TDA1514 AUDIO
3A DEAD LO HT, LOPTX
3A DEAD PSU NOISE TR7499, D6638, R3638/9 TWO 27R. LOPTX PINS
3A NO PIC TDA4580
3LC2050 POCKET PORTABLE NO SOUND AT ALL (TV OR RADIO): 10R

SURFACE MOUNTED RESISTOR R120.

3LC2050 POCKET PORTABLE NO TV SND, UPC1416G

4146 KT4
4184 KT4
4187 KT4
41GR884 G110 DEAD R3818(180K).
41GR884 G110 PROJECTION CHASSIS DEAD, R3818 180K
41GR8840 G110
41GR8841 G110 PROJECTION
41GR8841 G110=PROJECTION TV EXCESS WIDTH C2549.
41KT3152 KT3
4206 KT4
4266 KT4
4284 KT4
4287 KT4
42CT2142 CTXE
42K3150/05W EW RASTER BD234(BD767).
42K7227 KT3
42K7228 KT3
42KT2140 CTXE
42KT2142 CTXE
42KT2160 CTXE
42KT2162 CTXE
42KT3150 KT3
42KT3152 KT3
42KT3157 KT3
42KT4146 KT4
42KT4166 KT4
42KT4184 KT4
42KT4187 KT4
42KT5184 KT4
42KT7227 KT3
42KT7228 KT3
4309 KT4
4360 K40
43KE1312 CP90
43KE1312/05E CP90 RC
43KE1315 CP90
43KE1385 CP90
43KE2196 CTXE
43KE2425 G90AE
43KT2198 CTXE
43KV2425 G90AE
43KV2429 G90AE
4418 KT4
44T7220 E2
44T7220 FIELD COLLAPSE BD136/BD676A PNP .
4508 K40
4509 K40
4526 KT4
4616 KT4
4718 KT4

4728 KT4
4808 K40
4860 K40
4880 K40
51BE2080 E2
51BL7205 L7
51BL7215 L7
51K7324 KT3
51K7324 KT3 WARM LINE HOLD TDA2571A
51K7326 KT3
51KE1585/05B CP90
51KT2260 CTXE
51KT2262 CTXE
51KT2360 CTXE
51KT2362 CTXE
51KT2366 CTXE
51KT3237 KT3
51KT3260 KT3
51KT3262 KT3
51KT3267 KT3
51KT3272 KT3
51KT4226 KT4
51KT4284 KT4
51KT4287 KT4
51KT4309 KT4
51KT4366 KT4
51KT5287 KT4
51KT7323 KT3
51KT7324 KT3/4
51KT7326 KT3
52KE1510 CP90
52KE1512 CP90
52KE1512 PYE 90 DEGREE SIMILER TO 21CE1250/05B C2610 PINS BLOWS

BUT11.

52KE1515 CP90
52KE1585
52KE1585 CP90
52KE2403 2A
52KE2403 PYE 2A CHASSIS BUT11A
52KE2406 2A
52KE2406 PYE 2AT+ C2664 1N5(1KV).
52KE4505 2B
52KV1528 GR1AX
52KV2523 G90AE
52KV2525 G90AE
52KV2525 PYE G90AE CHOPPER MOD KIT PM06.
52KV2525/05 G90 RETUNE SOME CHANNELS MICRO_PRO.
52KV2529 G90AE
52ZY3535 ANUBIS B AA DEAD CHOPTR CNR50 OPTOCOUPLER IC7514,

CONTROL CHIP IC7500

52ZY3535 ANUBISBAA,NO PIC SND OK,R3452(4R7),R3450,TDA3653B
52ZY3535 ANUBIS_A HAVE CCT DIA
52ZY3535/25G ANUBIS B-AA "DEMO" SWITCH ON MAINS WITH THE

VOLUME-AND PROGRAM + BUTTONS
52ZY3535/25G ANUBIS_B AA DEMO MODE, POWER ON WITH VOL AND
PROG+.

52ZZ3523 NO STORE 24C02AB1/TMP47C434N3123
56KE2600 2A
56KE2600 R3493(680R)+ LOPTX 6141 =36832.
56KE2610 2A
56KE2612 2A
56KE2615 2A
56KS1042 K30
56KS1060 K30
56KS1062 K30
56KS1070 K30
56KS3400 K35
56KS3452 K35
56KS3457 K35
56KS3477 K35
56KS3500 K35
56KS3508 K35
56KS4508 K40
56KS4509 K40
56KS5402 K40
56KS5418 K40
56KS5447 K40
56KS5457 K40
56KS5487 K40
56KS5503 K40
56KS5507 K40
56KS5513 K40
56KS5553 K40
56KS5557 K40
56KS5563 K40
56KS5567 K40
56KS5577 K40
59KE2703 2A
59KE2703 2A TRIPPED LOPTX=HR6141.
59KE2703 2A TRIPPED R3601 CAUSED BY C9611 PINS.
59KE2706 2A
59KE3702 CP110
59KE3715 CP110
59KE3775 CP110
59KE3785 CP110
59KE4705 2B
59KE4795 2B
60CP2605 K12Z
61BL7245 L7
62ZY3535 ANUBIS BAA DEAD CHOPPER +CNR50+IC7500 .

63KE5765 2B
63KE6722 CP110
63KE6722 CP110 NO LINE DRV R3628(6R8) NO CAUSE FOUND.
63KE6725 CP110
63KV9637 G110
6620 KT4
66KE2800 2A
66KE2812 2A
66KE2815 2A
66KS1020 K30
66KS1022 K30
66KS1152 K30
66KS3700 K35
66KS3752 K35
66KS3757 K35
66KS3808 K35
66KS3908 K35
66KS4808 K40
66KS5702 K40
66KS5787 K40
66KS5917 K40
6720 K40
6820 K40
68KE2903 2A
68KE2906 2A
68KE3885/05M (PHILIPS CP110
68KE3902 CP110
68KE3915 CP110
68KE3985/05M (PHILIPS CP110)
68KE3985/05M CP110 WARM WHISTLE, LINE LINEARITY COIL
68KE7807 3A
68KE7827 3A
70KE6925 CP110
797 K12
86KE3985 CP110
8841 G110 PROJECTION CHASSIS
912 TX
928 KT3
934 KT3
9TC2000 TC2
9TC2100 TC2
9TC2100/05R SNOWY U321+AERIAL SOCKET.
A-AC STBY PULSED THY6570 6V2 ZENER DIODE D6568, LLZF6V2
A10 INT LOCKUP MICROPRO
A10 INT SND MUTE ,PAINTER IC, OR CPU.
A10 VERT LINES UNDER PIC,TDA9181
A10 WARM INT STBY, MICRO PRO IC7064
A10 WARM POOR CONTRAST OSD OK,C2246(1UF SM)
A10E
A10E NO/POOR PIC TR7408(BF423)

A10E AA TRIPPING SMELL, LOPTX (2422 531 98026).
A10E DEAD .LED 2 FLASHES FIELD TDA8172
A10E GHOSTING,IC7064 MICRO PRO
A10E INT BRILL, A1'S LOPTX
A10E INT CHAN/AV ,IC7064
A10E INT CHANNEL CHANGE "PAINTER CHIP MODULE"
A10E INT LOCKUP MICROPRO
A10E INT/NO SND ,MICROPRO IC7064(3111 250 54511)
A10E INT/NO SND ,MICROPRO IC7064(3111 250 54511) AUDIO MUTE LINE
A10E JUST SNOW ,TUNER UNIT
A10E PIC SIZE JUMPS MICRO PRO "PAINTER CHIP"
A10E SND BUZZ MAINS CHOKE
A10E VERT LINES UNDER PIC,TDA9181
AA5 DEAD/TRIPPING, LOPTR +C2450(680NF250V).
AA5AA PIC CHANGES/FLASHES WITH VOLUME,AUDIO H/SINK EARTHS

AND C2540

AA5AB LOPTR+SCANCOIL CONNECTIONS ON SCANCOILS.
ANUBIA_A LOPTX=OV2094/40 WVE 16332LT OR AT2079/40.
ANUBIS A , KIT (SBC7021) 150R SM R3551 BC848C SM TR7537,36VSM

ZD6557-9,18VSM ZENER LOPTX
ANUBIS A AC DEAD, LO HT ZENER DIODE D6555, WHICH MONITORS THE
+5V B SUPPLY.

ANUBIS A AC BLANK RASTER/OSD OK NO SND TRANSISTOR 7877,
ANUBIS A AC BRIGHT FLICKERS, KIT SBC7021 PART NO 4822 310 20491+

TR7554 BC337A
ANUBIS A CHILD LOCK,CH38/"SELECT" ON TV+"SLEEPTIMER" ON
REMOTE 4SECS/MAINS OFF
ANUBIS A CHILD LOCK,CH38/"SELECT"+"SEARCH" ON REMOTE
4SECS/MAINS OFF
ANUBIS A DEAD BUT11AF CHOPTR SERVICE KIT SBC7021, PART NO. 4822­310-20491.
ANUBIS A DEAD ,LO HT 95VN BC848C ERROR-SENSING TRANSISTOR
TR7537 SM.

ANUBIS A DEAD. LOPFX
ANUBIS A LOPTX SQUEAKED, SCAN COILS. CRT HAD TO BE REPLACED

AS WELL THEY COME AS AN ASSEMBLY.

ANUBIS A NO SND/MUTE, BC848 TRANSISTOR TR7156
ANUBIS A, 1991 SEE TV MAG MAY2001 HAVE CCT DIAG
ANUBIS B CTV HOTEL MODE ON: SET HOTEL ON IN SERVICE MENU.
ANUBIS B CTV SERVICE MODE PRESS BOTH VOL+ & P- ON RC. EXIT:

STANDBY.

ANUBIS B NO TEX, 27MHZ CRYSTAL.
ANUBIS B PROGRAMM 38. PRESS (3 SEC) BOTH INSTALL & P- ON TV.
ANUBIS B-AA ALARM LED FLASHES,"ER4" TEXT FAULT,27MHZ XTAL.
ANUBIS B-AA ALARM LED. FLASHING AND ER4 1701 27MHZ, FIT NEW

CRYSTAL.

ANUBIS B-AA GRAY LINE ACROSS. C2413 10NF
ANUBIS B-AA ST24C02P EEPROM OPTION C ON MENU.BARNLAS(CHILD

LOCK) OPTION A:FRAN

ANUBIS BAA DEAD C2540(2200UF25V).

ANUBIS LOPTX
ANUBIS LOPTX IF NOT BLACK.
ANUBIS S HOTEL MODE OFF: SELECT PROGRAMM 38. PRESS BOTH(3 SEC)

PR+ & VOL- ON TV.
ANUBIS S HOTEL MODE ON: SELECT PROGRAMM 38. PRESS(3 SEC) BOTH
STORE & PR- ON TV

ANUBIS_A LOPTX
ANUBIS_A DEAD WHINING LOPTX HAV CCT DIA.
ANUBIS_A NO LINE DRIVE R3444(HOT) LINE BURST LOPTX? AT2079/40

HR7488,

ANUBIS_A NO SND BC848 TR7156.
ANUBIS_A SNOW 10K+8K2 NR OPTO ISOL V/SMALL NO 30V.
ANUBIS_A, LO HT 40V(95VN) TR7537 BC848CSM.
ANUBIS_A, POWER SUPPLY REBUILD+OPTO TO CHOPPTX PIN 12 HARD

WIRED.

ANUBIS_AAC DEAD LOPTR BUT11A,SCANCOIL PLUG.
ANUBIS_AAC NARROW STRIP ONLY, IC7280(TDA3504).
ANUBIS_B NO TEXT 27MHZ XTAL.
BD438 TRANSISTOR TR7727
BOTTOM CRAMP C2575 4UF7.
BUT11A=1000V5A100W BUT12A=850V10A125W
C2602 10UF 63V NR LOPTX
C51GP2 GRANADA LOPTX=37741 HR7549/7503
C823 725
CE1557/05B CP90 AMNESIA 2.4 VOLT CELL
CE1557/05BCP90 WHISTLE LOPTR (2SC3973B) FITTED BUT11AF NO

REASON FOUND.

CE2640 2A
CF1 NO LINE OR FIELD SYNC, NO SND TDA2577A SYNC/TIMEBASE

GENERATOR CHIP.

CF1 ARCING EXCESSIVE EHT C2560 AND SET HT
CF1 BLANK RASTER NO SND C2147, A DISC CAP,
CF1 BLANK RASTER ONLY, C2147
CF1 BOTTOM CRAMP C2403(4U7F).
CF1 CHOPTR(BUT11AF) +R3291(10R)+CNX62(OPTO).
CF1 COLD STOPS, C2317 47NF
CF1 COLOR TDA3560/N6 +C2218(2U2F) FROM PIN5.
CF1 DEAD C2310(1.5UF) (ACROSS D6310)
CF1 DEAD C2310,D6310,OPTOCOUPLER C2317.
CF1 DEAD C2317 (47UF)
CF1 DEAD LOPTR(BUT11AF),R3503(220R),JOINTS LOPTX+DRIVER
CF1 DEAD NO 12V R3585 (110R)
CF1 DEAD TR7560 AND PINS TR7317 (CHOPPER) BUT111
CF1 DEAD WHISTLE LOPTR 2SC3795B(BUT11AF) RESOLDER LOPTX
CF1 DESTROYS T7317 (BUT111) C2310 BLUE CAP
CF1 FAILURE OF T7560 C2501(22NF) INT
CF1 FIELD COLLAPSE R3583 R3585(1R)
CF1 FIELD COLLAPSE TR7400/7401 PINS R3585(1R).
CF1 GOOD EHT NO RASTER R3585(1R).
CF1 HORRIBLE SQUEEL CROWBAR TRIPPED

C2123(47UF100V)+C2322(47UF100V)

CF1 INT CHOPTX PINS, TR7400 TR7401
CF1 INT DEAD CHOPPER TX PINS.
CF1 INT LINE SYNC, C2368 4.7UF FROM PIN 6 OF THE TDA2577A

TIMEBASE GENERATOR CHIP. IC7375.

CF1 LO HEIGHT 4.7UF FEEDBACK CAPACITOR C2430,
CF1 NO COLOUR, TDA3560/N3 COLOUR DECODER RESET CHROMA OSC
CF1 NO RASTER, EHT OK R3585 1R
CF1 POOR COLD LINE SYNC,C2368(4U7F) FROM PIN7 TDA2577A.
CF1 ROLLING R3379 AND C2377 10UF
CF1 ROLLING /FIELD SYNC 2377(10UF15V) NR TDA2577A.
CF1 ROLLING, C2377 10UF, 63V C2368 C2369 BOTH 4U7F.
CF1 TOO MUCH COLOR, TDA3560/N6 COLOUR DECODER C2218 2.2UF,
CF1 WEAK AND DISTORTED SOUND 820K HI, UNDER ON/OFF KNOB R2173
CFI DEAD. 1N5F PROTECTION CAPACITOR C2310 ACROSS THE BYD33M

190V RECTIFIER D6310

CFI STRIATIONS,LHS, C2484 (4.7UF),
CP110
CP110 FLASHING PIC,R3415(470K),R3412(180R) ON CRT BASE PCB
CP110 RAGGED VERTICALS C2633 100UF
CP110 SURGE/OFF DEGAUSSING POSISTOR
CP110 (EARLY VERSION) POOR/SLOW CONTRAST,C2670 AND C2621
CP110 24" SND ON VISION C2661 , RESOLDER TX
CP110 BLACKS OUT INT,R3415(470K) ON CRT BASE PCB.
CP110 BLANK RASTER "E" MICRO PRO.
CP110 BLOWS IN STBY REAPIR THEN MOD C2661 TO 2200UF REMOVE

C2657. R3658 120R R3659 100R

CP110 BOTTOM CRAMP R3572 1R5
CP110 BOTTOM HALF MISSING, R3572 (1R5 )
CP110 BU508A BURNUP C2611 +R3599(47R)+BF819 EW ON CRT BASE.
CP110 BUT11AF BRIDGE RECT TEA1039 R3658 120R R3659 100R C2657

1.5NF C2661 TO 2200UF, CNX62

CP110 BUT11AF FIT C2661(2200UF) IN PSU.
CP110 BUT11AF TEA1039 C2661 TO 2,200UF, REMOVE C2657 CNX62 ADD

39R ACROSS L5656

CP110 BUT11AF+TEA1039+D66576660(4*1N5061)+
CP110 BUT18AF CHOPTR D6612 D6614 D6646, D6649, TR7655, TR7656

TR7654
CP110 CHANNEL DISPLAY KEEPS GOING TO 'E': MICROCONTROLLE R
CHIP 7840 FAULTY.
CP110 CHOPTR(BUT11AF)
AGAIN,BRIDGE(1N5061),R3658(120R),R3659(100R)
CP110 CHOPTR(BUT11AF) AGAIN,TEA1039+C2661(2200UF),CNX62,ADD 39R
ACROSS L5656

CP110 COLD LINE TEARING C2633(100UF25V) LINE DRIVER DECOUPLER.
CP110 COLD NO PIC,C2621,C2370
CP110 COLD NO PIC/SND REPLACE CNX62A OPTOCOUPLER TR7670 IN

POWER SUPPLY.

CP110 DARK PIC C2621(22UF260V)
CP110 DEAD POWER KIT + 2.4V CELL.

CP110 DEAD ,C2656(150UF385V)
CP110 DEAD 1N4148 DIODE D6733, BESIDE THE MICROCONTROLLER

CHIP.

CP110 DEAD 300V OK, C2656
CP110 DEAD 300V OK,C2656 150UF, 385V.
CP110 DEAD BUT11AF TEA1039 R3659 100R R3658 120R
CP110 DEAD BYD33D D6672
CP110 DEAD CHOPPER +TEA1039+OPTO CAUSE=BD438 TR7727
CP110 DEAD CHOPTR ETC
CP110 DEAD COIL 5608
CP110 DEAD D6672(BYD33D)
CP110 DEAD F1 7739 IN PSU
CP110 DEAD F1 1A6 WICKMAN FUSE F1653 CNX62A OPTOCOUPLER
CP110 DEAD F1 7739 BC548.
CP110 DEAD F1 FUSE F1653 CNX62.
CP110 DEAD F1, NO SUPPLY AT PIN 12 OF THE SYNC/IF MODULE.
CP110 DEAD F1, OPTOCOUPLER IC7670
CP110 DEAD FUSE,A SMALL SUB-PANEL TR7691 BC368 AND D6691 18V

ZENER C2656 150UF, 385 V

CP110 DEAD LO 300V, C2656 150UF,
CP110 DEAD LOPTR THEN LOOKS LIKE LOPTX TDA2579+D6067 3V9

ZENNER.

CP110 DEAD LOPTR,3.9V ZENER DIODE D6067,
CP110 DEAD O/VOLT TRIP.WICKMAN 1653+CNX62
CP110 DEAD. HT OK, NO TUBE HEATERS, NO VOLTS ON LINE DRIVER.

R3628 6.8 OHMS OPEN CIRCUIT.

CP110 DISPLAY F1 TRANSISTOR 7739 (BC548) SHORT-CIRCUIT.
CP110 DYNATRON CTV114
CP110 EARLY CHASSIS ONLY DULL PIC LIKE TUBE C2670,C2621
CP110 EW R3599 47R
CP110 EW , BF819 TR7600 BC558, R3588 15K R3587 1K8 R3599 47R C2589

33UF,

CP110 EW R3599 47R T7600 BC558 T7601 BF819
CP110 EW RASTER CRT BASE .
CP110 EW RASTER,NO ADJUST,R3599(47R) ON CRT BASE PCB.
CP110 F1 7739 BC548
CP110 F1 DISPLAY ,FIELD COLLAPSE IC7675 PINS.
CP110 F1 FIELD COLLAPSE. 12V REGULATOR IC7675.
CP110 FIELD TDA3566
CP110 FIT 39R ACROSS L5656+REMOVE,C2657+C2661TO2200UF+DEGAUSE

POSISTOR+R3658+R3659+C2656.
CP110 FRAME COLLAPSE, REPLACE 3570 8.2K OHM WIRE WOUND
RESISTOR OPEN CIRCUIT.

CP110 FUSE BRIDGE RECT, RESERVOIR CAPACITOR 150UF 385V
CP110 HAVE CCT DIA 140V.
CP110 HT (140VN)LOW AT 60-70 VOLTS CHECK C2661 2200UF O/C.
CP110 IF CAN PATTERNING/NO TEXT, COIL L5082
CP110 INT DEAD BC337 LINE DRIVER TRANSISTOR TR7630
CP110 INT FIELD COLLAPSE 12V REGULATOR 7675 BEHIND TUNER.
CP110

INT PIC/POWER/FLASHING), DEGAUSS POS,CHOPTX.

CP110 INT POOR STARTUP/TRIPPING C2690(100UF50V) ON OVERVOLTS
SUB PANEL.
CP110 INT STOP/START, DRY-JOINT AT PIN 2 OF THE CHOPPER
TRANSFORMER

CP110 INT TRIPS TO STBY CHOPPER TX PINS.
CP110 JUNE 1993 PAGE 574 T/V MAGAZINE
CP110 LATER (TR7672 IN PSU) COLD POOR CONTRAST TR7672. C2670

C2621

CP110 LINE OUTPUT TRANSFORMER PTNO4822 140 10325.
CP110 LO HT C2690(100UF50V).
CP110 LOW POWER O/P PULSING, C2690(100UF50V) ON SMALL SUB

PANEL.

CP110 LOW POWER O/P PULSING, HT TO HI TRIPPING.
CP110 NICAM DISTORTION/OK IN MONO, REPLACE TDA1543
CP110 NO DISPLAY, LO 140V , 6V REGULATOR TRANSISTOR 7738 BC558
CP110 NO DISPLAY. 140V LINE LOW 60-80V: THE 6V REGULATOR

TRANSISTOR 7738 (BC558)

CP110 NO EW CORRECTION R3599(47R) ON CRT BASE.
CP110 NO PIC EHT OK, R3570 8K2
CP110 NO PIC EHT OK, R3570 82K
CP110 NO PIC SND PULSING / LO HT, 100UF HT +C2633(100UF) LINE DRV

FEED.

CP110 NO PIC/SND "F1" MICROPRO OR 7739(BC548.
CP110 NO SND TDA8190+R3102+R3672.
CP110 NO SOUND NO 25 VOLTS TO TDA8190 AUDIO OUTPUT IC,

CHECK/REPLACE 3672 1^
CP110 NO SOUND R3672(1R) NEAR CHOPPER TX CAUSE CHOPTX EARTH
PINS.

CP110 NO SOUND R3672(1R) NEAR CHOPPER TX CAUSE CNX62 ?.
CP110 NO START UP, LOW OR NO 14V TO PIN 9 OF IC7669 TEA1039,

CHECK C2656 150UF385V
CP110 NO/POOR REMOTE CONTROL C2967 (100UF, 10V) INSIDE THE
REMOTE CONTROL RECEIVER CAN.

CP110 PIC BLANKED EVERY SECOND,R3415 470K ON TUBE BASE PCB.
CP110 PIC BLANKS ON/OFF TDA3562A TR7413 R3415 470K CRT BASE PCB
CP110 POOR START C2690 100UF, 50V ON THE MAINS OVER VOLTAGE

SUBPANEL.
CP110 PSU LO/PULSING C2690 100UF, 50V THAT IS MOUNTED ON A
SMALL SUB PANEL
CP110 PSU1 BUT11AF TEA1039,BRIDGED ADD 39R ACROSS L5656.CUT
OUT C2657
CP110 PSU2 CHANGE C2661 TO 2,200UF,DEGAUS POSISTOR R3658 120R
R3659 100R, C2656 150UF, 385V

CP110 RAGGED VERTICALS C2633 (100UF)
CP110 RAGGED VERTICALS C2633 100UF, 25V,
CP110 RAGGED VERTICALS C2661(100UF) LINE DRIVER.
CP110 RAGGED VERTICALS, C2633 100UF
CP110 RAMDOM CHANNEL CHANGE, KEYBOARD FOIL, WHERE IT SLOTS

INTO THE SOCKET ON PCB
CP110 REPEATED FAILURE OF THE BUT11AF(7665)CHECK RESISTOR 3658

120R, AND 3659 100R

CP110 RHS TEXT, ROM CHIP UPD4364.
CP110 SEE PHILIPS2.TV.HTML
CP110 SLOW PIC C2670/2621 (22UF).
CP110 SLOW POOR PIC 22UF, 250V C2670.
CP110 SLOW START C2670 C2621. 100UF, 50V CAP MOUNTED ON A SMALL

PCB NR CHOPPERTX

CP110 SLOW START C2670/2621(22UF)+C2656(100UF50V).
CP110 SLOW START R3617 220K SM
CP110 SLOW/DARK PIC LO HT C2621 22UF, 250V,
CP110 SMALL DARK PIC 88, DIODE D6901 PROVED TO BE THE CULPRIT.
CP110 SND OK NO PIC CNX62A OPTOCOUPLER. TR7670,
CP110 SND OK, BLUE RASTER TR7405 BF432
CP110 STBY 100UF ON PULSING SMALL SUB-PANEL
CP110 T/TEXT FAULT RHS LETTERS UPD4364 .
CP110 TEA1039+CHOPPER.
CP110 WILL NOT START UP, D6672 BYD33D IN 32V LINE
CP110,EW RASTER CRTPCB,TR7600(BF819)+TR7601(BC558)
CP2605 K12Z
CP90
CP90 NO PIC NO A1'S LOPTX EHT OK
CP90 2.4V BATTERY
CP90 AMNESIA NICAD BATTERY
CP90 AMNESIA 2.4V BATTERY
CP90 AMNESIA 2.4V BATTERY.
CP90 BATTERY AGAIN C2901(22NF)
CP90 BLANK RASTER NO SND, DIODE D6733 BAV19
CP90 BRIGHT FIELD COLLAPSE R3623(8R2) NO VIDEO VOLTAGE.
CP90 BUT11A (7619) CAUSE C2619(1N5F),C2610(8N2F).
CP90 BUT11A

D6675(BYD33D),D6679(BYD33G)+C2679(1NF2KV)+TR7673(BC547),TR7674(B
C328)+D6676/77.

CP90 C2610 PINS BLOWS BUT11.
CP90 C2619 1N5(1KV) .
CP90 COLD INT CROWBAR TRIPS C2700(4U7F63V).
CP90 COLD PATTERN C2691 330UF, 25V
CP90 DARK PIC, C2495(33NF).
CP90 DEAD NO HT FROM PSU, LOPTX HR7503/36922
CP90 DEAD 3 BYW95B RECTIFIER D6695 400MA WICK MAN FUSE F1690
CP90 DEAD 95V OK22V LO C2691(330UF25V)
CP90 DEAD C2691 330UF, 25V
CP90 DEAD C2695 2.2NF, D6695,
CP90 DEAD C2695(2N2F)
CP90 DEAD C2875(330UF6V3).
CP90 DEAD D6665 1N4148 FROM OPTO
CP90 DEAD D6665 LEAKY(1N4148)
CP90 DEAD GOOD 95V , LOW 19V RAIL C2691 330UF .
CP90 DEAD GOOD 95V C2691 (330UF) , NO 5V LINE.
CP90 DEAD GOOD 95V NO 5V LINE TDA2579 IN IF CAN.
CP90 DEAD LOPTR SCAN COIL PLUG

CP90 DEAD LOPTX 36922=HR7503/HR7549
CP90 DEAD OPTO ISOLATOR CNX62
CP90 DEAD PSU WHISTLE,7701(BC548)
CP90 DEAD PULSING POWER, D6702(BZX79-F6V2)
CP90 DEAD TMP47C432 IC7840. OR C2934 AND C2935 BOTH 27PF
CP90 DEAD WHISTLE,T7701(BC548) LINE TIMEBASE.
CP90 DEAD WITH 95V OK,C2691(330UF25V).
CP90 DOT PATTERN IN GREY AREAS C2691 330UF
CP90 DULL PIC CRT RIMBAND CONNECTION.
CP90 FIELD BOUNCE TDA2579 IN IF/SYNC MODULE.
CP90 FIELD BOUNCE TDA2579 TIMEBASE GENERATOR CHIP IN CAN
CP90 FIELD COLLAPSE ,8R2 R3623 IN THE 163V SUPPLY WAS OPEN

CIRCUIT;

CP90 FIELD LOW HEIGHT,R3582(3R3).
CP90 FRONT BUTTONS NOT WORKING, 2V4 CELL AND LONG WARM UP.
CP90 HAVE CCT DIA.
CP90 HERRING BONE PATTERN C2691 330UF 25V.
CP90 HOT NO START,D6670(1N4148)
CP90 IF CAN PATTERNING/NO TEXT, COIL L5082
CP90 INT DEAD 47R IN POWER FEEDBACK LOOP.
CP90 INT DEAD MICROPRO.
CP90 INT FIELD /SLOW START BRILL IF/SYNC UNIT.
CP90 INT START C2700 4.7UF,
CP90 INT TRIPPING/PATTERN ON SCREEN C2691(330UF25V).
CP90 INT WHITE/FLYBACK LINES LOPTX PINS.
CP90 LINE LIN D6609/D6610 (READ OK BUT DUFF).
CP90 LOPTR(BUT12A) CAUSE C619(1N5F1KV)
CP90 LOPTX 3693379/10 HR7503=3692379/10
CP90 LOPTX, TR7876 TR7878 330UF, 6V C2875
CP90 LOPTX.
CP90 LOPTX= TF022
CP90 LOPTX= TF022 HR7503 OR TRIPPING REDUCE HT TP 90V.
CP90 LOW CONTRAST C2495(33NF) FROM PIN7 LOPTX.
CP90 MICRO PRO ? QUICK TEST IS TO SHUNT A DIODE ACROSS STBY

THYRISTOR THY6726

CP90 MIDDLE LINE FOLD EW DIODES D6609 D6610. READ OK
CP90 MOD SOUND BUZZ 1103, THIS IS A 3 PIN FILTER
CP90 NO CHAN DISLAY C2875 6.3V 330UF IN THE 6V SUPPLY LINE,
CP90 NO COLOR TDA3561A+C2278(22NF) LEAKY.
CP90 NO LED DISPLAY HT OK C2691 330UF, 25V
CP90 NO LEDS /HT OK C2691(330UF25V) ON 19V LINE.
CP90 NO LINE DRV, 330UF, 35V CAP C2691
CP90

NO PIC NO A1'S LOPTX

CP90 NO PIC SND OK,CRT HEATER L5473
CP90 NO PIC/SND D6733 BAV19
CP90 NO PIC/SND EHT OK,C2098(1UF)+TDA2541.
CP90 NO START TY6696+ZENNERS.
CP90 PATTERN C2703 C2691 IN PSU. BOTH 330UF ELECTROLYTICS.
CP90 PIC FLUTTE GOOD HT C2638(470UF16V)ON +12V LINE.
CP90 PIC FLUTTER (MOSTLY TOP) IF CAN ELETROLYTICS.

CP90 PIC FLUTTER GOOD HT C2638(470UF16V)ON +12V LINE.
CP90 PIC FLUTTER, 470UF 16V ON +12 LINE
CP90 POOR CONTRAST CRT, RIM BAND HAD COME ADRIFT.
CP90 POOR CONTRAST POT AT REAR BROKEN .
CP90 POOR CONTRAST POT AT REAR BROKEN /NEDD 3V AT PIN 7

TDA3561A.

CP90 POOR HOT START D6670 1|N4148
CP90 POOR REMOTE TDA3047 IR RC RECEIVER CHIP.
CP90 POOR STARTUP 95V IS 1V5C2700 4U7F
CP90 POSISTOR+4R7+C2679(2N1F2KV)+BUT11AF/HSINK ISOL.
CP90 RC HT(95V) AT 20V ISH STILL IN STBY
CP90 RC NO DISPLAY C2875 (NO 5V TO TRANSISTOR EMITTERS)
CP90 SEE PHILIPS2.TV.HTML
CP90 SEVERE FLUTTER,CAPS IN IF CAN C2044, C2098 BOTH 1UF, C2067

10UF,

CP90 SEVERE PICTURE FLUTTER. C2638 470UF, 16V,
CP90 SLOW PIC C2265 0.1UF FROM PIN 24 OF THE TDA3561A COLOUR

DECODER CHIP IC7260.

CP90 SLOW PIC C2265 FROM TDA3561.
CP90 SND HUM C2102(470UF25V) C2113(470UF25V)
CP90 SND INT CF1103 L5108
CP90 SOUND-ON-VISION. C2691 IN PSU 330UF, 25V ELECTROLYTIC
CP90 STBY DIODE D6934
CP90 STBY, 2.4V BATTERY
CP90 STRANGE DOT PATTERN C2703 C2691 IN POWER SUPPLY.
CP90 TOP FLICKERS (FLAG WAVING)

C2044+C2045+C2073+C2087+C2093+C2098 IN IF CAN.

CP90 V LO HEIGHT R3582 3R3
CP90 WHISTLE LOPTR (2SC3973B) FITTED BUT11AF NO REASON FOUND.
CP90 WHISTLE LOPTR BUT12A +RESOLDER ALL LINE AREA
CP90 WIDTH CHANGES WITH BRILL R3665(4R7)+D6665 +OPTOCOUPLER.
CP90 WIDTH FLUTTER C2619(1N52KV).
CP90 WIDTH FLUTTER, C2691 1.5NF, 2KV, TUNING CAPACITOR IN THE

LINE OUTPUT STAGE.

CP90 WIDTH/BRILL R3665 4.7OHM CNX62 OPTOCOUPLER.
CP90 WON'T STOP TUNING LINE OSC IN IF/CAN.
CS1234 K30
CS1250 K30
CS3890 K35
CT2006 CTX
CT2206 CTXE
CT2309 NO PIC/SND HISS R3586(2R2),LOPTX PINS
CT420 G11
CT450 G11
CT451 G11
CT452 G11
CT453 G11
CT454 G11
CT455 G11
CT456 G11

CT457 G11
CT462 G11
CT464 G11
CT467 G11
CT474 G11
CT480 G11
CT481 G11
CT483 G11
CT484 G11
CT492 G11
CT493 G11
CT494 G11
CTV105 CP90
CTV111 CP90
CTV114 CP110
CTV117 CP110
CTV121 CP90
CTX
CTX NO TUNING MEMORY. BATTERY WAS FLAT
CTX 20" NO SND SPEAKER U/S
CTX COLD NO COLOR, TDA3560 COLOUR DECODER CHIP'S HOLDER.
CTX DEAD R3394 OR R3395 27K
CTX DEAD 300V OK, C2323 220UF, 10V.
CTX DEAD LOPTX PINS
CTX DEAD R3317(100K),TR7322(BC548),C2395(100UF)
CTX DEAD R3394/R3395(27KR2W5)
CTX DEAD, 300V OK, C2323 220UF, 10V.
CTX DEAD. 320V OK BUX84 BF422 TR7353 TDA2577 IC7375 C2395 100UF
CTX FIELD COLLAPSE TDA3651A
CTX LINE TEAR C2378(1UF)
CTX LOPTX PINS+ 2R2 FUSIBLE RESISTOR R3585 HAS GONE OPEN
CTX NO CHANNEL LED R3785, 8K2 ON UPRIGHT PANEL.
CTX NO SND ,R3170+C2182
CTX NO SND SPKR .
CTX NO SND/PIC EHT OK,2.4V CELL.
CTX NO/POOR COLOR,TDA3560
CTX PATTERNING , 6MHZ FILTER
CTX POOR CONTRAST C2565 0.039UF NR LOPTX
CTX PYE 42KT2142/05T COLOUR PATTERN COIL 5153/5150 TOKO TYPE

91792.

CTX. NO BRIGHTNESS OR COLOUR MEMORY. M5840A CHIP.
CTXE
CTXE 14CT2206/25S NO SEARCH STOP LM339N QUAD OP-AMP IC7830 ON

THE VST PANEL

CTXE AMNESIA 2.4V BATTERY 1777
CTXE AMNESIA 2.4V BATTERY.
CTXE DEAD 5600/2KV DISK CERAMIC.
CTXE DEAD BU508A LOPTR TDA2577
CTXE DEAD BU508AF LOPTR TR7562
CTXE DEAD BU508AF LOPTR TR7562+LOPTX PINS+C2567, C2351 4.7UF

R3351 220R

CTXE DEAD CHOPPER 2SC2738+LOPTX HR6096.
CTXE DEAD NO CHOPPER DRIVE T7353(BF422).
CTXE DEAD TWO 27K, 2.5W R3394 AND R3395,
CTXE DEAD, NO 125V BF422 DRIVER TR. 7353
CTXE DEAD/LOPTX NOISE, C2351 4.7UF.
CTXE EHT ARCING THEN DEAD T7322(BC458 )
CTXE INT PIC/TICKS EHT CAP/LEAD
CTXE LINE TEARING/PULLING ON VCR AGC. PRE-SET R3144.
CTXE LO HT,T7322 BC548
CTXE LO WIDTH/EW R3483 6R2
CTXE NO COLOR,COLOR CAST,10R R3222
CTXE NO PIC R3585 2R2 + LOPTX PINS
CTXE NO PIC RADIO SOUNDS/ FRAME COLLAPSE 2R2 R3585 .
CTXE NO PIC/ODD/FILED COLLAPSE 2R2 R3585
CTXE NO SEARCH STOP LM339N.
CTXE NO SND R3170 3R3
CTXE NO SND, R3170+CHIP
CTXE NO SND/PIC/EHT OK,R3327 120K
CTXE RAGGED VERTICALS. FAULTY EHT. LEAD/CAP.
CTXE SEE PHILIPS2.TV.HTML
CTXE TRIPPING D6564 BY448 D6482 BYV95B
CTXE TRIPPING D6564 BY448 AND D6482 BYV95B
CTXE TRIPPING D6564(BY448)+D6482(BYV95B).
CTXE TRIPPING D6583 WAS SHORT.
CTXS
CTXS BLANK RASTER SND OK C2565 0.039UF
CTXS BLANK RASTER SND OK, R3565(36K) BEAM LIMITER
CTXS BURNUP PCB NR LOPTR.
CTXS CHOPTR+TR7330 +TR7331+ R3334/7/8 L5355
CTXS HI BRILL LINE SPEED TDA2540 PINS AND THE IF. COILS.
CTXS LO POWER TR7322 BC548 AND TR7323 BC558.
CTXS NO COLOR C2218 2.2UF, 63V IT'S BETWEEN PINS 4 AND 5 OF IC7192.
CTXS NO COLOR TDA3560+C2218(2U2F63V).
CTXS NO GREEN UNPLUG/REPLUG TDA3560/TDA3561A.
CTXS TRIPPING,HORRIBLE PIC BANDS,NO COLOUR

C2205(4U7F),C2351(4U7F),C2323(220UF10V)

D14GY1 NC3CR
D14KP3 CP90
D14KP4 NC3CR
D16 28DC2070/25R COLD NO COLOR/POOR SYNC ELECTROLYTIC CAPS IN

THE IF MODULE

D16 CHASS NO COLOR X1207 ON DIGVID BOARD EXCHANGE UNIT.
D16 CHASSIS L5251 ON DIGVID BOARD.
D16 RANDOM OSD,INT NO PIC, CRT BASE PANEL, FOCUS SPARK GAP
D16 STBY,TEXT,RGB LEDS FLASH CHECK

TR7130COL,D6502ANODE,TR7495COL,TR7425EMIT ALL=0 WHEN OK.

D36EP1 CP90
D36FY5 CP90
D36GP5 CP90

D36GP6 G90AE
D41FP2 CP90
D51EP2 CP90
D51EP4 CP90
D51EP5 CP90
D51FP3 CP90
D51FP4 CP90
D51FP5 CP90
D51FP6 CP90
D51GP2 G90AE
D51GP5 G90AE
D51GY4 G90AE
D51HY2 G90AE
D51JP4 G90AE
D51KP6 CP90
D59EP2 2B
D59EP3 CP110
D59EP6 CP110
D59EPC CP110
D59FP2 CP110
D59FP3 CP110
D59FP4 CP110
D59FP5 CP110
D59FP6 CP110
D59FY5 CP110
D59GP4 CP110
D59HY5 CP110
D59JP4 CP110
D59JP6 GR2.1
D66EP4 CP110
D66EP5 CP110
D66EP6 CP110
D66FY5 CP110
DEAD BUT11A CHOPTR CNX62 OPOTO R3664 150R, 5W D6664 BYD33J

C2664 1N5F, 2KV.

DYNATRON 25628IR G110 SCRAP IT.
FL1.0 DEAD LOPTR,LOPTX ,SCANCOIL PLUG
FL1.0 DEAD R3250(68R)+
FL1.0 DEAD TR7542
FL1.0 DEAD, STBY PSU,TR7201 TR7250 TR7251 D6251(5V6ZZD),R3250
FL1.0 NO SND TDA3856 IN IF/MODULE.
FL1.0 STBY LOPTR BU508AF SCAN COIL CONNECTOR
FL1.0 TRIPPED, T7542 IN THE PROTECTION CIRCUIT
FL1.0 TWEET/STBY TR7540/TR7542
FL1.0AA CHASSIS NO OFF AIR SOUND,TDA3856 IN IF/TUNER MODULE
FL1.1 ALL LEDS LIT, FRONT CONTROL PANEL ,AVAILABLE ONLY AS A

COMPLETE REPLACEMENT PANEL.

FL1.1 CHASSIS STCK IN STBY, PINS L5521.
FL1.1 DEAD, C2504 BLUE, DISC-CERAMIC 1NF.
FL1.1

STBY,LEDS FLASH,L5521.

FL1.1 STBY,TRANSISTOR 7542 AND 7540 BC858C.
FL1.1 WARM LHS WIDTH, LINE DRV TX PINS, WIRE ROUND EACH PIN
FL1.10 SEE TV MAG NOV 2000
FL1.10 AA BU508AF+TR7512/7513 CAUSE SCAN COIL PCB ARCING
FL1.10 DEAD RED LED LIT, LOPTX PINS,LINE DRV TX PINS.
FL1.10 DEAD, R3252(220K).
FL1.10 INT STBY,HI HT 140VN, R3374 75K ON MODULE
FL1.10 LOPTR,C2504.
FL1.10 MAINS ON,THEN TOUCH S24/S25 TO RESET SERVICE MODE.
FL1.10 NO SYNC R3509(100K).
FL1.10 NO TUNIMG, R3240(100K).
FL1.10 POWER TEST DISCON LL5511,FIT 100W BULB,AND SERVICE

DEFAULT MODE.

FL1.10 STBY 11, LO 5V, D6266(6V8ZD),D6272(5V6ZD).
FL1.10 STBY 99 ,TDA1512Q/N2.
FL1.10 STBY, TR7380 TR7480 SCAN COIL JOINTS,D6516,R3516
FL1.10 STBY/TRIP TDA1521 SND
FL1.1AA INT STBY,18V ZENER DIODE D6376
FL1.1AB CHOPPER USE KIT 48822 310 31919+BOTH ON4673+C2504.
FL1.1AB DEAD FUSE KIT 4822 310 31919+ TR9544/9545 ON4673 C2504

1N5F2KV,

FL1.2
FL1.2 STBY, L5381 Q7010 Q7512 AND Q7513,LOPTX, BDT60F Q7610
FL1.6 DEAD ALL LEDS FLASHING L55212 NR LINE LIN COIL
FL1.6 DEAD. FUSE BUT12AF CHOPTR TR7216 +RESOLDER ALL TX'S
FL1.6 DIGITAL , CHOPTR BUT12AF .
FL1.6 ERRCODE 99, C2523(8N2F2KV).
FL1.6 HOT STOPS/FLASH MUTE C2523 (8.2NF, 2KV)
FL1.6 INT RASTER LOPTX PINS.
FL1.6 NO SYNC PIN 6 OF RIBBON CABLE H.S20. PRINT CRACK EDGE OF

THE BOARD.

FL1.6 POOR OSD/TEXT,EEPROM 24C04B1 OPTION 2=103
FL1.6 SERVICE MODE ,TOUCH S23/S24 TOGETHER, D TO STORE
FL1.6AA 2 OPTION 1: 74 OPTION 2: 101 OPTION 3: 0 OPTION 4: 0
FL1.7 POOR OSD/TEXT,EEPROM 24C04B1 OPTION 2=39
FL1.7 SERVICE MODE ,TOUCH S23/S24 TOGETHER, D TO STORE
FL1.7 SERVICE MODE ,TOUCH S23/S24 TOGETHER, D TO STORE
FL1.7AA INT BLACKOUT L03 PINS AREA.
FL1.9 / 1.1AD NO NICAM SND. 10MZH CRYSTAL, X1602.
FL1.OAA NO OFF AIR SND, TDA3856 CHIP IN THE TUNER/IF MODULE
FL2.24 DEAD RED LED,C2504(2N2F3KV)
FOR A SET THAT GOES INTO STANDBY AT SWITCH-ON. CHECK AND

REPLACE 1.2V BATTERY

G11
G11 ROLLS WHEN HOT C2049(15UF).
G110
G110

T/V MAGAZINE DEC 1995, P106 AND NOV 1996 PAGE 18

G110 WORKS WITHOUT TEXT PANEL FITTED.
G110 1 IN BAND DOWN LHS TR7594+TR7593+C2593+C2594(10UF).
G110 25GR9763/25B DEAD BUT11AF , CNX83A, BC368 FUSE

G110 C2546(8N22KV)+T1534+TR7533.
G110 C2593 C2594 (10UF25V) BLOW CAUSE T7593(BC858+T7594(BC848).
G110 CHOKE L5619(3U9H) CAUSES BLOW UP,BUT18AF+R3619 KIT ES7059.
G110 DEAD 390NF C2550, C2545 (I.2NF, 2KV CERAMIC DISC)
G110 DEAD 148V LOW AT 20V LOPTX.
G110 DEAD BUT18AF,REPAIR KIT+TR7654(BC817)+ADD 2 BYD73B ACROSS

B/E OF CHOPTR

G110 DEAD BUZZING HT OK WITH LINE OP DISC LOPTX.
G110 DEAD CHIP RESISTOR R3619 IN PSU
G110 DEAD CHOKE L5619 (3.9UH) BUT18AF 10R CHIP RESISTOR R3619
G110 DEAD CHOPTR,FIT THE SBC7020 KIT
G110 DEAD FROM STBY, 20V ZENER DIODE D6657.
G110 DEAD LOPTR(BU2508AF)+LOPTX(HR6213/37554)+DRVRTX PINS.
G110 DEAD LOPTX
G110 DEAD LOPTX, D6657 LLZ-C20,ZENER
G110 DEAD LOPTX/LOPTR BU508AF/C2550 390NF/C2545 1N22KV).
G110 DEAD LOUD BUZZING LOPTX
G110 DEAD POWER SUPPLY DESTROYED BY R3619 PINS.
G110 DEAD PSU REPAIR KIT
G110 DEAD VLO HT, C858 SM TRANSISTOR Q7284 IN AUDIO PROTECTION
G110 DEAD VLO HT, LOPTX+TR7533 6N8F CHIP CAP C2526 IN THE EW
G110 DEAD WITH BUZZ C2550 LARGE BLUE 390NF250V.
G110 DEAD/PURR, 10K WIDTH CONTROL R3525
G110 DISCONNECT THE ELECTRONIC TRIP TR7656/7655 BY REMOVING

R3660.

G110 EXCESSIVE WIDTH 6N8(C2526)50V LEAAKY.
G110 EXTRA POWER SUPPLY MOD KIT (ES7059) 4822 310 10708 USE WITH

SBC7020.

G110 F2 DISPLAY INT NICAM BOARD PINS
G110 FIELD COLLAPSE TR7502 .
G110 HT=140VN
G110 IF LOPTX CHECK C2550 (390NF).
G110 INT BLANK RASTER/ODD TEXT SAA5231 HOT, L5803.
G110 INT DEAD PIN 18 LOPTX.
G110 INT PIC/NO TEXT, R3917,
G110 INT START/NO STBY 7656/7655,20V ZENER D6657
G110 LINE SHIFT/BLACK VERTICAL BAR, C2460 FROM PIN 12 OF THE

TDA2579

G110 LINES/BLANKING SAA5231 TELETEXT PROCESSOR CHIP IC7830
G110 LOPTR +C2550 390NF250V .
G110 LOPTR CAUSE DRIVER TX PINS 2SD1577.
G110 LOPTX SC CAUSE R3525(10K) EXCESSIVE WIDTH.
G110 LOPTX+D6657(LLZC20).
G110 LOPTX.
G110 LOPTX=37554=HR6213
G110 NICAM AV SWITCHING, TMP47C634-2676
G110 NICAM CHOPTR,LOPTR, C2546 8N2F,2KV.
G110 NICAM DEAD HT OK C2564 8N2F
G110 NICAM FIELD BOUNCE AND ROLLING ,C2465 220UF, 16V.
G110 NICAM LHS DISTORTED TDA1543.

G110 NICAM, ROLLING C2465(220UF16V).
G110 NO EW CORRECTION. 315MA WICKMAN FUSE T1534, TR7533.ZENER

D6561

G110 NO PIC OR SND WICKMAN FUSE(1A) FROM PIN5 OF LOPTX
G110 NO PIC/POOR SND/LO HT C2633 100UF IN PSU SUB-PANEL
G110 NO SND F2, D6661 ON THE COMPONENT SIDE OF THE MAIN PCB
G110 NO SND, TDA8415
G110 NO SND. IC7100 TDA8415
G110 NO SVHS IC7905 HEF4053.
G110 NO TEXT. RESOLDE SURFACE MOUNTED LINK IN THE 12V SUPPLY

LINE ON THE TEXT PANEL.

G110 NO TEXT/PIC BLANKING/LINES SAA5231 IC7830.????.
G110 ONLY CLOSE REMOTE , C2967 100UF IN REMOTE CONTROL

RECEIVER CAN.

G110 POOR FIELD LIN, C2509(2U2F50V)
G110 POOR FIELD LINEARITY C2509 2.2UF, 50V
G110 POWER SUPPLY BLOWN, ORDER 2 REPAIR KITS+R3616(100R)+TWO

WEEKS.

G110 POWER SUPPLY MOD KIT (SBC7020) 4822 310 20489
G110 SLOW START R3617(220R) SM
G110 SND OK NO PIC R3375 180R ON TUBE BASE PANEL TEA5101A/P RGB

IC7465

G110 SOUND OK,NO PIC R3375 180R ON CRT BASE=TEA5101A IC7465.
G110 TEXT TOP WAVING C2829(47UF) ON T/TEXT PANEL.
G110 TMP47C634N(IC7720) F DISPLAYED AND LED BLINK.
G110 VCR PB FLAG WAVING C289 47UF, ON THE TEXT PANEL.
G110 WARM CYAN FLASH, R3415 470K
G110 WIDTH VARIATIONS. R3525, 10K PRESET
G110 WIDTH VARIES R3525 10K PRESET GOES HI.
G110 WIDTH VARIES WITH BRIGHT C2526 (8N2) LEAKY OR WIDTH

PRESET.
G110 WONT REMOTE STBY, OK IF SWITCHED OF AND ON 20V ZENNER
D6657

G111S DISPLAY F1 F6 DJS BOTTOM NICAM MODULE ABOVE MAIN PCB
G20657 G11
G20C560 G8
G20C655 G11
G22C566 G11
G22C567 G11
G22C569 G11
G22C655 G11
G22C657 G11
G22C660 G11
G22C661 G11
G22C662 G11
G22C663 G11
G22C664 G11
G22C665 G11
G22C666 G11
G22C667 G11

G22C700 G11
G22C701 G11
G22C702 G11
G22C703 G11
G22C705 G11
G22C706 G11
G22C707 G11
G22C708 G11
G26C672 G11
G26C674 G11
G90 ,TRIPPING D6656(33V)*3.
G90 DEAD LOPTR H/SINK PINS.
G90 F7 NO TEXT C2843 220UF OR TMP47C434N-3555,
G90 GRANADA G51GP4 O/VOLT TRIPPED 33V ZENER DIODE D6656, D6653
G90 HI CONTRAST R3570 8R
G90 INT COLD LOCKUP ERR CODE F7 (TEXT FAULT) C2843(220UF25V).
G90 INT SND D6272 BAS32 SM,
G90 LOPTX FIZZING TDA2579A
G90 NO LINE DRV D6455.(BZX55F5V6). TR7455 (BC858).
G90 NO LINE DRV D6455 BZX55F5V6 TR7455 BC858
G90 NO TEXT F7 OSD , C2843 220UF DRIED UP.
G90 SNOWY PIC R3001 15R
G90 TO HI TEXT CONTRAST,RESOLDER ALL TEXT PANEL CONNECTORS.
G90 WARM STOPS,BC557C TR7652
G90 WEAK/NO SOUND D6272/D6278(BAS32).
G90AE

G90AE
G90AE BUT11AF CHOPTRR 7625 FIT KIT SBC7023, PART NO. 4822 310 20496
G90AE ,PSU REPAIR KIT+TR7654(BC847C).
G90AE 15" POOR FOCUS CRT BASE SOCKET LEAKY
G90AE 21GR2552 DEAD 47UF, 250V C2630/31.
G90AE BIG PIC /HI HT R3668 150R 7652 BC557C CNX83
G90AE BIG PIC,HI HT. R3668(150R),TR7652(BC557C)+CNX83
G90AE BLANK RASTER OSD/TUNING BAR OK.
G90AE BLANK RASTER, D6326: C2560 33NF WAS OPEN-CIRCUIT.
G90AE BLANK RASTER, FLY BACK LINES, PIN 8 IC TDA3561A HIGH,

REPLACE 7869 BC848 SM

G90AE BLANK RASTER, NO SND, IC7720 TMP47C434N-3555.
G90AE BLANK RASTER, TELETEXT OK, C2560 33NF
G90AE BLANK RASTER, TELETEXT OK. C2560 33NF
G90AE BLANK RASTER/TEXT OK,C2560(33NF)
G90AE BLOWS LOPTR TDA2579B (TDA2579A) RAGGED WIDTH.
G90AE BRIGHT RASTER POOR FIELD LIN, R3570 8.2
G90AE BUT11AF FIT MOD KIT SBC7023.
G90AE BUT11AF REPAIR KIT [4822 310 20496]+R3668(150R)+D665/7/8/9 .
G90AE CHOP BUT11AF +TR7615(BC858CSM) +D6623(LL4148SM).
G90AE CHOPPER ETC + D6624 AND D6622. NEXT TO POSISTOR
G90AE CHOPTR(BUT11AF) AGAIN,CNX83.
G90AE COGGING DOWN SIDES OF PIC 47UF, 160V C2631 C2631
G90AE COGGING PIC 47UF160V C2630/31.

G90AE COLOUR-KILLER IS OVERRIDE (470R PINS1 AND 6 TDA3561A

IC7350)

G90AE DEAD 2AT CAUSE DEGAUSS POSITOR
G90AE DEAD CHOPPER MOD KIT PC31020496(CPC).
G90AE DEAD D6653(BAS32)
G90AE DEAD FUSE +C9602/C2625(2800PF1KV) NEXT TO CHOPTR.
G90AE DEAD LO HT AT 50V(95) HI HT ON VARIAC, D6653(BAS32).
G90AE DEAD LO HT, D6653 BAS32
G90AE DEAD REPAIR KIT / FORGET IT.
G90AE DEAD REPAIR KIT+D6611/6613/6614 BAS32.
G90AE DEAD SFOR5D43 THY6670 D6669 (BAS32)
G90AE DEAD THY6670(SFOR5D43) .
G90AE DEAD TICKS R3668 7652 C2630 47UF
G90AE DEAD TICKS R3668 150R TR7652 BC557C C2630 47UF
G90AE DEAD TICKS,R3668,TR7652,C2630(47UF)
G90AE DEAD,PULSING,Q7502
G90AE DEAD. BUT11AF CAUSE CRACKED PRINT AROUND SECONDARY

SIDE CHOPPER TRANSFORMER.

G90AE DEGAUSS POSISTOR 2K4/30R PS11640137.
G90AE EXCESS BRILL LO VIDEO HT(90V) 163V NORMAL R3570(8R2).
G90AE EXCESS BRILL LO VIDEO VOLTS,R3570(8R2)
G90AE F4/F7 MICRO PROC CHECK 630MA WICKMAN FROM LOPTX.
G90AE F7 AND LED PULSING NO SOUND GOOD PIC
G90AE F7/P1 NO SND C2843 220UF 16V
G90AE FAST TRIPPING TR7652(BC557C).
G90AE FIELD COLLAPSE R3501(390R)
G90AE FIELD COLLAPSE, WICKMAN FUSE + R3501 390R
G90AE FLUTTER NOISE LO HT 40V LOPTX=37741=HR7549.
G90AE GREEN LED GOOD 95V R3580/81 NO 22V LOPTX 37741 HR7549/7503
G90AE GROTTY PIC/SYNC TDA5850 .
G90AE HO PIC DARKENS IC7720
G90AE HOT CHAN 1 STICKS,EEPROM NEXT TO MAIN CPU CHIP.
G90AE HOT OSD LOCK UP/FUNNY OSD'S TMP47C434N3555
G90AE HOT,NO REMOTE F4 OR F7. IC7720
G90AE HR7549=37743+TDA2579B (TDA2579A WORKS).
G90AE INT COLOR F4, MICROPRO IC7600+IC7601.
G90AE INT LINE COLLAPSE(FLUTTER) RESOLDER ALL SM'S ON

SECONDARY OF PSU.
G90AE INT SND, D6272 (BAS32 SM),IN 20V LINE TO TDA8191 SOUND CHIP
IC7220.

G90AE INT TUNER DRITT ZTK33B REGULATOR D6770
G90AE INT TUNING DRIFT 30V REG(TAA550) 6770 NR FTUNE+ BUTTON.
G90AE INT TUNING DRIFTS, REPLACE D6770 ZTK33B 33V ZENER.
G90AE LO 90V(30V),D6653(BAS32) .
G90AE LO HT,LOPTX HR7503
G90AE LO/INT SND TDA8191 CHIP IC7220. AND/OR D6272 AND D6278

BOTH BAS32,

G90AE LOPTX=HR7503/HR7549 37742.
G90AE LOUD SQUEAL REST

OK,R3614(360K)+R3618(180K)+R3620(180K)+C2630(47UF).

G90AE LOW EHT /FIZZY LOPTX=TDA2579A.
G90AE LOW GAIN R3001.
G90AE MOTORBOATING NOISE LOPTX HR7549.
G90AE NO 90V TO LINE OP, CRACKED PCB AT PCB EDGE.
G90AE NO BLUE. DIODE D6416 BAS32
G90AE NO CHAN CHANGE "F7",C2843(220UF16V)
G90AE NO COLOR C2359(100NF)
G90AE NO COLORS UNLOCKED C2359 100NF IN REFERENCE

OSCILLATOR'S APC LOOP.

G90AE NO PIC AI'S LOPTX 37741 HR7549/7503.
G90AE NO PIC NO CRT HTRS LOPTX
G90AE NO PIC/SND/OSD MICROPRO'S RESET LINE STUCK , IC7720,

TMP47C43N-3555
G90AE NO SND F7 TMP47C434N-3555 MICROCONTROLLER IC7720 AND/OR
EEPROM OR 22UF C2661.

G90AE NO SND TDA8191
G90AE NO SND/F7 TMP47C434N3555+EEPROM+C2661(22UF).
G90AE NO STBY 153R RESISTOR NEXT TO CHOPPER TRANSFORMER
G90AE NO STBY D6669(BAS32).
G90AE NO SYNC TDA2579 OR TDA5850.
G90AE NO SYNC TDA2579.
G90AE NO TEXT F7 SHOWING C2843(220UF) NR LOPTX P1 8.7V FEED TO

5V REG.

G90AE NO TEXT/INT BLANKING 2833, 2829, 5803 COIL,
G90AE NO TUNING, LOSS OF STORED DATA D6770 30V REG.
G90AE NOISY PSU R3614 360K, R3618, R3620 BOTH 180K C2630 47UF. C2630
G90AE NOT STOPPING ON TUNING SEARCH REPLACE 7088 BC848 SM
G90AE ONLY TWO COLORS BAS32 D6416,D6426,D6406
G90AE OVERIDE COLOR KILLER ADD 470R ACROSS TDA3561A PINS 1-6
G90AE POOR CONTRAST C2560 33NF FROM PIN 7 OF LOPTX
G90AE POOR CONTRAST C2560(33NF) FROM LOPTX.7
G90AE POOR FOCUS , CRT SOCKET GREEN INSIDE
G90AE POOR TEXT LONG LINKS ON MAIN PCB NR TEXT BOARD.
G90AE POWER SUPPLY SHUT DOWN. DIODE 6653 BAS32
G90AE RAGGED PIC /DIM C2640(680UF)+C2580(470UF).
G90AE RAGGED VERTICALS 47UF C2630
G90AE RAGGED VERTICALS C2630(47UF250V)
G90AE RAGGED VERTICALS, REPLACE HT RESERVOIR CAPACITOR C2630

47UF.

G90AE REDUCED HEIGHT WITH TOP FOLD-OVER. R3508 24K
G90AE SEE TV MAG JAN 1997
G90AE SERVICE KIT SBC7023(SEME RK70G).
G90AE SHUTS DOWN WITH TICKING NOISE FROM POWER SUPPLY, R3668

150R HOT, TR7652 BC557C
G90AE SND MUTED, NO CHAN CHANGE & F7 ON SCREEN, CAP
2843(220UF16VOLT).

G90AE SND PLOP ONLY C2630/31(47UF250V).
G90AE SNOWY RASTER, MICRO LOCK OUT C2661(22UF),R3664(8R2) IN

PSU

G90AE START/UP A BLANK SCREEN EX 2 P1 TMP74C434N-3555

G90AE STBY LOPTX(HR7503) 21"
G90AE TUNER DRIFT D6770(TAA550) 30V REGULATOR
G90AE TUNER DRIFT NO STORE X2402 EEPROM PUT MATTERS RIGHT.
G90AE TUNER DRIFT X2402 EEPROM
G90AE TUNER DRIFT/WONT STORE X2402 EEPROM.
G90AE TUNING DRIFT OR NO SIGNALS THOUGH OSD GREEN BAR OK:

ZTK33B D6770.

G90AE WARM CRT ARCING INSIDE CRT SOCKET.
G90AE WARM FINE DARK LINES,U743 TUNER
G90AE WARM FINE HORIZ LINES /LINE TEARING =TUNER UNIT U743 .
G90AE WARM TRIP TR7652(BC557C) SECONDARY OF PSU.
G90AE WARM TRIP, TR7652 BC557C ON SECONDARY SIDE OF POWER

SUPPLY.

G90AE WEAK BROKEN UP PIC TDA5850
G90AEBLANK RASTER,NO OSD MICROPRO TMP47C434N-3555

G90B
G90B DEAD C2545(1N5F3KV).
G90B LO HT C2660(680UF16V).
G90B LOW GAIN R3001.
G90B SLOW SND, C2846 220UF, ON TEXT PANEL
G90B SLOW START PIC, C2660(680UF) LOW 9V TO 5V REG.
G90B SND/TEXT SLOW START C2846(220UF).
G90B WARM NO TEXT SAA5243P/E.
G90B WARM, NO TEXT SAA5243P/E TEXT-PROCESSING
GOODMANS 256NS/05 L6.2 BU1508AX LOPTR ON SIDE OF DAUGHTER

BRD.

GR 2.1 POOR RASTER GREEN LED WAS FLASHING, AUDIO OUTPUT CHIP.
GR1-AX STBY C2631 22NF,
GR1AX
GR1AX DEAD 12V ZENER DIODE D6030
GR1AX NO SND OR RASTER. 95V HT OK,COIL L5524
GR1AX SLOW SND, TRANSISTOR TR7046 BC558
GR1AX 14GR1221 DEAD,LOPTX, L5224
GR1AX 14GR1227/05B SND/EHT OK,LOPTX NO A1'S
GR1AX AFC FAULTY, L5045 ADJUST.
GR1AX CHILD LOCK CH38 THEN STORE/CTRL
GR1AX CHILD LOCK ,PROGRAM 38 PRESS THE STORE AND CONTROL UP

BUTTONS TOGETHER.

GR1AX CHILD LOCK, CHAN38 STORE/CTRL BUTTONS TOGETHER
GR1AX CHOPPER FET TR7610+R3616+R3680(1R)+D6610(10VZENNER)

LEAKY.
GR1AX DARK BLANK RASTER C2045 22NF, IN A.G.C. CIRCUIT, FROM PIN
10 OF THE TDA8305 JUNGLE CHIP

GR1AX DEAD ,NO 90V , D6638(BZX79-B36)
GR1AX DEAD ,SPKER HUMMING, NO LINE DRIVE, L5524 NR LOPTX
GR1AX DEAD 95V OK 12V FEED COIL L5524, NEAR LOPTX 4822 156 21293.
GR1AX DEAD 95V OK C2523 (6U8F)+L5524(1U5H).
GR1AX DEAD D6613 15V ZENER, D6610 10V ZENER AND D6644 1N4148

,LOPTR TMP47C4323559

GR1AX DEAD DEGAUSS POSISTOR 2AT

GR1AX DEAD ISH.95V OK,6U8F C2523 CHOKE L5524 1.5UH D6523
GR1AX DEAD LO 90V ,C2618(27NF)
GR1AX DEAD LO 90V ,D6613(BYX79C15)
GR1AX DEAD LO 90V ,D6671(BZX79-F4V3 ZD)
GR1AX DEAD LO HT, R3610 R3613 10V ZENER DIODE D6610 IN THE

CHOPPER FET'S GATE CIRCUIT.
GR1AX DEAD LOPTR D6613 (15V ZENNER),D6610(10V
ZENNER),D6644(1N4148) ALL LEAKY

GR1AX DEAD LOPTR,2SC3795 TR7528 C2523 6U8F, 63V
GR1AX DEAD NO LINE DRV,12V ZENER DIODE D6030
GR1AX DEAD PURRING GOOD 95V NO LINE DRV , COIL L5524 NR LOPTX
GR1AX DEAD PURRING LOPTX GIVES LITTLE NEON

FLASH=TF026=AT2079/41=HR7527.

GR1AX DEAD R3610(330K).
GR1AX DEAD R3610+R3613+10V ZENNER D6620.
GR1AX DEAD R3613 120K ZENER DIODE D6610 BZX79-C10
GR1AX DEAD THY6641+D6638+D6639+D6640+R3100(1R)+BC558(TR7100).
GR1AX DEAD,LOPTR,LOPTX SMALL 3.3UH CHOKE L5519,
GR1AX DIM PIC D6326(BZX79C12))
GR1AX DIST SND TDA7052.
GR1AX ERROR MESS F0=LED FLASH 50MS ON/50MS OFF=INTERNAL RAM

FAULT IC7700.
GR1AX ERROR MESS F1=LED FLASH 50MS ON/100MS OFF=INTERNAL
TIMER FAULT IC7700.
GR1AX ERROR MESS F2=LED FLASH 50MS ON/150MS OFF=EEPROM OR
+5V FAULT.

GR1AX EXCESS HEIGHT, C2034 82PF,
GR1AX EXCESS HEIGHT,FIELD BLANKING C2043 82PF,
GR1AX FIELD BLANKING, R3529 PCB FROM LOPTX.
GR1AX FIELD COLLAPSE, TDA3653B
GR1AX FOCUS/A1'S ALTERED BRILL,SPILLAGE OVER CRT SOCKET
GR1AX GOTO
GR1AX GREEN SCRN,NO TUNE/NOCHANNEL, MICROPRO(TMP47C434-

3559)

GR1AX HOT INT DEAD LINE SCAN COIL CONNECTOR
GR1AX HT LO 15V, FET DRIVE D6610(BZX79C10).
GR1AX HT OK, L5524(1M5H) NO/INT LINE DRIVE
GR1AX INT COLOR,BREAK IN THE TRACK FROM PIN 10 OF LOPTX

AROUND THE CORNER OF THE PCB

GR1AX INT DEAD COIL, L5524,
GR1AX INT DEAD GOOD 95V/ LOW 12V C2523.
GR1AX INT DEAD L5524/ LINE DRIVE.
GR1AX INT LO WIDTH/SHIFT/LINE TEAR, C2523 6.8UF, 50V
GR1AX INT SHUT DOWN SCAN COIL PLUG.
GR1AX INT TRIPPING HT=95V TRY D6638/6639/6640.
GR1AX INT TRIPS/HI HT THREE 36V ZENER D6638, D6639 AND D6640
GR1AX JUST BUZZ L5524 NO LINE DRIVE.
GR1AX L LINE BLANKING HALF PIC, TDA8305 CHIP IC7020, R3529.
GR1AX LINE PHASE CORNER PCB BROKEN OR PRESET NEAREST TO

TDA8305A.

PHILIPS2.TV

GR1AX LINE SHIFT CORNER PCB BROKEN OR PRESET NEAREST TO
TDA8305A.

GR1AX LINE SHIFT PRESET NEAREST TO TDA8305A.
GR1AX LO HT(8V) R3613(120K) HI.
GR1AX LO SND, 5.1V ZENER DIODE D6715 NEAR TMP47C343559

MICROCONTROLLER, CHIP IC7700.

GR1AX LOPTR 2SC3795
GR1AX LOPTR 2SC3795,C2523(6U8F63V).
GR1AX LOPTR(2SC3795/BUT11AF) CAUSE C2528 8N2 1600V.
GR1AX LOPTX SC EARTH FROM PINS 106
GR1AX LOPTX=AT2079/41 HR7527
GR1AX LOW SOUND C2033(22NF).
GR1AX NO A1'S NO BRILL, LOPTX HR7527
GR1AX NO A1S LOPTX HR7527.
GR1AX NO COLOR,LOPTX PIN 10
GR1AX NO LINE DRIVE L5524 .
GR1AX NO LINE DRIVE. L5524, 1.5MH
GR1AX NO LINE DRIVE.COIL L5524
GR1AX NO PIC BLANK RASTER WITH A1S INCREASED C2045(22NF)

LEAKY BROWN

GR1AX NO PIC OR SOUND TDA8305A.
GR1AX NO PIC,C2045 22NF, IN THE AGC. CIRCUIT, FROM PIN 10 OF THE

TDA8305 JUNGLE CHIP IC7020.

GR1AX NO POWER/NO LED, GOOD 320V
GR1AX NO SEARCH STOP,C2031 22NF EVEN IF READS OK
GR1AX NO SND/PIC C2044 (4UF)
GR1AX NO SND/PIC C2044 (4UF) IS SHORT CIRCUIT.
GR1AX NO SND/PIC OSD OK, TDA8305A
GR1AX NO SND/RASTER. 95V HT OK COIL L5524
GR1AX NO SOUND, GOOD 95V LO 9V D6523+L5524.
GR1AX NO TUNING VOLTAGE, R3703
GR1AX POOR SND C514 150PF SND IF
GR1AX POOR SND, C514 150PF NR IF CHIP
GR1AX POOR TUNING LOCK, L5045 ADJUST.
GR1AX PURR GOOD 95V LOW 9V L5524 1.5MH NR LOPTX PIN 3 .
GR1AX R3616(1R) CHOPFET(IRF820)
GR1AX R3703 .
GR1AX RESET CHILD LOCK PROG38/STORE/CTRL+
GR1AX RESET HOTEL MODE PROG38/STORE/CTRL+ .
GR1AX SEARCH NO STOP C2031(22NF).
GR1AX SEE PHILIPS2.TV
GR1AX SEE TV MAG MAY94.
GR1AX SET HOTEL MODE PROG38/STORE/PROG+ .
GR1AX SLOW SND, TR7046 BC558
GR1AX SMEARED / WASHED OUT PIC BENDING VERTICALS

C2060(680UF).

GR1AX SMEARY PIC,BENT VERTICALS C2060 680UF
GR1AX SND OK NO PIC,FIELD COLLAPSE, TDA3653 IC7500.
GR1AX STBY GOOD 320V 15V HT C2613 CHOPPER FB.
GR1AX STBY L5524 1.5MH IN THE START-UP FEED TO THE LINE DRIVER

STAGE.

GR1AX THORN P1407R LOPTX AT2079/41 HR7527 FAT30057.
GR1AX TRIP OVERVOLT SENSING ZENER DIODES D6638, D6639, D6640,

R3100 1R

GR1AX TUNER DRIFT, TUNER UNIT
GR1AX VERSION 2 DIM PICTURE D6326 (BZX79C12)
GR1AX VERY BIG FRAME HEIGHT C2043(82PF) FROM PIN2 OF TDA8305
GR1AX WARM LWHITE BANDS ON PIC C2523 6U8F
GR1AX,DEAD LOPTX+L5224.
GR1AX/TASHIKO D14GP4 POOR START, ZENER DIODE 6638 BZX79-B36
GR2 INT STOPS, CNR50 CHIP.
GR2.1 DEAD UNPLUG THE TEXT PANEL. IC7880 (PCA84C81AP/098).
GR2.1 DEAD POWER OK UNPLUG TEXT PANEL IC7880(PCA84C81AP098)
GR2.1 HT DROP'S WITH LOPTX OK ON BULB= AUDIO CHIP .
GR2.1 LOPTX HR7785 œ39.44+VAT.
GR2.1 NO FASTTEXT IC7880 SHOULD BE (PCA84C81AP098)
GR2.1 NO TEXT,"F7" IC7800(PCF84C81/A89)
GR2.1 RED LED FLASHING WHEN BROUGHT OUT OF STANDBY, CAUSE

TDA2579 FIT TDA2579B

GR2.1 SOUND AND PICTURE MUTED IC7470 LINE/FIELD OSC.
GR2.1 TICKING C2611(68UF25V) HI INTERNAL RESISTANCE .
GR2.1A LO WIDTH EW TRANSIS ON CRT BASE + BC848.
GR2.1AA DEAD STBY LED FLASHING TDA2597 R3455 1K
GR2.1AA EXCESS WIDTH,R3585(15R) NR LOPTX.
GR2.1AA LO WIDTH/EW TR7533 OR TR7534, BC848 TRANSISTOR TR7530
GR2.2
GR2.2 FIELD COLLAPSE 2SD1266(NPN)+BD238(110V,2A,PNP)
GR2.2 'ERR TUNER' OSD MICROPRO+EEPROM .
GR2.2 20" LOPTX(1192 0527/HR7299) ARCING + LOPTR(BU508AF)
GR2.2 25" LOPTX(1192 0507 HR7279)+LOPTR(BU508AF)
GR2.2 ARCING LOPTX(1192.0527/HR7299) BLOWS BU508AF
GR2.2 ARCING LOPTX 1192.0527 HR7299
GR2.2 COLD PULSING C2559(100UF25V NR LINEDRVTX)+OPTO CNR50.
GR2.2 COLD PULSING C2611(100UF25V)
GR2.2 DEAD NO LEDS, HT OK 140VN, STANDBY THYRISTOR THY6670
GR2.2 DEAD C2545(1N5F3KV)
GR2.2 DEAD C2603(150UF400V)
GR2.2 DEAD CHOPPER BUT12AF +CNR50.
GR2.2 DEAD D6546,BY228+F1534
GR2.2 DEAD DISC LINE HT=148V THY6670.
GR2.2 DEAD LOPTR(BU508A) CAUSE TDA2579B
GR2.2 DEAD LOPTR(BU508AF) HT=95VN ON 2O" HT=148VN ON BIG SETS
GR2.2 DEAD PULSING,LOPTX,EHT CAP
GR2.2
GR2.2 DEAD. D6546, BY228, EW FUSE F1534 TR7533 2SA1359 ON CRT PCB

TR7530 BC848
GR2.2 DEAD.NO PIC/SND PUMPING, EW
F1534,C2550(390NF250V)D6547(BYW95)

GR2.2 EXCESS WIDTH PRESET POT
GR2.2 EXCESS WIDTH,C2559(100UF25V),R3551,R3552

DEAD STBY THERMISTOR THY6670

GR2.2 EXCESSIVE WIDTH TR7533(2SA1359) ON CRT BASE +TR7530(BC848).
GR2.2 LOPTR + LOPTX ARCING (1192 0507 HR7279)
GR2.2 LOPTX 37952 = HR6483/HR7279.
GR2.2 LOPTX ARCING
GR2.2 LOPTX HR7299/1192.0527/FAT30193
GR2.2 MICROPRO WITH SUFFIX 1637=NICAM / 1237= NON NICAM.
GR2.2 MONO SNOWY RASTER "ERR TUNER" ON SCRN EEPROM.

MICROPRO IC7708 (SUFFIX 1237).

GR2.2 NICAM
GR2.2 NO PIC/SND,STBY FLASHES TDA2579B
GR2.2 NO SYNC IC7470(TDA2579B)
GR2.2 ON IN STBY, CHILD LOCKED
GR2.2 SCANCOIL BURNUP +WICKMAN

1534(315MAT)+LOPTX(37953=HR6483)

GR2.2AA STANDBY THERMISTOR THY6670
GR2.2AA LO WIDTH EW F1534(T315MA)T7530 T7533

C2550(390NF400V)C2549(0U47F400V)

GR2.3
GR2.3
GR2.3AA 16.9 DEAD. BUT11AF CHOPTR CNR50 ON SUBPANNEL,SERIES

DEGAUSS POSISTOR

GR2.4 DEAD 2A5TH DEGAUSS POSISTOR FUNNY LEGS.
GR2.4 DEAD LOPTR(BU2520AF),C2550(680NF ON 29")
GR2.4 DEAD/TRIPS R3588 CAUSE C2549(680NF250V)
GR2.4 LINE COLLAPSE BURNUP BEHIND SCANCOIL PCB.
GR2.4 LO HEIGHT R3503(4R7).
GR2.4 LO HEIGHT, TR.7502 TR7503. R3503 4R7
GR2.4 LOPTR(BU508AF) CAUSE SCAN COIL PANEL.
GR2.4 NO RASTER SND OK,SCAN COIL CONNECTIONS.
GR2.4 R3374(1K5)R3434(1K5)R3431(180R)R3372(270R)TR7364(BF422)CRT

SPARKS.

GR2.4AA RED PIC CRT
GR2.4AA DEAD BU508AF LOPTR FUSE F1534 DIODE 6546 BY226 DIODES

6560 LL4148 6561 BZX79C68

GR2.4AA DEAD ON/OFF SWITCH BURNUP.
GR2.4AA GREEN PIC R3374 1K5 R3434 1.5K R3431 180K R3372 270R TR7364

BF422,CRT

GR2.4AA POOR CONTRAST /NO RED C2358 22NF LEAKY.
GR2.4AA POOR CONTRAST,VIDEO PROCESSOR CHIP IC7309 22NF CHIP

CAPACITOR C2358

GR21AA DEAD LED FLASHES ,NO LINE DRV,R3455(1K)
GR2330 G90AE
GR90AE LED FLASH F7 630MA 8V LINE FROM LOPTX CHECK LOPTX PINS
GRI-AX DEAD LO HT, BF487 7614 HOT, C2618 27NF BLUE PLASTIC BLOCK

TYPE.

GRI-AX DEAD BUT11AF LOPTR
GRI-AX DEAD CHOPFET R3616(10R) R3680(10R) 10V ZENER DIODE D6610

IN THE FET'S DRIVE

GRI-AX DEAD LO HT (95VN) C2618 27NF BLUE PLASTIC BLOCK TYPE.
GRI-AX INT DEAD C2523 6.8UF

GRI-AX STBY LED FLASH LOPTR OR 15V ZENER DIODE D6613.
GRI-AX STBY LED FLASHES 15V ZENER DIODE D6613.
HR7279 1192.0507 30027 PET32-B6 14010474 30028 30029 30021 30022 30023
HR7279 30024 30025 30026 31125830021 OR 22 482214010474 ETC
K3 NO SOUND MUTE SWITCH.
K30 BLACK BAND AT BOTTOM, C1588 680UF,
K30 CHAN 1 STUCK ,15V REGULATOR IC005
K30 COLD LINE HOLD,C376.
K30 INT ODD BLANKING C588 680UF, 35V BELOW LOPTX
K30 INT TRIPPING , LOOSE AQUADAG C.R.T EARTHING BRAID
K30 INT TRIPPING EHT CAP WIRE JOINTS IN LOPTX.
K30 MK2 NO COLOR SYNC MODULE PINS
K30 NO FIELD R1590(1R2)+C1521(1500UF).
K30 NO VIDEO AND DARK RASTER,TDA2560 T1535,D1422, C1565 68NF

C1586, 100UF

K30 TOP BLANKED C1586,100UF
K30 TRIPPING C156A 200UF
K30 WARM ONLY LINES, R8380 47R
K30-II WITH TELETEXT NO RED, C3046 ON THE STANDARD CHASSIS,

C2171 ON THE TELETEXT VERSION.

K35 BRIGHT BLANK RASTER R455 560K, R852(1R)
K35 C567(8N21K5V).
K35 CHASSIS INT LOW GAIN TUNER RF AGC POT R414
K35 DARK ONE SIDE FAINT FLYBACK LINES C583 4.7UF, 250V D586

BY406A

K35 EW BOWING 5R FROM COLLECTOR OF TRANSISTOR TS490
K35 FIELD COLLAPSE, 1R2 R590 1,500UF, 25V FIELD SCAN COUPLING

CAPACITOR C521

K35 FLYBACK LINES C583/D586.
K35 IN STBY, DEGAUSS POSISTOR
K35 INT SNOWY RF AGC POTENTIOMETER R414
K35 INT TRIPS, TS494,
K35 SMALL PIC E1. LO 140VN U11. ZENER DIODE D343 BZX79
K35 SMOKED, EW DIODE MODULATOR , C567 8.2NF, 1.5KV
K35 VCR PB FLAG WAVING, C375 HAD BEEN REMOVED. FITTING THIS

CAP PRODUCED A STABLE PICTURE.

K4 POWER WHISTLE C2161(1NF2KV) HT=140V.
K4/40 POWER WHINE, OPTO ISOL NO HT SCR TRIPPED OVER VOLTS.
K40 ALL SORTS TDA2579
K40 BLANK RASTER /NO SND, C2115 22NF
K40 BLANK RASTER. C2115 22NF,
K40 COLD POOR COLOR, 2.2UF, 63V C2164 NEAR THE TDA3561 COLOUR

DECODER

K40 DEAD LOPTR(BU508A)
K40 DEAD NOISY LOPTR BU508 CAUSE CNX62 OPOTO-COUPLER IC7120
K40 DEAD NOISY LOPTR BU508A T7162, SCAN COILS
K40 DEAD SQUEAL,C2163(9N1,2KV)
K40 DEAD. NO LINE DRIVE , R3192
K40 DEAD. R3192 680R,R3177 12R, 0.02UF, 250V CAP C2164
K40 DIM TEXT, PRESET R046 2K2 ON TEXT PCB

K40 EW C2170 MUST BE A BIPOLAR
K40 EW PROBLEMS R3177 12R
K40 EW RASTER,R3177,C2170(BIPOLAR)
K40 EXCESS BRILL/LO HEIGHT R3179 6R8
K40 FIELD COLLAPSE,R3186,C2107(100UF,50V)
K40 FIELD COLLAPSE. R3186 C2107 100UF,50V
K40 INT PIC/SND TR7114
K40 LHS STRIATIONS, R3191 LINE DRIVER
K40 NO CONTRLS OR REMOTE,D6103 ON VST MODULE
K40 NO LINE DRV R3192(680R),TDA3576A,C2204(3N9).
K40 NO PIC NO SND E3 ERR,TR7121,TR7122,TR7123
K40 NO PIC NOISE,BY299 DIODE D6154
K40 NO PIC OR TEXT TR7206(BC558)
K40 NO PIC SND/EHT OK,2.4V BATTERY
K40 NO PIC,R3186
K40 NO SND/PIC GOOD EHT TDA3576B.
K40 POOR COLD START WHINING C2128 IN POWER SUPPLY..
K40 POOR FOCUS, FOCUS POT ON CRT BASE PANEL
K40 SNOWY PIC,IF CAN JOINTS
K40 STRIATIONS LHS 7190. R3191
K40 SWITCH ON TRIP, C2128(100UF63V)
K40 TDA3576B PCB MARKED WRONG .
K40 TOP STREACH C2107(100UF50V)
K40 VERY BRIGHT ,R3179(6R8).
K40 WARM NO LED DISPLAY, MEMORY MODULE ON THE SEARCH

TUNING PANEL.

KE3715 CP110
KT 35 STEREO NO START,SHOWS E1, 2SD350A
KT2040 CTXE
KT2366 CTXE
KT3
KT3 TEXT RED RASTER SND OK, FUSE VL001 500MA CAUSE ON/OFF

SWITCH

KT3 4R7 R291 IN PSU
KT3 BOTTOM CRAMP C522 (220UF).
KT3 BRIGHT RASTER/CUTTING OUT, TDA2571Q SYNC/LINE GENERATOR
KT3 DEAD 300V OK, T7336
KT3 DEAD/PULSING TRIPLER , TDA3560 COLOUR DECODER CHIP HAD

BEEN DAMAGED AS WELL.

KT3 EDITION II DEAD TRIPLER
KT3 EXCESS BRILL, R587, 100R
KT3 HI BRILL PATTERNS R401 IN THE TUNING CIRCUIT.
KT3 HIGHT/LINES TS396(BC548).
KT3 HOT COLOR FADE C56(0.1UF) FROM PIN23 TDA3560.
KT3 HOT/WARM LINE HOLD TDA2571A
KT3 INT BLANK RASTER, RESOLDER ALL OF IF MODULE
KT3 INT DEAD THE MICA WASHER UNDER THE LINE OUTPUT

TRANSISTOR A PINHOLE THAT PRODUCED ARCING.

KT3 INT SOUND TDA2611AQ AUDIO IC (IC5181)
KT3 INT TRIP, TDA2571 SYNC/LINE GENERATOR

KT3 INT TRIPPING EHT LEAD TO LOPTX.
KT3 INT TRIPPING, DEGAUSSING POSISTOR.
KT3 INT WIDTH R1561.
KT3 INT WIDTH, R1561 LINE OUTPUT TRANSISTOR TR1462.
KT3 INTERFERENCE WHITE SCENES R401(25K) IN TUNING CCT.
KT3 JUST/HISS SNOW U321 TUNER.
KT3 LINE HOLD TDA2571A SEE MOD.
KT3 MK2 SND/EHT OK,NO PIC TDA2571Q CHIP IC367 ON THE SYNC PANEL
KT3 NO HT U470 CHOPPER MODULE R300, C300 ZENER 12V R298 D300
KT3 NO SOUND R413 4R7
KT3 ODD/NO TEXT , MAINS TRANSFORMER PINS IN THE TEXT/REMOTE

CONTROL POWER SUPPLY.

KT3 REMOTE CONTROL VOL GOES UP, REMOTE FAULTY
KT3 REMOTE ODD CHANNELS ONLY,IC70(40174)
KT3 TDA2571A TDA3571BQ+MOD(CUTOFF PINS 9/10+R368(47K TO

150K))+R383(1K5).

KT3 TRIPPING WITH TRIPLER DISCONNECTED LOPTX KT3
KT3 WARM BENT VERTICALS D567 BY228 IN EW DIODE MODULATOR

CIRCUIT.

KT3 WARM NO PIC, C3205 0.022UF
KT3 WARM/HOT COLOR FADE, C56 0.1UF, FROM PIN 23 OF THE TDA3560

COLOUR DECODER CHIP. IC35.
KT3, EDITION II WARM NO COLOR C56 0.1UF WHICH IS CONNECTED
BETWEEN PIN 23 OF TDA3560
KT3/K30 OVER SENSITIVE TRIP, MOD FIT A DIODE, BY206 , BETWEEN PIN
6 OF TDA2581/2 AND CHASSIS

KT3/K40 NO LINE DRV, TDA3576B SYNC/LINE OSCILLATOR .C2204 3N9F
KT30 DARK PICTURE: REPLACE 4.7UF 250V ON CRT BASE PCB
KT30 TRIPPING , EHT CAP/CABLE
KT30 WARM TOP LHS BLANKS AT1260/10 SCAN COILS FOR THE A56-540

TUBE

KT35 SEARCH NO LOCK,TDA3571BQ OSCILLATOR
KT35 TEXT RED RASTER SND OK, FUSE VL001 500MA CAUSE ON/OFF

SWITCH

KT4
KT4 MIXED MODE TEXT IN BW TDA3651A CHROMA
KT4 /KT40 BENT EDGES EW ,CHOKE L5170
KT4 IC7200 TDA3576B WARNING BOARD DRAWING WRONGWAY ROUND
KT4 INT JUST SNOW 7114 IN THE SOPS MODULE.
KT4 INT PIC LOSS TDA3576B POWER/LINE SPEED TO FAST.
KT4 INT PIC SND OK, TDA3576B
KT4 NO LINE DRIVE GOOD 140V IC7200 TDA3576B
KT4 TRIPPING, C2128, 100UF, 50V
KT4 TUNER UNIT U411.
KT4/40 FIELD COLLAPSE TDA3650 BYV95B 26V RECT D6186 3000UF C2187
KT4/K40 1001 WITH LATER SOPS POWER SUPPLY: HUM BARS,C2128

100UF, 50V.
KT4/K40 LINE JITTER TOP OF PIC ,C2195 1UF, 63V. ON MAIN LEFT-HAND
PANNEL, NEAR TDA3576
KT4/K40 LINE JITTERS AT TOP C2195 1UF, 63V. NR THE TDA3576 SYNC

CHIP IC7200.

KT4/K40 NO COLOR, C2135 120PF
KT4/K40 OVER RIDE COLOUR-KILLER ADD 470R TWEEN PINS 1 AND 6 OF

THE TDA3561 COLOUR DECODER CHIP.

KT4146 KT4
KV2523 G90AE
L
L6.1 CHASS CCT DIA IN TVJAN2000.
L6.1 DEAD BRIDGE P5NB40FP
L6.1 DEAD NO LEDS,TR7505(BC548B)
L6.1 ON/OFF SWITCH PCB BURN UP SEME SWPCB1
L6.1 SEE TV MAG JAN 2000
L6.1 TV MAG JAN 2000 P172
L6.1AA CRACKED PCB NR LOPTX. HOW DO YOU TUNE IT IN ?.
L6.1AA HOT SND/REMOTE MOD MICRO PRO SAA5290ZP/072 L6T MOE1.1.
L6.1AA NO SND,CHANGE 7505 TO BC337-40 AND 3500 TO 470RSM

SAA5290ZP/072 L6T MOE-1.0

L6.1AA ON/OFF SWITCH PCB BURN UP SEME SWPCB1
L6.2 WARM NO COLOR ,IC7100(TDA8361)
L6.2 AA BU1508AX STP4NA40F ON MODULE 110,BOTH OPTOISOLATORS

LOPTX

L6.2 BUZZING NO PIC ,R3514(1R),R3515(1R) FUSSY.
L6.2 CHANNEL LOCKED ,TR7505(BC337-40).
L6.2 DEAD

2AT5+D6514(200VZD)+R3514(2*1R)+BRIDGE+CHOPTR+D6501(5V6ZD)+6502(
15VZD)

L6.2 DEAD C2912
L6.2 DEAD C2912(2N2F2KV).
L6.2 DEAD D6503(BYD33D)+OPTOISOL.
L6.2 DEAD FUSE F1502(100MA).
L6.2 DEAD PSU REPAIR KIT+7501(BF487)
L6.2 DEAD TR7505(BC337-40).
L6.2 DEAD/NOISE FUSE F1502 D6503 BYD33D,OPTOCOUPLER,IC7420
L6.2 HT PULSING,R3425(12R) LINE DRV.
L6.2 INT LO WIDTH/EW , R3908(2R2)
L6.2 LOPTR TR7906 (BU1508AX)+L5420(15UH)+BRIDGE RECT+++.
L6.2 NO LINE DRV OPTOCOUPLER.
L6.2 NO PIC,SND OK,AUTO CHANNEL CHANGING,OPTO COUPLER
L6.2 REPAIR KIT ES7062 WVE 16062KT
L6.2 SNOW, MIDDLE STRIATION,LO 5V,TR7505(BC337-25).
L6.2 STBY FS1502 WICKMAN FUSE
L6.2 STBY,I502(CP 630MA),D6503(BYV10/40)
L6.2AA DEAD LOPTR.LOPTX.PSU L5420 15UH
L6.2AA DEAD PSU +LOPTR+LOPTX+L5420(15UH).
L6.2AA LINE COLLAPSE(DOWN MIDDLE)

R3929(220R)R3930(560R),C2915(390NF)

L6.2AA SEE TV MAG JAN 2000
L6.3 BU1508AX=WVE 16508RT
L6.3 CHANNEL LOCKED ,TR7505(BC337-40).
L6.3 DEAD, 5V REG TR7505(BC337-40),F1502(HI R)

L6.3 DEAD,BUI508AX,,L5420,
L6.3 ODD MICROPRO ACTION, 5V REG TR7505(BC337-40),F1502(HI R)
L6.3 REPAIR KIT ES7062 WVE 16062KT+BU1508AX+L5420(15MH)
L6.3 STBY, 5V REG TR7505(BC337-40),F1502(HI R)
L6.3 TRIPS, 5V REG TR7505(BC337-40),F1502(HI R)
L6.3AA BENT SIDES EW,C2913(390NF250V) ON SUB PCB
L6.3AA LO WIDTH C2913(390NF250V)
L7.1A SERVICE MODE SHORT M25, M25 ON PCB THEN SWITCH ON TV.

EXIT: ST-BY.

L7.2EAA DEAD FRONT LED BRIGHT/DIM R3451+FIELD CHIP+D6468 +MOD
L7.2EAA MOD FIELD ADD 51V ZENNER ACROSS IC7401 PINS 4 >| 5.
L7.2EAA SURGE STBY LOPTX AT2078-20311 HR8124,
L9.1 HOTEL MODE PROGRAM 38 PRESS BOTH VOLUME- AND VOLUME+

ON TV AND OSD KEY ON RC

L9.1E SERVICE MODE PRESS 0,6,2,5,9,6 AND MENU
L9H SERVICE MODE 062596 SEQUENCE THEN [I+]/[OSD] (SERVICE MODE).
L9H SERVICE MODE 062596 SEQUENCE THEN [MENU] (SERVICE

DEFAULT)

LOPTX=HR6040 HT=140VN
M
M1432 PYE L6.1 CRACKED PCB UNDER LOPTX (DROPPED)
M1432 PYE L6.1, CHOPPER/LOPTX =HR7774 4034110.
M1432 PYE SL6.1, LOOKS LIKE TUBE ,GOOD A1S/HTR LOPTX ?(HR7774)

EHT 19KV.

M1452 LOPTX CRACKED PCB +R3428(1R)+R3427(2R2).
M1452 PYE BC337 Q400 IF SCREECHES AFTER CHOPPER.
M1452 PYE DEAD 7422-LOPTR(BUT11AX)+CHOPTR+++++
M2032/05 SL6.1AA INT ONE COLOR 7300, 7310, AND 7326, ON THE TUBE

BASE,

MD1.1 NO PIC FUSE 630MA TR7400(BC327)+6400(IN4148).
MD1.1 TRIPPING, LOPTR(BU2506DF) CAUSE SCANCOILS PLUG
MD1.1 TRIPPING, TUNER UNIT ON I2C BUS.
MD1.1 TRIPPING.LED COLORS, TUNER UNIT
MD1.1E DEAD BRIDGE,CHOPTR H8NA60FI
MD1.1E DEAD ON OFF SWITCH BURNT
MD1.1E TOP FLYBACK LINES BC327A TRANSISTOR TR7400 ON THE

TESLA PANEL,

MD1.1E TOP FLYBCK LINES TR7400(BC327A) ON TESLA NR V/OP.
MD1.1E TOP FOLDOVER, SMALL PCB BEHIND PLATE UNDER CRT

NECK,7400(BC327)

MD1.2
MD1.2 HI VOL PATTERNS PIC,SSP PINS.
MD1.2 INT STBY D6482(56VZEN)
MD1.2 SND ON VIS SSP (SMALL SIGNAL PANEL) JOINTS
MD1.2E AA
MD1.2E AA LINE ACROSS MIDDLE SCAN PLUG
MD1.2E BURN-UP ON THE PLUG/SOCKET ON THE DEFLECTION COIL

ASSEMBLY.

MD1.2E DEAD C2433(1N5F2KV) BURNT
MD1.2E DEAD CHIRPING,SMELL,SCANCOIL PLUG,LOPTR(BU2508AF)

MD1.2E EXCESS BRILL R3443(6R8) NR LOPTX
MD1.2E FLYBACK LINES , LOPTX,A1'S
MD1.2E NO NICAM SND IC7353(MSP3410)
MD1.2E NO PIC SND OK,SCANCOIL JOINTS
MD1.2E NO SND/SLOW REMOTE EEPROM IC7685,IC7353(MSP3410)
MD1.2E PRESS BOTH MENU AND - ON TV
MD1.2E SERVICE MODE SHORT SERVICE JUMPER ON SMALL SIGNAL

PCB.

MD1.2E WIDE E/W DRVTX 5424, MTP3055EFI E/W DRIVER FET (7480)
MD2.25 LO HEIGHT WITH BRILL,R3546(0R39),R3547(0R39)
MDI1.1 TRIPPING 7450(BC558B).
MG2.1E DEAD LOPTR(BU2508DF) MOD CUT C2411 C2413(TO

10UF100V)R3406(TO 100R)

MG3.1E SERVICE MODE OPTION 1: IN TV IS A 3-PIN CONN WITH
MG3.1E SERVICE MODE OPTION 2:SERVICE-DEFAULT: PRESS 0 6 2 5 9 6

[MENU] .

MG3.1E SERVICE-MODE: PRESS 0 6 2 5 9 6 THEN [I+] "DEALER"
MG3.1E SHORT PINS 1-2 SERVICE-MODE. SHORT PINS 2-3 SERVICE-

DEFAULT.

NC3 BLANK RASTER SND/OSD OK TDA3565
NC3 BLANK RASTER SOUND OK, ON SCREEN DISPLAY OK, REPLACE

TDA3565.

NC3 CHOPPER BUT11AF+R401 (4R75W).
NC3 DEAD , FUSE, BUT11AF 4R7 R401. RESOLDE CHOPTX,LOPTS
NC3 DEAD ,WHISTLED. 8.2V ZENER DIODES (2581/2)
NC3 DEAD BLACK FUSE BUT11AF + 4R7 CAUSE PINS CHTX/LOPTX.
NC3 DEAD CHOPPER BUT11AF (FLASH MARKS NR ON OFF SWITCH)
NC3 DEAD CHOPTR(BUT11AF),CHOPTX PINS.
NC3 DEAD WHISTLE,D2581(8VZD),D2582(8VZD)
NC3 DEAD WHISTLE. TWO SERIES CONNECTED 8.2V ZENER DIODES,
NC3 FUSE (2AT) BUT11AF CHOPTR 560K R407.
NC3 FUSE (2AT) BUT11AF CHOPTR Q401 560K R407.
NC3 HOT NO PIC GOOD SND, RESOLDER LOPTX PINS.
NC3 INT PIC FADES, CRT HEATERS, LOPTX PINS
NC3 LO HEIGHT, R581,3.9M
NC3 LO HEIGHT,RIPPLE ,1K2 DAMPING RESISTOR ACROSS THE HITACHI

FIELD SCAN COILS.

NC3 LOPTR+LOPTX 36943=HR7564.14CN3001
NC3 LOW GAIN RINGING PIC, IF FILTERS. SAWF'S AND CERAMIC FILTERS
NC3 MONO NO CONTRAST/BRILL CONTROL, LOPTX, TDA4505
NC3 NO PIC TDA3565
NC3 NO SND POOR CONTRAST, 10R R416
NC3 POOR SND/CONTRAST 10R R416 IN 22V FEED TO THE AUDIO OUTPUT

STAGE.

NC3 SND/OSD OK,BLANK RASTER, TDA3565
NC3 TUNER DRIFT SELECTOR SWITCH.
NC3

WEAK/BUZZING SND , IF FILTERS. SAWF'S AND CERAMIC FILTERS

NC3-CR ARCING AT SWITCH ON, FILTER CAP JOINTS.
NC3-CR HOIZONTAL LINES ACROSS, C2413 100UF, 400V
NC3-CR LOPTX 140-10328=HR7564

NC3-CR ON OFF SWITCH HAS AUX CONTACTS NOT MOMENTARY , THEY

STAY CONNECTED

NC3CR HAVE CCT DIA.
NC3CR HORIZONTAL LINES C2413(100UF400V).
NC3CR HOT NO POWER CNX62(OPTO)
NO TEXT, E3 OSD, SAA5246 CHIP. CRYSTAL 1710
OSAKI P140 RESET CHILD LOCK PROG38/STORE/VOL-
P1470R : GRIAX PHILIPS : DEAD NO 12V SUPPLY TO TDA8305A PINS 6/7,

L5524

RC5903 HANDSET PROBLEM, INFRARED DIODE.
SL6.3AA C2012(2200PF2KV) DISK CERAMIC BLUE, NR LOPTR
STC2100 TC2
SYSTEM 4 CHASSIS DEAD C2161 (1NF2KV) BLUE.
SYSTEM 4 DEAD, BLUE 1NF, 2KV TUNING CAPACITOR C2161.
SYSTEM 4 INT SOUND MUTING. ON/OFF SWITCH, WHOSE MOMENTARY

STANDBY CONTACTS WERE SHORTING
SYSTEM 4 NO PIC SND OK,FIELD COLLAPSE R3168 (3R9) TDA3650 IC7110
100UF, 50V C2017.

T183 E2
T183 MONO,DEAD, R602 27K
T190 TX
T191 TX
T192 TX
T193 TX
T194 PYE/PHILIPS 12B771 TX CHASSIS, NO PIC TS228 BF198.
T194 TX
T195 TX
T196 TX
TC2 EXCESS BRILL, BF422 VIDEO OUTPUT TRANSISTOR TS250 , D257

BAW62.

TC2 PYE CUBE TV/RADIO/CASSETTE COMBI
THORN P1470R PHILIPS GR1-AX NO SND/PIC C2058 22UF
TX BENT VERTICALS. D351 IN TS351'S EMITTER
TX BRIGHT FIELD COLLAPSE, CRACK 95V LINE JUST BEHIND THE

AERIAL SOCKET BRACKET.

TX DEAD ISH,LINE DRIVER TRANSISTOR BC337
TX FIELD COLLAPSE.FIELD SCAN COILS BEING OPEN-CIRCUIT.
TX INT SND/PIC TUNER'S FEED THROUGH CAPACITORS.
TX LINE COLLAPSE ABOUT HALF AN INCH WIDE , LINE SCAN COUPLING

CAP C455 47UF

TX NO SYNC, R370 820K
TX2 DEAD ON/OFF SWITCH/VOL CONTROL
TX3303 TX3
V6600 KT3
V6620 KT4
V6621 KT4
V6651 KT4
V6720 K40
V6721 K40
V6820 K40

V6821 K40
V6851 K40
V7001 K40
V7620 K40 WARM TUNER DRIFT R3104 D7104 33V LINE
VP120 KT4
W66ERF001X013 A10E
W76ESF031X14 MD1.2E
Y6 SERVICE MODE PRESS SEQUENCE 0 6 2 5 9 6 FOLLOWED BY 'MENU'

,MENU
