Philips PV6080, PV5580 User Manual

Model PV5580/PV6080 User Guide

HD Widescreen Television

Once your MARANTZ purchase is registered, you’re eligible to receive all the privileges of owning a

MARANTZ product. So complete and return the Warranty Registration Card enclosed with your

purchase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to ensure you receive

all the benefits you’re entitled to.

For Customer Use

Enter below the Serial Number which is located on the rear of the cabinet. Retain this information for future reference.

Model Number: ________________________________ Serial Number: ______________________________

Know these

safety

symbols

t This “bolt of lightning” indicates uninsulated material within your unit which may cause an electrical shock. For the safety of everyone in your

household, please do not remove product covering.

s The “exclamation point” calls attention to features for which you should read the enclosed literature closely to prevent operating and maintenance

problems. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert. ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante de la prise et pousser jusqu’au

fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warranty

Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your MARANTZ warranty.

Owner

Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model

Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

SAFETY INSTRUCTIONS - Read before operating equipment

This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions - The safety and operating instructions should be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be followed.

5. Water and Moisture - The appliance should not be used near water

- for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc.

6. Carts and Stands - The appliance should be used only with a cart or stand that is recommended by the manufacturer.

6A. An appliance and cart combination should be moved

with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

6B. Tilt/Stability - All televisions must comply with recommended

international global safety standards for tilt and stability properties of its cabinet design.

• Do not compromise these design standards by applying exces-

sive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

• Also, do not endanger yourself, or children, by placing elec-

tronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

7. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

8. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

9. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

10. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.

11. Power-Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience receptacles, and the point where they exit from the appliance.

12. Cleaning - The appliance should be cleaned only as recommended by the manufacturer.

13. Power Lines - An outdoor antenna should be located away from power lines.

14. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges.

Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antenna-discharge unit, connection to grounding electrodes and requirements for the grounding electrode. See Fig. below.

15. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.

16. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

17. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

A. The power supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the

appliance; or

C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits

a marked change in performance; or

E. The appliance has been dropped, or the enclosure damaged.

18. Servicing - The user should not attempt to service the appliance

beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Example of Antenna Grounding as per NEC - National Electric Code

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE (NEC)

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM

TABLE OF CONTENTS

Getting Started

Welcome/Product Registration...................2

Safety/Precautions .....................................................3

Table of Contents.......................................................4

Features, Model and Cabinet Information.................5

On-Screen Features

PICTURE MENU

✧Adjusting Color, Brightness, Sharpness,

Tint, Picture, and Color Temperature Controls ..6

✧Using Clearview and Video Enhance Controls...7

✧Adjusting the TV's Convergence Control...........8

✧Using the Flesh Correction Control ....................9

FEATURES MENU

✧Using the Analog Format Screen Control.........10

✧Setting the TV for Closed Captioning...............11

✧Setting the TV for Cable or Antenna Signals....12

✧Adding Channels in Memory (Automatically) .13

✧Adding Channels in Memory (Manually).........14

✧Setting the TV Clock.........................................15

✧Using the Sleep Timer Control .........................16

✧Adjusting the Channel Display Control............17

✧Using the Time/Channel Reminder Control......18

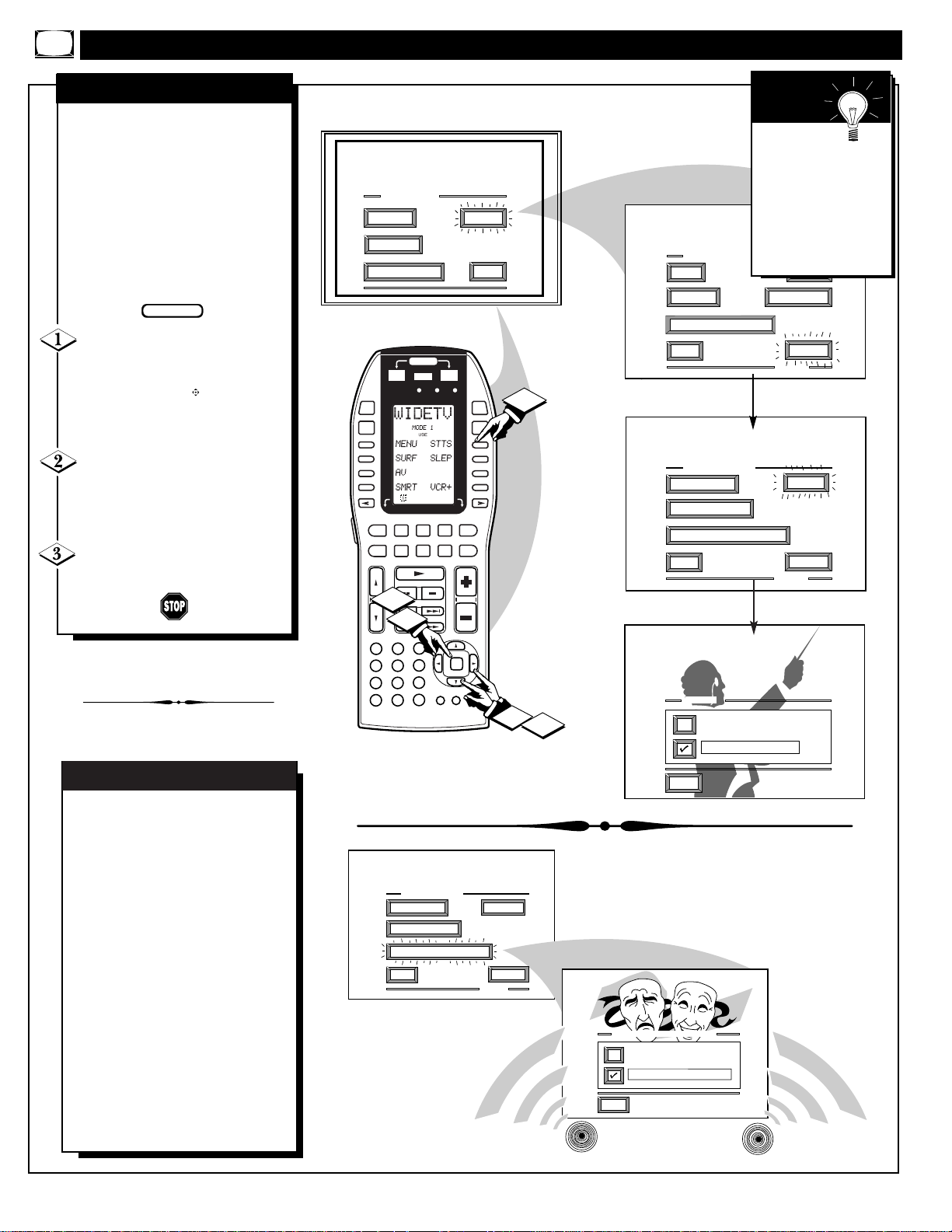

✧Using Parental Control/Content Advisory:

• Code Setup/Blocking Channels...............19-20

• Content Advisory - Movie Ratings .........21-22

• Parental Guidelines.......................................23

• Blocking Options/Review Settings...............24

✧Using the Channel Label Control......................25

✧Using the Language Selection Control..............26

SOUND MENU

✧Adjusting Bass, Treble, and Balance Sound

Controls.............................................................27

✧Setting the Bass Boost Control ........................27

✧Setting the TV for Stereo and SAP Programs ..28

✧Using the Incredible Surround Control.............29

✧Using the Volume Display Control...................29

✧Using the TV Speaker On/Off Control with

the Audio Output jacks .....................................30

✧Surround Sound Speaker Connections and

Variable Audio Output Control ........................31

✧Optional Surround Sound Connections ............32

✧Using the TV's Audio/Video Input and

Output Jacks ...............................................33-37

Monitor (HD) Control Operation

Connection of VGA and High Definition (HD)

Component Video Equipment .................................38

Adjusting of Monitor Display Controls...................39

Remote Control Operation

Setting the Auto Picture Control.............40-41

Using the Auto Sound Control.................................42

Using the Auto Surf Control....................................43

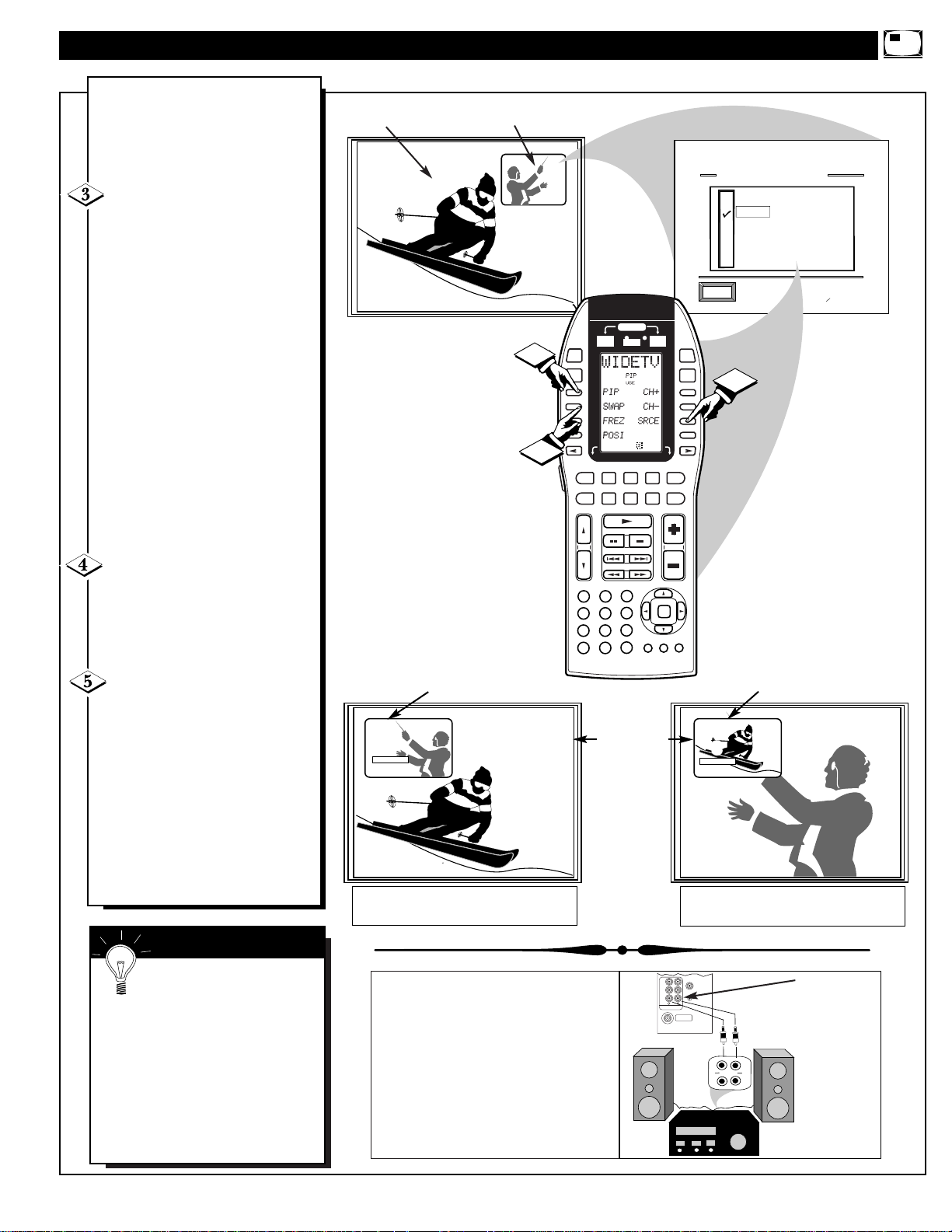

Picture-In-Picture (PIP)

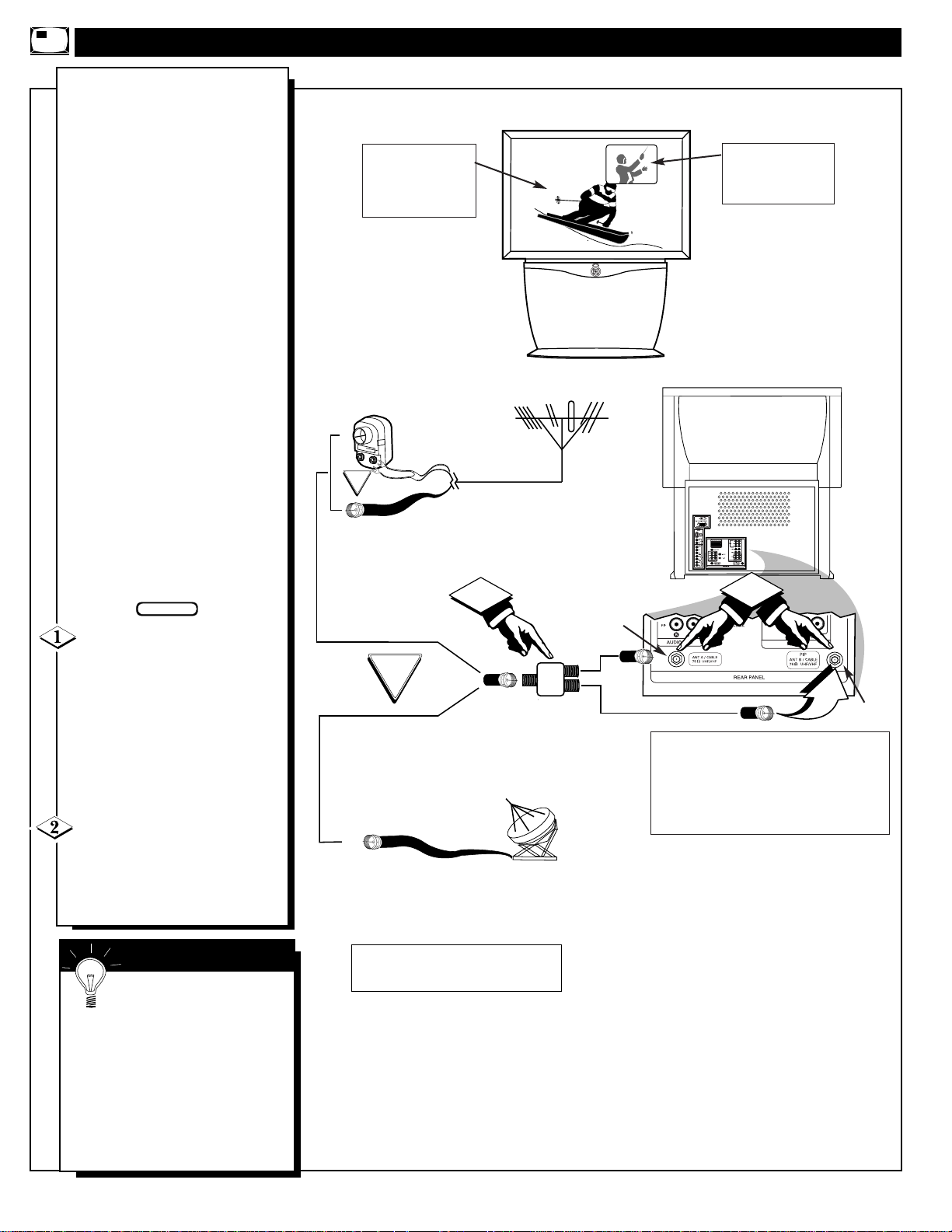

How to Use PIP (Connections) ............44-45

How to Use PIP with the TV Remote......................46

Selecting the Picture Source for PIP........................47

Adjusting PIP Color, Tint, and Size ........................48

More PIP Connections (Cable Converter)...............49

General Information

Tips if Something Isn’t Working ..............50

Glossary of TV Terms .............................................51

Index ........................................................................52

Factory Service Locations..................................53-54

Warranty ..................................................................56

Use the simple Set-Up Guide (supplied with your TV information packet) for details on:

• Antenna Hook-ups

• First Time Set-Up (Automatic Settings)

• Basic TV and Remote Control Operation

• On-Screen Menu Use

SET-UP AND QUICK USE GUIDE

BEGIN

STOP

NOTE: The universal learn remote supplied with this HD PTV features a LCD window display set for a variety of accessory product functions. Due to the amount of optional components available within the remote’s Device Reference and Learn Code Lists, please refer to the separate full-use Remote Control Owner’s Manual for complete details on its use and operation.

BRIGHTNESS

PICTURE SHARPNESS SVM OFF COLOR TINT VOLUME BAR ON

SET-U

P ANDQUICKUSEGUIDE

HD Widescreen Television

ANTENNAOR

CABLETV

ANT(ENNA) A& B INPUTS

our TVhas two sepa-

rate ANT(enna)/Cable

inputs on the rear of the

set. These two signal inputs offer convenient hook-up options for both normal TVprogram viewing and Picture-In-Picture (PIP) features.

The ANT(enna) Ainput is intendedfor use and view-

ing on the TV’s main screen. Your home’s primary Antenna, or Cable TVsignal, should be connected to this input for normal TVsetup, use and feature operation.

The ANT(enna) B input is a second, or auxiliary sig-

nal source, designed to

Aand B connection (using a common signal source and an optional Signal Splitter):

If yourAntenna orCable TV signal has a round cableconnector(75 ohm) on the end,

then you're ready to connect it to the 75ohm Signal Splitter.

If yourantenna has flat twinlead wire (300 ohm), you first

need to attach the antenna wires to the screws on a 300 to 75 ohm adapter before connecting to the 75ohm Signal Splitter.

’

11 10 9 8

How to Use the First Time Set-Up Control ..............2

Basic TVand Remote Control Operation.................3

How to Use the Onscreen Menu Controls.................4

WARNING: TO PREVENTFIRE OR SHOCK HAZARD DO NOTEXPOSE THIS UNITTO RAIN OR EXCESSIVE MOISTURE.

Atypical ANT(enna)

300 to 75ΩAdapter (483521827003)

Twin Lead

Wire

Round Cable 75ΩOhm

Getting Started

12 1

2 3 4

Warning/Precautions..................................1

5 7 6

Hooking Up Your TV................................1

Connect yourAntenna or

Cable TVsignal to the single

75 ohm input plug on the twoway Signal Splitter (optional). Then connect two lengths of RF Coaxial Cable to the two Output plugs on the two-way Signal Splitter (F-type connector on both ends).

Combination VHF/UHFAntenna

- Outdoor or Indoor Antenna -

receives normal broadcast channels

2-13 (VHF) and 14-69 (UHF).

TABLEOF CONTENTS

• For details on product registration, warranty,

NOTE: This owner's manual is used with several different television models. Not all features (and drawings) discussed in this manual will necessarily match those found with yourtelevision set. This is normal and does not require you contacting yourdealeror requesting service.

Connect the twin Output

plugs on the Signal Splitter to

the ANTAand ANT B inputs on the rear of the TV. Push the round connector end of the RF Coaxial Cable onto the ANT(enna) plug and screw it down tight (if using threaded cables).

and service refer to the other literature included with your TVinformation packet. Please retain all these materials and keep them handy for future reference.

SMART HELP

Note: Your HD Widescreen model TVis also capable for connection and use with digital signal Set Top Box providers. These optional Advanced Television Systems Committee (ATSC) equipment convert-

Back of TV

ers can be used to display digital broadcast system programming on your High Definition ready Widescreen TV. Be sure to set the TVfor the type signal you've connected (see "SETUP" on page 2 of this Guide.)

First Time Set Up - automatically sets the TV for local channels, the correct picture signal (antenna or cable), and assists in the setting of TV’s Guide Plus+ feature.

Infrared Remote Control - operates your TV set and a variety of wireless remote control VCRs, Cable TV Converters, and other accessory equipment.

Standard TV broadcast (VHF/UHF) or Cable TV (CATV) channel capability as well as advanced

connectivity for high definition video and VGA. Closed Captioning - allows the viewer to read TV

program dialogue or voice conversations as on-screen text.

Automatic Programming of channels - for quick and easy selection of favorite stations available in your area.

Picture-In-Picture (PIP) - can show a TV program and the direct video output from an accessory (VCR, etc.) onto the TV screen at the same time.

Parental Control for “Censoring” - this feature can block out channels to keep children from watching undesirable programming. Parental Guideline and Movie Rating settings can also be used as part of the new Content Advisory Data system available with TV programming.

Stereo TV - with a built-in audio amplifier and a twin speaker system, reception of TV programs in both broadcast stereo sound or (SAP) bilingual broadcast are available.

Twin Antenna (A/B) Inputs - for easy displaying of two separate signal sources on the TV. An A/B button on the remote control switches the TV’s Main screen between the two Antenna (A & B) Input options.

Audio/Video Jacks - for direct connections with VCRs (and other accessories) for quality TV picture and sound playback.Component Video Input connectors are also available for high fidelity color and picture resolution when using digital video source material, such as DVD.

Surround Sound - this TV set contains external; audio speaker connections for a more dynamic sound effect capable within the today’s Home Cinema environment.

Sleep-Timer - automatically turns the TV OFF at preset time intervals.

Smart/Auto Button - for the control of TV Sound and Picture levels. Use the Smart/Auto Button on the remote to quickly select various audio modes matched to specific types of TV programming; to select video level adjustments for a variety of program sources; and to make quick one button channel selection of up to 10 of your favorite channels.

FEATURES

As you unpack your TV please note that the following items have been included with your set:

• Owner's Manual

- Safety Tip Information

- Factory Service Center Locations

• Warranty Registration Card

• Remote Control Transmitter

• Batteries for Remote Control Use Refer to the back of this manual for instructions

on the cleaning and care of the TV.

End-of-Life disposal

Your new projection television and its packaging contain materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and minimize the amounts which need to be properly disposed.

Your product also uses batteries which should not be thrown away when depleted, but should be handed in and disposed of as small chemical waste.

Please find out about the local regulations on how to dispose of your old television, batteries, and packaging materials whenever you replace existing equipment.

High Definition Digital - Projection Television capable of 1500x1080i interlaced imaging for superior resolution and performance. Line doubling circuitry and video processing technology able to output progressive scan material with clean, stable widescreen images. Triple lens system matched to first surface mirror and fine pitched lenticular screen methods which amounts to an incredible 1,620,000 pixels of display capability. High Definition Component and RGB Inputs are available as well for Y, Pb, Pr; horizontal/vertical sync, and RGB/VGA monitor input operation modes.

Automatic Phosphor Aging Compensation (APAC)

- Automatic incremental shifting of TV screen

elements to prevent any onscreen image outline retention or “screen burn” problems.

GUIDE Plus+®- Electronic TV Program guide which provides for daily television channel listings, descriptions of program content, sorting of shows by subject themes, and a variety of other VCR programming options. (See your separate GUIDE Plus+

Owner’s Manual for further details.)

Because of continuous product improvements, the information mentioned in the documents accompanying your product are subject to change without notice.

PICTURE MENU CONTROL ADJUSTMENTS

COLOR, BRIGHTNESS,

SHARPNESS, TINT, PICTURE

o adjust your TV color and

picture controls, select a TV channel and follow the steps shown below:

Select BRIGHTNESS, PICTURE, COLOR, TINT, or SHARPNESS picture control.

With the PICTURE MENU on screen, move the RED highlight with the outer OK arrow

buttons. Then press the center OK button to select the feature.

Press the OK arrow

buttons to adjust the selected control.

Press the STATUS button to

clear the screen.

SMART HELP

Remember. When the bar

scale is centered, control settings are at normal mid-range levels.

BRIGHTNESS Press (-) or (+) until dark parts of the picture show good detail.

PICTURE Press (-) or (+) until whitest parts of the picture are as bright as you prefer.

COLOR Press (-) or (+) to add or eliminate color.

TINT Press (-) or (+) to obtain natural skin tones. (Also see Flesh Correction on page 9 for more information).

SHARPNESS Press (-) or (+) to improve detail in the picture.

BEGIN

Select and then press MENU (M) button to view additional controls grouped under same feature heading. For Example: Tint, Brightness, Picture, etc.

Note: A Color Temperature control is also available to set the level or degree of color intensity (especially on white picture screen elements). For example, use the Color Temperature (Picture Menu 3 of 3) for the following settings:

COOL – makes whites, bluish NORMAL – keeps whites, white.

WARM – makes whites, reddish.

PICTURE MENU

EXIT

3 OF 3

COLOR TEMPERATURE

MORE...

EXIT

NORMAL

WARM

COOL

COLOR TEMPERATURE

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

OFFON

ON/OFF

TUNER

DSS/ VCR2

CLONE MACRO MODE

LEA RNI NG REM OTE CON TRO L

RC- 18S R

LD DVD

AUX

TAPE

VCR1

CD-R

/MD

VOLCH

MACRO MACRO

1 4 7

PIP

MUTE

GUIDEAMP

SOUND

EXIT

PICTURE MENU

COLOR TINT

BRIGHT

SHARP

EXIT


CLEARVIEW

MORE...

1 OF 3

COLOR

MIN

EXIT

MAX

NEXT...

PICTURE MENU CONTROLS (CONTINUED)

learview is a sharpness feature

which smoothes out background snow (or picture noise) without losing picture image detail or crispness.

Select CLEARVIEW control.

With the PICTURE MENU on screen, move the RED highlight with the outer OK arrow

buttons. Then press the center OK button to select the feature.

Press the outer OK arrow

buttons to move the RED highlight. Press the center OK button to select (

U) the ENHANCED mode.

Press the STATUS button to

clear the screen.

CLEARVIEW

Note: An additional Picture Menu “VIDEO ENHANCEMENT” control (similar in function and use as the Sharpness control) is also available to further improve picture intensity and detail, particularly for the playback of DVD player source material. Selection and adjustment of the Video Enhancement control (Picture Menu 2 of 3) is the same as with other Color and Picture Menu control options.

PICTURE MENU

FLESH CORRECTION

EXIT

2 OF 3

MORE...

CONVERGENCE

VIDEO ENHANCEMENT

EXIT

MIN

MAX

VIDEO ENHANCEMENT

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

OFFON

ON/OFF

TUNER

DSS/ VCR2

CLONE MACRO MODE

LEA RNI NG REM OTE CON TRO L

RC- 18S R

LD DVD

AUX

TAPE

VCR1

CD-R

/MD

VOLCH

MACRO MACRO

POSITI ONDNPIP

6 9 C

MUTE

GUIDEAMP

SOUND

EXIT

PICTURE MENU

COLOR TINT

BRIGHT

SHARP

EXIT


CLEARVIEW

MORE...

1 OF 3

CLEARVIEW

NORMAL

ENHANCED

EXIT

NEXT...

PICTURE MENU CONTROLS (CONTINUED)

RED/BLUE CONVERGENCE

onvergence is the correct

lining up of the red and blue light paths on the TV screen. NOTE: If no color fringing (see Smart Help) shows, then no Convergence adjustments are necessary for your TV.

Select CONVERGENCE

control. With PICTURE MENU (2 of 3) on

screen, move the RED highlight with the outer OK arrow

buttons. Then press the center OK button to select the feature.

If there is RED or BLUE color

fringing (see note below) on your TV, press the outer OK arrow buttons to move the highlight. Press the center OK button to select the Align Red or Align Blue Convergence control.

Press the OK arrow

buttons to move the red or blue

cross directly over the white cross on the TV screen.

The red or blue cross is properly adjusted when it is completely merged with the white cross. (No color appears around the edge of the white cross).

Press the STATUS button to

clear the screen when convergence adjustments are complete.

SMART HELP

Remember. Convergence

has been set at the factory for best viewing, but if one or more of the (red or blue) colors appear around the edges of objects (color fringing) follow the steps given in this section.

BEGIN

NOTE: Adjustments for “Multi-Point” on-screen color fringing can also be made as part of the TV’s Convergence control system. Follow the TV’s on-screen menu directions to select individual screen areas that can be readjusted and set for varying red/blue color fringing conditions. These multi-point settings can then be “Saved” to memory for the specific areas of the TV screen (or Factory Settings for convergence can be recalled and put back into place for use).

CONVERGENCE MULTI POINT CONVERGE RED POINTS

CONVERGE BLUE POINTS RESTORE FACTORY SETTINGS SAVE ADJUSTMENTS BACK

CONVERGE RED POINTS

USE TO ADJUST

DIGIT 2, 4, 6, 8 TO MOVE CURSOR

PRESS MENU TO RETURN

PRESS MENU NOW TO CONTINUE

MULTI-POINT

CONVERGENCE

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

ON/OFF

VCR2

TUNER

DSS/

CLONE MACRO MODE

LEA RNI NG REM OTE CON TRO L

RC- 18S R

LD DVD

TAPE

MACRO MACRO

SOUND

OFFON

VCR1

CD-R

AUX

/MD

EXIT

PICTURE MENU

COLOR TINT

BRIGHT

SHARP

EXIT

PICTURE MENU

CONVERGENCE

FLESH CORRECTION

VIDEO ENHANCEMENT

EXIT


CLEARVIEW

MORE...

1 OF 3

MORE...

2 OF 3

VOLCH

POSITI ONDNPIP

4 7

6 9

MUTE

GUIDEAMP

CONVERGENCE MENU ALIGN RED

ALIGN BLUE CONVERGE MULTI POINT BACK

PRESS TO ALIGN RED PRESS MENU TO RETURN

se the Flesh Correction

control to keep skin tone hues (or facial tint) from varying from TV channel to TV channel.

Select FLESH

CORRECTION control.

With PICTURE MENU (2 of 3) on screen, move the RED highlight with the outer OK arrow

buttons. Then press the center OK button to select the feature.

Press the OK arrow

buttons to move the RED

highlight. Press the center OK button to turn (

U) the FLESH

CORRECTION control ON.

Press the STATUS button to

clear the screen.

FLESH CORRECTION

PICTURE MENU CONTROLS (CONTINUED)

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

CLONE MACRO MODE

LEA RNI NG REM OTE CON TRO L

MACRO

ON/OFF

RC- 18S R

SOUND

PICTURE MENU

EXIT

OFFON

MACRO

COLOR TINT

BRIGHT

SHARP

EXIT

PICTURE MENU

CONVERGENCE

FLESH CORRECTION


CLEARVIEW

MORE...

1 OF 3

DSS/

VCR2

TUNER

POSITI ONDNPIP

LD DVD

TAPE

3 6 9

VCR1

CD-R

AUX

/MD

VOLCH

MUTE

GUIDEAMP

VIDEO ENHANCEMENT

EXIT

FLESH CORRECTION

OFF

EXIT

MORE...

2 OF 3

FEATURE MENU CONTROL ADJUSTMENTS

ANALOG FORMAT

our TV is able to deliver

lifelike, widescreen picture (or “home cinema” experience) that is promised with High Definition TV viewing. The Analog Format control can be used to expand conventional 4:3 aspect ratio (width-to-height) broadcasts in order to fit your TV’s widescreen format; or to reset the screen to best match the current programming.

Select ANALOG FORMAT

control.

With the FEATURES MENU on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the OK arrow

buttons to move the RED

highlight. Press the center OK button to select (U) the desired screen aspect ratio or screen display control.

Press the STATUS button to

clear the screen.

Note: The LCD Display MODE 2 screen on the remote control can also be used to quickly select various aspect ratio screen control settings for TV viewing. Press the LCD screen direction (< or >) buttons on the remote to select the WideTV Mode 2 display for use. Then press the correct (D) callout button to select the desired screen aspect ratio. Note: Not all of the MODE 2 LCD display settings may be available for use with your select model HD PTV.

SMART HELP

Note: In the past the

relationship between a TV screen’s width to height, or aspect ratio, has historically been 33% wider than the picture screen height (or a 4:3 aspect ratio). The widescreen format of your TV screen is nearly 80% greater than its measure height (which accounts for a 16:9 aspect ratio). The reason for the 16:9 aspect ratio screen is that it allows for the dramatic and lifelike viewing of original version movies and cinemas (similar to the type found in your local theaters). And the 16:9 aspect ratio widescreen is also a good visual match for how our eyes work in a horizontally oriented field of view and action plane.

Panoramic - Conventional picture is expanded to fill the full 16:9 aspect ratio screen area. Most of the non-linear picture expansion is performed toward the outer edges so that correct proportions are retained in the center of the screen.

4:3 (Standard) Conventional TV picture format shows on the screen. Black bar areas show on the side margins of the screen.

16:9 (Expand) - Full widescreen mode with linear expansion to view HD program broadcasts. Used for material originally produced in 16:9 format.

Theater 1/2 - Expanded zoom modes with picture images increased in magnification. Designed for use with “letterbox” or cropped movie images such as found with Cinemascope or Cinerama type program material. Note: With the Theater modes there can be some loss of information at the edges as the picture expands to fill the screen.

Building Trade News

PANORAMIC

4 X 3

16 X 9

THEATER 1/2

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

LEA RNI NG REM OTE CON TRO L

DSS/ VCR2

TUNER

CLONE MACRO MODE

MACRO

ON/OFF

RC- 18S R

LD DVD

TAPE

SOUND

FEATURE MENU

ANALOG

EXIT

OFFON

MACRO

VCR1

CD-R

AUX

/MD

FORMAT

CLOSED

CAPTIONS

EXIT

ANALOG FORMAT

PANORAMIC 4 X 3 16 X 9 THEATER 1 THEATER 2

EXIT

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

VOLCH

POSITI ONDNPIP

4 7

6 9

MUTE

GUIDEAMP

losed Captioning (CC) allows

you to read the voice content of television programs on the TV screen. Designed to help the hearing impaired this feature uses on-screen "text boxes" to show dialogue and conversations while the TV program is in progress.

Select CLOSED

CAPTIONING control.

With the FEATURES MENU on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the OK arrow

buttons to move the RED highlight.

Press the center OK button to select (U) the desired Closed Caption mode - For Example: "ALWAYS ON" and "CAPTION 1".

CAPTION 1, 2, 3, 4:

dialogue (and descriptions) for the action on the captioned TV program shows on-screen. (See Important Note on this page.)

TEXT 1, 2, 3, 4:

often used for channel guide, schedules, or bulletin board information for CC programs.

After making your Caption mode

selection, press the STATUS

button to clear the TV screen. The selected Closed Caption mode will be active.

To cancel, set the Closed Captioned feature to OFF when finished.

FEATURE MENU CONTROLS (CONTINUED)

NOTE: Not all TV programs and product commercials are made for broadcast

with Closed Caption (CC) information included. Neither are all Closed Caption modes (CAPTION 1-4; or TEXT 1-4) necessarily being used by a broadcast station during the transmission of a closed caption program. Usually "CAPTION 1" is the most used mode to view captioned material. Refer to your area's TV program listings for the stations and times of Closed Caption shows.

CAPTION 1 mode

Example Screen Display

FULL SCREEN TEXT

will block TV screen from viewing

Closed Caption information will usually appear in black and white (although some broadcasters or networks may occasionally use color to highlight or draw attention to certain areas.)

CLOSED CAPTION

NOTE: The ON DURING MUTE ONLY control can be

used to set the TV to turn the Closed Caption mode "ON" whenever the MUTE button on the remote is pressed.

SMART HELP

Remember. Broadcast

stations will often use spelling abbreviations, symbols, dropouts and other grammatical shortcuts in order to keep pace with the on-screen action. These type factors vary upon the source of the captioned text material and do not indicate a need for service on the part of the TV.

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

MACRO

LEA RNI NG REM OTE CON TRO L

DSS/

VCR2

TUNER

POWER

SOURCE

OFFON

ON/OFF

CLONE MACRO MODE

RC- 18S R

LD DVD

AUX

TAPE

VOLCH

VCR1

MACRO

CD-R

/MD

SOUND

EXIT

FEATURE MENU

ANALOG FORMAT

CLOSED

CAPTIONS

EXIT

CLOSED CAPTION

ALWAYS ON ALWAYS OFF ON DURING MUTE ONLY

CAPTION 1 CAPTION 2 CAPTION 3 CAPTION 4

EXIT

CABLE TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

TEXT 1 TEXT 2 TEXT 3 TEXT 4

POSITI ONDNPIP

4 7

6 9 C

MUTE

GUIDEAMP

JOHN: Why did they move the meeting up to this week? MARSHA: I don't know, but they are pushing to close the deal.

CLOSE CAPTION PROGRAMS ON WXYZ

ALL ITEMS ARE EASTERN STANDARD TIME (EST)

CHECK LOCAL LISTINGS

FOR TIMES IN YOUR AREA

6:00 TOP OF THE MORNING

10:00 THE BEST LITTLE CALL-IN SHOW EVER

12:00 NOONDAY NEWS

1:30 AS YOUR LIFE TURNS MY WORLD AROUND 6:00 WORLD NEWS FOR TODAY

9:00 PLAYHOUSE MOVIE OF THE WEEK

FEATURE MENU CONTROLS (CONTINUED)

ou need to make sure the TV is

set to pick up either Cable TV or Antenna signals. In other words, the TV needs to know if you connected a Cable TV signal or a normal antenna to its ANTENNA plug.

NOTE: If you went through First Time Setup (in your Quick Use Guide), this task has already been completed for you.

Select CABLE CHANNEL

TUNING control.

With the FEATURES MENU on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the OK arrow

buttons

to move the RED highlight. Press the center OK button to select (

U) the desired

mode - For Example: CABLE.

CABLE- If you DO have

Cable TV

connected to the TV. Channels 1-125 available.

NORMAL- If you have an

Antenna connected

to the TV. Channels 2-69 available.

Press the STATUS button to

clear the screen.

CABLE TUNING

Note: Both ANT(enna) A and ANT B inputs on the rear of the TV can be set for the correct connected signal (either an Antenna or Cable TV source).

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

OFFON

ON/OFF

VCR2

TUNER

DSS/

CLONE MACRO MODE

LEA RNI NG REM OTE CON TRO L

RC- 18S R

LD DVD

AUX

TAPE

VCR1

CD-R

/MD

MACRO MACRO

SOUND

EXIT

FEATURE MENU

ANALOG FORMAT

CLOSED

CAPTIONS

EXIT

CABLE TUNING

CABLE ANT A NORMAL ANT A

CABLE ANT B NORMAL ANT B

CABLE

TUNING

CHANNEL MEMORY

MORE...

1 OF 5

POSITI ONDNPIP

4 7

VOLCH

6 9

MUTE

GUIDEAMP

EXIT

our TV can automatically set itself

for local area (or Cable TV) channels. This makes it easy for you to select only the TV stations in your area when the CHANNEL

▲▼

buttons are pressed. NOTE: If you went through First

Time Setup (in your Quick Use Guide), this task has already been completed for you.

Select CHANNEL MEMORY

(START AUTO-PROGRAMMING)

control. With the FEATURES MENU on

screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the center OK button to

turn AUTO-PROGRAMMING ON .

The TV shows which channel numbers are "SAVED" (

U) as they

are added into memory. "Auto-programming CHANNEL

MEMORY is finished" shows when the TV is through adding channels.

Press the STATUS button to clear

the screen.

CHANNEL MEMORY

AUTO-PROGRAMMING

FEATURE MENU CONTROLS (CONTINUED)

U Channel Numbers are Saved in Memory

SMART HELP

Try it out. Press the

CHANNEL▲▼ buttons

and see which channels you can select.

Remember, an Antenna or Cable TV signal must first be connected to your TV so that channels can be saved.

If you want to delete any unwanted channels from the TV's memory, see "ADD/DELETE CHANNELS" on the next page.

MAIN MENU


FEATURES

1ST TIME SETUP

SOUND

EXIT

FEATURE MENU

ANALOG FORMAT

CABLE

TUNING

BEGIN

MACRO

LEA RNI NG REM OTE CON TRO L

DSS/ VCR2

TUNER

POSITI ONDNPIP

4 7 M

POWER

SOURCE

ON/OFF

CLONE MACRO MODE

RC- 18S R

TAPE

LD DVD

CLOSED

CAPTIONS

EXIT

OFFON

MACRO

VCR1

CD-R

AUX

/MD

VOLCH

MUTE

GUIDEAMP

CHANNEL MEMORY

ADD/DELETE CHANNELS

START AUTO-PROGRAMMING

EXIT

AUTO-PROGRAMMING CHANNEL

MEMORY FOR ANT A

1 2 3 4 5 6 7 8 9 1O 11 12

13 14 15 16 17 18 19 20 21 22 23 24

Press "M" to

Stop Auto-Program

CHANNEL

MEMORY

MORE...

1 OF 5

FEATURE MENU CONTROLS (CONTINUED)

uto-Programming (see

previous page) adds all the channels it can find (on your Antenna or Cable TV system) into the TV's memory. Add/Delete Channels makes it easy for you to add other channels, or drop unwanted channels, from the list of channels in the TV's memory.

Select CHANNEL MEMORY

(ADD/DELETE CHANNELS)

control. With the FEATURES MENU on

screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the CHANNEL ▲▼ or

number buttons

to select the

channel you want to add or delete.

Press the outer OK arrow

button

(on the Right) to ADD the

channel into the TV's memory. Press the outer OK arrow button

(on the Left) to DELETE the channel from memory.

Repeat steps 2 and 3 for each channel you wish to add or delete.

Press the STATUS button to

clear the screen when through.

ADD/DELETE CHANNELS

SMART HELP

Remember. A separate

ADD/DELETE CHANNEL memory may also be created for the ANT(enna) B Input on the rear of the set (if an Antenna or Cable TV signal has been connected). Press the “SOURCE” button on the remote, while in the ADD/DELETE CHANNEL mode, to switch between the ANT A and ANT B channel memory lists. Then follow steps 2 and 3 as shown to the left to add or delete the desired channels.

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

ON/OFF

TUNER

DSS/ VCR2

CLONE MACRO MODE

LEA RNI NG REM OTE CON TRO L

RC- 18S R

LD DVD

TAPE

MACRO MACRO

SOUND

OFFON

VCR1

CD-R

AUX

/MD

EXIT

FEATURE MENU

ANALOG

FORMAT

CLOSED

CAPTIONS

EXIT

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

CHANNEL MEMORY

ADD/DELETE CHANNELS

START AUTO-PROGRAMMING

EXIT

POSITI ONDNPIP

4 7

VOLCH

6 9

MUTE

GUIDEAMP

ADD/DELETE CHANNEL

Channel 19 Added for ANT A

SELECT CHANNEL to DELETE CHANNEL

SOURCE

for ANT B

when FINISHED

FEATURE MENU CONTROLS (CONTINUED)

SET CLOCK

our TV comes with an on-

screen clock. During normal operation the clock appears on the screen with every channel change (and when the STATUS button is pressed).

Select SET CLOCK control.

With the FEATURES MENU (2 of

5) on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the remote's number

buttons to set the time clock.

Press the STATUS button to

set the clock in operation and clear the screen.

Remember, be sure to

press "0" first and then the hour number for single digit entries.

The remote's OK arrow buttons can also be used to set the hours, minutes and AM/PM portions of the clock.

TV Clock settings may be lost when the TV is unplugged (or AC power to the set is interrupted).

SMART HELP

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

ON/OFF

TUNER

DSS/ VCR2

CLONE MACRO MODE

LEA RNI NG REM OTE CON TRO L

RC- 18S R

LD DVD

TAPE

MACRO MACRO

POSITI ONDNPIP

FEATURE MENU

ANALOG

SOUND

EXIT

OFFON

VCR1

CD-R

AUX

/MD

VOLCH

MUTE

GUIDEAMP

FORMAT

CLOSED

CAPTIONS

EXIT

FEATURE MENU

SET

CLOCK

HALF HOUR

REMINDER

EXIT

PLEASE ENTER THE

CURRENT HOUR

SET CLOCK

9 : 19 AM

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

PARENTAL

CONTROL

CHANNEL

DISPLAY

MORE...

2 OF 5

FEATURE MENU CONTROLS (CONTINUED)

ave you ever fallen asleep in

front of the TV only to have it wake you up at two in the morning with a test pattern screeching in your ears? Well, your TV can save you all that trouble by automatically turning itself off.

Press the SLEEP button on the

remote control (LCD Display Mode 1 screen - D6 button).

Press the SLEEP button

repeatedly to pick the amount of time (15 minutes to 2 hours ahead) before the TV will turn itself off.

Press the STATUS button to

clear the screen after you have set the time for the TV to turn off.

Remember, to see how

many minutes are left before the TV shuts itself off, reselect the SLEEP TIMER control screen.

To stop a SLEEP TIMER setting, reset the timer back to OFF. (Turning the TV off and on, or pressing a button during the last minute of a timer setting, will also cancel a setting.)

A few seconds before the TV is to shut off a message will come on the screen telling you GOOD NIGHT.

SMART HELP

BEGIN

SLEEP TIMER

SET SLEEP TIMER

1 : 15

PRESS "SLEEP" TO CHANGE

POWER

SOURCE

OFFON

ON/OFF

DSS/ VCR2

TUNER

1 4 7

CLONE MACRO MODE

LEA RNI NG REM OTE CON TRO L

RC- 18S R

LD DVD

AUX

TAPE

MACRO

VCR1

CD-R

/MD

VOLCH

MUTE

GUIDEAMP

FEATURE MENU CONTROLS (CONTINUED)

ith the Channel Display

control you can change the size and location of the on screen channel and clock information.

Select CHANNEL DISPLAY

control. With the FEATURES MENU (2

of 5) on screen, move the RED highlight with the outer OK arrow buttons. Then press the center OK button to select the feature.

Press the OK arrow and

center OK buttons to highlight

and select (

U) the LARGE or

SMALL display control.

Press the STATUS button to

clear the screen.

CHANNEL DISPLAY

SMART HELP

Try it out. Press the

CHANNEL ▲▼ buttons and

you should see the Display Size you selected.

Remember. The SMALL SIZE display shows only the channel number, not the time (or clock).

BEGIN

MAIN MENU


FEATURES

1ST TIME SETUP

POWER

SOURCE

ON/OFF

MACRO

CLONE MACRO MODE

LEA RNI NG REM OTE CON TRO L

RC- 18S R

FEATURE MENU

ANALOG

SOUND

EXIT

OFFON

MACRO

FORMAT

CLOSED

CAPTION

EXIT

FEATURE MENU

SET

CLOCK

HALF HOUR

REMINDER

EXIT

CABLE

TUNING

CHANNEL

MEMORY

MORE...

1 OF 5

PARENTAL

CONTROL

CHANNEL

DISPLAY

MORE...

2 OF 5

DSS/

VCR2

TUNER

POSITI ONDNPIP

4 7

LD DVD

TAPE

3 6 9

VCR1

CD-R

AUX

/MD

VOLCH

CHANNEL DISPLAY

LARGE

MUTE

GUIDEAMP

SMALL - Channel/Label

EXIT

+ 39 hidden pages
