NPN/PNP general purpose
transistors
Product data sheet
Supersedes data of 2002 May 6
2004 Oct 15
Page 2
NXP Semiconductors Product data sheet
Top view
MAM341
645
NPN/PNP general purpose transistors PUMZ1
FEATURES
• Low current (max. 100 mA)
• Low voltage (max. 40 V)
• Reduces number of components and boardspace.
APPLICATIONS
• General purpose switching and amplification.
DESCRIPTION
Two independently operating NPN/PNP transistors in an
SC-88; SOT363 plastic package.
MARKING
T YPE NUMBER MARKING CODE
(1)
PUMZ1 F*Z
Note
1. * = -: Made in Hong Kong.
* = t: Made in Malaysia.
* = W: Made in China.
PINNING
PIN DESCRIPTION
1, 4 emitter TR1; TR2
2, 5 base TR1; TR2
3, 6 collector TR2; TR1
handbook, halfpage
132
56
4
TR1

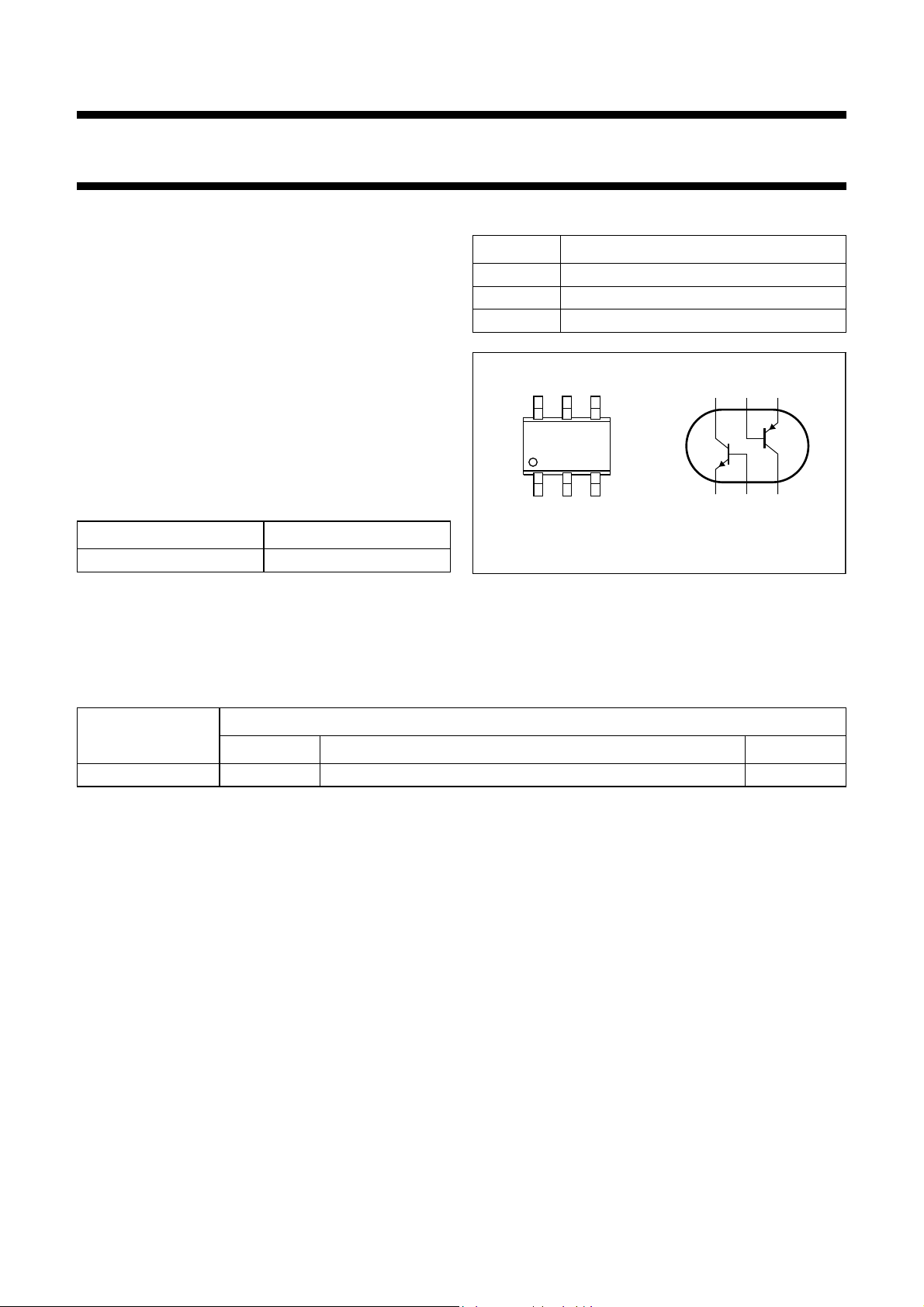

Fig.1 Simplified outline (SC-88) and symbol.
TR2
132
ORDERING INFORMATION
PACKAGE
TYPE NUMBER
NAME DESCRIPTION VERSION
PUMZ1 − plastic surface mounted package; 6 leads SOT363
2004 Oct 15 2
Page 3
NXP Semiconductors Product data sheet
NPN/PNP general purpose transistors PUMZ1
LIMITING VALUES
In accordance with the Absolu te Maximum Rating System (IEC 60134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
Per transistor; for the PNP transistor with negative polarity
V
CBO
V
CEO
V
EBO
I
C
I
CM
I
BM
P
tot
T
stg
T
j
T
amb
Per device
P
tot
collector-base voltage open emitter − 50 V
collector-emitter voltage open base − 40 V
emitter-base voltage open collector − 5 V
collector current (DC) − 100 mA
peak collector current − 200 mA
peak base current − 200 mA
total power dissipation T
≤ 25 °C − 200 mW
amb
storage temperature −65 +150 °C
junction temperature − 150 °C
operating ambient temperature −65 +150 °C
total power dissipation T
≤ 25 °C; note 1 − 300 mW
amb
Note
1. Device mounted on an FR4 printed-circuit board.
THERMAL CHARACTERISTICS
SYMBOL PARAMETER CONDITIONS VALUE UNIT
Per device
R
th(j-a)
thermal resistance from junction to ambient note 1 416 K/W
Note
1. Device mounted on an FR4 printed-circuit board.
2004 Oct 15 3
Page 4
NXP Semiconductors Product data sheet
NPN/PNP general purpose transistors PUMZ1
CHARACTERISTICS
T
= 25 °C unless otherwise specified.
amb
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
Per transistor; for the PNP transistor with negative polarity
I
CBO
I
EBO
h
FE
V
CEsat
C
c
f
T
Note
1. Pulse test: tp ≤ 300 μs; δ ≤ 0.02.
collector-base cut-off curren t IE = 0 A; VCB = 30 V − 100 nA
IE = 0 A; VCB = 30 V; Tj = 150 °C − 10 μA
emitter-base cut-off current IC = 0 A; VEB = 4 V − 100 nA
DC current gain IC = 1 mA; VCE = 6 V 120 −
collector-emitter saturation voltage IC = 50 mA; IB = 5 mA; note 1 − 200 mV
collector capacitance IE = ie = 0 A; VCB = 12 V; f = 1 MHz
TR1 − 1.5 pF
TR2 − 2.2 pF
transition frequency IC = 2 mA; VCE = 12 V; f = 100 MHz 100 − MHz
2004 Oct 15 4
Page 5
NXP Semiconductors Product data sheet
3
NPN/PNP general purpose transistors PUMZ1
PACKAGE OUTLINE

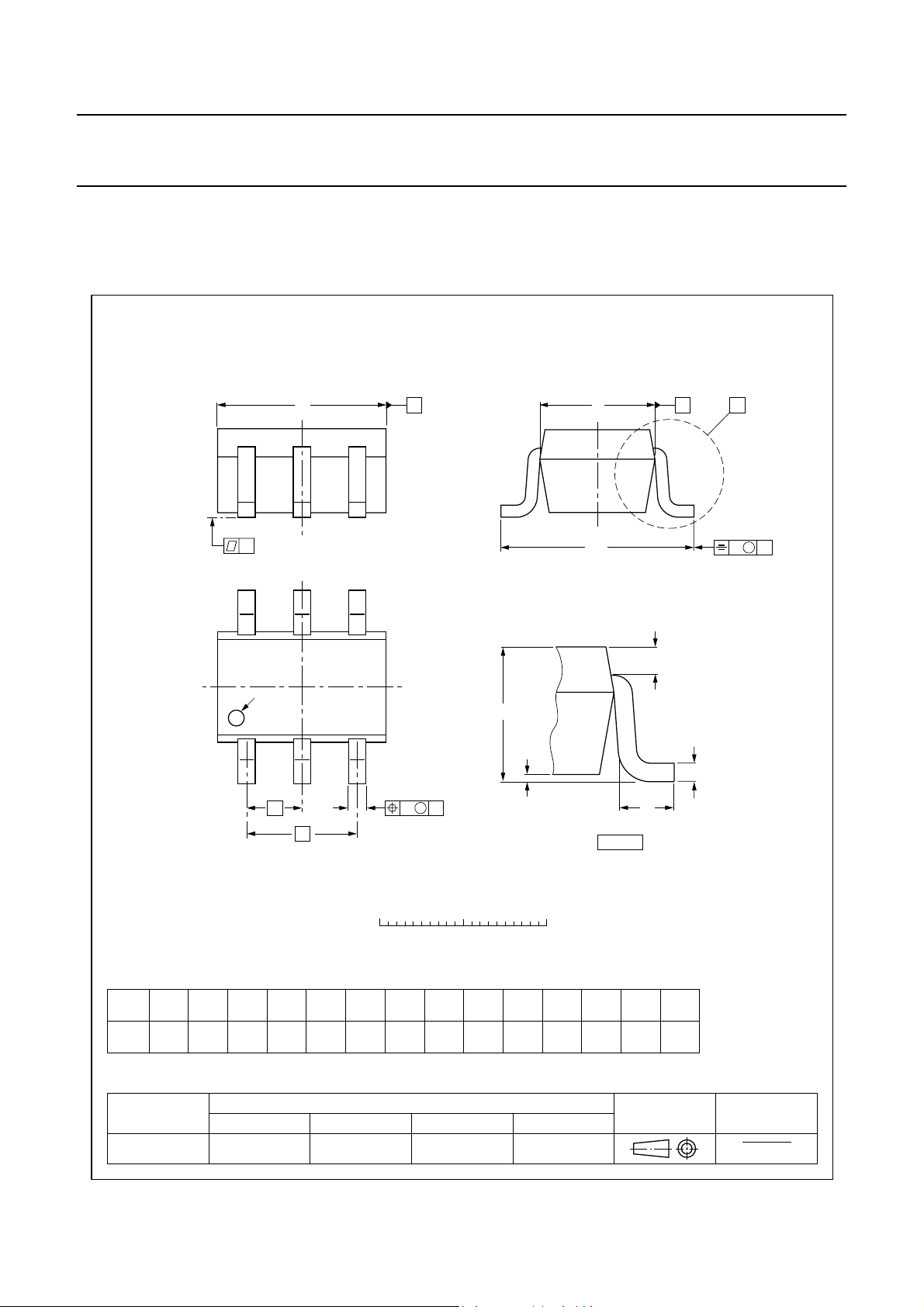

Plastic surface-mounted package; 6 leads SOT36
D
y
pin 1
index
132
e
1
e
E
H
E
AB
X
v M
A
456
Q
A
A
1
b
p
wBM
L
detail X
c
p
0 1 2 mm
scale
DIMENSIONS (mm are the original dimensions)
A
1
UNIT
A
1.1
mm
0.8
OUTLINE
VERSION
SOT363 SC-88
max
0.1
b
cD
p
0.30
0.20
IEC JEDEC JEITA
0.25
0.10
2.2
1.8
E
1.35
1.3
1.15
REFERENCES
e
e
0.65
H
L
Qywv
p
E
1
2.2
0.45
2.0
0.15
0.25
0.15
0.2 0.10.2
EUROPEAN
PROJECTION
ISSUE DATE
04-11-08
06-03-16
2004 Oct 15 5
Page 6
NXP Semiconductors Product data sheet
NPN/PNP general purpose transistors PUMZ1
DATA SHEET STATUS
DOCUMENT
STATUS
Objective data sheet Development This document contains data from the objective specification for product
Preliminary data sheet Qualification This document contains data from the preliminary specification.
Product data sheet Production This document contains the product specification.
Notes
1. Please consult the most recently issued document before initiating or completing a design.
2. The product status of device(s) described in this document may have changed since this document was published
and may differ in case of multiple devices. The latest product status information is available on the Internet at
http://www.nxp.com.
URL
DISCLAIMERS
General ⎯ Information in this document is believed to be
accurate and reliable. However, NXP Semiconductors
does not give any representations or warranties,
expressed or implied, as to the accuracy or completeness
of such information and shall have no liability for the
consequences of use of such information.
Right to make changes ⎯ NXP Semiconductors
reserves the right to make changes to information
published in this document, including without limitation
specifications and product descriptions, at any time and
without notice. This document supersedes and replaces all
information supplied prior to the publication hereof.
Suitability for use ⎯ NXP Semiconductors products are
not designed, authorized or warranted to be su itable for
use in medical, military, aircraft, space or life support
equipment, nor in applications where failure or malfunction
of an NXP Semiconductors product can reasonably be
expected to result in personal injury, death or severe
property or environmental damage. NXP Semiconductors
accepts no liability for inclusion and/or use of NXP
Semiconductors products in such equipment or
applications and therefore such inclusion and/or use is at
the customer’s own risk.
Applications ⎯ Applications that are described herein for
any of these products are for illustrative purposes only.
NXP Semiconductors makes no representation or
warranty that such applications will be suitable for the
specified use without further testing or modificati on .
(1)
PRODUCT
STATUS
(2)
DEFINITION
development.
above those given in the Characteristics sections of this
document is not implied. Exposure to limiting values for
extended periods may affect device reliability.
Terms and conditions of sale ⎯ NXP Semiconductors
products are sold subject to the general terms and
conditions of commercial sale, as published at
http://www.nxp.com/profile/terms, including those
pertaining to warranty, intellectual property rights
infringement and limitation of liability, unless explicitly
otherwise agreed to in writing by NXP Semiconductors. In
case of any inconsistency or conflict between information
in this document and such terms and conditions, the latter
will prevail.
No offer to sell or license ⎯ Nothing in this document
may be interpreted or construed as an offer to sell products
that is open for acceptance or the grant, conveya nce or
implication of any license under any copyrights, patents or
other industrial or intellectual property rights.
Export control ⎯ This document as well as the item(s)
described herein may be subject to export control
regulations. Export might require a prior authorization from
national authorities.
Quick reference data ⎯ The Quick reference data is an
extract of the product data given in the Limiting values and
Characteristics sections of this document, and as such is
not complete, exhaustive or legally binding.
Limiting values ⎯ Stress above one or more limiting
values (as defined in the Absolute Maximum Ratings
System of IEC
the device. Limiting values are stress ratings only an d
