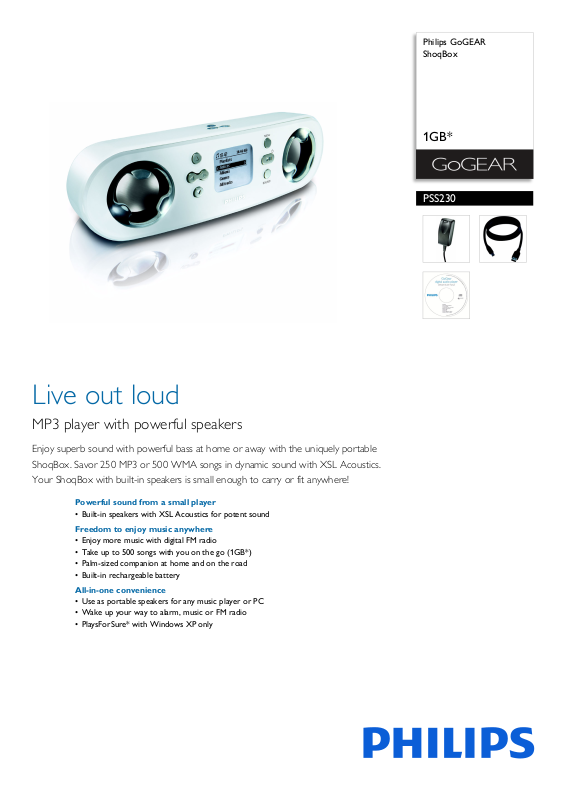

Page 1
Philips GoGEAR
ShoqBox
1GB*
PSS230
Live out loud
MP3 player with powerful speakers
Enjoy superb sound with powerful bass at home or away with the uniquely portable
ShoqBox. Savor 250 MP3 or 500 WMA songs in dynamic sound with XSL Acoustics.
Your ShoqBox with built-in speakers is small enough to carry or fit anywhere!
Powerful sound from a small player
• Built-in speakers with XSL Acoustics for potent sound
Freedom to enjoy music anywhere
• Enjoy more music with digital FM radio
• Take up to 500 songs with you on the go (1GB*)
• Palm-sized companion at home and on the road
• Built-in rechargeable battery
All-in-one convenience
• Use as portable speakers for any music player or PC
• Wake up your way to alarm, music or FM radio
• PlaysForSure* with Windows XP only
Page 2
ShoqBox
1GB*
PSS230/00
Specifications
Picture/Display
• Backlight color: White
• Indications: Battery status, DBB, time
•Lines of text: 5
• Resolution: 128 x 96 pixels
•Type: LCD
Sound
• Equalizer settings: Classic, Hip Hop, Jazz, Pop,
Rock
• Frequency response: 20 - 20 000 Hz Hz
• Signal/noise ratio: >80 dB (earphone), >50dB
eaker)
(sp
• Sound Enhancement: Dynamic Bass Boost
• Output power (RMS): 2 x 2 W RMS (4 ohm,
eakers), 2 x3 mW RMS (16 ohm, headphones -
sp
note HP not included)
• Volume Control: digital
Audio Playback
• Compression format: MP3, Windows Media™
Audio
• ID3-tag support
• MP3 bit rates: 8-320 kbps and VBR
• MP3 sample rates: 8, 11.025, 16, 22.050, 32, 44.1,
48 kHz
• WMA bit rates: 5 - 192
• WMA sample rates: 8,11.025
Storage Media
• Built-in memory (RAM): 1000
• Built-in memory type: NAND Flash
• Mass storage class compliant
• Music memory capacity, MP3: up to 250 (128kbps
min.)
& 4
• Music memory capacity, WMA: up to 500 (64kbps
min.)
& 4
Tuner/Reception/Transmission
• Frequency range: 87.5 - 108 MHz MHz
• Station presets: 10
• Tuner Bands: FM Stereo
Connectivity
• Aux in: Line-in, 3.5 mm
,16,22.050,32,44.1,48
• Cables: Line-in cable & FM antenna cable
• DC in: 5 V, D=3.0 mm
• Headphone: 3.5 mm
• USB: USB 2.0
Accessories
• AC/DC Adaptor/Charger: multi-voltage, AC:100240 V, 50-60 Hz, DC: 5 V (AY3192)
• Cables: Audio line-in & F
• CD-ROM: Device Manager, Windows Media
r, user manuals
Playe
• Pouch: Travel case (soft)
• USB cable: (AY3841)
• Quick start guide: Printed
M antenna cable
Green Specifications
• Lead-free soldered product
System Requirements
•CD-ROM drive
• Hard disk space: 50 MB
• PC OS: Windows XP (SP1 and above)
• RAM memory: 96 MB RAM
• USB: Free USB port
Dimensions
• Outer carton dimensions WxDxH: 268 x 204 x
248 mm
• Master carton quantity: 2
• Packaging dimensions (W x H x D): 230 mm x 256
mm x 96 mm mm
• Packaging type: D-box
• Product dimensions (WxDxH): 58 x 53 x 182 mm
• Product weight: 0.350 kg kg
Power
• Adaptor type: multi-voltage (AC: 100 - 240 V, 50 60 Hz)
• Battery capacity: 1600 mAh
•Battery Type: Li-ion
• Charging time: 4 hours hr
• Playtime on internal batt
• Rechargeable
•
ery: Up to 10 hours
Highlights
XSL Acoustics potent sound
Enjoy potent sound and powerful bass performance
from your ShoqBox with XSL Acoustics. Impressive
sound is produced by combining bright, brisk treble
and mid range sound with elastic, powerful bass.
Innovative use of high-tech materials like titanium
cone and neodymium magnet deliver sound output
that's nearly double the power of a traditional
speaker driver of the same size. Precise tuning
between the speaker driver, the small acoustic
architecture and the circuitry ensures superbly
dynamic sound and optimizes bass performance
from the smallest sound enclosure.
PlaysForSure*
Enjoying your GoGear device is simple with
PlaysForSure which ensures compatibility with
Windows Media Player 10 and Windows XP. Using
Windows Media player you can easily manage music
on your GoGear digital audio player and autosynchronize your PC music collection. Also, enjoy
the widest online shopping selection by simply
looking for the PlaysForSure logo at your choice of
online store. Then rest assured knowing any music
you purchase there will work with your GoGear
player.
Issue date 2014-02-10
Version: 1.0.5
12 NC: 9073 101 02307
EAN: 87 10895 93069 7
© 2014 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* 1GB = 1 billion bytes; available storage capacity will be less.
* Battery life varies by use and settings.
* Storage capacity based on 4 minutes per song and 64 kbps WMA or
128 kbps MP3 encoding.
* The PlaysForSure, Windows Media and the Windows logo are
trademarks, or registered trademarks of Microsoft Corporation in
the United States and/or other countries.
