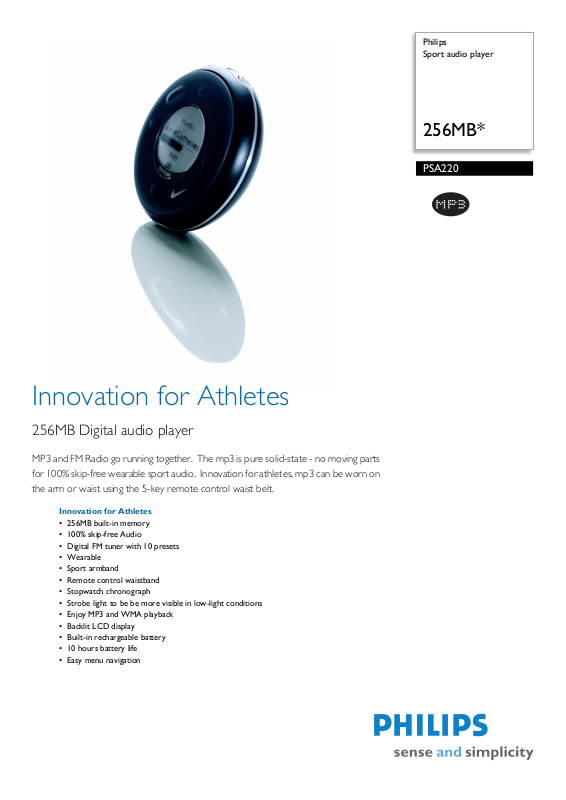

Philips PSA220-11 User Manual
Philips
Sport audio player
256MB*
PSA220
Innovation for Athletes
256MB Digital audio player
MP3 and FM Radio go running together. The mp3 is pure solid-st ate - no moving parts
for 100% skip-free wearable sport audio. Innovation for athlet es, mp3 can be worn on
the arm or waist using the 5-key remote control waist belt.
Innovation for Athletes
• 256MB built-in memory
• 100% skip-free Audio
• Digital FM tuner with 10 presets
• Wearable
• Sport armband
• Remote control waistband
• Stopwatch chronograph
• Strobe light to be be more visible in low-light conditions
• Enjoy MP3 and WMA playback
• Backlit LCD display
• Built-in rechargeable battery
• 10 hours battery life
• Easy menu navigation
Sport audio player
256MB*
PSA220/11
Specifications Product highlights
Picture/Display
• Backlight
• Backlight color: White
• Indications: album name, artist name, Battery
status, DBB, frequency, pre-set station, time,
track
• Type: LCD
Sound
• Bass enhancement: Digital Bass Boost
• Equalizer settings: Funk, Hip Hop, Rock, Techno
• Frequency response: 20 - 20 000 Hz
• Signal to noise ratio: >80
• Output power (RMS): 2 - 5mW
• Volume Control: digital
Audio Playback
• Compression format: MP3, Windows Media™
Audio
• ID3 Tag support: Album indication, Album title
and artist name, Genre title, Track title and artist
name
• ID3-tag support
• MP3 bit rates: 8-320 kbps and VBR
• WMA bit rates: 32 - 192 kbps
Storage Media
• Built-in memory capacity: 256
• Built-in memory type: NAND Flash
• Mass storage class compliant
• Music memory capacity, MP3: up to 65 (128
kbps)
• Music memory capacity, WMA: up to 130 (64
kbps)
Tuner/Reception/Transmission
• Frequency range: 87.5 - 108 MHz
• Station presets: 10
• Tuner Bands: FM Stereo
Connectivity
• DC in: 5V
• Headphone: 3.5 mm
• Line-out: 3,5 mm
• USB: USB 1.1
Accessories
• AC/DC Adaptor/Charger: AY4102
• Carrier: AY4207
• CD-ROM: AY4485
• Headphones: SBC HJ030/77
• USB cable: AY3912
• Waistband rc, extens., armband: AY4002
Software
•DMM
Green Specifications
• Lead-free soldered product
System Requirements
•CD-ROM drive
• Hard disk space: 1 GB
• Mac OS: 10
• PC OS: Windows® 98 SE, 2000, ME, XP
• Processor: 300 MHz processor or better
• RAM memory: 256 MB RAM
• USB: Free USB port
Dimensions
• Master carton quantity: 3
• Packaging dimensions (W x H x D):
192
x 95 x 192 mm
• Packaging type: D-box
• Product dimensions (W x H x D):
71
x 27 x 27 mm
• Product weight: 0.070 kg
Power
• Adaptor type: 100 - 240V
• Automatic Power off: SmartSave
• Battery capacity: 600
• Battery Type: Li-ion
• Charging time: 4 hrs full, 1 hr fast charge hr
• Operating time on battery: 10 hr
• Rechargeable
•
256MB* built-in memory
100% skip-free audio
10 presets Digital FM tuner
Wearable
Sport armband
Remote control waistband
Stopwatch chronograph
Strobe light
Enjoy MP3 and WMA playback
Backlit LCD display
Built-in rechargeable battery
10 hrs battery life
Easy menu navigation
Shuffle and Repeat modes
Equalizer
Equalizer allows you to select preset modes that
optimize certain frequency bands to enhance specific
music styles. Players with Equalizer, utilize graphic
equalizing technology to automatically set the optimum
sound frequency balance for a chosen music style. The
Equalizer allows you to enjoy the optimum sound
depending on the music style.
DBB Dynamic Bass Boost
Activate the Dynamic Bass Boost (DBB), and the lowend bass frequencies are electronically enhanced to
achieve consistent sound reproduction, especially when
the speaker volume is set at a low level. You hear
impressive bass at all times.
Digital Media Manager
Digital Media Manager is software from Philips that lets
you easily transfer music, photo and video files from
your device to your PC and vice versa. The software
recognizes your device when it is connected to the PC.
Us ing simp le point and click, you can e asily tr ansfer f iles
between the PC and a variety of Philips devices.
Date of issue 2007-01-15
Version: 2.0
12 NC: 9073 101 01129
EAN: 87 10895 80878 1
works with PC and Mac
© 2007 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
