Bluetooth alarm
clock with wireless
phone charger
PR702
User manual
Register your pr
www.philips.com/support
oduct and get suppor
t at
Contents
1 Important 2
Safety 2
2 Your Bluetooth alarm clock with
wireless phone charger
Introduction
What's in the box 3
Overview of the Bluetooth
alarm clock
3 Get started 5
Connect Power
Install battery
Set clock
Turn on
Adjust display brightness
4 Set alarm timer 7
Set alarm 7
Activate/deactivate alarm timer 7
5 Set sleep timer 8
6 Bluetooth 9
Play from Bluetooth device 9
7 Charging 10
8 Product information 11
3
3
4
5
5
5
6
6
9 Troubleshooting 12
10 Notice 13
Care of the environment 13
EN 1
1 Important
Safety
warning
• Never remove the casing of this Bluetooth alarm
clock.
• Never lubricate any part of this Bluetooth alarm
clock.
• Never place this Bluetooth alarm clock on other
electrical equipment.
• Keep this clock radio away from direct sunlight,
naked flames or heat.
• Make sure that you always have easy access to the
power cord, plug or adaptor to disconnect the
Bluetooth alarm clock from the power.
• Read these instructions.
• Heed all warnings.
• Follow all instrutions.
• Don’t block any vents, install in accordance with the
manufacturer's instructions.
• Don’t install near any heat sources such as radiators, heat
registers, stoves or other apparatus ( Including amplifiers )
that producce heat.
• Protect the power cord from being walked on or pinched,
particularly at plgus, convenience receptacles, and the point
where they exit from the Bluetooth alarm clock.
• Unplug this Bluetooth alarm clock during lightning storms
or when unused for long periods of time.
• Refer all servicing to qualified service personnel. Servicing is
required when the Bluetooth alarm clock has been damaged
in any way, such as power-supply cord or plug is damaged,
liquid has been spilled or objects have fallen into the Bluetooth
alarm clock, the Bluetooth alarm clock has been exposed to
rain or moisture, does’t operate normally or has been dropped.
• Battery usage CAUTION -- To prevent battery leakage which
may result in bodily injury, property damage, or damage to the
Bluetooth alarm clock.
• Install the battery correctly , + and - as marked on the
Bluetooth alarm clock.
• Remove the battery when the Bluetooth alarm clock
is’t used for a long time.
• The battery shall not be exposed to excessive heat such as
sunshine, fire or the like.
• This Bluetooth alarm clock shall not be exposed to
dripping or splashing.
• Don’t place any sources of danger on the Bluetooth
alarm clock(e.g.liquid filled object, lighted candles).
• Where the plug of the Direct Plug-in Adapter is used
as the disconnect device, the disconnect device shall
remain readily operable
remark
• Rating Lable is located at the bottom of the product
2 EN
2 Your Bluetooth alarm
clock with wireless
phone charger
Congratulations on your purchase, and
welcome to Philips! To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this Bluetooth alarm clock, you can:
• play audio from Bluetooth-enabled
devices
• view time
• set two alarms
• charge your mobile devices with the
wireless phone charger or USB
What’s in the box
Check and identify the contents of your
package:
• Bluetooth alarm clock
• Power adapter
• Printed materials
EN 3
Overview of the Bluetooth
alarm clock
b
a
d
e
a POWER/
• Bluetooth on/off
b - VOL +
• Set hour and minutes
• Set 12 hours or 24 hours
• Volume up/down
c
• Play/pause
d SNOOZE / BRIGHTNESS
• Snooze the alarm
• Adjust display brightness
e Display panel
• Display current status
f SET TIME/ zZ
• Set time
• Set sleep timer
g ALARM1/ ALARM2
• Set alarm
• Activate or deactivate alarm timer
h USB charging port
i Power adapter jack
j Wireless charging area
j
c
f
h
g
i
4 EN
3 Get started
Always follow the instructions in this chapter in
sequence.
Connect power
Caution
• The battery contains chemical substances, so it
should be disposed of properly.
According to the instructions in the correct
polarity (+ / -) insert section 1.5V x 2 AAA
batteries (not provided)
Caution
Risk of product damage! Make sure that
•
the power voltage corresponds to the
voltage printed on the back or underside
of the clock radio.
• Risk of electric shock! When you unplug
the AC adapter, always pull the plug from
the socket. Never pull the cord.
• Risk of explosion! Keep the battery away
from heat, sunshine or fire. Never discard
battery in fire.
• Danger of explosion if battery is incorrectly
replaced. Replace only with the same or
equivalent type.
Connect the power adapter to the wall outlet.
Install battery
You can only use AC power as power supply.
The AAA battery can only back up clock and
alarm settings. When power is disconnected,
the display backlight is off.
AAA
Replace batteries when the Low battery
indicator is on
Set clock
In standby mode, press and hold SET TIME
1
for more than 2 seconds to activate clock
setting. The time format 24H on the display
will flash.
Press the - or + button repeatedly to select
2
24 hour (default) or 12 hour clock display
format.
press SET TIME to confirm and the hour
3
digits on the display will flash
EN 5
Press the - or + button to adjust the hour
4
(press and hold the buttons for rapid setting)
Press SET TIME to confirm and the minutes
5
digits on the display will flash
Press the - or + button to adjust the minutes
6
(press and hold the buttons for rapid setting)
Press SET TIME to confirm and the set time
7
is displayed.
Turn on
Press POWER button to turn on the Bluetooth
alarm clock
Switch to the standby mode
Press the POWER button again to switch to the
standby mode
The clock (if set) is displayed
Adjust display brightness
Press BRIGHTNESS repeatedly to select
different brightness levels
• High
• Medium
• Low
EN 6
4 Set alarm timer
Set alarm
You can set two alarms to ring at different time.
Note
• Make sure that you have set the clock correctly.
• You can only set the alarm in standby mode.
In standby mode，press and hold ALARM1
1
or ALARM2 for more than 2 seconds to
activate alarm setting mode, clock digits
buzz icon ( ) and alarm icon ( or )
on the display will flash.
Press the - or + button to adjust the hour.
2
Press ALARM1 or ALARM2 to confirm and
the minutes digits on the display will flash.
Press the - or + button to adjust the minutes.
3
Press ALARM1 or ALARM2 to confirm
Press ALARM1 or ALARM2 repeatedly
4
to select alarm source:
Buzze
•
r ( ) on
• Bluetooth music ( ) on
• Cancel alarm
• Press ALARM1 or ALARM2 again to activate
or deactivate the alarm timer.
or appears if the alarm timer is on
and disappears if it is off.
• To stop the alarm, press the
corresponding ALARM1 or
ALARM2 buttons.
• To stop the ringing alarm, press the
corresponding ALARM1/ALARM2.
The alarm repeats itself in
subsequent days.
Snooze the alarm
When the alarm goes off, press SNOOZE.
The alarm snoozes and repeats
ringing nine minutes later.
Tip
The alarm volume is not adjustable, but it will go up
•
gradually to gently wake you up.
• If the alarm if set to Bluetooth music but no Bluetooth
device is detected, the alarm will default to buzzer.
Activate/deactivate alarm timer
• In standby mode, press ALARM1 or ALARM2
to view the current alarm settings.
7 EN

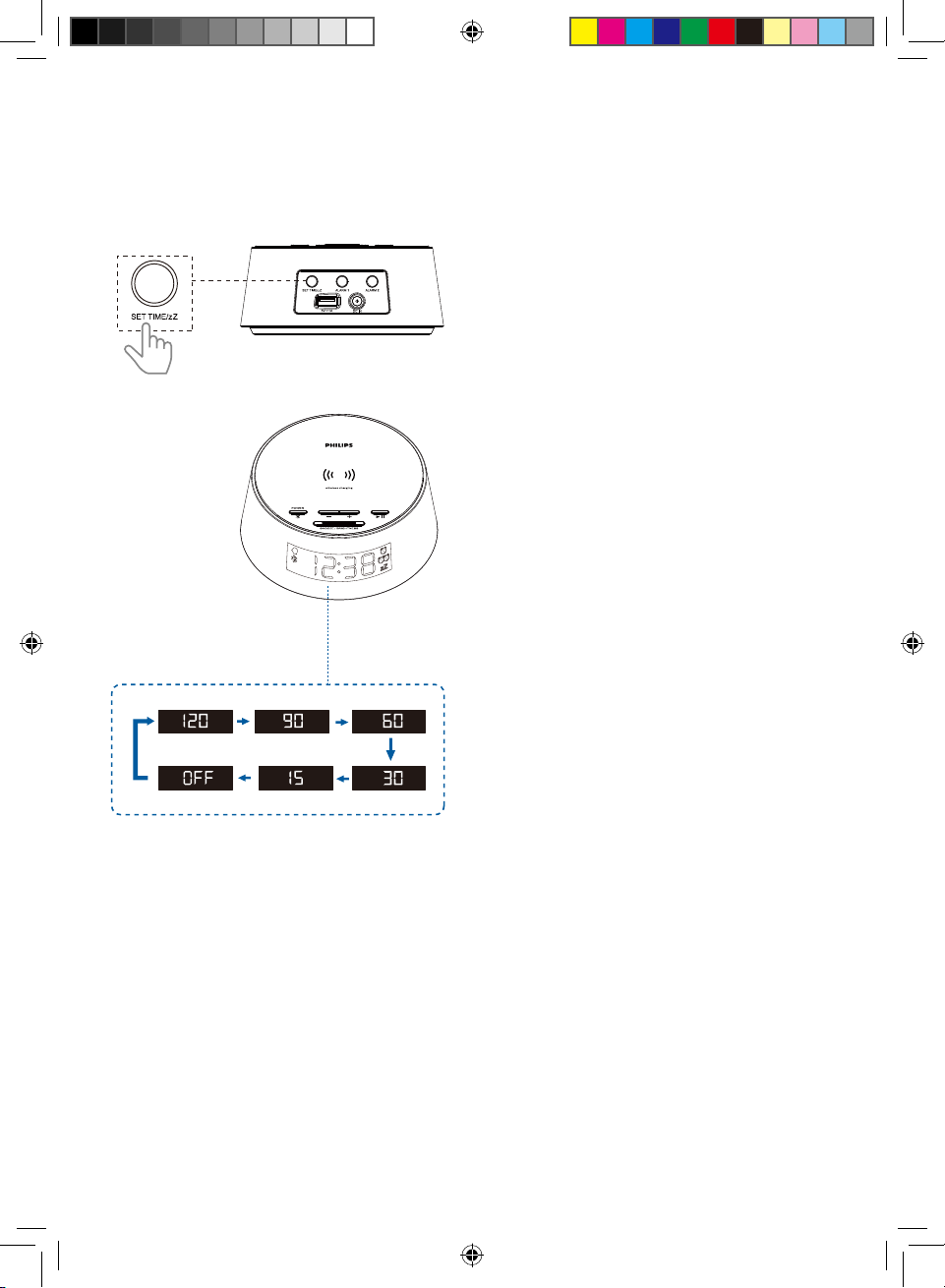

5 Set sleep timer
The Bluetooth alarm clock can switch to standby
mode automatically after a preset period.
• In Bluetooth playing mode, press SLEEP
repeatedly to select the sleep timer
period (in minutes).
To deactivate the sleep timer:
In sleep timer setting mode, press SLEEP
repeatedly until [OFF] appears.
EN 8
6 Bluetooth
Play from Bluetooth device
Press POWER repeatedly to select Bluetooth mode
on the display panel blink
Activate the Bluetooth function in your Bluetooth
device.
Select “PHILIPS PR702” displayed on your device
for pairing.
If connection is successful, the Bluetooth alarm
clock beeps twice and the icon stops flashing.
You can now start music playback on your Bluetooth
device.
Press -/+ to adjust the sound level.
Bluetooth reset
Press and hold POWER for over 5 seconds to
erase all pairing information.
And on the display panel blink
The Bluetooth alarm clock enters Bluetooth
mode automatically after reset.
9 EN
7 Charging
Using Qi Wireless Charging
Thi
s unit will wirelessly charge wireless charging
compatible phones by placing your phone on
top of the wireless charging icon of the Bluetooth
alarm clock. The charging icon ( ) on the
display is on while charging.
USB charging port
This product also has a USB charging port
for devices that do not support wireless
charging.
EN 10
8 Product information
Note
Product information is subject to change without prior
•
notice.
Loudspeaker output 2W RMS X 2
Wireless charging power 10W
USB charging output 5V 1.0A
Total harmonic distortion ＜2%
SNR ＞50dB
Power supply
(power adapter)
Battery
Brand name: PHILIPS
Model:
BQ30A-0902500-G;
Input: 100-240V~,
50/60 Hz,
Max. 800 mA ;
Output: 9 V
2500mA;
2 AAA batteries to
clock and alarm clock
back-up power (not
provided)
Standby Power
Consumption
Product dimensions
- Main unit
Product weight 0.45Kg
Note
≤1W
(WxHxD）
135 x 65 x 135mm
means DC voltage
11 EN
9 Troubleshooting
Warning
•
Never remove the casing of this device.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
device, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips Web page (www.
philips.com/support). When you contact Philips,
make sure that the device is nearby and the
model number and serial number are available.
No power
• Ensure that the AC power plug of the
Bluetooth alarm clock is connected properly.
• Ensure that there is power at the AC
outlet.
No response from the Bluetooth alarm clock
• Disconnect and reconnect the AC power
plug, then turn on the Bluetooth alarm
clock again.
Alarm does not work
• Set the clock/alarm correctly.
EN 12
10 Notice
Any changes or made to this
device that are not expressly approved by
MMD Hong Kong Holding Limited may void
the user’s authority to operate the equipment.
Hereby, MMD Hong Kong Holding Limited
declares that this product is in compliance
with the essential requirements and other
relevant provisions of Directive 2014/53/EU.
You can find the Declaration of Conformity
on www.philips.com/support.
Care of the environment
Disposal of your old product and battery
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
This symbol means that the product contains
batteries covered by European Directive
2013/56/EU which cannot be disposed of with
normal household waste.
Inform yourself about the local separate
collection system for electrical and electronic
products and batteries. Follow local rules and
never dispose of the product and batteries
with normal household waste. Correct disposal
of old products and batteries helps prevent
negative consequences for the environment and
human health.
Removing the disposable batteries
To remove the disposable batteries, see battery
installation section.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
paper pulp (buffer) and polyethylene (bags,
protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
This symbol on a product means that the product is
covered by European Directive 2012/19/EU. Inform
yourself about the local separate collection system
for electrical and electronic products. Follow local
rules and never dispose of the product with normal
household waste. Correct disposal of old products
helps prevent negative consequences for the
environment and human health.
13 EN
Loading...
