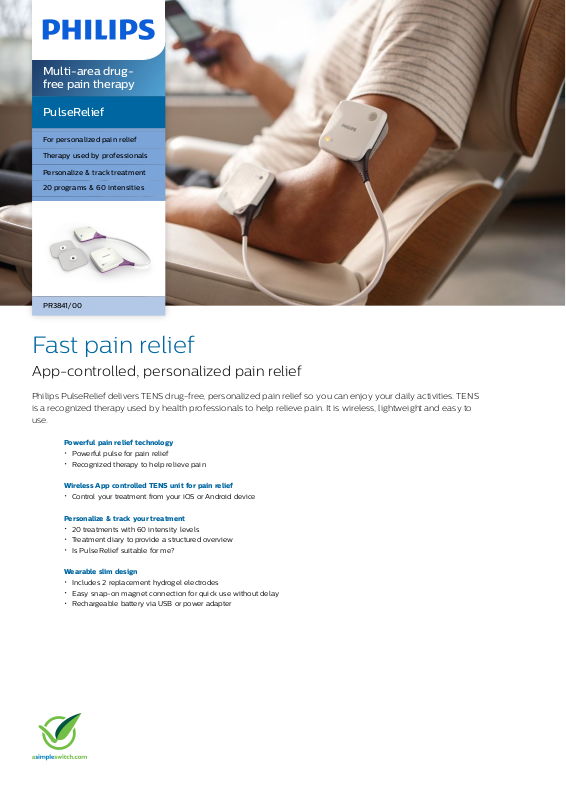

Philips PR3841/00 Leaflet

Multi-area drug­free pain therapy

PulseRelief

For personalized pain relief

Therapy used by professionals

Personalize & track treatment

20 programs & 60 intensities

PR3841/00

Fast pain relief

App-controlled, personalized pain relief

Philips PulseRelief delivers TENS drug-free, personalized pain relief so you can enjoy your daily activities. TENS
is a recognized therapy used by health professionals to help relieve pain. It is wireless, lightweight and easy to
use.

Powerful pain relief technology

Powerful pulse for pain relief

Recognized therapy to help relieve pain

Wireless App controlled TENS unit for pain relief

Control your treatment from your iOS or Android device

Personalize & track your treatment

20 treatments with 60 intensity levels

Treatment diary to provide a structured overview

Is PulseRelief suitable for me?

Wearable slim design

Includes 2 replacement hydrogel electrodes

Easy snap-on magnet connection for quick use without delay

Rechargeable battery via USB or power adapter

Multi-area drug-free pain therapy

PR3841/00

Highlights Specifications

Powerful TENS technology

PulseReli ef is a wireless one-channel TENS

device. It uses a bi-phase pulse to stimulate

the nerves underlying the skin. You can control

the intensity of the pulse yourself via the

PulseReli ef app.

Recognized pain therapy

TENS is a recognized therapy used by health

professionals to help relieve pain. TEN S is a

non-invasive pain relief method for which

clinical proof exists that i t can help relieve

pain. TENS uses tiny electrical impulses sent

through the skin to the nerves to block the pain

message from reaching the brain.

App-enabled treatment control

You can control your treatment via Bluetooth

low energy on your iOS or Android device (see

specifications for compatibility) to allow a high

degree of mobility during use of PulseRelief.

This enables you to go about your daily

activities without being hindered by wires.

20 treatments, 60 intensities

PulseReli ef offers a variety of treatments with

its 15 TEN S [Transcutaneous electrical nerve

stimulation] and 5 E MS [Electrical muscle

stimulation] programs. The 15 TENS programs

can be used to relieve muscle pain resulting

from e.g. strain injury, exercise or household

work. The 5 EMS programs offer muscle

stimulation for muscle conditioning.

Treatment diary

The Treatment diary is part of the PulsRelief

app. It gi ves you a comprehensive overview on

your personalized treatment history. You can

use this overview to optimize your pain

treatment (together with your health

professional).

Self-adhesive electrodes

The self-adhesive electrodes have patented

hydrogel technology for multiple application to

the skin. There are 2 electrodes in a resealable

plastic pack, and the recommended use is up

to 20 times per electrode. This is dependent on

skin type and usage. The electrodes ensure an

even distribution of the electrical pulse to the

skin beneath the electrodes.

Easy snap-on magnet connection

The 2 TENS units are easily connected to the

self-adhesive electrodes by a magnet. You first

apply the self-adhesive electrodes to your

body and then just snap-on the TENS units via

the magnet connection. The TEN S units come

with an USB adaptor and when fully charged

can last for up to 8 hours of continuous pain

therapy.

USB/power adapter

Keep your PulseRelief charged via USB or

standard power adapter at home or at work.

After the battery is fully charged PulseRelief

can be used for up to 8 hours.

Is PulseRelief for me?

PulseReli ef is designed to be used for

temporary relief of pain associated with sore

and aching muscles in the shoulder, waist,

back, neck, upper extremities (arm), and lower

extremities (leg) due to strain from exercise or

normal household work activities.

Power

Adaptor type: 100 - 240V AC, 50/60Hz

AC/DC Adaptor: 5V - 300mA

Battery type: Li-Ion (rechargeable)

Operating conditions

Atmospheric pressure: 700 hPa to 1060 hPa

Relative humidity: 15 % to 93 %

Temperature range: +5 °C to +40 °C

Pulse output parameters

Frequency range: 1 - 100 Hz

Current output: Max 60mA

Maximum output voltage: 60 V

Current pulse shape: Biphase symmetrical

Weight and dimensions

Weight TENS: 62 gr

Dimensions TENS (L x W x H): 53.5 x 53.5 x

11.5 (each unit excl electrodes) mm

Software

iPhone® compatibility: Version iOS7 up to

iOS10, iPhone® 4S and newer

iPad® compatibility: Version iOS7 up to iOS10,

iPad® 3rd gen, iPad Air™, iPad mini™ and

newer

iPod® compatibility: Version iOS7 up to iOS10,

iPod touch® 5th gen and newer

Android compatibility: 4.4 KitKat up to 7

Philips Green Logo

Philips Green Products can reduce costs,

energy consumption and CO2 emissi ons.

How? They offer a significant environmental

improvement i n one or more of the Phili ps

Green Focal Areas – E nergy efficiency,

Packaging, Hazardous substances, Weight,

Recycling and disposal and Lifetime

reliability.
