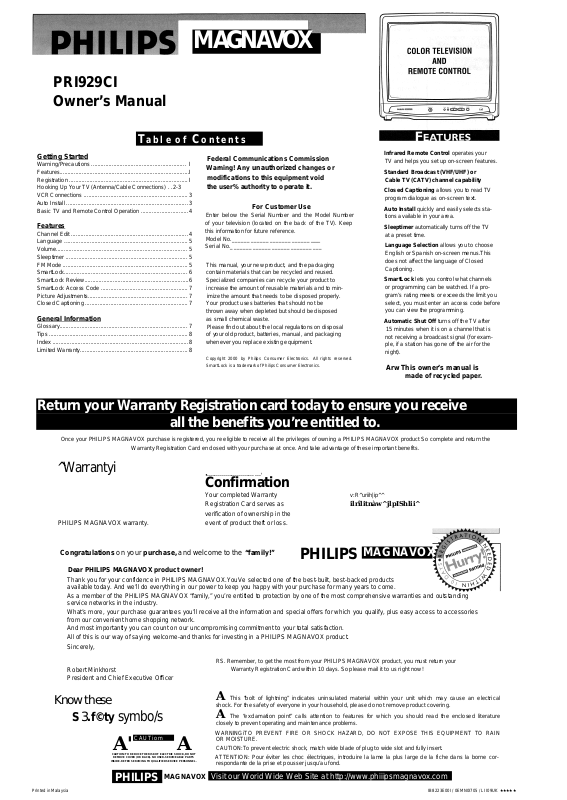

PRI929CI

Owner’s Manual

Table of Contents

MAGNAVOX

Getting Started

Warning/Precautions ............................................................ I

Features..................................................................................I

Registration Hooking Up Your TV (Antenna/Cable Connections) . .2-3

VCR Connections ..................................................................3

Auto Install .............................................................................3

Basic TV and Remote Control Operation

Features

Channel Edit ..........................................................................4

Language ..............................................................................5

Volume Sleeptimer

FM Mode ...............................................................................5

SmartLock

SmartLock Review..................................................................6

SmartLock Access Code

Picture Adjustments

Closed Captioning .................................................................7

General Information

Glossary

Tips ........................................................................................8

Index ......................................................................................8

Limited Warranty....................................................................8

...........................................................................

..............................

...................................................................................

.............................................................................

..............................................................................

.......................................................

...............................................................

.................................................................................

Federal Communications Commission

Warning! Any unauthorized changes or modifications to this equipment void

the user% authority to operate it.

Enter below the Serial Number and the Model Number of your television (located on the back of the TV). Keep this information for future reference. Model No._________________________ Serial No._____________________________

5 5

This manual, your new product, and the packaging

contain materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to min

imize the amount that needs to be disposed properly.

Your product uses batteries that should not be thrown away when depleted but should be disposed as small chemical waste.

Please find out about the local regulations on disposal of your old product, batteries, manual, and packaging

whenever you replace existing equipment.

For Customer Use

___

Infrared Remote Control operates your

TV and helps you set up on-screen features.

Standard Broadcast (VHF/UHF) or

Cable TV (CATV) channel capability

Closed Captioning allows you to read TV

program dialogue as on-screen text.

Auto Install quickly and easily selects sta

tions available in your area.

Sleeptimer automatically turns off the TV

at a preset time.

Language Selection allows you to choose

English or Spanish on-screen menus.This does not affect the language of Closed Captioning.

SmartLock lets you control what channels

or programming can be watched. If a pro gram’s rating meets or exceeds the limit you select, you must enter an access code before you can view the programming.

Automatic Shut Off turns off the TV after

15 minutes when it is on a channel that is not receiving a broadcast signal (for exam ple, if a station has gone off the air for the night).

Arw This owner’s manual is

made of recycled paper.

Return your Warranty Registration card today to ensure you receive

all the benefits you’re entitled to.

Once your PHILIPS MAGNAVOX purchase is registered, you re eligible to receive all the privileges of owning a PHILIPS MAGNAVOX product So complete and return the

Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

^Warrantyi

•

-------------------------

---

Confirmation

Your completed Warranty

Registration Card serves as

verification of ownership in the

PHILIPS MAGNAVOX warranty.

Congratulations on your purchase, and welcome to the “family!”

Dear PHILIPS MAGNAVOX product owner!

Thank you for your confidence in PHILIPS MAGNAVOX.YouVe selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS MAGNAVOX “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.

What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

And most importantly you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome-and thanks for investing in a PHILIPS MAGNAVOX product.

Sincerely,

event of product theft or loss.

PHILIPS

v:R^uriih|ip^^

ilrîlitnàw^jlpIShlii^

MAGNAVOX

Know these

Printed in Malaysia

Robert Minkhorst President and Chief Executive Officer

S3.f©ty symbo/s

CAUTiom

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

PHILIPS

MAGNAVOX

RS. Remember, to get the most from your PHILIPS MAGNAVOX product, you must return your

Warranty Registration Card within 10 days. So please mail it to us right now!

A This “bolt of lightning” indicates uninsulated material within your unit which may cause an electrical

shock. For the safety of everyone in your household, please do not remove product covering.

A The “exclamation point” calls attention to features for which you should read the enclosed literature

closely to prevent operating and maintenance problems.

WARNINGiTO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION:To prevent electric shock, match wide blade of plug to wide slot and fully insert. ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la fiche dans la borne cor

respondante de la prise et pousser jusqu’au fond.

Visit our Worid Wide Web Site at http://www.phiiipsmagnavox.com

IB8223E00I / 0EMN0I705 / LI I09UK ★ ★ ★ ★ ★

Antenna

Hooking Up Your TV (Antenna/Cable Connections)

-----

(BEGIN>

Combination UHF/VHF

combination antenna receives normal broadcast

channels (VHF 2-13 and UHF

14-69).Your connection is easy

since there is only one 75Q

(ohm) antenna jack on the back of your TV - and thafs where the antenna goes.

Combination

VHF/UHF

Antenna

(Outdoor or

indoor)

if your antenna has a

round connector (750), then you're ready to connect it to the TV. If your antenna has flat twin-lead wire (3000), you first need to attach the antenna wires to the screws on a 300 to 750 adaptor.

<l>

Push the round end of the adaptor (or cable) onto the ANT(enna) IN jack on the back of the TV. If the

round end of the adaptor or cable is threaded, screw it down tight.

To set the _ TV to select only the channel numbers in your area, see Auto Install on page

Separate UHF/VHF

OU may have two separate

antennas. One antenna is for

VHF channels (2-13) and the other antenna is for UHF chan nels (14-69). For homes with separate UHF/VHF antennas, you will need an optional combiner before you can connect the antennas to the TV.

Outdoor UHF Antenna

(Twin-lead 300Q)

-f BEO IN)-

<!>-

Attach the separate

UHF and VHF antennas to

the correct screws on the

combiner.

<2>

Push the round end of the

combiner onto the ANT(enna) IN jack on the back of the TV. .

Back of TV

To order _ any optional accessory, contact your dealer. Or, call

1-800-851-8885 and refer to the follow ing part numbers to order.

® UHF/VHF

Combiner: 4835 466 97016

® 75-3000

Adaptor: M6I009

® 300-750

Adaptor: 4835 218 27003

Outdoor VHF

Antenna

(Twin-lead 300Ì2)

Outdoor VHF Antenna

(Round cable 75Ì2)

Hooking Up Your TV (Antenna/Cable Connections) (Cont’d)

VCR Connections

' he basic Antenna/Cable to VCR to TV connection is

shown here. If you have a Cable Box, refer to the VCR owner's manual for details.

300 to 750

Adaptor

Outdoor

VHF/UHF

Antenna

Cable TV signal

l^iBEGIN)-

^ Connect your

Antenna or Cable signal to

the IN FROH ANT(enna) jack on the VCR.

<p-

Connect a coaxial cable to the OUT TO TV jack on the VCR and to the ANT(enna) IN jack on the TV.

The coaxial cable may be supplied with the VCR.

<a>'

Refer to the VCR

owner's manual for other

possible connections and for operating details.

bur Cable TV signal may be a single (75Q) cable or a

Cable Box installation. In either case, the connection to the TV is very easy.

tBEGIN)-

<4> If you do not have a

Cable Box, then you're ready

to connect your Cable TV sig nal to the TV.

If you have a Cable Box:

Connect the Cable TV signal to the IN jack on the Cable Box.

<l>-

If you do not have a

Cable Box, connect the Cable

TV signal directly to the ANT(enna) IN jack on the TV.

If you have a Cable Box:

Use a coaxial cable to connect the OUT jack of the Cable Box to the ANT(enna) IN jack on the TV NOTE: The coaxial cable might be supplied by the Cable TV company.

Note to the Cable TV System Installer: This reminder is provided to call

the Cable TV system installer’s attention to Article 820-40 of the National Electrical Code, which provides guidelines for proper grounding - in particular, specifying that the

cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as possible.

To select only the channels on your Cable sys tem, see Auto Install below. (You can not use AUTO INSTALL if you are using a Cable Box.)

If you use a Cable Box, set the TV to the same channel as the CH 3/4 switch on the back of the Cable Box and select channels at the Cable Box.

Auto Install

'allow these steps to quickly

odd area channels into the

TV's memory.

Setting Up and Using Your TV

^BEGINl

i4>

Press the POWER

button to turn ON the TV.

<2> Press the MENU but

ton.The main menu appears on

the TV screen.

SETUP EXIT ►

I BRIGHTNESS

COLOR llllliii 31 PICTURE

.................

...............

I 31

lïilïüF

.............

<l>

Press the CH(annel)

A/T buttons to select

SETUP.Then, press the

VOL(ume) ► or ◄ button to continue.

FM ANTENNA EXT^ EXIT

1 LANGUAGE ÉÑG]

AUTO INSTALL

CHANNEL EDIT

<p<î>

Back of TV

<4>-

Press the CH(annel) A/V

buttons to select AUTO

INSTALL.

EXIT LANGUAGE

I AUTO INSTALL

CHANNEL EDIT FM ANTENNA

►

Then, press the VOL(ume) ► or M button to enter AUTO

INSTALL, which will set up the chan nels.

AUTO STORE llllliii

When setup is complete, the SETUP menu will appear for a moment, then the lowest stored channel will be selected. Now, when you press the CH(annel)

A/T buttons, you will only scan

through channels that have been memorized and are available.

-3-

Setting Up and Using Your TV (Cont’d)

Remote

' 0 load the batteries into the remote:

I.Slide off the battery

compartment lid on the

remote control.

2. Insert two AA batter

ies (supplied) into the battery compartment

as indicated inside the

compartment. Batteries

installed incorrectly may damage the remote con trol.

3. Replace the lid.

Battery Compartment Lid

Battery Compartment

—(begin;

Point the remote control

toward the remote sensor on the TV when operating the TV with the remote.

POWER Button Press to turn the TV ON and OFF.

MENU Button

Press to access the on-screen menu. Press to return to a previous menu or press (repeat edly if necessary) to remove the menus. Press the CH(annel) A/T buttons to select

an item in the menu. Press the VOL(ume) ►/^ buttons to adjust an item in the menu or to advance to the next menu.

Number Buttons

Press to select channels.

______________________

____________________

• Cable Users

Enter channel numbers as a two-digit num ber for the quickest results. For example, to select channel 6, press 0,6. If you only press the Number 6 button, channel 6 will be selected after a brief delay. (There also may be a brief delay when you select channels 10.

I I, and 12.) If you want to select channels

100 and above, enter channel numbers as a three-digit number. For example, to select channel I 17, press 1, 1,7.

• Antenna Users

Enter channel numbers as a two-digit num ber for the quickest results.You may only select channels 2-69. For example, to select channel 5, press 0,5. If you only press the Number 5 button, channel 5 will be selected after a brief delay.

SLEEP Button

Press to set the TV to turn itself OFF automati cally. Details are on page 5.

CH(annei) A/T Buttons

Press to scan through programmed channel numbers. Press to select an item in the on

screen menu.

VOL(ume) ►/^ Buttons

Press to adjust the TV sound level. Press to adjust an item in the on-screen menu or to advance to the next menu.

MUTE Button

Press to turn OFF the sound on the TV. Press again to return the sound to its previous level.

Mute will be cancelled also if you press the VOL(ume) ► button to turn up the volume.

STATUS/EXIT Button Press to see the current channel number on the TV screen. Press to remove the on-screen menu.You also may remove the menu by pressing the CH(annel) pressing the VOL(ume) ►/^ buttons.You may need to select EXIT repeatedly to remove all the menus. Or, you may press the MENU button repeatedly to remove all the menus.

A/T buttons to select EXIT, then

ALT, CH (Alternate Channel) Button

Press to return to the TV channel you were viewing immediately before switching to your current channel.

CC (Closed Caption) Button

Press to select a Closed Caption mode.

Details are on page 7.

FM Button

Press to select FM radio mode. Press again to return to TV mode.

Television

I—tBEGIN>

<2> Press the POWER

button to turn ON the TV.

Be sure to connect the TV power cord to a standard AC outlet.

Press the VOLUME

A/T buttons to adjust

the sound level.

Press the CHAN-

NEL A/T buttons to select available TV chan nels.

to display the TV’s on-screen menu.

Press the CHANNEL A/T but tons to select an item in the menu.

Press the VOLUME A/T but

tons to adjust an item in the

menu or to advance to the next menu.

Note: To remove the menu, press

the CHANNEL A/T buttons to

select EXIT.Then, press the VOL UME A or T button. (You may

TV/FM MENU VOLUME CHANNEL POWER

O O EQ33 O

------

----------------'

Remote Sensor

need to select EXIT repeatedly to completely remove all of the menus.)

Or, press the MENU button, repeatedly if necessary, to remove

the on-screen menus.

Notes:

• You can connect earphones (not supplied) to the EARPHONE jack on the front of the TV for private, personal listening.

• To listen to FM radio stations, press the TV/FM button on the front of the TV to select FM mode. Details are on page 5.

Press the MENU button

The current _ channel number will appear briefly when the TV is first turned ON and with channel changes.To display the channel number for five sec onds, press the STA TUS/EXIT button.

You can turn on the TV by pressing the CHANNEL A/T buttons on the front of the TV. The CH(annel) A/T but tons of the remote control will not turn on the TV power.

Channel Edit

HANNEL EDIT makes it easy for you to add other

channels or drop unwanted channels from the TV's memory.

GD CD G3 CD CD CD CD CD CD

GD G3

-CbeginJ-

Press the MENU but ton, then press the CH(annel) A/T buttons to select SETUP.

SmartLock SmartLock REVIEW ►

1 SETUP

EXIT ► BRIGHTNESS llllliii

► 1

Features

<!>■

Press the VOL(ume)

► or ◄ button to continue to the SETUP menu.

<l>-

Press the CH(annel)

A/T buttons to select

CHANNEL EDIT.

'^NGUAGE ENG^X

AUTO INSTALL

1 CHANNEL EDIT

FM ANTENNA INT EXIT

► 1

<^i

Press the VOL(ume)

► or ◄ button to continue

to the CHANNEL EDIT

menu.

CHANNEL will be selected.

<§>

Press the CH(annel)

A/T buttons to select

SKIPPED.

Then, press theVOL(ume)

► or ^ button to set

SKIPPED to YES (if you

EXIT

1 CHANNEL

SKIPPED

► '

YES

►

10 1

want to skip past the channel when using the CH(annel)

A/T buttons) or NO (if you

want the channel to be avail able when you are using the

.

While CHANNEL is

CH(annel) A/T buttons).

selected, press the VOL(ume) ► or ◄ button or the Number buttons to select the channel you

<p- Press the

STATUS/EXIT button when you are finished.

want to add or skip.

EXIT

1 CHANNEL 18 1

SKIPPED YES

Features (Cont’d)

Language

yilow these steps to

change the language of

the on-screen menus.

CD CD CD CD CD CD CD CD CD

STATUS/EXIT

t—CbeginI-

Press the MENU but

ton.

^^TUP

EXIT ►

[BRIGHTNESS

COLOR llllllll

^^CTURE

llllllll

<^

■

33 1 29

Press the CH(annel)

A/T buttons to select

SETUP, then press the VOL(ume) ► or ^ button to continue. LANGUAGE

will be selected.

FM ANTENNA INT^^ EXIT

[LANGUAGE ÉÑG 1

AUTO INSTALL CHANNEL EDIT

Press the VOL(ume) ► or ◄ button to select ENG for English menus or ESP for Spanish menus.

FM ANTENNA EXIT

1 LANGUAGE EÑG 1

►

AUTO INSTALL

^HANNEL EDIT

^AHTENA FM

SALIDA

[idioma

AUTOPROGRAMACION

y^EVISAR CANAL

Press the

STATUS/EXIT button.

INT^^

►

INT^

ESP 1

►

Smart Help

If you accidentally chose Spanish and need English:

1) Press the MENU but

ton.

2) Press the CH(annel) A/T buttons to select INSTALACION, then press theVOL(ume) ► or ^ button to continue.

3) IDIOMA will be select ed. Press theVOL(ume) ► or button to have

ENG appear beside LAN GUAGE.

4) Press the

STATUS/EXIT button.

here are two ways to adjust the TV's volume. Follow these

steps to adjust the volume using the on-screen menu. Or, you can adjust the volume using the VOL(ume) ►/^ but tons on the remote control or the VOLUME buttons on the TV.

ave you ever fallen asleep in front of the TV, only to

have it wake you up at 2 a.m.

with a test pattern screeching in your ears? Well, your TV can save you all that trouble by automatically turning itself off.

Set the Sleeptimer simply by pressing the SLEEP button, or you may use the on-screen menu.

Volume

Press the MENU but-

(begun)-

Press the SLEEP button

repeatedly to pick the

amount of time (15 minutes to

120 minutes) before the TV turns itself off.The length of time will appear on the screen. One minute before the TV shuts itself off, the seconds will count down on the screen.

Press the CH(annel)

A/T buttons to select VOL

UME.Then, press the VOL(ume) ►/◄ buttons to adjust the volume level.

Sharpness

TINT

[ VOLUME

SLEEPTIMER

. SmartLock

CD CD

llllllll llllllll IHI-I»

-05 1

OFF

STATUS/EXIT MUTE

CD CD

34'X

13 1

<l>

Press the

STATUS/EXIT button to

remove the menu.

Smart Help

The Volume indi- g cator should appear on

the screen when you

adjust the volume.

The simplest way to adjust the volume is by

pressing the VOL(ume)

►/^ buttons.

Smart Help

To see how g many minutes remain before the TV shuts itself off, press the SLEEP button once or press the STATUS/EXIT button.

To cancel a SLEEPTIMER setting, press the SLEEP but ton twice so that OFF appears on the screen.

Press the MENU button.

i<l>

<S>

Press the CH(annel)

A/T buttons to select SLEEP-

TIMER.

Fm Mode

his feature enables you to

receive FM radio stations at

your television.

If you receive a weak radio signal, you may switch between the TV’s internal and external antennas. Usually, the internal antenna of the TV allows you to receive FM stations.

To switch between the external (EXT) and internal (INT) antennas, follow these steps.

1) Press the FM button to exit the FM mode and return to TV mode.

2) Press the MENU button.

3) Press the CH(annel) A/T buttons to select SETUP.

Then, press the VOL(ume) ► or button to continue.

4) Press the CH(annel) A/T buttons to select FM ANTENNA.

Then, press the VOL(ume) ► or ^ button to select INT or EXT.

5) Press the STATUS/EXIT button.

-(BEGIN)

<^i

Press the FM button on the remote control to select the FM mode. The

current radio frequency appears on the TV screen.

The radio frequency will move around on the TV screen during normal FM mode operation.

<S>,

Press the VOL(ume) ►/^ buttons repeatedly to set the amount of time or to select OFF.

Press the CH(annel)

A/T buttons until your

desired radio frequency appears.

<S>^

To exit FM mode and

return to TV mode, press

the FM button.

Press the STATUS/EXIT

button to remove the menu.

STATUS/EXIT MUTE

CD dD O

CD CD CD CD CD CD CD CD CD

CD PD

Smart Help

If you turn off g the TV in FM mode, the TV will be in TV mode when you turn on the TV again.

You may get better FM

reception by reposition ing the TV (when you

are using the TV’s Inter

nal antenna).

The TV’s FM radio has a

built-in antenna with a

band range of 88.0 ~

108.0MHz.

Features (Cont’d)

SmartLock

martLock enables parents to prevent their children from

watching inappropriate material on TV. SmartLock reads the ratings for programming (except for news and sports programs,

unedited movies on premium cable channels, and Emergency Broadcast System signals), then denies access to programming if the program's rating meets or exceeds the limitations you select. To block specific ratings or channels, follow these steps.

To set a new access code, see

SmartLock Access Code on page 7.

If the “Incorrect

Access Code...” mes

sage appears after step 2, enter the cor rect access code. In order to protect the privacy of the access code, an X will

appear on the screen

instead of the num ber you enter.

A “CHANNEL XX

BLOCKED...” mes sage will appear when someone tries to access the blocked programming. If you

want to view this

programming, enter

your access code.

The channel will remain blocked until

you enter the correct

code. If you do not

know the code, you will have to select another channel using the CH(annel)

buttons. When you turn off the TV once, the pro gramming is blocked again.

(BEGIN)-------------------------------

[ Press the MENU

button, then press the CH(annel) A/T buttons to select SmartLock.Then, press theVOL(ume) ► or

^ button to continue.

^LUME llllllll

SLEEPTIMER

1 SmartLock

SmartLock REVIEW SETUP

OFF 1

► 1

►

<l>-

Use the Number but

tons to enter your 4-digit access code. The default code

is 071 I. If you have not set up your personal access code, you should use 0711.

Enter Your Access Code

If you selected Blocking Options at step 4:

Press the CH(annel) A/T buttons to select Master Disable, Block Unrated or Block No Rating.Then, press the VOL(ume) ► or ◄ button to select ON or OFF. Details of

the Blocking Options are given at right,To return to the main BLOCK menu, press the MENU button.

BLOCKING OPTIONS

Master Disable [OFF] Block Unrated [OFF] Block No Rating [OFF]

If you selected Channels Blocked at step 4:

Channel will be selected. Press theVOL(ume) ► or ^ but ton or use the Number buttons to select the channel you want to block. Press the CH(annel) A/T buttons to select Blocked, then press the VOL(ume) ► or ◄ button to select ON or OFF. If Blocked is ON, the channel can not be watched

until the viewer enters the access code. To reset all channels for viewing, press the CH(annel) A/T buttons to select Clear All, then press the VOL(ume) ► or button. (Channel will be selected again.) Remember, viewing could still be blocked by another SmartLock setting (such as Movie Ratings). To return to the main BLOCK menu, press the MENU button.

CHANNELS BLOCKED

Channel Blocked Clear All

[OFF]

If you selected Movie Ratings or Parental Guidelines at step 4:

Press the CH(annel) A/T buttons to select the rating you

want to block.Then, press the VOL(ume) ► or ^ button so that ON appears beside the rating.

For example, if you set PG to ON, you may not view PG program ming because the block is on. Programs with a PG or higher rating will be blocked.

MOVIE RATINGS

G PG PG-13 R NC-17 X

[OFF] [OFF] [OFF]

[ON] [ON] [ON]

PARENTAL GUIDELINES

TV-Y TV-Y7

TV-G TV-PG TV-14 TV-MA

[OFF] >

[OFF] > > >

More specific sub-ratings are available for TV-Y7,TV-PG,TV-14, and TV-MA.When you press theVOL(ume) ►/^ buttons to select TY-Y7,TV-PG,TV-14 or TV-MA, additional sub-ratings will appear. Press the VOL(ume) ► or ^ button to set the

main rating to ON.Then, press the CH(annel) A/T but

tons to select a specific sub-rating.Then, press the VOL(ume) ►/^ buttons so that ON appears beside the sub-rating. If you select the main rating and turn it on or off,

the sub-ratings will turn on or off automatically. But, you can always turn sub-ratings on or off by selecting them individually. You can only turn on a sub-rating (for example, D) if the main rating (such as TV-PG) is set to ON.

TV-PG

► TV-PG [ON]

[OFF] [ON] [OFF] [ON]

The SmartLock menu will appear and BLOCK will be selected. Press the

VOL(ume) ► or ^ button to continue to the BLOCK menu.

SmartLock

BLOCK

CHANGE CODE

<6>

Press the

CH(annel) A/T buttons to select Blocking Options, Channels

Blocked, Movie Ratings or Parental Guidelines. Then, press the VOL(ume) ► or but ton to continue.

Press the

BLOCK

► Blocking Options

Channels Blocked Movie Ratings Parental Guidelines

STATUS/EXIT button.

STATUS/EXIT MUTE

<j> <l>

U LiJ li

G3 CD CD

BLOCKING OPTIONS

Master Disable

When Master Disable Is ON, all settings of Channels Blocked,

Movie Ratings, Parental Guidelines, Block Unrated, and Block

No Rating are Ineffective. SmartLock DISABLED will appear when you look at SmartLock Review. All programming may be viewed.

Block Unrated

When Block Unrated is ON,TV programs are blocked when

the show is broadcast as Unrated.

Block No Rating

When Block No Rating is ON,TV programs are blocked when

the show is broadcast without rating information.

PARENTAL GUIDELINES RATING EXPLANATIONS

• V-Violence

• S-Sexual situations

• L-Language

• D-Inappropriate dialogue • TV-PG - Parental Guidance

• FV-Fantasy Violence may frighten children under seven;TV-Y7 category only. dren under 14. Some cartoons may have this rating.

• TV-Y - Appropriate for all children.

• TV-Y7 - Appropriate for chil dren seven and older.

• TV-G - General Audience

suggested.

• TV-14 - Unsuitable for chil

• TV-MA - Mature audience only.

SmartLock Review

b check your SmartLock settings, follow these steps.

You will know what types of

programming and which chan

nels are blocked from viewing.

Smart Help

If you do not use the g VOL(ume) ► or button to advance through the SmartLock REVIEW screens, the screens will advance automatically within

10 seconds.

-(BEGIN)-------------------------------

' Press the MENU but

ton, then press the

CH(annel) A/T buttons to select SmartLock REVIEW.

^EEPTIMER

SmartLock

1 SmartLock REVIEW

SETUP

.EXIT

OFF ^

►

► 1

fCg> Press the VOL(ume)

► or ^ button so that

the SmartLock settings for

Movie Ratings and Parental

Guidelines appear.

Ratings that are blocked will appear on the screen. An “X” will appear if a specific sub-rat

ing is blocked, such as V for Violence In the TV-14 category.

Movie Ratings

Parental Guidelines

TV-PG TV-14 TV-MA

NEXT=$

R NC-17 X

Press the VOL(ume)

► or ◄ button to advance to the Channels Blocked screen. All currently

blocked channels will appear.

Channels Blocked 07 18 32

Press the VOL(ume) ► or ^ button to advance to the Block

Unrated and Block No Rating screen, which

shows if these options are set to On or Off.

Block Unrated On Block No Rating Off

After 10 seconds, the main

menu will reappear. Repeat steps 2-4 as often as neces sary in order to review all the settings.

When you are fin ished, press the STA TUS/EXIT button.

Features (Cont’d)

SmartLock

Access Code

"o change the access code,

follow these steps.


I^Bl Adjustments

' 0 adjust your TV picture controls, select a channel

and follow these steps.

tBEGIfSO--------------------------------------

Press the MENU but

ton, then press the CH(annel) A/T buttons to select SmartLock.

VOLUME llliiiii SLEEPTIMER

SmartLock REVIEW SETUP

Press theVOL(ume) ► or

^ button to continue. The

SmartLock Access Code screen will appear.

Enter Your Access Code

Press the MENU

button, then press the CH(annel) A/T buttons to select a control.

SETUP EXIT

[BRIGHTNESS 24

COLOR PICTURE

<l>,

Press the VOL(ume)

►/^ buttons to adjust the

selected control.

llllliii llllliii

OFF

31 31

Press the Number but

tons to enter your old access code. If you have never set up your

personal access code, use 0711.

Press the CH(annel) A/T

buttons to select CHANGE CODE. Then, press the VOL(ume) ► or ◄ button to continue.

SmartLock

BLOCK

CHANGE CODE

Use the Number buttons to enter your desired access code in the New Code space.Then, enter the same code in the Confirm Code space.

Your new access code should be

recorded.You will return to the SmartLock menu.

Confirm Code

<!>■

button. ^

■<s>

Press the STATUS/EXIT

BRIGHTNESS Press the VOL(ume) ►/-

buttons until the darkest parts of the picture are as bright as you prefer.

COLOR Press theVOL(ume) ►/◄ buttons to add or reduce color.

PICTURE Press the VOL(ume)^/^ but tons until the lightest parts of the picture show good detail.

SHARPNESS Press the VOL(ume)^/-^ buttons to improve detail in the picture.

TINT Press theVOL(ume) ►/◄ buttons to obtain natural skin tones.

You cannot use the default code after you set up your personal access code.

To restore 071 I as your personal access

code, unplug the TV’s power cord for

10 seconds, then plug it in again.This is helpful when you forget your personal access code.

Closed

"Ej

Captioning

losed Captioning allows you to read the voice con

tent of television programs on the TV screen. Designed to help the hearing impaired, this feature uses on-screen text boxes to show dialogue and conversations while the TV pro gram is in progress. Note: Broadcast stations will often use spelling abbrevia tions, symbols, dropouts and other grammatical shortcuts in order to keep pace with the on-screen action. These factors vary with the source of the captioned text material and do not indicate a need for TV service.

r<^,

repeatedly until the desired

Closed Caption mode appears on the screen.

You may choose CAPTION I,

CAPTION 2,TEXT I,TEXT 2,

or CAPTION OFF.

Press the

STATUS/EXIT button.

Press the CC button

Notes:

• Usually CAPTION I Is the preferred Closed Caption mode.

CAPTION I or 2: Dialogue (and descriptions) for the action on

the captioned TV program shows on the screen. TEXT I or 2: A black box appears on the TV screen. If the TEXT mode is available with the current TV program, text or information will appear. CAPTION OFF: Select to turn off Closed Captions completely.

• Captions and texts may not match the TV voice broadcast exactly.

• Interference or a weak antenna/cable signal may cause the Closed Captioning system to function Improperly.

• The caption or text characters will not appear if the menu is on the screen.

• Remember, not all TV programs and commercials are broadcast with Closed Captioning. Neither are all Closed Caption modes necessari ly being used by a broadcast station during the transmission of a program. Refer to your area's TV program listings for the stations and times of shows with Closed Captioning.

• If a black box appears on the screen, you have selected TEXT I or TEXT 2.To remove the black box, select CAPTION I, CAPTION 2, or CAPTION OFF.

Smart Help

Closed Captions will be

delayed briefly when you mute or adjust the volume, change channels, or press the STATUS/EXIT button to see the current channel number.

General Information

Glossary

Coaxial Cable - A single cable with a metal connector that screws (or pushes) direct ly onto a 750 jack (ANT(enna) In jack) on the Television or VCR.

Display - Allows the user to quickly confirm what channel number is being viewed cur rently.

Jack Panel - The area on the back of the TV.

Menu - An on-screen listing of features that are available for adjustments.

On-screen Displays (OSD) - The wording or messages that help you set up features

(color adjustment, channel setup, etc.).

Programming - Adding or deleting channels in the television’s memory.The television

“remembers” only the locally available or desired channel numbers and skips over any

unwanted channel numbers. Remote Sensor - An area on the front of the TV through which remote control sig

nals are received. Twin Lead Wire - The two-strand 300Q antenna wire used with many indoor and

outdoor antenna systems. In many cases, this type of antenna wire requires an additional adaptor (or balun) in order to connect to the ANT(enna) In jack on the TV.

Volume Indicator - Appears on the TV screen when you adjust the volume.

-7-

General Information

Tips

lease make these simple checks before calling for

service. These tips can save you time and money since charges

for TV installation and adjust ment of customer controls are not covered under your warranty.

^ ^ As an Energy Star®

4^,^ Partner, Philips

--------1---Company has determined that this product meets the Energy Star® guidelines for energy efficiency.

Energy Star® is a U.S. registered

mark. Using products with the Energy

Star® label can save energy. Saving

energy reduces air pollution and lowers utility bills.

Consumer Electronics

Power Failure

• When you disconnect the power cord from the AC outlet, or if you have a power failure, the Sleeptimer will be cancelled.You may reset the Sleeptimer.

-tBEGlNh

<p-

No Power

Check the TV power cord.

Make sure the power outlet is not on a

wall switch.

No Soynd

Check the VOL(ume) ►/◄ buttons. Check the MUTE button.

No Picture

Check antenna/cable connections. Is the antenna or cable properly secured to the ANT(enna) IN jack on the TV?

Remote Doesn’t Work

Check batteries. Replace with AA Heavy Duty (Zinc Chloride) or Alkaline batteries if necessary. Clean the remote and the remote sen sor on the TV. Check the TV power cord.

Wrong Channel

Repeat channel selection. See “Number Buttons” information on page 4. Add desired channel numbers into the TV memory. See page 4 for details.

Cleaning and Care

• Unplug the TV before cleaning.

• Avoid using anything abrasive that could scratch the screen.

• Wipe the TV screen with a clean cloth dampened with water.

• Gently wipe cabinet surfaces with a clean cloth or sponge dampened with cool clear water. Use a clean dry cloth to dry the wiped surfaces.

• Occasionally vacuum the ventilation holes or slots in the cabinet back.

• Never use thinners, insecticide sprays, or other chemicals on or near the cabinet.

SmartLock

• Programming may be rated by the Motion Picture Association of America (MPAA) or according to the Television Parental Guidelines. In order to block any inappro priate programming, set your limits in both places (Movie Ratings and Parental Guidelines).

® Ratings will remain blocked even after a power failure.

• You cannot access the menu when the “CHANNEL XX BLOCKED...” message appears.

• If you enter the access code once, you may change channels without seeing the “CHANNEL XX BLOCKED” message again. If you turn off the TV power, you

will be asked for the access code again when you tune to a blocked channel.

• If a power failure occurs, the default code, 0711, will be the active access code

again.

• If you connect the power cord to an AC outlet that is controlled by a wall switch, your personal access code will be erased every time you turn off the

power at the wall switch.The default code will be the active code again.

® To restore 071 I as your personal access code, unplug the TV’s power cord for 10

seconds, then plug it in again.

Index

Access Code ALT. CH Button Antenna Connections . . .2-3 Auto Install

Batteries

Cable TV Connections ... .3

Channel Edit .........................4

Channel Setup

........................

....

................

...........................

...............................

.....................

7 4

3 4

CH(annel) A/T Buttons . .4 Closed Captioning

Coaxial Cable........................3

Controls/Remote Controls/TV Earphone jack Features FM Button

................................

.................

...................

...........................

......................

..........................

4, 5

4 4 4

Glossary Language MENU Button MUTE Button Number Buttons Picture Adjustments POWER Button Precautions

...............................

.............................

Limited Warranty

COLOR TELEVISION

90 Days Free Labor

One Year Free Replacement of Parts (Two Years Free Replacement on Color Picture Tube)

This product must be carried in for repair.

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales receipt or other docu

ment showing that you purchased the product is considered proof of purchase.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For 90 days thereafter, all parts will

be repaired or replaced free, and labor is free. From 90 days to one year from the day of

purchase, all parts will be repaired or replaced free, but you pay for all labor charges. From

one to two years from the day of purchase, you pay for the replacement or repair of all parts

except the picture tube, and for all labor charges. After two years from the day of purchase,

you pay for the replacement or repair of all parts, and for ail labor charges.

All parts, including repaired and replaced parts, are covered only for the original warranty

period. When the warranty on the product expires, the warranty on all replaced and repaired

parts also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

• product repair and/or part replacement because of misuse, accident, unauthorized repair, or other cause not within the control of Philips Consumer Electronics Company.

• reception problems caused by signal conditions or cable or antenna systems outside the

unit.

• a product that requires modification or adaptation to enable it to operate in any country

other than the country for which it was designed, manufactured, approved, and/or autho rized, or repair of products damaged by these modifications.

• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you This includes, but is not limited to, prerecorded material, whether copyrighted or

not copyrighted.)

• a product used for commercial or institutional purposes.

STATUS/EXIT button

Tips .......................................8

VCR Connections .................3

Volume VOL(ume) ►/◄ Buttons 4-5

Warranty................................8

.................................

.......................

...

....................

...................

..............

.....................

........................

1,8

7 5 4 4 4 7 4

Remote Control Remote Sensor

Review (SmartLock)..............6

Safety Notes Service

..................................

SLEEP Button Sleeptimer SmartLock

....................

.........................

.....................

.............................

.........................

4 4

4, 5

6-8

HAKE SUREYOU KEER,,

Please keep your sales receipt or other document showing proof of purchase. Attach it to this owner’s manual and keep both nearby. Also keep the original box and packing material in case you need to return your product.

BEFORE REQUESTING SERVICE...

Please check your owner’s manual before requesting service. Adjustments of the controls dis cussed there may save you a service call.

TO GET WARRANTY SERVICE IN U.S.A., PUERTO RICO, OR U.S. VIRGIN ISLANDS...

Contact a Philips factory service center (see enclosed list) or authorized service center to arrange repair.

(In U.S.A., Puerto Rico, and U.S.Virgin Islands, all implied warranties, including implied war ranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. But, because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

TO GET WARRANTY SERVICE IN CANADA...

Please contact Philips at:

I-800-661-6162 (French Speaking)

I -800-363-7278 (English Speaking)

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a par ticular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental, or consequential damages, howsoever Incurred, even if notified of the possibility of such damages.)

..............

WHERE IS SERVICE AVAILABLE?

Warranty service Is available in all countries where the product is officially distributed by

Philips Consumer Electronics Company. In countries where Philips Consumer Electronics Company does not distribute the product, the local Philips service organization will attempt

to provide service (although there may be a delay If the appropriate spare parts and technical

manual(s) are not readily available).

Philips Service Solutions Group, P.O. Box 2976, Longview,Texas 75606

(903) 242-4800

REHEHBER...

Please record below the model and serial numbers found on the product. Also, please fill out and mall your warranty registration card promptly. It will be easier for us to notify you if nec essary.

MODEL# ___________________________________________________ SERIAL# ___________________________________________________

-8-

Philips PR1929B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

PHILIPS MAGNAVOX warranty.

Thank you for your confidence in PHILIPS MAGNAVOX.YouVe selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS MAGNAVOX “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.

What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

Sincerely,

ilrîlitnàw^jlpIShlii^

Antenna

AUTO INSTALL

Remote

3. Replace the lid.

Television

Notes:

Press the MENU button

Channel Edit

Language

Press the

Volume

Press the

Fm Mode

SmartLock

Master Disable

SmartLock


I^Bl Adjustments

Press the STATUS/EXIT

Closed

Captioning

Notes:

Glossary
