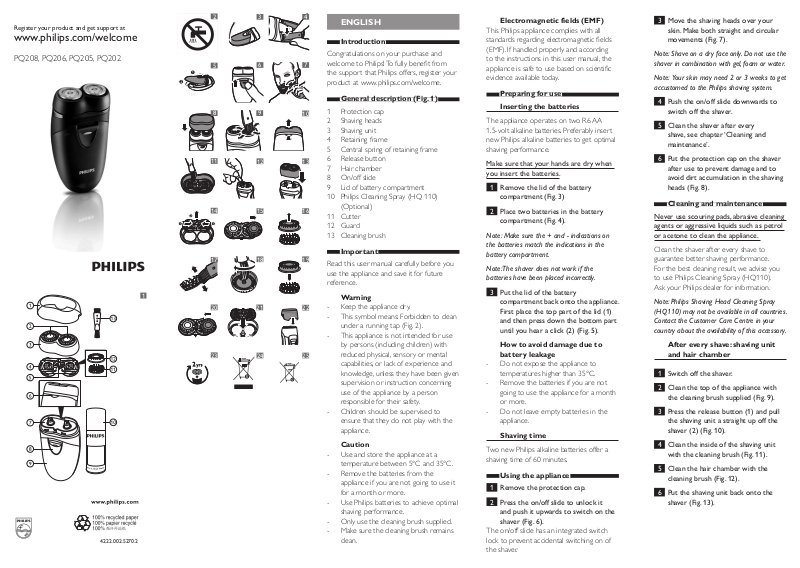

Philips PQ208, PQ206, PQ205, PQ202 User Manual

Register your product and get support at
www.philips.com/welcome
PQ208, PQ206, PQ205, PQ202
4222.002.5270.2
2
5
8 9
11
14
17
1
20 21
23
3 4
6 7
12 13
15 16
18 19
24 25
ENGLISH
Introduction
Congratulations on your purchase and
welcome to Philips! To fully benet from
the support that Philips offers, register your product at www.philips.com/welcome.
General description (Fig. 1)
1 Protection cap
10
2 Shaving heads 3 Shaving unit 4 Retaining frame 5 Central spring of retaining frame 6 Release button 7 Hair chamber 8 On/off slide 9 Lid of battery compar tment 10 Philips Cleaning Spray (HQ 110)
(Optional) 11 Cutter 12 Guard 13 Cleaning brush
Important
Read this user manual carefully before you use the appliance and save it for future reference.
Warning
- Keep the appliance dry.
22
- This symbol means: Forbidden to clean under a running tap (Fig. 2).
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
Caution
- Use and store the appliance at a temperature between 5°C and 35°C.
- Remove the batteries from the appliance if you are not going to use it for a month or more.
- Use Philips batteries to achieve optimal shaving performance.
- Only use the cleaning brush supplied.
- Make sure the cleaning brush remains clean.
Electromagnetic fields (EMF)
This Philips appliance complies with all
standards regarding electromagnetic elds
(EMF). If handled properly and according to the instructions in this user manual, the
appliance is safe to use based on scientic
evidence available today.
Preparing for use
The appliance operates on two R6 AA
1.5-volt alkaline batteries. Preferably insert new Philips alkaline batteries to get optimal shaving performance.
Make sure that your hands are dry when you insert the batteries.
1 Remove the lid of the battery
compartment (Fig. 3)
2 Place two batteries in the battery
compartment (Fig. 4).
Note: Make sure the + and - indications on the batteries match the indications in the battery compartment.
Note: The shaver does not work if the batteries have been placed incorrectly.
3 Put the lid of the battery
compartment back onto the appliance. First place the top part of the lid (1) and then press down the bottom part until you hear a click (2) (Fig. 5).
How to avoid damage due to battery leakage
- Do not expose the appliance to temperatures higher than 35°C.
- Remove the batteries if you are not going to use the appliance for a month or more.
- Do not leave empty batteries in the appliance.
Shaving time
Two new Philips alkaline batteries offer a shaving time of 60 minutes.
Using the appliance
1 Remove the protection cap.
2 Press the on/off slide to unlock it
and push it upwards to switch on the shaver (Fig. 6).
The on/off slide has an integrated switch lock to prevent accidental switching on of
3 Move the shaving heads over your
skin. Make both straight and circular movements (Fig. 7).
Note: Shave on a dry face only. Do not use the shaver in combination with gel, foam or water.
Note: Your skin may need 2 or 3 weeks to get accustomed to the Philips shaving system.
4 Push the on/off slide downwards to
switch off the shaver.
5 Clean the shaver after every
shave, see chapter ‘Cleaning and maintenance’.
6 Put the protection cap on the shaver
after use to prevent damage and to avoid dirt accumulation in the shaving heads (Fig. 8).
Cleaning and maintenance
Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.
Clean the shaver after every shave to guarantee better shaving performance. For the best cleaning result, we advise you to use Philips Cleaning Spray (HQ110). Ask your Philips dealer for information.
Note: Philips Shaving Head Cleaning Spray (HQ110) may not be available in all countries. Contact the Customer Care Centre in your country about the availability of this accessory.
After every shave: shaving unit and hair chamber
1 Switch off the shaver.
2 Clean the top of the appliance with
the cleaning brush supplied (Fig. 9).
3 Press the release button (1) and pull
the shaving unit a straight up off the shaver (2) (Fig. 10).
4 Clean the inside of the shaving unit
with the cleaning brush (Fig. 11).
5 Clean the hair chamber with the
cleaning brush (Fig. 12).
6 Put the shaving unit back onto the
shaver (Fig. 13).
the shaver.
Every two months: shaving heads
Note: Do not use cleaning agents or alcohol to clean the shaving heads. Only use Philips Cleaning Spray (HQ110).
1 Switch off the shaver.
2 Press the release button (1) and pull
the shaving unit straight up off the shaver (2) (Fig. 10).
3 To remove the retaining frame,
push the sides of the central spring towards each other (1). Then lift the retaining frame out of the shaving unit (2) (Fig. 14).
4 Slide the shaving heads out of the
retaining frame. Remove and clean one shaving head at a time. Each shaving head consists of a cutter and a guard (Fig. 15).
Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally mix up the cutters and guards, it may take several weeks before optimal shaving performance is restored.
5 Remove the guard from the
cutter (Fig. 16).
6 Clean it with the short-bristled side of
the cleaning brush. Brush carefully in the direction of the arrows (Fig. 17).
7 Clean the guard with the long-bristled
side of the cleaning brush (Fig. 18)
8 Put the cutter back into the guard
after cleaning (Fig. 19).
9 Slide the shaving heads back into the
retaining frame. (Fig. 20)
10 Put the retaining frame back into the
shaving unit (‘click’) (Fig. 21).
11 Put the shaving unit back onto the
shaver (Fig. 13).
Storage
Keep the appliance dry. Use and store the appliance at a temperature between 5°C and 35°C.
1 Switch off the shaver.
2 Put the protection cap on the shaver
after use to prevent damage and to avoid dirt accumulation in the shaving heads (Fig. 22).
Replacement
Replace the shaving heads every two years for optimal shaving results. Replace damaged or worn shaving heads with Philips shaving heads only (HQ4+ for China or HQ56 for the rest of the world). For instructions on how to remove the shaving heads, see chapter ‘Cleaning and maintenance’, section ‘Every two months: shaving heads’.
Accessories
To retain the top performance of your shaver, make sure you clean it regularly and replace its shaving heads at the recommended time.
Shaving heads
- We advise you to replace your shaving heads every two years. Always replace them with Philips shaving heads only (HQ4+ for China or HQ56 for the rest of the world) (Fig. 23).
Cleaning
- Use Philips Cleaning Spray (HQ110) to clean the shaving heads thoroughly.
Environment
- Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an
ofcial collection point for recycling.
By doing this, you help to preserve the environment (Fig. 24).
- Batteries contain substances that may pollute the environment. Do not throw away batteries with the normal household waste, but dispose
of them at an ofcial collection point
for batteries. Always remove the batteries before you discard and hand
in the appliance at an ofcial collection
point (Fig. 25).
Guarantee and service
If you need service or information or if you have a problem, please visit the Philips website at www.philips.com or contact the Philips Consumer Care Centre in your
country. You nd its phone number in the worldwide guarantee leaet. If there is no
Consumer Care Centre in your country, go to your local Philips dealer.
Guarantee restrictions
The shaving heads (cutters and guards) are not covered by the terms of the international guarantee because they are subject to wear.
Troubleshooting
This chapter summarises the most common problems you could encounter with the appliance. If you are unable to solve the problem with the information below, contact the Consumer Care Centre in your country.
Problem Possible
The shaver does not shave as well as it used to.
The shaver does not work when I push the on/off slide up­wards.
cause
The shaving heads are dirty. You have not cleaned the shaver well enough or you have not cleaned it for a long time.
Long hairs obstruct the shaving heads.
The shaving heads are damaged or worn.
The bat­teries are placed incorrectly.
Solution
Clean the shaver thor­oughly before you continue shaving. See chapter ‘Cleaning and maintenance’.
Clean the cutters and guards with the clean­ing brush supplied. See chapter ‘Cleaning and maintenance’, section ‘Every two months: shaving heads’.
Replace the shaving heads. See chapter ‘Replacement’.
Make sure the + and ­indications on the batteries match the indications in the battery compartment.
Problem Possible
My skin is irritated after shav­ing.
The rota­tion speed of the shaving heads is slower than usual.
The ap­pliance makes a strange noise.
cause
The bat­teries are empty.
Your skin needs time to get used to the Philips shaving system.
Too much dirt has collected in the shaving heads.
The bat­teries are empty
Too much dirt has collected in the shaving heads.
The shaving heads are damaged or worn.
Solution
Replace the batteries. See chapter ‘Preparing for use’.
Skin irritation during the
rst 2-3
weeks of use is possible. After this period, the skin irritation usually disap­pears.
Clean the shaving heads. See chapter ‘Cleaning and maintenance’.
Replace the batteries. See chapter ‘Preparing for use’.
Clean the shaving heads. After cleaning, lubricate the central point on the inside of the guards with Philips Clean­ing Spray (HQ110). See chapter ‘Cleaning and maintenance’.
Replace the shaving heads. See chapter ‘Replacement’.
简体中文
简介
感谢您的惠顾,欢迎光临飞利浦! 为了您能充分享受飞利浦提供的支持, 请在 www.philips.com/welcome 上注 册您的产品。
基本说明 (图 1)
1 保护盖 2 剃须刀头 3 剃毛刀头部件 4 固定架 5 固定架的中央弹簧 6 释放钮 7 毛发储藏室 8 开/关滑钮 9 电池舱盖 10 飞利浦清洁喷雾剂 (HQ 110)
(可选) 11 刀片 12 网罩 13 清洁刷
注意事项
使用产品之前,请仔细阅读本用户手 册,并妥善保管以供日后参考。
警告
- 保持器具干燥。
- 警告符号注释:禁止用在打开的水
龙头下进行清洗。 (图 2)
- 肢体不健全、精神有障碍及缺乏相 关经验和知识的人(包括儿童)必 须在监护人的监督及指导下使用。
- 请照看好儿童,本产品不能用于 玩耍。
注意
- 必须在 5°C 至 35°C 之间的温度 下使用和存放本产品。
- 如果超过一个月不使用本产品, 请从产品中取出电池。
- 请使用飞利浦电池,以实现最佳的 剃须效果。
- 仅限使用随附的清洁刷。
- 确保清洁刷保持洁净。
电磁场 (EMF)
这款飞利浦产品符合关于电磁场 (EMF) 的相关标准。据目前的科学证明,如果 正确使用并按照本用户手册中的说明进 行操作,本产品是安全的。
