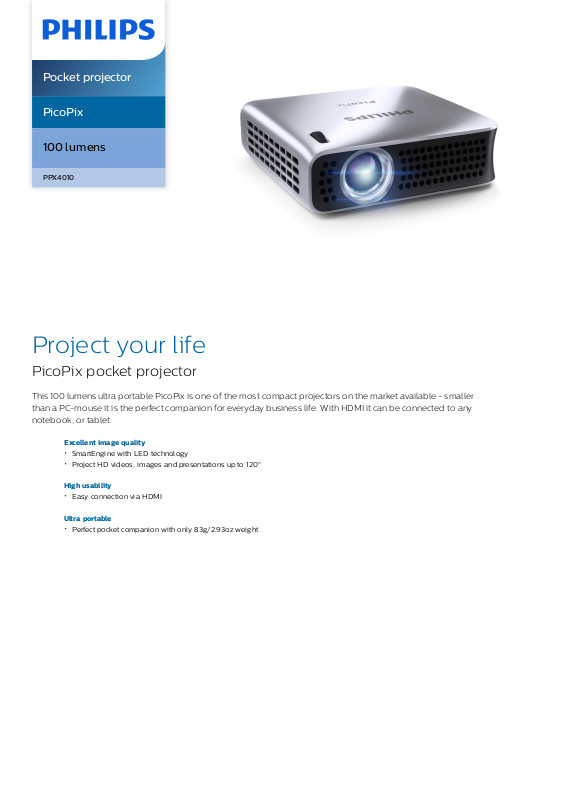

Philips PPX4010/US Leaflet
Pocket projector
PicoPix
100 lumens
PPX4010
Project your life
PicoPix pocket projector
This 100 lumens ultra portable PicoPix is one of the most compact projectors on the market available - smaller
than a PC-mouse it is the perfect companion for everyday business life. With HDMI it can be connected to any
notebook, or tablet.
Excellent image quality
SmartEngine with LE D technology
Project HD videos, images and presentations up to 120"
High usability
Easy connection via HDMI
Ultra portable
Perfect pocket companion with only 83g/2.93oz weight
Pocket projector
PPX4010/US
Specifications
Technology
Display technology: DLP SmartEngine
Light source: RGB LED
LED light sources: last over 30.000 hours
Brightness: up to 100 lumens
Contrast ratio: 1500:1
Resolution: 854 x 480 pixel
Throw ratio: 1,4:1
Screen size (diagonal): 38 cm-305 cm /
15"-120"
Screen distance: 50 cm-500 cm / 20"-197"
Aspect ratio: 16:9
Projection modes: front
Focus adjustment: manual
Noise level: < 28 dba
Connection
HDMI: mini HDMI with HD CP
Additional available cables: VGA cable for PC
connection, Mini display port cable
Power source
USB powered
Dimensions
Packed (W x D x H): 4.13 x 3.86 x 2.95 inch
Unpacked (W x D x H): 2.68 x 2.60 x 0.87 inch
Weight
Packed: 11.39 oz
Unpacked: 2.93 oz
Temperature range
Operation: 5–35 °C / 41–95 °F
Storage packed: -25–60 °C / -13–140 °F
Storage unpacked: 0–45 °C / 32–113 °F
Relative humidity
Operation: 15–85 % RH
Storage packed: 5–93 % RH
Storage unpacked: 15–85 % RH
Standard package includes
PPX4010
Quick start guide
Warranty card
Mini-HDMI to HDMI cable
Micro USB to USB-Y-cable
XGEM filterkeys
Weight: 83g
© 20 19 Koninklijke Philips N.V.
All Right s reser ved.
Specifications are subject to change
without notice. Trademarks are the
property of Koninklijke Philips N.V. or
their re spective owners .
Issue date 2019‑10 ‑24
Version: 2.0.1
12 NC: 8670 001 3 7314
UPC: 6 09585 24888 5
