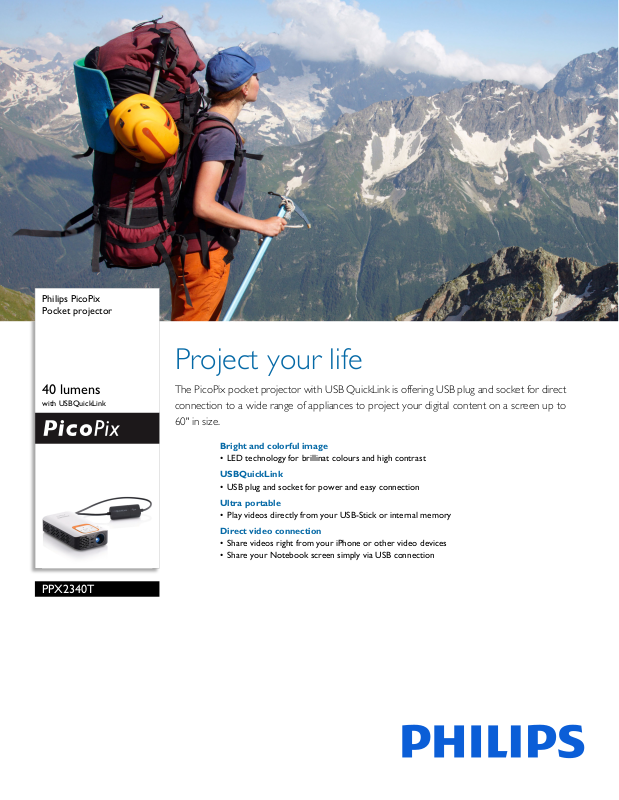

Philips PPX2340T Product Sheet

Philips PicoPix Pocket projector

Project your life

40 lumens

with USBQuickLink

PPX2340T

The PicoPix pocket projector with USB QuickLink is offering USB plug and socket for direct connection to a wide range of appliances to project your digital content on a screen up to 60" in size.

Bright and colorful image

• LED technology for brillinat colours and high contrast

USBQuickLink

• USB plug and socket for power and easy connection

Ultra portable

• Play videos directly from your USB-Stick or internal memory

Direct video connection

• Share videos right from your iPhone or other video devices

• Share your Notebook screen simply via USB connection

Pocket projector

40 lumens with USBQuickLink

PPX2340T/F7

Specifications

Technology/ optical

• Display technology: DLP

• Light source: RGB LED

• LED light source lasts over: 30.000 hours

• Brightness: up to 40 lumens

• Native resolution: 640 x 360 pixels

• Contrast ratio: 1500:1

• Color temperature: 6500 Kelvin

• Throw ratio: 1,6:1

• Screen size (diagonal): 10" - 60"

• Screen distance: 1.16ft - 6.97ft

• Focus: manual

• Internal memory: 4 GB

• Integrated MP4 player

• Direct link to smartphone: via USB

Supported video standards

•PAL

•SECAM

•NTSC

Sound

• Internal speaker: 1W

Connection

• Output audio: 3.5 mm audio out jack for headphones

• External Memory: micro SD/SDHC

• USB: slave -mass storage device (x-change data with ); slave - video streaming; master - connect mass

PC storage device; charging

• AV in: share the jack with audio out

Internal media player

• Supported video formats: .avi: MPEG-4; H.264; M-

JPEG / .mov: MPEG-4; H.264 / .mp4: MPEG-4; H.264 / .mkv: MPEG-4; H.264; M-JPEG / .ts: H.264 / .rm: RV3; RV4 / . rmvb: RV3; RV4

• Supported audio formats: MP3, WAV

• Supported photo formats: JPEG, BMP

Power Supply

• Battery life: Standard mode: 2 hours; Bright mode:

1.5 hours; LED indicator: battery charge

• Internal battery: 3.7V @ 2600mAh

Dimensions

• packed (WxDxH): 5.12 x 3.54 x 2.76 inch

• unpacked (WxDxH): 3.81 x 2.13 x 0.87 inch

Weight

• packed: 8.68 oz

• unpacked: 4.59 oz

Temperature range

• Operation: 41 - 104°F

• Storage packed: -13 - 140°F

• Storage unpacked: 32 - 113°F

Relative humidity

• Operation: 15 ~ 85% RH

• Storage packed: 5 ~ 93% RH

• Storage unpacked: 15 ~ 85% RH

Standard package includes

• User guide: on internal memory, internet

• Warranty card

• Carrying case

• Audio/video cable adapter: Composite

• Quick start guide

• PPX2340

Accessories

• PPA1160: Audio/video cable for 1Pod/iPhone/iPad

• PPA6200 power adapter 5V/2A

•

Highlights

LED-Technology

Your pictures and videos deserve the best quality when it comes to sharing them with those around you. This is why the PicoPix pocket projector uses high quality LED technology to project your pictures and videos in brillinat colours and breathtaking contrast.

Direct Video connection

Connect your iPhone, iPad, iPod, Camcorder, Gaming console or any other video devices and project all your content directly with your PicoPix on a big screen.

Integrated MP4 Media player

The integrated MP4 Media player supports all common video and audio formats.This makes the PicoPix pocket projector a standalone device, retrieving its content from the internal 2 GB memory, USB stick or a micro SD card.

USBQuickLink

For those who want to share content directly from their camera, smartphone or USB Stick the USBQuickLink is the easiest connection to all these devices. On the go just stick the USB plug and socket together and use the USBQuickLink as a handle.

Video Streaming

Share your Notebook screen showing your Media- or Webcontent like YouTube videos or Party pics with those around you. Just connect your PicoPix to the PC or Notebook via USB and start projecting.

Issue date 2014-01-17

Version: 2.0.1

12 NC: 8670 001 03385 UPC: 6 09585 23412 3

Specifications are subject t Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com

o change without notice.
